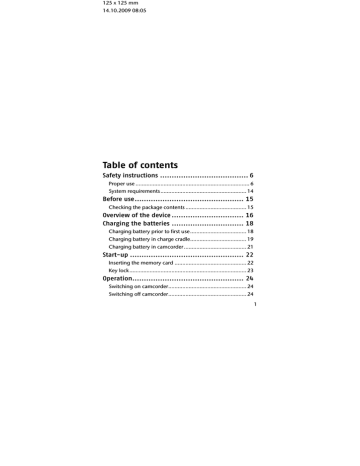

Table of contents
Safety instructions ...................................... 6
Proper use ......................................................................... 6
System requirements ....................................................... 14
Before use ............................................... 15
Checking the package contents ....................................... 15
Overview of the device ............................... 16
Charging the batteries ............................... 18
Charging battery prior to first use .................................... 18
Charging battery in charge cradle .................................... 19
Charging battery in camcorder ........................................ 21
Start-up ................................................. 22
Inserting the memory card .............................................. 22
Key lock ........................................................................... 23
Operation ................................................ 24
Switching on camcorder .................................................. 24
Switching off camcorder .................................................. 24
1
18 x 16 mm
14.10.2009 08:05
Selecting operating mode................................................ 25
Recording videos ...................................... 26
Selecting video resolution ................................................ 26
Starting recording/zoom function/ terminating recording 27
Display in video mode ..................................................... 29
Taking pictures ......................................... 30
Taking picture/zooming .................................................. 30
Display in photo mode .................................................... 31
Viewing recorded videos and photos ............. 32
Video playback ................................................................ 32
Viewing photos ............................................................... 34
Exiting playback mode ..................................................... 34
Deleting videos and photos ......................... 35
Deleting one file .............................................................. 35
Terminating deletion ....................................................... 36
Setup menu ............................................. 37
Key tones ......................................................................... 37
TV standard ..................................................................... 37
2
125 x 125 mm
14.10.2009 08:05
TV frequency ................................................................... 38
Formatting memory card/ internal memory ..................... 38
Setting date and time ...................................................... 39
Image quality settings ..................................................... 40
Exiting menu ................................................................... 40
Connecting camcorder to TV set .................... 41
Connection via HDMI ...................................................... 42
Connecting camcorder to computer ............... 43
Installing the software ............................... 44
DCF memory standard..................................................... 45
Card drive ........................................................................ 45
Memory folder structure .................................................. 46
Disposal .................................................. 47
Maintenance and care ............................... 48
Technical data .......................................... 49
ArcSoft Total Media™ HDCam 2.0 .................. 50
Quick start instructions .................................................... 50
3
18 x 16 mm
14.10.2009 08:05
Introduction ............................................ 51
Media Browser ......................................... 54
Display modes .......................................... 58
Function bar ............................................ 63
Import media files .................................... 64
Cut video clips .......................................... 65
Burning AVCHD disks .................................. 65
Edit video clips ......................................... 66
Upload files to YouTube .............................. 68
Upload files to Facebook ............................. 68
Create photo albums ................................. 69
Create album page .................................... 72
Restricted Warranty ................................... 75
I. General Conditions of Warranty .................................... 75
II. Special warranty conditions for MEDION PC, notebook, pocket PC (PDA) and navigation devices (PNA) ................ 82
4
125 x 125 mm
14.10.2009 08:05
III. Special warranty conditions for repair on site or replacement on site ......................................................... 85
5
18 x 16 mm
14.10.2009 08:05
Safety instructions
This unit is not intended for use by people (including children) with reduced physical, sensory or mental abilities, unless they are supervised by a person responsible for their safety or they have been instructed on its use. Children should be supervised to ensure they do not play with this unit.
Keep the plastic packaging out of reach of children as it can cause suffocation!
Proper use
This camcorder is designed for the recording of pictures and video clips. Recorded pictures and videos can be transferred to a PC.
Alternatively, they can be viewed on a TV via the USB-AV or HDMI interface. The camcorder is intended solely for private use and not for commercial purposes. Improper use shall void any warranty and liability on the part of the manufacturer.
6
125 x 125 mm
14.10.2009 08:05
Symbols and key words used in these instructions
DANGER!
Warning: immediate mortal danger!
CAUTION!
Warning: possible mortal danger and/or serious irreversible injuries
WARNING!
Please note the following guidelines to avoid injuries and property damage!
CAUTION!
Please note the following guidelines to avoid property damage!
PLEASE NOTE!
Additional information on using the device
7
18 x 16 mm
14.10.2009 08:05
PLEASE NOTE!
Observe the notes in the operating instructions!
CAUTION!
Warning: danger of electric shock!
Bulleted item / information on operating steps and results
Tasks to be performed
Always adhere to the user instructions of the devices that you connect to the camcorder.
Preventing electric shock
Never open the camcorder casing or the charger cradle, except to insert the battery.
8
125 x 125 mm
14.10.2009 08:05
Connect the charger cradle to a professionally installed AC
230 V ~ 50 Hz mains socket.
To remove the power cord quickly and easily from the mains in an emergency, the socket must be easily accessible and close to the appliance.
Do not kink or crush the power cord.
Use only the charger supplied.
Take measures to prevent moisture or liquid from penetrating the camcorder or the charger cradle.
Never touch the charger cradle with wet hands.
Never use the camcorder if the power cord is defective.
To avoid any danger, replace the charger cradle and its power cord by a charger unit of the same type if either component is damaged. In such a case, please contact our service centre.
In the event of a fault or malfunction, immediately switch off the camcorder.
Protect the camcorder and charger cradle from rain and splash water.
9
18 x 16 mm
14.10.2009 08:05
Do not place vessels containing liquids, such as vases, on or near the appliance or the charger cradle and protect all parts of the device from rain and splash water. The vessel might tip over, and the liquid might impair the electrical safety of the product.
Risk of explosion
Never expose the batteries to excessive heat (sunlight, open fire, etc.).
Do not throw batteries into a fire.
Never short-circuit the (rechargeable) batteries.
Do not dismantle (rechargeable) batteries.
CAUTION!
There is a risk of explosion, if rechargeable batteries are replaced incorrectly. Replace batteries only with the same or equivalent type.
Preventing fire hazards
Always uncoil the entire length of the power cord.
Ensure there is adequate ventilation and never cover the charger cradle.
10
125 x 125 mm
14.10.2009 08:05
Do not place naked flames – such as lit candles – on or near the unit.
Risk of poisoning
Keep the battery out of reach of children.
Risk of chemical burns
Always remove spent batteries from the device, as there is an increased risk of leakage. Avoid contact with skin, eyes and mucous membranes. If any of these areas come into contact with battery acid, rinse them immediately with plenty of clean water and contact a doctor without delay.
Preventing damage to the camcorder
If the battery is leaking, immediately remove it from the camcorder. Before inserting a new battery, clean the contacts.
Use only the lithium-ion battery supplied.
Before inserting the battery, check that the contacts in the camcorder and on the batteries are clean. If necessary, clean the battery connections with a clean, dry cloth or an eraser.
11
18 x 16 mm
14.10.2009 08:05
Do not touch the lens or lens mounting.
Preventing damage to the battery
Never insert the battery the wrong way round. Always ensure correct polarity at the +/- terminals.
Never allow the battery to come into contact with liquids.
Direct intense heat can damage the battery. Therefore do not expose the camcorder to any sources of direct heat.
If the camcorder is not to be used for long periods, remove the battery.
Preventing breakage
Do not drop the camcorder.
When carrying the camcorder, always place the strap around your wrist.
Preventing data loss
Never interrupt the power supply while data are being processed.
12
125 x 125 mm
14.10.2009 08:05
Preventing damage to SD cards
Never remove the SD card from the camcorder during the data saving process.
Protection from condensation
Do not expose the camcorder to rapid changes in temperature.
Place the camcorder in a protective case or plastic bag before exposing it to any sudden changes in temperature.
If the camcorder is cold, wait until it has reached room temperature before connecting it to the power cord. The device can safely be connected for charging as soon as the unit has reached room temperature.
Do not use or store the camcorder in direct sunlight or at high ambient temperatures.
Battery charge capacity
At low temperatures the capacity of the battery might drop significantly as chemical reactions are slowed down. When recording in cold weather, keep a second battery pack in reserve in a warm place (e.g. trouser pocket).
13
18 x 16 mm
14.10.2009 08:05
System requirements
If you wish to connect the camcorder to a PC, the computer must meet the following requirements:
Pentium P III or higher (recommended: P4), free USB 2.0 interface and 1 GB of free hard disk space.
Operating system and software:
Windows® XP, Windows Vista® or Windows®7
Windows Media Player 10 or higher
14
125 x 125 mm
14.10.2009 08:05
Before use
Checking the package contents
Please check your purchase to ensure that all items are included. If parts are missing, please contact us within 7 days of purchase. The following items are supplied with your product:
Full HD camcorder
1 lithium-ion batteries
Charge cradle with power cord
HDMI cable
USB/AV cable
Case
Carrying strap
Software CD
Operating instructions and warranty documents
15
18 x 16 mm
14.10.2009 08:05
Overview of the device
Front and rear of camcorder
16
125 x 125 mm
14.10.2009 08:05
1. Display
2. Operating LED
3. DEL button
4. SD card slot
5. LOCK
6. Speaker
button
7. Arrow buttons
8. MODE button
9. Playback button
10. Record button
11. Camera lens
12. Charger LED
13. Microphone
14. USB port and HDMI port
15. Battery compartment cover
16. Fixture for carrying strap
17. Tripod socket
17
18 x 16 mm
14.10.2009 08:05
Charging the batteries
Charging battery prior to first use
Before using the camcorder for the first time, you must charge the battery.
This can be done by placing the battery in the supplied charge cradle or directly in the camcorder, provided that the device is connected by the USB cable to a computer.
The battery charge level is indicated by a symbol on the display:
Battery fully recharged
Battery half empty Battery empty, recharge!
Removing and inserting battery
Remove the cover of the battery compartment by sliding it towards the tripod socket.
18
125 x 125 mm
14.10.2009 08:05
Remove the empty battery
(if any) and insert the charged battery as shown.
Charging battery in charge cradle
Place the battery you wish to charge in the charge cradle. The battery contacts must touch the contacts on the charger.
Push the battery against the spring contacts. Ensure that the battery is positioned properly below the guide edge in the tray.
Using the power cord, connect the charge cradle to a AC 230
V ~ 50 Hz mains socket.
The orange LED indicator lights up.
19
18 x 16 mm
14.10.2009 08:05
The charging time is approx. 2 hours.
As soon as the battery is fully charged, the green LED indicator lights up.
Disconnect the charge cradle from the mains supply.
CAUTION!
The charger is designed to prevent overcharging.
Nonetheless, unplug the charger from the mains to avoid unnecessary power consumption.
20
125 x 125 mm
14.10.2009 08:05
Charging battery in camcorder
Ensure that the rechargeable battery is inserted in the camcorder. Connect the mini USB plug of the USB/AV cable to the camcorder and connect the other end of the cable to a free USB port of your computer.
NOTE:
The camcorder must be switched off for charging.
The charging process starts immediately.
During charging, the red charger LED on the side of the device lights up.
The charging time is approx. 2
½ hours. When the battery is fully charged, the charger LED is switched off.
21
18 x 16 mm
14.10.2009 08:05
Start-up
Inserting the memory card
To save files to a SD memory card, insert it in the card slot and push it in until it engages. The metal contacts must face towards the bottom of the device.
To remove the memory card from the card slot, press the card gently in so that it disengages.
NOTE:
When the card is inserted photo and video files that are taken with the camcorder are stored on the card and can be viewed in playback mode. The display shows SD.
22
125 x 125 mm
14.10.2009 08:05
If no memory card is inserted in the camcorder, the photo and video files are stored in the internal
128 MB memory and can also be viewed in playback mode. The display shows MEM.
CAUTION!
Do not use force when trying to insert the memory card! The card can only be inserted in one direction. Incorrectly inserted memory cards can damage the camcorder or the card.
Key lock
In photo mode or video mode, press the LOCK button to lock all buttons apart from the record button.
The symbol is displayed.
Press the LOCK button again to release the lock.
23
18 x 16 mm
14.10.2009 08:05
Operation
Switching on camcorder
Turn the display clockwise.
The display is switched on and the green operating LED lights up.
Switching off camcorder
Turn the display counterclockwise. The display light is off and the camcorder is switched off.
24
125 x 125 mm
14.10.2009 08:05
Selecting operating mode
Repeatedly press the MODE button to select video or photo mode or to call up the setup menu.
In video mode, the symbol is displayed in the left top corner of the display.
In photo mode, the symbol is displayed in the left top corner of the display.
25
18 x 16 mm
14.10.2009 08:05
Recording videos
Switch on the camcorder and select video mode by pressing the MODE button .
Selecting video resolution
Before starting recording, press the arrow buttons
and
to select the resolution of the video recording. The following resolutions are available:
Dimensions Sound Setting Resolution in pixels Recording frame rate
1080p 1920 x 1080 pixels 30 fps
720p60 1280 x 720 pixels 60 fps
HD
WVGA
1280 x 720 pixels
848 x 480 pixels
QVGA* 320 x 240 pixels
30 fps
60 fps
120 fps
Playback frame rate
30 fps
60 fps
30 fps
60 fps
30 fps
16:9
16:9
16:9
4:3
4:3 yes yes yes yes no
26
125 x 125 mm
14.10.2009 08:05
*NOTE REGARDING QVGA
With QVGA, the images are recorded at 4x greater frame rate (120 fps). Use this option to record moving objects (sports videos, etc.).
No sound is recorded!
During playback, the recording video is shown in slow motion, as it is played at the standard frame
rate of 30 fps.
Starting recording/zoom function/ terminating recording
Starting recording
To start recording, press the record button.
The record symbol
REC is displayed in the top left corner of the display. In addition, the recording time is displayed.
27
18 x 16 mm
14.10.2009 08:05
Zooming during recording
Press the arrow button
to zoom out (wide angle).
Press the arrow button
to zoom in (tele lens angle).
The digital zoom rate is displayed by means of a bar.
NOTE:
Digital zooming is not available with settings
1080p and QVGA.
The zoom function is not available, if the key lock
is applied.
Terminating recording
To terminate the recording, press the record button again.
The record symbol
REC on the display is off.
28
125 x 125 mm
14.10.2009 08:05
Display in video mode
1. Video resolution (during recording
REC )
2. Memory to which data is saved
3. Battery charge level
4. Remaining recording time in %
5. Zoom level
6. Key lock
29
18 x 16 mm
14.10.2009 08:05
Taking pictures
Switch on the camcorder and select photo mode by pressing the MODE button .
Taking picture/zooming
Take one picture
Press the record button half down to activate automatic exposure measurement.
To take the picture, press the record button.
Zooming
Repeatedly press the arrow button
to zoom out (wide angle).
Repeatedly press the arrow button
to zoom in (tele lens angle).
The digital zoom rate is displayed by means of a bar.
30
125 x 125 mm
14.10.2009 08:05
Display in photo mode
1. Picture resolution
2. Memory to which data is saved
3. Battery charge level
4. Remaining number of pictures
5. Zoom level
6. Key lock
31
18 x 16 mm
14.10.2009 08:05
Viewing recorded videos and photos
To view video recordings, select video mode. To view photos, select photo mode.
Press the playback button to view the stored video or photo files.
Browse through the recorded files by pressing the arrow buttons
and
select the file you wish to view.
Press the arrow button
to change from the file list to video/photo view.
Press the arrow button
to go back to the file list.
Video playback
Starting/terminating playback and adjusting volume
To start a video playback, call up the video/photo file list and press the record button.
To terminate the playback, press the record button again.
32
125 x 125 mm
14.10.2009 08:05
During playback, you can adjust the volume by pressing the arrow buttons
and
. The current volume is indicated by means of a bar on the right side of the display.
Fast forward/rewind, slow motion
During playback, repeatedly press the arrow buttons and
to change to fast forward/rewind.
Fast forward/rewind is available at speed rates of 2x, 4x,
8x and 16x.
During playback, repeatedly press the MODE button to select slow motion playback at rates of 1/2, 1/4, 1/8 or
1/16 of the standard speed. At slow motion rate 1/16, press the mode button again to return to normal playback rate.
33
18 x 16 mm
14.10.2009 08:05
Viewing photos
Zoom function
Repeatedly press the arrow button
to zoom in by max. factor 8. Press the arrow button
to zoom out.
Press the record button half down to call up the navigation arrows.
You can now move the zoom frame across the picture by pressing the arrow buttons
.
To return to the zoom function, press the record button again half down. The navigation arrows disappear.
Exiting playback mode
Press the MODE button to exit the playback mode and to select another operating mode.
34
125 x 125 mm
14.10.2009 08:05
Deleting videos and photos
Select video or photo playback mode and select a file.
Press the DEL button.
The delete function bar is displayed.
Deleting one file
Using the arrow buttons
and
, select the symbol to delete the currently displayed file. Press the record button. The selected file is deleted.
Using the arrow buttons
and
, select the symbol and press the record button to delete all files in the selected mode (video or photo). You are prompted to confirm the command.
Using the arrow buttons
and
, check the box
and then press the record button to confirm that you wish to delete all files.
35
18 x 16 mm
14.10.2009 08:05
All files of the selected mode (video or photo) are deleted and message "NO FILE" is displayed.
Using the arrow buttons
and
, select the
symbol and press the record button to abort the delete process.
Terminating deletion
Using the arrow buttons
and
, select the
symbol and press the record button or the MODE button to terminate the delete function.
CAUTION! DATA LOSS!
When deleted, the data is irretrievably lost.
We therefore strongly recommend that you take a backup of your data before using the delete function.
36
125 x 125 mm
14.10.2009 08:05
Setup menu
Switch on the camcorder and select the setup menu by pressing the MODE button.
Select a menu option using the arrow buttons
and
.
Change the setting or value using the arrow buttons
and
.
Key tones
Switch key tones on or off.
: key tones off
: key tones on
TV standard
Select here the TV standard for video playback on a television set (NTSC or PAL).
37
18 x 16 mm
14.10.2009 08:05
TV frequency
Select here the frequency for video playback on a television set
(50 or 60 Hz).
Formatting memory card/ internal memory
Select this option to format the internal memory or the memory card (if inserted).
Press the arrow button
.
At the prompt, use the arrow buttons
and
to check the box
and confirm with the record button. The formatting process of the memory is started.
To abort formatting, press the arrow button
.
38
125 x 125 mm
14.10.2009 08:05
CAUTION! DATA LOSS!
When formatting the internal memory or the memory card, all stored data is irretrievably lost.
During formatting, do not switch off the camcorder and do not remove the memory card!
The internal memory or the memory card could otherwise be damaged so that the camcorder cannot be switched on again!
We strongly recommend that you take a backup of your data before formatting the memory.
Setting date and time
Press the arrow button
to call up the data and time settings.
Using the arrow buttons
and
, select a field, then press the arrow buttons
and
to change the value.
The date and time are displayed as follows: year (YY) – month (MM) – day (DD) hours (HH) – minutes (MM) – seconds (SS)
To save the new settings, press the record button.
39
18 x 16 mm
14.10.2009 08:05
Image quality settings
Select this option to adjust the bit rate for video recording. The higher the bit rate, the better the quality of your image and the larger the file:
High bit rate (= large video file)
Low bit rate (= small video file)
The table below shows the available settings and associated bit rates for video recordings:
Setting
1080p
720p60
HD
WVGA
QVGA*
High bit rate Low bit rate
12 M 8 M
12 M
8 M
8 M
4 M
8 M
4 M
4 M
2 M
Exiting menu
To exit the setup menu, press the MODE button again.
40
125 x 125 mm
14.10.2009 08:05
Connecting camcorder to TV set
To view photos and videos on a television set, proceed as follows:
Connect the USB/AV cable to the USB port of the camcorder.
Connect the white and yellow plugs of the USB/AV cable to the corresponding sockets on the television set.
Switch on the television set.
The camcorder’s LCD screen switches off.
The photos will be displayed on the TV set.
NOTE:
As long as the camcorder is connected to a television set, the LCD screen is switched off.
41
18 x 16 mm
14.10.2009 08:05
Connection via HDMI
To view recorded videos in HD, connect the camcorder with the HDMI cable to the digital port of your television set.
42
125 x 125 mm
14.10.2009 08:05
Connecting camcorder to computer
You can copy your pictures and videos to a computer.
Connect the mini USB plug of the USB/AV cable to the camcorder and connect the other end of the cable to a free USB port on your computer.
Switch on the camcorder so that the system can automatically detect the type of connected storage device.
Supported operating systems:
Windows XP; Windows Vista; Windows 7
43
18 x 16 mm
14.10.2009 08:05
Installing the software
The enclosed CD contains the driver files and the ArcSoft Total
Media software, which allows you to edit your pictures and video files.
Insert the CD in the CD drive of your computer.
Normally, the CD is automatically recognised and its contents are displayed on the screen. If this is not the case, select the CD drive in Windows Explorer > My Computer and double-click the drive name to start the CD.
The start page shows an overview of the contents of the
CD.
To install the software, double-click the Total Media
HDCam.exe icon.
To install the software, follow the on-screen instructions.
For more detailed information regarding the operation of the software, refer to the enclosed quick guide for ArcSoft
Total Media.
44
125 x 125 mm
14.10.2009 08:05
DCF memory standard
The files on your camcorder are managed (saved, named, etc.) as specified by the DCF standard (DCF =
Design Rule for Camera File System). You can also use your camcorder to view files stored on memory cards from other DCF cameras.
Card drive
If your PC is equipped with a card drive or is connected to a card reader and you have saved your pictures and video clips on the memory card, you can of course use just the card to copy the files to your PC.
45
18 x 16 mm
14.10.2009 08:05
Memory folder structure
The camcorder saves the recorded files in folders on the internal memory or on the memory card. The following folders are automatically created upon saving:
100MEDIA.: All photo and video files are saved in this folder, and the files are automatically named as "FILE" followed by a four-digit code.
When file number "FILE9999" is reached, a new folder named
"101DCIM" is created automatically, etc.
A maximum of 999 folders can be set up. If another file is recorded after all 999 folders have been created and filled, a message appears, informing you that it is not possible to create another folder. In this case, proceed as follows:
Insert a new memory card.
A new file structure is set up, starting with file "0001" in folder "100DCIM".
Do not attempt to change the folder and file structure on the camcorder (by renaming, etc.), as this might result in the loss of data.
46
125 x 125 mm
14.10.2009 08:05
Disposal
Packaging
Your camcorder is packaged to protect it during transport. All packaging is made from raw materials that can be reused or recycled through normal household waste recycling.
Device
At the end of its service life, do not dispose of the camcorder through normal household waste.
Dispose of it in an environmentally friendly manner by bringing it to a local WEEE collection point.
Contact your local authority to find out where your nearest collection point is located.
Batteries
Do not dispose of spent batteries through normal household waste. The batteries must be brought to a collection point for batteries for safe disposal.
47
18 x 16 mm
14.10.2009 08:05
Maintenance and care
Clean the housing, lens and display as follows:
Clean the camera housing using a soft, dry cloth.
Do not use thinners or detergents that contain oil, as these could damage your camcorder.
Before cleaning the lens and the display, use a lens brush to remove any dust. Then wipe the lens and display with a soft cloth. Do not apply any pressure to the display and do not use hard objects to clean it.
Do not use strong cleaning agents for the housing and lens (if there is dirt that cannot be removed, contact your dealer).
48
125 x 125 mm
14.10.2009 08:05
Technical data
Sensor:
Aperture/ focal distance:
LCD monitor:
File formats:
Battery:
Memory:
5.0 mega pixels CMOS
F = 2.8 / f= 4.76 mm
8.89 cm / 3.5 " LCD screen (16:9)
JPEG, AVI
NP40 rechargeable Li-ion battery
3.7 V; 720 mAh type: KLIC7001
Internal: 128 MB internal memory
(usable memory may vary)
External: SD/SDHC card (max. 8 GB)
Port:
Dimensions:
Weight:
Mini USB 2.0
113 x 59 x 19 mm (H x W x D)
115 g, incl. battery
This mark on the camcorder certifies that the camcorder complies with EU guidelines (European
Union) on radio interference. CE stands for
Conformité Européenne (European conformity).
49
18 x 16 mm
14.10.2009 08:05
ArcSoft Total Media™ HDCam 2.0
Quick start instructions
50
125 x 125 mm
14.10.2009 08:05
Introduction
Total Media™ HDCam by ArcSoft is desktop software that combines media management and playback functions.
Media management
You can import media files for editing, uploading and creating photo books and albums from the device.
Playback function
With Total Media™ HDCam by ArcSoft you can view photos and playback video clips.
System requirements
Operating system: Windows XP SP2, Vista and Windows 7
CPU: Intel / AMD Dual-Core or higher
Memory: 1 GB or more
Graphics card: DirectX 9 or DirectX 10 (recommended)
Port: Standard USB 1.1 connection or higher
Hard drive: A minimum of 2 GB free fixed disk storage
51
18 x 16 mm
14.10.2009 08:05
Installation
How to install the Total Media™ HDCam:
1. Connect your device to your desktop or notebook PC.
2. Insert the installation CD in the DVD/CD drive.
3. The CD starts automatically.
4. Follow the instructions to complete the installation.
If the CD does not execute automatically follow the steps below to install the software:
1. Double-click on Workstation.
2. Move the cursor to the DVD/CD drive.
3. Right-click and then click Open.
4. Double-click Total Media HDCam.exe.
5. A wizard appears and guides you through the installation.
6. Follow the instructions to complete the installation.
52
125 x 125 mm
14.10.2009 08:05
How to uninstall
How to install the Total Media™ HDCam:
1. Click on Start > Programs > ArcSoft Total Media HDCam
> Uninstall.
2. A wizard appears and guides you through the uninstallation.
3. Follow the instructions to complete the uninstallation.
Language
How to change the language of the user interface after installation:
1. On the main screen click on
2. Select a language and click on OK.
Preferences.
Registration and activation
How to register and update the software:
1. On the main screen to create a connection with the information centre click on .
2. Select Upgrade, Patches or Registration.
53
18 x 16 mm
14.10.2009 08:05
Media Browser
1
2
3
54
125 x 125 mm
14.10.2009 08:05
# Area Function
1 View mode area Offers three modes to display the media files.
2 Preview area To select and display file miniatures and detailed information
3 Function bar Lists the main function buttons.
55
18 x 16 mm
14.10.2009 08:05
View media files
Follow the instructions below to view the media files on your device:
1. Connect the device to the computer.
2. The device code is shown above the view mode area.
3. To display all the media files on the device click on the device code.
Device code
Media files on the device
56
125 x 125 mm
14.10.2009 08:05
To playback a video clip double-click the relevant clip or
To pause/stop/continue playback of a video clip click on
To playback the previous or next clip click
To delete a file click on the icon of the relevant file.
To cut a video clip click on the icon.
To assess a file click on the icon of the relevant file.
To view the properties of a file click on the icon of the relevant file.
Double-click the relevant image to open the preview of an image in a new window.
To open the preview of the previous or next image click on the left/right button.
57
18 x 16 mm
14.10.2009 08:05
Display modes
There is a choice of three display modes to display the media files: Library view, calendar view and search view.
Note: To view the media files on your device in the library or calendar view, you must first import the files.
Library view
The library view lists the "Own Creation" folder and other folders that are created when importing the files.
How to switch to library view
1. To extend the library window click on
Libraries.
2. Select the desired folder.
3. To switch to the library view click on
View or edit the properties of a folder by selecting the folder and clicking .
To delete a folder click on the icon of the relevant folder.
58
125 x 125 mm
14.10.2009 08:05
Calendar view
The calendar view uses the creation date of the files to arrange the media files.
How to switch to calendar view
1. To extend the calendar window click on Libraries.
2. Select the desired folder.
3. To switch to the calendar view click on
Three modes are available in the calendar view: Annual,
Monthly and Daily mode.
How to switch between the three different modes:
To open the monthly mode click on the image of the desired year.
To open the previous or next year - if available - click on or
To open the daily mode click on the image of the desired month.
To open the previous or next month - if available - click on or
To return to the previous mode click on
59
18 x 16 mm
14.10.2009 08:05
Browser view
Browser view enables you to search the media files on your computer with the aid of a tree structure.
How to switch to browser view:
To extend the computer window click on Computer.
To view the media files select the desired folder on your computer.
To update the list of media files click on
60
125 x 125 mm
14.10.2009 08:05
Preview area
The preview area has various options for selecting and displaying miniature file images and more detailed information for selection. Refer to the following table for a description of the relevant options:
Option Name
Evaluation filter
Function
Shows the media files as per the selected evaluation.
New filter Shows the new media files.
Type filter
Shows the media files as per the selected type.
Quick search
Shows the media files as per the letter entered.
61
18 x 16 mm
14.10.2009 08:05
Miniature image slide control
Modifies the size of the miniature images with the aid of the slide control.
Miniature images
Shows the files as miniature images
Details
Shows the miniature images of the files together with detailed information.
62
125 x 125 mm
14.10.2009 08:05
Function bar
The function bar lists the main function buttons. By clicking the buttons you access the relevant functions. A description of the relevant buttons is found in the following table:
Button Name
Import
Function
Imports media files from a camera, camcorder or memory device on the computer.
File link
Produce
AVCHD
Upload to
YouTube
Produces films with your video files.
Burns your video data onto an
AVCHD disk.
Uploads the files to your YouTube account.
Upload files to
Uploads the files to your Facebook account.
63
18 x 16 mm
14.10.2009 08:05
Photo album
Album page
Produces photo albums with your images.
Produces album pages with your images.
Import media files
How to import media files onto your computer:
1. Select the desired folder.
2. Select the desired files.
3. Click on Import. The "Import" window is displayed.
4. Select Import new scenes, Import selected scenes or
Import all scenes.
5. Select a folder name or enter one.
6. To import the files click on OK.
64
125 x 125 mm
14.10.2009 08:05
Cut video clips
How to cut video clips:
Click file link. The work area is displayed.
1. Move the desired video clips to the work area using dragand-drop.
2. Double-click to open the preview and edit the clips.
3. To cut the clips click on Continue.
4. Select the device and the path under which the cut clip is to be saved.
Burning AVCHD disks
How to burn AVCHD disks
1. Click on Create AVCHD. The work area is displayed.
2. Move the desired video clips to the work area using dragand-drop.
3. Double-click the relevant image to open the preview of an image in a new window.
4. Click on Next.
5. Select the drive with which you want to burn the AVCHD disk or the path to save the files on your computer.
65
18 x 16 mm
14.10.2009 08:05
Edit video clips
How to edit a video clip:
1. Double-click on a video clip in the work area. The “Edit” window is displayed.
2. To select the start of your cut clip click on
3. To select the end of your cut clip click on
4. To save the cut clip click on
A description of other tools in the "Edit" window is found in the following table:
Button Name
Playback /
Pause
Function
Click to playback or pause the clip.
Stop Click to end playback of the clip.
Previous Click to open the previous clip.
Next Click to open the next clip.
66
125 x 125 mm
14.10.2009 08:05
Time field
Click on the number; use the arrow keys to view a particular section of the video clip.
Volume level Slide to adjust the volume.
Full screen Click to open the full screen mode.
67
18 x 16 mm
14.10.2009 08:05
Upload files to YouTube
How to upload the files to YouTube:
Click on Upload to YouTube. The work area is displayed.
1. Move the desired file to the work area using drag-anddrop.
2. Click on Next. The log in window for YouTube is displayed.
3. Enter your YouTube user name and password.
4. To login to YouTube click on “Login”.
5. Follow the instructions to upload the file to YouTube.
Upload files to Facebook
To upload to Facebook:
1. Click on Upload to Facebook. The work area is displayed.
2. Move the desired file to the work area using drag-anddrop.
3. Click on Next. The login window for Facebook is displayed.
4. Enter your Facebook email address and password.
5. To login to Facebook click on “Login”.
6. Follow the instructions to upload the file to Facebook.
68
125 x 125 mm
14.10.2009 08:05
Create photo albums
How to create photo albums:
1. Click on Photo album. The work area is displayed.
2. Drag the desired images into the work area.
3. To start the print creations application by ArcSoft click on
Continue.
4. Select the categories for the photo albums to view the photo albums.
5. Select a photo album.
6. To open the “Photo album design" screen click on
Continue.
7. Observe the descriptions of the photo album design using the following diagram:
69
18 x 16 mm
14.10.2009 08:05
1
2
3
4 5
6 7
8
70
9
10
11
12 13
14 15
16
125 x 125 mm
14.10.2009 08:05
1 Restart
7
8
9
Undo / redo
Modify photo album template
Click icon to display the image page
10 Fill empty pages with images automatically
11 Click text or image to edit it
12 Photo album preview
13 Share photo album by email, image or SWF file
15 Edit page / page layout
16 Print / print options
71
18 x 16 mm
14.10.2009 08:05
Create album page
How to create album pages:
1. Click on Album page.
The work area is displayed.
2. Drag the desired image into the work area.
3. To start the print creations application by ArcSoft click on
Continue.
4. Select the categories for the photo albums to view the photo albums.
5. Select an album page.
6. To open the “Photo album design" screen click on
Continue.
7. Observe the descriptions of the photo album design using the following diagram:
72
125 x 125 mm
14.10.2009 08:05
1
2
3
4
5
6
7
8
9 10
11
73
18 x 16 mm
14.10.2009 08:05
7
8
9
10
11
4
5
6
2
3
1
Restart
Add images
Remove all
Block/release design
Save design
Undo / redo
Modify album page template
Click icon to display the image page
Album page preview
Share album page by email or image file
Print / print options
74
125 x 125 mm
14.10.2009 08:05
Restricted Warranty
I. General Conditions of Warranty
1. General
This warranty covers defects relating to workmanship and manufacture in MEDION products. The period during which this warranty is valid and during which claims against the warranty can be made to MEDION must be in accordance with the following terms in order to be considered eligible:
Is effective from the date of purchase or receipt of the
MEDION product from an authorised seller of MEDION products; and
expires at the end of the warranty period specified on the warranty card provided with the product.
For the warranty to be valid, you must:
provide suitable evidence of purchase, a copy of the original purchase receipt from an authorised seller of MEDION products is preferred; or
register your product within 28 days of purchase either online at www.MEDION.co.uk
or by completing and
75
18 x 16 mm
14.10.2009 08:05 returning the pre-paid registration card included with the product.
Please keep the original purchase receipt and the warranty card in a safe place. MEDION and its authorised sellers reserve the right to refuse a repair under warranty or a warranty confirmation if a proof of purchase [or registration of purchase] cannot be established, or has not been, submitted.
When it is necessary to return your product for repair please ensure that your product is suitably packed for transportation.
Provided that your product is still within warranty (please check the duration of the warranty period as described above) and is eligible for repair or replacement under the terms of the warranty, to return your product, please telephone MEDION on the service hotline number. You will be sent a pre-paid transportation box suitable for returning your product to
MEDION. PLEASE MAKE SURE THAT YOU HAVE A BACKUP COPY
OF ALL DATA ON THE PRODUCT BEFORE RETURNING THE
PRODUCT TO MEDION. MEDION shall bear the costs of postage and packaging for returning the product and the transportation risk. However, if following examination of the defective product in question, MEDION, in its reasonable opinion, considers that the defect has been caused by:
76
125 x 125 mm
14.10.2009 08:05
your operating and/or using the product other than as instructed in the accompanying documentation;
damage caused in transit as a result of your negligence in packaging of the product; and/or
otherwise than in accordance with the terms of this warranty;
This warranty shall be void and you may be required by
MEDION to reimburse MEDION for the reasonable costs of postage and packaging before MEDION will return the product to you. If so and you would still like MEDION to repair or replace the product, MEDION may do so but you will be charged MEDION’s standard rates for repair and replacement for this service.
Before returning the product, please contact MEDION via the service hotline or via the internet ( www.MEDION.co.uk
). You will receive a reference number (RMA No.) on the warranty card. Please mark the outside of your package to ensure that this reference number is clearly visible. Please submit a letter containing as much detailed information as possible and, a full description of the defect or fault.
This should include:
a description of the fault;
77
18 x 16 mm
14.10.2009 08:05
when it occurred, how long it has been evident and how frequently it occurs ;
any errors message(s) displayed when using the product;
a description of the circumstance(s) and conditions in which the fault occurs; and
whether it is an intermittent or persistent fault;
This will greatly assist MEDION in identifying the defect, when submitted together with the defective product.
Unless otherwise instructed by a MEDION representative in all cases, the product must be returned complete with all parts which were included with the original product. Incomplete contents of the returned package may lead to a delay in the repair or replacement. MEDION does not accept any liability for any additionally submitted material(s) which were not supplied with the original MEDION product.
This warranty does not affect your statutory rights in any way and is subject to the applicable legal statutes of the country where the product was sold to you by an authorised MEDION seller.
78
125 x 125 mm
14.10.2009 08:05
2. Scope
Subject to any exclusions set out within this warranty, where there is a defect in your MEDION product covered by this warranty, MEDION will repair or replace the MEDION product.
The decision whether to repair or replace the product will be made solely at the discretion of MEDION. MEDION may, in its own discretion, replace the product returned for repair under warranty with a replacement product that is either identical or, in the event that such product(s) are no longer available, a product of equal or superior specification and quality.
No warranty is given for batteries or rechargeable batteries or for consumable materials subject to wear and tear, i.e. for parts which have to be replaced periodically during the normal use of the product, such as video-projector lamp.
Non critical failures that fall within industry specified tolerances e.g. noise, LCD pixels are not covered by this warranty. Please consult the appropriate section in your user or instruction manual for this product for exact specifications and tolerances.
To the extent which is permitted under law, MEDION will accept no liability for burnt-in images on plasma or LCD products as a result of normal wear and tear during the operation of the product. Please refer to your user or
79
18 x 16 mm
14.10.2009 08:05 instruction manual for this product for detailed operating instructions for your plasma or LCD product.
The warranty does not cover errors relating to the playback of data media in an incompatible format or created with unsuitable software.
If it is found during repair or assessment that the defect concerned is not covered under warranty, MEDION reserves the right to invoice you for all reasonable costs incurred by
MEDION. These costs will be in relation to the return of the product, including reasonable administration costs, plus reasonable costs for materials used and labour provided when repairing or replacing the product. This is subject to MEDION providing you with an estimate for carrying out such work prior to costs being incurred and that you have accepted the estimate.
You are entitled to seek independent advice or consultation relating to your product or any of MEDION’s findings. MEDION will not be liable for any costs incurred to you when doing so.
3. Exclusion from warranty
To the extent permitted by law, this warranty shall be void in the event that defects or loss caused by:
80
125 x 125 mm
14.10.2009 08:05 a) failure and damage resulting from the operation of the product in an environment other than that recommended in the accompanying user or instruction manual (e.g. in direct sunlight or in a damp room); b) accidental damage; c) use other than in accordance with the accompanying user or instruction manual; d) modifications, conversions, expansions, maintenance and/or repairs made to the MEDION product by unauthorised repairers or use of unauthorised third party parts; e) negligence; f) virus attack or software errors; or g) improper transportation or packaging during return of the product.
This warranty will also be considered void if labels or serial numbers of the product or of a component of the product are modified or made illegible.
To the extent permitted by law, MEDION shall; only be responsible for losses which are a reasonably foreseeable consequence of the relevant defect in the product; MEDION will not be responsible for any costs incurred in relation to software configuration; economic loss; loss of opportunity; loss
81
18 x 16 mm
14.10.2009 08:05 of income; or loss of data or software arising out of its repair or replacement of a MEDION product under this warranty
4. Service Hotline
Before returning the product to MEDION you must contact us using the service hotline or via the internet
(www.MEDION.co.uk). You will receive further instructions for making your claim under warranty when you call.
The service hotline is available on 362 days in the year, including Sundays and bank holidays but excluding Christmas day, New Years Day and Easter day. The service hotline is subject to [national rate] telephone call charges. These charges are subject to change. The price of your call will be stated at the beginning of the call.
II. Special warranty conditions for MEDION PC, notebook, pocket PC (PDA) and navigation devices (PNA)
The following terms apply to MEDION PC, notebook, desktop, pocket PC and laptop products and optional items included with such products. If one of these items has a fault, you also have a warranty claim for its repair or replacement, from
82
125 x 125 mm
14.10.2009 08:05
MEDION. The warranty covers the costs of materials and labour for repairing or replacing the defective MEDION product or the optional item in question.
Hardware connected to your product that was not produced or marketed by MEDION can invalidate the warranty if MEDION can reasonably demonstrate that damage to the MEDION product or of the optional item included with the delivery was caused by such hardware. You are entitled to seek independent advice or consultation relating to your product or any of
MEDION’s findings. MEDION will not be liable for any costs incurred to you when doing so.
This warranty is restricted in relation to any pre-installed operating system as well as to application programme software that is included with the MEDION product in question. This warranty is restricted as follows:
For pre-installed operating system as well as to application programme software included in the MEDION product,
MEDION only guarantees the data media (e.g. the diskettes and
CD-ROMs) upon which this software is delivered and warrants that such data media shall be free from material and processing defects for a period of 90 days from the date of purchase of the
83
18 x 16 mm
14.10.2009 08:05
MEDION product from an authorised seller of MEDION.
MEDION will replace defective data media free of charge.
Any claims in respect of defective pre-installed operating system as well as to application programme software are hereby expressly excluded and you should contact the relevant licensor or copyright owner of the defective software in question. MEDION does not guarantee that any software supplied with MEDION products will function without interruption, will be free from errors or that it will fulfil your requirements. MEDION does not guarantee the 100% accuracy of the maps provided with the Navigation device.
It may be necessary to delete all data in the product in order to repair the MEDION product. PLEASE MAKE SURE THAT YOU
HAVE A BACKUP COPY OF ALL DATA ON THE PRODUCT
BEFORE RETURNING THE PRODUCT TO MEDION. To the extent permitted by law, MEDION excludes all liability for loss of data and MEDION recommends in all cases that you back up all data on your MEDION product before returning the product to
MEDION.
84
125 x 125 mm
14.10.2009 08:05
III. Special warranty conditions for repair on site or replacement on site
If a claim for repair or replacement on site is included within the terms of the warranty card provided with the product, the special warranty conditions for repair or replacement of your
MEDION product on site apply.
The following provisions must be made by you for carrying out repairs or replacements on site:
MEDION or its authorised personnel must have unrestricted, safe and immediate access to the products.
Telecommunication facilities required by MEDION or its authorised personnel for proper execution of your order, for testing and diagnostic purposes and for remedying faults are provided by you at your own expense.
You are responsible yourself for restoring the application software after the repair services have been carried out by
MEDION or its authorised personnel.
You must take all other necessary steps to enable MEDION or its authorised personnel to carry out your order properly.
85
18 x 16 mm
14.10.2009 08:05
You are responsible yourself for connecting and configuring any existing external peripheral products after MEDION or its authorised personnel have carried out their repairs.
The free cancellation period for repairs or replacements on site is 24 hours, thereafter our reasonable costs resulting from late or missing cancellation shall be invoiced at your expense.
86
125 x 125 mm
14.10.2009 08:05
87
advertisement
Related manuals
advertisement
