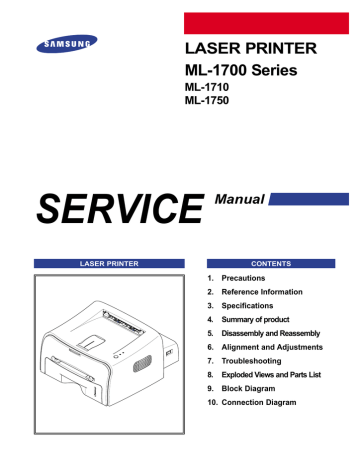

LASER PRINTER
ML-1700 Series
ML-1710
ML-1750
SERVICE
LASER PRINTER
Manual
CONTENTS
1. Precautions
2. Reference Information
3. Specifications
4. Summary of product
5. Disassembly and Reassembly
6. Alignment and Adjustments
7. Troubleshooting
8. Exploded Views and Parts List
9. Block Diagram
10. Connection Diagram
ELECTRONICS
This service manual is also provided on the web,
the ITSELF system f Samsung Electronics Co., Ltd.
http://itself.sec.samsung.co.kr
© Samsung Electronics Co.,Ltd. February 2003
Printed in Korea.
VERSION NO. : 1.00
CODE : JC-0093A
2003. 02
Precautions
1
1. Precautions
The cautions in the below are items needed to keep in mind when maintaining and servicing.
Please read carefully and keep the contents in mind to prevent accidents while servicing and to prevent
that the machine gets damage.
1.1 Warning for safety.
(1) Request the service by qualified service person.
The service for this machine must be performed by a service person who took the additional education of
this field.
It is dangerous if unqualified service person or user tries to fix the machine.
(2) Do not rebuild it discretionary.
Do not attach or change pats discretionary. Do not dissemble, fix, and rebuilt it. If do, printer will abnormally
work and electric shock or a fire can be occurred.
(3) Laser Safety Statement
The Printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J
for Class 1(1) laser products, and elsewhere, is certified as a Class I laser product conforming to the
requirements of IEC 825.
Class I laser products are not considered to be hazardous. The laser system and printer are designed so
there is never any human access to laser radiation above a Class I level during normal operation, user
maintenance, or prescribed service condition.
Warning >> Never operate or service the printer with the protective cover removed from Laser/Scanner assembly. The reflected
beam, although invisible, can damage your eyes. When using this product, these basic safety precautions should
always be followed to reduce risk of fire, electric shock, and injury to persons.
CAUTION - INVISIBLE LASER RADIATION
WHEN THIS COVER OPEN.
DO NOT OPEN THIS COVER.
VORSICHT - UNSICHTBARE LASERSTRAHLUNG,
WENN ABDECKUNG GE FFNET.
NICHT DEM STRAHL AUSSETZEN.
ATTENTION - RAYONNEMENT LASER INVISIBLE EN CAS
D OUVERTURE. EXPOSITION DANGEREUSE
AU FAISCEAU.
ATTENZIONE - RADIAZIONE LASER INVISIBILE IN CASO DI
APERTURA. EVITARE L ESPOSIZIONE AL
FASCIO.
PRECAUCION - RADIACION LASER IVISIBLE CUANDO SE ABRE.
EVITAR EXPONERSE AL RAYO.
ADVARSEL. - USYNLIG LASERSTR LNING VED BNING, N R
SIKKERHEDSBRYDERE ER UDE AF FUNKTION.
UNDG UDSAETTELSE FOR STR LNING.
ADVARSEL. - USYNLIG LASERSTR LNING N R DEKSEL
PNES. STIRR IKKE INN I STR LEN.
UNNG EKSPONERING FOR STR LEN.
VARNING - OSYNLIG LASERSTR LNING N R DENNA DEL
R PPNAD OCH SP RREN R URKOPPLAD.
BETRAKTA EJ STR LEN. STR LEN R FARLIG.
VARO! - AVATTAESSA JA SUOJALUKITUS OHITETTAESSA
OLET ALTTIINA N KYM TT M LLE LASERS TEILYLLE L KATSO S TEESEEN.
Service Manual
Samsung Electronics
1-1
Precautions
1.2 Caution for safety
1.2.1 Precaution related noxious material
The toner in a printer cartridge contains a chemical material, which might harm human body if it is swallowed.
Please keep children out of the toner cartridge.
1.2.2 Precaution related electric shock or fire
It is possible to get electric shock or burn by fire if you don't fallow the instructions of the manual.
(1) Use exact voltage. Please do use an exact voltage and wall socket. If not, a fire or an electric leakage can
be caused.
(2) Use authorized power code. Do use the power code supplied with PRINTER. A fire can be occurred when
over current flows in the power code.
(3) Do not insert many codes in an outlet. If do, a fire can be occurred due to flow over current in an outlet.
(4) Do not put water or extraneous matter in the PRINTER. Please do not put water, other liquid, pin, clip, etc.
It can cause a fire, electric shock, or malfunction. If it is happened, turn off the power and remove the
power plug from outlet immediately.
(5) Do not touch the power plug with wet hand. When servicing, do remove the power plug from outlet. And
do not insert or take off it with wet hand. Electric shock can be occurred.
(6) Caution when inserting or taking off the power plug. The power plug has to be inserted completely. If not,
a fire can be caused due to poor contact. When taking off the power plug, do grip the plug and take it off.
If grip the line and pull over, it could be damaged. A fire or electric shock could cause.
(7) Management of power code. Do not bend, twist, or bind it and place other materials on it. Also, do not fix
it with staples. If the power code gets damage, a fire or electric shock can be caused. A damaged power
code must be replaced immediately. Do not repair the damaged part and reuse it. A repaired part with plastic tape can be occurred a fire or electric shock. Do not spread chemicals on the power code. Do not
spread insecticide on the power code. A fire or electric shock can be occurred due to thinner(weak) cover
of the power code.
(8) Check whether the power outlet and the power plug are damaged, pressed, chopped, or blazing fire or
not. When such inferiorities are found, repair it immediately. Do not make it pressed or chopped when
moving the machine.
(9) Caution when thundering, and being flash of lightening. It causes a fire or electric shock. Take the power
plug off when thundering. Do not touch cable and device when thundering and being flash of lightening.
(10) Do avoid the place where is moisture or has dust. Do not install the printer in where have lots of dust or
around humidifier. A fire can be occurred. A plug part need to clean well with dried fabric to remove dust.
If water drops are dripped on the place covered with dust, a fire can be occurred.
(11) Avoid direct sunlight. Do not install the printer near to window where directly contacts to the sunlight. If
the machine contacts sunlight long time, the machine cannot work properly because inner temperature
of the machine is getting higher. A fire can be caused.
(12) Turn off the power and take off the plug when a smoke, strange smell, or sound from the machine. If you
keep using it, a fire can be occurred.
(13) Do not insert steel or metal piece inside/outside of the machine. Do not put steel or metal piece into a
ventilator. An electric shock could be happened.
1-2
Service Manual
Samsung Electronics
Precautions
1.2.3 Precaution related handling the machine.
If you ignore this information, you could get harm and machine could be damaged.
(1) Do not install it on the different levels, or slanted floor.
Please confirm whether it is balanced or not after installation. If it is unbalanced, an accident can be happened due to the machine fell over.
(2) Be careful not to insert a finger or hair in the rotating unit.
Be careful not to insert a finger of hair in the rotating unit (motor, fan, paper feeding part, etc) while the
machine is operating. Once it happens, you could harm.
(3) Do not place a pot contains water/chemical or small metals. If those are got into the inner side of machine,
a fire or electric shock can be occurred.
(4) Do not install it in where lots of moisture or dust exists or where raindrop reaches. A fire or electric shock
can be caused.
(5) Do not place a candlelight, burning cigarette, and etc. on the machine. Do not install it near to heater. A
fire can be occurred.
1.2.4 Precaution when assembly/disassembly
When replace parts, do it very carefully. Do memorize the location of each cable before replace parts for
reconnecting it afterwards. Do memorize. Please perform the below before replace or disassembly the parts.
(1) Check the contents stored in the memory. All the information will be erased after replace main board. The
information needed to keep has to be written down.
(2) Before servicing or replacing electric parts, take off a plug.
(3) Take off printer cables and power code connected to printer.
(4) Do use formal parts and same standardized goods when replacing parts.Must check the product name,
part code, rated voltage, rated current, operating temperature, etc.
(5) Do not give an over-force when release or tighten up the plastic parts.
(6) Be careful not to drop the small parts such as screws in the printer.
(7) Be careful not to change the location of small parts such as screws when assembling and disassembling.
(8) Do remove dust or foreign matters completely to prevent fire of tracking, short, or etc.
(9) After finished repair, check the assembling state whether it is same as before the repair or not.
Service Manual
Samsung Electronics
1-3
Precautions
1.3 ESD Precautions
Certain semiconductor devices can be easily damaged by static electricity. Such components are commonly
called “Electrostatically Sensitive (ES) Devices”, or ESDs. Examples of typical ESDs are: integrated circuits,
some field effect transistors, and semiconductor “chip” components.
The techniques outlined below should be followed to help reduce the incidence of component damage caused
by static electricity.
Caution >>Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
1. Immediately before handling a semiconductor component or semiconductor-equipped assembly, drain off
any electrostatic charge on your body by touching a known earth ground. Alternatively, employ a commercially available wrist strap device, which should be removed for your personal safety reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ESDs, place the assembly on a conductive surface,
such as aluminum or copper foil, or conductive foam, to prevent electrostatic charge buildup in the vicinity
of the assembly.
3. Use only a grounded tip soldering iron to solder or desolder ESDs.
4. Use only an “anti-static” solder removal device. Some solder removal devices not classified as “anti-static”
can generate electrical charges sufficient to damage ESDs.
5. Do not use Freon-propelled chemicals. When sprayed, these can generate electrical charges sufficient to
damage ESDs.
6. Do not remove a replacement ESD from its protective packaging until immediately before installing it. Most
replacement ESDs are packaged with all leads shorted together by conductive foam, aluminum foil, or a
comparable conductive material.
7. Immediately before removing the protective shorting material from the leads of a replacement ESD, touch
the protective material to the chassis or circuit assembly into which the device will be installed.
8. Maintain continuous electrical contact between the ESD and the assembly into which it will be installed,
until completely plugged or soldered into the circuit.
9. Minimize bodily motions when handling unpackaged replacement ESDs. Normal motions, such as the
brushing together of clothing fabric and lifting one’s foot from a carpeted floor, can generate static electricity sufficient to damage an ESD.
1-4
Service Manual
Samsung Electronics
R E F E R E N C E I N F O R M AT I O N
2
2. Reference Information
This chapter describes the reference information for applying this training manual, and it is consisted of the tool list, the abbreviation table, the outline of model, and so on.
2.1 Tool for Troubleshooting
The following tools are recommended for safe and smooth troubleshooting described in this service manual.
1 DCU(Diagnostic Control Unit)
Standard : Test equipment to diagnose the Laser
printer supplied by Samsung Electronics.
4 Driver
Standard : "-" type, "+" type (M3 long, M3 short, M2 long,
M2 short).
5 Tweezers
Standard : For general home use, small type.
2 DVM(Digital Volt Meter)
Standard : Indicates more than 3 digits.
6 Cotton Swab
Standard : For general home use, for medical ser-vice
7 Cleaning Equipments a IPA(Isopropyl
Alcohol)dry cloth or a soft stuff neutral
detergent
3 Electronic Scale
8 Software(Driver) installation CD ROM
Standard : Equipment to check the weight of consumables(toner cartridge) supplied by Samsung
Electronics. (The gram unit can be measured.)
Service Manual
Samsung Electronics
2-1
R E F E R E N C E I N F O R M AT I O N
2.2 Acronyms and Abbreviations
The table in the below explains abbreviations used in this service manual.
The contents of this service manual are declared with abbreviations in many parts. Please refer to the
table.
AC
Alternating Current
ASIC
Application Specific Integrated Circuit
ASSY
assembly
BIOS
Basic Input Output System
CMOS
Complementary Metal Oxide
Semiconductor
2-2
IEEE
Institute of Electrical and Electronics
Engineers. Inc
IPA
Isopropy Alcohol
IPM
Images Per Minute
LAN
local area network
lb
pound(s)
CN
connector
LBP
Laser Beam Printer
CON
connector
LCD
Liquid Crystal Display
CPU
Central Processing Unit
LED
Light Emitting Diode
dB
decibel
LSU
Laser Scanning Unit
dbA
decibelampere
MB
megabyte
dBM
decibel milliwatt
MHz
megahertz
DC
direct current
NVRAM
nonvolatile random access memory
DCU
Diagnostic Control Unit
OPC
Organic Photo Conductor
DPI
Dot Per Inch
PBA
Printed Board Assembly
DRAM
Dynamic Random Access Memory
PCL
DVM
Digital Voltmeter
Printer Command Language , Printer
Control Language
ECP
Enhanced Capability Port
PDL
Page Discription Language
EEPROM
Electronically Erasable Programmable
Read Only Memory
PPM
Page Per Minute
PTL
Pre-Transfer Lamp
EMI
Electro Magnetic Interference
Q-PID
Quick Printer Initiating Device
EP
electrophotographic
Q ty
quantity
EPP
Enhanced Parallel Port
RAM
Random Access Memory
F/W
firmware
ROM
Read Only Memory
GDI
graphics device interface
SCF
Second Cassette Feeder
GND
ground
SMPS
Switching Mode Power Supply
HBP
Host Based Printing
SPGP
Samsung Printer Graphic Processor
HDD
Hard Disk Drive
SPL
Samsung Printer Language
HV
high voltage
Spool
Simultaneous Peripheral Operation Online
HVPS
High Voltage Power Supply
SW
switch
I/F
interface
sync
synchronous or synchronization
I/O
Input and Output
USB
Universal Serial Bus
IC
integrated circuit
IDE
Intelligent Drive electronics or Imbedded
Drive Electronics
Service Manual
Samsung Electronics
R E F E R E N C E I N F O R M AT I O N
2.3 The Sample Pattern for the Test
The sample pattern shown in below is the standard pattern used in a factory.
The contents of the life span and the printing speed are measured with the pattern shown in below.
(The picture in the manual is 70% size of the actual A4 size.)
2.3.1 A4 5% Pattern
Service Manual
Samsung Electronics
2-3
R E F E R E N C E I N F O R M AT I O N
2.3.2 A4 2% Pattern
2-4
Service Manual
Samsung Electronics
R E F E R E N C E I N F O R M AT I O N
2.3.3 A4 IDC Pattern
Service Manual
Samsung Electronics
2-5
R E F E R E N C E I N F O R M AT I O N
2-6
Service Manual
Samsung Electronics
Specifications
3
3. Specifications
Product specifications are subject to change without notice.See below for product specifications.
3.1 General Specifications
ITEM
DESCRIPTION
Print Technology
Non-impact Electro-photograpic Printing
Developing system
Non-Magnetic, Mono-Component Developing System
Print Speed
16 PPM : A4 size , 5% Character pattern
(1)
17 PPM : Letter size , 5% Character pattern
Resolution
ML-1710 : True 600 X 600 DPI
ML-1750 : 1200 X 600 DPI
Source of Light
Laser diode (LSU : Laser Scanner Unit)
Warm-Up Time
Power-on boot : 30 seconds or less
First Print Out Time
Less than 12 seconds (Ready to 1st page out)
Media Size
75 X 125 (3” X 5”) mm to 216 X 356 (8.5” X 14”)mm
Media Thickness
16 ~ 24 lb
Dimension(W X D X H)
352 (13.8”) X 372 (14.6”) X 196 (7.7”) mm
Weight
Net : 7 Kg /15.4 lb
Gross : 9.5 Kg (Max.)
Stand by : Less than 35 dB
Acoustic Noise
(1)
Printing : Less than 50 dB
Power save mode
Available
Toner save mode
Available
Duty Cycle
Monthly : 15,000 pages maximum
Periodic Replacing Parts
(2)
Pick Up Roller :
60,000 Sheets
Feed Roller
:
60,000 Sheets
Transfer Roller :
60,000 Sheets
Fuser Assembly : 60,000 Sheets
(1) For measuring the printing speed, count the papers which outputted within one minute from when the
second page starts to be printed. (A4, 5% character pattern standard)
(2) The life span of the consumption parts can be checked by printing the demo page or the system list.
(Refer to the 6.3 Receive the service information)
Service Manual
Samsung Electronics
3-1
Specifications
3.2 Controller Specification
DESCRIPTION
ITEM
ML-1710
Processor(CPU)
OS Compatibility
(1)
Memory
ML-1750
Samsung Jupiter4 90MHz
Samsung SPGPm 166MHz
Win 98x/ME/2000/XP,
Win 9x/NT4.0/ME/2000/XP
Various Linux OS,Mac (Mac OS 8.6 ↑)
Various Linux OS,Mac (Mac OS 8.6 ↑)
FLASH ROM(PROGRAM) : 0.5MB flash
RAM : 8 MB
EEPROM(NVRAM) : 512 byte
Emulation
SPL(Samsung Printer Language)
PCL6, IBMProPrinter, EPSON
Interface
USB 1.1
USB
- 12 Mbps 1 port
- USB 2.0
- 480 Mbps 1 port
Parallel : IEEE 1284
- Modes supported :
Compatible,Nibble,Byte,ECP
External Network Adaptor(Optional)
(1)
Interface switching
Automatic
Interface time-out
5min(Max.)
Font
Windows Font
45 Scalable, 1 Bitmap
The SPL series model is USB exclusive use, so it supports the environment beyond the WIN 98.
3.3 Electrical Specification
ITEM
Input Voltage
Power Consumption
DESCRIPTION
Nominal input voltage
100~127VAC
Input voltage range
90~132VAC
Nominal frequency
50/60 Hz
Frequency tolerance
+3Hz
Printing : 280W Avg or less
Power Save : 10W Avg or less
3-4 Environmental Range
ITEM
3-2
OPERATING
STORAGE
Temperature
10~32 C(50-90 oF)
-20~40 C (-4~104 oF)
Humidity
20~80%RH
10~80%RH
o
o
Service Manual
Samsung Electronics
Specifications
3.5 TONER Cartridge (Developer)
ITEM
Life span
DESCRIPTION
REMARK
Starter: 1,000 sheets
IDC 5% pattern
Running : 3,000 sheets
Developing
Non-magnetic Mono Conponent Contact Developing
Charging
Conductive Roller Charging
Toner checking sensor
Not Available
Ozone
0.1PPM or less
Style
Single cartridge
8 hours
2-Paper Handling Specifications
Please refer to "Paper Specifications" on user guide
• Input Paper Size
PAPER
DIMENSIONS
WEIGHT
A4
210 X 297 mm
Letter
216 X 279(8.5 X 11")
Legal(Legal14")
216 X 356(8.5 X14")
JIS B5
182 X257mm (7.2 X 10")
Folio(Legal13")
216 X 330mm (8.5 X 13")
Minimum size (Custom)
76 X 127mm (3 X 5")
Maximum size (Custom)
216 X 356mm (8.5 X 14")
Transparency(OHP)
Same minimum and maximum
Thickness:
Label paper
sizes as listed above
0.10 X 0.14 mm (0.0039 X 0.0055")
Envelopes
60 to 90 g/m2 bond(16 to 24 lb)
60 to 163 g/m2 bond(16 to 43 lb)
Up to 90 g/m2 bond(16 to 24 lb)
• Input capacity
Cassette: 250 sheets
Manual : 1 sheet
• Output capacity
Face Down : 50 sheets(20lb)
Face Up : 1 sheet(OHP, Lavbel, Cut Sheet, Envelope)
Service Manual
Samsung Electronics
3-3
Specifications
3-4
Service Manual
Samsung Electronics
S U M M A RY OF PRO D U C T
4
4. Summary of Product
This chapter describes the functions and operating principal of the main component.
4.1 Printer Components
4.1.1 Front View
Top output tray
(Face down)
Control Panel
Output Support
Front Cover
Power switch
Manual Feeder guide
Manual Feeder
Tray
Paper level indicator
Service Manual
Samsung Electronics
4-1
S U M M A RY OF PRO D U C T
4.1.2 Rear View
Rear output tray
(Face up)
Power receptacle
Parallel port
(ML-1750 Only)
USB port
4.1.3 Inside View
Toner cartridge
Front Cover
4-2
Service Manual
Samsung Electronics
S U M M A RY OF PRO D U C T
4.1.3 Control Panel
1) On Line/Error and Toner Save LEDs
LED
Description
If the On Line/Error lights green, the printer is ready to print.
If the On Line/Error lights red, the printer is experiencing an error, such as jammed paper,
the open cover or the empty toner cartridge. If you press the Cancel button while the printer
is receiving data, the On Line/Error LED blinks red to cancel printing.
In Manual Feed mode, if there is no paper in the Manual Feeder, the On Line/Error LED
blinks red. Load paper into the Manual Feeder and the LED stops blinking.
If the printer is receiving data, the On Line/Error LED slowly blinks green.
If the printer is printing the received data, the On Line/Error LED blinks green fast.
If you press the Cancel button in Ready mode, this LED is on and the Toner Save mode is
enabled.
If you press this button once again, this LED is off and the Toner Save mode is disabled.
If the On Line/Error and Toner Save LEDs blink, your system has some problems. To solve
the problem.
Service Manual
Samsung Electronics
4-3
S U M M A RY OF PRO D U C T
2) Cancel button
4-4
Printing demo page
In Ready mode, press and hold this button for about 2 seconds until
all LEDs blink slowly, and release.
Printing configuration sheet
In Ready mode, press and hold this button for about 6 seconds until
all LEDs blink fast, and release.
Manual feeding
Press this button each time you load a sheet of paper in the manual
feeder, when you select Manual Feed for Source from your software
application.
Cleaning inside printer
In Ready mode, press and hold this button for about 10 seconds
until all LEDs turn on, and release. After cleaning the printer, one
cleaning sheet prints.
Canceling print job
Press this button during printing. The On Line/Error LED blinks while
the print job is cleared from both the printer and the computer, and
then return to Ready mode. This may take some time depending on
the size of the print job.
In Manual Feed mode, you can’t cancel the print job by pressing this
button.
Toner Save mode on/off
In Ready mode, press this button to turn the Toner Save mode on or
off.
Service Manual
Samsung Electronics
S U M M A RY OF PRO D U C T
4.2 System Layout
6
L S U
5
Fuser
Toner Cartridge
CR
7
PR
DR
OPC
SR
PTL
TR
2
K /R
3
MP Sensor
FR
4
P IC
1
1
2
3
4
Cassette
Manual Feeder
Transfer Roller
5
6
7
Fuser
LSU(Laser Scan Unit)
Toner Cartridge
PTL(Per-Tramsfer-Lamp)
Service Manual
Samsung Electronics
4-5
S U M M A RY OF PRO D U C T
4.2.1 Feeding Part
There are the universal cassette, which loads papers, and the manual feeder, which supplies paper one by
one. The cassette has the function pad which separates paper one by one, and it has the sensor function
to check the existence of the loading paper.
- Feeding Method: Universal Cassette Type
- Feeding Standard: Center Loading
- Feeding Capacity: Cassette-250 sheets (75g/m©˜, 20lb paper standard)
Manual 1 sheet (Paper, OHP, Envelop, etc.)
- Paper detecting sensor: Photo sensor
- Paper size sensor: None
4.2.2 Transfer Ass’y
It is consisted of the PTL (pre-transfer lamp) and the Transfer Roller. The PTL sends a light to the OPC
drum, makes the current on the drum surface to low, and improves the transfer efficiency.
The transfer roller delivers the toner of the OPC drum to the paper.
- The life span: Print over 60,000 sheets (in 15~30°C)
4.2.3 Driver Ass’y
It is a power delivery unit by gearing. By driving the motor, it supplies the power to the feeding unit, the
fusing unit, and the distributing unit.
4.2.4 Fixing Part(Fuser)
- The fuser is consisted of the Heat Lamp, Heat Roller, Pressure Roller, Thermistor, and Thermostat. It
adheres the toner to the paper with a pressure and a heat to complete the printing job.
- There are two methods, the existing method which use the Heat Lamp and the Q-PID which is developed
by Samsung.
110V : Heat Lamp type Fuser
220V : Heat Lamp type or Q-PID type Fuser
4.2.4.1 Temperature-Intercepting Device (Thermostat)
The thermostat is the temperature-intercepting device, which cuts off the power for preventing an overheating or a fire when the heat lamp or the heat coil of the heat roller is overheated.
4.2.4.2 Temperature Detecting Sensor (Thermistor)
The Thermistor detects the surface temperature of the heat roller, and it maintains the regular temperature
of the heat roller by responding to the information of the temperature.
4.2.4.3 Heat Roller
The heat roller transfers the temperature from the heat lamp or heat coil to the surface to heat the paper
which passes the surface. The melted toner cannot stain the heat roller coated with Teflon.
The heating elements are heat lamp and heat coil. For this product, Q-PID method with the heat coil is
applied.
4.2.4.4 Pressure roller
The pressure roller mounted right under the heat roller is made of the silicon resin, and the surface of the
roller is coated with Teflon to fuse the toner on the paper when paper passes between the heat roller and
the pressure roller.
4-6
Service Manual
Samsung Electronics
S U M M A RY OF PRO D U C T
4.2.4.5 Safety Relevant Facts
• Protecting device when overheating
- 1st protecting device: H/W cuts off when detecting an overheating
- 2nd protecting device: S/W cuts off when detecting an overheating
- 3rd protecting device: Thermostat cuts off the power
• Safety device
- The power of the fuser is cut off when the front cover is open.
- The overheating safety device for customer
- Maintains the surface temperature of the Fuser Cover under 80°C and attach the caution label
inside of the rear cover where customer can find easily.
4.2.5 LSU (Laser Scanner Unit)
The LSU unit is controlled by the video controller. It scans the video data received from video controller with
laser beam by using the rotation principal of the polygon mirror to create the latent image on the OPC drum.
It is the core part of LBP.
The OPC drum rotates as the same speed as the paper feeding speed. It creates the /HS YNC signal and
sends it to the engine when the laser bean of the LSU reaches the end of the polygon mirror, and the engine
detects the /HS YNC signal to arrange the vertical line of the image on the paper. After detecting the /HS
YNC signal, the image data is sent to the LSU to arrange the its left margin on the paper.
The one side of the polygon mirror is one line for scanning.
Service Manual
Samsung Electronics
4-7
S U M M A RY OF PRO D U C T
4.2.6 Toner Cartridge
By using the electronic photo process, it creates a visual image. In the toner cartridge, the OPC unit and
the developer unit are in a body. The OPC unit has OPC drum and charging roller, and the developer unit
has toner, toner cartridge, supply roller, developing roller, and blade (Doctor blade)
- Developing Method: Non magnetic 1 element contacting method
- Toner: Non magnetic 1 element shatter type toner
- The life span of toner: 3,000 sheets (IDC Pattern/A4 standard)
- Toner remaining amount detecting sensor: None
- OPC Cleaning: Collect the toner by using electric static + FILM OPC
- Management of disusable toner: Collect the toner by using electric static (Clenerless Type- No
disusable toner)
- OPC Drum protecting Shutter: None
- Classifying device for toner cartridge: ID is classified by interruption of the frame channel.
4-8
Service Manual
Samsung Electronics
S U M M A RY OF PRO D U C T
4.3 Main PBA(SPL Model)
The Engine Board and the Controller Board are in one united board, and it is consisted of CPU part and
print part in functional aspect. The CPU is functioned as the bus control, I/O handling, drivers, and PC interface. The main board sends the Current Image dlml Video data to the LSU and manages the conduct of
Electrophotography for printing. It is consisted of the circuits of the motor (paper feed, pass)
driving, clutch driving, pre-transfer lamp driving, current driving, and fan driving.
The signals from the paper feed jam sensor and paper empty sensor are directly inputted to the main
board.
FLASH MEMORY
ASIC
BUFFER
SDRAM
VIDEO CLK
14.7456MHz
Main CLK
10MHz
USB PORT
U27
MOTOR Drive IC
U16 U26
U32
U24 CN3
CN9
OSC1
CN10
U33
U13
CN6
U17
OSC2
CN2
CN1
U20
U31 CN5
U25
CN8
CN7
Service Manual
Samsung Electronics
4-9
S U M M A RY OF PRO D U C T
4.3.1 ASIC (Jupiter IV)
The Jupiter IV (16Bit RISC Processor), which is the executive controller to operate the printer function, is in
use, and the each operation block is driven by system program of the flash memory. The whole system is
controlled by driving operation block.
•Main function block
•
•
•
•
•
•
•
•
Completely Integrated System for Embedded Applications,
16 Bit Risc Architecture, Efficient and Powerful ARM7TDMI CPU
LSU Interface Module for Interfacing PVC or HPVC with LSU
2 Channel General Purpose DMA Controller for High Speed I/O
Dual Memory Bus Architecture
Operating frequency : 80MHz
Operating power : 3.3V
Power on reset time : under 6.6ms
4.3.2 Flash Memory
It stores the system program and downloads the system program through the PC interface.
• Capacity : 0.5M Byte
• Access Time : 70 nsec
4.3.3 SDRAM
It is used as a swath buffer, system working memory area, etc. while printing.
• Capacity :
ML-1510
ML-1710
ML-1750
2 M byte
8 M byte
8 M byte
• Access Time : 60 nsec
4.3.4 Sensor input circuit
1) Paper Empty Sensing
The Paper empty sensor (Photo Interrupter) on the engine board informs the state of paper to CPU whether
it is empty or not with operation of the actuator.
When cassette is empty, it detects the fact by reading the D0 Bit of CPU, and then informs the fact by
selecting the second LED(yellow) among the panel LEDs.
2) MP Sensing
By operation of Actuator on the frame, the MP Sensor (Photo Interrupter) on the engine board informs the
state of paper to CPU whether it is empty or not. It reads the D0 Bit of CPU for recognizing paper in MP,
and paper is fed from MP if there is.
4-10
Service Manual
Samsung Electronics
S U M M A RY OF PRO D U C T
3) Paper Feeding, Toner Cartridge Sensing
When paper passes the actuator (feed sensor part), it detects the signal of Photo interrupter, informs the
paper feeding state to CPU, and then sprays the image data after certain time.
If it doesn't detect the feed sensor within 1 sec. after paper is fed, paper Jam0 is occurred (Red and Yellow
will be turned on among the OP panel LEDs), and the fact whether the developer is inserted or not is detected with the same principle. After the developer is mounted, the actuator is operated. The signal from the photo
interrupter is detected when it is passing the actuator of the sensor part. That is the developer ID sensing.
4) Paper Exit Sensing
It detects paper state whether paper gets out from the set with operation of exit sensor on the engine board
and actuator on the frame. Paper detects the on/off time of exit sensor, and the normal operation or jam information is informed to the CPU.
The paper JAM2 is informed. (Red, Yellow LED will be turned on among the OP panel LEDs)
5) Cover Open Sensing
The Cover open sensor is located on the front cover. After the front cover is opened, +24V (DC fan, solenoid,
main motor, polygon motor part of LSU, HVPS), which is supplied to the each unit, is cut off.
The cover-open sensing is operated by the D0 bit of CPU, and the developer ID sensing is operated.
In this case, the red LED among OP panel LEDs will be ON for informing the facts to user.
6) DC FAN / SOLENOID Driving
It is driven by transistor and controlled by D6 bit of CPU.
When it is high, the fan is driving by turning on the TR, and it is off when the sleep mode is selected.
There are two solenoids, and they are driven by paper pick-up and MP signal. Its driving time is 300ms. The
diode protects the driving TR from the noise pulse, which is flown when the solenoid is de-energizing.
7) Motor Driving
The motor driving circuit is formed when the Driver IC is selected in the first place. The A3977 (Motor driver
IC) is used in this case. But, the resistance Rs value of sensing and the voltage value of the V reference can
be changed by motor driving voltage value.
Service Manual
Samsung Electronics
4-11
S U M M A RY OF PRO D U C T
4.4 Main PBA (PCL Model)
FONT ROM
RC-NETWORK
IC-LINE TRANSCEVIER
MAIN CLK
12MHz
FLASH
MEMORY
VIDEO CLK
14.7456MHz
USB CLK 30MHz
IC-USC
CLOCK GENERATOR
REGULATOR
SDRAM
MOTOR DRIVE IC
BUFFER
CPU(SPGPm)
SCHMITT INVERT
IC-VOLTAGE COMP
Service Manual
Samsung Electronics
4-12
S U M M A RY OF PRO D U C T
U8
U6 CN2
U27
CN3
U7 CN4
OSC2 U3
U20 U10
U11
U24
U13
CN13
U13
CN6
CN12
U1
Processor
PC Interface
Emulation
OS Compatibility
pcb
U15
U25
U14 OSC5 CN8 OSC4
U17
U26
ML-1710 (ML-1510)
Samsung Jupiter4 90MHz
USB 1.1
USB
SPL
(Samsung Printer Language)
Win 98/Me/2000/XP
Various Linux OS,
Mac (Mac OS 8.6 ↑)
FR-4, 2Layer
U18
CN10
CN9
CN11
ML-1750
Samsung SPGPm 166MHz
USB 2.0
USB/IEEE1284 (Parallel)
SPL, PCL6,
IBM ProPrinter, EPSON
Win 9x/NT/4.0/Me/2000/XP
Various Linux OS,
Mac (Mac OS 8.6 ↑)
FR-4, 4Layer
Service Manual
Samsung Electronics
4-13
S U M M A RY OF PRO D U C T
4.4.1 Asic(SPGPm)
1) ARM946ES
-
32-bit RISC embedded processor core
16KB instruction cache and 16KB data cache
No Tightly Coupled Memory
Memory Protection Unit & CP15 control program
2) Dual bus architecture for bus traffic distribution
- AMBA High performance Bus (AHB)
- System Bus with SDRAM
3) IEEE1284 compliant parallel port interface
4) Printer Video Controller for LBP engines
5) Graphic Execution Unit for Banding support of Printer Languages
6) Printer Video Controller for LBP engines
- PVC : Printer Video Controller without RET Algorithm
- HPVC : Printer Video Controller with RET algorithm
(Line Memory & Lookup Table Memory : 512 x 8 , 4096 x 16)
7) Engine Controller
- Motor Control Unit
- Motor Speed Lookup Table Memory (128 x 16 x 2)
- Pulse Width Modulation Unit
- 4 Channels are supported
- ADC Interface Unit
- 3 ADC Channels are available
- ADC Core (ADC8MUX8) maximum clock frequency : 3 MHz
8) USB 2.0 Interface
9) Package : 272 pins PBGA
10) Power : 1.8V(Core), 3.3V(IO) power operation
11) Speed : 166MHz core(ARM946ES) operation, 60MHz bus operation
4.4.2 Memory
1) Flash Memory
- It stores the System Program, downloads the System program through PC Interface, and compresses the
PCL font, then stores it.
- Capacity : 2M Byte
- Access Time : 70 nsec
2) DRAM
- It is used as Swath buffer, System working memory area, etc. when printing. It stores the font list, compressed into flash memory, on DRAM and uses it as PCL font.
- Capacity : 8M Byte (Basic), upto 64M Byte (Factory Option)
- Type : SDRAM 100MHz/133MHz , 16bit
4-14
Service Manual
Samsung Electronics
S U M M A RY OF PRO D U C T
4.4.4 SPGPm Internal Block Diagram
ROM
CONTROLLER
EXTERNAL
DMA CONTROLLER
(4CH)
ADDR/
DATA
MUX
ARM946E -S CORE
16KB ICACHE
16KB DCACHE
USB2.0
AHB BUS
ARBITER
IO
CONTROLLER
DECODER
MAC
SYSTEM
BUS
INTERFACE
SFR BUS
INTERFACE
SYSMAC
CLOCK & RESET
GENERATOR
PVC
SYSTEM PLL
(120MHz)
HPVC
512x8
4096x16
SYSTEM BUS
ARBITER
UART(3CH)
SDRAM
CONTROLLER
(5CH)
ENGINE
CONTROLLER
LSU I/F
System Bus
MOT OR
CONTROLLER
128x16 x2
SFR Bus
PULSE WIDTH
MODULATOR
HCT
ADC (3CH)
gCODEC
PARALLEL PORT
INTERFACE
MISC
CONTROLLER
GRAPHIC
EXECUTION
UNIT
EPI
ENGINE
Comm. I/F
INTERRUPT
CTRL (5CH)
ROTATOR/
SCALER/
HALFTONER
1024x8, 256x8x 4
TIME CONTROL
UNIT
Service Manual
Samsung Electronics
4-15
S U M M A RY OF PRO D U C T
4.5 SMPS & HVPS
The SMPS supplies the DC power to the system.
It takes 110V/220V and outputs the +3.3V, +5V and +24V to supply the power to the main board and ADF
board.
The HVPS part creates the high voltage of THV/MHV/Supply/Dev and supplies it to the developer part for
making the best condition to display the image. The HVPS part takes the 24V and outputs the high voltage
for THV/MHV/BIAS, and the outputted high voltage is supplied to the toner, OPC cartridge, and transfer
roller.
F1
110V : 125V/8A
220V : 250V T 5A H
F2
CN3
CN4
110V : 125V/3A (FAN CON.) (PANEL CON.)
220V : 250V 2A H
THV
CN1
(H/L CON.)
DEV
MHV OPC
SUPPLY
COVER OPEN SWITCH
MANUAL SENSOR
FEED SENSOR
PAPER-EMPTY SENSOR
EXIT SENSOR
4-16
MAIN PBA CON.
F101
250V L2A
Service Manual
Samsung Electronics
S U M M A RY OF PRO D U C T
4.5.1 HVPS(High Voltage Power Supply)
1) Transfer High Voltage (THV+)
-
Function: It is a voltage to transfer a toner developed on OPC drum to a paper.
Output voltage: Maximum +5.0KV ±5% (Duty changeable, unload)
1.0KV ±15%(When cleaning, 200MOhm)
Error: If THV (+) doesn't output, a ghost status (same character is printed after one cycle (76mm)
of OPC) with a low density occurs due to a toner on OPC drum cannot normally transfer to a
paper.
2) Charge Voltage (MHV)
- Function: It is a voltage to charge entire surface of OPC with -900V ~ -1000V.
- Output voltage: -1.3KV ~ 1.8KV DC ±50V
- Error: If MHV doesn't output, a black paper is printed out because toner on developing roller
moves to OPC drum due to the surface of OPC is not charged.
3)Cleaning Voltage (THV-)
- Function: It removes a dirty on a surface by sending a minus toner in a transfer roller to an OPC
drum to recover toners.
- Output Voltage: There is no feedback control, so change range of output is big up to load.
- Error: Toner contamination occurs at a backside of a printed-paper.
4) Developing Voltage (DEV)
- Function: It is a voltage to develop a toner with using a difference of electronic potential on an
exposed part by LSU (Laser Scanning Unit).
* Generally, the electronic potential of exposed OPC is -180V and exposed developer is -350V
when printing, so toner with minus (-) is developed on an exposed part.
- Output voltage: -200V ~ 600V DC ±20V
- Error: 1. If DEV is GND, a density is going significantly down.
2. If DEV is floating due to instable contacting point of terminal, and etc., a density is significantly going up.
5) Supply Voltage(SUP)
- Function: It is a voltage to supply toner to a developing roller.
- Output voltage: : -400V ~ 800V DC °æ 50V(Use ZENER, DEV gear)
- Error: 1. If SUP is GND, a density is dramatically going down.
2. If SUP is floating due to instable contacting point of terminal, and etc., a density is significantly going down as much as it cannot be recognized with eyes.
Service Manual
Samsung Electronics
4-17
S U M M A RY OF PRO D U C T
4.5.2 SMPS(Switching Mode Power Supply)
It is the power source for the whole system. It is an independent module, so it is possible to use for common use. It is mounted at the bottom of the set.
It is consisted of the SMPS part, which supplies the DC power for driving the system, and the AC heater
control part, which supplies the power to fuser. SMPS has three outputting channels (3.3V, +5V and +24V).
There are three kinds of power, 120V exclusive (America), 220V exclusive (Europe), and 220V for china
(nations with instable power supply).
1) AC Input
- Inputting rated voltage : AC 220V ~ 240V AC 120V / AC 220V
- Inputting voltage fluctuating range : AC 198V ~ 264V AC 90V ~ 135V / AC 198V ~ 264V
- Rated frequency : 50/60 Hz
- Frequency fluctuating range : 47 ~ 63 Hz
- Inputting voltage : Under 4.0Arms/2.0Arms
(The state when lamp is off or rated voltage is inputted/outputted)
2) Rated Power Output
NO
1
2
Item
Channel name
CONNECTOR PIN
3
Rated outputting voltage
4
5
6
7
8
9
Maximum outputting voltage
Peak loading voltage
Ripple noise voltage
Maximum output
Peak output
Uses
CH1
+3.3V
CON 3
3.3V PIN: 3, 4
GND PIN: 5, 6
3.3V ± 5%
(3.2 ~ 3.4V)
1.0 A
1.5 A
100mVp-p
3.3W
4.95W
Logic part
CH2
+5V
CON3
5V PIN : 8
GND PIN: 7
+5V ± 5%
(4.75 ~ 5.25V)
0.14A
0.14A
100mVp-p
0.35W
0.7W
LSU LD
CH3
+24.0V
CON 3
24V PIN: 11, 12, 13
GND : 9. 10
+24V ± 10%
(21.6 ~ 26.4V)
2.0 A
2.0 A
500mVp-p
48W
60W
Main Motor
HVPS
Solenoid
Fan
Remark
1ms
1ms
3) Consumption Power
NO
1
2
3
Item
Stand-By
PRINTING
Sleep-Mode
CH1
(+3.3V)
1.0 A
1.0 A
0.8A
CH2
(+5V)
0.07A
0.14A
0.01A
CH3
(+24V)
0.4 A
2.0 A
0.4A
System
AVG : 55 Wh
AVG : 250 Wh
AVG : 10 Wh
4) Length of Power Cord : 1830 ± 50mm
5) Power Switch : Use
4-18
Training Manual
Samsung Electronics
S U M M A RY OF PRO D U C T
6) Feature
-
Insulating resistance : over 50MΩ (at DC500V)
Insulating revisiting pressure : Must be no problem within 1min. (at 1500Vzc, 10mA)
Leaking voltage : under 3.5mA
Running voltage : under 40A peak (at 25°c, Cold start) Under 60A peak (in other conditions)
Rising Time : Within 2Sec
Falling Time : Over 20ms
Surge : Ring Wave 6KV-500A (Normal, Common)
7) Environment Condition
-
Operating temperature range : 0°c ~ 40°c
Maintaining temperature range : -25°c ~ 85°c
Maintaining humid range : 30% ~ 90% RH
Operating atmospheric pressure range : 1
8) EMI Requirement : CISPR ,FCC, CE, MIC, C-Tick,
9) Safty Requrement
- IEC950 UL1950, CSA950, C-UL,NOM,TUV,Semko,Nemko,iK,CB, CCC(CCIB),GOST, EPA,
4.5.3 Fuser AC Power Control
Fuser (HEAT LAMP) gets heat from AC power. The AC power controls the switch with the Triac, a semiconductor switch. The 'On/Off control' is operated when the gate of the Triac is turned on/off by Photo triac (insulting part).
In the other words, the AC control part is passive circuit, so it turns the heater on/off with taking signal from
engine control part.
When the 'HEATER ON' signal is turned on at engine, the LED of PC1 (Photo Triac) takes the voltage and
flashes. From the blinking light, the Triac part (light receiving part) takes the voltage, and the voltage is supplied to the gate of Triac and flows into the Triac. As a result, the AC current flows in the heat lamp, and heat
is occurred.
On the other hand, when the signal is off, the PC1 is off, the voltage is cut off at the gate of Triac, the Triac
becomes off, and then the heat lamp is turned off.
1) Triac (THY1) feature
- 12A,600V SWITCHING
2) Phototriac Coupler (PC3)
- Turn On If Current : 15mA ~ 50mA(Design: 16mA)
- High Repetive Peak Off State Voltage : Min 600V
Service Manual
Samsung Electronics
4-19
S U M M A RY OF PRO D U C T
4.6 Engine F/W
4.6.1 Feeding
If feeding from a cassette, the drive of the pickup roller is controlled by controlling the solenoid. The on/off
of the solenoid is controlled by controlling the general output port or the external output port. If feeding
from a manual feeder, decide to insert the paper according to the operation of the manual sensor, and by
driving the main motor, insert the paper in front of the feed sensor. While paper moves, occurrence of jam
is judged as below. (Refer to the [6.2 Paper Transfer rout])
4.6.1.1 Jam 0
• After picking up, paper cannot entered due to paper didn’t feed.
• After picking up, paper entered but it cannot reach to the feed sensor in certain time due to slip, etc.
• After picking up, if the feed sensor is not on, repack up. After repacking up, if the feed sensor is not on
after certain time, it is Jam 0.
- It is a status that the leading edge of the paper doesn’t pass the feed sensor.
• Even though the paper reaches to the feed sensor, the feed sensor doesn’t be on.
- It is a status that the leading edge of the paper already passes the feed sensor.
4.6.1.2 Jam 1
• After the leading edge of the paper passes the feed sensor, the tailing edge of the paper cannot pass the
feed sensor after certain time. (The feed sensor cannot be Off)
• After the leading edge of the paper passes the feed sensor, the paper cannot reach the exit sensor after
certain time. (The exit sensor cannot be On)
- The paper exists between the feed sensor and the exit sensor.
4.6.1.3 Jam 2
• After the tailing edge of the paper passes the feed sensor, the paper cannot pass the exit sensor after
certain time.
4.6.2 Drive
By gearing, the main motor drives the rollers such as feeding roller, developing roller, fuser roller, and distributing roller. The step motor is controlled for the sections, acceleration section and fixed speed section.
In the initial stage of the motor run, appoint the acceleration section to prevent the isolation of the motor. It
is controlled by the A3977 motor driver IC. The step signal and the enable signal are sent to make the
phase for driving the motor in CPU.
4.6.3 Transfer
The charging voltage, developing voltage and the transfer voltage are controller by PWM (Pulse Width
Modulation). The each output voltage is changeable due to the PWM duty. The transfer voltage admitted
when the paper passes the transfer roller is decided by environment recognition. The resistance value of
the transfer roller is changed due to the surrounding environment or the environment of the set, and the
voltage value, which changes due to the environments, is changed through AD converter. The voltage
value for impressing to the transfer roller is decided by the changed value.
4-20
Service Manual
Samsung Electronics
S U M M A RY OF PRO D U C T
4.6.4 Fusing
The temperature change of the heat roller’s surface is changed to the resistance value through the thermistor. By converting the voltage value, which impressed to the resistance, to the digital value through the AD
converter, the temperature is decided. The AC power is controlled by comparing the target temperature to
the value from the thermistor. If the value from the thermistor is out of the controlling range while controlling
the fusing, the error stated in the table occurs. (For the domestic model, the Q-PID method has been
applied.)
4.6.4.1 Heat Lamp Method
Error
Open heat error
Description
When warming up, it has been lower
than 68°C over 28 seconds
DCU
LED Displat
60 All LED are blinking.
Lower heat error
• Standby:
It has been lower than 80°C over 10 seconds
• Printing:
- 2 consecutive pages: it has been lower than
145°C over 4 seconds.
- 3 consecutive page; it has been 25°C lower
than the fixed fusing temperature over 4 seconds.
62
All LED are blinking
Over heat error
It have been higher than 220°C over 3 seconds
68
All LED are blinking
4.6.4.2 Q-PID Method
Error
Open heat error
Description
When preheating, it has been lower than 68°C
over 15 seconds.
DCU
LED Displat
60 All LED are blinking
Lower heat error
• After finishing the preheating stage,
it has not reached 100°C (preheating stop
temperature) during 15 seconds since the
temperature is over 68°C.
• Printing
1) When the main motor is on and after 0.92
second, it has not reached the 160°C
during 20 seconds.
2) From the 2 consecutive pages, it has been
20°C lower than the fusing temperature
over 4 seconds.
62
All LED are blinking
Over heat error
• the error is not displayed immediately when
it has been over 220°C over 3 seconds.
The temperature after the 3 seconds is checked.
If it is over 240°C, it is error.
• If the temperature has been higher than 220°C
over 25 seconds, it is an error even through the
temperature doesn’t reach 240°C.
68
All LED are blinking
Service Manual
Samsung Electronics
4-21
S U M M A RY OF PRO D U C T
4.6.4.3 What is the Q-PID Method?
The Q-PID is developed by Samsung, and it saves the preheating time in half in comparison with the existed
method. It saves not only the printing time for initial print but also it saves the printing speed for the reattempting print after for a while.
Air Layer
Holgen Lamp
Toner
Paper
Toner
Pressure Roller
• After heating the air layer, transfer the heat to the
surface
• It takes long time to heat it until it reaches the
proper temperature.
• The high temperature is needed when it is standby status.
Heat Pipe
Heating Wire
Paper
Pressure Roller
• The heat conductivity of the heat pipe is
100~150 times higher than cooper’s.
• It is possible to raise the temperature in an
instant
• It saves the dissipation of power in the standby
status due to high accumulation of heat.
4.6.5 LSU
The LSU is consisted of the LD (Laser Diode) and the polygon motor control. When the printing signal occurs,
it turns the LD and drives the polygon motor. When the receiving light part detects the beam, Hsync occurs.
When the polygon motor speed becomes a normal, LReady occurs. If two conditions are satisfied, the status bit of the LSU controller register becomes 1 to be judged that the LSU is ready. If two conditions are not
satisfied, the error shown in below occurs.
Error
Polygon motor error
Description
When the polygon motor’s speed doesn’t
become a normal
Hsync error
The polygon motor’s speed is normal,
but the Hsync signal is not created.
4-22
DCU
95
96
Service Manual
Samsung Electronics
Disassembly and Reassembly
5
5. Disassembly and Reassembly
5.1 General Precautions on Disassembly
When you disassemble and reassemble components, you must use extreme caution. The close
proximity of cables to moving parts makes proper
routing a must.
If components are removed, any cables disturbed
by the procedure must be restored as close as
possible to their original positions. Before removing any component from the machine, note the
cable routing that will be affected.
Releasing Plastic Latches
Many of the parts are held in place with plastic
latches. The latches break easily; release them
carefully.
To remove such parts, press the hook end of the
latch away from the part to which it is latched.
Whenever servicing the machine, you
must perform as follows:
1. Check to verify that documents are not stored
in memory.
2. Be sure to remove the toner cartridge before
you disassemble parts.
3. Unplug the power cord.
4. Use a flat and clean surface.
5. Replace only with authorized components.
6. Do not force plastic-material components.
7. Make sure all components are in their proper
position.
Service Manual
Samsung Electronics
5-1
Disassembly and Reassembly
5.2 Top Cover
1. Pull the Cassette out of the printer.
4. Unlatch the front ends of the Top Cover.
Cassette
2. Remove the Front Cover in the direction of
arrow.
5. Remove the Top Cover in the direction of arrow.
Top Cover
Front Cover
3. Remove four screws.
6. Remove the Rear Cover from the Top Cover.
Rear Cover
5-2
Service Manual
Samsung Electronics
Disassembly and Reassembly
5.3 Fuser
5.3.1 Fuser(Heat Lamp Type)
1. Before you remove the Fuser, you should
remove:
- Top Cover(see page 5-2)
5. Remove one screw and take the Idle Gear out.
Idle Gear
2. Unplug two connectors(Block) from the boards,
then remove four screws.
Fuser Ass'y
6. Remove four screws and divide the Fuser into
two parts
Fuser Cover
3. Remove two screws and take the Thermostat
out of the Fuser.
Thermostat
4. Remove two screws and take the Halogen
Lamp out of the Heat Roller.
7. Remove the Thermister from the Fuser Cover.
Heat Roller
Thermister
Halogen Lamp
Service Manual
Samsung Electronics
5-3
Disassembly and Reassembly
5.3.2 Fuser(Q-PID Type)
1. Before you remove the Fuser, you should
remove:
- Top Cover(see page 5-2)
4. Remove two screws.
2. Unplug two connectors(Block) from the boards,
then remove four screws.
Fuser Ass’y
5. Remove one screw and take the Idle Gear out.
Idle Gear
3. Remove two screws and take the Thermostat
out of the Fuser.
Thermostat
5-4
Service Manual
Samsung Electronics
Disassembly and Reassembly
6. Separate Heat Roller Ass'y after remove six
screws and after removing 6 screws as shown
in below, take out the heat roller assembly in
direction of the arrow while pulling the both side
of the unit-brush
7. Unplug Thermister Harness from the Fuser
cover.
Thermister Harness
Fuser Cover
Unit-Brush
Heat Roller
8. Remove one screw and separate Thermister
from the inter connector Fuser Cover.
Caution : • Be careful not to damage or contaminate the surface of the roller when assembling/disassembling
the heat roller.
• Additional state: Be careful especially not to damage the covering of the fusing assembly.
(If the cover is damaged, it could cause an electric
leakage.)
Thermister
Service Manual
Samsung Electronics
5-5
Disassembly and Reassembly
5.4 Exit Roller
1. Before you remove the Fuser, you should
remove:
- Top Cover(see page 5-2)
Exit Gear
Bearing
Exit Roller
2.Remove the Exit Gear, Bearing and Exit Roller
as shown below
1
2
5.5 LSU
1. Before you remove the Fuser, you should
remove:
- Top Cover(see page 5-2)
4. Unplug two connector from the LSU
2. Remove two screws and unplug one connector
from the Frame.
5. Unplug four screws and take the LSU out.
LSU
3. Remove the LED PBA Ass’y as shown below.
LED PBA Cover
5-6
Service Manual
Samsung Electronics
Disassembly and Reassembly
5.6 Fan
1. Before you remove the Fuser, you should
remove:
- Top Cover(see page 5-2)
2. Unplug the connector from the SMPS and
remove the one screw. Then take out the Fan.
DC Fan
5.7 Driver Ass’y
1. Before you remove the Fuser, you should
remove:
- Top Cover(see page 5-2)
3. Unplug one connector from the Driver Ass’y
Drive Ass'y
2. Remove the six screws from the Drive Ass’y.
Service Manual
Samsung Electronics
5-7
Disassembly and Reassembly
5.8 Engine Shield Ass’y
1. Before you remove the Fuser, you should
remove:
- Top Cover(see page 5-2)
- Fuser Connector(see page 5-3)
2. Remove the fourteen screws securing from the
Engine Shield Ass’y and unplug the all connectors. Then take the Engine Shield Ass’y.
Engine Shield
Ass'y
5.9 Main PBA
1. Before you remove the Fuser, you should
remove:
- Top Cover(see page 5-2)
- Engine Shield Ass’y(see page 5-8)
Main PBA
2. Unplug one connector and remove five screws
from the Main PBA. Then lift the Main PBA out,
as shown below.
5-8
Service Manual
Samsung Electronics
Disassembly and Reassembly
5.10 SMPS
1. Before you remove the Fuser, you should
remove:
- Top Cover(see page 5-2)
- Engine Shield Ass’y(see page 5-8)
3. Remove one screw and unplug one connector
from the Main PBA.
2. Unplug one connector and remove three screws
then take the Inlet Ass’y out.
Inlet Bracket
4. Remove three screws and take The SMPS out.
SMPS
Service Manual
Samsung Electronics
5-9
Disassembly and Reassembly
5.11 Transfer Roller
1. Before you remove the Fuser, you should
remove:
- Top Cover(see page 5-2)
- LSU(see page 5-6)
3. Unplug the PTL Holder Connector, then remove
the PTL Holder and PTL Lens, as shown below.
PTL
Holder
PTL
Lens
2. Remove three screws and take the Transfer
Earth out.
Transfer
Earth
4. Unlatch the Bush and remove it. Then lift the
Transfer Roller out, as shown below.
Transfer
Roller
Bush
5-10
Service Manual
Samsung Electronics
Disassembly and Reassembly
5.12 Feed Roller
1. Before you remove the Fuser, you should
remove:
- Top Cover(see page 5-2)
- Drive Ass’y(see page 5-7)
5. Remove the Idle Gear and Feed Gear2.
Feed Gear2
2. Remove two screws from the Guide Paper and
take it out.
Guide paper
Idle Gear
6. Remove the Feed Gear 1 Ass’y, as shown
below.
3. Pull up the Feed Idle Bush and Feed Idle Shaft,
as shown below.
Feed Gear1
Ass'y
Feed Idle
Shaft
Bush
7. Remove the Feed Roller and Feed Roller 1, as
shown below.
4. Remove three screws from the Feed Bracket
and take it out.
Feed Roller
Feed Bracket
Feed Roller1
Service Manual
Samsung Electronics
5-11
Disassembly and Reassembly
5.13 Pick Up Roller & Solenoid
1. Before you remove the Fuser, you should
remove:
- Top Cover(see page 5-2)
- Drive Ass’y(see page 5-7)
- Engine Shield Ass’y(see page 5-8)
4. Remove the Pick up Ass’y, as shown below.
2. Remove three screws from the Feed Bracket
and take it out.
Feed Bracket
Bush
1
2
Pick up Ass'y
5. Remove two screw then remove The Manual
Solenoid and Pick Up Solenoid.
3. Remove the Pick up Gear Ass’y, as shown
below.
Pick up Gear
Ass'y
(Pick up)
Solenoid
(Manual)
Solenoid
5-12
Service Manual
Samsung Electronics
ALIGNMENT & A D J U S T M E N T S
6
6. Alignment and Adjustments
This chapter describes the main functions for service, such as the product maintenance method,
the test output related to maintenance and repair, DCU using method, Jam removing method, and
so on. It includes the contents of manual.
6.1 How to use DCU
6.1.1 DCU Setup
You can examine the malfunction of the printer. To perform DCU, open the front discharge cover and leave
the connect the harness wire(10 pin/4 pin) to the CN3(ML-1750) or CN2(ML-1710/1510) of the Main control
board.
ML SERIES DIAGNOSTIC CONTROL UNIT
04 DEV 300
DEV 350
DEV 350
05 LSU READY
LSU MT & LD
LSU MOTOR
07 PAPER EMPTY
PAPER WIDTH
NEW CRU
08
EXIT SENSOR
FEED SENSOR
SELF
TEST
09 COVER OPEN
STATUS
10 COER HEATING PRINTING TEMP READY HEAT
DIAGNOSTIC
OFF
ON
DIAGNOSTIC CODE
00
01
02
03
04
05
06
07
08
09
10
11
MAIN MOTOR OPERATING SYSTEM
MAIN HIGH-VOLTAGE ON
TRNSFER HIGH-VOLTAGE (-)ON
THV(+) REFERANCE VOLTAGE
DEV/SUPPLY HIGH-VOLTAGE ON/PTL ON
LSU OPERATING SYSTEM
PICKUP CLUTCH ON
PEEMPTY/PWITH/NEW CRU TEST
FEED & EXIT SENSOR TEST
COVER OPEN SENSOR TEST
FUSER TEST
HOT BURN TEST
12
CLEAN MODE PRINT
13
THV(+)TRIGGER, ALL HV & FAN ON
14
THV(+) REFERENCE ON
STATUS CODE
61
WARM UP
00
01
02
03
04
READY
READY
READY
READY
READY
20
30
40
50
PRINT START
FEED SENSOR ON
FEED SENSOR OFF
PAPER OUT
69
SLEEP MODE
(REGAL)
(LETTER)
(A4)
(EXECUTIVE)
(B5)
ERROR STATUS CODE
60
62
68
64
70
71
72
73
95
DIAGNOSTIC
MODE
DOWN
UP
OPEN FUSER ERROR
LOW TEMPERATURE ERROR
OVER HEATING ERROR
COVER OPEN ERROR
NO PAPERR
PAPER JAM 0
PAPER JAM 1
PAPER JAM 2
LSU NOT READY
SHIFT
STOP
ENTER
TO ENTER DIAGNOSTIC MODE, PUSH THREE BUTTONS SIMUL ANEOUSL
AND TURN THE PRINTER POWER ON.
Service Manual
Samsung Electronics
6-1
ALIGNMENT & A D J U S T M E N T S
6.1.2 Code
Connect DCU to the printer and turn the power on. It show 7 Segment FND on the panel and each code
tells the function of the printer.
1) Normal Code
While printing or warming up, it indicate the position of the paper
Code
State
61
00~05
Warm up
Ready(kind of paper)
20, 21, 22
Print Start
30
40
50
69
Feed Sensor On
Feed Sensor off
Paper Out
Sleep Mode
Description
The printer is on, the cover is open or close.
The printer is ready, the paper is detected when the first paper is printed.
00: Legal ,01: Letter ,02: A4 ,03: EXEC ,04: B5 ,05: Folio, 06: A5/A6
The engine controller received the print order from the video controller.
20: 1st, 21: MP, 22: SCF
The paper is passing out of the Feed Sensor.
The paper has passed out of the Feed Sensor.
The paper has passed out of Exit Sensor.
The fuser power turned off to minimize the power consumption.
2) Error Code
When detecting the malfunction, the printing is stopped to indicate error code.
Code
State
60, 62, 68
Fuser Error
64
65
70
71
72
Cover Open
CRU Error
No Paper
Paper Jam 0
Paper Jam 1
73
Paper Jam 2
76
95
Out Bin Full
LSU Not Ready
6-2
Description
The error in the fuser occurred. There is a short circuit in the thermistor
and the thermostat while printing, Low Temperature Error occurs.
• 60: Open Fuser Error
• 62: Low Heat Error
• 68: Over Heat Error
The Printer Cover is open.
The Toner Cartridge not installed,
No paper in the paper cassette.
The front part of paper is jammed between pickup unit and Feed sensor.
The front part of paper is jammed between the Discharge sensor and
Feed sensor.
The front part of paper is jammed just after passing through the discharge
sensor.
The Out bin is filled with paper.
LSU Scanner Motor not ready or Hsync signal not output.
Service Manual
Samsung Electronics
ALIGNMENT & A D J U S T M E N T S
6.1.3 Self Diagnostic Mode
If Error code occurs due to malfunction of the printer, perform Self Diagnostic Mode to solve the problem.
The printer works only in the self-test mode to solve the malfunction problem.
To enter the self-test mode, turn the power on pressing the buttons of [Down], [Shift] and [Stop] at the same
time.
Release the button within 2 or 3 seconds if 78 shows in the DCU. If 00 shows in the DCU, press the button
[Up] or [Shift] to select the self+test , and press the button of [Enter] to operate. To stop, press the button of
[shift] and [Enter] together.
Code
Description
00
Main Motor Operating System
Only the main motor is in operation.
01
Main High Voltage On(THV-)
-1400 voltage output by MHV terminal.
Caution : High voltage probe should be used.
02
Transfer High Voltage(-)On(THV-)
-1000 voltage output by MHV terminal.
Caution : High voltage probe should be used.
03
Transfer High Voltage (+)Reference on (THV +)
+800 voltage output by MHV terminal.
Caution : High voltage probe should be used.
04
DEV/supply High Voltage : DEV/Supply High Voltage Test.
The left one of the three LEDs in the self-test panel is on when DEV high voltage Supply
high voltage output by each HV terminal(-500V). Press the [Up] button to switch the voltage. The middle and right one of the three LEDs are on and -650 voltage output by DEV
HV terminal.
Caution : High voltage probe should be used.
05
LSU Operating System
The scanning motor of LSU is in operation, the right LED of the three buttons on. Press
the [Up] button to Check LD. LD is functioning and the middle button is on. If the LD is
normal, all LEDs are on.
06
Pickup clutch on
The Solenoid in the printer is in operation. To stop the operation, Press the button [shift]
and [Enter] together.
Service Manual
Samsung Electronics
6-3
ALIGNMENT & A D J U S T M E N T S
Code
6-4
Description
07
Paper Empty Sensor Test :
If activate the Actuator of the PEMPTY Sensor, the left and right of the three LEDs are
on.
Paper Empty Sensor ON/OFF
1st LED ON/OFF
08
Feed & Exit Sensor Test
Test the Feed sensor and Discharge sensor in the same way as '07'.
Feed Sensor ON/OFF
2nd LED ON/OFF
Exit Sensor ON/OFF
3rd LED ON/OFF
09
Cover Open Sensor Test
Test the Cover Open Sensor in th same way as code '07’
Cover Open Sensor ON/OFF
1st LED ON/OFF
10
Fuser Test
If the [Enter] button pressed, the right LED is on and temperature of the fuser is up to
READY Mode. If the [Up] button pressed, the middle LED is on and temperature of the
fuser is up to Printing Mode.
If you press the button once more, the left LED is on and temperature of the fuser is up
to overheat Mode.
11
Hot Burn Test
If the [enter] button pressed, the printer is continuously printing without detection.
Turn the power off to stop operation.
12
Cleaning Mode Print Mode
Print the paper to clean the OPC Drum in the Cartridge.
13
THV(+) TRIGGER. ALL HV :
All high voltage output by each HV terminal and LSU and the fan is in operation. In this
mode, electronic resistance of transfer roller and high voltage is detected.
14
PTL Test :
Indicates the function of the PTL, same method of the code ‘07’.
15
Fan Test :
Indicates the function of the Fan, same method of the code ‘07’.
16
Manual Pickup Test :
Indicates the function of th Manual Pickup, same method of the code ‘07’.
17
Manual Sensor Test :
Indicates the function of the Manual Sensor, same method of the code ‘07’.
Service Manual
Samsung Electronics
ALIGNMENT & A D J U S T M E N T S
No.
Function
Enter
00
Motor
Motor Run
Motor Stop
01
MHV
Mhv On
Mhv Off
02
THV(-)
Thv Negative On
Thv Negative Off
03
THV(+)
Thv On
Thv Off
04
DEV
Dev On
05
LSU
LSU Run
06
Pic kUp
Pickup On
07
PEmpty
08
Sensor
09
Cover
10
Fus er
Fuser On
11
HotBur n
HotBurn On
12
Clean Print
Clean Printing
13
Up/Down
Stop
Supply
DEV
0 : -630V
0 : -430V
On
Off
Ready
Remar k
-1550V
+1300V
Dev Off
LSU Stop
Pickup Off
Paper Empty
Ex it
Feed
Cover Open
Fuser Off
Thv
low
Refer ence
adequate
high
14
PTL
PTL On
PTL Off
15
FAN
Fan On
Fan Off
Manual Pickup On
Manual Pickup Off
16
Manual
Pic kUp
Manual
17
Sensor
Manual Sensor
6.1.4 Self Test Button
If the Self-Test button pressed, vertical lines are printed.
Turn the power on while pressing this button, '89' shows in the DCU and the printer is warming up. After
warming-up the printer is in READY Mode, and '88' shows in the DCU. In this mode, without any detection,
the printer begins printing(trial printing and data from the PC). It is convenient to use this mode when the
engine malfunction is detected in the control board.
Service Manual
Samsung Electronics
6-5
ALIGNMENT & A D J U S T M E N T S
6.2 Paper Path
3
4
L S U
Fuser
Toner Cartridge
CR
DR
7
OPC
PR
PTL
TR
2
SR
MP Sensor
Feed
Sensor
FR
5
K /R
6
P IC
1
1
2
3
4
Paper Input (Cassette)
Paper Input (Manual Feeder)
Paper Out(Face Down)
5
6
7
Paper Empty Sensor
Paper Feeding Sensor
Paper Exit Sensor
Paper Out(Face Up)
L S U
L S U
L S U
Fuser
Fuser
Toner Cartridge
CR
Fuser
CR
OPC
PR
SR
PTL
OPC
PR
PTL
MP Sensor
Feed
Sensor
TR
FR
Toner Cartridge
OPC
PR
SR
SR
PTL
TR
MP Sensor
Feed
Sensor
FR
MP Sensor
Feed
Sensor
FR
K /R
TR
EXIT
Sensor
DR
EXIT
Sensor
DR
DR
EXIT
Sensor
CR
Toner Cartridge
K /R
K /R
P IC
P IC
Empty Sensor
<Jam0>
P IC
Empty Sensor
Empty Sensor
<Jam1>
<Jam2>
1) After taking order, the printer feeds the printing paper from the cassette or manual feeder.
2) The fad paper passes the paper feeding sensor. (Jam 0 occurs if the sensor is not operated after certain
time passes)
3) The paper passed the paper feeding sensor moves to the paper exit sensor via printing process. (Jam 1
occurs if the sensor is not operated after certain time passes)
4) The paper passed the paper exit sensor moves out from the set. (Jam 2 occurs sometime after if the tailing edge of the paper is not coming out from the set after the leading edge of paper passes the paper
exit sensor.)
6-6
Service Manual
Samsung Electronics
ALIGNMENT & A D J U S T M E N T S
6.3 Clearing Paper Jams
Occasionally, paper can be jammed during a print job. Some of causes include:
• The tray is loaded improperly or overfilled.
• The tray has been pulled out during a print job.
• The front cover has been opened during a print job.
• Paper that does not meet paper specifications has been used.
• Paper that is outside of the supported size range has been used.
If a paper jam occurs, the On Line/Error LED on the control panel lights red. Find and remove the jammed
paper. If it is invisible, look inside the printer.
Do not use a pinset or a sharp metal tool when removing a jam.
The covering of a metal part can be removed which can cause an electric leakage.
6.3.1 In the Paper Exit Area (JAM2)
1) If the paper jams as it exits to the output tray and a
long portion of the paper is visible, pull the paper
straight out.
When you pull the jammed paper, if there is resistance and the paper does not move immediately, stop
pulling. Continue with the next step.
2) Open the rear output tray.
3) Loosen the paper if it is caught in the feed rollers.
Then pull the paper gently out.
Note: Please be careful when you open the rear cover.
The inside of the printer is still hot.
4) Close the rear output tray. Open and close the front
cover. Printing can be resumed.
Service Manual
Samsung Electronics
6-7
ALIGNMENT & A D J U S T M E N T S
6.3.2 In the Paper Feed Area (JAM0)
1) Slide out the tray to expose the jammed paper.
2) Remove any missfeed paper by pulling it out by the visible edge from the tray. Make sure that all of the paper is
properly aligned in the tray.
3) Slide the tray back into the printer. Open and close the
front cover. Printing can be resumed.
6.3.3 Around the Toner Cartridge (JAM1)
1) Open the front cover and remove the toner cartridge
2) Gently pull the paper toward you.
3) Check that there is no other paper in the printer.
4) Reinstall the toner cartridge, and then close the cover.
Printing can be resumed.
6-8
Service Manual
Samsung Electronics
ALIGNMENT & A D J U S T M E N T S
6.3.4 Tips for Avoiding Paper Jams
By selecting the correct paper types, most paper jams can be avoided. If a paper jam occurs, follow the
steps outlined in
• Ensure that the adjustable guides are positioned correctly.
• Do not overload the tray. Ensure that the paper is below the paper capacity mark on the right inside of
the tray.
• Do not remove the paper from the tray while printing.
• Flex, fan and straighten the paper before loading.
• Do not use creased, damp or highly curled paper.
• Do not mix paper types in the input tray.
• Use only recommended print media.
• Ensure that the recommended print side is facing down when loading paper into the input tray.
Service Manual
Samsung Electronics
6-9
ALIGNMENT & A D J U S T M E N T S
6.4 Sample Pattern
This product has the several sample patterns for maintenance. With the sample patterns, check the existence of the abnormality. The patterns help to regularly maintain the product.
6.4.1 Printing a Demo Page
Print a demo page or a configuration sheet to make sure that the printer is operating correctly.
1) Hold down the Cancel button for about 2 seconds to print a demo page.
Hold down the Cancel button for about 6 seconds to print a configuration sheet.
2) The Demo page or the configuration sheet shows the printer’s current configuration.
<Demo Page : ML-1710>
6-10
<Demo Page : ML-1750>
Service Manual
Samsung Electronics
ALIGNMENT & A D J U S T M E N T S
<System Data List : PCL Model Only>
6.4.2 Printing a cleaning sheet
If you are experiencing blurred, faded or smeared printouts. Printing a cleaning sheet cleans the drum
inside the toner cartridge. This process will produce a page with toner debris, which should be discarded.
1) Ensure that the printer is turned on and in the Ready mode with paper loaded in the tray.
2) Press and hold down the Cancel button on the control panel for about 10 seconds.
3) Your printer automatically picks up a sheet of paper from the tray and prints out a cleaning sheet with
dust or toner particles on it.
Note: The cartridge cleaning process takes some time. To stop printing, turn the power off.
Service Manual
Samsung Electronics
6-11
ALIGNMENT & A D J U S T M E N T S
6.5 Consumables and Replacement Parts
The cycle period outlined below is a general guideline for maintenance.
The example list is for an average usage of 50 transmitted and received documents per day.
Environmental conditions and actual use will vary these factors.
The cycle period given below is for reference only.
COMPONENT
REPLACEMENT CYCLE
Pick-up Roller
60,000 Pages
Paepr Feeding Roller(Friction Pad)
60,000 Pages
Transfer Roller
60,000 Pages
Fuser
60,000 Pages
Toner Cartridge
3,000 Pages
6.6 The LED Status Display by Each Error
ERROR
Open Fuser Error
LED Status
The [Error] LED (red) and the [Toner Save] LED are simultaneously
DCU CODE
60
flashing every one-second.
Over Heat Error
The [Error] LED (orange) and the [Toner Save] LED are
68
simultaneously flashing every one-second.
Low Heat Error
The [Error] LED (red) and the [Toner Save] LED are simultaneously
62
flashing every 4 seconds.
LSU not Ready Error
The [Error] LED (green) and the [Toner Save] LED are
(Pmotor Error)
simultaneously flashing every one-second.
LSU Not Ready Error
The printing is stop in the fad status, and the [Error] LED (green) and
(HSYNC Error)
the [Toner Save] LED are simultaneously flashing every 4 seconds.
6-12
95
96
Service Manual
Samsung Electronics
ALIGNMENT & A D J U S T M E N T S
6.7 Periodic Defective Image
If the delinquent image regularly occurs in the printed-paper, it is due to delinquent or damaged roller.
Refer to the table in below and check the condition of the roller.
No
Roller
Defective image
Typical defect
1
OPC Drum
75.5mm
white spot on black image or black spot
2
Charge Roller
37.7mm
black spot
3
Supply Roller
37.0mm
light or dark horizontal image band
4
Developing Roller
35.3mm
horizontal image band
5
Transfer Roller
45.3mm
image ghost
6
Heat Roller
64.1mm
Black spot and image ghost
7
Pressure Roller
75.5mm
black spot on the backside
L S U
Fuser
Toner Cartridge
2
6
1
7
5
L S U
Fuser
Toner Cartridge
CR
DR
PR
OPC
SR
PTL
MP Sensor
FR
K /R
TR
P IC
1
2
3
4
4
PTL
OPC Drum
Charge Roller
Supply Roller
3
MP Sensor
5
6
7
Tramsfer Roller
Heat Roller
Pressure Roller
Developing Roller
<Rollers Layout>
Service Manual
Samsung Electronics
6-13
ALIGNMENT & A D J U S T M E N T S
6-14
Service Manual
Samsung Electronics
T RO U B L E S H O OT I N G
7
7. Troubleshooting
7.1 Bad image
7.1.1 Vertical Black Line and Band
• Description
1. Straight thin black vertical line occurs in the printing.
2. Dark black vertical band occur in the printing.
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Check and Cause
Solution
1. Damaged develop roller in the Developer.
Deformed Doctor-blade or cleaningblade.
1. If causes 1 and 2 occur in the developer
cartridge, replace the developer and try to
print out.
2. Scratched surface of the discharge roller
in the developer.
2. Replace the transfer roller if occurred as
No. 3.
3. Partly depression or deformation on the
surface of the transfer roller.
7.1.2 Vertical White Line
• Description
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Digital Printer
White vertical voids in the image.
Check and Cause
Solution
1. Foreign matter stuck onto the window of
internal lenses of LSU mirror.
1. Foreign matter stuck onto the window :
Clean the LSU window with recommended cleaner(IPA) Clean the window with a
clean cotton swab.
2. Foreign matter or toner particles between
the developer roller and blade.
(In case the life of the developer has
been expired, white lines or light image
occur in front of the image.)
2. Foreign matter in the LSU : Open the
cover of LSU and clean with a cotton
swab on the surface of the reflex mirror.
3. It may occur when Burr and foreign substances are on the window of the developer frame.
3. No 3. : Remove the foreign matter and
burr of the exposure window.
(Developer cartridge)
4. If the fuser is defective, voids occur periodically at the top of a black image.
4. No. 4. : Open the front cover and check
ribs that corresponds to the position of
the voids. Remove if found.
5. If the problems are not solved, replace
the developer cartridge.
Service Manual
Samsung Electronics
7-1
T RO U B L E S H O OT I N G
7.1.3 Horizontal Black Band
• Description
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Digital Printer
1. Dark or blurry horizontal stripes occur in the printing periodically.
(They may not occur periodically.)
Check and Cause
Solution
1. Bad contacts of the voltage terminals to
developer.
1. Clean each voltage terminal of the Charge,
Supply, Develop and Transfer roller.
(remove the toner particles and paper particles)
2. The rollers of developer may be stained.
Charge roller = 37.7mm
Supply roller = 37mm
Develop roller = 35.3mm
Transfer roller = 45.3mm
2. Clean the right Gear that has relatively
small gap of the teeth in the OPC.
3. If the malfunction persists, replace the
developer.
7.1.4 Black/White Spot
• Description
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Digital Printer
1. Dark or blurry black spots occur periodically in the printing.
2. White spots occur periodically in the printing.
Check and Cause
Solution
1. If dark or blurry black spots occur periodically, the rollers in the Developer may be
contaminated with foreign matte or paper
particles.
( Charge roller : 37.7 mm interval
OPC drum : 75.5 mm interval)
1. Run OPC cleaning Mode Print and run the
Self-test 2 or 3 times.
2. If faded areas or voids occur in a black
image at intervals of 75.5 mm, or black
spots occur elsewhere, the OPC drum
surface is damaged.
2. In case of 75.5 mm interval unremovable in
1, cleanly remove foreign substances stuck
on the OPC location equivalent to black
spots and white spots with a dry duster.
3. If a black image is partially broken, the
transfer voltage is abnormal or the transfer roller's life has expired.
3. The transfer roller guarantees 60.000
sheets printing. If the roller's life is expired,
replace it.
4. In case of 37.7 mm interval unremovable in
1, take measures as to replace the developer cartridge and try to print out.
5. Clean the inside of the set against the paper
particles and foreign matter in order not to
cause the trouble.
7-2
Service Manual
Samsung Electronics
T RO U B L E S H O OT I N G
7.1.5 Light Image
• Description
The printed image is light, with no ghost.
Check and Cause
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Solution
1. Develop roller is stained when the toner
of developer cartridge is almost consumed.
1. Check if the Toner Save mode is off.
2. Ambient temperature is below than 10°C.
2. Replace the developer cartridge and try to
print out.
3. Bad contact caused by the toner stains
between the high voltage terminal in the
HVPS and the one in the set.
3. Wait 30 minutes after printer is powered on
before you start printing.
4. Abnormal output from the HVPS.
4. Clean up the contaminated area by the
toner.
5. Replace the HVPS if the problems are not
solved by the above four directions.
7.1.6 Dark Image or a Black
• Description
The printed image is dark.
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Check and Cause
Solution
1. No charge voltage in the engine board.
( Perform DCU diagnostic code 01)
1. Clean the high voltage charge terminal.
2. Charge voltage is not turned on due to
the bad contacts between power supply
in the side of the Developer and charge
terminal of HVPS.
2. Check the state of the connector which
connects the engine board and HVPS.
3. Replace the HVPS if not solved by the
above direction 1 and 2.
Service Manual
Samsung Electronics
7-3
T RO U B L E S H O OT I N G
7.1.7 Uneven Density
• Description
Print density is uneven between left and right.
Check and Cause
Solution
1. The pressure force on the left and right
springs of the transfer roller is not even,
the springs are damaged, the transfer
roller is improperly installed, or the transfer roller bushing or holder is damaged.
1. Replace both the left and right Spring
Holder.
2. The toner level is not even on the developer roller due to the bad blade.
2. Occur in the developer cartridge, replace
the developer and try to print out.
7.1.8 Background
• Description
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Digital Printer
7-4
Light dark background appears in whole area of the printing.
Check and Cause
Solution
1. Does character exist less than 2%
per a page, and hasn’t it been used
long time?
1. The toner cartridge is basically
designed to print 3,000 sheets with
5% image. If it prints more than
3,000 sheets (around 5,000 sheets)
with 2% image, a background can be
occurred.
2. Does recycle paper be used?
2. The B/S is not guaranteed if using
recycle paper.
3. Has the life span of the developer
ended?
3. Replace the developer when the life
span of it has been ended.
4. Is the movement(Up and Down) of
the transfer roller smooth?
4. Clean the bushing part of the transfer
roller.
5. Is the HVPS normal?
5. If the problem is still not solved,
replace the developer.
Service Manual
Samsung Electronics
T RO U B L E S H O OT I N G
7.1.9 Ghost (1)
• Description
75.5mm
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Ghost occurs at 75.5 mm intervals of the OPC drum in the whole printing.
Check and Cause
Solution
1. Bad contacts caused by contamination
from toner particles between high voltage
terminal in the main body and the electrode of the Developer.
1. Clean the terminals when contaminated by
toner particles.
2. Bad contacts caused by contamination
from toner particles between high voltage
terminal in the main body and the one in
the HVPS board.
2. Occur in the developer cartridge, replace
the developer and try to print out.
3. The life of developer is expired.
3. Replace the engine board if not solved by
the above directions 1-2.
4. Transfer roller lifetime(60.000 sheets) has
expired.
4. If not solved by the direction 3, check the
transfer roller lifetime and replace it.
5. Abnormal low temperature(below 10°C).
5. Wait about 1 hour after power on before
using printer.
7.1.10 Ghost (2)
• Description
75.5mm
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Ghost occurs at 75.5 mm intervals of the OPC drum in the whole printing.
(When printing on card stock or transparencies using manual feeder)
Check and Cause
Solution
When printing on card stock thicker than normal paper or transparencies such as OHP,
higher transfer voltage is required.
Select 'Thick Mode' on paper type menu from
the software application and after using returning to the original mode is recommended.
Service Manual
Samsung Electronics
7-5
T RO U B L E S H O OT I N G
7.1.11 Ghost (3)
• Description
Check and Cause
Digital
Digital Printer
Printer
Solution
1. The life of the developer may be expired.
1. Occur in the developer cartridge, replace
the developer and try to print out.
2. The abnormal voltage and bad contact of
the terminal of the supply roller
2. Check the approved voltage of the supply
roller and contact of the terminal and adjust
if necessary.
37mm
Digital
Digital Printer
Printer
Digital
Digital Printer
Printer
White ghost occurs in the black image printing at 32mm intervals.
7.1.12 Ghost (4)
• Description
Check and Cause
47mm
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Ghost occurs at 47 mm intervals.
The temperature of the fuser is maintained
high.
Solution
1. Disassemble the fuser and remove the
contaminated toner particles on the roller
and clean the foreign matter between
Thermistor and Heat roller.
(
Caution : can be deformed)
7.1.13 Satins on the Face of Page
• Description
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Digital Printer
7-6
The background on the face of the printed page is stained.
Check and Cause
Solution
1. Toner leakage due to improperly sealed
developer.
1. Replace the developer cartridge.
2. If the transfer roller is contaminated, satins
on the face of page will occur.
2. If the transfer roller is contaminated, run PC
Cleaning Mode Print 2 or 3 times.
And perform Self-Test 2 or 3 times to
remove contamination.
Service Manual
Samsung Electronics
T RO U B L E S H O OT I N G
7.1.14 Satins on Back of Page
• Description
The back of the page is stained at 47 mm intervals.
Check and Cause
Digital
Digital Pri
Digital Printer
Digital Printer
Digital Printer
Solution
1. Transfer roller is contaminated.
1. Perform the OPC Cleaning Mode Print 2 or
3 times. Run Self-Test to remove the contamination of the transfer roller.
2. Pressure roller is contaminated.
2. Replace the transfer roller if contaminated
severely.
3. Disassemble the fuser and clean the
H/R(Heat Roller) and P/R(Pressure roller).
And check the area between H/R and
Thermistor. If contaminated, clean the area
not to be deformed.
7.1.15 Blank Page Print out (1)
• Description
Blank page is printed.
Check and Cause
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Bad ground contacts in OPC and/or developer.
Solution
Remove contamination of the terminals of the
developer and the unit.
7.1.16 Blank Page Print out (2)
• Description
1. Blank page is printed.
2. One or several blank pages are printed.
3. When the printer turns on, several blank pages print.
Check and Cause
Solution
1. Bad ground contacts in OPC and/or
developer.
1. Remove contamination of the terminals of
the developer.
2. Abnormal solenoid.
2. Perform the engine self test using DCU to check
if the Solenoid is normal.(refer to code 06)
3. If not solved by the above directions 1-2,
Replace the engine board.
4. Turn the power off, delete the data of PC
and try printing again.
Service Manual
Samsung Electronics
7-7
T RO U B L E S H O OT I N G
7.2 bad discharge
7.2.1
Wrong Print Position
• Description
Printing begins at wrong position on the paper.
Check and Cause
Solution
Wrong sense time caused by defective feed sensor
actuator.
Replace the defective actuator
7.2.2 JAM 0
L S U
Fuser
Toner Cartridge
CR
DR
EXIT
Sensor
OPC
PR
SR
PTL
MP Sensor
Feed
Sensor
FR
1. Paper is not exited from the cassette.
2. Jam-0 occurs if the paper feeds into the printer.
K /R
TR
• Description
P IC
Empty Sensor
Check and Cause
Solution
1. Check the Solenoid by using DCU diagnostic mode
06.
1. Replace the solenoid.
2. Check if the pad is loose due to bad sealing of the
side-pad.
2. Replace the side-pad Assembly L or R, if necessary.
3. Check the surface of the roller-pickup for foreign matter.
3. Clean with soft cloth dampened with IPA(Isopropyl
Alcohol) or water.
4. If the paper feeds into the printer rand Jam 0 occurs,
perform DCU to check feed-sensor of the engine
board.
4. Replace the SMPS-HVPS and/or Sensor.
7-8
Service Manual
Samsung Electronics
T RO U B L E S H O OT I N G
7.2.3
JAM 1
L S U
Fuser
Toner Cartridge
CR
DR
EXIT
Sensor
OPC
PR
SR
PTL
MP Sensor
Feed
Sensor
FR
K /R
TR
P IC
Empty Sensor
• Description
1. Recording paper is jammed in front of or inside the fuser.
2. Recording paper is stuck in the discharge roller and in the
fuser just after passing through the Actuator-Feed.
Check and Cause
Solution
1. If the recording paper is jammed in front of or inside
the fuser. (Perform DCU diagnostic code 08)
1. Replace the SMPS.
2. If the recording paper is stuck in the discharge roller
and the fuser just after passing through the ActuatorFeed, Feed Actuator may be defective.
2. Reassemble the Actuator-Feed and Spring-Actuator
if the returning is bad.
7.2.4 JAM 2
L S U
• Description
Fuser
Toner Cartridge
CR
DR
EXIT
Sensor
OPC
PR
SR
PTL
MP Sensor
Feed
Sensor
FR
K /R
TR
P IC
1. Recording paper is jammed in front of or inside the fuser.
2. Recording paper is stuck in the discharge roller and in the
fuser just after passing through the Actuator-Feed.
Empty Sensor
Check and Cause
Solution
1. If the paper is completely fed out of the printer, but Jam
2 occurs : Exit sensor is defective.
• After the paper is completely discharged, actuator
Exit should return to the original position to shut the
photo-sensor. Sometimes it takes longer hour than it
should and does not return.
1. Check if the exit sensor actuator is defective.
• Check if the actuator exit is unformed (Check if the
lever part is unformed in shape).
• Check whether burrs occur in the assembly part of
the actuator exit or not and if the actuator is
smoothly operated.
• Check if foreign matters and wire get caught in the
actuator exit's operation.
2. If the paper is rolled in the Fuser Roller:
• This occurs when a Guide claw is broken away or
transformed.
• It occurs when the Spring of a Guide claw is broken
away or transformed.
• It occurs when the Heat-Roller or Pressure-Roller is
seriously contaminated with the toner.
2. If the paper is stuck in the fuser : disassemble the
fuser and remove the jammed paper, and clean the
surface of the pressure roller with dry gauze.
3. Paper is accordion in the fuser.
3. Remove the jammed paper after disassembling the
fuser : Clean the surface of the pressure roller with
dry gauze.
• Remove the toner particles stained on the rib.
• Check the assemblage and performance of the exit.
Service Manual
Samsung Electronics
7-9
T RO U B L E S H O OT I N G
7.2.5 Multi-Feeding
• Description
Multiple sheets of paper are fed at once.
Check and Cause
Solution
1. Solenoid malfunction(the solenoid does not work
properly): Perform DCU Diagnostic Code 06.
1. Replace the solenoid if necessary.
2. Pad-Friction is contaminated with foreign matter.(oil...)
2. Clean the pad friction with soft clothe dampened
with IPA(Isopropyl Alcohol).
3. The face of paper is blended.
3. Use the smooth paper.
7.2.6 Paper rolled in the Fuser
• Description
If contaminated at intervals of 57mm on the back of a paper.
Check and Cause
Solution
1. Contamination of the pressure roller or heat
roller (Background, Hot off set).
1. After disassembling the fuser, clean contamination between the heat roller and the thermostor and remove the contamination of the
pressure roller.
2. Check the claw of the fuser whether it is unfitted.
2. If there is heavy background, repair it by the
background troubleshooting method.
3. The surface of the heat roller with IPA or
water
4. Check the warp or separation of the sprint
claw and the holder plate claw, and then manage it.
7-10
Service Manual
Samsung Electronics
T RO U B L E S H O OT I N G
7.2.7
Paper rolled in the Toner Cartridge (OPC Drum)
• Description
Paper is rolled up in the OPC.
Check and Cause
Solution
1. Paper is too much thin.
1. Recommend to use normal paper.
2. The face of paper is curled.
2. How to remove the rolled in the OPC Drum.
• Remove the paper while turning the OPC
Drum against the ongoing direction.
• C;eam fomger[romts on the OPC Drum
spft;u with IPA(Isopropyl Alcohol) or tissue.
Service Manual
Samsung Electronics
7-11
T RO U B L E S H O OT I N G
7.3 Malfunction
7.3.1 All LEDs blinking (Fuser Error)
• Description
1. All the lamps on the operator panel blink.
2. Gear of the fuser does not work and breaks away melt away.
When printing, motor breaks away from its place due to defective fuser gear.
Check and Cause
Solution
1. Check if the thermostat, AC wire and Heat Lamp is
open.
1. If the thermostat is open replace the fuser and
check following items.
2. Check if the thermistor sensor is in place.
2. If the thermistor sensor device is located deep in the
sponge, replace the fuser.
3. Check if the heat lamp works properly.
3. Check if the circuit of overheat mode works properly.
4. Check if the overheat circuit works properly.
4. Run DCU mode : Perform DCU diagnostic code 10.
5. The fuser gear is defective due to melting away.
5. Replace Fuser.
7.3.2 All LEDs blinking (Scan Error)
• Description
1. All lamps on the operator panel blink.
Check and Cause
DCU Mode : Perform DCU diagnostic code 05. If the DCU
error code 95 is displayed, replace LSU.
Solution
Replace LSU.
If you cannot solve the problem after you replace LSU,
replace the main board.
7-12
Service Manual
Samsung Electronics
T RO U B L E S H O OT I N G
7.3.3 Not function of the gear of the fuser due to melting away
• Description
The motor breaks away from its place due to gear melting away.
Check and Cause
DCU Mode : Check if the Error States '60' '62' '68' occur.
Check the operation of Fuser Erasing Lamp
On/Off with the Error Code Check -10-.
Solution
1. Replace the Fuser.
2. Replace the Main Control board.
7.3.4 Paper Empty
• Description
The paper lamp on the operator panel is on even when paper is loaded in the cassette.
Check and Cause
Solution
1. Bending or deformation of the actuator of the paper sensor.
1. Replace the defective actuator.
2. The function of the engine board is defective Perform
DCU mode : Perform DCU diagnostic code 8.
2. Replace the engine board.
7.3.5 Paper Empty without indication
• Description
The paper lamp on the operator panel does not come on when the paper cassette is empty.
Check and Cause
Solution
1. Bending or deformation of the actuator of the paper sensor.
1. Replace the defective actuator.
2. The function of the engine board is defective Perform.
DCU mode : Perform DCU diagnostic code 8.
2. Replace the engine board.
Service Manual
Samsung Electronics
7-13
T RO U B L E S H O OT I N G
7.3.6 Cover Open
• Description
The ERROR lamp is on even when the print cover is closed.
Check and Cause
Solution
1. The Hook Lever in the top cover may be defective.
1. Replace the hook lever, if defective.
2. Check the connector (Engine B’d↔HVPS) and circuit of
the cover switch department in the Main Control board.
Perform DCU mode : If Error state '64' occurs, Check the
related codes of the Cover Open Error.
2. Check the insertion of the Cover Open S/W
Connect.
3. Replace the Main Control board or Cover Open
S/W.
7.3.7 No lamp on when the cover is open
• Description
The ERROR lamp does not come on even when the printer cover is open
Check and Cause
1. Check the connector(CN8) and circuit of the cover switch
department in the Main Control board. Perform DCU
mode : If Error state '64' occurs, Check the related codes
of the Cover Open Error
Solution
1. Check the insertion of the Cover Open S/W
Connect.
2. Replace the Main Control board or Cover Open
S/W.
7-14
Service Manual
Samsung Electronics
T RO U B L E S H O OT I N G
7.3.8 Defective motor operation
• Description
Main motor is not driving when printing, and paper does not feed into the printer, resulting 'Jam 0'.
Check and Cause
Solution
1. Motor harness or sub PCB may be defective.
1. Check the motor harness, replace it, if defective.
2. Perform DCU diagnostic code 00 and Check the motor
operation.
2. Replace the SMPS, if necessary.
7.3.9 No Power
• Description
When system power is turned on, all lamps on the operator panel do not come on.
Check and Cause
Solution
1. Check if the power input and SMPS output are normal.
1. Replace the power supply cord or SMPS.
2. Check the inferiority of LED-Panel on the front-cover if
the LED of Panel does not appear after normal warmingup.
2. Replace the control board.
3. Replace the LED-panel.
Service Manual
Samsung Electronics
7-15
T RO U B L E S H O OT I N G
7.3.10 Vertical Line Getting Curved
• Description
When printing, vertical line gets curved.
Check and Cause
1. If the supply of +24v is unstable in the Main Control board
linking with LSU, check drive by DCU Mode : LSU Check
-05- LSU Motor on.
Solution
1. Replace LSU.
2. Replace the Main Control board.
7-16
Service Manual
Samsung Electronics
T RO U B L E S H O OT I N G
7.4 Toner Cartridge Service
It is not guaranteed for the default caused by using other toner cartridge other than the cartridge supplied
by the Samsung Electronic or caused by non-licensed refill production.
7.4.1 Precautions on Safe-keeping of Toner Cartridge
Excessive exposure to direct light more than a few minutes may cause damage to the cartridge.
7.4.2 Service for the Life of Toner Cartridge
If the printed image is light due to the life of the toner, you can temporarily improve the print quality by
redistributing the toner(Shake the toner cartridge), however, you should replace the toner cartridge to solve
the problem thoroughly.
7.4.3 Redistributing Toner
When toner is low, faded or light areas may appear on a printed page. You may be able to temporarily
improve the print quality by redistributing the toner. The following procedures may allow you to finish the
current print job before replacing the toner cartridge.
1) Grasp the front cover and pull it toward you to
open.
2) Remove the toner cartridge from the printer
3) Gently shake the toner cartridge from side to side
five or six times to redistribute the toner.
Note :
If the toner gets on your clothing, wipe it off with a dry
cloth and wash clothing in cold water. Hot water sets
toner into fabric.
Note :
Avoid reaching too far into the printer. The fusing
area may be hot.
To prevent damage to the toner cartridge, do not
expose it to light for more than a few minutes.
4) Reinsert the toner cartridge into the printer.
Ensure that the toner cartridge snaps into place.
5) Close the front cover. Make sure that the cover is
securely closed.
1.7
Service Manual
Samsung Electronics
7-17
T RO U B L E S H O OT I N G
7.4.4 Signs and Measures at Poor toner cartridge
Fault
Light image and
partially blank
(The life is ended.)
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Signs
Cause & Check
• The printed image
is light or unclean
and untidy.
1. If the image is light or unclean
and untidy printed image Shake the developer and
then recheck.
• Some part of the
(1)NG : Check the weight of
image is not printthe developer
ed.
(2)OK : Lack of toner, so the
life is nearly closed.
• Periodically a noise 2. Some part of image is not
as "tick tick" occurs.
printed - Shake the developer and then recheck.
(1)NG : Check the weight of
the developer and
clean the LSU window
with a cotton swab,
then recheck.
(2)OK : Lack of toner, so the
life is nearly closed.
3. Periodically a noise as "tick
tick" occurs - Measure the
cycle and the weight of the
developer.
4. White vertical stripes on the
whole screen or partly :
Check the weight of the
developer.
Toner
Contamination
• Toner is fallen on
the papers periodically.
• Contaminated with
toner on prints partly or over the whole
surface.
Solution
1. All of 1, 2, 3 aboveIf it become better by shaking,
replace with a new developer
after 35.3-100 sheets in the
closing state of the life span.
2. In case of 2If it becomes better after cleaning the LSU window, then the
developer is normal.
(Because of foreign substance
on the LSU window, the image
has not been printed partly.)
3. In case of 3If the cycle of noise is about 2
seconds, the toner inside the
developer has been nearly
exhausted.( Purchase and
replace with a new developer
after using about 200 sheets at
the point of occurrence)
4. In case of 3This is a phenomenon caused
by lack of toner, so replace with
a new developer.
1. Toner is fallen on the paper
periodically.
(1)Check the cycle of the
falling of the toner.
(2)Check the appearance of
both ends of the developer
OPC drum.
1. If both ends of the OPC drum
are contaminated with toner:
Check the life of the developer.
2.The center of the printed matter is contaminated with toner.
(1)Check whether foreign substances or toner are stuck
to the terminal (contact
point) of the developer.
(2)Check whether the state of
the terminal assembly is
normal.
2. Check whether it could be recycled.
3. If it cannot be recycled:
Replace the developer.
7-18
Service Manual
Samsung Electronics
T RO U B L E S H O OT I N G
Fault
White Black spot
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Digital Printer
Signs
Cause & Check
1. If light or dark periodical black
dots occur, this is because the
developer rollers are contaminated with foreign substance
or paper particles.
• White spots occur
(1)37.7mm
interval : Charged
in the image periodroller
ically.
(2)75.5mm interval : OPC cycle
• Light or dark black
dots on the image
occur periodically.
2. If white spots occur in a black
image at intervals of 75.5mm,
or black spots occur elsewhere, the OPC drum is damaged or foreign substance is
stuck to the surface.
Recycled product
Solution
1. In case of 1 above Run OPC Cleaning Mode Print
4-5 times repeatedly to remove.
Especially check foreign substance on the OPC surface, then
remove them with a clean gauze
moistened with IPA(Isopropyl
Alcohol) not to damage OPC if
necessary.
Never use usual alcohol.
2. In case of 2
If they are not disappeared by
running OPC Cleaning Mode
Print 4-5 times.
: at intervals of 37.7mm - Replace
the developer.
: at intervals of 75.5mm - Remove
foreign substance.
: Broken image - Replace the
developer according to carelessness.
3. If a black and white or graphic
image is partially broken at
irregular intervals, the transfer
roller's life has been expired or
the transfer voltage is abnormal.
3. In case of 3 - Exchange the
transfer roller because the life of
the transfer roller in use has been
expired. (Check the transfer voltage and readjust if different.)
• Poor appearance of 1. Poor appearance of the develthe developer.
oper.
(1)Check the damage to label
• Unclean and rough
and whether different materiprintouts.
als are used.
(2)Check the appearance of
• Bad background in
parts of the developer, such
the image.
as frame, hopper.
1. In case of 1 (1)If there is an evidence of disassembling the developer.
(2)If materials other than normal
parts of the developer are
added or substituted.
2. Unclean and rough printouts.
(1)Check whether foreign substance or toner are stuck to
the terminal (contact point) of
the developer.
(2)Check whether the state of
the terminal assembly is normal.
2. In case of 2 - If there are any
abnormals in connection with the
situation of 1.
(1)It occurs when the developer
is recycled over 2 times.
(2)If toner nearly being expired
are collected to use, it is
judged as the recycled developer.
Service Manual
Samsung Electronics
7-19
T RO U B L E S H O OT I N G
7.5 Bad Environment of The Software
7.5.1 The printer is not working (1)
• Description
While Power turned on, the printer is not working in the printing mode.
Check and Cause
Solution
1. Run Self-Test Mode : Turn the power on while pressing
the test printing button for 2 or 3 seconds before printing
works.
1.Check the power of the printer and perform the SelfTest. If the test printing works, that means no problems in the printer itself. If the test printing does not
work, that means bad functioning of the printer(not
because of software). Perform DCU to check the
Error Status.
2. Check if the PC and the printer is properly connected
and the toner cartridge installed.
2. Replace the printer cable. If the problems not solved
even after the cable replaced, check the amount of
the remaining tone.
(refer to Toner Cartridge Service 7.4)
3. Printing is nor working in the Windows.
3. Check if the connection between PC and printer port
is proper. If you use windows, check if the printer driver in the controller is set up. If the printer driver is
properly set up, check in which program the printing
is not working. The best way to find out is to open the
memo pad to check the function of printing. If it is not
working in a certain program, adjust the setup the
program requires. Sometimes, the printout is normal
within the Windows basic programs, but it's not working in a particular program. In such case, install the
new driver again. If not working in the Windows basic
program, Check the setup of the port of CMOS is on
ECP. And check the address of IRQ 7 and 378
4. Check if the printer cable is directly connected to peripheral devices
7-20
4. If the scanner needs to be connected to the printer,
first the remove the scanner from the PC to see if the
printer is properly working alone.
Service Manual
Samsung Electronics
T RO U B L E S H O OT I N G
7.5.2 The printer is not working (2)
• Description
After receiving the printing order, no response at all or the low speed of printing
occurs due to wrong setup of the environment rather than malfunction of the printer itself.
Check and Cause
Solution
1. Secure more space of the hard disk.
1. Not working with the message 'insufficient printer
memory' means hard disk space problem rather than
the RAM problem. In this case, provide more space
for the hard disk. Secure more space using the disk
utilities program.
2. Printing error occurs even if there is enough space in
the hard disk.
2. The connection of the cable and printer port is not
proper. Check if the connection is properly done and
if the parallel port in CMOS is rightly set up.
3. Check the parallel-port-related items in the CMOS
Setup.
3. As a printer port, Select ECP or SPP among
SPP(Normal), ECP, and EPP modes(increase printing speed) SPP normal mode support 8-bit data
transfer, while ECP Mode transfer the 12-bit data.
4. Reboot the system to print.
4. If the regular font is not printing, the cable or the
printer driver may be defective.
Turn the PC and printer off, and reboot the system
to print again. If not solved, double-click the printer in
my computer If the regular fonts are not printed this
time again. the cable must be defective so replace
the cable with new one.
Service Manual
Samsung Electronics
7-21
T RO U B L E S H O OT I N G
7.5.3 Abnormal Printing
• Description
The printing is not working properly even when the cable has no problem.
(even after the cable is replaced)
If the printer won't work at all or the strange fonts are repeated, the printer driver may be defective or wrong setup in the CMOS Setup.
Check and Cause
Solution
1. Set up the parallel port in the CMOS SETUP.
1. Select SPP(Normal) or ECP LPT Port the among
ECP, EPP or SPP in the CMOS Setup.
2. Printer Driver Error.
2. Check the printer in My Computer.(to see if the
printer driver is compatible to the present driver or
delete the old driver, if defective and reinstall the new
driver)
3. Error message from insufficient memory.
(The printing job sometimes stops or due to insufficient
virtual memory, but it actually comes from the insufficient space of the hard disk.)
3. Delete the unnecessary files to secure enough
space of the hard disk and start printing job again.
7-22
Service Manual
Samsung Electronics
T RO U B L E S H O OT I N G
7.5.4 SPOOL Error
• Description
To spool which stands for "simultaneous peripheral operations online" a computer document or
task list (or "job") is to read it in and store it, usually on a hard disk or larger storage medium so
that it can be printed or otherwise processed at a more convenient time (for example, when a
printer is finished printing its current document).
Check and Cause
Solution
1. Insufficient space of the hard disk in the directory
assigned for the basic spool.
1. Delete the unnecessary files to provide more space
to start printing job.
2. If the previous printing error not solved.
2. If there are some files with the extension name of
****.jnl, Delete them and Reboot the Windows to
restart printing job.
3. When expected to collide with other program.
3. Shut down all other programs except the current
one, if possible.
4. When an application program or the printer driver is
damaged.
4. Delete the printer driver completely and reinstall it.
5. When some files related to OS are damaged or virus
infected.
5 After rebooting the computer, check for viruses,
restore the damaged files and reinstall the program
to do the printing job.
6. Memory is less than suggested one.
6. Add up enough memory to the PC.
How to delete the data in the spool manager.
In the spool manager, the installed drivers and the list of the documents waiting to be printed are shown.
Select the document to be deleted and check the delete menu.
If you intend to delete the current document being printed, the data being transferred to the printer will be put
out and then the document is removed. Before choosing the document, the menu is still inactive.
Or put the document out of the list and repeat the routine as in the above or finish the spool manager.
Service Manual
Samsung Electronics
7-23
E X P LO D E D VIEW & PA RTS LIST
8
8. Exploded Views and Parts List
5-1. Main Assembly
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page(5-2)
5-2. Frame Unit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . page(5-4)
5-3. Drive Unit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . page(5-7)
5-4. Cassette Unit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . page(5-8)
5-5. Fuser Unit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . page(5-10)
Service Manual
Samsung Electronics
8-1
8-2
11
12
11-3
11-2
11-1
11-4
0
10
17
11-5
11-3
13
4
14
6
9
16-1
8
3
16-3
7
16-2
16
18
19
5
20
1
2-2
15
2-8
2-1
2-7
2-5
2-4
2-3
2
2-6
2-6
E X P LO D E D VIEW & PA RTS LIST
8.1 Main Assembly
Service Manual
Samsung Electronics
E X P LO D E D VIEW & PA RTS LIST
Main Assembly Parts List
SA : Service Available
O : Service available X : Service not available
No.
0
1
2
2-1
2-2
2-3
2-4
2-5
2-6
2-7
2-8
3
4
5
6
7
8
9
10
11
11-1
11-2
11-3
11-4
11-5
12
13
14
15
16
16-1
16-2
16-3
17
18
19
20
Description
ML-1710 / ML-1750
ELA UNIT-FRAME LOWER, 110V
MEA UNIT-COVER TOP
MEA UNIT-COVER TOP
MEA UNIT-COVER TOP
MEA UNIT-COVER TOP
LENS LED-M-LED
COVER-M-TOP
COVER-TOP
COVER-TOP
COVER-TOP
COVER-M-REAR
PMO-STACKER_RX
PMO-BUSHING_F/DOWN
PMO-SUB STACKER
SPRING-CS
KEY-M-ON LINE
PLATE-P-CHANNEL
CBF HARNESS-MOTOR
SMPS- V1(XAA)
UNIT-HUMMINGBIRD LSU
PBA MAIN-PANEL
COVER PCB-M-PCB
CBF HARNESS-LSU
ELA UNIT-RX DRIVE
MEA UNIT-COVER FRONT, USA
COVER-M-FRONT
ADJUST-M-MANUAL_L
ADJUST RACK-M-MANUAL
GEAR-RACK_PINION
ADJUST-M-MANUAL_R
MEA UNIT-CASSETTE, USA
PBA MAIN-CONTROLLER GDI_1L
PBA MAIN-CONTROLLER
CBF HARNESS-ENGINE
CBF HARNESS-ENGINE
FAN-DC_HUMMINGBIRD
MEA ETC-TR
ROLLER-TRANSFER ROLLER
GEAR-TRANSFER
PPR-SPACER_TR
MEA UNIT-TONER CART_ DOM_1K
CBF HARNESS-PANEL
SHIELD-P-ENGINE
BRACKET-P-INLET
SEC.Code
Q’ty
SA
JC96-02732A
JC97-01748A
JC97-01749A
JC97-01748F
JC97-01749N
JC67-00026A
JC63-00102A
JC63-00102F
JC63-00102T
JC63-00102U
JC63-00101A
JC72-00973A
*
JC72-01001A
6107-001169
JC64-00039A
JC61-00606A
JC39-00241A
JC44-00046A
JC59-00018A
JC92-01439A
JC63-00104A
JC39-00242A
JC96-02733A
JC97-01746A
JC63-00103A
JC70-00302A
JC70-00304A
JC66-00387A
JC70-00303A
JC97-01750A
JC92-01426A
JC92-01424D
JC39-00240A
JC39-00240B
JC31-00027A
JC97-01793A
JC66-00528A
JC66-00395A
JC72-00851A
*
JC39-00244A
*
JC61-00601A
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
O
O
O
O
O
O
O
O
O
O
O
O
X
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
X
X
O
X
O
Remark
110V
ML-1710/XAA
ML-1750/XAA
ML-1710/XAX
ML-1750/XAX
ML-1710/XAA
ML-1750/XAA
ML-1710/XAX
ML-1750/XAX
110V
ML-1710A
ML-1750A
ML-1710
ML-1750
Service Manual
Samsung Electronics
8-3
8-4
59-1
54
59-2
59
59-3
50
55
52
59-4
49
49-3
49-1
52
49-2
41
42
62
33
47
40
36
32
58-1
48
35
58-2
29
53
46
1
44
58-3
29
45
34
28
58-4
30
20
43
58-6
25
23
58-6
58-4
24
58-5
56
Transfer Roller
38
9
53
37
58
27
39
6
57
26
31
22
9
5
21
17
19
7
8
12
11
10
18
61
14
60
0
15
6
20
3
13
51
16
4
2
E X P LO D E D VIEW & PA RTS LIST
8.2 Frame Unit Assembly
Service Manual
Samsung Electronics
E X P LO D E D VIEW & PA RTS LIST
Frame Unit Assembly Parts List
SA : Service Available
O : Service available X : Service not available
No.
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
Description
ELA UNIT-FRAME LOWER, 110V
FRAME-M-BASE
GUIDE-P-TR
PLATE-P-SAW
GUIDE-M-TR RIB
GEAR-EXIT F/DOWN
MEC-BEARING,EXIT
ROLLER-EXIT F/DOWN
SPRING-CS
PMO-GEAR_EXIT_DRV16
HOLDER-M-EXIT F/DOWN
PMO-ROLLER_EXIT,MAIN
PMO-ROLLER_EXIT,FR
MEC-TERMINAL
IPR-P-TERMINAL CON
IPR-P-TERMINAL CR
HOUSING-TERMINAL
PMO-LOCKER CST
PMO-ACTUATOR CVR OPEN
PMO-PLATE GUIDE DEVE_R
SPRING ETC-GUIDE DEVE
IPR-P-GROUND_GUIDE PAPER
PMO-PLATE GUIDE DEVE_L
PMO-ACTUATOR FEED
PMO-ACTUATOR EMPTY
PMO-ACTUATOR MANUAL
IPR-P-GROUND_EARTH TR
SPRING-ETC
ROLLER-FEED ROLLER 1
PMO-BUSHING FEED
ROLLER-FEED
SPRING-TS
IPR-P-EARTH TRANSFER
HOLDER-PTL
LENS-PTL
BUSH-M-TR L
SPRING ETC-TR L HAWK
SPRING-TS
PMO-BUSHING_TR(L)
IPR-P-GROUND_FUSER
SHAFT-FEED IDLE
BUSH-M-FEED IDLE
SPRING ETC-TR
IPR-P_GROUND_DRIVE2
SPRING-TS
CAM-M-PICK_UP
IPR-P-GROUND_DRIVE
SOLENOID-HB (PICK-UP)
SOLENOID-HB (MANUAL)
SEC.Code
Q’ty
SA
JC96-02732A
*
JC61-00607A
JC61-00604A
JC61-00594A
*
*
JC66-00378A
6107-001163
*
JC61-00582A
*
*
JC75-00049A
JC70-00312A
JC70-00313A
JC61-00592A
JC72-00983A
JC72-00974A
JC72-00985A
*
JC70-00458A
JC72-00984A
JC72-00976A
JC72-00975A
JC72-00977A
*
6107-001162
*
*
JC66-00598A
*
JC70-00307A
JC61-00583A
JC67-00027A
JC61-00588A
*
*
JC72-00102A
JC70-00310A
JC66-00527A
*
*
JC70-00335A
6107-001170
JC66-00377A
JC70-00308A
JC33-00009A
*
1
1
1
1
1
1
2
1
4
2
4
4
4
4
3
1
1
2
1
1
2
1
1
1
1
1
1
1
1
5
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
1
1
1
1
O
X
O
O
O
X
X
O
O
X
O
X
X
O
O
O
O
O
O
O
X
O
O
O
O
O
X
O
X
X
O
X
O
O
O
O
X
X
O
O
O
X
X
O
O
O
O
O
X
Remark
110V
Spring Exit
Spring-act,Manual
Spring-act,Feed
Spring Feed Idle
Spring-cam Pick-up
continue on the next page.
Service Manual
Samsung Electronics
8-5
E X P LO D E D VIEW & PA RTS LIST
Frame Unit Assembly Parts List(Cont.)
SA : Service Available
O : Service available X : Service not available
No.
49
49-1
49-2
49-3
50
51
52
53
54
55
56
57
58
58-1
58-2
58-3
58-4
58-5
58-6
58-7
59
59-1
59-2
59-3
59-4
60
61
62
8-6
Description
AS-GEAR PICK_UP
PMO-GEAR PICK_UP B
PMO-GEAR PICK_UP A
SPRING-CS
BRACKET-P-FEED
IPR-P-GROUND_TR
SHAFT-FEED
RING-CS
GEAR-FEED 2
GEAR-IDLE 23
GUIDE-P-PAPER
RMO-RUBBER_FOOT
AS-PICK UP
BUSH-M-PICK_UP L
SHAFT-P-PICK_UP
STOPPER-PICK_UP
PMO-IDLE PICK_UP
SPONGE-ROLLER PICK_UP
BUSH-M-PICK_UP R
HOUSING-M-PICK_UP
MEA UNIT-CLUTCH
GEAR-FEED 1
PMO-COLLAR_SPRING
SPRING-TS
PMO-HUB CLUTCH
AS-FUSER 110V
RMO-RUBBER EXIT
PBA MAIN-PTL
SEC.Code
Q’ty
SA
JC81-01692A
JC72-00980A
JC72-00979A
*
JC61-00602A
JC70-00311A
JC66-00398A
*
JC66-00394A
JC66-00396A
JC61-00718A
*
JC81-01693A
*
*
*
JC72-00982A
JC72-01231A
JC61-00587A
JC61-00591A
JC97-01788A
JC66-00393A
JC72-00978A
*
JC72-00981A
JC81-01689A
*
*
1
1
1
1
1
1
2
3
1
1
1
2
1
1
1
2
2
1
1
1
1
1
1
1
1
1
4
1
O
O
O
X
O
O
O
X
O
O
O
X
O
X
X
X
O
O
O
O
O
O
O
X
O
O
X
X
Remark
Spring-Pick-up gear
110V
Service Manual
Samsung Electronics
E X P LO D E D VIEW & PA RTS LIST
8.3 Drive Unit Assembly
0
7
6
8
1
9
HARNESS-MOTOR
2
4
5
3
4
5
Drive Unit Assembly Parts List
SA : Service Available
O : Service available X : Service not available
No.
0
1
2
3
4
5
6
7
8
9
10
Description
SEC.Code
Q’ty
SA
ELA UNIT-RX DRIVE
BRACKET-P-GEAR 1400
GEAR-RDCN 53/26
GEAR-RDCN 113/33
GEAR-RDCN 57/18
RING-E
BRACKET-P-MOTOR 1400
GEAR-RDCN 103/41
GEAR-RDCN 90/31
MOTOR STEP-HUMMINGBIRD
PMO-IMPELLER_DRV
JC96-02733A
*
*
*
*
*
*
JC66-00390A
JC66-00392A
JC31-00028A
*
1
1
1
1
2
2
1
1
1
1
1
O
X
X
X
X
X
X
O
O
O
X
Remark
Service Manual
Samsung Electronics
8-7
E X P LO D E D VIEW & PA RTS LIST
8.4 Cassette Unit Assembly
0
12
14
13
4
17
3
16
18
5
6
2
7
5
8
10
9
11
1
15
8-8
Service Manual
Samsung Electronics
E X P LO D E D VIEW & PA RTS LIST
Cassette Unit Assembly Parts List
SA : Service Available
O : Service available X : Service not available
No.
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Description
MEA UNIT-CASSETTE, USA
FRAME-M-CASSETTE
PMO-EXTENSION LARGE
PMO-EXTENSION SMALL
PLATE-P-KNOCK_UP
SPRING-CS
HOLDER-M-PAD
SPRING ETC-EXIT ROLL FD
ROLLER-M-IDLE FEED
SPRING-ES
PMO-PLATE_LOCKER
SPRING ETC-LOCKER,PLATE
ADJUST-M-CASSETTE_L
ADJUST-M-CASSETTE_R
GEAR-PINION
INDICATOR-M-LEVER INDICATOR
RPR-FRICTION PAD
IPR-PLATE PAD
RPR-PAD CASSETTE
SEC.Code
Q’ty
SA
JC97-01750A
1
1
1
1
1
2
1
1
2
2
1
1
1
1
1
1
1
1
3
O
X
O
O
X
X
X
X
X
X
X
X
O
O
X
O
O
X
X
*
JC72-00970A
JC72-00971A
*
*
*
*
*
*
*
*
JC70-00300A
JC70-00301A
*
JC64-00040A
JC73-00140A
*
*
Remark
Service Manual
Samsung Electronics
8-9
E X P LO D E D VIEW & PA RTS LIST
8.5 Fuser Unit Assembly
0
10 9 8
7
6
33
4
11
5
12
3
2
32
1
32
17
13
16
15
14
18
22
19
23
20
24
25
21
31
27
30
26
29
28
8-10
Service Manual
Samsung Electronics
E X P LO D E D VIEW & PA RTS LIST
Fuser Unit Assembly Parts List
SA : Service Available
O : Service available X : Service not available
No.
O
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
Description
AS-FUSER 110V
COVER-M-FUSER
HOLDER-M-PLATE CLAW
SPRING ETC-CLAW
PMO-ROLLER EXIT
SPRING ETC-FUSER EXIT
THERMOSTAT-150
PMO-GEAR_EXIT_DRV16
GEAR-IDLE 23
RING-CS
GEAR-RDCN 25/15
IPR-ELECTRODE_LAMP
ELECTRODE-WIRE_L
THERMISTOR-NTC
ELECTRODE-WIRE_R
CBF HARNESS-FUSER 110V
GEAR-FUSER, Z37
BUSH-M-HR L
ROLLER-HEAT
BUSH-M-HR R
LAMP-HALOGEN
ROLLER-M-EXIT F/UP
ROLLER-PRESSURE
BEARING-PRESSURE/R
SPRING-CS
PMO-BUSHING TX
HOLDER-ACTUATOR
PMO-ACTUATOR_EXIT
IPR-P-FRAME_FUSER
GUIDE-M-INPUT
SPRING-TS
RMO-RUBBER_EXIT
NUT-HEXAGON
LABEL(P)-CAUTION, HOT_FUSER
SEC.Code
Q’ty
SA
JC81-01689A
1
1
4
4
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
3
1
1
1
1
1
2
5
1
O
X
X
X
X
X
O
X
X
X
O
X
X
O
X
O
O
X
O
O
O
X
O
X
X
X
X
O
X
X
X
X
X
X
*
*
*
*
*
JC47-00005A
*
*
*
JC66-00397A
*
*
1404-001298
*
JC39-00239A
JC66-00564A
*
JC66-00601A
JC61-00590A
4713-001155
*
JC66-00600A
*
*
*
*
JC72-00987A
*
*
*
*
*
*
Remark
110V
White
110V
Service Manual
Samsung Electronics
8-11
E X P LO D E D VIEW & PA RTS LIST
8-12
Service Manual
Samsung Electronics
Samsung Electronics
C-SOLENOID-MP
C-SOLENOID
F.G
IEEE1284
Interface
USB2.0
Net2270
Video
Clock
+
Font ROM
16MB
FLASH
MEMORY
(2MB)
SDRAM
(8MB)
SPGPm
ARM946ES
Controller Block
SMPS Block
Power On
Reset
Freq.
Spread
VOLTAGE
DETECTOR
MOTOR
DRIVER
HEATER-AC
Crystal
14.74 MHz
IN-LET
MP-SENSOR
P/EMPTY-SENSOR
FEED-SENSOR
EEPROM
Freq.
Spread
Crystal
12MHz
EXIT-SENSOR
Main Clock
+
+
FUSER ASS’Y
HVPS Block
+
GND
MHV
To Controller
THV
DEV
SUPPLY
OPC GND
Cover-open Switch
+24V
THVPWM
BLASPWM
MHVPWM
+24V
+5V
+3.3V
THERMISTOR
1KEY
2 LED
PANEL B’D
FAN
PTL
LSU
9
MAIN MOTOR
POWER CORD
B LOCK DIAG R A M
9. Block Diagram
9.1 PCL Model
Service Manual
9-1
9-2
M-CLUTCH
C-CLUTCH
Main Motor
IN-LET
CN9
CN2
CN8
F.G
Power On Reset
VOLTAGE
DETECTOR
MOTOR DR
PART’S
SMPS + Main 26p
SMPS PART’s
HEATER-AC
CON1
POWER CORD
CN8
+
SSCG
Video
Clock
CPU Jupiter 4
ARM7
90MHz
LD
FLASH
MEMORY
0.5MB
(128Kx32bits)
-
MP-SENSOR
P/EMPTY-SENSOR
FEED-SENSOR
Main Clock
Crystal
12MHz
EXIT-SENSOR
FUSER ASS’Y
THV-RD
HVPS PART’S
THVPWM
THV_EA
BIASPWM
MHVPWM
MHV
CN11
COVER OPEN SW
+24V
THV
DEV
SUPPLY
OPC GND
CON4
CN3
CN1
CN6
+3.3V
GND
HEATER-THERMISTOR
+24V
+5V
USB
1KEY
2 LED
PANEL B’D
FAN
PTL
LSU
B LOCK DIAG R A M
9.2 SPL Model
Service Manual
Samsung Electronics
C O N N E C T I O N D I AG R A M
10
10. Connection Diagram
10.1 PCL Model
IEEE1284
COMOPATIABLE
CABLE
38 PIN
CN5
37
38
CN9
1
2
3
4
5
6
7
8
9
10
11
6 PIN
HOST
COMPUTER
USB CABLE
CONNECTOR CN14
CN11
1
2
CN12
1
2
CN6
1
2
LSUCLK
nLREADY
nPMOTOR
GND
24VS
*HSYNC
5V
GND
nLD_ON
VDO
GND
+3.3V
PTL
1
2
3
4
5
1
2
3
4
5
6
POLYGON
MOTOR
LSU
LD
DIODE
1
2
PTL LED ARRAY
1
2
Manual Clutch
1
2
Main Clutch
for USB
5
6
PCL MAIN BOARD
FR-4, 4LAYER 1
1
2
THERMISTOR
1
2
3
4
MOTOR
DCU
1
2
3
4
THER 1
THER 2
A
B
A/
B/
+3.3V
DCU_DATA
DCU_CLK
GND
1
2
CN8
1
2
3
4
CN10
1
2
3
4
CN3
CN13
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
+24V
MP_CLUTCH
+24V
MAIN_CLUTCH
P_EMPTY
P_FEED
3.3V
3.3V
3.3V GND
3.3V GND
5V
3.3V GND
3.3V GND
3.3V GND
24VS
24VS
MP_EMPTY
24VS
LED_READY
THV_READ
LED_ERROR
THV_PWM
THV_EN
BIAS_PWM
MHV_PWM
LED_TONER SAVE
KEY_DEMO
FAN
FUSER
P_EXIT
2
1
4
3
6
5
8
7
10
9
12
11
14
13
16
15
18
17
20
19
22
21
24
23
26
25
SMPS
FAN
HVPS
PANEL
CN5
Service Manual
Samsung Electronics
10-1
C O N N E C T I O N D I AG R A M
10.2 SPL Model
HOST
COMPUTER
USB CABLE
4PIN
CONN-E CTOR
for
USB
CN6
CN3
THERMISTOR 12
MOTOR
1
2
3
4
THE RM
THE RM2
A
A/
B
B/
1
2
CN5
1
2
3
4
CN7
CN8
1
2
CN9
1
2
CN3
1
2
SPL
MAIN
BOARD
FR-4, 2Layer
CN10
DCU
10-2
1
2
3
4
+3.3V
D CU _D ATA
D CU _C LK
GND
1
2
3
4
CN2
1
2
3
4
5
6
7
8
9
10
11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
LSUCLK
nLREADY
nPMOTOR
GND
24VS
*HSYNC
5V
GND
nLD_ON
VDO
GND
+3.3V
PTL
+24V
MP_CLUTCH
+24V
MAIN_CLUTCH
P_EMPTY
P_FEED
3.3V
3.3V
3.3V GND
3.3V GND
5V
3.3V GND
3.3V GND
3.3V GND
24VS
24VS
MP_EMPTY
24VS
LED_READY
THV_READ
LED_ERROR
THV_PWM
THV_EN
BIAS_PWM
MHV_PWM
LED_TONER SAVE
KEY_DEMO
FAN
FUSER
P_EXIT
1
2
3
4
5
1
2
3
4
5
6
POLYGON
MOTOR
LSU
LD
DIODE
1
2
PTL LED ARRAY
1
2
Manual Clutch
1
2
Main Clutch
2
1
4
3
6
5 SMPS
8
7
10
9
12
11
14
13
16
15
18
17
20
HVPS
19
22
21
24
23
26
25
CN5
FAN
PANEL
Service Manual
Samsung Electronics
11
S C H E M ATIC DIAG R A M S
11. Schematic Diagrams
11.1 PCL Main Circuit Diagram (1/7)
Service Manual
Samsung Electronics
11-1
S C H E M ATIC DIAG R A M S
PCL Main Circuit Diagram (2/7)
11-2
Service Manual
Samsung Electronics
S C H E M ATIC DIAG R A M S
PCL Main Circuit Diagram (3/7)
Service Manual
Samsung Electronics
11-3
S C H E M ATIC DIAG R A M S
PCL Main Circuit Diagram (4/7)
11-4
Service Manual
Samsung Electronics
S C H E M ATIC DIAG R A M S
PCL Main Circuit Diagram (5/7)
Service Manual
Samsung Electronics
11-5
S C H E M ATIC DIAG R A M S
PCL Main Circuit Diagram (6/7)
11-6
Service Manual
Samsung Electronics
S C H E M ATIC DIAG R A M S
PCL Main Circuit Diagram (7/7)
Service Manual
Samsung Electronics
11-7
S C H E M ATIC DIAG R A M S
11.2 SPL Main Circuit Diagram (1/5)
11-8
Service Manual
Samsung Electronics
S C H E M ATIC DIAG R A M S
SPL Main Circuit Diagram (2/5)
Service Manual
Samsung Electronics
11-9
S C H E M ATIC DIAG R A M S
SPL Main Circuit Diagram (3/5)
11-10
Service Manual
Samsung Electronics
S C H E M ATIC DIAG R A M S
SPL Main Circuit Diagram (4/5)
Service Manual
Samsung Electronics
11-11
S C H E M ATIC DIAG R A M S
SPL Main Circuit Diagram (5/5)
11-12
Service Manual
Samsung Electronics
S C H E M ATIC DIAG R A M S
11.3 HVPS Circuit Diagram (1/2)
24VS
5V
5V
R202
100
Q201
CON2-16
C206
A708-Y
R201
THV-sen
430
5
6
R204
R205
47K
22K
2K
C201
473
U102-B
R208
6
D1NL20U
Q203
R206
C205
180K-F
473
R207
6KV
IT-01
C209
D205
D206
6KV
6KV
R212
6KV 221
R211
2.7V
THV
1/2W 100K
681
ZD201
330K-F
D204
1 ¡
C208
C2383
681
6KV 221
¡ 7
5
D203
C203
102
C211
2 ¡
Q202
50K
C202
6KV 221
C945C-Y
10K
11
R203
7
KA324
THV
C210
4
5.6K
+
-
IT201
104
R210
4
THV-PWM
103
100K
103
1N4148
C207
R209
C204
D201
D202
D1NL20U
TNR201
5N221K
1/4W 4.7
C212
TNR202
5N431K
2KV 221
24VS
R213
MGR1/2W 100MF
TNR203
5N431K
5V
C302
103
R302
470K
R303
R309
D302
4
470
N.U
IT301
C301
104
4KV
2 ¡
6
R301
1K
CON2-17
5
C304
3KV 151
¡ 7
THV-sen
Q301
1 ¡
C945C-Y
THV-EA
C303
Q302
C306
103
ZD301
2.7V
R307
150K
50K
IT-01
R306
D303
150KF
1N4148
C2383
473
INDEX
R305
MGR1/2W 50M
R304
1/4W 4.7
5V
D301
D1NL20U
D304
1N4148
C305
104
D305
R308
CON2-18
1K
+
1
-
THV-READ
C307
473
3
1N4148
2
U102-A
KA324
Service Manual
Samsung Electronics
11-13
S C H E M ATIC DIAG R A M S
HVPS Circuit Diagram (2/2)
5V
C404
D401
1N4148
R403
2.7V
1.5M
472
12
MHV-PWM
13
C401
473
R402
22K
C402
102
+
U102-D
KA324
C403
D402
1N4148
R408
470
R404
10K
C405
104
Q402
C945C-Y
R503
10
BIAS-PWM
CON2-20
R502
R501
47K
C501
473
9
22K
+
U102-C
KA324
R508
470
R504
10K
D502
C503
1N4148 681
C505
104
R513
SUPPLY
1/2W 50K
C510
C509
3KV 471
¡ 7
3KV 101
ZD503
200V
1 ¡
C507
103
R509
1/4W 10
D503
D1NL20U
BIAS-sen
IT-01
5V
C508
103
MGR1/2W 10MF
IN
DEV
20K
R514
R512
30KF
DEV
1/2W 50K
R515
MGR1/2W 15MF
5V
OUT
GND
11-14
+
R510
1/2W 1.8M
R511
2 ¡
R505
10K
ZD502
2.7V
C112
50V 10uF
D504
4KV
6
Q502
C945C-Y
U103
KA7805
MHV
20K
4
Q503
C2316
24VS
ZD403
130V
C506
103
5
C502
102
C410
221
C408
103
IT501
8
-
OPC
R412
30KF
24VS
R507
100K
R506
5.6K
Q501
A708-Y
BIAS-sen
R414
MGR1/2W 15MF
MHV-sen
5V
R409
1/4W 4.7
2.7V
330KF
472
R411
MGR1/2W 20MF
IT-01
D403
D1NL20U
ZD402
2.7V
ZD501
C504
¡ 7
1 ¡
Q403
C2316
D501
1N4148
C409
3KV 471
6
C407
103
MHV
R413
1/2W 100K
2 ¡
R405
10K
5V
R410
1/2W 560K
4
5
331
D404
4KV
IT401
14
-
C406
103
R407
100K
R406
5.6K
Q401
A708-Y
MHV-sen
CON2-19 R401
47K
24VS
ZD401
+
C113
25V 47uF
Service Manual
Samsung Electronics
S C H E M ATIC DIAG R A M S
11.4 SMPS Circuit Diagram : 110V (1/2)
AR1
DSS-601M
Humming-V1 SMPS circuit diagram
SW1
3024-P3T4DBKBK
F1
125V 8A
C3
472MAA
F2
125V 3A
LF1
0509V
472MAA
LF2
0504V
R14 R2
D1,2,3,4
600V2A*4
-
+
R113
R108
1/2W 3.3K
1/2W 3.3K
1/2W 3.3K
F101
11
C8
681
C107
16V
1000uF
U101
TL431
2
C13
472MAA
C12
472MAA
CON2-26(FUSER-ON)
NO MARKING RESISTOR 1/8W-J(5%)
CON2-3,4
+3.3V 1.0A
R111
1.8K-F
PC101-A
817M-B
C108
50V 1uF
7
4
250V2A
3
R10
C7
35V 47K
22uF
R110
430
C106
1KV 102
CON2-11,12,13(+24VS)
Q102
C1008-Y
R107
3
R9
1W0.25
2
R109
330
PC101-B
817M-B
CON2-8
+5V 0.14A
CON2-7
GND
L101
100
200V1A
CON2-9,10
GND
C104
25V
47uF
5uH
R7
6.8K
R114
1/2W
1.5K
3
U105
7805
D103
40V 3A
GND OCP/FB
3
5
R8
680
1/2W 3.3K
PC102
TLP3061F
Source
2
R106
4
1
C103
16V
100uF
C105
50V
1uF
8
R6
Vin
STR-G6353
R12
1W 180
FUSIBLE
VR1
500
1/2W 3.3K
R13
1/4W 100
C11
50V
104
Drain
D6
R105
U1
BTA12-600B
1
B1
D104
100V 1A
1/2W 3.3K
U2
PWM CONTROL
1
10
R104
630V
333
8
1/2W 3.3K
1W 47
FUSIBLE
CON1
2
D101,102
200V 3A*2 C102
35V
1000uF
D5
UF4007
1
R4
CON2-11,12,13
+24VS 2.0A
9
1/2W 3.3K
C10
1/8W75K 1/8W75K
1/4W330K
R11
L1
100uH
5
R15
SW2
SS-5GLD
R103
TH1
10D-13
R3
C101
1KV 102
R102
1/2W
560K
1KV 223
R1
1/4W330K
C5
200V
330uF
1/8W75K
C4
104
C1
224
PT1
EER2828V
R5
3W
47K
6
C6
INLET1
TVR1
10D221K
C2
1
R112
5.6K-F
C109
10V
470uF
GND
CON2-5,6
CON2-1(FEED-SEN)
CON2-2(PAPER-EMPT)
CON2-14(MANUAL)
CON2-15(THV-READ)
CON2-16(LED-READY)
CON2-17(THV-PWM)
CON2-18(LED-ERROR)
CON2-19(BIAS-PWM)
CON2-20(THV-EA)
CON2-21(LED TONER SAVE)
CON2-22(MHV-PWM)
CON2-23(FAN)
CON2-24(KEY-DEMO)
CON2-25(EXIT)
CON2-26(FUSER-ON)
Service Manual
Samsung Electronics
11-15
S C H E M ATIC DIAG R A M S
SMPS Circuit Diagram : 110V (2/2)
3.3V
R125 R126
3.3V
R127 R128
OP104
SG-288 2
4
2
4
OP103
KPI-512
OP103
KPI-512
TNR101
OPC1
7D561
5268-03A
11-16
1
3
1
3
2
4
2
4
OP101
KPI-512
53015-0510
3
2
1
R119
2.2K
1
2
3
Q101
KSC1008-Y
R120
5.6K
CON2-14(MANUAL)
CON2-25(EXIT)
CON3
D105
1N4003
CON2-23(FAN)
27K
3
R117 R118
100
1
27K
3
100
27K
100
27K
100
CON2-2(PAPER EMPTY)
CON2-1(FEED SENSOR)
1
24VS
R115 R116
4
5
DGND
CON2-16(LED-READY)
CON2-18(LED-ERROR)
CON2-21(LED-TONER SAVE)
CON2-24(KEY-DEMO))
CON4
Service Manual
Samsung Electronics
