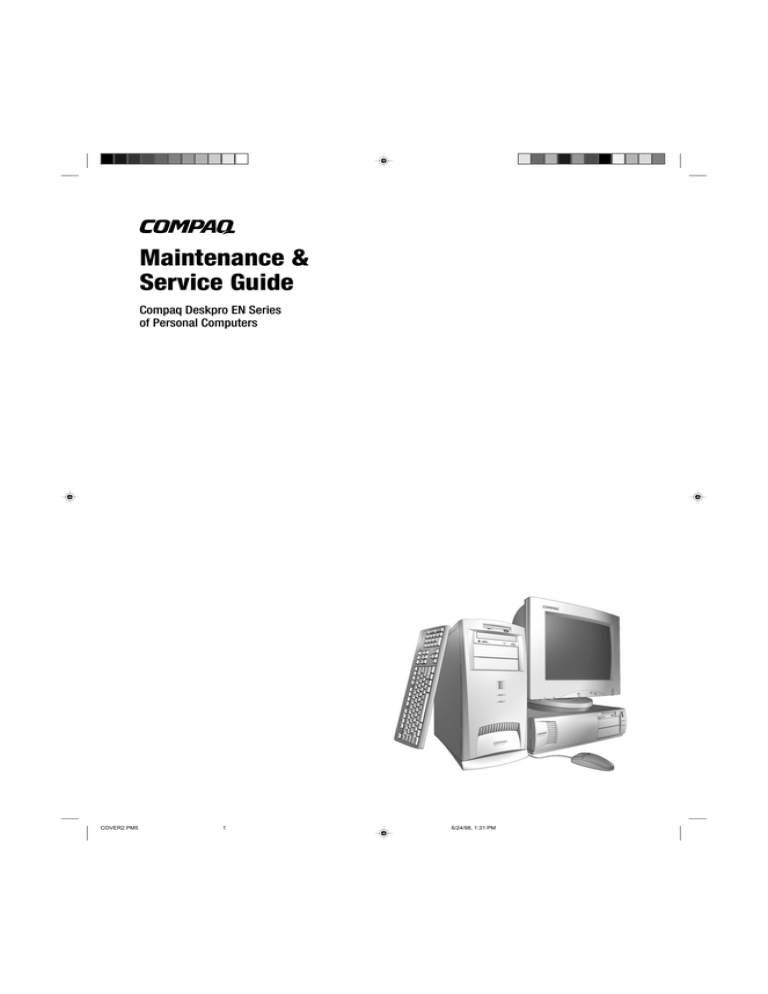

HP Deskpro EP DT 6700 System information

Maintenance &
Service Guide
Compaq Deskpro EN Series
of Personal Computers
COVER2.PM5
1
6/24/98, 1:31 PM
Notice
The information in this guide is subject to change without notice.
COMPAQ COMPUTER CORPORATION SHALL NOT BE LIABLE FOR
TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN;
NOR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL.
This guide contains information protected by copyright. No part of this guide may be
photocopied or reproduced in any form without prior written consent from Compaq
Computer Corporation.
 1998 Compaq Computer Corporation.
All rights reserved. Printed in the U.S.A.
Compaq and Deskpro are registered in the U. S. Patent and Trademark Office. PREMIER•SOUND is a
trademark of Compaq Computer Corporation.
Microsoft, MS-DOS, and Windows are registered trademarks of Microsoft Corporation.
Intel and Pentium are registered trademarks of Intel Corporation.
MMX and Celeron are registered trademarks of Intel Corporation.
Product names mentioned herein may be trademarks and/or registered trademarks of
their respective companies.
The software described in this guide is furnished under a license agreement or
nondisclosure agreement. The software may be used or copied only in accordance with
the terms of the agreement.
Maintenance & Service Guide
Compaq Deskpro EN Series of Personal Computers
Second Edition (June 1998)
First Edition (April 1998)
Part Number 179099-002
Spare Part Number 179290-001
Compaq Computer Corporation
CPS
C ONTENTS
preface
About This Guide
Symbols and Conventions .......................................................................................................... xi
Technician Notes .......................................................................................................................xii
System Serial Number ...............................................................................................................xii
Locating Additional Information...............................................................................................xii
chapter 1
Product Description
1.1 Compaq Deskpro EN Series of Personal Computer Models ..............................................1-2
1.1.1 Desktop Models .........................................................................................................1-2
1.1.2 Desktop CCP Models.................................................................................................1-3
1.1.3 Minitower Models......................................................................................................1-3
1.2 Features...............................................................................................................................1-4
1.3 System Design ....................................................................................................................1-5
1.3.1 Desktop Design Overview .........................................................................................1-5
1.3.2 Minitower Design Overview......................................................................................1-6
1.4 Preloaded Software.............................................................................................................1-7
1.4.1 Ordering Additional Operating System Drivers ........................................................1-7
1.5 Desktop Computer Features ...............................................................................................1-8
1.5.1 Front Panel Controls and LEDs .................................................................................1-8
1.5.2 Drive Positions...........................................................................................................1-9
1.5.3 Rear Panel Connectors.............................................................................................1-10
1.6 Minitower Computer Features..........................................................................................1-11
1.6.1 Front Panel Controls and LEDs ...............................................................................1-11
1.6.2 Drive Positions.........................................................................................................1-12
1.6.3 Rear Panel Connectors.............................................................................................1-13
1.7 Enhanced Keyboard..........................................................................................................1-14
1.8 Select Options...................................................................................................................1-15
chapter 2
Software Reference
2.1 Installing the Operating System .........................................................................................2-1
2.1.1 Microsoft Windows 95 or Windows 98.....................................................................2-1
2.1.2 Microsoft Windows NT Workstation 4.0 ..................................................................2-1
Installing Windows NT Workstation 4.0 Over a Network............................................2-1
Installing or Upgrading Device Drivers ........................................................................2-2
Creating an Emergency Repair Diskette .......................................................................2-2
Using the Emergency Repair Diskette ..........................................................................2-2
2.2 Registering the Computer...................................................................................................2-3
2.3 Compaq Software ...............................................................................................................2-3
2.4 Compaq Computer Setup Utilities and Diagnostic Features ..............................................2-4
2.4.1 Computer Setup Utilities ...........................................................................................2-4
Using Computer Setup Utilities ....................................................................................2-5
2.4.2 Computer Setup Menu ..............................................................................................2-6
Compaq Deskpro EN Series of Personal Computers
iii
2.5 Computer Diagnostics ........................................................................................................2-8
2.5.1 Create a Diagnostics Diskette ....................................................................................2-8
Deskpro EP Series, Deskpro EN Series, and Deskpro EN Series, Small Form Factor.2-8
Deskpro EN Series ........................................................................................................2-8
2.5.2 Computer Checkup (TEST) .......................................................................................2-8
2.5.3 View System Information (INSPECT) ......................................................................2-9
Using Computer Checkup (TEST) or View System Information (INSPECT) .............2-9
2.5.4 Enhanced Compaq Insight Personal Edition (Compaq Diagnostics for Windows)2-10
Using Compaq Insight Personal Edition .....................................................................2-11
Running Diagnostic Tests ...........................................................................................2-11
2.6 Protecting Your Software .................................................................................................2-12
2.6.1 Ordering Backup Diskettes ......................................................................................2-12
2.6.2 The Compaq Restore CD.........................................................................................2-12
2.7 Intelligent Manageability..................................................................................................2-13
2.8 Initial Configuration and Deployment..............................................................................2-14
2.8.1 Remote System Installation .....................................................................................2-14
2.9 Asset Tracking and Security.............................................................................................2-15
2.9.1 Password Security....................................................................................................2-16
Establishing a Setup Password Using Computer Setup ..............................................2-16
Establishing a Power-On Password Using Computer Setup.......................................2-17
Entering a Power-On Password ..................................................................................2-17
Changing a Power-On or Setup Password ..................................................................2-17
Deleting a Power-On or Setup Password ....................................................................2-18
National Keyboard Delimiter Characters....................................................................2-18
Clearing Passwords .....................................................................................................2-18
2.9.2 Smart Cover Sensor .................................................................................................2-19
Setting the Smart Cover Sensor Protection Level.......................................................2-19
2.9.3 Smart Cover Lock....................................................................................................2-19
Locking the Smart Cover Lock ...................................................................................2-19
Unlocking the Smart Cover Lock ...............................................................................2-20
Using the Smart Cover FailSafe Key ..........................................................................2-20
2.9.4 QuickLock/QuickBlank ...........................................................................................2-20
Enabling QuickLock and QuickBlank ........................................................................2-20
Disabling the Keyboard and Mouse Interface.............................................................2-21
Enabling the Keyboard and Mouse Interface..............................................................2-21
2.9.5 The Cable Lock Provision .......................................................................................2-21
2.10 Fault Notification and Recovery.....................................................................................2-22
2.10.1 Pentium II Fault Prediction and Prefailure Warranty ............................................2-22
2.10.2 SMART Hard Drive Fault Prediction ....................................................................2-22
2.10.3 Ultra ATA Integrity Monitoring ............................................................................2-22
2.10.4 ECC Fault Prediction and Prefailure Warranty......................................................2-22
2.10.5 Proactive Backup ...................................................................................................2-23
2.10.6 Surge-Tolerant Power Supply................................................................................2-23
2.10.7 Thermal Sensor ......................................................................................................2-23
2.11 Software Updating and Management .............................................................................2-24
2.11.1 Remote ROM Flash ...............................................................................................2-24
Using Remote ROM Flash ..........................................................................................2-24
FailSafe Boot Block ROM ..........................................................................................2-25
2.11.2 Remote Security Management...............................................................................2-27
2.11.3 Remote Wakeup and Remote Shutdown ...............................................................2-27
2.11.4 Replicating Original Setup.....................................................................................2-28
2.11.5 Dual-State Power Button .......................................................................................2-28
2.11.6 Power Management ...............................................................................................2-28
2.11.7 Enhanced Support Software CD and World Wide Web Site.................................2-29
iv
Contents
2.11.8 Compaq Integrated Software .................................................................................2-30
2.11.9 Universal Driver Manager .....................................................................................2-30
2.12 Building Blocks and Partners .........................................................................................2-31
2.12.1 Desktop Management Interface (DMI)..................................................................2-31
2.12.2 Compaq Insight Manager and the Insight Management Agents............................2-31
2.12.3 Compaq Management Solutions Partners Program ...............................................2-32
chapter 3
Spare Parts
3.1 System Unit ........................................................................................................................3-2
3.1.1 Desktop ......................................................................................................................3-2
3.1.2 Minitower...................................................................................................................3-4
3.2 Mass Storage Devices.........................................................................................................3-6
3.3 Cables .................................................................................................................................3-8
3.4 Standard and Optional Boards..........................................................................................3-10
3.5 Keyboards.........................................................................................................................3-14
3.6 Monitors ...........................................................................................................................3-16
3.7 Miscellaneous Screw Kit ..................................................................................................3-18
3.8 Miscellaneous Plastics ......................................................................................................3-19
3.9 Miscellaneous Parts ..........................................................................................................3-21
3.10 Tamper-Resistant Tools/Smart Cover FailSafe Key ......................................................3-23
3.11 Shipping Boxes...............................................................................................................3-24
3.12 Documentation ...............................................................................................................3-24
chapter 4
Removal and Replacement Preliminaries
4.1 Electrostatic Discharge Information ...................................................................................4-1
4.1.1 Generating Static........................................................................................................4-2
4.1.2 Preventing Electrostatic Damage to Equipment ........................................................4-2
4.1.3 Personal Grounding Methods and Equipment ...........................................................4-3
4.1.4 Grounding Workstations............................................................................................4-3
4.1.5 Recommended Materials and Equipment ..................................................................4-4
4.2 Routine Care .......................................................................................................................4-5
4.2.1 General Cleaning Safety Precautions.........................................................................4-5
4.2.2 Cleaning the Computer Case .....................................................................................4-5
4.2.3 Cleaning the Keyboard ..............................................................................................4-5
4.2.4 Cleaning the Monitor .................................................................................................4-6
4.2.5 Cleaning the Mouse ...................................................................................................4-6
4.3 Service Considerations .......................................................................................................4-6
4.3.1 Tools and Software Requirements .............................................................................4-6
4.3.2 Screws........................................................................................................................4-6
4.3.3 Cables and Connectors...............................................................................................4-7
4.3.4 Hard Drives................................................................................................................4-7
4.3.5 Plastic Parts................................................................................................................4-7
4.3.6 Lithium Battery..........................................................................................................4-7
Compaq Deskpro EN Series of Personal Computers
v
chapter 5
Desktop Removal and Replacement
5.1 Serial Number Location......................................................................................................5-1
5.2 Disassembly Sequence Chart..............................................................................................5-2
5.3 Feet Installation ..................................................................................................................5-3
5.4 Preparation for Disassembly...............................................................................................5-4
5.5 Cable Lock Installation.......................................................................................................5-5
5.6 System Unit Cover Removal ..............................................................................................5-6
5.6.1 Quick Release Cover Latch Removal ........................................................................5-7
5.6.2 Power Button Removal..............................................................................................5-8
5.6.3 Bezel Blank Removal ................................................................................................5-9
5.7 Cover Latch Retainer Removal ........................................................................................5-10
5.8 Drive Power Cable Positions............................................................................................5-11
5.9 Mass Storage Devices.......................................................................................................5-12
5.9.1 Side-Mounted Hard Drive Removal ........................................................................5-12
5.9.2 5.25-Inch Drive Removal ........................................................................................5-13
5.9.3 3.5-Inch Drive Removal from 5.25-Inch Drive Adapter .........................................5-14
5.10 Drive Release Latches ....................................................................................................5-16
5.10.1 3.5-Inch Drive Release Latch Removal .................................................................5-16
5.10.2 5.25-Inch Drive Release Latch Removal ...............................................................5-17
5.11 Tilt Drive Cage ...............................................................................................................5-18
5.12 Expansion Board Cage Components ..............................................................................5-19
5.12.1 Disconnecting and Raising the Expansion Board Cage.........................................5-19
5.12.2 Expansion Board Removal ....................................................................................5-20
5.12.3 Expansion Board Cage Removal ...........................................................................5-21
5.12.4 Riser Board Removal.............................................................................................5-24
5.12.5 Expansion Board Cage Guide Bracket Removal ...................................................5-25
5.12.6 Lift Lever Removal................................................................................................5-26
5.12.7 Fan Removal ..........................................................................................................5-27
5.13 Expansion Board Cage Chassis-Mounted Guide Bracket Removal...............................5-28
5.14 System Board and its Components.................................................................................5-29
5.14.1 System Board Removal .........................................................................................5-29
5.14.2 Microprocessor Removal .......................................................................................5-30
5.14.3 Memory Removal .................................................................................................5-32
5.14.4 Battery Removal ....................................................................................................5-33
5.15 Graphics Solutions..........................................................................................................5-34
5.15.1 AGP Graphics Board Removal..............................................................................5-34
5.15.2 Matrox Millennium II Graphics Memory ..............................................................5-35
5.15.3 ATI RAGE PRO TURBO AGP Graphics Memory Installation............................5-36
5.16 Speaker Removal............................................................................................................5-37
5.17 Power Supply Removal ..................................................................................................5-38
5.18 Power Switch Cable Components ..................................................................................5-39
5.18.1 Smart Cover Lock Solenoid Removal ...................................................................5-39
5.18.2 Power Switch Cable Assembly Removal ..............................................................5-40
vi
Contents
chapter 6
Minitower Removal and Replacement
6.1 Serial Number Location......................................................................................................6-1
6.2 Disassembly Sequence Chart..............................................................................................6-2
6.3 Preparation for Disassembly...............................................................................................6-3
6.4 Computer Base Assembly ..................................................................................................6-4
6.4.1 Computer Base Removal ...........................................................................................6-4
6.4.2 Computer Feet Removal ............................................................................................6-5
6.5 Cable Lock Installation.......................................................................................................6-6
6.6 Access Panel Removal........................................................................................................6-7
6.7 Front Bezel Assembly ........................................................................................................6-8
6.7.1 Front Bezel Removal .................................................................................................6-8
6.7.2 Power Button Removal..............................................................................................6-9
6.7.3 Bezel Blank Removal ..............................................................................................6-10
6.8 Mass Storage Devices.......................................................................................................6-11
6.8.1 Primary 3.5-Inch Hard Drive Removal....................................................................6-11
6.8.2 5.25-Inch Drive Bay Device Removal.....................................................................6-12
6.8.3 3.5-Inch Drive Removal from 5.25-Inch Drive Adapter .........................................6-13
6.9 Drive Release Latch Removal ..........................................................................................6-15
6.10 Expansion Board Cage Components ..............................................................................6-16
6.10.1 Disconnecting and Raising the Expansion Board Cage.........................................6-16
6.10.2 Expansion Board Removal ....................................................................................6-17
6.10.3 Expansion Board Cage Removal ...........................................................................6-18
6.10.4 Riser Board Removal.............................................................................................6-20
6.10.5 Expansion Board Cage Guide Bracket Removal ...................................................6-21
6.10.6 Lift Lever Removal................................................................................................6-22
6.10.7 Fan Assembly Removal .........................................................................................6-23
6.11 Expansion Board Cage Chassis-Mounted Guide Bracket Removal..............................6-24
6.12 System Board and its Components.................................................................................6-25
6.12.1 System Board Removal .........................................................................................6-25
6.12.2 Microprocessor Removal .......................................................................................6-26
6.12.3 Memory Removal .................................................................................................6-27
6.12.4 Battery Removal ....................................................................................................6-28
6.13 Graphics Solutions..........................................................................................................6-29
6.13.1 AGP Graphics Board Removal..............................................................................6-29
6.13.2 Matrox Millennium II Graphics Memory Upgrade ...............................................6-30
6.13.3 ATI RAGE PRO TURBO AGP Graphics Memory Installation............................6-31
6.14 Speaker Removal............................................................................................................6-32
6.15 Power Supply Removal ..................................................................................................6-33
6.16 Power Switch Cable Components ..................................................................................6-34
6.16.1 Smart Cover Lock Solenoid Removal ...................................................................6-34
6.16.2 Power Switch Cable Assembly Removal ..............................................................6-35
chapter 7
Service Notes .......................................................................................................................................7-1
chapter 8
Specifications
8.1 System ................................................................................................................................8-1
8.1.1 System Specifications ................................................................................................8-1
8.1.2 System Interrupts .......................................................................................................8-2
Compaq Deskpro EN Series of Personal Computers
vii
8.1.3 System DMA .............................................................................................................8-2
8.1.4 System I/O .................................................................................................................8-3
8.1.5 System Memory Map.................................................................................................8-4
8.2 Drives .................................................................................................................................8-4
8.2.1 Diskette Drive ............................................................................................................8-4
8.2.2 Ultra ATA Hard Drives .............................................................................................8-5
8.2.3 Wide UltraSCSI Hard Drives.....................................................................................8-6
8.2.4 24X Max CD-ROM Drive .........................................................................................8-7
8.2.5 32X Max CD-ROM Drive .........................................................................................8-8
8.3 Keyboard ............................................................................................................................8-9
8.4 Mouse .................................................................................................................................8-9
8.5 Supported Graphics Resolutions ......................................................................................8-10
8.5.1 ATI RAGE PRO TURBO Graphics ........................................................................8-10
8.5.2 Diamond Viper NVIDIA 128 3D AGP Graphics ....................................................8-10
8.5.3 Matrox Millennium II Graphics...............................................................................8-10
chapter 9
Connectors, Jumpers, and Switches
9.1 System Board......................................................................................................................9-1
9.2 Riser Board .........................................................................................................................9-2
9.2.1 Desktop Riser Board..................................................................................................9-2
9.2.2 Minitower Riser Board .............................................................................................9-4
9.3 Switch Settings ...................................................................................................................9-6
9.4 System Board Jumpers .......................................................................................................9-7
9.4.1 Clearing Configuration ..............................................................................................9-7
9.5 Hard Drives ........................................................................................................................9-8
appendix A
Connector Pin Assignments ..............................................................................................................A-1
appendix B
Power Cord Set Requirements
General Requirements ............................................................................................................. B-1
Country-Specific Requirements .............................................................................................. B-2
appendix C
Hard Drives
Device 0/Device 1 Relationship .............................................................................................. C-1
SMART ................................................................................................................................... C-1
Automatic Soft-Drive Types ................................................................................................... C-1
appendix D
Diagnostic Error Codes
Special Error Codes ...........................................................................................................D-9
appendix E
POST Error Messages ......................................................................................................................... E-1
viii
Contents
appendix F
Troubleshooting Without Diagnostics
Preliminary Checklist ...............................................................................................................F-1
Solving Minor Problems...........................................................................................................F-2
Diskette Drive Problems...........................................................................................................F-3
Display Problems......................................................................................................................F-4
Printer Problems .......................................................................................................................F-5
Hard Drive Problems ................................................................................................................F-6
Hardware Installation Problems ...............................................................................................F-7
CD-ROM Drive Problems ........................................................................................................F-8
Memory Problems ....................................................................................................................F-9
SCSI Problems..........................................................................................................................F-9
Network Problems ..................................................................................................................F-10
Resolving Audio Hardware Conflicts.....................................................................................F-12
Troubleshooting Using Compaq Intelligent Manageability Features.....................................F-12
appendix G
SCSI Guidelines
Guidelines for Installing Optional SCSI Devices ....................................................................G-1
Termination .............................................................................................................................G-2
Index ............................................................................................................................................... I-1
Compaq Deskpro EN Series of Personal Computers
ix
preface
ABOUT THIS GUIDE
This Maintenance and Service Guide is a troubleshooting and repair guide that can be used for
reference when servicing the Compaq Deskpro EN Series of Personal Computers. Only authorized
technicians trained by Compaq should attempt to repair this equipment.
Compaq Computer Corporation reserves the right to make changes to the Compaq Deskpro EN
Series of Personal Computers without notice.
Symbols and Conventions
The following text and symbols mark special messages throughout this guide:
!
WARNING: Text set off in this manner indicates that failure to follow directions in the warning could
result in bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to
equipment or loss of data.
✎
Text set off in this manner presents commentary, sidelights, clarifying
information, or specific instructions.
The following format conventions distinguish elements of the text throughout this guide:
„ Drive letters that are not in command lines are presented in uppercase type as shown here:
drive A.
„ Folder or directory names that are not in command lines are presented in uppercase type as
shown here: DIRECTORY.
„ The file names are presented in uppercase italic type as shown here: FILENAME.
„ The names of commands are presented in lowercase as shown here: install or a:\install.
„ Commands that are to be entered at the system prompt may be shown on a separate line:
a:\install
„ When you need to type information without pressing Enter, you are directed to “type” the
information.
„ When you need to type the information and press Enter, you are directed to “enter” the
information.
Compaq Deskpro EN Series of Personal Computers
xi
Technician Notes
!
WARNING: Only authorized technicians trained by Compaq should attempt to repair this equipment. All
troubleshooting and repair procedures are detailed to allow only subassembly/module level repair.
Because of the complexity of the individual boards and subassemblies, no one should attempt to make
repairs at the component level or to make modifications to any printed wiring board. Improper repairs can
create a safety hazard. Any indications of component replacement or printed wiring board modifications
may void any warranty.
!
WARNING: To reduce the risk of electric shock or damage to the equipment:
•
Do not disable the power grounding plug. The grounding plug is an important safety feature.
•
Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.
•
Disconnect the power from the computer by unplugging the power cord either from the electrical
outlet or the computer.
CAUTION: To properly ventilate your system, you must provide at least 3-inches (7.6-cm) of clearance at
the front and back of the computer and 1 inch (2.5 cm) on each side.
System Serial Number
The serial number is located on the top of the system unit cover toward the right front and on the
rear of the chassis.
For the purpose of AssetControl, the serial number is embedded in the CMOS on the system
board.
Locating Additional Information
The following documentation is available to support these products:
„ User Documentation
„ Technical Training Guides
„ Compaq Service Advisories and Bulletins
„ Compaq QuickFind
„ Technical Reference Guide
„ Compaq Service Quick Reference Guide
xii
About This Guide
chapter
1
PRODUCT DESCRIPTION
This chapter describes the model offerings and features of the Compaq Deskpro EN Series of
Personal Computers.
Compaq Deskpro EN Series of Personal Computers
Compaq EN Series of Personal Computers
1-1
1.1
Compaq Deskpro EN Series of Personal Computer Models
The Compaq Deskpro EN Series of Personal Computers is available in configurations described in
the following sections.
1.1.1
Desktop Models
Config. Processor/ Hard
Code
Bus Speed Drive
Drive
Type
RAM
CDROM
O/S
Network
Interface
Graphics*
BWZ6
266/66
3.2-GB
Ultra ATA
16-MB
N/A
Win 95
N/A
AGP
BWZ2
266/66
3.2-GB
Ultra ATA
32-MB
N/A
NT 4.0
Intel 10/100
AGP
BWZ3
266/66
3.2-GB
Ultra ATA
32-MB
N/A
Win 95
Intel 10/100
AGP
BWZ4
266/66
3.2-GB
Ultra ATA
32-MB
Yes
Win 95
Intel 10/100
AGP
CDN3
300/66**
3.2-GB
Ultra ATA
32-MB
N/A
Win 95
Intel 10/100
AGP
CDN2
300/66**
3.2-GB
Ultra ATA
32-MB
N/A
Win 95
N/A
AGP
BXH7
300/66
3.2-GB
Ultra ATA
32-MB
N/A
Win 95
N/A
AGP
BXH2
300/66
3.2-GB
Ultra ATA
32-MB
N/A
NT 4.0
Intel 10/100
AGP
BXH4
300/66
3.2-GB
Ultra ATA
32-MB
N/A
Win 95
Intel 10/100
AGP
BXH8
300/66
6.4-GB
Ultra ATA
32-MB
N/A
Win 95
Intel 10/100
AGP
BW27
333/66
3.2-GB
Ultra ATA
32-MB
N/A
Win 95
N/A
AGP
BW22
333/66
3.2-GB
Ultra ATA
32-MB
N/A
NT 4.0
Intel 10/100
AGP
BW25
333/66
3.2-GB
Ultra ATA
32-MB
Yes
Win 95
Intel 10/100
AGP
BW24
333/66
3.2-GB
Ultra ATA
32-MB
N/A
Win 95
Intel 10/100
AGP
BW23
333/66
3.2-GB
Ultra ATA
32-MB
Yes
NT 4.0
Intel 10/100
AGP
BW28
333/66
6.4-GB
Ultra ATA
32-MB
N/A
Win 95
Intel 10/100
AGP
BW29
333/66
4.3-GB
SCSI
32-MB
Yes
NT 4.0
Intel 10/100
AGP 2X
BW37
350/100
6.4-GB
Ultra ATA
32-MB
N/A
Win 95
N/A
AGP
BW32
350/100
6.4-GB
Ultra ATA
32-MB
N/A
NT 4.0
Intel 10/100
AGP 2X
BW33
350/100
6.4-GB
Ultra ATA
32-MB
N/A
Win 95
Intel 10/100
AGP 2X
BW34
350/100
6.4-GB
Ultra ATA
64-MB
Yes
Win 95
Intel 10/100
AGP 2X
BW38
350/100
6.4-GB
Ultra ATA
64-MB
Yes
NT 4.0
Intel 10/100
AGP 2X
BW35
350/100
4.3-GB
SCSI
64-MB
Yes
NT 4.0
Intel 10/100
AGP 2X
BW42
400/100
6.4-GB
Ultra ATA
64-MB
Yes
Win 95
Intel 10/100
AGP 2X
BW43
400/100
6.4-GB
Ultra ATA
64-MB
Yes
NT 4.0
Intel 10/100
AGP 2X
BW44
400/100
4.3-GB
SCSI
64-MB
Yes
NT 4.0
Intel 10/100
AGP 2X
Note: Models with Wide UltraSCSI hard drives ship standard with ECC memory modules.
All models have embedded 16-bit full duplex audio on the system board and a maximum expandable
memory of 384 MB.
Some models may not be available in all geographic locations.
*AGP = 4-MB memory installed. AGP 2X = 4-MB memory installed with 4-MB memory upgrade capability.
**Intel Celeron Processor with no L2 Cache.
1-2
Product Description
1.1.2
Desktop CCP Models
Config. Processor/ Hard
Code
Bus Speed Drive
Drive
Type
RAM
CDROM
O/S
Network
Interface
Graphics*
BWZP
266/66
**
BXHP
300/66
**
**
32-MB
**
32-MB
**
**
**
AGP
**
**
**
AGP
BW2P
333/66
**
**
32-MB
**
**
**
AGP
BW3P
350/100
**
**
32-MB
**
**
**
AGP 2X
BW4P
400/100
**
**
64-MB
**
**
**
AGP 2X
Note: All models have embedded 16-bit full duplex audio on the system board and a maximum expandable
memory of 384 MB.
Some models may not be available in all geographic locations.
*AGP = 4-MB memory installed. AGP 2X = 4-MB memory installed with 4-MB memory upgrade capability.
**Selected and dealer installed.
1.1.3
Minitower Models
Config. Processor/ Hard
Code
Bus Speed Drive
Drive
Type
RAM
CDROM
O/S
Network
Interface
Graphics*
BW72
266/66
3.2-GB
Ultra ATA
32-MB
Yes
Win 95
Intel 10/100
AGP
BW75
266/66
3.2-GB
Ultra ATA
32-MB
Yes
NT 4.0
Intel 10/100
AGP
BW74
266/66
3.2-GB
Ultra ATA
32-MB
Yes
Win 95
N/A
AGP
BZK2
333/66
6.4-GB
Ultra ATA
32-MB
Yes
Win 95
N/A
AGP
BZK3
333/66
6.4-GB
Ultra ATA
32-MB
Yes
Win 95
Intel 10/100
AGP
BW82
350/100
6.4-GB
Ultra ATA
32-MB
Yes
Win 95
Intel 10/100
AGP 2X
BW85
350/100
6.4-GB
Ultra ATA
32-MB
Yes
NT 4.0
Intel 10/100
AGP 2X
BW83
350/100
4.3-GB
SCSI
64-MB
Yes
NT 4.0
Intel 10/100
AGP 2X
BZL2
400/100
9.1-GB
SCSI
64-MB
Yes
NT 4.0
Intel 10/100
AGP 2X
Note: Models with Wide UltraSCSI hard drives ship standard with ECC memory modules.
All models have embedded 16-bit full duplex audio on the system board and a maximum expandable
memory of 384 MB.
Some models may not be available in all geographic locations.
*AGP = 4-MB memory installed. AGP 2X = 4-MB memory installed with 4-MB memory upgrade capability.
Compaq EN Series of Personal Computers
1-3
1.2
Features
Bus speed
66 or 100 MHz
Diskette drive
3.5-inch drive, 1.44-MB standard
Processor
Intel Celeron Processor at 300 MHz with no L2 cache
Intel Pentium II Processor at 266 to 400 MHz.
Hard drive
3.2- or 6.4-GB SMART Ultra ATA
4.3-GB or 9.1-GB SMART Wide UltraSCSI
Chipset
Intel 440BX AGPset
CD-ROM drive
24X Max tray load on select models
Architecture
PCI/ISA 242-byte CMOS RAM, battery-backed
plug and play capability is standard
Audio
Embedded 16-bit full duplex audio featuring Compaq
PREMIERzSOUND on all system boards
Cache
32-KB, L1
512-KB L2 (write-through, direct mapped) ECC (on
select models)
No L2 cache on Celeron models
Graphics
ATI RAGE PRO TURBO AGP Graphics
ATI RAGE PRO TURBO AGP 2X Graphics
Matrox Millennium II AGP Graphics
Diamond Viper NVIDIA RIVA 128 3D multimedia
graphics
Flash ROM BIOS
Network interface
Compaq Fast Ethernet NIC 10/100 TX PCI INTEL
WOL standard (some models available without NIC)
Memory 66 MHz without ECC
non-parity, Ultra ATA models
384-MB maximum
Upgrade modules available
3 DIMM sockets standard
I/O ports
Serial (2), parallel, USB (2), monitor, keyboard, audio,
and mouse are standard
SCSI port on SCSI models only
Memory 100 MHz without ECC
non-parity, Ultra ATA models
384-MB maximum
Upgrade modules available
3 DIMM sockets standard
Power supply
200-watt, 115 VAC, 5.5 A or 230 VAC, 3.0 A with
integral fan (2,000 volt surge suppressant capability)
Memory 66 MHz with ECC
non-parity, SCSI models
384-MB maximum
Upgrade modules available
3 DIMM sockets standard
Intelligent Manageability
Features include Initial Configuration and
Deployment, Asset Tracking and Security, Software
Updating and Management, Fault Notification and
Recovery, and Building Blocks and Partners
Memory 100 MHz with ECC
non-parity, SCSI models
384-MB maximum
Upgrade modules available
3 DIMM sockets standard
Operating System
Microsoft Windows 95 or Windows NT 4.0
preinstalled
Bays
Desktop: 3.5-inch internal (1), 3.5-inch external
(1), and 5.25-inch external (2)
Compaq Enhanced keyboard
With MS Windows-specific keys standard
Minitower: 3.5-inch internal (1), 3.5-inch external
(1), and 5.25-inch external (3)
Expansion slots
Desktop: 2 PCI, 2 PCI/ISA, and 1 AGP
CPU weight carrying capacity
100 lb. distributed on desktop model
Minitower: 2 ISA, 5 PCI, and 1 AGP
1-4
Chassis-mounted speaker, standard
Internal battery, standard
Two-button mouse, standard
Chassis fan, standard
Product Description
1.3
System Design
This section presents a design overview and functional descriptions of the key components of the
Compaq Deskpro EN Series of Personal Computers. All replaceable components are identified in
Chapter 3, and removal and replacement instructions are presented in Chapters 5 and 6.
1.3.1
Desktop Design Overview
The desktop models of the Compaq Deskpro EN Series of Personal Computers use a highly
serviceable chassis to house the slide-out system board, expansion board cage, power supply, and
mass storage devices. The expansion board cage houses the expansion boards.
All internal components are accessible when the cover with its integrated front bezel is removed.
The cover assembly is attached to the chassis with quick release cover latches; no tools are
required to remove the cover assembly.
The system board is easily removed from the chassis after the cover is removed and the expansion
board cage is raised by lifting a pair of top-mounted green levers. Once the system unit cover has
been removed and the expansion board cage raised, there is no need to remove any other
component to access the system board. Details of the disassembly procedure are found in
Chapter 5, “Removal and Replacement Procedures.”
The tilt drive cage is located on the right side of the chassis, directly in front of the power supply.
Tilting the cage allows full service access to the rear of the drives without the need for any tools.
The drive cage accommodates one side-mounted internal hard drive and provides three bays for
external access drives.
The drive cage allows drive installation without the use of rails. Two screws on each side of the
drive are used as guides, and drive release latches are used to secure the drives into the bays. Extra
guide screws (standard and metric thread) are provided on the front of the chassis, to the left of the
drive cage for use when installing additional drives.
The expansion board cage with the riser board mounts at a right angle to the system board. The
riser board is secured to the expansion board cage with three screws. Expansion boards are
installed at a right angle into the riser board. A single screw secures each expansion board to the
expansion board cage.
The power supply is mounted in the right rear corner of the chassis. Embedded clips located on
the bottom of the power supply engage cutouts in the floor of the chassis. The power supply is
held in place by three screws that are installed through the rear panel of the chassis.
Compaq EN Series of Personal Computers
1-5
1.3.2
Minitower Design Overview
The minitower models of the Compaq Deskpro EN Series of Personal Computers use a highly
serviceable chassis to house the slide-out system board, expansion board cage, power supply, and
mass storage devices. The expansion board cage houses the expansion boards.
All internal components are accessible when the access panel and the front bezel are removed.
The access panel is attached to the chassis with three easily removed thumb screws and the front
bezel is attached with tabs.
The system board is easily removed from the chassis after the access panel is removed and the
expansion board cage is raised by lifting a pair of top-mounted green levers. Once the access
panel has been removed and the expansion board cage raised, there is no need to remove any other
component to access the system board. Details of the disassembly procedure are found in
Chapter 6, “Removal and Replacement Procedures.”
The drive cage is located at the top of the chassis, accommodates one internal hard drive, and
provides four bays for external access drives.
The drive cage allows drive installation without the use of rails. Two screws on each side of the
drive are used as guides, and drive release latches are used to secure the drives into the bays. Extra
guide screws (standard and metric thread) are provided on the front of the chassis for use when
installing additional drives.
The expansion board cage with the riser board mounts at a right angle to the system board. The
riser board is secured to the expansion board cage with three screws. Expansion boards are
installed at a right angle into the riser board. A single screw secures each expansion board to the
expansion board cage.
The power supply is mounted in the top rear of the chassis. It is supported by built-in latches and
held in place by three screws that are installed through the rear panel of the chassis.
1-6
Product Description
1.4
Preloaded Software
The computer is shipped with Microsoft Windows 95 or Windows NT 4.0 installed as the
operating system, depending on the model.
The following Compaq software is preloaded on the computer:
„ ROM-based Computer Setup*
„ Compaq Diagnostics for Windows*
„ Compaq Support Software and device drivers*
„ Online Compaq Safety & Comfort Guide (English only)
„ Power Management with Energy Saver features*
„ Security Management*
„ Remote Management Tools*
✎
1.4.1
* Part of Intelligent Manageability
Ordering Additional Operating System Drivers
If you plan to run any of the following operating systems on the computer, you must install the
corresponding Compaq device drivers and utilities before attempting to use the computer:
„ IBM OS/2
„ NetWare
„ A version of Microsoft Windows or Windows NT that is different from the version
included with the computer
There are two methods to order copies of suitable device drivers and utilities:
„ Order the Support Software CD for Compaq Desktop, Portables, and Workstation
Products. This compact disc contains the latest device drivers, utilities, and flashable ROM
images needed to run MS-DOS, Windows 3.1, Windows 95, Windows NT Workstation
3.51, IBM OS/2, and NetWare on the Compaq commercial desktop product.
„ Download the software from the Compaq World Wide Web site (www.compaq.com).
The Support Software CD can be purchased in either of two ways:
„ A single CD-ROM that gives one-time access to the latest support software (North
America only).
„ A yearly subscription that delivers up to 12 monthly CD-ROMs provides continuous
access to the latest developments.
✎
When calling Compaq to place an order, be sure to have the serial number of the
computer available. The location of the serial number is shown in Chapters 5 and
6. This number is necessary for all purchases.
Compaq EN Series of Personal Computers
1-7
1.5
Desktop Computer Features
The Compaq Deskpro EN Series of Personal Computers ships with a mouse and keyboard. A
Compaq color monitor or other compatible monitor, which is also required to operate the
computer, does not ship with the computer.
1.5.1
1-8
Front Panel Controls and LEDs
1
2
3
4
5
6
7
Diskette Drive Activity Light illuminates when the diskette drive is reading or writing.
8
9
:
;
CD-ROM Eject Button.
CD-ROM Headphone Jack.
CD-ROM Headphone Volume Control.
Diskette Eject Button.
CD-ROM Tray.
CD-ROM Emergency Eject Socket.
CD-ROM Drive Activity Light illuminates when the CD-ROM drive is reading information from the
compact disc.
Dual-State Power Button.
Power-On Light illuminates when the computer is turned on.
Hard Drive Activity Light illuminates when the hard drive is reading or writing.
Product Description
1.5.2
Drive Positions
1
2
3
4
Standard 3.5-inch 1.44-MB diskette drive
Optional 5.25-inch CD-ROM drive (half-height) (standard on some models)
Optional 5.25-inch drive (half-height)
Standard 3.5-inch internal hard drive
To verify the type, size, and capacity of the mass storage devices installed in the computer, run the
View System Information (INSPECT) utility available at computer startup. Refer to Chapter 2,
"Intelligent Manageability," for more information.
Compaq EN Series of Personal Computers
1-9
1.5.3
Rear Panel Connectors
1
2
3
4
5
6
7
8
9
:
;
<
=
>
?
1-10
Power Cord Connection
Smart Cover Lock
Microphone Connector
Ethernet RJ-45 Connector (some models available without a NIC)
Line-In Audio Connector
Wide UltraSCSI Connector (select models)
Mouse Connector
Monitor Connector
Voltage Select Switch (115V or 230V to match geographical requirements)
Universal Serial Bus (USB) Connectors
Headphone Connector
Line-Out Connector
Keyboard Connector
Parallel Port Connector
Serial Connectors
Product Description
1.6
Minitower Computer Features
The Compaq Deskpro EN Series of Personal Computers ships with a mouse and keyboard. A
Compaq color monitor or other compatible monitor, which is also required to operate the
computer, does not ship with the computer.
1.6.1
Front Panel Controls and LEDs
1
2
3
4
5
6
7
8
9
:
Diskette Eject Button.
Diskette Drive Activity Light illuminates when the diskette drive is reading or writing.
CD-ROM Drive Tray.
Stereo Headphone Jack.
Headphone Volume Control.
CD-ROM Emergency Eject Socket.
CD-ROM Drive Activity Light illuminates when the CD-ROM drive is reading information.
CD-ROM Eject Button.
Dual-State Power Button.
Power-On Light illuminates when the computer is turned on and blinks (optional) in Energy Saver
Mode.
; Hard Drive Activity Light illuminates when the hard drive is reading or writing.
Compaq EN Series of Personal Computers
1-11
1.6.2
Drive Positions
1
2
3
4
5
Standard 3.5-inch 1.44-MB diskette drive
5.25-inch CD-ROM drive (half-height) (standard on some models)
Optional 5.25-inch drive (half-height)
Optional 5.25-inch drive (half-height)
Standard 3.5-inch internal hard drive
To verify the type, size, and capacity of the mass storage devices installed in the computer, run the
View System Information (INSPECT) utility available at computer startup. Refer to Chapter 2,
"Intelligent Manageability," for more information.
1-12
Product Description
1.6.3
Rear Panel Connectors
1
2
3
4
5
6
7
8
9
:
;
<
=
>
?
Voltage Select Switch (115V or 230V to match geographical requirements)
Universal Serial Bus (USB) Connectors
Headphone Connector
Line-Out Audio Connector
Keyboard Connector
Parallel Port Connector
Serial Connectors
Smart Cover Lock
Power Cord Connector
Microphone Connector
Ethernet RJ-45 Connector (some models available without a NIC)
Wide UltraSCSI Connector (select models)
Line-In Audio Connector
Mouse Connector
Monitor Connector
Compaq EN Series of Personal Computers
1-13
1.7
Enhanced Keyboard
Ref.
Key
Function
1
Ctrl
Used in combination with another key, its effect depends on the
software application you are using.
2
Windows Logo Keys
Opens the Windows Start menu. Used in combination with another key,
its effect depends on the software application you are using.
3
Alt
Used in combination with another key, its effect depends on the
software application you are using.
4
Windows Application Key Used (like the right mouse button) to open pop-up menus in a Microsoft
Office application. May perform other functions in other software
applications.
The keyboard has feet on the bottom that enable the user to tilt the keyboard to a more
comfortable typing angle.
Keyboard Tilt Foot
1-14
Product Description
1.8
Select Options
Category
Option
Category
Option
Processor,
66 MHz
Celeron 300
Pentium II 266
Pentium II 300
Pentium II 333
Hard Drive, 4.3-GB Wide UltraSCSI
SCSI
9.1-GB Wide UltraSCSI
Processor,
100 MHz
Pentium II 350
Pentium II 400
Removable Internal 1.44-MB diskette drive
Storage
Memory,
66 MHz
(both with
and without
ECC)
16-MB SDRAM DIMM*
32-MB SDRAM DIMM
64-MB SDRAM DIMM
128-MB SDRAM DIMM
Graphics
Controllers
ATI RAGE PRO TURBO AGP
ATI RAGE PRO TURBO AGP 2X
Diamond Viper NVIDIA RIVA 128 3D
multimedia graphics
Matrox Millennium II AGP graphics
Memory,
100 MHz
(both with
and without
ECC)
16-MB SDRAM DIMM*
32-MB SDRAM DIMM
64-MB SDRAM DIMM
128-MB SDRAM DIMM
Graphics
Memory
4-MB SGRAM SODIMM (for ATI RAGE PRO
TURBO 2X only)
4-MB memory upgrade for Matrox Millennium II
AGP graphics only
Hard Drive, 3.2-GB Ultra ATA
ATA
6.4-GB Ultra ATA
8.4-GB Ultra ATA
Network
Compaq Fast Ethernet 10/100 TX PCI Intel
WOL
3COM Fast Etherlink XL 10/100 TX PCI
(3C905B-TX) with Remote Wakeup
IBM PCI WOL Token Ring Adapter
Netelligent 10/100, TX PCI UTP TLAN
CD-ROM
Drive
32X Max IDE tray load
24X Max IDE tray load
Modem
Compaq Netelligent 56.6 baud modem
SCSI
Controller
PCI Wide UltraSCSI
controller
*16-MB modules with ECC are not available.
Compaq EN Series of Personal Computers
1-15
chapter
2
SOFTWARE REFERENCE
2.1
Installing the Operating System
CAUTION: Do not add optional hardware devices to your computer until the operating system is
successfully installed. Doing so may cause errors and may prevent the operating system from installing
properly.
2.1.1
Microsoft Windows 95 or Windows 98
The first time the computer is turned on, Microsoft Windows is automatically installed. This takes
approximately 5 to 15 minutes, depending on your system hardware configuration. At the
beginning of the installation process, the user is prompted to select the appropriate language for
the operating system. Read and follow the instructions that appear on the screen to complete the
installation.
CAUTION: Once the automatic installation has begun, DO NOT TURN OFF THE COMPUTER UNTIL THE
PROCESS IS COMPLETE. Turning off the computer during the installation process might damage the
software that runs the computer.
When the Welcome to Windows screen is displayed, the installation process is complete.
2.1.2
Microsoft Windows NT Workstation 4.0
The first time you turn on your computer, Microsoft Windows NT Workstation is automatically
installed for you. This takes approximately 30 minutes, depending on the system hardware
configuration. At the beginning of the installation process, the user is prompted to select the
appropriate language for the operating system. Read and follow the instructions that appear on
the screen to complete the installation.
Installing Windows NT Workstation 4.0 Over a Network
Network installation is used primarily for installing or upgrading Microsoft Windows NT
Workstation over a local area network. It can also be used to install additional drivers or files with
Windows NT.
✎
This capability does not imply the grant of a site license for Microsoft Windows
NT Workstation and should only be used to install the operating system on
computers for which the appropriate software license has already been obtained.
This installation method should be used to deploy Windows NT using a distribution share point
over a network connection.
The Windows NT installation that is completed when the computer is first turned on creates an
I386 directory. This directory and its subdirectories provide the Compaq-specific integration of
Windows NT for the computer model. This image, license permitting, can be used as a
distribution share point to deploy Windows NT over a network connection.
Compaq Deskpro EN Series of Personal Computers
2-1
To use distribution share point to install or upgrade Windows NT, see the Windows NT Resource
Kit and its documentation.
Installing or Upgrading Device Drivers
To install hardware devices such as a printer, a display adapter, a network adapter, or other device
after the Windows NT installation is completed, Windows NT needs access to the appropriate
software drivers for the devices.
The I386 directory and its subdirectories provide the Compaq-specific integration of Windows NT
for the computer model and include device drivers supported by Windows NT.
When prompted for the I386 directory on the Windows NT CD, replace the path specification
with C:\I386 or use the browse button of the dialog box to browse the computer for the I386
folder. This points Windows NT to the appropriate drivers and allows installation of the device to
be completed.
Creating an Emergency Repair Diskette
✎
The following section applies only to computers equipped with a diskette drive.
After installing Microsoft Windows NT, create an Emergency Repair Diskette. To create the
Emergency Repair Diskette, one blank, formatted diskette is needed. Complete the following
steps:
1. Click Start Æ Compaq Information Center Æ Create Emergency Repair Diskette.
2. Read and follow the instructions that appear on the screen.
A set of boot diskettes should also be created. These diskettes are required to start the computer
should the Emergency Repair Diskette be needed. To create boot diskettes, you need three blank,
formatted diskettes.
1. Click Start Æ Compaq Information Center Æ Create Boot Diskettes.
2. Read and follow the instructions that appear on the screen.
Using the Emergency Repair Diskette
✎
The following section applies only to computers equipped with a diskette drive.
To use the Emergency Repair Diskette if the computer is not equipped with the LS-120 drive,
insert the first boot diskette in the diskette drive and restart the computer. Follow the instructions
displayed on the screen.
To use the Emergency Repair Diskette if the computer is equipped with the LS-120 drive, follow
the instructions below:
1. Restart the computer using the Microsoft Windows NT Boot Disk 1.
2. Press the F6 key when the message “Setup is inspecting your computer’s hardware
configuration…” appears on your screen.
3. When asked if you want to specify a storage device, press S and select the Compaq
ATAPI/IDE/LS-120 Controller from the list.
4. When asked again if you want to specify a storage device, press the Enter key. Follow the rest
of the installation procedures as outlined in the operating system documentation from
Microsoft.
2-2
Software Reference
2.2
Registering the Computer
The computer should be registered with Compaq. Registration establishes a record of ownership
and gives the user an opportunity to receive product announcements, updates, and other
communications periodically. Registration is easy—just visit Compaq’s Web site at
www.compaq.com/register and follow the instructions that appear on the screen.
2.3
Compaq Software
The Microsoft Windows 95, Windows 98, or Windows NT Workstation operating system is
preinstalled on the computer and will be configured automatically the first time the computer is
turned on. The following Compaq software will also be installed at that time on selected models:
„ Computer Setup Utilities and diagnostic features
„ Compaq Support Software including device drivers
„ Online Compaq Safety & Comfort Guide
„ Intelligent Manageability
„ Enhanced Compaq Insight Personal Edition (Diagnostics for Windows)
„ Compaq Insight Management agents
„ DMI Support
„ Power Management with energy saver features
„ Security Management tools
„ Support Software Management tools
✎
Certain drivers and utilities are available only in selected languages. You can
obtain the latest version of these files, in English and selected other languages, in
one of three ways:
❏
Compaq Support Software CD for Compaq Desktop, Portable, and
Workstation Products (refer to “Enhanced Support Software CD and
World Wide Web Site” in this chapter for ordering information)
❏
Compaq Web Site at www.compaq.com
❏
Compaq Restore CD, which is supplied with many Deskpro models
Compaq Deskpro EN Series of Personal Computers
2-3
2.4
Compaq Computer Setup Utilities and Diagnostic Features
Compaq Computer Setup Utilities and diagnostic features provide information needed about the
computer system when contacting Compaq Customer Support. These tools can also be used to:
„ Change factory default settings, and to set or change the system configuration, which may
be necessary when you add or remove hardware.
„ Determine if all of the devices installed on the computer are recognized by the system and
functioning properly.
„ Determine information about the operating environment of the computer.
„ Solve system configuration errors detected but not automatically fixed during the Power-
On Self-Test (POST).
„ Establish and manage passwords and other security features.
„ Establish and manage energy-saving timeouts.
2.4.1
Computer Setup Utilities
Use Computer Setup Utilities to do the following:
„ Change factory default settings.
„ Set the system date and time.
„ Set, view, change, or verify the system configuration, including settings for processor,
graphics, memory, audio, storage, communications, and input devices.
„ Modify the boot order of bootable devices such as hard drives, diskette drives, CD-ROM
drives, DVD-ROM drives, or PD-CD drives.
„ Enable Quick Boot, which is faster than Full Boot but does not run all of the diagnostic
tests run during a Full Boot. You can set your system to:
❏
always Quick Boot (default);
❏
periodically Full Boot (from every 1 to 30 days); or
❏
always Full Boot.
„ Enable or disable Network Server Mode, which allows the computer to boot the operating
system when the power-on password is enabled. The keyboard and mouse remain locked
until the power-on password is entered.
„ Select Clean or Descriptive mode for displaying Power-On Self-Test (POST) messages.
Clean mode suppresses most POST messages, such as memory count, product name, and
other non-error text messages. If a POST error occurs, the error is displayed regardless of
the mode selected. To manually switch to Descriptive mode during POST, press any key
(except F10 or F12).
„ Establish an Ownership Tag, the text of which is displayed each time the system is turned
on or restarted.
„ Enter the Asset Tag or property identification number assigned by your company to this
computer.
„ Enable power-on password prompting during system restarts (warm boots) as well as
during power-on.
„ Establish a setup password that controls access to Computer Setup and the settings
described in this section.
2-4
Software Reference
„ Secure the serial, USB, or parallel ports so that they cannot be used until they are
unsecured.
„ Enable or disable QuickLock and QuickBlank features.
„ Enable or disable removable media boot ability.
„ Enable or disable removable media write ability.
„ Solve system configuration errors detected but not automatically fixed during the Power-
On Self-Test (POST).
„ Replicate your system setup by saving system configuration information on diskette and
restoring it on one or more computers.
Using Computer Setup Utilities
To access the Computer Setup Utilities menu, complete the following steps:
1.
Turn on or restart the computer. If you are in Windows, click Start Æ Shut Down Æ Restart
the Computer.
2.
When the F10 Setup message appears in the lower-right corner of the screen, press the F10
key. Press Enter to bypass the title screen, if necessary.
✎
If you do not press the F10 key while the message is displayed, you must turn the
computer off, then on again, to access the utility.
A choice of five headings appears in the Computer Setup Utilities menu: File, Storage, Security,
Power, and Advanced.
3.
Using the arrow keys or the Tab key, select the option you want and press the Enter key. To
return to the Computer Setup Utilities menu, press the Esc key.
4.
To apply and save changes, select File Æ Save Changes and Exit. If you selected an option
that automatically restarted the computer, changes were applied at that time. If you have made
changes that you do not want applied, select Ignore Changes and Exit. If you have already
applied changes you now want to eliminate, select Set Defaults and Exit. This option will
restore the original system defaults.
Compaq Deskpro EN Series of Personal Computers
2-5
2.4.2
Computer Setup Menu
Heading
Option
Description
File
System Information
Lists product name, processor type/speed/stepping, CPU
serial number, system ROM date, system board revision,
installed memory size, and asset tracking number.
Set Time and Date
Allows you to set system time and date.
Save to Floppy
Saves system configuration to a blank 1.44-MB diskette.
Restore from Floppy
Restores system configuration from a diskette.
Set Defaults and Exit
Restores factory default settings.
Ignore Changes and Exit
Exits Computer Setup without applying or saving any
changes.
Save Changes and Exit
Saves changes to system configuration and exits
Computer Setup.
Diskettes
Lists the currently installed drive A (preinstalled diskette
drive) and drive B devices.
Removable Media
Enables/disables removable media booting and removable
media writing.
Note: After saving changes to Removable Media, the
computer will restart. Turn the computer off, then on,
manually.
IDE Devices
Lists information regarding IDE devices connected to the
system. ATAPI devices (CD-ROM, DVD-ROM, tape) are
listed as ATAPI devices.
IDE Drive Timing
Allows you to set hard drive to Ultra-DMA (Ultra-ATA),
EDMA, or PIO mode operation.
IDE Drive Translation
Enables/disables IDE drive translation.
Boot Order
Allows you to specify boot order of installed peripheral
devices (such as LS-120 drive, diskette drive, hard drive,
SCSI drive, CD-ROM drive, or DVD-ROM drive).
Setup Password
Enables setup (administrator) password.
See the “Security Management” section of this guide for
more information.
Power-On Password
Enables power-on password.
Specifies prompting for Power-On Password.
See “Security Management” for more information.
Password Options
Enables/disables network server mode, keyboard
QuickLock, QuickBlank screen when locked, and
QuickLock in energy saver mode.
See “Security Management” for more information.
Note: This selection will appear only if a power-on
password is set.
Smart Cover
Enables/disables Smart Cover Sensor and Cover Lock.
Also lists most recent cover removal. (Feature supported
on select models only.)
See “Security Management” for more information.
Device Security
Enables/disables serial, parallel, and USB ports and audio
security.
Storage
Security
continued
2-6
Software Reference
Computer Setup Menu Continued
Power
Advanced*
*
Network Service Boot
Enables/disables Network Service Boot. (Feature supported
on select models only.)
System IDs
Allows you to set Asset Tag and Ownership Tag.
See “Security Management” for more information.
Allows setting of Chassis Serial Number if current number is
invalid.
Also allows you to set keyboard locale setting (e.g., English or
German) for System ID entry.
Energy Saver
Allows you to set energy saver mode to advanced, disabled,
or minimal.
Timeouts
Allows you to enable/disable timeouts or manually select
timeout values.
Note: This selection will only appear when energy saver mode
is set to advanced.
Energy Saver Options
Allows you to set power button configuration (on/off or
suspend/wakeup)
Allows user to enable/disable power LED blink in suspend
mode.
Note: This selection will not appear if the energy saver mode
is disabled.
Power-On Self Test
Allows you to set POST mode (QuickBoot or FullBoot) and
enables/disables POST messages.
Onboard Devices
Allows you to set resources for onboard system devices (serial
port, parallel port, etc.).
PCI Devices
Lists currently installed PCI devices and their IRQ settings.
Allows you to reconfigure IRQ settings for these devices or to
disable them entirely.
ISA PnP Devices
Lists current settings of plug and play (PnP) devices.
Enables or disables PnP devices.
Note: Will not appear if there are no PnP devices currently
installed.
Bus Options
Enables/disables PCI bus mastering, PCI reset on warm boot,
and PCI VGA palette snooping.
Allows you to set ISA back-to-back I/O (fast/legacy) delay and
bus priority (ISA/PCI).
Device Options
Allows you to set printer mode (flexible/standard), NumLock
state at power-on, and Erase-Eaze Keyboard support.
PCI VGA Configuration
Appears only if there are multiple PCI video adapters in the
system.
Allows users to specify which VGA controller will be the “boot”
or primary VGA controller.
These options should be used by advanced users only.
Compaq Deskpro EN Series of Personal Computers
2-7
2.5
Computer Diagnostics
Compaq strongly recommends that you create a diagnostics diskette as soon as you begin to use
the computer. This diskette will play an important role in the restoration process if you ever
experience a major system failure. It will also allow you to run the Computer Checkup (TEST) or
View System Information (INSPECT) diagnostic programs.
Another Compaq diagnostic feature is Enhanced Compaq Insight Personal Edition (Diagnostics
for Windows), described later in this guide.
2.5.1
Create a Diagnostics Diskette
Deskpro EP Series, Deskpro EN Series, and Deskpro EN Series, Small Form Factor
To create a bootable, DOS-based Diagnostic Diskette, * run the SOFTPAQ executable file found
in C:\DIAGDISK\ to extract the necessary files. Insert a blank, 1.44MB formatted diskette into the
diskette drive, then run C:\DIAGDISK\PDIAG\MAKEDISK.BAT.
✎
To obtain the SOFTPAQ executable filename, run
DIR C:\DIAGDISK\SP*.EXE.
* Depending on the model, this process may require two blank 1.44MB diskettes.
Deskpro EN Series
Using the Windows or Windows NT operating system:
Click Start Æ Compaq Information Center Æ Create Diagnostics Disk. Insert a diskette into the
diskette drive and follow the instructions on the screen.
2.5.2
Computer Checkup (TEST)
Use Computer Checkup (TEST) in the following instances to:
„ Determine if all the devices installed on the computer are recognized by the system and
functioning properly. Running TEST is optional but recommended after installing or
connecting a new device.
„ Save, print, or display the information generated by TEST. You should run TEST and have
the printed report available before placing a call to the Compaq Customer Support Center.
„ Assist your Compaq authorized dealer, reseller, or service provider in analyzing the system
by allowing the service provider to reproduce the same environment on another computer
for testing.
2-8
Software Reference
2.5.3
View System Information (INSPECT)
Use View System Information (INSPECT) to:
„ View information about the system once it has been configured.
„ Save, print, or display the information generated by INSPECT. You should run INSPECT
and have the printed report available before placing a call to the Compaq Customer
Support Center.
„ Assist your Compaq authorized dealer, reseller, or service provider in analyzing the system
by allowing the service provider to reproduce the same environment on another computer
for testing.
The information provided by INSPECT includes:
„ Contents of the operating system startup files
„ Current memory configuration
„ ROM versions
„ Type of processor and coprocessor
„ Diskette, CD-ROM, DVD-ROM, tape, or hard drives installed
„ Active printer and communications interfaces
„ Modem type installed
„ Graphics settings
„ Windows WIN.INI file details
✎
Categories or items of information displayed by View System Information
(INSPECT) are similar to but may vary slightly from those available in Compaq
Diagnostics for Windows.
Using Computer Checkup (TEST) or View System Information (INSPECT)
✎
Before you run Computer Checkup (TEST) or View System Information
(INSPECT), you must create a diagnostics diskette. See “Create a Diagnostics
Diskette” for instructions.
1. Reboot your computer from the diagnostics diskette you have created. Press Enter to bypass
the title screen, if necessary.
2. Select either Computer Checkup (TEST) or View System Information (INSPECT).
When running TEST:
1. Select the option to view the device list. A list of the installed hardware devices appears.
2. Verify that TEST correctly detected the devices installed. This utility will detect all devices
manufactured by Compaq; devices from other manufacturers may not be detected.
❏
If the list is correct, select OK and go on to step 3.
❏
If the list is incorrect, be sure that any new devices are installed properly.
Compaq Deskpro EN Series of Personal Computers
2-9
3. Select one of the following from the test option menu:
❏
Quick Check Diagnostics—This option runs a quick, general test on each device
with a minimal number of prompts. If errors occur, they are displayed when the
testing is complete.
❏
Automatic Diagnostics—This option runs unattended, maximum testing of each
device with minimal prompts. You can choose how many times to run the tests, to
stop on errors, or to print or file a log of errors.
❏
Prompted Diagnostics—This option allows maximum control over the device
testing process. You can choose attended or unattended testing, decide to stop on
errors, or choose to print or file a log of errors.
4. Follow the instructions on the screen as the diagnostic tests are run on the devices.
To exit either TEST or INSPECT, press the Esc key to reach the Exit option. Then press Enter.
2.5.4
Enhanced Compaq Insight Personal Edition
(Compaq Diagnostics for Windows)
Enhanced Compaq Insight Personal Edition is a component of Intelligent Manageability that
allows you to view:
„ System overview
„ AssetControl information
„ Input devices
„ Communications ports
„ Storage devices
„ Graphics information
„ Memory configuration
„ Security management settings
„ System health
„ Operating system
„ Windows version
Depending on the version, Compaq Insight Personal Edition may include diagnostic tests to
determine if all the devices installed on the computer are recognized by the system and are
functioning properly.
2-10
Software Reference
Using Compaq Insight Personal Edition
1. Select the Compaq Insight Personal Edition icon or the Compaq Diagnostics icon, located in
the Control Panel.
The screen displays an overview of the computer hardware and software.
2. For specific hardware and software information, select a category from the Categories menu or
from the toolbar.
✎
As you move your cursor over the toolbar icons, the corresponding category
names appear near the cursor.
3. To display more detailed information in a selected category, click More in the Information
Level box.
✎
4.
Categories or items of information displayed by Compaq Insight Personal Edition
are similar to but may vary slightly from the information presented in View
System Information (INSPECT).
Review and print this information.
✎
5.
To print the information, click File, then select Print. Select one of the following
options: Detailed Report (All Categories), Summary Report (All Categories), or
Current Category. Click OK to print the report you selected.
To exit Compaq Insight Personal Edition, click File, then click Exit.
Running Diagnostic Tests
If your version of Compaq Insight Personal Edition includes diagnostic testing utilities, four tabs
will appear next to Overview: Test, Status, Log, and Error.
1. Select the Test tab.
2. Select one of the following options:
❏
Quick Test—Runs a quick, general test on each device with a minimal number of
prompts.
❏
Complete Test—Runs maximum testing of each device with minimal prompts.
❏
Custom Test—Runs only the tests you select. To select specific devices or tests, find the
device in the list, then click the box beside each test to select or deselect it. When selected,
a red check mark appears in the box.
3. Select Interactive Mode or Unattended Mode.
4. In Interactive Mode, the diagnostic software will prompt you for input during tests that require
it. Some tests require interaction and will display errors or halt testing if selected in conjunction
with Unattended Mode.
5. Click the Begin Testing button.
Test Status is displayed, showing the progress and result of each test.
6. If errors are found, click the Error tab to display more detailed information and recommended
actions. By following the recommended actions, you may be able to solve some problems
yourself.
7. Click Print or Save the error information in case you need to contact your Compaq authorized
dealer, reseller, or service provider for assistance.
8. To exit Compaq Insight Personal Edition, click File, then click Exit.
Compaq Deskpro EN Series of Personal Computers
2-11
2.6
Protecting Your Software
To protect software from loss or damage, you should keep a backup copy of all system software,
applications, and related files stored on the hard drive. You can order a set of backup diskettes
from Compaq at nominal cost for all of the software preinstalled on the computer, or you can
make a set. Refer to the operating system or backup utility documentation for instructions on
making backup copies of data files. Another option is the Compaq Restore CD, which
accompanies many Deskpro models and enables the user to selectively restore the original
Deskpro system software.
2.6.1
Ordering Backup Diskettes
You can order all software as a single set, or you can order the various software packages
separately.
✎
Before calling Compaq to place your order, be sure to have the serial number of
your computer available. This number is necessary for all diskette purchases.
For a list of Compaq support telephone numbers, consult the Contacting Compaq Customer
Support guide.
2.6.2
The Compaq Restore CD
The Compaq Restore CD offers easy deployment and recovery of Deskpro system software.
Along with the Microsoft operating system CD, the Compaq Restore CD enables the user to
selectively restore the original Deskpro system software. This can be extremely helpful in the
event of hard drive failure or corruption.
The Restore CD is specific to each Deskpro model and accompanies many models along with the
Microsoft operating system CD.
2-12
Software Reference
2.7
Intelligent Manageability
Compaq Intelligent Manageability is the best, most comprehensive set of desktop management
solutions in the industry. Providing easy control and management of the desktop and portable PC,
Intelligent Manageability delivers significant financial and intangible returns when used to
manage distributed PC environments.
Intelligent Manageability is built upon industry-standard building blocks, including DMI 2.0,
Web-Based Enterprise Management, Intel's "Wired for Management," SNMP, and Net PC
technologies. It is tightly integrated with Compaq Management Solutions Partners and Compaq
Insight Manager.
Intelligent Manageability delivers solutions in five areas of primary concern for today's
businesses:
„ Initial Configuration and Deployment
„ Asset Tracking and Security
„ Fault Notification and Recovery
„ Software Updating and Management
„ Building Blocks and Partners
This section provides an introduction to Intelligent Manageability concepts and features. For more
detailed information on specific features, refer to the online Intelligent Manageability Installation
and Configuration Guide (IMINST.HLP) and the online Intelligent Manageability Guide
(INTMGT3.HLP).
✎
Support for specific features described in this chapter and in the online Intelligent
Manageability Guide may vary by model or software version.
Compaq Deskpro EN Series of Personal Computers
2-13
2.8
Initial Configuration and Deployment
Compaq computers come with a preinstalled set of system software. Automated System
Installation and Remote System Installation enable you to replace the preinstalled software with a
customized set of system and application software for consistent, standard software deployment.
The Compaq Restore CD, ROM-based setup, and ACPI-ready hardware provide further assistance
with selective recovery of system software, configuration management and troubleshooting, and
power management.
2.8.1
Remote System Installation
Remote System Installation allows you to start and set up your system using the software and
configuration information located on a network server. The Remote System Installation feature is
usually used as a system setup and configuration tool, and can be used for the following tasks:
„ Installing the optional Setup partition. The partition should be installed only if you wish to
use the previous generation of Compaq Computer Setup and Diagnostics utilities.
„ Formatting a hard drive.
„ Installing an operating system.
„ Installing application software or drivers.
To initiate Remote System Installation, press F12 when the F12=Network Service Boot message
appears in the lower-right corner of the Compaq logo screen. Follow the instructions on the screen
to continue the process.
2-14
Software Reference
2.9
Asset Tracking and Security
Compaq AssetControl features incorporated into the computer provide key asset tracking data that
can be managed using Management Solutions Partners products. Seamless, automatic integration
between AssetControl features and Solutions Partners products enables you to choose the
management tool that is best suited to your environment and to leverage your investment in
existing tools.
Compaq computers are manufactured with the hardware and firmware required to fully support
the DMI 2.0 standard.
Compaq also offers several solutions for controlling access to valuable computer components and
information. DriveLock prevents unauthorized access to data stored on the hard disk, even when
removed from the computer. Remote Security Management enables the system administrator to
centrally establish and manage policies for hardware-based security features, such as the Smart
Cover Lock and the Ownership tag, for networked PCs. Another solution integrates Memory
Change and Smart Cover Sensor alerts with Compaq Insight Manager to deliver proactive
notification of tampering with a computer's internal components.
✎
Security features described in the table below can be established from the Compaq
Computer Setup Utilities menu.
Feature
Purpose
Removable
Media Boot
Control
Prevents booting from the removable media drives.
Removable
Media Write
Control
Prevents writing to the removable media drives.
Serial, Parallel,
USB, or Infrared
Interface
Control
Prevents transfer of data through the integrated serial, parallel, USB (universal
serial bus), or infrared interface.
Power-On
Password
Prevents use of the computer until the password is entered. This can apply to both
initial computer startup and restarts.
QuickLock/
QuickBlank
Disables keyboard and mouse interface, and can blank the screen without exiting
applications. The power-on password must be set to enable QuickLock/
QuickBlank.
Setup Password
Prevents reconfiguration of the computer (use of the Computer Setup utility) until
the password is entered.
Smart Cover
Sensor
Indicates that computer cover or side panel has been removed. Can be set to
require the setup password to restart the computer, after the cover or side panel
has been removed.
Continued
Compaq Deskpro EN Series of Personal Computers
2-15
Feature
Purpose
Smart Cover
Lock
Prevents unauthorized access to the internal components. This is a softwarecontrollable cover lock, controlled by the setup password.
✎
Memory
Change Alerts
The Smart Cover FailSafe Key, a device for manually disabling the Smart
Cover Lock, is available from Compaq. You’ll need the FailSafe Key in
case of forgotten password, power loss, or computer malfunction.
Detects when DIMMs (dual inline memory modules) have been added, moved, or
removed; notifies end-user and system administrator.
✎
For information on enabling Memory Change Alerts, refer to the online
Intelligent Manageability Guide.
Ownership Tag
Displays ownership information, as defined by the system administrator, during
system startup (protected by setup password).
Cable Lock
Provision
Inhibits access to the interior of the computer to prevent unwanted configuration
changes or component removal. Can also be used to secure the computer to a fixed
object to prevent theft of the computer.
✎
Install a padlock with the security bracket to inhibit access to the interior
of the computer; add a cable lock to secure the computer to a fixed
object.
For more information about Computer Setup, refer to the “Compaq Computer Setup Utilities” section of this
chapter. In some cases switches may need to be set. For more information about these switches, refer to
the “Connectors, Jumpers, and Switches” chapter.
2.9.1
Password Security
The computer supports security password features, which can be established through the Compaq
Computer Setup Utilities menu.
Establishing a Setup Password Using Computer Setup
Establishing a setup password through Computer Setup prevents reconfiguration of the computer
(use of the Computer Setup utility) until the password is entered.
1. Turn on or restart the computer. If you are in Windows, click Start Æ Shut Down Æ Restart
the Computer.
2. When the F10 Setup message appears in the lower-right corner of the screen, press the F10
key. Press Enter to bypass the title screen, if necessary.
✎
If you do not press the F10 key while the message is displayed, you must turn the
computer off, then on again, to access the utility.
3. Select Security, then select Setup Password and follow the instructions on the screen.
4. Before exiting, click File Æ Save Changes and Exit.
2-16
Software Reference
Establishing a Power-On Password Using Computer Setup
Establishing a power-on password through Computer Setup prevents access to the computer when
power is turned on, unless the password is entered. The password must be entered each time the
computer is turned on, when the key icon appears on the monitor.
1.
Turn on or restart the computer. If you are in Windows, click Start Æ Shut Down Æ Restart
the Computer.
2.
When the F10 Setup message appears in the lower-right corner of the screen, press the F10
key. Press Enter to bypass the title screen, if necessary.
✎
If you do not press the F10 key while the message is displayed, you must turn the
computer off, then on again, to access the utility.
3.
Select Security, then Power-On Password and follow the instructions on the screen.
4.
Before exiting, click File Æ Save Changes and Exit.
Entering a Power-On Password
To enter a power-on password, complete the following steps:
1. Turn on or restart the computer. If you are in Windows, click Start Æ Shut Down Æ Restart
the Computer.
2. When the key icon appears on the monitor, enter your current password.
✎
Type carefully; for security reasons, the characters you type do not appear on the
screen.
If you enter the password incorrectly, a broken key icon appears. Try again. After three
unsuccessful tries, you must turn off the computer, then turn it on again before you can continue.
Changing a Power-On or Setup Password
1. Turn on or restart the computer. If you are in Windows, click Start Æ Shut Down Æ Restart
the Computer. To change the setup password, run Computer Setup.
2. When the key icon appears, type your current password, a slash (/) or alternate delimiter
character, your new password, another slash (/) or alternate delimiter character, and your new
password again as shown:
current password/new password/new password
✎
✎
Refer to the “National Keyboard Delimiter Characters” section in this chapter for
information about the alternate delimiter characters.
Type carefully; for security reasons, the characters you type do not appear on the
screen.
The new password takes effect the next time you turn on the computer.
Compaq Deskpro EN Series of Personal Computers
2-17
Deleting a Power-On or Setup Password
1. Turn on or restart the computer. If you are in Windows, click Start Æ Shut Down Æ Restart
the Computer. To delete the setup password, run Computer Setup.
2. When the key icon appears, type your current password followed by a slash (/) or alternate
delimiter character as shown:
current password/
✎
Refer to the “National Keyboard Delimiter Characters” section in this chapter for
information about alternate delimiter characters.
National Keyboard Delimiter Characters
Each keyboard is designed to meet country-specific requirements. The syntax and keys that you
use for changing or deleting your password depend on the keyboard that came with your
computer.
Arabic
/
Greek
-
Russian
/
Belgian
=
Hebrew
.
Slovakian
-
BHCSY*
-
Hungarian
-
Spanish
-
Brazilian
/
Italian
-
Swedish/Finnish
/
Chinese
/
Japanese
/
Swiss
-
Czech
-
Korean
/
Taiwanese
/
Danish
-
Latin American
-
Thai
/
French
!
Norwegian
-
Turkish
.
French Canadian
é
Polish
-
U.K. English
/
German
-
Portuguese
-
U.S. English
/
* For Bosnia-Herzegovina, Croatia, Slovenia, and Yugoslavia
Clearing Passwords
If you forget your password, you cannot access the computer. Refer to the “Connectors, Jumpers,
and Switches” chapter for instructions on clearing passwords.
2-18
Software Reference
2.9.2
Smart Cover Sensor
Smart Cover Sensor is a combination of hardware and software technology that can alert you
when the computer cover or side panel has been removed. There are three levels of protection, as
described in the following table:
Smart Cover Sensor Protection Levels
Level
Setting
Description
Level 0
Disabled
Smart Cover Sensor is disabled (default).
Level 1
Notify User
When the computer is restarted, the screen displays a message indicating
that the computer cover or side panel has been removed.
Level 2
Setup Password
When the computer is restarted, the screen displays a message indicating
that the computer cover or side panel has been removed. You must enter
the setup password to continue.
Setting the Smart Cover Sensor Protection Level
To set the Smart Cover Sensor protection level, complete the following steps:
1.
Turn on or restart the computer. If you are in Windows, click Start Æ Shut Down Æ Restart
the Computer.
2.
When the F10 Setup message appears in the lower-right corner of the screen, press the F10
key. Press Enter to bypass the title screen, if necessary.
✎
2.9.3
If you do not press the F10 key while the message is displayed, you must turn the
computer off, then on again, to access the utility.
3.
Select Security, then Smart Cover and follow the instructions on the screen.
4.
Before exiting, click File Æ Save Changes and Exit.
Smart Cover Lock
The Smart Cover Lock is a software-controllable cover lock featured on some Deskpro
computers. This lock prevents unauthorized access to the internal components. Computers ship
with the Smart Cover Lock in the unlocked position.
CAUTION: For maximum cover lock security, be sure to establish a setup password. The setup password
prevents unauthorized access to the Computer Setup utility.
Locking the Smart Cover Lock
To activate and lock the Smart Cover Lock, complete the following steps:
1. Turn on or restart the computer. If you are in Windows, click Start Æ Shut Down Æ Restart
the Computer.
2. When the F10 Setup message appears in the lower-right corner of the screen, press the F10 key.
Press Enter to bypass the title screen, if necessary.
✎
If you do not press the F10 key while the message is displayed, you must turn the
computer off, then on again, to access the utility.
3. Select Security, then select Smart Cover and follow the instructions on the screen.
4. Before exiting, click File Æ Save Changes and Exit.
Compaq Deskpro EN Series of Personal Computers
2-19
Unlocking the Smart Cover Lock
1. Turn on or restart the computer. If you are in Windows, click Start Æ Shut Down Æ Restart the
Computer.
2. When the F10 Setup message appears in the lower-right corner of the screen, press the F10 key.
Press Enter to bypass the title screen, if necessary.
✎
If you do not press the F10 key while the message is displayed, you must turn the
computer off, then on again, to access the utility.
3. Select Security, then select Smart Cover and the Unlocked option.
4. Before exiting, click File Æ Save Changes and Exit.
Using the Smart Cover FailSafe Key
If you enable the Smart Cover Lock and cannot enter your password to disable the lock, you will
need a Smart Cover FailSafe Key to open the computer cover. You will need the key in any of the
following circumstances:
„ Power outage
„ Start up failure
„ PC component failure (e.g., processor or power supply)
„ Forgotten password
CAUTION: The Smart Cover FailSafe Key is a specialized tool available from Compaq. Be prepared; order
this key before you need one.
2.9.4
QuickLock/QuickBlank
QuickLock/QuickBlank disables the keyboard and mouse interface, and can blank the screen,
without exiting open applications.
Enabling QuickLock and QuickBlank
1. Turn on or restart the computer. If you are in Windows, click Start Æ Shut Down Æ Restart the
Computer.
2. When the F10 Setup message appears in the lower-right corner of the screen, press the F10 key.
Press Enter to bypass the title screen, if necessary.
✎
If you do not press the F10 key while the message is displayed, you must turn the
computer off, then on again, to access the utility.
3. Select Security, then select Password Options and follow the instructions on the screen.
4. Before exiting, click File Æ Save Changes and Exit.
2-20
Software Reference
Disabling the Keyboard and Mouse Interface
Enter the QuickLock key combination (Ctrl+Alt+L) to disable the keyboard and mouse (or other
input device connected to the mouse connector). The applications you are running cannot be
accessed, but remain in view, unless the QuickBlank feature is also enabled through the Computer
Setup utility.
Enabling the Keyboard and Mouse Interface
To enable the keyboard and input device connected to the mouse connector, enter the power-on
password.
✎
2.9.5
For security reasons, the characters you type do not appear on the screen. The
application will not be affected by the characters typed.
The Cable Lock Provision
A physical security device for your computer may also be available, through the cable lock
provision. See your Guide to Features & Upgrades for more information on using and installing
the cable lock provision.
Compaq Deskpro EN Series of Personal Computers
2-21
2.10
Fault Notification and Recovery
Fault Notification and Recovery features combine innovative hardware and software technology
to prevent the loss of critical data and minimize unplanned downtime.
When a fault occurs, the computer displays a Local Alert message containing a description of the
fault and any recommended actions. You can then view current system health by using Compaq
Insight Personal Edition. If the computer is connected to a network managed by Compaq Insight
Manager or other SNMP-based management products from Compaq Management Solutions
Partners, the computer also sends a fault notice to the network management application.
2.10.1
Pentium II Fault Prediction and Prefailure Warranty
When the processor encounters an excessive number of error checking and correcting (ECC)
cache memory errors, the computer displays a Local Alert Message. This message contains
detailed information about the faulty processor, allowing your to take action before you
experience non-correctable cache memory errors. The Prefailure Warranty allows you to replace
these processors, free of charge, before they actually fail. Processors with ECC cache memory are
available on select Compaq personal computers.
2.10.2
SMART Hard Drive Fault Prediction
The SMART hard drive monitors hard drive activity to predict failures and, in some cases, fix
faults before failures occur. Fault prediction and failure indication parameters, such as abnormal
variations in spinup and seek times, or non-correctable read and write errors, are tracked to
determine the hard drive condition. Should these errors become significant, the computer displays
a warning message. The warning gives you time to back up the hard drive and replace it prior to
experiencing downtime or loss of data. The Prefailure Warranty for SMART hard drives allows
you to replace these drives, free of charge, before the drives fail.
SMART hard drives are compliant with the Small Form Factor Committee Specification for SelfMonitoring, Analysis, and Reporting Technology (SMART). SMART is the industry standard
technology, pioneered by Compaq and originally called IntelliSafe, that allows you to prevent data
loss and minimize downtime, in concert with Compaq Insight Management Agents.
2.10.3
Ultra ATA Integrity Monitoring
Ultra ATA Integrity Monitoring monitors the integrity of data as it is transferred between an Ultra
ATA hard drive and the system’s core logic. If the computer detects an abnormal number of
transmission errors, the computer displays a Local Alert message with recommended actions. An
alert is also sent over the network to the system administrator.
2.10.4
ECC Fault Prediction and Prefailure Warranty
When the computer encounters an excessive number of error checking and correcting (ECC)
memory errors, the computer displays a Local Alert message. This message contains detailed
information about the errant memory module, allowing you to take action before you experience
non-correctable memory errors. The Prefailure Warranty for ECC memory modules allows you to
replace these modules, free of charge, before the modules actually fail. ECC memory modules are
optional on all Compaq personal computers.
✎
2-22
To use this feature, you must replace the standard DIMMs with ECC DIMMs.
Software Reference
2.10.5
Proactive Backup
Proactive Backup software initiates a tape or PD-CD backup upon receiving notice of an
impending SMART hard drive failure.
The Seagate Backup Exec SMART Client works with Seagate Backup Exec tape backup software
on the server, or with Seagate Backup Exec software supporting the PD-CD drive.
Together with the Insight Management Agents, this software offers a Proactive Backup solution.
For instructions on configuring the Backup Exec SMART Client, contact your systems
administrator or refer to the Seagate Backup Exec documentation.
Cheyenne has also created an agent to support the Proactive Backup solution. The SMART Drive
Agent is the component that recognizes and reacts to the SMART hard drive fault alerts. This
agent is an extension to the Microsoft Windows 95 tape backup agent for the standalone
application ARCsolo for Windows. This agent works with the SMART hard drive to ensure that
critical data will be protected in the event of a hard drive failure.
2.10.6
Surge-Tolerant Power Supply
An integrated surge-tolerant power supply provides greater reliability when the computer is hit
with an unpredictable power surge. This power supply is rated to withstand a power surge of up to
2000 volts without incurring any system downtime or data loss.
2.10.7
Thermal Sensor
The thermal sensor is a hardware and software feature that tracks the internal temperature of the
computer. This feature displays a warning message when the normal range is exceeded, which
gives you time to take action before internal components are damaged or data is lost.
Compaq Deskpro EN Series of Personal Computers
2-23
2.11
Software Updating and Management
Remote ROM Flash, Remote Wakeup, and Remote Shutdown, when integrated with Management
Solutions Partners products, deliver on-going management of firmware, 24 hours a day. This
supplements the software distribution capabilities of the Solutions Partners products, which can
also be used to distribute new applications, device drivers, and other system software. The
Compaq Support Software CD and Web site includes updated ROM images and device drivers
which can be distributed to client PCs using these software tools.
For more information, refer to the online Remote Management Administrators Guide. The Remote
Management Administrators Guide is included with the Remote Management Administration
Tools, and is available on the Support Software CD for Compaq Desktop, Portable, and
Workstation Products or at the Compaq Web Site at www.compaq.com.
2.11.1
Remote ROM Flash
Your computer comes with reprogrammable flash ROM (read only memory). By establishing a
setup password in Security Management, you can protect the ROM from being unintentionally
updated or overwritten. This is important to ensure computer operating integrity. Should you need
or want to upgrade your ROM, you may:
„ Order an upgraded ROMPaq diskette from Compaq.
„ Order the Compaq Support Software CD for Compaq Desktop, Portable, and Workstation
Products.
„ Download the latest ROMPaq images from the Compaq World Wide Web site
(www.compaq.com).
CAUTION: For maximum ROM protection, be sure to establish a setup password. The setup password
prevents unauthorized ROM upgrades.
Using Remote ROM Flash
Remote ROM Flash allows the system administrator to safely upgrade the ROM on remote
Compaq Deskpro personal computers, directly from the centralized network management console.
Enabling the system administrator to perform this task remotely, on multiple computers, results in
a consistent deployment of and greater control over Deskpro ROM images over the network. It
also results in greater productivity and lower total cost of ownership.
Compaq created the Remote ROM Flash capability to be secure and fail-safe. All Deskpro
ROMPaq ROM images from Compaq are digitally signed to ensure authenticity and minimize
potential corruption. The ROM firmware includes a Boot Block that is protected during the flash
process and allows the Deskpro to be restarted, in the unlikely event of an unsuccessful ROM
flash.
✎
Your computer must be powered on, or turned on through Remote Wakeup, to
take advantage of Remote ROM Flash. Use of Remote ROM Flash also requires
an established setup password.
For more information on enabling Remote ROM Flash, refer to the online Remote Management
Administrators Guide. The Remote Management Administrators Guide is included with the
Remote Management Administration Tools, and is available on the Support Software CD for
Compaq Desktop, Portable, and Workstation Products or at the Compaq Web Site at
www.compaq.com.
2-24
Software Reference
FailSafe Boot Block ROM
The FailSafe Boot Block ROM allows for system recovery in the unlikely event of a ROM flash
failure, for example, if a power failure occurs during a ROM upgrade. The Boot Block is a flashprotected section of the ROM that checks to validate the system ROM each time power to the
system is turned on.
„ If the system ROM is valid, the system starts normally.
„ If the system ROM fails the validation check, the FailSafe Boot Block ROM provides
enough support to start the system from a ROMPaq diskette, which will program the
system ROM with a valid image.
Because there is no video or hard drive support from the Boot Block ROM, the keyboard lights
communicate information. When the Boot Block detects an invalid system ROM, the system
sounds a series of beeps (one long and three short) and flashes the three keyboard lights.
To recover the system after hearing the FailSafe Boot Block beeps, complete the following steps:
1. Remove any diskettes from the diskette drive and turn off the power.
2. Insert a ROMPaq diskette into the diskette drive.
3. Turn on power to the system.
If a setup password has been established, the Caps Lock light will turn on.
4. Enter the setup password.
If the system successfully starts from the diskette and successfully reprograms the ROM, then
the three keyboard lights will turn on. A “rising tone” series of beeps also signals successful
completion.
Compaq Deskpro EN Series of Personal Computers
2-25
The following table lists the various keyboard light combinations, as well as the meaning and
action associated with each combination.
Num
Lock 1
Caps
Lock 2
Scroll
Lock 3
Meaning and Required Action
OFF
ON
OFF
System requires setup password.
Enter the setup password. The light remains turned on until you
enter a valid setup password.
ON
OFF
OFF
System could not start from diskette because the ROMPaq diskette
is not present, is bad, or the drive is not ready.
Insert a valid ROMPaq diskette, turn the power off, then turn the
power on.
OFF
OFF
ON
ROM upgrade failed.
Try another ROMPaq diskette. If the light remains turned on,
contact Compaq customer support.
ON
ON
ON
ROM upgrade successfully completed.
Turn power off and back on to resume normal system operation.
Keyboard Lights
2-26
Software Reference
2.11.2
Remote Security Management
Remote Security Management allows the system administrator to safely set or modify security
features on remote Compaq Deskpros, directly from the centralized network management console.
Enabling the system administrator to perform these tasks remotely, on multiple computers, results
in consistent deployment of and greater control over Deskpro security parameters over the
network. It also results in greater productivity and lower total cost of ownership.
✎
Your computer must be powered on, or turned on through Remote Wakeup, to
take advantage of Remote Security Management. Use of Remote Security
Management also requires an established setup password.
For more information about the Remote Management Setup software and enabling Remote
Security Management, refer to the online Remote Management Administrators Guide. The Remote
Management Administrators Guide is included with the Remote Management Administration
Tools, and is available on the Support Software CD for Compaq Desktop, Portable, and
Workstation Products or at the Compaq Web Site at www.compaq.com.
2.11.3
Remote Wakeup and Remote Shutdown
If the computer has an optional network card installed, it may support the Compaq Remote
Wakeup and Remote Shutdown functions. These functions allow a system administrator to power
on and power off a client computer from a remote location, supported by PC LAN management
tools.
✎
Third-party software tools are required to remotely distribute software.
Remote Wakeup allows the network interface controller to continue functioning, even when
power to the computer has been turned off.
✎
The computer continues to consume a small amount of electricity even after you
turn it off. Only when you disconnect the power cord from the electrical outlet
does the computer stop consuming electricity.
To enable Remote Wakeup and Remote Shutdown, complete the following steps:
1. Double-click the Network Icon, located in the Control Panel.
2. Double-click the appropriate network controller.
3. Click the Advanced Properties tab.
4. Select Remote Wakeup.
5. Change the value to ON.
6. Click OK to save and apply changes, then click OK to exit the Network dialog.
For more information on using Remote Wakeup and Remote Shutdown, refer to the online
Remote Management Administrators Guide. The Remote Management Administrators Guide is
included with the Remote Management Administration Tools, and is available on the Support
Software CD for Compaq Desktop, Portable, and Workstation Products or at the Compaq Web
Site at www.compaq.com.
Compaq Deskpro EN Series of Personal Computers
2-27
2.11.4
Replicating Original Setup
This procedure gives an administrator the ability to easily copy one setup configuration to other
computers of the same model. This allows for faster, more consistent configuration of multiple
computers. To replicate your setup:
1. Access the Computer Setup Utilities menu.
2. Click File Æ Save to Floppy. Follow the instructions on the screen.
3. To replicate the configuration, click File Æ Restore from Floppy, and follow the instructions on
the screen.
2.11.5
Dual-State Power Button
In Windows 95 or Windows 98, the power button can function either as an on/off switch or as a
suspend button. The suspend feature does not turn off power altogether, but instead causes the
computer to enter a low-power standby. This allows you to quickly power down without closing
applications and to quickly return to the same operational state without any data loss.
To change the power button’s configuration, complete the following steps:
1. Access the Computer Setup Utilities menu.
2. Select Power, then Energy Saver Options. Set the power button configuration to either on/off or
suspend/wakeup, as desired.
For more information about the various screen and configuration options, refer to the “Using
Computer Setup Utilities” section of this chapter.
3. Select File Æ Save Changes and Exit.
After configuring the power button to function as a suspend button, press the power button to put
the system in a very low power state (suspend). Press the button again to quickly bring the system
out of suspend to full power status. To completely turn off all power to the system, press and hold
the power button for four seconds.
✎
2.11.6
If you have selected the “Blink LED during Energy Save” option in Computer
Setup, the power-on light will blink once every two seconds while the computer is
in suspend. Refer to the “Using Computer Setup Utilities” section of this chapter
for more information.
Power Management
Use the Timeouts option under the Power menu in Computer Setup to enable, customize, or
disable standby timeouts. This feature shuts down certain components of the computer when they
are not in use, saving energy without having to shut down the computer.
✎
When using Windows 95 or Windows 98, disable monitor timeouts in Computer
Setup first, then establish the settings in Windows, to avoid potential conflicts.
Use Display Properties to establish, modify, or disable Power Management
settings for the monitor. To access Display Properties, right-click on the Windows
Desktop, then choose Properties.
2-28
Software Reference
2.11.7
Enhanced Support Software CD and World Wide Web Site
Compaq engineers rigorously test and debug software developed by Compaq and third-party
suppliers, and develop operating-system specific support software, to ensure the highest level of
performance, compatibility, and reliability for Compaq personal computers.
When making the transition to new or revised operating systems, it is important to implement the
support software designed for that operating system. If you plan to run any of the following
operating systems on your computer, you must install corresponding Compaq device drivers and
utilities to ensure all features are supported and functioning properly:
„ Microsoft Windows 3.1
„ IBM OS/2
„ A version of Microsoft Windows or Microsoft Windows NT Workstation that is different
from the version included with your computer
Compaq has made the task of locating, accessing, evaluating, and installing the latest support
software easier. There are three methods you can use to access support software:
„ You can order the Support Software CD for Compaq Desktop, Portable, and Workstation
Products. This compact disc contains the latest device drivers, utilities, and flashable ROM
images needed to run MS-DOS, Microsoft Windows 3.1, Windows 95, Windows 98,
Windows NT Workstation, and IBM OS/2 on your Compaq commercial desktop product.
„ You can download the software from the Compaq World Wide Web site at
www.compaq.com.
✎
Both the CD and the web site include The Locator with Decision Support, a
comprehensive listing of the device drivers, utilities, flashable ROM images, and
more, categorized by operating system, personal computer family, and model for
easy retrieval. Decision Support provides detailed information for each piece of
support software, including descriptions, features, enhancements, dependencies,
and update information.
„ You can purchase backup diskettes.
If you choose to purchase the Support Software CD, you have two options:
„ You can purchase a single CD-ROM that gives you one-time access to the latest support
software (North America only, Compaq part number 272505-001).
„ You can purchase a yearly subscription that delivers up to 12 monthly CD-ROMs
(Compaq part number 183426-xxx).
The annual subscription ensures your continuous access to the latest developments.
✎
If you call Compaq to place an order, be sure to have the serial number of the
computer available. This number is necessary for all purchases.
Compaq Deskpro EN Series of Personal Computers
2-29
2.11.8
Compaq Integrated Software
Additional support software is available on the Support Software CD for Compaq Desktop,
Portable, and Workstation Products and may be downloaded from the Compaq World Wide Web
site at www.compaq.com. This software supplements the installation of off-the-shelf Microsoft
operating systems and lets you quickly and easily install the correct device drivers and other
software required for top performance.
2.11.9
Universal Driver Manager
Compaq has created a Universal Driver Manager (UDM) release that supports all Compaq
QVision, S3, Cirrus Logic, and Matrox graphics adapters found on Compaq Computer products.
The UDM eases graphics driver deployment across all Compaq platforms ensuring crosscompatibility and backward-compatibility. The resulting solution enables customers to manage
and control ongoing software maintenance costs. The UDM is available on the Support Software
CD for Compaq Desktop, Portable, and Workstation Products and may be downloaded from the
Compaq World Wide Web site at www.compaq.com.
2-30
Software Reference
2.12
Building Blocks and Partners
Compaq management solutions are based on industry standards, including DMI 2.0, Web-Based
Enterprise Management, Intel's "Wired for Management," SNMP, and Net PC technologies.
Microsoft, Intel, Hewlett-Packard, Novell, Seagate, and other industry leaders work closely with
Compaq to integrate their management solutions with Compaq products and initiatives, giving
you, the Compaq customer, extraordinary flexibility and functionality in client management and
PC ownership cost reduction.
2.12.1
Desktop Management Interface (DMI)
The Desktop Management Task Force (DMTF) is an industry body created in 1992 with the goal
of standardizing systems manageability. DMTF established the Desktop Management Interface
(DMI) framework to standardize access to PC configuration data. Compaq, as a Steering
Committee and Technical Committee member of the DMTF, delivers hardware and software
instrumentation that supports the DMI standard.
For more information on configuring the DMI software, refer to the online Intelligent
Manageability Guide.
2.12.2
Compaq Insight Manager and the Insight Management Agents
Using the industry-standard Simple Network Management Protocol (SNMP) found in Microsoft
operating systems, Compaq has continued the migration of management tools from servers to
desktops by enhancing Compaq Insight Manager. Compaq Insight Manager allows the LAN
administrator to remotely view AssetControl data, configuration data, memory change alerts, NIC
performance data, and contact information. The tool also provides access to the Fault
Management features of the Compaq Personal Computers.
Compaq Deskpro EN Series of Personal Computers
2-31
2.12.3
Compaq Management Solutions Partners Program
Compaq delivers desktop management solutions through the Compaq Management Solutions
Partners Program. This Compaq initiative ensures compatibility and integration of AssetControl
features with leading PC LAN and enterprise management products. These products provide
remote access to the AssetControl features so that LAN and PC administrators can manage the
Compaq Family of Personal Computers information from a central location. The partnership
ensures that the benefits of Intelligent Manageability are accessible through a broad range of
vendors. This allows customers to use their tools of choice to remotely manage their Compaq
computers more confidently and cost effectively.
Compaq Management Solutions Partners include:
„ Asset Software International (ASI) Corp.
„ BindView Development
„ Cheyenne Software Inc.
„ Computer Associates
„ Hewlett Packard
„ Intel Corporation
„ Network Associates (formerly McAfee Associates Inc.)
„ Microsoft Corporation
„ Novell Inc.
„ Seagate Technology, Inc.
„ Tally Systems Corp.
„ Tivoli Systems, Inc.
2-32
Software Reference
chapter
3
SPARE PARTS
This chapter provides an illustrated parts breakdown and a reference for spare parts for the
Compaq Deskpro EN Series of Personal Computers.
Compaq Deskpro EN Series of Personal Computers
Compaq Deskpro EN Series of Personal Computers
3-1
3.1
System Unit
3.1.1
Desktop
System Unit - Desktop
3-2
Spare Parts
Table 3-1
System Unit - Desktop Spare Parts
Spare Part Number
Warranty
Tier
1. Hood assembly with front bezel
179179-001
A
2. Power supply, 200 W
334169-001
A
3. Tilt drive cage assembly with hinge and drivelocks
179178-001
C
4. Expansion board cage with slot covers and screws
179177-001
C
5. Chassis (basepan) assembly (repair/exchange only)
179176-001
C
6. Smart cover lock solenoid
179189-001
A
7. Speaker assembly with enclosure
179188-001
A
Description
Compaq Deskpro EN Series of Personal Computers
3-3
3.1.2
Minitower
System Unit - Minitower
3-4
Spare Parts
Table 3-2
System Unit - Minitower Spare Parts
Spare Part Number
Warranty
Tier
1. Power supply, 200 W
334169-001
A
2. Expansion board cage with slot covers and screws
179366-001
C
3. Smart cover lock solenoid
179189-001
A
4. Speaker assembly
179188-001
A
5. Access panel
179367-001
A
6. Chassis (basepan) assembly (repair/exchange only)
179365-001
C
7. Front bezel assembly
179370-001
A
8. Computer base
179369-001
A
Description
Compaq Deskpro EN Series of Personal Computers
3-5
3.2
Mass Storage Devices
Mass Storage Devices
3-6
Spare Parts
Table 3-3
Mass Storage Devices
Spare Part
Number
Warranty
Tier
1. Diskette drive (3.5-inch, 1.44-MB)
179161-001
A
2. CD-ROM drive, 24X Max IDE tray load
166869-001
A
2. CD-ROM drive, 32X Max IDE tray load*
327659-001
A
3. 3.2-GB Ultra ATA hard drive*
166873-001
A
4. 6.4-GB Ultra ATA hard drive*
166973-001
A
5. 8.4-GB Ultra ATA hard drive
166981-001
A
6. 4.3-GB Wide UltraSCSI hard drive with guide screws*
179287-001
A
7. 9.1-GB Wide UltraSCSI hard drive with guide screws*
179288-001
A
Description
*Not shown.
Compaq Deskpro EN Series of Personal Computers
3-7
3.3
Cables
Cables
3-8
Spare Parts
Table 3-4
Cables
Description
Item Part
Number
Spare Part
Number
Warranty Tier
1.
NIC wakeup cable*
179056-001
166974-001
A
2.
Token Ring cable*
184395-001
172844-001
A
3.
Miscellaneous Spares Cable Kit, DT & MT.
Includes:
Hard drive/CD cable
Hard drive/CD cable *
Hard drive/CD cable*
Cable assembly, thermal sensor*
Diskette drive cable
Diskette drive cable*
Audio cable
Hard drive/CD cable* (not for this product)
Hard drive Ultra ATA cable (80-conductor)
"Y" Power cable assembly
179182-001
A
a.
b.
c.
d.
e.
f.
247116-002
179048-001
242947-008
166785-001
179049-001
247176-003
288489-001
242947-001
270847-002
296563-001
4.
Power switch cable with switch holder, switch,
and LEDs, for DT only
179293-001
B
4.
Power switch cable with switch holder, switch,
and LEDs, for MT only*
179383-001
B
5.
Power cord, AC, Black (Australia/New
Zealand)*
100661-001
285811-001
A
5.
Power cord, AC, Black (Japan)*
139867-001
292643-291
A
5.
Power cord, AC, Black (Germany, France,
Netherlands)*
100614-001
285810-001
A
5.
Power cord, AC, Black (UK/Singapore)*
100613-001
121259-001
A
5.
Power cord, AC, Black (US, LA, Asia/Pacific, 121565-001
Brazil)*
142766-001
A
6.
Video cable for P1610 Monitor*
305717-001
A
7.
SCSI 3-device cable with terminator
199616-013
179341-001
A
8.
SCSI LED cable
225537-001
247485-001
A
NOTE: Item part numbers are for reference purposes only.
*Not shown.
Compaq Deskpro EN Series of Personal Computers
3-9
3.4
Standard and Optional Boards
Standard and Optional Boards
3-10
Spare Parts
Table 3-5
Standard and Optional Boards
Item Part
Number
Spare Part
Number
Warranty
Tier
1. ATI RAGE PRO TURBO AGP Graphics
008061-00x
166871-001
A
1. ATI RAGE PRO TURBO AGP 2X Graphics*
334134-00x
334170-001
A
2. NVIDIA RIVA 128 3D multimedia graphics*
322727-001
322747-001
A
3. Matrox Millennium II AGP graphics
007448-001
296676-001
A
4. ATI RAGEPRO 2-MB memory (for use with
166871-001 only)
314024-002
166971-001
A
4. ATI RAGEPRO 4-MB memory upgrade* (for
use with 334170-001 only)
314025-002
166972-001
A
5. Matrox Millennium II 4-MB Memory upgrade
270309-001
270260-001
A
6. Riser board (backplane), DT
008001-001
178936-001
A
7. Riser board (backplane), MT
008058-001
179175-001
A
8. Memory, DIMM, SDRAM, 66 MHz
16-MB
32-MB
64-MB
128-MB
278030-002
278031-002
270859-002
270858-002
278066-001
278067-001
278095-001
270896-001
A
A
A
A
8. Memory, DIMM, SDRAM, 66 MHz w/ECC
32-MB
64-MB
128-MB
268308-002
270857-002
270856-002
288440-001
278098-001
278099-001
A
A
A
8. Memory, DIMM, SDRAM, 100 MHz
16-MB
32-MB
64-MB
128-MB
323010-001
323011-001
323012-001
323013-001
166969-001
166890-001
179190-001
166966-001
A
A
A
A
8. Memory, DIMM, SDRAM, 100 MHz, w/ECC
32-MB
64-MB
128-MB
323015-001
323016-001
323017-001
166968-001
166967-001
166965-001
A
A
A
332811-002
358230-001
A
10. Processor, PII, 300/66 w/heatsink and baffle
270848-004
179174-001
A
11. Processor, PII, 266/66 w/heatsink*
270607-003
179183-001
A
11. Processor, PII, 333/66 w/heatsink
278308-002
179184-001
A
11. Processor, PII, 350/100 w/heatsink*
278309-001
179172-001
A
11. Processor, PII, 400/100 w/heatsink*
278309-002
179326-001
A
178919-001
A
Description
9. Processor, Intel Celeron 300/66 w/heatsink &
cover
12. System board with mounting tray
NOTE: Item part numbers are for reference purposes only.
*Not shown.
continued
Compaq Deskpro EN Series of Personal Computers
3-11
Standard and Optional Boards
3-12
Spare Parts
Table 3-5 Continued
Description
Item Part
Number
Spare Part
Number
Warranty
Tier
13. Wide UltraSCSI PCI controller
334136-001
179261-001
A
14. Compaq Fast Ethernet NIC10/100 TX PCI Intel 323557-001
WOL
323556-001
A
14. Compaq 10/100 TX PCI Intel WOL UTP
w/Remote Wakeup*
323550-001
323553-001
A
15. IBM PCI Token Ring Adapter 4/16 WOL*
179264-001
179294-001
A
16. 3-COM Fast Etherlink XL 10/100 TX PCI with
Remote Wakeup*
179159-001
179164-001
A
17. Netelligent 10/100, TX PCI UTP TLAN*
005139-001
169849-001
A
18. Compaq Netelligent 56.6 Baud ISA Modem
294913-001
294912-001
A
NOTE: Item part numbers are for reference purposes only.
*Not shown.
Compaq Deskpro EN Series of Personal Computers
3-13
3.5
Keyboards
Keyboard
Table 3-6
Keyboards
Description
Spare Part
Number
Warranty
Tier
Arabic*
269513-171
A
Belgian*
269513-181
A
Brazilian*
269513-201
A
BHCSY (Bosnia-Herzegovina, Croatia, Slovenia, and Yugoslavia)*
269513-B41
A
Czech*
269513-221
A
Danish*
269513-081
A
Finnish*
269513-351
A
French*
269513-051
A
French Canadian*
269513-121
A
German*
269513-041
A
Greek*
269513-151
A
Hanguel* (Korean)
269513-AD1
A
Hebrew*
269513-BB6
A
Hungarian*
269513-211
A
International*
269513-B31
A
Italian*
269513-061
A
Japanese*
269513-191
A
Latin American Spanish*
269513-161
A
Norwegian*
269513-091
A
continued
3-14
Spare Parts
Table 3-6 continued
Description
Spare Part
Number
Warranty
Tier
Polish*
269513-241
A
Portuguese*
269513-131
A
Russian*
269513-251
A
Slovakian*
269513-231
A
Spanish*
269513-071
A
Swedish*
269513-101
A
Swiss*
269513-111
A
Taiwanese*
269513-AB1
A
Thai*
269513-281
A
Turkish*
269513-141
A
UK*
269513-031
A
US
269513-001
A
*Not shown.
Compaq Deskpro EN Series of Personal Computers
3-15
3.6
Monitors
Monitors
3-16
Spare Parts
Table 3-7
Monitors
Spare Part
Number
Warranty
Tier
1. Compaq P50 Color Monitor (NA)*
264202-001
A
1. Compaq P50 Color Monitor (GSA)*
264202-004
A
1. Compaq P50 Color Monitor (EUR)*
264202-021
A
1. Compaq P50 Color Monitor (Int'l, SH)*
264202-B21
A
2. Compaq P70 Color Monitor*
255652-001
A
2. Compaq P70 Color Monitor (Int'l, SH)*
255652-B23
A
3. Compaq V50 Color Monitor (NH, NA)
264152-001
A
3. Compaq V50 Color Monitor (GSA)*
264152-004
A
3. Compaq V50 Color Monitor (EUR)*
264152-021
A
4. Compaq V70 Color Monitor (MPR, NA)
255609-001
A
4. Compaq V70 Color Monitor (MPR, GSA)*
255609-004
A
5. Compaq V90 Color Monitor (NH)*
305602-001
A
5. Compaq V90 Color Monitor (SH)*
305602-B23
A
5. Compaq V90 Color Monitor (GSA)*
305602-004
A
6. Compaq P110 Color Monitor (NH, NA)
284959-001
A
6. Compaq P110 Color Monitor (Int'l)*
284959-B23
A
7. Compaq P1610W Color Monitor (NH)*
305710-001
A
Description
8. TFT500, 15.1-inch Flat Panel display*; refer to Maintenance &
Service Guide 297312-001 for spare parts list.
8. TFT450, 14.5-inch Flat Panel display; refer to Maintenance &
Service Guide 170431-001 for spare parts list.
*Not shown.
Compaq Deskpro EN Series of Personal Computers
3-17
3.7
Miscellaneous Screw Kit
Table 3-8
Miscellaneous Screw Kit
(not illustrated)
Description
Miscellaneous screw kit. Includes:
1. Screw, #6-32 x 3/8 TT (4 each)
2. Screw, #6-32 x .187 hi top serrated (5 each)
3. Screw, #6-32 x .250 hi top serrated (5 each)
4. Screw, #6-32 x 1/16 T15 tamper resistant (3 each)
5. Screw, #6-19 x 5/16 pan head (4 each)
6. Screw, M3 x 5mm TT hi top (4 each)
7. Screw, #6-32 x 5/16 TT (4 each)
8. Screw, #6-19, T15 pan head (5 each)
9. Thumbscrew (3 each)
Item Part
Number
114399-069
192308-003
192308-001
296769-002
101346-068
247348-001
109834-568
101346-071
179333-002
NOTE: Item part numbers are for reference purposes only.
3-18
Spare Parts
Spare Part
Number
Warranty Tier
179180-001
D
3.8
Miscellaneous Plastics
Miscellaneous Plastics
Compaq Deskpro EN Series of Personal Computers
3-19
Table 3-9
Miscellaneous Plastics
Description
Miscellaneous plastics kit. (Desktop) Includes:
1. Foot (6 each)
2. Expansion board cage guide bracket (2 each)
3. Expansion board cage chassis-mounted guide
bracket (2 each)
4. Heat sink baffle
5. Plastic pivot pin* (2 each)
6. Rear expansion board cage lift lever
7. Front expansion board cage lift lever
8. Hood latch (2 each)
9. Drive release latch
10. Hard drive release latch
11. Foam pad
Miscellaneous plastics kit. (Minitower) Includes:
1. Foot (6 each)
2. Expansion board cage guide bracket* (2 each)
3. Expansion board cage chassis-mounted guide
bracket* (2 each)
5. Plastic pivot pin* (2 each)
6. Rear expansion board cage lift lever
7. Front expansion board cage lift lever
10a. Drive release latch
15. Cable clip (2 ea)
Front bezel plastics kit (DT/MT). Includes:
12. Power switch spring (DT)
12. Power switch spring (MT)*
13. Power switch button (DT)
13. Power Switch button (MT)*
14. Quick Release cover latch button (2 each) (DT)
15. Bezel blank (2 each)(DT/MT)
Item Part
Number
3-20
Spare Parts
Warranty
Tier
179181-001
D
179371-001
D
179295-001
A
141042-004
178980-001
179118-001
283968-006
219385-001
178984-001
178984-002
178128-001
179027-001
179129-001
179278-001
141042-004
179236-001
179235-001
219385-001
178984-001
178984-002
179213-001
115151-001
163746-007
166837-003
178992-001
179234-001
178988-001
166775-001
NOTE: Item part numbers are for reference purposes only.
*Not shown.
Spare Part
Number
3.9
Miscellaneous Parts
Miscellaneous Parts
Compaq Deskpro EN Series of Personal Computers
3-21
Table 3-10
Miscellaneous Parts
Item Part
Number
Spare Part
Number
Warranty
Tier
1. Battery, real-time clock
334149-001
179322-001
A
2. Cable lock
173234-002
199109-001
D
3. Smart cover lock solenoid
270178-002
179189-001
A
4. Hard drive mounting bracket, 3.5” to 5.25”
247239-001
243231-001
A
5. Fan with retainer, DT
179289-001
A
6. Fan with retainer, MT
179368-001
A
7. Diskette drive mounting bracket, 3.5” to 5.25” 179026-001
166923-001
A
8. Computer base, MT
179369-001
A
Description
179214-001
9. Country Kit, domestic.* Includes hard copy
documentation, mouse, and power cable
Windows NT
Windows 95
CTO/CCP
D
179296-001
179297-001
179342-001
10. Mouse*
11. Slot cover*
101144-001
NOTE: Item part numbers are for reference purposes only.
*Not shown.
3-22
Spare Parts
166861-001
D
141081-001
D
3.10
Tamper-Resistant Tools/Smart Cover FailSafe Key
Tamper-Resistant Tools/Smart Cover FailSafe Key
Table 3-11
Tamper-Resistant Tools/Smart Cover Failsafe Key
Description
Spare Part
Number
Warranty
Tier
1. User tool, tamper-resistant wrench
166527-001
D
2. User tool, tamper-resistant bit (5 each)
166527-002
D
NOTE: There is no charge for these tools.
Compaq Deskpro EN Series of Personal Computers
3-23
3.11
Shipping Boxes
Table 3-12
Shipping Boxes
(not illustrated)
3.12
Description
Spare Part
Number
Warranty
Tier
Return Kit, Desktop. Includes box, buns, and HDT insert
179324-001
D
Return Kit, Minitower. Includes box, buns, and HDT insert
179325-001
D
Return Kit, Compaq P70 Color Monitor. Includes boxes and buns
255644-001
D
Return Kit, Compaq P70 Color Monitor. Includes boxes and buns
(5 pack)
255645-001
D
Return Kit, Compaq V90 Color Monitor. Includes boxes and buns
(domestic)
305627-001
D
Return Kit, Compaq V90 Color Monitor. Includes boxes and buns
(international)
305627-002
D
Return Kit, Compaq P110 Color Monitor. Includes boxes and buns
284996-001
D
Return Kit, Compaq P1610W Color Monitor. Includes boxes and buns
305712-001
D
Description
Spare Part
Number
Warranty
Tier
Maintenance & Service Guide, DT & MT
179290-001
D
Illustrated Parts Map, DT & MT
179291-001
D
Document kit includes:
Quick Setup Card
Reference Guide
179286-001
D
179348-001
D
179348-002
179348-003
D
D
179348-004
D
Documentation
Table 3-13
Documentation
(not illustrated)
Compaq Restore CD
Tier 1 (English, French, Brazilian Portuguese, Spanish, Italian,
and German)
Tier 2 (Japanese)
Tier 3 (English, French, Norwegian, Sweedish, Finnish, Danish,
and Dutch)
Tier 4 (English, Arabic, Czech, Greek, Hebrew, Hungarian,
Albanian, Croatian, Polish, Rumanian, Slovakian, Slovinian,
Estonian, Latvian, Lithuanian, Serbian, Bulgarian, Turkish,
Russian, Taiwanese, Simplified Chinese, Korean (Hanguel), Thai)
3-24
Spare Parts
chapter
4
REMOVAL AND REPLACEMENT PRELIMINARIES
This chapter provides general service information for the computer. Adherence to the procedures
and precautions described in this chapter is essential for proper service.
CAUTION: When the computer is plugged into an AC power source there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer to
prevent system board or component damage.
4.1
Electrostatic Discharge Information
A sudden discharge of static electricity from your finger or other conductor can destroy staticsensitive devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs.
An electronic device exposed to electrostatic discharge (ESD) may not be affected at all and can
work perfectly throughout a normal cycle. The device may function normally for a while, then
degrade in the internal layers, reducing its life expectancy.
Networks built into many integrated circuits provide some protection, but in many cases, the
discharge contains enough power to alter device parameters or melt silicon junctions.
Compaq Deskpro EN Series of Personal Computers
4-1
4.1.1
Generating Static
Table 4-1 shows how different activities generate static electricity at different electrostatic voltage
levels.
Table 4-1
Typical Electrostatic Voltages
Relative Humidity
Event
10%
40%
55%
Walking across carpet
35,000 V
15,000 V
7,500 V
Walking across vinyl floor
12,000 V
5,000 V
3,000 V
Motions of bench worker
6,000 V
800 V
400 V
Removing DIPs* from plastic tube
2,000 V
700 V
400 V
Removing DIPs* from vinyl tray
11,500 V
4,000 V
2,000 V
Removing DIPs* from Styrofoam
14,500 V
5,000 V
3,500 V
Removing bubble pack from PCB
26,500 V
20,000 V
7,000 V
Packing PCBs in foam-lined box
21,000 V
11,000 V
5,000 V
*Dual Inline Packaging (DIP) is the packaging around individual microcircuitry. These are then multi-packaged inside plastic
tubes, trays, or Styrofoam.
✎
4.1.2
700 volts can degrade a product.
Preventing Electrostatic Damage to Equipment
Many electronic components are sensitive to ESD. Circuitry design and structure determine the
degree of sensitivity. The following proper packaging and grounding precautions are necessary to
prevent damage to electric components and accessories.
„ To avoid hand contact, transport products in static-safe containers such as tubes, bags, or
boxes.
„ Protect all electrostatic parts and assemblies with conductive or approved containers or
packaging.
„ Keep electrostatic sensitive parts in their containers until they arrive at static-free stations.
„ Place items on a grounded surface before removing them from their container.
„ Always be properly grounded when touching a sensitive component or assembly.
„ Avoid contact with pins, leads, or circuitry.
„ Place reusable electrostatic-sensitive parts from assemblies in protective packaging or
conductive foam.
4-2
Removal and Replacement Preliminaries
4.1.3
Personal Grounding Methods and Equipment
Use the following equipment to prevent static electricity damage to equipment:
Wrist straps are flexible straps with a minimum of one-megohm +/- 10% resistance in the ground
cords. To provide proper ground, a strap must be worn snug against bare skin. The ground cord
must be connected and fit snugly into the banana plug connector on the grounding mat or
workstation.
Heel straps/Toe straps/Boot straps can be used at standing workstations and are compatible with
most types of shoes or boots. On conductive floors or dissipative floor mats, use them on both feet
with a minimum of one-megohm +/- 10% resistance between the operator and ground.
Table 4-2
Static Shielding Protection Levels
Method
Antistatic plastic
1,500
Carbon-loaded plastic
7,500
Metallized laminate
4.1.4
Voltage
15,000
Grounding Workstations
To prevent static damage at the workstation, use the following precautions:
„ Cover the workstation with approved static-dissipative material. Provide a wrist strap
connected to the work surface and properly grounded tools and equipment.
„ Use static-dissipative mats, foot straps, or air ionizers to give added protection.
„ Handle electrostatic sensitive components, parts, and assemblies by the case or PCB
laminate. Handle them only at static-free workstations.
„ Turn off power and input signals before inserting and removing connectors or test
equipment.
„ Use fixtures made of static-safe materials when fixtures must directly contact dissipative
surfaces.
„ Keep work area free of nonconductive materials such as ordinary plastic assembly aids and
Styrofoam.
„ Use field service tools, such as cutters, screwdrivers, and vacuums, that are conductive.
Compaq Deskpro EN Series of Personal Computers
4-3
4.1.5
Recommended Materials and Equipment
Materials and equipment that are recommended for use in preventing static electricity include:
„ Antistatic tape
„ Antistatic smocks, aprons, or sleeve protectors
„ Conductive bins and other assembly or soldering aids
„ Conductive foam
„ Conductive tabletop workstations with ground cord of one-megohm +/- 10% resistance
„ Static-dissipative table or floor mats with hard tie to ground
„ Field service kits
„ Static awareness labels
„ Wrist straps and footwear straps providing one-megohm +/- 10% resistance
„ Material handling packages
„ Conductive plastic bags
„ Conductive plastic tubes
„ Conductive tote boxes
„ Opaque shielding bags
„ Transparent metallized shielding bags
„ Transparent shielding tubes
4-4
Removal and Replacement Preliminaries
4.2
Routine Care
4.2.1
General Cleaning Safety Precautions
1. Never use solvents or flammable solutions to clean the computer.
2. Never immerse any parts in water or cleaning solutions; apply any liquids to a clean cloth and
then use the cloth on the component.
3. Always turn off the computer when cleaning with liquids or damp cloths.
4. Always turn off the computer before cleaning the keyboard, mouse, or air vents.
5. Disconnect the keyboard before cleaning it.
6. Wear safety glasses equipped with side shields when cleaning the keyboard.
4.2.2
Cleaning the Computer Case
Follow all safety precautions in Section 4.2.1 before cleaning the computer.
To clean the computer case, follow the procedures described below:
„ To remove light stains or dirt, use plain water with a clean, lint-free cloth or swab.
„ For stronger stains, use a mild dishwashing liquid diluted with water. Rinse well by wiping
it with a cloth or swab dampened with clear water.
„ For stubborn stains, use isopropyl (rubbing) alcohol. No rinsing is needed as the alcohol
will evaporate quickly and not leave a residue.
„ After cleaning, always wipe the unit with a clean, lint-free cloth.
„ Occasionally, clean the air vents on the computer. Lint and other foreign matter can block
the vents and limit the airflow.
4.2.3
Cleaning the Keyboard
Follow all safety precautions in Section 4.2.1 before cleaning the keyboard.
To clean the tops of the keys or the keyboard body, follow the procedures described in Section
4.2.2.
When cleaning debris from under the keys, review all rules in Section 4.2.1 before following these
procedures:
CAUTION: Use safety glasses equipped with side shields before attempting to clean debris from under
the keys.
„ Visible debris underneath or between the keys may be removed by vacuuming or shaking.
„ Canned, pressurized air may be used to clean debris from under the keys. Caution should
be used as too much air pressure can dislodge lubricants applied under the wide keys.
Compaq Deskpro EN Series of Personal Computers
4-5
„ If you remove a key, use a specially designed key puller to prevent damage to the keys.
This tool is available through many electronic supply outlets.
CAUTION: Never remove a wide leveled key (like the space bar) from the keyboard. If these keys are
improperly removed or installed, the keyboard may not function properly.
„ Cleaning under a key may be done with a swab moistened with isopropyl alcohol and
squeezed out. Be careful not to wipe away lubricants necessary for proper key functions.
Use tweezers to remove any fibers or dirt in confined areas. Allow the parts to air dry
before reassembly.
4.2.4
Cleaning the Monitor
„ Wipe the monitor screen with a clean cloth moistened with water or with a towlette
designed for cleaning monitors. Do not use sprays or aerosols directly on the screen; the
liquid may seep into the housing and damage a component. Never use solvents or
flammable liquids on the monitor.
„ To clean the monitor body follow the procedures in Section 4.2.2.
4.2.5
Cleaning the Mouse
Before cleaning the mouse, ensure that the power to the computer is turned off.
„ Clean the mouse ball by first removing the retaining plate and the ball from the housing.
Pull out any debris from the ball socket and wipe the ball with a clean, dry cloth before
reassembly.
„ To clean the mouse body, follow the procedures in Section 4.2.2.
4.3
Service Considerations
Listed below are some of the considerations that you should keep in mind during the disassembly
and assembly of the computer.
4.3.1
Tools and Software Requirements
To service the computer, you need the following:
„ Torx T-15 screwdriver (Compaq screwdriver, part number 161946-001)
„ Flat-bladed screwdriver
„ Diagnostics software
4.3.2
Screws
The screws used in the computer are not interchangeable. They may have standard or metric
threads and may be of different lengths. If an incorrect screw is used during the reassembly
process, it can damage the unit. Compaq strongly recommends that all screws removed during
disassembly be kept with the part that was removed, then returned to their proper locations.
4-6
Removal and Replacement Preliminaries
4.3.3
Cables and Connectors
Most cables used throughout the unit are flat, flexible cables. These cables must be handled with
care to avoid damage. Apply only the tension required to seat or unseat the cables during insertion
or removal from the connector. Handle cables by the connector whenever possible. In all cases,
avoid bending, twisting, or tearing the cables, and ensure that the cables are routed in such a way
that they cannot be caught or snagged by parts being removed or replaced.
CAUTION: When servicing this computer, ensure that cables are placed in their proper location during the
reassembly process. Improper cable placement can damage the computer.
4.3.4
Hard Drives
Handle hard drives as delicate precision components, avoiding all physical shock and vibration.
This applies to failed drives as well as replacement spares.
„ Use only the packaging provided by Compaq for shipping.
„ Do not remove hard drives from the shipping package for storage. Keep hard drives in
their protective packaging until they are actually mounted in the CPU.
„ Avoid dropping drives from any height onto any surface.
4.3.5
Plastic Parts
Plastic parts can be damaged by the use of excessive force during disassembly and reassembly.
When handling the plastic parts, use care. Do not use a screwdriver or similar tool to pry apart the
plastic components; use a flexible device, like a a tongue depressor.
4.3.6
Lithium Battery
The lithium battery that comes with the computer is replaceable and should be properly disposed of.
!
WARNING: Do not abuse or disassemble the lithium battery, as it may explode if mistreated. Do not
disassemble, crush, puncture, short external contacts, dispose of in water or fire, or expose it to
0
0
temperatures higher than 60 C (140 F).
Compaq Deskpro EN Series of Personal Computers
4-7
chapter
5
DESKTOP REMOVAL AND REPLACEMENT
After completing all necessary removal and replacement procedures, run the Diagnostics utility to
verify that all components operate properly.
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
5.1
Serial Number Location
The computer serial number should be provided to Compaq when requesting information or
ordering spare parts. The serial number is displayed on the top of the system unit cover at the right
front corner and also on the rear of the computer.
Serial Number Location
Compaq Deskpro EN Series of Personal Computers
5-1
5.2
Disassembly Sequence Chart
Use the chart below to determine the disassembly sequence for removing components from the
computer.
5.3
Computer Feet
5.4
Preparation for Disassembly
5.5
Cable Lock
5.6
System Unit Cover
5.6.1
Quick Release Cover Latch
5.6.2
Power Button
5.6.3
Bezel Blank
5.7
Cover Latch Retainer
5.8
Drive Power Cables
5.9.1
Side-Mounted Hard Drive
5.10.1
5.9.2
5.12.1
3.5-Inch Drive Release Latch
5.25-Inch Drive
5.9.3
3.5-Inch Drive from a 5.25-inch Drive Adapter
5.10.2
5.25-Inch Drive Release Latch
5.11
Tilt Drive Cage
Disconnecting and Raising the Expansion Board Cage
5.12.2
Expansion Board
5.12.3
Expansion Board Cage
5.12.4 Riser Board
5.12.5
Expansion Board Cage Guide Bracket
5.12.6 Lift Lever
5.13
5.14.1
System Board
5.12.7
5-2
Fan
5.14.2
Microprocessor
5.14.3
Memory
5.14.4
Battery
5.15.1
AGP Graphics Board
5.15.2
✎
Expansion Board Cage Chassis-Mounted Guide Bracket
Matrox Millennium II Graphics Memory
5.15.3
ATI RAGE PRO TURBO Graphics Memory
5.16
Speaker
5.17
Power Supply
5.18.1
Smart Cover Lock Solenoid
5.18.2
Power Switch Cable Assembly
All drives should be removed from the drive bay before removing the drive cage
from the chassis.
Desktop Removal and Replacement
5.3
Feet Installation
Six rubber feet are mounted to the underside of the chassis. The adhesive residue from the old feet
may be rubbed off using a clean, dry cloth or your finger. If necessary, scrape the adhesive residue
from the chassis using a small, flat-bladed screwdriver. To attach replacement feet to the chassis,
remove the protective strip from the adhesive on the back of the new feet and press them into
place.
Installing the Feet
Compaq Deskpro EN Series of Personal Computers
5-3
5.4
Preparation for Disassembly
See Chapter 4, “Removal and Replacement Preliminaries,” for initial procedures.
To prepare the computer for disassembly:
1. Remove any diskette or compact disc from the computer.
2. Turn off the computer and any peripheral devices that are connected to it.
CAUTION: Turn off the computer before disconnecting any cables.
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
3. Disconnect the power cord from the electrical outlet and then from the computer.
4. Disconnect all peripheral device cables from the computer.
✎
During disassembly, label each cable as you remove it, noting its position and routing. Keep all
screws with the units removed.
CAUTION: The screws used in the computer are of different thread sizes and lengths; using the wrong
screw in an application may damage the unit.
5. Remove the green shipping screw from the back of the access panel. No tools are required for
removing this screw.
✎
If desired, the shipping screw may be replaced after servicing the computer .
Removing the Shipping Screw
5-4
Desktop Removal and Replacement
5.5
Cable Lock Installation
The cable lock is an optional device used to help secure the unit.
1. Separate the pieces of the security bracket by bending the metal where the three pieces join (see
inset).
2. Insert the tang of the narrow bracket into the slot, and slide the U-shaped bracket between it and
the system unit cover (see inset); then, install the self-tapping screw included in the cable lock
kit.
3. Cover the screw with the flat portion of the bracket.
4. Install a lock (not provided) in the security bracket to control access to the inside of the
computer. Install a cable lock (not provided) to secure the computer to a secure place.
Installing the Cable Lock
To remove the cable lock provision, reverse the installation procedure.
Compaq Deskpro EN Series of Personal Computers
5-5
5.6
System Unit Cover Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Press in the quick release cover latch on each side of the front bezel to release the system unit
cover.
3. Slide the cover forward about 1-inch (2.5-cm); then, lift it up and off the unit.
Removing the System Unit Cover
To replace the cover, reverse the removal procedure.
CAUTION: Always face the front of the chassis when replacing the system unit cover to prevent
damaging the diskette drive eject button.
5-6
Desktop Removal and Replacement
5.6.1
Quick Release Cover Latch Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6) and place it with the bezel face down onto a
protected surface.
3. From the inside of the system unit cover, remove the eight screws that attach the front bezel to
the cover.
4. Separate the bezel from the system unit cover. The two cover release latches can be removed at
this time.
Removing the Front Bezel and Cover Latch
To install the latches, reverse the removal procedure.
Compaq Deskpro EN Series of Personal Computers
5-7
5.6.2
Power Button Removal
It is not necessary to remove the front bezel from the system unit cover to remove the power
button.
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Lay the system unit cover with its top down on a protected work surface.
4. Pinch together the two tabs on the rear of the power button, and push the button out of the front
bezel. The spring will follow the button out of the housing.
Removing the Power Button
To replace the power button, reverse the removal procedure.
5-8
Desktop Removal and Replacement
5.6.3
Bezel Blank Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Lay the system unit cover with its top down on a protected work surface.
4. Squeeze together the sides of the right end of the bezel blank to release the catches.
5. Remove the bezel blank from the front bezel.
Removing the Bezel Blank
To reinstall the bezel blank, reverse the removal procedure.
Compaq Deskpro EN Series of Personal Computers
5-9
5.7
Cover Latch Retainer Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Grasp the top of the tilt drive cage and rotate it to its upright position.
✎
It is not necessary to disconnect the power cables from the drives to perform this
step.
4. Remove the retaining screw that secures the latch retainer to the side of the chassis, then
remove the latch.
✎
There is one latch retainer on each side of the chassis.
Removing the Cover Latch Retainer
CAUTION: When returning the drive cage to its normal position, use caution to prevent damaging the
data and power cables.
To install the cover latch retainer, reverse the removal procedure.
5-10
Desktop Removal and Replacement
5.8
Drive Power Cable Positions
When removing and installing the power cables to the drives, consult the table below to ensure
that there is sufficient cable length to prevent fraying when the tilt drive cage is raised and
lowered.
Connector
Number
Cable Connection
P1
Riser Board
P2
Not Used
P3
Lower Bay Device
P4
Side-Mounted (Primary) Hard Drive
P5
CD-ROM Drive (when present)
P6
Diskette Drive
Compaq Deskpro EN Series of Personal Computers
5-11
5.9
Mass Storage Devices
5.9.1
Side-Mounted Hard Drive Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Disconnect the P4 power cable and the flat ribbon data cable from the rear of the drive.
4. Grasp the top of the tilt drive cage and rotate it to its upright position.
5. Lift up on the green drive release latch that secures the drive in position 1, slide the drive to the
rear of the cage 2, then pull the drive out of the J-slot.
Removing the Side Mounted Hard Drive
When replacing the drive with a new one, install two guide screws on each side of the drive before
installing it into the drive bay. Extra screws are mounted on the front of the chassis.
To install a hard drive, ensure it is parallel to the drive cage befor reversing the removal
procedure.
CAUTION: When installing the hard drive, do not damage the seal tape as this may void the warranty.
✎
Refer to Section 5.8 for proper power cable connections.
CAUTION: When returning the drive cage to its normal position, use caution to prevent damaging the
data and power cables.
5-12
Desktop Removal and Replacement
5.9.2
5.25-Inch Drive Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Disconnect the data and power cables from the rear of the drive.
4. Place your hand in front of the drive, then grasp the top of the tilt drive cage and rotate it to its
upright position.
5. Lift up on the green drive release latch that secures the drive in position 1; the drive will slide
out of the front of the drive cage 2.
✎
Refer to Section 5.9.3 to remove a 3.5-inch drive from a 5.25-inch drive adapter.
CAUTION: The drive slides easily out of the drive cage. Do not allow the drive to strike a hard surface as
it exits the drive bay. Excessive shock can damage the drive.
Removing the Drive from the Drive Bay
To replace the drive, reverse the removal procedure.
✎
Refer to Section 5.8 for proper power cable connections.
CAUTION: When returning the drive cage to its normal position, use caution to prevent damaging the
data and power cables.
✎
When installing a second device on the primary controller, use an 80-conductor
Ultra ATA cable that supports the drive for optimal performance.
When installing a CD-ROM drive, ensure that the guide screws are placed in the
lower set of holes on the drive.
Compaq Deskpro EN Series of Personal Computers
5-13
5.9.3
3.5-Inch Drive Removal from 5.25-Inch Drive Adapter
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Disconnect the power and data cables from the rear of the drive.
4. Rotate the drive cage to an upright position.
5. Remove the 5.25-inch drive device (Section 5.9.2).
CAUTION: The drive slides easily out of the drive cage. Do not allow the drive to strike a hard surface as
it exits the drive bay. Excess shock can damage the drive.
If this is a diskette drive, continue with step 6.
If this is a hard drive, continue with step 8.
6. If this is a diskette drive, remove the two screws on the left side that secure the drive into the
adapter.
Removing the Diskette Drive from the Drive Bay Adapter
7. Slide the drive out of the drive adapter and remove the guide screw from the right side of the
drive.
To install a new diskette drive, reverse the removal procedure. Extra screws are mounted on the
front of the chassis.
✎
Refer to Section 5.8 for proper power cable connections.
When installing either a replacement or a second diskette drive, it is necessary to
specify the drive size when configuring the computer using Computer Setup.
5-14
Desktop Removal and Replacement
8. If this is a hard drive, remove the four screws that secure the drive into the adapter, then slide
the drive out of the drive adapter.
Removing the Hard Drive from the Drive Bay Adapter
To install a new hard drive, reverse the removal procedure. Extra screws are mounted on the front
of the chassis.
✎
Refer to Section 5.8 for proper power cable connections.
CAUTION: When returning the drive cage to its normal position, use caution to prevent damaging the
data and power cables.
Compaq Deskpro EN Series of Personal Computers
5-15
5.10
Drive Release Latches
5.10.1
3.5-Inch Drive Release Latch Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Disconnect the drive and power cables from the rear of the computer.
4. Remove the side-mounted hard drive (Section 5.9.1).
5. From inside the drive bay, push out on the retainer tab that holds the green drive release latch in
position, then slide the latch up towards the rear of the drive bay to release it.
Removing the Drive Release Latch from the Side-Mounted Drive
To install the drive release latch, reverse the removal procedures.
✎
Refer to Section 5.8 for proper power cable connections.
CAUTION: When installing the hard drive, do not damage the seal tape as this may void the warranty.
CAUTION: When returning the drive cage to its normal position, use caution to prevent damaging the
data and power cables.
5-16
Desktop Removal and Replacement
5.10.2
5.25-Inch Drive Release Latch Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Disconnect the power and date cables from the rear of the drives.
4. Remove all drives from the 5.25-inch drive bays (Section 5.9.2).
5. Rotate the drive cage to its full upright position.
6. From inside the drive bay, push out on the retainer tabs that hold the green drive release latch in
position, then slide the drive release latch up towards the rear of the drive bay to release it.
Removing the 5.25-Inch Drive Release Latch
To install the drive release latch, reverse the removal procedures.
✎
Refer to Section 5.8 for proper power cable connections.
CAUTION: When returning the drive cage to its normal position, use caution to prevent damaging the
data and power cables.
Compaq Deskpro EN Series of Personal Computers
5-17
5.11
Tilt Drive Cage
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Disconnect the power and data cables from the rear of the drives.
4. Remove the side-mounted hard drive (Section 5.9.1).
5. Remove the drives from the 5.25-inch drive bay (Section 5.9.2).
6. Remove the two screws that secure the drive cage hinge bar to the chassis, then remove the
drive cage from the chassis.
Removing the Drive Cage
To install the drive cage, reverse the removal procedures.
✎
Refer to Section 5.8 for proper power cable connections.
CAUTION: When returning the drive cage to its normal position, use caution to prevent damaging the
data and power cables.
5-18
Desktop Removal and Replacement
5.12
Expansion Board Cage Components
5.12.1
Disconnecting and Raising the Expansion Board Cage
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Lift the two green levers on the top of the expansion board cage to the upright position to
electrically disconnect the riser board, which is mounted on the expansion board cage, from the
system board and automatically raise it out of the system board.
Disconnecting and Raising the Expansion Board Cage
✎
It is not necessary to disconnect any cables for this operation.
To reconnect the riser board which is mounted on the expansion board cage, to the system board,
rotate the levers to their original positions to lock the assembly in place.
Before reseating the assembly, ensure that the system board tray is completely pushed into the
chassis.
Compaq Deskpro EN Series of Personal Computers
5-19
5.12.2
Expansion Board Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Disconnect and raise the riser board 1 (Section 5.12.1).
4. Grasp the system board tray and pull the assembly out of the rear of the chassis about 4 inches
to access the expansion board retainer screws 2.
CAUTION: When removing and replacing the system board, do not allow the baffle mounted on top of the
processor (on select models) to drag against the expansion boards.
5. Disconnect any interconnect cables attached to the expansion board before removing the board.
6. Remove the screw that secures the expansion board to the board cage, then remove the
expansion board 3.
Removing the Expansion Board
To replace the expansion board, reverse the removal procedure.
✎
If you are installing an expansion board for the first time, remove the desired
expansion board slot cover before installing the board.
When installing a SCSI controller with an internal SCSI device, route the data
cable across the top of the expansion board cage. The SCSI board should be
mounted in the top slot if possible for cable routing purposes.
When installing a NIC expansion board, ensure that the Remote Wakeup cable is
properly installed. Failure to do so may cause computer startup or network
problems.
The computer should automatically recognize the added plug and play expansion board.
5-20
Desktop Removal and Replacement
5.12.3
Expansion Board Cage Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Rotate the drive cage to an upright position of about 75 degrees.
4. Disconnect the power, data, and control cables from the rear of the riser board. Release the
locking tab on the power cable connector to facilitate its removal.
Disconnecting the Cables from the Rear of the Riser Board
Compaq Deskpro EN Series of Personal Computers
5-21
5. Disconnect the speaker cable from the front of the riser board at P6 and unhook the cable from
the top of the fan housing.
Disconnecting the Speaker Cable from the Front of the Riser Board
6. Disconnect and raise the expansion board cage by levering it out of the system board (Section
5.12.1).
5-22
Desktop Removal and Replacement
7. Pull the expansion board cage straight up out of the chassis.
✎
It is not necessary to remove the expansion boards or the fan before removing this
assembly.
Removing the Expansion Board Cage
When reinstalling the expansion board cage, reverse the removal procedure.
CAUTION: When returning the drive cage to its normal position, use caution to prevent damaging the
data and power cables.
Compaq Deskpro EN Series of Personal Computers
5-23
5.12.4
Riser Board Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Disconnect and raise the expansion board cage (Section 5.12.1).
4. Remove the expansion board cage from the chassis (Section 5.12.3).
5. Remove the expansion boards from the board cage by first removing the retaining screw that
secures each board to the assembly. Be sure you disconnect any interconnect cables attached to
the expansion boards before removing the boards.
6. Disconnect the fan control cable from the riser board at P8 1.
7. Remove the three screws securing the riser board to the expansion board cage 2, then remove
the riser board 3.
Removing the Riser Board from the Expansion Board Cage
To replace the riser board, reverse the removal procedure.
CAUTION: When returning the drive cage to its normal position, use caution to prevent damaging the
data and power cables.
5-24
Desktop Removal and Replacement
5.12.5
Expansion Board Cage Guide Bracket Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Disconnect and raise the expansion board cage (Section 5.12.1).
4. Remove the expansion board cage from the chassis (Section 5.12.3).
✎
It is not necessary to remove the expansion boards from the expansion board cage
before removing the cage from the chassis.
5. Remove the expansion boards from the board cage by first removing the retaining screw that
secures each board to the assembly. Be sure you disconnect any interconnect cables attached to
the expansion boards before removing the boards.
6. Remove the riser board (Section 5.12.4).
7. Press in on the two tabs 1 that secure each guide bracket to the cage, then slide the bracket
toward the top of the cage to remove it.
Removing the Board Cage Guide Brackets
To replace the guide brackets, reverse the removal procedure.
CAUTION: When returning the drive cage to its normal position, use caution to prevent damaging the
data and power cables.
Compaq Deskpro EN Series of Personal Computers
5-25
5.12.6
Lift Lever Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Disconnect and raise the expansion board cage (Section 5.12.1).
4. Remove the expansion board cage from the chassis (Section 5.12.3).
5. Remove the expansion boards from the expansion board cage (Section 5.12.2).
6. Remove the riser board from the expansion board cage (Section 5.12.4).
7. Press the plastic pivot pin that secures the green lift lever to the expansion board cage through
the lever from the outside of the assembly using a blunt tool like a screwdriver. When the pin is
partway through the lever, it can easily be pulled the rest of the way with your fingers.
Removing the Pivot Pin From the Lift Lever
To replace the lift lever, reverse the removal procedure.
✎
5-26
The pivot pin can be installed without the use of tools using finger pressure only.
Desktop Removal and Replacement
5.12.7
Fan Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Disconnect and raise the expansion board cage (Section 5.12.1).
4. Disconnect the fan control wire from the front of the riser board at P8 1.
5. Remove the system board from the chassis (Section 5.14.1).
6. Remove the screw from the fan retainer on the bottom of the fan cage assembly 2, then pivot
the assembly up and out of the expansion board cage 3.
Removing the Fan Assembly
To replace the fan assembly, reverse the removal procedure.
Compaq Deskpro EN Series of Personal Computers
5-27
5.13
Expansion Board Cage Chassis-Mounted Guide Bracket Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Disconnect and raise the expansion board cage (Section 5.12.1).
4. Remove the expansion board cage (Section 5.12.3).
✎
It may be necessary to remove the system board before removing the chassismounted guide brackets.
5. Remove the two screws that secure each chassis-mounted guide bracket to the chassis, then
remove the bracket.
Removing the Expansion Board Cage Chassis-Mounted Guide Bracket
To replace the guide bracket, reverse the removal procedure.
CAUTION: When returning the drive cage to its normal position, use caution to prevent damaging the
data and power cables.
5-28
Desktop Removal and Replacement
5.14
System Board and its Components
5.14.1
System Board Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Disconnect and raise the expansion board cage (Section 5.12.1).
4. Grasp the system board tray and pull it straight out of the rear of the chassis.
CAUTION: When removing and replacing the system board, do not allow the baffle mounted on top of the
processor (on select models) to drag against the expansion boards.
Removing the System Board
To replace the system board, reverse the removal procedure.
Compaq Deskpro EN Series of Personal Computers
5-29
5.14.2
Microprocessor Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Disconnect the temperature cable from the P15 fan connector on the system board.
4. Press the processor release tabs inward 1.
5. Remove microprocessor assembly with its attached heat sink 2 by pulling it from the slot
edge 3.
CAUTION: Allow the system to cool before removing the processor.
CAUTION: Use care when pulling the processor out of its socket to prevent entrapping your fingers
between the processor and the memory module.
Removing the Pentium Microprocessor
5-30
Desktop Removal and Replacement
Removing the Celeron Microprocessor
CAUTION: Never remove the heat sink from the processor.
To replace the microprocessor, reverse the removal procedure.
✎
Before installing the microprocessor, pull the release tabs 1 out. Doing so will
cause the unit to make an audible snap when it seats in the socket.
Compaq Deskpro EN Series of Personal Computers
5-31
5.14.3
Memory Removal
Memory may be expanded by adding or replacing up to three DIMMs on the system board.
CAUTION: Static electricity can damage the electronic components of the computer or optional boards.
Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching
a grounded metal object.
CAUTION: When handling a memory module, be careful not to touch any of the contacts. Doing so can
damage the module.
To remove a memory module, complete the following steps:
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Press outward on both latches of the DIMM socket at the same time. This releases the module
and partially pushes it out of the socket.
4. Lift the module from the socket.
Replacing a Memory Module
To replace a DIMM, reverse the removal procedure.
✎
5-32
When the computer starts up, it will recognize the system memory upgrades and
automatically reconfigure the computer.
Desktop Removal and Replacement
5.14.4
Battery Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Lift up on the coin-type battery to remove it from its holder.
Removing the Coin-Type Battery
4. Press the replacement battery into the holder with the positive post up. The battery holder
automatically secures the battery in the proper position.
5. Reset the date, time, and passwords using Computer Setup (Chapter 2).
!
WARNING: Do not abuse or disassemble the lithium battery, as it may explode if mistreated. Do not
disassemble, crush, puncture, short external contacts, dispose of in water or fire, or expose it to
0
0
temperatures higher than 60 C (140 F).
Compaq Deskpro EN Series of Personal Computers
5-33
5.15
Graphics Solutions
5.15.1
AGP Graphics Board Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Remove the screw that secures the AGP board to the system board tray, then remove the AGP
board.
Removing the AGP Graphics Board
To install the AGP board, reverse the removal procedure.
5-34
Desktop Removal and Replacement
5.15.2
Matrox Millennium II Graphics Memory
1. Prepare the computer for disassembly (Section 5.4).
2. Remove the system unit cover (Section 5.6).
3. Disconnect and raise the expansion board cage (Section 5.12.1).
4. Pull the system board out of the chassis to get clear access to the graphics board, then remove
the AGP graphics board (Section 5.15.1).
5. Place the graphics board on a flat, static dissipative surface and install the upgrade memory
module.
6. Ensure that all pins on the module are properly aligned to avoid damaging them.
✎
If you are removing a memory module, rock the module gently from side to side
while pulling it up.
Installing the Graphic Memory Module on the Matrox Millennium II AGP Graphics Board
To install the graphics board, reverse the above procedure.
✎
The resolution must be changed via the Control Panel to take advantage of the
additional display modes.
Compaq Deskpro EN Series of Personal Computers
5-35
5.15.3
ATI RAGE PRO TURBO AGP Graphics Memory Installation
It is not necessary to remove the graphics board to install the memory upgrade module.
✎
The NVIDIA RIVA 128 3D multimedia graphics board does not accept a memory
module.
The spare ATI RAGE PRO TURBO AGP 1X board ships without a memory
module installed. The memory module removed from the board being replaced
should be installed in the new board before use.
1. Prepare the computer for disassembly (Section 5.4).
2. Remove the system unit cover (Section 5.6).
3. Slide the system board out of the chassis far enough to easily access the graphics board.
4. Install the memory module at a 30 degree angle so that its notch aligns with the tab in the
socket 1, then pivot the module until it latches into position 2.
Installing the AGP Graphics Memory Upgrade
✎
Be sure to remove the memory module when replacing the graphics board.
The resolution must be changed via the Control Panel to take advantage of the
additional display modes.
To remove the graphics memory module, release the retaining tabs before reversing the
installation procedure.
5-36
Desktop Removal and Replacement
5.16
Speaker Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Disconnect the speaker wire from the P6 connector of the front of the riser board.
4. From the front of the chassis, remove the four screws that secure the speaker housing to the
chassis; then remove the speaker assembly.
Removing the Speaker Assembly
To install the speaker, reverse the above procedure.
Compaq Deskpro EN Series of Personal Computers
5-37
5.17
Power Supply Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Disconnect the power cables from the back of the drives in the drive bay
4. Grasp the top of the tilt drive cage and rotate it to its upright position.
5. Disconnect the main power cable from the rear of the riser board. Release the locking tab on the
cable connector to facilitate the disconnect process.
6. Remove the three screws that secure the power supply to the chassis.
7. Pull the power supply forward, then out of the chassis.
Removing the Power Supply
To replace the power supply, reverse the above procedure.
✎
Refer to Section 5.8 for proper power cable connections.
CAUTION: When returning the drive cage to its normal position use caution to prevent damaging the data
and power cables.
5-38
Desktop Removal and Replacement
5.18
Power Switch Cable Components
5.18.1
Smart Cover Lock Solenoid Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. From the rear of the chassis, use the tamper resistant wrench (Compaq Part Number
166527-001) or the special bit (Compaq Part Number 166527-002) to remove the three screws
that secure the solenoid to the chassis. When the screws are removed, the solenoid will drop
from the chassis.
Removing the Smart Cover Solenoid Lock
4. Disconnect the solenoid from the power cable attached to its bottom.
To reinstall the solenoid, reverse the removal procedure.
Compaq Deskpro EN Series of Personal Computers
5-39
5.18.2
Power Switch Cable Assembly Removal
The power switch mounting bracket and status LEDs are a part of this cable assembly.
1. Prepare the computer for disassembly (Section 5.4).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Disconnect the cables from the rear of all of the drives.
4. Grasp the top of the tilt drive cage and rotate it to its full upright position.
5. Remove the side mounted hard drive from the drive cage (Section 5.9.1).
6. Disconnect the power switch cable from the P5 connector 1 on the rear of the riser board.
7. Remove the cover lock solenoid from the chassis 2 (Section 5.18.1), then disconnect the power
switch cable from it.
8. From the inside of the chassis, squeeze the tab on the power switch bracket holder 3 up, then
lift the assembly up 4 to release it from the chassis.
Removing the Power Switch Bracket Assembly
5-40
Desktop Removal and Replacement
9. Align the rear cable clip at the bottom of the drive cage so that it is parallel to the bottom edge
of the drive cage 1.
10. Maintain tension on the cable clip 2 while using a flat-bladed screwdriver to push in on the
tang of the clip from the underside of the drive cage 3. One side of the clip will pull free of the
hole.
11. Continue to maintain tension on the clip while using the screwdriver to push in the other tang
on the clip 4. The clip will pull out of the hole when both tangs have been compressed.
12. Repeat these steps for the front cable clip.
✎
When installing the cable clips it is not necessary to compress the tangs; simply
push the clip end into the hole until it is fully seated.
Removing the Power Switch Cable
To install the power switch assembly with the cable, reverse the removal procedure.
✎
Refer to Section 5.8 for proper power cable connections.
CAUTION: When returning the drive cage to its normal position use caution to prevent damaging the data
and power cables.
Compaq Deskpro EN Series of Personal Computers
5-41
chapter
6
MINITOWER REMOVAL AND REPLACEMENT
After completing all necessary removal and replacement procedures, run the Diagnostics utility to
verify that all components operate properly.
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer to
prevent system board or component damage.
6.1
Serial Number Location
The computer serial number should be provided to Compaq when requesting information or
ordering spare parts. The serial number is displayed on the top of the system unit cover toward the
right front and also on the rear of the computer.
Serial Number Location
Compaq Deskpro EN Series of Personal Computers
6-1
6.2
Disassembly Sequence Chart
Use the chart below to determine the disassembly sequence for removing components from the
computer.
6.3
Preparation for Disassembly
6.4.1
Computer Base
6.4.2
Computer Feet
6.5
Cable Lock
6.6
Access Panel
6.7.1
6.10.1
Front Bezel
6.7.2
Power Button
6.7.3
Bezel Blank
6.8.1
Primary 3.5-Inch Hard Drive
6.8.2
5.25-Inch Drive Device
6.8.3
3.25-Inch Drive from a 5.25-Inch Drive Adapter
6.9
Drive Release Latch
Disconnecting and Raising the Expansion Board Cage
6.10.2
Expansion Board
6.10.3
Expansion Board Cage
6.10.4
Riser Board
6.10.5
Expansion Board Cage Guide Bracket
6.10.6 Lift Levers
6.11
6.10.7
Fan Assembly
6.12.1
System Board
6.13.1
AGP Graphics Board
6.13.2
6.13.3
✎
6-2
Expansion Board Cage Chassis-Mounted Guide Bracket
Matrox Millennium II Graphics Memory
ATI RAGE PRO Graphics Memory
6.12.2
Microprocessor
6.12.3
Memory
6.12.4
Battery
6.14
Speaker
6.15
Power Supply
6.16.1
Smart Cover Lock Solenoid
6.16.2
Power Switch Cable Assembly
The top cover and drive cage are not to be removed for servicing the computer.
Minitower Removal and Replacement
6.3
Preparation for Disassembly
See Chapter 4, “Removal and Replacement Preliminaries,” for initial procedures.
To prepare the computer for disassembly:
1. Remove any diskette or compact disc from the computer.
2. Unlock the conputer Smart Cover Lock using Computer Setup.
3. Turn off the computer and any peripheral devices that are connected to it.
CAUTION: Turn off the computer before disconnecting any cables.
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
4. Disconnect the power cord from the electrical outlet and then from the computer.
5. Disconnect all peripheral device cables from the computer.
✎
During disassembly, label each cable as you remove it, noting its position and routing. Keep
all screws with the units removed.
CAUTION: The screws used in the computer are of different thread sizes and lengths; using the wrong
screw in an application may damage the unit.
Compaq Deskpro EN Series of Personal Computers
6-3
6.4
Computer Base Assembly
6.4.1
Computer Base Removal
1. Turn off the computer before rotating the computer. Failure to do so may cause damage to the
internal components.
2. Lay the computer on its side and remove the four screws that secure the base to the bottom of
the computer.
Removing the Computer Base
To install the computer base, reverse the removal procedure.
✎
6-4
The computer may be used without the molded base if vertical clearance is
restricted. Rubber feet are attached to the computer bottom as well as to the
bottom of the computer base for customer convenience.
Minitower Removal and Replacement
6.4.2
Computer Feet Removal
1. Turn off the computer before rotating the computer. Failure to do so may cause damage to the
internal components.
2. Lay the computer on its side and remove any adhesive residue from the old feet by rubbing it
off using a clean, dry cloth or your finger. If necessary, scrape the adhesive residue from the
computer base using a small, flat-bladed screwdriver. To attach replacement feet to the base,
remove the protective strip from the adhesive on the back of the new feet and press them into
place.
Installing New Computer Feet to the Computer Base
✎
Rubber feet are attached to the computer bottom as well as to the bottom of the
computer base for customer convenience.
Compaq Deskpro EN Series of Personal Computers
6-5
6.5
Cable Lock Installation
The cable lock is an optional device used to help secure the unit.
1. Separate the pieces of the security bracket by bending the metal where the three pieces join (see
inset).
2. Insert the tang of the narrow bracket into the slot, and slide the U-shaped bracket between it and
the system unit cover (see inset); then, install the self-tapping screw included in the cable lock
kit.
3. Cover the screw with the flat portion of the bracket.
4. Install a lock (not provided) in the security bracket to control access to the inside of the
computer. Install a cable lock (not provided) to secure the computer to a secure place.
Installing the Cable Lock
To remove the cable lock provision, reverse the installation procedure.
6-6
Minitower Removal and Replacement
6.6
Access Panel Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the three screws that secure the access panel to the chassis.
3. Press in at the topmost screw area to release the manual catch; then, slide the access panel back
about 1-inch (2.5 -cm).
4. Rotate the top of the access panel away from the chassis; then, pull it up and off the unit.
Removing the Access Panel
To replace the access panel, reverse the removal procedure.
Compaq Deskpro EN Series of Personal Computers
6-7
6.7
Front Bezel Assembly
6.7.1
Front Bezel Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Press on the two tabs on the inside of the front bezel (as indicated by the arrows on the chassis),
then pivot the bezel away from the computer before disengaging it from the chassis.
Removing the Front Bezel
To install the front bezel, reverse the removal procedure.
6-8
Minitower Removal and Replacement
6.7.2
Power Button Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Remove the front bezel (Section 6.7.1).
4. Set the front bezel on its edge on a protected work surface.
5. Pinch together the two tabs on the rear of the power button, and push the button out of the front
bezel. The spring will follow the button out of the housing.
Removing the Power Button
To replace the power button, reverse the removal procedure.
Compaq Deskpro EN Series of Personal Computers
6-9
6.7.3
Bezel Blank Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Remove the front bezel (Section 6.7.1).
4. Lay the front bezel on its front face on a protected work surface to protect it from scratches.
5. Squeeze together the sides of the right end of the bezel blank to release the catches.
6. Remove the bezel blank from the front bezel.
Removing the Bezel Blank
To reinstall the bezel blank, reverse the removal procedure.
6-10
Minitower Removal and Replacement
6.8
Mass Storage Devices
6.8.1
Primary 3.5-Inch Hard Drive Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Remove the front bezel (Section 6.7.1).
4. Disconnect the power cable and the flat ribbon data cable from the rear of the drive.
5. Lift up on the green drive release latch that secures the drive in position 1, then slide the drive
forward to remove it from the drive cage 2.
Removing the Primary Hard Drive
When replacing the drive with a new one, install two guide screws on each side of the drive before
installing it into the drive bay. Extra mounting screws are located on the front of the chassis.
To install a hard drive, reverse the removal procedure.
Compaq Deskpro EN Series of Personal Computers
6-11
6.8.2
5.25-Inch Drive Bay Device Removal
This section describes how to remove any drive from a 5.25-inch drive bay. To remove a 3.5-inch
drive from a 5.25-inch drive adapter, refer to Section 6.8.3.
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Remove the front bezel (Section 6.7.1).
4. Disconnect the data and power cables from the rear of the drive.
5. Push in on the green drive release tab that secures the drive in position 1, then slide the drive
out of the front of the drive cage 2.
✎
For removing a 3.5-inch drive from a 5.25-inch drive adapter, refer to Section
6.8.3.
Removing the Drive from the Drive Bay
When replacing the drive with a new one, install two guide screws on each side of the drive before
installing it into the drive bay. Extra mounting screws are located on the front of the chassis.
To replace the drive, reverse the removal procedure.
✎
If installing a second device on the primary controller, you must use an 80conductor Ultra ATA cable that supports the drive for optimal performance.
If installing a CD-ROM drive, ensure that the guide screws are placed in the lower
set of holes on the drive.
6-12
Minitower Removal and Replacement
6.8.3
3.5-Inch Drive Removal from 5.25-Inch Drive Adapter
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Remove the front bezel (Section 6.7.1).
4. Remove the drive assembly from the drive bay (Section 6.8.2).
If this is a diskette drive, continue with step 5.
If this is a hard drive, continue with step 7.
5. If this is a diskette drive, remove the two screws on the left side that secure the drive in the
adapter.
Removing the Diskette Drive from the Drive Bay Adapter
6. Slide the drive out of the drive adapter and remove the guide screw from the right side of the
drive.
To install a new diskette drive, reverse the removal procedure.
✎
When installing either a replacement or a second diskette drive, you must
configure the computer with Computer Setup to specify a drive size.
Compaq Deskpro EN Series of Personal Computers
6-13
7. If this is a hard drive, remove the four screws that secure the drive in the adapter, then slide the
drive out of the drive adapter.
Removing the Hard Drive from the Drive Bay Adapter
To install a new hard drive, reverse the removal procedure.
6-14
Minitower Removal and Replacement
6.9
Drive Release Latch Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Remove the front bezel (Section 6.7.1).
4. Disconnect the drive and power cables from the rear of the computer.
5. Remove the primary hard drive (Section 6.8.1).
6. Remove the drives from the 5.25-inch drive bays (Section 6.8.2).
7. From inside the drive bay, push out on the retainer tabs that hold the green drive release latch in
position, then slide the latch toward the rear of the drive cage to release it.
Removing the Drive Release Latch from the Drive Cage
To install the green drive release latch, reverse the removal procedures.
Compaq Deskpro EN Series of Personal Computers
6-15
6.10
Expansion Board Cage Components
6.10.1
Disconnecting and Raising the Expansion Board Cage
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
✎
The riser board is firmly attached to the expansion board cage. Raising the cage
electrically disconnects the riser board from the system board; lowering the cage
electrically connects the riser board to the system board.
3. Lift the two green levers on the top of the expansion board cage to their upright position to
electrically disconnect it from the system board. This is service position 1.
4. Raise the expansion board cage to engage the built-in catch that holds the cage up and away
from the system board. This secures the cage and prevents it from damaging components on the
system board. This is service position 2.
Disconnecting and Raising the Expansion Board Cage
✎
It is not necessary to disconnect any cables for this operation.
To reconnect the riser board that is mounted on the expansion board cage to the system board,
slightly lift the expansion board cage and release the built-in catch to lower it into service position
1; then, rotate the levers to their original positions to lock the assembly in place.
Before reseating the assembly, ensure that the system board tray is completely pushed into the
chassis .
6-16
Minitower Removal and Replacement
6.10.2
Expansion Board Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Lay the computer down on its side for easier access to the expansion slots.
4. Disconnect and raise the expansion board cage board to service position 2 (Section 6.10.1),
making sure that it is retained by the built-in catch.
5. Disconnect any interconnect cables attached to the expansion board.
6. Remove the screw that secures the expansion board to the board cage; then, remove the
expansion board.
✎
Use a stubby screwdriver to remove the screw that secures the expansion board to
the board cage to prevent interference with the chassis.
Removing an Expansion Board
To replace the expansion board, reverse the removal procedure.
✎
If you are installing an expansion board for the first time, remove the desired
expansion board slot cover before installing the board.
When installing a SCSI controller with an internal SCSI device, route the data
cable across the top of the expansion board cage. The SCSI board should be
mounted in the top slot if possible for cable routing purposes.
When installing a NIC expansion board, ensure that the Remote Wakeup cable is
properly installed. Failure to do so may cause computer startup or network
problems.
The computer should automatically recognize the added plug and play expansion board.
Compaq Deskpro EN Series of Personal Computers
6-17
6.10.3
Expansion Board Cage Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Disconnect the power, data, and control cables from the rear of the riser board. Release the
locking tab on the power cable connector to facilitate its removal.
Disconnecting the Cables from the Rear of the Riser Board
6-18
Minitower Removal and Replacement
4. Disconnect the speaker cable from the front of the riser board at P6 and unhook the cable from
the top of the fan housing.
Disconnecting the Speaker Cable from the Front of the Riser Board
5. Disconnect and raise the expansion board cage by levering it out of the system board
(Section 6.10.1).
6. Pull the expansion board cage straight out of the chassis.
✎
It is not necessary to remove the expansion boards or the fan before removing this
assembly.
Removing the Expansion Board Cage
When reinstalling the expansion board cage, reverse the removal procedure.
Compaq Deskpro EN Series of Personal Computers
6-19
6.10.4
Riser Board Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Remove the expansion board cage from the chassis (Section 6.10.3).
4. Remove the expansion boards from the expansion board cage by first removing the retaining
screw that secures each board to the assembly. Be sure you disconnect any interconnect cables
attached to the expansion boards before removing the boards.
5. Disconnect the fan control cable from the riser board at P8 1.
6. Remove the three screws securing the riser board to the expansion board cage 2, then remove
the riser board 3.
Removing the Riser Board from the Expansion Board Cage
To replace the riser board, reverse the removal procedure.
6-20
Minitower Removal and Replacement
6.10.5
Expansion Board Cage Guide Bracket Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Disconnect and raise the expansion board cage (Section 6.10.1).
4. Remove the expansion board cage from the chassis (Section 6.10.3).
✎
It is not necessary to remove the expansion boards from the expansion board cage
before removing the cage from the chassis.
5. Remove the expansion boards from the expansion board cage (Section 6.10.2).
6. Remove the riser board (Section 6.10.4).
7. Press in on the two tabs 1 that secure each guide bracket to the cage, then slide the bracket
toward the top of the cage to remove it.
Removing the Board Cage Guide Brackets
To replace the guide brackets, reverse the removal procedure.
Compaq Deskpro EN Series of Personal Computers
6-21
6.10.6
Lift Lever Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Disconnect and raise the expansion board cage (Section 6.10.1).
4. Remove the expansion board cage (Section 6.10.3).
5. Remove all expansion boards from the expansion board cage (Section 6.10.2).
6. Remove the riser board (Section 6.10.4).
7. Press the plastic pivot pin that secures the green lift lever to the expansion board cage out of the
lever from the outside of the assembly using a blunt tool like a screwdriver. When the pin is
partway through the lever, it can easily be pulled the rest of the way with your fingers.
Removing the Pivot Pin From the Lift Lever
To replace the lift lever, reverse the removal procedure.
✎
6-22
The pivot pin can be installed without the use of tools using finger pressure only.
Minitower Removal and Replacement
6.10.7
Fan Assembly Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Disconnect and raise the expansion board cage (Section 6.10.1).
4. Disconnect the fan control wire from the front of the riser board at P8 1.
5. Press up on the bottom tabs on the fan housing 2, then pivot the assembly up and out of the
expansion board cage 3.
Removing the Fan Assembly
To replace the fan assembly, reverse the removal procedure.
Compaq Deskpro EN Series of Personal Computers
6-23
6.11
Expansion Board Cage Chassis-Mounted Guide Bracket
Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Disconnect and raise the expansion board cage (Section 6.10.1).
4. Remove the expansion board cage (Section 6.10.3).
5. Lay the computer down on its side.
✎
It may be necessary to remove the system board before removing the chassis–
mounted guide brackets.
6. Remove the two screws that secure each chassis-mounted guide bracket to the expansion board
cage, then remove the bracket.
Removing the Expansion Board Cage Chassis-Mounted Guide Bracket
To replace the guide bracket, reverse the removal procedure.
6-24
Minitower Removal and Replacement
6.12
System Board and its Components
6.12.1
System Board Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Lay the computer down on its side.
4. Disconnect and raise the expansion board cage (Section 6.10.1).
5. Remove the retaining screw that secures the system board tray to the chassis.
6. Grasp the system board tray and pull it straight out of the rear of the chassis.
Removing the System Board
To replace the system board, reverse the removal procedure.
✎
It is not necessary to remove any cables from the system board to perform this
operation.
Compaq Deskpro EN Series of Personal Computers
6-25
6.12.2
Microprocessor Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Lay the computer down on its side.
4. Disconnect and raise the expansion board cage (Section 6.10.1).
5. Disconnect the temperature cable from the P15 fan connector on the system board.
6. Press the processor release tabs inward 1.
7. Remove the microprocessor assembly with its attached heat sink 2 by pulling it from the slot
edge 3.
CAUTION: Allow the system to cool before removing the processor.
CAUTION: Use care when pulling the processor out of its socket to prevent entrapping your fingers
between the processor and the memory module.
Removing the Microprocessor
CAUTION: Never remove the heat sink from the processor.
To replace the microprocessor, reverse the removal procedure.
✎
6-26
Before installing the microprocessor, pull the release tabs 1 out . Doing so will
cause the unit to make an audible snap when it seats in the socket.
Minitower Removal and Replacement
6.12.3
Memory Removal
Memory may be expanded by adding or replacing up to three DIMMs on the system board.
CAUTION: Static electricity can damage the electronic components of the computer or optional boards.
Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching
a grounded metal object.
CAUTION: When handling a memory module, be careful not to touch any of the contacts. Doing so can
damage the module.
To remove a memory module, complete the following steps:
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 6.6).
3. Lay the computer down on its side.
4. Press outward on both latches of the DIMM socket at the same time. This releases the module
and partially pushes it out of the socket.
5. Lift the module from the socket.
Replacing a Memory Module
To replace a DIMM, reverse the removal procedure.
✎
When the computer starts up, it will recognize the system memory upgrades and
automatically reconfigure the computer.
Compaq Deskpro EN Series of Personal Computers
6-27
6.12.4
Battery Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 6.6).
3. Lay the computer down on its side.
4. Lift up on the coin-type battery to remove it from its holder.
Removing the Coin-Type Battery
5. Press the replacement battery into the holder with the positive post up. The battery holder
automatically secures the battery in the proper position.
6. Reset the date, time, and passwords using Computer Setup (See Chapter 2).
!
6-28
WARNING: Do not abuse or disassemble the lithium battery, as it may explode if mistreated. Do not
disassemble, crush, puncture, short external contacts, dispose of in water or fire, or expose it to
°
°
temperatures higher than 60 C (140 F).
Minitower Removal and Replacement
6.13
Graphics Solutions
6.13.1
AGP Graphics Board Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Lay the computer down on its side.
4. Disconnect and raise the expansion board cage (Section 6.10.1).
5. Remove the rataining screw that secures the system board tray to the chassis; then, pull the
system board out so that the end of the AGP board clears the chassis (Section 6.12.1).
6. Remove the screw that secures the AGP board to the system board tray, then remove the AGP
board.
Removing an AGP Graphics Board
To install the AGP board, reverse the removal procedure.
Compaq Deskpro EN Series of Personal Computers
6-29
6.13.2
Matrox Millennium II Graphics Memory Upgrade
1. Prepare the computer for disassembly (Section 6.3).
2. Remove the system unit cover (Section 6.6).
3. Lay the computer down on its side.
4. Disconnect and raise the expansion board cage (Section 6.10.1).
5. Pull the system board out of the chassis to get clear access to the graphics board, then remove
the AGP graphics board (Section 6.13.1).
6. Place the graphics board on a flat, static dissipative surface and install the upgrade memory
module.
7. Ensure that all pins on the module are properly aligned to avoid damaging them.
✎
If you are removing a memory module, rock the module gently from side to side
while pulling it up.
Installing the Graphic Memory Module on the Matrox Millennium II AGP Graphics Board
To install the graphics board, reverse the above procedure.
✎
6-30
The resolution must be changed via the Control Panel to take advantage of the
additional display modes.
Minitower Removal and Replacement
6.13.3
ATI RAGE PRO TURBO AGP Graphics Memory Installation
It is not necessary to remove the graphics board to install the memory module.
✎
The NVIDIA RIVA 128 3D multimedia graphics board does not accept a memory
module.
The spare ATI RAGE PRO TURBO AGP 1X board ships without a memory
module installed. The memory module removed from the board being replaced
should be installed in the new board before use.
1. Prepare the computer for disassembly (Section 6.3).
2. Remove the system unit cover (Section 6.6).
3. Lay the computer down on its side.
4. Disconnect and raise the expansion board cage (Section 6.10.1).
5. Pull the system board out of the chassis to get clear access to the graphics board.
6. Install the memory module at a 30 degree angle so that its notch aligns with the tab in the
socket 1, then pivot the module until it latches into position 2.
Installing the ATI RAGE PRO TURBO AGP Graphics Memory Upgrade
CAUTION: Be sure to align the memory module before installation. Insert gently to prevent damage to the
module.
✎
Be sure to remove the memory module when replacing the graphics board.
The resolution must be changed via the Control Panel to take advantage of the
additional display modes.
To remove the graphics memory module, release the retaining tabs before reversing the
installation procedure.
Compaq Deskpro EN Series of Personal Computers
6-31
6.14
Speaker Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Disconnect the speaker wire from the P6 connector of the front of the riser board.
4. From the front of the chassis, remove the four screws that secure the speaker housing to the
chassis; then remove the speaker assembly.
Removing the Speaker Assembly
To install the speaker, reverse the above procedure.
✎
6-32
When installing the speaker, the audio leads connected to it should be at the top of
the speaker. This gives sufficient slack to the audio cable when the expansion
board cage is raised to service position 2.
Minitower Removal and Replacement
6.15
Power Supply Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Disconnect the power cables from the back of the drives in the drive bay.
4. Disconnect the main power cable from the rear of the riser board. Release the locking tab on the
cable connector to facilitate the disconnect process.
5. Remove the three screws from the rear of the chassis that secure the power supply to the
chassis.
6. Pull the power supply forward to disengage the hooks, then lower the supply out of the chassis.
Removing the Power Supply
To replace the power supply, reverse the above procedure.
Compaq Deskpro EN Series of Personal Computers
6-33
6.16
Power Switch Cable Components
6.16.1
Smart Cover Lock Solenoid Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. From the rear of the chassis, use the tamper resistant wrench (Compaq Part Number
166527-001) or the special bit (Compaq Part Number 166527-002) to remove the two screws
that secure the solenoid to the chassis. When the screws are removed, the solenoid will drop
from the chassis.
Removing the Smart Cover Solenoid Lock
4. Disconnect the solenoid from the power cable attached to its bottom.
To reinstall the solenoid, reverse the removal procedure.
6-34
Minitower Removal and Replacement
6.16.2
Power Switch Cable Assembly Removal
The power switch mounting bracket and status LEDs are a part of this cable assembly.
1. Prepare the computer for disassembly (Section 6.3).
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Remove the front bezel assembly (Section 6.7.1).
4. Disconnect the power switch cable from the P5 connector 1 on the rear of the riser board.
5. Disconnect the power switch cable from the cover lock solenoid 2.
6. Remove the expansion board cage (Section 6.10.3).
7. Unhook the cable from the drive cage side of the chassis brace 3.
8. Unhook the switch housing bracket from the chassis by squeezing the tab on the top of the
housing and lifting the assembly out of the slots in the front of the chassis 4.
✎
Details of step 8 are shown on the next page.
Removing the Power Switch Cable Assembly
Compaq Deskpro EN Series of Personal Computers
6-35
Removing the Power Switch Cable Assembly
To install the power switch cable assembly, reverse the removal procedure.
6-36
Minitower Removal and Replacement
chapter
7
SERVICE NOTES
CAUTION: Do not use the desktop version of this computer as a minitower. Doing so will block vent holes
in the side of the cover and can cause serious damage to the computer.
1. When using a 66-MHZ bus processor, you may install either 66- or 100-MHz DIMMs in the
computer. The 100-MHz DIMMs will only run at 66-MHz in this situation.
2. Do not install 66 MHz DIMMs in a computer having a 100-MHz bus processor.
3. Before installing the microprocessor, make sure the release latches are in the locked position.
This will cause the microprocessor to make an audible sound when it is properly seated in the
socket.
4. EDO DIMMs are not supported.
5. The desktop chassis will support a maximum distributed weight of 100 lbs.
6. USB support is available only when using the drivers provided by the device vendor.
7. The computer has the capability for using a Kensington cable lock device. This device is not
available from Compaq.
8. To disable the Spread System function, use the jumper on P108 labeled "Spread Disable."
Compaq Deskpro EN Series of Personal Computers
7-1
chapter
8
SPECIFICATIONS
This chapter provides physical, environmental, and performance specifications for the computer,
keyboard, and mass storage devices.
8.1
System
8.1.1
System Specifications
U. S.
Metric
Dimensions, Desktop
Height
Width
Length
5.88-in
19.16-in
16.82-in
14.93-cm
48.66-cm
42.72-cm
Dimensions, Minitower
Height
Width
Length
20.25-in
8.38-in
18.60-in
51.44-cm
21.29-cm
47.24-cm
Weight, Desktop
32.0-lb
14.50-kg
Weight, Minitower
40.0-lb
18.2-kg
Power Supply, 200 Watt
Operating Voltage Range
Rated Voltage Range
Rated Line Frequency
Rated input current, (maximum)
Heat dissipation, nominal
Heat dissipation, maximum
90-132 VAC
110-120 VAC
47 - 63 Hz
5.5 A
525 BTU/Hr
1,050 BTU/hr
180-264 VAC
200-240 VAC
47 - 63 Hz
2.75 A
2.21 kg-cal/min
4.41 kg-cal/min
Environmental Requirements
Operating Temperature
Nonoperating Temperature
Operating Humidity (noncondensing)
Nonoperating Humidity (noncondensing)
Maximum Operating Altitude (unpressurized)
Maximum Nonoperating Altitude (unpressurized)
50° to 95°F
-4° to 140°F
8 to 90%
5 to 95%
10,000 ft
30,000 ft
10° to 35°C
-20° to 60°C
8 to 90%
5 to 95%
3,048 m
9,141 m
Compaq Deskpro EN Series of Personal Computers
8-1
8.1.2
8.1.3
System Interrupts
Hardware IRQ
System Function
IRQ 0
System Timer Interrupt (Not on ISA Bus)
IRQ 1
Keyboard (Not on ISA Bus)
IRQ 2
Primary/Secondary Controller 8254 Interface
IRQ 3
Serial Port B
IRQ 4
Serial Port A
IRQ 5
Audio (Alternate = IRQ 7, 9, 10, 11, or 12)
IRQ 6
Diskette Drive Controller
IRQ 7
Parallel Port (LPT 1)
IRQ 8
Real-Time Clock
IRQ 9
PCI Slots/USB/AGP (Optional)
IRQ 10
PCI Slots/USB/AGP (Optional)
IRQ 11
PCI Slots/USB/AGP (Default)
IRQ 12
Mouse
IRQ 13
Numeric Coprocessor
IRQ 14
Primary IDE Controller
IRQ 15
Secondary IDE Controller
System DMA
Hardware DMA System Function
8-2
DMA 0
Audio
DMA 1
Audio (Alternate = DMA 0)
DMA 2
Diskette Drive
DMA 3
ECP Parallel Port LPT1
DMA 4
DMA Controller Cascading (Not on ISA Bus)
DMA 5
Unused
DMA 6
Unused
DMA 7
Unused
Specifications
8.1.4
System I/O
I/O Address
(Hex)
System Function
(Shipping Configuration)
I/O Address
(Hex)
System Function
(Shipping Configuration)
000 - 00F
DMA Controller # 1
170 - 177
Reserved
010 - 01F
Unused
178 - 1EF
Unused
020 - 03F
Interrupt Controller # 1
1F0 - 1F7
Fixed Disk Controller
040 - 043
Counter/Timer
1F8 - 1FF
Unused
044 - 05F
Unused
200
Unused
060
Keyboard Controller
201
Unused
061
Port B
202 - 21F
Unused
062 - 063
Unused
220 - 22F
Audio (Default)
(Alt = 240 - 24F, 250- 25F)
064
Keyboard Controller
230 - 277
Unused
065 - 06F
Unused
278 - 27F
Reserved Parallel Port
070 - 071
NMI Enable/Real-Time Clock
280 - 2E7
Unused
072 - 07F
Unused
2E8 - 2EF
Reserved Serial Port
080 - 08F
DMA Page Registers
2F0 - 2F7
Unused
090 - 091
Unused
2F8 - 2FF
Reserved Serial Port
092
Port A
300 - 317
Unused
093 - 09F
Unused
318 - 319
Unused
0A0 - 0BF
Interrupt Controller # 2
31A - 36F
Unused
0C0 - 0DF
DMA Controller # 2
330 - 331
Audio
0E0 - 0EB
Unused
370 - 377
Reserved
0EC - 0ED
483 Configuration Index/Data
378 - 37F
Parallel Port (Primary)
0EE - 0EF
483 Fast A20/Fast Reset
380 - 387
Unused
0F0 - 0F1
Co-Processor Busy Clear/Reset
388 - 38B
FM Synthesizer (OPL III)
0F2 - 0F3
Unused
38C - 397
Unused
0F4 - 0F5
483 CPU Speed Slow/Fast
398 - 399
Super AI/O Index/Data (Default)
(Alt = 26EH, 15CH, 02EH)
0F6 - 0F8
Unused
39A - 3AF
Unused
0F9
483/PGL Configuration Lock
3B0 - 3BB
MDA, EGA/VGA
0FA
Unused
3BC - 3BF
Reserved (Parallel Port)
0FB
483/PGL Configuration Unlock
3C0 - 3DF
EGA/VGA
0FC - 0FF
Unused
3E0 - 3E7
Unused
100 - 12F
Unused
3E8 - 3EF
Reserved (Serial Port)
130 - 131
Unused
3F0 - 3F7
Diskette Controller
132 - 16F
Unused
3F8 - 3FF
Serial Port (Primary)
Compaq Deskpro EN Series of Personal Computers
8-3
8.1.5
System Memory Map
Size
Memory Address
System Function
256 KB
FFFC0000h to FFFFFFFFh
System ROM
3839 MB
10000000h to FFFBFFFFh
PCI Memory Expansion
255 MB
00100000h to 0FFFFFFFh
HOST or PCI Memory Expansion
128KB
000E0000h to 000FFFFFh
System ROM
96 KB
000C8000h to 000DFFFFh
ISA/PCI option ROMs
32 KB
000C0000h to 000C7FFFh
Video ROM
128 KB
000A0000h to 000BFFFFh
Video RAM
640 KB
00000000h to 0009FFFFh
Base Memory
All memory above the first 256 MB is non-cacheable. All PCI memory is non-cacheable.
8.2
Drives
8.2.1
Diskette Drive
1.44 MB
8-4
Size and Capacity
Size.
High Density
Low Density
3.5 inches
1.44 MB
720 KB
Compaq Spare Part Number
179161-001
Light
Green
Height
1 inch
Bytes per Sector
512
Sectors per Track
High Density
Low density
18
9
Tracks per Side
High Density
Low Density
80
80
Read/Write Heads
2
Average Seek Time (Mb/s)
Track-to-Track (high/low)
Average (high/low)
Latency Average (ms)
3/6
94/173
100
Specifications
8.2.2
Ultra ATA Hard Drives
3.2-GB
6.4-GB
8.4-GB
Compaq Spare Part Number
166873-001
166973-001
166981-001
Drive Type
65
65
65
Transfer Rate
Interface (MBytes/sec)
33.3
33.3
33.3
Typical Seek Time
(including settling)
Single Track (ms)
Average (ms)
Full Stroke (ms)
<1.0
<9.5
20.0
1.0
9.7
20.0
1.0
9.7
18.0
Cylinders
Logical
6296
13328
16383
Data Heads
Logical
15
15
16
Sectors per Track
Logical
63
63
63
Buffer Size (KB)
256
256
256
Compaq Deskpro EN Series of Personal Computers
8-5
8.2.3
8-6
Wide UltraSCSI Hard Drives
4.3 GB
9.1 GB
Compaq Spare Part Number
179287-001
179288-001
Transfer Rate
Interface (MB/sec)
40.0
40.0
Typical Seek Time
(including settling)
Single Track (ms)
Average (ms)
Full Stroke (ms)
0.76
7.5
17.0
0.76
7.5
15.0
Cylinders
Physical
8420
8420
Data Heads
Physical
8
10
Sectors per Track
Physical
165 - 264
165 - 264
Buffer Size (KB)
384
384
Specifications
8.2.4
24X Max CD-ROM Drive
Compaq Spare Part Number
166869-001
Applicable Disc
CD-ROM mode1, mode 2
Mixed mode (audio and data combined)
CD-DA
Photo CD (single and multi-session)
CDi ready
CD-XA ready
Disc Diameter
12 cm, 8 cm
Capacity
550 MB (Mode 1, 12 cm)
640 MB (Mode 2, 12 cm)
180 MB (8 cm)
Center Hole
15 mm diameter
Disc Thickness
1.2 mm
Track Pitch
1.6 um
Access Time
Random
Full Stroke
100 ms
150 ms
Audio Output Level
0.7V (RMS) (typical)
Data Transfer Rate
Sustained
Burst
1500 to 3600 KB/sec
16.6 MB/sec
Compaq Deskpro EN Series of Personal Computers
8-7
8.2.5
8-8
32X Max CD-ROM Drive
Compaq Spare Part Number
327659-001
Applicable Disc
CD-ROM mode1, mode 2
Mixed mode (audio and data combined)
CD-DA
Photo CD (single and multi-session)
CDi ready
CD-XA ready
Disc Diameter
12 cm, 8 cm
Capacity
550 MB (Mode 1, 12 cm)
640 MB (Mode 2, 12 cm)
Center Hole
15 mm diameter
Disc Thickness
1.2 mm
Track Pitch
1.6 um
Access Time
Random
Full Stroke
<100 ms
<150 ms
Audio Output Level
0.7V (RMS) (typical)
Data Transfer Rate
Sustained
2100 to 4800 KB/sec
Specifications
8.3
Keyboard
Dimensions
Height
Width
Depth
Weight
8.4
U.S.
Metric
1.50 in
18.00 in
6.50 in
3.81 cm
45.72 cm
16.51 cm
3.5 lb
1.59 kg
Mouse
U.S.
Metric
Compaq Spare Part Number
166861-001
166861-001
Dimensions
Height
Length
Width
1.34 in
4.45 in
2.36 in
3.4 cm
11.3 cm
6.0 cm
Weight
4.59 oz
130 g
Base Resolution
400 dpi
400 dpi
Tracking Speed (maximum)
10 in/sec
25 cm/sec
Temperature
Operating
Storage
32° to 104°F
-4° to 140°F
0° to 40°C
-20° to 60°C
Lifetime
Mechanical
Switch
Exceeds 300 miles
Exceeds 1 million operations
Exceeds 483 km
Exceeds 1 million operations
Relative Humidity
10% to 90%, noncondensing
10% to 90%, noncondensing
ESD
No soft errors through 10 kV;
No hard errors through 15 kV; specific performance depends on host
system
Compaq Deskpro EN Series of Personal Computers
8-9
8.5
Supported Graphics Resolutions
8.5.1
ATI RAGE PRO TURBO Graphics
Number of Colors Supported
8.5.2
ATI RAGE PRO TURBO AGP
ATI RAGE PRO TURBO AGP 2X
Spare Part Number
179231-001
179186-001
Resolution
4-MB Memory
4-MB Memory
8-MB Memory
1600 × 1200
65K
65K
16.7M
1280 × 1024
16.7M
16.7M
16.7M
1024 × 768
16.7M
16.7M
16.7M
800 × 600
16.7M
16.7M
16.7M
640 × 480
16.7M
16.7M
16.7M
Diamond Viper NVIDIA 128 3D AGP Graphics
Number of Colors Supported
8.5.3
Spare Part Number
322747-001
Resolution
4-MB Memory
1920 × 1080
256
1600 × 1200
65K
1280 × 1024
65K
1152 × 864
16.7M
1024 × 768
16.7M
800 × 600
16.7M
640 × 480
16.7M
Matrox Millennium II Graphics
Number of Colors Supported
8-10
Spare Part Number
296676-001
Resolution
4-MB Memory
8-MB Memory
1920 × 1200
N/A
65K
1600 × 1200
65K
65K
1280 × 1024
16.7M
16.7M
1024 × 768
16.7M
16.7M
800 × 600
16.7M
16.7M
640 × 480
16.7M
16.7M
Specifications
chapter
9
CONNECTORS, JUMPERS, AND SWITCHES
9.1
System Board
System Board Overview (007998-102 on the Left and 008123-101 on the Right)
Table 9-1
Connectors, Jumpers, and Switches
Item
Description
Item
Description
BT2
External battery
J40
AGP connector
E50
CMOS
J50
Riser board socket
J1
DIMM 1
P15
Fan (thermal cable)
J2
DIMM2
P108
Spread System disable (select models)
J3
DIMM3
SW1
Switch 1, S1 through 6
*Board 007998-102 has the P15 connector located near the battery. Board 008123-101 has the P15
connector located near the riser board connector.
Compaq Deskpro EN Series of Personal Computers
9-1
9.2
Riser Board
9.2.1
Desktop Riser Board
Front Side of Desktop Riser Board
Table 9-2
Front Side of Riser Board
9-2
Item
Description
Item
Description
J10
ISA combination slot
J23
PCI combination slot
J11
ISA combination slot
P6
Speaker
J20
PCI connector slot
P8
Fan
J21
PCI connector slot
P9
NIC Remote Wakeup
J22
PCI combination slot
P29
SCSI LED header
Connectors, Jumpers, and Switches
Rear Side of Desktop Riser Board
Table 9-3
Rear Side of Riser Board
Item
Description
Item
Description
P1
Power supply connector
P10
Diskette drive connector
P5
Hood control, power switch, LEDs
P20
Primary IDE connector
P7
CD audio connector
P21
Secondary IDE connector
Compaq Deskpro EN Series of Personal Computers
9-3
9.2.2
Minitower Riser Board
Front Side of Minitower Riser Board
Table 9-4
Front Side of Riser Board
9-4
Item
Description
Item
Description
J10
ISA combination slot
J24
PCI combination slot
J11
ISA combination slot
P6
Speaker
J20
PCI connector slot
P8
Fan
J21
PCI connector slot
P9
NIC Remote Wakeup
J22
PCI combination slot
P29
SCSI LED header
J23
PCI combination slot
Connectors, Jumpers, and Switches
Rear Side of Minitower Riser Board
Table 9-5
Rear Side of Riser Board
Item
Description
Item
Description
P1
Power supply connector
P10
Diskette drive connector
P5
Hood control, power switch, LEDs
P20
Primary IDE connector
P7
CD audio connector
P21
Secondary IDE connector
Compaq Deskpro EN Series of Personal Computers
9-5
9.3
Switch Settings
Switch SW1
Table 9-6
Switch SW1 Password Control
S1
Action
On
Disable Password
Off
Enable Password
Table 9-7
Switch SW1 Processor Speed
Processor Speed
66 MHZ bus
100 MHz bus
S2
S3
S4
S5
233
350
Off
Off
On
On
266
400
On
On
Off
On
300
450
On
Off
Off
On
333
500
Off
On
Off
On
550
Off
Off
Off
Off
Table 9-8
Switch SW1 Power Switch
9-6
S6
Action
On
Auxiliary Power Supply on, Main Power Supply on
Off
Auxiliary Power Supply on, Main Power Supply off
Connectors, Jumpers, and Switches
9.4
System Board Jumpers
Locating the CMOS Jumpers
9.4.1
Clearing Configuration
The computer's configuration (CMOS) may occasionally be corrupted. If it does, it is necessary to
clear the CMOS memory.
To clear and reset the configuration, perform the following procedure:
1. Prepare the computer for disassembly (Section 5.4 or 6.3).
CAUTION: The power cord must be disconnected from the power source before changing the jumpers.
Failure to do so may damage the system board.
2. Remove the system unit cover (Section 5.6) or the access panel (Section 6.6).
3. Move the E50 jumper from pins 1 and 2 to pins 2 and 3 for 60 seconds; then, replace the jumper
to its original position.
4. Replace the system cover.
5. Turn the computer on.
6. Run the Computer Setup utility to reconfigure the system.
When CMOS is cleared, both the power-on password and the setup password become invalid
because both are stored in the configuration memory. You will need to reset the passwords.
Compaq Deskpro EN Series of Personal Computers
9-7
9.5
Hard Drives
Maxtor Ultra ATA Hard Drive Jumper Settings
Table 9-9
Maxtor Ultra ATA Hard Drive Jumper Settings
Definition
J50
Single
Primary (in a dual drive system)
Secondary
J
J
O
Cable Select
disabled*
enabled
J48
J42
O
J
Factory Reserved
O
Factory Reserved
9-8
J44
O
J
4092 Cylinder Limitation
disabled*
enabled
J = jumper
J46
O = no jumper
Connectors, Jumpers, and Switches
O
* = default setting
Seagate, Fujitsu, and Western Digital Ultra ATA Hard Drive Jumper Settings
Table 9-10
Seagate, Fujitsu, and Western Digital Ultra ATA Hard Drive Jumper Settings
Definition
Seagate
Fujitsu
Western Digital
Single
7 to 8
1-2 and 3-5
3-5
Primary
5 to 6 and 7 to 8
1-2 and 3-5
5-6
Secondary
no connection
3-5
3-4
Cable Select
5 to 6
2-4 and 3-5
1-2
Limit capacity to 2.1-GB
1 to 2
Compaq Deskpro EN Series of Personal Computers
9-9
appendix
A
CONNECTOR PIN ASSIGNMENTS
✎
This appendix contains the pin assignments for many connectors. Some connectors
may not be used on the computer being serviced.
Table A-1
Enhanced Keyboard
Connector and Icon (Orange)
6
4
5
3
KEY
2 1
Pin
Signal
1
Data
2
Unused
3
Ground
4
+5 VDC
5
Clock
6
Unused
Table A-2
Mouse
Connector and Icon (Green)
6
4
5
KEY
2 1
3
Pin
Signal
1
Data
2
Unused
3
Ground
4
+5 VDC
5
Clock
6
Unused
Compaq Deskpro EN Series of Personal Computers
A-1
Table A-3
Parallel Interface
Connector and Icon
13 12 11 10
9
8
7
6
5
4
3
2
Pin
Signal
1
Strobe
2
Data Bit 0
3
Data Bit 1
4
Data Bit 2
5
Data Bit 3
6
Data Bit 4
7
Data Bit 5
8
Data Bit 6
9
Data Bit 7
10
Acknowledge
11
Busy
12
Paper End
13
Select
14
Auto Linefeed
15
Error
16
Initialize Printer
17
Select IN
18-25
Signal Ground
1
25 24 23 22 21 20 19 18 17 16 15 14
Table A-4
Serial Interface
Connector and Icon
1
2
6
A-2
3
7
4
8
5
9
Connector Pin Assignments
Pin
Signal
1
Carrier Detect
2
Receive Data
3
Transmit Data
4
Data Terminal Ready
5
Signal Ground
6
Data Set Ready
7
Request to Send
8
Clear to Send
9
Ring Indicator
Table A-5
Monitor
Connector
5
4
3
2
1
10 9
8
7
6
15 14 13 12 11
Pin
Signal
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Red Analog
Green Analog
Blue Analog
Monitor ID Bit2
Ground Analog
Ground Red
Ground Green
Ground Blue
Fused +5 Volt Supply
Ground (syncs)
Monitor ID Bit 0
Bi-directional Data (SDA)*
Horizontal Sync
Vertical Sync
Data Clock (SCL)*
* For DDC support (I2C monitors)
Compaq Deskpro EN Series of Personal Computers
A-3
Table A-6
Ultra SCSI
Connector and Icon
Pin
Signal
1-11
12
13
14
15-25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Ground
Reserved
Open
Reserved
Ground
DBO
DB1
DB2
DB3
DB4
DB5
DB6
DB7
DBP
Ground
Ground
Reserved
TERMPWR
Reserved
Ground
ATN #
Ground
BSY #
ACK #
RST #
MSG #
SEL #
C/D
REQ #
Input/Output
Table A-7
Line-Out Audio Connector
Connector and Icon
1/8-inch Miniphone
A-4
Connector Pin Assignments
Table A-8
Line-In Audio Connector
Connector and Icon
1/8-inch Miniphone
Table A-9
Microphone Connector
Connector and Icon (Blue)
Stereo 1/8-inch Miniphone
Table A-10
Headphone Connector
Connector and Icon
Stereo 1/8-inch Miniphone
Compaq Deskpro EN Series of Personal Computers
A-5
Table A-11
USB Connector
Connector and Icon
1
2
3
4
Pin
Signal
1
VCC
2
- Data
3
+ Data
4
Ground
Table A-12
Ethernet RJ-45
Connector and Icon
1 3 5 7
2 4 6 8
A-6
Connector Pin Assignments
Pin
Signal
1
2
3
4
5
6
7
8
(+) Transmit Data
(-) Transmit Data
(+) Receive Data
Unused
Unused
(-) Receive Data
Unused
Unused
Table A-13
IDE/EIDE Drive Cable
39
1
40
2
Pin
Signal
Pin
Signal
1
2
RESET
GND
21
22
DMARQ
GND
3
4
DD7
DD8
23
24
DIOW
GND
5
6
DD6
DD9
25
26
DIOR
GND
7
8
DD5
DD10
27
28
IORDY
CSEL
9
10
DD4
DD11
29
30
DMACK
GND
11
12
DD3
DD12
31
32
INTRQ
IOCS16
13
14
DD2
DD13
33
34
DA1
PD1AG (80-pin cable detect)
15
16
DD1
DD14
35
36
DA0
DA2
17
18
DD0
DD15
37
38
CS1FX
CS3FX
19
20
GND
(KEY)
39
40
DASP
GND
Compaq Deskpro EN Series of Personal Computers
A-7
Table A-14
SCSI CD-ROM Cable
49
1
50
2
Pin
A-8
Signal
Pin
Signal
1
2
RESDRV_
GND
26
27
GND
OCHRDY
3
4
D07
008
28
29
CABLE SELECT
DAK
5
6
D06
D09
30
31
GND
IRQ
7
8
D05
D10
32
33
IO16
A1
9
10
D04
D11
34
35
PDIAG
A0
11
12
D03
D12
36
37
A2
CS1FX
13
14
D02
D13
38
39
CS3FX
DASP
15
16
D01
D14
40
41
GND
AUDIO_R
17
18
D00
D15
42
43
AUDIO_L
A_GND_R
19
20
GND
(KEY)
44
45
A_GND_L
+5VMOT1
21
22
DREQ
GND
46
47
+5VMOT2
+5VMOT3
23
24
25
IOW
GND
IOR
48
49
50
+5VMOT4
+5VMLOG1
+5VMLOG2
Connector Pin Assignments
Table A-15
AGP Connector
Pin
Signal "B"
Signal "A"
Pin
Signal "B"
Signal "A"
1
Spare
12v
34
VDDQ3.3
VDDQ3.3
2
5V
SPARE
35
AD21
AD22
3
5V
RESERVED
36
AD19
AD20
4
USB+
USB-
37
GND
GND
5
GND
GND
38
AD17
AD18
6
INTB#
INTA#
39
C/BE2#
AD16
7
CLK
RST#
40
VDDQ3.3
VDDQ3.3
8
REQ#
GNT#
41
IRDY#
FRAME#
9
VCC3.3
VCC3.3
42
10
ST0
ST1
43
GND
GND
11
ST2
RESERVED
44
12
RBF#
PIPE#
45
VCC3.3
VCC3.3
13
GND
GND
46
DEVSEL#
TRDY#
14
SPARE
SPARE
47
VDDQ3.3
STOP#
15
SBA0
SBA1
48
PERR#
GND
16
VCC3.3
VCC3.3
49
GND
GND
17
SBA2
SBA3
50
SERR#
PAR
18
SB_STB
RESERVED
51
C/BE1#
AD15
19
GND
GND
52
VDDQ3.3
VDDQ3.3
20
SBA4
SBA5
53
AD14
AD13
21
SBA6
SBA7
54
AD12
AD11
22
KEY
KEY
55
GND
GND
23
KEY
KEY
56
AD10
AD9
24
KEY
KEY
57
AD8
C/BEO#
25
KEY
KEY
58
VDDQ3.3
VDDQ3.3
26
AD31
AD30
59
AD STB0
RESERVED
27
AD29
AD28
60
AD7
AD6
28
VCC3.3
VCC3.3
61
GND
GND
29
AD27
AD26
62
AD5
AD4
30
AD25
AD24
63
AD3
AD2
31
GND
GND
64
VDDQ3.3
VDDQ3.3
32
ADSTB1
RESERVED
65
AD1
AD0
33
AD23
C/BE3#
66
SMB0
SMB1
Compaq Deskpro EN Series of Personal Computers
A-9
appendix
B
POWER CORD SET REQUIREMENTS
The voltage select switch feature on the computer permits it to operate from any line voltage
between 100-120 or 220-240 volts AC.
The power cord set received with the computer meets the requirements for use in the country
where you purchased the equipment.
Power cord sets for use in other countries must meet the requirements of the country where you
use the computer. For more information on power cord set requirements, contact your authorized
Compaq dealer, reseller or service provider.
General Requirements
The requirements listed below are applicable to all countries:
1. The length of the power cord set must be at least 6.00 feet (1.8 m) and a maximum of 9.75 feet
(3.0 m).
2. All power cord sets must be approved by an acceptable accredited agency responsible for
evaluation in the country where the power cord set will be used.
3. The power cord set must have a minimum current capacity of 10A and a nominal voltage rating
of 125 or 250 volts AC, as required by each country’s power system.
4. The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320
Standard Sheet C13 connector, for mating with appliance inlet on the Switch Box.
Compaq Deskpro EN Series of Personal Computers
B-1
Country-Specific Requirements
Power Cord Set Requirements–By Country
Country
Accrediting Agency
Applicable Note Numbers
Australia
EANSW
1
Austria
OVE
1
Belgium
CEBC
1
Canada
CSA
2
Denmark
DEMKO
1
Finland
SETI
1
France
UTE
1
Germany
VDE
1
Italy
IMQ
1
Japan
MITI
3
Norway
NEMKO
1
Sweden
SEMKO
1
Switzerland
SEV
1
United Kingdom
BSI
1
United States
UL
2
Notes:
1. The flexible cord must be <HAR> Type HO5VV-F, 3-conductor, 1.0 mm 2 conductor size. Power cord set
fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for
evaluation in the country where it will be used.
2. The flexible cord must be Type SJT or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a
two-pole grounding type with a NEMA 5-15P (15A, 125V) or NEMA 6-15P (15A 250V) configuration.
3. The appliance coupler, flexible cord, and wall plug must bear a "T" mark and registration number in
accordance with the Japanese Dentori Law. The flexible cord must be Type VCT or VCTF, 3-conductor,
0.75 mm2 conductor size. The wall plug must be a two-pole grounding type with a Japanese Industrial
Standard C8303 (15A, 125V) configuration.
B-2
Power Cord Set Requirements
appendix
C
HARD DRIVES
Compaq Computer Corporation uses IDE hard disk drives that conform to two different
primary/secondary implementations. These are Conner mode and ATA-compatible mode. These
two modes are incompatible with one another.
Device 0/Device 1 Relationship
A device 0/device 1 relationship exists when there are two hard drives connected to a single port.
In this situation, one drive must be designated as the device 0, or primary drive and the other as
the device 1, or secondary drive. This designation is necessary because both drives cannot work
simultaneously.
SMART
The SMART IDE hard drives for the Compaq Deskpro Personal Computers have built-in drive
failure prediction that warns the user or the network administrator of an impending failure or crash
of the hard drive.
Automatic Soft-Drive Types
An automatic soft-drive type is a mechanism where the system ROM and Computer Setup
automatically build a soft-drive type to provide support for IDE hard drives that are not in the hard
drive parameter table.
The soft-drive types are assigned according to the table below:
Table C-1
Soft-Drive Type Assignments
Drive
Hard Drive Type
Controller
0
1
65
66
Primary
Primary
0
1
68
15
Secondary
Secondary
For hard drives that are greater than 528 MB, the system automatically translates the hard drive
parameter for DOS by logically halving the cylinders and doubling the heads. This allows DOS to
access greater than 528 MB. The translated hard drive parameters are put into the hard drive
parameter table in the shadow RAM copy of the system ROM. When using any operating system
other than DOS, you must use F10 Setup to set up the hard drive parameter table without
translation.
Compaq Deskpro EN Series of Personal Computers
C-1
appendix
D
DIAGNOSTIC ERROR CODES
Diagnostic error codes occur if the system recognizes a problem while running the Compaq
Diagnostics program. These error codes help identify possibly defective subassemblies.
Table D-1 lists the device codes (AABB-CC) and the subtest range (AABB-CC) covered by
Compaq Diagnostics Tests. Some codes listed in this table will not apply to the computers
described in this manual and will not be detailed in the tables that follow.
Table D-1
Summary of Test Error Codes
Error Code
Range
Device Description
Error Code
Range
Device Description
0100 - 0199
Processor (P1)
3113 - 3199
Third Processor (P3)
0200 - 0210
Memory
3206 - 3206
Audio System
0301 - 0304
Keyboard
3300 - 3333
Mediavision Spectrum 16 Multimedia
0401 - 0498
Parallel Port
3400 - 3401
TV Tuner Board
0501 - 0516
Video Display Unit
4113 - 4199
Fourth Processor
0600 - 0699
Diskette Drive
5100 - 5130
Plasma Display System
0802 - 0824
Monochrome Video Board
5234 - 5240
Advanced Color Graphics (AGC)
1101 - 1109
Serial Port
6000 - 6089
Network Card
1201 - 1210
Modem
6500 - 6599
SCSI Hard Drives
1700 - 1799
Hard Drive
6600 - 6699
CD-ROM Drives
1800 - 1823
CD-ROM
6700 - 6799
SCSI Tape Drives
1900 - 1906
Tape Drive
7000
Server Manager/R Board
2113 - 2199
Second Processor (P2)
8601
Auxiliary Input Interface
2402 - 2480
Enhanced Color Graphics
(ECG/VGA)
8700 - 8702
Game Port
2502 - 2502
Pen/Digitizer
Compaq Deskpro EN Series of Personal Computers
D-1
Tables D-2 through D-18 list possible error codes, descriptions of each error condition, and
actions required to resolve the error condition.
✎
Retest the system after completing each step. If the problem has been resolved, do
not proceed with the remaining steps.
For assistance in the removal and replacement of a particular subassembly, see Chapters 5 and 6,
"Removal and Replacement Procedures."
Table D-2
Microprocessor Test Error Codes
Error
Code
Description
Recommended Action
0101-xx
CPU test failed.
Replace the system board and retest.
0102-xx
Coprocessor error.
1. Run Computer Checkup or Computer Setup and retest.
2. Replace the system board and retest.
0103-xx
DMA controller failed.
The following step applies to error codes 0103-xx through
0106-xx.
0104-xx
Interrupt controller failed.
Replace the system board and retest.
0105-xx
Port error.
0106-xx
Keyboard controller self-test failed.
0107-xx
CMOS RAM test failed.
The following steps apply to error codes 0107-xx through
0109-xx:
0108-xx
CMOS interrupt test failed.
1. Replace the battery/clock module and retest.
0109-xx
CMOS clock test failed.
2. Replace the system board and retest.
0110-xx
Programmable timer test failed.
The following step applies to error codes 0110-xx through
0113-01:
0113-01
Protected mode test failed.
Replace the system board and retest.
0114-01
Speaker test failed.
1. Verify the speaker connection.
2. Replace the system board and retest.
D-2
Diagnostic Error Codes
Table D-3
Memory Test Error Codes
Error
Code
Description
Recommended Action
0200-xx
Memory machine ID test failed.
Reinsert memory modules and retest.
0202-xx
Memory system ROM checksum
failed
The following steps apply to error codes 0202-xx through
0211-xx:
0203-xx
Memory write/read test failed
1. Remove one memory module at a time until the error
message stops.
0204-xx
Memory address test failed.
2. Replace other removed modules one at a time,
testing each to ensure the error does not return.
0205-xxx
Memory walking 1s test failed
3. Replace the system board and retest.
0209-xxx
RAM long test failed
0211-xx
Random pattern test failed.
0212-xxx
Cache test failed
Replace system board and retest.
0214-xx
Noise test failed.
The following steps apply to error codes 0214-xx through
0215-xx:
0215-xx
Random address test failed.
1. Remove one memory module at a time until the error
message stops.
2. Replace other removed modules one at a time,
testing each to ensure the error does not return.
3. Replace the system board and retest.
Table D-4
Keyboard Test Error Codes
Error
Code
Description
Recommended Action
0300-xx
Keyboard ID test failed.
The following steps apply to error codes 0300-xx through
0304-xx:
0301-xx
Keyboard self-test/interface test
failed.
1. Check the keyboard connection. If disconnected, turn
the computer off and connect the keyboard.
0302-xx
Individual key test failed.
2. Replace the keyboard and retest.
0304-xx
Keyboard repeat test failed.
3. Replace the system board and retest.
Table D-5
Parallel Printer Test Error Codes
Error
Code
Description
Recommended Action
0401-xx
Printer failed or not connected.
The following steps apply to 0401-xx through 0403-xx:
0402-xx
Printer port test failed.
1. Connect the printer.
0403-xx
Printer pattern test failed.
2. Check power to the printer.
3. Install the loop-back connector and retest.
4. Replace system board and retest.
Compaq Deskpro EN Series of Personal Computers
D-3
Table D-6
Diskette Drive Test Error Codes
Error
Code
Description
Recommended Action
0600-xx
Diskette ID drive types test failed.
The following steps apply to error codes 0600-xx through
0610-xx:
0601-xx
Diskette format failed.
1. Replace the diskette media and retest.
0602-xx
Diskette read test failed.
2. Check and/or replace the diskette power and signal
cables and retest.
0603-xx
Diskette write, read, compare test
failed.
3. Replace the diskette drive and retest.
0604-xx
Diskette random seek test failed.
4. Replace the system board and retest.
0605-xx
Diskette ID media test failed.
0606-xx
Diskette speed test failed.
0610-xx
Diskette change line test failed.
Table D-7
Serial Port Test Error Codes
Error
Code
Description
Recommended Action
1101-xx
Serial port test failed.
1. Run Computer Setup or Windows NT or Windows 95
utilities.
2. Replace the system board and retest.
Table D-8
Modem Communications Test Error Codes
D-4
Error
Code
Description
Recommended Action
1201-xx
Modem internal test failed.
The following steps apply to error codes 1201-xx through
1210-xx:
1203-xx
Modem external termination test
failed.
1. Disconnect from the phone line and retest.
1204-xx
Modem auto originate test failed.
2. Check the phone number.
1205-xx
Modem auto answer test failed.
3. Check the modem line.
1210-xx
Modem direct connect test failed.
4. Replace the modem and retest.
Diagnostic Error Codes
Table D-9
Hard Drive Test Error Codes
Error
Code
Description
Recommended Action
1701-xx
Hard drive format test failed.
The following steps apply to error codes 1701-xx
through 1736-xx:
1702-xx
Hard drive read test failed.
1. Run Computer Setup and verify drive type.
1703-xx
Hard drive write/read/compare test
failed.
2. Replace the hard drive signal and power cables and
retest.
1704-xx
Hard drive random seek test failed.
3. Replace the hard drive and retest.
1705-xx
Hard drive controller test failed.
4. Replace the system board and retest.
1708-xx
Hard drive format bad track test
failed.
1710-xx
Hard drive park head test failed.
1715-xx
Hard drive head select test failed.
1716-xx
Hard drive conditional format test
failed.
1717-xx
Hard drive ECC* test failed.
1719-xx
Hard drive power mode test failed.
1724-xx
Hard drive network preparation test
failed.
1736-xx
Hard drive monitoring test failed.
*Error Correction Code
Table D-10
Tape Drive Test Error Codes
Error
Code
Description
Recommended Action
1900-xx
Tape drive ID test failed.
The following steps apply to error codes 1900-xx
through 1910-xx:
1901-xx
Tape drive servo test failed.
1. Replace the tape cartridge and retest.
1902-xx
Tape drive format or format
verification test failed.
2. Check and/or replace the signal cable and retest.
1903-xx
Tape drive sensor test failed.
3. Check the switch settings on the adapter board (if
applicable).
1904-xx
Tape drive BOT/EOT test failed.
4. Replace the tape adapter board (if applicable) and
retest.
1905-xx
Tape drive read test failed.
5. Replace the tape drive and retest.
1906-xx
Tape drive write/read/compare failed. 6. Replace the system board and retest.
1910-xx
Tape erase test failed.
Compaq Deskpro EN Series of Personal Computers
D-5
Table D-11
Video Test Error Codes
Error
Code
Description
Recommended Action
2401-xx
Graphics controller test failed.
1. Replace the video board and retest.
2. Replace the system board and retest.
2402-xx
Video memory test failed.
The following steps apply to error codes 2402-xx
through 2419-xx:
2403-xx
Video attribute test failed.
1. Run the Configuration and Diagnostics
utilities.
2404-xx
Video character set test failed.
2. Replace the monitor and retest.
2405-xx
Video 80 × 25 mode 9 × 14 character cell
test failed.
3. Replace the video/system board and retest.
2406-xx
Video 80 × 25 mode 8 × 8 character cell test
failed.
2408-xx
Video 320 × 200 mode color set 0 test
failed.
2409-xx
Video 320 × 200 mode color set 1 test
failed.
2410-xx
Video 640 × 200 mode test failed.
2411-xx
Video screen memory page test failed.
2412-xx
Video gray scale test failed.
2418-xx
ECG/VGC memory test failed.
2419-xx
ECG/VGC ROM checksum test failed.
2420-xx
Graphics attribute test failed.
1. Replace the monitor and retest.
2. Replace the video board and retest.
3. Replace the system board and retest.
2421-xx
ECG/VGC 640 × 200 graphics mode test
failed.
The following steps apply to error codes 2421-xx
through 2456-xx:
2422-xx
ECG/VGC 640 × 350 16 color set test failed. 1. Run the Configuration and Diagnostics
utilities.
2423-xx
ECG/VGC 640 × 350 64 color set test failed. 2. Replace the monitor and retest.
2424-xx
ECG/VGC monochrome text mode test
failed.
2425-xx
ECG/VGC monochrome graphics mode test
failed.
2431-xx
640 × 480 graphics test failure.
2432-xx
320 × 200 graphics (256 color mode) test
failure.
2448-xx
Advanced VGA Controller test failed.
2451-xx
132-column Advanced VGA test failed.
2456-xx
Advanced VGA 256 Color test failed.
3. Replace the video/system board and retest.
continued
D-6
Diagnostic Error Codes
Table D-11 Continued
Error
Code
Description
Recommended Action
2458-xx
Advanced VGA BitBLT test.
The following steps apply to error codes 2458-xx through
2480-xx:
2468-xx
Advanced VGA DAC test.
1. Replace the video board and retest.
2477-xx
Advanced VGA data path test.
2. Replace the system board and retest.
2478-xx
Advanced VGA BitBLT test.
2480-xx
Advanced VGA Linedraw test.
Table D-12
Audio Test Error Codes
Error
Code
Description
Recommended Action
3206-xx
Audio System Internal Error.
Replace the system board and retest.
Note: When Windows 95 is installed, changes to ESS sound device configuration do not take effect until the
computer is restarted (turned off and on).
Table D-13
Network Interface Test Error Codes
Error
Code
Description
Recommended Action
6000-xx
Network ID test failed.
The following steps apply to error codes 6000-xx through
6089-xx:
6014-xx
Network configuration test failed.*
1. Run Computer Setup or Windows NT or Windows 95
utilities.
6016-xx
Network reset test failed.*
2. Verify test procedures.
6028-xx
Network internal test failed.*
3. Replace the network board, if installed.
6029-xx
Network external test failed.*
4. Replace the system board.
6054-xx
Network configuration test failed.**
6056-xx
Network reset test failed.**
6068-xx
Network internal test failed.**
6069-xx
Network external test failed.**
6089-xx
Network open test failed.**
* Ethernet only.
**Token Ring only.
Compaq Deskpro EN Series of Personal Computers
D-7
Table D-14
CD-ROM Test Error Codes
Error
Code
Description
Recommended Action
6600-xx
ID test failed.
The following steps apply to error codes error codes 6600xx through 6623-xx:
6605-xx
Read test failed.
1. Replace the CD media and retest.
6608-xx
Controller test failed.
2. Check the jumper settings on the adapter board.
6623-xx
Random read test failed.
3. Verify that the speakers are connected.
4. Check and/or replace the power and signal cables and
retest.
5. Replace the CD-ROM drive and retest.
Table D-15
Pointing Device Test Error Codes
Error
Code
Description
Recommended Action
8601-xx
Mouse test failed.
The following steps apply to error codes 8601-xx through
8602-xx:
1. Replace with a working mouse and retest.
8602-xx
D-8
Interface test failed.
Diagnostic Error Codes
2. Replace the system board and retest.
Special Error Codes
This section includes the error codes for the following devices:
„ SCSI Hard drives
„ SCSI Tape drives
„ SCSI PD-CD drives
„ All CD-ROM drives
The error codes are written in the format AABB-CC and can be determined by looking up the
respective parts of the code in the three corresponding tables numbered D-16, D-17, and D-18.
AA (Table D-16) identifies the drive type being tested. BB (Table D-17) identifies the type of test.
CC (Table D-18) identifies the exact error received.
For example, if you received a diagnostic error code of 6523-05, you would look at Table D-16 to
identify the meaning of the first two numbers, 65. This indicates a hard drive problem. The second
set of two numbers, 23, refers to a random read, as shown in Table D-17. The last two numbers,
05, indicate a seek failure, as listed in Table D-18. When you combine this information, you know
that the diagnostics program was testing the random-read functioning of the hard drive and
received a seek failure. The device is faulty and must be replaced.
Table D-16
Device Names
65XX-XX
Hard Drive
66XX-XX
CD-ROM Drive and PD-CD Drive
67XX-XX
Tape Drive
Table D-17
Test Names
XX00-XX
ID
XX05-XX
Read
XX06-XX
SA/Media
XX08-XX
Controller
XX09-XX
Media erase
XX23-XX
Random read
XX28-XX
Media load/unload
Compaq Deskpro EN Series of Personal Computers
D-9
Table D-18
Special Test Error Codes
Error Code
Description
Recommended Action
XXXX-02
Drive not installed.
Check cable connections.
XXXX-03
Media not in drive.
Check for and install DATA CD or write-enabled tape in
drive.
XXXX-05
Seek failure.
Replace the indicated device.
XXXX-06
Drive timed out.
Replace the indicated device.
XXXX-07
Drive busy.
Replace the indicated device.
XXXX-08
Drive already reserved.
Replace the indicated device.
XXXX-09
Unknown.
XXXX-10
Unknown.
XXXX-11
Media soft error.
Replace the indicated device.
XXXX-12
Drive not ready.
Replace the indicated device.
XXXX-13
Media error.
Replace the indicated device.
XXXX-14
Drive hardware error.
Replace the indicated device.
XXXX-15
Illegal drive command.
Replace the indicated device.
XXXX-16
Media was changed.
Replace the indicated device.
XXXX-17
Tape write-protected.
1. Disable write-protect on tape cartridge.
2. Replace tape drive.
XXXX-18
No data detected.
Replace the indicated device.
XXXX-21
Drive command aborted.
Replace the indicated device.
65XX-24
Media hard error.
1. Back up data and perform Surface Analysis to
reallocate defect.
2. Replace drive.
66XX-24
Media hard error.
1. Replace current DATA CD with different DATA CD.
2. Replace drive.
67XX-24
Media hard error.
1. Ensure correct media type for this tape drive.
2. Replace current tape with new tape.
3. Replace tape drive.
XXXX-25
Unknown.
XXXX-30
Controller timed out.
Replace the indicated device.
XXXX-31
Unrecoverable error.
Replace the indicated device.
XXXX-32
Controller/drive disconnected.
Replace the indicated device.
XXXX-33
Illegal controller command.
Replace the indicated device.
XXXX-34
Invalid SCSI bus phase.
Replace the indicated device.
XXXX-35
Invalid SCSI bus phase.
Replace the indicated device.
XXXX-36
Invalid SCSI bus phase.
Replace the indicated device.
XXXX-39
Error status from drive.
Replace the indicated device.
XXXX-40
Target timed out.
Replace the indicated device.
continued
D-10
Diagnostic Error Codes
Table D-18 Continued
Error Code
Description
Recommended Action
XXXX-41
SCSI bus stayed busy.
Replace the indicated device.
XXXX-42
ACK/REQ lines bad.
Replace the indicated device.
XXXX-43
ACK did not deassert.
Replace the indicated device.
XXXX-44
Parity error.
Replace the indicated device.
XXXX-50
Data pins bad.
Replace the indicated device.
XXXX-51
Data line 7 bad.
Replace the indicated device.
XXXX-52
MSG, C/D, and/or I/O lines bad.
Replace the indicated device.
XXXX-53
BSY never went busy.
Replace the indicated device.
XXXX-54
BSY stayed busy.
Replace the indicated device.
XXXX-60
Controller CONFIG-1 register bad. Replace the indicated device.
XXXX-61
Controller CONFIG-2 register bad. Replace the indicated device.
XXXX-65
Media not unloaded.
Replace the indicated device.
XXXX-90
Fan failure.
1. Ensure fan(s) connected.
2. Replace nonfunctional fan(s).
XXXX-91
Over Temperature.
1. Ensure proper air flow.
2. Perform required maintenance and cleaning.
XXXX-99
Autoloader reported tapes not
loaded properly.
1. Install tape(s) in autoloader tape drive according to
test instructions.
2. Change autoloader magazine.
Compaq Deskpro EN Series of Personal Computers
D-11
appendix
E
POST ERROR MESSAGES
An error message results if the Power-On Self-Test encounters a problem. This test runs when the
system is turned on, checking assemblies within the computer and reporting any errors found.
Table E-1
Power-On Self-Test Messages
Message
Beeps* Probable Cause
Recommended Action
101-ROM Error
1L, 1S
1. Flash the ROM.
System ROM checksum.
2. Replace the system board.
101-Option ROM
Checksum Error
1L, 1S
Option ROM checksum.
Replace the system board.
162-System Options
Not Set
2S
Configuration incorrect.
Run Computer Setup or Windows NT
or Windows 95 utilities.
163-Time & Date
Not Set
2S
Invalid time or date in
configuration memory
Set the date and time under Control
Panel.
164-Memory Size Error 2S
Memory configuration incorrect. Run Computer Setup or Windows NT
or Windows 95 utilities.
201-Memory Error
RAM failure.
None
1. Run Computer Setup or Windows
NT or Windows 95 utilities.
2. Replace the memory module(s) (if
any).
3. Replace system board.
203-Memory Address
Error
None
RAM failure.
1. Run Computer Setup or Windows
NT or Windows 95 utilities.
2. Replace the memory module(s) (if
any).
3. Replace system board.
207-ECC corrected
2S
single bit error in
DIMM/SIMM pairs 1, 2,
or 3
Single Bit ECC error
Replace DIMM if error persists.
* L = Long, S = Short
continued
Compaq Deskpro EN Series of Personal Computers
E-1
Table E-1 Continued
Message
Beeps*
Probable Cause
Recommended Action
213-Incompatible DIMM 2S
module in DIMM sockets
1, 2, or 3
DIMM is not fully compliant
Replace DIMM
with SPD standard or is
electrically incompatible with
the hardware.
301-Keyboard Error
None
Keyboard failure.
Reconnect keyboard with computer
turned off.
301-Keyboard Error or
Test Fixture Installed
None
Keyboard failure.
Replace the keyboard.
303-Keyboard Controller None
Error
I/O board keyboard controller. 1. Reconnect keyboard with computer
turned off.
2. Replace the system board.
304-Keyboard or System None
Unit Error
Keyboard failure.
1. Replace the keyboard with computer
turned off.
2. Replace the system board.
404-Parallel Port
Address Conflict
Detected
2S
Both external and internal
ports
are assigned to parallel port
X.
Run Computer Setup or Windows NT or
Windows 95 utilities.
501-Display Adapter
Failure
1L, 2S
Video display controller.
Replace the graphics board.
601-Diskette Controller None
Error
Diskette controller circuitry or 1. Run Setup.
floppy drive circuitry incorrect. 2. Check and/or replace cables.
3. Replace diskette drive.
4. Replace the system board.
602-Diskette Boot
Record Error
None
Diskette in drive A not
bootable.
Replace the diskette.
605-Diskette Drive Type 2S
Error
Mismatch in drive type.
Run Computer Setup or Windows NT or
Windows 95 utilities.
610-External Storage
Drive Failure
External tape drive not
connected.
Reinstall tape drive or press F1 and allow
system to reconfigure without the drive.
611-Primary Floppy Port 2S
Address Assignment
Conflict
Configuration error.
Run Computer Setup or Windows NT or
Windows 95 utilities.
612-Secondary Floppy
Port Address
Assignment Conflict
2S
Configuration error.
Run Computer Setup or Windows NT or
Windows 95 utilities.
912-The Computer
Cover Has Been
Removed Since Last
System Start Up
None
None
No action required.
* L = Long, S = Short
continued
E-2
POST Error Messages
Table E-1 Continued
Message
Beeps* Probable Cause
Recommended Action
914
None
Hood lock is not connected.
Inspect wiring and the connections
between the hood lock solenoid and the
riser board.
916
None
Thermal sensor from
processor heatsink not
connected.
Inspect wiring and verify that the
connector is plugged into the P15
connector on the system board.
1151-System Board
Comm Port 1 Address
Assignment Conflict
2S
Both external and internal
serial ports are assigned to
COM1.
Run Computer Setup or Windows NT or
Windows 95 utilities.
1152-System Board
Comm Port 2 Address
Assignment Conflict
2S
Both external and internal
serial ports are assigned to
COM2.
Run Computer Setup or Windows NT or
Windows 95 utilities.
1720-SMART Hard Drive None
detects imminent failure
Hard drive is about to fail.
Back up contents and replace hard drive.
1721-SMART SCSI Hard None
Drive detects imminent
failure
Hard drive is about to fail.
Back up contents and replace hard drive.
1771-Primary Disk Port 2S
Address Assignment
Conflict
Internal and external hard
drive controllers are both
assigned to the primary
address.
Run Computer Setup or Windows NT or
Windows 95 utilities.
1772-Secondary Disk
Port Address
Assignment Conflict
2S
Internal and external hard
drive controllers are both
assigned to
the secondary address.
Run Computer Setup or Windows NT or
Windows 95 utilities.
1780-Disk 0 Failure
None
Hard drive/format error.
Run the Configuration and Diagnostics
utilities.
1781-Disk 1 Failure
None
Hard drive/format error.
Run the Configuration and Diagnostics
utilities.
1782-Disk Controller
Failure
None
Hard drive circuitry error.
Run the Configuration and Diagnostics
utilities.
1790-Disk 0 Failure
None
Hard drive error or wrong
drive type.
Run the Configuration and Diagnostics
utilities.
1791-Disk 1 Failure
None
Hard drive error or wrong
drive type.
Run the Configuration and Diagnostics
utilities.
1792-Secondary Disk
Controller Failure
None
Hard drive circuitry error.
Run the Configuration and Diagnostics
utilities.
1793-Secondary
None
Controller or Disk Failure
Hard drive circuitry error.
Run the Configuration and Diagnostics
utilities.
1800-Temperature Alert None
Internal temperature exceeds Check that computer air vents are not
specification.
blocked and cooling fan is running.
* L = Long, S = Short
continued
Compaq Deskpro EN Series of Personal Computers
E-3
Table E-1 Continued
Message
Recommended Action
Invalid Electronic Serial None
Number
Electronic serial number has Run Computer Setup.
become corrupted.
Audible
Power-on successful.
2S
None.
Flashing Power and HD None
LEDs (simultaneously)
Unseated backplane (system 1. Remove backplane.
will not boot)..
2. Wipe connector.
3. Reinstall the backplane.
Flashing Num Lock
LED
1S, 2L
System memory not present. 1. Check DIMM.
2. Remove and reseat DIMM.
3. Refer to the "Solving Memory
Problems section of this guide.
Flashing Caps Lock
LED
1L, 2S
Video controller not present
or incorrectly initialized.
1. Clear CMOS.
2. Remove and reseat video board.
Flashing Scroll Lock
LED
2L, 1S
System board hardware
failure (prior to video).
Replace system board.
* L = Long, S = Short
E-4
Beeps* Probable Cause
POST Error Messages
appendix
F
TROUBLESHOOTING WITHOUT DIAGNOSTICS
Preliminary Checklist
This section describes some simple, preliminary tests and guidelines for troubleshooting the
computer without using the diagnostics.
If you encounter some minor problem with the computer or a software application, go through the
following checklist for possible solutions before running any of the diagnostic utilities:
„ Are the computer and monitor connected to a working electrical outlet?
„ Is the computer turned on?
„ Is the green power light illuminated?
„ Is the monitor turned on?
„ Is the green monitor light illuminated?
„ Turn up the monitor brightness and contrast controls if the monitor is dim.
„ Press and hold any key. If the system beeps, then the keyboard should be operating
correctly.
„ Check all cables for loose or incorrect connections.
„ Reconfigure the computer after installing a non-plug and play expansion board or other
option, such as a diskette drive.
„ Are all of the necessary device drivers installed?
„ Have all printer drivers been installed for each application?
„ Remove all diskettes from the diskette drives before you turn on the system.
„ Are all switch set correctly?
„ Is the NIC Remote Wakeup cable (featured on some models) connected between the NIC
and the riser/system board?
Compaq Deskpro EN Series of Personal Computers
F-1
Solving Minor Problems
Table F-1
Solutions for Minor Problems
Problem
Possible Solution
Computer will not turn on.
Ensure that the computer is properly connected to an external
power source.
A PCI or ISA card that has been installed is defective.
Remove any adapter card that was just installed.
Computer appears locked up and won’t
turn off when the power button is
pressed.
Software control of the power button may not be functional.
Press and hold the button for four seconds, then release. This
invokes the hardware override for the power button.
Computer date and time display is
incorrect.
First reset the date and time under Control Panel. If the
problem persists, the real-time clock (RTC) battery may need
to be replaced. See Chapter 5 for replacement procedures.
Computer powered off automatically.
The unit temperature was exceeded because the unit is in an
exceedingly hot environment. Let it cool down.
The fan may be blocked.
The unit temperature was exceeded because the computer
was functioning with the cover or side panel removed.
Replace cover or side panel, and let the computer cool down
before turning power back on.
Computer appears to pause periodically.
Network driver is loaded and no network connection is
established. Establish a network connection, or use Computer
Setup or Windows Device Manager to disable the network
controller.
Cannot remove computer cover or side
panel.
Smart Lock, featured on some computers, is locked. Unlock
the Smart Cover Lock using Computer Setup.
The Smart Cover FailSafe Key, a device for manually
disabling the Smart Cover Lock, is available from Compaq.
You’ll need the FailSafe Key in cases of forgotten password,
power loss, or computer malfunction.
Computer does not boot up and power
and hard drive LEDs are blinking
Ensure that the riser board is properly seated .
Computer does not boot up and Num
Lock LED is blinking; you may hear one
short and two long beeps
DIMMs may be improperly installed or may be bad.
The Caps Lock LED is flashing; you may
hear one long and two short beeps.
The video controller is not present or is incorrectly initialized.
Following the directions in Chapter 6, clear configuration
memory. If a video board has been added, remove and reseat
it.
Computer does not boot up and the
Scroll Lock LED is flashing; you may
hear two long and one short beeps.
System board hardware failure (prior to video). Replace
system board.
✎
F-2
If the standard keyboard has been replaced with a Universal Serial Bus keyboard,
you will hear the beep sequences mentioned above but will not see the flashing
lights.
Troubleshooting Without Diagnostics
Diskette Drive Problems
This section identifies some quick checks for diskette drive-related problems.
Table F-2
Solutions for Diskette Drive Problems
Problem
Possible Solution
Diskette drive light stays on.
1. Diskette is damaged. In Windows 95, run Scan Disk. Click Start Æ
System Tools Æ ScanDisk.
In Windows NT, run Scan Disk. Click Start Æ Programs Æ
DiskTools Æ ScanDisk.
2. Diskette is incorrectly inserted. Remove the diskette and reinsert.
3. Software program may be damaged. Check the program diskettes.
4. Drive button is not pushed in. Push in drive button.
5. Drive cable is not properly connected. Reconnect drive cable.
Diskette drive cannot write to a
diskette.
1. Diskette is not formatted. Format the diskette.
2. Diskette is write-protected. Either use another diskette that is not
write-protected or disable the write protection on the diskette.
3. Writing to the wrong drive. Check the drive letter in the path
statement.
4. Not enough space is left on the diskette. Use another diskette.
5. Diskette write control is enabled. Check the security feature settings
in Computer Setup.
Cannot format diskette.
Invalid media reported. When formatting a diskette in DOS, you may
need to specify diskette capacity. For example, to format a 720-K
diskette, type the following command at the DOS prompt:
FORMAT A:/F:720
Diskette drive cannot read a
diskette.
1. Diskette is not formatted. Format the diskette.
2. Using the wrong diskette type for the drive type. Check the drive
type and use a compatible diskette.
3. Reading the wrong drive. Check the drive letter in the path
statement.
4. Diskette drive has been disabled by Computer Setup, Windows NT,
or Windows 95 utilities. Run Computer Setup and enable the
diskette drive.
A problem has occurred with a
disk transaction.
The directory structure is bad, or there is a problem with a file. Run
Scan Disk. Click Start, then select Programs, Accessories, System
Tools.
Non-system disk message.
The system is trying to start from a nonsystem diskette. Remove the
diskette from the drive.
Drive not found.
Check the cables for loose connections.
If a second diskette drive has been installed, follow the computer
reconfiguration directions in the "Hardware Installation Problems"
section.
System has misidentified the
diskette drive type
If a diskette drive other than a 3.5-inch, 1.44-MB drive has been
installed, ensure that the drive type is identified correctly under
Computer Setup.
Compaq Deskpro EN Series of Personal Computers
F-3
Display Problems
This section identifies some quick checks for display-related problems.
Table F-3
Solutions for Display Problems
Problem
Possible Solution
Screen is blank.
1. Monitor is not turned on and the monitor light is not on. Turn on the
monitor and check that the monitor light is on.
2. Screen save has been initiated. Press any key or move the mouse
to light the screen.
3. The cable connections are not correct. Check the cable connection
from the monitor to the computer and check the electrical outlet.
4. The brightness need adjusting. Adjust the brightness control.
5. The QuickBlank feature has been enabled through Computer
Setup. Run Computer Setup to disable it.
6. The energy saver feature has been enabled. Press any key or click
the mouse button and, if one has been set, type the password.
7. The RGB (Red, Green, Blue) input switch on the back of the
monitor is incorrectly set. Set the monitor's input switch to 75 ohms
and, if there is a sync switch, set it to External.
8. System ROM is bad and system is running in FailSafe Boot Block
mode (indicated by one long beep and three short beeps). Reflash
the ROM using a ROMPaq diskette. Refer to the “FailSafe Boot
Block ROM” section of Chapter 2.
9. If a fixed-sync monitor is used, be sure that the monitor can accept
the same sweep rate as the resolution chosen.
Graphics colors are wrong.
Either the cabling or the monitor impedance is incorrect.
1. Ensure that the Red, Green, and Blue BNC cables are connected to
the corresponding monitor connectors.
2. Be sure the monitor's RGB inputs are set to 75 ohms.
Characters are dim.
1. Adjust the monitor's brightness and contrast controls.
2. Check that the video cable is securely connected to the graphics
card and monitor.
3. Set the RGB switch (and sync options, if available) to 75 ohms, with
the sync set to External. Refer to the documentation included with
the monitor.
Monitor does not function
properly when used with the
energy saver features.
Monitor without the energy saver feature is being used with energy
saver features enabled. Disable the monitor energy saver features.
Blurry display or requested
resolution cannot be set.
If the graphics controller was upgraded, the correct display drivers may
not be loaded. Install the correct display drivers on the diskette
included in the upgrade kit.
The picture is broken up; it rolls,
jitters, or blinks.
1. Be sure the monitor cable is securely connected to the computer.
2. In a two-monitor system or if another monitor is in close proximity,
move the monitors apart to be sure they are not interfering with one
other's magnetic field.
Continued
F-4
Troubleshooting Without Diagnostics
Table F-3 Continued
Problem
Possible Solution
Screen goes blank.
A screen blanking utility may be installed or energy saver features
may be enabled. Press any key or type password.
Monitor overheats.
There is not enough ventilation space for proper airflow. Leave at
least 3 inches (7.6 cm) of ventilation space. Be sure there is nothing
on top of the monitor obstructing the air flow.
Cursor will not move using the
arrow keys on the numeric
keypad.
The Num Lock key is on. Press the key to turn it off. The Num Lock
light should not be on when you want to use the arrow keys.
Printer Problems
This section identifies some quick checks for printer-related problems.
Table F-4
Solutions for Printer Problems
Problem
Possible Solution
Printer will not print.
1. Printer is not turned on and online. Turn the printer on and make
sure it is online.
2. The correct printer drivers for the application are not installed.
Install the correct printer drivers for the application.
3. If the computer is on a network, you may not have made the
connection to the printer. Make the proper network connections to
the printer.
Printer will not turn on.
The cables may not be connected properly. Reconnect all cables and
check the power cord and electrical outlet.
Prints garbled information.
1. The correct printer drivers for the application are not installed.
Install the correct printer driver for the application.
2. The cables may not be connected properly. Reconnect all cables.
Printer is off line.
The printer may be out of paper. Check the paper tray and refill it if it is
empty. Select online.
Compaq Deskpro EN Series of Personal Computers
F-5
Hard Drive Problems
This section identifies some quick checks for hard drive-related problems.
The information provided by the diagnostics tests includes: error code, system serial number,
drive serial number, drive model, and drive firmware revision. Specific details of the drive failure
are not included.
When you run the diagnostics, the test results are stored in a log. After completing the test, you
can print this log to a local printer or save it to a file. Alternatively, before running the test, you
can configure the test options to send the results to a local printer or file.
Solutions for some typical hard drive problems are presented in Table F-5.
Table F-5
Solutions for Hard Drive Problems
Problem
Possible Solution
Hard drive error occurs.
Hard disk has bad sectors or has failed. Use a utility to locate and
block usage of bad sectors. If necessary, reformat the hard disk.
Disk transaction problem.
Either the directory structure is bad or there is a problem with a file.
In Windows 95, run Scan Disk. Click Start Æ System Tools Æ
ScanDisk.
Drive not found.
1. Cable could be loose. Check cable connections.
2. The system may not have automatically recognized a newly
installed device. See reconfiguration directions in the “Hardware
Installation Problems” section. If system still does not recognize the
new device, check to see if the device is listed within Computer
Setup. If it is listed, the probable cause is a driver problem; if it is
not listed, the probable cause is a hardware problem.
3. If the drive is a secondary drive that has just been installed on the
same controller as the primary drive, verify that the jumpers for both
drives are set correctly.
Nonsystem disk message.
1. The system is trying to start from a diskette that is not bootable.
Remove the diskette from the diskette drive.
2. The system is trying to start from the hard drive but the hard disk
has been damaged. Insert a bootable diskette into the diskette drive
and restart the computer.
3. Diskette boot has been disabled in Computer Setup. Run Computer
Setup and enable diskette boot.
Second Ultra ATA hard drive
does not perform optimally.
F-6
Troubleshooting Without Diagnostics
The cable is not compatible with the drive type. Reinstall the second
Ultra ATA hard drive using an 80-conductor cable.
Hardware Installation Problems
You may need to reconfigure the computer when you add or remove hardware, such as an
additional diskette drive. If you install a plug and play device, Windows 95 automatically
recognizes the device and configures the computer. If you install a non-plug and play device, you
must reconfigure the computer after completing installation of the new hardware. In Windows 95,
select the Add New Hardware icon in the Control Panel and follow the instructions that appear on
the screen. To reconfigure the computer in Windows NT Workstation 4.0 after installing new
hardware, use the utility provided with the hardware.
Table F-6
Solutions for Hardware Installation Problems
Problem
Possible Solutions
A new device is not
automatically recognized as
part of the computer system.
1. The computer needs to be reconfigured to recognize the new
device. Follow the reconfiguration instructions above. If system still
does not recognize the new device, but the device is listed with
Computer Setup, use Computer setup to address any resource
conflicts. Additional setup utilities are available on the Compaq
website at www.compaq.com or on the Compaq Support Software
CD for Compaq Deskpro , Portable, and Workstation Products.
2. When the system advised you of changes to the configuration, you
did not accept them. Reboot the computer and follow the
instructions for accepting the changes. Additional setup utilities are
available on the Compaq website at www.compaq.com or on the
Compaq Support Software CD for Compaq Deskpro , Portable, and
Workstation Products.
3. A plug and play board may not automatically configure when added
if the default configuration conflicts with other devices. Use
Windows 95 Device Manager to deselect the automatic settings for
the board and choose a basic configuration that doesn’t cause a
resource conflict. You can also use Computer setup to reconfigure
or disable devices to resolve the resource conflict.
4. The cables for the new external device are loose or the power
cables are unplugged. Check all cables, and check that pins in the
cable or connector are not bent down.
5. The power switch for the new external device is not turned on. Turn
off the computer, turn on the external device, and then turn the
computer on to integrate the new device with the computer.
6. If the drive is a secondary drive that has just been installed on the
same controller as the primary drive, verify that the jumpers for both
drives are set correctly.
Compaq Deskpro EN Series of Personal Computers
F-7
CD-ROM Drive Problems
This section identifies some quick checks for CD-ROM drive-related problems.
Table F-7
CD-ROM Drive Problems
Problem
Possible Solution
Cannot read compact disc.
1. CD is not properly seated in the drive. Eject the CD, correctly seat
it in the drive, then reload.
2. CD has been loaded upside down. Eject the CD, turn it over, then
reload.
System will not boot from CDROM
drive.
1. The CD-ROM boot is not enabled through the Computer Setup
utility. Run the Computer Setup utility and set the drive priorities.
Cannot eject compact disc (trayload unit).
CD is not properly seated in the drive. Turn off the computer and
insert a thin metal rod into the emergency eject hole and push firmly
(a straightened paper clip can be used). Slowly pull the tray out from
the drive until the tray is fully extended, then remove the CD.
Cannot eject compact disc (slotload unit).
1. Remove the drive from the chassis.
2. Ensure that drive cabling and jumpers are set correctly. To boot a
SCSI drive, the drive ID number must be set to 0.
2. Remove the front bezel from the drive.
3. Remove the top and bottom drive covers.
4. Release the clamping mechanism to retrieve the CD.
CD-ROM device is not detected;
driver is not loaded.
F-8
Troubleshooting Without Diagnostics
CD-ROM drive is not connected properly or not properly terminated.
Open the computer and check the drive cable.
Memory Problems
This section identifies some quick checks for memory-related problems.
Table F-8
Memory Problems
Problem
Possible Solution
System won't boot or does not
function properly after installing
additional memory modules
Memory module is not the correct type or speed grade for the
system. Replace module with an industry-standard, SPD-compliant
168-pin synchronous dynamic random access memory (SDRAM)
DIMM that meets the following criteria (if you do not know the
system bus speed, run Computer Setup to determine it):
System Bus
66 MHz
Out of Memory error.
100 MHz
Rated for 66 MHz or faster
operation.
Rated for 100 MHz or faster
operation.
Has an access time (CLK to Q)
of 9 ns or less.
Has an access time (CLK to Q)
of 6 ns or less.
Cycle time of 15 ns.
Cycle time of 10 ns.
Supports CAS latency 2 or 3
operation.
Supports CAS latency 2 or 3
operation.
Memory configuration may not be set up correctly; check memory
configuration using Device Manager.
The computer has run out of memory for the application. Check the
application documentation to determine the memory requirements.
Memory count during POST is
wrong.
Memory modules may not have been installed incorrectly or nonSDRAM DIMM modules may have been used.
Insufficient memory error during
operation.
Too many Terminate and Stay Resident programs (TSRs) are
installed. Delete any unnecessary TSRs.
There is not enough memory for the application. Check the memory
requirements for the application or add more memory.
SCSI Problems
Some common causes and solutions for SCSI device problems are listed in the following table.
Table F-9
SCSI Problems
Problem
Possible Solution
System with IDE and SCSI
drives will not boot from SCSI
hard drive
The IDE drive needs to be disabled. Under the Computer Setup
Advanced menu, disable the primary IDE controller.
System will not boot from a
SCSI drive.
The SCSI drive is not configured correctly.
Ensure that drive cabling and jumpers are set correctly. To boot a
SCSI drive, the drive ID number must be set to 0.
Compaq Deskpro EN Series of Personal Computers
F-9
Network Problems
Some common causes and solutions for network problems are listed in the following table. These
guidelines do not discuss the process of debugging network cabling.
Table F-10
Network Problems
Problem
Possible Solution
The Remote Wakeup feature is
not functioning.
The feature is not available when using an AUI network connection;
use an RJ-45 network connection.
Remote Wakeup is not enabled. Use the network control application
to enable Remote Wakeup. Refer to Chapter 2.
Network driver does not detect
network controller.
Network controller is disabled. Run Computer Setup and enable
network controller.
Network status link light does
not turn on or flashes.
No active network is detected. Check cabling and network
equipment for proper connection.
Network connection is not set up properly. Use the network control
application to verify that the device is working properly. Refer to
Chapter 2.
System is configured for AUI connection; link LED does not apply to
AUI connections.
Network driver is not properly loaded. Reinstall network drivers.
Refer to Chapter 2.
System cannot autosense the network. Disable autosensing
capabilities and force the system into the correct operating mode.
Refer to Chapter 2.
Diagnostics reports a failure.
The cable is not securely connected or is attached incorrectly.
Ensure that the cable is securely attached to the network connector
and that the other end of the cable is securely attached to the
correct device.
There is a problem with the cable or a device at the other end of the
cable. Ensure that the cable and device at the other end are
operating correctly.
The network controller is defective. Replace the controller or the
system board.
Network controller interrupt with an expansion board. Under the
Computer Setup Advanced menu, change the resource settings for
the board.
Diagnostics passes, but
the computer does not
communicate with the network.
Network drivers are not loaded, or driver parameters do not match
current configuration. Make sure the network drivers are loaded and
that the driver parameters match the configuration of the network
controller.
The network controller is not configured for this computer. In
Windows 95 or Windows NT, select the Network icon at the Control
Panel.
Network controller interrupt with an expansion board. Under the
Computer Setup Advanced menu, change the resource settings for
the board.
continued
F-10
Troubleshooting Without Diagnostics
Table F-10 Continued
Problem
Possible Solution
Network controller stopped
working when an expansion
board was added to the
computer.
Network drivers are not loaded or driver parameters do not match
the current configuration. Make sure that the drivers are loaded and
that the driver parameters match the configuration of the network
controller.
The cable is not securely connected or is attached incorrectly.
Ensure that the cable is securely attached to the network connector
and that the other end of the cable is securely attached to the
correct device.
Network controller interrupt with an expansion board. Under the
Computer Setup Advanced menu, change the resource settings for
the board.
Network drivers were accidentally deleted when the drivers for the
new expansion board were installed, or the files containing the
network drivers are corrupted. Reinstall the network drivers, using
backup diskettes.
Network controller stopped
working without apparent
cause.
The files containing the network drivers are corrupted. Reinstall the
network drivers, using backup diskettes.
The cable is not securely connected or is attached incorrectly.
Ensure that the cable is securely attached to the network connector
and that the other end of the cable is securely attached to the
correct device.
The network controller is defective. Replace the network controller
or system board.
Cannot connect to the network
server when attempting Remote
System Installation
The network controller is not configured properly. Run Computer
Setup and modify the Embedded NIC Settings.
Compaq Deskpro EN Series of Personal Computers
F-11
Resolving Audio Hardware Conflicts
Hardware conflicts occur when two or more peripheral devices contend for the same signal lines
or channels. Conflicts between the audio interface and another peripheral device may be due to
the settings of the base I/O addresses, interrupts, or DMA channels. The audio interface typically
has the following settings:
Table F-11
Audio Interface Settings
Item
Setting
Base I/O address
220H
FM Synthesizer (OPL III)
388-38Bh
Interrupt
IRQ 5
8-bit DMA
Channel 1
To resolve hardware conflicts:
1. Change the hardware settings of your audio card or the peripheral card in your system if the
peripheral card is using the audio interface setting. You can change settings for integrated audio
using Computer Setup.
2. If you are unsure of the settings of the peripheral cards, you can isolate the source of the
problem by temporarily removing all cards and other essential cards such as the disk controller.
After that, add the cards back one at a time until the card that is causing the conflict is found.
Problem
Possible Solution
Sound does not come out of the
speaker.
Software volume control is turned down in Microsoft Sound System
Control Panel, or CD-ROM volume control on the front or back of
the computer is turned down.
1. Click Start, then select Programs, Accessories, Multimedia,
Volume Control.
2. Turn the CD-ROM volume control knob on the front or back of
the computer to increase the volume.
Troubleshooting Using Compaq Intelligent Manageability Features
The Local Alert Pop-Up Dialog notifies you of an impending or actual hardware failure. If the
computer is connected to a network and the Compaq Insight Management Agents are installed and
configured, an Simple Network Management Protocol (SNMP) trap (message) is sent to the
specified SNMP-compliant management application.
The Local Alert Pop-Up Dialog also tells you the steps you need to take prior to a hardware
failure to avoid loss of data and damage to the computer. The system administrator can create a
customized action message that might include contact telephone or pager numbers.
To close the Local Alert Pop-Up Dialog, click the Close button. To retrieve fault information after
closing the dialog, run Compaq Insight Personal Edition.
For more detailed information, refer to the online Intelligent Manageability Guide.
F-12
Troubleshooting Without Diagnostics
appendix
G
SCSI GUIDELINES
This appendix contains helpful guidelines for installing Small Computer System Interface (SCSI)
devices. For more detailed information, refer to the documentation that came with your computer.
Guidelines for Installing Optional SCSI Devices
When installing and operating SCSI devices, you must adhere to the following guidelines:
„ A single SCSI controller allows you to daisy-chain up to seven SCSI devices. These
may be hard drives, CD-ROM drives, scanners, tape drives, and/or other SCSI devices
installed in your computer. Most SCSI controllers have connectors for both internal and
external devices.
„ Every SCSI device must have a unique identification (ID) number. The SCSI
controller identifies signals to and from a SCSI device by its SCSI ID number rather than
its location. Moving a SCSI device from one position to another on the SCSI chain does
not affect the communication between the controller and the SCSI device. Check the
information that came with your device for the recommended SCSI ID number to be
applied. The reserved and available SCSI ID numbers for Compaq computers are as
follows:
❏
0 is reserved for the primary hard drive and has the lowest device priority.
❏
1 through 6 are available for use by all SCSI devices.
❏
7 is reserved for the system board and has the highest device priority.
„ Every SCSI chain or circuit must be terminated (closed) at both ends. Termination can
be accomplished in one of several ways:
❏
Use a cable with a built-in terminator.
❏
Use a cable with a terminating resistor plug in the last connector.
❏
Connect a SCSI device, with the termination enabled, into the last connector.
Some systems have both ends of the SCSI cable connected to, and terminated by, the system
board.
„ Turn on all external SCSI devices before turning on power to the computer. This
enables the controller to recognize the external SCSI devices and automatically reset.
When an external SCSI device is connected to the external SCSI connector on the rear
panel of the computer, that device becomes the end of the SCSI chain and must be
terminated.
„ All SCSI hard drives must be either internal or external, but never both. The system
does accommodate a combination of other internal and external SCSI devices, such as
SCSI tape and CD-ROM drives.
Compaq Deskpro EN Series of Personal Computers
G-1
Termination
1. Every SCSI chain must be terminated at both ends regardless of whether it is an internal SCSI
chain, an external SCSI chain, or a combination internal-external SCSI chain.
2. The PD-CD drive must be terminated by using a SCSI interconnect cable that has a terminating
plug on one of its ends. This drive does not ship with terminating resistors.
3. Compaq SCSI-2 controllers have an automatic terminating device which turns OFF the
terminator when both the external and internal SCSI signal ports connect to SCSI devices.
4. A terminating resistor plug is molded into one end of some internal flat SCSI signal cables. It
may also be a separate electronic device that installs into the SCSI signal port of an external
device, installs into an internal flat SCSI signal cable connector, or installs into the SCSI signal
port of some non-Compaq SCSI-2 controllers.
5. Terminators are generally designated as being active or passive by the voltage limiting method
used. Both types of terminators come in the forms described in 2, 3, and 4 above. The product
documentation usually describes the terminator type.
6. All Compaq SCSI-2 controllers have active terminators. Active terminators more effectively
filter out electronic noise (voltage surges) on the SCSI chain than passive terminators.
7. To ensure the integrity of data transferred faster than 5 megabytes per second, use active
terminators to terminate the SCSI chain.
G-2
SCSI Guidelines
Index
3
3.5-inch drive release latch
removal and replacement,
5-16
5
5.25-inch drive
removal and replacement,
5-13, 6-12
5.25-inch drive release latch
removal and replacement,
5-17
A
access panel
removal and replacement,
6-7
spare part number, 3-5
administrator (setup)
password, 2-15
AGP
board spare part number, 3-11
AGP connector
pin assignments, A-9
AGP graphics board
removal and replacement,
6-29
Alt key, 1-14
architecture, 1-4
arrow key, 1-14
audio, 1-4
resolving hardware conflicts,
F-12
test error codes, D-7
B
backplane. See riser board
backplane/riser board
spare part number, 3-11
battery, 4-7
battery, real time clock
removal and replacement,
5-33, 6-28
spare part number, 3-22
bay, drive, 1-4
beeps, 2-25
bezel blank
removal and replacement,
5-9, 6-10
boxes
shipping, 3-24
bus speed, 1-4
buttons
power, 2-28
C
cable lock
removal and replacement,
5-5, 6-6
spare part number, 3-22
cable lock provision, 2-16,
2-21, 7-1
cables, 4-7
connector, 4-7
illustrated, 3-8
spare part numbers, 3-9
cache, 1-4
CD-ROM
IDE connector pin
assignments, A-7
CD-ROM cable
connector pin assignments,
A-8
CD-ROM drive, 1-4
spare part number, 3-7
specifications, 8-7, 8-8
test error codes, D-8
troubleshooting without
diagnostics, F-8
chassis
desktop spare part number,
3-3
minitower spare part number,
3-5
chassis guide bracket
removal and replacement,
5-28, 6-24
cleaning
computer, 4-5
keyboard, 4-5
monitor, 4-6
mouse, 4-6
codes
diagnostic error, D-1
POST error, E-1
Compaq Diagnostics for
Windows, 2-10
Compaq Insight Manager and
the Insight Management
Agents, 2-31
Compaq Insight Personal
Edition, 2-10
Compaq Integrated Software,
2-30
Compaq Management
Solutions Partners Program,
2-32
Compaq Restore CD, 2-12
Complete Test, 2-11
computer base
removal and replacement,
6-4
spare part number, 3-22
Computer Checkup (TEST),
2-8
computer feet
removal and replacement
6-5
Computer Setup
replicating, 2-28
Computer Setup Utilities, 2-4
using, 2-5
connector
SCSI, A-4
connector
AGP, A-9
CD-ROM cable, A-8
desktop rear panel, 1-10
Ethernet BNC, A-6
headphone, A-5
IDE cable, A-7
Index
I-1
line-in audio, A-5
line-out audio, A-4
microphone pin assignments,
A-5
minitower rear panel, 1-13
monitor, A-3
mouse, A-1
parallel interface, A-2
serial interface, A-2
USB, A-6
connectors
cable, 4-7
controls
desktop front panel, 1-8
minitower front panel, 1-11
country kit, domestic
spare part number, 3-22
cover latch retainer
removal and replacement,
5-10
cover lock solenoid
removal and replacement,
5-39, 6-34
spare part number, 3-3, 3-5,
3-22
Create a Diagnostics Diskette,
2-8
Ctrl key, 1-14
Custom Test, 2-11
D
delimiter characters, 2-18
design overview
desktop, 1-5
minitower, 1-6
Desktop Management
Interface (DMI), 2-31
device 0/device 1 relationship,
C-1
device drivers
installing or upgrading, 2-2
ordering, 1-7
diagnostic error codes
audio, D-7
CD-ROM, D-8
diskette drive, D-4
hard drive, D-5
keyboard, D-3
memory, D-3
microprocessor, D-2
modem, D-4
mouse, D-8
network, D-7
I-2
Index
PD-CD, D-9
pointing device, D-8
printer, D-3
serial port, D-4
summary, D-1
tape drive, D-5
video, D-6
diagnostic features
Computer Checkup (TEST),
2-8
Create a Diagnostics
Diskette, 2-8
View System Information
(INSPECT), 2-9
diagnostic testing, 2-11
Diagnostics for Windows,
2-10
DIMM. See also memory
module
removal and replacement,
5-32, 6-27
spare part number, 3-11
Disabling the Keyboard and
Mouse Interface, 2-21
disassembly chart, 5-2, 6-2
disconnecting and raising the
riser board, 5-19, 6-16
diskette drive, 1-4
cable spare part number, 3-9
mounting bracket spare part
number, 3-22
spare part number, 3-7
specifications, 8-4
test error codes, D-4
troubleshooting without
diagnostics, F-3
display
troubleshooting without
diagnostics, F-4
DMA, system, 8-2
document kit
spare part number, 3-24
documentation
spare part numbers, 3-24
drive adapter
removal and replacement,
5-14, 6-13
drive bay, 1-4
drive cage assembly
desktop spare part number,
3-3
removal and replacement,
5-18
drive positions
desktop, 1-9
minitower, 1-12
drive release latch
removal and replacement,
6-15
E
ECC Fault Prediction and
Prefailure Warranty, 2-22
EDO memory, 7-1
electrostatic damage,
preventing, 4-2
electrostatic discharge, 4-1
Enabling QuickLock and
QuickBlank, 2-20
Enabling the Keyboard and
Mouse Interface, 2-21
Enhanced keyboard, 1-4
Enhanced Support Software
CD, 2-29
Ethernet
BNC connector pin
assignments, A-6
expansion board
removal and replacement,
5-20, 6-17
spare part number, 3-11
expansion board cage
desktop spare part number,
3-3
minitower spare part number,
3-5
removal and replacement,
5-21, 6-18
expansion board cage guide
bracket
removal and replacement,
5-25, 6-21
expansion slot, 1-4
F
FailSafe Boot Block ROM,
2-25
fan
removal and replacement,
5-27, 6-23
spare part number, 3-22
fax/modem
spare part number, 3-11
features summary, 1-4
feet
removal and replacement,
5-3, 6-5
flash ROM, 2-24
floppy drive. See diskette
drive
front bezel
plastics kit spare part
number, 3-20
removal and replacement,
6-8
spare part number, 3-5
G
generating static, 4-2
graphics board
memory spare part number,
3-11
removal and replacement,
5-34, 6-29
spare part number, 3-11
graphics memory, ATI RAGE
PRO
removal and replacement,
5-36, 6-31
graphics memory, Matrox
Millennium II
removal and replacement,
5-35, 6-30
graphics solutions, 1-4
resolutions, 8-10
grounding
methods, 4-3
workstations, 4-3
H
hard drive, 1-4
EIDE specifications, 8-5
IDE connector pin
assignments, A-7
mounting bracket spare part
number, 3-22
proper handling, 4-7
removal and replacement,
5-12, 6-11
SMART, C-1
soft-drive type assignments,
C-1
spare part number, 3-7
test error codes, D-5
troubleshooting without
diagnostics, F-6
Ultra SCSI specifications,8-6
hard drive cable
spare part number, 3-9
hardware installation
troubleshooting without
diagnostics, F-7
headphone connector pin
assignments, A-5
hood assembly
spare part number, 3-3
I
I/O port, 1-4
I/O, system, 8-3
icon
broken key, 2-17
key, 2-17
ID number, SCSI, G-1
IDE
connector pin assignments,
A-7
Illustrated Parts Map
spare part number, 3-24
infrared interface control, 2-15
INSPECT utility, 1-9, 1-12
Intelligent Manageability,
F-12
Enhanced Compaq Insight
Personal Edition, 2-10
features, 1-4
Interactive Mode, 2-11
interrupts, system, 8-2
IRQ, 8-2
K
key icon, 2-17
keyboard, 1-4, 1-14
cleaning, 4-5
enabling and disabling, 2-21
illustrated, 3-14
national delimiter characters,
2-18
spare part number, 3-14,
3-15
specifications, 8-9
test error codes, D-3
Keyboard Light
Combinations, 2-26
L
LED, 1-8, 1-11
cable spare part number, 3-9
illustrated, 3-8
lifting lever
removal and replacement,
5-26, 6-22
line-in audio pin assignments,
A-5
line-out audio pin assignments
line-out audio, A-4
Local Alert Pop-Up Dialog,
F-12
Locking the Smart Cover
Lock, 2-19
M
Maintenance & Service Guide
spare part number, 3-24
mass storage devices
spare part numbers, 3-7
materials, static preventing,
4-4
memory, 1-4
change alerts, 2-16
test error codes, D-3
troubleshooting without
diagnostics, F-9
memory map, system, 8-4
memory module
removal and replacement,
5-32, 6-27
spare part number, 3-11
microphone
connector pin assignments,
A-5
microprocessor. See also
processor
removal and replacement,
5-30, 6-26
spare part number, 3-11
test error codes, D-2
Microsoft Windows, 2-3
Microsoft Windows NT, 2-3
installing over network, 2-1
Microsoft Windows NT
Workstation, 2-1
minor problems
troubleshooting without
diagnostics, F-2
miscellaneous parts
illustrated, 3-21
Index
I-3
miscellaneous plastics
illustrated, 3-19
miscellaneous plastics kit
spare part number, 3-20
miscellaneous screw kit
spare part numbers, 3-18
models, 1-2
modem
spare part number, 3-11,
3-13
test error codes, D-4
monitor
cleaning, 4-6
connector pin assignments,
A-3
spare part numbers, 3-17
mother board. See system
board
mouse
cleaning, 4-6
connector pin assignments,
A-1
enabling and disabling, 2-21
specifications, 8-9
test error codes, D-8
N
network
interface, 1-4
service boot, 2-14
test error codes, D-7
troubleshooting without
diagnostics, F-10
NIC
spare part number, 3-11
wakeup cable spare part
number, 3-9
O
operating system, 2-3
ordering device drivers, 1-7
options, 1-15
ordering backup diskettes,
2-12
Ownership Tag, 2-16
P
parallel
interface control, 2-15
parallel interface pin
assignments, A-2
I-4
Index
passwords, 2-15
changing, 2-17
clearing, 2-18
deleting, 2-18
entering, 2-17
establishing, 2-16
power-on, 2-17
setup, 2-16
PD-CD drive
test error codes, D-9
Pentium II Fault Prediction
and Prefailure Warranty,
2-22
pin assignments
AGP, A-9
CD-ROM cable, A-8
diskette drive (IDE), A-7
Ethernet BNC connector,
A-6
hard drive (IDE), A-7
headphone, A-5
IDE drive, A-7
line-in audio, A-5
line-out audio, A-4
microphone connector, A-5
monitor connector, A-3
mouse connector, A-1
parallel interface connector,
A-2
SCSI connector, A-4
serial interface, A-2
pin assignmnets
USB connector, A-6
plastic parts, 4-7
pointing device
test error codes, D-8
power button
configuring for suspend,
2-28
removal and replacement,
6-9
power button removal and
replacement, 5-8
power cord
requirements, B-1
spare part number, 3-9
Power Management, 2-28
power supply, 1-4
removal and replacement,
5-38, 6-33
spare part number, 3-3, 3-5
surge tolerance, 2-23
power switch
cable removal and
replacement, 5-40
cable removal and
replacement, 6-35
cable spare part number, 3-9
power-on password, 2-15,
2-16
Power-on Self-Test (POST)
messages, E-1
preloaded software, 1-7
preventing electrostatic
damage, 4-2
printer
test error codes, D-3
troubleshooting without
diagnostics, F-5
Proactive Backup, 2-23
processor. See also
microprocessor
removal and replacement,
5-30, 6-26, 7-1
spare part number, 3-11
test error codes, D-2
product overview, 1-1
protecting your software
ordering backup diskettes,
2-12
Q
quick release cover latch
removal and replacement,
5-7
Quick Test, 2-11
QuickLock/QuickBlank, 2-15,
2-20
R
real time clock battery
spare part number, 3-22
rear panel connectors
desktop, 1-10
minitower, 1-13
Remote ROM Flash, 2-24
Remote Security Management,
2-27
Remote System Installation,
2-14
Remote Wakeup and Remote
Shutdown, 2-27
removable media
boot control, 2-15
write control, 2-15
removal and replacement
3.5-inch drive release latch,
5-16
5.25-inch drive, 5-13, 6-12
5.25-inch drive release latch,
5-17
AGP graphics board, 5-34,
6-29
battery, real time clock, 5-33,
6-28
bezel blank, 5-9, 6-10
cable lock, 5-5, 6-6
chassis guide bracket, 5-28,
6-24
computer base, 6-4
computer feet, 6-5
cover latch retainer, 5-10
cover lock solenoid, 5-39,
6-34
DIMM, 5-32, 6-27
drive adapter, 5-14, 6-13
drive cage, 5-18
drive release latch, 6-15
expansion board, 5-20, 6-17
expansion board cage, 5-21,
6-18
expansion board cage guide
bracket, 5-25, 6-21
fan, 5-27, 6-23
feet, 5-3, 6-5
front bezel, 6-8
graphics board, 5-34, 6-29
graphics memory, ATI
RAGE PRO, 5-36, 6-31
graphics memory, Matrox
Millennium II, 5-35
graphics memory, Matrox
Millennium II, 6-30
hard drive, 5-12, 6-11
lifting lever, 5-26, 6-22
memory module, 5-32, 6-27
microprocessor, 5-30, 6-26
power button, 5-8, 6-9
power supply, 5-38, 6-33
power switch cable, 5-40,
6-35
processor, 5-30, 6-26
quick release cover latch, 5-7
riser board, 5-24, 6-20
speaker assembly, 5-37, 6-32
system board, 5-29, 6-25
system unit cover, 6-7
system unit cover, 5-6
replicating your setup, 2-28
return kit
spare part number, 3-24
riser board
disconnecting and raising,
5-19, 6-16
removal and replacement,
5-24, 6-20
riser board/backplane
spare part number, 3-11
ROM upgrade
recovery from ROM upgrade
failure, 2-25
remote, 2-24
ROMPaq diskette, 2-24
S
screws, 4-6
SCSI
cable spare part number, 3-9
connector pin assignments,
A-4
controller spare part number,
3-13
device daisy-chain, G-1
device ID number, G-1
external devices, G-1
installation guidelines, G-1
startup sequence, G-1
termination, G-1, G-2
troubleshooting without
diagnostics, F-9
SCSI hard drive
specifications, 8-6
Security Management
cable lock provision, 2-21
serial
interface control, 2-15
serial interface pin
assignments, A-2
serial number, 1-7
serial number location, 5-1,
6-1
serial port
test error code, D-4
service considerations, 4-6
setup password, 2-15, 2-16
setup utilities, 2-4
using, 2-5
shipping boxes
spare part numbers, 3-24
slot cover
spare part number, 3-22
SMART
hard drive, C-1
Smart Cover Lock, 2-16, 2-19
Smart Cover Sensor, 2-15,
2-19
setting protection level, 2-19
SMART Hard Drive Fault
Prediction, 2-22
soft-drive type assignments,
C-1
software
preloaded, 1-7
required for service, 4-6
software recovery, 2-12
speaker
desktop spare part number,
3-3
minitower spare part number,
3-5
removal and replacement,
5-37, 6-32
specifications
CD-ROM drive, 8-7, 8-8
diskette drive, 8-4
hard drive, 8-5, 8-6
keyboard, 8-9
mouse
system, 8-1
standard and optional boards
illustrated, 3-10
spare part numbers, 3-11
static
generating, 4-2
shielding protection levels,
4-3
Support Software CD, 2-3
Surge-Tolerant Power Supply,
2-23
suspend
configuring power button,
2-28
system
DMA, 8-2
I/O, 8-3
interrupts, 8-2
memory map, 8-4
specifications, 8-1
system board
removal and replacement,
5-29, 6-25
spare part number, 3-11
system design, 1-5
system unit
desktop spare part numbers,
3-3
Index
I-5
minitower spare part
numbers, 3-5
system unit cover
removal and replacement,
5-6
T
tape drive
test error codes, D-5
terminators, SCSI, G-1, G-2
active, G-2
passive, G-2
test error codes
audio, D-7
CD-ROM, D-8
diskette drive, D-4
hard drive, D-5
keyboard, D-3
memory, D-3
microprocessor, D-2
modem, D-4
mouse, D-8
network, D-7
pointing device, D-8
printer, D-3
serial port, D-4
tape drive, D-5
video, D-6
The Locator with Decision
Support. See
Thermal Sensor, 2-23
token ring
cable spare part number, 3-9
spare part number, 3-13
tools
service, 4-6
tools, tamper-resistant
spare part number, 3-23
two button mouse
spare part number, 3-22
typical electrostatic voltages,
4-2
U
Ultra ATA Integrity
Monitoring, 2-22
Unattended Mode, 2-11
Universal Driver Manager,
2-30
Unlocking the Smart Cover
Lock, 2-20
I-6
Index
USB connector pin
assignments, A-6
USB interface control, 2-15,
7-1
Using the Smart Cover
FailSafe Key, 2-20
utilities
Computer Setup, 2-4
using, 2-5
V
video cable
spare part number, 3-9
video test error codes, D-6
View System Information
(INSPECT), 2-9
voltages, typical electrostatic,
4-2
W
Windows
Logo key, 1-14
Windows application key, 1-14
World Wide Web Site, 2-29
