Canon
•
'" •
t(
ExitPtint PictBridge
Photo Printer
PI}(MA
iP6320D I iP631 OD
Series

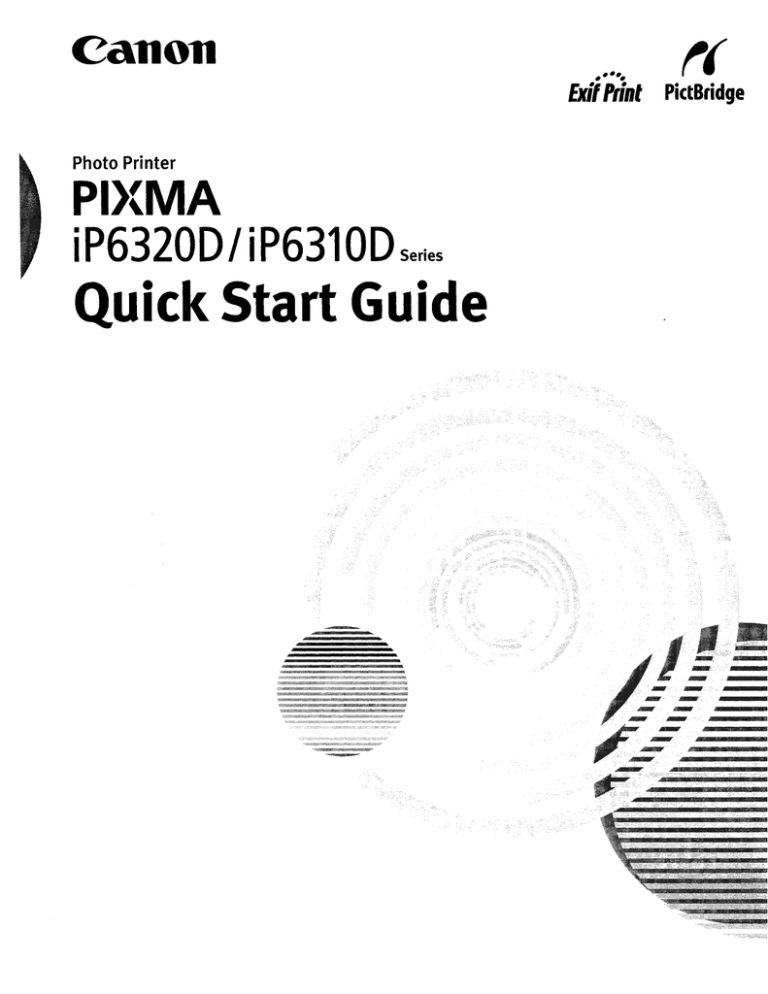

Quick Start Guide
~
•...........
~
AiIlIl1IiIIf:•...••.•...•... _
illl!l8
_
JJIIIIIIIIIf·.AlIIIIIIIIIIIf_
JI1fI1fff .
........
~
_
..,.4iii!iIr
'-'
-~7~J~~
.......,
.-
. -
.-
~
~~
~
~~
~~~
~~~
Getting Help from Canon
Help Us Help You Better
Before you contact Canon, please record the following information.
Serial Number (located on the inside of the product):
_
Model Number (located on the top of the product):
Setup CD-ROM number (located on the CD-ROM):
_
_
Purchase Date:- - - - - - - - - - - - - - - - - - - - - - - - - -
Customer Technical Support Sequence*
1. Internet -
www.canontechsupport.com
For quick and comprehensive self-help in an intuitively guided interactive troubleshooting
environment, the place to start is our helpful tech support web site. In addition, the latest
driver downloads, answers to frequently asked questions, product information, and
"where to buy" instructions are found here.
2. Email Tech Support -
www.canontechsupport.com
For individual attention to a special issue, try emailing our friendly technical support
representatives, specially trained to communicate quick, easy, and logical solutions to your
inquiries within 24 hours.
3. ToU-Free Live Tech Support -
(1-800-828-4040)
This option provides live telephone technical support, free of service charges, MondaySaturday (excluding holidays), during your product's 1 year limited warranty period.
Telephone Device for the Deaf (TOO) support is available at (1-866-251-3752).
4. Extended Service and Support -
www.canonesp.com
Canon CarePAK Extended Service Plan is a cost-attractive and easy-to-use extended service
program that provides up to three full years of service and support coverage at a very
attractive price. CarePAK offers toll-free Canon technical support and includes Canon's
superb InstantExchange product replacement program. For further information about
extending your Canon service and support, call (1-800-385-2155), or visit our Web site at
www.canonesp.com. CarePAK must be purchased during your product's warranty period.
For more information and updated program specifics, please visit our web site at
www.canontechsupport.com.
* Support program specifics are subject to change without notice.
Canou
PI}{MA
iP6320D/iP6310D
Photo Printer
Quick Start Guide
Canon PIXMA iP6320D/iP63100 Photo Printer Quick Start Guide
The diagrams and computer screens in this guide refer to the iP6320D. The operations are the
exactly the same with the iP6310D, unless otherwise described.
Copyright
This manual is copyrighted by Canon U.S.A., Inc. with aU rights reserved. Under the copyright laws,
this manual may not be reproduced in any form, in whole or in part, without the prior written
consent of Canon U.S.A., Inc.
© 2006 Canon U.S.A., Inc.
Disclaimer
Canon U.S.A., Inc. has reviewed this manual thoroughly in order that it will be an easy-to-use
guide to your Canon PIXMA iP6320D/iP6310D Photo Printer. AU statements, technical information
and recommendations in this manual and in any guides or related documents are believed reliable,
but the accuracy and completeness thereof are not guaranteed or warranted, and they are notintended to be, nor should they be understood to be, representation or warranties concerning the
products described.
Specifications are subject to change without notice.
•
IBlilIBI
As an ENERGY STAR partner, Canon U.S.A., Inc., has determined that this product meets the
ENERGY STAR guidelines for energy efficiency.
AU information regarding non-Canon products was compiled from publicly available information. No
representation is made regarding the accuracy thereof.
About Consumables
Consumables (ink tanks / FINE cartridges) are available for 5 years after production has stopped.
Trademarks
•
IIWindows ll and "Internet Explorer ll are trademarks of Microsoft Corporation, registered in the
United States and other countries.
IIMacintosh ll and IIMac ll are trademarks of Apple Computer, Inc., registered in the U.s. and other
countries.
t1SmartMedia" is a trademark of Toshiba Corporation.
ll
"MEMORY STICK II , IIMemory Stick PRO II , "MEMORY STICK Duo" and "Memory Stick PRO Ouo are
•
trademarks of Sony Corporation.
IIxO-Picture Card ll is a trademark of Fuji Photo Film Co., ltd.
•
IIMultiMediaCard ll is a trademark of Infineon Technologies AG.
•
IISD card" and II miniSO Card ll are trademarks of SO Association.
•
IIlrDA Feature Trademark ll is owned by the Infrared Data Association and used under license
therefrom.
IIBluetooth ll is a trademark of Bluetooth SIG, Inc.,U.s.A. and are licensed to Canon Inc.
•
•
•
•
•
IIAdobe ll and IIAdobe RGB (1998)11 are either registered trademarks or trademarks of Adobe
Systems Incorporated in the United States and/or other countries.
Canon U.S.A., Inc.
One Canon Plaza
Lake Success, NY 11042
Bluetooth 10: B02165
Contents
Contents
Basic Printing
Turning on the Printer •.•.•.•.•..••..•••.••.•..•.••.••.•....•.•••.•..••..•.•••••.•... 2
Turning off the Printer ..........•..................•.••...•.......•.......•......•... 3
Loading Paper .••..•....•............••....•..•.................•.•................ 4
Using Specialty Media ...••••.•..•.••.•..•...••..••.•.•.....••.••.••.••.••••..•••.•. 9
Printing with Windows. . . . . . . . . . . . . . • • . . . • . • . • . . . . . . . . . • . . . . . . . . . . • . . • . . . . . . . . • • . .. 11
Printing with Macintosh ....•............•...•...•..................•.•...•........• 13
Cancel Printing ..•..•..•..•..•.•...•••.•..•••....•.••••..•..•....•............•..• 15
Accessing the Printer Driver (Windows) .......•...........•.......•...•....•.......... 16
Using the Bundled Software. . . . . . . . . . . . . • • . . . • • . • . . . . . . . . . . . . . . . • . . . . . . . • . . . . • . . . . .• 17
Printing Maintenance
When Printing Becomes Faint or Colors are Incorrect .•.•.•....•.................. '.' ...•. 18
Troubleshooting
Cannot Install the Printer Driver. ..............•..............................•....... 20
Cannot Connect to PC Properly •..•....•.•..•............•...•..•............•....... 21
Print Quality is Poor or Contains Errors •...................•.........................•. 22
Printer Does Not Start or Stops During Print Jobs .••..•...•..........•..............•... 25
Paper Does Not Feed Properly ...............................•.........•.......•..... 26
Paper Jams .......•.••....••.......•....•..........•.••.•..•..•...............•... 26
An Error Message Appears on the Screen. . . . • . . • . . . . • . . • . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 27
POWER lamp and Alarm lamp Flash Alternately ...........••.......•................... 28
Appendix
Specifications ......•.•.........•...........................•••••..•••..•......... 29
Safety Precautions ..•.............•....•..............••.•......•.••.............. 3 2
Regulatory Information ..•.•...•......•.....•.•..................................... 34
CANON U.S.A., INC. LIMITED WARRANTY --- (USA Only) ...........•....................... 35
Index
37
1
Basic Printing
Basic Printing
W
Note
This Quick Start Guide describes some of the features of your printer
and how to use them. For more information, view the iP6320D/iP6310D
User's Guide, Printer Driver Guide, and Photo Application Guide
installed on your computer, or use the online help within your printer
driver interface:
,~,~-,
~
While in the printer's properties dialog box, press the F1 key, or click 6
in the upper right corner. Then click the feature you want to know more
about, or click the Help button when displayed.
While in the Page Setup dialog box or Print dialog box, click
lower left corner.
Clicking
provides detailed information about each setting.
When the Help window appears, select your desired topic.
in the
Turning on the Printer
1 To turn on the printer, press the POWER button.
The POWER lamp flashes while the printer warms up and changes to steady (non·
flashing) when the printer is ready.
POWER Lamp
~~---------- Alarm Lamp
~Important
•
•
2
If the Alarm lamp lights, refer to "An Error Message is Displayed on
the LCD" in the "Troubleshooting" section of the Direct Printing Guide.
If the POWER lamp and the Alarm lamp flash alternately, see "POWER
Lamp and Alarm Lamp Flash Alternately" on page 28.
Basic Printing
Turning off the Printer
1
To turn off the printer, press the POWER button.
When the POWER lamp stops blinking, the printer is turned off.
~Important
About the Power Plug
When removing the power plug after turning off the printer, be sure to
check that the POWER lamp is not lit. If the power plug is removed from
the wall outlet with the POWER lamp lit or blinking, the printer cannot
protect its print heads and may be unable to print.
3
Basic Printing
Loading Paper
• Print Media to Avoid
Do not use the following types of paper. Using such paper will not only produce
unsatisfactory results, but can also cause the printer to jam or malfunction.
• Folded, curled or wrinkled paper
• Damp paper
• Paper that is too thin (less than 64 gsm/17 lb)
• Paper that is too thick (more than 105 gsm/28Ib)*
• Paper with holes
• Picture postcards
• Postcards with an affixed photo or sticker
• Envelopes with double flaps
• Envelopes with pressure seals
• Envelopes with an em bossed or treated surface
*Non-Canon genuine paper
Also, do not use a cut paper or memo pad, when printing on a paper smaller than AS
size.
4
Basic Printing
• Preparing the Printer
W
Note
•
•
1
Flatten the four corners of the paper before loading it.
W
2
For detailed information on the specialty media Canon provides for
use with its various printers, see "Using Specialty Media" on page 9.
Consult "Printing Media" in the User's Guide for detailed
instructions on how to load specialty media into the printer.
Note
When paper is curled, gently bend it in the opposite direction of the curl
(without curling the reverse side) and then load the paper. How to flatten
paper curl, refer to "Paper is curled" on page 24.
Prepare to load paper.
(1) Open the paper support.
(2) Pull out the paper output tray.
Paper thickness
lever
W
Note
•
•
•
•
(3) Move the paper thickness lever to the
correct position for the media in use.
Move the lever to its left position for
plain paper, and move it to the right
position for envelopes and T-Shirt
Transfers.
See "Canon genuine paper" on page
10.
Place the printer on a flat surface.
Do not place any obstacles in front of the printer to keep this area
open for paper which is ejected.
Remove each sheet as soon as paper is ejected. If the paper output
slot is stacked with printed sheets it may interfere with the printer's
ejecting process.
When performing duplex printing, pay great attention to the dust and
stain on the area (desk, etc.) where the printed paper is ejected.
Printing with dust and stain remaining on this area can have a bad
effect on the printing result and printer.
5
Basic Printing
3
Load the paper.
• Loading Plain Paper
Load limit mark
Do not load beyond this load
limit mark.
(1) Insert the paper into the auto sheet
feeder with the print side facing up.
When loading the 4" x 6" paper, load
sheets in the portrait position (short
side facing down).
(2) Align the paper stack against the right
side of the auto sheet feeder.
(3) Pinch the paper guide and slide it against the left
side of the paper stack.
W
6
Note
• You can use general copy paper or Canon's Super White Paper.
• You can load up to 100 sheets of plain paper (64 gsm or 17lb, 10 mm
or 0.39 inches in height) in the auto sheet feeder.
• Do not touch the printed surfaces until the ink dries. For specific
drying times, refer to the instructions packaged with your media.
Basic Printing
• Loading Envelopes
Use either European DL or US Comm. #10 size envelopes.
The address is automatically rotated and printed out.
~Important
•
•
•
Do not use envelopes with embossed or treated surface, with a
double flap or pressure seals, with sticker flaps.
Select either DL Env. or Comm. Env. #10 in the printer driver
according to the envelope size you are using.
If you do not select Media Type correctly, the print out results in the
wrong way round.
Fold the envelope flap shut.
(1) Align the envelope
against the right side of
the auto sheet feeder.
Set the envelope with its
flap facing down on the
left side.
A maximum of 10
envelopes can be loaded
at one time.
Printing direction
(2) Pinch the paper guide and slide it against
the left side of the envelope.
W
Note
•
When printing the envelope, set the paper thickness lever to the
right.
• When using a special paper to inverse the print result, open the
printer properties dialog box and select the Rotate 180 degrees
check box on the Page Setup tab.
(3) Select Envelope in Media Type, and then select DL Env. or Comm. Env. #10 in
Page Size.
(4) Select Landscape in Orientation.
For the printer driver setting, see "Printing with Windows" on page 11, or
"Printing with Macintosh" on page 13.
7
Basic Printing
• Loading Other Small-Sized Paper
(1) Align the paper against
the right side of the auto
sheet feeder.
Regardless to the actual
orientation of your
photograph, load the
paper vertically (short
side first) in the printer.
A maximum of 20 sheets
of size in 4" x 6 11 paper
can be loaded at one time.
(2) Pinch the paper guide and slide it against
the left side of the paper stack.
(3) Select 4x6in 101.6x152.4mm, 5x7in 127.0x177.8mm or Credit Card
2.13x3.39in 54x86mm from Page Size in the printer driver.
For the printer driver setting, see "Printing with Windows" on page 11, or
"Printing with Macintosh" on page 13.
Important
Always load paper in portrait orientation. Loading paper in
landscape orientation can cause the paper to be jammed.
Portrait
W
8
Note
Landscape
We recommend using Canon photo media when printing
photographs.
See "Using Specialty Media" on page 9.
Basic Printing
Using Specialty Media
Canon recommends that you use Canon genuine paper to ensure optimal print quality.
• Photo Quality Media
• Glossy Photo Paper
• Media for Business Documents
• High Resolution Paper
• Matte Photo Paper
• Photo Paper Plus Double Sided
• Photo Paper Plus Glossy
• Photo Paper Plus Semi-Gloss
• Photo Paper Pro
• Photo Stickers
9
Basic Printing
• Canon genuine paper
i Paper Support load limit I PaperThickness i Printer Driver Settings
Media Name
i
High Resolution
Paper
I
Letter: up to 80 sheets
Super White Paper Letter: up to 10mm
Letter: up to 10 sheets*l
4 11 x6 11 : up to 20 sheets
Credit Card: up to 20
sheets
Glossy Photo
Paper
Matte Photo Paper Letter: up to 10 sheets
4"x6": up to 20 sheets
Lever Position
for Media Type
Left
High Resolution Paper
Left
Plain Paper
Left
Glossy Photo Paper
Left
Matte Photo Paper.
Photo Paper Plus
Double Sided*1*2
Letter: 1 sheet
Sllx7": 1 sheet
Left
Photo Paper Plus Double
Sided
Photo Paper Plus
Glossy*l
Letter: up to 10 sheets
4 x6": up to 20 sheets
S" x 7": up to 10 sheets
Left
Photo Paper Plus Glossy
Photo Paper Plus
Semi-Gloss*l
Letter: up to 10 sheets
4 x6": up to 20 sheets
1l
8"xl0 : up to 10 sheets
Left
Photo Paper Plus Glossy
Photo Paper Pro
Letter: up to 10 sheet
4"x6 up to 20 sheets
4 x8": up to 20 sheets
8 x10": up to 10 sheets
Left
Photo Paper Pro
Left
Photo Paper Plus Glossy
Right
T-Shirt Transfers
I
I
11
:
I
I1
Photo Stickers*3*4 1 sheet
T-Shirt Transfers
1 sheet
*1
When loading a stack of paper, the printed side may be marked when it is fed in. If this happens, load paper one sheet at
a time.
*2
Photo Paper Plus Double Sided is not supported by Macintosh systems.
*3
You can specify the print setting easily by using the Easy-PhotoPrint provided with the Setup CD-ROM.
For instructions on how to print from the software applications, refer to the Photo Application Guide.
*4
You can print photos in a memory card or digital camera on the Canon-branded sticker without a computer. For details,
refer to the Direct Printing Guide.
W
Note
•
•
10
When using plain paper (64 gsm or 17Ib), up to 100 sheets can be set. Set
the paper thickness lever to the left and select Plain Paper from Media Type
in the printer driver.
For a detailed description of print media types, refer to the User's Guide.
Basic Printing
Wlrimm
Printing with Windows
W
Note
•
•
•
The menu screens and dialog boxes that appear may vary depending on the
application you are using.
The steps described in this section are for printing using a computer with
Windows® XP Service Pack 2 installed (hereafter called Windows XP SP2).
You can use Easy-PhotoPrint to easily do print operations when printing
photographs. Easy-PhotoPrint is provided on the Setup CD-ROM. For details
on how to use Easy-PhotoPrint, refer to the Photo Application Guide.
1
Turn your printer on, then set papers.
2
Create a document or open a file to print.
3
Open the printer properties dialog box.
(1) Select Print from the application1s File menu.
The Print dialog box opens.
~2~~~~~~~~~~~
Status:
Offline
Location:
.. Co..m
..ment:
W
Note
.~~..........--
L.~i~..~.L. ~.,}~~~.,.~E..:..::
.J..........
(2)
Ensure that your printer is
selected.
(3) Click Preferences or
Properti es.
In Windows 2000, click on the Main tab in the Print dialog box.
11
Basic Printing
4
Specify the required settings.
(1) Click Media Type to select
the media loaded in the
printer.
/)High
~. :~~~ ~::~d~rd
C>£ustom
CDA.!dto
o Manual
(2) Click OK.
W
S
Note
•
From the Page Setup tab, select the correct document size to be
printed. If the size is different from that set in the application, then
you need to set it to the same size or use Scaled Printing or Fit-toPage. Refer to the Printer Driver Guide.
• To adjust Print Quality settings, select Custom and click Set on the
Main tab. You can control the quality in the Custom dialog box.
• For details about other printer driver functions, click Help or
Instructions to view the Help or Printer Driver Guide. Instructions is
displayed on the Main and Maintenance tabs only. If the On-screen
Manual is not installed, Instructions is not displayed.
• Click the check box to select Preview before printing. This will allow
you to preview a screen that shows how the selected printing effects
on your document will look when printed. Some applications do not
contain the preview function.
Print the document.
r:::i Print to file ! Preferences I
Ifin,gpri/'lter. ~ .. J
...........................................................................
12
~~~~~~t--
(1) Click Print or OK.
Basic Printing
W
Note
You can cancel a print job in progress by simply pressing the Stop/Reset
button on the printer.
See "Cancel Printing" on page 15.
Printing with Macintosh
W
Note
•
The menu screens and dialog boxes that appear may vary depending on the
software application you are using.
• The steps described in this section are for printing using a computer with
Mac® as x v.l0.4.x installed (hereafter called Macintosh®).
'
• You can use Easy-PhotoPrint to easily do print operations when printing
photographs. Easy-PhotoPrint is provided on the Setup CD-ROM. For details
on how to use Easy-PhotoPrint, refer to the Photo Application Guide.
1
Turn your printer on, then set papers.
2
Create a document or open a file to print.
3
Select Paper Size.
(1) Select Page Setup from the application1s File menu.
The Page Setup dialog box opens.
Format fu{fii>63¥O~~mmm
mmm . .) ~
Canont?5320D
PaperSlz¢(fu~=--·
==--.)
(2) Ensure that your printer is
selected.
(3) Select the desired paper size
from the Paper Size pop-up
menu.
13
Basic Printing
4
Specify the-required settings.
(1) Select Print from the application1s File menu.
The Print dialog box opens.
1------ (5)
Select the print mode
appropriate to your
document listed under
Print Mode.
fc;;~:(_}- (6) Click Print.
W
Note
•
•
•
•
•
When you select the print mode appropriate to your document under
Print Mode, the document will be printed in the color and print
quality suited to the characteristics of the Media Type you have
selected.
- Printing a top-quality photo: Select when printing documents
which mainly consist of photographs and graphics featuring fine
color gradation.
- Printing tables and charts: Select when pri,nting documents which
mainly consist of graphs and graphics (illustrations) with strong
color definition.
- Printing a composite document: Select when printing documents
which are mainly just text.
- Detailed Setting: You can fine-tune Print Quality and Halftoning
settings here.
For details about the printer driver, refer to the Printer Driver Guide.
To view the Printer Driver Guide, click:~~:1J~ on any Print dialog box that
has a Quality & Media, Color Options, Special Effects, Borderless
Printing, or Margin selected from the pop-up menu. If the On-screen
Manual is not installed, the Printer Driver Guide is not displayed even
if :;~ is clicked.
Clie'king the Preview button displays a preview screen that allows you
to confirm the selected printing effects and how your document will
look when printed. Some applications do not have a preview
function.
You can cancel a print job while printing.
See "Cancel Printing" on page 15.
14
Basic Printing
Cancel Printing
(\fi¥~-
..
You can cancel a print job while printing by pushing the Stop/Reset button on the printer.
1
Press the Stop/Reset button while the printer is printing.
Printing is canceled and paper is ejected.
W
1
Note
You can also cancel a print job by clicking Cancel Printing on the Canon IJ Status
Monitor. To display the Canon IJ Status Monitor, click Canon iP6320D/Canon
iP6310D on the taskbar.
Click the printer's icon in the Dock and display the list of print jobs in
progress.
If you are using Mac OS Xv.l0.2.8, click on the printer icon in the Dock to start up
the Print Center and double-click on the name of your printer in the Printer List to
open a list of print jobs in progress.
2
Select an undesired document and click the Delete icon.
The print job is deleted.
W
Note
To temporarily stop a job in progress, click Hold. To cancel all the jobs in the list,
click Stop Jobs.
15
Basic Printing
Accessing the Printer Driver (Windows)
The printer properties dialog box can be opened from either within an application or directly
from the Windows Start menu.
W
Note
This manual refers to operations in Windows XP SP2.
These operations may vary depending on the version of your Windows
operating system you use.
• Opening the Printer Properties Dialog Box from your Application
Program
W
1
Note
Depending on your application program, the command and menu names may
differ and there may be more steps involved in opening the printer properties
dialog box. For more details, see the user1s manual regarding your application.
In your application program, select the command to print a document.
The Print dialog box can usually be opened by selecting Print from the File menu.
2
Ensure that your printer is selected. Then click Preferences (or Properties).
The printer properties dialog box opens.
• Opening the Printer Properties Dialog Box Directly from the Start
Menu
This method is used for printer maintenance and configuring shared print settings for
all application programs.
1
Click Start and select Control Panel, Printers and Other Hardware, and then
Printers and Faxes.
For non-Windows XP users, click Start, select Settings, and then Printers.
2
Select the icon of your pri nter.
3
Open the File menu and select Printing Preferences (or Properties).
The printer properties dialog box opens.
When opening the printer properties dialog box from Properties, the tabs related to
the Windows function (e.g., the Ports tab, or the Details tab) are displayed. These
tabs are not displayed, when the printer properties dialog box is opened from
Printing Preferences or application programs. For details about these tabs, refer to
the Windows documentation.
W
16
Note
For details on how to set each function, refer to the Printer
Driver Guide or Help.
Basic Printing
Using the Bundled Software
The Setup CD-ROM includes photo applications designed to edit the photographs taken by a
digital camera and print them as photo-lab quality prints withou~ standard white borders.
Use the application(s) suitable for your print purposes.
W
Note
•
•
To install applications, refer to Easy Setup Instructions.
For details about photo applications, refer to the Photo Application Guide.
• Easy-PhotoPrint (Windows/ Macintosh)
You can make a Borderless Print easily and quickly, just by selecting a photograph
taken with a digital camera and the paper type on which to print it. In addition, it
has tools to correct red eye caused by the camera's flash or smooth and beautify the
facial skin.
It is compatible with ExifPrint*.
• PhotoRecord (Windows)
You can create fun and unique photo albums with decorative themes such as frame,
background, and clip-art. You can also copy or move the decorated photos.
It is compatible with ExifPrint*.
• Easy-WebPrint (Windows)
You can easily print out homepages displayed on Internet Explorer@ in full size
without its right-hand side being cropped. This application is automatically added
to the Internet Explorer toolbar. Internet Explorer 6.0 is recommended.
* ExifPrint is the worldwide standard. Under ExifPrint, the digital camera can record data tags for specific camera
settings and functions such as whether the flash was on or off, if the camera was in portrait or night scene mode,
etc.
Canon PIXMA Printers support ExifPrint and use a suitable photo application to read the camera data precisely,
producing optimal prints. This enables you to create prints that reproduce color more accurately.
17
Printing Maintenance
Printing Maintenance
When Printing Becomes Faint or Colors are Incorrect
When printing becomes faint or colors are incorrect, the print head nozzles are probably
clogged. Follow the procedures below to clean these nozzles.
W
Note
Before Performing Maintenance
Remove the FINE Cartridge once, then insert it into place again. Refer to
"Replacing a FINE Cartridge" in the Direct Printing Guide.
Step 1
Refer to "Printing the Nozzle Check Pattern" in the
Direct Printing Guide.
I;;;'.
\~~ >~~ \~
.~
;'1>'
i • ·•· • • •···<i.i·.·.. .· i»·..· . ·>•••••·•• <.·.•·. •.) . . •. . . } . ?
~~ ~;;r. :j~
After print head cleaning, print
the nozzle check pattern.
........--11-----
If the print quality is poor,
perform print head cleaning.
If the pattern is printed normally,
- - - - - - - - - click Exit.
Step 2
Refer to "Print Head Cleaning" in the
Direct Printing Guide.
If the problem remains after performing print head cleaning twice
Step 3
Refer to "Print Head Deep Cleaning" in the
Direct Printing Guide.
If the problem still remains after performing print head deep cleaning twice
Step 4
Refer to "Replacing a FINE Cartridge" in the
W
Note
Direct Printing Guide.
If ruled lines are misaligned, adjust the print head position.
Refer to "Aligning Print Head - Auto head align" in the
18
Direct Printing Guide.
Troubleshooting
Troubleshooting
This section provides troubleshooting tips for the most common printing problems.
Troubleshooting usually falls into one of the following categories.
Refer to the User's Guide for additional information on topics not covered in this section.
When an error message is displayed on the LCD, refer to "An Error Message is Displayed on
the LCD" in the "Troubleshooting" section of the Direct Printing Guide. When photos cannot
be printed properly from a digital camera, refer to "Cannot Print Properly from the Digital
Camera" in the "Troubleshooting" section of the Direct Printing Guide.
• "Cannot Install the Printer Driver" on page 20
• "Cannot Connect to PC Properly" on page 21
• "Print Quality is Poor or Contains Errors" on page 22
• "Printer Does Not Start or Stops During Print Jobs" on page 25
• "Paper Does Not Feed Properly" on page 26
• "Paper Jams" on page 26
• "An Error Message Appears on the Screen" on page 27
• "POWER Lamp and Alarm Lamp Flash Alternately" on page 28
When an Error Occurs
When an error occurs in printing such as the printer is out of paper or paper jams, a
troubleshooting message is displayed automatically. Take the appropriate action described
in the message.
The message may vary depending on the version of your Windows operating system.
19
Troubleshooting
Cannot Install the Printer Driver
Problem
Cannot Install the
Printer Driver
I
Possible Cause
Installation
procedure not
followed correctly
I
Try This
Follow the Easy Setup Instructions packaged with your printer for proper printer
driver installation.
liiflrnmm
If the installer was forced to be terminated due to an error, Windows may be
unstable. Remove the CD-ROM from the CD-ROM drive and restart your computer.
Reinstall the printer driver. If this problem persists, refer to your Windows
documentation for more information.
Installation does
~~~~~a;:icallY when
the Setup CD-ROM
is inserted into the
drive
If printer driver installation did not start automatically when you inserted the
Setup CD-ROM into the CD-ROM drive:
1. Click Start and select My Computer.
2. Double-click the CD-ROM icon.
For non-Windows XP users, open the My Computer window and then doubl.e-click
the CD-ROM icon.
1~1~jS!m~
Double-click the CD-ROM icon on your desktop to start installation.
If the CD-ROM icon is not displayed on the desktop, there is a problem with the CDROM. Contact the Customer Care Center.
lVf1I;mm
Unable to proceed
beyond the Printer
Connection screen
f"7teprinte r cnlJllirorce,ieteC"dR"(heck
118 (1)fl!18(tlOn
20
Reinstall the printer driver.
1. Click Cancel on the Printer Connection
screen.
2. Click Start Over on the Installation Failure
screen.
3. Click Back on the screen that appears
next.
4. Click Exit on the Welcome screen, then
remove the CD-ROM.
5. Turn the printer off.
6. Check the cable connection.
7. Restart the computer.
8. Make sure no other applications
(including anti-virus programs) are
running.
9. Carefully follow the procedures
described in the Easy Setup Instructions
and reinstall the driver.
Troubleshooting
Cannot Connect to PC Properly
Problem
Printing Speed Is
Slow fUSB 2.0 HiSpeed
Connection Does
Not Work.
I
Possible Cause
Your environment is
not fully compatible
with USB 2.0.
Try This
I
If your environment is not fully compatible with USB 2.0, the printer will operate at
a lower speed provided under USB 1.1.
Check the following to ensure that your PC environment supports USB 2.0 HiSpeed connection.
• The USB port on your PC supports USB 2.0 Hi-Speed connection.
•
Both the USB cable and USB hub support USB 2.0 Hi-Speed connection.
•
Be sure to use a certified USB 2.0 Hi-Speed cable. You are recommended to use
the cable no longer than 3 meters.
Your PC supports the USB 2.0 Hi-Speed connection.
•
Obtain the latest version of the OS update program and install it on your PC.
The USB 2.0 Hi-Speed driver operates properly.
Obtain the latest version of the USB 2.0 Hi-Speed driver and install it on your
PC.
~Important
l,,1hmWM
When You
Connect to a
Computer
Running
Windows XP, the
Screen Shows
the Warning
Message IIHispeed USB
device plugged
into non-hi-speed
USB hub" or
IIThis device can
perform faster ll •
Your environment is
not fully compatible
with USB 2.0.
For details on checking the above, contact the maker of your
computer, USB cable, or USB hub.
See "Printing Speed Is Slow/USB 2.0 Hi-Speed Connection Does Not Work."
above.
21
Troubleshooting
Print Quality is Poor or Contains Errors
Problem
Cannot Print to End
of Job
I
Possible Cause
Try This
The Page Size setting
does not match the
size of the paper
loaded in the printer
First, check the Page Size setting in the application.
Then, check the Page Size setting in the Page Setup tab of the printer driver
for Windows or the Page Setup dialog box of the printer driver for Macintosh.
'~'iilmmm
Check the size of the print data. For Windows XP and Windows 2000, if the
size of the data is too large, part of it may be lost. When the spool format is
EMF, follow the procedure below.
1. Open the printer properties dialog box.
See "Opening the Printer Properties Dialog Box Directly from the Start
Menu" on page 16.
2. On the Page Setup tab, click Print Options.
3. Select the Reduce spool data size check box and click OK.
When Reduce spool data size is selected, the print quality may be degraded.
The size of the print
data is too large
Ink Does Not Eject
Properly/Not
Printed/Printing is
Blurred/Colors are
Wrong/White
Streaks Appear
I
FINE Cartridge is not
installed properly/
there is no ink left
Remove the FINE Cartridge, then reinstall it.
Small dusts may be stuck between the contact points. In this case, the print
out result may be improved by reinstalling the FINE Cartridge.
Also, check that the protective tape is removed.
* To the FINE Cartridge holder
Protective tape
Print head nozzles are
clogged
22
Print the nozzle check pattern to ensure that ink is ejected properly.
Refer to "Printing the Nozzle Check Pattern" in the Direct Printing Guide.
If the ink is not ejected properly:
Refer to "Print Head Cleaning" in the Direct Printing Guide.
Refer to "Print Head Deep Cleaning" in the Direct Printing Guide.
II
Troubleshooting
Problem
I
Possible Cause
Incorrect paper type
Try This
I
('i'bmtm
On the Main tab of the printer driver, ensure that the Media Type selected
matches the media being used.
Ifl~~m:mm
In the Print dialog box of the printer driver, select Quality & Media from the
pop-up menu, and then ensure that the Media Type selected matches the
paper loaded.
Glossy photo paper
other than Canon
genuine paper is used
Select Other Photo Paper from Media Type, which may resolve the problem.
Load one sheet at a time and remove each sheet as soon as it is printed.
Print Quality is not set
properly
Be sure to set the Print Quality setting to High for Windows or Fine for
Macintosh.
l¥!"~
1. Open the printer properties dialog box.
See "Opening the Printer Properties Dialog Box from your Applic~tion
Program" on page 16.
2. On the Main tab, click High for the Print Quality setting.
If you cannot select High or the problem is not solved, select Custom, click
Set, and select the higher quality.
1:<1:Jl!~
1. Open the Print dialog box.
You can generally select Print in the File menu from you application
program.
2. In the Print dialog box, select Quality & Media from the pop-up menu, and
then click Detailed Setting.
3. Drag the Print Quality slide bar towards the Fine side.
Printed Ruled Lines
are Misaligned
Media is not loaded
with print-side up
Check that your paper is loaded with the correct print side facing up.
Consult "Printing Media" in the User's Guide for detailed instructions on how
to load and use your media.
Print head is
misaligned
Align the print head. Refer to "Aligning Print Head-Auto head align" in the
Direct Printing Guide.
Paper thickness lever
position is not proper
Set the paper thickness lever in suitable position for your media.
See "Canon genuine paper" on page 10.
Print Quality is not set
properly
Be sure to set the Print Quality setting to High for Windows or Fine for
Macintosh.
~
........ "
')
BAAIi
**
fj;lII
1. Open the printer properties dialog box.
See "Opening the Printer Properties Dialog Box from your Application
Program" on page 16.
2. On the Main tab, click High for the Print Quality setting.
If you cannot select High or the problem is not solved, select Custom, click
Set, and select the higher quality.
~v·
1. Open
Print dialog box.
You can generally select Print in the File menu from you application
program.
2. In the Print dialog box, select Quality & Media from the pop-up menu, and
then click Detailed Setting.
3. Drag the Print Quality slide bar towards the Fine side.
23
Troubleshooting
Problem
Printed Paper Curls
or has Ink Blots
I
Possible Cause
Paper being used is
too thin
I
Try This
Use photo paper such as Canon's Photo Paper Pro to print photos or pictures
in deep color that have high color saturation.
Incorrect paper type
On the Main tab of the printer driver, ensure that the Media Type selected
matches the media being used.
l/l~m~J!dJ~
In the Print dialog box of the printer driver, select Quality & Media from the
pop-up menu, and then ensure that the Media Type selected matches the
paper loaded.
Back of Paper is
Smudged
Printed Surface is
Scratched
Inside of the printer is
dirty
If the inside of the printer is dirty, printed paper may become smudged.
Periodically clean the inside of the printer.
Refer to "Cleaning the Inside of the Printer" in the User's Guide.
Paper feed roller is
dirty
Clean the paper feed roller.
Refer to "Back of Paper is Smudged/Paper Does Not Feed Properly/Printed
Surface is Scratched" in the Direct Printing Guide.
.
Inappropriate type of
paper is being used
Check to see if the paper you are printing on is too thick or curled.
See "Print Media to Avoid" on page 4.
Note that smudging may occur at the top and bottom edges of paper when
using Borderless Printing. Ensure that the paper you are using is compatible
with Borderless Printing.
Paper is curled
If all four corners or the printing surface of the paper is curled, the paper may
become dirty or the paper may not feed properly. Use the paper after
correcting paper curl as follows.
1. Face up the printing surface *1, and cover it with a non-printing regular
paper to avoid damaging the surface.
2. Roll up the paper in a direction opposite to paper curl as the figure below.
3. Check the printing paper if paper curl is corrected within approximately 2
to 5 mm/0.08 to 0.2 inches *2.
It is recommended to print the curl-corrected paper one sheet at a time.
....................
Paper thickness lever
position is not proper
24
~
I
~
*1
...
Set the paper thickness lever in suitable position for your media.
See "Canon genuine paper" on page 10.
If the paper is scratched even when printing on plain paper (left), set the
paper thickness lever to the right.
Return the paper thickness lever to the left after printing.
Troubleshooting
Printer Does Not Start or Stops During Print Jobs
Problem
Printer Does Not
Start or Printer
Stops During
Print Jobs
I
Possible Cause
There may be
problems with your
operating system
Try This
I
Restart your computer. It may solve the problem.
Delete an undesired print job, if there is any. Use Canon IJ Status Monitor in
Windows or Printer Setup Utility (or Print Center) in Macintosh for the deletion.
i;irJmw!g
1. Open the printer properties dialog box.
See "Opening the Printer Properties Dialog Box Directly from the Start Menu"
on page 16.
2. Click the Maintenance tab and then View Printer Status.
3. Click Display Print Queue.
4. Select Cancel All Documents in the Printer menu.
W
Note
In Windows XP and Windows 2000
The print jobs may not be selected.
5. When the confirmation message is displayed, click Yes.
The print job is deleted.
W
Note
In Windows Me and Windows 98
Click to select an undesired document and select Purge Print
Documents in the Printer menu.
I;,~~
1. Select Applications from the Go menu.
2. Double-click the Printer Setup Utility icon in the Utilities folder.
When using Mac as x v. 10. 2, double-click the Print Center icon.
3. Double-click the name of your printer displayed upder Name in the Printer List.
4. Click to select an undesired document and click ~.
The print job is deleted.
Cannot Print to
End of Job
Incorrect page size
is selected
Ensure that the page size setting matches the size of the paper loaded in the
printer:
Check the Page Size setting from within your application to ensure that it
matches the size of the paper loaded.
Check Page Size on the Page Setup tab in the printer properties dialog box of
the printer driver (Windows) or the Page Setup dialog box of the printer driver
(Macintosh) to ensure that it matches the size of the paper loaded.
,Yiyf1nmm
Check the size of the print data. For Windows XP and Windows 2000, if the size of
the data is too large, part of it may be lost. When the spool format is EMF, follow
the procedure below.
1. Open the printer properties dialog box.
2. On the Page Setup tab, click Print Options.
3. Select the Reduce spool data size check box, and click OK.
The size of the print
data is too large
•
•
W
Note
When Reduce spool data size is set, the print quality may be
degraded.
25
Troubleshooting
Paper Does Not Feed Properly
Problem
I
Paper Does Not
Feed Properly
Possible Cause
I
Try This
Inappropriate type
of paper is being
used
•
Paper feed roller is
dirty
Clean the paper feed rollers.
Refer to "Back of Paper is Smudged/Paper Does Not Feed Properly/Printed Surface
is Scratched" in the Direct Printing Guide.
Paper is loaded
incorrectly
Load in the portrait orientation regardless of the print direction of the auto sheet
feed.
Ensure that paper is loaded correctly. Pinch the paper guide and slide it against
the paper stack. See "loading Paper" on page 4.
•
Check to see if the paper you are printing on is too thick or curled.
See "Print Media to Avoid" on page 4.
Check if the paper exceeds the load limit mark. If it exceeds, load less paper.
See "Loading Plain Paper" on page 6.
Paper Jams
Problem
Paper Jams
I
Possible Cause
Landscape credit
card-sized paper
jams inside the
printer
I
Try This
Remove the paper inside of the printer. Refer to "Paper Jams" in "Troubleshooting"
section of the Direct Printing Guide.
Paper jams in the
paper output slot/
auto sheet feeder
Paper is loaded
incorrectly
26
Check to see if the paper is loaded correctly, and set the paper guide for the
loaded paper correctly.
See "loading Paper" on page 4.
Troubleshooting
An Error Message Appears on the Screen
Problem
r,,-,{,
'l.~
I Possible Cause I
Try This
Printer not ready
Ensure that the POWER lamp lights.
If the POWER lamp is off, turn the printer on.
When the POWER lamp is flashing, the printer is initializing. Wait until the
POWER lamp stops flashing.
Paper is not loaded
Load paper and press the OK button.
An error message may appear if the "No paper" error has not been reset for a
certain period.
Ensure that the printer is securely connected to the computer.
Writi ng Error/
Output Error/
Communication Error
Faulty connection
W
t
o
.\/
"Error No.: 300"
Note
•
If you are using a switching hub or other device, disconnect
the printer and reconnect it directly to the computer and try
printing again.
If successful, the problem may have been with the device.
•
There could also be a problem with the cable(s). Replace the
cable(s) and try printing again.
Printer port setting
does not match the
interface connected
to the printer
Check the printer port settings.
1. Click Start and select Control Panel, Printers and Other Hardware, and then
Printer you want to
use is not selected
on the Printer
popup menu on the
Print dialog box
Select your printer name on the Printer pop-up menu on the Print dialog box.
If your printer name does not appear on the Printer pop-up menu, do the
following to confirm the printer settings:
1. Select Print and Fax Preferences from the Printer pop-up menu.
When using Mac as x v.10.3.x or Mac as x v.10.2.8, select Edit Printer List
from the Printer pop-up menu.
2. Ensure that your printer name is displayed and the check box is selected in
the screen that is displayed.
When using Mac as x v.10.2.8, ensure that your printer name is displayed in
the Printer List.
3. If your printer name is not displayed in the screen displayed in step 2, click
Add(+) to add the printer.
If you cannot add the printer, follow the procedures described in Easy Setup
Instructions and reinstall the driver.
Printers and Faxes.
For non-Windows XP, click Start, select Settings, and then Printers.
2. Select the icon of your printer.
3. Open the File menu and select Properties.
4. Click the Ports tab (or the Details tab) to confirm the port settings.
A USB port is selected if either USBnnn (Canon iPXXXXX) or MPUSBPRNnn
(Canon iPXXXXX) (where n is a number, and XXXXX represents 63200 or
63100.) is indicated.
If the port setting is not correct, change the port setting according to the
interface you are using on the Ports tab (or the Details tab), or reinstall the
printer driver.
Printer driver is not Uninstall then reinstall the printer driver.
installed properly
1. Click Start, and select All Programs (or Programs), the name of your printer,
and Uninstall.
2. Follow the on-screen instructions to uninstall the driver.
3. Follow the procedures described in the Easy Setup Instructions and reinstall
the printer driver.
Printer not ready
Ensure that the POWER lamp lights.
If the POWER lamp is off, turn the printer on.
If the POWER lamp is flashing, the printer is initializing. Wait until the POWER
lamp stops flashing.
Printer not properly Ensure that the printer is securely connected to the computer.
connected
W Note • If you are using a switching hub or other device, disconnect
the printer and reconnect it directly to the computer and try
printing again.
If successful, the problem may have been with the device.
• There could also be a problem with the cable(s). Replace the
cable(s) and try printing again.
27
Troubleshooting
The printer has a built-in ink absorber to hold the ink used during print head
cleaning, for example. This error message indicates that this ink absorber is
nearly full.
Press the OK button to clear the error so you can continue printing. Before the
ink absorber becomes completely full, contact the Customer Care Center.
When you experience this error, you will need to call for servicing to replace the
ink absorber and to check the printer for proper operation.
"Error No.:
1700/1711"
"Error No.: 2001"
"Error No.: 2500"
A specified period
of time has elapsed
without receiving a
response from the
digital camera/The
digital camera or
digital video
camcorder
con nected is not
compatible with
this printer
Disconnect the camera cable, and reconnect it.
Automatic print
head alignment
failed
Refer to "An Error Message is Displayed on the LCD" in the Direct Printing Guide.
W
Note
Depending on the model or brand of your PictBridge compliant
device, you may have to select a print mode before connecting the
device.
You may also have to turn on the device or select Play mode
manually after connecting the device to the printer.
Perform necessary operations according to the instruction
manual supplied with your device.
If the error is still unresolved, there is a possibility that you are using a digital
camera or digital video camcorder that is not supported by this printer. '
PictBridge-compatible digital camera or digital video camcorder can be
connected to your printer for Direct Printing.
POWER Lamp and Alarm Lamp Flash Alternately
Problem
POWER Lamp and
Alarm Lamp Flash
Alternately
28
I
Possible Cause
An error that
requires contacting
the Customer Care
Center may have
occurred
I
Try This
Disconnect the printer cable from the printer, and then turn the printer off and
unplug the printer from the power supply. Plug the printer back in and turn the
printer back on after leaving it for a while.
If the problem remains, contact the Customer Care Center.
___________________________
At:lPendix
Appendix
Specifications
Printer
Maximum resolution (dpi):
4800 (horizontal)* x 1200 (vertical)
*Ink droplets can be placed in a pitch of 1/4800 inch at minimum.
Print speed *
Black printing (text pattern)
*Print speed will vary depending on system
configuration, software, document
complexity, print mode and page
coverage.
Max speed (custom setting 5): 12 ppm
Standard: 3.4 ppm
Color printing
Max Speed (custom setting 5): 10 ppm
Standard: 2.9 ppm
Print width:
203.2 mm max. (S.O in)
(for Borderless Printing: 215.9 mm/S.5 in)
Interface:
USB 2.0 Hi-Speed*l*2/Direct Print Port/lrDA v.1.2*3/Bluetooth v.1.2
(Option)
*1 All operations are not guaranteed for computers standard-equipped
with a USB 2.0 Hi-Speed interface.
*2 Since the USB 2.0 Hi-Speed interface is fully upwardly compatible
with USB Full-Speed (USB 1.1), it can be used at USB Full-Speed
(USB 1.1).
*3 IrDA v.l.2 is not supported with iP6310D.
Acoustic noise level:
Approx. 43 dB (A) (in the highest print quality mode)
Operating environment:
Temperature: 5 to 35°C (41 to 95°F)
Humidity: 10 to 90% RH (no condensation)
Storage environment:
Temperature: 0 to 40°C (32 to 104°F)
Humidity: 5 to 950/0 RH (no condensation)
Power supply:
AC 100-240 V, 50/60 Hz
Power consumption:
Standby: Approx. 1 W
Printing: Approx. 11 W
Off: Approx. 0.5 W
Dimensions
(with a paper support and
paper output tray retracted):
438 (W) x 260 (D) x 172 (H) mm
17.24 (W) x 10.24 (D) x 6.77 (H) in
Weight:
iP6320:
Approx. 3.5 kg (7.70 lb.)
iP6310:
Approx. 3.4 kg (7.48 lb.)
Canon FINE Cartridges:
Nozzles:
Color: 192 x 2 x 3 nozzles
Photo: 192 x 2 x 3 nozzles
29
Appendix
Camera Direct Print (PictBridge)
Paper size:
Default (selections based on the printer setting), 10 x 15 cm/4 11 x 611
(Photo Paper Plus Glossy, Photo Paper Pro, Photo Paper Plus Semi-Gloss,
Glossy Photo Paper, or Photo Sticker*1), 13 x 18 cm/S II x 711 (Photo Paper
Plus Glossy)*2, A4/8.S 11 X 11 11 (Letter) (Photo Paper Plus Glossy A4/Letter,
Photo Paper Pro A4/Letter, Photo Paper Plus Semi-Gloss A4/Letter,
Glossy Photo Paper A4/Letter, or Plain Paper A4/Letter), S.4 x 8.6 cm/
Credit Card (Glossy Photo Paper Credit Card)
Canon-brand sticker. Printing on this paper is available only when
the Layout function on your camera has a 16-up option. For details,
refer to "Printing Photographs Directly from a PictBridge Compliant
Device" in the Direct Printing Guide.
*2 If using a Canon PictBridge-compatible camera, you can select it.
*1
Paper type:
Default (selections based on the printer setting), Photo (Photo Paper
Plus Glossy, Photo Paper Plus Semi-Gloss, Glossy Photo Paper), Fast
(Photo Paper Pro), Plain Paper (A4/Letter only)
Layout:
Default (selections based on the printer setting), Borderless, .
Bordered, N-up (2, 4, 9, 16)*, 3S-up*2
*1
Layout compatible with Canon-brand sticker above. For details, refer
to "Printing Photographs Directly from a PictBridge Compliant
Device" in the Direct Printing Guide.
*2
Photos are printed in 35mm Film Style layout (contact printing
layout). This option can be selected for Canon PictBridge-compliant
devices only. (Note that this option cannot be used for some
models.)
For a Canon PictBridge-compliant device, selecting the item
displayed with the [i] icon prints the shooting information (Exif data)
in list format, or in the margins of specified photos. (Note that these
options cannot be used for some models.)
Trimming:
Default (Off: No trimming), On (follow camera's setting), Off
Image optimize:
Default (selections based on the printer setting), VIVID*, NR (Noise
Reduction)*, VIVID+NR*. Face*
* If using a Canon PictBridge-compatible camera, you can select it.
Date/File No. print:
3°
Default (Off: No printing), Date. File No•• Both, Off
____________________________
AeJ?endix
Minimum System Requirements *1
*2
Operating System
Interface
USB 2.0 Hi-Speed
USB
Hard Disk Space*4
RAM
Processor
400MB
128MB
Windows XP SP1, SP2
Pentium 111*3
Windows 2000 Professional SP4
(Celeron 566 MHz)
Windows.XP SP1, SP2
Pentiumll 300 MHz*3
Windows 2000 Professional SP2,
SP3, SP4
Windows Millennium Edition
Windows 98, 98 Second Edition
*2
Operating System
Interface
I
USB 2.0 Hi-Speed
USB
Mac OS Xv.l0.4
Mac OS X v.l0.2.8 - v.l0.3
I
Processor
Intel processor
PowerPC G3/G4/G5
I
RAM
256MB
I
Hard Disk Space*4
250MB
128MB
*1 Conform to the operating system1s requirement when it is higher than this.
For updated compatibility, visit our website.
*2 Operation can only be guaranteed on a PC with built-in USB or USB 2.0 Hi-Speed port and pre-installed Windows XP, 2000,
Me, 98 or Mac OS X v.10.2.8-v.l0.4.
*3 Including compatible processors.
*4 For bundled software installation.
• CD-ROM drive
lV4{imnm
•
Display:
800 x 600
Color 16 bit
•
Mac File System: Mac OS Extended Oournaled), Mac OS X Extended
•
Display:
800 x 600
Thousands Colors
Additional Systems Requirements for On-screen Manuals
liAV1rmg
Browser: Windows HTML Help Viewer
Note: Microsoft Internet Explorer 5.0 or later must be
installed. The on-screen manual may not be displayed
properly depending on your operating system or Internet
Explorer version. We recommend that you keep your system
up to date with Windows Update.
Browser: Help Viewer
Note: The on-screen manual may not be displayed properly
depending on your operating system. We recommend that
you keep your system up to date.
31
~endix
A Safety Precautions
Please read the safety warnings and cautions provided in this manual to ensure that you use
your printer safely. Do not attempt to use your printer in any other way than is described in
this manual.
Warning
You may cause an electric shock/fire or damage the printer if you ignore any of
~hese safety precautions.
Choosing a location
Do not place the printer close to flammable solvents such as alcohol or thinners.
Power supply
Never attempt to plug in or unplug the printer from the power supply when your hands are wet.
Always push the plug all the way into the power outlet.
Never damage, modify, stretch or excessively bend or twist the power cord.
Do not place heavy objects on the power cord.
Never plug the printer into a power socket that is shared with other
equipment (extension lead/cord, 2- or 3- way adapter, etc.).
Never use the printer if the power cord is bundled or knotted.
If you detect smoke, unusual smells or strange noises around the printer, immediately unplug the
printer at the power supply and call for service.
Periodically, unplug the printer and use a dry cloth to wipe off any dust or dirt collected on the plug
and the power outlet.
If the printer is placed at a location exposed to a lot of dust, smoke, or high
humidity, dust collected on the plug will absorb moisture and may cause
insulation failure and fire.
Cleaning the printer
Use a damp cloth to clean the printer. Never use flammable solvents such as
alcohol, benzene or thinners.
If flammable solvents come in contact with the electrical components inside
the printer, it could cause a fire or electric shock.
Always unplug the printer from the power outlet before cleaning the printer.
If you accidentally switch the printer on while cleaning it, you could injure yourself or damage the
printer.
Maintaining the printer
Do not attempt to disassemble or modify the printer. There are no user serviceable parts inside
the printer.
The printer contains high-voltage components. Never attempt any maintenance procedure which
is not described in this guide.
Working around the
printer
32
Do not use flammable sprays near the printer.
This could cause a fire or electric shock if spray were to come in contact with the electrical
components inside the printer.
___________________________
AeJ?endix
Caution
You may cau~e injury or damage the printer if you ignore any of these safety
precautions.
Choosing a location
Do not install the printer in a location that is unstable or subject to excessive vibration.
Do not install the printer in locations that are very humid or dusty, in direct sunlight, outdoors, or
close to a heating source.
To avoid the risk of fire or electric shocks, install the printer in a location that has a constant
temperature range of 5°C to 35°C (41°F to 95°F) and humidity of 10% to 90% (condensation free).
Do not place the printer on a thick rug or carpet.
Power supply
Ensure that the area around the power outlet is kept clear at all times so you
can easily unplug the power cord when if necessary.
Never remove the plug by pulling on the cord.
Do not use an extension lead/cord.
Never use a power supply source other than the one rated for the printer in the country of where
you purchased the printer.
AC 100·240 V, 50/60 Hz
Working around the
printer
Never put your hands or fingers in the printer while it is printing.
When moving the printer, carry the printer at both ends.
Do not place any object on the printer.
Do not place any metal objects (paper clips, staples, etc.) or containers of flammable solvents
(alcohol, thinners, etc.) on top of the printer.
Should any foreign object (metal or liquid) fall into the printer, unplug the power cord and call for
service.
When installing or transporting this printer, do not incline it, lay it down on its side, or turn it
upside down. Ink can leak.
FINE Cartridges (Ink
Cartridges)
For safety reasons, store FINE Cartridges (Ink Cartridges) out of the reach of small children.
If a child should ingest any ink, consult a doctor immediately.
Do not shake FINE Cartridges (Ink Cartridges).
Ink may leak out and stain clothing or the surrounding area.
Never touch the electrical contacts or nOlzles on a FINE Cartridge (Ink
Cartridge) after printing.
The metal parts may be very hot and could cause burns.
33
Appendix
Regulatory Information
For 120V, 60Hz model
Model Number: K10256 (iP6320D)/K10257 (iP6310D)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•
Consult the dealer or an experienced radiollY technician for help.
Use of a shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or
modifications should be made, you could be required to stop operation of the equipment.
Canon U.S.A., Inc.
One Canon Plaza
Lake Success, NY 11042
1-516-328-5600
(For U.S.A. Only)
Canadian Radio Interference Regulations
This digital apparatus does not exceed the Class B limits for radio noise emissions from a digital apparatus as set out in the
interference-causing equipment standard entitled "Digital Apparatus", ICES·003 of the Industry Canada.
Cet appareil numerique respecte les limites de bruits radioelectriques appticables aux appareils numeriques de Classe B
prescrites dans la norme sur Ie materiel brouilleur NMB-003 d'lndustrie Canada intitulee « Appareils numeriques ».
34
Appendix
CANON U.S.A., INC. LIMITED WARRANTY ••• (USA Only)
The limited warranty set forth below is given by Canon U.S.A., Inc. ("Canon USA") with respect to the new or refurbished
Canon-brand product ("Product") packaged with this limited warranty, when purchased and used in the United States only.
The Product is warranted against defects in materials and workmanship under normal use and service (a) for a period of one
(1) year from the date of original purchase when delivered to you in new condition in its original container or (b) for 90 days
from the date of original purchase for refurbished Products. Defective parts or a defective Product returned to a Canon USA
repair facility or a Canon USA Authorized Service Facility ("ASF"), and proven to be defective upon inspection, will be repaired,
exchanged for new or comparable rebuilt parts, or exchanged for a refurbished Product, as determined by the Canon USA
repair facility or the ASF. Warranty repair or replacement shall not extend the original warranty period of the Product. A dated
proof of purchase is required at the time of warranty service. A copy of your dated bill of sale will satisfy this requirement. This
warranty does not cover any accessories, or any consumables, such as paper or ink cartridges, as to which there shall be no
warranty or replacement.
This limited warranty shall only apply if the Product is used in conjunction with compatible computers, peripheral equipment
and software. Canon USA shall have no responsibility for such items except for compatible Canon brand peripheral equipment
covered by a separate warranty ("Separate Warranty"). Repairs of such Canon brand peripheral equipment shall be governed
by the terms of the Separate Warranty. Non-Canon brand equipment and software that may be distributed with the Product are
sold "as is" and without warranty of any kind by Canon USA, including any implied warranty regarding merchantabjlity or
fitness for a particular purpose, and all such warranties are disclaimed. The sole warranty, if any, with respect to such nonCanon brand items is given by the manufacturer or producer thereof.
This limited warranty covers all defects encountered in normal use of the Product and does not apply in the following cases:
(a)
(b)
(c)
Loss of or damage to the Product due to abuse, neglect, mishandling, improper packaging by you, alteration, accident,
electrical current fluctuations, improper use, failure to follow operating or maintenance instructions in, or
environmental conditions prescribed in, Canon USA's user's manual or other documentation, or services performed by
someone other than a Canon USA repair facility or ASF. Without limiting the foregoing, dropping the Product, scratches,
and abrasions will be presumed to have resulted from misuse, abuse or failure to operate the Product as set forth in the
user's manual or other documentation for the Product.
Use of parts or supplies (other than those sold by Canon USA) that cause damage to the Product or cause abnormally
frequent service calls or service problems.
If the Product has had its serial number or dating defaced, altered or removed.
ANY SYSTEM SOFTWARE (WHETHER FACTORY LOADED ON THE PRODUCT OR CONTAINED ON THE SOFTWARE DISKETTES OR CDROMS ENCLOSED WITH, OR ACCOMPANYING, THE PRODUCD, AND ANY UTI LIlY SOFTWARE, DISTRIBUTED WITH OR FOR THE
PRODUCT, IS SOLD "AS IS" AND WITHOUTWARRANlY BY CANON USA. THE SOLE WARRANlYWITH RESPECT TO SUCH SOFTWARE
IS CONTAINED IN THE SOFTWARE MANUFACTURER'S LICENSE AGREEMENT DISTRIBUTED THEREWITH, INCLUDING ANY
LIMITATIONS AND DISCLAIMERS THEREON. PLEASE CONTACT CANON USA IMMEDIATELY IFYOU HAVE NOT RECEIVED A COPY OF
THE SOFTWARE MANUFACTURER'S LICENSE AGREEMENT.
NO IMPLIED WARRANlY, INCLUDING ANY IMPLIED WARRANlY OF MERCHANTABILllY OR FITNESS FOR A PARTICULAR PURPOSE,
APPLIES TO THE PRODUCT AFTER THE APPLICABLE PERIOD OF THE EXPRESS LIMITED WARRANlY STATED ABOVE, AND NO OTHER
EXPRESS WARRANlY OR GUARANlY, EXCEPT AS MENTIONED ABOVE, GIVEN BY ANY PERSON OR ENTllY WITH RESPECT TO THE
PRODUCT SHALL BIND CANON USA, OR ITS ASF. (SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANlY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.) CANON USA SHALL NOT BE LIABLE FOR LOSS OF
REVENUES OR PROFITS, INCONVENIENCE, EXPENSE FOR SUBSTITUTE EQUIPMENT OR SERVICE, STORAGE CHARGES, LOSS OR
CORRUPTION OF DATA, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR
INABILITY TO USE THE PRODUCT REGARDLESS OFTHE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF CANON USA
OR ITS ASF HAS BEEN ADVISED OF THE POSSIBILllY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST CANON
USA OR ITS ASF BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT CAUSING THE ALLEGED DAMAGE.
WITHOUT LIMITING THE FOREGOING, YOU ASSUME ALL RISK AND LIABILIlY FOR LOSS, DAMAGE OR INJURY TO YOU AND YOUR
PROPERlY AND TO OTHERS AND THEIR PROPERlY ARISING OUT OF THE POSSESSION, USE, MISUSE, OR INABILITY TO USE THE
PRODUCT SOLD BY CANON USA NOT CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON USA, OR ITS ASF. (SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.) THIS LIMITED WARRANlY SHALL NOT EXTEND TO ANYONE OTHER THAN THE
ORIGINAL PURCHASER OF THE PRODUCT OR THE PERSON FOR WHOM IT WAS PURCHASED AS A GIFT, AND STATES YOUR
EXCLUSIVE REMEDY.
Canon USA offers a range of customer technical support* options:
• Interactive troubleshooting, e-mail technical support, the latest driver downloads and answers to frequently asked
questions (www.canontechsupport.com )
• Toll-free live technical support Monday-Saturday (excluding holidays) at 1-800-828-4040
35
~endix
•
Telephone Device for the Deaf (TDD-1-866-251-3752)
•
Repair or Exchange Service Options:
In the event service is required for the Product during the limited warranty period, Canon USA offers two hardware support
options:
Authorized Service Facility Carry-In / Mail-In Service
(anon USA's Carry-In/Mail-In Service provides repair or exchang.e, at (anon USA's option, through Canon USA's Authorized
Service Facility (ASF) network. The name and telephone number of the ASF(s) near you may be obtained from (anon USA's
Web site at: www.canontechsupport.com or by calling the Canon USA Customer Care Center at 1-800-828-4040, or any time
while speaking to a technical support person. A Product covered by this limited warranty will be repaired or exchanged, as
determined by Canon USA, and returned without charge by the ASF.
InstantExchange Service **
A Canon Customer Care Center or ASF technician will attempt to diagnose the nature of the problem and, if possible, correct
it over the telephone. If the problem cannot be corrected over the telephone, and you elect the InstantExchange option, a
reference number will be issued to you. You will be asked for the Product serial number and other information pertaining to
your defective Product and for a ship-to location for the replacement Product (must include street address).
The Canon USA repair facility will ship out the replacement Product, via 2nd day Air freight service, prepaid by Canon USA.
After receipt of the replacement Product (with instructions and a prepaid waybill), follow the enclosed instructions on how to
ship the defective Product to the Canon USA repair facility. The defective Product must be returned in the shipping carton in
which the replacement Product was packed and include the reference number, A COPY OF YOUR DATED PROOF OF PURCHASE
(BILL OF SALE), and a complete explanation of the problem. DO NOT INCLUDE ANY OTHER ITEMS WITH THE DEFECTIVE PRODUCT
IN THE RETURN SHIPPING CARTON, AND BE SURE TO RETAIN YOUR PRINTHEAD AND INK CARTRIDGE(S) AND TANK(S).
InstantExchange Service expedites, usually by the second business day, the exchange of a defective Product with a
replacement Product, which will normally be shipped the same day if your request for this service is by 3 p.m. E.T. Monday
through Friday, except holidays (three (3) business day InstantExchange Service for Alaska and Hawaii). Canon USA does not
guarantee expedited shipping service in the event of the occurrence of factors beyond its reasonable control. The replacement
Product you receive may be a refurbished or reconditioned unit and will be covered for the balance of the period remaining on
your original limited warranty. NOTE THAT BY USING THIS SERVICE YOU WILL KEEP THE "REPLACEMENT PRODUCT THAT IS SENT
TO YOU. CANON USA WILL RETAIN THE DEFECTIVE PRODUCT THAT YOU ORIGINALLY PURCHASED, WHICH SHALL BECOME THE
PROPERTY OF CANON USA. InstantExchange warranty program service is available only during the express limited-warranty
period for your Product and only in the continental United States, Alaska and Hawaii during such period.
This limited warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.
*
**
Support program specifics are subject to change without notice.
InstantExchange warranty service is subject to the availability of refurbished or new replacement units.
Canon U.S.A., Inc.
One Canon Plaza
lake Success, NY 11042
USA
Canon is a registered trademark of Canon Inc.
©2006 Canon U.S.A., Inc. Canon is a registered trademark of Canon Inc. in the United States and may also be a registered
trademark in other countries.
Index
Index
A
Opening the Printer Properties Dialog Box from your
Application Program (Windows)
Alarm lamp
2
An Error Message Appears on the Screen ............•........ 27
p
B
Page Setup (Macintosh) ......•...........•..•.•................•..... 13
Page Setup dialog box (Macintosh) ....•..............•...•..... 13
Paper feed roller ..•....••.•.•..•.•...•.......•..•.................••..... 26
Paper Size ......•..............•.....•................•..•.•.••....•........ 13
Paper Support Load limit ................•.••.•.•.................... 10
Paper thickness lever .•.•......•...........•..•.••.•..•.•..•.....•..•..•. 5
Paper Thickness Lever Position ...............•..•................ 10
Photo Paper Plus Double Sided .......•..•.••.•............•...... 10
Photo Paper Plus Glossy
10
Photo Paper Plus Semi-Gloss
:
10
Photo Paper Pro
10
Photo Stickers
10
PhotoRecord
17
POWER button
2
POWER lam p
2
POWER Lamp and Alarm Lamp Flash Alternately
28
5
Preparing the Printer
Preview before printing
12
Print dialog box
II, 14
Print Head Cleaning
18
Print Head Deep Cleaning
18
Print Media to Avoid
4
14
Print Mode
Print Quality
12, 22
Printer Driver Settings for Media Type
10
Printer Properties dialog box
11, 16,23
Printing the Nozzle Check Pattern
18
Borderless Print ...............•...........••••.••.••••...••.•...•.••.•..•17
Borderless Printing ......................••.•......•....•...........••.•24
(
Cancel Printing ........•.•..•.••.................................•...•....•15
Cannot Connect to PC Properly •........•..........................21
Cannot Install the Printer Driver ..•..•.•.•...............•.........20
Canon IJ Status Monitor .•...•.••..•••......•..•.•...........•.........25
CANON U.S.A., INC. LIMITED WARRANTY --- (USA Only) ..35
D
Driver
settings ..•.•.............•..•.........•..•.•....••..............12, 14
uninstalling •.••................•..................•..•...•..........27
E
Easy-PhotoPrint
17
Easy-WebPrint ....•.....•..........•..••......•......•.......••.••.••..••.17
ExifPrint ...•.....................•....•...••..........•................••.•...17
G
genuine paper ........•.•..•.....•............•.•..•.•...............•....•10
Glossy Photo Paper •.•............•...•.•..•.........•.....•......•..•..10
H
R
Help button .••..............•.•.............•..•.•..•.•...............•.•.... 2
High Resolution Paper .........•.••.•.••...........•......•.•....•.....10
Replacing a FINE Cartridge
L
5
Load limit mark •.••.••..........•.•.....•.•............•.....•............. 6
Loading Envelopes .................•...•.•..•..............•.....•....... 7
Loading Other Small-Sized Paper •................•.•...•......... 8
Loading Plain Paper ........•.•.••...•.............•....••............... 6
Safety Precautions
Specifications
Stop/Reset button
Super White Paper
M
T
Matte Photo Paper
10
Media Name ..........•.............•........•..•................•..........10
Media Type ...............•..•...............••.•.•..•.•........ 10, 12, 14
Troubleshooting
T-Shirt Transfers
Turning off the Printer
Turning on the Printer
o
Opening the Printer Properties Dialog Box Directly from the
Start Menu (Windows) .......•...•................•......•...•.....16
16
18
32
29
13
10
19
10
3
2
u
Uninstalling the printer driver
27
37
Index
USB 2.0 Hi·Speed
Using Specialty Media
21
9
w
When Printing Becomes Faint or Colors are Incorrect ... 18
Ordering Information
For additional supplies, use the following descriptions and order numbers.
Description
Order #
FINE Cartridges
CL-41 Color
CL-51 Color
CL-52 Photo
0617B002
0618Bo02
0 61 9 B002
Canon Specialty Papers
11
Photo Paper Plus Glossy (4 11 x 6 /20 sheets)
Photo Paper Plus Glossy (4 11 x 6 11 /50 sheets)
Photo Paper Plus Glossy (4 11 x 6 11 /120 sheets)
Photo Paper Plus Glossy (5 11 x 7'1/ 20 sheets)
Photo Paper Plus Glossy (8.5 x 11 /20 sheets)
Photo Paper Plus Double Sided (5 x i /l0 sheets)
Photo Paper Plus Double Sided (8.5 11 x 11 11 /10 sheets)
Photo Paper Plus Double Sided Album Kit (5 11 x it)
Photo Paper Plus Double Sided Album Kit (8.5 11 x 11 11)
Photo Paper Plus Semi-Gloss (4 11 x 611/50 sheets)
Photo Paper Plus Semi-Gloss (8.5 11 x 11 /20 sheets)
Photo Paper Pro for Borderless Printing (4" x 6"/20 sheets)
Photo Paper Pro for Borderless Printing (4 x 6 11 /75 sheets)
Photo Paper Pro (8.5 x 11" /15 sheets)
Photo Paper Pro (8 11 x 10 11 /20 sheets)
Photo Paper Pro (8.5 x 11 11 /30 sheets)
Matte Photo Paper (4" x 6" /120 sheets)
Matte Photo Paper (8.5 11 x 1111/50 sheets)
Photo Paper Glossy (4 x 6"/50 sheets)
Photo Paper Glossy (4 x 6 /100 sheets)
Photo Paper Glossy (8.5 11 x 1111/50 sheets)
Photo Paper Glossy (8.5 x 11"/100 sheets)
Glossy Photo Paper Credit Card Size
Photo Stickers
High Resolution Paper (8.5" x 11 /100 sheets)
11
11
11
l
11
11
11
11
11
11
11
11
11
7980Ao07
798oAo12
7980Ao22
798oAo19
7980Ao06
9981Ao06
9981Ao05
0041Bo0 5
00418006
8386Aol0
83 8 6Ao0 7
1029Ao1 4
1029A02 7
1029Ao0 4
1029Ao S9
1029A028
7981Ao14
7981Ao04
07558021
07758022
0775 802 3
°775 B02 4
91 S7 A02 3
0001COOl
1043Aol1
Call1-800-0K-CANON to locate a dealer near you, or visit the Canon eStore at
www.estore.usa.canon.com.
•
18k'iijriiit.UI
©2006 Canon U.S.A., Inc. Canon is a registered trademark of Canon Inc. in the United States and may be a
registered trademark or trademarks in other countries. All other product and brand names are trademarks of
their respective owners. As an ENERGY STAR® partner, Canon U.S.A.• Inc. has determined that this product
meets the ENERGY STAR® guidelines for energy efficiency.
Quick Start Guide
Canon U.S.A., Inc.
One Canon Plaza, Lake Success, NY 11042, U.s.A.
Canon Inc.
30-2, Shimomaruko 3-Chome, Ohta-ku, Tokyo 146-8501, Japan
Canon Canada, Inc.
6390 Dixie Road, Mississauga, Ontario, LST 1P7, Canada
Canon Latin America, Inc.
703 Waterford Way, Suite 400, Miami, FL 33126, U.s.A.
Canon Mexicana
Boulevard Man uel Avila Camacho No. 138 PB
YPisos 15, 16 Y17, Colonia Lomas de Chapultepec
Delegaci6n Miguel Hidalgo, CP 11000, Mexico D.F.
The following FINE Cartridges are compatible with this printer.
CL·41
CL-S1
CL-52
For details on FINE Cartridge replacement, refer to "Replacing a FINE Cartridge" in the Direct Printing Guide.
xxxxxxxx
©CANON INC.2006
PRINTED IN THAILAND
Canon
.....
ExilPtint
Photo Printer
PI}{MA iP631 OD
Series
Direct Printing Guide
t(
PictBridge
Canon
PI}{MA iP6310D
Photo Printer
Direct Printing Guide
Contents
Contents
Operation Panel and Menu Display
3
Operation Panel Names and Functions ....•.•...•.•.•.•......••..•.•...•...•..•...•..•..3
LCD Monitor •.•.....•.••.•.......•....••.•.•..•.•.•...•.•...•..•...•........•....•.. 5
Memory Card Mode .............••.•..............•.•.•.•.•..........•.•...•.•..•.•.5
Configuration .•.••...•..•.......•.•.....•..••••....•.•.•....•...•.....•....•...... 6
Printing Flow
7
Using a Memory Card
9
Memory Cards Supported by This Printer ••••........•..•..•.....................•...•.•.9
Inserting a Memory Card •.••...........•.•••••••••••••••••••.•••.•••.•••••..•........ 10
Removing a Memory Card ...••...•.....•.•.•.•..••.•.•.•.•.......•...••.••...." •..... 11
Loading Paper
12
Printing a Photograph
15
Printing a Photo List - Print Index .•.•.•.••..••••.....•••.•.•....•.•.•.•.•.•.•...••.•.• 15
Specifying Photos to Print •.....•..........•••.•..•..••.•...•....•.•.••....•••..•.... 16
Specifying the Range of Photos in the Memory Card .........•......•.....•.........••.... 18
Printing on the Sticker - Sticker Print •.•..••.••••...•.•.•.•..•.•...•••.••..••...•.••... 19
Printing All Photos .•.••.•..•••.••.••••.••.•••...•..•..••....•..•....•....•....•.•.. 20
Printing According to the Settings Made on the Camera - DPOF Printing ...••.•.•.......•.. 20
Other Settings
23
Changing Other Settings •.•.•.•.•••••...•.•.•••...••...•••..••••...•.••...••.•.••.. 23
Printing Photographs Directly from a Digital Camera
24
Printing Photographs Directly from a PictBridge Compliant Device •.....••••.•.•.•.•...•.• 24
Printing Photographs from a Wireless Communication Device
29
Setting the Page Size, Media Type, and Layout When Printing From a Mobile Phone ...•.•.... 29
Performing Bluetooth Communication .••.•.•.•..•...•...•......•..........•.•.•..•.... 31
Using Data in the Memory Card on the Computer
33
Browsing Photos in the Memory Card on the Computer •..••.......•.•............•.....•.33
Saving Data in the Memory Card onto the Computer .•.••.........••..•.•.•.....•......•..33
Setting up the Card Slot as the Memory Card Drive of the Computer ..••...•......•......•.•34
Printing Maintenance
35
When Printing Becomes Faint or Colors are Incorrect .....••...•.....•.•..•••...•.•.•..•..35
Printing the Nozzle Check Pattern ...•..••..•.•........•.......•..•.•..........•.•.... 36
Examining the Nozzle Check Pattern ..........•......•..••..•.•.....•.........•..•.•.. 36
Print Head Cleaning•••••..•.•.•..•.•.......•........•.....•......•..........•.•.•..•37
Print Head Deep Cleaning ........•.......•..••.•••.•...•..........•..•••.....•••.••• 38
Aligning the Print Head - Auto head align •.....•........•............•..........••.••.• 38
1
Contents
Replacing a FINE Cartridge
39
Replacing a FINE Cartridge .••••••..•.•........•••.....••.•..•..••...•.•.••........... 39
What is Low Ink Warning? ...•..•.•.•.•••..•...•.•..•••....••......•.....•...•...•... 42
2
Troubleshooting
43
Index
52
Operation Panel and Menu Display
The names and functions of the controls on the operation panel, how to display the menus, and
the items in the menus are described below:
Operation Panel Names and Functions
(1)
(3)
(2)
I
II
@j
II
•
1! 11 ~ 11-,
(1)
(4) (5) (6) (7)
(8)
(9) (10)
(11) (12)
POWER Button
Press to turn the printer on or off.
POWER Lamp
Off: the printer is turned off.
Lighting: the printer is ready to print, is currently printing, or is currently initializing.
Flashing: the printer is preparing to turn on or off.
(2)
Alarm Lamp
Lighting: an error has occurred and the printer is not ready to print.
When the POWER lamp and the Alarm lamp flash alternately, an error has occurred that
may require a service call.
(3)
LCD Monitor
When you perform direct printing, the menus and the setting items are displayed here.
(4)
Save Button
Saves data in the memory card onto the computer's hard disk. See "Saving Data in the
Memory Card onto the Computer" on page 33.
(5)
Easy-PhotoPrint Startup Button
Starts Easy-PhotoPrint. See "Browsing Photos in the Memory Card on the Computer" on
page 33.
(6)
Menu Button
Displays menus. See "Memory Card Mode" on page 5.
(7)
Configuration Button
Allows you to set print settings and maintenance of the printer. See "Configuration" on
page 6.
3
(8)
....... Buttons
Use these buttons to select a menu item or the number of photo, to specify the number of
copies to print, and to make print settings.
(9)
OK Button
Allows you to make a selection. For example, selecting a photo to be printed, selecting a
menu item or other settings.
If an error occurs, press to resume printing after resolving the printer problem.
(10) Back Button
Allows you to return to the previous screen.
(11) Print Button
Press to start printing according to the settings displayed on the LCD.
(12) Stop/Reset Button
Press to cancel the settings you have made. If this button is pressed during printing, the
printer aborts printing.
(13) Card Slot Cover
Close this after inserting a memory card.
(14) Card Slot
Set the memory card containing photos here.
(15) Indicator Lamp
The indicator lamp lights when memory card
reading is enable and flashes while the printer is
accessing the memory card.
(16) Direct Print Port
Connects the printer to a PictBridge-compatible
digital camera or digital video camcorder. See
"Connecting to a PictBridge Compliant Device"
on page 24.
When using optional Bluetooth unit*, connect
this port.
*The Bluetooth unit is not available to some
regions due to the law of the countries or the
regulations. For details, contact the Customer
Care Center.
See "Printing Photographs from a Wireless
Communication Device" on page 29 or the
Bluetooth User's Guide.
4
LCD Monitor
(1) Shows Memory Card Mode.
(2) Shows the Media Type.
(3) Shows the Page Size.
[ INDEX]
PHOTO PRO
(4) Shows the number of photo in the memory card (only
for INDEX printing).
(5) The ...... buttons are activated when this mark is
displayed.
For the print settings of page size and media type etc. see the section of Memory Card Modes.
Memory Card Mode
When you press the Menu button, Memory Card Mode screens appear on the LCD. By using ......
button, you can select the following modes.
INDEX
See "Printing a Photo list - Print Index" on page 15.
PRINT ALL PHOTOS
See "Printing All Photos" on page 20.
SELECT PHOTO
See "Specifying Photos to Print" on page 16.
SELECT RANGE
See "Specifying the Range of Photos in the Memory Card" on page 18.
STICKR
See "Printing on the Sticker - Sticker Print" on page 19.
DPOF
See "Printing According to the Settings Made on the Camera - DPOF
Printing" on page 20.
5
Configuration
Each time you press Configuration button, following setting items are displayed on the LCD.
PRINT SETTINGS
QUIET MODE
See "Other Settings" on page 23.
WIRELESS SETTINGS
PAGE SIZE
MEDIA TYPE
LAYOUT
IMAGE OPTIMIZER
See "Printing Photographs from a Wireless
Communication Device" on page 29.
BLUETOOTH SET
DEVICE NAME
ACCESS REFUSAL
SECURITY
PASSKEY
See "Printing Photographs from a Wireless
Communication Device" on page 29.
PICTBRIDGE SET
PAGE SIZE
MEDIA TYPE
PRINTQLTY
BORDERLESS PRINT
IMAGE ENHANCEMENT
See "Printing Photographs Directly from a
Digital Camera" on page 24.
OTHERS
DATE/TIME SETUP
See "Other Settings" on page 23.
READ-ONLY MODE
MAINTENANCE
NOZZLE CHECK
See "Printing the Nozzle Check Pattern" on
page 36.
CLEANING
See "Print Head Cleaning" on page 37.
DEEP CLEANING
See "Print Head Deep Cleaning" on page 38.
AUTO HEAD ALIGN
See "Aligning the Print Head· Auto head
align" on page 38.
ALIGN PRINT HEAD
See "Adjusting the Print Head Manually" on
page 44.
HEAD ALIGN PRINT
See "Aligning the Print Head - Auto head
align" on page 38.
ROLLER CLEANING
See "Back of Paper is Smudged/Paper Does
Not Feed Properly/Printed Surface is
Scratched" on page 46.
BOTTOM CLEANING
See "Back of Paper is Smudged/Paper Does
Not Feed Properly/Printed Surface is
Scratched" on page 46.
RESTORE DEFAULT
See "Other Settings" on page 23.
SAVE CONFGURATION
See "Setting up the Card Slot as the Memory See page 17.
Card Drive of the Computer" on page 34.
LOAD CONFGURATION
LANGUAGE SETTING
See "Other Settings" on page 23.
6
See page 17.
Printing Flow
This is the procedure for printing photos from the memory card inserted in the card slot of the
printer.
Print a Photo List ofAll Photos in the Memory Cord
Step 1 Turn on the Printer.
Step 2 Load the paper.
See "Loading Paper" on
page 12.
Step 3 Insert the memory cord.
Step 4 Print a Photo List in the Memory Cord.
See "Printing a Photo List - Print Index" on page 15.
7
Print the Photos by Other Printing Menus
Select the photos you want to print in the printed photo list.
Step 5 Select Memory Card Mode.
PRINT ALL PHOTOS
Prints all photos in the memory card. See "Printing All Photos" on page
20.
SELECT PHOTO
You can specify photos you want to print saved in the memory card.
See "Specifying Photos to Print" on page 16.
SELECT RANGE
You can specify the range of photos you want to print using the file number or
shooting date.
See "Specifying the Range of Photos in the Memory Card" on page 18.
STICKR
You can print your favorite photo on the Canon Photo Stickers.
See "Printing on the Sticker - Sticker Print" on page 19.
DPOF
Prints photos according to the DPOF settings set on the digital camera.
See "Printing According to the Settings Made on the Camera - DPOF Printing" on
page 20.
Step 6 Start printing.
Press the Print button to start printing.
8
Using a Memory Card
Let's take a look at different types of memory cards and how to insert and remove them.
Memory Cards Supported by This Printer
Supported memory cards are as follows:
Memory Cards which can be inserted
directly
Memory Cards which can be used
through a special adapter
•
•
xD-Picture Card*l
•
CompactFlash (CF)
Card
Microdrive
*Supports TYPE I/TYPE II
(3.3V).
•
•
Memory Stick
Memory Stick PRO
•
•
Memory Stick DUO*2
Memory Stick PRO DUO*2
•
Secure Digital (SD)
Card
MultiMedia Card
(ver.3.31)
•
miniSD Card*2
SmartMedia Card
*1 Purchase the CompactFlash Card
Adapter for xD-Picture Card
separately.
•
•
*Supports 3.3V card
only (1MB and 2MB
cards not supported)
...,.
*2 Use the special adapter supplied
with the card.
~Important
•
•
•
•
•
This printer accepts images taken with a camera compatible with the
Design rule for Camera File system (Exif2.21 compliant), TIFF (Exif2.21
compliant), and DPOF (Ver. 1.00 compliant).
Photos stored in a memory card not supported by the digital camera
may fail in loading or be damaged. For types of memory cards supported
by the digital camera, refer to your digital camera user's manual.
Use the digital camera to format a memory card. Memory card data
formats may not be compatible with computer-specific formats.
Images edited on the computer may result in improper printing.
Please use only one type of memory card at a time.
9
Inserting a Memory Card
1 Open the card slot cover.
f
~~C
~~\~~~~~~~
\~
'~~-'~
f~~;?=~r-·_·~-.\ .._-..
2
.. ~~
Insert the memory card in the card slot.
•
If you use a CompactFlash (CF) card or
Microdrive
In.ser~ it into th~ slo.t on the lower until it stops
With Its end projecting as shown.
~~
~
.4
: -~
",,~
The indicator lamp lights.
*For xD-Picture Card, use the compliant adapter.
•
If you use a SmartMedia card
Insert it into the slot on the upper until it stops
with its end projecting as shown.
The indicator lamp lights.
•
If you use a Memory Stick/Memory Stick PROI
SD card/Multimedia card (ver.3.31)
Insert it into the slot on the upper until it stops
with its end projecting as shown.
The indicator lamp lights.
*For Memory Stick Duo/Memory Stick PRO Duo/
miniSD Card, use the special adapter.
\1'lrnportant
10
Do not try to insert the memory card into the card slot any further
than the position it stops; otherwise the printer or the memory card
will be damaged.
3
Ensure that the indicator lamp lights after flashing for a moment and then
close the card slot cover.
W Notes
•
When OFF is selected in the READ-ONLY MODE screen, you cannot print
photos in the memory card. After using the card slot as the memory
card drive of the computer, remove the memory card, then be sure to
select ON in the READ-ONLY MODE screen again. See "Setting up the
Card Slot as the Memory Card Drive of the Computer" on page 34.
• If you have used a computer to edit or process the data stored in the
memory card, be sure to print photos from the computer. Using the
operation panel to print photos may result in improper printing.
Removing a Memory Card
WNote
If you use the printer connected to your computer, follow the instructions
for removal of the memory card from the computer. For the procedure, see
"Setting up the Card Slot as the Memory Card Drive of the Computer" on
page 34.
1
Open the card slot cover.
2
Ensure that the indicator lamp is not flashing, then remove the memory card.
~Important
3
Removing the memory card or turning off the printer while the
indicator lamp is flashing can damage the data stored in the memory
card.
Close the card slot cover.
11
Loading Paper
This section describes how to load the paper and select the page sizes and media types from the
operation panel.
• Print Media to Avoid
Do not use the following types of paper. Using such paper will not only produce
unsatisfactory results, but can also cause the printer to jam or malfunction.
-Folded, curled or wrinkled paper
-Damp paper
-Excessively thin paper (less than 64 gsm or 17 lb)
eExcessively thick paper* (more than 105 gsm or 28 lb)
*non-Canon genuine paper
ePicture postcards
ePostcards with an affixed photos or stickers
-Envelopes
-Any type of paper with holes
• Loading the Print Media in the Auto Sheet Feeder
11
In this example, description is provided using Photo Paper Plus Glossy 4" x 6 /101.6 x
152.4 mm in your printer.
See "Media Types for Card Direct Printing" on page 14 for compatible paper.
1
Flatten the four corners of the paper before loading it.
WNote
12
If the paper is curled, gently bend the corners in the opposite
direction until the paper becomes completely flat. See "Back of
Paper is Smudged/Paper Does Not Feed Properly/Printed Surface is
Scratched" on page 46.
2
Prepare to load paper.
t"~---- (1) Open the paper support and
the extension.
~~---:::~--(3) Set the paper thickness lever
to the left position.
(2) Pull out the paper output tray and the extension completely.
3
Load the paper.
Load limit mark
Do not load the stack of paper beyond this load limit mark.
• II ~
(1) Insert the paper in the auto sheet feeder
_~;.. ss .. ~
with print side facing UP. Load the pc;tper
~
lengthways regardless of the direction of
t.\
the photo.
.
C;::o • •
(2) Align the paper stack snug against the
right side of the auto sheet feeder.
(3) Pinch the paper guide and slide it against the left side of the stack of paper.
~Important
Always load paper in portrait orientation. Loading paper in landscape
orientation can cause paper to be jammed.
Portrait
WNote
Landscape
Do not touch the printed surface until the ink dries. For specific drying
times, refer to the instructions packaged with your media.
13
• Media Types for Card Direct Printing
You can use the following Canon genuine paper:
Media Type
Paper Support Load Limit
PAGE SIZE
Plain Paper
A4/Letter: up to 100 sheets
[A4]/[8.5"x11
11
Photo Paper Pro*1
A4/Letter: up to 10 sheets
[A4]/[8.5"x11
11
101.6 x 152.4 mm/4" x 6":
up to 20 sheets
[4 x6"]
A4/Letter: up to 10 sheets
[A4]/[8.5"x11"]
101.6 x 152.4 mm/
4" x 6 up to 20 sheets
[4 x6"]
127 x 177.8 mm/
5" x 7": up to 10 sheets
[5 x7"]
Photo Paper Plus
Semi-Gloss*1
A4/Letter: up to 10 sheets
[A4]/[8.5"xll
101.6 x 152.4 mm/4" x 6":
up to 20 sheets
[4 x6"]
Matte Photo Paper
A4/Letter: up to 10 sheets
[A4]/[8.5 x11"]
101.6 x 152.4 mm/4" x 6":
up to 20 sheets
[4 x6"]
A4/Letter: up to 10 sheets
[A4]/[8.5"x11"]
101.6 x 152.4 mm/4" x 6":
up to 20 sheets
[4"x6"]
Credit Card: up to 20
sheets
[CREDIT CARD
SIZE]
Photo Paper Plus
Glossy*1
MEDIA TYPE
]
]
I
Il
[PLAI N PAPER]
[PHOTO PAPER
PRO]
[PHOTO PAPER
PLUS]
11
:
Glossy Photo Paper
Photo Stickers*2
WNotes
1 sheet
I
l1
]
I
I1
I
-
[PHOTO PAPER
PLUS]
[MAnE PHOTO
PAPR]
[GLOSSY]
-
• When using plain paper (64 gsm or 17 lb) up to 100 sheets can be set.
*1: When loading a stack of paper, the printed side may be marked when it is
fed in. If this happens, load paper one sheet at a time.
*2: When printing on sticker paper, select STICKR from Memory Card Mode.
When printing photos in a mobile phone on sticker paper, select STlCKR
x16 in the WIRELESS SEITINGS screen. See "Printing Photographs from
a Wireless Communication Device" on page 29.
14
Printing a Photograph
Let's print a photo list of all photos in the memory card at first.
Printing a Photo List - Print Index
1 Prepare to print.
(1) Turn on the printer.
(2) Load the paper.
See "Loading Paper" on page 12.
(3) Insert the memory card in the card slot.
See "Inserting a Memory Card" on page 10.
2
Select the INDEX from the Memory Card Mode.
(1) Press the Menu button.
1.MEMORY CARD MODE
~
INDEX)t-----;-~.;-----(2) Use the ~~ buttons to select INDEX
0
and then press the OK button.
3
Check the print setting items
Use the ~~ buttons to select the page size and then press the OK
button.
You can select the following page size:
PAGE SIZE:
8.5I1xl111/A4/4I1x611/Sllx711/CREDIT CARD SIZE
MEDIA lYPE:
Use the ~~ buttons to select the media type and then press the OK
button.
You can select the following media type:
PLAIN PAPER/PHOTO PAPER PRO/PHOTO PAPER PLUS/MAITE PHOTO
PAPR/GLOSSY
PRINT QLlY:
Use the
button.
~~
buttons to select the print quality and then press the OK
STANDARD: Print the standard print quality.
HIGH: Print the priority for print quality.
PRINT DATE:
WNoie
Use the .... ~ buttons to select whether or not to print the shooting
date and then press the OK button.
Press the Back button to return to the previous screen.
15
4
Start Printing.
Press the Print button.
Specifying Photos to Print
You can specify photos to print in the memory card.
1
Print a photo list.
See "Printing a Photo list - Print Index" on page 15.
2
Select the SELECT PHOTO from the Memory Card Mode.
(1) Press the Menu button.
(2) Use the ~~ buttons to select SELECT PHOTO and then press the OK button.
3
Specify the photos to print.
(1) Select the photo (the file number) from the printed photo list.
(2) Use the ~~ buttons to select a file number and then press the OK button.
(3) Use the ~~ buttons to select YES or NO, and then press the OK button.
r----.J==============:::::;----yES: Select when you want to specify other
SELECT I NEXT PHOTO?
< YES >
4
N O - - - - + - - - - NO:
photos.
Select when you finished specifying all
the photos you want to print.
Confirm the file numbers to print.
Confirm the file numbers on the display correspond with the numbers you selected
on Step 3and then press the OK button.
You can use the .... ~ buttons to confirm the numbers when ~~ is displayed on the
screen.
S
Specify the number of copies to print.
Using the ~~ buttons, specify the number of copies and then press the OK button.
16
6
Check the print setting items.
For the details of the print setting items, see "Print Setting Items" on page 22.
PAGE SIZE:
Use the <4lIII. buttons to select the page size and then press
the OK button.
MEDIA TYPE:
Use the <4lIII. buttons to select the media type and then press
the OK button.
PRINTQLTY:
Use the ~ ... buttons to select STANDARD or HIGH and then
press the OK button.
BORDERLESS
PRINT**:
Use the <4lIII. buttons to select whether or not to print
borderless prints and then press the OK button.
PRINT DATE*:
Use the <4lIII. buttons to select whether or not to print the
shooting date and then press the OK button.
FILE NO. PRINT*:
Use the ~. buttons to select whether or not to print the DCF
number (file number) and then press the OK button.
ENHANCEMENT**:
Use the <4lIII. buttons to select SET or SKIP and then press the
OK button.
Selecting SET allows you to optimize photos with various
functions. For details, see "Print Setting Items" on page 22.
*
**
This item is not available for DPOF printing.
This item is not available for INDEX printing.
WNote
7
Press the Back button to return to the previous screen.
Start printing.
Press the Print button.
W Notes
• You can save the current settings. Once you save the settings, the
saved settings are loaded when the printer is turned on.
1. Press the Configuration button repeatedly to select SAVE
CONFGURATION.
2. Press the. button to select YES and then press the OK button.
3.
Press the Stop/Reset button.
• You can load the saved print settings.
1. Press the Configuration button repeatedly to select LOAD
CONFGURATION.
2.
Press the. button to select YES and then press the OK button.
3.
Press the Stop/Reset button.
17
Specifying the Range of Photos in the Memory Card
You can specify the range of photos you want to print by the file number or shooting date.
1
Print a photo list.
See "Printing a Photo List - Print Index" on page 15.
2
Select the SELECT RANGE from the Memory Card Mode.
(1) Press the Menu button.
(2) Use the ~~ buttons to select SELECT RANGE and then press the OK button.
3
Select the specification method.
Use the ... ~ buttons to select PHOTO NO. or DATE and then press the OK button.
PHOTO NO.: You can specify the range of photos by photo number of the printed
photo list.
DATE: You can specify the range of photos by date of the printed photo list.
4
Specify the range of photos you want to print looking at the printed photo
list.
If you selected PHOTO NO.:
(1) Use the ... ~ buttons to specify the first file number and then press the OK
button.
(2) Use the ... ~ buttons to specify the last file number and then press the OK
button.
If you selected DATE:
(1) Use the ~~ buttons to specify the earliest shooting date and then press the OK
button.
(2) Use the ... ~ buttons to specify the latest shooting date and then press the OK
button.
5
Check the print setting items.
See "Specifying Photos to Print" on page 16.
6
Start printing.
Press the Print button.
18
Printing on the Sticker - Sticker Print
You can print your favorite photo on the Canon Photo Stickers.
1
Print a photo list.
See "Printing a Photo List - Print Index" on page 15.
2
Select the STICKR from the Memory Card Mode.
(1) Press the Menu button.
(2) Use the ~~ buttons to select STICKR and then press the OK button.
3
Select a photo to print on the sticker looking at the printed photo list.
(1) Select a photo (a file number) to print from the printed photo list.
(2) Use the ~~ buttons to select a file number and then press the OK button.
WNote
4
You can select one file as the photo to print on the sticker.
Specify the number of copies to print.
Using the ~~ buttons to specify the number of copies and then press the OK button.
5
Specify the layout.
Using the ~~ buttons to select STICKR x16 and then press the OK button.
6
Start printing.
Press the Print button.
19
Printing All Photos
You can print all photos in a memory card.
1
Prepare to print.
See "Printing a Photo List - Print Index" on page 15.
2
Select the PRINT ALL PHOTOS from the Memory Card Mode.
(1) Press the Menu button.
(2) Use the ~~ buttons to select PRINT ALL PHOTOS and then press the OK button.
3
Check the print setting items.
4
Start printing.
See "Specifying Photos to Print" on page 16.
Press the Print button.
Printing According to the Settings Made on the Camera
- DPOF Printing
If DPOF (Digital Print Order Format) settings made on the camera, photos are printed
automatically according to those settings.
W Notes
20
This printer allows you to make the following DPOF settings:
- Image format
: CIFF, Exif (Tift), JFIF
- Print type - Standard: The photos for which you specified "Standard" using
the DPOF function are printed.
- Print type - Index
: The photos for which you specified "Index" using the
DPOF function are printed according to the printer's
index print layout.
- Photos to Print
: Only the photos specified using the DPOF function
are printed (photos cannot be specified on the
operation panel).
- Copies
: The photos are printed according to the numbers of
copies specified usingthe DPOFfunction (numbers of
copies cannot be specified on the operation panel).
- Other functions (addition of comments, trimming/rotation, etc.) are not
supported.
• Photos are automatically scaled according to the paper size. The upper,
lower, left, and/or right portion(s) of the photo may be missing depending
on the size of the paper you use.
• The shooting date format is as specified in the DPOF setting from DPOF
printing.
•
1
Prepare to print.
See "Printing a Photo List - Print Index" on page 15.
2
Select the DPOF from the Memory Card Mode.
(1) Press the Menu button.
(2) Use the .... ~ buttons to select DPOF and then press the OK button.
3
Check the print setting items.
See "Specifying Photos to Print" on page 16.
4
Start printing.
Press the Print button.
21
• Print Setting Items
PAGE SIZE
Select the page size.
8.5 xll", A4, 4 x6", 5 x7", CREDIT CARD SIZE
I
I
I
MEDIA TYPE
Select the media type.
PLAIN PAPER, PHOTO PAPER PRO, PHOTO PAPER PLUS, MAnE PHOTO PAPR, GLOSSY
PRINTQLTY
Select the printing quality.
STANDARD, HIGH
BORDERLESS PRINT
Select bordered or borderless print.
PRINT DATE
Select whether to print the shooting date or not.
FILE NO. PRINT
Select whether to print the DCF (the file number) or not.
IMAGE ENHANCEMENT
Select SET or SKIP.
Selecting SET allows you to optimize photos with the functions below.
RED EYECORR
Correct the red eyes caused by the reflection when the flash hits a person's eyes.
VIVID
This function makes green and blue more lively.
POP
This function automatically optimizes brightness and tone of a photo.
REMOVE NOISE
This function reduces the noise on blue areas like the sky as well as on black areas.
FACE BRIGHT
This function brightens a darkened face on the photo taken against the light.
OPTIMIZER
Corrects the contours and smooths out the jaggedness.
BRIGHTNESS
Adjust brightness.
-2, -1, 0, +1, +2
CONTRAST
Adjust contrast.
-2, -1, 0, +1, +2
COLOR
Adjust color hue.
R+2,R+1,0,Y+1,Y+2
(R: Color hue Red/Y: Color hue Yellow)
22
Other Settings
Changing Other Settings
• Quiet mode
You can reduce the sound that the printer generates during operation.
(1) Press the Configuration button to select QUIET MODE and then press the OK
button.
(2) Use the ~ .. buttons to select ON and then press the OK button.
(3) Press the Stop/Reset button.
~Important
• Print speed may be somewhat slower than in the normal operating mode.
•
•
Sound reduction is not as effective when certain printing options are
selected. Sound generated during printer warm up is the same as during
normal operation .
Changing the item in this menu is effective only when you are printing
from a memory card or from a digital camera connected to this printer. If
you are printing with your computer connected, specify the required
settings in the printer driver.
• Date Display Format
You can change the format for printing the date.
(1) Press the Configuration button repeatedly to select OTHERS.
(2) Use the ~ .. buttons to select DATE/TIME SETUP and then press the OK button.
(3) Use the ~ .. buttons to select date display format and then press the OK button.
(4) Press the Stop/Reset button.
W Note
The shooting date format is as specified in the DPOF setting from DPOF printing.
• Language
You can change the language displayed on the LCD.
(1) Press the Configuration button repeatedly to select OTHERS.
(2) Use the ~ buttons to select LANGUAGE SETTING and then press the OK button.
(3) Use the ~ buttons to select a language and then press the OK button.
(4) Press the Stop/Reset button.
• Reset
You can reset all settings, other than the language setting and the print head position, to the
initial state.
(1) Press the Configuration button repeatedly to select RESTORE DEFAULT.
(2) Use the ~ .... buttons to select YES and then press the OK button.
23
Printing Photographs Directly from
a Digital Camera
Printing Photographs Directly from a PictBridge
Compliant Device
Connecting a PictBridge compliant device such as digital camera, camcorder or mobile phone to
the printer allows you to print recorded images directly without using a computer.
WNote
PictBridge is an Industry standard enabling a range of digital photo
solutions, including the direct printing of photos from a digital still
camera, camcorder or mobile phone* without the need to use a computer.
*Hereafter, the PictBridge compliant digital camera, digital camcorder, or
camera-equipped mobile phone are collectively called a PictBridge
compliant device.
• Connecting to a PictBridge Compliant Device
To connect a PictBridge compliant device to this printer, use the USB cable supplied with the
device.
A Caution
Do not connect any equipment other than PictBridge compliant devices, or
the Bluetooth unit (option) to the direct print port of the printer. If you do
so, electric shock, fire, or damage to the device could result.
WNote
When producing photos with the digital device connected to the printer, it
is advisable to use the AC adapter supplied with the device. If you use the
device battery, be sure to charge it fully.
1
Turn on the printer.
2
load the paper in the auto sheet feeder.
See "Loading Paper" on page 12.
3
24
Connect the PictBridge compliant device to the printer.
WNote
Depending on the model or brand of your PictBridge compliant
device, you may have to select a print mode before connecting the
device.
You may also have to turn on the device or select Play mode
manually after connecting the device to the printer.
Perform necessary operations according to the instruction manual
supplied with your device.
(1) Ensure that the device is turned off.
(2) Connect the camera to the printer using the USB cable (for connection to a computer)
supplied with the device.
WNote
Some types of the PictBridge compliant devices turn on
automatically when connected to the printer. If the device does not
turn on automatically, turn it on manually.
(3) Turn on and set up the device for direct printing.
When the connection between the device and printer has been established, the
POWER lamp on the printer flashes twice.
* The power-on sequence may differ depending on the model or brand of the
device.
f( will appear on the LCD display of the device when the printer is correctly connected.
25
• Confirming or Changing the Device Settings
To change the paper size or paper type, operate the device to select the PictBridge print
setup mode and confirm or change the settings.
You can change the following settings on the PictBridge setting screen displayed by
pressing Configuration button. However, changes can be made on the PictBridge
setting screen only when the corresponding items below are in the Default (selections
based on the printer setting) using the controls of the device.
PictBridge compliant device
setting items
PictBridge setting items (PICTBRIDGE SEn on
the printer
Paper size: Default
PAGE SIZE
Paper type: Default
MEDIA TYPE
Print quality: Default
PRINTQLTY
Layout: Default
BORDERLESS PRINT
Image Optimize: Default
IMAGE ENHANCEMENT
You can select the page size, media type, borderless printing, and optimize on the
printer when printing from a PictBridge compliant device.
(1) Turn on the printer.
(2) Press the Configuration button repeatedly to select the PICTBRIDGE SET and
then press the OK button.
(3) Confirm or change the settings.
Use the ~ ... buttons to select the item to set and then press the OK button.
About the Settings Explained Below
The settings explained on the following pages cannot be made on some devices. If any
setting cannot be made, the default setting explained above is used.
Names of settings that are displayed on Canon PictBridge compliant devices are used
in the description given below.
Different names may be displayed on your device depending on the brand or model.
For details, refer to your device's instruction manual.
• About Image Data Format for Printing
This printer accepts images* taken with a camera compatible with the Design rule for
Camera File system and PNG files.
*Exif2.21 compliant
• About "Paper size" and "Paper type"
When you have selected the Default (selections based on the printer setting), the
printer operates based on the PictBridge setting screen.
26
The following sizes and types of paper can be loaded in the printer by selecting options
from Paper Size and Paper Type.
"Paper size" setting
"Paper type" setting
Paper loaded in printer
10 x 15 cm/4" x 6"
Photo Paper Plus Glossy
Fast Photo
Photo Paper Pro
Photo Paper Plus Semi-Gloss
Glossy Photo Paper
Photo Stickers*l
Photo Paper Plus Glossy
Photo Paper Plus Glossy
Fast Photo
Photo Paper Pro
Photo Paper Plus Semi-Gloss
Glossy Photo Paper
13 x 18 em/51! x 7"*2
11
A4/8.5 x 1t" (Letter)*3*4
5.4 x 8.6 em/Credit Card
Glossy Photo Paper
Credit Card
*1 This paper is exclusively used to print photo stickers. When printing on sticker
11
11
paper, select 10 x 15 em/4 x 6 in Paper size.
*2 This size can be selected only for Canon PictBridge compliant devices (note that it
cannot be selected for some models).
*3 Plain Paper can be selected for Paper type when A4 or 8.5" x 11" (Letter) is selected
for Paper size. When Plain Paper is selected for Paper type, bordered printing will be
performed even when Borderless is selected for Layout.
*4 When A4 or 8.5" x 11 (Letter) is selected for Paper size, you can print in 4-up layout.
11
• About "layout" and "Trimming"
For Layout, when you have selected Default (selections based on the printer setting),
the printer operates based on the PictBridge setting screen.
Note
When printing onto Photo Stickers (PS-tOt) (16-up), use the following settings.
1. Load Photo Stickers (PS-l0l) in the auto sheet feeder.
2. Select 10 x 15 em/4 11 x 6 11 for the Paper size, and Photo for the Paper
type.
3. Select N-up for Layout, then select 16.
Some PictBridge compliant devices display the layout option; 2-up,
4-up, 9-up, and 16-up. In this case always select 16-up.
If there are no options on the PictBridge compliant device that
correspond to 2-up, 4-up, 9-up, or 16-up, printing on stickers is not
possible.
By default, Off (No trimming) is selected for Trimming.
W
27
• About "Image optimize"
When you have selected Default (selections based on the printer setting), the printer
operates based on the PictBridge setting screen.
If you use a Canon PictBridge-compliant device, you can select VIVID, NR, VIVID+NR, or
Face. (Note that these options cannot be selected for some models.)
WNotes • When VIVID is selected, green and blue portions of photos are printed
vividly.
When NR (Noise Reduction) is selected, noise in blue portions, such as
the sky, and dark portions is removed.
• When VIVID+NR is selected, functions of both VIVID and NR are
performed.
• When Face is selected, backlit images are corrected when printed .
•
• About "Date/File No. print"
By default, Off is selected for this printer.
If you select an image which has had the shooting date embedded in it using a camera
with print mode, select Off for this function. If you select Date, File No., or Both, the
date and/or file number will be printed over the embedded date.
• Other Settings
If you use a Canon PictBridge-compliant device, you can use the following print
settings. (Note that these print settings cannot be used for some models.) For details,
refer to your device's instruction manual.
• Shooting Info (Exif Data)
You can print shooting Info (Exif Data) on photos in list format, or in the margins of
specified photos.
Select Layout, then select the item displayed with the [i] icon.
• 35mm Film Style Layout (Contact Printing Layout)
You can print selected photos or index-specified photos in 35 mm film style layout
(contact printing layout).
Select Layout, then select the item displayed with the film icon.
WNotes
28
•
Never disconnect the USB cable during printing.
When disconnecting the USB cable between the product and printer,
follow the device instructions given in the Instruction manual.
• Controls of the digital camera cannot be used for the following:
- Print quality setting
- Printer maintenance
• For the device operation method and troubleshooting, refer to your
device's manual.
• For print error messages, see "Cannot Print Properly from the Digital
Camera" on page 49.
Printing Photographs from a
Wireless Communication Device
This section explains the printer's settings when printing photos through Bluetooth
communication. If the optional Bluetooth unit BU-20 is connected to the printer, you can also
print photos through Bluetooth communication. For details, refer to the Bluetooth User's Guide.
WNote
•
The mobile phone supporting the opp (Object Push Profile) or BIP (Basic
Imaging Profile) can print photos. For details of profiles, refer to your
product's instruction manual.
_
When printing photos through Bluetooth communication:
• See "Setting the Page Size, Media Type, and Layout When Printing From a Mobile
Phone" below.
• See "Performing Bluetooth Communication" on page 31.
Setting the Page Size, Media Type, and Layout When
Printing From a Mobile Phone
You can select the page size, media type, layout and borderless printing on the wireless print
setting screen when printing from a mobile phone through Bluetooth communication.
* The initial setting is borderless printing on 4 1 x6" Photo Paper Plus Glossy.
1
Turn on the printer.
2
Connect the Bluetooth unit BU-20 to the direct print port.
W Note
WIRELESS SETTINGS cannot be selected until the Bluetooth unit is
connected.
29
3
Press the Configuration button repeatedly to select the WIRELESS SElTlNGS
and then press the OK button.
4
Confirm or change the settings.
(1) Use the -4 .. buttons to select the item to set and then press the OK button.
The photos in the mobile phone can be printed according to the following
settings.
• Setting Items
PAGE SIZE:
Select the page size for the wireless print.
MEDIA TYPE:
Select the media type for the wireless print.
WHote
For information on wireless compatible page size and media type,see
"Media Types for Card Direct Printing" on page 14.
LAYOUT:
Select the layout of photos as below.
Sticker print: STICKR x16
Printing on paper other than sticker: Borderless print ON/OFF
IMAGE OPTIMIZER: Correct the contours and smooths out the jaggedness.
W Note
30
When printing on Canon Photo Stickers, make the settings as below.
PAGE SIZE
MEDIA TYPE
LAYOUT
STICKER
PHOTO PAPER PLUS
STICKR x16
Performing Bluetooth Communication
• Printing through Bluetooth communication
When you print through Bluetooth communication from a mobile phone, refer to your mobile
phone manual.
1
Prepare to print.
(1) Confirm the printer is ON.
(2) Load the paper in the auto sheet feeder
See "Loading Paper" on page 12.
2
Connect the Bluetooth unit BU-20 to the direct print port.
3
Set the print setting.
See "Setting the Page Size, Media Type, and Layout When Printing From a Mobile
Phone" on page 29.
4
Start printing from a mobile phone.
• When you select the device name, select the initial value of this printer "Canon
iP6310D-1".
• If you are required to enter the passkey, enter the initial value "0000".
You can change the device name of the printer or passkey in Bluetooth settings on the
printer. See "Changing the Bluetooth Settings-Bluetooth settings" on page 32.
WNotes • Communication is possible up to about ten meters depending on the
conditions below. The printing speed may change depending on the
following conditions:
- Presence of obstacles between the communication equipment and
radio wave conditions.
- Presence of magnetic fields, static electricity or electromagnetic
interference.
- Receiver sensitivity and antenna performance of the
communication equipment.
31
About transmittable data
•
It does not support printing a downloaded content or photo and a
photo attached to an E-mail for security reason.
• It does not support printing video files.
• Depending on your device, it may not print data stored in a memory card.
• Depending on the size of a photo, it may take a while for this printer
to start to print after starting the infrared transfer.
• It automatically sets the photo quality and orientation (horizontal or
vertical) according to the photo size.
• It automatically sets to the margin according to the photo size.
• Changing the Bluetooth Settings-Bluetooth settings
You can change the Bluetooth settings such as the device name of a printer and passkey.
1
Turn on the printer.
2
Connect the Bluetooth unit BU-20 to direct print port.
W Note
BlUETOOTH SET cannot be selected until the Bluetooth unit is
connected.
3
Press the Configuration button repeatedly to select the BLUETOOTH SET and
then press the OK button.
4
Change the setting.
Use the ~ ... buttons to select the setting item you want to change and then press the
OK button .
• Setting Items
• DEVICE NAME:
• ACCESS REFUSAL:
• SECURI1Y:
• PASSKEY:
32
Select the device name of this printer displayed on the screen of
the Bluetooth devices.
When you set iP6310D-2, the printer name on the Bluetooth
device is "Canon iP631 00- 2".
The initial value is set to iP6310D-1.
Selecting ON will disable search for this printer from Bluetooth
devices.
Selecting ON will enable a passkey.
Setting a passkey will prevent incorrect access from other
Bluetooth devices.
You can change the passkey. The passkey refers to an
identification number to be determined. It is used to prevent
incorrect access from other Bluetooth devices.
The initial value is set to "0000".
After you change the passkey, you are require to enter the new
passkey again. Enter the new passkey to the Bluetooth device.
Using Data in the Memory Card on
the Computer
Browsing Photos in the Memory Card on the Computer
By pressing the Easy~PhotoPrint Startup button, you can display photos in the memory card on
the computer display with Easy-PhotoPrint, if the printer is connected to the computer. You can
print the photos from Easy-PhotoPrint.
~Important
To use the Easy-PhotoPrint Startup button, connect the printer to the
computer and install the printer driver, Memory Card Utility, and EasyPhotoPrint. For more information on installation, refer to the Easy Setup
Instructions.
1
Ensure that both the printer and the computer are turned on, and connected
by a USB cable.
2
Press the Easy-PhotoPrint Startup button.
Easy-PhotoPrint starts on the computer.
WNote
For information on printing with Easy-PhotoPrint and other details, refer to
the Photo Application Guide.
Saving Data in the Memory Card onto the Computer
By pressing the Save button, you can save the data in the memory card on the hard disk of the
computer.
~Important
To use the Save button, connect the printer to the computer and install the
Memory Card Utility. For more information on installation, refer to the Easy
Setup Instructions.
1
Ensure that both the printer and the computer are turned on, and connected
by a USB cable.
2
Press the Save button.
The photos will be saved to a folder created in the location specified below. The
folder will be named automatically according to the date that it was created
(YYYY_MM_DD).
33
Windows XP/Windows 2000/Windows Me: My Pictures folder
Windows 98: My Documents folder
Mac
as x v.10.2.8 or later: Pictures folder
Setting up the Card Slot as the Memory Card Drive of
the Computer
The card slot of the printer can also be used as the memory card drive of the computer.
~Important
To use the card slot of the printer as the memory card drive of the
computer t the printer must be connected to the computer and the
Memory Card Utility must have been installed for Windows Me/Windows
98/Windows 98 Second Edition. If the utility is not installed t install-it
following the installation procedure explained in the Easy Setup
Instructions.
• When OFF is selected in the READ-ONLY MODE screen t you cannot print
photos in the memory card. After using the card slot as the memory card
drive of the computer t remove the memory card, then be sure to select
ON in the READ-ONLY MODE screen again.
•
1
Ensure that both the printer and the computer are turned on, and connected
by a USB cable.
2
Press the Configuration button repeatedly to select OTHERS.
3
Use the ..... buttons to select READ-ONLY MODE and then press the OK
button.
4
Specify the READ-ONLY MODE.
(1) Use the ..... buttons to select a mode.
. When selecting OFF, the card slot is used as the memory card drive of the computer.
Photo data can be written into the memory card .
. When selecting ON, the card slot is used only for reading. Be sure to select th is mode
when printing photos.
(2) Press the OK button.
WNotes
If you use the card slot of the printer as the memory card drive of the
computer t follow the instructions for removal of the memory card from the
computer t before removing it.
•
Windows: Right-click the removable disk icon and click Eject.
If Eject is not displayed on the screen t ensure that the
indicator lamp is not flashing and remove the memory card .
• Macintosh: Be sure to drag the
icon into the Trash.
34
Printing Maintenance
When Printing Becomes Faint or Colors are Incorrect
When printing becomes faint or colors are incorrect, the print head nozzles are probably clogged.
Follow the procedures below to clean the nozzles.
WNole
Before Performing Maintenance
Remove the FINE Cartridge once, then insert it into place again. See
"Replacing a FINE Cartridge" on page 39.
Step 1
"AD~rua__~~..,,~~~~~
__~ ~
"Printing the NOlzle Check Pattern" on page 36
Step 2
.W~
1'*4. . . . . . . .
After print head
cleaning, print the
nozzle check pattern.
-.J~_ _~ ~ ~_ _~_ _~iaM!I~
"Print Head Cleaning" on page 37
If the problem remains after performing print head cleaning twice.
"Print Head Deep Cleaning" on page 38
If the problem still remains after performing print head deep cleaning twice.
"Replacing a FINE Cartridge" on page 39
WNole
If ruled lines are misaligned, adjust the print head position.
See "Aligning the Print Head - Auto head align" on page 38.
35
Printing the Nozzle Check Pattern
Print the nozzle check pattern to determine whether the ink ejects properly from the print head
nozzles. Use this function when printed results are blurred or the colors are incorrect.
1
With the printer on, load a sheet of A4/Letter-sized plain paper in the auto
sheet feeder.
Move the paper thickness lever to the left position.
2
Print the nozzle check pattern.
(1) Press the Configuration button repeatedly to select MAINTENANCE.
(2) Use the ...-~ buttons to select NOZZLE CHECK and then press the OK button.
Do not open the front cover while printing.
(3) Examine the nozzle check pattern.
See below.
Examining the Nozzle Check Pattern
The nozzle check pattern should appear as follows when ink is discharged properly.
Examine the nozzle check pattern output by the printer.
WNote
If the ink level is low, the nozzle check pattern is not printed properly.
Stop printing the nozzle check pattern, and replace the FINE Cartridge.
See "Replacing a FINE Cartridge" on page 39.
I
I
I
I
I
I
BK
bk
PC
tro
PM
pm
I
I
I
I
I
I
I c I
I c I
I I
I ml
I I
I I
to!
y
1
1
Confirm the printed nozzle check pattern.
White stripes in this pattern indicate that the FINE Cartridges require cleaning.
When white stripes appear
See "Print Head Cleaning" on page 37.
Print Head Cleaning
If white stripes are found in the printed nozzle check pattern, perform the print head
cleaning to unclog the print head nozzles. Cleaning the print head consumes ink, so perform
the print head cleaning only when necessary.
1
Ensure that the printer is on.
2
Start print head cleaning.
(1) Press the Configuration button repeatedly to select MAINTENANCE.
(2) Use the ... ~ buttons to select CLEANING and then press the OK button.
~Important
Do not perform any other operations until the print head cleaning finishes.
This takes about 30-50 seconds.
WNote
After print head cleaning finishes
After print head cleaning finishes, print the nozzle check pattern to verify
that the print head nozzles are clean.
See "Printing the Nozzle Check Pattern" on page 36.
If the problem remains after perform ing print head cleaning twice, try print
head deep cleaning.
See "Print Head Deep Cleaning" on page 38.
37
Print Head Deep Cleaning
If print quality does not improve by the standard print head cleaning, try print head deep
cleaning, which is a more powerful cleaning process. Print head deep cleaning consumes
more ink than standard print head cleaning, so perform this procedure only when
necessary.
1
2
Ensure that the printer is on.
Start print head deep cleaning.
(1) Press the Configuration button repeatedly to select MAINTENANCE.
(2) Use the ... buttons to select DEEP CLEANING and then press the OK button.
~Important
Do not perform any other operation until the print head deep cleaning
finishes. This takes about 1·2 minutes.
WNote
After print head deep cleaning finishes, print the nozzle check pattern to
verify that the print head nozzles are clean.
See "Printing the Nozzle Check Pattern" on page 36.
If the problem persists, perform the print head deep cleaning again.
If the problem remains, the printer may have run out of ink.
See "Replacing a FINE Cartridge" on page 39.
If the problem continues to exist, the printer may be damaged. Contact the
Customer Care Center.
Aligning the Print Head - Auto head align
If ruled lines are misaligned or a printout is unsatisfactory, print head alignment is required.
1
With the printer on, load a sheet of A4/Letteroosized plain paper in the auto
sheet feeder.
Move the paper thickness lever to the left position.
2
Align the print head automatically.
(1) Press the Configuration button repeatedly to select MAINTENANCE.
(2) Use the ~ .. buttons to select AUTO HEAD ALIGN and then press the OK button.
Do not open the front cover while printing.
WNotes
•
You can print the current settings of the print head position by selecting
HEAD ALIGN PRINT.
• When Automatic Print Head Alignment Cannot Be Executed Correctly
When automatic print head alignment cannot be executed correctly, the
message "HEAD ALIGNMENT ERROR" is displayed on the LCD. See "An
Error Message is Displayed on the LCD" on page 44.
Replacing a FINE Cartridge
If there is no improvement with the quality of printing following such maintenance as print head
cleaning, a FINE Cartridge is probably empty. Replace the empty FINE Cartridge with a new one.
When replacing a FINE Cartridge, check the model number very carefully.
The printer will not print properly if a wrong FINE Cartridge is used, or installed wrong.
ll~JJ
Color: CL-41
Photo: CL-S2
CL-41
WNote
WJ
CL·51
The High Yield Color FINE Cartridge (Cl-51) can be installed as option.
Replacing a FINE Cartridge
When a FINE Cartridge runs out of ink, replace them using the following steps.
1
2
Ensure that the printer is on.
Open the card slot cover first and then open the front cover.
The FINE Cartridge holder moves to the left.
3
Remove the empty FINE Cartridge.
(1) Push down the FINE Cartridge.
u
0
tL
000
~Important
(2) Remove the FINE Cartridge.
u
0
ll.
000
Handle the FINE Cartridge carefully to avoid staining clothing or the
surrounding area.
• Discard the empty FINE Cartridge according to the local laws and
regulations.
•
39
4
Prepare a replacement FINE Cartridge.
*
.""
~---Protectivetape
*To the FINE Cartridge holder
Unpack a new FINE Cartridge and remove the orange protective tape gently.
~Important
•
•
•
5
Do not reattach the protective tape once you have removed it.
Handle the removed protective tape carefully to avoid getting your
hands dirty or staining surrounding work area.
Once the protective tape is removed, do not touch the electrical
contacts or print head nozzles on a FINE Cartridge. The printer may
not print out properly if you touch it.
Install the new FINE Cartridge.
The Color FINE Cartridge should be installed into the left slot (C) and the Photo FINE
Cartridge should be into the right slot (P).
u
tl,
000
0
/'
(1) Insert a new FINE Cartridge slightly slanted.
(2) Push up the FINE Cartridge until it clicks into place.
40
U
tl,
000
0
6
Close the front cover first and then close the card slot cover.
The FINE Cartridge holder moves to the right.
WNote
~Important
If straight lines are misaligned or the resulting output is unsatisfactory,
align the print head position.
See "Aligning the Print Head - Auto head align" on page 38.
• To maintain optimal print quality, we recommend that you use Canon
brand FINE Cartridge. Replenishing ink only is also not recommended.
• Replace the FINE Cartridge promptly. Do not leave the FINE Cartridge
removed.
• When a FINE Cartridge runs out of ink, replace the FINE Cartridge with a
new one immediately. If you replace it with the FINE Cartridge that ·has
been removed once, the printer may not print properly due to clogged
print head nozzles. And, the low ink warning message which relays the
exchange time of a FINE Cartridge will be off.
• To maintain optimal print quality, FINE Cartridge should be installed
until the "recommended date of replacement". And, use up all ink in
the FINE Cartridge within six months from its first use (We recommend
that you take note of the date when the FINE Cartridge is installed to the
printer).
41
What is Low Ink Warning?
The low ink warning is that the ink counter counts a remaining level of ink and tells you that FINE
Cartridges are running out of ink before printing.
The ink counter considers as ink is full when new FINE Cartridge is installed, and then starts
counting a remaining level of ink. For this, if old FINE Cartridge is installed, a remaining level of
ink cannot be displayed correctly.
When the following message appears on the LCD:
•
CINK LOW
PINK LOW
You should purchase new FINE Cartridge.
CHECK INK
U162
Printing stops. Possible causes are as follows:
• This FINE Cartridge has previously been used.
• Ink may have run out.
The function for detecting the remaining ink level will be disabled since the remaining ink
level cannot be correctly detected.
Pressing the OK button cancels the error messages and enables continuation of printing.
However, error detection function will be disabled after the error indication is canceled,
therefore, the low ink warning message does not appear later on. When you install new
FINE Cartridge, the low ink warning is enabled automatically.
42
Troubleshooting
Let's take a lool< at countermeasures against troubles which may occur during use of the printer.
WNote
Here, we will discuss errors indicated on the LCD, problems that might
occur during direct printing from the digital camera. If you cannot find the
symptom corresponding to a certain problem, refer to the User's Guide.
_ "An Error Message is Displayed on the LCD" on page 43
-"POWER Lamp and Alarm Lamp Flash Alternately" on page 45
-"An Unintended Language is Displayed on the LCD" on page 45
-"Ink Does Not Come Out/ Printing is Blurred/Colors are Wrong/White Streaks" on page 45
_ "Back of Paper is Smudged/Paper Does Not Feed Properly/Printed Surface is Scratched" on
page 46
-"Paper Jams" on page 48
_ "Cannot Print Properly from the Digital Camera" on page 49
• An Error Message is Displayed on the LCD
If Alarm lamp lights and an error message is displayed on the LCD, take the corresponding
countermeasure described below.
Message
I
Try This
NO PHOTOS ON CARD
• Photo data edited/processed on the compu'ter should be printed from the computer, not from the
camera.
• There is no proper data in the memory card. See "Memory Cards Supported by This Printer" on page 9.
LOAD PAPER
Reload the paper correctly and press the OK button.
PAPER JAMMED
If paper has jammed in the printer, clear the jam, reload the paper in the printer correctly and then press
the OK button.
See "Paper Jams" on page 48.
CHECK INK
U041
Replace the FINE Cartridge, and close the front cover.
If lines are misaligned or the resulting output is not satisfactory, carry out the Print Head Alignment.
If printing is in progress and you want to continue printing, press the OK button. Then printing can
continue under the ink out condition with the FINE cartridge installed. Replace the empty FINE cartridge
immediately after the printing. The resulting print quality is not satisfactory, if printing is continued under
the ink out condition.
CHECK INK
U051
U052
U053
U059
Possible causes are as follows:
• The FINE Cartridge may not be installed properly.
• The FINE Cartridge may not be the compatible with this printer.
Install the appropriate FINE Cartridge. If lines are misaligned or the resulting output is not satisfactory,
carry out the Print Head Alignment.
CHECK INK
U075
U076
Some FINE Cartridges are not installed in place.
Install the FINE Cartridges in the appropriate positions.
WASTE INK NEAR FULL
The printer has a built-in ink absorber to hold the ink used during print head cleaning, for example. This
error message indicates that the ink absorber is nearly full.
Press the OK button to cancel the error so you can continue printing.
Before the ink absorber becomes completely full, contact the Customer Care Center. (You will need to
replace a particular part of the printer.)
Canon recommends that you call for service as soon as this error occurs. Once the ink absorber becomes
completely full, printing cannot be performed until the ink tank is replaced.
43
Message
I
Try This
INCOMPATIBLE
CAMERA
Disconnect the camera cable and reconnect it.
Depending on the model or brand of your PictBridge compliant device, you may have to select a print mode
before connecting the device.
You may also have to turn on the device or select Play mode manually after connecting the device to the
printer.
Perform necessary operations according to the instruction manual supplied with your device.
If the error is still unresolved, there is a possibility that you are using a digital camera or digital video
camcorder that is not supported by this printer. PictBridge-compatible digital camera or digital video
camcorder can be connected to your printer for Direct Printing.
HEAD ALIGNMENT
ERROR
Possible causes are as follows:
• Other than A4/Letter-sized plain paper is loaded.
Press the OK button to clear the error, and then load A4/Letter-sized plain paper in the auto sheet
feeder.
• Print head nozzles are clogged.
Press the OK button to clear the error, and then print the nozzle check pattern to examine the print
head condition.
For information on how to print a nozzle check pattern, See "Printing the Nozzle Check Pattern" on
page 36.
• The paper output slot has been exposed to a strong light source preventing current print head
alignment.
Press the OK button to clear the error and move the printer to a darker location.
After carrying out the above measures, if the problem continues after aligning the print head again, press the
OK button to clear the error, and then perform manual print head alignment. For details on manual print head
alignment, see "Adjusting the Print Head Manually" on page 44.
CHECK INK
U140
The FINE Cartridge may not be the compatible with this printer.
Install the appropriate FINE Cartridge. If lines are misaligned or the resulting output is not satisfactory,
carry out the Print Head Alignment.
CHECK INK
U162
Possible causes are as follows:
• This FINE Cartridge has previously been used.
• Ink may have run out.
The function for detecting the remaining ink level will be disabled since the remaining ink level cannot be
correctly detected. If you want to continue printing without this function, press the OK button.
Canon recommends to use new genuine Canon cartridges in order to obtain optimum qualities.
CHECK PRINTER
An error that requires contacting the Customer Care Center may have occurred. (POWER lamp and Alarm
lamp alternately.)
Disconnect the printer cable from the printer, and then turn the printer off and unplug the printer from the
power supply. Plug the printer back in and turn the printer back on after leaving it for a while.
If the problem remains, contact the Customer Care Center.
WNote
44
Adjusting the Print Head Manually
If the automatic print head adjustment does not work or if you wish to adjust
the print heads manually, follow the procedure below.
1. With the printer on, load a sheet of A4/Letter-sized plain paper in the
auto sheet feeder.
2. Press the Configuration button repeatedly to select MAINTENANCE.
3. Use the ~~ buttons to select ALIGN PRINT HEAD and then press the OK
button.
4. Examine the printed pattern and enter the
SET VALUE
number of column "A" with fewest white
stripes using the ~~ buttons.
.I
A
~ 0 ~
5. Press the OK button.
6. Repeat Steps (4) through (5) and enter
the pattern numbers up to column "N".
•
POWER Lamp and Alarm Lamp Flash Alternately
Possible Cause
I
An error that requires
contacting the Customer Care
Center may have occurred
Try This
Disconnect the printer cable from the printer, and then turn the printer off and unplug the printer
from the power supply. Plug the printer back in and turn the printer back on after leaving it for a
while.
If the problem remains, contact the Customer Care Center.
• An Unintended Language is Displayed on the LCD
Possible Cause
I
The language you want to be
displayed is not selected
Try This
Select the language according to the following procedure.
(1) Press the POWER button to turn off the printer.
(2) Press the POWER button to turn on the printer.
(3) Press the Configuration button three times.
If the Bluetooth unit is attached to the printer, press the Configuration button five times.
(4) Press the ~ button twice.
(5) Press the OK button.
(6) Press the ~button repeatedly to select the leftmost language.
(7) Press the ~ button the number of times in the following table according to your desired
language.
Language
Japanese
Language
Time(s)
o
Portuguese
Time(s)
7
2
Russian
8
9
French
3
Czech
10
Italian
4
Hungarian
11
Spanish
5
6
Polish
12
Turkish
13
English
German
Dutch
Swedish
(8) Press the OK button.
The desired language is displayed on the LCD.
(9) Press the Stop/Reset button .
•
Ink Does Not Come Out/ Printing is Blurred/Colors are Wrong/White
Streaks
Possible Cause
I
Try This
A FINE Cartridge is not seated
properly/FINE Cartridge is
empty
• Open the card slot cover first and the front cover next, and press up the FINE Cartridge to
install it properly.
• Ensure that the specified FINE Cartridge is installed. If the specified FINE Cartridge is not used,
good printing color quality cannot be expected.
See "Replacing a FINE Cartridge" on page 39.
Incorrect media type
On the operation panel, confirm that the media type selected matches the paper loaded.
Print head nozzles clogged or
shifted
Print the nozzle check pattern to check for uneven ink output.
When a specific color is missing from the nozzle check pattern, clean the print head.
• If ink supply is uneven: See "Print Head Cleaning" on page 37.
• If straight lines are shifted: See "Aligning the Print Head - Auto head align" on page 38.
Media not loaded print-side
up
Check that your paper is loaded with the correct print side facing up.
WNote
Follow the instructions packaged with your specialty media for loading and handling.
45
•
Back of Paper is Smudged/Paper Does Not Feed Properly/Printed
Surface is Scratched
Possible Cause I
Inside of the printer is
dirty
Try This
If the inside of the printer is dirty, printed paper may be smudged. Follow the steps described below to
clean the inside of the printer.
(1) Ensure that the printer is turned on and there is no paper loaded in the auto sheet feeder.
(2) Place A4/letter-sized plain paper in landscape, horizontally fold it in half.
(3) Unfold the paper, and load the paper in the auto sheet feeder with the inverted-V edge down.
(4) Press the Configuration button repeatedly to select MAINTENANCE.
(5) Use the ~~ buttons to select BOTTOM CLEANING and then press the OK button.
Paper will be ejected.
If protrusions inside the printer are stained, wipe ink off the protrusions using a swab or the like.
~Important
Before cleaning, be sure to turn off the printer.
Paper feed roller is dirty
Follow the steps described below to clean the paper feed rollers.
Since the paper feed roller cleaning exhausts the paper feed roller, perform only when it is needed.
(1) Ensure that the printer is turned on. If the paper is loaded in the printer, remove the paper.
(2) Press the Configuration button repeatedly to select MAINTENANCE.
(3) Use the ~~ buttons to select ROLLER CLEANING and then press the OK button.
The paper feed roller will rotate as it cleans.
(4) Repeat (2) through (3) twice.
(5) load three or more sheets of A4/letter-sized plain paper lengthways in the auto sheet feeder.
(6) Press the Configuration button repeatedly to select MAINTENANCE.
(7) Use the ~~ buttons to select ROLLER CLEANING and then press the OK button.
The paper that is loaded in the printer will feed through the printer and be ejected.
(8) Repeat (6) through (7) three times.
If repeating this procedure three times or more does not solve the problem, contact the Customer Care
Center.
Possible Cause
Inappropriate media
type is used
I
Try This
• Check to see if the paper you are printing on is too thick.
See "Print Media to Avoid" on page 12.
• Note that smudging may occur at the top and bottom edges of the paper when using borderless
printing. Ensure that the paper you are using is compatible with borderless printing.
If all four corners or the printing surface of the paper is curled, the paper may become dirty or not feed
properly through the printer. Use the paper after correcting paper curl as follows.
(1) Place the paper on a flat surface with the print side *1 face up, then cover it with plain regular paper
to avoid damaging the surface.
(2) Roll up the paper in the opposite direction as shown in the figure below.
(1)
(2)
*1
(3) Check the printing paper if paper curl is corrected within approximately 2 to 5 mmjO.08 to 0.2 inches*2.
It is recommended to print the curl-corrected paper one sheet at a time.
....................
Paper thickness lever
position is not proper
~. . . . . . . .
:~~
..
..
Set the paper thickness lever to the left position.
If the paper is scratched even when printing on plain paper, set the paper thickness lever to the right
position.
Return the paper thickness lever to the left after printing.
47
• Paper Jams
Possible Cause
I
Try This
Landscape credit card-sized
paper jams inside the printer
You cannot load credit card-sized paper in the landscape orientation. Slowly pull the paper out
from the auto sheet feeder.
Paper jams in the paper
output slot
Remove the paper according to the following procedure.
(1) Slowly pull the paper out, either from the auto sheet feeder or from the paper output slot,
whichever is easier.
• If the paper tears and a piece remains inside the printer, open the card slot cover first and
the front cover next, and remove it.
A Caution
Be careful not to touch any com ponents inside the printer.
After removing all paper, close the front cover first and the card slot cover next.
If you cannot pull the paper out, turn the printer off and turn it back on. The paper will be
ejected automatically.
(2) Reload the paper into the printer and press the OK button.
If you cannot remove the paper or if the paper tears inside the printer, or if the paper jam error
continues after removing the paper, contact the Customer Care Center.
• Cannot Print Properly from the Digital Camera
The following are the possible errors that may occur when printing directly from a digital still
camera or digital video camcorder*, and the countermeasures to eliminate them.
* Hereafter, the digital still camera and digital video camcorder are collectively called a digital
camera or camera.
WNote
This section describes errors that are indicated on Canon-brand
PictBridge-compatible cameras.
The error messages and operations may vary depending on the camera
you are using. If you cannot clear the error on your device, check the error
message displayed on the LCD of the printer, and then clear it. For details,
see "An Error Message is Displayed on the LCD" on page 43.
Try This
Error message on
camera
I
Printer in use
Images are being printed from the computer. Wait until printing ends. The printer automatically
starts printing the images from the camera after completing the current printing. If the printer is
warning up, wait until warm-up ends. When it is ready, the printer starts printing automatically.
No paper
Load paper in the auto sheet feeder, and select Continue*l in the display on your camera.
Paper jam
Select Stop in the display on your camera to stop printing.
Remove the jammed paper, load new paper, and press the OK button on the printer and retry
printing.
Paper lever error
Set the paper thickness lever to the left position.
If the paper is scratched even when printing on plain paper, set the paper thickness lever to
the right position.
Return the paper thickness lever to the left after printing.
Printer cover open
Close the front cover on the printer.
No printhead
Possible causes are as follows:
• The FINE Cartridge may not be installed properly.
• The FINE Cartridge may not be the compatible with this printer.
Install the appropriate FINE Cartridge. If lines are misaligned or the resulting output is not
satisfactory, carry out the print head alignment.
• Some FINE Cartridges are not installed in place.
Install the FINE Cartridges in the appropriate positions.
Waste tank (ink absorber*2) full/
ln k absorber*2 full
The printer has a built-in ink absorber to hold the ink used during print head cleaning, for
example.
You can continue printing for a while by selecting Continue*l in the display on your camera.
However, because printing is disabled once the ink absorber becomes completely full and
until the ink tank is replaced, you are recommended to contact the Customer Care Center as
early as possible. (You will need to replace a particular part of the printer.)
49
Error message on
camera
Try This
I
Noink
Possible causes are as follows:
• The ink has run out.
Replace the FINE Cartridge, and close the front cover.
If lines are misaligned or the resulting output is not satisfactory, carry out the print head
alignment.
If printing is in progress and you want to continue printing, press the OK button on the
printer. Then printing can continue under the ink out condition with the FINE Cartridge
installed. Replace the empty FINE Cartridge immediately after the printing. The resulting
print quality is not satisfactory, if printing is continued under the ink out condition.
• Some FINE Cartridges are not installed in place. Install the FINE Cartridges in the
appropriate positions.
• The FINE Cartridge may not be the compatible with this printer. Install the appropriate FINE
Cartridge. If lines are misaligned or the resulting output is not satisfactory, carry out the print
head alignment.
• This FINE Cartridge has previously been used.
• Ink may have run out.
The function for detecting the remaining ink level will be disabled since the remaining ink
level cannot be correctly detected. If you want to continue printing without this function,
press the OK button.
Canon recommends to use new genuine Canon cartridges in order to obtain optimum
qualities.
Printer error
An error requiring servicing might have occurred. (Printer POWER lamp and Alarm lamp flash
alternately.)
Disconnect the cable between the printer and the camera. Turn off the printer and unplug the
power cord of the printer from the power supply. After a while, plug the power cord of the
printer back in, turn on the printer, and then reconnect the camera to the printer.
If the same problem occurs, contact the Customer Care Center.
Hardware Error
FINE Cartridge errors have occurred. Replace the FINE Cartridge.
See "Replacing a FINE Cartridge" on page 39.
*1
*2
To resume printing, you can press the OK button on the printer instead of selecting Continue.
The ink absorber absorbs ink used during cleaning, for example. If this message appears, you
will need to call for servicing to replace the absorber and to check the printer for proper
operation.
50
WNotes • PictBridge-compatible digital cameras can be connected to your printer
•
•
•
•
•
•
for direct printing.
A communication time out occurs if printing takes a long time or if it
takes too much time to send data. This may stop printing. In such a
case, disconnect the cable between the printer and the camera, and
reconnect it. Then, turn the camera on, if it does not automatically turn
on just by connecting the cable. If the problem is still unresolved,
select some other photo and check if it can be printed or not.
Depending on the model or brand of your PictBridge compliant device,
you may have to select a print mode before connecting the device. You
may also have to turn on the device or select Play mode manually after
connecting the device to the printer. Perform necessary operations
according to the instruction manual supplied with your device.
The print head nozzles may be clogged if printing becomes faint of
colors are incorrect. See "When Printing Becomes Faint or Colors are
Incorrect" on page 35.
If the paper is curled or its surface is scratched during printing, make
sure that you are using the correct type of paper. If this error occurs
even when you are using the correct type of paper, set the paper
thickness lever to the right position.
To disconnect the cable connected between a digital camera and
printer, follow the procedure below.
1. Disconnect the cable from the printer.
2. Turn off the digital camera.
3. Disconnect the cable from the digital camera.
When disconnecting the cable, be sure to hold the connector by its
sides.
For the errors indicated on the camera and their solution, also refer to
the user's manual of the camera. For other troubles on the digital
camera, contact the manufacturer of the camera.
51
Index
Index
A
Adjusting the Print Head Manually
44
Alarm Lamp •.....•.............................................•............. 3
ALIGN PRINT HEAD .•.........•..•.•..•.........•.....................6, 44
38
Aligning the Print Head
AUTO HEAD ALIGN ............•............•.•....•.......•......•... 6, 38
Auto sheet feeder
12
B
BlUETOOTH SET ......•..............••...•....•..•..•.••.••.••.•..•....... 6
BORDERLESS PRINT ..................•........•......•................. 22
BORDERLESS PRINT (PictBridge) .......•....•.•.••............6, 26
BOTIOM CLEANING ..•....•................•..•.............•..•.•...6, 46
BRIGHTNESS
22
c
Card slot
Card slot cover
CL 41
CLMSl
ClMS2
CLEANING
COLOR
Configuration Button
CONTRAST
M
10
10
39
39
39
6, 37
22
3, 6
22
D
Date/File No. print (PictBridge)
DATE/TIME SETUP
DEEP CLEANING
Digital Camera
Digital Camera (Troubleshooting)
Direct Print Port
DPOF
28
6, 23
6, 38
24
49
4
5, 21
E
Easy-PhotoPrint Startup Button
.3, 33
F
FACE BRIGHT
FILE NO. PRINT
FINE Cartridge
22
22
39
H
HEAD ALIGN PRINT
IMAGE ENHANCEMENT
52
6, 38
22
IMAGE ENHANCEMENT (PictBridge)
Image optimize (PictBridge)
IMAGE OPTIMIZER (Wireless)
INDEX
Ink absorber
Ink Does Not Come Out
6,26
28
6, 30
5,15
49
45
L
LANGUAGE SETIING
Layout (PictBridge)
LAYOUT (Wireless)
LCD
LCD (Troubleshooting)
LOAD CONFGURATION
Load limit mark
Loading Paper
Low ink warning
:
6
27
6,30
5
43
6, 17
13
12
42
M
MAINTENANCE
MEDIA TYPE
Memory Card Utility
Menu Button
6
22
33, 34
3, 5
N
NOZZLE CHECK
NR (Noise Reduction)
6, 36
28
o
OPTIMIZER
OTHERS
22
6, 23
p
PAGE SIZE
22
Paper Jams
48
Paper size (PictBridge)
26
Paper type (PictBridge)
26
PictBridge
24
PICTBRIDGE SET
6,26
POP
22
POWER Button
3
POWER Lamp
3
PRINT ALL PHOTOS
5, 20
PRINT DATE
22
PRINTQLTY
22
PRINT SETIINGS
6
Printing a Photo List - Print Index
15
Printing According to the Settings Made on the Camera DPOF Printing
20
Index
Printing All Photos
Printing is Blurred
Printing Maintenance
Printing on the Sticker - Sticker Print
20
45
35
19
Q
QUIET MODE
6,23
R
READ-ONLY MODE
RED EYE CORR
REMOVE NOISE
RESTORE DEFAULT
ROLLER CLEANING
6
22
22
6,23
6,46
5
Save Button
SAVE CONFGURATION
SELECT PHOTO
SELECT RANGE
Specifying Photos to Print
Specifying the Range of Photos in the Memory Card
STICKR
3,33
6, 17
5, 16
5, 18
16
18
5. 19
T
Trimming (PictBridge)
27
v
VIVID
22
w
White Streaks
WIRELESS SETTINGS
45
6.29
53
54
Direct Printing Guide
(anon U.S.A., Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Canon Inc.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
(anon Canada, Inc.
6390 Dixie Road, Mississauga, Ontario, L5T 1P7, Canada
(anon latin America, Inc.
703 Waterford Way, Suite 400, Miami, FL 33126, U.S.A.
(anon Mexicana
Boulevard Manuel Avila Camacho No. 138 PB
y Pisos 15, 16y 17, Colonia Lomas de Chapultepec
Delegaci6n Miguel Hidalgo, CP 11000, Mexico D.E
The following FINE Cartridges are compatible with this printer.
41
52
CL-41
CL-52
The following FINE Cartridge (High Yield) is compatible with this printer as an option.
51
Cl·51
For details on FINE Cartridge replacement, refer to "Replacing a FINE Cartridge" in this guide.
QT5-0325-VOl
xxxxxxxx
©CANON INC.2006
PRINTED IN THAILAND
Carefully remove all items from the box.
o
Remove the shipping tape from the front and back of the
printer.
fJ
Open (a) the card slot cover first and (b) the front cover next,
Pull down and remove the protective material on the right
side.
(a) Card slot cover
PIXMA iP6310D Photo Printer
(b) Front cover
Power Cord
Protective material
•
Close the front cover first and the card slot cover next.
e
Plug the power cord into the back of the printer and connect
the other end to a power outlet.
Press the POWER button. The printer will initialize. Wait until
the POWER lamp remains fully lit.
Color FINE Cartridge
(Cl-41)
Photo FINE Cartridge
(Cl-52)
PI){MA
i P6320D / iP631 OD So,,,
Quick Start Guide
W
o
When the screen appears on the LCD, confirm a language
and then press the OK button.
W
Documentation and
Software Kit
o
NOTE: Do not connect the USB cable at this stage.
NOTE:
-If the language you want to be displayed is not selected, refer to
"An Unintended Language is Displayed on the LCD" in the Direct
Printing Guide.
-If you leave the printer more than five minutes without using any
button on the operation panel, the LCD goes into sleep mode
automatically. Press the OK button to turn on the LCD again.
Open the card slot cover first and the front cover next.
The FINE Cartridge holder automatically moves to the left.
Write down the serial number. You will need this to register
the product.
FINE Cartridge
holder
Serial number
o Take out the Color FINE Cartridge (Cl-41) from its box and remove the protective
o
Open the paper support and pull out the paper output tray.
tape gently.
Paper support
Electrical contacts
Protective tape
W
NOTE:
-Do not touch the electrical contacts or print head nozzles on a FINE Cartridge. The
printer may not print out properly if you touch it.
-Do not reattach the protective tape once you have removed it.
-Handle the removed protective tape carefully to avoid getting your hands dirty or
staining surrounding work area.
•
Paper output tray
•
Pinch the paper guide and slide it to the left. Load a few
sheets of blank paper into the auto sheet feeder, then slide
the paper guide toward the left edge of the paper.
Auto sheet feeder
Insert the Color FINE Cartridge slightly slanted into the left slot (C).
Print side
Paper thickness lever
«)
Push up the Color FINE Cartridge until it clicks into place.
A IMPORTANT: For correct printer operation, make sure the FINE Cartridge is secure in
slots.
e
W
NOTE: Ensure that the paper thickness lever is set to the left
position.
«)
Ensure that the message requesting head alignment is
displayed on the lCD, select YES using the ~~ buttons ani
press the OK button.
Repeat the procedure for the Photo FINE Cartridge (Cl-52), inserting it into the
right slot (P).
The pattern is printed. And the print head is aligned
automatically.
A
IMPORTANT: It takes about four minutes to finish printing.
When automatic print head alignment can not be
executed correctly, the message II HEAD ALIGNMENT
ERROR is displayed on the LCD. refer to IIAn Error
II
Message is Displayed in the LCD in the Direct Printing
Guide.
II
o Close the front cover first and the card slot cover next.
A
IMPORTANT: Wait until the preparatory operation is complete; this takes about one
to two minutes.
The messa'ge requesting head alignment is displayed on the LCD.
Go to the next step.
Continue with Step 5
on side two_
The screens below refer to Windows XP Service Pack 2
installation. Screens may differ depending on the operating
system you are using.
•
When the Printer Connection screen appears, connect the USB
cable to the computer and the other end to the printer.
o TURN THE PRINTER OFF.
You hear the operation sound until the printer is turned off.
It may take about 20 seconds.
f) Turn the computer on and start Windows.
W
NOTE:
·Before installing the driver, disable all anti-virus programs
and automatically loading programs.
·For Windows XP or Windows 2000, log on to Windows as a
member of Administrators group before continuing.
A IMPORTANT:
If you see the Found New Hardware Wizard,
click Cancel. Next, remove the USB cable connected to your
computer. Then proceed from step 3 to install the printer
driver.
o TURN THE PRINTER ON.
Welcome to the Found New
Hardware Wizard
A
'Windows wiU search for current and updated soflware by
looking on your computer. on the hardware installation CD. or on
lhe Windows Update Web site (with your permission).
&.f!a-.Q0.I:~y.~.~UiQj!f!ci
IMPORTANT: If you cannnot proceed to the next procedure after
ll
two minutes, refer to IITroubleshooting instructions
in the Quick Start Guide.
O~es,lhislimeonly
o Yes, now andjlvery lime I connect a device
ONo.notthis!ime
If the message asking for your confirmation to restart your
computer appears, click OK.
The system is restarted automatically.
•
Insert the Setup CD-ROM.
The setup program should run automatically.
"
e When the majn menu screen appears, click Easy Install and
Follow the on-screen instructions to install the remaining
software. When the Installation Results screen appears, click
Next.
follow the on-screen instructions.
canon
Installation Results
PIXMA iP6310D
Instaliationresu~saredescribedbelow.Todisplayanintroductionof
the soflware, move the mouse pointer to the soflware name
Select the installation method and follow the instructions on the
screens
,*PrinterDriver
tl0n-screenManual
IbMemoryCardUtlllty
CEasy-WebPrlnt
UEasy-PhotoPrlnt
btSloled
........d
~MyPrinter
W
NOTE:
·Select Easy Install in order to install application software,
on-screen manual, utility and printer drivers. Select Custom
Install in order to choose the options you would like to
install.
-To install PhotoRecord or Adobe® RGB (1998), click Custom
Install and follow the instruction on the screen.
-Adobe RGB (1998) cannot be installed in Windows Me and
Windows 98.
o Whenthe Easy Install screen appears, click Install.
Easy Install
~ Follow the on-screen instructions to register your product.
If the message asking for your confirmation to restart your
computer appears, click OK.
The system is restarted automatically.
~ When the Installation completed successfully screen appears,
.
click Exit.
If Restart is displayed, ensure the Restart the system now
(recommended) check box is selected, then click Restart.
Canon
Installation completed successfully.
EstIDl.t.dl....1I.dondDl.:l0to15Dllnllt~~iVl
W
NOTE: Move the cursor over items to display explanations of
each application below.
o Read the License Agreement, then click Yes.
Follow the on-screen instructions to install the software.
If the message asking for your confirmation to restart your
computer appears, click OK. The system is restarted automatically.
Part no. QT5-0324-V01 ©2006 CANON INC. "Windows" is a trademark of Microsoft Corporation, registered in the United StatE
"Adobe" and IIAdobe RGB(1998)"are either registered trademarks or trademarks of Adobe Systems IncorporatE
~
~
& When the Easy Install screen appears, click Install.
NOTE:
-Before installing the driver, disable all anti-virus programs and
automatically loading programs.
Easy Install
-Use Mac®OS X v.l0.2.8 to 10.4.x.
-The screens below refer to Mac OS X v.l0.4.x installation.
Screens may differ depending on the operating system you are
using.
1~?!MemorycardUtillty
-Do not remove or insert the USB cable during installation, as this
may result in the computer or printer not operating normally.
o
r-fiie-'lstedSOtiWarilprngrnmsWiin'e-instafiEKfl'o-prOCelifdli:kpnstafif.------------- --: To display an introduction of the software. move the mouse pointer to the software name.
- -
.... - - -- - - '.,- - . . ~ .--- .. __ ._ .. _--_. )
DrIWIsysb!m~MB_1SplIllIl
T_
Connect the end of the USB cable to the computer, the other to
the printer.
~---c.·::.::.::.:···-_,..,.l
W
NOTE: Move the cursor over items to display explanations of
each application bellow.
6) Read the License Agreement, then click Yes. Follow the
on-screen instructions to install the software.
o Follow the on-screen instructions to register your product.
~ When the Installation completed successfully screen
appears, click Restart.
Canon
Installation completed successfully.
f) Turn on the computer and start Mac as x.
•
Insert the Setup CD-ROM.
W
NOTE:
-If the CD-ROM folder does not open automatically,
double-click the CD-ROM icon on the desktop.
-Log on as an Administrator before continuing.
e Double-click the Setup icon.
~ After restarting the computer, select Applications from the
Go menu.
Double-click the Utilities folder, and then double-click the
Printer Setup Utility (Print Center when you use Mac as x
v.10.2.8) icon. Check that your printer name is displayed on
the Printer List. If your printer name is not displayed on the
Printer List, click Add to add the printer.
For details, refer to the Printer Setup Utility Help or Mac
Help.
o When the Authenticate screen appears, enter your
administrator name and password. Click OK.
If you do not know your administrator name or password, click
(?) on the lower-left corner of the screen, then follow the on-screen
instructions.
setup requires that you type your password.
Name:
Password:
~
Details
o When the main menu screen appears, click Easy Install and
follow on-screen instructions.
canon
PIXMAiP6310D
Select the Ins1allation method andfoUow the instructions on the
screens.
Tt'JsrnethodailJof.t1)'OOlOse~IheSOftwarepmgtams1hatvouwa1'\ttofJSeand
b_.onlylho~"'Dllra,",
~
~
NOTE: Select Easy Install in order to install application software,
on-screen manual, utility and printer drivers. Select
Custom Install in order to choose the options you would
like to install.
d other countries. "Macintosh" and "Mac" are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
the United States and/or other countries. Specifications subject to change without notice. Printed in Thailand. 052006Y
...........
%:.ifii~W'li&ifiiilHL~~ photography
Print/Share Button
Printing without a computer just got even easier! First, connect a Canon
PowerShot camera with the advanced Print/Share* button to a PictBridge
compatible printer. Then, with the desired image displayed on the camera's
LCD (in playback mode), press the Print/Share button. In seconds you'll
have a brilliant photograph of that image. How easy was that?
* For a list of Canon cameras featuring a Print/Share button,
visit www.usa.canon.com/consumer/ directprint.
A System for Long-lasting Photos. The Canon ChromaLifel00 system combines
the FINE print head technology and newly developed inks with select Canon photo
papers, with results rivaling that of many conventional photos.
Lil<e to know more about Canon products?
Checl< out www.usa.canon.com/consumer
Canon
imageANYWARE
©2006 Canon U.S.A., Inc. Canon, EOS EOS Rebe'l and Powershot are registered trademarks and
PIXMA and digital revolutionized photography we revolutionized digital are trademarks of Canon
Inc. in the United States and may also be registered trademarks or trademarks in other countries.
IMAGEANYWARE is atrademark of Canon.
QT1-0117-VOl
Printed in Thailand
052006A
Product registration valid only in the U.S.A.
Canon
I PIXMA™ iP6310D Photo Printer Registration Card I
Thank you for purchasing aCanon PIXMA iP631 00 Photo Printer. To help us selVe you better, complete and return this Registration Card. Simply fill out the
following questions and mail this card or fax it to 1-800-567-3229. Note: The toll-free number is for Registration Cards only. No operator will answer this number.
o Mr.
Q]
V1PIP6310
0 Ms.
,--I...l...--L----L---l..-JL......L---'---'------J...---l
U
First Name
Initial
Last Name
Company Name
1 I I I
Mailing Address
Apt. No./Suite
City
Zip
State
L-L..-J'---JI-I
I-IL..-J.-----'-----'--'
Home Phone w/Area Code
'---'---'----'1-1
1-
L I- - - ' - - - - - - ' - - - - - - ' - - - - '
Business Phone w/Area Code
Business Phone Extension
E-Mail Address
Fold Here
[2]
Where did you purchase this printer?
m
Name of Store
Month
Day
I-I
Date of purchase:
Consumer Imaging Group of Canon U.s.A., Inc. often
updates the software and firmware for its products.
Would you like to receive notice when these software
and firmware updates are available for your product?
Year,
I I-I
I I
IT] On occasion, Consumer Imaging Group of Canon U.s.A.,
I I I I I I
Q]
[I]
Inc. may want to send you information about other
Canon products and promotions that may be of interest
to you. Would you like to receive this information?
Which operating system are you using with your PC?
o Windows® XP
o Windows Me
0 Windows 2000
0 Windows 98
0 Mac®
0 Other
as x
DYes
_
Did you purchase a PC at the SAME TIME you purchased this printer?
DYes
ONo
[ [ ] Where will this printer be primarily used? Check ONE only:
Home business
0 Corporate office
Small business (outside of home)
0 Government/Military/Law
Home (personal/family/creative)
enforcement
Home (work brought from office)
0 Educational institution
o
o
o
o
0 No
DYes
Serial number (located inside the printer):
0 No
The following questions are strictly 9.P1~~1 and will only be used by Canon.
flOl
~
o Male
o Female
IT!]
AGE
035 to 44
045 to 54
55t064
0 Under 18
018 to 24
25 to 34
o
f11l
8
V1PIP6310~_~_
©2006 Canon U.s.A., Inc. Canon is a registered trademark and PIXMA is a trademark
of Canon Inc. in the United States and may also be registered trademarks or trademarks in
other countries. All other product and brand names are trademarks of their respective owners.
o 65 or older
o
ANNUAL INCOME
o $15,000 to $30,000
o $30,001 to $50,000
o $50,001 to $75,000
0$75,001 to $150,000
0$150,001 +
QT1-0137-VOl
P-iP63100-REG-0306
Printed in Thailand
Please tape closed. DO NOT STAPLE.
042006F
NO POSTAGE
NECESSARY
IF MAILED
INTHE
UNITED STATES
Please send correspondence to:
Canon U.s.A., Inc.
One Canon Plaza
Lake Success, NY 11042·1198
BUSINESS REPLY MAIL
FIRST-CLASS MAIL PERMIT NO. 10331 SALT LAKE CITY UT
POSTAGE WILL BE PAID BY ADDRESSEE
CANON USA INC
DEPT PIXMATM iP6310D
PO BOX 30403
SALT LAKE CITY UT 84130-9776
11111111 •• 111 .11 •• 11. 1111.1.1 •• 1. 1111. 111.1111 .1. 1.1
Fold Here
Registration Card
Congratulations on purchasing a Canon PIXMA™ iP6310D Photo Printer.
Register now to receive information about other Canon
products and promotions that may be of interest to you.
easy ways to register:
o
Visit our Web site at www.registercanon.com or
_
Send electronically through driver installation or
_
Mail in this card or
8
Fax this card to 1-800-567-3229
Please be sure to register using only 1 of the 4 easy methods.
