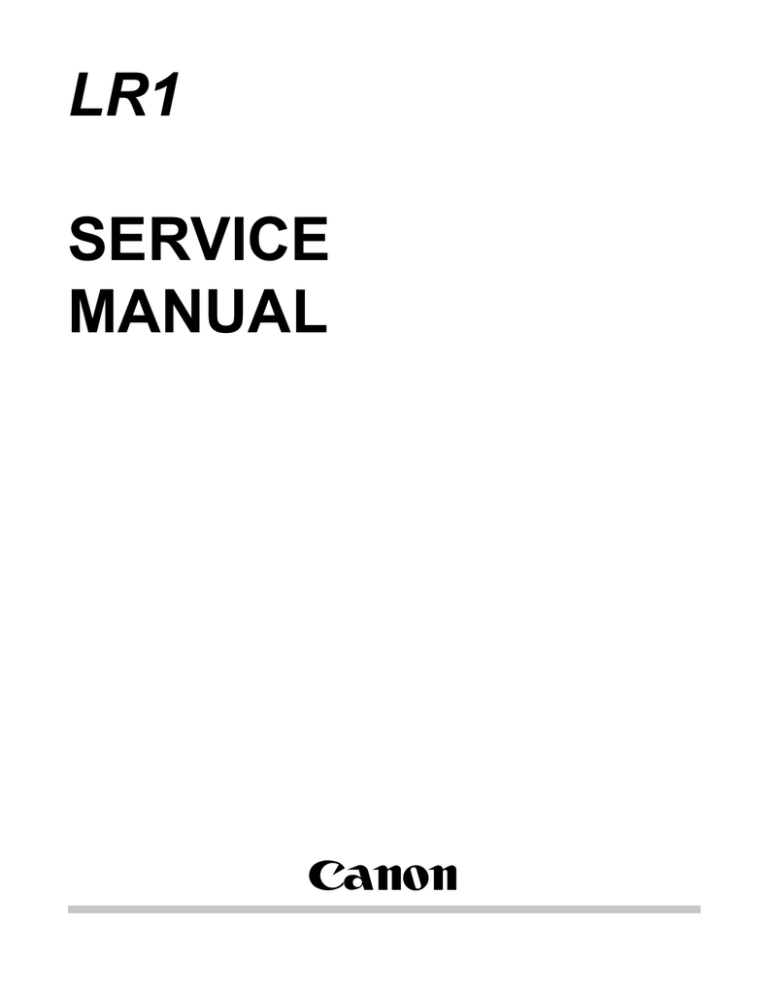

Canon LR1 Service manual

LR1
SERVICE
MANUAL
Canon
REVISION 0
DEC. 1999
QY8-1367-000
COPYRIGHT  1999 CANON INC. CANON LR1 1299 AB 0.02-0 PRINTED IN JAPAN (IMPRIME AU JAPON)
1299 AB 0.02-0
Application
This manual has been issued by Canon Inc. for qualified persons to learn technical theory, installation,
maintenance, and repair of products. This manual covers all localities where the products are sold. For
this reason, there may be information in this manual that does not apply to your locality.
Corrections
This manual could include technical inaccuracies or typographical errors due to improvements or
changes in the products. When changes occur in applicable products or in the content of this manual,
Canon will release technical information as the need arises. In the event of major changes in the
contents of this manual over a long or short period, Canon will issue a new editions of this manual
The following paragraph does not apply to any countries where such provisions are
inconsistent with local law.
Trademarks
The product names and company names described in this manual are the registered trademarks of the
individual companies.
Copyright
This manual is copyrighted with all rights reserved. Under the copyright laws, this manual may not be
copied, reproduced or translated into another language, in whole or in part, without the written consent
of Canon Inc., except in the case of internal business use.
Copyright  1999 by Canon Inc.
CANON INC.
BJ Printer Technical Support Dept. 21
16-1, Shimonoge 3-chome, Takatsu-ku, Kawasaki, Kanagawa 213-8512, Japan
This manual has been produced on an Apple Power Macintosh 7300/180 personal computer and OKI
MICROLINE 803 PSIIV laser beam printer; artworks of printing films were printed on Agfa SelectSet
Avantra 25. All page layouts, logos, and parts-list data were saved with Canon Optical Disc Subsystem
mo-5001S™ and Optical Disc Cartridge mo-502M™, and Interface Kit mo-IF2™ for Macintosh. All
graphics were produced with MACROMEDIA FREEHAND™ 7.0J. All documents and all page layouts were
created with QuarkXpress™ 3.3 Japanese version.
I. ABOUT THIS MANUAL
This manual is divided into five sections, and contains information required for serving the
unit.
Product
Outline
Part 1: Product Specifications
This section contains outlines and product specifications of the unit.
Part 2: Maintenance
This section explains how to maintain the unit. Descriptions and adjustment of
assembly/disassembly and verification methods after assembly/disassembly are
included.
Maintenance
Part 3: Operation
This section explains how to operate the unit properly. Operation procedures for service
modes are explained.
Operation
Part 4: Troubleshooting
This section explains how to find out possible causes of troubles and units/parts to be
replaced. It is divided into two parts: troubleshooting by error indications and by
symptoms.
Troubleshooting
Part 5: Appendix
This section includes block diagrams of the unit and information to technically
understand the hardware (applied for new techniques only). This section also includes
pin arrangements.
Appendix
Sufficient information regarding assembly/disassembly is not given in this
manual. Refer to the illustrations in the separate Parts Catalog.
I
II. TABLE OF CONTENTS
Page
1- 1
1- 1
1- 2
1- 3
1- 3
1- 3
1- 4
1- 4
1- 4
1- 4
1- 5
1- 6
1- 7
1- 7
1- 7
1- 8
1- 9
1 -10
1 -10
1 -10
1 -10
1 -10
1 -10
1 -11
1 -12
Part 1: PRODUCT OUTLINE
1. PRODUCT OUTLINE
1.1 Product Outline
1.2 Features
2. SPECIFICATIONS
2.1 Printer Specifications
2.1.1 Printer specifications
2.1.2 Printer life
2.2 Paper Specifications
2.2.1 Paper sizes and weights
2.2.2 Paper types and handling
2.2.3 Printable area
2.3 BJ Cartridge Specifications
2.4 Interface Specifications
2.4.1 Parallel interface
2.4.2 Serial interface
2.5 Printer Drivers
3. PACKING
4. INSTALLATION
4.1 Installation Location
4.2 Installation Procedure
4.2.1 Connecting the centronics interface cable
4.2.2 Connecting the USB interface cable
4.2.3 Connecting to a power supply
5. NAMES AND FUNCTION OF PARTS
6. PARTS CODE LIST
Part 2: MAINTENANCE
2- 1
2- 1
2- 1
2- 1
2- 2
2- 2
2- 3
2- 3
2- 4
2- 5
2- 6
2- 6
2- 6
2- 6
2- 6
2- 7
2- 7
2- 8
2- 8
2- 9
2- 9
2- 9
2 -10
1. PERIODIC REPLACEMENT PARTS AND MAINTENANCE
1.1 Periodic Replacement Parts
1.2 Consumables
1.3 Periodic Maintenance
2. DISASSEMBLY AND REASSEMBLY
2.1 Tools
2.2 Cautions for Disassembly and Reassembly
2.2.1 Cautions for ink stains (ink path/ink mist)
2.2.2 Damage by static electricity
2.2.3 Preparation for transportation
2.3 Disassembly and Reassembly
2.3.1 Removing plastic parts
2.3.2 Removing and installing tap screws
2.3.3 Cable positions
2.3.4 Deformation of spur tips
2.3.5 Feed gear cautions
2.3.6 Installing and removing the upper case unit
2.3.7 Positioning the MODE switch
2.3.8 Installing and removing the home position sensor
2.4 Applying Grease
2.5 Adjustments and Settings After Disassembly and Reassembly
2.5.1 Adjustments
2.6. Spur Cleaner
II
Page
2 -10
2 -11
2 -11
2.6.1 Usage
3. OPERATION CHECK AFTER DISASSEMBLY AND ASSEMBLY
3.1 Check Procedure
Part 3: OPERATION
3- 1
3- 1
3- 2
3- 3
3- 4
3- 5
3- 6
3- 6
3- 7
3- 7
3- 8
3- 8
3- 9
3- 9
3 -10
3 -11
3 -11
3 -12
3 -13
1. PRINTER OPERATION FUNCTIONS
1.1 Status Indications
1.1.1 Status indicators
1.1.2 Error description
1.1.3 Ink-low indicator
1.1.4 BJ status monitor (Used only when connected to a computer)
1.2 Operation With a Computer
1.2.1 Function settings with the printer driver
1.3 Operation From the Printer Itself
1.3.1 Cleaning and head refreshing
1.3.2 Printing the nozzle check pattern
1.3.3 Resetting the dot counter
1.3.4 Cleaning the pick-up roller
1.3.5 Auto power on/off setting
1.3.6 Mode switch
2. SERVICE-RELATED FUNCTION
2.1 Service Mode Operations
2.2 Printing the EEPROM Data
2.3 Setting the Waste Ink Amount
Part 4: TROUBLESHOOTING
4- 1
4- 1
4- 4
4- 5
4 -16
4 -16
1. TROUBLESHOOTING ACCORDING TO ERROR DISPLAY
1.1 Initial Flow Chart
1.2 Error List
1.3 Troubleshooting Errors
2. TROUBLESHOOTING BY SYMPTOMS
2.1 Troubleshooting By Symptoms
Part 5: APPENDIX
5555555555555555555-
1
1
1
1
2
2
3
3
3
4
4
5
7
7
7
8
8
8
9
1. TECHNICAL REFERENCE
1.1 Description of Paper-feed Section
1.1.1 Construction of paper-feed section
1.1.2 Pick-up section
1.1.3 Transport section
1.1.4 Paper delivery section
1.1.5 Remaining paper indication function
1.1.6 Pick-up retry function
1.1.7 The form alignment function
1.2 Purge Section
1.2.1 Cleaning function
1.2.2 Description of Purge Section
1.3 Description of Carriage Section
1.3.1 BJ cartridge mounting function
1.3.2 Carriage drive control
1.4 Electronic Circuit Description
1.4.1 Printer block diagram
1.4.2 Power source line block diagram
1.4.3 USB interface
III
Page
5 -10
5 -10
5 -11
5 -11
5 -11
5 -11
5 -11
5 -12
5 -13
5 -13
5 -18
5 -19
5 -19
5 -20
5 -21
5 -21
5 -22
5 -23
1.4.4 Automatic interface switching
1.4.5 Detection functions
1.5 BJ Cartridge Description
1.5.1 BJ cartridge and ink cartridge configuration
1.5.2 BJ cartridge construction
1.5.3 BJ cartridge printing drive control
1.5.4 BJ cartridge identification
1.5.5 Printing mode list
2. CONNECTOR LOCATIONS AND PIN ARRAY
2.1 Control Board
2.2 Operation Panel Board
2.3 Sensor Board
2.4 Pick-up Roller Position Sensor Board
2.5 BJ Cartridge
2.6 Carriage Motor
2.7 Paper-Feed Motor
2.8 Pick-up Motor
2.9 Circuit Diagram
IV
III. ILLUSTRATION INDEX
Page
1- 1
1- 2
1- 5
1- 9
1 -10
1 -11
Part 1: PRODUCT OUTLINE
Figure
Figure
Figure
Figure
Figure
Figure
111111-
1
2
3
4
5
6
Exterior of Printer
Possible System Configurations
Printable Area
Packing
Installation Space
Parts Names and Major Functions
Part 2: MAINTENANCE
2- 3
2- 4
2- 6
2- 7
2- 7
2- 8
2- 8
2- 9
2 -10
2 -10
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
2- 1
2- 2
2- 3
2- 4
2- 5
2- 6
2- 7
2- 8
2- 9
2 -10
Ink Path
Parts Exposed to Ink Mist
Spurs
Feed Gear Cautions
Installing and Removing the Upper Case Unit
MODE Switch Positioning
Installing and Removing the Home Position Sensor
Applying Grease
Spur Cleaner
Set the Spur Cleaner
Part 3: OPERATION
3- 1
3- 5
3- 6
3- 7
3- 8
3 -12
3 -13
Figure
Figure
Figure
Figure
Figure
Figure
Figure
3333333-
1
2
3
4
5
6
7
Operation Panel
BJ Status Monitor (Sample)
Printer Driver Utilities (Sample)
Printer Buttons
Printing the Nozzle Check Pattern (Sample BC-11e)
EEPROM Data Printout (sample)
Waste Ink Absorber (50% of capacity)
Part 5: APPENDIX
5- 1
5- 1
5- 2
5- 3
5- 3
5- 5
5- 6
5- 7
5- 8
5- 8
5- 9
5- 9
5 -10
5 -11
5 -11
5 -13
5 -13
5 -18
5 -19
5 -19
5 -20
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
5- 1
5- 2
5- 3
5- 4
5- 5
5- 6
5- 7
5- 8
5- 9
5 -10
5 -11
5 -12
5 -13
5 -14
5 -15
5 -16
5 -17
5 -18
5 -19
5 -20
5 -21
Paper-Feed Path
Pick-up Section
Indicating the Remaining Amount of Paper
Fixing Skewed Paper
Purge Section
Wiping Operation
Carriage Section Structure
Block Diagram
Power Source Line Block Diagram
USB Data Transfer
NRZI
Sensor Locations
Cartridge Configuration
Nozzle Array
Control Board
Printer Diagram
Operation Panel Board
Sensor Board
Pick-up Roller Position Sensor Board
BJ Cartridge
V
Page
5 -21
5 -21
5 -22
Figure 5 -22
Figure 5 -23
Figure 5 -24
Carriage Motor
Paper-Feed Motor
Pick-up Motor
VI
IV. TABLE INDEX
Page
1 -12
Part 1: PRODUCT OUTLINE
Table
1- 1
PARTS CODE
Part 3: OPERATION
3- 2
Table
3- 1
STATUS INDICATORS
Part 4: TROUBLESHOOTING
4- 4
Table
4- 1
ERROR DISPLAY
Part 5: APPENDIX
5- 4
5 -10
5 -12
5 -17
Table
Table
Table
Table
5555-
1
2
3
4
INK CONSUMPTION DURING CLEANING
DETECTION FUNCTIONS
PRINTING MODES AND DRIVE METHOD
HEAD INSTALLATION STATUS AND SIGNAL DETECTION
VII
Part 1
PRODUCT
OUTLINE
Page
1- 1
1- 1
1- 2
1- 3
1- 3
1- 4
1- 6
1- 7
1- 8
1- 9
1 -10
1 -10
1 -10
1 -11
1 -12
1. PRODUCT OUTLINE
1.1 Product Outline
1.2 Features
2. SPECIFICATIONS
2.1 Printer Specifications
2.2 Paper Specifications
2.3 BJ Cartridge Specifications
2.4 Interface Specifications
2.5 Printer Drivers
3. PACKING
4. INSTALLATION
4.1 Installation Location
4.2 Installation Procedure
5. NAMES AND FUNCTION OF PARTS
6. PARTS CODE LIST
Part 1: Product Outline
LR1
1. PRODUCT OUTLINE
1.1 Product Outline
Manual-feed guide
Extension tray
Manual-feed tray
Cartridge cover
Manual-feed slot
Paper delivery cover
MODE switch
Paper delivery tray
Operation panel
Paper cassette
Remaining paper indication window
Parallel interface connector
USB interface connector
Rear cover
Power connector
Black
Color
BJ cartridge
Figure 1-1 Exterior of Printer
1-1
Storage box
Product
Outline
This is Canon’s first bubble-jet printer for use with a set top box (STB).
The design is a complete departure from conventional printers geared for personal
computers. The printer is designed to resemble an AV component to match the living
room interior.
It also has a MODE SELECTION switch, ink-low warning, and other functions which
are required as a non-PC printer. The large-capacity ink cartridges also make ink
cartridge replacements less frequent.
Part 1: Product Outline
LR1
1.2 Features
1) The printer is connected to the TV via the STB to enable images from the Internet to
be printed. It can also be used as a PC printer.
Internet
TV
Personal computer
Modem
STB
LR1
LR1
With a personal computer.
With a STB (set top box).
Figure 1-2 Possible System Configurations
2) By using a paper cassette and the operation panel on the front of the printer, frontend operation is easy.
3) The printer uses three types of BJ cartridges: Black, color, and photo color.
The black and color cartridges use large-capacity ink cartridges to make ink cartridge
replacement less frequent.
Black BJ cartridge BC-10 (optional): 128-nozzle head with detachable ink cartridge
Color BJ cartridge BC-11e:
136-nozzle head (64-nozzles for Bk and 24
nozzles each for Y, M, and C) with detachable
ink tank and ink-drop modulation technology
Photo Color BJ cartridge BC-12e (optional):
136-nozzle head (64-nozzles for Bk and 24
nozzles each for Y, M, and C) with detachable
ink cartridge and ink-drop modulation
technology
Ink
Ink
Ink
Ink
Ink
Ink
Ink
Ink
Cartridge
Cartridge
Cartridge
Cartridge
Cartridge
Cartridge
Cartridge
Cartridge
BCI-10
BCI-17
BCI-11
BCI-11
BCI-18
BCI-18
BCI-12
BCI-12
Black:
Black:
Black:
Color:
Black:
Color:
Black:
Color:
For
For
For
For
For
For
For
For
BC-10 Black
BC-10 large-capacity Black
BC-11e Black
BC-11e Color (YMC integrated)
BC-11e large-capacity Black
BC-11e large-capacity Color (YMC integrated)
BC-12e Photo Black
BC-12e Photo Color (YMC integrated)
4) The remaining ink amount is calculated with the dot counter. An INK-LOW indicator
is also provided.
5) Bitmap fonts for the Internet are built-in for high-quality and quick text output.
1-2
Part 1: Product Outline
LR1
2. SPECIFICATIONS
2.1 Printer Specifications
2.1.1 Printer specifications
Printing Direction
Max. Print Width
Line Feed Speed
Interface
Cassette Capacity
Manual Feed Tray
Capacity
Detection Function
Operating Noise
Ambient Conditions
Power Source
External
Dimensions
Weight
Certification
Desk-top serial color printer, non-PC printer for STB
Automatic feed (cassette)/Manual feed (manual feed tray)
360 × 720 dpi (Max. resolution)
High-speed
BC-10 Black Cartridge
Black Text (PC Magazine)
New monochrome pattern (E)
BC-11e Color Cartridge
New color pattern (E)
BC-12e Photo Cartridge
Full Address Printing
Standard
High-quality
3.5 ppm
3.2 ppm
4.1 ppm * 3.9 ppm * 1.0 ppm
1.9 ppm * 1.6 ppm * 0.3ppm
-
-
0.1 ppm *
* Catalog specification.
Unidirectional (automatically selected according to the print data)
203 mm
Approx. 136 ms/line: 9.03 mm (128/360 inch) carriage return
USB and IEEE 1284-standard, 8-bit parallel (Compatible/Nibble)
Plain paper: 5 mm max. (Approx. 50 sheets at 75 g/m2)
1 sheet
Cartridge cover-open detection: Provided
BJ cartridge detection: Provided
BJ cartridge identification: Provided
Ink-low detection sensor: Provided
Waste ink capacity detection: Provided
Paper width detection: None
Approx. 45 dB (A): Sound pressure level conforms to ISO 9296.
During operation: Temperature 5°C-35°C (41°F-95°F)
Humidity 10%-90% RH (No condensation)
During non-operation: Temperature 0°C-35°C (32°F-95°F)
Humidity 5%-95% RH (No condensation)
Power voltage/frequency: 100-240 VAC 50/60 Hz
Power consumption: During printing: Approx. 30 W
During standby: Approx. 2 W
Soft power off: Approx. 2 W
Approx. 365mm W × 364mm D × 110 mm H
Approx. 4.0 kg (excluding BJ cartridge)
Radio wave interference: FCC, SISPR 22, CE Mark
Electrical safety: UL, CSA, IEC, GS, FIMKO, SEMCO, AS/NZS,
CCIB, SISIR,
EI, NEMKO, Korean Electric Commerce
Environmental: Energy Star, Blue Angel
1-3
Product
Outline
Type
Paper Feed System
Resolution
Throughput
(Reference only)
Part 1: Product Outline
LR1
2.1.2 Printer life
The printer’s life shall be until any of the following conditions is attained:
(1) A total of 12,000 sheets are printed with the1,500-character standard pattern in
black ink
(2) A total of 6,000 sheets are printed with the color printing standard pattern at 7.5%
duty per color
(3) A total of 2,000 sheets are printed with photographic standard patterns
(4) Five years of operation elapses
2.2 Paper Specifications
2.2.1 Paper sizes and weights
(1) Paper sizes
A4, B5, A5, letter, envelope (Com #10/DL-size)
(2) Weight
64-105 g/m2 for cassette feeding
2.2.2 Paper types and handling
Type
Plain paper
Size
A4/LTR
GP-301* A4/LTR
Feed method Capacity
Cassette
Approx. 5 mm or less
(Approx. 50 sheets of 75 g/m2
weight)
Manual
1 sheet
Cassette
Approx. 5 mm or less
(Approx. 50 sheets of 75 g/m2
weight)
Manual
1 sheet
Cassette
Approx. 5 mm or less
(Approx. 40 sheets)
Manual
1 sheet
Manual
1 sheet
HG-101* A4/LTR
CF-102* A4/LTR
Manual
Manual
1 sheet
1 sheet
BF-102*
A4/LTR
Manual
1 sheet
BP-101*
TR-201*
A4/LTR
A4/LTR
Manual
Manual
1 sheet
1 sheet
FM-101* 120 mm × 216 mm Manual
1 sheet
Com #10 241 mm × 105 mm Manual
DL-size 220 mm × 110 mm
1 sheet
1 sheet
Plain paper LC-301*
for Color BJ
A4/B5/LTR/A5
A4/LTR
High-quality HR-101* A4/LTR
paper
Photo glossy
paper
Glossy film
Transparency
film
Back print
film
Banner
T-shirt
transfer
Photo glossy
card
Envelope
* Paper dedicated to BJ printers.
Note 1: The printing side of the paper is stacked face-down in the cassette.
Note 2: Only A4 or letter-size paper can be fed from the paper cassette.
1-4
Part 1: Product Outline
LR1
2.2.3 Printable area
A4/A5/B5/Letter/Postcard Size
3.0mm
Envelopes
3.0mm
22mm
22mm
6.4mm
(COM#10: 31.4mm)
(DL size: 10.4mm)
7.0mm
22mm
3.4mm: A4/A5/B5/Postcard 3.4mm: A4/A5/B5/Postcard
6.3mm: LTR
6.4mm: LTR
: Recommended printing area.
: Possible printing area.
Figure 1-3 Printable Area
1-5
Product
Outline
22mm
7.0mm
Part 1: Product Outline
LR1
2.3 BJ Cartridge Specifications
Black BJ Cartridge
BC-10
Construction Detachable ink cartridge
Head
128 nozzles
(Vertical array)
Bk (128 nozzles × 1)
Ink colors
Bk
Ink
cartridge
BCI-10 Black
BCI-17 Black
(large-capacity)
Weight
26 g
(with BCI-10 installed)
Service Life Approx. 3,000 sheets*2
Printable
Approx. 170 sheets
1
Sheets*
(BCI-10)*2
Approx. 270 sheets
(BCI-17)*2
*1
*2
*3
*4
*5
:
:
:
:
:
Color BJ Cartridge
BC-11e
Detachable ink cartridge
136 nozzles
(Vertical array)
Bk (64 nozzles × 1)
C, M, Y (24 nozzles × 3)
Bk, C, M, Y
BCI-11 Black
BCI-11 Color
BCI-18 Black
(large-capacity)
BCI-18 Color
(large-capacity)
29 g
(with BCI-11 installed)
Approx. 2,000 sheets*3
Color : Approx. 30 sheets
(BCI-11)*3
Black : Approx. 25
sheets (BCI-11)*3
Color : Approx. 50 sheets
(BCI-18)*3
Black : Approx. 40
sheets (BCI-18)*3
The number of sheets per ink cartridge
1,500-character standard pattern.
7.5% duty per color (using standard pattern).
Average 16.7% duty per color.
7.5% duty per color (calculated values by ink volume used).
1-6
Photo BJ Cartridge
BC-12e
Detachable ink cartridge
136 nozzles
(Vertical array)
Bk (64 nozzles × 1)
C, M, Y (24 nozzles × 3)
Photo Bk, Photo C,
Photo M, Y
BCI-12 Black (Photo)
BCI-12 Color (Photo)
29 g
(with BCI-12 installed)
Approx. 200 sheets*4
Approx. 20 sheets*5
Part 1: Product Outline
LR1
2.4 Interface Specifications
2.4.1 Parallel interface
2.4.2 Serial interface
1) Interface type
USB (Universal Serial Bus conforming to USB Specification Revision 1.0)
2) Data transfer method
Control transfer
Bulk transfer
3) Signal level
-Data, +Data
Difference input sensitivity: +0.2 V (Min.)
“H” level output voltage:
+2.8 V to +3.6 V
“L” level output voltage:
+0.0 V to +0.3 V
Vcc
“H” level input voltage:
+2.0 V to +5.5 V
“L” level input voltage:
+0.0 V to +0.8 V
4) Input/Output
3.3 V pull-up for +Data signal
5) Interface cable
Cable:
Twisted-pair, shielded cable, 5.0 m or shorter
Must conform to USB.
Wire material: AWG (American Wire Gauge) No. 28 or higher
6) Interface connector
On printer:
USB with series-B receptacle
On cable:
USB with series-B plug
7) I/O signal and pin array
For details, see “Part 5: CONNECTOR LOCATION AND PIN ARRAY” on page 5-13.
1-7
Product
Outline
1) Interface type
IEEE 1284 parallel interface
2) Data transfer method
8-bit parallel transfer (Compatibility mode and nibble mode supported)
3) Signal level
Input
“Low” level:
0.0 V to +0.8 V
“High” level: +2.0 V to +5.0 V
Output
“Low” level:
0.0 V to +0.4 V
“High” level: +2.4 V to +5.5 V
4) Input/Output
+5 V pull-up for all signals
5) Interface cable
Cable: Twisted-pair, double-shielded cable, 2.0 m or shorter
Must conform to IEEE 1284.
Wire material: AWG (American Wire Gauge) No. 28 or higher
6) Interface connector
On printer: Amphenol 57-40360 or equivalent
On cable: Amphenol 57-30360 or equivalent
7) I/O signal and pin array
For details, see “Part 5: CONNECTOR LOCATION AND PIN ARRAY” on page 5-13.
Part 1: Product Outline
LR1
2.5 Printer Drivers
The compatibility between printer drivers and interface ports is shown below.
Windows 95/98
Windows NT4.0
Windows 2000
Macintosh
Printer Driver
Parallel I/F
USB I/
●
▲*
✕
✕
✕
✕
✕
✕
●: Compatible,
▲: Compatible under certain conditions,
✕: Incompatible
* For USB, compatibility is assured only with personal computers preinstalled with
Windows 98.
1-8
Part 1: Product Outline
LR1
3. PACKING
After opening the package, make sure all the items below have been included.
Quick guide
Quick sheet
Tape
Packing
Printer
Packing
Packing for accessories
Ink cartridges
BJ cartridge
Power cord
Packing
Packing
Cassette
protective
packing
Paper cassette
AC adapter
Interface cable
Packing for accessories
Box
Figure 1-4 Packing
1-9
Product
Outline
Protective
sheet
Manuals
Part 1: Product Outline
LR1
4. INSTALLATION
For installation details, see the User’s Manual.
4.1 Installation Location
For optimum use, place the printer where there is enough space. The printer’s external
dimensions are shown below.
Approx. 185.5 mm
Approx. 110 mm
Approx.
364 mm
Approx. 365 mm
Approx. 559.5 mm
Figure 1-5 Installation Space
4.2 Installation Procedure
To prevent an electric potential difference between the computer and printer, first
connect the interface cable, then connect the AC plug into an AC power outlet.
4.2.1 Connecting the centronics interface cable
1) Make sure the printer and computer’s power is off.
2) Connect the interface cable to the printer’s interface connector. Lock the
connection with the cable’s connector clips.
3) Connect the other end of the interface cable to the computer and lock the
connection.
4.2.2 Connecting the USB interface cable
1) Connect the interface cable to the printer’s interface connector. Lock the
connection with the cable’s connector clips. It is unnecessary to turn off the printer
or computer before connecting cables. The cable can be connected while their
powers are turned on.
2) Connect the other end of the interface cable to the computer and lock the
connection.
4.2.3 Connecting to a power supply
1) Connect the AC plug of the power cable to an AC power outlet and the DC plug of
the AC adapter to the printer.
2) Press the printer’s POWER button to turn on the printer. First, all the indicators
on the printer will light. Then the POWER indicator will light and the BUSY
indicator will blink during the initialization operation. After the initialization ends,
the BUSY indicator will turn off. If a BJ cartridge has not been installed, the ERROR
indicator will light and the beeper will sound three times. The carriage will also
move to the cartridge replacement position.
1-10
Part 1: Product Outline
LR1
5. NAMES AND FUNCTION OF PARTS
The names and major functions of parts are shown below.
DOT COUNTER RESET
button
After replacing the BJ
cartridge or ink cartridge,
press this button to reset
the ink dot counter.
If the ink dot counter is
not reset, the ink-low
indicator will not be
accurate.
Extension tray
Cartridge cover
Open this cover when
replacing the BJ cartridge.
• When this cover is opened,
the carriage moves to the
cartridge replacement
position.
• Also, if the cartridge is being
loaded and this cover is left
open for 10 min. or longer,
the carriage returns to the
home position.
• If this cover is opened during
printing, the printing will
stop. Closing the cover will
resume the printing.
Paper delivery cover
Prevents dust, etc., from
adhering to the discharged
paper.
Paper delivery tray
After printing, the paper is
discharged to this tray.
Paper cassette
Load with plain paper or
HR-101. (only for A4/LTR)
Mode switch
If the connected STB has a
mode switching function, it
can be set with this switch.
It cannot be used when a
computer is connected.
Paper check window
Displays the amount of
paper remaining in the
cassette.
Operation panel
BUSY indicator (Green)
OFF: Standby
ON:
Printing in progress
or printing data
being received.
Blinks:During
initialization or
cleaning.
Cover is open.
RESUME/
CLEAN
LOW INK
POWER indicator (Green)
OFF: Power is off.
ON:
Power is on.
BUSY
POWER
COLOR
POWER button
Press to turn on/off the power
and print the test pattern.
RESUME button
This cancels user-resolvable
errors. Also, it is used to
execute cleaning, and pick-up
roller cleaning.
BLACK
ERROR indicator (Orange)
OFF: Normal status
Lit or blinking:
An error has occurred and
printing is not possible.
INK-LOW indicator
Lights when the remaining ink
amount is low.
Rear cover
This is opened to fix paper jams
or to execute the pick-up roller
cleaning.
Parallel interface connector
Connector for connection
to a computer.
USB interface connector
Connector for connection
to a computer.
Power connector
Connector for connection to a
AC adapter.
Figure 1-6 Parts Names and Major Functions
1-11
Product
Outline
Manual-feed tray
Load this tray during manual
paper feeding.
Part 1: Product Outline
LR1
6. PARTS CODE LIST
A list of printer parts, consumables, and optional equipment are listed below.
Table 1-1 PARTS CODE
Item
Printer
BJ cartridge
Designation
LR1*
BC-10
BC-11e
BC-12e Photo
Ink cartridge
BCI-10Bk
BCI-17Bk
(large-capacity)
Black
BCI-11Bk
Color
BCI-11Color
Black (large-capacity) BCI-18Bk
(large-capacity)
Color (large-capacity) BCI-18Color
(large-capacity)
Photo black
BCI-12Bk
Photo color
BCI-12Color
Cartridge storage box SB-11
Universal Adapter
AD360U
Power cable
Black
Color
Black
Black (large-capacity)
Product Code
Q30-3220
F45-0631
F45-1321
F45-1751
F47-0751
F47-2721
F47-0761
F47-0771
F47-2731
F47-2741
F47-2751
F47-2761
Q70-4120
Q70-3839
Q70-3980
* Items included with LR1: BC-11e, BCI-18 Bk, BCI-18 Color, AD 360U, power cable,
parallel interface cable.
1-12
Part 2
MAINTENANCE
Page
2- 1
2- 1
2- 1
2- 1
2- 2
2- 2
2- 3
2- 6
2- 9
2- 9
2 -10
2 -11
2 -11
1. PERIODIC REPLACEMENT PARTS AND MAINTENANCE
1.1 Periodic Replacement Parts
1.2 Consumables
1.3 Periodic Maintenance
2. DISASSEMBLY AND REASSEMBLY
2.1 Tools
2.2 Cautions for Disassembly and Reassembly
2.3 Disassembly and Reassembly
2.4 Applying Grease
2.5 Adjustments and Settings After Disassembly and Reassembly
2.6. Spur Cleaner
3. OPERATION CHECK AFTER DISASSEMBLY AND ASSEMBLY
3.1 Check Procedure
Part 2: Maintenance
LR1
1. PERIODIC REPLACEMENT PARTS AND MAINTENANCE
1.1 Periodic Replacement Parts
Level
User
Service personnel
Replacement Parts
None
None
1.2 Consumables
Service
personnel
For Black BJ
Cartridge
BJ Cartridge BC-10
Ink Cartridge BCI-10
LargeBCI-17
Capacity
Ink Cartridge
None
Consumables
For Color BJ
Cartridge
BC-11e
Bk: BCI-11 Bk
Color: BCI-11 Color
Bk: BCI-18 Bk
Color: BCI-18 Color
1.3 Periodic Maintenance
Level
User
Service personnel
Periodic Inspections
None
None
2-1
For Photo BJ
Cartridge
BC-12e
Bk: BCI-12 Bk
Color: BCI-12 Color
None
Maintenance
Level
User
Part 2: Maintenance
LR1
2. DISASSEMBLY AND REASSEMBLY
2.1 Tools
Tools required for disassembly and reassembly are listed below.
Ordinary Tools
Phillips screwdriver
Blade screwdriver
Needle-nosed pliers
Tweezers
Flat brush
For
For
For
For
For
Remarks
the removal and installation of screws.
the removal of plastic parts.
the removal and installation of springs.
the disconnection and connection of flexible cables, etc.
applying grease.
Special Tools (Part No.)
Remarks
Grease MOLYKOTE PG-641
To be applied on the specified parts (see page 2-9).
(CK-0562-000)
Spur Cleaner (QY9-0055-000) For cleaning the spurs (see page 2-10).
2-2
Part 2: Maintenance
LR1
2.2 Cautions for Disassembly and Reassembly
2.2.1 Cautions for ink stains (ink path/ink mist)
During servicing, be careful not to touch the ink path and get ink stains on the
printer, work table, and your hands and clothing.
The ink path includes the BJ cartridge’s ink cartridge supply inlet, the BJ cartridge’s
ink filter, the ink nozzles and maintenance jet receptacle, head cap, wiper, and waste
ink absorber.
Cap
Waste ink absorber
Wiper
Pump
Ink path
Maintenance jet receptacle
Figure 2-1 Ink Path
2-3
Maintenance
Although the ink does not contain anything harmful to humans, it does
contain organic solvents.
Black ink:
Glycerin 56-81-5, ethylene glycol 107-21-1, isopropyl alcohol
107-21-1
Color ink:
Isopropyl alcohol 67-63-0
Photo ink: Glycerin 56-81-5, ethylene glycol 107-21-1, isopropyl alcohol
67-63-0
Be careful not to get the ink in your mouth or eyes.
If ink gets into your eyes, wash with lots of water and see a doctor. If you
consume a large amount of ink orally, see a doctor promptly.
Since the ink contains dyes, it will permanently stain clothing and other
materials.
Part 2: Maintenance
LR1
The BJ cartridge ejects ink onto the paper to print. After a long period of time or
heavy-duty use, ink mist created by loose ink droplets and ink bouncing off by the
paper will soil the platen, inside the cartridge cover, and around the purge section.
These soiled parts can soil the paper and your hands and clothing. To prevent this,
use a soft, damp cloth to wipe these parts clean.
When cleaning the purge section, be careful not to touch the cap or wiper
section.
Platen section
Purge section
Check point !
Purge section
Figure 2-2 Parts Exposed to Ink Mist
2.2.2 Damage by static electricity
Due to the rubbing of clothing, static electricity can build up within the human body.
Static electricity can damage electrical components or alter the electrical
characteristics of components.
Never touch the contacts on the carriage and the BJ cartridge.
Handle the control board, sensor board or operation panel board with care not to
break them by static electricity.
2-4
Part 2: Maintenance
LR1
2.2.3 Preparation for transportation
While moving or transporting the printer, either leave the BJ cartridge in the printer
or keep it in the storage box. This is to prevent the ink from leaking and the BJ
cartridge’s ink nozzles from drying up.
(1) Carrying the printer
Before carrying the printer while the BJ cartridge is still installed, follow the
procedure below.
1) Turn off the printer by pressing the POWER button.
3) Disconnect the interface cable.
4) Disconnect the AC adapter’s DC plug from the printer.
Disconnect the AC adapter’s AC plug from the power outlet.
If you turn off the power by disconnecting the AC adapter or if you carry or
transport the BJ cartridge without putting it in the storage box, ink may
leak and the nozzles may dry up.
(2) Transporting the printer
Before transporting the printer, follow the procedure below.
1) Follow the procedure above for “(1) Carrying the printer” to turn off the printer and
disconnect the interface cable and AC adapter.
2) Pack the printer and AC adapter in their original packaging.
If you do not have the original packaging, use enough shock-absorbing material to
pack the printer.
2-5
Maintenance
2) Check that the BJ cartridge is at the capping position (right end of printer). If it is
not at the capping position, turn the printer on and off by the POWER button so that
the carriage is moved to the capping position.
Part 2: Maintenance
LR1
2.3 Disassembly and Reassembly
Cautions for disassembling and reassembling the printer are stated below.
As for the disassembly procedure, refer to the Parts Catalog. The illustrations in the
Parts Catalog are numbered according to the order of disassembly.
2.3.1 Removing plastic parts
The printer has many plastic parts. When disassembling the printer, be careful not to
break or bend the plastic hooks. For details on disassembly and reassembly, refer to
the Parts Catalog.
Some plastic parts contain glass fiber to improve the rigidity for better
precision. Since these parts are less flexible, their plastic hooks are
especially easy to break. During disassembly, do not exert excessive force
on plastic parts with a screwdriver or other instrument.
2.3.2 Removing and installing tap screws
The printer uses tap screws to fasten the upper and bottom cases, the control board
and bottom case, the pick-up unit and bottom case unit, and the chassis platen unit
and bottom case. The removed tap screws will have residue from the mold in which
the internal thread was made. Since the residue may crush the screw threads, clean
off the residue from the tap screws before re-installing or use new tap screws.
2.3.3 Cable positions
Lay the cables connecting the motors, sensors, and control board according to the
stipulated position.
For positioning the cables, refer to the Parts Catalog.
2.3.4 Deformation of spur tips
Be careful not to deform the spur tips.
The spur contacts the paper after the printing.
If the spur’s tips are deformed, the contact area with the paper will become larger,
increasing the amount of ink on the paper transferring onto the spur tips which will
soil paper with dotted lines.
Spurs section
Figure 2-3 Spurs
2-6
Part 2: Maintenance
LR1
2.3.5 Feed gear cautions
When disassembling or reassembling the printer, do not touch the gears of the at
paper feeding section. Note that even a slight scratch on the gears will cause irregular
paper feeding during high-quality printing.
Paper feed
double gear
Paper feed
gear
Maintenance
Figure 2-4 Feed Gear Cautions
2.3.6 Installing and removing the upper case unit
Before installing or removing the upper case unit, the paper delivery tray must be
removed.
Upper case unit
Paper delivery tray
1
2
Figure 2-5 Installing and Removing the Upper Case Unit
2-7
Part 2: Maintenance
LR1
2.3.7 Positioning the MODE switch
The position of the MODE switch on the upper cover must match the switch on the
control board. Otherwise, the cover cannot be attached properly.
Mode switch
Mode switch in
the A position
Mode switch in
the B position
Mode switch
The switch on the control board
Match the position of the Mode switch
to the position of the control board.
Switch on the control board
Figure 2-6 MODE Switch Positioning
2.3.8 Installing and removing the home position sensor
The home position sensor cannot be installed or removed when the carriage is at the
home position. Move the carriage away from the home position before installing or
removing the home position sensor.
Home position sensor
2
1
Figure 2-7 Installing and Removing the Home Position Sensor
2-8
Part 2: Maintenance
LR1
2.4 Applying Grease
The places where grease is applied are shown below.
Only one type of grease is to be used: PG-641 (CK-0562).
Use a flat brush to apply grease thinly and evenly.
To disassemble and assemble the printer, refer to the Parts Catalog.
When applying grease, be careful not to get any grease on the wiper and
cap.
Carriage shaft
Maintenance
Carriage guide
Figure 2-8 Applying Grease
2.5 Adjustments and Settings After Disassembly and Reassembly
2.5.1 Adjustments
(1) User Level
None.
(2) Service personnel Level
Timing
After control board replacement
After printer base unit replacement
Adjustment
EEPROM setting*
EEPROM clear*
Time Required
2 min.
2 min.
Tools Required
None
None
* To clear and set the EEPROM, refer to “Part 3: 2.1 Service Mode Operations” on page 3-10.
2-9
Part 2: Maintenance
LR1
2.6. Spur Cleaner
If the tips of spurs become dirty with ink, spur marks can be left on the print images.
In such case, clean the spurs by using the spur cleaner (QY9-0055-000). The spur
cleaner can be used until it loses its intended effect.
2.6.1 Usage
1) Moisten the fabric part of the spur cleaner with approx. 5 cc of water.
Moisten the fabric with water, as shown below, so that the fabric absorbs enough
water from end to end, especially the areas that will contact the spurs.
Be careful not to moisten the fabric with too much water. In case too much water
is used, there is a possibility that water will be squeezed from the spur cleaner
when passing through the paper feed roller, spread inside the printer, and cause
failure.
Be careful that the water
is absorbed by the fabric
from end to end.
Part moistened with water
Fabric (white-colored)
Spur cleaner
Transparent film
Figure 2-9 Spur Cleaner
2) Turn the power on.
3) Set the spur cleaner.
Open the manual feed tray and set the spur cleaner with the fabric-affixed part of
the cleaner face-up and to the top.
The spur cleaner is fed and stops at the print start position.
Spur cleaner
Fabric (white-colored)
Figure 2-10 Set the Spur Cleaner
4) Feed the spur cleaner.
Press the RESUME button, and release it after the beeper sounds once. The spur
cleaner is delivered.
5) Repeat procedures 3) and 4) approx. 5 times in case of heavy soiling.
6) Remove the moisture remaining in the paper feeding path.
With a single sheet of plain paper set in the manual feed tray, repeat procedure 4)
several times until the water is completely removed from the paper path.
2-10
Part 2: Maintenance
LR1
3. OPERATION CHECK AFTER DISASSEMBLY AND ASSEMBLY
3.1 Check Procedure
After disassembly and reassembly, follow the procedure below to check the printer’s
operation.
1) After repairs
Check that the printer can print out the EEPROM data properly. For the procedure,
see “Part 3: 2.1 Service Mode Operations” on page 3-10.
2) After replacing the control board and printer base unit
After replacing the control board and printer base unit, check the following:
After printer base unit replacement
The ROM version in the list of EEPROM data
must be the correct one.
In the list of EEPROM data, the total waste ink
amount must be about the same percentage as
in the waste ink absorber.
The nozzle check pattern must be able to be
printed from the printer driver.
In the list of EEPROM data, the total waste ink
amount must be cleared to 0%.
*1: To print out the list of EEPROM settings, see “Part 3: 2.1 Service Mode Operations” on
page 3-10.
*2: To set or clear the total waste ink amount, see “Part 3: 2.1 Service Mode Operations”
on page 3-10.
2-11
Maintenance
After control board replacement
Part 2: Maintenance
LR1
This page intentionally left blank
2-12
Part 3
OPERATION
Page
3- 1
3- 1
3- 6
3- 7
3 -11
3 -11
3 -12
3 -13
1. PRINTER OPERATION FUNCTIONS
1.1 Status Indications
1.2 Operation With a Computer
1.3 Operation From the Printer Itself
2. SERVICE-RELATED FUNCTION
2.1 Service Mode Operations
2.2 Printing the EEPROM Data
2.3 Setting the Waste Ink Amount
Part 3: Operation
LR1
1. PRINTER OPERATION FUNCTIONS
The printer’s operation functions include status indications and printer control via a
personal computer or via the printer’s operation panel and operation from the printer
itself.
1.1 Status Indications
The printer has indicators to indicate the printer status.
The printer indicates an error with a green POWER indicator, a green BUSY indicator,
an orange ERROR indicator, and a certain number of beeper sounds.
The remaining ink amount is indicated by the INK-LOW indicator.
BUSY indicator
POWER indicator
ERROR indicator
RESUME/
CLEAN
BUSY
POWER button
LOW INK
POWER
COLOR
BLACK
INK-LOW indicator
Figure 3-1 Operation Panel
3-1
Operation
RESUME button
Part 3: Operation
LR1
1.1.1 Status indicators
1) Normal Status
Refer to the following “Table 3-1 STATUS INDICATORS”.
Table 3-1 STATUS INDICATORS
Indicator State
Power
Busy
(Green)
(Green)
On
Off
On
Blinking
Error
(Orange)
Off
Off
On
Off
Off
Off
On
Off
Status
During power on.
During initialization and busy, cartridge
replacement, cleaning operation, and cartridge
cover open.
During printing.
During power on and standby.
2) Error Status
2-1) Error display for user-recoverable errors
When a user-resolvable error occurs, the ERROR indicator either turns on or blinks
and the beeper sounds a certain number of times. By closing the cartridge cover
and pressing the RESUME button, the beeper sounds a certain number of times to
indicate which error has occurred and the error is canceled.
2-2) Error display for user-unrecoverable errors
When a user-unrecoverable error occurs, the POWER indicator, BUSY indicator, or
ERROR indicator blinks and the beeper sounds a certain number of times to indicate
which error has occurred.
Status
User-recoverable errors
Paper-feed error
Paper jam error
Cartridge not-loaded error
Cartridge mismatch error
Failed manual feed warning
Cartridge replacement
auto-completion warning
Cartridge overheating warning
Waste ink full warning
User-unrecoverable errors
ROM error
RAM error
No-cartridge error
Home position error
Waste ink full error
Internal temperature sensor error
Automatic correction error
Head overheating error
EEPROM error
Power
Busy
Error
On
On
On
On
On
On
Off
Off
Off
Off
Off
Off
On
On
On
On
Blinking
Blinking
1
2
3
4
1
3
Page
Page
Page
Page
Page
Page
On
On
Off
Off*
Blinking
Blinking
4
5
Page 4-8
Page 4-5
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
1
2
3
4
5
6
7
8
11
* The BUSY indicator turns on when there is receiving data.
3-2
Beeper Sounds Page
Page
Page
Page
Page
Page
Page
Page
Page
Page
4-11
4-11
4-13
4-13
4-10
4-15
4-5
4-5
4-13
4-6
4-5
4-5
4-6
4-8
4-5
Part 3: Operation
LR1
1.1.2 Error description
User-unrecoverable errors
9) ROM error
The ROM check failed during initialization.
10) RAM error
The RAM check failed during initialization.
11) No-cartridge error
The printer is unable to detect the BJ cartridge at any position except at the
cartridge replacement position.
12) Home position error
The home position sensor is not working (line disconnected).
The carriage’s home position cannot be detected.
13) Waste ink full error
The total waste ink amount recorded in the EEPROM exceeds the full capacity
(100%).
14) Internal temperature sensor error
The temperature sensor (TH1) on the control board has a malfunction (line
disconnected).
15) Automatic correction error
The home position cannot be detected during printing position correction.
16) Head overheating error
The BJ cartridge temperature is abnormal.
17) EEPROM error
An error occurred during the writing to EEPROM.
3-3
Operation
User-recoverable errors
1) Paper-feed error
The paper is not fed during the paper-feed operation.
2) Paper jam error
The paper cannot be delivered even when the paper delivery operation is executed for
584.2 mm (23 inches).
3) Cartridge not-loaded error
The cartridge is not loaded in the printer.
4) Cartridge mismatch error
The data sent by the personal computer does not match the installed cartridge.
Open the cartridge cover and install the correct cartridge. The error will then be
canceled. Pressing the POWER button to turn the printer on/off will also cancel the
error.
5) Failed manual feed warning
The paper cannot be fed manually with the manual feed tray.
6) Cartridge replacement auto-completion warning
The cartridge replacement mode has been disabled by the printer. Closing the
cartridge cover cancels the error.
7) Cartridge overheating warning
The cartridge temperature is high and the cartridge cover is also open.
8) Waste ink full warning
The total waste ink amount recorded in the EEPROM is close to the full capacity
(99% or higher).
Part 3: Operation
LR1
1.1.3 Ink-low indicator
The printer has an INK-LOW indicator to display the remaining ink amount.
COLOR
The BCI-18 Color still has ink.
BLACK
The BCI-17 Black/BCI-18 Black still has
ink.
COLOR
The BCI-18 Color's remaining ink amount
is half or less.
BLACK
The BCI-11 Color's/BCI-12 Color has little
ink remaining.
The BCI-17 Black/BCI-18 Black's
remaining ink amount is less than half.
The BCI-10 Black/BCI-12 Black has little
ink remaining.
COLOR
BCI-18 Color has little ink remaining.
BCI-18 Black has little ink remaining.
BLACK
: lit (Green)
: off
No lamps lit:
One lamp lit:
Two lamps lit:
Enough ink remains.
The large-capacity ink cartridges have less than half (equivalent
to the amount in the standard ink cartridge) the full amount of
ink.
The standard-capacity ink cartridges have little ink remaining.
The large-capacity ink cartridge has little ink remaining.
After replacing the ink cartridge, reset the dot counter. If the dot counter
is not reset, the remaining ink amount detected will not be correct. To
reset the dot counter, see “1.3.3 Resetting the dot counter” on page 3-8.
3-4
Part 3: Operation
LR1
1.1.4 BJ status monitor (Used only when connected to a computer)
The BJ status monitor indicates the printer’s status and printer progress. It can also
cancel the printing.
The BJ status monitor can be used only when it is connected to a personal computer.
It cannot be used when it is connected to a set top box.
(1) BJ status monitor features
1) Displays the printer’s status and printing progress in real-time with diagrams and
messages.
2) When an error occurs, the error type and solutions are displayed.
3) The type of BJ cartridge installed and ink-low warning are displayed as text and
icons.
4) The current printing operation can be canceled.
Figure 3-2 BJ Status Monitor (Sample)
3-5
Operation
(2) BJ status monitor display items
1) Printer name
2) Document name
3) Status: When an error occurs, the error code and solutions are displayed.
4) Start date and time
5) Progress
6) Printed page count
7) Printing canceled
8) Installed cartridge: Cartridge type indicated by an icon.
9) Ink-low warning: The remaining amount of ink for each ink cartridge is displayed
as an icon.
Part 3: Operation
LR1
1.2 Operation With a Computer
When the printer is connected to a personal computer, the printer’s functions can be
set with the exclusive printer driver. The exclusive printer driver cannot be used when
the printer is connected to a set top box.
1.2.1 Function settings with the printer driver
The following utility items can be set or executed with the exclusive printer driver.
1) Cleaning
2) Head refreshing
3) Pick-up roller cleaning
To clean the pick-up roller, feed one cleaning sheet in the cassette to the rear of the
printer. This cleans the paper bits adhering to the pick-up roller.
To clean the pick-up roller, open the rear cover. The cleaning sheet will be delivered
from the rear of the printer.
4) Printing the demo pattern
5) Printing the nozzle check pattern
6) Printer power off
7) Automatic power on/off function setting
8) Status monitor startup
Figure 3-3 Printer Driver Utilities (Sample)
3-6
Part 3: Operation
LR1
1.3 Operation From the Printer Itself
The printer has a POWER button, RESUME button, MODE switch, and DOT COUNTER
RESET button.
These printer controls enable “offline operation” while the printer is not connected to a
computer or STB.
DOT COUNTER RESET buttons
MODE switch
Figure 3-4 Printer Buttons
1.3.1 Cleaning and head refreshing
While the power is on, hold down the RESUME button and release after the beeper
sounds the stipulated number of times. The cleaning will then start. Cleaning can
also be executed from the printer driver’s utility while the printer is connected to a
computer.
Operation
Cleaning
Head refreshing
Beeper Sounds
2 times
3 times
3-7
Operation
POWER button
RESUME button
Part 3: Operation
LR1
1.3.2 Printing the nozzle check pattern
With the printer off, hold down the POWER button and release after the beeper
sounds four times. The nozzle check pattern will then start printing. If any printing
defects show up in this printout, excute the BJ cartridge cleaning. If the printing
defect still persists after cleaning the BJ cartridge or refreshing the head five times or
more, replace the BJ cartridge.
Printed with the first nozzle.
Printed with the first nozzle.
Yellow 24 nozzles
Magenta 24 nozzles
Cyan 24 nozzles
Black 64 nozzles
24
24
24
64
24
24
24
24
Printed with the 136th nozzle.
Small dot printing
Printed with the 136th nozzle.
Large and small dot printing
Figure 3-5 Printing the Nozzle Check Pattern (Sample BC-11e)
If possible, print out the nozzle check pattern with paper fed from the cassette.
If you must feed the paper manually to print out the nozzle check pattern, follow the
procedure below:
1) Without setting any paper in the manual-feed slot, and the paper cassette try to
print out the nozzle check pattern. A paper-feed error will occur.
2) Insert one sheet of paper into the manual-feed slot, then press the RESUME button.
The paper-feed error will be canceled and the nozzle check pattern will be printed.
1.3.3 Resetting the dot counter
After replacing the ink cartridge or BJ cartridge with a new cartridge, follow the
procedure below to reset the dot counter.
1) Open the cartridge cover. The cartridge will move to the center.
2) Check that the ink cartridge whose dot counter is to be reset is installed. (The dot
counter reset will be enabled only for the cartridge installed.)
3) When resetting the dot counter for the black ink cartridge, press the “BLACK”
COUNTER RESET button. To reset the dot counter for a color ink cartridge, hold
down the “COLOR” button and release when the beeper sounds.
After replacing the ink cartridge or BJ cartridge to a new one, be sure to
reset the dot counter. If the dot counter is reset without the ink cartridge
being replaced or if the dot counter is not reset after the cartridge is
replaced, the remaining ink amount detected will not be correct.
3-8
Part 3: Operation
LR1
1.3.4 Cleaning the pick-up roller
When dust and paper bits adhere to the pick-up roller, the paper feeding becomes less
efficient. In such a case, use a cleaning sheet to clean the pick-up roller as described
below.
Use the exclusive cleaning sheet included in the pack of high-resolution paper.
1) Put the cleaning sheet in the paper cassette.
Peel off the cleaning sheet’s backing. Lay the sheet with the sticky side facing up.
Set the sticky side toward the claw.
2) Open the rear cover.
3) Hold down the RESUME button and release it when the beeper sounds once.
The cleaning sheet will be fed into the printer and discharged out the back of the
printer. The error indicator will light.
4) Take out the cleaning sheet and close the rear cover. Press the RESUME button.
You can also clean the pick-up roller with the printer driver if the printer
is connected to a personal computer. See 1.2.1 Function settings with the
printer driver on page 3-6.
The printer has an auto power on/off feature.
Upon factory shipment, the printer is set as follows:
Auto power on: Enabled
Auto power off: Enabled, 30 min.
To disable the auto power on/off, hold down the POWER button and release after the
beeper sounds the stipulated number of times.
Setting
Auto power on: Disabled
Auto power off: Disabled
Beeper Sounds
12 times
13 times
To enable the auto power on/off again, set the function back to the factory setting.
With the power off, hold down the POWER button and release after the beeper sounds
seven times. The function will then be returned to the factory shipment setting. Note
that this will also return all other items in the function setting table to the factory
shipment setting.
The auto power on/off setting can also be changed with the printer driver’s utility
while the printer is connected to a personal computer.
3-9
Operation
1.3.5 Auto power on/off setting
Part 3: Operation
LR1
The function settings upon factory shipment are shown below.
Paper Selection
LTR
Smoothing
Disable
Font
Test Scale
Disable
Reduction
1/1
Font Lock
Disable
Character Set
Top Margin
8.5mm
Auto Power On
Enable
Input/Download
Buffer
64/23KB
Code Page
Print Mode
HQ
Auto Power Off
Enable (30 min.)
Automatic Line
Feed
CR=CR
Low Ink Alert
Roman
Internal
Character Set
USA
Italic
PC437
Enable
1.3.6 Mode switch
If the STB connected to the printer has a mode selection switch, you can choose the
mode by the MODE switch. The MODE switch is not used when the printer is
connected to a computer.
3-10
Part 3: Operation
LR1
2. SERVICE-RELATED FUNCTION
The printer has a service mode to access service settings and to execute a test printout.
2.1 Service Mode Operations
1) Disconnect the cable of AC adapter from the printer power connector. Open the
cartridge cover.
2) While holding down the COLOR DOT COUNTER RESET button and the BLACK DOT
COUNTER RESET button and insert the AC adapter’s DC plug into the printer.
3) While holding down the COLOR DOT COUNTER RESET button and the BLACK DOT
COUNTER RESET button, press the POWER button and release the buttons after the
beeper sounds once.
4) Press the COLOR DOT COUNTER RESET button the number of times indicated below
to select the function to be executed.
Each time you press the button, the beeper will sound and the indicator will change
to orange or green.
Indicator
Busy (Green)
Busy (Green)
Error (Orange)
Busy (Green)
Error (Orange)
Function
EEPROM reset
EEPROM data printout
Waste ink absorber capacity setting: 25%
Waste ink absorber capacity setting: 50%
Waste ink absorber capacity setting: 75%
5) After making the selection, press the BLACK DOT COUNTER RESET button. The
beeper sounds once and the functions will be executed.
The service mode can be set only when the cartridge cover is open. The
cover sensor detects whether the cartridge cover is open or not.
When the cover sensor lever is up, the cover is detected as closed.
When the cover sensor lever is down, the cover is detected as open.
When you take off the upper case or cartridge cover, the cover sensor lever
will be up. In that case, do step 2 above while pushing down the cover
sensor lever.
3-11
Operation
Times
7
13
14
15
16
Part 3: Operation
LR1
2.2 Printing the EEPROM Data
The EEPROM records various data such as the settings, total page count of each BJ
cartridge, total waste ink absorption amount, and the dot counter for each ink
cartridge. The data in EEPROM serves as a general guide to how much the printer has
been used.
ROM version
Total page count
(monochrome/color)
Total waste ink
amount count (ng/%)
Ink dot count
B461 ---------------Black
B462/B467 -------Color
B467us ------------Photo
Figure 3-6 EEPROM Data Printout (sample)
3-12
Part 3: Operation
LR1
2.3 Setting the Waste Ink Amount
The printer detects “waste ink full” based on the total waste ink absorption amount
recorded in the EEPROM. Thus, after you replace the waste ink absorber, you must
also reset the total waste ink absorption amount.
Also, after replacing the control board, you must reset the new control board’s
EEPROM and set the waste ink absorption amount for the waste ink absorber installed
in the printer base unit.
1) After replacing the control board
Before replacing the control board, visually check the waste ink absorption amount in
the waste ink absorber in the printer base unit.
After replacing the control board, set the waste ink absorption amount you found out
visually to the EEPROM.
Printer Base Unit
0%
50 %
25 %
100 %
75 % Waste ink full error
Operation
Waste ink
Ink absorber
Purge unit side
Figure 3-7 Waste Ink Absorber (50% of capacity)
2) After replacing the printer base unit (waste ink absorber)
After replacing the printer base unit, set 0% as the waste ink absorption amount to
the EEPROM (EEPROM reset).
The EEPROM contains various data such as the settings, total page count for each BJ
cartridge, total waste ink absorption amount, and the dot counter for each ink
cartridge. When the EEPROM is reset, all those data will be reset as well.
3-13
Part 3: Operation
LR1
This page intentionally left blank
3-14
Part 4
TROUBLESHOOTING
Page
Part 4: TROUBLESHOOTING
4- 1
4- 1
4- 4
4- 5
4 -16
4 -16
1. TROUBLESHOOTING ACCORDING TO ERROR DISPLAY
1.1 Initial Flow Chart
1.2 Error List
1.3 Troubleshooting Errors
2. TROUBLESHOOTING BY SYMPTOMS
2.1 Troubleshooting By Symptoms
Part 4: TROUBLESHOOTING
LR1
1. TROUBLESHOOTING ACCORDING TO ERROR DISPLAY
1.1 Initial Flow Chart
LED Display
When DC power is supplied
START
Insert the DC jack of the
AC adapter.
Service mode?
:
Lights
:
Blinking
:
OFF
Yes
No
Specity that the printer
enters the service mode
at power on and write it
into the EEPROM.
• RAM check
• ROM check
Correct?
No
Yes
END
Troubleshooting
When the printer is turn
on, the following is
displayed:
• RAM error
• ROM error
When the power turns on with the POWER button
START
Press the POWER button
to turn on the printer.
POWER indicator
turns on.
BUSY Indicator start
blinking.
• RAM check
• ROM check
Correct?
Yes
No
• RAM error
• ROM error
ERROR
Next
page
BUSY
POWER
RAM error: 2 beeps
ROM error: 1 beep
4-1
Part 4: TROUBLESHOOTING
LR1
Previous
page
Internal temperature
sensor check.
Correct?
No
Yes
Internal temperature
sensor error
ERROR
Test printing
selected?
Yes
POWER
Beeper : 6 times
Execute selected test
printing after
initialization ends.
No
Waste ink amount check.
Correct?
BUSY
No
Yes
If 99 to 99.9%:
Waste-ink full warning
If 100% or more:
Waste-ink full error
Initialization of paper feed
motor.
ERROR
BUSY
POWER
Warning
Beeper : 5 times
Cap open
ERROR
Carriage moves to home
position.
Home position
detectable?
BUSY
POWER
ERROR
Beeper : 5 times
No
Yes
Home position error
ERROR
BUSY
POWER
Beeper : 4 times
Printing position
correction setting.
Printing position
correction detection.
Detectable?
Yes
No
Automatic correction
error
Next
page
ERROR
BUSY
POWER
Beeper: 7 times
4-2
Part 4: TROUBLESHOOTING
LR1
Previous
page
Maintenance jet.
Detect paper by PE
sensor and paper
delivery sensor.
Detected?
Yes
No
Paper delivery operation
Yes
Paper delivered?
Initialize ASF Motor
No
Internal temperature
detection
Paper jam error
BJ cartridge
installed?
No
Move carriage to cartridge
replacement position.
Check printer’s status to
execute cleaning
No
POWER
Beeper : 2 times
Yes
Is cleaning
necessary?
BUSY
ERROR
BUSY
POWER
Beeper : 3 times
Yes
Cleaning executed to
match the status
BUSY Indicator turns off
END
4-3
Troubleshooting
ERROR
Head temperature
adjustment signal setting
Part 4: TROUBLESHOOTING
LR1
1.2 Error List
Error Status
1) Error display for user-recoverable errors
When a user-resolvable error occurs, the ERROR indicator either turns on or blinks
and the beeper sounds a certain number of times. By closing the cartridge cover
and pressing the RESUME button, the beeper sounds a certain number of times to
indicate which error has occurred and the error is canceled.
2) Error display for user-unrecoverable errors
When a user-unrecoverable error occurs, the POWER indicator, BUSY indicator, and
ERROR indicator blink and the beeper sounds a certain number of times to indicate
which error has occurred.
Table 4-1 ERROR DISPLAY
Status
User-recoverable errors
Paper-feed error
Paper jam error
Cartridge not-loaded error
Cartridge mismatch error
Failed manual feed warning
Cartridge replacement
auto-completion warning
Cartridge overheating warning
Waste ink full warning
User-unrecoverable errors
ROM error
RAM error
No-cartridge error
Home position error
Waste ink full error
Internal temperature sensor error
Automatic correction error
Head overheating error
EEPROM error
Power
Busy
Error
On
On
On
On
On
On
Off
Off
Off
Off
Off
Off
On
On
On
On
Blinking
Blinking
1
2
3
4
1
3
Page
Page
Page
Page
Page
Page
On
On
Off
Off*
Blinking
Blinking
4
5
Page 4-8
Page 4-5
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
Blinking
1
2
3
4
5
6
7
8
11
* The BUSY indicator turns on when there is receiving data.
4-4
Beeper Sounds Page
Page
Page
Page
Page
Page
Page
Page
Page
Page
4-11
4-11
4-13
4-13
4-10
4-15
4-5
4-5
4-13
4-6
4-5
4-5
4-6
4-8
4-5
Part 4: TROUBLESHOOTING
LR1
1.3 Troubleshooting Errors
<Cause> The contents in ROM could not be read during the
1. ROM Error
2. RAM Error
initialization.
<Suspected parts> Control ROM.
<Measure> Replace the ROM or the control board.
<Cause> Reading and writing in RAM cannot be performed
properly.
<Suspected parts> DRAM, MPU, and print controller.
<Measure> Replace the control board.
3. EEPROM Error
<Cause> Writing to EEPROM cannot be performed properly.
<Suspected parts> EEPRROM, MPU, and print controller.
<Measure> Replace the control board.
If ROM error or RAM error occurs, the error display might not always be
accurate.
<Cause> When the waste-ink amount reaches 99%, a waste-ink
5. Waste-Ink Full
Error/Waste-Ink
Full Warning
warning is issued.
When it reaches 100%, the waste-ink full error occurs.
<Suspected parts> Waste-ink absorber and control board.
<Measure> 1. Replace printer base unit (replace waste-ink
absorber) and reset the EEPROM.
2. Replace the control board and reset the wasteink amount in the EEPROM.
4-5
Troubleshooting
4. Internal
Temperature
Sensor Error
<Cause> Thermistor is abnormal.
<Suspected parts> Thermistor.
<Measure> Replace control board.
Part 4: TROUBLESHOOTING
6. Automatic
Correction Error
7. Home Position
Error
LR1
<Cause>
Automatic correction error: The printing correction
cannot be detected
properly.
Home position error:
The home position
sensor cannot detect the
carriage.
<Suspected parts> Home position sensor, carriage motor,
paper-feed motor, control board, carriage
ribbon cable, lock arm, and printer base
unit
<Measure>
Remove upper case.
• Check for any loose or deformed parts in the carriage section.
• Check if the lock arm is broken or deformed.
• Check for any paper bits or waste particles stuck between parts.
Check the inside of the
printer visually.
Correct?
No
Yes
Fix the problem or
replace the chassis
platen unit.
Power ON.
Check (visually) operation
of carriage motor and
paper-feed motor.
Correct?
Yes
No
Replace home position
sensor.
Check (visually) operation
of lock arm.
Correct?
Yes
• Check the lock arm operation during the initialization.
No
Replace printer base
unit.
Next
page
4-6
Part 4: TROUBLESHOOTING
LR1
Previous
page
Carriage motor
Check the carriage motor
and paper-feed motor.
CNCR
4
A
A
B
B
4
3
2
1
Approx. 8.5 Ω/
phase
1
Carriage motor
Measuring Point
1-2
CNCR
3-4
Pin No.
Normal Value
Approx. 8.5 Ω
• Before measuring, disconnect the carriage motor's connector
from the control board.
Paper-feed motor
5
CNLF
A
B
B
A
COM
Approx. 70.0 Ω
/ phase
1
Paper-feed motor
Measuring Point
2-5
CNLF
Pin No.
3-4
Normal Value
Approx. 70.0 Ω
• Before measuring, disconnect the paper-feed motor's connector
from the control board.
Correct?
Yes
No
Replace chassis platen
unit.
Replace control board.
4-7
• Faulty carriage motor.
• Faulty paper-feed motor.
Troubleshooting
5
4
3
2
1
Part 4: TROUBLESHOOTING
LR1
<Cause> The head temperature is abnormally high.
8. Head
Overheating
Error
Even after the head's power is turned off, the head
temperature does not go down.
<Suspected parts> There is no ink in the BJ cartridge and ink
cartridge.
Control board
9. Cartridge
Overheating
Warning
<Measure>
Leave the printer for
several minutes.
Error displayed?
No
Yes
END
• Since the head might be hot, do not touch the carriage.
Press the POWER button
to turn off the power, then
leave the printer for
several minutes.
Remove and install the BJ
cartridge.
Press the POWER button
to turn on the power.
Error displayed?
No
Yes
END
• Make sure that the following connectors are connected securely:
Carriage ribbon cable, paper-feed motor cable, carriage motor
cable, control board, and panel cable.
Check connector.
Correct?
No
Yes
Repair faulty part.
Next
page
4-8
Part 4: TROUBLESHOOTING
LR1
Previous
page
Check BJ cartridge
temperature sensor
resistance.
DiA
DiK
10
29
Measuring Point
+
Pin No.
Correct?
Normal
–
10 29
Conducting
29 10
Not conducting
The measuring point
and normal value are
the same for the black
BJ cartridge, color BJ
cartridge, and
photo BJ cartridge.
No
Troubleshooting
Yes
Replace BJ cartridge.
Check the carriage ribbon
cable.
28 29
24 25 26
23 22 21 20
27
16 17 18 19
15
14 13 12 11
3
7 8 9 10
5 6 4
1
2
• Check for conduction in pins 10, 29, and 11.
29
1
Carriage ribbon cable
Correct?
Yes
No
Replace chassis platen
unit.
Replace control board.
4-9
• Faulty carriage ribbon cable
Part 4: TROUBLESHOOTING
LR1
10. Failed Manual
Feed Warning
<Cause> This indicates that the paper was not picked up
properly during manual feeding.
<Suspected parts> Printer chassis unit, control board, paperend sensor, paper delivery sensor
<Measure>
Press the POWER button
to turn the power on and
off.
Start Manual Feed.
Correct?
Yes
No
END
Remove upper case.
• Check that the paper end sensor cable is securely connected to
the sensor board and control board's connector.
• Check that the paper deliverly sensor cable is securely connected
to the control board's connector.
Check connectors.
Correct?
No
Yes
Repair faulty part
Turn on power.
• During the initialization, check that the paper-feed motor and
paper-feed roller operate normally.
Check the paper-feed
section’s operation.
Correct?
Yes
No
Replace printer chassis
unit.
1. Replace sensor
board.
2. Replace control
board.
3. Replace printer base
unit.
• Faulty paper delivery sensor
4-10
Part 4: TROUBLESHOOTING
LR1
<Cause> Paper cannot be picked up.
11. Paper-feed
Error/Paper
Jam Error
Paper cannot be delivered.
<Suspected parts> Pick-up unit, chassis platen unit, printer
base unit, sensor board, control board,
paper-end sensor
<Measure>
Check operating
environment and paper
specifications.
No
Specifications OK?
Print in the proper
environment with proper
paper.
Yes
Remove top case.
Correct?
No
Yes
Repair/Replace faulty
part.
• Check that the paper-end sensor cable is securely connected to
the sensor board’s and control board’s connector.
• Check that paper deliverly sensor cable is securely connected to
the sensor board’s and control board's connector.
Check connector.
Correct?
No
Yes
Repair faulty part.
Turn on power.
Next
page
4-11
Troubleshooting
• Check for paper jam.
• Check for deformed, or broken gears.
• Check for chassis deformation.
Check the inside of
printer visually.
Part 4: TROUBLESHOOTING
LR1
Previous
page
• Check if the paper-feed motor and eject roller operates during the
initialization.
• Check for any abnormal noise.
• Check if the paper-feed motor is out of step.
Check operation of paperfeed section and paper
delivery section.
Correct?
No
Yes
Repair/Replace faulty
part.
• Start the paper pick-up from the cassette and check the operation
of the pick-up section.
• Check if the pick-up roller and ASF roller rotate.
• Check for any abnormal noise.
• Check if the paper-feed motor is out of step.
Check pick-up operation.
Correct?
• Chassis platen unit or etc.
No
Yes
Check the pick-up motor.
PIck-up motor
CNASF
5
5
4
3
2
1
A
B
B
A
COM
Approx. 50.0 Ω
/ phase
1
Measuring Point
CNASF
2-5
Pin No.
3-4
Correct?
Normal Value
Approx. 50.0 Ω
• Before mesuring, disconnect the pick-up motor's
connector from the control board.
No
Yes
Replace cassette.
• Use a sheet of paper to check if it moves smoothly.
• Check if it is deformed or broken.
Check the paper delivery
sensor.
Correct?
Yes
Replace pick-up unit.
No
Replace printer base
unit.
1. Replace sensor
board.
2. Replace control
board.
4-12
Part 4: TROUBLESHOOTING
LR1
12. Cartridge notloaded Error
13. No-cartridge
Error
14. Cartridge
Mismatch Error
<Cause> • The cartridge cannot be detected.
• No cartridge has been installed.
<Cause>
• The cartridge cannot be detected at the position
other than the cartridge replacement position.
<Cause> • The proper cartridge is not installed.
<Suspected parts> Cartridge, control board, carriage ribbon cable, faulty contact between the
carriage and cartridge.
<Measure>
Open the cartridge cover
and remove and reinstall
the BJ cartridge.
Troubleshooting
Error displayed?
No
Yes
END
• Check for anything adhering to the contact between the carriage
and cartridge.
• Check the cartridge type (see below).
Check the cartridge
installation status.
To find the BJ cartridge's identification problem, check the
conduction at the measuring points shown below.
14
13
12
11
Error displayed?
No
Yes
END
Next
page
4-13
Resistance (Ω) Between Pins
11-14 12-14 13-14
0
∞
∞
0
0
∞
∞
0
BC-10
0
BC-11e
BC-12e
Part 4: TROUBLESHOOTING
LR1
Previous
page
Disconnect and reconnect
carriage ribbon cable.
Error displayed?
No
Yes
END
Check the conduction of
the carriage ribbon cable.
28 29
24 25 26
23 22 21 20
27
16 17 18 19
15
14 13 12 11
3
7 8 9 10
5 6 4
1
2
29
1
Cable broken?
No
Carriage ribbon cable
Yes
Replace chassis platen
unit.
1. Replace BJ cartridge.
2. Replace controller
board.
4-14
• Faulty carriage ribbon cable
Part 4: TROUBLESHOOTING
LR1
15. Cartridge
Replacement
Auto-completion
Warning
<Cause> The carriage was detected to be at the cartridge
replacement position for 10 min. or longer.
(Mistaken operation by the user or faulty cartridge
cover sensor.)
<Suspected parts> Cartridge cover sensor, sensor lever,
sensor board, sensor cable, control
board
<Measure>
Close the cartridge cover.
Error displayed?
No
Yes
END
• Check if the cover has deformed. Check if the lever has fallen off,
if it is broken or if it moves smoothly.
The cartridge cover
and check the cover
sensor lever.
Correct?
No
Repair/replace the faulty
part.
Disconnect and reconnect
the sensor cable.
Problem persists?
• For the connectors on the sensor board and control board.
No
Yes
END
Check conduction of
sensor cable.
Sensor cable
Cable broken?
Yes
No
Replace sensor cable.
1. Replace sensor board.
2. Replace control board.
4-15
Troubleshooting
Yes
Part 4: TROUBLESHOOTING
LR1
2. TROUBLESHOOTING BY SYMPTOMS
2.1 Troubleshooting By Symptoms
<Problem> • The power does not turn on even when the
1. The Power Does
Not Turn On
<Cause>
POWER button is pressed.
• Initialization is not executed even when the
POWER button is pressed.
Faulty AC adapter, Faulty power cable, Faulty
POWER button, Faulty operation panel board, Faulty
panel cable, Faulty control board
<Measure>
AC adapter's DC plug
Check the AC adapter’s
output voltage.
11.5 V-13.0 Vdc
being output?
No
Yes
+
Check conduction of
power cable.
Cable broken?
–
No
Yes
Replace power cable.
• Check if the button has come off, if it is broken or if it operates
smoothly.
Check installation
condition of the operation
panel's POWER button.
Correct?
Replace AC adapter.
No
Yes
Repair/replace the faulty
part.
Disconnect and reconnect
the panel cable.
Problem persists?
• For the connectors on the operation panel board and control
board.
No
Yes
END
Next
page
4-16
Part 4: TROUBLESHOOTING
LR1
Previous
page
Check conduction of
panel cable.
Panel cable
Cable broken?
Yes
No
1. Replace operation
panel board.
Replace panel cable.
2. Replace control
board.
Troubleshooting
4-17
Part 4: TROUBLESHOOTING
2. Faulty Operation
Panel
LR1
<Problem> • Indicators (POWER, BUSY, ERROR) do not light.
<Cause>
• Beeper does not sound.
• The POWER button and RESUME button do not
work.
Faulty LED, switch, or beeper. Faulty panel cable or
control board.
<Measure>
• Check if the button or light guide has come off, if it is broken, or
if it moves smoothly.
Check operation panel
section.
Correct?
No
Yes
Repair/replace faulty
part.
• For the connectors on the operation panel board and control board.
Disconnect and reconnect
the panel cable.
Problem persists?
No
Yes
END
Check conduction of
panel cable.
Panel cable
Cable broken?
Yes
No
Replace panel cable.
1. Replace operation
panel board.
• Faulty LED, switch, or beeper
2. Replace control board.
4-18
Part 4: TROUBLESHOOTING
LR1
3. Faulty Printing
/No Printing
<Problem> • Nothing is printed.
<Cause>
• No printing midway.
• Only a certain color is not printed.
Faulty ink cartridge, faulty BJ cartridge, faulty purge
section
The protective cap/tape is still on the head.
<Measure>
Remove and reinstall the
BJ cartridge.
Problem persists?
No
Yes
END
• The protective cap/tape should not be on the BJ cartridge’s
head.
Check visually.
Cleaning operation
(about 5 times)
• See “Part 3: 1.3.2 Printing the nozzle check pattern” (page 3-8.)
Problem with
printing result?
Troubleshooting
Output the nozzle check
pattern.
No
Yes
END
1. Replace ink cartridge.
2. Replace BJ cartridge.
Problem persists?
No
Yes
END
Replace printer base
unit.
• Faulty purge section
4-19
Part 4: TROUBLESHOOTING
4. Faulty Printing
White Stripes
Appear
LR1
<Problem> • There is smearing.
<Cause>
• There are white stripes.
• Certain dots are not printed.
Faulty ink cartridge, faulty BJ cartridge, faulty BJ
cartridge contact, cartridge ribbon cable, purge
section, control board
<Measure>
Cleaning operation
(about 5 times)
• See “Part 3: 1.3.2 Printing the nozzle check pattern” (page 3-8.)
Output the nozzle check
pattern.
Problem with
printing result?
No
END
Remove and reinstall the
BJ cartridge.
Output the nozzle check
pattern.
Problem with
printing result?
No
Yes
END
1. Replace ink cartridge.
2. Replace BJ cartridge.
Problem with
printing result?
No
Yes
END
Disconnect and reconnect
carriage ribbon cable.
Output the nozzle check
pattern.
Problem with
printing result?
Yes
No
END
Next
page
4-20
Part 4: TROUBLESHOOTING
LR1
Previous
page
28 29
24 25 26
23 22 21 20
Check the conduction of
the carriage ribbon cable.
27
16 17 18 19
14 13 12 11
7
8
9
5
6
4
1
2
15
3
10
29
1
Cable broken?
Carriage ribbon cable
Yes
No
Replace chassis platen
unit.
No
Replace printer base
unit.
Yes
Replace or clean chassis
platen unit.
• Faulty purge section
4-21
• Faulty gear or waste matter on gear
Troubleshooting
• Any waste matter or strike marks?
Check the paper-feed
section's gears.
Abnormal?
• Faulty carriage ribbon cable
Part 4: TROUBLESHOOTING
LR1
5. Faulty Printing
Other Printing
Problems
Problem
• Soiled paper
• Spur tracks
• Broken vertical
lines
• Wavy printing
• Uneven printing
density
Check Item
Caused by a dirty platen.
Solution
Use a soft, damp cloth to clean
the platen.
There is a build-up of ink around Execute cleaning a few times. If
the head's nozzles (The paper is
that does not work, replace the
not soiled if the paper is only fed BJ cartridge.
and discharged without printing.)
Check for any dried ink, paper
Replace the printer base unit.
bits, or foreign matter adhering
to the purge section's wiper and
around the cap.
Check for any ink adhering to
Clean the paper-feed roller, ASF
the paper transport parts. (The
rollers, and pick-up roller
paper is already soiled when it
rubber.
reaches the platen.)
Ink is adhering to the spur.
Use the spur cleaner (special
tool) to clean the spur.
Deformed spur tips.
Replace the printer base unit.
The BJ cartridge is not properly Reinstall the BJ cartridge.
installed.
The problem also occurs when
Replace the BJ cartridge.
the user's BJ cartridge (defective)
is installed in a non-defective
printer.
Check the printing mode.
Set the printing mode again.
Deformed chassis.
Replace the chassis platen unit.
Friction between the carriage
Replace the chassis platen unit.
unit and carriage shaft.
Check the printing mode.
Set the printing mode again.
Faulty BJ cartridge.
Replace BJ cartridge.
4-22
Part 4: TROUBLESHOOTING
LR1
6. The Ink-Low
Indicator Lights
Even with
Enough Ink
<Problem> • Although there is enough ink, the ink-low indicator
turns on.
<Cause> Dot counter reset operation error, faulty dot counter
reset button, faulty control board, faulty sensor board,
faulty sensor cable.
<Measure>
• To check whether the dot counter reset operation was executed
properly, output the EEPROM data and check if the value for “Inklow Warning Counter” has been cleared.
See Part 3: 2.1 “Service Mode Operations” (page 3-11.)
Dot counter reset
operation.
Problem persists?
No
Yes
END
• Check if the button has come off, if it is broken or if it moves
smoothly.
Check the DOT
COUNTER RESET
button.
Yes
No
Repair/replace faulty
part.
Disconnect and reconnect
the sensor cable.
Problem persists?
No
Yes
END
Check conduction of the
carriage ribbon cable.
Sensor cable
Cable broken?
Yes
No
Replace sensor cable.
1. Replace sensor
board.
• Faulty switch
2. Replace control board.
4-23
Troubleshooting
Abnormal?
Part 4: TROUBLESHOOTING
LR1
7. The Ink-Low
Indicator Does
not Light Even
When Ink is Low
<Problem> • Although there is no ink, the INK-LOW indicator
does not light.
<Cause> Dot counter reset operation error, faulty dot counter
reset button, faulty control board, faulty sensor board,
faulty sensor cable.
<Measure>
Turn off the printer and
turn it on again.
INK-LOW indicator
lights?
Yes
No
Replace the BJ cartridge
or ink cartridge.
Dot counter reset
operation.
Problem persists?
No
Yes
END
Replace control board.
• For all connectors on the panel board and control board.
Disconnect and reconnect
the panel cable.
Problem persists?
• Faulty EEPROM
No
Yes
END
Check conduction of the
panel cable.
Panel cable
Cable broken?
Yes
No
Replace panel cable.
1. Replace sensor
board.
2. Replace the control
board.
• Faulty LED
4-24
Part 4: TROUBLESHOOTING
LR1
8. The Carriage Does
not Move to the
Replacement Position
Even When the
Cartridge Cover is
Opened
<Problem> • The carriage does not move to the replacement
position even when the cartridge cover is opened.
<Cause> The cartridge replacement termination warning is
issued, faulty cartridge cover sensor, faulty sensor
board, faulty control board, faulty sensor cable, faulty
carriage, faulty carriage motor.
<Measure>
Turn on the power and
close the cartridge cover,
and open it again.
Problem persists?
• This operation cancels the cartridge replacement auto-completion
warning.
No
Yes
END
Turn off the power and
remove the upper case.
• Check if the lever has fallen off, if it is broken or if it moves
smoothly.
Check the cover sensor
lever.
Yes
No
Repair/replace faulty
part.
• For all the connectors on the sensor board and control board.
Disconnect and reconnect
the sensor cable.
Problem persists?
Troubleshooting
Abnormal?
No
Yes
END
Check conduction of
sensor cable.
Sensor cable
Cable broken?
Yes
No
Replace sensor cable.
1. Replace sensor
board.
• Faulty switch
2. Replace control
board.
3. Replace chassis
platen unit.
• Faulty carriage/carriage motor
4-25
Part 4: TROUBLESHOOTING
LR1
This page intentionally left blank
4-26
Part 5
APPENDIX
Page
5- 1
5- 1
5- 4
5- 7
5- 8
5 -11
5 -13
5 -13
5 -18
5 -19
5 -19
5 -20
5 -21
5 -21
5 -22
5 -23
1. TECHNICAL REFERENCE
1.1 Description of Paper-feed Section
1.2 Purge Section
1.3 Description of Carriage Section
1.4 Electronic Circuit Description
1.5 BJ Cartridge Description
2. CONNECTOR LOCATIONS AND PIN ARRAY
2.1 Control Board
2.2 Operation Panel Board
2.3 Sensor Board
2.4 Pick-up Roller Position Sensor Board
2.5 BJ Cartridge
2.6 Carriage Motor
2.7 Paper-Feed Motor
2.8 Pick-up Motor
2.9 Circuit Diagram
Part 5: Appendix
LR1
1. TECHNICAL REFERENCE
1.1 Description of Paper-feed Section
1.1.1 Construction of paper-feed section
The printer’s paper-feed section consist of the pick-up section, transport section, and
paper delivery section. The function and construction of these components are
described below.
Paper delivery tray
Paper-feed roller Paper-end sensor
Spurs
Paper
Manual-feed tray
Paper guide roller
Cassette
Eject rollers
Pinch roller
ASF roller
Pick-up roller
Paper delivery sensor
Figure 5-1 Paper-Feed Path
1.1.2 Pick-up section
a) Paper transport with ASF roller
b) Paper transport with paper-feed roller
Paper
Paper-feed
roller
Cassette
Pick-up roller :
• Stops at a position where it
does not interfere with the
paper.
ASF roller
ASF roller : While the paper-feed roller is the
paper, the ASF roller is retracted.
Paper guide roller
• Positioned to pick up the paper from the casette.
Figure 5-2 Pick-up Section
5-1
Appendix
The pick-up roller picks up the paper from the cassette and the ASF rollers deliver it
to the transport section.
(During manual feed, the pick-up section is not used since the paper is inserted
directly to the transport section through the manual-feed slot.)
The pick-up unit has a pick-up roller, driven by the pick-up motor, and ASF rollers.
When the printer receives a printing command or pick-up command, the pick-up
roller rotates once to deliver the paper to the ASF rollers and paper guide rollers.
When the ASF rollers grab the paper, the pick-up roller rotates to its initial position so
it does not obstruct the paper transported by the ASF rollers. (Fig. 5-2a)
The ASF rollers transport the paper up to the transport section’s paper feed roller.
When the paper feed rollers grabs the paper edge, the ASF rollers move to its standby
position. The paper is thereby freed from the ASF rollers, and the transport section
does not obstruct the paper transport. (Fig. 5-2b)
Part 5: Appendix
LR1
1.1.3 Transport section
The transport section consists of the paper feed roller driven by the paper-feed motor
and the pinch roller. After these two rollers take the paper through the printing
position, they deliver the paper to the paper delivery section.
(1) Cassette feeding
When the paper delivered from the pick-up section turns on the paper-end sensor,
the paper-feed motor starts up and drives the paper feed roller.
After the paper feed roller first rotates in reverse to fix the skewed sheet (see “1.1.7
The form alignment function”), it rotates forward until the paper reaches the printing
start position.
If the paper-end sensor does not turn on even though the pick-up section executed
the pick-up operation, a paper-feed error will result.
(2) Manual feeding
When the paper inserted in the manual-feed slot turns on the paper-end sensor, the
paper-feed roller rotates to feed the paper. When the front edge of the paper is
detected by the paper delivery sensor, the paper-feed roller rotates in the reverse
direction and sends the paper back to the starting position for printing. The
operation then stops.
When the paper does not turns the paper delivery sensor on under the rotating the
paper-feed roller, the paper feed motor rotates to send the paper to the manual-feed
tray for discharge. Then, the failed manual feed warning is indicated.
Paper-feed roller
Paper-end sensor
Paper
Paper delivery sensor
Figure 5-3 Paper Path for Manual Feeding
1.1.4 Paper delivery section
The paper delivery section discharges the paper with the eject roller (driven by the
paper feed roller’s rotation) and spur.
To avoid soiling the printed side of the paper, the spur presses the paper against the
eject roller while the paper is discharged.
If the paper delivery sensor detects that the paper was not discharged after printing, a
paper jam error is indicated.
5-2
Part 5: Appendix
LR1
1.1.5 Remaining paper indication function
The printer can indicate the amount of paper remaining in the cassette. When the
paper-loaded cassette is installed in the printer, the stack of paper pushes up a lever
which indicates the remaining amount of paper.
The drum has white and black sections. The amount in the white section can be
checked through the window at the front of the printer.
Paper amount lever
Paper amount
window
Paper
amount
Paper
Drum
Figure 5-4 Indicating the Remaining Amount of Paper
1.1.6 Pick-up retry function
The pick-up retry operation is executed if the paper-end sensor cannot detect the
paper after the pick-up operation. The pick-up is tried again. If the pick-up retry is
executed once and the paper pick-up still does not work properly, a paper-feed error
occurs.
1.1.7 The form alignment function
Even if the paper is skew when it is picked up, the paper is aligned by the transport
section. The paper feed roller rotates in reverse and the paper is set against the
pressure roller so that the paper edge becomes parallel to the paper feed roller.
Appendix
Paper feed roller
Pinch roller
ASF roller
Paper guide roller
The paper edge is straightened by setting it
against the paper feed roller (rotating in reverse)
and pinch roller.
Skewed paper
Figure 5-5 Fixing Skewed Paper
5-3
Part 5: Appendix
LR1
1.2 Purge Section
To maintain printing quality, the purge section maintains the BJ cartridge’s nozzles.
1.2.1 Cleaning function
Cleaning is performed to prevent defective printing caused by improper ejection of ink
by the BJ cartridge head. The cleaning operation combines purging, wiping, and
maintenance jet. It executes the following operations:
• Suction:
The ink is sucked out of the head to refresh the ink in the head
with new ink.
• Maintenance jet: To eliminate any air bubbles in the head’s nozzles and to remove
waste particles near the nozzle openings, ink is ejected from the
nozzles onto the cap and maintenance jet receptacle.
• Wiping:
Wipe off paper bits and dried ink on the head’s face plate.
Depending on the BJ cartridge type and the printer’s condition, the cleaning time and
combination of cleaning operations will differ.
Cleaning is performed at the times below to ensure that the head produces highquality printing.
Table 5-1 INK CONSUMPTION DURING CLEANING
Printer Status
Ink Consumption (approx. mg)
Power ON with POWER button
1) Less than 72 hours elapsed
since the last cleaning
2) 72 hours or more elapsed since
the last cleaning
3) 169 hours or more elapsed
since the last cleaning
After BJ cartridge or ink cartridge replacement
Cleaning executed with the
1) Cleaning
RESUME button
2) Head refreshing
Upon product arrival
5-4
BC-10
7
BC-11e/12e
40
120
180
240
260
240
120
240
360
520
260
520
520
Part 5: Appendix
LR1
1.2.2 Description of Purge Section
Cleaning is done by the printer’s purge section. When the carriage moves to the right
from the home position, the trigger gear attached to the paper-feed gear will start
turning. The paper-feed motor’s driving force is thereby conveyed to the purge
section’s gear and cam to drive the cap, wiper, cylinder, and pump.
Cap
Wiper
Paper-feed
double gear
Trigger gear
Paper-feed
gear
Pump arm
Pump gear
Waste-ink
absober
Cylinder
gear
Pump
Piston shaft
Cap
Wiper
Figure 5-6 Purge Section
b) Suction
The purge section’s cap is connected to the pump. The piston in the pump is
coupled to the cylinder gear which is driven by the pump gear. Ink is drawn from
the head to fill the cap when the piston moves to the right to seal the pump. Then
the piston is moved to the left to open the pump. The ink in the cap is then drawn
into the pump and absorbed by the waste ink absorber via the ink absorber.
c) Wiping
The wiper is set or released by the carriage’s wiping hook. When the carriage moves
to the right from the home position, the wiper touches the head’s aluminum plate
and any dirt on the wiper is removed before the wiper proceeds to wipe off ink on the
face plate. Also, when the wiper goes down, ink falls off toward the gear. (Wiping)
After the wiping operation, when the carriage moves further to the right, the
carriage’s hook lever pushes down the latch lever so that the wiper goes down.
(Wiper released)
5-5
Appendix
a) Capping
Capping resolves or prevents improper ink ejection due to a dried-out face plate on
the head. Since the pump arm moves via the pump gear’s cam, the cap moves up
and down for capping.
When the carriage goes to the home position, the cap is pushed onto the head’s face
plate to cap it.
Capping is done at the following times:
1. When the power is turned off with the POWER button.
2. When the data is not received within the stipulated time during printing.
Part 5: Appendix
LR1
Next, when the carriage moves to the left, the carriage’s hook lever pushes down the
wiper lever so that the wiper goes to the wiping position again. (Wiper ready
position)
Wiping is executed at the following times:
1. During printing, when the printing dot count or printing time exceeds the
stipulated value.
2. After purging.
3. Before capping.
Wiper lever
Latch lever
Cap
Wiper
Carriage
Carriage
Carriage
Hook lever
BJ cartridge
Wiper lever
Latch lever
Wiper
During Wiping
Wiper Released
Figure 5-7 Wiping Operation
5-6
Wiper Ready
Part 5: Appendix
LR1
1.3 Description of Carriage Section
1.3.1 BJ cartridge mounting function
The carriage holds the BJ cartridge and locks it in place mechanically. When a BJ
cartridge is installed on the carriage, the carriage ribbon cable’s contact is pressed
against the BJ cartridge’s signal connector to enable printing signals to be
transmitted from the control board.
While the printer is turned off, the carriage is locked at the capping position. On the
back of the carriage are wiping hooks which release the wiper or sets it to the ready
position. It also has a home position edge which blocks the home position sensor on
the chassis.
Carriage ribbon cable
Home position edge
Contact
Carriage belt
Wiping hooks
Cartridge lock hook
Figure 5-8 Carriage Section Structure
1.3.2 Carriage drive control
5-7
Appendix
The carriage is driven by the carriage motor via the carriage belt. The carriage
position is controlled by the MPU sending a stepping pulse to the carriage motor.
The carriage position is detected by the home position sensor (on the chassis)
detecting the carriage’s home position edge.
The mechanical shifting that occurs during bi-directional printing is corrected
automatically by detecting the carriage’s home position in both directions and shifting
the printing starting position with software. A shift correction is made for the
initialization after the power is turned on or when the printing starts after the printing
mode has been changed.
Part 5: Appendix
LR1
1.4 Electronic Circuit Description
1.4.1 Printer block diagram
A block diagram of the printer’s electronic circuit is shown below.
Control Board
Address bus A0 - A23
P70-73
Paper-Feed
Motor
PM
Transistor
Array
(IC11)
P74-77
ASFEN
Printer Controller (IC3)
Internal Temperature
Sensor (TH1)
P93/AN3
Pick-up Roller
Position Sensor
(PS1)
P85
Sensor Board
MPU (IC1)
Pick-up Roller Position
Sensor Board
CS1
CS1N
Paper-end Sensor
(SW13)
Mode Switch
(SW-1 ON)
P90/AN0
PB2,3,6,14
EEPROM
(IC9)
2Kbit
DOT COUNTER
RESET Button
Reset IC
(IC503)
PO2/INTP102 RESET
Color (SW11)
LX1
LX0
48MHz
(X4)
SX1
SX0
23MHz
(X2)
16/32-Mbit
DRAM
(IC16)
MA0-9
MA0-9
16-Mbit
A0-9
MD0-15
D0-15
MD0-15
USB Interface
(JUSB)
RESN
P54
Parallel Interface
(CNIF)
P60,61,
64,65
LPA4
LPA5
LPA6
LPB2
LPB3
SNM1
LPB0
Cartridge Cover
Switch (SW10)
CSSEL
Black (SW12)
A1-21
Transistor
Array
(IC15)
D0-15
PM
Control
ROM (IC19S)
Carriage Motor
A0-23
Driver IC
(IC6)
D0-15
PM
A0-23
Pick-up Motor
D0-15
Data bus D0 - D15
LPB1
HRank, DIK, DIA
Home Position
Sensor
HDATA
HCLOCK
HRES
HLATCH
HCONT
INK-LOW
Indicator
(LED9-12)
WHT
BENB0-2
TOP
HENBA-D
ID0,1
MCH0,1
ODDENB
EVENENB
RESUME POWER
Switch
Switch
(SW7)
(SW6)
POWER Indicator (LED1)
Paper Delivery
Sensor
ERROR Indicator (LED6)
BUSY Indicator (LED7)
BJ Cartridge
Operation Panel Board
Beeper (BZ1) BZ
Figure 5-9 Block Diagram
1.4.2 Power source line block diagram
The printer uses an internal power voltage of 5 V/24 V/3.3 V. The power source line’s
block diagram is shown below.
LFREF1
V2-ON
: Parallel Interface
Vcc1 (+5VDC)
: MPU,EEPROM, DRAM
Printer Controller
Motor Driver
Control ROM
Parallel Interface
: USB Interface
3Vcc (+3VDC)
Vcc2 (+5VDC)
: BJ Cartridge
(Logic System Power Source)
Vcc3 (+5VDC)
: Sensors
V3-ON
DC/DC
Converter
(IC2)
Printer
Controller
(IC3)
VH-ON
VIF (+5VDC)
+5V DC
Regulator
(IC7)
DC/DC
Converter
(IC14)
AC Adapter
Power Connector
(CNDCIN)
+13VDC
MPU
(IC1)
AC in
Vpp (+13V DC)
: BJ Cartridge
VH
(+24VDC /20VDC) (Heater Driving)
Motors
Figure 5-10 Power Source Line Block Diagram
5-8
Part 5: Appendix
LR1
1.4.3 USB interface
With USB, up to 127 peripheral devices can be connected to the computer. It is a
serial interface with a high-speed transmission rate of 12 Mbps. It also enables
devices to be hot-swappable which means they can be connected or disconnected even
while the computer and printer are on. Each device is connected via a port on a hub.
The hub tells the computer which ports are connected or unconnected.
Data transmission
With USB, data is transmitted in transfer units called frames which are divided into 1
ms. A series of frames constitute the transmission.
To synchronize with the local clock, all packets start with the SYNC field and end with
the EOP (end of packet) field.
The frame string starts with the SOF (start of frame) packet. The SOF consists of the
PID (packet identification field) which indicates the packet’s type and direction, the
frame No., and CRC (cyclic redundancy check) for error checking.
After SOF, the frame contains a token packet and a handshake packet that indicates
the status of the data and flow control.
The token packet consists of an address field that can specify PID and 128 addresses,
an ENDP (end point) field, and CRC.
The data packet contains PID, data field, CRC, and EOP.
The handshake packet contains only PID.
Elapsed Time
1 Frame (Approx. 1ms)
SOF
Frame String
SOF
SOF
Inside a Frame
Printer
Packet String
Other Functions
Token
Data
Handshake
Inside a Packet
Frame
Number
CRC
EOP
SYNC PID ADDR ENDP CRC EOP
SYNC PID
DATA
CRC EOP
SYNC PID
EOP
Figure 5-11 USB Data Transfer
Data encoding and decoding
The USB data transfer string is ultimately codified in the NRZI (Non Return to Zero
Invert) format. When the original data bit is 0, the transmission data bit is inverted.
When the original data bit is 1, the transmission data bit is maintained as is.
If the transfer data’s level does not change for a long time, the data’s receiving end will
be unable to acquire the data’s sample position synchronization. This may cause the
bit to shift. This is prevented by a method called bit stuffing. The original data before
NRZI codification has bit 0 added one time after six consecutive bit 1’s.
0
DATA
NRZI
1
1
0
1
0
1
0
0
Idle
Idle
Figure 5-12 NRZI
5-9
0
1
0
0
1
1
0
Appendix
SYNC
Part 5: Appendix
LR1
1.4.4 Automatic interface switching
The printer has an automatic interface switching feature.
When there is no printing from either the USB or parallel interface, printing can be
started from either interface.
After printing starts and ends with one interface, the interface cannot be switched
until the receiving buffer becomes empty.
1.4.5 Detection functions
The printer has the following detection functions.
Table 5-2 DETECTION FUNCTIONS
Detection Function
Paper detection
(Pick-up/Paper
transport section)
Method
Paper-end sensor
Main Purpose
Paper detection
Paper-feed error detection (during feeding by cassette)
Failed manual feed warning detection
Paper jam error detection
Paper detection
Paper delivery sensor Paper detection
(Paper delivery
Printing start position control (during manual feed)
section)
Paper jam error detection
Carriage position
Home position sensor Carriage home position detection
BJ cartridge
Carriage cable
Cartridge not-loaded
presence
connector pins
Cartridge mismatch error
11/12/13 combination Cartridge type identification (See page 5-17)
Ink-low detection
Ink dot counter
INK-lOW indicator (See page 3-4)
Waste ink amount Waste ink counter
Waste ink full warning/error detection
Internal temperature Internal temperature Ink ejection amount control/Abnormal
detection
sensor (TH1)
temperature increase detection
Head temperature Diode sensor
Ink ejection amount control
detection
Cartridge cover
Cartridge cover
The cover open is detected, and the carriage
open
sensor
moves to the cartridge replacement position
Pick-up roller home Pick-up roller
Initial position of the pick-up roller detection
position
position sensor
Mode detection
Mode switch
Dependent on the connected device’s driver
(When the printer is connected to the computer,
this detection cannot be used.)
Cartridge cover
sensor
Paper delivery
sensor
Paper end sensor
Internal temperature sensor
(On the Control board)
Figure 5-13 Sensor Locations
5-10
Part 5: Appendix
LR1
1.5 BJ Cartridge Description
1.5.1 BJ cartridge and ink cartridge configuration
The printer uses the BJ cartridge and ink cartridge shown below.
BCI-10
BCI-17
Large Capacity)
BCI-12 Bk
BCI-12 Color
BCI-18 Bk (Large Capacity)
BCI-18 Color (Large Capacity)
BCI-11 Bk
BCI-11 Color
BC-10
BC-11e
BC-12e
Figure 5-14 Cartridge Configuration
1.5.2 BJ cartridge construction
Each BJ cartridge has a print head having one of the nozzle configurations described
below. The ink cartridge is detachable from the BJ cartridge. Also, the ink is a dyebased.
[BJ Cartridge Nozzle Count]
BJ Cartridge
BC-10
BC-11e/BC-12e
Black
Color
Nozzle Count
128 Nozzles
64 Nozzles
24 nozzles/color
Nozzle 136
Nozzle 128
Black
Nozzles 73-136
Nozzle 1
Nozzle 1
BC-10
BC-11e/BC-12e
Figure 5-15 Nozzle Array
1.5.3 BJ cartridge printing drive control
The black BJ cartridge executes the same printing drive control as the BJC-85.
1.5.4 BJ cartridge identification
The printer detects the bubble jet head’s board signal via the cartridge signal contact.
It thereby detects the type of BJ cartridge installed and the head rank.
For details on the signal contact, see page 5-17 (Table 5-4 HEAD INSTALLATION STATUS
AND SIGNAL DETECTION).
All BJ cartridges are divided into one of thirteen types in accordance with the
production irregularities of the bubble jet head’s heater characteristics. While
compensating for these irregularities, the printer executes optimum ink ejection
control.
5-11
Appendix
Cyan
Nozzles 49-72
Magenta
Nozzles 25-48
Yellow
Nozzles 1-24
Part 5: Appendix
LR1
1.5.5 Printing mode list
The printing mode list for the black, color, and photo BJ cartridges is shown below.
Table 5-3 PRINTING MODES AND DRIVE METHOD
With Black BJ Cartridge Installed
Printing Mode
Bk-HS
Bk-HQ
Bk-FINE
Bk-Smoothing
Bk-HQ (720)
Bk-FINE (720)
Carriage
Operation
1 pass
1 pass
4 passes
1 pass
1 pass
4 passes
Nozzles
128 nozzles
128 nozzles
32 nozzles
128 nozzles
128 nozzles
32 nozzles
Resolution
[dpi]
180
360
360
360
720
720
Carriage Driving
Frequency [kHz]
7.82
6.43
6.43
3.91
6.43
6.43
Head Driving
Frequency [kHz]
7.82
6.43
6.43
7.82
12.86
12.86
Resolution
[dpi]
180
360
360
180
360
360
720
720
Carriage Driving
Frequency [kHz]
7.82
6.43
6.43
7.82
6.43
6.43
4.73
6.43
Head Driving
Frequency [kHz]
7.82
6.43
6.43
7.82
6.43
6.43
9.46
12.83
Resolution
[dpi]
720
Carriage Driving
Frequency [kHz]
5.00
Head Driving
Frequency [kHz]
10.00
With Color BJ Cartridge Installed
Printing Mode
Bk & White-HS
Bk & White-HQ
Bk & White-FINE
Color-HS
Color-HQ
Color-FINE
Color-HQ (720)
Color-FINE (720)
Carriage
Operation
1 pass
1 pass
4 passes
1 pass
1 pass
3 passes
1 pass
3 passes
Nozzles
64 nozzles
64 nozzles
16 nozzles
24 nozzles
24 nozzles
8 nozzles
24 nozzles
8 nozzles
With Photo BJ Cartridge Installed
Printing Mode
Photo-FINE (720)
Carriage
Operation
3 passes
Nozzles
8 nozzles
5-12
Part 5: Appendix
LR1
2. CONNECTOR LOCATIONS AND PIN ARRAY
2.1 Control Board
1
36
41
5 29
1 1
61
81 3
3
1
18
J3
J2
CNCR
CNH
CNASF J1
12
19
J4
CNIF
1
CNLF
1
JUSB
CNDC
Figure 5-16 Control Board
Mechanical Section
Purge
Section
Paper Feed Roller
BJ Cartridge
Carriage
Pick-up Unit
Pick-up
Roller
Pick-up Roller Position Sensor
Board
Paper Delivery
Sensor
Pick-up Roller
Position Sensor
USB Interface
Carriage Motor
Pick-up
Motor
Parallel Interface
JUSB
J2
CNIF
J3
CNASF
CNLF
CNCR
Sensor
Detection
Interface Control
Head Control
Mechanism Control
CNDC
Power Supply
3Vcc(+3.3VDC)
Vcc1-3(+5VDC)
VIF(+5VDC)
VH(+24/20VDC)
Vpp(+13VDC)
Power
Generation
INK DOT
COUNTER
RESET Button
Detection
Internal
Temperature
sensor
POWER/BUSY/ERROR
Indicator Control
Sensor
Detection
J1
Button
CNH
Cartridge
Cover Sensor
Mode Switch
POWER/RESUME
Button Detection
Beeper
Control
J4
PE Sensor
J5
LED
Button
Operation Panel Board
Sensor Board
Operation Panel
HP Sensor
Figure 5-17 Printer Diagram
5-13
Beeper
Appendix
Control Board
AC Adapter
Paper Feed
Motor
Part 5: Appendix
LR1
CNIF (Parallel Interface Connector)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
Compatible Mode
STROBE
DATA1
DATA2
DATA3
DATA4
DATA5
DATA6
DATA7
DATA8
ACKNLG
BUSY
P.E.
SELECT
AUTO FEED XT
N.C
GND
GND
+5.0V
STROBE-RET
DATA1-RET
DATA2-RET
DATA3-RET
DATA4-RET
DATA5-RET
DATA6-RET
DATA7-RET
DATA8-RET
ACKNLG-RET
BUSY-RET
P.E.-RET
INIT
ERROR
GND
N.C
+5.0V
SELECT IN
Nibble Mode
HostClk
Data1
Data2
Data3
Data4
Data5
Data6
Data7
Data8
PrtClk
PrtBusy
AckDataReq
Xflag
HostBusy
Undefined
Gnd
Gnd
Vcc
Signal Gnd
Signal Gnd
Signal Gnd
Signal Gnd
Signal Gnd
Signal Gnd
Signal Gnd
Signal Gnd
Signal Gnd
Signal Gnd
Signal Gnd
Signal Gnd
Init
DataAvail
Undefined
Undefined
Undefined
1284Active
JUSB (USB Interface Connector)
Pin No.
1
2
3
4
Signal
Vcc
-Data
+Data
GND
Function
Cable power supply
Data
Data
GND
5-14
Part 5: Appendix
LR1
J1 (Sensor Board Connector)
Pin No.
1
2
3
4
Signal
GND
C-DCR-SW
BK-DCR-SW
DOOR-SW
IN/OUT
...
IN
IN
IN
5
HPS
IN
6
PES
IN
7
8
Vcc3
Vcc1
...
...
Function
GND
COLOR INK DOT COUNTER RESET Button
BLACK INK DOT COUNTER RESET Button
Door-open sensor
(H: When open, L: When closed)
Home position sensor
(H: At home position, L: Not at home position)
Paper-end sensor
(H: Paper available, L: Paper out)
+5VDC
+5VDC
J2 (Paper Delivery Sensor Connector)
Pin No.
1
2
3
Signal
Vcc3
PTS
Vcc3
IN/OUT
OUT
IN
OUT
Function
+5VDC
Paper delivery sensor
+5VDC
J3 (Pick-up Roller Position Sensor Connector)
Pin No.
1
2
3
Signal
Vcc3
GND
ASFHP
IN/OUT
...
...
IN
Function
+5VDC
GND
Pick-up roller position sensor
(H: At home position, L: In operation)
J4 (Operation Panel Board Connector)
Signal
BUSY-LED
Vcc1
ERR-LED
PWR-LED
PWRON
RCV-SW
BZOUT
GND
C-LED2
C-LED1
BK-LED2
BK-LED1
IN/OUT
OUT
OUT
OUT
OUT
IN
IN
OUT
...
OUT
OUT
OUT
OUT
Function
BUSY indicator
+5VDC
ERROR indicator
POWER indicator
POWER button
RESUME button
Beeper
GND
COLOR INK-LOW indicator 2
COLOR INK-LOW indicator 1
BLACK INK-LOW indicator 2
BLACK INK-LOW indicator 1
IN/OUT
IN
...
...
Function
+13VDC
GND
GND
CNDC (DC Jack)
Pin No.
1
2
3
Signal
Vpp
GND
GND
5-15
Appendix
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
Part 5: Appendix
LR1
CNCR (Carriage Motor Connector)
Pin No.
1
2
3
4
Signal
BCRM
BCRM
ACRM
ACRM
IN/OUT
OUT
OUT
OUT
OUT
Function
Carriage motor
Carriage motor
Carriage motor
Carriage motor
phase
phase
phase
phase
B
B
A
A
CNLF (Paper-Feed Motor Connector)
Pin No.
1
2
3
4
5
Signal
VH
ALFM
BLFM
BLFM
ALFM
IN/OUT
...
OUT
OUT
OUT
OUT
Function
+20/24VDC
Paper-feed motor
Paper-feed motor
Paper-feed motor
Paper-feed motor
phase
phase
phase
phase
CNASF (Pick-up Motor Connector)
Pin No.
1
2
3
4
5
Signal
VH
A-ASFM
B-ASFM
B-ASFM
A-ASFM
IN/OUT
...
OUT
OUT
OUT
OUT
Function
+20/24VDC
Pick-up motor
Pick-up motor
Pick-up motor
Pick-up motor
5-16
phase
phase
phase
phase
A
B
B
A
A
B
B
A
Part 5: Appendix
LR1
CNH (Carriage Ribbon Cable Connector)
Signal
VHG
VHG
MCH0
MCH1
HVH
HVH
WHT
N.C.
TOP
DIA
ID0
ID1
HCONT
HVSS
HENBA
EVENENB
IN/OUT
...
...
OUT
OUT
...
...
OUT
...
IN
OUT
INV
IN
IN/OUT
...
OUT
OUT
17
18
19
HENBB
HENBD
ODD ENB
OUT
OUT
OUT
20
BENB0
OUT
21
BENB1
OUT
22
BENB2
OUT
23
24
25
26
27
28
29
HVDD
HCLOCK
HLATCH
HRES
HENBC
HDATA
DIK
...
OUT
OUT
OUT
OUT
OUT
IN
Function
GND for head-driving voltage VH
GND for head-driving voltage VH
Drive signal for temperature adjustment heater
Drive signal for temperature adjustment heater
Head-driving voltage (+24 VDC)
Head-driving voltage (+24 VDC)
Subheater driving signal
Unused
Rank resistor’s detection signal
Head temperature sensor’s (diode) anode
BJ cartridge (black/color) detection signal
BJ cartridge (black/color) detection signal
BJ cartridge detection signal/HENABLE select signal
Logic driving voltage GND in the head
Heater driving signal in the head
Heater driving signal for the even-numbered nozzles
in the head
Heater driving signal in the head
Heater driving signal in the head
Heater driving signal for the odd-numbered nozzles in
the head
Signal for generating the block enable decoder’s
output signal
Signal for generating the block enable decoder’s
output signal
Signal for generating the block enable decoder’s
output signal
Head’s logic driving voltage +5 V
Clock signal that transfers the print data
Timing signal that latches the print data
Reset signal for the latch
Heater driving signal in the head
Print data
Head temperature sensor’s (diode) cathode
Whether or not there is a BJ cartridge and the BJ cartridge’s identification are detected
with connector pin 11 (ID0), pin 12 (ID1), and pin 13 (HCONT).
Table 5-4 HEAD INSTALLATION STATUS AND SIGNAL DETECTION
BC-10
BC-11e
BC-12e
Not loaded
Carriage Cable Contact Pin No./Signal
11
12
13
ID0
ID1
HCONT
L
L
H
H
L
L
H
H
L
H
H
—
5-17
Appendix
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Part 5: Appendix
LR1
2.2 Operation Panel Board
J1
1
12
Figure 5-18 Operation Panel Board
J1 (Control Board Connector)
See page 5-15 (J4 Operation Panel Board Connector Pin Description).
J1
Signal
IN/OUT Function
Pin No.
1
BK-LED1
IN
BLACK INK-LOW indicator 1
2
BK-LED2
IN
BLACK INK-LOW indicator 2
3
C-LED1
IN
COLOR INK-LOW indicator 1
4
C-LED2
IN
COLOR INK-LOW indicator 2
5
GND
...
GND
6
BZOUT
IN
Beeper
7
RCV-SW
OUT RESUME button
8
PWRON
OUT POWER button
9
PWR-LED
IN
POWER indicator
10
ERR-LED
IN
ERROR indicator
11
Vcc1
...
+5 VDC
12
BUSY-LED
IN
BUSY indicator
5-18
Control Board
J4 pin No.
12
11
10
9
8
7
6
5
4
3
2
1
Part 5: Appendix
LR1
3
1
J6
J5
1
8
2.3 Sensor Board
Figure 5-19 Sensor Board
J5 (Home Position Sensor Connector)
Pin No.
1
2
3
Signal
Vcc3
HPS
Vcc3
IN/OUT
...
IN
...
Function
+5VDC
Home position sensor
GND
J6 (Control Board Connector)
See page 5-15 (J1 Sensor Board Connector Pin Description).
J1
Signal
IN/OUT Function
Pin No.
1
Vcc1
...
+5VDC
2
Vcc3
...
+5VDC
3
PES
OUT Paper-end sensor
4
HPS
OUT Home position sensor
5
DOOR-SW OUT Door-open sensor
6
BK-DCR-SW OUT BLACK INK DOT COUNTER RESET button
7
C-DCR-SW OUT COLOR INK DOT COUNTER RESET button
8
GND
...
GND
Control Board
J1 Pin No.
8
7
6
5
4
3
2
1
Appendix
2.4 Pick-up Roller Position Sensor Board
1
J1
3
Figure 5-20 Pick-up Roller Position Sensor Board
J1 (Control Board Connector)
See page 5-15 (J3 Pick-up Roller Position Sensor Connector Pin Description).
J1
Pin No.
1
2
3
Signal
ASFHP
GND
Vcc3
IN/OUT Function
OUT
...
...
Pick-up roller position sensor
GND
+5VDC
5-19
Control Board
J3 Pin No.
3
2
1
Part 5: Appendix
LR1
2.5 BJ Cartridge
3 15 27
11
19
4
9
12
18
21 26
2
6
8
13
17
22 25
29
1
5
7
14 16
23 24
28
10
20
Figure 5-21 BJ Cartridge
See page 5-17 (CNH Carriage Ribbon Cable Connector Pin Description).
Pin No.
Signal
IN/OUT Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
GNDH
GNDH
MCH1
MCH2
VH
VH
SUB
Spare 1
RNK
DIA
ID-0
ID-1
IND
GNDL
HEAT-A
EVEN
...
...
IN
IN
OUT
OUT
OUT
...
IN
IN
IN
IN
IN/OUT
...
OUT
OUT
17
18
19
HEAT-B
HEAT-D
ODD
OUT
OUT
OUT
20
B-ENB0
OUT
21
B-ENB1
OUT
22
B-ENB2
OUT
23
24
25
26
27
28
29
VDD
D-CLK
LT-CLK
RESET
HEAT-C
I-DAT
DIK
OUT
OUT
OUT
OUT
OUT
OUT
IN
GND for head-driving voltage VH
GND for head-driving voltage VH
Drive signal for temperature adjustment heater
Drive signal for temperature adjustment heater
Head-driving voltage (+24 V DC)
Head-driving voltage (+24 V DC)
Subheater driving signal
Unused
Rank resistor’s detection signal
Head temperature sensor’s (diode) anode
BJ cartridge (black/color) detection signal
BJ cartridge (black/color) detection signal
BJ cartridge detection signal
Logic driving voltage GND in the head
Heater driving signal in the head
Heater driving signal for the even-numbered
nozzles in the head
Heater driving signal in the head
Heater driving signal in the head
Heater driving signal for the odd-numbered
nozzles in the head
Signal for generating the block enable decoder’s
output signal
Signal for generating the block enable decoder’s
output signal
Signal for generating the block enable decoder’s
output signal
Head’s logic driving voltage +5 V
Clock signal that transfers the print data
Timing signal that latches the print data
Reset signal for the latch
Heater driving signal in the head
Print data
Head temperature sensor’s (diode) cathode
5-20
CNH
Signal
VHG
VHG
MCH0
MCH1
HVH
HVH
WHT
N.C.
TOP
DIA
ID0
ID1
HCONT
HVSS
HENBA
EVEVENB
HENBB
HENBD
ODD ENB
BENB0
BENB1
BENB2
HVDD
HCLOCK
HLATCH
HRES
HENBC
HDATA
DIK
Part 5: Appendix
LR1
2.6 Carriage Motor
Figure 5-22 Carriage Motor
See page 5-16 (CNCR Carriage Motor Connector Pin Description).
Pin No.
Signal
1
2
3
4
BCRM
BCRM
ACRM
ACRM
IN/OUT Function
IN
IN
IN
IN
Carriage
Carriage
Carriage
Carriage
motor
motor
motor
motor
phase
phase
phase
phase
B
B
A
A
Control Board
CNCR Pin No.
1
2
3
4
2.7 Paper-Feed Motor
Appendix
Figure 5-23 Paper-Feed Motor
See page 5-16 (CNCF Paper-Feed Motor Connector Pin Description).
Pin No.
Signal
IN/OUT Function
1
VH
...
2
3
4
5
ALFM
BLFM
BLFM
ALFM
IN
IN
IN
IN
+20/24 VDC
(When paper-feed motor is driven.)
Paper-feed motor phase A
Paper-feed motor phase B
Paper-feed motor phase B
Paper-feed motor phase A
5-21
Control Board
CNLF Pin No.
1
2
3
4
5
Part 5: Appendix
LR1
2.8 Pick-up Motor
Figure 5-24 Pick-up Motor
See page 5-16 (CNASF Pick-up Motor Connector Pin Description).
Pin No.
Signal
IN/OUT Function
1
VH
...
2
3
4
5
6
A-ASFM
B-ASFM
B-ASFM
A-ASFM
N.C.
IN
IN
IN
IN
...
+20/24 VDC
(When pick-up motor is driven.)
Pick-up motor phase A
Pick-up motor phase B
Pick-up motor phase B
Pick-up motor phase A
...
5-22
Control Board
CNASF Pin No.
1
2
3
4
5
6
Part 5: Appendix
LR1
2.9 Circuit Diagram
1
2
3
4
5
6
7
8
9
10
CONTROL PCB ASS'Y 01
A
Vpp
CNDC
F1
SLM40
1
2
3
ZD1
HZS20-2
D1
1R5BZ41
Reset IC
1
L1
NF03FC070
1
2
Vcc1
J5
IC5
C1
0.1µ,25V
4
3
C2
3300µ,25V
1
2
3
Vcc1
VCC
M/R
SUB
GND
VOUT
R2
10K,1/16W
5
RESET
4
C60
0.1µ,25V
C3
0.1µ,25V
Vcc1
DC-DC Converter
IC14
ICP1
ICP-N20
1
2
VIN
SW
GND
F/B
Vif
Vcc2
Vcc3
Q4
DTA113ZUA
1
2
L101
LHL10TB221K
4
3
C
3
C8
1000µ,16V
Q3
DTA143EUA
1
2
ZD3
HZS6C-2
2
1
B
D5
1SS133
R101
100,1/16W
3
<02-F1>
<03-G4>
Q7
2SK2103
3
D101
D1NS4
2
R166
4.7K,1/16W
R165
1M,1/16W
Vpp
<02-A3>
V2-ON
Q6
DTC143EUA
3
2
1
3
1
D8
1SS133
V3-ON
<02-F1>
Q5
DTC143EUA
D
LF-PRT
<04-F7>
VH
2
1
3
D4
ERB83-006
Q10
FX20ASJ-03
1
DC-DC Converter
IC2
8
7
6
5
2
<03-A4>
VH-ON
2
R1
100,1/16W
R23
1K,1/16W
3
Q11
1
DTC143EUA
C36
33µ,25V
CD
SI
V+
INV
CS
ES
CT
GND
Q33
DTA143EUA
3
R16
200,1/16W
1
2
3
4
D3
1SS133
Q9
2SK2018-01S 2
R20
15K,1/16W
D7
1SS133
ZD6
HZS27-2
C17
0.01µ,50V
2
R10
68K,1/16W
C74
3300p,50V
3
Q35
DTA143EUA 1
3
E
C19
2200µ,35V
C75
3300p,50V
1
1
3
C13
0.1µ,25V
C12
330p,50V
R17
1K,1/16W
Q8
2 2SA1298Y
2
Q34
2SC2412K
3
R21
820,1/16W
2
Q36
2SC2412K
3
1
C731
0.1µ,25V
R19
51,1/10W
1
F
Vcc1
Regulator IC
IC7
1
2
3
C14
0.01µ,50V
CONT
GND
NOISE
VIN
VOUT
3Vcc
C6
0.1µ,25V
5
4
R167
330K,1/16W
D10
1SS133
R168
330K,1/16W
LFREF1
<03-A4>
G
C5
4.7µ,25V
5-23
Appendix
R22
10K,1/16W
L2
LHL13@101K
Part 5: Appendix
LR1
4
5
6
7
8
9
10
CONTROL PCB ASS'Y 02
CS1 <03-F7>
0
1
2
3
4
<04-B7>
<01-D8>
<05-B2>
<03-G4>
<03-G4>
<03-G4>
<03-G5>
<03-G5>
3
ASFEN
V2-ON
MTSTB
WAIT
INT4
INT5
INT6
INT7
2
MCHE1 <04-F7>
MCHE0 <04-F7>
WHEAT <04-F7>
1
FN1
SXOUT
BK1608HS241
16
D [15:0]
24
FB201
FB202
Vcc1
A [23:0]
BK1608LM182
C30
10p,50V
R28
X2
1M,
1/16W
C35
10p,50V
<03-G7>
A
<03-B7>
HCONT
HCLK
HDATA
HLAT
BENB3
BENB2
BENB1
ODDENB
EVENB
HENBC
HENBB
HENBA
HENBD
HRES
BK1608LM182
R27
100,1/16W
<03-G4>
Carriage Cable Connector
CNH
VH
C318
1µ,50V
<04-F10>
<04-F10>
MCH0
MCH1
VH
MD [15:0]
<03-A7>
16
C28
0.01µ,50V
MA [9:0] 10
<03-A7>
R306
2.7K,1/16W
Vcc1
<04-F10>
C309
0.01µ,50V
<03-A4>
LCAS
UCAS
OE
8
7
6
5
4
<01-D10>
V3-ON
<01-B10>
<03-G4>
RESET
Vcc1
3Vcc
C302
0.01µ,
50V
Vcc1
C20
0.01µ,
50V
C21
0.01µ,
50V
X4
CX-16F
48MHz
C22
8p,50V
C315
0.01µ,
50V
L3
LEM2520T1R5J
<05-D6> CR-I23
<03-C2> FPOWERON
<05-C6>
R304
100,1/16W
R305
1M,1/16W
R18
10K,1/16W
3VDD_6
5VDD_7
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
A23
A22
A21
A20
A19
A18
A17
A16
VSS_8
3VDD_5
A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
RDN
WRN
HWRN
5VDD_6
3VDD_4
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
Vcc1
<03-D2>
3
Vcc1
Vcc1
DA1 3
HZM6.8FA
<03-D1>
ID0
R311
100,1/16W
<03-D1>
ID1
R312
R313
100,1/16W
100,1/16W
R314
R315
100,1/16W
100,1/16W
R320
R321
100,1/16W
100,1/16W
C306
0.01µ,50V
3
4
2
DA2 5
HZM6.8FA
1
2
DA3 3
HZM6.8FA
4
2
DA3 5
HZM6.8FA
1
2
100,1/16W
R323
R324
C10
0.01µ,
50V
3
2
DA4 5
HZM6.8FA
100,1/16W
100,1/16W
1
2
DA5 3
HZM6.8FA
100,1/16W
100,1/16W
R325
R326
9
TOP
10
11
DIA
ID0
12
13
14
ID1
HCONT
HVSS
15
16
HENBA
EVENENB
17
18
HENBB
HENBD
19
20
ODDENB
BENB0
21
22
BENB1
BENB2
23
24
HVDO
HCLOCK
4
25
26
HLATCH
HRES
2
DA5 5
HZM6.8FA
R328
10K,1/16W
1
27
28
HENBC
HDATA
C
To
BJ Cartridge
D
2
E
3Vcc
Vcc1
RD
WR
HWR
C23
0.01µ,
50V
DA2
HZM6.8FA
DA4 4
HZM6.8FA
R322
R329
10K,1/16W
1
2
Vcc2
3Vcc
15
14
13
12
11
10
9
8
7
6
5
4
3 Vcc1
2
1
0
DA1 5
HZM6.8FA
100,1/16W
100,1/16W
R318
R319
4
2
100,1/16W
100,1/16W
R316
R317
23
22
21
20
19
18
17
16
W-HT
Q16
2SB1443Q
R308
1K,1/16W
R327
330K,1/16W
C308
0.01µ,
50V
7
8
B
2
1
HRANK
MCH0
MCH1
HVH
HVH
1
3
C316
1000p,50V
C25
0.01µ,
50V
5
6
7
8
9
10
11
12
13
14
15
TOPC
Q2
DTC143EUA
3Vcc
3
4
5
6
C24
0.01µ,
50V
<03-A4>
<03-A4>
<03-A4>
Vcc1
Vcc1
Vcc1
R333
470K,
1/10W
8
R336
100,
1/16W
8
R332
12K,
1/16W
R338
180K,
1/16W
29
DIK
3
5
R331
33K,
1/16W
2
1
7
<03-D2> HDIS
C319
1000p,50V
6
R335
100K,
1/16W
4
R334
100K,1/16W
F
4
IC13
IC13
C320
0.1µ,25V
R337
7.5K,
1/16W
R339
1K,1/16W
Vcc1
CP3
Vcc1 Vcc1
R7
10K,1/16W
G
CP5
CP6
CR-I1
C47
100p,50V
CP7
C304
0.01µ,50V
R26
10K,1/16W
5-24
Appendix
15
14
13
12
11
10
9
8
Printer Control IC
IC3
SELIN
INIT
AUTXT
FAULT
SLCT
PE
BUSY
ACK
IFD7
IFD6
IFD5
IFD4
IFD3
IFD2
IFD1
IFD0
STB
3
C9
0.01µ,50V
<03-D7>
<03-D7>
<03-D7>
CP9
PLUG
PULLUP
USBD+
USBD-
Vcc1
2
VHG
VHG
<04-F6>
<04-E6>
<04-D6>
<04-E6>
<04-E6>
<04-D6>
<04-D6>
<04-D6>
<04-C6>
<04-C6>
<04-C6>
<04-C6>
<04-C6>
<04-C6>
<04-C6>
<04-C6>
<04-B6>
<05-F7>
3Vcc <05-F7>
<05-F7>
<05-F7>
9
0
1
2
DOOR-SW
RCV-SW
BZOUT
BK-DCR-SW
BUSY-LED
PWR-LED
ERR-LED
PTS
<03-C7> UW
<03-C7> RAS
PWRON
C29
0.01µ,
50V
<06-E8>
<06-D4>
<06-D4>
<06-F8>
<06-G4>
<06-E4>
<06-F4>
<06-F1>
0
1
2
3
4
5
6
7
3VDD_1
5VDD_1
MD0
MD1
MD2
MD3
MD4
MD5
MD6
MD7
UWN
RASN
MA9
MA0
MA1
MA2
LWN
PLUG
PULUPN
USBD_P
USBD_M
3VDD_2
VSS_1
MA3
MD15
MD14
MD13
MD12
MD11
MD10
MD9
MD8
LCASN
UCASN
OEN
MA8
MA7
MA6
MA5
MA4
LPA2
RESN
5VDD_2
3VDD_3
<06-E4>
C18
0.01µ,
50V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
VSS_2
VSS_3
5VDD_3
TEST
LXI
LXO
MTEST
LPA3
SNMI
NMIO
LPB3
LPB2
LPB1
LPB0
CSSEL
LPA6
LPA5
LPA4
IRRXD
IRFRXD
IRTXD
VSS_4
5VDD_4
SELIN
INITN
AFXT
FAULT
SLCT
PE
BUSY
ACK
IFD7
IFD6
IFD5
IFD4
IFD3
IFD2
IFD1
IFD0
STBN
VSS_5
5VDD_5
VSS_6
VSS_7
Vcc1
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
3Vcc
VSS_12
VSS_11
5VDD_9
HCONT
HCLK
HDATA
HLAT
BENB3
BENB2
BENB1
ODENB
EVENB
HENB3
HENB2
HENB1
HENB0
MCHE1
MCHE0
WHEAT
HDRES
IFSEL
LPA0
LPA1
WAITN
INT0
INT1
INT2
INT3
CS0N
CS1N
D0
D1
D2
D3
D4
NTEST2
SXIN
SXOUT
SXO
SXI
NTEST1
5VDD_B
VSS_10
VSS_9
176
175
174
173
172
171
170
169
168
167
166
165
164
163
162
161
160
159
158
157
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
138
137
136
135
134
133
CP1
R307
5.6K1/4
W-HT
1
2
Part 5: Appendix
LR1
1
2
3
4
5
6
7
8
9
10
CONTROL PCB ASS'Y 03
<06-A4>
<06-D8>
<06-E8>
<02-C7>
<02-F6>
<02-F6>
<02-E6>
<02-B1>
MA [9:0]
A
MD [15:0]
DRAM
Vcc1
BK-CR-LED1
PES
HPS
TOPC
HWR
WR
RD
C-CR-LED1
LFREF1
VH-ON
BK-CR-LED2
<06-B4>
<01-G7>
<01-F1>
<06-B4>
<02-B1>
IC16
0
1
2
3
Vcc1
C42
0.01µ,50V
A [23:0]
<02-A6>
R531
47K,1/16W
C37
1000p,50V
<05-B10>
<02-F6>
<02-C7>
MEDIA_SEL
HDIS
HRANK
CP12
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
12
13
14
15
16
17
18
19
20
21
22
23
<02-D1>
<02-D1>
0
1
2
3
CP2
C45
0.01µ,50V
15
14
13
12
11
10
9
8
7
6
<02-E1>
<02-E1>
<02-E1>
C41
100p,50V
11
10
9
8
B
36
35
34
33
32
31
30
29
28
27
26
9
8
7
6
5
4
C
Control ROM
IC19S
19
18
8
7
6
5
4
3
2
1
C44
0.01µ,50V
C39
100p,50V
NC4
/LCAS
/UCAS
/OE
A9
A8
A7
A6
A5
A4
GND1
15
14
13
12
D
<02-A4>
C38
100p,50V
NC2
NC3
/WE
/RAS
A11/NC
A10/NC
A0
A1
A2
A3
VCC3
50
49
48
47
46
45
44
43
42
41
40
OE
UCAS
LCAS
Vcc1
R34
300,1/16W
VSS3
I/O16
I/O15
I/O14
I/O13
GND2
I/O12
I/O11
I/O10
I/O9
NC5
CS1
0
8
1
9
2
10
3
11
C40
100p,50V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
20
9
10
11
12
13
14
15
16
17
21
15
7
14
6
13
5
12
4
E
Vcc1
R52
10K,1/16W
R71
0.1A
F
Vcc1
C27
0.01µ,50V
16
D [15:0]
<02-A6>
G
5-25
Appendix
CP13
VCC1
I/O1
I/O2
I/O3
I/O4
VCC2
I/O5
I/O6
I/O7
I/O8
NC1
C11
0.01µ,50V
Vcc1
0
1
2
3
4
5
TH20-3M503F
C46
0.01µ,50V
A12
A13
A14
A15
P20/A16
P21/A17
P22/A18
P23/A19
P24/A20
P25/A21
P26/A22
P27/A23
VCC3
GND3
GND2
P17/D15
P16/D14
P15/D13
P14/D12
P13/D11
P12/D10
P11/D9
P10/D8
D7
D6
WAIT
C-DCR-SW
CRREF1
CRREF2
INT4
INT5
TE-DIO
TE-CLK
INT6
INT7
E-OE
TH1
ASFHP
<02-A3>
<06-F8>
<05-D6>
<05-B6>
<02-A4>
<02-A4>
<05-E7>
<05-D7>
<02-A4>
<02-A4>
<05-D7>
Thermister
<06-C1>
Vcc1
Vcc1
RESET
ID0
MPU
IC1
<01-B10> <02-F1>
<05-D10>
E-D0
GND1
X1
X2
EA
RESET
WDTOUT
PA0/_WAIT
PA1/T10
PA2/T01
PA3/T03
PB0/INT4/T14
PB1/INT5/T15
PB2/T04
PB3/T05
PB4/INT6/T16
PB5/INT7/T17
PB6/T06
PB7/INT0
VCC2
D0
D1
D2
D3
D4
D5
CP11
P65/_REFOUT
P70/PG00
P71/PG01
P72/PG02
P73/PG03
P74/PG10
P75/PG11
P76/PG12
P77/PG13
NMI
P80/TXD0
P81/RXD0
P82/_CTS0/SCLK0
P83/TXD1
P84/RXD1
P85/SCLK1
AGND
VREF
VCC1
P90/AN0
P91/AN1
P92/AN2
P93/AN3
AM8/_16
CLK
15
16
17
18
19
20
21
22
23
24
25
UW
RAS
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
<02-C7>
ID1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
SXOUT
<02-C7>
C-CR-LED2
BCRM
ACRM
BCRM
ACRM
ALFM
BLFM
ALFM
BLFM
FPOWERON
<02-A6>
<06-C4>
<04-B7> <05-C6>
<04-B7> <05-D6>
<04-B7>
Vcc1
Vcc1
Vcc1
Vcc1
<04-B7>
<04-F7>
R33
R32
R44
R37
<04-F7>
10K,
10K,
10K,
10K,
<04-F7>
1/16W 1/16W
1/16W 1/16W
<04-F7>
<02-G1>
CP10
GND4
P64/_RAS
P83/_CS3/_CAS
P62/_CS2
P61/-CS1
VCC4
P60/_CS0
P55/R/_W
P54/_BUSAK
P53/_BUSRQ
P52/_HWR
WR
RD
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
0
1
2
3
4
5
6
7
8
9
10
11
24
4
5
6
7
C15
0.01µ,50V
1
2
3
4
5
6
7
8
9
10
11
Part 5: Appendix
LR1
1
2
3
4
5
6
7
8
9
10
CONTROL PCB ASS'Y 04
A
Pick-up Motor Driver
Vcc1
Vif
IC15
R504
100,1/16W
R503
1K,
1/16W
<03-C2>
<02-A3>
IFD0
IFD1
IFD2
IFD3
IFD4
IFD5
IFD6
IFD7
FB29
FB31
FB32
FB36
FB30
RA3
C503
1000p,
50V
C504
1000p,
50V
C505
1000p,
50V
C506
1000p,
50V
C507
1000p,
50V
C508
1000p,
50V
BK1608LM182
BK1608LM182
BK1608LM182
BK1608LM182
R509
1K,1/16W
FB34
FB33
FB38
FB35
ACRM
ACRM
IC8
6
IC8
11
IC8
3
IC8
1
2
3
4
5
6
7
8
9
10
R8
2.7K,1/16W
R9
2.7K,1/16W
R11
2.7K,1/16W
R12
2.7K,1/16W
ASFEN
Vcc1
VCC
GND
AUTXT
<02-G4>
ACK
<02-G4>
BUSY
<02-G4>
PE
<02-G4>
SLCT
<02-G4>
INIT
<02-G4>
FAULT
<02-G4>
Vcc1
R510
5.6K,1/16W
BCRM
8
E1
B1
C1
B2
C2
B3
C3
B4
C4
E2
FU1
ICP-N20
14
CNASF
C
1
2
3
4
5
6
C16
0.1µ,25V
7
B
VH
IC8
C509
1000p,
50V
BK1608LM182
BK1608LM182
BK1608LM182
9
10
4
5
12
13
1
2
8
7
6
5
C502
1000p,
50V
<02-G4>
<02-G4>
<02-G4>
<02-G4>
<02-G4>
<02-G4>
<02-G4>
<02-G4>
BCRM
1
2
3
4
RA4
8
7
6
5
Vif
FB37
BK1608LM182
<03-C2>
<03-C2>
<05-D6>
8
7
6
5
RA2
1
2
3
4
NF4
BK1608LM182
BK32164S601
FB28
2
1
4
3
NF5
6
5
BK32164S601
8
7
1
2
3
4
5
6
7
8
1
2
3
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
RA1
<03-C2>
<05-C6>
R506
100,1/16W
R507
1K,1/16W
D
E
BK1608LM182
BK1608LM182
C516
0.01µ,
50V
R508
1K,1/16W
C511
1000p,
50V
C512
1000p,
50V
C513
1000p,
50V
C514
1000p,
50V
C515
1000p,
50V
Paper Feed Motor Driver
IC11
SELIN
<02-G3>
<02-A3>
<02-A3>
<02-A3>
<03-C2>
<03-C2>
<03-C2>
<03-C2>
<01-D10>
1
2
3
4
5
6
7
8
WHEAT
MCHE1
MCHE0
ALFM
ALFM
BLFM
BLFM
LF-PRT
C608
1µ,50V
D6
1SS133
R611
0.68,1/2W
I1
I2
I3
I4
I5
I6
I7
GND
O1
O2
O3
O4
O5
O6
O7
COM
16
15
14
13
12
11
10
9
VH
ZD4
MTZJ15B
W-HT
MCH1
MCH0
<02-C7>
<02-B7>
<02-B7>
F
VH
CNLF
1
2
3
4
5
G
5-26
Appendix
STROBE
DATA1
DATA2
DATA3
DATA4
DATA5
DATA6
DATA7
DATA8
ACK
BUSY
PE
SLCT
AUTXT
NC
S-GND
F-GND
+5V
S-GND
S-GND
S-GND
S-GND
S-GND
S-GND
S-GND
S-GND
S-GND
S-GND
S-GND
S-GND
INPRM
FAILT
S-GND
NC
+5V
SELIN
FG1
FG2
<02-G4>
C501
1000p,50V
Parallel Interface
CNIF
STB
1
2
3
4
R502
1K,
1/16W
8
7
6
5
R501
390,
1/8W
R505
1K,1/16W
Part 5: Appendix
LR1
1
2
3
4
5
6
7
8
9
10
CONTROL PCB ASS'Y 05
A
Vcc1
Vcc1
1
Mode Switch
2
3
R4
10K,1/16W
Q18
DTA143EUA
SW1
SSSU1114000
2
3
2
<02-A3>
MTSTB
3
Q19
DTC143EUA
B
1
1
MEDIA_SEL
CRREF2
Carriage Motor Driver
R24
15K,1/16W
C48
470p,50V
CNCR
1
R602
0.39,1/2W
2
R603
0.39,1/2W
3
4
4 3
4 3
DA8
S1ZAS4
DA7
S1ZAS4
1 2
R607
0.39,1/2W
R608
0.39,1/2W
IC6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1 2
MD
VREF1
CR1
E1
DECAY1
OUTAN
OUTA
OUTBN
OUTB
DECAY2
E2
CR2
VREF2
VBB
VCC
PHA1
EN2
IA1
IA2
IA3
IA4
IB4
IB3
IB2
IB1
EN2
PHA2
GND
28
27
26
25
24
23
22
21
20
19
18
17
16
15
C607
0.01µ,50V
R610
15K,1/16W
<03-G4>
C4
0.01µ,50V
R609
10K,1/16W
IC10
2
1
7
BCRM
C
<03-C2> <04-B7>
C603
0.1µ,25V
Vcc1
CR-I1
CR-I23
<02-G1>
3
6
5
ACRM
CRREF1
C602
0.01µ,50V
R38
15K,1/16W
C50
0.01µ,50V
R605
15K,1/16W
<03-C2> <04-B7>
<03-G4>
Vcc1
EEPROM
IC9
<02-G1>
IC10
<03-G5>
<03-G4>
Vpp
C49
470p,50V
<03-D2>
1
2
3
4
E-OE
TE-CLK
R613
5.6K,1/16W
R601
10K,1/16W
<03-G4>
NC1
VCC
CS
SK
NC2
GND
DO
DI
Vcc1
R614
10K,1/16W
R612
10K,1/16W
8
7
6
5
D
E-DO
<03-D2>
R609
0.01µ,50V
TE-DIO
Vcc1
IC10
USB Interface
3VCC
VCC
GND
R56
10K,1/16W
8
4
C7
0.1µ,25V
<02-D1>
<02-D1>
PLUG
1
PULLUP 3
2
<02-D1>
Q1
DTA143EUA
R57
47K,1/16W
1
3
4
2
F
3
USBDR54
24,1/16W
<02-D1>
R59
15K,
1/16W
DA6
HZM6.8FA
JUSB
USBD+
R58
1.5K,1/16W
DA6
HZM6.8FA
1
5
4
R55
24,1/16W
G
5-27
Appendix
E
Part 5: Appendix
LR1
1
2
3
4
5
6
7
8
9
10
CONTROL PCB ASS'Y 06
A
Vcc1
1
<03-A4>
BK-CR-LED1
3
J4
Q13
2
DTA143EUA
R60
180,1/16W
12
1
<03-A4>
BK-CR-LED2
3
Q14
2
DTA143EUA
R61
180,1/16W
B
11
1
<03-A4>
C-CR-LED1
3
Q15
DTA143EUA 2
R62
180,1/16W
10
1
<03-C2>
Vcc1
<03-D2>
R25
100,1/16W
ASFHP
C-CR-LED2
Vcc3
R50
10K,1/16W
3
Q17
DTA143EUA 2
R63
180,1/16W
9
R49
300,1/16W
Vcc3
C
Vcc1
J3
J1
3
C33
100p,50V
2
<02-G3>
BZOUT
8
8
7
7
R515
100,1/16W
Vcc1
1
<02-G3>
RCV-SW
D
R521
10K,1/16W
R514
100,1/16W
6
<03-A4>
PES
R516
100,1/16W
6
Vcc1
C523
0.01µ,50V
Pick-up Roller Position Sensor Connector
PWRON
R512
100,1/16W
5
<03-A4>
HPS
R517
100,1/16W
5
C521
0.01µ,50V
<02-G3>
PWR-LED
E
R30
300,1/16W
4
<02-G3>
DOOR-SW
R513
100,1/16W
4
Vcc3
Vcc1
C522
0.01µ,50V
J2
1
<02-G3>
ERR-LED
R519
300,1/16W
3
<02-G3>
BK-DCR-SW
R46
100,1/16W
Vcc1
C31
0.01µ,50V
<02-G3>
2
C26
0.01µ,50V
R3
10K,1/16W
R520
10K,1/16W
3
Vcc1
PTS
R45
10K,1/16W
2
<03-G4>
C-DCR-SW
R48
100,1/16W
R47
10K,1/16W
F
2
C32
0.01µ,50V
ZD2
3
Paper Delivery Sensor Connector
<02-G3>
BUSY-LED
R29
300,1/16W
1
Operation Panel Board Connector
1
Sensor Board Connector
G
5-28
Appendix
<02-G2>
C34
0.01µ,50V
R53
10K,1/16W
R511
10K,1/16W
Part 5: Appendix
LR1
1
2
3
4
5
6
7
8
9
10
SENSOR BOARD UNIT
A
B
To Control Board
J6
R61
18K,1/16W
1
3
2
SW10
4 MPU10640MLB0
Cartridge
Cover Switch
To Home Position Sensor
J5
1
3
2
SW13
4 MPU10640MLB0
1
VCC1
2
VCC3
3
PES
PE Sensor
4
R62
220,1/16W
1
3
1
3
C61
1000p,50V
R64
22K,1/16W
Q61
2SC2412KS
5
DOOR SW
6
Dot Count Reset SW (Black)
7
Dot Count Reset SW (Color)
8
GND
SW11
SKHVPB
SW12
SKHVPB
E
F
G
5-29
Appendix
R63
100K,1/16W
D
2
2
R52
180K,1/16W
C
Part 5: Appendix
LR1
1
2
3
4
5
6
7
8
9
10
PANEL BOARD UNIT
A
B
J7
12
LED7
SEL6410E
Busy Indicator
LED6
SEL6810A(D)
Error Indicator
11
10
9
8
7
6
LED1
SEL6410E
Power Indicator
SW6
SKHVPB
Power Button
SW7
SKHVPB
Resume Button
D
BZ1
PKM13EPY-4000-TF01
Buzzer
BZ
R1
1.5K,1/4W
5
3
2
1
LED9
SEL6410E
Ink Low Indicator
(Color 2)
LED10
SEL6410E
Ink Low Indicator
(Color 1)
LED11
SEL6410E
Ink Low Indicator
(Black 2)
LED12
SEL6410E
Ink Low Indicator
(Black 1)
E
F
G
5-30
Appendix
4
C
The printing paper contains
100% waste paper.
PRINTED IN JAPAN (IMPRIME AU JAPON)
CANON INC.
