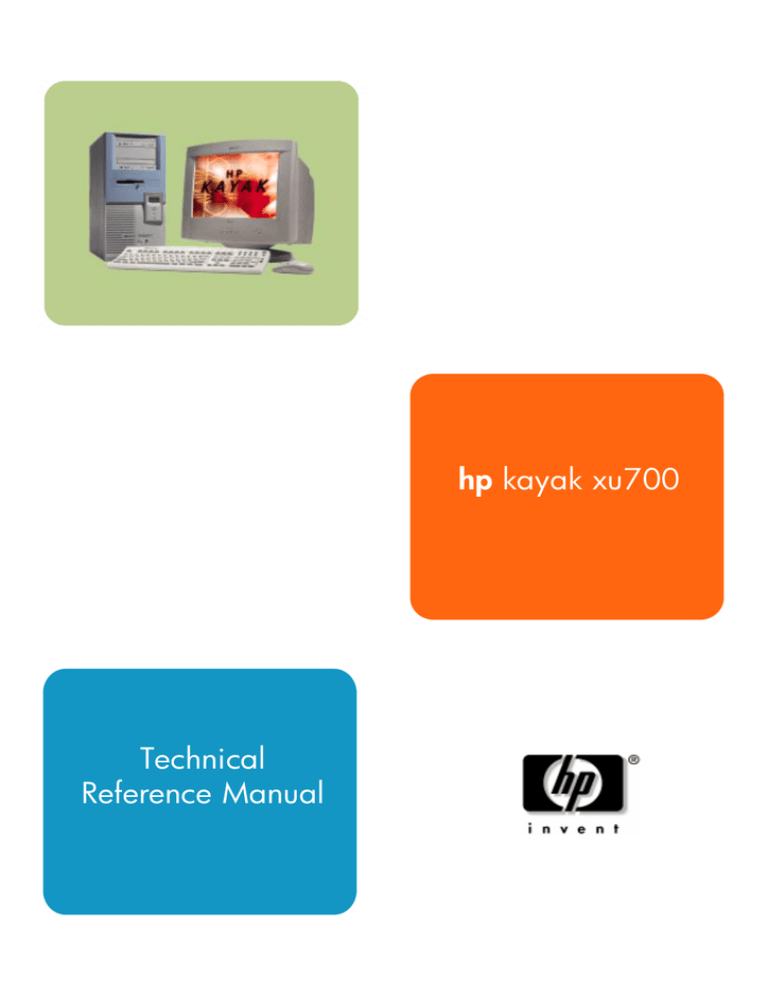

hp kayak xu700
Technical
Reference Manual
Notice
The information contained in this document is subject to change without notice.
Hewlett-Packard makes no warranty of any kind with regard to this
material, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose.
Hewlett-Packard shall not be liable for errors contained herein or for incidental
or consequential damages in connection with the furnishing, performance, or
use of this material.
Hewlett-Packard assumes no responsibility for the use or reliability of its
software on equipment that is not furnished by Hewlett-Packard.
This document contains proprietary information that is protected by copyright.
All rights are reserved. No part of this document may be photocopied,
reproduced, or translated to another language without the prior written consent
of Hewlett-Packard Company.
Adaptec® is a registered trademark of Adaptec, Inc.
Adobe and Acrobat are trademarks of Adobe Systems Incorporated.
NVIDIA™, GeForce2 GTS™ and Quattro2 MXR™ are registered trademarks or
trademarks of NVIDIA Corporation.
Matrox® is a registered trademark of Matrox Electronic Systems Ltd.
Microsoft®, Windows® and MS-DOS® are registered trademarks of the
Microsoft Corporation.
Windows NT® is a registered trademark of Microsoft Corporation.
Pentium® and AGPset™ are trademarks of Intel Corporation.
WOL™ (Wake on LAN) is a trademark of IBM.
Hewlett-Packard France
Business Desktop Division (BDD)
Outbound Marketing Communications
38053 Grenoble Cedex 9
France
2000 Hewlett-Packard Company
Created Dec. 2000
Contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Bibliography. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
1 System Overview
HP Kayak XU700 PC Workstation Overview . . . . . . . . . . . . . . . . . . . . . . . . .
9
Package for the Minitower Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13
Front and Side Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13
14
Internal Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
HP Kayak XU700 Minitower Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . .
15
HP Kayak XU700 Minitower Specifications and Characteristics . . . . . . .
16
Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Consumption and Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Environmental Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
16
17
18
Power Saving and Ergonometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
Power Saving and Ergonometry for APM Systems . . . . . . . . . . . . . . . . . . . . . . .
Power Saving Modes and Resume Events
for ACPI Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power-On from Space-Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Soft Power Down. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20
21
21
21
Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
Where to Find the Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
2 System Board
System Board Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
Architectural View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29
Accessory Board Slots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
AGP Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCI Slots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
31
System Board Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33
3
Contents
Chipset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Memory Controller Hub (82850) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Accelerated Graphics Port (AGP) Bus Interface . . . . . . . . . . . . . . . . . . . . . . . .
AGP 4x Bus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Memory Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38
38
39
The Input/Output Controller Hub 2 (82801BA) . . . . . . . . . . . . . . . . . . . . . . 42
Crystal CS4299 Integrated PCI Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Devices on the SMBus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Devices on the Low Pin Count Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The Super I/O Controller (NS 87364) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
46
47
52
53
FirmWare Hub (82802AB). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
System Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Intel Pentium 4 Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cache Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
57
58
Assigned Device Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Input/Output Controller Hub Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCI 64-bit Hub Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interrupt Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
................................................................
59
59
59
61
3 Interface Cards
Graphics Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Matrox Millennium G450 Graphics Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NVIDIA Quadro2 MXR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
63
67
Network Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
HP 10/100 TX PCI LAN Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Supported LAN Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3COM NIC (Network Interconnect) LAN Card . . . . . . . . . . . . . . . . . . . . . . . . .
68
70
70
SCSI Adapter Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Adaptec 29160 SCSI PCI Adapter Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
................................................................
4
72
74
Contents
4 Mass Storage Devices
Flexible Disk Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hard Disk Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CD-ROM Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
75
75
77
5 HP BIOS
Using the HP Setup Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
82
Updating the System BIOS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
87
Restoring BIOS Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
87
If You Forgot the Administrator Password . . . . . . . . . . . . . . . . . . . . . . . . .
88
Clearing the CMOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
89
Recovering the BIOS (Crisis Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
90
BIOS Addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
91
System Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HP I/O Port Map (I/O Addresses Used by the System). . . . . . . . . . . . . . . . . . . .
DMA Channel Controllers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
91
92
93
6 Tests and Error Messages
MaxiLife Test Sequence and Error Messages . . . . . . . . . . . . . . . . . . . . . . .
97
Basic Pre-boot Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pre-boot Diagnostics Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Post Test Sequence and Post Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating System Boot Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Run-Time Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Menu (Minitower models only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
98
99
100
101
101
102
Order in Which POST Tests Are Performed . . . . . . . . . . . . . . . . . . . . . . .
105
Error Message Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
113
7 Connectors and Sockets
Rear Panel Socket Pin Layouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
122
5
Contents
6
Preface
This manual is a technical reference and BIOS document for engineers and
technicians providing system level support. It is assumed that the reader
possesses a detailed understanding of AT-compatible microprocessor
functions and digital addressing techniques.
Technical information that is readily available from other sources, such as
manufacturers’ proprietary publications, has not been reproduced.
This manual contains summary information only. For additional reference
material, refer to the bibliography on the following page.
For all warning and safety instructions, refer to the user guide delivered
with the PC Workstation.
Conventions
The following conventions are used throughout this manual to identify
specific numeric elements:
Hexadecimal numbers are identified by a lower case h.
For example, 0FFFFFFFh or 32F5h
Binary numbers and bit patterns are identified by a lower case b.
For example, 1101b or 10011011b
7
Bibliography
Documentation can be downloaded from the HP web site:
www.hp.com/go/kayaksupport.
❒ HP Kayak XU700 User’s Guide
Available in English, French, Italian, German, Spanish and Swedish.
❒ HP Kayak XU700 Troubleshooting Guide
Available in English, French, Italian, German, Spanish and Swedish.
❒ HP Kayak XU700 PC Workstation Service Handbook Chapter —
Available in English only.
Extra Information Can Be ❒ nVIDIA graphics cards
http://www.nvidia.com
Obtained At:
❒ ELSA graphics cards
http://www.elsa.com
❒ Matrox graphics cards
http://www.matrox.com
❒ Intel Chipsets. Intel I850 chipset
http://developer.intel.com
❒ Intel Pentium 4 Processor
http://developer.intel.com
8
1
System Overview
This manual describes the HP Kayak XU700 Minitower PC Workstation
and provides detailed system specifications.
This chapter introduces the external features, and lists the specifications
and characteristic data of the system. It also provides a summary of the
documentation available.
HP Kayak XU700 PC Workstation Overview
The HP Kayak XU700 PC Workstation is based on the ATX
form factor. The following table provides an overview of the system.
Feature
Description
System Board
Dimensions of 12-inches x 9.6-inches in an Extended-ATX (E-ATX) package
Processor
Intel Pentium® 4 processor.
Socket 423
Processors from 1.4 GHz and upwards with a quad pumped 100 MHz FSB
(Front Side Bus).
Level-One: 16 KB code, 16 KB data.
Level-Two: i256 KB.
Cache Memory (integrated
•
in processor package)
•
Internal Processor Clock
Speed
1.4 GHz, 1.5 GHz and higher speeds with a quad pumped 100 MHz FSB.
Chipset
Intel® Chipset (I850) including Memory Controller Hub (MCH) Host Bridge,
Input/Output Controller Hub (ICH) for input/output sub-system.
Super I/O Chip
NS 87364.
BIOS
Based on Phoenix core including:
(Basic Input/Output System)
•
•
•
Firmware - BIOS
4 M/bits of flash memory.
Support for PCI 2.2 Specification.
Support for RIMM memory modules.
Flash EEPROM: Intel’s Firmware hub concept.
9
1 System Overview
HP Kayak XU700 PC Workstation Overview
Feature
Description
HP MaxiLife Utility
Hardware monitoring utility that monitors system components via the SMBus
and a LCD status panel.
Operating System
All models are preloaded with Windows 2000.
2 pairs of RIMM sockets supporting 2 or 4 PC800 RDRAM memory modules.
Main Memory
Each pair of memory sockets must contain identical memory modules
(identical in size, speed and type). That is, sockets A1 and B1 must contain
identical modules, and sockets A2 and B2 must contain identical modules (or
continuity modules).
If only two RDRAM modules are installed, use the sockets marked A1 and B1.
The other two sockets (AA2 and B2) must contain continuity modules
Models are supplied with non-ECC RDRAM modules.
Both ECC and non-ECC modules are available.
Up-to-date memory upgrades are listed on the HP PC Accessories website at:
www.hp.com/go/pcaccessories
Mass Storage
Seven shelves supporting:
•
•
•
Two front-access, third-height 3½-inch (one for the floppy disk drive and
one free) (height 1”);
Three front-access, half-height, 5¼-inch drives (height 1.0”);
Possibility of installing two 3½-inch hard disk drive in one of the
5¼-inch shelves using an adapter tray (available as an accessory).
Two internal 3½-inch hard disk drives (height 1.0”).
SCSI Controller
Adaptec Ultra 160 SCSI PCI card (optional).
IDE Controller
All models include an integrated Ultra ATA-100 controller that supports up to
four IDE devices.
Graphics Controllers
•
•
10
nVIDIA Quadro2 MXR with TwinView.
Matrox Millennium G450-Dual monitor AGP graphics controller with 16 MB
SGRAM graphics memory (maximum configuration).
1 System Overview
HP Kayak XU700 PC Workstation Overview
Feature
Accessory Card Slots
Description
One AGP Pro Universal 4X
32-bit slot supporting:
•
•
1.5V AGP cards (≤25W)
1.5V AGP Pro Cards (≤50W)
High power >50W AGP Pro and 3.3V AGP cards are not supported.
Five 32-bit 33 MHz PCI (Peripheral Component Interconnect) slots supporting
all bridges and multi-function PCI devices. All five PCI slots comply with the
PCI Specification 2.2.
❒ PCI slot 5 contains a LAN interface board,
❒ PCI slot 4 is for a SCSI interface board (some models only).
LAN Card
All models are supplied with an HP 10/100BT PCI Ethernet Adapter LAN card
installed in PCI slot 5, supporting Wake-On LAN (WOL) and PCI 2.2
Specification.
CD-ROM Drive
Models include either an IDE 48X CD-ROM, CD-RW drive or DVD drive.
Audio
Integrated on the system board CrystalClear™ CS4299 Audio Codec 97
version 2.1.
•
•
System Board
Connectors:
•
•
•
•
•
•
•
•
•
•
•
•
One flexible disk drive connector
Two ATA-100 IDE connectors (for up to four IDE devices)
One CD-IN audio connector
Internal speaker connector
WOL connector
Battery socket
Status panel connector
Main power supply connector and ATX 12V power connector
Auxiliary power connector (used on MT models only)
Main chassis fan connector
Processor fan connector
PCI card fan connector
Chassis intrusion connector
Thermal sensor connector
11
1 System Overview
HP Kayak XU700 PC Workstation Overview
Feature
Rear Connectors
(color coded)
Description
Keyboard/Mouse
❒ HP enhanced keyboard with mini-DIN connector
❒ HP enhanced scrolling mouse with mini-DIN connector
• 25-pin parallel
❒ Mode: Centronics or bidirectional modes (ECP/EPP)
❒ Parallel port: 1 (378h, IRQ 7), 2 (278h, IRQ 5), or Off.
• 9-pin serial (two, buffered)
❒ Standard: Two UART 16550 buffered serial ports
(both RS-232-C).
❒ Serial Ports A and B: 2F8h (IRQ 3), 2E8h (IRQ 3),
3F8h (IRQ 4), 3E8h (IRQ 4), or Off—
(if one port uses 2xxh, the other port must use 3xxh).
•
•
•
12
Dual USB connectors
Audio
❒ LINE IN jack (3.5 mm)
❒ LINE OUT jack (3.5 mm)
❒ MIC IN jack (3.5 mm)
1 System Overview
Package for the Minitower Models
Package for the Minitower Models
The following two diagrams show the front and rear views of the HP Kayak
XU700 Minitower PC Workstation.
Front and Side Views
Power Supply Unit
Front access shelves:
Main Fan
Spare mounting rails (not shown):
- Wide green rails for 3.5-inch devices
(for example, zip drive)
- Narrow green rails for 5.25-inch devices
- Blue rails for 3.5-inch hard disk drives
- three 5¼-inch drive
shelves (can be used for
optical drives or two
additional hard disk
drives with a 3½ tray
kit– avail. as accessory)
- two 3½-inch shelves
including a 1.44 MB
floppy disk drive
MaxiLife Status Panel
Primary Hard Disk Drive Shelf
Secondary Hard Disk Drive Shelf
13
1 System Overview
Internal Features
Rear View
HP Master Key Lock
Keyboard connector
Mouse connector
Serial port A
Serial port B
Line Out (headphone) connector
Line In connector
Microphone connector
Dual USB connectors
Parallel port
Display connector
Internal Features
The core architecture of the HP Kayak XU700 PC Workstation is
constructed around: Memory Controller Hub (MCH), Input/Output
Controller Hub (ICH) and the Host bus.
The HP Kayak XU700 PC Workstation supports a Pentium IV processor.
This processor is described on page 57.
The components of the system board are described in chapter 2; the
graphics, network and SCSI devices are described in chapter 3; mass storage
devices are described in chapter 4; the HP BIOS routines are summarized in
chapter 5; and the Power-On Self-Test routines are described in chapter 6.
14
1 System Overview
HP Kayak XU700 Minitower Front Panel
HP Kayak XU700 Minitower Front Panel
The front panel of HP Kayak XU700 Minitower PC Workstation has the
following features:
LCD Control Buttons
Power On/Off
Button
Reset Button
Hard Disk
Activity Light
• Liquid Crystal Display (LCD). LCD error messages and available menus
are described on page 97.
• On/Off LED. There are five states:
Blank. Indicates that the computer is turned off.
Green. Indicates that the computer is turned on and running correctly.
Red (fixed or flashing). Indicates a pre-boot or that there is a PowerOn Self-Test (POST) error, preventing the system from booting.
Amber. Displayed during system reset, system lock, Standby mode
(Windows 98) or Suspend mode (Windows 95).
• Hard disk drive activity LED. Activated during POST and when the
hard disk drive is being accessed.
15
1 System Overview
HP Kayak XU700 Minitower Specifications and Characteristics
HP Kayak XU700 Minitower Specifications and
Characteristics
Physical Characteristics
System Processing Unit
Weight
(Standard configuration as shipped,
excl. keyboard and display)
14 kilograms (31.7 pounds).
Dimensions:
47.0 cm max. (D) by 21.0 cm (W) by 49.0 cm (H)
(18.50 inches by 8.26 inches by 19.3 inches).
Footprint:
0.09 m2 (1.06 sq ft).
Electrical Specifications
Parameter
Total Rating
Input voltage
(Switch select)
Input current (max)
Standard
Connector
Extension
Total
100-127 V
VAC
200 -250 V
Vac
—
—
—
—
—
5A
2.5 A
—
—
—
—
—
—
—
—
—
50 to 60 Hz
—
Available power
320 W
—
Max current at +12 V
15 A
15 A
0.5 A
1A
4.2 A
5.2 A
Max current at -12 V
0.8 A
—
0.1 A
—
—
—
Max current at +3.3 V
28 A
—
7.6 A
6A
7.6 A
13.6 A
—
—
—
2A
Max current at +5 V
30 A
—
5A
2A
Max current at -5 V
0.0 A
—
—
2A
—
2
Max current at +5V stdby
combined with 3.3 V stdby
2.
Peak
(15 secs.)
Input frequency
Vddq
1.
Maximum for AGP Slot1
Maximum per
PCI Slots
32-bit 33 MHz
100 W for PCI slots and AGP Pro slot
—
—
1.875 A total on 3.3 V stdby
A maximum of 50 W can be drawn from the AGP Pro slot. The standard part of the AGP Pro connector supplies 25 W (max.) plus
25 W from the connector extension (25 W + 25 W = 50 W). Refer to page 30 for information about the AGP PRO Universal slot.
Only for I/O buffers.
16
—
1 System Overview
HP Kayak XU700 Minitower Specifications and Characteristics
If the overload protection in the power supply unit is triggered, all power is
immediately cut. To reset the power supply unit, remove the power cord and
then determine what caused the overload and remedy it. Reconnect the
power cord, then reboot the PC Workstation. If an overload happens twice,
then there is an undetected short circuit somewhere.
NOTE
When the PC Workstation is turned off with the power button on the front
panel, the power consumption falls below the low power consumption (refer
to the below table), but is not zero. The special on/off method used by this
PC Workstation extends the lifetime of the power supply. To reach zero
power consumption in “off” mode, either unplug the PC Workstation from the
power outlet or use a power block with a switch.
Power Consumption and Cooling
The power consumption and acoustics given in the below table is valid for a
standard configuration as shipped (one processor, 256 MB of memory,
320 W power supply, one hard disk drive, graphics card, LAN card).
All information in this section is based on primary power consumptions.
Power consumption (approximate values)
•
•
1.
Typical operating
Suspend (only on Windows 2000 models)
230 V / 50 Hz and 115 V / 60 Hz
70 W - 238.8 Btu/h1
<4 W - 13.6 Btu/h
1 W = 3.4121 Btu/h
Additional Component:
•
•
•
•
Processor
SCSI Hard disk drive with input/output access
SCSI Hard disk without input/output access (idle)
PCI card
50 W
23 W
16 W
10 to 36 W
- 170.6 Btu/h
- 78.4 Btu/h
- 54.5 Btu/h
- 64.1 Btu/h to 122.8 Btu/h
17
1 System Overview
HP Kayak XU700 Minitower Specifications and Characteristics
Environmental Specifications
Environmental Specifications (System Processing Unit, with Hard Disk)
Operating Temperature
+10 °C to +35 °C (+40 °F to +95 °F).
Storage Temperature
-40 °C to +70°C (-40 °F to +158 °F).
Over Temperature Shutdown
+50°C (+122°F)
Operating Humidity
15% to 80% (relative).1
Storage Humidity
8% to 85% (relative).1
Acoustic noise emission (as defined ISO 7779):
•
•
•
1.
Operating
Operating with hard disk access
Operating with floppy disk access
Sound Power
Sound Pressure
LwA <= 40.5 dB
LwA <= 41.4 dB
LwA <= 43.2 dB
LpA <= 25.7 dB
LpA <= 26.5 dB
LpA <= 30.0 dB
Operating Altitude
10000 ft (3100m) max
Storage Altitude
15000ft (4600m) max
non-condensing conditions.
Operating temperature and humidity ranges may vary depending upon the mass
storage devices installed. High humidity levels can cause improper operation of
disk drives. Low humidity levels can aggravate static electricity problems and
cause excessive wear of the disk surface.
18
1 System Overview
Power Saving and Ergonometry
Power Saving and Ergonometry
Depending on the operating system, the following power management types
are available:
• No sleeping state: Windows NT 4 (Full On and Off).
• APM: Windows 95 and Windows 98 SE APM (Full On, Suspend and Off).
• ACPI: Windows 98 SE ACPI and Windows 2000 (Full On, Standby,
Hibernate, Off).
Windows 2000
Full On
A
P
M
Not Supported by
Windows 2000
Windows NT 4
Windows 95
Supported
Supported
Supported
Supported
Suspend
Standby (S1 or S3)
Supported
Not Supported by
Windows NT 4
Supported
Off
A
C
P
I
Windows 98 SE
Supported
(implemented as S3,
Suspend to RAM)
Supported
(implemented as S1,
suspend)
Hibernate (S4)
Supported
Not Supported
Off (S5)
Supported
Supported
Supported
Supported
APM only Operating System
19
1 System Overview
Power Saving and Ergonometry
Power Saving and Ergonometry for APM Systems
Suspend1
Full On
Normal speed
Halted
Halted
On
Blanked, <5 W (typ)
Blanked, <5 W (typ)
Normal speed
Halted
Halted
Supports up to 320 W
<40 W (230V, 50 Hz)
<21 W (115V, 60 Hz)
(plugged in but turned off)
<5 W (average)
Resume events
Keyboard, network (RWU),
modem, USB
Space bar or power
button, RPO
Resume delay
A few seconds
Boot delay
Processor
Display
Hard disk drive
Power
consumption
1.
Off
Not supported by Windows NT 4.
20
1 System Overview
Power Saving and Ergonometry
Power Saving Modes and Resume Events
for ACPI Systems
Full On (S0)
Suspend (S1)
Suspend to RAM
(S3)
Suspend to Disk
(S4)
Off (S5)
Processor
Normal speed
Halted
Off
Off
Off
Display
On
Blanked
Off
Off
Off
Hard Disk
Drive
Normal speed
Halted
Off
Off
Off
Active Power
Planes
VCC
VCCAux
VCC
VCCAux
Memory
VCCAux
VCCAux
VCCAux
Power
Consumption
Supports up to
320 W
<40 W
<10 W
<10 W
<10 W
Power button,
LAN,
Modem,
Scheduler,
HP Start Key
Power button,
LAN,
Modem,
Scheduler,
HP Start Key
Power button,
HP Start Key
Resume Events
Power button,
LAN,
Modem,
USB,
Scheduler,
HP Start Key
Resume Delay
Instantaneous
Instantaneous
BIOS boot delay
Regular boot delay
Power-On from Space-Bar
The power-on from the space-bar function is enabled provided that:
• The computer is connected to a Power-On keyboard (recognizable by the
Power-On icon on the space bar).
• The function has not been disabled by setting SW-6 to off on the system
board switches.
Soft Power Down
When the user requests the operating system to shut down, the environment
is cleared, and the computer is powered off. Soft Power Down is available
with Windows NT (when the Soft Power Down utility is used).
21
1 System Overview
Documentation
Documentation
The table below summarizes the availability of the documentation that is
appropriate to the HP Kayak XU700 PC Workstation. Only selected
publications are available in paper-based form. Most are available as
printable files from the HP web site or the Information CD-ROM.
Online at HP
WWW Site
(see address
below)
Available on
the
Information
CD-ROM
HP Desktop PCs Quick User’s Guide
PDF file
No
A7185-XXXXX1
HP Kayak XU700 User’s Guide
PDF file
Yes
No
HP Kayak XU700 Troubleshooting Guide
PDF file
Yes
No
HP Kayak XU700
Technical Reference Manual
PDF file
No
No
PDF file
No
When available, chapter will be
included in the fifth edition of the
Service Handbook
Title
HP Kayak XU700 Service Handbook Chapter
1.
Paper-based
XXXXX = includes language code.
Access HP World Wide
Web Site
Additional online support documentation, BIOS upgrades and drivers are
available from HP’s World Wide Web site, at the following address:
World-Wide Web URL:
http://www.hp.com/go/kayaksupport
After accessing the site, select HP Kayak XU700 PC Workstation.
22
1 System Overview
Documentation
Where to Find the Information
The table below summarizes information provided in the HP Kayak XU700
PC Workstation documentation set.
Quick User’s
Guide
User’s Guide
Troubleshooting
Guide1
Service
Handbook
Technical
Reference
Manual
Introducing the PC
Standard
configuration.
Product features
Exploded view.
Parts list.
Product range.
CPL dates.
Product model
numbers
Environmental
Key features.
Setting up the
PC. Working in
comfort.
Safety Warnings
Finding on-line
information
HP Web sites.
Technical
information
Basic details.
Formal documents
Certificate of
Conformity.
Software
License
agreement.
Connecting
devices and
turning on
Rear panel
connectors,
starting and
stopping.
Electrical, multimedia,
safety, unpacking,
removing & replacing
cover.
Preloaded,
HP Web sites.
Safety.
HP Web sites.
Basic details.
HP Web
sites, others.
Advanced.
Using the PC
Basic details.
Updating and
recovering.
Fields and their
options within
Setup
Basic details.
Viewing Setup screen,
using, passwords
Basic details.
Manageability
Power management,
Software and drivers.
BIOS
Technical
details.
Memory
maps.
Complete
list.
23
1 System Overview
Documentation
Quick User’s
Guide
User’s Guide
Troubleshooting
Guide1
Service
Handbook
Technical
Reference
Manual
Upgrading the PC
Full description.
Opening the PC
Full PN details
Supported
accessories
Installing
accessories
Configuring
devices
System board
Processor(s), memory,
accessory boards,
mass storage devices.
Installing devices
Error messages,
problem solving.
Installing and
removing, connectors
and switch settings.
Switch settings.
Installing devices.
Jumpers,
switches and
connectors.
Jumpers,
switches and
connectors.
Chip-set
details.
Service notes.
Advanced.
Repairing the PC
Basic.
Troubleshooting
Basic, MaxiLife,
hardware diagnoses.
Basic details.
Power-On SelfTest routines
(POST)
Kayak diagnostic
utility
e-DiagTools,
CD-ROM
recovery.
HP e-DiagTools,
CD-ROM recovery.
MaxiLife, hardware
diagnoses and
suggested
solutions.
Error Messages,
EMU and
suggestions for
corrective action.
HP e-DiagTools,
CD-ROM recovery
Peripheral Devices
Audio Accessories
24
Refer to Audio User’s
Guide for information
on setting up and
configuring audio
accessories.
Refer to online
version of Audio
User’s Guide for
information on
setting up and
configuring audio
accessories.
Error codes
and
suggestions
for corrective
action.
Order of
tests.
Technical
details.
1 System Overview
Documentation
Quick User’s
Guide
LAN Accessories
1.
User’s Guide
Refer to LAN
Administrator’s Guide
for information on
setting up and
configuring LAN cards
and systems.
Troubleshooting
Guide1
Service
Handbook
Technical
Reference
Manual
Refer to online
version (preloaded
on hard disk) of
LAN
Administrator’s
Guide for
information on
setting up and
configuring LAN
cards and systems.
For address, “Access HP World Wide Web Site” on page 22.
25
1 System Overview
Documentation
26
2
System Board
This chapter describes the components of the system board, taking in turn
the components of the Memory Controller Hub (MCH), the Input/Output
Controller Hub (ICH2), FirmWare Hub (FWH) and the System Bus.
The following diagram shows the HP Kayak XU700 PC Workstation system
board in detail.
cm
.4 es
24 inch
9.6
5 cm
30. ches
in
12
27
2 System Board
System Board Overview
System Board Overview
The following diagram shows where the different chips and connectors are
located on the system board.
A2
A1
Main Power
Supply
Memory slots
B2
B1
Main chassis fan
Auxiliary power
(MT models only)
i850 MCH
Chassis intrusion
AGP Slot
Primary IDE
Secondary IDE
ATX12V power
PCI slots
i850 ICH2
Thermal sensor
CD-ROM
audio in
Floppy
Processor fan
Pentium 4
processor
(socket 423)
System
board
switches
Battery socket
HP MaxiLife
Wake On LAN
PCI card fan
Status panel
28
Internal Speaker
2 System Board
Architectural View
Architectural View
Intel Pentium 4
Processor
Socket 423
Address (36)
Control
100 MHz two-way System Bus
(Data Bus runs at 4 x 100 MHz,
3.2 GB/s transfer rate)
Data (64)
1.5V
AGP
PRO
Connector
AGP 4x Bus
(133 MHz (1 GB/sec
data transfer rate)
850
Memory
Controller Hub
(MCH)
82850
Dual Rambus Channel
4 onboard RIMM sockets
supporting RDRAM memory.
3.2 GB/s at 400 MHzdata transfer rate)
HUB LINK 8
(266 MB/s data
transfer rate)
I/O Controller Hub
(ICH2)
(ICH) 82801AA
82801BA
Keyboard,
Mouse and
Floppy
Parallel and
Serial Ports
4 USB
Connectors
USB
Super I/O
NS 87364
LPC / FWH Link
IDE
Controller
PCI Bridge
4 x USB
Controller
AC’97
Audio
Controller
LPC
Bridge
SM Bus
Controller
PCI Bus (32-bit, 33 MHz)
133 MB/s data transfer rate
Slot 1 - 32-bit/33 MHz
Slot 2- 32-bit/33 MHz
Slot 3 - 32-bit/33 MHz
Slot 4 - 32-bit/33 MHz
Slot 5 - 32-bit/33 MHz
SMBus
ATA/100 2 Channels
2 IDE
Connectors
FirmWare Hub
(FWH)
82802AA
Serial
EEPROM
MaxiLife
Monitoring
Chip
Fans
LCD
Status
Panel
29
2 System Board
Accessory Board Slots
Accessory Board Slots
The following block diagram shows the position of the accessory board slots
on the system board.
One 1.5V AGP slot.
PCI Slot 1
PCI Slot 2
Five 32-bit 33 MHz PCI slots
PCI Slot 3
PCI Slot 4
PCI Slot 5
AGP Slot
Minitower models of the HP Kayak XU700 are equipped with a single AGP
(Accelerated Graphics Port) graphics slot.
The AGP Pro Universal slot provides the ultimate graphics performance for
high-end graphics cards, combining AGP 4X bandwidth (with data transfer
rates up to 1056 MB/sec) with the ability to accept high-end graphics cards
drawing up to 50 W of power.
To accommodate AGP Pro cards, the AGP PRO slot connector is wider than
the standard AGP 4X connector. Additional pins have been added at both
ends of the connector to meet the increased power requirements of AGP
Pro graphics cards.
An AGP Pro card may draw power either from the existing part of the AGP
Pro connector, the extended part, or a combination of the two. In all cases,
the maximum power that may be drawn by an AGP Pro card is limited to
50 W in the Minitower models. Power on the existing part of the connector
is delivered on 5.0 V and 3.3 V rails. Power on the extension is delivered on
the 12 V and 3.3 V rails.
30
2 System Board
Accessory Board Slots
Either standard AGP graphics cards or AGP Pro graphics cards drawing less
than 50W of power can be used (below 25W a standard AGP connector may
be used), with power being provided through 3.3 V, 5 V, or 12 V power rails.
NOTE
AGP Pro graphics cards drawing more than 50W (“high-power” AGP Pro
cards) and AGP 3.3V graphics cards cannot be used in the Minitower’s AGP
slot.
The AGP Pro Universal slot is backwards compatible with both AGP 1x and
2.x modes (using 1.5 V signalling), and AGP 4x mode (where 1.5 V signalling
is required).
The AGP interface and bus are explained on page 38.
PCI Slots
There is a total of five Peripheral Component Interconnect (PCI) 32-bit,
33 MHz connectors on the system board.
The PCI slots accept 3.3 V and 5 V PCI 32-bit 33 MHz cards, and Universal
PCI cards (which are 3.3 V or 5 V compatible). Refer to the table on the
following page for the different PCI board installations.
The maximum supported power consumption per slot is 25W, either from
the 5V or the 3.3V supply and must respect the electrical specifications of
the PCI 2.2 specification. Total power consumption for the PCI slots must
not exceed 60 W.
The power consumption of each PCI board is automatically reported to the
system through the two Presence Detect pins of each PCI slot. These pins
code the following cases:
• No accessory board in the PCI slot.
• 7 W maximum PCI board in the PCI slot.
• 15 W maximum PCI board in the PCI slot.
• 25 W maximum PCI board in the PCI slot.
31
2 System Board
Accessory Board Slots
The following table shows the various PCI board installations for the
different PCI slots:
PCI Card
Universal
(3.3 V or 5 V compatible)
3.3 V and 5 V
PCI Slot
Slots 1, 2, 3, 4 & 5
5 V, 32-bit/33 MHz
1.
2.
32-bit/
33 MHz
64-bit/
33 MHz
yes
yes1
32-bit/
33 MHz or 66 MHz
yes
yes2
64-bit/
33 MHz or 66 MHz
yes1
yes2
A 64-bit card can be installed in a 32-bit slot. However, this card will only operate in 32-bit
mode.
A 66 Mhz card can be installed in a 33 MHz slot. However, this card will only operate in
33 MHz mode.
The system board and BIOS support the PCI specification 2.2. This
specification supports PCI-to-PCI bridges and multi-function PCI devices,
and each of the five PCI slots have Master capabilities.
The PCI slots are connected to the ICH2 PCI 32-bit 33 MHz bus.
32
2 System Board
System Board Switches
System Board Switches
There are ten system board switches used for configuration, numbered from
1 to 10. Some switches are reserved and should not be modified, otherwise it
could lead to a system failure.
Switch
Default
Position
1-4
OFF
Reserved. Do Not change Default Settings
5
ON
Reserved. Do Not change Default Setting
6
ON
Enables keyboard power-on.
OFF disables this option.
7
OFF
Enables normal modes.
ON enables the BIOS recovery mode at next boot.
8
OFF
Retains CMOS memory.
ON clears CMOS memory at next boot.
9
OFF
Enables User and System Administrator passwords.
ON clears the passwords at next boot.
10
depends on
chassis type
Use
ON = minitower
OFF = desktop
33
2 System Board
Chipset
Chipset
The Intel® I850 chipset is a high-integration chipset designed for
MCH graphics/multimedia PC platforms and is comprised of the following:
• The 82850 Memory Controller Hub (MCH) is a bridge between: the System bus, Dual Rambus bus (main memory), AGP 4x (graphic) bus and
Hub Link 8-bit. The MCH chip feature is described in detail on page 35.
ICH2
• The 82801BA Input/Output Controller Hub2 (ICH2) is a bridge between
the following buses: the PCI bus (32-bits/33 MHz) and SMBus. In addition,
the ICH2 supports the integrated IDE controller (Ultra ATA/100), Enhanced DMA controller, USB controller, Interrupt controller, Low Pin
Count (LPC) interface, FWH interface, ACPI Power Management
Logic, AC’97 2.1 Compliant Link, AOL (Alert-On-LAN) and Real
Time Clock (RTC) and CMOS. The ICH2 is described in detail on page
42.
•
34
The 82802AB Firmware Hub (FWH) stores system BIOS and SCSI BIOS,
nonvolatile memory component. In addition, the FWH contains an Intel®
Random Number Generator (RNG). The RNG provides random numbers
to enable fundamental security building blocks for stronger encryption,
digital signing and security protocols for the PC Workstation. The FWH is
described in detail on page 54.
2 System Board
Memory Controller Hub (82850)
Memory Controller Hub (82850)
The MCH Host Bridge/Controller is contained in a 615-pin Organic Land
Grid Array (OLGA) package and is the bridge between the System bus,
Dual Rambus bus (main memory), AGP 4x (graphic) bus and Hub Link 8bit.
The following figure shows an example of the system block diagram using
the MCH.
Socket 423
Intel Pentium 4
Processor
Address (36)
Control
100 MHz two-way System Bus
(Data Bus runs at 4 x 100 MHz,
3.2 GB/s transfer rate)
Data (64)
1.5V
AGP
PRO
Connector
AGP 4x Bus
(133 MHz (1 GB MB/s
data transfer rate)
I850 Memory
Controller Hub (MCH)
82850
AGP
Memory
Interface
Controller
Dual Rambus Bus
3.2 GB/s at 400 MHzdata transfer rate
4 onboard RIMM sockets
supporting RDRAM memory.
HUB LINK 8
(266 MB/s data
transfer rate)
I/O Controller Hub
(ICH2) 82801BA
35
2 System Board
Memory Controller Hub (82850)
The following table shows the features that are available in the MCH Host
Bridge/Controller.
Feature
•
Processor/System Bus:
❒ Supports on Pentium 4 processor at: 100 MHz System Bus
frequency (400 MHz Data Bus).
❒ Provides an 8-deep In-Order Queue supporting up to eight
outstanding transaction requests on the System bus.
❒ Desktop optimized AGTL+ bus driver technology with integrated AGTL + termination resistors.
❒ Support for 32-bit System bus address.
•
Memory Controller.
Direct Rambus:
❒ Dual Direct Rambus Channels operating in lock-step (both
channels must be populated with a memory module).
Supporting 300 MHz or 400 MHz.
❒ RDRAM 128 Mb, 256 Mb devices.
❒ Minimum upgrade increment of 32 MB using 128 Mbit
DRAM technology.
❒ Up to 64 Direct Rambus devices.
Dual channel maximum memory array size is:
— 1 GB using 128 Mbit DRAM technology.
— 2 GB using 256 Mbit DRAM technology.
❒ Up to 8 simultaneous open pages:
— 1 KByte page size support for 128 Mbit and 256 Mbit
RDRAM devices.
— 2 KByte page size support for 256 Mbit RDRAM devices.
•
Hub Link 8-bit Interface to ICH2:
❒ High-speed interconnect between the MCH and ICH2
(266 MB/sec).
36
Feature
•
Accelerated Graphics Port (AGP) Interface:
❒ Single 1.5V AGP PRO connector.
❒ AGP Rev 2.0 compliant, including AGP 4x data transfers and
2x/4x Fast Write protocol.
❒ AGP 1.5V connector support with 1.5 V signalling only.
❒ AGP PIPE# or SBA initiated accesses to DRAM is not
snooped
❒ AGP FRAME initiated accesses to DRAM are snooped
(snooper identifies that data is coherent in cache memory).
❒ Hierarchical PCI configuration mechanism.
❒ Delayed transaction support for AGP-to-DRAM reads that
cannot be serviced immediately.
2 System Board
Memory Controller Hub (82850)
Feature
Feature
•
Power management:
❒ SMRAM space re-mapping to A0000h - BFFFFh (128 KB).
❒ Extended SMRAM space above 256 MB, additional 128 K,
256 K, 512 K, 1 MB TSEG from Top of Memory, cacheable
(cacheability controlled by processor).
❒ Suspend to RAM.
❒ ACPI Rev. 1.0 compliant power management.
❒ APM Rev. 1.2 compliant power management.
❒ Power-managed states are supported for up to two
processors.
•
Arbitration:
❒ Distributed Arbitration Model for Optimum Concurrency
Support.
❒ Concurrent operations of System, hub interface, AGP and
memory buses supported via a dedicated arbitration and
data buffering logic.
•
615 OLGA MCH package.
•
Input/Output Device Support:
❒ Input/Output Controller Hub (ICH2).
❒ PCI 64 Hub (P64H).
MCH Interface
The MCH interface provides bus control signals and address paths via the
Hub Link 8-bit access to the ICH2 for transfers between the processor on
the system bus, Dual Rambus bus and AGP 4x bus.
The MCH supports 32-bit host addresses, allowing the processor to address
a space of 4GB. It also provides an 8-deep In-Order Queue supporting up to
eight outstanding transaction requests on the system bus.
Host-initiated input/output signals are positively decoded to AGP or MCH
configuration space and subtractively decoded to Hub Link 8-bit interface.
Host-initiated memory cycles are positively decoded to AGP or RDRAM, and
are again subtractively decoded to Hub Link 8-bit interface.
AGP semantic memory accesses initiated from AGP to DRAM do not require
a snoop cycle (not snooped) on the System bus, since the coherency of data
for that particular memory range will be maintained by the software.
However, memory accesses initiated from AGP using PCI Semantics and
accesses from Hub Link interface to RDRAM do require a snoop cycle on the
System bus.
Memory access whose addresses are within the AGP aperture are translated
using the AGP address translation table, regardless of the originating
interface.
Write accesses from Hub Link interface to the AGP are supported.
37
2 System Board
Memory Controller Hub (82850)
The MCH supports one Pentium 4 processor at an FSB frequency of 100MHz
using AGTL+ signalling. Refer to page 56 for a description of the System bus.
Accelerated Graphics Port (AGP) Bus Interface
A controller for the Universal AGP (Accelerated Graphics Port) Pro slot is
integrated in the MCH. The AGP Bus interface is compatible with the
Accelerated Graphics Port Specification, Rev 2.0, operating at 133 MHz, and
supporting up to 1 GB/sec data transfer rates. The MCH supports only a
synchronous AGP interface, coupling to the System bus frequency.
AGP 4x Bus
The AGP bus is a dedicated bus for the graphics subsystem, which meets the
needs of high quality 3D graphics applications. It has a direct link to the
MCH.
The AGP bus is based upon a 66 MHz, 32-bit PCI bus architecture, to which
several signal groups have been added to provide AGP-specific control and
transfer mechanisms.
AGP specific transactions always use pipelining. This control mechanism
increases the bus efficiency for data transfer. Sideband Addressing (SBA)
may also be used by AGP transaction requests which further increases the
bus efficiency for data transfer. The supported modes are detailed below:
•
•
•
•
38
FRAME-based AGP. Only the PCI semantics are: 66 MHz, 32-bit, 1.5 V,
266 MB/s peak transfer rate.
AGP 1X with pipelining, sideband addressing can be added: uses 66 MHz,
32-bit, 1.5 V, increased bus efficiency, 266 MB/s peak transfer rate.
AGP 2X with pipelining, sideband addressing can be added: 66 MHz
double clocked, 32-bit, 1.5 V, 533 MB/s peak transfer rate.
AGP 4X with pipelining, sideband addressing can be added: 133 MHz
double clocked, 32-bit, 1.5 V, increased bus efficiency, 1066 MB/s peak
transfer rate
2 System Board
Memory Controller Hub (82850)
AGP PCI Bus
Implementation
Pentium 4 Processor
1.5V
AGP
PRO
Connector
AGP 4x Bus
(133 MHz)
GX-Device 1
AGP Port
Interface
PCI-to-PCI
Device 0
I850
Memory
Controller Hub
(MCH)
Hub Link 8-bit
I/O Controller
Hub (ICH2)
Main Memory Controller
The main memory controller is integrated in the MCH supporting two
primary rambus channels (A and B).
DRAM Interface
The MCH provides optional System bus error checking for data, address,
request and response signals. Only 400 MHz Direct Rambus devices are
supported in any of 128 or 256 Mbit technology. 128 Mbit RDRAM uses page
sizes of 1 kbytes, while 256 Mbit devices target 1 kbyte or 2 kbyte pages.
A maximum number of 32 Rambus devices (128 Mbit technology implies 1
GB maximum in 32 MB increments, 256 Mbit technology implies 2 GB
maximum in 64 MB increments) are supported on the Direct Rambus
channel without external logic.
The MCH also provides optional data integrity features including ECC in the
memory array. During DRAM writes, ECC is generated on a QWord (64 bit)
basis. During DRAM reads, the MCH supports multiple-bit error detection
and single-bit error correction when the ECC mode is enabled.
39
2 System Board
Memory Controller Hub (82850)
MCH will scrub single bit errors by writing the corrected value back into
DRAM for all reads when hardware scrubbing is enabled. This, however does
not include reads launched in order to satisfy an AGP aperture transaction.
ECC can only be enabled when all RDRAM devices are populated in a system
that supports the extra two data bits used to store the ECC code.
Dual Rambus Bus
The Dual Rambus bus is comprised of 16 x 2 bits of data information, and
8 bits of Error Correcting Code (ECC). The bus is connected to the RIMM
memory slots and to the MCH chip supporting two Dual Rambus channels
(A and B).
Both channels run at 300 or 400 MHz supporting up to 32 rambus devices
per channel. The maximum available data bandwidth is 3.2 GB/s at 400 MHz.
The configuration of both primary rambus channels must be symmetrical –
the memory configuration on channel A must be identical to the memory
configuration on channel B. This means the memory must be installed in
identical pairs.
40
2 System Board
Memory Controller Hub (82850)
RIMM Memory Slots
The HP Kayak XU700 PC Workstation has four RIMM memory sockets,
RIMM A1, RIMM A2, RIMM B1, RIMM B2, for installing two or four RDRAM
memory modules.
Each pair of memory sockets must contain identical memory modules
(identical in size, speed and type). That is, sockets A1 and B1 must contain
identical modules, and sockets A2 and B2 must contain identical modules
(or continuity modules).
If only two RDRAM modules are installed, use the sockets marked A1 and
B1. The other two sockets (A2 and B2) must contain continuity modules.
If only Each DIMM socket is connected to the SMBus and is described on
page 49.
Read/Write Buffers
The MCH defines a data buffering scheme to support the required level of
concurrent operations and provide adequate sustained bandwidth between
the DRAM subsystem and all other system interfaces (CPU, AGP and PCI).
System Clocking
The MCH operates the System interface at 100 MHz or, PCI at 33 MHz and
AGP at 66/133 MHz. Coupling between all interfaces and internal logic is
done in a synchronous manner. The clocking scheme uses an external clock
synthesizer (which produces reference clocks for the host, AGP and PCI
interfaces).
41
2 System Board
The Input/Output Controller Hub 2 (82801BA)
The Input/Output Controller Hub 2 (82801BA)
The ICH2 is encapsulated in a 360-pin Enhanced Ball Grid Array (EBGA)
package and is located on the system board just underneath the AGP
connector. It provides the interface between the PCI bridge (PCI Rev. 2.2
compliant with support for 32-bit 33 MHz PCI operations),
PCI-to-LPC (Low Pin Count) bridge, IDE controller, USB controller,
SMBus controller and Audio Codec ’97 controller.
The ICH2 functions and capabilities are discussed in detail later on in this
section. The following figure shows an example of the system block
diagram using the ICH2.
Intel Pentium 4
Processor
Address (36)
Control
Data (64)
System Bus
I850 Memory
Controller Hub
(MCH)
I/O Controller Hub
(ICH2)
(ICH) 82801AA
82801BA
Keyboard,
Mouse and
Floppy
4 USB
Connectors
USB
Super I/O
NS 87364
LPC / FWH Link
Parallel and
Serial Ports
FirmWare Hub
(FWH)
82802AA
42
IDE
Controller
PCI Bridge
CS Audio
Codec
(CS4280)
Slot 1 - 32-bit/33 MHz
4 x USB
Controller
DMA
Controller
SM Bus
Controller
Slot 3 - 32-bit/33 MHz
Slot 2- 32-bit/33 MHz
Slot 4 - 32-bit/33 MHz
Slot 5 - 32-bit/33 MHz
SMBus
ATA/100 2 Channels
2 IDE
Connectors
PCI Bus (32-bit, 33 MHz)
133 MB/s data transfer rate
Serial
EEPROM
MaxiLife
Monitoring
Chip
Fans
LCD
Status
Panel
2 System Board
The Input/Output Controller Hub 2 (82801BA)
The following table shows the available ICH2 features.
Feature
• Multi-function PCI Bus Interface:
❒
❒
❒
❒
PCI at 32-bit 33 MHz.
PCI Rev 2.2 Specification.
133 Mbyte/sec data transfer rate.
Master PCI Device Support for up to five devices.
• USB, supporting:
❒ USB revision 1.1 compliant.
❒ UHCI Implementation with four USB Ports for serial
transfers at12 or 1.5 Mbit/sec.
❒ Wake-up from sleeping states.
❒ Legacy keyboard/mouse software.
• Power Management Logic:
❒ ACPI 1.0 compliant.
❒ Support for APM-based legacy power management for nonACPI implementations.
❒ ACPI defined power states (S1, S3, S4, S5).
❒ ACPI power management timer.
❒ SMI generation.
❒ All registers readable/restorable for proper resume from 0 V
suspend states.
❒ PCI PME#.
• Real-Time Clock, supporting:
❒ 256-byte battery-backed CMOS RAM.
❒ Hardware implementation to indicate Century Rollover.
• Timers Based on 82C54:
❒ System Timer, Refresh Request, Speaker Tone Output.
• System Timer, Refresh Request, Speaker Tone Output.
Feature
• Enhanced DMA Controller:
❒
❒
❒
❒
Two 82C37 DMA controllers.
PCI DMA with 2 PC/PCI Channels in pairs.
LPC DMA.
DMA Collection Buffer to provide Type-F DMA performance
for all DMA channels.
• Interrupt Controller:
❒ Two cascaded 82C59 controllers.
❒ Integrated I/O APIC capability.
❒ 15 Interrupt support in 8259 Mode, 24 supported in I/O APIC
mode.
❒ Serial Interrupt Protocol.
• Integrated IDE Controller:
❒
❒
❒
❒
❒
❒
❒
❒
Independent Timing of up to four drives.
Ultra ATA/100 Mode (100 Mbytes/sec).
Ultra ATA/66 Mode (66 Mbytes/sec).
Ultra ATA/33 Mode (33 Mbytes/sec).
PIO Mode 4 transfers up to 14 Mbytes/sec.
Separate IDE connections for Primary and Secondary cables.
Integrated 16 x 32-bit buffer for IDE PCI Burst transfers.
Write Ping-Pong Buffer for faster write performances.
• System TCO Reduction Circuits:
❒ Timers to Generate SMI# and Reset Upon.
❒ Timers to Detect Improper Processor Reset.
❒ Integrated Processor Frequency Strap Logic.
• SMBus
❒ Host Interface allows processor to communicate via SMBus.
❒ Compatible with 2-wire I2C bus.
• GPIO:
❒ TTL, Open-Drain, Inversion.
• Firmware Hub (FWH) interface.
• 3.3 V operation with 5 V Tolerant Buffers for IDE and PCI signals.
• 241 BGA Package.
• Alert-On-LAN (AOL) support.
43
2 System Board
The Input/Output Controller Hub 2 (82801BA)
ICH2 Architecture
The ICH2 interface architecture ensures that the I/O subsystems, both PCI
and the integrated input/output features (for example: IDE, AC’97 and USB)
receive the adequate bandwidths.
To achieve this, by placing the I/O bridge directly on the ICH2 interface, and
no longer on the PCI bus, the ICH2 architecture ensures that both the
input/output functions integrated into the ICH2 and the PCI peripherals
obtain the bandwidth necessary for peak performance.
ICH2 PCI Bus Interface
The ICH2 PCI provides the interface to a PCI bus interface operating at
33 MHz. This interface implementation is compliant with PCI Rev 2.2
Specification, supporting up to five external PCI masters in addition to the
ICH2 requests. The PCI bus can reach a data transfer rate of 133
MBytes/sec. The maximum PCI burst transfer can be between 256 bytes and
4 KB. It also supports advanced snooping for PCI master bursting, and
provides a pre-fetch mechanism dedicated for IDE read.
Refer to the table page 59 for ICH2 interrupts.
SMBus Controller
The System Management (SM) bus is a two-wire serial bus which runs at a
maximum of (100 kHz). The SMBus Host interface allows the processor to
communicate with SMBus slaves and an SMBus Slave interface that allows
external masters to activate power management events. The bus connects
to sensor devices that monitor some of the hardware functions of the system
board, both during system boot and run-time.
Refer to page 47 for a description of the devices on the SMBus, or to page 50
for information on the MaxiLife ASIC.
Low Pin Count Interface The ICH2 implements the LPC interface 1.0 specification.
Enhanced USB Controller The USB (Universal Serial Bus) controller provides enhanced support for
the Universal Host Controller Interface (UHCI). This includes support that
allows legacy software to use a USB-based keyboard and mouse. The USB
supports four stacked connectors on the back panel. These ports are built
into the ICH2, as standard USB ports.
The ICH2 is USB revision 1.1 compliant.
USB works only if the USB interface has been enabled within the HP Setup
program. Currently, only the Microsoft Windows 95 SR2.1, Windows 98 and
Windows 2000 operating systems provide support for the USB.
44
2 System Board
The Input/Output Controller Hub 2 (82801BA)
AC’97 Controller
This is the single-chip CS4299 audio controller that provides full audio
features for the Kayak XU700.
Refer to page 46 for information about the CS4299 audio solution.
IDE Controller
The IDE controller is implemented as part of the ICH2 chip and has PCIMaster capability. Two independent ATA/100 IDE channels are provided
with two connectors per channel. Two IDE devices (one master and one
slave) can be connected per channel. In order to guarantee data transfer
integrity, Ultra-ATA cables must be used for Ultra-ATA modes (Ultra-ATA/33,
Ultra-ATA/66 and Ultra-ATA/100).
The PIO IDE transfers of up to 14 Mbytes/sec and Bus Master IDE transfer
rates of up to 66 Mbytes/sec are supported. The IDE controller integrates
16 x 32-bit buffers for optimal transfers.
It is possible to mix a fast and a slow device, such as a hard disk drive and a
CD-ROM, on the same channel without affecting the performance of the fast
device. The BIOS automatically determines the fastest configuration that
each device supports.
DMA Controller
The seven-channel DMA controller incorporates the functionality of two
82C37 DMA controllers. Channels 0 to 3 are for 8-bit count-by-byte
transfers, while channels 5 to 7 are for 16-bit count-by-word transfers (refer
to table on page 93 for allocated DMA channel allocations). Any two of the
seven DMA channels can be programmed to support fast Type-F transfers.
The ICH2 DMA controller supports the LPC (Low Pin Count) DMA. Single,
Demand, Verify and Incremental modes are supported on the LPC interface.
Channels 0-3 are 8-bit, while channels 5-7 are 16-bit. Channel 4 is reserved
as a generic bus master request.
Interrupt Controller
The Interrupt controller is equivalent in function to the two 82C59 interrupt
controllers. The two interrupt controllers are cascaded so that 14 external
and two internal interrupts are possible. In addition, the ICH2 supports a
serial interrupt scheme and also implements the I/O APIC controller. A table
on page 59 shows how the master and slave controllers are connected.
45
2 System Board
The Input/Output Controller Hub 2 (82801BA)
Timer/Counter Block
The timer/counter block contains three counters that are equivalent in
function to those found in one 82C54 programmable interval counter/timer.
These three counters are combined to provide the system timer function,
and speaker tone. The 14.318 MHz oscillator input provides the clock source
for these three counters.
Advanced Programmable Incorporated in the ICH2, the APIC can be used in either single-processor or
multi-processor systems, while the standard interrupt controller supports
Interrupt Controller
only single-processor systems.
Real Time Clock
The RTC is 146818A-compatible, with 256 bytes of CMOS. The RTC
performs two key functions: keeping track of the time of day and storing
system data.
The RTC operates on a 32.768 kHz crystal and a separate 3V lithium battery
that provides up to 7 years of protection for an unplugged system. It also
supports two lockable memory ranges. By setting bits in the configuration
space, two 8-byte ranges can be locked to read and write accesses. This
prevents unauthorized reading of passwords or other security information.
Another feature is a date alarm allowing for a schedule wake-up event up to
30 days in advance.
Enhanced Power
Management
The ICH2’s power management functions include enhanced clock control,
local and global monitoring support for 14 individual devices, and various
low-power (suspend) states. A hardware-based thermal management circuit
permits software-independent entry points for low-power states.
The ICH2 includes full support for the Advanced Configuration and Power
Interface (ACPI) specifications.
Crystal CS4299 Integrated PCI Audio
Based on the earlier Crystal audio controller, the CS4299 extends these
features to include, among many other enhancements, PC’98 and PC’99
compliancy for multimedia desktops requiring high quality audio.
Features of the CS4299 include:
•
•
•
46
AC’97 2.1 compatibility
Industry leading mixed signal technology
20-bit stereo digital-to-analog converter and 18-bit analog-to-digital
converter
2 System Board
The Input/Output Controller Hub 2 (82801BA)
•
•
•
•
•
High quality pseudo differential CD input
Mono microphone input
An analog line-level stereo inputs for LINE IN
Stereo line level output
Meets or exceeds Microsoft’s PC’98 and PC’99 audio performance
requirements.
The CS4299 introduces a new architecture that is different from the one
used with the CS4280-CS4297 pair.
Previous Architecture
New Architecture
North Bridge
North Bridge
PCI Slots
South Bridge
PCI Bus
South Bridge
CS4280 digital
controller
Audio controller link
Audio controller link
CS4299
CS4297
Devices on the SMBus
The SMBus is a subset of the I2C bus. It is a two-wired serial bus which runs
at a maximum speed of 100 kHz. It is used to monitor some of the hardware
functions of the system board (such as voltage levels, temperature, fan
speed, memory presence and type), both at system boot and during normal
run-time. It is controlled by the SMBus controller located in the ICH2.
47
2 System Board
The Input/Output Controller Hub 2 (82801BA)
The following devices are connected to the SMBus:
•
•
•
•
•
•
•
•
LCD status panel.
One Serial EEPROM MaxiLife (also includes backup values of CMOS
settings).
PCI slot 5, thus being ready for Alert-On LAN (AOL) from a hardware
level.
ICH2 SMBus Master Controller 100 kHz maximum.
MaxiLife for hardware management, bus master controller.
One LM75 thermal sensor on the system board.
One ADM1024 hardware monitoring sensor.
RIMM or DIMM serial EEPROM.
Intel Pentium 4
Processor
System Bus
I850 Memory
Controller Hub
(MCH)
HUB LINK 8
(233 MB/s data
transfer rate)
I/O Controller Hub
(ICH2) 82801AA
82801BA
IDE
Controller
CS Audio
Codec
(CS4299)
DMA
Controller
SM Bus
Controller
SMBus
4 x USB
Controller
Serial
EEPROM
48
PCI Bridge
MaxiLife
Monitoring
Chip
Fans
LCD
Status
Panel
2 System Board
The Input/Output Controller Hub 2 (82801BA)
ICH2 SMBus Master
Controller
The ICH2 provides a processor-to-SMBus controller. All access performed to
the SMBus is done through the ICH2 SMBus interface. Typically, the
processor has access to all the devices connected to the SMBus.
DIMM Sockets
Each DIMM socket is connected to the SMBus. The 168-pin DIMM modules
include a 256 byte I2C Serial EEPROM. The first 128 bytes contain general
information, including the DRAM chips’ manufacturer’s name, DIMM speed
rating, DIMM type, etc. The second 128 bytes of the Serial EEPROM can be
used to store data online.
RIMM Sockets
Each RIMM socket is connected to the SMBus. The 168-pin RIMM modules
include a 256 byte I2C Serial EEPROM. The first 128 bytes contain general
information, including the DRAM chips’ manufacturer’s name, RIMM speed
rating, RIMM type, etc. The second 128 bytes of the Serial EEPROM can be
used to store data online.
ADM1024
The ADM1024 chip is a hardware monitoring sensor dedicated to the
processor temperature. This chip uses the thermal diodes integrated into
each processor cartridge and makes the temperature information available
through the SMBus. It also monitors processor power supply voltages.
Serial EEPROM
This is the non-volatile memory which holds the default values for the CMOS
memory (in the event of battery failure).When installing a new system
board, the Serial EEPROM will have a blank serial number field. This will be
detected automatically by the BIOS, which will then prompt the user for the
serial number which is printed on the identification label on the back of the
PC Workstation.
The computer uses 16KBytes of Serial EEPROM implemented within two
chips. Serial EEPROM is ROM in which one byte at a time can be returned to
its unprogrammed state by the application of appropriate electrical signals.
In effect, it can be made to behave like very slow, non-volatile RAM. It is
used for storing the tatoo string, the serial number, and the parameter
settings for the Setup program as well as MaxiLife firmware.
LM75 Temperature
Sensor
The LM75 temperature sensor and alarm are located on the system board.
The sensor is used to measure the temperature in various areas of the
system board. This information is used to regulate fans.
49
2 System Board
The Input/Output Controller Hub 2 (82801BA)
HP MaxiLife Hardware
Monitoring Chip
MaxiLife is a hardware monitoring chip which is resident on the system
board. Its responsibility includes On/Off and reset control, status panel
management (Lock button, LEDs), hardware monitoring (temperature and
voltage), early diagnostics (CPU, memory, PLLs, boot start), run-time
diagnostics (CPU errors), fan speed regulation, and other miscellaneous
functions (such as special OK/FAIL symbols based on a smiling face).
The integrated microprocessor includes a Synopsys cell based on Dallas
“8052” equivalent, a 2 KB boot ROM, 256 bytes of data RAM, an I2C cell, an
Analog-to-Digital (ADC) with 5 entries, and an additional glue logic for
interrupt control, fan regulation, and a status panel control.
MaxiLife downloads its code in 96 milliseconds from an I2C serial EEPROM.
The total firmware (MaxiLife 8051-code, running in RAM) size is 14 KB. As
it exceeds the 2 KB program RAM space, a paging mechanism will swap
code as it is required, based on a 512 byte buffer. The first 2 KB pages of
firmware code is critical because it controls the initial power on/reset to
boot the system. This initial page is checked with a null-checksum test and
the presence of MaxiLife markers (located just below the 2 KB limit).
MaxiLife is not accessible in I/O space or memory space of the system
platform, but only through the SMBUS (which is a sub-set of the I2C bus),
via the ICH2. Its I2C cell may operate either in Slave or Master mode,
switched by firmware, or automatically in the event of ‘Arbitration’ loss.
As a monitoring chip, MaxiLife reports critical errors at start-up, and is
therefore powered by Vstandby (3.3V) power. For MaxiLife to work, the PC
Workstation must be connected to a grounded outlet. This enables the PC
Workstation’s hardware monitoring chip to be active, even if the system has
been powered off.
Test Sequence and
Error Messages
Refer to “MaxiLife Test Sequence and Error Messages” on page 97 for
detailed information about the different test sequences and error messages
50
2 System Board
The Input/Output Controller Hub 2 (82801BA)
MaxiLife Architecture
The MaxiLife chip continuously monitors temperature and voltage sensors
located in critical regions on the system board. This chip receives data about
the various system components via a dedicated I2C bus, which is a reliable
communications bus to control the integrated circuit boards.
LCD Status Panel
Serial EEPROM
Temperature Sensor
Voltage Sensor
Speed up/slow down
HP MaxiLife
I2C bus
Hardware
Monitoring
ASIC
NOTE
System Fans
Memory
Memory
AGPset
MaxiLife is powered by VSTBY. This means that it is functional as soon as the
power cord is plugged in.
51
2 System Board
The Input/Output Controller Hub 2 (82801BA)
Devices on the Low Pin Count Bus
The following devices are connected to the LPC bus.
Intel Pentium 4
Processor
System Bus
I850 Memory
Controller Hub
(MCH)
HUB LINK 8
I/O Controller Hub
(ICH2)
(ICH) 82801AA
82801BA
IDE
Controller
Keyboard,
Mouse and
Floppy
Super I/O
NS 87364
Parallel and
Serial Ports
LPC / FWH Link
FirmWare
Hardware
(FWH) 82802
52
PCI Bridge
4 x USB
Controller
CS Audio
Codec
(CS4299)
DMA
Controller
SM Bus
Controller
2 System Board
The Input/Output Controller Hub 2 (82801BA)
The Super I/O Controller (NS 87364)
The Super I/O chip (NS 87364) provides the control for two FDD devices,
two serial ports, one bidirectional multi-mode parallel port and a keyboard
and mouse controller.
Device
Super I/O
Serial / Parallel
Communications Ports
Index
Data
2Eh
2Fh
The 9-pin serial ports (whose pin layouts are depicted on page 123) support
RS-232-C and are buffered by 16550A UARTs, with 16-Byte FIFOs. They can
be programmed as COM1, COM2, COM3, COM4, or disabled.
The 25-pin parallel port (also depicted on page 124) is Centronics
compatible, supporting IEEE 1284. It can be programmed as LPT1, LPT2, or
disabled. It can operate in the four following modes:
❒ Standard mode (PC/XT, PC/AT, and PS/2 compatible).
❒ Bidirectional mode (PC/XT, PC/AT, and PS/2 compatible).
❒ Enhanced mode (enhanced parallel port, EPP, compatible).
❒ High speed mode (MS/HP extended capabilities port, ECP, compatible).
FDC
The integrated floppy disk controller (FDC) supports any combination of
two of the following: tape drives, 3.5-inch flexible disk drives, 5.25-inch
flexible disk drives. It is software and register-compatible with the 82077AA,
and 100% IBM-compatible. It has an A and B drive-swapping capability and
a non-burst DMA option.
Keyboard and Mouse
Controller
The computer has an 8042-based keyboard and mouse controller. The
connector pin layouts are shown on page 122.
53
2 System Board
FirmWare Hub (82802AB)
FirmWare Hub (82802AB)
The FWH (also known as flash memory) is connected to the LPC bus. It
contains 4 Mbit (512 kB) of flash memory.
The hardware features of the FWH include: a Random Number Generator
(RNG), five General Purpose Inputs (GPI), register-based block locking and
hardware-based locking. An integrated combination of logic features and
non-volatile memory enables better protection for the storage and update of
system code and data, adds flexibility through additional GPIs, and allows
for quicker introduction of security/manageability features.
The following table shows the available FWH features.
Feature
• Platform Compatibility:
Feature
• Two Configurable Interfaces:
❒ Enables security-enhanced platform infrastructure.
❒ Part of the Intel I840 chipset.
• FirmWare Hub Interface Mode:
❒ Five signal communication interface supporting x8 reads and
writes.
❒ Register-based read and write protection for each code/data
storage blocks.
❒ Five additional GPIs for system design and flexibility.
❒ A hardware RNG (Random Number Generator).
❒ Integrated CUI (Command User Interface) for requesting
access to locking, programming and erasing options. It also
handles requests for data residing in status, ID and block lock
registers.
❒ Operates with 33 MHz PCI clock and 3.3 V input/output.
• A/A Mux Interface/Mode, supporting:
❒ 11-pin multiplexed address and 8-pin data I/O interface.
❒ Fast on-board or out-of-system programming.
• Industry Standard Packages:
❒ 40L TSOP or 32L PLCC.
54
❒ FirmWare Hub interface for system operation.
❒ Address/Address Multiplexed (A/A Mux) interface.
• 4 Mbits of Flash Memory for system code/data non-volatile
storage:
❒ Symmetrically blocked, 64 Kbyte memory sections.
❒ Automated byte program and block erase through an
integrated WSM (Write State Machine).
• Power Supply Specifications:
❒ Vcc: 3.3 V +/- 0.3 V.
❒ Vpp: 3.3 V and 12 V for fast programming, 80 ns.
• Case Temperature Operating Range.
2 System Board
FirmWare Hub (82802AB)
The FWH includes two hardware interfaces:
•
FirmWare Hub interface.
•
Address/Address Multiplexed (A/A Mux) interface.
The IC (Interface Configuration) pin on the FWH provides the control
between these interfaces. The interface mode needs to be selected prior to
power-up or before return from reset (RST# or INIT# low to high
transition).
The FWH interface works with the ICH2 during system operation, while the
A/A Mux interface is designed as a programming interface for component
pre-programming.
An internal CUI (Command User Interface) serves as the control center
between the FWH and A/A Mux interfaces, and internal operation of the
non-volatile memory. A valid command sequence written to the CUI initiates
device automation. An internal WSM (Write State Machine) automatically
executes the algorithms and timings necessary for block erase and program
operations.
55
2 System Board
System Bus
System Bus
The system bus of the Pentium 4 processor is implemented in the GTL
(Gunning Transceiver Logic)+ technology. This technology features opendrain signal drivers that are pulled up through resistors at bus extremities to
the operating voltage of the processor core. These resistors also act as bus
terminators, and are integrated in the processor and in the 82850 MCH.
Socket 423
Intel Pentium 4
Processor
Address (32)
Control
100 MHz two-way System Bus
(Data Bus runs at 4 x 100 MHz,
3.2 GB/s transfer rate)
Data (64)
1.5V
AGP
PRO
Connector
AGP 4x Bus
(133 MHz (1 GB/sec
data transfer rate)
850
Memory
Controller Hub
(MCH)
82850
Dual Rambus Channel
4 onboard RIMM sockets
supporting RDRAM memory.
3.2 GB/s at 400 MHzdata transfer rate)
HUB LINK 8
(266 MB/s data
transfer rate)
I/O Controller Hub
(ICH) 82801AA
The supported operating frequency of the GTL+ bus for the Pentium 4 is
100 MHz. The width of the data bus is 64 bits, while the width of the address
is 32 bits. Data bus transfers occur at four times the system bus, at 400 MHz.
Along with the operating frequencies, the processor voltage is set
automatically.
The control signals of the system bus allow the implementation of a “split transaction” bus protocol. This allows the Pentium 4 processor to send its
request (for example, for the contents of a given memory address) and then
to release the bus, rather than waiting for the result, thereby allowing it to
56
2 System Board
System Bus
accept another request. The MCH, as target device, then requests the bus
again when it is ready to respond, and sends the requested data packet. Up
to four transactions are allowed to be outstanding at any given time.
Intel Pentium 4 Processor
The Pentium 4 processor has several features that enhance performance:
•
•
•
•
•
•
Data bus frequency of 400 MHz.
Dual Independent Bus architecture, which combines a dedicated 64-bit
L2 cache bus (supporting 256 KB) plus a 64-bit system bus that enables
multiple simultaneous transactions.
MMX2 technology, which gives higher performance for media,
communications and 3D applications.
Dynamic execution to speed up software performance.
Internet Streaming SIMD Extensions 2 (SSE2) for enhanced floating
point and 3D application performance.
Uses multiple low-power states, such as AutoHALT, Stop-Grant, Sleep and
Deep Sleep to conserve power during idle times.
The Pentium 4 processor is packaged in a pin grid array (PGA) that fits into
a PGA423 socket (423-pin Zero Insertion Force or ZIF socket).
Processor Clock
The 100 MHz System Bus clock is provided by a PLL. The processor core
clock is derived from the System Bus by applying a “ratio”. This ratio is fixed
in the processor. The processor then applies this ratio to the System bus
clock to generate its CPU core frequency.
Bus Frequencies
There is a 14.318 MHz crystal oscillator on the system board. This frequency
is multiplied to 133 MHz by a phase-locked loop. This is further scaled by an
internal clock multiplier within the processor.
The bus frequency and the processor voltage are set automatically.
Voltage Regulation
Module (VRM)
One VRM is integrated on the system board complying with VRM
specification rev. 9.0. High-current and low voltage processors are
supported.
The processor requires a dedicated power voltage to supply the CPU core
and L2 cache. The processor codes through Voltage Identification (VID)
pins with a required voltage level of 1.30 V to 2.05 V. The VID set is decoded
57
2 System Board
System Bus
by the VRM on the system board that in return supplies the required power
voltage to the processor. It should be noted, however, that voltage may vary
from one processor model to another.
Cache Memory
The Pentium 4 integrates the following cache memories on the same die as
the processor cache:
•
A trace instruction and L1 data cache. The trace cache is 4-way set associative.
•
A 256KB L2 cache. The L2 cache is 8-way associative.
The amount of cache memory is set by Intel at the time of manufacture, and
cannot be changed.
58
2 System Board
Assigned Device Interrupts
Assigned Device Interrupts
Input/Output Controller Hub Interrupts
Reference
Name
REQ/G
NT
ID
CS4280
4 (ICH2)
5
USB Controller
—
—
AGP slot
J34
PCI 32-bit slot #1
Device
Chip-set Interrupt Connection
IDSEL
AD[xx]
INTA
INTB
INTC
INTD
21
—
A
—
—
—
—
A
—
—
—
—
0
16
A
B
—
—
J37
1 (ICH2)
6
22
C
D
A
B
PCI 32-bit slot #2
J38
0 (ICH2)
8
24
A
B
C
D
PCI 32-bit slot #5 (LAN card)
J42
5 (ICH2)
11
27
B
C
D
A
AC’97 Audio Controller
PCI 64-bit Hub Interrupts
Reference
Name
REQ/G
NT
ID
AIC-7892
2 (P64H)
9
PCI 32-bit slot #3
J39
1 (P64H)
PCI 32-bit slot #4
J40
0 (P64H)
Device
Ultra-wide SCSI U160 Controller
IDSEL
AD[xx]
Interrupt Requests (IRQ)
0
1
2
3
4
5
6
7
8
25
—
—
—
—
—
—
—
—
A
4
20
—
—
—
—
A
B
C
D
—
7
23
A
B
C
D
—
—
—
—
—
Interrupt Controllers
The system has an Interrupt controller which is equivalent in function to
that of two 82C59 interrupt controllers. The following table shows how the
interrupts are connected to the APIC controller. The Interrupt Requests
(IRQ) are numbered sequentially, starting with the master controller, and
followed by the slave (both of 82C59 type).
59
2 System Board
Assigned Device Interrupts
Although the Setup program can be used to change some of the settings, the
following address map is not completely BIOS dependent, but is determined
partly by the operating system. Note that some of the interrupts are
allocated dynamically.
APIC Controller
Interrupt Source
1.
Interrupt Signalling on
of
device
Input
(PIC mode)1
(APIC
modes)
INTA - PCI slot 3 (32/33)
P64H
IRQ0
BT_INT
APIC bus
INTB - PCI slot 3 (32/33)
P64H
IRQ1
BT_INT
APIC bus
INTC - PCI slot 3 (32/33)
P64H
IRQ2
BT_INT
APIC bus
INTD - PCI slot 3 (32/33)
P64H
IRQ3
BT_INT
APIC bus
INTA - PCI slot 4 (32/33)
P64H
IRQ4
BT_INT
APIC bus
INTB - PCI slot 4 (32/33)
P64H
IRQ5
BT_INT
APIC bus
INTC - PCI slot 4 (32/33)
P64H
IRQ6
BT_INT
APIC bus
INTD - PCI slot 4 (32/33)
P64H
IRQ7
BT_INT
APIC bus
INTA - onboard SCSI controller
P64H
IRQ8
BT_INT
APIC bus
AGP - INTA, PCI Slot 1 - INTC, PCI
Slot 2 - INTA, PCI Slot 5 - INTB
ICH2
INTA
INT
APIC bus
PCI Audio - INTA, AGP - INTB, PCI
Slot 1 - INTD, PCI Slot 2 - INTB,
PCI Slot 5 - INTC
ICH2
INTB
INT
APIC bus
BT_INT, PCI Slot 1 - INTA, PCI
Slot 2 - INTC, PCI Slot 5 - INTD
ICH2
INTC
INT
APIC bus
USB - INTA, PCI Slot 1 - INTB, PCI
Slot 2 - INTD, PCI Slot 5 - INTA
ICH2
INTD
INT
APIC bus
Device on Primary IDE Channel
ICH2
IRQ14
INT
APIC bus
Device on Secondary IDE Channel
ICH2
IRQ15
INT
APIC bus
Serial Interrupt from Super I/O
ICH2
SERIRQ
INT
APIC bus
In PIC mode, the Interrupts signaled to the P64H are chained as INTC to the ICH2.
There are three major interrupt modes available:
PIC mode: This mode uses only the “Legacy” interrupt controllers, so that
only one processor can be supported. Because this system has dual
processor capability, this mode is not chosen by default by Windows NT.
However, during Windows NT installation, you have the possibility of
selecting this mode.
60
2 System Board
Assigned Device Interrupts
Virtual wire mode: This mode is implemented with APIC controllers in the
ICH2 and P64H and used during boot time. The virtual wire mode allows the
transition to the “symmetric I/O mode”. In the virtual wire mode, only one
processor executes instructions.
Symmetric I/O mode: This mode is implemented with APIC controllers in
the ICH2 and P64H, and allows for multiple processor operations.
NOTE
In “PIC mode” and “virtual wire mode”, the PCI interrupts are routed to the
INT line. In the “symmetric I/O mode”, the PCI interrupts are routed to the
I/O APIC controllers and forwarded over an APIC bus to the processors.
PCI Interrupt Request Lines
PCI devices generate interrupt requests using up to four PCI interrupt
request lines (INTA#, INTB#, INTC#, and INTD#).
PCI interrupts can be shared; several devices can use the same interrupt.
However, optimal system performance is reached when minimizing the
sharing of interrupts. Refer to page 59 for a table of the PCI device
interrupts.
61
2 System Board
Assigned Device Interrupts
62
3
Interface Cards
This chapter describes the graphics, network and SCSI devices that are
supplied with the HP Kayak XU700 PC Workstation.
Graphics Cards
HP Kayak XU700 PC Workstation models are supplied with a graphics
card. This graphics card is one of the following, depending on the PC
Workstation model:
•
Matrox Millennium G450
•
NVIDIA Quadro2 MXR.
Matrox Millennium G450 Graphics Card
The Matrox Millennium G450 Dual Head AGP graphics card has a total of
16MB of installed video memory (non-upgradeable). Main features include:
•
Powered by the 256-bit DualBus Matrox G450 chip
•
Matrox DualHead technology for connecting two monitors
•
Matrox DualHead technology with PowerDesk desktop manager:
❒ Easy multiple resolutions support
❒ Simple dialog box
❒ Effortless multiple-window management
•
TV output (composite video and S-video, NTSC and PAL)
•
Full AGP 2X/AGP 4X support (up to 1GB/s bandwidth)
•
360MHz main RAMDAC and 230MHz secondary RAMDAC
•
Support for all VESA standards:
❒ VBE 2.0 (Super VGA modes)
❒ DPMS energy saving
❒ DDC2B support for Plug & Play detection of monitor
•
Support for true 32-bit color (16.7 million colors) at resolutions up to
2048 x 1536 on the main display.
63
3 Interface Cards
Graphics Cards
•
Support for monitors with 16/10 aspect ration, at resolutions up to
1920 x 1200 on the main display
3D Features
•
VCQ2 or Vibrant Color Quality2
•
Supports 32-bit Z buffering for exceptional rendering precision
•
Environment-mapped bump mapping for more realistic 3D images.
•
Stencil buffering
•
Bilinear, trilinear, and anisotropic filtering
•
Single, double and triple buffering
•
texture mapping
•
MIP mapping
•
Gouraud shading
•
Alpha blending, anti-aliasing, fogging, specular highlighting.
The diagram below shows the Matrox Millennium G450 graphics card.
VGA Port 1
VGA Port 2
NOTE
If only one monitor is used, then Port 1 must be used.
If a second monitor is connected, it is detected by the driver during the
operating system startup. This means that both monitors must be connected
to the graphics card before startup.
64
3 Interface Cards
Graphics Cards
If only one monitor is detected, then only the mono head settings will be
available in the Driver Configuration screens.
Available Video Resolutions
The number of colors supported is limited by the graphics device and the
video memory. The resolution/color/refresh-rate combination is limited by a
combination of the display driver, the graphics device, and the video
memory. If the resolution/refresh-rate combination is set higher than the
display can support, you risk damaging the display.
The following table summarizes the maximum supported resolutions.
Maximum Display Resolution
Aspect Ratio
Main Display
Second Display
Traditional
4:3 / 5:4 aspect ratio
2048 x 1536
1600 x 1200
Wide screen
16:9 / 16:10 aspect ratio
1920 x 1200
1600 x 1024
65
3 Interface Cards
Graphics Cards
The following table summarizes the maximum supported refresh rates.
The maximum refresh rates are always attainable with 8-bit or 16-bit color.
They may not be attainable with 24-bit or 32-bit color and the highest
refresh rates.
Maximum Refresh Rates (Hz)
Aspect Ratio
Traditiona
onal
4:3 / 5:4 aspect ra
ratio
Wide screen
een
16:9 / 16:
16:10 aspect ratio
Main Display
Second Display
(360MHz RAMDAC)
(230MHz RAMDAC)
640x480
200
200
800x600
200
200
1024x768
160
160
1152x864
140
150
1280x1024
120
120
1600x1200
100
85
1800x1440
85
—
1920x1440
85
—
2048x1536
85
—
856x480
200
200
1280x720
160
140
1600x1024
120
90
1920x1080
110
—
1920x1200
100
—
Resolution
Limitations
•
When using Windows 95 or Windows 98 in dual display mode, the graphics
memory is equally between the two displays. In this case each display has
16 MB graphics memory.
•
The second display supports only 16-bit and 32-bit color.
•
3D acceleration is only available when using 16-bit and 32-bit color.
66
3 Interface Cards
Graphics Cards
NVIDIA Quadro2 MXR
The NVIDIA Quadro2 MXR graphics card has these main features:
•
TwinView™ architecture allows two simultaneous displays.
•
Support for both DVI-I (digital LCD) and VGA (analog CRT) monitors
•
AGP 4x with fast writes
•
350MHz RAMDAC
•
Digital Vibrance Control (DVC) for accurate color adjustment giving
bright, accurate colors in all conditions
•
?High performance hardware anti-aliasing for smoother edges
3D Features
•
Second Generation Transform and Lighting Engines
Dedicated, graphics-specific GPU frees PC Workstation’s main processor
for other tasks and provides faster transform and lighting processing.
•
NVIDIA Shading Rasterizer
Provides natural visual properties such as cloud, smoke, water, textiles,
plastic to images.
•
32 MB Unified Frame Buffer
Allows the use of high resolution, 32bpp textures.
•
32-bit Z/Stencil Buffer
Eliminates “polygon popping” problems in high-polygon 3D imaging.
The diagram below shows an example of NVIDIA Quadro2 MXR graphics
card.
Actual graphics card
may differ from the
one shown
67
3 Interface Cards
Network Cards
Network Cards
Most HP Kayak XU700 PC Workstation models are supplied with an
HP 10/100 TX LAN card.
A description of this card and the features of other supported LAN cards is
provided in this section.
HP 10/100 TX PCI LAN Interface
The 10/100 TX LAN Interface is a 32-bit PCI 2.2 card that supports 10 Mbits
per second (10 BaseT) and 100 Mbits per second (100 TX) transfer speeds,
and both half and full duplex operation.
68
3 Interface Cards
Network Cards
HP 10/100 TX PCI LAN Interface Features
Feature:
Description:
RJ45 Connector
Connection to Ethernet 10/100 TX autonegotiation
BootROM
Protocols:
•
•
PxE 2.0,
On-board socket support up to 128 Kb.
Remote Power On (RPO)
Full remote power on using Magic Packet for Microsoft Windows 95,
Windows 98, Windows NT4 in APM mode.
Remote Wake Up (RWU)
Enable and Wake Up from Suspend state using Magic Packet and Pattern
Matching for Microsoft Win98SE and Win2000 in ACPI mode.
This feature enables a host computer to remotely (over the network) power
on computers and wake computers up from energy-saving Sleep mode. For
these features to work, use the Setup program to configure the BIOS.
Power Management
•
•
•
•
Manageability
•
•
•
Diagnostic
•
•
OnNow 1.0,
Advanced Power Management 1.2,
PCI Power Management 1.1,
WfM 2.0 compliant, ACPI.
Desktop Management Interface (DMI) 2.0 Dynamic driver,
DMI 2.0 SNMP mapper,
PXE 2.0 Flashable BootROM (optional on socket).
Mac address DOS report tool,
User Diag for DOS.
HP 10/100 TX PCI LAN Interface LED Descriptions
LED
Description
Flashing
Off
Link integrity
Reversed polarity
Good 10 Base-T
connection between
NIC and hub.
No connection
between NIC and
hub
Link integrity
Reversed polarity
Good 100 TX
connection between
NIC and hub.
No connection
between NIC and
hub
Yellow:
Port traffic for
either speed
Network traffic
present
Heavy network
traffic
No traffic
10 LNK
100 LNK
ACT
Steady
69
3 Interface Cards
Network Cards
Supported LAN Cards
The following LAN cards are supported on the HP Kayak XU700 PC
Workstation.
3COM NIC (Network Interconnect) LAN Card
3COM NIC LAN Card Features
Feature
Description
Interface
32-bit 10/100 BT full duplex RJ LAN Port.
LED
Three LEDs:
•
•
•
activity,
10 MB/s speed,
100 MB/s speed.
Labels
PCI 2.2 Specification, PC 99, Intel WfM 2.0.
Power Management1
•
•
•
•
•
•
RPO and RWU for APM Windows 95 and Windows 98,
RWU for ACPI Windows 98 and Windows 2000,
RPO for Windows NT 4,
OnNow 1.0, APM 1.2,
PCI power management. 1.1,
WOL, PCI VccAux 3.3 V.
Manageability
DMI 2.0 Component Code.
Diagnostic
•
•
Mac address DOS report tool,
User Diag for DOS, Windows NT 4, Windows 95 and Windows 98.
Drivers
Major OSes, Minor OSes.
Boot ROM
Multiboot BootROM (BIOS or socket).
Remote Wake Up
(RWU)
This feature enables a host computer to remotely (over the network) power
on computers and wake computers up from energy-saving Sleep mode. For
these features to work, use the Setup program to configure the BIOS.
70
3 Interface Cards
Network Cards
3COM LAN Card LED Descriptions
LED
Description
Flashing
Steady
Off
GREEN:
Link integrity
Reversed polarity
10 LNK
Good 10 Base-T
connection between
NIC and hub.
No connection
between NIC and
hub
GREEN:
Link integrity
Reversed polarity
100 LNK
Good 100 TX
connection between
NIC and hub.
No connection
between NIC and
hub
Yellow:
Port traffic for
either speed
Network traffic
present
Heavy network
traffic
No traffic
ACT
71
3 Interface Cards
SCSI Adapter Cards
SCSI Adapter Cards
Adaptec 29160 SCSI PCI Adapter Card
Your Personal Workstation is equipped with an Ultra 160/m SCSI card. The
Adaptec® SCSI card has a system bus rate of 533 MB/Sec, a SCSI data
transfer rate of 160 MB/Sec and the capability of supporting up to 15
peripheral devices.
The Adaptec SCSI card is able to connect to Low-Voltage Differential (LVD)
SCSI devices (for example, Ultra2 and Ultra 160/m) and Single-Ended (SE)
SCSI devices (for example, Ultra SCSI, Fast SCSI, SCSI-1, etc.). Examples of
single ended devices include: DAT drives, Scanners, and older hard disk
drives.
Connector 2
Connector 3
Connector 4
Connector 1
Here is a description of connectors one through four.
Connector 1
68-pin external connector for LVD SCSI devices
Connector 2
68-pin internal connector for LVD SCSI devices
Connector 3
68-pin internal connector for Wide SE SCSI devices
Connector 4
50-pin internal connector for Narrow SE SCSI devices
While SE SCSI devices will work when attached to connector 1 or 2, this will
limit all devices to single-ended mode. For example, this would result in the
Ultra 160/m hard disk drive performance being limited from 160 MB/second
to 40 MB/second. Therefore, it is recommended that you connect only LVD
72
3 Interface Cards
SCSI Adapter Cards
SCSI devices to connectors 1 and 2.
For information on how to connect internal an external SCSI devices, please
read your User’s Guide.
SCSI Cable Information
The intended use of the external SCSI connector is to connect Low-Voltage
Differential SCSI devices to your Personal Workstation. This section
provides you with SCSI cable information that is important for the correct
operation of your external SCSI device.
NOTE
The total length of the external SCSI cable should not exceed 10 meters
(approximately 32.81 feet) and there must be at least eight inches of cable
separating each device.
Contact you dealer to order shielded HP SCSI cables to connect external
SCSI accessories.
CAUTION:
Low-voltage differential SCSI is very sensitive to noise, and therefore, all cables on
the SCSI bus must be exceptionally high quality cables. Examples of these are given
in the following table.
Please make sure that any external hard disk enclosures are rated for low-voltage
differential SCSI use.
Cable Number
Cable Length
C2978A
0.5m
C2979A
1.5m
C2911B
1.0m
C2924B
2.5m
C2361A
1.0m
C2362A
2.5m
C2363A
10.0m
C2365A
5.0m
Description
68-pin HDTS1 to 68-pin HDTS
68-pin VHDCI2 to 68-pin HDTS
1.
High Density Thumbscrew (HDTS)
2.
Very High Density Cabled Interconnect (VHDCI)
73
3 Interface Cards
SCSI Adapter Cards
Additional SCSI Card Features
The Adaptec® SCSI card provides double transition clocking, cyclical
redundancy check, and domain validation.
Feature
Double Transition
Clocking
Description
Changes the digital protocol to use both edges of
the SCSI request/acknowledge signal clock. It
allows designers to use Ultra2 cables. The signal
in an Ultra2 SCSI runs a 40 MHz, while data runs
at only 20 MHz or 80 MB/second on a 16-bit wide
bus.
Using both edges of the same signal at 40 MHz the
data rate can be increased to 40 MB/second or 160
MB/second on a 16-bit wide bus.
Cyclical Redundancy
Check
Provides extra data protection for marginal cables
that are connected to external devices. The Ultra3
SCSI cyclical redundancy check detects all:
•
•
•
•
Domain Validation
74
Single error bits
Double bit errors
Odd number of errors
Burst errors up to 32-bits long
Tests networks, cables, backplanes, terminators,
and hard disk drives to ensure that the
environment is operating at required specification.
If reliability is at risk the speed of transfer is
lowered.
4
Mass Storage Devices
This chapter describes the mass storage devices that are supplied with the
PC Workstation. For the position of the different mass storage devices, refer
to the diagram on page 13. This chapter also summarizes the pin
connections on internal and external connectors.
HP product numbers and replacement part numbers for mass storage
devices are listed in the Service Handbook Chapters, which can be accessed
from the HP World Wide Web site at the following address:
www.hp.com/go/kayaksupport.
Information about available accessories can be obtained from
www.hp.com/go/pcaccessories
Flexible Disk Drives
A 3.5-inch, 1.44 MB flexible disk drive is supplied in the front-access shelf.
Hard Disk Drives
The following table lists the 3.5-inch (1-inch high) hard disk drives (which
are subject to change) that may be supplied with the HP Kayak XU700 PC
Workstation (type and quantity depends on model) on internal shelves,
connected to the SCSI or IDE controller.
IDE Hard Disk Drives
IBM Deskstar
75GXP IDE
(7.2 krpm)
IBM Deskstar
(Telesto LP)
75GXP IDE
(7.2 krpm)
Capacity
20.5 GB
40 GB
Interface
UltraIDE ATA/66
UltraIDE ATA/66
External peak transfer rate
66 MB/s
66 MB/s
Average seek time (read)
8.5 ms
8.5 ms
Media transfer rate (Mb/s)
444 Mb/s max.
444 Mb/s max.
Number of discs/heads
2/3
3/6
Buffer size
2 MB
2 MB
75
4 Mass Storage Devices
SCSI Hard Disk Drives
Quantum
Atlas 10K II
SCSI (10 krpm)
Quantum
Atlas 10K II
SCSI (10 krpm)
Quantum
Atlas 10K II
SCSI (10 krpm)
Capacity
9.2 GB
18.4 GB
36.7 GB
Interface
Ultra160 SCSI
Ultra160 SCSI
Ultra160 SCSI
External peak transfer rate
160 MB/s
160 MB/s
160 MB/s
Average seek time (read)
4.7 ms
4.7 ms
4.7 ms
Internal data rate (Mb/s)
280 Mb/s min. to
478 Mb/s max.
280 Mb/s min. to
478 Mb/s max.
280 Mb/s min. to
478 Mb/s max.
Number of discs/heads
2/3
3/6
5/10
Buffer size
8 MB
8 MB
8 MB
76
4 Mass Storage Devices
CD-ROM Drives
IDE 48X CD-ROM Drive
Some models1 have a 48X IDE CD-ROM drive supplied in a 5.25-inch
front-access shelf ATAPI, supporting ATAPI commands and with audio
playback capability. It can play any standard CD-Audio disks, in addition to
CD-ROM disks, conforming to optical and mechanical standards as specified
in the Red, Yellow, Green and Orange Book.
Some of the 48X IDE CD-ROM features include:
•
Application Disk type (confirmed by Red, Yellow, Green, Orange Book)
•
CD-ROM data disk (Mode 1 and Mode 2)
•
Photo-CD Multisession
•
CD Audio disk
•
Mixed mode CD-ROM disk (data and audio)
•
CD-ROM XA, CD-I, CD-Extra, CD-R, CD-RW
Description
Data capacity
Data transfer rate
650 MB
Sustained transfer rate (1X=150 KB/s); Outerside: 7,200 KB/s
Burst transfer rate:
Buffer memory size
Access time
Rotational speed
Interface
Power requirements
PIO mode 4 - 16.6 Mbytes/s maximum
Single Word DMA Mode 2 - 8.3 Mbytes/s maximum
Multi Word DMA Mode 2 - 16.6 Mbytes/s maximum
128 Kbytes
Average Stroke (1 / 3) 110 ms
Full Stroke 180 ms
2,048 bytes (Mode-1)
2,336 bytes (Mode-2)
ATAPI
5V, 1.2A
12V, 0.8A
1.
Refer to the HP Kayak PC Workstations Service Handbook to find out which
models are installed with the 48X IDE CD-ROM.
77
4 Mass Storage Devices
8X Video IDE DVD-ROM Some models1 have a DVD-ROM (Read Only) drive. It can play any standard
CD-Audio disks, in addition to CD-ROM disks, conforming to optical and
Drive
mechanical standards as specified in the Red, Yellow, Orange and Green
Books.
Description
Data capacity
Data transfer rate
650 MB
Sustained transfer rate (1X=150 KB/s); Outerside: 7,200 KB/s
Burst transfer rate:
Buffer memory size
Access time
Rotational speed
Interface
Power requirements
PIO mode 4 - 16.6 Mbytes/s maximum
Single Word DMA Mode 2 - 8.3 Mbytes/s maximum
Multi Word DMA Mode 2 - 16.6 Mbytes/s maximum
128 Kbytes
Average Stroke (1 / 3) 110 ms
Full Stroke 180 ms
2,048 bytes (Mode-1)
2,336 bytes (Mode-2)
ATAPI
5V, 1.2A
12V, 0.8A
1.
78
Refer to the HP Kayak PC Workstations Service Handbook to find out which
models are installed with the DVD-ROM drive.
4 Mass Storage Devices
4X IDE CD-Writer Plus
Drive
Some models1 have a CD-RW (ReWritable) drive supplied in a 5.25-inch
front-access shelf ATAPI, supporting ATAPI commands and with audio
playback capability. It can play any standard CD-Audio disks, in addition to
CD-ROM disks, and can record both write-once (CD-R) and CD-RW optical
media. It conforms to optical and mechanical standards as specified in the
Red, Yellow, Orange and Green Books.
Description
Data capacity
650 MB or up to 74 minutes of audio per disc
547MB in CD-UDF data format
Performance
Typical: 110 ms (random, 1/3 access including latency)
Maximum: 130 ms (random, 1/3 access including latency)
Data transfer rate:
Read: Up to 32X (1X=150 KB/s)
Write: 8X (CD-R); 4X (CD-RW)
Burst transfer rate
16.67 Mbytes/sec.
Spin-up time
3.2 seconds (disk stop to high speed)
Spin-down time
2.5 seconds (disk high speed to stop)
Corrected error rate
ECC On (max. 32X): 1 block/1012 bits
ECC Off (max. 32X): 1 block/109 bits
Data Buffer Capacity
2 MB
Write methods
- Track at once
- Session at once
- Disc at once
- Variable packet writing
- Fixed packet writing
- Multisession
Format and EEC standard
Red, Yellow, Orange, Green books
MTBF
120,000 POH
Interface
E-IDE and ATAPI
1.
Refer to the HP Kayak PC Workstations Service Handbook to find out which
models are installed with the HP CD-RW drive.
79
4 Mass Storage Devices
80
5
HP BIOS
This chapter summarizes the Setup program and BIOS of the HP Kayak
XU700 PC Workstation. The POST routines are described in the next
chapter.
The BIOS is based on the core Phoenix BIOS, which includes 4 M/bits of
flash memory, support for PCI 2.2 Specification, suspend to RAM, and RIMM
or DIMM memory modules.
The BIOS includes a Boot ROM for the 3COM 3C905C and HP LAN cards.
The System ROM contains the POST (Power-On Self-Test) routines, and the
BIOS: the System BIOS, video BIOS, and low option ROM. This chapter,
together with the subsequent chapter, gives an overview of the following
aspects:
•
•
•
Menu-driven Setup with context-sensitive help, described next in this
chapter.
The address space, with details of the interrupts used, described at the
end of this chapter.
The Power-On Self-Test or POST, which is the sequence of tests the
computer performs to ensure that the system is functioning correctly,
described in the next chapter.
The system BIOS is identified by the version number IX.WM, where:
•
•
•
IX is a two-letter code indicating that it is for the Kayak XU700.
W is a one-digit code indicating the HP entity.
M is the major BIOS version.
An example of a released version would look similar to the following the
example: IX.W1.05.
The procedure for updating the System ROM firmware is described on
page 87.
81
5 HP BIOS
Using the HP Setup Program
To run the Setup program, press
while the initial HP logo is displayed,
immediately after restarting the PC Workstation.
Alternatively, press
to view the summary configuration screen. By
default, this remains on the screen for 15 seconds, but pressing any key will
ignore this delay.
The band along the top of the Setup screen offers the following menus:
Main, Advanced, Security, Boot, Power and Exit. These are selected using
the left and right arrow keys.
The following screens are examples of a BIOS configuration.
Main Screen
The Main Screen presents a list of fields. To change a value press either the
or
keys.
PhoenixBIOS Setup Utility
Main
Advanced
Security
BIOS Version:
IC.11.02
PnP OS
Reset Configuration Data:
[No]
[No]
System Time:
System Date:
[14:42:33]
[02/08/2000]
Key Click:
Keyboard auto-repeat rate speed:
Delay before auto-repeat:
Numlock at Power-on:
[Disabled]
[21.8 per Second]
[0.50 Second]
[On]
Boot
Power
Exit
Item-Specific Help
.
F1
Help
Select Item
F7/F8
Change Values
F9
Setup Defaults
ESC
Exit
Select Menu
Enter
Select > Sub-Menu
F10
Previous Values
82
5 HP BIOS
Advanced Screen
The Advanced Screen does not have the same structure as the Main Screen
and Power Screen. Instead of presenting a list of fields, it offers a list of
sub-menus.
The Advanced screen is to be used by advanced users who wish to carry out
special system configurations.
Main
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
Advanced
Security
Boot
Power
Exit
Item-Specific Help
.
Processors, Memory and Cache
Floppy Disk Drives
IDE Devices
Integrated USB Interface
Integrated I/O Ports
Integrated Audio Device
AGP Configuration (Video)
PCI Device, slot #1
PCI Device, slot #2
PCI Device, slot #3
PCI Device, slot #4
PCI Device, slot #5
Processors, Memory and Cache
Advanced
Processors, Memory and Cache
1.
Processor Type
CPU Speed
Pentium (R) 4
1500 MHz
Processor Serial Number
[Disabled]
Memory Caching
Memory Error Checking1
[Enabled]
[Disabled]
Item-Specific Help
Only if ECC modules are detected.
Floppy Disk Drives
Advanced
Floppy Disk Drives
Floppy Disk Controller
Floppy Disk Drive A
Floppy Disk Drive B
Item-Specific Help
[Enabled]
[1.44, 3½”]
[Not installed]
83
5 HP BIOS
IDE Devices
Advanced
IDE Devices
>>
>>
>>
>>
>>
>>
Item-Specific Help
IDE Primary Master Device
IDE Primary Slave Device
[None]
[None]
IDE Secondary Master Device
IDE Secondary Slave Device
[None]
[None]
Large Disk Access Method
Integrated IDE Controller
[NT/DOS]
[Both Enabled]
IDE Primary Master Device
Advanced
IDE Primary Master Device (HD 2564)
Item-Specific Help
Type
Multisector transfer
LBA Mode Control
32 bit I/O
Transfer Mode
ULTRA DMA Mode
Integrated USB Interface
Advanced
Integrated USB Interface
USB Controller
Legacy Keyboard Emulation
Item-Specific Help
[Auto]
[Disabled]
Integrated I/O Ports
Advanced
Integrated I/O Ports
Parallel Port
Parallel Port Mode
Serial Port A
Serial Port B
Item-Specific Help
[Auto]
[ECP]
[Auto]
[Auto]
Integrated Audio Device
Advanced
Integrated Audio Device
Integrated Audio
84
[Enabled]
Item-Specific Help
5 HP BIOS
AGP Configuration (Video)
Advanced
AGP Configuration (Video)
Graphic Aperture
Item-Specific Help
[64 MB]
PCI Device, Slot #1
Advanced
PCI Device, Slot 11
Option ROM Scan
Bus Master
Bus Latency Timer
1.
Item-Specific Help
[Auto]
[Disabled]
[0040h]
PCI Slot #x have the same options as above. PCI Device, Slot 1 is only used as an example.
Security Screen
Sub-menus are presented for changing the characteristics and values of the
System Administrator Password, User Password, Power-on Password, boot
device security and Hardware Protection.
Main
>>
Security
Advanced
Administrator Password
Set Administrator Password
Clear Both Passwords
Clear
[Enter]
[Enter]
User Password
Set User Password
Clear
[Enter]
Power-on Password
[Disabled]
Start from Floppy
Start from CD-ROM
Start from HDD
[Enabled]
[Enabled]
[Enabled]
Boot
Power
Exit
Item-Specific Help
.
Hardware Protection
Hardware Protection
Security
Hardware Protection
Write on Floppy Disks
[Unlocked]
Secured Setup Configuration
Hard Disk Boot Sector
[No]
[Unlocked]
Item-Specific Help
85
5 HP BIOS
Boot Screen
This screen allows you to select the order of the devices in which you want
the BIOS to attempt to boot the operating system:
•
•
Hard disk drives
Removable devices.
The operating system assigns drive letters to these devices in the order you
specify. During POST, if the BIOS is unsuccessful at booting from one device,
it will then attempt to boot from the next device on the Boot Device Priority
list until an operating system is found.
Main
Advanced
Quickboot Mode
Display Option ROM Messages
>
Security
Boot
Power
Exit
Item-Specific Help
.
[Enabled]
[Enabled]
Boot Device Priority
Power Screen
This screen allows you to set the standby delay and suspend delay. Standby
mode slows down the processor, while the suspend mode saves a maximum
of energy. Both these options are only available with Windows 95 RTM. For
other operating systems, Windows 95 SR 2.5, Windows 98 and Windows
2000, use the control panel for similar options.
Modem ring enables or disables the system to return to full speed when an
IRQ is generated. Network interface enables or disables the system to return
to full speed when a specific command is received by the network interface.
Main
86
Advanced
Security
Standby Delay
Suspend Delay
[Disabled]
[Disabled]
Suspend Wakeup
Modem Ring
Network Interface
[Enabled]
[Enabled]
Boot
Power
Exit
Item-Specific Help
.
5 HP BIOS
Updating the System BIOS
Updating the System BIOS
The latest system BIOS (standard flash operation) can be downloaded from
HP’s Support Web site at: www.hp.com/go/kayaksupport. Then select HP
Kayak XU700 PC Workstation.
Instructions on updating the BIOS are supplied with the downloaded BIOS
files and a BIOS flash utility (flash.txt).
The BIOS update not only flashes the BIOS, but also updates MaxiLife. How
the System BIOS flash is carried out is shown below.
Boot from
floppy disk
Flash
BIOS
Reboot PC
Workstation
(press a key)
Flash
MaxiLife
PC Workstation
powers off
automatically
PC Workstation
powers on
automatically
PC Workstation
Boots
Do not switch off the computer until the system BIOS update procedure has
completed, successfully or not, otherwise irrecoverable damage to the ROM
may be caused.
Restoring BIOS Default Settings
Suspected hardware errors may be caused by BIOS and configuration
issues. If the BIOS settings are suspected to be wrong, do the following steps
to restore the BIOS to its default setting:
while the initial HP logo is displayed immediately after
1 Press
restarting the PC Workstation to access the Setup program.
to load the default settings from the Setup program.
2 Press
3 Set the “Reset Configuration Data” to Yes in the Main menu.
It is recommended that before you make any modifications to the BIOS
you take note of the system setup.
87
5 HP BIOS
If You Forgot the Administrator Password
If You Forgot the Administrator Password
1 Switch off the PC Workstation and remove the power cord.
2 Remove the PC Workstation’s cover.
3 Set switch 9 on the system board switch block to the ON position.
4 Replace the power cord and restart the PC Workstation.
5 When the message Passwords have been cleared appears on screen,
switch off the PC Workstation.
6 Remove the power cord and reset switch 9 back to the OFF position.
7 Replace the PC Workstation’s cover.
8 Switch on the PC Workstation and allow it to complete its startup routine.
9 After the Power-On-Self-Test has completed, press F2 when prompted to
use the Setup program.
10 Set the Administrator and new User passwords.
11 Press Esc or select Exit Menu to save the new Password and exit
Setup.
88
5 HP BIOS
Clearing the CMOS
Clearing the CMOS
1 Turn off the PC Workstation, disconnect the power cord and all cables,
then remove the cover.
2 Set the system board switch 8 to the ON position.
3 Replace the cover, and reconnect the power cord and video cable.
4 Reboot the PC Workstation. A message similar to the following will be
displayed:
“Configuration has been cleared, set switch Clear to the
ON position before rebooting.”
5 Turn off the PC Workstation, disconnect the power cord and video cable,
and remove the cover.
6 Set the system board switch 8 to the OFF position.
7 Replace the cover, and reconnect the power cord and data cables.
8 Switch on the PC Workstation. Run the Setup program by pressing F2.
Then press F9, the CMOS default values will be automatically downloaded
and saved.
9 Press Esc to save the configuration and exit from the Setup program.
89
5 HP BIOS
Recovering the BIOS (Crisis Mode)
Recovering the BIOS (Crisis Mode)
If for some reason the BIOS is corrupted and the standard flash cannot be
used, use the BIOS Recovery Mode (exceptional BIOS recovery operation)
to restore the BIOS. To do this:
1 Obtain a bootable DOS floppy disk.
2 Copy the BIOS files on to the floppy disk.
How to download the system BIOS is described on page 87.
3 Create (or edit) the file, AUTOEXEC.BAT
This should contain a single line of text:
“phlash /c /mode=3 /s IX.W1.XX.FUL”
(rename the BIOS filename with the one on the floppy disk).
4 Shut down the PC Workstation.
5 Power off the PC Workstation and remove the power cord.
6 Remove the cover.
7 Set switch 7 to the ON position.
8 Insert the floppy disk into the floppy disk drive.
9 Reconnect the power cord and switch on the PC Workstation.
10 The PC Workstation boots from the floppy disk, then flashes the BIOS.
However, it should be noted, that during the flash process, the screen
remains blank.
11 The recovery process is finished when there is one very long beep.
12 Power off the PC Workstation. Remove the floppy disk from the drive.
Remove the power cord.
13 Set switch 7 back to the OFF position.
14 Replace the cover, reconnect the power cord, then reboot the PC
Workstation.
90
5 HP BIOS
BIOS Addresses
BIOS Addresses
This section provides a summary of the main features of the HP system
BIOS. This is software that provides an interface between the computer
hardware and the operating system.The procedure for updating the System
ROM firmware is described on page 87.
System Memory Map
Reserved memory used by accessory boards must be located in the area
from C8000h to EFFFFh.
0000 0000 - 0000 03FF
Real-mode IDT
0000 0400 - 0000 04FF
BIOS Data Area
0000 0500 - 0009 FC00
Used by Operating System
0009 FC00 - 0009 FFFF
Extended BIOS Data Area
000A_0000 - 000B_FFFF
Video RAM or
SMRAM (not visible unless in SMM)
000C 0000 - 000C 7FFF
Video ROM (VGA ROM)
000C 8000 - 000F FFFF
Adapter ROM, RAM, memory-mapped registers, BIOS
000E 0000-000F FFFF
128 KB BIOS (Flash/Shadow)
0001 0000-000F FFFF
Memory (1 MB to 16 MB)
0010 0000-001F FFFF
Memory (16 MB to 32 MB)
0020 0000-003F FFFF
Memory (32 MB to 64 MB)
0040 0000-007F FFFF
Memory (64 MB to 128 MB)
0080 0000-7FFF FFFF
Memory (128 MB to 2 GB)
FECO 0000
I/O APIC
FEEO 0000
Local APIC (each CPU)
FFF8 0000-FFFF FFFF
512 KB BIOS (Flash)
91
5 HP BIOS
BIOS Addresses
HP I/O Port Map (I/O Addresses Used by the System1)
Peripheral devices, accessory devices and system controllers are accessed
via the system I/O space, which is not located in system memory space. The
64 KB of addressable I/O space comprises 8-bit and 16-bit registers (called
I/O ports) located in the various system components. When installing an
accessory board, ensure that the I/O address space selected is in the free
area of the space reserved for accessory boards (100h to 3FFh).
Default Values for
I/O Address Ports
0000 - 0CF7
0020 - 0021
002E - 002F
0040 - 0043
0060, 0064
0061
0070
0070 - 0071
0080
0081 - 0083, 008F
0092
00A0 - 00A1
00C0 - 00DF
00F0 - 00FF
0170 - 0177
01F0 - 01F7
0278 - 027F
02E8 - 02EF
02F8 - 02FF
0372 - 0377
0378 - 037F
03B0 - 03DF
03E8 - 03EF
03F0 - 03F5
03F6
03F7
1.If configured.
92
Function
DMA controller 1
Master interrupt controller (8259)
Super I/O
Timer 1
Keyboard controller (reset, slow A20)
Port B (speaker, NMI status and control)
Bit 7: NMI mask register
RTC and CMOS
Manufacturing port (POST card)
DMA low page register
PS/2 reset and Fast A20
Slave interrupt controller
DMA controller 2
Co-processor error
Free (IDE secondary channel)
IDE primary channel
LPT 2
Serial port 4 (COM4)
Serial port 2 (COM2)
Free (IDE secondary channel, secondary floppy disk drive)
LPT1
VGA
COM3
Floppy disk drive controller
IDE primary channel
Floppy disk drive controller
5 HP BIOS
BIOS Addresses
Default Values for
I/O Address Ports
03F8 - 03FF
04D0 - 04D1
0778 - 077F
0CF8 - 0CFF
C000 C100 - C10F
Function
COM1
Interrupt edge/level control
LPT1 ECP
PCI configuration space
Power Management I/O space and ACPI Registers
SMBus I/O space
DMA Channel Controllers
Only “I/O-to-memory” and “memory-to-I/O” transfers are allowed.
“I/O-to-I/O” and “memory-to-memory” transfers are disallowed by the
hardware configuration.
The system controller supports seven DMA channels, each with a page
register used to extend the addressing range of the channel to 16 MB.
The following table summarizes how the DMA channels are allocated.
DMA controller
Channel
Function
DMA 0
Free
DMA 1
Free if not used for parallel port in Setup
DMA 2
Floppy disk drive controller
DMA 3
Free if not used for parallel port in Setup
DMA 4
Used to cascade DMA channels 0-3
DMA 5
Free
DMA 6
Free
DMA 7
Free
Interrupt Controllers
The system has an Interrupt controller which is equivalent in function to
that of two 82C59 interrupt controllers. The following table shows how the
interrupts are connected to the APIC controller. The Interrupt Requests
(IRQ) are numbered sequentially, starting with the master controller, and
followed by the slave (both of 82C59 type).
93
5 HP BIOS
BIOS Addresses
I/O APIC
Input
94
IRQ
Interrupt Request Description
INTIN0
ICH
INTIN1
IRQ1
Super I/O Keyboard Controller
INTIN2
IRQ0
ICH System Timer
INTIN3
IRQ3
Super I/O - Used by serial port if enabled
INTIN4
IRQ4
Super I/O - Used by serial port if enabled
INTIN5
IRQ5
Free if not used for parallel port or audio
INTIN6
IRQ6
Super I/O - Floppy Disk Controller
INTIN7
IRQ7
Super I/O - LPT1
INTIN8
IRQ8
ICH - RTC
INTIN9
IRQ9
Available for PCI devices
INTIN10
IRQ10
Available for PCI devices
INTIN11
IRQ11
Available for PCI devices
INTIN12
IRQ12
Super I/O - Mouse
INTIN13
IRQ13
Co-processor
INTIN14
IRQ14
ICH - Integrated IDE Controller (primary)
INTIN15
IRQ15
ICH - Integrated IDE Controller (secondary).
INTIN16
PCINTA
INTIN17
PCINTB
INTIN18
PCINTC
INTIN19
PCINTD
INTIN20
TFPC IRQ
INTIN21
SCI IRQ
INTIN22
not connected
INTIN23
ICH SMI
(not used)
5 HP BIOS
BIOS Addresses
There are three major interrupt modes available:
PIC mode: This “Legacy” mode uses only the interrupt controllers.
Therefore, only one processor can be supported in this mode. This mode
can be selected upon installation of Windows NT.
Virtual wire mode: This mode is implemented using the 82C59 interrupt
and the I/O APIC controller and is used during boot time. The virtual wire
mode allows the transition to the “symmetric I/O mode”. In the virtual wire
mode, only one processor executes operations.
Symmetric I/O mode: This mode is implemented using the I/O APIC
controller and allows for multiple processor operations.
NOTE
In “PIC mode” and “virtual wire mode”, the PCI interrupts are routed to the
INT line. In the “symmetric I/O mode”, the PCI interrupts are routed to the
I/O APIC controllers and forwarded over an APIC bus to the processors.
PCI Interrupt Request Lines
PCI devices generate interrupt requests using up to four PCI interrupt
request lines (INTA#, INTB#, INTC#, and INTD#).
PCI interrupts can be shared; several devices can use the same interrupt.
However, optimal system performance is reached when minimizing the
sharing of interrupts. Refer to page 59 for a table of the PCI device
interrupts.
95
5 HP BIOS
BIOS Addresses
96
6
Tests and Error Messages
This chapter describes the MaxiLife firmware test sequences and error
messages, the pre-boot diagnostics error codes, the Power-On Self-Test
(POST) routines, which are contained in the computer’s ROM BIOS, the
error messages which can result, and the suggestions for corrective action.
MaxiLife Test Sequence and Error Messages
When the PC Workstation is turned on (pressing the ON/OFF button), the
system initiates the normal startup sequence which is composed of the
following steps:
•
•
•
•
Basic pre-boot diagnostics
BIOS launch
POST phase
Operating System boot phase
If any errors are detected during the startup sequence, MaxiLife will not
necessarily ‘freeze’ the system. However, some critical hardware errors are
fatal to the system and will prevent the system from starting (for example,
‘CPU Socket’ and ‘Power Supply’ are serious malfunctions that will prevent
the system from working correctly).
Errors that are not so critical will be detected both during pre-boot
diagnostics and POST where the BIOS boot process will return an error
code. Some errors are only detected during POST sequence, and produce
the same process.
Finally, while the PC Workstation is working, fan and temperature controls
can be reported (for example, a fan error will be reported if a fan cable is not
connected). This type of error disappears as soon as the problem is fixed
(for example, the fan cable has been reconnected).
The different diagnostics are described below.
97
6 Tests and Error Messages
MaxiLife Test Sequence and Error Messages
Basic Pre-boot Diagnostics
The first diagnostic (called basic pre-boot diagnostics) is run to check the
presence of the processor(s) or terminators, power supply, hardware
monitoring and thermal sensors. Simply by having a power cord connected
to the PC Workstation activates the Basic Pre-boot Diagnostics.
The pre-boot diagnostic tests are run in order of priority with respect to
their importance to computer functions.
On the HP Kayak XU700 PC Workstation, the first detected error displays
a message on the LCD status panel. If this happens, one of the following
screens could appear.
Presence of processor, or
processor terminator
Control of some voltages:
12V, 3.3V, 1.8V, 2.5V, -5V
ERROR
ERROR
CPU Socket
Power Supply
Missing or incorrectly installed
processor or processor terminator
If a Power Supply error is displayed, a cause could be
with the power supply cabling or circuits.
The following diagram shows how the Pre-boot Diagnostics works when it
encounters an error.
CPU or Terminator
Vcc State (5V)
Voltage 12V, 3.3V, 1.8V, 2.5V
Voltage CPU1, CPU2
I2C Bus
MaxiLife Firmware
Hardware
Monitoring
Temperature
Sensors
System
Memory
LCD Status Panel
ERROR
CPU Socket
98
An error has been detected when checking the
processor and processor terminator. The
displayed error message could indicate a missing
processor or processor terminator.
6 Tests and Error Messages
MaxiLife Test Sequence and Error Messages
The following table shows the test sequence carried out, the type of error
message, and the action to take.
Test
Error Code
Beep Codes
Action to Take
Presence of either a processor or processor
terminator
CPU Socket
1
Check that the processor(s), processor
terminator are correctly installed.
Control of some voltages: 12V, 3.3V, 1.8V, 2.5V
Power Supply
2
Check the power supply cable and
connectors, and processor.
Check the hardware monitoring.
No HW Monitoring
System board problem.
Check thermal sensor.
Therm. Sensor 90
System board problem.
Check thermal sensor.
Therm. Sensor 92
System board problem.
Pre-boot Diagnostics Error Codes
When a failure occurs prior to operating system loading, the PC emits a
distinctive modulated sound (repeated three times), followed by a series of
beeps. These beeps identify the part that needs troubleshooting or
replacement.
Number
of beeps
Problem
1
Absent or incorrectly connected processor.
2
Power supply is in protected mode.
3
Memory modules not present, incompatible or not functioning.
4
Video controller failure.
5
PnP/PCI initialization failure.
6
Corrupted BIOS. You need to activate crisis recovery procedure.
7
System board failure.
99
6 Tests and Error Messages
MaxiLife Test Sequence and Error Messages
Post Test Sequence and Post Error
In this phase, MaxiLife waits for any error messages that the BIOS may
issue. If such an error occurs, then an error code is displayed on the monitor
screen.
On the HP Kayak XU700 Minitower PC Workstation, a screen similar to
the following example is displayed. The error code that appears on the LCD
status panel is the same as the one that appears on the monitor screen. If
the POST issues several error codes, only the last one is visible on the LCD
status panel.
ERROR
Keyboard Test
The following diagrams show the different BIOS-generated errors.
“BIOS” ERROR
BIOS
MaxiLife
“Spy System
Memory”
“read system memory”
There is a time-out of 3 seconds before
the message is displayed on the LCD
status panel and video display.
ERROR
BIOS Check sum
System Memory
LCD Status Panel
“BIOS”-Generated Errors
“No Video”
BIOS
MaxiLife
ERROR
No Video
Video
Slots
LCD Status Panel
Beep Codes
100
6 Tests and Error Messages
MaxiLife Test Sequence and Error Messages
Test
Error Code
Beep Codes
Action to Take
Incompatible memory modules
Mem Miscompare
3
Check that the memory modules are of
the same speed and type.
Presence of continuity modules in the RIMM
sockets
RIMM Continuity
3
Check that the RDRAM continuity
modules are installed
Compatibility speed rating of installed RDRAM
modules
RIMM speed
3
Check that the installed RDRAM modules
have the same speed ratings
Compatibility of installed RDRAM modules
RIMM Devices
3
The 32 device limit per RDRAM has been
exceeded.
Presence of memory modules
No RIMM
3
Check that the memory modules are
correctly installed
Availability of video controller. It is checked by
the BIOS. If an error is detected, it is not a fatal
one and the BIOS will continue its execution
normally.
No Video
4
Check that the video controller is
correctly installed
Note: No error is detected if a monitor is
not connected to an installed video
controller. This is not a fatal error and
the BIOS will continue its normal
execution.
Operating System Boot Phase
If no error message has been displayed at this stage of the system startup by
the BIOS, the operating system is launched. The LCD status panel will
display the system platform and a “smiling icon.”
Run-Time Errors
During the normal usage of the PC Workstation (and at boot), MaxiLife
continually monitors vital system parameters. These include: temperature
errors, fan malfunctions, power voltage drops and CPU problems.
101
6 Tests and Error Messages
MaxiLife Test Sequence and Error Messages
Test
Error Code
During normal usage of the PC, HP MaxiLife
continually checks vital system parameters. If an
error occurs, a message appears on the LCD
panel.
Action to Take
System FAN
System or chassis fan, fan cable.
PCI FAN
PCI fan, fan cable.
CPU 1 FAN
CPU 1 fan, fan cable.
CPU 2 FAN
CPU 2 fan, fan cable.
Processor Temp
Processor temperature > 85°C.
CPU Temperature
Thermal or internal processor failure.
PCI Temperature
Ambient or PCI temperature > 64°C.
Disk Temperature
Disk temperature > 58°C, or sensor unplugged.
PSU 12 V error
Power supply unit has failed. Try the following:
Power CPU error
1 Replace the power supply unit with a known working one.
PSU 3V3 error
2 If the problem persists, replace the system board.
PSU 2V5 error
PSU 1V8 error
PSU -5V error
Main Menu (Minitower models only)
The main menu is displayed when any of the LCD buttons are pressed
(MaxiLife LCD status panel can be accessed even though the PC
Workstation is turned off). The Main Menu comprises three sub-menus:
System Info, Boot Steps and Boot report.
102
6 Tests and Error Messages
MaxiLife Test Sequence and Error Messages
System Info
Obtains information from the BIOS and the system’s Serial EEPROM. This
information includes: product name, BIOS version, serial number, number of
processors and speed, size of memory for each socket. The following
diagram shows how the System Info obtains its information.
System Info
strings in EEPROM
MaxiLife
HP Kayak XU700
Info
Write
Services
BIOS
LCD Status Panel
DMI Table
Boot Steps
Shows the Power-On-Self-Test (POST) codes during the system startup.
The POST code is provided by the BIOS and is displayed on the LCD panel
as soon as it is available. If the system stops during the startup, the last
successful boot step POST code is displayed on the LCD. When Boot Steps
is selected, the POST step will be shown on the LCD status panel during the
subsequent boot processes.
To ensure that MaxiLife is ready to display the first POST codes as soon as
possible, the Pre-boot diagnostics are not executed when the system is
booted with the Boot Steps option selected. The following diagram shows
how Boot Steps obtains its information from the BIOS, and then displays a
POST error if needed.
System Info
Boot Steps
Next
HP KAYAK XU700
Post Code 24
MaxiLife
Ok
This is a toggle item,
which is indicated with
a check mark
“Write
POST
Code”
BIOS
“Write
POST
ERROR”
Error
Post Code XX
Boot report
Runs a set of diagnostics assessing the system’s components. Results of the
tests are displayed on the LCD status panel, one after another, when the
LCD
buttons are pressed.
103
6 Tests and Error Messages
MaxiLife Test Sequence and Error Messages
Components are tested in sequence when the “Next” button is pressed.
When they have all been checked, a diagnostic screen is shown. Depending
on the result of the diagnostics, the screen could indicate either:
Diagnostics Done OK or FAIL.
At the end of the test, you can exit the diagnostic mode by pressing the
LCD button.
For More Information
About MaxiLife
Refer to the online Troubleshooting Guide for more information about this
diagnostics utility at the HP World Wide Web site:
http://www.hp.com/go/kayaksupport.
104
6 Tests and Error Messages
Order in Which POST Tests Are Performed
Order in Which POST Tests Are Performed
Each time the system is powered on, or a reset is performed, the POST is
executed. The POST process verifies the basic functionality of the system
components and initializes certain system parameters.
The POST starts by displaying a graphic screen of the HP PC Workstation’s
logo when the PC Workstation is restarted. If you wish to view the POST
details, press Esc to get the HP Summary Screen.
If the POST detects an error, the screen switches to text mode, and a
detailed error message is displayed inside a view system errors screen, in
which the error message utility (EMU) not only displays the error diagnosis,
but the suggestions for corrective action (refer to page 113 for a brief
summary).
On the HP Kayak XU700 Minitower PC Workstation, the LCD status panel
displays either a message, a POST code number (refer to page 105) or an EMU
code.
Devices such as memory and newly installed hard disks, are configured
automatically. The user is not requested to confirm the change.
During the POST, the BIOS and other ROM data are copied into high-speed
shadow RAM. The shadow RAM is addressed at the same physical location
as the original ROM in a manner which is completely transparent to
applications. It therefore appears to behave as very fast ROM. This
technique provides faster access to the system BIOS firmware.
The following table lists the POST checkpoint codes and their associated
beeps. Refer to page 99 for more details about pre-boot diagnostics error
codes.
Checkpoint
Code
POST Routine Description
02h
Verify Real Mode
03h
Disable Non-Maskable Interrupt (NMI)
04h
Get CPU type
MaxiLife LCD
Display
Message
Beep
Codes
105
6 Tests and Error Messages
Order in Which POST Tests Are Performed
Checkpoint
Code
106
POST Routine Description
MaxiLife LCD
Display
Message
06h
Initialize system hardware
08h
Initialize chipset with initial POST values
09h
Set IN POST flag
P.O.S.T Start
0Ah
Initialize CPU registers
CPU Regist. Init
0Bh
Enable CPU cache
0Ch
Initialize caches to initial POST values
0Eh
Initialize I/O component
I/O Init.
0Fh
Initialize the local bus IDE
IDE Init.
10h
Initialize Power Management
11h
Load alternate registers with initial POST values
12h
Restore CPU control word during warm boot
13h
Initialize PCI Bus Mastering devices
14h
Initialize keyboard controller
16h
BIOS ROM checksum
17h
Initialize cache before memory autosize
18h
8254 timer initialization
1Ah
8237 DMA controller initialization
1Ch
Reset Programmable Interrupt Controller
20h
Test DRAM refresh
RAM Refresh Test
22h
Test 8742 keyboard controller
Keyb. Ctrl. Test
24h
Set ES segment register to 4 GB
26h
Enable A20 line
28h
Autosize DRAM
29h
Initialize POST Memory Manager
2Ah
Clear 512 KB base RAM
Beep
Codes
PCI Mast. Init.
BIOS Check sum
Memory Detection
3
6 Tests and Error Messages
Order in Which POST Tests Are Performed
Checkpoint
Code
POST Routine Description
MaxiLife LCD
Display
Message
Beep
Codes
2Ch
RAM failure on address line 1
RAM Add. Failure
2Eh
RAM failure on data bits xxxx1 of low byte of memory bus
RAM Data Low
2Fh
Enable cache before system BIOS shadow
30h
RAM failure on data bits xxxx1 of high byte of memory bus
32h
Test CPU bus-clock frequency
33h
Initialize POST Dispatch Manager
36h
Warm start shut down
38h
Shadow system BIOS ROM
3Ah
Autosize cache
3Ch
Advanced configuration of chipset registers
3Dh
Load alternate registers with CMOS values
42h
Initialize interrupt vectors
45h
POST device initialization
46h
Check ROM copyright notice
48h
Check video configuration against CMOS
49h
Initialize PCI bus and devices
PCI Detection
5
4Ah
Initialize all video adapters in system
Video Detection
4
4Bh
Display QuietBoot screen (optional)
4Ch
Shadow video BIOS ROM
4Eh
Display BIOS copyright notice
50h
Display CPU type and speed
51h
Initialize EISA board
52h
Test keyboard
54h
Set key click if enabled
RAM Data High
Shadow BIOS
ROM
Keyboard Test
107
6 Tests and Error Messages
Order in Which POST Tests Are Performed
Checkpoint
Code
108
POST Routine Description
MaxiLife LCD
Display
Message
56h
Enable keyboard
58h
Test for unexpected interrupts
59h
Initialize POST display service
5Ah
Display prompt “Press F2 to enter SETUP”
5Bh
Disable CPU cache
5Ch
Test RAM between 512 and 640 KB
Base Memory Test
60h
Test extended memory
Ext. Memory Data
62h
Test extended memory address lines
Ext. Memory Add.
64h
Jump to UserPatch1
66h
Configure advanced cache registers
67h
Initialize Multi Processor APIC
68h
Enable external and CPU caches
69h
Setup System Management Mode (SMM) area
6Ah
Display external L2 cache size
6Ch
Display shadow-area message
6Eh
Display possible high address for UMB recovery
70h
Display error messages
72h
Check for configuration errors
76h
Check for keyboard errors
7Ch
Set up hardware interrupt vectors
7Eh
Initialize coprocessor if present
80h
Disable onboard Super I/O ports and IRQs
81h
Late POST device initialization
82h
Detect and install external RS 232 ports
83h
Configure non-MCD IDE controllers
Unexpect. STOP
Keyboard Test
Beep
Codes
6 Tests and Error Messages
Order in Which POST Tests Are Performed
Checkpoint
Code
POST Routine Description
MaxiLife LCD
Display
Message
84h
Detect and install external parallel ports
85h
Initialize PC-compatible PnP ISA devices
86h
Re-initialize onboard I/O ports
87h
Configure System Board Configurable Devices (optional)
88h
Initialize BIOS Data Area
89h
Enable Non-Maskable Interrupts (NMIs)
8Ah
Initialize Extended BIOS Data Area
8Bh
Test and initialize PS/2
8Ch
Initialize floppy controller
8Fh
Determine number of ATA drives (optional)
90h
Initialize hard disk controllers
Disc Ctrl. Init.
91h
Initialize local-bus hard disk controllers
Disc Bus Init.
92h
Jump to UsersPatch2
Maxilife Test
93h
Build MPTABLE for multi-processor boards
95h
Install CD-ROM for boot
96h
Clear huge ES segment register
97h
Fix up Multi Processor table
98h
Search for option ROMs.
99h
Check for SMART drive
9Ah
Shadow option ROMs
9Ch
Set up Power Management
9Dh
Initialize security engine (optional)
9Eh
Enable hardware interrupts
9Fh
Determine number of ATA and SCSI drives
A0h
Set time of day
Beep
Codes
Mouse PS2 Test
CDROM Ctr. Init.
Opt. Rom Detect.
Check ATA / SCSI
109
6 Tests and Error Messages
Order in Which POST Tests Are Performed
Checkpoint
Code
110
POST Routine Description
MaxiLife LCD
Display
Message
A2h
Check key lock
A4h
Initialize typematic rate
A8h
Erase F2 prompt
AAh
Scan for F2 key stroke
ACh
Enter SETUP
AEh
Clear Boot flag
B0h
Check for errors
B2h
POST done - prepare to boot operating system
B5H
Terminate QuietBoot (optional)
B6h
Check password (optional)
Check Password
B7h
ACPI tables initialized
ACPI Init.
B8h
Clear global descriptor table
B9h
Prepare Boot
Prepare Boot...
BAh
Initialize DMI parameters
DMI Tables Init.
BBh
Initialize PnP Option ROMs
PNP Opt. ROM Init
BCh
Clear parity checkers
BDh
Display MultiBoot menu
BEh
Clear screen (optional)
BFh
Check virus and backup reminders
C0h
Try to boot with INT 19
C1h
Initialize POST Error Manager (PEM)
C2h
Initialize error logging
C3h
Initialize error display function
C4h
Initialize system error handling
C5h
PnPnd dual CMOS (optional)
BIOS SETUP
...Checking...
Beep
Codes
6 Tests and Error Messages
Order in Which POST Tests Are Performed
Checkpoint
Code
POST Routine Description
C6h
Initialize notebook docking (optional)
C7h
Initialize notebook docking late
C8h
Force check (optional)
C9h
Extended checksum (optional)
D2h
Unknown Interupt
MaxiLife LCD
Display
Message
Beep
Codes
The following are for boot block in Flash ROM
E0h
Initialize the chipset
E1h
Initialize the bridge
E2h
Initialize the CPU
E3h
Initialize system timer
E4h
Initialize system I/O
E5h
Check force recovery boot
E6h
Checksum BIOS ROM
E7h
Go to BIOS
E8h
Set Huge Segment
E9h
Initialize Multi Processor
EAh
Initialize OEM special code
EBh
Initialize PIC and DMA
ECh
Initialize Memory type
EDh
Initialize Memory size
EEh
Shadow Boot Block
EFh
System memory test
F0h
Initialize interrupt vectors
F1h
Initialize Run Time Clock
111
6 Tests and Error Messages
Order in Which POST Tests Are Performed
Checkpoint
Code
1.
112
POST Routine Description
F2h
Initialize video
F3h
Initialize System Management Mode
F4h
Output one beep before boot
F5h
Boot to Mini DOS
F6h
Clear Huge Segment
F7h
Boot to Full DOS
MaxiLife LCD
Display
Message
Beep
Codes
If the BIOS detects error 2C, 2E, or 30 (base 512K RAM error), it displays an additional word-bitmap
(xxxx) indicating the address line or bits that failed.For example:
“2C 0002” means line 1 (bit one set) has failed.
“2E 1020” means data bits 12 and 5 (bits 12 and 5 set) have failed in the lower 16 bits.
The BIOS also sends the bitmap to the port-80 LED display. It first displays the checkpoint code,
followed by a delay, the high-order byte, another delay, and then the low-order byte of the error. It
repeats this sequence continuously.
6 Tests and Error Messages
Error Message Summary
Error Message Summary
In the event of an error generated in POST (Power-On-Self-Test) during the
boot process, the Error Setup Manager gives access to one or more detected
errors. Each EMU error is displayed as a 4-digit code with an associated text
message on the monitor screen or/and the MaxiLife LCD panel.
Further details can be accessed by pressing ENTER. A detailed description
of the reason for the failure and how to solve the problem is displayed. The
following examples give the different types of error categories.
Category #1:
If the error is only a warning (i.e. key stuck), the POST should prompt:
WARNING1
00100
1.
Keyboard Error
After a time-out period of five seconds without any intervention, the system resumes to boot.
Category #2:
00xx
If the error is serious, the POST should prompt:
The BIOS has detected a serious problem that prevents your PC from booting
Press <Enter> to view more information about error
113
6 Tests and Error Messages
Error Message Summary
Code #
Cause / Symptom
Short message (US)
0000h
Any POST error that is not listed below
System error
0010h
CMOS Checksum error (if no Serial EEProm)
Incorrect CMOS Checksum
0011h
Date and Time (CMOS backed up from SE2P)
Date and Time Lost
0012h
PC configuration lost (both SE2P and CMOS lost)
Incorrect PC Configuration
0020h
Any POST error regarding an AT option ROM
Option ROM Error
0040h
Serial number corrupted (bad checksum or null #)
Invalid PC Serial Number
0041
Product flag not initialized or bad
Invalid Internal product type
0060h
RPO initialization failure
Remote Power On Error
0070h
CPU Termination Card missing from Processor 2
socket in a mono-processor system
CPU Terminator Card Error
0100h
Keyboard stuck key
Keyboard Error
0101h
Keyboard self-test failure
Keyboard Error
0102h
Keyboard controller I/O access failure
Keyboard Error
0103h
Keyboard not connected
Keyboard Error
0300h
Floppy A: self-test failure
Flexible Disk Drive A Error
0301h
Floppy B: self-test failure
Flexible Disk Drive B Error
0310h
Floppy A: not detected (but configured in CMOS)
Flexible Disk Drive Error
0311h
Floppy B: not detected (but configured in CMOS)
Flexible Disk Drive Error
0306h
General failure on floppy controller
Flexible Disk Drive Error
0400h
CD-ROM test failure
CD-ROM Error
0401h
CD-ROM not detected (but configured in CMOS)
CD-ROM Error
0500h
General failure on HDD onboard primary ctrl
IDE Device Error
0501h
General failure on HDD onboard secondary ctrl
IDE Device Error
0510h
HDD # 0 self-test error
IDE Device # 0 Error
0520h
HDD # 0 not detected (but configured in CMOS)
IDE Device # 0 Error
0521h
HDD # 1 not detected (but configured in CMOS)
IDE Device # 1 Error
114
6 Tests and Error Messages
Error Message Summary
Code #
Cause / Symptom
Short message (US)
0522h
HDD # 2 not detected (but configured in CMOS)
IDE Device # 2 Error
0523h
HDD # 3 not detected (but configured in CMOS)
IDE Device # 3 Error
0530h
Found a drive on slave connector only (primary)
IDE Device Error
0531h
Found a drive on slave connector only (secondary)
IDE Device Error
0600h
Found less video memory than configured in CMOS
Video Memory Error
0700h
Found less DRAM memory than at previous boot
System Memory Error
0711h
Defective SIMM (module 1, bank 1)
System Memory Error
0800h
Found lower cache size than configured
System Cache Error
0801h
Cache self-test failure
System Cache Error
0A00h
Plug and Play video auto-setting failure (DDC hang)
DDC Video Error
The following table summarizes the most significant of the problems that
can be reported.
Message
Explanation or Suggestions for Corrective Action
Operating system not found
Check whether the disk, HDD, FDD or CD-ROM disk drive is
connected.
If it is connected, check that it is detected by POST.
Check that your boot device is enabled on the Setup Security
menu.
If the problem persists, check that the boot device contains the
operating system.
Missing operating system
If you have configured HDD user parameters, check that they are
correct. Otherwise, use HDD type “Auto” parameters.
Resource Allocation Conflict -PCI device
0079 on system board
Clear CMOS.
Video Plug and Play interrupted or
failed. Re-enable in Setup and try again
You may have powered your computer Off/On too quickly and the
computer turned off Video plug and play as a protection.
System CMOS checksum bad - run
Setup
CMOS contents have changed between 2 power-on sessions. Run
Setup for configuration.
No message, system “hangs”
Check that the main memory modules are correctly set in their
sockets.
115
6 Tests and Error Messages
Error Message Summary
Message
Other
116
Explanation or Suggestions for Corrective Action
An error message may be displayed and the computer may “hang”
for 20 seconds and then beep. The POST is probably checking for a
mass storage device which it cannot find and the computer is in
Time-out Mode. After Time-out, run Setup to check the
configuration.
7
Connectors and Sockets
IDE Drive Connectors
IDE Connectors
Pin
Signal
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
Reset#
HD7
HD6
HD5
HD4
HD3
HD2
HD1
HD0
Ground 7
DMARQ
DIOW#
DIOR#
IORDY
DMACK#
INTRQ
DA1
DA0
CS1FX#
DASP#
Pin
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
Flexible Disk Drive Data Connector
Signal
Pin
Ground
HD8
HD9
HD10
HD11
HD12
HD13
HD14
HD15
orientation key
Ground 2
Ground 3
Ground 4
CSEL
Ground 5
IOCS16#
PDIAG#
DA2
CS3FX#
Ground 6
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
Signal
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Pin
Signal
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
LDENSEL#
Microfloppy
EDENSEL
INDX#
MTEN1#
DRSEL0#
DRSEL1#
DTEN0#
DIR#
STP#
WRDATA#
WREN#
TRK0#
WRPRDT#
RDDATA#
HDSEL1#
DSKCHG#
Battery Pinouts
Battery Connections
Pin
1
2
3
Signal
GROUND
VBAT1
VBAT2
Battery Connections
Pin
1
2
Signal
VBAT1
GROUND
117
7 Connectors and Sockets
Additional SCSI LED
Connector
Additional SCSI LED Connector
(4-pin)
Pin
1
2
3
4
Signal
Not used
LED Out
LED Out
Not used
Power Supply Connector
(20-pin) and
Aux Power Connector
Power Supply Connector for
System Board (20-pin)
Pin
11
12
13
14
15
16
17
18
19
20
Signal
Pin
Signal
3V3_MAINSENSE 1 3V3_2
12V_NEG
2 3V3_3
GROUND_1
3 GROUND2
_PSON
4 5V_1
GROUND3
5 GROUND4
GROUND5
6 5V_2
GROUND6
7 GROUND7
5V_NEG
8 PW0K
5V_3
9 5VSB
5V_4
10 12V
Wake On LAN
Connector
Wake On LAN (WOL)
Pin
Signal
1 5V STDBY
2 Ground
3 LAN_WAKE
Rear Fan Connector
Fan Connector
Pin
Signal
1 Ground
2 12V Power
3 Sense
118
Aux. Power
Connector
Pin
1
2
3
4
5
6
Signal
GROUND1
GROUND2
GROUND3
3V3_1
3V3_2
5V
7 Connectors and Sockets
PCI Fan Connector
(MT only)
3
2
1
Fan Connector
Vertical plastic latch for
keying and attachment
Pin
Signal
1 Sense
2 +12 V Power (or less, depending on desired fan speed)
3 Ground
Internal Audio
Connectors
CD AUDIO Connector
Pin
1
2
3
4
Signal
Analog Ground
CD Left Channel
Analog Ground
CD Right Channel
AUX Connector
I/O
IN
IN
Pin
1
2
3
4
Signal
Analog Ground
AUX Left Channel
Analog Ground
AUX Right Channel
I/O
IN
IN
Internal Speaker
Pin
1
2
3
4
Signal
SPK1
Tst1
Tst2
SPK2
Status Panel and
Intrusion
Status Panel
Pin
1
3
5
7
9
11
13
Signal
B1_LCD1
Ground
HDD_LED_K
ON_OFF
GROUND2
_RESET
VSTDBY_3V
Pin
2
4
6
8
10
12
14
Intrusion
Signal
B1_LCD2
PWR_LED_A
BACKLIGHT
RED-LED_A
HDD_LED_A
SDA
SCL
Pin
Signal
4 CLOSE
3 COMMON
1 OPEN
119
7 Connectors and Sockets
Hard Disk Drive
Temperature Connector
HDD Temperature
Pin
Signal
1 3V3
2 SENSE
4 Ground
VGA DB15 Connector
VGA DB Connector Pins
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Standard VGA
Analog RED
Analog GREEN
Analog BLUE
Monitor ID2
n/c
Analog RED return
Analog GREEN return
Analog BLUE return
n/c
Digital ground
Monitor ID 0
Monitor ID 1
HSYNC
VSYNC
n/c
DDC2B
Analog RED
Analog GREEN
Analog BLUE
Monitor ID2
DDC return
Analog RED
Analog GREEN
Analog BLUE
VCC supply (optional)
Digital ground
Monitor ID 0
Data:SDA
HSYNC
VSYNC
Clock:SCL
LCD Panel
LCD Panel
Pin
1
3
5
7
9
Signal
SCL_5V
SDA_5V
not connected
RX_BB
Ground
Pin
2
4
6
8
10
Signal
VSTDBY 5V
BT_LCD 1
BT_LCD 2
TX_BB
Ground
S-Video Connector
C – Color (Chrominance)
GND – Ground (C)
120
Y – Intensity (Luminance)
GND – Ground (Y)
7 Connectors and Sockets
Ethernet UTP Connector
121
7 Connectors and Sockets
Rear Panel Socket Pin Layouts
Rear Panel Socket Pin Layouts
Mouse Connector
Keyboard Connector
Serial Port A
9-pin Serial Port
Connectors
25-pin Parallel Port Connector
Serial Port B
Line Out
Audio jacks
Line In
MIC
USB Connectors (two)
Keyboard and Mouse
Connectors
2
4
1
3
122
Keyboard and Mouse Connectors
6
5
Pin
1
3
5
Signal
Data
Ground
Clock
Pin
2
4
6
Signal
Not Used
+5 V dc
Not Used
7 Connectors and Sockets
Rear Panel Socket Pin Layouts
USB Stacked
Connector
The USB graphic and pinout table for a USB connector. However, the
information is also valid for a USB Stacked Connector.
USB Connector
Pin
1
Serial Port
Connectors
2 3
Signal
1
2
3
4
Shell
4
VBus
DD+
GND
Shield
This pinout information is valid for both the Serial Port A and Serial Port B
connectors.
9-pin Serial Port Connector
1
6
7
8
9
2
3
4
5
Pin
6
7
8
9
Signal
(DSR) CC
(RTS) CA
(CTS) CB
(R) CE
Pin
1
2
3
4
5
Signal
(DCD) CF
(RD) BB
(TD) BA
(DTR) CD
(GND) AB
123
7 Connectors and Sockets
Rear Panel Socket Pin Layouts
25-pin Parallel Connector
25-pin Parallel Connector
25
24
23
22
21
20
13
12
11
10
9
8
7
6
5
4
19
18
17
16
15
3
2
1
14
Pin
25
24
23
22
21
20
19
18
17
16
15
14
Signal
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
SLIN
INIT
ERROR
AUTO-FD
Pin
13
12
11
10
9
8
7
6
5
4
3
2
1
Signal
SLCT
PE
BUSY
ACK
D7
D6
D5
D4
D3
D2
D1
DO
Strobe
MIDI/Joystick
Connector
MIDI/Joystick Connector
Pin
9
10
11
12
13
14
15
External Audio Jacks
8
7
6
5
4
3
2
1
9
10
11
12
13
14
15
Signal
+5 V
B-1
B-X
MIDI-OUT
B-Y
B-2
MIDI-IN
Pin
8
7
6
5
4
3
2
1
Signal
+5 V
A-2
A-Y
Ground
Ground
A-X
A-1
+5 V
On the PC Workstation there is a Line In jack, Line Out jack and Mic In jack
located on the rear panel. These external jacks are standard connectors.
124
