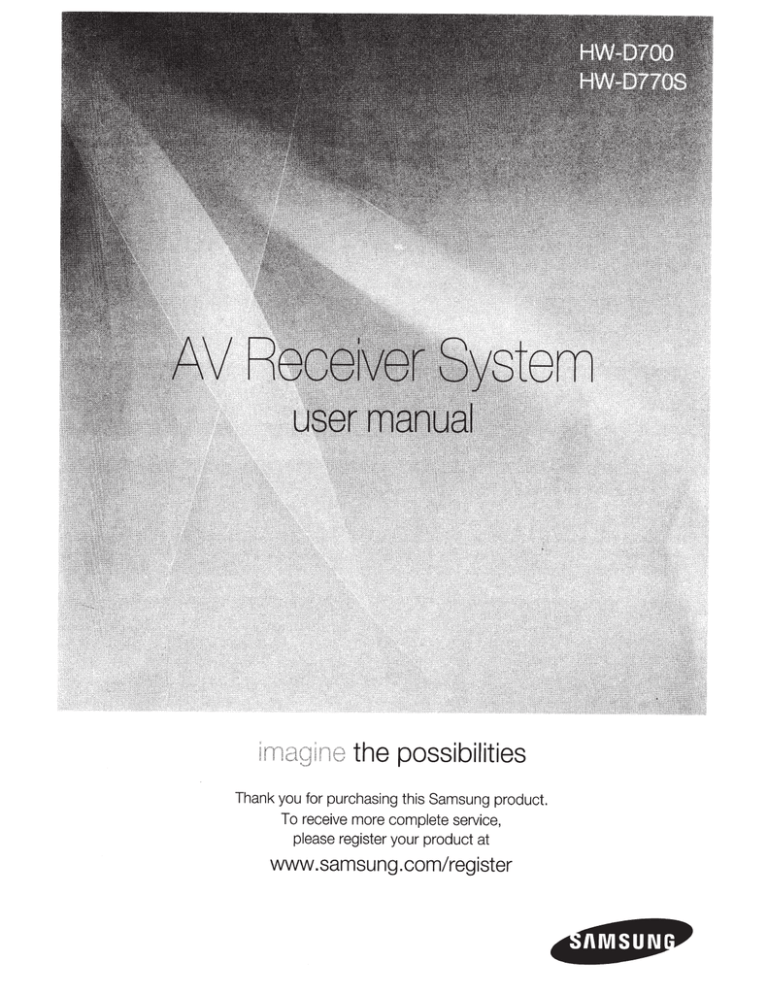

Samsung HW-D700 Operating instructions

the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
Safety Information
Safety Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
A
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates "dangerous voltage"
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important instructions
accompanying the product.
WARNING
• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
CAUTION
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed
on the apparatus.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.
This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other
equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded
cables and connectors for connections.
FCC NOTE {FOR U.S.A):
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio!TV technician for help.
Caution : FCC regulations state that any unauthorized changes or modifications to this equipment may void the user• s
authority to operate it.
License
• Manufactured under license from Dolby Laboratories. Dolby, Pro Logic and the double-D symbol are trademarks of Dolby
Laboratories.
• Manufactured under license under U.S. Patent #'s: 5,451 ,942; 5,956,67 4; 5,97 4,380; 5,978,762; 6,226,616; 6,487,535;
7,212,872; 7,333,929; 7,392,195; 7,272,567 &other U.S. and worldwide patents issued &pending.
DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD Master Audio, and the DTS logos are trademarks of
DTS, Inc. Product includes software.© DTS, Inc. All Rights Reserved.
2
English
Important Safety Instructions
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth an uncontrolled environment.
This equipment should be installed and operated with minimum distance 7. 9 inches between the radiator and
your body. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Canadian Department of Communications Radio Interference Regulations
This digital apparatus (Wireless Internet Radio) does not exceed the Class Blimits for radio-noise emissions
from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of
Communications.
Read these operating instructions carefully before using the unit. Follow all the safety instructions listed
below. Keep these operating instructions handy for future reference.
1)
Read these instructions.
2)
Keep these Instructions.
3)
Heed all warnings.
4)
Follow all instructions.
5)
Do not use this apparatus near water.
6)
Clean only with dry cloth.
7)
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
8)
9)
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11) Only use attachment/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart!
apparatus combination to avoid injury from tip-over.
-~
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
English
3
Safety Information
Precautions
• Ensure that the AC power supply in your house complies with specifications listed on the identification sticker
located on the back of your product.
• Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation
(7.5-1 Ocm I 20-25 inches).
• Do not place the product on amplifiers or other equipment which may become hot.
Make sure the ventilation slots are not covered.
• Do not stack anything on top of the product.
• To disconnect the product completely from the power supply, remove its plug from the wall outlet.
- If you leave the product unused for a long period of time, disconnect the plug from the wall outlet.
• During thunderstorms, disconnect the AC plug from the wall outlet. Voltage spikes caused by lightning could
damage the product.
• Do not expose the product to direct sunlight or other heat sources. This could cause the product to overheat
and malfunction.
• Protect the product from moisture, excess heat, and equipment creating strong magnetic or electric fields (i.e.
speakers.).
• Disconnect the power cable from the AC supply if the product malfunctions.
• Your product is not intended for industrial use. It is for personal use only.
• Condensation may occur if you store your product in cold temperatures. If transporting the product during the
winter, wait approximately 2 hours until the product has reached room temperature before using.
• The batteries used with this product contain chemicals that are harmful to the environment.
Do not dispose of batteries in the general household trash.
4
English
Contents
SAFETY INFORMATION
2
3
4
Safety Warnings
Important Safety Instructions
Precautions
GETTING STARTED
7
8
9
9
10
11
12
Key features of your new AV Receiver
Accessories
Description
Front Panel
Display
Rear Panel
Remote Control
CONNECTIONS
16
18
19
20
22
23
24
25
26
27
28
30
30
Speaker Positioning
Connecting the Speakers
Connecting the Bi-AMP Speaker
Connecting External Devices/your 1V via HDMI
HDMI Function
Connecting to your 1V
Connecting a DVD or BD(Biu-ray) Player
Connecting a Cable, Satellite or Set-top Box
Connecting a CD Player
Connecting Using the External Amplifier (Ex. Second Room)
Connecting an iPod
Connecting the FM Antenna
Connecting AUX Components
SETUP
31
31
32
33
36
36
Before Using the AV Receiver
Home Menu
Selecting Digital/HOM!/Analog
Setup Menu Tree
Audio Setup
Selecting a Source Device And Connection Jack
(Digital Audio In)
Setting the Speaker Size
Connection Setting For Surround Back
Setting the Speaker Listening Distance
Setting the Speaker Level
Setting the Test Tone
Setting Dolby Pro Logic Mode
Surround Setup
Setting Dolby Pro Logic llx
Setting NE0:6 Mode
Setting EX/ES Mode
Other Settings
Audio Sync
Tone Control
MP3 Enhancer
Smart Volume
Auto Calibration Setup
DRC Setup
Dual Mono Setup
HDMI Setup
Video Convert Setup
36
38
39
40
41
42
42
42
43
43
44
44
44
45
45
46
47
47
48
49
English
5
Contents
OP.ERATION
50
50
51
52
52
53
53
54
54
54
55
55
56
56
56
57
57
•
6
Using the Surround Modes
Using the AUDIO EFFECT Button On the Front of the
Main Unit
Using the S.DIRECT Button
Using the SUBWOOFER button
Listening to the Radio
To Listen in Mono/Stereo
Presetting Radio Stations .
Using an iPod
Listening to Music (iPod audio function)
Watching a Movie (iPod video function)
Convenient Functions
Sleep Timer Function
Mute Function
Adjust the Display
Reset Function
Using Headphones
Software Upgrade
MISCELLANEOUS
58
59
Operating your 1V with the Remote Control
Operating your DVD or BD Player with the Remote
Control
OTHER INFORMATION
60
61
61
62
Troubleshooting
Product Protection Function
Auto Calibration Error List
Specifications
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product
appearance.
English
Getting Started
.....
0
Key features of your new AV Receiver
Product Features
Digital AV Receiver
This product is a pure digital AV receiver that performs digital signal processing to minimize signal
distortion and loss.
Dolby Digital
Effective audio encoding/decoding technology that provides a vivid surround sound in up to 5.1 channels.
Dolby Pro Logic llx
Dolby Pro Logic llx is a new technology that provides discrete 7.1 channels out of 2 channel or multi
channel sources. It also provides Music,Movie and Game modes.
Dolby Pro Logic llx is an improved surround system that is optimized to a 7.1 CH multimedia system,
enabling you to maximize your entertainment experience.
Dolby Pro Logic liz
Dolby Pro Logic liz adds front height channels to surround sound, creating a 7.1 playback system for
video games, home music, and movies; bringing enhanced spatial effects and enveloping sound.
Dolby Digital EX
Adds a surround back channel for more spacious sound compared to regular 5.1 channel Dolby Digital.
Dolby Digital Plus
Dolby Digital Plus is the next -generation audio technology for all high-definition programming and media.
Dolby True-HD
Dolby True-HD is Dolby's next-generation lossless technology developed for high-definition disc-based
media.
DTS 96/24
DTS 96/24 encodes standard 16 bit/44.1 kHz sound to 24 bit/96kHz and applies it to a
5.1 CH sound track.
•
r1
IJ!f
96
~
DTS (Digital Theater Systems)
DTS provides a discrete 5.1 CH digital audio signal for both music and movie contents and uses less
compression than Dolby Digital for richer sound.
DTS-HD (Master Audio, High Resolution)
(Digital Theater Systems- High Definition)
DTS-HD Audio provides the highest quality multi-channel sound possible.
It delivers sound quality that matches the clear and vivid images of high-definition video.
DTS
n:C:Ei ~ rt1n:c:Eil
Provides a full range of 6 channels by converting a digital PCM or analog stereo signal using DTS digital
matrix decoding.
English
7
I
Getting Started
DTS-ES (Extended Surround)
0
E x r E N ° E
The DTS-ES (Extended Surround) system is a new multi digital signal format that was
developed by Digital Theater Systems Inc.
SURROUND
Supporting full compatibility with the conventional DTS digital surround sound format, the
DTS-ES (Extended Surround) system improves the surround signal for a 360-degree surround effect.
DTS-ES adds an additional rear center surround channel for 6.1 channel sound:
t tnl sl
iPod
You can enjoy music files by connecting your iPod/iPhone to the AV Receiver with
the supplied iPod dock.
Madetor
~ iPod
CiPhone
SFE (Sound Field Effect) Using 32bit Audio Digital Signal Processing
Provides more realistic surround sound with normal stereo audio sources.
Anynet+ (HDMI-CEC) Function
Anynet + is a function that can be used to operate this AV Receiver with a Samsung TV remote control,
by connecting the receiver to a SAMSUNG TV using an HOM I Cable. (This function is available only in
connection with Samsung TV and DVD player supporting Anynet+(HDMI-CEC).)
Accessories
Check the box for the supplied accessories listed below.
Remote Control
(AI-t59-02370A)/
Batteries (AAA size)
(4301-000116)
8
English
FM antenna
(AH42-00017A)
User's manual
(AH68-02354X)
iPod Dock
(AH96-00051 A)
ASC microphone
( AH30-00099A )
0
.......
Description
Front Panel
SI\MSUNG
0 0 0
A.VSYNC
=
...,Sflf CT-.
~
0000()0
LJ
20
OJ
w
w
w
INPUT SELECT CONTROL
Used to select a source.
FM -+ TV -+ BD/DVD -+ SAT -+ GAME -+ AUX -+ CD -+ IPOD AUDIO
IPOD VIDEO
SETUP BUTTON
Displays the SETUP menu.
AUDIO ASSIGN BUTTON
Toggles to select an input mode for the selected source.
AUDIO EFFECT BUTTON
Toggles to select asurround sound mode.
-+
[[]
[]]
3D SOUND BUTTON
Press to apply 3D Sound effect.
DISPLAY
Displays the speaker/audio input status, listening mode, etc.
(IJ
UP(A), DOWN(V), LEFT(<),
RIGHT(>) BUTTONS
Used to move the cursor up, down, left or right.
Also used to select detailed options in the AUDIO EFFECT mode and to change the
tone level.
[[]
Bi-AMP INDICATOR
The indicator lights on when you turn on Bi-AMP.
00
ENTER BUTTON
Used to select an item in the SETUP menu.
[QJ
(ill
TONE CONTROL BUTTON
Used to set the bass, treble level and tone to on/off.
ASC BUTTON
Used to select the auto calibration mode.
(W
MASTER VOLUME CONTROL
Adjusts the volume level.
G]J
POWER BUTTON ((!) )
Turns the receiver on/off.
English
9
Getting Started
[HJ
PHONES JACK
Used to connect a set of headphones.
[1]]
[!§]
[tJ
[j]J
G]J
[gQJ
(W
AUXIN JACKS
Auxiliary AV input terminals used to connect a camcorder, portable DVD player
or gaming device.
ASC MICJACK
Used to connect the ASC MIC for setting up Auto calibration.
RETURN SUTION
Return to the previous menu.
AV SYNC SUlTON
Used to select the Audio Delay Mode.
TUNING MODE SUlTON
Used to select the Manual or Preset mode for FM radio.
SELECT SUlTON
Used to change the radio frequency.
TUNER MEMORY SUlTON
Used to set a preset radio frequency.
[ggJ
S.DIRECT SUlTON
Used to select the S.DIRECT mode.
(Output the original signal as it is without applying the sound field effect or any
other sound effect.)
Display
r-------~
:·-----------------~ -+-4----,
~ co-- m·--CQ:·m=;;~,,~~:...;,::.
~u ~ u~Es_m!t*1~1_;1_j[H
o 1:
...
:GO aiD (][).: .,-Rura::t::o•G,TAL·Ex n:c:s 96::r(fN'Eo·a:oiGITAL :
·~ CEJ ~ [][]looLeviPROLOGIClix
24 •••-.-----------------.
1
,
DTS-HDMSTRL.PCM:
.: .~
. ........... _____ __H,. . . . ,.~:oiGITAL•PLusPROLOGICliz
. . . _. . . .
.
~o- --- -- - ------- -- -------- -- -- - ----- -
.:; -.-.;.-.;;.....
... ..
=~=:: =~=::
=~=::
=~=::
=~=::
=~=::
=~=::
=~=::
=~=::
I
•• •
•• •
•• •
•• •
•• •
•• •
•• •
.....=:•. .•:..... ..... ..... ..... ..... ..... ..........
=:•.
.•:
..... ..... ..... ..... ..... ..... ±!-..... ..... ..... ..... .....
,.,.!--.... •..
~~;.;.-.-- ;.;.;,;;.- -;;.;;.;.--;;.;.~;-
·' . •: =:•. . •:
•• •
••
•• •
••
••
-.-.;.-.;.- -.-•.-.~.-.-- ~;.-.;.-.-- ;;.~.-.~--- -.-.;.-.;.;- -.-;,;.;;.-- ~;.-.;.-.~
=:•. . •: =:•. .•: =:•. .•: =:•. . •: =:•. . •: =:•.
••
••
••
: ! ,.,,._._- ! ,.,,.!- -''!!'!!- -._.,.,, - _.,,.,' - !!'!!'.·- -
••
~
[j]
[I]
······;
I
:ANALOG:
-- ------ - - -· ·----~ - -- -- ------·
••
••
=~=::
=~=::
•• •
•• •
d~
=~::::·-· - -·
.
··~h
.•: =:•. . •: =:•. .•: =:•..: kHZ:
••
••
"'!'!!- -,.,.,! -·- - !!'!!'."- - !
•• •
....
I
''!!'!! : .. u ~
SPEAKER INDICATORS
Displays sound producing speakers.
USTENING MODE INDICATORS
Displays the current listening mode and audio source.
TUNING ·INDICATORS
Displays the status of the current radio broadcast.
AUDIO INPUT INDICATORS
Displays the audio input signal type of the currently connected external audio source.
[[]
(]]
SPEAKER LEVEL INDICATOR
Displays the speaker level.
RADIO FREQUENCY
INDICATORS
Displays the current radio frequency range.
[[J
MESSAGE DISPLAY
Informs you of the status of the receiver.
10
English
w
w
0
......
Rear Panel
!41
[I~
j_ i__l_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _----,...
I
til ~'~-'-~'-· ~·.·~~·~~·~· ~E:J~·~~~·~·~~'~·123~~~· ·~ "- ·- -']
i
,...-···------~--~·-··-····------·-· ___ _j
w
VIDEO IN JACKS
Receives the video signal from a video player (80/DVD, SAT, TV).
USB PORT
Can be only used for firmware upgrades.
HDMI OUT JACKS
Outputs digital video and audio signals simultaneously using an HDMI cable.
HDMIIN JACKS
Receives digital video and audio signals simultaneously using an HOM! cable.
VIDEO OUT JACK
Outputs the video signal to a monitors(TV, Projector etc).
FM ANTENNA JACK
Connect the FM antenna.
iPod JACK
Receives the audio/video signal from an iPod.
[]]
ONLY FOR SERVICE JACK
Used for the service repair.
(]]
AUDIO IN JACKS
Receives the audio signal from avideo player (BO/DVD, SAT, TV).
[1QJ
COMPONENT VIDEO IN JACKS
Receives the component video signal.
[ill
[j]J
l1]J
COMPONENT VIDEO OUT JACKS
Outputs the component video signal.
COAXIAL IN JACK (DIGITAL AUDIO IN)
Receives the digital coaxial audio signal.
~
[§]
LINE OUT JACKS
Outputs the analog audio signal to the external amplifier.
The digital signal output is not supported.
[1]
w
w
[]]
(]]
w
[ID
OPTICAL IN JACKS (DIGITAL AUDIO IN) Receives the digital optical audio signal.
SUBWOOFER AUDIO OUT JACKS Connect the subwoofers. (Active subwoofer only)
SPEAKERS OUT TERMINALS
Speaker connection terminals.
The front speaker and surround back speaker ports can be connected to a
speaker that supports bi-amplifying. For connecting to the bi-amplifier, refer
to page 19.
English
11
Getting Started
Remote Control
Tour of the Remote Control
•
A
-+--+--+--
TUNING ••
/CH
v
12
English
29
0
...&.
G)
CD
POWER BUTTON
Turns the receiver on/off.
(!)
TV BUTTON
To change to 1V mode, press the 1V button.
rn
~
:r
<C
en
,....
A)
~
CD
c.
AMP BUTTON
To change to AMP mode, press the AMP button.
NUMBER BUTTONS
Used to select a1V channel.
NEO: 6BUTION
Select the desired NE0:6 mode.
PROLOGIC BUTTON
Select the desired Dolby Pro Logic audio mode.
SKIP BUTTONS
Press to skip backwards or forwards on a connected DVD/8D player or iPod.
[[)
(I)
(!ID
(ill
[g)
G]J
G]
(!ID
G])
STOP/PLAY BUTTON
Press to stop/start playback on a connected DVD/8D player or iPod.
MUTE BUTTON
Mutes the sound of a connected device.
VOLUME CONTROL BUTTONS
Adjusts the volume of the selected device.
MOIST BUTTON
Select MONO or STEREO for radio broadcasts.
TONE BUTTON
You can adjust the bass and treble level.
SETUP/MENU BUTTON
Displays the SETUP menu.
UP/DOWN/LEFT/RIGHT BUTIONS
Used to navigate the menus.
RETURN BUTTON
Used to return to the previous menu from the SETUP menu.
FUNCTION SELECTOR BUTTONS
Used to select an input source.
GlJ
AV SYNC BUTTON
Used to select the Audio Delay Mode.
@)
ASC BUTTON
Used to set the Auto Sound Calibration function.
ITID
SUBWOOFER BUTTON
Used to select the Subwoofer.
(gQJ
INPUT SELECT,
TV SOURCE BUTTON
Toggles to find and select an input source.
Press to select a connected TV's video source.
@]
BD BUTTON
To change to 80 mode, press the 8D button.
~
DVD BUTTON
To change to DVD mode, press the DVD button.
(giD
SLEEP BUTTON
Used to set the Sleep Timer.
0
~
(!]
m
English
13
Getting Started
~
~
~
DIMMER BUTION
Adjusts the brightness of the display.
DSPBUTION
Used to select the SFE mode.
AUDIO ASSIGN BUTION
Toggles to select an input mode for the selected source.
SEARCH BUTION
Press to search backwards or forwards.
PAUSEBUTION
Pauses playback on a connected device.
TUNING/CHANNEL BUTIONS
Used to change the radio broadcasting frequency or TV channel.
S.DIRECT BUTION
Press to select S.DIRECT mode.
TUNER MEMORY BUTION
Used to set a preset radio frequency.
(@
INFOBUTION
Display information on the connected device currently being used.
@ID
ENTER BUTION
Used to select an item in the SETUP menu.
EXIT BUTTON
Exits the SETUP menu.
3D SOUND BUTION
Press to apply 3D Sound effect.
CROSS OVER BUTION
Press to adjust the crossover frequency.
(gZ)
~
~
@]
@]
~
@ID
@ID
14
English
Installing batteries in the Remote Control
* Battery size: AAA
••
•••
....
~NOTE
········ •••••
..
..
········
••
••
••
••
••
•
•
Follow these precautions to avoid leaking or cracking cells:
~
11
~
Place batteries in the remote control so they match the polarity: (+)to(+) and(-) to(-).
Assuming typical AVR usage, the batteries last for about one year.
Use the correct type of batteries. Batteries that look similar may differ in voltage.
Always replace both batteries at the same time.
Do not expose the batteries to heat or a flame.
Operation Range of the Remote Control
The remote control can be used up to approximately 23 feet/7 meters in a straight line. It can also be
operated at a horizontal angle of up to 30° from the remote control sensor.
SIIMSU118
ooooc{}ooo
C• ~~~ •) o o oo-o
-- ·-· ....
English
15
Connections
This section involves various methods of connecting the AV receiver to other external components.
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
Speaker Positioning
There are two methods for positioning the speakers.
When using Dolby Pro Logic liz, place the Surround Back Speakers in the FHL, FHR position and connect
them to SURROUND BACK/ FRONT HEIGHT terminal(s).
* Speakers are provided with model HW-07708 only. Model HW-0700 does not come with
speakers.
D
L, R, C, SW, SL, SR, SBL, SBR (Dolby Pro Logic llx)
L, R, C, SW, SL, SR, FHL, FHA( Dolby Pro Logic liz)
Position of AV Receiver
Place the AV Receiver on a dedicated stand or rack.
Subwoofer
e
The position of the subwoofer is not so critical. Place it anywhere you like.
Subwoofer function (HW-0770 5 only)
Active subwoofer with integrated 150W amplifier
provides rich bass sound.
• Connect the SW OUT terminal of the amplifier to the
INPUT terminal of the subwoofer speaker.
• Press the POWER button on the rear side of the
subwoofer to turn the power on.
• Using the subwoofer's VOLUME control, you can set the
desired bass level (See page 40 ~~setting the Speaker
Level to set the subwoofer level in the menu).
0
©
POWER
&ONIOFF
::::::=•··7c'
MAX
MIN
{Q)VOLUME
··.......··
Qo
INPUT
II
Front Speakers
80
Place these speakers in front of your listening position, facing inwards (about 45°) toward you.
Place the speakers so that their tweeters will be at the same height as your ears.
Align the front face of the front speakers with the front face of the center speaker or place them slightly in
front of the center speaker.
16
English
Center Speaker (9
It is best to install it at the same height as the front speakers.
You can also install it directly over or under the 1V.
Surround Speakers-~
Place these speakers behind. your listening position.
If there isn't enough room, place these speakers so they face each other.
Place them about 2 to 3 feet (60 to 90cm) above your ears, facing slightly downward.
Unlike the front and center speakers, the surround speakers are used to handle mainly sound effects and
sound will not come from them all the time.
Surround Back Speakers
00 (Using Dolby Pro Logic llx)
If you are using two rear center speakers, place them behind the listening position.
Place the surround back speaker about 2.3-3.3 feet (70 em to 1 m).
Front Height Speakers
0 G
(Using Dolby Pro Logic liz)
When using Dolby Pro Logic liz, place the Surround Back Speakers on the FHL, FHR position above the
front Land front R speakers at least 3.3 feet(1 m) above each one.
~NOTE
~
When you attach the speakers to the wall, make sure to fasten them tightly so they do not fall off.
Speaker Configuration
For the best surround-sound experience, you should connect seven speakers and a powered
subwoofer. The following table shows which channels you should use based on the number of
speakers you have.
2 speakers
3 speakers
4 speakers
5 speakers
7 speakers
7 speakers
(DPL llx)
(DPL liz)
G
G
• • • • • •
G
G
e
G
e
G
e
e
e
e
e
e
• • e• •
0
• •
~ NOTE
• No matter how many speakers you use, a powered subwoofer is recommended for powerful and solid bass.
11 If you place a speaker near your TV set, screen color may be distorted because of the magnetic field
generated by the speaker. If this occurs, place the speaker away from your TV set.
English
17
Connections
I
Connecting the Speakers
Connecting Speaker Wire
1. Loosen the knob by turning counterclockwise.
2. Insert the bare part of the wire into the hole in the side of each
terminal.
3. Tighten the knob by turning clockwise to secure the wire.
1.
FRONT (R) SURROJND (R) SJFRJJNJ 00< (R) SURfU.ND 00< W
3.
FRONT (L)
ACTIVE SUBWOOFER
Model HW-0700
AV Receiver
HW-0700
Model HW-D770S
AV Receiver
FRONT SPEAKER
CENTER SPEAKER
SURROUND SPEAKER
SURROUND BACK SPEAKER
ACTIVE SUBWOOFER
HW-0700
PS-FC770S
PS-CC770S
PS-RC770S
PS-BC770S
PS-AW730
~NOTE
X%
Speakers are provided with model HW-D770S only. Model HW-D700 does not come with speakers.
One Active Subwoofer is provided, if you would like to use another, purchase it from the retailer
where you bought the player and connect it to the other SUBWOOFER OUT Jack.
Keep the subwoofer speaker out of reach of children to prevent them from inserting their hands or
objects into the duct (hole).
Never touch speaker terminals while the power is on. Doing so could result in electric shock.
Make sure the polarities (+ and -) are correct.
If you want to use two active subwoofer speakers, connect both subwoofer speakers into the
SUBWOOFER OUT terminals in the rear panel.
When using Dolby Pro Logic liz, connect the Front Height speakers (FHL,FHR) to the Surround
Back Speaker terminals.
18
English
Connecting the Bi-AMP Speaker
Connect the tweeter (high range) port and woofer (low range) to the front port and surround back speaker
port respectively as appropriate. Then, you can use the bi-amplification feature that supports enriched high
range and base tones.
Bi-AMP Speaker R
Bi-AMP Speaker L
Tweeter
Tweeter
Woofer
Woofer
1. Connect the FRONT L connector (rear side of main unit) to the Tweeter port in the front left
speaker.
2. Connect the FRONT R connector (rear side of main unit) to the Tweeter port in the front right
speaker.
3. Connect the SURROUND BACK L connector (rear side of main unit) to the Woofer port in the front
left speaker.
4. Connect the SURROUND BACK R connector (rear side of main unit) to the Woofer port in the front
right speaker.
! CAUTION
If Bi-amp is active, you may encounter a restricted access if you have not removed the shorting bar
(like a jumper) in both tweeter and subwoofer ports in the front speaker.
Before you can use bi-amp, ensure that you use a speaker that supports bi-amplifying.
~NOTE
To enable the Bi-Amp feature, you must set 7.1 CHANNEL to Bi-AMP in SETUP menu. See page 38.
With the Bi-amp feature, you can use up to 5.1 channels for speaker output in the main unit.
English
19
Connections
Connecting External Devices/your TV via HOM I
HOM I is a digital standard interface for connection to such devices as a 1V, projector, DVD player, Blu-ray
player, set-top box and more.
HOM I removes any loss of signal from analog conversion, enabling you to enjoy video and audio sound
quality as it was originally created in the digital source.
By connecting through the HDMI(High-Definition Multimedia Interface) interface, you can play back digital
video and audio.
DVDor
Blu-ray Player
0
SAT
(Cable/Satellite/
Set-top box)
r:-~ ~-0
_"
Game console
or
HDTVTuner
(HDTV Terrestrial
Receiver)
.
'
Camcorder
]
HDMI OUT
~I'!
J l
l
•
SUB
J
(ARC)
• Using two HDMI OUT
jacks, you can connect two
TVs or projectors at the
same time.
••
i
ro~ft ~-~·---TV
G~} =
TV
TV
• Connect it if you want to use
Anynet+. (If connected TV support
ARC, it is not necessary to connect
the OPTICAL OUT.)
20
English
MAIN Jack
• Supports Anynet+ and ARC.
• Supports Full HD and 3D.
SUB Jack
• Does not support Anynet+ and ARC.
• When both Main and SUB are connected at the same time, output signal of SUB will be the same to that
of Main, which matches specifications of the 1V connected to the Main jack.
JACK
Anynet+
ARC
Resolution
30
MAIN
0
0
1080p
0
SUB
X
X
1080p
0
~NOTE
When a 3D TV is connected to the Main and a 2D TV is connected to SUB at the same time, both Main and
Sub output 30 signal and the TV connected to SUB will display nothing.
If your TV supports ARC function, connect to ARC support port of TV. (To enable ARC function for the TV
connected to SUB jack, a TV that supports ARC function should have been connected to the MAIN jack.)
High-bandwidth Digital Content Protection System (HDCP) support
To play digital contents through the HDMI connection, both the connected external device and 1V must
support High-bandwidth Digital Content Protection System (HDCP). This product supports HDCP.
Compatibility with a TV Supporting HDMI
A 1V with an HOM I jack.
Video/Audio
A 1V with a OVI-D jack (TV supporting HDCP)
Video
A 1V with a OVI-D jack (TV not supporting HDCP)
-
~NOTE
11
11
11
Audio from SACD discs will not be heard with this connection. To play a DVD disc whose copyright is
protected by CPPM, use a player supporting CPPM.
The quality of the audio output through the HDMI jack (sampling frequency and bit rate) may be limited by the
performance of the connected device.
Since HDMI connection supports both video and audio, you don't have to connect an additional audio cable.
English
21
Connections
HDMI Function
Using Anynet+ (HDMI-CEC)
Anynet + is a function that enables you to control other Sam sung Devices with your Samsung TVI s
remote control. Anynet + can be used by connecting this AV Receiver to a SAM SUNG TV using an
HDMI Cable. This is only available with SAMSUNG TVs and SAMSUNG AV Products that support
Anynet+.
1 . Connect the AV receiver to a Samsung TV with an HOM I cable. (See page 20)
2. Set the Anynet + function on your TV.
(See the TV instructions manual for more information.)
• You can operate the volume on the AV receiver by using Volume buttons on the TV remote
control.
To Turn on Anynet+
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches between INPUT and SETUP OFF.
2. Press the~ • buttons to select OPTION, and then press the ENTER button.
3. Press the~ • buttons to select HDMI SETUP, and then press the ENTER button.
4. Press the~ • buttons to select HOM I ANYNET+,and then press the ENTER button.
5. Press the~ • buttons to set ANYNET+to ON, and then press the ENTER button.
To exit setup mode
• Press the SETUP/MENU or EXIT button on the remote control.
SETUP OFF appears on the display and Setup Mode is exited.
~NOTE
If you use an HOM I cable to connect a Samsung TV to your AV Receiver, you can operate the AV
receiver using the TV's remote control. This function is available only in connection with Sam sung
TV and DVD player supporting Anynet + (HDMI-CEC).
Please check your TV for the ANYNET+ logo. If your TV has an ANYNET+ logo, then it supports
ai
the Anynet + function.
• When you are making Anynet+ connection, do not connect more than two AV receivers (Anynet+
installed). Otherwise, it can cause a malfunction.
t~
22
English
0
1\)
Connecting to your TV
'
"
...
...
~
VIDEO
IN
y
...
or
Ps
. ...
PR
COMPONENT
IN
OPTICAL
OUT
AUDIO
OUT
TV
Video Connection
If your television is equipped with Component Video inputs, connect a Component video cable (not supplied) from
the Component Video Output (PR, Ps and Y) jacks on the back of your AV Receiver to the Component Video Input
jacks on your 1V.
OR
Connect the Video cable (not supplied) from the VIDEO OUT (MONITOR) jack on the back of your AV Receiver to
the Video Input jack on your 1V.
Audio Connection
Connect the Digital Input (OPTICAL 3) on your AV Receiver to the Digital Output of the 1V.
OR
Connect AUDIO IN (1V) on your AV Receiver to the Audio Out of the 1V.
English
23
Connections
Connecting a DVD or BD(Biu-ray) Player
VIDEO
IN
COMPONENT
IN
Y
Pa
TV
Po
~m
t" or t"
. :.::-
--- .;:: : : :
I ;~~ ~·&;
'"'..,::"'
>..'0
(~J
~
(~
.
;~~i:~
c= ; r=::J z·= J
; : : : :.-----·· _; l
I
I
:
;-~
l 1" or lt-
!1"
:1--i <p~-l-:. ~
~
: 0
DIO
uT
:::::1
~~~:/
VIDEO
ouT
l
COMPONENT
ouT
or
!
-····------·······-;
i1"
i~ ~o~oc==::J~----~----"~:J
[Q]t:
__
OPTICAL
ouT
DVD or BD Player
J
Video Connection
Connect a Component video cable (not supplied) from the COMPONENT IN (BD/DVD) (PR, Ps and Y) jacks on the
back of your AV Receiver to the Component Video Output jacks on your DVD/BD player.
OR
Connect a Video cable (not supplied) from the VIDEO IN (BD/DVD) jack on the back of your AV Receiver to the
Video Output jack on your DVD/BD player.
Audio Connection
Connect the Digital Input (OPTICAL 1) on your AV Receiver to the Digital Output of the DVD/BD player.
OR
Connect AUDIO IN (BD/DVD) on your AV Receiver to the Audio Out of the DVD/BD player.
24
English
0
0
::J
::J
Connecting a Cable, Satellite or Set-top Box
CD
()
,...
VIDEO
IN
c:r
COMPONENT
IN
'• fff•
::J
TV
en
--
~·Nw
or
~
':
<
i
;,
i
1 ~6 ~·A~[OJ
~c:EO
0 0~ ~00
GUT
L
R
AUDIO
OUT
l
Y
Ps
PR
[":ooo_c:=J_:J
SAT(Cable/Satellite/Set-top box)
COMPONENT OPTICAL
OUT
OUT
or
J
Video Connection
Connect a Component video cable (not supplied) from the COMPONENT IN (SAT) (PR, Ps andY) jacks on the
back of your AV Receiver to the Component Video Output jacks on your SAT.
OR
Connect a Video cable (not supplied) from the VIDEO IN (SAT) jack on the back of your AV Receiver to the Video
Output jack on your SAT.
Audio Connection
Connect the Digital Input (OPTICAL 2) on your AV Receiver to the Digital Output of the SAT.
OR
Connect AUDIO IN (SAT) on your AV Receiver to the Audio Out of the SAT.
~NOTE
11
}I
Disconnect the power plug from the outlet if you will not use this unit for a long period of time.
If the cable/set-top box has only one audio output jack, connect it to either the right or left audio input jack of
the main unit. Connect the audio cable Is red plug to the red jack and white cable to the white jack.
English
25
Connections
Connecting a CD Player
•
• •
or
~
~
OPTICAL
OUT
COAXIAL
OUT
~ ~ 6)
(: I
CD Player
Audio Connection
Connect the Digitalin put (COAXIAL, OPTICAL1-3) on your AV Receiver to the Digital Output of the CD Player.
OR
Connect AUDIO IN (CD) on your AV Receiver to the Audio Out of the CD player.
~NOTE
Connect the audio cable's red plug to the red jack and white cable to the white jack.
If the CD player has only one audio output jack, connect it to either the right or left audio input jack of the
main unit.
If the CD player has only OPTICAL digital output jack, connect it to OPTICAL1 or 2 JACK of the main
unit. Please see Audio Setup at Page 36.
II
26
English
II
0
1\)
(')
0
Connecting Using the External Amplifier (Ex. Second Room)
::::J
::::J
(I)
This setup allows 7.1-channel playback in your main listening room and 2-channel stereo playback in
Second Room, with a same source in each room.
• Use an RCA audio cable to connect the AV receiver's LINE OUT UR jacks to an analog audio input
on your Second Room amplifier.
• Connect your Second Room speakers to the speaker terminals on your Second Room amplifier.
OJ
I
.
Install speaker
in sub space
AV
RECEIVER
Second Room
Connecting using the external amplifier
Install speaker in main space
,,------------------------------------,
I
I
I
\
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
, ___________________________________
,~
Second Room
~NOTE
•
•
•
•
•
Usually, the secondary amplifier is used in a second room.
Line Out only outputs analog signal.
Line Out does not provide the Volume Control.
The external amplifier with volume control (like AV Receiver or Pre-Main Amplifier) should be used.
The Volume can be controlled in the external amplifier.
English
27
....
(5'
0
::::J
en
Connections
Connecting an iPod
You can listen to audio from an iPod through the main unit. For iPod operation with your receiver, see
this page and pages 54 - 55.
1. Connect the iPod dock connector to the iPod jack on your reciever.
2. Place the iPod in the Dock.
• If you want to play a movie stored in your iPod player, you should set the player's TV Out option to
On before inserting it into the dock. See pages 54 -55.
3. Press the iPod button on the remote control.
• You can also use the INPUT SELECT on the main unit.
The mode switches as follows :
FM---+ TV---+ BD/DVD---+ SAT---+ GAME---+ AUX---+ CD---+ IPOD AUDIO---+ IPOD VIDEO
~NOTE
You must have the VIDEO (Monitor or TV) output connected to your TV to view iPod video. See
page 23.
11· Adjust
the volume to a moderate level before you connect your iPod and AV Receiver.
m When the unit is powered on and you connect an iPod, the unit will charge your iPod's battery.
~~ Make sure to connect the dock connector so that the label "SAMSUNG" faces upward.
28
English
Disconnecting an iPod
Follow the steps below to prevent damage to an iPod and data when disconnecting from your
AV receiver.
1. Use the INPUT SELECT on the main unit to switch to a mode other than IPOD AUDIO or IPOD
VIDEO.
OR
1. Turn off the AV Receiver.
2. Disconnect the iPod player from the iPod dock, or remove the iPod dock connector from the AV
receiver.
iPod/iPhone Models You Can Use with This Product
!ill
11
iPod touch (3rd generation)
iPod touch (2nd generation)
iPod touch (I st generation)
• iPod classic
o iPod with video
• iPod with dock connector
• iPod with Click Wheel
• iPod nano (5th generation)
m iPod nano (4th generation)
iW iPod nano (3rd generation)
~~~ iPod nano (2nd generation)
• iPod nano (I st generation)
iPhone 4
• iPhone 3GS
• iPhone 3G
m iPhone
~~
~NOTE
"Made for iPod" means that an electronic accessory has been designed to connect specifically to iPods and
has been certified by the developer to meet Apple performance standards.
• "Made for iPhone" means that an electronic accessory has been designed to connect specifically to iPhones
and has been certified by the developer to meet Apple performance standards.
• Apple is not responsible for the operation of this device or its compliance with safety and regulatory
standards.
11
iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
iPhone is a trademark of Apple Inc.
English
29
Connections
Connecting the FM Antenna
1 . Connect the FM antenna supplied to the FM ANTENNA terminal as a temporary measure.
2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall
or other rigid surface.
1
FM
~~
FM antenna (supplied)
~NOTE
Do not place the antenna cable close to the power cord. Keep it as far away as possible.
If you experience poor FM reception, use an external antenna.
Connecting AUX Components
·
You can connect external devices you use for a short time (camcorder, game console, mobile equipment,
etc.) to the front of this unit for convenience.
VIDEO
0
AUDIO
G
~mm
-~
L_;
AUXIN
___j
;
• •
VIDEO
OUT
30
English
AUDIO
OUT
Camcorder
Setup
For your convenience, you can set this AV receiver's features for the best use.
Before Using the AV Receiver
Turning On/Off
Connect the power plug to the outlet.
This unit will set to Standby mode.
Press the POWER button on the main unit for 2 seconds.
• This unit will be turned on.
• You can also turn the unit on/off by pressing the POWER button on the remote control.
Remote Control Functions
You can operate your AMP (this AV receiver)/ TV and BD(Samsung only)/DVD player with this remote
control. See pages 58- 59 for more details.
To Select a Function
Method 1
Press the IN PUT SELECT button on the remote control.
• Each time you press this button, FM ~TV~ BD/DVD ~SAT~
~ IPOD VIDEO will be selected in turn.
GAME~
AUX ~CD~ IPOD AUDIO
Method 2
Press the BD/DVD, SAT, GAME!TV, CD, iPod or TUNER button.
• You can directly select the desired function.
Home Menu
Use the HDMI cable to connect between main unit and
monitor. Press SETUP/MENU to display the "INPUT"
message on the display screen. You will see the OSD
menu in a few seconds.
~NOTE
The OSD menu will be displayed only if you use the
HOM I cable for the connection.
For using the OSD menus, refer to using the menus
on the display screen.
The OSD (On Screen Display) may change in this
product after you upgrade the software version.
English
31
Setup
Selecting Digitai/HDMI/Analog
You can listen to sound of analog, HDMI, optical input using this unit.
1. Press the INPUT SELECT button on the remote control to select a
desired function (BD/DVD, SAT, TV, CD, AUX). See page 31.
2. Press the AUDIO ASSIGN button on the remote control to select the
audio input source of the external device you have connected.
• Each time you press this button, the input mode changes as
follows:
• For BD/DVD function
n!,·n
i i n ilri T
r·,
u ,., 1
Li!t' L.'
DVD
nir"n
,-,nT
'-' r·
T ,-
'-' !l '-'
1
1 '-
s:=rr
:-:or
_, . -T:-,=·
-·-
• For SAT function
HD i'·1 I e
::;:=!T
• For TV function
----------------------------
1
I
I
I
DPT IC::
OCf'·- :
T.'jl!/
I !I·'-·
I
---------------------------~
• For CD function
,-,-,
'-·'-'
CDF: }f I F: L.
,-r,
n
11 ,,-, 1 ,-, ,L u ,_:,
LLI
n ' ·" n
011\r'
1 Jl_l.fl.
1,-, I ,-,,1'"11 ·,, n L u ._:,
• For AUX function
:=:u }{
nu ,., _T 1 1
1 1n 1111
-~
,-,It
~NOTE
m You can also change the input mode by pressing the AUDIO ASSIGN button on the front of your
AV Receiver.
• You can enjoy Dolby Digital or DTS if you connect the digital audio output jack of an external
audio component to the optical or coaxial digital audio input jack on the main unit.
• For the TV function, the TV ARC menu will be displayed only if an ARC-compliant TV is
connected.
32
English
Setup Menu Tree
Here's a quick look at how the setup menus are organized on your AV Receiver.
BD/DVD
··········································································:···>······························································:
OPTICAL 1; 2
COAXIAL
OPTICAL1, 2
COAXIAL
OPTICAL1, 2
COAXIAL
...................................................................... :..................................................................:
SAT
......................................................................... : ...................................................................:
CD
......................................................................... :........................................ ......................... :
,.
English
33
Setup
FRONT
LARGE
SMALL
CENTER
LARGE
SMALL
NONE
SURROUND
LARGE
SMALL
NONE
SURROUND BACK
LARGE
SMALL
NONE
FRONT HEIGHT
LARGE
SMALL
SUBWOOFER
YES
NO
60Hz, 80Hz, 100Hz, 120Hz, 150Hz, 180Hz, 200Hz
CROSSOVER
SURR.BACK
Plllz
81-AMP
FRONT LEFT
FRONT RIGHT
CENTER
SURROND LEFT
1 -30FT (1 foot steps) , default : 1OFT
SURROUND RIGHT
SURROUND BACK LEFT
FRONT HEIGHT LEFT
SURROUND BACK RIGHT
FRONT HEIGHT RIGHT
SUBWOOFER
FRONT LEFT
I
FRONT RIGHT
I
CENTER
SURROND LEFT
SURROUND RIGHT
-1 0 - +1OdB (1 dB step) , default : OOdB
SURROUND BACK LEFT
FRONT HEIGHT LEFT
SURROUND BACK RIGHT
FRONT HEIGHT RIGHT
SUBWOOFER
AUTO
move to 'Test Tone check Page"
MANUAL
~NOTE
• If Dolby Pro Logic liz is set to On, the Surround Back speaker (SBUSBR) is changed to the Front
Height Speaker (FHUFHR).
34
English
ON
0-7
ON
ON
ON
ON
1V
ON
AUTO
BYPASS
English
35
Setup
Audio Setup
Selecting a Source Device And Connection Jack (Digital Audio In)
Select the extemal devices you have connected to the receiver.
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches
between INPUT and SETUP OFF.
'i"hlnJl'T'
1 !'l!!'"u!
2. Press the ENTER button to select INPUT.
3. Press the ENTER button to select INPUT SELECTION.
4. Press the .A T buttons to select a desired jack.
• Devices switch as follows; BD/DVD, SAT, CD
~ NOTE
You can also use the SETUP, 1\,V, ENTER, RETURN
buttons on the front of your AV Receiver.
Setting the Speaker Size
Signal outputs and frequency response from the speaker will be adjusted according to your speaker
configuration and whether certain speakers are used or not.
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches between
INPUT and SETUP OFF.
2. Press the .A ~ buttons to select SPEAKER, and then press
the ENTER button.
CDCC)i./CD
._!!
L. ! l i
3. Press the .A ~ buttons to select SPK SIZE, and then press the
ENTER button.
4. Press the .A ~ buttons to select the speaker you want, and
then press the ENTER button.
• Each time you press the .A T buttons, FRONT~
CENTER ~ SURR ~ SBACK(DPLIIx) I FRONTH(DPLIIz) ~
~ SUBW ~ CROVR will be selected in tum.
5. Press the .A~ buttons to set the mode (LARGE, SMALL etc.)
for the selected speaker.
6. Repeat steps 2-5 to set the mode for each speaker.
36
English
CD
CD
I,
L. !
I,
- To exit setup mode • Press the SETUP/MENU or EXIT button on the remote control.
SETUP OFF appears on the display and Setup Mode is exited.
Setting the Speaker
SPEAKER ·
Possible Settings
Default Setting
FRONT (Front)
LARGE, SMALL
SMALL
CENTER (Center)
LARGE, SMALL, NONE
SMALL
SURR (Surround)
LARGE, SMALL, NONE
SMALL
SBACK (Surround Back)
LARGE, SMALL, NONE
SMALL
FRONTH (Front Height)
LARGE, SMALL
SMALL
SUBW (Subwoofer)
YES, NO
YES
CROVR (Crossover Frequency)
60, 80, 100,120, 150, 180, 200(Hz)
100Hz
•
•
•
•
•
•
LARGE : Select when using large speakers. You can listen to full range sound.
SMALL : Select this when using small speakers.
NONE: Select when no speaker is used.
YES (subwoofer) : Select when using the subwoofer speaker.
NO (subwoofer) : Select when not using the subwoofer speaker.
CROVR: Select the crossover frequency for the best bass response in your speakers.
~NOTE
• You can also use the SETUP, 1\,V, ENTER, RETURN buttons on the front of your AV Receiver.
• When the Front speaker is only set to LARGE, you can select LARGE of other speakers.
• When the Surround speaker is set to LARGE, you can select LARGE of SBACK (Surround Back)
speaker.
• When the 7.1 CHANNEL is set to Plllz, you can not select NONE of surround speaker and front
height speaker.
• You can also change the crossover frequency by using the CROSS OVER,<,> buttons on the
remote control.
English
37
Setup
Connection Setting For Surround Back
Settings for the surround back speaker differ depending on the connection method and installation site
of the speaker to be connected. You must configure the 7.1 CHANNEL settings according to the
connected speaker before you listen to music properly.
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches between
INPUT and SETUP OFF.
2. Press the .A. T buttons to select SPEAKER, and then press the
ENTER button.
3. Press the .A. T buttons to select 7.1 CHANNEL, and then
press the ENTER button.
4. Press the .A. T to select a proper setting for the surround back
speaker.
• SURR.BACK: Select this if you want to install the surround
back speaker in the default settings. With this setting, you can
enable the Dolby Pro Logic llx mode.
• PLIIz: Select this if you want to install the surround
back speaker in the top front corner. With this
setting, you can enable the Dolby Pro Logic liz
mode.
• BI-AMP : Select this if you want to connect the
Bi-Amp compliant speaker to the surround back
port. With this setting, you can enable the Bi-Amp
feature.
v
~NOTE
• Depending on the 7.1 CHANNEL settings, the surround back speaker or front height speaker
menus may not be activated or may differ in the speaker menu: SPEAKER SIZE, SPEAKER
LEVEL, SPEAKER DISTANCE.
• Depending on your setting, you may not use different features simultaneously. If you set SURABACK, for instance, you cannot use the following features: Plllz and 81-AMP.
38
English
Setting the Speaker Listening Distance
If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of
the audio signals from the center and surround speakers.
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches between
INPUT and SETUP OFF.
CDCOI./CD
_II
Lllll.L.II.
2. Press the A T buttons to select SPEAKER, and then press
the ENTER button.
3. Press the A T buttons to select SPK DISTANCE, and then
,- ,-, I J'
press the ENTER button.
,::r ,-- (\
4. Press the A T buttons to select the speaker you want.
• Each time you press the AT buttons, F.L 7 F.R7 CEN 7
S.L 7 S.R 7 SBL 7 SBR 7 S.W will be selected in turn.
5. Press the ~ ..,.. buttons to set the Speaker Distance.
• For the FRONT LEFT, FRONT RIGHT, CENTER, SURR.
LEFT, SURR. RIGHT, SURRBACK.LEFT,
•,
SURRBACK.RIGHT and SUBWOOFER Speakers,
• .. ..
you can set the distance from the speaker to
listening position between 1ft- 30ft (0.3-9.0m) in
intervals of 1ft (0.3m).
~
;-
,.••
'
,-, - ,- T ,-, J; lr- r·
U _1 .::r 1 r-1 I '11 '- C
I
L
I
i!Tr-r -!hli
I,-- 1 U.
!' i
:r
' • l-, ·'" .. •
'•
~· ·~~
•
'
•
• ; ~~
•
~~
"'
•
\
""' ~
:1 :f,
~ •,
v'
.. {
10FT
...
I
•
.:: .<:
1>
10Ft'
10Pr
•
- Setting Speaker Distance -
Set the distance from the speaker to listening position in intervals of 1ft(0.3m).
• F. L (front left) : 1ft - 30ft
• SW (subwoofer) : 1ft - 30ft
• F.R (front right) : 1ft - 30ft
• SBL (surround back left) : 1ft - 30ft
• S.L (surround left) : 1ft - 30ft
• SBR (surround back right) : 1ft - 30ft
• S.R (surround right) : 1ft - 30ft
• FHL (front height left) : 1ft - 30ft
• CEN (center) : 1ft - 30ft
• FHR (front height right) : 1ft - 30ft
~ NOTE
If the listening position is beyond the range of the speaker distance setup, set the speaker
distance to the maximum.
If Dolby Pro Logic liz is set to On, the Surround Back speaker (SBUSBR) is changed to the Front
Height Speaker (FHUFHR).
English
39
Setup
Setting the Speaker Level
You can set the balance and level of speakers.
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches between
INPUT and SETUP OFF.
2. Press the .AT buttons to select SPEAKER, and then press
the ENTER button.
3. Press the .A T buttons to select SPK LEVEL, and then press
the ENTER button.
4. Press the .A T buttons to select the speaker you want.
• Each time you press this button, F.L-? F.R-? CEN-? S.L-?
S.R -? SBL-? SBR -? S.W will be selected in turn.
f
:-· i ;"i-"i
L.i:. i:' f:.:.L.
buttons to set the Speaker Level mode.
• You can adjust it from -10 to+ 1OdB in 1 step increments.
• The sound gets quieter at -1 OdB and louder at
+IOdB.
5. Press the
<IIIII
~
.i.
'
-,
;
; ;
-
·I
- Setting Speaker Level • F.L (front left) : -10- + IOdB
• SW (subwoofer) : -1 0 - +1OdB
• F.R (front right) : -10 - +1OdB
• SBL (surround back left) : -1 0 - +1OdB
• S.L (surround left) : -1 0 - +1OdB
• SBR (surround back right) : -1 0 - +1OdB
• S.R (surround right) : -10 - +1OdB
• FHL (front height left) : -10 - +1OdB
• CEN (center) : -1 0 - +1OdB
• FHR (front height right) : -10- +1OdB
~ NOTE
• If Dolby Pro Logic liz is set to On, the Surround Back speaker (SBUSBR) is changed to the Front
Height Speaker (FHUFHR).
• You can also change the subwoofer level by using the SUBWOOFER, <. >buttons on the remote
control.
40
English
Setting the Test Tone
Use the test tone to check the speaker connection status or level.
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches between
INPUT and SETUP OFF.
2. Press the A ,. buttons to select SPEAKER, and then press
the ENTER button.
3. Press the A,. buttons to select TEST TONE, and then press
the ENTER button.
4. Press the A ,. buttons to select the option you want, and then
,- n ,- ,-,; ,· r ,-,
:::' r· c. n r'. c rr.
T
nhil-
1 ,_,,.t!C
press the ENTER button.
• AUTO : Test signal will be automatically output as follows;
F.L -7 CEN -7 S.W -7 F.R -7 S.R -7 SBR -7 SBL -7 S.L.
- During test tone output, press the .A. 'f' buttons to adjust the
speaker output level from -10 to+ 10 dB by 1 step.
• MANUAL : Enables you to adjust the output level of the
speaker manually.
1) Press the ENTER button to select the speaker
you want.
Each time you press the ENTER button, F.L -7
CEN -7 S.W -7 F.R -7 S.R -7 SBR -7 SBL-7 S.L
will be selected in turn.
41'1.
..
Oclf
2) Press the .&. ,. buttons to set the Test Tone
mode you want.
You can adjust the speaker output level from -10
to +1OdB by 1 step.
The sound gets quieter at -1 OdB and louder at
+10dB.
- Test Tone Output •
•
•
•
F.L (front left) : -10 - +1OdB
F.R (front nght) : -10 - + 1OdB
S L (surround left) : -1 0 - +1OdB
S.R (surround right) : -10- + 1OdB
• CEN (center) : -10- +10dB
• S.W (subwoofer) : -10 - +1OdB
• SBL (surround back left) : -1 0 - +1OdB
• SBR (surround back right) : -1 0 - +1OdB
- To stop test tone • Press the SETUP/MENU button once.
SETUP OFF appears on the display and test tone stops.
~ NOTE
In the Dolby Pro Logic liz mode, test signal will be automatically output as follows: F.L -7 FHL -7
CEN -7 S.W -7 FHR -7 F.R -7 S.R -7 S.L.
English
41
Setup
Setting Dolby Pro Logic Mode
This mode provides up to 7.1 channel sound from 2 channel sources, or provides 7.1 channel sound
from 5.1 channel sources for music or movie mode.
Press the PROLOGIC button on the remote control.
•
•
•
•
•
•
MOVIE: Adds realism to the movie soundtrack.
MUSIC : Provides up to 7.1 channel surround sound for digital, analog or existing stereo sources.
GAME :Enhances the excitement of the game's sound.
MATRIX : You will hear up to 7.1 channel surround sound.
PL (Pro Logic): You will experience a surround effect with 5.1 channel surround sound.
OFF : Output the original signal as it is without applying the sound field effect or any other sound
effect.
Surround Setup
Setting Dolby Pro Logic llx
This function works only in Dolby Pro Logic llx MUSIC mode.
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches between
INPUT and SETUP OFF.
2. Press the • ~buttons to select SURROUND, and then press
the ENTER button.
3. Press the • ~ buttons to select DPLIIx, and then press the
ENTER button.
4. Press the • ~ buttons to select the option you want, and then
press the ENTER button.
• PANORAMA : Press the • ~ buttons to select ON or OFF.
(This mode extends the front stereo image to include the
,-, ,-, it f ,-, ,-, ,-, il ri ,-,
-,,-··r-·
surround speakers for an exciting . wraparound .. effect with
r· r·r ' ·,, ,_, rr. r·r 1•r r·r :_, ,... r·
side wall imaging.)
• DIMENSION: Press the .,... ...,. buttons to set from -7 to 7.
(Incrementally adjusts the sound field (DSP)from the front or surround.)
• C- WIDTH : Press the .,... ...,. buttons to set from 0 to 7.
(This sets the width of the center sound image. The higher the setting, the less sound comes
from the center speaker.)
~NOTE
PANORAMA, DIMENSION and CENTER WIDTH settings are enabled only if the Dolby Pro Logic
Mode is set to MUSIC.
• You cannot use Dolby Pro Logic llx mode for multi channel signals such as Dolby Digital, Dolly
Digital +, Dolby true HD, DTS, DTS-HD Master Audio.
• Pro Logic works only for PCM audio signals with sampling frequencies of 32KHz, 44KHz or
48KHz.
• When Dolby Pro Logic liz is set ON, Dolby Pro Logic llx can not be used.
fi
42
English
Setting NE0:6 Mode
You can play back 2 channel sound over 5.1 or 7.1 channels when enjoying music or a movie.
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches between
INPUT and SETUP OFF.
2. Press the • ~buttons to select SURROUND, and then press
the ENTER button.
3. Press the ~ T buttons to select DTS NE0:6, and then press
the ENTER button.
4. Press the ENTER buttons to set the C-IMAGE mode you want.
Press the ..._ ~ buttons to set the C-IMAGE from 0 to 5.
This parameter adjusts the center image through the front and
center speakers. 5 is the wider.
lc:r::;
11
11
Using NE0:6 Mode
Press the NE0:6 button on the remote control.
• MUSIC : When listening to music, you can experience sound
effects as if you are listening to the actual performance.
• CINEMA : Adds realism to the movie soundtrack.
• OFF : Output the original signal as it is without applying the sound field effect or any other sound effect.
~NOTE
NE0:6 works only for 2-ch audio signals with sampling frequencies of 32KHz, 44KHz or 48KHz.
Setting EX/ES Mode
When surround back speakers are connected, you can listen to 7.1 multi-channel sound using the built -in
Dolby Digital Surround EX or DTS ES decoder. This function works when a Dolby Digital or DTS source
(such as a DVD player) is input, and does not work with L.PCM and Dolby Digital2 channel sources.
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches
between INPUT and SETUP OFF.
2. Press the • ~ buttons to select SURROUND, and then press
the ENTER button.
3. Press the ~ T buttons to select EX/ES, and then press the
ENTER button.
4. Press the ~ T buttons to set the EX/ES mode you want.
• AUTO : If the unit receives an audio signal that it can
recognize, it will select an optimal decoder for playback in
7.1 channels.
~~ cttsEs
If the amplifier does not recognize the audio signal, it will not
play in 7.1 channel automatically.
E~ }f / E~ ::;
Fi L: TCi
• OFF : Dolby Digital Surround EX I DTS ES decoder will not
be used for playback.
• ON : Dolby Digital or DTS signal will be played in 7.1 channel using Dolby Digital Surround EX I
DTS ES decoder.
~: : x: / E::::
I
I
~NOTE
~
You cannot use DTS-ES without surround back speakers connected.
English
43
Setup
Other Settings
Audio Sync
Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio
delay time to match the video.
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches
between INPUT and SETUP OFF.
2. Press the .A T buttons to select OPTION, and then press the
ENTER button.
3. Press the .AT buttons to select AUDIO SYNC, and then
press the ENTER button.
l
ICPT I CI'·,J
IFiUDIC
buttons to set the AUDIO SYNC Delay Time.
4. Press the
• You can adjust it from 0 to 240MS in 1OMS steps.
-0111111
...,.
:_::··· i···
Tone Control
This will enable you to adjust the bass and treble level.
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches between
INPUT and SETUP OFF.
IGF'TIGI\i
2. Press the • T buttons to select OPTION, and then press the
ENTER button.
3. Press the .A T buttons to select TONE CONTROL, and then
press the ENTER button.
4. Press the .A T buttons to select TONE, and then press, the
ENTER button.
ITni··.iF
I
·-
••
· -. . .
5. Press the .A T buttons to select ON or OFF you want, and then I
press the ENTER button.
L-:-_r_C_U!_.~:_::_:_ _ _ _L_li_···_i··_·- - ~
• If it is set to TONE OFF, the Tone Control function will be
disabled.
6. Press the .A T buttons to set the Tone Control mode you want.
buttons to set from -6 to 6.
• BASS &TREBLE: Press the
• Each time you press this button, TONE -7 BASS -7 TREBLE will be selected in turn.
• You can adjust it from -6 to +6dB by 1 step.
• The sound gets quieter at -6d8 and louder at +6d8.
-0111111
...,.
~NOTE
~
The Tone Control function can be applied to the front channels only.
44
English
MP3 Enhancer
This also helps enhance your sound experience (ex. mp3 music). Use this if you want to hear better
sound from a low quality mp3 source.
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches
between INPUT and SETUP OFF.
Ii_!,-.i•••'.-. .!., .l !_l hi
T ,-. '•
i
2. Press the • ~ buttons to select OPTION, and then press the
ENTER button.
3. Press the • ~ buttons to select MP3 ENHANCER, and then
press the ENTER button.
4. Press the •
~
li'·'!P
. .. :::
-
buttons to select ON or OFF.
Smart Volume
This will regulate and stabilize the volume level against a drastic volume change when changing
channels or during a scene transition.
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches
between INPUT and SETUP OFF.
IoPT I Ci'·,i
2. Press the • ~ buttons to select OPTION, and then press the
ENTER button.
3. Press the • ~ buttons to select SMART VOLUME, and then
press the ENTER button.
4. Press the •
~
buttons to select ON or OFF.
English
45
Setup
Auto Calibration Setup
By setting the calibration just once when you relocate or install the unit, you can have the unit
automatically recognize the distance between speakers, levels between channels, and frequency
characteristics to create a 7.1-channel sound field optimized for your environment.
-Before Setting1. Plug the ASC microphone into the ASC MIG jack.
2. Place the ASC microphone at the listening position.
3. Press the ASC button on the front panel, and then press the ENTER button.
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches between
INPUT and SETUP OFF.
2. Press the A..- buttons to select OPTION, and then press the
ENTER button.
3. Press the .&..- buttons to select AUTO CALIBRATION, and
then press the ENTER button.
4. Press the A...- buttons to select MEASUREMENT, and then
press the ENTER button.
• To create the optimal 7.1 channel sound field, the selections
are in the following sequence:
L -+ C -+ R -+ SR -+ SBR -+ SBL -+ SL-+ SW
• MODE ON: The auto calibration mode is set to on.
MODE OFF : The auto calibration mode is set to
off.
To cancel the Auto Calibration setup.
This will be automatically reverted if you
press the RETURN button.
• If auto calibration error occurs, see "Auto
Calibration Error List" on page 61.
46
English
~NOTE
Setting the calibration takes about 3 minutes.
Because the volume level of the tone is fixed during the Auto Calibration Setup, you cannot adjust
the volume using the volume control.
If the ASC microphone is disconnected during the Auto Calibration Setup, the setup will be
canceled.
You can also press the ASC button on the remote control to use this function.
If Dolby Pro Logic liz is set to ON, the selection are in the following sequence:
FL 7 CEN 7 FR 7 SR 7 FHR 7 FHL 7 SL 7 SW.
DRC Setup
You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.
DRC compresses the audio to make the loudest sounds quieter and the quietest sounds louder.
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches between
INPUT and SETUP OFF.
2. Press the • T buttons to select OPTION, and then press the
ENTER button.
3. Press the • T buttons to select DRC, and then press the
ENTER button.
4. Press the • T buttons to set the DRC you want.
• AUTO : The Dynamic Range Control will be set automatically
based on the information provided by the Dolby TrueHD
Soundtrack.
• MIN : Sets DRC effect to minimum.
• STD : Sets DRC effect to standard.
• MAX : Sets DRC effect to maximum.
I
Dual Mono Setup
Dual mono programs have two independent mono channels.
You can use this function when dual mono programs are played.
When you use this function, select audio channels CH 1, CH2 or both Channel.
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches between
INPUT and SETUP OFF.
2. Press the • T buttons to select OPTION, and then press the
ENTER button.
3. Press the • T buttons to select DUAL MONO, and then press
the ENTER button.
4. Press the • T buttons to select the DUAL MONO option you
want.
• CH1 : Channel1 is heard only.
• CH2 : Channel 2 is heard only.
• BOTH: Both channels are heard from front speakers.
i-Ii i!-!i
!_I!_I('"JL.
English
47
Setup
HDMI Setup
Use this if you want to receive audio from HOM I connected external devices.
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches between
INPUT and SETUP OFF.
2. Press the • T buttons to select OPTION, and then press the
ENTER button.
3. Press the • T buttons to select HDMI SETUP, and then press
the ENTER button.
4. Press the • T buttons to set the HOM I Setup mode you want,
and then press the ENTER button.
5. Press the • T buttons to set you want.
• AUTO SYNC: ON, OFF
The AV receiver can be set to automatically correct any delay
between the video and the audio, based on the data from the
connected TV.
- ON : HDMI Sync is enabled.
- OFF : HDMI Sync is disabled.
Ii···l Dl'·1 I
r;
I,==,=
: : T,=-;
.. ··-·=-·.:..
-·
• HDMI AUDIO: AVR(Audio Video Receiver), TV
This preference determines whether audio received at the HDMIIN is output by the HOM I OUT.
If you want to listen to audio from an HOM I connected external device through your HOM I
connected TV s speakers, set it to TV. Otherwise, leave it on AVR to listen to audio from the NV
receiver.
- AVR: HDMI audio is not output
-TV : HDMI audio is output
• HDMIANYNET+:ON,OFF
Anynet + is a function that enables you to control other Samsung Devices with your Samsung
TV S remote control.
- ON : Anynet + is enabled.
- OFF : Anynet + is disabled.
1
1
• ARC : AUTO , OFF
If you use the HOM I cable to connect between HOM I IN of an Audio Return Channel-compliant
TV and HOM I OUT (ARC) of the main unit, you can listen to the TV sound through the main unit
connected speaker without the further connection.
- AUTO : The audio signal from the TV can be sent to the HOM I OUT of the main unit.
- OFF : Turn TV ARC funtion off.
~NOTE
• HDMI Audio is enabled only if both the HDMIINPUT and HDMI OUT are connected properly and
working normally.
• HOM I Sync function works only if your HOM I compatible TV supports this function.
• If HDMI ANYNET+ is set to OFF, TV ARC will be set to OFF accordingly that cannot switch to
AUTO.
• The ARC function will be active only via the HOM I OUT terminal.
48
English
en
([)
......
Video Convert Setup
c::
"0
You can convert the incoming composite or component video signal into a maximum quality of the
connected 1V if you output the converted video via HOM I OUT.
1. Press the SETUP/MENU button on the remote control.
• Each time the button is pressed, the mode switches between
INPUT and SETUP OFF.
leFT ICi'·,!
2. Press the • • buttons to select OPTION, and then press the
ENTER button.
3. Press the • • buttons to select CONV. VIDEO, and then press
the ENTER button.
4. Press the • • buttons to select BYPASS or AUTO.
:E~~;:::E~~~i~J~~~~f~;::~~~~;~:::o~:e0::~:~ing I
CDl\11/ ' Ei Y"P ;=i
~; ~;
in the maximum resolution that the connected 1V supports.
Video conversion flow according to the connected port
As shown in the illustration, if the unit's HOM I Out is connected to a 1V or monitor, the analog video
source (composite or component) from the video device is processed for up-conversion automatically
for HDMI output.
If connected to a 1V or monitor through Composite or Component ports, corresponding analog signal
will be output respectively, without any conversion. In case if the unit and video source device is
connected in multiple methods (HDMI, Component and Composite video) at the same time: Video
input signal is automatically selected in the order of Component Video __. Composite Video.
";==
'
.
. l -;;:. ""•i~;.~~~J\
:·1;
~-:- 1•
~
· ·.
. .. .. _I :
TV
_.,~;9~~~-i
_ !:'1"'1
"> t··~·OOcCiii!O'~
---------c:::=:-
Output
Signal
Input
Signal
HDMIOUT
HDMIIN
HDMIIN
e
.
'
~
'V!JY
COMPONENT OUT
COMPONENT IN
VIDEO OUT
VIDEO IN
COMPONENT IN
VIDEO OUT
VIDEO IN
~NOTE
~~
[$
This enables upconverting up to a quality of 1080p.
Auto conversion is not applied to a video source incoming from HDMIIN port.
English
49
Operation
Using the Surround Modes
Using the AUDIO EFFECT Button On the Front of the Main Unit
Selecting the DPLIIx mode
1. Press the AUDIO EFFECT button to select DPLIIx mode.
• Each time you press this button, PROLOGICII x -7 n:C:Ei -7 I!W=J.ill;J;I -7 3D SOUND will
be selected in turn.
2. Press the <, > button.
• Each time you press the<,> button, MUSIC -7 GAME -7 MATRIX -7 PL -7 PL OFF -7
MOVIE will be selected in turn.
• If you turn Dolby Pro Logic liz on, HEIGHT -7 PL OFF will be selected in turn.
• You can also select the DPLIIx mode by pressing the PROLOGIC button on the remote control.
Selecting the NE0:6 mode
1. Press the AUDIO EFFECT button briefly to select NE0:6 mode.
• Each time you press this button, PROLOGICII x -7 n:C:Ei -7 ....
, r'tW,!jl""''':t:~:il"'r'''ll......
;J;--1-7 3D SOUND will
be selected in turn.
2. Press the <, > button.
• Each time you press the<,> button, MUSIC -7 CINEMA -7 OFF will be selected in turn.
• You can also select the NE0:6 mode by pressing the NEO: 6 button on the remote control.
Selecting the DSP mode
1. Press the AUDIO EFFECT button to select DSP mode.
• Each time you press this button, PROLOGICII x -7 n:C:Ei -?l!rJ=J.iiJ;J;I-7 3D SOUND will
be selected in turn.
2. Press the <, > button.
• Each time you press the <, > button, STEREO -7 HALL 1-7 HALL 2 -7
J.CLUB -7 CHURCH -7 ROCK -7 CLASSIC -7 LIVE -7 GAME -7 MOVIE -7 CONCERT -7
STADIUM will be selected in turn.
• You can also select the DSP mode by pressing the DSP button on the remote control.
Selecting the 3D SOUND mode
1. Press the AUDIO EFFECT button to select 3D SOUND mode.
• Each time you press this button, PROLOGICII x -7 n:C:Ei -7 I!,!J#J.ill;J;I -7 3D SOUND will
be selected in turn.
2. Press the <, > button.
• Each time you press the<,> button, 3D SOUND ON -7 3D SOUND OFF will be selected in turn.
• You can also select the 30 SOUND mode by pressing the 3D SOUND button on the remote control.
~NOTE
~~a·
The 3D sound effect will not be available for Dolby TrueHD, Dolby Digital Plus, DTS-HD Master
Audio and DTS-HD High Resolution Audi9.
You cannot use Dolby Pro Logic llx mode for Analog multi channel signals, LPCM multi channel
signals from HDMI, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio and DTS-HD High
Resolution Audio.
Pro Logic works with the audio signals with sampling frequencies of 32KHz, 44KHz or 48KHz.
The 3D sound effect will not be available for FM.
50
English
Using the S.DIRECT Button
Output the original signal as it is without applying the sound field effect or any other sound effect.
Press the S.DIRECT button.
~NOTE
• The screen will display "DIRECT" instead of "S.DIRECT".
Input Signal and Surround Chart
o =active, -=inactive
Output Channel
Input Signal
Surround Mode
Display Information
UR
c
SL
SR
Dolby Digital
0
0
0
-
0
Dolby Digital EX
0
0
0
0
0
Digital + Dolby Digital
Digital tDolby Digital EX
L, C, R, SL, SR, SW
L, C, R, SL, SR ,SBL, SBR, SW
Dolby Digital +Prologic llx
0
0
0
0
0
Digital + Dolby Digital +Prologic llx
L, C, R, SL, SR ,SBL, SBR, SW
Dolby Digital +Prologic liz
0
0
0
0
Digital + Dolby Digital +Prologic liz
Dolby Digrtal Plus
Dolby Digital Plus
0
0
0
0
Digital + Dolby Digital Plus
Dolby TrueHD
Dolby TrueHD
0
0
0
0 (Height)
0
0
0
Dolby TrueHD
DTS (5.1-ch)
DTS Surround
0
0
0
-
0
DTS
DTS-ES
DTS Digital +Prologic llx
0
0
0
0
0
DTS +Prologic lix
DTS Digital +Prologic liz
0
0
0
0 (Height)
0
DTS +Prologic liz
DTS-ES
0
0
0
0
0
DTS ES .
DTS 96/24
0
Q.
0
-
0
DTS 96/24
DTS-HD Master Audio
0
0
0
0
0
DTS-HD MSTR
L, C, R, SL, SR, SW
L,C,R,SL,SR,SBL,SBR,SW
DTS-HD High Resolution
0
0
0
0
0
DTS-HD
L,C,R,SL,SR,SBL,SBR,SW
Multi-Channel
0
0
0
0
0
Digital + LPCM
L,C,R,SL,SR,SBL,SBR,SW
Multi-Channel
0
0
0
0(Height)
0
Digital +LPCM
L, C, R, SL, SR, H, SW
Stereo
0
-
-
-
0
Digital t LPCM
L,R,SW
L, C, R, SL, SR ,SBL, SBR, SW
L, C, R, SL, SR, H, SW
Dolby Digital
Dolby Digitital EX
DTS 96/24
DTS-HD
LPCM Multi-Channel
2-ch PCM
Analog 2-ch
SBL
SBR
SUBW
Signal Format
Prologic lix
0
0
0
0
0
Digital t LPCM +Dolby Digital +
Prologic lix
Prologic liz
0
0
0
0(Height)
0
Digital t LPCM t Dolby Digital t
Prologic liz
NE0:6
0
0
0
0
0
SFE
0
0
0
0
0
Stereo
0
-
-
-
Prologic lix
0
0
0
0
Channel Status
L, C, R, SL, SR, H, SW
L, C, R, SL, SR ,SBL, SBR, SW
L,C, R,SL,SR,SBL,SBR,SW
L, C, R, SL, SR, SW
L,C,R,SL,SR,SBL,SBR,SW
L, C, R, SL, SR ,SBL, SBR, SW
L,C, R,SL,SR,SBL,SBR,SW
Digital + LPCM +DTS +NE0:6
Digital +LPCM +LIVE SURR
L,C, R,SL,SR,SBL,SBR,SW
0
Analog
0
Analog + Dolby Digital +Prologic llx
L, R, SW
L,C,R,SL,SR,SBL,SBR,SW
L,C,R,SL,SR,SBL,SBR,SW
Prologic liz
0
0
0
0 (Height)
0
Analog + Dolby Digital +Prologic liz
NE0:6
0
0
0
0
0
Analog + DTS NE0:6
L,C,R, SL,SR,SBL,SBR,SW
SFE
0
0
0
0
0
Analog + LIVE SURR
L,C, R,SL,SR,SBL,SBR,SW
• UR : front speaker (left/right)
C : center speaker
SUSR : surround speaker (left/right)
SBUSBR : surround back speaker (left/right)
H = FHUFHR: front height speaker (left/right)
SW : subwoofer
L,C,R,SL,SR,H,SW
• LIVE SURR : LIVE SURROUND
English
51
Operation
~NOTE
m
m
Channel status displays are dependent on the speaker configuration.
SFE mode works with 2-ch signals.
If Dolby Pro Logic liz is set to On, the Surround Back speaker(SBUSBR) is changed to the Front
Height Speaker(FHUFHR), Dolby true HD, Dolby plus, DTS-HD Audio ,SFE and NE0:6 will be
output 5.1 channel.
ProLogic llx and ProLogic liz works only audio signals with sampling frequencies of 32KHz,
44KHz or 48KHz.
Using the SUBWOOFER button
You can set the subwoofer Level.
1. Press the SUBWOOFER button.
~ buttons to select Subwoofer LEVEL under the
Display with S.W. (The display disappears automatically.)
2. Press the
<1111111
lc
··-:
1
! u II;
..
..I
- Setting the Subwoofer Level• SW (Subwoofer): -10 ~ +1OdB
Listening to the Radio
You can listen to the radio by using either automatic or manual tuning.
1. Press the IN PUT SELECT button on the remote control to select FM.
2. Select a frequency (radio broadcast).
• Preset tuning :
Press the~,~ buttons on the remote control to select the preset frequency.
• Manual tuning 1 (Automatic tuning):
Press and hold the TUNING/CH ( V, A ) buttons on the remote control to automatically tune in
a frequency.
• Manual tuning 2 :
Press the TUNING/CH ( V ,A) buttons on the remote control to increase or decrease the
frequency step by step.
~NOTE
bTI
You can also use the SELECT (V,A) button on the main uint to change the radio frequency.
52
English
To Listen in Mono/Stereo
Press the MOIST button on the remote control.
• Each time you press this button, STEREO or MONO will be selected in turn.
• If you select MONO in an area with weak reception, it will help to reduce noise.
• This function works only with the remote control.
Presetting Radio Stations
You can preset up to 15 FM stations.
E.g.: Setting station FM 89.1 0 in preset 2.
1. Press the IN PUT SELECT button on the remote control to
select FM.
2. Press the TUNING/CH ( V, 1\ ) buttons on the remote control
to select 89.1 0.
• Refer to step 2 above to tune in automatically and manually.
3. Press the TUNER MEMORY button on the main unit.
• You can also use the TUNER MEMORY button on the
remote control.
• Tuner number will blink on the display.
4. Press the TUNING/CH ( V, 1\ ) buttons on the remote control
to select preset 2.
• You can select from presets 1 to 15.
5. Press the TUNER MEMORY button on the main unit.
• Tuner number will disappear and station 89.10 will be saved
in preset 2.
6. To preset other stations, repeat steps 2 to 5.
ij·1 c: :l I E~
i-· I!;!
r·,.
i
CD CD CD IXI@.§!l
CID c:E IE
ClD
i-illi
r· ,·~
CD CD CD
,-,,-,
ANALOG
il-!
Ci:i.
ji_i
i-,,-,
ii-i
MHZ
IXJl2@l
GO c:E CE
CID
i
i
ANALOG
hli
r·i-· ,.,
C1:1.
J i_)
MHZ
CD CD CD IXI@.§!l
Ciil CE
em
CID
;:::_I
i-· hri
r· ,.,
,-,i-1
Ci:l.
ANALOG
ii-i
i I_!
MHz
To Listen to Preset Station
• Press the TUNING MODE button to select PRESET and press the SELECT ( V, 1\ ) buttons.
English
53
Operation
Using an iPod
You can enjoy playback of your iPod using the supplied remote control.
Listening to Music (iPod audio function)
You can play music files stored in the iPod player by connecting it to the AV
receiver.
1. Connect the iPod dock connector to the iPod jack on the AV Receiver.
2. Place the iPod in the dock.
• Your iPod is automatically turned on.
3. Press the INPUT SELECT button on the remote control to select IPOD
AUDIO mode.
4. Press the PLAY button on the remote control to play.
• The AV receiver starts playing from the first track of the iPod player.
5. You can use the remote control to control simple playback functions such as the PLAY, PAUSE,
STOP, SKIP (~,~1) buttons.
~NOTE
It@
m
See page 29 for compatible iPods.
Compatibility depends on the software version of your iPod.
You can also select iPod by pressing the iPod button on the remote control.
Watching a Movie (iPod video function)
You can play video files stored in the iPod player on a TV by
connecting it to the AV receiver.
1. Connect the iPod dock connector to the iPod jack on the AV
receiver.
2. In the iPod screen, move to Videos> Settings and set the TV
Out option to On.
3. Place the iPod in the dock.
4. Press the INPUT SELECT button on the remote control to select
IPOD VIDEO mode.
5. Set the AV IN option of the TV connected to the AV receiver to
COMPOSITE.
Follow the iPod onscreen guide through the following steps.
6. Press the •, ~ buttons on the remote control to select Videos and
press the ENTER button.
7. Press the •, ~ buttons on the remote control to select Movies and
press the ENTER button.
54
English
<iPod Screen>
8. Press the ._, ~ buttons to select the file to play and press the
ENTER button.
• The iPod·s video files will be played on the TV screen.
9. You can use the remote control to control simple playback
functions such as the PLAY, PAUSE, STOP, SKIP (1+11,~)
buttons.
• If you press the PREV button after the playback, the player will
move to the start screen of the current file.
• Press the STOP button to stop playing and return to the list screen.
• Press the RETURN button to return to the previous menu.
<iPod Screen>
~NOTE
• Before you can play the video files in the iPod player, you must connect the AudioNideo terminals
of the TV to the receiver using the Composite (AN) cable.
• See page 29 for compatible iPods.
Compatibility depends on the software version of your iPod.
• When the current file is played to the end, the next file will not be played automatically.
To play the next file, select a file to play in the list screen of the iPod player.
m No other screen than the playback one will appear on the TV screen. Check other screens on the
iPod player.
Convenient Functions
Sleep Timer Function
You can set the time that this unit will shut itself off.
Press the SLEEP button.
• SLEEP: OFF -7 10M -7 20M -7 30M -7 60M -7 90M -7 120M -7
150M will be selected in turn.
To check sleep timer
Press the SLEEP button.
• The remaining time before this unit will shut itself off is shown on the
display.
• Pressing the button again changes the sleep time from what you set
previously.
To cancle sleep timer
• Press the SLEEP button until SLEEP OFF appears on the display.
English
55
Operation
Mute Function
This function is useful when answering a doorbell or telephone call.
Press the MUTE button.
• MUTE appears on the display.
To output sound again
MUTE
Gil
Press the MUTE button again or press the Volume button.
• MUTE will disappear and sound will output.
Adjust the Display
You can adjust the brightness of the display.
Press the DIMMER button.
• Each time you press this button, the brightness changes as follows:
Dark~ Bright.
~NOTE
11
SLEEP, Mute and the Adjust Display functions can only be
operated with the remote control.
Reset Function
When the Power is on,
1. Press the MUTE button.
• MUTE appears on the display.
2. Press the 2 button five times and then press the ENTER button.
• INITIAL: NO appears on the display.
buttons to select YES.
3. Press the
<111111
.,...
• The unit will turn off after 5 seconds.
When the Power is Off,
1. Press and hold the TUNER MEMORY button on the front of your AV
Receiver for longer than 5 seconds.
• POWER LED will blink one time.
~NOTE
• Using the RESET function will erase all stored settings.
• Do not use this unless necessary.
56
English
MUTE
[i]
Using Headphones
Use headphones (not supplied) for private listening pleasure.
Connect the headphones to the headphone (PHONES) jack and listen to music.
~NOTE
Do not turn the volume up too high when you use headphones as it may damage your hearing.
Software Upgrade
Samsung may offer upgrades for AV Receiver's firmware in the future.
Please visit Samsung.com or contact the Samsung call center at
1-800-SAMSUNG (726-7864) to receive information about
downloading upgrades and using a USB drive. Upgrades will be
possible by connecting a USB drive to the USB port located on your
AV Receiver.
~NOTE
~
~
~m
,. ;.;
m
Insert a USB drive containing the firmware upgrade into the USB
port on the back of the main unit.
Please be careful to not disconnect the power or remove the USB
drive while upgrades are being applied. The main unit will turn off
automatically after completing the firmware upgrade.
When software is upgraded, settings you have made will return to
their default (factory) settings. We recommend you write down your
settings so that you can easily reset them after the upgrade.
If you failed software upgrade, it is strongly recommended whole USB data format to FAT16 and
retry software upgrade.
The NTFS USB File System can not be supported.
Depending on the manufacturer, the USB may not be supported.
English
57
Miscellaneous
Operating your TV with the Remote Control
1. Press the POWER button to turn on the TV.
2. Press the TV button to set the remote to TV mode.
3. Point the remote control toward the TV.
4. While holding down the POWER button, enter the code corresponding to your brand of TV.
• If there is more than one code listed for your TV in the table, enter one at a time to determine
which code works.
• If the code matches the TV·s code, the TV will be turned off.
5. If TV is turned on or off when you press the POWER button of the remote control, the setting is
completed.
• You can use the TV POWER, VOLUME, CHANNEL, MENU and Numeric buttons (0-9).
~NOTE
11
11
The remote control may not work on some brands of TVs. Also, some operations may not be
possible depending on your brand of TV.
The remote control will work with Samsung TVs by default.
TV Brand Code List
Code
Brand
56, 57, 58
Admiral (M.Wards)
Brand
Code
Brand
Code
Hitachi
15, 18, 50, 59, 69
Realistic
03, 19
Sampo
40
Samsung
00, 15, 16, 17, 40, 43, 46,
47, 48, 49, 59, 60, 98
A Mark
01 , 15
lnkel
45
An am
01, 02, 03, 04, 05, 06, 07, 08,
09, 10, 11 , 12, 13, 14
JC Penny
56, 59, 67, 86
JVC
70
KlV
59, 61 , 87, 88
KEC
03, 15, 40
KMC
15
01 , 18, 40, 48
AOC
Sanyo
19, 61, 65
Scott
03, 40, 60, 61
Sears
15, 18, 19
Sharp
15, 57, 64
Signature 2000
(M.Wards)
57, 58
Sony
50, 51 , 52, 53, 55
Bell & Howell
(M.Wards)
57, 58, 81
Brocsonic
59, 60
Candle
18
LG (Goldstar)
01, 15, 16, 17, 37, 38, 39, 40, 41,
42, 43, 44
Cetronic
03
Luxman
18
Citizen
03, 18, 25
LXI (Sears)
19, 54, 56, 59, 60, 62, 63, 65, 71
Magnavox
15, 17, 18, 48, 54, 59, 60, 62, 72, 89
Soundesign
03, 40
Marantz
40, 54
Spectricon
01
Matsui
54
sss
18
Cinema
97
Classic
03
Concerto
18
Contec
46
Coronado
15
Craig
03, 05, 61, 82, 83, 84
62
Croslex
03
Crown
MGA
18, 40
Sylvania
18, 40, 48, 54, 59, 60, 62
Mitsubishi/
MGA
18, 40, 59, 60, 75
Symphonic
61, 95,96
MTC
18
Tatung
06
18, 19, 20, 40, 59, 60
Techwood
18
03, 15, 18, 25
NEC
Curtis Mates
59, 61,63
Nikei
03
Teknika
cxc
03
On king
03
TMK
18, 40
02, 03, 04, 15, 16, 17, 18, 19, 20,
21 , 22, 23, 24, 25, 26, 27, 28, 29,
30, 32, 34, 35, 36, 48, 59, 90
Onwa
03
Toshiba
19, 57, 63, 71
Daewoo
Panasonic
OO , W , 0~0~516~~.7a~
Vidtech
18
Penney
18
Videch
59, 60, 69
Philco
03, 15, 17, 18, 48, 54, 59, 62, 69, 90
Wards
15, 17, 18, 40, 48, 54,
60, 64
Yamaha
18
York
40
Daytron
40
Dynasty
03
03, 15, 40, 46, 59, 61, 64, 82,
83, 84, 85
Philips
15, 17, 18, 40, 48, 54, 62, 72
Emerson
Pioneer
63, 66, 80, 91
Fisher
19, 65
Portland
15, 18, 59
Funai
03
Proton
40
Futuretech
03
Quasar
06, 66, 67
General Electric (GE)
06, 40, 56, 59, 66, 67, 68
Radio Shack
17, 48, 56, 60, 61 , 75
HallMark
40
RCA/Proscan
18, 59, 67, 76, 77, 78, 92, 93, 94
58
English
Yupiteru
03
Zenith
58, 79
Zonda
01
Dongyang
03, 54
Operating your DVD or BD Player with the Remote Control
1. Press the POWER button to turn on the DVD (BD) player.
2. Press the BD/DVD button on the remote control to set the remote to DVD (BD) mode.
3. Point the remote control toward the DVD (BD).
4. While holding down POWER button, enter the code corresponding to your brand of DVD (BD).
• If there is more than one code listed for your DVD (BD) in the table, enter one at a time to
determine which code works.
• If the code matches the DVD (BD)'s code, the DVD (BD) will be turned off.
5. If DVD (BD) is turned on or off when you press the POWER button of the remote controller, the
setting is completed.
• You can use DVD (BD) POWER, PLAY, PAUSE, STOP, SKIP, MENU and Numeric buttons
(0-9).
~NOTE
The remote control may not work on some brands of DVD.
Also, some operations may not be possible depending on your brand of DVD.
The remote control will work with Samsung DVD (BD) by default.
DVD Brand Code List
.
,
.·Ar~rut .
· ··•:/. . .....
"!""""~ .
DEN ON
DOONOON
DMTECH
FISHER
GE
HARMAN/KARDON
JVC
KENWOOD
LG
MAGNAVOX
MITSUBISHI
'
'cooe.Numtier ,
... . . ......
003,032
019
017
002
006
012
010,013
008
001
004
005,016
···.·c:D_ .... ~
.
).
, J;lliCIII~ ·
.
ON KYO
OPTIMUS
PANASONIC
PRO SCAN
PHILIPS
PIONEER
RCA
SAMSUNG
SANYO
SONY
THETA DIGITAL
.· ',.....
'
•••
2•
:>.
• •· ·.· .lle
· ~·
004,014
011
021
006
004,023
007,011,022,025
006
000,027
002
015,020
011
.BI"Cil~ " . ·.· ~'tJumb«tr
;:
....•.. ·::·.·<
.·. ····•·
TOSHIBA
YAMAHA
ZENITH
TAEGWANG
PS2
X-BOX
APEX
Marantz
004,018
009,033
004,024
026
028
029
030
031
BD Player Brand Code List
~NOTE
• The remote control will control Sam sung BD players only.
English
59
Other Information
Troubleshooting
Before requesting service, please check the following.
Remedy
Symptom
Check
The unit will not tum on.
• Is the power cord plugged into the
outlet?
• Connect the power plug to the
outlet.
A function does not
work when the button is
pressed.
• Is there static electricity in the air?
• Disconnect the power plug and
connect it again.
Sound is not produced.
• Are the speakers and external
components connected properly?
• Is the Mute function on?
• Is the volume set to minimum?
• Is the Speaker Size set incorrectly
to NONE?
• Connect them correctly.
• Press the MUTE button to
cancel the function.
• Adjust the volume.
• Refer to pages 37 to select
LARGE, SMALL or YES.
Picture does not appear
on a TV when the
function is selected.
• Is the external component
connected properly?
• Connect it correctly.
Remote controller does
not work.
• Are the batteries drained?
• Is the distance between remote
control and main unit too great?
• Replace with new batteries.
• Operate at close distance.
The sound from the lefV
right channels is
reversed.
• Are the left/right speaker or left/right
input/output cables connected
properly?
• Check the left/right channel and
connect it/them correctly.
Can't receive radio
broadcasts.
• Is FM antenna connected
properly?
• Connect the antenna correctly.
• If the input strength of antenna
signal is weak, install the FM
antenna in a place with good
reception.
There is no sound from
surround speakers.
• Are the surround speakers
connected properly?
• Is SURR (surround) incorrectly set
to NONE in the Speaker Size?
• Is surround mode set to stereo?
• Refer to page 18 to connect
them properly.
• Refer to page 37 to select
LARGE or SMALL.
• Refer to pages 50 - 52 to select
proper Surround Mode.
There is no sound from
surround back
speakers
• Are the surround back speakers
connected properly?
• Is SBACK (Surround Back) set to
NONE in the Speaker Size?
• Is Surround Mode set to EX/ES?
• Refer to page 18 to connect
them properly.
• Refer to page 37 to select
LARGE or SMALL.
• Refer to page 43 to set
Surround Mode to EX/ES.
Can't select EX/ES
mode.
• Is SBACK (Surround Back) set to
NONE in the Speaker Size?
• Is the input signal selected
properly?
• Refer to page 37 to select
LARGE or SMALL.
• Use a 7.1 channel external
component.
60
English
0
en
0r+
;:r
Symptom
Check
C1)
....,
Remedy
Can't select Dolby Pro
Logic llx mode.
• Is the input signal selected
properly?
• Only 2 channel signal can
select Dolby Pro Logic llx
mode. (ex: Dolby Digital, PCM,
2 channel analog input signal.)
Can't select NE0:6
mode.
• Is the input signal selected
properly?
• Use PCM and Analog input
signal.
There is no sound
when playing a DTS
encoded DVD.
• Is Digital input selected?
• Check whether the DVD player
is properly connected and refer
to page 32 to select the digital
input.
Product Protection Function
Heat protection
• The protection function will come on if the main unit or power transformer overheats.
II
r:= F~
C) T. F: C: T. I Ci i···i
II
will appear in the display .
This function will come on :
- If speaker terminal is shorted
- If speaker cable is shorted
If there is no problem when you turn the unit on again after turning it off, PROTECTION mark will
disappear on the display and the unit will work properly.
Auto Calibration Error List
Error No.
Auto Calibration Error Message on OSD
E02 NOMIC
Connect the calibration microphone.
E03 NOISY
Keep quiet during the measurement.
E04 MIC LEVL
The speaker are too close to the microphone.
Install all speakers and the calibration microphone at the proper location.
E05 NO FRONT
Connect the front speaker correctly.
E07 LEVLOVR
Install all speakers and the calibration microphone at the proper location.
E08 DISTOVR
Some speakers are too far from calibration microphone.
Install all speakers and the calibration microphone at the proper location.
E13 TIME OVR
Unplug andre-plug the power cable.
Then, perfrom the measurement again.
E14 CODE ERR
Unplug and re-plug the power cable.
Then, perfrom the measurement again.
English
61
Other Information
Specifications
Power supply
120V, 60Hz
Standby power consumption
0.9W
Power consumption
GENERAL
Main unit
75W
Subwoofer
35W
Weight
13.671bs
Dimensions 0N x H x D)
16.9 x 6.5 x 14.2 inches
Operating temperature rang.e
FMTUNER
AMPLIFIER
FREQUENCY
RESPONSE
HDMI
VIDEO OUTPUT
*
Operating humidity range
10%-75%
Frequency response
87.5-1 08.0MHz
Usable sensitivity
12dBf
S/N ratio
MONO/STE~EO
Distortion
MONO/STEREO 0.3/0.8%
Stereo separation
30dB
Tuner output level
1kHz, 75kHz Dev
Rated output
20Hz. . . 20kHz/THD = 0.9%
Front speaker (left+right)
60 120W/CH
Genter speaker
60 120W/CH
Surround speaker (left+right)
60 120W/CH
Surround back .speaker (left+right)
6Q 120W/CH
Subwoofer speaker
8Q 150W/CH
Input sensitivity/impedance
450mV/47kQ
S/N ratio (analog input)
80dB
Separation (1kHz)
60dB
Analog input
20Hz-20kHz(±3dB)
Digital input/96kHz PCM
20Hz -44kHz(±3dB)
Input
Compatible 1080p
Output
Compatible 1080p
TV format
NTSC/PAL
Input level/impedance
1Vp-p/75 n
Output level/impedance
1Vp-p/75 n
Video frequency response
5Hz to 1OkHz( -3d B)
S/N Ratio
60dB
55/55dB
S/N Ratio, Distortion, Separation and Usable sensitivity are based on measurement using AES (Audio
Engineering Society) guidelines.
- Sam sung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
-Design and specifications are subject to change without prior notice.
62
English
SAMSUNG AV receiver
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in
the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and
workmanship for a limited warranty period of:
One (1) Year Parts and Labor*
(*90 days Parts and Labor for Commercial Use)
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States.
To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty
service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon
request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. Transportation of the product to and from the
service center is the responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or
products if found to be defective during the limited warranty period specified above. All replaced parts and products become the
property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original
warranty, or ninety (90) days, whichever is longer.
SAMSUNG's obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set
forth in the applicable end user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an
"AS IS" basis. Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent
otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to the following, including,
but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not
intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or
other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations,
repairs, external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in service
problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions,
cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal or
reinstallation; reception problems and distortion related to noise, echo, interference or other signal transmission and delivery
problems. SAMSUNG does not warrant uninterrupted or error-free operation of the product.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES
WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE,
AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT
TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR
PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE
LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE
PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE
FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND
PURCHASEW0S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY
TO USE THIS P,RODUCT SOLD B~ SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED
WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS
NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights,
and you may also have other rights which vary from state to state.
To obtain warranty hardware service, please contact SAMSUNG at:
Samsung Electronics America, Inc.
105 Challenger Road Ridgefield Park, NJ07660-0511
1-800-SAMSUNG(726-7864) and www.samsung.com
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAM SUNG
customer care center.
Area
I
• North America
Canada
Mexico
U.S.A
Contact Center If
Web Site
1-800-SAMSUNG (726-7864)
01-800-SAMSUNG (726-7864)
1-800-SAMSUNG (726-7864)
www.samsung.com
www.samsung.com
www.samsung.com
0800-333-3733
0800-124-421 I 4004-0000
800-SAMSUNG (726-7864)
01-8000112112
0-800-507-7267
1-800-751-2676
1-800-1 0-7267
800-6225
1-800-299-0013
800-791 9267
1-800-234-7267
00-1800-5077267
800-7267
0-800-777-08
1-800-682-3180
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung .com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
1-800-SAMSUNG (726-7864)
www.samsung.com
0-800-1 00-5303
www.samsung.com
• Latm Amenca
Argentine
Brazil
Chile
Colombia
Costa Rica
Dominica
Ecuador
El Salvador
Guatemala
Honduras
Jamaica
Nicaragua
Panama
Peru
Puerto Rico
Trinidad &
Tobago
Venezuela
Austria
42 27 5755
0810 - SAMSUNG (7267864,
€ 0.071min)
Belgium
02-201-24-18
Bosnia
Bulgaria
Croatia
051331999
07001 33 11
062 SAMSUNG (062 726 7864)
800-SAMSUNG (800-726786)
Samsung Zrt., ceska organizacnf
slozka, Oasis Florenc, Sokolovska394/17, 180 00, Praha 8
70 70 19 70
030- 6227 515
01 48 63 00 00
01805 - SAMSUNG (726-7864
€ 0,141Min)
06-80-SAMSUNG (726-7864)
800-SAMSUNG (726-7864)
+381 011 3216899
261 03 710
023 207 777
020 405 888
0900-SAMSUNG
(0900-7267864) (€ 0,1 OIMin)
815-56 480
0 801 1SAMSUNG (172678)
I 022-607-93-33
80820-SAMSUNG (726-7864)
1. 0801 0 SAMSUNG (72678) doar din reteaua Romtelecom,
tarif local
2. 021.206.01.1 0 - din orice
retea, tarif normal
Czech
Denmark
Finland
France
Germany
Hungary
ltalia
Kosovo
Luxemburg
Macedonia
Montenegro
Netherlands
Norway
Poland
Portugal
Rumania
Contact Center tl
0700 Samsung (0700 726
7864)
0800-SAMSUNG (726-7864)
902-1-SAMSUNG (902 172 678)
0771 726 7864 (SAMSUNG)
Serbia
Slovakia
Spain
Sweden
Switzerland
0848-SAMSUNG (7267864,
CHF 0.081min)
U.K
Eire
Lithuania
Latvia
Estonia
0330 SAMSUNG (7267864)
0818 717100
8-800-77777
8000-7267
800-7267
Russia
Georgia
Armenia
Azerbaijan
Uzbekistan
Kyrgyzstan
Tadjikistan
8-800-555-55-55
8-800-555-555
0-800-05-555
088-55-55-555
8-1 0-800-500-55-500
(GSM: 7799)
8-1 0-800-500-55-500
00-800-500-55-500
8-1 0-800-500-55-500
Ukraine
0-800-502-000
www.samsung.com
Belarus
Moldova
81 0-800-500-55-500
00-800-500-55-500
www.samsung.coml
be (Dutch)
www.samsung.coml
be_fr (French)
• As1a Pac1f1c
• Europe
Albania
Area
www.samsung.com
www.samsung.com
www.samsung.com
Kazakhstan
..
Australia
New Zealand
China
1300 362 603
0800 SAMSUNG (0800 726 786)
400-810-5858 I 010-6475 1880
Hong Kong
(852) 3698 4698
India
Indonesia
www.samsung.com
www.samsung.com
www.samsung.com
Japan
Malaysia
www.samsung.com
Philippines
www.samsung.com
www.samsung.com
www.samsung.com
Singapore
Thailand
Taiwan
Vietnam
3030 8282 I 1800 11 0011 I
1800 3000 8282 I 1800 266 8282
0800-112-8888 I
021-5699-7777
0120-327-527
1800-88-9999
1-800-1 O-SAMSUNG(726-7864) I
1-800-3-SAMSUNG(726-7864) I
1-800-8-SAMSUNG(726-7864) I
02-5805777
1800-SAMSUNG (726-7864)
1800-29-3232 I 02-689-3232
0800-329-999
1 800 588 889
Web Site
www. samsung. com
www.samsung.com
www.samsung.com
www.samsung.com
www .samsung. comlch
www.samsung.coml
ch_fri(French)
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.ua
www.samsung.coml
ua_ru
www.samsung.com
www.samsung.com
www.samsung.com
www .samsung .comlhk
www.samsung.coml
hk_enl
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
• Middle East
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
Bahrain
Egypt
Jordan
Morocco
Oman
Saudi Arabia
Turkey
U.A.E
8000-4726
08000-726786
800-22273
080100 2255
800-SAMSUNG (726-7864)
9200-21230
444 7711
800-SAMSUNG (726-7864)
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
0800-SAMSUNG (726-7864)
0860-SAMSUNG (726-7864)
www.samsung.com
www.samsung.com
• Africa
Nigeria
South Africa
QUESTIONS OR COMMENTS?
COUNTRY
CALL
OR VISIT US ONLINE AT
WRITE
IN THE US
1-800-SAMSUNG
(7267864)
www .samsung. com/us
Samsung Electronics America, Inc.
85 Challenger Road Ridgefield Park,
NJ 07660-0511
Code No. AH68-02354X
quick startguide . . . . . . .
1 Front panel
2 Remote control functions
3 Connecting the speakers
4 Connecting external devices
AV Receiver System
HW-0700/HW-07705
1 Front panel
!
2 3 4 5
.--------___r ~
T
7
6
8 9 10 11 12
T
IAMIU11118
f - - - - _ _ _,
I TT
i
13
·- I
1-
·---'
0
I
•
__________
c==
~ ~~--~ c; ~a ·a
((i)
0 0 0 •)
0 0 0 0 - 0 '0
1....-c:::===r----j-~
J
- -::r-- - - -L-\
0
--c:===r'
CD
INPUT SELECT CONTROL
Used to select a source.
FM - TV- BD/DVD- SAT- GAME - AUX- CD - IPOD AUDIO- IPOD VIDEO
[I)
@]
SETUP BUTION
Displays the SETUP menu.
AUDIO ASSIGN BUTION
Toggles to select an input mode for the selected source.
0
AUDIO EFFECT BUTION
Toggles to select asurround sound mode.
@]
(!]
(I]
3D SOUND BUTION
Press to apply 3D Sound effect.
DISPlAY
Displays the speaker/audio input status, listening mode, etc.
UP(A), DOWN(V), LEFT(<), RIGHT(>) BUTIONS
Used to move the cursor up, down, left or right.
Also used to select detailed options in the AUDIOEFFECT mode and to change the tone level.
®
Bi-AMP INDICATOR
The indicator lights on when you turn on Bi-AMP.
[!)
ENTER BUTION
Used to select an item in the SETUP menu.
rw
TONE CONTROL BUTION
Used to set the bass, treble level and tone to on/off.
ASC BUTTON
Used to select the auto calibration mode.
MASTER VOLUME CONTROL
Adjusts the volume level.
POWER BUTION ( <) )
Turns the receiver on/off.
PHONES JACK
Used to connect a set of headphones.
AUXIN JACKS
Auxiliary AV input terminals used to connect a camcorder, portable DVD player or gaming device.
ASC MICJACK
Used to connect the ASC MIG for setting up Auto calibration.
[ill
01)
(ill
(H)
(lli
ill]
Thank you for purchasing this Samsung Digital Surround AV Receiver System.
We have manufactured this product to provide you with many hours of AudioNideo Entertainment.
This "QUICK START GUIDE" guide has been included to get you up and running in the least amount of time as possible.
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
Samsung Electronics America, Inc.
1-800-SAMSUNG (7267864)
wvvw.samsung.com/us
0 - English
1_front panel
(ill
(lli
RETURN BUTTON
Return to the previous menu.
AV SYNC BUTTON
Used to select the Audio Delay Mode.
(ill
TUNING MODE BUTTON
Used to select the Manual or Preset mode for FM radio.
(W
SELECT BUTTON
Used to change the radio frequency.
(ill
(ill
TUNER MEMORY BUTTON
Used to set a preset radio frequency.
S.DIRECT BUTTON
Used to select the S.DIRECT mode.
(Output the original signal as it is without applying the sound field effect or any other sound effect.)
2 Remote control functlons
POWER BUTION
Turns the receiver on/off.
TVBUTION
To change to TV mode, press the TV button.
AMP BUTION
To change to AMP mode, press the AMP button.
NUMBER BUTIONS
Usee to select a TV channel.
NEO: 6 BUTION
Select the desired NE0:6 mode.
PROLOGIC BUTION
Select the desired Dolby Pro Logic audio mode.
SKIPBUTIONS
Press to skip backwards or forwards on
a connected DVD/BD player or iPod.
STOP/PLAY BUTION
Press to stop/start playback on a
connected DVD/BD player or iPod.
MUTEBUTION
Mutes the sound of a connected device.
VOLUME CONTROL BUTIONS
Adjusts the volume of the selected device.
MO/STBUTION
INPUT SELECT,
TV SOURCE BUTION
Toggles to find and select an input source.
Press to select a connected TV's video source.
BD BUTION
To change to 80 mode, press the 80 button.
DVD BUTTON
To change to DVD mode, press the DVD button.
SLEEP BUTION
Usee to set the Sleep Timer.
DIMMER BUTION
Adjusts the brightness of the display.
DSP BUTTON
Used to select the SFE mode.
AUDIO ASSIGN BUTION
Toggles to select an input mode for the
selected source.
SEARCH BUTION
Press to search backwards or forwards.
PAUSE BUTION
Pauses playback on a connected device.
TUNING/CHANNEL BUTIONS
Used to change the radio broadcasting
frequency or TV channel.
S.DIRECT BUTION
Select MONO or STEREO for radio broadcasts.
Press to select S.DIRECT mode.
TONEBUTION
TUNER MEMORY BUTION
Used to set a preset radio frequency.
Used to set a preset radio frequency.
SETUP/MENU BUTION
INFOBUTION
Displays the SETUP menu.
UP/DOWN/LEFT/RIGHT BUTIONS
Used to navigate the menus.
RETURN BUTION
Display information on the connected device
currently being used.
ENTER BUTION
Used to select an item in the SETUP menu.
Used to return to the previous menu
from the SETUP menu.
EXITBUTION
Exits the SETUP menu.
FUNCTION SELECTOR BUTIONS
3D SOUND BUTION
Used to select an input source.
Press to apply 3D Sound effect.
AV SYNC BUTION
CROSS OVER BUTION
Used to select the Audio Delay Mode.
ASCBUTION
Used to set the Auto Sound Calibration
function.
SUBWOOFER BUTION
Used to select the Subwoofer.
f)- English
Press to adjust the crossover frequency.
3 Connecting the speakers
FRONT (L)
ACTIVE SUBWOOFER
Model HW·D700
AV Receiver
HW·D700
Model HW·D770S
AV Receiver
FRONT SPEAKER
CENTER SPEAKER
SURROUND SPEAKER
SURROUND BACK SPEAKER
ACTIVE SUBWOOFER
HW·D700
PS·FC770S
PS-CC770S
PS·RC770S
PS-BC770S
PS·AW730
* Speakers are provided with model HW-D770S only. Model HW-0700 does not come with speakers.
• One Active Subwoofer is provided, if you would like to use another, purchase it from the retailer where you bought the
player and connect it to the other SUBWOOFER OUT Jack.
Connecting Speaker Wire
1. Loosen the knob by turning counterclockwise.
2. Insert the bare part of the wire into the hole in the side of each terminal.
3. Tighten the knob by turning clockwise to secure the wire.
Connecting the Speakers
1. Press down the terminal tab on the back of the speaker.
2. Insert the black wire into the black terminal(-) and the red wire into the red (+) terminal,
and then release the tab.
3. Connect the connecting plugs to the back of the AV Receiver.
• Make sure the colors of the speaker terminals on the back of the AV receiver match
the colors of the connecting plugs.
8- English
Black
4 Connecting external devices
Connecting External Devices/your TV via HOM I
We recommend using HOM I connections for the best quality video and audio.
Game console
SAT
(Cable/Satellite/
Set-top box)
DVD or
Blu-ray Player
[
"]
~~TVTuner
0
(HDTV Terrestrial
Receiver)
c==J
~
•
6
Camcorder
a
• Using two HOM I OUT
jacks, you can connect
two lVs or projectors at
the same time.
t
-
• Connect it if you want to use Anynet+.
(If connected TV support ARC, it is not
necessary to connect the OPTICAL OLJT.)
TV
__.
~ NOTE
Audio from SACD discs will not be heard with this connection. To play a DVD disc whose copyright is protected by CPPM, use a
player supporting CPPM.
• The quality of the audio output through the HOMI jack (sampling frequency and bit rate) may be limited by the performance of the
connected device.
• Since HDMI connection supports both video and audio, you don't have to connect an additional audio cable.
Connecting to your TV
VIDEO
IN
'
....
COMPONENT
IN
OPTICAL
OUT
-TV
0- English
AUDK)
OUT
Connecting a DVD or BD{Biu-ray) Player
VIDEO
IN
t" or t"
Connecting_ a Cable, Sat~llite or-~et-:_top Box
VIDEO
IN
TV
0
t
or
~ NOTE
• Disconnect the power plug from the outlet if you will not use this unit for a long period of time.
• If the cable/set-top box has only one audio output jack, connect it to either the right or left audio input jack of the main unit. Connect
the audio cable's red plug to the red jack and white cable to the white jack.
0- English
Connecting a CD Player
-
~~ oo~o'to~ofoo
QQQ.® o
~~~---J
~i !~~~rrrr
I
I
I
1
I
I
I
I
I
I
I
I
I
1
I
I
0
f' i
:· .l-~
f' i f'
or
I
1
1
I
I
,_&
1 - --~·- •
I
l: ooooooiO.
I
"'••o
0
i
1
COAXIAL
OUT
T
c~;OJ
CD Player
~ NOTE
• If the CD player has only one audio output jack, connect it to either the right or left audio input jack of the main unit.
Connecting the FM Antenna
1. Connect the FM antenna supplied to the FM ANTENNA terminal as a temporary measure.
2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.
FM antenna (supplied)
~ NOTE
• Do not place the antenna cable close to the power cord. Keep it as far away as possible.
• If you experience poor FM reception, use an external antenna.
0· English
AH68-02354U
Dear Valued Customers :
Thank you for purchasing Samsung Products
If you have any further questions, please contact
Samsung Electronics America.
Web : www.samsung.com
Call : 1-800-Samsung
II 11111111111111
6801-001672
READ THIS BEFORE USING YOUR
SAMSUNG PRODUCTS!
Valued Customer :
If you experience any technical problems
with your new Samsung Products
,please call Samsung Customer Support,
(Monday - Sunday, 9:00 AM - 9:00PM)
Before returning this product to your place of
purchase.
