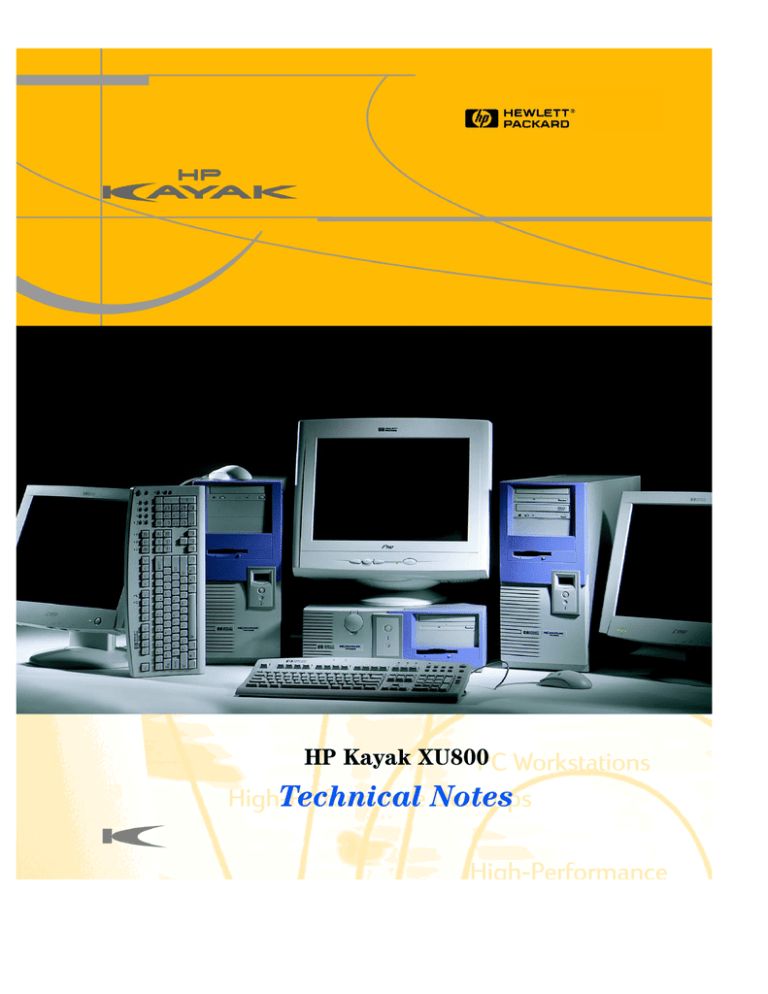

HP Kayak XU800
Technical Notes
Notice
The information contained in this document is subject to change without notice.
Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.
ELSA
® and GLoria Synergy
® are registered trademarks of ELSA AG,
Aachen and/or ELSA Inc., Santa Clara.
Matrox
®
is a registered trademark of Matrox Electronic Systems Ltd.
Microsoft
®
, Windows
®
and MS-DOS
®
are registered trademarks of the
Microsoft Corporation.
Windows NT® is a registered trademark of Microsoft Corporation.
Pentium® , and AGPset
TM
are trademarks of Intel Corporation.
Rambus and RDRAM are registered trademarks of Rambus Inc. Direct
Rambus, Direct RDRAM and RIMM are trademarks of Rambus Inc.
Hewlett-Packard France
Business Desktop Division (BDD)
Outbound Marketing Communications
38053 Grenoble Cedex 9
France
1999 Hewlett-Packard Company
HP Kayak XU800 PC Workstation
Technical Information
This section provides technical information about your
PC Workstation.
Features
Feature: Description:
System Board
Microprocessor
Extended-ATX with a dimension of 12.8-inch x 11.4-inch.
All models have support for up to two Intel Pentium® III processor with either a i256 KB.
For Processor 1, a VRM (Voltage Regulator Module) is integrated on the system board, while there is a VRM socket for a second processor, if one is installed.
• Level-One: 16 KB code, 16 KB data.
• Level-Two: i256 KB.
Cache Memory
(integrated in processor package)
Internal CPU Clock Rate
External Processor Bus
Chipset
Super I/O Chip
BIOS (Basic Input/Output
System)
Firmware - BIOS
HP MaxiLife Utility
(available on all models)
533 MHz, 600 MHz, 667 MHz, 733 MHz, 800 MHz and higher.
133 MHz Front Side Bus .
Intel® Chipset (I840) including, Input/Output Controller Hub (ICH),
PCI 64-bit Hub (P64H), FirmWare Hub (FWH) and Memory Repeater
Hub (MRH-S) for SDRAM support.
NS 87364.
Based on the core of AMIBIOS, including:
• 4 M/bits of flash memory.
• Support for PCI 2.2 Specification.
• Support for RDRAM or SDRAM memory modules.
Flash EEprom: Intel’s Firmware hub concept.
Hardware monitoring utility that monitors system components via the
I
2
C bus and a LCD status panel.
Features
Feature:
Operating System
Main Memory
Maximum amount of memory that can be installed is:
2 GB (4 x 512 MB).
Mass Storage
SCSI Controller
IDE Controller
Description:
All models are preloaded with Windows NT® 4.0 SP5.
Models include either:
• Four RIMM sockets supporting RDRAM ECC memory modules installed in pairs. Any unused RIMM sockets must contain a continuity module.
Models are supplied with either 128 MB or 256 MB RDRAM ECC main memory installed in pairs.
Memory upgrades are available in pairs of: 128 MB, 256 MB or 512
MB RDRAM ECC modules.
• Four DIMM sockets supporting SDRAM 100 MHz ECC memory modules installed in pairs. Models are supplied with 128 MB of
SDRAM unbuffered ECC main memory.
Memory upgrades are available in 32 MB, 64 MB, 128 MB,
256 MB or 512 MB unbuffered 100 MHz ECC SDRAM modules.
Seven shelves supporting:
• Two front-access, third-height 3½-inch (one for the floppy disk drive and one free) (height 1”);
• Three front-access, half height, 5¼-inch drives (height 1.0”);
Possibility to install a 3½-inch hard disk drive in one of the
5¼-inch shelves.
• Two internal 3½-inch hard disk drives (height 1.0”).
SCSI Ultra 160m controller:
Adaptec® AIC-7892 Ultra-Wide 16-bit integrated SCSI controller
(160 MB/s).
The internal SCSI connectors allows for up to five internal devices to be connected. Additional devices can be added outside the PC Workstation by connecting directly to the rear panel SCSI connector. The external connector allows up to ten external devices to be connected. This gives a maximum of 15 (internal + external) devices that can be connected.
All models include an integrated Ultra ATA-66 controller that supports up to four IDE devices .
2 English
Features
Feature:
Video Controllers
Accessory Card Slots
LAN Card
CD-ROM Drive
Audio
HP UltraFlow Cooling
System
Description:
Models include either:
• ELSA GLoria Synergy® II AGP video controller with 32 MB of installed SGRAM video memory (maximum configuration).
• Matrox® Millennium G250 AGP video controller with
8 MB SGRAM video memory which can be upgraded to 16 MB.
• Matrox Millennium G400-Dual monitor AGP video controller with
16 MB SGRAM video memory (maximum configuration).
• 3Dlabs Oxygen® GVX1, 32 MB SGRAM video memory (maximum configuration).
All models haves:
• One Universal AGP PRO 4X 50 W 32-bit slot. The AGP bus provides a high performance graphics interface.
• Three 32-bit 33 MHz PCI slots
1
1, 2 and 5 (5 V).
❒ PCI slot 5 is Alert-On LAN (AOL) ready.
• Two 64-bit 66 MHz PCI slots 3 and 4 (3.3 V).
A majority of the configurations are delivered with PCI slots 1 to 4 vacant.
All models are supplied with an HP 10/100BT PCI Ethernet Adapter LAN card installed in PCI slot 5, supporting Wake-On LAN (WOL) and PCI 2.2
Specification.
Models include either an IDE 48X CD-ROM, CD-RW drive or DVD drive.
Integrated on the system board CSA4280 audio PCI chip and AC97
Codec (CS4297) audio.
Cooling system with multiple temperature-regulated fans to optimize cooling. Alert reporting to MaxiLife and TopTools.
1. All five PCI slots comply with the PCI Specification 2.2.
English 3
Features
Feature:
System Board
Connectors
Rear Panel Connectors
(color coded)
Description:
• One flexible disk drive connector
• Two ATA-66 IDE connectors (for up to four IDE devices)
• One 16-bit U-160SCSI connector and one SCSI terminator.
The SCSI cable is routed from the SCSI connector on the system board (located near the system switches) to the SCSI devices inside the chassis, onto an onboard SCSI terminator (behind the processor), and finally onto the external SCSI connector on the rear panel. The onboard SCSI terminator is automatically deactivated when an external device is attached.
• One CD-IN audio connector
• AUX connector
• Internal speaker connector
• One WOL connector
• One status panel connector
• Two power supply connectors that must be connected
• Two fan connectors (one for the PCI fan, and one for the rear fan)
• One battery socket
The system board layout with all connectors can be found on page 11.
• 9-pin serial (two, buffered)
❒ Standard: Two UART 16550 buffered serial ports
(both RS-232-C).
❒ Serial Ports A and B: 2F8h (IRQ 3), 2E8h (IRQ 3),
3F8h (IRQ 4), 3E8h (IRQ 4), or Off—
(if one port uses 2xxh, the other port must use 3xxh).
• Dual USB connectors
• External 16-bit U160m SCSI connector
• Audio
❒ Joystick/Dual MIDI connector
❒ LINE IN jack (3.5 mm)
❒ LINE OUT jack (3.5 mm)
❒ MIC IN jack (3.5 mm)
• Keyboard/Mouse
❒ HP enhanced keyboard with mini-DIN connector
❒ HP enhanced scrolling mouse with mini-DIN connector
• 25-pin parallel connector
❒ Mode: Centronics or bidirectional modes (ECP/EPP)
❒ Parallel port: 1 (378h, IRQ 7), 2 (278h, IRQ 5), or Off.
4 English
Physical Characteristics (standard configuration)
Characteristics:
Weight (excl. keyboard and display)
Dimensions
Footprint
Storage temperature
Storage humidity
Operating temperature
Operating humidity
Power supply
Description:
14.4 kilograms (31.68 pounds).
47.0 cm max. (D) by 21,0 cm (W) by 49.0 cm (H)
(18.50 inches by 8.26 inches by 19.29 inches).
0.09 m
2
(1.06 sq ft).
-40 °C to 70°C (-40 °F to 158 °F).
8% to 85% (relative).
10 °C to 35 °C (50 °F to 95 °F).
15% to 85% (relative).
Input voltage: 100 - 127, 200 - 250 V (switch select)
Input frequency: 50/60 Hz
Maximum output power: 300 W continuous
Features
English 5
NOTE
System Specifications
System Specifications
Power Consumption Information
The power consumption and acoustics given in the below table is valid for a standard configuration as shipped (one processor, 256 MB of memory, 300 W power supply, one hard disk drive, video card, LAN card).
All infomation in this section is based on primary power consumptions.
Acoustic noise emission (as defined ISO 7779):
• Operating
• Operating with hard disk access
• Operating with floppy disk access
Power consumption - Windows NT:
• Operating with input/output (disk access)
• Operating without input/output (idle)
• Off with LAN card
1.
1 W = 3.4121 Btu/h
Sound Power
LwA <= 43.9 dB
LwA <= 44.9 dB
LwA <= 46.7 dB
Sound Pressure
LpA <= 30.8 dB
LpA <= 31.8 dB
LpA <= 33.6 dB
230 V / 50 Hz
85.5 W - 291.7 Btu/h
1
75.8 W - 258.6 Btu/h
4.2 W - 14.3 Btu/h
115 V / 60 Hz
84.5 W - 288.3 Btu/h
77.2 W - 263.4 Btu/h
4 W - 13.6 Btu/h
Component:
• Processor:
• SCSI HDD with access:
• SCSI HDD with no access:
• PCI card:
50 W
23 W
16 W
10 W - 36 W -
-
-
170.6 Btu/h
78.4 Btu/h
54.5 Btu/h
34.1 Btu/h - 122.8 Btu/h
When the computer is turned off with the power button on the front panel, the power consumption falls below 5 Watts, but is not zero. The special on/off method used by these computers considerably extends the lifetime of the power supply. To reach zero power consumption in
“off” mode, either unplug the power outlet or use a power block with a switch.
6 English
System Specifications
Maximum Loads Available for Accessory Slots
PCI Accessory Slots
The maximum supported power consumption per slot is 25W, either from the 5V or the 3.3V supply and must respect the electrical specifications of the PCI 2.2 specification. Total power consumption for the PCI slots must not exceed 75W.
If the total power consumption used in the PCI/AGP slots exceeds 75W, the BIOS will display a warning during the boot sequence.
There are five PCI slots on the system board:
• Three 32-bit 33 MHz PCI slots 1, 2 and 5, accepting 5 V PCI cards
• and Universal PCI cards (support for 3.3 V or 5 V).
Two 64-bit 66 MHz PCI slots 3 and 4, supports 3.3 V PCI cards and Universal PCI cards (support for 3.3 V or 5 V).
The following table shows the various PCI board installations for the different PCI slots:
PCI Card
5 V 3.3 V Universal
(3.3 V or 5 V compatible)
PCI Slot
Slots 1, 2 & 5
5 V,
32-bit/33 MHz
Slots 3 and 4
3.3 V,
64-bit/66 MHz
32-bit/
33 MHz yes not supported
64-bit/
33 MHz yes
1 not supported
32-bit/
33 MHz or 66 MHz not supported
33 MHz yes
3,4
66MHz yes
4
33 MHz or 66 MHz not supported
33 MHz yes
3
64-bit/
66 MHz yes
32-bit/
33 MHz or 66 MHz yes
33 MHz yes
3,4 yes 2
66 MHz yes
4
64-bit/
33 MHz or 66 MHz yes yes
3
1
33 MHz yes 1
,
2
66 MHz yes
1.
A 64-bit card can be installed in a 32-bit slot. However, this card will only operate in 32-bit mode.
2.
A 66 Mhz card can be installed in a 33 MHz slot. However, this card will only operate in 33 MHz mode.
3.
A 33 MHz card can be installed in a 66 MHz slot, However, the card will operate in 33 MHz mode and will force all other PCI devices to operate at
33 MHz as well.
4.
A 32-bit card can be installed in a 64-bit slot without preventing other 64-bit PCI devices to operate in 64-bit mode.
English 7
System Specifications
If a standard AGP (Accelerated Graphic Port) card is installed in the
AGP PRO slot, the maximum power consumption for the PCI accessory and AGP slot must not exceed 75 W.
If an AGP PRO card (
>
25 W and
≤
50 W) is installed, then the PCI slot 1 is made inaccessible as defined in the AGP PRO specification (PCI slot must be left unoccupied to provide its sources in terms of cooling and electrical power to the AGP PRO card.
AGP PRO Slot
The AGP PRO slot is a Universal-type connector which provides power through 3.3 V, 12 V or 5 V power rails with a maximum allocated power consumption of 50 W. If this power consumption is exceeded, MaxiLife reports an error and prevents the PC Workstation from powering on.
It provides an AGP 4x interface which is fully compliant with the AGP specification revision 2.0. The universal AGP PRO slot supports AGP
1x and 2x modes (uses 3.3 V or 1.5 V signals), and AGP 4x mode
(1.5 V signalling).
AGP Video Card
1
Supported operation in the Universal AGP
PRO Slot
AGP1x
2
AGP2x
2
AGP4x
2
≤
25 W yes yes yes
1.5 V
≤
50 W yes yes yes
PCI-type yes
1.
AGP PRO video cards are supported up to 50 W.
2.
With or without sideband addressing.
yes
≤ yes yes yes yes
Universal
25 W
≤
50 W yes yes yes yes
≤
25 W
3.3 V
≤
50 W yes yes no yes yes yes no yes
8 English
System Specifications
IRQs, DMAs, and I/O Addresses Used by Your PC Workstation
The IRQ, DMA, and I/O address mappings shown here are for a basic configuration. The resources used by your PC Workstation may vary, depending on which accessory boards are bundled with the
PC Workstation. Resources are allocated by the system BIOS or the
Plug and Play operating system.
IRQs used by
PC Workstation
IRQ2 Free
DMAs used by
PC Workstation
DMA 0
DMA 1
DMA 2
DMA 3
DMA 4
DMA 5
DMA 6
DMA 7
IRQ5 Free
IRQ6 Flexible disk drive controller
IRQ7 LPT1
IRQ8 Real-time clock
IRQ9 Free
IRQ10 Free
IRQ11 Free
IRQ12 Mouse
IRQ14
IRQ15
Integrated IDE controller (primary)
Integrated IDE controller (secondary)
Capture
Playback
Flexible disk drive controller
LPT ECP
Cascade free free free
English 9
System Specifications
I/O Addresses used by PC
Workstation
0000 - 000F DMA controller 1
0020 - 0021 Master interrupt controller
002E - 002F Configuration registers
0040 - 0043 Timer 1
0060, 0064 Keyboard controller
0061 Port B (speaker, NMI status and control)
0070 Bit 7: NMI mask register
0070 - 0071 RTC and CMOS
0080
0081 - 0083,
Manufacturing port (POST card)
008F
0092
DMA low page register
PS/2 reset and Fast A20
00A0 - 00A1 Slave interrupt controller
00C0 - 00DF DMA controller 2
00F0 - 00FF Coprocessor error
0130 - 013F
0170 - 0177 Free (IDE secondary channel)
01F0 - 01F7 IDE primary channel
0200
0220 - 0232
0278 - 027F LPT 2
02E8 - 02EF Serial port 4 (COM4)
02F8 - 02FF Serial port 2 (COM2)
0330 - 0331
0372 - 0377 Free (Secondary flexible disk drive)
0378 - 037A LPT1
0388 - 038B
03B0 - 03DF VGA
03E8 - 03EF COM3
03F0 - 03F5 Flexible disk drive controller
03F6
03F7
IDE primary channel
Flexible disk drive controller
03F8 - 03FF COM1
04D0 - 04D1 Interrupt edge/level control
0678 - 067B LPT2 ECP
0778 - 077B LPT1 ECP
0CF8 - 0CFF PCI configuration space
8000 Power Management I/O space
8800 MBus I/O space
10 English
System Board Connectors
System Board Connectors
The following diagram shows where the different chips and connectors are located on the E-ATX system board.
Fan CPU 1 c
SCSI Termination
Connector
Battery Backup
Unit c
AUX Power
Power Supply
Mouse (upper) &
Keyboard (lower)
Two USB
Serial Port A
Serial Port B
(Both ports are stacked with the Parallel Port)
Midi & Audio
Processor 1 Connector
Processor 2 Connector
Rear Fan
Line Out
Line In
MIC
Fan
CPU2 c
Anti-Intrusion b
Memory Controller Hub
(MCH) 8284O-QP
Input/Output Controller
Hub (ICH) 82801AA
FDD
Secondary IDE
Primary IDE
VRM for socket
CPU 2
HDD Temperature
Sensor
Battery
One AGP 4x Slot
PCI Slot 1
(32-bit 33 MHz, 5V)
PCI Slot 2
(32-bit 33 MHz, 5V)
Super I/O NS 87364 Chip
CSA4280 Audio PCI chip
MaxiLife - Status Panel
PCI Fan
CD-ROM Audio In
AUX Audio In
Internal Speaker
Internal SCSI U160
Connector to
Internal Devices
PCI Slot 5
(32-bit 33 MHz, 5V)
PCI Slot 4
(64-bit 66 MHz, 3.3V)
Wake-On Lan
PCI Slot 3 (64-bit 66
MHz, 3.3V)
(WOL) c
PCI 64-bit Hub
(P64H)
Additional SCSI
LED Connector d
FirmWare Hub
Controller (FWH)
82802AB
Adaptec 7892 SCSI
U160 Controller
Configuration
Switches a a. Refer to
“System Board Switches” on page 12
or the Switch Block Label located on the chassis of the system box for the different system board switch settings.
b. Connector for the Anti-Intrusion switch.
c. Optional.
d. Connector for additional control of HDD LED on the status panel through the SCSI controller on a PCI add-on card.
English 11
Switch Boxes
System Board Switches
System Board Switches
There are ten system board switches used for configuration, numbered from 1 to 10. Of these a certain number are reserved and should not be modified, otherwise it could lead to a system failure.
Switch
1
Default
Position
UP
To Configure:
2
3
4
UP
UP
UP
Enables normal mode.
DOWN enables the BIOS recovery mode at next boot.
Reserved. Do Not change Default Setting
Enables User and System Administrator passwords.
DOWN clears the passwords at next boot.
Retains CMOS memory.
DOWN clears CMOS memory at next boot.
5
6
UP
DOWN
Reserved 5-6. Do Not change Default Settings
7
8
9
10
DOWN
DOWN
DOWN
UP
Enables keyboard power-on.
UP disables this option.
Reserved 8-10. Do Not change Default Settings
There are two types of system board switch boxes that may be used on the HP Kayak XU800 PC Workstation.
OPEN = UP CLOSED = DOWN or
OFF = OPEN ON = CLOSED
Default Configuration
OPEN = UP
CLOSED = DOWN
10 9 8 7 6 5 4 3 2 1
X X X X X X
X X X X
12 English
Configuring Your Network Connection
Configuring Your Network Connection
You need to use the PC Workstation’s Setup program to change the integrated Ethernet interface settings. To access the Setup program,
Press while the initial “Kayak” logo is displayed immediately after restarting the PC Workstation.
The following table summarizes which network options you can set using the Setup program. To
Network Setup Items
1
Where to find in Setup
Enable your PC Workstation to be started (booted and logged on) from the network.
Enable remote power-on of your PC Workstation.
In the Security menu, go to the Boot Devices
Security submenu (described below).
In the Power menu, enable the Integrated
Network item.
In the Power menu, enable the Network
Interface item.
From “Suspend Wakeup” mode, enable your PC
Workstation to return to full power when a command is received by the integrated network interface.
Determine boot device priority.
In the Boot menu, select the Boot Device
Priority list item.
1.
For full information on setting up your network, refer to the online Network Administrator’s
Guide preloaded onto your PC Workstation.
Controlling the Network Security Features
The Security Features allow you to enable starting from the network if you want the PC Workstation to start from a LAN server.
To enable starting from the network:
1 Press while the initial “Kayak” logo is displayed immediately after restarting the PC Workstation to access the Setup program.
Use the or key to select the Boot menu.
2 Check that Option ROM is enabled on the PCI 5 (Advance PCI5).
English 13
Configuring Your Network Connection
3 Highlight the line 1st Device and press or to change the option to Lan .
To disable boot options:
1 Press while the initial “Kayak” logo is displayed immediately after restarting the PC Workstation to access the Setup program.
Use the or key to select the Security menu.
2 Press to go to the Start From Floppy line . Press or to change the option to Disabled .
3 Press to go to the Start From CD-ROM line. Press or to change the option to Disabled .
4 Press to go to the Start From HDD line. Press or to change the option to Disabled.
5 Save your changes and exit.
To obtain further information and assistance, refer to the online help in the Setup program.
14 English
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- Intel Pentium III processor with speeds up to 800 MHz
- Up to 2 GB of RDRAM or SDRAM memory
- Seven expansion slots for adding additional components
- Integrated SCSI and IDE controllers for fast data transfer
- Dual USB ports for connecting peripherals
- Compact size and sleek design
Related manuals
Frequently Answers and Questions
What types of processors does the HP XU800 support?
How much memory can the HP XU800 accommodate?
Does the HP XU800 have any expansion slots?
What types of storage devices can the HP XU800 support?
Does the HP XU800 have any USB ports?
advertisement
Table of contents
- 3 Features
- 7 Physical Characteristics (standard configuration)
- 8 System Specifications
- 8 Power Consumption Information
- 9 Maximum Loads Available for Accessory Slots
- 9 PCI Accessory Slots
- 10 AGP PRO Slot
- 13 System Board Connectors
- 14 System Board Switches
- 15 Configuring Your Network Connection
- 15 Controlling the Network Security Features
