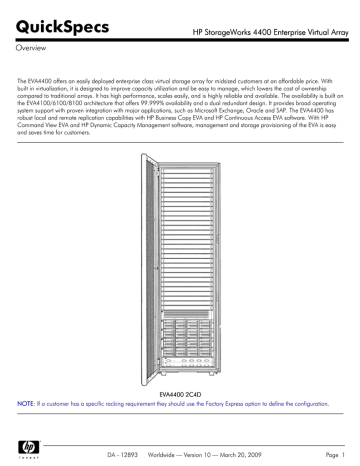

QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Overview
The EVA4400 offers an easily deployed enterprise class virtual storage array for midsized customers at an affordable price. With
built in virtualization, it is designed to improve capacity utilization and be easy to manage, which lowers the cost of ownership
compared to traditional arrays. It has high performance, scales easily, and is highly reliable and available. The availability is built on
the EVA4100/6100/8100 architecture that offers 99.999% availability and a dual redundant design. It provides broad operating
system support with proven integration with major applications, such as Microsoft Exchange, Oracle and SAP. The EVA4400 has
robust local and remote replication capabilities with HP Business Copy EVA and HP Continuous Access EVA software. With HP
Command View EVA and HP Dynamic Capacity Management software, management and storage provisioning of the EVA is easy
and saves time for customers.
EVA4400 2C4D
NOTE:
NOTE If a customer has a specific racking requirement they should use the Factory Express option to define the configuration.
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 1
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Overview
What’s New
Concurrent with the introduction of the new EVA6400/8400 array models, the EVA4400 is being refreshed with many new features
also being introduced with the EVA6400/8400. This includes:
Vraid 6
Large LUNs (32TB)
Solid State Disk Support
Instant restore from MirrorClone Snapshot
Command View EVA and Replication Solution Manager support for All EVA generators
Dynamic Capacity Manager on Linux
A new version of the M6412 drive enclosure, M6412A, that meets the latest RoHS requirements
And, only recently, support of Command View EVA / ABM (Array Based Management) for the EVA4400 only
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 2
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
Controller Model
Virtual Controller Software (XCS)
Management Software
Application Environment
Local Data Replication -- HP
StorageWorks Business Copy EVA
Remote Data Replication -- HP
StorageWorks Continuous Access
EVA
Command View EVA Aarray
management and configuration
support
Application block and file storage
O/S Support
RAID supported
LUN size
Number of controllers
Cache (per controller pair)
Battery Back-up Cache
Host Connectivity
Number of Host Supported
(Single Path/Dual Path)
Host Ports (per controller pair)
Host Port Speed
Device Connectivity
Device Ports (per controller pair)
Device Port Speed
EVA4400
HSV300
XCS v9.5
Command View EVA v9.0
Oracle, SAP, Microsoft
Exchange, SQL
Yes
EVA6400
HSV400
XCS v9.5
Command View EVA v9.0
Oracle, SAP, Microsoft
Exchange, SQL
Yes
EVA8400
HSV450
XCS v9.5
Command View EVA v9.0
Oracle, SAP, Microsoft
Exchange, SQL
Yes
Yes
Yes
Yes
Up to 16 EVAs
Up to 16 EVAs
Up to 16 EVAs
Yes
Yes
Yes
HP-UX
HP-UX
HP-UX
HP OpenVMS
HP OpenVMS
HP OpenVMS
Windows 2003
Windows 2003
Windows 2003
Windows 2008
Windows 2008
Windows 2008
Windows Server 2008 HyperV Windows Server 2008 HyperV Windows Server 2008 HyperV
Sun Solaris
Sun Solaris
Sun Solaris
Linux
Linux
Linux
IBM AIX
IBM AIX
IBM AIX
Novell NetWare
Novell NetWare
Novell NetWare
VMware
VMware
VMware
Apple Mac OSX
Apple Mac OSX
Apple Mac OSX
Citrix Xen
Citrix Xen
Citrix Xen
Vraid0, Vraid1, Vraid 0+1, Vraid0, Vraid1, Vraid 0+1, Vraid0, Vraid1, Vraid 0+1,
Vraid5, Vraid 0+5, Vraid 6 & Vraid5, Vraid 0+5, Vraid 6 & Vraid5, Vraid 0+5, Vraid 6 &
Cross Vraid Snaps
Cross Vraid Snaps
Cross Vraid Snaps
Up to 32TB
Up to 32TB
Up to 32TB
2
2
2
4GB
8GB
14 or 22GB
Yes, up to 96 hours
Yes, up to 96 hours
Yes, up to 96 hours
Fibre Channel, iSCSI and
Fibre Channel, iSCSI and
Fibre Channel, iSCSI and
Direct Connect
Direct Connect
Direct Connect
512/256
512/256
512/256
4 or 2 embedded FC switches
8
8
with ten 8Gb/s FC SAN ports
per controller
4 Gb
4 Gb
4 Gb
Redundant FC-AL pairs from Redundant FC-AL pairs from Redundant FC-AL pairs from
each controller to switched
each controller to switched
each controller to switched
JBOD for redundant paths to JBOD for redundant paths to JBOD for redundant paths to
dual drive ports
dual drive ports
dual drive ports
4
8
12
4 Gb
4 Gb
4 Gb
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 3
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
Device Path Aggregate Bandwidth
Switched device shelves (M6412)
Drives per enclosure
Drive types (mixed in any enclosure)
Supported disks, minimum
Supported disks, maximum
Capacity
Drive capacities and speeds
JBOD Support (behind XP)
I/O Requests per Second (IOPs)
Maximum throughput (MB/s)*
Drive Interface (per controller)
Variable Speed Redundant Blowers
Environmental Monitoring Unit
Regulatory approvals
16 Gb
1 to 8
12
Solid State Disks (SSD), High
Performance Fibre Channel
and Fibre Attached
Technology Adapted (FATA)
6 SSD, 8 FC and FATA
8 SSD, 96 FC and FATA
.4 to 96TB
72GB SSD
400GB 10K rpm
146GB 15K rpm
300GB 15K rpm
450GB 15K rpm
1TB FATA
Yes
>140,000
1550
Two 4Gb/s FC-AL ports per
controller in redundant pairs,
two paths to each dual ported
drive
Yes
Monitors Power and
Temperature
UL, CSA, TUV, FCC, CE
MARK, CTICK, BSMI, VCCI
32 Gb
48 Gb
2 to 18
3 to 27
12
12
Solid State Disks (SSD), High Solid State Disks (SSD), High
Performance Fibre Channel Performance Fibre Channel
and Fibre Attached
and Fibre Attached
Technology Adapted (FATA) Technology Adapted (FATA)
6 SSD, 8 FC and FATA
6 SSD, 8 FC and FATA
8 SSD, 216 FC and FATA
8 SSD, 324 FC and FATA
.4 to 216TB
.4 to 324TB
72GB SSD
72GB SSD
400GB 10K rpm
400GB 10K rpm
146GB 15K rpm
146GB 15K rpm
300GB 15K rpm
300GB 15K rpm
450GB 15K rpm
450GB 15K rpm
1TB FATA
1TB FATA
Yes
Yes
TBD
TBD
TBD
TBD
Four 4Gb/s FC-AL ports per
Six 4Gb/s FC-AL ports per
controller in redundant pairs, controller in redundant pairs,
two paths to each dual ported two paths to each dual ported
drive
drive
Yes
Yes
Monitors Power and
Monitors Power and
Temperature
Temperature
UL, CSA, TUV, FCC, CE
UL, CSA, TUV, FCC, CE
MARK, CTICK, BSMI, VCCI MARK, CTICK, BSMI, VCCI
Optical Switches and Directors:
http://h18006.www1.hp.com/storage/saninfrastructure/switches.html
Fibre Channel Switches & Directors
* More EVA4400 performance information is available at: www.hp.com/go/eva4400, Resource Library.
EVA 4400 Capabilities
Easy to install and configure in just a few hours (for a factory configured unit) with the SmartStart
configuration utility*
Virtualization abilities allow for easy management and excellent capacity utilization
Start small and increase capacity as the business grows
Business application and HP BladeSystem integration
Excellent reliability and availability. HP's data shows that most customers are achieving 99.999%
availability with the EVA 4x00/6x00/8x00
Support for integrated application (block) and file storage solution with EVA file services offerings
Support for dual-ported 4 Gb/s FC disk drives and 2 Gb/s dual-ported Fibre Attached
Technology Adapted (FATA) drives and dual ported Solid State Disks (SSD)
Array management flexibility with optional deployments of:
Array Based Management with Command View / ABM
Server Based Management with Command View / SBM**
Support for Direct Attach connection to Windows, HP-UX, and Linux servers, without the need for
SAN switches, with Command View / ABM
SAN support for integrated EVA iSCSI Connectivity Option with Windows and Linux, Apple Mac
OS X, Microsoft Windows, Sun Solaris, VMware.
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 4
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
Management of up to 1024 virtual disks (256 per HBA), for the EVA4400, ranging in size from
1GB to 32TB per Virtual disk, in 1GB increments.
Dynamic Capacity Management support to expand (in 1GB increments) and shrink LUNs up to
2TB.
NOTE: Requires Host Operating System Support.
Virtual disk data load leveling (non-disruptive background activity)
Distributed sparing of disk capacity
Redundant FC-AL loops from each controller to dual disk ports
Support for remote replications between current EVA generations
Migration support via remote replications between current and earlier EVA generations
Dual redundant controller operation for increased fault tolerance
Robust local and remote replication capabilities with Business Copy and Continuous Access EVA
High availability with hot plug drives, power supplies, fans, and industry failover software
Multiple Bus Failover Support using industry popular multiple path software.
NOTE: Requires native OS multi-pathing support.
Battery-Back-Up for controller cache memory
Asynchronous Disk Swap (hot swap)
Clustered Server Support
Mirrored Write-Back Cache Support
Read-Ahead and Adaptive Read Caching Support
Virtual RAID Arrays (Vraid0, Vraid1, Vraid 0+1, Vraid5, Vraid 0+5, Vraid 6 & Cross Vraid Snaps)
Support for local replication between Vraid types using Vsnap or Snapclone within a disk group or
using Snapclone across disk groups (and Cross Vraid Snapshot and Snapclone)
Online XCS software upgrade capability
Online drive firmware upgrade capability
Supports connection of up to 256 hosts
Multi-Vendor Platform Support
Controller Password Protection for Configuration Control
Selective Storage Presentation and SAN-based Data Zoning (through switches).
HP StorageWorks Command View EVA GUI Interface for management and monitoring (manages
up to 16 EVAs).
Monitor and control health, HP EVA end-to-end SAN performance and monitoring, storage
utilization and reporting for all key HP EVA and SAN infrastructure including servers, storage, HP
MSA, HP EML E-series tape, HP ProLiant Storage Servers (NAS), HBAs, switches, applications and
monitor the entire backup from a single interface with HP Storage Essentials
*For more information on SmartStart,for EVA see:
http://h18000.www1.hp.com/products/storageworks/evasmartstart/relatedinfo.html?jumpid=
reg_R1002_USEN
** For more information on Command View, see:
http://h18006.www1.hp.com/products/storage/software/cmdvieweva/index.html
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 5
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
EVA4400 Product
Packaging
The EVA4400 packaging consists of a 2U FC dual HSV300 controller assembly and 2U 12-bay Model
M6412A FC drive enclosures. (The M6412A drive enclosure is also used by the EVA6400 and
EVA8400.) The EVA4400 is also available with an embedded SAN switch for each controller, for a total
of two switches per enclosure. This SAN switch is an 8Gb/s, 10 port B-series FC switch for a total of 20
SAN ports per EVA4400 enclosure.
EVA4400 configurations allow a wide range of configuration options, including flexible factory rackmounting options in either a standard 42U cabinet (based on the HP 10000 G2 Series Rack or a choice
of 42U extended and 36U and 22U heights).
EVA4400 is available in pre-configured Starter Kit configurations. For more information on these kits
see: http://h18000.www1.hp.com/products/quickspecs/12894_div/12894_div.html
Embedded SAN Switch
Options
In addition to providing twenty 8Gb/s FC SAN port connectivity, the embedded SAN Switches have
optional software components for:
Adaptive Networking
ISL Trunking
Advanced Performance Monitoring
Fabric Watch
Extended Fabric
For more information on these software component options, see:
http://h18006.www1.hp.com/storage/networking/b_switches/index.html and look for HP StorageWorks
B-Series 8/8 SAN Switch information.
Multi-Vendor Platform
The EVA4400 provides support for industry-leading Operating System platforms including:
HP-UX
HP OpenVMS
Windows Server 2003
Windows Server 2008
Windows Server 2008 HyperV
Sun Solaris
Linux
IBM AIX
Novell NetWare
VMware
Apple Mac OSX
Citrix Xen
NOTE: See Operating System, Cluster and High Availability Compatibility matrix for Operating System
version detail.
Designed for No-SinglePoint-of-Failure
The EVA family’s redundant architecture and value added software is designed to eliminate singlepoints-of-failure from server to storage in clustered or single server configurations with multi-pathing.
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 6
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
HP SmartStart for EVA
configuration utility
The EVA4400 is easily installable in a few to several hours, depending on the complexity of the
configuration, using HP SmartStart configuration utility for EVA Storage. For Windows 2003 and 2008
application servers, SmartStart software installs HBA drivers, Multi-pathing I/O (MPIO) drivers, the
Storage System Scripting Utility (SSSU) for Windows, Command View EVAperf, installs Command View
EVA on a Windows Server 2003 management server and helps provision the EVA4400 storage.
Installation and Startup
For more complex environments, an Installation & Start-up service is recommended or may be required.
HP recommends the purchase of the following Installation & Startup services:
For an EVA4400 into heterogeneous server environments, including installation of controllers,
drive enclosures, disk drives, installation of Command View / SBM and HP's Remote Connectivity
Support Pack (RSP), purchase the EVA4400 Installation and Startup Service - HA114A1#58D.
For factory configured, factory racked EVA orders and when final installation of just the preconfigured EVA hardware at the customer site is required, purchase the Basic I&S service HA113A1#58D.
For factory configured, factory racked EVA orders, without an existing Command View
management server, purchase the Command View Installation and Startup - HA124A1#5AS. This
service includes LUN design and implementation, HP Insight Remote Support software, and
customer orientation training.
For Continuous Access configurations, purchase the HP Data Replication Solution ServiceContinuous Access.
For Replication Solutions Manager, purchase the HP Data Replication Solution Service -Continuous Access EVA or Business Copy EVA.
NOTE: Customers who have completed the necessary training or who have gained the necessary
experience with these environments may decide to not purchase the recommended Installation and
Startup services. However some installation and startup services are required.
HP requires the purchase of Installation & Startup services when using:
Storage Essentials, purchase the Storage Essentials Solution Service.
Continuous Access, purchase the HP Data Replication Solution Service Continuous Access EVA.
NOTE: A comprehensive list of Installation & Start-up services can be found at:
www.hp.com/hps/storage
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 7
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
Remote Replication
Solutions
(Software options)
HP StorageWorks Continuous Access provides disaster tolerant replication across a Fibre Channel SAN.
Continuous Access EVA performs real-time replication between HP StorageWorks Enterprise Virtual
Arrays of the current and earlier generations. Continuous Access EVA provides the highest level of FC
SAN data protection to customers in order to meet disaster tolerant business continuity implementation
goals. Through the use of MAN/WAN Fibre Channel SAN extensions, Continuous Access EVA provides
24x7 protections against disaster like scenarios, in campus, metro or continental networks. Thus,
enabling business protection against unforeseen events. For additional information about Continuous
Access EVA visit: http://h18006.www1.hp.com/storage/software.html
HP StorageWorks Disaster Tolerant Solution for mySAP Business Suite on EVA offers a business
continuance solution for SAP environments, where data integrity and value added functionality are high
priorities. Best practices for implementing remote mirroring of an SAP database as part of an overall
data protection strategy with SAP applications can be found at:
http://h71028.www7.hp.com/erc/downloads/4aa1-5683Enw.pdf
The HP StorageWorks IP Distance Gateway provides SAN over WAN connectivity for protecting and
replicating data between EVA systems. By connecting islands of SANs over WANs, the IP Distance
Gateway enables CA replication (Asynchronous and Synchronous), SAN device sharing, data migration
and other long distance data services. At the core of providing long distance data services is the ability to
copy, move and replicate data locally and over long distances. However, SANs have limited distance
capabilities (10km) and IT managers need to share, protect and move data over greater distances than
10km, routers and switches that link SANs over IP WANs is the weapon of choice for most IT managers.
The IP Distance Gateway uses the FCIP (Fibre Channel Internet Protocol) standard to extend SAN
connectivity over the WAN.
Low Cost SAN over WAN Connectivity
High Performance with data compression and load balancing
Support for FCIP for SAN extension
Bridges SANs for all FC Fabrics
Supports two Ethernet and two Fibre Channel ports
Concurrent FC and IP traffic in High Availability mode
Integrated management with HP StorageWorks mpx Manager
Supports High Availability Options
Fabric and Direct Attach support
http://h18006.www1.hp.com/storage/disk_storage/index.html
Local Replication
Solutions
(Software options)
The HP StorageWorks Business Copy is a local replication application for the EVA family. It incorporates
Virtually Capacity-free Snapshot (Vsnaps), standard snapshots and Snapclone capabilities. Business
Copy EVA creates point-in-time copies of storage volumes, called Business Continuance Volumes (BCVs)
using the snapshot and cloning capabilities of the array firmware and provides multi-array local mirror
management. This product is indispensable for critical data center operations such as non-disruptive
backups, frequent snapshots of high value databases, and data mining. The bottom line benefits include
improved disk capacity utilization and increased business continuity, data availability, and productivity
savings. Additional features include licensing based on replicated (not total raw) capacity and a new
improved management interface.
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 8
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
Replication Management HP Business Copy EVA and HP Continuous Access EVA comes complete with HP Replication Solutions
Manager, a graphical user interface and scripting environment, that greatly simplifies storage
management by creating, running, and managing storage replication jobs using controller based
snapshots, clones and remote mirroring.
With HP Replication Solutions Manager users easily can manage both remote and local replication
across the full EVA product family. By virtually removing the complexity associated with both small and
large replication environments, point-in-time copies and remote replication are managed and
configured with just a few mouse clicks. To assist the user, Information on the replication environment is
presented in a variety of views, including an interactive topology manager that allows each user to select
their viewing preference. In addition, HP Replication Solutions Manager provides a scripting interface for
additional flexibility.
Application Integration
with Oracle
As an option to HP Business Copy EVA, the user can simply replicate an Oracle database. HP
Replication Solutions Manager will provide a graphical interface to view the components of the database
to be replicated, and allow selection of a specified database. The replication manager will automatically
suspend the Oracle application, and take a point in time copy (local or remote) of all associated array
virtual disks. The replication manager will provide the option to restart the original Oracle database after
the replicas have been initiated on the array. The user will be able to utilize the replication manager to
present the replica to another host.
Capacity Management
HP StorageWorks EVA Dynamic Capacity Management Software is a comprehensive software solution
that automates storage provisioning and improves capacity utilization on the HP StorageWorks
Enterprise Virtual Array (EVA) family. Designed for the enterprise market, EVA Dynamic Capacity
Management Software uses advanced automation to automatically "right-size" the file system and storage
volumes to ensure the highest levels of capacity utilization are achieved while reducing ongoing storage
administration needs. For more information about DCM, please see the following:
http://h18000.www1.hp.com/products/storage/software/eva_dcm/index.html
Application Solutions
The EVA4400 is the ideal solution for customers running Oracle, Exchange, SAP environments and those
customers who are deploying virtual server technologies like VMware. Here are descriptions of two such
solutions:
JD Edwards
The HP and JD Edwards EnterpriseOne solution leveraging the HP BladeSystem and HP StorageWorks
EVA4400, offers a single database and pre-integrated applications that help companies manage the
core processes involving finances, people and equipment enabling them to make the best use of
information and resources throughout the business. The HP and JD Edwards EnterpriseOne solution
provides capabilities across a breadth of business processes, including customer relationship
management, enterprise resource planning, supply chain management and supplier relationship
management.
Oracle E-Business Suite (EBS)
Designed to support the global economy (as well as mid-market companies with complex requirements),
Oracle® E-Business Suite (EBS) on the HP BladeSystem server and the HP StorageWorks EVA4400 helps
users think globally to make better decisions; work globally to be more competitive; and manage
globally to lower costs, enhance security and increase performance. This right-sized, affordable business
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 9
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
technology is built on a unified architecture with a single Oracle Database-providing a comprehensive,
integrated set of business management and planning applications that allow organizations to manage
their end-to end operations.
For additional tested, industry leading configurations built on the EVA4400 and HP’s Blade and Rack
Servers, visit: http://h18006.www1.hp.com/products/storageworks/eva4400sb/index.html
EVA with HP Storage
Essentials Storage
Resource Management
Software Suite
HP Storage Essentials Enterprise Suite and HP Storage Essentials Standard Edition SRM Software
integrate with HP Systems Insight Manager to provide end-to-end advanced server and storage
management capabilities. HP Storage Essentials SRM Suite software features a base management
console and an expanding portfolio of value-add plug-in software to assist in managing EVA in
heterogeneous SANs across the enterprise.
HP Storage Essentials Suite delivers integrated heterogeneous and multivendor functionality for network
(Arrays, DAS, SAN, NAS, HBAs, switches) management, storage resource management, reporting,
business application and backup monitoring, capacity metering, provisioning and application
infrastructure monitoring.
http://h18006.www1.hp.com/products/storage/software/e-suite/index.html
HP Standard Edition SRM HP Storage Essentials Standard Edition Storage Resource Management Software and Systems Insight
Software and EVA
Manager with Command View EVA / SBM software provides a total solution that allows midsize
businesses with limited IT staff to see the big picture (storage-servers-infrastructure) thereby reducing SAN
complexity by not having to depend on Excel spreadsheets or whiteboards to track and manage SAN
storage and infrastructure. It supports Windows and Linux servers with small to medium HP storage
based SANs including HP EVA, HP MSA, HP NAS, HP EML Tape, HBAs and fabric devices. HP Standard
Edition SRM Software unified server and storage tool-set automates complex and manual storage
process and tasks with auto discovery, visualization and topology mapping for quick device
identification, integrated NAS and SAN management, business application monitoring including Oracle,
Microsoft SQL, Sybase, InterSystems Caché, Microsoft Exchange Server and SAP Adaptive Computing
Controller (ACC) environments path dependency identification, and end-to-end EVA SAN performance
monitoring and analysis. For more information on HP Storage Essentials SRM Standard Edition Software
visit: http://h18006.www1.hp.com/products/storage/software/std-suite/index.html
HP Storage Essentials
SRM Performance Pack
Software and EVA
(end-to end EVA SAN
Performance
Management)
HP Storage Essentials SRM Performance Pack Software combined with Storage Essentials SRM Enterprise
Edition Software monitors performance along the complete path of business applications through
underlying storage area networks (SAN) components, including host server, host bus adapter (HBA),
fabric switch and Enterprise Virtual Array. A unified and simplified interface helps EVA administrators
increase efficiency, troubleshoot performance bottlenecks faster, and quickly visualize the big
performance picture of their EVA storage, hosts and SAN infrastructure with real-time monitoring,
historical trend analysis and trend extrapolation.
The SRM Performance Pack Software can be ordered separately on a per EVA basis for existing Storage
Essentials SRM Enterprise Edition customers, and for Storage Essentials SRM Standard Edition customers
the SRM Standard Edition LTU includes licensing to monitor up to 3 HP EVAs. For more information on
HP Storage Essentials SRM Standard Edition Software visit:
http://h18006.www1.hp.com/products/storage/software/std-suite/index.html
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 10
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
HP StorageWorks 12000 Expanding the power of the HP StorageWorks Enterprise Virtual Array (EVA), the HP StorageWorks
Virtual Library System EVA 12000 Virtual Library System EVA Gateway accelerates backup performance in complex SAN
Gateway
environments while improving overall reliability. Integrating seamlessly into existing backup applications
and processes by emulating popular tape libraries and tape drive formats, the HP VLS12000 EVA
Gateway matches the existing data protection environment, removing the need to change backup
software or monitoring policies. Additionally, because the VLS EVA Gateway uses HP EVAs as the storage
pool, ease of use is maintained throughout the system. By emulating multiple tape drives simultaneously,
more backup jobs can be done in parallel resulting in reduced backup times and, because the data
resides on disk, single file restores are exceptionally fast.
The HP Virtual Library System EVA Gateway simplifies your SAN environment by providing more virtual
devices and leveraging existing switches and HP EVA infrastructure. The result is the ability to vastly
increase scale yet reduce the complexity of shared storage while maintaining the manageability of the
system. As your environment changes, the HP Virtual Library System EVA Gateway adapts to it - host
masking and mapping ensure that only the appropriate hosts have access to the HP Virtual Library
System.
The HP Virtual Library System EVA Gateway offers advanced features such as Automigration which
allows users to move data under the control of the VLS from the VLS storage to tape or another VLS. The
VLS EVA Gateway will also be able to take advantage of data deduplication when that feature is
launched in early 2008. For more information on the VLS EVA Gateway, please visit the link below:
http://h18006.www1.hp.com/storage/disk_storage/disk_to_disk/vls/12000vls/index.html
EVA iSCSI Connectivity
EVA iSCSI Connectivity Option
EVA4400 iSCSI support is available through the EVA4400 iSCSI Connectivity Option. This powerful
solution provides iSCSI connectivity to an EVA4400 utilizing the EVA's existing Fibre Channel
infrastructure.
The HP StorageWorks EVA4400 iSCSI Connectivity Option extends the advantages of Fibre Channel
SANs into smaller departments and remote locations. This EVA4400 option allows customers to
incorporate iSCSI servers within SANs without requiring additional storage arrays or management costs.
Use the EVA's Command View (/SBM or /ABM) software to manage the iSCSI connectivity to the array
and mount the iSCSI device in the same rack as the array. For small-SAN deployment, the EVA4400
Starter Kit with the iSCSI Connectivity Option provides an affordable, robust and highly available simple
iSCSI solution for smaller budgets.
For more information and operating system support:
http://h18006.www1.hp.com/products/storageworks/evaiscsiconnect/index.html
ProLiant Storage Server Gateways
The EVA also supports select ProLiant Storage Servers (i.e. NAS) connected as iSCSI/file/print gateways.
ProLiant DL380 G5 SAN Gateway Storage Servers and SB460c SAN Gateway Storage Servers both
feature Microsoft's Windows Unified Data Storage Server 2003 operating system that includes a cluster
license and Microsoft iSCSI Software Target standard, while other models offer optional support for
Microsoft iSCSI Software Target. ProLiant Storage Servers with iSCSI target functionality not only enable
tiered (Fibre Channel and iSCSI) block access for application servers, but they also add file and print
services to your EVA solution. In addition, any ProLiant DL380 G5 Storage Server or SB460c SAN
Gateway Storage Server is a perfect platform from which to run Command View EVA / SBM. You can
greatly enhance the value of your EVA when you host EVA management, file and print services, and
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 11
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
iSCSI connectivity all from the same ProLiant Storage Server gateway solution.
For more information: http://www.hp.com/go/storageservers
EVA File Services
File services for the EVA are supported through the use of the EFS Clustered Gateway. Using File services
with the EVA eliminates having to manage silos of storage, File Services for the EVA creates a single,
integrated storage solution that provides both easy to manage application (block) services and scalable
files services.
This solution can serve both block and file data concurrently with high availability and scalable
performance. The solution is supported by a powerfully simple suite of management software making it
easy for users to achieve high levels of productivity.
File services through the EFS Clustered Gateway supports mid-range and enterprise customers wanting a
single storage solution for their block and file data, improved storage utilization, scalable throughput
performance to meet application specific demands for consistent high transaction I/O, easy capacity
expansion, instantaneous replication, simplified storage administration and high availability. Customers
can consolidate their individual silos of storage to gain flexibility, reduce IT costs and complexity as
compared to traditionally architected storage solutions.
The use of EVA and file services supports both CIFS (windows) and NFS file serving. The components can
be factory integrated into HP EVA4400 arrays. The components required to implement file services on
the EVA are:
Two EFS Clustered Gateway serving nodes
One Ethernet Switch
Two 8Gb FC Switches
Installation and Startup
A file service solution provides the following benefits:
Integrates and simplifies providing a single storage solution for application (block) and file data
delivering high utilization and lower TCO
Uses a single set of management tools that can be invoked from anywhere, anytime, resulting in a
very operationally efficient environment to manage.
Combines state-of-the-art application (block) data performance and file serving performance, that
can scale as needs dictate, offers customer's aggregate performance levels far in excess of
traditional file servers and NAS appliances.
Additional capacity can be added quickly and easily with any combination of high performance
Fibre Channel and/or low cost FATA drives.
Uses state-of-the-art virtualization which improves performance, disk usage and TCO while the
single, shared pool of storage allows for easy dynamic expansion, which automatically distributes
data to avoid potential hot spots.
With fully redundant components such as SAN switches, array controllers, and file serving nodes
built into every unit, this solution is perfect for demanding mid-range and enterprise storage
applications.
For more information:
http://h18006.www1.hp.com/products/storageworks/efs/index.html?jumpid=reg_R1002_USEN
http://h18006.www1.hp.com/products/storageworks
ProLiant Storage Server Gateways
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 12
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
Select ProLiant Storage Servers can be connected to an EVA to add file, print, management, and/or
iSCSI services and boost the value of your array investment. ProLiant DL380 G5 SAN Gateway and
SB460c SAN Gateway Storage Servers are designed to provide highly-available additional data services
to an EVA array or SAN, and both feature Microsoft's Windows Unified Data Storage Server 2003
operating system that includes a cluster license and Microsoft iSCSI Software Target standard. ProLiant
Storage Servers can host Command View EVA / SBM as well, making them an affordable and flexible
way to add functionality and value to your EVA investment.
For more information: http://www.hp.com/go/storageservers
EVA with HP Systems
HP SIM is the foundation for HP’s unified server-storage strategy - it is packaged as value add software
Insight Manager Software with EVA, it is a management application and it is derived from the heritage of Compaq Insight
Manager, HP Toptools, and HP Servicecontrol. HP SIM runs on HP Windows, Linux, and HP-UX and
provides discovery and identification, fault management, security administration, asset reporting, and
centralized configuration management across heterogeneous servers, storage and infrastructure. HP SIM
is easily extensible, integrating other HP management products and value-add plug-ins such as the
ProLiant Essentials, Integrity Essentials, and Server Essentials.
HP SIM relies on industry standards like SMI-S, SNMP, SSH, WBEM, and WMI to detect and report
heterogeneous device attributes. HP SIM may also be configured to launch array specific applications for
configuration, reporting and replication. For more information on HP Systems Insight Manager see:
http://www.docs.hp.com/en/netsys.html
Single-pathing
(Single HBA per host)
Single-pathing (or single HBA per host) support is provided for all supported operating systems (but may
be version dependent). Use of single-pathing, which does not offer a redundant path option, should be
used with care. Failure of the single HBA will result in loss of access for that host until the HBA is
replaced.
Enclosure Capacity
The EVA4400 provides one of the highest density disk storage solutions in its class of product. The
EVA4400 can be configured in 18U of rack space with eight 2U 12-bay M6412A FC disk enclosures for
a maximum capacity of 96 disk drives and a maximum storage capacity of 96 TB of disk capacity. The
EVA4400 supports the HP 10000 G2 series racks.
Solid State Disk Support
The EVA supports 72GB dual ported fibre channel solid state disk drives (SSDs). The EVA arrays will
support mixed drive types (solid state disks, high performance and FATA) within an enclosure, The solid
state disks require their own disk group. The minimum number of SSDs supported is 6 and the maximum
is 8 per array.
SSD are supported with Vraid 5 only. SSDs are supported with Business Copy EVA, but are not currently
supported with Continuous Access EVA.
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 13
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
10K rpm Drive Support
The EVA supports the 400GB 10K rpm dual-ported 4 Gb/s FC disk. The EVA4400 will support up to 96
disk drives. The EVA4400 array will support single or mixed drive capacities and types (high
performance and FATA) within an enclosure. HP recommends using the same drive type (the same
capacity) within a disk group because virtualization allocates space proportionate to the highest capacity
drive within the group. A minimum of eight high performance Fibre Channel drives are required in a
configuration using high performance drives.
15K rpm Drive Support
The EVA also supports 146GB, 300GB, and 450GB 15K rpm dual-ported 4 Gb/s FC disk drives. The
EVA arrays will support single or mixed drive capacities and types (high performance and FATA) within
an enclosure. HP recommends using the same drive type (the same capacity) within a disk group
because virtualization allocates space proportionate to the highest capacity drive within the group. A
minimum of eight high performance Fibre Channel drives are required in a configuration using high
performance drives.
FATA Drive Support
The EVA supports 1TB dual ported 4 Gb/s Fibre Attached Technology Adapted (FATA) disks. An EVA will
support a full configuration of FATA disk drives. The EVA4400 Starter Kits and the EVA4400 can be
configured with any combination of FATA and high performance disk drives; total raw capacity will vary
based upon the redundancy (Vraid) selected. A minimum of eight FATA drives are required in a
configuration using FATA drives.
FATA drives are designed for lower duty cycle applications such as near on-line data replication for
back-up. These drives should not be used as a replacement for EVA high performance, standard duty
cycle, Fibre Channel drives. Doing so could shorten the life of the drive.
Please see the following URL for more information on FATA drives, their uses and their benefits:
http://h71028.www7.hp.com/ERC/downloads/5982-7353EN.pdf
Fibre Channel
Technology
The EVA4400 models are 4Gb/s FC Switched Fabric enabled and are compatible with 8Gb/s, 4Gb/s or
2Gb/s FC Switched Fabric SANs with XCS v9.0. They can co-exist in the same FC SAN with
EVA3000/5000 or EVA4x00/6x00/8x00 FC storage solutions and many other SAN devices. The
EVA4400 with embedded switch model is 8Gb/s FC ready with XCS v9.0. The embedded switch is an
8Gb/s, 10 port B-series SAN switch for a total of 20 ports per controller enclosure.
The EVA4400 takes advantage of the benefits of Fibre Channel (FC) in distance, performance and
connectivity. The use of optical Fibre cabling allows distances between connected segments of a SAN to
be up to 500 meters @ 1 Gb/s; 300 meters @ 2 Gb/s using short wave multi-mode, 150 meters @ 4
Gb/s and up to 10 kilometers (6.21 miles) @ 1 Gb/s when using long wave cable. Storage Area
Networks (SANs) can be constructed using FC switches/directors for fabric connectivity. HP
StorageWorks SAN B-series and C-series switches and directors provide exceptional connectivity while
increasing the effective bandwidth of the network. Supported SAN features include Zoning for
communication isolation and Inter-Switch Links (hops) up to 10 km.
For more information on specific support specifications see the following SAN Infrastructure URL:
http://h18006.www1.hp.com/storage/saninfrastructure/switches.html
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 14
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
Transfer Speeds
The EVA4400 Starter Kits and EVA4400 have two FC host ports per HSV300 or HSV300-S controller;
four for a controller pair. Each controller-to-host interface is 4 Gb/s. The HSV300 and HSV300-S
controllers are compatible with 2 Gb/s and 4 Gb/s FC switches (if required), HBAs, servers and other
storage solutions.
Each EVA controller pair interfaces with the M6412A drive enclosures. With 2 device ports per controller
and dual FC I/O modules per drive enclosure, each controller has two connections to each FC drive A
and B port. So each controller has a redundant path to each drive.
Easy Installation
The EVA4400 can ship from the factory fully configured. After unpacking, it can be plugged into power
sources, connected to the FC SAN, enabled and configured using HP SmartStart for EVA Storage and
Command View EVA and it is ready for use. Installation and start-up services are not required but are
available separately.
High Availability/ Fault
Tolerance/
Hot pluggable support
All EVA4400s are configured with dual HSV controllers that operate in a redundant mode. Each
EVA4400 controller has two FC device ports. For EVA4400, in the event of a path failure, the alternate
paths to the controller can be utilized with the use of multi-path software in the Operating System Path
software.
On the EVA4400, each port connects to one FC I/O module on a drive enclosure. Up to eight drive
enclosures can be connected in a FC loop arrangement with a controller pair and connect to one port of
up to 96 drives. With the two FC ports per controller, each controller can connect to both ports on up to
96 disk drives for redundant paths to all 96 drives.
The HSV300 controllers also have dual redundant hot plug power supplies and dual redundant hot plug
blowers. Each controller has hot plug cache batteries to maintain cache contents for up to 96 hours in
case of a total power failure.
The M6412 FC drive enclosure has dual redundant hot plug FC I/O modules that allow the controllers
to distribute I/Os between the two modules and provides redundant paths should either FC I/O module
become unavailable. The enclosure also has dual redundant hot plug power supplies and dual hot plug
blowers. Environmental Monitoring Unit (EMU) functionality is built into the I/O module in the enclosure
and monitors and reports the condition of the power supplies and fans.
The FC and FATA disk drives have dual FC ports which can be redundantly accessed by each controller.
The drives are hot plug. The drives can be configured, using redundant Vraid1 or Vraid5 protection, so
that a drive failure will not cause loss of data. Optional virtual sparing can be configured so that a drive
failure will trigger an automatic rebuild of the Vraid1 or Vraid5 protection using the virtual spare.
All EVAs have dual redundant power distribution. Two independent power cords distribute power through
two Power Distribution Units (PDUs) to each side of the EVA cabinets and to each power supply of the
controllers and to each power supply of the drive enclosures Each cabinet power cord can be connected
to independent power sources. For maximum availability, a customer should provide redundant power
from independent power circuit breakers, independent power lines from the power company and even
independent power companies.
The EVA4400 with embedded switch model also includes two 10 port 8Gb/s FC SAN B-series switches.
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 15
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
EVA Manageability
HP StorageWorks Command View EVA provides the capability to manage the EVA Array family in a SAN
or direct connect Fibre Channel host attach configuration. HP Command View EVA / SBM software runs
on a variety of server configurations using Windows Server 2003. ProLiant DL380 G5 and SB460c SAN
Gateway Storage Servers are the perfect companion platforms from which to run Command View EVA /
SBM, since they can also add file and iSCSI services to your array, and help you optimize your
investment by combining multiple services on a single device or cluster.
The powerful Command View EVA / SBM provides an easy mechanism to manage up to 16 EVA units in
a SAN configuration. Industry leading security enhancements in Command View now allows
administrators to take advantage of Windows domains and local groups. Command View integrates with
Windows Active Directory to authorize and authenticate users. In addition, all user actions and events
that change system state are logged. Administrators can now use the audit logging capabilities to see
who did what and when. The Command View EVA media kits and license are required with all EVA
models. HP Command View EVA requires a License to use (LTUs) equal to, or greater than the total raw
capacity of each array.
Performance
Fibre Channel host connections provide up to 400MB/s bandwidth for each path. Dual mirrored port
write caching capability, with battery backed cache, maintains optimal availability while assuring data
integrity in the event of a failure.
Each HSV300 controller has two Fibre Channel host ports (four ports in a redundant pair of controllers)
assuring the availability of bandwidth for the most demanding applications. For the Embedded Switch
controllers, the host ports are connected internally to the embedded switches and are not available
externally. Twenty 8Gb/s SAN ports are available externally for SAN connections.
In addition, up to 4GB of cache per controller pair ensures high performance.
Scalability
A storage management server can manage up to 16 EVA controller pairs (EVA4400, EVA3000s,
EVA5000s, EVA4x00s, EVA6x00s and/or EVA8x00s) in any one fabric. An EVA4400 controller pair will
support up to 256 multi-path host connections (up to 1024 HBAs).
The EVA4400 will scale up to 96 disks (96TB using 1TB FATA disk drives, and 43.2TB using 450 GB
high performance disk drives).
Configure to Order (CTO) options and the HP 10000 G2 Series Racks allow even greater server and
device integration, flexibility and scalability for the EVA4400. Data center managers can customize
server, storage and back-up configurations as well as using the residual cabinet U space to mount
management servers, switches and have the peace of mind that it is built with HP factory precision
manufacturing.
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 16
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
EVA as Virtualized
Storage behind the XP
HP Storage Works EVA4400 disk arrays can be connected as external storage devices behind the HP
StorageWorks XP family of disk arrays.
The XP24000/XP20000 simplifies the management of heterogeneous SAN environments through its
ability to support up to 247 PB/ 96 PB respectively of external storage-all configured ‘behind’ a single
XP. XP External Storage software uses advanced virtualization technology to allow storage administrators
to host XP Disk Array LUNs on externally attached disk arrays. Any Fibre Channel port from any CHA
pair installed in any slot can be used to connect to external storage.
Instead of seeing a confusing collection of dissimilar arrays, host systems perceive all the data to be
stored inside the XP disk array. In effect, the XP becomes the storage controller for a flexible, multi-tiered
collection of storage with a range of cost and performance capabilities. By configuring current or legacy
storage systems behind a single XP24000/XP20000, data can be moved back and forth dynamically
across tiers, all of which is invisible to the applications.
The XP’s virtualization feature also reduces the total cost of storage ownership by:
Exploiting common storage management across multiple vendors’ systems
Easily deploying a dual-vendor policy
Facilitating simpler and lower cost data migrations
Increasing storage utilization
Extending the life of legacy storage
For more information please refer to the XP24000/20000 External Storage web page at:
http://h18006.www1.hp.com/products/storage/software/extstxp/index.html
Servers Supported –
Single and Clustered
HP servers (HP-UX, ProLiant, ProLiant Storage Servers, AlphaServers)
X86 servers
Dell servers
Sun servers
IBM servers
Apple XsApple Servers (PowerPC and Intel)
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 17
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
EVA Required Software
HP StorageWorks EVA4400 ships with XCS v9.5 factory installed on new EVAs. XCS v9.5 also supports
the EVA6400/8400. The base XCS License to use for the EVA is contained in the hardware shipment..
XCS v9.5 controller media download is available from HP.com. These downloads are available for
upgrades of existing EVA4400 or as archival media for the EVA6400/8400. The EVA Release Notes and
Upgrading Product software Guide are also available from the same location.
NOTE: Review the Release Notes and Upgrading Product Software documentation and compatibility
requirements of all installed Array Integrated Software completely before upgrading. Downgrading the
EVA4400 from XCS v9.5 is not supported.
XCS v9.5 controller media and the EVA4400 Release Notes are also available to download from:
http://h18006.www1.hp.com/products/storageworks/eva/index.html
HP StorageWorks Command View EVA is required software for the EVA4400. HP Command View EVA
requires a License to use (LTUs) equal to, or greater than the total raw capacity of each array.
Install and configure Command View / SBM and the EVA 4400 with HP SmartStart for EVA Storage.
Order this media kit when ordering an EVA4400.
EVA StorageWorks EVA
Software Selector
The following matrix will assist in identifying some of the complimentary HP software products can be
used along with the EVA to support various business applications. Please see your Sales Representative,
or go to: http://www.hp.com for more information on these valuable HP software products.
Just click on the product name and you will be linked to the product specification URL.
HP Command
View EVA
HP SmartStart
HP Business
Copy EVA
HP Continuous
Access EVA
Dynamic
Capacity
Manager
HP Storage
Essentials Suite
(Heterogeneous,
multivendor)
Business
Disaster
Unified
EVA Device and
Continuity/ Recovery/ Storage Resource Server and
Configuration Backup Solutions
Local
Remote
Management
Storage
Management
Mirroring Mirroring
Management
X (Required)
Application
Integration
X
X
X
X
X
X
End to end
provisioning
(hosts,
infrastructure,
storage)
X
End to end
backup
monitoring/
reporting
DA - 12893
X
Discovery,
topology,
monitoring,
events,
applications,
NAS/SAN, File
monitoring,
reporting,
Performance,
monitor host
Worldwide — Version 10 — March 20, 2009
X
monitor applications
and associated
storage/infrastructure
(Oracle, Microsoft
Exchange Server,
Sybase, Microsoft
SQL, InterSystems
Cache' database and
SAP ACC)
Page 18
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
HP Storage
Essentials
Standard Edition
SRM Software
(Small to medium
HP Storagebased SANs)
Discovery,
topology
clusters
X
monitoring,
events,
applications,
NAS/SAN, File
monitoring,
reporting, EVA
Performance,
monitor host
clusters
X
Backup
monitoring/
reporting
HP Data
Protector
HP Systems
In-context launch
Insight Manager of CV EVA, SAN
discovery,
monitoring, asset,
config., security
HP Storage
Mirroring
X
X
X
X
(Oracle, Exchange,
Sybase, MS SQL)
X
X
(Included
with EVA)
X
EVA and Value-added Software Compatibility
Model
XCS Software
HP Command View HP Continuous
EVA*
Access EVA**
EVA4400
EVA4400 v9.0 (XCS Command View EVA Continuous Access
9.0)
/ SBM v8.0
EVA
or
Command View EVA
/ ABM v8.1
HP Business Copy
EVA**
Business Copy EVA
HP Replication
Solution Manager
(RSM)***
Replication Solution
Manager v4.0
*HP StorageWorks Command View EVA is required software. HP Command View EVA requires a License to use (LTUs) equal to or
greater than the total raw capacity of each array. If the EVA does not have the proper licensed capacity it will be in violation of the
End User License Agreement (EULA).
**HP StorageWorks Continuous Access EVA and HP StorageWorks Business Copy EVA requires a License to use (LTUs) equal to or
greater than the total usable amount of data being replicated on each array. If the EVA does not have the proper licensed capacity it
will be in violation of the End User License Agreement (EULA).
***HP StorageWorks Replication Solutions Manager Software provides a powerfully simple graphical user interface (GUI) to create,
manage and configure local and remote replication on the entire EVA family. The RSM Software provides a centralized management
interface that integrates with HP Business Copy EVA Software and HP Continuous Access EVA Software for local and remote
replication, resulting in a unique, cost effective disaster recovery solution.
Operating Systems, Cluster and High Availability Compatibility
Operating System
Versions Supported
Microsoft Windows
2003/32-bit
Standard
Enterprise
DA - 12893
SP1, R2; SP2
SP1, R2; SP2
Cluster Server or
High Availability
Software
Microsoft Cluster
Server
(MSCS)
HA Versions
Supported
Failover Software
Windows Server
2003
Enterprise Edition
Full featured MPIO,
v3.00.00 available
from HP and
Worldwide — Version 10 — March 20, 2009
Page 19
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
Enterprise Edition from HP and
Windows 2003
Microsoft DSM from
DataCenter Edition Microsoft
(64-bit))*
(64-bit))
Standard
Enterprise
Enterprise
DataCenter
Standard
Enterprise
Enterprise
11i v1 (PA-RISC)
11i v2 (PA-RISC & Integrity)
11i v3 (PA-RISC & Integrity)
HP ServiceGuard
****
Linux
Red Hat EL Advanced Server 4.5, 4.6
(IA32, IA64 & x86_64)
RedHat EL Advanced Server 5.0, 5.1
(IA32, IA64 & x86_64)
SUSE/SLES9 (IA32, IA64 & x86_64)SP3, SP4
SUSE/SLES10 (IA32, IA64 & x86_64)SP1
HP ServiceGuard
for Linux****
Linux
11.16
VERITAS
Foundation
Suite/HA for
Linux***
Linux
5.0 (SLES9& REL4
x86 only)*
only)
Tiger - 10.4.10 minimum
Leopard - 10.5
Alpha: 7.3-2, 8.2, 8.3
Integrity: 8.2-1, 8.3, 8.3-1H1
N/A
N/A
HP OpenVMS
Clusters
8
9
10 (SPARC & x86_64)
SunCluster
VERITAS
Foundation
Suite/HA***
Suite/HA
HACMP
VERITAS
Foundation
Suite/HA***
Suite/HA
NetWare cluster
server
MSCS Clustering**
Clustering
7.3-2
8.2
8.2-1
8.3
8.3-1
3.1
Apple Mac OS X
HP OpenVMS
Sun Solaris
SP1, R2; SP2
SP1, R2; SP2
SP1; SP2
SP1; SP2
(MSCS)
Microsoft Windows
2003/x64
Microsoft Windows
2003/IA64
Microsoft Windows 2008
32-bit, x64*
x64
Microsoft Windows 2008
IA64*
IA64
HP-UX
Veritas Foundation 5.0 (Windows
Suite/HA ***
2003)
IBM AIX
5.2
5.3
6.1
Novell NetWare***
NetWare
6.5 SP6, SP7
VMware
ESX Server 2.5.4, 2.5.5, 3.0.1, 3.0.2,
and 3.5
Citrix
Integrated Citrix XenServer HP Enterprise
Citrix Xen Enterprise 4.1.0-7846
11.14 (11i v1)
11.15
11.16
Veritas Foundation 11.17
Suite/HA***
Suite/HA
5.0 (11iv2)
5.0 (9 & 10)
HP Secure Path
3.0F SP3 for HP-UX
11.23 and prior
versions, HP-UX
11.31 has OS
native multi-path,
pvlinks native in
HP-UX and Veritas
DMP
QLogic Failover
driver, available
from QLogic /HP,
Emulex MultiPulse
available from
Emulex/HP and
Device Mapper
v4.0 Enablement Kit
from HP
ATTO FC HBA
driver
Native in OS
MPxIO for Solaris,
Native in OS
Veritas DMP 5.0
Native in OS
5.0 (AIX 5.3)
MPIO for IBM AIX,
Native in OS
Veritas DMP 5.0
1.8
MPIO for NetWare,
Native in OS
Windows Server
2003
Enterprise Edition
Native Device
Mapper MPIO
Windows Server
2003
Enterprise Edition
Guest Operating Systems Supported
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 20
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Product Highlights
Red Hat 5.2
SuSE 10 SP1
Windows 2003 x64
*For more specific information on supported versions of Windows 2008, see the OS support matrix at: hp.com
**For more detailed information on Cluster Server Support see the VMware Release Notes
***Follows initial release, check posted Operating Specific Release Notes or software documentation for support.
**** For more specific information on supported versions check posted Operating Specific Release Notes or software documentation
for support
Racking Guidelines and
Power Distribution
Power Distribution Units (PDUs) are configured according to the voltage used in the country when the
solution is ordered. These PDUs provide redundant power. They are located in the bottom and back of
the cabinet, taking 1U of rack space.
For the EVA4400, a variety of HP 10000 G2 Series Rack offerings and integration options are available.
The EVA configurator tools utilize a 42U HP 10000 G2 Series Rack as the standard recommendation
and will provide a 200 - 240V PDU and country specific power cords. However, the EVA4400
configurations can be customized to meet a wide variety of customer needs. The height, width (including
the 800mm wide rack) and types of rack and PDUs can be modified based upon the specific customer
need. If other devices, such as servers, switches or back-up devices are to be installed with the EVA, this
can be specified and the cabinets and PDUs can be modified to support the configuration. The EVA4400
also supports 22U and 36U racks. The 47U rack is also supported, but not factory configured, because
of the cabinet height, which creates shipping difficulties. It must be assembled on site.
For more information on the HP rack offerings, please see the following URL:
http://h18004.www1.hp.com/products/servers/proliantstorage/racks/index.html
The EVA also supports the 5642 (42U) Rack Cabinet System as a field installed option.
For more information on the 5642 rack, please see the following URL:
http://h18004.www1.hp.com/products/servers/proliantstorage/racks/5000series/5642/index.html
Other PDUs, besides the 200 - 240 V single-phase default PDU, are also supported. This includes 100 127 volt single-phase, 200 - 240 volt three-phase, and 380 - 415 volt three-phase PDUs. Monitored
PDUs are also supported.
For more information on PDU support, please see the following URL:
http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/pdu.html
NOTE: When adding additional devices to existing racks ensure that the installed PDUs will support the
new power requirements.
Total Cost of Ownership The unique virtual architecture allows up to twice the normal effective capacity utilization of traditionally
architected storage offerings. And with Virtually Capacity-Free Snapshot (Vsnap), significant duplicate
capacity requirements can be eliminated resulting in fewer/smaller storage acquisitions.
The EVA has one of the highest density disk storage solutions in the industry. Additionally, the unique
virtual architecture allows up to twice the normal effective capacity utilization of traditionally architected
storage offerings. And with the virtually Capacity-Free Snapshot (Vsnap), FATA disk drives and the ability
to change Vraid types, significant amount of duplicate capacity requirements can be eliminated, resulting
in fewer/smaller storage acquisitions.
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 21
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Family Information
HP Care Pack Services
HP Care Pack Services offer upgraded service levels to extend and expand your standard product
warranty with easy to buy, easy to use support packages that help you make the most of your hardware
and software investments. They let you choose the support levels that meet your business requirements,
from basic to mission-critical. They help you contain total cost of ownership.
HP Care Pack warranty extensions can be purchased along with HP products to cost-effectively upgrade
or extend your warranty. For many products, post-warranty HP Care Pack Services are available when
your original warranty has expired.
Why purchase an HP Care Pack service?
Your standard warranty protects against product defects. HP Care Pack Services help you guard against
unplanned downtime, which can reduce your productivity and profitability. These convenient service
packages:
Protect your investment in HP products
Provide consistent, predictable levels of support across your entire department or business
Ease budget planning with fixed-cost support that includes parts and labor
Give you direct access to proven technical and problem-solving expertise
Offer a choice of response-time and repair-time commitments
Deliver prompt, measurable results
Are available whenever and wherever you do business
HP Care Pack availability may vary by country and product.
Supporting your Adaptive Enterprise journey.
HP Services helps you make the Adaptive Enterprise real for your organization. The breadth, depth, and
quality of HP hardware and software support services can help you improve the performance of your IT
support processes and resolve the complex software and hardware problems that tax user productivity.
HP Care Pack services help you increase IT environment stability,
stability efficiency, and agility from the desktop
to the data center, and improve the productivity of your employees.
Warranty and Services
The EVA4400 comes with a 2-year HP’s Global Limited Warranty and Technical Support, which includes
Included with the Product 2 years 9x5 hardware support, with next business day (NBD) response.
HP’s warranty and support features:
Online Business Support Center and IT Resource Center
Remote Support
Technical Phone Support
Customer Self Repair (see list below)
Software Limited Warranty
On-site Warranty Service
Online Support
HP online support capabilities include a variety of self-help tools, troubleshooting assistance, and access
to the patch database, firmware/software update packages and documentation. Register with the HP
Business Support Center and the IT Resource Center to receive product specific and proactive
notifications for the EVA4400. For more information go to: www.hp.com/support or: www.itrc.hp.com.
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 22
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Family Information
Remote Support
HP designed the EVA4400 with support capability to facilitate remote monitoring and email notification
of array errors/events. To take full advantage of HP’s remote support solutions and maximize the service
delivery experience, these features must be enabled at time of installation. Additional fault monitoring
software is included in the EVA software media kit.
Technical Phone Support
24x7 telephone technical support is available to assist with Hardware warranty related troubleshooting
and issue resolution. Call HP warranty support: 1-800-474-6836. Qualified technical resources will be
your first point of contact to assist with your service request.
Customer Self Repair (customer installed replacement parts)
HP designed the EVA4400 to enable the highest degree of Customer Self Repair and parts
replacements. This feature enables maximum support flexibility, while minimizing unit down time.
Customer Self Repair parts come with step by step instructions with additional assistance available online
or by phone.
Required Customer Self-Repair (Replacement) Parts List:
Hard disk drives with drive firmware code load.
Controller enclosure power supply.
Controller enclosure fan.
Controller management module
Disk enclosure power supply.
Disk enclosure fan.
Bezels.
Optional Customer Self-Repair Parts List:
Controller cache battery.
Controller module.
Controller cache memory (DIMM).
Internal enclosure boards and cables
Fiber channel Transceivers.
Fiber channel transceivers cables.
Part replacement videos can be viewed at: http://hp.com/go/sml. For the EVA4400, select Storage, then
EVA Disk Arrays, then HP StorageWorks 4400 Enterprise Virtual Array, then the particular resource
needed.
Software Warranty
If the removable HP Software media on which HP distributes the software proves to be defective in
materials or workmanship within 90-days of purchase, return the media to HP for replacement.
On-site Warranty Service
The HP EVA4400 comes with 2 year on-site warranty support, for those service events not remedied
either remotely or through use of customer self-repair replaceable parts. On-site service is made
available at HP’s discretion and scheduled during standard office hours.
For more information about HP’s Global Limited Warranty and Technical Support, visit:
http://h18006.www1.hp.com/products/storageworks/warranty.html
For more information about HP’s Global Limited Warranty and Technical Support, visit:
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 23
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Family Information
ftp://ftp.compaq.com/pub/products/storageworks/warranty/en_321708-008.pdf
HP warrants the HP 10000 G2 Series Rack according to the standard rack product warranty. Please
refer to product specification for further details:
http://h18004.www1.hp.com/products/servers/proliantstorage/racks/index.html
Recommended
Services
HP SAN Solution Service
HP Critical Services
HP Proactive 24
HP Support Plus 24
HP Software Maintenance
Service
DA - 12893
Quickly realize the benefit of your SAN investment while reducing
overall cost of ownership
Fast, expert implementation that guards against unexpected
compatibility issues, minimizes disruption to your business and
optimizes performance
Provides a fully installed, configured and documented SAN with
scalability that allows for additional capacity as your business grows
Boost business productivity through increased server, storage,
networking, and applications availability
Minimize business losses caused by IT downtime
Reduce risk and improve efficiency by proactively managing changes
across your IT environment
Resolve complex problems quickly through direct access to HP
Services expertise and hands-on assistance
Rapidly access single-source support from a team familiar with your
business and technology infrastructure
Free your IT staff to focus on strategic business issues
Enhanced operational effectiveness and availability with proactive
problem identification and solutions recommendations
Partner with technical experts who help coordinate support, provide
hands-on assistance, and share industry best practices and HP knowhow with your staff
Rapidly access single-source support spanning your environment from
servers to storage to networking
Obtain personalized services tailored to your business environment
and objectives
Anticipate necessary change - and execute it correctly the first time
Efficiently manage infrastructure resources to meet your performance
objectives
24x7 4-hr. onsite hardware support
Material and parts included
Work to completion for hardware support
24x7 2-hr response XCS phone-in assistance
Remote problem diagnosis & support
Escalation management
Software product and documentation updates
License to use and copy software product updates
Software electronic support
Improve the productivity of system managers and operators
Improve system performance and reduce downtime due to software
defects
Expedite problem resolution through expert-level technical resources
Enjoy consistent service coverage across geographically dispersed sites
Update HP and selected third-party software at a predictable cost
Worldwide — Version 10 — March 20, 2009
Page 24
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Family Information
Take advantage of subscription savings on software updates
Keep your license compliancy up-to-date
Available HP Care Pack
Services
Extend your product warranty with a wide choice of cost-saving support packages.
HP Care Pack Services are sold by HP and HP authorized enterprise and commercial resellers. Services
for customers purchasing via direct and enterprise resellers are quoted using HP order configuration
tools. Additional information about HP Care Pack Service features and benefits is available at:
http://www.hp.com/hps/carepack/services.
Key for HP Care Pack Service availability in the table below:
E = Service available for customers purchasing direct and via enterprise resellers
C = Service available for customers purchasing via commercial resellers
N/A = Service not applicable
HP Care Pack Services
Deployment and Per Event Services
HP Installation
HP Installation & Startup
HP Implementation
HP StorageWorks EVA Firmware Upgrade Service
Service Available
E/C
E/C
E/C
E/C
NOTE: For more information about Deployment and Per Event Services for HP Storage, visit:
http://www.hp.com/hps/storage/.
HP Care Pack Services Availability
Services
HP 4 Hr, 24x7 Hardware Support
HP Next Business Day Hardware
Support
HP Software Support
HP Software Support 24x7
HP Support Plus
HP Support Plus 24
HP Proactive Essentials 24x7
Unlimited
HP Proactive 24 Service
HP Critical Service
1 yr
E/C
3 yr
E/C
4 yr
E/C
5 yr
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E
E
E
E
E
E
E
E
NOTE: To find HP Care Pack Services available via HP authorized commercial resellers, visit:
http://h30125.www3.hp.com/csn/salesmktg/elfpack/elf_nonlkup_ctrylang.asp?code=elnl
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 25
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Family Information
Deployment and Per
Availability Assessment for SANs
Event Service Descriptions
Recommendations for reducing or eliminating risks to the availability of your SAN infrastructure.
SAN Solution Service
You get a powerful network storage solution up-and-running quickly and efficiently with minimum
disruption and rapid returns on your SAN investment.
Data Migration
Transfers your critical information to a new or reconfigured storage array in an open systems
environment - across a data center or around the world.
Data Replication Solution Service
Ensures a timely, cost-effective deployment of your data replication solution cuts risk and shortens
your time-to-results.
Data Sanitation Service
Provides a method for removing data from rotational hard disk media preventing sensitive
information from being retrieved or re-created. It recommended to remove data during asset
retirement, leasing returns, hardware upgrades, or redeployment of storage devices.
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit: http://www.hp.com/support
HP Insight Remote Support Software
HP recommends customers install HP's Insight Remote Support software, (part number RSSWMBASE)
from: www.software.hp.com, with every EVA installation. HP Insight Remote Support helps customers
reduce costs, save time and ensure maximum system availability by providing remote monitoring,
intelligent event diagnosis and the automatic secure submission of hardware event notifications. This
technology has been optimized for environments with 1-50 servers (maximum 100) and requires only a
shared Windows ProLiant hosting device. It will support HP ProLiant, BladeSystem, Integrity, HP 9000
servers and HP EVA storage devices, and will be available at no extra cost as part of the EVA warranty,
HP Care Pack Service or contractual support agreement with HP. For more information access the
Insight RS quick start guide at: http://docs.hp.com/en/netsys.html#Insight%Remote%20Support
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 26
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Family Information
NOTE: If integration with HP Systems Insight Manager (HP SIM) or HP Operations Manager is required,
then customers should install the HP Remote Support Pack (RSP), not Insight RS. The RSP solution
enhances HP SIM with intelligent event diagnosis and the automatic submission of hardware event
notifications securely to HP Support, including acknowledgement and status returns.
Remote Support Pack contains event monitoring and proactive service support, including assessments
and analysis for nearly all HP servers, storage, networks and SAN environments plus selected Dell and
IBM Windows servers that have a support obligation with HP, including proactive service contracts. The
HP contract and warranty entitlement feature of HP SIM requires this plug-in to be installed. More
information can be found at: www.hp.com/services/remotesupportpack.
Customer self repair instructions, in seven local languages, are available in the component spare kits
(RUs) and the business support center at: www.hp.com. Video based instructions are available under
"Customer self repair steps" and printable replacement instructions are listed under "Manuals" at the
following location: http://h20000.www2.hp.com/bizsupport/techsupport/home.jsp?&lang=en&cc=
us&prodtypeId=12169&prodseriesId=470490&submit.y=9&submit.x=7&lang=en&cc=us
HP Education Services
Training for the Enterprise Virtual Array is now offered as part of HP comprehensive curriculum of HP
Storage, Storage Management, and IT Service Management courses. These courses will provide the
training required to realize the full potential of your HP EVA Virtual Array storage solutions, optimize your
systems and SAN for highest efficiency, and achieve better return on your IT investments.
For more information about HP Education Services for Storage and SAN, visit:
http://education.hp.com/curr-storsan.htm
Awards
J.D. Power Gives HP a Seal of Approval 27-Nov-2005
Good service is a key factor in deciding which computer or printer to buy these days, and HewlettPackard hopes a customer service endorsement from J.D. Power and Associates will help boost sales of
HP products. HP said this week it is the first company to receive the J.D. Power and Associates Certified
Technology Service and Support certification "for providing an outstanding customer service experience."
Consumers will soon see the J.D. Power and Associates service mark on product boxes, web sites and
advertising for everything from HP PCs and all-in-one devices to HP cameras and fee-based services. To
earn the certification, HP performed within the top 20 percent of technology support organizations on a
variety of customer service criteria. J.D. Power and Associates found that HP has met or exceeded this
new standard for customer satisfaction in supporting its North American customers.
http://www.hp.com/hpinfo/newsroom/press/2005/051116a.html
HP Receives Two Service and Support Industry Awards; Inducted into Association Hall of Fame 14Apr-2006
HP has received two STAR Awards for Best Practices from the Service & Support Professionals Association
(SSPA) and was consequently inducted into the SSPA Hall of Fame for winning its fifth award. The STAR
Awards are the only service and support industry award from a professional association dedicated to
serving industry professionals. http://www.hp.com/hpinfo/newsroom/press/2006/060414a.html
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 27
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Family Information
Additional Services
Information
For more information about Deployment, Per Event, Consulting and Education services for HP Storage,
visit: http://www.hp.com/hps/storage/.
For more information about HP Care Pack Services for Storage, visit:
http://www.hp.com/hps/carepack/storage/cp_networked.html.
For more information about HP Storage Software, services and updates, visit:
http://h18006.www1.hp.com/storage/software.html.
If you have specific questions, contact your local HP representative. Contact information for a
representative in your area can be found at "Contact HP": http://www.hp.com.
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 28
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Configuration
Step 1 – Choose an EVA Model – Base and Factory-Integration Information
Models
Enterprise Virtual Array
4400 Independent
Components
The following components are available worldwide. The EVA4400 models are
modular and scalable storage solutions designed to have no-single-point-of-failure,
which provide disaster tolerance and business continuance support for storage
consolidation on heterogeneous SANs.
EVA4400 Dual Controller HP StorageWorks 4400 Dual Controller Enterprise Virtual Array
Array
One 2U controller enclosure with two HSV300 controller module, mounting
hardware, cables, controller mounting. Order one unit for each EVA4400 array
configuration.
EVA4400 Controller Pair HP StorageWorks EVA4400 Dual Controller Enterprise Virtual Array with Embedded
Enclosure with embedded Switch and 8Gb SFPs
switch
One 2U Controller Enclosure with two HSV300-S controller modules, mounting
hardware, cables, and controller mounting. Each controller module also includes an
8Gb/s 10 port B-series SAN switch, for a total of two switches and 20 ports per
controller enclosure. Also included are four 8Gb/s SFPs. per controller enclosure; 8
total. Additional 4Gb/s or 8Gb/s SFPs can be purchased separately. Order one unit
for each EVA4400 array configuration.
AG637A
AG805B
The embedded switches come with full fabric scalability enabled, licenses and docs.
The included software has Advanced Fabric OS, Advanced Web Tools and Advanced
Zoning.
See below for optional switch software.
M6412A FC Drive
HP StorageWorks M6412A Fibre Channel Drive Enclosure
Enclosures & Accessories Select up to eight M6412A drive enclosures to expand EVA4400 configurations. Drive
enclosures may be:
1. Ordered for on-site capacity additions to existing EVA4400 configurations.
2. Ordered for field installation of complete EVA4400 configurations in
conjunction with the EVA4400 Starter Kits.
3. Installed by HP manufacturing into EVA configurations by ordering the
enclosure with the factory integration part number (#0D1).
This drive enclosure is compatible with EVA4400 arrays only. Up to eight drive
enclosures are supported with each pair of HSV300 or HSV300-S controllers.
The M6412A is a 2U dual-redundant FC Loop 12-bay disk enclosure with
mounting hardware, and the necessary copper FC cables for connecting to an
HSV300 or HSV300-S Controller pair.
NOTE: The M6412A drive enclosure meets the very latest RoHS (Restriction of
Hazardous Substance) requirements. The M6412 met an earlier version of the RoHS
requirements. They are functionally equivalent otherwise.
NOTE: A minimum of 8 disk drives per Fibre Channel type or FATA drive type are
required per EVA4400 when using those drive types; a minimum of 6 Solid State Disks
are required per EVA4400 when using those drive types.
AG638B
AG638A
Is being
discontinued
Step 2 – Choose File Services and EVA4400 Connectivity Options
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 29
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Configuration
The EVA File Services and EVA iSCSI Connectivity options provide superior storage consolidation, management and total cost of
ownership. The EVA file service offerings support both block and file data concurrently with high availability and scalable
performance. The EVA iSCSI Connectivity Option extends the FC SAN investment with integrated multi-protocol support, allowing
customers to incorporate iSCSI servers without requiring additional storage arrays or management costs. ProLiant Storage Servers
are an affordable way to add Windows-powered file, print, iSCSI, and Command View EVA / SBM hosting services to an EVA array
or SAN.
Ordering an iSCSI Connectivity Option is easy. The iSCSI Connectivity Option will be factory integrated into EVA4400
configurations. ProLiant Storage Servers can be ordered to be added into an EVA configuration in the field or they can be integrated
in the factory.
The EVA iSCSI Connectivity Options supports Windows and Linux environments.
AJ713A
HP StorageWorks iSCSI HP StorageWorks EVA4400 iSCSI Connectivity Option
Connectivity Option
Order this part for all new installations. Includes One unit, shelf, brackets, copper FC
cables and documentation. Includes one unit to mount in existing shelf and
documentation. Includes support for 16 initiators.
HP StorageWorks EVA4400 iSCSI Connectivity Upgrade Option
AJ714A
For multi-path (dual unit high availability) order both part numbers. (The second
hardware unit installs into the shelf that ship with AJ713A.)
HP StorageWorks iSCSI Initiator Upgrade license
T5471A
Initiator license for additional 32 ports for a total of 48
NOTE: For more information on the iSCSI Connectivity Options:
NOTE
http://h18006.www1.hp.com/products/storageworks/evaiscsiconnect/index.html
HP ProLiant Storage Servers
HP ProLiant Storage Servers (plus a Fibre Channel HBA) can add file, print, iSCSI,
HP ProLiant Storage
Servers, SAN Gateways, and/or Command View EVA / SBM management services to an EVA or Fibre Channel
and supported Fibre
SAN. SAN Gateway models feature Microsoft's Windows Unified Data Storage Server
Channel HBAs
2003 operating system that also includes Microsoft iSCSI Software Target and a
cluster license for high availability standard (Microsoft iSCSI Software Target is
optional for other Storage Server models). In addition, any ProLiant Storage Server
connected to an EVA is a recommended platform from which to run Command View
EVA / SBM. Increase the value of your SAN/array investment by hosting EVA
management, file and print services, and iSCSI connectivity all from the same ProLiant
Storage Server gateway solution.
HP ProLiant DL380 G5 Base Storage Server
NOTE: Microsoft Windows Storage Server 2003 R2 Standard x64 Edition O/S
(compatible with Command View EVA / SBM) with file services on a 2U rack form
factor platform. For more information, go to:
http://h18006.www1.hp.com/products/quickspecs/12559_div/12559_div.html
HP ProLiant DL380 G5 SAN Gateway Storage Server
NOTE: Microsoft Windows Unified Data Storage Server 2003 Enterprise x64 Edition
O/S (compatible with Command View EVA / SBM) with file, iSCSI, and cluster services
on a 2U rack form factor platform. For more information, go to:
http://h18006.www1.hp.com/products/quickspecs/12559_div/12559_div.html
DA - 12893
Worldwide — Version 10 — March 20, 2009
AG815B
AG771B
Page 30
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Configuration
HP ProLiant SB460c SAN Gateway Storage Server
NOTE: Microsoft Windows Unified Data Storage Server 2003 Enterprise x64 Edition
O/S (compatible with Command View EVA / SBM) with file, iSCSI, and cluster services
on a blade form factor platform. For more information, go to:
http://h18006.www1.hp.com/products/quickspecs/13114_div/13114_div.html
Fibre Channel HBA options for DL380 G5 Storage Servers
HP StorageWorks FC2142SR 4Gb PCIe HBA
HP StorageWorks FC2242SR Dual Channel 4 Gb PCIe HBA
HP StorageWorks FC1142SR 4Gb PCIe HBA
HP StorageWorks FC1242SR Dual Channel 4 Gb PCIe HBA
HP StorageWorks 81Q PCI-e FC HBA
HP 82Q 8Gb Dual Port PCI-e FC HBA
HP StorageWorks 81E 8Gb SP PCI-e FC HBA
HP 82E 8Gb Dual-port PCI-e FC HBA
Fibre Channel HBA options for the SB460c SAN Gateway Storage Server
Emulex Lpe1105 FC Dual Channel 4Gb, PCI-E-to-Fibre Channel Host Bus Adapter
Qlogic QMH2462 4Gb FC HBA for HP c-Class BladeSystem
HP StorageWorks 12000 Expanding the power of the HP StorageWorks Enterprise Virtual Array (EVA), the HP
Virtual Library System EVA StorageWorks 12000 Virtual Library System EVA Gateway accelerates backup
Gateway
performance in complex SAN environments while improving overall reliability. For
more information on the VLS EVA Gateway, please please visit see:
http://h18006.www1.hp.com/storage/disk_storage/disk_to_disk
/vls/12000vls/index.html
HP StorageWorks IP Distance Gateway
HP StorageWorks IP
Distance Gateway
Order this part for all new installations. Includes One unit, shelf, brackets and
SAN over WAN
documentation.
connectivity, enables EVA HP StorageWorks IP Distance Gateway
Continuous Access
Includes One unit to mount in existing shelf and documentation.
replication over WAN
For multi-path (dual unit high availability) order both part numbers. This second
(Asynchronous and
hardware unit installs into the shelf that ship with AG680A.
Synchronous)
NOTE: For more information on the IP Distance Gateway:
http://h18006.www1.hp.com/storage/disk_storage/index.html
StorageWorks B-series FC switch options
Storage Works B-series 8- HP B-series 8-24 Port Pwr Pk+ Upgr LTU (Adaptive Networking, Fabric Watch, ISL
24 Port SAN Switch Power Trunking, Advanced Performance Monitoring)
Pack+ Upgrade LTU
Optional switch software HP B 8-31 Port Trunking Switch LTU
HP B 8-31 Port Extend Fabric Switch LTU
HP B 8-31 Port Fabric Watch Switch LTU
HP B 8-31 Adv Perf Monitor Switch LTU
HP B-series 8-24 Pt Adaptive Network LTU
HP Data Center Fabric Manager Ent Sw
DA - 12893
Worldwide — Version 10 — March 20, 2009
AN583A
A8002A
A8003A
AE311A
AE312A
AK344A
AJ764A
AJ762A
AJ763A
403621-B21
403619-B21
AH814A
AG680A
AG681A
T5521A
324506-B21
324505-B21
324504-B21
324507-B21
T5524A
T5542A
Page 31
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Configuration
NOTE: For more information on these software component options, see:
http://h18006.www1.hp.com/storage/networking/b_switches/index.html and look for
HP StorageWorks B-Series 8/8 SAN Switch information.
Step 3 – Choose a Rack – Base and Factory Integration Information
Factory Integration
Start your order by choosing a rack to house your EVA4400 based on the HP 10000
G2 Series Rack.
NOTE: The 10000 G2 Series Rack is the only series supported for factory
configuration.
Primary Configuration
Use of the EVA Factory Integration part number is required for component integration.
Rules
The EVA4400 will be configured into a 42U HP 10000 G2 Series Rack with the
appropriate PDU. If other products such as servers or back-up products are included
in the cab a different PDU will be added (if required) or can be chosen from a list of
appropriate offerings shown in the configuration tool. HP 10000 G2 Series Rack must
be purchased. Additional EVA4400 controller enclosures and drive enclosures may be
ordered for multiple subsystem integration at the factory. The 5642 (42U) Rack
Cabinet System is supported for field installation. This rack may be purchased along
with EVA component pieces for assembly in the field. The HP 5642 rack system is an
entry level rack with sufficient features for easy access and ease of use.
When calculating available U-space, assume that no space will be placed between
the mounted components. For redundancy, order PDUs in quantities of two. Refer to
the Configuration and User Guide in the Information Library at the Rack Solutions
webpage.
HP 10000 Series G2
NOTE: The number of subsystems varies and is determined by the interior U-space of
Racks
the cab.
HP Rack 10642 G2 Shock (42U)
HP Rack 10642 G2 w/Extn Shock (42U)
HP Rack 10636 G2 Shock (36U)
HP Rack 10636 G2 w/Extn Shock (36U)
HP Rack 10622 G2 Shock (22U)
HP Rack 10636 G2 Modular Cooling System (MCS) Shock (42U)
HP Rack 10842 G2 800mm Wide Shock (42U)
For more information on the HP rack offerings, please see the following URL:
http://h18004.www1.hp.com/products/servers/proliantstorage/racks/index.html
For PDUs, see:
http://h18004.www1.hp.com/products/servers/proliantstorage/powerprotection/pdu.html
HP PDU Pivot Kit
Used to reclaim 2U of space in a 10000 G2 Series Rack with EVA4400
configurations. This kit allows the PDUs to be placed in the back of the rack without
requiring any rack U space.
HP Rack 5642 System for 5642 (42U) Rack Cabinet System
Field Installation only
For more information on this rack, please see:
http://h18004.www1.hp.com/products/servers/proliantstorage/racks/
5000series/5642/index.html
DA - 12893
Worldwide — Version 10 — March 20, 2009
AF002A
AF004A
AF012A
AF014A
AF021A
AF098A
AF042A
AG730A
358254-B21
Page 32
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Configuration
Non-HP rack and power
requirements
HP ProLiant Storage
Servers and supported
Fibre Channel HBAs
For detailed information on determining compatibility of a non-HP rack, please review
the information included in the EVA User Guide which can be found at:
http://www.hp.com/go/eva.
Select HP ProLiant Storage Servers (plus a Fibre Channel HBA) add file and print
services to an EVA or Fibre Channel SAN. ProLiant DL380 G5 x64 SAN Storage
Server and DL585 G2 Storage Server gateways each feature Microsoft’s Windows
Unified Data Storage Server 2003 operating system that also includes Microsoft iSCSI
Software Target and a cluster license standard (Microsoft iSCSI Software Target is
optional for other DL380 G5 Storage Server models). In addition, any ProLiant DL380
G5 Storage Server or DL585 G2 Storage Server is a perfect platform from which to
run Command View EVA. You stretch your investment even further when you host EVA
/ SBM management, file and print services, and iSCSI connectivity all from the same
ProLiant Storage Server gateway solution.
HP ProLiant DL380 G5 Base Storage Server
NOTE: Microsoft Windows Storage Server 2003 R2 Standard x64 Edition O/S
HP ProLiant DL380 G5 1.16TB SAS Storage Server
NOTE: Microsoft Windows Storage Server 2003 R2 Standard x64 Edition O/S
HP ProLiant DL380 G5 x64 SAN Storage Server
NOTE: Microsoft Windows Unified Data Storage Server 2003 Enterprise x64 Edition
O/S
HP ProLiant DL585 G2 Storage Server
NOTE: Microsoft Windows Unified Data Storage Server 2003 Enterprise x64 Edition
O/S
HP StorageWorks FC2142SR 4Gb PCIe HBA
HP StorageWorks FC2242SR Dual Channel 4 Gb PCIe HBA
HP StorageWorks FC1142SR 4Gb PCIe HBA
HP StorageWorks FC1242SR Dual Channel 4 Gb PCIe HBA
HP StorageWorks FC2143 4Gb PCI-X 2.0 HBA
HP StorageWorks FC2243 Dual Channel 4Gb PCI-X 2.0 HBA
HP StorageWorks FC1143 4Gb PCI-X 2.0 HBA
HP StorageWorks FC1243 Dual Channel 4Gb PCI-X 2.0 HBA
HP StorageWorks 81E 8Gb PCI-e FC HBA
HP StorageWorks 82E 8Gb Dual-port PCI-e FC HBA
HP StorageWorks 82Q 8Gb Dual-Port PCI-e FC HBA
HP StorageWorks 81Q PCI-e FC HBA
DA - 12893
Worldwide — Version 10 — March 20, 2009
AG815A
AG816A
AG771A
AG630A
A8002A
A8003A
AE311A
AE312A
AD167A
AD168A
AB429A
AE369A
AJ762A
AJ763A
AJ764A
AK344A
Page 33
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Configuration
Step 4 – Firmware and Software
Controller Firmware and
Installation and
Management Software
HP StorageWorks EVA4400 is factory installed with XCS v9.5. Separate Media kits and licenses are
required to support HP Command View EVA, HP Continuous Access EVA and HP Business Copy EVA.
HP StorageWorks EVA4400 XCS v9.5 controller media download is available from HP.com. These
downloads are available as archival media for the EVA4400 from the following link:
http://h18006.www1.hp.com/products/storageworks/eva/index.html
HP Command View EVA / SBM v8.0 or / ABM v8.1 is mandatory to support the EVA4400 and XCS
V9.5. An HP Command View License-to-Use (LTU) must be purchased for each EVA controller pair. Each
HP EVA must be licensed with the appropriate HP Command View LTU(s) to be in compliance with the
End User License Agreement (EULA) and the Command View license monitoring function.
The Command View licensed capacity per EVA must be equal to, or greater than the total raw capacity
of each EVA. HP Command View EVA may be purchased in increments of a 1TB LTU (one or multiple
1TB LTUs based upon the EVA's raw capacity), or an HP Command View Unlimited Capacity LTU may
be purchased which will support up to the maximum raw storage capacity of the EVA. The license to use
requirements are the same whether using Command View EVA SBM and/or ABM. One license applies to
both.
HP SmartStart for EVA
configuration utility
OPTIONAL SOFTWARE:
SOFTWARE EVA4400 optional software can be found at the following URL:
http://h18006.www1.hp.com/storage/software.html
Install and configure the EVA4400 using HP SmartStart for EVA Storage configuration utility, which runs
on Windows Server systems. This software installs necessary drivers on Windows Server 2003 and 2008
application servers and Command View EVA / SBM v8.0 on a Windows Server 2003 management
server, as well as provisions the storage. During installation, click to accept the terms of the HP
SmartStart for EVA* Storage configuration utility End User License Agreement (EULA). No separately
orderable LTU is required for HP SmartStart for EVA Storage.
*For more information on SmartStart, see:
http://h18000.www1.hp.com/products/storageworks/evasmartstart/relatedinfo.html?jumpid=
reg_R1002_USEN
Step 5 – Hard Disk Drives
Drives are orderable at the time the array is purchased, or can be added in the future when additional capacity is required. Use
these SKUs whenever ordering hard disk drives for the EVA 4400, either for factory integration or when adding additional capacity.
Note that these SKUs apply ONLY to the EVA4400 and can't be used with other EVA models.
HP StorageWorks FC
NOTE: A minimum of eight (8) high performance FC or FATA or 6 solid state disks
and FATA Drives
drives are required per EVA4400.
HP StorageWorks 72GB 4Gb dual port FC EVA M6412 SSD
AR055A
HP StorageWorks 400GB 10K FC EVA M6412 Hard Disk Drive
AJ711A
HP StorageWorks 146GB 15K rpm 4Gb dual port FC EVA M6412 Hard Disk Drive
AG556A
HP StorageWorks 300GB 15K rpm 4Gb dual port FC EVA M6412 Hard Disk Drive
AG690A
HP StorageWorks 450GB 15K rpm 4Gb dual port FC EVA M6412 Hard Disk Drive
AG803A
HP StorageWorks 1TB FATA dual port EVA M6412 Enc Hard Disk Drive
AG691A
NOTE: 0D1 will appear after this part number to indicate factory integration where
appropriate
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 34
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Configuration
Step 6 – Cables and SFPs
FC cable – Copper SFP
The following cables are used with the M6412 drive enclosure but are not necessary
for new installations. These cables are for use inside the cab between the controllers
and drive enclosures if replacement cables are required
Cable FC Copper SFP 0 .6m
Cable FC Copper SFP 2m
8 Gb/s SFP
HP 8Gb Shortwave B-series FC SFP+ 1 Pack for use with EVA4400 embedded switch
(Small Form- Factor Profile model
Transceiver)
HP 8Gb Longwave B-series FC SFP+ 1 Pack for use with EVA4400 embedded switch
8 Gb/s SFP
(Small Form-Factor Profile model.
Transceiver)
HP 4Gb Short Wave B-series FC SFP 1 Pack for use with EVA4400 embedded switch
4 Gb/s SFP
(Small Form- Factor Profile model.
Transceiver)
FC cable – 1 Gb to 2
NOTE: Before selecting the FC cables to connect between the controllers and the
Gb/s
switches, check to see what kind of connectors are on the switches that will be
(optional)
connected to the controllers. The SFP connector can support 8Gb I/Os, 4Gb I/Os,
(LC to SC)
2Gb I/Os and/or 1Gb I/Os.
NOTE: One of these cables (either LC to SC or LC to LC) is required per FC port of
each HSV controller.
FC Short Wave 2-Meter Cable, LC/SC (1Gb to 2Gb)
FC Short Wave 5-Meter Cable, LC/SC (1Gb to 2Gb)
FC Short Wave 15-Meter Cable, LC/SC (1Gb to 2Gb)
FC Short Wave 30-Meter Cable, LC/SC (1Gb to 2Gb)
FC Short Wave 50-Meter Cable, LC/SC (1Gb to 2Gb)
FC cable - OM2
NOTE: SFP - Small Form-Factor Profile on the ports of the EVA4x00/6x00/8x00. One
LC-LC type cables
of these cables (LC to LC) is required per FC port used of each HSV controller.
2-meter LC-LC Multi-Mode Fibre Cable
5-meter LC-LC Multi-Mode Fibre Cable
15-meter LC-LC Multi-Mode Fibre Cable
30-meter LC-LC Multi-Mode Fibre Cable
50-meter LC-LC Multi-Mode Fibre Cable
.5 m LC-LC Multi-Mode OM3 Fibre Channel Cable
FC cable - OM3
LC-LC type cables
1 m LC-LC Multi-Mode OM3 Fibre Channel Cable
2 m LC-LC Multi-Mode OM3 Fibre Channel Cable
5 m LC-LC Multi-Mode OM3 Fibre Channel Cable
15 m LC-LC Multi-Mode OM3 Fibre Channel Cable
30 m LC-LC Multi-Mode OM3 Fibre Channel Cable
50 m LC-LC Multi-Mode OM3 Fibre Channel Cable
DA - 12893
Worldwide — Version 10 — March 20, 2009
321624-B21
324394-B21
AJ716A
AJ717A
AJ715A
221691-B21
221691-B22
221691-B23
221691-B26
221691-B27
221692-B21
221692-B22
221692-B23
221692-B26
221692-B27
AJ833A
AJ834A
AJ835A
AJ836A
AJ837A
AJ838A
AJ839A
Page 35
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Configuration
Step 7 – Management and High Availability Software
EVA Storage
Management /
User Interface
NOTE: Command View / SBM v8.0 runs on either a management server or application host running
Microsoft Windows. One management server or application host is required per SAN fabric containing
an Enterprise Virtual Array.
An HP Command View License-to-Use (LTU) must be purchased for each EVA controller pair. Each HP
EVA must be licensed with the appropriate HP Command View LTU(s) to be in compliance with the End
User License Agreement (EULA). The licensed capacity per EVA must be equal to, or greater than the
total raw capacity of each EVA. HP Command View EVA may be purchased in increments of a 1TB LTU
(one or multiple 1TB LTUs based upon the raw capacity), or an HP Command View Unlimited Capacity
LTU may be purchased which will support up to the maximum raw storage capacity of the EVA. The
license to use requirements are the same whether using Command View EVA / SBM and/or / ABM. One
license applies to both.
See the HP StorageWorks Command View EVA QuickSpecs for detailed licensing, support and
configuration information:
http://h18006.www1.hp.com/products/storage/software/cmdvieweva/index.html
High Availability Software Industry popular multiple path software is supported on the EVA4400. This software is used to manage
multiple paths between hosts and storage systems. It enables high availability through path management
and I/O load balancing. Multiple Path support is available for the following Operating Systems:
HP-UX – HP-UX 11.31 has OS native multi-path, pvlinks native in HP-UX and Veritas DMP
Windows – Full featured MPIO, v3.00.00 available from HP and Microsoft DSM from Microsoft
Linux – QLogic Failover driver, available from QLogic /HP, Emulex MultiPulse available from
Emulex/HP and Device Mapper v4.0 Enablement Kit from HP
OpenVMS – native in OS
AIX – MPIO native in OS
Solaris – MPxIO native in OS, Veritas DMP available from Veritas
NetWare – MPIO native in OS
VMware – MPIO native in OS
Apple Mac OS X - Included with ATTO HBA driver
Refer to: http://h18006.www1.hp.com/products/storage/software/multipathoptions/index.html
Step 8 – Expansion Options
The EVA4400 Dual Controller Enclosure can be added on-site into existing EVA configurations (or qualified rack systems), using the
AG637A SKU. Additional M6412 drive enclosures (AG638A) can be ordered to expand an EVA4400 configuration:
1. Ordered for on-site capacity additions to existing EVA4400 configurations.
2. Ordered for field installation of complete EVA4400 configurations in conjunction with the EVA4400 Starter Kits into the
supported HP cabinets and racks described in Step 3 or into qualified 3rd party rack systems by HP Global Services.
3. Installed by HP manufacturing into EVA configurations by ordering the enclosure with the factory integration part number.
Up to eight drive enclosures are supported with each pair of HSV300 or HSV300-S controllers. The M6412A is a 2U dualredundant FC Loop 12-bay disk enclosure with mounting hardware, and the necessary copper FC cables for connecting to an
HSV300 Controller pair.
Order additional hard disk drives using the SKUs listed in Step 5. The EVA4400 supports up to 96 hard disk drives.
NOTE: Minimum of 8 disk drives per Fibre Channel drive type or FATA drive type per EVA4400.
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 36
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Configuration
Step 9 – Optional Components and Software
Remote Replication
Software
Local Replication
Software
Capacity Management
Software
Storage Resource
Management Software
(HP Standard Edition
SRM Software)
VMware Site Recovery
Manager
HP StorageWorks Continuous Access EVA is a controller-based application that performs real-time
replication between HP StorageWorks enterprise virtual arrays. For more information, see Continuous
Access description earlier in this document. Please see the product URL for ordering information and part
numbers:
http://h18006.www1.hp.com/storage/software.html
HP StorageWorks Business Copy EVA is a local replication software product for the EVA family providing
Snapshot and clone set-up and management. Business Copy EVA is sold by utilized capacity. For more
information, see the Business Copy description earlier in this document. See the product URL for ordering
information and part numbers: http://h18000.www1.hp.com/storage/software.html
HP StorageWorks EVA Dynamic Capacity Management Software is a comprehensive software solution
that automates storage provisioning and improves capacity utilization on the HP StorageWorks Enterprise
Virtual Array (EVA) family. For more information, see the DCM description earlier in this document. See
the product URL for ordering information and part numbers:
http://h18000.www1.hp.com/products/quickspecs/12815_div/12815_div.html
HP Storage Essentials Standard Edition Storage Resource Management Software allows midsize
businesses with limited IT staff to see the big picture thereby reducing SAN complexity. For more
information, see the Storage Essentials product description earlier in this document.
Standard Edition SRM Media and License to Use (LTU)
HP Storage Essentials Standard Edition SRM Media Kit
T5314AA
HP Storage Essentials Standard Edition SRM LTU
T5315AA
Add on Storage Essentials Suite plug-in licensing available to Standard Edition
HP Storage Essentials NAS Manager 1 TB LTU
T4294AA
HP Storage Essentials File System Viewer 1 TB LTU
T4292AA
HP Storage Essentials Database Viewer 1 MAL LTU
T4289AA
HP Storage Essentials Exchange Viewer 1 MAL LTU
T4288AA
HP Storage Essentials Backup Manager 1 TB LTU
T4295AA
VMware Site Recovery Manager (SRM) is designed to automate the recovery process and the remote
replication of HP StorageWorks Continuous Access EVA with StorageWorks Enterprise Virtual Arrays. The
solution provides central management through VMware Virtual Center and enables more frequent
testing. This solution also leverages your existing recovery site hardware to reduce operational cost of
training. It is a solution that is fully integrated with HP servers, HP Storage and HP Services, providing
mid-market customers with a total business continuity solution. For more information:
www.hp.com/go/storage/vmware
NOTES:
NOTES
1. Refer to the HP Standard Edition SRM Software QuickSpec for product and licensing details:
http://h18006.www1.hp.com/products/storage/software/e-suite/index.html
2. Standard Edition SRM LTU contains bundled licensing comprising of Edition 150 MAPs, 3TBs of File System Viewer, NAS
Manager, and I MAL for either the Exchange Viewer or the Database Viewer. This is a customer choice.
Optional Hardware Accessories
Non-HP Rack installation For racks other than those specifically stated within the EVA4400 product set, please visit the EVA web
page for details on rack and power specifications: http://www.hp.com/go/eva
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 37
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Configuration
SAN Components
The HP StorageWorks SAN integrates best-in-class storage networking components to deliver a complete connectivity platform for
end-to-end network storage solutions. HP's fabric portfolio includes: HBAs, directors, switches, SAN extenders, NAS heads, iSCSI
routers, and fabric software. HP SAN Infrastructure components deliver the network storage infrastructure for the Adaptive Enterprise.
For details on SAN infrastructure components and storage compatibility information, please visit: http://hp.com/go/san
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 38
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Technical Specifications
EVA4400
Operating Temperature 50° to 95° F (10° to 35° C) - Reduce rating by 1° F for each 1000 ft altitude (1.8° C/1,000 m)
Shipping Temperature
-40° to 150° F (-40° to 66° C)
Humidity
10% to 90% non-condensing
Shipping Humidity
5% to 90% non-condensing
Operating Vibration
Sine 5-10 Hz 0.020" (0.5mm) double amplitude displacement, 10-500 Hz 0.1g, Random 10-500Hz at
0.15 Grms
Non-operating Vibration Sine 10-150 Hz 0.3g, Random 10-500 Hz at 0.5 Grms
Shipping Vibration
Sine 5-150 Hz 0.5g, Random 0.86 Grms from 5-300 Hz, consisting of 5-100 Hz at 0.0059 g2/Hz and
(packaged, on shock
100-300 Hz at 0.000049 g2/Hz
pallet)
5g half-sine 10mSec
Operating Shock
8g half-sine 10mSec
Non-operating Shock
Horizontal: 10-deg incline at 1m/Sec, Vertical rotational edge 0.15m
Shipping Shock
(packaged, on shock
pallet)
Up to 8,000 ft (2,400 m)
Altitude
Not to exceed 500,000 particles per cubic foot of air at a size of 0.5 micron or larger
Air Quality
Power Data (North America/Europe/Japan) maximum configuration
NOTE: This power information is for a maximum configuration using the default 208 - 240 Volt single-phase PDUs. Other PDUs
may use different plugs, voltages, etc. For more information on PDU support, please see the following URL:
http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/pdu.html
EVA4400
North America – 3 wire NEMA No. L6-30P, 30 Amp (208 to 240V, 50-60Hz 30A)
AC plug type
(quantity 2)
Europe – 3 wire, 2 pole IEC 309, 30 amp, (220 to 240V 50Hz 32A)
Single
Number of phases
17A @ 200V-240V AC, 60Hz total, 4.25 A per power cord
Rated current
North America – 208 or 230V
Nominal Line Voltage
Europe – 230V
Japan – 206V
Latin America – 208 or 240V
187 to 256V
Range Line Voltage
North America 60 Hz, Europe 50 Hz, Japan 50 or 60 Hz, Latin America 60K or 50Hz
Line Frequency
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 39
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Technical Specifications
Enterprise Virtual Array 4400
NOTE: This data represents fully populated
drive shelves with 450GB 15K rpm disk
drives under typical heavy load
performance. Other drive types may vary
slightly.
NOTE: At idle, the system operates at
approx. 15% less power than at typical.
Typical Total System Wattage without
embedded switches
Total System BTU/hour
Input Current per plug, 230V
Input Current per plug, 208V
Input Current per plug, 115V
Input Current per plug, 100V
In Rush Current (A) per plug,
208V
Failover Input Current (A), 230V
Mode Input Current (A), 208V
Input Current (A), 115V
Input Current (A), 100V
2C1D
2C2D
2C3D
2C4D
2C5D
2C6D
2C7D
2C8D
359
615
871
1127
1383
1639
1895
2151
1225
0.8
0.9
1.6
1.9
70
2098
1.4
1.5
2.8
3.3
100
2971
2.0
2.2
4.0
4.7
130
3844
2.5
2.8
5.2
6.0
149
4716
3.1
3.5
6.4
7.4
168
5589
3.7
4.1
7.5
8.8
178
6462
4.3
4.7
8.7
10.1
188
7335
4.9
5.4
9.9
11.5
200
1.5
1.6
3.0
3.5
2.5
2.8
5.1
6.0
3.6
4.0
7.3
8.5
4.7
5.2
9.5
11.0
5.7
6.4
11.7
13.6
6.8
7.5
13.8
16.1
7.9
8.7
16.0
18.6
8.9
9.9
18.2
21.2
Typical Total System Wattage with
441
697
953
1209
1465
1721
1977
2233
embedded switches
Total System BTU/hour
1504
2377
3250
4123
4996
5869
6742
7615
Input Current per plug, 230V
1.0
1.6
2.2
2.7
3.3
3.9
4.5
5.0
Input Current per plug, 208V
1.1
1.7
2.4
3.0
3.7
4.3
5.0
5.6
Input Current per plug, 115V
2.0
3.2
4.4
5.6
6.7
7.9
9.1
10.3
Input Current per plug, 100V
2.4
3.7
5.1
6.5
7.8
9.2
10.6
12.0
Failover Input Current (A), 230V
1.8
2.9
4.0
5.0
6.1
7.2
8.2
9.3
Mode Input Current (A), 208V
2.0
3.2
4.4
5.6
6.8
7.9
9.1
10.3
Input Current (A), 115V
3.7
5.4
8.0
10.2
12.4
14.6
16.7
18.9
Input Current (A), 100V
4.3
6.8
9.4
11.9
14.4
17.0
19.5
22.0
NOTE: Typical is described as a system in normal steady state operation. (I.e., both PDUs operating normally, the array
reading/writing to disk drives in a production environment)
NOTE: For the lower voltages, PDUs may not be able to support the maximum power/current and the power/current may be divided
across two or more PDUs.
* Total system wattage would increase by 85 watts with the embedded switch option. Input current would increase as well.
Enterprise Virtual Array EVA4400 Product Dimensions, Weight and Clearance
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 40
QuickSpecs
HP StorageWorks 4400 Enterprise Virtual Array
Technical Specifications
Physical Dimensions
Height
in/cm
EVA4400 2C8D
78.75 (200.03)
Configuration
(42U Graphite cab)
EVA4400 Dual Controller
3.5/8.89
Array
M6412A Drive Enclosure
3.5/8.89
Width
in/cm
Depth
in/cm
Max Weight
lb/kg
860 (390.09)
Req. Front
Clearance
in/cm
30 (76.2)
Req. Rear
Clearance
in/cm
30 (76.2)
23.7 (60.3)
40.2 (102.2)
17.6/44.70
24.5/62.3
48/21.8
N/A
N/A
17.6/44.70
23.75/60.33
57/25.86
N/A
N/A
© Copyright 2009 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1 GB = 1 billion bytes (10003 or 109). Actual usable capacity can be less, based on Vraid types used.
DA - 12893
Worldwide — Version 10 — March 20, 2009
Page 41
