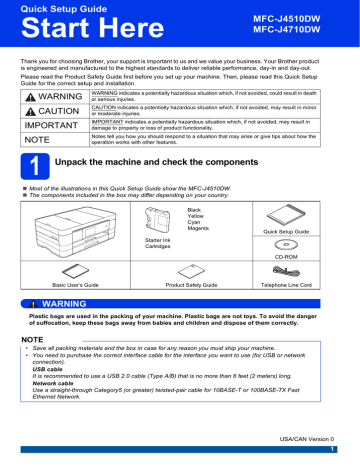

Quick Setup Guide
Start Here
MFC-J4510DW
MFC-J4710DW
Thank you for choosing Brother, your support is important to us and we value your business. Your Brother product
is engineered and manufactured to the highest standards to deliver reliable performance, day-in and day-out.
Please read the Product Safety Guide first before you set up your machine. Then, please read this Quick Setup
Guide for the correct setup and installation.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death
or serious injuries.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injuries.
IMPORTANT
IMPORTANT indicates a potentially hazardous situation which, if not avoided, may result in
damage to property or loss of product functionality.
NOTE
Notes tell you how you should respond to a situation that may arise or give tips about how the
operation works with other features.
1
Unpack the machine and check the components
 Most of the illustrations in this Quick Setup Guide show the MFC-J4510DW.
 The components included in the box may differ depending on your country.
Black
Yellow
Cyan
Magenta
Quick Setup Guide
Starter Ink
Cartridges
CD-ROM
Basic User’s Guide
Product Safety Guide
Telephone Line Cord
WARNING
Plastic bags are used in the packing of your machine. Plastic bags are not toys. To avoid the danger
of suffocation, keep these bags away from babies and children and dispose of them correctly.
NOTE
• Save all packing materials and the box in case for any reason you must ship your machine.
• You need to purchase the correct interface cable for the interface you want to use (for USB or network
connection).
USB cable
It is recommended to use a USB 2.0 cable (Type A/B) that is no more than 6 feet (2 meters) long.
Network cable
Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast
Ethernet Network.
USA/CAN Version 0
1
a
b
Remove the protective tape and film covering
the machine, and also from the Touchscreen.
c
Make sure you have all the components.
2
Gently press and slide the paper guides a to fit
the paper size. Make sure that the triangular
mark b on the paper guide a lines up with the
mark for the paper size you are using.
Load plain Letter/A4
paper
1
2
CAUTION
DO NOT carry the machine by holding the scanner
cover, the Jam Clear Cover, the manual feed slot
cover, or the control panel. Doing this may cause
the machine to slip out of your hands. Carry the
machine by sliding your hands into the handhold
indentations located on each side of the machine.
For detailed information, see the Product Safety
Guide.
a
Pull the paper tray (for MFC-J4710DW, paper
tray #1, the upper tray) a, completely out of
the machine.
d
Fan the stack of paper well to avoid paper jams
and misfeeds.
1
NOTE
b
Open the output paper tray cover a.
1
2
Always make sure that the paper is not curled or
wrinkled.
e
Gently put the paper into the paper tray (for
MFC-J4710DW, tray #1) print side down and
top edge first.
h
Slowly push the paper tray completely into the
machine.
IMPORTANT
Be careful that you do not push the paper in too
far; it may lift at the back of the tray and cause
paper feed problems.
i
While holding the paper tray in place, pull out
the paper support a until it clicks, and then
unfold the paper support flap b.
2
f
Gently adjust the paper guides to fit the paper.
Make sure that the paper guides touch the
edges of the paper.
1
NOTE
• For printing and copying on special media,
open the manual feed slot a on the back of the
machine. Feed only one sheet at a time of
Ledger, Legal, A3, envelopes, or thicker paper
when using the manual feed slot.
g
For details, see Loading paper in the manual
feed slot in chapter 2 of the Basic User’s
Guide.
Check that the paper is flat in the tray and
below the maximum paper mark a. Close the
output paper tray cover.
1
1
• (MFC-J4710DW)
For information about tray #2 (the lower tray),
see Loading paper in paper tray #2 in chapter
2 of the Basic User’s Guide.
3
3
Connect the power cord
and telephone line
c
IMPORTANT
Connect the telephone line cord.
Connect one end of the telephone line cord to
the jack of the machine marked LINE.
Carefully guide the telephone line cord into the
cable channel and out the back of the machine.
Connect the other end to a modular wall jack.
DO NOT connect the USB cable yet (if you are
using a USB cable).
a
Connect the power cord.
IMPORTANT
NOTE
• If you do not plan to use the fax feature on this
machine, go to step 4 on page 5.
• To prolong print head life, provide the best ink
cartridge economy and maintain print quality,
we do not recommend frequently unplugging
the machine and/or leaving the machine
unplugged for extended periods of time. We
recommend using
The telephone line cord MUST be connected to
the jack of the machine marked LINE.
d
Lift the scanner cover to release the lock a.
Gently push the scanner cover support
down b and close the scanner cover c using
both hands.
1
to power down the
machine. Using
allows minimal power to
the machine, which ensures periodic cleaning
of the print head.
b
4
Lift the scanner cover until it locks securely into
the open position.
3
2
4
NOTE
If you are sharing one telephone line with an
external telephone, connect it as shown below.
Before you connect the external telephone,
remove the white protective cap c from the EXT.
jack of the machine.
Install the ink cartridges
CAUTION
If ink gets in your eyes, wash it out with water at
once and call a doctor if you are concerned.
1
NOTE
2
Make sure you install the Starter Ink Cartridges
included with your machine first.
a
3
Make sure that the power is turned on.
The Touchscreen will show
No Ink Cartridge.
NOTE
a Extension telephone
b External telephone
c Protective cap
You can adjust the angle of the control panel by
lifting it. When lowering the control panel, make
sure you push the release button a that is
located behind the mark.
NOTE
If you are sharing one telephone line with an
external telephone answering machine, connect it
as shown below.
Before you connect the external telephone
answering machine, remove the white protective
cap a from the EXT. jack of the machine.
1
b
Open the ink cartridge cover a.
1
a Protective cap
Set the receive mode to External TAD if you
have an external answering machine. See
Choose the correct Receive Mode on page 9. For
additional details, see Connecting an external
TAD (telephone answering device) in chapter 6 of
the Basic User’s Guide.
1
5
c
Remove the orange protective part a.
e
Take care to match the sticker color a with the
cartridge color b as shown in the diagram
below.
Install each ink cartridge in the direction of the
arrow on the label.
1
2
1
NOTE
Do not throw away the orange protective part.
You will need it if you transport the machine.
d
Unpack the ink cartridge.
Turn the green release lever on the orange
protective packing a counterclockwise until it
clicks to release the vacuum seal. Then
remove the orange protective packing a as
shown.
f
Gently push the back of the ink cartridge
marked “PUSH” until it latches. After all the ink
cartridges are installed close the ink cartridge
cover.
2
1
2
NOTE
1
IMPORTANT
• DO NOT shake the ink cartridges. If ink stains
your skin or clothing, wash with soap or
detergent at once.
• DO NOT touch the cartridge in the area
indicated b, as this can cause the machine not
to function with the cartridge.
6
The machine will prepare the ink tube system for
printing. This process will take approximately four
minutes. Do not turn off the machine.
5
IMPORTANT
• DO NOT take out ink cartridges if you do not
need to replace them. If you do so, it may
reduce the ink quantity and the machine will not
know the quantity of ink left in the cartridge.
• DO NOT repeatedly insert and remove the
cartridges. If you do so, ink may seep out of the
cartridge.
• If you mix the colors by installing an ink
cartridge in the wrong position, clean the print
head several times after correcting the
cartridge installation. (See Cleaning the print
head in Appendix A of the Basic User’s Guide.)
• Once you open an ink cartridge, install it in the
machine and use it up within six months of
installation. Use unopened ink cartridges by
the expiration date written on the cartridge
package.
• DO NOT dismantle or tamper with the ink
cartridge, this can cause the ink to leak out of
the cartridge.
• Brother strongly recommends that you do not
refill the ink cartridges provided with your
machine. We also strongly recommend that
you continue to use only Genuine Brother
Brand replacement ink cartridges. Use or
attempted use of potentially incompatible ink
and/or cartridges in the Brother machine may
cause damage to the machine and/or may
result in unsatisfactory print quality. Our
warranty coverage does not apply to any
problem that is caused by the use of
unauthorized third party ink and/or cartridges.
To protect your investment and obtain premium
performance from the Brother machine, we
strongly recommend the use of Genuine
Brother Supplies.
Check the print quality
NOTE
Make sure you put paper in the paper tray (for
MFC-J4710DW, tray #1, the upper tray) for the
initial setup.
a
b
c
When the preparation process has finished, the
Touchscreen shows Set paper and press
[OK].
Press OK.
Check the quality of the four color blocks on the
sheet. (black/yellow/cyan/magenta)
If all lines are clear and visible, press Yes to
finish the quality check and go to the next step.
OK
If you can see missing short lines, press No and
follow the steps on the Touchscreen.
Poor
7
6
7
Set the paper settings
(MFC-J4710DW)
For your machine to produce the best print quality and
to feed the correct paper size, the paper type and size
must be set to match the paper in the tray.
For details on the types and sizes of paper supported,
see Paper Size and Type in chapter 2 of the Basic
User’s Guide.
Review Touchscreen
display
The Touchscreen displays information on screen
operation and manual feed slot use. Review this
information and go to the next step. For details, see
the Basic User’s Guide.
NOTE
You can change the default tray that the machine
will use for printing copies or received faxes. (See
Tray use in Copy mode or Tray use in Fax mode
in chapter 2 of the Basic User’s Guide.)
a
b
c
d
When Tray Setting appears on the
Touchscreen, press Tray Setting to set the
paper size and paper type.
Press Tray #1 to set paper size and paper
type for tray #1, or press Tray #2 to set paper
size for tray #2.
Press the size and type of paper you are using.
Press OK.
a
b
c
d
e
f
8
8
Press
Choose your language
(if needed)
.
Press All Settings.
Swipe up or down, or press a or b to display
Initial Setup.
Press Initial Setup.
Swipe up or down, or press a or b to display
Local Language.
Press Local Language.
Press your language.
Press
.
9
Choose the correct Receive Mode
The correct Receive Mode is determined by the external devices and telephone subscriber services (Voice Mail,
Distinctive Ring, etc.) you have (or will be using) on the same line as the Brother machine.
For details, see Using Receive Modes in chapter 5 of the Basic User’s Guide.
Will you be using a Distinctive Ring number for receiving faxes?
Brother uses the term “Distinctive Ring” but telephone companies may have other names for this service such
as Custom Ringing, RingMaster, Personalized Ring, Teen Ring, Ident-A-Call, and Smart Ring. See Distinctive
Ring in chapter 6 of the Basic User’s Guide for instruction on setting up your machine using this feature.
Will you be using Voicemail on the same telephone line as your Brother machine?
If you have Voice Mail on the same telephone line as your Brother machine, there is a strong possibility that
Voice Mail and the Brother machine will conflict with each other when receiving incoming calls. See Voice Mail
in chapter 6 of the Basic User’s Guide for instructions on setting up your machine using this service.
Will you be using a Telephone Answering Device on the same telephone line as your Brother machine?
Your external telephone answering device (TAD) will automatically answer every call. Voice messages are
stored on the external TAD and fax messages are printed. Choose External TAD as your receive mode. See
the instructions below. For additional details, see Connecting an external TAD (telephone answering device) in
chapter 6 of the Basic User’s Guide.
Will you be using your Brother machine on a dedicated fax line?
Your machine automatically answers every call as a fax. Choose Fax Only as your receive mode. See the
instructions below.
Will you be using your Brother machine on the same line as your telephone?
Do you want to receive voice calls and faxes automatically?
The Fax/Tel receive mode is used when sharing the Brother machine and your telephone on the same
line. Choose Fax/Tel as your receive mode. See the instructions below. For additional information see
Fax/Tel in chapter 5 of the Basic User’s Guide for instructions on setting up and using this receive mode.
Important Note: You cannot receive voice messages on either Voice Mail or an answering machine
when choosing the Fax/Tel mode.
Do you expect to receive very few faxes?
Choose Manual as your receive mode. You control the phone line and must answer every call yourself.
See the instructions below.
a
b
c
d
e
f
Press
.
Press All Settings.
Swipe up or down, or press a or b to display Initial Setup.
Press Initial Setup.
Press Receive Mode.
Press Fax Only, Fax/Tel, External TAD or Manual.
Press
.
NOTE
If the Receive Mode option is not displayed, make sure the Distinctive Ring feature is set to Off. (See Turning
off Distinctive Ring in chapter 6 of the Basic User’s Guide.)
9
10
Set the date and time
The machine displays the date and time, and if you
set up the station ID, it will add it to each fax you send.
a
b
c
d
Press
.
Press
00:00 01.01.2012 (Date and
Time).
Press Date.
Enter the last two digits of the year on the
Touchscreen, and then press OK.
11
You should store your name and fax number to be
printed on all fax pages that you send.
For details, see Entering Text in Appendix C of the
Basic User’s Guide.
a
b
c
d
e
f
e
f
g
h
(e.g. Enter 1 2 for 2012.)
Enter the two digits for the month on the
Touchscreen, and then press OK.
Enter the two digits for the day on the
Touchscreen, and then press OK.
Set your Station ID
g
h
Press
.
Press All Settings.
Swipe up or down, or press a or b to display
Initial Setup.
Press Initial Setup.
Press Station ID.
Press Fax.
Enter your fax number (up to 20 digits) on the
Touchscreen, and then press OK.
Press Name.
Enter your name (up to 20 characters) using
the Touchscreen, and then press OK.
NOTE
• Press
to cycle between letters, numbers
and special characters. (The characters
available may differ depending on your
country.)
Press Clock Type.
Press 12h Clock or 24h Clock.
• If you entered a number or a character
incorrectly and want to change it, press d or c
to move the cursor to the incorrect one. Press
and then re-enter the correct one.
i
j
i
Press Time.
(12h Clock only)
k
10
to cycle AM and PM.
Press OK, and then press
.
NOTE
Enter the time on the Touchscreen.
Press
Press
.
(USA only)
The Telephone Consumer Protection Act of 1991
makes it unlawful for any person to use a
computer or electronic device to send any
message via a telephone fax machine unless
such messages clearly contain, in a margin at the
top or bottom of each transmitted page, or on the
first page of the transmission, the date and time it
is sent and an identification of the business or
other entity or other individual sending the
message and the telephone number of the
sending machines or such business, other entity
or individual.
12
Fax Transmission Report
Your Brother machine is equipped with a
Transmission Verification Report that can be used as
confirmation that you sent a fax. This report lists the
name or fax number of the receiving party, the date,
time, and duration of the transmission, the number of
pages transmitted, and whether or not the
transmission was successful. If you want to use the
Fax Transmission Report feature, see Transmission
Verification Report in chapter 4 of the Basic User’s
Guide.
13
Set Tone or Pulse dialing
mode
(Canada only)
Your machine comes set for Tone dialing service. If
you have a Pulse dialing service (rotary), you need to
change the dialing mode.
a
b
c
d
e
f
Press
.
Press All Settings.
Swipe up or down, or press a or b to display
Initial Setup.
Press Initial Setup.
Press Tone/Pulse.
Press Pulse (or Tone).
Press
.
14
Set the telephone line
compatibility (VoIP)
If you are connecting the machine to a VoIP service
(over the Internet) you need to change the
compatibility setting.
NOTE
If you are using an analog telephone line you can
skip this step.
a
b
c
d
e
f
Press
.
Press All Settings.
Swipe up or down, or press a or b to display
Initial Setup.
Press Initial Setup.
Swipe up or down, or press a or b to display
Compatibility.
Press Compatibility.
Press Basic(for VoIP).
Press
15
.
Automatic Daylight
Savings Time
You can set the machine to change automatically for
daylight savings time. It will set the time forward one
hour in the spring and backward one hour in the fall.
a
Press
.
b
Press
00:00 01.01.2012 (Date and
c
d
e
Time).
Press Auto Daylight.
Press On (or Off).
Press
.
11
16
Set the Time Zone
You can set the time zone on the machine for your
location. For example, the time zone for Eastern Time
in the USA and Canada is UTC-05:00.
a
Press
.
b
Press
00:00 01.01.2012 (Date and
c
d
e
12
Time).
Swipe up or down, or press a or b to display
Time Zone.
Press Time Zone.
Enter your time zone.
Press OK.
Press
.
17
Choose your connection type
These installation instructions are for Windows® XP Home, XP Professional, XP Professional x64 Edition,
Windows Vista®, Windows® 7, and Mac OS X v10.5.8, 10.6.x, 10.7.x.
NOTE
• For Windows Server® 2003/2008/2008 R2, the drivers can be found from your model’s download page at
http://solutions.brother.com/.
• If your computer does not have a CD-ROM drive you can download the latest drivers, manuals and utilities
for your model from the Brother Solutions Center at http://solutions.brother.com/. Some software
applications included on the CD-ROM may not be available as a download.
Windows®, go to page 14
Macintosh, go to page 17
Windows®, go to page 20
Macintosh, go to page 24
Windows® Macintosh
Wired Network
For Wired Network
Windows® Macintosh
USB
For USB interface cable
Wireless Network
For Wireless Network
Windows® and Macintosh,
go to page 28
13
USB
Windows®
For USB interface users
(Windows® XP Home/XP Professional/Windows Vista®/Windows® 7)
18
Before you install
b
The CD-ROM Top menu will appear. Click
Install MFL-Pro Suite and click Yes if you
accept the license agreements. Follow the
on-screen instructions.
Make sure that your computer is ON and you are
logged on with Administrator rights.
IMPORTANT
• DO NOT connect the USB cable yet.
• If there are any programs running, close them.
NOTE
• The screens may differ depending on your
operating system.
c
Choose Local Connection (USB), and then
click Next. The installation continues.
• The CD-ROM includes Nuance™ PaperPort™
12SE. This software supports Windows® XP
Home (SP3 or greater), XP Professional (SP3
or greater), XP Professional x64 Edition (SP2
or greater), Windows Vista® (SP2 or greater)
and Windows® 7. Update to the latest
Windows® Service Pack before installing
MFL-Pro Suite.
19
a
Install MFL-Pro Suite
Put the supplied installation CD-ROM into your
CD-ROM drive. If the model name screen
appears, choose your machine. If the language
screen appears, choose your language.
NOTE
• For Windows Vista® and Windows® 7, when
the User Account Control screen appears click
Continue or Yes.
• If the Brother screen does not appear
automatically, go to My Computer or
Computer then double-click the CD-ROM icon
and double-click start.exe.
14
d
When this screen appears, go to the next step.
USB
20
a
Windows®
Connect the USB cable
d
Lift the scanner cover to release the lock a.
Gently push the scanner cover support
down b and close the scanner cover c using
both hands.
1
Lift the scanner cover until it locks securely into
the open position.
3
2
b
Connect the USB cable to the USB port
marked with a
symbol a. You will find the
USB port inside the machine on the right, as
shown in the callout below.
The installation will continue automatically.
The installation screens appear one after
another.
IMPORTANT
DO NOT cancel any of the screens during the
installation. It may take a few seconds for all
screens to appear.
1
NOTE
Windows® Macintosh
USB
e
For Windows Vista® and Windows® 7, when the
Windows® Security screen appears, click the
check box and click Install to complete the
installation correctly.
f
c
Carefully guide the USB cable into the cable
channel and out the back of the machine.
Connect the cable to your computer.
g
h
If Environmental Advice for Imaging
Equipment screen appears, click Next.
When the On-Line Registration screen is
displayed, follow the on-screen instructions.
Click Next.
If you do not want to set your machine as the
default printer, uncheck Set as Default Printer
and click Next.
IMPORTANT
Make sure that the cable does not restrict the
cover from closing, or an error may occur.
15
USB
21
a
Finish and restart
Click Finish to restart your computer.
After restarting the computer, you must log on
with Administrator rights.
NOTE
• If an error message appears during the
software installation, run the Installation
Diagnostics located in
Start/
All Programs/Brother/MFC-JXXX (where
MFC-JXXX is your model name).
• Depending on your security settings, a
Windows® Security or antivirus software
window may appear when using the machine
or its software. Please allow or permit the
window to continue.
b
The following screens will appear.
• When the Software Update Setting screen
appears, choose the software update setting
you want and click OK.
• When the Brother Product Research and
Support Program screen appears, select
your preference and follow the on-screen
instructions.
NOTE
Internet access is required for the software
update and the Brother Product Research &
Support Program.
Finish
The installation is now
complete.
To install optional applications:
Now go to
Page 44
16
Windows®
NOTE
XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is the
most suitable driver for Windows Vista® and
Windows® 7 when printing from applications that
use the XML Paper Specification documents.
Please download the latest driver by accessing
the Brother Solutions Center at
http://solutions.brother.com/.
USB
Macintosh
For USB interface users (Mac OS X v10.5.8, 10.6.x, 10.7.x)
18
Before you install
b
Connect the USB cable to the USB port
marked with a
symbol a. You will find the
USB port inside the machine on the right, as
shown in the callout below.
Make sure your machine is connected to the power
and your Macintosh is ON. You must be logged on
with Administrator rights.
1
NOTE
For Mac OS X v10.5.0 to 10.5.7 users, upgrade to
Mac OS X v10.5.8 - 10.7.x.
IMPORTANT
• DO NOT connect the machine to a USB port on
a keyboard or a non-powered USB hub.
c
Carefully guide the USB cable into the cable
channel and out the back of the machine.
Connect the cable to your Macintosh.
• Connect the machine directly to your
Macintosh.
a
Windows® Macintosh
USB
19
Connect the USB cable
Lift the scanner cover until it locks securely into
the open position.
IMPORTANT
Make sure that the cable does not restrict the
cover from closing, or an error may occur.
17
USB
d
Macintosh
Lift the scanner cover to release the lock a.
Gently push the scanner cover support
down b and close the scanner cover c using
both hands.
d
e
1
Please wait for the software to install. After the
installation, the Brother software will search for
the Brother device. This will take a few
moments to complete.
Choose your machine from the list, and then
click OK.
3
2
f
20
a
b
c
When this screen appears, click Add Printer.
Install MFL-Pro Suite
Put the supplied installation CD-ROM into your
CD-ROM drive.
Choose your machine from the list. Click Add
and then click Next.
Double-click the Start Here OSX icon to install.
If the model name screen appears, choose
your machine.
Choose Local Connection (USB), and then
click Next. Follow the on-screen instructions.
g
When this screen appears, click Next.
The installation of MFL-Pro Suite is now
complete.
Go to step 21.
18
USB
21
Macintosh
Download and install
Presto! PageManager
When Presto! PageManager is installed, OCR
capability is added to Brother ControlCenter2. You
can easily scan, share and organize photos and
documents using Presto! PageManager.
a
On the Brother Support screen, click the
Presto! PageManager to go to the
Presto! PageManager download site, and
follow the on-screen instructions.
The installation is now
complete.
Windows® Macintosh
USB
Finish
19
Wired Network
Windows®
For wired network interface users
(Windows® XP Home/XP Professional/Windows Vista®/Windows® 7)
18
Before you install
Make sure that your computer is ON and you are
logged on with Administrator rights.
19
a
Connect the network
cable
Lift the scanner cover until it locks securely into
the open position.
IMPORTANT
If there are any programs running, close them.
NOTE
• The screens may differ depending on your
operating system.
• The CD-ROM includes Nuance™ PaperPort™
12SE. This software supports Windows® XP
Home (SP3 or greater), XP Professional (SP3
or greater), XP Professional x64 Edition (SP2
or greater), Windows Vista® (SP2 or greater)
and Windows® 7. Update to the latest
Windows® Service Pack before installing
MFL-Pro Suite.
• If you have previously set up your machine for
a wireless network and then want to set it up on
a wired network, you should check that the
machine’s Network I/F is set to
Wired LAN. The wireless network interface
will become inactive with this setting.
On your machine, press
.
Press All Settings.
Press Network.
Swipe up or down, or press a or b to display
Network I/F.
Press Network I/F.
Press Wired LAN.
Press
20
.
b
Connect the network cable to the Ethernet port
marked with a
symbol a. You will find the
Ethernet port inside the machine on the left, as
shown in the callout below. Remove the orange
protective cap before connecting the cable.
1
Wired Network
c
Carefully guide the network cable into the cable
channel and out the back of the machine.
Connect the cable to your network.
Windows®
20
a
Install MFL-Pro Suite
Put the supplied installation CD-ROM into your
CD-ROM drive. If the model name screen
appears, choose your machine. If the language
screen appears, choose your language.
NOTE
• For Windows Vista® and Windows® 7, when
the User Account Control screen appears click
Continue or Yes.
IMPORTANT
Make sure that the cable does not restrict the
cover from closing, or an error may occur.
NOTE
If both the USB and the network cables are being
used, guide both cables through the cable
channel with one on top of the other.
d
• If the Brother screen does not appear
automatically, go to My Computer or
Computer then double-click the CD-ROM icon
and double-click start.exe.
b
The CD-ROM Top menu will appear. Click
Install MFL-Pro Suite and click Yes if you
accept the license agreements. Follow the
on-screen instructions.
Lift the scanner cover to release the lock a.
Gently push the scanner cover support
down b and close the scanner cover c using
both hands.
1
2
Windows® Macintosh
Wired Network
3
21
Wired Network
c
Choose Wired Network Connection
(Ethernet), and then click Next.
Windows®
NOTE
• If there is more than one machine connected to
the network, choose your machine from the list,
and then click Next.
This window will not appear if there is only one
machine connected to the network, the
machine will be chosen automatically.
d
When this screen appears, choose Change
the Firewall port settings to enable network
connection and continue with the
installation. (Recommended) and click Next.
• If your machine is not found over the network,
the following screen will appear.
If you are using a firewall other than the
Windows® Firewall or the Windows® Firewall is
off, this screen may appear.
Confirm your settings by following the
on-screen instructions.
e
See the instructions provided with your firewall
software for information on how to add the
following network ports.
 For network scanning, add UDP port 54925.
 For network PC-Fax receiving, add UDP port
54926.
 If you still have trouble with your network
connection, add UDP ports 137 and 161.
The installation of the Brother drivers will
automatically start. The installation screens
appear one after another.
IMPORTANT
DO NOT cancel any of the screens during the
installation. It may take a few seconds for all
screens to appear.
NOTE
For Windows Vista® and Windows® 7, when the
Windows® Security screen appears, click the
check box and click Install to complete the
installation correctly.
f
g
h
22
If Environmental Advice for Imaging
Equipment screen appears, click Next.
When the On-Line Registration screen is
displayed, follow the on-screen instructions.
Click Next.
If you do not want to set your machine as the
default printer, uncheck Set as Default Printer
and click Next.
Wired Network
21
a
Finish and restart
Click Finish to restart your computer. After
restarting the computer, you must log on with
Administrator rights.
Windows®
22
Install MFL-Pro Suite on
additional computers
(if needed)
If you want to use your machine with multiple
computers on the network, install MFL-Pro Suite on
each computer. Go to step 20 on page 21. Also see
step 18 on page 20 before you install.
NOTE
NOTE
• If an error message appears during the
software installation, run the Installation
Diagnostics located in
Start/
All Programs/Brother/MFC-JXXX (where
MFC-JXXX is your model name).
• Depending on your security settings, a
Windows® Security or antivirus software
window may appear when using the machine
or its software. Please allow or permit the
window to continue.
The following screens will appear.
• When the Software Update Setting screen
appears, choose the software update setting
you want and click OK.
• When the Brother Product Research and
Support Program screen appears, select
your preference and follow the on-screen
instructions.
NOTE
Internet access is required for the software
update and the Brother Product Research &
Support Program.
Finish
The installation is now
complete.
To install optional applications:
Now go to
Page 44
NOTE
XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is the
most suitable driver for Windows Vista® and
Windows® 7 when printing from applications that
use the XML Paper Specification documents.
Please download the latest driver by accessing
the Brother Solutions Center at
http://solutions.brother.com/.
Windows® Macintosh
Wired Network
b
Network license (Windows®)
This product includes a PC license for up to 2
users. This license supports the installation of the
MFL-Pro Suite including Nuance™ PaperPort™
12SE on up to 2 PCs on the network. If you want
to use more than 2 PCs with Nuance™
PaperPort™ 12SE installed, please purchase the
Brother NL-5 pack which is a multiple PC license
agreement pack for up to 5 additional users. To
purchase the NL-5 pack, contact your authorized
Brother dealer or contact Brother customer
service.
23
Wired Network
Macintosh
For wired network interface users (Mac OS X v10.5.8, 10.6.x, 10.7.x)
18
Before you install
Make sure your machine is connected to the power
and your Macintosh is ON. You must be logged on
with Administrator rights.
19
a
Connect the network
cable
Lift the scanner cover until it locks securely into
the open position.
NOTE
• For Mac OS X v10.5.0 to 10.5.7 users, upgrade
to Mac OS X v10.5.8 - 10.7.x.
• If you have previously set up your machine for
a wireless network and then want to set it up on
a wired network, you should check that the
machine’s Network I/F is set to
Wired LAN. The wireless network interface
will become inactive with this setting.
On your machine, press
.
Press All Settings.
Press Network.
Swipe up or down, or press a or b to display
Network I/F.
Press Network I/F.
Press Wired LAN.
Press
24
.
b
Connect the network cable to the Ethernet port
marked with a
symbol a. You will find the
Ethernet port inside the machine on the left, as
shown in the callout below. Remove the orange
protective cap before connecting the cable.
1
Wired Network
c
Carefully guide the network cable into the cable
channel and out the back of the machine.
Connect the cable to your network.
Macintosh
20
a
b
Install MFL-Pro Suite
Put the supplied installation CD-ROM into your
CD-ROM drive.
Double-click the Start Here OSX icon to install.
If the model name screen appears, choose
your machine.
IMPORTANT
Make sure that the cable does not restrict the
cover from closing, or an error may occur.
c
NOTE
If both the USB and the network cables are being
used, guide both cables through the cable
channel with one on top of the other.
d
Choose Wired Network Connection
(Ethernet), and then click Next. Follow the
on-screen instructions.
Lift the scanner cover to release the lock a.
Gently push the scanner cover support
down b and close the scanner cover c using
both hands.
1
3
2
e
Please wait for the software to install. After the
installation, the Brother software will search for
the Brother device. This will take a few
moments to complete.
If the machine is configured for your network,
choose your machine from the list, and then
click OK.
Windows® Macintosh
Wired Network
d
25
Wired Network
NOTE
Macintosh
f
When this screen appears, click Add Printer.
• If your machine is not found over the network,
confirm your network settings.
• You can find your machine’s MAC Address
(Ethernet Address) and IP Address by printing
out the Network Configuration Report. See
Printing the Network Configuration Report in
the Network User’s Guide.
Choose your machine from the list. Click Add
and then click Next.
• If this screen appears, click OK.
Enter a name for your Macintosh up to
15 characters long.
g
If you want to use the scan feature directly from
your machine to scan over the network, you
must check the Register your computer with
the “Scan To” function on the machine box.
Click OK. Go to f.
The name you enter will appear on the
machine’s Touchscreen when you press Scan
and choose a scan option. (For more
information, see Network Scanning in the
Software User’s Guide.)
26
When this screen appears, click Next.
The installation of MFL-Pro Suite is now
complete.
Go to step 21.
Wired Network
21
Macintosh
Download and install
Presto! PageManager
When Presto! PageManager is installed, OCR
capability is added to Brother ControlCenter2. You
can easily scan, share and organize photos and
documents using Presto! PageManager.
a
On the Brother Support screen, click the
Presto! PageManager to go to the
Presto! PageManager download site, and
follow the on-screen instructions.
22
Install MFL-Pro Suite on
additional computers
(if needed)
Finish
The installation is now
complete.
Windows® Macintosh
Wired Network
If you want to use your machine with multiple
computers on the network, install MFL-Pro Suite on
each computer. Go to step 20 on page 25. Also see
step 18 on page 24 before you install.
27
For Wireless Network Users
For wireless network interface users
18
Before you begin
First you must configure the wireless network settings of your machine to communicate with your access
point/router. After the machine is configured to communicate with your access point/router, computers on your
network will have access to the machine. To use the machine from these computers, you will need to install the
drivers and software. The following steps will guide you through the configuration and installation process.
To achieve optimum results with normal everyday document printing, place the Brother machine as close to the
network access point/router as possible with minimal obstructions. Large objects and walls between the two
devices as well as interference from other electronic devices can affect the data transfer speed of your documents.
Due to these factors, wireless may not be the best method of connection for all types of documents and
applications. If you are printing large files, such as multi-page documents with mixed text and large graphics, you
may want to consider choosing wired Ethernet for a faster data transfer or USB for the fastest throughput speed.
Although your Brother machine can be used in both a wired and wireless network, only one of the connection
methods can be used at a time.
NOTE
If you have previously configured the wireless settings of the machine you must reset the network settings
before you can configure the wireless settings again.
On your machine, press
. Press All Settings.
Press Network.
Swipe up or down, or press a or b to display Network Reset, and then press Network Reset.
Press Yes to accept. Hold down Yes for 2 seconds to confirm.
The following instructions are for infrastructure mode (connected to a computer through an access point/router).
Infrastructure Mode
5
1
4
2
3
a Access point/router
b Wireless network machine (your machine) connected to the access point/router
c Wireless-capable computer connected to the access point/router
d Wired computer connected to the access point/router
e Mobile device connected to the access point/router
Please make sure the wireless network settings of the machine match the access point/router.
NOTE
To set up your machine in Ad-hoc mode (connected to a wireless-capable computer without an access
point/router) you can find instructions in the Network User’s Guide on the CD-ROM.
You can view the Network User’s Guide by following the instructions below.
1 Turn on your computer. Insert the CD-ROM into your CD-ROM drive.
For Windows®:
2 Choose your model and the language. The CD-ROM top menu will appear.
3 Click User’s Guides, and then click PDF documents.
4 Click Network User’s Guide.
For Macintosh:
2 Double-click User’s Guides. Choose your model and the language.
3 Click User’s Guides, and then click Network User’s Guide.
28
For Wireless Network Users
19
Choose your wireless setup method
The following instructions will offer three methods for setting up your Brother machine on a wireless network.
Choose the method you prefer for your environment.
a
Setup using the installation CD-ROM and a USB cable (Windows® and Macintosh)
You need to temporarily use a USB cable during configuration (cable not included).
It is recommended that you use a computer wirelessly connected to your network for this method.
• If you are using Windows® XP, or currently using a computer connected to an access
point/router by network cable, you need to know your wireless settings. Please write down
your wireless network settings in the area below.
• Please do not contact Brother Customer Service for assistance without the wireless security
information. We cannot assist you in locating your network security settings.
Item
Record the current wireless network settings
SSID (Network Name)
Network Key
* The Network Key may also be described as the Password, Security Key or Encryption Key.
NOTE
If you do not know this information (SSID and Network Key), you cannot continue the wireless
setup.
How can I find this information?
1) You should see the documentation provided with your wireless access point/router.
2) The initial network name could be the manufacturer’s name or the model name.
3) If you do not know the security information, please consult the router manufacturer, your system
administrator or internet provider.
page 31
Wireless Network
Now go to
29
For Wireless Network Users
For methods b and c, start your wireless setup by pressing the Wi-Fi button on the Touchscreen.
b
Manual setup from the control panel using the Setup Wizard (Windows®, Macintosh and
mobile devices)
If your wireless access point/router does not support WPS (Wi-Fi Protected Setup™) or AOSS™,
write down the wireless network settings of your wireless access point/router in the area below.
Please do not contact Brother Customer Service for assistance without the wireless security
information. We cannot assist you in locating your network security settings.
Item
Record the current wireless network settings
SSID (Network Name)
Network Key
* The Network Key may also be described as the Password, Security Key or Encryption Key.
NOTE
If you do not know this information (SSID and Network Key), you cannot continue the wireless
setup.
How can I find this information?
1) You should see the documentation provided with your wireless access point/router.
2) The initial SSID could be the manufacturer’s name or the model name.
3) If you do not know the security information, please consult the router manufacturer, your system
administrator or internet provider.
Now go to
c
One-push setup using WPS or AOSS™ (Windows ®, Macintosh and mobile devices)
If your wireless access point/router supports automatic wireless (one-push) setup (WPS or AOSS™)
Now go to
30
page 34
page 35
For Wireless Network Users
20
Setup using the
installation CD-ROM and
a USB cable (Windows®
and Macintosh)
c
Choose Wireless Network Connection, and
then click Next.
• You need to temporarily use a USB cable
during configuration (cable not included).
• These steps are for a Windows® installation.
For Macintosh installation, insert the
installation CD-ROM into your CD-ROM
drive and double-click Start Here OSX to
install. Select Wireless installation and
follow the Wireless Device Setup
instructions on your computer screen.
a
d
When this screen appears, choose Change
the Firewall port settings to enable network
connection and continue with the
installation. (Recommended) and click Next.
Put the supplied installation CD-ROM into your
CD-ROM drive. If the model name screen
appears, choose your machine. If the language
screen appears, choose your language.
NOTE
• For Windows Vista® and Windows® 7, when
the User Account Control screen appears click
Continue or Yes.
• If the Brother screen does not appear
automatically, go to My Computer or
Computer then double-click the CD-ROM icon
and double-click start.exe.
b
The CD-ROM Top menu will appear. Click
Install MFL-Pro Suite and click Yes if you
accept the license agreements. Follow the
on-screen instructions.
If you are using a firewall other than the
Windows® Firewall or the Windows® Firewall is
off, this screen may appear.
See the instructions provided with your firewall
software for information on how to add the
following network ports.
 For network scanning, add UDP port 54925.
 For network PC-Fax receiving, add UDP port
54926.
 If you still have trouble with your network
connection, add UDP ports 137 and 161.
Wireless Network
31
For Wireless Network Users
e
f
Choose Yes, I have a USB cable to use for
installation. and then click Next.
Temporarily connect the USB cable (not
included) directly to the computer and the
machine.
g
h
When the following screen appears, check Yes
if you want to connect to the listed SSID. Click
Next and go to j.
When the following screen appears, the wizard
will search for wireless networks available to
your machine. Choose the SSID that you wrote
down for your network in step 19-a on
page 29, and then click Next.
If the confirmation screen appears, check the
box and click Next, go to g.
Otherwise, go to h.
NOTE
• For instructions on connecting the USB cable
to the USB port of your machine, see Connect
the USB cable on page 15.
• If this screen appears, read the Important
Notice. Check the box after you confirm the
SSID and Network Key, and then click Next.
32
NOTE
• If a list of SSIDs is not displayed, make sure
your access point is on and set to broadcast the
SSID. Make sure the machine and the access
point are within communication range, then
click Refresh.
• If your access point is set to not broadcast the
SSID you can manually add it by clicking the
Advanced button. Follow the on-screen
instructions for entering the Name (SSID), and
then click Next.
For Wireless Network Users
i
Enter the Network Key you wrote down in
step 19-a on page 29, and then click Next.
NOTE
If your network is not configured for
Authentication and Encryption, the following
screen will appear. To continue configuration,
click OK and go to j.
k
l
Disconnect the USB cable between the
computer and the machine.
Click Next to continue to install MFL-Pro Suite.
Wireless setup is now complete. The
Wi-Fi button at the upper right of the
Touchscreen changes to a four-level
indicator that displays the wireless signal
strength of your access point/router.
The Wi-Fi LED
on the control panel
lights up, indicating that the machine’s
Network I/F is set to WLAN.
j
To install MFL-Pro Suite
Click Next. The settings will be sent to your
machine.
For Windows® users:
Now go to
Step 22-e on page 39
For Macintosh users:
Now go to
NOTE
Step 22-d on page 41
• The settings will remain unchanged if you click
Cancel.
• If you want to manually enter the IP address
settings of your machine, click Change IP
Address and enter the necessary IP address
settings for your network.
• If the wireless setup failure screen appears,
click Retry.
Wireless Network
33
For Wireless Network Users
20
Manual setup from the
control panel using the
Setup Wizard
(Windows®, Macintosh
and mobile devices)
d
Press
b
Press
.
Press Setup Wizard.
When Switch Network interface to
wireless? is displayed, press Yes to accept.
This will start the wireless setup wizard.
To cancel, press No.
The machine will search for available SSIDs. It
will take several seconds to display a list of
available SSIDs.
If a list of SSIDs is displayed, swipe up or down,
or press a or b to choose the SSID you wrote
down in step 19-b on page 30. Select the
SSID you want to connect with. Press OK.
If the wireless access point/router of the
selected SSID supports WPS and the machine
asks to use WPS, go to c.
If the machine asks you to enter a Network
Key, go to d.
Otherwise, go to e.
NOTE
• If a list of SSIDs is not displayed, make sure
your access point is on. Move your machine
closer to the access point and try starting
from a again.
• If your access point is set to not broadcast the
SSID, you will have to manually add the SSID
name. For details, see the Network User’s
Guide.
c
Press Yes to connect your machine using
WPS. (If you choose No to continue manual
configuration, go to d to enter a Network Key.)
When the Touchscreen indicates you should
start WPS, press the WPS button on your
wireless access point/router, and then press
Next to proceed.
Go to e.
to cycle between lower case and
upper case. Press
to cycle between
letters, numbers and special characters. (The
characters available may differ depending on
your country.) To move the cursor to the left or
right, press d or c.
(For more information, see Entering Text for
Wireless Settings on page 45.)
You must have the wireless settings you
wrote down for your network in step 19-b on
page 30 before you proceed.
a
Enter the Network Key you wrote down in
step 19-b on page 30 using the Touchscreen.
e
f
Press OK when you have entered all the
characters, then press Yes to apply your
settings.
Your machine will now try to connect to your
wireless network. It may take a few minutes.
A connection result message appears for
60 seconds on the Touchscreen and a WLAN
report will automatically be printed.
If the connection failed, check the error code on
the printed report and refer to Troubleshooting
on page 36.
Wireless setup is now complete. The
Wi-Fi button at the upper right of the
Touchscreen changes to a four-level
indicator that displays the wireless signal
strength of your access point/router.
The Wi-Fi LED
on the control panel
lights up, indicating that the machine’s
Network I/F is set to WLAN.
NOTE
For Mobile Device users, please go to the User’s
Guide for the application you are using (Ex.
AirPrint, Brother iPrint&Scan or other
applications) for additional details on how to use
your machine with the application. To download
the User’s Guide for the application you are using,
please go to the manuals download selection on
your model’s home page of the Brother Solutions
Center at http://solutions.brother.com/.
To install MFL-Pro Suite, continue to
step 21.
For Windows® users:
Now go to
Page 38
For Macintosh users:
Now go to
Page 41
34
For Wireless Network Users
20
a
b
c
One-push setup using
WPS or AOSS™
(Windows®, Macintosh
and mobile devices)
Confirm your wireless access point/router has
the WPS or AOSS™ symbol as shown below.
Place the Brother machine within range of your
WPS or AOSS™ access point/router. The
range may differ depending on your
environment. Refer to the instructions provided
with your access point/router.
Press
.
Press WPS/AOSS.
When Switch Network interface to
wireless? is displayed, press Yes to accept.
This will start the wireless setup wizard.
To cancel, press No.
NOTE
If your wireless access point/router supports WPS
(PIN Method) and you want to configure your
machine using the PIN (Personal Identification
Number) Method, see Configuration using the
PIN Method of WPS (Wi-Fi Protected Setup) in
the Network User’s Guide.
d
When the Touchscreen indicates you should
start WPS or AOSS™, press the WPS or
AOSS™ button on your wireless access
point/router. See the user’s guide of your
wireless access point/router for instructions.
e
A connection result message appears for
60 seconds on the Touchscreen and a WLAN
report will automatically be printed.
If the connection failed, check the error code on
the printed report and refer to Troubleshooting
on page 36.
Wireless setup is now complete. The
Wi-Fi button at the upper right of the
Touchscreen changes to a four-level
indicator that displays the wireless signal
strength of your access point/router.
The Wi-Fi LED
on the control panel
lights up, indicating that the machine’s
Network I/F is set to WLAN.
NOTE
For Mobile Device users, please go to the User’s
Guide for the application you are using (Ex.
AirPrint, Brother iPrint&Scan or other
applications) for additional details on how to use
your machine with the application. To download
the User’s Guide for the application you are using,
please go to the manuals download selection on
your model’s home page of the Brother Solutions
Center at http://solutions.brother.com/.
To install MFL-Pro Suite, continue to
step 21.
For Windows® users:
Now go to
Page 38
For Macintosh users:
Now go to
Page 41
Wireless Network
Then press OK and your machine will now
automatically detect which mode (WPS or
AOSS™) your wireless access point/router
uses and try to connect to your wireless
network.
35
For Wireless Network Users
Troubleshooting
Please do not contact Brother Customer Service for assistance without the wireless security
information. We cannot assist you in locating your network security settings.
How can I find the wireless security information (SSID and Network Key)
1) You should see the documentation provided with your wireless access point/router.
2) The initial SSID could be the manufacturer’s name or the model name.
3) If you do not know the security information, please consult the router manufacturer, your system
administrator or internet provider.
* The Network Key may also be described as the Password, Security Key or Encryption Key.
Wireless LAN report
If the wireless LAN report that printed shows that the connection failed, check the error code on the printed report
and refer to the following instructions.
Error code
Recommended Solutions
The wireless setting is not activated, turn the wireless setting to ON.
- If a network cable is connected to your machine, disconnect it and turn the wireless setting
of your machine to ON.
TS-01
On your machine, press
and All Settings.
Press Network.
Swipe up or down, or press a or b to display Network I/F.
Press Network I/F.
Press WLAN.
Press
.
The wireless access point/router cannot be detected.
1. Check the following 4 points.
TS-02
- Make sure that the wireless access point/router is powered on.
- Move your machine to an obstruction-free area, or closer to the wireless access
point/router.
- Temporarily place your machine within about 3.3 feet (one meter) from the wireless
access point when you are configuring the wireless settings.
- If your wireless access point/router is using MAC address filtering, confirm the MAC
address of the Brother machine is allowed in the filter.
2. If you manually entered the SSID and security information (SSID/authentication
method/encryption method/Network Key), the information may be incorrect.
Reconfirm the SSID and security information and re-enter the correct information as
necessary.
See How can I find the wireless security information (SSID and Network Key) on page 36 to
confirm.
36
For Wireless Network Users
The Authentication/Encryption methods used by the selected wireless access point/router are
not supported by your machine.
For infrastructure mode, change the authentication and encryption methods of the wireless
access point/router.
Your machine supports the following authentication methods:
authentication method
WPA-Personal
WPA2-Personal
TS-04
Open
Shared key
encryption method
TKIP
AES
AES
WEP
None (without encryption)
WEP
If your problem is not solved, the SSID or network settings you entered may be incorrect.
Reconfirm the wireless network settings.
See How can I find the wireless security information (SSID and Network Key) on page 36 to
confirm.
For ad-hoc mode, change the authentication and encryption methods of your computer for
the wireless setting.
Your machine supports Open authentication method only, with optional WEP encryption.
TS-05
The security information (SSID/Network Key) is incorrect.
Reconfirm the SSID and security information (Network Key).
If your router uses WEP encryption, enter the key used as the first WEP key. Your Brother
machine supports the use of the first WEP key only.
See How can I find the wireless security information (SSID and Network Key) on page 36 to
confirm.
TS-06
The wireless security information (Authentication method/Encryption method/Network Key) is
incorrect.
Reconfirm the wireless security information (Authentication method/Encryption method/
Network Key) in the table of TS-04.
If your router uses WEP encryption, enter the key used as the first WEP key. Your Brother
machine supports the use of the first WEP key only.
See How can I find the wireless security information (SSID and Network Key) on page 36 to
confirm.
The machine cannot detect a wireless access point/router that has WPS or AOSS™ enabled.
TS-07
If you would like to configure your wireless settings using WPS or AOSS™, you must operate
both your machine and the wireless access point/router.
Confirm your wireless access point/router supports WPS or AOSS™ and try starting again.
Wireless Network
If you do not know how to operate your wireless access point/router
using WPS or AOSS™ see the documentation provided with your
wireless access point/router, ask the manufacturer of your wireless
access point/router or ask your network administrator.
Two or more wireless access points that have WPS or AOSS™ enabled are detected.
TS-08
- Confirm that only one wireless access point/router within range has the WPS or AOSS™
method active and try again.
- Try starting again after a few minutes in order to avoid interference from other access
points.
37
Wireless Network
Windows®
Install the drivers & software
(Windows® XP Home/XP Professional/Windows Vista®/Windows® 7)
21
Before you install
b
The CD-ROM Top menu will appear. Click
Install MFL-Pro Suite and click Yes if you
accept the license agreements. Follow the
on-screen instructions.
Make sure that your computer is ON and you are
logged on with Administrator rights.
IMPORTANT
If there are any programs running, close them.
NOTE
• The screens may differ depending on your
operating system.
• The CD-ROM includes Nuance™ PaperPort™
12SE. This software supports Windows® XP
Home (SP3 or greater), XP Professional (SP3
or greater), XP Professional x64 Edition (SP2
or greater), Windows Vista® (SP2 or greater)
and Windows® 7. Update to the latest
Windows® Service Pack before installing
MFL-Pro Suite.
22
a
Install MFL-Pro Suite
Put the supplied installation CD-ROM into your
CD-ROM drive. If the model name screen
appears, choose your machine. If the language
screen appears, choose your language.
NOTE
• For Windows Vista® and Windows® 7, when
the User Account Control screen appears click
Continue or Yes.
• If the Brother screen does not appear
automatically, go to My Computer or
Computer then double-click the CD-ROM icon
and double-click start.exe.
38
c
Choose Wireless Network Connection, and
then click Next.
Wireless Network
d
When this screen appears, choose Change
the Firewall port settings to enable network
connection and continue with the
installation. (Recommended) and click Next.
f
Windows®
The installation of the Brother drivers will
automatically start. The installation screens
appear one after another.
IMPORTANT
DO NOT cancel any of the screens during the
installation. It may take a few seconds for all
screens to appear.
NOTE
For Windows Vista® and Windows® 7, when the
If you are using a firewall other than the
Windows® Firewall or the Windows® Firewall is
off, this screen may appear.
Windows® Security screen appears, click the
check box and click Install to complete the
installation correctly.
g
h
See the instructions provided with your firewall
software for information on how to add the
following network ports.
i
If Environmental Advice for Imaging
Equipment screen appears, click Next.
When the On-Line Registration screen is
displayed, follow the on-screen instructions.
Click Next.
If you do not want to set your machine as the
default printer, uncheck Set as Default Printer
and click Next.
 For network scanning, add UDP port 54925.
 For network PC-Fax receiving, add UDP port
54926.
 If you still have trouble with your network
connection, add UDP ports 137 and 161.
e
Choose your machine from the list, and then
click Next.
• If your machine is not found over the network,
confirm your settings by following the
on-screen instructions. If you encounter this
failure, go to step 19-b on page 30 and setup
the wireless connection again.
• If you are using WEP and the Touchscreen
displayed Connected but your machine is not
found on the network, make sure you entered
the WEP key correctly. The WEP key is case
sensitive.
Windows®
Macintosh
Wireless Network
NOTE
39
Wireless Network
23
a
Finish and restart
Click Finish to restart your computer. After
restarting the computer, you must log on with
Administrator rights.
Windows®
24
Install MFL-Pro Suite on
additional computers
(if needed)
If you want to use your machine with multiple
computers on the network, install MFL-Pro Suite on
each computer. Go to step 21 on page 38.
NOTE
NOTE
• If an error message appears during the
software installation, run the Installation
Diagnostics located in
Start/
All Programs/Brother/MFC-JXXX (where
MFC-JXXX is your model name).
• Depending on your security settings, a
Windows® Security or antivirus software
window may appear when using the machine
or its software. Please allow or permit the
window to continue.
b
The following screens will appear.
• When the Software Update Setting screen
appears, choose the software update setting
you want and click OK.
• When the Brother Product Research and
Support Program screen appears, select
your preference and follow the on-screen
instructions.
NOTE
Internet access is required for the software
update and the Brother Product Research &
Support Program.
40
Network license (Windows®)
This product includes a PC license for up to 2
users. This license supports the installation of the
MFL-Pro Suite including Nuance™ PaperPort™
12SE on up to 2 PCs on the network. If you want
to use more than 2 PCs with Nuance™
PaperPort™ 12SE installed, please purchase the
Brother NL-5 pack which is a multiple PC license
agreement pack for up to 5 additional users. To
purchase the NL-5 pack, contact your authorized
Brother dealer or contact Brother customer
service.
Finish
The installation is now
complete.
To install optional applications:
Now go to
Page 44
NOTE
XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is the
most suitable driver for Windows Vista® and
Windows® 7 when printing from applications that
use the XML Paper Specification documents.
Please download the latest driver by accessing
the Brother Solutions Center at
http://solutions.brother.com/.
Wireless Network
Macintosh
Install the drivers & software (Mac OS X v10.5.8, 10.6.x, 10.7.x)
21
Before you install
d
The Brother software will search for the Brother
device in your wireless network. If the machine
is configured for your network, choose the
device you want to install, and then click Next.
Make sure your machine is connected to the power
and your Macintosh is ON. You must be logged on
with Administrator rights.
NOTE
For Mac OS X v10.5.0 to 10.5.7 users, upgrade to
Mac OS X v10.5.8 - 10.7.x.
22
a
b
NOTE
Install MFL-Pro Suite
If your wireless settings fail, the Wireless Device
Setup Wizard screen appears. Follow the
on-screen instructions to complete the wireless
configuration.
Put the supplied installation CD-ROM into your
CD-ROM drive.
Double-click the Start Here OSX icon to install.
If the model name screen appears, choose
your machine.
e
c
Choose your machine from the list, and then
click OK.
Choose Wireless Network Connection, and
then click Next.
Windows®
Macintosh
Wireless Network
41
Wireless Network
f
The installation of the Brother drivers will
automatically start. Please wait for the software
to install.
g
Macintosh
When this screen appears, click Add Printer.
NOTE
• You can find your machine’s MAC Address
(Ethernet Address) and IP Address by printing
out the Network Configuration Report. See
Printing the Network Configuration Report in
the Network User’s Guide.
Choose your machine from the list, click Add,
and then click Next.
• If this screen appears, click OK.
Enter a name for your Macintosh up to
15 characters long.
h
If you want to use the scan feature directly from
your machine to scan over the network, you
must check the Register your computer with
the “Scan To” function on the machine box.
Click OK. Go to g.
The name you enter will appear on the
machine’s Touchscreen when you press Scan
and choose a scan option. (For more
information, see Network Scanning in the
Software User’s Guide.)
42
When this screen appears, click Next.
The installation of MFL-Pro Suite is now
complete.
Go to step 23.
Wireless Network
23
Macintosh
Download and install
Presto! PageManager
When Presto! PageManager is installed, OCR
capability is added to Brother ControlCenter2. You
can easily scan, share and organize photos and
documents using Presto! PageManager.
a
On the Brother Support screen, click the
Presto! PageManager to go to the
Presto! PageManager download site, and
follow the on-screen instructions.
24
Install MFL-Pro Suite on
additional computers
(if needed)
If you want to use your machine with multiple
computers on the network, install MFL-Pro Suite on
each computer. Go to step 21 on page 41.
Finish
The installation is now
complete.
Windows®
Macintosh
Wireless Network
43
Install Optional Applications
1
2
Install optional
applications
FaceFilter Studio and BookScan &
Whiteboard Suite supported by
Reallusion, Inc
FaceFilter Studio is an easy-to-use borderless photo
printing application.
The BookScan Enhancer software can correct your
scanned book images automatically.
The Whiteboard Enhancer software cleans up and
enhances text and images from photos taken of your
whiteboard.
NOTE
• The machine must be ON and connected to the
computer.
Windows®
Install FaceFilter Studio
Help
To get instructions on how to use FaceFilter Studio,
download and install FaceFilter Studio Help.
a
To run FaceFilter Studio, go to
Start/All Programs/Reallusion/
FaceFilter Studio on your computer.
b
Click Check for Updates on the screen.
NOTE
You can also go to the Reallusion update web
page by clicking the
button in the upper right
corner of this screen.
• Some applications require Internet access.
• Make sure you are logged on with
Administrator rights.
• This application is not available for Windows
Server® 2003/2008 series.
a
b
Open the top menu again by ejecting and then
reinserting the CD-ROM or by double-clicking
the start.exe program from the root folder.
The CD-ROM Top menu will appear. Choose
your language and then click Additional
Applications.
c
d
Click the Download button and choose a folder
to save the file in.
Close FaceFilter Studio before you start the
installer for FaceFilter Studio Help.
Double-click the downloaded file from the
folder you specified and follow the on-screen
instructions for installation.
NOTE
To view the complete FaceFilter Studio Help, go
c
d
44
Click the button for the application you want to
install.
Go back to the Additional Applications
screen to install more applications.
to
Start/All Programs/Reallusion/
FaceFilter Studio/FaceFilter Studio Help on
your computer.
For Network Users
Reset the network settings to factory default
To restore all network settings of the internal Print/Scan server to the factory default, please follow the steps below.
a
b
c
d
e
f
g
h
Make sure the machine is idle, then disconnect all the cables from the machine (except the power cord).
Press
.
Press All Settings.
Press Network.
Swipe up or down, or press a or b to display Network Reset, and then press Network Reset.
Press Yes.
Hold down Yes for 2 seconds to confirm.
The machine will restart, re-connect the cables once this is complete.
Entering Text for Wireless Settings
Press
to cycle between lower case and upper case.
Press
to cycle between letters, numbers and special characters. (The characters available may differ
depending on your country.)
To move the cursor to the left or right, press d or c.
Inserting spaces
To enter a space, press Space.
Making corrections
If you entered a number or a character incorrectly and want to change it, move the cursor to the incorrect one.
Press
and then re-enter the correct one. You can also go back and insert a character.
45
Consumables
Replacement consumables
When the time comes to replace ink cartridges, a message will be indicated on the Touchscreen. For more
information about the ink cartridges for your machine, visit http://www.brother.com/original/ or contact your local
Brother re-seller.
Ink cartridge
Magenta
LC103M (High Yield)
LC105M (Super High Yield)
Cyan
LC103C (High Yield)
LC105C (Super High Yield)
Yellow
LC103Y (High Yield)
LC105Y (Super High Yield)
Black
LC103BK (High Yield)
LC107BK (Super High Yield)
What is Innobella™?
Innobella™ is a range of genuine consumables offered by Brother.
The name “Innobella™” derives from the words “Innovation” and “Bella” (meaning
“Beautiful” in Italian) and is a representation of the “innovative” technology providing
you with “beautiful” and “long lasting” print results.
Trademarks
The Brother logo is a registered trademark of Brother Industries, Ltd.
Brother is a trademark of Brother Industries, Ltd.
Windows, Windows Vista and Windows Server are either registered trademarks or trademarks of Microsoft Corporation in the United States
and/or other countries.
Macintosh and Mac OS are trademarks of Apple Inc., registered in the United States and other countries.
Nuance, the Nuance logo, PaperPort and ScanSoft are trademarks or registered trademarks of Nuance Communications, Inc. or its affiliates
in the United States and/or other countries.
FaceFilter Studio is a trademark of Reallusion, Inc.
AOSS is a trademark of Buffalo Inc.
Wi-Fi and Wi-Fi Protected Access (WPA) are registered trademarks of the Wi-Fi Alliance.
Wi-Fi Protected Setup and Wi-Fi Protected Access 2 (WPA2) are trademarks of the Wi-Fi Alliance.
Each company whose software title is mentioned in this manual has a Software License Agreement specific to its proprietary programs.
Any trade names and product names of companies appearing on Brother products, related documents and any other
materials are all trademarks or registered trademarks of those respective companies.
Compilation and Publication
Under the supervision of Brother Industries, Ltd., this manual has been compiled and published, covering the latest product descriptions and
specifications.
The contents of this manual and the specifications of this product are subject to change without notice.
Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for
any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other
errors relating to the publication.
Copyright and License
©2012 Brother Industries, Ltd. All rights reserved.
This product includes software developed by the following vendors:
©1983-1998 PACIFIC SOFTWORKS, INC. ALL RIGHTS RESERVED.
©2008 Devicescape Software, Inc. All rights reserved.
This product includes the “KASAGO TCP/IP” software developed by ZUKEN ELMIC,Inc.
Get inspired. If you’re using Windows®, double-click the Brother CreativeCenter icon on your desktop to
access our FREE website with many ideas and resources for personal and professional use.
Mac users can access Brother CreativeCenter at this web address: http://www.brother.com/creativecenter/
www.brotherearth.com
