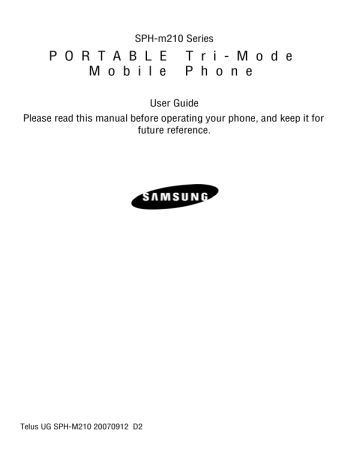

SPH-m210 Series
P O R T A B L E
M o b i l e
T r i - M o d e
P h o n e
User Guide
Please read this manual before operating your phone, and keep it for
future reference.
Telus UG SPH-M210 20070912 D2
Intellectual Property
All Intellectual Property, as defined below, owned by or which is
otherwise the property of Samsung or its respective suppliers
relating to the SAMSUNG Phone, including but not limited to,
accessories, parts, or software relating thereto (the “Phone
System”), is proprietary to Samsung and protected under federal
laws, state laws, and international treaty provisions. Intellectual
Property includes, but is not limited to, inventions (patentable or
unpatentable), patents, trade secrets, copyrights, software, computer
programs, and related documentation and other works of authorship.
You may not infringe or otherwise violate the rights secured by the
Intellectual Property. Moreover, you agree that you will not (and will
not attempt to) modify, prepare derivative works of, reverse engineer,
decompile, disassemble, or otherwise attempt to create source code
from the software. No title to or ownership in the Intellectual Property
is transferred to you. All applicable rights of the Intellectual Property
shall remain with SAMSUNG and its suppliers.
© 2007 Samsung Electronics Canada Inc. Samsung is a registered
trademark of Samsung Electronics Co. Ltd. and its related entities.
Licensed by Qualcomm Incorporated under one or more of the
following patents: U.S. Patent No. 4, 901, 307; 5, 056, 109; 5, 099,
204; 5, 101, 501; 5, 103, 459; 5, 107, 225; 5, 109, 390.
Printed in South Korea
Openwave® is a registered Trademark of Openwave, Inc.
RSA® is a registered Trademark RSA Security, Inc.
Disclaimer of Warranties; Exclusion of Liability
EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE
WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE
PRODUCT “AS IS”, AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY
OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT
NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR
ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF
THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF
THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF
THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION
OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE
INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR
IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE
PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES
OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR
ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF
ANTICIPATED PROFITS OR BENEFITS.
Table of Contents
Getting Started................................................................................. 1
Closed View of Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Front View of Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Viewing the Display Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Features of Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Turning Your Phone On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using Your Phone’s Battery and Charger . . . . . . . . . . . . . . . . . . . . . . . . . 10
Phone Basics ................................................................................. 13
Displaying Your Phone Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Making and Answering Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Responding to Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Using Call Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Making a Three-Way Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Using the Speakerphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Roaming ........................................................................................ 29
Understanding Roaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Setting Your Roaming Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Set NAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Voice Services ............................................................................... 31
Voice Recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Customizing Voice Recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Voice Memos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Navigating Through Menus............................................................ 42
Menu Styles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Viewing the Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Contacts ........................................................................................ 50
Adding a New Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Finding Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Adding a Phone Number to a Contact Entry . . . . . . . . . . . . . . . . . . . . . . . 51
Editing a Contacts Entry’s Phone Number . . . . . . . . . . . . . . . . . . . . . . . . 51
Selecting a Ringer Type for an Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Assigning a Contact to a Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Call History .................................................................................... 54
Viewing History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Call History Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Making a Call From Call History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Saving a Phone Number From Call History . . . . . . . . . . . . . . . . . . . . . . . 56
Prepending a Phone Number From
Call History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Erasing Call History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Call Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Messaging ..................................................................................... 59
Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Text Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Web Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
E-Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
IM & Chat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Short Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Shop .............................................................................................. 71
Ringtones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Wallpaper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Games . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
GPS Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Wireless Web................................................................................. 75
Tools.............................................................................................. 77
Voice Memo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Voice Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Alarm Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Note Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
World Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Phone Settings .............................................................................. 85
Sound Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Display Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Games/Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
TTY Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Airplane Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Phone Security ............................................................................ 106
Accessing the Security Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Special # . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Erasing the Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Erasing Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Resetting Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Safety .......................................................................................... 110
Getting the Most Out of Your Reception . . . . . . . . . . . . . . . . . . . . . . . . 110
Caring for the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Owner’s Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
User Guide Proprietary Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Warranty...................................................................................... 120
Index............................................................................................ 123
Getting Started
Getting Started
Closed View of Phone
1. Front Display
Screen
1. Front Display Screen: The front display screen shows the
time and provides basic information about your phone,
such as signal strength, battery strength, ringtone
settings, and alarms.
Getting Started
1
Front View of Your Phone
16. Earpiece
15. Main Display Screen
14. Messaging Key
1. Navigation Keys
2. Left Softkey
3. SEND Key
4. BACK Key
5. Volume Key
13. OK Key
12. Right Softkey
11. END Key
10. Power/Accessory
Interface
Connector
9. Keypad
6. Shift/Asterisk Key
7. Microphone
2 Getting Started
8. Space/Pound Key
•
•
In Idle mode, the navigation keys access favorite menu
options directly. See ‘Nav. Key Shortcuts” on page 98 for
more information.
In menu mode, the navigation keys scroll through the
menu options. In a first-level menu, the Left and Right keys
scroll though the different menus.
2. Left Softkey: This key can be used in several different ways.
•
•
In idle mode, press to access the Menu.
When using other features, such as the Web Browser, the
left softkey performs a context-sensitive action. This action
is shown in the bottom left corner of the Display Screen.
3. SEND Key: This key can be used in several different ways.
•
•
Allows you to place or answer a call.
In standby mode, press the key once to access the Dialed
Calls log in your Call History. For more information, see
"Call History" on page 54.
4. BACK Key: Deletes characters from the display when you
are in text entry mode. When in a menu, press to return to
the previous menu.
5. Volume Key: Allows you to adjust the ringer volume in
standby mode (with the flip open) or adjust the voice
volume during a call.
•
•
The volume key can also be used to scroll up or down to
navigate through the different menu options.
To mute the ringer during an incoming call, press the
volume key up or down.
Getting Started
3
Getting Started
1. Navigation Keys: These keys allows you to scroll through
the phone menu options and provides a shortcut to phone
functions from standby mode.
6. Shift/Asterisk Key: This key can be used in several different
ways.
•
•
Enters the asterisk [*] character for calling features.
•
In Idle mode, press and hold to switch your handset to
Silent Mode.
In text entry mode, press to change the character input type
(ABC, Abc, abc).
7. Microphone: The microphone allows the other caller to hear
you clearly when you are speaking to them.
8. Space/Pound Key: This key can be used in several different
ways.
•
•
•
Enters the pound [#] character for calling features.
In text entry mode, press to enter a space.
In Idle mode, press and hold to switch your handset to Lock
Mode.
9. Keypad: Use these keys to enter numbers, letters, and
characters.
10. Power/Accessory Interface Connector: The Power/
Accessory Interface Connector is used to plug in a travel
adaptor, or any available accessory to your phone.
11. END Key: This key can be used in several different ways.
•
•
During a call, press to end the call.
•
When in the main menu, press to return the phone to
standby mode and cancel your input.
When the phone is off or in Idle mode, press and hold this
key for a few seconds to turn your phone On or Off.
12. Right Softkey: This key can be used in several different
ways.
4 Getting Started
In Idle mode, press to access your Contacts.
When using other features, such as the Web Browser, the
right softkey performs a context-sensitive action. This
action is shown in the bottom right corner of the Display
Screen.
Getting Started
•
•
when navigating through a menu
13. OK Key: Press
accepts the highlighted choice in the menu.
14. Messaging Key: In Idle mode press this key to access the
Messaging menu.
15. Main Display Screen: This screen displays all the
information needed to operate your phone.
16. Earpiece: The speaker allows you to hear the other caller while
talking on your phone.
Viewing the Display Screen
Your phone’s interior and exterior display screens provides a wealth
of information about your phone’s status and options. This list
identifies the symbols you’ll see on your phone’s display screens:
R
displays your current signal strength. The more lines
you have, the stronger your signal.
means there is no service, as your phone cannot find a
signal.
indicates that your phone is roaming
tells you a call is in progress.
indicates that 3G functionality is active.
indicates that you are sending information.
Getting Started
5
indicates that you are receiving information.
indicates that 3G functionality is dormant or inactive.
indicates that an alarm is set on your phone.
indicates that your phone is in speaker mode.
indicates that GPS location is turned on.
1x
indicates that your phone is receiving 3G digital
service.
1x
D
indicates that your phone is receiving digital (non 3G)
service.
indicates that your phone is receiving analog service.
iIndicates that the TTY option is On.
A
T
V
W
W
V
T
indicates that you have new text messages waiting.
indicates that you have new voice mail messages
waiting.
indicates that you have new web alerts waiting.
indicates that you have new voice, text and web alert
messages waiting.
indicates that the ringer is set at a level between 1-5 or
that 1-Beep is selected.
indicates that the ringer is turned Off.
indicates that your phone is in Vibrate mode.
indicates that your phone is in Silent mode.
indicates that your phone is in Ringer and Vibrate
mode.
6 Getting Started
indicates that your phone is in Auto Answer mode. If
you are using a headset or hands-free kit, then calls are
automatically answered after a preselected number of
rings. If you are not using the headset or hands-free
kit, then this setting is ignored. For more information,
see "Auto-Answer" on page 99.
indicates that your phone’s browser is in security
mode.
displays your current battery strength at full.
Getting Started
AA
displays your current battery strength at empty.
Tip: Display indicators let you know when you’re off the network.
Features of Your Phone
Congratulations on the purchase of your Samsung SPH-m210
phone. This phone is lightweight, easy-to-use, reliable, and it also
offers many significant features and service options:
• Dual-band/Tri-Mode capability provides access to other Digital
Networks where roaming agreements are established. See
"Roaming" on page 29.
• Mobile BrowserTM provides access to the wireless Internet in
digital mode. See "Launching the Browser" on page 75.
• Messaging provides quick and convenient text messaging
capabilities. See "Create New" on page 62.
• Downloadable wallpapers, and ringtones allow you to turn
down time into fun time and to personalize your phone. See
"With your new web enabled phone, you have access to a
variety of services such as downloadable Ringtones,
Wallpapers, Games and GPS applications." on page 71.
Getting Started
7
• The built-in organizer lets you schedule alerts to remind you of
important events. See "Schedule" on page 80.
• Five hundred internal Contacts entries. See "Contacts" on page
50.
• English or French language menus. See "Language" on page
101.
Turning Your Phone On and Off
To turn your phone on:
•
Press
to turn your phone on.
Once your phone is On, it displays “Entering Service Area” which
indicates that your phone is searching for a signal. When your phone
finds a signal, it automatically enters standby mode – the phone’s
idle state. At this point, you are ready to begin making and receiving
calls.
If your phone is unable to find a signal after 15 minutes of searching,
a Power Save mode is automatically activated. When a signal is
found, your phone automatically returns to standby mode.
In Power Save mode, your phone searches for a signal periodically
without your intervention. You can also initiate a search for service
by pressing any key (when your phone is turned On).
Tip: The Power Save feature helps to conserve your battery power when
you are in an area where there is no signal.
To turn your phone off:
•
Press and hold
8 Getting Started
for two seconds until you see the power-
ing down animation on the display screen.
Getting Started
Getting Started
Your screen remains blank while your phone is off (unless the
battery is charging).
9
Using Your Phone’s Battery and Charger
Battery Capacity
Your phone is equipped with a Lithium Ion (LiIon) battery. It allows
you to recharge your battery before it is fully drained. The battery
provides approximately 3 hours of continuous digital talk time or
approximately 6 days of continuous digital standby time.
When the battery reaches 5% of its capacity, the battery icon blinks.
When there are approximately two minutes of talk time left, the
phone sounds an audible alert and then powers down.
Note: Long backlight settings, searching for service, vibrate mode or
browser use affect the battery’s talk and standby times.
Tip: Be sure to watch your phone’s battery level indicator and charge the
battery before it runs out of power.
Installing the Battery
To install the LiIon battery:
1. Insert the battery into the opening on the back of the phone
at a 45-degree angle, making sure to line up the gold
contacts. Gently press down until it snaps into place.
2. Install the protective cover by lining up the tabs at the top
and gently press up until the cover snaps into place
10 Getting Started
Removing the Battery
1. Remove the protective cover by pressing down on the back
of the cover.
2. Grip the battery at the bottom and pull up and out at a
45-degree angle.
3. Using the side tabs, pull the top of the battery away from the
phone and remove.
Charging the Battery
Your phone’s LiIon battery is rechargeable and should be charged as
soon as possible so you can begin using your phone.
Keeping track of your battery’s charge is important. If your battery
level becomes too low, your phone automatically turns off and you
will lose all the information you were just working on. For a quick
check of your phone’s battery level, glance at the battery charge
indicator located in the upper-right corner of either of your phone’s
display screens.
indicates that the battery is full. If the battery
charge is getting too low, the battery icon
blinks and the phone
sounds a warning tone.
Getting Started
11
Getting Started
To remove your battery:
Warning! IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE
INSTRUCTIONS.
DANGER! TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK,CAREFULLY FOLLOW THESE INSTRUCTIONS. FOR
CONNECTION TO A SUPPLY NOT IN NORTH AMERICA, USE AN
ATTACHMENT PLUG ADAPTOR OF THE PROPER CONFIGURATION FOR
THE POWER OUTLET.
Always use a Samsung-approved desktop charger, travel adapter, or
vehicle power adapter to charge your battery.
Warning! Using the wrong battery charger could cause damage to your
phone and void the warranty.
12 Getting Started
Phone Basics
Displaying Your Phone Number
In case you forget your phone number, your phone can remind you.
Phone Basics
To display your phone number:
•
Press the left softkey
for MENU, followed by
to display your phone number.
Note: To access the phone’s main MENU, press the left softkey
while in standby mode. Menu items may be selected by highlighting them
with the navigation key and pressing
, or you can press the number
corresponding to the menu item on your keypad.
Making and Answering Calls
Making Calls
Placing a call from your phone is as easy as making a call from any
land-line phone. Just enter the number and press
and you’re on
your way to clear calls.
To make a call using your keypad:
1. Make sure your phone is on.
2. Enter a phone number. (If you make a mistake while dialing,
press
to erase one digit at a time. Press and hold
to erase the entire number.)
3. Press
to call.
Phone Basics
13
4. Press
or close the phone when you are finished.
Tip: To redial your last outgoing call, press
twice.
You can also place calls from your phone by using Voice Command
(page 32), Speed Dialing numbers from your Contacts (page 19), and
using your Call History listings (page 55).
Answering Calls
To answer an incoming call:
1. Make sure your phone is on. (If your phone is off, incoming
calls go to Voice Mail.)
2. Press
or the left soft key
to answer an incoming
call. (Depending on your phone’s settings, you may also
answer incoming calls by opening the phone or by pressing
any number key. See “Call Answer Mode” on page 98 for
more information.)
Your phone notifies you of incoming calls in the following ways:
• The phone rings and/or vibrates.
• The backlight illuminates.
• The screen displays an incoming call message.
If the incoming call is from a number stored in your Contacts, the
Contacts entry’s name is displayed. The caller’s phone number may
also be displayed, if available.
14 Phone Basics
The following options are also available to handle an incoming
call:
• Press the volume key to quiet the ringer.
• Press the right softkey to Ignore the incoming call
Phone Basics
and send it directly to your Voice Mail box.
Ending a Call
To disconnect a call when you are finished:
•
Close the phone or press
.
Missed Call Notification
When an incoming call is not answered, the Missed Call log is
displayed on your screen. You have two options:
•
Press the left softkey
Contacts.
•
Press the right softkey
to Save the phone number to your
to call the number back.
Calling Emergency Numbers
You can place calls to 911 (dial
and press
your phone is locked or your account is restricted.
), even if
Warning: 911 call can be terminated by closing a flip or pressing
the
key.
However, after terminating the call, the phone will stay in Emergency
mode. You can exit emergency mode by pressing
.
Phone Basics
15
In-Call Options
Select actions by pressing the left softkey
for MENU during a call.
A list of options is displayed that allows you to perform different
actions during the course of a call. The following options are
available: (To select an option, press the corresponding keypad
number or highlight the option and press
•
.)
Mute or UnMute allows you to mute or reactivate
your phone’s microphone.
•
DTMF On/DTMF Off activates or deactivates
DTMF tones on your keypad.
•
Speaker On or Speaker Off allows you to activate
or deactivate your phone’s speaker phone.
•
Call History checks your call log for Missed,
Outgoing, and Incoming calls. You can also erase the
logs from this menu.
•
Contacts accesses the Contacts menu options.
•
3-Way Call allows you to talk to two different
people at the same time. (For more information, see
"Making a Three-Way Call" on page 27.)
•
Messaging allows you to check for Voice Mail
and notifications.
•
Tools accesses the Tools menu options.
•
Version displays the hardware/software version
and Preferred Roaming List (PRL) being used.
16 Phone Basics
End-of-Call Options
Note: The End-of-Call options are not displayed for calls identified as
Unknown ID or Restricted number.
Saving a Phone Number
Your phone can store up to 500 entries (numbers/e-mails/URLs) in
different categories (Mobile, Home, Office, etc.). Phone book
capacity is based by number of entries not by number of contacts.
(For more information, see "Adding a New Contact" on page 50.)
To save a number from standby mode:
1. Enter a phone number.
2. Press the right softkey
for Save.
3. Using the navigation keys, select one of the following
options:
•
•
New Entry: Create a new contact
Find: Add the number to an existing contact and press
4. Select the Type using the navigation key and press
• Mobile
• Home
• Office
• Pager
• Fax
• Others
5. Enter the name using the keypad and press
.
.
.
Phone Basics
17
Phone Basics
After receiving a call from or making a call to a phone number that is
not in your Contacts, the phone number and the duration of the call
are displayed. Press the right softkey
to Save the new number
in your Contacts. (See below for more information on “Saving a
Phone Number.”)
•
After you have saved the number, your list of Contacts is displayed.
Dialing and Saving Phone Numbers With Pauses
You can dial or save phone numbers with pauses for use with
automated systems, such as Voice Mail or credit card billing
numbers.
There are two types of pauses available on your phone:
• Hard Pause (P) sends the next set of numbers when
you press
.
• 2-Second Pause (T) automatically sends the next set
of numbers after two seconds.
Note: You can have multiple pauses in a phone number and combine
2-second and hard pauses.
To dial or save phone numbers with pauses:
1. Enter a phone number from standby mode.
2. Press left softkey
for a hard pause or
for Options and select
P pause
T pause for a 2-second pause.
3. Enter additional numbers.
4. Press
to dial the number.
— or—
Press right softkey
to Save to save the number in your
internal Contacts.
Note: When dialing a number with a hard pause, press
next set of numbers.
18 Phone Basics
to send the
Dialing From Contacts
To dial directly from a Contacts entry:
1. From standby mode, press the right softkey
your CONTACTS.
to display
3. Scroll up or down to highlight the desired entry and press
to make the call.
Tip: If the desired entry contains more than one phone number, scroll
up or down to display the number you wish to call and press
to make
the call.
Using One-Touch/Two-Touch/Three-Touch
Speed Dialing
You can store up to 500 numbers in your phone’s speed dial memory
to make contacting friends and family as easy as pressing a few
buttons. With this feature, you can dial Speed Dial entries using one
key press for locations 2-9, two key presses for locations 10-99, and
three key presses for 100-500.
To use One-Touch Dialing for Speed Dial locations 2-9:
•
Press and hold the appropriate key for approximately two
seconds. (The display confirms that the number has been
dialed.)
To use Two-Touch Dialing for Speed Dial locations 10-99:
1. Press the first digit.
Phone Basics
19
Phone Basics
2. Scroll left or right to search By Name, By Entry, or By
Group.
2. Press and hold the second digit for approximately two
seconds. (The display confirms that the number has been
dialed when it shows “Calling...”.)
To use Three-Touch Dialing for Speed Dial locations 100-500:
1. Press the first digit.
2. Press the second digit.
3. Press and hold the third digit for approximately two
seconds. (The display confirms that the number has been
dialed.)
Note: Your phone also supports 3–4 digit dialing. If you enter a number
using the keypad without holding the last number and then press
,
your phone will dial those digits. (For example, if you enter
and press
, it dials 212, not the number stored in memory
location 212. You cannot store a contact in location 1, 211, 311 or 411.
Entering Text
Selecting a Character Input Mode
Your phone provides convenient ways to enter words, letters,
punctuation, symbols, and numbers whenever you are prompted to
enter text (for example, when adding a Contacts entry or when
sending text messages).
To change the character input mode:
1. When you display a screen where you can enter text,
press the left softkey
for Options.
2. Select a character input mode:
20 Phone Basics
•
•
Alpha to enter characters by tapping the keypad
(see page 23).
Symbol to enter symbols (see page 24).
Phone Basics
•
•
•
T9 (English) to enter characters using predictive
T9 Text Input (see page 21).
Number to enter numbers (see page 24).
Quick Text to enter pre-defined phrases (see page 24).
Entering Characters Using T9 Text Input
T9 Text Input lets you enter text in your phone by pressing keys just
once per letter. (To select the T9 (English) mode when entering text,
see “Selecting a Character Input Mode” above.)
T9 Text Input analyzes the letters you enter using an intuitive word
database and creates a suitable word. (The word may change as you
type.)
To enter text using T9:
1. From the text entry screen (for example, a new event in
scheduler), press the left softkey
for Options and select
T9 (English).
2. Use your keypad to enter the new event. (For example, to
enter “Meeting”, press
once,
twice,
once,
once,
once, and
once.)
When entering text, note the following:
• If the word you want does not display after you have
entered all the letters, press
to scroll through
additional word selections.
• To accept a word and insert a space, press .
Phone Basics
21
• If you make a mistake, press
character. Press and hold
word.
22 Phone Basics
to erase a single
to delete an entire
Entering Characters by Tapping the Keypad
To enter text using Alpha:
1. From a text entry screen (for example, a Contacts entry),
press the left softkey
for Options and select Alpha.
2. Use your keypad to enter the contact's name. (For example,
to enter “bill”, press
twice,
three times,
three times, and
three times again.).
Characters scroll in the following order:
.@?!-,&:’1
ABC2
DEF3
PQRS7
TUV8
WXYZ9
GHI4
0
JKL5
Space
MNO6
Change case
After a character is entered, the cursor automatically advances to the
next space after two seconds or when you press a different key to
enter a character.
Phone Basics
23
Phone Basics
To enter characters by tapping the keypad, select the Alpha mode
(see “Selecting a Character Input Mode” on page 20). Press the
corresponding key repeatedly until the desired character appears.
When the Abc icon is shown, the first letter of the first word is
capitalized and following letters are lowercase. The
key can be
used to select the case desired.
Entering Numbers and Symbols
To enter numbers:
•
Select the Number mode and press the appropriate key. (See
“Selecting a Character Input Mode” on page 20.)
To enter symbols:
•
Select the Symbol mode. (See “Selecting a Character Input
Mode” on page 20.) To enter a symbol, press the appropriate
key displayed above the desired symbol character.
Entering Quick Text
To enter quick text:
•
Select the Quick Text mode. Select the pre-defined text by
using the navigation keys and press
. The text will appear
in the input screen.
Using Caller ID
Caller ID allows people to identify a caller before answering the
phone by displaying the number of the incoming call. If you do not
want your number displayed when you make a call, just follow these
easy steps.
To block your phone number from being displayed for a specific
outgoing call:
1. Press
.
2. Enter the number you want to call.
3. Press
24 Phone Basics
.
To permanently block your number, call the Customer Service
department of your network service provider.
Phone Basics
Phone Basics
25
Responding to Call Waiting
When you’re on a call, Call Waiting alerts you of incoming calls by
sounding two beeps. Your phone’s screen informs you that another
call is coming in and displays the caller’s phone number (if it is
available and you are in digital mode).
To respond to an incoming call while you’re on a call:
•
Press
. (This puts the first caller on hold and answers the
second call.)
To switch back to the first caller:
•
Press
again.
Do Not Disturb Mode
For those calls where you don’t want to be interrupted, you can
activate Do Not Disturb mode, which disables Call Waiting and
directs all incoming calls to Voicemail.
To activate Do Not Disturb Mode:
• Press
followed by
before placing your call.
You will hear a message to confirm the activation.
To disable Do Not Disturb Mode
• Press
followed by
before placing your call.
You will hear a message to confirm the deactivation.
Using Call Forwarding
Call Forwarding lets you forward all your incoming calls to another
phone number – even when your phone is turned off. You can
26 Phone Basics
continue to make calls from your phone when Call Forwarding is
activated.
To Activate Call Forwarding
1. Press
followed by
.
Phone Basics
2. Enter the area code and phone number to which your
future calls should be forwarded.
3. Press
. You will hear a message to confirm the
activation.
To Deactivate Call Forwarding
1. Press
followed by
.
2. Press
. You will hear a message to confirm the
deactivation.
Note: You may be charged a higher rate for calls you have forwarded.
Making a Three-Way Call
With Three-Way Calling, you can talk to two people at the same time.
When using this feature, the normal airtime rates will be charged for
each of the two calls.
To make a Three-Way Call:
1. Enter a number you wish to call and press
.
2. Once you have established the connection, press the left
softkey
for MENU, followed by
for 3-Way Call.
3. Dial the second number and press
.
Phone Basics
27
4. When you’re connected to the second party, press
to begin your three-way call.
again
If one of the people you called hangs up during your call, you and the
remaining caller stay connected. If you initiated the call and are the
first to hang up, all three callers are disconnected.
Tip: You can also begin a Three-Way Call by displaying a phone number
stored in your Internal Contacts, Call History, or Messaging. To call the
third party, press
.
Note: Call Waiting and Three-Way Calling might not be available while
roaming off the network.
Using the Speakerphone
The speakerphone allows you to hear audio through the speaker and
talk without holding your phone. When the speakerphone is
activated, use the volume keys to adjust the sound level.
To turn the speakerphone on during a call:
• Press the left softkey
for Speaker On.
for MENU, followed by
To turn the speakerphone off during a call:
• Press the left softkey
for Speaker Off.
for MENU, followed by
Warning: Due to higher volume levels, do not place the phone near your
ear during speakerphone use.
28 Phone Basics
Roaming
Understanding Roaming
Recognizing Icons on the Display Screen
Your phone’s display screen always lets you know when you’re off
the network. The following icons indicate the type of network you
are roaming on:
• Analog Indicator:
Roaming
• Roaming Indicator: R
A
Note: You will pay a higher per-minute rate for roaming calls.
Roaming on Other Digital Networks
When you’re roaming, your call quality will be similar to the quality
you receive when making calls on your home network. You may not
be able to access certain features, such as web services.
Setting Your Roaming Mode
Your phone allows you to control your ability to roam. By using the
Roaming menu option, you can determine which signals your phone
accepts. Choose from three different settings on your phone to
control your roaming experience:
1. Press the left softkey
2. Press
for Settings.
3. Press
for Advanced
for MENU.
Roaming
29
4. Press
for System.
5. Press
for Set Mode.
6. To select an option, highlight it and press
•
•
•
•
.
Digital Only: This setting allows you to only access digital
networks.
Analog Only: This setting allows you to only access analog
networks.
Automatic: This setting seeks service. When service is
unavailable, the phone searches for an alternate system.
Home Only: This setting allows you to access the home
network only and prevents roaming on other networks.
Set NAM
This setting allows you to associate your mobile identification
number (MIN) to your phone’s electronic serial number (ESN).
1. Press the left softkey
2. Press
for Settings.
3. Press
for Advanced
4. Press
for System.
5. Press
for Set NAM.
for MENU.
6. Using the navigation keys, select NAM 1 or NAM 2 and
press
.
30 Roaming
Voice Services
Voice Recognition
Voice recognition allows you to say commands to perform common
functions supported by your phone. You simply say the predesignated command displayed on your screen in a normal tone of
voice to perform the desired function.
To activate voice recognition:
1. Press and hold
command.)
. (The phone prompts you to say a voice
• Voice Dial
• Contacts
• Voice Memo
• Status
Voice Services
2. Wait for the beep and then say one of the following
commands:
• Calendar
When it recognizes one of these commands, the phone launches the
associated application. If the phone does not hear a command
within approximately eight seconds, it de-activates voice recognition
without taking any action.
Note: If you want to use another button to activate voice recognition, in
addition to
, press the left softkey
for MENU, followed by
for Nav.Key Shortcuts. Using this menu, you can
change button assignments, including the button used to launch “Voice
Dial,” which is the voice recognition application.
Voice Services
31
Using Voice Dial
Voice Dial allows you to dial any valid 7, 10 or 11 digit North
American phone number by speaking the number naturally, without
pausing between the digits.
Tips for using Voice Dial:
• Voice Dial works best in quieter environments.
• When saying a number, speak at a normal speed and
say each digit clearly. There is no need to pause
between digits.
• The phone recognizes the digits one, two, three, four,
five, six, seven, eight, nine, zero, and oh. The phone
does not recognize numbers such as “one eight
hundred” for “1-800.” Instead, say “one-eight-zerozero.”
• The phone recognizes only valid 7, 10 or 11 digit North
American phone numbers.
• If your phone does not usually recognize you correctly
when you are using Voice Dial, try adapting Voice Dial
to your voice, which can significantly improve accuracy
for some speakers. (See "Changing Voice Dial
Sensitivity" on page 37 for details.)
To place a call using Voice Dial:
1. Activate voice recognition by pressing and holding
phone prompts you for a command.)
. (The
2. Say Voice Dial. (The phone prompts you to say the
number.)
3. Say either a name stored in your Contacts or a valid 7, 10 or
11 digit North American phone number naturally and
clearly.
32 Voice Services
• If the phone asks you, “Did You Say,” followed by the
correct number, say “Yes.” (You can also select the
correct number from those displayed on the screen by
pressing
on the correct number. The phone will then
dial the number.)
• If the phone asks you, “Did You Say,” followed by an
incorrect number, say No. (If there are other alternatives,
the phone will prompt you with the next one. You can also
press the navigation key up or down to select the correct
number from the Choice List, and then press
to dial.)
• If you said a name listed in your Contacts that has more
Note: In some cases, the phone might ask you to repeat a name or
number. Make sure that the number is a valid 7 or 10 digit North
American phone number, and then say the number again. If the number
isn't valid, or if the phone still doesn't understand the number on the
second try, it will not place a call.
Looking up Contact Information
Voice recognition lets you retrieve contact information for any person
in your Contacts by saying the full name of the person.
To retrieve information using voice recognition:
1. Activate voice recognition by pressing and holding
phone will prompt you for a command.)
. (The
2. Say Contacts. (The phone will prompt you to say the
name.)
Voice Services
33
Voice Services
than one number associated with it, the phone displays
the different locations (Home, Office, Mobile, etc.) and
asks you which one to dial. Say one of the location
names and the phone will dial the number for the
location you specified.
3. Say the full name of the person, exactly as it is entered in
your Contacts. (The phone will play the name it recognized
through the earpiece, and then open the contact information
for that name.)
•
•
If the phone says, “Did You Say,” followed by an incorrect
name, say No. The phone then prompts you with the next
name, if there is one. If there are no more names, the phone
will say “Sorry, No Match Found.”
If you wish to dial this Contact, simply press
.
Phone Status Information
The voice recognition Status option gives you an update on your
signal strength and battery level.
To retrieve your phone's status information:
1. Press and hold
to activate voice recognition. (The phone
prompts you to say a voice command.)
2. Wait for the beep and say Status. Your phone’s current
status information is displayed.
Customizing Voice Recognition
Adapting Voice Dial
Voice Dialing is speaker independent, which means that no initial
training or adaptation is required. Some users with heavy accents or
unusual voice characteristics may encounter difficulty in achieving
high accuracy with speaker independent Voice Dialing, so the Adapt
Digits feature allows users to dramatically improve the digit accuracy
through adaptation. Users who get acceptable digit recognition
accuracy will find no additional benefit to performing the Adapt Digit
adaptation.
34 Voice Services
After you adapt Voice Dial, your phone will be customized to your
voice. Other people will not be able to use Voice Dial on your phone
unless they reset the phone to factory defaults.
Note: ONLY adapt Voice Dial if the system is frequently mis-recognizing
your speech. You can always restore the system to its original factory
setting.
Adaptation involves recording several digit sequences to teach the
system your voice. The adaptation process takes about 3 minutes.
Tips for adapting Voice Dial:
Voice Services
• Adapt digits in a quiet place.
• Make sure you wait for the beep before starting to
speak.
• Speak clearly, but say each digit sequence naturally.
• If you make a mistake while recording a sequence of
digits, or if there is an unexpected noise that spoils the
recording, you can say or select No when the prompt
asks, “Did the recording sound OK?” You will then be
prompted to re-record the sequence.
To adapt Voice Dial to your voice:
1. Press and hold
to activate voice recognition. (The phone
prompts you to say a voice command.)
2. Press the left softkey
3. Press
for Settings.
for Digit Dialing.
4. Press
for Adapt Digits. (The phone displays the first
digit sequence.)
Voice Services
35
5. When you are ready to start recording, press the left softkey
for OK. (The phone prompts you to say the first
sequence of digits.)
6. Wait for the beep, and then repeat the digits using a normal
tone of voice. (The phone plays back your recording and
asks you if the recording sounds “OK.”)
•
•
If the recording sounds OK (no mistakes and no
background noises), say Yes.
If you need to re-record the digits to fix any problems, say
No. (The phone then prompts you to say the digits again.)
7. Wait for the beep, and then record the digits again. (Repeat
this step until you are satisfied with the recording.)
8. After confirming that the recording sounds OK, repeat the
recording process with the next set of digits. In total, there
are 10 sets of numbers. When you are finished with a full
session, you will reach a screen that reads, “Adaptation
Complete.”
Note: It is recommended that you perform the complete adaptation of
Voice Dial at least once to achieve the maximum benefit of this feature. If
a partial adaptation is performed, you can always return later and resume
the process from the half way point.
Resetting Voice Dial Adaptation
To erase any adaptation and reset Voice Dial to its original state:
1. Press and hold
to activate voice recognition. (The phone
prompts you to say a voice command.)
2. Press the left softkey
3. Press
36 Voice Services
for Settings.
for Digit Dialing.
4. Press
for Reset Digits.
5. Press the left softkey
to select OK.
Changing Voice Dial Sensitivity
You can adjust your phone’s sensitivity to sounds when listening for
voice commands or names, making it require a more exact or less
exact sound match before responding to your command.
To adjust your phone’s voice dial sensitivity:
1. Press and hold
to activate voice recognition. (The phone
prompts you to say a voice command.)
for Settings.
3. Press
for Sensitivity.
4. Press
for Commands or
for Names.
5. Press the navigation key up or down to select Reject More,
Recommended or Reject Less and press
.
• If you select Reject More, your phone will require a
more exact sound match and if you select Reject Less,
your phone will require a less exact sound match.
Enabling/Disabling Choice Lists
You can customize whether the Voice Dial feature displays the list of
top voice recognition choices or automatically dials the first number,
without displaying a choice list.
To enable or disable choice lists for Voice Dial:
1. Press and hold
to activate voice recognition. (The phone
prompts you to say a voice command.)
2. Press the left softkey
3. Press
for Settings.
for Choice Lists.
Voice Services
37
Voice Services
2. Press the left softkey
4. Press
for Name Dialing,
for Contacts.
for Digit Dialing or
5. Press the navigation key up or down to select Automatic,
Always On or Always Off and press
.
Changing Voice Dial Prompts
By default, your phone provides audio prompts such as “Please say a
command”. You can turn these prompts on or off.
1. Press and hold
to activate voice recognition. (The phone
prompts you to say a voice command.)
2. Press the left softkey
3. Press
for Sound.
4. Press
Names.
for Prompts,
for Settings.
for Digits or
for
5. Press the navigation key up or down to select On or Off and
press
.
Changing Voice Dial Name Playback
You can configure the speed and volume by which your phone reads
back names:
1. Press and hold
to activate voice recognition. (The phone
prompts you to say a voice command.)
2. Press the left softkey
for Settings.
3. Press
for Sound.
4. Press
for Name Settings.
5. Press
for Speed or
•
for Volume.
Speed: Press the navigation key up or down to select
Faster, Recommended, or Slower and press
.
38 Voice Services
•
Volume: Press the navigation key up or down to select
Louder, Recommended, or Softer and press
.
Changing Voice Launch
By default, Voice Recognition is activated by pressing and holding
. You can change your phone’s settings to activate Voice
Recognition whenever you open the flip lid of your phone.
To change your Voice Launch method:
1. Press and hold
to activate voice recognition. (The phone
prompts you to say a voice command.)
2. Press the left softkey
for Voice Launch.
4. Press the navigation key up or down to select Send Only or
Send or Flip Open and press
.
Voice Memos
You can use your phone to record brief memos to remind you of
important events, phone numbers, or other items.
Recording Voice Memos
To record a voice memo:
1. Activate voice recognition by pressing and holding
phone will prompt you for a command.)
. (The
2. Say Voice Memo.
3. Wait for the beep and then start speaking. (As it is
recording, the phone displays a countdown timer that
shows how many seconds are left for recording.)
Voice Services
39
Voice Services
3. Press
for Settings.
•
Press the left softkey
to Pause the memo. (When a
memo is paused, press the left softkey
again to
Resume recording.)
4. To finish recording, press the right softkey
to Stop to
the recording prior to the countdown completion.
5. The memo is saved to your phone. Press the right
softkey
to Play your message for review.
Tip: You can also assign Voice Memos to either the left or right
navigation keys. For more information, see "Nav. Key Shortcuts" on page
98. You can also create voice memos by pressing the left softkey
for
MENU, followed by
then selecting Voice Memo.
Note: A total of 5 minutes in 10 separate memos can be recorded and
saved. Individual memos can record up to 30 seconds of audio.
Reviewing and Erasing Memos
To play the voice memos you have recorded:
1. Press the left softkey
2. Press
for Shop.
3. Press
for Tools.
for MENU.
4. Highlight Voice Memo and press
.
5. Press
for Review. (The phone displays a list of saved
memos, with the first one selected.)
40 Voice Services
6. Select a memo and press the right softkey
or
to
play your memo.
— or —
Press the number corresponding to the memo you want to
review. (The phone replays the memo.)
7. To stop play before the memo ends, press the right
softkey
.
To erase an individual memo:
1. Press the left softkey
for Shop.
3. Press
for Tools.
4. Highlight Voice Memo and press
.
5. Press
for Review. (The phone displays a list of saved
memos, with the first one selected.)
6. Using the navigation keys, highlight the memo to erase.
7. Press the left softkey
Erase.
for Options followed by
8. Press the navigation key up to select Yes and press
for
.
To erase all voice memos:
1. Press the left softkey
2. Press
for Shop.
3. Press
for Tools.
for MENU.
4. Highlight Voice Memo and press
5. Press
.
for Erase All.
6. Press the navigation key left to select Yes and press
Voice Services
.
41
Voice Services
2. Press
for MENU.
Navigating Through Menus
Menu Styles
Your phone can display the various features and options in one of
two different menu styles, Icon and List. Regardless of which style
you prefer, menu organization and key commands do not change.
List Style
List style displays all the various menu choices in a vertical list. As
you navigate through the menu, options are highlighted. You can use
your navigation keys to scroll through menus quickly and easily. The
scroll bar at the right of the menu keeps track of your position in the
menu at all times.
• To navigate through a menu, simply press the navigation key
up or down. If you are in a first-level menu, such as Settings,
you may also navigate to the next menu by pressing the
navigation key left or right.
• You can also press the number corresponding to the menu
choice. For example, if you want to view your last dialed call:
1. Press the left softkey
for MENU.
2. Press
for Call History.
3. Press
for Dialed Calls.
Icon
Icon style displays the first level menu choices with graphical icons
arranged in a grid pattern. In other menu levels, choices are arranged
in a vertical list, similar to List style.
• To navigate through a first level menu, simply press the
navigation key in the direction towards your desired menu
42 Navigating Through Menus
choice. The currently-highlighted menu choice is enlarged and
has a text label beneath it. Once the desired menu option is
highlighted, press
.
• You can also press the number corresponding to the menu
choice.
Note: For more information on changing the menu style between List and
Icon, see "Changing the Phone’s Menu Style" on page 90.
Backing Up Within a Menu
To go to the previous menu:
• Press
.
To return to standby mode:
.
Navigating
• Press
Navigating Through Menus
43
Viewing the Menus
Menu Diagram
The following list outlines your
phone’s menu structure:
1: Contacts
1: List Entries
• By Name
• By Entry
• By Group
• Friends
• Family
• Colleagues
• VIP
• My Group
2: New Entry
1: Number
2: E-Mail
3: Groups
1: Friends
2: Family
3: Colleagues
4: VIP
5: My Group
4: My Phone#
5: Memory Info
2: Call History
1: Recent Calls
2: Received Calls
3: Dialed Calls
4: Missed Calls
5: Erase History
1: Recent Calls
2: Received Calls
3: Dialed Calls
44
Navigating Through Menus
4: Missed Calls
6: Call Timers
1: Last Call
2: Recent Calls
3: Lifetime
4: Data Transferred
5: Connection Time
6: Reset Timer
3: Messaging
1: Voice Mail
1: Dial Voice Mail
2: Clear Icon
• Yes
• No
2: Text
1: Send New
2: Inbox
3: Outbox/Sent
4: Templates
5: Drafts
6: Saved
7: Erase Messages
1: Inbox
2: Outbox
3: Templates
4: Drafts
5: Saved
6: All Messages
8: Settings
1: Callback Number
2: Save to Outbox
• Auto Save
• Prompt
• Do Not Save
3: Auto Delete Inbox
• On
• Off
4: Default Entry Mode
• T9 Word
• Alpha
• Number
5: Quick Text
1: How are you?
2: Hi there!
3: Thanks!
4: I’ll call you later
5: On my way.
6: Busy right now.
7: Call me.
8: Running late, will be
there soon
4: Shop
Navigating Through Menus
45
Navigating
9: Where are you?
10: Send me a message
11: 11-20: <empty>
6: Auto Scrolling
1: Off
2: 3 Seconds
3: 5 Seconds
4: 10 Seconds
7: Message Reminder
1: Once
2: Off
3: Every 2 Minutes
9: Memory Info
3: Web Alerts
4: E-mail
• Get New
• Online E-mail
5: IM & Chat
• Get New
• Online IM&Chat
6: Short Codes
1: Short Code List
1: Ringtones
• Get New
2: Wallpaper
• Get New
3: Games
• Get New
• Tetris
• Bejeweled
• PAC-MAN by Namco
• Ms. PAC-MAN by Namco
4: GPS
• Get New
5: Tools
• Get New
• Voice Memo
1: Record
2: Review
3: Erase All
• Voice Dial
1: Digit Dialing
1: Adapt Digits
2: Reset Digits
2: Sensitivity
1: Commands
• Reject More
• Recommended
• Reject Less
2: Names
• Reject More
• Recommended
• Reject Less
3: Choice Lists
1: Name Dialing
• Automatic
• Always On
• Always Off
2: Digit Dialing
• Automatic
• Always On
• Always Off
3: Contacts
• Automatic
• Always On
• Always Off
4: Sound
1: Prompts
• On
• Off
2: Digits
• On
• Off
3: Names
• On
• Off
4: Name Settings
1: Speed
• Faster
• Recommended
• Slower
2: Volume
• Louder
• Recommended
• Softer
5: Voice Launch
• Send Only
• Send or Flip Open
6: About
• Calculator
• Alarm Clock
1: Alarm #1
2: Alarm #2
3: Alarm #3
• Schedule
• Options
46
Navigating Through Menus
1: View type
2: Add new
3: Jump To Date
4: Erase All
• Note Pad
• World Clock
• Options
• DST Setting
1: Off
2: On
6: Favourites
• Short Codes
• Bookmarks
5: Wireless Web
6: Settings
1: Sounds
1: Ringer Volume
1: Calls
2: Messages
3: Alarms
2: Ringer Type
1: Voice Calls
1: Caller ID
2: No Caller ID
2: Messages
1: Voice Mail
2: Text Messages
3: Web Alert
3: Alarms
1: Alarm 1
2: Alarm 2
3: Alarm 3
4: Schedule
3: Alerts
1: Minute Beep
• On
• Off
• Green Apple
• Road
• Tulips
2: Downloads
2: Front Display
3: Received Call
1: Caller ID
1: No Image
2: Downloads
2: No Caller ID
1: No Image
2: Downloads
4: Dialing Colour
• Basic
• Rainbow
• Monochrome
• Hyphenate
5: Banner
6: Backlight
1: On
• 3 Seconds
• 7 Seconds
• 15 Seconds
• 30 Seconds
• Always On
• Always Off
2: Dim
• 1 Minute
• 2 Minutes
• 5 Minutes
• 10 Minutes
• Always On
3: Keypad
• 7 Seconds
• 15 Seconds
• Always On
• Always Off
Navigating Through Menus
Navigating
2: Call Connect
• On
• Off
3: Call Lost
• On
• Off
4: No Service
• On
• Off
4: Roam Ringer
• Normal
• Distinctive
5: Keypad
6: Tone Type
• Normal
• Xylophone
7: Tone Length
• Short
• Long
8: Power On/Off
• On
• Off
2: Display
1: Menu Style
• Icon
• List
2: Wallpapers
1: Main Display
1: Preloaded
• Leaf
• ZenStyle
• Pond
• Flower
• Snow Boarding
• Digital Clock
• World Time
• Scheduler
47
7: Contrast
1: Main Display
2: Front Display
8: Brightness
• Lowest
• Low
• Med
• High
• Highest
9: Theme Color
• Purple
• Blue
• Green
3: Games/Tools
1: Backlight
• 8 Seconds
• 15 Seconds
• Always On
• Always Off
2: Volume
3: Notification
1: Voice Mail
• On
• Off
2: Text Message
• On
• Off
3: Web Alert
• On
• Off
4: GPS
• On
• Emergency Only (E911)
5: Setup
1: Nav. Key Shortcuts
1: Left Nav Key
• None
48
Navigating Through Menus
• Contacts
• Voice Memo
• Scheduler
• Voice Dial
• Ringer Type
• Display
• Alarms
• Browser
• Shop
2: Right Nav Key (Options
same as Left key)
2: Call Setup
1: Call Answer
• Send Key
• Any Key
• Flip Open
2: Auto-Answer (Available
only with CarKit and Headset)
• 2 Seconds
• 4 Seconds
• 8 Seconds
• Off
3: Auto-Prepend
• On
• Off
4: Call Restriction
1: Dialed Call
• Allow All
• Contacts Only
• Special# Only
5: Auto-Hyphen
• On
• Off
3: Language
• English
• French
4: Data Setup
5: Erase Content
• Yes
• No
6: Reset Phone
• Yes
• No
4: Memory Usage
5: Memory Manager
1: Ringtones
2: Wallpapers
3: Voice Memos
4: Java
7: TTY Mode
• On
• Off
8: Airplane Mode
• On
• Off
Navigating
• Off
• Fax In Once
• Fax In Always
• Data In Once
• Data In Always
6: Advanced
1: Phone Info
1: My Phone Number
2: Software Version
3: Hardware Version
4: ESN
5: PRL
6: Browser Version
7: Serving System
8: Icon Glossary
2: System
1: Set Mode
• Digital Only
• Analog Only
• Automatic
• Home Only
2: Set NAM
• NAM 1
• NAM 2
3: Security
1: Lock Phone
• Unlocked
• On Power-up
• Lock Now
2: Change Lock
3: Special #
1: 911
2: *911
3: #911
4: Erase Contacts
• Yes
• No
In-Use Menu
1: Mute/Unmute
2: DTMF On/Off
3: Speaker On/Off
4: Call History
5: Contacts
6: 3-Way Call
7: Messaging
8: Tools
9: Version
Navigating Through Menus
49
Contacts
Adding a New Contact
Your phone can store up to 500 entries (numbers/e-mails/URLs) in
different categories (Home, Office, Mobile, Pager, Fax, Alias, E-Mail,
Others). Phone book capacity is based by number of entries not by
number of contacts.
To add a new entry:
1. Enter a new phone number and press the right softkey
for Save.
2. Using the navigation keys, select New Entry and press
3. Select the Type using the navigation key and press
• Mobile
• Home
• Office
• Pager
• Fax
• Others
.
.
4. Enter the name using the keypad and press
to save. After
you have saved the number, the new Contacts entry is
displayed.
Finding Contacts
There are several ways to display your Contacts entries: by name, by
entry, or by group. To find an entry from the Contacts menu:
1. Press the left softkey
for MENU.
2. Press
for Contacts.
3. Press
for List Entries.
50 Contacts
4. Press the navigation key left or right to search By Name, By
Entry, or By Group.
5. Once the desired option is highlighted, press the navigation
key down.
6. Enter the first few letters or entry # to locate the desired
entry.
•
If you are searching By Group, then press the navigation key
left or right to scroll through your groups.
7. Scroll to highlight the name and press
to make the call.
Adding a Phone Number to a Contact Entry
To add a phone number to an entry:
1. Press the left softkey
for MENU.
2. Press
for Contacts.
3. Press
for List Entries.
4. Select the desired entry and press
for Options, followed by
to
6. Press the navigation key down until the desired label
(Mobile, Home, Office, etc.) is highlighted.
7. Enter the phone number using the keypad and press
.
Editing a Contacts Entry’s Phone Number
To edit an entry’s phone number:
1. Press the left softkey
for MENU.
Contacts
51
Contacts
5. Press the left softkey
Edit the entry.
.
2. Press
for Contacts.
3. Press
for List Entries.
4. Select the desired entry and press
5. Press the left softkey
Edit the entry.
.
for Options, followed by
to
6. Press and hold
to erase the entire number or press
once to erase just the last number.
7. Enter the phone number using the keypad and press
.
Selecting a Ringer Type for an Entry
You can assign a ringer type to a Contacts entry so you can identify
the caller by the ringer type. (See “Ringer Types” on page 86.)
To select a ringer type for an entry:
1. Press the left softkey
for MENU.
2. Press
for Contacts.
3. Press
for List Entries.
4. Select the desired entry and press
5. Press the left softkey
Edit the entry.
.
for Options, followed by
to
6. Press the navigation key down until Default is selected and
press the left softkey
for Edit.
7. Using the navigation keys, select Default Ringer, Preloaded
or Downloaded and press
.
8. Press the navigation key up or down to highlight and listen
to the desired Ringer. Press
to select the desired ringer.
9. Press
52 Contacts
to save the changes to the contact entry.
Assigning a Contact to a Group
You can assign a group name to your entries to help sort them. The
preset group names in your phone are:
• Friends
• Family
• Colleagues
• VIP
• My Group
To associate an existing number in your Contacts with a group:
1. Press the left softkey
2. Press
for Contacts.
3. Press
for Groups.
for MENU.
4. Select the desired entry and press
5. Press the left softkey
Add.
.
for Options followed by
6. Select a Contact and press
for
.
Note: Each Contact phone number or e-mail address can be assigned to
only one Group.
Contacts
53
Contacts
7. Scroll through the Contact entry to select a phone number
or e-mail address and press
. If the Contact has more
than one number or address, choose the preferred number
or address.
Call History
Viewing History
You’ll find the Call History feature very helpful. It is a list of the last 20
phone numbers (or Contacts entries) for each of: recent calls,
received calls, dialed calls, and missed calls. Call History makes
redialing a number fast and easy. It is continually updated as new
numbers are added to the beginning of the list and the oldest entries
are removed from the bottom of the list.
Each entry contains the phone number (if it is available) and Contacts
entry name (if the phone number is in your Contacts). Duplicate calls
(same number and type of call) may only appear once on the list.
To view a Call History entry:
1. Press the left softkey
2. Press
•
•
•
•
for MENU.
for Call History.
Press
for Recent Calls.
Press
for Received Calls.
Press
for Dialed Calls.
Press
for Missed Calls.
Tip: You can access your list of recent calls from the idle screen by
pressing the navigation key down. You can also access your list of Dialed
Calls from the idle screen by pressing the
key.
54 Call History
Call History Options
For additional information on a particular call, highlight a Call History
entry and press
. The time and date of the call is displayed.
Tip: You can also scroll between Call History entries by pressing the
navigation key left or right.
Press the left softkey
options for this entry:
for Options to select one of the following
• Dial: Call the displayed number.
• Save: Save the displayed number to your Contacts.
• Prepend: Edit the displayed number.
• Erase: Remove the displayed number from the Call
History.
• Send Msg: Send message to the displayed number.
Making a Call From Call History
To place a call from Call History:
1. Press the left softkey
2. Press
for MENU.
for Call History.
3. Select Recent Calls
, Received Calls
Dialed Calls
, or Missed Calls
.
,
Call History
4. Highlight the entry you want to call and press
the number.
to dial
Note: You cannot make calls from Call History to entries identified as
Unknown or Restricted.
Call History
55
Saving a Phone Number From Call History
To save a phone number from Call History:
1. Press the left softkey
2. Press
for MENU.
for Call History.
3. Select Recent Calls
, Received Calls
Dialed Calls
, or Missed Calls
.
,
4. Highlight the entry you want to save and press
.
5. Press the left softkey
for Options, followed by
to
Save the number.
Follow the onscreen prompts to complete the entry. (See
"Saving a Phone Number" on page 17 for more details.)
After you have saved the number, the new Contacts entry is
displayed.
Note: You cannot save phone numbers already in your Internal Contacts
or from calls identified as Unknown ID or Restricted.
Prepending a Phone Number From
Call History
If you need to make a call from Call History and you happen to be
outside your local area code, you can add the appropriate prefix by
prepending the number.
To prepend a phone number from Call History:
1. Press the left softkey
2. Press
56 Call History
for MENU.
for Call History.
3. Select Recent Calls
, Received Calls
Dialed Calls
, or Missed Calls
.
,
4. Highlight the entry you want to prepend and press
5. Press the left softkey
Prepend the number.
.
for Options, followed by
to
6. Use the keypad to enter the desired numbers.
7. Press
to call the prepended number.
Erasing Call History
To erase individual Call History entries, see “Call History Options” on
page 55.
To erase Call History:
1. Press the left softkey
for MENU.
2. Press
for Call History.
3. Press
for Erase History.
4. Select Recent Calls
, Received Calls
Dialed Calls
, or Missed Calls
.
,
5. Using the navigation key, highlight Yes, and press
.
Call History
Call History
57
Call Timers
Call Timers allows you to check the time of the last call or the total air
time (including data usage) since your phone was activated on the
network. These times are not meant for billing purposes. To view a
call timer:
1. Press the left softkey
for MENU.
2. Press
for Call History.
3. Press
for Call Timers.
4. Press
for Last Call,
for Recent Calls,
Lifetime,
for Data Transferred, or
Connection Time.
for
for
To reset the call timers:
1. Press the left softkey
for MENU.
2. Press
for Call History.
3. Press
for Call Timers.
4. Press
for Reset Timer.
5. Using the navigation key, highlight Yes, and press
58 Call History
.
Messaging
Voice Mail
Setting Up Your Voice Mail
All unanswered calls to your phone are automatically transferred to
your voice mail, even if your phone is in use or turned off. Therefore,
you will want to set up your voice mail and personal greeting as soon
as your phone is activated.
To set up your voice mail:
1. Press the left softkey
for MENU.
2. Press
for Messaging.
3. Press
for Voice Mail.
4. Follow the system prompts to create your passcode, record
your greeting, and record your name announcement.
Note: You must request this feature from your service provider for it to
work correctly.
Voice Mail Notification
There are several ways your phone alerts you of a new message:
• By displaying a message on the screen.
• By sounding the assigned ringer type.
Messaging
59
Messaging
Now you can chat online, exchange text and email messages right
from your phone and stay connected without saying a word. Within
the Messaging menu you can also view the number of voice mail
messages you have waiting for you.
• By displaying
V
at the top of your screen.
New Voice Mail Message Alerts
When you receive a new voice message, your phone alerts you and
prompts you to call your voice mail.
To call your voice mail:
1. Press the right softkey
2. Press the left softkey
to View your message details.
for Send to listen to the message.
Tip: You can also press and hold the navigation key up to check your
voice mail.
To display your Voice Mail:
•
Press the left softkey
by
for MENU, followed
.
Important: When you are roaming off the network, you may not receive
notification of new voice mail messages. It is recommended that you
periodically check your voice mail by dialing 1 + area code + your Phone
Number. You will be charged roaming rates when accessing voice mail
while roaming off the network.
Note: Your phone accepts messages even when it is turned off. However,
you are only notified of new messages when your phone is turned on and
you are in a Service Area.
Retrieving Your Voice Mail Messages
To dial your voice mail from your phone, you can either speed dial
your voice mail by pressing and holding the navigation key up or by
60 Messaging
using the menu keys. You can also access your voice mail messages
by pressing and holding the
key.
Messaging
Using the menu to retrieve your messages:
1. Press the left softkey
for MENU.
2. Press
for Messaging.
3. Press
for Voice Mail.
4. Press
for Dial Voice Mail.
5. Press the left softkey
to SEND:Listen to your messages.
Note: You are charged for airtime minutes when you are accessing your
voice mail from your phone.
Clearing the Message Icon
Your phone may temporarily continue to display the message icon
after you have checked your voice and text messages.
To clear the icon from the display screen:
1. Press the left softkey
for MENU.
2. Press
for Messaging.
3. Press
for Voice Mail.
4. Press
for Clear Icon.
5. Press the navigation key up to select Yes and press
Messaging
.
61
Text Messages
Create New
Using your phone you can send text messages to other mobile
phones in North America and the rest of the world, depending on
your carrier.
To send a message:
1. Press the left softkey
for MENU.
2. Press
for Messaging.
3. Press
for Text.
4. Press
for Send New.
5. Enter the phone number of the person to whom you’re
sending a message. When you are finished,
.
press
• To enter a phone number, enter the number.
• To send the message to one of your contacts, press the
left softkey
followed by
for Contacts. Highlight
the desired contact and press
. The Contact is
displayed. Press the left softkey
for Select.
• You can send your message to multiple numbers. Use the
navigation keys to move up and down your list of
addresses. You can send a message to a maximum of 10
numbers.
6. Create your message using the keypad. To change the text
entry mode or to add Quick Text, press the left softkey
for Options. For more information on entering text, see
"Entering Text" on page 20. When you are finished creating
your message, press
.
62 Messaging
7. Press left softkey
for SEND.
You can save a draft of your message prior to sending it. You can
save the entire message as a draft, or you can save the text.
1. Compose your message, following steps 1-6 listed above.
2. Select
for Save to Drafts. The message is now stored
in your Drafts folder. Once the message is sent, the draft
will be deleted.
3. You can now continue to edit or send your message.
Inbox
This folder contains all your received text messages. From this
folder, you can view your messages, reply to or forward the message
to another destination.
To read a Text Message:
1. Press the left softkey
for MENU.
2. Press
for Messaging.
3. Press
for Text.
4. Press
for Inbox. Your messages appear in a list.
5. Highlight the desired message and press
appears on screen.
. The message
To reply to a Message:
1. While the message is open, select the left softkey
Options.
2. Press
for
to Reply.
3. Compose your reply message. For more information, see
"To send a message:" on page 62, beginning at step 6.
Messaging
63
Messaging
To save your message:
Note: the address field is already filled in when replying to a message.
Outbox/Sent
This folder contains all the messages you have sent or are waiting to
send. From this folder, you can resend your messages or forward
them to different destinations.
To resend your message
1. Press the left softkey
for MENU.
2. Press
for Messaging.
3. Press
for Text.
4. Press
list.
for Outbox/Sent. Your messages appear in a
5. Highlight the desired message and press the left
softkey
for Options.
6. Press
to Re-send.
Templates
This folder contains pre-written text messages. From this folder, you
can quickly send common messages. You can use the built-in
templates or write your own.
To compose a message using a draft:
1. Press the left softkey
for MENU.
2. Press
for Messaging.
3. Press
for Text.
4. Press
in a list.
for Templates. Your template messages appear
64 Messaging
• Create New: Select this option to create a new
template. Creating a new template is similar to
creating a text message.
• Edit: Select this option to edit the currently
highlighted template.
• Erase: Select this option to delete the currently
highlighted template.
• Erase Multiple: Select this option to delete several
templates. To select a message for deletion, highlight
for Select.
the message and press the left softkey
Press
to delete the templates.
Drafts
This folder contains drafts of unfinished or unsent text messages.
From this folder, you can complete and send your messages. Once
sent, the draft message is erased.
To compose a message using a draft:
1. Press the left softkey
for MENU.
2. Press
for Messaging.
3. Press
for Text.
4. Press
for Drafts. Your draft messages appear in a list.
5. Highlight the desired draft message and press the left
softkey
for Options.
6. Press
to Edit. You can now add Send To addresses,
edit your message or sending options. When you are ready
to send your text message, press the left softkey
for
Send.
Messaging
65
Messaging
5. Highlight the desired template and press the left
softkey
for Options. Select one of the following
options:
Saved
This folder contains saved text messages. Saved messages will not
automatically expire and must be manually deleted.
To view a saved message:
1. Press the left softkey
for MENU.
2. Press
for Messaging.
3. Press
for Text.
4. Press
list.
for Saved. Your saved messages appear in a
5. Highlight the desired saved message and press
message appears on screen.
. The
Erase Messages
You can erase messages at anytime from the Inbox, Outbox,
Templates, Drafts or Saved message folders. To erase the messages
from the desired folder:
1. Press the left softkey
for MENU.
2. Press
for Messaging.
3. Press
for Text.
4. Press
for Erase Messages.
5. Press
for Inbox,
for Outbox,
for
Templates,
for Drafts,
for Saved and
All Messages.
for
6. Press the navigation key left or right to select Yes and press
.
66 Messaging
Settings
Messaging
There are several options associated with messages. The Settings
menu allows you to customize the options to fit your preferences.
To access the Settings menu:
1. Press the left softkey
for MENU.
2. Press
for Messaging.
3. Press
for Text.
4. Press
for Settings.
The following options are available:
CallBack Number: allows you to change the callback number for
this message. The default callback number is your mobile phone
number.
Save to Outbox: allows you to adjust whether sent messages are
saved in your Outbox. Your options are:
• Auto Save - automatically saves a copy of the outgoing
message in the filed folder.
• Prompt - prompts you to save a copy of the outgoing
message.
• Do Not Save - does not save a copy of the outgoing
message.
Messaging
67
Auto Delete Inbox: allows you to adjust whether read messages
are automatically deleted from your Inbox. Your options are On or
Off.
Default Entry Mode: The Entry Method allows you to set the
default character input method for new text messages. You can
select between:
• T9 Word: is a predictive text entry mode
• Alpha: is the standard keypad text entry mode.
• Number: is the standard numeric entry mode.
Quick Text: Quick Text messages are used to enter common
responses easier than ever. A Quick Text can be selected and
automatically entered into the message. Quick Text can also be
customized to whatever you want by editing one of the 20 message
slots in your phone. To edit a Quick Text message:
1. From the Settings menu, select
for Quick Text. A list
of Quick Text messages appears on screen.
2. Highlight the desired Quick Text slot and press
3. Edit the message and press
68 Messaging
when finished.
.
Message Reminder: This option allows you to configure how
often you are notified of new text messages. Options are Once, Off
or Every 2 Minutes.
Memory Info
This menu displays how much memory is available for messages.
Web Alert
Your phone is capable of receiving web alerts from online providers.
Consult with your Service Provider for more details.
To access your web alerts:
1. Press the left softkey
for MENU.
2. Press
for Messaging.
3. Press
for Web Alerts.
4. Follow the on-screen instructions.
E-Mail
Your phone is capable of accessing online e-mails. Consult with your
Service Provider for more details.
To access your online e-mail:
1. Press the left softkey
for MENU.
2. Press
for Messaging.
3. Press
for E-mail.
Messaging
69
Messaging
Auto Scrolling: The scroll timer allows you to set the length of
time a message takes to scroll across the screen. Options are Off,
3 Seconds, 5 Seconds or 10 Seconds.
4. Select Get New to setup a new email account or Online Email for an existing account and press
.
5. Follow the on-screen instructions.
IM & Chat
Your phone is capable of engaging in online chat sessions. Consult
with your Service Provider for more details.
To access your chat session:
1. Press the left softkey
for MENU.
2. Press
for Messaging.
3. Press
for IM & Chat.
4. Select Get New to setup a new IM or chat account or Online
IM&Chat for an existing account and press
.
5. Follow the on-screen instructions.
Short Codes
Your phone is capable of access pre-configured short codes. Consult
with your service provider for more details.
1. Press the left softkey
for MENU.
2. Press
for Messaging.
3. Press
for Short Codes.
4. Select Short Code list and follow the on-screen
instructions.
70 Messaging
Shop
With your new web enabled phone, you have access to a variety of
services such as downloadable Ringtones, Wallpapers, Games and
GPS applications.
pressing
Shop
Tip: You can access the Shop menu from the Idle screen by
.
Ringtones
Downloading Ringtones
To download an available ringtone to your phone:
1. Press the left softkey
for MENU.
2. Press
for Shop.
3. Press
for Ringtones.
4. Highlight Get New and press
.
5. The browser will launch and take you to the Ringtones
download menu.
6. Use your navigation key to highlight and select a
ringtone you wish to download. (For more information on
navigating the Web, see “Navigating the Wireless Web” on
page 76.)
7. From the item information page, select Buy. You will be
prompted with the cost of the ringtone.
Shop
71
Assigning Downloaded Ringtones
Downloaded Ringtones may be assigned directly from the
Downloads menu and are also available through the Settings menu.
To assign a downloaded ringtone through the Settings menu, see
"Selecting Ringer Types for Voice Calls" on page 86. To assign a
downloaded ringtone:
1. Press the left softkey
for MENU.
2. Press
for Shop.
3. Press
for Ringtones.
4. Highlight a ringtone and press the left softkey
by
for Set As.
followed
5. You will be prompted with options on where to assign this
ringtone (Voice Calls, Contacts entry, Messages, Alarms or
Schedule). Press
for Voice Calls.
6. Press
7. Press
for Caller ID or
for No Caller ID.
to exit.
Note: You may assign a ringtone to multiple options (Voice Calls,
Contacts entry, Messages, Alarm or Schedule).
Wallpaper
Downloading Wallpaper
To download a new Wallpaper to your phone:
1. Press the left softkey
for MENU.
2. Press
for Shop.
3. Press
for Wallpaper.
72 Shop
4. Highlight Get New and press
. The browser will launch
and take you to the Wallpaper download menu.
5. Use your navigation key to highlight and select a Wallpaper
you wish to download. (For more information on
navigating the Web, see “Navigating the Wireless Web” on
page 76.)
Shop
6. From the item information page, select Buy. You will be
prompted with the cost of the Wallpaper.
Assigning Downloaded Wallpapers
Downloaded Wallpapers may be assigned directly from the
Downloads menu and are also available through the Settings menu.
To assign a downloaded Wallpaper through the Settings menu, see
"Changing the Wall Paper" on page 91.
To assign a downloaded Wallpaper from the Downloads menu:
1. Press the left softkey
for MENU.
2. Press
for Shop.
3. Press
for Wallpaper.
4. Highlight Wallpaper and press
.
5. Highlight a Wallpaper and press the left softkey
Option, followed by
for Set As.
6. Press
for
for Wallpaper.
Note: You may assign an Image to Wallpapers, Contacts entry, or
Received Call.
Shop
73
Games
Downloading Games
To download an available game to your phone:
1. Press the left softkey
2. Press
for Shop.
3. Press
for Games.
for MENU.
4. Highlight Get New or one of the following preloaded games:
• Tetris
• Bejeweled
• PAC-MAN by Namco
• Ms. PAC-MAN by Namco
5. Press
.
6. If you selected Get New the browser will launch and take
you to the Games download menu. If you selected one of
the preloaded games, you will be prompted to select an
Access Network option before the game is launched.
GPS Applications
Downloading GPS Applications
To download an available ringtone to your phone:
1. Press the left softkey
2. Press
for Shop.
3. Press
for GPS.
for MENU.
4. Highlight Get New and press
74 Shop
.
5. The browser will launch and take you to the GPS download
menu.
Wireless Web
Wireless Web
Your phone comes equipped with Wireless Web access through
your browser. You can view specially designed version of popular
sites which includes sports, weather, news, stock quotes etc.... as
well as downloadable ringtones and Wallpapers. When you launch
the browser, the phone will connect to the Internet and the service
indicator icon will display.
Note: Rates and pricing vary according to your service plan. Please
contact your service provider for additional information.
Launching the Browser
To launch a web connection:
1. Press the left softkey
2. Press
for MENU.
for Wireless Web.
3. You are connected to the Mobile Web Home page.
Web Connection Status and Indicators
Your phone's display lets you know the current status of your web
connection through indicators which appear at the top of the screen.
The following symbols are used:
Your web connection is active (data is being transferred).
Incoming voice calls go directly to voice mail; outgoing voice
calls can be made, but the web connection will terminate.
Wireless Web
75
When your web connection is dormant (no data is being sent
or received). Though not currently active, when dormant the
phone can restart an active connection quickly; voice calls can
be made and received.
Navigating the Wireless Web
Navigating through menus and Web sites during a web session is
easy once you've learned a few basics. Here are some tips for getting
around:
Softkeys
When browsing the Web, the bottom line of your phone's display
contains one or more softkeys. These keys are shortcut controls for
navigating around the Web, and they correspond to the softkey
buttons directly below the phone’s display screen. Depending on
which Web sites you visit, the labels on the softkeys may change to
indicate their function.
To use softkeys, simply press the desired softkey button. If an
additional pop-up menu appears when you press the softkey button,
select the menu items using your keypad (if they’re numbered) or by
highlighting the option and pressing
.
Scrolling
As with other parts of your phone's menu, you'll have to scroll up
and down to see everything on some Web sites.
•
Press the navigation key up and down to scroll line by line or
press the volume buttons on the side of the phone to scroll
one page at a time.
Navigating Between Web Pages
Once you've learned how to use softkeys and scroll, you can start
navigating Web sites.
76 Wireless Web
• Select on-screen items by using the navigation key to
highlight the desired item, then press the desired
softkey button (or press
).
You'll find that the left softkey
is used primarily for selecting
items.
• If the items on a page are numbered, you can use your
• Select links by highlighting the link and then selecting
the appropriate softkey.
Tip: The tenth item in a numbered list may be selected by pressing
the
key on your phone’s keypad, even though the number 0 doesn’t
appear on the screen.
•
To go back one page, press
on your phone. (Note that
is also used like a BACKSPACE key to delete text.)
Tools
Your phone is equipped with handy utility software. It can take
memos, track important appointments, provide timely alarms and
reminders and function as a calculator.
Voice Memo
You can use your phone to record voice memos that can be reviewed
later. For more information, see "Voice Memos" on page 39.
Tools 77
Tools
keypad (number keys) to select an item.
Links, which appear as underlined text, allow you to jump to
different Web pages, select special functions, or even place phone
calls.
Voice Dial
Your phone is equipped with voice recognition software that allows
you to dial phone numbers or look up contacts hands-free. For more
information, see "Voice Recognition" on page 31.
Calculator
Your phone comes with a built-in calculator.
To use the calculator:
1. Press the left softkey
2. Press
3. Press
for MENU.
for Shop.
for Tools.
4. Highlight Calculator and press
.
5. Enter a number with the keypad. (Press
to insert a
decimal point and/or
to make the number negative or
positive.)
6. Use your navigation key to select a mathematical function:
•
•
•
•
Left to Subtract
Up to Add
Right to Multiply
Down to Divide
7. Enter the next number using the keypad. Repeat steps 5 and
6 as necessary.
8. Press
78 Tools
to view the results.
Alarm Clock
Your phone comes with a built-in alarm clock with multiple alarm
times.
To use the alarm clock:
1. Press the left softkey
Tools
2. Press
for MENU.
for Shop.
3. Press
for Tools.
4. Highlight Alarm Clock and press
5. Press
,
, or
.
to select an Alarm.
6. Press the navigation key left or right and select On.
7. Press the navigation key down once and then press it right
or left to select AM or PM.
8. Press the navigation key down once and then use the
keypad to enter the alarm time.
9. Press the navigation key down once and then press the
navigation key right or left to select the Alarm Interval.
Alarm interval options include:
• Once
• Daily
• Mon-Fri
• Mon-Sat
10. Press
• Every Sun
• Every Sat
• Every Weekend
to Save.
Tools 79
Schedule
Your Schedule helps organize your time and reminds you of
important events.
To add an event to today’s schedule:
1. Press the left softkey
2. Press
3. Press
for MENU.
for Shop.
for Tools.
4. Highlight Schedule and press
. A calendar is displayed.
Dates that have events scheduled have a box around them.
5. Press the left softkey
Add new.
for Options and press
for
6. Enter the event description using the keypad and press
.
Tip: For more information on entering text using the keypad, see
"Entering Text" on page 20.
7. Enter the time and date for this event using the keypad.
Press the navigation keys up and down to move between
the various Time Setup options. The Time Setup options
are:
•
•
•
Time: use the navigation keys to select AM or PM and enter
the time of the event using the keypad.
Date: enter the date of the event.
Alarm Option: Choose one of the following: 10Min before,
30Min before, 1Hour before, No alarm, or On time.
8. When you are finished setting the time and date for your
to save your event.
event, press
80 Tools
Event Alerts
There are several ways your phone alerts you of scheduled events:
• By playing the assigned ringer type.
• By illuminating the backlight.
To select the Schedule ringer:
for MENU.
2. Press
for Settings.
3. Press
for Sounds.
4. Press
for Ringer Type.
5. Press
for Alarms.
6. Press
for Schedule.
Tools
1. Press the left softkey
7. Press the navigation key up or down to highlight the desired
ringer or melody and press
.
Viewing Events
To view your scheduled events:
1. Press the left softkey
2. Press
3. Press
for MENU.
for Shop.
for Tools.
4. Highlight Schedule and press
.
5. A calendar is displayed. Dates that have events scheduled
have a box around them
•
To view a date’s events, highlight that date using the
.
navigation key and then press
Tools 81
•
To jump ahead to a different date, press the left
softkey
for Options and press
for Jump to
Date. Enter the desired date using the keypad and
press
.
6. The first event for the day is displayed. If you have one or
more events scheduled for this date, use the left and right
navigation keys to scroll through all of the date’s events.
Edit an Existing Event
To edit an existing event:
1. View the day that you wish to erase the events for. See
"Viewing Events" on page 81 for more details.
2. Press the left softkey
3. Press
for Options.
to Edit the event.
4. Edit the event description using the keypad and press
.
Tip: For more information on entering text using the keypad, see
"Entering Text" on page 20.
5. Edit the time and date for the event and press
to
confirm. For information on editing the time and date, see
‘Schedule” on page 80.
Erasing Events for a Day
To delete one or more events for a day:
1. View the day that you wish to erase the events for. See
"Viewing Events" on page 81 for more details.
2. Press the left softkey
3. Press
82 Tools
for Options.
to Erase one event or
to Erase All.
4. Highlight Yes using the navigation key and press
confirm.
to
Note Pad
To compose a note:
1. Press the left softkey
2. Press
3. Press
for MENU.
for Shop.
for Tools.
4. Highlight Note Pad and press
•
•
.
If you have no memos composed, then the Memo menu is
automatically displayed.
If you have one or more composed memos, they are
displayed. Press the left softkey
for Options, followed
by
for Add new.
5. Enter up to 60 characters in the memo using the keypad and
press
to Save. (For more details on entering characters,
see "Entering Text" on page 20.)
To view, edit, or erase a note:
1. From the Tools menu, highlight Note Pad and press
.
2. Use the navigation keys to scroll to the desired memo and
press
to view the memo details.
3. Press the left softkey
for Options.
4. Select an option:
Tools 83
Tools
Your phone comes with a memo pad you can use to compose and
store notes to help keep you organized.
•
•
•
Add new: Enter a new memo. See ‘Note Pad” on page 83
for information.
Edit: Edit the currently highlighted memo.
Erase or Erase All: Press
to Erase the highlighted
note or
to Erase All. Highlight Yes with the
navigation key and press
to confirm.
World Clock
World Clock displays what time it is in twenty-five different time
zones around the world together with one or more major cities,
states, regions, or countries in a time zone.
To access world time:
1. Press the left softkey
2. Press
3. Press
for MENU.
for Shop.
for Tools.
4. Highlight World Clock and press
.
5. Press the navigation key left, right, up, or down to display
the different time zones.
6. To activate/deactivate Daylight Savings Time, press the left
softkey
for Options. Select Off or On and press the left
softkey
for Select.
84 Tools
Phone Settings
You can customize your phone’s display, sound and other settings to
the way you like it.
Sound Settings
Ringer Volume
You can adjust the volume of your phone using either the Menu or
the volume keys on the side of your phone.
To adjust the ringer volume from the menu:
Phone Settings
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Sounds.
4. Press
for Ringer Volume.
5. Press
Alarms.
for Calls,
for Messages, or
for
6. Press the navigation key left or right until the desired
volume level is selected and press
to save and exit.
Tip: You can adjust the ringer volume in standby mode (or the earpiece
volume during a call) by using the volume key on the side of your phone.
Phone Settings
85
Ringer Type
Different ringer types help you identify incoming calls and messages.
You can assign ringer types to individual Contacts entries, types of
calls, Scheduler entries, and types of messages.
Selecting Ringer Types for Voice Calls
Your phone provides a variety of ringer options that allow you to
customize your ring and volume settings. These options allow you to
identify incoming calls by the ring.
To select a ringer type for voice calls:
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Sounds.
4. Press
for Ringer Type.
5. Press
for Voice Calls.
6. Press
for Caller ID or
for No Caller ID.
7. Press the navigation button up or down to select the desired
Ringer.
8. Press
to save and exit.
Selecting Ringer Types for Messages
To select a ringer type for messages:
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Sounds.
4. Press
for Ringer Type.
86 Phone Settings
5. Press
6. Press
for Messages.
for Voice Mail,
for Text Messages or
for Web Alert.
7. Press the navigation button up or down to select the desired
Ringer.
8. Press
to save and exit.
Selecting Ringer Types for Alarms
To select a ringer type for alarms:
for MENU.
2. Press
for Settings.
3. Press
for Sounds.
4. Press
for Ringer Type.
5. Press
for Alarms.
Phone Settings
1. Press the left softkey
6. Select Alarm 1, Alarm 2, Alarm 3 or Schedule and
press
.
7. Press the navigation button up or down to select the desired
Ringer.
8. Press
to save and exit.
Alerts
Your phone can alert you with an audible tone when you change
service areas, once a minute during a voice call, or when a call has
been connected.
The different actions available are:
• Minute Beep - An alert tone is sounded every minute
that you are connected.
Phone Settings
87
• Call Connect - An alert tone is sounded when you are
initially connected.
• Call Lost- An alert tone is sounded when the signal
fades and the connection is lost.
• No Service- An alert tone is sounded when you come
out of your coverage area.
To enable or disable alert sounds:
1. Press the left softkey
2. Press
for Settings.
3. Press
for Sounds.
4. Press
for Alerts.
for MENU.
5. Press:
•
•
•
•
for Minute Beep
for Call Connect
for Call Lost
for No Service
6. Select On or Off using the navigation key and press
save and exit.
to
Roam Ringer
You can set your phone to provide a either a normal or a distinctive
ringer type when roaming. To select a ringer type for incoming roam
calls:
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Sounds.
4. Press
for Roam Ringer.
88 Phone Settings
5. Select Normal or Distinctive and press
to save and exit.
Keypad Volume
To adjust the keypad volume:
1. Press the left softkey
2. Press
for Settings.
3. Press
for Sounds.
4. Press
for Keypad.
for MENU.
5. Press the navigation key right to increase or left to
decrease the volume.
to save and exit.
Tone Type
Your phone offers a number of options for selecting the type of tone
accompanying a key press.
To select a key type:
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Sounds.
4. Press
for Tone Type.
5. Select Normal or Xylophone and press
to save and exit.
Tone Length
Your phone offers a number of options for selecting the audible
tones accompanying a key press. Voice mail or other automated
systems may require long or short time lengths to activate different
features.
Phone Settings
89
Phone Settings
6. Press
To select a key tone:
1. Press the left softkey
2. Press
for Settings.
3. Press
for Sounds.
4. Press
for MENU.
for Tone Length.
5. Select Short or Long and press
to save and exit.
Power On/Off
You can set the phone to generate a sound when powering on or off.
To set the Power On/Off setting:
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Sounds.
4. Press
for Power On/Off.
5. Select On or Off and press
to save and exit.
Display Settings
Changing the Phone’s Menu Style
Your phone allows you to choose how the menu appears on your
display screen.
To select the display’s menu style:
1. Press the left softkey
2. Press
for Settings.
3. Press
for Display.
90 Phone Settings
for MENU.
4. Press
for Menu Style.
5. Press the navigation key up or down to select Icon or List
and press
to save and exit.
Note: For more information on menu style’s, see "Menu Styles" on page
42.
Changing the Wall Paper
Your new phone offers options for what you see on the display
screen when in standby mode.
To change the display images:
Phone Settings
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Display.
4. Press
for Wallpapers.
5. Press
for Main Display.
6. Press
for Preloaded or
for Downloads. Local
images come preloaded on your phone and cannot be
changed. Downloaded images are images that you have
chosen from your service provider.
Note: For more information on downloading images for your wall paper,
see "With your new web enabled phone, you have access to a variety of
services such as downloadable Ringtones, Wallpapers, Games and GPS
applications." on page 71.
7. Press the navigation key left or right until the desired image
is displayed.
8. Press
to save and exit.
Phone Settings
91
Changing the Incoming Call Display
Your new phone offers options for what you see on the display
screen when receiving a call.
To change the display image when you receive a call:
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Display.
4. Press
for Received Call.
5. Press
for Caller ID or
for No Caller ID.
6. Press
for No Image or
for Downloads.
•
If you have selected Downloads, press the navigation key
left or right until the desired image is displayed.
Note: For more information on downloading images for your wall paper,
see "With your new web enabled phone, you have access to a variety of
services such as downloadable Ringtones, Wallpapers, Games and GPS
applications." on page 71.
7. Press
to save and exit.
Changing the color of your Dialing Font
You can adjust the color so that it appears in color or
monochromatic.
To change the dialing font color:
1. Press the left softkey
2. Press
for Settings.
3. Press
for Display.
92 Phone Settings
for MENU.
4. Press
for Dialing Color.
5. Press the navigation keys up or down to select one of the
following and press
:
•
•
•
Basic displays entered digits all in black.
•
Hyphenate displays each block of digits separated by
hyphens in a different color.
Rainbow displays each digit in a different color.
Monochrome displays entered digits as a single color of
your choice.
6. A sample of the new Dialing color appears onscreen.
•
•
If you selected Monochrome, press the navigation keys
left or right to select your desired color and press
.
Phone Settings
•
If you selected Hyphenate, press the navigation keys left
or right to select your desired color for the first block of
digits. Press the right softkey
to move to the Next
block of digits. When you are finished, press the left
softkey
for Select.
If you selected any other option, press
to save your
changes.
Changing the Banner Text
The text greeting can be up to 12 characters and is displayed on your
phone’s screen in standby mode. You may choose to display a
custom greeting or display your User Name on the phone’s screen.
To display or change your custom greeting:
1. Press the left softkey
2. Press
for Settings.
3. Press
for Display.
for MENU.
Phone Settings
93
4. Press
for Banner.
5. Press and hold
to clear the existing greeting.
6. Use the keypad to enter a new custom greeting. (See
"Entering Text" on page 20.)
7. Press
to save and exit.
Changing the Backlight Time Length
The backlight setting lets you select how long the display screen and
keypad are illuminated after the handset is opened or any key press is
made.
To change the backlight setting:
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Display.
4. Press
for Backlight.
5. Press
for On,
for Dim, or
for Keypad.
6. Use the navigation key to select:
•
•
•
3 Seconds, 7 Seconds, 15 Seconds, 30 Seconds,
Always On, or Always Off for the On setting.
1 Minute, 2 Minutes, 5 Minutes, 10 Minutes or Always
On for the Dim setting.
7 Seconds, 15 Seconds, Always On, or Always Off for
the Keypad setting.
7. Press
94 Phone Settings
to save and exit.
Note: Long backlight settings reduce the battery’s talk and standby
times.
Changing the Contrast of your Displays
The Contrast setting adjusts the contrast of your main and front LCD
screens. You can adjust the contrast if you have difficulty viewing the
screen, particularly in sunlight.
To change the Contrast setting:
1. Press the left softkey
for MENU.
for Settings.
3. Press
for Display.
4. Press
for Contrast.
5. Press
for Main Display or
for Front Display.
6. Press the navigation keys left or right to adjust the contrast
level and press
to save your changes.
Changing Your Display’s Brightness
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Display.
4. Press
for Brightness.
5. Select Lowest, Low, Med, High, or Highest using the
navigation keys and press
.
Changing Your Display’s Theme Colour
1. Press the left softkey
for MENU.
Phone Settings
95
Phone Settings
2. Press
2. Press
for Settings.
3. Press
for Display.
4. Press
for Theme Color.
5. Select Purple, Blue or Green using the navigation keys and
press
.
Games/Tools
Changing the Backlight Settings
The backlight setting lets you select how long the display screen and
keypad is illuminated while playing games or using a tool.
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Games/Tools.
4. Press
for Backlight.
5. Use the navigation key to select 8 Seconds, 15 Seconds,
Always On or Always Off.
6. Press
to save and exit.
Changing the Volume Settings
The Volume setting lets you adjust the volume level for games or tool
is being used.
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Games/Tools.
4. Press
for Volume.
96 Phone Settings
5. Use the left and right navigation key to select the volume
and press
to save and exit.
Changing the Notification Settings
The Notification setting allows you to set whether or not your phone
prompts you of incoming messages while playing games or using
tools.
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Games/Tools.
4. Press
for Notification.
for Voice Mail,
for Web Alert.
Phone Settings
5. Press
for Text Message or
6. Use the navigation key to select On or Off.
7. Press
to save and exit.
GPS
Your phone’s GPS feature enables service providers to locate your
position or emergency and other services.
1. Press the left softkey
2. Press
for Settings.
3. Press
for GPS
for MENU.
4. Use the navigation keys to select On or Emergency Only
(E911) and press
to save and exit.
Phone Settings
97
Setup
Nav. Key Shortcuts
When in Idle mode, you can use the left and right navigation keys to
launch an often-used function. The center navigation key cannot be
changed.
To change the feature launched by a navigation key:
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Setup.
4. Press
for Nav. Key Shortcuts.
5. Press
for Left Nav Key or
for Right Nav Key.
6. Press the navigation key up or down to select one of the
following functions:
• None
• Contacts
• Voice Memo
• Scheduler
• Voice Dial
7. Press
• Ringer Type
• Display
• Alarms
• Browser
• Shop
to save and exit.
Call Setup
Call Answer
To set the actions required to answer an incoming call:
1. Press the left softkey
98 Phone Settings
for MENU.
2. Press
for Settings.
3. Press
for Setup.
4. Press
for Call Setup.
5. Press
for Call Answer and select one of the following:
• Send Key
6. Press
• Any Key
• Flip Open
to save and exit.
Auto-Answer
1. Press the left softkey
Phone Settings
To answer calls when your phone is connected to an optional
hands-free car kit or head set:
for MENU.
2. Press
for Settings.
3. Press
for Setup.
4. Press
for Call Setup.
5. Press
for Auto-Answer.
6. Press the navigation key up or down to select 2 Seconds, 4
Seconds, 8 Seconds or Off.
7. Press
to save and exit.
Auto-Prepend
When the Auto-Prepend feature is turned on, your phone
automatically inserts a predetermined set of digits and symbols at
the beginning of any number entered. For example, you could enter a
‘1’ if all your calls are going to be long-distance.
1. Press the left softkey
2. Press
for MENU.
for Settings.
Phone Settings
99
3. Press
for Setup.
4. Press
for Call Setup.
5. Press
for Auto-Prepend.
6. Highlight On or Off using the navigation keys. If you select
On, then enter the prepending sequence.
7. When you are finished, press
.
Call Restriction
You can restrict the phone numbers that your phone can call. You
can change the Restriction settings to prevent all calls, restrict calls
to Contacts only or to only allow special numbers such as 911 or
Customer Service.
To restrict calls:
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Setup.
4. Press
for Call Setup.
5. Press
for Call Restriction.
6. Enter your security code.
Note: For more information security codes, see "Locking Your Phone" on
page 106.
7. Press
for Dialed Call.
8. Using the navigation keys, select Allow All, Contacts Only
or Special# Only and press
.
100 Phone Settings
Auto-Hyphen
When the Auto-Hyphen feature is turned on, your phone
automatically inserts dashes between blocks of numbers, making
them easier to read. Dashes are inserted into 7, 10 or 11 digit
formats. For instance, if you enter the digits 4165551212, your
phone will display the number as 416-555-1212.
To change turn Auto-Hyphen On or Off:
1. Press the left softkey
for MENU.
for Settings.
3. Press
for Setup.
4. Press
for Call Setup.
5. Press
for Auto-Hyphen.
6. Select On or Off using the navigation keys and press
.
Note: Dialing 911, *911 or #911 disables Auto Prepend, allowing you to
complete the emergency call.
Language
Your phone can display text in English or French. Language selection
changes all menus and voice message settings.
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Setup.
4. Press
for Language.
5. Press the navigation key up or down to select English or
French.
Phone Settings
101
Phone Settings
2. Press
6. Press
to save and exit.
Data Setup
Your phone is capable of sending and receiving digital data and fax
calls when connected to a computing device (laptop, desktop, hand
held, palmtop, etc.) running the Windows operating system. Your
phone functions similar to a typical modem on your PC, enabling you
to use wireless data involving a wide variety of Windows
applications.
To use digital data or fax services with your phone, you will need to
obtain a digital data/fax kit from your service provider. This kit
contains the necessary cables, software, and documentation required
for you to connect and use your phone with your computing device.
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Setup.
4. Press
for Data Setup.
5. Using the navigation keys, highlight the desired option.
•
•
Off: No incoming Data/Fax calls can be received.
•
Fax In Always: No Voice Calls can be received. Only allows
incoming Fax calls.
•
•
Fax In Once: No Voice Calls can be received. Allows one
incoming fax call, and then reverts to Off.
Data In Once: No voice calls can be received. Allows one
incoming data transmission and then reverts to Off
Data In Always: No voice calls can be received. Only allows
incoming data transmissions.
6. Press
102 Phone Settings
to save and exit.
Advanced
Phone Info
The Phone Info screen displays information about your handset’s
current hardware and software that is used for diagnostics.
To view your Phone Info:
1. Press the left softkey
for MENU.
for Settings.
3. Press
for Advanced.
4. Press
for Phone Info.
5. Using the navigation keys, highlight the desired
: My Phone Number,
information and then press
Software Version, Hardware Version, ESN, PRL, Browser
Version, Serving System, or Icon Glossary.
6. When you are finished viewing the phone information,
press
to exit.
System
For more information on System settings, see "Roaming" on page 29.
Security
For more information on Security settings, see "Phone Security" on
page 106.
Memory Usage
The Memory Usage screen tells you how much of your phone’s
memory is used and how much remains available.
1. Press the left softkey
for MENU.
Phone Settings
103
Phone Settings
2. Press
2. Press
for Settings.
3. Press
for Advanced.
4. Press
for Memory Usage.
5. Your phone’s memory usage is displayed. Press
finished.
when
Memory Manager
The Memory Manager allows you to free up phone memory by
deleting unwanted ringtones or wallpapers.
To delete a file:
1. Press the left softkey
for MENU.
2. Press for Settings.
3. Press
for Advanced.
4. Press
for Memory Manager.
5. Use the navigation keys to select the category of the file or
files that you wish to delete and press
.
6. Select the file you wish to delete and press
.
Tip: If you want to delete all the files in a category, press the left
softkey
for Options and select Erase All.
TTY Mode
Your phone is Text Telephone-compatible. Connect the TTY
equipment to the power/accessory interface connector, which is
located on the right side of the phone. Before you can use your phone
with a TTY device, you’ll need to enable TTY.
104 Phone Settings
Note: Enabling TTY may impair headset use and non-TTY accessory
performance.
To enable TTY:
1. Press
for MENU.
2. Press
for Settings.
3. Press
for TTY Mode.
4. Press the left soft key
for OK.
5. Press the navigation key up or down to select On or Off.
to save and exit.
Airplane Mode
Airplane Mode allows you to use many of your phone’s features,
such as Notepad or Scheduler, etc., when you are in an airplane or in
any other area where making or receiving calls or data is prohibited.
When your phone is in Airplane Mode, it cannot send or receive any
calls or access online information. All incoming calls will be sent
directly to your voice mail box.
To set your phone to Airplane Mode:
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Airplane Mode.
4. Press the navigation key up or down to select On or Off and
press
to save and exit.
While in Airplane Mode, your phone’s standby screen will display
“Phone off.”
Phone Settings
105
Phone Settings
6. Press
Phone Security
Accessing the Security Menu
All of your phone’s security settings are available through the
Security menu. You must enter your lock code to view the
Security menu.
To access the Security menu:
1. Press the left softkey
for MENU.
2. Press
for Settings.
3. Press
for Advanced.
4. Press
for Security.
5. Enter your lock code. (The security menu is displayed.)
Tip: If you can’t recall your lock code, try using the last four digits of your
Phone Number.
Locking Your Phone
When your phone is locked, you can only receive incoming calls or
make calls to 911 or special numbers.
To lock your phone:
1. From the Security menu, press
for Lock Phone.
2. Using the navigation key, select Unlocked, On Power-up or
Lock Now, and press
.
106 Phone Security
Unlocking Your Phone
To unlock your phone:
1. Press the left softkey
for MENU.
2. Enter your lock code.
Changing the Lock Code
To change your lock code:
1. From the Security menu, press
for Change Lock.
2. Enter your new lock code. Your new lock code must have 4
digits.
3. Re-enter your new lock code.
Calling in Lock Mode
To place an outgoing call in lock mode:
•
To call an emergency number or special number, enter the
phone number and press
.
•
To place normal outgoing calls, press
to display the
lock code screen. Enter your lock code. Enter the desired
phone number and press
.
Special #
You can save up to three special numbers in addition to your Internal
Contacts entries (the same number may be in both directories). You
can make and receive calls from special numbers even when your
phone is locked.
Phone Security
107
Phone Security
You can place calls to 911 and to your special numbers when in
lock mode.
To add or replace a special number:
1. From the Security menu, press
2. Select a special # slot and press
for Special #.
.
3. Enter the number using the keypad.
4. Press
to Save.
Note: There are no Speed Dial options associated with special numbers.
Erasing the Contacts
To erase all the names and phone numbers in your Contacts:
1. From the Security menu, press
for Erase Contacts.
2. Using the navigation key, select Yes and press
permanently delete.
to
Erasing Content
This option deletes all saved downloaded content from the phone,
including Ringtones, Wallpapers, and applications.
To erase your downloads:
1. From the Security menu, press
for Erase Content.
2. Using the navigation key, select Yes and press
permanently delete.
108 Phone Security
to
Resetting Your Phone
Resetting the phone restores all the factory defaults, including the
ringer types and display settings. The Contacts, Scheduler, and
Messaging are not affected.
To reset your phone:
1. From the Security menu, press
phone will reset.
for Reset Phone. Your
2. Using the navigation key, select Yes and press
phone will reset.
.Your
Phone Security
Phone Security
109
Safety
Getting the Most Out of Your Reception
Keeping Tabs on Signal Strength
The quality of each call you make or receive depends on the signal
strength in your area. Your phone informs you of the current signal
strength by displaying a number of bars next to the signal strength
icon. The more bars displayed, the stronger the signal. If you’re
inside a building, being near a window may give you better reception.
Understanding the Power Save Feature
If your phone is unable to find a signal after 15 minutes of searching,
a Power Save feature is automatically activated. If your phone is
active, it periodically rechecks service availability or you can check it
yourself by pressing any key. Anytime the Power Save feature is
activated, a message displays on the screen. When a signal is found,
your phone returns to standby mode.
Understanding How Your Phone Operates
Your phone is basically a radio transmitter and receiver. When it’s
turned on, it receives and transmits radio frequency (RF) signals.
When you use your phone, the system handling your call controls the
power level. This power can range from 0.006 watts to 0.2 watts in
digital mode.
Knowing Radio Frequency Safety
The design of your phone complies with updated NCRP standards
described below. In 1991-92, the Institute of Electrical and
Electronics Engineers (IEEE) and the American National Standards
Institute (ANSI) joined in updating ANSI’s 1982 standard for safety
levels with respect to human exposure to RF signals. More than 120
110 Safety
scientists, engineers and physicians from universities, government
health agencies and industries developed this updated standard after
reviewing the available body of research. In 1993, the Federal
Communications Commission (FCC) adopted this updated standard
in a regulation. In August 1996, the FCC adopted hybrid standard
consisting of the existing ANSI/IEEE standard and the guidelines
published by the National Council of Radiation Protection and
Measurements (NCRP).
Maintaining Your Phone’s Peak Performance
There are several simple guidelines to operating your phone properly
and maintaining safe, satisfactory service.
• Speak directly into the mouthpiece.
• Avoid exposing your phone and accessories to rain or
liquid spills. If your phone does get wet, immediately
turn the power off and remove the battery. If it’s
inoperable, return it to a dealer store or call Customer
Support for service.
Maintaining Safe Use of and Access to Your Phone
FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED MAY LEAD
TO SERIOUS PERSONAL INJURY AND POSSIBLE PROPERTY
DAMAGE
Safety
111
Safety
Note: For the best care of your phone, only authorized personnel should
service your phone and accessories. Faulty service may void the
warranty. Although your phone is quite sturdy, it is a complex piece of
equipment and can be broken. Avoid dropping, hitting, bending, or
sitting on it. Any changes or modifications to your phone not expressly
approved in this document could void your warranty for this equipment
and void your authority to operate this equipment.
Using Your Phone While Driving
Talking on your phone while driving (or operating the phone without
a hands-free device) is prohibited in some jurisdictions. Laws vary as
to specific restrictions. Remember that safety always comes first.
When using your phone in the car:
• Get to know your phone and its features, such as speed
dial
and re-dial.
• When available, use a hands-free device.
• Position your phone within easy reach.
• Let the person you are speaking to know you are
driving; if necessary, suspend the call in heavy traffic
or hazardous weather conditions.
• Do not take notes or look up phone numbers while
driving.
• Dial sensibly and assess the traffic; if possible, place
calls when stationary or before pulling into traffic.
• Do not engage in stressful or emotional conversations
that may divert your attention from the road.
• Dial 911 to report serious emergencies. It’s free from
your wireless phone.
• Use your phone to help others in emergencies.
• Call roadside assistance or a special non-emergency
wireless number when necessary.
Following Safety Guidelines
To operate your phone safely and efficiently, always follow
any special regulations in a given area. Turn your phone off in areas
where use is forbidden or when it may cause interference or danger.
112 Safety
Using Your Phone Near Other Electronic Devices
Most modern electronic equipment is shielded from radio frequency
(RF) signals. However, RF signals from wireless phones may affect
inadequately shielded electronic equipment.
RF signals may affect improperly installed or inadequately shielded
electronic operating systems and/or entertainment systems in motor
vehicles. Check with the manufacturer or their representative to
determine if these systems are adequately shielded from external RF
signals. Also check with the manufacturer regarding any equipment
that has been added to your vehicle.
Consult the manufacturer of any personal medical devices, such as
pacemakers and hearing aids, to determine if they are adequately
shielded from external RF signals.
Note: Always turn off the phone in health care facilities and request
permission before using the phone near medical equipment.
Turning Off Your Phone Before Flying
Turning Off Your Phone in Dangerous Areas
To avoid interfering with blasting operations, turn off your phone
when in a blasting area or in other areas with signs indicating that
two-way radios should be turned off. Construction crews often use
remote-control RF devices to set off explosives.
Safety
113
Safety
Turn off your phone before boarding any aircraft. To prevent
possible interference with aircraft systems, the U.S. Federal Aviation
Administration (FAA) regulations require you to have permission
from a crew member to use your phone while the plane is on the
ground. To prevent any risk of interference, FCC regulations prohibit
using your phone while the plane is in the air.
Turn off your phone when you’re in any area that has a
potentially explosive atmosphere. Although it’s rare, your
phone or its accessories could generate sparks. Sparks
could cause an explosion or a fire resulting in bodily
injury or even death. These areas are often, but not
always, clearly marked. They include:
• Fueling areas such as gas stations.
• Below deck on boats.
• Fuel or chemical transfer or storage facilities.
• Areas where the air contains chemicals or particles
such as grain, dust or metal powders.
• Any other area where you would normally be advised to
turn off your vehicle’s engine.
Note: Never transport or store flammable gas, liquid or explosives in the
compartment of your vehicle that contains your phone or accessories.
Restricting Children’s Access to your Phone
Your phone is not a toy. Children should not be allowed to play with it
because they could hurt themselves and others, damage the phone,
dial 911 by mistake or make calls that increase your phone bill.
Caring for the Battery
Protecting Your Battery
The guidelines listed below help you get the most out of your
battery’s performance.
• Use only Samsung approved batteries and travel
adapters. These chargers are designed to maximize
114 Safety
•
Less than one month:
4º F to 140º F (-20º C to 60º C)
Safety
•
battery life. Using other batteries or chargers voids
your warranty and may cause damage.
• In order to avoid damage, charge the battery only in
temperatures that range from 32º F to 113º F (0º C to
45º C).
• Don’t use the battery charger in direct sunlight or in
high humidity areas, such as the bathroom.
• Never dispose of the battery by incineration.
• Keep the metal contacts on top of the battery clean.
• Don’t attempt to disassemble or short-circuit the
battery.
• The battery may need recharging if it has not been used
for a long period of time.
• It’s best to replace the battery when it no longer
provides acceptable performance. When used
correctly, the battery can be recharged hundreds of
times before it needs replacing.
• Don’t store the battery in high temperature areas for
long periods of time. It’s best to follow these storage
rules:
More than one month:
4º F to 113º F (-20º C to 45º C)
Disposal of Lithium Ion (LiIon) Batteries
For safe disposal options of your LiIon batteries, contact your nearest
service center.
Special Note: Be sure to dispose of your battery properly. In some
areas, the disposal of batteries in household or business trash may
be prohibited.
Safety
115
Note: For safety, do not handle a damaged or leaking LiIon battery.
Acknowledging Special Precautions and
Industry Canada Notice
Only use approved batteries, antennas, and chargers. The use of any
unauthorized accessories may be dangerous and will invalidate the
phone warranty if said accessories cause damage or a defect to the
phone.
Although your phone is quite sturdy, it is a complex piece of
hardware and can be broken. Use common-sense guidelines to avoid
dropping, hitting, bending or sitting on it.
Cautions
Any changes or modifications to your phone not expressly approved
in this document could void your warranty for this equipment, and
void your authority to operate this equipment. Only use approved
batteries, antennas and chargers. The use of any unauthorized
accessories may be dangerous and void the phone warranty if said
accessories cause damage or a defect to the phone.
Although your phone is quite sturdy, it is a complex piece of
equipment and can be broken. Avoid dropping, hitting, bending or
sitting on it.
Information to User
This equipment has been tested and found to comply with the limits
of a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
116 Safety
guarantee that interference will not occur in a particular installation; if
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•
•
Reorient / relocate the receiving antenna.
•
Connect the equipment into an outlet on a circuit difference
from that to which the receiver is connected.
Increase the separation between the equipment and
receiver.
Consult the dealer or an experienced radio/TV technician for help.
Specific Absorption Rates (SAR) for Wireless Phones
The SAR is a value that corresponds to the relative amount of RF
energy absorbed in the head of a user of a wireless handset.
All phones must meet the federal standard, which incorporates a
substantial margin of safety. As stated above, variations in SAR
values between different model phones do not mean variations in
safety. SAR values at or below the federal standard of 1.6 W/kg are
considered safe for use by the public.
The highest reported SAR values of the SPH-m210 are:
1.11 W/kg CDMA Head SAR (Part 22)
Safety
117
Safety
The SAR value of a phone is the result of an extensive testing,
measuring and calculation process. It does not represent how much
RF the phone emits. All phone models are tested at their highest
value in strict laboratory settings. But when in operation, the SAR of
a phone can be substantially less than the level reported to the FCC.
This is because of a variety of factors including its proximity to a
base station antenna, phone design and other factors. What is
important to remember is that each phone meets strict federal
guidelines. Variations in SARs do not represent a variation in safety.
1.17 W/kg CDMA Body SAR (Part 22)
1.22 W/kg PCS CDMA Head SAR (Part 24)
0.566 W/kg PCS CDAM Body SAR (Part 24)
118 Safety
Owner’s Record
The model number, regulatory number and serial number are located
on a nameplate inside the battery compartment. Record the serial
number in the space provided below. This will be helpful if you need
to contact us about your phone in the future.
Model: SPH-m210
Serial No.:
User Guide Proprietary Notice
CDMA Technology is licensed by QUALCOMM Incorporated under
one or more of the following patents:
4,901,307 5,109,390 5,267,262 5,416,797
5,506,865 5,544,196 5,657,420 5,101,501
5,267,261 5,414,796 5,504,773 5,535,239
5,600,754 5,778,338 5,228,054 5,337,338
5,710,784 5,056,109 5,568,483 5,659,569
5,490,165 5,511,073
Safety
119
Safety
T9 Text Input is licensed by Tegic Communications and is covered by
U.S. Pat. 5,818,437, U.S. Pat. 5,953,541, U.S. Pat. 6,011,554 and
other patents pending.
Warranty
STANDARD LIMITED WARRANTY
What is Covered and For How Long? SAMSUNG Electronics Canada Inc. (“SAMSUNG”) warrants to the
original purchaser (“Purchaser”) that SAMSUNG's phones and accessories ("Products") are free from defects
in material and workmanship under normal use and service for the period commencing upon the date of
purchase and continuing for the following specified period of time after that date:
Phone
1 Year
Batteries
1 Year
Leather Case/Pouch/Holster
90 Days
Game Pad
90 Days
Other Phone Accessories
1 Year
What is Not Covered? This Limited Warranty is conditioned upon proper use of Product by Purchaser. This
Limited Warranty does not cover: (a) defects or damage resulting from accident, misuse, abuse, neglect,
unusual physical, electrical or electromechanical stress, or modification of any part of Product, including
antenna, or cosmetic damage; (b) equipment that has the serial number removed or made illegible; (c) any
plastic surfaces or other externally exposed parts that are scratched or damaged due to normal use; (d)
malfunctions resulting from the use of Product in conjunction with accessories, products, or ancillary/
peripheral equipment not furnished or approved by SAMSUNG; (e) defects or damage from improper testing,
operation, maintenance, installation, or adjustment; (f) installation, maintenance, and service of Product; or (g)
Product used or purchased outside Canada. This Limited Warranty covers batteries only if battery capacity
falls below 80% of rated capacity or the battery leaks, and this Limited Warranty does not cover any battery if:
(i) the battery has been charged by a battery charger not specified or approved by SAMSUNG for charging
the battery; (I) any of the seals on the battery are broken or show evidence of tampering; or (IA) the battery has
been used in equipment other than the SAMSUNG phone for which it is specified.
What are SAMSUNG's Obligations? During the applicable warranty period, SAMSUNG will repair or
replace, at SAMSUNG's sole option, without charge to Purchaser, any defective component part of Product.
To obtain service under this Limited Warranty, Purchaser must return Product to an authorized phone service
facility in an adequate container for shipping, accompanied by Purchaser's sales receipt or comparable
substitute proof of sale showing the date of purchase, the serial number of Product and the sellers' name and
address. To obtain assistance on where to deliver the Product, call Samsung Customer Care at 1-800Samsung. Upon receipt, SAMSUNG will promptly repair or replace the defective Product. SAMSUNG may,
at SAMSUNG's sole option, use rebuilt, reconditioned, or new parts or components when repairing any
Product or replace Product with a rebuilt, reconditioned or new Product. Repaired/replaced leather cases,
pouches and holsters will be warranted for a period of ninety (90) days. All other repaired/replaced Product
will be warranted for a period equal to the remainder of the original Limited Warranty on the original Product
or for 90 days, whichever is longer. All replaced parts, components, boards and equipment shall become the
120 Warranty
property of SAMSUNG. If SAMSUNG determines that any Product is not covered by this Limited Warranty,
Purchaser must pay all parts, shipping, and labor charges for the repair or return of such Product.
What Are the Limits On SAMSUNG's Liability? EXCEPT AS SET FORTH IN THE EXPRESS
WARRANTY CONTAINED HEREIN, PURCHASER TAKES THE PRODUCT "AS IS," AND
SAMSUNG MAKES NO WARRANTY OR REPRESENTATION AND THERE ARE NO
CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, OF ANY KIND
WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO:
· THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR
PURPOSE OR USE;
·
WARRANTIES OF TITLE OR NON-INFRINGEMENT;
·
DESIGN, CONDITION, QUALITY, OR PERFORMANCE OF THE PRODUCT;
· THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN;
OR
· COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE,
SPECIFICATION OR CONTRACT PERTAINING THERETO.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE
OTHER RIGHTS, WHICH VARY FROM PROVINCE TO PROVINCE. THIS LIMITED
WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER
OF THIS PRODUCT AND SHALL BE PURCHASER'S EXCLUSIVE REMEDY. IF ANY PORTION
OF THIS LIMITED WARRANTY IS HELD ILLEGAL OR UNENFORCEABLE BY REASON OF
ANY LAW, SUCH PARTIAL ILLEGALITY OR UNENFORCEABILITY SHALL NOT AFFECT THE
ENFORCEABILITY FOR THE REMAINDER OF THIS LIMITED WARRANTY WHICH
PURCHASER ACKNOWLEDGES IS AND WILL ALWAYS BE CONSTRUED TO BE LIMITED BY
ITS TERMS OR AS LIMITED AS THE LAW PERMITS.
Warranty
121
Warranty
NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE
AN EXPRESS WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT.
ALL IMPLIED WARRANTIES AND CONDITIONS THAT MAY ARISE BY OPERATION OF LAW,
INCLUDING IF APPLICABLE THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY LIMITED TO THE SAME DURATION OF
TIME AS THE EXPRESS WRITTEN WARRANTY STATED HEREIN. SOME JURISDICTIONS DO
NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATION MAY NOT APPLY TO YOU. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE
FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE, USE, OR MISUSE OF,
OR INABILITY TO USE THE PRODUCT OR ARISING DIRECTLY OR INDIRECTLY FROM THE
USE OR LOSS OF USE OF THE PRODUCT OR FROM THE BREACH OF THE EXPRESS
WARRANTY, INCLUDING INCIDENTAL, SPECIAL, CONSEQUENTIAL OR SIMILAR DAMAGES,
OR LOSS OF ANTICIPATED PROFITS OR BENEFITS, OR FOR DAMAGES ARISING FROM ANY
TORT (INCLUDING NEGLIGENCE OR GROSS NEGLIGENCE) OR FAULT COMMITTED BY
SAMSUNG, ITS AGENTS OR EMPLOYEES, OR FOR ANY BREACH OF CONTRACT OR FOR
ANY CLAIM BROUGHT AGAINST PURCHASER BY ANY OTHER PARTY. SOME
JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU.
THE PARTIES UNDERSTAND THAT THE PURCHASER MAY USE THIRD-PARTY SOFTWARE
OR EQUIPMENT IN CONJUNCTION WITH THE PRODUCT. SAMSUNG MAKES NO
WARRANTIES OR REPRESENTATIONS AND THERE ARE NO CONDITIONS, EXPRESS OR
IMPLIED, STATUTORY OR OTHERWISE, AS TO THE QUALITY, CAPABILITIES, OPERATIONS,
PERFORMANCE OR SUITABILITY OF ANY THIRD-PARTY SOFTWARE OR EQUIPMENT,
WHETHER SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT IS INCLUDED WITH THE
PRODUCT DISTRIBUTED BY SAMSUNG OR OTHERWISE, INCLUDING THE ABILITY TO
INTEGRATE ANY SUCH SOFTWARE OR EQUIPMENT WITH THE PRODUCT. THE QUALITY,
CAPABILITIES, OPERATIONS, PERFORMANCE AND SUITABILITY OF ANY SUCH THIRDPARTY SOFTWARE OR EQUIPMENT LIE SOLELY WITH THE PURCHASER AND THE DIRECT
VENDOR, OWNER OR SUPPLIER OF SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT, AS
THE CASE MAY BE.
This Limited Warranty allocates risk of Product failure between Purchaser and SAMSUNG, and
SAMSUNG's Product pricing reflects this allocation of risk and the limitations of liability contained in this
Limited Warranty. The agents, employees, distributors, and dealers of SAMSUNG are not authorized to make
modifications to this Limited Warranty, or make additional warranties binding on SAMSUNG. Accordingly,
additional statements such as dealer advertising or presentation, whether oral or written, do not constitute
warranties by SAMSUNG and should not be relied upon.
Samsung Electronics Canada, Inc.
©2007 Samsung Electronics Canada Inc. Samsung is a registered trademark of Samsung Electronics Co. Ltd.
and its related entities.
No reproduction in whole or in part allowed without prior written approval.
Specifications and availability subject to change without notice.
#861826 v2 | 4032342
122 Warranty
Index
A
Alert Notification 87
Auto-Answer 99
Auto-Hyphen 101
B
Backlight 94
Battery
Capacity 10
Charging 11
Disposal 115
Installing 10
Removing 11
C
Call Forwarding 26
Call History 54
Erasing 57
Making a Call From 55
Options 55
Prepending a Phone Number
56
Saving a Phone Number From
56
Viewing 54
Call Options 16
Call Waiting 26
Do Not Disturb Mode 26
Caller ID 24
Choice Lists 37
Contrast 95
D
Display Screen Symbols 5
Do Not Disturb Mode 26
E
Emergency Numbers 15
Entering Text
ABC Mode 23
Selecting a Character Input
Mode 20
Symbols and Numbers 24
T9 Text Input 21
Erasing Content 108
F
Font
changing the colour 92
G
Greeting 93
L
Locked Mode
Making Calls 107
Locking Your Phone 106
M
Making Calls 13
Menus
Diagram 44
Navigation 42
Viewing 44
Messaging 59
Erasing Text Messages 66
Missed Call Notification 15
N
Name Lookup 33
Navigating Through Menus 42
P
PCS Services
Call Waiting 26
Caller ID 24
Phone Book
Adding an Entry 50
123
Calling a Number From 19
Editing Entries 51
Erasing 108
Finding Entries 50
Phone Number
Displaying 13
Phone Numbers
Saving 17
With Pauses 18
R
Resetting Your Phone 109
Ringer Types 86
Ringer Types for Scheduled Alerts
87
Roaming 29
Other Digital Networks 29
S
Scheduler
Erasing Events 82
Viewing Events 81
Security 106
Security Menu 106
Set NAM 30
Shop
Downloading Items 71
Speakerphone 28
Special Numbers 107
Speed Dialing 19
T
T9 Text Input 21
Text Messages
Message Setup Options 67
Text Entry Mode 68
Three-Way Calling 27
Turning Your Phone On and Off 8
U
Unlocking Your Phone 107
124
V
Voice Dial
Adapting Voice Dial 34
Changing Voice Dial Prompts
38
Changing Voice Dial Sensitivity
37
Changing Voice Launch 39
Customizing 34
Voice Mail
Clearing 61
Notification 59
Retrieving 60
Setting Up 59
Voice Memos 39
Voice Recognition
Activating 31
Name Lookup 33
Voice Dial 32
Volume Settings 85
W
Wireless Web 75
Launching the Browser 75
Navigating 76
Status Indicators 75
