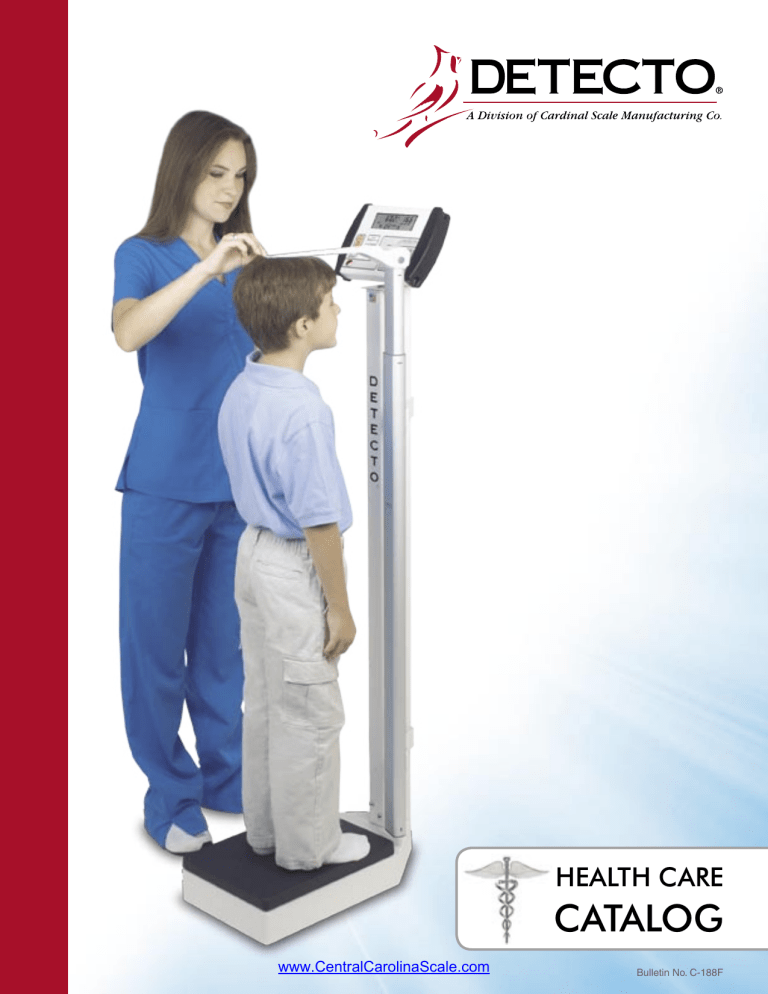

Detecto Healthcare Catalog 2011.indd

HEALTH CARE
CATALOG
www.CentralCarolinaScale.com
Bulletin No. C-188F
(3)
WEIGHBEAM
PHYSICIAN SCALES
PATRIOT
M a d e i n U S A
AMERICAN-MADE QUALITY
™
Detecto’s world-renowned eye-level physician scales
feature a dual-reading die-cast weigh beam which may
be read from either side of the scale. Capacity may
be increased to 500 lb / 220 kg by using an optional
counterweight, also available from Detecto (see page
5). Scale is 59 in / 150 cm high.
Detecto
439
MODEL
CAPACITY
HEIGHT ROD
WHEELS
HANDPOST
439
400 lb x 4 oz
●
2391
180 kg x 100 g
●
437
400 lb x 4 oz
2371
180 kg x 100 g
438
400 lb x 4 oz
●
●
2381
180 kg x 100 g
●
●
448
400 lb x 4 oz
●
●
449
400 lb x 4 oz
●
●
2491
180 kg x 100 g
●
●
339
400 lb x 4 oz / 175 kg x 100 g
●
337
400 lb x 4 oz / 175 kg x 100 g
338
400 lb x 4 oz / 175 kg x 100 g
●
349
400 lb x 4 oz / 175 kg x 100 g
●
●
●
●
● Long-lasting, durable steel construction
● Electrostatic powder paint finish for optimum quality
● Height rod measures 30 - 78 in / 76 - 200 cm
● Heavy-duty solid, stable base for patient assurance
● 10.5 x 14.5 in / 27 x 37 cm platform with removable cover
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
(4)
STAINLESS STEEL
WEIGHBEAM
PHYSICIAN SCALES
SUPERB PROTECTION IN HIGH-HUMIDITY AREAS
Enjoy the classic elegance of stainless steel in your
Detecto mechanical weighbeam scale. A platform
cover that lifts off easily combined with the stainless steel
casing makes cleanup a breeze. Water damage from
mopping and high-humidity areas around swimming
pools and locker rooms is a thing of the past with
Detecto’s stainless steel health care scales.
PATRIOT
M a d e i n U S A
™
MODEL
CAPACITY
HEIGHT ROD
439S
400 lb x 4 oz
●
2391S
180 kg x 100 g
●
437S
400 lb x 4 oz
2371S
180 kg x 100 g
339S
400 lb x 4 oz / 175 kg x 100 g
337S
400 lb x 4 oz / 175 kg x 100 g
●
Detecto
339S
Detecto
339S Weighbeam
● Stainless steel protects against rust from water damage
● Height rod measures 30 - 78 in / 76 - 200 cm
● 10.5 x 14.5 in / 27 x 37 cm platform with removable cover
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
(5)
PHYSICIAN SCALE
ACCESSORIES
PATRIOT
M a d e i n U S A
VERSATILE OPTIONS
™
With a whole host of optional accessories,
Detecto’s physician scales may be customized
for your specific measurement requirements.
Height Rod
MODEL
DESCRIPTION
3PHTROD-1
Height rod for eye-level physician scales:
30 in - 78 in / 76 cm - 200 cm
3PHTRODCM-1
Metric height rod for eye-level
physician scales: 76 cm - 200 cm
3PHTRODWHCM-1 Metric height rod for waist-high
physician scales: 76 cm - 200 cm
Handpost
Counterweights
3PWHL
Wheels for use with all eye-level physician scales and models 8430 and 8437.
3PHNDPST
Handpost for replacement use on
physician scales only
CW-9
Conversion weight assembly for use with
new 437, 438, 439, 448 and 449 scales
(Increase weight range from 400 lb to
500 lb)
CW-30X
Conversion weight assembly for use with
old 437, 438, 439, 448 and 449 scales
(Increase weight range from 350 lb to
450 lb)
CW-39X
Conversion weight assembly for use with
old 337, 338, 339, 348 and 349 scales
(Increase weight range from 350 lb to
450 lb - works for pounds only)
CW-80X
Conversion weight assembly for use with
new 2371, 2381, 2391 and 2491 scales
(Increase weight range from 180 kg to
220 kg)
Wheels
● Increase the overall scale capacity to
500 lb / 220 kg using counterweights
Detecto
448
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
(6)
LOW-PROFILE
PROFESSIONAL
DOCTOR SCALES
COMPACT SIZE - LARGE DISPLAY
Detecto
PD200
Detecto
PD100
● Wall/desk mounting bracket for display
● Angled display for convenient viewing
● Portable with optional carrying case
● Weight tracking for up to four users
● 87 in / 220 cm cable from base to display
● 12.5 in W x 13 in D / 32 cm W x 33 cm D platform
ProDoc® digital scales feature
heavy-duty stable bases, Body
MODEL
CAPACITY / DESCRIPTION
PD100
480 lb x 0.2 lb / 220 kg x 0.1 kg
Low profile with remote display
PD100M
220 kg x 0.1 kg
Low profile with remote display
Mass Index calculation, and
highly-visible 1 in / 25 mm
high LCD. Powered by 6 AA
Alkaline batteries (not included) or optional 9V AC/DC
Detecto
PRODOC-CASE
power adapter.
PRODOC-CASE Carrying case for PD100 and PD100M
PD200
480 lb x 0.2 lb / 220 kg x 0.1 kg
Compact integral design scale
PD200M
220 kg x 0.1 kg
Compact integral design scale
www.CentralCarolinaScale.com
---
www.Detecto.com
•
OIML Class III
(800) 641-2008
•
detecto@cardet.com
---
OIML Class III
(7)
COMFORT-HEIGHT
PROFESSIONAL
DOCTOR SCALES
Detecto
PD300DHR
ECONOMICAL MEASUREMENT
Detecto
PD300
Detecto’s ProDoc® professional doctor scales are
designed to provide the medical-grade accuracy you
depend on. The LCD display provides easy-to-view
1 in / 25 mm high readouts. Six AA batteries (not
included) or optional AC power adapter.
The model PD300DHR features digital weight and
height measurement for accurate calculation of Body
Mass Index. Detecto’s time-saving digital height rod
displays patient height quickly on the weight display.
Simply step on the scale and touch one key to see
weight and one key to automatically calculate BMI.
MODEL
CAPACITY / DESCRIPTION
HEIGHT ROD
PD300
480 lb x 0.2 lb / 220 kg x 0.1 kg
PD300M
220 kg x 0.1 kg
PD300DHR
480 lb x 0.2 lb / 220 kg x 0.1 kg
PD300MDHR
220 kg x 0.1 kg
PD300MHR
480 lb x 0.2 lb / 220 kg x 0.1 kg
Mechanical
PD300MMHR
220 kg x 0.1 kg
Mechanical
DHR
Optional digital height rod for
PD300 43"/110cm - 79"/200cm
Digital
MHR
Optional mechanical height rod for
PD300 30"/76cm - 78"/200cm
Mechanical
OIML Class III
Digital
Digital
OIML Class III
OIML Class III
● Built-in wheels for fast transport
● 12.5 in W x 13 in D / 32 cm W x 33 cm D platform
● Includes four patient/family member weight memory recalls
● 48 in / 122 cm high display for easy viewing of measurements
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
(8)
WALL-MOUNT
STADIOMETERS
DIGITAL STADIOMETERS
Detecto’s exclusive digital height technology
allows you to receive height readings quickly,
accurately, and comfortably. Measure up to 6’7”
/ 200 cm with automatic height viewing on the
remote display, positioned where you need it with
Detecto’s wall-mount or desktop bracket.
● Crisp 1 in / 25 mm high LCD readouts
● 69 in / 175 cm cable length from display
to wall-mount height rod
● 6 AA Alkaline batteries (not included)
MODEL
MEASUREMENTS
DHRWM
43 in - 79 in / 110 cm - 200 cm
Detecto
DHRWM
MECHANICAL STADIOMETERS
Detecto’s stadiometers have long been the choice
for medical height measurement. Everything needed for operation is included with the stadiometer
and installation takes seconds with the included
hardware. Merely lift the spoon and request for
the patient to step up to be measured.
● Easy to install, easy to operate
● Durable steel construction
● 1/4 in / 1/2 cm or 1/2 cm graduations
MODEL
MEASUREMENTS
3PHTROD-WM
30 in - 78 in / 76 cm - 200 cm
3PHTRODCM-WM 76 cm - 200 cm
Detecto
3PHTROD-WM
PATRIOT
M a d e i n U S A
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
™
(9)
MORE FEATURES WITH DETECTO
Efficient Patient Measurement
Detecto
750 Indicator
Height • Weight • Body Mass Index
The time-saving 1LOOK feature displays all
patient measurements onscreen simultaneously
Detecto
758C Indicator
● 0.75 in / 19 mm high digits
● Body Mass Index
● Serial connectivity
● 6 AA batteries or AC
OIML Class III
Indicators may be set to
display metric only.
OIML Class III - 758CSV
EMR/EHR Connectivity
Efficiently send patient data to a PC for
electronic recordkeeping via the indicator’s
serial, USB, or optional Ethernet port or to a printer.
● 0.5 in / 13 mm high digits
● Up to 99 tares (optional)
Patient ID Barcode Scanning
● NTEP legal for trade
Send patient ID to 758C
● 6 C batteries or AC
indicator for EMR/EHR records
Detecto
P600
printer
PATRIOT
M a d e i n U S A
www.CentralCarolinaScale.com
™
---
www.Detecto.com
•
(800) 641-2008
•
Detecto
P150
printer
detecto@cardet.com
---
( 10 )
EYE-LEVEL DIGITAL
PHYSICIAN SCALES
DIGITAL HEIGHT ROD AVAILABLE
PATRIOT
M a d e i n U S A
™
Detecto’s model 6437 eye-level digital physician scale is available with a
digital, mechanical, or without a height rod. The 6437DHR scale (shown
here) is designed for optimum performance and utilizes Detecto’s unique
1LOOK feature which displays height, weight, and BMI simultaneously by
simply raising the digital height rod while a patient is being weighed on
the physician scale. All of this data may be output to a printer or PC for
EMR/EHR via the scale’s serial, USB, or optional Ethernet ports. Six C-size
batteries (not included) or optional AC adapter.
Detecto exclusive feature on 6437DHR
scales: digital height, weight, and BMI
shown onscreen simultaneously.
MODEL
CAPACITY
6437
500 lb x 0.2 lb / 225 kg x 0.1 kg
HEIGHT ROD HANDPOST
6437DHR 500 lb x 0.2 lb / 225 kg x 0.1 kg
Digital
6439
500 lb x 0.2 lb / 225 kg x 0.1 kg
Mechanical
6449
500 lb x 0.2 lb / 225 kg x 0.1 kg
Mechanical
●
● Patient ID barcode scanning option
● Body Mass Index calculation and bar graph visual display
Detecto
6437DHR
● 59 in / 150 cm high scale for convenient weight viewing
● Heavy-duty solid, stable base for patient assurance
● 10.5 x 14.5 in / 27 x 37 cm platform with removable cover
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 11 )
DIGITAL PHYSICIAN
SCALES
DURABLE STEEL CONSTRUCTION
PATRIOT
M a d e i n U S A
™
Detecto
6129
Detecto
6339
These waist-high and eye-level Detecto scales are the
● Large 0.75 in / 19 mm high LCD digits
right choice for home, health, and clinical office weighing.
● Body Mass Index calculation
The all-USA-manufactured scales are designed for years of
● Spacious weighing platform with heavy steel base
dependable and accurate weighing, plus they are versatile
● 6 AA Alkaline or NiCad rechargeable batteries
enough to meet all clinical health requirements.
(not included) and optional AC adapter
WAIST HIGH
EYE LEVEL
MODEL
CAPACITY
MODEL
CAPACITY
6127
6127KG
500 lb x 0.2 lb / 225 kg x 0.1 kg
6337
500 lb x 0.2 lb / 225 kg x 0.1 kg
225 kg x 0.1 kg
6339
500 lb x 0.2 lb / 225 kg x 0.1 kg
6129
500 lb x 0.2 lb / 225 kg x 0.1 kg
●
6129KG
225 kg x 0.1 kg
●
---
HEIGHT ROD
HEIGHT ROD
www.CentralCarolinaScale.com
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
●
( 14 )
CHAIR SCALES
Detecto
6875
DIGITAL CHAIR
SCALES STEEL CONSTRUCTION
DURABLE
Ergonomics dictated this stylish, battery-powered
chair scale’s contemporary design. The LCD displays large .75 in / 19 mm high digits. Concealed
wheels and sleek styling allow this scale to be
extremely portable - it even fits through a standard
30 in / 76 cm door. The armrests fold out of the
way to allow patients easy accessibility.
MODEL
CAPACITY
6875
400 lb x 0.2 lb / 180 kg x 0.1 kg
6875KGEU
200 kg x 0.1 kg
OIML Class III
● Plastic-molded seat for patient comfort
● Battery powered for complete portability
● Fully electronic - 4 load cells
ROLLING CHAIR SCALES
Detecto’s
6880
offers
fold-up
PATRIOT
M a d e i n U S A
™
armrests
and footrests, secure rear wheel brakes, an
ergonomically shaped seat and smooth-gliding
3 in / 7 cm diameter wheels which can turn around
easily in a full revolution. The scale is fully electron-
Detecto
6880
ic with a single load cell. Padded handgrips contribute to the 6880 being a pleasure to operate.
MODEL
CAPACITY
6880
440 lb x 0.2 lb / 200 kg x 0.1 kg
6880KGEU
200 kg x 0.1 kg
OIML Class III
● LOCK key for holding patient weights
● Lift-away armrests and footrest
● Convenient units switching between lbs/kgs
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 15 )
BARIATRIC SCALES
PORTABLE CONVENIENCE
Detecto
6800
Ideal for most clinical weighing applications, this scale
is low profile for patient comfort when stepping on and
off the scale. With a built-in carrying handle, Detecto’s
MODEL
CAPACITY
6800
800 lb x 0.2 lb / 360 kg x 0.1 kg
6800KGEU 300 kg x 0.1 kg or 350 kg x 0.2 kg
OIML Class III
model 6800 scale is easy to transport from office to office. Utilizing Detecto’s model 750 weight display and
a universal bracket, the indicator may be mounted on a
wall or desk for easy viewing. Powered by 6 AA batteries
(not included), this scale is truly portable when power
outlets are not accessible. 10 ft / 3 m long cable from
indicator to the scale. EMR-EHR-ready serial port.
PATRIOT
M a d e i n U S A
● Spacious 24 in / 61 cm square weighing platform
● Body Mass Index calculation
● Skid-proof, textured black rubber mat
● Lightweight, ultra-portable design
● High 800 lb / 360 kg bariatric weighing capacity
™
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 17 )
PATRIOT
M a d e i n U S A
WAIST-HIGH DIGITAL
BARIATRIC SCALES
™
EXTRA-LARGE SIZE PLATFORM
Detecto’s 6856 and 6857DHR bariatric scales’
balanced design and integral wheels make them
easy to move. The 6857DHR scale (shown left) is
designed for optimum performance and utilizes
Detecto’s unique 1LOOK feature which displays
height, weight, and BMI simultaneously by simply raising the digital height rod while a patient
is being weighed on the bariatric scale. There are
no keys to push and no operational sequences to
memorize, it’s fully automatic. All of this data may
be output to a printer or PC for EMR/EHR via the
scale’s serial, USB, or optional Ethernet ports.
Detecto
6857DHR
(features serial,
USB, and optional
Ethernet ports)
MODEL
CAPACITY
6856
800 lb x 0.2 lb / 360 kg x 0.1 kg
HEIGHT ROD
6856KGEU
300 kg x 0.1 kg or 350 kg x 0.2 kg
6857DHR
800 lb x 0.2 lb / 360 kg x 0.1 kg
OIML Class III
Detecto
6856
(features
serial port)
Digital
6857KGEUDHR 300 kg x 0.1 kg or 350 kg x 0.2 kg
Digital
OIML Class III
Detecto exclusive feature on 6857DHR
scales: digital height, weight, and BMI
shown onscreen simultaneously.
● Spacious 24 in / 61 cm square weighing platform
● Extra-high 800 lb / 360 kg bariatric weighing capacity
● Patient ID barcode scanning option on 6857DHR
● Body Mass Index calculation and bar graph visual display
● Stainless steel handrails with padded patient handgrips
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 19 )
FLIP-SEAT DIGITAL
BARIATRIC SCALES
SPACIOUS WEIGHING PLATFORM
PATRIOT
M a d e i n U S A
Detecto
6868
™
Built specifically for weighing obese and unsteady
MODEL
CAPACITY
6868
800 lb x 0.2 lb / 360 kg x 0.1 kg
patients, Detecto’s 6868 portable bariatric scales
6868KGEU 300 kg x 0.1 kg or 350 kg x 0.2 kg
OIML Class III
feature a flip-up seat allowing weighing in a
standing or sitting position. Sturdy stainless steel
handrails with padded foam hand grips, non-
● 32 in x 34 in / 81 cm x 86 cm weighing platform
skid rubber mat, and an extra wide platform adds
● Padded seat ensures patient comfort
comfort to the weighing of obese patients and
● Extra-high weighing capacity for bariatrics
those requiring assistance. The compact design
● Easy transport on the scale’s large diameter wheels
permits the scale to roll through doors and into
● Low-profile platform for easy patient access
patients’ rooms for easy weighing (requires door
opening greater than 32 in / 81 cm wide). Six AA
batteries (not included) or optional AC adapter.
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 21 )
DIGITAL
STATIONARY
WHEELCHAIR SCALES
DIGITAL SPEED AND ACCURACY
PATRIOT
M a d e i n U S A
™
Detecto
6495
With the model 6495 heavy-duty digital wheel-
MODEL
CAPACITY
6495
400 lb x 0.2 lb / 180 kg x 0.1 kg
chair scale, you receive speed and increased
accuracy that only electronic weighing can provide.
The digital weight display is mounted at a conve-
● Numeric keypad for wheelchair tare weights
nient angle for easy viewing. A keypad for entry
● Connectivity output to printer or EMR/EHR
of known weights of empty wheelchairs speeds the
● 30 in x 26 in / 76 cm x 66 cm weighing platform
weighing process and provides the exact weight
● Convenient units switching from lbs to kgs
of patients instantly in 0.5 in / 13 mm high LCD
● Platform accomodates all sizes of wheelchairs
digits. The 6495 features RS232 serial, USB, and
● LOCK/HOLD key for holding patient weight
optional Ethernet for connectivity to EMR/EHR in
healthcare facilities. Powered by 6 C-size batteries
(not included) or optional AC adapter.
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 23 )
FOLDING PORTABLE
WHEELCHAIR SCALES
UNIQUE FOLD-UP DESIGN
Detecto
6550
The 6550’s
column folds down and
latches securely for easy
transport in four directions.
MODEL
CAPACITY
This incredibly-popular lightweight scale
6550
1,000 lb x 0.2 lb / 450 kg x 0.1 kg
offers a wide range of versatility. It can be used
6550KGEU 300 kg x 0.1 kg or 350 kg x 0.2 kg
OIML Class III
with wheelchairs, straight-legged chairs or as
a stand-on scale, and its sloped ramps offer
versatility by allowing entry from either side. The
● 30 in x 32 in / 76 cm x 81 cm platform (flat portion)
6550’s vertical fold-up feature and heavy-duty
● 6 C batteries (not included) or optional AC adapter
wheels contribute to its ease of mobility and
● EMR/EHR-ready serial, USB, and optional Ethernet
minimal storage space. The 6550’s digital weight
● Lightweight fold-up scale for heavyweight tasks
indicator
● 2-way low-profile platform for easy patient access
featuring serial, USB and optional Ethernet
is
the
industry’s
most
advanced,
output, BMI calculation, yellow “quick keys” for
basic weighing, and an easy-to-read LCD display.
PATRIOT
M a d e i n U S A
™
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 25 )
PORTABLE BARIATRIC
WHEELCHAIR SCALES
EXTRA-WIDE SCALE PLATFORM
PATRIOT
M a d e i n U S A
™
Detecto
BRW1000
Accomodating up to 40 in / 101 cm wide bariatric size
wheelchairs, Detecto’s BRW1000 provides everything
required for weighing bariatric patients. For extended
MODEL
CAPACITY
BRW1000
1,000 lb x 0.5 lb / 450 kg x 0.2 kg
BRW1000KGEU 400 kg x 0.2 kg or 300 kg x 0.1 kg OIML Class III
patient comfort, clinical staff may simply roll the patient
on the scale and key in the wheelchair tare weight for
quick and easy weighing. Heavy-duty construction, extralarge weighing platform with integral ramp, and 1,000
lb capacity makes this the perfect scale for weighing
patients in manual or power wheelchairs, dialysis
patients, or walk-ons. EMR/EHR-ready serial, USB, and
optional Ethernet connectivity.
● Spacious 40 in W x 30 in D / 101 cm W x 76 cm D
weighing platform (flat portion)
● Completely portable: wheels and carrying handles
● Light in weight, but heavy in capacity
● Integral two-way access ramps
● Body Mass Index calculation
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 27 )
IN-FLOOR SCALES
DIALYSIS PATIENT MONITORING
Detecto’s in-floor scales are exceptional for
dialysis patient monitoring and bariatric weighing.
The platform is level with the floor for easy access,
so it also works well for multi-purpose weighing.
The patient simply walks or is wheeled onto the
platform and weighed. Stretchers and beds fit
easily onto the 6 ft long model with no need for
dual scale systems. The weight is displayed on a
recessed or wall-mounted digital readout. The
digital indicator is AC powered for continual use
and gives you a choice of pound or kilogram
weight readings. The handrail is optional.
Detecto model FH-144-II/CH shown above with handrail and
included model 204FWMP digital weight indicator/printer combo.
MODEL
CAPACITY
PLATFORM SIZE
FH-133-II/C
1,000 lb x 0.2 lb / 450 kg x 0.1 kg
36 in x 36 in / 90 cm x 90 cm
FH-133-II/CH* 1,000 lb x 0.2 lb / 450 kg x 0.1 kg
36 in x 36 in / 90 cm x 90 cm
FH-143-II/C
1,000 lb x 0.2 lb / 450 kg x 0.1 kg
48 in x 36 in / 120 cm x 90 cm
FH-143-II/CH* 1,000 lb x 0.2 lb / 450 kg x 0.1 kg
48 in x 36 in / 120 cm x 90 cm
FH-144-II/C
1,000 lb x 0.2 lb / 450 kg x 0.1 kg
48 in x 48 in / 120 cm x 120 cm
FH-144-II/CH* 1,000 lb x 0.2 lb / 450 kg x 0.1 kg
48 in x 48 in / 120 cm x 120 cm
FH-164-II/C
1,000 lb x 0.2 lb / 450 kg x 0.1 kg
72 in x 48 in / 180 cm x 120 cm
FH-164-II/CH* 1,000 lb x 0.2 lb / 450 kg x 0.1 kg
72 in x 48 in / 180 cm x 120 cm
* H suffix = Handrail comes with these designated models.
The models listed above come with steel frame pit kits
and model 204FWMP digital weight indicator/printer combo.
Please consult factory for pit installations.
Detecto
model FH-164-II/C
accomodates gurneys
PATRIOT
M a d e i n U S A
www.CentralCarolinaScale.com
™
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 28 )
IN-BED SCALES
FOR BED-BOUND PATIENTS
PATRIOT
M a d e i n U S A
Detecto’s
Detecto
IBFL500
(�ts through 36 in /
91 cm doorways)
™
in-bed
scales
feature
flame-
retardant, anti-bacterial 6 ft / 1.8 m long
stretchers which are placed underneath the
patient and hydraulically lifted inches from the
bed for weighing. They feature locking casters,
adjustable weighing arm, and sturdy steel
construction. The model IB800 features base
widening stance for added stability. The ZERO
key allows staff to easily subtract the weight of
bedding for accurate patient measurement. Six
AA alkaline batteries (not included) or optional
AC adapter. Not for transport.
MODEL
CAPACITY
BASE
IBFL500
500 lb x 0.1 lb / 225 kg x 0.1 kg
Fixed
IB800
800 lb x 0.2 lb / 350 kg x 0.1 kg
Adjustable
● Hydraulic lift mechanism eases lifting
● Stretcher carrying strap and “easy stow” hoops
● Under bed clearance: 4.8 in / 12 cm high
● Serial connectivity: EMR / EHR ready
Detecto
IB800
(�ts through 32 in /
81 cm doorways)
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 29 )
PATIENT LIFT SCALES
AND KIT ADAPTERS
FOR USE WITH PATIENT LIFTS
The PL series digital scales can determine the weight
of a person suspended from a portable patient lift
and operates on one 9V battery. The lock-in weight
Detecto
PL400
feature stores the last weight reading when the unit
is turned off, and these scales feature 0.75 in / 19
mm high readouts. Detecto also offers mechanical
patient lift scales with 7 in / 18 cm diameter, single
revolution dial, cast iron housing, and 24.75 in /
63 cm overall height.
PATRIOT
M a d e i n U S A
™
Detecto
11S400H
MODEL
CAPACITY
PL400
400 lb x 0.2 lb / 180 kg x 0.1 kg
PL600
600 lb x 0.2 lb / 270 kg x 0.1 kg
11S400H
400 lb x 1 lb (mechanical dial)
PATIENT LIFT KIT ADAPTERS
MODEL
DESCRIPTION
PL-HLKIT
Connecting link kit connects the Hoyer®
yoke to Detecto’s PL400 or PL600 indicator.
Includes 2 stainless steel links, 2 stainless
steel spacers, 2 stainless steel shoulder
bolts, and 2 elastic stop nuts.
PL-ICKIT
Connecting link kit connects the Invacare®
models RPA600-1, RPL450, or 9805 patient
lifts to Detecto’s PL400 or PL600 indicator.
Includes 2 stainless steel links, 1 stainless
steel PL/lift adapter, 4 stainless steel
shoulder bolts, 4 elastic stop nuts, and 6
stainless steel spacers.
Detecto
PL-HLKIT
Detecto
PL-ICKIT
Hoyer® and Invacare® are trademarks of their respective companies.
Patient lift itself is not included.
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 32 )
DIGITAL BABY
LENGTH MEASURING
DIGITAL SPEED AND ACCURACY
Detecto
DLM
Detecto’s model DLM may be used stand-alone on
an exam table or with Detecto’s model MB130 and
MODEL
MEASUREMENT RANGE
DLM
13¾ in - 31½ in / 35 cm - 80 cm
Readouts in feet/inches, inches, and
centimeters
MB150 pediatric scales. The lightweight design
and battery power make it ideal for easy transport
from one patient room to another. Dimensions:
11.4 in W x 2.7 in H x 24.4 in L / 29 cm W x 7 cm
H x 62 cm L. Graduations: 1/16 in / 1 mm.
● Two 1.5V AAA batteries included
● HOLD feature retains measurement
● Bold LCD with convenient units switching
Detecto
MB130 with DLM
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 33 )
DIGITAL BABY /
STAND-ON SCALES
BABY / TODDLER SCALE
With dual graduation ranging from
neonatal to pediatric care (accurate to 5 grams),
Detecto’s MB130 features a removable baby tray
which automatically converts the scale into a lowprofile step-on toddler scale with a capacity of up
to 20 kilograms / 40 pounds. One 9V Alkaline
battery (not included) or AC adapter (included).
Detecto
MB130
MB130 converts to
stand-on toddler scale
MODEL
CAPACITY / DESCRIPTION
MB130
0 - 10 kg x 5 g / 0 - 20 lb x 0.01 lb
10 - 20 kg x 10 g / 20 - 40 lb x 0.02 lb
MB-CASE Carrying case for MB130 / MB150
● 1 in / 25 mm high LCD with 5 active digits
● Attach DLM for digital length measurement
BABY / MOTHER SCALE
Multifunctionality is the key to Detecto’s
MB150. This digital scale features a removable
baby tray and converts into a low-profile step-on
personal scale with a capacity of up to 330 lb /
150 kg at the push of a button. The LCD also flips
the display reading vertically, so it’s viewable from
Detecto
MB150
a standing position looking down.
MODEL
CAPACITY / DESCRIPTION
MB150
Adult: 330 lb x 0.2 lb / 150 kg x 0.1 kg
Baby: 44 lb x 0.02 lb / 20 kg x 0.01 kg
MB-CASE Carrying case for MB130 / MB150
● Body Mass Index calculation
● Attach DLM for digital length measurement
MB150 converts to
stand-on adult scale
Detecto
MB-CASE
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 34 )
Detecto
8440-CASE
DIGITAL BABY /
TODDLER SCALES
ACCURACY TO 1/2 OUNCE
Detecto
8440
Detecto’s 8440 baby scale is perfect for home
health care or wherever space is limited and
performance is paramount. Powered requirements:
MODEL
CAPACITY / DESCRIPTION
8440
44 lb x 1/2 oz / 20 kg x 10 g
8440-CASE
Carrying case for 8440
one 9V Alkaline battery (not included) and one 3V
CR2032 lithium backup-up battery (included) for
memory. Scale dimensions: 13.7 in W x 11 in D x
6.9 in H / 35 cm W x 28 cm D x 18 cm H.
● Date and time display
● Storage of previous weight
● Large 1 in / 25 mm high LCD display
Collapsible baby tray for
standing toddler weighing
and easy storage
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 37 )
SUSPENDED
BABY SCALES
SLING SEAT INCLUDED
Detecto
HS25KGP
Ideal for doctors and nurses working in remote
locations, Detecto’s model HS25KGP Baby Scale
is lightweight and portable without requiring any
battery or AC power. The included waterproof
vinyl weighing trousers are attached to a heavyduty, zinc-plated S-hook providing a comfortable
suspended sling seat for weighing babies
MODEL
CAPACITY
HS25KGP
25 kg x 100 g
● Heavy-duty zinc-plated 4 in /10 cm S-hook
● No power required for operation
● 8 in / 20 cm shatterproof glass dial
● Ultraportable and accurate
NO POWER REQUIRED
The made-in-USA MCS25KGN Suspended Baby
Scale is lightweight and portable. It’s designed to
Detecto
MCS25KGNT
withstand rugged conditions and remain accurate
through years of continuous service. Perfect for
doctors and nurses working in remote locations.
MODEL
CAPACITY / DESCRIPTION
MCS25KGNT 25 kg x 100 g (sling seat included)
MCS25KGN
25 kg x 100 g (no sling seat)
● Heavy-duty zinc-plated 4 in /10 cm S-hook
PATRIOT
M a d e i n U S A
● 8 in / 20 cm shatterproof glass dial
● Ultraportable and accurate
™
● No power required
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 38 )
WET DIAPER SCALES
REMOVABLE WEIGHING TRAYS
PATRIOT
M a d e i n U S A
Detecto
AP-4KD
Detecto
PS5A-2KD
Detecto packs a lot of functionality into these
compact
accurately
™
wet
diaper
measure
scales,
fluid
designed
output.
to
Featur-
MODEL
CAPACITY
ENCLOSURE
AP-4KD
4,000 g x 1 g
stainless steel
PS5A-2KD 70 oz x .1 oz / 1,998 g x 2 g
baked enamel
ing 0.5 inch / 13 mm high LCD, pushbutton
tare, and AC adapter, these scales come with
9 in W x 6 in D x 2 in H / 23 cm W x 15 cm
D x 5 cm H stainless steel trays for easy cleanup, a major consideration in nurseries where
repeated use is the rule. Available with stainless
● AC adapter included with both scales
● Push button tare simplifies weighing
● Stainless steel weighing tray
● Compact size fits in any space
steel (left) or baked enamel (right) enclosure.
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 39 )
AUTOPSY SCALES
STAINLESS STEEL QUALITY
Detecto
T3530
PATRIOT
M a d e i n U S A
Detecto’s T3530 hanging scale comes with a deep
15 in / 38 cm round stainless steel pan and bows.
™
MODEL
CAPACITY
T3530
32 lb - 10 lb x 1 oz
Long term accuracy is guaranteed by Detecto’s use of
Thermolastic springs which are not affected by extreme
temperature variations. An air dashpot that absorbs
shock created when items are placed on the scale
protects the mechanism and increases the scale life.
The extra-large, recessed 14.5 in / 37 cm dial is easily
readable from both sides and is lithographed on metal
● Easy-to-read, oversized 14.5 in / 37 cm dial
● 3.2 revolutions
● 15 in / 38 cm round stainless steel pan
● Air dash pot
● Made-in-USA quality
with chrome-plated sashes and stainless steel bands.
Stainless steel housing and stainless steel pans enhance
the clean, attractive appearance. Removable pan is
easily sterilized.
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 41 )
PORTABLE HOME
HEALTHCARE SCALES
Detecto
DR550C
STAINLESS STEEL PLATFORM
Detecto’s DR550C stainless steel platform scale is battery
powered, so you can take it anywhere needed. The scale
MODEL
CAPACITY
DR550C
550 lb x 0.2 lb / 250 kg x 0.1 kg
features a non-skid mat to enhance patient safety when getting on and off the scale. An optional black carrying case with
● Stainless steel weighing platform
handle protects the scale for transport: DR400C-CASE. Plat-
● 1 in / 25 mm high LCD with 5 active digits
form size: 12 in x 12 in x 2 in H / 35 cm x 35 cm x 5 cm.
● 4 keys - LB/KG, TARE/HOLD, ON, OFF
MOBILE BARIATRIC WEIGHING
● Large weighing platform
● Integral carrying handle
● RS232 serial output
Detecto
DR660
Detecto’s DR660 features a lightweight,
spacious 21.5 in W x 17.2 in D x 1.97 in H /
56 cm W x 44 cm D x 5 cm H weighing platform. The DR660
features a built-in rechargeable battery pack (7.2VDC/
1200mA), which is able to provide 8 hours of continuous use,
MODEL
CAPACITY
DR660
660 lb x 0.5 lb / 300 kg x 0.2 kg
or 120 VAC 60Hz powering a 15 VDC 300mA wall plug-in
UL/CUL listed power supply (included). 1 in / 25 mm high
LCD digits.
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 42 )
PORTABLE HOME
HEALTHCARE SCALES
PATRIOT
M a d e i n U S A
PORTABLE
Detecto
GP-400-758C
Ideal for home healthcare, uses for these lightweight, portable
MODEL
CAPACITY
GP-400-758C
400 lb x 0.2 lb / 200 kg x 0.1 kg
scales are almost limitless. With detachable indicators and
GP-400KGEU
200 kg x 0.1 kg
built-in carrying handles, they go with you anywhere weighing
GP-600-758C
600 lb x 0.2 lb / 270 kg x 0.1 kg
OIML Class III
is needed. Their large, easy-to-clean platforms 18 in W x 14
in D x 2 in H / 46 cm W x 36 cm D x 6 cm H feature a black
● USB, serial, and optional Ethernet ports
non-skid mat. GP-400-758C is NTEP legal for trade.
LOW PROFILE
Detecto
GP-400-750
The perfect scale for those who need a lightweight, portable
MODEL
CAPACITY
GP-400-750
400 lb x 0.2 lb / 200 kg x 0.1 kg
scale. With a built-in carrying handle and compact design,
this scale goes with you anywhere that weighing is needed.
● LOCK/RELEASE key holds weight
Platform size: 18 in W x 14 in D x 2 in H / 46 cm W x 36
● Calculate BMI using arrows keys
cm D x 6 cm H. Powered by 6 AA batteries (not included) or
optional AC adapter. Slip-resistant mat and bubble level.
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
™
( 43 )
Detecto
D350
BATHROOM SCALES
RAISED, EASY-TO-VIEW DIAL
Detecto’s D350 and D350K scales are well-suited
for locker rooms, hotels, fitness clubs, pharmacies,
nutritional counseling centers, offices, and private
households. The powder-coated steel casing is
built to last a lifetime. The spacious tread area on
the weighing platform is covered in easy-to-clean,
black synthetic material for fast wipe-downs.
MODEL
CAPACITY
D350
350 lb x 1 lb / 160 kg x 1 kg
D350K
160 kg x 0.5 kg
● Easy-to-read, large 7 in / 18 cm dial
● 10.6 in x 10.6 in / 27 cm x 27 cm platform
● Adjusting scroll to set zeropoint and balance
WEIGHT TRACKER MARKERS
Detecto
D1130
A low profile design and non-skid vinyl mat are just
a few features of the Detecto D1130 and D1130K
scales - proven performers for budget-minded
customers. They feature a white, baked-enamel
finish and four personal colorful indicators to mark
one person’s or a whole family’s weights.
MODEL
CAPACITY
D1130
300 lb x 1 lb
D1130K
130 kg x 500 g
● Four colorful weight tracker markers
● Easy-to-read, large 7 in / 18 cm dial
● 11.3 in x 11.8 in / 29 cm x 30 cm platform
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 47 )
FOOD SERVICE
SCALES
DIGITAL PORTION CONTROL
● AC or one 9V battery (not included)
● 5-digit 0.8 in / 20 mm high LCD
● Stainless steel enclosure and platform
Detecto
PS-4
MODEL
CAPACITY
PS-4
4 lb x 0.1 oz / 2,000 g x 1 g
Platform size: 5.9 in W x 4.75 in D / 15 cm W x 12
cm D. Overall dimensions: 5.9 in W x 6.7 in D x
1.5 in H / 15 cm W x 17 cm D x 4 cm H.
● Built-in rechargeable battery pack
● 5-digit 0.8 in / 20 mm high LCD
● Plastic enclosure and stainless steel platform
Detecto
PS-7
MODEL
CAPACITY
PS-7
7 lb x 0.1 oz / 112 oz x 0.1 oz /
112 oz x 1/8 oz / 3,000 g x 1 g /
7 lb x 0.005 lb
Platform size: 8 in W x 4.9 in D / 24 cm W x 13
cm D. Overall dimensions: 8 in W x 7.9 in D x 2.4
in H / 20 cm W x 20 cm D x 6 cm H
● NTEP legal for commercial trade
● 5-digit 0.8 in / 20 mm high LED
● Stainless steel enclosure and platform
MODEL
CAPACITY
AP-6
99.95 oz x 0.05 oz
Platform size: 6.8 in W x 5.3 in D / 17 cm W x 13
cm D. Overall dimensions: 7.5 in W x 7 in D x 2.8
Detecto
AP-6
PATRIOT
M a d e i n U S A
in H / 19 cm W x 18 cm W x 7 cm H.
www.CentralCarolinaScale.com
™
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
( 49 )
VETERINARY SCALES
PATRIOT
M a d e i n U S A
™
SMALL ANIMALS
Detecto
VET50
This portable, compact scale with a remote digital display
is the ideal scale for small animals. Its scale base can be
MODEL
CAPACITY
VET50
50 lb x 0.02 lb / 20 kg x 0.01 kg
positioned up to 8 ft / 2.5 m away from the display. The scale
and display are battery powered (6 AA not included) and have
● Stainless steel weighing platform
a power-saving automatic sleep mode. Overall dimensions:
● LOCK key to retain active animal’s weight
12 in W x 14 in D x 3 in H / 31 cm W x 36 cm D x 7 cm H.
● Non-skid rubber mat included
LARGE ANIMALS
Detecto
VET400
The perfect scale for veterinarians, kennels, labs or anyone
handling medium to large size animals. The large, low-profile
platform makes it easy for animals to step onto the floor scale
MODEL
CAPACITY
VET400
400 lb x 0.2 lb / 200 kg x 0.1 kg
VET-MAT
Rubber mat for VET400
without hesitancy. The removable stainless steel platform
makes clean-up fast and easy. The indicator comes with a 8 ft
● 42 in x 22 in / 107 cm x 55 cm platform
/ 2.5 m coiled cable and adjustable mounting bracket.
● 0.75 in / 19 mm high LCD readouts
www.CentralCarolinaScale.com
---
www.Detecto.com
•
(800) 641-2008
•
detecto@cardet.com
---
USA Manufacturer
www.Detecto.com
Detecto Scale reserves the right to improve, enhance or modify features and specifications without prior notice.
© Copyright 2011 Cardinal Scale Mfg. Co. • Printed in USA • MWC/12K/0911/C-188F
www.CentralCarolinaScale.com
