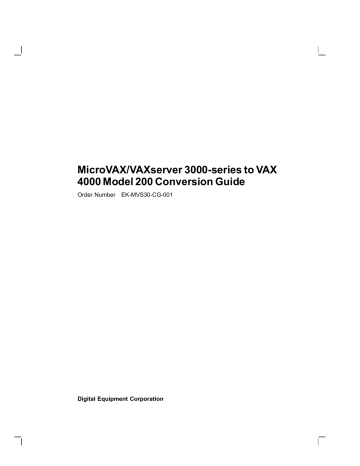

MicroVAX/VAXserver 3000-series to VAX
4000 Model 200 Conversion Guide
Order Number EK-MVS30-CG-001
Digital Equipment Corporation
February 1991
The information in this document is subject to change without notice and should not
be construed as a commitment by Digital Equipment Corporation. Digital Equipment
Corporation assumes no responsibility for any errors that may appear in this document.
The software described in this document is furnished under a license and may be used or
copied only in accordance with the terms of such license.
No responsibility is assumed for the use or reliability of software on equipment that is not
supplied by Digital Equipment Corporation or its affiliated companies.
Restricted Rights: Use, duplication, or disclosure by the U. S. Government is subject to
restrictions as set forth in subparagraph ( c ) ( 1 ) ( ii ) of the Rights in Technical Data and
Computer Software clause at DFARS 252.227–7013.
Copyright © Digital Equipment Corporation 1991
All Rights Reserved.
Printed in U.S.A.
The following are trademarks of Digital Equipment Corporation: DECnet, MicroVAX, VAX,
VAXcluster, VAXserver, VMS, and the DIGITAL logo.
This document was prepared and published by Educational Services Development and
Publishing, Digital Equipment Corporation.
Contents
v
About This Guide
1
1.1
1.2
1.3
1.4
A
A.1
A.2
A.3
VAXserver/MicroVAX 3300/3400 Conversion
Summary of Conversion .
Unpacking the Kit . . . . .
Before Installing the Kit
Installing the Kit . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1–1
1–2
1–5
1–6
Module Return Procedure and Forms
Return Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–1
Digital Forms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–2
Customer Administrative Services (CAS) District Offices . . . A–11
Figures
1–1
1–2
1–3
1–4
1–5
1–6
1–7
Removing Front Panel . . . . . . . . . . . . . . . .
Removing Console Cable . . . . . . . . . . . . . .
Removing CPU I/O Panel . . . . . . . . . . . . . .
Attaching CPU Labels . . . . . . . . . . . . . . . .
Conversion and Serial Label Location . . . .
Label Locations on System Without Panels
Medallion Location . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. 1–6
. 1–7
. 1–8
. 1–9
. 1–10
. 1–11
. 1–12
iii
iv Contents
Tables
1
1–1
1–2
Conversion Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Conversion Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VMS Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
v
1–2
1–5
About This Guide
This guide describes how to convert from a VAXserver 3300/3400 system
to a VAXserver 4000-200 system and from a MicroVAX 3300/3400 system
to a VAX4000-200 system. This guide also contains forms to be returned
with the old system module.
Intended Audience
This document is intended for Digital Customer Services personnel and
licensed self-maintenance customers.
Conversion Kits
Table 1 lists the system (before conversion), conversion kit number, and
the upgrade (after conversion).
Table 1 Conversion Kits
System
Conversion
Kit Number
Upgrade
MicroVAX 3300/3400
660SU–AA
–AB
–AC
–AD
VAX 4000-200
VAXserver 3300/3400
660SU–BA
–BB
–BC
–BD
VAXserver 4000-200
v
vi About This Guide
Customer Responsibilities
Customers should not install this conversion kit unless they are qualified
self-maintenance customers. Only qualified maintenance personnel
should perform the installation procedure. If you are not a qualified
self-maintenance customer, call Digital Customer Services to schedule a
system conversion.
It is the customer’s responsibility to perform a software backup before a
Digital Customer Services representative arrives at your site.
When the conversion is complete, return the old CPU module to Digital.
Appendix A contains forms that need to be completed by the Customer
Services representative. The customer and Digital Customer Services
representative must sign the forms.
Digital Customer Services Responsibilities
The Customer Service Representative should contact the customer to
ensure that the customer’s software is backed up before arriving at the
site.
After installation of the conversion kit, the Customer Services
representative must complete the following forms and remove them from
this document by tearing them along the perforated line. The forms must
be signed by the customer and the Customer Services representative. The
following forms are in Appendix A.
•
Customer Services Worksheet
•
Installation Receipt–Customer Copy
•
Installation Receipt–Customer Services Copy
•
Return Material Checklist
The Customer Services representative should give the customer the
signed Installation Receipt–Customer Copy. The representative should
include the signed Installation Receipt–Customer Services Copy with the
CPU module that is being returned to Digital to ensure the customer
receives credit.
About This Guide vii
Organization
This document contains one chapter and one appendix:
Chapter
Description
1
Describes how to install the conversion kit on a VAXserver 3300
/3400 or MicroVAX 3300/3400 system.
Appendix A
Contains forms for the return of the customer module and a list
of the Customer Administrative Services (CAS) district offices.
Conventions
The following conventions are used in this guide:
Convention
Meaning
CAUTION
Provides information to prevent damage to equipment or
software.
NOTE
Provides general information about the current topic.
Related Document
The following document is a related document:
Documentation
Order Number
KA660 CPU System Maintenance
EK-498AA-MG
1
VAXserver/MicroVAX 3300/3400
Conversion
This chapter describes how to convert from a VAXserver 3300/3400 system
to a VAXserver 4000-200 system, and from a MicroVAX 3300/3400 system
to a VAX4000-200 system.
CAUTION
Memory module MS650-AA will not function with a KA660-XX
CPU module. When a KA640 CPU is removed and the system is
converted to a KA660–XX system:
•
Install an MS650-BA (16-Mbyte) memory or MS650-BB
memory.
1.1 Summary of Conversion
The tasks required to convert from a VAXserver 3300/3400 system to a
VAXserver 4000-200 system and from a MicroVAX 3300/3400 system to a
VAX 4000-200 system, are summarized below.
To begin the conversion, go to Section 1.2.
1. Have the customer back up the system software.
2. Run the diagnostics to verify system operation.
3. Unpack and inventory the conversion kit.
4. Remove the front panel.
5. Remove the CPU I/O cover cables.
6. Remove the CPU I/O cover.
7. Disconnect the CPU module cables.
8. Remove the old CPU module.
9. Install the new KA660–AA/BA (M7626) CPU module.
1–1
1–2 VAXserver/MicroVAX 3300/3400 Conversion
10. If necessary, upgrade the old memory module/s to MS650-BA/BB.
11. Connect all cables.
12. Reinstall the CPU I/O panel.
13. Install the new medallion and labels.
14. Replace the front panel.
15. Run the diagnostics to verify system operation.
16. Have the customer verify that the system boots and operates correctly.
17. Complete the forms in Appendix A.
1.2 Unpacking the Kit
1. Make sure there is no external damage on the shipping container,
such as dents, holes, or crushed corners.
2. Unpack the conversion kit and check its contents against the shipping
invoice.
CAUTION
Modules can be damaged by static discharge if an antistatic
wrist strap and antistatic mat are not used during handling.
The wrist strap and mat are in the antistatic kit in the
Customer Services toolkit.
Table 1–1 lists the kit contents.
Table 1–1 Conversion Kit Contents
Description
Kit Variations
AA
AB
AC
AD
BA
BB
BC
BD
Server CPU module
(P/N: M7626-BA)
–
–
–
–
X
X
X
X
Server CPU module label
(P/N: 36-26883-A7)
–
–
–
–
X
X
X
X
VAX CPU module
(P/N: M7626-AA)
X
X
X
X
–
–
–
–
The (X) in the column represents parts that are included in the kit. The dash (–) represents
parts that are not included in the kit.
VAXserver/MicroVAX 3300/3400 Conversion 1–3
Table 1–1 (Cont.) Conversion Kit Contents
Description
Kit Variations
AA
AB
AC
AD
BA
BB
BC
BD
VAX CPU module label
(P/N: 36-26883-A6)
X
X
X
X
–
–
–
–
Conversion label
(P/N: 36-15946-00)
X
X
X
X
X
X
X
X
VAX 4000-200 (BA213)
(P/N: 74-34425-46)
–
X
–
X
–
–
–
–
VAXserver 4000-200 (BA213)
(P/N: 74-34425-48)
–
–
–
–
–
X
–
X
VAX 4000-200 (BA215)
(P/N: 74-36884–09)
X
–
X
–
–
–
–
–
VAXserver 4000-200 (BA215)
(P/N: 74-36884-13)
–
–
–
–
X
–
X
–
Memory module
(P/N: MS650-BB)
–
–
X
X
–
–
X
X
Memory module label
(MS650-BB) (P/N: 36-26883B8)
–
–
X
X
–
–
X
X
VAX 4000-200 bill board
label (BA213)
(P/N: 36-27354-39)
–
X
–
X
–
–
–
–
VAXserver 4000-200 bill
board label (BA213)
( P/N: 36-27354-43)
–
–
–
–
–
X
-
X
VAX 4000-200 bill board
label (BA215)
(P/N: 36-29304-08)
X
–
X
–
–
–
–
–
VAXserver 4000-200 bill
board label (BA215)
( P/N: 36-29304-10)
–
–
–
–
X
–
X
–
The (X) in the column represents parts that are included in the kit. The dash (–) represents
parts that are not included in the kit.
1–4 VAXserver/MicroVAX 3300/3400 Conversion
Table 1–1 (Cont.) Conversion Kit Contents
Description
Kit Variations
AA
AB
AC
AD
BA
BB
BC
BD
BA213-series serial label
(P/N: 36-27838-55)
–
X
–
X
–
X
–
X
BA215-series serial label
(P/N: 36-29305-09)
X
–
X
–
X
–
X
–
Conversion Guide
(P/N: EK-MVS30-CG)
X
X
X
X
X
X
X
X
VAX 4000-200 Customer
Hardware Information Kit
(P/N: QZ-K25AA-GZ)
–
X
–
X
–
X
–
X
VAX 4000-200 Hardware
Information Kit
(P/N: QZ-K25AB-GZ)
X
–
X
–
X
–
X
–
The (X) in the column represents parts that are included in the kit. The dash (–) represents
parts that are not included in the kit.
Table 1–2 lists the VMS licenses included with the kit.
VAXserver/MicroVAX 3300/3400 Conversion 1–5
Table 1–2 VMS Licenses
Description
Variation
AA
AB
AC
AD
BA
BB
BC
BD
VMS 1-20 user
(P/N: QL-001AS-BJ)
X
X
X
X
–
–
–
–
DECnet VAX END NODE
(P/N: QL-D04AS-AA)
X
X
X
X
–
–
–
–
VMS file and application
server
(P/N: QL-001AC-BA)
–
–
–
–
X
X
X
X
DECnet VAX F/F
(P/N: QL-D05AC-AA)
–
–
–
–
X
X
X
X
VAXcluster
(P/N: QL-VBRA2-AA)
–
–
–
–
X
X
X
X
VMS /UX connect
(P/N: QL-VHRA9-JB)
–
–
–
–
X
X
X
X
The (X) in the column represents parts that are included in the kit. The dash (–) represents
parts that are not included in the kit.
3. Unpack the CPU module and place it on a grounded antistatic mat.
4. Save the packing material for when you return the old module.
5. If any item is missing or damaged:
•
Contact the customer’s sales representative.
•
Contact the customer’s delivery agent.
1.3 Before Installing the Kit
1. Have the customer back up the system software before Customer
Services arrives. It is the customer’s responsibility to back up the
system software.
2. Power up the system and run diagnostics to verify system operation.
3. Turn off the system power before installing the kit.
1–6 VAXserver/MicroVAX 3300/3400 Conversion
1.4 Installing the Kit
To install the conversion kit:
1. Turn the key switch to the bottom position and lower the access door.
2. Remove the front panel as shown in Figure 1–1.
2
Lift and
Remove Panel
1
Latch
MLO-002609
Figure 1–1
Removing Front Panel
3. If the console cable is present, remove the console cable as shown in
Figure 1–2.
4. If the Ethernet cable is present, remove the Ethernet cable from the
I/O panel.
CAUTION
Use the antistatic wrist strap and the antistatic mat when
working with the modules.
VAXserver/MicroVAX 3300/3400 Conversion 1–7
Console
Cable
Locking Tab
Squeeze Locking Tab
and Pull From Jack
MLO-002610
Figure 1–2
Removing Console Cable
5. Remove the CPU I/O panel as shown in Figure 1–3.
1–8 VAXserver/MicroVAX 3300/3400 Conversion
To Release: Push In and Turn
Counterclockwise 1/4-Turn
To Fasten: Push In and Turn
Clockwise 1/4-Turn
Attach Antistatic
Wrist Strap to
System Chassis
MLO-002615
Figure 1–3
Removing CPU I/O Panel
6. Disconnect the CPU module cables.
7. Remove the old CPU module from slot 1.
8. Install the new KA660–AA/BA CPU module in slot 1.
NOTE
If there are any MS650-AA memory modules installed in the
system, you must remove the modules from the system and
install either the MS650-BA or MS650-BB memory module(s).
A 3-connector memory cable is provided in the memory kit for
a 2-memory module connection.
9. Remove the 50-pin daisy-chain memory cable that connects the
memory modules to the CPU module, if applicable.
10. Install the new memory modules, if applicable.
11. Reconnect the memory modules and DSSI cables to the CPU module.
VAXserver/MicroVAX 3300/3400 Conversion 1–9
12. Connect the new CPU I/O panel over slots 1 and 2.
13. Attach the new CPU labels to the CPU I/O panel as shown in
Figure 1–4.
MS650
BA/BB
M7622
BA/BB
MS650
BA/BB
MS640
AA/BA
M7622
-AA
M7626
KA660
AA/BA
M7626
MLO-003644
LJ-00537-TI0
Figure 1–4
Attaching CPU Labels
14. Replace the front panel.
15. Power up the system and run the system diagnostics to verify system
operation.
16. Attach the new serial label and logo/model label over the existing
serial label and logo/model labels as shown in Figure 1–5 and
Figure 1–6.
17. Attach the conversion label as shown in Figure 1–5 and Figure 1–6.
1–10 VAXserver/MicroVAX 3300/3400 Conversion
220-240
4.7
Hz
W
50-60
670
Made in U.S.A.
Fabrique aux Etats-Unis
708A
Listed
E.O.P. Equip.
Also classified by Underwriters
Laboratories Inc. in accordance with
IEC Publications 435 and 380.
This epuipment complies with the requirements in Part 15 of FCC Rules for a Class A computing device.
Operation of this equipment in a residential area may cause unacceptable interference to Radio and TV
reception requiring the operator to take whatever steps are necessary to correct the interference.
FTZ C-386/87
C83/7/903A
DEC
36-27838-02-F01
Series BA213 CPU MOD
Model
SN
V
A
Conversion
Label
Product Conversion Label
From:
To:
By:
Date:
36-15846-01-C1
Existing
Serial Label
MLO-002613
LJ-00573-TI0
Figure 1–5
Conversion and Serial Label Location
VAXserver/MicroVAX 3300/3400 Conversion 1–11
MicroVAX 3400
Existing
Logo/Model
Label
From:
To:
By:
Date:
36-15846-01-C1
Product Conversion Label
Conversion
Label
Figure 1–6
MLO-003960
LJ-00531-TI0
Label Locations on System Without Panels
18. Remove the old medallion, using a flat-blade screwdriver to lift it off
the front panel.
19. Attach the new medallion as shown in Figure 1–7.
1–12 VAXserver/MicroVAX 3300/3400 Conversion
VAXserver 4000-200
VAX 4000-200
MLO-002614
LJ-00486-TI0
Figure 1–7
Medallion Location
20. Have the customer reinstall the system backup data.
21. Fill out the forms in Appendix A.
A
Module Return Procedure and Forms
Return of the old CPU modules to Digital is required. Customer Services
personnel must ensure that the instructions to repackage and return the
old CPU module to Digital are followed. The instructions apply only to
U.S. area installations.
For installations outside the U.S. area, contact the local Digital office for
return destination instructions.
A.1 Return Procedure
The conversion agreement with Digital is not complete untl you take the
following steps.
1. Obtain the serial number of the system being upgraded. (Customer
Administrative Services (CAS) cannot process the order without this
serial number.)
2. Ensure that the serial number is on the Purchase Order.
3. Issue a hardcopy quotation to the customer, referencing the serial
number, and state the following:
"Return of the replaced modules to Digital is a condition of sale
for this upgrade. Failure to return the modules will result in a
penalty charge. Installation of hardware by Digital Customer
Services personnel is required."
4. Pack the old modules using the packaging material set aside from the
carton of the conversion kit (quad-height module box).
Pack the modules first in the nickel-plated bag, then in the pink
plastic wrapping, and finally in the box.
5. Complete the Customer Services Worksheet in Section A.2. It
documents the work you performed.
Return the worksheet to your contract administrator at the branch
office.
A–1
A–2 Module Return Procedure and Forms
6. Contact your local Digital Customer Administrative Services (CAS)
office to obtain information for the Installation Receipt and the Return
Material Checklist in Section A.2. Section A.3 lists the CAS district
offices and their phone numbers.
Ask the CAS representative for a return authorization (RA) number.
CAS will contact the customer to arrange for carrier pickup and
return of the module to Digital.
7. Complete both copies of the Installation Receipt.
The Installation Receipt–Customer Copy is the customer’s receipt. It
shows that the installation was completed and that Customer Services
contacted CAS.
Return the Installation Receipt–Customer Services Copy to Customer
Services along with the old modules to ensure that the customer does
not incur a penalty charge.
8. Complete the Return Material Checklist.
Return the checklist with the old modules.
9. Place the self-adhesive mailing label on the module box you are
returning.
Write the return authorization (RA) number in the space provided on
the label.
10. Seal the box for shipment.
Refer questions regarding the return procedure to the local account
representative.
NOTE
A nonreturn charge will be assessed to customers who do not
return their old CPU modules.
A.2 Digital Forms
This section contains the:
•
Customer Services Worksheet
•
Installation Receipt–Customer Copy
•
Installation Receipt–Customer Services Copy
•
Return Material Checklist
Module Return Procedure and Forms A–3
Customer Services Worksheet
This form acts as a verification of the work performed on the system and
as a check on the procedures used. Please fill out this form and return it
to your Contract Administrator for updating the customer’s contract.
Customer:
System Serial Number:
Old System Model Number:
Old CPU Module Serial Number:
New System Name:
New System Model Number:
New CPU Module Serial Number:
Module Return Procedure and Forms A–5
Installation Receipt—Customer Copy
For VAX 4000-200, and VAXserver 4000-200 system conversions.
This form acts as a customer receipt and as verification for Customer
Services that the 660SU–XX conversion kit was installed.
Customer
Services:
Complete both copies of this form. Then, give a copy to the
customer and a copy to the local CAS office for filing with
customer documents.
Customer:
Digital will contact you within the next several days to arrange
for package pickup and return. Keep this copy as your record of
installation by Digital.
NOTE
Contact the local CAS office to obtain the RA (return
authorization) number. See Section A.3 for the closest CAS office.
You should have the Digital order number available. Be sure to
note the name of the person you speak with.
Name of CAS representative:
Branch Office:
pickup and return.
, will arrange for package
Return Authorization (RA) Number:
Digital Order Number:
Old CPU Module Serial Number:
Converted to:
New CPU Module Serial Number:
Installation was performed on this date:
Module Packed for Return:
Customer Name:
Phone Number:
Customer Signature:
Customer Services Representative Signature:
Module Return Procedure and Forms A–7
Installation Receipt—Customer Services Copy
For VAX 4000-200, and VAXserver 4000-200 system conversions.
This form acts as a customer receipt and as verification for Customer
Services that the 660SU–XX conversion kit was installed.
Customer
Services:
Complete both copies of this form. Then, give a copy to the
customer and a copy to the local CAS office for filing with
customer documents.
Customer:
Digital will contact you within the next several days to arrange
for package pickup and return. Keep this copy as your record of
installation by Digital.
NOTE
Contact the local CAS office to obtain the RA (return
authorization) number. See Section A.3 for the closest CAS office.
You should have the Digital order number available. Be sure to
note the name of the person you speak with.
Name of CAS representative:
Branch Office:
pickup and return.
, will arrange for package
Return Authorization (RA) Number:
Digital Order Number:
Old CPU Module Serial Number:
Converted to:
New CPU Module Serial Number:
Installation was performed on this date:
Module Packed for Return:
Customer Name:
Phone Number:
Customer Signature:
Customer Services Representative Signature:
Module Return Procedure and Forms A–9
Return Material Checklist
For VAX 4000-200, VAXserver 4000-200, and VAX 4000-300 system
conversions.
This form must be filled out and returned with the old modules to ensure
that the customer does not incur a penalty charge.
Return Authorization (RA) Number:
Digital Order Number:
Customer Name:
Customer Address:
Customer Contact:
********* Include this form with your module return*********
Module Return Procedure and Forms A–11
A.3 Customer Administrative Services (CAS)
District Offices
Name, Location
Phone Number
Allegheny District, Pittsburgh
(412) 244–7410
Carolinas District, Columbia
(803) 798–6477
Chicago District, Chicago
(312) 806–2478
Connecticut District, Meriden
(203) 634–5325
CSS District, Nashua
(603) 884–6549
DECdirect District, Nashua
(603) 884–9115
Florida District, Tampa
(813) 882–6822
Greater Boston District, Waltham
(617) 895–5455
Great Lakes District, Detroit
(313) 344–2285
Los Angeles District, Culver City
(213) 417–4232
Midsouth District, Memphis
(901) 761–6712
New England District, Bedford
(603) 472–6061
New Jersey Commercial District,
Piscataway
(201) 562–4728
New Jersey Financial District, New York
(212) 714–2648
New York Financial District, New York
(212) 714–2648
New York Suburban District, Tarrytown
(914) 524–5284
North Central District, Minneapolis
(612) 851–2225
North Texas/Oklahoma District, Dallas
(214) 404–6135
Northwest District, Bellevue
(206) 462–2540
Ohio Valley District, Cincinnati
(513) 984–7739
Philadelphia District, Blue Bell
(215) 834–4115
Rocky Mountain District, Englewood
(303) 649–3073
Santa Clara District, Santa Clara
(408) 496–4274
Southeast District, Atlanta
(404) 257–2282
Southern California District, Costa Mesa
(714) 850–7606
South Texas District, Houston
(713) 953–3918
A–12 Module Return Procedure and Forms
Name, Location
Phone Number
Southwest District, Tempe
(602) 894–4747
Upstate New York District, Rochester
(716) 385–7152
U.S. Distribution/Sales District, Marlboro
(508) 480–4259
Virginia District, Landover
(301) 306–2566
Washington DC District, Landover
(301) 459–2890
Washington DC District, FDA Landover
(301) 459–2292
Download PDF
Similar pages
MicroVAX/VAXserver 3000-series to VAX 4000 Model 200 Conversion Guide Order Number EK-MVS30-CG-001
Getting Your Multifunction Back On Your Network PIXMA MX532
Installing Your Multifunction to Your Network for the First Time PIXMA MX532
VAX 4000 Model 200 (BA215) Installation Checklist EK–V400R–IN–002 June 1991
Agilent 34946A-34947A Microwave Switch/Driver Modules *34980-90046*
Installing Your Multifunction to additional computers on the network PIXMA MX532
34946A and 34947A Microwave Switch/Driver Modules
Getting Your Multifunction Back On Your Network PIXMA MX532
Vax V-116 SERIES Technical data
Installing Your Multifunction to additional computers on the network PIXMA MX532 Mac OS
VAX 4000 Model 200 (BA215) Installation Order Number EK–432AB–IN–002 Digital Equipment Corporation
VAX 4000 Model 200 (BA430) Installation Order Number EK–436AB–IN–002 Digital Equipment Corporation
VAX 4000 (BA440-Based) Systems DSSI Upgrade Installation Guide Order Number: EK–VV4SY–IG. B01
VAXserver/VAX 4000-series System Conversion Guide Order Number: EK-VM430-CG. C01 October 1992
KA660 CPU Module Technical Manual Digital Equipment Corporation Order Number: EK-KA660-TM-001
_ FCO DSRVD-O001 (DAS), DECserver 90L errors & slow echoing... ______________________________________________________________________________
BA200 to BA400 Series Enclosures Storage Device Conversion Procedure Digital Equipment Corporation
Vax 4000 Model 200 Technical data
5D353 CSA1-DSPP PROGRAM 05/23/2005 1
2120 Series
Vax 4000 Model 200 Technical information
Clevo M740TU Laptop User Manual
