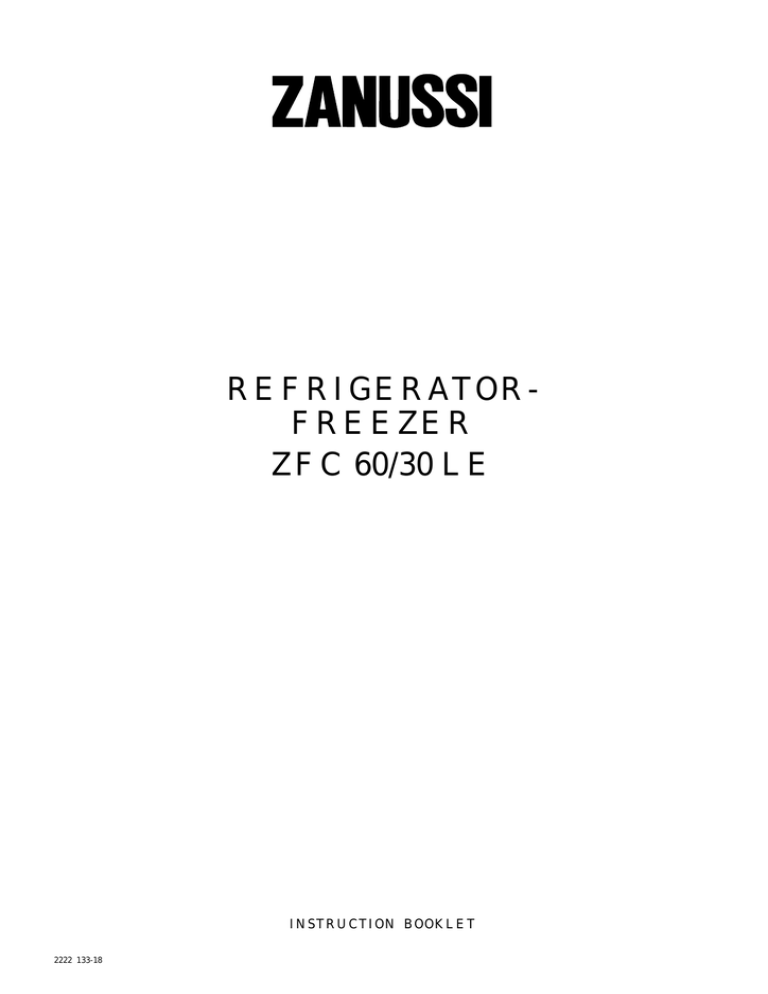

REFRIGERATOR-

FREEZER

ZFC 60/30 LE

2222 133-18

INSTRUCTION BOOKLET

CONTENTS

Warnings

Conservation

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

Installation .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

Positioning .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

Before using .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

Rear spacers .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

The electrical connections .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

Door reversibility

Your appliance

Operation

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

Control panel, Starting your appliance, Setting the temperature .

.

.

.

.

.

.

.

.

.

.

.

.page

Ambient temperature switch .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

The freezer compartment .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

Freezing fresh food .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

9

Thawing, Making ice cubes, Cold accumulator .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

10

9

9

9

9

7

8

5

6

5

5

3

4

5

Health and safety guidelines .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

11

Fresh food refrigeration .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

12

Dual purpose meat box .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

12

Positioning the door shelves .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

12

Drink dispenser.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

13

Use and features of the «CRISP’N FRESH» filter .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

13

Cleaning the filter .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

13

Cool check temperature guide .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

14

Starting the appliance .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

14

Everyday use of the cool check temperature guide .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

14

Defrosting .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

15

Maintenance and cleaning .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

16

Internal cleaning, external cleaning .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

16

When the appliance is not in use, changing the light bulb .

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

16

What happens if something goes wrong ?

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

17

Guarantee conditions .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.page

18

TECHNICAL SPECIFICATIONS

DIMENSIONS Height

Width

Depth

POWER SUPPLY VOLTAGE AND FREQUENCY

165 cm

59.5 cm

60 cm

220-240 V / 50 Hz

TOTAL POWER ABSORBED

AVERAGE DAILY UNITS ELECTRICITY*

GROSS CAPACITY Fridge

Freezer

NET CAPACITY Fridge

Freezer

STAR RATING

100 W

0.87 kWh

174 l

88 l

170 l

77 l

* This figure is based on standard test results in accordance with European Standard EN153. Actual consumption will depend on how the appliance is used and where it is located.

2

WARNINGS

IT IS MOST IMPORTANT THAT THIS INSTRUCTION

BOOK SHOULD BE RETAINED WITH THE APPLIANCE

FOR FUTURE REFERENCE. SHOULD THE APPLIANCE

BE SOLD OR TRANSFERRED TO ANOTHER OWNER, OR

SHOULD YOU MOVE HOUSE AND LEAVE THE

APPLIANCE, ALWAYS ENSURE THAT THE BOOK IS

SUPPLIED WITH THE APPLIANCE IN ORDER THAT

THE NEW OWNER CAN GET TO KNOW THE

FUNCTIONING OF THE APPLIANCE AND THE

RELEVANT WARNINGS.

THESE WARNINGS ARE PROVIDED IN THE INTEREST

OF SAFETY. YOU MUST READ THEM CAREFULLY

BEFORE INSTALLING OR USING THE APPLIANCE.

“ This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.

“ Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

“ This product should be serviced by an authorised

ZANUSSI Service Centre, and only genuine spare parts should be used.

“ It is dangerous to alter the specifications or modify this product in any way.

“ Care must be taken to ensure that the appliance does not stand on the electrical supply cable.

“ ZANUSSI domestic refrigerators, freezers and fridge/freezers are designed to be used specifically for the storage of edible foodstuffs only.

“ There are working parts in this product which heat up. Always ensure that there is adequate ventilation as a failure to do this will result in possible food loss. See installation instructions.

“ Parts which heat up should not be exposed.

Wherever possible, the back of the appliance should be close to a wall but leaving the required distance for ventilation as stated in the installation instructions.

“ Before defrosting, cleaning or maintenance work is carried out, be sure to switch off the appliance and unplug it.

“ Frozen food must NOT be re-frozen once it has thawed out.

“ Do not place carbonated or fizzy drinks in the freezer as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

“ The cooling plate or refrigerated freezer shelves in this appliance contain channels through which the refrigerant passes. If these are punctured this would cause substantial damage to the appliance and result in food loss. DO NOT USE

SHARP INSTRUMENTS to scrape off frost or ice. Under NO circumstances should solid ice be forced off the lining or shelves. Solid ice should be allowed to thaw, when defrosting the appliance.

See Defrost instructions.

“ The appliance should be left for 2 hours after installation before it is turned on in order to allow the refrigerant to settle.

“ This appliance is heavy. Care should be taken when moving it.

“ Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or “frost/freezer burns”.

“ Ice lollies can cause “frost/freezer burns” if consumed straight from the freezer.

“ Manufacturers’ storage recommendations should be strictly adhered to. Refer to relevant instructions.

“ Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Refer to your local

ZANUSSI Service Centre and always insist on genuine spare parts.

3

08/96

2222 133-18

4

CONSERVATION

In the interests of the Environment:

When disposing of your old fridge, freezer or fridge/freezer.

Help to keep your country tidy – use authorised disposal sites for your old appliances.

For maximum efficiency:

Make sure that the appliance is cleaned properly.

Make sure that the door is closed properly.

Do not position the appliance near to sources of heat.

Do not over-fill your appliance, air MUST be allowed to circulate.

INSTALLATION

Warning

IF YOU ARE DISCARDING AN OLD

APPLIANCE THAT HAS A LOCK OR CATCH

ON THE DOOR, YOU MUST ENSURE THAT IT

IS MADE UNUSABLE TO PREVENT YOUNG

CHILDREN BEING TRAPPED INSIDE.

Depending upon the position which you choose for your appliance, you may wish to reverse the way in which the door opens. To do this, refer to instructions on “Door reversal directions” paragraph.

Positioning

This appliance is designed to operate in ambient temperatures between 10

°

C (50

°

F) and 32

°

C (90

°

F).

It should be located in a dry atmosphere, out of direct sunlight and away from extreme temperature e.g. not next to a cooker or other sources of direct heat, or in a very cold room e.g. an outhouse, where the temperatures may fall below

10

°

C (50

°

F). If these temperatures are exceeded i.e. colder or warmer, then the appliance may not operate correctly.

You should also ensure that air can circulate freely around the back and the top of the cabinet. There must also be at least 100 mm (4”) distance between the top of the cabinet and any overhanging kitchen furniture (Fig. 1-A). Ideally, the appliance should not be positioned beneath overhanging furniture

(Fig. 1-B).

Fig. 1

Adjust the level of the appliance by screwing out the adjustable foot, or feet, at the bottom of the cabinet using your fingers or a spanner (see Fig. 2).

Fig. 2

D200

Before using

Remove all securing tapes. Wash inside the appliance with lukewarm water and bicarbonate of soda (5 ml to 0.5 litre of water). Do not use soap or detergent as the smell may linger. Dry thoroughly.

Rear spacers

In the bag with the documentation, there are two spacers which must be fitted as shown in the figure.

Slacken the screws and insert the spacer under the screw head, then re-tighten the screws.

Fig. 2a

A B

NP002

There should also be a gap of 25 mm either side of the appliance. Do not obstruct the space underneath. The back of the cabinet may be placed close to the wall but must not touch it. DO NOT install in places with restricted ventilation.

PR153

5

THE ELECTRICAL CONNECTIONS

WARNING: THIS APPLIANCE MUST BE EARTHED.

The manufacturer declines any liability should this safety measure not be observed.

If the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off and the appropriate plug fitted.

Remove the fuse from the cut off plug.

The cut off plug should then be disposed of to prevent the hazard of shocks in case it should be plugged into a 13amp socket in another part of your home.

Important

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow

Blue

Brown

- Earth

- Neutral

- Live

If you fit your own plug, the colours of the wires in the mains lead of your appliance may not correspond with the markings identifying the terminals in your plug, proceed as follows:

Fig. 3

GREEN & YELLOW

13 AMP. FUSE

A replacement cover/carrier must be obtained from your local Zanussi Service Force Centre whose address is listed in the Customer Care Booklet which accompanies your instruction manual.

This appliance complies with the E.E.C. Directive No. 87/308 of 2.6.87 relative to radio interference suppression.

-

-

This appliance complies with the following

E.E.C. Directives:

73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;

89/336 EEC of 3.5.89 (Electromagnetic

Compatibility Directive) and subsequent modifications.

Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.

BROWN

BLUE

CORD CLAMP

D207

Connect the Green and Yellow (earth) wire to the terminal in the plug which is marked with the letter

«E» or the earth symbol , or coloured green and yellow.

Connect the blue (neutral) wire to the terminal in the plug which is marked with the letter «N» or coloured black.

Connect the brown (live) wire to the terminal in the plug which is marked with the letter «L» or coloured red.

The plug moulded onto the lead incorporates a fuse.

For replacement, use a 13amp BSI362 fuse. Only

ASTA or BSI approved fuses should be used.

The plug must not be used if the fuse cover/carrier is lost. The cover/carrier is indicated by the coloured insert at the base of the plug.

6

DOOR REVERSIBILITY

Unplug the appliance from the power supply before carrying out the below-mentioned operations.

Remove the ventilation grill (D).

Unscrew the bottom hinge (E).

Remove the freezer door by releasing it from the middle hinge (H).

Unscrew the middle hinge.

Remove the fridge door by releasing it from the top hinge pin (A).

Remove the pin and the washer (A+B) from the top hinge (C), then mount these on the opposite side, after having removed the plugs which must be refitted on the other side.

Refit the fridge door.

Replace the middle hinge to the left hand side.

Replace the freezer door.

Screw down the bottom hinge (E) on the opposite side by using the screws previously removed.

Remove the plug (F) from the ventilation grill (D) and replace it on the opposite side.

Re-assemble the ventilation grill (D).

The doors can be aligned by adjusting both the middle and top hinges.

The middle hinge can be adjusted horizontally, with the help of a tool, after having slackened the two screws.

The top hinge is adjusted by slackening the nut with a 10 mm spanner and then proceeding as shown in the Figure.

Warning:

After having reversed the opening direction of the doors check that all the screws are properly tightened and that the magnetic seal adheres to the cabinet.

If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket or accelerate this process by heating up the part involved with a normal hairdrier.

D427

D419

F

D640

F

D

H

E

F

F

C

B

A

Fig. 4

Fig. 4a

Fig. 4b

Fig. 4c

D405

7

YOUR APPLIANCE

M

L

K

J

I

H

G

FAST FREEZE

3

6

9

12

A Controls

B Dairy compartment with egg trays

C Drink dispenser

D Can storage shelf

E Bottle storage shelf

F Freezer calender (recommended storage times for frozen foods) and produce storage card (write on / wipe off card for recording what has been stored in the freezer and when)

G Storing frozen food

H - Freezing fresh foods

I Salad drawers

J Glass shelf (for storing fresh meat) with crisp’n fresh filter

K Meat box

L Storage shelves

M - Cool check temperature guide

8

D

E

F

A

B

C

OPERATION

Control panel

3

4

A

A . Pilot light for ambient temperature switch

B . Ambient temperature switch

B

C . Thermostat knob

D . Operating pilot light

C D

Starting your appliance

Insert the plug into the wall socket.

The thermostat switch (C) will be pre-set and the operating pilot light (D) will illuminate.

If the thermostat switch is in the OFF ( O ) position, use a coin to turn the switch to between position 3 and 4 and the operating pilot light will illuminate.

Setting the temperature

The temperature inside the refrigerator and freezer is regulated by a single thermostat with 6 temperature positions and one «OFF» ( O) position.

Position 1 = minimum cold

Position 6 = maximum cold

Turn the thermostat dial to the required position; the intermediate position is usually the most suitable .

The thermostat setting can vary as the temperature inside the refrigerator compartment depends on the following factors:

– room temperature

– how often the door is opened

– how much food is stored

– position of the appliance

Important

If the refrigerator is not defrosting correctly, it is possible that because a very low temperature has been selected and the motor is working continuously, which prevents the defrost cycle from operating.

To ensure correct defrosting, a lower number should be selected on the thermostat and you should notice that the motor cuts out from time to time, which is correct.

If you wish to return to a lower temperature, turn the thermostat to a higher number, however you should turn the setting lower occasionally to allow automatic defrosting.

Ambient temperature switch

With a room temperature below +16

°

C the refrigerator compartment may not function correctly. If the room temperature is lower than

+16

°

C it will be necessary to turn knob (B) to the

« I » position. The relevant pilot light (A) comes on.

The freezer compartment

The four-star freezer compartment is suitable for storage of commercially frozen food and for freezing fresh foods.

Freezing fresh food

It is not necessary to adjust the thermostat setting when freezing fresh food.

In any 24 hours you can freeze up to 10 kg.

Place food to be frozen in the upper drawer of the freezer (H) as this is the coldest part.

Caution

In the event of a power cut the food in the freezer will not be affected if the power cut is short and if the freezer is full. Do not open the door. Should the food begin to thaw, it must be consumed quickly and must not be re-frozen.

9

Thawing

Food can be thawed in a number of ways, depending on the type of food and the size of the packs.

Meat, fish and fruit should be thawed in the refrigerator compartment and small pieces of meat or poultry can even be cooked while still frozen, but you must ensure that it is thoroughly cooked through.

Vegetables should be directly immersed in boiling water; ready-cooked dishes can be placed directly in the oven in their aluminium wrapping.

A microwave oven is particularly suitable for thawing any type of frozen or deep-frozen food: follow the oven instructions, particularly regarding the placement of aluminium wrapping in the oven.

Making ice cubes

The appliance is provided with two plastic ice cube trays.

Fill the trays 3/4 full to allow the ice to expand and place them in one of the freezer drawers.

To turn out the ice cubes simply give the tray a slight twist to release the cubes.

Cold accumulator

The freezer contains one cold accumulator which can be found in one of the freezer drawers. Place the cold accumulator in the FAST FREEZE compartment see Fig. 5. The cold accumulator increases storage times in the event of a power cut or breakdown.

Removal of this unit will increase the capacity of the fast freezing compartment but will reduce storage times in the event of a power cut or breakdown.

Fig. 5

D401

10

HEALTH AND SAFETY GUIDELINES

Because of consumer demand, preservatives have been removed from many pre-prepared foods. This together with the changes in shopping habits to a once-a-week shop, mean that safe handling and storage of food is even more important than ever.

The following tips should help you to ensure that the food in your home is in as perfect condition as possible.

“ Keep the time between buying chilled food and placing it in your fridge as short as possible. Tests showed that the temperature of 1 litre of orange juice rose to 22

°

C in an hour between the supermarket and home. It then took 11 hours to get down to 7

°

C in the refrigerator.

“ Keep the refrigerator door closed as much as possible. Remember that warm air is flowing in as you are deciding what to have for tea!

“ Do not push food together too much, try to allow air to circulate around each item.

“ Cool cooked food as quickly as possible but do

NOT place in the refrigerator or freezer until cool. (Leave food in a place as cool as possible in order that it can then be placed in the refrigerator or freezer as soon as possible).

“ Do NOT mix raw and cooked meat, they must be in separate containers. Take care not to let the meat juices drip onto other food. If the meat does drip, remove everything and clean thoroughly.

“ Do not store food uncovered.

“ The best way to defrost food is to put it in the refrigerator to thaw slowly.

“ Remove suspect food from your refrigerator and clean the interior with a solution of bicarbonate of soda in warm water (5ml to 0.5 litre of water).

“ Never allow spillages to dry and harden.

“ Ensure that food placed in the freezer is dated and labelled and used in date order to ensure that food is consumed at its best.

“ It is important that food is used before its “best before” date.

“ Store eggs in the egg rack provided in the refrigerator door. Discard any broken or chipped eggs.

“ Regularly check the refrigerator door seal to ensure that it is clean and free from bits and pieces.

“ Always wash your hands with soapy water and dry them with a clean towel before handling food.

“ Keep work surfaces clean and avoid cross contamination by not using the same work surface or knife, without washing them thoroughly in between.

“ Use kitchen roll wherever possible for cleaning up food. If you use a dishcloth, be sure to boil it frequently.

“ The fresh foods to be frozen must be fresh and of the best quality.

“ The size of each pack should be small enough to ensure that it is used in one go. Small packs freeze more quickly and uniformly and give better results.

“ Frozen food, once thawed, must not be refrozen.

Lean food keeps better and longer than fatty food, salt reduces the storage time.

“ Wrap the food in polythene or aluminium freezing bags or foil so that they adhere to the food and provide an airtight seal.

“ Packaging which is swollen or has traces of refrozen water droplets on the pack could indicate that the product has not been kept at a suitable temperature and that it may have lost its original quality. Partially thawed food must not be refrozen, it must be consumed within 24 hours.

Never exceed the storage times indicated.

“ Never place hot food, bottles or cans of fizzy drink in the freezer as they may explode. Containers with a lid must not be filled to the brim.

“ Do not open the door or place extra fresh food in the freezer next to food which is already frozen as this could cause the temperature of the frozen food to rise and its quality and storage life to reduce.

11

Fresh food refrigeration

To obtain the best performance, do not store warm food or evaporating liquids in the refrigerator; do cover or wrap the food, particularly if it has a strong flavour.

Do not cover the shelves with any protective material, such as paper, cardboard or plastic, which may obstruct the air circulation through them.

To help you use your refrigerator correctly, here are some more useful hints:

Raw meat (beef, pork, lamb & wild fowl): wrap in polythene bags and place on top of the salad crisper.

Meat can only be stored safely in this way for one or two days at the most.

Fruit & vegetables: these should be thoroughly cleaned and placed in the bottom salad crispers.

Butter & cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

For better use of space, the front half-shelves can lie over the rear ones (Fig. 6).

Fig. 6

Dual purpose meat box

The meat box can also be used as a salad crisper.

The lid is reversible and when storing meat the

10mm gap allows the meat to breathe.

By reversing the lid the box becomes airtight and can be used as a salad crisper.

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be adjusted in height.

To do this proceed as per Fig. 7.

Fig. 7

D064

The top shelf can be removed for easier cleaning

(see Fig. 8).

Fig. 8

D346

D066

12

Drink dispenser

The container for cooling drinks (Fig. 9) is located in the door of the fridge. It is easily removed from its runners for filling and cleaning by pushing it upwards from the left side and then by pulling sharply outwards. Remove the clip on lid to fill.

Fig. 9

Use and features of the «CRISP’N FRESH» filter

“Crisp’N Fresh” is the glass shelf on top of the salad crispers which is fitted with special removable green filters.

These filters allow cool air from the fridge to circulate through the drawers but help prevent moisture loss. By retaining moisture in foods such as fresh fruit, vegetables and salad they are kept fresher for longer.

Fig. 10

D208

To pour a drink, press a glass upwards against the tap arms. To stop the flow of liquid remove the glass.

Before using the dispenser, we recommend that you rinse it several times with hot water. For a thorough cleaning of the container add a spoonful of bicarbonate of soda to the rinsing water. Push the dispenser tap on and off several times to allow sugar deposits from soft drinks or wines to dissolve, or alternatively remove for cleaning by unscrewing in an anticlockwise direction. Empty the container and rinse thoroughly with clean water.

If using the dispenser to store fresh fruit juice, particular attention should be paid to the manufacturers storage instructions. It is also advisable to clean the dispenser thoroughly between every filling, using a solution of sterilising fluid.

D392

Cleaning the filter

The filter is held by two small support frames which press into position and are therefore easily removed for cleaning. To do this, turn the glass shelf upside down and release the frames as shown in Fig. 11.

The filters and the glass cover can be washed gently in warm soapy water, they should not be put in the dishwasher.

Fig. 11

D003

Replacement filters can be purchased as a spare part from your local Zanussi Service Centre.

13

Cool check temperature guide

This model has a cool check temperature guide fitted to a shelf in the fridge compartment. The guide is designed to show whether the fridge is operating at safe temperatures for all food types.

The guide consists of a temperature sensitive strip sealed in the shelf trim.

When the fridge is operating at the safe temperature to store food, the guide will appear black. If the temperature in the fridges rises the guide will show the words TOO WARM. The temperature in the fridge may rise if the door has just been opened, the fridge has just been loaded with shopping or if the room temperature is higher than normal. See “Everyday use of the temperature guide” for further information.

The shelf with Cool Check temperature guide must be placed in the fridge according to the instructions located on the fridge wall and always ensure the guide is at the front.

When cleaning the shelf take care not to immerse the guide in water and wipe any spills from the holder quickly.

Important

The guide is only suitable for use in the model supplied and accurate temperature guidance cannot be guaranteed if transferred to other appliances.

The guide will not work in the freezer compartment.

Starting the appliance

Check that the shelf with the Cool Check is positioned correctly (as described previously). Close the door and leave the appliance overnight to allow the temperature to reach a safe level.

If after waiting overnight the temperature guide still shows TOO WARM, adjust the thermostat to a higher number, close the door and allow to stand overnight.

A higher thermostat setting may be required to keep the fridge temperature at the safe storage level during warmer weather.

For more information on starting you appliance, see

“Operation”.

Everyday use of the cool check temperature guide

During everyday use a fridge door is opened many times and as a result temperature fluctuation may occur. A Zanussi fridge is designed to cope with any changes in temperature but under certain conditions the temperature guide in the appliance may show TOO WARM.

What to do if the Cool Check temperature guide shows

TOO WARM

The Cool Check guide may show TOO WARM if:

1. The fridge is switched off.

ACTION: Start the appliance in accordance with the instructions.

2. The fridge door has recently been opened or is left open for more than approximately one minute.

ACTION: As mentioned before the temperature guide is sensitive to changes in fridge temperature and opening the fridge door for prolonged periods may cause the guide to show

TOO WARM. This should not cause concern as such fluctuations in temperature do not generally affect the safe storage of food.

Leave the fridge door closed for as long as possible so the temperature returns to a safe level, the guide should then appear black.

3. The fridge has been loaded with fresh shopping.

ACTION: When fresh shopping or additional quantities of food are placed in the fridge, the temperature may rise and cause the guide to show TOO WARM.

Do not adjust the thermostat as the time taken for the guide to appear black will depend on the quantity and the temperature of food introduced.

4. The fridge temperature is above the recommended maximum for the safe storage of all food types.

ACTION: To lower the fridge temperature, adjust the thermostat, then leave the appliance overnight before checking the guide again.

5. If the guide is still showing TOO WARM , adjust the thermostat again, to a colder setting, and leave the appliance overnight before checking the guide again.

14

Defrosting

Refrigerator

The refrigerator automatically defrosts every time the compressor stops. The water is discharged, via the pipe, into a tray located at the back of the appliance above the compressor, where it evaporates.

Important

To avoid defrost water overflowing into the fridge, periodically clean the water discharge hole in the centre of the V shaped drip collector at the back of the refrigerator compartment behind the fruit and vegetable drawer. Use the defrost cleaner provided which you will find already inserted into the discharge hole (Fig. 12).

Fig. 12

– Replace the scraper in one of the drawers.

– Reconnect the appliance to the mains or reset the thermostat.

After letting the appliance run for at least half an hour, replace the previously removed food into the compartments.

Fig. 13

D037

Remember to wash the defrost cleaner in hot soapy water at regular intervals. Dry thoroughly before replacing.

Freezer

When the frost has reached a thickness of up to

4mm it can be removed using the ice scraper provided with the appliance. During this operation it is not necessary to disconnect the appliance from the mains and remove the food. Never use metal tools for this operation.

For complete defrosting (once or twice a year) proceed as follows:

– turn the thermostat dial to the «OFF» position

( O) or disconnect the appliance from the mains.

– Remove any food from inside the freezer and fridge, wrap it in several sheets of newspaper and store in a cool, dry place.

– Leave the door open and insert the ice scraper under the channel in the centre of the lower part of the appliance, place a low-sided container beneath the scraper to collect the water (Fig. 13).

– Clean and dry thoroughly.

D068

Important

When defrosting the freezer, the fridge is also controlled by the thermostat and will not be operational during this period.

A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

Attention!

«In the event of a power failure causing the temperature within your freezer to rise, do not re-freeze the food without checking its condition. The following guidelines should assist you.»

Ice-cream: once thawed should be discarded.

Fruits & Vegetables: if soft should be cooked and used up.

Breads & Cakes: can be re-frozen without danger.

Shellfish: should be refrigerated and used up quickly.

Cooked Dishes: i.e. casseroles should be refrigerated and used up.

Large Pieces of Meat: can be re-frozen providing there are still ice crystals remaining within them.

Small Joints: should be cooked and can then be re-frozen as cooked dishes.

Chicken: should also be cooked and re-frozen as a cooked dish.

15

MAINTENANCE AND CLEANING

Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the

ELECTRICITY supply.

Internal cleaning

Clean the inside and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water).

Rinse and dry thoroughly.

NEVER USE DETERGENTS, ABRASIVE

POWDERS, HIGHLY PERFUMED CLEANING

PRODUCTS OR WAX POLISHES, TO CLEAN

THE INTERIOR AS THESE WILL DAMAGE

THE SURFACE AND LEAVE A STRONG

SMELL.

Clean the drain hole of the water trough at regular intervals and make sure that the drain hole is never obstructed, so that the defrost water may flow freely.

External cleaning

Wash the outer cabinet with warm soapy water. Do

NOT use abrasive products.

Once or twice a year dust the condenser (black grill) and the compressor at the back of the appliance, with a brush or vacuum cleaner, see Fig. 14.

Fig. 14

When the appliance is not in use

When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the doors ajar to prevent unpleasant smells.

Changing the light bulb

Should the interior light fail to work, first switch off the appliance and disconnect from the electricity supply, then replace the bulb as follows, see Fig. 15.

Fig. 15

D665

Unscrew the light cover and then pull it outward toward the middle of the cabinet. Unscrew the bulb and replace it with a new 15 watt bulb (available from your nearest Zanussi Service Force Centre).

Replace the light cover by sliding it into its original position and replacing the screw.

CONDENSER

DEFROST

TRAY

COMPRESSOR

D280

You MUST ensure that the appliance is switched

OFF. An accumulation of dust will affect the performance of the appliance and cause excessive electricity consumption.

16

WHAT HAPPENS IF SOMETHING GOES WRONG?

Before contacting your local Zanussi Service

Centre, check the following points:

The appliance does not work...

Check that:

“ There is power at the socket.

“ Ensure that there is not a power cut by checking the household lights.

“ The fuse has not blown.

“ The air circulation passages are not covered.

“ The thermostat dial is in the correct position.

“ The ambient temperature has dropped below

+16

°

C – switch on the ambient temperature switch.

Vibration or abnormal noises...

“ You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils of tubing at the rear, to the cooling plate/evaporator.

When the compressor is on, the refrigerant is being pumped round, and you will hear a whirring or pulsating noise from the compressor.

A thermostat controls the compressor, and you will hear a faint “click” when the thermostat cuts in and out.

Traces of water on the bottom of the fridge compartment...

Check that:

“ The defrosting water discharge hole is not obstructed.

The light does not come on...

Check that:

“ The bulb is fitted correctly.

“ Replace the bulb if it has blown.

Fridge does not defrost...

Check that:

“ The thermostat setting is not too high (see page 9).

Other points to check...

Check that:

“ Have you turned the thermostat to the correct setting?

“ Have doors been left open causing the temperature to rise?

“ Sometimes the freezer door will be difficult to open shortly after you have closed it. Don’t worry this is due to pressure difference which will quickly equalise and allow the door to open normally.

If, after the above checks, there is still a fault, call your local Zanussi Service Centre, whose address can be found in the accompanying Customer Care

Booklet, and can also be found in your local telephone directory under «Z». Please make sure you give the model and serial number of the appliance. This information can be found on the rating plate inside the fridge compartment on the left side behind the vegetable drawer, or on the guarantee certificate.

Original spare parts can be purchased from Zanussi

Service Centres.

In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Please note that proof of purchase is required for any in-guarantee service calls.

Before contacting your local Zanussi Service

Centre, make a note of the model and serial number.

This information can be found on the rating plate situated inside the cabinet behind the bottom fridge/freezer drawer.

SERVICE DETAILS - ADHESIVE LABEL

When you return your guarantee card to Zanussi

Ltd., you will receive an Appliance Guarantee and

Maintenance Record Card together with an adhesive label which contains the telephone number of your local Zanussi Service Centre. The label can be stuck to the machine or adjacent furniture.

17

PEACE OF MIND FOR TWELVE MONTHS

Zanussi standard guarantee conditions

This guarantee is in addition to your statutory and other legal rights which will not be excluded or in any way diminished by the return of this guarantee card.

We, Zanussi Ltd., undertake that if, within twelve months of the date of the purchase, this ZANUSSI appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option, repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:

“ The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.

“ The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s operating and maintenance instructions.

“ The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.

All service work under this guarantee must be undertaken by a Zanussi Service Centre.

Home visits are made between 8.30am and 5.30pm

Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

Any appliance or defective part replaced shall become our property.

Exclusions

This guarantee does not cover:

“ Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.

“ Costs incurred for calls to put right machines improperly installed or calls to machines outside the United Kingdom.

“ Appliances found to be in use within a commercial environment, plus those which are the subject of rental agreements.

“ Products of Zanussi manufacture which are NOT marketed by Zanussi Ltd.

“ EU Countries - The standard guarantee is applicable but is subject to the owner’s responsibility and cost to ensure the appliance meets the standards set by the country to which the product is taken. The Zanussi Company in the country concerned will be pleased to advise further. Sight of your purchase receipt will be required by them.

18 Printed on recycled paper
