VocoPro PKJ-9090PRO Operating instructions

R
TM
m
a
n
u
a
l
THE SINGER'S ULTIMATE CHOICE

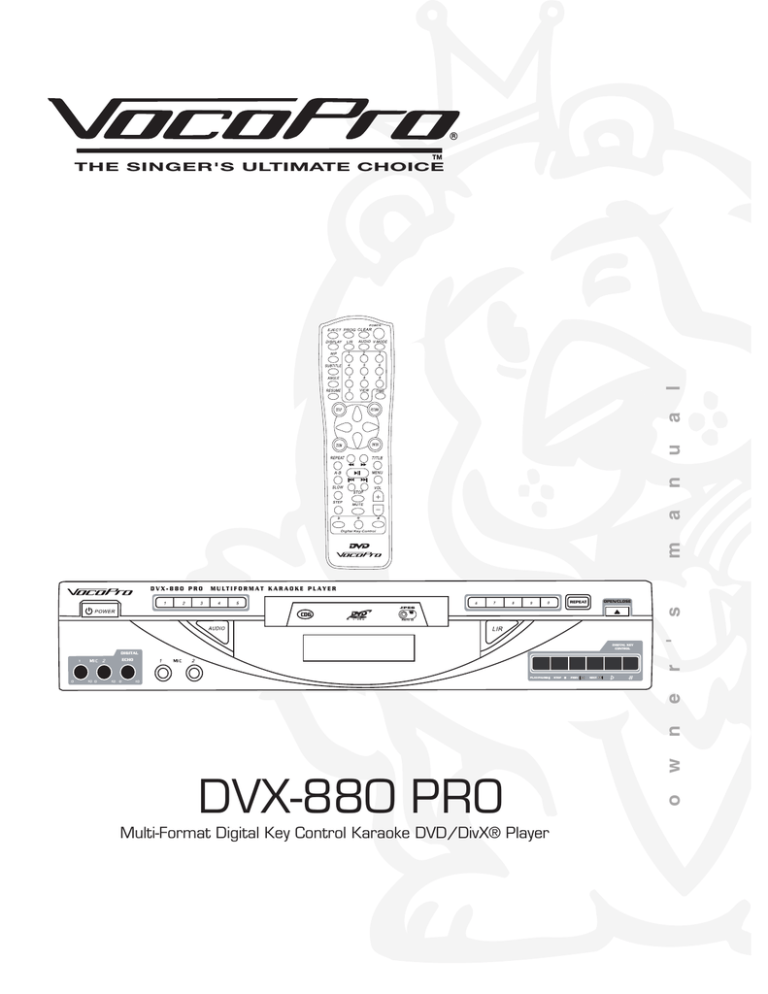

DVX-880 PRO
M U LT I F O R M AT K A R A O K E P L AY E R
OPEN/CLOSE
REPEAT
s
JPEG
CDG
DIGITAL KEY
CONTROL
'
PHOTO CD
DIGITAL
r
ECHO
STOP
PREV
NEXT
Multi-Format Digital Key Control Karaoke DVD/DivX® Player
o
DVX-880 PRO
w
n
e
PLAY/PAUSE
Table of Contents
Introduction
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . II
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . III
Listening for a Lifetime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IV
Specifications and Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Mounting the DVX-880 PRO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Getting Connected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Audio Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 4
Video Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 6
Microphone Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Controls and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 10
Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Basic Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 12
Advanced Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 14
Karaoke Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
DVD Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Mp3 Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Setting up Preferences (On-Screen Display) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 - 26
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Safety instructions
CAUTION
RISK OF SHOCK
CAUTION: To reduce the risk of electric shock,
do not remove cover (or back). No
user-serviceable parts inside. Only refer
servicing to qualified service personnel.
Explanation of Graphical Symbols
8. Ventilation - The appliance should be situated so its
location does not interfere with its proper ventilation. For
example, the appliance should not be situated on a bed,
sofa, rug, or similar surface that may block the
ventilation slots.
9. Heat - The appliance should be situated away from
heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers)
that produce heat.
10. Power Sources - The appliance should be
connected to a power supply only of the type described
in the operating instructions or as marked on the
appliance.
The lightning flash & arrowhead
symbol, within an equilateral triangle,
is intended to alert you to the
presence of danger.
11. Grounding or Polarization - Precautions should be
taken so that the grounding or polarization means of
an appliance is not defeated.
The exclamation point within an
equilateral triangle is intended to alert
you to the presence of important
operating and servicing instructions.
12. Power-Cord Protection - Power-supply cords
should be routed so that they are not likely to be walked
on or pinched by items placed upon or against them,
paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit
from the appliance.
WARNING
To reduce the risk of fire or electric shock, do
not expose this unit to rain or moisture.
13. Cleaning - Unplug this unit from the wall outlet
before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
14. Power lines - An outdoor antenna should be
located away from power lines.
1. Read Instructions - All the safety and operating
instructions should be read before the appliance is
operated.
15. Nonuse Periods - The power cord of the appliance
should be unplugged from the outlet when left unused
for a long period of time.
2. Retain Instructions - The safety and operating
instructions should be retained for future reference.
16. Object and Liquid Entry - Care should be taken so
that objects do not fall and liquids are not spilled into the
enclosure through openings.
3. Heed Warnings - All warnings on the appliance and in
the operating instructions should be adhered to.
4. Follow Instructions - All operating and use
instructions should be followed.
5. Attachments - Do not use attachments not
recommended by the product manufacturer as they may
cause hazards.
6. Water and Moisture - Do not use this unit near water.
For example, near a bathtub or in a wet basement and
the like.
7. Carts and Stands - The appliance should be used
only with a cart or stand that is recommended by the
manufacturer.
7 A. An appliance and cart combination
should be moved with care. Quick stops,
excessive force, and uneven surfaces may
cause an overturn.
17. Damage Requiring Service - The appliance should
be serviced by qualified service personnel when:
A.
B.
C.
D.
The power supply cord or plug has been damaged; or
Objects have fallen into the appliance; or
The appliance has been exposed to rain; or
The appliance does not appear to operate normally
or exhibits a marked change in performance; or
E. The appliance has been dropped, or the enclosure
damaged.
18. Servicing - The user should not attempt to service
the appliance beyond that described in the operating
instructions. All other servicing should be referred to
qualified service personnel.
Note:
To CATV system installer's (U.S.A.): This reminder is
provided to call the CATV system installer's attention to
Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the
cable ground shall be connected as close to the point of
cable entry as practical.
I
FCC information (U.S.A.)
1. IMPORTANT NOTICE: DO NOT MODIFY THIS
UNIT!: This product, when installed as indicated in the
instructions contained in this manual, meets FCC
requirements. Modifications not expressly approved by
Vocopro may void your authority, granted by the FCC, to
use this product.
2. IMPORTANT: When connecting this product to
accessories and/or another product use only high
quality shielded cables. Cable(s) supplied with this
product MUST be used. Follow all installation
instructions. Failure to follow instructions could void your
FCC authorization to use this product in the U.S.A.
3. NOTE: This product has been tested and found to
comply with the requirements listed in FCC Regulations,
Part 15 for Class "B" digital devices. Compliance with
these requirements provides a reasonable level of
assurances that your use of this product in a residential
environment will not result in harmful interference with
other electronic devices. This equipment
generates/uses radio frequencies and, if not installed
and used according to the instructions found in the
owner's manual, may cause interference harmful to the
operation of other electronic devices. Compliance with
FCC regulations does not guarantee that interference
will not occur in all installations. If this product is found
to be the source of interference, which can be
determined by turning the unit "Off" and "On", please try
to eliminate the problem by using one of the following
measures:
Relocate either this product or the device that is being
affected by the interference.
Use power outlets that are on different branch (circuit
breaker or fuse) circuits or install AC line filter(s).
In the case of radio or TV interference, relocate/reorient
the antenna. If the antenna lead-in is 300-ohm ribbon
lead, change the lead-in to coaxial type cable.
If these corrective measures do not produce satisfactory
results, please contact your local retailer authorized to
distribute Vocopro products. If you can not locate the
appropriate retailer, please contact Vocopro, 1728
Curtiss Court, La Verne, CA 91750.
CAUTION
The apparatus is not disconnected from the AC power
source so long as it is connected to the wall outlet,
even if the apparatus itself is turned off. To fully insure
that the apparatus is indeed fully void if residual power,
leave unit disconnected from the AC outlet for at least
fifteen seconds.
CAUTION:
READ THIS BEFORE OPERATING YOUR UNIT
1. To ensure the finest performance, please read this
manual carefully. Keep it in a safe place for future
reference.
2. Install your unit in a cool, dry, clean place - away from
windows, heat sources, and too much vibration, dust,
moisture or cold. Avoid sources of hum (transformers, v
motors). To prevent fire or electrical shock, do not expose
to rain and water.
3. Do not operate the unit upside-down.
4. Never open the cabinet. If a foreign object drops into
the set, contact your dealer.
5. Place the unit in a location with adequate air
circulation. Do not interfere with its proper ventilation; this
will cause the internal temperature to rise and may result
in a failure.
6. Do not use force on switches, knobs or cords. When
moving the unit, first turn the unit off. Then gently
disconnect the power plug and the cords connecting to
other equipment. Never pull the cord itself.
7. Do not attempt to clean the unit with chemical solvents:
this might damage the finish. Use a clean, dry cloth.
8. Be sure to read the "Troubleshooting" section on
common operating errors before concluding that your unit
is faulty.
9. This unit consumes a fair amount of power even when
the power switch is turned off. We recommend that you
unplug the power cord from the wall outlet if the unit is not
going to be used for a long time. This will save electricity
and help prevent fire hazards. To disconnect the cord, pull
it out by grasping the plug. Never pull the cord itself.
10. To prevent lightning damage, pull out the power cord
and remove the antenna cable during an electrical storm.
11. The general digital signals may interfere with other
equipment such as tuners or receivers. Move the system
farther away from such equipment if interference is
observed.
NOTE:
Please check the copyright laws in your country
before recording from records, compact discs,
radio, etc. Recording of copyrighted material may
infringe copyright laws.
Voltage Selector (General Model Only)
Be sure to position the voltage selector to match the
voltage of your local power lines before installing the
unit.
110V
II
Welcome
And Thank you for purchasing the DVX-880 PRO from VocoPro, your ultimate choice in
Karaoke entertainment! With years of experience in the music entertainment business,
VocoPro is a leading manufacturer of Karaoke equipment, and has been providing
patrons of bars, churches, schools, clubs and individual consumers the opportunity to
sound like a star with full-scale club models, in-home systems and mobile units. All our
products offer solid performance and sound reliability, and to reinforce our commitment
to customer satisfaction, we have customer service and technical support professionals
ready to assist you with your needs. We have provided some contact information for
you below.
VocoPro
1728 Curtiss Court
La Verne, CA 91750
Toll Free: 800-678-5348
TEL: 909-593-8893
FAX: 909-593-8890
VocoPro Company Email Directory
Customer Service & General Information
info@vocopro.com
Tech Support
techsupport@vocopro.com
Remember Our Website
Be sure to visit the VocoPro website www.vocopro.com for the latest information on
new products, packages and promos. And while you're there don't forget to check out
our Club VocoPro for Karaoke news and events, chat rooms, club directories and even
a KJ Service directory!
We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in
Karaoke entertainment.
FOR YOUR RECORDS
Please record the model number and serial number below, for easy reference, in case of loss or theft. These
numbers are located on the rear panel of the unit. Space is also provided for other relevant information
Model Number
Serial Number
Date of Purchase
Place of Purchase
III
Listening for a lifetime
Selecting fine audio equipment such as the unit youʼve just purchased is only the start of your
musical enjoyment. Now itʼs time to consider how you can maximize the fun and excitement your
equipment offers. VocoPro and the Electronic Industries Associationʼs Consumer Electronics
Group want you to get the most out of your equipment by playing it at a safe level. One that lets
the sound come through loud and clear without annoying blaring or distortion and, most
importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing “comfort level” adapts to a higher volume of
sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard
against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without
distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
• Pay attention to the different levels in various recordings.
Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all,
we want you listening for a lifetime.
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since
hearing damage from loud noise is often undetectable until it is too late, this manufacturer and
the Electronic Industries Associationʼs Consumer Electronics Group recommend you avoid
prolonged exposure to excessive noise. This list of sound levels is included for your protection.
Some common decibel ranges:
Level
30
40
50
60
70
80
Example
Quiet library, Soft whispers
Living room, Refrigerator, Bedroom away from traffic
Light traffic, Normal Conversation
Air Conditioner at 20 ft., Sewing machine
Vacuum cleaner, Hair dryer, Noisy Restaurant
Average city traffic, Garbage disposals, Alarm clock at 2 ft.
The following noises can be dangerous under constant exposure:
Level
90
100
120
140
180
Example
Subway, Motorcycle, Truck traffic, Lawn Mower
Garbage truck, Chainsaw, Pneumatics drill
Rock band concert in front of speakers
Gunshot blast, Jet plane
Rocket launching pad
-Information courtesy of the Deafness Research Foundation
IV
Specifications and Features
Specifications
Play mode:
Compatible formats:
Resolution:
Video S/N ratio:
Frequency response:
Audio S/N ratio:
Dynamic Range:
Distortion:
D/A converter:
Video output:
S-Video output:
Digital audio output:
AC-3:
Power voltage:
Power consumption:
Dimensions:
Weight:
NTSC/PAL/AUTO
DVD, DIVX, CD+G, Mp3, VCD, SVCD, DVD-R/RW, DVD+R/RW,
CD-R/RW, HDCD
> 500 lines
> 56dB
fs 96KHz: 20Hz-02KHz: +/- 1dB
> 90dB
> 90dB
< 0.01%
96 KHz / 24bit
1Vp-p (75 Ohms)
Y: 1Vp-p (75 Ohms) C: 0.3Vp-p (75 Ohms)
Coaxial
5.1 channel output, SCART
~100V-240V 50/60Hz
< 25W
17” x 3.3” x 9.1”
6.9 lbs.
Features
• Multi-format disc player supports DVD, DivX®, VCD, CDG, Mp3, Photo-CD, HDCD and
CD/DVD-R RW formats for unparalleled media entertainment compatibility
• Dual 1/4” microphone inputs with individual volume controls
• Built-in Echo effect for a more professional vocal sound
• Direct Track Access for immediate song selection and playback
• ±16 step Digital Key Control for changing the key of the music to fit your vocal range via
remote or front panel
• Program up to 20 tracks in any order
• Built-in Dolby Digital (AC-3) and Dolby DTS decoders for cinema sound quality
• Progressive Scan player
• Full-function remote control for ease of operation of all system features
• 100V/240V and NTSC-PAL compatible for use worldwide
• Audio Outputs 5.1 Channel, Stereo L/R, Digital Coaxial, Digital Optical
• Video Outputs: Y, Cb, Cr, Composite RCA, S-Video, SCART
1
Mounting the DVX-880 PRO
Mounting
Use the included mounting brackets to mount the
DVX-880 PRO into a 19” rack case. The DVX-880
PRO requires 2 RUs of available rackspace.
1
Installing the Mounting Brackets onto the DVX-880 PRO
Position the mounting brackets on the DVX-880 PRO
with the tabs facing away from the player. Line up the
two holes on the mounting bracket with two holes
3 the included
on the sides of the DVX-880 PRO. Use
screws to secure the brackets on each
4 side of the
DVX-880 PRO.
1
2
PHOTO CD
PHOTO CD
2
Mounting the DVX-880 PRO
To mount, carefully place the DVX-880 PRO in the
rack space of your case. The DVX-880 PRO takes 4
screws to mount. Make sure holes are aligned evenly.
Use an alternating “X” rotation when screwing to
ensure even tension and alignment.
You will need:
• 19” Rack Case
• 4 Mount Screws
• Phillips-head Screwdriver
2
3
4
3
1
PHOTO CD
2
4
Getting Connected
FR, FL, CENTER, SL, SR CONNECTION
Audio Connections
DVX-880 PRO
Mic + Music
Out
FL
CENTER
FR
SL
SW
L
SR
5.1 CH Audio Output
Y
R
Mixed Out
Cb
COAXIAL
Video Connections
Cr
DTX-9900
VIDEO
S-VIDEO
OPTICAL
L/R MIX OUTPUT CONNECTION
DVX-880 PRO
PKJ-9090PRO
Mic + Music
Out
PKJ-9090PRO
1 2 3 4
PROFESSIONAL DJ/KJ/VJ POWERED MIXER
CROSSFADER
VIDEO TOGGLE
VIDEO 1
VIDEO 2
AV 2
PH 1/LINE
FL
CENTER
SL
L
Y
Cb
(BALANCED)
(BALANCED)
(BALANCED)
(BALANCED)
GAIN
GAIN
GAIN
GAIN
AV 3
PH 2/LINE
CD 1
VIDEO
DSP KEY CONTROL AND
CROSSFADER VIDEO TOGGLE
VIDEO 3
LIGHT
(DC 12V)
LEFT
AV 1
PH 3/LINE
CD 2
STEREO 1
-26 -20 -17 -14 -10 -6
CD 3
STEREO 2
0 +3 +6 +9 +10 +15
RIGHT
OUTPUT LEVEL DISPLAY
STEREO 3
POWER
SIGNAL
-20
GAIN
SIGNAL
+6
-20
GAIN
+6
SIGNAL
-20
GAIN
+6
AV OUT LEVEL
POWER AMP LEVEL
VOCAL EFFECTS
MANUAL
+12
PARTNER ELIMI.
FR
SW
SR
5.1 CH Audio Output
R
Mixed Out
TREBLE
TREBLE
TREBLE
+12
-12
COAXIAL
Cr
S-VIDEO
+12
+12
HEADPHONES
+12
MULTI.
TREBLE
-12
-12
-12
-12
CROSSFADER
OPTICAL
VOCAL
BASS
BASS
BASS
CUE
BASS
DOWN
NORMAL
CUE
UP
60
250
1K
4K
12K
CUE
CUE
MASTER EQUALIZER
VIDEO SEL.
ECHO
ECHO
CUE
ECHO
CUE
ECHO
CUE
CUE
ON
ON
ON
ON
KEY
KEY
KEY
KEY
ON
ON
ON
ON
ON
ON
ON
KEY
KEY
KEY
ON
ON
ON
ON
PHONES LEVEL
MAST
ECHO
ON
AUTO
LEVEL
OFF
ON
1
2
1
2
3
2
REPEAT
3
DELAY
ASSIGN
ASSIGN
CROSSFADER / VIDEO TOGGLE
MIC 1
MIC 2
MIC 3
MIC 4
TALK OVER
MASTER/LEFT
MASTER/RIGHT
BOOTH
DIGITAL ECHO
3
Getting Connected
DIGITAL/COAXIAL CONNECTION
Audio Connections
DVX-880 PRO
FL
CENTER
FR
SW
Mic + Music
Out
SL
L
SR
Y
R
5.1 CH Audio Output
Mixed Out
VIDEO
Cb
COAXIAL
Cr
S-VIDEO
OPTICAL
Dolby Digital AC-3
Receiver/Decoder
DTX-5000G
Audio Connections
SUB CONNECTION
SUB-1500
DVX-880 PRO
FL
FR
CENTER
SW
SL
SR
5.1 CH Audio Output
4
Mic + Music
Out
L
R
Mixed Out
Y
COAXIAL
Cb
Cr
VIDEO
S-VIDEO
OPTICAL
Getting Connected
B
RCA CONNECTION
Video Connections
DVX-880 PRO
FL
FR
CENTER
SW
SL
SR
5.1 CH Audio Output
Mic + Music
Out
L
R
Mixed Out
Y
COAXIAL
Cb
Cr
VIDEO
S-VIDEO
OPTICAL
LTV-5
S-VIDEO/Y, Cb, Cr CONNECTION
Video Connections
TV
DVX-880 PRO
FL
FR
CENTER
SW
SL
SR
5.1 CH Audio Output
Mic + Music
Out
L
R
Mixed Out
Y
COAXIAL
Cb
Cr
VIDEO
S-VIDEO
OPTICAL
5
Getting Connected
Setting the correct video mode
Depending on which video connection you are using, you may need to change the DVX-880 PRO’s video output
settings by pressing the V-MODE button on the remote control.
The V-MODE button toggles between the following modes:
P-Scan: Standard video mode.
SCART: When using the SCART output
S-Video: When using the S-Video output
YUV: When using the Component outputs
Microphone Connections
DVX-880 PRO
MIC CONNECTION
M U LT I F O R M AT K A R A O K E P L AY E R
OPEN/CLOSE
REPEAT
JPEG
CDG
PHOTO CD
DIGITAL KEY
CONTROL
DIGITAL
ECHO
PLAY/PAUSE
STOP
PREV
NEXT
Connect up to two microphones to the DVX-880 PRO, by connecting a 1/4” cable to the MIC 1 and 2 inputs
on the DVX-880 PRO.
NOTE: Microphone vocals are only output from the MIC and MUSIC OUT on the rear panel of the DVX-880 PRO.
You will not hear the vocals if you are not outputting from these outputs.
6
Controls and Functions
FRONT PANEL
2
3
DVX-880 PRO
2
4
5
M U LT I F O R M AT K A R A O K E P L AY E R
1
OPEN/CLOSE
REPEAT
JPEG
CDG
PHOTO CD
DIGITAL KEY
CONTROL
DIGITAL
ECHO
PLAY/PAUSE
6 6 7
8
STOP
PREV
NEXT
8 9
1. POWER button - This button turns the unit ON/OFF.
2. NUMBER PAD - Press to select a track or file for direct playback.
3. DISC TRAY - Insert discs here using the OPEN/CLOSE button on the player or the EJECT button on the remote
control.
4. REPEAT button - Switches between the different repeat modes. The available repeat modes differ depending
on what type of disc you are using (i.e. CD+G, Mp3, DivX, etc.).
5. OPEN/CLOSE
button - Opens and closes the disc tray.
6. MIC VOLUME 1 and 2 - Individual volume control for each mic.
7. ECHO LEVEL - Controls level of ECHO effect on both mics.
8. MIC 1 and MIC 2 inputs - Connect 1/4” MIC cables (or line cables for wireless systems) here.
NOTE: Microphone vocals are only output from the MIC and MUSIC OUT on the rear panel of the DVX-880 PRO.
You will not hear the vocals if you are not outputting from these outputs.
9. AUDIO button - Switch between AC-3 5.1-channel and AC-3 2-channel audio output.
10. DISPLAY WINDOW - Shows disc tray status and time display.
11. L/R - Switch between four playback modes for multiplex CD+Gs:
LEFT-MONO: Left channel only (no vocals)
RIGHT-MONO: Right channel only (no music)
MIX-MONO: Virtual stereo
STEREO - Left and Right true stereo
12. PLAY/PAUSE button - PLAYS a disc while it is stopped or paused and PAUSES a disc that is playing.
13. STOP button - STOPS a disc that is playing.
14. PREV / NEXT buttons - Press these buttons to advance to the NEXT or reverse to the PREVIOUS track.
15. DIGITAL KEY CONTROL buttons - UP raises the key and DOWN lowers the key
7
Controls and Functions
REAR PANEL
1
2
3
8
9
SCART OUTPUT
U
4
5
6
S
A
7
1. 5.1 CH. AUDIO OUTPUT jacks - These jacks are for connecting to 5.1 channel ready amplifiers/receivers.
2. COMPONENT VIDEO OUT (Y/Pb/Pr) jacks - These jacks output VIDEO to a TV or monitor via COMPONENT VIDEO
cables. COMPONENT VIDEO outputs the different color signals (Pr/Pb) and luminance signal (Y) separately in order to
achieve high fidelity in reproducing colors. The description of the component video output connectors may differ depending
on the TV set or monitor (e.g. Pr/Pb Y, Cr/Cb/Y, R-Y/B-Y/Y, etc.). Please refer to the operating instructions of the TV
set or monitor for details.
3. VIDEO OUT (RCA) jack - This jack outputs VIDEO to TVs, TFTs and monitors.
4. MIC and MUSIC OUT jacks - These audio output jacks provide analog AUDIO connections to external devices
(A/V receivers, TVs, VCRs etc.). Vocals and music are simultaneously output from these connections.
NOTE: Microphone vocals are only output from the MIC and MUSIC OUT on the rear panel of the DVX-880 PRO.
You will not hear the vocals if you are not outputting from these outputs.
5. COAXIAL OUT jack - This digital output is for connecting devices with a COAXIAL cable.
6. S-VIDEO jack - This jack outputs VIDEO to a display device (TV, TFT, etc.) via an S-VIDEO cable. S-VIDEO provides better
color separation and better resolution by separating the color and picture signals of a composite video signal.
7. OPTICAL OUT jack - This digital out is for connecting devices with an OPTICAL cable. Please make sure to remove
the protective cover from this jack prior to connecting an OPTICAL cable. When not using this input, keep the protective
cover on to protect it from dust and foreign material.
8. SCART OUT - Use this jack for connecting to European TV systems.
9. AC IN terminal - Grounded AC power cable connects here.
8
Controls and Functions
REMOTE CONTROL
1. EJECT button - Press to OPEN and CLOSE the disc tray.
2. PROGRAM button - Press to access the PROGRAM selection
window.
3. DISPLAY button - To access OSD playback display menu.
The different OSD display modes available depend on the type of disc
being played.
4. L/R - Switch between four playback modes for multiplex CD+Gs:
LEFT-MONO: Left channel only (no vocals)
RIGHT-MONO: Right channel only (no music)
MIX-MONO: Virtual stereo
STEREO - Left and Right true stereo
5. N/P - Press to toggle between NTSC and PAL video settings.
Select NTSC for North American based video systems and PAL for
European based video systems.
6. SUBTITLE - Press to access the SUBTITLE selection window.
7. ANGLE - For use only with multi-angle coded discs, for example
some recorded performances such a sports events, concerts or
theatrical programs. Pressing the button will select various angles
of view.
8. RESUME - Returns you to track listing menu from any SETUP
subdirectory.
9. SETUP - Press to access the main setup MENU.
10. DIRECTION keys - Use these buttons to navigate through the
various menu selections
11. ZOOM - Increases the size of the lyrics display during TRACK
playback, or the SCENE view on a DVD.
12. B-SCAN / F-SCAN buttons - These buttons are used to SCAN
either BACKWARD or FORWARD through tracks on a disc during
playback.
NOTE: Using the B-SCAN and F-SCAN buttons during the playback of
a CDG disc while performing Karaoke is not recommended, as it will
cause the onscreen lyrics to scramble.
13. REPEAT - Switches between the different repeat modes. The
available repeat modes differ depending on what type of disc you are
using
(i.e. CD+G, Mp3, DivX, etc.).
14. PLAY / PAUSE button - Press to initiate disc PLAYBACK or
PAUSE disc playback.
15. A-B button - Allows you to loop a certain section of a disc,
causing it to repeat continuously.
16. PREV / NEXT buttons - Press these buttons to advance to
the NEXT or reverse to the PREVIOUS track.
17. SLOW - Press to execute a SLOW motion playback of a DVD or
Video CD.
9
Controls and Functions
REMOTE CONTROL CONT.
18. STOP button - Press this button once to PAUSE playback and
enter AUTO STOP MODE. Press twice to completely STOP playback.
While in AUTO STOP MODE, playback pauses and the VocoPro
splash screen appears. Pressing PLAY will resume playback and
exit AUTO
STOP MODE.
19. STEP - Press this button to enter STEP mode playback. In
STEP mode, playback is paused and the track/scene advances one
frame each time STEP is pressed. To exit STEP mode, hit the PLAY
button.
20. MUTE button - Press to SILENCE audio playback. Video playback is not affected while using the menu feature.
21. DIGITAL KEY CONTROL buttons - These buttons direct the
DIGITAL KEY CONTROLLER
# - Raises the musical key a half step each time it
is pressed.
- Resets the musical key to it’s original key.
b - Lowers the musical key a half-step each time
it is pressed.
22. POWER button - Press to turn machine ON/OFF.
23. CLEAR - Cancels PROGRAM function.
24. V-MODE - To select video signal output selections for P-SCAN,
SCART, S-Video ad YUV.
25. AUDIO button - Switch between AC-3 5.1-channel and AC-3
2-channel audio output.
26. NUMBER pad - Press to select a track or file for direct playback.
27. VIEW - When using VCDs, this button will give you 4 options:
INTRO, DISC, TRACK and EXIT. The 3 menus will show up to 9
TRACKS or sections to view.
28. TIME - Press this button to view the current disc or track
position or to manually input a time to start playback from.
29. RETURN - For use with VCDs, this button will return to previous menu or page
30. ENTER - To make menu selections or play selected tracks
31. TITLE - Press to access the TITLE MENU of a DVD, VCD or media disc. Press again to return back to disc playback. If the TITLE
MENU button is pressed during disc playback, playback is paused.
Upon exiting the TITLE MENU, playback is resumed.
32. MENU - Press to access the menu of a DVD, VCD or media
disc. Press again to return back to disc playback. If the MENU
button is pressed during disc playback, playback is paused. Upon
exiting the MENU window, playback is resumed.
33. VOLUME -/+ keys - Press this button to RAISE or LOWER the
master music VOLUME.
10
Basic Operations
Before powering on the DVX-880 PRO
• Make sure the power cord is connected to the machine and a power outlet.
• If you are using a power strip/surge protector, make sure that it is switched on.
• Make sure all components (TV, mixer, sound system etc.) are already connected.
Turning on the Power
Press the POWER button on the DVX-880 PRO or on its remote control.
Inserting a Disc
1. Open the disc tray by pressing the OPEN/CLOSE button on the player or the EJECT button on the remote.
2. Insert the disc label side up.
3. Close the disc tray by pressing the OPEN/CLOSE button on the player or the EJECT button on the remote.
CD/CD+G disc - The disc will automatically begin playing
DVD/VCD disc - The movie menu will show up on the screen.
Mp3/DivX disc - The Mp3/DivX menu will appear on the screen
Playing a disc
NOTE: Discs will automatically begin playing when they are loaded into the disc tray.
To play a stopped disc, press the PLAY/PAUSE button on the player or on the remote control.
Skipping tracks on a disc
Skip forwards and backwards to tracks using the PREV. and NEXT ( |<< and >>| ) buttons on the player or on the remote.
PREV ( |<< ) skips backwards to the previous track.
NEXT ( >>| ) skips forwards to the next track.
11
Basic Operations
Scanning Through Tracks on a Disc
Scan forwards and backwards through tracks using the << and >> buttons on the remote control.
<< - Rewinds through a track
>> - Fast-forwards through a track
Using the Direct Track Access feature
Jump directly to tracks by using the number pad on the player or on the remote control.
To jump to track 1 press “0”, “1” and then ENTER
To jump to track 22 press “2”, “2” and then ENTER
Using the Repeat function
Switch between repeat functions by pressing the REPEAT button on the player or on the remote control.
TRACK repeat - Repeats the same track again
ALL repeat - Repeats an entire disc again, after it has finished
Using the slow-motion feature
Press the SLOW button on the remote to toggle between the 8 different slow-forward and slow-rewind options”
| > 1/2 - Plays forwards at 1/2 the normal speed
| > 1/4 - Plays forwards at 1/4 the normal speed
| > 1/8 - Plays forwards at 1/8 the normal speed
| > 1/16 - Plays forwards at 1/16 the normal speed
< | 1/2 - Rewinds at 1/2 the normal speed
< | 1/4 - Rewinds at 1/4 the normal speed
< | 1/8 - Rewinds at 1/8 the normal speed
< | 1/16 - Rewinds at 1/16 the normal speed
12
Advanced Operations
Jumping to a specific time in a track or chapter
Press the TIME button on the remote twice to access the time menu.
Use the number pad to enter the exact time to skip to.
For example:
To jump to :30 seconds in a track while it is playing
1. Press TIME twice
2. Press “0”, “0”, “0”, “3”, “0”
To jump to 2:50 in a track while it is playing
1. Press TIME twice
2. Press “0”, “0”,
“1”, “5”, “0”
Programming tracks/Chapters
Program Menu
You can program up to 20 tracks on a CD or chapters in a movie to play in a different order than which they appear
on the disc.
1. Press the PROGRAM button on the remote to access the program menu.
2. In each slot, enter the track number that you want to play at that order.
3. Press ENTER on the remote control to go to the next slot.
NOTE: For numbers 1 - 9, you must press “0” and then the track number. For example, track 2 would be “0” and
then “2”.
13
Advanced Operations
Using the STEP feature
The STEP feature lets you skip through frames, one frame at a time.
Press the STEP button on your remote to advance frames. Press the >|| (play) button on the remote to exit step mode.
Looping portions of music or video using the A-B feature
1. Press the A-B button on the remote control once at the starting-point of the loop.
2. Press the A-B button again at the ending-point of the loop. The loop will automatically begin playing.
3. Press the A-B button a third time to cancel the loop.
14
Karaoke Operations
Digital Key Control
Digital Key Control allows you to raise and lower the key of the music to fit any singer’s vocal range.
Change the key by using the UP and DOWN buttons on the player or the “b”, (
) and “#” buttons on the remote.
# - Raises the musical key a half-step each time it is pressed.
- Resets the musical key to it’s original key.
b - Lowers the musical key a half-step each time it is pressed.
Removing the vocal track from Mulitplex CD+G discs.
NOTE: Vocals can only be removed on Multiplex format CD+G discs.
Remove vocals by pressing the L/R button on the player or on the remote.
This switches between four settings:
LEFT-MONO: Left channel only (no vocals)
RIGHT-MONO: Right channel only (no music)
MIX-MONO: Virtual stereo
STEREO - Left and Right true stereo
Multiplex discs have music on one channel and vocals on the other.
Choosing the music channel only will eliminate the vocals. Use stereo (L/R) for regular discs.
15
DVD Operations
Accessing the DVD menu
Press the MENU button on the remote while the DVD is playing.
Use the arrow buttons on the remote to navigate through the menu and use the ENTER button to make selections.
Turning on Subtitles
Press the SUBTITLE button on the remote control to access subtitles on DVDs with subtitle available.
NOTE: Not all DVDs have subtitles available.
Changing the screen angle
Press the ANGLE button on the remote control to switch between a DVD’s different viewing angles.
NOTE: Not all DVDs have multiple viewing angles
Zooming in and out on movies
Press the ZOOM button on the remote control to toggle between the different zoom options:
2X 3X 4X 1/2
1/3
1/4
16
Zooms in 2x the original size
Zooms in 3x the original size
Zooms in 4x the original size
- Zooms out 1/2 the original size
- Zooms out 1/3 the original size
- Zooms out 1/4 the original size
Mp3 Operations
The Mp3 Menu will appear when an Mp3 disc is loaded into the DVX-880 PRO. Use the
arrow keys on the remote control to navigate through the menu and use the ENTER button to open files and select songs.
Mp3 Repeat options
Use the REPEAT button on the remote to toggle between the 6 repeat options:
FOLDER:
Plays the whole folder once
SHUFFLE:
Plays all the songs in a folder, in random order without repeating the same song twice.
Playback is stopped when all of the songs in a folder have been played once.
RANDOM:
Plays all the songs in a folder, in random order and will repeat songs more than once.
Playback is continuous
SINGLE:
Repeats the same song continuously
REPEAT ALL:
Repeats the whole disc.
REPEAT FOLDER:
Repeats the folder continuously.
17
Setting Up Preferences
General Setup page
1. TV Display
To view the standard
4:3 picture or the cut
standard 4:3 picture
4:3 subtitle block to
view the full width of
the widescreen mode
Standard TV set
16:9 To view widescreen
picture with a
widescreen TV set
Widescreen TV set
2. Angle Mark
ON: The angle mark (
) will appear on the screen for DVDs with the multi-angle option.
OFF: The angle mark will not appear.
18
Setting Up Preferences
3. OSD Language
Choose the language for this OSD menu
4. Closed Captions
ON: Subtitles will appear on movies with subtitle available
OFF: Subtitles will be hidden
5. Screen Saver
ON: The screen saver will appear after 30 seconds if the screen is idle
OFF: The screen saver is off
6. Last Memory
Last Memory remembers the last scene of a movie before the unit is turned off
and starts at the same spot when the unit is turned back on.
19
Setting Up Preferences
Audio Setup page
1. Analog Audio Setup
1.1 Downmix
LT / RT: When connecting to a Dolby Digital amplifier.
STEREO: When connecting to a stereo TV or amplifier and using a disc that supports 2-channel output.
VSS: When using a disc that has been formatted with Virtual Surround Sound.
5.1CH: Choose this setting to output the 5.1-channel sound.
1.2 Front Speaker
Set this based on the size of your front speakers
1.3 Center Speaker
ON: If you have a center speaker
OFF: If you do not have a center speaker
1.4 Rear Speaker
ON: If you have a rear speaker(s)
OFF: If you do not have a rear speaker(s)
1.5 Subwoofer
ON: If you have a subwoofer
OFF: If you do not have a subwoofer
20
Setting Up Preferences
2. Digital Audio Setup
2.1 RAW
SPDIF OFF: No digital audio output
SPDIF/ RAW: Digital audio output in RAW format. Normally used for DTS and Dolby Digital 5.1 signals
SPDIF/ PCM: Digital audio output in PCM format. Normally used for audio CD signal
3. Dolby Digital Setup
3.1 Dual Mono
STEREO: Audio playback is standard L/R stereo
L-MONO: The right, guide vocal channel is removed, and replaced with a duplicate, instrumental left channel.
(Only on Multiplex format CD+G discs)
R-MONO: The left channel is removed, and replaced with a duplicate right channel of all vocals.
(Only on Multiplex format CD+G discs)
MIX-MONO: Audio playback is in LR/LR mode, also known as virtual stereo.
3.2 Dynamic
Dynamic mode automatically raises the volume of quieter music and lowers the volume of louder music.
ON: Dynamic feature is on
OFF: Dynamic feature is off
4. Channel Delay
Adjusts the amount of delay for each digital 5.1 channel. This is used to synchronize the speakers in your
surround-sound setup.
21
Setting Up Preferences
5. Equalizer
5.1 Sound Mode
Choose between preset equalizer modes, based on the type of music or turn the EQ off.
5.2 Bass Boost
ON: Boosts the bass signal
OFF: Bass boost is off.
5.3 Super Bass
ON: Enhances the quality of the bass signal
OFF: Super bass is off.
5.4 Treble Boost
ON: Boosts the treble channel
OFF: Treble boost is off
6. 3D Processing Page
6.1 Pro Logic II (Downmix (1.1) must be set to 5.1CH to access this page)
6.1.1 MODE
MUSIC: When playing music only
MOVIE: When playing a movie
PRO LOGIC: When using surround sound
AUTO: Automatically detects the appropriate mode
6.1.2 PANORAMA
ON: Panorama effect is on
OFF: Panorama effect is off
22
Setting Up Preferences
6. 3D Processing Page CONT.
6.1.3 DIMENSION
Adjust the depth of the surround sound balance from front to back
6.1.4 CENTER WIDTH
Gradually spreads the center sound into the left and right channels for a fuller sound.
6.2 Reverb Mode
Choose between different types of reverb
7. HDCD
Changes the output sample rate for HDCD discs.
OFF: Allows the unit to output all signals without a limit
44.1K: Outputs all signals of the disc’s sampling rate from 0K to 44.1K
88.2K: Outputs all signals of the disc’s sampling rate from 0K to 88.2K
8. Karaoke Mode
8.1 Mic
ON: The mic input channels are on
OFF: The mic input channels are off
Must be ON when using the DVX-880 PRO’s microphone inputs.
NOTE: Microphone vocals are only output from the MIC and MUSIC OUT on the rear panel of the DVX-880 PRO.
You will not hear the vocals if you are not outputting from these outputs.
23
Setting Up Preferences
Video Setup page
1. Video Output
NOTE: You can use the V-Mode button on the remote to switch between these video output settings.
S-VIDEO: When using the S-Video output
YUV: When using the Component video (Y, Cb, Cr) outputs
SCART: When using the SCART output
2. TV-Mode
PROGRESSIVE: When using a Progressive Scan TV
INTERLACE: When not using a Progressive Scan TV
3. Color Setting
3.1 Sharpness
Adjust the sharpness level
3.2 Brightness
Adjust the brightness level
3.3 Contrast
Adjust the contrast level
3.4 Gamma
Adjusts the gamma level
3.5 Hue
Adjusts the hue level
3.6 Saturation
Adjusts the saturation level
24
Setting Up Preferences
Preference Page
1. TV Type
PAL: For European TV systems
NTSC: For North American TV systems
AUTO: Automatically detects the correct system
2. PBC
Enables the Playback Control (PBC) menu for VCDs
3. Audio
Choose different audio languages for DVDs with multiple languages available
4. Subtitle
Choose different subtitle languages for DVDs with multi-language subtitles available
5. Disc Menu
Choose different DVD menu languages for DVDs with multiple menu languages available
6. Parental
Set the parental rating for DVDs
7. Default
Restores all of the default factory presets
25
Setting Up Preferences
Password Setup page
1. Password Mode
ON: Makes the password necessary in order to change the parental settings
OFF: Eliminates the need for a password to change the parental settings
2. Password
Here you can change the password
To change:
1.
2.
3.
4.
Select CHANGE
Type in the old password and press ENTER on the remote control
Type in your new password and press ENTER on the remote control
Type in your new password again and press ENTER on the remote control
The new password will be set
26
Troubleshooting
There is no power
• Make sure the power cord is firmly connected to the back of the DVX-880 PRO and to the power outlet
• If using a power strip/surge-protector, make sure that it is plugged in and switched on.
There is no sound
•
•
•
•
Make
Make
Make
Make
sure
sure
sure
sure
everything is connected firmly and properly
there are no defective cables
all of your components are turned on
all of the components (amp, mixer, TV, etc.) are set to the proper inputs
No picture
•
•
•
•
•
•
Make
Make
Make
Make
Make
Make
sure
sure
sure
sure
sure
sure
everything is connected firmly and properly
there are no defective cables
all of your components are turned on
all of the components (amp, mixer, TV, etc.) are set to the proper inputs
the TV or monitor is working correctly
the DVX-880 PRO is set to the correct video output mode using the V-MODE button on the remote control
The disc does not play
•
•
•
•
Make sure the disc is inserted correctly (label-side up)
Make sure the disc is clean and not scratched
If using a CD/DVD R/RW, try using a different brand as some brands might not be compatible
Clean the CD lens using a CD lens cleaner
Remote control does not work
• Make sure the batteries are inserted, inserted correctly, and not out of power.
• Point the remote control directly at the remote sensor on the machine
• Move closer to the machine
The picture is unclear
• Make sure the disc is not dirty or damaged
• Make sure that the TV TYPE (N/P button on the remote) is set correctly:
NTSC: In North America, Japan and many other Asian countries
PAL: In Europe
• Try restarting the DVX-880 PRO
There are no vocals
• Make sure that MIC is turned ON in the Karaoke Preferences Page.
Press SETUP on the remote to access the OSD preferences.
27
R
TM
THE SINGER'S ULTIMATE CHOICE
C
VOCOPRO 2005
Version 1.0
www.vocopro.com
