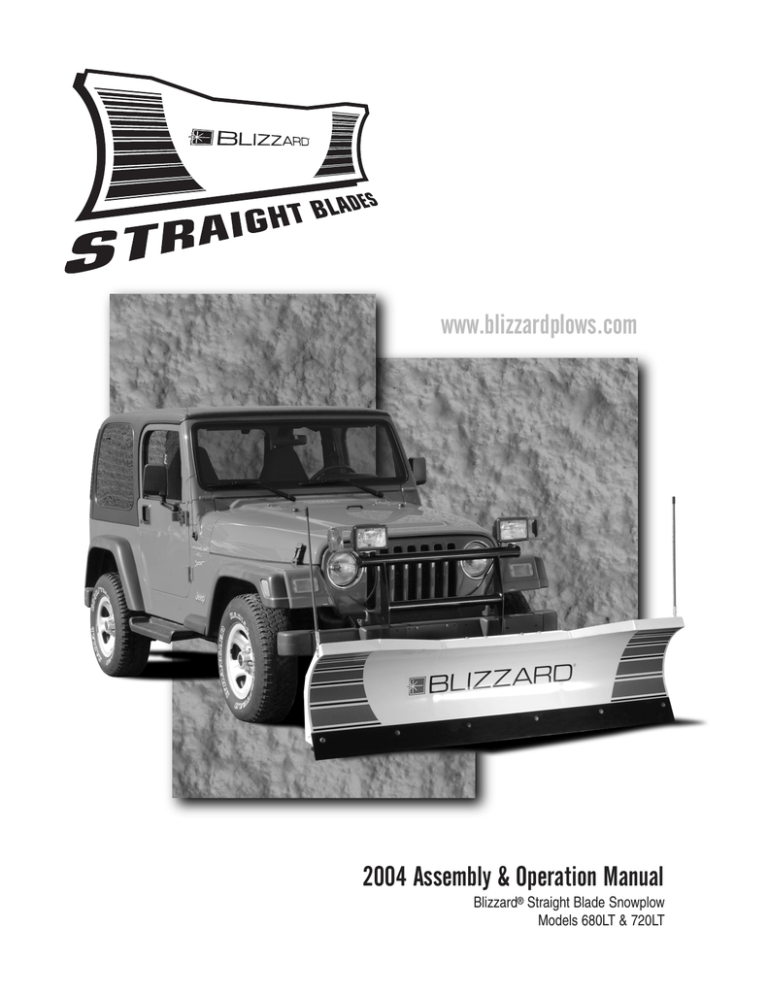

2004 Assembly & Operation Manual
Blizzard® Straight Blade Snowplow
Models 680LT & 720LT
Introduction
Congratulations on purchasing the finest
straight blade snowplow available!
Blizzard straight blades are clearing
new trails for innovative design, rugged
durability, quality craftsmanship and
superior performance. Our exclusive
products are manufactured and tested
in Michigan’s Upper Peninsula, the
snow capital of the Midwest. With an
annual snowfall averaging over 250,"
we couldn’t imagine building snow
removal products anywhere else!
Your Blizzard straight blade is equipped
with versatile features designed for years
of dependable service. The hydraulic
draw latch mounting system positively
aligns the plow for fast installation or
removal. All Blizzard straight blade
snowplows feature an extended moldboard.This unique construction provides
an additional 5" of blade that rolls snow
farther ahead and to the side when
plowing. Now you can move snow
faster, saving fuel and reducing wear
on your truck and plow. Safety features
include full moldboard trip action,
enclosed hydraulics and automatic
cylinder pressure relief.
To ensure years of optimum snowplow
performance, review the contents of this
manual. It contains assembly information, detailed diagrams, complete parts
listings, maintenance guidelines and
troubleshooting tips.
Should you need additional information,
contact your local Blizzard snowplow
dealer. Their knowledgeable staff is well
informed on the latest straight blade
information. They are also your source
for replacement parts, technical assistance and all service repairs.
Comments, suggestions or concerns?
Address all correspondence to:
Blizzard Corporation
Customer Service Department
95 Airpark Boulevard
Calumet, MI 49913
i
Table of Contents
Table of Contents
01
02
03
Snowplow Accessories
Warning!
Snowplow Operation
04
05
09
10
12
14
15
Assembly Instructions
Unpacking & Inspection
Moldboard & A-frame Assembly
Electrical Assembly - Plow Harness
Electrical Assembly - Vehicle Harness
Testing The Snowplow
Power Hitch™ Instruction
Notes
16
17
18
Maintenance & Plow Specifications
Regular Maintenance
Storing Your Snowplow
Plow Specifications
19
22
24
Plow Diagrams & Part Lists
Models 680LT & 720LT Parts List
Models 680LT & 720LT Assembly Schematic
Manifold Detail with Hydraulic & Electrical Schematics
25
26
27
28
29
30
31
32
Electrical Diagrams
Molded Plug Pin Locations
Plow Harness
Plow Harness Wire Schematic
Main Lighting Harness - Triple Relay Version
Main Lighting Harness - Triple Relay Version Wire Schematic
Vehicle Harness
Vehicle Harness Wire Schematic
On/Off Switch Leads & Ground Lead
33
Torque Specifications
Bolts & Hydraulic Adapters
34
Troubleshooting
Troubleshooting Guide
36
37
Warranties
Limited Consumer Warranty
Commercial Warranty
Snowplow Accessories
All of the accessories pictured below are currently offered for your snowplow. See your local authorized Blizzard dealer for pricing and availability.
Visit our web site at www.blizzardplows.com to view new snowplow
accessories and our latest Blizzard snowplow wearables.
Straight Blade Joystick
Window Mount Bracket
P/N 61261
This adjustable bracket mounts
easily to your straight blade joystick control and installs quickly
onto any door panel. Ideal for left
hand joystick operation or for
vehicles with center consoles. The window mount bracket is shipped
complete with hardware. Some assembly required.
Touch Pad Control Station
P/N 62142
Small and compact, the Blizzard
straight blade snowplow touch
pad control offers ergonomic comfort behind the wheel. Whether
you hold it in your hand, strap it on
your leg, wrap it around your seat
or mount it to the dashboard, this control will provide the flexibility
you need! Control is shipped with a molded plastic leg tray,
adjustable Velcro® strap and extra Velcro® patches. Control
measures 3-1/4" x 3-1/4" x 1-5/16".
Blizzard Snowplow Rapid
Action Hydraulic Oil
P/N 63070 (Quart)
P/N 63071 (12 Quarts/Case)
P/N 63072 (Gallon)
P/N 63069 (4 Gallons/Case)
Blizzard hydraulic oil is specially
formulated for use in Blizzard snowplows. This zinc-free product can
significantly enhance the operation and performance of the
hydraulic system in the most inclement weather conditions.
Blizzard hydraulic oil maintains its viscosity to temperatures as low
as -60˚F. Blizzard oil is available by the quart, gallon or case.
Adjustable Pedestal Mount
(For use with all controls)
P/N 63078 (12" Shaft)
Easy-to-install and flexible, our
adjustable pedestal mount will
position your straight blade snowplow control station how you want
it! Available in a 12" extension, this
quality built accessory will install
on all Blizzard snowplow control stations in minutes! Ideal for bucket
seat vehicles with low center consoles. Pedestal mount accessory
shipped with complete hardware and adapter plate.
Blizzard Snowplows
Emergency Parts Kit
P/N 63115
Be prepared for unexpected plow
emergencies! This kit includes the
most common replacement parts
conveniently packaged in a small,
durable plastic case. Custom foam
insert holds the following plow
parts: Angle cylinder hose, lift cylinder hose, hitch pin w/hair pin cotter, angle cylinder clevis pin w/cotter, hydraulic adapters, solenoid,
Power Hitch™ toggle switch, corrosion preventive compound (2 oz.)
and 10A fuse. The compact case (13.5"x9"x3.3") allows for easy
storage behind or under your truck seat.
Blizzard Snowplow
Touch-Up Paint
P/N 61219 (Gloss White)
P/N 63073 (Gloss Black)
Putting your snowplow away for
the winter? Have a deep scratch
to cover? Clean up your blade and
plow parts with our gloss spray
paints. Blizzard snowplow touchup paint provides an excellent finish to help keep your snowplow
looking its best. Paint provided in 12 oz. spray cans.
Snowplow Accessories 01
Warning!
WARNING:
Prior to operating your straight blade, review the WARNING! label at the
passenger’s side rear of the moldboard (shown below).
CAUTION:
Note: Read and understand all warnings indicated in this manual prior to
operating the snowplow. Warnings and cautions in the manual are indicated
by the icons shown to the left.
WARNING
1.
Properly mount the snowplow prior to moving the vehicle.
2.
To prevent accidental plow activation, turn the Power switch on the snowplow control
to the “OFF” position when not in use.
3.
Stand clear of the attachment area when mounting the snowplow to the undercarriage
and operating the Power Hitch Connect/Disconnect switch. Failure to do so may
result in serious injury or death.
4.
Securely position all mounting pins prior to operating your snowplow.
5.
Do not position your body between the snowplow and the vehicle when servicing
or operating.
6.
Position snowplow in such a manner as to not block your vision or plow headlights
while in transit.
7.
Do not change the position of the snowplow while in transit.
8.
Do not exceed 40 mph when transporting the snowplow.
9.
Do not exceed 10 mph when plowing.
10.
Always lower the snowplow when the vehicle is parked.
11.
Vehicles equipped with air bags are designed to be activated in a frontal collision
equivalent to hitting a solid object or barrier at approximately 14 mph or more.
READ
OWNER’S
MANUAL
THOROUGHLY
PRIOR TO
OPERATING
PLOW.
WARNING
Careless or high speed driving while plowing snow, which results in vehicle impact
deceleration equivalent to or greater than the airbag deployment threshold described
above, would deploy the airbag.
Blizzard straight blade snowplows are protected by U.S. Patents 6,178,669; 6,276,076 and 6,393,737. Other patents pending.
Calumet, Michigan 49913
BLZ 1060
Should the WARNING! label or any of the labels
that came with your snowplow become hard to
read or wear off, contact your local authorized
Blizzard dealer for replacements.
02
Warning!
Snowplow Operation
BLIZZARD
®
Your snowplow is the most advanced and versatile straight blade on the
market. The easy-to-use joystick control allows you to automatically adjust
the plow blade into an infinite number of plowing positions. Review the
illustrations below for instruction on maneuvering your snowplow.
WARNING
A.
To prevent accidental plow activation, turn
POWER switch to the “OFF” position when
not in use.
BLZ 1017
A. Lowered or Float Position
Pushing the joystick forward, toward the “Lower/
Float” designation on the label, will lower your
straight blade to the ground. Pushing and
momentarily holding the joystick ahead will allow
the snowplow to “float”, or follow the contour of
the ground when moving forward or backward.
B. Raised Position
Pulling the joystick back, toward the “Raise”
designation on the label, will lift your straight
blade off of the ground. To stop raising the plow,
simply return the joystick to its “neutral” or center
position. The snowplow has reached its maximum
raised position when the blade stops lifting –
return the joystick to its neutral position.
B.
C. Angled Right Position
To angle your straight blade to the right, position
the joystick toward the “R” on the label. To stop
angling the plow, return the joystick to its “neutral”
or center position. The snowplow has reached its
maximum angled position when the blade stops
moving to the right side.
D. Angled Left Position
To angle your straight blade to the left, position
the joystick toward the “L” on the label. To stop
angling the plow, return the joystick to its “neutral”
or center position. The snowplow has reached its
maximum angled position when the blade stops
moving to the left side.
C.
D.
***** IMPORTANT *****
To prevent premature failure of the power
contactor (solenoid), initiate the plow function
and return the joystick to its neutral or center
position— except float. DO NOT hold the joystick in any position that allows the pump to
continuously run after the plow has reached
its maximum degree of movement. This will
reduce the useful life of the solenoid.
Snowplow Operation
03
Assembly Instructions
Unpacking & Inspection
Date of Purchase
Dealer/Distributor
Your Blizzard straight blade has been packaged to withstand transit and
weather related damage. Fully inspect all components upon receipt of your
plow. In the event of shipping damage or missing parts, immediately contact
our Customer Service Department toll free at 1-888-680-8600.
Begin unpacking and inspection in the following order:
Telephone Number
1. Remove the shipping document from the end panel of the pallet wrap.
Retain all documentation for your records.
Snowplow Serial Number
2. All wood framing and polyethylene material should be removed from
the pallet for easy access to the snowplow.
Hydraulic Pump Serial Number
3. Due to the odd shaped components and size of several assembly
parts, various cable ties and corrugated material are used for scratch
resistance and package orientation. Please remove these items prior
to assembly.
4. Place the main blade assembly on a flat, level surface.
Once you have inspected all parts and removed all packaging materials,
your snowplow is ready to be fully assembled.
Pallet Wrap End Panel
The tear resistant woven polyethylene pallet wrap
contains a moisture barrier to help protect all
packaged components and keep out the most
inclement weather during shipping and storage.
The end panel of the pallet cover contains important information regarding the snowplow model
and the plow’s serial number. Both of these numbers are given together. The first three digits and
two letters in the the number indicated is always
the plow model 680LT or 720LT – and the entire
ten digit number make up the serial number. The
shipping document is also attached to the end
panel. Be sure to retain this list for your records.
04
Unpacking & Inspection
Moldboard & A-Frame Assembly
1. Begin the moldboard assembly by positioning the PIVOT BEAM and
A-FRAME near the connecting points at the rear of the blade between
the two center support ribs. Position the pivot beam between the two
support ribs until the connecting points on the beam align with those
on the plow. Insert one 3/4" DIA. x 3" CLEVIS PIN through each mounting hole and secure them with one 1/4" DIA. x 1-1/2" COTTER PIN.
Note: Mount the kickstand to the end of the pivot beam (driver’s side)
using the 1/2"-13 x 4-1/2" bolt provided. The spring, bushing and lock
nut locate on the inside of the pivot beam. Review the diagram to the
right and on page 22. Upon installation, rotate the spring loaded kickstand clockwise until it locks into place. Adjust the foot on the stand
arm so the height of the A-frame, at its mount points, is 10-1/2" to
level ground. Tighten both of the 1/2"-13 top lock nuts on the kickstand.
10-1/2"
Spring Loaded
Adjustable
Pivot Beam
Kickstand
Note: To prevent the kickstand from hitting the ground before the
snowplow cutting edges, causing stress on the kickstand lock pin,
adjust the kickstand foot approximately 1/8" short of level ground.
This procedure will provide clearance for the kickstand when the
snowplow is lowered with the kickstand in the down position.
2. Remove each dust cap from both of the ANGLE CYLINDER ports and
attach one 7/16"-20 x 7/16"-20 MALE O.R.B. CONNECTOR ADAPTER
to each port. Note: All of the hydraulic adapters can be found packaged with the manifold assembly. Reference the torque specifications
table on page 33. Connect one 1/4" x 15" hydraulic hose (P/N 60294)
to the driver’s side angle cylinder adapter. Note: The 90˚ end on the
hose connects to the manifold. Connect one 1/4" x 20" hydraulic hose
(P/N 60296) to the passenger’s side angle cylinder adapter. Be careful
not to overtighten the hose connections. Route both hoses through
the access holes in A-frame at the A-frame angle cylinder mount
brackets. Both hoses should extend through the triangular openings at
the top of the A-frame.
3. Position each ANGLE CYLINDER with the rod end of the cylinder in
the pivot beam and the base end in the A-frame angle cylinder mount
bracket. Secure each cylinder to the pivot beam and A-frame using
two 3/4" x 3" CLEVIS PINS with 1/4" x 1-1/2" COTTER PINS.
4. Next, remove both of the plastic dust caps from the HYDRAULIC LIFT
CYLINDER ports. Attach one 7/16"-20 x 7/16"-20 MALE O.R.B. CONNECTOR ADAPTER to the retract port (rod end) and one 7/16"-20 x
7/16"-20 90˚ O.R.B. ADJUSTABLE ELBOW ADAPTER to the extend
port (base end). Once the adapters have been installed on the cylinder,
connect the rod end hose. The male connector adapter receives a
1/4" x 18" hydraulic hose (P/N 60295).
5. Position the lift cylinder in the channel opening under the A-frame.
Route the 18" rod end hose through the front (closest to the pivot
beam) 2" diameter hole in the A-frame. The lift cylinder base end hole
should align with the holes on either side of the channel. Secure the
lift cylinder to the A-frame using one 5/8" DIA. x 5-3/4" CLEVIS PIN
and one 1/4" x 1-1/2" cotter pin. Use the access hole in the A-frame,
located at the driver’s side, to install the clevis pin. The 90˚ adjustable
elbow adapter receives the 1/4" x 10" hydraulic hose (P/N 60293).
1/8" Ground
Clearance
The kickstand mounts to the side of the pivot
beam with one 1/2"-13 x 4-1/2" hex cap screw
and top lock nut. To pivot the kickstand, simply
pull the spring loaded leg out and rotate it until
the pin locks into place. The kickstand also has
an adjustable foot that can be moved to accommodate varying vehicle heights. Adjust the kickstand foot approximately 1/8" short of level ground.
This will prevent the kickstand from hitting the
ground before the plow cutting edges. The proper
height of your snowplow mounting points to level
ground should be set at 10-1/2".
7/16"
7/16"
Male O.R.B. Connector Adapter
7/16"
7/16"
90˚ O.R.B. Adjustable Elbow Adapter
Moldboard & A-frame Assembly
05
Printed
Label
All of the hoses shipped with the snowplow contain a printed label (with a part number) applied
to the hose. Install the following hoses to their
respective ports on the manifold:
Hose P/N 60294
Hose P/N 60296
Hose P/N 60293
Hose P/N 60295
Port #1
Port #2
Port #3
Port #4
6. Begin the draw latch installation by first removing the DRAW LATCH
MOUNT PIN, SPACER & COTTER PIN from the assembly. By removing
this pin, the INNER DRAW LATCH PLATES can swing free. Proceed
to remove the INNER DRAW LATCH PLATE LIFT CYLINDER MOUNT
PIN. Position the plates on either side of the lift cylinder rod and insert
the pin through the plates and cylinder rod. With the cylinder connected to the inner draw latch plates, rotate the draw latch assembly
toward the draw latch mount holes on the A-frame. Align the holes in
the outer draw latch plate with those of the inner draw latch plates
and the A-frame. Note: The A-FRAME LATCH, located at the rear
center of the A-frame, should be raised up to insert the draw latch
mount pin. Pull the A-FRAME LATCH PULL PIN out and rotate the
latch counterclockwise if it is locked into position. Secure the assembly
to the A-frame by replacing the draw latch mount pin spacer and cotter
pin. Reset the A-frame latch so the latch pull pin locks into place.
Hydraulic
Lift / Lower
Cylinder
Draw Latch Assembly
Draw Latch
Mount Pin
(1" DIA. x 3-1/4")
Draw Latch
Finger Weldment
The draw latch consists of a series of interconnected plates and pins that attach to the A-frame
and the hydraulic lift cylinder.
Cotter Pin
(3/16" x 2-1/2")
Draw Latch
Arm Weldment
Top Lock Nut
(3/4"-10)
Inner Draw
Latch Plate
A-Frame
Latch
A-Frame Latch
Lock Pin
Outer Draw
Latch Plate
Draw Latch Arm
Pivot Pin
(3/4" DIA. x 2-1/16")
Inner Draw Latch Plate
Lift Cylinder Mount Pin
(5/8" DIA. x 2-1/16")
Draw Pin
(1" DIA. x 4-1/2")
Draw
Pin
A-Frame Latch
Rotates Clockwise
And Hooks Onto
Draw Pin
To mount the straight blade, the A-frame latch
should be lowered over the draw pin– this allows
the draw latch to pull the plow into the undercarriage. Once the plow is safely attached to the
undercarriage, rotate the A-frame latch counterclockwise until the lock pin snaps into place. The
A-frame latch is only used to mount the plow.
The A-frame latch should always be locked in
place when not in use.
Cotter Pin
(1/4" x 1-1/2")
Hex Head Cap Screw
(3/4"-10 x 3-1/2")
Clevis Pin
(3/4" x 3-7/16")
Once you have completed the draw latch installation, proceed to assemble
the manifold. The manifold, pump and coil harness have been joined
together at the factory; however, the manifold contains several components
that you will need to install prior to securing the assembly to the A-frame.
7. Each of the 4 HOSE PORTS on the HYDRAULIC MANIFOLD are
covered with stretch wrap. Remove the wrap and install the appropriate
fitting (illustrated on page 7) in its respective port.
Note: All ports are identified by a stamped number on the manifold.
The numbers also identify the hydraulic functions, which can be referenced on the label under the hydraulic pump and manifold cover
(see illustration on page 7).
06
Moldboard & A-frame Assembly (Continued)
Installing The Manifold Adapters
7/16"
9/16"
90˚ Adjustable Elbow O.R.B. Adapter
(Ports #1, #3 & #4)
2
There are a total of 4 hydraulic adapters to install.
All of the adapters can be found packaged with
the manifold assembly. Remove the protective
stretch wrap from the manifold in a clean area.
DO NOT let any foreign objects enter into the
open ports. The valves can become contaminated
and greatly hinder the plow’s performance.
Review the table on page 33 for proper torque
specifications.
3
7/16"
1
4
9/16"
Male O.R.B. Connector Adapter
(Port #2)
Note: The gray arrows shown in the manifold illustration above indicate
the direction the 90˚ adapters should face to receive the hydraulic hoses.
Hydraulic Hose Identification Guide
Straight Blade Snowplows
S4
S6
S8
RV
FC
S3
HYDRAULIC HOSES
Port
Function
1
2
3
4
Right Angle - Left Cylinder
Left Angle - Right Cylinder
Raise - Lift Cylinder (Base)
Lower - Lift Cylinder (Rod)
NOTE: Energize the following
solenoids for the functions:
S5
Clockwise - Decreases Plow Drop Speed
Counterclockwise - Increases Plow Drop Speed
Pressure Gauge
Quick Connect
2
1
S3
S4
S5
S6
S5 & S8
Left Angle - Right Cylinder
Right Angle - Left Cylinder
Float
Raise - Lift Cylinder (Base)
Lower - Lift Cylinder (Rod)
RV
FC
Angle Relief Valve
Variable Flow Control Valve
3
When installing the manifold between the mount
brackets on the A-frame, DO NOT handle the
manifold by the wire lead coils. The solenoid
cartridges can bend, causing them to stick when
activated. Always carry the manifold by the sides
of the aluminum block.
4
Calumet, Michigan 49913
BLZ 1054
8. Next, align the mount holes on the pump and the manifold with the
holes in the brackets located on the A-frame. When installed correctly,
the manifold will be located at the front of the A-frame closest to the
pivot beam.
CAUTION: When installing the manifold between the mount
brackets on the A-frame, hold the manifold at the sides of
the block. Never handle the manifold by the wire lead coils.
Doing so can cause a solenoid cartridge to bend, causing
the cartridge to stick when activated.
Moldboard & A-frame Assembly (Continued)
07
Use Loctite ® On All Manifold
Mount Hardware
A medium strength threadlocker, such as
Loctite® 242®, should be used to properly
secure the mount hardware for the pump and
manifold. This will help prevent the hardware from
working free from vibration and plow use. Apply
a liberal amount of threadlocker to all threaded
fasteners and the threads in the pump and manifold. Both the pump and manifold receive two
3/8"-16 x 1-1/4" hex cap screws—one on each
side of the A-frame and two into the pump.
Secure one 3/8" flat washer, lock washer and 3/8"-16 x 1-1/4" hex
head cap screw through the top mount hole in the rear bracket and
into the pump. The bottom mount hole receives one 3/8" INTERNAL/
EXTERNAL TOOTH LOCK WASHER, 3/8" lock washer and 3/8"-16 x
1-1/4" hex head cap screw. The bottom mount location will serve as
the ground for the plow electrical harness. Installation instructions for
the harness can be found on page 9. Note: A medium strength
threadlocker, such as Loctite® 242® should be used on the pump
and manifold mount fasteners. This will help prevent the fasteners
from working free. Mount the manifold to the side brackets on the Aframe using the hardware provided on the manifold. The passenger’s
side mount bracket will serve as the ground location for the manifold
coil harness. Installation instructions for the coil harness can be found
on page 9.
9. Once the pump and manifold assembly is in place, connect the
hydraulic hoses to their respective adapters on the manifold. Review
the label under the pump cover to identify which hoses connect to
each port (See page 7).
Begin installing the hoses with the lift cylinder hoses. Connect the
base end hose (P/N 60293) to port #3. Connect the rod end hose
(P/N 60295) to port #4. Next, attach the 90˚ fitting, on the passenger’s
side angle cylinder hose (P/N 60296), to the male connector adapter
on port #2. Route the hose under the pump and over the manifold.
Lastly, connect the driver’s side angle cylinder hose (P/N 60294) to
port #1. Route the hose over the pump to the hydraulic adapter.
10. Hook each EXTENSION SPRING to the receiving holes located on
the pivot beam and connect the opposite end of the spring to their
respective SPADE BOLTS. Install the 5/8"-11 x 4-3/8" spade bolts
through the EXTENSION SPRING MOUNTING ANGLE on the top rear
of the blade. Secure each spade bolt by placing one 5/8" flat washer
on the bolt and thread one 5/8"-11 nylon insert lock nut. Tighten each
lock nut until a piece of paper can pass between the 3th & 4th coils
on the spring.
11. Install the flexible BLADE GUIDES at each end of the moldboard.
Insert the 5/16"-18 x 1" hex head cap screw through the holes provided
at the top of the outside reinforcement rib. Tighten all screws using the
nylon insert lock nuts provided.
Congratulations! You have successfully completed half of the installation.
Don’t quit now, you’re nearly out of the garage!
08
Moldboard & A-frame Assembly (Continued)
Electrical Assembly - Plow Harness
1. Begin the electrical assembly by connecting the RED POWER WIRE
from the PLOW ELECTRICAL HARNESS to the PUMP motor terminal
stud using the hardware provided on the pump. Note: The red power
wire contains an end ring terminal too large for the pump motor stud.
Remove the end ring terminal from the harness and replace it with
the 1/4" DIA. END RING TERMINAL located on the pump motor
terminal stud.
2. Next, remove the bottom bolt, lock washer and internal/external tooth
lock washer from the rear pump mount bracket. Route the BLACK
GROUND WIRE (from the harness) under the pump on the driver’s
side of the A-frame. Align the tooth lock washer and end ring terminal
over the hole on the bracket and secure them with the lock washer
and bolt.
3. The manifold contains a red COIL WIRE HARNESS that must be
grounded to the A-frame. Locate the 3/8" end ring terminal on this
harness and secure it to the passenger’s side manifold mount bracket.
Use the existing manifold mount hardware to secure the ground. Note:
The internal/external tooth lock washer provided should install against
the mount bracket to provide a solid ground.
Diode Pack
Mount Bracket
Draw Latch
Toggle Switch
Mount Bracket
The draw latch toggle switch installs through the
rear of the bracket with the protective hood. Align
the key washer with the slot cut in the bracket to
prevent the switch from turning. Secure the
switch with the hardware provided. Note: Use the
square notch in the bracket (below the protective
hood) to position the braided harness. Use another
cable tie to hold the harness against the bracket.
4. Remove the hex jam nut and external tooth lock washer from the
POWER HITCH CONNECT/DISCONNECT TOGGLE SWITCH and
insert it through the back of the mount bracket on the A-frame. Align
the notch in the key washer on the switch to the notch on the bracket.
Replace the lock washer and jam nut and tighten until the switch is
firmly in place. Next, attach the connector on the plow harness to the
switch. Note: Use caution when making the connection. Switches can
break if done forcefully.
5. Continue the harness installation by connecting the PLASTIC FEMALE
ELECTRICAL CONNECTOR on the harness to the PLASTIC MALE
ELECTRICAL CONNECTOR found on the coil wire harness.
6. Finalize the harness installation by positioning the wire harness braid
in the notch on the switch bracket and secure it with a cable tie. Note:
The DIODE LOOP HARNESS should be positioned inside of the
pump cover.
7. Next, place the MOLDED RUBBER POWER CONNECTOR (from the
harness) through the hole in the PUMP & MANIFOLD COVER. Position
the cover over the protective toggle switch hood. Align the front and
rear holes in the cover with the U-NUTS located on the mount tabs.
Secure the pump cover with two 3/8"-16 x 1-1/8" CLAMPING KNOBS.
Congratulations! You have just completed building the finest snowplow
available! However, the vehicle wire harness still needs to be installed.
That is the focus of the second half of the electrical assembly instruction.
The Pump Cover Installs Over
The Top Of The Draw Latch
Switch Bracket
To properly secure the pump and manifold cover
on the A-frame, position the cover over the top of
the protective hood on the draw latch switch
mount bracket. Align the holes in the cover with
the U-clips on the welded A-frame tabs. Secure
the cover using two clamping knobs.
Electrical Assembly - Plow Harness
09
Electrical Assembly - Vehicle Harness
B
A
C
D
Heavy-Duty Power Contactor (Solenoid)
There are four wires that need to be attached to
the power contactor:
(A) Red Power Battery Wire
(B) Vehicle Wire Harness Red Power Wire
(C) 24" Black Ground Wire
(D) Brown/White Pump Solenoid Activation Wire
CAUTION: Always perform the vehicle wire harness assembly with the vehicle off and the keys out of the ignition. Use
caution when testing the electrical wires for the vehicle’s
headlight functions.
1. Begin the installation of the electrical harness under the hood. Insert
the WHITE POWER CONNECTOR & RED POWER WIRE (with FUSE)
end of the harness through the driver’s side fire wall access panel into
the vehicle cab. Note:You may need to widen an opening or cut access
to the cab interior to facilitate the assembly. Loosely position the
remaining portion of the harness over the driver’s side fender well and
place the MOLDED RUBBER POWER CONNECTOR near the bumper.
Note: Keep the plow and vehicle rubber power connector pins lubricated with a liberal amount of dielectric grease. Always replace the
protective RUBBER WEATHER CAPS when the plow is disconnected
from the vehicle.
2. Next, attach the POWER CONTACTOR (SOLENOID) to the driver’s
side wheel well or engine fan guard using two 12-14 x 3/4" hex washer
self-drilling screws. Note: Some model vehicles provide mounting
locations for accessory components. Always mount the solenoid with
the terminals facing up. This will extend the useful life of the solenoid.
Connect the 24" BLACK GROUND WIRE to either small terminal on
the solenoid and attach the opposite end to the vehicle with one hex
washer self-drilling screw. Locate the BROWN/WHITE PUMP SOLENOID ACTIVATION WIRE on the wire harness and position the eyelet
over the remaining small terminal on the contactor. Secure it with the
hardware provided on the solenoid.
3. Proceed to connect the BLACK VEHICLE WIRE HARNESS GROUND
WIRE to the negative terminal on the vehicle’s battery. Cut the wire to
length and crimp a 3/8" DIA. END RING TERMINAL on the wire. It is
also recommended that the ring terminal be soldered. Note: The harness should be secured to the vehicle prior to taking the necessary
measurement. Measure the distance needed for the RED POWER
WIRE to reach the solenoid and properly secure an end ring terminal
to it. Connect the power wire to either large terminal on the solenoid.
CAUTION: Do not fasten the wire harness to areas that come
in contact with moving engine parts or possess extreme
heat.The harness could become tangled and/or melt causing
electrical failure and vehicle damage.
4. Attach and solder an end ring terminal to both ends of the remaining
length of the red 4 gauge wire. Connect one end of the wire to the
open terminal on the solenoid and the remaining end to the positive
terminal on the battery.
5. With the vehicle harness secured to the truck, position the MAIN
LIGHTING HARNESS such that both of the large, gray VEHICLE
HEADLIGHT CONNECTORS are near the truck headlights and the
smaller, black PLOW HEADLIGHT CONNECTORS are near the grill
of the vehicle.
10
Electrical Assembly - Vehicle Harness
6. Plug the HEADLIGHT GROUND/RELAY (BLACK & GREEN/YELLOW)
CONNECTOR, from the vehicle wire harness, into the connector on
the main lighting harness. With the connection made, plug each
HEADLIGHT RELAY into the receptacles. Securely mount the receptacles to the vehicle with the terminal wires facing down and the relays
facing up. Installing the relays in this position will allow moisture to
drain from the relay.
7. Next, remove the front directional light assembly on the driver’s side
of the vehicle. Feed the VIOLET, turn light wire and GRAY, run light wire
from the main lighting harness through the opening in the directional
light housing. At this point, use a test light or ohm meter to determine
the proper wires in the vehicle’s electrical system to splice into. Once
you have identified the proper wires, position one end of the turn or
run light wire into a SPLICE LOCK CONNECTOR provided. Attach
the vehicle wire to the opposite side of the splice lock connector.
Complete the splice by pinching both wires together and locking the
connector. Repeat the splice procedure for the remaining wire. The
passenger’s side directional light assembly requires the same installation; however, only one wire, the PINK, turn light, needs to be spliced.
The vehicle wire harness is packaged with three
12V quick connect, sealed headlight relays. The
relays install into the black receptacles located on
the main lighting harness. Review the diagram on
page 28.
8. Connect the vehicle headlights to the main lighting harness using a
HEADLIGHT ADAPTER KIT. Due to differences in the construction
of the adapter kits, and the various make and model vehicles Blizzard
snowplows are installed on, a headlight adapter kit is not packaged
with your snowplow. Contact your local Blizzard dealer to obtain the
appropriate adapter for your vehicle.
9. Begin the adapter kit installation by removing the existing vehicle headlight connector from the headlight. Attach the HEADLIGHT ADAPTER
CONNECTOR to the existing vehicle headlight connector. Next, plug
the BLACK, FIVE-PIN CONNECTOR on the headlight adapter into
the gray, five-pin connector on the vehicle wire harness. Lastly, plug the
HEADLIGHT ADAPTER CONNECTOR into the vehicle headlight receptacle. Note: If more than one plug is present, match the colors of
each connector (ie gray to gray, black to black, Chevrolet daylight running is clear to gray). Repeat the installation for the opposite headlight.
10. Once the headlight adapter connections are completed, proceed to
secure the braided harness to the vehicle. Safely route all harness
lengths around the engine components and attach them to the vehicle
with cable ties. Extend the PLOW HEADLIGHT CONNECTORS, from
the main lighting harness, through the grill of the vehicle and position
the HARNESS POWER PLUG and WEATHER CAP near the bumper.
Cable tie the power plug to the vehicle bumper or tow hook to keep
the harness from hanging too low.
Snowplow Hitch Pin
& Hair Pin Cotter
In the event you should lose hydraulic power while
snowplowing, raise the snowplow into a pile of
snow and insert the emergency hitch pin provided
with your plow. The pin will lock the plow in a temporary raised position until proper service can be
performed to restore hydraulic power. Note: For
clarity, the draw latch is not illustrated.
11. Return to the driver’s side cab interior to install the remainder of the
vehicle wire harness. Connect the RED POWER WIRE (with 15 AMP
FUSE) to a switched power source with a minimum of 15 amps. Note:
The red power wire MUST be fused and switched on and off with
ignition. Secure all loose wires under the dash.
Elec. Assem. - Vehicle Harness (Continued)
11
Insert one terminal into
the middle spade.
Remaining terminal connects
to either spade on the SAME
side of the switch.
12. Find an accessible location under the dashboard for the PLOW
HEADLIGHT TOGGLE SWITCH & BRACKET. Install the headlight
bracket using two self-drilling screws. Insert the toggle switch through
the bracket and secure it with the hardware provided. Use the MALE
2-PIN POWER CONNECTOR to connect the toggle switch to the
vehicle wire harness.
First, insert the 24" GREEN/YELLOW GROUND LEAD into the
FEMALE 2-PIN POWER CONNECTOR (on the vehicle wire harness).
This lead should be grounded to the vehicle. Next, plug both of the
SWITCH LEADS into the toggle switch. Note: Both terminals should
be inserted into the spades on the same side of the switch. One
terminal should be positioned in the middle spade. See the illustration
to the left and on page 32. Plug both 2-pin power connectors together.
13. Next, install the LIGHT TOWER. Position the tower arms into the
receiving pockets located on the undercarriage. Each pocket has a
lock pin that secures both light tower arms. Pull out and twist each
handle to temporarily unlock the pins. Place the light tower into the
pockets and relock the pins. See your local Blizzard dealer for complete installation instructions for your vehicle undercarriage.
Vinyl
Cap
The black vinyl caps provided with your snowplow
install at each end of the light tower. Adjust the
plow headlights as desired, secure each with
hardware provided and finish the installation by
capping the light tower ends.
Power Hitch
Operation
System Power
Turned “OFF”
System Power
Turned “ON”
POWER
SWITCH
BLZ 1061
14. Proceed to install the PLOW HEADLIGHTS. Align one HEADLIGHT
BALL STUD MOUNT ADAPTER on the light tower tube with the
mounting hole and insert the threaded stud through each. Secure the
headlight with one 1/2" galvanized washer (neoprene facing up), one
7/16" external tooth lock washer and hex nut. Note: All snowplows are
shipped with two BLACK VINYL CAPS that install at either end of the
light tower. Connect the terminals from the plow lights to the terminals
on the main lighting harness. Repeat the installation for the opposite
headlight.
15. Align the four mount holes on the JOYSTICK CONTROL with the
holes located on the JOYSTICK BENCH MOUNT PEDESTAL. Note:
The radius on the pedestal should face the dashboard. Secure the
joystick to the pedestal with four 8-32 x 3/4" machine screws provided.
Next, slide the VELCRO® STRAP through the slots cut in the pedestal.
The metal D-RING should be located on the side opposite of the radius.
Wrap the strap around the bench and fasten. Finally, connect the
white power connector from the vehicle wire harness to the connector
on the control station. The power switch on the joystick should be in
the middle or “OFF” position. See the diagram to the left.
This completes the electrical assembly installation for the vehicle wire
harness and main lighting harness. You are now ready to perform all of
the test functions on the snowplow.
Testing The Snowplow
12
Testing The Snowplow
1. Fill the HYDRAULIC PUMP FLUID RESERVOIR with BLIZZARD
SNOWPLOW RAPID ACTION HYDRAULIC OIL (P/N 63070) until it
is approximately 3/4" from the top of the tank. Replace the cap on the
reservoir. Proceed to remove the weather caps from each of the plow
and vehicle wire harnesses and connect the plugs. Turn the POWER
SWITCH on the joystick (in the cab) to the “ON” position and turn the
vehicle ignition switch on. You now have power to the snowplow. Once
all of the hydraulic functions have been executed, the system will have
been filled with approximately 1-1/2 to 2 quarts of hydraulic oil.
2. To raise the POWER HITCH on the snowplow, turn the power switch
on the control station to the up or “ON” position. Push and hold the
toggle switch on the A-frame upward into the “CONNECT” position.
Notice the action of the fluid in the reservoir. By activating the initial
hydraulic function, the fluid begins to fill the system. Push and hold the
toggle switch in the “DISCONNECT” position, the Power Hitch will lower.
Refill the reservoir until the fluid is 3/4" from the top of the tank.
3. Position the vehicle such that the draw latch is below the push beam
and the mounting points on the A-frame are in line with the mounting
points on the undercarriage. Pull out the A-FRAME LATCH PIN and
rotate the A-FRAME LATCH clockwise until the latch is resting on the
DRAW PIN (See diagram on page 14). Move the snowplow in position
by activating the draw latch connect switch and release.
WARNING: Always use caution when operating the draw
latch CONNECT/DISCONNECT switch. Keep your hands and
feet away from the operation of the draw latch and the main
blade. The action of the draw latch moves the snowplow in
position for proper attachment to the vehicle. Failure to follow
this warning may result in serious injury or death.
The Power Hitch will raise until it hits the push beam and the DRAW
LATCH FINGERS will pull the plow into the vehicle. The mounting
points on the plow and vehicle are now positively aligned. Rotate the
A-frame latch counterclockwise until the latch is locked in the raised
position. Insert the two HITCH PINS through the mounting holes on
the A-frame and secure each with one hair pin cotter. The snowplow
is now securely mounted to the vehicle.
4. Return to the interior of the vehicle. With the plow securely in place,
you can now execute the remaining functions of the snowplow. The
power supply on the joystick should be in the “ON” position. Next, raise
the plow to its maximum height by pulling back (“RAISE”) on the joystick. Angle the snowplow to the left by moving the joystick toward the
“L” (left angle) on the label. If the plow function is slow or delayed, the
hydraulic fluid is filling the cylinder and replacing the air in the system.
Continue testing the remaining joystick functions. Monitor the fluid level
in the reservoir and fill to 3/4" from the top of the tank if needed. Also,
look for any hydraulic fluid leaks around the manifold, pump, hydraulic
hoses and all cylinders.
Your Blizzard straight blade snowplow will use
approximately 1-1/2 to 2 quarts of Blizzard Rapid
Action Hydraulic Oil. Blizzard hydraulic oil is also
available by the case (P/N 63071), gallon (P/N
63072) or gallon case (P/N 63069). See your
local authorized Blizzard dealer for price and
availability.
BLIZZARD
®
WARNING
To prevent accidental plow activation, turn
POWER switch to the “OFF” position when
not in use.
BLZ 1017
5. Lastly, check that the vehicle and plow headlights are in proper working condition including the turn signals. If necessary, adjust the plow
headlight beams with the plow in the raised position.
Congratulations on a successful assembly and installation! Once all of the
blade and electrical functions have been tested your Blizzard straight
blade is ready for action. Should you need additional support during a
plow assembly or undercarriage installation, contact your local authorized
Blizzard dealer.
Testing The Snowplow (Continued)
13
Power Hitch™ Instruction
Prior to operating your straight blade, review the Mounting & Dismounting
Instructions label at the driver’s side rear of the moldboard (shown below).
MOUNTING & DISMOUNTING
INSTRUCTIONS
TM
AY
!
A-Frame Latch
Rotates Clockwise
And Hooks Onto
Draw Pin
KE EP F INGE RS
AW
BLZ 1059
Should the Mounting & Dismounting Instructions
label or any of the labels that came with your
snowplow become hard to read or wear off, contact
your local authorized Blizzard dealer for
replacements.
14
Power Hitch™ Instruction
Notes
Notes
15
Maintenance Schedule
Maintenance Performed
Date
Regular Maintenance
Your Blizzard straight blade snowplow has been designed for years of
rugged, dependable service with low maintenance. To ensure proper
working condition, follow the maintenance guidelines below and on the
next page.
CAUTION: Always follow the maintenance guidelines in a timely
fashion. Failure to observe maintenance guidelines may result
in poor snowplow operation, increased component wear or
possibly lead to part failure.
Routinely inspect the following items – perform maintenance as needed:
1. All fasteners, pins, nuts and bolts for tightness. See the recommended
maximum bolt torque chart on page 33.
2. All hydraulic hoses and hydraulic hose adapters for wear and leaks.
See the recommended hydraulic adapter torque values on page 33.
3. All cylinders for leaks; inspect rod ends for corrosion and pitting.
4. Cutting edges and plow shoes for wear. Do not discard plow shoe
washers. These should be retained for different shoe adjustments.
5. Clean and lubricate all electrical plugs, headlight connections, ground
and battery cables, solenoid connections and switch connections to
prevent corrosion. Apply dielectric grease for every 25 hours of snowplow use. You may need to grease more frequently depending on your
plowing environment.
6. Lubricate all pins and bushings to prevent corrosion and to maintain
consistent operation, including the A-frame latch. A NLGI Grade 2
multipurpose lithium complex grease with molybdenum (MPGM) is
recommended for lubrication.
7. Clean and cover deep scratches or exposed metal with Blizzard Snowplow white (P/N 61219) or black (P/N 63073) touch-up paint. Contact
your local Blizzard Dealer for availability.
8. Check the hydraulic oil level in the hydraulic pump fluid reservoir. Fill
the fluid to within 3/4" from the top of the reservoir. Do not exceed this
level. Never mix different types of fluids. Contact your local dealer for
replacement Blizzard Snowplow Rapid Action Hydraulic Oil (P/N 63070).
9. Check the trip spring adjustment. Properly adjusted tension will allow
a sheet of paper to pass between the 3rd and 4th coils of the spring.
10. To adjust the snowplow drop speed, use the variable flow control valve
(FC) on the manifold (see label under pump & manifold cover). Turn the
dial on the valve clockwise to decrease the drop speed. Turn the dial
counterclockwise to increase the drop speed. See the Troubleshooting
Guide on page 35 for additional instructions.
16
Regular Maintenance
11. Do not allow snow and ice to build-up on the pump and manifold cover.
Excessive build-up may cause bumper damage when the plow is raised.
Storing Your Snowplow
Annual Fluid Replacement
Type & Quantity of Fluid Replaced
Date
Placing Your Plow In Storage
1. Position your plow on a flat, level surface for storage. Follow the dismounting procedure illustrated on page 14.
2. Pressure wash and dry the entire snowplow prior to placing in storage.
3. Apply a liberal amount of dielectric grease to all electrical plugs and
connections. Clean and install all dust caps.
4. Lubricate all exposed hydraulic cylinder rod ends with liquid white
lithium grease to prevent corrosion.
5. Lubricate all pins and bushings to prevent corrosion and to maintain
consistent operation, including the A-frame latch. A NLGI Grade 2
multipurpose lithium complex grease with molybdenum (MPGM) is
recommended for lubrication.
6. Clean and cover deep scratches or exposed metal with Blizzard Snowplow white (P/N 61219) or black (P/N 63073) touch-up paint. Contact
your local Blizzard dealer for availability.
7. Remove and properly discard the fluid from the pump reservoir. Clean
the pump filter and replace the hydraulic oil to within 3/4" from the top
of the reservoir. Changing the fluid annually will prolong the life of your
pump and manifold. Never mix different types of hydraulic oil. Contact
your local dealer for replacement Blizzard Snowplow Rapid Action
Hydraulic Oil (P/N 63070).
8. Cover the snowplow with a tarp if stored outside. This will protect your
plow from sun fading and inclement weather which can lead to
accelerated corrosion.
Removing Your Plow From Storage
1. Perform all regular maintenance indicated on the previous page.
2. If you have not replaced the hydraulic oil in the pump reservoir, it is
strongly encouraged that you do so prior to operating your plow. Prolonged storage could result in condensation build-up.
3. Follow the mounting procedure illustrated on page 14.
4. Once the plow has been properly mounted to the vehicle and all
electrical connections have been made, initiate all of the functions of
the snowplow. Monitor the fluid level in the reservoir and fill to 3/4" from
the top of the tank if needed.
5. Adjust the snowplow headlights as needed.
Storing Your Snowplow
17
Plow Specifications
Moldboard
Length
680LT ..................................................................................6'-8"
720LT ..................................................................................7'-2"
Thickness ........................................................................16 Gauge
Height
680LT ..............................................................................21-1/2"
720LT ..............................................................................23-1/2"
Reinforcement ........................................................4 Ribs @ 3/16"
Cutting Edge ..........................................................1/4" x 5" (1080)
Finish ............................................................Powder Coat - White
Trip Mechanism
Trip Spring Type ..................................(4) 5/16" Hooked Extension
Trip Spring Adjustment ......................5/8"-11 x 4-3/8" Spade Bolts
A-frame
Material ................................................Rec. Tube & Channel Type
Hitch Pins........................................................3/4" x 6" Yellow Zinc
Finish..............................................................Powder Coat - Black
Pump
Construction ............................Steel Housing w/Clear Plastic Tank
Type ................................................................Internal Gear Pump
Size ......................................................................................0.7 cc
Motor ............................................................................12V Starter
Volume Per Minute ......................................0.8 GPM @ 1500 PSI
Weight ..................................................................................9.2 lb.
Mount ....................................A-frame Install w/Hex Head Screws
Reservoir Capacity ........................................................1.2 quarts
Controls ..................................................Toggle Switch & Joystick
Angle Cylinders
Stroke ..................................................................................7-5/16"
Ram Diameter........................................................................1-1/4"
Bore Diameter........................................................................1-1/2"
Lower/Raise Cylinder
Stroke ....................................................................................4-5/8"
Ram Diameter ..............................................................................1"
Bore Diameter........................................................................1-3/4"
Plow Headlights
Type ......................................................Low Profile w/Turn Signals
Measurements ............................................12" W x 5"H x 5-1/4"D
Housing ..............................................................Plastic Composite
Mount ..............................................................Adjustable Ball Type
Bulb Type........High/Low Sealed Beam Halogen, 12V Rectangular
Switch Type ....................................................Dash Mount, Toggle
Miscellaneous
Plow Weight*
680LT ..................................................................Approx. 355 lb.
720LT ..................................................................Approx. 370 lb.
Amperage Draw** ........................................................Approx. 65A
Adjustable Plow Shoes................................................(2) Standard
Mount Mechanism........................................Hydraulic Power Hitch
Control Station ..............................................Joystick or Touch Pad
*Plow weight does not include vehicle undercarriage.
Manifold
Construction ............................................Red Anodized Aluminum
Ports..............................................................................................4
Cartridge Valves............................................................................5
Relief Valve ..................................................................................1
Flow Control Valve ........................................................................1
Weight ................................................................................13.3 lb.
Mount ....................................A-frame Install w/Hex Head Screws
Maximum Flow Capacity....................................................2.0 gpm
18
Plow Specifications
**Amperage draw specifications are based on the snowplow lift operation, at a shop temperature of 65˚F, using Blizzard Snowplow Rapid Action Hydraulic Oil. Amperage will vary with
temperature, oil viscosity and meter accuracy. Deadheading a plow function will result in
significantly increased amperage.
Unless otherwise indicated, all specifications are for the Model 680LT & 720LT straight blade
snowplows.
Blizzard Corporation reserves the right, under its Continuous Improvement Policy, to change
construction or design details and furnish equipment when so altered without reference to
illustrations or specifications.
M O D E L S 6 8 0 LT & 7 2 0 LT PA R T S L I S T
Ref.
No.
Part
No.
Build Quantity Part Description
680LT 720LT
Moldboard Assembly Parts
1
81061
81067
2
81062
81073
3
61196
4
61365
5A 61098
5
61102
6
61101
7
61103
8A 61049
8
61051
9
61052
10
63102
63110
11
63105
12
61175
13
63104
14
63103
63111
15
63063
16
61188
17
61064
18
61201
19
61435
1
N/A
1
N/A
6
6
2
2
36
2
2
4
4
1
N/A
1
1
1
1
N/A
1
4
4
4
4
N/A
1
N/A
1
6
6
2
2
36
2
2
4
4
N/A
1
1
1
1
N/A
1
1
4
4
4
4
Moldboard Weldment - Model 680LT
Moldboard Weldment - Model 720LT
Cutting Edge, Moldboard (1080) - Model 680LT
Cutting Edge, Moldboard (1080) - Model 720LT
Bolt, Carriage, 1/2"-13 x 1-1/2" Grade 8 P
Nut, Flanged Lock, 1/2"-13 Z
Plow Shoe Assembly, Standard (7-3/4" Shaft): (1) - 5 & 7, (18) - 6
Spacer, 1-5/8" O.D, 1-1/8" I.D. x 1-1/2" YZ
Washer, Flat, 1", 1-3/4" O.D., 1-1/16" I.D. YZ
Pin, Linch, 7/16" x 1-3/4" YZ
Plow Guide Assembly: (2) - 8 & 9
Screw, Hex Head Cap, 5/16"-18 x 1" Grade 5 Z
Nut, Nylon Insert Lock, 5/16"-18 Z
Decal, Passenger’s Side Moldboard (BLZ 1057) - Model 680LT
Decal, Passenger’s Side Moldboard (BLZ 1065) - Model 720LT
Label, WARNING! (BLZ 1060)
Decal, Center Moldboard (BLZ 1018)
Label, Power Hitch™ Mounting & Dismounting Instructions (BLZ 1059)
Decal, Driver’s Side Moldboard (BLZ 1058) - Model 680LT
Decal, Driver’s Side Moldboard (BLZ 1066) - Model 720LT
Label, Serial Number, Sequentially Numbered (BLZ 1049)
Nut, Nylon Insert Lock, 5/8"-11 Type NE
Washer, SAE Mil-Carb High-Strength, 5/8", 1-5/16" O.D., 21/32" I.D. YZ
Bolt, Spade, 5/8"-11 x 4-3/8" Grade 8 Z
Spring, Extension, 6-7/8" O.A.L. x 2-3/4" O.D., 5/16" Wire Diameter
Note: The reference numbers listed identify parts shown
in the illustrations on pages 22-24. These numbers are
specific to these illustrations only and do not correspond
with other diagrams in the manual. Always review the part
number given for proper component identification.
Pivot Beam & A-frame Assembly Parts
20
21A
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45A
45
46
47
48
49
50
51
52
53
54
83017
41039
61152
41038
41047
61020
61026
61057
61293
41037
50069
61357
61434
61008
60277
60294
60296
60004
60254
82061
60293
60008
60295
61438
61275
62038
82079
82078
61426
61105
40079
61000
61309
61433
61011
40126
61295
1
1
1
1
1
3
2
2
1
1
6
8
1
1
2
1
1
3
1
1
1
1
1
2
2
1
1
1
3
3
3
3
3
4
6
2
1
1
1
1
1
1
3
2
2
1
1
6
8
1
1
2
1
1
3
1
1
1
1
1
2
2
2
1
1
3
3
3
3
3
4
6
2
1
Pivot Beam Weldment
Kickstand Assembly: (1) - 21-23, 27, 28, (2) - 25, 26, (3) - 24
Screw, Hex Head Cap, 1/2"-13 x 4-1/2" Grade 8 YZ
Kickstand Leg Weldment
Kickstand Foot Weldment
Nut, Top Lock, 1/2"-13 Grade C Z
Washer, SAE Mil-Carb High-Strength, 1/2", 1-1/16" O.D., 17/32" I.D. YZ
Screw, Hex Head Cap, 1/2"-13 x 1-1/4" Grade 8 YZ
Spring, Compression, 2" O.A.L. x 1.101" O.D., 0.207 Wire Diameter
Bushing, Stepped, 1.13" O.D., 0.53" I.D. x 3/8", Stainless Steel
Pin, Clevis, 3/4" DIA. x 3" YZ
Pin, Cotter, 1/4" x 1-1/2" Z
Screw, Hex Head Cap, 1"-8 x 6" (with 4-3/4" Shank) Grade 8 P
Nut, Top Lock, 1"-8 Grade C Z
Hydraulic Cylinder, Plow Angle
Hydraulic Hose (Port #1), 1/4" x 15" - Plow Angle Right (Left Cylinder)
Hydraulic Hose (Port #2), 90˚/Straight, 1/4" x 20" - Plow Angle Left (Right Cylinder)
Hydraulic Adapter, 7/16"-20 x 7/16"-20 Male O.R.B. Connector
Hydraulic Cylinder, Plow Raise/Lower
Pin, Clevis, 5/8" DIA. x 5-3/4" YZ
Hydraulic Hose (Port #3), 1/4" x 10" - Plow Raise/Lower, Extend (Base End)
Hydraulic Adapter, 7/16"-20 x 7/16"-20 90˚ O.R.B. Adjustable Elbow
Hydraulic Hose (Port #4), 1/4" x 18" - Plow Raise/Lower, Retract (Rod End)
Knob, Clamping, 3/8"-16 x 1-1/8"
U-Nut, 3/8"-16
Switch, Toggle, DPDT, (On)-Off-(On), 16 Amps, 115V AC - Draw Latch Connect/Disconnect
A-frame Assembly: (1) - 45, 48-50, 54, (2) - 53, (4) - 51 & 52
A-frame Weldment
Pin, Hitch, 3/4" x 6" YZ
Pin, Hair Cotter, 9/64" DIA. x 2-11/16" Z
Pin, A-frame Latch, 3/8" DIA. x 1-3/4", Stainless Steel
Spring, Compression, 0.94" O.A.F.L. x 0.36" O.D., 0.029" Wire Diameter, Stainless Steel
Ring, Standard Split, 1-1/4" O.D., 1-1/16" I.D., Stainless Steel
Screw, Hex Head Cap, 5/16"-18 x 5/8" Grade 8 YZ
Washer, Split Lock, 5/16" YZ High-Alloy
Bushing, A-frame Pivot, Replaceable
Label, Power Hitch Connect/Disconnect Switch (BLZ 1037)
Parts List (1 of 3)
19
M O D E L S 6 8 0 LT & 7 2 0 LT PA R T S L I S T
Ref.
No.
Part
No.
Build Quantity Part Description
680LT 720LT
Draw Latch Assembly Parts
55A
55
56
57
58
59
60
61
62
63
64
65
66
67
68
82087
82084
82101
61363
61308
82055
82088
82095
82092
82091
82096
82097
40093
40116
61006
1
2
1
3
1
1
2
1
1
1
1
1
1
1
1
1
2
1
3
1
1
1
1
1
1
1
1
1
1
1
Draw Latch Assembly: (1) - 30, 56, 58, 59, 61-68, (2) - 55, 60, (3) - 57
Outer Draw Latch Plate Weldment, Driver’s & Passenger’s Sides
Pin, Draw, 1" DIA. x 4-1/4" (with 13/64" DIA. Cotter Pin Hole) YZ
Pin, Cotter, 3/16" x 2-1/2" Z
Screw, Hex Head Cap, 3/4"-10 x 3-1/2" Grade 8 YZ
Pin, Clevis, 3/4" DIA. x 3-7/16" BZ
Inner Draw Latch Plate
Pin, Draw Latch Mount (To A-frame), 1" x 3-1/4" (with 13/64" DIA. Cotter Pin Hole) BZ
Draw Latch Arm Weldment
Draw Latch Finger Weldment
Pin, Inner Draw Latch Plate/Hydraulic Cylinder Rod End, Plow Raise/Lower, 5/8" x 2-1/16" BZ
Pin, Draw Latch Arm Pivot, 3/4" x 2-1/16" BZ
Bushing, 1-1/4" O.D., 1-1/16" I.D. x 1-1/2" YZ
Spacer, 1" O.D., 25/32" I.D. x 5/8" YZ
Nut, Top Lock, 3/4"-10 Grade C Z
Hydraulic Pump & Manifold Assembly Parts
69
70
71
72
73
74
75A
75
76
77
78
79
80
81
82A
N/A
N/A
N/A
N/A
N/A
82
83
84
85
86
87
88
89
90
91A
91
92
93
N/A
N/A
N/A
N/A
94
95
96
61010
61412
61214
61222
61016
61307
60270
60269
60287
60003
60050
60005
60288
60167
62148
62045
62096
62097
62116
62117
62114
60052
60168
60170
62115
60166
60169
60165
60038
60282
60285
60284
60283
60305
60306
60307
60308
62160
82100
63099
2
4
4
4
2
2
1
1
3
1
2
1
1
2
1
1
15
5
5
1
4
5
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
2
4
4
4
2
2
1
1
3
1
2
1
1
2
1
1
15
5
5
1
4
5
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
Screw, Hex Head Cap, 5/16"-18 x 3-3/4" Grade 8 YZ
Washer, SAE Mil-Carb, High-Strength, 5/16", 11/16" O.D., 11/32" I.D., YZ
Screw, Hex Head Cap, 3/8"-16 x 1-1/4" Grade 8 YZ
Washer, Split Lock, 3/8" YZ High-Alloy
Washer, SAE Mil-Carb, High-Strength, 3/8", 13/16" O.D., 13/32" I.D., YZ
Washer, Internal/External Tooth Lock, 3/8" Z
Manifold Assembly: (1) - 75, 77, 79, 80, 84, 85, 87-89, (2) - 78, 81, (3) - 76, (5) - 83
Manifold Block (with Cross Port Relief), Red Anodized Aluminum
Hydraulic Adapter, 7/16"-20 x 9/16"-18 90˚ O.R.B. Adjustable Elbow
Hydraulic Adapter, 7/16"-20 x 9/16"-18 Male O.R.B. Connector
Plug, -6 SAE Hollow Hex (61010007)
Hydraulic Adapter, 9/16"-18 x 9/16"-18 90˚ O.R.B. Adjustable Elbow
Test Port Coupling, Nipple, 9/16"-18
Valve, Spool, Four-Way, Two Position C.C. (86020197 w/o screen)
Coil Harness Assembly: (1) - 86, 62045, 62117, (4) - 82, (5) - 62096, 62097 & 62116
Connector, Electric, Male, Plastic
Seal, Cable, Silicone, Orange (18 AWG)
Terminal, Male (18-16 AWG)
Silicone Cavity Plug, White (18-16 AWG)
Terminal, End Ring, 3/8" I.D. Copper, 8 Gauge
Coil, PDL 10V DC
Nut, Hex Jam, 1/2"- 20 YZ
Valve, Relief, 3000 PSI (85020340)
Valve, Spool, Three-Way, Two Position (85002279 w/o screen)
Coil, DDL 10V DC
Valve, Spool, Three-Way, Two Position (86020195 w/o screen)
Valve, Flow Control (85002054)
Valve, N.C., Two-Way (86020190)
O-ring, 3/ 32" C.S.W., 9/16" I.D., 3/4" O.D. Neoprene, 70 Durometer
Hydraulic Pump Assembly, 12 VDC Power Unit (MTE - 85203132): (1) - 91-93, 60305, 60306, 60307 & 60308
Reservoir Cap, Hydraulic Pump (MTE - 12501176)
Reservoir, 1.2 Quart, Hydraulic Pump (MTE - 32301360)
Motor, 12 VDC, Hydraulic Pump (MTE - 39200485)
Pump Assembly, (MTE - 21507048)
Kit, Seal, Includes: Shaft Oil Seal, Pump O-Ring & Reservoir O-Ring, (MTE - 10901313)
Inlet Filter (MTE - 37201027)
Coupling (MTE - 37901019)
Terminal, End Ring, 1/4" I.D., 4 Gauge, Z
Cover, Hydraulic Pump & Manifold, 1/4" Polyethylene
Label, Hydraulic Hose Identification Guide (BLZ 1054)
Snowplow Wire Harness Assembly Parts
97A
97
98
N/A
N/A
N/A
20
62039
62057
62001
62046
62093
62167
1
1
1
1
10
1
Parts List (2 of 3)
1
1
1
1
10
1
Wire Harness Assembly, Plow: (1) - 97, 98, 62006, 62046 & 62167, (10) - 62093
Wire Harness, Plow
Weather Cap, Rubber, Plow Wire Harness
Connector, Electric, Female, Plastic
Terminal, Female (18-16 AWG)
Harness, Diode Loop
M O D E L S 6 8 0 LT & 7 2 0 LT PA R T S L I S T
Ref.
No.
Part
No.
Build Quantity Part Description
680LT 720LT
Vehicle Wire Harness Assembly Parts
99A
99
100
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
101
102
103
104A
104
105
106
N/A
N/A
107
108
109
110
111
112
113A
113
114
115
116
117
118
119
120
62149
62150
62000
62124
62151
62035
62144
62042
61228
61229
61230
62056
62072
62008
62009
62016
62126
62127
62024
61041
61088
61031
61106
61107
61108
62032
62061
62062
61231
61550
61112
61111
61427
39054
62073
62074
61174
63106
61185
61127
61254
30153
61128
1
1
1
1
1
2
3
1
4
4
2
1
4
1
1
3
1
1
1
1
1
5
2
1
1
2
2
1
2
2
2
2
2
1
1
1
1
1
1
1
4
1
1
1
1
1
1
1
2
3
1
4
4
2
1
4
1
1
3
1
1
1
1
1
5
2
1
1
2
2
1
2
2
2
2
2
1
1
1
1
1
1
1
4
1
1
N/A
N/A
N/A
N/A
N/A
N/A
61454
60299
60318
61457
61458
61531
1
1
1
1
1
N/A
1
1
1
1
N/A
1
Wire Harness Assembly, Vehicle - Triple Relay Ver: (1) - 99, 100, 62124, 62151, 62056, (3) - 61031, 62016, 62144, (4) - 62072
Wire Harness, Vehicle - Triple Relay Version
Weather Cap, Rubber, Vehicle Wire Harness
Fuse, 1/4" DIA. x 1-1/4" BUSS AGC 15A, 32V
Main Lighting Harness - Triple Relay Version
Weather Cap, Rubber, Main Lighting Harness
Headlight Relay, CB1-D-12V, Standard Quick Connect w/Diode Inside
Power Contactor (Solenoid), 12V Continuous, High Performance DC, Plastic
Nut, Hex Jam, 5/16"- 24 Z
Nut, Hex Full, #10 - 32 Z
Washer, Split Lock, #10 Z Medium
Ground Wire, Power Contactor, 24"
Terminal, End Ring, 3/8" I.D. Copper, 4 Gauge
Fuse Clip, Mini
Fuse Clip, Auto Blade
Connector, Splice Lock (18 -14 AWG)
Ground Lead (Green/Yellow Wire), 24" with #10 Ring Terminal
Switch Lead, On/Off Plow Light (Green/Yellow Wires), 24" with Two 1/4" Receptacles
Switch,Toggle, DPDT, On-On, 20 Amps, 125V AC - Plow/Vehicle Headlights
Bracket, Plow/Vehicle Headlight Toggle Switch
Label, Plow/Vehicle Headlight Toggle Switch Bracket (BLZ 1008)
Screw, Hex Washer Self-Drilling, 12-14 x 3/4"
Headlight Assembly, Plow (Specify Driver’s or Passenger’s Side): (1) - 104/105, 106-110 & 62061
Headlight, Plow, Driver’s Side
Headlight, Plow, Passenger’s Side
Wire Harness (with 5-pin plug), Plow Headlight
Bulb, Sealed Beam Halogen, Glass, Plow Headlight (H6545/H4666)
Corrosion Preventive Compound (2 fl. oz.)
Adapter, Ball Stud Mount, Headlight
Washer, Neoprene Backing, 1/2" I.D., 1" O.D., Galvanized
Washer, External Tooth Lock, 7/16" YZ
Nut, Hex, 7/16"-14 Grade 8 YZ
Cap, 2-1/4" I.D., 2-3/8" O.D. x 3/4", Black Vinyl
Light Tower
Control Station Assembly, Joystick: (1) - 113-115
Control Station, Joystick
Label, Control Station, Joystick (BLZ 1017)
Label, Plow Power Switch, On/Off (BLZ 1061)
Base Plate, 1/8" ABS Plastic, Joystick Control Station
Strap (Velcro® with 2" Metal D-Ring), Black, 61"
Screw, Pan Head Machine, 8-32 x 3/4" Z
Undercarriage Weldment, 1997-Current, Chevrolet S-10
Decal, Undercarriage Push Beam, 1-1/2" x 9-1/4" (BLZ 1004)
Miscellaneous Assembly Parts
Kit, Hardware, Snowplow Assembly Parts: (1) - 38, 73, 74, (2) - 42, 71, 72, (4) - 16-18, (6) - 29, (7) - 30
Kit, Hydraulic Adapter: (1) - 40 & 77, (3) - 36 & 76
Kit, Hydraulic Hose: (1) - 34, 35, 39, 41
Kit, Hardware, Moldboard Cutting Edge - Models 680LT & 720LT: (6) - 3 & 4
Cutting Edge (with Hardware Kit), Moldboard - Model 680LT: (1) - 2 (81062), 61457
Cutting Edge (with Hardware Kit), Moldboard - Model 720LT: (1) - 2 (81073), 61457
Parts List (3 of 3)
21
2
11
9
10
3
16
17
1
12
18
13
29
31
19
29
30
29
30
20
42
20
43
32
30
4
29
14
24
6
7
27
5
28
26
15
21A
5A
21
22
33
45
45A
36
34
54
29
25
24
23
30
100
39
99
98
40
41
36
38
97
97A
99A
37
2004 Blizzard® Straight Blade Snowplow Assembly Schematic - Models 680LT & 720LT
96
8A
Blizzard Corporation reserves the right, under its Continuous Improvement Policy, to
change construction or design details and furnish equipment when so altered without reference
to illustrations or specifications. Blizzard Corporation offers a one-year limited warranty for all
snowplows and accessories. Blizzard Corporation does not warranty non-Blizzard snowplow
service parts or accessories or damage resulting from the use of these unauthorized items.
Blizzard snowplows are protected by one or more of the following U.S. patents: 5,638,618; 5,899,007; 6,178,669; 6,276,076;
6,393,737; 6,615,513. Other patents pending.
8
113A
113
114
115
95
69
52
70 72
70 74
71
75A - SEE DETAIL ON PAGE 24.
69
73
72
91
90
52
70
70
71
73
72
94
116
91A
92
101
102
71
71
118
103
74
72
93
117
105
33
3
30
104A
104
29
35
36
106
30
43
107
47
44
46
111
57
66
46
57
64
61
47
52
63
53
108
109
110
51
49
48
50
57
65
60 62
56
48
67
59
55
55A
112
68
50
119
30
50
49
58
48
120
49
RIGHT ANGLE
1
3000 PSI
2
3
RAISE LOWER
RV
FC
S5
S6
S3
CONNECTS TO PACKARD ELECTRIC CONNECTOR
SEE SCHEMATIC ON PAGE 27.
LIFT CYL.
LEFT ANGLE
4
A
B
C
D
E
F
G
H
J
K
S5
N/A
S6
S8
S4
S3
N/A
N/A
N/A
N/A
S4
S6
S3
S5
S8
S8
S4
TGP
PGP
T1 P1
83
82
83
82
82A
85
86
88
87
81
78
82
82
89
84
75
76
81
76
80
79
77
78
76
24
Manifold Detail w/Hydraulic & Electrical Schematics
WIRE
COLOR
(BLUE)
BLIZZARD HARNESS PLUG (VEHICLE)
UNIVERSAL 14 + 2 MOLD
PIN
NO.
COLOR
1
BLACK
BLACK
RED
BROWN/WHITE
BROWN
RED/WHITE
RED/BLACK
BLUE/WHITE
BLUE/BLACK
BLUE
LT. GREEN
WHITE
ORANGE
N/A
N/A
N/A
PINK/BLACK
N/A
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
FUNCTION
GROUND
GROUND
12 VOLT DC (+)
PUMP SOLENOID TO RING
PUMP SOLENOID TO MOLEX
RIGHT SLIDE BOX EXTEND
RIGHT SLIDE BOX RETRACT
LEFT SLIDE BOX EXTEND
LEFT SLIDE BOX RETRACT
LEFT ANGLE
RIGHT ANGLE
LIFT
FLOAT
N/A
N/A
N/A
12 (+) VDC FUSED
N/A
STRIPE
COLOR
(BLACK)
7
AWG
4
18
4
18
18
18
18
18
18
18
18
18
18
N/A
N/A
N/A
18
18
WIRE
COLOR
(RED)
PIN NUMBER
STRIPE
COLOR
(WHITE)
4
BLUE/WHITE
PIN NUMBER
EXAMPLE
RED/BLACK
BLUE/BLACK
RED/WHITE
BLACK
TOP
BROWN
8
7
2
11
3
4
1
10
15
16
ORANGE
5
6
BLUE
14
3
9
1
13
BROWN/WHITE
12
LIGHT GREEN
RED
BLACK
WHITE
PINK/BLACK
VEHICLE HARNESS PLUG (2004)
FACE VIEW LOOKING AT FEMALE CONNECTOR
FEMALE TERMINALS
WIRE
COLOR
(PINK)
BLIZZARD HARNESS PLUG (PLOW)
PIN
NO.
COLOR
FUNCTION
AWG
1
BLACK
N/A
RED
BROWN
RED/WHITE
RED/BLACK
BLUE/WHITE
BLUE/BLACK
BLUE
LT. GREEN
WHITE
WHITE
ORANGE
N/A
N/A
N/A
PINK/BLACK
N/A
GROUND
N/A
12 VOLT DC (+)
PUMP SOLENOID
RIGHT SLIDE BOX EXTEND
RIGHT SLIDE BOX RETRACT
LEFT SLIDE BOX EXTEND
LEFT SLIDE BOX RETRACT
LEFT ANGLE
RIGHT ANGLE
LIFT
LIFT
FLOAT
N/A
N/A
N/A
12 (+) VDC FUSED
N/A
4
N/A
4
18
18
18
18
18
18
18
18
18
18
N/A
N/A
N/A
18
18
10
11
12
13
14
15
16
15
WIRE
COLOR
(BLUE)
PIN NUMBER
STRIPE
COLOR
(WHITE)
6
RED/BLACK
PIN NUMBER
EXAMPLE
BLUE/WHITE
RED/WHITE
3
LIGHT GREEN
RED
TOP
BROWN
Y
PL
AP E ITH
Y TIV W VE
L
L C E TI
CA DU AS N
DI N E VE LL
IO -CO GR RE N A
R
C P
PE NON TRI N D O LS
IO N A
EC S U IN
EL RRO MPO RM
I
D O O TE
C C
2
3
4
5
6
7
8
9
STRIPE
COLOR
(BLACK)
1
9
12
5
4
13
7
6
2
10
10
14
15
BLUE/BLACK
8
11
BLUE
16
ORANGE
BLACK
WHITE (DOUBLE)
PINK/BLACK
PLOW HARNESS PLUG (2004)
FACE VIEW LOOKING AT MALE CONNECTOR
MALE TERMINALS
Diagram - Molded Plug Pin Locations
25
3
5
6
8
K
1"
9"
D
13"
ORANGE/BLACK
ORANGE/WHITE
ORANGE/RED
WHITE
ORANGE
BLACK SLIT (0.75 I.D.)
C
E
END RING TERMINALS (3/8" I.D.)
P/N 62072
CONDUIT
ORANGE/RED
• NOT DRAWN TO SCALE
• UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS IN INCHES
• ALL WIRE 18 GA EXCEPT AS MARKED
• ALL CONNECTORS VIEWED FROM TERMINAL SIDE.
WITH MOLDED PLUG
P/N 62039
J
RED, WHITE & BLACK
B
H
NYLON CORD
ORANGE/BLACK
ORANGE
7"
A
WHITE
ORG/BLACK
ORG/WHITE
WHITE
ORANGE/RED
LT. GREEN
BLUE
BLUE/BLACK
BLUE/WHITE
RED/BLACK
RED/WHITE
ORANGE/WHITE
PLOW HARNESS (2004)
DIODE LOOP HARNESS - P/N 62167
HEAT SHRINK 6 AMP 600 VOLT
TUBING
DIODES (4)
ORG/BLK
ORG/RED
WHITE
ORG/WHITE
ORANGE
1"
A
B
C
D
E
F
G
H
J
K
G
24"
COLORS (PIN 1 - BLACK, PIN 2 - RED)
WIRE (SGT 4 AWG)
F
HIGH AMP WIRES
PLASTIC ELECTRIC CONNECTOR, FEMALE - P/N 62046
SILICONE RUBBER CABLE SEAL - P/N 62096
FEMALE TERMINAL (18-16 AWG) - P/N 62093
OTTO CONNECTOR
AMP TERMINALS (18-14 AWG)
4
2
SEAL END OF TUBE WITH SILICONE SEALANT
7
1
NOTE: GREASE FEMALE TERMINALS
(1) BROWN
(2) BROWN
(3) ORANGE/RED
(4) WHITE
(5) PINK/BLACK
(6) PINK/BLACK
(7) NOT USED
(8) NOT USED
TOP
Diagram - Plow Harness
BROWN
PINK/BLACK
ORANGE
WHITE
WHITE
LT. GREEN
BLUE
BLUE/BLACK
BLUE/WHITE
RED/BLACK
RED/WHITE
7
16
11
10
5
15 14
6
1
END VIEW
2
13
4
9
12
3
LOOKING AT CONNECTOR
8
NOTE: SEE DETAIL ON PAGE 25.
3
15
11
10
10
9
8
7
6
5
4
PERIODICALLY APPLY
NON-CONDUCTIVE
DIELECTRIC GREASE WITH
CORROSION PREVENTIVE
COMPOUND ON ALL
TERMINALS
26
Plow Harness Wire Schematic
27
MANIFOLD CONNECTOR
K
J
H
G
E
F
C
D
B
A
D4
WHITE
ORANGE
ORANGE/BLACK
ORANGE/RED
ORANGE
ORANGE/RED
ORANGE/WHITE
WHITE
D3
D1
D2
ORANGE
WHITE
ORANGE/WHITE
ORANGE/BLACK
ORANGE/RED
DIODE LOOP HARNESS
ORANGE/BLACK
ORANGE/WHITE
RED/WHITE
RED/BLACK
BLUE/WHITE
BLUE/BLACK
BLUE
LT. GREEN
ORANGE/RED
WHITE
ORANGE/WHITE
ORANGE/BLACK
ORANGE/RED
ORANGE
PINK/BLACK
ORANGE/RED
4
BLUE
LT. GREEN
WHITE
RED/WHITE
RED/BLACK
BLUE/WHITE
BLUE/BLACK
3
WHITE
ORANGE/RED
ORANGE/BLACK
ORANGE/WHITE
TO PUMP MOTOR
5
2
BROWN
1
4 GA, BLACK
4 GA, RED
DPDT (ON)-OFF-(ON)
HITCH SWITCH
PLOW HARNESS WIRE SCHEMATIC (2004)
WHITE
PINK/BLACK
6
BROWN
WHITE
1
2
5
4
6
7
8
9
10
11
15
3
SEE VEHICLE
WIRE HARNESS
SCHEMATIC
BLACK
RED
RED/WHITE
RED/BLACK
BLUE/WHITE
BLUE/BLACK
BLUE
LT. GREEN
WHITE
ORANGE
PINK/BLACK
BROWN
Diagram - Main Lighting Harness
B
26"
RUN (GRAY)
TURN (VIOLET)
OTHER WIRE
OTHER WIRE
1"
C
E
A
B
D1
C1
E1
A1
B1
A1 B1 C1 D1 E1
B
D2
C2
E2
A2
B2
A2 B2 C2 D2 E2
24"
F
D
B
LEFT
RELAY P/N 62144
5"
18"
A = WHITE
B = BLACK
C = VIOLET
D = GRAY
E = LT. GREEN/BLACK
F = YELLOW/BLACK
NOTE: (3) CB1-D-12V RELAYS TO
BE PLUGGED IN CONNECTORS
D
A B C D E
14"
5"
A
E
C
A
LOOKING AT
CONNECTOR
END VIEW
VEHICLE
• NOT DRAWN TO SCALE
• UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS IN INCHES
• ALL WIRE TO BE 16 GA EXCEPT PINK, GRAY, GREEN/YELLOW (VIOLET TO BE 18 GA)
TRIPLE RELAY VERSION
P/N 62151
B
A = BLACK
B = GREEN/YEL.
A
MAIN LIGHTING HARNESS (2004)
OTHER WIRE
GRAY WIRE
BLUE SPLICE LOCK CONNECTOR
P/N 62016
OTHER WIRE
VIOLET WIRE
BLUE SPLICE LOCK CONNECTOR
P/N 62016
C E
D A
C
B
A
D
E
C = LT. GREEN
B = YELLOW
A = WHITE/RED
D = YELLOW/RED
E = LT. GREEN/RED
NOTE: 2 WEATHER CAPS NEEDED (LEFT & RIGHT)
FOR EACH LIGHTING HARNESS
P/N 62035
A = YELLOW/BLACK
B = BLACK/WHITE
C = YELLOW
D = GREEN/YELLOW
E = YELLOW/RED
A1 = LT. GREEN/BLACK
B1 = BLACK/WHITE
C1 = LT. GREEN
D1 = GREEN/YELLOW
E1 = LT. GREEN/RED
A2 = WHITE
B2 = BLACK/WHITE
C2 = WHITE/RED
D2 = GREEN/YELLOW
28"
18"
F
D
B
RIGHT
1"
OTHER WIRE
PINK WIRE
TURN (PINK)
OTHER WIRE
A
D
B
C E
C = LT. GREEN
B = YELLOW
A = WHITE/RED
D = YELLOW/RED
E = LT. GREEN/RED
A = WHITE
B = BLACK
C = PINK
D = GRAY
E = LT. GREEN/BLACK
F = YELLOW/BLACK
BLUE SPLICE LOCK CONNECTOR
P/N 62016
26"
JACKET MATERIAL
BLACK NYLON BRAID
24"
E
C
A
LOOKING AT
CONNECTOR
END VIEW
VEHICLE
28
Main Lighting Harness Wire Schematic
29
B
F
D
B
VIOLET
GRAY
E LT. GRN/RED (LOW BEAM)
D YELLOW/RED (HIGH BEAM)
A WHITE/RED (COMMON)
C LT GRN (LOW BEAM FEED)
B YELLOW (HIGH BEAM FEED)
C VIOLET (LEFT TURN)
B BLACK (GROUND)
D GRAY (PARK-RUN)
F YELLOW/BLACK (HIGH BEAM)
A WHITE (COMMON)
B
A
WHITE
WHT/RED
LT GRN/BLK
LT. GRN/RED
LT. GREEN
YEL/BLK
(HIGH BEAM) YELLOW/RED D
PINK
(LOW BEAM) LT. GRN/RED E
D A
C E
F
D
B
(COMMON) WHITE/RED A
(HIGH BEAM FEED) YELLOW B
E
C
A
LOOKING AT
CONNECTOR
END VIEW
(LOW BEAM FEED) LT. GRN C
(GROUND) BLACK B
(RIGHT TURN) PINK C
(PARK-RUN) GRAY D
(HIGH BEAM) YELLOW/BLACK F
(COMMON) WHITE A
(LOW BEAM) LT. GREEN/BLACK E
MAIN LIGHTING HARNESS - TRIPLE RELAY VERSION WIRE SCHEMATIC (2004)
BLACK
YELLOW
BLACK/WHITE
YEL/RED
GREEN/YELLOW
E LT. GREEN/BLACK (LOW BEAM)
FROM VEHICLE HARNESS
C E
D A
E
C
A
VEHICLE
LOOKING AT
CONNECTOR
END VIEW
VEHICLE
B
30
Diagram - Vehicle Harness
5
8
4
7
9
6
3
LOOKING AT
CONNECTOR
1" LONG
BLACK
1"
1
2
3
4
5
6
7
8
9
10
11
12
RED/WHITE
RED/BLACK
RED
ORANGE
BLUE/WHITE
BLUE/BLACK
BLACK
WHITE
BROWN
PINK/BLACK
LT. GREEN
BLUE
20"
• NOT DRAWN TO SCALE
• UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS IN INCHES
• ALL WIRE 18 GA EXCEPT AS MARKED
• ALL CONNECTORS VIEWED FROM TERMINAL SIDE
TRIPLE RELAY VERSION
P/N 62150
VEHICLE HARNESS (2004)
2
1
GREEN/YELLOW
1" LONG
END VIEW
10 11 12
2
1
8" LONG
RED
BLACK SLIT (0.50 I.D.)
CONDUIT
67"
89"
10" LONG
BLACK
(4) SUPPLIED LOOSELY
P/N 62072
3/8" RING TERMINAL
COLORS (PIN 1 - BLACK, PIN 2 - RED)
WIRE (SGT 4 AWG)
HIGH AMP WIRES
89"
21"
10" LONG
85" LONG
20" LONG
A
FUSE CAP
FUSE BODY
SPRING
FUSE (15AMP)
FUSE HOLDER
GREEN/YELLOW
BROWN/WHITE
RED
B
25"
9
13
4
10
6
14 15
5
2
END VIEW
1
16
7
11
8
3
4
5
6
7
8
9
10
11
15
BROWN
RED/WHITE
RED/BLACK
BLUE/WHITE
BLUE/BLACK
BLUE
LT. GREEN
WHITE
ORANGE
PINK/BLACK
2 4GA RED
1 4GA BLACK
LOOKING AT CONNECTOR
12
3
NOTE: SEE DETAIL ON PAGE 25.
BLACK NYLON CORD
Vehicle Harness Wire Schematic
31
ORANGE
11
10
9
8
7
6
5
4
4 GA BLACK
PINK/BLACK
ORANGE
WHITE
LT. GREEN
BLUE
BLUE/BLACK
BLUE/WHITE
RED/BLACK
RED/WHITE
BROWN
BLACK
B A
BLACK
RELAY LIGHTING
HARNESS
GREEN/YELLOW
BLACK
BROWN
RED/WHT
RED/BLACK
BLUE/WHITE
BLUE/BLACK
BLUE
LT. GREEN
WHITE
ORANGE
PINK/BLACK
RED
GREEN/YELLOW 1
BLACK 2
VEHICLE HARNESS - TRIPLE RELAY VERSION WIRE SCHEMATIC (2004)
SEE PLOW HARNESS
WIRE SCHEMATIC
1
4 GA RED
2
BLACK
BROWN/WHITE
3
BROWN
RED/BLACK
RED/WHITE
WHITE
LT. GREEN
BLUE
BLUE/BLACK
BLUE/WHITE
PINK/BLACK
15
BLACK
NOTE: ALL GROUNDS HAVE BLACK WIRE
7
10
4
8
11
12
6
5
2
1
9
3
32
Diagram - On/Off Switch Leads & Ground
COLOR
GREEN/YELLOW
GREEN/YELLOW
PIN
NO.
1
2
RELAY GROUND (FROM SWITCH)
RELAY GROUND (FROM SWITCH)
FUNCTION
“AMP” CONNECTOR
(2) PIN POWER CONNECTOR
WITH “MOLEX” MALE TERMINAL
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN INCHES
NOT DRAWN TO SCALE
FOR BLIZZARD RELAY HARNESS WHEN USING A CONTROL STATION
WITH A SINGLE POWER SWITCH
ON/OFF SWITCH LEADS & GROUND LEAD (2004)
GROUND TO VEHICLE
#10 RING TERMINAL
P/N 62126
GROUND LEAD
12" LONG
18
18
AWG
18
18
AWG
LOOKING AT
CONNECTOR
END VIEW
1
2
RELAY GROUND (FROM VEH. HARNESS)
RELAY GROUND (FROM #10 RING TERM.)
FUNCTION
GREEN/YELLOW
GREEN/YELLOW
GREEN/YELLOW
COLOR
24" LONG
1
2
PIN
NO.
GREEN/YELLOW
SEE DIAGRAM ON PAGE 30.
VEHICLE HARNESS
“MOLEX” FREE HANGING RECEPTACLE
.093 (2) PIN POWER CONNECTOR
WITH “MOLEX” FEMALE TERMINAL
TO CONTROL
1
2
.250 RECEPTACLE
P/N 62127
.250 RECEPTACLE
P/N 62024
NOTE: SEE INSTALLATION
INSTRUCTIONS ON PAGE 12.
DPDT TOGGLE SWITCH
SWITCH LEADS
12" LONG
GREEN/YELLOW
LOOKING AT
CONNECTOR
END VIEW
Torque Specifications
Grade Identification Marking for J429 - Grade 8 Bolt
• Material: Medium carbon alloy steel:quenched and tempered
• Minimum Proof Strength: 120,000 psi
• Minimum Tensile Strength: 150,000 psi
• Core Hardness Rockwell (min.): C33, (max.): C39
• Minimum Yield Strength: 130,000 psi
Grade Identification Marking for J429 - Grade 5 Bolt
• Material: Medium carbon steel: quenched and tempered
• Minimum Proof Strength: 85,000 psi
• Minimum Tensile Strength: 120,000 psi
• Core Hardness Rockwell (min.): C25, (max.): C34
• Minimum Yield Strength: 92,000 psi
Nominal
Thread
Size
Clamp Loads
(Pounds)
1/4-20
5/16-18
3/8-16
7/16-14
1/2-13
9/16-12
5/8-11
3/4-10
7/8-9
1-8
2,000
3,350
4,950
6,800
9,050
11,600
14,500
21,300
29,435
38,600
SAE J429 - Grade 5
Tightening Torque
“Lubricated”
6.25
13.25
23
37
57
82
113
200
321
482.5
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
“Dry”
8.34
17.5
31
50
75
109
151
266
430
640
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
Grade Identification Marking for Metric - Grade 8.8 Bolt
• Material: Medium carbon steel: quenched and tempered
• Minimum Proof Strength: 580 MPa
• Minimum Tensile Strength: 800 MPa
• Core Hardness Rockwell (min.): C22, (max.): C32
• Minimum Yield Strength: 640 MPa
8.8
Diameter
(millimeters)
5
6
7
8
10
12
14
16
18
20
Clamp Loads
(Pounds)
1,389
1,965
2,826
3,579
5,672
8,243
11,246
15,882
19,423
24,784
Metric Class 8.8
Tightening Torque
“Lubricated”
3.42
5.81
9.74
14.10
27.90
48.71
77.49
125.46
171.95
243.54
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
Nominal
Thread
Size
Clamp Loads
(Pounds)
1/4-20
5/16-18
3/8-16
7/16-14
1/2-13
9/16-12
5/8-11
3/4-10
7/8-9
1-8
2,850
4,700
6,950
9,600
12,800
16,400
20,300
30,100
41,550
54,540
10.9
4.56
7.80
12.99
18.82
37.27
64.94
103.32
166.79
229.52
325.46
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
5
6
7
8
10
12
14
16
18
20
37˚ JIC Flare Torque Values
“Lubricated”
8.92
18.35
32.5
53
80
115
159
282
454
680
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
“Dry”
11.93
25.44
44
70
107
154
211
376
606
900
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
Grade Identification Marking for Metric - Grade 10.9 Bolt
• Material: Low carbon alloy steel: quenched and tempered
• Minimum Proof Strength: 830 MPa
• Minimum Tensile Strength: 1040 MPa
• Core Hardness Rockwell (min.): C32, (max.): C39
• Minimum Yield Strength: 940 MPa
Diameter
(millimeters)
“Dry”
SAE J429 - Grade 8
Tightening Torque
Clamp Loads
(Pounds)
1,987
2,812
4,044
5,121
8,116
11,796
16,092
21,970
26,868
34,284
Metric Class 10.9
Tightening Torque
“Lubricated”
4.89
8.34
13.95
20.15
39.92
69.74
110.70
173.43
238.37
338.00
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
“Dry”
6.52
11.07
18.60
26.94
53.28
92.25
147.60
231.00
317.34
450.18
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
ft-lbs
O-Ring Boss Torque Values
Turns
Size
ft-lbs min./max.
Assembly Steps w/Visual Check
Size
ft-lbs min./max.
O-Ring Boss Assembly
N/A
N/A
2
2
1-1/2
1-1/2
1-1/2
1-1/4
1
1
1
1
1
-02
-03
-04
-05
-06
-08
-10
-12
-14
-16
-20
-24
-32
6-7
8-9
11 - 12
14 - 15
18 - 20
36 - 39
57 - 63
79 - 88
94 - 103
108 - 113
127 - 133
158 - 167
245 - 258
1. Make sure the tubing and threads are clean.
-02
-03
-04
-05
-06
-08
-10
-12
-14
-16
-20
-24
-32
6-7
8 - 10
13 - 15
17 - 21
22 - 25
40 - 43
43 - 57
68 - 75
90 - 99
112 - 123
146 - 200
154 - 215
218 - 290
1. Verify the port, O-ring, sealing surfaces, and threads are
clean and free of damage.
2. Lubricate the threads with 10W hydraulic oil.
3. Hand tighten the nut/sleeve to appox. 30 in-lbs.
4. Make alignment marks on the nut and fitting.
5. Proceed to tighten to turns or ft-lb values.
6. When fully tightened make a 2nd set of alignment marks at the fully tightened position.
Note: Torque values specified are for threads
lubricated with 10W hydraulic oil.
Sizes -02 through -08 are less tolerant to overtorque abuse. This will reduce the clamping force
resulting in loss of seal and reduction in flow.
2. Lubricate the threads and the O-ring with 10W hydraulic oil.
3. For an adjustable O.R.B., completely back-off the lock nut
and the washer.
4. Hand tighten the fitting until it contacts the port spotface.
Point the elbow or tee in the desired direction and hold.
5. Proceed to tighten to the proper specified torque value.
Note: Torque values specified are for threads lubricated
with 10W hydraulic oil.
Disclaimer: All torque values included in the charts above are advisory only, and their use by anyone is entirely voluntary. Reliance on the contents for any purpose by anyone is the sole risk of that person and Blizzard Corporation is not responsible for any loss, claim or damages
arising therefrom. Blizzard Corporation has made an effort to present the above contents accurately, but we do not guarantee its completeness or validity. This information is subject to change at any time, without notice. Blizzard Corporation makes no representations or warranties,
express or implied, in connection with the information.
Torque Specifications
33
Troubleshooting Guide
Prior to diagnosing your straight blade, verify that all connectors (plow and vehicle wire harness plugs, headlight adapters,
control box, fused hot lead, draw latch switch, solenoid ground wire connection, coil wire lead harness, plow headlight
harnesses) are free of corrosion and are well lubricated with dielectric grease. Insuring that all connectors are in good
working order will save time in determining your snowplow’s service needs.
Problem
Probable Cause(s)
Suggested Remedy
Pump will not run.
Plow wire harness may not be properly connected to the
vehicle wire harness.
Verify the wire harnesses are properly connected.
Review the instruction on pages 9-12.
Power or ground cables to the battery, pump or solenoid
may not be properly connected.
Properly connect all cables. Clean and lubricate with
dielectric grease. If power does not resume, check the
continuity of all cables to find the break.
Pump will not run, power to the solenoid.
The black ground wire and brown/white activation wire on
the solenoid are not properly connected.
Properly connect both cables. Test for power by initiating any joystick function except the float. Note: The
POWER rocker switch must be in the “ON” position to
properly test any plow function. If the solenoid is
grounded and no power exists, diagnose the plow &
truck wire harnesses.
Pump will not run with power to the solenoid.
Brown/white activation wire and ground are
properly connected.
The red, hot wire to the pump motor is not properly
connected.
Connect red wire and check the black ground wire. If
problem is not resolved, the solenoid could be inoperable or the pump motor may be worn. Replace the
solenoid if there is no power to the pump. Replace the
pump motor if it is receiving power.
Pump will not turn off. Do not allow the pump
motor to continuously run. Unplug both of the
harnesses until the pump can be tested or a
Blizzard dealer can diagnose the problem.
Solenoid may be damaged.
Disconnect the brown/white activation wire from the
solenoid. If the problem is not resolved, replace the
solenoid.
Short in the joystick control or wire harness.
Disconnect the joystick in the cab. If the solenoid turns
off, there is a short in the electrical system.
Fluid level in the pump reservoir is low. Fluid is leaking.
Add fluid to within 3/4" from the top of the tank. Check
for leaks around the pump, manifold and cylinders.
Amperage from the vehicle’s alternator is too low.
Repair or replace vehicle alternator. System amperage
draw is 65 Amps at 1000 PSI.
Pump filter may be clogged.
Remove the pump tank and thoroughly clean the filter.
A-frame latch will not move.
Draw latch is binding the A-frame latch.
Lower the draw latch to relieve binding on the A-frame
latch and reposition the A-frame latch as needed.
Plow will not lift. Pump works properly.
Control station in the cab may not be properly connected.
Connect the power connector from the control to the
vehicle wire harness.
A-frame latch is in the (down) locked position.
Lift the A-frame latch into the raised position.
Diode loop harness may be corroded or could have failed.
Clean diode loop harness thoroughly and/or replace.
Coils on the manifold may be damaged.
Remove the S6 coil from the cartridge valve. Position
a screwdriver inside of the coil and push the draw
latch connect/disconnect toggle switch upward. The
screwdriver should be magnetically drawn to the coil.
Replace the coil if there is no action.
Pump runs but plow functions are slow.
34
Troubleshooting Guide (1 of 2)
Problem
Probable Cause(s)
Suggested Remedy
Plow will not lift with magnification to the
S6 coil.
Hydraulic lock in the manifold. This occurs if the voltage is
too low on the coils – should be 11.8 volts.
Loosen cartridge valve S6 to relieve pressure and retighten. DO NOT OVERTIGHTEN! Valves should be
torqued to a maximum of 24 ft. lbs.
Solenoid cartridge valve may be contaminated.
Remove any foreign objects that may be obstructing
proper valve operation. Replace if not operating properly
after cleaning.
Plow will not stay angled when plowing.
The angle pressure relief valve is set too low.
NOTE: Increasing the pressure relief valve will cause
damage to your plow. Do not set the pressure relief
greater than 3000 PSI (See illustration below)
Check the pressure relief by testing the valve inline with
the cylinder. Attach a tee fitting to the angle cylinder
hydraulic adapter and connect the hose and pressure
gauge to the tee. Push the plow against a solid object
and record the pressure reading. Note: The setting should
not exceed 3000 PSI.
Plow will not angle, pump works.
Review all probable causes above.
NOTE: Verify coils S3 & S4 for angle functions.
Plow lowers too slow.
Variable flow control valve is not adjusted properly.
(See illustration below)
Turn flow control valve counterclockwise in small increments and test. NOTE: Never make adjustments when
the plow is in the raised position! Fluid pressure will make
the valve difficult to adjust and serious injury or death can
occur from a falling plow.
Review all probable causes for plow will not lift (Page 34).
Verify S5 coil (float) or S5 & S8 coils (disconnect) for
magnetism.
Plow drops sporadically.
Variable flow control valve is opened too far.
Turn clockwise 1/16 of a turn and test. See warning above.
Headlights will not switch from the vehicle to
the snowplow.
No power or ground to the headlight relay.
Verify green/yellow (G/Y) wire for the ground is connected.
Verify black/white (BK/W) wire for the power is connected.
If both are connected properly, replace the headlight relay.
Should your snowplow develop other problems not indicated in the Troubleshooting Guide, contact your local dealer for technical assistance and/or replacement parts.
Angle Pressure Relief Valve
Variable Flow Control Valve
Jam Nut
Variable Flow
Control Valve
Valve
Clockwise - Decreases Plow Drop Speed
Counterclockwise - Increases Plow Drop Speed
Troubleshooting Guide (2 of 2)
35
BLIZZARD
®
LIMITED CONSUMER WARRANTY
This warranty covers defects in material and workmanship except as set forth below.
WARRANTED PARTY:
This warranty applies only to the “Original Purchaser” who purchased this plow from an Authorized Blizzard Dealer,
for personal, family or household use.
TERM OF WARRANTY:
This Blizzard straight blade snowplow is warranted for the following period:
Parts and labor are warranted for one year from date of purchase.
BLIZZARD CORPORATION’S WARRANTY REMEDY:
Blizzard Corporation will, at its sole discretion, repair or replace defective parts at no charge.
CUSTOMERS RESPONSIBILITY:
To obtain warranty service, the purchaser must return the defective snowplow to any Authorized Blizzard Dealer.
The purchaser must verify the original purchase date. Transportation costs to and from the dealer will be the
responsibility of the purchaser.
ITEMS NOT COVERED UNDER THIS WARRANTY:
This limited warranty does not cover the following:
1. Expendable parts such as cutting edges, plow shoes, hoses, fasteners, blade guides, paint finish, etc.
2. Any snowplow or part thereof which has been repaired or altered by anyone other than an Authorized Blizzard Dealer.
3. Any snowplow or part thereof which has been subject to neglect, misuse, accident, improper installation, maintenance,
or storage. This includes, but is not limited to, corrosion of any electrical components.
4. Snowplows mounted on vehicles other than those for whom Blizzard Corporation has provided a specific
undercarriage system.
5. Blizzard Corporation does not assume liability for damage to the purchaser's vehicle resulting from the attachment
and use of a Blizzard straight blade snowplow. Vehicle risk is the sole responsibility of the purchaser.
WARRANTY LIMITATIONS:
THIS WARRANTY IS OFFERED IN LIEU OF ANY OTHER EXPRESS WARRANTY.
THE DURATION OF ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED
TO THE DURATION OF THIS WARRANTY.
BLIZZARD CORPORATION'S LIABILITY IS EXPRESSLY LIMITED TO REPAIR OR REPLACEMENT OF
DEFECTIVE PARTS. BLIZZARD CORPORATION SHALL NOT BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL
OR CONTINGENT DAMAGES WHATSOEVER, EVEN IF DAMAGES ARE CAUSED BY THE NEGLIGENCE OR
FAULT OF BLIZZARD CORPORATION.
State Laws: Some states do not allow exclusion of incidental or consequential damages or the limitations on how
long an implied warranty lasts, so these limitations or exclusions may not apply to you. This warranty gives you
specific legal rights and you may also have other rights which vary from state to state.
This warranty does not apply if you purchased your snowplow for other than personal, family, or household use. If
purchased for other than personal, family or household use, refer to the Blizzard Straight Blade Commercial Warranty.
95 AIRPARK BOULEVARD
CALUMET, MICHIGAN 49913
[906] 482-5555
1029-7-99 REV 8/01
BLIZZARD
®
COMMERCIAL WARRANTY
This warranty covers defects in material and workmanship except as set forth below.
WARRANTED PARTY:
This warranty applies only to the “Original Purchaser” who purchased this plow from an Authorized Blizzard Dealer,
for commercial use.
TERM OF WARRANTY:
This Blizzard straight blade snowplow is warranted for the following period:
Parts and labor are warranted for one year from date of purchase.
BLIZZARD CORPORATION’S WARRANTY REMEDY:
Blizzard Corporation will, at its sole discretion, repair or replace defective parts at no charge.
CUSTOMERS RESPONSIBILITY:
To obtain warranty service, the purchaser must return the defective snowplow to any Authorized Blizzard Dealer within the
warranty period. The purchaser must verify the original purchase date. Transportation costs to and from the Dealer will be
the responsibility of the purchaser.
ITEMS NOT COVERED UNDER THIS WARRANTY:
This warranty does not cover the following:
1. Expendable parts such as cutting edges, plow shoes, hoses, fasteners, blade guides, paint finish, etc.
2. Any snowplow or part thereof which has been repaired or altered by anyone other than an Authorized Blizzard Dealer.
3. Any snowplow or part thereof which has been subject to neglect, misuse, accident, improper installation, maintenance,
or storage. This includes, but is not limited to, corrosion of any electrical components.
4. Snowplows mounted on vehicles other than those for whom Blizzard Corporation has provided a specific undercarriage
system.
5. Blizzard Corporation does not assume liability for damage to the purchaser's vehicle resulting from the attachment and
use of a Blizzard straight blade snowplow. Vehicle risk is the sole responsibility of the purchaser.
LIMITS OF BLIZZARD CORPORATION’S LIABILITIES:
BLIZZARD CORPORATION'S LIABILITY IS EXPRESSLY LIMITED TO REPAIR OR REPLACEMENT OF
DEFECTIVE PARTS. BLIZZARD CORPORATION SHALL NOT BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL
OR CONTINGENT DAMAGES WHATSOEVER, EVEN IF DAMAGES ARE CAUSED BY THE NEGLIGENCE OR
FAULT OF BLIZZARD CORPORATION.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESSED AND IMPLIED
WARRANTIES INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE.
This warranty does not apply if you purchased your snowplow for personal, family, or household use.
In this case, refer to the Blizzard Straight Blade Limited Consumer Warranty.
95 AIRPARK BOULEVARD
CALUMET, MICHIGAN 49913
[906] 482-5555
1030-7-99 REV 8/01
95 Airpark Boulevard
Calumet, MI 49913
[888] 680-8600
[906] 482-5555
[906] 482-5445 Fax
www.blizzardplows.com
Blizzard, Power Hitch and Seat Cinch are trademarks of Blizzard Corporation. Blizzard is registered
in the United States Patent and Trademark Office. Loctite and 242 are registered trademarks of Loctite
Corporation, USA. Velcro is a registered trademark of Velcro Industries B.V. All other trademarks and
registered trademarks are the property of their respective owners. All Blizzard snowplows are protected
by one or more of the following United States Patents: 5,638,618; 5,899,007; 6,178,669; 6,276,076;
6,393,737 and 6,615,513. Other patents pending. Copyright © 2004 Blizzard Corporation. All rights
reserved. Made and printed in the USA.1375-04-04
