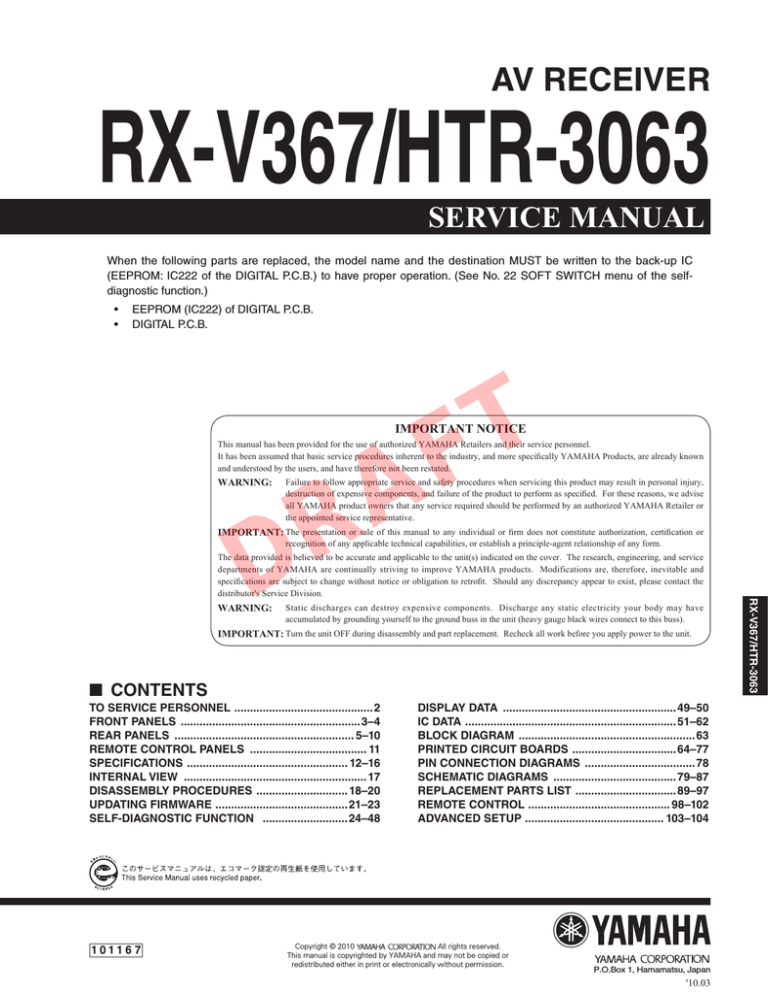

AV RECEIVER
RX-V367/HTR-3063
SERVICE MANUAL
When the following parts are replaced, the model name and the destination MUST be written to the back-up IC
(EEPROM: IC222 of the DIGITAL P.C.B.) to have proper operation. (See No. 22 SOFT SWITCH menu of the selfdiagnostic function.)
•
•
EEPROM (IC222) of DIGITAL P.C.B.
DIGITAL P.C.B.
T
F
IMPORTANT NOTICE
A
R
This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known
and understood by the users, and have therefore not been restated.
WARNING:
Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury,
destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise
all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or
the appointed service representative.
D
IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.
WARNING:
Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.
■ CONTENTS
TO SERVICE PERSONNEL ............................................2
FRONT PANELS .........................................................3–4
REAR PANELS ......................................................... 5–10
REMOTE CONTROL PANELS ..................................... 11
SPECIFICATIONS ................................................... 12–16
INTERNAL VIEW .......................................................... 17
DISASSEMBLY PROCEDURES ............................. 18–20
UPDATING FIRMWARE ..........................................21–23
SELF-DIAGNOSTIC FUNCTION ...........................24–48
1011 6 7
DISPLAY DATA .......................................................49–50
IC DATA ...................................................................51–62
BLOCK DIAGRAM ........................................................63
PRINTED CIRCUIT BOARDS .................................64–77
PIN CONNECTION DIAGRAMS ...................................78
SCHEMATIC DIAGRAMS .......................................79–87
REPLACEMENT PARTS LIST ................................89–97
REMOTE CONTROL ............................................. 98–102
ADVANCED SETUP ............................................ 103–104
Copyright © 2010
All rights reserved.
This manual is copyrighted by YAMAHA and may not be copied or
redistributed either in print or electronically without permission.
P.O.Box 1, Hamamatsu, Japan
'10.03
RX-V367/HTR-3063
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service
departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and
specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the
distributor's Service Division.
RX-V367/HTR-3063
■ TO SERVICE PERSONNEL
WALL
OUTLET
1. Critical Components Information
Components having special characteristics are marked
and
must be replaced with parts having specifications equal to those
originally installed.
2. Leakage Current Measurement (For 120V Models Only)
When service has been completed, it is imperative to verify
that all exposed conductive surfaces are properly insulated
from supply circuits.
EQUIPMENT
UNDER TEST
• Meter impedance should be equivalent to 1500 ohms shunted
by 0.15 μF.
AC LEAKAGE
TESTER OR
EQUIVALENT
INSULATING
TABLE
• Leakage current must not exceed 0.5mA.
• Be sure to test for leakage with the AC plug in both polarities.
For U model
“CAUTION”
“F1501: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 6A,
125V FUSE.”
For C model
CAUTION
F1501: REPLACE WITH SAME TYPE 6A, 125V FUSE.
T
F
ATTENTION
F1501: UTILISER UN FUSIBLE DE RECHANGE DE MÉME TYPE DE 6A, 125V.
A
R
WARNING: CHEMICAL CONTENT NOTICE!
This product contains chemicals known to the State of California to cause cancer, or birth defects or other reproductive
harm.
D
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON
WHATSOEVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or
expose eyes to solder/flux vapor!
RX-V367/HTR-3063
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.
About lead free solder
All of the P.C.B.s installed in this unit and solder joints are soldered using the lead free solder.
Among some types of lead free solder currently available, it is recommended to use one of the following types for the
repair work.
• Sn + Ag + Cu (tin + silver + copper)
• Sn + Cu (tin + copper)
• Sn + Zn + Bi (tin + zinc + bismuth)
Caution:
As the melting point temperature of the lead free solder is about 30°C to 40°C (50°F to 70°F) higher than that of the lead
solder, be sure to use a soldering iron suitable to each solder.
2
RX-V367/HTR-3063
■ FRONT PANELS
Top view
RX-V367 / HTR-3063
Front view
RX-V367 (U, C, T models)
A
R
RX-V367/HTR-3063
D
RX-V367 (R, K, A, B, G, F, L models)
T
F
3
RX-V367/HTR-3063
HTR-3063 (U, C, T models)
T
F
HTR-3063 (R, K, A, G, F, L models)
A
R
RX-V367/HTR-3063
D
4
RX-V367/HTR-3063
■ REAR PANELS
RX-V367 (U model)
T
F
RX-V367 (C model)
A
R
RX-V367/HTR-3063
D
RX-V367 (R model)
5
RX-V367/HTR-3063
RX-V367 (T model)
T
F
RX-V367 (K model)
A
R
RX-V367/HTR-3063
D
RX-V367 (A model)
6
RX-V367/HTR-3063
RX-V367 (B, G, F models)
T
F
RX-V367 (L model)
A
R
RX-V367/HTR-3063
D
HTR-3063 (U model)
7
RX-V367/HTR-3063
HTR-3063 (C model)
T
F
HTR-3063 (R model)
A
R
RX-V367/HTR-3063
D
HTR-3063 (T model)
8
RX-V367/HTR-3063
HTR-3063 (K model)
T
F
HTR-3063 (A model)
A
R
RX-V367/HTR-3063
D
HTR-3063 (G, E, F models)
9
RX-V367/HTR-3063
HTR-3063 (L model)
A
R
T
F
RX-V367/HTR-3063
D
10
RX-V367/HTR-3063
■ REMOTE CONTROL PANELS
RAV331
(U, C models)
RAV332
(R, T, K, A, L models)
RAV333
(B, G, E, F models)
Sheet (T model)
T
F
RX-V367/HTR-3063
D
A
R
11
RX-V367/HTR-3063
■ SPECIFICATIONS
■ Audio Section
Minimum RMS Output Power (Power Amp. Section)
(1 kHz, 0.9 % THD)
U, C models (8 ohms)
FRONT L/R .......................................................... 100 W/ch
CENTER ................................................................... 100 W
SURROUND L/R ................................................. 100 W/ch
R, T, K, A, B, G, F, L models (6 ohms)
FRONT L/R .......................................................... 100 W/ch
CENTER ................................................................... 100 W
SURROUND L/R ................................................. 100 W/ch
Maximum Power (JEITA) (1 kHz, 10 % THD, 6 ohms)
[R, T, K, L models]
FRONT L/R ............................................................ 135 W/ch
CENTER ..................................................................... 135 W
SURROUND L/R .................................................... 135 W/ch
Max. Power Per Channel (1 kHz, 0.7 % THD, 4 ohms)
[B, G, F, L models]
FRONT L/R ............................................................ 120 W/ch
CENTER ..................................................................... 120 W
SURROUND L/R .................................................... 120 W/ch
IEC Power (1 kHz, 0.9 % THD, 8 ohms) [B, G, F, L models]
FRONT L/R .............................................................. 95 W/ch
Residual Noise (IHF-A Network)
FRONT L/R SP OUT ........................................150 μV or less
Channel Separation
AV5, etc. (Input 5.1 k-ohms shorted, 1 kHz / 10 kHz)
.......................................... 60 dB or more / 45 dB or more
Volume Control
............................ MUTE / -80 dB to +16.5 dB / 0.5 dB step
Tone Control Characteristics
BASS
Boost/Cut ................................ ±10 dB / 2 dB step / 50 Hz
Turnover frequency ................................................. 350 Hz
TREBLE
Boost/Cut ...............................±10 dB / 2 dB step / 20 kHz
Turnover frequency ................................................ 3.5 kHz
Filter Characteristics
FRONT, CENTER, SURROUND (H.P.F.)
........ fc=40/60/80/90/100/110/120/160/200 Hz, 12 dB/oct.
T
F
SUBWOOFER (L.P.F.)
........ fc=40/60/80/90/100/110/120/160/200 Hz, 24 dB/oct.
A
R
Dynamic Power Per Channel (IHF) (FRONT L/R drive)
U, C models
(8/6/4/2 ohms) ..................................... 110/130/160/180 W
RX-V367/HTR-3063
D
■ Video Section
Composite Video Signal Level
..................................................................1 Vp-p / 75 ohms
Component Signal Level
R, T, K, A, B, G, F, L models
(6/4/2 ohms) ............................................... 105/130/150 W
Y ................................................................1 Vp-p / 75 ohms
Dynamic Headroom [U, C models]
(8 ohms) ...................................................................0.23 dB
Video Maximum Input Level (VIDEO COMV. OFF)
................................................................... 1.5 Vp-p or more
Input Sensitivity/Input Impedance
AV5, etc. ............................................... 200 mV / 47 k-ohms
Signal to Noise Ratio (IHF)
...................................................................... 50 dB or more
Maximum Input Signal (1 kHz, 0.5 % THD, Effect on)
AV5, etc. ..........................................................2.3 V or more
Monitor Out Frequency Response
Component video signal ..................5 Hz to 60 MHz, ±3 dB
PB/PR ......................................................0.7 Vp-p / 75 ohms
Output Level/Output Impedance
AUDIO OUT (REC) .............................. 200 mV / 1.2 k-ohms
SUBWOOFER (2 ch STEREO and FRONT SP: Small)
................................................................. 1 V / 1.2 k-ohms
Headphone Jack Rated Output/Impedance
AV5, etc. (1 kHz, 50 mV, 8 ohms) .......... 100 mV / 470 ohms
Frequency Response (10 Hz to 100 kHz)
AV5, etc. to FRONT L/R ........................................0 / -3.0 dB
Total Harmonic Distortion (1 kHz, 50 W)
AV5, etc. (straight) to FRONT L/R SP OUT
U, C models
(8 ohms) ....................................................0.06 % or less
R, T, K, A, B, G, F, L models
(6 ohms) .....................................................0.06 % or less
Signal to Noise Ratio (IHF-A Network)
AV5, etc. (STEREO) (Input shorted) to SP OUT
250 mV ........................................................ 98 dB or more
12
■ FM Section
Tuning Range
U, C models ............................................ 87.5 to 107.9 MHz
R, L models ................. 87.5 to 108.0 / 87.50 to 108.00 MHz
T, K, A, B, G, F models ........................ 87.50 to 108.00 MHz
50 dB Quieting Sensitivity (IHF) (1 kHz, 100 % Mod.)
Mono ............................................................ 3 μV (20.8 dBf)
Signal to Noise Ratio (IHF)
Mono ...........................................................................74 dB
Stereo ..........................................................................69 dB
Harmonic Distortion (1 kHz)
Mono ........................................................................... 0.3 %
Stereo .......................................................................... 0.3 %
Antenna Input
............................................................ 75 ohms unbalanced
RX-V367/HTR-3063
■ AM Section
Tuning Range
U, C models .............................................. 530 to 1,710 kHz
R, L models ........................ 530 to 1,710 / 531 to 1,611 kHz
T, K, A, B, G, F models .............................. 531 to 1,611 kHz
U ........................U.S.A. model
C ..................Canadian model
R .....................General model
T..................... Chinese model
K ...................... Korean model
A .................Australian model
B .......................British model
G ..................European model
F..................... Russian model
L..................Singapore model
Antenna Input
........................................................................ Loop antenna
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby
Laboratories.
■ General
Power Supply
U, C models ............................................... AC 120 V, 60 Hz
R model ............................AC 110-120/220-240 V, 50/60 Hz
T model ...................................................... AC 220 V, 50 Hz
DTS and DTS Digital Surround are registered trademarks and the DTS logos
and Symbol are trademarks of DTS, Inc.
K model ...................................................... AC 220 V, 60 Hz
A model ...................................................... AC 240 V, 50 Hz
B, G, F models ........................................... AC 230 V, 50 Hz
“iPod” is a trademark of Apple Inc., registered in the U.S. and other countries.
“iPhone” is a trademark of Apple Inc.
T
F
L model .......................................... AC 220-240 V, 50/60 Hz
Bluetooth is a registered trademark of the Bluetooth SIG and is used by
Yamaha in accordance with a license agreement.
U, C models .................................................250 W / 320 VA
A
R
“HDMI”, the “HDMI” logo and “High-Definition Multimedia Interface” are
trademarks, or registered trademarks of HDMI Licensing LLC.
U, C, T, K, A, B, G, F models ............................0.5 W or less
R model ............................................................1.0 W or less
[HTR-3063]
T model ..............................................................Gold color
U, C, R, T, K, A, G, F, L models ........................ Black color
R, G models ......................................................Silver color
Batteries (R03, AAA, UM-4) ...............................................x 2
Indoor FM antenna (1.4 m) ...............................................x 1
59
Remote control .................................................................x 1
(2-3/8")
Accessories
50
(7/8")
315 (12-3/8")
[RX-V367]
T model ..............................................................Gold color
U, C, R, T, K, A, B, G, F, L models ................... Black color
R, G, F, L models .........................................Titanium color
Silver color
ø 60
Top view
170 (6-5/8")
Finish
45
Weight ......................................................... 7.5 kg (16.5 lbs.)
23
• DIMENSIONS
274 (10-3/4")
Dimensions (W x H x D)
.................. 435 x 151 x 315 mm (17-1/8" x 5-7/8" x 12-3/8")
“SILENT CINEMA” is a trademark of Yamaha Corporation.
335 (13-1/4")
(2")
Front view
130 (5-1/8")
Optimizer microphone (6.0 m) .........................................x 1
Sheet (T model) ................................................................x 1
151 (5-7/8")
AM loop antenna (1.0 m) ..................................................x 1
21
435 (17-1/8")
(7/8")
* Specifications are subject to change without notice.
Unit: mm (inch) 13
RX-V367/HTR-3063
D
Maximum Power Consumption
................................................................................... 440 W
18
Standby Power Consumption
(1-3/4")
R, T, K, A, B, G, F, L models ....................................... 250 W
(3/4")
Power Consumption
RX-V367/HTR-3063
• SELECT MENU
MUSIC
STEREO
MUSIC ENHANCER
SUR. DECODE
STRAIGHT
Surround Decoder
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
● ● ●
D
*1
●
●
●
●
●
△ ●
RX-V367/HTR-3063
△ : Setting is possible only when Pro Logic II Music is selected using decode type.
Decode Type で Pro Logic II Music を選択時のみ設定可
14
T
F
A
R
●
●
Initialize
Panorama: On/Off
Effect Level: High/Low
Direct: Auto/Off
Surround R Level: 0 to 100%
Surround L Level: 0 to 100%
Center Level: 0 to 100%
Program
Standard
Spectacle
Sci-Fi
Adventure
Drama
Mono Movie
Sports
Action Game
Roleplaying Game
Hall in Munich
Hall in Vienna
Chamber
Cellar Club
The Roxy Theatre
The Bottom Line
Music Video
2ch Stereo
5ch Stereo
Straight Enhancer
5ch Enhancer
DSP Level: -6dB to +3dB
Parameter
Category
MOVIE
Decode Type
Sound field parameters
*1 Decode Type
Decode Type
Pro Logic
PL II Movie
PL II Music
PL II Game
RX-V367/HTR-3063
• SET MENU TABLE
MAIN MENU
1 Speaker Setup
SUB-MENU
1 Config
2 Level
3 Distance
PARAMETER
VALUE [INITIAL VALUE]
Subwoofer
Front speaker
Center speaker
Surround speaker L/R
Crossover
Subwoofer Phase
Extra Bass
FL (Front speaker L)
FR (Front speaker R)
C (Center speaker)
SL (Surround speaker L)
SR (Surround speaker R)
SWFR (Subwoofer)
Unit
Front L
Front R
Center
[Yes] / None
Small / [Large]
None / [Small] / Large
40 / 60 / [80] / 90 / 100 / 110 / 120 / 160 / 200 Hz
[NRM] / REV
On / [Off]
-10.0 to +10.0 dB, [0 dB], 0.5 dB step
-10.0 to +10.0 dB, [-1.0 dB], 0.5 dB step
Sur. L
Sur. R
SWFR
4 Equalizer
2 Sound Setup
1 Lipsync
A
R
2 Adaptive DRC
3 D.Range
4 Max Volume
5 Init. Volume
6 HDMI Audio Out
HDMI Auto
Auto
Manual
···········||···········
···········||···········
···········||···········
···········||···········
···········||···········
···········||···········
···········||···········
0 dB
0 dB
0 dB
0 dB -6.0 to +6.0 dB, [0 dB], 0.5 dB step
0 dB
0 dB
0 dB
[Off] / On
[Off] / On
0 to 240 ms, 1 ms step
0 to 240 ms, [0 ms], 1 ms step
Auto / [Off]
[Max] / STD / Min
-30.0 to +15.0 dB / +16.5 dB (Maximum volume), [+16.5
dB], 5.0 dB step
Off, Mute, -80 dB to +16.5 dB [Off], 0.5 dB step
[Amp] / TV / Amp+TV
RX-V367/HTR-3063
D
5 Test Tone
T
F
EQ Type Select
GEQ
Front L 63 Hz
Front R 160 Hz
Center 400 Hz
Sur. L
1 kHz
Sur. R 2.5 kHz
6.3 kHz
16 kHz
-10.0 to +10.0 dB, [0 dB], 0.5 dB step
meters (m) / [feet (ft)]
0.30 to 24.00 m, [3.00 m], 0.1 m step
1.0 to 80.0 ft, [10.0 ft], 0.5 ft step
0.30 to 24.00 m, [2.60 m], 0.1 m step
1.0 to 80.0 ft, [8.5 ft], 0.5 ft step
0.30 to 24.00 m, [2.40 m], 0.1 m step
1.0 to 80.0 ft, [8.0 ft], 0.5 ft step
0.30 to 24.00 m, [3.00 m], 0.1 m step
1.0 to 80.0 ft, [10.0 ft], 0.5 ft step
[GEQ] / Off
* “GEQ” is available only when “EQ Type Select” is set
to “GEQ”.
3 Function Setup
1 Input Rename
2 Auto Power Down
3 Dimmer
Input is possible to 9 characters
Input possible Character type
Capital
: A to Z
Small
: a to z
Figure
: 0 to 9
Symbols
: # * + , - etc.
Space
[Off] / 4 hours / 8 hours / 12 hours
-4 to 0, [0]
15
RX-V367/HTR-3063
MAIN MENU
4 DSP Parameter
SUB-MENU
MOVIE Standard
Spectacle
Sci-Fi
Adventure
Drama
Mono Movie
Sports
Action Game
Roleplaying Game
MUSIC Hall in Munich
Hall in Vienna
Chamber
Cellar Club
The Roxy Theatre
The Bottom Line
Music Video
STEREO 2ch Stereo
5ch Stereo
MUSIC ENHANCER Straight Enhancer
5ch Enhancer
SUR. DECODE Sur. Decoder
STRAIGHT
PARAMETER
[2], [9]
[2], [9]
[6], [9]
[3], [4], [5], [9]
[7], [9]
[7], [9]
[1], [8], [9]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
RX-V367/HTR-3063
5 Memory Guard
16
VALUE [INITIAL VALUE]
Decode Type
DSP Level
Center Level
Surround L Level
Surround R Level
Direct
Effect Level
Panorama
Initialize
D
A
R
T
F
Pro Logic, PL II Movie, PL II Music, PL II Game
-6 to +3 dB, [0 dB]
0 to 100 %, [100 %]
[Auto] / Off
[High] / Low
[Off] / On
[Off] / On
RX-V367/HTR-3063
■ INTERNAL VIEW
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
T
F
16
12
13
16
11
10
14
9
OPERATION (3) P.C.B.
MAIN (3) P.C.B. (R model)
MAIN (1) P.C.B.
AM/FM TUNER
DIGITAL P.C.B.
MAIN (2) P.C.B.
OPERATION (4) P.C.B.
MAIN (4) P.C.B.
OPERATION (9) P.C.B.
OPERATION (2) P.C.B.
OPERATION (8) P.C.B.
POWER TRANSFORMER
OPERATION (7) P.C.B.
OPERATION (1) P.C.B.
OPERATION (6) P.C.B.
OPERATION (5) P.C.B.
8
15
RX-V367/HTR-3063
D
A
R
17
RX-V367/HTR-3063
■ DISASSEMBLY PROCEDURES
(Remove parts in the order as numbered.)
Disconnect the power cable from the AC outlet.
1. Removal of Top Cover
a. Remove 5 screws (①) and 4 screws (②). (Fig. 1)
b. Slide the top cover rearward to remove it. (Fig. 1)
2. Removal of Front Panel Unit
a.
b.
c.
d.
Remove 7 screws (③). (Fig. 1)
Remove CB166, CB193 and CB221. (Fig. 1)
Unlock and remove CB136. (Fig. 1)
Release hook and then remove the front panel unit. (Fig. 1)
Top cover
T
F
Remove CB136
Unlocked
②
A
R
Cable
Connect CB136
Locked
Connected
D
RX-V367/HTR-3063
Cable
①
②
CB136
CB221
Front panel unit
CB166
③
CB193
③
Hook
③
Fig. 1
18
RX-V367/HTR-3063
3. Removal of DIGITAL P.C.B.
a. Remove CB222–223 and CB262. (Fig. 2)
b. Remove 2 screws (U, C models)/1 screw (R, T, K, A, B, G, L models) (④) and 5 screws (⑤). (Fig. 3)
c. Remove the DIGITAL P.C.B. which is connected directly to the OPERATION (4) P.C.B. with board-to-board connectors.
(Fig. 2)
4. Removal of OPERATION (4) P.C.B.
a. Remove CB194. (Fig. 2)
b. Remove screw (⑥) and 2 screws (⑦). (Fig. 3)
c. Remove the OPERATION (4) P.C.B. which is connected directly to the MAIN (1) P.C.B. with board-to-board connectors.
(Fig. 2)
r #PBSEUP#PBSEDPOOOFDUPFT
DIGITAL P.C.B
DIGITAL P.C.B.
OPERATION (4) P.C.B.
CB223
CB222
CB262
T
F
A
R
CB264
CB196
⑦
CB191
OPERATION (4) P.C.B.
⑦
CB195
CB192
CB21
CB22
MAIN (1) P.C.B.
RX-V367/HTR-3063
D
CB263
Fig. 2
④ (U, C models)
⑤
④
⑥
⑧
Fig. 3
19
RX-V367/HTR-3063
When checking the P.C.B.
a.
b.
c.
d.
e.
Remove the top cover. (Fig. 1)
Remove 3 screws (⑧). (Fig. 3)
Remove 5 screws (⑨) and 4 screws (⑩). (Fig. 4)
Place the P.C.B.s (with rear panel) upright. (Fig. 5)
Connect the ground of heat sink, rear panel and MAIN (1) P.C.B. (G3) to the chassis with a ground lead or the like.
(Fig. 5)
⑨
⑩
T
F
A
R
⑨
RX-V367/HTR-3063
D
⑨
Fig. 4
Rear panel
Ground lead
G3
Chassis
MAIN (1) P.C.B.
Ground lead
Heat sink
Fig. 5
20
RX-V367/HTR-3063
■ UPDATING FIRMWARE
Note)
Updating the firmware restores all the set up information (soundfield parameters, system memory and tuner
presetting, etc.) to the original factory settings.
When the following parts are replaced, the firmware must be updated to the latest version.
DIGITAL P.C.B.
Microprocessor (IC221, DIGITAL P.C.B.)
● Confirmation of firmware version and checksum
Before and after updating the firmware, check the firmware version and checksum by using the self-diagnostic
function menu.
Start up the self-diagnostic function and select “25. ROM VER/SUM/PORT” menu.
Using the sub-menu, have the firmware version and checksum displayed, and note them down.
(See “SELF-DIAGNOSTIC FUNCTION”)
*
When the firmware version is different from written one after updating, perform the updating procedure again from
the beginning.
T
F
● Initializing the back-up IC (EEPROM: IC222 of the DIGITAL P.C.B.)
A
R
After updating the firmware, the back-up IC MUST be initialized by the following procedure to have proper
memorization of the set up information (soundfield parameters, system memory and tuner presetting, etc.).
D
Start up the self-diagnostic function and select “24. FACTORY PRESET” menu. (See “SELF-DIAGNOSTIC FUNCTION”)
Select “24. PRESET RSRV”, press the “ ” (Power) key of this unit to turn off the power once and turn on the power
again. Then the back-up IC is initialized.
•
DVD or CD player (with DIGITAL OUTPUT (OPTICAL or COAXIAL) jack)
•
Optical cable (when OPTICAL jack is used)
•
Digital audio pin cable (when COAXIAL jack is used)
•
Firmware CD
*
RX-V367/HTR-3063
● Required Tools
Download the latest firmware from the specified download source and create the firmware CD.
21
RX-V367/HTR-3063
● Connection
Connect this unit and DVD/CD player as shown below. (Fig. 1)
Example of connection between digital OPTICAL jacks
This unit
DVD/CD player
Optical cable
T
F
Example of connection between digital COAXIAL jacks
A
R
This unit
RX-V367/HTR-3063
D
Digital audio pin cable
Fig. 1
22
DVD/CD player
RX-V367/HTR-3063
● Operation Procedures
1. While pressing the “INFO” key of this unit, connect the power cable of this unit to the AC outlet. (Fig. 2)
The FIRMWARE UPDATE mode is activated and “CDDA Upgrader” is displayed. (Fig. 2)
"INFO" key
Display
CDDA Upgrader
T
F
Fig. 2
2. Eject the disc tray of the DVD/CD player, load the firmware CD on it and press the “PLAY” key. Writing of the
firmware starts automatically. (Fig. 3)
A
R
3. When writing of the firmware is completed, “Update Success”, “Please...” and “Power off!!” are displayed
repeatedly. (Fig. 3)
D
Writing is started
XXXXXX
XX XX
Writing is completed
Update Success
X X X X X X : Received data
RX-V367/HTR-3063
Please...
Power off!!
Fig. 3
*
When the version of the firmware to be written is the same as the one existing in this unit, “Same Version”,
“Please...” and “Power off!!” are displayed repeatedly. (Updating is not necessary.)
If the display remains unchanged for more than 10 seconds after starting the firmware CD play procedure,
perform the firmware CD play procedure again from the beginning.
If “FILE CORRUPTED” is displayed after “Address:XXXXXX”, make sure that the written data is not corrupted
and perform Steps 1 to 7 of “Operation Procedures” again.
If “Upgrade Failed” is displayed, perform “operation procedures” again from the beginning.
4. Press the “ ” (Power) key of this unit to turn off the power.
5. Eject the disc tray of the DVD/CD player and unload the firmware CD from it.
6. Start up the self-diagnostic function and check that the firmware version and checksum are the same as written
ones. (See “Confirmation of firmware version and checksum”)
23
RX-V367/HTR-3063
■ SELF-DIAGNOSTIC FUNCTION
This unit has self-diagnostic functions that are intended for inspection, measurement and location of faulty point.
There are 26 main menu items, each of which has sub-menu items.
Listed in the table below are main menu items and sub-menu items.
Note that not all menu items listed will apply to the models covered in this service manual.
No.
Main menu
Sub-menu
1
BYPASS
1 ANALOG BYPASS
2
RAM THROUGH
1 RAM MARGIN
2 RAM FULL ALL
3 RAM FULL CENTER
4 RAM FULL SURROUND
5 RAM FULL SURROUND BACK (Not for service)
3
HDMI AUDIO
1 SPDIF
2 Multi
3 DSD
4
SPEAKERS SET
T
F
1 FRONT: SML 0dB
2 CENTER: NONE
3 LFE/BASS: FRNT
4 TONE: MAX
A
R
5 TONE: MIN
6 SPEAKER 6-ohms (Not for service)
RX-V367/HTR-3063
5
LIMITER CONTROL (Not for service)
D
6
MIC CHECK (R, K, A, B, G, F, L models)
7
FL/MONITOR CHECK
1 AC_B: Hi
2 AC_B: Lo
3 LIM/PLDET/THM
1 MIC CHECK
1 INITIAL DISPLAY
2 ALL SEGMENT OFF/MONITOR (VIDEO) MUTE
3 ALL SEGMENT ON/MONITOR (COMPONENT) MUTE
4 DIMMER 50%
5 CHECK PATTERN
8
MANUAL TEST
1 TEST ALL
9
AD DATA CHECK
1 PS/DC
2 TH1/TH2
3 AMP/DK
4 K1/K2
10
VIDEO CHECK
1 I2C
2 DIGITAL COMPONENT (Not for service)
3 DIGITAL CVBS (Not for service)
4 DIGITAL Y/C (Not for service)
5 ANALOG BYPASS (Not for service)
11
NO MENU
Invalidity
12
NO MENU
Invalidity
13
NO MENU
Invalidity
14
DOCK
1 DOCK
2 BT VERSION (Not for service)
24
RX-V367/HTR-3063
No.
15
Main menu
Sub-menu
HDMI INFORMATION
1 MODEL NAME
2 PRODUCT ID
3 VENDOR NAME
16
HDMI SELECT
1 HDMI NONE
2 HDMI IN 1 * *
3 HDMI IN 2 * *
4 HDMI IN 3 * *
5 HDMI IN 4 * *
17
NO MENU
Invalidity
18
IF STATUS (Not for service)
1 DSP STATUS
19
BUS CHECK
1 TI BUS:
20
NO MENU
Invalidity
21
PROTECTION HISTORY
1 HISTORY 1
2 EEPROM:
T
F
2 HISTORY 2
3 HISTORY 3
4 HISTORY 4
22
A
R
SOFT SWITCH
1 SWITCH MODE
2 MDOEL
3 DESTINATION
23
UPDATE (Not for service)
24
FACTORY PRESET
25
ROM VER/SUM/PORT
1 PRESET INHIBIT
2 PRESET RESERVED
1 FIRMWARE VERSION
2 ALL CHECKSUM
RX-V367/HTR-3063
D
1 TI FLASH BOOT
3 TI (DSP) FLASH ROM VERSION
4 TI (DSP) FLASH ROM CHECKSUM
5 MODEL/DESTINATION
6 Verify (Not for service)
26
MODEL/DESTINATION (Not for service)
1 MODEL/DEST
2 M/D:
25
RX-V367/HTR-3063
● Starting Self-Diagnostic Function
While pressing the “TONE CONTROL” and “STRAIGHT” keys of this unit as shown in the figure below, press the “ ” (Power)
key of this unit to turn on the power.
The self-diagnostic function mode is activated.
Keys of this unit
T
F
While pressing these keys, turn on the power.
A
R
● Starting Self-Diagnostic Function in the protection cancel mode
If the protection function works and causes hindrance to trouble shoot, cancel the protection function as described below,
and it will be possible to enter the self-diagnostic function mode.
(The protection functions other than the excess current detect function will be disabled.)
D
While pressing the “TONE CONTROL” and “STRAIGHT” keys as shown in the figure above, press the “ ” (Power) key to
turn on the power and keep pressing those 2 keys and the “ ” (Power) key for 3 seconds or longer.
The self-diagnostic function mode is activated with the protection functions disabled.
RX-V367/HTR-3063
In this mode, the “SLEEP” segment of the FL display of this unit flashes to indicate that the mode is self-diagnostic function
mode with the protection functions disabled.
CAUTION!
Using this product with the protection function disabled may cause further damage to this unit. Use special care for this
point when using this mode.
● Canceling Self-Diagnostic Function
1.
2.
26
Before canceling self-diagnostic function, execute setting for FACTORY PRESET of main menu No.24. (Memory
initialization inhibited or Memory initialized).
* In order to keep the user memory preserved, be sure to select PRESET INHIBITED (Memory initialization inhibited).
Press the “ ” (Power) key of this unit to turn off the power.
RX-V367/HTR-3063
● Display provided when Self-Diagnostic Function started
The display is as described below depending on the situation when the last time the power to this unit is turned off.
1. When the power is turned off by usual operation:
The FL display of this unit displays “NO PROTECT” then the main menu (sub-menu “1. ANALOG BYPAS” of main menu
1 BYPASS) a few seconds later.
Opening message
Main menu display
After a few seconds
NO PROTECT
1.ANALOG BYPAS
2. When the protection function worked to turn off the power:
The FL display of this unit displays the data of protection function which worked at that time then the main menu (sub-menu “1.
ANALOG BYPAS” of main menu 1 BYPASS) a few seconds later.
T
F
Note: At that time if you reactivate the self-diagnostic function after turning off the power once by pressing the “ ” (Power)
key, “NO PROTECT” will be displayed because that situation is equal to “1. When the power is turned off by usual
operation:” described above.
However the protection function history is stored in a back-up IC with a backup. For details, refer to main menu 21
PROTECTION HISTORY.
A
R
2-1. When the protection function worked due to excess current.
D
PS PRT:xxx
AD value when the protection function is working
RX-V367/HTR-3063
Cause: An excessive current flowed through the power amplifier.
Supplementary information: As current of the power amplifier is detected, the abnormal channel can be identified by
checking the current detect transistor.
Turning on the power without correcting the abnormality will cause the protection function to work immediately and the
power supply will instantly be shut off.
Notes)
•
Applying the power to this unit without correcting the abnormality can be dangerous and cause additional
circuit damage. To avoid this, if “PRI” and “PRD” protection function has been activated 3 times continuously,
the power will not turn on even when the “ ” (Power) key is pressed.
In order to turn on the power again, disconnect the power cable of this unit from the AC outlet once and then
reconnect it again.
•
The output transistors in each amplifier channel should be checked for damage before applying power to this unit.
•
Amplifier current should be monitored by measuring DC voltage across the emitter resistors for each channel.
27
RX-V367/HTR-3063
2-2. When the protection function worked due to a short between speaker terminals.
I PROTECT:xxx
AD value when the protection function is working
Cause: The line between speaker terminals is shorted.
Supplementary information: As the excess current is detected after operation of the speaker relay, the shorted speaker
terminal and the connected speaker can be identified.
Turning on the power without correcting the abnormality will cause the protection function to work immediately and the
power supply will instantly be shut off.
2-3. When the protection function worked due to abnormal DC output.
T
F
DC PRT:xxx
A
R
AD value when the protection function is working
Cause: DC output of the power amplifier is abnormal.
Supplementary information: The protection function worked due to a DC voltage appearing at the speaker terminal. A
cause could be a defect in the amplifier.
D
RX-V367/HTR-3063
Turning on the power without correcting the abnormality will cause the protection function to work in 3 seconds and the
power supply will be shut off.
2-4. When the protection function worked due to abnormal voltage in the power supply section.
PRV PRT:xxx
AD value when the protection function is working
Cause: The voltage in the power supply section is abnormal.
Supplementary information: The protection function worked due to a defect or overload in the power supply.
Turning on the power without correcting the abnormality will cause the protection function to work in 1 seconds and the
power supply will be shut off.
28
RX-V367/HTR-3063
2-5. When the protection function worked due to excessive heatsink temperature.
THM PRT:xxx
AD value when the protection function is working
Cause: The temperature of the heatsink is excessive.
Supplementary information: The protection function worked due to the temperature limit being exceeded.
Causes could be poor ventilation or a defect related to the thermal sensor.
Turning on the power without correcting the abnormality will cause the protection function to work in 1 seconds and the
power supply will be shut off.
*
For detection of each protection function, refer to main menu described later.
● History of protection function
T
F
When the protection function has worked, its history is stored in memory with a backup.
Even if no abnormality is noted while servicing the unit, an abnormality which has occurred previously can be defined
as long as the backup data has been stored.
The history of the protection function will be initialized when self-diagnostic function is cancelled by selecting No. 242. PRESET RESERVED (Memory initialized) sub-menu.
RX-V367/HTR-3063
D
A
R
29
RX-V367/HTR-3063
● Operation procedure of Main menu and Sub-menu
There are 26 main menu items, each of having sub-menu items.
Main menu selection
Select the menu using “SCENE TV” (forward) and “SCENE BD/DVD” (reverse) keys.
Sub-menu selection
Select the sub-menu using “SCENE RADIO” (forward) and “SCENE CD” (reverse) keys.
Keys of this unit
Main menu selection
Reverse
Forward
Sub-menu selection
T
F
Reverse
Forward
A
R
● Functions in Self-Diagnostic Function mode
D
RX-V367/HTR-3063
In addition to the self-diagnostic function menu items, functions as listed below are available.
•
•
•
•
Power ON/OFF
Master volume
Muting
Input selection
*
Functions related to the tuner and the set menu are not available.
● Initial settings used to start Self-Diagnostic Function
The following initial settings are used when starting self-diagnostic function.
When self-diagnostic function is canceled, these settings are restored to those before starting self-diagnostic function.
•
•
•
•
30
Master volume: -20 dB
Input: AV5
Main menu: 1. ANALOG BYPASS
Speaker setting: LARGE, Bass out to SWFR (All channels)
RX-V367/HTR-3063
● Details of Self-Diagnostic Function menu
1. BYPASS
Using the sub-menu, it is possible to select ANALOG BYPASS output.
1-1. ANALOG BYPASS
The analog input audio signal is output to FRONT L/R in DIRECT mode.
1.ANALOG BYPAS
INPUT: AV5 ANALOG
SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz
SPEAKER OUTPUT
Input level
Both ch, -20 dBm
FRONT
CENTER
SURROUND
SUBWOOFER
OUTPUT
+11.5 dBm
-∞
-∞
-∞
Volume
+6.5 dB
T
F
ANALOG BYPASS
A
R
DIR
DSP
LC89058
D
FL / FR
(DECODE)
(POST PROCESSING)
C / SW
TI D70Y
SL / SR
A/D
PCM1803
ROM
RX-V367/HTR-3063
DRAM
(Shaded items not used in this example)
31
RX-V367/HTR-3063
2. RAM THROUGH
Using the sub-menu, it is possible to select MARGIN output or FULL BIT output.
2-1. RAM MARGIN
The audio signal is output including the head margin.
2.RAM MARGIN
INPUT: AV5 ANALOG
SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz
SPEAKER OUTPUT
Input level
Both ch, -20 dBm
FRONT
CENTER
SURROUND
SUBWOOFER
OUTPUT
+11.5 dBm
+11.5 dBm
+11.5 dBm
-6.5 dBm
Volume
+6.5 dB
T
F
2-2. RAM FULL ALL
The audio signal is output to all channels in digital full bit without including the head margin.
The SUBWOOFER signal is output but not in digital full bit.
A
R
2.RAM FULL ALL
INPUT: AV5 ANALOG
SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz
Input level
RX-V367/HTR-3063
Both ch, -20 dBm
Volume
+6.5 dB
D
SPEAKER OUTPUT
FRONT
CENTER
SURROUND
SUBWOOFER
OUTPUT
+11.5 dBm
+11.5 dBm
+11.5 dBm
-6.5 dBm
2-3. RAM FULL CENTER
The audio signal is output to only CENTER channel in digital full bit without including the head margin.
2.RAM FULL C
INPUT: AV5 ANALOG
SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz
SPEAKER OUTPUT
Input level
Both ch, -20 dBm
32
FRONT
CENTER
SURROUND
SUBWOOFER
OUTPUT
-∞
+11.5 dBm
-∞
-∞
Volume
+6.5 dB
RX-V367/HTR-3063
2-4. RAM FULL SURROUND
The audio signal is output to only SURROUND L/R channels in digital full bit without including the head margin.
2.RAM FULL SUR
INPUT: AV5 ANALOG
SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz
SPEAKER OUTPUT
Input level
Both ch, -20 dBm
FRONT
CENTER
SURROUND
SUBWOOFER
OUTPUT
-∞
-∞
+11.5 dBm
-∞
Volume
+6.5 dB
2-5. RAM FULL SURROUND BACK
Not for service.
T
F
2.RAM FULL SB
INPUT: AV5 ANALOG
SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz
A
R
SPEAKER OUTPUT
Input level
Both ch, -20 dBm
Volume
+6.5 dB
CENTER
SURROUND
SUBWOOFER
OUTPUT
-∞
-∞
-∞
-∞
RX-V367/HTR-3063
D
FRONT
33
RX-V367/HTR-3063
3. HDMI AUDIO
Using the sub-menu, the audio signals input to HDMI IN are selected and output.
* When selecting “DSD”, be sure to connect an HDMI unit equipped with DSD output function to this unit.
3.SPDIF
3-1. SPDIF
SPDIF signal is output.
3.Multi
3-2. Multi (DVD-Audio)
Multi signal is output.
3.DSD
3-3. DSD (Direct stream digital)
DSD signal is output.
T
F
A
R
4. SPEAKER SET
D
The analog switch settings for each sub-menu are as shown in the table below.
FRONT
: SML 0dB
RX-V367/HTR-3063
CENTER : NONE
LFE/B
: FRONT
TONE
: MAX
TONE
: MIN
SPEAKER 6-ohm
FRONT
CENTER
SURROUND
SUBWOOFER
SMALL
LARGE
LARGE
SWFR
LARGE
NONE
LARGE
SWFR
LARGE
SMALL
SMALL
FRONT
LARGE
LARGE
LARGE
SWFR
LARGE
LARGE
LARGE
SWFR
LARGE
LARGE
LARGE
SWFR
LARGE: This mode is used for a speaker with high bass reproduction performance (a large unit). Full bandwidth
signals are output.
SMALL: This mode is used for a speaker with low bass reproduction performance (a small unit).
The signals of 90 Hz or less are mixed into the channel specified by LFE/BASS.
NONE:
This mode is used for no center speaker.
The center content is reduced by 3 dB and distributed to FRONT L/R.
SWFR:
LFE of 5.1 channel signal or LFE/BASS lower than 90 Hz is output through SUBWOOFER OUT.
FRONT: LFE of 5.1 channel signal or LFE/BASS lower than 90 Hz is distributed to FRONT L/R.
34
RX-V367/HTR-3063
4.FRNT:SML 0dB
4-1. FRONT: SML 0dB
The FRONT L/R signal, when 90 Hz or lower, is mixed to the channel specified by LFE/BASS.
4.CENTER:NONE
4-2. CENTER: NONE
The CENTER signal is distributed to FRONT L/R.
4.LFE/B:FRNT
4-3. LFE / BASS: FRONT
The LFE/BASS signal is distributed to FRONT L/R.
4.TONE:MAX
4-4. TONE: MAX
The audio signal is output with the tone control “BASS +10 dB”, “TREBLE +10 dB”.
4.TONE:MIN
T
F
4-5. TONE: MIN
The audio signal is output with the tone control “BASS +10 dB”, “TREBLE +10 dB”.
4.SPEAKER 6ohm
A
R
4-6. SPEAKER 6 ohms
Not for service.
D
INPUT: AV5 ANALOG
SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz
SPEAKER OUTPUT
FRONT
CENTER
SURROUND
SUBWOOFER
OUTPUT
+11.5 dB
+11.5 dB
-1.5 dB
Volume
Both ch, -20 dBm
+6.5 dB
+11.5 dB
Both ch, -20 dBm
+6.5 dB
+16.0 dB
-∞
+11.5 dB
-6.5 dB
Both ch, -20 dBm
+6.5 dB
-∞
+11.5 dB
+11.5 dB
-∞
Both ch, -20 dBm
+6.5 dB
+14.0 dB
+11.5 dB
+11.5 dB
-6.5 dB
Both ch, -20 dBm
+6.5 dB
+8.5 dB
+11.5 dB
+11.5 dB
-6.5 dB
Both ch, -20 dBm
+6.5 dB
+11.5 dB
+11.5 dB
+11.5 dB
-6.5 dB
RX-V367/HTR-3063
Input level
35
RX-V367/HTR-3063
5. LIMITER CONTROL
Not for service.
* When “5-3. LIM/PLDET/THM” sub-menu is selected, keys become non-operable. However, it is possible to
advance to the next main menu by pressing the “SCENE TV” (forward) or “SCENE BD/DVD” (reverse) keys of this
unit.
5.AC_B:Hi
5-1. AC-B: Hi
5.AC_B:Lo
5-2. AC-B: Lo
255255230000__
5-3. LIM / PLDET / THM
* Do not change the setting value because this item is only for the use of development staff.
A
R
D
6. MIC CHECK (R, K, A, B, G, F, L models)
T
F
RX-V367/HTR-3063
The signals input through the microphone are output to only FRONT L channel via A/D–D/A.
36
6.MIC CHK
ON
RX-V367/HTR-3063
7.
FL/MONITOR CHECK
This menu is used to check the FL display and video monitor output.
When checking the video monitor output, connect a TV monitor to this unit with a component video cable and video
pin cable.
Using the sub-menu, the FL display and video monitor output change together as shown below.
Checking FL display section
Check of the Video control section. (Monitor out)
7-1. INITIAL DISPLAY
MONITOR output ON
7-2. ALL SEGMENT OFF
MONITOR (VIDEO) output mute
T
F
7-3. ALL SEGMENT ON
A
R
* After check, change to next
menu at once.
7-4. DIMMER 50 %
7-5. CHECK PATTERN
MONITOR output ON
RX-V367/HTR-3063
D
MONITOR (COMPONENT) output mute
MONITOR output ON
Lighting in lattice
Short
Normal
Segment conditions of the FL driver and the FL tube are checked by turning ON and OFF all segments.
Next, the operation of the FL driver is checked by using the dimmer control.
Then a short between segments next to each other is checked by turning ON and OFF all segments alternately (in lattice).
(In the above example, the segments in the second row from the top are shorted.)
37
RX-V367/HTR-3063
8. MANUAL TEST
The built-in noise generator of DSP outputs the test noise through the channels specified by using the sub-menu.
The noise frequency for subwoofer is 30 to 80 Hz. Other than that, the noise frequency is 500 to 2 kHz.
8-1. TEST ALL
Noise is output from all channels.
8.TEST ALL
9. A/D DATA CHECK
T
F
This menu is used to display the A/D conversion value of the microprocessor which detects panel keys of this unit and
protection functions in using the sub-menu.
When K1/K2 menu is selected, keys become non-operable due to detection of the values of all keys.
However, it is possible to advance to the next main menu by turning the “VOLUME” knob of this unit.
A
R
* Numeric values in the figure are given as reference only.
9-1. PS/DC
PS:
Power supply voltage protection detection
D
Voltage detects: AC2, ±12A, S9, +7D, +5A, +5I, -VP
Normal value:
DC:
Power amplifier DC (DC voltage) output is detected.
Normal value:
RX-V367/HTR-3063
101 to 155
(Reference voltage: 3.3 V=255)
27 to 88
(Reference voltage: 3.3 V=255)
* If PS or DC becomes out of the normal value range, the protection function works to turn off the power.
PS:126 DC:058
9-2. TH1/TH2
Temperature of the heatsink is detected.
Normal value:
87 to 255
(Reference voltage: 3.3 V=255)
* If TH1 or TH2 becomes out of the normal value range, the protection function works to turn off the power.
TH1:226
38
2:255
RX-V367/HTR-3063
9-3. AMP/DK
AMP:
Power amplifier output is detected.
Normal value:
DK:
128 to 255
(Reference voltage: 3.3 V=255)
DOCK type detection (U, C models)
(Reference voltage: 3.3 V=255)
AMP:255 DK:255
DOCK detection for AD port
Pull-up resistance 10 k-ohms
DOCK type (DKID 141 pin)
Bluetooth
iPod
A/D value (3.3 V=255)
5 – 25
120 – 140
Wireless iPod
No connected
255
T
F
9-4. K1/K2
Panel key of this unit is detected.
A
R
When the A/D conversion value of the panel key becomes out of the specified range, normal operation will not
be available.
In that case, check the constant of voltage dividing resistor, solder condition, etc. Refer to table.
(Reference voltage: 3.3 V=255)
0 – 11
12 – 37
38 – 64
K1
Display
STRAIGHT
0 – 11
TUNING
>>
TUNING
<<
12 – 32
33 – 54
65 – 88
AM
55 – 75
79 – 113
FM
76 – 96
114 – 139
140 – 164
PRESET
>
PRESET
<
97 – 119
120 – 142
K2
RADIO
(SCENE4)
CD
(SCENE3)
TV
(SCENE2)
BD/DVD
(SCENE1)
PROGRAM
>
PROGRAM
<
INPUT
>
INPUT
<
165 – 186
MEMORY
143 – 163
187 – 226
INFO
164 – 181
255
KEY OFF
182 – 197
(Power)
198 – 209
TONE
CONTROL
255
KEY OFF
RX-V367/HTR-3063
D
Display
K1:255 K2:255
–
39
RX-V367/HTR-3063
10. VIDEO CHECK
This menu is used to check the video control section.
10-1. I2C check
The I2C (Inter integrated circuit) bus line connection is checked.
0 : No error detected
I2C: 00000000
1 : An error is detected
0 bit : –
1 bit : –
2 bit : –
3 bit : HDMI TRANSMITTER (IC202,DIGITAL P.C.B.)
4 bit : HDMI RECEIVER (IC201, DIGITAL P.C.B.)
5 bit : –
6 bit : –
T
F
7 bit : –
10-2. Digital component
A
R
Not for service.
DIGITAL COMP
10-3. Digital CVBS (Video)
RX-V367/HTR-3063
Not for service.
D
DIGITAL CVBS
10-4. Digital Y/C (S-Video)
Not for service.
DIGITAL Y/C
10-5. Analog bypass
Not for service.
ANALOG BYPASS
40
RX-V367/HTR-3063
11. NO MENU
11.Invalidity
12. NO MENU
12.Invalidity
13. NO MENU
T
F
13.Invalidity
RX-V367/HTR-3063
D
A
R
41
RX-V367/HTR-3063
14. DOCK
14-1. DOCK
This menu is used to check the DOCK connector without the iPod itself.
With the power to this unit turned off, short between pins No. 14 (TX) and No. 18 (RX), between pins No. 4 (iPDET) and
No. 8 (DGND). Also, connect a 10 k-ohms, 1/4 W resistor between pins No. 21 (DKID) and No. 8 (DGND). (Make sure
that the power is turned off.)
Start up the self-diagnostic function and select this menu.
The check result is displayed according to the following display specifications.
Note) Be sure to return the shorted pins to their original condition after executing this test.
16
9
10
11
3
4
1
17
18
12
13
14
5
6
7
8
19
20
21
2
DOCK CONNECTOR
RX-V367/HTR-3063
Check item
UART loop back test
Others = “NG”
Short pins
Result
Pins No.14 (TX)
– No.18 (RX)
OK
Y
NG
N
IC221
pin No. 64
iPAP (iPod accessory power) detection
DKID (DOCK ID) detection
Display
High = YES
Y
Low = No
N
Pins No.4 (iPDET)
IC221
– No.8 (DGND) pin No. 65
Low = installed
Y
High = not installed
N
Pins No.21 (DKID)
– No.8 (DGND) IC221
* 10 k-ohms, 1/4 W pin No. 95
pull down
10 k-ohms,
1/4 W pull down
Y
Other
N
14-2. BT (Bluetooth version)
The DOCK (Bluetooth module) version is displayed.
BT V:--------
42
NG NNNN
All Y = “OK”
A
R
D
iPDET (iPod installation to DOCK) detection
T
F
DOCK:
10 k-ohms
1/4 W
15
⎫
⎬
⎭
⎫
⎬
⎭
⎫
⎬
⎭
⎫
⎬
⎭
RX-V367/HTR-3063
15. HDMI INFORMATION
The HDMI informations are displayed.
MN:RX-V367
15-1. HDMI model name
The model name of this unit written in HDMI module is displayed.
RX-V367/HTR-3063
15-2. HDMI product ID
PI: 3145
The product ID of this unit written in HDMI module is displayed.
RX-V367: 3145
HTR-3063: 3146
VN: YAMAHA
T
F
15-3. HDMI vendor name
The vendor name “YAMAHA” of this unit written in HDMI module is displayed.
16. HDMI SELECT
A
R
D
Using the sub-menu, the selected input signal is output to HDMI OUT.
* Support audio is set to “OTHER”.
RX-V367/HTR-3063
16-1. HDMI none
HDMI NONE
No signal is output.
HDMI IN 1
**
16-2. HDMI in 1
The signal input from HDMI “IN 1” is output.
* * When deep color video signals are input, “30” bit or “36” bit is displayed.
HDMI IN 2
**
16-3. HDMI in 2
The signal input from HDMI “IN 2” is output.
HDMI IN 3
**
16-4. HDMI in 3
The signal input from HDMI “IN 3” is output.
HDMI IN 4
**
16-5. HDMI in 4
The signal input from HDMI “IN 4” is output.
43
RX-V367/HTR-3063
17. NO MENU
17.Invalidity
18. IF STATUS (Input function status)
Not for service.
DST:710E0F2390
T
F
19. BUS CHECK
Communication and bus line connection between devices on the DIGITAL P.C.B. are checked.
19-1. TI (DSP) BUS check
A
R
Communication and bus line connection between microprocessor (IC221) and TI (DSP, IC241) are checked.
TI BUS:NoEr
No error detected.
Boot:
When “Boot” is displayed for a few seconds or “Boot” and “NoEr” are displayed alternately, there is a
possibility that an error had occurred.
19-2. EEPROM BUS check
RX-V367/HTR-3063
D
NoEr:
Communication and bus line connection between microprocessor (IC221) and EEPROM (IC222) are checked.
EEPROM BUS:OK
OK:
No error detected.
NG:
An error is detected.
20. NO MENU
20.Invalidity
44
RX-V367/HTR-3063
21. PROTECTION HISTORY
This menu is used to display the history of protection function.
All history of protection function will be erased by pressing the “STRAIGHT” key.
Example
21-1.PS1
078L
21-1. History 1
H: When the upper limit of the protection function is exceeded.
L: When the lower limit of the protection function is exceeded.
A/D value when the protection function is activated. (Reference voltage: 3.3 V=255)
Example
21-2.NoPRT
21-2. History 2
T
F
Example
21-3.NoPRT
Example
21-4.NoPRT
21-3. History 3
RX-V367/HTR-3063
D
A
R
21-4. History 4
45
RX-V367/HTR-3063
22. SOFT SWITCH
When the following parts are replaced, the model name and the destination MUST be written to the back-up IC
(EEPROM: IC222 of the DIGITAL P.C.B.) to have proper operation.
• EEPROM (IC222) of DIGITAL P.C.B.
• DIGITAL P.C.B.
Note) When the DIGITAL P.C.B. is replaced, the firmware also must be updated to the latest version. (See
“UPDATING FIRMWARE”)
22-1. SWITCH MODE
Press the “STRAIGHT” key to select the “22. SW: MODEL”. This unit is in the mode where the name and the
destination can be written.
PCB:
Model name and destination can not be written.
MODEL: Model name and destination can be written.
22.SW
:PCB
T
F
22.SW
:MODEL
Press the “STRAIGHT” key is selected.
A
R
22-2. MODEL
Press the “STRAIGHT” key to select the model name, “V367” (RX-V367) or “H3063” (HTR-3063). Selected model
name is written.
D
22.MODEL: V367
22.MODEL:H3063
Press the “STRAIGHT” key is selected.
RX-V367/HTR-3063
22-3. DESTINATION
Press the “STRAIGHT” key repeatedly to select the destination. Selected destination is written.
Press the “STRAIGHT” key is selected.
22.DEST :U
22.DEST :C
22.DEST :R
22.DEST :T
22.DEST :K
22.DEST :A
22.DEST :G
22.DEST :L
G: B, G, F models
46
RX-V367/HTR-3063
23. UPDATE TI
Not for service.
23.UPDATE TI
24. FACTORY PRESET
This menu is used to reserve/inhibit initialization of the back-up IC (EEPROM: IC222 of the DIGITAL P.C.B.).
24.PRESET INHI
24-1. PRESET INHIBIT (Initialization inhibited)
T
F
Initialization of the back-up IC is not executed. Select this sub-menu to protect the values set by the
user.
24.PRESET RSRV
A
R
24-2. PRESET RESERVED (Initialization reserved)
Initialization of the back-up IC is reserved. (Actual initialization is executed the next time the power is
turned on.) Press the “ ” (Power) key of this unit to turn off the power after this sub-menu is selected,
reset the original factory settings or to reset the backup IC. Any protection history will be initialized.
D
CAUTION: Before setting to the PRESET RESERVED, write down the existing preset memory content of the tuner.
(This is because setting to the PRESET RESERVED will cause the user memory content to be erased.)
RX-V367/HTR-3063
47
RX-V367/HTR-3063
25. ROM VER/SUM/PORT
The firmware version, checksum values, model name and destination are displayed.
The checksum is obtained by adding the data at every 8-bits for each program area and expressing the result as a
4-figure hexadecimal notation.
* Numeric values in the figure are given as reference only.
VER.
A017
25-1. Firmware version
The firmware version of microprocessor (IC221 DIGITAL P.C.B.) is displayed.
Sum:
7740
25-2. All checksum
The checksum value of microprocessor (IC221 DIGITAL P.C.B.) is displayed.
TiVer:03.00r1
25-3. TI (DSP) FLASH ROM version
The firmware version of TI (DSP) FLASH ROM (IC243 DIGITAL P.C.B.) is displayed.
TiSum:A41D79DB
T
F
25-4. TI (DSP) FLASH ROM checksum
A
R
The checksum value of TI (DSP) FLASH ROM (IC243 DIGITAL P.C.B.) is displayed.
V3 000
U 111
25-5. MODEL/DESTINATION
D
The model name and destination are displayed.
DESTINATION detection value
Detection value
Destination
111
222
333
444
555
666
777
888
U
C
R
T
K
A
B, G, F
L
RX-V367/HTR-3063
MODEL detection value
Detection value
Model name
Verify 255
0
111
V3 (RX-V367)
H3 (HTR-3063)
25-6. VERIFY
Not for service.
26. MODEL/DESTINATION
Not for service.
26.MODEL/DEST
48
26.M/D: V367 U
RX-V367/HTR-3063
■ DISPLAY DATA
● V1001 : 18-MT-09GNK (OPERATION P.C.B.)
69
1
PATTERN AREA
● PIN CONNECTION
Pin No.
69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35
Connection F2 NX NP NP P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 P21 P22 P23 P24 P25 P26 P27 P28 P29 P30 P31
34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
Pin No.
T
F
Connection P32 P33 P34 P35 P36 NX NX NX NX NX NX NX 18G 17G 16G 15G 14G 13G 12G 11G 10G 9G 8G 7G 6G 5G 4G 3G 2G 1G NP NP NX F1
Note : 1) F1, F2 ..... Filament pin
2) NP ..... No pin
3) NX ..... No extend pin
A
R
● GRID ASSIGNMENT
18G
1a
2a
1G
1a
2G
3G
S9
2a
1a
2a
S17
D
4G
5G
6G
7G
8G
S16
9G
10G
15G
17G
S14 S15
11G
12G
13G
S7
14G
1a
S6 S13
a
1-1
2-1
3-1
4-1
5-1
1-2
2-2
3-2
4-2
5-2
2-3
3-3
4-3
5-3
1-4
2-4
3-4
4-4
5-4
j
S3
b
h
k
r
n
g
2-5
3-5
4-5
5-5
1-6
2-6
3-6
4-6
5-6
1-7
2-7
3-7
4-7
5-7
f
b
S3
m
S5
S4
S2
g
c
e
1-5
a
S2
f
1-3
2a
RX-V367/HTR-3063
S12 S10 S11
16G
17G
S8
4) 1G-18G ..... Grid pin
c
e
p
d
(18G-16G)
d
(15G)
S1
(1G-14G)
49
RX-V367/HTR-3063
RX-V367/HTR-3063
● ANODE CONNECTION
18G
17G
16G
15G
1G-14G
P1
1a
1a
1a
S5
1-1
P2
1h
1h
1h
S7
2-1
P3
1j
1j
1j
1d
3-1
P4
1k
1k
1k
2d
4-1
P5
1b
1b
1b
S2
5-1
P6
1f
1f
1f
1e
1-2
P7
1m
1m
1m
2e
2-2
P8
1g
1g
1g
S3
3-2
P9
1c
1c
1c
1c
4-2
P10
1e
1e
1e
2c
5-2
P11
1r
1r
1r
S4
1-3
P12
1p
1p
1p
1g
2-3
P13
1n
1n
1n
2g
P14
1d
1d
1d
1f
P15
2a
2a
2a
2f
P16
2h
2h
2h
1b
P17
2j
2j
2j
2b
P18
2k
2k
2k
1a
P19
2b
2b
2b
2a
2m
1-5
2g
2-5
2c
3-5
2e
4-5
2r
5-5
2p
1-6
2n
2n
2-6
2d
2d
3-6
P20
2f
2f
P21
2m
2m
P22
2g
2g
P23
2c
2c
P24
2e
2e
P25
2r
2r
P26
2p
2p
P27
2n
P28
2d
A
R
D
4-3
5-3
1-4
2-4
3-4
4-4
5-4
P29
S8
4-6
P30
S9
5-6
P31
S6
1-7
P32
S13
2-7
P33
50
2f
T
F
3-3
S15
3-7
P34
S12
P35
S10
S14
S17
5-7
P36
S11
–
S16
S1
4-7
RX-V367/HTR-3063
■ IC DATA
MUTE 51
DATA
CLOCK
DGND
SUBR1
SUBL1
SBLCIN
SBRCIN
FRIN2
FLIN2
SRIN2
SLIN2
SWIN2
CIN2
SBRIN2
SBLIN2
SLCIN
SRCIN
SUBR2
SUBL2
AVCC
R2A15220FP (MAIN P.C.B.)
8-channel electronic volume with 11 input selector and tone control
50
49
48
47
46 45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
AVEE
A VEE 52
ADCL 53
30 TRER
MCU
I/F
AVCC
29 BASSR2
28 BASSR1
ATT
0/-6/-12/-18dB
ADCR 54
27 TREL
SUB2
AGND 55
26 BASSL2
SUB
MAIN
SUB
MAIN
MAIN
INR1 56
Bass/Treble
-14~+14dB
(2dBstep)
0~-95dB,
-∞
(0.5dBstep)
INL1 57
INR2 58
T
F
SUB
INL2 59
+42~0dB
(0.5dBstep)
Tone+MIX
Tone
Tone
INR3 60
25 BASSL1
+42~0dB
(0.5dBstep)
Bypass
Tone
Tone+MIX
Tone
Bypass
INL3 61
A
R
0~95dB,
-∞
(0.5dBstep)
INR4 62
INL4 63
INR5 64
INL5 65
INR6 66
Bass/Treble
-14~+14dB
(2dBstep)
INR7 68
INL7 69
INR8 70
REC
INL8 71
INRA/RECR1 72
INLA/RECL1 73
INR9 74
+42~-95dB
-(0.5dBstep)
+42~-95dB
-∞(0.5dBstep)
+42~-95dB
-∞(0.5dBstep)
24 FRC
23 FR Pre-OUT
22 FROUT
21 AGND
20 FLOUT
19 FL Pre-OUT
18 FLC
17 CC
16 COUT
15 AGND
14 SWOUT
13 SWC
+42~-95dB
-∞(0.5dBstep)
12 SRC
11 SR Pre-OUT
10 SROUT
+42~-95dB
-∞(0.5dBstep)
9 A GND
RX-V367/HTR-3063
D
INL6 67
8 SLOUT
7 SL Pre-OUT
+42~-95dB
-∞(0.5dBstep)
INL9 75
6 SLC
INRB/RECR2 76
5 AGND
INLB/RECL2 77
4 SBRC
86
87
88
89
90
91
92
93
94
95
96
97
98
99 100
RECL3
FLIN1
FRIN1
CIN1
SWIN1
SLIN1
SRIN1
SBLIN1
SBRIN1
SBLC
SBL Pre-OUT
SBL OUT
84 85
RECR3
83
INL14
82
INR13
81
INR14
1 AGND
INL13
2 SBR OUT
INR11/RECR5 80
INL12
3 SBR Pre-OUT
INR10/RECL4 79
INR12
INR10/RECR4 78
INL11/RECL5
IC21:
51
RX-V367/HTR-3063
RX-V367/HTR-3063
Pin No.
52
Port Name
Function Name
Detail of Function
1
AGND
AE
Analog ground of internal circuit
2
SBROUT
VOSBL
Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel
3
SBR Pre-OUT
VOPSBL
Pre-output pin of FL/FR/SL/SR/SBL/SBR channel
4
SBRC
AE
Connects capacitor for reducing click noise of L/R/C/SW/SL/SR/SBL/SBR channel volume
5
AGND
AE
Analog ground of internal circuit
6
SLC
VOPSR
Connects capacitor for reducing click noise of L/R/C/SW/SL/SR/SBL/SBR channel volume
7
SL Pre-OUT
VOSR
Pre-output pin of FL/FR/SL/SR/SBL/SBR channel
8
SLOUT
AE
Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel
9
AGND
AE
Analog ground of internal circuit
10
SROUT
VOSL
Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel
Pre-output pin of FL/FR/SL/SR/SBL/SBR channel
11
SR Pre-OUT
VOPSL
12
SRC
AE
13
SWC
AE
14
SWOUT
VOSW
Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel
15
AGND
AE
Analog ground of internal circuit
16
COUT
VOC
Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel
17
CC
AE
18
FLC
AE
Connects capacitor for reducing click noise of L/R/C/SW/SL/SR/SBL/SBR channel volume
T
F
Connects capacitor for reducing click noise of L/R/C/SW/SL/SR/SBL/SBR channel volume
19
FL Pre-OUT
VOPFR
Pre-output pin of FL/FR/SL/SR/SBL/SBR channel
20
FLOUT
VOFR
Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel
21
AGND
POE
Analog ground of internal circuit
22
FROUT
VOFL
Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel
23
FR Pre-OUT
VOPFL
Pre-output pin of FL/FR/SL/SR/SBL/SBR channel
24
FRC
AE
Connects capacitor for reducing click noise of L/R/C/SW/SL/SR/SBL/SBR channel volume
25
BASSL1
AE
26
BASSL2
AE
27
TREL
AE
28
BASSR1
AE
29
BASSR2
AE
30
TRER
AE
31
AVCC
VCC
32
SUBL1
N.C.
33
SUBL2
N.C.
34
SRCIN
N.C.
35
SLCIN
N.C.
36
SBLIN2
8SBR
37
SBRIN2
8SBL
38
CIN2
8C
39
SWIN2
8SW
40
SLIN2
8SR
41
SRIN2
8SL
42
FLIN2
8FR
43
FRIN2
8FL
44
SBRCIN
Z2L
45
SBLCIN
Z2R
46
SUBL1
Z2R
47
SUBR1
Z2L
48
DGND
MG
49
DATA
VOL_SCK
Input pin of control data
50
CLOCK
VOL_MOSI
Input pin of control clock
A
R
D
Frequency characteristic setting pin of L/R channel tone control (Bass)
Frequency characteristic setting pin of L/R channel tone control (Treble)
Frequency characteristic setting pin of L/R channel tone control (Bass)
Frequency characteristic setting pin of L/R channel tone control (Treble)
Positive power supply to internal circuit
Output pin for L/R channel SUB1/SUB2 output
3rd multi input pin for SBL/SBR/SL/SR channel volume that is able to swap SBR/SBL with
SR/SL
Multi input pin of L/R/C/SW/SL/SR/SBL/SBR channel (Multi IN 1/2)
3rd multi input pin for SBL/SBR/SL/SR channel volume that is able to swap SBR/SBL with
SR/SL
Output pin for L/R channel SUB1/SUB2 output
Digital ground of internal circuit
RX-V367/HTR-3063
Pin No.
Port Name
Function Name
AE
Detail of Function
51
MUTE
Outside mute control pin
52
AVEE
53
ADCL
ADR
54
ADCR
ADL
55
AGND
AE
56
INR1
AU2L
57
INL1
AU2R
58
INR2
AU1L
59
INL2
AU1R
60
INR3
AV-6L
61
INL3
AV-6R
62
INR4
AV-5L
63
INL4
AV-5R
64
INR5
PHL
65
INL5
PHR
66
INR6
SRL
67
INL6
SRR
68
INR7
IPL
69
INL7
IPR
70
INR8
XML
71
INL8
XMR
72
INRA/RECR1
AV-OUT_L
73
INLA/RECL1
AV-OUT_R
74
INR9
USBL
75
INL9
USBR
76
INRB/RECR2
AOL
77
INLB/RECL2
AOR
78
INR10/RECR4
TUL
79
INL10/RECL4
TUR
80
INR11/RECR5
MIC
81
INL11/RECL5
AE
82
INR12
AUXL
83
INL12
AUXR
84
INR13
AE
85
INL13
AE
86
INR14
AE
87
INL14
AE
88
RECR3
N.C.
89
RECL3
N.C.
90
FLIN1
DAFR
91
FRIN1
DAFL
92
CIN1
DAC
93
SWIN1
DASW
94
SLIN1
DASR
95
SEIN1
DASL
96
SBLIN1
DASBR
97
SBRIN1
DASBL
98
SBLC
AE
Connects capacitor for reducing click noise of L/R/C/SW/SL/SR/SBL/SBR channel volume
99
SBL Pre-OUT
VOPSBR
Pre-output pin of FL/FR/SL/SR/SBL/SBR channel
100
SBL OUT
VOSBR
Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel
–
Negative power supply to internal circuit
Output pin for L/R channel ADC
Analog ground of internal circuit
Input pin of L/R channel (Input selector)
T
F
A
R
Output pin for L/R channel (input selector)/Output pin for L/R channel REC output
D
Input pin of L/R channel (Input selector)
Output pin for L/R channel (input selector)/Output pin for L/R channel REC output
RX-V367/HTR-3063
Input pin of L/R channel (Input selector)
Output pin for L/R channel REC output
Multi input pin of L/R/C/SW/SL/SR/SBL/SBR channel (Multi IN 1/2)
53
RX-V367/HTR-3063
108
107
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
SPI0_CLK/I2C0_SCL
SPI0_SCS/I2C1_SCL
Vss
SPI0_ENA/I2C1_SDA
EM_OE
DVDD
EM_RW
CVDD
EM_CS[2]
Vss
EM_RAS
EM_CS[0]
EM_BA[0]
Vss
EM_BA[1]
EM_A[10]
DVDD
EM_A[0]
CVDD
EM_A[1]
EM_A[2]
Vss
EM_A[3]
CVDD
EM_A[4]
EM_A[5]
Vss
DVDD
EM_A[6]
EM_A[7]
Vss
CVDD
EM_A[8]
EM_A[9]
EM_A[11]
DVDD
IC241: D70YE101BRFP266 (DIGITAL P.C.B.)
Decoder/Post processor
* No replacement part available.
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
Vss
EM_CKE
EM_CLK
Vss
DVDD
EM_WE_DQM[1]
EM_D[8]
CVDD
EM_D[9]
EM_D[10]
Vss
EM_D[11]
DVDD
EM_D[12]
EM_D[13]
CVDD
EM_D[14]
EM_D[15]
Vss
CVDD
EM_D[0]
EM_D[1]
DVDD
EM_D[2]
EM_D[3]
Vss
EM_D[4]
EM_D[5]
CVDD
EM_D[6]
DVDD
EM_D[7]
Vss
EM_WE_DQM[0]
EM_WE
EM_CAS
T
F
A
R
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
Vss
SPI0_SIMO
SPI0_SOMI/I2C0_SDA
DVDD
AXR0[0]
Vss
AXR0[1]
AXR0[2]
AXR0[3]
Vss
AXR0[4]
AXR0[5]/SPI1_SCS
AXR0[6]/SPI1_ENA
AXR0[7]/SPI1_CLK
CVDD
Vss
DVDD
AXR0[8]/AXR1[5]/SPI1_SOMI
AXR0[9]/AXR1[4]/SPI1_SIMO
CVDD
Vss
AXR0[10]/AXR1[3]
AXR0[11]/AXR1[2]
CVDD
Vss
AXR0[12]/AXR1[1]
AXR0[13]/AXR1[0]
DVDD
AXR0[14]/AXR2[1]
AXR0[15]/AXR2[0]
ACLKR0
Vss
AFSR0
ACLKX0
AHCLKR0/AHCLKR1
AFSX0
INT
256
Program/Data
ROM Page1
256K Bytes
64
256
Program/Data
ROM Page2
256K Bytes
256
Program/Data
ROM Page3
256K Bytes
Memory
Controller
Program
Fetch
256
I/O
Program/Data
RAM
256K Bytes
64
C67x+CPU
D2
Data
R/W
256
Program
Cache
32K Bytes
CSP
256
32
I/O Interrupts MAX0
Out
32
32
32
High-Performance
Crossbar Switch
32
32
CONTROL
MAX1
32
32
Events
in
McASP0
16 Serializes
32
PMP DMP
32
32
JTAG EMU
32
32
McASP1
6 Serializes
32
McASP2
2 Serializes
DIT Only
32
SPI1
32
SPI0
32
I2C0
32
I2C1
32
RT1
32
PLL
32
Peripheral Configuration Bus
D1
Data
R/W
McASP DMA Bus
RX-V367/HTR-3063
Vss
AHCLKX0/AHCLKX2
AMUTE0
AMUTE1
AHCLKX1
Vss
ACLKX1
CVDD
ACLKR1
DVDD
AFSX1
AFSR1
Vss
RESET
Vss
CVDD
CLKIN
Vss
TMS
CVDD
TRST
OSCVss
OSCIN
OSCOUT
OSCVDD
Vss
PLLHV
TDI
TDO
Vss
DVDD
EMU[0]
CVDD
EMU[1]
TCK
Vss
D
EMIF
dMAX
54
Peripheral Interrupt and DMA Events
RX-V367/HTR-3063
Function Name
(P.C.B.)
No.
TYPE(1)
PULL(2)
GPIO(3)
Detail of Function
1
VSS
2
AHCLKX0/AHCLKX2
IO
–
Y
McASP0 and McASP2 transmit master clock
3
AMUTE0
IO
–
Y
McASP0 mute output
4
AMUTE1
IO
–
Y
McASP1 mute output
5
AHCLKX1
IO
–
Y
McASP1 transmit master clock
6
VSS
7
ACLKX1
IO
–
Y
McASP1 transmit bit clock
8
CVDD
IO
–
Y
McASP1 receive bit clock
9
ACLKR1
10
DVDD
11
AFSX1
IO
–
Y
McASP1 transmit frame Sync (L/R clock)
12
AFSR1
IO
–
Y
McASP1 receive frame Sync (L/R clock)
13
VSS
14
RESET
IO
–
N
Device reset pin
15
VSS
16
CVDD
17
CLKIN
IO
–
N
Alternate clock input (3.3-V LVCMOS input)
18
VSS
19
TMS
IO
IPU
N
Test mode select
20
CVDD
21
TRST
IO
IPU
N
Test reset
22
OSCVSS
PWR
–
N
Oscillator Vss tap point (for filter only)
23
OSCIN
N
1.2-V oscillator input
24
NC
25
OSCVDD
26
VSS
27
PLLHV
28
TDI
29
TDO
30
VSS
31
DVDD
32
EMU[0]
33
CVDD
34
IO
T
F
A
R
–
–
N
PWR
–
N
Oscillator 1.2-V Vpp tap point (for filter only)
PWR
–
N
PLL 3.3-V supply input (requires external filter)
IO
IPU
N
Test data in
OZ
IPU
N
Test data out
IO
IPU
N
Emulation pin 0
EMU[1]
IO
IPU
N
Emulation pin 1
35
TCK
IO
IPU
N
Test clock
36
Ground(Vss)
37
EM_CAS
O
–
N
SDRAM column address strobe
38
EM_WE
O
–
N
SDRAM write enable
39
EM_WE_DQM[0]
O
–
N
Write enable or byte enable for EM_D [7:0]
40
VSS
41
EM_D[7]
IO
–
N
EMIF data bus [lower 16-bits]
42
DVDD
43
EM_D[6]
IO
–
N
EMIF data bus [lower 16-bits]
44
CVDD
45
EM_D[5]
IO
–
N
EMIF data bus [lower 16-bits]
46
EM_D[4]
IO
–
N
EMIF data bus [lower 16-bits]
47
VSS
48
EM_D[3]
IO
–
N
EMIF data bus [lower 16-bits]
49
EM_D[2]
IO
–
N
EMIF data bus [lower 16-bits]
50
DVDD
RX-V367/HTR-3063
D
O
55
RX-V367/HTR-3063
Function Name
(P.C.B.)
RX-V367/HTR-3063
No.
PULL(2)
GPIO(3)
Detail of Function
51
EM_D[1]
IO
–
N
EMIF data bus [lower 16-bits]
52
EM_D[0]
IO
–
N
EMIF data bus [lower 16-bits]
53
CVDD
54
VSS
55
EM_D[15]
IO
–
N
EMIF data bus [lower 16-bits]
56
EM_D[14]
IO
–
N
EMIF data bus [lower 16-Bits]
57
CVDD
58
EM_D[13]
IO
–
N
EMIF data bus [lower 16-Bits]
59
EM_D[12]
IO
–
N
EMIF data bus [lower 16-Bits]
60
DVDD
61
EM_D[11]
IO
–
N
EMIF data bus [lower 16-Bits]
62
VSS
63
EM_D[10]
IO
–
N
EMIF data bus [lower 16-Bits]
64
EM_D[9]
IO
–
N
EMIF data bus [lower 16-Bits]
65
CVDD
66
EM_D[8]
IO
–
N
EMIF data bus [lower 16-bits]
67
EM_WE_DQM[1]
O
–
N
Write enable or byte enable for EM_D [15:8]
68
DVDD
69
VSS
70
EM_CLK
O
–
71
EM_CKE
O
–
72
VSS
73
DVDD
74
EM_A[11]
O
75
EM_A[9]
O
O
T
F
A
R
N
SDRAM clock
N
SDRAM clock enable
76
EM_A[8]
77
CVDD
78
VSS
79
EM_A[7]
O
N
EMIF address bus
80
EM_A[6]
O
D
–
N
EMIF address bus
81
DVDD
82
VSS
83
EM_A[5]
O
–
N
EMIF address bus
84
EM_A[4]
O
–
N
EMIF address bus
85
CVDD
86
EM_A[3]
O
–
N
EMIF address bus
87
VSS
88
EM_A[2]
O
–
N
EMIF address bus
89
EM_A[1]
O
–
N
EMIF address bus
90
CVDD
91
EM_A[0]
O
–
N
EMIF address bus
92
DVDD
93
EM_A[10]
O
–
N
EMIF address bus
94
EM_BA[1]
O
–
N
SDRAM bank address and asynchronous memory Low-Order address
95
VSS
96
EM_BA[0]
O
–
N
SDRAM bank address and asynchronous memory Low-Order address
97
EM_CS[0]
O
–
N
SDRAM chip select
98
EM_RAS
O
–
N
SDRAM row address strobe
99
VSS
O
–
N
Asynchronous memory chip select
100 EM_CS[2]
56
TYPE(1)
–
N
EMIF address bus
N
EMIF address bus
N
EMIF address bus
–
–
–
RX-V367/HTR-3063
Function Name
(P.C.B.)
TYPE(1)
PULL(2)
GPIO(3)
O
–
N
Asynchronous memory read/not write
104 EM_OE
O
–
N
SDRAM output enable
105 SPI0_ENA/I2C1_SDA
IO
–
Y
SPI0 enable (ready) or I2c1 serial data
107 SPI0_ENA/I2C1_SCL
IO
–
Y
SPI0 enable (ready) or I2c1 serial clock
108 SPI0_CLK/I2C0_SCL
IO
–
Y
SPI0 serial clock or I2c0 serial clock
No.
101
Detail of Function
CVDD
102 NC
103 DVDD
106 VSS
109 VSS
110
SPIO_SIMO
IO
–
Y
SPI0 data pin slave in master out
IO
–
Y
SPI0 data pin slave out master in or I2C0 serial data
IO
–
Y
McASP0 serial data 0
111
SPIO_SOMI/I2C0_SDA
112
DVDD
113
AXR0[0]
114
VSS
115
AXR0[1]
IO
–
Y
McASP0 serial data 1
116
AXR0[2]
IO
–
Y
McASP0 serial data 2
117
AXR0[3]
IO
–
Y
McASP0 serial data 3
118
VSS
119
AXR0[4]
IO
–
Y
McASP0 serial data 4
–
Y
McASP0 serial data 5 or SPI1 slave chip select
–
Y
McASP0 serial data 6 or SPI1 enable (ready)
–
Y
McASP0 serial data 7 or SPI1 serial clock
–
Y
McASP0 serial data 8 or McASP1 serial data 5 or SPI1 data pin slave
out master in
–
Y
McASP0 serial data 9 or McASP1 serial data 4 or SPI1 data pin slave in
master out
120 SPI1_SCS
IO
121 SPI1_ENA
IO
122 SPI1_CLK
IO
A
R
123 CVDD
124 VSS
125 DVDD
126 /SPI1_SOMI
127 /SPI1_SIMO
IO
RX-V367/HTR-3063
128 CVDD
D
IO
T
F
129 VSS
130 AXR0[10]
IO
–
Y
McASP0 serial data 10 or McASP1 serial data 3
131 AXR0[11]
IO
–
Y
McASP0 serial data 11 or McASP1 serial data 2
134 AXR0[12]
IO
–
Y
McASP0 serial data 12 or McASP1 serial data 1
135 AXR0[13]
IO
–
Y
McASP0 serial data 13 or McASP1 serial data 0
137 AXR0[14]
IO
–
Y
McASP0 serial data 14 or McASP2 serial data 1
138 AXR0[15]
IO
–
Y
McASP0 serial data 15 or McASP2 serial data 0
139 ACLKR0
IO
–
Y
McASP0 receive bit clock
141 AFSR0
IO
–
Y
McASP0 receive frame Sync (L/R clock)
142 ACLKX0
IO
–
Y
McASP0 transmit bit clock
132 CVDD
133 VSS
136 DVDD
140 VSS
143 AHCLKR0/AHCLKR1
IO
–
Y
McASP0 and McASP1 receive master clock
144 AFSX0
IO
–
Y
McASP0 transmit frame Sync (L/R clock)
57
RX-V367/HTR-3063
IC221: R5F364AMNBF (DIGITAL P.C.B.)
Microprocrssor
8
8
Port P0
Port P1
8
8
8
8
Port P1
Port P3
Port P4
Port P5
VCC2 ports
Internal peripheral functions
System clock generator
UART or
clock synchronous serial I/O
Timer (16-bit)
(6 channels)
XIN-XOUT
XCIN-XCOUT
Outputs (timer A): 5
Inputs (timer B): 6
Clock synchronous serial I/O
(8-bit x 2 channels)
PLL frequency synthesizer
On-chip oscillator (125 kHz)
Three-phase motor control
circuit
Multi-master I2C-bus interface
DMAC (4 channels)
(1 channel)
Real-time clock
CRC arithmetic circuit
CEC function
(CRC-CCITT or CRC-16)
PWM function (8-bit x 2)
Remote control signal
receiver (2 circuits)
Voltage detector
Watchdog timer
On-chip debugger
Power-on reset
(15-bit)
R0H
R1H
D/A converter
Memory
ROM (1)
SB
R0L
R1L
USP
R2
R3
(8-bit resolution x 2
circuits)
ISP
INTB
A0
A1
FB
8
RAM (2)
A
R
PC
FLG
VCC1 ports
Port P10
T
F
M16C/60 series
Microprocessor core
A/D converter
(10-bit resolution x 26
channels)
Port P9
Port P8
D
8
Port P7
8
Port P6
8
8
Multiplier
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
74
73
75
76
50
77
49
78
48
VCC2 ports
79
47
80
46
81
45
82
44
83
43
84
42
85
41
86
40
87
39
88
38
89
37
90
36
91
35
92
34
93
33
94
32
95
31
96
30
97
29
VCC1 ports
98
28
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
TB4IN
DA0
SOUT3
SIN3
CLK3
BYTE
CNVSS
P8_7
P8_6
N_RESET
XOUT
VSS
XIN
VCC1
NMI
N_INT2
N_INT1
N_INT0
P8_1
P8_0
TA3IN
P7_6
TA2IN
P7_4
P7_3
5
26
4
27
100
3
99
1
RXD6
P1_1
P1_0
P0_7
P0_6
P0_5
P0_4
P0_3
P0_2
P0_1
AN0_0
AN7
AN6
AN5
AN4
AN3
AN2
AN1
AVSS
AN0
VREF
AVCC
SIN4
SOUT4
CLK4
2
RX-V367/HTR-3063
TXD6
P1_4
N_INT3
P1_6
P1_7
P2_0
P2_1
P2_2
P2_3
N_INT6
N_INT7
P2_6
P2_7
VSS
P3_0
VCC2
P3_1
P3_2
P3_3
P3_4
P3_5
P3_6
P3_7
P4_0
P4_1
Notes:
1. ROM size depends on MCU type.
2. RAM size depends on MCU type.
Notes:
1. N-channel open drain output.
2. Check the position of pin 1 by referring to appendix 1, Package Dimensions.
58
P4_2
P4_3
P4_4
CLK7
RXD7
P4_7
P5_0
P5_1
P5_2
P5_3
P5_4
P5_5
P5_6
P5_7
P6_0
P6_1
SCL0
SDA0
P6_4
CLK1
RXD1
TXD1
SDA2
SCL2
P7_2
RX-V367/HTR-3063
Pin
No.
Port Name
Function
Name
(P.C.B.)
Detail of Function
RDS READY input / Open drain output (Imax=8
mZ) on LC72725 side
O
Low Fix
O
Low Fix
O
Low Fix
IO
Low Fix
MCU
MCU
MCU
MCU
E8A_CNVSS
MCU
MCU
MCU
MCU
VOL_RB
VOL_RA
N_CPU_RST
XOUT
DGND
XIN
+3.3M
(no use)
REM_IN
I+
I+
MCU
MCU
MCU
MCU
MCU
I+
IRQ
IRQ
O
IRQ
I+
I+
MCU
MCU
MCU
MCU
MCU
I+
IRQ
I-
I+
I+
MCU
MCU
MCU
MCU
MCU
I+
IRQ
I-
I+
I+
MCU
MCU
MCU
MCU
MCU
I+
I
I-
I-
I-
I-
I-
O
Low Fix
I+
O
Low Fix
I+
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
TMR
I+
I+
I+
O
Low Fix
O
Low Act
O
Low Act
SI
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
SO
SI
O
IO
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
I+
I+
I+
IO
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
I+
I+
I+
IO
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
2 DA0
AMP_LMT
3 SOUT3
DSP_MOSI
4 SIN3
DSP_MISO
5 CLK3
DSP_SCK
6 BYTE
BYTE
7 CNVSS
8
9
10
11
12
13
14
15
16
HDM_MUT
18 N_INT0
HDM_INT
19 P8_1
N_MIC_DET
20 P8_0
HTX_PON
21 TA3IN
N_DSP_INT
22 P7_6
(no use)
23 TA2IN
N_PDET
24 P7_4
(no use)
25 P7_3
N_FLD_RST
26 P7_2
N_FLD_CS
27 SCL2
HDM_SCL
28 SDA2
HDM_SDA
29
30
31
32
E8A_TXD
E8A_RXD
E8A_SCLK
E8A_BUSY
33 SDA0
TUN_SDA
34 SCL0
TUN_SCL
35 P6_1
N_HRX_RST
36 P6_0
N_HTX_RST
DA
SO
SI
SO
I-
O
Low Fix
SO
SO
SI
O
ISI
O
SO
O
Low Act
O
Low Act
Synchronous data output for DSP, DIR, DAC
Synchronous data input for DSP, DIR, DAC
Synchronous clock output for DSP, DIR, DAC
Data but width change input
When in single chip mode: L (16 bit)
Processor mode select
Low: Single chip mode
Volume rotary encoder B
Volume rotary encoder A
Reset input
Oscillation circuit output
Microprocessor GND
Oscillation circuit input
Microprocessor power supply
T
F
A
R
D
O
High Act
TMR
Remitter control output
II-
Remote control pulse input
HDMI mute input
H: Mute
Interrupt input from HDMI Rx
MIC detection
L: MIC available
HDMI Tx +5V power regulator control
H: Regulator ON
Interrupt input from DSP
O
Low Fix
RX-V367/HTR-3063
17 N_INT1
TXD1
RXD1
CLK1
P6_4
AC off
O
Low Fix
O
Low Fix
O
Low Fix
IO
Low Fix
RDS_RDY
TMR
Power off MCU sleep
O
Low Fix
O
Low Fix
O
Low Fix
IO
Low Fix
1 TB4IN
P8_7
P8_6
N_RESET
XOUT
VSS
XIN
VCC1
NMI
N_INT2
Full on
AC power detection
L: Power down
FL driver reset
FL driver chip select
HDMI Rx/Tx I2C SCL output
HDMI Rx/Tx I2C SDA input/output
Synchronous data input/output for tuner I2C
Synchronous clock output for tuner I2C
HDMI Rx reset
HDMI Tx reset
59
RX-V367/HTR-3063
RX-V367/HTR-3063
Pin
No.
60
Port Name
Function
Name
(P.C.B.)
37 P5_7
N_DIR_RST
38 P5_6
N_DIR_CS
39 P5_5
N_E8A_EPM
40 P5_4
DIR_WCK
41 P5_3
DIR_SDO
42 P5_2
N_ADC_PDN
43 P5_1
N_DAC_CS
44 P5_0
N_E8A_CE
45 P4_7
N_DSP_RDY
46 RXD7
RDS_MISO
47 CLK7
RDS_SCK
48 P4_4
N_TUN_TUND
49 P4_3
N_TUN_ST
50 P4_2
DSP_FMT
51 P4_1
N_DSP_CS
52 P4_0
N_DSP_RST
53 P3_7
N_E2R_CS
54 P3_6
N_RDS_RST
55 P3_5
R2A_MOSI
56 P3_4
R2A_SCK
57 P3_3
I_PRT
58 P3_2
SP_IMP
59 P3_1
N_CNPT_PS
60 VCC2
VCC2
61 P3_0
N_VO_MT
62 VSS
VSS
63 P2_7
N_HP_DET
64 P2_6
IPD_APDT
65 N_INT7
N_IPD_DET
Full on
Power off MCU sleep
O
Low Act
O
Low Act
II
O
Low Fix
O
Low Fix
II
I
I
O
Low Act
O
Low Act
I+
I+
O
Low Fix
O
Low Fix
I+
I+
IO
I+
IO
Low Fix
I+
I+
I+
O
High Act
O
Low Act
O
High Act
O
Low Act
O
Low Act
O
AC off
I-
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Act
O
Low Fix
O
Low Fix
O
Low Fix
I-
O
Low Fix
O
Low Fix
IO
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
I+
O
Low Fix
IO
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Act
O
Low Fix
O
Low Fix
O
Low Fix
I-
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Act
O
Low Fix
O
Low Fix
O
Low Fix
I-
O
O
O
O
Low Fix
Low Fix
Low Fix
O
Low Fix
MCU
O
Low Fix
MCU
O
Low Fix
O
Low Fix
MCU
O
Low Fix
MCU
O
Low Fix
O
Low Fix
MCU
O
Low Fix
MCU
O
Low Fix
O
Low Act
MCU
O
Low Act
MCU
I+
I
O
Low Fix
O
Low Fix
I+
I+
DIR chip select
DIR_WCK input for CDDA writing
ADC power down
DAC chip select
DSP ready input
T
F
IO
Low Fix
I+
I+
DIR reset
DIR_SDO input for CDDA writing
A
R
D
O
O
Low Fix
O
Low Fix
II
Detail of Function
I-
I-
I-
I-
IRQ
IRQ
IRQ
O
Low Fix
RDS data input
RDS clock output
Tuner tuned input
Tuner stereo input
DSP full mute output
H: Mute
DSP chip select
DSP reset
EEPROM chip select
RDS reset
Electronic vol pattering synchronous data output
Electronic vol pattering synchronous clock output
Overcurrent protection detection
Speaker impedance changing relay control /
At 8 ohm: Low (Relay off, B voltage high)
At 6 ohm and temperature rise: High (Relay ON, B
voltage low)
Component video selector IC power save
Microprocessor power supply
Composite video selector mute
Microprocessor GND
Headphone detection
L: Headphone available
iPod accessory power detection / Low while iPod
booting (about 2 seconds). Execute identification
when booting seems to have completed. Change to
constant input to prevent pulling between high output
of iPod and Low Fix of microprocessor output.
iPod detection
When inserting an iPod into the DOCK H to L
RX-V367/HTR-3063
Pin
No.
Port Name
Function
Name
(P.C.B.)
N_DIR_INT
67 P2_3
HPRY
68 P2_2
SPRY_S
69 P2_1
SPRY_C
70 P2_0
SPRY_F
71 P1_7
3D_PON
72 P1_6
5D_PON
73 N_INT3
PSW_DET
74 P1_4
VSEL3
75 TXD6
IPD_MOSI
76 RXD6
IPD_MISO
77 P1_1
VSEL2
78 P1_0
VSEL1
79 P0_7
N_SB_MT
80 P0_6
N_SW_MT
81 P0_5
N_S_MT
82 P0_4
N_C_MT
83 P0_3
N_F_MT
84 P0_2
PWR_RY
85 P0_1
N_FCT
86 AN0_0
(no use)
87 AN7
DC_PRT
88 AN6
AMP_OLV
89 AN5
THM1_PRT
90 AN4
THM2_PRT
91 AN3
KEY2
92 AN2
KEY1
93 AN1
PS_PRT
94 AVSS
AVSS
Power off MCU sleep
AC off
IRQ
I
O
High Act
O
High Act
O
High Act
O
High Act
O
High Act
O
High Act
IRQ
O
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
IRQ
O
Low Fix
O
Low Fix
I+
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
IRQ
O
Low Fix
O
Low Fix
I+
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
I
I
I
I
AD
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
I
AD standby
MCU
MCU
MCU
SO
SI
O
D
AD
AD
AD
AD
AD
AD
AD
MCU
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
I
O
Low Fix
O
Low Fix
I+
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
O
Low Fix
DIR interrupt input
Headphone relay control
Speaker relay control (Surround)
H: Relay ON
Speaker relay control (Center)
H: Relay ON
Speaker relay control (Front)
H: Relay ON
PCB DIGITAL +3.3D, +1.2D regulator control
H: Regulator ON
PCB DIGITAL +5D regulator control
H: Regulator ON
Power system switch (Power, Scene) detection
Video input select
T
F
A
R
O
O
Low Act
O
Low Act
O
Low Act
O
Low Act
O
Low Act
O
High Act
I
Detail of Function
Synchronous data output for iPod
Synchronous data input for iPod
Video input select
Video input select
Mute control (Surround back)
* Spare to use for HD audio when necessary
Mute control (Subwoofer)
Mute control (Surround)
Mute control (Center)
RX-V367/HTR-3063
66 N_INT6
Full on
Mute control (Front)
Power relay control
H: ON
FCT detection
H: Product mode L: FCT mode
Power AMP DC detection
Power AMP output level detection
Temperature detection 1
Temperature detection 2 (U model)
KEY1 AD value taken in
KEY1 AD value taken in
PS protection detection
Microprocessor GND
61
RX-V367/HTR-3063
Pin
No.
Function
Name
(P.C.B.)
Port Name
95 AN0
IPD_TYPE
96 VREF
97 AVCC
98 SIN4
VREF
AVCC
E2R_MISO
99 SOUT4
FLD_MOSI
100 CLK4
FLD_SCK
Full on
AD
MCU
MCU
SI
SO
SO
Power off MCU sleep
AC off
Detail of Function
I
I
I
AD standby AD standby AD standby
MCU
MCU
MCU
MCU
MCU
MCU
SI
O
SI
SO
O
SO
Low Fix
SO
O
SO
Low Fix
DOCK discriminate
AD reference voltage
Microprocessor power supply
Synchronous data input for EEPROM
FL driver/Synchronous data output for EEPROM
FL driver/Synchronous clock output for EEPROM
Key detection for A/D port
Key input (A/D) pull-up resistance 10 k-ohms
Ohm
0
V
0 – 0.15
A/D value
(3.3 V=255)
0 – 11
12 – 37
38 – 64
65 – 88
KEY1
(92 pin)
STRAIGHT
TUNING
>>
TUNING
<<
AM
Ohm
0
+ 1.0 k
+ 1.0 k
+ 1.5 k
V
0 – 0.15
A/D value
RX-V367/HTR-3063
+ 1.5 k
+ 1.8 k
+ 2.2 k
+ 3.3 k
1.15 – 1.46
1.47 – 1.79
1.80 – 2.12 2.13 – 2.40 2.41 – 2.91
89 – 113
114 – 139
140 – 164
33 – 54
55 – 75
KEY2
SCENE
SCENE
SCENE
SCENE
(91 pin)
RADIO
CD
TV
BD/DVD
+ 8.2 k
+ 10.0 k
T
F
A
R
D
12 – 32
+ 4.7 k
165 – 186
187 – 226
FM
PRESET
>
PRESET
<
MEMORY
INFO
+ 1.5 k
+ 2.2 k
+ 3.3 k
+ 4.7 k
(22 k + 33 k)
1.25 – 1.53
1.54 – 1.84
1.84 – 2.10
2.11 – 2.33 2.34 – 2.54 2.54 – 2.71
97 – 119
120 – 142
143 – 163
164 – 181
INPUT
INPUT
>
<
0.15 – 0.42 0.43 – 0.70 0.71 – 0.97 0.98 – 1.24
0 – 11
(3.3 V=255)
62
+ 1.0 k
0.15 – 0.48 0.49 – 0.82 0.83 – 1.14
76 – 96
PROGRAM PROGRAM
>
<
–
22.0 k
33.0 k
182 – 197
198 – 209
(Power)
TONE
CONTROL
A
B
C
D
E
F
G
H
I
J
RX-V367/HTR-3063
1
■ BLOCK DIAGRAM
DIGITAL
r 4FFQBHF→
SCHEMATIC DIAGRAM
I2C2
29-32
HDMI IN 1
Port0
33-36
HDMI IN 2
2
21
22
107
IC201
Port1
N_HRX_RST
HDM_INT
HDM_MUT
25
N_HTX_RST
IC202
Digital Video Data
HDMI RX
37-40
HDMI IN 3
Port2
HDMI OUT
HDMI Tx
SiI9233
SiI9134
I2S
41-44
HDMI IN 4
Port3
I2S
SPDIF
4
5
HDMI SPDIF
XL201
27MHz
MAIN
(Component)
IC41
(Optical)
2,4
AV2
N_CPNT_PS
IC42
(Composite)
Composite
Selector
TC74HC4051
(Composite)
AV4
A
R
9,10,11
N_VO_MT
5VSEL1
5VSEL2
5VSEL3
(Optical)
HDMI I2S
AV5
41
(Analog)
SPDIF
AUDIO1
AUDIO2
(Analog)
5
VAUX
DOCK
(U, C models)
OPERATION
r 4FFQBHF→
SCHEMATIC DIAGRAM
AM/FM Tuner
6
YPAO MIC In
(R, K, A, B, G, L models)
FL display
N_DIR_RST
35
N_DIR_INT
R2A_SCK 49,50
R2A_MOSI
IC21
Selector
and
E-Vol
R2A15220FP
(Analog)
53
D
(Analog)
N_MIC_DET
VOLUME
KEY1
KEY2
PSW_DET
90
19 DA_SR 95
20 DA_SL 94
DAC
D70YE101BRFP266
135 SD3
PCM1681DBQR
22 DA_C
92
AV OUT
Speaker Relay
RY1
Mute
20
IC21
Selector
and
E-Vol
R2A15220FP
21 DA_SW 93
22
10
FRONT L
IC1
Mute
16
Mute
15
22
8
4
11
N_F_MT
SPRY_F
18
FRONT R
Power
AMP
STK433-330Y
RY4
6
CENTER
N_C_MT
SPRY_C
14
RY3
Mute
15
IC2
11
Power
AMP
STK433-130Y
N_S_MT
PCM1803DBR
Mute
SPI3
6
SURROUND L
SPRY_S
4
SURROUND R
ANALOG BYPASS
3
IC223
RDS
LC72725KM
(B, G, F models)
15
16
2
1
HDM_INT
HDM_MUT
REM_IN
PWS_DET
N_RDS_RST
RDS_SCK
RDS_MISO
RDS_RDY
IC222
EEPROM 32kbit
R1EX25032ASA00A
N_DIR_INT
IPD_DET
1,8
N_E2P_CS
N_PDET
N_DSP_INT
RDS_RDY
SPI4
VOL_RA
VOL_RB
27 DA_FL
134 SD2
N_FLD_RST
N_FLD_CS
RC In
(Analog)
26 DA_FR 91
IC263
MONITOR OUT
(VIDEO)
(Composite)
33
ADC_PDN
10
I2C0
N_TUN_ST
N_TUN_TUND
131 SD1
IC43
49 50
130 SD0
IC241
(Composite)
20
3
2
AUDIO DSP
UART6
IPD_TYPE
IPD_DET
IPD_APDT
(Analog)
(RDS)
T
F
IC43
17
IC262
ADC
1
(Composite)
(Analog)
REM_IN
Front Panel Keys
IC261
DIR
LC89058WD
(Analog)
(Composite)
7
HDMI I2S (Multi Ch)
(Composite)
4
N_DSP_RST
N_DSP_CS
N_DSP_INT
N_DSP_RDY
DSP_FMT
(Coaxial)
14
120
107
121
105
AV3
MONITOR OUT
(COMPONENT VIDEO)
23
5VSEL1
5VSEL2
(Optical)
R2A_MOSI
(Component)
3
(Component)
Component
Selector
NJM2586AM
R2A_SCK
AV1
N_DAC_CS
MAIN
r 4FFQBHF→
SCHEMATIC DIAGRAM
r 4FFQBHF→
SCHEMATIC DIAGRAM
IPD_TYPE
PS_PRT
KEY1
KEY2
THM2_PRT
THM1_PRT
AMP_0LV
DC_PRT
DEST
18
17
16
66
65
23
21
1
95
93
92
91
90
89
88
87
86
<Interrupt>
NMI
/INT0
/INT1
/INT2
/INT3
/INT4
IC221
/INT5
/INT6
/INT7
MICROPROCESSOR
<Timer>
TA2IN
TA3IN
TB4IN
<AD port>
AN0
AN1
AN2
AN3
AN4
AN5
AN6
AN7
AN0_0
M16C/64A
R5F364AMNFB
ROM:512K Byte
RAM: 31k Byte
Clock : 20MHz
<Serial>
I2C0
UART1
IC27
SUBWOOFER OUT
Mute
N_SW_MT
Tuner
E8A
I2C2
HDMI Rx/Tx
SPI3
DSP/DAC/DIR
SPI4
FL Driver/EEPROM
Serial5
(P8_0, TA3INとして使用)
UART6
iPod
<PIO>
P0_1
1
SP_IMP
AMP_LMT
N_SW_MT
I_PRT
DC_PRT
AMP block
and
Heat Sink
and
Main Power Supply
RY2
HEADPHONE
HPRY
N_HP_DET
THM1_PRT
THM2_PRT
SW151
Main Power
Supply
(Main Trans)
MODEL
PWR_RY
N_CPU_RST
N_PDET
11
13
XL221
20MHz
Stadnby
Power Suppy
(Sub Trans)
AC IN
OPERATION
r 4FFQBHF→
SCHEMATIC DIAGRAM
63
A
B
C
D
E
F
G
H
I
J
RX-V367/HTR-3063
■ PRINTED CIRCUIT BOARDS
1
POINT A XL201 (Pin 5 of IC201)
POINT C 1 / IC221 (97 pin, +3.3M), 2 / IC221 (10 pin, N_RESET)
POINT B XL221 (Pin 11 of IC221)
POINT D XL261 (Pin 29 of IC261)
DIGITAL P.C.B. (Side A)
2
No replacement part available.
DOCK
HDMI 1
(BD/DVD)
HDMI OUT
D
IC221 2
(N_RESET)
IC221 2
(N_RESET)
AC POWER ON
(Connect the power cable)
HDMI 2
HDMI 3
CB202
CB201
CB205
3
IC221 1
(+3.3M)
No replacement part available.
U, C models
OPERATION (4)
IC221 1
(+3.3M)
AC POWER OFF
(Disconnect the power cable)
AC POWER ON
(Connect the power cable)
HDMI 4
A
CB203
CB204
CB261
(CB196)
25
51
48
1
1
1
11
144
IC262
20
IC241
1
4
1
9
8
108
16
IC223
1
72
37
36
5
8
1
25
26
72
IC263
73
1
7
IC267
76
50
1
OPERATION (4)
(CB1)
51
25
IC243
1
4
IC265
8
5
1
4
IC264
8
5
48
(CB195)
6
CB262
N_PDET
PWR_RY
N_CPU_RST
+3.3M
MGND
+9T
AGND
+5A
+5I
IGND
+7D
DGND
THM1_PRT
THM2_PRT
+3.3M
DGND
+3.3D
KEY1
KEY2
N_FLD_CS
FLD_MOSI
FLD_SCK
N_FLD_RST
PSW_DET
REM_IN
VDL_RA
VDL_RB
N_MIC_DET
reserved
CB221
64
B
OPERATION (1)
1
2
C
OPERATION (2)
(CB131)
(CB101)
7
TUL
TUE
SW_MT
R2A_SCK
DGND
I_PRT
AMP_LMT
N_HP_DET
SPRY_S
SPRY_F
NC
MAIN (1)
8
75
24
TUR
SB_MT
R2A_MOSI
DGND
DC_PRT
AMP_OLV
TRANS_RY
HPRY
SPRY_C
PS_PRT
IC221
14
14
SDA
TUNED
STEREO
VDD SEL
+9V
GND
TUNER
100
109
15
73
IC222
28
D
76
1
CB222
1
75
100
36
37
144
SCL
S-METER
LOUT
ROUT
DETOUT
IC201
13
12
50
T
F
B, G, F models
CB223
108
36
37
IC261
CB264
5
25
26
10
ADR
ADL
AGND
DA_FL
DA_FR
DA_C
AGND
DA_SW
DA_SL
DA_SR
(DA-SBL)
(DA-SBR)
AGND
F_MT
C_MT
S_MT
+5A
reserved
A
R
109
24
IC202
4
CB263
+5D
AV1_D
AV2_D
DGND
AV3_D
AV4_D
DGND
IPR
IPL
IPE
IPV
IPVE
5VSEL1
5VSEL2
5VSEL3
N_VO_MT
N_CNPT_PS
DGND
• Semiconductor Location
Ref no. Location
D2022
D4
D2202
G5
D2601
F5
D2602
F5
IC201
F4
IC202
E4
IC221
G5
IC222
F5
IC223
H4
IC241
D5
IC243
E6
IC261
D4
IC262
C4
IC263
C5
IC264
F6
IC265
F6
IC267
E5
Q2201
C5
Q2202
C6
Q2203
C6
Q2205
H6
A
B
C
D
E
F
G
H
I
J
RX-V367/HTR-3063
1
DIGITAL P.C.B. (Side B)
2
U, C models
3
A
R
4
D
T
F
5
• Semiconductor Location
1
27
4
IC266
5
4
IC203
1
IC242
28
4
54
3
1
3
3
IC268
5
6
B, G, F models
5
1
Ref no. Location
D2201
G5
D2203
G5
D2204
G5
D2607
F6
D2610
E5
IC203
E5
IC242
E6
IC266
F5
IC268
F5
Q2001
G3
Q2002
G3
Q2003
G3
Q2004
F3
Q2005
F3
Q2006
F3
Q2007
E3
Q2008
E3
Q2206
H4
7
65
A
B
C
D
E
F
G
H
I
J
RX-V367/HTR-3063
1
OPERATION (1) P.C.B.
(Side A)
2
DIGITAL (CB221)
OPERATION (7)
(CB171)
CB104
SW116
A
R
SW113
TUNING
OPERATION (4)
(CB193)
CB106
4
MG
VRB
VRA
+3.3S
D
OPERATION (6)
SW111
SW109
AM
FM
T
F
SW107
CB102
AXR
E
AXL
VE
AUX-V
+12
MIC
E
-12
CB103
CB101
3
DGND
N_MIC_DET
VOL_RB
VOL_RA
REM_IN
PSW_DET
N_FLD_RST
FLD_SCK
FLD_MOSI
N_FLD_CS
KEY2
KEY1
+3.3S
DGND
+3.3M
SW105
SW103
PRESET
MEMORY
SW117
SW114
SW112
RADIO
CD
TV
BD
DVD
(CB145)
(CB136)
INFO
5
PJ101
JK101
SW110
SW108
SW118
STRAIGHT
VIDEO AUX
R AUDIO
6
7
66
L
VIDEO
PORTABLE
SW106
PROGRAM
TONE CONTROL
F1
VP
F2
OPERATION (2)
SW101
SCENE
SW119
FG
PSW
MG
N_MIC_DET
-12
E
MIC
+12
SW104
SW102
INPUT
A
B
C
D
E
F
G
H
I
J
RX-V367/HTR-3063
1
OPERATION (1) P.C.B.
(Side B)
2
33 32
D
10
1
A
R
4
T
F
IC
48
49
3
17
16
64 1
5
6
• Semiconductor Location
7
Ref no. Location Ref no. Location
D1001
H3
Q1002
F3
D1002
H3
Q1003
F3
D1003
D5
Q1004
F3
D1004
D5
Q1005
G3
D1005
C5
Q1006
H3
D1006
C5
Q1007
F3
IC101
G3
Q1008
G3
Q1001
F3
67
A
B
C
D
E
F
G
H
I
J
RX-V367/HTR-3063
1
OPERATION (2) P.C.B.
(Side A)
U, C models
C model
OUT COM IN
IC132
OUT COM IN
IC135
OUT COM IN
IC133
OUT COM IN
IC134
4
1
IC131
2
U, C models
13
6
CB
AC6
VP
AC6
OPERATION (1)
(CB102)
CB131
4
POWER TRANSFORMER
-VP
PS_PRT
-12A
AGND
+12A
NC
AC5
AC5
AC4
AC4
AC3
AC3
AC2
E
AC2
3
MG
ACDET
PRY
S9
T
F
N_PDET
PWR_RY
N_CPU_RST
+3.3M
MG
9T
AG
+5A
+5I
IGND
+7D
DGND
THM1_PRT
THM2_PRT
A
R
CB132
DIGITAL (CB262)
D
MAIN (1)
(CB2)
OPERATION (3) P.C.B.
(Side A)
R model
U, C, T, K, A, B, G, L models
5
U, C, T, K, A, B, G, L models
R model
• Semiconductor Location
6
CB154
AC IN
51
B1
MG
ACDET
PRY
S9
C
Ref no. Location Ref no. Location
D1304
G2
IC132
F2
D1307
C2
IC133
G2
D1308
D3
IC134
G2
D1309
D2
IC135
G2
D1502
H6
Q1303
G3
D1503
G5
Q1501
H7
D1504
G5
Q1502
H7
D1505
H5
Q1503
H7
D1506
H5
Q1504
H6
D1507
H5
Q1505
H6
IC131
H2
R model
CB155
U, C, T, K, A, B, G, L models
CB152
CB153
7
R model
68
POWER TRANSFORMER
A
B
C
D
E
F
G
H
I
J
RX-V367/HTR-3063
1
OPERATION (2) P.C.B.
(Side B)
U, C models
R, T, K, A, B, G, L models
2
U, C models
3
A
R
4
D
5
6
T
F
U, C models
OPERATION (3) P.C.B.
(Side B)
• Semiconductor Location
Ref no. Location
D1301
H2
D1302
H2
D1303
H2
D1305
H2
D1306
H3
D1311
C2
D1312
C2
D1313
C2
D1314
C2
D1501
H6
D1508
H5
D1509
G5
D1510
H6
Q1301
I2
Q1302
H2
Q1304
H3
7
R model
69
7
70
5VSEL_3
IPV
AUXV
+5A
5VSEL_1
DIGITAL (CB263)
N_VO_MT
IPVE
AUXE
-12A
5VSEL_2
+5D
AV1_D
AV2_D
DG
AV3_D
AV4_D
DG
AGND
ADL
ADR
IPE
IPR
IPL
AGND
MIC
AGND
AUXR
AUXL
AUXE
DAFL
DAFR
AGND
DAC
DASW
AGND
DASL
DASR
AGND
(DASBL)
(DASBR)
AGND
F_MT
C_MT
S_MT
+12A
-12A
D
CB196
E
MAIN (1)
(CB21)
CB194
F
CB192
CB191
4
A
R
D
CB195
DIGITAL (CB264)
G
(Side A)
T
F
AGND
+12V
VAUXE
AUXE
-12V
MIC
+3.3S
VRA
VRB
MG
MAIN (2)
OPERATION (1)
(CB41)
(CB106)
CB145
AG
CPNT_N_PS
OPERATION (4) P.C.B.
ADR
ADL
AGND
DA-FL
DA-FR
DA-C
AGND
DA-SW
DA-SL
DA-SR
(DA-SBL)
(DA-SBR)
AGND
F_MT
C_MT
S_MT
+5A
NC
DGND
N_CNPT_PS
N_VO_MT
5VSEL3
5VSEL2
5VSEL1
IPVE
IPV
IPE
IPL
IPR
DGND
AV4_D
AV3_D
DGND
AV2_D
AV1_D
+5D
6
C
HPL
HPE
HPR
N_HP_DET
CB166
5
B
CB193
AG
A
H
I
OPERATION (5) P.C.B.
MAIN (1)
(CB22)
OPERATION (6) P.C.B.
VAUX
AUXL
AUXR
OPERATION (1)
(CB104)
SW145
VOLUME
J
RX-V367/HTR-3063
1
(Side A)
PHONES
SILENT CINEMA
2
JK166
3
MAIN (1)
(W1)
(Side A)
A
B
C
D
E
F
G
H
I
J
RX-V367/HTR-3063
1
OPERATION (4) P.C.B.
(Side B)
OPERATION (5) P.C.B.
(Side B)
OPERATION (6) P.C.B.
(Side B)
2
3
A
R
4
D
T
F
5
6
• Semiconductor Location
7
Ref no. Location
D1651
I3
D1652
H3
D1653
H3
71
A
B
C
D
E
F
G
H
I
RX-V367/HTR-3063
1
OPERATION (7) P.C.B.
OPERATION (8) P.C.B.
(Side A)
R, K, A, B, G, L models
FG
PSW
MG
N_MIC_DET
-12
E
MIC
+12
3
CB171
2
OPERATION (1)
(CB103)
JK171
SW171
YPAO MIC
A
R
4
OPERATION (9) P.C.B.
5
6
7
72
(Side A)
D
T
F
(Side A)
J
A
B
C
D
E
F
G
H
I
J
RX-V367/HTR-3063
1
OPERATION (7) P.C.B.
OPERATION (8) P.C.B.
(Side B)
(Side B)
R, K, A, B, G, L models
2
4
6
IC102
1
5
3
A
R
4
OPERATION (9) P.C.B.
(Side B)
D
T
F
• Semiconductor Location
Ref no. Location
D1701
D3
D1702
D3
D1703
C3
IC102
D2
5
6
7
73
A
B
C
D
E
F
G
H
I
J
RX-V367/HTR-3063
1
SPEAKERS
R
+/-
MAIN (1) P.C.B.
(Side A)
AV 1
AV 2
AV 3
AV 4
AV 5
AV OUT
AUDIO1
AUDIO2
AUDIO
OUT
L/R
L/R
L/R
L/R
L/R
+/-
PJ21
L
+/-
SURROUND CENTER
R
L
SUBWOOFER
OPTICAL COAXIAL COAXIAL OPTICAL
(TV)
(CD)
PJ24
FRONT
+/-
+/-
PJ22
2
PJ26
OPERATION (4)
(CB192)
3
CB3
T
F
E
A
R
D
OPERATION (4)
(CB191)
E
ACL
CB1
4
ACH
CB22
AUXE
DAFL
DAFR
AGND
DAC
DASW
AGND
DASL
DASR
AGND
(DASBL)
(DASBR)
AGND
F_MT
C_MT
S_MT
+12A
-12A
ACH
CB21
+5D
AV1_D
AV2_D
DG
AV3_D
AV4_D
DG
AGND
ADL
ADR
IPE
IPR
IPL
AGND
MIC
AGND
AUXR
AUXL
ACL
POWER TRANSFORMER
CB2
W1
5
• Semiconductor Location
IC2
IC1
1
15
DIGITAL (CB222)
7
74
TUL
TUR
TUE
(SB_MT)
SW_MT
R2A_MOSI
R2A_SCK
DGND
DGND
DC_PRT
I_PRT
AMP_OLV
AMP_LMT
TRANS_RY
N_HP_DET
HPRY
SPRY_S
SPRY_C
SPRY_F
PS_PRT
NC
19
HPL
HPG
HPR
N_HP_DET
1
+12A
AGND
-12A
PS_PRT
-VP
6
OPERATION (2)
(CB134)
OPERATION (5)
(CB166)
Ref no. Location Ref no. Location
D1
H5
IC1
F6
D2
H6
IC2
C6
D9
G3
Q1
I6
D10
D5
Q2
H6
D11
E5
Q3
H5
D12
H3
Q4
I6
D13
G4
Q5
I5
D14
H3
Q6
H5
D15
G4
Q7
G5
D16
F5
Q8
E5
D17
F4
Q9
C5
D18
I2
Q10
F5
D19
H5
Q11
G5
D20
I2
Q12
E5
D22
I3
Q21
I2
D201
E4
Q22
E5
D202
E4
A
B
C
D
E
F
G
H
I
J
RX-V367/HTR-3063
1
MAIN (1) P.C.B.
(Side B)
2
1
7
IC22
8
3
4
5
14
1
IC23
8
4
81 80
1
IC25
8
100
1
21
5
IC
4
5
A
R
51
50
1
IC24
8
30 31
4
5
8
IC27
1
4
D
T
F
5
• Semiconductor Location
6
7
Ref no. Location Ref no. Location
D3
C5
Q16
H3
D4
G5
Q17
G3
D5
E5
Q18
H3
D6
C5
Q19
G3
D7
G5
Q20
G3
D8
F5
Q23
I3
IC21
D4
Q24
I3
IC22
D2
Q201
B5
IC23
B3
Q202
B6
IC24
B4
Q203
B5
IC25
C3
Q204
B5
IC27
C4
Q205
B5
Q13
G3
Q208
F3
Q14
G3
Q209
F3
Q15
H3
75
A
B
C
D
E
F
G
H
I
J
RX-V367/HTR-3063
1
MAIN (2) P.C.B.
MAIN (3) P.C.B.
(Side A)
(Side A)
R model
2
MONITOR OUT
AV1
COMPONENT
VIDEO
PR/PB/Y
COMPONENT
VIDEO
PR/PB/Y
PJ41
AV2
AV3
AV 4
AV 5
AV
OUT
MONITOR
OUT
VIDEO
PR/PB/Y
PJ44
PJ43
PJ45
PJ42
SW51
3
CB41
A
R
4
AG
AG
N_CPNT_MT
5V_SEL1
5V_SEL2
+5A
-12A
AUXV
AUXE
IPV
IPVE
5V_SEL3
N_VO_MT
OPERATION (4)
(CB194)
5
6
7
76
MAIN (4) P.C.B.
(Side A)
D
• Semiconductor Location
Ref no. Location
Q401
B3
OR
120V
RE
240V
110V
YE
220V
VI
T
F
CB51
VOLTAGE
SELECTOR
POWER TRANSFORMER
A
B
C
D
E
F
G
H
I
J
RX-V367/HTR-3063
1
MAIN (2) P.C.B.
MAIN (3) P.C.B.
(Side B)
(Side B)
R model
2
16
3
9
36
IC42
24
13
1
19
IC43
8
1
1
12
A
R
4
MAIN (4) P.C.B.
(Side B)
D
T
F
18
IC41
• Semiconductor Location
Ref no. Location
D401
B3
IC41
C3
IC42
D3
IC43
E3
5
6
7
77
RX-V367/HTR-3063
■ PIN CONNECTION DIAGRAMS
• ICs
• Diodes
BD9325FJ
D70YE101BRFP266
SiI9233ACTU
KIA7805API
108
KIA7812API
KIA7912PI
1N4003S
1SS133
1SS176
1SS270A
73
72
109
1SS355
COM
144
OUT
COM
OUT
IN
LA73050-TLM-E
OUT
Anode
LC89058WD-E
–
AC
AC
M12L64164A-5TG
24
16
25
12
36
1
1
1
37
54
28
1
27
RS203M-B-C-J80
MX29LV160DBTI-70G
NJM2388F33
NJM2586AM (TE2)
24
25
D
12
17
1
48
16
1
1
4
NJM2830U1-05 (TE1)
NJM2884U1-18 (TE1)
2
A
R
48
33
64
NJM2867F3-05
NJM4565M (TE1)
Cathode
1. VIN
2. VOUT
3. GND
4. ON/OFF CONTROL
24
1
PCM1681PWPR
PCM1803DBR
1
T
F
Anode
–
AC
–
AC
AC
+
4
4
+
AC
Cathode
• Transistors
2N5401C-AT/P
2SA1015-Y
2N5551C-AT
2SA1576A
3
8
4
E
20
28
C
1
1
B
B
2SC4081 T106
C
E
B
E
CE
C
B
E
B
CB
1
2SD2704 K
1
R5F364AMNFB
SiI9134CTU
R1EX25032ASA00A
KRA104S-RTK
KRC102S-RTK
KRC104S-RTK
STK433-330Y-E
STK433-130Y-E
C
KRC102M-AT
KTA1046-Y-U/P
OUT
50
76
8
4
B
19
15
1
1
R2A15220FP
80
100
26
1
TC74HC4051AFEL
TC74VHCT08AFT
TC74VHCU04FT
51
81
50
100
31
25
8
1
30
16
7
14
1
1
KTC3875S
C
51
E
78
2SC1815 Y
2SC1815 Y TP
2SA1708
E
10
14
5
CONTROL (Active High)
GND
NC
VOUT
VIN
1
UDZS4.7B
UDZ5.1B
UDZS5.6B TE-17 5.6V
UDZS9.1B
C
5
75
Cathode
Cathode
TS6P03G 6.0A 200V
3
1.
2.
3.
4.
5.
Anode
13
8
36
32
Anode
+
18
48
RB051LA-40
RB501V-40
MTZJ4.7A
MTZJ6.8C
MTZJ10B
MTZJ39D
36
LC72725KM-UY-TLM-E
49
KDS160-RTK
37
1
M66003-0131FP-R
Cathode
Cathode
Cathode
GND
IN
IN
1
Anode
Anode
KBP103G 1.0A 200V
4
HZU3.3B2 TRF-E
Anode
Anode
Cathode
8
1T2
E
COMMON
IN
E
CB
BC
B
E
B
A
C
D
E
F
G
H
I
J
K
L
M
N
RX-V367/HTR-3063
SCHEMATIC DIAGRAMS
DIGITAL 1/4
1
HDMI 4
HDMI 3
CB204
HDMI 2
CB203
HDMI 1
(BD/DVD)
CB202
HDMI OUT
CB201
CB205
2
0
0
0
0
3
0
0
0
0
0
0.6
0
0
0
0
0
0
0
0
0.6
0
0
0.6
0
0.6
IC204
IC204
IC204
IC204
4
4.9
5.1
T
F
0
A
1.3
0
0
0
3.0
0
HDMI RX
0
1.3
3.6
3.4
0
3.4
0
2.2
0
2.2
3.4
0
2.2
0
2.2
0
2.2
IC201
3.3
3.4
3.3
1.9
0
0
0
1.9
0
0
0
0
0
1.9
0
0
0
0
1.9
4.9
0
0
1.9
0
HDMI TX
2.2
0
2.2
0
2.2
0
2.2
0
2.2
0
3.4
0
1.9
3.4
3.4
0
1.9
3.4
IC202
0
1.3
3.4
3.4
0
3.4
3.4
3.3
0
0
3.4
0
3.4
3.4
0
2.2
2.2
0
0.5
2.2
2.2
0
3.2
2.2
3.4
0
5.1
2.2
3.4
0
0
2.2
2.2
0.6
2.2
2.2
2.2
2.2
3.4
2.2
0
2.2
2.6
No replacement part available.
0
0
サービス部品供給なし
0
0
サービス部品供給なし
3.4
0
0
0
0.6
3.4
0
0
3.4
1.9
3.4
3.4
2.2
2.2
3.4
2.2
2.2
2.2
3.4
0
0
3.4
2.2
2.2
2.2
2.2
2.2
2.2
3.4
1.3
2.2
2.2
2.2
2.2
2.2
2.2
3.4
3.4
2.2
1.3
3.4
2.2
3.4
3.4
3.4
2.2
2.2
2.2
2.2
2.2
0
0
0
0.3
0
3.6
0
0.6
0
0
0
0.6
0
0
1.9
2.2
0
0
