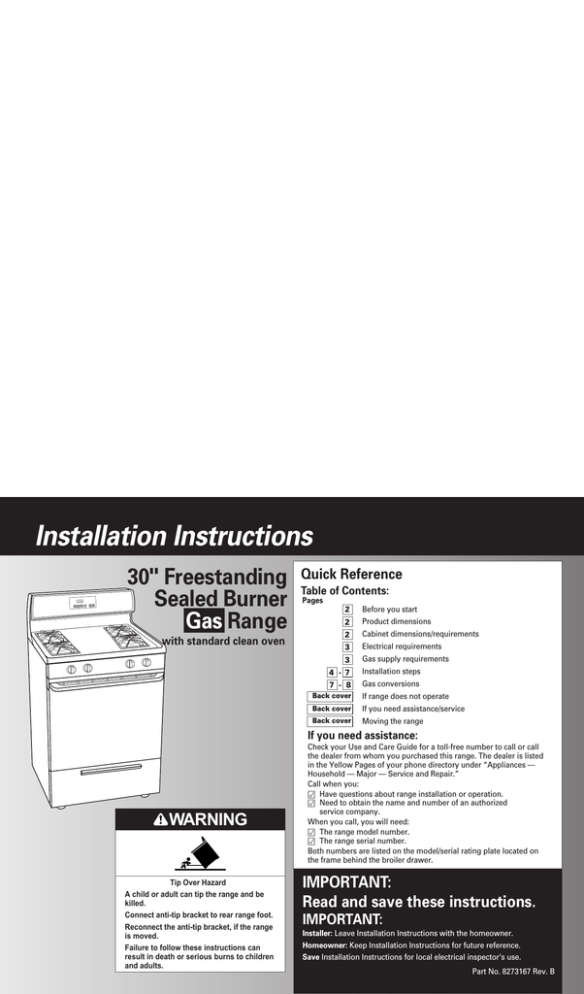

Installation Instructions
888
30" Freestanding
Sealed Burner
Gas Range
with standard clean oven
Quick Reference
Table of Contents:
Pages
2
Before you start
2
Product dimensions
2
Cabinet dimensions/requirements
3
Electrical requirements
3
Gas supply requirements
4 - 7
Installation steps
7 - 8
Gas conversions
Back cover
If range does not operate
Back cover
If you need assistance/service
Back cover
Moving the range
If you need assistance:
WARNING
Tip Over Hazard
A child or adult can tip the range and be
killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range
is moved.
Failure to follow these instructions can
result in death or serious burns to children
and adults.
Check your Use and Care Guide for a toll-free number to call or call
the dealer from whom you purchased this range. The dealer is listed
in the Yellow Pages of your phone directory under “Appliances —
Household — Major — Service and Repair.”
Call when you:
Have questions about range installation or operation.
Need to obtain the name and number of an authorized
service company.
When you call, you will need:
The range model number.
The range serial number.
Both numbers are listed on the model/serial rating plate located on
the frame behind the broiler drawer.
IMPORTANT:
Read and save these instructions.
IMPORTANT:
Installer: Leave Installation Instructions with the homeowner.
Homeowner: Keep Installation Instructions for future reference.
Save Installation Instructions for local electrical inspector's use.
Part No. 8273167 Rev. B
Before you start...
Your safety and the safety of
others are very important.
We have provided many important safety
message in this manual and on your
appliance.
Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential
hazards that can kill or hurt you and
others.
All safety messages will be preceded by the
safety alert symbol and the word “DANGER”
or “WARNING”. These words mean:
Product dimensions
Grounded electrical
outlet is required. See
“Electrical
requirements,” Page 3.
Proper gas supply
connection must be
available. See “Gas
supply requirements,”
Page 3.
888
27-1/8" depth
with handle
46-7/8"
overall
height
DANGER
You can be killed or seriously injured if
you don’t immediately follow instructions.
36"
cooktop
height
WARNING
You can be killed or seriously injured if
you don’t follow instructions.
All safety messages will tell you what the
potential hazard is, tell you how to reduce
the chance of injury, and tell you what can
happen if the instructions are not followed.
WARNING: If the information in
this manual is not followed
exactly, a fire or explosion may
result causing property damage,
personal injury or death.
— Do not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.
— WHAT TO DO IF YOU SMELL
GAS
• Do not try to light any
appliance.
• Do not touch any electrical
switch.
• Do not use any phone in your
building.
• Immediately call your gas
supplier from a neighbor’s
phone. Follow the gas
supplier’s instructions.
• If you cannot reach your
gas supplier, call the fire
department.
— Installation and service must
be performed by a qualified
installer, service agency or
the gas supplier.
Important: Observe all governing codes
and ordinances.
Do not obstruct flow of combustion and
ventilation air.
This installation must conform with all local
codes and ordinances. In the absence of
local codes, installation must conform with
American National Standard, National Fuel
Gas Code ANSI Z223.1 — latest edition*.
It is the customer’s responsibility:
• To contact a qualified electrical installer.
• To assure that the electrical installation
is adequate and in conformance with
National Electrical Code, ANSI/NFPA 70
— latest edition** and all codes and
ordinances.
Cabinet opening dimensions shown must be
used. Given dimensions are minimum
clearances.
When installing a range under existing cabinets
and the installation does not meet the minimum
cabinet clearances, install a range hood above
the cooktop to avoid burn hazards.
Proper installation is your responsibility. A
qualified technician must install this range. Make
sure you have everything necessary for correct
installation. It is the installer’s responsibility to
comply with installation clearances specified on
the gas information label. The gas information
label and model/serial rating plate are located on
the frame behind the broiler drawer.
Page 2
25"
29-7/8" width
Cabinet dimensions/requirements
Check location where range will be installed. The range
should be located for convenient use in the kitchen.
Recessed installations must provide complete enclosure of
the sides and rear of range.
ALL OPENINGS IN THE WALL OR FLOOR WHERE RANGE IS
TO BE INSTALLED MUST BE SEALED.
IMPORTANT: Some cabinet and building materials are not
designed to withstand the heat produced by the oven for
baking and self-cleaning. Check with your builder or cabinet
supplier to make sure that the materials used will not
discolor, delaminate or sustain other damage.
13" max. upper
cabinet depth
30" min. cabinet
opening width
For minimum
clearance to top of
cooktop, see Note.***
30-1/8" opening
width
18" min.
clearance upper
cabinet to
countertop
Do Not pinch the power
supply cord between the
range and the wall.
2" min.
countertop
space to side
wall or other
combustible
material
Do Not seal the range to
the side cabinets.
8"
17"
8"
17"
4-1/2"
If cabinet depth is greater
than 24", oven frame must
extend beyond cabinet
fronts by 1/2" min.
Contact a qualified
floor covering
installer to check
that the floor
covering can
withstand at least
200°F.
Use an insulated pad
or 1/4" plywood
under range if
installing range over
carpeting.
2"
2"
This shaded area recommended
*** Note: 24" min. when bottom of wood
for installation of rigid gas pipe.
or metal cabinet is protected by not
Flexible gas pipe and electrical
4-1/2"
less than 1/4" flame retardant milloutlet are recommended in either
board covered with not less than
shaded area.
No. 28 MSG sheet steel, 0.015"
stainless steel, 0.024" aluminum or
0.020" copper.
30" min. clearance between the top of
the cooking platform and the bottom
of an unprotected wood or metal
cabinet.
The floor-mounted anti-tip bracket MUST be installed. To
install the anti-tip bracket supplied, see Pages 4-5 and the
anti-tip bracket template/instruction sheet.
Anti-tip bracket
Mobile home installation
The installation of this range must conform to the
Manufactured Home Construction and Safety Standards,
Title 24 CFR, Part 3280 (formerly the Federal Standard for
Mobile Home construction and Safety, Title 24, HUD, Part
280); or when such standard is not applicable, the Standard
for Manufactured Homes Installations (Manufactured Home
Sites, Communities and Setups), ANSI A225.1/NFPA 501A**,
or with local codes.
When this range is installed in a mobile home, it must be
secured to the floor during transit. Any method of securing
the range is adequate as long as it conforms to the standards
listed above.
Copies of the standards listed may be obtained from:
* CSA International
8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575
** National Fire Protection Association
One Batterymarch Park
Quincy, Massachusetts 02269
Parts supplied
floor-mounted
anti-tip bracket
2 plastic
anchors
Not shown:
• literature pack
• orifice spuds
2 screws
(#10 x 1-1/2")
Bracket must be securely mounted to
sub-floor. Thickness of flooring may
require longer screws to anchor
bracket to sub-floor. Longer screws
are available from your local hardware
store.
Tools needed:
Electrical requirements
WARNING
level
3/8" drive
ratchet
wood floor:
1/8" drill bit
Phillips
screwdriver
concrete/ceramic floors:
3/16" carbide-tipped masonry
drill bit (Hammer may be
needed for anchors.)
tape measure
or ruler
channel lock
pliers
15/16" and 1/2"
combination
wrenches
putty knife
gloves
safety glasses
hand or
electric drill
pipe
wrench
Materials required:
• gas line shutoff valve
• 1/2" male pipe thread nipple for connection to pressure
regulator
• L.P. gas-resistant pipe-joint compound
• AGA or CSA design-certified flexible metal appliance
connector (4-5 feet) or rigid gas supply line as needed
• Insulated pad or 1/4" plywood if range is installed
over carpeting
Electrical Shock Hazard
Plug into a grounded 3-prong outlet.
Do not remove ground prong.
Do not use an adapter.
Failure to follow these instructions can
result in death, fire, or electrical shock.
If codes permit and a separate ground wire is
used, it is recommended that a qualified
electrician determine that the ground path is
adequate.
Do Not ground to a gas pipe.
Check with a qualified electrician if you are not
sure range is properly grounded.
A 120-volt, 60-Hz, AC-only, 10-ampere, fused
electrical supply is required. A time-delay fuse or
circuit breaker is recommended. It is
recommended that a separate circuit serving
only this appliance be provided.
Electronic ignition systems operate within wide
voltage limits, but proper grounding and polarity
are necessary. In addition to checking that the
outlet is correctly grounded, the outlet must be
checked by a qualified electrician to see if it is
wired with correct polarity.
Important: This range is equipped with an
electronic ignition system that will not operate if
plugged into an outlet that is not properly
polarized.
Recommended
ground method
For personal safety, this range is equipped with a
power supply cord having a 3-prong ground
plug. To minimize possible shock hazard, the
cord must be plugged into a mating 3-prong,
ground-type outlet, grounded in accordance with
the National Electrical Code, ANSI/NFPA 70 —
latest edition* and all local codes and
ordinances.
If a mating outlet is not available, it is the
personal responsibility and obligation of the
customer to have a properly polarized and
grounded, 3-prong outlet installed by a qualified
electrician.
Copies of the standards listed may be obtained from:
* National Fire Protection Association
One Batterymarch Park
Quincy, Massachusetts, 02269
3-prong polarized
ground-type outlet
3-prong ground
plug
ground
prong
power supply
cord
A wiring diagram is included on the back of
the range.
See “Cabinet dimensions/requirements,” Page 2,
for recommended location of electrical outlet.
Gas supply requirements
WARNING
Explosion Hazard
Use a new AGA or CSA approved gas
supply line.
Install a shut-off valve.
Securely tighten all gas connections.
If connected to LP, have a qualified person
make sure gas pressure does not exceed
14" water column. Examples of a qualified
person include licensed heating personnel,
authorized gas company personnel, and
authorized service personnel.
Failure to do so can result in death,
explosion, or fire.
Observe all governing codes and ordinances.
This installation must conform with local codes
and ordinances. In the absence of local codes,
installations must conform with American
National Standard, National Fuel Gas Code ANSI
Z223.1 — latest edition**.
Input ratings shown on the model/serial rating
plate are for elevations up to 2,000 feet. For
assistance when installing the range at higher
elevations, contact your local service company.
Type of gas: This range is design-certified by
CSA International for use with Natural gas or,
after proper conversion, for use with L. P. gas.
This range is factory set for use with Natural gas.
Gas conversion instructions are provided on
pages 7-8. The model/serial rating plate located
on the frame behind the storage drawer or
broiler drawer has information on the type of gas
that can be used. If the type of gas listed does
not agree with the type of gas available, check
with the local gas supplier. Conversion must be
done by a qualified service technician.
Page 3
Gas supply line: Provide a gas supply line of 3/4"
rigid pipe to the range location. With L.P. gas,
piping or tubing size can be 1/2" minimum. A
smaller size pipe on longer runs may result in
insufficient gas supply. Usually, L.P. gas
suppliers determine the size and materials used
in the system.
Pipe-joint compounds made for use with L.P. gas
must be used on pipe threads only.
Flexible metal appliance connector: If local codes
permit, a new AGA or CSA design-certified, 1/2"
or 3/4" I.D., flexible metal appliance connector is
recommended for connecting range to the gas
supply line. A 1/2" male pipe thread nipple is
needed for connection to pressure regulator
female pipe threads. Do Not kink or damage the
flexible metal tubing when moving the range.
Rigid pipe connection: Requires a
combination of pipe fittings to obtain
an in-line connection to the range. All
strains must be removed from the
supply and fuel lines so range will
be level and in line.
manual shutoff valve
“open” position
to range
gas supply
Shutoff valve: The supply line must be equipped
with a manual shutoff valve. This valve should
be located in the same room as the range and
should be in a location that allows ease of
opening and closing. The valve is for turning on
or shutting off gas to the range. Do Not block
access to shutoff valve.
Pressure regulator: The gas pressure regulator
supplied with this range must be used. The inlet
pressure to the regulator should be as follows
for proper operation:
NATURAL GAS:
Minimum pressure: 5 inches WCP
Maximum pressure: 14 inches WCP
L.P. GAS:
Minimum pressure: 11 inches WCP
Maximum pressure: 14 inches WCP
Contact your local gas supplier if you are not
sure about the inlet pressure.
Line pressure testing above 1/2 psi gauge
(14" WCP) — The range and its individual
manual shutoff valve must be disconnected
from the gas supply piping system during any
pressure testing of that system at test pressures
greater than 1/2 psig (3.5 kPa).
Line pressure testing at 1/2 psi gauge
(14" WCP) or lower — The range must be
isolated from the gas supply piping system by
closing its individual manual shutoff valve
during any pressure testing of that system at test
pressures equal to or less than 1/2 psig (3.5 kPa).
Copies of the standards listed may be obtained from:
** CSA International
8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575
888
E
D
D
Check cooktop
burners for
proper flame
Plug power
supply cord
into grounded
outlet
Make proper
gas
connection
A
Remove shipping
material.
Remove oven
racks and parts
package.
B
C
Install antitip bracket
Secure range
with anti-tip
bracket
C
E
Level range
Check burner
operation
D
Replace or close
broiler drawer.
Installation steps
A Preparation
WARNING
Excessive Weight Hazard
Use two or more people to move and
install range.
Failure to follow this instruction can
result in back or other injury.
1.
Put on safety glasses and gloves. Do Not
use oven door handle to lift or move the range.
2.
Remove oven racks and parts package
from inside oven. Remove shipping materials,
tape and protective film from range.
B Anti-tip bracket installation
WARNING
Contact a qualified floor covering installer for
the best procedure for drilling mounting
holes through your type floor covering.
4.
Tip Over Hazard
A child or adult can tip the range and be
killed.
Connect anti-tip bracket to rear range
foot.
Reconnect the anti-tip bracket, if the
range is moved.
Failure to follow these instructions can
result in death or serious burns to
children and adults.
Page 4
Use the anti-tip bracket
template/instruction sheet to install the
anti-tip bracket.
Anti-tip bracket must be
anchored securely to the sub
floor.
Depending on the
thickness of your
flooring, longer
screws may be
needed to anchor
the bracket
to the sub floor.
Longer screws are
available from your
local hardware store.
3.
cardboard
shipping base
Keep cardboard shipping base under
range to prevent damage to floor covering.
C Operating position
front leveling leg
rear leveling leg
5.
Remove cardboard shipping base from
under range. Open broiler drawer. Use a 3/8”
drive ratchet to lower rear leveling legs onehalf turn. Use channel lock pliers to lower front
leveling legs one-half turn.
Before moving range across floor, check that
range is still on cardboard shipping base to
protect floor covering.
6.
Making sure the
anti-tip bracket is
installed:
anti-tip
• Look for the
bracket
anti-tip bracket
range foot
securely attached to
floor.
• Slide range back so rear range foot is under
anti-tip bracket.
7.
If installing the range in a mobile
home, you MUST secure the range to the floor.
Any method of securing the range is adequate as
long as it conforms to “Manufactured Home
Construction and Safety Standard,” Page 2.
8.
Place rack in oven. Place level on
rack, first side to side; then front to back.
If range is not level, pull range forward until
rear leveling leg is free of the anti-tip bracket.
Use 3/8" drive ratchet and channel lock pliers
to adjust leveling legs up or down until range
is level. Push range back into position. Check
that rear leveling leg is engaged in anti-tip
bracket.
Note: Oven must be level for satisfactory
baking conditions.
D Gas and electrical connections
12.
All connections must be wrench-tightened.
Use a brush and liquid detergent
to test all gas connections. Bubbles around
connections will indicate a leak. If a leak
appears, shut off gas valve controls and
tighten connections. Then check connections
again. Never test for gas leaks with a match
or other flame. Clean all detergent from
range. Replace broiler drawer.
Typical rigid pipe connection
pressure
regulator
90˚elbow
90˚elbow
nipple
black iron
pipe
union
union
manual
gas
shutoff
valve
nipple
10.
Use 15/16" combination wrench and
channel lock pliers to attach the flexible
connector to the adapters. Check that connector
is not kinked.
Plug power supply cord into
grounded electrical outlet.
Typical flexible connection
pressure
regulator
regulator shutoff valve in
“on” position
use pipe-joint
compound
adapter
flexible
connector
manual shutoff valve
“open” position
to range
use pipe-joint
compound
gas supply
adapter
1/2" to 3/4"
gas pipe
manual
gas
shutoff
valve
A 1/2" male pipe thread is needed for connection to
pressure regulator female pipe threads.
9.
Apply pipe-joint compound made for
use with L.P. gas to the smaller thread ends of
the flexible connector adapters. Attach one
adapter to the pressure regulator elbow and
the other adapter to the gas shutoff valve.
Tighten both adapters.
Page 5
Center the burner cap on burner
base. Burner cap should be level when
properly positioned. Place burner grates
over burner.
14.
1/2" to 3/4"
gas pipe
90˚elbow
13.
11.
Check that range regulator shutoff
valve is in the “on” position. Open the manual
shutoff valve in the gas supply line.
E Check operation
Electronic ignition system
Cooktop and oven burners use electronic
ignitors in place of standing pilots. When a
cooktop control knob is turned to the “LIGHT”
position, the system creates a spark to light the
burner. This sparking continues until the
control knob is turned to the desired setting.
When the oven control is turned to the desired
setting, a hot surface ignitor heats to a bright
orange and ignites the gas. No sparking occurs
and the glow bar remains on while the burner
operates.
Check operation of oven burner
17.
Open broiler drawer. Follow the
instructions for your type of oven controls.
18.
If your oven has this type of electronic
control pads (with or without timer):
ON
BAKE
BROIL
START ?
PREHEAT
Check operation of cooktop
888
BAKE
TEMP/
TEMP
TIME
CUSTOM
BROIL
START
OFF
ENTER
CANCEL
F
OF
A
LIGHT
ON
TIMER
HGIH
BAKE
BROIL
START ?
HEAT
BAKE
888
TEMP/
TEMP
TIME
CUSTOM
BROIL
regulator
shutoff valve
CLOCK
TEMP
TIMER
START
OFF
ENTER
CANCEL
5 SEC
B
1. Press the “BAKE” pad.
• The “BAKE” indicator will light.
• “350” will appear in the display.
2. Press the START/ENTER pad.
• The “PREHEAT” or “HEAT,” and “ON”
indicators will appear.
• The display will show the automatic
countdown time (10 minutes) needed to
preheat the oven for selected temperature.
• The oven burner should light in 50-60
seconds; this delay is normal. The oven
valve requires a certain time before it will
open and allow gas to flow.
If your oven has this type of electronic
control pads:
16.
Push in and turn each cooktop
control knob from “LIGHT” to “LOW” setting
quickly. The low flame should be a minimum,
steady blue flame.
If flame needs to be adjusted, turn control
knob to the “LOW” setting and remove control
knob. Insert a small flat-blade screwdriver into
the valve stem. Turn the valve screw to obtain
the smallest flame that will not go out when
the control of a cold burner is quickly turned
from “HIGH” to “LOW”. Repeat for other
cooktop burners as needed.
Check the oven burner
for proper flame. The flame should
be 1/2" long, with inner cone of
bluish-green, and outer mantle of
dark blue, and should be clean and
soft in character. No yellow tips,
blowing or lifting of flame should occur. If
burner does not light, check that the regulator
shutoff valve is in the “on” position (see Step
11).
5 SEC
15.
Push in and turn each surface unit
control knob to “LIGHT” position. The flame
should light within 4 seconds. Turn control
knob to “HIGH” position after burner lights.
Check each cooktop burner for
proper flame. The small inner
cone should have a very distinct
blue flame 1/4" to 1/2" long. The
outer cone is not as distinct as
the inner cone.
To avoid damaging the hot surface ignitor,
Do Not insert any object into the openings of
the protective shield that surrounds the ignitor
or clean that area.
888°
F
ON
CUSTOM
BROIL
TEMP
If oven flame needs adjusting:
Locate the air shutter next to the pressure
regulator. Loosen screw and adjust the air
shutter until the proper flame appears. Tighten
screw.
19.
Turn the control knob to “OFF” or
press the “OFF/CANCEL” pad.
Check operation of broil burner
20.
Broil burner and oven burner are the
same burner. Follow the instructions for your
type of oven controls.
If your oven has this type of electronic
control pads (with and without timer):
88:88
HEAT BAKE BROIL
BAKE
air shutter
and screw
TIMER
CLOCK
TIMER
SET LIGHT
TIMER
OFF
ON
HR
MIN
START
OFF
ENTER
CANCEL
BAKE
BROIL
START ?
PREHEAT
5 SEC
888
C
1. Press the “BAKE” pad.
• The “BAKE” indicator will light.
• “350°F” will appear in the display.
2. Press the START/ENTER pad.
• “PrE,” and “10:00” will appear in the display.
• “HEAT” and “ON” indicators will light.
BAKE
TEMP/
TEMP
TIME
CUSTOM
BROIL
START
OFF
ENTER
CANCEL
5 SEC
A
CANCEL
TIMER
BAKE
BROIL
START ?
HEAT
BAKE
ON
888
CUSTOM
BROIL
TEMP/
TEMP
TIME
CLOCK
TEMP
TIMER
START
OFF
ENTER
CANCEL
5 SEC
B
1. Press the “CUSTOM BROIL” pad.
• “525” or “HI” will appear in the display.
• The “BROIL” indicator will light.
2. Press the “START/ENTER” pad.
• “HEAT”(console B only) and “ON”
indicators will light.
• The oven burner should light in 50-60
seconds; this delay is normal. The oven
valve requires a certain time before it will
open and allow gas to flow.
Page 6
E Check operation
(cont.)
If your oven has this type of electronic
control pads:
888°
F
ON
BAKE
CUSTOM
BROIL
TEMP
Close the broiler drawer. Press the
“OFF/CANCEL” pad.
TIMER
CLOCK
TIMER
SET LIGHT
TIMER
OFF
Check that the broil burner is
operating.
22.
88:88
HEAT BAKE BROIL
21.
HR
MIN
START
OFF
ENTER
CANCEL
5 SEC
C
1. Press the “CUSTOM BROIL” pad.
• “HI” will appear in the display.
• The “BROIL” indicator will light.
2. Press the “START/ENTER” pad.
• “HEAT”and “ON” indicators will light.
• The oven burner should light in 50-60
seconds; this delay is normal. The oven
valve requires a certain time before it will
open and allow gas to flow.
You have just finished installing
your new range. To get the most
efficient use from your range, read your
Use & Care Guide.
Keep Installation Instructions and Guide
close to range for easy reference.
The instructions will make installing the
range in another home as easy as the
first installation.
CANCEL
Gas conversions
Gas conversions (from Natural gas to L.P. gas; or
from L.P. gas to Natural gas) must be done by a
qualified installer.
WARNING
Fire Hazard
Shut off gas supply line valve.
Make all conversions before turning gas
supply valve back on.
Failure to follow these instructions can result
in explosion, fire or other injury.
3.
L.P. gas conversion
1.
Complete installation sections A-C (Pages
4-5) before converting cooktop to L.P. gas. Check
that main gas supply line has been shut off and
the power supply cord is disconnected.
pressure
regulator
Natural
reinstall
Surface
one of the
orifice
screws
Burners:
spud
Remove burner
spark electrode
caps. Use a orifice
spud
Phillips or
holder
Quadrex
screwdriver to
remove the two
screws holding
range cooktop
the burner head down. Lift the
burner head off the cooktop to uncover the
orifice spud holder. The orifice spud is recessed
in the holder.
Note: Reinstall one of the screws through the
range cooktop to hold orifice spud holder in place
while removing and replacing orifice spuds.
Locate the L.P. gas orifice spuds in
literature package. Orifice spuds are
stamped with a number and
groove
marked with two color dots
and a groove.
L.P. gas orifice spud
5/16"
nut driver
orifice spud.
plastic
cover
pressure
regulator
Replace orifice
spud with the
number listed
in the chart.
L.P.
burner
assembly
plastic
cover
orifice
number
L.P. Gas
cap
washer
Nat. gas
L.P. gas
DO NOT REMOVE THE PRESSURE REGULATOR.
2.
Open broiler drawer to locate pressure
regulator.
Pressure regulator: Remove plastic cover. Turn
cap marked “N” on front of pressure regulator
counterclockwise with a wrench to remove. Do
Not disturb or remove the spring beneath the
cap. Turn the cap over and reinstall cap on
regulator so that the letters “L.P.” are visible.
Replace plastic cover over cap.
Page 7
Surface
Propane
burner
Rate (BTU/hr)
Left rear
8,000
Left front
11,000
Right front
8,000
Right rear
5,000
3.
Orifice
Number
L80
L99
L80
L65
Color
Marking
Green/Lt.Blue
Green/yellow
Green/Lt.Blue
Green/Brown
Surface Burners: Remove burner caps.
Use a Phillips or Quadrex screwdriver to remove
the two screws holding the burner head down.
Lift the burner head off the cooktop.
A brass orifice spud is located in the center of
each burner throat about 2" below the cooktop.
Apply masking tape to the end of a 5/16" nut
driver to fit snugly over the orifice spud. Press
driver down onto the spud of the left front burner
and remove by turning spud counter-clockwise
and lifting it out. Replace the Natural gas spud
with the appropriate L.P. gas spud shown in the
table.
Continue to replace the remaining orifice spuds,
one at a time. Place the Natural gas spuds in
plastic parts bag for future use and keep with
literature package. Replace burner caps using
both screws and burner grates.
Natural gas conversion
1.
Check that main gas supply line has been
shut off and the power supply cord is
disconnected.
orifice hood
pin
Natural gas
increase gas
increase flame
sizepre-set at factory
for Natural gas
hood
L.P. gas
decrease gas
decrease
flame size
pressure
regulator
L.P.
4.
Oven burner: Use 1/2" combination
wrench to turn the orifice hood down snug onto
pin (approximately 2 to 2-1/2 turns). DO NOT
OVERTIGHTEN. The burner flame cannot be
properly adjusted if this conversion is not made.
orifice hood
pin
plastic
cover
pressure
regulator
5.
YOU MUST ADJUST “LOW” SETTING FOR
EACH COOKTOP BURNER AS IN STEP 16,
PAGE 6.
6.
Making sure the
anti-tip bracket is
installed:
anti-tip
• Look for the
anti-tip bracket bracket
securely attached to
range foot
floor.
• Slide range back so rear range foot is under
anti-tip bracket.
Natural gas
increase gas
increase flame size
pre-set at factory
for Natural gas
Natural
Complete installation sections D through
E, Pages 5-7. Checking for proper cooktop burner
and oven flame is very important.
The small inner cone should have a very distinct
blue flame 1/4" to 1/2" long. The outer cone is not
as distinct as the inner cone. L.P. gas flames
have a slightly yellow tip. If the flame is noisy or
blowing, it is getting too much air. If the flame is
soft and lazy, it is not getting enough air.
plastic
cover
washer
L.P. gas
Nat. gas
DO NOT REMOVE THE PRESSURE REGULATOR.
2.
Open broiler drawer to locate pressure
regulator.
Pressure regulator: Remove plastic cover. Turn
cap marked “L.P.” on front of pressure regulator
counterclockwise with a wrench to remove. Do
Not disturb or remove the spring beneath the
cap. Turn the cap over and reinstall cap on
regulator so that the letter “N” is visible. Replace
plastic cover over cap.
3.
reinstall
Locate the L.P. gas orifice spuds in
literature package. Orifice spuds are
stamped with a number and
marked with two color dots.
5/16"
nut driver
Natural gas
orifice spud
orifice spud.
Replace orifice
spud with the
number listed
in chart.
burner
assembly
orifice
number
Natural Gas
Surface
Propane
burner
Rate (BTU/hr)
Left rear
8,000
Left front
12,000
Right front
9,500
Right rear
5,000
hood
L.P. gas
decrease gas
decrease
flame size
4.
Oven burner: Use 1/2" combination
wrench to loosen the orifice hood away from pin
(approximately 2 to 2-1/2 turns). The burner
flame cannot be properly adjusted if this
conversion is not made.
cap
Surface
one of the
orifice
screws
Burners:
spud
Remove burner
spark electrode
caps. Use a orifice
spud
Phillips or
holder
Quadrex
screwdriver to
remove the two
screws holding
range cooktop
the burner head down. Lift the
burner head off the cooktop to uncover the
orifice spud holder. The orifice spud is recessed
in the holder.
Note: Reinstall one of the screws through the
range cooktop to hold orifice spud holder in place
while removing and replacing orifice spuds.
Orifice
Number
N139
N176
N150
N110
Color
Marking
Blue/Black
Blue/Red
Blue/Brass
Blue/White
A brass orifice spud is located in the center of
each burner throat about 2" below the cooktop.
Apply masking tape to the end of a 5/16" nut
driver to fit snugly over the orifice spud. Press
driver down onto the spud of the left front burner
and remove by turning spud counter-clockwise
and lifting it out. Replace the L.P. gas spud with
the appropriate Natural gas spud shown in the
table.
Page 8
Continue to replace the remaining orifice spuds,
one at a time. Place the L.P. gas spuds in plastic
parts bag for future use and keep with literature
package. Replace burner caps using both screws,
and burner grates.
5.
Check operation of range in section E,
Pages 6-7. Checking for proper cooktop burner
and oven flame is very important.
YOU MUST ADJUST “LOW” SETTING FOR
EACH COOKTOP BURNER AS IN STEP 16,
PAGE 6.
Natural gas flames do not have yellow tips.
6.
Making sure the
anti-tip bracket is
installed:
anti-tip
• Look for the
bracket
anti-tip bracket
range foot
securely attached to
floor.
• Slide range back so rear range foot is under
anti-tip bracket.
If range does not operate:
Check that the circuit breaker is not tripped
or the house fuse blown.
Check that the power supply cord is plugged
into the wall receptacle.
Check that gas line is turned on.
See Use and Care Guide for troubleshooting list.
If you need assistance:
If you have questions about operating, cleaning
or maintaining your range:
Refer to Use and Care Guide.
Call the Consumer Assistance Center. Check
your Use and Care Guide for a toll-free
number to call or call the dealer from whom
you purchased this range. The dealer is
listed in the Yellow Pages of your phone
directory under “Appliances — Household —
Major — Service and Repair.”
Moving the range:
WARNING
Tip Over Hazard
A child or adult can tip the range and be
killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range
is moved.
Failure to follow these instructions can
result in death or serious burns to children
and adults.
anti-tip
bracket
range foot
If you need service:
4. Making sure the anti-tip bracket is installed:
• Look for the anti-tip bracket securely attached
to floor.
• Slide range back so rear range foot is under
anti-tip bracket.
5. Check that range is level.
6. Reconnect gas line to range and check for
leaks.
7. Plug power supply cord into outlet.
Maintain the quality built into your range by
calling an authorized service company.
To obtain the name and number of an
authorized service company:
Contact the dealer from whom you
purchased your range; or
Look in the Yellow Pages of your telephone
directory under “Appliances — Household —
Major — Service and Repair;” or
Call the Consumer Assistance Center.
The toll-free number is listed in your Use
and Care Guide.
When you call, you will need:
The range model number.
The range serial number.
Both numbers are listed on the model/serial
rating plate located on the frame behind the
broiler drawer.
Part No. 8273167 Rev. B
© 2000 Whirlpool Corporation
When moving range, slide range onto cardboard
or hardboard to prevent damaging the floor
covering.
If removing the range is necessary for cleaning
or maintenance:
1. Shut off the gas supply to the range.
2. Slide range forward away from the wall, just
far enough to disconnect the gas and electric
supply lines.
3. Slide range forward to complete cleaning or
maintenance.
Benton Harbor, Michigan 49022
Printed in U.S.A.

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
