Samsung DC68-02836B Service manual

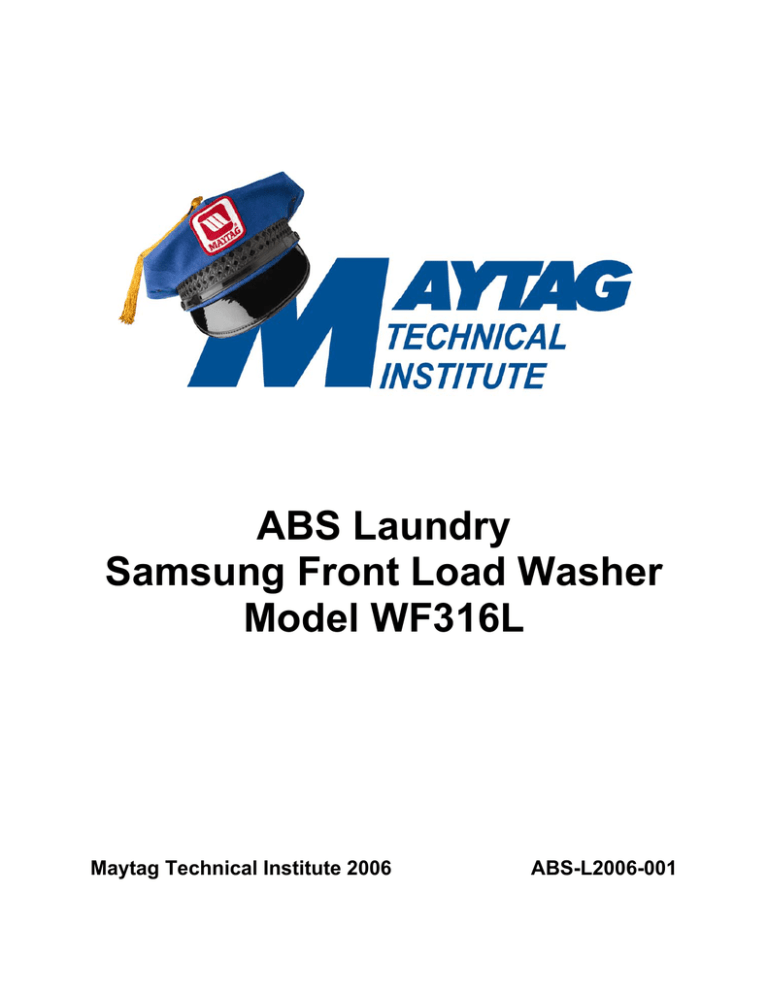

ABS Laundry
Samsung Front Load Washer
Model WF316L
Maytag Technical Institute 2006
ABS-L2006-001
Notes:
WASHING MACHINE
Model
: WF316L
Model code : WF316LAW/XAA
SERVICE
WASHING MACHINE
Manual
THE FEATURE OF PRODUCT
1. SilverCare
2. SuperSize Capacity
3. Direct Drive Motor
4. Child Lock
5. My Cycle
Refer to the service manual in the itself (http://itself.sec.samsung.co.kr/) for the more information.
-This Service Manual is a property of Samsung
Electronics Co., Ltd.
Any unauthorized use of Manual can be punished
under applicable International and/or domestic
law.
Samsung Electronics Co.,Ltd.
416, Maetan-3Dong, Yeongtong-Gu, Suwon City,
Gyeonggi-Do, Korea, 443-742
Printed in Korea
P/N : DC68-02636A
URL : http://itself.sec.samsung.co.kr/
CONTENTS
1. Precautions
1-1. Safety Precautions ............................................................................................................................1-1
1-2. Precautions upon Installation ............................................................................................................1-2
2. PRODUCT SPECIFICATIONS
2-1. THE FEATURE OF PRODUCT .........................................................................................................2-1
2-2. SPECIFICATIONS OF PRODUCT ....................................................................................................2-2
2-3. THE COMPARATIVE SPECIFICATIONS OF PRODUCT .................................................................2-3
2-4. OPTION SPECIFICATIONS ..............................................................................................................2-4
3. OPERATING INSTRUCTIONS AND INTALLATION
3-1. Each Key and Display .......................................................................................................................3-1
3-2. FUNCTION OF CONTROL KEYS.....................................................................................................3-2
3-3. MAIN FUNCTIONS ...........................................................................................................................3-6
3-4 SPECIAL FUNCTIONS ......................................................................................................................3-8
4. ALIGNMENT AND ADJUSTMENTS
4-1. GENERAL ERROR FUNCTION........................................................................................................4-1
4-2. TEST MODE .....
4-2
5. ASSEMBLY AND DISASSEMBLY
5-1. TOOLS FOR DISASSEMBLY AND ASSEMBLY ...............................................................................5-1
5-2. DISASSEMBLY .
5-2
5-3. ASSEMBLY .......
5-5
6. TROUBLE SHOOTING
6-1. TROUBLE DIAGNOSIS ....................................................................................................................6-1
6-2. PROBLEM CHECKING AND METHOD OF PCB .............................................................................6-3
6-3 Control Panel .....
6-4
6-4 Driving Unit.........
6-5
7. EXPLODED VIEWS AND PARTS LIST
7-1. ASSY-COVER TOP ...........................................................................................................................7-1
7-2. ASSY-TUB OUTER(SPIN BASKET) .................................................................................................7-2
7-3. ASSY-CASE OUTER.........................................................................................................................7-3
7-4. BOLT/SCREW PARTS LIST .............................................................................................................7-4
CONTENTS
8. ELECTRICAL PARTS LIST .....................................................................................................................8-1
9. BLOCK DIAGRAM ..
9-1
10. WIRING DIAGRAM .............................................................................................................................10-1
11. PCB DIAGRAM....
11-1
12. SCHEMATIC-DIAGRAMS .................................................................................................................12-1
13. CIRCUIT DESCRIPTIONS ..................................................................................................................13-1
14. REFERENCE INFORMATION
14-1. MODEL NAME ..............................................................................................................................14-1
14-2. TERMINOLOGY ............................................................................................................................14-2
14-3. FABRIC CARE CHART .................................................................................................................14-3
14-4. ELECTRICAL WARNINGS ...........................................................................................................14-4
14-5. Q & A .............
14-5
1. Precautions
1-1. Safety Precautions
1. Do not allow the customer to repair the product.
☞ It may cause personal injury or product damage when the unit is serviced by unqualified personnel.
2. Disconnect power to the appliance before servicing.
☞ Be aware of the possibilities of an electric shock.
3. Do not use multi-plug.
☞ Power outlet may be overloaded causing the socket to overheat.
4. Check for any damage on power plug or power outlet.
☞ Replace it immediately if it has problem. (It may cause an electric shock or fire)
5. Make sure to earth the product.
☞ May cause electric shock.
6. Do not clean the product with water.
☞ May cause electric shock / fire or shorten product life.
7. The wiring harness should be free from moisture and connected properly during serving.
☞ It should be proof against any external force.
8. Remove any dust or dirt in the product, wiring section and connections during servicing.
☞ Protect against possibilities of fire due to tracking etc.
9. Check for any water trace on electrical parts, harness, etc.
☞ Replace the parts and /or wipe dry the water.
10.Check the assembled status of the parts after servicing.
☞ Check if the product is assembled in the same status as before servicing.
11.Be sure not to pull on the power cord but to unplug it by holding the plug.
☞ Beware of possibility of electric shock or fire when the power cord is damaged.
12.Unplug the power plug from the outlet when the washing machine is not used.
☞ Beware of possibility of electric shock or fire while lightening.
13.Do not use or put flammable materials (including gasoline, alcohol, thinner etc) around the washing machine.
☞ Flammable materials may spark an explosion or fire.
14.Do not put a water containing bowl or wet laundry on the washing machine.
☞ It may cause an electric shock or fire, or shorten the product life when its water penetrates into the
washing machine.
15.Do not install the washing machine in a place where it is exposed to snow or rain etc.
☞ It may cause an electric shock or fire and shorten the product life.
16.Do not press control buttons with pointed objects such as pins, needles, etc.
☞ It may cause an electric shock or other problems.
17.Check the washing machine is leveled horizontally on the floor and is installed properly.
☞ Vibration may shorten the product life.
18.Make sure to use connectors when connecting wires.
☞ If wires are connected without connectors, it may cause a tracking fire.
19.When the washing machine is to be laid down for servicing, put a pad on the floor and lay the product on its side slowly.
☞ If the wash machine is laid on its front, internal components may be damaged by the tub.
1-1
1-2. Precautions upon Installation
■ How to Remove Shipping Bolts
1. Remove the screws by using
the supplied spanner.
3. Fill the holes with the supplied
plastic caps.
■ Precautions before Installation
The unit is quite heavy.
So, make sure to have 2 or
more personnel move it.
Make sure that the unit stands
on a firm and leveled floor.
2. Remove the shipping bolts
from the back of the unit.
4. Keep the shipping bolts and
screws for future use.
eep it away from direct sunlight
or high humidity, and install it in
a place with good ventilation.
Install the unit at a place with
a wall outlet easily accessible.
Keep the unit away from places in
which it is freezing, especially in
winter.
1-2
Keep the unit away from heat
appliances such as a heater.
1-2. Precautions upon Installation
■ Grounding
► Make sure to ground the unit to prevent
electric leakage or shock.
With a grounded receptacle
► It does not need an additional grounding.
■Water Drainage
► Hook the drain hose over the Wash Basin or Laundry
Tub or plug the end of the drai hose into the Standpipe
- Hook the drain hose over the Wash Basin or Laundry
Tub or plug the end of the drain hose into the Standpipe
- The outlet end of the drain hose must be at least
60-90 cm above the base of the machine.
► Seal the drain pipe connections
- If not, it may cause water leakage.
► Prevent water from siphoning away
- If the end of the drain hose is put in water, it could siphon
away water during washing.
So, make sure that the end of the drain hose is not put in
water.
Note: Caution must always be exercised to avoid collapsing
or damaging the drain hose.
For best performance the drain hose should not be
restricted in any way, through elbows, couplings or
excessive lengths.
1-3
1-2. Precautions upon Installation
■ How to Level the Unit
1.Select an installation place.
► Install the unit with 10cm or more
clearance from its surrounding walls.
2.Check if the unit is leveled.
► If the unit wabbles, adjust the leveling
legs.
3.Adjust the leveling legs.
When the unit is not leveled
► Lift up the unit a little bit and adjust the shortest.
► Turn the leveling bolt counter clockwise as shown
in the picture above (The leveling leg gets longer.)
► The 4 leveling legs should
touch the floor all together.
► Slide your Washer into
position.
1-4
► Level your Washer by
turning the leveling legs
in or out as necessary
by hand. When your
Washer is level, tighten
the nuts using
the wrench included
with your Washer.
► If you install your washer on
softfloor, you should place the
rubber cup under adjustable
eg. Before put rubber cup, please
remove film for double-side tape
attached on rubber cup.
2. PRODUCT SPECIFICATIONS
2-1. SPECIFICATIONS OF PRODUCT
TYPE
DIMENSION
FRONT LOADING WASHER
Div
Inches (cm)
Div
Inches (cm)
A. Height-Overall
38 (96.5)
C. Depth With Door Open 90°
49 (124.5)
B. Width
27 (68.6)
D. Depth
30.25 (77.0)
WATER PRESSURE
50 kPa ~ 800 kPa
WEIGHT
89.9 kg
CAPACITY
3.29 Cu.ft
WASHING
120V
226W
WASHING AND HEATING
120V
997W
SPIN
120V
379W
DRAIN
120V
41W
WF326 *
1200rpm
WF316*
1100rpm
WF306 *
1000rpm
POWER CONSUMPTION
SPIN REVOLUTION
2-1
2-2. OVERVIEW OF THE WASHING MACHINE
Hot water supply hose
Cold water supply hose
Detergent
drawer
Control
panel
Door
Drain Hose
Adjustable leg
2-2
2-3. THE COMPARATIVE SPECIFICATIONS OF PRODUCT
Samsung
(WF316LAW)
Whirlpool
(GHW9250M)
LG
(WM2432HW)
Bosch
(WFMC6400)
3.29 (DOE)
3.21 (DOE)
3.22 (3.72)
2.93 (DOE)
93.4
90
91
83
Direct Drive
3-Phase
Direct Drive
3-Phase
LED
LED
LED
LCD (red)
57
52
59
66
1.01
1.00
0.99
1.02
48 Liter
56 Liter
49 Liter
61 Liter
128
105
114
189
RPM
1,100
1,100
1,200
1,200
Noise
57 dB
59 dB
66 dB
62 dB
Item
Capacity (Cu.ft)
Volume of Spinner (ℓ)
Motor
User Interface
Cycle Time
Wash Performance
Water Consumption/Cycle
Energy Consumption
(W/O Heater Wh/Cycle)
2-3
2-4. OPTION SPECIFICATIONS
Item
Item Name
CODE.NO
SPANNER
DC60-4014 6A
HOLE COVER
DC61-10688A
HOSE DRAIN
DC97-07126A for HOT
DC97-07127A for COLD
MANUAL-BOOK
Remark
DC68-02291A
2-4
Memo
2-5
3. OPERRATING INSTALLATION AND INSTALLATION
3-1. OVERVIEW OF THE CONTROL PANEL
1. Digital graphic display
Displays the remaining wash time, all wash information, and error messages.
2. Temperature selection button
Press the button repeatedly to cycle through the different water temperature options.
Extra Hot/Cold - Heavily soiled, colorfast items. Only available with the Sanitize cycle.
Hot/Cold - Whites and heavily soiled, colorfast items.
Warm/Warm - Colorfast items. When warm rinse is selected, only the final rinse will be warm. The other rinses will be cold to
conserve energy.
Warm/Cold - Moderately soiled, colorfast items; most wrinkle-free items.
Cold/Cold - Brightly colored, very lightly soiled items; washable woolens.
3. Spin selection button
Press the button repeatedly to cycle through the different spin speed options.
Extra High - Removes more water from loads during spin.
NOTE: To minimize wrinkling of wrinkle-free and no-iron fabrics, DO NOT use the Extra High spin option for these loads, nor overload
your Washer.
High - Use for underwear, t-shirts, jeans and sturdy cottons.
Medium - Use for jeans, wrinkle-free or wash-and-wear items and synthetics.
Low - Use for delicate items needing a slow spin speed because of fabric and construction.
No Spin - Drains your Washer without spinning. Use for extremely delicate items that cannot tolerate any spin.
4. Soil Level selection button
Press the button to select the Soil Level/washing time.
Heavy - For heavily soiled loads.
Normal - For moderately soiled loads. This setting will be appropriate for most loads.
Light - For lightly soiled loads.
5. Signal selection button
Press the button to increase or decrease the end of cycle signal volume or turn off the signal.
6. SilverCare button
Silver ions are added during the wash and rinse cycles to maximize the sanitizing and antibiotic effects.
3-1
3-1. OVERVIEW OF THE CONTROL PANEL
7. Select Cycle Option
Delay Start - Any cycle can be delayed for up to 12, 19 or 24hours (select models) in one-hour increments. Displayed hour indicates
the time at which the wash will be finished.
Extra Wash - Add additional time to the wash for better stain removal.
Extra Rinse - Add an additional rinse at the end of the cycle to more thoroughly remove laundry additives and perfumes.
Extra Spin - Add additional time to remove more water from loads
My Cycle - Choose your favorite cycle including temperature, spin, soil level, option, etc.
Pre Wash - Add detergent to the Pre Wash selection of the detergent compartment. Washer fills with cold water and
detergent, tumbles, then drains and advances to the selected wash cycle. Some cycles cannot be selected with this option.*
* You can`t select PreWash option in Delicate/Hand Wash, Wool, Quick Wash and Active Wear cycles.
8. Cycle Selector
Select the appropriate cycle for the type of load.
This will determine the tumble pattern and spin speed for the cycle.
NOTE: To minimize wrinkling of loads, select the Perm Press cycle.
Heavy Duty - For sturdy, colorfast fabrics and heavily soiled garments.
Normal - For most fabrics including cottons, linens, and normally soiled garments.
Whites - For white fabrics with or without bleach.
Perm Press - For wash-and-wear, synthetic fabrics, and lightly to normally soiled garments.
Delicates/Hand Wash - For sheer fabrics, bras, lingerie silk, and other handwash-only fabrics. For best results, use liquid
detergent.
Wool - For machine-washable wool. Loads should be under 8 pounds.
The wool wash cycle of this machine has been approved by Woolmark for the washing of machine washable Woolmark products
provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer
of this washing machine, M0509.
Quick Wash - For lightly soiled or wrinkled garments needed quickly.
Towels - For bath towels and washcloths. Do not load too many towels because they absorb lots of water.
Sanitize - For heavily soiled, colorfast garments. This cycle heats the water to 150°F to eliminate bacteria.
NOTE: If Pause is selected during the heating portion of the Sanitize Cycle, your Washer door will remain locked for your
safety.
Bedding - For bulky items such as blankets and sheets.
Active Wear - For washable sportswear.
Eco Wash - For geographic areas where energy and water conservation is needed.
Rinse + Spin - Use for loads that need rinsing only or to add rinse-added fabric softener to a load.
Spin Only - Provides a spin to remove more water from the load.
9. Start/Pause selection button
Press to pause and restart programs.
10. Power button
Press once to turn your Washer on, press again to turn your Washer off. If your Washer is left on for more than 10 minutes
without any buttons being touched, the power automatically turns off.
NOTE : Cycles and options vary by model. Refer to cycle chart in Appendix.
3-2
3-2. PROGRAMME CHART
326LAW, 326LAS
Functions
Options
Temp
EH/
C
Spin
H/C W/
W
W/
C
C/C EH
Soil Level
H
M
L
NS
H
N
L
Time
Delay Extra Extra
Start Wash Rinse
My
Pre
Extra Silver
Cycle Wash Spin Care
Heavy
Duty
Normal
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
90
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
53
Whites
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
60
Perm Press
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
45
Delicates/
Hand Wash
Wool
√
√
√
√
√
√
√
√
√
√
√
√
39
√
√
√
Quick
Wash
Towels
Sanitize
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
Active
Wear
Eco Wash
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
Rinse +
Spin
Spin Only
57
√
Bedding
√
√
√
√
33
√
√
64
√
√
√
110
√
√
√
69
√
49
√
√
45
√
√
√
18
√
√
√
9
306LAW
Temp
H/C W/W W/C
Heavy
Duty
Normal
Whites
Perm Press
Delicates/
Hand Wash
Wool
Quick
Wash
Towels
Rinse +
Spin
3-3
C/C
Functions
Spin
H
M
L
NS
Soil Level
H
N
L
Options
Delay Extra Extra
Start Wash Rinse
Time
Silver
Care
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
65
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
53
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
60
√
√
√
√
√
√
√
√
√
√
√
√
√
√
45
√
√
√
√
√
√
√
√
√
√
√
39
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
33
√
√
√
√
√
√
√
√
√
√
√
√
√
√
64
√
√
√
√
√
√
√
18
√
√
√
√
57
√
3-2. PROGRAMME CHART
316LAW, 316BAW, 316BAC
Functions
Options
Temp
Spin
Soil Level Delay Extra Extra My
EH/ H/ W/ W/C C/ EH H M L NS H N L Start Wash Rinse Cycle
C
C W
C
Time
Pre Silver
Wash Care
Heavy Duty
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
90
Normal
Whites
Perm Press
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
53
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
60
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
45
√
√
√
√
√
√
√
√
√
√
√
√
39
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
33
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
Delica-tes/
Hand Wash
√
Wool
Quick Wash
Towels
Sani-tize
Bed-ding
Rinse + Spin
√
√
√
√
√
Spin Only
√
√
√
57
√
√
√
√
√
√
√
64
√
√
√
√
√
110
√
√
√
√
√
69
√
√
√
18
√
9
306BHW
Functions
EH/
C
H/C
Temp
W/ W/
W
C
Options
C/C
H
Spin
M
L
NS
H
Soil Level
N
L
Time
Delay Extra Extra Silver
Start Wash Rinse Care
Heavy Duty
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
65
Normal
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
53
Whites
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
60
Perm Press
√
√
√
√
√
√
√
√
√
√
√
√
√
√
45
Delicates/
Hand Wash
√
√
√
√
√
√
√
√
√
√
√
39
√
√
√
Wool
√
√
Quick Wash
√
√
√
√
√
√
√
√
√
√
√
√
Towels
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
Sanitize
Bedding
Rinse + Spin
Spin Only
√
√
√
√
√
57
√
√
33
√
√
√
64
√
√
√
√
110
√
√
√
√
69
√
√
18
9
3-4
3-3. MAIN FUNCTION
CHILD LOCK
A function that prevents children from playing with your Washer.
ACTIVATING/DEACTIVATING
If you want to activate/deactivate the Child Lock function, press the Soil Level and Signal buttons at the same time for 3
seconds.
How It Works:
1. Child Lock can be activated while your Washer is running.
2. Once you activate Child Lock, all controls (except for the Power button) will be locked until you deactivate Child Lock.
3. The Child Lock button will be lit while it is in effect.
Note: When buttons, other than the Power button, do not respond, please check if the Child Lock
button is on.
GARMENT +
You can add or take laundry items even after the wash has started, as long as the Garment+ light is on. Pushing the Start/
Pause button unlocks the door, unless the water is too hot or if there is too much water in your Washer. If you are able to unlock
the door and wish to continue the wash cycle, close the door and press the Start/Pause button.
MY CYCLE
Allows you to activate your custom wash (temperature, spin, soil level, etc.) with one–button convenience.
By pushing the My Cycle button, you activate the settings used during the last My Cycle mode. The My Cycle light will indicate
activation.
You can select all options as follows in My Cycle mode.
1. Select cycle using Cycle Selector dial.
2. After cycle selection, set each option.
Note: At this time, the option will follow as per each cycle’s default option selection.
Then you can start My Cycle by pushing the Start/Pause button in My Cycle mode.
The cycle and options you select will be displayed next time you choose My Cycle.
3-5
3-3. MAIN FUNCTION
FOR SILVERCARE WASHING
Silver ions are added during the wash and rinse cycles to maximize the sanitizing and antibiotic effects, treating fabrics with a
microscopic coating protection that kills more than 650 kinds of bacteria.
1. Open the door, put in the clothes and close the door again.
2. Press the Power button.
3. Select a Cycle by turning the Cycle Selection dial.
4. Press SilverCare button.
5. Add detergent in the dispenser tray for main washing, and add fabric softener up to the marked line.
:
For Pre Wash, put a supplementary detergent in the dispenser.
SilverCare: If it is used together with fabric softener, its effect may be decreased.
6. Press Start/Pause button.
: Automatically selects optimal washing conditions by sensing the laundry’s weight.
Note :
FOR HOME USE ONLY– COMMERCIAL USERS SHOULD NOTIFY THEIR LOCAL WASTE TREATMENT
AUTHORITIES BEFORE USE
You can find # of times you used SilverCare option by pushing signal and SilverCare button.
LU3 : less than 1000 times
LU2 : between 1000 to 2000 times
LU1 : between 2000 to 2999 times
LU0 : over 2999 times
You should replace the silver kit when it display “LU0”. Contact 1-800-SAMSUNG.
Note :
For some model which has no heater if you choose SilverCare, Temp will be fixed to Cold/Cold.
If you change Temp selection, SilverCare will be canceled.
3-6
3-4. TECHNICAL POINT
1) Motor on/off time at each course
unit:sec
Course
Washing
Off
4
Ccw
13
Off
4
Motor r.p.m
Heavy Duty
Cw
13
Normal
12
8
12
8
50
Whites
7
8
7
8
40
Perm Press
5
10
5
10
40
Delicate/Hand wash
2
48
2
48
50
Wool
2
58
2
58
50
Quick Wash
12
8
12
8
50
Towels
10
10
10
10
50
Sanitize
8
12
8
12
45
Bedding
10
10
10
10
45
Rinse + Spin
5
10
5
10
40
52
2) Final dehydrating r.p.m at each course
unit:rpm
Model
Course
Heavy Duty
WF316L
1200
Normal
1200
Whites
1200
Perm Press
800
Delicate/Hand wash
800
Wool
400
Quick Wash
1200
Towels
400
Sanitize
1200
Bedding
1200
Rinse + Spin
800
Spin Only
1200
3-7
3-4. TECHNICAL POINT
3) The water supply control at each process cycle
Model
WF316, WF306
Process cycle
Cold water 5L/min
Cold water 10L/min + (Hot water 10L/min)
Cold water 10L/min
Cold water 10L/min + Cold water 5L/min
Pre Washing
Washing
Rinse
Final rinse
4) The water level data at each course
unit:Khz
Model
Course
Washing
Rinse
Washing
Normal
Rinse
Washing
Whites
Rinse
Washing
Perm Press
Rinse
Washing
Delicate/Hand wash
Rinse
Washing
Wool
Rinse
Washing
Quick Wash
Rinse
Washing
Towels
Rinse
Washing
Sanitize
Rinse
Washing
Bedding
Rinse
Washing
Rinse + Spin
Rinse
Heavy Duty
Default water level
(kHz)
24.25
23.60
24.25
23.60
24.40
23.60
23.80
23.65
23.45
23.15
24.40
23.80
24.25
23.50
24.25
23.50
24.25
23.50
24.25
23.50
24.25
23.50
Supplementary water START
(kHz)
24.90
25.00
24.90
25.00
25.00
25.00
24.55
24.55
24.35
24.35
25.00
25.00
24.90
25.00
24.90
25.00
24.90
25.00
24.90
25.00
24.90
25.00
Supplementary water
End (kHz)
23.60
24.60
23.60
24.60
24.75
24.60
24.30
24.30
24.00
24.00
24.70
24.70
23.60
24.60
24.60
24.60
24.60
24.60
24.60
24.60
24.60
24.60
3-8
Memo
3-9
4. ALIGNMENT AND ADJUSTMENTS
4-1. GENERAL ERROR FUNCTION
LED
Diagnostic
NO Display
Code
Description
1
nd
1
The water level fails to drop below the Reset Water Level
within 15 minutes.
2
LO
2
Door fails to unlock after 3 attempts.
3
nF
3
When the filling continues for more than 16 minutes or there
is no change of water level for 3 minutes
4
FL
4
Door fails to lock after 3 attempts.
Water Level Sensor Trouble.
(When the input signal from the water level sensor is out of
range, the unit will send out beeping sounds and halts the
cycle.)
A fault is detected in the water level sensor.
Data (frequency) shows the water level is at or above the
overflow water level. (When this condition is detected, the
machine will automatically starts draining water until the water
level falls below the overflow water level)
Unbalance or cabinet bump is detected during final spin,
which prevents the drum from spinning over 400 rpm. (Never
exceeds 400 RPM due to unbalanced load)
Corrective Action
Go to “ Will Not Drain” Troubleshooting
Section.
Go to “ Will Not Unlock” Troubleshooting
Section.
Go to “ No Water Fill” Troubleshooting
Section.
Go to “ Will Not Lock” Troubleshooting
Section.
5
LE
8
6
OE
E
7
dc
10
8
-
11
EEPROM Fault. (Program settings are being reset.)
9
E2
15
Jammed Key.(When key input signals are coming out for
more than 30 seconds, it is regarded as a jam.)
10
dL
18
Door is detected as open when the motor is operating.
11
dS
22
Door is detected as open while it is trying to lock the door.
12
bE
25
Motor hall sensor signals come out without motor operation.
Replace Machine Control Board.
13
tE
29
Abnormal high/low temperature or resistance (Thermal
sensor or PBA) resistance.
Go to “ Board Input Test” and check Water
Temperature. Check loose or pinched wires.
Replace PCB or thermistor.
MICOM is attempting to drive the motor but is not getting any
response signals from the hall sensor. Visual check shows
motor is not running. (Locked, Defective Hall Sensor or
Overload)
System Relay (Main Relay) Failure. (PCB does not notice the
relay operation when there should be.)
Go to “No Water Fill” Troubleshooting Section.
First check to see that all of water valves are
not stuck. If water valves are OK, check water
level sensor.
Go to “Wet Clothes” Troubleshooting Section.
Go to “EEPROM Clear Mode” If display
shows “FAiL”,Replace Machine Control
Board.
Check all of keys. If A key is sensed to be
pressed, all keys will do not respond.
Check for loose wire connections.
Go to “Quick Test Mode” and then do Door
lock/Unlock Test and Motor Test.
Go to “Quick Test Mode” and then do Door
Lock/Unlock Test
Evaluate wire harness for loose or unhooked
connections. Go to “ Quick Test Mode” and
test Motor.
14
E3
2E
15
Sr
34
16
Hr
36
17
3E
3E
Over-current is detected. Motor won’t turn.
(IPM detects over-current.)
Evaluate wire harness for loose or unhooked
connections.
Go to “ Quick Test Mode” to test Motor.
18
2E
91
Voltage for motor control bus is over specified limit.
Replace PCB
19
2E
92
Voltage for motor control bus is under specified limit.
Replace PCB
20
8E
8E
MEMS Sensor Failure. (No MEMS Sensor Check Signal)
Check MEMS PCB ,Main PCB & Wireharness
21
7E
7E
Silver Care Kit (Silver Care PCB) Failure.
Check Silver Care PCB ,Main PCB & Wireharness
22
PF
-
23
SUdS
-
Heater Relay Failure (No Heater Relay Check Signal)
Replace PCB.
Replace PCB
It occurs when there is power failure during the washing.(“PF”
is not an error. It is to inform the user of power failure.)
Suds is detected during the washing session. (“SUdS” is not Guide a user to reduce amount of detergent
an error. If the washer is in suds period, “SUdS” will light up
usage.
instead of remaining time.)
4-1
4-2. TEST MODE
Test Mode:
Each Test Mode for the Frontier Washer is as follows in the coming pages. The test modes indicated by the red
arrows are the modes unable to get an access once the washing cycle has started due to safety reasons.
4-2-1. Quick Test Mode
Definition of Quick Test Mode:
- Check operation of all LED’s (Verify faulty LED).
- Check model and software version.
- Check different operating modes (e.g. water valve, motor, door, drain pump, etc.).
How to Enter:
- Plug in and turn on the unit.
- Press Spin Key, Soil Level Key and Power Key at the same time.
(Same for all Frontier models.)
Quick Test Mode:
Quick Test
1. Mode
All: LED’s
light up and it sends out Beep Sound when it enters into the Quick
Test Mode. (Including 7-Segment)
1. All LED’s light up and it sends out Beep Sound
when it enters
into the QuickTest Mode. (Including 7-Segment)
2. Displays software version for a sec.
(Ex. If S/W Version is 60, 7-Segment will display U060)
2. Displays software version for a sec.
(Ex. If S/W Version is60, 7-Segmentwill display U060)
3. After displaying the software version, 7-Segmentwill display the
following information for each model.
- F1 : WF326L
AW, WF326LAS
- F2 : WF316L
AW
- F2b: WF316B
AC, WF316BAW
- F3 : WF306L
AW
- F8b: WF306BHW
- EEEE : Model option Error (Need to replace PCB
Assy.)
3. After displaying the software version, 7-Segment will display the following
information for each model.
- F1 : WF326LAW, WF326LAS
- F2 : WF316LAW
F2b: WF316BAC,
4. When model- information
is being display
ed, WF316BAW
press the following keys to test various components.
F3 Va
: lWF306LAW
- Temp Key :-Water
ve Test
- Spin Key :-Motor
Test
F8b:
WF306BHW
- Soil Level Key : Door Lock/UnlockTest
EEEE
Model option Error (Need to replace PCB Assy.)
- Signal Key : Drain
Pump:Test.
4. When model information is being displayed, press the following keys to test
various components.
- Temp Key : Water Valve Test
- Spin Key : Motor Test
- Soil Level Key : Door Lock/Unlock Test
- Signal Key : Drain Pump Test.
4-2
4-2-1. Quick Test Mode
Water Valv
e Test:
Water Valve Test:
1. To enter the Water Valve
Test, press the Temp Key while
k
is being display
during the Quic
1.model
Toinformation
enter the Water
ValveedTest,
press the
Temp
Test Mode.
being displayed during the Quick Test Mode.
Key while model information is
2. Each time theTemp Key is pressed, it will cycle through
the operations on theleft flowchart.
2.But,Each
time
theand
Temp
Key is pressed,
it will cycle through the operations on the
WF306L
AW(F3)
WF306BHW(F8b)
do
not have
the pre
So,But,
it will WF306LAW(F3)
skip Pre Water Va
lve On
leftwater
flowvalve.
chart.
andandWF306BHW(F8b) do not have the
jump
to Cold
Water
Valve
On. it will skip Pre Water Valve On and jump to Cold Water
pre
water
valve.
So,
Valve
3. If the
TempOn.
Keyis pressed duringAll Water Valve OFF,
the machinewill return to the beginning as shown
in the flowchart.
3. If the Temp Key is pressed during All Water Valve OFF, the machine will return
theneeds
beginning
as shown
the Valve
flow chart.
.
4. The to
door
to besecured
for the in
Water
to operate
Therefore, the door lo
ck will be on during thewater valve
operation.
4. The door needs to be secured for the Water Valve to operate.
Therefore,
the door
lock will
bePCB
on
during
the water valve operation.
5. If there
is an
y problem
with Water
Valve,
Assy.
or Wire
Harness, thewater valves could not operate. So,to make sure
for the watervalves to operate, checkvisually if water comes
5.out with
If there
any Va
problem
with
Water Valve, PCB Assy. or Wire Harness,
.
eachis
Water
lve On mode
the
water valves could not operate. So, to make sure for the water valves to
operate, check visually if water comes out with each Water Valve On mode.
Motor Test:
1. To enter the Motor Test, press the Spin Key while model information is being
displayed during the Quick Test Mode.
2. Each time the Spin Key is pressed, it will cycle through the operations on the
left flow chart.
4. The Door Lock will be on during the motor operation.
5. If there is any problem with Motor, PCB Assy. or Wire Harness,related error
codes will be displayed.
Door Lock/Unlock Test:
1. To check the Door Lock/Unlock operation, press the Soil Level Key while
model information is being displayed during the Quick Test Mode.
2. Each time the Soil Level Key is pressed, it will cycle through the Door Lock/
Unlock operations on the left flow chart.
3. If the Soil Level Key is pressed during Door Lock and Water Valve, Motor or
Drain Pump operation, all of the operations will stop. And, when the Soil Level
Key is pressed again,the door will be released.
4. If there is any problem with Door Switch, PCB Assy. or Wire Harness, related
error codes will be displayed.
Drain Pump Test:
1. To check the Drain Pump operation, press the Signal Key while model
information is being displayed during the Quick Test Mode.
2. Each time the Signal Key is pressed, it will cycle through the operations on the
left flow chart.
3. The Drain Pump operation is independent.
Therefore, it will operate regardless of Door Lock/Unlock.
4. If there is any problem with Drain Pump, PCB Assy. or Wire Harness, the
Drain Pump will not operate.
So, its operation needs a visual inspection.
4-3
4-2-2. EEPROM Reset Mode
Definition of EEPROM Reset Mode:
- EEPROM initialization.
- All course/option settings are to be reset to default values after EEPROM initialization.
- When Service arises and it needs PCB replacement, EEPROM should be reset.
How to Enter:
- The unit needs to be on.
- Press Delay Start Key, Signal Key and Power Key at the same time.
(Same for all Frontier models.)
EEPROM Reset Mode:
1. EEPROM can be reset once the user enters the EEPROM Clear Mode.
2. If there is any problem with EEPROM, 7-Segment will display “ FAiL ”. “Good”
will be displayed if everything is OK.
3. PCB assy. needs replacing if “FAiL” is displayed during EEPROM reset.
4. If PCB assy. is replaced for some reason, EEPROM needs resetting.
5. If problem occurs with Sticky Function, My Cycle and Power Failure
Compensation, it may be due to EEPROM .
Check EEPROM’s condition at EEPROM Clear Mode.
4-2-3. Continuous Run Mode
Definition of Continuous Run Mode:
- Will continuously repeat the current cycle until the Continuous Run Mode is cancelled.
How to Enter:
- Press Delay Start Key and Extra Rinse Key together for 3 sec.
(Same for all Frontier models.)
Continuous Run Mode:
1. Press Delay Start + Extra Rinse Key for 3 sec during Power On State (Normal User Mode) .
2. Once in Continuous Run Mode, 7-Segment will blink “cc” and the remaining time in turns.
3. The Continuous Run Mode will repeat the previous cycle until continuous run mode is cancelled.
4. During Continuous Run Mode, press Delay Start + Extra Rinse Key for 3 seconds to return to normal user mode.
7-segment will no longer display “cc”, but only display the remaining time.
4-2-4. Special Test Mode
Definition of Special Test Mode:
- Special Test Mode enables service technicians to verify the operation of the washing machine and do troubleshooting.
- Special Test Mode can be entered during all washing cycle without interrupting the cycle except some of test modes.
- Various tests can be done with Special Test Mode. So, troubleshooting can be done based on the resulting diagnostic codes.
How to Enter:
- To enter the Special Test Mode, press the Signal and Extra Rinse Keys for 3 seconds or until the unit sends out
beeping sounds. (same for all Frontier models.)
4-4
4-2-4. Special Test Mode
Special Test Mode:
1. The washer must be on to go into the Special Test Mode.
2. The motor speed will be displayed when started (It displays 0 when the motor does not spin).
3. The present state of the machine will not be changed.
(i.e., the current cycle in progress will not be interrupted and only the display will change)
4. All LED’s will be turned off except the “Door Lock” LED. It will continue to display the condition of the door lock.
5. To exit Special Test Mode, press Signal and Extra Rinse Keys for 3 second again, or Power Key.
If no key is operated during Special Test Mode for 5 minutes, the machine will return to normal user mode.
4-2-5. Quick Spin Test Mode
Definition of Quick Spin Test Mode:
- Quick Spin Test Mode is to do Spin Check. (High RPM)
How to Enter:
- During Special Test Mode, press the Delay Start and Silver Wash Keys (Rinse Water + Key) for 3 seconds to enter
Quick Spin Test Mode. (same for all Frontier models.)
- Cannot enter once the washing cycle has started.
Quick Spin Test Mode:
As it enters into the Quick Spin Test Mode, it starts spinning and reaches to its maximum RPM. And then, it stays at its maximum speed for
2 minutes before it exits the Quick Spin Test Mode.
To hold Quick Spin Test Mode (entering Speed Hold Mode), press the Start/Pause button. If the Start/Pause button is pressed during Quick
Spin Test Mode, it will stop accelerating and hold its spinning speed for 10 minutes before going back to Quick Spin Test Mode.
Also, to cancel the hold and allow Quick Spin Test Mode to continue, press the Delay Start and Silver Wash Keys together for 3 seconds.
4-5
4-2-6. Cycle Count Check Mode
Definition of Cycle Count Check Mode:
- Cycle Count Check Mode is to tally up the number of washings.
How to Enter:
- To enter the Cycle Count Check Mode, press the Signal Key during Special Test Mode.
(same for all Frontier models.)
Cycle Count Check Mode:
1.
Activate the Special Test Mode in advance.
2. When the Signal key is pressed, the total number of washings will light up and a signal LED will glow (Louder, Softer, Off LED).
3. The maximum number of cycles will be 2999.
The counter will roll over to 0 and start counting again after 2999.
4. The counting will be carried out at the end of the normal cycle.
(During Continuous Run Mode, it does not Do not count any cycle in Continuous Run Mode)
5. To exit the Cycle Count Check Mode, press the “Signal” key again.
Then, it returns to the Special Test Mode with motor RPM illuminating.
4-2-7. S/W Version Check Mode
Definition of S/W Version Check Mode:
- S/W Version Check Mode is to bring up S/W Version information.
How to Enter:
- To enter the S/W Version Check Mode, press the Soil Level Key during Special Test Mode.
(same for all Frontier models.)
S/W Version Check Mode:
1. Activate the Special Test Mode in advance.
2. Press the Soil Level Key to bring up its software Version
Ex) Generate U005 at U005
3. To exit the S/W Version Check Mode, press the Soil Level S/W once again.
Then, it returns to the Special Test Mode with motor RPM illuminating.
4-6
4-2-8. Fast Time Down Test Mode
Definition of Fast Time Down Test Mode:
- Fast Time Down Test Mode is to forward the program to the next cycle stage.
How to Enter:
- To enter the Fast Time Down Test Mode, press the Temp key during Special Test Mode.
(same for all Frontier models.)
Fast Time Down Test Mode:
1.
Activate the Special Test Mode in advance.
2. To forward the program to the next cycle stage,
press the Temp key.
Each stage is located at key points of a complete cycle as follows:
- End of Each Fill (Beginning of Wash or Rinse Tumble Session)
- Beginning of Drain Session
- Beginning of Spin Session (Here, it checks the water level. So, if it is
over the reset level, it carries out draining before the spinning.)
- Beginning of Fill Session
- Beginning of Bleach Fill
- Beginning of Fabric Softener Fill
- Every 3 minutes during Wash and Rinse Tumble Session
Marker
Fill Water
Pre Wash
At this point, it checks thewater
level, and If it is over the reset
level, itwill carry out draining
before the spinning
.
Spin
Drain
3 minutes
Main Wash
Fill Water
3 minutes
Pre
Valve
Bleach
Supply
Spin
Drain
3 minutes
Fill Water
Pre
Valve
3 minutes
Rinse
Fill Water
Spin
Drain
Softener
Supply
Final Rinse
Drain
Final Spin
3 minutes
4-7
4-2-9. Board Input Test Mode
Definition of Board Input Test Mode:
- Board Input Test Mode is to displays a specified input after a key press.
How to Enter:
- To enter the Board Input Test Mode, press the Extra Wash key during Special Test Mode.
(same for all Frontier models.)
Board Input Test Mode:
1. Activate the Special Test Mode first.
2. Press the Extra Wash key to start Board Input Test.
3. Water Temperature Display in Celsius Dial the Rotary Cycle Selector to “Heavy Duty” and press the Start/Pause dial.
4. Water Temperature Display in Fahrenheit Dial the Rotary Cycle Selector to “Normal” and press the Start/Pause dial.
5.
Door Position (Open/Close) Display Dial the Rotary Cycle Selector to “Whites” and press the Start/Pause dial: “OP” will illuminate if open,
“CL” if closed.
6. Door Status (Lock/Unlock) Display Dial the Rotary Cycle Selector to “Perm Press” and press the Start/Pause dial: “UL” will illuminate if
unlocked, “LO” if locked.
7. Overflow Water Level Display Dial the Rotary Cycle Selector to “Delicate/Hand Wash” and
press the Start/Pause dial: “ ‾0 ” will illuminate if below level, “ ‾1 ” if above level (Overflow).
The above water level is defined as the overflow water level.
8. Heater-On Water Level Display Dial the Rotary Cycle Selector to “Wool” and
press the Start/Pause dial: “ -0” will illuminate if below level, “-1” if above level (Heater-On).
The Medium water level is defined as the level needed for the heater to turn on.
9. Reset Water Level Display Dial the Rotary Cycle Selector to “Quick Wash” and
press the Start/Pause dial: “_0” will illuminate if below level (Reset), “_1” if above level.
10. Water Level Display (Frequency) Dial the Rotary Cycle Selector to “Towels” and press the Start/Pause dial:
If it illuminates “2435”, it indicates 24.35 kHz.
11. AG Kit Status Dial the Rotary Cycle Selector to “Rinse+Spin” and press the Start/Pause dial.
Then, it will display the Ag Kit Status in 3 seconds: “- -” if AG kit is operated properly.
“7E” if AG kit is out of order (check wire harness & PCB)
12. MEMS Sensor Kit Status. Dial the Rotary Cycle Selector to “Spin Only” and press the Start/Pause dial. Then, it will display the MEMS
Sensor Kit status after displaying “00” for 3 seconds: “- -” if MEMS Sensor kit is operated properly.
“8E” if MEMS Sensor kit is out of order (check wire harness & PCB)
High Water Le
vel
(Overflow LEVEL)
Medium Water Le
vel
Heater
4-8
Reset Water Level
4-2-10. Diagnostic Code Check Mode
Definition of Diagnostic Code Check Mode:
- Diagnostic Code Check Mode is to bring up the stored diagnostic codes (reference codes for service technicians).
How to Enter:
- To enter the Diagnostic Code Check Mode with code “d” flashing, press the Silver Wash (Rinse Water +)
during Special Test Mode. (same for all Frontier models.)
Board Input Test Mode:
1. Activate the Special Test Mode first.
2. Press the “Silver Wash (Rinse Water +)” key to start Diagnostic Code Check Mode with Code “d” flashing.
3. To cycle through the diagnostic codes (d1,d2,d3~d9), turn the Rotary Cycle Selector in one direction (either Clockwise or
Counterclockwise).
4. Now, when turning the Rotary Selector Key in the same direction, it shows diagnostic codes from the latest (d1).
5. When turning it in the opposite direction, it shows the diagnostic codes in the reverse order.
Ex) When it stops at d5 and turns backward, it shows from d4 down to “d”.
6. EEPROM holds the codes up to 9 of them. So, when it goes beyond it, “- -” and “d” will light up.
Ex) “d” – d1~d9 – “- -”
7. When there are only 6 codes stored in EEPROM, it will display “- -” after them.
Refer to Diagnostic Code.
4-9
Memo
4-10
5. ASSEMBLY AND DISASSEMBLY
5-1. TOOLS FOR DISASSEMBLY AND ASSEMBLY
NO.
2
TOOL
10mm
13mm
19mm
Double-ended
10, 13,19mm
spanner
3
Vice pliers
4
Other(Driver, Nipper, Long nose)
Heater (1)
Motor (1), Balance (5), 2 holes of each left and right of the
shock absorber 1 Pulley hole
Replaceable for the box driver.
Since the bolt runs idle when the box driver is used, use the
box driver 17mm.
Tool to protect the idle and abrasion of the bolt for the
box driver.
General tools for the after service.
5
JIG for the Tub
1 (Disassemble and Assemble)
1
Box driver
5-1
5-2. DISASSEMBLY
Warning! To avoid risk of electrical shock, personal injury or death, disconnect the power to the washing machine.
Part Name
Descriptive Picture
How To Do
Top Cover
1. Unplug the unit.
2. Remove screws(2ea) at the back.
3. Slide Top Cover back and lift it up.
Water Level
Sensor
1. Unplug the unit.
2. Remove Top Cover.
3. Remove the screw(1ea).
4. Disconnect the wire harness.
5. Take out Pressure Hose.
Ag Kit
1. Unplug the unit.
2. Remove Top Cover.
3. Remove screws(2ea) from the rail.
4. Disconnect the wire harness.
4. Remove clamps and hoses.
5-2
5-2. DISASSEMBLY
Part Name
Descriptive Picture
How To Do
Ag PCB
1. Unplug the unit.
2. Remove Top Cover.
3. Flip open the PCB cover.
4. Disconnect the wire harness.
5. Remove screws (2ea) on the frame.
EMI Filter
1. Unplug the unit.
2. Remove Top Cover.
3. Remove the earth screw.
3. Remove the acorn nut (13mm) and
disconnect the wire harness.
Water Valve
1. Unplug the unit.
2. Remove Top Cover.
3. Remove two screws for each Single Hot
and 3-Combo Cold Valve.
4. Remove clamps and hoses.
Dispenser
1. Unplug the unit.
2. Remove Top Cover.
3. Remove Dispenser Drawer.
4. Remove screws(3ea) on the top.
5. Plug out all the connectors.
6. Unscrew(6ea) PCB and separate it from
Console.
5-3
5-2. DISASSEMBLY
Part Name
Descriptive Picture
How To Do
Console
1. Unplug the unit.
2. Remove Top Cover.
3. Remove Dispenser Drawer.
4. Remove screws(3ea) on the top.
5. Plug out all the connectors.
6. Unscrew(6ea) PCB and separate
it from Console.
Door
1. Unplug the unit.
2. Remove screws(2ea) and takeout Door Assy
from Front Panel.
3. Remove screws along the
perimeter of Glass Retainer.
4. Remove Glass Retainer.
5. Remove Door Glass.
6. Remove Hinge.
7. Remove Outer Window Panel.
Front Panel
1. Unplug the unit.
2. Remove Top Cover, Dispenser, Console and
Door.
4. Snap up the boot at 6 o’clock and pull out
the clamp spring.
5. Pull the boot from the lip formed into the front
opening.
6. Remove screws(2ea) on the bottom.
7. Remove screws(4ea) on the top.
8. Plug out the connectors to Door Lock.
9. Lift out Front Panel.
Boot
1. Unplug the unit.
2. Knock the unit down to Front Panel
(included).
3. Unscrew the boot clamp at 12
o’clock.
4. Pull out the boot.
5-4
5-2. DISASSEMBLY
Part Name
Descriptive Picture
How To Do
Heater
1. Unplug the unit.
2. Knock the unit down to Front Panel (included).
3. Remove the wire connectors.
4. Remove the nut (10mm) in the center and take
out Heater.
Motor
1. Unplug the unit.
2. After removing screws(2ea) on Back Cover,
take out Back Cover by sliding it up.
4. Rotate Motor Cover to locate a slot in Stator.
Insert a Phillips screwdriver into the slot to lock
Stator.
5. Remove the nut (19mm).
6. Grab Motor Cover at 3 and 9 o’clock and pull
it out.
7. Remove the bolts (6ea, 10mm) securing
Stator Coil to Tub.
8. Remove the wire connectors.
Drain Pump
1. Unplug the unit.
2. Remove Back Cover.
3. Remove the wire connector.
4. Remove Clamp and Drain Hose.
5. Remove Clamp and Pump Hose.
6. Remove the bolts (3ea, 13mm) securing Drain
Pump to Cabinet Bottom.
7. Remove the screw securing
Drain Pump to the support bracket.
Twist Drain Pump clockwise to
remove.
* Make sure to put an empty container under
Drain Pump to hold water inside.
5-5
5-2. DISASSEMBLY
Part Name
Outer Tub
and Spinner(1)
5-6
Descriptive Picture
How To Do
1. After the above knock-down to
Drain Pump, do the following.
2. Remove screws holding the wire harness.
3. Remove the bolts (2ea,13mm) securing Rear Struts
to Cabinet Bottom.
4. Swing Struts up against Tub to make it easy to
remove Tub Assy.
5. Remove bolts (2ea each side, 13mm) securing
Counter Weights.
6. Remove the screw holding the wire harness.
7. Remove bolts (2ea each side, 13mm) securing Front
Struts to Cabinet Bottom and swing Struts up against
Tub..
8. Loop the wire harness and Water Pressure Hose out
of its retaining holders.
9. Remove screws (7ea) securing Rail Frame and take
it off.
10. Remove Clamp and Vent Hose.
11. Loop out Suspension Spring by lifting it up (each
side).
12. Take out Tub and put it on block supports (4” wood
blocks or their equivalents) to prevent shaft
damage.
13. Remove screws (10mm) around the perimeter of the
tub.
14. Separate Front and Back Tubs from each other.
15. Take out Spinner Drum.
16. Remove screws to disassemble Baffles.
* When assembling, make sure that Front and Back
Tubs are fastened up tightly. If not, it will cause water
leakage.
Memo
5-7
6. TROUBLE SHOOTING
6-1. TROUBLE DIAGNOSIS
-
As the micom wash machine is configured of the complicate structure, there might be the
service call.
Below information is prepared for exact trouble diagnosis and suitable repair guide.
Caution for the Repair and Replacement
Please follow below instruction for the trouble diagnosis and parts replacement.
1) As some electronic components are damaged by the charged static electricity from the resin
part of wash machine or the human body, prepare the human body earth or remove the potential differ
ence of the human body and wash machine by contacting the power supply plug when the work contact
ing to PCB is executed.
2) Since AC220~240V is applied to the triac T1 and T2 on P.C.B, the electric shock may occur by
touching and be careful that the strong and weak electricity are mixed.
3) As the P.C.B assembly is designed for no trouble, do not replace the P.C.B assembly by the
wrong diagnosis and follow the procedure of the trouble diagnosis when the micom is not op
erated normally.
6-1
6-1. TROUBLE DIAGNOSIS
WARNING
To avoid risk of electrical shock, personal injury or death, disconnect power to unit before servicing, unless testing requires
power.
Will Not Start
• Plug the unit into the wall outlet. Check for proper voltage.
• Check fuse or reset circuit breaker.
• Push any key to turn on the washer and press the Start/Pause key to run the washer.
• Close door and push the Start/Pause key to run the washer.
• Check if washer is in a pause, soak or suds process.
Wait briefly and it may start. (If the washer is in suds period, Suds will light up instead of remaining time.)
• Check for restricted drain system.
(If there is electrical problem in drain system, “nd” error will occur after 15 minutes.)
• Check Water Supply.
• Check the line or water valve screen filter.
• Check if PCB connectors are assembled properly.
• Check if CN5, CN6 terminals on PCB are in good condition.
(Refer to PCB Connector Check.)
• Replace PCB.
Leaking
• Start a normal cycle with the drum empty and fill her up to check its tumbling.
• Perform Quick Test Mode or Quick Spin Test
(Carry it out without laundry in the unit.)
• Check for loose connections at PCB, Water Level Sensor, Motor,
Hall Sensor Wire Harness, etc. (Refer to the Component Testing Procedure)
• Check motor windings resistance.
(CN9 1 & 3 = 11.6 ohms (±7% 20°C basis),
CN9 1 & 2 = 11.6 ohms (±7% 20°C basis),
CN9 2 & 3 = 11.6 ohms (±7% 20°C/68°F basis))
• If it doesn’t tumble after all of the above tests, change PCB. When the problem persists, change the motor.
No Tumble
•
•
•
•
•
•
Start normal cycle with an empty machine and allow
a fill to check tumble.
Perform Quick Spin Test. (Before test, make sure that the tumbler is empty.)
Check for loose connections at Machine Control Board,
Pressure Switch, Motor, Tach Harness and Motor
Control. (Refer to the component testing procedure)
Check motor windings resistance.
CN9 pins 1 & 3 = 11.6ohms ±7%,
Pins 1 & 2 = 11.6ohms ±7%,
Pins 2 & 3 = 11.6 ohms ±7%
Faulty Main Control Board.
Faulty motor.
Will Not Spin
• Make sure to close the door completely.
• Check for water left inside the washer. If so, go to “Will Not Drain”.
• Perform Quick Test Mode or Quick Spin Test.
Does the washer spin? (Before the test, empty the unit inside.)
If it doesn’t tumble after the above, change PCB.
When the problem persists, change the motor.
• Perform Quick Test Mode or Quick Spin Test.
Does the washer spin? If it does, Check Possible unbalanced load scenario in normal mode.
• Check for loose connections at PCB, Water Level Sensor, Motor, Hall Sensor Wire Harness. (CN8,CN9,CN3)
(Refer to the Component Testing Procedure.)
• Check motor windings resistance.
(CN9 Pin1&3 = 11.6 ohms (at ±7% 20°C/68°F),
Pin1&2 = 11.6ohms (at ±7% 20°C),
Pin2&3 = 11.6 ohms (at ±7% 20°C))
6-2
6-1. TROUBLE DIAGNOSIS
No Water Fill
• Perform Quick Test Mode.
Check all of Water Valves visually.
(Pre Wash Valve, Cold Water Valve, Bleach Water Valve, Softener dispenses using Cold & Bleach Water Valve, and Hot
Water Valve.)
• Check if water taps are turned on fully.
• Check Water Valves and Water Level Sensor (Refer to PCB Connector Check)
• Check if there is any kink in inlet hoses.
• Check if inlet screens are clogged up.
• Check if water has enough pressure. If so, find out its contributors.
• Check if there is any frozen area in the unit (Drain Hose, etc)
• Measure the resistance of Water Valve Coil.
(It should read 1.18K ohms. Check Pin#1 of CN5 and PIN#1,2,3,4 of CN10)
• Check Pressure S/W and PCB for loose connections.
(Refer to PCB Connector Check.)
Tub Full of Suds
• Go to “Will Not Drain” and “Will Not Spin” and check the draining.
• Check PCB and Drain Pump for any loose wire connection.
• Perform Quick Test Mode or Board Output Test to drain.
• Use HE (High-Efficiency) or low sudsing detergent specially formulated for front load washers.
• Reduce the amount of detergent for that specific load size and soil level. Keep in mind that towel creates more suds generally.
• Reduce the amount of detergent when water is soft, or laundry is small or lightly soiled.
• Do one more washing cycle with cold water and a table spoon of salt without detergent.
Wet Clothes
• Unbalance due to not enough load. Put additional load.
• Due to excessive suds by using general detergent.
Use HE (High-Efficiency) or reduce its quantity.
• Low Spin Speed or Drain Only was selected.
• Go to “ Will Not Spin”.
Will Not Lock
• Door is not aligned or closed properly.
• Perform Quick Test Mode.
Check Door Lock.
Check the output voltage of Door Lock Coil.
If it reads 120V, change Door Lock Switch, and if not, change PCB.
(Refer to PCB Connector Check.)
• Read Lock Switch and PCB (CN10).
(Refer to PCB Connector Check.)
• Try Door Lock and check for 120V to Door Lock Connector.
If 120V present, change Main Control Board and if not, change Door Lock switch.
6-3
6-1. TROUBLE DIAGNOSIS
Will Not Unlock
• Check if the door is being pushed out, which may keep it from unlocking.
• Door locks itself when the water level is too high. Opening door will result in water draining from door opening.
• Check the following with Board Input Test Mode.
Water Level (frequency): Over 23.80 KHz.
→ If so, refer to “Will Not Drain”.
Temperature (Inside Drum): Higher than 60ºC/140ºC.
→ If so, wait until it drops.
When everything is normal, check PCB connectors and Door Lock Switch.
• Drain manually after removing the plastic drain hose holder.
• Display shows “LO”. Turn off and on the unit.
If “LO” keeps illuminating, check PCB and Door Lock Switch.
• Read Lock Switch and PCB (CN10 & CN7).
(Refer to PCB Connector Check.)
• Perform Quick Test Mode.
Check Door Lock.
Check the output voltage of Door Lock Coil.
If it reads 120V, change Door Lock Switch, and if not, change PCB.
(Refer to PCB Connector Check.)
No Key Operation
• Option and Function buttons respond differently according to each cycle.
• Child Lock is being activated. To exit, hold down Soil Level Key and Signal Key simultaneously until it sends out a beeping
sound.
• When “End“ illuminates on the display, only Power button works. Press Power button and make new cycle selections.
Will Not Drain
• Check for any kink on the drain hose. If any, straight it out.
• Check for any restriction in the drain hose.
• Close the door and press the Cycle Selector dial. For safety reasons, the washer does not tumble or spin with the door open.
• When it is freezing outside, check if it is frozen inside the drain hose.
• Check if the water level signal input is correct. Go to Board Input Test Mode.
• Go to Quick Test Mode and do Drain Pump Test.
• Check if there is any twist in the hose (the one between Tub and Drain Pump).
• Check if it reads AC 120V at the pump when a spin cycle is selected.
• Read the winding resistance of the pump motor. (14.2 7% Ohms)
• Check the pump at CN10 (Pin6) on PCB. It should read AC 110~120V. (Refer to PCB Connector Check)
Wrong Water Temperature
• Check if both of the water taps are fully open.
• Make sure the domestic water heater is set to deliver water lower than 120°F (49°C) hot water at the tap.
Also check water heater capacity and recovery rate.
• If the water heater is located far from the washer, screw out the hot water tap and let its water pass until you get hot water.
• Too Hot/Too Cold: Reduced amount of water is supplied while PCB controls the influx to regulate the actual temperature of the
water in the tub. This may appear to be significantly hotter/colder than expected.
• Check if the temperature selection is correct.
• Disconnect inlet hoses from the Water Valve and remove any residue in the inlet screens.
Noisy and/or Vibration/Walking
• Check if the washer is leveled and the lock nuts are tightened up on the bottom plate.
• Check if all of the shipping bolts and spacers are removed from the back panel.
• Check if load is big enough and there is no unbalance.If there is not enough load, put in a few towels to balance it.
• Check if the motor is fastened enough.
• Remove various trouble contributors (such as dust coat on the floor).
6-4
6-1. TROUBLE DIAGNOSIS
Rubber Feet Leaving Marks on Floor
•
•
Use a pencil eraser to remove mark.
Walk washer into location, do not drag.
Additive Cups Full of Water
•
•
•
Small amount of water in bottom of additive cups is normal.
Remove and wash Dispenser Tray, removable Cup, and Rinse Cap.
Level washer.
Buttons do not Respond
•
•
•
Option and Function buttons respond differently according to each cycle.
Child Lock feature has been selected. To disable feature press and hold Temp and Spin
simultaneously until a beep is heard.
When display shows “End”, only the Power button will function. Press Power and make new cycle
selections.
6-5
6-2. PROBLEM CHECKING AND METHOD OF PCB
-If you plug in the power cord and turn Power S/W on, memorized data is displayed.
If any data is not displayed, check the followings.
倫 CNw 塁
倫 CN2 塁
枴 CN4 藍
卵 CN8 柩
�- CN3 吏
�c
枸
柝
濫
卵
CNw0
Thermistor Check
Check Voltage at Pin #6 and #3 of CN3
Tester Check = DC2.5V
If it reads 5V, check if its connector is engaged properly.
Door Switch Check
Check Voltage at Pin #6 and #4 of CN3
When Door Open = DC5V
When Door Close = DC0V
Water Sensor Check
Check Voltage and Frequency at Pin #6 and #7 of CN3
Reset water level = DC2.5V, 25.8KHz
Check Voltage and Frequency at Pin #6 and #8 of CN3
Reset water level = DC2.5V, 25.8KHz
Sump Sensor Check
Check Voltage at Pin #4 and #2 of CN8
Tester Check = DC0V or 3.75V
Check Voltage at Pin #4 and #3 of CN8
Tester Check = DC0V or 3.75V
Motor Check
Resistance at Pin #1 and #2 of CN9 =11.6Ω
Resistance at Pin #1 and #3 of CN9 =11.6Ω
Resistance at Pin #2 and #3 of CN9 =11.6Ω
6-6
欄 CN9 卵
欄 CN5 卵
卵 RY9 嵐
嵐
CN7
卵
Door Lock Check
Check Voltage at Pin #1 of CN5 and Pin #7 of CN10
When Door Lock = AC120V
Check Voltage at Pin #1 of CN5 and Pin #2 of CN7
When Door Lock = AC120V
Door Unlock Check
Check Voltage at Pin #1 of CN5 and Pin #8 of CN10
When Door Unlock = AC120V
Drain Motor Check
Check Voltage at Pin #1 of CN5 and Pin #6 of CN10
When Drain Pump operates = AC120V
Water Valve Check
Check Voltage at Pin #1 of CN5 and Pin #1,2,3,4 of CN10
When each Valve operates = AC120V
AC Power Check
Check Voltage at Pin #1 and #3 of CN5
Check Voltage at Pin #1 of CN5 and Pin #1 of CN6
Tester Check = AC120V
Heater Relay Check
Check Voltage at Pin #1 of CN5 and Pin #2 of RY9
When Heater Relay operates = AC120V
Memo
6-7
7. EXPLODED VIEW AND PARTS LIST
7-1. THE CONTROL PARTS
12
13
5
28
37
32
18
19
33
45
27
48
20
36
43
31
21
44
15 42
16
30
26
29
17
25
23
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
CODE NO.
DC64-01106A
DC97-10795A
DC64-01050A
DC64-01105A
DC64-01126A
DC64-01112A
DC66-00413A
MFS-F2WLHA-T0
MFS-FTWTHA-00
MES-AG3MOD-S2
MFS-MEMS-00
MFS-F2WLHA-S0
DC61-01164A
DC61-01514A
DC61-01516A
DC97-10336A
DC97-08774A
DC61-01171A
DC67-00121B
DC64-01114A
DC64-01158A
DC64-01113A
DC97-07125C
DC61-01167C
DC61-01168A
DC61-01169A
DC62-00142D
DC62-30314H
DC67-00051B
DC65-00008A
DC65-00014A
DC65-00009A
DC61-00118A
DC61-00118A
DC61-00133A
6002-000444
6002-001374
6002-001376
6002-000444
6002-001279
6002-000630
6002-001374
6002-001376
6002-001373
6002-001374
6002-000444
6002-001376
6002-000444
6002-000444
6002-001376
6002-001376
6002-001376
6002-001306
6002-000213
6002-001294
DC61-01168A
DC61-01169A
DC61-01170A
DC61-01267A
DC63-00516A
DC64-01106A
DC97-10795A
DC64-01105A
DC97-10336A
DC64-01114A
DC64-01113A
DC67-00121B
DESCRIPTION
KNOB-ENCODER
ASSY-PANEL CONTROL
PANEL-CONTROL
BUTTON-PUSH(P)
INLAY-PANEL
WINDOW-ENCODER
LEVER-POWER
ASSY PCB PARTS(M)
ASSY PCB PARTS(M)
ASSY PCB PARTS(S)
ASSY PCB PARTS(S)
ASSY PCB PARTS(S)
GUIDE-PCB
GUIDE-LED(B)
GUIDE-LED(C)
ASSY-DRAWER
ASSY-S. DRAWER
GUIDE-LIQUID
CAP-RINSE
PANEL-DRAWER
MASCOT
HANDLE-DRAWER
ASSY-HOUSING DRAWER
HOUSING-DRAWER(L)
HOUSING-DRAWER(M)
HOUSING-DRAWER(U)
VALVE-WATER
VALVE-WATER
HOSE-DRAWER
CLAMPER HOSE
CLAMPER HOSE
CLAMPER HOSE
CLAMPER HOSE
CLAMPER HOSE
CLAMPER HOSE
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
HOUSING-DRAWER(M)
HOUSING-DRAWER(U)
BODY-DRAWER
CASE-PRE WASH
COVER-DETERGENT
KNOB-ENCODER
ASSY-PANEL CONTROL
BUTTON-PUSH(P)
ASSY-DRAWER
PANEL-DRAWER
HANDLE-DRAWER
CAP-RINSE
SPECIFICATION
WF326LAW,ABS,-,-,-,-,WHT,-,
WF316LAW,LOWES
WF316LAW,ABS,-,-,-,-,WHT,I
WF326LAW,ABS,-,-,WHT,FRON
WF316LAW,PET,T0.188,-,-,WHT,
WF326LAW,SAN,-,-,-,-,TRAN
GW-PJT,POM,-,-,-,-,NTR,ENTRY
MFS-F2WLHA-T0
MFS-FTWTHA-00
MES-AG3MOD-S2
MES-MEMS-00
MFS-F2WLHA-S0
GW-PJT,ABS(V0),-,-,-,NTR,STAND
WF-G106AW,HIPS,-,-,-,NTR,FR
WF-G106AW,HIPS,-,-,-,NTR,FR
WF316LAW,NEAT-WHT
MAH9700AWW
GW-PJT,ABS,-,-,-,WHT,MAH9700,PP(TB53),-,-,-,MUNSELL
WF326LAW,ABS,-,-,-,-,WHT,LO
WF326LAW,NICKEL,T0.5,W10.5,L65
WF326LAW,ABS,-,-,-,-,WHT,F
WF326LAW,FRONTIER
WF326LAW,PP(TB-53),-,GW-PJT,PP(TB-53),-,-,GW-PJT,PP(TB-53),-,-,GW-PJT,NYLON,3WAY,MAX 10BAR,
GW-PJT,NYLON,-,MAX10BAR,NTR,
Q1636GW/XEU,EPDM,ID9.0,OD14.
SEW-DR605,SK5,-,-,YEL,ID14.
GW-PJT,HSWR,-,ID82,ZPC2,HOS
TS85-PJT,HSWR,-,-,YEL,OD24/
P1291,LYLON6/6,ID27,OD30,-,
P1291,LYLON6/6,ID27,OD30,-,
P1291,PP(BJ-730),ID24.5,OD2
TH,+,-,2S,M4,L14,PASS,STS4
TH,+,WE,-,M4,L12,ZPC3 (WHT
TH,+,-,1,M4,L12,ZPC3 (WHT)
TH,+,-,2S,M4,L14,PASS,STS4
PWH,+,-,1,M4,L12,PASS,STS4
PH,+,-,2S,M3,L8,ZPC(YEL),S
TH,+,WE,-,M4,L12,ZPC3 (WHT
TH,+,-,1,M4,L12,ZPC3 (WHT)
HEX,+,-,2,M6.5,L40,ZPC3(WH
TH,+,WE,-,M4,L12,ZPC3 (WHT
TH,+,-,2S,M4,L14,PASS,STS4
TH,+,-,1,M4,L12,ZPC3 (WHT)
TH,+,-,2S,M4,L14,PASS,STS4
TH,+,-,2S,M4,L14,PASS,STS4
TH,+,-,1,M4,L12,ZPC3 (WHT)
TH,+,-,1,M4,L12,ZPC3 (WHT)
TH,+,-,1,M4,L12,ZPC3 (WHT)
TH,+,1,M4,L14,ZPC(YEL)
TH,+,-,1,M4,L12,ZPC(YEL),S
BH,+,,M4,L16,ZPC(BLK)
GW-PJT,PP(TB-53),-,-,GW-PJT,PP(TB-53),-,-,GW-PJT,PP(TB-53),-,-,-,-,WHT
WINGS-PJT,PP(TB53),-,-,-,W
GW-PJT,PP(TB-53),-,-,-,WF326LAW,ABS,-,-,-,-,WHT,-,
WF316LAW,LOWES
WF326LAW,ABS,-,-,WHT,FRON
WF316LAW,NEAT-WHT
WF326LAW,ABS,-,-,-,-,WHT,LO
WF326LAW,ABS,-,-,-,-,WHT,F
MAH9700,PP(TB53),-,-,-,MUNSELL
QTY
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.48
10
1
1
1
1
1
3
6
4
11
2
1
15
5
12
1
1
1
3
2
3
1
1
5
8
3
1
1
1
1
1
1
1
1
1
1
1
1
SVC Code
C0104
C0002
C0082
C0044
A0242
C0008
C0108
Y0161
Y0161
Y0162
Y0162
Y0162
Y0002
R0014
R0085
R0157
A0328
C0106
R0155
R0019
R0096
R0097
R0098
W0032
W0032
R0158
N0009
N0018
N0010
N0012
N0012
N0001
Z0008
Z0055
Z0056
Z0008
Z0013
Z0062
Z0055
Z0056
Z0046
Z0055
Z0008
Z0056
Z0008
Z0008
Z0056
Z0056
Z0056
Z0015
Z0006
Z0062
R0097
R0098
R0036
J0028
R0173
C0104
C0002
C0044
R0014
A0328
R0155
R0157
SA/SNA
SNA
SNA
SNA
SA
SNA
SNA
SA
SA
SA
SA
SA
SA
SNA
SNA
SNA
SA
SNA
SA
SA
SNA
SNA
SNA
SA
SA
SNA
SNA
SA
SA
SA
SA
SA
SA
SNA
SNA
SNA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SC
SNA
SNA
SNA
SNA
SNA
SC
SNA
SNA
SNA
SA
SA
SNA
SNA
SA
7-1
7-2. THE DOOR PARTS
4
19
16
3
2
8
1
15
13
17
9
20
5
11
7-2
24
6
18
10
14
22
23
21
NO.
CODE NO.
DESCRIPTION
SPECIFICATION
QTY
SVC Code
SA/SNA
1
6002-000444
SCREW-TAPPING
TH,+,-,2S,M4,L14,PASS,STS4
3
Z0008
SA
2
6002-000444
SCREW-TAPPING
TH,+,-,2S,M4,L14,PASS,STS4
3
Z0008
SA
3
6002-000444
SCREW-TAPPING
TH,+,-,2S,M4,L14,PASS,STS4
2
Z0008
SA
4
6002-001374
SCREW-TAPPING
TH,+,WE,-,M4,L12,ZPC3 (WHT
6
Z0055
SA
5
6002-001374
SCREW-TAPPING
TH,+,WE,-,M4,L12,ZPC3 (WHT
15
Z0055
SA
6
6002-001374
SCREW-TAPPING
TH,+,WE,-,M4,L12,ZPC3 (WHT
1
Z0055
SA
7
DC64-00504A
DOOR-GLASS
TS85-PJT,BOROSILICATE,-,-,-,-
1
D0061
SC
8
6002-001376
SCREW-TAPPING
TH,+,-,1,M4,L12,ZPC3 (WHT)
4
Z0056
SA
9
6002-001376
SCREW-TAPPING
TH,+,-,1,M4,L12,ZPC3 (WHT)
5
Z0056
SA
10
6002-001376
SCREW-TAPPING
TH,+,-,1,M4,L12,ZPC3 (WHT)
1
Z0056
SA
11
6002-001376
SCREW-TAPPING
TH,+,-,1,M4,L12,ZPC3 (WHT)
3
Z0056
SA
12
6002-001376
SCREW-TAPPING
TH,+,-,1,M4,L12,ZPC3 (WHT)
1
Z0056
SA
13
6002-001376
SCREW-TAPPING
TH,+,-,1,M4,L12,ZPC3 (WHT)
1
Z0056
SA
14
DC63-00673A
COVER-DOOR
WF316LAW,ABS,T2.8,-,-,-,-,CR-
1
D0106
15
DC64-01120A
DOOR-SAFETY
WF326LAW,PET,T2.8,-,-,-,NTR,
1
D0066
SA
16
6002-001279
SCREW-TAPPING
17
DC61-01520A
HOLDER-GLASS
WF326LAW,PP(TB53),T2.8,-,-,
1
D0081
SA
18
DC66-00326A
LEVER-DOOR
TS85-PJT,POM,-,W24,L54,-,WHT,
1
D0107
SA
19
6001-001773
SCREW-MACHINE
TH,+,-,M5,L12,PASS,STS430,
2
Z0027
SA
20
DC61-01518A
FRAME-FRONT
WF326LAW,SECC,-,-,WHT,T0.8,W
1
F0103
21
DC97-10718A
ASSY-HINGE DOOR
FRONTIER-PJT,SINGLE
1
22
DC97-04973A
ASSY-WIRE DIAPHRAGM
TS85-PJT,FRAME-FRONT
1
R0030
23
DC63-00673A
COVER-DOOR
WF316LAW,ABS,T2.8,-,-,-,-,CR-
1
D0106
24
DC64-01120A
DOOR-SAFETY
WF326LAW,PET,T2.8,-,-,-,NTR,
1
D0066
SA
SA
7-3. THE TUB PARTS
62
18
50
60
66
68
65
64
67
29
24
24
59
59
2
29
63
61
37
37
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
CODE NO.
6002-001373
6002-001374
6011-001554
6011-001559
DC31-00049A
DC47-00006G
DC60-50148B
DC60-60044A
DC60-60044A
DC60-60044A
DC60-60049A
DC61-01257A
DC67-00139A
DC97-02412F
DC97-10337A
6011-001491
DC66-00386A
DC66-00387A
DC66-00388B
DC66-00434A
DC97-06986A
6011-001553
6011-001557
6011-001557
DC60-60044A
DC61-00219C
DC61-01482A
DC61-01338A
DC65-00014A
DC65-20008C
DC66-00343A
DC67-00123A
DC67-00126A
DC67-00155A
DC69-00804A
DC72-00001D
DC72-00035A
DC97-08649A
6002-000444
6002-000444
6002-000444
6002-000444
6002-000444
6002-001376
6002-001376
6011-001557
DC60-60044A
DC60-60044A
DC60-60044A
DC61-00118A
DC61-01172A
DC63-10003E
DC64-00802A
DC65-20008C
DC66-00343C
DC67-00122A
DC72-00001A
DC97-04981D
DC63-10002Q
DC67-00124A
DC97-08650A
DC62-00156A
6031-001523
DC66-10003B
DC61-01431A
DC61-01414A
DC65-00009A
DC97-08649A
6002-001376
6002-001376
DC66-10003B
DC66-10003B
DC66-10003B
DESCRIPTION
SCREW-TAPPING
SCREW-TAPPING
BOLT-ETC
BOLT-HEX
MOTOR-DRUM
HEATER
NUT-HEX
WASHER-PLAIN
WASHER-PLAIN
WASHER-PLAIN
WASHER-SPRING
SPRING-HANGER
WEIGHT-BALANCER(F)
ASSY-BOLT
ASSY-DRUM
BOLT-FLANGE
DRUM-FRONT
DRUM-BACK
DRUM-WRAPPER
DRUM-LIFTER
ASSY-FLANGE SHAFT
BOLT-ETC
BOLT-HEX
BOLT-HEX
WASHER-PLAIN
CLIP-HOSE
BRACKET-HEATER
BRACKET-HOUSING BEARING
CLAMPER HOSE
CABLE CLAMP
DAMPER-SHOCK
HOSE-O.F
HOSE-DRAIN
HOSE-O.F(I)
PACKING-TUB
BAND-RING
BAND-RING
ASSY-SEMI TUB BACK
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
BOLT-HEX
WASHER-PLAIN
WASHER-PLAIN
WASHER-PLAIN
CLAMPER HOSE
GUIDE-WATER
SPONGE-HOSE AIR
DOOR-DIAPHRAGM
CABLE CLAMP
DAMPER-SHOCK
HOSE-DRAWER TUB
BAND-RING
ASSY-CLAMP DIAPHGRAM
SPONGE-HARNESS
HOSE-PRESSURE
ASSY-SEMI TUB FRONT
SEAL-OIL
WASHER-WAVE
WIRE-VINYL
BRACKET-TUB(B)
BRACKET-TUB(F)
CLAMPER HOSE
ASSY-SEMI TUB BACK
SCREW-TAPPING
SCREW-TAPPING
WIRE-VINYL
WIRE-VINYL
WIRE-VINYL
SPECIFICATION
HEX,+,-,2,M6.5,L40,ZPC3(WH
TH,+,WE,-,M4,L12,ZPC3 (WHT
M6,L56,ZPC3(WHT),SWRCH10A,P1.0
M10,L41,ZPC3(WHT),SM10C,NEWMOTECH,SEW-HW125,-,-,-,-,1
-,GW-PJT,STS316L,1000W,7.92~8.
SM20C(NYLON),M12,-,-,ZPC3(YEL)
-,ID10.5,OD30,T3,-,STS304
-,ID10.5,OD30,T3,-,STS304
-,ID10.5,OD30,T3,-,STS304
-,ID10.5,OD18,T2.5,-,SIR
GW-PJT,HSWR,4,ID26,OD30,L2
GW-PJT,GC,-,-,-,RED,F
MAH2400AWW,MOTOR/M8*L62
WF326LAW,FRONTIER
M8,L38.5,PASS,STS304,P1.25,H
GW-PJT,STS430 H/L NO4,-,ID561
GW-PJT,STS430 H/L NO4,ID561,OD
GW-PJT,STS430 H/L NO4,T0.6,
WF326LAW,PP(TI42),-,-,L314,G
GW-PJT,ALDC+SM45C/DD-T
M7.5,L30,ZPC3(WHT),SWRCH18A,HE
M8,L66,ZPC3(WHT),SM10C,M8,L66,ZPC3(WHT),SM10C,-,ID10.5,OD30,T3,-,STS304
SK-5,WSLS1100A,ID35 OD37.4,ZPC
GW-PJT,STS430/304,T0.5,W9
GW-PJT,SBHG1-A(G
GW-PJT,HSWR,-,ID82,ZPC2,HOS
DA-8N,NYLON#66,-,-,NTR,ID13.
SEW-HW125,-,-,-,-,-,-,30-50
GW-PJT,EPDM,-,-,T2.0,-,BLK,GW-PJT,EPDM,OD 68,-,T2.0,-,BL
WINGS-PJT,EPDM,-,-,T2.0,-,BL
GW-PJT,EPDM-FORM,-,PI8,W624,
WINGS-PJT,HSWR,T2.4,-,-,YEL,ID
WINGS-PJT,HSWR,T4,-,-,YEL,HOSE
WINGS-PJT,SAMBAK
TH,+,-,2S,M4,L14,PASS,STS4
TH,+,-,2S,M4,L14,PASS,STS4
TH,+,-,2S,M4,L14,PASS,STS4
TH,+,-,2S,M4,L14,PASS,STS4
TH,+,-,2S,M4,L14,PASS,STS4
TH,+,-,1,M4,L12,ZPC3 (WHT)
TH,+,-,1,M4,L12,ZPC3 (WHT)
M8,L66,ZPC3(WHT),SM10C,-,ID10.5,OD30,T3,-,STS304
-,ID10.5,OD30,T3,-,STS304
-,ID10.5,OD30,T3,-,STS304
P1291,LYLON6/6,ID27,OD30,-,
GW-PJT,FRPP(GF15%),T2.5,-,-,
GW-PJT,HB22-GREY,-,T130,
GW-PJT,EPDM,T1.5,-,-,-,GR
DA-8N,NYLON#66,-,-,NTR,ID13.
GW-PJT,-,-,-,-,-,-,60N
GW-PJT,EPDM,-,-,-,-,BLK,
DRUM-MODEL,HSWR,-,-,-,,YEL,ID6
WINGS-PJT,HSWR/ZPC4
KS-PJT,PU-FOAM,-,T3,W100,
GW-PJT,EPDM,-,-,-,-,BLK,WINGS-PJT,SAMBAK
TS85-PJT,NBR(SD45.5),BLK,-,-,SK5,-,ID35,OD45,T0.6,ZPC2,SEW-100JL,PVC,-,T2.0*L150,WINGS-PJT,SBHG1-A,T0.4,-,
WINGS-PJT,SBHG1-A,T0.4,-,
TS85-PJT,HSWR,-,-,YEL,OD24/
WINGS-PJT,SAMBAK
TH,+,-,1,M4,L12,ZPC3 (WHT)
TH,+,-,1,M4,L12,ZPC3 (WHT)
SEW-100JL,PVC,-,T2.0*L150,SEW-100JL,PVC,-,T2.0*L150,SEW-100JL,PVC,-,T2.0*L150,-
QTY
12
6
6
4
1
1
1
1
2
2
1
2
2
4
1
6
1
1
1
3
1
20
2
2
1
1
1
1
1
1
2
1
1
1
1
2
2
1
3
11
1
3
2
1
3
2
1
2
2
1
1
1
1
1
2
1
1
1
1
1
1
1
1
4
1
1
1
1
1
3
2
1
4
SVC Code
Z0046
Z0055
U0097
U0320
H0075
U0358
Z0004
U0353
U0353
U0353
U0362
A0351
U0086
U0365
R0001
Z0023
R0002
R0005
R0003
R0006
R0007
U0097
U0320
U0320
U0353
N0020
U0359
U0112
N0018
U0363
U0133
I0047
I0043
U0185
U0364
W0031
W0031
U0078
Z0008
Z0008
Z0008
Z0008
Z0008
Z0056
Z0056
U0320
U0353
U0353
U0353
N0012
P0148
U0367
U0029
U0363
U0133
I0046
W0031
U0038
W0059
I0078
U0079
U0016
U0354
U0385
U0384
N0010
U0078
Z0056
Z0056
SA/SNA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SNA
SNA
SNA
SA
SA
SNA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SNA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SNA
SA
SA
SA
SA
SA
SA
SA
SA
SNA
SA
SA
SA
SA
SNA
SA
SA
SA
SNA
SA
SA
SNA
SNA
SNA
7-3
7-4. THE FRAME PARTS
36 60
15
4
15-6
15-5
54
7
17
42
5
15-3
15-1
8
37
8
9
15-4
24
18
1
6
16
19
2 3
59
46
43
37
20
27
50
51
31
44
62
62
15-2
15-9
44
49
23
61
( ASSY-PUMP DRAIN )
57
26
58
53
48
19
19-4
19-2
19-3
19-1
55
56
52
55
A:
B:
B
22
22
56
( ASSY-ABSORBER )
45
25
28
15
32
55
33
13
47
B
B
A
B
A
A
B
A
A
7-4
NO.
CODE NO.
DESCRIPTION
SPECIFICATION
QTY
SVC Code
SA/SNA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
6002-001374
6002-001374
6002-001374
6002-001376
6002-001376
6002-001376
6002-001376
6009-001458
DC61-01166A
DC67-00172A
DC96-00774A
6002-001294
DC31-00054A
DC61-01424A
DC61-01254A
DC62-00202A
DC63-00619A
DC97-03716C
DC61-00553C
DC61-01200A
DC97-08635D
DC61-01403A
DC61-01404A
DC67-00170A
DC67-00170B
6009-001476
6502-000127
DC29-00013A
DC61-00133A
DC61-00274A
DC61-01432A
DC63-00522A
DC96-00757A
DC97-07126A
DC97-07127A
DC97-07128D
DC72-00001D
DC72-00035A
DC72-00001A
DC97-08634A
DC61-01256A
DC61-01180A
DC61-01182B
DC61-01183B
DC97-06994A
DC97-08740C
DC61-40081A
DC62-10278A
DC97-07448A
DC97-06995A
DC66-10003B
DC66-10003B
6011-001565
DC61-00118A
DC61-01432A
6021-001203
DC97-07128D
DC61-00219C
6002-001306
DC63-00523A
DC97-06995A
DC97-08740C
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-SPECIAL
FRAME-PLATE(U)
CAP-O.F
ASSY-PUMP DRAIN
SCREW-TAPPING
PUMP-DRAIN
BRACKET-PUMP
CASE-PUMP
VALVE-CHECK
CUSHION-PUMP
ASSY-SENSOR PRESSURE
HOLDER-WIRE SADDLE
GUIDE-WIRE
ASSY-ABSORBER
BRACKET-ABSORBER
SPRING-ABSORBER
WEIGHT-ABSORBER
WEIGHT-ABSORBER
SCREW-HEX
CABLE CLAMP
FILTER-EMI
CLAMPER HOSE
GUIDE-HOSE
LEG-RUBBER
COVER-BACK
ASSY POWER CORD
ASSY-HOSE WATER
ASSY-HOSE WATER
ASSY-HOSE DRAIN(I)
BAND-RING
BAND-RING
BAND-RING
ASSY-COVER TOP
GUIDE-SPRING
FRAME
BRACKET-SPRING(L)
BRACKET-SPRING(R)
ASSY-PLATE BOTTOM
ASSY-CAP O.F
HOLDER-WIRE
HOSE-HANGER
ASSY-FIXER TUB
ASSY-FRAME
WIRE-VINYL
WIRE-VINYL
BOLT-HEX
CLAMPER HOSE
LEG-RUBBER
NUT-HEXAGON FLANGE
ASSY-HOSE DRAIN(I)
CLIP-HOSE
SCREW-TAPPING
COVER-TOP
ASSY-FRAME
ASSY-CAP O.F
TH,+,WE,-,M4,L12,ZPC3 (WHT
TH,+,WE,-,M4,L12,ZPC3 (WHT
TH,+,WE,-,M4,L12,ZPC3 (WHT
TH,+,-,1,M4,L12,ZPC3 (WHT)
TH,+,-,1,M4,L12,ZPC3 (WHT)
TH,+,-,1,M4,L12,ZPC3 (WHT)
TH,+,-,1,M4,L12,ZPC3 (WHT)
CH,+,-,M4,L10,ZPC3(BLK),SW
GW-PJT,EGI,-,-,-,T1.6,-,GW-PJT,PP,T2.8,-,-,GRY,OVER FL
WINGS-PJT,80W(120V/60Hz)
BH,+,,M4,L16,ZPC(BLK)
-,120V,60Hz,40mm,80W/3600RPM
WINGS-PJT,GA,T1.2,W185,L115
WINGS-PJT,PP(5113MF6),T3,W110,
WINGS,EPDM,PO30,1~10BAR,BLK,
MAH9700AWW,EPDM,-,-,-,-,WIN
SEW-3HW123,DN-S14T/
-,NYLON66,-,-,-,NTR,D
GW-PJT,SBHG1-A,T1.0,W52,-,NTR
FRONTIER,970/1080
GW27,SBHG1-A,T1.0,W170,
GW-PJT,SWC,CD2,ID16,OD20
GW-PJT,ZNDC,WEIGHT390G,GW-PJT,ZNDC,WEIGHT305G,HEX,+,-,M5,L10,ZPC3(BLK),SWRCH
DAWH-18NB,ID15,-,NYLON66,NTR
LFT-215G,WINGS_PJT,250VAC,15A
P1291,PP(BJ-730),ID24.5,OD2
P/PV/M,PP,-,-,-,WHT,FRAME/DRA
MAH9700AWW,BUTYL,-,GRY,-,WING
GW-PJT,GI,T0.4,W426,L507,-,-,
GW-PJT,GW,UL/CSA,3/16AWG
GW-PJT,HOT
GW-PJT,COLD
MAH9700AWW,WINGS-PJT
WINGS-PJT,HSWR,T2.4,-,-,YEL,ID
WINGS-PJT,HSWR,T4,-,-,YEL,HOSE
DRUM-MODEL,HSWR,-,-,-,,YEL,ID6
GW-PJT,GW-PJT,POM,-,-,-,NTR,WINGS-PJT,PCM,-,-,WHT,T1.0,-,WINGS-PJT,SBHG1-A,T1.6
WINGS-PJT,SBHG1-A,T1.6
GW-PJT,SBHG1-A/T1.6
GW-PJT,SUDS
DAWH-2NC,NYLON66,-,-,-,-,NTR
-,PP(JS20),-,-,-,-,NTR,GW-PJT,POWER CORD
GW-PJT,H+COLD
SEW-100JL,PVC,-,T2.0*L150,SEW-100JL,PVC,-,T2.0*L150,M6,L35.1,ZPC(YEL),SWCH25K,TAPP
P1291,LYLON6/6,ID27,OD30,-,
MAH9700AWW,BUTYL,-,GRY,-,WING
1C,M10,ZPC(YEL),SCP-1
MAH9700AWW,WINGS-PJT
SK-5,WSLS1100A,ID35 OD37.4,ZPC
TH,+,1,M4,L14,ZPC(YEL)
GW-PJT,SECC(EGI),T1.0,W684,L56
GW-PJT,H+COLD
GW-PJT,SUDS
6
15
1
4
5
1
3
2
1
1
1
3
1
1
1
1
1
1
3
1
1
1
8
1
1
2
5
1
1
1
1
1
1
1
1
1
2
2
1
1
2
1
1
1
1
2
5
1
4
1
2
2
3
1
1
1
1
1
5
1
1
2
Z0055
Z0055
Z0055
Z0056
Z0056
Z0056
Z0056
Z0047
F0125
A0047
J0013
Z0062
J0025
J0017
J0019
F0223
J0029
Q0006
M0048
U0161
U0380
U0378
U0379
SA
SA
SA
SA
SA
SA
SA
SA
SA
SNA
SA
SNA
SNA
SA
SNA
SA
SA
SA
SA
SA
SA
SNA
SNA
SNA
SNA
SA
SA
SA
SNA
SA
SNA
SA
SA
SC
SC
SA
SA
SA
SA
SA
SNA
SNA
SNA
SNA
SNA
SA
SA
SA
SA
SA
SNA
SNA
SA
SNA
SNA
SNA
SA
SA
SC
SNA
SA
SA
Z0048
U0363
W0036
N0001
A0083
B0073
A0282
W0002
I0040
I0040
I0023
W0031
W0031
W0031
P0001
A0352
F0094
F0079
U0364
F0066
A0372
N0006
I0030
A0025
F0028
U0320
N0012
B0073
B0076
I0023
N0020
Z0015
P0053
F0028
A0372
Memo
7-5
8. ELECTRICAL PARTS LIST
-You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
Level
CODE NO.
DESCRIPTION
SPECIFICATION
QTY SVC-Code
SA
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
..2
...3
...3
...3
....4
...3
...3
...3
...3
...3
....4
....4
...3
...3
....4
.....5
...3
....4
....4
...3
....4
.....5
....4
.....5
...3
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
..2
6001-001773
6002-000444
6002-001374
6002-001376
6003-001563
6009-001476
DC63-00522A
DC97-04973A
DC97-07448A
DC97-08634A
DC97-10336A
DC61-01171A
DC67-00121B
DC97-10340A
DC61-01222A
DC72-00034B
DC97-10338A
DC64-01120A
6002-000444
6002-001279
6009-001476
DC61-01520A
DC66-00326A
DC61-00891A
DC61-01532A
DC64-01108A
DC97-10511A
MFS-F13DL-S0
DC41-00045A
DC97-10513A
DC64-01105A
DC66-00413A
MFS-F2WLHA-T0
MFS-F2WLHA-S0
DC41-00045A
MFS-FTWTHA-00
6002-000630
DC61-01445A
6002-001374
6002-001376
6003-001563
6009-001458
6011-001559
DC29-00013A
DC61-01166A
DC64-00519B
DC97-07125C
DC65-00008A
DC67-00051B
DC61-01167C
DC61-70029C
DC62-00142D
DC62-30314H
DC67-00089F
DC97-08800A
DC61-00553C
DC61-01200A
DC97-08635D
MES-AG3MOD-S2
SCREW-MACHINE
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPTITE
SCREW-HEX
COVER-BACK
ASSY-WIRE DIAPHRAGM
ASSY-FIXER TUB
ASSY-COVER TOP
ASSY-DRAWER
GUIDE-LIQUID
CAP-RINSE
ASSY-FRAME FRONT
BRACKET-HINGE
SPONGE-EPDM
ASSY-COVER DOOR
DOOR-SAFETY
SCREW-TAPPING
SCREW-TAPPING
SCREW-HEX
HOLDER-GLASS
LEVER-DOOR
GUIDE-HINGE
HINGE-DOOR
BUTTON-ENCODER
ASSY-KNOB ENCODER
ASSY PCB PARTS(S)
PCB-SUB
ASSY-S.PANEL CONTROL
BUTTON-PUSH(P)
LEVER-POWER
ASSY PCB PARTS(M)
ASSY PCB PARTS(S)
PCB-SUB
ASSY PCB PARTS(M)
SCREW-TAPPING
GUIDE-CUSHION
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPTITE
SCREW-SPECIAL
BOLT-HEX
FILTER-EMI
FRAME-PLATE(U)
DOOR-LOCK S/W
ASSY-HOUSING DRAWER
CLAMPER HOSE
HOSE-DRAWER
HOUSING-DRAWER(L)
SPRING-CLIP
VALVE-WATER
VALVE-WATER
HOSE-WATER
ASSY-S.HOUSING DRAWER
HOLDER-WIRE SADDLE
GUIDE-WIRE
ASSY-ABSORBER
ASSY PCB PARTS(S)
TH,+,-,M5,L12,PASS,STS430,
TH,+,-,2S,M4,L14,PASS,STS4
TH,+,WE,-,M4,L12,ZPC3 (WHT
TH,+,-,1,M4,L12,ZPC3 (WHT)
TH,+,-,S,M4,L8,ZPC3(BLK),S
HEX,+,-,M5,L10,ZPC3(BLK),SWRCH
GW-PJT,GI,T0.4,W426,L507,-,-,
TS85-PJT,FRAME-FRONT
GW-PJT,POWER CORD
GW-PJT,WF316LAW,NEAT-WHT
GW-PJT,ABS,-,-,-,WHT,MAH9700,PP(TB53),-,-,-,MUNSELL
WF326LAW,FRONTIER
WINGS-DRYER,SECC(EGI),T1.6
MAH2400,EPDM,-,T1,W15,L500,W
WF326LAW,FRONTIER
WF326LAW,PET,T2.8,-,-,-,NTR,
TH,+,-,2S,M4,L14,PASS,STS4
PWH,+,-,1,M4,L12,PASS,STS4
HEX,+,-,M5,L10,ZPC3(BLK),SWRCH
WF326LAW,PP(TB53),T2.8,-,-,
TS85-PJT,POM,-,W24,L54,-,WHT,
HAUZEN(DOM),POM,-,-,-,WHT,HI
WF326LAW,ZNDC,T3.8,-,-,-,-,FR
WF326LAW,ABS,-,-,WHT,FRON
FRONTIER,LOWES
MFS-F13DL-S0 FRONTIER
FRONTIER,FR-1,NL 1,-,T1.6,197x
WF316LAW,WHT
WF326LAW,ABS,-,-,WHT,FRON
GW-PJT,POM,-,-,-,-,NTR,ENTRY
MFS-F2WLHA-T0
MFS-F2WLHA-S0
FRONTIER,FR-1,NL 1,-,T1.6,197x
MFS-FTWTHA-00
PH,+,-,2S,M3,L8,ZPC(YEL),S
MAH98700AWW,PP,T2.8,-,-,-,
TH,+,WE,-,M4,L12,ZPC3 (WHT
TH,+,-,1,M4,L12,ZPC3 (WHT)
TH,+,-,S,M4,L8,ZPC3(BLK),S
CH,+,-,M4,L10,ZPC3(BLK),SW
M10,L41,ZPC3(WHT),SM10C,LFT-215G,WINGS_PJT,250VAC,15A
GW-PJT,EGI,-,-,-,T1.6,-,GW-PJT,PP-GF,-,-,-,-,BLK,1
WF326LAW,FRONTIER
SEW-DR605,SK5,-,-,YEL,ID14.
Q1636GW/XEU,EPDM,ID9.0,OD14.
WF326LAW,PP(TB-53),-,SEW-HW125,HSWR67,CD1.2,ID8.5
GW-PJT,NYLON,3WAY,MAX 10BAR,
GW-PJT,NYLON,-,MAX10BAR,NTR,
WF326LAW,EPDM,ID5,OD9,T2,L190
MAH9700AWW,-,NYLON66,-,-,-,NTR,D
GW-PJT,SBHG1-A,T1.0,W52,-,NTR
FRONTIER,970/1080
MES-AG3MOD-S2
2
3
6
4
2
2
1
1
4
1
1
1
1
1
1
3
1
1
11
2
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
15
5
4
2
4
1
1
1
1
10
1.48
1
2
1
1
1
1
3
1
1
1
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
Z0027
Z0008
Z0055
Z0056
Z0048
A0282
R0030
A0025
P0001
R0014
R0085
R0157
F0064
D0048
D0111
D0010
D0066
Z0008
Z0013
Z0048
D0081
D0107
D0072
D0108
C0105
C0029
Y0162
C0044
C0108
Y0161
Y0162
Y0161
Z0062
X0050
Z0055
Z0056
Z0047
U0320
W0036
F0125
C0058
R0019
N0009
R0158
R0096
N0008
W0032
W0032
I0003
R0159
M0048
U0161
U0380
Y0162
8-1
8. ELECTRICAL PARTS LIST
Level
CODE NO.
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
MFS-MEMS-00
DC63-00693A
6002-001373
6002-001374
6011-001554
6031-001523
DC31-00049A
DC47-00006G
DC60-50148B
DC60-60044A
DC60-60049A
DC67-00139A
DC97-02412F
DC97-03716C
6002-000444
6002-001376
6011-001557
DC60-60044A
DC61-00219C
...3
DC61-01338A
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
...3
...3
...3
...3
...3
...3
...3
..2
..2
DC62-00156A
DC65-00014A
DC65-20008C
DC67-00123A
DC67-00126A
DC67-00155A
DC69-00804A
DC72-00001D
DC72-00035A
DC61-01431A
DC61-01482A
DC66-00343A
DC97-10337A
6002-000444
6011-001491
DC66-00434A
DC97-06986A
6002-000444
6002-001376
6011-001557
DC60-60044A
DC61-01172A
DC61-70029C
DC63-10002D
DC64-00802A
DC65-00009A
DC66-00343C
DC67-00122A
DC72-00001A
DC67-00124A
DC97-08650A
DC61-01414A
DC63-10003E
DC97-04981D
DC60-40146A
DC61-10688A
DC62-10278A
6002-001376
6011-001565
8-2
DESCRIPTION
ASSY PCB PARTS(S)
COVER-DOOR SWITCH
SCREW-TAPPING
SCREW-TAPPING
BOLT-ETC
WASHER-WAVE
MOTOR-DRUM
HEATER
NUT-HEX
WASHER-PLAIN
WASHER-SPRING
WEIGHT-BALANCER(F)
ASSY-BOLT
ASSY-SENSOR PRESSURE
SCREW-TAPPING
SCREW-TAPPING
BOLT-HEX
WASHER-PLAIN
CLIP-HOSE
BRACKET-HOUSING
BEARING
SEAL-OIL
CLAMPER HOSE
CABLE CLAMP
HOSE-O.F
HOSE-DRAIN
HOSE-O.F(I)
PACKING-TUB
BAND-RING
BAND-RING
BRACKET-TUB(B)
BRACKET-HEATER
DAMPER-SHOCK
ASSY-DRUM
SCREW-TAPPING
BOLT-FLANGE
DRUM-LIFTER
ASSY-FLANGE SHAFT
SCREW-TAPPING
SCREW-TAPPING
BOLT-HEX
WASHER-PLAIN
GUIDE-WATER
SPRING-CLIP
SPONGE-HARNESS
DOOR-DIAPHRAGM
CLAMPER HOSE
DAMPER-SHOCK
HOSE-DRAWER TUB
BAND-RING
HOSE-PRESSURE
ASSY-SEMI TUB FRONT
BRACKET-TUB(F)
SPONGE-HOSE AIR
ASSY-CLAMP DIAPHGRAM
BOLT-SPANER
CAP-FIXER
HOSE-HANGER
SCREW-TAPPING
BOLT-HEX
SPECIFICATION
QTY
SVC_Code
SA
MES-MEMS-00
FRONTIER,PP(V0),-,-,-,
HEX,+,-,2,M6.5,L40,ZPC3(WH
TH,+,WE,-,M4,L12,ZPC3 (WHT
M6,L56,ZPC3(WHT),SWRCH10A,P1.0
SK5,-,ID35,OD45,T0.6,ZPC2,NEWMOTECH,SEW-HW125,-,-,-,-,1
-,GW-PJT,STS316L,1000W,7.92~8.
SM20C(NYLON),M12,-,-,ZPC3(YEL)
-,ID10.5,OD30,T3,-,STS304
-,ID10.5,OD18,T2.5,-,SIR
GW-PJT,GC,-,-,-,RED,F
MAH2400AWW,MOTOR/M8*L62
SEW-3HW123,DN-S14T/
TH,+,-,2S,M4,L14,PASS,STS4
TH,+,-,1,M4,L12,ZPC3 (WHT)
M8,L66,ZPC3(WHT),SM10C,-,ID10.5,OD30,T3,-,STS304
SK-5,WSLS1100A,ID35 OD37.4,ZPC
1
1
12
1
6
1
1
1
1
1
1
2
4
1
1
1
2
2
1
Y0162
D0106
Z0046
Z0055
U0097
U0354
H0075
U0358
Z0004
U0353
U0362
U0086
U0365
Q0006
Z0008
Z0056
U0320
U0353
N0020
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
GW-PJT,SBHG1-A(G
1
U0112
SA
TS85-PJT,NBR(SD45.5),BLK,-,-,GW-PJT,HSWR,-,ID82,ZPC2,HOS
DA-8N,NYLON#66,-,-,NTR,ID13.
GW-PJT,EPDM,-,-,T2.0,-,BLK,GW-PJT,EPDM,OD 68,-,T2.0,-,BL
WINGS-PJT,EPDM,-,-,T2.0,-,BL
GW-PJT,EPDM-FORM,-,PI8,W624,
WINGS-PJT,HSWR,T2.4,-,-,YEL,ID
WINGS-PJT,HSWR,T4,-,-,YEL,HOSE
WINGS-PJT,SBHG1-A,T0.4,-,
GW-PJT,STS430/304,T0.5,W9
SEW-HW125,-,-,-,-,-,-,30-50
WF326LAW,FRONTIER
TH,+,-,2S,M4,L14,PASS,STS4
M8,L38.5,PASS,STS304,P1.25,H
WF326LAW,PP(TI42),-,-,L314,G
GW-PJT,ALDC+SM45C/DD-T
TH,+,-,2S,M4,L14,PASS,STS4
TH,+,-,1,M4,L12,ZPC3 (WHT)
M8,L66,ZPC3(WHT),SM10C,-,ID10.5,OD30,T3,-,STS304
GW-PJT,FRPP(GF15%),T2.5,-,-,
SEW-HW125,HSWR67,CD1.2,ID8.5
-,PU-FOAM,-,T10,W100,L80,
GW-PJT,EPDM,T1.5,-,-,-,GR
TS85-PJT,HSWR,-,-,YEL,OD24/
GW-PJT,-,-,-,-,-,-,60N
GW-PJT,EPDM,-,-,-,-,BLK,
DRUM-MODEL,HSWR,-,-,-,,YEL,ID6
GW-PJT,EPDM,-,-,-,-,BLK,WINGS-PJT,SAMBAK
WINGS-PJT,SBHG1-A,T0.4,-,
GW-PJT,HB22-GREY,-,T130,
WINGS-PJT,HSWR/ZPC4
-,-,OD36,T2.5,L52,FE,FZY,-,P
SWF-P12,PP(TB53),-,-,-,WHT,-,
-,PP(JS20),-,-,-,-,NTR,TH,+,-,1,M4,L12,ZPC3 (WHT)
M6,L35.1,ZPC(YEL),SWCH25K,TAPP
1
1
1
1
1
1
1
2
2
1
1
2
1
3
6
3
1
2
3
2
2
1
1
1
1
1
2
1
1
1
1
1
1
1
1
6
1
1
3
U0016
N0018
U0363
I0047
I0043
U0185
U0364
W0031
W0031
U0385
U0359
U0133
R0001
Z0008
Z0023
R0006
R0007
Z0008
Z0056
U0320
U0353
P0148
N0008
W0059
U0029
N0010
U0133
I0046
W0031
I0078
U0079
U0384
U0367
U0038
A0034
A0043
I0030
Z0056
U0320
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
8. ELECTRICAL PARTS LIST
Level
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
....4
....4
..2
..2
..2
...3
...3
..2
...3
..2
...3
...3
...3
...3
...3
0.1
...3
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
....4
....4
....4
...3
...3
...3
..2
....4
....4
CODE NO.
6002-001376
6011-001565
6502-000127
DC61-00274A
DC61-01257A
DC61-40081A
DC96-00757A
DC96-00774A
6002-001376
DC62-00202A
DC61-01424A
DC99-00704A
6031-001531
DC63-00619A
DC96-01043A
DC97-06995A
DC97-07128D
DC61-00219C
DC62-10022G
DC97-08740C
DC67-00172A
DC97-08838A
DC61-01267A
DC64-00504A
6002-001306
DC97-07126A
DC97-07127A
DC96-01053A
DC61-01539A
DC63-10001K
DC69-00209A
DC69-00923A
DC69-00935A
DC69-00967A
DC60-60044B
DC61-01253A
DC61-01272A
6011-001549
DC61-01406A
DC63-00523A
DC63-10002Q
DC61-01170A
DC63-00672A
DC64-01113A
DC64-01114A
DC63-00516A
DC64-01158A
DC61-01577A
DC61-01518A
DC97-10671A
DC63-00673A
DC64-01121A
0203-001838
6002-000213
DC61-01576A
DC97-10718A
DC97-10795A
DC64-01084A
DC64-01106A
DESCRIPTION
SCREW-TAPPING
BOLT-HEX
CABLE CLAMP
GUIDE-HOSE
SPRING-HANGER
HOLDER-WIRE
ASSY POWER CORD
ASSY-PUMP DRAIN
SCREW-TAPPING
VALVE-CHECK
BRACKET-PUMP
ASSY-CUSHION PUMP
WASHER-PLAIN
CUSHION-PUMP
ASSY-M.WIRE HARNESS
ASSY-FRAME
ASSY-HOSE DRAIN(I)
CLIP-HOSE
HOSE-PUMP
ASSY-CAP O.F
CAP-O.F
ASSY-LEG
CASE-PRE WASH
DOOR-GLASS
SCREW-TAPPING
ASSY-HOSE WATER
ASSY-HOSE WATER
ASSY-CONTROL
PLATE-STEEL
SPONGE-EPDM
WOOD-STAY
CUSHION-DOOR
PACKING CASE-DESIGN
CUSHION-TOP
WASHER-PLAIN
FIXER-TUB
FIXER-WASHER
BOLT-HEX
FIXER-RUBBER
COVER-TOP
SPONGE-HARNESS
BODY-DRAWER
COVER-DRAWER
HANDLE-DRAWER
PANEL-DRAWER
COVER-DETERGENT
MASCOT
SPRING-DRAWER
FRAME-FRONT
ASSY-DOOR
COVER-DOOR
DECORATION-DOOR
TAPE-DOUBLE FACE
SCREW-TAPPING
SUPPORT-HINGE
ASSY-HINGE DOOR
ASSY-PANEL CONTROL
KNOB-ENCODER(I)
KNOB-ENCODER
SPECIFICATION
TH,+,-,1,M4,L12,ZPC3 (WHT)
M6,L35.1,ZPC(YEL),SWCH25K,TAPP
DAWH-18NB,ID15,-,NYLON66,NTR
P/PV/M,PP,-,-,-,WHT,FRAME/DRA
GW-PJT,HSWR,4,ID26,OD30,L2
DAWH-2NC,NYLON66,-,-,-,-,NTR
GW-PJT,GW,UL/CSA,3/16AWG
WINGS-PJT,80W(120V/60Hz)
TH,+,-,1,M4,L12,ZPC3 (WHT)
WINGS,EPDM,PO30,1~10BAR,BLK,
WINGS-PJT,GA,T1.2,W185,L115
MAH9700AWW,WINGS-WASHE
SCP1,-,ID7,OD14,T0.8,ZPC2(Y
MAH9700AWW,EPDM,-,-,-,-,WIN
WF326LAW,SILVER KIT
GW-PJT,H+COLD
MAH9700AWW,WINGS-PJT
SK-5,WSLS1100A,ID35 OD37.4,ZPC
SWF-P12,PP(BB110),ID21,OD26,-,
GW-PJT,SUDS
GW-PJT,PP,T2.8,-,-,GRY,OVER FL
MAH9700AWW,GRY/BUTYL+BOLT
WINGS-PJT,PP(TB53),-,-,-,W
TS85-PJT,BOROSILICATE,-,-,-,TH,+,1,M4,L14,ZPC(YEL)
GW-PJT,HOT
GW-PJT,COLD
WF316LAW,BETTER/WHT
MAH9700AWW,SBHG1-(GI),T0.4,W
SWF-P12,EPDM,-,T3,W15,L530,B
SEW-PH100,NAWANG,-,T20,W570,L3
MDE9700AYW,PS-FOAM,T8,W40,L
WF326AW,SW3,-,-,W748
WF326LAW,PS-FOAM,-,-,-,-,-,N
SBC,ID8.4,OD30,T3,-,-,GW-PJT,TB52,T8.0,WHT,OD25/L110
GW-PJT,NYLON,T2.0,NTR,FIXER
M8,L155,ZPC(YEL),SWRCH18A,TAPP
GW-PJT,EPDM,T5.0,NTR,GW-PJT,SECC(EGI),T1.0,W684,L56
KS-PJT,PU-FOAM,-,T3,W100,
GW-PJT,PP(TB-53),-,-,-,-,WHT
WF326LAW,ABS,-,-,-,-,-,WHT,
WF326LAW,ABS,-,-,-,-,WHT,F
WF326LAW,ABS,-,-,-,-,WHT,LO
GW-PJT,PP(TB-53),-,-,-,WF326LAW,NICKEL,T0.5,W10.5,L65
FRONTIER,STS304,C/D 0.8,I/
WF326LAW,SECC,-,-,WHT,T0.8,W
WF316LAW,STS-DECO
WF316LAW,ABS,T2.8,-,-,-,-,CRWF326LAW,STS430,T0.6,-,4930,EPDM,T0.6,W41,R213
TH,+,-,1,M4,L12,ZPC(YEL),S
FRONTIER-PJT,STS430,T1.2,FRONTIER-PJT,SINGLE
WF316LAW,LOWES
K4-PJT,ABS,-,-,-,-,WHT,WF326LAW,ABS,-,-,-,-,WHT,-,
QTY
SVC-Code
SA
1
3
5
1
2
5
1
1
1
1
1
3
1
1
1
1
1
1
1
2
1
4
1
1
5
1
1
1
1
1
2
Z0056
U0320
U0363
A0083
A0351
N0006
W0002
J0013
Z0056
F0223
J0017
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SA
SC
SC
SC
SC
SC
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
10
8
1
1
1
1
1
U0353
J0029
W0004
F0028
I0023
N0020
W0030
A0372
A0047
B0070
J0028
D0061
Z0015
I0040
I0040
C0027
Y0159
D0111
D0053
A0015
A0197
U0353
U0144
U0320
P0053
W0059
R0036
R0155
A0328
R0173
C0106
R0122
F0103
D0001
D0106
Z0006
D0105
C0002
C0075
C0104
8-3
8. ELECTRICAL PARTS LIST
Level
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
....4
....4
....4
....4
....4
....4
....4
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
8-4
CODE NO.
0401-000005
0601-001028
0601-001751
1003-000337
2003-000642
2202-002037
3404-001022
3711-000651
3711-003133
DC07-00038A
DC34-00003A
DC61-01207A
DC61-01514A
DC61-01516A
DE02-00036A
DE02-00060A
DE02-00083A
DE02-00086A
DE13-20017A
DE39-60001A
DC61-01517B
DC64-01050A
DC64-01110A
DC64-01112A
DC64-01118A
DC64-01126A
DC64-01139A
0401-000005
0601-001028
0601-001751
1003-000337
2003-000642
2202-002037
3404-001022
DC07-00036A
DC34-00003A
DC61-01514A
DC61-01516A
DC97-07814A
DE02-00036A
DE02-00060A
DE02-00083A
DE02-00086A
DE13-20017A
DE39-60001A
0103-002581
0103-002582
0201-001354
0205-001027
0401-000133
0402-000012
0402-000137
0402-000351
0402-001194
0402-001404
0103-002581
0103-002582
0201-001354
0205-001027
0401-000133
0402-000012
0402-000137
DESCRIPTION
DIODE-SWITCHING
LED
LED
IC-DARLINGTON DRIVER
R-METAL OXIDE(S)
C-CERAMIC,MLC-AXIAL
SWITCH-TACT
HEADER-BOARD TO CABLE
HEADER-BOARD TO CABLE
LED DISPLAY
SWITCH PRESSURE
GUIDE-PCB(S)
GUIDE-LED(B)
GUIDE-LED(C)
CHEMICALS-FLUX SOLDER
CHEMICALS-ALCOHOL
SOLDER-WIRE
SOLDER-WIRE FLUX
IC-DRIVE
WIRE-SO COPPER
GUIDE-ENCODER
PANEL-CONTROL
BUTTON-PUSH(F)
WINDOW-ENCODER
BUTTON-PUSH(AG)
INLAY-PANEL
BUTTON-PUSH(C)
DIODE-SWITCHING
LED
LED
IC-DARLINGTON DRIVER
R-METAL OXIDE(S)
C-CERAMIC,MLC-AXIAL
SWITCH-TACT
LED DISPLAY
SWITCH PRESSURE
GUIDE-LED(B)
GUIDE-LED(C)
ASSY-JUMP WIRE
CHEMICALS-FLUX SOLDER
CHEMICALS-ALCOHOL
SOLDER-WIRE
SOLDER-WIRE FLUX
IC-DRIVE
WIRE-SO COPPER
RESIN-PUR
RESIN-PUR
ADHESIVE-A.C.F
OIL-SILICON
DIODE-SWITCHING
DIODE-RECTIFIER
DIODE-RECTIFIER
DIODE-RECTIFIER
DIODE-RECTIFIER
DIODE-BRIDGE
RESIN-PUR
RESIN-PUR
ADHESIVE-A.C.F
OIL-SILICON
DIODE-SWITCHING
DIODE-RECTIFIER
DIODE-RECTIFIER
SPECIFICATION
1N4148,75V,150mA,DO-35,T
ROUND,Y-GRN,3mm,569nm
ROUND,RED,3MM,630NM,KID65783AP,DIP,18P,
300ohm,5%,1W,AA,TP,3.3x
100nF,80-20%,50V,Y5V
15V,20mA,130±40gf,6x6x5mm,S
BOX,12P,1R,2.5mm,S
BOX,13P,1R,2.5mm,S
CSV-KSW07EG,FRONTIER-PJT,-,7
V7_PJT,DC28V,10mA,24,-,J
WINGS-DRYER,HIPS,-,-,-,NTR,
WF-G106AW,HIPS,-,-,-,NTR,FR
WF-G106AW,HIPS,-,-,-,NTR,FR
KS-77S,-,-,-,-,KOK
ALL,MODEL,-,-,-,-,-,S63S,D3.0,-,-,-,-,-,-,RS60S,-,D1.2,60SN/40PB,
KID65003AP,DIP,16P,STICK,TR-AR
,PI0.6,SN,T,52MM TAPING_W
WF316LAW,ABS,-,-,-,CR-COAT
WF316LAW,ABS,-,-,-,-,WHT,I
WF326LAW,ABS,-,-,WHT,FRON
WF326LAW,SAN,-,-,-,-,TRAN
WF326AW,ABS,-,-,TRANSPAR
WF316LAW,PET,T0.188,-,-,WHT,
WF326LAW,ABS,-,-,TRANS,FR
1N4148,75V,150mA,DO-35,T
ROUND,Y-GRN,3mm,569nm
ROUND,RED,3MM,630NM,KID65783AP,DIP,18P,
300ohm,5%,1W,AA,TP,3.3x
100nF,80-20%,50V,Y5V
15V,20mA,130±40gf,6x6x5mm,S
CSV-KSW05EG,FRONTIER-PJT,-,7
V7_PJT,DC28V,10mA,24,-,J
WF-G106AW,HIPS,-,-,-,NTR,FR
WF-G106AW,HIPS,-,-,-,NTR,FR
WINGS-PJT,13P/130MM/WHT,KS-77S,-,-,-,-,KOK
ALL,MODEL,-,-,-,-,-,S63S,D3.0,-,-,-,-,-,-,RS60S,-,D1.2,60SN/40PB,
KID65003AP,DIP,16P,STICK,TR-AR
,PI0.6,SN,T,52MM TAPING_W
CPU-55B/UEP 700FB,-,-,94V0
UEP 700FA/CPU-55A,-,-,94V0
IR-100 BOND-EPOXY
G746,-,RLS4148,75V,150mA,LL-34,
UF4007,1KV,1A,DO-41,TP
1N4007,1KV,1A,DO-41,TP
1N4937,600V,1A,DO-41,TP
SHG2D,200V,2A,-,TP
GBJ1506,600V,15A,SIP-4,ST
CPU-55B/UEP 700FB,-,-,94V0
UEP 700FA/CPU-55A,-,-,94V0
IR-100 BOND-EPOXY
G746,-,RLS4148,75V,150mA,LL-34,
UF4007,1KV,1A,DO-41,TP
1N4007,1KV,1A,DO-41,TP
QTY
8
25
1
1
11
1
11
1
1
1
1
1
1
1
2
1
10
1
2
53
1
1
1
1
1
1
1
8
35
1
1
12
1
12
1
1
1
1
2
2
1
10
1
2
51
160.7
80.3
1
1
8
3
1
3
1
1
160.7
80.3
1
1
8
3
1
SVC-Code
Y0063
Y0063
Y0051
Y0087
C0011
Y0052
C0082
C0043
C0008
A0242
Y0063
Y0063
Y0051
Y0087
C0011
Y0052
E0001
SA
8. ELECTRICAL PARTS LIST
Level
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
CODE NO.
0402-000351
0402-001194
0402-001404
0403-000537
0501-000316
0504-001080
0604-000118
0801-000168
1103-001183
1202-000001
1404-000230
2001-000110
2001-000561
2001-001153
2002-000321
2003-000448
2003-002036
2003-002299
0402-000351
0402-001194
0402-001404
0403-000537
0501-000316
0504-001080
0604-000118
0801-000168
1103-001183
1202-000001
1404-000230
2001-000110
2001-000561
2001-001153
2002-000321
2003-000448
2003-002036
2003-002299
2004-000218
2007-000293
2007-000300
2007-000468
2007-000477
2007-000496
2007-000546
2007-000575
2007-000671
2007-000872
2007-000931
2009-001121
2201-000879
2202-000127
2203-000206
2203-000239
2203-000260
2203-000444
2203-000889
2301-000131
2401-000598
2401-001573
2401-001998
2401-002438
2401-002463
2401-003862
DESCRIPTION
DIODE-RECTIFIER
DIODE-RECTIFIER
DIODE-BRIDGE
DIODE-ZENER
TR-SMALL SIGNAL
TR-DIGITAL
PHOTO-COUPLER
IC-CMOS LOGIC
IC-EEPROM
IC-VOLTAGE COMP.
THERMISTOR-PTC
R-CARBON
R-CARBON
R-CARBON(S)
R-COMPOSITION
R-METAL OXIDE(S)
R-METAL OXIDE(S)
R-METAL OXIDE
DIODE-RECTIFIER
DIODE-RECTIFIER
DIODE-BRIDGE
DIODE-ZENER
TR-SMALL SIGNAL
TR-DIGITAL
PHOTO-COUPLER
IC-CMOS LOGIC
IC-EEPROM
IC-VOLTAGE COMP.
THERMISTOR-PTC
R-CARBON
R-CARBON
R-CARBON(S)
R-COMPOSITION
R-METAL OXIDE(S)
R-METAL OXIDE(S)
R-METAL OXIDE
R-METAL
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-METAL PLATE
C-CERAMIC,DISC
C-CERAMIC,MLC-AXIAL
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-FILM,LEAD-PEF
C-AL
C-AL
C-AL
C-AL
C-AL
C-AL
SPECIFICATION
1N4937,600V,1A,DO-41,TP
SHG2D,200V,2A,-,TP
GBJ1506,600V,15A,SIP-4,ST
1N4749A,5%,1000mW,DO-41,TP
KSA928A-Y,PNP,1000mW,TOKRC246S,NPN,200mW,2.2K/10K,SO
TR,20-300%,200mW,DIP-4,ST
4069,INVERTER,SOP,14P,150M
24C04,512x8,SOP,8P,5x4mm,2.5/5
7533,TO-92,3P,-,SINGLE,
27ohm,20%,-,265V,1.5A,360
10OHM,5%,1/4W,AA,TP,2.4X6.4MM
27KOHM,5%,1/4W,AA,TP,2.4X6.4MM
47ohm,5%,1/2W,AA,TP,2.4x6.4m
1.5MOHM,5%,1/4W,AA,TP,2.5X
100Kohm,5%,2W,AA,TP,4x1
51Kohm,5%,2W,AA,TP,4x12
240KOHM,5%,1W,AC,TP,3.3X9.
1N4937,600V,1A,DO-41,TP
SHG2D,200V,2A,-,TP
GBJ1506,600V,15A,SIP-4,ST
1N4749A,5%,1000mW,DO-41,TP
KSA928A-Y,PNP,1000mW,TOKRC246S,NPN,200mW,2.2K/10K,SO
TR,20-300%,200mW,DIP-4,ST
4069,INVERTER,SOP,14P,150M
24C04,512x8,SOP,8P,5x4mm,2.5/5
7533,TO-92,3P,-,SINGLE,
27ohm,20%,-,265V,1.5A,360
10OHM,5%,1/4W,AA,TP,2.4X6.4MM
27KOHM,5%,1/4W,AA,TP,2.4X6.4MM
47ohm,5%,1/2W,AA,TP,2.4x6.4m
1.5MOHM,5%,1/4W,AA,TP,2.5X
100Kohm,5%,2W,AA,TP,4x1
51Kohm,5%,2W,AA,TP,4x12
240KOHM,5%,1W,AC,TP,3.3X9.
10Kohm,1%,1/8W,AA,TP,1.8x3.2mm
100ohm,5%,1/4W,TP,3216
10Kohm,5%,1/8W,TP,2012
1Kohm,5%,1/8W,TP,2012
1Mohm,5%,1/8W,TP,2012
2.2Kohm,5%,1/4W,TP,3216
20Kohm,5%,1/8W,TP,2012
220ohm,5%,1/4W,TP,3216
2Kohm,5%,1/8W,TP,2012
4.7Kohm,5%,1/8W,TP,2012
470ohm,5%,1/8W,TP,2012
0.03OHM,5%,5W,CL,BK,26X5X1
2.2NF,10%,1KV,Y5P,BK,10X4
10nF,+80-20%,25V,Y5V
100nF,10%,50V,X7R,2012
0.1nF,5%,50V,C0G,2012
10nF,10%,50V,X7R,2012
1nF,10%,50V,X7R,2012
4.7nF,10%,50V,X7R,TP,2012
100nF,5%,630V,TP,27.5x12
1uF,20%,50V,GP,TP,4x7,5
47uF,20%,50V,GP,TP,6.3x11,2.5
1000uF,20%,25V,GP,TP,10x20,5mm
47uF,20%,50V,WT,TP,6.3x11,5
470uF,20%,16V,GP,TP,8x11.5,5
820UF,20%,250V,GP,BK,30X40MM,1
QTY
3
1
1
1
2
2
3
1
1
1
1
3
1
2
3
1
6
2
3
1
1
1
2
2
3
1
1
1
1
3
1
2
3
1
6
2
1
10
11
11
2
2
2
9
1
10
1
1
1
3
22
1
7
4
3
1
1
1
2
4
1
2
SVC-Code
SA
E0001
E0002
Y0050
Y0053
Y0088
E0001
E0002
Y0050
Y0053
Y0088
8-5
8. ELECTRICAL PARTS LIST
Level
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
..2
...3
...3
0.1
..2
...3
....4
....4
....4
....4
....4
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
8-6
CODE NO.
DESCRIPTION
2802-001202
3002-001080
3501-001154
3501-001269
3501-001272
3601-001168
3711-000833
3711-004783
3711-004929
3711-005680
3711-005688
3711-005695
3711-005699
3711-005706
6001-000115
DC13-00071A
DC13-00160A
DC13-00161A
DC26-00023A
DC41-00046A
DC61-01164A
DC62-00208A
DC62-00232A
DE02-00036A
DE02-00060A
DE02-00083A
DE02-00086A
DE13-20016A
DE13-20017A
DE39-60001A
2401-000455
DC99-00739A
DC69-00966A
DC69-90008A
DC97-10567A
DC66-10003B
DC97-10417A
DC61-01530A
DC61-01531A
DC61-01558A
DC61-01168A
DC61-01169A
DC97-08632A
DC61-01403A
DC61-01404A
DC67-00170A
DC67-00170B
0103-002581
0103-002582
0402-000012
0402-000137
0402-001194
0403-000161
0501-000316
0604-000139
1203-000259
1203-002545
1404-000230
2001-000009
2001-000023
2001-000028
2001-000034
2001-000085
RESONATOR-CERAMIC
BUZZER-PIEZO
RELAY-MINIATURE
RELAY-POWER
RELAY-POWER
FUSE
HEADER-BOARD TO CABLE
HEADER-BOARD TO CABLE
HEADER-BOARD TO CABLE
CONNECTOR-HEADER
HEADER-BOARD TO CABLE
HEADER-BOARD TO CABLE
HEADER-BOARD TO CABLE
HEADER-BOARD TO CABLE
SCREW-MACHINE
PLD-MICOM
IC HYBRID
IC HYBRID-IPM
TRANS SWITCHING
PCB-MAIN
GUIDE-PCB
HEAT SINK
HEAT SINK
CHEMICALS-FLUX SOLDER
CHEMICALS-ALCOHOL
SOLDER-WIRE
SOLDER-WIRE FLUX
IC-VOLT REGU
IC-DRIVE
WIRE-SO COPPER
C-AL
ASSY-CUSHION BOTTOM
CUSHION-BOTTOM
TAPE-OPP
ASSY-COVER DRUM
WIRE-VINYL
ASSY-GUIDE WATER
GUIDE-WATER(U)
PLATE-SILVER
GUIDE-WATER(L)
HOUSING-DRAWER(M)
HOUSING-DRAWER(U)
ASSY-GUIDE WIRE
BRACKET-ABSORBER
SPRING-ABSORBER
WEIGHT-ABSORBER
WEIGHT-ABSORBER
RESIN-PUR
RESIN-PUR
DIODE-RECTIFIER
DIODE-RECTIFIER
DIODE-RECTIFIER
DIODE-ZENER
TR-SMALL SIGNAL
PHOTO-COUPLER
IC-POSI.FIXED REG.
IC-PWM CONTROLLER
THERMISTOR-PTC
R-CARBON
R-CARBON
R-CARBON(S)
R-CARBON
R-CARBON(S)
SPECIFICATION
16MHZ,±0.5%,TP,5.5X6.
85DB,12V,-,2.0KHZ,ST
12Vdc,200mW,3000mA,1Form
12VDC,-,25000MA,1FORMA,20MS,
12VDC,-,25000mA,1FormA,20mS,
250V,8A,FAST-ACTING,-,5.6x21mm
BOX,2P,1R,8MM,STRA
BOX,8P,2R,4.2mm,ST
BOX,3P,1R,10MM,STR
BOX,5P,1R,2.5mm,STRAIGH
BOX,13P,1R,2.5mm,S
BOX,9P,1R,2.5mm,ST
BOX,4P,1R,2.5mm,ST
BOX,5P,1R,2.5mm,ST
BH,+,M3,L10,ZPC(YEL),SWRCH
TMP88PS43F/OTP,QFP,80PIN
BP5049-15,IC HYBRID,7 PIN,-25
PS21963,-,25,-20~100,DIP,1
EE2229,MES-5HR123A-00,K1
FRONTIER,FR-4,NL 1,-,T1.6,D 19
GW-PJT,ABS(V0),-,-,-,NTR,STAND
MA8800AW,AL,T2,W30,L35,WHT,-,C
FRONTIER,-,-,W40,L115,BLK,-,-,
KS-77S,-,-,-,-,KOK
ALL,MODEL,-,-,-,-,-,S63S,D3.0,-,-,-,-,-,-,RS60S,-,D1.2,60SN/40PB,
KA7805A,TO-220AB,1A,0/125C,
KID65003AP,DIP,16P,STICK,TR-AR
,PI0.6,SN,T,52MM TAPING_W
10uF,20%,35V,GP,TP,4x7mm,5
WF316LAW,LOWES
WF-G126,PS-FOAM,-,-,-,-,-,-,-,-,W50,-,-,YEL/WHT,-,WF326LAW,FRONTIER
SEW-100JL,PVC,-,T2.0*L150,WF326LAW,FRONTIER
WF326LAW,ABS,-,-,-,-,20X8
WF326LAW,SIL,T0.8,W80,H20,S
WF-G126AW,ABS,-,-,-,-,20X
GW-PJT,PP(TB-53),-,-,GW-PJT,PP(TB-53),-,-,WINGS-PJT,SPONGE/HOLDER
GW27,SBHG1-A,T1.0,W170,
GW-PJT,SWC,CD2,ID16,OD20
GW-PJT,ZNDC,WEIGHT390G,GW-PJT,ZNDC,WEIGHT305G,CPU-55B/UEP 700FB,-,-,94V0
UEP 700FA/CPU-55A,-,-,94V0
UF4007,1KV,1A,DO-41,TP
1N4007,1KV,1A,DO-41,TP
SHG2D,200V,2A,-,TP
1N4751,28.5-31.5(5%),1000MW,
KSA928A-Y,PNP,1000mW,TOTR,130-260%,200mW,DIP-4,ST
7818,TO-220,3P,-,PLAS
266,DIP,8P,300MIL,PLAS
27ohm,20%,-,265V,1.5A,360
20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
47OHM,5%,1/4W,AA,TP,2.4X6.4MM
100OHM,5%,1/2W,AA,TP,2.4X6.4
220OHM,5%,1/4W,AA,TP,2.4X6.4MM
100KOHM,5%,1/2W,AA,TP,2.4X6.
QTY
SVC-Code
1
1
8
1
1
1
1
1
2
1
2
1
1
1
2
1
1
1
1
1
1
1
1
5
1
20
1
1
2
7
1
1
1
2
1
2
1
1
2
1
1
1
1
1
8
1
1
20
30
2
4
1
2
4
5
1
1
1
1
1
2
1
1
Y0115
Y0118
Y0116
Y0116
Y0117
C0010
Y0049
Y0090
Y0002
Y0044
Y0044
Y0057
Y0052
X0049
X0007
R0010
R0021
R0088
R0111
R0087
R0097
R0098
U0378
U0379
Y0055
Y0088
SA
8. ELECTRICAL PARTS LIST
Level
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
CODE NO.
2001-000429
2001-000734
2003-000616
2006-001083
2201-000153
2201-000879
2202-002037
2401-000455
2401-000598
2001-000429
2001-000734
2003-000616
2006-001083
2201-000153
2201-000879
2202-002037
2401-000455
2401-000598
2001-000429
2001-000734
2003-000616
2006-001083
2201-000153
2201-000879
2202-002037
2401-000455
2401-000598
2401-001573
2401-001778
2401-003505
3711-004929
3711-005695
DC26-00025A
DC27-00003A
DC41-00041A
DC61-01519A
DE02-00083A
DE02-00086A
DE13-20007A
DE13-20025A
DE39-60001A
DE70-00179A
0103-002581
0103-002582
0201-001354
2001-000734
2007-000033
2007-000293
2007-000872
2203-000206
2203-000260
2401-000455
3711-005706
DC32-00011A
DC41-00047A
DC61-01562A
DE02-00036A
DE02-00060A
DE02-00083A
DE02-00086A
DE13-20007A
DE39-60001A
DESCRIPTION
R-CARBON
R-CARBON
R-METAL OXIDE(S)
R-CEMENT
C-CERAMIC,DISC
C-CERAMIC,DISC
C-CERAMIC,MLC-AXIAL
C-AL
C-AL
R-CARBON
R-CARBON
R-METAL OXIDE(S)
R-CEMENT
C-CERAMIC,DISC
C-CERAMIC,DISC
C-CERAMIC,MLC-AXIAL
C-AL
C-AL
R-CARBON
R-CARBON
R-METAL OXIDE(S)
R-CEMENT
C-CERAMIC,DISC
C-CERAMIC,DISC
C-CERAMIC,MLC-AXIAL
C-AL
C-AL
C-AL
C-AL
C-AL
HEADER-BOARD TO CABLE
HEADER-BOARD TO CABLE
TRANS SWITCHING
COIL-INDUCTOR
PCB-MAIN
GUIDE-PCB(S)
SOLDER-WIRE
SOLDER-WIRE FLUX
IC-OP AMP
IC-LINEAR
WIRE-SO COPPER
PIN-EYELET
RESIN-PUR
RESIN-PUR
ADHESIVE-A.C.F
R-CARBON
R-CHIP
R-CHIP
R-CHIP
C-CER,CHIP
C-CER,CHIP
C-AL
HEADER-BOARD TO CABLE
SENSOR-MEMS
PCB-SUB
GUIDE-PCB(M)
CHEMICALS-FLUX SOLDER
CHEMICALS-ALCOHOL
SOLDER-WIRE
SOLDER-WIRE FLUX
IC-OP AMP
WIRE-SO COPPER
SPECIFICATION
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
27ohm,5%,2W,AA,TP,4x12m
120ohm,5%,5W,CJ,TP,14x10x27mm
10nF,+80-20%,250V,Y5V,-,1
2.2NF,10%,1KV,Y5P,BK,10X4
100nF,80-20%,50V,Y5V
10uF,20%,35V,GP,TP,4x7mm,5
1uF,20%,50V,GP,TP,4x7,5
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
27ohm,5%,2W,AA,TP,4x12m
120ohm,5%,5W,CJ,TP,14x10x27mm
10nF,+80-20%,250V,Y5V,-,1
2.2NF,10%,1KV,Y5P,BK,10X4
100nF,80-20%,50V,Y5V
10uF,20%,35V,GP,TP,4x7mm,5
1uF,20%,50V,GP,TP,4x7,5
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
27ohm,5%,2W,AA,TP,4x12m
120ohm,5%,5W,CJ,TP,14x10x27mm
10nF,+80-20%,250V,Y5V,-,1
2.2NF,10%,1KV,Y5P,BK,10X4
100nF,80-20%,50V,Y5V
10uF,20%,35V,GP,TP,4x7mm,5
1uF,20%,50V,GP,TP,4x7,5
47uF,20%,50V,GP,TP,6.3x11,2.5
470uF,20%,25V,GP,TP,10x16,5
10uF,20%,450V,GP,TP,10X20mm,5
BOX,3P,1R,10MM,STR
BOX,9P,1R,2.5mm,ST
EE1616-H,AG-KIT,-,80 ~ 1
ADR3102J,1000uH,5%,radial,
2ND AG-KIT/HI_ACTIVE,FR-1,1,-,
WF-G126AW,HIPS(V0),T2.8,-,S63S,D3.0,-,-,-,-,-,-,RS60S,-,D1.2,60SN/40PB,
KA2904,DIP,-,-,-,-,LM393/A,DIP,COMPARATOR,-,-,-,,PI0.6,SN,T,52MM TAPING_W
-,BRASS,-,-,-,-,ID1.5 OD2.8
CPU-55B/UEP 700FB,-,-,94V0
UEP 700FA/CPU-55A,-,-,94V0
IR-100 BOND-EPOXY
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
0ohm,5%,1/4W,TP,3216
100ohm,5%,1/4W,TP,3216
4.7Kohm,5%,1/8W,TP,2012
100nF,10%,50V,X7R,2012
10nF,10%,50V,X7R,2012
10uF,20%,35V,GP,TP,4x7mm,5
BOX,5P,1R,2.5mm,ST
LIS2L02AS4,MAH9600,-40 to 85
MFS-MEMS-00,FR-1,1,5,T1.6,-,-,
WF326LAW,PP,T2.8,-,-,NTR,ME
KS-77S,-,-,-,-,KOK
ALL,MODEL,-,-,-,-,-,S63S,D3.0,-,-,-,-,-,-,RS60S,-,D1.2,60SN/40PB,
KA2904,DIP,-,-,-,-,,PI0.6,SN,T,52MM TAPING_W
QTY
4
12
1
1
1
1
2
2
1
4
12
1
1
1
1
2
2
1
4
12
1
1
1
1
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
10
3
12
8
1
1
1
1
3
3
2
2
1
1
1
1
1
1
5
1
1
1
SVC-Code
SA
Y0090
Y0054
Y0003
8-7
8. ELECTRICAL PARTS LIST
Level
CODE NO.
DESCRIPTION
SPECIFICATION
QTY
SVC-Code
..2
...3
...3
...3
...3
....4
.....5
....4
....4
....4
.....5
.....5
.....5
...3
...3
...3
...3
....4
....4
.....5
.....5
..2
...3
...3
....4
....4
....4
.....5
....4
...3
...3
....4
....4
....4
....4
....4
0.1
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
0.1
..2
..2
..2
DC97-07130A
6011-001553
6601-001207
6601-001208
DC97-08649A
DC61-01174A
0103-002522
DC61-40348B
DC68-02060A
DC97-06991A
6601-001338
DC61-01178A
DC61-01196A
DC66-10003B
DC66-00386A
DC66-00387A
DC66-00388B
DC60-00037A
DC97-07098A
DC61-00841A
DC66-00384A
DC97-07131A
DC61-00118A
DC97-08633A
DC67-00194A
DC63-10056P
DC61-01173A
0103-002522
DC61-40348B
DC66-10003B
6502-000168
6011-001556
DC60-50010A
DC60-50010B
DC61-01498B
DC66-10001F
DC97-10569A
0203-001508
6801-001310
6902-000009
6902-000215
DC65-60115A
DC68-02173A
DC68-02217A
DC68-02219A
DC68-02291A
DC68-02294A
DC68-02295A
DC68-02296A
DC68-02297A
DC68-02298A
DC68-02299A
DC68-02300A
DC68-02301A
DC68-20091B
DC69-90009A
DC99-00646A
6902-000212
6902-000304
DC99-00693A
DC61-00118A
DC61-00133A
DC61-01256A
ASSY-TUB BACK
BOLT-ETC
BEARING-BALL
BEARING-BALL
ASSY-SEMI TUB BACK
TUB-BACK
RESIN-FRPP
BRACKET-NUT
LABEL-TUB
ASSY-HOUSING BEARING
BEARING-BALL
HOUSING-BEARING
BUSH-BEARING
WIRE-VINYL
DRUM-FRONT
DRUM-BACK
DRUM-WRAPPER
FLANGE-SHAFT
ASSY-SHAFT
BUSH-SHAFT
SHAFT
ASSY-TUB FRONT
CLAMPER HOSE
ASSY-HOSE PRESSURE
HOSE-PVC
SPONGE-CUSHION
TUB-FRONT
RESIN-FRPP
BRACKET-NUT
WIRE-VINYL
CABLE CLAMP
BOLT-HEX
NUT-DIAPHRAGM
NUT-DIAPHRAGM
BRACKET-WIRE
WIRE-DIAPHRAGM
ASSY-CASE
TAPE-OPP
CARD-REGISTRATION
BAG PE
BAG SHEET
BAND-PP
LABEL-PACKING
LABEL-WARNING
LABEL-WARNING
MANUAL-BOOK
LABEL-ENERGY
LABEL RATING
MANUAL-GUIDE
LABEL-CAUTION
LABEL-POWER CORD
LABEL-CLEARANCE
LABEL-WARNING
LABEL-HOSE
LABEL-BAR CODE
TAPE-SCOTCH PAR
ASSY-ACCESSORY
BAG PE
BAG PE
ASSY-PAINT
CLAMPER HOSE
CLAMPER HOSE
GUIDE-SPRING
GW-PJT,WASH-ONLY
M7.5,L30,ZPC3(WHT),SWRCH18A,HE
6307ZZ,ID35,OD80,L21,STS304
6306ZZ,ID30,OD72,L19,STS304
WINGS-PJT,SAMBAK
GW-PJT,FRPP(GF15%),PI 602,PI 6
SUPRAN 2315SDR,NTR,2315SDR,SBHG-R,P1291,T3,-,-,-,NO-PAI
W/M,-,YUPO,-,W60,L20,-,WHT,-,GW-PJT,6306/6307ZZ
6207ZZ,ID35,OD72,L17,STS304
GW-PJT,ALDC8,T5,W205,L11
GW-PJT,SMF-4030,SM15C,ID72,
SEW-100JL,PVC,-,T2.0*L150,GW-PJT,STS430 H/L NO4,-,ID561
GW-PJT,STS430 H/L NO4,ID561,OD
GW-PJT,STS430 H/L NO4,T0.6,
GW-PJT,ALDC,T3.5,-,-,-,NTR,
GW-PJT,DD-TYPE(3.3)
TS85-PJT,ALDC,-,-,-,-,GW-PJT,SM45C,L219.9,OD 35,NTE,
GW-PJT,3.3CuFt
P1291,LYLON6/6,ID27,OD30,-,
WINGS-PJT,PU/TUB-FR
MAH9700AWW,PVC,-,O26.4,T0.7,L6
SEW-3HR125,KIMOJI-PU-FOAM
GW-PJT,FRPP(GF15%),ID602,OD608
SUPRAN 2315SDR,NTR,2315SDR,SBHG-R,P1291,T3,-,-,-,NO-PAI
SEW-100JL,PVC,-,T2.0*L150,DA-6N,ID10.0,T1.0,NYLON6/6,N
M4,L60,ZPC3(WHT),SM10C,EGI,M4,-,-,2.5TX20X8
EGI,M4.2,-,-,2.5TX20X8
ALL MODEL,SCP,T0.5,-,L58.4,
WINGS-PJT,HSWR,-,OD2,L147
WF326LAW,FRONTIER
W50,,YEL
USA,XAA,ENGLISH,MOJOJI
HDPE,T0.03,L400,W240,TRP,8,2,P
NITRON/HDPE,T0.5/T0.012,W1000,
-,PP,T0.8,W17.5,-,WHT,W/M,-,ART,-,W90,L175,-,WHT
MAYTAG,-,ART+LAMI,-,W108,L
MAYTAG,-,ART+LAMI,-,W170,L
WF326,SEA,ENGLISH,U.S,100MOJ
WF326,SEA,ART,-,-,-,-,-,COV
WF326,SEA,YUPO,-,W25,L110,WF326,SEA,ENGLISH,U.S,100MO
WF326,SEA,ART+LAMI,-,-,-,WF326,SEA,ART+LAMI,-,W1
WF326,-,ART+LAMI,-,-,-,WF326,SEA,ART+LAMI,-,W230,
WF326,SEA,ART+LAMI,-,W285,L48
MOJO,W32,L125.5,-,FILAMENT-TAPE,-,W50,-,MAH9700AWW,WINGS-PJT
HDPE,T0.03,W350,L450,TRP,8,2
LDPE,T0.05,L230,W180,TRP,8,2,P
WF316LAW,NEAT-WHT
P1291,LYLON6/6,ID27,OD30,-,
P1291,PP(BJ-730),ID24.5,OD2
GW-PJT,POM,-,-,-,NTR,-
1
20
1
1
1
1
5,395.00
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
2,430.00
6
4
1
1
1
1
1
1
1
0.8
1
1
1
14.2
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
1
1
1
1
1
1
2
U0013
U0097
8-8
U0078
U0024
U0023
U0017
U0021
R0002
R0005
R0003
R0009
R0028
U0377
U0026
N0012
I0044
A0365
U0030
U0023
U0363
U0320
U0204
U0204
U0276
A0001
V0007
V0004
V0004
A0243
V0005
V0002
A0244
V0004
F0062
N0012
N0001
A0352
SA
8. ELECTRICAL PARTS LIST
Level
..2
...3
...3
...3
...3
...3
...3
....4
...3
...3
...3
....4
....4
...3
...3
...3
...3
...3
...3
CODE NO.
DC72-00013D
6002-001294
DC31-00054A
DC61-01254A
DC72-00034E
6041-001035
DC61-01180A
DC61-01405A
DC61-01182B
DC61-01183B
DC97-06994A
DC61-01181A
DC61-01552A
DC61-01290A
DC64-00970A
DC69-00920B
DC72-00013E
6021-001203
DC61-01432A
DESCRIPTION
SPONGE-HARNESS
SCREW-TAPPING
PUMP-DRAIN
CASE-PUMP
SPONGE-EPDM
RIVET-RH
FRAME
PLATE-STEEL
BRACKET-SPRING(L)
BRACKET-SPRING(R)
ASSY-PLATE BOTTOM
PLATE-BOTTOM
BRACKET-LEG
BUSH-HOSE(L)
SHUTTER-SUDS
PACKING-SUDS
SPONGE-HARNESS
NUT-HEXAGON FLANGE
LEG-RUBBER
SPECIFICATION
SEW-5G105A,PU-FOAM,-,T10,
BH,+,,M4,L16,ZPC(BLK)
-,120V,60Hz,40mm,80W/3600RPM
WINGS-PJT,PP(5113MF6),T3,W110,
MAH9700,EPDM,-,T1.0,W15,L100
K1661-0512,AL(A5052),OD3.9,L11
WINGS-PJT,PCM,-,-,WHT,T1.0,-,WINGS-PJT,SBHG1-A,T1.0,W961.
WINGS-PJT,SBHG1-A,T1.6
WINGS-PJT,SBHG1-A,T1.6
GW-PJT,SBHG1-A/T1.6
GW-PJT,SBHG1-A,T1.6,W682,L6
WINGS-PJT,SWRCH6A,T2.0,-,-,Y
WINGS-PJT,TPE(EPDM+PP),-,-,
GW-PJT,PP,T1.0,W63,L66,NTR,
GW-PJT,EPDM,PACKING,T6.0,W6
MAH9700AWW,PU-FOAM,-,T10,
1C,M10,ZPC(YEL),SCP-1
MAH9700AWW,BUTYL,-,GRY,-,WING
QTY
SVC-Code
4
3
1
1
1
4
1
1
1
1
1
1
4
1
1
1
1
1
1
W0059
Z0062
J0025
J0019
D0111
F0117
F0094
Y0159
F0079
U0364
F0066
X0014
B0075
I0024
SA
W0059
B0076
B0073
8-9
Memo
8-10
9. BLOCK DIAGRAM
9-1
Memo
9-2
10. WIRING DIAGRAM
10-1
Memo
10-2
11. PCB DIAGRAM
11-1 MAIN PCB LAYOUT
2
1
3
4
5
16
6
17
7
18
8
9
11
12
13
14
15
10
Item
Part Number
1
Display
2
Jog_Dial
3
Power_key
4
Key
5
CN1
6
RELAY1
7
RELAY2
Description
Displays or indicates operations or
functions
Starts/stops an operation to
select a
course
Turns the power on/off
Selects and processes each
function
Detects if the door is open or
closed
In case of Power_On/Off,
supplies or
disconnects AC power
Disconnects Power from the
Heater
Item
8
9
10
11
Part Number
CN3
RELAY3
CN4
RELAY4
12
CN6
13
14
CN7
구동부
Description
AC1과 GND를 연결함
Motor의 정/역 방향을 제어함
Motor의 동작 Wire를 연결함
고 RPM진행시 On/Off 제어함
Heat Sink의 온도Sensor를 연
결함
수위,온도Sensor를 연결함
냉/온/Pre/Drain 동작용 부품
Item
15
Part Number
Door System
16
CN10
17
CN8
18
CN9
Description
Parts for Door Lock/Unlock
Connects Motor Tacho Sensor
Connects the silver nano wire
Connects the driving system
wire
11-1
11-2 Connector & Relay Terminals Description (MAIN PCB)
RELAY1
CN8
A)Connects to AC2
B)Connects to AC2-1
COMMON
①Connects
②Connects
③Connects
⑤Connects
⑥Connects
RELAY2
to
to
to
to
to
SIG-A
SIG-B
IH
PWM
GROUND
A)Connects to the
HEATER
B)Connects to the
HEATER
CN1
CN10
A)Connects to the DOOR
LOCK Signal
B)Connects to the DOOR
LOCK Signal
A) Connects to the
TACHO SENSOR
B) Connects to the
TACHO SENSOR
CN3
②Connects to AC1
③Connects to GROUND
CN4
①Connects
③Connects
④Connects
⑤Connects
⑥Connects
11-2
to
to
to
to
to
the
the
the
the
the
MOTOR
MOTOR
MOTOR
MOTOR
MOTOR
STATOR
STATOR
STATOR
STATOR
STATOR
CN6
CN7
①Connects to the TEMP
SENSOR
④Connects to the TEMP
SENSOR
①Connects
②Connects
③Connects
④Connects
SENSOR
⑤Connects
SENSOR
CN9
to
to
to
to
GORUND
5V
5V
the WATER
to the TEMP
①Connects
②Connects
③Connects
④Connects
⑥Connects
to
to
to
to
to
the
the
the
the
the
DRAIN-MOTOR
COLD VALVE
PRE VALVE
HOT VALVE
ROLD DOOR S/W
11-3 Connector & Relay Terminals Description (AG-KIT PBA)
CN1
①Connects to AC1
③Connects to AC2
CN7
①Connects to GORUND
②Connects to IH
③Connects to PWM
④Connects to SIGNAL-B
⑤Connects to SIGNAL-A
⑧Connects to AG-B
⑨Connects to AG-A
11-3
Memo
11-4
12. SCHEMATIC DIAGRAMS
12-1. Main PCB
* This Document can not be used without Samsung’s authorization.
12-1
12-2. SUB PCB
* This Document can not be used without Samsung’s authorization.
12-2
12-3. MEMS PCB
* This Document can not be used without Samsung’s authorization.
12-3
12-4. AG PCB
* This Document can not be used without Samsung’s authorization.
12-4
13. CIRCUIT DESCRIPTIONS
13-1. OVERALL SYSTEM
13-1
13-2. AC Input & Power Circuit
▶ Function
Generates a required DC power of 12V or 5V in case of supplied or disconnected
AC power.
▶ Description
- When AC 220V is applied to CN3, D17 D20 transforms it to DC 300V.
- DC 300V is generated for the LVT1 secondary source by IC3 and PC1
turning on/off.
- The secondary 12V depends on the ZD1 value.
- The 12V for the LVT1 secondary source is transformed to DC 5V through IC4
13-2
13-3. Driving System Circuit
▶ Function
Controls each driving system (VALVE, DOOR S/W, DRAIN-MOTOR) by turning RELAY or
TRIAC on/off.
▶ Description
- MICOM outputs a high signal of 5V from pin # 1 - 7 of IC7 and IC9. - Then, pin # 10 to 16 of IC7 and IC9 are electrically grounded (0V).
- When pin # 10 to 16 are grounded, this creates an electric potential difference from
the 12V that turns on RELAY 5,6,7 and TRIAC2,3,4,5.
- The operating parts (VALVE, DRAIN-MOTOR, DOOR S/W) connected to CN9 turn on if
they are supplied with power.
13-3
13-4. Sensor Detection Circuit
▶ Function
Detects signals from the sensor and controls the current system.
▶ Description
-
The water level sensor is connected to pin 4 of CN7.
The frequency of the level sensor changes according to the water amount in the tub.
Then, the frequency is input to MICOM pin 48 for detecting the water amount.
The DHSEH sensor is connected to CN7 pin 5 and CN6 pins 3,4.
The resistance of the temp. sensor changes according to the ambient temperature.
The changed resistance is applied to R50 and R51.
- The voltage applied to R50 and R51 is decided according the temp. MICOM stores the value.
- When voltage is applied to MICOM pins 22 and 23, MICOM compares it to the predefined one before detecting the
current temp.
13-4
13-5. Silver Nano System
▶ Function
Applies the electric current to the silver plate during the water supply and uses the silver water to
perform the bacteria-free or sterilization processes.
▶ Description
- Selects the silver nano feature to operate the system.
- Supplies water to the two silver plates AG_B and AG_A. Then, SINAL_A and SIGNAL_B output a high signal of 5V.
- Both SIGNAL_A and SIGNAL_B repeat this for 15 seconds outputting a high signal of 5V.
SIGNAL_A output turns TR1 and TR6 on to generate a potential difference between the 12V and the grounding for
causing the current to flow. SIGNAL_B output turns TR4 and TR5 on to generate a potential difference between the 12V
and the grounding for causing the current to flow.
- The flowing current is transformed to a voltage by the resistance of R27.
- Then, the voltage is applied to IC1 pin 2 and used for detecting and controlling the flowing current.
13-5
Memo
13-6
A
- 4,5,6 : Better
- 7,8,9 : Best
(Washer Frontloading)
- 1,2,3 : Good
Feature Contents
Dealer
L (Lowe’s)
B (BBY)
C (Costco)
L
4 : 3.4 cu.ft.
Year
6
- A : Ag+
RPM
9 : 900
0 : 1000
1 : 1100
2 : 1200
2
3 : 3.3 cu.ft.
Capacity
3
WF
WF
Model Code (BOM)
Model Code (Dealer)
S
/
Color
W (White)
S (Silver)
C (Champagne)
B (Black)
Code
Service
1
Code For SEA
XAA
14. REFERENCE INFORMATION
14-1. MODEL NAME
14-1
14-2. TERMINOLOGY
1) ASSY-MAIN PCB (Imbalance Sensor)
→ To prevent the laundry from gathering on one side of the tube causing noise and vibration, the
washing machine uses an imbalance detection device that evenly disentangles the laundry
before the hydrating cycle starts.
2) DOOR-LOCK S/W
→ Prevents the door from being opened while a cycle is in progress. For safety purposes, it
keeps the door locked even in pause mode or after the washing cycle unless the water level
frequency is greater than 24.8Khz (anti-overflow level) or the inside-tube temperature is less
than 65℃ in the hydrating cycle, and 55℃ in the washing cycle.
3) SENSOR-PRESSURE (Anti Over-Flow)
→ When the water supplied is more than 2/3 of the tube capacity due to a malfunction of the
water supply valve, this device automatically starts water-draining and displays “OVERFLOW ERROR(E3)” on the LED.
4) THERMISTOR
→ Keeps sensoring and controlling the temperature inside the tube to keep it below your settings.
5) ASSY-THERMAL FUSE (Anti Over-Heat)
→ When the washing heater is overheated due to an error in the thermistor or any other
malfunction, the assy-thermal fuse (built in the heater) is automatically activated to discon
nect the power for your and the product’s safety.
6) ASSY-MAIN PCB (Sensitive Laundry Protection)
→ To avoid any damage to sensitive laundry, the tube temperature is detected and
“ERROR(E8)” is displayed on the LED for Wool or Lingerie courses when the temperature is
over 50℃.
7) THERMOSTAT (Anti Over-Heat)
→ When the heater (drier) overheats from an error in the thermistor or any other malfunction, the
thermostat (installed on the drying duct) is automatically activated to disconnect the power for
your or product’s safety
8) CHILD LOCK
→ Prevents children from playing with the washing machine.
9) PRE-WASH
→ The machine does a preliminary wash of about 10 minutes prior to the main wash. This is
particularly effective for cleaning badly stained laundry.
14-2
14-3. FABRIC CARE CHART
The following symbols provide garment care directions without words.
The care label will include, in order, four symbols: washing, bleaching, drying and ironing, or dry cleaning when necessary.
The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label
directions to maximize garment life and reduce laundering problems.
Wash Cycle
Special Instructions
Warning symbols for laundering
Normal
Line Dry/ Hang to Dry
Do Not Wash
Permanent Press/Wrinkle Resistant/
Wrinkle Control
Drip Dry
Do Not Wring
Gentle/Delicates
Dry Flat
Do Not Bleach
Hand Wash
Heat Setting
Do Not
Tumble Dry
High
No Steam (added to iron)
Hot
Medium
Do Not Iron
Warm
Low
Cold
Any Heat
Water Temperature**
Bleach
No Heat/Air
Any Bleach
(when needed)
Iron-Dry or Steam Temperatures
Only Non-Chlorine
(color-safe)
Bleach (when needed)
Tumble Dry Cycle
Normal
Permanent Press/ Wrinkle Resistant/
Wrinkle Control
Gentle/ Delicates
Line Dry/ Hang to Dry
High
Drip Dry
Medium
Dry Flat
Low
Dryclean
Dry clean
Do Not Dry clean
**The dot symbols represent appropriate wash water temperatures for various items. The temperature range for Hot is 105°
- 125° F/ 41° - 52°C, for Warm 85° - 105° F/29° - 41° C and for Cold 60° - 85° F/16° - 29° C.
(Wash water temperature must be a minimum of 60° F/16°C for detergent activation and effective cleaning.)
The clothes Washer may not ensure these temperatures because the actual water temperatures entering your Washer are
dependent on water heater settings and regional water supply temperatures. For example, cold water entering the home in the
northern states during winter may be 40° F/4° C which is too cold for effective cleaning. The water temperature in this situation
will need to be adjusted by selecting a warm setting, adding some hot water to the MAX FILL line or using your Washer’s
heating option, if available.
14-3
14-4. ELECTRICAL WARNINGS
To reduce the risk of fire, electrical shock, and other injuries, keep these safety precautions in mind:
-
Operate the appliance only from the type of power source indicated on the marking label.
If you are not sure of the type of power supplied to your home, consult your appliance dealer or local power
company.
-
Use only a grounded or polarized outlet. For your safety, this appliance is equipped with a polarized alter
nating current line plug having one blade wider than the other.
This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet,
try reversing the plug. If the plug still doesn’t fit, contact your electrician to replace your outlet.
-
Protect the power cord. Power supply cords should be routed so that they are unlikely to be walked on or
pinched by items placed on or against them. Pay particular attention to cords at plugs, convenience re
ceptacles, and the point where they exit from the unit.
-
Do not overload the wall outlet or extension cords. Overloading can result in fire or electric shock.
14-5. Models
Dealer
Models
Remark
WF326LAS
2(1200rpm), 6(‘06), L(Lowe’s), A(Ag+), S(Silver)
WF326LAW
2(1200rpm), 6(‘06), L(Lowe’s), A(Ag+), W(white)
WF316LAW
1(1100rpm), 6(‘06), L(Lowe’s), A(Ag+), W(white)
WF306LAW
0(1000rpm), 6(‘06), L(Lowe’s), A(Ag+), W(white)
WF316BAC
1(1100rpm), 6(‘06), B(BBY), A(Ag+), C(Champagne)
WF316BAW
1(1100rpm), 6(‘06), B(BBY), A(Ag+), W(white)
WF306BAW
0(1000rpm), 6(‘06), B(BBY), A(Ag+), W(white)
WF306BHW
0(1000rpm), 6(‘06), B(BBY), H(Ag+,Heater), W(white)
WF316CAW
1(1100rpm), 6(‘06), C(costco), A(Ag+), W(white)
WF306C1W
0(1000rpm), 6(‘06), C(costco), 1(grade), W(white)
Lowe’s
BBY
Costco
14-4
14-5. Q & A
NO.
Question
Answer
1
How long does it take for the door to unlock?
It takes approximately 2-3 seconds for the door to unlock.
2
When “End” is displayed, the Power button should be pressed or door
The cycle is complete and “End” is displayed. should be opened before selecting another cycle. The display will show
“End” until washer is turned off. To turn off washer, the Power button
How do I set another cycle?
should be pressed or the door should be opened
3
What should I do when Information Code
(“dc”) lights up?
When the Information Code is displayed, press the Start/Pause dial
and then restart the cycle. For more information, refer to the Owner’s
Manual
4
There is a small amount of water left in
Detergent Drawer after the load is complete.
Is this normal?
It is normal for a small amount of water remaining in Detergent Drawer
after it completes washing. Bleach is usually flushed out into the tub at
the beginning of the washing. Also, its compartment is washed again
during the following rinse cycle, removing any remnants.
5
Power button may have been accidentally bumped or pushed. Reset
When I went back to my washer, it was turned
the cycle and start the washer. Make sure the unit is plugged into a live
off. What happened?
electrical outlet. Check house fuse or circuit breaker.
6
The washer door gets locked after a power
failure. How can I open it?
If the power fails while the door is locked, the door will remain locked
until the power comes back on. If the power comes back on while the
door is still locked, the cycle will resume where it left off. If the door is
unlocked, “PF” will display and the washer will pause. Press Power Off
and restart the cycle.
7
The water must be drained from the tub for the door to be opened. Set
The washer door does not unlock when there
the rotary dial to Spin Only and press the Start/Pause dial. The door will
is water in the tub. How can I open it?
open 2-3 seconds after the Spin or Drain cycle is completed.
14-5
Memo
14-6
Be Aware, Be Alert
Always work safely.
On the Job, On the Road, In the Home
Every Time, All the Time
