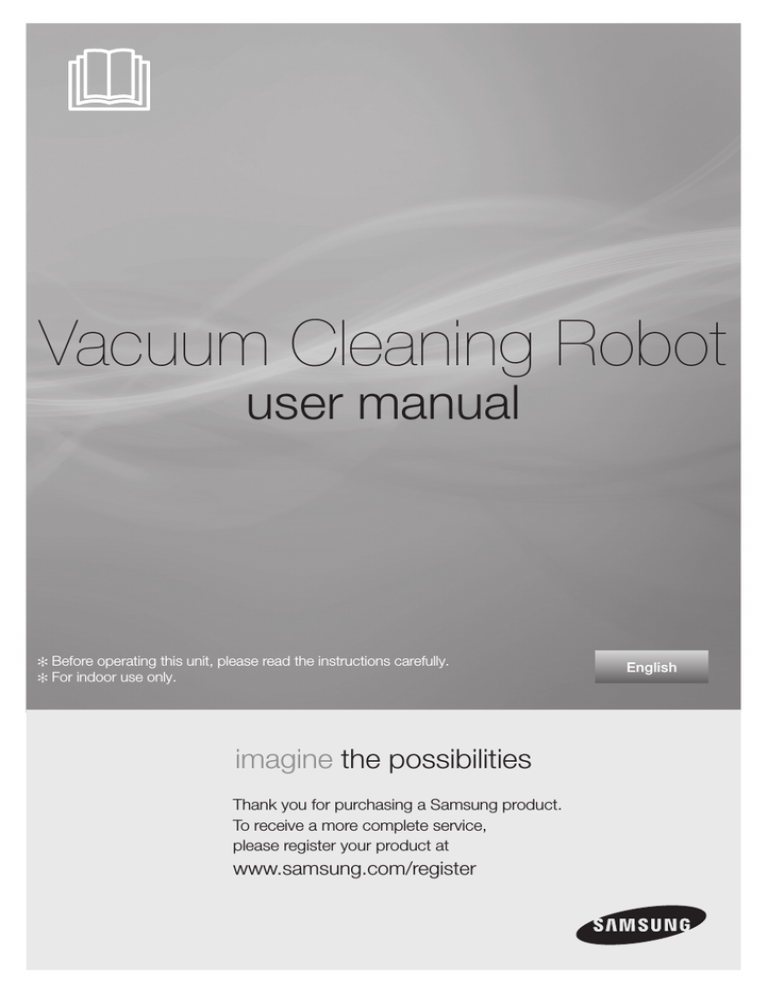

Samsung SR10F71U series User manual

Vacuum Cleaning Robot
user manual
✻ Before operating this unit, please read the instructions carefully.
✻ For indoor use only.
imagine the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/register
English
safety information
SAFETY INFORMATION
• Before operating the appliance, please read this manual thoroughly and retain it for your
reference.
• Because these following operating instructions cover various models, the characteristics of your
WARNING
vacuum cleaner may differ slightly from those described in this manual.
WARNING
CAUTION/WARNING SYMBOLS USED
WARNING
CAUTION
Indicates that a danger of death or serious injury exists.
Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
NOTE
02_ safety information
Indicates that a risk of personal injury or material damage exists.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should be
observed, including the following:
READ ALL INSTRUCTIONS BEFORE USING YOUR VACUUM
CLEANING ROBOT.
Unplug from outlet when not in use and before conducting
maintenance.
WARNING: to reduce the risk of fire, electric shock, or injury:
GENERAL
•Use only as described in this manual.
•Do not operate the vacuum cleaning robot or charger if it has
been damaged in any way.
•If the cleaner is not working as it should, has been dropped,
damaged, left outdoors, or dropped in water, return it to a
customer care center.
•Do not handle the charger or vacuum cleaning robot with wet
hands.
•Use only on dry, indoor surfaces.
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
•Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
BATTERY CHARGER
•Do not modify the polarized plug to fit a non-polarized outlet or
extension cord.
•Do not use outdoors or on wet surfaces.
•Unplug the charger from the outlet when not in use and before
servicing.
•Use only the charger supplied by the manufacturer to recharge.
•Do not use with a damaged cord or plug.
safety information _03
safety information
•Do not pull or carry by the cord, use the cord as a handle, close
the door on the cord, or pull the cord around sharp edges or
corners. Keep the cord away from heated surfaces.
•Do not use extension cords or outlets with inadequate current
carrying capacity.
•Do not unplug by pulling on the cord. To unplug, grasp the plug,
not the cord.
•Do not mutilate or incinerate batteries as they will explode at
high temperatures.
•Do not attempt to open the charger. Repairs should only be
carried out by a qualified customer care centre.
•Do not expose the charger to high temperatures or allow
moisture or humidity of any kind to come into contact with the
charger.
VACUUM CLEANING ROBOT
•Do not pick up hard or sharp objects such as glass, nails,
screws, coins, and etc.
•Do not use without a filter in place. When servicing the unit,
never put fingers or other objects into the fan chamber in case
the unit accidentally turns on.
•Do not put any objects into openings. Do not use with any
openings blocked; keep openings free of dust, lint, hair, and
anything that may reduce air flow.
•Do not pick up toxic materials (chlorine bleach, ammonia, drain
cleaner, etc.).
•Do not pick up anything that is burning or smoke, such as
cigarettes, matches, or hot ashes.
•Do not use to pick up flammable or combustible liquids such as
gasoline, nor use on areas where they may be present.
•Do not use vacuum cleaning robot in an enclosed space filled
with vapours given off by oil based paint, paint thinner, moth
proofing substances, flammable dust, or other explosive or
toxic vapours.
•Leaks from battery cells can occur under extreme usage
or temperature conditions. If the liquid gets on skin, wash
quickly with water. If the liquid gets into the eyes, flush them
immediately with clean water for a minimum of 10 minutes.
Seek medical attention.
04_ safety information
contents
SAFETY INFORMATION
02
06
07
10
11
Power Related
Before Use
In Use
Cleaning and Maintenance
PRODUCT FEATURES
13
ASSEMBLING THE CLEANER
15
OPERATING THE CLEANER
20
MAINTAIN TOOLS AND FILTERS
37
TROUBLESHOOTING
43
15Components
16 Name of each part
20 Installing the vacuum cleaning robot
20 Installation order
20 Turning the Power Switch on or off
21 Installing the charger
22Charging
23 About the Battery
23 Battery check code and countermeasure
24 Setting the Time
25 Installing the VIRTUAL GUARD
27 Using the vacuum cleaning robot
27 Starting/Stopping Cleaning
28Recharging
29 Auto Cleaning
30 Spot Cleaning
31 Max Cleaning
32 Manual Cleaning
33 Timer Reservation
34 Weekly Reservation
36 Additional Functions
36 Using additional functions
37 Cleaning the vacuum cleaning robot
37 Please keep the cleaning and maintenance
methods in mind
37 Cleaning the Sensor Window and the Camera
38 Cleaning the Dust Bin and the Filters
39 Cleaning the vacuum cleaning robot
39 Cleaning the Power Brush
41 Cleaning the Edge-Cleaning Side rotating Brush
42 Cleaning the Driving Wheel
43 Checklist before SVC Calls
45 Troubleshooting for Error Codes
PRODUCT SPECIFICATION
46
contents _05
safety information
POWER RELATED
WARNING
WARNING
Do not bend the power cord forcefully or place a heavy object
on it that could break it.
-- This may result in fire or electric shock.
Make sure to remove any dust or water from the power plug.
-- Failing to do so may result in a malfunction or electric shock.
WARNING
Do not pull the power plug by the cord or touch the plug with
wet hands.
-- This may result in fire or electric shock.
WARNING
Do not use multiple plugs in a single socket.
(Do not leave the cord lying exposed on the floor.)
-- This may result in fire or electric shock.
WARNING
Do not use a damaged power cord, plug, or a loose power
outlet.
-- This may result in fire or electric shock.
06_ safety information
BEFORE USE
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
01safety information
CAUTION
Before activating the vacuum cleaning robot, make sure that
the dust bin is assembled.
-- If the dust bin is not inserted, vacuum cleaning robot will not
operate.
Never use vacuum cleaning robot in locations with combustible
material such as.
-- Locations with candles or desk lamps on the floor.
-- Locations with unattended fires (fire or embers).
-- Locations with gasoline, distilled alcohol, thinner, ashtrays with
burning cigarettes, etc.
Vacuum cleaning robot is for domestic use only. Do not use it in the following
locations.
-- Attics, basements, warehouses, industrial buildings, separate rooms distant from the
main building, locations exposed to wet or damp conditions such as bathrooms or wash
rooms, and narrow and highly situated locations such as tables or shelves. Critical damage
(abnormal operation and breakage) may occur when used in these locations.
Open all doors to clean all rooms.
-- When a door is closed, the vacuum cleaning robot will not be able to enter that room.
-- However, make sure to close the doors to the main entrance, the veranda and the
bathroom, and any other rooms where the vacuum cleaning robot may fall to a lower floor.
Do not use the cleaner on a black floor.
-- The vacuum cleaning robot may not run normally in this case.
For carpets with long tassels, fold the tassels under the carpet.
-- Unfolded tassels may result in critical damage to the carpet and
the machine itself, as they get caught in the driving wheel or the
power brush.
When the cliff sensor is polluted, the vacuum cleaning robot
may be in danger of falling down the stairs.
This may cause personal injury and critical damage to the
product.
To prevent risk, install the VIRTUAL GUARDs (Fence Mode
setting) in front of dagerous areas. Clean the sensor window
and camera.
safety information _07
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
Remove small objects or brittle items from the area to be
cleaned in advance.
-- Make sure to clear any objects before cleaning.
-- Make sure to remove fragile items such as china, glass objects,
flowerpots, etc.
-- Vacuum cleaning robot does not recognize coins, rings or other
valuable items such as jewelry.
Remove objects scattered on the floor before cleaning.
-- Vacuum cleaning robot is designed to detect obstacles 5cm away
from it.
-- Bath towels, pads in front of bathrooms and sinks, entrances,
utility rooms, power cords, table cloths or belts can become
entangled in the driving wheel or power brush. This can cause
objects to fall from the table.
Inform all family members (or relevant parties) to be cautious
before cleaning or when using the Scheduled Cleaning Mode.
-- Vacuum cleaning robot may run into children, causing them to fall.
Ensure that children do not step or sit on the vacuum cleaning
robot.
-- Children may fall and injure themselves or critical damage may
occur to the product.
When a child or pet is left alone, make sure to turn off the
Power Switch of the vacuum cleaning robot.
-- Vacuum cleaning robot may attract their attention.
-- When the rotating wheel or brush catches fingers, feet, clothing or
hair, this may result in injury.
-- If a child or pet is in the way of the vacuum cleaning robot, it may
be identified as an obstacle and the area may not cleaned.
-- When the Power Switch is turned off, it will cut off the power
supply and deactivate all functions.
When installing the charger station, do not leave the power
cord exposed on the floor.
-- When the vacuum cleaning robot automatically recharges or
passes by the charger station, it may drag the power cord around
with it.
Always keep the power cord of the charger plugged into the
outlet.
-- Although the vacuum cleaning robot has a self-charging function,
if the power cord of the charger station is unplugged, it cannot
charge its battery automatically.
08_ safety information
CAUTION
WARNING
Objects in front of the charger will prevent the vacuum
cleaning robot from auto-charging itself.
-- Clear the area.
m
t 0.5
abou
m
ut 0.5
abo
ab
ou
There should be no obstacles and cliffs 0.5m to the left and
right and within 1m of the front.
t1
m
abou
ab
ou
WARNING
Do not short-circuit the charge pins with metal objects such
as chopsticks, screwdrivers, and etc.
-- This will result in critical damage to the charger.
WARNING
Make sure that there is no trace of liquids on the charger
station.
-- Failing to do so may result in fire or electric shock.
WARNING
WARNING
WARNING
m
t 0.5
m
t 0.5
abou
t1
m
Make sure the vacuum cleaning robot does not vacuum or
move over liquids such as water, oil or pet litter.
-- This may result in critical damage to the product.
-- Liquids may spread through the wheels resulting in contamination.
Do not use the charger for other purposes.
-- This may result in critical damage to the charger or cause a fire.
Do not install the charger station on a dark floor.
-- If the floor where the charger station is installed is dark, it is hard for the vacuum cleaning
robot to return to it.
safety information _09
01safety information
CAUTION
Install the charger in a location that can be easily accessed by
the vacuum cleaning robot.
-- If the charger is installed in a corner, this may cause extra
movements and may disturb the automatic recharging process.
IN USE
CAUTION
You cannot use the vacuum cleaning robot on thick carpets.
-- This may result in problems with the vacuum cleaning robot.
-- This may result in damage to carpets.
CAUTION
Do not use the vacuum cleaning robot on a table or other high
locations.
-- This may result in damage when the unit accidentally drops.
CAUTION
CAUTION
CAUTION
WARNING
Vacuum cleaning robot may bump into furniture such as chair
legs, table legs, thin and long furniture, etc. while operating.
-- For a quicker and cleaner performance, place the chairs on top of
the table.
Do not place any objects on top of the vacuum cleaning robot.
-- This may result in malfunction.
Immediately remove any large pieces of paper or plastic bags
from the machine while cleaning.
-- Using the machine for an extended period of time with its inlet port
obstructed may result in critical damage to the product.
If an unusual sound, smell or smoke is emitted from the
vacuum cleaning robot, immediately turn off the Power Switch
and call the customer care center.
10_ safety information
CAUTION
NOTE
NOTE
01safety information
NOTE
Do not move the robotic vacuum cleaner holding the dustbin
part.
-- This may cause the dustbin to separate, resulting in injury or
serious damage to the product.
Vacuum cleaning robot may not be able to continue its
operation if it is stuck at the entrance or veranda doorsill.
-- To resume operating, turn the Power Switch off and then on again
after moving it to a location where it can continue cleaning.
Vacuum cleaning robot cannot completely clean locations that
it cannot reach, such as corners, and spaces between sofas
and walls.
-- Please clean these locations occasionally.
Dust clusters may remain after cleaning, when the vacuum cleaning robot fails to
pick up dust clusters that were formed while cleaning.
-- In this case, sweep up the dust with another cleaning tool.
CLEANING AND MAINTENANCE
CAUTION
CAUTION
WARNING
When cleaning the product, do not spray water directly onto
the exterior or wipe it with a volatile material such as benzene,
thinner or alcohol.
-- This may result in critical damage to the product.
The unit must not be disassembled or reconstructed by anyone
other than a qualified service engineer.
-- This may result in damage to the product.
Remove any foreign substances accumulated on the Obstacle
and Cliff sensors on a regular basis.
-- Dirt accumulated on the sensors will result in inaccurate
functioning of the sensors.
Cliff sensor
Obstacle sensor
safety information _11
WARNING
When removing foreign substances, always use the cleaning
brush after turning the Power Switch off.
-- Failing to do so may result in sudden operation of the unit and
cause an injury or critical damage to the product.
Edge-cleaning side
brush
Power brush
WARNING
WARNING
WARNING
If the power cord is damaged, have it replaced by a qualified
service engineer from the customer care center.
-- Failing to do so may result in fire or electric shock.
Before cleaning the charger, make sure to disconnect the
power cord for safety.
Contact the Samsung Electronics customer care center to
replace the battery.
-- Failing to use original batteries will result in product failure.
12_ safety information
product features
CONVENIENT VIRTUAL GUARD FUNCTION
You can confine the vacuum cleaning robot to a particular section by using the Fence (virtual wall)
mode.
• What is ceiling shape recognition (Visionary
mapping plus™)?
This function recognizes the shape of the ceiling
using the camera on top to identify the area to be
cleaned and determines the best way to pass over
and clean every section of the floor.
DELICATE CLEANING OF EVERY CORNER
Since the vacuum cleaning robot cleans the floor in a sequential way ( ) along the map
determined by the ceiling shape recognition function, it cleans every corner of the floor.
VARIOUS CLEANING MODES
Various cleaning modes are provided to meet all your needs.
2
5
6
About 1.5m
3
4
7
8
About 1.5m
1
Tu
d
Mon e We
Thu
S
Fri at
Sun
~
1. Auto Mode : Cleans all rooms automatically.
2. Spot Mode : Cleans a localized area intensely. It can be used to clean bread or cookie
crumbs.
3. Max Mode : Runs until the battery is nearly depleted.
4. Manual Mode : You can clean the floor manually by moving the cleaning robot.
5. Turbo Mode : Since the power brush rotates at maximum speed in this mode, the product will
clean more effectively.(You can switch the mode with the remote control.)
6. Dust Sensor Mode : When dust enters the vacuum cleaner, the vacuum cleanin robot starts
to clean its surroundings intensively. (You can operate this with the remote control.)
7. Timer Mode : At the specified time, the cleaning robot cleans the floor.
8. Weekly Schedule Mode : A scheduled cleaning operation starts from the set time of a
particular day of the week.
product features _13
AUTO CHARGING
When the battery is low, the vacuum cleaning robot is
automatically guided to the charger to enable it to perform a
quick auto charge.
EDGE-CLEANING SIDE ROTATING BRUSH
The edge-cleaning side rotating brush cleans dust from the
edges.
DOORSILL CROSSING
About 1cm
Stair type
Vertical type
The vacuum cleaning robot innovative driving system makes
it possible for it to cross over doorsills with a height of about
1cm and clean all rooms. The vacuum cleaning robot may not
be able to pass a 1cm doorsill depending on the shape of the
doorsill.
AVOIDING OBSTACLES
When the vacuum cleaning robot encounters an obstacle while
cleaning, the obstacle sensor allows the cleaner to avoid it and
continue cleaning. (It may happen that the cleaner touches thin
or fine obstacles.)
ANTI-FALLING
The 3 Cliff sensors detect downward steps such as stairs or
the front door threshold to prevent vacuum cleaning robot from
falling down stairs.
SAFETY DEVICE
stop
When the vacuum cleaning robot is lifted up while cleaning,
the driving wheels, power brush, suction motor, and side
rotating brush are stopped autonati(all) by sensor.
DYNAMIC SIDE BRUSH
When the cleaning robot detects an obstacle, the Dynamic
Side Brushes operate. (For a better cleaning result, if a far-away
obstacle is detected, the Dynamic Side Brush on the side of
the detected obstacle starts to operate first and then as the
cleaning robot turns, the Dynamic Side Brush on the other side
starts to operate.)
14_ product features
assembling the cleaner
COMPONENTS
02assembling
■■ Main Body
■■ Remote Control
■■ Charger (Station)
■■ Others Components
(AAA-Type Batteries)
User Manual
(CD-ROM) /
2 Battery
VIRTUAL GUARD
Spare Filter
Cleaning Brush
Quick Start Guide
assembling _15
NAME OF EACH PART
■■ Main unit
Dustbin Eject Button
Display panel
Virtual Guard Sensor
Camera
Remote Control Sensor
Obstacle Sensor
Obstacle Sensor
Bumper Sensor
Front
Dustbin Eject Button
Dust bin
Remote Control Sensor
Side
Cliff Sensor
Driving Wheel
Dynamic Side Brush
Power Switch
Charge Pin
Power Brush
Roller
Power Brush Cover
Cliff Sensor
Battery Cover
Charge Pin
Dynamic Side Brush
Driving Wheel
Cliff Sensor
Bottom
16_ assembling
■■ Charger (Station)
Charging lamp (Green)
02assembling
Power lamp
(Red)
Cord winder
Charging
terminals
Front
Back
■■ VIRTUAL GUARD
Power Button
Lamp
Main Body Detection Sensor
Distance Detection Sensor
■■ Installing the batteries
Batteries are not supplied with the product. You have to purchase the batteries separately. Install
the alkaline batteries (type D) before use.
1
Lift the cover of the VIRTUAL
GUARD while pressing the
locking tab.
2
3
Install the batteries into the
VIRTUAL GUARD as shown
by the figure below. (If the
batteries are installed with
the incorrect polarity, the
VIRTUAL GUARD will not
work.)
After inserting the tip of the
cover into the slot, push the
other end to close it until it
clicks into place.
❈❈ Specification: Alkaline Type D (LR20) batteries
assembling _17
■■ Remote Control
Power
Recharging
Auto
Max
Directional
Buttons
Spot
(moving backwards is
not supported.)
Start/Stop
Manual
Dust Sensor
Turbo
Sound
Clock
Timer/Weekly
■■ Installing the Remote Control Batteries
Batteries are not installed in the remote control when purchasing the product.
Install the batteries (type AAA) before use.
1
Lift the battery compartment
cover at the back of the
remote control, while
pressing the locking tab.
2
3
Install the batteries into the
remote control as shown
by the figure below. (If the
batteries are installed with
the wrong polarity, the
remote control will not work.)
After inserting the tip of the
cover into the slot, push the
other end to close it until it
clicks into place.
❈❈ Specification: AAA type batteries
18_ assembling
■■ Display panel
2
3
4
5
6
1
7
8
B
9
02assembling
A
C
10
DISPLAY PART
1.
-2.
-3.
--4.
-5.
-6.
-7.
--
Number Display
Shows the timer display, progress status, and error codes using numbers, letters and graphics.
Weekly Reservation
When you set a weekly reservation to start cleaning from the specified time on the specified day
of the week, the icon for the selected day of the week is turned on.
Battery Level Indicator
Charging : Shows the charging progress in 3 steps.
In Use : Shows the battery charge level. The battery charge level is reduced by each level from
FULL while operating. (When the battery is fully discharged, one level will flash to display “Lo”.)
Timer
When cleaning is scheduled, the Timer icon is lit.
Dust Sensor Mode
This icon turns on when Dust Sensor mode is enabled.
Turbo Mode
This icon turns on when Turbo mode is enabled.
Cleaning Mode Display
Each time the Cleaning Mode button is pressed, the corresponding cleaning mode is displayed.
(A)Auto Mode : This icon turns on when Auto cleaning mode is selected.
(B)Spot Mode : This icon turns on when Spot cleaning mode is selected.
(C)Max Mode : This icon turns on when Max cleaning mode is selected.
BUTTON PART
8. Cleaning Mode
-- Press to select a cleaning mode. After selecting a cleaning mode, press the
button to start
cleaning.
9. Start/Stop
-- Press to start/stop cleaning.
10. Recharging
-- When this button is pressed, The cleaning robot will return to the charger station to charge its
battery.
assembling _19
operating the cleaner
INSTALLING THE VACUUM CLEANING ROBOT
Installation order
1. Turning the Power Switch on or off
To use the vacuum cleaning robot, you must turn on the Power Switch
at the bottom of the main unit.
2. Installing the Charger
To charge the vacuum cleaning robot, you must first install the charger.
Since the battery is discharged when the product is purchased, you
must fully charge the battery before use.
3. Charging the Battery
You should charge the battery completely before using the vacuum
cleaning robot.
4. Setting the Time
You should set the time to use the scheduled and daily cleaning options.
5. Installing the VIRTUAL GUARD
You can confine the vacuum cleaning robot to a particular section by using Fence (virtual wall)
mode.
Turning the Power Switch on or off
To use the vacuum cleaning robot, you must turn the Power Switch
on.
If you turn off the Power switch, all settings except for the current
time and the Weekly reservations are reset.
❈❈ If no key is pressed for approximately 1 minute after turning the
power on, the power is automatically cut to prevent the battery
discharging.
To turn the power on again, press and hold the power (
)
button on the main body.
1. Lift the body and turn on the power switch while making
sure not to press any other button.
-- If the icons are not turned on, it indicates that the battery charge
is depleted. In this case, dock the vacuum cleaning robot to the
charger station after turning the Power Switch on.
-- The configured time may be different from the current time. If the
configure time is incorrect, set the time to the current time.
CAUTION
If the Power Switch is turned off, the vacuum cleaning robot will
not be charged even if it is docked with the charger station.
20_ operating
Installing the charger
Power lamp
Charging lamp
03operating
1. Install the charger on a flat surface.
2. There should be no obstacles and cliffs 0.5m to the left and
right and within 1 m of the front.
m
t 0.5
t
abou
0.5m
abou
ab
ou
t1
m
3. Install the charger in a location where it can be easily accessed by
the vacuum cleaning robot.
4. Arrange the power cord along the wall.
5. When the floor is made of wood, install the charger in the same
direction as the grain of the wood.
NOTE
Always keep the power cord of the charger plugged
into the power outlet.
-- If no power is supplied to the charger, the vacuum
cleaning robot will not be able to find the charger and will
not be able to charge automatically.
-- If the vacuum cleaning robot is separated from the
charger, the battery is automatically discharged.
operating _21
Charging
When the product is initially purchased, the battery is fully
discharged, and you must charge the vacuum cleaning robot
manually.
Power lamp
Charging lamp
Turn on the Power Switch at the bottom of the product.
1. After aligning the charge pins of the main unit with
the charge pin of the charger station, press the main
unit until you hear a Recharging power sound from
the charger.
-- The Charging Lamp turns green.
Power lamp
2. Check the charge status of the vacuum cleaning robot.
-- When charging starts, “the amount of remaining battery power”
and “
” are displayed on the status display panel in this
sequence.
-- When charging is complete, the battery level indicator and
“FULL” will be displayed in the display panel.
Flash
Flash
22_ operating
■■ When the battery level display flashes while cleaning,
the vacuum cleaning robot stops vacuuming and
automatically charges itself at the charger.
■■ If the vacuum cleaning robot starts the current cleaning
run at a location other than the charging station and fails
to locate the charging station while cleaning, it will stop
near the location where it started cleaning.
■■ When the battery level flashes and “Lo” is displayed while
cleaning, vacuum cleaning robot cannot be operated by
the remote control or the buttons on the main unit. In
this case, directly carry the vacuum cleaning robot to the
charger to charge the battery. (This is when the battery is
completely discharged.)
Charging lamp
Charging
Fully charged
<Charge display>
Charge
Charging Required
complete
charging
NOTE
About the Battery
■■ The vacuum cleaning robot is powered by an environment-friendly Lithuim-ion (Li-ion)
rechargeable battery, and an over-charge prevention function guarantees an extended life time.
■■ The battery warranty period is 6 months from the date of
purchase.
■■ When purchasing a battery, ask the customer care center for the
genuine part symbol (
) and model number before purchasing it.
-- This battery is only for Samsung vacuum cleaning robot. It is strictly prohibited to use it for other
appliances or for other purposes.
-- Do not disassemble or modify the battery.
-- Charge it in a location with good ventilation.
-- Do not expose the battery to fire and do not heat it.
-- Do not connect any metallic objects to the (+) or (-) terminals of the battery.
-- Keep it indoors (0°C~40°C).
-- Before you discard product, dispose of batteries in an environmentally safe manner.
-- Do not discard this batteries with your regular household trash.
-- Follow all local regulations when disposing of old batteries.
❈❈ If the battery is out of order, do not disassemble it. Contact your nearest customer care center.
❈❈ An increased charging time and a shorter battery life indicates the near end of the battery life.
Please contact an authorized customer care center to replace your battery.
The rechargeable battery incorporated in this product is not user replaceable.
For information on its replacement, please contact your service provider.
Battery check code and countermeasure
■■ If the “
“ message scrolls when the
button on
the main body or the
remote control button is pressed
while the robot is docked to the charging station, it indicates
a defective or open-circuited battery. In this case, please
contact the service center.
(scrolls)
operating _23
03operating
• When the product is initially purchased, it will take about 180 minutes to fully charge the
battery and will run for about 100 minutes.
• When charging the battery while the battery is over-heated, the charging time can increase.
• Measures to take when charging is not smooth.
When the vacuum cleaning robot cannot be automatically charged, check the following:
-- Turn the Power Switch at the bottom of the vacuum cleaning robot off and on.
-- Re-plug the power of the charger.
-- Check whether there are any foreign substances on the charge connector and wipe
the charge connector on the main unit and the charger with a dry cloth.
-- Check whether there are objects near the charger that are strong reflectors.
• When separating the vacuum cleaning robot from the charger, it will discharge naturally.
-- Charge the vacuum cleaning robot through the charger, if possible. (When leaving
your home unattended for a long period of time due to a business trip, travelling etc.,
turn off the Power Switch of the vacuum cleaning robot and unplug the power of the
charger to store them.)
Setting the Time
The clock displays the current time. You can change the current time with the following steps.
■■ You can only set the time using the remote control.
Remote Control
Configuration Sequence
Blinks
1. Press the Clock button.
-- The current time is displayed.
Blinks
Decrease
Increase
Decrease
Increase
Decrease
Increase
Blinks
Blinks
Blinks
Canceling the Settings
Remote Control
24_ operating
2. Press the Clock button.
-- The day of the week will blink.
Press the  or  button to
set the day of the week.
3. Press the Clock button. Press
the  or  button to set the
hour.
4. Press the Clock button. Press
the  or  button to set the
minutes.
5. Press the Clock button.
-- The value you set will
blink and the settings are
completed.
-- Press the Start/Stop button to cancel the settings and exit
Time Set mode.
-- If there is no input for 1 minute while you are setting the time,
the cleaner exits Time Set mode automatically.
Installing the VIRTUAL GUARD
You can confine the vacuum cleaning robot to a
particular section by using Fence (virtual wall) mode.
Power Button
Lamp
Main Body
Detection
Sensor
Button operations
1. Lamp operations
-- Fence (virtual wall) Mode: The red lamp flashes.
-- Off :The lamp is turned off.
2. Turn the Power Button on
-- Whenever you press the Power button, Fence (virtual wall)
mode ➝ Power off is selected in this sequence.
❈❈ The distance of virtual wall is 2.5m at minimum and may
differ depending on surroundings and movement status of
the robot.
Forming a Fence (virtual wall)
VIRTUAL GUARD creates an invisible barrier that the vacuum
cleaning robot cannot cross.
E.g. in front of pots, furniture, the front door, and so on.
1. Turn the Fence (virtual wall) mode on using the Power
button.
-- The mode lamp flashes red.
Distance
Sensor
2. Install the VIRTUAL GUARD in front of the area you
A fence (virtual wall)
want to block access from the vacuum cleaning robot. is formed.
-- Install the VIRTUAL GUARD so that the distance detection
sensor can form an invisible barrier that the vacuum cleaning robot cannot cross.
operating _25
03operating
Distance
Detection
Sensor
About the IrDA sensor
CAUTION
• The infrared signal transmission may not be
[Infrared Signal Priority]
smooth in locations exposed to halogen lamps or
in outdoor locations.
• Vacuum cleaning robot uses 3 types of infrared
>
>
devices and a device may not work in front of
another device with a higher priority.
Remote
Virtual
Charger
• When controlling the vacuum cleaning robot
Control
guard
with the remote control, the vacuum cleaning
robot may cross the virtual fence of the VIRTUAL
GUARD or run against an obstacle, because the remote control signal has a higher priority than
the VIRTUAL GUARD signal.
• When using the vacuum cleaning robot in a small location or at a close distance, it may
malfunction due to interference of the infrared signals.
• Install the VIRTUAL GUARD away from the charger as auto charging may be interrupted if the
VIRTUAL GUARD is near the charger.
• If more than one vacuum cleaning robot is used simultaneously, they may malfunction due to
interference of the infrared signals.
26_ operating
USING THE VACUUM CLEANING ROBOT
Starting/Stopping Cleaning
03operating
You can run or stop all vacuum cleaning robot functions.
■■ Each vacuum cleaning robot function only runs when the
Power Switch is turned on.
■■ When the vacuum cleaning robot is operating, press the
button to cancel the operation and select a function.
Turning the power on or off
Turning the power on
-- Main unit: Press the
button.
Turning the power off
-- Remote control: Press the
button.
-- Main unit: Press and hold the
button down for 3 seconds.
❈❈ If no key is pressed for approximately 1 minute after turning the power
on, the power is automatically cut to prevent the battery discharging.
To turn the power on again, press and hold the power (
) button on
the main body.
Using the remote
control
Starting or stopping cleaning
Starting
-- Remote control : Press the Auto, Spot, Max, Manual button.
-- Main unit : Select Auto, Spot, Max mode by using the
and then pressing the
button
button.
-- When cleaning begins, the vacuum cleaning robot starts to move.
button without selecting cleaning mode starts to
❈❈ Pressing the
perform the Auto mode cleaning.
Stopping
-- To stop, press the
remote control or main unit button.
-- When cleaning is stopped, the vacuum cleaning robot stops.
Using the main unit
buttons
operating _27
Recharging
You can have the vacuum cleaning robot return to the charger
to charge the battery by using the Recharging button.
■■ When the vacuum cleaning robot is operating, press the
button to cancel the operation and press the Recharging button.
1. Press the Recharging button.
-- (“
”) is displayed on the display panel and the vacuum
cleaning robot returns to the charging station for recharging.
2. To stop the vacuum cleaning robot while it is returning to the charger,
press the
button.
3. To test the auto charge function, press the Recharging button when
the vacuum cleaning robot is less than 1.5m from the charger.
Using the remote
control
Troubleshooting when the vacuum cleaning robot does not
return to the charger
-- Check the installation of the charger
-- When the charger is in a location where the charger cannot guide
the vacuum cleaning robot to the charger.
-- When the charger is more than 5m away from vacuum cleaning
robot.
: It may require a longer time for the vacuum cleaning robot to
return to the charger.
■■ Manually charge the vacuum cleaning robot in the following cases.
-- When the charger is installed in a corner.
-- When the battery is fully discharged.
-- When the vacuum cleaning robot is trapped by an obstacle
(furniture etc.)
-- When the vacuum cleaning robot cannot pass over the doorsill to
the location where the charger is installed.
28_ operating
Using the main unit
buttons
1.
5m
ah
ea
d
Auto Cleaning
Main unit button
Remote control
button
Configuration
Sequence
1. Set the mode.
▶
1time
2. Cancel the mode.
NOTE
About the Resume Cleaning function
• If the vacuum cleaning robot has evaluated that cleaning is
complete, the resume cleaning function is not performed.
• If you move the vacuum cleaning robot when it is being
charged or press a button, the vacuum cleaning robot
judges cleaning to be complete and does not resume
cleaning.
CAUTION
• Do not move the vacuum cleaning robot when it is cleaning
or press a button while it is cleaning. Otherwise, the
vacuum cleaning robot judges cleaning to be complete and
starts cleaning again from the beginning.
• Each time you press the Turbo button, the Turbo icon on
the display panel is turned on or off sequentially. When the
Turbo icon is turned on, you can start cleaning in Turbo
mode.
• Each time you press the Dust Sensor button, the Dust
Sensor icon on the display panel is turned on or off
sequentially. When the Dust Sensor icon is turned on, you
can start cleaning in Dust Sensor mode.
Normal Mode
Turbo Mode
Dust Sensor Mode
Cleaning Complete
operating _29
03operating
The vacuum cleaning robot will move by itself and automatically
clean the house until cleaning is completed once.
■■ If you press the Start/Stop button on the main unit or remote control
without selecting a cleaning mode, an automatic cleaning run starts.
■■ If cleaning begins when the vacuum cleaning robot is docked with the
charger station, the time to return to the charger is decreased since the
vacuum cleaning robot remembers its original position while moving.
■■ If the vacuum cleaning robot starts the current cleaning run at a location
other than the charging station and fails to locate the charging station
while cleaning, it will stop near the location where it started cleaning.
■■ If the battery level becomes too low while cleaning, the vacuum cleaning robot will automatically
return to the charger station and resume cleaning after charging its battery. (Number of cleaning
operations resumed : Once)
Spot Cleaning
Main unit button
Remote control
button
About 1.5m
About 1.5m
You can conveniently clean a specific area that has a a lot of
cookie crumbs, dust, and etc.
■■ Move the vacuum cleaning robot to the location where you want to
perform a spot clean.
Configuration
Sequence
1. Set the mode.
▶
2time
2. Cancel the mode.
-- In Spot cleaning mode, the vacuum cleaning robot cleans an area
with a length of 1.5m and a width of 1.5m.
-- When cleaning is completed, the vacuum cleaning robot will
display End, Stop, and Stand by.
NOTE
Normal Mode
Turbo Mode
When the vacuum cleaning robot is docked with the charger
station, spot cleaning is not supported.
CAUTION
• Each time you press the Turbo button, the Turbo icon on
the display panel is turned on or off sequentially. When the
Turbo icon is turned on, you can start cleaning in Turbo
mode.
• Each time you press the Dust Sensor button, the Dust
Sensor icon on the display panel is turned on or off
sequentially. When the Dust Sensor icon is turned on, you
can start cleaning in Dust Sensor mode.
Dust Sensor Mode
Cleaning Complete
30_ operating
Max Cleaning
Main unit button
Remote control
button
Configuration
Sequence
1. Set the mode.
▶
3time
2 times in charging mode
2. Cancel the mode.
NOTE
About the Resume Cleaning function
• If the vacuum cleaning robot judges cleaning to be
complete, resume cleaning is not performed.
• If you move the vacuum cleaning robot while it is being
charged or press a button, vacuum cleaning robot judges
cleaning to be complete (cleaning is not resumed).
CAUTION
• Do not move the vacuum cleaning robot while it is cleaning
or press a button while cleaning. Otherwise, the vacuum
cleaning robot judges cleaning to be complete and starts
cleaning again from the beginning.
• Each time you press the Turbo button, the Turbo icon on
the display panel is turned on or off sequentially. When the
Turbo icon is turned on, you can start cleaning in Turbo
mode.
• Each time you press the Dust Sensor button, the Dust
Sensor icon on the display panel is turned on or off
sequentially. When the Dust Sensor icon is turned on, you
can start cleaning in Dust Sensor mode.
Normal Mode
Turbo Mode
Dust Sensor Mode
operating _31
03operating
The vacuum cleaning robot automatically moves and cleans until
the battery runs out and the battery level flashes only one level.
■■ If cleaning begins when the vacuum cleaning robot is docked with
the charger station, the time to return to the charger is decreased
since the vacuum cleaning robot remembers its original position while
moving.
■■ If the vacuum cleaning robot starts the current cleaning run at
a location other than the charging station and fails to locate the
charging station while cleaning, it will stop near the location where it
started cleaning.
■■ If the battery level becomes low while cleaning, the vacuum cleaning robot automatically returns
to the charger station and resumes cleaning after charging the battery. (Number of resumed
cleaning operations: Once)
Manual Cleaning
You can move the vacuum cleaning robot to clean a particular
location directly by using the remote control.
■■ Move the vacuum cleaning robot to the location where you want to
perform manual cleaning.
■■ You can manually clean using the remote control only.
Remote control button
Configuration Sequence
1. Set the mode.
2. Cancel the mode.
NOTE
CAUTION
32_ operating
• When the vacuum cleaning robot is docked with the
charger station, manual cleaning is not supported.
• If there is no input for about 1 minute to switch to standby
mode.
• Each time you press the Turbo button, the Turbo icon on
the display panel is turned on or off sequentially. When the
Turbo icon is turned on, you can start cleaning in Turbo
mode.
• Each time you press the Dust Sensor button, the Dust
Sensor icon on the display panel is turned on or off
sequentially. When the Dust Sensor icon is turned on, you
can start cleaning in Dust Sensor mode.
Directional Buttons
(Forwards, Left, Right)
A backwards function is not
supported.
Timer Reservation
In this mode, you can schedule the cleaner to start a once-off
cleaning run from a particular time.
■■ A scheduled cleaning run is only performed when the cleaner is
docked to the charger station.
Blinks
Decrease
Increase
Decrease
Increase
Decrease
Increase
Blinks
Blinks
Blinks
Blinks
Blinks
Blinks
Blinks
Configuration Sequence
1. Press the Timer/Weekly
button.
-- The current setting is
displayed and
blinks.
Press the  or  button to
set the hour.
❈❈ Cleaning Mode
-- If there is no previous
reservation, the cleaning
mode is set to Auto mode. If
a reservation exists, cleaning
mode is set to the configured
mode.
2. Press the Timer/Weekly
button.
-- The time increases/decreases
by 5 minutes. Press the  or
 button to set the minutes.
3. Press the Timer/Weekly
button. Press the  or 
button to set the cleaning
mode.
-- You can select either Auto or
Max cleaning mode.
4. Press the Timer/Weekly
button.
-- The value you set will
blink and the settings are
completed.
-- When the settings are
completed, the configured
time and
are displayed.
Canceling the Settings
-- If you press the Start/Stop button while the cleaner is charging
or you are setting the time, the settings are canceled.
-- Please take note that the settings are canceled if the cleaner
is detached from the charger station.
Timeout
-- If there is no input for 1 minute while you are setting the time,
the cleaner exits Time Set mode automatically.
operating _33
03operating
Remote Control
Weekly Reservation
In this mode, you can schedule the cleaner to start a once-off
cleaning run from the specified time on the specified days of
the week.
■■ A scheduled cleaning run is only performed when the cleaner is
docked to the charging station.
Remote Control
Tue
Mon
Thu
Wed
Sat
Fri
Sun ~
Configuration Sequence
Standby mode
-- In Standby mode, the
scheduled days of the week
are displayed.
When there is no reservation
Blinks
Decrease
Increase
When there is a reservation
Blinks
Blinks
Decrease
Increase
Decrease
Increase
Blinks
Blinks
34_ operating
1. Hold down the Timer/Weekly
button for more than 3
seconds. Press the  or 
buttons to set the day of the
week.
-- If there is no reservation set
previously, the current day of
the week is displayed.
-- If there is no scheduled time,
--:-- is displayed.
2. Press the Timer/Weekly
button. Press the  or 
buttons to set the hour.
❈❈ If there is a scheduled hour, it
is displayed.
❈❈ Cleaning Mode
-- If there is no reservation set
previously, the cleaning mode
is set to Auto mode. If there
is a reservation, it is set to the
configured mode.
3. Press the Timer/Weekly
button.
-- The time increases/decreases
by 5 minutes. Press the  or
 button to set the minutes.
Remote Control
Blinks
Decrease
Blinks
Blinks
Canceling the Settings
Timeout
4. Press the Timer/Weekly
button. Press the  or 
button to set the cleaning
mode.
-- You can select either Auto or
Repeat cleaning mode.
5. Press the Timer/Weekly
button.
-- The value you set blinks and
the settings are completed.
❈❈ After the settings are
completed, the day of week
you have set blinks. At this
time you can move to step ( 2 )
and add another day of the
week.
-- If you press the Start/Stop button while you are making a
weekly reservation, the reservation for the currently set day of
the week is canceled. Then if you press the button again, the
cleaner exits reservation setting mode.
-- If there is no input for 1 minute while setting the time, the
cleaner exits the reservation setting mode automatically.
operating _35
03operating
Blinks
Increase
Configuration Sequence
ADDITIONAL FUNCTIONS
Using additional functions
You can use the cleaning robot more easily and conveniently using various additional
functions.
■■ You can only configure the additional functions with the remote control.
Turbo Mode
Each time you press the Turbo button, the Turbo icon on the
display panel is turned on or off sequentially.
On turbo (Turbo Mode) : The power brush rotates at
maximum speed.
Off turbo (Normal Mode) : The power brush rotates at normal
speed.
Dust Sensor Mode
Each time you press the Dust Sensor button, the Dust Sensor
icon on the display panel is turned off or on sequentially.
Dust Sensor Mode On : In Auto cleaning mode, when the
vacuum cleaner senses that dust has entered a specific area,
the cleaner rotates and changes direction to clean that area,
and then after cleaning that area, resumes its previous course.
In Spot, Max, Manual mode, when the vacuum cleaner senses
that dust has entered a specific area, the boost continues to
operate for several seconds.
Dust Sensor Mode Off : The cleaner does not sense the dust
entering and continues to drive as set in the selected cleaning
mode.
Selecting a Sound Effect
Press the Sound select button to select a sound effect.
■■ Each time you press this button, Sound Effects → Mute is
selected in this sequence.
-- Sound Effects : Plays sound effects.
-- Mute : Plays no sound or announcements.
36_ operating
maintain tools and filters
CLEANING THE VACUUM CLEANING ROBOT
Please keep the cleaning and maintenance methods in mind
04maintain
■■ When the Power Switch is damaged, please contact the service
agent so that it does not cause any accidents.
■■ Do not use any means or mechanical devices not installed by the
manufacturer that could accelerate the deformation of the vacuum
cleaning robot.
■■ Always turn off the power switch at the
bottom of the main unit before cleaning
the vacuum cleaning robot. The vacuum
cleaning robot could operate suddenly and
cause an injury.
Cleaning the Sensor Window and the Camera
You must turn off the Power Switch at the bottom of the main
unit before cleaning the vacuum cleaning robot.
■■ Never spray water, thinner, benzene etc. directly onto the main unit
of vacuum cleaning robot.
■■ Lightly wipe the sensor window or camera
using a soft cloth.
Camera
Front Sensor window
Front Sensor Window and
Camera
Cliff Sensor Window
Rear Sensor Window
maintain _37
Cleaning the Dust Bin and the Filters
First, empty the dust bin before cleaning it.
■■ When separating the dust bin, take care not to spill the dust out of the
dust bin.
■■ Empty the dust bin in the following cases.
1. When dust has accumulated inside the dust bin.
2. When the suction power suddenly becomes weak.
3. When the noise suddenly increases.
1. Press the Dust Bin Eject (PUSH) button and pull the dust bin to
separate the dust bin.
2. Separate the dust bin cover by pulling it in the direction of the arrow
in the figure.
3. Remove the filter and the mesh filter from the dustbin.
NOTE
Filter
Mesh filter
4. Shake the dust from the filter, Mesh filter and dustbin.
❈❈ You can clean it with water.
After cleaning it with water :
1. Dustbin : Wipe the water off completely.
2. Filter, Mesh filter : Dry them completely and then
reassemble them.
5. Reassemble the filter and mesh filter onto the dustbin.
-- Assemble the mesh filter while the grid side is facing
downward. If the orientation is not correct, you will not be
able to assemble it.
CAUTION
If the dustbin is assembled without the filter being mounted, the error code C08 occurs.
Make sure to mount the filter.
6. Close the dust bin cover and install it into the main unit.
38_ maintain
CLEANING THE VACUUM CLEANING ROBOT
Cleaning the Power Brush
04maintain
You must turn off the Power Switch at the bottom of the
main unit before cleaning the vacuum cleaning robot.
• Because the dust in the dust bin may come out, separate the
dust bin first before cleaning the power brush.
CAUTION
1. After checking whether there are any foreign substances, press
the hook that is fixing the brush cover to separate it.
2. Lift the power brush up from the main unit.
3. Remove any foreign substances such as long hairs or strings
wrapped around the power brush using a cleaning brush or a
vacuum cleaner.
maintain _39
4. After a cleaning run, first fix the side of the power brush
opposite to the Power Switch and then fix the other side.
5. Insert the side into the two grooves and assemble it by
slightly sliding it down until it clicks into place.
CAUTION
• To prevent the vacuum cleaning robot from becoming clogged, be careful not to vacuum tooth
picks or cotton swabs.
• When removing foreign substances becomes difficult, contact a customer care center.
• Because the power brush vacuums the dust on the floor, long strings or hair can become
wrapped around the brush. Check and clean the power brush regularly.
40_ maintain
Cleaning the Edge-Cleaning Side rotating Brush
You must turn off the Power Switch at the bottom of the
main unit before cleaning the vacuum cleaning robot.
04maintain
1. Check whether the side rotating brush is bent or whether there
are any foreign substances stuck on the brush.
2. Wearing rubber gloves, wrap the side rotating brush with a cloth
using hot water for about 10 seconds and wipe it on the cloth.
3. Turning the side rotating brush, repeat the procedures in Step 2.
4. If hair or string is wrapped between the main unit and the side
rotating brush, undo the screw of the side rotating brush using
a (+) driver to remove it. When reassembling the brush, check
the “L” mark on the edge-cleaning side rotating brush and the
“L” mark on the main unit and then reassemble the side rotating
brush. (Letter “R” is carved at the right side rotating brush.)
NOTE
L
Because the side rotating brush easily attracts hair and other foreign substances, make sure to
clean it frequently.
Excessive foreign substances on the side rotating brush can damage the brush.
maintain _41
Cleaning the Driving Wheel
You must turn off the Power Switch at the bottom of the main
unit before cleaning the robot.
■■ If the vacuum cleaning robot suddenly starts to zigzag, there may be
foreign substances stuck on the driving wheel.
1. When cleaning the driving wheel, place a soft cloth on the floor and
flip the main unit, placing it down carefully.
2. Check for foreign substances and remove them using a stick or a
pair of blunt nippers if necessary.
42_ maintain
troubleshooting
CHECKLIST BEFORE SVC CALLS
Symptom
Vacuum cleaning
robot stopped
operating while
cleaning.
Checklist
Measure to Take
• Is the dust bin assembled?
• Install the dust bin.
• Is the Power Switch turned on?
• Turn on the Power Switch.
• Is cleaning mode
panel turned on?
button. (To turn it
in the display • Press the
off, press and hold the
button
down for 3 seconds or longer.)
• Is the battery level flashing only
one level and is ‘Lo’ displayed in
the display panel?
• Lift up the vacuum cleaning robot,
and manually dock the vacuum
cleaning robot onto the charger to
charge it.
• Vacuum cleaning robot will not
operate when the battery in the
remote control is depleted.
• Replace the batteries in the remote
control. (AAA type)
• Is the battery level flashing only
one level and is ‘Lo’ displayed in
the display panel?
• Lift up the vacuum cleaning robot,
manually dock the robot onto the
charger to charge it.
• Has the vacuum cleaning robot
become hooked on wires on the
floor?
• Turn off the Power Switch and
remove the wires.
• Is the vacuum cleaning robot stuck • Turn off the Power Switch and
to the floor where there is a height
move the cleaning vacuum
difference?
cleaning robot to another place to
clean.
-- The driving wheel is lifted.
• Is there a thin towel (cloth)
• Turn off the Power Switch and
wrapped around the driving wheel?
remove the thin towel.
• Is the vacuum cleaning robot stuck • Turn off the Power Switch and
on the doorsill?
move the vacuum cleaning robot
to another place to clean.
The suction power is
weak while cleaning.
• Check whether the dust bin is full
of dust.
• Stop the vacuum cleaning robot
and empty the dust bin.
• Check whether the suction inlet is
clogged by foreign substances.
• Turn off the Power Switch and
remove the foreign substances on
the suction inlet.
• Check whether the filter is clogged. • Clean the filter well.
troubleshooting _43
05troubleshooting
Vacuum cleaning
robot does not
operate at all before
cleaning.
Symptom
Checklist
Measure to Take
Vacuum cleaning
• Check whether the power plug of
robot cannot find the
the charger is plugged correctly
charger.
into the outlet.
• If there are any obstacles within a
range of about 1m in front of the
charger and about 0.5m range to
the left and right of the charger,
you should remove the obstacles.
• If there are any foreign substances
on the change pin, wipe them off
with a dry towel.
• Is the VIRTUAL GUARD installed
near the charger?
• Move the VIRTUAL GUARD to
another place so that the vacuum
cleaning robot can charge
automatically.
Vacuum cleaning
• Are the batteries of the VIRTUAL
robot passes through
GUARD worn out?
the VIRTUAL GUARD.
• Is the lamp turned off?
• Replace the batteries.
(2 type D (LR20) alkaline batteries)
The battery usage
time of the VIRTUAL
GUARD is too short.
• Replace the batteries with new
alkaline batteries.
(2 type D (LR20) alkaline batteries)
• Are you using manganese drycell
batteries?
The vacuum cleaning • The vacuum cleaning robot may
robot suddenly
clean in a diagonal direction in the
performs its cleaning
following cases.
operation in the
-- After the vacuum cleaning robot
diagonal direction.
has been charged while placed at
an angle in the charger station.
-- When the vacuum cleaning robot
moves to another area by a
shortened route after cleaning an
area.
-- When the angle of making
contact with an obstacle is not
perpendicular (90˚).
-- When the floor is made of tiles or
wood.
44_ troubleshooting
• Check if the VIRTUAL GUARD
is turned off and then turn the
VIRTUAL GUARD on.
• The cleaning direction is
determined by the initial location.
Since it cleans areas by drawing a
map, it eventually covers the entire
area. (Normal operation)
Install the charging station in
the direction of the grain of the
wood, and start cleaning while the
vacuum cleaning robot is docked
with the charger station.
TROUBLESHOOTING FOR ERROR CODES
CAUSE
SOLUTION
• A foreign substance (string,
paper, toy etc.) is caught in
the power brush.
• Turn off the Power Switch at the bottom and
remove the foreign substance from the power
brush.
• A foreign substance (string,
paper, toy etc.) is caught in
the left driving wheel.
• Turn off the Power Switch at the bottom and
remove the foreign substance from the left
driving wheel.
• A foreign substance (string,
paper, toy etc.) is caught in
the right driving wheel.
• Turn off the Power Switch at the bottom and
remove the foreign substance from the right
driving wheel.
• Check the Bumper sensor.
• Turn off the Power Switch at the bottom, and
then remove the obstacle from the front of the
vacuum cleaning robot or move it to a different
location.
• A foreign substance (dust,
stain etc.) is on the Obstacle
sensor window.
• Turn off the Power Switch at the bottom and
wipe the foreign substance from the front and
rear sensor windows using a soft cloth.
• A foreign substance (Dust,
• Turn off the Power Switch at the bottom and
stain etc.) is on the Cliff sensor
wipe the foreign substance on the cilff sensor
window.
window with a soft cloth.
(scrolls)
• Dust bin not inserted.
• Insert the dust bin until you hear a “Click”
sound.
• A foreign substance (String,
cloth etc.) is caught on the
edge-cleaning side rotating
brush.
• Turn off the Power Switch at the bottom and
wipe the foreign substance from the edgecleaning side rotating brush.
• The battery is defective or
open-circuited.
• Turn off the emergency switch at the bottom
of the robot and contact the service center.
❈❈ If you press the Start/Stop button or turn off the Power Switch, the error code is cleared.
troubleshooting _45
05troubleshooting
ERROR CODE
product specification
80 mm (Height)
116 mm (Height)
350 mm (Length)
350 mm (Width)
166 mm (Length)
Main Body
Classification
Charger(Station)
Item
SR10F71UB
Diameter
350mm
Height
80mm
Weight
3.5kg
Power voltage
AC220-240V~, 50-60Hz
Charge power consumption
40 W
Main unit power consumption
40 W
Battery specifications
14.4V / 31.68Wh
Charging type
Auto Charging/Manual Charging
Cleaning mode
Auto, Spot, Max, Manual, Timer, Weekly
Charging time
About 180 minutes
Cleaning time
(on the basis of hard floor)
About 90 minutes
Mechanical
Specifications
Electrical
Specifications
228 mm (Width)
Cleaning
Specifications
Cleaning method
Ceiling shape recognition
Main unit button type
Touch type
46_ product specification
Open Source Announcement
The software included in this product contains copyrighted software that is licensed under the GPL/LGPL.
You may obtain the complete Corresponding Source code from us for a period of three years after our last shipment of this
product by sending email to: oss.request@samsung.com
If you want to obtain the complete Corresponding Source code in the physical medium such as CD-ROM, the cost of physically
performing source distribution may be charged.
This offer is valid to anyone in receipt of this information.
GPL Software :
Linux kernel, BusyBox, mtd-utils, lrzsz, wireless tools
LGPL Software :
uClibc
- GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General
Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all
its users. This General Public License applies to most of the Free Software Foundation’s software and to any other program whose
authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License
instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure
that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source
code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you
can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the
rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that
you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they
know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to
copy, distribute and/or modify the software.
Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this
free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is
not the original, so that any problems introduced by others will not reflect on the original authors’ reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free
program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear
that any patent must be licensed for everyone’s free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be
distributed under the terms of this General Public License. The “Program”, below, refers to any such program or work, and a “work
based on the Program” means either the Program or any derivative work under copyright law: that is to say, a work containing the
Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is
included without limitation in the term “modification”.) Each licensee is addressed as “you”.
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act
of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based
on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program
does.
1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you
conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all
the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of
this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange
for a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy
and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:
a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any
change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program
or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for
such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright
notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute
the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program
itself is interactive but does not normally print such an announcement, your work based on the Program is not required to
print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program,
and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply
to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole
which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for
other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to
exercise the right to control the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program)
on a volume of a storage or distribution medium does not bring the other work under the scope of this License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the
terms of Sections 1 and 2 above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the
terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your
cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to
be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative
is allowed only for noncommercial distribution and only if you received the program in object code or executable form with
such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete
source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts
used to control compilation and installation of the executable. However, as a special exception, the source code distributed need
not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and
so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent
access to copy the source code from the same place counts as distribution of the source code, even though third parties are not
compelled to copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt
otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this
License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated
so long as such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to
modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License.
Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this
License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from
the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any
further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by
third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent
issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this
License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your
obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program
at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies
directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from
distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is
intended to apply and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of
any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which
is implemented by public license practices. Many people have made generous contributions to the wide range of software
distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or
she is willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces,
the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation
excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this
License incorporates the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such
new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to
it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version
published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose
any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to
the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software
Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of
all derivatives of our free software and of promoting the sharing and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE
EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS
AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU.
SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR
CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER,
OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE
TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING
OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA
BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM
TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Programs
If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to
make it free software which everyone can redistribute and change under these terms.
To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively
convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is
found.
one line to give the program’s name and an idea of what it does.
Copyright (C) yyyy name of author
This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as
published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.
You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software
Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.
Also add information on how to contact you by electronic and paper mail.
If the program is interactive, make it output a short notice like this when it starts in an interactive mode:
Gnomovision version 69, Copyright (C) year name of author
Gnomovision comes with ABSOLUTELY NO WARRANTY; for details
type `show w’. This is free software, and you are welcome
to redistribute it under certain conditions; type `show c’ for details.
The hypothetical commands `show w’ and `show c’ should show the appropriate parts of the General Public License. Of course,
the commands you use may be called something other than `show w’ and `show c’; they could even be mouse-clicks or menu
items--whatever suits your program.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the
program, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright
interest in the program `Gnomovision’
(which makes passes at compilers) written
by James Hacker.
signature of Ty Coon, 1 April 1989
Ty Coon, President of Vice
This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine
library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use
the GNU Lesser General Public License instead of this License.
- GNU LESSER GENERAL PUBLIC LICENSE
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim copies
of this license document, but changing it is not allowed.
[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2,
hence the version number 2.1.]
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General
Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for
all its users.
This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries--of
the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully
about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the
explanations below.
When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make
sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive
source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you
are informed that you can do these things.
To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender
these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.
For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we
gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must
provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and
recompiling it. And you must show them these terms so they know their rights.
We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal
permission to copy, distribute and/or modify the library.
To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified
by someone else and passed on, the recipients should know that what they have is not the original version, so that the original
author’s reputation will not be affected by problems that might be introduced by others.
Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company
cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist
that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.
Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU
Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public
License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.
When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking
a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the
entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code
with the library.
We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the ordinary
General Public License. It also provides other free software developers Less of an advantage over competing non-free programs.
These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license
provides advantages in certain special circumstances.
For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it
becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that
a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free
software only, so we use the Lesser General Public License.
In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body
of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the
whole GNU operating system, as well as its variant, the GNU/Linux operating system.
Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user of a program
that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.
The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between
a “work based on the library” and a “work that uses the library”. The former contains code derived from the library, whereas the
latter must be combined with the library in order to run.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder
or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called “this
License”). Each licensee is addressed as “you”.
A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs
(which use some of those functions and data) to form executables.
The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on
the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a
portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation
is included without limitation in the term “modification”.)
“Source code” for a work means the preferred form of the work for making modifications to it. For a library, complete source code
means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control
compilation and installation of the library.
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of
running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a
work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the
Library does and what the program that uses the Library does.
1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in any medium, provided
that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep
intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with
the Library.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange
for a fee.
2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and
distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:
•
a) The modified work must itself be a software library.
•
b
) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any
change.
•
c
) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this
License.
•
d
) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program
that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith
effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and
performs whatever part of its purpose remains meaningful.
(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent
of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this
function must be optional: if the application does not supply it, the square root function must still compute square
roots.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library,
and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply
to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole
which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for
other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to
exercise the right to control the distribution of derivative or collective works based on the Library.
In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a
volume of a storage or distribution medium does not bring the other work under the scope of this License.
3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the
Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public
License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has
appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.
Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all
subsequent copies and derivative works made from that copy.
This option is useful when you wish to copy part of the code of the Library into a program that is not a library.
4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form
under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable
source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software
interchange.
If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy
the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not
compelled to copy the source along with the object code.
5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled
or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of the Library, and
therefore falls outside the scope of this License.
However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the Library (because
it contains portions of the Library), rather than a “work that uses the library”. The executable is therefore covered by this License.
Section 6 states terms for distribution of such executables.
When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for the work may
be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can
be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.
If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline
functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative
work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)
Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6.
Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.
6. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with the Library to produce
a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit
modification of the work for the customer’s own use and reverse engineering for debugging such modifications.
You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are
covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must
include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also,
you must do one of these things:
•
a
) Accompany the work with the complete corresponding machine-readable source code for the Library including
whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work
is an executable linked with the Library, with the complete machine-readable “work that uses the Library”, as object
code and/or source code, so that the user can modify the Library and then relink to produce a modified executable
containing the modified Library. (It is understood that the user who changes the contents of definitions files in the
Library will not necessarily be able to recompile the application to use the modified definitions.)
•
b
) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at
run time a copy of the library already present on the user’s computer system, rather than copying library functions
into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long
as the modified version is interface-compatible with the version that the work was made with.
•
c
) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified
in Subsection 6a, above, for a charge no more than the cost of performing this distribution.
•
d
) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to
copy the above specified materials from the same place.
•
e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.
For an executable, the required form of the “work that uses the Library” must include any data and utility programs needed for
reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that
is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating
system on which the executable runs, unless that component itself accompanies the executable.
It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally
accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an
executable that you distribute.
7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library
facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work
based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:
•
a
) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other
library facilities. This must be distributed under the terms of the Sections above.
•
b
) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and
explaining where to find the accompanying uncombined form of the same work.
8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any
attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your
rights under this License. However, parties who have received copies, or rights, from you under this License will not have their
licenses terminated so long as such parties remain in full compliance.
9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to
modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License.
Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License
to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.
10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from
the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose
any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by
third parties with this License.
11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent
issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this
License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your
obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all.
For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or
indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of
the Library.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is
intended to apply, and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity
of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which
is implemented by public license practices. Many people have made generous contributions to the wide range of software
distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or
she is willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces,
the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation
excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this
License incorporates the limitation as if written in the body of this License.
13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time
to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or
concerns.
Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to
it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version
published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version
ever published by the Free Software Foundation.
14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with
these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the
Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the
free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.
NO WARRANTY
15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT
PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR
OTHER PARTIES PROVIDE THE LIBRARY “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE
LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER,
OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO
YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING
OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA
BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY
TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Libraries
If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free
software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively,
under the terms of the ordinary General Public License).
To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most
effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full
notice is found.
one line to give the library’s name and an idea of what it does.
Copyright (C) year name of author
This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as
published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version.
This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.
You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free
Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Also add information on how to contact you by electronic and paper mail.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the
library, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the library `Frob’ (a library for tweaking knobs) written by James Random
Hacker.
signature of Ty Coon, 1 April 1990
Ty Coon, President of Vice
That’s all there is to it!
- JPEG
This software is based in part on the work of the Independent JPEG Group.
- OpenCV :
IMPORTANT: READ BEFORE DOWNLOADING, COPYING, INSTALLING OR USING.
By downloading, copying, installing or using the software you agree to this license.
If you do not agree to this license, do not download, install, copy or use the software.
License Agreement
For Open Source Computer Vision Library
Copyright (C) 2000-2008, Intel Corporation, all rights reserved.
Copyright (C) 2008-2010, Willow Garage Inc., all rights reserved.
Third party copyrights are property of their respective owners.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following
conditions are met:
Redistribution’s of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistribution’s in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
The name of the copyright holders may not be used to endorse or promote products derived from this software without specific
prior written permission.
This software is provided by the copyright holders and contributors “as is” and any express or implied warranties, including,
but not limited to, the implied warranties of merchantability and fitness for a particular purpose are disclaimed. In no event shall
the Intel Corporation or contributors be liable for any direct, indirect, incidental, special, exemplary, or consequential damages
(including, but not limited to, procurement of substitute goods or services; loss of use, data, or profits; or business interruption)
however caused and on any theory of liability, whether in contract, strict liability, or tort (including negligence or otherwise) arising
in any way out of the use of this software, even if advised of the possibility of such damage.
OpenSSL
This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)
본 제품에는 OpenSSL Toolkit 사용을 위해 OpenSSL Project에 의해 개발된 소프트웨어가 사용되었습니다.
LICENSE ISSUES
==============
The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLeay license
apply to the toolkit. See below for the actual license texts. Actually both licenses are BSD-style Open Source licenses. In case of
any license issues related to OpenSSL please contact openssl-core@openssl.org.
- OpenSSL License
=============================================================================================
Copyright (c) 1998-2008 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following
conditions are met:
Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
All advertising materials mentioning features or use of this software must display the following acknowledgment:
“This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)”
The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to endorse or promote products derived from this
software without prior written permission. For written permission, please contact openssl-core@openssl.org.
Products derived from this software may not be called “OpenSSL” nor may “OpenSSL” appear in their names without prior written
permission of the OpenSSL Project.
Redistributions of any form whatsoever must retain the following acknowledgment:
“This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)”
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT “AS IS” AND ANY EXPRESSED OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR
TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
=============================================================================================
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com). This product includes software written
by Tim Hudson (tjh@cryptsoft.com).
