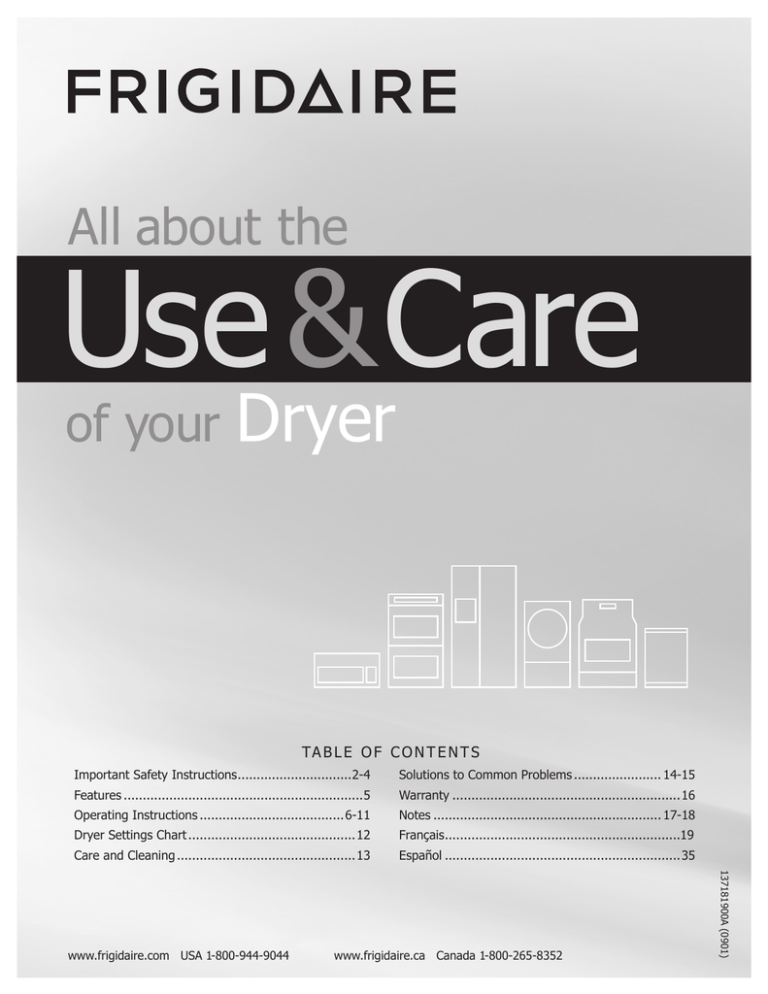

Electrolux AEQ7000ES1 Operating instructions

All about the
Use & Care
of your
Dryer
TA B L E O F C O N T E N T S
Important Safety Instructions...............................2-4
Solutions to Common Problems........................ 14-15
Features................................................................5
Warranty.............................................................16
Operating Instructions.......................................6-11
Notes............................................................. 17-18
Dryer Settings Chart.............................................12
Français...............................................................19
Care and Cleaning................................................13
Español...............................................................35
www.frigidaire.ca Canada 1-800-265-8352
137181900A (0901)
www.frigidaire.com USA 1-800-944-9044
Important Safety Instructions
WARNING
WARNING
Please read all instructions before using this dryer.
Recognize safety symbols, words and
labels
Safety items throughout this manual are labeled with
a WARNING or CAUTION based on the risk type as
described below:
Definitions
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury
or death.
DANGER
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.
WARNING
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
CAUTION
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury.
IMPORTANT
IMPORTANT indicates installation, operation or
maintenance information which is important but not
hazard-related.
For your safety the following information in this manual
must be followed to minimize the risk of fire or explosion
or to prevent property damage, personal injury or death.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electrical switch; do not
use any phone in your building.
•Clear the room, building or area of all occupants.
•Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
•If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
Read all instructions before using this appliance. This
book contains valuable information about:
• Operation
• Care
• Service
Keep it in a safe place.
This Use and Care Guide provides general operating
instructions for your dryer. It also contains information
about features for several other models. Your dryer may
not have every feature included.
Use the dryer only as instructed in this Use & Care
Guide.
Save these instructions for future reference.
Product Record
Record Your Model and Serial Numbers
The model and serial numbers of your dryer are found on
the dryer serial plate located at the top of the door opening. Record and retain these numbers.
Model Number______________________
Serial Number_ _____________________
Purchase Date______________________
2
Important Safety Instructions
240 v Electric Dryer
10-30R
3-wire
(fused 30 amp)
14-30R
4-wire
120 v Gas Dryer
Grounding type
wall receptacle
UL-approved service
cord must be installed
on electric dryers (not
provided with unit
except those
manufactured for sale
in Canada).
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
(fused 30 amp)
Power cord with
3-prong grounded plug
Avoid fire hazard or electrical shock. Do not use an adaptor plug or extension cord or remove grounding
prong from electrical power cord. Failure to follow this warning can cause serious injury, fire or death.
WARNING
To reduce the risk of fire, electrical shock, or injury to persons when using this dryer, comply with the basic warnings
listed below. Failure to comply with these warnings could result in serious personal injuries.
You can be killed or seriously injured if you don’t follow these Important Safety Instructions:
PREVENT FIRE
• Do not dry items that have been previously cleaned in,
soaked in, or spotted with gasoline, cleaning solvents,
kerosene, waxes, etc. Do not store these items on or
near the dryer. These substances give off vapors that
could ignite or explode.
• Do not place items exposed to cooking oils in your dryer.
Items contaminated with cooking oils may contribute to
a chemical reaction that could cause a load to catch fire.
• Do not dry articles containing rubber, plastic or similar materials such as bras, galoshes, bath mats, rugs, bibs, baby
pants, plastic bags and pillows that may melt or burn.
Some rubber materials, when heated, can under certain
circumstances produce fire by spontaneous combustion.
WARNING
FIRE HAZARD
A clothes dryer produces combustible lint. The dryer
must be connected to an outdoors exhaust. Regularly
inspect the outdoor exhaust opening and remove any
accumulation of lint around the opening and in the
surrounding area.
• Clean the lint screen before or after each load. The interior of the dryer, lint screen housing and exhaust duct
should be cleaned approximately every 18 months by
qualified service personnel. An excessive amount of lint
build-up in these areas could result in inefficient drying
and possible fire. See Care and Cleaning.
• Do not operate the dryer if the lint screen is blocked,
damaged or missing. Fire hazard, overheating and
damage to fabrics can occur.
• Do not obstruct the flow of ventilating air. Do not stack
or place laundry or throw rugs against the front or back
of the dryer.
• Do not spray any type of aerosol into, on or near dryer
at any time.
• Do not use fabric softeners or products to eliminate
static unless recommended by the manufacturer of the
fabric softener or product.
• Do not continue to use the dryer is you hear squeaking,
grinding, rubbing or other unusual noises. This could
be a sign of mechanical breakdown and lead to fire or
serious injury. Contact a qualified technician immediately.
• Failure to comply with these warnings could result in
fire, explosion, serious bodily injury and/or damage to
the rubber or plastic parts of the dryer.
3
Important Safety Instructions
PROTECT CHILDREN
• Do not allow children to play on or in the dryer. Close
supervision of children is necessary when the dryer is
used near children. As children grow, teach them the
proper, safe use of all appliances.
• Destroy the carton, plastic bag and other packing materials after the dryer is unpacked. Children might use
them for play. Cartons covered with rugs, bedspreads
or plastic sheets can become airtight chambers.
• Keep laundry products out of children’s reach. To prevent personal injury, observe all warnings on product
labels.
• Before the dryer is removed from service or discarded,
remove the dryer door to prevent accidental entrapment.
• Failure to comply with these warnings could result in
serious personal injuries.
PREVENT INJURY
• To prevent shock hazard and assure stability during
operation, the dryer must be installed and electrically
grounded by a qualified service person in accordance with
local codes. Installation instructions are packed in the
dryer for the installer’s reference. Refer to INSTALLATION
INSTRUCTIONS for detailed grounding procedures. If the
dryer is moved to a new location, have it checked and
reinstalled by a qualified service person.
• To prevent personal injury or damage to the dryer, the
electrical power cord of a gas dryer must be plugged into
a properly grounded and polarized 3-prong outlet. The
third grounding prong must never be removed. Never
ground the dryer to a gas pipe. Do not use an extension
cord or an adaptor plug.
• ALWAYS disconnect the dryer from the electrical supply
before attempting any service or cleaning. Failure to do so
can result in electrical shock or injury.
• Do not use any type spray cleanser when cleaning dryer
interior. Hazardous fumes or electrical shock could occur.
• To prevent injury, do not reach into the dryer if the drum
is moving. Wait until the dryer has stopped completely
before reaching into the drum.
PREVENT INJURY AND DAMAGE TO THE DRYER
• All repairs and servicing must be performed by an
authorized servicer unless specifically recommended in
this Owner’s Guide. Use only authorized factory parts.
• Do not tamper with controls.
• Do not install or store the dryer where it will be exposed to the weather.
• A thermal limiter switch automatically turns off the
motor in the unlikely event of an overheated situation
(electric dryers only). A service technician must replace
the thermal limiter switch after correcting the fault.
• Failure to comply with these warnings could result in
serious personal injuries.
CAUTION
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to
warn customer of potential exposure to such substances. Included in this list are soot and carbon monoxide, both of
which may be produced by the use of this product.
 NOTE
The instructions appearing in this Use and Care Guide are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any
appliance.
4
FEATURES
Cycle Selector
LED Display
Control Lock
Reversible Door
Drum Light
Large Surface
Moisture Sensor
Door Latch
Exhaust Channel
Outlet
Door Strike
Adjustable
Leveling Legs
Heavy Duty
Drying Rack*
Lint Filter
Stacking Kit for Mounting
on Matching Washer*
*Not all models come with drying rack and
stacking kit from the factory. They may be
purchased as accessories.
5
Operating Instructions
Normal Operating Sounds
You may or may not hear the following sounds from your
new dryer:
A.SUSPENSION ROLLERS The dryer drum is
supported by a set of suspension rollers. At times
there may be a thumping or rolling sound when the
dryer starts. This may happen if the dryer has not
been in use for a period of time, or after a heavy
load has remained in the dryer drum for an extended
period, creating a temporary flat spot on the edge
of the roller. The noise should dissipate as the dryer
operates and the flat spots smooth out.
B.AIR FLOW SYSTEM Your dryer is equipped with a
high volume air handling system. In some installations
there may be some sounds associated with air
movement throughout the dryer, including the air
duct, blower, and exhaust system. This is normal and
can vary with load size and type.
C.GAS VALVE (Gas models only.) The flow of gas is
controlled by electric solenoids. During operation there
may be a clicking sound as the valve opens and closes to
control the gas flow.
D.GAS BURNER (Gas models only.) When the burner
is operating, there may be sounds generated as the
air flow mixes with the gas flame. This noise is normal
and will only occur when the gas is ignited in the
combustion tube.
A
D
C
B
CAUTION
Do not continue to use the dryer if you hear squeaking,
grinding, rubbing or other unusual noises. This could
be a sign of mechanical breakdown and lead to fire or
serious injury. Contact a qualified technician immediately.
Operating Your Dryer
WARNING
To reduce the risk of fire, electric shock or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS
in this Use and Care Guide before operating your dryer.
(Mesh bag not included.)
6
1 Prepare load for drying.
• Dry items of similar fabric, weight and construction
in the same load.
• Separate dark items from light-colored items. Separate items that shed lint from those that attract lint.
• Check for stains which may not have been removed
in washing. Repeat stain removal process and wash
again before drying. Dryer heat may permanently
set some stains.
• Place delicate or small items in a mesh bag.
• Be sure buckles, buttons and trim are heatproof
and won’t damage the drum finish. Close zippers;
fasten hooks and Velcro®-like fasteners. Tie strings
and sashes to prevent snagging and tangling.
Operating Instructions
Operating Your Dryer, continued
• A suitable drying temperature, dryness level and
options will automatically be indicated for the cycle
selected. See the “Dryer Settings Chart” for more
details.
• To change the drying temperature and dryness
level, press the Temperature or Dryness buttons to
scroll to the desired settings.
• To select or delete an option, press Options; then,
while the indicator is blinking, press Select. The
indicator will light when the option has been selected. It will no longer be lighted when the option
has been deleted.
2 Check that the lint filter is clean and in place.
 NOTE
If a setting is not available for the cycle selected, the
indicator will not light.
3 Load the dryer and close the door.
4
• Adjustments made to a cycle will be remembered
and recalled each time that cycle is selected in the
future.
• To return to factory settings, press the Start/Pause
and Select buttons at the same time and hold until
the signal sounds.
• Load items loosely. The average wet load will
fill the drum 1/3 to 1/2 full. Items need room to
tumble freely for even drying and less wrinkling.
• If desired, place a dryer fabric softener sheet on
top of the load at the beginning of the cycle.
• To save energy and time and avoid uneven drying
and wrinkling, do not overload the dryer.
• When drying large items, dry only two or three
items at a time. Fill out the load with small and
medium sized items.
• For delicate or very small loads, add two or three
similar items to improve tumbling action.
Select the appropriate cycle and settings for
each load.
 NOTE
Press and hold both for ten seconds
to return to factory settings.
Over-drying can cause wrinkles, shrinkage, lint,
harshness and a build up of static electricity.
• Turn the cycle selector knob in either direction to
select the cycle desired. The indicator for that cycle
will be illuminated.
• The estimated drying time for Auto Dry cycles or
the actual drying time for Timed Dry cycles will be
displayed.
5 Start the cycle.
6
• To add or remove items when the dryer is running,
open the door. The dryer will stop when the door
is opened. Allow the drum to come to a complete
stop before reaching inside.
• Close the door and press Start to resume the cycle.
When the cycle ends, remove items immediately and hang or fold.
IMPORTANT
Clean the lint filter after every load.
7
Operating Instructions
This manual covers many models and not all cycles, options, or features listed are available
on every model. Console shown above for reference only. Your model may differ.
Cycle Selection
Turn the cycle selector in either direction to the cycle
desired. The indicator for that cycle will be illuminated.
For best results
Follow the fabric care label instructions
on items to be dried.
To change the cycle once it has begun, press the cancel
button before selecting a new cycle. Just turning the
cycle selector knob to another selection will not change
the cycle. If the selection is changed after the cycle
starts, the indicator lights will blink, the signal will beep
and “Err” will be displayed. The signal will beep and the
status lights will flash, but the original cycle will continue.
Auto Dry Cycles
Auto Dry cycles take the guesswork out of selecting the
correct drying time for each load. Moisture sensing bars
at the back of the dryer drum sense the moisture level of
the load as it tumbles through the heated air. With Auto
Dry cycles, the load will automatically be dried at the
selected temperature to the desired dryness level. Auto
Dry cycles save time and energy and protect fabrics.
The estimated drying time will be displayed for about 5
minutes. Then the outside of the display will light up in a
circular track to indicate the drying time is automatically
being determined by the sensors. When the load has
reached the selected dryness level, it will continue to
tumble during a cool down period. This helps reduce
wrinkling and makes items easier to handle during
unloading.
8
Drying time varies depending on size and dampness of
load and fabric type. If the load is too small or almost
dry, the moisture sensing bars may not detect enough
moisture to continue the cycle and the cycle may end
after a few minutes. If this occurs, select a Timed Dry
cycle.
Room temperature and humidity, type of installation and
electrical voltage or gas pressure can also affect drying
time.
Towels/Bedding
Select this Auto Dry cycle for towel loads.
Heavy
Select this Auto Dry cycle for sturdy work clothes.
Normal
Select this Auto Dry cycle for cotton items.
Casual
Select this Auto Dry cycle for cottons and blends with a
no-iron finish.
Delicates
Select this Auto Dry cycle for knits and delicate items.
Timed Dry Cycles
WARNING
FIRE HAZARD
To avoid fire hazard, do not use heat to dry items
containing feathers or down, foam rubber, plastics
similarly textured, rubber-like materials. Use the Timed
Dry cycle and the Air Fluff/No Heat setting.
Quick
Select this timed cycle to quickly dry small loads in 25
minutes.
Timed Dry
To manually select the drying time for any load, turn
the knob to Timed Dry. Drying times from 15 to 90
minutes can be selected by continuing to turn the
knob. Drying time will be displayed. You will not be able
to select a Dryness level.
Operating Instructions
This manual covers many models and not all cycles, options, or features listed are available
on every model. Console shown above for reference only. Your model may differ.
Cycle Settings
For best results
Follow the fabric care label instructions
on items to be dried.
Appropriate drying Temperature, Dryness Level and
Options will automatically be displayed for each cycle.
The settings can be changed before the cycle is started.
If changes are attempted after the cycle starts, the lights
will blink, the signal will beep and “Err” will be displayed.
Drying Temperature
To change the preset temperature, press the Temperature
button to scroll to the desired setting.
To protect your fabrics, not all temperatures are available
with every cycle.
The temperature selected for the cycle will be remembered
and recalled each time that cycle is selected in the future.
To return to factory settings, press the Start/Pause and
Select buttons at the same time and hold until the signal
sounds.
Maximum
Recommended for durable fabrics and towels.
High
Recommended for most cotton fabrics.
Medium
Recommended for wrinkle free, easy care, lightweight
fabrics and bulky loads.
Low
Recommended for delicate fabrics.
Air Fluff/No Heat
This setting (no heat) should only be used with a
Timed Dry cycle to dry items containing feathers,
down, foam rubber, plastics or rubber-like materials;
to refresh clothing, stuffed animal, pillows or blankets;
and to dust draperies.
 NOTE
To change the Temperature after the cycle starts, press
Start/Pause, adjust the setting and press Start/Pause to
resume the cycle.
9
Operating Instructions
This manual covers many models and not all cycles, options, or features listed are available
on every model. Console shown above for reference only. Your model may differ.
Cycle Settings, continued
Dryness Level (Auto Dry)
To change the preset level, press the Dryness button to
scroll to the degree of dryness desired.
To protect your fabrics, not all dryness levels are available
with every cycle. If a Dryness level is not appropriate for
the cycle, it cannot be selected.
The Dryness level selected for the cycle will be remembered
and recalled each time that cycle is selected in the future.
To return to factory settings, press the Start/Pause and
Select buttons at the same time and hold until the signal
sounds.
 NOTE
To change the Dryness level after the cycle starts, press
Start/Pause, adjust the setting and press Start/Pause to
resume the cycle.
Select the Normal dryness level for most Auto Dry cycles.
Occasionally a load may seem too damp or over-dried at
the end of the cycle. To increase drying time for similar
loads in the future, select More Dry. For loads requiring
less drying time, select Less Dry.
Select Damp Dry for items you wish to partially dry
before hanging or ironing.
10
Options
To select an option, press Options until the indicator for
the desired option flashes, then press Select. If an option
is not available for a cycle, the indicator will not light.
Follow the same steps to delete an option.
 NOTE
To change the Options after the cycle starts, press
Start/Pause, adjust the setting and press Start/Pause to
resume the cycle.
Shrink Guard
Select Shrink Guard to lower the initial drying
temperature to protect fabrics from overdrying.
Extended Tumble
Select Extended Tumble if the dried load might not
be removed promptly at the end of the cycle. The dry
load will continue tumbling without heat to help reduce
wrinkling. When the Signal is selected, a beep will be
heard periodically. The load may be removed any time
during Extended Tumble.
Signal Volume
A signal will sound at the end of the cycle and
periodically during Extended Tumble. The signal has an
adjustable volume level or can be turned off.
Operating Instructions
Other Features
Drying Rack (on select models)
Use the drying rack for items which should not be tumble
dried. Insert the rack into the dryer drum, resting the
back support on the moisture sensor bars and the front
legs on the air grill.
Place items to be dried on top of the rack, leaving space
between items and not allowing them to hang over the
sides or through the holes. The weight should not exceed
10 lbs (4.5 kg). Select the air (no heat) setting for items
containing plastic, foam rubber, rubber-like materials,
feathers or down.
moisture sensing bars
When items are dry, remove the rack and store it in a
convenient location.
 NOTE
If your model did not come supplied from the factory
with a drying rack you may order one.
Control Lock
To avoid having someone accidentally start or stop the
dryer, press Options and Select at the same time and
hold for 10 seconds. “LOC” will be displayed. To remove
the control lock, press Options and Select again.
Status Display/Status Lights
The estimated total cycle time will be displayed when the
cycle is selected. The estimated remaining cycle time is
displayed during the cycle. The following indicators may
be lighted during the cycle:
• Drying
• Cool Down
• Extended Tumble
Drum Light
The drum light will come on whenever the door is opened
to illuminate the drum during loading and unloading.
Closing the door turns off the light.
Press and hold both for ten seconds
to lock or unlock the controls.
Reversible Door
Your dryer is equipped with a reversible door. The door
can be hinged on the right or left side.
 NOTE
For step-by-step instructions on DOOR REVERSAL, refer
to the Installation Instructions supplied with this dryer.
11
Dryer Settings Chart
These Temperature, Dryness levels and Options are available with the following cycles:
Towels/
Bedding
Heavy
Normal
Casual
Quick
Delicates
Timed Dry
60 min
55 min
50 min
40 min
25 min
20 min
15-90 min
Maximum

*
*
High
*



Medium


*


Low



*

Estimated Cycle Duration**
Temperature
*


*
Air Fluff/No Heat

Dryness
More Dry
*
*

Normal


*
*

Less Dry


*
Damp Dry




*




*

*
*
*
*
Options
Shrink Guard
Extended Tumble
Signal Volume
*
*
*
* Factory presets
Available selections
**Estimated cycle duration is based on default dryness level and factory settings for electric dryers. Displayed cycle
duration may differ slightly on gas models.
12
Care and Cleaning
WARNING
FIRE HAZARD
A clothes dryer produces combustible lint. The
dryer must be connected to an outdoors exhaust.
Regularly inspect the outdoor exhaust opening
and remove any accumulation of lint around the
opening and in the surrounding area.
WARNING
To reduce risk of fire or serious injury to persons or property,
comply with the basic warnings listed in the Important
Safety Instructions and those listed below.
• Before cleaning the dryer interior, unplug the electrical
power cord to avoid electrical shock hazards.
• Do not use any type spray cleanser when cleaning the dryer
interior. Hazardous fumes or electrical shock could occur.
INSIDE
IMPORTANT
Clean the lint filter after every load.
• Clean the lint filter after every load. Lint build-up on the
filter restricts air flow, which causes longer drying times.
The filter is located at the bottom of the door opening. Remove by pulling straight up. Remove the lint and replace
the filter.
• Occasionally a waxy build-up may form on the lint filter
and/or moisture sensing bars from using dryer-added
fabric softener sheets. To remove this build-up, wash them
with warm, soapy water. Dry the filter thoroughly and
replace. Do not operate the dryer without the lint filter in
place.
• If the dryer drum becomes stained from noncolorfast
fabrics, clean the drum with a damp cloth and a mild liquid
household cleanser. Remove cleanser residue before drying the next load.
• Every 18 months an authorized servicer should clean the dryer cabinet interior and exhaust duct. These areas can collect
lint and dust over time. An excessive amount of lint build-up
could result in inefficient drying and possible fire hazard.
OUTSIDE
IMPORTANT
• Clean the cabinet with mild soap and water. Never use
harsh, gritty or abrasive cleansers.
• If the cabinet becomes stained, clean with diluted chlorine bleach (1 part bleach to 8 parts water). Rinse several
times with clear water.
• Remove glue residue from tape or labels with a mixture of
warm water and mild detergent. Or, touch residue with the
sticky side of the tape or label.
• When cleaning chrome parts use a window cleaner with
ammonia or mild soap and water.
• Before moving the dryer, place a strip of cardboard or thin
fiberboard under the front leveling legs to prevent damage
to the floor.
Do not store or place laundry products on top of
dryer at any time. They can damage the finish or
controls.
13
SOLUTIONS TO COMMON PROBLEMS
Common Drying Problems
Many drying problems involve poor cleaning results, poor soil and stain removal, residues of lint and scum, and fabric
damage. For satisfactory drying results, follow these suggestions provided by The Soap and Detergent Association.
PROBLEM
POSSIBLE CAUSES
SOLUTIONS
PREVENTIVE MEASURES
Greasy, oily
stains
• Fabric softener sheet.
• Rub fabric softener stains with
bar soap. Rinse and rewash.
• Add a few bath towels to small loads
for proper tumbling.
• Some “silk-like” fabrics should be air
dried.
• Use proper drying temperature.
• Place fabric softener sheet on top of
load before starting the dryer.
Lint
• Overloading.
• Overdrying causes static
electricity.
• Lint screen not clean when
cycle began.
• Lint is attached to “pills.”
• Reduce load size and rewash
using liquid fabric softener in the
final rinse.
• Or, add a fabric softener sheet
and tumble without heat.
• Use lint brush or roller to remove
lint.
• Do not overload dryer.
• Use fabric softener in washer or dryer
to reduce static electricity.
• Remove items when they are slightly
damp to avoid overdrying.
• Check that lint filter is clean and in
place.
Pilling
(Fibers break
off, ball up and
cling to fabric.)
• Overdrying.
• Use a lint brush or shaver to
remove pills.
• Use fabric softener to lubricate fibers.
• When ironing, use spray starch or
fabric finish on collars and cuffs.
• Turn items inside out to reduce abrasion.
Shrinking
• Temperature too high.
• Overdrying.
• Irreversible condition.
• Follow fabric care label directions.
• If shrinking is a concern, check load
often.
• Remove items while slightly damp and
hang or lay flat to complete drying.
• Block knits into shape.
Wrinkling
• Overloading.
• Leaving items in dryer after
cycle ends.
• Reduce load size and tumble at
medium or low heat for 5-10
minutes.
• Remove items immediately. Hang
or fold.
• Do not overload dryer.
• Remove items as soon as cycle ends.
14
SOLUTIONS TO COMMON PROBLEMS
Avoid Service Checklist
Before calling for service, review this list. It may save both time and expense. The list includes common occurrences
that are not the result of defective workmanship or materials in this dryer.
OCCURRENCE
POSSIBLE CAUSE
SOLUTION
Dryer does not start.
Electrical power cord is not securely plugged in or plug
may be loose.
Make sure the plug fits tightly in wall outlet.
House fuse blown or circuit breaker tripped.
Reset circuit breaker or replace fuse.
Make sure electrical line is not overloaded and the dryer is on a
separate circuit.
Dryer runs but won’t
heat.
Drying cycle takes too
long, outside of the
dryer feels too hot or
smells hot.
Thermal limiter tripped.
Call authorized service person for replacement.
There are 2 house fuses in the dryer circuit. If 1 of the 2
fuses is blown, the drum may turn but the heater will not
operate. (electric models)
Replace fuse.
Gas supply valve is not open (gas models).
Check to make sure supply valve is open. See INSTALLATION
INSTRUCTIONS for procedure.
Dryer does not have enough air supply to support the
burner flame (gas models).
See INSTALLATION INSTRUCTIONS.
LP gas supply tank is empty or there has been a utility
interruption of natural gas (gas models).
Refill or replace tank.
Lint filter is clogged with lint.
Make sure all lint has been removed from the dryer lint filter
before starting each cycle.
Exhaust duct requirements have not been met.
Exhaust duct must be at least 4 inches in diameter and made
of rigid or semi-rigid metal.
Dryer should heat when utility service is restored.
When in place, the duct must have no more than two 90°
bends and must not exceed length listed in INSTALLATION
INSTRUCTIONS.
Excessive wrinkling.
Scratching or chipping
of the drum finish.
Electric dryer is connected to a 208 volt circuit.
Drying time will be 20% longer than drying on a 240 volt
circuit.
Drying procedures have not been followed.
See “Operating Instructions.”
Outside exhaust hood or exhaust duct may be clogged
or restricted.
Clean out any obstruction.
High humidity.
Use a dehumidifier near the dryer.
Dryer is overloaded.
Do not overload. See “Operating Instructions.”
Items left in dryer too long.
Remove items as soon as cycle ends.
Insufficient sorting of items.
See “Operating Instructions.”
Drying temperature too high.
Follow fabric care label instructions.
Foreign objects such as coins, pins, clips or buttons
are inside the dryer.*
Always remove foreign objects from pockets before laundering.
Remove objects from drum and restart dryer.
Permanently attached items such as belt buckles,
zippers and fasteners may be hitting the inside of the
drum.*
It may be necessary to sew a scrap of material securely around
ornaments before drying to prevent scratching and damage to
the dryer.
*Drum damage caused by foreign objects or permanently attached items is not covered by the warranty.
15
major appliance warranty information
Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to
be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1.
Products with original serial numbers that have been removed, altered or cannot be readily determined.
2.
Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3.
Rust on the interior or exterior of the unit.
4.
Products purchased "as-is" are not covered by this warranty.
5.
Food loss due to any refrigerator or freezer failures.
6.
Products used in a commercial setting.
7.
Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8.
Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9.
Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc.,which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN
LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.
If You Need
Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and
parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
North America
P.O. Box 212378
Augusta, GA 30907
16
Canada
1.800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
NOTES
17
NOTES
18
