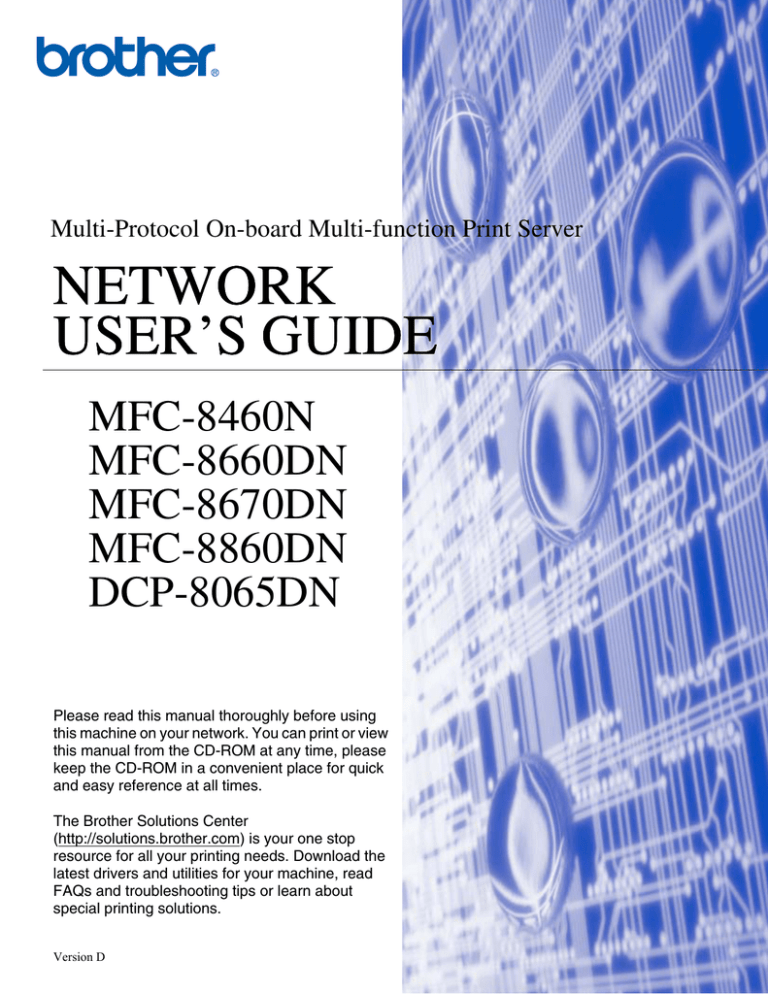

Brother MFC-8670DN User`s guide

Multi-Protocol On-board Multi-function Print Server
NETWORK
USER’S GUIDE
MFC-8460N
MFC-8660DN
MFC-8670DN
MFC-8860DN
DCP-8065DN
Please read this manual thoroughly before using
this machine on your network. You can print or view
this manual from the CD-ROM at any time, please
keep the CD-ROM in a convenient place for quick
and easy reference at all times.
The Brother Solutions Center
(http://solutions.brother.com) is your one stop
resource for all your printing needs. Download the
latest drivers and utilities for your machine, read
FAQs and troubleshooting tips or learn about
special printing solutions.
Version D
Definitions of warnings, cautions, and notes
We use the following icon throughout this User’s Guide:
Notes tell you how you should respond to a situation that may arise or give tips about how the
operation works with other features.
Trademarks
Brother and the Brother logo are registered trademarks and BRAdmin Light and BRAdmin Professional is a
trademark of Brother Industries, Ltd.
UNIX is a registered trademark of The Open Group.
Apple, Macintosh, and LaserWriter are registered trademarks of Apple Inc.
HP, Hewlett-Packard, Jetdirect and PCL are registered trademarks of Hewlett-Packard Company.
Windows Vista is either a registered trademark or a trademark of Microsoft Corporation in the United States
and other countries.
Microsoft, Windows, Windows NT and Windows Server are registered trademarks of Microsoft Corporation
in the United States and/or other countries.
OpenLDAP is a registered trademark of the OpenLDAP Foundation.
All other terms, brand and product names mentioned in this User’s Guide are registered trademarks or
trademarks of their respective companies.
OpenLDAP Statements
This product includes software developed by the OpenLDAP Project.
Unless otherwise expressly stated herein, The OpenLDAP Public License Version 2.8 shall be applied to
individual files.
Copyright 1998-2005 The OpenLDAP Foundation All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted only as
authorized by the OpenLDAP Public License.
A copy of this license is available in the file LICENSE in the top-level directory of the distribution or,
alternatively, at <http://www.OpenLDAP.org/license.html>.
Portions Copyright 1999 Lars Uffmann.
Portions Copyright 1998 A. Hartgers.
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted only as
authorized by the OpenLDAP Public License.
Portions Copyright ©1990, 1993-1996 Regents of the University of Michigan. All rights reserved.
Redistribution and use in source and binary forms are permitted provided that this notice is preserved and
i
that due credit is given to the University of Michigan at Ann Arbor. The name of the University may not be
used to endorse or promote products derived from this software without specific prior written permission. This
software is provided ``as is'' without express or implied warranty.
Portions Copyright ©1999, 2000 Novell, Inc. All Rights Reserved.
THIS WORK IS SUBJECT TO U.S. AND INTERNATIONAL COPYRIGHT LAWS AND TREATIES. USE,
MODIFICATION, AND REDISTRIBUTION OF THIS WORK IS SUBJECT TO VERSION 2.0.1 OF THE
OPENLDAP PUBLIC LICENSE, A COPY OF WHICH IS AVAILABLE AT
HTTP://WWW.OPENLDAP.ORG/LICENSE.HTML OR IN THE FILE "LICENSE" IN THE TOP-LEVEL
DIRECTORY OF THE DISTRIBUTION. ANY USE OR EXPLOITATION OF THIS WORK OTHER THAN AS
AUTHORIZED IN VERSION 2.0.1 OF THE OPENLDAP PUBLIC LICENSE, OR OTHER PRIOR WRITTEN
CONSENT FROM NOVELL, COULD SUBJECT THE PERPETRATOR TO CRIMINAL AND CIVIL
LIABILITY.
Portions Copyright ©The Internet Society (1997).
see RFC 2251 for full legal notices.
The OpenLDAP Public License Version 2.8, 17 August 2003
Redistribution and use of this software and associated documentation ("Software"), with or without
modification, are permitted provided that the following conditions are met:
1. Redistributions in source form must retain copyright statements and notices,
2. Redistributions in binary form must reproduce applicable copyright statements and notices, this list of
conditions, and the following disclaimer in the documentation and/or other materials provided with the
distribution, and
3. Redistributions must contain a verbatim copy of this document.
The OpenLDAP Foundation may revise this license from time to time. Each revision is distinguished by a
version number. You may use this Software under terms of this license revision or under the terms of any
subsequent revision of the license.
THIS SOFTWARE IS PROVIDED BY THE OPENLDAP FOUNDATION AND ITS CONTRIBUTORS ``AS IS''
AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE OPENLDAP FOUNDATION, ITS CONTRIBUTORS, OR THE
AUTHOR(S) OR OWNER(S) OF THE SOFTWARE BE LIABLE FOR ANY DIRECT,
INDIRECT,INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
OF SUCH DAMAGE.
The names of the authors and copyright holders must not be used in advertising or otherwise to promote the
sale, use or other dealing in this Software without specific, written prior permission. Title to copyright in this
Software shall at all times remain with copyright holders.
ii
OpenLDAP is a registered trademark of the OpenLDAP Foundation. Copyright 1999-2003 The OpenLDAP
Foundation, Redwood City, California, USA. All Rights Reserved.
Permission to copy and distribute verbatim copies of this document is granted.
A number of files contained in OpenLDAP Software contain a statement:
USE, MODIFICATION, AND REDISTRIBUTION OF THIS WORK IS SUBJECT TO VERSION 2.0.1 OF THE
OPENLDAP PUBLIC LICENSE, A COPY OF WHICH IS AVAILABLE AT
HTTP://WWW.OPENLDAP.ORG/LICENSE.HTML OR IN THE FILE "LICENSE" IN THE TOP-LEVEL
DIRECTORY OF THE DISTRIBUTION.
The following is a verbatim copy of version 2.0.1 of the OpenLDAP Public License referenced in the above
statement.
The OpenLDAP Public License
Version 2.0.1, 21 December 1999
Copyright 1999, The OpenLDAP Foundation, Redwood City, California, USA. All Rights Reserved.
Redistribution and use of this software and associated documentation ("Software"), with or without
modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain copyright statements and notices. Redistributions must also
contain a copy of this document.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
3. The name "OpenLDAP" must not be used to endorse or promote products derived from this Software
without prior written permission of the OpenLDAP Foundation. For written permission, please contact
foundation@openldap.org.
4. Products derived from this Software may not be called "OpenLDAP" nor may "OpenLDAP" appear in their
names without prior written permission of the OpenLDAP Foundation. OpenLDAP is a trademark of the
OpenLDAP Foundation.
5. Due credit should be given to the OpenLDAP Project (http://www.openldap.org/).
THIS SOFTWARE IS PROVIDED BY THE OPENLDAP FOUNDATION AND CONTRIBUTORS ``AS IS''
AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE OPENLDAP FOUNDATION OR ITS CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED
AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
RFC 2251 Full Copyright Statement
Copyright ©The Internet Society (1997). All Rights Reserved.
iii
This document and translations of it may be copied and furnished to others, and derivative works that
comment on or otherwise explain it or assist in its implementation may be prepared, copied, published and
distributed, in whole or in part, without restriction of any kind, provided that the above copyright notice and
this paragraph are included on all such copies and derivative works. However, this document itself may not
be modified in any way, such as by removing the copyright notice or references to the Internet Society or other
Internet organizations, except as needed for the purpose of developing Internet standards in which case the
procedures for copyrights defined in the Internet Standards process must be followed, or as required to
translate it into languages other than English.
The limited permissions granted above are perpetual and will not be revoked by the Internet Society or its
successors or assigns.
This document and the information contained herein is provided on an "AS IS" basis and THE INTERNET
SOCIETY AND THE INTERNET ENGINEERING TASK FORCE DISCLAIMS ALL WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTY THAT THE USE OF THE
INFORMATION HEREIN WILL NOT INFRINGE ANY RIGHTS OR ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Compilation and publication notice
Under the supervision of Brother Industries Ltd., this manual has been compiled and published, covering the
latest product’s descriptions and specifications.
The contents of this manual and the specifications of this product are subject to change without notice.
Brother reserves the right to make changes without notice in the specifications and materials contained
herein and shall not be responsible for any damages (including consequential) caused by reliance on the
materials presented, including but not limited to typographical and other errors relating to the publication.
©2006 Brother Industries Ltd.
iv
Brother numbers
IMPORTANT
CAUTION
For technical and operational assistance, you must call the country where you purchased the machine.
Calls must be made from within that country.
For Customer Service
In USA
1-877-BROTHER (1-877-276-8437)
1-901-379-1215 (fax)
In Canada
1-877-BROTHER
(514) 685-4898 (fax)
In Brazil
helpline@brother.com.br
In Europe
Visit http://www.brother.com for contact information on your local Brother office.
■ Service center locator (USA)
For the location of a Brother authorized service center, call 1-877-BROTHER (1-877-276-8437).
■ Service center locations (Canada)
For the location of a Brother authorized service center, call 1-877-BROTHER.
If you have any comments or suggestions, please write to us at:
In USA
Customer Support
Brother International Corporation
100 Somerset Corporate Boulevard
Bridgewater NJ 08807-0911
In Canada
Brother International Corporation (Canada), Ltd.
- Marketing Dept.
1, rue Hôtel de Ville
Dollard-des-Ormeaux, PQ, Canada H9B 3H6
In Brazil
Brother International Corporation do Brasil Ltda.
Av. Paulista, 854 - 15 and. - Ed. Top Center
CEP: 01310-100 - São Paulo - SP - Brasil
In Europe
European Product & Service Support
1 Tame Street
Audenshaw
Manchester, M34 5JE, UK
v
Internet address
Brother Global Web Site: http://www.brother.com
For Frequently Asked Questions (FAQs), Product Support, Driver Updates and Utilities:
http://solutions.brother.com
For Brother Accessories & Supplies:http://www.brothermall.com (In USA)
http://www.brother.ca/ (In Canada)
vi
Table of contents
1
Introduction
Overview................................................................................................................................................1
Network function features ......................................................................................................................2
Network printing...............................................................................................................................2
Network scanning ............................................................................................................................2
Network PC-FAX (Not available for DCP-8065DN).........................................................................2
Fax to server (MFC-8860DN only) ..................................................................................................2
Management utility ..........................................................................................................................2
BRAdmin Light.............................................................................................................................2
BRAdmin Professional.................................................................................................................2
Remote Setup (Not available for DCP-8065DN) .........................................................................3
Types of Network Connections..............................................................................................................3
Network Connection Example .........................................................................................................3
Peer-to-Peer printing using TCP/IP .............................................................................................3
Network Shared Printing..............................................................................................................4
Protocols................................................................................................................................................5
TCP/IP Protocols .............................................................................................................................5
DHCP/BOOTP/RARP..................................................................................................................5
APIPA ..........................................................................................................................................5
DNS client....................................................................................................................................5
LPR/LPD .....................................................................................................................................5
Port 9100 .....................................................................................................................................5
SMTP client .................................................................................................................................6
IPP...............................................................................................................................................6
mDNS ..........................................................................................................................................6
TELNET.......................................................................................................................................6
SNMP ..........................................................................................................................................6
Web server (HTTP) .....................................................................................................................6
FTP..............................................................................................................................................6
LDAP ...........................................................................................................................................6
IPv6 .............................................................................................................................................6
2
Configuring your network printer
Overview................................................................................................................................................7
IP addresses, subnet masks and gateways ..........................................................................................7
IP address .......................................................................................................................................7
Subnet mask....................................................................................................................................8
Gateway (and router).......................................................................................................................8
Setting the IP address and subnet mask ...............................................................................................9
Using the BRAdmin Professional utility and the TCP/IP protocol to configure your network printer
(for Windows®).................................................................................................................................9
BRAdmin Professional utility .......................................................................................................9
How to configure your machine using the BRAdmin Professional utility .....................................9
Using the control panel to configure your machine for a network..................................................10
Using other methods to configure your machine for a network .....................................................10
Changing the print server settings .......................................................................................................10
Using the BRAdmin Professional utility to change the print server settings (for Windows®) .........10
Using a HTTP (web browser) to change the print/scan settings ...................................................11
vii
Using the Remote Setup to change the print server settings
(for Windows® and Mac OS® X 10.2.4 or greater) (Not available for DCP-8065DN) ................11
Remote Setup for Windows® .....................................................................................................11
Remote Setup for Macintosh® ...................................................................................................12
3
Control Panel Setup
LAN Main Setup Menu.........................................................................................................................13
TCP/IP ...........................................................................................................................................13
BOOT Method ...........................................................................................................................13
IP Address .................................................................................................................................15
Subnet Mask .............................................................................................................................16
Gateway ....................................................................................................................................16
Node Name ...............................................................................................................................16
WINS Config..............................................................................................................................17
WINS Server..............................................................................................................................17
DNS Server ...............................................................................................................................18
APIPA ........................................................................................................................................18
IPv6 ...........................................................................................................................................19
Ethernet .........................................................................................................................................19
Setup Internet (MFC-8860DN only)...............................................................................................20
SMTP Server address ...............................................................................................................20
POP3 Server address................................................................................................................20
Mailbox Name............................................................................................................................21
Mailbox Pwd ..............................................................................................................................21
Setup Mail RX (MFC-8860DN only) ..............................................................................................22
Auto Polling ...............................................................................................................................22
Poll Frequency...........................................................................................................................22
Header.......................................................................................................................................22
Del Error Mail.............................................................................................................................23
Notification.................................................................................................................................23
Setup Mail TX (MFC-8860DN only)...............................................................................................23
Sender Subject ..........................................................................................................................23
Size Limit ...................................................................................................................................24
Notification.................................................................................................................................24
Setup Relay (MFC-8860DN only)..................................................................................................25
Rly Broadcast ............................................................................................................................25
Relay Domain ............................................................................................................................25
Relay Report..............................................................................................................................26
Scan to E-mail (E-mail server) (MFC-8860DN only) .....................................................................26
Color File Type for Scan to E-mail (E-mail server) ....................................................................26
Black and White File Type for Scan to E-mail (E-mail server)...................................................26
Scan to FTP...................................................................................................................................27
Color File Type for Scan to FTP ................................................................................................27
Black and White File Type for Scan to FTP...............................................................................27
Fax to Server (MFC-8860DN only)................................................................................................28
Setting Fax to Server to On .......................................................................................................29
How to Operate .........................................................................................................................29
Time Zone (MFC-8860DN only) ....................................................................................................30
Windows® Time Zone Setting....................................................................................................30
Restoring the network settings to factory default...........................................................................30
Printing the Network Configuration List .........................................................................................31
viii
4
Network printing from Windows® basic TCP/IP Peer-to-Peer printing
Overview..............................................................................................................................................32
For Windows® 98/Me/NT®/2000/XP/Windows Vista® users ................................................................32
Configuring the standard TCP/IP port ...........................................................................................32
Printer driver not yet installed ....................................................................................................32
Printer driver already installed ...................................................................................................33
For Windows NT® 4.0 users ................................................................................................................33
Installing the TCP/IP protocol ........................................................................................................33
Other sources of information ...............................................................................................................34
5
Internet printing for Windows®
Overview..............................................................................................................................................35
Quick Tips..................................................................................................................................35
Brother Internet Print General Information ....................................................................................35
Brother Internet Print: Configuring the Brother Print Server ..........................................................36
Print Server Configuration Checklist..........................................................................................36
Brother Internet Print: Using the BRAdmin Professional utility to Configure the Print Server .......37
Brother Internet Print: Using a Web Browser to Configure the Print Server..................................38
Brother Internet Print: Installing the BIP software on Windows® 98/Me/2000/XP and
Windows NT® 4.0 ..........................................................................................................................38
Setup from CD-ROM .................................................................................................................38
Adding a Second Brother Internet Port..........................................................................................40
Windows® 2000/XP and Windows Vista® IPP printing ..................................................................41
For Windows Vista® ...................................................................................................................41
For Windows® 2000/XP .............................................................................................................42
Specifying a different URL.............................................................................................................44
Other sources of information ...............................................................................................................44
6
Network printing from a Macintosh®
Overview..............................................................................................................................................45
How to choose the BR-Script 3 printer driver (TCP/IP) .......................................................................45
For Mac OS® X 10.5 ......................................................................................................................45
For Mac OS® X 10.2.4 to 10.4.x ....................................................................................................47
How to select the print server (TCP/IP) (Mac OS® 9.1 - 9.2) .........................................................49
Changing the print server settings .......................................................................................................51
Changing the configuration using a web browser..........................................................................51
Changing the configuration using the Remote Setup ....................................................................51
Using the BRAdmin Light utility to change the print server settings
(for Mac OS® X 10.2.4 or greater) .................................................................................................51
Other sources of information ...............................................................................................................52
7
Web Based Management
Overview..............................................................................................................................................53
How to connect to your machine using a Browser ........................................................................53
Password Information....................................................................................................................53
Changing the Scan to FTP configuration using a Browser............................................................54
Changing the LDAP configuration using a Browser (MFC-8860DN only) .....................................54
Using E-mail notification with user authentication .........................................................................55
ix
8
LDAP Operation (MFC-8860DN only)
Overview..............................................................................................................................................57
Changing the LDAP configuration using a Browser ......................................................................57
LDAP operation using the control panel ........................................................................................57
9
Internet Fax (MFC-8860DN only)
Overview..............................................................................................................................................59
Getting Connected ....................................................................................................................59
Control Panel Key Functions .........................................................................................................60
Sending an Internet Fax ................................................................................................................60
Manually Entering Text..................................................................................................................61
Receiving E-mail or Internet Fax ...................................................................................................61
Receiving an Internet Fax to your computer..................................................................................62
Forwarding Received E-mail and Fax Messages ..........................................................................62
Using E-mail notification with user authentication .........................................................................62
Relay Broadcasting .......................................................................................................................62
Relay Broadcast from a machine ..............................................................................................63
Sending to multiple phone numbers: .........................................................................................63
Outlook 97/98/2000/2002/2003: ................................................................................................64
TX Verification Mail........................................................................................................................64
Setup Mail (TX)..............................................................................................................................65
Setup Mail (RX) .............................................................................................................................65
Error mail .......................................................................................................................................65
Important information on Internet Fax ...........................................................................................66
10
Brother Internet Fax Printing Software(MFC-8860DN only)
Overview..............................................................................................................................................67
Installing Brother Internet Fax Printing Driver................................................................................68
Changing the BFP Port Settings....................................................................................................69
Relay Broadcast Function .............................................................................................................71
Uninstalling from Windows® 98/98SE/Me/2000/XP and Windows NT® 4.0...................................72
Using the BFP Address Book ........................................................................................................73
Setting Up a Member in the Address Book ...............................................................................73
Setting Up a Group for Broadcasting.............................................................................................74
Editing Member Information ......................................................................................................74
Deleting a Member or Group .....................................................................................................74
Exporting the Address Book ......................................................................................................75
Sending a Network Fax with BFP..................................................................................................76
11
Troubleshooting
Overview..............................................................................................................................................77
General problems ................................................................................................................................77
CD-ROM is inserted, but does not start automatically...............................................................77
How to reset the Brother print server to factory default .............................................................77
Network print software installation problems .......................................................................................78
The Brother print server is not found during setup of the network print software installation or
from the printer driver of the Brother machine in Windows®. ....................................................78
The Brother print server is not found using the Simple Network Configuration capabilities of
Mac OS® X. ...............................................................................................................................78
x
Printing problems.................................................................................................................................81
Print job is not printed................................................................................................................81
Error during printing...................................................................................................................83
Scanning and PC Fax problems ..........................................................................................................84
Protocol-specific troubleshooting.........................................................................................................87
Windows® 2000/XP and Windows Vista® IPP troubleshooting .....................................................87
Want to use a different Port number other than 631. ................................................................87
The “Go to printer’s Web site” option in Windows® XP and Windows Vista® is not working
The “Get More Info” option in Windows® 2000 and Windows Server® 2003 is not working......87
Web browser troubleshooting (TCP/IP).........................................................................................87
LDAP troubleshooting....................................................................................................................87
12
Appendix A
Using services .....................................................................................................................................88
Other ways to set the IP address (for advanced users and Administrators)........................................88
Using DHCP to configure the IP address ......................................................................................88
Using BOOTP to configure the IP address....................................................................................89
Using RARP to configure the IP address ......................................................................................89
Using APIPA to configure the IP address......................................................................................90
Using ARP to configure the IP address .........................................................................................90
Windows® systems ....................................................................................................................90
UNIX®/Linux systems ................................................................................................................91
Using the TELNET console to configure the IP address ...............................................................91
Using the Brother Web BRAdmin server software for IIS* to configure the IP address ................92
Installation when using a Network Print Queue or Share (printer driver only) .....................................93
Multi-function Print Server specifications.............................................................................................94
Function Table and Default Factory Settings.......................................................................................95
Entering Text .......................................................................................................................................97
13
Index
xi
1
Introduction
Overview
The Brother machine can be shared on a 10/100 MB wired Ethernet network using the internal network print
server. The print server supports various functions and methods of connection depending on the operating
system you are running on a network supporting TCP/IP. These functions include printing, scanning, PC-FAX
send, PC-FAX receive, Remote Setup and Status Monitor. The following chart shows what network features
and connections are supported by each operating system.
Operating
Systems
10/100
BASE-TX
Wired
Ethernet
(TCP/IP)
Printing
Windows®
98/98SE/Me/
2000/XP/
XP Professional
x64 Edition
Windows Vista®
√
√
Windows NT® 4.0
√
√
Mac OS® X 10.2.4
or greater
√
√
Mac OS® 9.1-9.2
√
√
Scanning
√
PC-Fax
Send*
√
PC-Fax
Receive*
Remote
Setup*
√
Status
Monitor
√
√
√
√
√
√
√
√
√
■ * PC-FAX Send, PC-FAX Receive and Remote Setup functions are not available for DCP-8065DN
To use the Brother machine through a network, you need to configure the print server, and set up the
computers you use.
In this chapter, you will learn the basic concept of the network function, connection and protocols. In Chapter
2, you will read information on network configuration. In Chapter 3, you will learn how to configure the print
server using the control panel. Chapter 4 through Chapter 6 describe how to configure your print server with
your operating system:
Chapter 2: Configuring your network printer
Chapter 3: Control Panel Setup
Chapter 4: Network printing from Windows® basic TCP/IP Peer-to-Peer printing
Chapter 5: Internet printing for Windows®
Chapter 6: Network printing from a Macintosh®
1
1
Introduction
Network function features
Brother machine has the following basic network functions.
1
Network printing
The print server provides printing services for Windows® 98/98SE/Me/NT®/2000/XP/Windows Vista®
supporting the TCP/IP protocols and Macintosh® supporting TCP/IP (Mac OS® 9.1-9.2 / Mac OS® X 10.2.4
or greater for a wired network).
Network scanning
You can scan documents over the network to your computer or to a central server (See Chapter 4 for
Windows® and Chapter 10 for Macintosh® of the Software User’s Guide on the CD-ROM).
Network PC-FAX (Not available for DCP-8065DN)
You can directly send and receive a PC file as a PC-FAX on your network (See Chapter 6 for Windows® and
Chapter 7 for Macintosh® of the Software User’s Guide on the CD-ROM for complete description).
Fax to server (MFC-8860DN only)
The Fax to Server feature allows the machine to scan documents and send them via a separate fax server.
Unlike Internet Fax or I-Fax, the Fax to Server feature utilizes a server to send the documents as fax data
over phone or T-1 lines.
Management utility
BRAdmin Light
BRAdmin Light is a utility for initial setup of the Brother network connected devices. This utility can search for
Brother products on your network, view the status and configure basic network settings, such as IP address.
The BRAdmin Light utility is available for Windows Vista® and Mac OS® X 10.2.4 or greater.
BRAdmin Professional
The BRAdmin Professional is a utility for more advanced management of network connected Brother devices.
This utility can search for Brother products on your network, view the status and configure the network
settings from a computer running system.
The BRAdmin professional utility is available for Windows® 98/98SE/Me, Windows NT® 4.0 and Windows®
2000/XP.
2
Introduction
Remote Setup (Not available for DCP-8065DN)
The Remote Setup software allows you to configure network settings from a Windows® or Macintosh® (Mac
OS® X 10.2.4 or greater). (See Chapter 5 for Windows® and Chapter 11 for Macintosh® of the Software User’s
Guide on the CD-ROM).
Types of Network Connections
Generally speaking, there are two types of networks: A Peer-to-Peer network and a shared Network.
Network Connection Example
Peer-to-Peer printing using TCP/IP
In a Peer-to-Peer environment, each computer directly sends and receives data to each device. There is no
central server controlling File access or Printer sharing.
Windows
R
Windows
R
Windows
R
Network printer (your machine)
TCP/IP
Switch or
Router
TCP/IP
■ In a smaller network of 2 or 3 computers, we recommend the Peer-to-Peer printing method as it is easier
to configure than the Network Shared Printing method described on the following page. See Network
Shared Printing on page 4.
■ Each computer must use the TCP/IP Protocol.
■ The Brother machine needs an appropriate IP address configuration.
■ If you are using a router, the Gateway address must be configured on the computers and the Brother
machine.
3
1
Introduction
Network Shared Printing
In a Network Shared environment, each computer sends data via a centrally controlled computer. This type
of computer is often called a “Server” or a “Print Server”. Its job is to control the printing of all print jobs.
1
Windows
R
Windows
R
Windows
R
TCP/IP
Windows
R
Also known as
“Server” or “Print
Server”
Network printer (your machine)
Network Shared
■ In a larger network, we recommend a Network Shared printing environment.
■ The “Server” or the “Print Server” must use the TCP/IP Print Protocol.
■ The Brother machine needs an appropriate IP address configuration unless the machine is shared via the
parallel port or USB port of the server.
4
Introduction
Protocols
TCP/IP Protocols
1
Protocols are the standardized sets of rules for transmitting data on a network. Protocols allow users to gain
access to network-connected resources.
The print server used on this Brother product supports the TCP/IP (Transmission Control Protocol/Internet
Protocol) protocols.
TCP/IP is the most popular set of protocols and can be used in almost all operating systems such as
Windows®, Macintosh® and Linux.
The following TCP/IP protocols are available on this Brother product.
DHCP/BOOTP/RARP
By using the DHCP/BOOTP/RARP protocols, the IP address can be automatically configured.
Note
To use the DHCP/BOOTP/RARP protocols, please contact your Network Administrator.
APIPA
If you do not assign an IP address manually (using the MFL-Pro Suite Installation or BRAdmin software) or
automatically (using a DHCP/BOOTP/RARP server), the Automatic Private IP Addressing (APIPA) protocol
will automatically assign an IP address from the range 169.254.1.0 to 169.254.254.255.
DNS client
The Brother print server supports the Domain Name Service (DNS) client function. This function allows the
print server to communicate with other devices by using its DNS name.
LPR/LPD
Commonly used printing protocol on a TCP/IP network.
Port 9100
Another commonly used printing protocol on a TCP/IP network.
5
Introduction
SMTP client
The Simple Mail Transfer Protocol (SMTP) allows the Brother machine to send and receive e-mails.
IPP
1
The Internet Printing Protocol (IPP Version 1.0) allows you to print documents via the internet.
mDNS
mDNS allows the Brother print server to automatically configure itself to work in a Mac OS® X Simple Network
Configured system. (Mac OS® X 10.2.4 or greater).
TELNET
The Brother print server supports TELNET server for command line configuration.
SNMP
Simple Network Management Protocol (SNMP) is used to manage network devices including computers,
routers and Brother network ready machines.
Web server (HTTP)
The Brother print server is equipped with a built in web server that allows you to monitor its status or change
its configuration settings.
Note
We recommend Internet Explorer 6.0 (or higher) or Netscape Navigator 7.1 (or higher). If a different web
browser is used, make sure it is compatible with HTTP 1.0 and HTTP 1.1.
FTP
File Transfer Protocol (FTP) allows the Brother machine to scan black and white or color documents directly
to an FTP server located locally on your network or on the internet.
LDAP
Lightweight Directory Access Protocol (LDAP) allows the Brother machine to search for information such as
fax numbers and E-mail addresses from an LDAP server.
IPv6
This machine is compatible with the IPv6, the next generation internet protocol. For more information on the
IPv6 protocol, visit http://solutions.brother.com.
6
2
Configuring your network printer
Overview
Before you can use your Brother machine on your network, you need to install the Brother software and also
configure the appropriate TCP/IP network settings on the machine itself. To do this, we recommend that you
use the automatic installer on the Brother CD-ROM as this will guide you through the software and network
installation.
If you do not wish to use the automatic installer, or you do not understand some of the terms used by the
automatic installer, refer to the remainder of this chapter for more information.
Note
If you do not wish to, or are unable to use the automatic installer or any of Brother’s software tools, you can
also use the machine’s control panel to change network settings. For more information, see Control Panel
Setup on page 13.
IP addresses, subnet masks and gateways
To use the machine in a networked TCP/IP environment, you need to configure its IP address and subnet
mask. The IP address you assign to the print server must be on the same logical network as your host
computers. If it is not, you must properly configure the subnet mask and the gateway address.
IP address
An IP address is a series of numbers that identifies each device connected to a network. An IP address
consists of four numbers separated by dots. Each number is between 0 and 255.
Example: In a small network, you would normally change the final number.
192.168.1.1, 192.168.1.2, 192.168.1.3
If you have a DHCP/BOOTP/RARP server in your network (typically a UNIX®/Linux, Windows® 2000/XP,
Windows Vista® network) the print server will automatically obtain its IP address from the DHCP server.
Note
On smaller networks, the DHCP server may be the Router.
For more information on DHCP, BOOTP and RARP, see Using DHCP to configure the IP address on page
88, Using BOOTP to configure the IP address on page 89 and Using RARP to configure the IP address on
page 89.
7
2
Configuring your network printer
If you do not have a DHCP/BOOTP/RARP server, the Automatic Private IP Addressing (APIPA) protocol will
automatically assign an IP address from the range 169.254.1.0 to 169.254.254.255. For more information on
APIPA, see Using APIPA to configure the IP address on page 90.
If the APIPA protocol is disabled, the default IP address of a Brother print server is 192.0.0.192. However,
you can easily change this IP address number to match with the IP address details of your network. For
information on how to change the IP address, see Setting the IP address and subnet mask on page 9.
2
Subnet mask
Subnet masks restrict network communication.
Example: PC1 can talk to PC2
PC1 IP Address:192.168.1.2
Subnet Mask: 255.255.255.0
PC2 IP Address:192.168.1.3
Subnet Mask: 255.255.255.0
Note
0 denotes that there is no limit to communication at this part of the address.
In the above example, we can communicate with anything that has an IP address that begins with
192.168.1.X
Gateway (and router)
A gateway is a network point that acts as an entrance to another network and sends data transmitted via the
network to an exact destination. The router knows where to direct data that arrives at the gateway. If a
destination is located at an external network, the router transmits data to the external network. If your network
communicates with other networks, you may need to configure the Gateway IP address. If you do not know
the Gateway IP address then contact your Network Administrator.
8
Configuring your network printer
Setting the IP address and subnet mask
Using the BRAdmin Professional utility and the TCP/IP protocol to configure
your network printer (for Windows®)
2
BRAdmin Professional utility
The BRAdmin Professional utility is designed to allow you to manage your network connected Brother
machines in a TCP/IP environment.
How to configure your machine using the BRAdmin Professional utility
Note
• Please use the BRAdmin Professional utility that was supplied on the CD-ROM of your Brother
product. For Windows Vista®, BRAdmin Professional is available as a web download from
http://solutions.brother.com. You can also download the latest Brother BRAdmin Professional utility
from http://solutions.brother.com. This utility is only available for Windows® users.
• If you are using Personal Firewall software (e.g. the Internet Connection Firewall available in
Windows® XP), disable it. Once you are sure that you can print, re-start your Personal Firewall
software.
• Node name: Node name appears in current BRAdmin Professional window. The default Node name
is “BRN_xxxxxx” (“xxxxxx” is the last six digits of Ethernet address.).
• The default password for Brother print servers is “access”.
1
Start the BRAdmin Professional utility (from Windows® 98/98SE/Me, Windows NT® 4.0, Windows®
2000/XP and Windows Vista®), by clicking Start / Programs / Brother Administrator Utilities / Brother
BRAdmin Professional Utilities / BRAdmin Professional.
2
Select TCP/IP in the left frame of the main BRAdmin window.
3
Select Search Active Devices from the Devices menu. BRAdmin Professional will search for new
devices automatically.
9
Configuring your network printer
Note
• If the print server is set to its factory default settings without using a DHCP/BOOTP/RARP server, the
device will appear as an APIPA device in the BRAdmin Professional utility screen.
• You can find the node name and IP address by printing the Network Configuration List. See Printing
the Network Configuration List on page 31 for information on how to print the Network Configuration
List on your print server.
4
Double-click the unconfigured device.
5
Enter the IP address, Subnet Mask and Gateway (if needed) of your print server.
6
Click OK.
7
With the correctly programmed IP address, you will see the Brother print server in the device list.
Using the control panel to configure your machine for a network
You can configure your machine for a network using the control panel LAN menu. See Control Panel Setup
on page 13.
Using other methods to configure your machine for a network
You can configure your machine for a network using other methods. See Other ways to set the IP address
(for advanced users and Administrators) on page 88.
Changing the print server settings
Using the BRAdmin Professional utility to change the print server settings (for
Windows®)
1
Start the BRAdmin Professional utility (from Windows® 95/98/Me, Windows NT® 4.0, Windows® 2000/XP
and Windows Vista®), by clicking Start / Programs / Brother Administrator Utilities / Brother
BRAdmin Professional Utilities / BRAdmin Professional.
2
Select TCP/IP in the left frame of the main BRAdmin window.
3
Select the print server which you want to configure, in the right frame of the main BRAdmin window.
4
Select Configure Print Server from the Control menu.
5
Enter a password. The default Password is “access”.
10
2
Configuring your network printer
6
You can now change the print server settings.
Using a HTTP (web browser) to change the print/scan settings
A standard web browser (we recommend Microsoft Internet Explorer® version 6.0 or later, or Netscape
Navigator® version 7.1 or later) can be used to change your print server settings using the HTTP (Hyper Text
Transfer Protocol). To use a web browser, you must have assigned an IP address to the print server.
1
Type http://printer_ip_address/ into your browser. (Where printer_ip_address is the IP
address or the print server name)
For example: http://192.168.1.2/ (if the printer’s IP address is 192.168.1.2.)
Note
If you have edited the hosts file on your computer or are using Domain Name System (DNS), you can also
enter the DNS name of the print server. As the print server supports TCP/IP and NetBIOS names, you can
also enter the NetBIOS name of the print server. The NetBIOS name can be seen in the Network
Configuration List. See Printing the Network Configuration List on page 31 for information on how to print the
Network Configuration List on your print server. The NetBIOS name assigned is the first 15 characters of the
node name and by default it will appear as BRN_xxxxxx where xxxxxx is the last six digits of the Ethernet
address.
2
Click Network Configuration.
3
Enter a user name and a password. The User Name is “admin” and the default Password is “access”.
4
Click OK.
5
Click Configure TCP/IP.
6
You can now change the printer server settings.
Using the Remote Setup to change the print server settings
(for Windows® and Mac OS® X 10.2.4 or greater) (Not available for DCP-8065DN)
Remote Setup for Windows®
The Remote Setup application allows you to configure network settings from a Windows® application. When
you access this application, the settings on your machine will be downloaded automatically to your PC and
displayed on your PC screen. If you change the settings, you can upload them directly to the machine.
1
Click the Start button, All Programs, Brother, MFL-Pro Suite MFC-XXXX, Remote Setup, then
MFC-XXXX LAN (where XXXX is your model name).
2
Enter a password. The default Password is “access”.
11
2
Configuring your network printer
3
Click TCP/IP.
4
You can now change the print server settings.
Remote Setup for Macintosh®
2
®
The Remote Setup application allows you to configure many MFC settings from a Macintosh application.
When you access this application, the settings on your machine will be downloaded automatically to your
Macintosh® and displayed on your Macintosh® screen. If you change the settings, you can upload them
directly to the machine.
1
Double click the Macintosh HD icon on your desktop, Library, Printers, Brother, then Utilities.
2
Double click the Remote Setup icon.
3
Enter a password. The default Password is “access”.
4
Click TCP/IP.
5
You can now change the print server settings.
12
3
Control Panel Setup
LAN Main Setup Menu
3
The control panel LAN menu section can be used to configure network settings.
Press Menu, then press number 6 for MFC-8460N, MFC-8660DN, MFC-8670DN and MFC-8860DN, 4 for
DCP-8065DN and then proceed to the menu selection you wish to configure.
Please note that the machine is supplied with Remote Setup applications for Windows® and Macintosh®, the
BRAdmin Professional utility for Windows® 98/98SE/Me, Windows NT® 4.0 and Windows® 2000/XP,
BRAdmin Light utility for Windows Vista® and Mac OS® X 10.2.4 or greater and HTTP protocol (web based
management) for Windows® and Macintosh®, which also can be used to configure many aspects of the
network. See Changing the print server settings on page 10 for Windows® and Changing the print server
settings on page 51 for Macintosh®.
TCP/IP
This menu has ten sections: Boot Method, IP Address, Subnet Mask, Gateway, Node Name, WINS
Config, WINS Server, DNS Server, APIPA and IPv6.
BOOT Method
1
(For MFC-8460N, MFC-8660DN, MFC-8670DN and MFC-8860DN) Press Menu, 6, 1, 1.
(For DCP-8065DN) Press Menu, 4, 1, 1.
2
Press ▲ or ▼ to select Auto, Static, RARP, BOOTP or DHCP.
3
Press OK.
4
Press Stop/Exit.
Auto mode
In this mode, the machine will scan the network for a DHCP server, if it can find one, and if the DHCP server
is configured to allocate an IP address to the machine, then the IP address supplied by the DHCP server will
be used. If no DHCP server is available, the machine will scan for a BOOTP server. If a BOOTP server is
available, and it is configured correctly, the machine will take its IP address from the BOOTP server. If a
BOOTP server is not available, the machine will scan for a RARP server. If a RARP server also does not
answer, the machine will use an APIPA address, see Using APIPA to configure the IP address on page 90.
This whole process can take 2 to 3 minutes so we recommend printing a Network Configuration List to confirm
the network settings are set correctly.
Static mode
In this mode the machine’s IP address must be manually assigned. Once entered the IP address is locked to
the assigned address.
13
Control Panel Setup
RARP mode
Brother print server IP address can be configured using the Reverse ARP (RARP) facility on your host
computer. This is done by editing the /etc/ethers file (if this file does not exist, you can create it) with an entry
similar to the following:
00:80:77:31:01:07
3
BRN_310107
Where the first entry is the Ethernet address of the print server and the second entry is the name of the print
server (the name must be the same as the one you put in the /etc/hosts file).
If the RARP daemon is not already running, start it (depending on the system the command can be rarpd,
rarpd -a, in.rarpd -a or something else; type man rarpd or refer to your system documentation for additional
information). To verify that the RARP daemon is running on a Berkeley UNIX-based system, type the
following command:
ps -ax | grep -v grep | grep rarpd
For AT&T UNIX-based systems, type:
ps -ef | grep -v grep | grep rarpd
The Brother print server will get the IP address from the RARP daemon when it is powered on.
BOOTP mode
BOOTP is an alternative to RARP. However, unlike RARP, it is able to configure the subnet mask and
gateway. In order to use BOOTP to configure the IP address make sure that BOOTP is installed and running
on your host computer (it should appear in the /etc/services file on your host as a real service; type man
bootpd or refer to your system documentation for information). BOOTP is usually started up via the
/etc/inetd.conf file, so you may need to enable it by removing the “#” in front of the bootp entry in that file. For
example, a typical bootp entry in the /etc/inetd.conf file would be:
#bootp dgram udp wait /usr/etc/bootpd bootpd -i
Note
Depending on the system, this entry might be called “bootps” instead of “bootp”.
In order to enable BOOTP, simply use an editor to delete the “#” (if there is no “#”, then BOOTP is already
enabled). Then edit the BOOTP configuration file (usually /etc/bootptab) and enter the name, network type
(1 for Ethernet), Ethernet address and the IP address, subnet mask and gateway of the print server.
Unfortunately, the exact format for doing this is not standardized, so you will need to refer to your system
documentation to determine how to enter this information (many UNIX® systems also have template
examples in the bootptab file that you can use for reference). Some examples of typical /etc/bootptab entries
include:
BRN_310107 1
00:80:77:31:01:07 192.189.207.3
and:
BRN_310107:ht=ethernet:ha=008077310107:\
ip=192.189.207.3:
14
Control Panel Setup
Certain BOOTP host software implementations will not respond to BOOTP requests if you have not included
a download filename in the configuration file; if this is the case, simply create a null file on the host and specify
the name of this file and its path in the configuration file.
As with RARP, the print server will load its IP address from the BOOTP server when the printer is powered on.
3
DHCP mode
Dynamic Host Configuration Protocol (DHCP) is one of several automated mechanisms for IP address
allocation. If you have a DHCP server in your network (typically a UNIX®, Windows® 2000/XP,
Windows Vista® network) the print server automatically obtains its IP address from DHCP server and register
its name with any RFC 1001 and 1002-compliant dynamic name services.
Note
If you do not want your print server to be configured using DHCP, BOOTP or RARP, you must set the BOOT
METHOD to static, this will prevent the print server from trying to obtain an IP address from any of these
systems. To change the BOOT METHOD, use the control panel, Web browser or by using the BRAdmin
application.
IP Address
This field displays the current IP address of the machine. If the BOOT Method is set to Static, enter the IP
address that you wish to assign to the machine (check with your network manager for the IP address to use).
If you have selected a method other than Static, the machine will attempt to determine its IP address using
the DHCP, RARP or BOOTP protocols. The default IP address of your machine will probably be incompatible
with the IP address numbering scheme of your network. We recommend that you contact your network
manager for the correct IP address settings.
1
(For MFC-8460N, MFC-8660DN, MFC-8670DN and MFC-8860DN) Press Menu, 6, 1, 2.
(For DCP-8065DN) Press Menu, 4, 1, 2.
2
Select 1 to change. Enter the IP address.
3
Press OK.
4
Press Stop/Exit.
15
Control Panel Setup
Subnet Mask
This field displays the current subnet mask used by the machine. If you are not using DHCP or BOOTP to
obtain the subnet mask, enter the desired subnet mask. Check with your network manager for the subnet
mask to use.
1
(For MFC-8460N, MFC-8660DN, MFC-8670DN and MFC-8860DN) Press Menu, 6, 1, 3.
(For DCP-8065DN) Press Menu, 4, 1, 3.
2
Select 1 to change. Enter the Subnet Mask address.
3
Press OK.
4
Press Stop/Exit.
3
Gateway
This field displays the current gateway or router address used by the machine. If you are not using DHCP or
BOOTP to obtain the gateway or router address, enter the address you wish to assign. If you do not have a
gateway or router, leave this field blank. Check with your network manager if you are unsure.
1
(For MFC-8460N, MFC-8660DN, MFC-8670DN and MFC-8860DN) Press Menu, 6, 1, 4.
(For DCP-8065DN) Press Menu, 4, 1, 4.
2
Enter the Gateway address.
3
Press OK.
4
Press Stop/Exit.
Node Name
You can register the machine name on the Network. This name is often referred to as a NetBIOS name; and
is the name that is registered by the WINS server on your network. Brother recommends the name
BRN_XXXXXX (where XXXXXX is the last six digits of the Ethernet address) (up to 15 characters).
1
(For MFC-8460N, MFC-8660DN, MFC-8670DN and MFC-8860DN) Press Menu, 6, 1, 5.
(For DCP-8065DN) Press Menu, 4, 1, 5.
2
Select 1 to change. Enter the Node Name.
3
Press OK.
4
Press Stop/Exit.
16
Control Panel Setup
WINS Config
This selection controls how the machine obtains the IP address of the WINS server.
1
(For MFC-8460N, MFC-8660DN, MFC-8670DN and MFC-8860DN) Press Menu, 6, 1, 6.
(For DCP-8065DN) Press Menu, 4, 1, 6.
2
Press ▲ or ▼ to select Auto or Static.
3
Press OK.
4
Press Stop/Exit.
3
Auto
Automatically uses a DHCP request to determine the IP addresses for the primary and secondary WINS
servers. You must set the BOOT Method to Auto for this feature to work.
Static
Uses a specified IP address for the primary and secondary WINS servers.
WINS Server
1
(For MFC-8460N, MFC-8660DN, MFC-8670DN and MFC-8860DN) Press Menu, 6, 1, 7.
(For DCP-8065DN) Press Menu, 4, 1, 7.
2
Press ▲ or ▼ to select Primary or Secondary.
3
Press OK.
4
Enter the WINS Server address.
5
Press OK.
6
Press Stop/Exit.
Primary WINS Server IP Address
This field specifies the IP address of the primary WINS (Windows® Internet Naming Service) server.
Secondary WINS Server IP Address
This field specifies the IP address of the secondary WINS server. It is used as a backup to the Primary WINS
server address. If the Primary server is unavailable, the machine still can register itself with a secondary
server. If you have a primary WINS server, but no secondary WINS server, simply leave this field blank.
17
Control Panel Setup
DNS Server
1
(For MFC-8460N, MFC-8660DN, MFC-8670DN and MFC-8860DN) Press Menu, 6, 1, 8.
(For DCP-8065DN) Press Menu, 4, 1, 8.
2
Press ▲ or ▼ to select Primary or Secondary.
3
Press OK.
4
Enter the DNS Server address.
5
Press OK.
6
Press Stop/Exit.
3
Primary DNS Server IP Address
This field specifies the IP address of the primary DNS (Domain Name Service) server.
Secondary DNS Server IP Address
This field specifies the IP address of the secondary DNS server. It is used as a backup to the Primary DNS
server address. If the Primary server is unavailable, the machine will contact the Secondary DNS server.
APIPA
When enabled, the print server will automatically allocate a IP address in the range (169.254.1.0 169.254.254.255) when the print server cannot obtain an IP address through the BOOT Method you have set
(Menu, 6, 1, 1 for MFC-8460N, MFC-8660DN, MFC-8670DN and MFC-8860DN, Menu, 4, 1, 1 for
DCP-8065DN). Selecting Off means the IP address doesn’t change, when the print server cannot obtain an
IP address through the BOOT Method you have set.
1
(For MFC-8460N, MFC-8660DN, MFC-8670DN and MFC-8860DN) Press Menu, 6, 1, 9.
(For DCP-8065DN) Press Menu, 4, 1, 9.
2
Press ▲ or ▼ to select On or Off.
3
Press OK.
4
Press Stop/Exit.
18
Control Panel Setup
IPv6
This machine is compatible with IPv6, the next generation internet protocol. If you want to use the IPv6
protocol, select On.The default setting for IPv6 is Off. For more information on the IPv6 protocol, visit
http://solutions.brother.com.
1
Press (For MFC-8460N, MFC-8660DN, MFC-8670DN and MFC-8860DN) Menu, 6, 1, 0.
(For DCP-8065DN) Press Menu, 4, 1, 0.
2
Press ▲ or ▼ to select On or Off.
3
Press OK.
4
Press Stop/Exit.
3
Ethernet
Ethernet link mode. Auto allows the print server to operate in 100BASE TX full or half duplex, or in 10BASE
T full or half duplex mode.
100BASE TX Full Duplex (100B-FD) or Half Duplex (100B-HD) and 10BASE T Full Duplex (10B-FD) or Half
Duplex (10B-HD) fix the print server link mode. This change is valid after the print server has been reset
(default is Auto).
Note
If you incorrectly set this value, you may not be able to communicate with your print server.
1
(For MFC-8460N, MFC-8660DN, MFC-8670DN and MFC-8860DN) Press Menu, 6, 2.
(For DCP-8065DN) Press Menu, 4, 2.
2
Press ▲ or ▼ to select Auto/100B-FD/100B-HD/10B-FD/10B-HD.
3
Press OK.
4
Press Stop/Exit.
19
Control Panel Setup
Setup Internet (MFC-8860DN only)
This menu has five selections: Mail Address, SMTP Server, POP3 Server, Mailbox Name and Mailbox
Pwd. As this section requires you to enter a lot of text characters, you may find that it is more convenient to
use your favorite web browser to configure these settings. (See Web Based Management on page 53. For
more details about Internet Fax, see Internet Fax (MFC-8860DN only) on page 59.)
Note
If you want to use the E-mail notification function, see Using E-mail notification with user authentication on
page 55.
Mail Address
1
Press Menu, 6, 3, 1, 1.
2
Select 1 to change. Enter the mail address. Press OK.
3
Press Stop/Exit.
Entering text
You can access the character you want by repeatedly pressing the appropriate number key. For more
information, see Entering Text on page 97.
SMTP Server address
This field displays the Node Name or IP address of an SMTP mail server (outgoing E-mail Server) on your
network.
(Ex, mailhost.brothermail.net -or- 192.000.000.001)
1
Press Menu, 6, 3, 1, 2.
2
Press ▲ or ▼ to select Name or IP Address.
3
Enter the SMTP SERVER Address.
4
Press OK.
5
Press Stop/Exit.
POP3 Server address
This field displays the Node Name or IP address of the POP3 server (incoming E-mail server) used by the
20
3
Control Panel Setup
Brother machine. This address is necessary for the Internet Fax features to function correctly.
(Ex, mailhost.brothermail.net -or- 192.000.000.001)
1
Press Menu 6, 3, 1, 3.
2
Press ▲ or ▼ to select Name or IP Address.
3
Enter the POP3 Server Address.
4
Press OK.
5
Press Stop/Exit.
3
Mailbox Name
You can specify a mailbox name on the POP3 server where the internet print jobs are to be retrieved.
1
Press Menu, 6, 3, 1, 4.
2
Enter the user account name assigned to the Brother machine that will login to the POP3 Server.
3
Press OK.
4
Press Stop/Exit.
Mailbox Pwd
You can specify password on the POP3 server where the internet print jobs are to be retrieved.
1
Press Menu, 6, 3, 1, 5.
2
Enter the user password assigned to the machine that will login to the POP3 Server. Please note that
this password is case sensitive.
3
Press OK.
4
Press OK again to verify the password.
5
Press Stop/Exit.
Note
To set for no password, enter a single space.
21
Control Panel Setup
Setup Mail RX (MFC-8860DN only)
This menu has five selections Auto Polling, Poll Frequency, Header, Del Error Mail and Notification.
3
Auto Polling
When set to On the machine automatically checks the POP3 server for new messages. “No Mail” will be
displayed if there are no E-mail messages when the POP3 server is polled.
1
Press Menu, 6, 3, 2, 1.
2
Press ▲ or ▼ to select On or Off.
3
Press OK.
4
Press Stop/Exit.
Poll Frequency
Sets the interval for checking for new messages on the POP3 server (default is 10Min).
1
Press Menu, 6, 3, 2, 2.
2
Enter the polling frequency.
3
Press OK.
4
Press Stop/Exit.
Header
This selection allows the contents of the mail header to be printed when the received message is printed
(Subject+From+To or All or None).
1
Press Menu, 6, 3, 2, 3.
2
Press ▲ or ▼ to select All or Subject+From+To or None.
3
Press OK.
4
Press Stop/Exit.
22
Control Panel Setup
Del Error Mail
When set to On, the machine automatically deletes error mails that the machine can not receive from the POP
server.
1
Press Menu, 6, 3, 2, 4.
2
Press ▲ or ▼ to select On or Off.
3
Press OK.
4
Press Stop/Exit.
3
Notification
The notification feature allows a confirmation of receipt message to be transmitted to the sending station
When the I-Fax has been received.
This feature only works on I-Fax machines that support the “MDN” specification.
1
Press Menu, 6, 3, 2, 5.
2
Press ▲ or ▼ to select On or MDN or Off.
3
Press OK.
4
Press Stop/Exit.
Setup Mail TX (MFC-8860DN only)
This menu has three selections Sender Subject, Size Limit and Notification.
Sender Subject
This field displays the subject that is attached to the Internet Fax data being sent from the Brother machine
to a PC (default is “Internet Fax Job”).
1
Press Menu, 6, 3, 3, 1.
2
Select 1 to change the Sender Subject—OR—2 to exit.
3
Enter the subject information.
4
Press OK.
5
Press Stop/Exit.
23
Control Panel Setup
Size Limit
Some E-mail servers do not allow you to send large E-mail documents. (the System Administrator will often
place a limit on the maximum E-mail size). With this function enabled, the machine will display Out of
Memory when trying to send E-mail documents over 1Mbyte in size. The document will not be sent and an
error report will be printed. The document you are sending should be separated into smaller documents that
will be accepted by the mail server. (For your information, a 42 page document based on the ITU-T Test
Chart#1 test chart is approximately 1Mbyte in size).
1
Press Menu, 6, 3, 3, 2.
2
Press ▲ or ▼ to select On or Off.
3
Press OK.
4
Press Stop/Exit.
Notification
The notification feature allows a confirmation of receipt message to be transmitted to the sending station
When the I-Fax has been received.
This feature only works on I-Fax machines that support the “MDN” specification.
1
Press Menu, 6, 3, 3, 3.
2
Press ▲ or ▼ to select On or Off.
3
Press OK.
4
Press Stop/Exit.
24
3
Control Panel Setup
Setup Relay (MFC-8860DN only)
This menu has three selections Rly Broadcast, Relay Domain and Relay Report. For more information on
Relay Broadcast, see Relay Broadcasting on page 62 of this User’s Guide.
Rly Broadcast
This function allows the machine to receive a document over the Internet, and then relay it to other fax
machines through conventional analog landlines
1
Press Menu, 6, 3, 4, 1.
2
Press ▲ or ▼ to select On or Off.
3
Press OK.
4
Press Stop/Exit.
Relay Domain
You can register the Domain Names (Max.10) that are allowed to request a Relay Broadcast.
1
Press Menu, 6, 3, 4, 2.
2
Press ▲ or ▼ to select the Relay Domain (01 - 10).
3
Press OK.
4
Enter the Relay Domain name for the Domain that is being allowed to request a Relay Broadcast.
5
Press OK.
6
Press Stop/Exit.
25
3
Control Panel Setup
Relay Report
A Relay Broadcast Report can be printed at the machine that will act as a Relay Station for all Relay
Broadcasts. When the machine is used with the Brother Network PC Fax software the machine is also acting
as a Relay Station for fax transmissions from the network. This means that a Relay Report can also be printed
for confirmation of sent network faxes. (For US / Canada only)
Its primary function is to print reports of any relayed broadcasts that have been sent through the machine.
Please note: in order to use this function, you must assign the relay domain in the "Trusted Domains" section
of the Relay function settings.
1
Press Menu, 6, 3, 4, 3.
2
Press ▲ or ▼ to select On or Off.
3
Press OK.
4
Press Stop/Exit.
Scan to E-mail (E-mail server) (MFC-8860DN only)
Color File Type for Scan to E-mail (E-mail server)
You can select the default color file type for the Scan to E-mail (E-mail server) function.
1
Press Menu, 6, 4, 1.
2
Press ▲ or ▼ to select PDF or JPEG.
3
Press OK.
4
Press Stop/Exit.
Black and White File Type for Scan to E-mail (E-mail server)
You can select the default Black and White file type for the Scan to E-mail (E-mail server) function.
1
Press Menu, 6, 4, 2.
2
Press ▲ or ▼ to select PDF or TIFF.
3
Press OK.
4
Press Stop/Exit.
26
3
Control Panel Setup
Note
For how to operate Scan to E-mail (E-mail server), see Network Scanning of the Software User’s Guide on
the CD-ROM.
3
Scan to FTP
Color File Type for Scan to FTP
You can select the default color file type for the Scan to FTP function.
1
(For MFC-8460N, MFC-8660DN and MFC-8670DN) Press Menu, 6, 3, 1.
(For MFC-8860DN) Press Menu, 6, 5, 1.
(For DCP-8065DN) Press Menu, 4, 3, 1.
2
Press ▲ or ▼ to select PDF or JPEG.
3
Press OK.
4
Press Stop/Exit.
Black and White File Type for Scan to FTP
You can select the default Black and White file type for the Scan to FTP function.
1
(For MFC-8460N, MFC-8660DN and MFC-8670DN) Press Menu, 6, 3, 2.
(For MFC-8860DN) Press Menu, 6, 5, 2.
(For DCP-8065DN) Press Menu, 4, 3, 2.
2
Press ▲ or ▼ to select PDF or TIFF.
3
Press OK.
4
Press Stop/Exit.
Note
For how to operate Scan to FTP, see Network Scanning of the Software User’s Guide on the CD-ROM.
27
Control Panel Setup
Fax to Server (MFC-8860DN only)
The Fax to Server feature allows the machine to scan a document and send it over the network to a separate
fax server. The document will then be sent from the server as fax data to the destination fax number over
standard phone lines. When the Fax to Server feature is set to ON all automatic fax transmissions from the
machine will be sent to the fax server for fax transmission. You can continue to send a fax directly from the
machine using the manual fax feature (For more information, see sending a fax manually in the User’s Guide).
To send a document to the fax server the correct syntax for that server must be used. The destination fax
number must be sent with a prefix and a suffix that match the parameters used by the fax server. In most
cases the syntax for the prefix is “fax=” and the syntax for the suffix would be the domain name of the fax
server E-mail gateway. The suffix must also include the “@” symbol at the beginning of the suffix. The prefix
and the suffix information must be stored in the machine before you can use the fax to server function.
Destination fax numbers can be saved in the One-Touch or Speed Dial locations or entered using the dial
pad (up to 20 digit numbers). For example if you wanted to send a document to a destination fax number of
123-555-0001 the following syntax would be used.
Prefix
Suffix
fax=123-555-0001@faxserver.companyname.com
Destination fax number
28
3
Control Panel Setup
Setting Fax to Server to On
You can store the prefix/suffix address for the fax server in the machine.
1
Press Menu, 6, 6.
2
Press ▲ or ▼ to select On and then press OK.
3
Press ▲ or ▼ to select Prefix and then press OK.
4
Enter the prefix using dial pad.
5
Press OK.
6
Press ▲ or ▼ to select Suffix and then press OK.
7
Enter the suffix using dial pad.
8
Press OK.
9
Press Stop/Exit.
3
Note
You can enter the prefix and suffix address using up to a total of 40 characters.
How to Operate
1
Place the document in the ADF or on the scanner glass.
2
Enter the fax number.
3
The machine will send the message over a TCP/IP network to the fax server.
29
Control Panel Setup
Time Zone (MFC-8860DN only)
This field displays your country time zone. The time shown is the time difference between your country and
Greenwich Mean Time. For example, the Time Zone for Eastern Time in the USA and Canada is UTC-05:00.
1
Press Menu, 6, 7.
2
Press ▲ or ▼ to select the time.
3
Press OK to accept the selection.
4
Press Stop/Exit to exit the configuration menu.
Windows® Time Zone Setting
You can see the time difference for your country by using the Time Zone setting in Windows®.
1
For Windows Vista®:
Click the Start button, Control Panel, Date and Time, and then Change time zone.
For Windows® XP:
Click the Start button, Control Panel, Date and Time, and then select Time Zone.
For Windows® 2000:
Click the Start button, Settings, Control Panel, Date/Time, and then select Time Zone.
2
Change the date and time. Verify your time zone setting from the pull-down menu (this menu displays
the time difference from GMT).
Restoring the network settings to factory default
If you wish to reset the print server back to its default factory settings (resetting all information such as the
password and IP address information), please follow these steps:
1
Make sure the machine is not operating, then disconnect all the cables from the machine (except power
cable).
2
(For MFC-8460N, MFC-8660DN, MFC-8670DN and MFC-8860DN) Press Menu, 6, 0.
(For DCP-8065DN) Press Menu, 4, 0.
3
Press 1 to select Reset.
4
Press 1 to select Yes.
5
The machine will re-start, re-connect cables once this is complete.
30
3
Control Panel Setup
Note
You can reset the print server back to its default factory settings using the BRAdmin Professional utility,
BRAdmin Light utility or a web browser. For more information, see Using the BRAdmin Professional utility
and the TCP/IP protocol to configure your network printer (for Windows®) on page 9 and Using the BRAdmin
Light utility to change the print server settings (for Mac OS® X 10.2.4 or greater) on page 51.
Printing the Network Configuration List
Note
Node Name: Node Name appears in the Network Configuration List. The default Node Name is
"BRN_xxxxxx" ("xxxxxx" is the last six digits of Ethernet address.).
The Network Configuration List prints a report listing all the current network configuration including the
network print server settings.
1
(For MFC-8460N, MFC-8660DN, MFC-8670DN and MFC-8860DN) Press Menu, 5, 6.
(For DCP-8065DN) Press Menu, 1, 8.
2
Press Start.
31
3
4
Network printing from Windows®
basic TCP/IP Peer-to-Peer printing
Overview
If you are a Windows® user and want to print using the TCP/IP protocol in a Peer-to-Peer environment, please
follow the instructions in this chapter. This chapter explains how to install the network software and the printer
driver which you will need to be able to print using your network printer.
Note
• You must configure the IP address on your machine before you proceed with this chapter. If you have
not configured the IP address, see Configuring your network printer on page 7 first.
• Verify the host computer and print server are either on the same subnet, or that the router is properly
configured to pass data between the two devices.
• The default password for Brother print servers is “access”.
• Before installation, if you are using Personal Firewall software (e.g. the Internet Connection Firewall
available in Windows XP/Windows Vista®), disable it. Once you are sure that you can print, re-start
your Personal Firewall software.
• If you are connecting to a Nework Print Queue or Share (printing only), see Installation when using a
Network Print Queue or Share (printer driver only) on page 93 for installation details.
For Windows® 98/Me/NT®/2000/XP/Windows Vista® users
Windows® 98/Me/NT®/2000/XP/Windows Vista® users can send print job using Brother Peer-to-Peer Print
software provided on the CD-ROM which we have supplied with the machine. Windows® 2000/XP and
Windows Vista® users can also print via Internet using the IPP protocol. For more information, see Internet
printing for Windows® on page 35.
If you have already installed the printer driver, jump to Printer driver already installed on page 33.
Configuring the standard TCP/IP port
Printer driver not yet installed
1
Start the CD-ROM installation menu program according to the Quick Setup Guide.
2
Select the model name and your language (if necessary), and then click Install Optional Applications.
3
Click Printer Driver (Only).
4
Click Next in response to the Welcome message. Follow the on-screen instructions.
5
Select Standard Installation and click Next.
32
4
6
Select Brother Peer-to-Peer Network Printer, and then click Next.
7
Follow the on-screen instruction, and then click OK.
Note
Contact your administarator if you are not sure about the location and name of the printer in the network.
8
4
Click Finish.
Printer driver already installed
If you have already installed the printer driver and wish to configure it for network printing, follow these steps:
1
Select the printer driver you wish to configure.
2
Select File and then Properties.
3
Click the Ports tab of the driver and click Add Port.
4
Select the port that you wish to use. Typically this would be Standard TCP/IP Port. Then click the New
Port... button.
5
The Standard TCP/IP Port Wizard will start. Follow steps 8 to 12 of Printer driver not yet installed on
page 32.
6
Close Add Port and Properties dialog box.
For Windows NT® 4.0 users
Installing the TCP/IP protocol
If you did not install the TCP/IP protocol during the installation of your Windows NT®4.0 system (either
workstation or server) follow these steps.
1
Go to the Start button, select Settings, and then Control Panel.
2
Run the Network applet by double clicking the Network icon and then click the Protocols tab.
3
Select Add, and double click TCP/IP Protocol.
4
Insert the requested disk(s), or CD-ROM, to copy the required files.
5
Click Close. The Windows NT®4.0 system will review protocol bindings and then you will see the TCP/IP
Properties dialog.
33
6
Configure the host IP address, subnet mask, and gateway address in that dialog. Consult your system
manager for these addresses.
7
Click OK to exit (your Windows NT®4.0 workstation or server will need to be re-booted).
4
Other sources of information
See Configuring your network printer on page 7 to learn how to configure the IP address of the printer.
34
5
Internet printing for Windows®
Overview
Brother's Brother Internet Print (BIP) software, for Windows® 98/Me and Windows NT® 4.0, allows a PC user
at one location to send a print job to a Brother machine at a remote location via the Internet. For example, a
user on a PC in New York could print a document directly from their Microsoft Excel application program to
a printer in Paris.
Windows® 2000/XP users can also use this BIP software, but are recommended to use the IPP protocol
support that is part of the Windows® 2000/XP operating systems. Skip to the “Windows® 2000 IPP Printing”
section of this document.
Note
Brother Internet Print software is not supported in Windows Vista®. Use the IPP protocol support that is part
of the Windows Vista® operating systems.
Quick Tips
1
Windows® 2000/XP and Windows Vista® users can print using TCP/IP using the standard Network
Printing software and IPP protocol software built into any Windows® 2000/XP and Windows Vista®
installation.
2
Windows® 98/Me users can send print jobs using the IPP protocol via a Windows® 2000 computer,
provided that the Microsoft Internet Print Services software is installed on the client PC, Internet
Information Server (IIS) is installed and running on the server and that the client PC is using version 4
or later of Microsoft Internet Explorer.
Brother Internet Print General Information
The BIP software is installed using a standard Windows® 98/Me/2000/XP and Windows NT® 4.0 Installation
Wizard. It creates a virtual port on the Windows® 98/Me/2000/XP and Windows NT® 4.0 PC that operates in
a similar way to the standard LPT1 printer port from the application program point of view. The user can use
the Windows® 98/Me/2000/XP and Windows NT® 4.0 Print Manager to create a printer that uses this port
along with a standard Windows® 98/Me/2000/XP and Windows NT® 4.0-compatible printer. Any Windows®
98/Me/2000/XP and Windows NT® 4.0 applications program can therefore print to this printer (and hence to
the virtual port) without modification or operational procedure.
When a job is printed to the BIP virtual port, it is actually MIME-encoded (converted to a standard Internet
E-mail message) and sent out to a Brother print server at the remote location. This means that BIP is
compatible with most common E-mail software packages. The only requirement is that the E-mail server be
capable of sending E-mail message over the Internet.
35
5
Internet printing for Windows®
In more detail, the procedure works in the following way:
■ If you are connected to a Local Area Network, the E-mail message is passed to the E-mail server, which
in turn transmits the message out over the Internet using the SMTP protocol (Simple Mail Transport
Protocol) to the remote print server.
■ If you are connecting via a modem directly to an Internet Service Provider (ISP), the ISP handles the
routing of the E-mail to the remote print server.
■ At the remote site, an E-mail server receives the E-mail message. The remote Print/Fax server, which has
its own E-mail address, uses the POP3 protocol (Post Office Protocol 3) to download the E-mail message
from the E-mail server. It then decodes the attachment and prints it out on the printer.
Note
If an E-mail is received that has not been configured to use the BIP virtual port driver, the printer will print the
E-mail out as a text document.
Brother Internet Print: Configuring the Brother Print Server
The print server can be configured using the BRAdmin Professional utility, Web BRAdmin software or by
using a web browser.
Print Server Configuration Checklist
Note
Before configuring the print server to receive BIP jobs, be sure that the E-mail server at the remote site (the
receiving end) is configured to handle the TCP/IP POP3, and SMTP protocols (SMTP is only required if the
notification feature is enabled).
1
Configure the POP3 server on the E-mail server at the remote site with a mail account (Mailbox name)
and password for the Brother print server (generally, the mail account name will be the first part of the
Email address; for example, if you assign the E-mail address emailprinter@xyz.com, then the mail
account name would be emailprinter).
2
Make sure that the print server is installed and running with TCP/IP enabled and has a valid IP address
assigned to it.
Because access to the E-mail server on most networks is usually restricted, you may need to have your
Network Administrator check the configuration and add the mail account.
36
5
Internet printing for Windows®
Brother Internet Print: Using the BRAdmin Professional utility to Configure the
Print Server
Note
Skip this section if you wish to use the Web Browser to configure the print server.
Using the BRAdmin Professional utility, you can configure the Brother print server using the TCP/IP protocol.
The steps required to configure the print server to receive print jobs from a Windows® 98/Me/2000/XP and
Windows NT® 4.0 PC running the BIP software are as follows.
1
Start the BRAdmin Professional utility.
2
Select the Node Name of the desired Brother print server from the list and double click on it. (the default
node name is usually BRN_xxxxxx, where xxxxxx is the last six digits of the Ethernet address (MAC
address)). You will be prompted for a password; the default password is “access”.
Note
You can find the node name and MAC address by printing out the machine configuration page. For
information on how to print the configuration page on your print server, see Printing the Network Configuration
List on page 31.
3
Click on the POP3/SMTP tab.
4
Enter the address of the POP3 server (consult your Network Administrator if you do not know this
address).
5
Enter the POP3 Account Name for the remote Brother print server. Usually this will be the first part of
the E-mail address (for example, if the E-mail address of the print server is emailprinter@xyz.com, then
the POP3 Account Name would be emailprinter).
6
Enter the password for the mailbox, if any.
7
The print server is configured by default to poll the POP3 server every 10 minutes. You may change this
value, if desired.
8
If you have enabled notification, enter the address of your SMTP server (consult your Network
Administrator if you do not know this address).
9
Press the OK button and save the changes. Now exit the BRAdmin Professional utility. You have now
configured the print server to receive print jobs.
37
5
Internet printing for Windows®
Brother Internet Print: Using a Web Browser to Configure the Print Server
1
Connect to the printer server IP address using your web browser.
2
When you reach the Network Configuration screen, you will be prompted for a User name and a
password. The default settings are User name “admin” and the password “access”.
3
Select the Configure POP3/SMTP option. Enter the address of the POP3 server (consult your Network
Administrator if you do not know this address). For more information, see Brother Internet Print: Using
the BRAdmin Professional utility to Configure the Print Server on page 37.
4
You should see a Segmented Message Timeout option. If a print job is separated into multiple E-mail
messages using the Partial E-mail Print feature of the BIP, this value indicates how long the print server
will wait for all of the segments of the message to arrive.
5
Select Submit to save the changes. Exit from the web browser. You have now configured the print server
to receive print jobs.
5
Brother Internet Print: Installing the BIP software on Windows® 98/Me/2000/XP
and Windows NT® 4.0
To install the BIP software on a Windows® 98/2000/XP and Windows NT® 4.0 PC, execute the following
steps:
Note
Be sure that the PC is running an E-mail program (for example, Microsoft Outlook) that is capable of sending
E-mail message using Winsock.
Be sure that your E-mail server is capable of sending messages across the Internet.
Setup from CD-ROM
1
Start the CD-ROM installation menu program according to the Quick Setup Guide.
2
Select the proper model and Install Optional Applications menu. Then select Network Print Software
installation program.
3
Click the Next button in response to the Welcome message.
4
Select the Brother Internet Print button.
5
Select the desired directory to install the BIP files and then click Next. The installation program will create
the directory for you if it does not already exist.
6
You will then be asked for a port name. Enter the name of the port. The port name must begin with the
38
Internet printing for Windows®
BIP and end with a number, for example, BIP1.
7
Press OK to continue.
8
You will then be asked to enter the port settings for the remote print server:
5
Enter any unique legal Internet E-mail address for the remote print server (for example
emailprinter@xyz.com). Note that Internet E-mail addresses cannot have spaces in them.
Enter your E-mail address and the IP address of your SMTP E-mail server (consult your Network
Administrator if you do not know this address). Also specify if you are going to use the Partial E-mail
Print option and the Notification type.
9
Press OK to continue. You will then be asked to re-start your computer.
10
Once your computer has re-started you must create a printer on your Windows® 98/Me/2000/XP and
Windows NT® 4.0 system using the standard Windows® 98/Me/2000/XP and Windows NT® 4.0 printer
setup procedure. To do this, go the Start button, select Settings and then Printers (Windows®
98/Me/2000 and Windows NT® 4.0). For Windows® XP users, go to the Start button, select Printers and
Faxes.
11
Select Add Printer (or Add a Printer for Windows® XP) to begin the printer installation.
12
Click Next when you get the Add Printer Wizard window.
<For Windows® 98/Me users>
13
Select Local Printer when you are asked how the printers are connected to your computer and click
Next.
<For Windows NT® 4.0 users>
13
Select My Computer, and then Click Next.
<For Windows® 2000/XP users>
13
Select Local Printer, and delete the check mark in Plug and Play check box. Then click Next.
<For Windows® 98/Me users>
14
Select the desired model of the remote printer (for example, Brother HL-series). If necessary, click Have
Disk to load the driver from the CD-ROM. Click Next when you are done.
15
If you have selected a printer driver that is already being used, you have the option of either keeping the
existing driver (recommended) or replacing it. Select the desired option and press Next.
16
Select the Brother Internet port (BIP...) which you selected in step 6 and press Next.
39
Internet printing for Windows®
<For Windows NT® 4.0 and Windows® 2000/XP users>
14
Select the Brother Internet port (BIP...) which you selected in step 6 and press Next.
15
Select the desired model of the remote printer (for example, Brother HL-series). If necessary, click Have
Disk to load the driver from the CD-ROM. Click Next when you are done.
16
If you have selected a printer driver that is already being used, you have the option of either keeping the
existing driver (recommended) or replacing it. Select the desired option and press Next.
17
Enter any desired name for the BIP remote printer and press Next. Note that this name does not need
to match the port name that you assigned in step 6, or E-mail address that you assigned in step 9.
18
Select No when asked if you want to print a test page, unless you have already configured the remote
print server to receive BIP print jobs.
You have now finished installing the BIP software. If you need to configure another remote print server, go to
the next section, “Adding a Second Brother Internet Port”.
Adding a Second Brother Internet Port
You should not re-run the install program to add a new Brother Internet Port. Instead, press the Start button,
select Settings, and open the Printers window. Click on the icon of a printer that is using BIP, select File
from the menu bar, and then choose Properties. Click on the Details (Ports on Windows® 2000/XP and
Windows NT® 4.0) tab and click the Add Port button.
In the Add Port dialog, select the Other radio button (Windows® 98/Me only) and then Brother Internet Port.
Click OK (New Port on Windows® 2000/XP and Windows NT® 4.0) and it will give you the Port Name text
box. Any unique name can be given here as long as it starts with “BIP” and another port does not already
exist with the same name.
40
5
Internet printing for Windows®
Windows® 2000/XP and Windows Vista® IPP printing
Use the following instructions if you wish to use the IPP printing capabilities of Windows® 2000/XP and
Windows Vista®.
5
Note
• You must configure the IP address on your machine before you proceed with this section. If you have
not configured the IP address, see Configuring your network printer on page 7 first.
• Verify the host computer and print server are either on the same subnet, or that the router is properly
configured to pass data between the two devices.
• The default password for Brother print servers is "access".
For Windows Vista®
1
Click the Start button, Control Panel, Hardware and Sound, and then Printers.
2
Click Add a printer.
3
Choose Add a network, wireless or Bluetooth printer.
4
Click The printer that I want isn’t listed.
5
Choose Select a shared printer by name and then enter the following in the URL field:
http://printer’s IP address:631/ipp (where “printer’s IP address” is the printer’s IP address or the node
name.)
Note
If you have edited the hosts file on your computer or are using a Domain Name System (DNS), you can also
enter the DNS name of the print server. As the print server supports TCP/IP and NetBIOS names, you can
also enter the NetBIOS name of the print server. The NetBIOS name can be seen in the Network
Configuration List. To learn how to print the Network Configuration List, see Printing the Network
Configuration List on page 31. The NetBIOS name assigned is the first 15 characters of the node name and
by default it will appear as “BRN_xxxxxx” (where “xxxxxx” is the last six digits of the Ethernet address).
6
When you click Next, Windows Vista® will make a connection with the URL that you specified.
If the printer driver has already been installed:
(1) You will see the printer selection screen in the Add Printer Wizard. Click OK.
If the appropriate printer driver is already installed on your computer, Windows Vista® will automatically
use that driver for use. In this case, you will simply be asked if you wish to make the driver the default
printer, after which the Driver installation wizard will complete. You are now ready to print.
(2) Go to 11.
41
Internet printing for Windows®
If the printer driver has NOT been installed:
(1) One of the benefits of the IPP printing protocol is that it establishes the model name of the printer when
you communicate with it. After successful communication you will see the model name of the printer
automatically. This means that you do not need to inform Windows Vista® about the type of printer
driver to be used.
(2) Go to 7.
7
If your printer is not in the list of supported printers, click Have Disk. You will then be asked to insert the
driver disk.
8
Click Browse and choose the appropriate Brother printer driver that is contained in the CD-ROM or in
the network share. Click Open.
9
Click OK.
10
Specify the model name of the printer. Click OK.
Note
• When the User Account Control screen appears, click Continue.
• If the printer driver that you are installing does not have a Digital Certificate you will see a warning
message. Click Install this driver software anyway to continue with the installation. The Add Printer
Wizard will then complete.
11
You will see the Type a printer name screen in the Add Printer Wizard. Check the Set as the default
printer check box if you want to use this printer as the default printer, and then click Next.
12
To test the printer connection, click Print a test page, and then click Finish and the printer is now
configured and ready to print.
For Windows® 2000/XP
1
For Windows® 2000: Go to the Start button, select Settings and then Printers.
For Windows® XP: Go to the Start button and select Printers and Faxes.
2
For Windows® 2000: Double click the Add Printer icon to get the Add Printer Wizard.
For Windows® XP: Double-click Add a printer to get the Add Printer Wizard.
3
Click Next when you see the Welcome to the Add Printer Wizard screen.
4
Select Local printer or Network printer. For Windows® 2000: Make sure that you select Network
Printer.
For Windows® XP: Make sure that you select A network printer, or a printer attached to another
computer.
5
Click Next.
42
5
Internet printing for Windows®
6
For Windows® 2000: Select Connect to a printer on the Internet or on your intranet and then enter
the following in the URL field: http://printer_ipaddress:631/ipp (Where
printer_ipaddress is the IP address or the print server name).
For Windows® XP: Select Connect to a printer on the Internet or on a home or office network and
then enter the following in the URL field: http://printer_ipaddress:631/ipp (Where
printer_ipaddress is the IP address or the print server name).
Note
If you have edited the hosts file on your computer or are using Domain Name System (DNS), you can also
enter the DNS name of the print server. As the print server supports TCP/IP and NetBIOS names, you can
also enter the NetBIOS name of the print server. The NetBIOS name can be seen in the Network
Configuration List. The NetBIOS name assigned is the first 15 characters of the node name and by default it
will appear as BRN_xxxxxx where xxxxxx is the last six digits of the Ethernet address.
7
When you click Next, Windows® 2000/XP will make a connection with the URL that you specified.
If the printer driver has already been installed:
If the appropriate printer driver is already installed on your PC, Windows® 2000/XP will automatically use that
driver for use. In this case, you will simply be asked if you wish to make the driver the default driver, after
which the Driver installation Wizard will complete. You are now ready to print.
If the printer driver has NOT been installed:
One of the benefits of the IPP printing protocol is that it establishes the model name of the printer when you
communicate with it. After successful communication you will see the model name of the printer
automatically. This means that you do not need to inform Windows® 2000/XP the type of printer driver to be
used.
8
Click OK. You will then see the printer selection screen in the Add Printer Wizard.
9
If your printer is not in the list of supported printers, click Have Disk. You will then be asked to insert the
driver disk.
10
Click Browse and select the CD-ROM or network share that contains the appropriate Brother printer
driver.
11
Now specify the model name of the printer.
12
If the printer driver that you are installing does not have a Digital Certificate you will see a warning
message. Click Yes to continue with the installation. The Add Printer Wizard will then complete.
13
Click the Finish button and the printer is now configured and ready to print. To test the printer
connection, print a test page.
43
5
Internet printing for Windows®
Specifying a different URL
Please note that there are several possible entries that you can enter for the URL field.
5
http://ipaddress:631/ipp
This is the default URL and we recommend that you use this URL. Please note the Get More Info option will
not display any printer data.
http://ipaddress:631/ipp/port1
This is for HP® Jetdirect® compatibility. Please note the Get More Info option will not display any printer data.
http://ipaddress:631/
If you forget the URL details, you can simply enter the above text and the printer will still receive and process
data. please note the Get More Info option will not display any printer data.
If you are using the built in service names that the Brother print server supports, you can also use the
following: (However, please note the Get More Info option will not display any printer data).
http://ipaddress:631/brn_xxxxxx_p1
http://ipaddress:631/binary_p1
http://ipaddress:631/text_p1
http://ipaddress:631/pcl_p1
http:/ipaddress:631/postscript_p1
http://ipaddress:631/brn_xxxxxx_p1_at
Where ipaddress is the IP address or the print server name.
Other sources of information
See Configuring your network printer on page 7 to learn how to configure the IP address of the printer.
44
6
Network printing from a Macintosh®
Overview
This chapter explains how to configure the BR-Script 3 (PostScript® 3™ language emulation) printer driver
on a Network. For more information on how to configure the Brother Driver on a Network, see the Quick Setup
Guide included with the machine.
How to choose the BR-Script 3 printer driver (TCP/IP)
For Mac OS® X 10.5
1
Turn the power of the machine ON.
2
From the Apple menu, choose System Preferences.
3
Click Print & Fax.
4
Click + button to add your machine.
5
Choose IP.
6
Enter the IP address of the printer into the Address box.
45
6
Network printing from a Macintosh®
Note
• The Network Configuration List will allow you to confirm the IP address. For more information on how
to print the configuration page, see Printing the Network Configuration List on page 31.
• When specifying the Queue Name, use the value brn_xxxxxx_p1_at where xxxxxx are the last 6 digits
of the Ethernet address.
7
From the Print Using pull-down list choose Select a driver to use, and then from the Printer Model
pull-down list choose your model. For example, choose Brother MFC-XXXX BR-Script3, and then click
Add.
8
From the Default Printer pull-down list choose your model to set as the default printer. The printer is
now ready.
46
6
Network printing from a Macintosh®
For Mac OS® X 10.2.4 to 10.4.x
1
Turn the power of the machine ON.
2
From the Go menu, choose Applications.
3
Open the Utilities folder.
4
Double click the Printer Setup Utility icon. (Mac OS® X 10.2.x users, click the Print Center icon.)
5
Click Add.
6
(Mac OS® X 10.2.4 to 10.3.x) Choose IP Printing.
(Mac OS® X 10.4) Choose IP Printer.
(Mac OS® X 10.2.4 - 10.3.x)
7
6
(Mac OS® X 10.4)
(Mac OS® X 10.2.4 to 10.3.x) Enter the IP address of the printer into the Printer Address box.
(Mac OS® X 10.4) Enter the IP address of the printer into the Address box.
(Mac OS® X 10.2.4 - 10.3.x)
(Mac OS® X 10.4)
47
Network printing from a Macintosh®
Note
• The Network Configuration List will allow you to confirm the IP address. For more information on how
to print the configuration page, see Printing the Network Configuration List on page 31.
• When specifying the Queue Name, use the value brn_xxxxxx_p1_at where xxxxxx are the last 6 digits
of the Ethernet address.
8
From the Printer Model pull-down list choose your model. For example, choose Brother MFC-XXXX
BR-Script3, and then click Add.
(Mac OS® X 10.2.4 - 10.3.x)
9
(Mac OS® X 10.4)
Click the printer, then click Make Default to set the printer as the default printer. The printer is now ready.
48
6
Network printing from a Macintosh®
How to select the print server (TCP/IP) (Mac OS® 9.1 - 9.2)
1
Open the Applications (Mac OS® 9) folder.
2
Open the Utilities folder.
3
Open the Desktop Printer Utility icon.
4
Select the Printer (LPR) option and click OK.
5
At this point we must select the correct PPD file for the
machine and also configure the correct LPR information.
Click Change in the PostScript Printer Description
(PPD) File section and select the appropriate PPD file for
your model.
6
Now select the Change button below the LPR Printer Selection text.
6
49
Network printing from a Macintosh®
7
Enter the IP address and service name details of the
machine. When specifying the Queue, use the value
brn_xxxxxx_p1_at where xxxxxx are the last 6 digits
of the Ethernet address.
6
Note
If you do not specify the correct value the machine may not
print, or it may not print the data correctly. Please ensure that
the value you enter here matches with the Service name of
the machine.
8
Click OK to go back to the previous screen.
9
You are now ready to create the printer for use. To do that, click Create and you will see the following:
10
Enter the name of the printer in the Save desktop
printer As: option and click Save.
11
You can make this the default printer by clicking the
printer name once and then select Printing and Set
Default Printer.
Whenever you send a print job, the printer that you just
created will be used.
50
Network printing from a Macintosh®
Changing the print server settings
Changing the configuration using a web browser
6
Simply connect to the printer using the format: http://ipaddress where ipaddress is the address of the
printer.
See Using a HTTP (web browser) to change the print/scan settings on page 11.
Changing the configuration using the Remote Setup
From a Macintosh®, it is also possible to change the printer or print server parameters using the Remote
Setup application.
See Using the Remote Setup to change the print server settings (for Windows® and Mac OS® X 10.2.4 or
greater) (Not available for DCP-8065DN) on page 11.
Using the BRAdmin Light utility to change the print server settings
(for Mac OS® X 10.2.4 or greater)
Brother BRAdmin Light utility is a Java application that is designed for Mac OS X 10.2.4 or greater
environment. BRAdmin Light allows you to change network settings on Brother network ready machine.
Note
• Please use the BRAdmin Light utility version that was supplied on the CD-ROM with your Brother
product. You can also download the latest Brother BRAdmin LIght utility version from
http://solutions.brother.com. This utility is only available for Macintosh® users.
• Node name: Node name appears in current BRAdmin Light. The default Node name is "BRN_xxxxxx"
("xxxxxx" is the last six digits of Ethernet address.).
• The default password for Brother print servers is “access”.
1
Start the BRAdmin Light utility (from Mac OS® X 10.2.4 or greater), by double clicking the Macintosh
HD icon on your desk top and clicking Library / Printers / Brother / Utilities. And then, double click the
BRAdminLight.jar file.
2
Select the print server which you want to change the settings.
3
Select Configure Print Server from the Control menu.
4
Enter a password. The default Password is “access”. You can now change the print server settings.
51
Network printing from a Macintosh®
Other sources of information
1
Visit http://solutions.brother.com for more information on network printing.
2
See Configuring your network printer on page 7 to learn how to configure the IP address of the printer.
52
6
7
Web Based Management
Overview
A standard Web Browser (we recommend Microsoft Internet Explorer® version 6.0 or later, or Netscape
Navigator® version 7.1 or later) can be used to manage your machine using the HTTP (Hyper Text Transfer
Protocol). You can get the following information from a machine on your network using a web browser:
■
■
■
■
■
■
Printer status information.
Change Fax configuration items, such as General Setup. Quick-Dial settings and Remote Fax.
You can also change network settings such as TCP/IP information.
Configure Scan to FTP and LDAP search functions.
Software version information of the machine and print server.
Change network and machine configuration details.
You must use the TCP/IP protocol on your network and have a valid IP address programmed into the print
server and your computer.
1
To learn how to configure the IP address on your machine, see Configuring your network printer on
page 7.
2
The default password for Brother print servers is “access”.
3
You can use a web browser on most computing platforms, for example, Macintosh® and UNIX® users
are also able to connect to the machine and manage it.
4
You can also use the BRAdmin Professional or the BRAdmin Light utilities to manage the printer and its
network configuration.
How to connect to your machine using a Browser
Type http://printer’s IP Address / into your browser (you can also use the NetBIOS name of the
print server, if you are in a Microsoft Windows domain/Workgroup environment). Enter the DNS name of the
machine if connecting to a network that uses the DNS protocol.
For Macintosh® users, you can have easy access to Web Based Management System by clicking the
machine icon on Status Monitor screen. For more information, see Chapter 7 Status Monitor of the Software
User’s Guide on the CD-ROM.
Password Information
Web Based Management offers two levels of password access. Users are able to access to the General
Setup, Fax settings and Lists and Reports. The default user name for Users is “user” (case sensitive) and
the default password is “access”.
Administrators are able to access all settings. The login name for the Administrator is “admin” (case
sensitive) and the default password is “access”.
53
7
Web Based Management
Changing the Scan to FTP configuration using a Browser
You can configure and change following Scan to FTP settings using a web browser.
■
■
■
■
■
■
■
■
■
7
Profile name (Up to 15 characters)
Host Address (FTP server address)
Username
Password
Store Directory
Quality
File Type (PDF/JPEG/TIFF)
Passive mode (On/Off)
Port Number
Note
The details required to use Scan to FTP can be either be entered manually at the control panel or by using a
web browser to pre-configure and store the details in a FTP Profile. For more information see Network
Scanning in the Software Users Guide.
Changing the LDAP configuration using a Browser (MFC-8860DN only)
You can configure and change LDAP settings using a web browser.
■
■
■
■
■
■
■
■
■
■
LDAP Enable/Disable
LDAP Server Address
Port (The default port number is 389.)
Authentication
Username
Password
Search Root
Attribute of Name (Search Key)
Attribute of E-mail
Attribute of Fax Number
For more information on LDAP operation, see LDAP Operation (MFC-8860DN only) on page 57.
54
Web Based Management
Using E-mail notification with user authentication
To use the E-mail notification function via a secure SMTP server that requires user authentication, you need
to use POP before SMTP or SMTP-AUTH method. These methods prevent an unauthorized user from
accessing the mail server. You can use Web Based Management (web browser), BRAdmin Professional or
Web BRAdmin to configure these settings.
Note
• If the SMTP Server Authentication Method selection menu does not appear on your Web Based
Management web page, you need to download the latest firmware from http://solutions.brother.com/.
• To use the E-mail notification function with BRAdmin Professional or Web BRAdmin, please download
the latest version of firmware from http://solutions.brother.com/.
• You need to match the settings of POP3/SMTP authentication with one of the E-mail servers. Contact
your network administrator or your internet service provider about the configuration before using.
How to configure the POP3/SMTP settings using Web Based Management (web browser).
1
Start your web browser.
2
Type “http://printer’s IP address/” into your browser (where “printer’s IP address” is the printer’s IP
address or the node name.).
■ For example:
http://192.168.1.2/ (if the printer’s IP address is 192.168.1.2.)
http://BRN123456/ (if the printer’s node name is BRN123456.)
Note
If you have edited the hosts file on your computer or are using Domain Name System, you can also enter the
DNS name of the print server. As the print server supports TCP/IP and NetBIOS names, you can also enter
the NetBIOS name of the print server. The NetBIOS name can be seen in the Network Configuration List. To
learn how to print the Network Configuration List, see Printing the Network Configuration List on page 31. The
NetBIOS name assigned is the first 15 characters of the node name and by default it will appear as
“BRN_xxxxxx” where “xxxxxx” is the last six digits of the Ethernet address.
3
Click Network Configuration.
4
Click Configure POP3/SMTP.
55
7
Web Based Management
5
You can configure the POP3/SMTP settings on this page.
7
Note
• You can also change the SMTP port number using Web Based Management. This is useful if your ISP
(Internet Service Provider) implements the “Outbound Port 25 Blocking (OP25B)” service, and you are
not using the ISP’s SMTP server. By changing the SMTP port number to a specific number which your
SMTP server decide (for example, port 587), you will be able to send E-mail via the SMTP server you
currently use. You will also need to check SMTP-AUTH of SMTP Server Authentication Method to
enable the SMTP server authentication.
• If you can use both POP before SMTP and SMTP-AUTH, we recommend choosing SMTP-AUTH.
• If you choose POP before SMTP for the SMTP Server Authentication Method, you need to configure
the POP3 settings. You can also use the APOP method.
• For more information, see the Help text in the Web Based Management.
• You can also confirm whether the E-mail settings are correct after configuration by sending a test
E-mail.
6
After configuring, click Submit. The Test E-mail Send/Receive Configuration dialog appears.
7
Follow the instruction on-screen, if you want to test with the current settings.
56
8
LDAP Operation (MFC-8860DN only)
Overview
LDAP operation allows you to search for information such as fax numbers and E-mail addresses from your
server. You can configure LDAP settings using a web browser.
Changing the LDAP configuration using a Browser
You can configure and change LDAP settings using a web browser. For more information, see Changing the
LDAP configuration using a Browser (MFC-8860DN only) on page 54.
LDAP operation using the control panel
1
Press Search.
2
Press ▲ or ▼ to select Server & Local.
3
Press OK.
4
Enter initial characters for your search by using the Dial Pad.
Note
■ You can enter up to 15 characters.
■ For more information on using the Dial Pad, see Entering Text on page 97.
5
Press Search or OK.
▲
The LDAP search result will be shown on LCD before the local address book search result with . If
there is no match on the server and the local address book, the LCD will show Not Found for 2 seconds.
6
Press ▲ or ▼ to select.
7
▲
To confirm details of the result information, highlight the result and press
.
Press OK.
If the result includes both a fax number and an E-mail address, the machine will prompt you to press ▲
or ▼ to select and press OK.
8
Load your document and press Start.
57
8
LDAP Operation (MFC-8860DN only)
Note
• The LDAP function of this machine supports LDAPv3.
• You need to use Simple Authentication to communicate with your LDAP server.
• SSL/TLS is not supported.
• For more information, please visit http://solutions.brother.com.
8
58
9
Internet Fax (MFC-8860DN only)
Overview
Internet Faxing (I-Fax) allows you to send and receive Fax documents using the Internet as the transport
mechanism. Documents are transmitted in E-mail messages as attached TIFF-F files. This means that
computers are also able to receive and send documents, providing that the computer has as an application
that can generate and view TIFF-F files, you can use Microsoft® Imaging or a TIFF-F viewer application. Any
documents sent via the machine will automatically be converted into a TIFF-F format. If you wish to send and
receive messages to and from your machine, your mail application on the computer must be able to support
the MIME format.
E-mail
Relay
Fax (G3 TX)
Internet
E-mail
Internet
Relay
E-mail
Internet
Fax
Note
Internet Fax is available in Black & White only.
Getting Connected
Before sending or receiving an Internet Fax you must configure your Brother machine to communicate with
your network and mail server. You must ensure the following: a correctly configured IP address for your
machine, an E-mail address for your machine, the mail server(s) IP address, mailbox name and password for
your Brother machine. If you are unsure of any of these items, please contact your systems Administrator.
For details of how to configure this information, see Setup Internet (MFC-8860DN only) on page 20.
59
9
Internet Fax (MFC-8860DN only)
Control Panel Key Functions
Shift + 1
Used to change input mode. You can use Dial Pad keys as Standard alphabet character keys.
9
Dial Pad
Used to enter Standard Alpha characters (26 letters), as well as @. space ! “ # % & ’ () + / : ; < > = ? [ ] ^ - $
, _ and Numbers.
▲
▲
or
Moves the LCD cursor to the left or right when you enter text.
OK
Used to store multiple numbers.
Start
Begins transmitting the document.
Stop/Exit
Deletes entered data and stops the scanning or transmitting process.
One Touch / Search / Speed-Dial
These functions work the same way as with conventional machine’s.
However, please note that you cannot use chain dialling for E-mail addresses.
Shift + Start
Used to receive E-mail from the POP3 server manually.
Sending an Internet Fax
Sending an Internet Fax is the same as sending a normal Fax. If you have already programmed the
addresses of the destination Internet Fax machines as One Touch or Speed-Dial locations, you can send the
Internet Fax by loading the document into the machine, use the Fax Resolution key to set the preferred
resolution and select a Speed-Dial or One Touch number and press Start.
If you wish to manually enter the Internet Fax address load the document into the machine and press Shift
and 1 simultaneously to change into the “alphabet” dialling mode.
To manually enter the Internet Fax address, see Entering Text on page 97.
60
Internet Fax (MFC-8860DN only)
Manually Entering Text
Press Shift and 1 simultaneously to change into the “alphabet” dialling mode.
You can use the Dial Pad to enter the E-mail address. For more information, see Entering Text on page 97.
Please note that also you can connect to the machine using a web browser and store the E-mail address
information through Web Based Management. See Web Based Management on page 53 for more
information.
As you enter an Internet Fax address, the address will appear character by character on the LCD panel. If
you specify more than 22 characters, the LCD panel will scroll the name to the left character by character.
You can enter up to 60 characters.
Press Start to send the document.
After the document is scanned, it is transmitted to the recipient Internet Fax machine automatically via your
SMTP server. You can cancel the send operation by pressing the Stop/Exit button during scanning. After the
transmission is finished, the machine will return to standby mode.
Some E-mail servers do not allow you to send large E-mail documents (the System Administrator will often
place a limit on the maximum E-mail size). With this function enabled, the machine will display Out of
Memory when trying to send E-mail documents over 1Mbyte in size. The document will not be sent and an
error report will be printed. The document you are sending should be separated into smaller documents that
will be accepted by the mail server. You can enable this feature through the Web Management utility or the
LAN function mode.
Receiving E-mail or Internet Fax
There are 2 ways you can receive E-mail messages:
■ POP3 receiving at regular intervals
■ POP3 receiving (manually initiated)
Using POP3 receiving the machine must poll the E-mail server to receive the print jobs. This polling can occur
at set intervals (for example, you can configure the machine to poll the E-mail server at 10 minute intervals)
or you can manually poll the server by pressing the Shift + Start buttons.
If your machine starts to receive E-mail print jobs, the LCD panel will reflect this activity. For example, you
will see Receiving on the LCD panel followed by “xx E-mail(S)”. If you press the Shift + Start buttons to
manually poll the E-mail server for E-mail print jobs and there are no mail documents waiting to be printed,
the machine will display No Mail on the LCD panel for two seconds.
If your machine is out of paper when receiving data, the received data will be held in the machine's memory.
This data will be printed automatically after paper is re-inserted into the machine. (For European, Asian and
Oceanian machines, Memory receive must be switched “ON”.)
If the received mail is not in a plain text format or an attached file is not in the TIFF-F format, the following
error message will be printed: ATTACHED FILE FORMAT NOT SUPPORTED. FILE NAME:XXXXXX.doc
If the received mail is too large, the following error message will be printed: E-MAIL FILE TOO LARGE. If
61
9
Internet Fax (MFC-8860DN only)
Delete POP Receive Error Mail is ON (default) then error mail is automatically deleted from the E-mail
server.
Receiving an Internet Fax to your computer
9
When a computer receives an Internet Fax document, the document is attached to a mail message that
informs the computer that it has received a document from an Internet Fax. This is notified in the Subject field
of the received mail message.
If the computer to which you wish to send a document is not running Windows®
98/98SE/Me/2000/XP/Windows NT® 4.0 or Windows Vista® operating system, please inform the PC's owner
that they must install some software that can view TIFF-F files.
You can use “Microsoft® Imaging” that is supplied with Windows® 98/Me/2000/XP/Windows NT® 4.0 or
Windows Vista®.
Forwarding Received E-mail and Fax Messages
You can forward received E-mail or standard fax messages to another E-mail address or fax machine.
Received messages can be forwarded via E-mail to a PC or Internet Fax. They can also be forwarded via
standard phone lines to another machine.
The setting can be enabled using the Web browsers or through the machine front panel. The steps for
configuring Fax Forward can be found in the User’s Guide supplied with your machine.
Please see the User’s Guide included with the machine to check that this feature is supported.
Using E-mail notification with user authentication
To use the E-mail notification function via a secure SMTP server that requires user authentication, you need
to use POP before SMTP or SMTP-AUTH methods. These methods prevent an unauthorized user from
accessing the mail server.
For more information, see Using E-mail notification with user authentication on page 55.
Relay Broadcasting
This function allows the Brother machine to receive a document over the Internet, and then relay it to other
fax machines through conventional telephone lines.
If you wish to use your machine as a relay broadcast device, you must specify the domain name that you trust
at the machine, in other words, the portion of the domain after the ‘@’ sign.
A trusted domain refers to the E-mail address. For example, if the other party’s address is bob@brother.com,
then we identify the domain as brother.com. If the E-mail address is jack@brother.co.uk, then we identify the
domain as brother.co.uk.
62
Internet Fax (MFC-8860DN only)
Use care in selecting a trusted domain since any user on a trusted domain will be able to send a Relay
Broadcast. You can register up to 10 domain names.
Relay Broadcast can support the relay of a document up to a maximum of 48 fax machines through
conventional telephone lines.
9
Relay Broadcast from a machine
UKFAX@brother.co.uk
FAX@brother.com
123456789
INTERNET
UKFAX@brother.co.uk (fax#123456789)
In this example, your machine has an E-mail address of FAX@brother.com, you wish to send a document
from this machine to another machine in England with an E-mail address of UKFAX@brother.co.uk, this
machine will then forward the document to a standard fax machine using a conventional telephone line. If
your E-mail address is FAX@brother.com, you must configure a trusted domain name of brother.com on the
machine in England that will broadcast the document to the conventional fax machine. If you do not enter the
domain name information, then the machine in the middle (the machine that will broadcast the document) will
not trust any internet jobs that it receives from the machine in the @brother.com domain.
After the trusted domain is set you can send the document from your machine [I.E. FAX@brother.com] by
entering the E-mail address of the machine [I.E. UKFAX@brother.co.uk] that will forward the document
followed by the phone number of the fax that will receive the document. The following is an example of how
to enter the E-mail address and phone number.
UKFAX@brother.co.uk(fax#123456789)
E-mail address
Fax Phone Number
The word “fax#” must be
included with the phone
number inside the parenthesis.
Sending to multiple phone numbers:
If you want to have the document relayed to more than one standard fax machine the address can be entered
using the following method:
1
Enter the phone number of the first Fax machine UKFAX@brother.co.uk(Fax#123).
2
Press Menu.
3
Enter the phone number of the second Fax machine UKFAX@brother.co.uk(Fax#456).
63
Internet Fax (MFC-8860DN only)
4
Press Start.
Relay Broadcast from a computer
UKFAX@brother.co.uk
Your computer
123456789
9
INTERNET
UKFAX@brother.co.uk(fax#123456789)
You can also send E-mail from your computer and have it relayed to a conventional FAX machine. The
method of entering the phone number of the conventional FAX machine that will receive the relayed E-mail
will vary depending on the mail application you are using. The following are some examples of different mail
applications:
Some E-mail applications do not support sending to multiple phone numbers. If your E-mail application
cannot support multiple phone numbers you will only be able to relay to one Fax machine at a time.
Enter the address of the relay machine and phone number of the FAX in the “TO” box using the same method
used when sending from an machine.
UKFAX@brother.co.uk(fax#123456789)
Outlook 97/98/2000/2002/2003:
For Outlook 97/98/2000/2002 and 2003 the address information must be entered into the address book as
follows:
Name: fax#123456789
E-mail address: UKFAX@brother.co.uk
TX Verification Mail
Transmission Verification Mail supports two separate functions. Verification Mail for sending allows you
request notification from the receiving station that the Internet Fax or E-mail was received and processed.
Verification Mail for receiving allows you to transmit a default report back to the sending station after
successfully receiving and processing an Internet Fax or E-mail.
To use this feature you must set the Notification option within the Setup Mail RX and Setup Mail
TX options.
64
Internet Fax (MFC-8860DN only)
Setup Mail (TX)
You can set the Notification option in the Setup Mail TX option to either On or Off. When switched
to On an additional field of information is sent with the image data. This field is named MDN.
MDN
Mail Disposition Notification - This field requests the status of the Internet Fax / E-mail message after delivery
through the SMTP (Send Mail Transfer Protocol) transport system. Once the message has arrived at the
Receiving station this data is used when the machine or user reads or prints the received Internet Fax or
E-mail. For example, if the message is opened for reading or is printed the receiving station sends back a
notification to the original sending machine or user.
The receiving station must support the MDN field in order to be able to send a notification report, otherwise
the request will be ignored.
Setup Mail (RX)
There are three possible settings for this option On, MDN or Off.
Receive Notification “On”
When switched to “On” a fixed message is sent back to the sending station to indicate successful reception
and processing of the message. These fixed messages depend on the operation requested by the sending
station.
Report messages consist of
SUCCESS : Received From <mail address>
Receive Notification “MDN”
When switched to “MDN” a report as described above is sent back to the sending station if the originating
station sent the “MDN” field to request confirmation.
Receive Notification “Off”
OFF - Switches all forms of receive notification Off, no messages are sent back to the sending station
regardless of the request.
Error mail
If there is a mail delivery error while sending an Internet Fax, the mail server will send an error message back
to the machine and the error message will be printed. If there is an error while receiving mail, an error
message will be printed (Example: “The message being sent to the machine was not in a TIFF-F format.”).
65
9
Internet Fax (MFC-8860DN only)
Important information on Internet Fax
Internet Fax communication on a LAN system is basically the same as communication via E-mail; however,
it is different from Fax communication using standard phone lines. The following is important information for
using Internet Fax:
■ Factors such as the receiver’s location, structure of the LAN system, and how busy the circuit (such as
the internet) is, may cause the system to take a long time to send back an error mail. (normally 20 sec. to
30 sec.).
■ In the case of transmission through the Internet, due to its low level of security, we recommend that you
use standard phone lines to send confidential documents.
■ If the receiver’s mail system is not compatible with the MIME format, you cannot transmit a document to
the receiver. Depending on receiver’s server, there may be some cases in which the error mail will not be
sent back.
■ If the size of a document’s image data is huge, there is a possibility of unsuccessful transmission.
■ You cannot change font and character size of Internet mail that you received.
66
9
10
Brother Internet Fax Printing Software
(MFC-8860DN only)
Overview
10
Depending on your network configuration and application requirements for sending faxes via a network, you
can choose between Brother Network PC FAX Software or Brother Internet Fax Printing Software. With either
software, viewable document such as web pages, word documents, PDF documents can be sent from the
users desktop to any standard Facsimile machines, Internet fax machines and E-mail addresses.
Brother Internet Fax Printing Software (BFP) is a Windows® 98/98SE/Me, Windows NT® 4.0 and Windows®
2000/XP software utility that gives network PC Fax and Internet Fax functionality from the desktop to users
on your network or over the Internet.
BFP utilizes SMTP as the transport for sending documents from your PC. This allows any PC supported by
a SMTP mail server to send an Internet FAX even if that PC does not have direct access to the networked
machine.
Brother Network PC Fax Software utilizes LPR as the transport for sending documents from your PC to the
networked machine for transmission. This requires that the sending PC has access to the network that the
sending machine is connected.
Note
Brother Internet Fax Printing Software is not supported in Windows® XP Professional x64 Edition and
Windows Vista®.
67
Installing Brother Internet Fax Printing Driver
Insert the CD-ROM supplied with your Brother machine into your CD-ROM Drive. The installer screen will
automatically start.
10
Note
If the installer screen does not appear automatically, select Start/Run and type X:/setup.exe.
(X:/ should be the drive letter of your CD-ROM drive on your PC)
1
Select Install Optional Applications.
2
Select Brother Internet Fax Printing (BFP) Driver.
3
Click Install.
Next you will be presented with the licensing agreement, please carefully read the agreement and make the
necessary choice.
During the installation you are
presented with the following screen,
select the default unless you have
previously installed this software. If this
is the case use a port number that has
not been previously configured.
Example BFP2
You also need to enter certain
information into the printer driver dialog
screen.
It is very important that you enter your
own E-mail address. You also need to
configure the SMTP mail server IP
address or Node Name.
When Installing BFP on Windows®
2000/XP and Windows NT® 4.0
operating systems we recommend
that you add a “:” to the end of the
port name.
Here you can enter the default E-mail
address of the print server or you can
leave it blank.
* If an address is specified here this
will always be used as default
This can be the Node
Name or IP address of
the E-mail server
Note
If in any doubt contact your Network Administrator for assistance.
68
Changing the BFP Port Settings
If you have more than one networked machine with the print server you may want to change the settings of
the BFP software to use an alternative machine as the network fax print server.
To alter BFP settings, select Start/Printers and Faxes to
open the Printers dialogue box. Highlight Brother Internet
Fax and right click the mouse. From the list presented
select Properties.
You are now presented with the screen below, which allows
you to configure the BFP settings. To change the details of
the print server, select the Ports tab.
69
10
The following screen shows the current configuration to alter this
configuration, press the Configure Port... key.
10
From the Configure Port... dialogue box you can change the settings.
70
Relay Broadcast Function
Before you can successfully use the machine as a network fax solution you need to switch the feature Relay
Broadcasting ON at the machine. In addition you also need to set a Trusted Domain at the machine.
10
The easiest way to achieve this is to logon to the machine using Web Based Management. Open you favorite
web browser and enter the IP address of the network machine. Enter the password of the print server to
access the configuration settings. Then browse to Internet Settings and Relay Function. For more
information, see Web Based Management on page 53.
Note
If you do not know the password contact you Network Administrator.
In order for the machine to receive data from the desktop and then send this information (network fax) to other
fax machines the Relay Broadcast Function must be switched “ON”. Also you must tell the networked
machine which networks can relay faxes through your machine. This is known as setting the Trusted
Domain. For instance, if a network machine has an E-mail address of fax@brother.com and users of this
machine also have E-mail addresses with the same domain name then the machine must be told to allow
these users to send network faxes through the machine. This is known as the Relay Function and Trusted
Domains. So we set the trusted domain as brother.com
Note
Trusted Domains provide security for your machine. In that only users from a particular domain can send
faxes through your network connected machine.
71
Uninstalling from Windows®
98/98SE/Me/2000/XP and Windows NT® 4.0
Select Start/Control Panel and then double
click the Add or Remove programs icon. From
the list of installed programs select Brother
Internet Fax x.xx then click the
Change/Remove button.
10
Note
You also need to remove Brother Internet Fax Driver from the Start/Control Panel/Add or Remove
Program properties.
72
Using the BFP Address Book
This utility can administer the Fax addresses, Internet Fax addresses and E-mail address of all the contacts
that you wish to use with the BFP Software. Additionally you can create Groups of contacts that you may wish
to broadcast documents to.
From the Start menu, select All Programs, Brother, MFL-Pro
Suite MFC-XXXX, PC-FAX Sending and then click PC-FAX
Address Book. The Brother Address Book dialog box will
appear:
Setting Up a Member in the Address Book
In the Brother Address Book dialog box you can add, edit and
delete stored information for members and groups.
1
In the Address Book dialog box, click the
icon to add a
member.
The Brother Address Book Member Setup dialog box will appear:
Note
When creating the Address Book member please select the method of default delivery.
2
In the Brother Address Book Member Setup dialog box, type the member's information.
Name and Fax are required fields. You can also enter the an E-mail contact address and machine
address for the address book member Click the OK button to save the member's information.
73
10
Setting Up a Group for Broadcasting
If you repeatedly send the same PC-FAX to multiple recipients,
you can combine members into a Group.
1
In the Brother Address Book dialog box, click the
icon to create a group.
The Brother Address Book Group Setup dialog box
appears:
2
Type the name of the new group in the Group Name field.
3
In the Available Names box, select each member to be
included in the Group, and then click Add>>.
4
Members you add to the group will be listed in the Group
Members box.
5
After all the members have been added, click OK.
10
Editing Member Information
1
To edit a Member or Group, select the Member or Group you want to edit.
2
Click the
3
Edit the Member or Group information.
4
Click OK to save your changes.
Edit icon.
Deleting a Member or Group
1
To delete a Member or Group, select the Member of Group you want to delete.
2
Click the
3
Click OK when the Delete OK? dialog appears.
Delete icon.
74
Exporting the Address Book
You can export the address book to an ASCII text file (*.csv).
1
To export the current telephone book, from the Address Book select File, point to Export, and then click
Text—OR—Click Vcard and go to Step 5.
2
Select the data fields you wish to Export from the Available Items column, and then click Add>>.
3
If you are exporting to an ASCII file, select Divide Character - Tab or Comma. This selection inserts a
Tab or Comma between each data field when it is Exported.
4
Select the OK button to save the data.
5
Type in the name of the file, and then select Save.
6
If you are creating a Vcard, you must first select the member.
7
Select items in the order you want them listed.
75
10
Sending a Network Fax with BFP
From the application you wish to send the document from
select File/Print. Ensure that the Brother Internet Fax
Driver is selected as shown below.
10
Click OK to start the BFP dialogue box. From this dialogue
box you can either specify an address in the address line
or select a location from the address book. If you wish to
type more than one location in the address line make sure
they are separated by “;”.
Note
When entering a Fax Contact you must first specify the Internet Address of the machine that will send the
document followed by the fax number as shown below.
Mailmfc9650@brother.co.uk(fax#2537)
76
11
Troubleshooting
Overview
11
This chapter describes procedures for troubleshooting problems you may encounter with a Brother print
server, it is divided into the following sections:
■
■
■
■
General problems
Network print software installation problems
Printing problems
Protocol-specific troubleshooting
General problems
CD-ROM is inserted, but does not start automatically
If your computer does not support Autorun, the menu will not start automatically after inserting the CD-ROM.
In this case, execute setup.exe in the root directory of the CD-ROM.
How to reset the Brother print server to factory default
You can reset the print server back to its default factory settings (resetting all information such as the
password and IP address information). See Restoring the network settings to factory default on page 30.
77
Troubleshooting
Network print software installation problems
The Brother print server is not found during setup of the network print software installation
or from the printer driver of the Brother machine in Windows®.
The Brother print server is not found using the Simple Network Configuration capabilities of
Mac OS® X.
Make sure you have completed the IP address setting of the Brother print server according to Chapter 2 or
Chapter 3 of this User’s Guide before installing the network print software or printer driver. Check the
following:
1
Make sure that the machine is powered on, is on-line and ready to print.
2
Check to see if there is any LED activity. Brother print servers have two LEDs on the back panel of the
machine. The upper green LED shows Link/Activity (Received/Transmit) status. The lower orange LED
shows Speed status.
• No light: If the upper LED is off, then the print server is not connected to the network.
• The upper LED is green: The Link/Activity LED will be green if the print server is connected to a
Ethernet network.
• The lower LED is orange: The Speed LED will be orange if the print server is connected to a 100
BASE TX Fast Ethernet network.
• The lower LED is off: The Speed LED will be off if the print server is connected to a 10BASE T
Ethernet network.
3
Print the Network Configuration List and check if the settings such as IP address settings are correct for
your network. The problem may be the result of mismatched or duplicate IP address. Verify that the IP
address is correctly loaded into the print server. And make sure that no other nodes on the network have
this IP address. For information on how to print the Network Configuration List, see Printing the Network
Configuration List on page 31.
4
Verify that the print server is on your network as follows:
For Windows®
Try pinging the print server from the host operating system command prompt with the command:
ping ipaddress
Where ipaddress is the print server IP address (note that in some instances it can take up to two
minutes for the print server to load its IP address after setting the IP address).
78
11
Troubleshooting
For Macintosh®
For Mac OS® X 10.5
(1) Turn the power of the machine ON.
11
(2) From the Apple menu, choose System Preferences.
(3) Click Print & Fax.
(4) Click + button to add your machine.
(5) Choose Brother MFC-XXXX (XXXX is your model name), and then click Add.
(6) From the Default Printer pull-down list choose your model to set as the default printer. The printer
is now ready.
79
Troubleshooting
For Mac OS® X 10.2.4 or greater
(1) From the Go menu, select Applications.
(2) Open the Utilities folder.
11
(3) Double-click the Printer Setup Utility icon. (For Mac OS® X 10.2.x users, double click the Print
Center icon)
(4) Click Add.
(5) Make the following selection. Make sure that your print server appears. If it is visible, then the
connection is good. Otherwise, go to Step 5.
(Mac OS®X 10.2.4 - 10.3.x)
(Mac OS®X 10.4)
For Mac OS® 9.1 to 9.2
(1) From the Apple menu, open the Chooser.
(2) Click the Brother (IP) icon, and make sure that your print server name appears in the right frame. If
it is visible, then the connection is good. Otherwise, go to Step 5.
5
If you have tried 1 to 4 above and it does not work, then reset the print server back to the default factory
settings and try from the initial setup again. For information how to reset to the default factory settings,
see Restoring the network settings to factory default on page 30.
6
Check if a personal firewall such as ICF (Internet Connecting Firewall) for Windows XP is running on
your computer. If it is running, temporarily turn it off and try again.
Note
If none of the above steps are successful, there is almost certainly a hardware or network problem!
80
Troubleshooting
Printing problems
Print job is not printed
11
Make sure the status and configuration of the print server. Check following:
1
Make sure that the machine is powered on, is on-line and ready to print. Print the Network Configuration
List of the machine and check if the settings such as IP address settings are correct for your network.
See Printing the Network Configuration List on page 31 for information on how to print the Network
Configuration List on your print server.
2
The problem may be the result of mismatched or duplicate IP address. Verify that the IP address is
correctly loaded into the print server. And make sure that no other nodes on the network have this IP
address.
3
Verify that the print server is on your network as follows:
For Windows®
(1) Try pinging the print server from the host operating system command prompt with the command:
ping ipaddress
Where ipaddress is the print server IP address (note that in some instances it can take up to two
minutes for the print server to load its IP address after setting the IP address).
(2) If a successful response is received, then proceed to Windows® 2000/XP and Windows Vista® IPP
troubleshooting on page 87, and Windows® 2000/XP and Windows Vista® IPP troubleshooting on
page 87. Otherwise, proceed to Step 4.
For Macintosh®
For Mac OS® X 10.5
(1) Turn the power of the machine ON.
(2) From the Apple menu, choose System Preferences.
(3) Click Print & Fax.
(4) Click + button to add your machine.
81
Troubleshooting
(5) Choose Brother MFC-XXXX (XXXX is your model name), and then click Add.
11
(6) From the Default Printer pull-down list choose your model to set as the default printer. The printer
is now ready.
For Mac OS® X 10.2.4 or greater
(1) From the Go menu, select Applications.
(2) Open the Utilities folder.
(3) Double-click the Printer Setup Utility icon. (For Mac OS® X 10.2.x users, double click the Print
Center icon)
(4) Click Add.
(5) Make the following selection. Make sure that your print server appears. If it is visible, then the
connection is good.
82
Troubleshooting
11
(Mac OS®X 10.2.4 - 10.3.x)
(Mac OS®X 10.4)
For Mac OS® 9.1 to 9.2
(1) From the Apple menu, open the Chooser.
(2) Click the Brother (IP) icon, and make sure that your print server name appears in the right frame. If
it is visible, then the connection is good. Otherwise, go to Step 4.
4
If you have tried 1 to 4 above and it does not work, then reset the print server back to the default factory
settings and try from the initial setup again. For information how to reset to the default factory settings,
see Restoring the network settings to factory default on page 30.
Error during printing
If you try to print while other users are printing large amounts of data (e.g. many pages or color pages with
high resolution), the printer is unable to accept your print job until the ongoing printing is finished. If the waiting
time of your print job exceeds a certain limit, a time out situation occurs, which causes the error message. In
such situations, execute the print job again after the other jobs are completed.
83
Troubleshooting
Scanning and PC Fax problems
The network scanning feature does not work in Windows®
The network PC Fax feature does not work in Windows®
11
Firewall settings on your PC may be rejecting the necessary network connection. Follow the instructions
below to disable the Firewall. if you are using a Personal Firewall software, see the User’s Guide for your
software or contact the software manufacturer.
Windows® XP SP2 users:
1
Click the Start button, Control Panel, Network and Internet Connections and then Windows
Firewall. Make sure that Windows Firewall on the General tab is set to On.
2
Click the Advanced tab and Settings... button of Network Connection Settings.
3
Click the Add button.
4
To add port 54925 for network scanning, enter the information below:
(1) In Description of service: Enter any description, for example, “Brother Scanner”.
(2) In Name or IP address (for example 192.168.0.12) or the computer hosting this service on
your network: Enter “Localhost”.
(3) In External Port number for this service: Enter “54925”.
(4) In Internal Port number for this service: Enter “54925”.
(5) Make sure UDP is selected.
(6) Click OK.
5
Click the Add button.
6
To add port 54926 for network PC Fax, enter the information below:
(1) In Description of service: Enter any description, for example, “Brother PC Fax”.
(2) In Name or IP address (for example 192.168.0.12) or the computer hosting this service on your
network: Enter “Localhost”.
(3) In External Port number for this service: Enter “54926”.
(4) In Internal Port number for this service: Enter “54926”.
(5) Make sure UDP is selected.
(6) Click OK.
84
Troubleshooting
7
If you still have trouble with your network connection, click the Add button.
8
To add port 137 for network scanning, network printing and network PC Fax receiving, enter the
information below:
11
(1) In Description of service: Enter any description, for example, “Brother PC Fax receiving”.
(2) In Name or IP address (for example 192.168.0.12) or the computer hosting this service on your
network: Enter “Localhost”.
(3) In External Port number for this service: Enter “137”.
(4) In Internal Port number for this service: Enter “137”.
(5) Make sure UDP is selected.
(6) Click OK.
9
Make sure if the new setting is added and is checked, and then click OK.
Note
After the Brother software package is installed, re-enable your Firewall.
Windows Vista® users:
1
Click the Start button, Control Panel, Network and Internet, Windows Firewall and click Change
settings.
2
When the User Account Control screen appears, do the following.
• Users who have administrator rights: Click Continue.
• For users who do not have administrator rights: Enter the administrator password and click OK.
3
Make sure that on (recommended) is selected on the General tab.
4
Click the Exceptions tab.
5
Click the Add port... button.
6
To add port 54925 for network scanning, enter the information below:
(1) In Name: Enter any description, for example, “Brother Scanner”.
(2) In Port number: Enter “54925”.
(3) Make sure UDP is selected.
(4) Click OK.
85
Troubleshooting
7
Click the Add port... button.
8
To add port 54926 for network PC Fax, enter the information below:
(1) In Name: Enter any description, for example, “Brother PC Fax”.
11
(2) In Port number: Enter “54926”.
(3) Make sure UDP is selected.
(4) Click OK.
9
10
Make sure that the new setting is added and is checked, and then click Apply.
If you still have trouble with your network connection such as network scanning or printing, check File
and Printer Sharing box in the Exceptions tab and then click Apply.
Note
After the Brother software package is installed, re-enable your Firewall.
86
Troubleshooting
Protocol-specific troubleshooting
Windows® 2000/XP and Windows Vista® IPP troubleshooting
11
Want to use a different Port number other than 631.
If you are using Port 631 for IPP printing, you may find that your firewall may not let the print data through. If
this is the case, use a different port number (port 80), or configure your Firewall to allow Port 631 data
through.
To send a print job using IPP to a printer using Port 80 (the standard HTTP port) enter the following when
configuring your Windows® 2000/XP and Windows Vista® system.
http://ipaddress/ipp
The “Go to printer’s Web site” option in Windows® XP and Windows Vista® is not working
The “Get More Info” option in Windows® 2000 and Windows Server® 2003 is not working
If you are using a URL of:
http://ipaddress:631 or http://ipaddress:631/ipp,
the Get More Info option in Windows® 2000/XP, Windows Vista® and Windows Server® 2003 will not
function. If you wish to use the Get More Info option, use the following URL:
http://ipaddress
This will then force Windows® 2000/XP and Windows Vista® to use Port 80 to communicate with the Brother
print server.
Web browser troubleshooting (TCP/IP)
1
If you can not connect to the print server using your web browser it may be worth checking the Proxy
Settings of your browser. Look in the Exceptions setting and if necessary, type in the IP address of the
print server. This will stop your PC from trying to connect to your ISP or proxy server every time you wish
to look at the printer server.
2
Make sure that you are using the proper web browser, we recommend Netscape Navigator® version 7.1
or later/ Microsoft Internet Explorer® version 6.0 or later.
LDAP troubleshooting
If you are having trouble connecting to a Windows® LDAP server, please contact your Network Administrator
and check the LDAP Security Options.
For more information, please visit http://solutions.brother.com.
87
A
Appendix A
Using services
A service is a resource that can be accessed by computers that wish to print to the Brother print server. The
Brother print server provides the following predefined services (do a SHOW SERVICE command in the
Brother print server remote console to see a list of available services): Enter HELP at the command prompt
for a list of supported commands.
Service (Example)
Definition
BINARY_P1
TCP/IP binary, NetBIOS service
TEXT_P1
TCP/IP text service (adds carriage return after each line feed)
PCL_P1
PCL® service (switches PJL-compatible printer to PCL® mode)
BRN_xxxxxx_P1
TCP/IP binary
BRN_xxxxxx_P1_AT
PostScript service for Macintosh
POSTSCRIPT_P1
PostScript service (switches PJL-compatible printer to PostScript mode)
Where xxxxxx is the last six digits of the Ethernet address (for example, BRN_310107_P1).
Other ways to set the IP address (for advanced users and
Administrators)
For information on how to configure your network printer using the BRAdmin Professional utility or a web
browser, see Setting the IP address and subnet mask on page 9.
Using DHCP to configure the IP address
The Dynamic Host Configuration Protocol (DHCP) is one of several automated mechanisms for IP address
allocation. If you have a DHCP server in your network, the print server will automatically obtain its IP address
from DHCP server and register its name with any RFC 1001 and 1002-compliant dynamic name services.
Note
If you do not want your print server configured via DHCP, BOOTP or RARP, you must set the BOOT
METHOD to static so that the print server has a static IP address. This will prevent the print server from trying
to obtain an IP address from any of these systems. To change the BOOT METHOD, use the BRAdmin
Professional utility.
88
A
Appendix A
Using BOOTP to configure the IP address
BOOTP is an alternative to RARP that has the advantage of allowing configuration of the subnet mask and
gateway. In order to use BOOTP to configure the IP address make sure that BOOTP is installed and running
on your host computer (it should appear in the /etc/services file on your host as a real service; type man
bootpd or refer to your system documentation for information). BOOTP is usually started up via the
/etc/inetd.conf file, so you may need to enable it by removing the “#” in front of the bootp entry in that
file. For example, a typical bootp entry in the /etc/inetd.conf file would be:
#bootp dgram udp wait /usr/etc/bootpd bootpd -i
Depending on the system, this entry might be called “bootps” instead of “bootp”.
Note
In order to enable BOOTP, simply use an editor to delete the “#” (if there is no “#”, then BOOTP is already
enabled). Then edit the BOOTP configuration file (usually /etc/bootptab) and enter the name, network type
(1 for Ethernet), Ethernet address and the IP address, subnet mask and gateway of the print server.
Unfortunately, the exact format for doing this is not standardized, so you will need to refer to your system
documentation to determine how to enter this information (many UNIX® systems also have template
examples in the bootptab file that you can use for reference). Some examples of typical /etc/bootptab entries
include:
BRN_310107 1
00:80:77:31:01:07 192.168.1.2
and:
BRN_310107:ht=ethernet:ha=008077310107:\
ip=192.168.1.2:
Certain BOOTP host software implementations will not respond to BOOTP requests if you have not included
a download filename in the configuration file; if this is the case, simply create a null file on the host and specify
the name of this file and its path in the configuration file.
As with RARP, the print server will load its IP address from the BOOTP server when the printer is powered on.
Using RARP to configure the IP address
The Brother print server’s IP address can be configured using the Reverse ARP (RARP) facility on your host
computer. This is done by editing the /etc/ethers file (if this file does not exist, you can create it) with an
entry similar to the following:
00:80:77:31:01:07
BRN_310107
Where the first entry is the Ethernet address of the print server and the second entry is the name of the print
server (the name must be the same as the one you put in the /etc/hosts file).
89
A
Appendix A
If the RARP daemon is not already running, start it (depending on the system the command can be rarpd,
rarpd -a, in.rarpd -a or something else; type man rarpd or refer to your system documentation for
additional information). To verify that the RARP daemon is running on a Berkeley UNIX®-based system, type
the following command:
ps -ax | grep -v grep | grep rarpd
A
For AT&T UNIX®-based systems, type:
ps -ef | grep -v grep | grep rarpd
The Brother print server will get the IP address from the RARP daemon when the printer is powered on.
Using APIPA to configure the IP address
The Brother print server supports the Automatic Private IP Addressing (APIPA) protocol. With APIPA, DHCP
clients automatically configure an IP address and subnet mask when a DHCP server is not available. The
device chooses it's own IP address in the range 169.254.1.0 through to 169.254.254.255. The subnet mask
is automatically set to 255.255.0.0 and the gateway address is set to 0.0.0.0.
By default, the APIPA protocol is enabled. If you want to disable the APIPA protocol, you can disable it using
control panel of the machine. For more information, see APIPA on page 18.
If the APIPA protocol is disabled, the default IP address of a Brother print server is 192.0.0.192. However,
you can easily change this IP address number to match with the IP address details of your network.
Using ARP to configure the IP address
If you are unable to use the BRAdmin application and your network does not use a DHCP server, you can
also use the ARP command. The ARP command is available on Windows® systems that have TCP/IP
installed as well as UNIX® systems. To use arp enter the following command at the command prompt:
arp -s ipaddress ethernetaddress
Where ethernetaddress is the Ethernet address (MAC address) of the print server and ipaddress is the
IP address of the print server. For example:
Windows® systems
Windows® systems require the hash "-" character between each digit of the Ethernet address.
arp -s 192.168.1.2 00-80-77-31-01-07
90
Appendix A
UNIX®/Linux systems
Typically, UNIX® and Linux systems require the colon ":" character between each digit of the Ethernet
address.
A
arp -s 192.168.1.2 00:80:77:31:01:07
Note
You must be on the same Ethernet segment (that is, there cannot be a router between the print server and
operating system) to use the arp -s command.
If there is a router, you may use BOOTP or other methods described in this chapter to enter the IP address.
If your Administrator has configured the system to deliver IP addresses using BOOTP, DHCP or RARP your
Brother print server can receive an IP address from any one of these IP address allocation systems. In which
case, you will not need to use the ARP command. The ARP command only works once. For security reasons,
once you have successfully configured the IP address of a Brother print server using the ARP command, you
cannot use the ARP command again to change the address. The print server will ignore any attempts to do
this. If you wish to change the IP address again, use a web browser, TELNET (using the SET IP ADDRESS
command) or factory reset the print server (which will then allow you to use the ARP command again).
To configure the print server and to verify the connection, enter the following command ping ipaddress
where ipaddress is the IP address of the print server. For example, ping 192.189.207.2.
Using the TELNET console to configure the IP address
You can also use the TELNET command to change the IP address.
Using TELNET is effective way, when you change the IP address. But a valid IP address must already be
programmed into the print server.
Type TELNET ipaddress at the command prompt of the system prompt, where ipaddress is the IP address
of the print server. When you are connected, push the Return or Enter key to get the “#” prompt, enter the
password "“access”" (the password will not appear on the screen).
You will be prompted for a user name. Enter anything in response to this prompt.
You will then get the Local> prompt. Type SET IP ADDRESS ipaddress, where ipaddress is the
desired IP address you wish to assign to the print server (check with your network manager for the IP address
to use). For example:
Local> SET IP ADDRESS 192.168.1.3
You will now need to set the subnet mask by typing SET IP SUBNET subnet mask, where subnet mask
is the desired subnet mask you wish to assign to the print server (check with your network manager for the
subnet mask to use). For example:
91
Appendix A
Local> SET IP SUBNET 255.255.255.0
If you do not have any subnets, use one of the following default subnet masks:
255.0.0.0 for class A networks
A
255.255.0.0 for class B networks
255.255.255.0 for class C networks
The leftmost group of digits in your IP address can identify the type of network you have. The value of this
group ranges from 1 through 127 for Class A networks (e.g., 13.27.7.1), 128 through 191 for Class B networks
(e.g.,128.10.1.30), and 192 through 223 for Class C networks (e.g., 192.168.1.4).
If you have a gateway (router), enter its address with the command SET IP ROUTER routeraddress,
where routeraddress is the desired IP address of the gateway you wish to assign to the print server. For
example:
Local> SET IP ROUTER 192.168.1.4
Type SET IP METHOD STATIC to set the method of IP access configuration to static.
To verify that you have entered the IP information correctly, type SHOW IP.
Type EXIT or Ctrl-D (i.e., hold down the control key and type "D") to end the remote console session.
Using the Brother Web BRAdmin server software for IIS* to configure the IP
address
The Web BRAdmin server software is designed to manage all LAN/WAN Brother network connected devices.
By installing the Web BRAdmin server software on a computer running IIS*, Administrators with a web
browser can connect to the Web BRAdmin server, which then communicates with the device itself. Unlike the
BRAdmin Professional utility - which is designed for Windows® systems only - the Web BRAdmin server
software can be accessed from any client computer with a web browser that supports Java.
Please note this software is not included on the CD-ROM that was supplied with your Brother product.
Please visit http://solutions.brother.com/webbradmin to learn more about this software and to download it.
IIS* = Internet Information Server 4.0, 5.0 or 5.1
92
Appendix A
Installation when using a Network Print Queue or Share
(printer driver only)
Note
• You must configure the IP address on your machine before you proceed with this chapter. If you have
not configured the IP address, see Chapter 2 first.
• Verify the host computer and print server are either on the same subnet, or that the router is properly
configured to pass data between the two devices.
• Before installation, if you are using Personal Firewall software (e.g. the Internet Connection Firewall
available in Windows XP), disable it. Once you are sure that you can print, re-start your Personal
Firewall software.
1
Start the CD-ROM installation menu program according to the Quick Setup Guide.
2
Select the model name and your language (if necessary), and then click Install Optional Applications.
3
Click Printer Driver (Only).
4
Click Next in response to the Welcome message. Follow the on-screen instructions.
5
Select Standard Installation and click Next.
6
Select Network Shared Printer, and then click Next.
7
Select your printer’s queue, and then click OK.
Note
Contact your administarator if you are not sure about the location and name of the printer in the network.
8
Click Finish.
93
A
Appendix A
Multi-function Print Server specifications
Operating system support
Windows® 98/98SE/Me, Windows NT® 4.0, Windows® 2000/XP,
Windows® XP Professional x64 Edition, Windows Vista®
Mac OS® 9.1 to 9.2, Mac OS® X 10.2.4 or greater
Protocol support
TCP/IP: IPv4
ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), ICMP,
WINS/NetBIOS, DNS, mDNS, LPR/LPD, Custom Raw
Port/Port9100, POP3/SMTP, IPP, FTP, TELNET, SNMP, HTTP,
TFTP, LDAP (MFC-8860DN only)
TCP/IP: IPv6
ICMPv6, NDP, DNS, mDNS,LPR/LPD, Custom Raw
Port/Port9100, POP3/SMTP, IPP, FTP, TELNET, SNMP, HTTP,
TFTP, LDAP (MFC-8860DN only)
A
Network type
10/100BASE-TX Ethernet network
Network printing
Windows® 98/98SE/Me Peer-to-Peer printing
Windows NT® 4.0, Windows® 2000/XP and Windows Vista® TCP/IP printing
Macintosh® printing (Mac OS® 9.1-9.2 and Mac OS® 10.2.4 or greater supporting
TCP/IP)
Computer requirements
(for drivers, BRAdmin
Professional, Peer-to-Peer
software, etc.)
Processor
Minimum Speed
Intel® Pentium® II or equivalent for Windows® 98/98SE/Me/
2000 Professional/XP and Windows NT® 4.0
AMD Opteron™, AMD Athlon™64, Intel® Xeon™ with Intel®
EM64T, Intel® Pentium® 4 with Intel® EM64T for Windows® XP
Professional x64 Edition, Intel® Pentium® 4 or equivalent 64-bit
(Intel®64 or AMD64) supported CPU for Windows Vista®.
Minimum RAM
32MB for Windows® 98/98SE/Me
64MB for Windows® 2000 Professional and Windows NT® 4.0
128MB for Windows® XP
256MB for Windows® XP Professional x64 Edition
512MB for Windows Vista®
Recommended
RAM
128MB for Windows® 98/98SE/Me
256MB for Windows® 2000 Professional and Windows NT® 4.0
256MB for Windows® XP
512MB for Windows® XP Professional x64 Edition
1GB for Windows Vista®
Computer
Ethernet ready Power Macintosh®
Processor
Minimum Speed
All base models meet minimum requirements
Minimum RAM
32MB for Mac OS® 9.1 to 9.2
128MB for Mac OS® X 10.2.4 or greater
Recommended
RAM
64MB for Mac OS® 9.1 to 9.2
160MB for Mac OS® X 10.2.4 or greater
Macintosh® connection
Management utilities
BRAdmin
Windows® 98/98SE/Me, Windows NT® 4.0, Windows® 2000/XP,
Professional utility Windows Vista® 1
BRAdmin Light
Windows Vista®
Mac OS® X 10.2.4 or greater
Web BRAdmin 2
Windows® 2000 Professional / Server / Advanced Server,
Windows® XP Professional, Windows Vista®
1
For Windows Vista®, BRAdmin Professional is available as a download from http://solutions.brother.com.
2
Web BRAdmin is available as a download from http://solutions.brother.com.
94
Appendix A
Function Table and Default Factory Settings
LEVEL ONE
LEVEL TWO
6.LAN
1.TCP/IP
(MFC-8460N,
MFC-8660DN,
MFC-8670DN
and
MFC-8860DN)
4.LAN
(DCP-8065DN)
LEVEL
THREE
LEVEL FOUR
OPTIONS
OPTIONS
A
1.BOOT
Method
Auto/ Static/ RARP/ BOOTP/ DHCP
2.IP Address
[169].[254].[001-254].[000-255] *1
3.Subnet
Mask
[255].[255].[000].[000] *1
4.Gateway
[000].[000].[000].[000]
5.Node Name
BRN_XXXXXX=(last 6 figures of the BRN_XXXXXX
Ethernet address)
(up to 15 characters)
6.WINS
Config
Auto/ Static
7.WINS
Server
(Primary)
[000].[000].[000].[000]
(Secondary)
[000].[000].[000].[000]
8.DNS Server
(Primary)
[000].[000].[000].[000]
(Secondary)
[000].[000].[000].[000]
9.APIPA
On/Off
0.IPv6
On/Off
2.Ethernet
3.Setup IFAX
(MFC-8860DN
only)
Auto/ 100B-FD/ 100B-HD/ 10B-FD/
10B-HD
1.Setup
Internet
2.Setup Mail
RX
3.Setup Mail
TX
1.Mail Address
(60 characters)
2.SMTP Server
[000].[000].[000].[000]
Name
(up to 30 characters)
3.POP3 Server
[000].[000].[000].[000]
Name
(up to 30 characters)
4.Mailbox Name
(up to 20 characters)
5.Mailbox Pwd
Password:******
1.Auto Polling
On/ Off
2.Poll Frequency
10Min
3.Header
All/ Suject+From+To/ None
4.Del Error Mail
On/ Off
5.Notification
On/ MDN/ Off
1.Sender Subject
Internet Fax Job
2.Size Limit
On/ Off
3.Notification
On/ Off
4.Setup Relay 1.Rly Broadcast
Verify:******
On/ Off
95
Appendix A
4.Scan to E-mail 1.Color
(MFC-8860DN
only)
2.B/W
3.Scan to FTP
(MFC-8460N,
MFC-8660DN,
MFC-8670DN
and
DCP-8065DN)
5.Scan to FTP
(MFC-8860DN)
2.Relay Domain
RelayXX:
XX=01-10 YYYYY=(up to 30
characters)
3.Relay Report
On/ Off
PDF/JPEG
1.Color
PDF/JPEG
2.B/W
TIFF/PDF
On/ Off
Prefix/Suffix
7.Time Zone
(MFC-8860DN
only)
UTCXXX:XX
1.Reset
A
TIFF/PDF
6.Fax to Server
(MFC-8860DN
only)
0.Factory Reset
Relay01*YYYYY
1.Yes 2.No
2.Exit
■ The factory settings are shown in Bold.
■ *1: The factory setting for IP Address and Subnet Mask may be changed by the APIPA setting.
96
Appendix A
Entering Text
When setting certain menu selections, such as the Station ID, you will need to type text characters. The
number keys have letters printed above them. The keys: 0, #
do not have printed letters because they
are used for special characters.
Press the appropriate number key the required number of times to access the characters below:
(For setting an email address)
Press
Key
one
time
two
times
three
times
four
times
five
times
six
times
seven
times
eight
times
2
a
b
c
A
B
C
2
a
3
d
e
f
D
E
F
3
d
4
g
h
i
G
H
I
4
g
5
j
k
l
J
K
L
5
j
6
m
n
o
M
N
O
6
m
7
p
q
r
s
P
Q
R
S
8
t
u
v
T
U
V
8
t
9
w
x
y
z
W
X
Y
Z
(For setting other menu selections)
Press
Key
one
time
two
times
three
times
four
times
2
A
B
C
2
3
D
E
F
3
4
G
H
I
4
5
J
K
L
5
6
M
N
O
6
7
P
Q
R
S
8
T
U
V
8
9
W
X
Y
Z
Inserting spaces
once between numbers. To enter a space in a name, press
▲
▲
To enter a space in a fax number, press
twice between characters.
If you entered a letter incorrectly and want to change it, press
character, press Clear/Back.
▲
Making corrections
to move the cursor under the incorrect
97
A
Appendix A
Repeating letters
▲
To enter a character on the same key as the previous character, press
pressing the key again.
to move the cursor right before
A
or
▲
Press , # or 0, then press
to select it.
▲
Special characters and symbols
to move the cursor under the symbol or character you want. Press OK
Press
for
(space) ! " # $ % & ' ( )
Press #
for
:;<=>?@[]^_
Press 0
for
ÁÀÃÂÇÉÈÊËÍÎÏÓÕÔÖŒÚÙÛ
*
+,-./
*
is not available for I FAX settings.
98
I
Index
A
I
APIPA ............................................. 5, 18, 90
ARP .......................................................... 90
IIS ............................................................. 92
Internet ..................................................... 35
Internet Printing ........................................ 35
IP Address ............................................ 7, 15
IPP ........................................... 6, 35, 41, 87
IPv6 ...................................................... 6, 19
ISP ........................................................... 36
B
BFP Address Book ................................... 73
BFP Port ................................................... 69
BINARY_P1 ............................................. 88
BIP ........................................................... 35
BOOTP ........................................... 5, 14, 89
BRAdmin Light ......................................... 51
BRAdmin Professional ......................... 9, 10
BRN_xxxxxx_P1 ...................................... 88
BRN_xxxxxx_P1_A1 ................................ 88
Broadcasting ............................................ 74
Brother Internet Fax Printing Software ..... 67
Brother Solutions Center ...................... 9, 51
Browser .................................................... 53
C
I
L
LAN menu ................................................ 13
LDAP .................................................... 6, 54
LDAP Operation ....................................... 57
LED (Print Server) .................................... 78
LPR/LPD .................................................... 5
M
Macintosh® Printing .................................. 45
mDNS ......................................................... 6
MIME ........................................................ 35
Control panel ............................................ 10
D
DHCP ............................................. 5, 15, 88
DNS ........................................ 11, 41, 43, 53
DNS Client ................................................. 5
DNS Server .............................................. 18
E
N
Network Configuration List ....................... 31
Network Printing ....................................... 32
Network Shared Printing ............................ 4
P
Firewall ..................................................... 84
FTP ............................................................ 6
Password ........................................... 32, 41
PCL_P1 .................................................... 88
Peer-to-Peer ............................................... 3
Ping .................................................... 78, 81
POP3 ........................................................ 36
