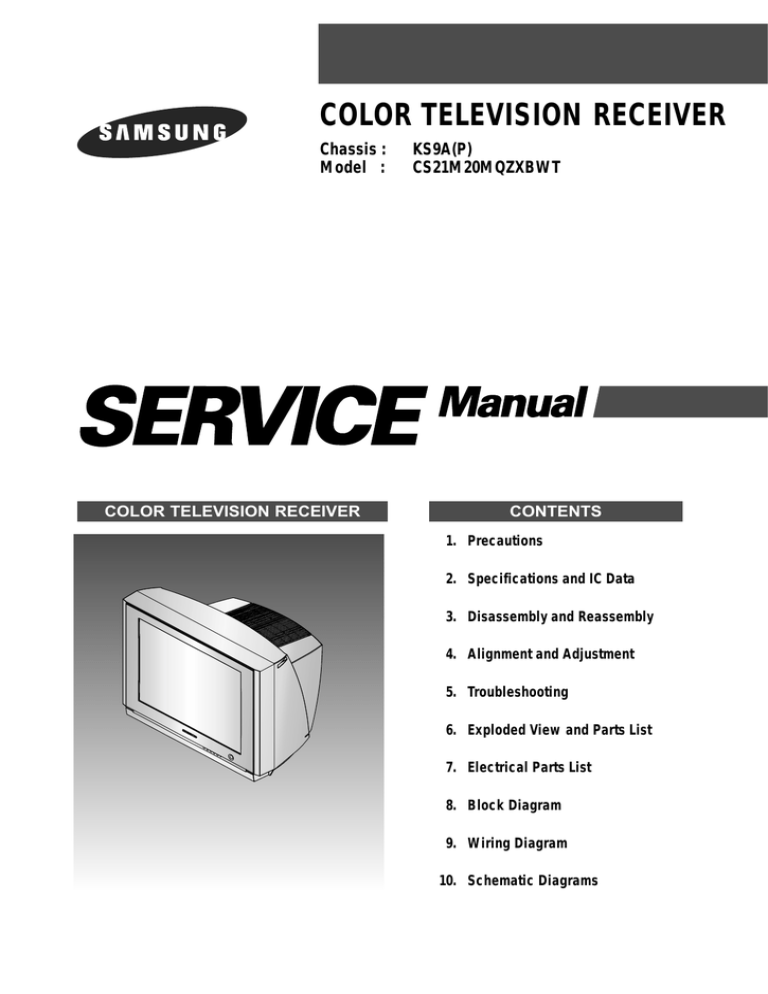

COLOR TELEVISION RECEIVER
Chassis :
Model :
COLOR TELEVISION RECEIVER
KS9A(P)
CS21M20MQZXBWT
CONTENTS
1. Precautions
2. Specifications and IC Data
3. Disassembly and Reassembly
4. Alignment and Adjustment
5. Troubleshooting
6. Exploded View and Parts List
7. Electrical Parts List
8. Block Diagram
9. Wiring Diagram
10. Schematic Diagrams
ELECTRONICS
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
© Samsung Electronics Co., Ltd. Apr. 2004
Printed in Korea
AA82-01550A
Precautions
1. Precautions
Follow these safety, servicing and ESD precautions to prevent damage and protect against potential
hazards such as electrical shock and X-rays.
1-1 Safety Precautions
1. Be sure that all of the built-in protective
devices are replaced. Restore any missing
protective shields.
2. When reinstalling the chassis and its
assemblies, be sure to restore all protective
devices, including: nonmetallic control knobs
and compartment covers.
3. Make sure that there are no cabinet openings
through which people—particularly
children—might insert fingers and contact
dangerous voltages. Such openings include
the spacing between the picture tube and the
cabinet mask, excessively wide cabinet
ventilation slots, and improperly fitted back
covers.
If the measured resistance is less than 1.0
megohm or greater than 5.2 megohms, an
abnormality exists that must be corrected
before the unit is returned to the customer.
4. Leakage Current Hot Check (Figure 1-1):
Warning: Do not use an isolation
transformer during this test. Use a leakagecurrent tester or a metering system that
complies with American National Standards
Institute (ANIS C101.1, Leakage Current for
Appliances), and Underwriters Laboratories
(UL Publication UL1410, 59.7).
5. With the unit completely reassembled, plug
the AC line cord directly into the power
outlet. With the unit’s AC switch first in the
ON position and then OFF, measure the
current between a known earth ground (metal
water pipe, conduit, etc.) and all exposed
metal parts, including: antennas, handle
brackets, metal cabinets, screwheads and
control shafts. The current measured should
not exceed 0.5 milliamp. Reverse the powerplug prongs in the AC outlet and repeat the
test.
LEAKAGE
CURRENT
TESTER
DEVICE
UNDER
TEST
(READING SHOULD
NOT BE ABOVE
0.5mA)
TEST ALL
EXPOSED METAL
SURFACES
2-WIRE CORD
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
EARTH
GROUND
Fig. 1-1 AC Leakage Test
6. Antenna Cold Check:
With the unit’s AC plug disconnected from the
AC source, connect an electrical jumper across
the two AC prongs. Connect one lead of the
ohmmeter to an AC prong. Connect the other
lead to the coaxial connector.
7. X-ray Limits:
The picture tube is especially designed to prohibit X-ray emissions. To ensure continued
X-ray protection, replace the picture tube only
with one that is the same type as the original.
Carefully reinstall the picture tube shields and
mounting hardware; these also provide X-ray
protection.
8. High Voltage Limits:
High voltage must be measured each time servicing is done on the B+, horizontal deflection
or high voltage circuits. Correct operation of
the X-ray protection circuits must be
reconfirmed whenever they are serviced.
(X-ray protection circuits also may be called
“horizontal disable” or “hold-down”.)
Heed the high voltage limits. These include
the X–ray Protection Specifications Label, and
the Product Safety and X-ray Warning Note on
the service data schematic.
1-1
Precautions
1-1 Safety Precautions (Continued)
9. High voltage is maintained within specified
limits by close-tolerance, safety-related
components and adjustments. If the high
voltage exceeds the specified limits, check
each of the special components.
10. Design Alteration Warning:
Never alter or add to the mechanical or
electrical design of this unit. Example: Do not
add auxiliary audio or video connectors. Such
alterations might create a safety hazard. Also,
any design changes or additions will void the
manufacturer’s warranty.
11. Hot Chassis Warning:
Some TV receiver chassis are electrically
connected directly to one conductor of the AC
power cord. If an isolation transformer is not
used, these units may be safely serviced only
if the AC power plug is inserted so that the
chassis is connected to the ground side of the
AC source.
To confirm that the AC power plug is inserted
correctly, do the following: Using an AC
voltmeter, measure the voltage between the
chassis and a known earth ground. If the
reading is greater than 1.0V, remove the AC
power plug, reverse its polarity and reinsert.
Re-measure the voltage between the chassis
and ground.
12. Some TV chassis are designed to operate with
85 volts AC between chassis and ground,
regardless of the AC plug polarity. These units
can be safely serviced only if an isolation
transformer inserted between the receiver and
the power source.
13. Some TV chassis have a secondary ground
system in addition to the main chassis ground.
This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulating material that must not be defeated
or altered.
15. Observe the original lead dress, especially
near the following areas: Antenna wiring,
sharp edges, and especially the AC and high
voltage power supplies. Always inspect for
pinched, out-of-place, or frayed wiring. Do
not change the spacing between components
and the printed circuit board. Check the AC
power cord for damage. Make sure that leads
and components do not touch thermally hot
parts.
16. Picture Tube Implosion Warning:
The picture tube in this receiver employs
“integral implosion” protection. To ensure
continued implosion protection, make sure
that the replacement picture tube is the same
as the original.
17. Do not remove, install or handle the picture
tube without first putting on shatterproof
goggles equipped with side shields. Never
handle the picture tube by its neck. Some
“in-line” picture tubes are equipped with a
permanently attached deflection yoke; do not
try to remove such “permanently attached”
yokes from the picture tube.
18. Product Safety Notice:
Some electrical and mechanical parts have
special safety-related characteristics which
might not be obvious from visual inspection.
These safety features and the protection they
give might be lost if the replacement component differs from the original—even if the
replacement is rated for higher voltage,
wattage, etc.
Components that are critical for safety are
indicated in the circuit diagram by shading,
(
) or ( ! ).
Use replacement components that have the
same ratings, especially for flame resistance
and dielectric strength specifications.
A replacement part that does not have the
same safety characteristics as the original
might create shock, fire or other hazards.
14. Components, parts and wiring that appear to
have overheated or that are otherwise
damaged should be replaced with parts that
meet the original specifications. Always
determine the cause of damage or overheating, and correct any potential hazards.
1-2
Samsung Electronics
Precautions
1-2 Servicing Precautions
Warning1: First read the “Safety Precautions” section of this manual. If some unforeseen circumstance creates a conflict between
the servicing and safety precautions, always follow the safety precautions.
Warning2: An electrolytic capacitor installed with the wrong polarity might explode.
1. Servicing precautions are printed on the
cabinet. Follow them.
2. Always unplug the unit’s AC power cord from
the AC power source before attempting to: (a)
Remove or reinstall any component or
assembly, (b) Disconnect an electrical plug or
connector, (c) Connect a test component in
parallel with an electrolytic capacitor.
3. Some components are raised above the printed
circuit board for safety. An insulation tube or
tape is sometimes used. The internal wiring is
sometimes clamped to prevent contact with
thermally hot components. Reinstall all such
elements to their original position.
4. After servicing, always check that the screws,
components and wiring have been correctly
reinstalled. Make sure that the portion around
the serviced part has not been damaged.
5. Check the insulation between the blades of the
AC plug and accessible conductive parts
(examples: metal panels, input terminals and
earphone jacks).
6. Insulation Checking Procedure: Disconnect the
power cord from the AC source and turn the
power switch ON. Connect an insulation
resistance meter (500V) to the blades of the AC
plug.
The insulation resistance between each blade
of the AC plug and accessible conductive parts
(see above) should be greater than 1 megohm.
7. Never defeat any of the B+ voltage interlocks.
Do not apply AC power to the unit (or any of
its assemblies) unless all solid-state heat sinks
are correctly installed.
8. Always connect a test instrument’s ground
lead to the instrument chassis ground before
connecting the positive lead; always remove
the instrument’s ground lead last.
1-3
Precautions
1-3 Precautions for Electrostatically Sensitive Devices (ESDs)
1. Some semiconductor (“solid state”) devices
are easily damaged by static electricity. Such
components are called Electrostatically
Sensitive Devices (ESDs); examples include
integrated circuits and some field-effect
transistors. The following techniques will
reduce the occurrence of component damage
caused by static electricity.
2. Immediately before handling any semicon
ductor components or assemblies, drain the
electrostatic charge from your body by
touching a known earth ground. Alternatively,
wear a discharging wrist-strap device. (Be
sure to remove it prior to applying power—
this is an electric shock precaution.)
3. After removing an ESD-equipped assembly,
place it on a conductive surface such as
aluminum foil to prevent accumulation of
electrostatic charge.
4. Do not use freon-propelled chemicals. These
can generate electrical charges that damage
ESDs.
1-4
5. Use only a grounded-tip soldering iron when
soldering or unsoldering ESDs.
6. Use only an anti-static solder removal device.
Many solder removal devices are not rated as
“anti-static”; these can accumulate sufficient
electrical charge to damage ESDs.
7. Do not remove a replacement ESD from its
protective package until you are ready to
install it. Most replacement ESDs are
packaged with leads that are electrically
shorted together by conductive foam,
aluminum foil or other conductive materials.
8. Immediately before removing the protective
material from the leads of a replacement ESD,
touch the protective material to the chassis or
circuit assembly into which the device will be
installed.
9. Minimize body motions when handling
unpackaged replacement ESDs. Motions such
as brushing clothes together, or lifting a foot
from a carpeted floor can generate enough
static electricity to damage an ESD.
Samsung Electronics
Specifications and IC Data
2. Specifications and IC Data
2-1 Specifications
Television System:
Channels:
Intermediate Frequencies (MHz) :
CI
PAL-I (UHF)
CII
PAL-I (VHF/UHF)
CX
PAL-B/G, SECAM-B/G
CK
PAL-B/G, D/K, SECAM-B/G, D/K
CW
PAL-B/G, D/K, SECAM-B/G, D/K, NT 4.43
CS
PAL-B/G, D/K, SECAM-B/G, D/K, NT4.43, NT3.58
System
Band
PAL/SECAM- PAL,
SECAM- D/K
B/G,I
SECAM-K1, NTSC - M
PAL-D
VHF
2 - 12
1 - 13
2-9
2 - 13
UHF
21 - 69
21 - 69
13 - 57
14-69
PAL - I
NTSC - M
SYSTEM
IF Carrier Frequency
Picture Tube:
SYSTEM
MODEL
PAL/SECAM-D/K,
PAL/
SECAM- B/G SECAM-K1
Picture IF Carrier
38.90
38.90
38.90
38.90
Sound IF Carrier
33.40
32.40
32.90
34.40
Color Sub Carrier
34.47
34.47
34.47
35.32
14 Inch
A34KQV42X
Quick start, in-line-gun,
20 Inch
A48KRD82X(H)
Black stripe, 90degree deflection
21 Inch
A51KQJ63X
21 Flat
A51QDX993X
Power Requirements:
AC 160~300V, 50/60Hz
Antenna Input Impedance:
VHF, UHF : Telescopic dipole antenna (75 ohm unbalanced type )
Speaker Impedance
8 ohm, 7W+7W (MAX)
Samsung Electronics
2-1
Specifications and IC Data
2-2 IC Line Up
Table 2-1 IC Line-Up
Loc. No
Specification
HC101
PAP103
Description
IF PRE-AMP
SPM802ER
TTX, English/Croatian/Romanian/Hungarian/Polish/Czech/
Bulgarian/Russian/Portugal
SPM802ERN
W/O TTX, English/Croatian/Romanian/Hungarian/Polish/Czech/
Bulgarian/Russian/Portugal
IC201S
Philips
IC301
LA7840
VERTICAL OUTPUT
Sanyo
IC501
TDA6107Q
RGB DRIVE AMP
Philips
IC601
TDA7266S
SOUND-AMP (3W x 1CH or 3W x 2CH or 5W x 2CH)
IC801S
KA5Q0765R
POWER IC (STR)
IC802
KA7632
CUSTOM REGULATOR (5V, 8V, 3.3V)
IC902
PC801S
IC101
2-2
Remark
24C08/KS28C040
TCET1108 / LTV817B
U4468B
EEPROM
PHOTO COUPLER
SIF - IC
TEMIC
Samsung Electronics
Specifications and IC Data
2-3 Semiconductor Base Diagrams
ELECTROLYTICCONDENSER
IC
DIODE
SPM-802ERN(Pin 64)
SPM-802ER(Pin 64)
X24CO8P(Pin 8)
KS24C080(Pin 8)
U4468B(Pin 16)
TRANSISTOR
TRANSISTOR
IC
SAW-FILTER
G3956M
K9260M
11
1
2SD1651
2SD1650
2SD2499
KSA614
B
C
E
KSC815-Y
KSA539-Y
BC548
KTC9014
UPC574J
or
KA33V
E B C
IC
TRANSISTOR
LA7840
TDA6107Q
KA7632
KSR1012
KSR1010
KSR2010
KTD863-Y
KSC2331-Y
E C B
Fig. 2-1 Semiconductor Base Diagrams
Samsung Electronics
2-3
MEMO
2-4
Disassembly and reassembly
3. Disassembly and Reassembly
3-1 Back Cover Removal
1. After removing the screws, press the tension rib and pull the cabinet backwards.
2. To reassemble, press the tension rib (see diagram).
Samsung Electronics
3-1
Disassembly and reassembly
3-2 Main Board Removal
1. Separate the socket board from the CRT neck.
2. Remove the Anode Cap from the CRT.
3. Remove the main board by pulling it with both hands.
Warning: The FBT is charged with high voltage.
Before removing the Anode Cap, discharge the voltage
through one of the heat sinks on the main board.
3-2
Samsung Electronics
Disassembly and reassembly
3-3 Speaker Removal
1. Remove the speaker by
pressing the tension rib.
Samsung Electronics
3-3
Disassembly and reassembly
3-4 CRT Removal
1. Spread a soft mat on the floor. Place the TV set face
down.
2. Remove the 4 nuts mounting the CRT to the front cabinet. Lift the CRT.
3. Caution: Because of the high vacuum and large surface
area of the picture tube, be careful while handling it: (1)
Always lift the picture tube by grasping it firmly around
the faceplate, (2) Never lift the tube by its neck. (3) Do
not scratch the picture tube or apply excessive pressure.
Fractures of the glass may cause an implosion.
3-4
Samsung Electronics
Alignment and Adjustments
4. Alignment and Adjustments
4-1 Preadjustment
4-1-1 Factory Mode
4-1-3 When CRT Is Replaced
1. Do not attempt these adjustments in the Video
Mode.
1. Make the following adjustments AFTER setting up after setting up purity and convergence :
2. The Factory Mode adjustments are necessary
when either the EEPROM (IC902) or the CRT
is replaced.
3. Do not tamper with the “Adjustment” screen
of the Factory Mode menu. This screen is
intended only for factory use.
4-1-2 When EEPROM (IC902) Is Replaced
1. When IC902 is replaced all adjustment data
revert to initial values. It is necessary to
re-program this data.
White Balance
Sub-Brightness
Vertical Center
Vertical Size
Horizontal Center
Fail Safe (This adjustment must be the last
step).
2. If the EEPROM or CRT is replaced, set VA to
40 (factory mode) and set SC to 24.
2. After IC902 is replaced, warm up the TV for
10 seconds.
4-2 Factory/Service Mode
4-2-1 Procedure for the “Adjustment” Mode
4. Selection sequences for the all system:
1. This mode uses the standard remote control.
The Service Mode is activated by entering the
following remote-control sequence :
(1) DISPLAY→FACTORY.
(2) STAND-BY→ DISPLAY→ MENU→ MUTE
→POWER ON.
2. The “SERVICE (FACTORY)” message will be
displayed. The Service Mode has five components: ADJUST, OPTION,OPTION1,G2 Adjust
and Reset
3. Access the Adjustment Mode by pressing the
“VOLUME” keys ( Up or Down). The adjustment parameters are listed in the accompanying table, and selected by pressing the CHANNEL keys (▲ ,▼).
Samsung Electronics
DOWN or UP key:
AGC>SCT>SBT>BLR>BLB>RG>GG>BG>VSL>
VS>VA>HS>SC>CDL>STT>AKB>PDL>
NDL>PSR>NSR>VOL>LCO>TXP>MVOL>FMWS>
AGCS>OMD>SCL>PWL>ACN>PEK>ACL>FCD>SCBT>
SSP>PSNS
5. The VOLUME keys increase or decrease the
adjustment values (stored in the
non-volatile memory) when Adjustment Mode
is cancelled.
6. Cancel the Adjustment Mode by re-pressing
the “FACTORY” or “Power OFF” keys.
4-1
Alignment and Adjustments
4-2-2 Main Adjustment Parameter
OSD
AGC
SCT
SBT
BLR
BLB
RG
GG
BG
VSL
VS
VA
HS
SC
CDL
STT
AKB
PDL
NDL
PSR
NSR
VOL
LCO
TXP
MVOL
FMWS
AGCS
OMD
SCL
PWL
AGN
PEK
ACL
FCO
SCBT
SSP
PSNS
4-2
FUNCTION
RANGE INITIAL DATA REMARK
RF AGC
0 … 63
33
Sub contrast
0 … 23
13
Sub brightness
0 … 23
9
Black level offset R
0 … 63
31
Black level offset B
0 … 63
27
White point R
0 … 63
32
White point G
0 … 63
32(FIX)
White point B
0 … 63
31
Vertical slope
0 … 63
19
Vertical shift
0 … 63
38
Vertical amplitude
0 … 63
40(FIX)
Horizontal shift
0 … 63
30
S-correction
0 … 63
24
Cathode drive level
0 … 15
12
Sub tint
0 … 7
7
Black current stabilization
0 … 1
0
PAL delay
0 … 15
1
NTSC delay
0 … 15
10
PAL sub color
0 … 23
15
NTSC sub color
0 … 23
10
Volume pre setting
0 … 63
10
SECAM-L Vision IF
0 … 1
0
TTX Position
0 … 15
9
Melody initial volume adjustment
0 … 50
10
Narrow-band sound PLL window selection 0 … 1
0
IF AGC speed
0 … 3
1
Off-set IF demodulator
0 … 63
26
Soft clipping level
0 … 3
1
Peak white limiting
0 … 15
12
FM demodulator gain
0 … 1
1
Peaking center frequency
0 … 3
2
Automatic color limiting
0 … 1
0
Forced color limiting
0 … 1
0
Screen brightness
0 … 63
45
Sub Sharpness gain adjustment
0 … 23
20
Identify sensitivity PAL/NTSC decoder 0 … 1
1
Samsung Electronics
Alignment and Adjustments
4-2-3 Option Bytes
In the Service Mode, various can be selected via the Option Table. Example:
Option Table:XX XX XX XX
1
LNA
ON
2
SYSTEM
CZ
3
AUDIO
STEREO
4
JACK
5
ZOOM
6
AUTO POWER
ON
7
SBL
OFF
8
2nd SIF
ON
9
HOTEL MODE
OFF
10
BKS
ON
11
HIGH DEVIA
ON
12
HELP MENU
ON
13
TIME
ON
14
V-GUARD
OFF
Samsung Electronics
SCART
NOR/ZOOM/16:9
4-3
Alignment and Adjustments
4-2-4 RESET
The Reset Mode is used during factory inspection.
Function Reset:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Auto Volume
Color System
Sound System
Blue Screen
Low Noise AMP
Volume
CH. Skip
CH. Lock
Timer
Custom
Off
Auto (option)
D/K (option)
Off
Off (option)
10
Erased
Off
Off
4-3 Other Adjustments
4-3-1 General
1. Usually, a color TV needs only slight touchup adjustment upon installation. Check the
basic characteristics such as height, horizontal
and vertical sync and focus.
2. The picture should have good black and white
details. There should be no objectionable
color shading; if color shading is present, perform the purity and convergence adjustments
described below.
3. Use the specified test equipment or its equivalent.
4. Correct impedance matching is essential.
5. Avoid overload. Excessive signal from a sweep
generator might overload the front-end of the
TV. When inserting signal markers, do not
allow the marker generator to distort test
results.
4-3-2 Automatic Degaussing
A degaussing coil is mounted around the picture tube, so that external degaussing after
moving the TV should be unnecessary. But
the receiver must be properly degaussed upon
installation.
The degaussing coil operates for about 1 second after the power is switched ON. If the set
has been moved or turned in a different direction, disconnect its AC power for at least 30
minutes.
If the chassis or parts of the cabinet become
magnetized, poor color purity will result. If
this happens, use an external degaussing coil.
Slowly move the degaussing coil around the
faceplate of the picture tube and the sides and
front of the receiver. Slowly withdraw the coil
to a distance of about 6 feet before removing
power.
6. Connect the TV only to an AC power source
with voltage and frequency as specified on the
backcover nameplate.
7. Do not attempt to connect or disconnect any
wires while the TV is turned on. Make sure
that the power cord is disconnected before
replacing any parts.
8. To protect against shock hazard, use an isolation transformer.
4-4
Samsung Electronics
Alignment and Adjustments
4-3-3 High Voltage Check
4-3-6 Purity Adjustment
CAUTION: There is no high voltage adjustment on this chassis.
The B+ power supply must be set to +125 volts (Full color bar input
and normal picture level).
1. Warm up the receiver for at least 20 minutes.
1. Connect a digital voltmeter to the second
anode of the picture tube.
2. Plug in the CRT deflection yoke and tighten
the clamp screw.
3. Plug the convergence yoke into the CRT and
set in as shown in Fig. 4-2.
2. Turn on the TV. Set the Brightness and
Contrast controls to minimum (zero beam current).
4. Input a black and white signal.
3. The high voltage should not exceed 27.5KV.
5. Fully demagnetize the receiver by applying an
external degaussing coil.
4. Adjust the Brightness and contrast controls to
both extremes. Ensure that the high voltage
does not exceed 27.5KV under any conditions.
6. Turn the CONTRAST and BRIGHTNESS controls to maximum.
4-3-4 FOCUS Adjustment
7. Loosen the clamp screw holding the yoke.
Slide the yoke backward or forward to provide vertical green belt. (Fig. 4-3).
1. Input a black and white signal.
8. Tighten the convergence yoke.
2. Adjust the tuning control for the clearest picture.
3. Adjust the FOCUS control for well defined
scanning lines in the center area of the screen.
9. Slowly move the deflection yoke forward,
and adjust for the best overall green screen.
10. Temporarily tighten the deflection yoke.
11. Produce blue and red rasters by adjusting the
low-light controls. Check for good purity in
each field.
4-3-5 Cathode Voltage Adjustment
(ScreenVoltage
Adjustment)
4-3-5 Cathode
Adjustment
(Screen Adjust)
1. Connect CRT socket pin GK to an oscilloscope
probe.
1. Input a gray scale pattern.
2. Input a gray scale pattern. (Use a pattern generator,
PM5518)
( Use
a pattern
generator,PM5518)
12. Tighten the deflection yoke.
Use"Adjustment"
the P mode key
(on the remote control)
2.3.Enter
Mode:
for the STANDARD picture.
(1) DISAPLAY → FACTORY
4. Adjust the Screen VR (on the FBT) so that the
(2) STAND-BY → DISAPALY → MENU
voltage on the oscilloscope becomes 120+2.5V
(See Fig. 4-1).
→ MUTE → POWER ON
3. Select "G2 adjust" by pressing channel key
▲ or ▼
4. Enter "G2 adjust" by pressing channel key
œ or √
5. Adjust he screen Vr (On the FBT),so that OSD
becomes "SCREEN ADJEST:OK"
Samsung Electronics
4-5
Alignment and Adjustments
4 Pole Magnet
2 Pole Magnet
6 Pole Magnet
2 POLE
PURITY
Clamper
Screw
ADJUST THE ANGLE
(VERTICAL LINES)
YOKE
CLAMP
SCREW
6 POLE
CONVERGENCE
4 POLE
CONVERGENCE
Fig. 4-2 Convergence Magnet Assembly
Vertical Green Belt
31m/m
Fig. 4-3 Center Convergence Adjustment
4-3-7 White Balance Adjustment
(a) Set up
1
1. Warm up the TV for at least 30 minutes in the
Aging Mode (OSD White). This mode is displayed by entering the following sequence:
DISPLAY →FACTORY → FACTORY
2. Input a Toshiba pattern.
2
(b) Low-Light Adjustment
1. Set SBT to 2.5
3.5 ± 0.5 fL in the Factory Service
Mode with using CA100. See Fig. 4-4 ➁.
Fig. 4-4
2. Adjust RG,BG so that the levels are suitable to
each local area.
(c) High-Light Adjustment
50 SCT
21"flattoin55
theFL
Factory
Service
within the
1. Set
(20”. 21”),
65 Mode
FL(14”)
using CA100.See
Fig.4-4with
1 using
.
Factory
Service Mode
CA100. See
Fig. 4-4 ①.
4-6
Samsung Electronics
Alignment and Adjustments
4-3-8 Center Convergence Adjustment
1. Warm up the receiver for at least 20 minutes.
2. Adjust the two tabs of the 4 pole magnets to
change the angle between them. Superimpose
the red and blue vertical lines in the center
area of the screen.
3. Adjust the Brightness and Contrast controls
for a well defined picture.
4. Adjust the two-tab pairs of the 4 pole magnets, and change the angle between them.
Superimpose the red and the blue vertical
lines in the center area of the screen.
BLUE
5. Turn the both tabs at the same time, keeping
the angle constant, and superimpose the red
and blue horizontal line in the center of the
screen.
6. Adjust the two-tab pairs of the 6-pole magnets
to superimpose the red and blue line onto the
green. (Changing the angle affects the vertical
lines, and rotating both magnets affects the
horizontal lines.)
7. Repeat adjustments 2~6, if necessary.
8. Since the 4-pole magnets and 6-pole magnets
interact, the dot movement is complex
(Fig. 4-5).
RED/BLUE
RED
BLUE
RED/BLUE
RED
GREEN
GREEN
6-Pole Magnet Movement
4-Pole Magnet Movement
Fig. 4-5 Center Convergence Adjustment
Samsung Electronics
4-7
Alignment and Adjustments
4-3-9 RF AGC Adjustment
Set the AGC data to 33 (Factory Mode).
4-3-10 Sub-Color Adjustment
Set
PSR
data to 2 (Factory Mode).
NSR
5
5
5
4-3-11 Geometry Adjustment
SC VS→VSL→HS
Fig. 4-9
1. Input a lion head pattern (in the PAL channel).
2. Set the SC (S-Correction) as follows : 9 (21”),
9 (20”),
0 (14”) and VA 40 so that the lion
24(21"flat)
head circle becomes oval.
6. Adjust HS (using the width coil) so that the
left and right margins of the picture are 5.
3. Adjust with VSL (Vertical-Slope) so that the
bottom margin of the picture is 4.
4
Fig. 4-7
4. Adjust with VS (Vertical shift) so that the top
margin of the picture is 4.
4
Fig. 4-8
5. Adjust with HS (Horizontal Shift) so that the
lion-head pattern and CRT centers are aligned.
4-8
Samsung Electronics
Troubleshooting
5. Troubleshooting
5-1 No Video (Raster On, No Sound)
Open the IF Pin of Tuner
Measure the
Voltage of Each Pin
of TU01S
No
Check/Replace
TU01S
No
Check/Replace
IC201S
Yes
Check IC201S
Pins 2,3
Yes
See "No Sound"
(Video OK)
Check IC201S
Pins 40,49,50
See "No Video"
(Sound OK)
Samsung Electronics
No
Check/Replace
IC501, IC201S
See "No Sound"
(Video OK)
5-1
Troubleshooting
5-2 No Power
No
Check/Replace
IC801S, D801S, D802S,
D803S,D804S,FP801S
No
Check/Replace
IC802 (KA7632)
No
Check/Replace
IC201S
Check IC201S
Pin 1 : Stand-by : 0V
Normal : 3.3V
No
Check/Replace
IC201S, (µ-com).
Check IC201S,
Pin 33 (H-out)
No
Check/Replace
IC201S, Q401, Q402.
Check the 125V,
13.0V B+ Lines
Yes
Check IC802
Pin 8 (8V)
Pin 9 (9V)
Pin 10 (5V)
Check IC201S
Pin 1 (3.3V)
Yes
D402,D403
5-2
Samsung Electronics
Troubleshooting
5-3 No Video (Sound OK)
Check IC201S
Pin 40 (CVBS)
No
Check/Replace
IC201S
Yes
Check IC201S
Pins 38/R214, R215
Check IC201S
Pin 49 (V-GUARD)
Pin 50 (Cut-off)
Pin 51~53 (R,G,B-out)
No
No
Check/Replace
IC201S
Yes
Check IC501
on the CRT PCB
No
Check/Replace
IC501
Check/Replace
R421, R505 (HEATER 6.3Vrms)
D503 (CRT G1 pin)
CRT, V999S
Samsung Electronics
5-3
Troubleshooting
5-4 No Sound (Video OK)
Check IC201S
Pin 44 (Sound Out)
No
Check/Replace
IC201S
Yes
Check/Replace
Q904, IC201S
No
Check/Replace
R814, R815
No
Check/Replace
IC601
Yes
Check IC601
Pins 6 (0V)
No
Check IC601
Pin 3,13 (B+ 10-12.5V)
Yes
Check IC601
Yes
Check/Replace
A/V Front assembly.
5-5 No TTX
Check IC201S
No
Check/Replace
IC201S
Yes
See No Video
5-4
Samsung Electronics
Exploded View & Parts List
6. Exploded View & Parts List
6-1 CS21M20MQZXBWT
You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr
Remark
Samsung Electronics
Code No
Description Specification
Q’ty
S.N.A
T0003
AA64-03863B
CABINET FRONT;21M20,HQ,TTSEC,HIPS,HB,G43
1
S.N.A
T0023
AA64-03860A
KNOB POWER;29M20,ABS,HB,G3676,SVM3012
1
S.N.A
CIS7
AA61-60003J
SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-,
1
S.N.A
CIS3
AA64-03862A
DECORATION-POWER;29M20,ABS,HB,G3676,AL
1
S.N.A
T0057
AA64-70123A
BADGE-BRAND;NEW,AL,L50,FLAT,SILVER,SAMSU
1
S.N.A
T0091
AA94-13917A
ASSY PCB MISC-A/V SIDE;21M16/21M20,KS9A
1
T0245
AA61-00711D
HOLDER-PCB;29U1,U2,HIPS VO,BK502(HB-PROP
2
S.N.A
T0569
AA94-14275A
ASSY PCB MISC-MASTER;21M20,FULL-MONTY,KS
1
S.N.A
AA64-03861A
WINDOW-RMC LED;29M20,PC,CLEAR
1
S.N.A
T0022
AA64-03859A
KNOB CONTROL;29M20,ABS,HB,G3676,SVM3012
1
S.N.A
T0154
AA94-14276A
ASSY PCB MISC-CONTROL;21M20,FULL-MONTY,K
1
T0175
AA96-01572A
ASSY SPEAKER P;8ohm,semidome,10W,AA91-00
1
S.N.A
T0527
AA65-00009B
CLAMPER CORE-D,COIL;21A8,NYLON 66,V0,-,-
4
S.N.A
SC016
AA60-10050R
SCREW-ASSY;-,SWRCH18A,M5,L31.5,HH,+,WC,-
4
S.N.A
T0063
AA03-00403A
CRT COLOR;A51QDX993X,0MG,1.75MH,18MH,3.1
1
V999S
3704-001105
SOCKET-CRT;11P,20PI,26.5PI,NI,-
1
T0015
AA64-03866A
CABINET BACK;21M20,TTSEC,HIPS,FV2,GR503,
1
T0073
AA94-14029A
ASSY PCB MAIN;CS21M20MQZXBWT,FULL MONTY
1
T0066
AA96-20109B
ASSY POWER CORD;-,CP2/NO(4.0),H/C250,KKP
1
T0074
AA59-00332A
REMOCON;TM75,DEEP IMPACT,36,G6148,PAL,EX
1
S.N.A
6-1
Electrical Parts List
You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr
7. Electrical Parts List
7-1 CS21M20MQZXBWT
Level Loc. No. Code No.
Description ; Specification
Remark
ASSY COVER FRONT
1
M0001
AA90-04993B ASSY COVER FRONT;CS21M20MQZXBWT
S.N.A
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
T0081
T0081
T0081
T0081
SC016
T0081
T0175
M0003
T0081
T0081
T0069
T0069
T0245
CIS7
T0022
T0023
6003-001026
6003-001026
6003-001268
AA60-10002A
AA60-10050R
AA60-10050T
AA96-01572A
AA96-02057B
6003-001019
6003-001019
AA60-00091G
AA60-00091R
AA61-00711D
AA61-60003J
AA64-03859A
AA64-03860A
AA64-03861A
AA64-03862A
AA64-03863B
AA64-70123A
AA65-00011C
AA65-30105A
BP61-00509A
BP61-00495A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
CIS3
CIS3
T0057
T0382
T0382
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
SCREW-TAPTITE;TH,+,B,M4,L12,ZPC(YEL),SWR
SCREW-TAPPING;-,ZPC(YEL),M4,L12,RH,+,-,SCREW-ASSY;-,SWRCH18A,M5,L31.5,HH,+,WC,SCREW-TAPPING;-,SWRCH18A,M4,L20,RH,+,2S,
ASSY SPEAKER P;8ohm,semidome,10W,AA91-00
ASSY COVER P-FRONT;21M20,HQ,TTSEC,HIPS,H
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
SPACER-FELT;-,FELT,200X10,-,-,BLK,T0.5,SPACER-FELT;,FELT,250X10,,,BLK,T0.5,,
HOLDER-PCB;29U1,U2,HIPS VO,BK502(HB-PROP
SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-,
KNOB CONTROL;29M20,ABS,HB,G3676,SVM3012
KNOB POWER;29M20,ABS,HB,G3676,SVM3012
WINDOW-RMC LED;29M20,PC,CLEAR
DECORATION-POWER;29M20,ABS,HB,G3676,AL
CABINET FRONT;21M20,HQ,TTSEC,HIPS,HB,G43
BADGE-BRAND;NEW,AL,L50,FLAT,SILVER,SAMSU
CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2,
CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2,
HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W20.0mm
HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W30.0mm
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY COVER REAR
1
M0002
AA90-04994B ASSY COVER REAR;21M20,TTSEC(245),HIPS,FV
S.N.A
..2
..2
..2
T0069
T0015
T0214
AA60-00091J SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,AA64-03866A CABINET BACK;21M20,TTSEC,HIPS,FV2,GR503,
AA65-30008A CLAMPER CORE-CORD;-,PE,HB,-,BLK,-
S.N.A
S.N.A
ASSY CHASSIS
1
M0017
AA91-07648A ASSY CHASSIS;CS21M20MQZXBWT,FULL MONTY K S.N.A
..2
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
..2
T0091
AA94-13917A
0202-001366
3722-000143
3722-001031
AA39-00094A
AA39-20461C
AA97-14337B
2001-001153
2001-001153
2202-000121
2202-000121
2202-000222
2202-000222
2401-000025
2401-000025
2701-000114
2701-000114
2701-000158
2701-000158
AA41-00567B
AA94-14029A
JE601
JR01
T0245
T0245
R075
R075
C689
C689
C689
C689
C701
C701
LE05
LE04
LE02
LE01
0
T0073
Samsung Electronics
ASSY PCB MISC-A/V SIDE;21M16/21M20,KS9A
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb,
S.N.A
JACK-PHONE;1P(VER),3.4PI,AG,BLK,NO
JACK-PIN;3P,3.6mm,#18,AU
LEAD CONNECTOR-ASSY;,3(2)P,200MM,YBNH250
LEAD CONNECTOR-ASSY;,11P,300MM,YBNH250-1
ASSY AUTO;CS21D8SX/ANB,KS1A
S.N.A
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;3.3nF,20%,16V,Y5P,TP
C-CERAMIC,MLC-AXIAL;3.3nF,20%,16V,Y5P,TP
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
INDUCTOR-AXIAL;10UH,10%,2534
INDUCTOR-AXIAL;10UH,10%,2534
INDUCTOR-AXIAL;22UH,10%,2534
INDUCTOR-AXIAL;22UH,10%,2534
PCB-SIDE A/V;CS21D8,FR-1,1L,B,245X245,KS
S.N.A
ASSY PCB MAIN;CS21M20MQZXBWT,FULL MONTY
Level Loc. No. Code No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
T0083
T0083
T0090
IC112
NT802S
P803T
RW701
C598
C410A
CX801S
CR402S
CR410S
C701
X901
SF101S
FP801S
V999S
CN906
CN906
CN906
JS701
T0119
T801S
T0616
T401
T0296
LW01
LX801S
T0245
TU01S
GT301
IC101
XS01
CN906
CN906
T0245
T0245
ICS01
HCP01
ICS02
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
C598
C598
C598
C598
C598
C689
C689
C689
C689
C2560
C2560
0202-001366
0402-001230
0402-001599
0502-001160
1103-001106
1404-001045
1404-001265
2011-001133
2201-000446
2301-001402
2306-000318
2306-000350
2306-000353
2401-003030
2801-003937
2904-000302
3601-001012
3704-001105
3711-000628
3711-002642
3711-002643
3722-000183
AA09-00411A
AA26-00134A
AA26-00201A
AA26-50001B
AA27-00122A
AA27-00296A
AA29-00015A
AA39-20620C
AA40-00067A
AA60-40012D
AA95-03275A
0202-001366
1204-001583
2801-004020
3711-002706
3711-002708
AA39-00095A
AA39-00276A
1204-002038
AA61-10068A
AA97-14855A
1203-000515
2001-000281
2001-000281
2001-000281
2001-000281
2001-000290
2001-000362
2001-000429
2001-000429
2001-000515
2001-000780
2001-000780
2201-000112
2201-000304
2201-000304
2201-000471
2201-000471
2202-000121
2202-000127
2202-000279
2202-000286
2301-000111
2301-000111
Description ; Specification
Remark
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb,
DIODE-RECTIFIER;FMG-G2CS,1000V,3A,DO-41,
DIODE-RECTIFIER;DGP30L,1500,3A,DO-201AD(
TR-POWER;2SD2499,NPN,50000mW,TO-3P,BK,8IC-EEPROM;24C080,1Kx8Bit,DIP,8P,9.6x6.4m
THERMISTOR-NTC;4.7ohm,15%,2900K,35.0mW,T
THERMISTOR-PTC;4.5OHM/100OHM,+30/-20%,22
R-NET;33K/24K/75x3,5%,1/8W,X,SIP,6P,TP
C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,BK,15X
C-FILM,LEAD-PPF;33nF,5%,630V,BK,20x11x17
C-FILM,LEAD-PPF;220NF,20%,250V,BK,-,22.5
C-FILM,LEAD-PPF;270NF,5%,400V,BK,26X18.5
C-FILM,LEAD-PPF;6.3nF,5%,1.6KV,BK,26.5x8
C-AL;220uF,20%,450V,GP,BK,30x35,10
CRYSTAL-UNIT;12MHz,25ppm,28-AAM,30pF,30o
FILTER-SAW AV;38.9MHz,SIP5K,ST,15.4dB,B/
FUSE;250V,4A,SLOW-BLOW,GLASS,5.2x20mm
SOCKET-CRT;11P,20PI,26.5PI,NI,CONNECTOR-HEADER;BOX,11P,1R,2.5MM,STRAIG
CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH
JACK-SCART;21P,4mm,SN,BLK,NO
IC MICOM;TDA9351PS/N2/3I,SPM-802EE5,64P,
TRANS SWITCHING;,CS21S5T,160V~260V,PM2 P
TRANS FBT;FCA173B,KS1A-1,3.8mH,FERRITE,1
TRANS-HORIZ.DRIVE;-,-,-,7.1mH,-,-,102uH,
COIL LINEARITY;90UH,90UH,L81 DR10x10,7.5
COIL CHOKE;220UH,CPTTV,220UH,10%,3A,DR14
FILTER LINE NOISE;WS32W8,28-20MH 1.5A,+LEAD CONNECTOR-ASSY;,9P,500MM,YBNH250-09
TUNER;TAEL-G671D,-,PAL,181CH,38.9MHz,-,7
PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
ASSY SUB PCB-STEREO;CIS-CS CZ-SYSTEM,A2,
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb,
IC-IF CIRCUIT;U4468B,DIP,16P,-,PLASTIC,5
CRYSTAL-UNIT;18.432MHz,30ppm,28-AAM,12pF
CONNECTOR-HEADER;NOWALL,8P,1R,2.5mm,ANGL
CONNECTOR-HEADER;NOWALL,10P,1R,2.5mm,ANG
LEAD CONNECTOR-ASSY;,3(2)P,200MM,YBNH250
LEAD CONNECTOR-ASSY;,UL1185#26,UL/CSA,6P
IC-SOUND PROCESSOR;MSP3410G-PO-83V3,PSDI
BRACKET-PCB;M2160,SPTE,T0.3,-,-,-,ASSY AUTO-STEREO;CS21M20MQZXBWT,FULL MON
IC-VOL. DETECTOR;7042,TO-92,3P,177MIL,PL
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
C-CERAMIC,DISC;1.5NF,10%,50V,Y5V,TP,5X3.
C-CERAMIC,DISC;0.001NF,0.25PF,50V,C0G,TP
C-CERAMIC,DISC;0.001NF,0.25PF,50V,C0G,TP
C-CERAMIC,DISC;0.33NF,10%,50V,Y5P,TP,4X3
C-CERAMIC,DISC;0.33NF,10%,50V,Y5P,TP,4X3
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C-CERAMIC,MLC-AXIAL;47pF,5%,50V,SL,TP,3.
C-CERAMIC,MLC-AXIAL;56pF,5%,50V,SL,TP,1.
C-FILM,LEAD-PEF;1.8nF,5%,50V,TP,6.5x3.0x
C-FILM,LEAD-PEF;1.8nF,5%,50V,TP,6.5x3.0x
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
7-1
Electrical Parts List
Level Loc. No. Code No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
....4
...3
....4
....4
....4
....4
....4
...3
....4
....4
....4
....4
...3
....4
....4
....4
....4
....4
...3
....4
....4
....4
....4
...3
....4
....4
....4
...3
....4
....4
....4
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
7-2
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
LS02
LS03
LS01
LS04
T101
SF102S
IC801S
CIS
T0086
T0081
CIS
CIS
D806
T0083
T0081
IC601
T0085
T0081
IC301
CIS
T0088
T0081
CIS
IC802
IC062
T0081
IC501
T0074
T0081
CISS
CISS
CISS
CISS
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
2301-000383
2301-000383
2301-000383
2301-000383
2305-000412
2305-000665
2305-000665
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-001026
2401-001026
2401-002075
2401-002075
2401-002075
2401-002075
2401-002144
2401-002144
2401-002594
2701-000114
2701-000114
2701-000184
2701-000184
AA26-00025A
AA41-01028B
2904-001024
AA96-00242D
0205-001154
1203-002916
6003-000333
AA62-30186B
AA63-30189A
AA96-00243D
0205-001153
0402-001374
6003-000335
AA62-00045A
AA96-00244G
0205-001153
1201-001741
6003-000335
AA61-10162B
AA62-00046A
AA96-00244M
0205-001154
1204-002121
6003-000335
AA62-00046A
AA96-00245A
1203-001939
6003-000334
AA62-00055A
AA96-50311A
1201-001159
6003-000334
AA62-30175D
AA97-14853A
0401-000005
0401-000005
0401-000005
0401-000006
0402-000254
0402-000254
0402-000493
0402-000540
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0402-001111
0402-001111
Description ; Specification
Remark
C-FILM,LEAD-PEF;10nF,5%,50V,TP,6x7x3.2mm
C-FILM,LEAD-PEF;10nF,5%,50V,TP,6x7x3.2mm
C-FILM,LEAD-PEF;10nF,5%,50V,TP,6x7x3.2mm
C-FILM,LEAD-PEF;10nF,5%,50V,TP,6x7x3.2mm
C-FILM,LEAD-PEF;470nF,5%,63V,TP,-,5mm
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;3.3UF,20%,50V,GP,TP,5X11,5
C-AL;3.3UF,20%,50V,GP,TP,5X11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;220uF,20%,16V,GP,TP,8x11.5,5
INDUCTOR-AXIAL;10UH,10%,2534
INDUCTOR-AXIAL;10UH,10%,2534
INDUCTOR-AXIAL;4.7UH,10%,2534
INDUCTOR-AXIAL;4.7UH,10%,2534
TRANS RF;7MG,-,-,-,10pF,-,58.35MHz,7.7x7
PCB SUB-STEREO MODULE;21M16/21M20,FR-1,1
S.N.A
FILTER-SAW AV;38.9MHz,SIP5K,TP,18.3dB,PA
ASSY H/S;SCREWAA62-30186B,5Q0765RTH,OIL
S.N.A
OIL-SILICON;G746,-,S.N.A
IC-PWM CONTROLLER;KA5Q0765RTH-YDTU,TO-22
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
S.N.A
HEAT SINK-ES;-,-,-,SILVER,171J + COVER-H
S.N.A
COVER-HEATSINK;-,PC-ABS,T0.8,-,-,V0,NTR,
S.N.A
ASSY H/S;-,BRIDGE,AA62-00045A,D06U20S,DR
S.N.A
GREASE-SILICON;SC102,JAPAN,S.N.A
DIODE-RECTIFIER;FFPF06U20S,200V,6A,TO-22
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR
S.N.A
HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,
S.N.A
ASSY H/S;-,AUDIO,AA62-00046A,TDA8944J,BR
S.N.A
GREASE-SILICON;SC102,JAPAN,S.N.A
IC-AUDIO AMP;TDA8944J,DBS,17P,937MIL,DUA
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR
S.N.A
BRACKET-IC;-,SBHG-1,T1.0,-,-,-,100
S.N.A
HEAT SINK-PS;-,-,T1.0,-,D1(DREAM) 60X25X
S.N.A
ASSY H/S;SCREWAA64-00046A,LA78040N,OIL S
S.N.A
OIL-SILICON;G746,-,S.N.A
IC-VERTICAL DEF.;LA78040N,TO220,7P,-,PLA
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR
S.N.A
HEAT SINK-PS;-,-,T1.0,-,D1(DREAM) 60X25X
S.N.A
ASSY H/S;-,-,AA62-00055A,KA7632,S.N.A
IC-MULTI REG.;7632,SIP,10P,-,PLASTIC,3.3
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
S.N.A
HEAT SINK-PS;-,-,T1.0,-,35*15*25,D1,-,-,
S.N.A
ASSY H/S;-,VIDEO,AA62-30175D,TDA6107Q,S.N.A
IC-VIDEO AMP;6107,ZSIP,9P,-,SINGLE,-,PLA
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
S.N.A
HEAT SINK-PS;-,SECC,T1.0,-,33X15X30 FT-2
S.N.A
ASSY AUTO-MAIN;CS21M20MQZXBWT,FULL MONTYS.N.A
DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T
DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T
DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T
DIODE-SWITCHING;BAV21,250V,200MA,DO-35,T
DIODE-RECTIFIER;RGP10J,600V,1A,DO-41,TP
DIODE-RECTIFIER;RGP10J,600V,1A,DO-41,TP
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;1N5397GP,600V,1.5A,-,TP
DIODE-RECTIFIER;1N5397GP,600V,1.5A,-,TP
Level Loc. No. Code No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
T0083
T0083
T0083
T0083
T0083
T0083
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
T0156
T0156
T0156
T0156
T0156
T0156
T0156
T0090
Q902
VX801S
R125
R125
R125
R075
R075
R075
R075
R075
R075
R075
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
0402-001111
0402-001111
0402-001111
0402-001321
0402-001321
0402-001352
0403-000508
0403-000508
0403-000508
0403-000508
0403-000700
0403-000700
0403-000700
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-001140
0403-001221
0403-001317
0403-001318
0403-001319
0403-001319
0403-001319
0403-001319
0403-001319
0403-001322
0403-001327
0403-001328
0403-001328
0501-000283
0501-000283
0501-000369
0501-000389
0501-000389
0501-000389
0501-000389
0502-000242
0504-001159
1405-000187
2001-000005
2001-000008
2001-000011
2001-000016
2001-000016
2001-000019
2001-000019
2001-000019
2001-000022
2001-000037
2001-000221
2001-000273
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
Description ; Specification
Remark
DIODE-RECTIFIER;1N5397GP,600V,1.5A,-,TP
DIODE-RECTIFIER;1N5397GP,600V,1.5A,-,TP
DIODE-RECTIFIER;1N5397GP,600V,1.5A,-,TP
DIODE-RECTIFIER;1A4G,400,1A,TO-220F,TP
DIODE-RECTIFIER;1A4G,400,1A,TO-220F,TP
DIODE-RECTIFIER;GUF15G-20A,400V,1.5A,MEL
DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO
DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO
DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO
DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO
DIODE-ZENER;TZP33A,5%,1000MW,DO-41,TP
DIODE-ZENER;TZP33A,5%,1000MW,DO-41,TP
DIODE-ZENER;TZP33A,5%,1000MW,DO-41,TP
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;RD10ESAB-T4,9.7-10.2V,400MW,
DIODE-ZENER;UZ39BSB,35.36-37.19V,500MW,D
DIODE-ZENER;MTZJ3.0B,3.01-3.22V,500MW,DO
DIODE-ZENER;MTZJ4.3B,4.17-4.43V,500MW,DO
DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500MW,DO
DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500MW,DO
DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500MW,DO
DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500MW,DO
DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500MW,DO
DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500MW,DO
DIODE-ZENER;MTZJ18A,16.22-17.06V,500MW,D
DIODE-ZENER;MTZJ22A,20.15-21.2V,500MW,DO
DIODE-ZENER;MTZJ22A,20.15-21.2V,500MW,DO
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TOTR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-POWER;KSA614,PNP,25W,TO-220,TP,40-24
TR-DIGITAL;SRC1211M,NPN,400MW,10KOHM,TOVARISTOR;750V,1250A,12.5x7mm,TP
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);33OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
Samsung Electronics
Electrical Parts List
Level Loc. No. Code No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R075
R075
R075
R075
R075
R075
R075
R075
R075
R075
R075
R075
RX801S
R501H
R502H
R503
RY801S
R413
R403
R827
R802
R834
R837
R838
R839
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
2001-000319
2001-000325
2001-000325
2001-000429
2001-000429
2001-000449
2001-000449
2001-000472
2001-000472
2001-000563
2001-000563
2001-000563
2001-000591
2001-000591
2001-000591
2001-000645
2001-000660
2001-000734
2001-000734
2001-000739
2001-000739
2001-000786
2001-000793
2001-000857
2001-000857
2001-000857
2001-000857
2001-000857
2001-000878
2001-000878
2001-000924
2001-000947
2001-000947
2001-000969
2001-000969
2001-000969
2001-001006
2001-001062
2001-001078
2001-001108
2001-001114
2001-001116
2001-001117
2001-001117
2001-001122
2001-001138
2001-001150
2001-001150
2001-001194
2002-000133
2002-001008
2002-001008
2002-001008
2002-001012
2003-000592
2003-000784
2003-000998
2003-001040
2003-001040
2003-001091
2003-001091
2003-001091
Samsung Electronics
Description ; Specification
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;120KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;120OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;120OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;330KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;6.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;6.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);10MOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);15KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);27OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);2KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);2KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);390OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);82KOHM,5%,1/2W,AA,TP,2.4X6.4
R-COMPOSITION;3.3Mohm,5%,1/2W,AA,TP,3.5x
R-COMPOSITION;1.8Kohm,10%,1/2W,AA,TP,3.7
R-COMPOSITION;1.8Kohm,10%,1/2W,AA,TP,3.7
R-COMPOSITION;1.8Kohm,10%,1/2W,AA,TP,3.7
R-COMPOSITION;8.2Mohm,5%,1/2W,AA,TP,3.7x
R-METAL OXIDE(S);22ohm,5%,2W,AF,TP,4x12m
R-METAL OXIDE(S);7.5Kohm,5%,2W,AF,TP,4x1
R-METAL OXIDE;300ohm,5%,2W,AF,TP,3.9x10m
R-METAL OXIDE(S);47Kohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);47Kohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);10ohm,5%,2W,AF,TP,4x12m
R-METAL OXIDE(S);10ohm,5%,2W,AF,TP,4x12m
R-METAL OXIDE(S);10ohm,5%,2W,AF,TP,4x12m
Remark
Level Loc. No. Code No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R315
R316
R407
R814
R811
R812
R303
R401
R402
R024
R219
R024
R024
R306
R304
R825
R824
R420
R421
R505
R305
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C420
C806
C225
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
2003-002069
2003-002069
2003-002209
2003-002228
2003-002239
2003-002239
2003-002279
2003-002288
2003-002288
2004-001402
2004-001914
2004-001970
2004-004089
2004-004097
2008-000264
2008-000284
2008-000294
2008-001062
2008-001148
2008-001149
2008-001159
2201-000259
2201-000467
2201-000556
2201-000556
2201-000573
2201-000573
2201-000599
2201-000639
2201-000723
2201-000991
2201-000991
2202-000121
2202-000121
2202-000121
2202-000121
2202-000127
2202-000127
2202-000210
2202-000279
2202-000632
2202-000796
2202-000796
2202-000796
2202-000796
2202-000796
2301-000004
2301-000004
2301-000013
2301-000013
2301-000016
2301-000016
2301-000148
2301-000148
2301-000148
2301-000213
2301-000233
2301-000253
2301-000289
2301-000289
2301-001065
2301-001435
2301-001664
2305-000149
2305-000285
2305-000289
2305-000289
2305-000289
2305-000289
2305-000289
2305-000289
2305-000289
2305-000382
2305-000412
2305-000412
2305-000665
2305-000665
Description ; Specification
Remark
R-METAL OXIDE;470ohm,5%,2W,AF,TP,3.9x10m
R-METAL OXIDE;470ohm,5%,2W,AF,TP,3.9x10m
R-METAL OXIDE(S);47Kohm,5%,2W,AG,TP,3.9X
R-METAL OXIDE(S);0.47ohm,5%,2W,AG,TP,3.9
R-METAL OXIDE(S);100KOHM,5%,2W,AF,TP,3.9
R-METAL OXIDE(S);100KOHM,5%,2W,AF,TP,3.9
R-METAL OXIDE(S);1.2OHM,5%,2W,AG,TP,5.6X
R-METAL OXIDE(S);2.2KOHM,5%,2W,AF,TP,3.9
R-METAL OXIDE(S);2.2KOHM,5%,2W,AF,TP,3.9
R-METAL(S);6.8Kohm,1%,1/2W,AA,TP,2.4x6.4
R-METAL;39Kohm,2%,1/8W,AA,TP,1.8x3.5mm
R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
R-METAL(S);123Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL;1.6Kohm,2%,1/2W,AA,TP,6.5x2.5m
R-FUSIBLE(S);1ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);0.1OHM,10%,2W,AF,TP,3.9X10M
R-FUSIBLE(S);33ohm,5%,2W,AF,TP,3.9x10mm
R-FUSIBLE;39ohm,5%,2W,AF,TP,3.9x10mm
R-FUSIBLE;3.3OHM,5%,1W,AG,TP,3.9X12MM
R-FUSIBLE(S);0.22OHM,5%,2W,AF,TP,3.8X11M
R-FUSIBLE(S);1.5OHM,5%,1W,AF,TP,3.9X10MM
C-CERAMIC,DISC;0.18NF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.33NF,10%,2KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.047NF,5%,50V,C0G,TP,5X3
C-CERAMIC,DISC;0.047NF,5%,50V,C0G,TP,5X3
C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.68NF,10%,2KV,Y5P,TP,9X5
C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5
C-CERAMIC,DISC;0.56NF,10%,2KV,Y5P,TP,7.5
C-CERAMIC,DISC;0.56NF,10%,2KV,Y5P,TP,7.5
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C-CERAMIC,MLC-AXIAL;270pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;47pF,5%,50V,SL,TP,3.
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-FILM,LEAD-PEF;2.2nF,5%,100V,TP,5.5X10X
C-FILM,LEAD-PEF;2.2nF,5%,100V,TP,5.5X10X
C-FILM,LEAD-PEF;4.7nF,5%,100V,TP,10.5x12
C-FILM,LEAD-PEF;4.7nF,5%,100V,TP,10.5x12
C-FILM,LEAD-PEF;22nF,5%,100V,TP,7.2x4.5x
C-FILM,LEAD-PEF;22nF,5%,100V,TP,7.2x4.5x
C-FILM,LEAD-PEF;10nF,5%,100V,TP,7x3.2x7m
C-FILM,LEAD-PEF;10nF,5%,100V,TP,7x3.2x7m
C-FILM,LEAD-PEF;10nF,5%,100V,TP,7x3.2x7m
C-FILM,LEAD-PEF;220nF,5%,250V,TP,21.5x11
C-FILM,LEAD-PEF;3.9nF,10%,100V,TP,5.8x12
C-FILM,LEAD-PEF;39NF,5%,100V,TP,7.5X4.5X
C-FILM,LEAD-PEF;5.6nF,5%,50V,TP,7x6x3,5
C-FILM,LEAD-PEF;5.6nF,5%,50V,TP,7x6x3,5
C-FILM,LEAD-PPF;47nF,5%,630V,TP,19x15.5x
C-FILM,LEAD-PPF;1.5nF,5%,1.2kV,TP,15x8x1
C-FILM,LEAD-OTHER;100nF,3%,50V,TP,20x16x
C-FILM,LEAD-PEF;100nF,5%,100V,TP,12x12.5
C-FILM,LEAD-PEF;220NF,5%,100V,TP,10.5X5.
C-FILM,LEAD-PEF;220nF,5%,63V,TP,-,5mm
C-FILM,LEAD-PEF;220nF,5%,63V,TP,-,5mm
C-FILM,LEAD-PEF;220nF,5%,63V,TP,-,5mm
C-FILM,LEAD-PEF;220nF,5%,63V,TP,-,5mm
C-FILM,LEAD-PEF;220nF,5%,63V,TP,-,5mm
C-FILM,LEAD-PEF;220nF,5%,63V,TP,-,5mm
C-FILM,LEAD-PEF;220nF,5%,63V,TP,-,5mm
C-FILM,LEAD-PEF;4.7nF,5%,400V,TP,-,5mm
C-FILM,LEAD-PEF;470nF,5%,63V,TP,-,5mm
C-FILM,LEAD-PEF;470nF,5%,63V,TP,-,5mm
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
7-3
Electrical Parts List
Level Loc. No. Code No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
7-4
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
L103
L202
L902
L904
J142
L405
L301
L302
L404
L201
L205
L903
L102
L104
L204
L701
L702
L703
L704
L804
F101
F101
F101
Z202
Z203
L2514
L2514
L2514
L2514
2305-000665
2305-000665
2305-000665
2305-000665
2305-000665
2305-000665
2305-000665
2305-000665
2305-000665
2305-000665
2305-000665
2401-000025
2401-000025
2401-000025
2401-000025
2401-000025
2401-000025
2401-000050
2401-000262
2401-000302
2401-000302
2401-000360
2401-000365
2401-000430
2401-000480
2401-000481
2401-000603
2401-000660
2401-000660
2401-000660
2401-000722
2401-000758
2401-000962
2401-001101
2401-001176
2401-001192
2401-001232
2401-001486
2401-001998
2401-002268
2401-002278
2401-002288
2401-002288
2401-002619
2401-003028
2401-003028
2401-003028
2701-000114
2701-000114
2701-000114
2701-000114
2701-000115
2701-000116
2701-000142
2701-000142
2701-000142
2701-000158
2701-000158
2701-000158
2701-000159
2701-000168
2701-000184
2701-000184
2701-000184
2701-000184
2701-000184
2701-001030
2901-000297
2901-000297
2901-000297
2903-001240
2903-001246
3301-000287
3301-000287
3301-000287
3301-000287
Description ; Specification
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;10uF,20%,16V,GP,TP,5x11,2.5
C-AL;100uF,20%,160V,HR,TP,16x25,7.5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-AL;100uF,20%,50V,WT,TP,10x12.5mm,
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,WT,TP,5x11,5
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;2.2uF,20%,50V,GP,TP,5x11,5
C-AL;2.2uF,20%,50V,GP,TP,5x11,5
C-AL;2.2uF,20%,50V,GP,TP,5x11,5
C-AL;2200uF,20%,25V,WT,TP,16x25,7.5
C-AL;0.22UF,20%,50V,GP,TP,5X11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;330uF,20%,16V,GP,TP,8x11.5,5
C-AL;33uF,20%,25V,GP,TP,5x11,5
C-AL;33uF,20%,50V,GP,TP,6.3x11,5
C-AL;4.7uF,20%,250V,GP,TP,10x12.5,5
C-AL;47uF,20%,160V,HR,TP,13x20mm,5m
C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C-AL;2.2uF,20%,250V,LZ,TP,8X11,5
C-AL;22uF,20%,250V,WT,TP,13x20,5
C-AL;470uF,20%,25V,WT,TP,10x20,5
C-AL;470uF,20%,25V,WT,TP,10x20,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;100uF,20%,25V,WT,TP,6.3x11,5
C-AL;100uF,20%,25V,WT,TP,6.3x11,5
C-AL;100uF,20%,25V,WT,TP,6.3x11,5
INDUCTOR-AXIAL;10UH,10%,2534
INDUCTOR-AXIAL;10UH,10%,2534
INDUCTOR-AXIAL;10UH,10%,2534
INDUCTOR-AXIAL;10UH,10%,2534
INDUCTOR-AXIAL;10UH,10%,3070
INDUCTOR-AXIAL;10UH,10%,4298
INDUCTOR-AXIAL;1UH,10%,2534
INDUCTOR-AXIAL;1UH,10%,2534
INDUCTOR-AXIAL;1UH,10%,2534
INDUCTOR-AXIAL;22UH,10%,2534
INDUCTOR-AXIAL;22UH,10%,2534
INDUCTOR-AXIAL;22UH,10%,2534
INDUCTOR-AXIAL;22UH,10%,4298
INDUCTOR-AXIAL;3.3UH,5%,2534
INDUCTOR-AXIAL;4.7UH,10%,2534
INDUCTOR-AXIAL;4.7UH,10%,2534
INDUCTOR-AXIAL;4.7UH,10%,2534
INDUCTOR-AXIAL;4.7UH,10%,2534
INDUCTOR-AXIAL;4.7UH,10%,2534
INDUCTOR-AXIAL;43UH,10%,4514
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-CERAMIC;TR,5.5MHz,-,28dB,-,TP,FILTER-CERAMIC;TR,5.5MHz,-,-,-,TP,multi.
BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50
BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50
BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50
BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50
Remark
Level Loc. No. Code No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
...3
..2
L2514
FD801S
F801A
F801B
CN906
CN906
EL403
EL404
EL801
EL802
EL804
EY101
EY401
EY402
EY403
EY404
EY405
EY406
EY407
EY408
EY409
EY410
EY411
EY412
EY414
EY415
EY416
EY417
EY418
EY419
EY420
EY422
EY423
EY501
EY801
EY802
EY803
EY807
EY808
EY809
EY810
EY813
EY818
EY819
EY821
EY822
EY823
EY824
EY825
EY827
EY828
EY829
EY830
EY833
EY850
EY851
EY852
EY853
EY860
EY861
FIX01
FIX02
GT101
GT501
GT502
GT801
GT802
GT803
GT804
GT805
GT806
GT807
0
R125
SG501
T0569
3301-000287
3601-001086
3602-000114
3602-000114
3711-002645
3711-003043
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
AA37-00001A
AA37-00001A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA41-01027B
2001-000548
AA27-90001B
AA94-14275A
Description ; Specification
BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50
FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS
FUSE-HOLDER;-,-,30mohm
FUSE-HOLDER;-,-,30mohm
CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
CONNECTOR-FBT FIX PIN;JM-3500,CPTTV,0.36
CONNECTOR-FBT FIX PIN;JM-3500,CPTTV,0.36
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PCB MAIN;21M16/21M20,FR-1,1,1.6T,245*245
R-CARBON;270KOHM,5%,1/8W,AA,TP,1.8X3.2MM
COIL-SPARK,GAP;S-23,1.5KV,-,-,-,-,-,-,-,
ASSY PCB MISC-MASTER;21M20,FULL-MONTY,KS
Remark
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Samsung Electronics
Electrical Parts List
Level Loc. No. Code No.
...3
...3
...3
...3
...3
...3
....4
...3
..2
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
0202-001366
3711-004696
3711-004697
6003-000333
AA61-01376A
AA97-14856A
AA41-01056A
SW811S 3403-001107
T0098
AA94-14276A
0202-001366
LDY02 0601-001502
D0254 AA32-00012A
T0245
AA39-20005A
T0245
AA39-20052A
AA97-14854A
DZ016 0403-000508
DZ016 0403-000508
DZ016 0403-000508
R125
2001-000005
R125
2001-000005
R125
2001-000241
R125
2001-000241
R125
2001-000429
R125
2001-000472
R125
2001-000472
R125
2001-000793
R125
2001-000924
C701
2401-000302
SW02
3404-000176
SW03
3404-000176
SW04
3404-000176
SW05
3404-000176
SW06
3404-000176
AA41-01052A
CN906
CN906
T0081
T0062
Description ; Specification
Remark
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb,
S.N.A
CONNECTOR-HEADER;NOWALL,3P,1R,5MM,ANGLE,
CONNECTOR-HEADER;NOWALL,3P,1R,5MM,ANGLE,
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
S.N.A
HOLDER-POWER;HIPS V0,29M20,BLK
S.N.A
ASSY AUTO-PCB;CS21M20MQZXBWT,FULL MONTY S.N.A
PCB SUB-MASTER S/W;CS21M20MQ,FR-1,1,A,24
S.N.A
SWITCH-PUSH;250V,5A,DPST,-,KDC-A04
ASSY PCB MISC-CONTROL;21M20,FULL-MONTY,K
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb,
S.N.A
LED;ROUND,GRN,4.75mm,565nm
MODULE REMOCON;ORC-50HF2,38KHZ,940NM,MES
LEAD CONNECTOR-ASSY;,3P,500,YBNH025-03,6
LEAD CONNECTOR-ASSY;,4P,300,YBNH025-04,Y
ASSY AUTO-CONTROL;CS21M20MQZXBWT,FULL MO S.N.A
DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO
DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO
DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
PCB SUB-CONTROL;CS-21M20MQ,FR-1,1,A,245*
S.N.A
Level Loc. No. Code No.
Description ; Specification
Remark
1
AA92-08951A ASSY P/MATERIAL;21M20,HQ,TTSEC(245)
S.N.A
..2
..2
..2
..2
6902-000001
6902-000005
6902-000061
AA60-40006A
S.N.A
S.N.A
S.N.A
S.N.A
T0214
BAG AIR;LDPE,T0.2,L1800,W1000,TRP,,,LDPE
BAG PE;HDPE/NITRON/HDPE,T0.015/T0.5/T0.0
BAG AIR;LDPE,T0.2,L1000,W500,TRP,,,
PIN-STAPLE;AUTO,33X17.8X2.4,H18,33X17.8X
ASSY CPT
1
T0521
AA91-07790A ASSY CPT;CS21M16MGZXXSE,KS9A
..2
..2
..2
...3
...3
...3
...3
..2
T0089
T0527
T0521
T0063
T0079
T0078
AA27-00256A
AA65-00009B
AA91-07819A
AA03-00403A
AA27-00002A
AA27-00324A
AA63-60028A
AA98-70014D
COIL DEGAUSSING;,21IHCH,10%,35TS,4.5OHM,
CLAMPER CORE-D,COIL;21A8,NYLON 66,V0,-,ASSY CPT;CS21M16MHZXBWT,KS9A FLAT MST
CRT COLOR;A51QDX993X,0MG,1.75MH,18MH,3.1
MAGNET CONVERGENCE;JH291-SC-OB,29.1MM,-,
DEFLECTION YOKE;,DIF-2192AA(A),S/T,A51QD
SPACER-DY;-,NEOPRENE,-,-,-,BLK,-,-,V0 W1
ASSY TBC WIRE P;TVI,22,NTSC,PAL,1P,UL101
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY FIXING
1
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
AA91-07649A ASSY FIXING;CS21M20MQZXBWT,FULL MONTY KS S.N.A
T0245
T0245
CLAMP
T0066
T0077
AA39-20010D
AA39-20179A
AA61-01364A
AA65-30002A
AA65-30009A
AA65-30018A
AA65-30018A
AA65-30111A
AA96-20109B
3811-001609
AA39-10006X
AA61-20284A
LEAD CONNECTOR-ASSY;,1P,400,YFH800-01,S,
LEAD CONNECTOR-ASSY;,3(2)P,300MM,YFH800HOLDER-COVER;KS1A,NYLON66,BLK,V2
CLAMPER CORE-FBT;-,NYLON-66,V0,-,BLK,CLAMPER CORE-FBT;-,ABS,V0,-,BLK,CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-,
CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-,
CLAMPER CORE-WIRE;ALL MODEL,NYLON,V0,-,W
ASSY POWER CORD;-,CP2/NO(4.0),H/C250,KKP
WIRE-PVC CU;BCWA,300V,ROLL,-,#22,BLK
CBF POWER CORD;-,KKP419C,KLCE-2F,2.286MT
HOLDER;P-CORD,PP,-,-,-,BLK,VO,KE-002
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY ACCESSORY
1
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
M0045
T0080
T0075
T0269
T0074
T0511
1
AA92-08848A ASSY ACCESSORY;CS21M20MQZXBWT,KS9A,FULLM S.N.A
6801-001073
AA26-90001C
AA42-00003A
AA68-01120A
AA68-01402A
6902-000110
AA59-00332A
AA68-03124A
AA68-03242A
AA68-03278A
AA68-00952A
AA68-00816B
CARD-REGISTRATION;RUS,XEV,RUS,MOJO100,-,
TRANS MATCHING;-,300ohm/75ohm,PAL,40-890
ANT ROD;-,3S,720mm,ABS,UL/CSA,MANUAL SERVICE;-,-,CIS,A4,6PAGE(FOLD),W/
MANUAL-GOOD WILL LETTER;,CIS,B5,1PAGE,A/
BAG PE;LDPE,T0.05,L356,W240,TRP,28,2,PE
REMOCON;TM75,DEEP IMPACT,36,G6148,PAL,EX
MANUAL USERS;CS21V10,UI,RUSSIA,CIS,W/P10
MANUAL-01,SAFETY GUIDE;NT/PAL ALL MODEL,
MANUAL-00,CARD WARRANTY;CIS ALL MODEL,CI
CARD-COUPON;-,A/P100(G),AA68-00949A,-,-,
CARD WARRANTY-03;,RUSSINA,2,W/P 120G,BOT
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY P/MATERIAL
Samsung Electronics
7-5
Electrical Parts List
MEMO
7-6
Samsung Electronics
Block Diagram
8. Block Diagram
8-1 KS9A
<OPTION>
TUNER
AC/DC
Converter
EEPROM
14N
21F
CRT
PreAMP
VIF SAW
+ S/W
RGB
IF
<OPTION>
Back JACK
RCA
In/Out
A/V-IN
A/V-OUT
U.O.C
&
Micom
UOC
TUNER
VERTICAL
AMP
LA78040
UOC
H-Drive
S/W
TRANS
B/+8V
B/+5V
A/+3.3V
180V
±16.5V
Front-A/V
IN
V-Drive
KA7632
VIDEO
AMP
TDA6107
A/+13V
A/+125V
SMPS
CONT
ROLER
MONO
<OPTION>
SIF-S/W & SIF IC
&
MSP(Option)
H-OUT TR
AUDIO
AMP
7W×2CH
FBT
To FBT B+
To Sound AMP B+
8-1
Wiring Diagram
9. Wiring Diagram
9-1 KS9A
POWER
CORD
CRT PCB
CN501
1 2 3 4 5 6 7 8
1 2 3
180V
NC
HEAT
GND
CUT-OFF
B-OUT
G-OUT
R-OUT
CN501B
180V
GND
HEAT
CN603
R+ OUT
R- OUT
L+ OUT
L- OUT
Samsung Electronics
1
2
3
4
CN701
1
SOUND L OUT
2
SOUND L IN
SOUND R OUT
3
SOUND R IN
4
FRONT AUDIO IN 5
6
GND
21 PIN AUDIO IN 7
GND
8
21 PIN VIDEO IN 9
GND
10
FRONT VIDEO IN 11
9-1
MEMO
9-2
Schematic Diagrams
10. Schematic Diagrams
10-1 ONECHIP & MICOM
TP01
TP02
TP03
TP04
TP05
TP06
TP07
TP08
TP09
TP10
TP11
TP12
TP13
TP14
TP 04
TP 05
TP 03
TP 10
TP 11
TP 12
TP 06
TP 08
TP 13
TP 07
TP 09
TP 01
TP 02
TP 14
: Power Line
Samsung Electronics
10-1
Schematic Diagrams
10-2 SOUND, EXT-A/V (SCART)
: Power Line
10-2
Samsung Electronics
Schematic Diagrams
10-3 SOUND, EXT-A/V (RCA)
: Power Line
Samsung Electronics
10-3
Schematic Diagrams
10-4 POWER / CRT / VERTICAL / HORIZONTAL
TP01
TP02
TP06
TP03
TP05
TP04
TP04
TP03
TP02
TP05
TP01
TP06
: Power Line
10-4
Samsung Electronics
Schematic Diagrams
10-5 SUB PCB-MONO
Samsung Electronics
10-5
Schematic Diagrams
10-6 SUB PCB-STEREO
10-6
Samsung Electronics
