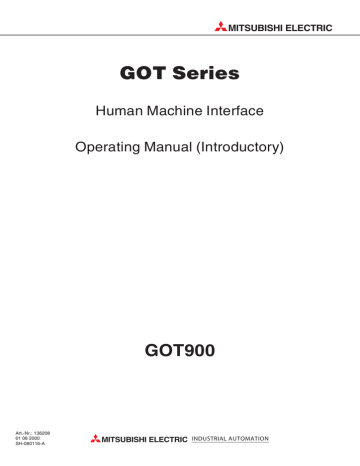

MITSUBISHI ELECTRIC
GOT Series
Human Machine Interface
Operating Manual (Introductory)
GOT900
Art.-Nr.: 136208
01 08 2000
SH-080116-A
MITSUBISHI ELECTRIC
INDUSTRIAL AUTOMATION
•
SAFETY PRECAUTIONS
•
(Always read these instructions before using this equipment.)
Before using this product, please read this manual and the relevant manuals introduced in this manual carefully and pay full attention to safety to handle the product correctly.
The instructions given in this manual are concerned with this product. For the safety instructions of the programmable controller system, please read the CPU module user's manual.
In this manual, the safety instructions are ranked as "WARNING" and "CAUTION".
WARNING
CAUTION
Indicates that incorrect handling may cause hazardous conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous conditions, resulting in medium or slight personal injury or physical damage.
Note that the
!
CAUTION level may lead to a serious consequence according to the circumstances.
Always follow the instructions of both levels because they are important to personal safety.
Please save this manual to make it accessible when required and always forward it to the end user.
[Design Precautions]
!
WARNING
•
Some failures of the GOT main unit, communication board or cable may keep the outputs on or off.
An external monitoring circuit should be provided to check for output signals which may lead to a serious accident.
Not doing so can cause an accident due to false output or malfunction.
•
If a communication fault (including cable disconnection) occurs during monitoring on the GOT, communication between the GOT and PLC CPU is suspended and the GOT becomes inoperative.
For bus connection : The CPU becomes faulty and the GOT inoperative.
A system where the GOT is used should be configured to perform any significant operation to the system by using the switches of a device other than the GOT on the assumption that a GOT communication fault will occur.
Not doing so can cause an accident due to false output or malfunction.
!
CAUTION
•
Do not bundle the control and communication cables with main-circuit, power or other wiring.
Run the above cables separately from such wiring and keep them a minimum of 100mm apart.
Not doing so noise can cause a malfunction.
A - 1 A - 1
[Mounting Precautions]
!
WARNING
•
Before installing or removing the GOT main unit to or from an enclosure, always switch off the
GOT power externally in all phases.
Not doing so can cause a module failure or malfunction.
•
Before loading or unloading the communication board to or from the GOT, always switch off the
GOT power externally in all phases.
Not doing so can cause a module failure or malfunction.
!
CAUTION
•
The GOT should be used in the environment given in the general specifications of the GOT user's manual.
Not doing so can cause an electric shock, fire, malfunction or product damage or deterioration.
•
When mounting the GOT main unit to an enclosure, tighten the mounting screws in the specified torque range.
Undertightening can cause a drop, short circuit or malfunction.
Overtightening can cause a drop, short circuit or malfunction due to the damage of the screws or module.
•
When loading the communication board to the GOT main unit, fit it to the connection interface of the GOT and tighten the mounting screws in the specified torque range.
Undertightening can cause a drop, failure or malfunction.
Overtightening can cause a drop, failure or malfunction due to the damage of the screws or module.
A - 2 A - 2
[Wiring Precautions]
!
WARNING
•
Before starting wiring, always switch off the GOT power externally in all phases.
Not doing so may cause an electric shock, product damage or malfunction.
!
CAUTION
•
Please make sure to ground FG terminal, LG terminal, and protective ground terminal of the
GOT power supply unit by applying Class D Grounding (Class 3 Grounding Method) or higher which is used exclusively for the GOT.
Not doing so may cause an electric shock or malfunction.
•
Correctly wire the power supply module on the GOT after confirming the rated voltage and terminal arrangement of the product.
Not doing so can cause a fire or failure.
•
Tighten the terminal screws of the GOT power supply section in the specified torque range.
Undertightening can cause a short circuit or malfunction.
Overtightening can cause a short circuit or malfunction due to the damage of the screws or module.
•
Exercise care to avoid foreign matter such as chips and wire offcuts entering the module.
Not doing so can cause a fire, failure or malfunction.
•
Plug the bus connection cable by inserting it into the connector of the connected module until it
"clicks".
After plugging, check that it has been inserted snugly.
Not doing so can cause a malfunction due to a contact fault.
•
Plug the communication cable into the connector of the connected module and tighten the mounting and terminal screws in the specified torque range.
Undertightening can cause a short circuit or malfunction.
Overtightening can cause a short circuit or malfunction due to the damage of the screws or module.
[Test Operation Precautions]
!
WARNING
•
Before performing test operation (bit device on/off, word device's present value changing, timer/counter's set value and present value changing, buffer memory's present value changing) for a user-created monitor screen, read the manual carefully to fully understand how to operate the equipment.
During test operation, never change the data of the devices which are used to perform significant operation for the system.
False output or malfunction can cause an accident.
A - 3 A - 3
[Startup/Maintenance Precautions]
!
WARNING
•
When power is on, do not touch the terminals.
Doing so can cause an electric shock or malfunction.
•
Before starting cleaning or terminal screw retightening, always switch off the power externally in all phases.
Not switching the power off in all phases can cause a module failure or malfunction.
Undertightening can cause a short circuit or malfunction.
Overtightening can cause a short circuit or malfunction due to the damage of the screws or module.
!
CAUTION
•
Do not disassemble or modify the module.
Doing so can cause a failure, malfunction, injury or fire.
•
Do not touch the conductive and electronic parts of the module directly.
Doing so can cause a module malfunction or failure.
•
The cables connected to the module must be run in ducts or clamped.
Not doing so can cause the module or cable to be damaged due to the dangling, motion or accidental pulling of the cables or can cause a malfunction due to a cable connection fault.
•
When unplugging the cable connected to the module, do not hold and pull the cable portion.
Doing so can cause the module or cable to be damaged or can cause a malfunction due to a cable connection fault.
[Disposal Precautions]
!
CAUTION
•
When disposing of the product, handle it as industrial waste.
A - 4 A - 4
REVISIONS
Print Date Manual Number
Aug., 2000 SH (NA) 080116-A
The manual number is given on the bottom left of the back cover.
Revision
Japanese Manual Version SH-080111-A
This manual confers no industrial property rights or any rights of any other kind, nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be held responsible for any problems involving industrial property rights which may occur as a result of using the contents noted in this manual.
2000 MITSUBISHI ELECTRIC CORPORATION
A - 5 A - 5
INTRODUCTION
Thank you for choosing the Mitsubishi Graphic Operation Terminal.
Before using the equipment, please read this manual carefully to use the equipment to its optimum.
CONTENTS
About manuals ...............................................................................................................................................A- 8
Abbreviations and generic terms in this manual ...........................................................................................A- 9
CHAPTER1 FUNDAMENTAL KNOWLEDGE 1- 1 to 1- 4
1.1 About GOT ............................................................................................................................................... 1- 1
1.2 About GOT Operations ............................................................................................................................ 1- 2
1.3 Mouse Usage and Operations................................................................................................................. 1- 3
1.4 System Configuration Used in the Manual.............................................................................................. 1- 4
1.5 Procedures for Use of GOT ..................................................................................................................... 1- 4
CHAPTER2 SETTING FIGURES AND OBJECTS 2- 1 to 2- 2
2.1 Drawing a Figure...................................................................................................................................... 2- 1
2.2 Editing a Figure or Object ........................................................................................................................ 2- 2
CHAPTER3 CREATING SCREENS 3- 1 to 3-15
3.1 Creating a Screen like This...................................................................................................................... 3- 1
3.2 Common Setting before Drawing ............................................................................................................ 3- 2
3.2.1 Selecting GOT/PLC type................................................................................................................... 3- 2
3.2.2 Setting screen switching device........................................................................................................ 3- 3
3.3 Creating the First Screen ......................................................................................................................... 3- 4
3.4 Setting Objects ......................................................................................................................................... 3- 5
3.4.1 Setting numerical display function .................................................................................................... 3- 5
3.4.2 Setting numerical input function........................................................................................................ 3- 7
3.4.3 Setting lamp display function ............................................................................................................ 3- 8
3.4.4 Setting touch key function................................................................................................................. 3-11
CHAPTER4 CREATING THE SECOND SCREEN 4- 1 to 4-14
4.1 Creating a Screen like This...................................................................................................................... 4- 1
4.2 Creating the Second Screen.................................................................................................................... 4- 2
4.3 Creating Comments ................................................................................................................................. 4- 3
4.4 Setting Objects ......................................................................................................................................... 4- 4
4.4.1 Setting touch key function for screen switching ............................................................................... 4- 4
4.4.2 Setting level display function............................................................................................................. 4- 7
4.4.3 Setting panelmeter display function.................................................................................................. 4- 9
4.4.4 Setting alarm list display function ..................................................................................................... 4-11
4.5 Saving Created Screen Data................................................................................................................... 4-13
4.6 Reading Saved Screen Data ................................................................................................................... 4-14
A - 6 A - 6
CHAPTER5 STARTING GOT FOR CHECKING 5- 1 to 5- 6
5.1 Connecting the Personal Computer and GOT........................................................................................ 5- 1
5.2 Installing the OS....................................................................................................................................... 5- 1
5.3 Downloading Screen Data ....................................................................................................................... 5- 2
5.4 Connecting to PLC CPU .......................................................................................................................... 5- 3
5.5 Executing Monitoring ............................................................................................................................... 5- 4
5.6 Upload ...................................................................................................................................................... 5- 5
5.7 Sequence Program Used in the Manual ................................................................................................. 5- 6
INDEX Index- 1
A - 7 A - 7
About Manuals
The following manuals related to this product are available. Obtain the manuals as required the according to this table.
•
Related manual
Manual name
GT Works Version5/GT Designer Version5 Operating Manual (Start up Manual)
Describes how to install GT Works Version5/GT Designer Version5 into a personal computer and how to browse the online manuals.
(Found in the packing of the GT Works Version5/GT Designer Version5)
Manual number (Model code)
IB-0800143
(13JU06)
GT Works Version5/GT Designer Version5 Reference Manual
Deals with the system configuration of GT Works Version5/GT Designer Version5, the screen makeup of the GT Designer, the general description of various monitoring functions, the procedure for displaying the monitor screen on the GOT, and how to use the help function.
(Available as option)
SH-080117
(13JF95)
GT Simulator Version5 Operating Manual
Explains the system configuration, screen makeup and using methods of GT Simulator.
(Available as option)
GOT-A900 Series User’s Manual (GT Works Version5/GT Designer Version5 compatible Connection System Manual)
Gives the specifications, system configuration, setting method and connection diagram of each connection form available for the GOT-A900 series.
(Available as option)
A985GOT/A975GOT/A970GOT/A960GOT User’s Manual
Explains the specifications, general system configuration, component devices, part names, option unit loading methods, installation and wiring methods, maintenance and inspection methods, and error codes of A985GOT/A975GOT/A970GOT/A960GOT unit.
(Available as option)
A950GOT/A951GOT/A953GOT/A956GOT User’s Manual
Explains the specifications, general system configuration, component devices, part names, option unit loading methods, installation and wiring methods, maintenance and inspection methods, and error codes of A950GOT/A951GOT/A953GOT/A956GOT unit.
(Available as option)
GOT-A900 Series Operating Manual (GT Works Version5/GT Designer Version5 compatible Extended
•
Option Functions Manual)
Provides the specifications of the utility, system monitoring, ladder monitoring, special function unit monitoring, network monitoring functions and list editor functions available for the GOT-A900 series and how to operate the dedicated monitor screen.
(Available as option)
SH-080120
(13JU09)
SH-080119
(13JR20)
SH-4005
(13JL70)
SH-080018
(13JL92)
SH-080118
(13JU08)
A - 8 A - 8
Abbreviations and generic terms in this manual
GOT
Abbreviations and generic terms
A985GOT
A975GOT
A970GOT
A97 GOT
A960GOT
A956GOT
A953GOT
A951GOT
A951GOT-Q
Abbreviations and generic terms used in this manual are described as follows:
A950GOT
A950 handy GOT
A95 GOT
Communication board
Bus connection board
GT Works Version5
Software
CPU
Others
GT Designer Version5
GT Designer
GT Simulator
GT Converter
GT Debugger
GT Manager
AnUCPU
AnACPU
AnNCPU
ACPU (Large Type)
A2US(H)CPU
AnS(H)CPU
A1SJ(H)CPU
ACPU (Small Type)
Memory
OS
Object
Personal Computer
Description
Generic term of A985GOT-TBA, A985GOT-TBD and A985GOT-TBA-EU
Generic term of A975GOT-TBA-B, A975GOT-TBD-B, A975GOT-TBA, A975GOT-TBD and
A975GOT-TBA-EU
Generic term of A970GOT-TBA-B A970GOT-TBD-B, A970GOT-TBA, A970GOT-TBD,
A970GOT-SBA, A970GOT-SBD, A970GOT-LBA, A970GOT-LBD, A970GOT-TBA-EU and
A970GOT-SBA-EU
Generic term of A975GOT and A970GOT
Generic term of A960GOT-EBA, A960GOT-EBD and A960GOT-EBA-EU
Generic term of A956GOT-TBD, A956GOT-SBD, A956GOT-LBD, A956GOT-TBD-M3,
A956GOT-SBD-M3 and A956GOT-LBD-M3
Generic term of A953GOT-TBD, A953GOT-SBD, A953GOT-LBD, A953GOT-TBD-M3,
A953GOT-SBD-M3 and A953GOT-LBD-M3
Generic term of A951GOT-TBD, A951GOT-SBD, A951GOT-LBD, A951GOT-TBD-M3,
A951GOT-SBD-M3 and A951GOT-LBD-M3
Generic term of A951GOT-QTBD, A951GOT-QSBD, A951GOT-QLBD, A951GOT-QTBD-M3,
A951GOT-QSBD-M3 and A951GOT-QLBD-M3
Generic term of A950GOT-TBD, A950GOT-SBD, A950GOT-LBD, A950GOT-TBD-M3,
A950GOT-SBD-M3 and A950GOT-LBD-M3
Generic term of A953GOT-SBD-M3-H and A953GOT-LBD-M3-H
Generic term of A956GOT, A953GOT, A951GOT, A951GOT-Q, A950GOT and A950 handy
GOT
Generic term of A9GT-QBUSS, A9GT-QBUS2S, A9GT-BUSS and A9GT-BUS2S
SW5D5C-GTWORKS-E software package
Generic term of SW5D5C-GOTR-PACKE software package and SW5D5C-GOTR-PACKEV software package
Abbreviation of image creation software GT Designer for GOT900
Abbreviation of GT Simulator screen simulator GOT900
Abbreviation of data conversion software GT Converter for GOT900
Abbreviation of debugging software GT Debugger
Abbreviation of GT Manager data editing software for GOT900
Generic term of A2UCPU, A2UCPU-S1, A3UCPU and A4UCPU CPU units
Generic term of A2ACPU, A2ACPU-S1 and A3ACPU CPU units
Generic term of A1NCPU, A2NCPU, A2NCPU-S1 and A3NCPU CPU units
Generic term of AnUCPU, AnACPU and AnNCPU CPU units
Generic term of A2USCPU, A2USCPU-S1 and A2USHCPU-S1 CPU units
Generic term of A1SCPU, A1SHCPU, A2SCPU and A2SHCPU CPU units
Generic term of A1SJCPU-S3 and A1SJHCPU CPU units
Generic term of A2US(H)CPU, AnS(H)CPU and A1SJ(H)CPU CPU units abbreviation of mmory (flash memory) in the GOT
Abreviation of GOT system software
Setting data for dynamic image
Personal computer where the corresponding software package is installed
A - 9 A - 9
1 FUNDAMENTAL KNOWLEDGE
MELSOFT
1
CHAPTER1 FUNDAMENTAL KNOWLEDGE
This manual describes procedures for creating a simple screen and monitoring with the
GOT for learning basic operations.
If using the GOT for the first time, read this manual to become familiar with operation of the GOT and the GT Designer.
POINT
The screen data and sequence programs created in Chapters 3 and 4 of this manual are packed with GT Designer.
Use them as required to check settings, for example.
1.1 About GOT
(1) What is the GOT?
The GOT can be used as an electronic operator panel which has achieved on its monitor screen the switch operation, lamp indication, data display, message display and other operations which were previously performed on an operator panel.
Space saving
Cost reduction
(2) About monitor screen data to be displayed on the GOT
The monitor screen data to be displayed on the GOT are created on a personal computer using the dedicated software (GT Designer).
You can perform the corresponding functions of the GOT by pasting display frame figures called switch figure, lamp figure, numerical display and other objects to create screens on GT Designer, and setting PLC CPU device memory
(bit, word) driven operating functions to the pasted objects.
The monitor screen data created are transferred to the GOT through an RS-232C cable or PC card (memory card).
Personal computer
PC card RS-232C cable Any of various connection cables
Screen data transfer Connection
PLC CPU
GOT
1 - 1 1 - 1
1 FUNDAMENTAL KNOWLEDGE
MELSOFT
1.2 About GOT Operations
This section briefly explains what operations the GOT will perform when it is connected with the PLC CPU.
(1) System example
PLC CPU
1
Sequence program
M0 M1 Y10
(GOT)
Touch.
Run
Stop
Run lamp
Y10
Bus connection cable
GOT
Run Stop Run lamp
Data 1 123
Y10
MOV K123 D10
<GOT settings made to figures>
Touch key setting
Bit momentary
Write device: M0
Touch key setting
Bit momentary
Write device: M1
Lamp display setting
Bit
Read device: Y10
Numerical display setting
Read device: D10, unsigned BIN
Indication: Unsigned decimal
(2) Operation explanation
(PLC CPU)
Turns ON.
M0 M1 Y10
1) While the "Run" touch key of the GOT is touched, the bit device "M0" is ON.
Y10
Y10
MOV K123 D10
Data 0
(GOT)
Turns ON.
Run Stop
Run lamp
(PLC CPU)
M0 M1
Turns ON.
Y10
Y10
Y10
MOV K123 D10
Data 0
2) When the bit device "M0" turns ON, the bit device
"Y10" turns ON.
An ON figure also appears as the GOT's lamp display where the monitor device is preset to the bit device "Y10".
(To the following page)
1 - 2 1 - 2
1 FUNDAMENTAL KNOWLEDGE
MELSOFT
(From the previous page)
(GOT)
Run Stop
Data
"123" appears.
(PLC CPU)
"123" is stored into D10.
M0 M1 Y10
3) Since the bit device "M0" is ON, "123" is stored into the word device "D10".
Run lamp
Y10
"123" also appears as the GOT's numerical display where the monitor device is preset to the word device "D10".
Y10
MOV K123 D10
123
(GOT)
Touch.
(PLC CPU)
M1 turns ON.
M0 M1
Y10 turns OFF.
4) While the "Stop" touch key of the GOT is touched, the bit device "M1" of the PLC CPU is ON.
Y10
Since the bit device "Y10" of the PLC CPU turns
OFF, the lamp display of the GOT turns OFF.
Y10
Run Stop
Run lamp
Data
Display turns OFF.
123
Y10
MOV K123 D10
1.3 Mouse Usage and Operations
Describes basic operations of the mouse.
(1) Click
Cl ick
Press the left button of the mouse once, then release without moving the mouse.
This is the most common operation.
Using the right button to perform this operation is called "right-click".
(2) Double click
Cl ick
Cl ick
Press the left button of the mouse twice quickly without moving the mouse. This operation is for the left button only.
(3) Drag
Mo ve
th e m ous e e b utton
.
wh ile th is pr essed
Move the mouse while pressing the left button.
Using the right button to perform this operation is called "right-drag".
1 - 3 1 - 3
1 FUNDAMENTAL KNOWLEDGE
1.4 System Configuration Used in the Manual
MELSOFT
GT Works Version5 or
GT Designer Version5
Install
Bus connection
A975GOT
Data transfer
PLC CPU (ACPU)
Personal computer
1.5 Procedures for Use of GOT
Describes the procedures from installation of the GT Designer to monitoring with the
GOT.
Start
Install the GT Designer.
Start the GT Designer.
GT Works Version5/GT Designer Version5
Operating Manual (Start up Manual)
Carry out common setting.
Prepare the user screen data.
Refer to 3.1
Refer to Chapter 3 and Chapter 4
Connect the GOT and the personal computer with RS-232C, and turn ON the GOT.
Refer to 5.1
Using the GOT
for the first time?
No
Yes
Install the OS and the communication driver.
Transfer the user screen data.
Connect to the PLC, and start monitoring.
(Turn OFF the GOT, then turn it ON again.)
Refer to 5.2
Refer to 5.3
Refer to 5.4 and 5.5
End
1 - 4 1 - 4
2 SETTING FIGURES AND OBJECTS
MELSOFT
CAHPTER2 SETTING FIGURES AND OBJECTS
2
2.1 Drawing a Figure
Describes how to draw a figure.
POINT
This chapter deals with only the drawing and editing of figures used in this manual.
For the drawing and editing of other figures, refer to the help function of GT
Designer.
When drawing a figure, click the icon of the figure you want to draw.
Click when drawing a rectangle.
Click when drawing a scale.
Click when entering a text.
When setting the attributes of a figure or text, click the list box to choose the attributes.
For details, refer to the GT Works
Version5/GT Designer Version5
Reference Manual.
1)
(1) When drawing a rectangle
1) Click the left mouse button at the start point of the rectangle.
2)
2) Drag the cursor to the end point.
3)
3) Release the left mouse button. A rectangle appears.
(2) When drawing a scale
1) As the scale setting dialog box appears, make settings.
Scale points: Set the number of scale points.
Direction: Choose the scale direction.
Center line: Specify whether a line is drawn in the
scale center or not.
2) Click the OK button.
3)
4)
5)
3) Press the left mouse button at the starting point of drawing the scale.
4) Drag the cursor to the end point.
5) Release the left mouse button. The scale appears.
2 - 1 2 - 1
2 SETTING FIGURES AND OBJECTS
MELSOFT
(3) When entering a text
1) As the text/figure setting dialog box appears, enter a text.
2) Click the OK button.
2
3)
4)
3) A frame of display range appears at the upper-left of the screen.
Move the frame to the desired position.
4) Click the mouse button.
The character string appears.
2.2 Editing a Figure or Object
(1) Resizing a figure or object
The following example enlarges a figure.
1) Select the figure to enlarge.
2) 3)
2) Press the left mouse button at the handle of the selected figure or object ( ) in the direction to enlarge, then drag it.
3) Release the left mouse button. The figure or object is resized.
• Holding down the Shift key and changing the size
resizes the figure at equal ratios.
• Holding down the Ctrl key and changing the size
resizes the figure relative to the center.
(2) Copying a figure or object
The following example copies a figure.
1) Choose the figure to be copied.
2) 3)
2) Hold down the "Ctrl" button of the keyboard and drag the figure.
3) Release the left button of the mouse at the position you want to copy. This copies the figure.
2 - 2 2 - 2
3
3 CREATING SCREENS
CHAPTER3 CREATING SCREENS
3.1 Creating a Screen like This
In this chapter, a screen as shown below is created.
MELSOFT
Numerical display function
Numerical input function
Touch key function
Lamp display function
3 - 1 3 - 1
3 CREATING SCREENS
MELSOFT
3.2 Common Setting before Drawing
Describes the operations for common setting before drawing.
3.2.1 Selecting GOT/PLC type
Describes the operations for selecting the type of the GOT and the PLC to use.
1) Starting GT Designer displays the project selection dialog box. Click New .
3
3)
2) The dialog box appears.
3) Click the list box and set the type of the GOT and the PLC.
Here, set as follows:
GOT type: A97 GOT(640 480)
PLC type: MELSEC-A
4)
4) Click the OK button.
The GOT/PLC types are set.
POINT
The GOT/PLC type setting dialog box is also displayed by choosing the [Common]-
[GOT/PLC Type] menu.
3 - 2 3 - 2
3 CREATING SCREENS
MELSOFT
3.2.2 Setting screen switching device
Describes the operations for setting the screen switching device for switching screens.
Here, only the screen switching device of the base screen is set to "D999" because only the base screens are switched in the manual.
1) Click the [Common] – [Switching Screen] menu.
3)
2) The dialog box appears.
3) Click the Device button on the base screen to set the screen switching device of the base screen.
5)
6)
7)
4) The dialog box appears.
5) Click the list box to set to "D".
6) Click button 9 three times.
7) After setting is completed, click the OK button.
(To the following page)
3 - 3 3 - 3
3 CREATING SCREENS
(From the previous page)
8)
9)
8) Check that value is set to "D999".
9) Click the OK button.
The screen switching device is set.
MELSOFT
POINTS
•
Screen switching device
The screen switching device is required for switching screens.
Devices designated as the screen switching devices must be used only as such.
Word devices "D" or "W are mainly used as the screen switching device, but device "GD" for the GOT is also available.
•
Device "GD"
Device "GD" is a word device of the GOT.
In device GD, 1024 points from GD0 to GD1023 are available.
There is a bit device GB, in which 1024 points from GB0 to GB1023 are also available.
3.3 Creating the First Screen
Refer to Chapter 2 and create a screen as follows:
Use a rectangle to create this.
Use characters to create these.
3 - 4 3 - 4
3 CREATING SCREENS
3.4 Setting Objects
Describes the operations for setting objects used in this chapter.
3.4.1 Setting numerical display function
Describes the operations for setting numerical display function.
1) Click on the tool palette.
MELSOFT
3)
4)
2) The dialog box appears.
3) Click the Device button and set the device.
Device: Set to D12.
4) Check the check box and click the Shape button to designate the background figure.
5)
6)
5) The dialog box appears. Click the figure to be used as the background.
(Here, select figure 21.)
6) Click the OK button.
(To the following page)
3 - 5 3 - 5
3 CREATING SCREENS
(From the previous page)
MELSOFT
7)
8)
7) Set the attributes of the figure and numerical value.
Here, set as shown on the left.
8) Click the OK button.
9) A frame of display range appears at the upperleft of the screen. Move the frame to the desired position and click.
Change the size of the outer figure or the inner object frame with the handle ( ). (Refer to 2.2.)
10) Copy the numerical display function and double-click the copied numerical display function.
11) Change the device to "D13" and click the
OK button.
12) This sets two numerical display functions.
3 - 6 3 - 6
3 CREATING SCREENS
3.4.2 Setting numerical input function
Describes the operations for setting numerical input function.
1) Click on the tool palette.
MELSOFT
2)
3)
4)
2) As the dialog box appears, refer to the numerical display function settings and make the following settings.
Device: Set to D10.
Shape: Use No. 21.
3) Set the attributes of the figure and numerical value.
Here set as shown on the left.
4) After setting, click the OK button and place the display range frame of the numerical input function.
5) Copy the numerical input function and change the device of the second numerical input function to "D11".
6) This sets two numerical input functions.
POINT
In this manual, make setting to display the key window as soon as you touch the part where the numerical input object is set.
To make this setting, choose the [Common]-[Auxiliary Setting]-[Project] menu and turn on the "When touch input is detected, open key window at the same time" check box.
3 - 7 3 - 7
3 CREATING SCREENS
MELSOFT
3.4.3 Setting lamp display function
Describes the operations for setting the lamp display function.
1) Click the List button on the template (parts display area).
2) The template (directory tree) is displayed.
Click the + button of the parts library folder.
3) As the library names appear, double-click Lamp
(1).
(To the following page)
3 - 8 3 - 8
3 CREATING SCREENS
(From the previous page)
MELSOFT
4) Parts in the library are displayed on the template
(part display area).
5) Click a lamp on the template (part display area).
(Here, use No. 1).
6) Move the cursor to the screen.
A frame of display range appears.
Move the frame to the desired position and click.
7) Double-click the pasted lamp.
8) The dialog box appears.
9)
10)
9) Click the Device button and set the device.
Device: Set to Y0.
10) After setting the device, click the Case (Bit) tab.
11) Click the Text button.
(To the following page)
3 - 9 3 - 9
3 CREATING SCREENS
(From the previous page)
MELSOFT
12) The dialog box appears.
After setting each item, click the OK button.
Position: Choose Bottom.
Text: Type Y0.
Horizontal alignment: Click the center button.
13)
14)
15)
13) Click the Copy from ON button.
14) Set the attributes of the lamp.
Here, designate as shown on the left.
15) Click the OK button.
16) The lamp set on the screen is updated.
17) Repeat steps 7) to 16) for the number of lamps to set. (Here, repeat 3 times.)
Device: Set Y1 to Y3.
Text: Type Y1 to Y3.
The lamp pasted in 7) must be copied and pasted to a new position.
(Refer to 2.2.)
POINT
With the [Edit]-[Consecutive Copy] menu, a figure can be copied continuously.
3 - 10 3 - 10
3 CREATING SCREENS
MELSOFT
3.4.4 Setting touch key function
Describes the operations for setting touch key function.
1) Double-click Switch (1) on Template (directory tree) only.
Refer to Section 3.4.3 for the way to display
Template (directory tree).
(To the following page)
2) Parts in the library are displayed on the template
(part display area).
3) Click a lamp on the template (part display area).
Here, use No.16.
4) Move the cursor to the screen.
A frame of display range appears.
Move the frame to the desired position and click.
5) Double-click the pasted touch key.
3 - 11 3 - 11
3 CREATING SCREENS
(From the previous page)
MELSOFT
6)
7)
6) As the dialog box appears, make the following settings.
Display trigger: Choose Bit.
Device: Set to M70.
7) Click the [Case] tab.
8) Click the ON Text button.
(To the following page)
3 - 12 3 - 12
3 CREATING SCREENS
(From the previous page)
MELSOFT
9) The dialog box appears.
After setting each item, click the OK button.
Position: Choose Bottom.
Text: Type M70.
Horizontal alignment: Click the center button.
10)
11)
10) Click the Copy from ON button.
12)
11) Set the attributes of the touch key and text.
Here, designate as shown on the left.
12) Click the [Action] tab.
(To the following page)
3 - 13 3 - 13
3 CREATING SCREENS
(From the previous page)
13) Click the Bit button.
MELSOFT
(To the following page)
14)
15)
16)
14) The dialog box appears. Select "Alternate".
15) Click the Device button and set the device to
"M70".
16) Click the OK button.
3 - 14 3 - 14
3 CREATING SCREENS
(From the previous page)
17) Click the OK button.
MELSOFT
18) The touch key set on the screen is updated.
19) Repeat steps 5) to 18) for the number of touch keys to set.
(Here, repeat 3 times.)
Device: Set M71 to M73.
Text: Type M71 to M73.
The key pasted before step 5) must be copied and pasted to a new position.
(Refer to 2.2.)
POINT
With the [Edit]-[Continuous Copy] menu, a figure can be copied continuously.
3 - 15 3 - 15
4 CREATING THE SECOND SCREEN
MELSOFT
CHAPTER4 CREATING THE SECOND SCREEN
4.1 Creating a Screen like This
In this chapter, the following screen is created as the second screen of the screen created in Chapter 3 (the first screen).
The switching button to the second screen is added to the first screen.
(1) Adding the screen switching button to the first screen
The screen switching button to the second screen must be set on the first screen.
Set a touch key at the lower right corner of the first screen.
4
(2) Creating the second screen
Touch key function
Level display function
Parameter display function
Alarm list display function
Touch key function
4 - 1 4 - 1
4
4 CREATING THE SECOND SCREEN
4.2 Creating the Second Screen
Describes the operations for creating the second screen.
1) Click on tool bar 1.
MELSOFT
2) Click the spin box and set the screen number to "2".
2)
3)
3) Click the OK button.
The second screen is created.
First, create a screen as follows by referring to Chapter 2.
Use rectangles to create these.
Use scales to create these.
4 - 2 4 - 2
4 CREATING THE SECOND SCREEN
MELSOFT
4.3 Creating Comments
Describes the operations for creating comments that are used in the alarm list function.
Register comments as follows:
Comment
No.
1
2
3
4
Device
Y0
Y1
Y2
Y3
Comment
A-line supply conveyer stopped. Check the power source.
Emergency stop limit switch operated. Check the product.
Product limit switch does not operate. Check for presence/absence of the product.
Hydraulic pressure of finishing machine 1 is low. Supply hydraulic oil.
1) Click the [Draw]-[Comment] menu.
2)
3)
2) As the dialog box appears, type a comment from the keyboard.
3) After comment creation, click the Enter button to register the No. 1 comment.
4)
5)
4) Create remaining No. 2 to No. 4 comments.
5) After setting is completed, click the OK button.
The dialog box disappears.
4 - 3 4 - 3
4 CREATING THE SECOND SCREEN
MELSOFT
4.4 Setting Objects
Describes the operation for setting the objects used in this chapter.
4.4.1 Setting touch key function for screen switching
Describes the operations for setting the touch key function for screen switching.
1) Paste to the screen the No. 15 key of Switch (1) registered on Template.
2) Double-click the pasted key.
3) The dialog box appears.
Click the [Case] tab.
4) Click the ON Text button.
(To the following page)
4 - 4 4 - 4
4 CREATING THE SECOND SCREEN
(From the previous page)
MELSOFT
5) The dialog box appears. After setting each item, click the OK button.
Position: Select Center.
Text: Input Screen 1.
Horizontal alignment: Click the center button.
Vertical alignment: Click the center button.
6)
7)
6) Click the Copy from ON button.
7) Set the attributes of the touch key and text.
8)
Here, designate as shown on the left.
8) Click the [Action] tab.
9) Click the Base button.
(To the following page)
4 - 5 4 - 5
4 CREATING THE SECOND SCREEN
(From the previous page)
MELSOFT
10)
10) The dialog box appears.
11)
Designate the destination to "Fixed".
12)
11) Click the spin box and input "Screen 2" for the touch key set on the first screen and "Screen 1" for the touch key set on the second screen.
12) Click the OK button.
13) Click the OK button.
14) The touch key set on the screen is updated.
15) Change the key size with the handle ( ).
(Refer to 2.2.)
POINT
When setting the screen changing switch on the first screen, choose [Screen]-[B-1
No title] to display the first screen, and set the screen changing switch in the above procedure.
Displays the base screen 1.
Displays the base screen 2.
4 - 6 4 - 6
4 CREATING THE SECOND SCREEN
4.4.2 Setting level display function
Describes the operations for setting the level display function.
1) Click on the tool pallet.
MELSOFT
2) The dialog box appears.
3)
3) Click the Device button to designate the device.
4)
Device: Set to D12.
5)
4) Set the attributes of the level display as shown on the left.
5) Click the [Form] tab.
6)
6) Set the Fixed value of the Upper value to "10000" and that of the Lower value to "0".
7)
(You can type them directly from the keyboard.)
7) Click the OK button.
(To the following page)
4 - 7 4 - 7
4 CREATING THE SECOND SCREEN
(From the previous page)
MELSOFT
8) A frame of display range appears at the upper-left of the screen. Move the frame to the desired position, then click.
9) Change the key size with the handle ( ).
(Refer to 2.2.)
11) Copy the level display function and set the device of the second level display function to "D13".
12) This sets two level display functions.
4 - 8 4 - 8
4 CREATING THE SECOND SCREEN
4.4.3 Setting panelmeter display function
Describes the operations for setting the panelmeter display function.
1) Click on the tool palette.
MELSOFT
2)
2) As the dialog box appears, refer to the level display function settings and make the following settings.
Device: Set to D12.
Shape: Use No. 39.
3)
3) Set the attributes of the panelmeter.
Make settings as shown on the left.
4)
4) Click the [Form] tab.
5)
5) Make the [Form] tab settings as indicated below.
Type: Top 1/2
Upper: Fixed, 10000
Lower: Fixed, 0
6)
6) After setting, click the Extended>> button.
(To the following page)
4 - 9 4 - 9
4 CREATING THE SECOND SCREEN
(From the previous page)
7) Click the [Graph] tab.
MELSOFT
8)
9)
8) Make the [Graph] tab settings as indicated below.
Upper: Fixed, 100
Lower: Fixed, 0
9) Click the OK button.
10) A frame of display range appears at the upper-left of the screen.
Move the frame to the desired position, then click.
11) Using the handles ( ), set the size.
(Refer to 2.2.)
12) Copy the panelmeter display function and change the device of the second panelmeter display function to "D13".
13) This sets two panelmeter display functions.
4 - 10 4 - 10
4 CREATING THE SECOND SCREEN
4.4.4 Setting alarm list display function
Describes the operations for setting the alarm list display function.
1) Click on the tool palette.
MELSOFT
2) The dialog box appears.
3)
3) Check the check box and click the Shape button to designate the background figure.
(Here, select figure 39.)
4)
4) Set the attributes of the figure.
Make settings as shown on the left.
5)
5) Click the [Form] tab.
6) Click the spin box and set the device value to "4".
6) 7) Click the Device button.
7)
(To the following page)
4 - 11 4 - 11
4 CREATING THE SECOND SCREEN
(From the previous page)
MELSOFT
8)
9)
10)
8) The dialog box appears.
Click the Edit button to set the device.
Device: Set Y0.
9) Select "Continuous".
10) Click the OK button.
11)
11) Set the number of comments to display to "Single".
12) Click the OK button.
12)
13) A frame of display range appears at the upper-left of the screen.
Move the frame to the desired position, then click.
14) Change the size with the handle ( ).
(Refer to 2.2.)
4 - 12 4 - 12
4 CREATING THE SECOND SCREEN
MELSOFT
4.5 Saving Created Screen Data
Describes the operations for saving created screen data.
Here, the data is saved on a personal computer's hard disk (drive C) as an example.
1) Click [Project] [Save As].
2) The dialog box appears.
Click the list box and click "(C:)".
2)
3)
3) Click the folder creation button to create a new folder.
4) Designate a project name to the new folder.
(Here, input "Got".)
5) After designating the name, double-click "Got" and display the contents of the folder.
6) Check that "Got" is displayed here.
6)
7) Click the Save button to save the screen data.
7)
POINT
When saving screen data, create a folder for each project.
Note that since the file name of GT Designer is fixed, the project of GT Designer already existing in the folder where a new project will be saved will be overwritten by the new project.
4 - 13 4 - 13
4 CREATING THE SECOND SCREEN
MELSOFT
4.6 Reading Saved Screen Data
Describes the operations for reading the saved data.
Here,the data saved in 4.5 (the data saved in drive C) is read as an example.
1) Click the [Project] [Open] menu.
2)
2) The dialog box appears. Click "(C:)".
3)
3) Double-click "Got" and display the contents of the folder.
4) Check that "Got" is displayed here.
4)
5) Check that "a9gotp.got" is in the folder.
Click the Open button to read the screen data.
5)
4 - 14 4 - 14
5 STARTING GOT FOR CHECKING
MELSOFT
CHAPTER5 STARTING GOT FOR CHECKING
5.1 Connecting the Personal Computer and GOT
Connect the personal computer and the GOT with an RS-232C cable.
For further details, refer to GT Works Version5/GT Designer Version5 Reference
Manual.
RS-232C interface
COM port
RS-232C cable
A975GOT
Personal computer
5.2 Installing the OS
Describes the operations for installing the OS program and the communication driver on the GOT before monitoring.
This chapter describes a specific installation example.
POINT
The GOT does not have the OS program for monitoring or the communication driver. Therefore, these programs must be installed on the GOT before monitoring.
Once the programs are installed, you do not need to install again unless the version of OS or the communication method changes.
1) Click the [Communication] [Install] [OS] menu.
5
(To the following page)
5 - 1 5 - 1
5 STARTING GOT FOR CHECKING
MELSOFT
(From the previous page)
2)
3)
2) The dialog box appears.
Designate each item.
Target: GOT
Standard monitor OS:
Check the checkbox and select "English".
Communication driver:
Click the list box, then select "Bus [Ver 8.0.0].
[Ver *.*.*] may be different.
3) Click the Install button.
4) Click the Yes button.
Installation of the OS is executed.
5
5.3 Downloading Screen Data
Describes the operations for downloading the screen data created in Chapter 4 to the
GOT.
1) Click the [Communication] [Download (to
GOT)] [Monitor Data] menu.
2) The dialog box appears.
Click the Download button.
3) Click the OK button.
Downloading of the screen data is executed.
5 - 2 5 - 2
5 STARTING GOT FOR CHECKING
MELSOFT
5.4 Connecting to PLC CPU
Here, the bus connection is used to connect the GOT and the PLC CPU. For details of the bus connection board and the bus connection cable, refer to GOT-A900 Series
User
′ s Manual (GT Works Version5/GT Designer Version5 compatible Connection
System Manual).
A975GOT
Bus communication cable
Bus communication board
Set the extension number switch to 1.
Set the I/O slot switch to 0.
PLC CPU (ACPU)
POINT
Be sure to turn OFF the whole system before connecting the GOT and the PLC
CPU.
5 - 3 5 - 3
5 STARTING GOT FOR CHECKING
5.5 Executing Monitoring
Displays numerical values for D12 and
D13.
When the external input Y0 to Y3 are turned ON, the lamp lights accordingly.
Press the touch key.
The corresponding external output M70 to M73 is turned
ON/OFF.
Carries out level display of values
D12 and D13.
Turning ON of Y0 to Y3 displays the designated alarm comments.
MELSOFT
Input values to D10 and D11 from the ten-key window.
Press the touch key.
The second screen appears.
Carries out panel meter display of values D12 and D13.
Press the touch key.
The first screen appears.
5 - 4 5 - 4
5 STARTING GOT FOR CHECKING
5.6 Upload
MELSOFT
When you want to make correction to the screen data installed into the GOT, use GT
Designer and read the screen data from the GOT to the personal computer.
The read screen data can be re-edited and then re-transferred (downloaded) to the
GOT.
This section describes the operation to upload data from the GOT to the personal computer.
1) Click the [Communication] [Upload (from
GOT)] menu.
2) As the dialog box appears, specify "Upload destination path:" (drive or folder) and click the Upload button.
3) Click the Yes button.
Uploading of the screen data is executed.
5 - 5 5 - 5
5 STARTING GOT FOR CHECKING
5.7 Sequence Program Used in the Manual
MELSOFT
5 - 6 5 - 6
