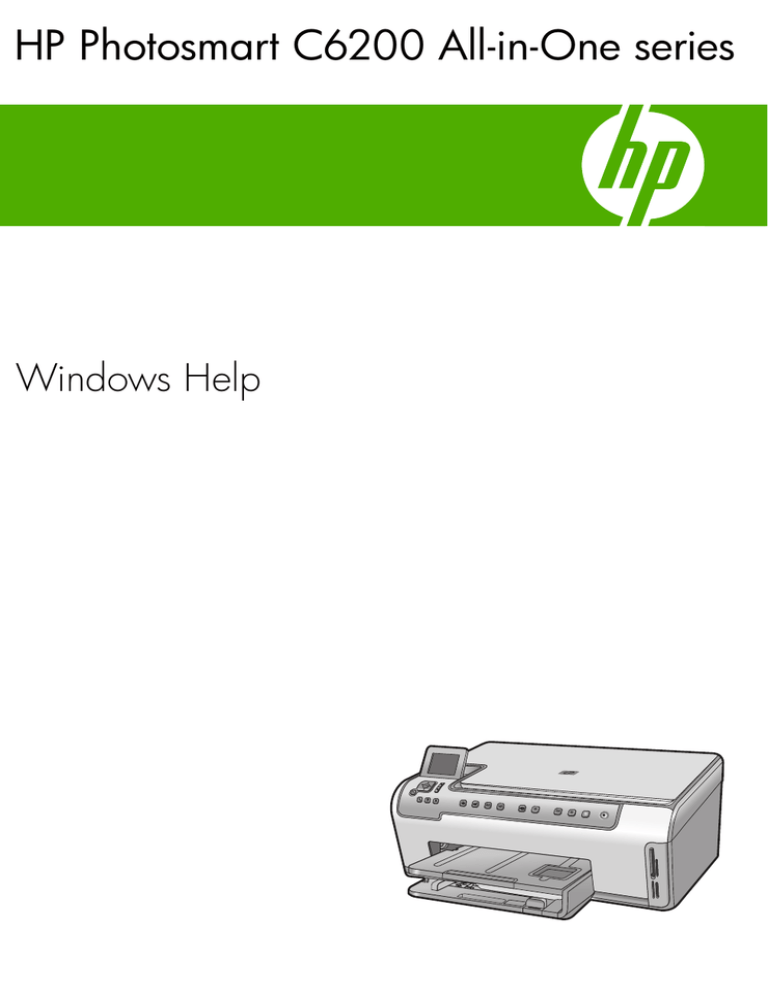

HP Photosmart C6200 All-in-One series
Windows Help
1
HP Photosmart C6200 All-in-One series Help........................................................................3
2
HP All-in-One overview
The HP All-in-One at a glance....................................................................................................5
Control panel overview...............................................................................................................6
Menu overview............................................................................................................................9
Use the HP Photosmart Software.............................................................................................11
3
Find more information............................................................................................................13
4
Finish setting up the HP All-in-One
Set your preferences................................................................................................................15
Computer connection information.............................................................................................17
Connect to a network................................................................................................................18
5
How do I?.................................................................................................................................31
6
Load originals and load paper
Load originals...........................................................................................................................33
Choose papers for printing and copying...................................................................................34
Load paper...............................................................................................................................36
Avoid paper jams......................................................................................................................43
7
Print from your computer
Print from a software application..............................................................................................45
Make the HP All-in-One the default printer...............................................................................46
Change the print settings for the current job............................................................................46
Change the default print settings..............................................................................................50
Printing shortcuts......................................................................................................................51
Perform special print jobs.........................................................................................................52
Stop a print job.........................................................................................................................62
8
Use the photo features
View and select photos.............................................................................................................66
Print your photos......................................................................................................................67
Create special projects from your photos.................................................................................69
Share photos using HP Photosmart Software..........................................................................70
Save photos to your computer..................................................................................................71
Edit photos using the control panel..........................................................................................72
9
Use the scan features
Make reprints of your photos....................................................................................................79
Scan an image..........................................................................................................................80
Edit a scanned image...............................................................................................................82
Share a scanned image with friends and relatives...................................................................83
Stop scanning...........................................................................................................................83
1
Contents
Contents
10 Use the copy features
Make a copy.............................................................................................................................85
Preview your copy job..............................................................................................................85
Change the copy settings for the current job............................................................................86
Change default copy settings...................................................................................................89
Perform special copy jobs........................................................................................................89
Stop copying.............................................................................................................................93
Contents
11 Print reports and forms
Print a self-test report...............................................................................................................95
Print forms................................................................................................................................96
12 Maintain the HP All-in-One
Clean the HP All-in-One...........................................................................................................97
Check the estimated ink levels.................................................................................................98
Work with ink cartridges............................................................................................................99
Reduce energy consumption when the HP All-in-One is off...................................................106
Self-maintenance sounds.......................................................................................................106
Turn off the HP All-in-One......................................................................................................106
13 Shop for ink supplies...........................................................................................................107
14 Troubleshooting
Troubleshooting tips...............................................................................................................109
Hardware setup troubleshooting.............................................................................................112
Software installation troubleshooting......................................................................................116
Network troubleshooting.........................................................................................................120
Print quality troubleshooting...................................................................................................123
Print troubleshooting...............................................................................................................131
Memory card troubleshooting.................................................................................................139
Scan troubleshooting..............................................................................................................142
Copy troubleshooting..............................................................................................................145
Errors......................................................................................................................................149
15 HP warranty and support
Warranty.................................................................................................................................169
Ink cartridge warranty information..........................................................................................169
Support process.....................................................................................................................170
Before you call HP support.....................................................................................................170
HP support by phone..............................................................................................................171
Additional warranty options....................................................................................................171
HP Quick Exchange Service (Japan).....................................................................................172
HP Korea customer support...................................................................................................172
Prepare the HP All-in-One for shipment.................................................................................173
Pack the HP All-in-One...........................................................................................................174
16 Technical information
Specifications.........................................................................................................................175
Environmental product stewardship program.........................................................................176
Regulatory notices..................................................................................................................179
Index............................................................................................................................................183
2
HP Photosmart C6200 All-inOne series Help
For information about the HP All-in-One, see:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
“HP All-in-One overview” on page 5
“Find more information” on page 13
“Finish setting up the HP All-in-One” on page 15
“How do I?” on page 31
“Load originals and load paper” on page 33
“Print from your computer” on page 45
“Use the photo features” on page 65
“Use the scan features” on page 79
“Use the copy features” on page 85
“Print reports and forms” on page 95
“Maintain the HP All-in-One” on page 97
“Shop for ink supplies” on page 107
“HP warranty and support” on page 169
“Technical information” on page 175
HP Photosmart C6200 All-in-One series Help
HP Photosmart C6200 All-inOne series Help
1
3
Chapter 1
HP Photosmart C6200 All-inOne series Help
4
HP Photosmart C6200 All-in-One series Help
2
HP All-in-One overview
Use the HP All-in-One to quickly and easily make copies, scan documents, or print photos
from a memory card. HP papers that are specifically designed for the type of project you
are printing produce the best results. The Two-sided printing accessory included with the
HP All-in-One lets you print on both sides of the page, so you can print brochures and
booklets, or just save paper.
The HP All-in-One also provides built-in templates that you can use to print narrow- and
wide-ruled notebook paper, graph paper, or music sheets that are perfect for your child’s
homework assignments. You can even print a task checklist to keep track of your list of
things to do. You can access many HP All-in-One functions directly from the control panel,
without turning on your computer.
This section contains the following topics:
•
•
•
•
The HP All-in-One at a glance
Control panel overview
Menu overview
Use the HP Photosmart Software
Overview
The HP All-in-One at a glance
Label
Description
1
Color graphics display (also referred to as the
display)
2
Control panel
3
Output tray (currently shown in the up position)
4
Paper-width guide for the main input tray
5
Main input tray (also referred to as the input tray)
HP All-in-One overview
5
Chapter 2
(continued)
*
Label
Description
6
Paper tray extender (also referred to as the tray
extender)
7
Paper-width and paper-length guides for the
photo tray
8
Photo tray
9
Paper-length guide for the main input tray
10
Ink cartridge door
11
Memory card slots
12
Glass
13
Lid backing
14
Ethernet port
15
USB port
16
Power connection*
17
Two-sided printing accessory
Use only with the power adapter supplied by HP.
Control panel overview
This section describes the functions of the control panel buttons and lights, as well as the
icons and sleep state on the display.
This section contains the following topics:
•
•
•
Control panel features
Display icons
Display sleep state
Overview
6
HP All-in-One overview
Control panel features
The following diagram and related table provide a quick reference to the HP All-in-One
control panel features.
Ethernet
Icon
Name and Description
1
Color graphics display (also referred to as the display): Displays menus, photos,
and messages. The display can be pulled up and angled for better viewing.
2
Attention light: Indicates a problem occurred. See the display for more information.
3
Back: Returns to the previous screen on the display.
4
Setup: Opens the Setup menu where you can generate reports, change device
settings, and perform maintenance functions.
5
Help: Opens the Help Menu menu on the display where you can select a topic to
learn more about it. From the idle state, pressing Help lists a menu of items for which
help is available. Depending on the topic you select, the topic will appear on your
display or on your computer screen. When viewing screens other than Idle, the
Help button provides context sensitive help.
6
Cancel: Stops the current operation.
7
Photo Menu: Launches the Photosmart Express menu for printing, saving, editing,
and sharing photos.
8
Red Eye Removal: Turns the Red Eye Removal feature on or off. By default, this
feature is turned off. When the feature is turned on, the HP All-in-One automatically
corrects red eye coloring in the photo currently shown on the display.
9
Photo Reprints: Enables you to make a copy of an original photo placed on the
glass.
10
Print Photos: Depending on whether you access your photos from the View,
Print, or Create menu, the Print Photos button will display the Print Preview screen
or it will print any selected photo(s). If no photos are selected, a prompt appears
asking if you want to print all the photos on your card.
Control panel overview
7
Overview
Label
Chapter 2
(continued)
Label
Icon
Name and Description
11
Scan Menu: Opens the Scan Menu where you can select a destination for your
scan.
12
Start Scan: Starts a scan.
13
Copy Menu: Opens the Copy Menu where you can select copy options, such as
number of copies, paper size, and paper type.
14
Start Copy Black: Starts a black-and-white copy.
15
Start Copy Color: Starts a color copy.
16
On: Turns the HP All-in-One on or off. When the HP All-in-One is off, a minimal
amount of power is still supplied to the device. You can further reduce power supply
by holding down the On button for 3 seconds. This will put the HP All-in-One in
Standby/Off state. To completely remove power, turn the HP All-in-One off, and then
unplug the power cord.
17
Zoom out - (magnifying glass icon): Zooms out to show more of a photo. If you press
this button when a photo is shown on the display at 100%, the Fit to Page feature is
applied to the photo automatically.
18
Zoom in + (magnifying glass icon): Zooms in to enlarge the image on the display.
You can also use this button together with the arrows on the directional pad to adjust
the crop box for printing.
19
OK: Selects a menu setting, value, or photo on the display.
20
Directional pad: Allows you to navigate through photos and menu options by
pressing the up, down, left, or right arrow buttons.
If you are zooming in on a photo, you can also use the arrow buttons to pan around
the photo and select a different area to print.
Display icons
The following icons can appear at the bottom of the display to provide important
information about the HP All-in-One.
Overview
Icon
Purpose
Shows the ink cartridge status. The color of the icon corresponds to the color of
the ink cartridge, and the fill level of the icon corresponds to the fill level of the
ink cartridge.
NOTE: The ink level icons will only appear if one of the ink cartridges is less
than 50% full. If the ink level for all ink cartridges is more than 50% full, the ink
cartridge icons do not appear on the display.
Shows that the ink cartridge is nearly empty, and will need to be replaced.
8
HP All-in-One overview
(continued)
Icon
Purpose
Shows that an unknown ink cartridge is inserted. This icon might appear if an
ink cartridge contains non-HP ink.
Indicates that there is a wired network connection.
Display sleep state
To prolong the life of the display, it dims after two minutes of inactivity. After 60 minutes
of inactivity, the display goes into a sleep state and the screen shuts off completely. The
display turns back on when you press a control panel button, insert a memory card, lift
the lid, or access the HP All-in-One from a connected computer.
Menu overview
The following topics provide a quick reference to top-level menus that appear on the
HP All-in-One display.
Photosmart Express Menu
Scan Menu
Setup Menu
Copy Menu
Help Menu
Overview
•
•
•
•
•
Menu overview
9
Chapter 2
Photosmart Express Menu
The following options are available in the Photosmart Express menu when you insert a
memory card or press Photo Menu on the control panel.
View
Print
Create
Share
Save
Scan Menu
The following options are available when you press the Scan Menu button on the control
panel.
NOTE: The applications that appear on the Scan Menu vary depending on the
software applications installed on your computer.
Scan and Reprint
Overview
Scan to Memory Card
HP Photosmart Premier
Scan to Computer
NOTE: The Scan to Computer option only appears if the HP All-in-One is networkconnected.
Setup Menu
The following options are available when you press the Setup button on the control panel.
Printable School Papers
Tools
Preferences
10
HP All-in-One overview
Network
Copy Menu
The following options are available when you press the Copy Menu button on the control
panel.
Copies
Size
Quality
Lighter/Darker
Preview
Crop
Paper Size
Paper Type
Margin Shift
Enhancements
Set As New Defaults
Help Menu
The Help Menu menu provides quick access to key help topics and is available when
you press the Help button. If you select one of the first six topics, the help appears on
the display. If you select one of the remaining topics, the help appears on your computer.
The following options are available.
Use Control Panel
Insert Ink Cartridges
Load Paper in Photo Tray
Load Paper in Main Tray
Load Original on Scanner
How Do I
Overview
Error Messages
General Troubleshooting
Networking Troubleshooting
Use Memory Card
Get Support
Use the HP Photosmart Software
The HP Photosmart Software provides a fast and easy way to make prints of your photos.
It also provides access to other basic HP imaging software features, such as saving and
viewing your photos.
Use the HP Photosmart Software
11
Chapter 2
For more information on using the HP Photosmart Software:
•
•
Check the Contents panel on the left. Look for the HP Photosmart Software Help
contents book at the top.
If you do not see the HP Photosmart Software Help contents book at the top of the
Contents panel, access the software help through the HP Solution Center.
Overview
12
HP All-in-One overview
3
Find more information
You can access a variety of resources, both printed and onscreen, that provide
information about setting up and using the HP All-in-One.
Setup Guide
The Setup Guide provides instructions for setting up the HP All-in-One and
installing software. Make sure you follow the steps in the Setup Guide in order.
If you have problems during setup, check the Setup Guide for troubleshooting
information, or see “Troubleshooting” on page 109 in this onscreen Help.
Basics Guide
HP Photosmart
2600 series printer
User Guide
The Basics Guide contains an overview of the HP All-in-One, including stepby-step instructions for basic tasks, troubleshooting tips, and technical
information.
HP Photosmart animations
The HP Photosmart animations, located in the relevant sections of the onscreen
Help, show you how to complete key tasks on the HP All-in-One. You will learn
how to load paper, insert a memory card, and replace ink.
Onscreen Help
The onscreen Help provides detailed instructions on using all features of the
HP All-in-One.
•
•
•
The How Do I? topic provides links so you can quickly find information on
performing common tasks.
The HP All-in-One overview topic provides general information about the
main features of the HP All-in-One.
The Troubleshooting topic provides information about resolving errors
you might encounter with the HP All-in-One.
Readme
The Readme file contains the most recent information which might not be found
in other publications.
Install the software to access the Readme file.
If you have Internet access, you can get help and support from the HP Web
site. This Web site offers technical support, drivers, supplies, and ordering
information.
Find more information
www.hp.com/support
Find more information
13
Chapter 3
Find more information
14
Find more information
Finish setting up the HP All-inOne
After you have completed the steps in your Setup Guide, refer to this section to help you
finish setting up the HP All-in-One. This section contains important setup-related
information for your device, including information on setting preferences.
This section contains the following topics:
•
•
•
Set your preferences
Computer connection information
Connect to a network
Set your preferences
You can change the settings on the HP All-in-One so that it behaves according to your
preference. For example, you can set general device preferences, such as the language
used to display messages. You can also restore the device settings to what they were
when you purchased your device. This will erase any new defaults you have set.
This section contains the following topics:
•
•
•
•
•
Set your language and country/region
Set the default paper tray for DPOF printing
Enable faster browsing of photos
Restore the factory defaults
Play a slideshow on the display
Set your language and country/region
The language setting determines which language the HP All-in-One uses to show
messages on the display. The country/region setting determines the default paper sizes
and layouts for printing. You can change these settings at any time by using the following
procedures.
To set your language
1. Press Setup.
2. Press to highlight Preferences, and then press OK.
3. Press to highlight Set Language, and then press OK.
4. Press to scroll through the languages. When the language you want to use
appears, press OK.
5. When prompted to confirm the language, press to highlight Yes or No, and then
press OK.
To set your country/region
1. Press Setup.
2. Press to highlight Preferences, and then press OK.
Finish setting up the HP All-in-One
15
Finish setup
4
Chapter 4
3. Press to highlight Set Country/Region, and then press OK.
4. Press to scroll through the countries/regions. When the country/region you want
to use appears, press OK.
5. When prompted to confirm the country/region, press to highlight Yes or No, and
then press OK.
Set the default paper tray for DPOF printing
Finish setup
Set the default paper tray to use when you print photos from a DPOF file. The default
setting is Photo Tray.
To set the default paper tray
1. Press Setup.
2. Press to highlight Preferences, and then press OK.
3. Press to highlight DPOF Tray Select, and then press OK.
4. Press or to highlight Main Tray or Photo Tray, and then press OK to select the
tray you want.
Enable faster browsing of photos
You can set up the HP All-in-One to enable faster photo browsing by writing small
thumbnails to the memory card. The thumbnails take up a relatively small amount of
space and are used to speed up the browsing performance of photos on the card.
NOTE: This feature is on by default.
To turn faster browsing on or off
1. Press Setup.
2. Press to highlight Preferences, and then press OK.
3. Press to highlight Enable Faster Browsing, and then press OK.
4. Press or to highlight On or Off, and then press OK.
Restore the factory defaults
You can restore the current settings to what they were when you purchased the HP Allin-One.
NOTE: Restoring the factory defaults will not affect any changes you made to scan
settings and the language and country/region settings.
You can perform this process from the control panel only.
To restore the factory defaults
1. Press Setup.
2. Press to highlight Tools, and then press OK.
3. Press to highlight Restore Factory Defaults, and then press OK.
The factory default settings are restored.
16
Finish setting up the HP All-in-One
Play a slideshow on the display
You can set up the HP All-in-One to play a slideshow on the display, similar to a
screensaver on a computer, when you are not using the device.
•
Demo Mode: appears after the HP All-in-One is inactive for one minute and shows
a set of predefined graphics that describe features of the device. The slideshow plays
until you press a button or use the device. If the HP All-in-One remains inactive for
eight hours, the display turns off. Demo Mode is off by default.
NOTE: HP recommends leaving Demo Mode off.
•
Tips Slideshow: appears only after you print from the computer. The HP All-in-One
shows a set of predefined slides with information about special features that you can
do with the device. The slideshow plays through once and then the display returns to
the main menu. Tips Slideshow is on by default.
To turn the demo mode on or off
1. Press Setup.
2. Press to highlight Tools, and then press OK.
3. Press to highlight Demo Mode, and then press OK.
4. Press or to highlight On or Off, and then press OK.
To turn the tips slideshow on or off
1. Press Setup.
2. Press to highlight Tools, and then press OK.
3. Press to highlight Tips Slideshow, and then press OK.
4. Press or to highlight On or Off, and then press OK.
Computer connection information
You can use the HP All-in-One as a stand-alone copier and photo printer, or you can
connect the HP All-in-One to a computer to enable printing and other software features.
This section contains the following topics:
•
•
•
Supported connection types
Connect using Ethernet
Use printer sharing
Supported connection types
Description
Recommended number
of connected
computers for best
performance
Supported software
features
Setup instructions
USB connection
One computer connected
with a USB cable to the
All features are
supported, except
Webscan.
Follow the Setup Guide
for detailed instructions.
Computer connection information
17
Finish setup
There are two types of slideshows that you can enable:
Chapter 4
(continued)
Description
Recommended number
of connected
computers for best
performance
Supported software
features
Setup instructions
rear USB 2.0 High Speed
port on the HP All-in-One.
Finish setup
Ethernet (wired)
connection
Up to five computers
connected to an HP Allin-One using a hub or
router.
All features are
supported, including
Webscan.
Follow the instructions in
“Wired network setup”
on page 19.
Printer sharing
Up to five computers.
All features resident on
the host computer are
supported. Only print is
supported from the other
computers.
Follow the instructions in
“Use printer sharing”
on page 18.
The host computer must
be turned on at all times,
or the other computers
will not be able to print to
the HP All-in-One.
Connect using Ethernet
The HP All-in-One supports both 10 Mbps and 100 Mbps Ethernet network connections.
For detailed instructions on connecting the HP All-in-One to an Ethernet (wired) network,
see “Wired network setup” on page 19.
Use printer sharing
If your computer is on a network, and another computer on the network has an HP Allin-One connected to it by a USB cable, you can print to that printer using printer sharing.
The computer directly connected to the HP All-in-One acts as the host for the printer and
has full software functionality. The other computer, which is referred to as a client, has
access only to the print features. You must perform other functions from the host
computer or from the control panel on the HP All-in-One.
To enable printer sharing on a Windows computer
▲ Refer to the user guide that came with your computer or see the Windows onscreen
Help.
Connect to a network
This section describes how to connect the HP All-in-One to a network and how to view
and manage network settings.
18
If you want to:
See this section:
Connect to a wired (Ethernet) network.
“Wired network setup” on page 19
Install the HP All-in-One software for use in a
networked environment.
“Install the software for a network connection”
on page 21
Add connections to more computers on the
network.
“Connect to additional computers on a
network” on page 22
Finish setting up the HP All-in-One
If you want to:
See this section:
Change the HP All-in-One from a USB
connection to a network connection.
“Change the HP All-in-One from a USB
connection to a network connection”
on page 22
NOTE: Use the instructions in this section if
you first installed the HP All-in-One with a USB
connection, and you now want to change to an
Ethernet network connection.
View or change the network settings.
“Manage your network settings” on page 22
Find definitions of networking terms.
“Network glossary” on page 29
Find troubleshooting information.
“Network troubleshooting” on page 120
Finish setup
(continued)
Wired network setup
This section describes how to connect the HP All-in-One to a router, switch, or hub using
an Ethernet cable and how to install the HP All-in-One software for a network connection.
This is known as a wired or Ethernet network.
To set up the HP All-in-One on a wired
network, you need to do the following:
See this section:
First, collect all of the required materials.
“What you need for a wired network”
on page 19
Next, connect to a wired network.
“Connect the HP All-in-One to the network”
on page 20
Finally, install the software.
“Install the software for a network connection”
on page 21
What you need for a wired network
Before you connect the HP All-in-One to a network, make sure you have all of the required
materials.
Connect to a network
19
Chapter 4
❑ A functional Ethernet network that includes a router, switch, or hub with an Ethernet
port.
❑ CAT-5 Ethernet cable.
Finish setup
Although standard Ethernet cables look similar to standard telephone cables, they
are not interchangeable. There is a different number of wires in each one, and each
has a different connector. An Ethernet cable connector (also called an RJ-45
connector) is wider and thicker and always has 8 contacts on the end. A phone
connector has between 2 and 6 contacts.
❑ A desktop computer or laptop with an Ethernet connection.
NOTE: The HP All-in-One supports both 10 Mbps and 100 Mbps Ethernet
networks. If you are purchasing, or have purchased, a network interface card
(NIC), make sure it can operate at either speed.
Connect the HP All-in-One to the network
To connect the HP All-in-One to the network, use the Ethernet port on the back of the
device.
To connect the HP All-in-One to the network
1. Remove the yellow plug from the back of the HP All-in-One.
2. Connect the Ethernet cable to the Ethernet port on the back of the HP All-in-One.
20
Finish setting up the HP All-in-One
Finish setup
3. Connect the other end of the Ethernet cable to an available port on your Ethernet
router or switch.
4. Once you have connected the HP All-in-One to the network, install the software.
Related topics
“Install the software for a network connection” on page 21
Install the software for a network connection
Use this section to install the HP All-in-One software on a computer connected to a
network. Before you install the software, make sure you have connected the HP All-inOne to a network.
NOTE: If your computer is configured to connect to a series of network drives, make
sure that your computer is currently connected to these drives before installing the
software. Otherwise, HP All-in-One installation software might try to use one of the
reserved drive letters, and you will not be able to access that network drive on your
computer.
NOTE: Installation time can range from 20 to 45 minutes depending on your
operating system, the amount of available space, and the processor speed of your
computer.
To install the Windows HP All-in-One software
1. Quit all applications running on your computer, including any virus detection software.
2. Insert the Windows CD that came with the HP All-in-One into the CD-ROM drive on
your computer and follow the onscreen instructions.
3. If a dialog box about firewalls appears, follow the instructions. If you see firewall popup messages, you must always accept or allow the pop-up messages.
4. On the Connection Type screen, select Through the network, and then click
Next.
The Searching screen appears as the Setup program searches for the HP All-in-One
on the network.
5. On the Printer Found screen, verify that the printer description is correct.
If more than one printer is found on the network, the Printers Found screen appears.
Select the HP All-in-One you want to connect.
6. Follow the prompts to install the software.
When you have finished installing the software, the HP All-in-One is ready for use.
Connect to a network
21
Chapter 4
7. If you disabled any virus detection software on your computer, make sure to enable
it again.
8. To test your network connection, go to your computer and print a self-test report to
the HP All-in-One.
Finish setup
Related topics
• “View and print network settings” on page 23
• “Print a self-test report” on page 95
Connect to additional computers on a network
You can connect the HP All-in-One to more than one computer on a small network of
computers. If the HP All-in-One is already connected to a computer on a network, for
each additional computer you must install the HP All-in-One software. Once you have set
up the HP All-in-One on the network you will not need to configure it again when you add
additional computers.
Related topics
“Install the software for a network connection” on page 21
Change the HP All-in-One from a USB connection to a network connection
If you first install the HP All-in-One with a USB connection, you can later change to an
Ethernet network connection. If you already understand how to connect to a network, you
can use the general directions below.
To change a USB connection to a wired (Ethernet) connection
1. Unplug the USB connection from the back of the HP All-in-One.
2. Connect an Ethernet cable from the Ethernet port on the back of the HP All-in-One
to an available Ethernet port on the router or switch.
3. Install the software for a network connection, choose Add a Device, and then choose
Through the network.
4. When the installation is complete, open Printers and Faxes (or Printers) in the
Control Panel and delete the printers from the previous USB installation.
For more detailed instructions on connecting the HP All-in-One to a network, see:
“Wired network setup” on page 19
Manage your network settings
You can manage network settings for the HP All-in-One through the HP All-in-One control
panel. Additional advanced settings are available in the Embedded Web Server, a
configuration and status tool you access from your Web browser using an existing
network connection to the HP All-in-One.
This section contains the following topics:
•
•
22
Change basic network settings from the control panel
Change advanced network settings from the control panel settings
Finish setting up the HP All-in-One
•
•
Use the Embedded Web Server
Network configuration page definitions
Change basic network settings from the control panel
You can perform a variety of network management tasks from the control panel, such as
printing the network settings and restoring network defaults.
•
•
Finish setup
This section contains the following topics:
View and print network settings
Restore network defaults
View and print network settings
You can display a summary of the network settings on the HP All-in-One control panel,
or you can print a more detailed configuration page. The network configuration page lists
all of the important network settings such as the IP address, link speed, DNS, and mDNS.
To view and print the network settings
1. On the control panel of the HP All-in-One, press Setup.
2. Press until Network is highlighted, and then press OK.
The Network Menu appears.
3. Press until View Network Settings is highlighted, and then press OK.
The View Network Settings Menu appears.
4. Do one of the following:
• To display wired network settings, press until Display Wired Summary is
highlighted, and then press OK.
This displays a summary of the wired (Ethernet) network settings.
• To print the network configuration page, press until Print Network
Configuration Page is highlighted, and then press OK.
This prints the network configuration page.
Related topics
“Network configuration page definitions” on page 26
Restore network defaults
You can reset the network settings to what they were when you purchased the HP All-inOne.
To restore network defaults
1. On the control panel of the HP All-in-One, press Setup.
2. Press until Network is highlighted, and then press OK.
3. Press until Restore Network Defaults is highlighted, and then press OK.
4. Press OK to confirm that you want to restore the network defaults.
Change advanced network settings from the control panel settings
The advanced network settings are provided for your convenience. However, unless you
are an advanced user, you should not change any of these settings.
Connect to a network
23
Chapter 4
This section contains the following topics:
•
•
Set link speed
Change IP settings
Set link speed
You can change the speed at which data is transmitted over the network. The default is
Automatic.
Finish setup
To set link speed
1. Press Setup.
2. Press until Network is highlighted, then press OK.
The Network Menu appears.
3. Press until Advanced Setup is highlighted, and then press OK.
Press until Set Link Speed is highlighted, and then press OK.
4. Press to select the link speed that matches your network hardware, and then press
OK to confirm the setting.
• Automatic
• 10-Full
• 10-Half
• 100-Full
• 100-Half
Change IP settings
The default setting for the IP settings is Automatic, which sets the IP settings
automatically. However, if you are an advanced user, you might want to manually change
the IP address, subnet mask, or the default gateway. To see the IP address and subnet
mask of the HP All-in-One, print a network configuration page from the HP All-in-One.
NOTE: When manually entering an IP Setting, you must already be connected to an
active Network, otherwise the setting will not stay when you exit from the menu.
CAUTION: Be careful when manually assigning an IP address. If you enter an invalid
IP address during the installation, your network components will not be able to connect
with the HP All-in-One.
To change IP settings
1. Press Setup.
2. Press until Network is highlighted, then press OK.
The Network Menu appears.
3. Press until Advanced Setup is highlighted, and then press OK.
4. Press until IP Settings is highlighted, and then press OK.
If the HP All-in-One is already connected to a wired network, you are prompted to
confirm that you want to change the IP settings. Press OK.
5. Press until Manual is highlighted, and then press OK.
24
Finish setting up the HP All-in-One
6. Press to highlight one of the following IP settings, and then press OK.
• IP Address
• Subnet Mask
• Default Gateway
7. Enter your changes, and then press OK to confirm the setting.
Finish setup
Related topics
• “View and print network settings” on page 23
• “Network configuration page definitions” on page 26
Use the Embedded Web Server
If your computer is connected to an HP All-in-One on a network, you can access the
Embedded Web Server that resides in the HP All-in-One. The Embedded Web Server is
a web-based user interface that provides some options not available on the HP All-inOne control panel, including Webscan, a feature that lets you scan photos and documents
from the HP All-in-One to your computer using a Web browser, and advanced network
security options. Also, the Embedded Web Server enables you to monitor status, change
device preferences, and order printer supplies.
NOTE: Use the Embedded Web Server to change network settings not available on
the control panel.
This section contains the following topics:
•
•
Access the Embedded Web Server
Use the Embedded Web Server to modify network settings
Access the Embedded Web Server
The computer you use to access the Embedded Web Server on the HP All-in-One must
be connected to the same network as the HP All-in-One.
To access the Embedded Web Server
1. Print a network configuration page to find the IP address for the HP All-in-One.
2. In the Address box in your Web browser on your computer, type the IP address of
the HP All-in-One, as shown on the network settings page. For example, http://
192.168.1.101.
The Embedded Web Server Information page appears, showing information for the
HP All-in-One.
NOTE: If you are using a proxy server in your browser, you might need to disable
it to access the Embedded Web Server.
3. If you need to change the language displayed in the Embedded Web Server, do the
following:
a. Click the Information tab.
b. Click Language in the navigation menu.
c. In the Language list, click the appropriate language.
d. Click Apply.
Connect to a network
25
Chapter 4
4. Click the Settings tab to access device settings.
5. Make any configuration changes, and then click Apply.
6. Close the Embedded Web Server.
Related topics
“View and print network settings” on page 23
Finish setup
Use the Embedded Web Server to modify network settings
The Embedded Web Server gives you an intuitive interface to your network connection
parameters.
To use the Embedded Web Server to modify network settings
1. Print a network configuration page to find the IP address for the HP All-in-One.
2. In the Address box in your Web browser on your computer, type the IP address of
the HP All-in-One, as shown on the network settings page. For example, http://
192.168.1.101.
The Embedded Web Server Information page appears, showing information for the
HP All-in-One.
NOTE: If you are using a proxy server in your browser, you might need to disable
it to access the Embedded Web Server.
3. Click the Networking tab.
4. Click Wired (802.3) in the navigation menu.
5. Make your changes, and then click Apply.
Related topics
“View and print network settings” on page 23
Network configuration page definitions
The network configuration page shows the network settings for the HP All-in-One. There
are settings for general information and 802.3 wired (Ethernet).
For information on how to print a network configuration page, see “View and print network
settings” on page 23. For additional information on terms used here, see the “Network
glossary” on page 29.
This section contains the following topics:
•
•
26
General network settings
Wired (802.3) network settings
Finish setting up the HP All-in-One
General network settings
The following table describes the general network settings shown on the network
configuration page.
Parameter
Description
Network Status
Status of the HP All-in-One:
Active connection
type
Offline: The HP All-in-One is not currently connected to the network.
Network mode of the HP All-in-One:
•
•
URL
Ready: The HP All-in-One is ready to receive or transmit data.
Finish setup
•
•
Wired: The HP All-in-One is connected by Ethernet cable to an IEEE
802.3 network.
None: There is no network connection.
The IP address of the Embedded Web Server.
NOTE: You will need to know this URL when you try to access the
Embedded Web Server.
Firmware
Revision
The internal networking component and device firmware revision code.
Hostname
The TCP/IP name assigned by the installation software to the device. By
default, this is the letters HP followed by the last 6 digits of the Media Access
Control (MAC) address.
Admin Password
Status of the administrator's password for the Embedded Web Server:
NOTE: If you call HP support, depending on the problem, you might be
asked to provide the firmware revision code.
•
•
mDNS
Set: Password is specified. You must enter the password to make
changes to the Embedded Web Server parameters.
Not Set: No password is set. A password is not required for making
changes to the Embedded Web Server parameters.
Some local and ad hoc networks do not use central DNS servers. They use
a DNS alternative called mDNS.
With mDNS, your computer can find and use any HP All-in-One connected
to your local area network. It can also work with any other Ethernet-enabled
device that appears on the network.
Wired (802.3) network settings
The following table describes the 802.3 wired network settings shown on the network
configuration page.
Parameter
Description
Hardware
Address (MAC)
The Media Access Control (MAC) address that identifies the HP All-in-One.
This is a unique 12-digit identification number assigned to networking
hardware for identification, including routers, switches, and other such
devices. No two pieces of hardware have the same MAC address.
Connect to a network
27
Chapter 4
(continued)
Parameter
Description
NOTE: Some Internet service providers (ISPs) require that you register the
MAC address of the Network Card or LAN Adapter that was connected to
your cable or DSL modem during installation.
IP Address
This address uniquely identifies the device on the network. IP addresses are
assigned dynamically through DHCP or AutoIP. You can also set up a static
IP address, though this is not recommended.
Finish setup
CAUTION: Be careful when manually assigning an IP address. An invalid
IP address during installation will prevent your network components from
seeing the HP All-in-One.
Subnet Mask
A subnet is an IP address assigned by the installation software to make an
additional network available as part of a larger network. Subnets are specified
by a subnet mask. This mask determines which of the HP All-in-One IP
address bits identify the network and subnet, and which bits identify the device
itself.
NOTE: It is recommended that the HP All-in-One and the computers that
use it all reside on the same subnet.
Default Gateway
A node on a network that serves as an entrance to another network. A node
in this instance can be a computer or some other device.
NOTE: The address of the default gateway is assigned by the installation
software, unless you have already set a manual IP address.
Configuration
Source
The protocol used to assign the IP address to the HP All-in-One:
•
•
•
•
DNS server
AutoIP: The installation software automatically determines the
configuration parameters.
DHCP: The configuration parameters are supplied by a dynamic host
configuration protocol (DHCP) server on the network. On small networks,
this could be a router.
Manual: The configuration parameters are set manually, such as a static
IP address.
Not Specified: The mode used when the HP All-in-One is initializing.
The IP address of the domain name service (DNS) for the network. When you
use the web or send an e-mail message, you use a domain name to do it. For
example, the URL http://www.hp.com contains the domain name hp.com. The
DNS on the Internet translates the domain name into an IP address. Devices
use the IP addresses to refer to one another.
•
•
IP Address: The IP address of the domain name server.
Not Specified: The IP address is not specified, or the device is initializing.
NOTE: Check to see if a DNS IP address appears on the network
configuration page. If no address is shown, obtain the DNS IP address from
your Internet service provider (ISP).
28
Link
Configuration
The speed at which data is transmitted over a network. Speeds include 10TXFull, 10TX-Half, 100TX-Full, and 100TX-Half. When set to None, networking
is disabled.
Total Packets
transmitted
The number of packets transmitted by the HP All-in-One without error since
it has been turned on. The counter clears after the HP All-in-One is turned
off. When a message is transmitted over a packet-switching network, it is
Finish setting up the HP All-in-One
(continued)
Parameter
Description
broken up into packets. Each packet contains the destination address as well
as the data.
The number of packets received by the HP All-in-One without error since it
has been turned on. The counter clears after the HP All-in-One is turned off.
Network glossary
access point
A network router that has wireless capability.
ASCII
American Standard Code for Information Interchange. The standard for
numbers used by computers to represent all the uppercase and lowercase
Latin letters, numbers, punctuation, etc.
AutoIP
A feature of the installation software, which determines the configuration
parameters of devices on the network.
DHCP
Dynamic Host Configuration Protocol. A server on the network that supplies
configuration parameters to devices on the network. On small networks, this
could be a router.
DNS
Domain Name Service. When you use the Web or send an e-mail message,
you use a domain name to do it. For example, the URL http://www.hp.com
contains the domain name hp.com. The DNS on the Internet translates the
domain name into an IP address. Devices use the IP addresses to refer to
one another.
DNS-SD
See DNS. The SD portion stands for Service Discovery. This is part of a
protocol developed by Apple that enables automatic discovery of computers,
devices, and services on IP networks.
DSL
Digital Subscriber Line. A high-speed connection to the Internet.
Ethernet
The most common local network technology that connects computers using
copper cabling.
Ethernet cable
The cable used to connect network elements in a wired network. The CAT-5
Ethernet cable is also known as a straight-through cable. When using an
Ethernet cable, the network elements must be attached to a router. An
Ethernet cable uses an RJ-45 connector.
EWS
Embedded Web Server. A browser-based utility that provides a simple way
to manage the HP All-in-One. You can monitor status, configure HP All-inOne networking parameters, or access HP All-in-One features.
Gateway
A computer or other device, such as a router, that serves as an entrance to
the Internet or another network.
HEX
Hexadecimal. The base 16 numbering system, which uses the digits 0-9 plus
the letters A-F.
host computer
The computer at the center of a network.
Hostname
The TCP/IP name assigned by the installation software to the device. By
default, this is the letters HP followed by the last 6 digits of the Media Access
Control (MAC) address.
hub
No longer commonly used in modern home networks, a hub takes its signal
from each computer and sends it to all of the other computers connected to
Connect to a network
29
Finish setup
Total Packets
received
Chapter 4
(continued)
the hub. Hubs are passive; other devices on the network plug into the hub in
order to communicate with one another. A hub does not manage the network.
Finish setup
30
IP address
A number that uniquely identifies the device on the network. IP addresses
are assigned dynamically through DHCP or AutoIP. You can also set up a
static IP address, though this is not recommended.
MAC address
Media Access Control (MAC) address that uniquely identifies the HP All-inOne. This is a unique 12-digit identification number assigned to networking
hardware for identification. No two pieces of hardware have the same MAC
address.
network name
The SSID or network name identifies a wireless network.
NIC
Network Interface Card. A card on your computer that provides an Ethernet
connection so that you can connect your computer to a network.
RJ-45 connector
The connector on the ends of an Ethernet cable. Although standard Ethernet
cable connectors (RJ-45 connectors) look similar to standard telephone
cable connectors, they are not interchangeable. An RJ-45 connector is wider
and thicker and always has 8 contacts on the end. A phone connector has
between 2 and 6 contacts.
router
A router provides a bridge between two or more networks. A router can link
a network to the Internet, link two networks and connect both to the Internet,
and help secure networks through the use of firewalls and assigning dynamic
addresses. A router can also act as a gateway, while a switch cannot.
SSID
The SSID or network name identifies a wireless network.
switch
A switch makes it possible for several users to send information over a
network at the same time without slowing each other down. Switches allow
different nodes (a network connection point, typically a computer) of a
network to communicate directly with one another.
WEP
Wired Equivalent Privacy (WEP) is a type of encryption used for wireless
network security.
WPA
Wi-Fi Protected Access (WPA) is a type of encryption used for wireless
network security. WPA offers greater security than WEP.
Finish setting up the HP All-in-One
How do I?
This section contains links to commonly performed tasks, such as printing photos,
scanning, and making copies.
•
•
•
•
•
•
•
•
•
“How do I print 10 x 15 cm (4 x 6) inch borderless photos from a memory card?”
on page 67
“How do I make reprints of a photo in a variety of sizes?” on page 79
“How do I make a black-and-white or color copy of a document?” on page 85
“How do I print 13 x 18 cm (5 x 7) inch or larger size photos from a memory card?”
on page 67
“How do I save photos to my computer?” on page 71
“How do I share my photos with family and friends?” on page 70
“How do I scan a photo or document to the computer?” on page 80
“How do I print on both sides of the paper?” on page 55
“How do I print wide-rule notebook paper and graph paper for my child's homework
project?” on page 96
How do I?
5
How do I?
31
Chapter 5
How do I?
32
How do I?
6
Load originals and load paper
You can load many different types and sizes of paper in the HP All-in-One, including letter
or A4 paper, legal paper, photo paper, transparencies, envelopes, and HP CD/DVD tattoo
labels. By default, the HP All-in-One is set to detect the size and type of paper you load
in the input tray automatically and then adjust its settings to generate the highest quality
output for that paper.
If you are using special papers, such as photo paper, transparency film, envelopes, or
labels, or if you experience poor print quality using the automatically-adjusted settings,
you can manually set the paper size and type for print and copy jobs.
This section contains the following topics:
•
•
•
•
Load originals
Choose papers for printing and copying
Load paper
Avoid paper jams
Load originals
To load an original on the glass
1. Lift the lid on the HP All-in-One.
2. Load your original print side down on the right front corner of the glass.
TIP: For more help on loading an original, refer to the engraved guides along the
edge of the glass.
3. Close the lid.
Load originals and load paper
33
Load originals and load paper
You can copy or scan up to letter- or A4-size originals by loading them on the glass.
Chapter 6
Choose papers for printing and copying
You can use different types and sizes of paper in the HP All-in-One. Review the following
recommendations to get the best printing and copying quality. Whenever you change
paper types or sizes, remember to change those settings.
This section contains the following topics:
•
•
•
Recommended papers for printing and copying
Recommended papers for printing only
Papers to avoid
Recommended papers for printing and copying
If you want the best print quality, HP recommends using HP papers that are specifically
designed for the type of project you are printing. If you are printing photos, for example,
load HP Premium or HP Premium Plus photo paper in the input tray.
HP Premium Plus Photo Paper
HP Premium Plus Photo Papers are the best HP photo paper, with image quality and
fade resistance superior to store-processed photos. They are ideal for printing your highresolution images for framing or including in a photo album. These papers are available
in several sizes, including 10 x 15 cm (4 x 6 inch) (with or without tabs), A4, and 8.5 x 11
inch sizes for printing or copying photos from the HP All-in-One.
Load originals and load paper
HP Premium Photo Paper
HP Premium Photo Papers are high-quality, glossy-finish or soft gloss-finish photo
papers. They look and feel like store-processed photos and can be mounted under glass
or in an album. These papers are available in several sizes, including 10 x 15 cm (4 x 6
inch) (with or without tabs), A4, and 8.5 x 11 inch sizes for printing or copying photos from
the HP All-in-One.
HP Advanced Photo Paper or HP Photo Paper
HP Advanced Photo Paper or HP Photo Paper is a sturdy, glossy photo paper that
features an instant-dry finish for easy handling without smudging. It resists water, smears,
fingerprints, and humidity. Your prints have a look and feel comparable to a storeprocessed photo. It is available in several sizes, including A4, 8.5 x 11 inch, and 10 x 15
cm (4 x 6 inch) (with or without tabs) for printing or copying photos from the HP All-inOne. HP Advanced Photo Paper is marked on the nonprinting corners with the following
symbol.
HP Premium Inkjet Transparency Film and HP Premium Plus Inkjet Transparency
Film
HP Premium Inkjet Transparency Film and HP Premium Plus Inkjet Transparency Film
make your color presentations vivid and even more impressive. This film is easy to use
and handle and dries quickly without smudging.
34
Load originals and load paper
HP Premium Inkjet Paper
HP Premium Inkjet Paper is the ultimate coated paper for high-resolution usage. A
smooth, matte finish makes it ideal for your highest-quality documents.
HP Bright White Inkjet Paper
HP Bright White Inkjet Paper delivers high-contrast colors and sharp text. It is opaque
enough for two-sided color usage with no show-through, which makes it ideal for
newsletters, reports, and flyers.
HP All-in-One Paper or HP Printing Paper
• HP All-in-One Paper is specifically designed for HP All-in-One devices. It has an extra
bright blue-white shade that produces sharper text and richer colors than ordinary
multifunction papers.
• HP Printing Paper is a high-quality multifunction paper. It produces documents that
look and feel more substantial than documents printed on standard multipurpose or
copy paper.
To order genuine HP supplies for the HP All-in-One, go to www.hp.com/buy/supplies. If
prompted, choose your country/region, follow the prompts to select your product, and
then click one of the shopping links on the page.
Recommended papers for printing only
If you want the best print quality, HP recommends using HP papers. Using paper that is
too thin or too thick, paper that has a slick texture, or paper that stretches easily can cause
paper jams. Using paper that has a heavy texture or does not accept ink can cause printed
images to smear, bleed, or not fill in completely.
Depending on your country/region, some of these papers might not be available.
HP Iron-On Transfers
HP Iron-On Transfers (for color fabrics or for light or white fabrics) are the ideal solution
for creating custom T-shirts from your digital photos.
HP Premium Photo Cards
HP Premium Photo Cards enable you to make your own greeting cards.
HP Brochure & Flyer Paper
HP Brochure & Flyer Paper (Gloss or Matte) is glossy-coated or matte-coated on both
sides for two-sided use. They are the perfect choice for near-photographic reproductions
and business graphics for report covers, special presentations, brochures, mailers, and
calendars.
HP Premium Presentation Paper
HP Premium Presentation Paper gives your presentation a quality look and feel.
Choose papers for printing and copying
35
Load originals and load paper
Certain papers are supported only when you start the print job from your computer. The
following list provides information about these papers.
Chapter 6
HP CD/DVD Tattoos
HP CD/DVD Tattoos allow you to personalize your CDs and DVDs by printing highquality, low-cost CD or DVD labels.
To order genuine HP supplies for the HP All-in-One, go to www.hp.com/buy/supplies. If
prompted, choose your country/region, follow the prompts to select your product, and
then click one of the shopping links on the page.
Papers to avoid
Using paper that is too thin or too thick, paper that has a slick texture, or paper that
stretches easily can cause paper jams. Using paper that has a heavy texture or does not
accept ink can cause printed images to smear, bleed, or not fill in completely.
Papers to avoid for all print and copy jobs
• Any size paper other than those listed in the HP All-in-One printer software.
• Paper with cutouts or perforations (unless specifically designed for use with HP inkjet
devices).
• Highly textured stock, such as linen. It might not print evenly, and the ink can bleed
into these papers.
• Extremely smooth, shiny, or coated papers not specifically designed for the HP Allin-One. They can jam the HP All-in-One or repel the ink.
• Multi-part forms, such as duplicate and triplicate forms. They can wrinkle or get stuck,
and the ink is more likely to smear.
• Envelopes with clasps or windows. They can get stuck in the rollers and cause paper
jams.
• Banner paper.
Load originals and load paper
Additional papers to avoid when copying
• Envelopes.
• Transparency film other than HP Premium Inkjet Transparency Film or HP Premium
Plus Inkjet Transparency Film.
• Iron-On Transfers.
• Greeting card paper.
• Inkjet labels.
• HP CD/DVD tattoo labels.
Load paper
This section describes the procedure for loading different types and sizes of paper into
the HP All-in-One for your copies or printouts.
TIP: To help prevent rips, wrinkles, and curled or bent edges, store all paper flat in
a resealable bag. If the paper is not stored properly, extreme changes in temperature
and humidity might result in curled paper that does not work well in the HP All-in-One.
36
Load originals and load paper
This section contains the following topics:
•
•
•
•
•
Load full-size paper
Load 10 x 15 cm (4 x 6 inch) photo paper
Load postcards, Hagaki, or index cards
Load envelopes
Load other types of paper
Load full-size paper
You can load many types of letter, A4, or legal paper into the main input tray of the HP Allin-One.
2. Tap a stack of paper on a flat surface to align the edges, and then check the paper
for the following:
• Make sure it is free of rips, dust, wrinkles, and curled or bent edges.
• Make sure all the paper in the stack is the same size and type.
3. Insert the stack of paper into the main input tray with the short edge forward and the
print side down. Slide the stack of paper forward until it stops.
TIP: If you are using letterhead, insert the top of the page first with the print side
down. For more help on loading full-size paper and letterhead, refer to the diagram
engraved in the base of the input tray.
Load paper
37
Load originals and load paper
To load full-size paper
1. Pull out the main input tray, and then slide the paper-width and paper-length guides
to their outermost positions.
Chapter 6
4. Slide the paper-width and paper-length guides inward until they stop at the edges of
the paper.
Do not overload the main input tray; make sure the stack of paper fits within the input
tray and is no higher than the top of the paper-width guide.
5. Push the main input tray back into the HP All-in-One.
6. Pull the output tray extender toward you, as far as it will go. Flip the paper catch at
the end of the output tray extender to open the extender the rest of the way.
NOTE: When you use legal-size paper, leave the tray extender closed.
Load originals and load paper
Related topics
• “Recommended papers for printing and copying” on page 34
• “Change the print settings for the current job” on page 46
Load 10 x 15 cm (4 x 6 inch) photo paper
You can load up to 10 x 15 cm (4 x 6 inch) photo paper into the photo tray of the HP Allin-One. For the best results, use 10 x 15 cm (4 x 6 inch) HP Premium Plus Photo
Paper or HP Premium Photo Paper.
To load 10 x 15 cm (4 x 6 inch) photo paper in the photo tray
1. Raise the output tray, and then pull out the photo tray.
NOTE: You can also remove the entire photo tray assembly to load photo paper
into the photo tray.
38
Load originals and load paper
2. Insert the stack of photo paper into the photo tray with the short edge forward and the
print side down. Slide the stack of photo paper forward until it stops.
If the photo paper you are using has perforated tabs, load the photo paper so that the
tabs are closest to you.
3. Slide the paper-length and paper-width guides inward against the stack of photo
paper until the guides stop.
Do not overload the photo tray; make sure the stack of photo paper fits within the
photo tray and is no higher than the top of the paper-width guide.
4. Push in the photo tray, and then lower the output tray.
Load originals and load paper
Related topics
• “Recommended papers for printing only” on page 35
• “Print your photos” on page 67
• “Print a borderless image” on page 53
• “Print a photo on photo paper” on page 53
Load postcards, Hagaki, or index cards
You can load postcards, Hagaki, and index cards in the photo tray.
To load postcards, Hagaki, or index cards in the photo tray
1. Raise the output tray, and then pull out the photo tray.
NOTE: You can also remove the entire photo tray assembly to load cards into
the photo tray.
Load paper
39
Chapter 6
2. Insert the stack of cards into the photo tray with the short edge forward and the print
side down. Slide the stack forward until it stops.
3. Slide the paper-length and paper-width guides inward against the stack of cards until
the guides stop.
Do not overload the photo tray; make sure the stack of cards fits within the photo tray
and is no higher than the top of the paper-width guide.
4. Push in the photo tray, and then lower the output tray.
Load originals and load paper
Related topics
• “Change the print settings for the current job” on page 46
• “Set the copy paper size” on page 86
Load envelopes
You can load one or more envelopes into the main input tray of the HP All-in-One. Do not
use shiny or embossed envelopes or envelopes that have clasps or windows.
NOTE: For specific details on how to format text for printing on envelopes, consult
the help files in your word processing software. For best results, consider using a label
for the return address on envelopes.
40
Load originals and load paper
To load envelopes
1. Pull out the main input tray, and then slide the paper-width and paper-length guides
to their outermost positions.
4. Slide the paper-width guide inward against the stack of envelopes until it stops.
Do not overload the main input tray; make sure the stack of envelopes fits within the
main input tray and is not higher than the top of the paper-width guide.
5. Push the main input tray back into the HP All-in-One.
6. Pull the output tray extender toward you, as far as it will go.
NOTE: When you use legal-size paper, leave the tray extender closed.
Related topics
“Change the print settings for the current job” on page 46
Load paper
41
Load originals and load paper
2. Remove all paper from the main input tray.
3. Insert one or more envelopes into the far-right side of the main input tray with the
envelope flaps up and on the left. Slide the stack of envelopes forward until it stops.
Chapter 6
Load other types of paper
The following types of paper are designed for special projects. Create your project in the
HP Photosmart Software or another application, set the paper type and size, and then
print.
HP Premium Inkjet Transparency Film and HP Premium Plus Inkjet Transparency
Film
▲ Insert the film so that the white transparency strip (with arrows and the HP logo) is on
top and is going into the input tray first.
NOTE: For best results, set the paper type to transparency film before printing
on transparency film.
HP Iron-On Transfers
1. Flatten the transfer sheet completely before using it; do not load curled sheets.
TIP: To prevent curling, keep transfer sheets sealed in the original package until
you are ready to use them.
2. Locate the blue stripe on the nonprinting side of the transfer paper and then manually
feed one sheet at a time into the input tray with the blue stripe facing up.
HP Greeting Cards, HP Photo Greeting Cards, or HP Textured Greeting Cards
▲ Insert a small stack of HP greeting card paper into the input tray with the print side
down; slide the stack of cards forward until it stops.
Load originals and load paper
TIP: Make sure the area on which you want to print is inserted first, print side
down in the input tray.
Inkjet labels
1. Always use letter or A4 label sheets designed for use with inkjet devices, and make
sure that the labels are no more than two years old. Labels on older sheets might
peel off when the paper is pulled through the HP All-in-One, causing subsequent
paper jams.
2. Fan the stack of labels to make sure none of the pages are sticking together.
3. Place a stack of label sheets on top of full-size plain paper in the input tray, label side
down. Do not insert labels one sheet at a time.
For best results, set the paper type and paper size before printing.
HP CD/DVD Tattoo labels
▲ Place one sheet of CD/DVD tattoo paper in the input tray with the print side down;
slide the CD/DVD tattoo paper forward until it stops.
NOTE: When you use CD/DVD tattoo labels, leave the tray extender closed.
42
Load originals and load paper
Related topics
• “Change the print settings for the current job” on page 46
• “Recommended papers for printing only” on page 35
Avoid paper jams
To help avoid paper jams, follow these guidelines.
•
•
•
•
•
•
•
•
Remove printed papers from the output tray frequently.
Prevent curled or wrinkled paper by storing all unused paper flat in a resealable bag.
Ensure that paper loaded in the input tray lays flat and the edges are not bent or torn.
If you are printing labels, ensure that the label sheets are no more than two years old.
Labels on older sheets might peel off when the paper is pulled through the HP All-inOne, and cause paper jams.
Do not combine different paper types and paper sizes in the input tray; the entire stack
of paper in the input tray must be the same size and type.
Adjust the paper-width guide in the input tray to fit snugly against all paper. Make sure
the paper-width guide does not bend the paper in the input tray.
Do not force paper too far forward in the input tray.
Use paper types that are recommended for the HP All-in-One.
Load originals and load paper
Related topics
• “Recommended papers for printing and copying” on page 34
• “Papers to avoid” on page 36
• “Clear paper jams” on page 111
Avoid paper jams
43
Chapter 6
Load originals and load paper
44
Load originals and load paper
7
Print from your computer
The HP All-in-One can be used with any software application that allows printing. You
can print a range of projects, such as borderless images, newsletters, greeting cards,
iron-on transfers, and posters.
You can also automatically print on both sides of the page using the Two-sided printing
accessory included with the HP All-in-One to print brochures and booklets, or just save
paper.
This section contains the following topics:
•
•
•
•
•
•
•
Print from a software application
Make the HP All-in-One the default printer
Change the print settings for the current job
Change the default print settings
Printing shortcuts
Perform special print jobs
Stop a print job
Print from a software application
Most print settings are automatically handled by the software application. You need to
change the settings manually only when you change print quality, print on specific types
of paper or transparency film, or use special features.
To print from a software application
1. Make sure you have paper loaded in the input tray.
2. On the File menu in your software application, click Print.
3. Select the HP All-in-One as the printer.
If you set the HP All-in-One as the default printer, you can skip this step. The HP Allin-One will already be selected.
4. If you need to change settings, click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
Print
NOTE: When printing a photo, you must select options for the specific photo
paper and photo enhancement.
Print from your computer
45
Chapter 7
5. Select the appropriate options for your print job by using the features available in the
Advanced, Printing Shortcuts, Features, and Color tabs.
TIP: You can easily select the appropriate options for your print job by choosing
one of the predefined print tasks on the Printing Shortcuts tab. Click a type of
print task in the Printing Shortcuts list. The default settings for that type of print
task are set and summarized on the Printing Shortcuts tab. If necessary, you
can adjust the settings here and save your custom settings as a new printing
shortcut. To save a custom printing shortcut, select the shortcut and click Save
As. To delete a shortcut, select the shortcut and click Delete.
6. Click OK to close the Properties dialog box.
7. Click Print or OK to begin printing.
Make the HP All-in-One the default printer
You can set the HP All-in-One as the default printer to use from all software applications.
This means that the HP All-in-One is automatically selected in the printer list when you
select Print from the File menu in a software application. The default printer is
automatically selected when you click the Print button in the toolbar of most software
applications. For more information, see the Windows Help.
Change the print settings for the current job
You can customize the print settings of the HP All-in-One to handle nearly any print task.
This section contains the following topics:
•
•
•
•
•
•
•
•
Set the paper size
Set the paper type for printing
View the print resolution
Change the print speed or quality
Change the page orientation
Scale the document size
Change the saturation, brightness, or color tone
Preview your print job
Set the paper size
The Size setting helps the HP All-in-One determine the printable area on the page. Some
of the paper size choices have a borderless equivalent, which allows you to print to the
top, bottom, and side edges of the paper.
Usually, you set the paper size in the software application you used to create your
document or project. However, if you are using custom-size paper, or if you cannot set
the paper size from your software application, you can change the paper size in the
Properties dialog box before printing.
Print
46
Print from your computer
To set the paper size
1. Make sure you have paper loaded in the input tray.
2. On the File menu in your software application, click Print.
3. Make sure the HP All-in-One is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Features tab.
6. In the Resizing Options area, from the Size drop-down list, select More.
7. Select the appropriate paper size, and then click OK.
The following table lists the suggested paper size settings for the different types of
paper you can load in the input tray. Make sure to look at the long list of choices in
the Size list to see if a defined paper size already exists for the type of paper you are
using.
Paper type
Suggested paper size settings
CD/DVD tattoo paper
5 x 7 in.
Copier, multi-purpose, or
plain papers
Letter or A4
Envelopes
Appropriate listed envelope size
Greeting-card papers
Letter or A4
Index cards
Appropriate listed card size (if listed sizes are not appropriate,
you can specify a custom paper size)
Inkjet papers
Letter or A4
Iron-on T-shirt transfers
Letter or A4
Labels
Letter or A4
Legal
Legal
Letterhead
Letter or A4
Panorama photo paper
Appropriate listed panorama size (if listed sizes are not
appropriate, you can specify a custom paper size)
Photo papers
10 x 15 cm. (with or without tab), 4 x 6 in. (with or without tab),
letter, A4, or appropriate listed size
Transparency films
Letter or A4
Custom-size papers
Custom paper size
Set the paper type for printing
Print
If you print on special papers, such as photo paper, transparency film, envelopes, or
labels, or if you experience poor print quality, you can set the paper type manually.
Change the print settings for the current job
47
Chapter 7
To set the paper type for printing
1. Make sure you have paper loaded in the input tray.
2. On the File menu in your software application, click Print.
3. Make sure the HP All-in-One is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Features tab.
6. In the Basic Options area, from the Paper Type drop-down list, select More.
7. Select the type of paper that you have loaded, and then click OK.
View the print resolution
The printer software displays the print resolution in dots per inch (dpi). The dpi varies
according to the paper type and print quality that you select in the printer software.
To view the print resolution
1. Make sure you have paper loaded in the input tray.
2. On the File menu in your software application, click Print.
3. Make sure the HP All-in-One is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Features tab.
6. In the Print Quality drop-down list, select the appropriate print quality setting for your
project.
7. In the Paper Type drop-down list, select the type of paper that you have loaded.
8. Click the Resolution button to view the print resolution dpi.
Change the print speed or quality
The HP All-in-One automatically chooses a print quality and speed setting depending on
the paper type setting you select. You can also change the print quality setting to
customize the speed and quality of the print process.
To select a print speed or quality
1. Make sure you have paper loaded in the input tray.
2. On the File menu in your software application, click Print.
3. Make sure the HP All-in-One is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Features tab.
Print
48
Print from your computer
6. In the Print Quality drop-down list, select the appropriate quality setting for your
project.
NOTE: To view the maximum dpi that the HP All-in-One will print, click
Resolution.
7. In the Paper Type drop-down list, select the type of paper that you have loaded.
Change the page orientation
The page orientation setting allows you to print your document vertically or horizontally
on the page.
Usually, you set the page orientation in the software application you used to create your
document or project. However, if you are using custom-size or special HP paper, or if you
cannot set the page orientation from your software application, you can change the page
orientation in the Properties dialog box before printing.
To change the page orientation
1. Make sure you have paper loaded in the input tray.
2. On the File menu in your software application, click Print.
3. Make sure the HP All-in-One is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Features tab.
6. In the Basic Options area, click one of the following:
• Click Portrait to print the document vertically on the page.
• Click Landscape to print the document horizontally on the page.
Scale the document size
The HP All-in-One allows you to print the document at a different size than the original.
To scale the document size
1. Make sure you have paper loaded in the input tray.
2. On the File menu in your software application, click Print.
3. Make sure the HP All-in-One is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Features tab.
6. In the Resizing options area, click Scale to paper size, and then click the
appropriate paper size from the drop-down list.
Change the saturation, brightness, or color tone
Print
You can change the intensity of colors and the level of darkness in your printout by
adjusting the Saturation, Brightness, or Color Tone options.
Change the print settings for the current job
49
Chapter 7
To change the saturation, brightness, or color tone
1. Make sure you have paper loaded in the input tray.
2. On the File menu in your software application, click Print.
3. Make sure the HP All-in-One is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Color tab.
6. Click the Advanced Color Settings button.
7. Move the sliders to adjust the Saturation, Brightness, or Color Tone.
• Brightness indicates the lightness or darkness of the printed document.
• Saturation is the relative purity of printed colors.
• Color Tone affects the perceived warmth or coolness of printed colors, by adding
more orange or blue tones, respectively, to your image.
Preview your print job
You can preview your print job before sending it to the HP All-in-One. This helps to prevent
wasting paper and ink on projects that do not print as expected.
To preview your print job
1. Make sure you have paper loaded in the input tray.
2. On the File menu in your software application, click Print.
3. Make sure the HP All-in-One is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Select the print settings appropriate for your project on each of the tabs in the dialog
box.
6. Click the Features tab.
7. Select the Show Preview Before Printing check box.
8. Click OK, and then click Print or OK in the Print dialog box.
Your print job displays in the preview window.
9. In the HP preview window, do one of the following:
• To print, click Start Printing.
• To cancel, click Cancel Printing.
Change the default print settings
If there are settings that you frequently use for printing, you might want to make them the
default print settings so they are already set when you open the Print dialog box from
within your software application.
Print
50
Print from your computer
To change the default print settings
1. In the HP Solution Center, click Settings, point to Print Settings, and then click
Printer Settings.
2. Make changes to the print settings, and click OK.
Printing shortcuts
Use printing shortcuts to print with print settings that you use often. The printer software
has several specially designed printing shortcuts that are available in the Printing
Shortcuts list.
NOTE: When you select a printing shortcut the appropriate printing options are
automatically displayed. You can leave them as is, change them, or create your own
shortcuts for commonly used tasks.
Use the Printing Shortcuts tab for the following print tasks:
•
•
•
•
•
•
General Everyday Printing: Print documents quickly.
Photo Printing–Borderless: Print to the top, bottom, and side edges of 10 x 15 cm
(4 x 6 inch) HP Photo Papers with or without a tear-off tab.
Photo Printing–With White Borders: Print a photo with a white border around the
edges.
Fast/Economical printing: Produce draft-quality printouts quickly.
Presentation printing: Print high-quality documents, including letters and
transparencies.
Two-sided (Duplex) Printing: Print two-sided pages with the HP All-in-One.
This section contains the following topics:
•
•
Create printing shortcuts
Delete printing shortcuts
Related topics
• “Print a borderless image” on page 53
• “Print a photo on photo paper” on page 53
• “Print on transparencies” on page 59
• “Print on both sides of the page” on page 55
Create printing shortcuts
In addition to the printing shortcuts that are available in the Printing Shortcuts list, you
can create your own printing shortcuts.
Print
If you frequently print on transparency film, for example, you can create a printing shortcut
by selecting the Presentation Printing shortcut, changing the paper type to HP Premium
Inkjet Transparency Film, and then saving the modified shortcut under a new name; for
example, Transparency Presentations. After creating the printing shortcut, simply
select it when printing on transparency film rather than changing the print settings each
time.
Printing shortcuts
51
Chapter 7
To create a printing shortcut
1. On the File menu in your software application, click Print.
2. Make sure the HP All-in-One is the selected printer.
3. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
4. Click the Printing Shortcuts tab.
5. In the Printing Shortcuts list, click a printing shortcut.
The print settings for the selected printing shortcut are displayed.
6. Change the print settings to those you want in the new printing shortcut.
7. Click Save as and type a name for the new printing shortcut, and then click Save.
The printing shortcut is added to the list.
Delete printing shortcuts
You might want to delete printing shortcuts that you no longer use.
To delete a printing shortcut
1. On the File menu in your software application, click Print.
2. Make sure the HP All-in-One is the selected printer.
3. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
4. Click the Printing Shortcuts tab.
5. In the Printing Shortcuts list, click the printing shortcut that you want to delete.
6. Click Delete.
The printing shortcut is removed from the list.
NOTE: Only the shortcuts that you have created can be deleted. The original HP
shortcuts cannot be deleted.
Perform special print jobs
In addition to supporting standard print jobs, the HP All-in-One can perform special jobs
such as printing borderless images, iron-on transfers, and posters.
This section contains the following topics:
•
•
•
•
•
•
•
•
•
Print a borderless image
Print a photo on photo paper
Print custom CD/DVD labels
Print using Maximum dpi
Print on both sides of the page
Print a multiple-page document as a booklet
Print multiple pages on a single sheet
Print a multiple-page document in reverse order
Reverse an image for iron-on transfers
Print
52
Print from your computer
•
•
•
•
Print on transparencies
Print a group of addresses on labels or envelopes
Print a poster
Print a Web page
Print a borderless image
Borderless printing lets you print to the top, bottom, and side edges of 10 x 15 cm (4 x 6
inch) photo paper.
TIP: For the best results, use HP Premium Photo Papers or HP Premium Plus Photo
Papers to print your photos.
To print a borderless image
1. Load up to 10 x 15 cm (4 x 6 inch) paper in the photo tray.
2. On the File menu in your software application, click Print.
3. Make sure the HP All-in-One is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Features tab.
6. In the Size list, click More, and then select the size of photo paper loaded in the photo
tray.
If a borderless image can be printed on the specified size, the Borderless printing
check box is enabled.
7. In the Paper Type drop-down list, click More, and then select the appropriate paper
type.
NOTE: You cannot print a borderless image if the paper type is set to Plain
paper or to a type of paper other than a photo paper.
8. Select the Borderless check box if it is not already checked.
If the borderless paper size and paper type are not compatible, the HP All-in-One
software displays an alert and allows you to select a different type or size.
9. Click OK, and then click Print or OK in the Print dialog box.
Print a photo on photo paper
For high-quality photo printing, HP recommends you use HP Premium Plus Photo
Papers with the HP All-in-One.
Print
To print a photo on photo paper
1. Load up to 10 x 15 cm (4 x 6 inch) paper in the photo tray or full-size photo paper in
the main input tray.
2. On the File menu in your software application, click Print.
3. Make sure the HP All-in-One is the selected printer.
Perform special print jobs
53
Chapter 7
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Features tab.
6. In the Basic Options area, from the Paper Type drop-down list, select More. Then,
select the appropriate photo paper type.
7. In the Resizing Options area, from the Size drop-down list, select More. Then, select
the appropriate paper size.
If the paper size and paper type are not compatible, the HP All-in-One software
displays an alert and allows you to select a different type or size.
8. In the Basic Options area, select a high print quality, such as Best or Maximum
dpi from the Print Quality drop-down list.
9. In the HP Real Life Technologies (RTL) area, click the Photo fix drop-down list and
select from the following options:
• Off: applies no HP Real Life technologies to the image.
• Basic: automatically focuses the image; moderately adjusts image sharpness.
• Full: automatically lightens dark images; automatically adjusts sharpness,
contrast, and focus of images; automatically removes red-eye.
10. Click OK to return to the Properties dialog box.
11. If you want to print the photo in black and white, click the Color tab and select the
Print in grayscale check box.
12. Click OK, and then click Print or OK in the Print dialog box.
NOTE: Do not leave unused photo paper in the input tray. The paper might start to
curl, which could reduce the quality of your printout. Photo paper should be flat before
printing.
Print custom CD/DVD labels
You can use the HP Photosmart Software or online templates from the HP Web site to
create and print a custom label on CD/DVD tattoo paper. You can affix the printed CD/
DVD tattoo to any CD/DVD.
To print a CD/DVD tattoo
1. Use the HP Photosmart Software, or go to www.hp.com to access templates for
creating CD/DVD labels.
2. Load 13 x 18 cm (5 x 7 inch) CD/DVD tattoo paper in the main input tray.
3. On the File menu in your software application, click Print.
4. Make sure the HP All-in-One is the selected printer.
5. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
6. Click the Features tab.
7. In the Paper Type drop-down list, click More, and then select HP CD/DVD tattoo
paper from the list.
8. Click OK, and then click Print or OK in the Print dialog box.
Print
54
Print from your computer
Print using Maximum dpi
Use Maximum dpi mode to print high-quality, sharp images.
To get the most benefit from Maximum dpi mode, use it to print high-quality images such
as digital photographs. When you select the Maximum dpi setting, the printer software
displays the optimized dots per inch (dpi) that the HP All-in-One will print.
Printing in Maximum dpi takes longer than printing with other settings and requires a
large amount of disk space.
To print in Maximum dpi mode
1. Load up to 10 x 15 cm (4 x 6 inch) paper in the photo tray or full-size photo paper in
the main input tray.
2. On the File menu in your software application, click Print.
3. Make sure the HP All-in-One is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Features tab.
6. In the Paper Type drop-down list, click More, and then select the appropriate paper
type.
7. In the Print Quality drop-down list, click Maximum dpi.
NOTE: To view the maximum dpi that the HP All-in-One will print, click
Resolution.
8. Select any other print settings that you want, and then click OK.
Print on both sides of the page
You can print on both sides of the page using the Two-sided printing accessory included
with the HP All-in-One to print brochures and booklets, or just save paper.
When printing two-sided pages, make sure to use paper that is thick enough so that
images do not show through to the other side. HP recommends using high-quality paper
such as HP Bright White Inkjet Paper or HP Brochure & Flyer Paper.
Print
To print on both sides of the page
1. Load paper into the input tray.
2. On the File menu in your software application, click Print.
3. Make sure the HP All-in-One is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Features tab.
6. In the Paper saving options area, from the Two-sided printing drop-down list,
select either On or Automatic depending on your software.
7. Click OK, and then click Print or OK in the Print dialog box.
Perform special print jobs
55
Chapter 7
Print a multiple-page document as a booklet
The HP All-in-One allows you to print your document as a small booklet, which you can
fold and then staple together.
For best results, design your document to fit on a multiple of four pages, such as an 8,
12, or 16-page program for a child's school play or for a wedding.
To print a multiple-page document as a booklet
1. Load paper into the input tray.
The paper should be thick enough so that the images do not show through to the
other side.
2. On the File menu in your software application, click Print.
3. Make sure the HP All-in-One is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Features tab.
6. In the Paper saving options area, from the Two-sided printing drop-down list,
select either On or Automatic depending on your software.
7. Select the binding edge from the Booklet layout list, as appropriate for your
language.
• If your language reads left-to-right, click Left edge binding.
• If your language reads right-to-left, click Right edge binding.
The Pages per sheet box is automatically set to two pages per sheet.
8. Click OK, and then click Print or OK in the Print dialog box.
The HP All-in-One begins printing.
9. Wait until the HP All-in-One has stopped printing for several seconds before removing
any of the printed pages from the output tray.
If you remove the pages while the document is still printing, the pages might get out
of order.
10. When the entire document has finished printing, fold the stack of paper in half, so that
the first page is on top, then staple the document along the crease.
TIP: For best results, use a saddle stapler, or a heavy-duty stapler with a long
reach to staple the booklet.
Print
56
Print from your computer
11 9
7
1
5
3
Figure 7-1 Left-edge binding for left-to-right languages
7
9 11
5
3
1
Figure 7-2 Right-edge binding for right-to-left languages
Print multiple pages on a single sheet
You can print up to 16 pages on a single sheet of paper.
Print
To print multiple pages on a single sheet
1. Make sure you have paper loaded in the input tray.
2. On the File menu in your software application, click Print.
3. Make sure the HP All-in-One is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Features tab.
6. In the Pages per sheet list, click 2, 4, 6, 8, 9, or 16.
7. If you want a border to appear around each page image printed on the sheet of paper,
select the Print page borders check box.
Perform special print jobs
57
Chapter 7
8. In the Page order list, click an appropriate page order option.
The sample output graphic is numbered to show how the pages will be ordered if you
select each option.
9. Click OK, and then click Print or OK in the Print dialog box.
Print a multiple-page document in reverse order
Because of the way the paper feeds through the HP All-in-One, the first page that prints
is print side up at the bottom of the stack. Usually this means you need to put the printed
pages in the correct order.
5
4
3
2
1
A better way is to print the document in reverse order so that the pages are stacked
correctly.
1
2
3
4
5
TIP: Set this option as a default setting so you do not have to remember to set it
every time you print a multiple-page document.
To print a multiple-page document in reverse order
1. Make sure you have paper loaded in the input tray.
2. On the File menu in your software application, click Print.
3. Make sure the HP All-in-One is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Advanced tab.
Print
58
Print from your computer
6. In the Layout Options area, select Front to Back in the Page Order option.
NOTE: If you set your document to print on both sides of the page, the Front to
Back option is not available. Your document will automatically print in the correct
order.
7. Click OK, and then click Print or OK in the Print dialog box.
NOTE: When you are printing multiple copies, each set is printed completely
before the next set is printed.
Reverse an image for iron-on transfers
This feature reverses an image so you can use it for iron-on transfers. This feature is also
useful for transparencies when you want to make notations on the back of the
transparency without scratching the original.
To reverse an image for iron-on transfers
1. On the File menu in your software application, click Print.
2. Make sure the HP All-in-One is the selected printer.
3. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
4. Click the Features tab.
5. In the Paper Type drop-down list, click More, and then select HP Iron-on Transfer
from the list.
6. If the selected size is not what you want, click an appropriate size in the Size list.
7. Click the Advanced tab.
8. In the Printer Features area, select On from the Mirror Image drop-down list.
9. Click OK, and then click Print or OK in the Print dialog box.
NOTE: To prevent jams, manually feed the iron-on transfer sheets into the input
tray one sheet at a time.
Print on transparencies
For the best results, HP recommends you use HP transparency products with the HP Allin-One.
Print
To print on transparencies
1. Load the transparency into the input tray.
2. On the File menu in your software application, click Print.
3. Make sure the HP All-in-One is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Features tab.
Perform special print jobs
59
Chapter 7
6. In the Basic Options area, from the Paper Type drop-down list, select More. Then
select the appropriate paper type.
TIP: If you want to make notations on the back of the transparencies and erase
them later without scratching the original, click the Advanced tab, and select the
Mirror Image check box.
7. In the Resizing Options area, from the Size drop-down list, select More. Then, select
an appropriate size.
8. Click OK, and then click Print or OK in the Print dialog box.
NOTE: The HP All-in-One automatically waits for transparencies to dry before
releasing them. Ink dries slower on film than on plain paper. Make sure you allow
enough time for the ink to dry before handling the transparency.
Print a group of addresses on labels or envelopes
With the HP All-in-One, you can print on a single envelope, a group of envelopes, or label
sheets designed for inkjet printers.
To print a group of addresses on labels or envelopes
1. Print a test page on plain paper first.
2. Place the test page on top of the label sheet or envelope, and hold both up to the
light. Check the spacing for each block of text. Make adjustments as needed.
3. Load the labels or envelopes into the main input tray.
CAUTION: Do not use envelopes with clasps or windows. They can get stuck in
the rollers and cause paper jams.
4. Slide the paper-length and paper-width guides inward against the stack of labels or
envelopes until the guides stop.
5. If you are printing on envelopes, do the following:
a. Display the print settings, and click the Features tab.
b. In the Resizing Options area, click the appropriate envelope size in the Size list.
6. Click OK, and then click Print or OK in the Print dialog box.
Print
60
Print from your computer
Print a poster
You can create a poster by printing a document on multiple pages. The HP All-in-One
prints dotted lines on some pages to indicate where to trim the pages before taping them
together.
To print a poster
1. Make sure you have paper loaded in the input tray.
2. On the File menu in your software application, click Print.
3. Make sure the HP All-in-One is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Advanced tab.
6. Expand Document Options, and then expand Printer Features.
7. In the Poster Printing drop-down list, click either 2x2 (4 sheets), 3x3 (9 sheets),
4x4 (16 sheets), or 5x5 (25 sheets).
This selection tells the HP All-in-One to enlarge your document so that it fits on 4, 9,
16, or 25 pages.
If your originals are of multiple pages, each of those pages will be printed on 4, 9, 16,
or 25 pages. For example, if you have a one-page original and you select 3x3, you
will get 9 pages; if you select 3x3 for a two-page original, 18 pages will print.
8. Click OK, and then click Print or OK in the Print dialog box.
9. After the poster has printed, trim the edges of the sheets and tape the sheets together.
Print a Web page
If you use Internet Explorer 6.0 or higher for Web browsing, you can use HP Smart Web
Printing to ensure simple, predictable web printing with control over what you want and
how you want it printed. You can access HP Smart Web Printing from the toolbar in
Internet Explorer. For more information about HP Smart Web Printing, see the help file
provided with it.
Perform special print jobs
61
Print
You can print a Web page from your Web browser on the HP All-in-One.
Chapter 7
To print a Web page
1. Make sure you have paper loaded in the main input tray.
2. On the File menu in your Web browser, click Print.
The Print dialog box appears.
3. Make sure the HP All-in-One is the selected printer.
4. If your Web browser supports it, select the items on the Web page that you want to
include in the printout.
For example, in Internet Explorer, click the Options tab to select options such as As
laid out on screen, Only the selected frame, and Print all linked documents.
5. Click Print or OK to print the Web page.
TIP: To print Web pages correctly, you might need to set your print orientation to
Landscape.
Stop a print job
Although you can stop a print job from either the HP All-in-One or the computer, HP
recommends you stop it from the HP All-in-One for best results.
NOTE: Although most software applications designed for Windows use the
Windows print spooler, your software application might not use the spooler. An
example of a software application that does not use the Windows print spooler is
PowerPoint in Microsoft Office 97.
If you cannot cancel your print job by using one of the following procedures, consult
the instructions for canceling background printing in the online help for your software
application.
To stop a print job from the HP All-in-One
▲ Press Cancel on the control panel. If the print job does not stop, press Cancel again.
It can take a few moments for the print job to be cancelled.
To stop a print job from the computer (Windows 2000 users)
1. On the Windows taskbar, click Start, point to Settings, and then click Printers.
2. Double-click the HP All-in-One icon.
TIP: You can also double-click the printer icon in the Windows taskbar.
3. Select the print job you want to cancel.
4. On the Document menu, click Cancel Printing or Cancel, or press the Delete key
on your keyboard.
It can take a few moments for the print job to be cancelled.
To stop a print job from the computer (Windows XP users)
1. On the Windows taskbar, click Start, and then click Control Panel.
2. Open the Printers and Faxes control panel.
Print
62
Print from your computer
3. Double-click the HP All-in-One icon.
TIP: You can also double-click the printer icon in the Windows taskbar.
4. Select the print job you want to cancel.
5. On the Document menu, click Cancel Printing or Cancel, or press the Delete key
on your keyboard.
It can take a few moments for the print job to be cancelled.
To stop a print job from the computer (Windows Vista users)
1. On the Windows taskbar, click Start, and then click Control Panel.
2. Click Printers.
3. Double-click the HP All-in-One icon.
TIP: You can also double-click the printer icon in the Windows taskbar.
Print
4. Select the print job you want to cancel.
5. On the Document menu, click Cancel Printing or Cancel, or press the Delete key
on your keyboard.
It can take a few moments for the print job to be cancelled.
Stop a print job
63
Chapter 7
Print
64
Print from your computer
Use the photo features
The HP All-in-One is equipped with memory card slots that enable you to print or edit
photos from a memory card without uploading your photos to a computer first.
Additionally, if the HP All-in-One is network-connected or connected to a computer with
a USB cable, you can also transfer your photos to the computer to print, edit, or share.
The HP All-in-One supports the memory cards described below. Each type of memory
card can only be inserted in the appropriate slot for that card, and only one card may be
inserted at a time.
CAUTION: Do not insert more than one memory card at a time. If more than one
memory card is inserted, unrecoverable data loss might occur.
1
CompactFlash (CF) types I and II
2
Secure Digital (SD), Secure Digital Mini (adapter required), Secure Digital High Capacity
(SDHC), MultiMediaCard (MMC), MMC Plus, MMC Mobile (RS-MMC; adapter required),
TransFlash MicroSD Card, or Secure MultiMedia Card
3
Memory Stick, Memory Stick Pro, Memory Stick Select, Memory Stick Magic Gate, Memory
Stick Duo or Duo Pro (adapter optional), or Memory Stick Micro (adapter required)
4
xD-Picture Card
The memory card area also has a Photo light. This light blinks green when a memory
card is being read or when an image is being printed from a card, and stays solid green
Use the photo features
65
Photos
8
Chapter 8
when images are ready to be viewed. The Photo light is located near the memory card
slots and is indicated by a camera icon.
CAUTION: Do not pull out the memory card while the Photo light is flashing. A
flashing light means the HP All-in-One is accessing the memory card. Wait until the
light remains solid. Removing a memory card while it is being accessed might corrupt
information on the card or damage the HP All-in-One or memory card.
Photos
This section contains the following topics:
•
•
•
•
•
•
View and select photos
Print your photos
Create special projects from your photos
Share photos using HP Photosmart Software
Save photos to your computer
Edit photos using the control panel
View and select photos
You can view and select photos on your memory card before or while printing them.
To view and select photos
1. Insert a memory card into the appropriate slot on the HP All-in-One.
The Photosmart Express menu appears, with the most recent photo shown on the
display.
View
Print
66
Use the photo features
Create
Share
Save
TIP: A checkmark appears to indicate each photo that is selected. You can
change the number of copies by pressing or . The total number of photos that
will print appears at the top of the display.
9. (Optional) If you want to check and/or modify any of your print settings, press to
highlight Settings and press OK.
10. To print the photo(s), use or to highlight Print Now (or press the Print Photos
button on the control panel).
A print status screen displays the number of pages to print and the estimated time to
complete.
TIP: During printing, you can highlight Add more photos and press OK to add
more photos to the print queue.
Print your photos
You can print the photos on your memory card in a variety of sizes, from 10 x 15 cm (4
x 6 inch) up to the size of letter or A4 paper, including multiple small-size photos on a
single page.
To achieve the best print quality, HP recommends using HP papers that are specifically
designed for the type of project you are printing along with genuine HP ink. HP papers
and HP ink are specifically designed to work well together to provide high-quality output.
To print your photos
TIP: If you want to print only a single borderless 10 x 15 cm (4 x 6 inch) photo on 10
x 15 cm (4 x 6 inch) paper, a shortcut is to simply press Print Photos twice on the
control panel (once to display the Print Preview screen and once to start the print
job).
Print your photos
67
Photos
2. Load up to 10 x 15 cm (4 x 6 inch) photo paper in the photo tray or full-size photo
paper in the main input tray.
3. Press until View is highlighted, and then press OK.
The View Photos screen appears.
4. Press or to scroll through the thumbnails of your photos.
5. When the thumbnail of the photo you want to view is highlighted, press OK.
6. When the photo appears by itself on the display, press OK again.
The Photo Options screen appears.
7. With Print Preview highlighted, press OK.
The Print Preview screen appears, showing how your photo will look when printed.
8. If you want to select additional photos to view and print, press to highlight Add
More, press OK, and repeat steps 4–6.
Or, once you're in the Add Photos screen, the quickest way to select multiple photos
(if you don't need the option to edit them) is to press to select a photo, and then
press or to scroll through more photos to select.
Chapter 8
1. Insert a memory card into the appropriate slot on the HP All-in-One.
The Photosmart Express menu appears, with the most recent photo shown on the
display.
Photos
View
Print
Create
Share
Save
2. Load up to 10 x 15 cm (4 x 6 inch) photo paper in the photo tray or full-size photo
paper in the main input tray.
3. Press until Print is highlighted, and then press OK.
The Print Layout screen appears.
4. Press or to scroll through the layout options, and press OK when the option you
want is highlighted:
4x6
5x7
The Select Photos screen appears.
5. Press or to scroll through the thumbnails of your photos.
6. When you have highlighted the thumbnail of the photo you want to print, press OK.
7. When the chosen photo appears by itself on the display, press to select it.
A checkmark appears to indicate that the photo is selected. You can change the
number of copies by pressing or . The total number of photos that will print
appears at the top of the display.
8. Press or to continue scrolling through and selecting photos, and then press
OK.
The Photo Options menu appears.
68
Use the photo features
Create special projects from your photos
The HP All-in-One enables you to create special projects from your photos, including:
•
•
•
•
Photo albums
Panorama prints
Wallet-size photos
Passport-size photos
To create special projects
1. Insert a memory card into the appropriate slot on the HP All-in-One.
The Photosmart Express menu appears, with the most recent photo shown on the
display.
View
Print
Create
Share
Save
2. Make sure the photo tray or main input tray is loaded with the correct paper for the
type of project you are creating.
3. Press or to highlight Create, and then press OK.
The Create screen appears.
Create special projects from your photos
69
Photos
9. With Print Preview highlighted, press OK.
The Print Preview screen appears, showing how your photo(s) will look when printed.
10. (Optional) If you want to check and/or modify any of your print settings, use or
to highlight Settings and press OK.
11. Use or to highlight Print Now and press OK (or press Print Photos on the
control panel).
A print status screen displays the number of pages to print and the estimated time to
complete.
Chapter 8
Photos
4. Press or to scroll through the projects, and then and then press OK to select the
project you want.
• Album Pages: Enables you to select multiple photos and print them onto a series
of themed album pages, which you can then bind to create a photo album. The
photos in your album pages are placed in the same orientation for a visually
pleasing presentation.
• Panorama Prints: Enables you to select multiple photos to "stitch" together to
create a single wide view (or panorama) photo. The HP All-in-One automatically
aligns the edges of the photos you select to create the smoothest transition from
one photo to the next.
• Wallets: Enables you to print your own wallet-size photos to carry with you or give
to friends or relatives.
• Passport Photos: Enables you to print your own passport-size photos. (If you
have questions on guidelines or restrictions for passport photos, contact a local
passport service agency.)
5. Respond to the prompts for the project you are creating.
6. At the Print Preview screen, highlight Print Now, and then press OK.
A print status screen displays the number of pages to print and the estimated time to
complete.
Share photos using HP Photosmart Software
You can use the HP Photosmart Software installed on your computer to transfer photos
from a memory card to your computer’s hard drive for advanced photo editing, sharing
photos online, and printing from your computer.
Before transferring photos to your computer, you need to remove the memory card from
your digital camera and insert it in the appropriate memory card slot on the HP All-in-One.
70
Use the photo features
Photos
To send photos from a memory card
1. Insert a memory card into the appropriate slot on the HP All-in-One.
The Photosmart Express menu appears, with the most recent photo shown on the
display.
View
Print
Create
Share
Save
2. Press until Share is highlighted, and then press OK.
The Share Photos screen appears.
3. Press or to scroll through the thumbnails of your photos.
4. When you have highlighted the thumbnail of the photo you want to share, press
OK.
5. When the chosen photo appears by itself on the display, press to select it.
A checkmark appears to indicate that the photo is selected.
6. Press or to continue scrolling through and selecting photos, and then press
OK.
The Share Options screen appears.
7. Press or to highlight Share, and then press OK.
When the Share Not Finished message appears, press OK and then follow the
onscreen prompts on your computer.
Save photos to your computer
You can use the HP Photosmart Software installed on your computer to transfer photos
from a memory card to your computer’s hard drive for advanced photo editing, sharing
photos online, and printing from your computer.
Before transferring photos to your computer, you need to remove the memory card from
your digital camera and insert it in the appropriate memory card slot on the HP All-in-One.
Save photos to your computer
71
Chapter 8
To save photos
1. Insert a memory card into the appropriate slot on the HP All-in-One.
The Photosmart Express menu appears, with the most recent photo shown on the
display.
Photos
View
Print
Create
Share
Save
2. Press until Save is highlighted, and then press OK.
3. When the Save to Computer screen asks you to see the computer monitor for Import
photo options, follow the onscreen prompts on your computer to save the photos to
your computer.
Only images that were not previously saved are copied to your computer.
Edit photos using the control panel
The HP All-in-One offers several basic editing features that you can use to edit your
photos manually before you print them, as well as a feature that enables you to
automatically enhance your photos.
This section contains the following topics:
•
•
•
•
•
•
72
Zoom and pan to crop a photo
Rotate a photo
Adjust the brightness of your photos
Print a frame around your photo
Apply special color effects to your photos
Remove red-eye
Use the photo features
•
•
Automatically enhance your photos
Fix a faded original
Zoom and pan to crop a photo
The HP All-in-One enables you to zoom in or out on a specific area of a photo. When you
print the photo, the photo is cropped so only the area shown on the display prints.
To crop a photo
1. Insert a memory card into the appropriate slot on the HP All-in-One.
The Photosmart Express menu appears, with the most recent photo shown on the
display.
2. With View highlighted, press OK.
You can use or for highlighting options.
The View Photos screen appears.
3. Press or to scroll through the thumbnails of your photos.
4. When the thumbnail of the photo you want to edit is highlighted, press OK.
5. When the selected photo appears by itself on the display, press OK again to display
the Photo Options menu.
6. In the Photo Options menu, use or to highlight Edit Photo, and then press
OK.
The Edit Photo menu appears.
7. Use or to highlight Crop, and then press OK.
The Crop screen appears.
8. Press Zoom In or Zoom Out to zoom closer to or farther away from the subject of
the photo.
An outline appears on the photo to show you an approximate view of the area that
will print.
9. Press the arrows on the directional pad to pan around the photo and select a specific
area to print.
10. Press OK to crop the photo.
Rotate a photo
Depending how you were holding your digital camera at the time you took a photo, the
photo might appear sideways or upside down on the display. You might need to rotate
the photo to make it show or print properly.
NOTE: When printing more than one photo on a page, the HP All-in-One
automatically adjusts the orientation of your photos to fit a maximum number of photos
on the page. The rotation you apply here is ignored to accommodate the number of
photos selected per page.
Edit photos using the control panel
73
Photos
NOTE: The changes you make to the photo apply only to viewing and printing the
photo. The changes will not be saved on the memory card.
Chapter 8
Photos
To rotate a photo
1. Insert a memory card into the appropriate slot on the HP All-in-One.
The Photosmart Express menu appears, with the most recent photo shown on the
display.
2. With View highlighted, press OK.
You can use or for highlighting options.
The View Photos screen appears.
3. Press or to scroll through the thumbnails of the photos on your memory card.
4. When the thumbnail of the photo you want to edit is highlighted, press OK.
5. When the selected photo appears by itself on the display, press OK again to display
the Photo Options menu.
6. In the Photo Options menu, use or to highlight Edit Photo, and then press
OK.
The Edit Photo menu appears.
7. Use or to highlight Rotate, and then press OK.
The Rotate screen appears.
8. Use or to flip the image 90 degrees clockwise or counterclockwise.
9. When you are done rotating the image, press OK.
Adjust the brightness of your photos
You can adjust the brightness of a photo so that it prints lighter or darker than the original
photo you took with your digital camera.
NOTE: The changes you make to the photo apply only to viewing and printing the
photo. The changes will not be saved on the memory card.
To adjust the brightness
1. Insert a memory card into the appropriate slot on the HP All-in-One.
The Photosmart Express menu appears, with the most recent photo shown on the
display.
2. With View highlighted, press OK.
You can use or for highlighting options.
The View Photos screen appears.
3. Press or to scroll through the thumbnails of the photos on your memory card.
4. When the thumbnail of the photo you want to edit is highlighted, press OK.
5. When the selected photo appears by itself on the display, press OK again to display
the Photo Options menu.
6. In the Photo Options menu, use or to highlight Edit Photo, and then press
OK.
The Edit Photo menu appears.
7. Use or to highlight Brightness, and then press OK.
The Brightness screen appears.
8. Press or to increase or decrease the brightness of the photo.
The current brightness selection is indicated by the vertical line on the slidebar.
9. When you are done adjusting brightness, press OK.
74
Use the photo features
Print a frame around your photo
You can print a decorative colored border around the outside edge of your photo to frame
the photo.
To print a frame around your photo
1. Insert a memory card into the appropriate slot on the HP All-in-One.
The Photosmart Express menu appears, with the most recent photo shown on the
display.
2. With View highlighted, press OK.
You can use or for highlighting options.
The View Photos screen appears.
3. Press or to scroll through the thumbnails of your photos.
4. When the thumbnail of the photo you want to edit is highlighted, press OK.
5. Press OK again to display the Photo Options menu.
6. Use or to highlight Edit Photo, and then press OK.
The Edit Photo menu appears.
7. Press or until Frame is highlighted, and then press OK.
The Frame screen appears.
8. Press or to scroll through the frames until you have highlighted the one you want,
and then press OK.
The selected frame is applied to the photo and shown by itself on the display.
Apply special color effects to your photos
You can apply special color effects to a photo so that it prints with a sepia, hand-tinted,
or black-and-white finish.
NOTE: The changes you make to the photo apply only to viewing and printing the
photo. The changes will not be saved on the memory card.
To change the color effects
1. Insert a memory card into the appropriate slot on the HP All-in-One.
The Photosmart Express menu appears, with the most recent photo shown on the
display.
2. With View highlighted, press OK.
You can use or for highlighting options.
The View Photos screen appears.
3. Press or to scroll through the thumbnails of the photos on your memory card.
4. When the thumbnail of the photo you want to edit is highlighted, press OK.
5. When the selected photo appears by itself on the display, press OK again to display
the Photo Options menu.
Edit photos using the control panel
75
Photos
NOTE: The changes you make to the photo apply only to viewing and printing the
photo. The changes will not be saved on the memory card.
Chapter 8
6. In the Photo Options menu, use or to highlight Edit Photo, and then press
OK.
The Edit Photo menu appears.
7. Use or to highlight Color Effect, and then press OK.
The Color Effect menu appears.
8. Use or to select one of the following color effect options, and then press OK:
Photos
No Effect
Does not apply any special color effects to your photo.
Black & White
Prints the photo in black and white.
Sepia
Applies brown tones, similar to photos produced in the early 1900s, to
your photo.
Antique
Applies brown tones along with some pale colors to your photo. With
this option, your photo will look like it was hand-tinted.
The selected color effect is applied to the photo, and the photo is shown by itself on
the display.
Remove red-eye
The flash on a camera (especially on older model cameras) can sometimes cause a
subject's eyes to appear red in your photos. You can remove redness so that eyes appear
the correct shade in your photos.
NOTE: The changes you make to the photo apply only to viewing and printing the
photo. The changes will not be saved on the memory card.
To remove red-eye from photos
1. Insert a memory card into the appropriate slot on the HP All-in-One.
The Photosmart Express menu appears, with the most recent photo shown on the
display.
2. With View highlighted, press OK.
You can use or for highlighting options.
The View Photos screen appears.
3. Press or to scroll through the thumbnails of the photos on your memory card.
4. When the thumbnail of the photo you want to edit is highlighted, press OK.
5. When the selected photo appears by itself on the display, press the Red Eye
Removal button on the control panel.
TIP: Another method is to choose Red Eye Removal from the Edit Photo menu.
A red-eye icon blinks in the upper left corner of the photo, red-eye removal is applied,
and the photo is shown by itself on the display.
Automatically enhance your photos
The HP All-in-One is set up, by default, to enhance your photos automatically when you
print them. The changes are only visible on your printed output; you cannot see the
changes on the display.
76
Use the photo features
When this feature is enabled, the HP All-in-One uses HP Real Life Technologies to:
•
•
•
Adjust the brightness or darkness of your photos (shown in print preview and printed
output)
Adjust the lighting to make dark images appear brighter (shown on printed output
only)
Sharpen blurry images (shown on printed output only)
To turn off automatic photo enhancement
1. Insert a memory card into the appropriate slot on the HP All-in-One.
The Photosmart Express menu appears, with the most recent photo shown on the
display.
2. With View highlighted, press OK.
You can use or for highlighting options.
The View Photos screen appears.
3. Press or to scroll through the thumbnails of your photos.
4. When the thumbnail of the photo you want to edit is highlighted, press OK.
5. When the selected photo appears by itself on the display, press OK again to display
the Photo Options menu.
6. In the Photo Options menu, use or to highlight Edit Photo, and then press
OK.
The Edit Photo menu appears.
7. Use or to highlight Photo Fix, and then press OK.
The Photo Fix menu appears.
8. To turn off automatic photo enhancement, use or to select Off, and then press
OK.
Fix a faded original
When you are making a reprint of an original photo, an additional option, Fix Faded
Original, appears in the Edit Photo menu. This option enables you to correct old photos
that have faded colors. Turning on this option fixes the fading during the final scan.
NOTE: This feature is off by default.
To fix a faded original photo when making a reprint
1. While previewing your scanned reprint, press OK to display the Reprint Options
menu.
2. In the Reprint Options menu, use or to highlight Edit Photo, and then press
OK.
The Edit Photo menu appears.
3. Use or to highlight Fix Faded Original, and then press OK to turn the feature
on or off.
The current value of the feature (on or off) appears in the Edit Photo menu.
Edit photos using the control panel
77
Photos
You can turn off the automatic photo enhancement feature for individual photos, on a perimage basis.
Chapter 8
Related topics
“Make reprints of your photos” on page 79
Photos
78
Use the photo features
9
Use the scan features
Scanning is the process of converting text and pictures into an electronic format for your
computer. You can scan almost anything (photos, magazine articles and text documents)
on the HP All-in-One.
You can use the scanning features of the HP All-in-One to do the following:
•
•
•
•
•
Scan text from an article into your word processor and quote it in a report.
Print business cards and brochures by scanning a logo and using it in your publishing
software.
Send photos to friends and relatives by scanning your favorite prints and including
them in e-mail messages.
Create a photographic inventory of your house or office.
Archive treasured photos in an electronic scrapbook.
This section contains the following topics:
Make reprints of your photos
Scan an image
Edit a scanned image
Share a scanned image with friends and relatives
Stop scanning
Scan
•
•
•
•
•
Make reprints of your photos
You can scan a printed copy of a photo to make reprints in a variety of sizes, up to the
size of letter (8.5 x 11 inch) or A4 (210 x 297 mm) paper.
By default, the HP All-in-One is set to detect the type of paper you are using automatically.
For the best results when reprinting photos, leave the Paper Type set to Automatic, and
load photo paper in the HP All-in-One. You should only change the Paper Type if you
see print quality issues using the Automatic setting.
To reprint an original photo
1. Press Photo Reprints for the Scan and Reprint option.
NOTE: You can also press Scan Menu on the control panel for the Scan and
Reprint option.
NOTE: Depending on the paper size you choose, you can place the photo paper
in the photo tray or the main input tray.
2. When prompted, load your original photo print side down on the right front corner of
the glass, and then do one of the following:
To reprint your original photo using the default print settings
▲ Press Print Photos on the control panel.
Use the scan features
79
Chapter 9
To change print settings before reprinting your original photo
a. Press OK to change print settings.
The Source of Original screen appears.
b. Press or to highlight any option and press OK.
The Print Layout screen appears.
c. Press or to highlight the print layout pattern and press OK.
NOTE: Depending on the paper size you choose, you might be prompted to
choose a layout for the photos on your pages.
The Scan Preview menu appears.
d. Press or to adjust the number of copies and press OK.
The Reprint Options screen appears.
NOTE: The HP All-in-One scans your original and shows a preview of the
photo on the display.
e. Press OK to select Print Preview .
NOTE: Select Edit Photo to edit photos before printing.
f.
The Print Preview screen appears.
Press or to highlight Print Now and press OK (or press Print Photos on the
control panel).
Scan
Scan an image
You can start a scan from your computer or from the control panel of the HP All-in-One.
This section explains how to scan from the control panel of the HP All-in-One only.
NOTE: You can also use the software you installed with the HP All-in-One to scan
images. Using this software, you can edit a scanned image and create special projects
using a scanned image.
To use the scan features, the HP All-in-One and computer must be connected and turned
on. The HP All-in-One software must also be installed and running on your computer prior
to scanning. To verify that the HP All-in-One software is running on a Windows computer,
look for the HP All-in-One icon in the system tray at the lower right side of the screen,
near the time.
NOTE: Closing the HP Digital Imaging Monitor icon in the Windows system tray
can cause the HP All-in-One to lose some of its scan functionality. If this happens,
you can restore full functionality by restarting your computer or by starting the
HP Photosmart Software.
This section contains the following topics:
•
•
Scan an original to a computer
Scan an original to a memory card
Scan an original to a computer
You can scan originals placed on the glass by using the control panel.
80
Use the scan features
To scan to a computer
1. Load your original print side down on the right front corner of the glass.
2. Press Scan Menu on the control panel.
3. Press to highlight Scan to Computer, and then press OK.
4. If the HP All-in-One is connected to one or more computers on a network, do the
following:
a. Press OK to select Select Computer.
A list of the computers connected to the HP All-in-One appears on the display.
NOTE: The Select Computer menu might list computers with a USB
connection in addition to those connected through the network.
NOTE: Alternatively, you can press Start Scan instead of OK.
A preview image of the scan appears on your computer, where you can edit it.
6. Make any edits to the preview image, and then click Accept when you are finished.
Related topics
• “Control panel features” on page 7
• “Scan Menu” on page 10
Scan an original to a memory card
You can send the scanned image as a JPEG image to the memory card that is currently
inserted. This enables you to use the photo print options to print borderless prints and
album pages from the scanned image.
NOTE: If the HP All-in-One is connected to a network, you can access the scanned
image only if the memory card is being shared across the network.
To save a scan to a memory card
1. Make sure your memory card is inserted into the appropriate slot on the HP All-inOne.
2. Load your original print side down on the right front corner of the glass.
Scan an image
81
Scan
b. Press OK to select the default computer, or press to select a different computer,
and then press OK.
The Scan To menu appears on the display, listing the applications on the selected
computer.
If the HP All-in-One is connected directly to a computer with a USB cable, proceed
to step 5.
5. Press OK to select the default application to receive the scan, or press to select a
different application, and then press OK.
Chapter 9
3. Press Scan Menu on the control panel.
4. Press to highlight Scan to Memory Card, and then press OK.
NOTE: Alternatively, you can press Start Scan instead of OK.
The HP All-in-One scans the image and saves the file to the memory card in the JPEG
format.
Edit a scanned image
You can edit a scanned image using the software you installed with the HP All-in-One.
You can also edit a scanned document by using your Optical Character Recognition
(OCR) software.
NOTE: If you are using HP Photosmart Essential, the Optical Character Recognition
(OCR) software might not be installed on your computer. To install the OCR software,
you must re-insert the software disk and select OCR under the Custom installation
options.
This section contains the following topics:
•
•
•
Edit a scanned preview image
Edit a scanned photo or graphic
Edit a scanned document
Scan
Edit a scanned preview image
You can use the tools in the HP Scanning software to modify a preview image. Any
changes that you make, such as brightness, image type, resolution, and more apply only
to this scan session.
You can make additional changes in the HP Photosmart software after the image is
scanned.
Edit a scanned photo or graphic
You can edit a scanned photo or graphic using the software you installed with the HP Allin-One. Using this software, you can rotate or crop the image, as well as adjust the
brightness, contrast, and color saturation.
Edit a scanned document
Scanning text (also known as optical character recognition or OCR) enables you to bring
the content of magazine articles, books, and other printed matter into your favorite word
processor and many other programs as fully editable text. Learning to work with OCR
correctly is important if you want to obtain the best results. Do not expect scanned text
documents to be letter-perfect the first time you use your OCR software. Using OCR
software is an art that takes time and practice to master.
NOTE: If you are using HP Photosmart Essential, the Optical Character Recognition
(OCR) software might not be installed on your computer. To install the OCR software,
you must re-insert the software disk and select OCR under the Custom installation
options.
82
Use the scan features
Share a scanned image with friends and relatives
You can easily share scanned images with friends and family using the HP Photosmart
Share online service. HP Photosmart Share enables you to send images to others as email or upload photos to an online photo album or photo finishing service.
NOTE: Availability of the services described here varies by country/region. Some of
the services described here might not be available in your country/region.
To send a scan of a photo or document
1. Load your original print side down on the right front corner of the glass.
2. Press Scan Menu.
3. Press OK to select HP Photosmart Share and send the scan to your computer. If
the HP All-in-One is connected to one or more computers on a network, a Select
Computer menu appears. Select the destination computer name.
4. Use the HP Photosmart Share Software on your computer to send the scan as
thumbnail preview to an e-mail recipient (the full-size file can be downloaded later, at
the recipient's convenience), to an online photo album or photo finishing service, or
to a network-connected HP device.
5. The HP All-in-One sends the scanned photo or document to the computer or to all
the share destinations that you selected.
Scan
Related topics
“Share photos using HP Photosmart Software” on page 70
Stop scanning
To stop scanning
▲ Press Cancel on the control panel.
Share a scanned image with friends and relatives
83
Chapter 9
Scan
84
Use the scan features
10 Use the copy features
The HP All-in-One enables you to produce high-quality color and black-and-white copies
on a variety of paper types, including transparencies. You can enlarge or reduce the size
of an original to fit a specific paper size, adjust the darkness of the copy, and use special
features to make high-quality copies of photos, including borderless copies.
TIP: For the best copy performance on standard copy projects, set the paper size
to Letter or A4, the paper type to Plain Paper, and the copy quality to Fast.
This section contains the following topics:
•
•
•
•
•
•
Make a copy
Preview your copy job
Change the copy settings for the current job
Change default copy settings
Perform special copy jobs
Stop copying
Make a copy
You can make quality copies from the control panel.
To make a copy from the control panel
1. Make sure you have paper loaded in the input tray.
2. Load your original print side down on the right front corner of the glass.
3. Press Start Copy Black or Start Copy Color to begin copying.
Preview your copy job
NOTE: You must explicitly pick your copy settings to ensure an accurate preview.
Automatic settings will not reflect the loaded paper size and type, but use defaults
instead.
Previews appear when you select Preview on the Copy Menu, or when you use the crop
feature to specify a specific area of the original to copy.
To preview your copy from the control panel
1. Press Copy Menu.
The Copy Menu appears.
2. Change copy settings on the HP All-in-One to accurately reflect the copy you want to
make.
Use the copy features
85
Copy
After changing settings on the HP All-in-One for making a copy, you can preview an image
of the expected output on the display before starting the copy.
Chapter 10
3. Press to highlight Preview, and then press OK.
An image on the display shows how your copy will print.
4. Press Start Copy Black or Start Copy Color to accept the preview and begin
copying.
Change the copy settings for the current job
You can customize the copy settings of the HP All-in-One to handle nearly any copy task.
This section contains the following topics:
•
•
•
•
•
Set the number of copies
Set the copy paper size
Set the copy paper type
Change copy speed or quality
Adjust the lightness and darkness of your copy
Set the number of copies
You can set the number of copies that you want to print by either using the Copies option
on the control panel or by selecting the appropriate options in your software application.
To set the number of copies from the control panel
1. Make sure you have paper loaded in the input tray.
2. Load your original print side down on the right front corner of the glass.
3. Press Copy Menu.
The Copy Menu appears.
4. Press to highlight Copies, and then press OK.
The Copies option appears.
5. Press to select the number of copies, up to the maximum.
(The maximum number of copies varies by model.)
6. Press Start Copy Black or Start Copy Color.
Set the copy paper size
Copy
You can set the paper size on the HP All-in-One. The paper size you select should match
what is loaded in the input tray.
86
Use the copy features
To set the paper size from the control panel
1. Press Copy Menu.
The Copy Menu appears.
2. Press to highlight Paper Size, and then press OK.
The Paper Size menu appears.
3. Press to highlight the appropriate paper size and then press OK.
Refer to the following table to determine which paper size setting to choose, based
on the paper loaded in the input tray.
Paper type
Suggested paper size settings
Copier, multi-purpose, or plain papers
8.5x11 inch or A4
Inkjet papers
8.5x11 inch or A4
Letterhead
8.5x11 inch or A4
Photo papers
10x15 cm
4x6 inch
8.5x11 inch
A4
L (Japan only)
2L (Japan only)
20x25 cm (Germany only)
Mutsugiri (Japan only)
Hagaki
Hagaki (Japan only)
Transparency films
8.5x11 inch or A4
Set the copy paper type
To set the paper type for copies
1. Press Copy Menu.
The Copy Menu appears.
2. Press to highlight Paper Type, and then press OK.
The Paper Type menu appears.
3. Press until the appropriate paper type appears.
Refer to the following table to determine which paper type setting to choose based
on the paper loaded in the input tray.
Paper type
Control panel setting
Copier paper or letterhead
Plain Paper
HP Bright White Paper
Plain Paper
Change the copy settings for the current job
87
Copy
You can set the paper type on the HP All-in-One. The default paper type setting for
copying is Automatic, which causes the HP All-in-One to detect the type of paper in the
input tray.
Chapter 10
Paper type
Control panel setting
HP Premium Plus Photo Paper, Glossy
Premium Photo
HP Premium Plus Photo Paper, Matte
Premium Photo
HP Premium Plus 10 x 15 cm (4 x 6 inch)
Photo Paper
Premium Photo
HP Photo Paper
Photo Paper
HP Everyday Photo Paper
Everyday Photo
HP Everyday Photo Paper, Semi Gloss
Everyday Matte
HP Premium Paper
Premium Inkjet
Other inkjet paper
Premium Inkjet
HP Professional Brochure & Flyer Paper
(Glossy)
Brochure Glossy
HP Professional Brochure & Flyer Paper
(Matte)
Brochure Matte
HP Premium or Premium Plus Inkjet
Transparency Film
Transparency
Other transparency film
Transparency
Plain Hagaki
Plain Paper
Glossy Hagaki
Premium Photo
L (Japan only)
Premium Photo
Advanced Photo Paper
Advanced Photo
4. Press OK.
Change copy speed or quality
The HP All-in-One provides four options that affect copy speed and quality:
•
Copy
•
•
•
Maximum Resolution produces the highest quality for all paper. Maximum
Resolution copies slower than the other quality settings.
Best produces high quality for all paper and eliminates the banding (striping) effect
that sometimes occurs in solid areas. Best copies slower than the Normal or Fast
quality settings.
Normal delivers high quality and is the recommended setting for most of your
copying. Normal copies faster than Best and is the default setting.
Fast copies faster than the Normal setting. The text is comparable to the quality of
the Normal setting, but the graphics might be lower quality. The Fast setting uses
less ink and extends the life of your ink cartridges.
To change the copy quality from the control panel
1. Make sure you have paper loaded in the input tray.
2. Load your original print side down on the right front corner of the glass.
88
Use the copy features
3. Press Copy Menu.
The Copy Menu appears.
4. Press to highlight Quality, and then press OK.
The Quality menu appears.
5. Press to select a copy quality.
6. Press OK.
Adjust the lightness and darkness of your copy
You can use the Lighter/Darker option to adjust the contrast of the copies you make.
To adjust the copy contrast from the control panel
1. Make sure you have paper loaded in the input tray.
2. Load your original print side down on the right front corner of the glass.
3. Press Copy Menu.
The Copy Menu appears.
4. Press to highlight Lighter/Darker, and then press OK.
The Lighter/Darker menu appears.
5. Do one of the following:
• Press to darken the copy.
• Press to lighten the copy.
6. Press OK.
Change default copy settings
When you change copy settings from the control panel, the settings apply only to the
current copy job. To apply copy settings to all future copy jobs, you can save the settings
as defaults.
Copy
To set default copy settings from the control panel
1. Make any needed changes to the Copy settings.
2. Press Copy Menu.
The Copy Menu appears.
3. Press to highlight Set As New Defaults, and then press OK.
The Set As New Defaults menu appears.
4. Press to highlight Yes, change defaults, and then press OK.
NOTE: The settings you specify here are only saved on the HP All-in-One. They do
not adjust the settings in the software. You can save your most frequently used
settings by using the software that you installed with the HP All-in-One.
Perform special copy jobs
In addition to supporting standard copy jobs, the HP All-in-One can perform special jobs
such as copying borderless photos and resizing originals.
Change default copy settings
89
Chapter 10
This section contains the following topics:
•
•
•
•
•
•
Make a borderless copy of a photo
Resize an original to fit onto letter or A4 paper
Resize an original using custom settings
Crop an original
Shift the left margin
Improve the quality of a copy
Make a borderless copy of a photo
For the best quality when copying a photo, load 10 x 15 cm (4 x 6 inch) photo paper in
the photo tray and change your copy settings for the correct paper type and photo
enhancement.
To make a borderless copy of a photo from the control panel
1. Load up to 10 x 15 cm (4 x 6 inch) photo paper into the photo tray.
2. Load your original photo print side down on the right front corner of the glass.
Position the photo on the glass so the long edge of the photo is along the front edge
of the glass, as indicated by the engraved guides along the edge of the glass.
3. Press Start Copy Black or Start Copy Color.
The HP All-in-One makes a borderless copy of your original photo.
NOTE: If you loaded tabbed paper in the photo tray, you can remove the tab
from the copy of your photo once the ink has completely dried.
Copy
TIP: If the output is not borderless set the paper type to Premium Photo, and
then try making the copy again.
Related topics
• “Load 10 x 15 cm (4 x 6 inch) photo paper” on page 38
• “Set the copy paper type” on page 87
90
Use the copy features
Resize an original to fit onto letter or A4 paper
You can use the Fit to Page feature to copy an original to fit within the printable margins
of a page without the risk of cropping some part of your original. This is useful for reducing
or enlarging an original. For example:
•
•
If you enlarge a 10 x 15 cm (4 x 6 inch) photo to make a borderless full-size copy on
letter or A4 paper, some part of your photo will be cropped. The Fit to Page feature
will enlarge the photo as much as possible to fit the page without cropping any part
of your photo.
If the image or text on your original fills the entire sheet of paper with no margins, you
can use the Fit to Page feature to reduce your original and prevent unwanted
cropping of the text or images at the edges of the sheet.
NOTE: In order to resize your original without changing the proportions or cropping
the edges, the HP All-in-One might leave an uneven amount of white space around
the edges of the paper.
To resize a document from the control panel
1. Make sure you have paper loaded in the input tray.
2. Load your original print side down on the right front corner of the glass.
3. Press Copy Menu.
The Copy Menu appears.
4. Press to highlight Size, and then press OK.
The Size menu appears.
5. Press to highlight Fit to Page, and then press OK.
Copy
Resize an original using custom settings
You can use your own custom settings to reduce or enlarge a copy of a document.
To set a custom size from the control panel
1. Make sure you have paper loaded in the input tray.
2. Load your original print side down on the right front corner of the glass.
3. Press Copy Menu.
The Copy Menu appears.
4. Press to highlight Size, and then press OK.
The Size menu appears.
5. Press to highlight Custom 100%, and then press OK.
The Custom 100% menu appears.
Perform special copy jobs
91
Chapter 10
6. Press or to select a percentage to reduce or enlarge the copy.
(The minimum and maximum percentage to resize a copy varies by model.)
7. Press OK.
Crop an original
After changing settings on the HP All-in-One for making a copy, you can use the crop
feature to specify a particular area of the original to copy.
To crop your copy from the control panel
1. Press Copy Menu.
The Copy Menu appears.
2. Change copy settings on the HP All-in-One to accurately reflect the copy you want to
make.
3. Press to highlight Crop, and then press OK.
The Crop screen appears.
4. Press the arrows on the directional pad to move the cursor to the upper left corner
where you want the crop to begin, and then press OK.
5. Press and to move the cursor to the lower right corner of the crop area, and then
press OK.
The HP All-in-One shows a preview image of the expected output on the display.
6. Press Start Copy Black or Start Copy Color to accept the preview and begin
copying.
Shift the left margin
You can shift the left margin of the copies by using the Margin Shift option. This helps
in binding or 3-hole punching for the copies produced. The HP All-in-One shifts the image
on the copies produced 0.95 cm (3/8 inch) to the right.
NOTE: When the Margin Shift feature is enabled, the right side of the copy images
may be cropped.
Copy
To shift the margin for your copy from the control panel
1. Press Copy Menu.
The Copy Menu appears.
2. Change copy settings on the HP All-in-One to accurately reflect the copy you want to
make.
3. Press to highlight Margin Shift, and then press OK.
The Margin Shift menu appears.
4. Press to highlight On, and then press OK.
5. Press Start Copy Black or Start Copy Color to begin copying.
Improve the quality of a copy
You can use the Enhancements feature to adjust the quality of text documents by
sharpening edges of black text or adjust photographs by enhancing light colors that might
otherwise appear white.
92
Use the copy features
The Mixed enhancement is the default option. Use the Mixed enhancement to sharpen
edges of most originals. You can use Photo enhancements to enhance light colors that
might otherwise appear white.
If any of the following occur, turn off Text enhancement by selecting Photo or None:
•
•
•
•
Stray dots of color surround some text on your copies
Large, black typefaces look splotchy (not smooth)
Thin, colored objects or lines contain black sections
Horizontal grainy or white bands appear in light- to medium-gray areas
To copy a blurred document from the control panel
1. Make sure you have paper loaded in the input tray.
2. Load your original print side down on the right front corner of the glass.
3. Press Copy Menu.
The Copy Menu appears.
4. Press to highlight Enhancements, and then press OK.
The Enhancements menu appears.
5. Press to highlight Text, and then press OK.
6. Press Start Copy Black or Start Copy Color.
To copy an overexposed photo
1. Make sure you have paper loaded in the input tray.
2. Position the photo on the glass so the long edge of the photo is along the front edge
of the glass.
Load your original print side down on the right front corner of the glass.
3. Press Copy Menu.
The Copy Menu appears.
4. Press to highlight Enhancements, and then press OK.
The Enhancements menu appears.
5. Press to highlight Photo, and then press OK.
6. Press Start Copy Black or Start Copy Color.
Copy
Stop copying
To stop copying
▲ Press Cancel on the control panel.
Stop copying
93
Chapter 10
Copy
94
Use the copy features
11 Print reports and forms
The HP All-in-One enables you to print self-test reports. You can also print forms such
as ruled papers and checklists.
This section contains the following topics:
•
•
Print a self-test report
Print forms
Print a self-test report
If you are experiencing problems with printing, print a self-test report before you replace
the ink cartridges. This report provides useful information on several aspects of your
device, including your ink cartridges.
•
History log: contains information that might be used for diagnostic purposes if
you need to call HP support.
Print reports and forms
95
Print reports and forms
To print a self-test report
1. Load letter, A4, or legal unused plain white paper into the input tray.
2. Press Setup.
3. Press to highlight Tools, and then press OK.
4. Press to highlight Self-Test Report, and then press OK.
The HP All-in-One prints a self-test report, which contains the following information:
• Product information: includes the model number, serial number, and other
product information.
• Revision information: includes the firmware version number.
• Ink delivery system information: displays the approximate ink level of each
installed ink cartridge, the status of each ink cartridge, the date each cartridge
was installed, and the date each cartridge will expire.
• Print quality pattern: displays six color blocks, representing each of the six
installed cartridges. Solid, even blocks of color indicate there are no print quality
problems. When streaks are displayed or there are missing blocks, clean the print
head using the procedure described in “Clean the print head” on page 103. If the
color blocks still show print quality problems after cleaning the print head, align
the printer using the procedure described in “Align the printer” on page 102. If
the color blocks continue to show print quality problems after cleaning and
aligning, contact HP support.
Chapter 11
Print forms
The HP All-in-One contains built-in templates that enable you to print common forms,
such as narrow or wide ruled notebook paper, graph paper, task checklists, and music
sheets on plain letter- or A4-size paper.
To print forms from the control panel
1. Make sure you have paper loaded in the input tray.
2. Press Setup.
The Setup menu appears.
3. Press to highlight Printable School Papers, and then press OK.
The Printable School Papers menu appears.
4. Press to highlight the form you want to print, and then press OK.
5. Press or to enter the number of pages you want to print, and then press OK.
Print reports and forms
96
Print reports and forms
The HP All-in-One requires little maintenance. Sometimes you might want to clean the
glass and lid backing to remove surface dust and ensure that your copies and scans
remain clear. You will also need to replace ink cartridges, clean the print head assembly,
or align the printer from time to time. This section provides instructions for keeping the
HP All-in-One in top working condition. Perform these simple maintenance procedures
as necessary.
This section contains the following topics:
•
•
•
•
•
•
Clean the HP All-in-One
Check the estimated ink levels
Work with ink cartridges
Reduce energy consumption when the HP All-in-One is off
Self-maintenance sounds
Turn off the HP All-in-One
Clean the HP All-in-One
To ensure that your copies and scans remain clear, you might need to clean the glass
and lid backing. You might also want to dust the exterior of the HP All-in-One.
TIP: You can purchase an HP Cleaning Kit for Inkjet Printers and All-in-Ones
(Q6260A) that provides everything needed to safely clean your HP device. For more
information, go to: www.shopping.hp.com/accessories-store/printer.
This section contains the following topics:
•
•
•
Clean the glass
Clean the lid backing
Clean the exterior
Clean the glass
Fingerprints, smudges, hair, and dust on the main glass surface slow down performance
and affect the accuracy of the copy and scan features.
To clean the glass
1. Turn off the HP All-in-One, and raise the lid.
2. Clean the glass with a soft cloth or sponge slightly moistened with a nonabrasive
glass cleaner.
CAUTION: Do not use abrasives, acetone, benzene, or carbon tetrachloride on
the glass, since they can damage it. Do not place or spray liquid directly on the
glass. The liquid might seep under the glass and damage the device.
3. Dry the glass with a dry, soft, lint-free cloth to prevent spotting.
4. Turn on the HP All-in-One.
Maintain the HP All-in-One
97
Maintain the HP All-in-One
12 Maintain the HP All-in-One
Chapter 12
Clean the lid backing
Minor debris can accumulate on the white document backing located underneath the lid
of the HP All-in-One.
Maintain the HP All-in-One
To clean the lid backing
1. Turn off the HP All-in-One, and raise the lid.
2. Clean the white document backing with a soft cloth or sponge slightly moistened with
a mild soap and warm water.
Wash the backing gently to loosen debris. Do not scrub the backing.
3. Dry the backing with a dry, soft, lint-free cloth.
CAUTION: Do not use paper-based wipes, as these might scratch the backing.
4. If further cleaning is needed, repeat the previous steps using isopropyl (rubbing)
alcohol, and wipe the backing thoroughly with a damp cloth to remove any residual
alcohol.
CAUTION: Be careful not to spill alcohol on the glass or exterior of the HP Allin-One, as this might damage the device.
Clean the exterior
Use a soft cloth or slightly moistened sponge to wipe dust, smudges, and stains off the
case. The interior of the HP All-in-One does not require cleaning. Keep fluids away from
the control panel and the interior of the HP All-in-One.
CAUTION: To avoid damage to the exterior of the HP All-in-One, do not use alcohol
or alcohol-based cleaning products.
Check the estimated ink levels
You can easily check the ink supply level to determine how soon you might need to
replace an ink cartridge. The ink supply level shows an estimate of the amount of ink
remaining in the ink cartridges.
NOTE: The HP All-in-One can only detect the ink levels for genuine HP ink. The ink
levels in ink cartridges that are refilled or have been used in other devices might not
register accurately.
NOTE: Ink from the cartridges is used in the printing process in a number of different
ways, including in the initialization process, which prepares the device and cartridges
for printing, and in printhead servicing, which keeps print nozzles clear and ink flowing
smoothly. In addition, some residual ink is left in the cartridge after it is used. For more
information, see www.hp.com/go/inkusage.
To check the ink levels from the control panel
1. Press Setup.
2. Press to highlight Tools, and then press OK.
98
Maintain the HP All-in-One
Maintain the HP All-in-One
3. Press to highlight Display Ink Gauge, and then press OK.
The HP All-in-One displays a gauge that shows the estimated ink levels of all
cartridges installed.
4. Press any button to return to the Tools menu.
To check the ink levels from the HP Photosmart Software
1. In the HP Solution Center, click Settings, point to Print Settings, and then click
Printer Toolbox.
NOTE: You can also open the Printer Toolbox from the Print Properties dialog
box. In the Print Properties dialog box, click the Services tab, and then click
Service this device.
The Printer Toolbox appears.
2. Click the Estimated Ink Level tab.
The estimated ink levels for the ink cartridges appear.
TIP: You can also print a self-test report to see if ink cartridges might need to be
replaced.
Related topics
“Print a self-test report” on page 95
Work with ink cartridges
To ensure the best print quality from the HP All-in-One, you will need to perform some
simple maintenance procedures and, when prompted by a message on the display,
replace the ink cartridges.
This section contains the following topics:
•
•
•
•
•
Replace the ink cartridges
Align the printer
Clean the print head
Clean the ink cartridge contacts
Remove ink from your skin and clothing
Replace the ink cartridges
Follow these instructions when you need to replace ink cartridges.
Work with ink cartridges
99
Chapter 12
Maintain the HP All-in-One
NOTE: If you are installing ink cartridges in the HP All-in-One for the first time, be
sure to use only the ink cartridges that came with the device. The ink in these
cartridges is specially formulated to mix with the ink in the print head assembly at firsttime setup.
If you do not already have replacement ink cartridges for the HP All-in-One, to order
cartridges, go to www.hp.com/buy/supplies. If prompted, choose your country/region,
follow the prompts to select your product, and then click one of the shopping links on the
page.
To replace the ink cartridges
1. Make sure the HP All-in-One is turned on.
2. Open the ink cartridge door by lifting from the front center of the device, until the door
locks into place.
3. Squeeze the bottom of the latch below the ink cartridge you want to replace, and then
lift the latch.
If you are replacing the black ink cartridge, lift the latch on the far left.
100
Maintain the HP All-in-One
Maintain the HP All-in-One
If you are replacing one of the five color ink cartridges, such as yellow, light cyan
(blue), cyan, light magenta (pink), or magenta, lift the appropriate latch in the center
area.
1
Ink cartridge latch for the black ink cartridge
2
Ink cartridge latches for the color ink cartridges
4. Pull the ink cartridge toward you out of its slot to remove it.
Work with ink cartridges
101
Chapter 12
Maintain the HP All-in-One
5. Remove the new ink cartridge from its packaging, and then, holding it by the handle,
push the ink cartridge into the empty slot.
Match the color and pattern of the ink cartridge to the color and pattern on the print
carriage.
6. Close the latch and make sure it is secure.
7. Repeat steps 3 through 6 for each ink cartridge you are replacing.
8. Close the ink cartridge door.
Related topics
“Shop for ink supplies” on page 107
Align the printer
The HP All-in-One automatically aligns the print head when you install the ink cartridges
during the initial setup. The HP All-in-One also aligns the print head during periodic
102
Maintain the HP All-in-One
If you still have print quality problems after aligning the printer, try cleaning the print head.
If print quality problems persist after aligning and cleaning, contact HP support.
To align the printer from the control panel
1. Load letter, A4, or legal unused plain white paper into the input tray.
2. Press Setup.
The Setup menu appears.
3. Press to highlight Tools, and press OK.
The Tools menu appears.
4. Press to highlight Align Printer, and press OK.
5. The HP All-in-One prints a test page, aligns the print head, and calibrates the printer.
Recycle or discard the page.
A success or failure message appears.
NOTE: If you have colored paper loaded in the input tray when you align the
printer, the alignment will fail. Load unused plain white paper into the input tray,
and then try the alignment again.
6. Press OK to continue.
To align the printer from the HP Photosmart Software
1. Load letter, A4, or legal unused plain white paper into the input tray.
2. In the HP Solution Center, click Settings, point to Print Settings, and then click
Printer Toolbox.
NOTE: You can also open the Printer Toolbox from the Print Properties dialog
box. In the Print Properties dialog box, click the Services tab, and then click
Service this device.
The Printer Toolbox appears.
3. Click the Device Services tab.
4. Click Align the Printer.
The HP All-in-One prints a test page, aligns the print head, and calibrates the printer.
Recycle or discard the page.
Related topics
“Clean the print head” on page 103
Clean the print head
Use this feature when the self-test report shows streaking or white lines through any of
the blocks of color. Do not clean the print head unnecessarily, as this wastes ink and
shortens the life of the ink nozzles on the print head.
Work with ink cartridges
103
Maintain the HP All-in-One
maintenance to ensure excellent print quality. You might want to use this feature when
the self-test report shows streaking or white lines through any of the blocks of color.
Chapter 12
Maintain the HP All-in-One
To clean the print head from the control panel
1. Load letter or A4 unused plain white paper into the input tray.
2. Press Setup.
3. Press to highlight Tools, and then press OK.
4. Press to highlight Clean Printhead, and then press OK.
The HP All-in-One cleans the print head and prints a page that you can recycle or
discard.
To clean the print head from the HP Photosmart Software
1. Load letter, A4, or legal unused plain white paper into the input tray.
2. In the HP Solution Center, click Settings, point to Print Settings, and then click
Printer Toolbox.
NOTE: You can also open the Printer Toolbox from the Print Properties dialog
box. In the Print Properties dialog box, click the Services tab, and then click
Service this device.
The Printer Toolbox appears.
3. Click the Device Services tab.
4. Click Clean the Print Head.
5. Follow the prompts until you are satisfied with the quality of the output, and then click
Done.
If print quality still seems poor after you clean the print head, try aligning the printer.
If print quality problems persist after cleaning and aligning, contact HP support.
Related topics
“Align the printer” on page 102
Clean the ink cartridge contacts
Clean the copper-colored ink cartridge contacts if all ink cartridges are installed and a
message appears on the display that says a cartridge is missing or damaged.
Before cleaning the ink cartridge contacts, remove the ink cartridge and verify that nothing
is covering the ink cartridge contacts or the ink cartridge slot, then reinstall the ink
cartridge. If you continue to get a message that says a cartridge is missing or damaged,
clean the ink cartridge contacts. If you still get this message after cleaning the contacts,
you will need a replacement ink cartridge. Remove the affected ink cartridge and look at
the end-of-warranty date on the bottom. If it is before the end-of-warranty date, contact
HP support to obtain a replacement ink cartridge.
Make sure you have the following materials available:
•
•
Dry foam rubber swabs, lint-free cloth, or any soft material that will not come apart or
leave fibers.
Distilled, filtered, or bottled water (tap water might contain contaminants that can
damage the ink cartridges).
CAUTION: Do not use platen cleaners or alcohol to clean the ink cartridge contacts.
These can damage the ink cartridge or the HP All-in-One.
104
Maintain the HP All-in-One
NOTE: Do not remove multiple ink cartridges at the same time. Remove and
clean each ink cartridge one at a time. Do not leave an ink cartridge outside the
HP All-in-One for more than 30 minutes.
4. Inspect the ink cartridge contacts for ink and debris buildup.
5. Dip a clean foam rubber swab or lint-free cloth into distilled water, and squeeze any
excess water from it.
NOTE: Hold the ink cartridge by its handle. Do not touch the copper-colored
contacts with your hands or anything other than a foam rubber swab or lint-free
cloth.
6. Clean only the copper-colored contacts.
1
Copper-colored contacts
7. Place the ink cartridge back into the empty slot and press down on the gray latch until
it clicks into place.
8. Repeat if necessary for the other ink cartridges.
9. Gently close the ink cartridge door.
Related topics
• “Replace the ink cartridges” on page 99
• “Ink cartridge warranty information” on page 169
Work with ink cartridges
105
Maintain the HP All-in-One
To clean the ink cartridge contacts
1. Make sure the HP All-in-One is turned on.
2. Lift the ink cartridge door.
3. Squeeze the bottom of the latch below the ink cartridge you want to clean, and then
lift the latch.
Chapter 12
Remove ink from your skin and clothing
Follow these instructions to remove ink from your skin and clothing:
Maintain the HP All-in-One
Surface
Remedy
Skin
Wash the area with an abrasive soap.
White fabric
Wash the fabric in cold water and use chlorine bleach.
Color fabric
Wash the fabric in cold water and use sudsy ammonia.
CAUTION: Always use cold water to remove ink from fabric. Warm or hot water can
set the ink into the fabric.
Reduce energy consumption when the HP All-in-One is off
When the HP All-in-One is off, an amount of energy is still being consumed. Energy
consumption can be lessened by enabling the Standby/Off state.
NOTE: When the HP All-in-One is in the Standby/Off state, it will take longer than
usual to turn back on.
To enable the Standby/Off state
▲ Press and hold the On button for 3 seconds until the HP All-in-One turns off.
Self-maintenance sounds
The HP All-in-One will make mechanical noises at various times to perform periodic
maintenance functions, such as replenishing the ink levels in the print head assembly or
cleaning the print head. This is normal operation and is necessary to ensure the HP Allin-One produces the best quality printouts.
CAUTION: A message on the display will notify you when the HP All-in-One is
performing maintenance functions. Do not remove power from the device during this
time.
Turn off the HP All-in-One
To avoid damaging the HP All-in-One, you must properly shut it down by using the On
button located on the device. Do not turn the HP All-in-One off by unplugging the power
cord or turning off a power strip.
106
Maintain the HP All-in-One
13 Shop for ink supplies
For a list of ink cartridge numbers, see the printed documentation that came with the
HP All-in-One. You can also use the software that came with the HP All-in-One to find
out the reorder number for all the ink cartridges. You can order ink cartridges online from
the HP Web site. Additionally, you can contact a local HP reseller to find out the correct
ink cartridge reorder numbers for your device and purchase ink cartridges.
To order genuine HP supplies for the HP All-in-One, go to www.hp.com/buy/supplies. If
prompted, choose your country/region, follow the prompts to select your product, and
then click one of the shopping links on the page.
To order ink cartridges from your desktop
▲ Click the Shop for HP Supplies icon on your desktop to connect to HP SureSupply.
You will see a list of original HP printing supplies that are compatible with your device,
as well as options to conveniently purchase the supplies you need (options vary by
country/region).
If you deleted this icon from your desktop, click the Start menu, point to the HP folder,
then click Shop for Supplies.
To order HP printing supplies through the HP Solution Center
1. In the HP Solution Center, click Settings, point to Print Settings, and then click
Printer Toolbox.
NOTE: You can also open the Printer Toolbox from the Print Properties dialog
box. In the Print Properties dialog box, click the Services tab, and then click
Service this device.
2. Click the Estimated Ink Levels tab.
3. Click Ink Cartridge Ordering Information.
The ink cartridge reorder numbers appear.
4. Click Order Online.
HP sends detailed printer information, including model number, serial number, and
ink supply levels, to an authorized online reseller. The supplies you need are
preselected; you can change quantities, add or remove items, and then check out.
Shop for ink supplies
107
Shop for ink supplies
NOTE: Ordering ink cartridges online is not supported in all countries/regions. If it is
not supported in your country/region, contact a local HP reseller for information about
purchasing ink cartridges.
Chapter 13
Shop for ink supplies
108
Shop for ink supplies
14 Troubleshooting
This section contains the following topics:
•
•
•
•
•
•
•
•
•
•
Troubleshooting tips
Hardware setup troubleshooting
Software installation troubleshooting
Network troubleshooting
Print quality troubleshooting
Print troubleshooting
Memory card troubleshooting
Scan troubleshooting
Copy troubleshooting
Errors
Troubleshooting tips
This section contains the following topics:
•
•
•
•
Communication problems over a USB connection
Information on ink cartridges and the print head
Information on paper
Clear paper jams
Communication problems over a USB connection
If the HP All-in-One and computer are USB-connected and are not communicating with
each other, try the following:
•
•
•
Look at the display on the HP All-in-One. If the display is blank and the On button is
not lit, the HP All-in-One is turned off. Make sure the power cord is firmly connected
to the HP All-in-One and plugged into a power outlet. Press the On button to turn on
the HP All-in-One.
Check the USB cable. If you are using an older cable, it might not be working properly.
Try connecting it to another product to see if the USB cable works. If you experience
problems, the USB cable might need to be replaced. Also verify that the cable does
not exceed 3 meters (9.8 feet) in length.
Check the connection from the HP All-in-One to your computer. Verify that the USB
cable is securely plugged into the USB port on the back of the HP All-in-One. Make
Troubleshooting
109
Troubleshooting
NOTE: For information on network communication problems, see “Network
troubleshooting” on page 120. For information on communication problems involving
a memory card, see “Memory card troubleshooting” on page 139.
Chapter 14
sure the other end of the USB cable is plugged into a USB port on your computer.
After the cable is connected properly, turn the HP All-in-One off and then on again.
•
•
•
•
If you are connecting the HP All-in-One through a USB hub, make sure the hub is
turned on. If the hub is on, try connecting directly to your computer.
Check other printers or scanners. You might need to disconnect older products from
your computer.
Try connecting the USB cable to another USB port on your computer. After you check
the connections, try restarting your computer. Turn the HP All-in-One off and then on
again.
If necessary, remove the software you installed with the HP All-in-One and then install
it again.
For more information, see:
“Uninstall and reinstall the software” on page 118
Information on ink cartridges and the print head
Troubleshooting
The following tips help maintain HP ink cartridges and ensure consistent print quality.
•
•
•
•
•
•
110
Install the ink cartridge on or before the install by date, which is printed on the ink
cartridge package.
Keep all ink cartridges in the original sealed packages until they are needed.
Turn off the HP All-in-One by pressing the On button located on the device. Do not
turn off the device by turning off a power strip or unplugging the power cord from the
HP All-in-One. If you improperly turn off the HP All-in-One, the print head assembly
might not return to the correct position.
Store ink cartridges at room temperature (15.6°-26.6° C or 60°-78° F).
HP recommends that you do not remove the ink cartridges from the HP All-in-One
until you have replacement cartridges available to install.
If you are transporting the HP All-in-One make sure you turn off the device by pressing
the On button to power it down properly. Also, make sure you leave the ink cartridges
installed. Doing these actions will prevent ink leaking from the print head assembly.
Clean the print head when you notice a significant decrease in print quality.
Troubleshooting
•
•
Do not clean the print head unnecessarily. This wastes ink and shortens the life of
the cartridges.
Handle ink cartridges carefully. Dropping, jarring, or rough handling during installation
can cause temporary printing problems.
Information on paper
The HP All-in-One is designed to work well with most paper types. Test a variety of paper
types before buying a large quantity. Find a paper type that works well and is easy to
purchase. HP Premium papers are designed for the best quality results. In addition, follow
these tips:
•
•
•
•
•
•
Do not use paper that is too thin, that has a slick texture, or that stretches easily. It
can feed incorrectly through the paper path, causing paper jams.
Store photo media in its original packaging inside a resealable plastic bag on a flat
surface in a cool, dry place. When you are ready to print, remove only the paper you
plan to use immediately. When you have finished printing, return any unused photo
paper to the plastic bag.
Always hold photo paper by the edges. Fingerprints on photo paper can reduce print
quality.
Do not use paper that is heavily textured. It can cause graphics or text to print
improperly.
Do not combine different paper types and paper sizes in the input tray; the entire stack
of paper in the input tray must be the same size and type.
Store printed photos under glass or in a storage book to prevent bleeding over time
from high humidity. Use HP Premium Plus photo paper for maximum performance.
Clear paper jams
To clear a paper jam from the Two-sided printing accessory
1. Turn off the HP All-in-One.
2. Press in the tabs on the left and right side of the Two-sided printing accessory.
Remove the accessory by pulling it away from the HP All-in-One.
CAUTION: Trying to clear a paper jam from the front of the HP All-in-One can
damage the print mechanism. Always access and clear paper jams from the Twosided printing accessory of the HP All-in-One.
Troubleshooting tips
111
Troubleshooting
If the HP All-in-One has a paper jam, check the Two-sided printing accessory.
Chapter 14
3. Gently pull the paper out of the rollers.
CAUTION: If the paper tears when you are removing it from the rollers, check
the rollers and wheels for torn pieces of paper that might be remaining inside the
device. If you do not remove all the pieces of paper from the HP All-in-One, more
paper jams are likely to occur.
4. If the paper jam is cleared, proceed to step 5.
If the paper jam is not cleared, do the following:
a. Open the Two-sided printing accessory by pulling the tabs up.
b. Remove any paper from inside the accessory.
c. Close the Two-sided printing accessory by pressing the tabs down until they lock
into place.
5. Replace the Two-sided printing accessory. Gently push the accessory forward until
it snaps into place.
6. Turn on the HP All-in-One, and then press OK to continue the current job.
Hardware setup troubleshooting
This section contains hardware troubleshooting information for the HP All-in-One.
Many issues are caused when the HP All-in-One is connected to the computer using a
USB cable before the HP All-in-One software is installed on the computer. If you
connected the HP All-in-One to your computer before the software installation screen
prompts you to do so, you must follow these steps:
Troubleshooting
Troubleshooting common setup issues
1. Disconnect the USB cable from the computer.
2. Uninstall the software (if you have already installed it).
3. Restart your computer.
4. Turn off the HP All-in-One, wait one minute, then restart it.
5. Reinstall the HP All-in-One software.
CAUTION: Do not connect the USB cable to the computer until prompted by the
software installation screen.
This section contains the following topics:
•
•
•
•
•
•
•
112
The HP All-in-One will not turn on
I connected the USB cable, but I am having problems using the HP All-in-One with
my computer
The display shows the wrong language
The wrong measurements are showing in menus on the display
I received a message on the display that the printer alignment failed
The HP All-in-One does not print
I received a message on the display about a paper jam or a blocked print head
assembly
Troubleshooting
The HP All-in-One will not turn on
Cause: The HP All-in-One is not properly connected to a power supply.
•
•
•
1
Power connection
2
Power cord and adapter
3
Grounded power outlet
If you are using a power strip, make sure the power strip is on. Or, try plugging
the HP All-in-One directly into a grounded power outlet.
Test the power outlet to make sure it is working. Plug in an appliance that you
know works, and see if the appliance has power. If not, then there might be a
problem with the power outlet.
If you plugged the HP All-in-One into a switched outlet, make sure the switch is
on. If it is switched to on but still does not work, then there might be a problem
with the power outlet.
Cause: You pressed the On button too quickly.
Solution: The HP All-in-One might not respond if you press the On button too
quickly. Press the On button once. It might take a few minutes for the HP All-in-One
to turn on. If you press the On button again during this time, you might turn the device
off.
CAUTION: If the HP All-in-One still does not turn on, it might have a mechanical
failure. Unplug the HP All-in-One from the power outlet and contact HP. Go to:
www.hp.com/support. If prompted, choose your country/region, and then click
Contact HP for information on calling for technical support.
Hardware setup troubleshooting
113
Troubleshooting
Solution:
• Make sure the power cord is firmly connected to both the HP All-in-One and the
power adapter. Plug the power cord into a grounded power outlet, surge protector,
or power strip.
Chapter 14
I connected the USB cable, but I am having problems using the HP All-in-One with
my computer
Cause: The USB cable was connected before the software was installed.
Connecting the USB cable before prompted can cause errors.
Solution: You must first install the software that came with the HP All-in-One before
connecting the USB cable. During installation, do not plug in the USB cable until
prompted by the onscreen instructions.
Once you have installed the software, connecting your computer to the HP All-in-One
with a USB cable is straightforward. Simply plug one end of the USB cable into the
back of your computer and the other into the back of the HP All-in-One. You can
connect to any USB port on the back of your computer.
For more information on installing the software and connecting the USB cable, see
the Setup Guide that came with the HP All-in-One.
Troubleshooting
The display shows the wrong language
Cause:
in-One.
You might have selected the incorrect language when setting up the HP All-
Solution: You can change the language settings at any time from the
Preferences menu.
For more information, see:
“Set your language and country/region” on page 15
The wrong measurements are showing in menus on the display
Cause: You might have selected the incorrect country/region when setting up the
HP All-in-One. The country/region you select determines the paper sizes shown on
the display.
114
Troubleshooting
Solution:
You can change the country/region settings from the Preferences menu.
For more information, see:
“Set your language and country/region” on page 15
I received a message on the display that the printer alignment failed
Cause: The incorrect type of paper is loaded in the input tray (for example, colored
paper, paper with text on it or, certain recycled paper).
Solution: Load unused plain white letter or A4 paper into the input tray, and then
try the alignment again.
If the alignment fails again, you might have a defective sensor on the print head
assembly. Contact HP support. Go to www.hp.com/support. If prompted, choose your
country/region, and then click Contact HP for information on calling for technical
support.
For more information, see:
“Align the printer” on page 102
The HP All-in-One does not print
Cause: The HP All-in-One and computer are not communicating with each other.
Solution:
Check the connection between the HP All-in-One and computer.
For more information, see:
“Communication problems over a USB connection” on page 109
Cause: There might be a problem with one or more of the ink cartridges.
Solution:
Check that the ink cartridges are installed properly and have ink.
“Work with ink cartridges” on page 99
Cause: The HP All-in-One might not be turned on.
Solution: Look at the display on the HP All-in-One. If the display is blank and the
On button is not lit, the HP All-in-One is turned off. Make sure the power cord is firmly
connected to the HP All-in-One and plugged into a power outlet. Press the On button
to turn on the HP All-in-One.
Cause: The HP All-in-One might be out of paper.
Solution:
Load paper in the input tray.
For more information, see:
“Load paper” on page 36
Hardware setup troubleshooting
115
Troubleshooting
For more information, see:
Chapter 14
I received a message on the display about a paper jam or a blocked print head
assembly
Cause:
The HP All-in-One has a paper jam.
Solution: Clear the paper jam, and then follow the prompts on the display or the
computer screen to continue.
For more information, see:
“Clear paper jams” on page 111
Cause:
The print head assembly is blocked.
Solution: There might be some packing material inside the HP All-in-One. Turn the
HP All-in-One off and open the ink cartridge door. Remove any objects that are
blocking the print head assembly (including any packing materials), and then turn the
HP All-in-One on again. Follow the prompts on the display or the computer screen to
continue.
Software installation troubleshooting
Use this section to solve any problems you might encounter while setting up the HP Allin-One software.
This section contains the following topics:
•
•
•
•
•
•
•
When I insert the CD-ROM into my computer’s CD-ROM drive, nothing happens
The minimum system checks screen appears
A red X appears on the USB connect prompt
I received a message that an unknown error has occurred
The registration screen does not appear
Uninstall and reinstall the software
Missing HP Photosmart Software
Troubleshooting
When I insert the CD-ROM into my computer’s CD-ROM drive, nothing happens
Cause:
Solution:
The installation failed to run automatically.
If the installation does not run automatically, you can start it manually.
To start the installation from a Windows computer
1. From the Windows Start menu, click Run.
2. In the Run dialog box, enter d:\setup.exe, and then click OK.
If your CD-ROM drive is not assigned to drive letter D, enter the appropriate drive
letter.
The minimum system checks screen appears
Cause: Your system does not meet the minimum requirements to install the
software.
116
Troubleshooting
Solution: Click Details to see what the specific problem is, and then correct the
problem before attempting to install the software.
A red X appears on the USB connect prompt
Cause: Normally, a green check appears indicating that the USB connection is
successful. A red X indicates that the USB connection failed.
Solution: Check that the HP All-in-One is turned on, and then try the USB
connection again.
3. Click Retry to retry the connection. If this does not work, continue to the next step.
4. Verify that the USB cable is set up properly as follows:
• Unplug the USB cable and plug it in again or try plugging the USB cable into
a different USB port.
• Do not attach the USB cable to a keyboard.
• Verify that the USB cable is 3 meters (9.8 feet) or less in length.
• If you have several USB devices attached to your computer, you might want
to unplug the other devices during the installation.
5. Continue with the installation and restart the computer when prompted.
For more information, see:
“Uninstall and reinstall the software” on page 118
I received a message that an unknown error has occurred
Cause: The source of the error is unknown.
Solution: Try to continue with the installation. If that does not work, stop and then
restart the installation, and follow the directions on the screen. If an error occurs, you
might need to uninstall and then reinstall the software. Do not simply delete the HP AllSoftware installation troubleshooting
117
Troubleshooting
To retry the USB connection
1. Unplug the HP All-in-One power cord, and then plug it in again.
2. Verify that the USB cable and power cord are plugged in.
Chapter 14
in-One application files from your computer. Make sure to remove them properly using
the uninstall utility provided when you installed the software that came with the HP Allin-One.
For more information, see:
“Uninstall and reinstall the software” on page 118
The registration screen does not appear
Cause:
The registration screen did not launch automatically.
Solution: You can access the registration (Sign up now) screen from the Windows
taskbar by clicking Start, pointing to Programs or All Programs, HP, Photosmart
C6200 All-in-One series, and then clicking Product Registration.
Uninstall and reinstall the software
If your installation is incomplete, or if you connected the USB cable to the computer before
prompted by the software installation screen, you might need to uninstall and then
reinstall the software. Do not simply delete the HP All-in-One application files from your
computer. Make sure to remove them properly using the uninstall utility provided when
you installed the software that came with the HP All-in-One.
Troubleshooting
To uninstall from a Windows computer, method 1
1. Disconnect the HP All-in-One from your computer. Do not connect the HP All-in-One
to your computer until after you have reinstalled the software.
2. On the Windows taskbar, click Start, Programs or All Programs, HP, Photosmart
C6200 All-in-One series, Uninstall.
3. Follow the onscreen instructions.
4. If you are asked whether you would like to remove shared files, click No.
Other programs that use these files might not work properly if the files are deleted.
5. Restart your computer.
NOTE: It is important that you disconnect the HP All-in-One before restarting
your computer. Do not connect the HP All-in-One to your computer until after you
have reinstalled the software.
6. To reinstall the software, insert the HP All-in-One CD-ROM into your computer’s CDROM drive, and follow the onscreen instructions and the instructions provided in the
Setup Guide that came with the HP All-in-One.
7. After the software is installed, connect the HP All-in-One to your computer.
8. Press the On button to turn the HP All-in-One on.
After connecting and turning on the HP All-in-One, you might have to wait several
minutes for all of the Plug and Play events to complete.
9. Follow the onscreen instructions.
118
Troubleshooting
To uninstall from a Windows computer, method 2
NOTE: Use this method if Uninstall is not available in the Windows Start menu.
1. On the Windows taskbar, click Start, Settings, Control Panel.
2. Double-click Add/Remove Programs.
3. Select HP Photosmart All-In-One Driver Software, and then click Change/
Remove.
Follow the onscreen instructions.
4. Disconnect the HP All-in-One from your computer.
5. Restart your computer.
NOTE: It is important that you disconnect the HP All-in-One before restarting
your computer. Do not connect the HP All-in-One to your computer until after you
have reinstalled the software.
6. Insert the HP All-in-One CD-ROM into your computer’s CD-ROM drive and then start
the Setup program.
7. Follow the onscreen instructions and the instructions provided in the Setup Guide that
came with the HP All-in-One.
To uninstall from a Windows computer, method 3
NOTE: Use this method if Uninstall is not available in the Windows Start menu.
NOTE: It is important that you disconnect the HP All-in-One before restarting
your computer. Do not connect the HP All-in-One to your computer until after you
have reinstalled the software.
5. Start the Setup program for the HP All-in-One again.
6. Select Install.
7. Follow the onscreen instructions and the instructions provided in the Setup Guide that
came with the HP All-in-One.
Missing HP Photosmart Software
Cause: The HP Photosmart Software is not installed.
Software installation troubleshooting
119
Troubleshooting
1. Insert the HP All-in-One CD-ROM into your computer’s CD-ROM drive and then start
the Setup program.
2. Disconnect the HP All-in-One from your computer.
3. Select Uninstall and follow the onscreen directions.
4. Restart your computer.
Chapter 14
Solution: Install the HP Photosmart Software that came with the HP All-in-One. If
it is installed, restart your computer.
To install the HP Photosmart Software
1. Insert the HP All-in-One CD-ROM into your computer’s CD-ROM drive and then
start the Setup program.
2. When prompted, click Install More Software to install the HP Photosmart
Software.
3. Follow the onscreen instructions and the instructions provided in the Setup Guide
that came with the HP All-in-One.
Cause:
Solution:
Cause:
Solution:
Cause:
The HP All-in-One is turned off.
Turn the HP All-in-One on.
The computer is turned off.
Turn the computer on.
The HP All-in-One is not properly connected to the computer.
Solution: Check the connection from the HP All-in-One to your computer. Verify
that the USB cable is securely plugged into the USB port on the back of the HP Allin-One. Make sure the other end of the USB cable is plugged into a USB port on your
computer. After the cable is connected properly, turn the HP All-in-One off and then
on again.
Troubleshooting
For more information on setting up the HP All-in-One and connecting it to your
computer, see the Setup Guide that came with the HP All-in-One.
Network troubleshooting
This section addresses problems you might encounter setting up a wired network.
120
Troubleshooting
This section contains the following topics:
•
•
The computer is unable to discover the HP All-in-One
The Printer not Found screen appears during installation
The computer is unable to discover the HP All-in-One
Cause: Cables are not connected properly.
Solution: Check the following cables to ensure they are connected properly.
• Cables between the HP All-in-One and the hub or router
• Cables between the hub or router and your computer
• Cables to and from your modem or HP All-in-One Internet connection (if
applicable)
Cause: Your computer's Local Area Network card (LAN card) is not set up properly.
Solution:
Make sure that your LAN card is set up properly.
To check your LAN card (Windows 2000 and XP)
1. Right-click My Computer.
2. In the System Properties dialog box, click the Hardware tab.
3. Click Device Manager.
4. Make sure your card shows up under Network Adapters.
5. Refer to the documentation that came with your card.
Cause: You do not have an active network connection.
Solution:
Check to see if you have an active network connection.
To see if you have an active network connection
▲ Check the two Ethernet indicator lights on the top and bottom of the RJ-45
Ethernet jack on the back of the HP All-in-One. The lights indicate the following:
a. Top light: If this light is a solid green, the device is properly connected to the
network, and communications have been established. If the top light is off,
there is no network connection.
b. Bottom light: This yellow light flashes when data is being sent or received by
the device over the network.
Network troubleshooting
121
Troubleshooting
To check your LAN card (Windows Vista)
1. On the Windows taskbar, click Start, Computer, and then click Properties.
2. Click Device Manager.
3. Make sure your card shows up under Network Adapters.
4. Refer to the documentation that came with your card.
Chapter 14
To establish an active network connection
1. Check the cable connections from the HP All-in-One to your gateway, router, or
hub to ensure connections are secure.
2. If the connections are secure, press the On button on the control panel to turn the
HP All-in-One off. Then turn off the power on your router or hub. Turn on the router
or hub first, and then press the On button to turn the HP All-in-One on.
Cause: You were able to connect the HP All-in-One to the network previously, but
now it will not connect.
Solution: Turn off the HP All-in-One, the computer, and the router. Wait a few
seconds. Turn on the router first, and then turn on the HP All-in-One and the computer.
Cause:
The HP All-in-One and computer are not connected to the same network.
Solution: Try accessing the Embedded Web Server on the HP All-in-One. To find
the IP address, print a network configuration page.
Related topics
• “View and print network settings” on page 23
• “Use the Embedded Web Server” on page 25
The Printer not Found screen appears during installation
Cause:
Solution:
Cause:
Solution:
The HP All-in-One is not turned on.
Turn on the HP All-in-One.
You do not have an active network connection.
Make sure you have an active network connection.
Troubleshooting
To make sure your network connection is active
1. If the connections are secure, turn off the power on the HP All-in-One, and then
turn it on again. Press the On button on the control panel to turn the HP All-inOne off, and press it again to turn the device on. Also, turn off the power on your
router or hub, and then turn it on again.
2. Check the cable connections from the HP All-in-One to your gateway, router, or
hub to ensure connections are secure.
3. Make sure the HP All-in-One is connected to the network with a CAT-5 Ethernet
cable.
Cause:
122
Troubleshooting
Cables are not connected properly.
Solution: Check the following cables to ensure they are connected properly:
• Cables between the HP All-in-One and the hub or router
• Cables between the hub or router and your computer
• Cables to and from your modem or HP All-in-One Internet connection (if
applicable)
Cause: A firewall, anti-virus, or anti-spyware application is preventing the HP Allin-One from accessing your computer.
Solution: Uninstall the HP All-in-One software, and then reboot your computer.
Temporarily disable anti-virus or anti-spyware applications, and then reinstall the
HP All-in-One software. You can re-enable your anti-virus or anti-spyware
applications after installation is complete. If you see firewall pop-up messages, you
must always accept or allow the pop-up messages.
If the screen still appears, try uninstalling the HP All-in-One software, rebooting your
computer, and temporarily disabling your firewall before reinstalling the HP All-in-One
software. You can re-enable your firewall application after installation is complete. If
you still see firewall pop-up messages, you must always accept or allow the pop-up
messages.
For more information, see the documentation provided with the firewall software.
Cause: A Virtual Private Network (VPN) is preventing the HP All-in-One from
accessing your computer.
Solution:
Try temporarily disabling the VPN before proceeding with the installation.
NOTE: The HP All-in-One functionality will be limited during VPN sessions.
If you are having problems with print quality, try the solutions in this section and observe
the following guidelines:
•
•
•
•
To achieve the best print quality, HP recommends using HP papers that are
specifically designed for the type of project you are printing along with genuine HP
ink. HP papers and HP ink are specifically designed to work well together to provide
high-quality output.
Replace refilled or empty ink cartridges with genuine HP ink cartridges.
Check the device settings to make sure that the print mode and paper selection is
correct for the paper and the task.
For more information, see “Set the paper type for printing” on page 47 and “Choose
papers for printing and copying” on page 34.
Print and evaluate a self-test report.
For more information, see “Print a self-test report” on page 95.
Print quality troubleshooting
123
Troubleshooting
Print quality troubleshooting
Chapter 14
•
If the self-test report shows a defect, try the following:
• Clean the ink cartridges automatically. For more information, see “Clean the print
head” on page 103.
• If you are missing lines when you print, clean the electrical contacts. For more
information, see “Clean the ink cartridge contacts” on page 104.
If the self-test report does not show a problem, investigate other causes, such as the
image file or software program.
For additional ink cartridge troubleshooting, visit the HP Web site at www.hp.com/
support.
This section contains the following topics:
•
•
•
•
•
•
•
•
•
•
•
•
Ink is bleeding or smearing
Ink is not filling the text or graphics completely
The text edges are jagged
The printout has a horizontal band of distortion near the bottom of the page
Colors run into each other on the printout
Printouts have horizontal streaks or lines
Printouts are faded or have dull colors
Printouts seem blurry or fuzzy
Printouts have vertical streaks
Printouts are slanted or skewed
Ink is overspraying the paper when I print a photo
Paper is not picked up from the input tray
Ink is bleeding or smearing
Cause:
The paper type is not suitable for the HP All-in-One.
Solution: Use HP Premium Papers or any other paper type that is appropriate for
the HP All-in-One.
Troubleshooting
Cause:
The print head needs to be cleaned.
Solution: Clean the print head, and then print a self-test report. Check the color
blocks in the report for any problems. If the color blocks show print quality problems,
perform a printer alignment.
If the problem persists after cleaning and aligning, contact HP support for help. Go
to:
www.hp.com/support
If prompted, choose your country/region, and then click Contact HP for information
on calling for technical support.
For more information, see:
•
•
•
“Clean the print head” on page 103
“Print a self-test report” on page 95
“Align the printer” on page 102
Cause:
124
Troubleshooting
The paper is too close to the print head.
Solution: If the paper is too close to the print head during printing, the ink might be
smeared. This can happen if the paper is raised, wrinkled, or very thick, such as a
mailing envelope. Make sure the paper lays flat in the input tray and is not wrinkled.
Ink is not filling the text or graphics completely
Cause: The Paper Type setting is incorrect.
Solution: Change the Paper Type setting to match the type of paper loaded in the
input tray.
For more information, see:
•
•
“Set the copy paper type” on page 87
“Set the paper type for printing” on page 47
Cause: The print quality setting on the HP All-in-One is set too low.
Solution: Load high-quality paper in the input tray and print the image with a high
print quality setting, such as Best, Maximum dpi, or High Resolution. Always make
sure the paper you are printing on is flat. For best results when printing images, use
HP Premium Plus Photo Paper.
If the problem persists, use the software you installed with the HP All-in-One or
another software application to rotate your image 180 degrees so that the light blue,
gray, or brown hues in your image do not print at the bottom of the page.
For more information, see:
“Information on paper” on page 111
Cause: The print head needs to be cleaned.
If the problem persists after cleaning and aligning, contact HP support for help. Go
to:
www.hp.com/support
If prompted, choose your country/region, and then click Contact HP for information
on calling for technical support.
For more information, see:
•
•
•
“Clean the print head” on page 103
“Print a self-test report” on page 95
“Align the printer” on page 102
Cause: You are using non-HP ink.
Solution: HP recommends that you use genuine HP ink cartridges. Genuine HP
ink cartridges are designed and tested with HP printers to help you easily produce
great results, time after time.
Print quality troubleshooting
125
Troubleshooting
Solution: Clean the print head, and then print a self-test report. Check the color
blocks in the report for any problems. If the color blocks show print quality problems,
perform a printer alignment.
Chapter 14
NOTE: HP cannot guarantee the quality or reliability of non-HP ink. Printer
service or repairs required as a result of printer failure or damage attributable to
the use of non-HP ink will not be covered under warranty.
The text edges are jagged
Cause:
The font is a custom size.
Solution: Some software applications offer custom fonts that have jagged edges
when enlarged or printed. Also, if you want to print bitmapped text, it might have
jagged edges when enlarged or printed.
Use TrueType or OpenType fonts to ensure that the HP All-in-One is able to print
smooth fonts. When selecting a font, look for the TrueType or OpenType icon.
The printout has a horizontal band of distortion near the bottom of the page
Cause: Your photo image has light blue, gray, or brown hues that print near the
bottom of the page.
Solution: Load high-quality paper in the input tray and print the image with a high
print quality setting, such as Best, Maximum dpi, or High Resolution. Always make
sure the paper you are printing on is flat. For best results when printing images, use
HP Premium Plus Photo Paper.
If the problem persists, use the software you installed with the HP All-in-One or
another software application to rotate your image 180 degrees so that the light blue,
gray, or brown hues in your image do not print at the bottom of the page.
For more information, see:
“Information on paper” on page 111
Troubleshooting
Colors run into each other on the printout
Cause: The print or copy quality setting is set too high for the type of paper loaded
in the HP All-in-One.
Solution: Check the quality setting. Use a lower quality setting to decrease the
amount of ink used for printing or copying.
For more information, see:
•
•
“Change the print speed or quality” on page 48
“Change copy speed or quality” on page 88
Cause:
The paper type is not suitable for the HP All-in-One.
Solution: Use HP Premium Papers or any other paper type that is appropriate for
the HP All-in-One.
Cause:
126
Troubleshooting
You are printing on the wrong side of the paper.
Solution: Load paper with the side you want to print on facing down. For example,
if you are loading glossy photo paper, load the paper with the glossy side down.
For more information, see:
“Load paper” on page 36
Cause: You are using non-HP ink.
Solution: HP recommends that you use genuine HP ink cartridges. Genuine HP
ink cartridges are designed and tested with HP printers to help you easily produce
great results, time after time.
NOTE: HP cannot guarantee the quality or reliability of non-HP ink. Printer
service or repairs required as a result of printer failure or damage attributable to
the use of non-HP ink will not be covered under warranty.
Cause: The print head needs to be cleaned.
Solution: Clean the print head, and then print a self-test report. Check the color
blocks in the report for any problems. If the color blocks show print quality problems,
perform a printer alignment.
If the problem persists after cleaning and aligning, contact HP support for help. Go
to:
www.hp.com/support
If prompted, choose your country/region, and then click Contact HP for information
on calling for technical support.
For more information, see:
“Clean the print head” on page 103
“Print a self-test report” on page 95
“Align the printer” on page 102
Troubleshooting
•
•
•
Printouts have horizontal streaks or lines
Cause: The paper is not feeding properly or is loaded incorrectly.
Solution:
Make sure the paper is loaded correctly.
For more information, see:
“Load full-size paper” on page 37
Cause: The print quality setting on the HP All-in-One is set too low.
Solution: Load high-quality paper in the input tray and print the image with a high
print quality setting, such as Best, Maximum dpi, or High Resolution. Always make
sure the paper you are printing on is flat. For best results when printing images, use
HP Premium Plus Photo Paper.
Print quality troubleshooting
127
Chapter 14
If the problem persists, use the software you installed with the HP All-in-One or
another software application to rotate your image 180 degrees so that the light blue,
gray, or brown hues in your image do not print at the bottom of the page.
For more information, see:
“Information on paper” on page 111
Cause:
The print head needs to be cleaned.
Solution: Clean the print head, and then print a self-test report. Check the color
blocks in the report for any problems. If the color blocks show print quality problems,
perform a printer alignment.
If the problem persists after cleaning and aligning, contact HP support for help. Go
to:
www.hp.com/support
If prompted, choose your country/region, and then click Contact HP for information
on calling for technical support.
For more information, see:
•
•
•
“Clean the print head” on page 103
“Print a self-test report” on page 95
“Align the printer” on page 102
Printouts are faded or have dull colors
Cause:
The print quality setting on the HP All-in-One is set too low.
Solution: Load high-quality paper in the input tray and print the image with a high
print quality setting, such as Best, Maximum dpi, or High Resolution. Always make
sure the paper you are printing on is flat. For best results when printing images, use
HP Premium Plus Photo Paper.
Troubleshooting
If the problem persists, use the software you installed with the HP All-in-One or
another software application to rotate your image 180 degrees so that the light blue,
gray, or brown hues in your image do not print at the bottom of the page.
For more information, see:
“Information on paper” on page 111
Cause:
The paper type is not suitable for the HP All-in-One.
Solution: Use HP Premium Papers or any other paper type that is appropriate for
the HP All-in-One.
Cause:
Solution:
The Lighter/Darker copy setting for the HP All-in-One is set too light.
Adjust the lightness and darkness of the copies.
For more information, see:
“Adjust the lightness and darkness of your copy” on page 89
128
Troubleshooting
Cause: The Paper Type setting is incorrect.
Solution: Change the Paper Type setting to match the type of paper loaded in the
input tray.
For more information, see:
•
•
“Set the copy paper type” on page 87
“Set the paper type for printing” on page 47
Cause: Copying a poor-quality picture, such as a newspaper photo, causes bands,
checks, or stripes to appear on your copy. These are called moiré patterns.
Solution: To reduce moiré patterns, try placing one or more clear plastic sheet
protectors directly on the glass, and then place the original print side down on top of
the sheet protectors.
Cause: Debris might be stuck on the glass or on the back of the document lid; this
causes poor copy quality and slows down processing.
Solution:
Clean the glass and the back of the document lid.
For more information, see:
•
•
“Clean the glass” on page 97
“Clean the lid backing” on page 98
Cause: The print head needs to be cleaned.
Solution: Clean the print head, and then print a self-test report. Check the color
blocks in the report for any problems. If the color blocks show print quality problems,
perform a printer alignment.
If the problem persists after cleaning and aligning, contact HP support for help. Go
to:
If prompted, choose your country/region, and then click Contact HP for information
on calling for technical support.
For more information, see:
•
•
•
“Clean the print head” on page 103
“Print a self-test report” on page 95
“Align the printer” on page 102
Printouts seem blurry or fuzzy
Cause: The paper type is not suitable for the HP All-in-One.
Solution: Use HP Premium Papers or any other paper type that is appropriate for
the HP All-in-One.
Cause: The Paper Type setting is incorrect.
Print quality troubleshooting
129
Troubleshooting
www.hp.com/support
Chapter 14
Solution: Change the Paper Type setting to match the type of paper loaded in the
input tray.
For more information, see:
•
•
“Set the copy paper type” on page 87
“Set the paper type for printing” on page 47
Cause:
The print quality setting on the HP All-in-One is set too low.
Solution: Load high-quality paper in the input tray and print the image with a high
print quality setting, such as Best, Maximum dpi, or High Resolution. Always make
sure the paper you are printing on is flat. For best results when printing images, use
HP Premium Plus Photo Paper.
If the problem persists, use the software you installed with the HP All-in-One or
another software application to rotate your image 180 degrees so that the light blue,
gray, or brown hues in your image do not print at the bottom of the page.
For more information, see:
“Information on paper” on page 111
Cause:
You are printing on the wrong side of the paper.
Solution: Load paper with the side you want to print on facing down. For example,
if you are loading glossy photo paper, load the paper with the glossy side down.
For more information, see:
“Load paper” on page 36
Printouts have vertical streaks
Cause:
The paper type is not suitable for the HP All-in-One.
Troubleshooting
Solution: Use HP Premium Papers or any other paper type that is appropriate for
the HP All-in-One.
Printouts are slanted or skewed
Cause:
Solution:
The paper is not feeding properly or is loaded incorrectly.
Make sure the paper is loaded correctly.
For more information, see:
“Load full-size paper” on page 37
Cause:
Solution:
Cause:
130
Troubleshooting
More than one type of paper is loaded in the input tray.
Load only one type of paper at a time.
The Two-sided printing accessory might not be securely installed.
Solution: Make sure the Two-sided printing accessory on the back of the HP Allin-One is securely installed.
Ink is overspraying the paper when I print a photo
Cause: A small amount (a few millimeters) of overspray is common when making
a copy of a photo. If there are more than a few millimeters of overspray, it might mean
the HP All-in-One thinks the paper loaded is wider than it actually is.
TIP: One way to tell if ink is overspraying the paper is to check the back side of
pages you print after running a copy or print job. If the back side of the page has
ink streaks, the HP All-in-One might have over sprayed your previous copy or print
job.
Solution: Check the paper size setting. Set the paper size to match the paper
loaded in the input tray.
For more information, see:
“Set the copy paper size” on page 86
Paper is not picked up from the input tray
Cause: There is not enough paper in the input tray.
Solution: If the HP All-in-One is out of paper or there are only a few sheets
remaining, load more paper in the input tray. If there is paper in the input tray, remove
the paper, tap the stack of paper against a flat surface, and reload the paper into the
input tray. Follow the prompts on the display or the computer screen to continue your
print job.
Troubleshooting
Print troubleshooting
Use this section to solve these printing problems:
•
•
•
•
•
•
•
•
•
•
Envelopes print incorrectly
Borderless printing produces unexpected results
The HP All-in-One is not responding
The HP All-in-One prints meaningless characters
Nothing happens when I try to print
The pages in my document came out in the wrong order
The margins are not printing as expected
Text or graphics are cut off at the edge of the page
A blank page came out while printing
Ink is spraying the inside of the HP All-in-One when I print a photo
Envelopes print incorrectly
Cause: A stack of envelopes is loaded incorrectly.
Print troubleshooting
131
Chapter 14
Solution: Remove all paper from the input tray. Load a stack of envelopes in the
input tray, with the envelope flaps facing up and to the left.
NOTE: To avoid paper jams, tuck the flaps inside the envelopes.
Related topics
“Load envelopes” on page 40
Cause:
The wrong type of envelope is loaded.
Solution: Do not use shiny or embossed envelopes or envelopes that have clasps
or windows.
Borderless printing produces unexpected results
Cause: Printing a borderless image from a non-HP software application produces
unexpected results.
Solution: Try printing the image from the photo imaging software that came with
the HP All-in-One.
The HP All-in-One is not responding
Troubleshooting
Cause:
The HP All-in-One is busy with another task.
Solution: If the HP All-in-One is performing another task such as copying or
scanning, your print job will be delayed until the HP All-in-One completes the current
task.
Some documents take a long time to print. If nothing has printed several minutes after
you sent a print job to the HP All-in-One, check your computer to see if there are any
messages.
Cause:
Solution:
The HP All-in-One has a paper jam.
Clear the paper jam.
For more information, see:
“Clear paper jams” on page 111
Cause:
132
Troubleshooting
The HP All-in-One is out of paper.
Solution:
Load paper in the input tray.
For more information, see:
“Load paper” on page 36
Cause: The print head assembly has stalled.
Solution: Turn the HP All-in-One off and open the ink cartridge door. Remove any
objects that are blocking the print head assembly (including any packing materials),
and then turn the HP All-in-One on again.
Cause: The computer is not communicating with the HP All-in-One.
If the connections are secure, and nothing has printed several minutes after you sent
a print job to the HP All-in-One, check the status of the HP All-in-One. In the
HP Photosmart Software, click Status.
For more information, see:
“Communication problems over a USB connection” on page 109
Cause: The HP All-in-One is turned off.
Solution: Look at the On button located on the top of the HP All-in-One. If it is not
lit, the HP All-in-One is turned off. Make sure the power cord is firmly connected to
the HP All-in-One and plugged into a power outlet. Press the On button to turn on the
HP All-in-One.
Cause: The HP All-in-One experienced an error.
Solution: Turn the HP All-in-One off, and then unplug the power cord. Plug the
power cord back in, and then press the On button to turn on the HP All-in-One.
Cause: The status of the printer driver has changed.
Print troubleshooting
133
Troubleshooting
Solution: If the HP All-in-One is not properly connected to the computer,
communication errors can occur. Make sure the USB cable is connected to the HP Allin-One and the computer as shown below.
Chapter 14
Solution:
printing.
The printer driver status might have changed to either offline or stop
To check the printer driver status
1. In the HP Solution Center, click the device tab.
2. Click Settings.
3. Click Status.
If the status is offline or stop printing, change the status to ready.
Cause:
A deleted print job is still in the queue.
Solution: A print job might remain in the queue after it has been cancelled. The
cancelled print job jams the queue and prevents the next print job from printing.
From your computer, open the printer folder and see if the cancelled job remains in
the print queue. Try to delete the job from the queue. If the print job remains in the
queue, try one or both of the following:
•
•
Disconnect the USB cable from the HP All-in-One, restart the computer, and then
reconnect the USB cable to the HP All-in-One.
Shut down the HP All-in-One, restart the computer, and then restart the HP Allin-One.
Cause:
The Two-sided printing accessory is not installed correctly.
Solution: If the Two-sided printing accessory is installed, remove it and reinstall it.
To reinstall it, press the buttons on each side of the accessory and push it into the
rear of the HP All-in-One until it clicks into place.
If the Two-sided printing accessory is not installed, install it at the rear of the HP Allin-One.
Troubleshooting
The HP All-in-One prints meaningless characters
Cause:
There is no more available memory in the HP All-in-One.
Solution: Turn off the HP All-in-One and your computer for 60 seconds, then turn
them both on and try printing again.
Cause:
The document is corrupt.
Solution: Try printing another document from the same software application. If this
works, then try printing a previously saved version of the document that is not corrupt.
Nothing happens when I try to print
Cause:
The HP All-in-One is turned off.
Solution: Look at the On button located on the top of the HP All-in-One. If it is not
lit, the HP All-in-One is turned off. Make sure the power cord is firmly connected to
134
Troubleshooting
the HP All-in-One and plugged into a power outlet. Press the On button to turn on the
HP All-in-One.
Cause: The HP All-in-One is busy with another task.
Solution: If the HP All-in-One is performing another task such as copying or
scanning, your print job will be delayed until the HP All-in-One completes the current
task.
Some documents take a long time to print. If nothing has printed several minutes after
you sent a print job to the HP All-in-One, check your computer to see if there are any
messages.
Cause: The HP All-in-One is not the selected printer.
Solution: Make sure the HP All-in-One is the selected printer in your software
application.
TIP: You can set the HP All-in-One as the default printer to ensure that the printer
is automatically selected when you select Print in the File menu of your different
software applications.
Cause: The computer is not communicating with the HP All-in-One.
Troubleshooting
Solution: If the HP All-in-One is not properly connected to the computer,
communication errors can occur. Make sure the USB cable is connected to the HP Allin-One and the computer as shown below.
If the connections are secure, and nothing has printed several minutes after you sent
a print job to the HP All-in-One, check the status of the HP All-in-One. In the
HP Photosmart Software, click Status.
For more information, see:
“Communication problems over a USB connection” on page 109
Cause: The HP All-in-One has a paper jam.
Print troubleshooting
135
Chapter 14
Solution:
Clear the paper jam.
For more information, see:
“Clear paper jams” on page 111
Cause:
The print head assembly has stalled.
Solution: Turn the HP All-in-One off and open the ink cartridge door. Remove any
objects that are blocking the print head assembly (including any packing materials),
and then turn the HP All-in-One on again.
Cause:
Solution:
The HP All-in-One is out of paper.
Load paper in the input tray.
For more information, see:
“Load paper” on page 36
The pages in my document came out in the wrong order
Cause: The print settings are set to print the first page of your document first.
Because of the way the paper feeds through the HP All-in-One, this means the first
page will be print side up at the bottom of the stack.
Solution: Print the document in reverse order. When the document finishes
printing, the pages will be in correct order.
For more information, see:
“Print a multiple-page document in reverse order” on page 58
The margins are not printing as expected
Cause:
Troubleshooting
Solution:
The margins are not set correctly in your software application.
Check the printer margins.
Make sure the margin settings for the document do not exceed the printable area of
the HP All-in-One.
To check your margin settings
1. Preview your print job before sending it to the HP All-in-One.
2. Check the margins.
The HP All-in-One uses the margins you have set in your software application,
as long as they are greater than the minimum margins the HP All-in-One supports.
3. Cancel the print job if the margins are not satisfactory, and then adjust the margins
in your software application.
Cause: The paper size setting might not be set correctly for the project you are
printing.
136
Troubleshooting
Solution: Verify that you have selected the proper paper size setting for your
project. Make sure that you have loaded the correct paper size in the input tray.
Cause: The paper guides are not positioned correctly.
Solution: Remove the stack of paper from the input tray, reload the paper, and then
slide the paper width guide inward until it stops at the edge of the paper.
For more information, see:
“Load paper” on page 36
Cause: A stack of envelopes is loaded incorrectly.
Solution: Remove all paper from the input tray. Load a stack of envelopes in the
input tray, with the envelope flaps facing up and on the left.
NOTE: To avoid paper jams, tuck the flaps inside the envelopes.
For more information, see:
“Load envelopes” on page 40
Cause: The margins are not set correctly in your software application.
Solution:
To check your margin settings
1. Preview your print job before sending it to the HP All-in-One.
2. Check the margins.
The HP All-in-One uses the margins you have set in your software application,
as long as they are greater than the minimum margins the HP All-in-One supports.
3. Cancel the print job if the margins are not satisfactory, and then adjust the margins
in your software application.
Make sure the margin settings for the document do not exceed the printable area of
the HP All-in-One.
Cause: The size of the document you are printing is larger than the paper loaded
in the input tray.
Print troubleshooting
137
Troubleshooting
Text or graphics are cut off at the edge of the page
Chapter 14
Solution: Make sure the layout of the document you are trying to print fits on a paper
size supported by the HP All-in-One.
To preview the print layout
1. Load the correct paper size into the input tray.
2. Preview your print job before sending it to the HP All-in-One.
3. Check the graphics in the document to make sure that the current size fits within
the printable area of the HP All-in-One.
4. Cancel the print job if the graphics do not fit in the printable area of the page.
TIP: Some software applications allow you to scale the document to fit the paper
size currently selected. Additionally, you can scale the size of a document from
the print Properties dialog box.
Cause:
Solution:
The paper is loaded incorrectly.
If the paper is misfeeding, it could cause parts of the document to cut off.
Remove the stack of paper from the input tray, and then reload the paper following
the steps below.
For more information, see:
“Load paper” on page 36
A blank page came out while printing
Cause:
The document you are printing contains an additional blank page.
Solution: Open the document file in your software application and remove any extra
pages or lines at the end of the document.
Cause:
The HP All-in-One picked up two sheets of paper.
Troubleshooting
Solution: If the HP All-in-One has only a few sheets remaining, load more paper in
the input tray. If there is plenty of paper in the input tray, remove the paper, tap the
stack of paper against a flat surface, and reload the paper into the input tray.
For more information, see:
“Load paper” on page 36
Ink is spraying the inside of the HP All-in-One when I print a photo
Cause: The borderless print settings require photo paper to be loaded in the input
tray. You are using the wrong paper type.
Solution: Make sure you load photo paper in the input tray before you print a
borderless print job.
138
Troubleshooting
Memory card troubleshooting
Use this section to solve these memory card problems:
•
•
•
•
•
•
•
•
•
My memory card no longer works in my digital camera
The HP All-in-One does not read the memory card
The Photo light next to the memory card slots is blinking
The Attention light blinks when I insert my memory card
The photos on the memory card do not transfer to my computer
Memory card is not available
The file name appears as meaningless text
Other users on the network can access my memory card
Error message: Cannot find the file or item. Make sure the path and file name are
correct.
My memory card no longer works in my digital camera
Cause: You formatted the card on a Windows XP computer. By default, Windows
XP will format a memory card of 8 MB or less and 64 MB or more with the FAT32
format. Digital cameras and other devices use the FAT (FAT16 or FAT12) format and
cannot recognize a FAT32 formatted card.
Solution: Reformat your memory card in your camera or format your memory card
in a Windows XP computer by selecting the FAT format.
The HP All-in-One does not read the memory card
Cause: The card is inserted backwards or upside down.
If the memory card is not inserted properly, the HP All-in-One will not respond and
the Photo light (near the memory card slots) will not turn on.
After the memory card has been inserted properly, the Photo light will blink for a few
seconds, and then remain lit.
Cause: The memory card is not fully inserted.
Solution: Make sure you fully insert the memory card into the appropriate slot on
the HP All-in-One.
If the memory card is not inserted properly, the HP All-in-One will not respond and
the Photo light (near the memory card slots) will not turn on.
After a memory card has been inserted properly, the Photo light will blink for a few
seconds, and then remain lit.
Cause: You have inserted more than one memory card.
Memory card troubleshooting
139
Troubleshooting
Solution: Turn the memory card so that the label side is on the left and the contacts
are on the right (and facing the HP All-in-One), and then push the card forward into
the appropriate slot until the Photo light turns on.
Chapter 14
Solution:
at a time.
Cause:
Remove one of the memory cards. You can use only one memory card
The file system is corrupted.
Solution: Check the display for an error message telling you about the problem and
how to solve it.
If the file system on the card is corrupt, reformat the memory card in your digital
camera.
CAUTION: Reformatting the memory card will delete any photos stored on the
card. If you have previously transferred the photos from your memory card to a
computer, try printing the photos from the computer. Otherwise, you will need to
retake any photos you might have lost.
The Photo light next to the memory card slots is blinking
Cause:
The HP All-in-One is reading the memory card.
Solution: Do not pull out the memory card while the Photo light is flashing. A
flashing light means the HP All-in-One is accessing the memory card. Wait until the
light remains solid. Removing a memory card while it is being accessed might corrupt
information on the card or damage the HP All-in-One and card.
The Attention light blinks when I insert my memory card
Cause:
The HP All-in-One has detected an error with the memory card.
Solution: Remove and reinsert the memory card. You might have inserted it
incorrectly. Turn the memory card so that the label side is on the left and the contacts
are on the right (and pointing towards the HP All-in-One), and then push the card
forward into the appropriate slot until the Photo light turns on.
Troubleshooting
If the problem continues, the memory card might be defective.
Cause:
Solution:
at a time.
You have inserted more than one memory card.
Remove one of the memory cards. You can use only one memory card
The photos on the memory card do not transfer to my computer
Cause:
140
Troubleshooting
The HP Photosmart Software is not installed.
Solution: Install the HP Photosmart Software that came with the HP All-in-One. If
it is installed, restart your computer.
To install the HP Photosmart Software
1. Insert the HP All-in-One CD-ROM into your computer’s CD-ROM drive and then
start the Setup program.
2. When prompted, click Install More Software to install the HP Photosmart
Software.
3. Follow the onscreen instructions and the instructions provided in the Setup Guide
that came with the HP All-in-One.
Cause: The HP All-in-One is turned off.
Solution:
Turn the HP All-in-One on.
Cause: The computer is turned off.
Solution:
Turn the computer on.
Cause: The HP All-in-One is not properly connected to the computer.
Solution: If the HP All-in-One is directly connected to a computer with a USB cable,
check the physical connection from the HP All-in-One to the computer. Verify that the
USB cable is securely plugged into the USB port on the back of the HP All-in-One.
Make sure the other end of the USB cable is plugged into a USB port on your
computer. After the cable is connected properly, turn the HP All-in-One off and then
on again.
If the HP All-in-One is network-connected, check physical network connections and
make sure the network is operational. Once you verify network connectivity, retry the
task.
•
•
“Communication problems over a USB connection” on page 109
“Network troubleshooting” on page 120
Memory card is not available
Cause: If this message appears on your display, it means that another user is
accessing the memory card over the network. Other users who try to use the same
memory card might see a read/write error message. The memory card might not
appear, as expected, in a list of shared network drives. In addition, if the HP All-inOne is connected to your computer by a USB cable, the computer might be accessing
the memory card, making it inaccessible to the HP All-in-One.
Solution:
Wait until the other user has finished using the memory card.
The file name appears as meaningless text
Cause: The HP All-in-One does not support Unicode. This is a limitation of the
Common Internet File System (CIFS) server.
Memory card troubleshooting
141
Troubleshooting
For more information, see:
Chapter 14
The CIFS server is included in all network-connected HP All-in-One devices. It
provides network drive letter access to the memory card in the HP All-in-One. This
lets you read/write files on the network from the memory card in the HP All-in-One.
The CIFS server appears on your computer as a network drive. In addition to reading/
writing files from your memory card, you can also create folders and store other
information.
Solution: If a file name was created with Unicode by another application, it will
display as arbitrary characters.
Other users on the network can access my memory card
Cause: The Common Internet File System (CIFS) server in the HP All-in-One does
not support authentication. This is a limitation of the CIFS server.
The CIFS server is included in all network-connected HP All-in-One devices. It
provides network drive letter access to the memory card in the HP All-in-One. This
lets you read/write files on the network from the memory card in the HP All-in-One.
The CIFS server appears on your computer as a network drive. In addition to reading/
writing files from your memory card, you can also create folders and store other
information.
Solution:
Every user on the network can access the memory card.
Error message: Cannot find the file or item. Make sure the path and file name are
correct.
Cause: The Common Internet File System (CIFS) server in the HP All-in-One is not
operational.
Troubleshooting
The CIFS server is included in all network-connected HP All-in-One devices. It
provides network drive letter access to the memory card in the HP All-in-One. This
lets you read/write files on the network from the memory card in the HP All-in-One.
The CIFS server appears on your computer as a network drive. In addition to reading/
writing files from your memory card, you can also create folders and store other
information.
Solution:
Retry your task at a later time.
Scan troubleshooting
Use this section to solve these scan problems:
•
•
•
•
•
•
•
142
Scan halts
Scan fails
Scan fails because of insufficient computer memory
Scanned image is blank
Scanned image is incorrectly cropped
Scanned image has incorrect page layout
Scanned image shows dotted lines instead of text
Troubleshooting
•
•
•
Text format is incorrect
Text is incorrect or missing
The scan feature does not work
Scan halts
Cause: The computer system resources might be low.
Solution: Turn off the HP All-in-One and then turn it back on. Turn off the computer
and then turn it back on.
If this does not work, try changing the scan to a lower resolution.
Scan fails
Cause: The computer is not turned on.
Solution:
Turn on your computer.
Cause: Your computer is not connected to the HP All-in-One by a USB cable or
network cable.
Solution: Connect your computer to the HP All-in-One with a standard USB cable
or across a network.
Cause: The HP All-in-One software might not have been installed.
Solution:
Insert the HP All-in-One installation CD and install the software.
Cause: The software you installed with the HP All-in-One is not running.
Open the software you installed with the HP All-in-One and try scanning
Scan fails because of insufficient computer memory
Cause: Too many programs are running on your computer.
Solution: Close all programs that are not in use. This includes programs that run
in the background, such as screen savers and virus checkers. If you turn off your virus
checker, remember to turn it back on after you finish your scan.
If this does not work, it might help to restart your computer. Some programs do not
release memory when you close them. Restarting your computer will clear the
memory.
If this problem occurs frequently, or if you encounter memory problems while using
other programs, you might need to add more memory to your computer. See the user
guide that came with your computer for more information.
Scanned image is blank
Cause: The original is placed incorrectly on the glass.
Scan troubleshooting
143
Troubleshooting
Solution:
again.
Chapter 14
Solution:
Load your original print side down on the right front corner of the glass.
Scanned image is incorrectly cropped
Cause:
The software is set to automatically crop scanned pictures.
Solution: The Autocrop feature crops anything that is not part of the main image.
Sometimes this might not be what you want. In that case, you can turn off
autocropping and crop the scanned image manually, or not at all.
Scanned image has incorrect page layout
Cause:
Solution:
Automatic cropping is changing the page layout.
Turn off automatic cropping to retain the page layout.
Troubleshooting
Scanned image shows dotted lines instead of text
Cause: If you use the Text image type to scan text that you plan to edit, the scanner
might not recognize color text. The Text image type scans at 300 x 300 dpi, in black
and white.
If you are scanning an original that has graphics or artwork surrounding the text, the
scanner might not recognize the text.
Solution:
Make a black-and-white copy of the original and then scan the copy.
Text format is incorrect
Cause:
The scan document settings are incorrect.
Solution: Some applications cannot handle framed text formatting. Framed text is
one of the scan document settings. It maintains complex layouts, such as multiple
columns from a newsletter, by putting the text in different frames (boxes) in the
destination application.
144
Troubleshooting
Text is incorrect or missing
Cause: The brightness is not set correctly.
Solution:
Adjust the brightness, and then rescan the original.
Cause: Debris might be stuck on the glass or on the back of the document lid. This
can cause poor-quality scans.
Solution:
Clean the glass and lid backing.
For more information, see:
•
•
“Clean the lid backing” on page 98
“Clean the glass” on page 97
Cause: The scan document settings are not set to the correct optical character
recognition (OCR) language. The OCR language tells the software how to interpret
the characters it sees in the original image. If the OCR language does not match the
language in the original, the scanned text might be incomprehensible.
Solution:
Select the correct OCR language.
NOTE: If you are using HP Photosmart Essential, the Optical Character
Recognition (OCR) software might not be installed on your computer. To install
the OCR software, you must re-insert the software disk and select OCR under the
Custom installation options.
The scan feature does not work
Cause: The computer is turned off.
Turn the computer on.
Cause: The HP All-in-One is not properly connected to the computer through a USB
cable or a network cable.
Solution:
network.
Check the cables that connect the HP All-in-One to your computer or
Cause: The software that came with the HP All-in-One is not installed or is not
running.
Solution: Restart your computer. If that does not help, install or reinstall the
software that came with the HP All-in-One.
Copy troubleshooting
Use this section to solve these copy problems:
•
•
Copies are too light or too dark
Nothing happens when I try to copy
Copy troubleshooting
145
Troubleshooting
Solution:
Chapter 14
•
•
•
•
•
Parts of the original do not appear or are cut off
Fit to Page is not working as expected
A borderless copy has white space around the edges
The image is cropped when I make a borderless copy
The printout is blank
Copies are too light or too dark
Cause:
Solution:
The Lighter/Darker setting for the HP All-in-One is set too light or too dark.
Adjust the lightness and darkness of the copies.
For more information, see:
“Adjust the lightness and darkness of your copy” on page 89
Cause:
Solution:
The original you are copying is overexposed.
Try using Enhancements to improve an overexposed image.
For more information, see:
“Improve the quality of a copy” on page 92
Nothing happens when I try to copy
Cause:
The HP All-in-One is turned off.
Solution: Look at the display on the HP All-in-One. If the display is blank and the
On button is not lit, the HP All-in-One is turned off. Make sure the power cord is firmly
connected to the HP All-in-One and plugged into a power outlet. Press the On button
to turn on the HP All-in-One.
Cause:
Solution:
The original is placed incorrectly on the glass.
Load your original print side down on the right front corner of the glass.
Troubleshooting
For more information, see:
“Load originals” on page 33
Cause:
Solution:
Cause:
The HP All-in-One might be busy copying or printing.
Check the display to see if the HP All-in-One is busy.
The HP All-in-One does not recognize the paper type.
Solution: Do not use the HP All-in-One to copy onto envelopes or other papers the
HP All-in-One does not support.
Cause:
146
Troubleshooting
The HP All-in-One has a paper jam.
Solution:
in-One.
Clear the paper jam and remove any torn paper that remains in the HP All-
For more information, see:
“Clear paper jams” on page 111
Parts of the original do not appear or are cut off
Cause: The original is placed incorrectly on the glass.
Solution:
Load your original print side down on the right front corner of the glass.
For more information, see:
“Load originals” on page 33
Cause: The original fills the entire sheet.
Solution: If the image or text on your original fills the entire sheet with no margins,
use the Fit to Page feature to reduce your original and prevent unwanted cropping
of the text or images at the edges of the sheet.
For more information, see:
“Resize an original to fit onto letter or A4 paper” on page 91
Cause: The original is larger than the paper in the input tray.
Solution: If your original is larger than the paper in the input tray, use the Fit to
Page feature to reduce your original to fit on the paper in the input tray.
For more information, see:
Fit to Page is not working as expected
Cause: You are trying to increase the size of an original that is too small.
Solution: Fit to Page can only enlarge the original up to the maximum percentage
allowed by your model. (The maximum percentage varies by model.) For example,
200% might be the maximum enlargement percentage allowed by your model.
Enlarging a passport photo by 200% might not enlarge it enough for it to fit a full-size
page.
If you want to make a large copy of a small original, scan the original into the computer,
resize the image in the HP scanning software, and then print a copy of the enlarged
image.
Cause: The original is placed incorrectly on the glass.
Copy troubleshooting
147
Troubleshooting
“Resize an original to fit onto letter or A4 paper” on page 91
Chapter 14
Solution:
Load your original print side down on the right front corner of the glass.
For more information, see:
“Load originals” on page 33.
Cause: Debris might be stuck on the glass or on the back of the document lid. The
HP All-in-One interprets anything it detects on the glass as part of the image.
Solution: Turn off the HP All-in-One, and then use a soft cloth to wipe the glass
and the back of the document lid.
For more information, see:
•
•
“Clean the glass” on page 97
“Clean the lid backing” on page 98
A borderless copy has white space around the edges
Cause:
You are trying to make a borderless copy of an original that is too small.
Solution: When you make a borderless copy of a small original, the HP All-in-One
enlarges the original up to a maximum percentage. This might leave white space
around the edges. (The maximum percentage varies by model.)
Depending on the size of the borderless copy you are trying to make, the minimum
size of the original varies. For example, you cannot enlarge a passport photo to create
a letter-size borderless copy.
If you want to make a borderless copy of a very small original, scan the original into
the computer, resize the image in the HP scanning software, and then print a
borderless copy of the enlarged image.
Cause:
Solution:
You are trying to make a borderless copy without using photo paper.
Use photo paper to make borderless copies.
Troubleshooting
For more information, see:
“Make a borderless copy of a photo” on page 90
Cause: Debris might be stuck on the glass or on the back of the document lid. The
HP All-in-One interprets anything it detects on the glass as part of the image.
Solution: Turn off the HP All-in-One, and then use a soft cloth to wipe the glass
and the back of the document lid.
For more information, see:
•
•
148
“Clean the glass” on page 97
“Clean the lid backing” on page 98
Troubleshooting
The image is cropped when I make a borderless copy
Cause: The HP All-in-One cropped some of the image around the margins of the
copy to achieve a borderless print without changing the proportions of the original.
Solution: If you want to enlarge a photo to fit a full-size page without cropping the
edges, use Fit to Page.
For more information, see:
•
•
“Resize an original to fit onto letter or A4 paper” on page 91
“Resize an original using custom settings” on page 91
Cause: The original is larger than the paper in the input tray.
Solution: If your original is larger than the paper in the input tray, use the Fit to
Page feature to reduce your original to fit on the paper in the input tray.
For more information, see:
“Resize an original to fit onto letter or A4 paper” on page 91
The printout is blank
Cause: The original is placed incorrectly on the glass.
Solution: Load your original print side down on the right front corner of the glass.
For more information, see:
“Load originals” on page 33
Errors
This section contains the following categories of messages on your device:
Device messages
File messages
General user messages
Paper messages
Power and connection messages
Ink cartridge messages
Troubleshooting
•
•
•
•
•
•
Device messages
The following is a list of device-related error messages:
•
•
•
•
•
•
Firmware revision mismatch
Mechanism error
Memory is full
Scanner failure
Photo tray problem
Photo tray cannot engage
Errors
149
Chapter 14
•
•
Photo tray cannot disengage
Two-sided printing accessory is missing
Firmware revision mismatch
Cause: The revision number of the HP All-in-One firmware does not match the
revision number of the software.
Solution: To find support and warranty information, go to the HP Web site at
www.hp.com/support. If prompted, choose your country/region, and then click
Contact HP for information on calling for technical support.
Mechanism error
Cause:
The HP All-in-One has a paper jam.
Solution:
Clear the paper jam.
For more information, see:
“Clear paper jams” on page 111
Cause:
The print head assembly is blocked or stalled.
Solution: Turn the HP All-in-One off and open the ink cartridge door. Remove any
objects that are blocking the print head assembly (including any packing materials),
and then turn the HP All-in-One on again.
Memory is full
Cause:
One.
Solution:
The document you are copying has exceeded the memory of the HP All-inTry making fewer copies.
Troubleshooting
Scanner failure
Cause:
The HP All-in-One is busy or an unknown cause has interrupted your scan.
Solution: Turn off the HP All-in-One and then turn it on again. Restart your
computer and then try to scan again.
If the problem persists, try plugging the power cord directly into a grounded power
outlet rather than a surge protector or power strip. If the problem continues, contact
HP support. Go to www.hp.com/support. If prompted, choose your country/region,
and then click Contact HP for information on calling for technical support.
Photo tray problem
Cause:
There is not enough paper in the photo tray.
Solution: If the photo tray is empty or there are only a few sheets remaining, load
more paper in the photo tray. If there is paper in the photo tray, remove the paper,
150
Troubleshooting
tap the stack of paper against a flat surface, and reload the paper into the photo tray.
Follow the prompts on the display or the computer screen to continue your print job.
Cause: The paper is not feeding properly or is loaded incorrectly.
Solution:
Make sure you have paper loaded correctly in the photo tray.
Cause: There might be too much paper loaded in the photo tray.
Solution: Do not overload the photo tray; make sure the stack of photo paper fits
within the photo tray and is no higher than the top of the paper-width guide.
Cause: Two or more pieces of paper might be stuck together.
Solution: Remove the paper from the photo tray and shuffle the paper so it does
not stick together. Reload the paper into the photo tray and try printing again.
Cause: The photo paper might be curled.
Solution: If the photo paper is curled, place the paper in a plastic bag and gently
bend it the opposite direction of the curl until the paper lies flat. If the problem persists,
use photo paper that is not curled.
Cause: You might be using the printer in an extremely high- or low-humidity
environment.
Solution:
Load one sheet of photo paper at a time.
Cause: The photo tray cannot engage or disengage.
Photo tray cannot engage
Cause: The photo tray might not be pushed all the way in.
Solution: Lift the output tray, then push the photo tray all the way in. Push the output
tray all the way down.
Photo tray cannot disengage
Cause: The output tray might not be lowered all the way.
Errors
151
Troubleshooting
Solution: Re-insert the photo tray and lower the output tray. To continue your print
job, press OK on the control panel of the HP All-in-One.
Chapter 14
Solution:
Push the output tray all the way down.
Two-sided printing accessory is missing
Cause:
The Two-sided printing accessory is not installed or it is installed incorrectly.
Solution: Firmly insert the Two-sided printing accessory into the back of the device
until both sides snap into place.
NOTE: Do not press the buttons on either side of the accessory when installing
it. Use the buttons only when removing the accessory from the device.
File messages
The following is a list of file-related error messages:
•
•
•
•
•
•
•
•
Error reading or writing the file
Unreadable files. NN files could not be read
Photos not found
File not found
File format not supported
Invalid file name
Supported file types for the HP All-in-One
File corrupted
Error reading or writing the file
Cause:
Solution:
The HP All-in-One software could not open or save the file.
Check to see if you typed the correct folder and file name.
Troubleshooting
Unreadable files. NN files could not be read
Cause:
Some of the files on the inserted memory card are damaged.
Solution: Reinsert the memory card in the HP All-in-One or try transferring the files
to your computer using a memory card reader or a USB cable. If you already
transferred the files to your computer, try printing those files by using the
HP Photosmart Software. The copies might not be damaged. If these solutions do
not work, retake the photos with your digital camera as a last resort.
Photos not found
Cause:
Some of the files on the inserted memory card are damaged.
Solution: Reinsert the memory card in the HP All-in-One or try transferring the files
to your computer using a memory card reader or a USB cable. If you already
transferred the files to your computer, try printing those files by using the
152
Troubleshooting
HP Photosmart Software. The copies might not be damaged. If these solutions do
not work, retake the photos with your digital camera as a last resort.
Cause: There are no photos found on the memory card.
Solution: Take some photos with your digital camera, or if you previously saved
photos on your computer, you can print them using the HP Photosmart Software.
File not found
Cause: There is not enough available memory on your computer to create a print
preview file.
Solution:
Close some applications and try the task again.
File format not supported
Cause: The HP All-in-One software did not recognize or support the file format of
the image you are trying to open or save. If the file extension indicates it is a supported
file type, the file might be corrupted.
Solution: Open the file in another application, and save it in a format that the HP Allin-One software recognizes.
For more information, see:
“Supported file types for the HP All-in-One” on page 153
Invalid file name
Cause: The file name you entered is invalid.
Make sure that you are not using any invalid symbols in the file name.
NOTE: Although the file name might look correct, it could still include invalid
characters. Overwrite the existing file name with a new name.
Supported file types for the HP All-in-One
The HP All-in-One software recognizes the following file formats: BMP, DCX, FPX, GIF,
JPG, PCD, PCX, TIF, PICT, PSD, PCS, EPS, TGA, SGI, PDF, and PNG.
File corrupted
Cause: Some of the files on the inserted memory card are damaged.
Solution: Reinsert the memory card in the HP All-in-One or try transferring the files
to your computer using a memory card reader or a USB cable. If you already
transferred the files to your computer, try printing those files by using the
HP Photosmart Software. The copies might not be damaged. If these solutions do
not work, retake the photos with your digital camera as a last resort.
Errors
153
Troubleshooting
Solution:
Chapter 14
Cause:
The file system is corrupted.
Solution: Check the display for an error message telling you that the images on the
memory card are corrupted.
If the file system on the card is corrupt, reformat the memory card in your digital
camera.
CAUTION: Reformatting the memory card will delete any photos stored on the
card. If you have previously transferred the photos from your memory card to a
computer, try printing the photos from the computer. Otherwise, you will need to
retake any photos you might have lost.
General user messages
The following is a list of messages related to common user errors:
•
•
•
•
•
•
•
•
•
•
•
Cannot crop
Memory card error
Disconnected
No scan options
Out of disk space
Memory card must be in slot
Card access error
Use only one card at a time
Card is inserted incorrectly
Card is not fully inserted
Card is damaged
Cannot crop
Cause:
The computer does not have enough memory.
Troubleshooting
Solution: Close all unnecessary applications. This includes applications that run in
the background, such as screensavers and virus checkers. (If you turn off your virus
checker, remember to turn it back on after you finish.) Try restarting your computer
to clear the memory. You might need to purchase more RAM. Refer to the
documentation that came with your computer.
Cause: For scanning, there must be at least 50 MB of space available on your
computer's hard disk.
Solution: Empty the Recycle Bin on your desktop. You might also need to remove
files from the hard disk.
Memory card error
Cause: There are two or more memory cards inserted into the HP All-in-One at the
same time.
154
Troubleshooting
Solution: Remove all but one memory card. The HP All-in-One reads the remaining
memory card and displays the first photo stored on the memory card.
Cause: You have inserted a Compact Flash memory card backwards or upside
down.
Solution: Remove the memory card and reinsert it correctly. The front label of the
Compact Flash card faces left.
Cause: You have not fully inserted the memory card.
Solution:
stops.
Remove the memory card and reinsert it in the memory card slot until it
Disconnected
Cause: Several situations can cause this error message to appear.
• Your computer is not turned on.
• Your computer is not connected to the HP All-in-One.
• The software that came with the HP All-in-One was not installed correctly.
• The software that came with the HP All-in-One is installed, but it is not running.
Solution: Make sure your computer is turned on and is connected to the HP All-inOne. Also make sure you installed the software that came with the HP All-in-One.
For more information, see:
•
•
“Communication problems over a USB connection” on page 109
“Network troubleshooting” on page 120
Cause: The software that came with the HP All-in-One is not running, or has never
been installed.
Solution: Make sure the software is installed and running. For more information,
see the Setup Guide that came with the HP All-in-One.
Out of disk space
Cause: There is not enough available memory on your computer to perform the
task.
Solution:
Close some applications and try the task again.
Memory card must be in slot
Cause: The feature you are trying to use is only available when there is a memory
card inserted in the HP All-in-One.
Errors
155
Troubleshooting
No scan options
Chapter 14
Solution: Make sure you fully insert the memory card into the appropriate slot on
the HP All-in-One, and then try the task again.
Card access error
Cause: There are two or more memory cards inserted into the HP All-in-One at the
same time.
Solution: Remove all but one memory card. The HP All-in-One reads the remaining
memory card and displays the first photo stored on the memory card.
Cause:
down.
You have inserted a Compact Flash memory card backwards or upside
Solution: Remove the memory card and reinsert it correctly. The front label of the
Compact Flash card faces left.
Cause:
Solution:
stops.
You have not fully inserted the memory card.
Remove the memory card and reinsert it in the memory card slot until it
Use only one card at a time
Cause:
Solution:
Multiple memory cards are inserted in the HP All-in-One.
You can insert only one memory card at a time.
If more than one memory card is inserted, the Attention light will blink rapidly, and an
error message will appear on the display. Remove the additional memory card to
resolve the problem.
Troubleshooting
Card is inserted incorrectly
Cause:
The card is inserted backwards or upside down.
Solution: Turn the memory card so that the front label faces left and the contacts
are on the right, and then push the card forward into the appropriate slot until the
Photo light turns on.
If the memory card is not inserted properly, the HP All-in-One will not respond and
the Photo light (near the memory card slots) will not turn on.
After the memory card has been inserted properly, the Photo light will blink for a few
seconds, and then remain lit.
Card is not fully inserted
Cause:
The card is not fully inserted.
Solution: Make sure you fully insert the memory card into the appropriate slot on
the HP All-in-One.
156
Troubleshooting
If the memory card is not inserted properly, the HP All-in-One will not respond and
the Photo light (near the memory card slots) will not turn on.
After the memory card has been inserted properly, the Photo light will blink for a few
seconds, and then remain lit.
Card is damaged
Cause: You formatted the card on a Windows XP computer. By default, Windows
XP will format a memory card of 8 MB or less and 64 MB or more with the FAT32
format. Digital cameras and other devices use the FAT (FAT16 or FAT12) format and
cannot recognize a FAT32 formatted card.
Solution: Reformat your memory card in your camera or format your memory card
in a Windows XP computer by selecting the FAT format.
Cause: The file system is corrupted.
Solution: Check the display for an error message telling you that the images on the
memory card are corrupted.
If the file system on the card is corrupt, reformat the memory card in your digital
camera.
CAUTION: Reformatting the memory card will delete any photos stored on the
card. If you have previously transferred the photos from your memory card to a
computer, try printing the photos from the computer. Otherwise, you will need to
retake any photos you might have lost.
Paper messages
The following is a list of paper-related error messages:
Cannot load paper from input tray
Ink is drying
Out of paper
Paper jam, misfeed or blocked print head assembly
Paper mismatch
Paper mismatch for photo
Wrong paper width
Troubleshooting
•
•
•
•
•
•
•
Cannot load paper from input tray
Cause: There is not enough paper in the input tray.
Solution: If the HP All-in-One is out of paper or there are only a few sheets
remaining, load more paper in the input tray. If there is paper in the input tray, remove
the paper, tap the stack of paper against a flat surface, and reload the paper into the
input tray. Follow the prompts on the display or the computer screen to continue your
print job.
Errors
157
Chapter 14
For more information, see:
“Load full-size paper” on page 37
Ink is drying
Cause: Transparencies and some other media require a drying time that is longer
than normal.
Solution: Leave the sheet in the output tray until the message disappears. If it is
necessary to remove the printed sheet before the message disappears, carefully hold
the printed sheet on the underside or the edges, and place it on a flat surface to dry.
Out of paper
Cause:
There is not enough paper in the input tray.
Solution: If the HP All-in-One is out of paper or there are only a few sheets
remaining, load more paper in the input tray. If there is paper in the input tray, remove
the paper, tap the stack of paper against a flat surface, and reload the paper into the
input tray. Follow the prompts on the display or the computer screen to continue your
print job.
For more information, see:
“Load full-size paper” on page 37
Cause:
The Two-sided printing accessory is off the HP All-in-One.
Solution: If you removed the Two-sided printing accessory to clear a paper jam,
replace it.
For more information, see:
“Clear paper jams” on page 111
Troubleshooting
Paper jam, misfeed or blocked print head assembly
Cause:
Paper has jammed the HP All-in-One.
Solution: Clear the jam. To continue your print job, press OK on the control panel
of the HP All-in-One.
For more information, see:
“Clear paper jams” on page 111
Cause:
The print head assembly is blocked.
Solution: Turn off the HP All-in-One and open the ink cartridge door to access the
print head assembly area. Remove any objects that are blocking the print head,
including any packing materials. Turn the HP All-in-One on again.
158
Troubleshooting
Paper mismatch
Cause: The print setting for the print job does not match the paper type or size
loaded in the HP All-in-One.
Solution:
Change the print setting or load the appropriate paper in the input tray.
For more information, see:
“Change the print settings for the current job” on page 46
“Information on paper” on page 111
Paper mismatch for photo
Cause: The image size for the photo is larger than the paper loaded.
Solution: Replace the paper in the input tray with a larger sized paper. To continue
your print job, press OK on the control panel of the HP All-in-One.
Wrong paper width
Cause: The print setting chosen for the print job does not match the paper loaded
in the HP All-in-One.
Solution:
Change the print setting or load the appropriate paper in the input tray.
For more information, see:
“Information on paper” on page 111
“Change the print settings for the current job” on page 46
“Load paper” on page 36
Power and connection messages
The following is a list of power- and connection-related error messages:
Communication test failed
HP All-in-One not found
Improper shutdown
Two-way communication lost
Troubleshooting
•
•
•
•
Communication test failed
Cause: The HP All-in-One is turned off.
Solution: Look at the display on the HP All-in-One. If the display is blank and the
On button is not lit, the HP All-in-One is turned off. Make sure the power cord is firmly
connected to the HP All-in-One and plugged into a power outlet. Press the On button
to turn on the HP All-in-One.
Cause: The HP All-in-One is not connected to the computer.
Errors
159
Chapter 14
Solution: If the HP All-in-One is not properly connected to the computer,
communication errors can occur. Make sure the USB cable is securely connected to
the HP All-in-One and the computer, as shown below.
For more information, see:
“Communication problems over a USB connection” on page 109
HP All-in-One not found
Cause: This error applies only to USB-connected devices. The USB cable is not
plugged in properly.
Solution: If the HP All-in-One is not properly connected to the computer,
communication errors can occur. Make sure the USB cable is securely connected to
the HP All-in-One and the computer, as shown below.
Troubleshooting
For more information, see:
“Communication problems over a USB connection” on page 109
160
Troubleshooting
Improper shutdown
Cause: The last time the HP All-in-One was used, it was not turned off properly. If
the HP All-in-One is turned off by turning off the switch on a power strip or by using
a wall switch, the device can be damaged.
Solution: Press the On button located on the control panel of the HP All-in-One to
turn the device on and off.
Two-way communication lost
Cause: The HP All-in-One is turned off.
Solution: Look at the display on the HP All-in-One. If the display is blank and the
On button is not lit, the HP All-in-One is turned off. Make sure the power cord is firmly
connected to the HP All-in-One and plugged into a power outlet. Press the On button
to turn on the HP All-in-One.
Cause: The HP All-in-One is not connected to the computer.
Troubleshooting
Solution: If the HP All-in-One is not properly connected to the computer,
communication errors can occur. Make sure the USB cable is securely connected to
the HP All-in-One and the computer, as shown below.
For more information, see:
“Communication problems over a USB connection” on page 109
Ink cartridge messages
The following is a list of ink cartridge error messages:
•
•
•
•
Calibration error
Cannot print
Incompatible ink cartridge(s)
The following ink cartridges cannot be used after device initialization and must be
replaced
Errors
161
Chapter 14
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Ink cartridge problem
Ink cartridge(s) are empty
Ink cartridge(s) are expired
Ink delivery failure
Ink expiration near
Ink supply error
Non-HP ink
Original HP ink depleted
Print head assembly is stalled
Print head failure
Alignment failed
Replace ink cartridges soon
Scheduled maintenance
Wrong ink cartridge(s) installed
Ink cartridge is missing, incorrectly installed, or not intended for your device
Calibration error
Cause:
An incorrect type of paper is loaded in the input tray.
Solution: If you have color or photo paper loaded in the input tray when the printer
aligns, the calibration might fail. Load unused plain white letter or A4 paper into the
input tray, and then press OK on the control panel.
Cannot print
Cause:
The indicated ink cartridge(s) are out of ink.
Solution: Replace the indicated ink cartridge(s) immediately so that you can
resume printing.
Troubleshooting
The HP All-in-One cannot continue printing until the indicated ink cartridge(s) are
replaced. All printing will stop.
For more information, see:
“Replace the ink cartridges” on page 99
Incompatible ink cartridge(s)
Cause:
The wrong ink cartridge(s) are installed.
Solution: The indicated ink cartridge(s) cannot be used after the device has
undergone first-time setup. Replace the ink cartridge(s) with the appropriate ink
cartridges for the HP All-in-One. To find out the reorder number for all the ink
cartridges that the HP All-in-One supports, see the printed documentation that came
with the HP All-in-One.
For more information, see:
“Replace the ink cartridges” on page 99
162
Troubleshooting
Cause: The ink cartridge(s) are not intended for use in this device.
Solution:
Contact HP support. Go to:
www.hp.com/support
If prompted, choose your country/region, and then click Contact HP for information
on calling for technical support.
The following ink cartridges cannot be used after device initialization and must be
replaced
Cause: The wrong ink cartridge(s) are installed.
Solution: The indicated ink cartridge(s) cannot be used after the device has
undergone first-time setup. Replace the ink cartridge(s) with the appropriate ink
cartridges for the HP All-in-One. To find out the reorder number for all the ink
cartridges that the HP All-in-One supports, see the printed documentation that came
with the HP All-in-One.
For more information, see:
“Replace the ink cartridges” on page 99
Cause: The ink cartridge(s) are not intended for use in this device.
Solution:
Contact HP support. Go to:
www.hp.com/support
If prompted, choose your country/region, and then click Contact HP for information
on calling for technical support.
Ink cartridge problem
Solution: Replace the indicated ink cartridge(s) immediately so that you can
resume printing. If there are no ink cartridges missing from the HP All-in-One, the ink
cartridge contacts might need to be cleaned.
If there are no ink cartridges missing from the HP All-in-One, and you still receive this
message after cleaning the ink cartridge contacts, you might have a damaged ink
cartridge. Check to see if your ink cartridge is still under warranty and the end of
warranty date has not been reached.
•
•
If the end of warranty date has been reached, purchase a new ink cartridge.
If the end of warranty date has not been reached, contact HP support. Go to
www.hp.com/support. If prompted, choose your country/region, and then click
Contact HP for information on calling for technical support.
For more information, see:
•
•
“Replace the ink cartridges” on page 99
“Clean the ink cartridge contacts” on page 104
Errors
163
Troubleshooting
Cause: The indicated ink cartridge(s) are missing or are damaged.
Chapter 14
•
•
“Ink cartridge warranty information” on page 169
“Shop for ink supplies” on page 107
Ink cartridge(s) are empty
Cause:
Solution:
The indicated ink cartridge(s) are out of ink.
Replace the indicated ink cartridge(s) with new ink cartridge(s).
For more information, see:
“Replace the ink cartridges” on page 99
Ink cartridge(s) are expired
Cause:
The ink in the indicated ink cartridge(s) is at the expiration date.
Solution: Each ink cartridge has an expiration date. The purpose of expiration is to
protect the printing system and to ensure ink quality. When you receive an ink
cartridge(s) are expired message, remove and replace the expired ink cartridge, and
then close the message. You can also continue printing without replacing the ink
cartridge, by following the instructions on the HP All-in-One or the ink cartridge
expiration message on your computer screen. HP recommends replacing the expired
ink cartridges. HP cannot guarantee the quality or reliability of expired ink cartridges.
Device service or repairs required as a result of using expired ink will not be covered
under warranty.
For more information, see:
“Replace the ink cartridges” on page 99
Ink delivery failure
Troubleshooting
Cause: The print head assembly or the ink delivery system has failed and the
HP All-in-One can no longer print.
Solution: Turn the HP All-in-One off, unplug the power cord, and wait 10 seconds.
Then, plug the power cord back in and turn the device on.
If you continue to receive this message, write down the error code provided in the
message, and then contact HP support. Go to:
www.hp.com/support
If prompted, choose your country/region, and then click Contact HP for information
on calling for technical support.
Ink expiration near
Cause:
Solution:
164
Troubleshooting
The ink in the indicated ink cartridge(s) is near expiration.
One or more of the ink cartridges are near their expiration date.
Each ink cartridge has an expiration date. The purpose of expiration is to protect the
printing system and to ensure ink quality. When you receive an ink cartridge(s) are
expired message, remove and replace the expired ink cartridge, and then close the
message. You can also continue printing without replacing the ink cartridge, by
following the instructions on the HP All-in-One or the ink cartridge expiration message
on your computer screen. HP recommends replacing the expired ink cartridges. HP
cannot guarantee the quality or reliability of expired ink cartridges. Device service or
repairs required as a result of using expired ink will not be covered under warranty.
For more information, see:
“Replace the ink cartridges” on page 99
Ink supply error
Cause: The indicated ink cartridge was removed during maintenance.
Solution: Replace the indicated ink cartridge with the previous ink cartridge during
the maintenance procedure. After the maintenance procedure is complete, you can
insert the new ink cartridge.
For more information, see:
“Replace the ink cartridges” on page 99
Non-HP ink
Cause: The HP All-in-One detected non-HP ink.
Solution:
Replace the indicated ink cartridge(s).
NOTE: HP cannot guarantee the quality or reliability of non-HP ink. Printer
service or repairs required as a result of printer failure or damage attributable to
the use of non-HP ink will not be covered under warranty.
If you believe you purchased genuine HP ink cartridge(s), go to:
www.hp.com/go/anticounterfeit
For more information, see:
“Replace the ink cartridges” on page 99
Original HP ink depleted
Cause: The original HP ink in the indicated ink cartridge(s) has been depleted.
Solution: Replace the indicated ink cartridge(s) or press OK on the control panel
to continue.
Errors
165
Troubleshooting
HP recommends that you use genuine HP ink cartridges. Genuine HP ink cartridges
are designed and tested with HP printers to help you easily produce great results,
time after time.
Chapter 14
HP recommends that you use genuine HP ink cartridges. Genuine HP ink cartridges
are designed and tested with HP printers to help you easily produce great results,
time after time.
NOTE: HP cannot guarantee the quality or reliability of non-HP ink. Printer
service or repairs required as a result of printer failure or damage attributable to
the use of non-HP ink will not be covered under warranty.
For more information, see:
“Replace the ink cartridges” on page 99
Print head assembly is stalled
Cause:
Solution:
The print head assembly is blocked.
Remove any objects that are blocking the print head assembly.
To clear the print head assembly
1. Open the ink cartridge door by lifting from the front center of the device, until the
door locks into place.
Troubleshooting
2. Remove any objects that are blocking the print head assembly, including any
packing materials.
3. Turn the HP All-in-One off, then turn it on again.
4. Close the ink cartridge door.
Print head failure
Cause: The print head assembly or the ink delivery system has failed and the
HP All-in-One can no longer print.
Solution:
Contact HP support. Go to:
www.hp.com/support
If prompted, choose your country/region, and then click Contact HP for information
on calling for technical support.
166
Troubleshooting
Alignment failed
Cause: An incorrect type of paper is loaded in the input tray.
Solution: If you have color or photo paper loaded in the input tray when you align
the printer, the alignment might fail. Load unused plain white letter or A4 paper into
the input tray, and then try the alignment again. If the alignment fails again, you might
have a defective sensor.
Contact HP support. Go to:
www.hp.com/support
If prompted, choose your country/region, and then click Contact HP for information
on calling for technical support.
Cause: The print head assembly or sensor is defective.
Solution:
Contact HP support. Go to:
www.hp.com/support
If prompted, choose your country/region, and then click Contact HP for information
on calling for technical support.
Replace ink cartridges soon
Cause: The indicated ink cartridge is estimated to be low on ink and might need to
be replaced soon.
Solution: You might be able to continue printing for a short period of time with ink
remaining in the print head assembly. Replace the indicated ink cartridge(s) or follow
the prompts on the display or computer screen to continue.
For more information, see:
Scheduled maintenance
Cause: The HP All-in-One performs a periodic maintenance procedure to ensure
excellent print quality.
Solution: Load unused plain white letter or A4 paper in the input tray. Then follow
the prompts on the display or computer screen to continue.
Wrong ink cartridge(s) installed
Cause: The wrong ink cartridge(s) are installed.
Solution: The first time you set up and use the HP All-in-One, make sure to install
the ink cartridges that were shipped with your device. The ink in these ink cartridges
is specially formulated to mix with the ink in the print head assembly.
Errors
167
Troubleshooting
“Replace the ink cartridges” on page 99
Chapter 14
To resolve this error, replace the affected ink cartridge(s) with the ink cartridges that
were shipped with the HP All-in-One.
For more information, see:
“Replace the ink cartridges” on page 99
Ink cartridge is missing, incorrectly installed, or not intended for your device
Cause:
One or more ink cartridges are missing.
Solution: Remove and reinsert the ink cartridges and verify that they are fully
inserted and locked in place.
Cause: One or more of the ink cartridges are not installed or are installed
incorrectly.
Solution: Remove and reinsert the ink cartridges and verify that they are fully
inserted and locked in place. If the problem persists, clean the copper-colored
contacts of the ink cartridges.
For more information, see:
•
•
“Replace the ink cartridges” on page 99
“Clean the ink cartridge contacts” on page 104
Cause:
The ink cartridge is defective or not intended for use in this device.
Solution: Replace the indicated ink cartridge(s) immediately so that you can
resume printing. If there are no ink cartridges missing from the HP All-in-One, the ink
cartridge contacts might need to be cleaned.
If there are no ink cartridges missing from the HP All-in-One, and you still receive this
message after cleaning the ink cartridge contacts, you might have a damaged ink
cartridge. Contact HP support. Go to:
www.hp.com/support
Troubleshooting
If prompted, choose your country/region, and then click Contact HP for information
on calling for technical support.
For more information, see:
“Replace the ink cartridges” on page 99
Cause:
The wrong ink cartridge(s) are installed.
Solution: The first time you set up and use the HP All-in-One, make sure to install
the ink cartridges that were shipped with your device. The ink in these ink cartridges
is specially formulated to mix with the ink in the print head assembly.
To resolve this error, replace the affected ink cartridge(s) with the ink cartridges that
were shipped with the HP All-in-One.
For more information, see:
“Replace the ink cartridges” on page 99
168
Troubleshooting
15 HP warranty and support
Hewlett-Packard provides Internet and phone support for the HP All-in-One.
This section contains the following topics:
Warranty
•
•
Ink cartridge warranty information
•
•
Support process
Before you call HP support
•
HP support by phone
•
•
Additional warranty options
HP Quick Exchange Service (Japan)
•
HP Korea customer support
•
•
Prepare the HP All-in-One for shipment
Pack the HP All-in-One
Warranty
For more information about the warranty, see the printed documentation that came with the HP Allin-One.
Ink cartridge warranty information
The HP cartridge warranty is applicable when the product is used in its designated HP printing device.
This warranty does not cover HP ink products that have been refilled, remanufactured, refurbished,
misused, or tampered with.
During the warranty period the product is covered as long as the HP ink is not depleted and the end
of warranty date has not been reached. The end of warranty date, in YYYY/MM/DD format, may be
found on the product as indicated:
HP warranty and support
For a copy of the HP Limited Warranty Statement, see the printed documentation that came with the
HP All-in-One.
HP warranty and support
169
Chapter 15
Support process
If you have a problem, follow these steps:
1. Check the documentation that came with the HP All-in-One.
2.
3.
Visit the HP online support Web site at www.hp.com/support. HP online support is available to
all HP customers. It is the fastest source for up-to-date device information and expert assistance
and includes the following features:
•
Fast access to qualified online support specialists
•
Software and driver updates for the HP All-in-One
•
Valuable HP All-in-One and troubleshooting information for common problems
•
Proactive device updates, support alerts, and HP newsgrams that are available when you
register the HP All-in-One
Call HP support. Support options and availability vary by device, country/region, and language.
Before you call HP support
Software programs from other companies might be included with the HP All-in-One. If you experience
problems with any of those programs, you will receive the best technical assistance by calling the
experts at that company.
NOTE: This information does not apply to customers in Japan. For information on service
options in Japan, see “HP Quick Exchange Service (Japan)” on page 172.
If you need to contact HP support, do the following before you call:
1. Make sure that:
a.
The HP All-in-One is plugged in and turned on.
b. The specified ink cartridges are installed correctly.
c.
2.
The recommended paper is properly loaded in the input tray.
Reset the HP All-in-One:
a.
Turn off the HP All-in-One by pressing the On button.
b. Unplug the power cord from the back of the HP All-in-One.
c.
Plug the power cord back into the HP All-in-One.
d. Turn on the HP All-in-One by pressing the On button.
3.
To find support and warranty information, go to the HP Web site at www.hp.com/support. If
prompted, choose your country/region, and then click Contact HP for information on calling for
technical support.
Check the HP Web site for updated information or troubleshooting tips for the HP All-in-One .
4.
If you are still experiencing problems and need to speak with an HP support representative, do
the following:
a. Have the specific name of the HP All-in-One, as it appears on the control panel, available.
b. Print a self-test report.
c. Make a color copy to have available as a sample printout.
d. Be prepared to describe your problem in detail.
HP warranty and support
e.
5.
Have your serial number ready.
You can view the serial number by looking at the sticker on the rear side of the HP All-inOne. The serial number is the 10-character code in the upper left corner of the sticker.
Call HP support. Be near the HP All-in-One when you call.
Related topics
“Print a self-test report” on page 95
170
HP warranty and support
HP support by phone
For a list of support phone numbers, see the printed documentation that came with the device.
This section contains the following topics:
•
Phone support period
•
Placing a call
•
After the phone support period
Phone support period
One year of phone support is available in North America, Asia Pacific, and Latin America (including
Mexico). To determine the duration of phone support in Europe, the Middle East, and Africa, go to
www.hp.com/support. Standard phone company charges apply.
Placing a call
Call HP support while you are in front of the computer and the HP All-in-One. Be prepared to provide
the following information:
•
Model number (located on the label on the front of the HP All-in-One)
•
Serial number (located on the back or bottom of the HP All-in-One)
•
Messages that appear when the situation occurs
•
Answers to these questions:
•
Has this situation happened before?
•
Can you re-create it?
•
Did you add any new hardware or software to your computer at about the time that this
situation began?
Did anything else occur prior to this situation (such as a thunderstorm, HP All-in-One was
moved, etc.)?
•
After the phone support period
After the phone support period, help is available from HP at an additional cost. Help may also be
available at the HP online support Web site: www.hp.com/support. Contact your HP dealer or call
the support phone number for your country/region to learn more about support options.
Additional warranty options
HP warranty and support
Extended service plans are available for the HP All-in-One at additional costs. Go to www.hp.com/
support, select your country/region and language, then explore the services and warranty area for
information about the extended service plans.
HP support by phone
171
Chapter 15
HP Quick Exchange Service (Japan)
For instructions on how to pack your device for exchange, see “Pack the HP All-in-One”
on page 174.
HP Korea customer support
HP warranty and support
172
HP warranty and support
Prepare the HP All-in-One for shipment
If, after contacting HP support or returning to the point of purchase, you are requested to send the
HP All-in-One in for service, make sure you remove and keep the following items before returning
your device:
•
The control panel faceplate
•
The power cord, USB cable, and any other cable connected to the HP All-in-One
CAUTION: The replacement HP All-in-One will not be shipped with a power cord. Store
the power cord in a safe place until the replacement HP All-in-One arrives.
•
Any paper loaded in the input tray
•
Remove any originals you might have loaded in the HP All-in-One
This section contains the following topics:
•
Secure the ink system
•
Remove the control panel faceplate
Secure the ink system
Contact HP support for information about how you should secure the ink system to prevent ink from
leaking in the HP All-in-One during shipment. They might instruct you to replace the ink cartridges
with replacement ink cartridges.
If you receive a replacement HP All-in-One, refer to the instructions included in the box for information
about how to secure the ink system. The replacement HP All-in-One might come with ink cartridges
that you can use to install in your device to prevent the ink system from leaking during shipment.
NOTE: This information does not apply to customers in Japan. For information on service
options in Japan, see “HP Quick Exchange Service (Japan)” on page 172.
Related topics
“Replace the ink cartridges” on page 99
Remove the control panel faceplate
Remove the control panel faceplate before returning the HP All-in-One for repair.
NOTE: This information does not apply to customers in Japan. For information on service
options in Japan, see “HP Quick Exchange Service (Japan)” on page 172.
CAUTION: The HP All-in-One must be unplugged before following these steps.
2.
Unplug the power cord, and then disconnect it from the HP All-in-One. Do not return the power
cord with the HP All-in-One.
3.
Remove the control panel faceplate as follows:
a. Place your hands on each side of the control panel faceplate.
b. Place the fingertips of your left hand in the small gap under the display, and then pry the
faceplate down and to the right.
Prepare the HP All-in-One for shipment
173
HP warranty and support
To remove the control panel faceplate
1. Press the On button to turn off the HP All-in-One.
Chapter 15
4.
Retain the control panel faceplate. Do not return the control panel faceplate with the HP All-inOne.
CAUTION: The replacement HP All-in-One might not come with a control panel faceplate.
Store your control panel faceplate in a safe place, and when the replacement HP All-in-One
arrives, reattach your control panel faceplate. You must attach your control panel faceplate
to use the control panel functions on the replacement HP All-in-One.
NOTE: See the Setup Guide that came with the HP All-in-One for instructions on how to
attach your control panel faceplate. The replacement HP All-in-One might come with
instructions for setting up your device.
Pack the HP All-in-One
Complete the following steps after you have prepared the HP All-in-One for shipment.
To pack the HP All-in-One
1. If available, pack the HP All-in-One for shipment by using the original packing materials or the
packaging materials that came with your exchange device.
If you do not have the original packaging materials, please use other adequate packaging
materials. Shipping damage caused by improper packaging and/or improper transportation is
not covered under the warranty.
2.
Place the return shipping label on the outside of the box.
3.
Include the following items in the box:
HP warranty and support
•
174
•
A complete description of symptoms for service personnel (samples of print quality problems
are helpful).
A copy of the sales slip or other proof of purchase to establish the warranty coverage period.
•
Your name, address, and a phone number where you can be reached during the day.
HP warranty and support
16 Technical information
Technical information
The technical specifications and international regulatory information for the HP All-in-One are
provided in this section.
For additional specifications, see the printed documentation that came with the HP All-in-One.
This section contains the following topics:
•
Specifications
•
Environmental product stewardship program
•
Regulatory notices
Specifications
Technical specifications for the HP All-in-One are provided in this section. For additional
specifications, see the printed documentation that came with the HP All-in-One.
System requirements
Software and system requirements are located in the Readme file.
For information about future operating system releases and support, visit the HP online support Web
site at www.hp.com/support.
Paper specifications
Type
Paper weight
Input tray*
Output tray†
Photo tray*
Plain paper
20 to 24 lb. (75 to
90 gsm)
Up to 125 (20 lb.
paper)
50 (20 lb. paper)
n/a
Legal paper
20 to 24 lb. (75 to
90 gsm)
Up to 125 (20 lb.
paper)
50 (20 lb. paper)
n/a
Cards
110 lb. index max
(200 gsm)
Up to 40
25
Up to 20
Envelopes
20 to 24 lb. (75 to
90 gsm)
Up to 15
15
n/a
Transparency film
N/A
Up to 40
25
n/a
Labels
N/A
Up to 40
25
n/a
5 x 7 inch (13 x 18 cm)
Photo paper
145 lb.
Up to 20
20
n/a
4 x 6 inch (10 x 15 cm)
Photo paper
145 lb.
Up to 20
20
20 to 25
8.5 x 11 inch (216 x 279
mm) Photo paper
N/A
Up to 40
25
n/a
*
†
*
(236 gsm)
(236 gsm)
Maximum capacity.
Output tray capacity is affected by the type of paper and the amount of ink you are using.
HP recommends emptying the output tray frequently.
Maximum capacity.
NOTE: For a complete list of supported media sizes, see the printer driver.
Technical information
175
Chapter 16
Print specifications
•
Up to 1200 x 1200 rendered dpi black when printing from a computer
Technical information
•
Up to 4800 x 1200 optimized dpi color when printing from a computer and 1200-input dpi
•
•
Print speeds vary according to the complexity of the document
Panorama-size printing
•
Method: drop-on-demand thermal inkjet
•
•
Language: PCL3 GUI
Duty cycle: Up to 3000 printed pages per month
Copy specifications
•
Digital image processing
•
Up to 9 copies from original (depends on model)
•
Copy speeds vary according to the complexity of the document and model
•
Maximum copy enlargement ranging from 200-400% (depends on model)
•
Maximum copy reduction ranging from 25-50% (depends on model)
Scan specifications
•
Image editor included
•
Integrated OCR software automatically converts scanned text to editable text (if installed)
•
Twain-compliant software interface
•
•
Resolution: up to 4800 x 4800 ppi optical (depends on model); 19200 ppi enhanced (software)
For more information about ppi resolution, see the scanner software.
Color: 48-bit color, 8-bit grayscale (256 levels of gray)
•
Maximum scan size from glass: 21.6 x 29.7 cm (8.5 x 11.7 inches)
Print resolution
To find out about the printer resolution, see the printer software. For more information, see “View
the print resolution” on page 48.
Ink cartridge yield
Visit www.hp.com/pageyield for more information on estimated cartridge yields.
Acoustic information
If you have Internet access, you can get acoustic information from the HP Web site. Go to:
www.hp.com/support.
Environmental product stewardship program
Hewlett-Packard is committed to providing quality products in an environmentally sound manner.
Design for recycling has been incorporated into this product. The number of materials has been kept
to a minimum while ensuring proper functionality and reliability. Dissimilar materials have been
designed to separate easily. Fasteners and other connections are easy to locate, access, and
remove using common tools. High priority parts have been designed to access quickly for efficient
disassembly and repair.
For more information, visit HP’s Commitment to the Environment Web site at:
www.hp.com/hpinfo/globalcitizenship/environment/index.html
This section contains the following topics:
176
•
Paper use
•
Plastics
•
Material safety data sheets
•
Recycling program
Technical information
HP inkjet supplies recycling program
Energy Star® notice
•
Special handling of materials
•
Attention California users
•
Battery disposal in the Netherlands
•
Battery disposal in Taiwan
•
Disposal of waste equipment by users in private households in the European Union
Paper use
This product is suited for the use of recycled paper according to DIN 19309 and EN 12281:2002.
Plastics
Plastic parts over 25 grams are marked according to international standards that enhance the ability
to identify plastics for recycling purposes at the end of product life.
Material safety data sheets
Material safety data sheets (MSDS) can be obtained from the HP Web site at:
www.hp.com/go/msds
Recycling program
HP offers an increasing number of product return and recycling programs in many countries/regions,
and partners with some of the largest electronic recycling centers throughout the world. HP
conserves resources by reselling some of its most popular products. For more information regarding
recycling of HP products, please visit:
www.hp.com/hpinfo/globalcitizenship/environment/recycle/
HP inkjet supplies recycling program
HP is committed to protecting the environment. The HP Inkjet Supplies Recycling Program is
available in many countries/regions, and lets you recycle used print cartridges and ink cartridges
free of charge. For more information, go to the following Web site:
www.hp.com/hpinfo/globalcitizenship/environment/recycle/
Energy Star® notice
This product is designed to reduce power consumption and save natural resources without
compromising product performance. It has been designed to reduce total energy consumption both
during operation and when the device is not active. This product qualifies for ENERGY STAR® which
is a voluntary program established to encourage the development of energy-efficient office products.
ENERGY STAR is a U.S. registered service mark of the U.S. EPA. As an ENERGY STAR partner,
HP has determined that this product meets ENERGY STAR guidelines for energy efficiency.
For more information on ENERGY STAR guidelines, go to the following Web site:
www.energystar.gov
Environmental product stewardship program
177
Technical information
•
•
Chapter 16
Special handling of materials
This HP product contains a lithium-manganese dioxide battery located on the main printed circuit
assembly that may require special handling at end-of-life.
Attention California users
Technical information
The battery supplied with this product may contain perchlorate material. Special handling may apply.
For more information, go to the following Web site:
www.dtsc.ca.gov/hazardouswaste/perchlorate
Battery disposal in the Netherlands
Dit HP Product bevat een lithium-manganese-dioxide
batterij. Deze bevindt zich op de hoofdprintplaat.
Wanneer deze batterij leeg is, moet deze volgens de
geldende regels worden afgevoerd.
Battery disposal in Taiwan
178
Technical information
Česky
Likvidace vysloužilého zařízení uživateli v domácnosti v zemích EU
Tato značka na produktu nebo na jeho obalu označuje, že tento produkt nesmí být likvidován prostým vyhozením do běžného domovního odpadu. Odpovídáte za to, že vysloužilé
zařízení bude předáno k likvidaci do stanovených sběrných míst určených k recyklaci vysloužilých elektrických a elektronických zařízení. Likvidace vysloužilého zařízení samostatným
sběrem a recyklací napomáhá zachování přírodních zdrojů a zajišťuje, že recyklace proběhne způsobem chránícím lidské zdraví a životní prostředí. Další informace o tom, kam můžete
vysloužilé zařízení předat k recyklaci, můžete získat od úřadů místní samosprávy, od společnosti provádějící svoz a likvidaci domovního odpadu nebo v obchodě, kde jste produkt
zakoupili.
Dansk
Bortskaffelse af affaldsudstyr for brugere i private husholdninger i EU
Dette symbol på produktet eller på dets emballage indikerer, at produktet ikke må bortskaffes sammen med andet husholdningsaffald. I stedet er det dit ansvar at bortskaffe affaldsudstyr
ved at aflevere det på dertil beregnede indsamlingssteder med henblik på genbrug af elektrisk og elektronisk affaldsudstyr. Den separate indsamling og genbrug af dit affaldsudstyr på
tidspunktet for bortskaffelse er med til at bevare naturlige ressourcer og sikre, at genbrug finder sted på en måde, der beskytter menneskers helbred samt miljøet. Hvis du vil vide mere
om, hvor du kan aflevere dit affaldsudstyr til genbrug, kan du kontakte kommunen, det lokale renovationsvæsen eller den forretning, hvor du købte produktet.
Nederlands
Afvoer van afgedankte apparatuur door gebruikers in particuliere huishoudens in de Europese Unie
Dit symbool op het product of de verpakking geeft aan dat dit product niet mag worden afgevoerd met het huishoudelijk afval. Het is uw verantwoordelijkheid uw afgedankte apparatuur
af te leveren op een aangewezen inzamelpunt voor de verwerking van afgedankte elektrische en elektronische apparatuur. De gescheiden inzameling en verwerking van uw afgedankte
apparatuur draagt bij tot het sparen van natuurlijke bronnen en tot het hergebruik van materiaal op een wijze die de volksgezondheid en het milieu beschermt. Voor meer informatie over
waar u uw afgedankte apparatuur kunt inleveren voor recycling kunt u contact opnemen met het gemeentehuis in uw woonplaats, de reinigingsdienst of de winkel waar u het product
hebt aangeschaft.
Eesti
Eramajapidamistes kasutuselt kõrvaldatavate seadmete käitlemine Euroopa Liidus
Kui tootel või toote pakendil on see sümbol, ei tohi seda toodet visata olmejäätmete hulka. Teie kohus on viia tarbetuks muutunud seade selleks ettenähtud elektri- ja elektroonikaseadmete
utiliseerimiskohta. Utiliseeritavate seadmete eraldi kogumine ja käitlemine aitab säästa loodusvarasid ning tagada, et käitlemine toimub inimeste tervisele ja keskkonnale ohutult.
Lisateavet selle kohta, kuhu saate utiliseeritava seadme käitlemiseks viia, saate küsida kohalikust omavalitsusest, olmejäätmete utiliseerimispunktist või kauplusest, kust te seadme
ostsite.
Suomi
Hävitettävien laitteiden käsittely kotitalouksissa Euroopan unionin alueella
Tämä tuotteessa tai sen pakkauksessa oleva merkintä osoittaa, että tuotetta ei saa hävittää talousjätteiden mukana. Käyttäjän velvollisuus on huolehtia siitä, että hävitettävä laite
toimitetaan sähkö- ja elektroniikkalaiteromun keräyspisteeseen. Hävitettävien laitteiden erillinen keräys ja kierrätys säästää luonnonvaroja. Näin toimimalla varmistetaan myös,
että kierrätys tapahtuu tavalla, joka suojelee ihmisten terveyttä ja ympäristöä. Saat tarvittaessa lisätietoja jätteiden kierrätyspaikoista paikallisilta viranomaisilta, jäteyhtiöiltä tai tuotteen
jälleenmyyjältä.
Ελληνικά
Απόρριψη άχρηστων συσκευών στην Ευρωπαϊκή Ένωση
Το παρόν σύμβολο στον εξοπλισμό ή στη συσκευασία του υποδεικνύει ότι το προϊόν αυτό δεν πρέπει να πεταχτεί μαζί με άλλα οικιακά απορρίμματα. Αντίθετα, ευθύνη σας είναι να
απορρίψετε τις άχρηστες συσκευές σε μια καθορισμένη μονάδα συλλογής απορριμμάτων για την ανακύκλωση άχρηστου ηλεκτρικού και ηλεκτρονικού εξοπλισμού. Η χωριστή συλλογή και
ανακύκλωση των άχρηστων συσκευών θα συμβάλει στη διατήρηση των φυσικών πόρων και στη διασφάλιση ότι θα ανακυκλωθούν με τέτοιον τρόπο, ώστε να προστατεύεται η υγεία των
ανθρώπων και το περιβάλλον. Για περισσότερες πληροφορίες σχετικά με το πού μπορείτε να απορρίψετε τις άχρηστες συσκευές για ανακύκλωση, επικοινωνήστε με τις κατά τόπους αρμόδιες
αρχές ή με το κατάστημα από το οποίο αγοράσατε το προϊόν.
Magyar
A hulladékanyagok kezelése a magánháztartásokban az Európai Unióban
Ez a szimbólum, amely a terméken vagy annak csomagolásán van feltüntetve, azt jelzi, hogy a termék nem kezelhető együtt az egyéb háztartási hulladékkal. Az Ön feladata,
hogy a készülék hulladékanyagait eljuttassa olyan kijelölt gyűjtőhelyre, amely az elektromos hulladékanyagok és az elektronikus berendezések újrahasznosításával foglalkozik.
A hulladékanyagok elkülönített gyűjtése és újrahasznosítása hozzájárul a természeti erőforrások megőrzéséhez, egyúttal azt is biztosítja, hogy a hulladék újrahasznosítása az
egészségre és a környezetre nem ártalmas módon történik. Ha tájékoztatást szeretne kapni azokról a helyekről, ahol leadhatja újrahasznosításra a hulladékanyagokat, forduljon
a helyi önkormányzathoz, a háztartási hulladék begyűjtésével foglalkozó vállalathoz vagy a termék forgalmazójához.
Latviski
Lietotāju atbrīvošanās no nederīgām ierīcēm Eiropas Savienības privātajās mājsaimniecībās
Šis simbols uz ierīces vai tās iepakojuma norāda, ka šo ierīci nedrīkst izmest kopā ar pārējiem mājsaimniecības atkritumiem. Jūs esat atbildīgs par atbrīvošanos no nederīgās ierīces,
to nododot norādītajā savākšanas vietā, lai tiktu veikta nederīgā elektriskā un elektroniskā aprīkojuma otrreizējā pārstrāde. Speciāla nederīgās ierīces savākšana un otrreizējā pārstrāde
palīdz taupīt dabas resursus un nodrošina tādu otrreizējo pārstrādi, kas sargā cilvēku veselību un apkārtējo vidi. Lai iegūtu papildu informāciju par to, kur otrreizējai pārstrādei var
nogādāt nederīgo ierīci, lūdzu, sazinieties ar vietējo pašvaldību, mājsaimniecības atkritumu savākšanas dienestu vai veikalu, kurā iegādājāties šo ierīci.
Lietuviškai
Europos Sąjungos vartotojų ir privačių namų ūkių atliekamos įrangos išmetimas
Šis simbolis ant produkto arba jo pakuotės nurodo, kad produktas negali būti išmestas kartu su kitomis namų ūkio atliekomis. Jūs privalote išmesti savo atliekamą įrangą atiduodami ją
į atliekamos elektronikos ir elektros įrangos perdirbimo punktus. Jei atliekama įranga bus atskirai surenkama ir perdirbama, bus išsaugomi natūralūs ištekliai ir užtikrinama, kad įranga
yra perdirbta žmogaus sveikatą ir gamtą tausojančiu būdu. Dėl informacijos apie tai, kur galite išmesti atliekamą perdirbti skirtą įrangą kreipkitės į atitinkamą vietos tarnybą, namų ūkio
atliekų išvežimo tarnybą arba į parduotuvę, kurioje pirkote produktą.
Utylizacja zużytego sprzętu przez użytkowników domowych w Unii Europejskiej
Symbol ten umieszczony na produkcie lub opakowaniu oznacza, że tego produktu nie należy wyrzucać razem z innymi odpadami domowymi. Użytkownik jest odpowiedzialny za
dostarczenie zużytego sprzętu do wyznaczonego punktu gromadzenia zużytych urządzeń elektrycznych i elektronicznych. Gromadzenie osobno i recykling tego typu odpadów
przyczynia się do ochrony zasobów naturalnych i jest bezpieczny dla zdrowia i środowiska naturalnego. Dalsze informacje na temat sposobu utylizacji zużytych urządzeń można
uzyskać u odpowiednich władz lokalnych, w przedsiębiorstwie zajmującym się usuwaniem odpadów lub w miejscu zakupu produktu.
Descarte de equipamentos por usuários em residências da União Européia
Este símbolo no produto ou na embalagem indica que o produto não pode ser descartado junto com o lixo doméstico. No entanto, é sua responsabilidade levar os equipamentos
a serem descartados a um ponto de coleta designado para a reciclagem de equipamentos eletro-eletrônicos. A coleta separada e a reciclagem dos equipamentos no momento do
descarte ajudam na conservação dos recursos naturais e garantem que os equipamentos serão reciclados de forma a proteger a saúde das pessoas e o meio ambiente. Para obter mais
informações sobre onde descartar equipamentos para reciclagem, entre em contato com o escritório local de sua cidade, o serviço de limpeza pública de seu bairro ou a loja em que
adquiriu o produto.
Postup používateľov v krajinách Európskej únie pri vyhadzovaní zariadenia v domácom používaní do odpadu
Tento symbol na produkte alebo na jeho obale znamená, že nesmie by vyhodený s iným komunálnym odpadom. Namiesto toho máte povinnos odovzda toto zariadenie na zbernom
mieste, kde sa zabezpečuje recyklácia elektrických a elektronických zariadení. Separovaný zber a recyklácia zariadenia určeného na odpad pomôže chráni prírodné zdroje a
zabezpečí taký spôsob recyklácie, ktorý bude chráni ľudské zdravie a životné prostredie. Ďalšie informácie o separovanom zbere a recyklácii získate na miestnom obecnom úrade,
vo firme zabezpečujúcej zber vášho komunálneho odpadu alebo v predajni, kde ste produkt kúpili.
Ravnanje z odpadno opremo v gospodinjstvih znotraj Evropske unije
Ta znak na izdelku ali embalaži izdelka pomeni, da izdelka ne smete odlagati skupaj z drugimi gospodinjskimi odpadki. Odpadno opremo ste dolžni oddati na določenem zbirnem
mestu za recikliranje odpadne električne in elektronske opreme. Z ločenim zbiranjem in recikliranjem odpadne opreme ob odlaganju boste pomagali ohraniti naravne vire in zagotovili,
da bo odpadna oprema reciklirana tako, da se varuje zdravje ljudi in okolje. Več informacij o mestih, kjer lahko oddate odpadno opremo za recikliranje, lahko dobite na občini,
v komunalnem podjetju ali trgovini, kjer ste izdelek kupili.
Kassering av förbrukningsmaterial, för hem- och privatanvändare i EU
Produkter eller produktförpackningar med den här symbolen får inte kasseras med vanligt hushållsavfall. I stället har du ansvar för att produkten lämnas till en behörig återvinningsstation
för hantering av el- och elektronikprodukter. Genom att lämna kasserade produkter till återvinning hjälper du till att bevara våra gemensamma naturresurser. Dessutom skyddas både
människor och miljön när produkter återvinns på rätt sätt. Kommunala myndigheter, sophanteringsföretag eller butiken där varan köptes kan ge mer information om var du lämnar
kasserade produkter för återvinning.
Technical information
English
Français
Deutsch
Italiano
Español
Eliminación de residuos de aparatos eléctricos y electrónicos por parte de usuarios domésticos en la Unión Europea
Este símbolo en el producto o en el embalaje indica que no se puede desechar el producto junto con los residuos domésticos. Por el contrario, si debe eliminar este tipo de residuo, es
responsabilidad del usuario entregarlo en un punto de recogida designado de reciclado de aparatos electrónicos y eléctricos. El reciclaje y la recogida por separado de estos residuos
en el momento de la eliminación ayudará a preservar recursos naturales y a garantizar que el reciclaje proteja la salud y el medio ambiente. Si desea información adicional sobre los
lugares donde puede dejar estos residuos para su reciclado, póngase en contacto con las autoridades locales de su ciudad, con el servicio de gestión de residuos domésticos o con la
tienda donde adquirió el producto.
Português
Smaltimento di apparecchiature da rottamare da parte di privati nell'Unione Europea
Questo simbolo che appare sul prodotto o sulla confezione indica che il prodotto non deve essere smaltito assieme agli altri rifiuti domestici. Gli utenti devono provvedere allo
smaltimento delle apparecchiature da rottamare portandole al luogo di raccolta indicato per il riciclaggio delle apparecchiature elettriche ed elettroniche. La raccolta e il riciclaggio
separati delle apparecchiature da rottamare in fase di smaltimento favoriscono la conservazione delle risorse naturali e garantiscono che tali apparecchiature vengano rottamate
nel rispetto dell'ambiente e della tutela della salute. Per ulteriori informazioni sui punti di raccolta delle apparecchiature da rottamare, contattare il proprio comune di residenza,
il servizio di smaltimento dei rifiuti locale o il negozio presso il quale è stato acquistato il prodotto.
Slovenčina
Entsorgung von Elektrogeräten durch Benutzer in privaten Haushalten in der EU
Dieses Symbol auf dem Produkt oder dessen Verpackung gibt an, dass das Produkt nicht zusammen mit dem Restmüll entsorgt werden darf. Es obliegt daher Ihrer Verantwortung, das
Gerät an einer entsprechenden Stelle für die Entsorgung oder Wiederverwertung von Elektrogeräten aller Art abzugeben (z.B. ein Wertstoffhof). Die separate Sammlung und das
Recyceln Ihrer alten Elektrogeräte zum Zeitpunkt ihrer Entsorgung trägt zum Schutz der Umwelt bei und gewährleistet, dass sie auf eine Art und Weise recycelt werden, die keine
Gefährdung für die Gesundheit des Menschen und der Umwelt darstellt. Weitere Informationen darüber, wo Sie alte Elektrogeräte zum Recyceln abgeben können, erhalten Sie bei
den örtlichen Behörden, Wertstoffhöfen oder dort, wo Sie das Gerät erworben haben.
Slovenščina
Évacuation des équipements usagés par les utilisateurs dans les foyers privés au sein de l'Union européenne
La présence de ce symbole sur le produit ou sur son emballage indique que vous ne pouvez pas vous débarrasser de ce produit de la même façon que vos déchets courants.
Au contraire, vous êtes responsable de l'évacuation de vos équipements usagés et, à cet effet, vous êtes tenu de les remettre à un point de collecte agréé pour le recyclage des
équipements électriques et électroniques usagés. Le tri, l'évacuation et le recyclage séparés de vos équipements usagés permettent de préserver les ressources naturelles et de s'assurer
que ces équipements sont recyclés dans le respect de la santé humaine et de l'environnement. Pour plus d'informations sur les lieux de collecte des équipements usagés, veuillez contacter
votre mairie, votre service de traitement des déchets ménagers ou le magasin où vous avez acheté le produit.
Svenska
Disposal of Waste Equipment by Users in Private Households in the European Union
This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment
at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where
you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
Polski
Disposal of waste equipment by users in private households in the European Union
Regulatory notices
The HP All-in-One meets product requirements from regulatory agencies in your country/region.
Regulatory notices
179
Chapter 16
This section contains the following topics:
Regulatory model identification number
FCC statement
Notice to users in Korea
VCCI (Class B) compliance statement for users in Japan
Notice to users in Japan about the power cord
Noise emission statement for Germany
Toxic and hazardous substance table
Declaration of conformity (European Economic Area)
HP Photosmart C6200 All-in-One series declaration of conformity
Technical information
•
•
•
•
•
•
•
•
•
Regulatory model identification number
For regulatory identification purposes, your product is assigned a Regulatory Model Number. The
Regulatory Model Number for your product is SDGOB-0714. This regulatory number should not be
confused with the marketing name (HP Photosmart C6200 All-in-One series, etc.) or product
numbers (CC985A, etc.).
FCC statement
FCC statement
The United States Federal Communications Commission (in 47 CFR 15.105) has specified
that the following notice be brought to the attention of users of this product.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•
•
•
•
Reorient the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
For further information, contact:
Manager of Corporate Product Regulations
Hewlett-Packard Company
3000 Hanover Street
Palo Alto, Ca 94304
(650) 857-1501
Modifications (part 15.21)
The FCC requires the user to be notified that any changes or modifications made to this
device that are not expressly approved by HP may void the user's authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
180
Technical information
Technical information
Notice to users in Korea
VCCI (Class B) compliance statement for users in Japan
Notice to users in Japan about the power cord
Noise emission statement for Germany
Geräuschemission
LpA < 70 dB am Arbeitsplatz im Normalbetrieb nach DIN 45635 T. 19
Toxic and hazardous substance table
Regulatory notices
181
Chapter 16
Declaration of conformity (European Economic Area)
The Declaration of Conformity in this document complies with ISO/IEC 17050-1 and EN 17050-1. It
identifies the product, manufacturer’s name and address, and applicable specifications recognized
in the European community.
Technical information
HP Photosmart C6200 All-in-One series declaration of conformity
DECLARATION OF CONFORMITY
according to ISO/IEC 17050-1 and EN 17050-1
Supplier's Name:
Hewlett-Packard Company
Supplier's Address:
16399 West Bernardo Drive
San Diego, CA 92127-1899, USA
DoC#: SDGOB-0714-rel.2.0
declares, that the product
Product Name and Model:
Regulatory Model Number:
HP Photosmart C6200 Series (CC985A)
1)
SDGOB-0714
Product Options:
ALL
Power Adapter:
0957-2230
conforms to the following Product Specifications and Regulations:
EMC:
CISPR 22:1997+A1:2000+A2:2002 / EN 55022:1998 +A1:2000+A2:2003 Class B
CISPR 24:1997+A1:2001+A2:2002 / EN 55024:1998 +A1:2001+A2:2003 Class B
EN 301 489-1 V1.4.1:2002 / EN 301 489-17 V1.2.1:2002
IEC 61000-3-2:2000+A1:2000+A2:2005 / EN 61000-3-2:2000+A2:2005
IEC 61000-3-3:1994+A1:2001 / EN 61000-3-3:1995+A1:2001
FCC Title 47 CFR, Part 15 Class B / ICES-003, Issue 4
GB9254:1998, GB17625.1:2003
SAFETY:
IEC 60950-1:2001 / EN 60950-1:2001
IEC 60825-1 Ed. 1.2:2001 / EN 60825-1+A2+A1:2002 (LED)
GB4943:2001
This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two Conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation
The product herewith complies with the requirements of the EMC Directive 2004/108/EC and the Low Voltage
Directive 2006/95/EC and carries the CE-Marking accordingly
Additional Information:
1.
This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the
design. The Regulatory Model Number is the main product identifier in the regulatory documentation and
test reports, this number should not be confused with the marketing name or the product numbers.
San Diego, CA, USA
16 January, 2007
Local contact for regulatory topics only:
182
EMEA:
Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Böblingen, Germany
U.S.:
Hewlett-Packard, 3000 Hanover St., Palo Alto 94304, U.S.A. 650-857-1501
Technical information
Index
10 x 15 cm photo paper
copy 86
load 38
specifications 175
2 pages on 1, print 57
4 pages on 1, print 57
4 x 6 inch (10 x 15 cm)
borderless photos
print 53
4 x 6 inch photo paper
copy 86
4 x 6 inch photo paper, load 38
802.3 wired, configuration
page 27
A
A4 paper, load 37
addresses, print 60
admin password 27
advanced network settings 23
after the support period 171
align printer 102
B
best copy quality 88
blank
copy 149
scan 143
blocked print head 116
booklet printing 56
borderless copies 90
borderless photos
copy has borders 148
crop is wrong 149
print 53
brightness, change in print 49
Browsing photos 16
buttons, control panel 7
C
cancel
button 7
copy 93
print job 62
scan 83
cartridges. See ink cartridges
CAT-5 Ethernet cable 20
choose paper 34
clean
exterior 98
glass 97
ink cartridge contacts 104
lid backing 98
print head 103
color
dull 128
smeared 126
color graphics display
copy preview 85
crop original 92
shift margin 92
color tone, change in print 49
communication problems
test failed 159
two-way communication
lost 161
config source (802.3 wired) 28
configuration page
802.3 wired 27
general information 27
connect
wired network (Ethernet) 19
connection problems
device not found 160
HP All-in-One does not turn
on 113
connection types supported
Ethernet 18
printer sharing 18
control panel
buttons 7
features 7
overview 6
copy
blank 149
borderless has borders 148
borderless photo 90
cancel 93
crop 92
crop is wrong 149
default settings 89
enlarge 91
fit to page fails 147
make a copy 85
margin shift 92
menu 11
missing information 147
number of copies 86
paper size 86
paper types,
recommended 87
photos, enhance 92
preview 85
quality 88
reduce 91
size, custom 91
smeared 126
specifications 176
speed 88
text, enhance 92
too dark 146
too light 146
troubleshooting 145
country/region, set 15
crop
borderless copy is
wrong 149
fails 154
crop an original 92
crop photos 73
customer support
warranty 169, 171
Index
Symbols/Numerics
D
damaged, ink cartridge 163
dark copy 146
darken
copies 89
declaration of conformity
European Economic
Area 182
United States 182
default gateway (802.3
wired) 28
default printer, set as 46
default settings
restore 16
183
default settings, restore 23
device
no response 132
not found 160
direction pad 8
disconnected error 155
Display
icons 8
display
change language 114
change measurements 114
sleep state 9
DNS server (802.3 wired) 28
documents
edit scanned 82
scan 79
double-sided prints 55, 56
DPOF printing 16
E
edit
Index
scan preview 82
edit scanned images 82
Embedded Web Server
access using web
browser 25
password settings 27
envelopes
load 40
specifications 175
environment
Environmental product
stewardship program 176
error messages
memory cards 154
out of paper 158
reading or writing file 152
European Union
Directive 2002/95/EC 178
EWS. See Embedded Web
Server
F
factory defaults, restore 16
fast copy quality 88
fax
paper width incorrect 159
poor quality printouts 124,
125
fax problems
poor print quality 125
smeared ink 124
184
Hagaki, load 39
hardware address (802.3
wired) 27
help
menu 10
hostname 27, 29
HP Instant Share
send a scan 83
HP Photosmart
send images 70
clean contacts 104
damaged 163
empty 164
error message 168
error messages 161
expired 164
HP ink depleted 165
incompatible 162
incorrect 162, 163, 167, 168
missing 163
non-HP ink 165
order 107
replace 99
replace soon 167
supply error 165
tips 110
troubleshoot 115
ink levels
icons 8
ink levels, check 98
ink supplies
purchase 107
ink, removing ink from skin and
clothing 106
invalid file name 153
IP
address 27, 28
settings 24
iron-on transfers 59
I
J
file
invalid name 153
supported formats 153
unreadable 152
unsupported formats 153
firmware revision mismatch 150
firmware version 27
fit to page 91
fit to page fails 147
G
gateway, default setting 28
general information,
configuration page 27
glass
clean 97
greeting cards, load 42
H
images
crop 73
edit scanned 82
rotate 73
scan 79
send a scan 83
zoom 73
improper shutdown 161
index cards, load 39
ink
drying time 158
empty 164
low 138
replace soon 167
sprays inside device 131
sprays inside HP All-inOne 138
ink cartridge
failure 164
ink cartridges
check ink levels 98
jams, paper 43, 116
L
labels
load 42
specifications 175
landscape orientation 49
language, set 15
left arrow 8
legal paper
copy 86
load 37
specifications 175
letter paper
copy 87
load 37
specifications 175
lid backing, clean 98
light
copy 146
lighten
copies 89
link
configuration 28
speed 24
load
10 x 15 cm photo paper 38
4 x 6 inch photo paper 38
A4 paper 37
envelopes 40
full-size paper 37
greeting cards 42
Hagaki 39
index cards 39
iron-on transfers 42
labels 42
legal paper 37
letter paper 37
original 33
postcards 39
transparencies 42
M
MAC address 27
maintenance
align printer 102
check ink levels 98
clean exterior 98
clean glass 97
clean lid backing 98
clean print head 103
replace ink cartridges 99
restore factory defaults 16
self-test report 95
Standby/Off, set mode 106
make a copy 85
margins
incorrect 136
text or graphic cut off 137
maximum resolution quality 88
mDNS service name 27
media. See paper
Media Access Control (MAC)
address 27
memory cards
digital camera cannot
read 139
e-mail photos 70
error message 154
file unreadable 152
HP All-in-Onecannot
read 139
inaccessible 141
insert 71
photos missing 152
read or write error 141
save files to computer 71
scan to 81
share photos 70
slots 65
troubleshoot 139
menus
copy 11
help 10
scan to 10
setup 10
missing
information from copy 147
ink cartridge 163
text from scan 145
N
network
advanced settings 23
connection type 27
restore settings 23
status 27
upgrade 22
network configuration page 26
no scan options error 155
normal copy quality 88
number of copies 86
O
OK button 8
on button 8
order
ink cartridges 107
ink supplies 107
out of paper 158
overheads, print 59
P
page order 58
paper
choose 34
feed fails 131
incompatible types 36
jam 150, 158
jams 43, 111, 116
load 36
misfeed 158
out of 158
paper mismatch 159
photo 159
recommended copy
types 87
recommended sizes for
printing 46
recommended types 34, 35
size incorrect 159
specifications 175
tips 111
type incorrect 159
width incorrect 159
paper size
copy setting 86
paper type 47
password, Embedded Web
Server 27
phone numbers, support 170
phone support 171
phone support period
period for support 171
photosmart express
menu 10
Photo browsing 16
photo paper
copy 87
load 38
specifications 175
photos
add a frame 72
add color effect 72
adjust brightness 72
crop 73
e-mail 70
edit scanned 82
flip horizontal 72
ink sprays 138
missing 152
print borderless 53
print on photo paper 53
remove red-eye 72
rotate 73
send using HP
Photosmart 70
share 70
zoom 73
Photosmart Express 7
poor fax printout quality 124,
125
portrait orientation 49
postcards
load 39
posters 61
preview copy 85
185
Index
Index
Index
preview image, edit 82
preview print job 50
print
2 or 4 pages on 1 57
addresses 60
blank printout 138
booklet 56
borderless fails 132
borderless photos 53
both sides of page 55
cancel job 62
CD/DVD labels 54
correct order 58
distorted printout 126
envelopes 60
envelopes print
incorrectly 131
faded 128
from computer 45
from software application 45
iron-on transfers 59
labels 60
margins incorrect 136, 137
meaningless characters 134
multiple pages on one
sheet 57
nothing happens 134
on photo paper 53
posters 61
preview 50
print options 46, 50
quality, troubleshoot 124,
125, 127, 129
reverse images 59
reversed page order 136
self-test report 95
special print jobs 52
specifications 176
transparencies 59
troubleshooting 131
vertical streaks 130
Web pages 61
print cartridges
low ink 138
print head
clean 103
failure 166
stalled 166
print head, blocked 116
print quality 48
print settings
brightness 49
color tone 49
186
layout 49
orientation 49
paper size 46
paper type 47
print quality 123
quality 48
reduce/enlarge 49
resizing options 49
resolution 48
saturation 49
speed 48
printer found screen,
Windows 21
printer sharing
Mac 18
Windows 18
printer, align 102
Printing Shortcuts tab 51
problems
copy 145
error messages 149
print 131
scan 142
Q
quality
print 48
quality, copy 88
R
recycle
ink cartridges 177
red-eye, remove 72
reduce/enlarge copies
custom size 91
resize to fit letter or A4 91
regulatory notices
China 178
declaration of conformity
(European Economic
Area) 182
declaration of conformity
(U.S.) 182
Directive 2002/95/EC 178
regulatory model
identification number 180
reinstall software 118
removing ink from skin and
clothing 106
replace ink cartridges 99
reports
self-test 95
resolution
print 48
restore factory settings 16
restore network defaults 23
right arrow 7
RJ-45 plug 20, 29, 30
rotate photos 73
S
saturation, change in print 49
save
photos to computer 71
scanned image 80
scan
blank 143
button 8
cancel 83
crop incorrect 144
documents 79, 80
edit image 82
fails 143, 150
features 79
from control panel 80
halts 143
no scan options error 155
page layout incorrect 144
photos 79, 80
preview image, edit 82
save to computer 80
save to memory card 81
scan specifications 176
send using HP Photosmart
Share 83
share images 83
stop 83
text appears as dotted
lines 144
text format incorrect 144
text incorrect 145
to memory card 81
troubleshooting 142
scan glass
clean 97
scan to
menu 10
security
network, WEP key 21
self-test report 95
send images using HP
Photosmart Share
scanned image 83
set
print options 46, 50
Index
T
T-shirt transfers. See iron-on
transfers
technical information
copy specifications 176
paper specifications 175
print specifications 176
scan specifications 176
system requirements 175
telephone numbers,
support 170
text
cut off 137
dotted lines on scan 144
enhance on copies 92
incorrect format on
scan 144
incorrect or missing on
scan 145
jagged 126
meaningless characters 134
not filled in 125
smooth fonts 126
Tips Slideshow 17
total packets received (802.3
wired) 29
total packets transmitted (802.3
wired) 28
transparencies
copy 87
load 42
specifications 175
Tray selection 16
troubleshoot
blocked print head 116
fax problems 124, 125
hardware installation 112
incorrect
measurements 114
jams, paper 43, 116
language, display 114
network setup 120
printer alignment 115
software installation 116
USB cable 114
troubleshooting
cannot find the file or
item 142
communication
problems 109
copy 145
error messages 149
filename appears as
gibberish 141
memory card 139
others on network can
access my memory
card 142
print 131
Printer not Found 122
scan 142
unable to discover
device 121
two-sided prints 55, 56
USB cable
communication lost 161
USB cable installation 114
W
warranty 169, 171
Web pages, print 61
Z
zoom
button 8
buttons 73
photos 73
Index
settings
country/region 15
language 15
network 22
restore defaults 23
setup
button 7
menu 10
sharing 22
shift left margin 92
ship your device 173
sleep state 9
smeared ink, fax 124
software application, print
from 45
software installation
reinstall 118
troubleshoot 116
uninstall 118
speed
copy 88
print 48
start copy black 8
start copy color 8
status, network 27
stop
copy 93
print job 62
scan 83
Store Demo 17
subnet mask 28
support
contact 170
support process 170
system requirements 175
U
uninstall software 118
upgrade to network 22
URL 27
187
Index
188
