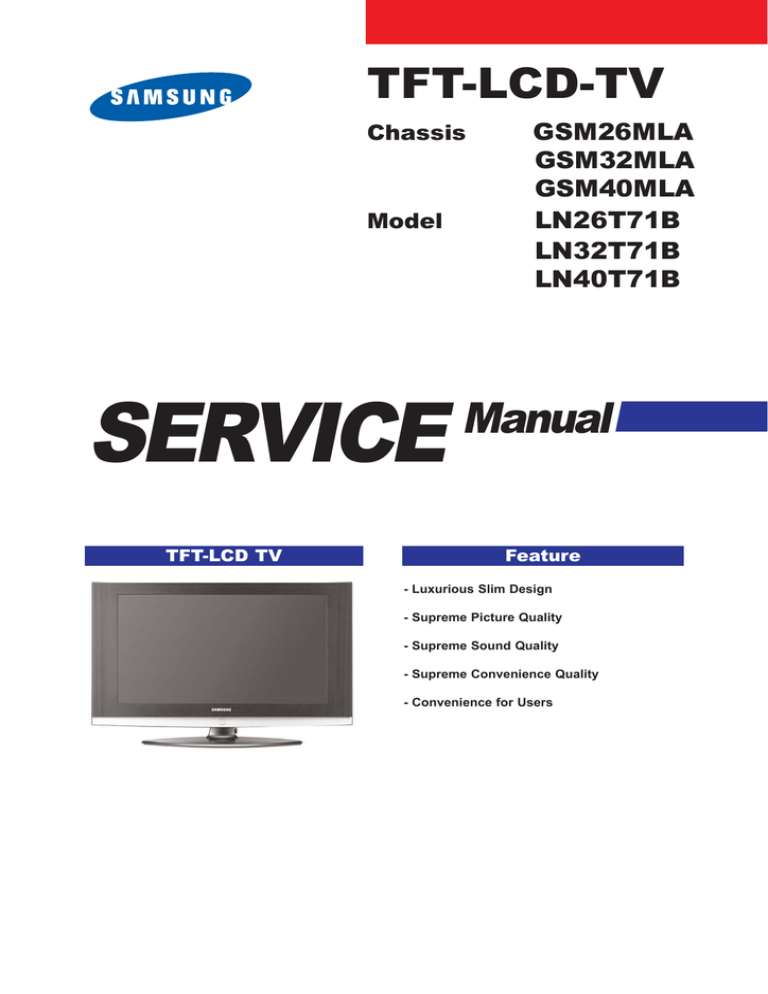

TFT-LCD-TV
Chassis
Model
SERVICE
TFT-LCD TV
GSM26MLA
GSM32MLA
GSM40MLA
LN26T71B
LN32T71B
LN40T71B
Manual
Feature
- Luxurious Slim Design
- Supreme Picture Quality
- Supreme Sound Quality
- Supreme Convenience Quality
- Convenience for Users
Copyright
2006 by Samsung Electronics Co., Ltd.
All rights reserved.
This manual may not, in whole or in part, be copied,
photocopied, reproduced, translated, or converted to any
electronic or machine readable form without prior
written permission of Samsung Electronics Co., Ltd.
LN26T71B / LN32T71B / LN40T71B Service Manual
First edition June 2006.
Printed in Korea.
ii
Trademarks
Samsung is the registered trademark of Samsung
Electronics Co., Ltd.
LN26T71B / LN32T71B / LN40T71B and Macmaster
Cable Adapter are trademarks of Samsung Electronics
Co., Ltd.
Macintosh and Power Macintosh are trademarks of
Apple Computer, Inc.
All other trademarks are the property of their respective
owners.
Contents
Contents
1 Precautions
1 Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.
1-1 Safety Precautions
1-1-1 Warnings
1.
For continued safety, do not attempt to modify the
circuit board.
2.
Disconnect the AC power and DC Power Jack before
servicing.
1-1-2 Servicing the LCD Monitor
1.
When servicing the LCD Monitor Disconnect the AC
line cord from the AC outlet.
2.
It is essential that service technicians have an accurate
voltage meter available at all times. Check the
calibration of this meter periodically.
1-1-3 Fire and Shock Hazard
Before returning the monitor to the user, perform the
following safety checks:
1.
Inspect each lead dress to make certain that the leads
are not pinched or that hardware is not lodged between
the chassis and other metal parts in the monitor.
2.
Inspect all protective devices such as nonmetallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacitor networks, mechanical
insulators, etc.
3.
Leakage Current Hot Check (Figure 1-1):
WARNING: Do not use an isolation
transformer during
this test.
Use a leakage current tester or a metering system that
complies with American National Standards Institute
(ANSI C101.1, Leakage Current for Appliances), and
Underwriters Laboratories (UL Publication UL1410,
59.7).
Figure 1-1. Leakage Current Test Circuit
1-1-4 Product Safety Notices
Some electrical and mechanical parts have special
safety-related characteristics which are often not evident
from visual inspection. The protection they give may not
be obtained by replacing them with components rated for
higher voltage, wattage, etc. Parts that have special safety
characteristics are identified by
on schematics and parts
lists. A substitute replacement that does not have the same
safety characteristics as the recommended replacement part
might create shock, fire and/or other hazards. Product
safety is under review continuously and new instructions
are issued whenever appropriate.
1-1
1 Precautions
1-2 Servicing Precautions
WARNING:
An electrolytic capacitor installed with the wrong polarity might explode.
Caution:
Before servicing units covered by this service manual, read and follow the Safety
Precautions section of this manual.
Note:
If unforeseen circumstances create conflict between the following servicing precautions and any of the safety
precautions, always follow the safety precautions.
1-2-1 General Servicing
Precautions
1.
4.
Check the insulation between the blades of the AC
plug and accessible conductive parts (examples: metal
panels, input terminals and earphone jacks).
5.
Insulation Checking Procedure: Disconnect the power
cord from the AC source and turn the power switch
ON. Connect an insulation resistance meter (500 V) to
the blades of the AC plug.
Always unplug the unit s AC power cord from the AC
power source and disconnect the DC Power Jack
before attempting to:
(a) remove or reinstall any component or assembly, (b)
disconnect PCB plugs or connectors, (c) connect a test
component in parallel with an electrolytic capacitor.
2.
Some components are raised above the printed circuit
board for safety. An insulation tube or tape is
sometimes used. The internal wiring is sometimes
clamped to prevent contact with thermally hot
components. Reinstall all such elements to their
original position.
3.
After servicing, always check that the screws,
components and wiring have been correctly
reinstalled. Make sure that the area around the
serviced part has not been damaged.
The insulation resistance between each blade of the
AC plug and accessible conductive parts (see above)
should be greater than 1 megohm.
6.
Always connect a test instrument s ground lead to the
instrument chassis ground before connecting the
positive lead; always remove the instrument s ground
lead last.
1-3 Static Electricity Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called
Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors.
The following techniques will reduce the incidence of component damage caused by static electricity.
1.
Immediately before handling any semiconductor
components or assemblies, drain the electrostatic
charge from your body by touching a known earth
ground. Alternatively, wear a discharging wrist-strap
device. To avoid a shock hazard, be sure to remove the
wrist strap before applying power to the monitor.
2.
After removing an ESD-equipped assembly, place it
on a conductive surface such as aluminum foil to
prevent accumulation of an electrostatic charge.
3.
Do not use freon-propelled chemicals. These can
generate electrical charges sufficient to damage ESDs.
4.
Use only a grounded-tip soldering iron to solder or
desolder ESDs.
5.
Use only an anti-static solder removal device. Some
solder removal devices not classified as anti-static
can generate electrical charges sufficient to damage
ESDs.
1-2
6.
Do not remove a replacement ESD from its protective
package until you are ready to install it. Most
replacement ESDs are packaged with leads that are
electrically shorted together by conductive foam,
aluminum foil or other conductive materials.
7.
Immediately before removing the protective material
from the leads of a replacement ESD, touch the
protective material to the chassis or circuit assembly
into which the device will be installed.
Caution: Be sure no power is applied to
the chassis or circuit and
observe all other safety
precautions.
8.
Minimize body motions when handling unpackaged
replacement ESDs. Motions such as brushing clothes
together, or lifting your foot from a carpeted floor can
generate enough static electricity to damage an ESD.
1 Precautions
1-4 Installation Precautions
1. For safety reasons, more than two people are
required for carrying the product.
2. Keep the power cord away from any heat emitting
devices, as a melted covering may cause fire or
electric shock.
3. Do not place the product in areas with poor
ventilation such as a bookshelf or closet. The
increased internal temperature may cause fire.
6. Keep the antenna far away from any high-voltage
cables and install it firmly. Contact with the highvoltage cable or the antenna falling over may
cause fire or electric shock.
7. When installing the product, leave enough space
(10cm) between the product and the wall for
ventilation purposes.
A rise in temperature within the product may
cause fire.
4. Bend the external antenna cable when connecting
it to the product. This is a measure to protect it
from being exposed to moisture. Otherwise, it
may cause a fire or electric shock.
5. Make sure to turn the power off and unplug the
power cord from the outlet before repositioning
the product. Also check the antenna cable or the
external connectors if they are fully unplugged.
Damage to the cord may cause fire or electric
shock.
1-3
1 Precautions
Memo
1-4
2 Product Specifications
2 Product specifications
2-1 Fashion Feature
Excellent Picture Quality
-DNIe technology provides life-like clear images.
Dynamic Contrast
-Automatically detects the input visual signal and adjusts to create optimum contrast.
Energy saving
-Adjusts the brightness of TV so as to reduce the power consumption.
SRS TruSurround XT
-SRS TruSurround XT provides a virtual Dolby surround system.
Convenience
-The TV utilizes the HDMI system to implement perfect digital sound and picture quality.
2-1
2 Product Specifications
2-2 LN26T71B Specifications
Item
Description
±
°
°
2-2
°
°
°
°
°
°
2 Product Specifications
2-3 LN32T71B Specifications
Item
Description
LCD Panel
TFT-LCD panel, RGB vertical stripe, normaly white, 32-Inch viewable, 0.511 (H) x 0.511 (V) mm pixel pitchh
Scanning Frequency
Horizontal : 30 kHz ~ 61 kHz (Automatic) / Vertical : 60 Hz ~ 75 Hz (Automatic)
Display Colors
16,777,216 colours
Maximum Resolution
Horizontal : 1360 Pixels
Vertical : 768 Pixels
Input Video Signal
Analog 0.7 Vp-p ± 5% positive at 75
Input Sync Signal
Type : Seperate H/V
Level : TTL level
Maximum Pixel Clock rate
80 MHz
Active Display
Horizontal/Vertical
556.4 mm / 339.8 mm
AC power voltage & Frequency
AC 110 ~ 240V, 60 / 50 Hz
Power Consumption
152 W
, internally terminated
Dimensions(W x D x H)
Set
800 x 252 x 602.5 mm(31.5 x 9.92 x 23.72 inches)After installation Stand
800 x 79.6 x 564 mm(31.5 x 3.13 x 22.20 inches) Without stand
Weight
Set(After installation Stand)
14.8 kg (32.62 lbs)
TV System
Tunning
Frequency Synthesize
System
Sound
MONO, STEREO
Environmental
Considerations
Operating Temperature : 50°F ~ 104°F (10°C ~ 40°C)
Operating Humidity : 10 % ~ 80 %
Storage Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Storage Humidity : 5 % ~ 95 %
Antena Input
75
-MAX Internal speaker Out : Right : 10W / Left : 10W
-BASS Control Range : -8 dB ~ + 8dB
Sound Characteristic
-TREBLE Control Range : -8 dB ~ +8 dB
-Headphone Out : 10 mW MAX
-Output Frequency : RF : 80 Hz ~ 15 kHz
A/V : 80 Hz ~ 20 kHz
2-3
2 Product Specifications
2-4 LN40T71B Specifications
Item
Description
LCD Panel
TFT-LCD panel, RGB vertical stripe, normaly white, 40-Inch viewable, 0.648(H) x 0.216(V) mm pixel pitch
Scanning Frequency
Horizontal : 30 kHz ~ 61 kHz (Automatic) / Vertical : 60 Hz ~ 75 Hz (Automatic)
Display Colors
16,777,216 colours
Maximum Resolution
Horizontal : 1360 Pixels
Vertical : 768 Pixels
Input Video Signal
Analog 0.7 Vp-p ± 5% positive at 75
Input Sync Signal
Type : Seperate H/V
Level : TTL level
Maximum Pixel Clock rate
80 MHz
Active Display
Horizontal/Vertical
556.4 mm / 339.8 mm
AC power voltage & Frequency
AC 110 ~ 240V, 60 / 50 Hz
Power Consumption
205 W
, internally terminated
Dimensions(W x D x H)
Set
1004 x 330 x 749 mm(39.52 x 12.99 x 29.49 inches) After installation Stand
31004 x 115 x 680 mm(39.52 x 4.52 x 26.77 inches) Without stand
Weight
Set(After installation Stand)
30.2 kg (66.58 lbs)
TV System
Tunning
Frequency Synthesize
System
Sound
MONO, STEREO
Environmental Considerations
Operating Temperature : 50°F ~ 104°F (10°C ~ 40°C)
Operating Humidity : 10 % ~ 80 %
Storage Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Storage Humidity : 5 % ~ 95 %
Antena Input
75
-MAX Internal speaker Out : Right : 10W / Left : 10W
-BASS Control Range : -8 dB ~ + 8dB
Sound Characteristic
-TREBLE Control Range : -8 dB ~ +8 dB
-Headphone Out : 10 mW MAX
-Output Frequency : RF : 80 Hz ~ 15 kHz
A/V : 80 Hz ~ 20 kHz
2-4
2 Product Specifications
2-5 Spec Comparison
Model
LA26R51B / LA32R51B / LA40R51B
LN26T71B / LN32T71B / LN40T71B
30 ~ 61 kHz
60 ~ 75 Hz
16,777,216 colors
30 ~ 61 kHz
60 ~ 75 Hz
16,777,216 colors
WXGA, 1360 x 768 @ 60 Hz
WXGA, 1360 x 768 @ 60 Hz
H/V Separate, TTL, P. or N.
0.7 Vp-p @ 75ohm
H/V Separate, TTL, P. or N.
0.7 Vp-p @ 75ohm
140W / 184W / 285W
< 1W
100W / 165W / 205W
< 1W
Design
Frequency
Horizontal
Vertical
Display Color
PC Resolution
Maximum mode
Input Signal
Sync Signal
Video Signal
Power
Consumption
Normal
Power Saving
2-5
2 Product Specifications
2-6 Option Specification
Item
2-6
Item Name
Code.No
Remote Control &
Batteries (AAA x 2)
BN59-00556A
Power Cord
3903-000067
Cover-Bottom
26", 32" : BN63-02415B
40" : BN63-02416B
Stand
26" : BN90-00877A
32" : BN90-00876A
40" : BN90-00875A
Stand Screw (4 ea)
6002-001294
Owner's Instructions
BN68-01001W
Warranty Card /
Registration
Card /Safety Guide Manual
(Not available in all locations)
-
Remark
3 Alignments and Adjustments
3 Alignments and Adjustments
3-1 Service Instruction
1. Usually, a color TV-VCR needs only slight touch-up adjustment upon installation.
Check the basic characteristics such as height, horizontal and vertical sync.
2. Use the specified test equipment or its equivalent.
3. Correct impedance matching is essential.
4. Avoid overload. Excessive signal from a sweep generator might overload the front-end
of the TV. When inserting signal markers, do not allow the marker generator to distort
test result.
5. Connect the TV only to an AC power source with voltage and frequency as specified on
the backcover nameplate.
6. Do not attempt to connect or disconnect any wire while the TV is turned on. Make sure
that the power cord is disconnected before replacing any parts.
7. To protect aganist shock hazard, use an isolation transform.
3-1
3 Alignments and Adjustments
3-2 How to Access Service Mode
3-2-1 Entering Factory Mode
"
"
- If you have Factory remote - control
- The buttons are active in the service mode.
1. Remote - Control Key : Power, Arrow Up, Arrow Down, Arrow Left
Arrow Right, Menu, Enter, Number Key(0~9)
2. Function - Control Key : Power, CH +, CH -, VOL +, VOL -,
Menu, TV/VIDEO(Enter)
3-2-2 Panel Check
Specially for LA26,32R7**, You have to check Panel Maker Because of different adjustments as follows.
First of all, Check the label rating!
1) Label Rating File
Panel check
If Panel Mark is "A", Set the factory mode
indicating as follows.
Panel BOM(Bill of material) : BN07-00289A
Connector between Panel and Power Unit
: BN39-00603A (250mm)
* Option Byte
1. Gamma "AUO"
2. Panel Option "AUO_AMVA"
If Panel Mark is "S" or not printed.
Set the factory mode indicating as follows.
3-2
Panel BOM(Bill of material) : BN07-00247A
Connector between Panel and Power Unit
: BN39-00603M (300mm)
* Option Byte
1. Gamma "OFF"
2. Panel Option "AMLCD_INT"
Others are same shown below.
3 Alignments and Adjustments
3-3 Factory Data
1. Calibration
2. Option Table
3. White Balance
XXXX XXXX
4. SVP-PX
5. Option Block
6. STV8258/STA323W
7. YC Delay
8. Adjust
9. I2C Check
10. W/B MOVIE
11. Checksum
12. Reset
13. Spread Spectrum
T-BRDMNUS-1000 (Main Micom Ver)
T-BRDMNUSS-1000 (Sub Micom Ver)
Month / Day / Year / Hour / Min. / Sec.
1. Calibration
1) AV Calibration
2) DTV Calibration
3) PC Calibration
4) HDMI Calibration
2. Option Table
XXXX XXXX
inch Option
32
Carrier Mute
ON
Shop Mode
OFF
Gamma
AUO
Auto FM
ON
Debug
OFF
Panel option
AUO_AMVA
High Dev.
OFF
Dynamic Contrast
OFF
2HDMI
OFF
ACR
OFF
V-Chip
OFF
Brt,Sensor
OFF
Dynamic CE
ON
EnergySave
ON
Dynamic Dimming
ON
LBE/FBE
OFF
Color System
Manual
FRC(Micronas)
OFF
Auto Power
ON
FRC(Samsung)
OFF
Magazine LNA
OFF
LNA
OFF
V-Chip Area
US
3-3
3 Alignments and Adjustments
1. Calibration
2. Option Table
3. White Balance
3-4
AV Calibration
EXE
DTV Calibration
PC Calibration
EXE
EXE
HDMI Calibration
EXE
Inch Option
26"
32"
40"
Gamma
Panel Option
AUO
AUO
AUO
AUO_AMVA
AMLCD
AMLCD_INT
2Hdmi
Brt. Sensor
OFF
OFF
OFF
OFF
OFF
OFF
EnergySave
ON
ON
ON
LBE/FBE
FRC(Micronas)
OFF
OFF
OFF
OFF
OFF
OFF
FRC(Samsung)
LNA
OFF
OFF
OFF
OFF
OFF
OFF
Carrier Mute
ON
ON
ON
Auto FM
High Deviation
ON
OFF
ON
OFF
ON
OFF
ACR
Dynamic CE
Dynamic Dimming
OFF
ON
ON
OFF
ON
ON
OFF
ON
ON
Color System
Auto Power
Manual
ON
Manual
ON
Manual
ON
Magazine LNA
V-Chip Area
Shop Mode
OFF
US
OFF
OFF
US
OFF
OFF
US
OFF
Debug
Dynamic Contrast
V-Chip
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Sub Brightness
R-Offset
G-Offset
B-Offset
Sub Contrast
R-Gain
G-Gain
B-Gain
104
122
128
129
165
137
128
136
104
122
128
129
155 --> 140
137
128
136
104
122
128
129
155 --> 140
137
128
136
3 Alignments and Adjustments
4. SVP-PX
ComB Filter
Y-Filter
80H
Sharpness
H2Gain
H4Gain
00H
0CH
V2Gain
V4Gain
00H
0CH
Sr2Gain
00H
Sr4Gain
Sl2Gain
08H
00H
Sl4Gian
08H
PeaKTh1
PeaKTh2
03H
33H
PeaKTh3
Y_NR_OFF
45H
80H
C_NR_OFF
80H
Y_NR_ON
C_NR_ON
80H
80H
R-Offset
G-Offset
B-Offset
23H
23H
23H
R-Gain
G-Gain
B-Gain
9BH
9BH
9BH
TCD3 Contrast
TCD3 Brightness
TCD3 CR
TCD3 CB
TCD3 Delay
Analog Y Offset
Analog PB Offset
Analog PR Offset
Analog Y Gain
Analog PB Gain
Analog PR Gain
Black Level
Svp Brightness
6AH
26H
80H
80H
00H
40H
80H
80H
D6H
FEH
FEH
00H
00H
NR
RGB Calibration
ADC Calibration
3-5
3 Alignments and Adjustments
Calibration Target
low high
delta
AV ADC
COMP ADC
17H D5H
0FH EBH
04H
02H
PC ADC
ALL RGB
17H D5H
00H DDH
04H
08H
Color Management Skin Direction
Skin Enhane
Reddish
40H
5. Option block
EXE
6. STV8258/STA323W
Ch1 Volume
Ch2 Volume
Stereo Pilot H
40H
40H
23H
Stereo Pilot L
Sap Pilot H
Sap Pilot L
SQTH
CETH
10H
80H
60H
70H
10H
AV Delay
Comp delay
HDMI Delay
55H
32H
32H
PC Delay
L1 Att/Rel Thres
32H
7F
RF PAL-M
RF PAL-N
RF NTSC
AV PAL-M
AV PAL-N
AV NTSC
S-VIDEO PAL-M
S-VIDEO PAL-N
S-VIDEO NTSC
Component
PC
HDMI
77H
64H
63H
76H
76H
54H
77H
77H
BBH
88H
88H
88H
7. Y/C Delay
3-6
3 Alignments and Adjustments
8. Adjust
Video Mute Time
10
Vol Curve
Melody Volume
Large
4
Ana_Dimm_Max
FEH
LNA PLUS
Hotel Option
RFDB-1 Level
2
RFDB-2 Level
RFDB-3 Level
5
9
RFDB-4 Level
Hotel Mode
24
OFF
Power On Channel 1
9. I2C Check
10. W/B MOVIE
Power On Volume
Max Volume
10
100
Local Key Lock
Power On Source
OFF
RF
EXE
WB Movie
Color Mode
W1 R Gain
OFF
Movie
157
W1 B Gain
W1 R Offset
W1 B Offset
W2 R Gain
W2 B Gain
W2 R Offset
W2 B Offset
Movie Contrast
Movie Brightness
Movie Color
Movie Sharpness
Movie Color Tone
76
119
138
142
48
129
143
80
65
35
35
Warm2
3-7
3 Alignments and Adjustments
11. Checksum
12. Reset
13. Spread Spectrum
3-8
18EA
EXE
Spectrum
ON
Delta
Positive
3
8
Negative
2
3 Alignments and Adjustments
3-4 Service Adjustment
3-4-1 White Balance - Calibration
If picture color is wrong, do calibration first.
Equipment : CA210, Patten : chess pattern
Execute calibration in Factory Mode
Source AV : PAL composite, Component : 1280*720/60Hz
PC : 1024*768/60Hz
( chess patten )
3-4-2 White Balance - Adjustment
If picture color is wrong, check White Balance condition.
Equipment : CA210, Patten : Toshiba
Adjust W/B in Factory Mode
Sub brightness and R/G/B Offset controls low light region
Sub contrast and R/G/B Gain controls high light region
Source AV : PAL composite, Component : 1280*720/60Hz
HDMI[DVI] : 1280*720/60Hz
[ Test Pattern : MSPG-945 Series Pattern #92 ]
*Color temperature
1500K +/-500, -6 ~-20 MPCD
*Color coordinate
H/L : 267/263 +/- 2 35.0 Ft +/- 2.0Ft
L/L : 270/260 +/- 3
1.5 Ft +/- 0.2Ft
W/B Patten
3-9
3 Alignments and Adjustments
3-4-3 Conditions for Measurement
1. On the basis of toshiba ABL pattern : High Light level (57 IRE)
- INPUT SIGNAL GENERATOR : MSPG-925LTH
* Mode
NO
1 : 744X484@60 Hz
NO
2 : 744X484@60 Hz
NO
6 : 1280X720@60 Hz
NO 21 : 1024X768@60 Hz
* Pattern NO 36 : 16 Color Pattern
NO 16 : Toshiba ABL Pattern
NO 92 : W/B Pattern
2. Optical measuring device : CA210 (FL)
Please use the MSPG-925 LTH generator for model LE26M51B/LE32M51B/LE40M51B/LE46M51B.
3-4-4 Method of Adjustment
1. Adjust the white balance of AV, Component and DVI Modes.
(AV
Component)
a) Set the input to the mode in which the adjustment will be made
(RF
DTV
PC
DVI).
* Input signal - VIDEO Mode : Model #2 (744*484 Mode), Pattern #16
- DTV,DVI Mode : Model #6 (1280*720 Mode), Pattern #16
- HDMI Mode: Model #6(1280*720 Mode), Pattern #16
b) Enter factory color control, confirm the data.
c) Adjust the low light. (Refer to table 1, 2 in adjustment position by mode)
- Adjust sub - Brightness to set the 'Y' value.
- Adjust red offset ('x') and blue offset ('y') to the color coordinates.
Picture 4-2 W/B Patten
* Do not adjust green offset data.
d) Adjust the high light. (Refer to table 1, 2 in adjustment position by mode)
- Adjust red gain ('x') and blue gain ('y') to the color coordinates.
* Do not adjust the green gain and sub-contrast (Y) data.
3-10
3 Alignments and Adjustments
Picture 4-3 W/B Patten
3-11
3 Alignments and Adjustments
3-5 Software Upgrade
3-5-1 How to Update Flash ROM
1. Installthe Flash Downloader
ConnectSet(Service Jack)and Jig Cable to execute Program Update.
2. Flash Downloader program update
-Before Turning on the set,Click "connect"which is under of OSD Screen!
-Turn on the Set.
3-12
4 Troubleshooting
4 Troubleshooting
4-1 First Checklist for Troubleshooting
1. Check the various cable connections first.
- Check to see if there is a burnt or damaged cable.
- Check to see if there is a disconnected cable connection or a connection is too loose.
- Check to see if the cables are connected according to the connection diagram.
2. Check the power input to the Main Board.
3. Check the voltage in and out between the SMPS
Main Board, between the SMPS
INVERTER Board, and between the Main LVDS Boards.
4-1
4 Troubleshooting
4-2 Checkpoints by Error Mode
4-2-1 No Power
LAMP off, power indicator
LED red color?
No
Check a connection a power cable.
Yes
Does proper DC 12V
appear at CN800?
No
Change a Assy PCB Power.
Yes
Does proper DC A3.3V,
A5V appear at
C854, C866?
No
Check a IC809, IC802.
Change a main PCB ass'y.
No
Check a IC803, IC805, IC813, IC307.
Change a main PCB ass'y
No
Check a other function.
(No picture part)
Replace a lcd panel.
Yes
Does proper DC 5V, 3.3V,
1.8V appear at C811, C853,
C833?
Yes
A power is supplied to set?
4-2
4 Troubleshooting
4-2-2 No Video (Analog PC)
Power Indicator is off.
Lamp on, no video.
Yes
Check a PC source and check
the connection of DSUB cable?
No
Input a analog PC signal and
connected cable(DPMS).
No
PC cable. Change a PC
cable. Change a main PCB ass'y.
No
Check a IC500
Change a main PCB ass'y.
Yes
1
Does the signal appear at
#30, 22, 38(R, G, B) of IC500?
Yes
Does the digital data appear
at the output of
LVDS (R563_OP~R572_OP)?
Yes
Check a LVDS cable?
Replace a lcd panel?
No
Please, Call to Samsung Co. LTD.
4-3
4 Troubleshooting
WAVEFORMS
1 R,G,B Output Signal of IC500
4-4
4 Troubleshooting
4-2-3 No Video (Digital-HDMI)
Power Indicator is off.
Lamp on, no video.
Yes
Check the connection
of HDMI cable?
No
Input a HDMI cable.
Yes
Does the digital data appear at
3
R503~R510?
No
Check a a IC 500
Change a main PCB ass'y.
No
Check a IC500
Change a main PCB ass'y.
Yes
2 Does the digital data
appear at output of IC500
LVDS(R563_OP~R572_OP)?
Yes
Check a LVDS cable?
Replace lcd panel?
No
Please, Call to Samsung Co. LTD.
4-5
4 Troubleshooting
2 Digital Output Data of IC500
4-6
3 Signal of HDMI(Data)
4 Troubleshooting
4-2-4 No Picture (Tuner_CVBS)
Power Indicator is off.
Lamp on, no picure.
No
Connect the RF cable and
check RF signal.
No
Check a B+ voltage (#6 of Tuner) 5V,
change a main PCB ass'y
Yes
4
Dose the signal appear
at R110?
Yes
4
Does the signal appear at
#8 of IC500?
No
Change a main PCB ass'y.
Yes
3
Does the digital data appear
at output of
R563_OP~R572_OP?
No
Check a IC500.
Change a main PCB ass'y.
Yes
Check a LVDS cable?
Replacea lcd panel?
No
Please, Call to Samsung Co. LTD.
4-7
4 Troubleshooting
WAVEFORMS
3 CVBS Output Signal
4-8
4 Tuner_CVBS Output Signal
4 Troubleshooting
4-2-5 No Picture (Video_CVBS)
Power Indicator is off.
Lamp on, no picture.
No
Check a A/V cable and video signal.
Yes
4
Dose the signal appear at
#10 of IC500?
No
Check a connection harness.
Yes
Does the signal appear at
Out of IC500
R563_OP~R572_OP?
No
Check a IC515.
Change a main PCB ass'y
Yes
Check a LVDS cable?
Replace lcd panel?
No
Please, Call to Samsung Co. LTD.
4-9
4 Troubleshooting
WAVEFORMS
4 CVBS Output Signal
4-10
4 Troubleshooting
4-2-6 No Picture (S-VIDEO_Y,C)
Power Indicator is off.
Lamp on, no picure.
No
Connect the s-video cable.
Operating a video player.
Yes
5 Dose the Y/C signal appear at
No
Check a connection harness.
#21, #31 of IC500?
Yes
2
Does the digital data appear
at Output of IC500,
R563_OP~R572_OP?
No
Check a IC500.
Change a main PCB ass'y.
Yes
Check a LVDS cable?
Replacea lcd panel?
No
Please, Call to Samsung Co. LTD.
4-11
4 Troubleshooting
WAVEFORMS
2 Digital Output Data of IC500
4-12
5 Analog Signal(Y,C) to IC500
4 Troubleshooting
4-2-7 No Sound
No
Picture is display, no sound.
Connect a sound cable.
control a volume.
Yes
Does the signal appear at
Pin #10, #16(CH1_L, R Sound)
and Pin #3, #9
6
(CH2_L, R Sound)
of IC603?
No
Check a connection harness and
headphone jack / Side AV.
No
Check a IC603.
Change a main PCB ass'y.
Yes
Check the DC 12V
of IC603?
Yes
7
Does the signal appear at
L609_OP, L611_OP,
L612_OP, L614_OP?
No
Change a main PCB ass'y.
Yes
Replace the speaker ass'y?
4-13
4 Troubleshooting
WAVEFORMS
6 The Signal are Inputed to IC603
4-14
7 DC +12V
5 Exploded View & Parts List
5 Exploded View and Parts List
- You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
5-1 LN26T71B Exploded View
M0014
T0447
M0215
M0013
T0076
T0003
T0175
T0175
M0013
5-1
5 Exploded View & Parts List
5-2 LN26T71B Parts list
Location
Code.No
Item & Specification
T0003
BN96-03174B
ASSY COVER P-FRONT;26T71,UO(XAX),HIPS,HB
1
S.A
T0175
BN96-03279A
ASSY SPEAKER P;16ohm,Sonoma 26,Left,5W,N
1
S.A
T0175
BN96-03280A
ASSY SPEAKER P;16ohm,Sonoma 26,Right,5W,
1
S.A
M0215
BN07-00254A
LCD-PANEL;T260XW02,8bit,626.0*373.0*50.0
1
S.A
T0447
BN96-03008C
ASSY BRACKET P-PANEL;BORDEAUX,26,AUO,SMP
1
S.N.A
T0076
BN39-00615D
CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING,
1
S.A
M0014
BN94-01012B
ASSY PCB MAIN;LN26R71BX/XAZ,A51O,BORDEAU
1
S.A
M0013
BN96-03189B
ASSY COVER P-REAR;26T71,UO(XAX),HIPS,HB,
1
S.A
M0013
BN96-03192A
ASSY STAND P-BASE;26T70,HIPS,HB,BK500,BK
1
S.A
5-2
Q'ty
SA/SNA
Remark
5 Exploded View & Parts List
5-3 LN32T71B Exploded View
T0447
M0215
M0013
T0076
T0003
T0175
T0175
M0013
5-3
5 Exploded View & Parts List
5-4 LN32T71B Parts list
Location
Code.No
Item & Specification
T0003
BN96-03175B
ASSY COVER P-FRONT;32T71,UO(XAX),-,HIPS,
1
S.A
T0175
BN96-03247B
ASSY SPEAKER P;8ohm,Yellow/Black,470mm,1
1
S.A
T0175
BN96-03248B
ASSY SPEAKER P;8ohm,Red/Black,950mm,10W,
1
S.A
M0215
BN07-00207A
LCD-PANEL;V320B1-L01,Duomo,8bit,760*450*
1
S.A
T0447
BN96-02999A
ASSY BRACKET P-PANEL;BORDEAUX,32,AMLCD,S
1
S.N.A
T0076
BN39-00615D
CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING,
1
S.A
M0013
BN96-03188F
ASSY COVER P-REAR;32T71,UO(XAX),HIPS,HB,
1
S.A
M0013
BN96-03191A
ASSY STAND P-BASE;32T70,HIPS,HB,BK500,BK
1
S.A
5-4
Q'ty
SA/SNA
Remark
5 Exploded View & Parts List
5-5 LN40T71B Exploded View
M0014
T0447
M0215
M0013
T0076
T0003
T0175
T0175
M0013
5-5
5 Exploded View & Parts List
5-6 LN40T71B Parts list
Location
Code.No
Item & Specification
Q'ty
SA/SNA
T0003
BN96-03184C
ASSY COVER P-FRONT;40T71,UO(XAX),HIPS,HB
1
S.A
T0175
BN96-03247A
ASSY SPEAKER P;8ohm,Sonoma 32,Left,10W,N
1
S.A
T0175
BN96-03248A
ASSY SPEAKER P;8ohm,Sonoma 32,Right,10W,
1
S.A
M0215
BN07-00264A
LCD-PANEL;LTA400WT-L01,8bit,952*551*51.0
1
S.A
T0447
BN96-03528B
ASSY BRACKET P-PANEL;SONOMA,40EO,READY,S
1
S.N.A
T0076
BN39-00615D
CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING,
1
S.A
M0014
BN94-01012C
ASSY PCB MAIN;LN40R71BX/XAZ,A51O,BORDEAU
1
S.A
M0013
BN96-03187F
ASSY COVER P-REAR;40T71,UO(XAX),HIPS,HB,
1
S.A
M0013
BN96-03190A
ASSY STAND P-BASE;40T70,HIPS,HB,BK500,BK
1
S.A
5-6
Remark
6 Electrical Parts List
6 Electrical Parts List
You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
6-1 LN26T71B Parts List
Level
Loc. No.
0
Code No.
Description & Specification
Q'ty
LN26T71BX/XAO
LN26T71B,A51O/26T70-GSM,26,LCD-TV,COLOMB
0
SA/SNA
0.1
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
..2
..2
M0001
M0081
T0003
M0162
T0069
T0060
T0056
M0112
T0059
T0061
T0022
T0023
T0054
M0146
M0145
T0382
M0081
M0081
M0081
T0175
T0175
T0382
BN90-00859B
6006-001096
BN96-03174B
6502-001067
AA60-00171F
BN61-01655A
BN63-02403A
BN63-02404B
BN64-00379A
BN64-00453A
BN64-00467A
BN64-00476A
BN64-00477A
BN96-03437A
BN96-03466A
BP61-00509C
6003-001188
6003-001188
6003-001188
BN96-03279A
BN96-03280A
BP61-00495C
ASSY COVER FRONT;26T71,UO(XAX),-,HIPS,HB
SCREW-TAPTITE;BH,+,WP,B,M4.0,L12,ZPC(BLK
ASSY COVER P-FRONT;26T71,UO(XAX),HIPS,HB
CABLE CLAMP;DAFC-1300,ID2.2,T5.2,NYLIN6/
SPACER-FELT;50L2,FELT,350,T0.5,5
SPRING ETC;STS-304 SUS,D8,L12,T0.5
COVER-DECORATION;SONOMA 26,HIPS,HB,GR503
COVER-FRONT;26T71,UO(XAX),HIPS,HB,BK500,
INDICATOR LED;ROME-II,23,PC,CLEAR
WINDOW-REMOCON;32R71,PC,V0,VIOLET,DIFFUS
KNOB CONTROL;SONOMA26,32,40,ABS,-,-,-,V0
KNOB POWER;SONOMA,26,32,40,HIPS,HB,GR503
KNOB-DECORATION;SONOMA26,32,40,ABS,HB,GR
ASSY BOARD P-POWER;BORDEAUX2,CT5000-4150
ASSY BOARD P-FUNCTION;SONOMA,SJ06-01-008
HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W20.0mm
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
ASSY SPEAKER P;16ohm,Sonoma 26,Left,5W,N
ASSY SPEAKER P;16ohm,Sonoma 26,Right,5W,
HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W30.0mm
1
4
1
2
2
1
1
1
1
1
1
1
1
1
1
0.28
2
1
2
1
1
0.2
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.N.A
0.1
..2
..2
...3
...3
...3
...3
...3
...3
M0216
T0524
M0013
T0081
M0081
T0920
M0111
T0132
BN90-00877A
6902-000561
BN96-03192A
6002-001294
6003-001239
BN61-01830A
BN61-02369A
BN63-01946B
BN73-00052A
ASSY STAND;26T70,SONOMA
BAG PE;HDPE+NITRON(DOUBLE),T0.015+T0.5,W
ASSY STAND P-BASE;26T70,HIPS,HB,BK500,BK
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S
BRACKET-STAND BOTTOM;26 MILANO,SECC,T2.0
GUIDE-STAND;SONOMA 26,HIPS V0,-,-,-,BK50
COVER-STAND;26T70,HIPS,HB,BK500,BKP-1526
RUBBER FOOT;ARES 17,SILICON,DIA 17 * T1.
1
1
1
3
6
1
1
1
6
S.N.A
S.N.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
0.1
..2
..2
..2
...3
...3
...3
...3
M0002
T0081
T0081
M0013
T0101
M0006
T0071
T0064
BN90-00880B
6002-001294
6002-001294
BN96-03189B
BN61-02058A
BN63-02408B
BN64-00445A
BN65-00002A
ASSY COVER REAR;26T71,UO(XAX),HIPS,HB,BK
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
ASSY COVER P-REAR;26T71,UO(XAX),HIPS,HB,
BRACKET-WALL;23,27,MGM,SECC,T1.6
COVER-REAR;26T71,UO(XAX),HIPS,HB,BK500,S
INLAY-TERMINAL;26R71,PS SHEET,T0.5,-,-,B
CLAMPER CORE;BORDEAUX,PP,V0,BLK
1
9
2
1
2
1
1
1
S.N.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
0.1
..2
MP1.0
M0215
BN91-01017C
BN07-00254A
ASSY LCD-AMZ;LE26R71BX/*
LCD-PANEL;T260XW02,8bit,626.0*373.0*50.0
1
1
S.N.A
S.A
0.1
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
M0017
M0014
T0245
JA709
CN330
CN330
CN330
CN503
CN330
JA330
JA330
JA330
JA332
JA333
JA333
JA333
JA333
BN91-01091B
BN94-01012B
0202-001492
3701-001294
3711-004068
3711-004484
3711-004484
3711-005884
3711-005942
3722-001061
3722-001061
3722-001061
3722-001734
3722-002143
3722-002360
3722-002362
3722-002362
ASSY CHASSIS;LN26R71BX/XAZ,A51O,BORDEAUX
ASSY PCB MAIN;LN26R71BX/XAZ,A51O,BORDEAU
SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-,
CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,AU
HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,ANGL
HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA
HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA
HEADER-BOARD TO BOARD;BOX,30P,2R,2mm,ANG
HEADER-BOARD TO CABLE;BOX,16P,1R,2mm,STR
JACK-PHONE;1P,3.6PI,AG,BLK,N
JACK-PHONE;1P,3.6PI,AG,BLK,N
JACK-PHONE;1P,3.6PI,AG,BLK,N
JACK-VHS;4P,SN,BLK,STRAIGHT
JACK-PIN;5P,NI,GRN/BLU/RED/WHT/RED,STRAI
JACK-PIN;3P,AU,GRN/BLU/RED,STRAIGHT
JACK-PIN;2P,Sn,WHT/RED,STRAIGHT
JACK-PIN;2P,Sn,WHT/RED,STRAIGHT
1
1
0.25
1
1
1
1
1
1
1
1
1
1
1
1
1
1
S.N.A
S.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-1
6 Electrical Parts List
Level
Loc. No.
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
JA333
JA333
M0107
CIS8
T0174
SUB05
D100
D200
D201
D202
D226
D227
D228
D307
D320
D321
D322
D323
D324
D325
D326
D327
D451_NT
D467
D485
D486
D487
D494
D946_OP
D961_OP
D979_OP
D800
D801
D906
D300
D304
D305
D490
D491
D492
D493
D499
D500
D501
D502
D503
D504
D505
D506
D507
D508
D509
D510
D511
D512
D513
D909
D911
D301
D418
D421
D101
D308
D309
D401
D403
D404
D405
D406
D407
D408
D409
6-2
Code No.
3722-002362
3722-002363
BN63-01847A
BN73-00024C
BN97-01052B
0202-001477
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0402-000553
0403-000258
0403-000258
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-001016
0403-001169
0403-001169
0403-001425
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
Description & Specification
JACK-PIN;2P,Sn,WHT/RED,STRAIGHT
JACK-PIN;3P,Sn,YEL/WHT/RED,STRAIGHT
SHIELD-COVER;ROME,SECC,T0.3,49.5,79.5,HE
SILICON/RUBBER-BERGQUIST;VENUS 32,40",SI
ASSY SMD;LN26R71BX/XAZ,A51O,BORDEAUX
SOLDER-CREAM;LST309-M,-,D20~45§-,96.5Sn/
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2
DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2
DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2
DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LLDIODE-ZENER;RLZ16C,15.96-16.51V,500MW,LL
DIODE-ZENER;RLZ16C,15.96-16.51V,500MW,LL
DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
Q'ty
1
1
1
1
1
3.033
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
D410_NT
D411_NT
D412_NT
D428
D461
D462
D470
D471
D472
D483
D484
D949_OP
D950_OP
D962_OP
D963_OP
D964_OP
D975_OP
D600
D601
D900
D901
Q603
Q100
Q301
Q501
Q600
Q601
Q602
Q605
Q606
Q609
Q802
Q900
Q904
Q905
Q906
Q972
Q973
Q222
Q800
Q801
Q409
Q409
Q409
Q409
Q409
Q409
IC104
IC900
IC605
IC905
IC107
IC110
IC112
IC112
IC112
IC222
DU410
T0085
T0085
IC503_OP
IC910
T0087
T0087
T0087
T0087
T0087
T0087
T0170
IC601
IC118
R221
Code No.
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0407-000123
0407-000123
0407-000123
0407-000123
0501-000280
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-002080
0501-002080
0501-002080
0505-000110
0505-000110
0505-000110
0505-000110
0505-000110
0505-001170
0801-002095
0903-001432
1001-000164
1001-001109
1002-001399
1006-001076
1103-000129
1103-000129
1103-001279
1105-001538
1201-000166
1201-002136
1201-002246
1203-001559
1203-001559
1203-001815
1203-001816
1203-002842
1203-002842
1203-002855
1203-002974
1203-003059
1204-002471
1204-002503
2007-000043
Description & Specification
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOTDIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOTDIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOTDIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOTTR-SMALL SIGNAL;KSA1182,PNP,150MW,SOT-23
TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0
IC-CMOS LOGIC;74LCX245,TRANSCEIVER,TSSOP
IC-MICROCOMPUTER;M30840SGP,16Bit,LQFP,10
IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16
IC-ANALOG SWITCH;FST3125M,BUS SWITCH & C
IC-D/A CONVERTER;PCM1754,24BIT,SSOP,16P,
IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P,
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
IC-EEPROM;24C32,32Kbit,4Kx8Bit,SOP,8P,5x
IC-VIDEO RAM;K4D263238,-,128M,4x1Mx32Bit
IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10
IC-AUDIO AMP;LM4810,MSOP,8P,3x3mm,DUAL,IC-AUDIO AMP;STA323W,SO,36P,15.9x11mm,-,
IC-RESET;DS1834A,SOIC,8P,150MIL,PLASTIC,
IC-RESET;DS1834A,SOIC,8P,150MIL,PLASTIC,
IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA
IC-POSI.FIXED REG.;78M08,TO-252,3P,-,PLA
IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P
IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P
IC-POSI.FIXED REG.;MC33269DTRK-5.0,DPRK,
IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P
IC-SWITCH VOL. REG.;MP1583,SOIC,8P,4.9x3
IC-AUDIO PROCESSOR;STV8258DSX,TQFP,80P,1
IC-VIDEO PROCESS;SVP-PX56-7256,PQFP,256P
R-CHIP;1Kohm,1%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.A
6-3
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R222
R9004
R9005
R9006
R9007
R9008
R9009
R9010
R9015
R9028
R9032
R976
R109
R807
26_
R321
R440_NT
R441_NT
R442_NT
R443_NT
R444
R446
R456_NT
R480
R491_OP
R492_OP
R493_OP
R500
R501
R502
R511
R512
R514_OP
R516
R523
R539
R540
R542
R563_OP
R564_OP
R565_OP
R566_OP
R567_OP
R568_OP
R569_OP
R570_OP
R571_OP
R572_OP
R574
R575
R577
R592
R656
R691
R692
R693
R9000
R9013
R9014
R9030
R909
R913
R931
R932
R933
R934
R936
R939
R940
R941
R949
R950
6-4
Code No.
2007-000043
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000060
2007-000067
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
Description & Specification
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;100Kohm,1%,1/10W,TP,1608
R-CHIP;15Kohm,1%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R951
R952
R953
R998
R224
R225
R226
R227
R458
R499
R503
R504
R505
R506
R507
R508
R509
R510
R518
R585
R586
R104
R105
R306
R308
R475
R495
R611
R612
R658
R659
R676
R682
R108
R113
R116
R243
R244
R406
R409
R457_NT
R498
R525
R533
R538
R559
R582
R584
R587
R614
R615
R616
R617
R618
R619
R620
R621
R636
R637
R639
R640
R644
R645
R648
R650
R651
R653
R654
R678
R679
R680
R802
Code No.
2007-000070
2007-000070
2007-000070
2007-000070
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
Description & Specification
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-5
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R9002
R901
R9016
R9023
R9025
R911
R916
R917
R919
R937
R947
R966
R967
R971
R972
R973
R977
R978
R999
R562
R100
R405
R410
R114
R307
R311
R403
R407
R408
R411
R429
R474
R476
R487
R528
R590
R591
R810
R9026
R946
R103
R106
R119_OP
R120_OP
R312
R322
R522
R535
R537
R554
R576
R9019
R9044
R9045
R905
R928
R935
R530
R532
R925
R926
R963
R964
R242
R526
R541
R578
R593
R643
R655
R808
R809
6-6
Code No.
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000075
2007-000076
2007-000076
2007-000076
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000082
2007-000082
2007-000082
2007-000082
2007-000082
2007-000082
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
Description & Specification
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;220ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R9011_OP
R9033
R9034
R9035
R9036
R9037
R9038
R9051
R9052
R9053
R9054
R9055
R9056
R9057
R908
R918
R923
R924
R927
R929
R930
R938
R943
R962
R996
R426
R427
R302
R303
R316
R445
R447
R459
R473
R515
R519
R555
R556
R610
R661
R673
R801
R803
R804
R9029
R9043
R906
R907
R912
R915
R920
R921
R922
R954
R956
R970
R994
R995
R664
R666
R101
R670
R914
R313
R527_OP
R601
R646
R652
R657
R665
R993
R602
Code No.
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000087
2007-000087
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000093
2007-000093
2007-000094
2007-000094
2007-000094
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000100
Description & Specification
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;6.8Kohm,5%,1/10W,TP,1608
R-CHIP;6.8Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-7
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R603
R604
R605
R606
R607
R608
R609
R626
R627
R628
R629
R630
R631
R632
R633
R102
R660
R663
R667
R800
R107
R111
R112
R668
R5004
R550
R551
R553
R638
R236
R237
R238
R683
R413
R417
R434
R481
R9012_OP
R323
R324
R325
R326
R327
R328
R329
R330
R942
R955_OP
R957_OP
R969
R974
R975
R979
R980
R982
R983
R984
R985
R986
R987
R988
R989
R990
R991
R992
R997
R412
R416
R695
R9041
R9042
R557
6-8
Code No.
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000102
2007-000102
2007-000102
2007-000102
2007-000102
2007-000106
2007-000106
2007-000106
2007-000107
2007-000113
2007-000113
2007-000113
2007-000113
2007-000119
2007-000123
2007-000123
2007-000123
2007-000125
2007-000293
2007-000293
2007-000293
2007-000293
2007-000293
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000458
2007-000458
2007-000704
2007-000704
2007-000704
2007-000903
Description & Specification
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;220Kohm,5%,1/10W,TP,1608
R-CHIP;220Kohm,5%,1/10W,TP,1608
R-CHIP;220Kohm,5%,1/10W,TP,1608
R-CHIP;470Kohm,5%,1/10W,TP,1608
R-CHIP;33ohm,5%,1/10W,TP,1608
R-CHIP;33ohm,5%,1/10W,TP,1608
R-CHIP;33ohm,5%,1/10W,TP,1608
R-CHIP;33ohm,5%,1/10W,TP,1608
R-CHIP;560ohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;3.9Kohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/4W,TP,3216
R-CHIP;100ohm,5%,1/4W,TP,3216
R-CHIP;100ohm,5%,1/4W,TP,3216
R-CHIP;100ohm,5%,1/4W,TP,3216
R-CHIP;100ohm,5%,1/4W,TP,3216
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;18Kohm,5%,1/10W,TP,1608
R-CHIP;18Kohm,5%,1/10W,TP,1608
R-CHIP;3.6Kohm,5%,1/10W,TP,1608
R-CHIP;3.6Kohm,5%,1/10W,TP,1608
R-CHIP;3.6Kohm,5%,1/10W,TP,1608
R-CHIP;430ohm,1%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R117
R118
R414
R415
R418
R477
R478
R482
R902
R903
R948
R223
R228
R805
R115_OP
R318
R320
R423
R424
R425
R435
R484
R485
R486
R904_OP
R910_OP
R468
R469
R470
R471
R472
R483
R496
R497
R675
R677
R681
R684
IC223
RA221
RA222
RA223
RA224
RA225
RA226
RA227
RA903
RA904
RA906
RA907
RA908
RA910
RA500
RA501
RA900
RA901
RA902
RA905
RA909
RA911
RA913
RA916
RA917
RA918
RA919
RA920
RA921
RA922
C6003
C616
C632
C120
Code No.
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-001014
2007-001014
2007-001068
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-008720
2007-008720
2007-008720
2007-008720
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000651
2011-000651
2011-000651
2011-000651
2011-000651
2011-000651
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2203-000125
2203-000140
2203-000140
2203-000189
Description & Specification
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;51OHM,5%,1/10W,TP,1608
R-CHIP;51OHM,5%,1/10W,TP,1608
R-CHIP;6.8Kohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;4.7ohm,1%,1/4W,TP,3216
R-CHIP;4.7ohm,1%,1/4W,TP,3216
R-CHIP;4.7ohm,1%,1/4W,TP,3216
R-CHIP;4.7ohm,1%,1/4W,TP,3216
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-9
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C250
C303
C486
C511
C512
C513
C514
C516
C517
C518
C521
C522
C523
C524
C525
C526
C527
C529
C530
C532
C533
C534
C535
C537
C538
C545
C548
C549
C551
C553
C554
C555
C558
C560
C561
C564
C565
C566
C567
C568
C569
C570
C571
C572
C573
C577
C588
C589
C590
C591
C593
C595
C597
C598
C6004
C6016
C6017
C620
C625
C626
C627
C628
C644
C649
C651
C652
C660
C664
C680
C682
C687
C801
6-10
Code No.
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
Description & Specification
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C803
C805
C812
C813
C815
C817
C834
C836
C840
C849
C867
C868
C900
C904
C943
C117
C118
C269
C270
C401
C403
C404
C405
C406
C407
C412
C413
C423
C424
C487
C488
C6006
C6007
C6008
C623
C678
C679
C926
C928
C101
C111
C112
C228
C229
C230
C231
C232
C238
C241
C244
C264
C265
C268
C504
C505
C506
C507
C508
C541
C622
C800
C802
C810
C814
C816
C830
C843
C944
C901
C903
C908
C931
Code No.
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000440
2203-000440
2203-000440
2203-000440
Description & Specification
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-11
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C933
C937
C114
C575
C592
C500
C510
C639
C647
C911
C912
C938
C939
C304
C305
C483
C484
C688
C696
C940_OP
C946_OP
C947_OP
C948_OP
C949_OP
C662
C663
C115
C223
C224
C502
C503
C674
C675
C104
C634
C266
C411
C629
C106
C6009
C670
C672
C617
C631
C673
C103
C110
C221
C222
C235
C236
C261
C501
C519
C528
C543
C601
C640
C641
C642
C643
C657
C665
C822
C825
C827
C851
C853
C856
C859
C861
C914
6-12
Code No.
2203-000440
2203-000440
2203-000491
2203-000531
2203-000531
2203-000552
2203-000552
2203-000626
2203-000626
2203-000626
2203-000626
2203-000626
2203-000626
2203-000783
2203-000783
2203-000783
2203-000783
2203-000783
2203-000783
2203-000783
2203-000783
2203-000783
2203-000783
2203-000783
2203-000798
2203-000798
2203-000888
2203-000888
2203-000888
2203-000888
2203-000888
2203-000888
2203-000888
2203-000972
2203-000972
2203-000998
2203-000998
2203-001402
2203-001607
2203-001607
2203-001652
2203-001652
2203-001656
2203-001656
2203-001724
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
Description & Specification
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;2.2nF,10%,50V,X7R,1608
C-CER,CHIP;2.7nF,10%,50V,X7R,1608
C-CER,CHIP;2.7nF,10%,50V,X7R,1608
C-CER,CHIP;0.02nF,5%,50V,C0G,1608
C-CER,CHIP;0.02nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;33nF,10%,16V,X7R,TP,1608,C-CER,CHIP;33nF,10%,16V,X7R,TP,1608,C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;47nF,10%,16V,X7R,1608
C-CER,CHIP;47nF,10%,16V,X7R,1608
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608
C-CER,CHIP;0.22nF,5%,50V,NP0,1608
C-CER,CHIP;0.22nF,5%,50V,NP0,1608
C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608
C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;4700nF,+80-20%,16V,Y5V,3216
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C915
C916
C918
C920
C922
C923
C924
C925
C935
C941
C689
C697
C300
C536
C699
C823
C839
C870
C919
C942
C6001
C6002
C6005
C6011
C677
C681
C683
C685
C690
C691
C692
C693
C694
C695
C698
C546
C547
C550
C552
C556
C557
C559
C562
C563
C578
C579
C580
C581
C582
C583
C584
C585
C586
C594
C596
C824
C302
C574
C576
C587
C599
C600
C6015
C603
C604
C605
C606
C607
C608
C609
C610
C611
Code No.
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005030
2203-005030
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005834
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
Description & Specification
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;470nF,+80-20%,50V,Y5V,TP,3216
C-CER,CHIP;470nF,+80-20%,50V,Y5V,TP,3216
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-13
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C613
C618
C619
C621
C624
C630
C636
C645
C646
C648
C650
C653
C654
C655
C656
C658
C686
C852
C855
C921
C5001
C5002
C806
C819
C835
C239
C240
C102
C107
C108
C615
C668
C669
C671
C811
C848
C854
C116
C249
C509
C635
C667
C807
C820
C666
C485
C531
C684
C826
C902
C907
C913
C917
C950
C100
C227
C237
C542
C633
C850
C866
C6010
C676
C520
C113
C833
T0052
T0052
T0052
T0052
T0052
T0052
6-14
Code No.
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2402-001059
2402-001059
2402-001081
2402-001081
2402-001081
2402-001097
2402-001097
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001129
2402-001129
2402-001129
2402-001129
2402-001129
2402-001129
2402-001129
2402-001160
2402-001178
2402-001178
2402-001178
2402-001178
2402-001178
2402-001178
2402-001178
2402-001178
2402-001178
2402-001183
2402-001183
2402-001183
2402-001183
2402-001183
2402-001183
2402-001183
2402-001221
2402-001221
2402-001226
2402-001238
2409-001029
2703-000274
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
Description & Specification
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-AL,SMD;220¥ìF,20%,6.3V,-,TP,6x6.6x6.6
C-AL,SMD;220¥ìF,20%,6.3V,-,TP,6x6.6x6.6
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
C-AL,SMD;0.1UF,20%,50V,WT,TP,4.3X4.3X5.2
C-AL,SMD;0.1UF,20%,50V,WT,TP,4.3X4.3X5.2
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;330UF,20%,16V,WT,TP,1008
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;470UF,20%,16V,-,TP,A8.3XB8.3XL1
C-AL,SMD;470UF,20%,16V,-,TP,A8.3XB8.3XL1
C-AL,SMD;4.7UF,20%,35V,HR,TP,4.3X4.3X5.8
C-AL,SMD;1uF,20%,50V,HR,TP,4.3x4.3x5.2mm
C-ORGANIC;120uF,20%,6.3V,WT,TP,10.3x10.3
INDUCTOR-SMD;2.2uH,10%,2012
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
.....5
....4
.....5
....4
....4
....4
....4
....4
....4
...3
...3
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
X904
X903
X600
X500
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
CN703
CN330
CN330
CN330
M0018
IC115
M0018
IC520
R806
C841
R110
R9027
C842
T0077
CIS3
T0562
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000417
2703-001229
2703-001229
2703-001229
2703-001229
2703-001229
2703-001229
2703-001426
2703-002327
2703-002722
2703-002915
2703-002915
2703-002915
2703-002915
2801-003326
2801-003923
2801-003954
2801-004483
3301-000314
3301-000314
3301-001145
3301-001145
3301-001236
3301-001236
3301-001236
3301-001236
3301-001236
3301-001236
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001393
3301-001404
3301-001404
3301-001404
3301-001569
3701-001311
3711-005291
3711-005292
3711-005497
BN97-01060A
1107-001555
BN97-01060B
0903-001389
2007-000092
2203-000405
2007-000073
2007-000124
2203-002398
BN41-00680D
BN40-00091A
6046-001013
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;220uH,5%,3225
INDUCTOR-SMD;2.2uH,10%,1608
INDUCTOR-SMD;2.2uH,10%,1608
INDUCTOR-SMD;2.2uH,10%,1608
INDUCTOR-SMD;2.2uH,10%,1608
INDUCTOR-SMD;2.2uH,10%,1608
INDUCTOR-SMD;2.2uH,10%,1608
INDUCTOR-SMD;680uH,20%,7070
INDUCTOR-SMD;3.9uH,5%,3225
INDUCTOR-SMD;22uH,20%,12x12mm
INDUCTOR-SMD;22uH,20%,8080
INDUCTOR-SMD;22uH,20%,8080
INDUCTOR-SMD;22uH,20%,8080
INDUCTOR-SMD;22uH,20%,8080
CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH
CRYSTAL-SMD;10MHz,30ppm,28-AAN,20pF,60oh
CRYSTAL-SMD;27MHz,30ppm,28-AAN,16pF,50oh
CRYSTAL-SMD;28.322MHz,30ppm,HC-49,20pF,5
BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;60ohm,3216,1500mA,TP,41ohm/40MH
BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz
BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz
BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
CONNECTOR-HDMI;21P,2R,FEMALE,SMD-S,AU30U
HEADER-BOARD TO CABLE;BOX,2P,1R,2MM,SMDHEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMDHEADER-BOARD TO CABLE;BOX,15P,1R,1.25MM,
ASSY MICOM;A51O
IC-FLASH MEMORY;49BV802A,8MBIT,1MX8/512K
ASSY MICOM;A51O
IC-MICROCONTROLLER;S3F866B,8Bit,QFP,44P,
R-CHIP;15Kohm,5%,1/10W,TP,1608
C-CER,CHIP;0.18nF,5%,50V,C0G,1608
R-CHIP;91ohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
C-CER,CHIP;22nF,10%,50V,X7R,1608
PCB MAIN;BORDEAUX,FR-4,4,MP1.3,1.6,192*1
TUNER;TCPN3081PA32S(H),TCPN3081PA32S(H),
STAND OFF;M3,L5,Ni PLT,SUM24L,#4-40
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.A
S.A
S.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.A
S.N.A
0.1
M0112
BN91-01176C
ASSY SHIELD;LN26T71BX/GSU
1
S.N.A
6-15
6 Electrical Parts List
Level
Loc. No.
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
..2
..2
..2
..2
..2
..2
..2
..2
..2
M0081
M0081
T0069
M2893
M2893
T0076
M2893
M2893
M0146
M0115
M0114
T0447
M0146
Code No.
Description & Specification
Q'ty
SA/SNA
M0131
T0159
M0081
M0081
M0081
M0081
M0081
M0081
M0081
M0081
6003-000115
6003-000115
AA60-00171F
BH39-00362B
BN39-00603E
BN39-00615D
BN39-00691B
BN39-00712A
BN61-02207A
BN61-02364A
BN61-02500A
BN96-03008C
BN61-02205B
BN61-02206B
BN61-02208A
BN61-02209A
BN61-02210A
AA63-01437A
BN96-03058A
6003-000337
6003-001188
6003-001188
6003-001188
6003-001188
6003-001188
6003-001188
6003-001439
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
SPACER-FELT;50L2,FELT,350,T0.5,5
LEAD CONNECTOR;RE32**,UL1007#26,5P,150mm
LEAD CONNECTOR;RE26**AU,UL1007#26,14P,15
CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING,
LEAD CONNECTOR;LE32R71BX,UL1007#26,16P,1
LEAD CONNECTOR-LVDS;LE32**,UL1571#30,30P
BRACKET-PANEL SIDE;Bordeaux 26,SECC,T1.2
BRACKET-STAND LINK;SONOMA 32,SECC,T1.6
HOLDER-WIRE;NYLON6.6,NATURAL
ASSY BRACKET P-PANEL;BORDEAUX,26,AUO,SMP
BRACKET-PANEL TOP;Bordeaux 26,SECC,T1.2
BRACKET-PANLE BOTTOM;Bordeaux 26,SECC,T1
BRACKET GUIDE-MAIN;Bordeaux 26,SECC,T1.2
BRACKET-GUIDE POWER;Bordeaux 26,SECC,T1.
BRACKET-GUIDE POWER;Bordeaux 26,SECC,T1.
GASKET;Bordeaux,Conductive Fabric,20mm,9
ASSY PCB P-SMPS;Bordeaux 26 PFC,LE26R71B
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW
4
4
2
1
1
1
1
1
4
1
2
1
1
1
1
1
1
2
1
4
2
1
4
2
4
2
1
S.A
S.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
0.1
..2
M0003
T0130
BN92-01701C
BN69-01324C
ASSY BOX;26T71,UO,(GSU),SONOMA
BOX-00,SET;26T7(OVERSEA),SY-05,A,YEL,A1,
1
1.01
S.N.A
S.N.A
0.1
..2
..2
..2
..2
M0113
T0376
T0524
T0376
T0003
BN92-01704A
6902-000061
6902-000358
6902-000379
6902-000604
ASSY P/MATERIAL;26T70,SONOMA
BAG AIR;LDPE,T0.2,L1000,W500,TRP,,,
BAG PE;HDPE/NITRON(DOUBLE),T0.02/T0.5,W9
BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,-BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP,
1
0.016
1
0.005
3.66
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
0.1
M0019
BN92-02002L
ASSY LABEL;LN26T71BX/XAO
1
S.N.A
0.1
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
M0045
M0045
T0268
T0524
T0210
ACCESSORY
T0074
T0531
M0156
M0126
M0045
T0081
ACCESSORY
BN92-02004E
BN96-04215D
3903-000144
6902-000110
AA68-03242F
AA68-03727A
BN59-00556A
BN63-02415B
BN68-01001W
BN69-01086A
BN96-01800A
6002-001294
6902-000128
ASSY ACCESSORY;LN26T71BX/XAO
ASSY ACCESSORY;LN26T71BX/XAO,A51O,SONOMA
CBF-POWER CORD;DT,US,BP3/Y,U(IEC C13-RA)
BAG PE;LDPE,T0.05,W250,L400,TRP,28,2
MANUAL FLYER-01,SAFETY GUIDE;All Model,S
MANUAL FLYER-01,WARRANTY CARD;All,SAMSUN
REMOCON;Bordeaux,TM86,44,PAL-N, M,South
COVER-BOTTOM;SONOMA,32,HIPS,HB,BK500
MANUAL USERS-01;COMM,SAMSUNG,2Langs,S.Am
BOX ACCESSORY-00;COMM,SW1,YEL,-,W573,D63
ASSY ACCESSORY;ROME32,SCREW
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
BAG ZIPPER;LDPE,T0.05,W200,L150,TRP,8,2-
1
1
1
2
1
1
1
1
1
1
1
4
1
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.N.A
6-16
6 Electrical Parts List
6-2 LN32T71B Parts List
Level
Loc. No.
0
Code No.
Description & Specification
Q'ty
LN32T71BX/XAO
LN32T71B,A51O/32T70-GSM,32,LCD-TV,COLOMB
0
SA/SNA
0.1
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
..2
..2
M0001
M0081
T0003
M0162
T0069
T0060
T0056
M0112
T0059
T0061
T0022
T0023
T0054
M0146
M0145
T0382
M0081
M0081
M0081
T0175
T0175
T0382
BN90-00858J
6006-001096
BN96-03175B
6502-001067
AA60-00171L
BN61-01655A
BN63-02413A
BN63-02467B
BN64-00379A
BN64-00453A
BN64-00467A
BN64-00476A
BN64-00477A
BN96-03438A
BN96-03466A
BP61-00509C
6003-001188
6003-001188
6003-001188
BN96-03247B
BN96-03248B
BP61-00495C
ASSY COVER FRONT;32T71,UO(XAX),HIPS,HB,B
SCREW-TAPTITE;BH,+,WP,B,M4.0,L12,ZPC(BLK
ASSY COVER P-FRONT;32T71,UO(XAX),-,HIPS,
CABLE CLAMP;DAFC-1300,ID2.2,T5.2,NYLIN6/
SPACER-FELT;46L3,FELT,460,T0.5,10
SPRING ETC;STS-304 SUS,D8,L12,T0.5
COVER-DECORATION;SONOMA 32,HIPS,HB,GR503
COVER-FRONT;32T70,UO(XAX),HIPS,-,-,-,HB,
INDICATOR LED;ROME-II,23,PC,CLEAR
WINDOW-REMOCON;32R71,PC,V0,VIOLET,DIFFUS
KNOB CONTROL;SONOMA26,32,40,ABS,-,-,-,V0
KNOB POWER;SONOMA,26,32,40,HIPS,HB,GR503
KNOB-DECORATION;SONOMA26,32,40,ABS,HB,GR
ASSY BOARD P-POWER & IR;BORDEAUX2,CT5000
ASSY BOARD P-FUNCTION;SONOMA,SJ06-01-008
HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W20.0mm
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
ASSY SPEAKER P;8ohm,Yellow/Black,470mm,1
ASSY SPEAKER P;8ohm,Red/Black,950mm,10W,
HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W30.0mm
1
4
1
2
2
1
1
1
1
1
1
1
1
1
1
0.28
2
1
2
1
1
0.2
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.N.A
0.1
..2
..2
...3
...3
...3
...3
...3
...3
M0216
T0524
M0013
T0081
M0081
T0920
T0132
T0004
BN90-00876A
6902-000520
BN96-03191A
6002-001294
6003-001239
BN61-01812A
BN61-02360A
BN73-00052A
BN63-01937C
ASSY STAND;32T70,SONOMA
BAG PE;HDPE/NITRON(DOUBLE),T0.015/T0.5(D
ASSY STAND P-BASE;32T70,HIPS,HB,BK500,BK
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S
BRACKET-STAND BOTTOM;32 MILANO,SECC,T2.0
GUIDE-STAND;SONOMA 32,HIPS VO,-,-,-,BK50
RUBBER FOOT;ARES 17,SILICON,DIA 17 * T1.
COVER-STAND BASE;32T70,HIPS,HB,BK500,BKP
1
1
1
3
6
1
1
6
1
S.N.A
S.N.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
0.1
..2
T0852
M0215
BN91-00875A
BN07-00207A
ASSY LCD-CMO;A61J-CMO
LCD-PANEL;V320B1-L01,Duomo,8bit,760*450*
1
1
S.N.A
S.A
0.1
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
M0017
M0014
T0245
JA709
CN330
CN330
CN330
CN330
CN503
CN330
JA330
JA330
JA333
JA333
JA333
JA333
JA333
JA333
M0107
CIS8
T0174
SUB05
D100
D200
D201
D202
D226
D227
D228
D307
D320
D321
D322
D323
BN91-01091A
BN94-01012A
0202-001492
3701-001294
3711-004068
3711-004484
3711-004484
3711-004909
3711-005884
3711-005942
3722-001061
3722-001061
3722-002143
3722-002360
3722-002362
3722-002362
3722-002362
3722-002363
BN63-01847A
BN73-00024C
BN97-01052A
0202-001477
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
ASSY CHASSIS;LN32R71BX/XAZ
ASSY PCB MAIN;LN32R71BX/XAZ
SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-,
CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,AU
HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,ANGL
HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA
HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA
HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG
HEADER-BOARD TO BOARD;BOX,30P,2R,2mm,ANG
HEADER-BOARD TO CABLE;BOX,16P,1R,2mm,STR
JACK-PHONE;1P,3.6PI,AG,BLK,N
JACK-PHONE;1P,3.6PI,AG,BLK,N
JACK-PIN;5P,NI,GRN/BLU/RED/WHT/RED,STRAI
JACK-PIN;3P,AU,GRN/BLU/RED,STRAIGHT
JACK-PIN;2P,Sn,WHT/RED,STRAIGHT
JACK-PIN;2P,Sn,WHT/RED,STRAIGHT
JACK-PIN;2P,Sn,WHT/RED,STRAIGHT
JACK-PIN;3P,Sn,YEL/WHT/RED,STRAIGHT
SHIELD-COVER;ROME,SECC,T0.3,49.5,79.5,HE
SILICON/RUBBER-BERGQUIST;VENUS 32,40",SI
ASSY SMD;LN32R71BX/XAZ
SOLDER-CREAM;LST309-M,-,D20~45§-,96.5Sn/
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
1
0.25
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
3.033
1
1
1
1
1
1
1
1
1
1
1
1
S.N.A
S.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-17
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
6-18
Loc. No.
D324
D325
D326
D327
D451_NT
D467
D485
D486
D487
D494
D800
D801
D906
D300
D304
D305
D490
D491
D492
D493
D499
D500
D501
D502
D503
D504
D505
D506
D507
D508
D509
D510
D511
D512
D513
D909
D911
D301
D418
D421
D101
D308
D309
D401
D403
D404
D405
D406
D407
D408
D409
D410_NT
D411_NT
D412_NT
D428
D461
D462
D470
D471
D472
D483
D484
D600
D601
D900
D901
Q603
Q100
Q301
Q501
Q600
Q601
Code No.
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0402-000553
0403-000258
0403-000258
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-001016
0403-001169
0403-001169
0403-001425
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0407-000123
0407-000123
0407-000123
0407-000123
0501-000280
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
Description & Specification
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2
DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2
DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2
DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LLDIODE-ZENER;RLZ16C,15.96-16.51V,500MW,LL
DIODE-ZENER;RLZ16C,15.96-16.51V,500MW,LL
DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOTDIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOTDIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOTDIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOTTR-SMALL SIGNAL;KSA1182,PNP,150MW,SOT-23
TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT-
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
Loc. No.
Q602
Q605
Q606
Q609
Q802
Q900
Q904
Q905
Q906
Q972
Q973
Q222
Q800
Q801
Q409
Q409
Q409
Q409
Q409
Q409
IC104
IC900
IC605
IC905
IC107
IC110
IC112
IC112
IC112
IC222
DU410
T0085
T0085
IC910
T0087
T0087
T0087
T0087
T0087
T0087
T0170
IC601
IC118
R221
R222
R9004
R9005
R9006
R9007
R9008
R9009
R9010
R9015
R9028
R9032
R976
R109
R807
32_
R321
R440_NT
R441_NT
R442_NT
R443_NT
R444
R446
R456_NT
R480
R500
R501
R502
R511
Code No.
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-002080
0501-002080
0501-002080
0505-000110
0505-000110
0505-000110
0505-000110
0505-000110
0505-001170
0801-002095
0903-001432
1001-000164
1001-001109
1002-001399
1006-001076
1103-000129
1103-000129
1103-001279
1105-001538
1201-000166
1201-002136
1201-002246
1203-001559
1203-001815
1203-001816
1203-002842
1203-002842
1203-002855
1203-002974
1203-003059
1204-002471
1204-002503
2007-000043
2007-000043
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000060
2007-000067
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
Description & Specification
TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0
IC-CMOS LOGIC;74LCX245,TRANSCEIVER,TSSOP
IC-MICROCOMPUTER;M30840SGP,16Bit,LQFP,10
IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16
IC-ANALOG SWITCH;FST3125M,BUS SWITCH & C
IC-D/A CONVERTER;PCM1754,24BIT,SSOP,16P,
IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P,
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
IC-EEPROM;24C32,32Kbit,4Kx8Bit,SOP,8P,5x
IC-VIDEO RAM;K4D263238,-,128M,4x1Mx32Bit
IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10
IC-AUDIO AMP;LM4810,MSOP,8P,3x3mm,DUAL,IC-AUDIO AMP;STA323W,SO,36P,15.9x11mm,-,
IC-RESET;DS1834A,SOIC,8P,150MIL,PLASTIC,
IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA
IC-POSI.FIXED REG.;78M08,TO-252,3P,-,PLA
IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P
IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P
IC-POSI.FIXED REG.;MC33269DTRK-5.0,DPRK,
IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P
IC-SWITCH VOL. REG.;MP1583,SOIC,8P,4.9x3
IC-AUDIO PROCESSOR;STV8258DSX,TQFP,80P,1
IC-VIDEO PROCESS;SVP-PX56-7256,PQFP,256P
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;100Kohm,1%,1/10W,TP,1608
R-CHIP;15Kohm,1%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-19
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
6-20
Loc. No.
R512
R514_OP
R516
R523
R539
R540
R542
R563_OP
R564_OP
R565_OP
R566_OP
R567_OP
R568_OP
R569_OP
R570_OP
R571_OP
R572_OP
R574
R575
R577
R592
R656
R691
R692
R693
R9000
R9013
R9014
R9030
R909
R913
R931
R932
R933
R934
R936
R939
R940
R941
R949
R950
R951
R952
R953
R998
R224
R225
R226
R227
R458
R499
R503
R504
R505
R506
R507
R508
R509
R510
R518
R585
R586
R104
R105
R306
R308
R475
R495
R611
R612
R658
R659
Code No.
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
Description & Specification
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
Loc. No.
R676
R682
R108
R113
R116
R243
R244
R406
R409
R457_NT
R498
R525
R533
R538
R559
R582
R584
R587
R614
R615
R616
R617
R618
R619
R620
R621
R636
R637
R639
R640
R644
R645
R648
R650
R651
R653
R654
R678
R679
R680
R802
R9002
R901
R9016
R9023
R9025
R911
R916
R917
R919
R937
R947
R966
R967
R971
R972
R973
R977
R978
R999
R562
R100
R405
R410
R114
R307
R311
R403
R407
R408
R411
R429
Code No.
2007-000072
2007-000072
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000075
2007-000076
2007-000076
2007-000076
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
Description & Specification
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;220ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-21
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
6-22
Loc. No.
R474
R476
R487
R528
R590
R591
R810
R9026
R946
R103
R106
R312
R322
R522
R535
R537
R554
R555
R556
R576
R9019
R9044
R9045
R905
R928
R935
R530
R532
R925
R926
R963
R964
R242
R526
R541
R578
R593
R643
R655
R808
R809
R9011_OP
R9033
R9034
R9035
R9036
R9037
R9038
R9051
R9052
R9053
R9054
R9055
R9056
R9057
R908
R918
R923
R924
R927
R929
R930
R938
R943
R962
R996
R426
R427
R302
R303
R316
R445
Code No.
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000082
2007-000082
2007-000082
2007-000082
2007-000082
2007-000082
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000087
2007-000087
2007-000090
2007-000090
2007-000090
2007-000090
Description & Specification
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;6.8Kohm,5%,1/10W,TP,1608
R-CHIP;6.8Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
Loc. No.
R447
R459
R473
R515
R519
R610
R661
R673
R801
R803
R804
R9029
R9043
R906
R907
R912
R915
R920
R921
R922
R954
R956
R970
R994
R995
R664
R666
R101
R670
R914
R313
R601
R646
R652
R657
R665
R993
R602
R603
R604
R605
R606
R607
R608
R609
R626
R627
R628
R629
R630
R631
R632
R633
R102
R660
R663
R667
R800
R107
R111
R112
R668
R5004
R550
R551
R553
R638
R236
R237
R238
R683
R413
Code No.
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000093
2007-000093
2007-000094
2007-000094
2007-000094
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000102
2007-000102
2007-000102
2007-000102
2007-000102
2007-000106
2007-000106
2007-000106
2007-000107
2007-000113
2007-000113
2007-000113
2007-000113
2007-000119
2007-000123
2007-000123
2007-000123
2007-000125
2007-000293
Description & Specification
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;220Kohm,5%,1/10W,TP,1608
R-CHIP;220Kohm,5%,1/10W,TP,1608
R-CHIP;220Kohm,5%,1/10W,TP,1608
R-CHIP;470Kohm,5%,1/10W,TP,1608
R-CHIP;33ohm,5%,1/10W,TP,1608
R-CHIP;33ohm,5%,1/10W,TP,1608
R-CHIP;33ohm,5%,1/10W,TP,1608
R-CHIP;33ohm,5%,1/10W,TP,1608
R-CHIP;560ohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;3.9Kohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/4W,TP,3216
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-23
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
6-24
Loc. No.
R417
R434
R481
R9012_OP
R323
R324
R325
R326
R327
R328
R329
R330
R942
R955_OP
R957_OP
R969
R974
R975
R979
R980
R982
R983
R984
R985
R986
R987
R988
R989
R990
R991
R992
R997
R412
R416
R695
R9041
R9042
R557
R117
R118
R414
R415
R418
R477
R478
R482
R902
R903
R948
R223
R228
R805
R318
R320
R423
R424
R425
R435
R484
R485
R486
R468
R469
R470
R471
R472
R483
R496
R497
R675
R677
R681
Code No.
2007-000293
2007-000293
2007-000293
2007-000293
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000458
2007-000458
2007-000704
2007-000704
2007-000704
2007-000903
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-001014
2007-001014
2007-001068
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-008720
2007-008720
2007-008720
Description & Specification
R-CHIP;100ohm,5%,1/4W,TP,3216
R-CHIP;100ohm,5%,1/4W,TP,3216
R-CHIP;100ohm,5%,1/4W,TP,3216
R-CHIP;100ohm,5%,1/4W,TP,3216
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;18Kohm,5%,1/10W,TP,1608
R-CHIP;18Kohm,5%,1/10W,TP,1608
R-CHIP;3.6Kohm,5%,1/10W,TP,1608
R-CHIP;3.6Kohm,5%,1/10W,TP,1608
R-CHIP;3.6Kohm,5%,1/10W,TP,1608
R-CHIP;430ohm,1%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;51OHM,5%,1/10W,TP,1608
R-CHIP;51OHM,5%,1/10W,TP,1608
R-CHIP;6.8Kohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;4.7ohm,1%,1/4W,TP,3216
R-CHIP;4.7ohm,1%,1/4W,TP,3216
R-CHIP;4.7ohm,1%,1/4W,TP,3216
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
Loc. No.
R684
IC223
RA221
RA222
RA223
RA224
RA225
RA226
RA227
RA903
RA904
RA906
RA907
RA908
RA910
RA500
RA501
RA900
RA901
RA902
RA905
RA909
RA911
RA913
RA916
RA917
RA918
RA919
RA920
RA921
RA922
C6003
C616
C632
C120
C250
C303
C486
C511
C512
C513
C514
C516
C517
C518
C521
C522
C523
C524
C525
C526
C527
C529
C530
C532
C533
C534
C535
C537
C538
C545
C548
C549
C551
C553
C554
C555
C558
C560
C561
C564
C565
Code No.
2007-008720
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000651
2011-000651
2011-000651
2011-000651
2011-000651
2011-000651
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2203-000125
2203-000140
2203-000140
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
Description & Specification
R-CHIP;4.7ohm,1%,1/4W,TP,3216
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-25
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
6-26
Loc. No.
C566
C567
C568
C569
C570
C571
C572
C573
C577
C588
C589
C590
C591
C593
C595
C597
C598
C6004
C6016
C6017
C620
C625
C626
C627
C628
C644
C649
C651
C652
C660
C664
C680
C682
C687
C801
C803
C805
C812
C813
C815
C817
C834
C836
C840
C849
C867
C868
C900
C904
C943
C117
C118
C269
C270
C401
C403
C404
C405
C406
C407
C412
C413
C423
C424
C487
C488
C6006
C6007
C6008
C623
C678
C679
Code No.
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
Description & Specification
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
Loc. No.
C926
C928
C101
C111
C112
C228
C229
C230
C231
C232
C238
C241
C244
C264
C265
C268
C504
C505
C506
C507
C508
C541
C622
C800
C802
C810
C814
C816
C830
C843
C944
C901
C903
C908
C931
C933
C937
C114
C575
C592
C500
C510
C639
C647
C911
C912
C938
C939
C304
C305
C483
C484
C688
C696
C662
C663
C115
C223
C224
C502
C503
C674
C675
C104
C634
C266
C411
C629
C106
C6009
C670
C672
Code No.
2203-000236
2203-000236
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000440
2203-000440
2203-000440
2203-000440
2203-000440
2203-000440
2203-000491
2203-000531
2203-000531
2203-000552
2203-000552
2203-000626
2203-000626
2203-000626
2203-000626
2203-000626
2203-000626
2203-000783
2203-000783
2203-000783
2203-000783
2203-000783
2203-000783
2203-000798
2203-000798
2203-000888
2203-000888
2203-000888
2203-000888
2203-000888
2203-000888
2203-000888
2203-000972
2203-000972
2203-000998
2203-000998
2203-001402
2203-001607
2203-001607
2203-001652
2203-001652
Description & Specification
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;2.2nF,10%,50V,X7R,1608
C-CER,CHIP;2.7nF,10%,50V,X7R,1608
C-CER,CHIP;2.7nF,10%,50V,X7R,1608
C-CER,CHIP;0.02nF,5%,50V,C0G,1608
C-CER,CHIP;0.02nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;33nF,10%,16V,X7R,TP,1608,C-CER,CHIP;33nF,10%,16V,X7R,TP,1608,C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;47nF,10%,16V,X7R,1608
C-CER,CHIP;47nF,10%,16V,X7R,1608
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608
C-CER,CHIP;0.22nF,5%,50V,NP0,1608
C-CER,CHIP;0.22nF,5%,50V,NP0,1608
C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608
C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-27
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
6-28
Loc. No.
C617
C631
C673
C103
C110
C221
C222
C235
C236
C261
C501
C519
C528
C543
C601
C640
C641
C642
C643
C657
C665
C822
C825
C827
C851
C853
C856
C859
C861
C914
C915
C916
C918
C920
C922
C923
C924
C925
C935
C941
C689
C697
C300
C536
C699
C823
C839
C870
C919
C942
C6001
C6002
C6005
C6011
C677
C681
C683
C685
C690
C691
C692
C693
C694
C695
C698
C546
C547
C550
C552
C556
C557
C559
Code No.
2203-001656
2203-001656
2203-001724
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005030
2203-005030
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
Description & Specification
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;4700nF,+80-20%,16V,Y5V,3216
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;470nF,+80-20%,50V,Y5V,TP,3216
C-CER,CHIP;470nF,+80-20%,50V,Y5V,TP,3216
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
Loc. No.
C562
C563
C578
C579
C580
C581
C582
C583
C584
C585
C586
C594
C596
C824
C302
C574
C576
C587
C599
C600
C6015
C603
C604
C605
C606
C607
C608
C609
C610
C611
C613
C618
C619
C621
C624
C630
C636
C645
C646
C648
C650
C653
C654
C655
C656
C658
C686
C852
C855
C921
C5001
C5002
C806
C819
C835
C239
C240
C102
C107
C108
C615
C668
C669
C671
C811
C848
C854
C116
C249
C509
C635
C667
Code No.
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005834
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2402-001059
2402-001059
2402-001081
2402-001081
2402-001081
2402-001097
2402-001097
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001129
2402-001129
2402-001129
2402-001129
2402-001129
Description & Specification
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-AL,SMD;220¥ìF,20%,6.3V,-,TP,6x6.6x6.6
C-AL,SMD;220¥ìF,20%,6.3V,-,TP,6x6.6x6.6
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
C-AL,SMD;0.1UF,20%,50V,WT,TP,4.3X4.3X5.2
C-AL,SMD;0.1UF,20%,50V,WT,TP,4.3X4.3X5.2
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-29
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
6-30
Loc. No.
C807
C820
C666
C485
C531
C684
C826
C902
C907
C913
C917
C950
C100
C227
C237
C542
C633
C850
C866
C6010
C676
C520
C113
C833
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
X904
X903
X600
X500
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
Code No.
2402-001129
2402-001129
2402-001160
2402-001178
2402-001178
2402-001178
2402-001178
2402-001178
2402-001178
2402-001178
2402-001178
2402-001178
2402-001183
2402-001183
2402-001183
2402-001183
2402-001183
2402-001183
2402-001183
2402-001221
2402-001221
2402-001226
2402-001238
2409-001029
2703-000274
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000417
2703-001229
2703-001229
2703-001229
2703-001229
2703-001229
2703-001229
2703-001426
2703-002327
2703-002722
2703-002915
2703-002915
2703-002915
2703-002915
2801-003326
2801-003923
2801-003954
2801-004483
3301-000314
3301-000314
3301-001145
3301-001145
3301-001236
3301-001236
3301-001236
3301-001236
3301-001236
3301-001236
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
Description & Specification
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;330UF,20%,16V,WT,TP,1008
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;470UF,20%,16V,-,TP,A8.3XB8.3XL1
C-AL,SMD;470UF,20%,16V,-,TP,A8.3XB8.3XL1
C-AL,SMD;4.7UF,20%,35V,HR,TP,4.3X4.3X5.8
C-AL,SMD;1uF,20%,50V,HR,TP,4.3x4.3x5.2mm
C-ORGANIC;120uF,20%,6.3V,WT,TP,10.3x10.3
INDUCTOR-SMD;2.2uH,10%,2012
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;220uH,5%,3225
INDUCTOR-SMD;2.2uH,10%,1608
INDUCTOR-SMD;2.2uH,10%,1608
INDUCTOR-SMD;2.2uH,10%,1608
INDUCTOR-SMD;2.2uH,10%,1608
INDUCTOR-SMD;2.2uH,10%,1608
INDUCTOR-SMD;2.2uH,10%,1608
INDUCTOR-SMD;680uH,20%,7070
INDUCTOR-SMD;3.9uH,5%,3225
INDUCTOR-SMD;22uH,20%,12x12mm
INDUCTOR-SMD;22uH,20%,8080
INDUCTOR-SMD;22uH,20%,8080
INDUCTOR-SMD;22uH,20%,8080
INDUCTOR-SMD;22uH,20%,8080
CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH
CRYSTAL-SMD;10MHz,30ppm,28-AAN,20pF,60oh
CRYSTAL-SMD;27MHz,30ppm,28-AAN,16pF,50oh
CRYSTAL-SMD;28.322MHz,30ppm,HC-49,20pF,5
BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
.....5
....4
.....5
....4
....4
....4
....4
....4
....4
...3
...3
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
CN703
CN330
CN330
CN330
M0018
IC115
M0018
IC520
R806
C841
R110
R9027
C842
T0077
CIS3
T0562
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001393
3301-001404
3301-001404
3301-001404
3301-001569
3701-001311
3711-005291
3711-005292
3711-005497
BN97-01060A
1107-001555
BN97-01060B
0903-001389
2007-000092
2203-000405
2007-000073
2007-000124
2203-002398
BN41-00680D
BN40-00091A
6046-001013
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;60ohm,3216,1500mA,TP,41ohm/40MH
BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz
BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz
BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
CONNECTOR-HDMI;21P,2R,FEMALE,SMD-S,AU30U
HEADER-BOARD TO CABLE;BOX,2P,1R,2MM,SMDHEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMDHEADER-BOARD TO CABLE;BOX,15P,1R,1.25MM,
ASSY MICOM;A51O
IC-FLASH MEMORY;49BV802A,8MBIT,1MX8/512K
ASSY MICOM;A51O
IC-MICROCONTROLLER;S3F866B,8Bit,QFP,44P,
R-CHIP;15Kohm,5%,1/10W,TP,1608
C-CER,CHIP;0.18nF,5%,50V,C0G,1608
R-CHIP;91ohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
C-CER,CHIP;22nF,10%,50V,X7R,1608
PCB MAIN;BORDEAUX,FR-4,4,MP1.3,1.6,192*1
TUNER;TCPN3081PA32S(H),TCPN3081PA32S(H),
STAND OFF;M3,L5,Ni PLT,SUM24L,#4-40
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.A
S.A
S.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.A
S.N.A
0.1
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
...3
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
M0112
M0081
M0081
T0069
M2893
T0076
M2893
M0114
M0146
M0115
T0447
M0146
T0578
M0020
T0159
M2893
M2893
M0081
M0081
M0081
M0081
M0081
M0081
M0081
M0081
BN91-01176D
6003-000115
6003-000115
AA60-00171L
BH39-00362B
BN39-00615D
BN39-00691A
BN61-01709A
BN61-02207A
BN61-02364A
BN96-02999A
BN61-02194A
BN61-02195A
BN61-02198A
BN61-02199A
BN61-02200A
AA63-01437A
BN96-03186G
BN39-00672A
BN61-02365B
BN64-00454B
BN96-02439A
BN96-03775A
BN39-00659A
BN39-00712E
6003-000337
6003-001188
6003-001188
6003-001188
6003-001188
6003-001188
6003-001188
6003-001439
ASSY SHIELD;LN32T71BX/GSU
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
SPACER-FELT;46L3,FELT,460,T0.5,10
LEAD CONNECTOR;RE32**,UL1007#26,5P,150mm
CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING,
LEAD CONNECTOR;Torino-32,UL1007#26,16P,1
HOLDER-WIRE;NYLON 6/6,NATURAL,DAWS-1ND
BRACKET-PANEL SIDE;Bordeaux 26,SECC,T1.2
BRACKET-STAND LINK;SONOMA 32,SECC,T1.6
ASSY BRACKET P-PANEL;BORDEAUX,32,AMLCD,S
BRACKET-PANEL TOP;Bordeaux 32,SECC,T1.2
BRACKET-PANEL BOTTOM;Bordeaux 32,SECC,T1
BRACKET-GUIDE MAIN;Bordeaux 32,SECC,T1.2
BRACKET-GUIDE POWER;Bordeaux 32,SECC,T1.
BRACKET-GUIDE POWER;Bordeaux 32,SECC,T1.
GASKET;Bordeaux,Conductive Fabric,20mm,9
ASSY BOARD P-HOLDER AV;SONOMA,32,SO,CT50
LEAD CONNECTOR;LNR329DX/XAA,UL2835#28,UL
HOLDER-SIDE AV;SONOMA,32,HIPS,HB,BK500
INLAY AV;BORDEAUX,PS SHEET,T0.3,-,-,BLAC
ASSY BOARD P-SUB AV SIDE;MILANO,CT5000-3
ASSY PCB P-SMPS;FreeVoltage SMPS,LA32R71
LEAD CONNECTOR;RE32*CMO,UL1007#26,14/12P
LEAD CONNECTOR-LVDS;Bordeaux,UL1571#30,U
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW
1
4
4
2
1
1
1
2
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
6
2
2
4
1
2
1
S.N.A
S.A
S.A
S.N.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
0.1
..2
M0003
T0130
BN92-01700Q
BN69-01312L
ASSY BOX;32T71,UO,(GSU),SONOMA
BOX-00,SET;32T7(OVERSEA),SY-05,A,YEL,A1,
1
1.01
S.N.A
S.N.A
0.1
..2
..2
..2
..2
M0113
T0376
T0376
T0524
T0003
BN92-01703A
6902-000061
6902-000379
6902-000519
6902-000604
ASSY P/MATERIAL;32T70,SONOMA
BAG AIR;LDPE,T0.2,L1000,W500,TRP,,,
BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,-BAG PE;HDPE/NITRON(DOUBLE),T0.015/T0.05(
BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP,
1
0.016
0.007
1
6.35
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
M0131
M0059
M2893
6-31
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
0.1
M0019
BN92-02002R
ASSY LABEL;LN32T71BX/XAO
1
S.N.A
0.1
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
M0045
M0045
T0268
T0524
T0210
ACCESSORY
T0074
T0531
M0156
M0126
M0045
T0081
ACCESSORY
BN92-02004E
BN96-04215D
3903-000144
6902-000110
AA68-03242F
AA68-03727A
BN59-00556A
BN63-02415B
BN68-01001W
BN69-01086A
BN96-01800A
6002-001294
6902-000128
ASSY ACCESSORY;LN26T71BX/XAO
ASSY ACCESSORY;LN26T71BX/XAO,A51O,SONOMA
CBF-POWER CORD;DT,US,BP3/Y,U(IEC C13-RA)
BAG PE;LDPE,T0.05,W250,L400,TRP,28,2
MANUAL FLYER-01,SAFETY GUIDE;All Model,S
MANUAL FLYER-01,WARRANTY CARD;All,SAMSUN
REMOCON;Bordeaux,TM86,44,PAL-N, M,South
COVER-BOTTOM;SONOMA,32,HIPS,HB,BK500
MANUAL USERS-01;COMM,SAMSUNG,2Langs,S.Am
BOX ACCESSORY-00;COMM,SW1,YEL,-,W573,D63
ASSY ACCESSORY;ROME32,SCREW
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
BAG ZIPPER;LDPE,T0.05,W200,L150,TRP,8,2-
1
1
1
2
1
1
1
1
1
1
1
4
1
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.N.A
0.1
..2
..2
..2
...3
...3
...3
...3
M0002
T0081
T0081
M0013
M0006
T0071
T0064
BN90-00879H
6002-001294
6002-001294
BN96-03188F
BN63-02410C
BN64-00445B
BN65-00002A
BN61-02776A
ASSY COVER REAR;32T71,UO(XAX),HIPS,HB,BK
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
ASSY COVER P-REAR;32T71,UO(XAX),HIPS,HB,
COVER-REAR;32T70,SO,HIPS,HB,BK500,SONOMA
INLAY-TERMINAL;32,37,40R71,PS SHEET,T0.5
CLAMPER CORE;BORDEAUX,PP,V0,BLK
HOLDER-WALL;32R7,ABS,HB,BLK
1
2
9
1
1
1
1
2
S.N.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
6-32
6 Electrical Parts List
6-3 LN40T71B Parts List
Level
Loc. No.
0
Code No.
Description & Specification
Q'ty
LN40T71BX/XAO
LN40T71B,A51O/40T70-GSM,40,LCD-TV,COLOMB
0
SA/SNA
0.1
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
..2
..2
M0001
M0081
T0003
M0162
T0069
T0060
M0112
T0056
T0059
T0061
T0022
T0023
T0054
M0146
M0145
T0382
M0081
M0081
M0081
T0175
T0175
T0382
BN90-00857J
6006-001096
BN96-03184C
6502-001067
AA60-00171G
BN61-01655A
BN63-02407C
BN63-02414A
BN64-00379A
BN64-00453A
BN64-00467A
BN64-00476A
BN64-00477A
BN96-03438A
BN96-03466A
BP61-00509C
6003-001188
6003-001188
6003-001188
BN96-03247A
BN96-03248A
BP61-00495C
ASSY COVER FRONT;40T71,UO(XAX),HIPS,HB,B
SCREW-TAPTITE;BH,+,WP,B,M4.0,L12,ZPC(BLK
ASSY COVER P-FRONT;40T71,UO(XAX),HIPS,HB
CABLE CLAMP;DAFC-1300,ID2.2,T5.2,NYLIN6/
SPACER-FELT;43L2,FELT,505,T0.5,10
SPRING ETC;STS-304 SUS,D8,L12,T0.5
COVER-FRONT;40T71,UO(XAX),HIPS,HB,BK500,
COVER-DECORATION;SONOMA 40,HIPS,HB,GR503
INDICATOR LED;ROME-II,23,PC,CLEAR
WINDOW-REMOCON;32R71,PC,V0,VIOLET,DIFFUS
KNOB CONTROL;SONOMA26,32,40,ABS,-,-,-,V0
KNOB POWER;SONOMA,26,32,40,HIPS,HB,GR503
KNOB-DECORATION;SONOMA26,32,40,ABS,HB,GR
ASSY BOARD P-POWER & IR;BORDEAUX2,CT5000
ASSY BOARD P-FUNCTION;SONOMA,SJ06-01-008
HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W20.0mm
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
ASSY SPEAKER P;8ohm,Sonoma 32,Left,10W,N
ASSY SPEAKER P;8ohm,Sonoma 32,Right,10W,
HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W30.0mm
1
4
1
2
2
1
1
1
1
1
1
1
1
1
1
0.28
2
1
2
1
1
0.2
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.N.A
0.1
..2
..2
...3
...3
...3
...3
...3
...3
M0216
T0081
M0013
T0081
M0081
T0920
M0111
T0132
BN90-00875A
6002-001294
BN96-03190A
6002-001294
6003-001239
BN61-01811A
BN61-02361A
BN63-01939C
BN73-00052A
ASSY STAND;40T70,SONOMA
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
ASSY STAND P-BASE;40T70,HIPS,HB,BK500,BK
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S
BRACKET-STAND BOTTOM;40 MILANO,SECC,T3.0
GUIDE-STAND;SONOMA 40,HIPS V0,-,-,-,BK50
COVER-STAND;40T70,HIPS,HB,BK500,BKP-1526
RUBBER FOOT;ARES 17,SILICON,DIA 17 * T1.
1
4
1
7
11
1
1
1
9
S.N.A
S.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
0.1
..2
T0852
M0215
BN91-01017B
BN07-00264A
ASSY LCD-SPZ;LE40R71BX/*
LCD-PANEL;LTA400WT-L01,8bit,952*551*51.0
1
1
S.N.A
S.A
0.1
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
M0017
M0014
T0245
JA709
CN330
CN330
CN330
CN330
CN503
CN330
JA330
JA330
JA333
JA333
JA333
JA333
JA333
JA333
M0107
CIS8
T0174
SUB05
D100
D200
D201
D202
D226
D227
D228
D307
D320
D321
D322
D323
BN91-01091C
BN94-01012C
0202-001492
3701-001294
3711-004068
3711-004484
3711-004484
3711-004909
3711-005884
3711-005942
3722-001061
3722-001061
3722-002143
3722-002360
3722-002362
3722-002362
3722-002362
3722-002363
BN63-01847A
BN73-00024C
BN97-01052C
0202-001477
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
ASSY CHASSIS;LN40R71BX/XAZ,A51O,BORDEAUX
ASSY PCB MAIN;LN40R71BX/XAZ,A51O,BORDEAU
SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-,
CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,AU
HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,ANGL
HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA
HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA
HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG
HEADER-BOARD TO BOARD;BOX,30P,2R,2mm,ANG
HEADER-BOARD TO CABLE;BOX,16P,1R,2mm,STR
JACK-PHONE;1P,3.6PI,AG,BLK,N
JACK-PHONE;1P,3.6PI,AG,BLK,N
JACK-PIN;5P,NI,GRN/BLU/RED/WHT/RED,STRAI
JACK-PIN;3P,AU,GRN/BLU/RED,STRAIGHT
JACK-PIN;2P,Sn,WHT/RED,STRAIGHT
JACK-PIN;2P,Sn,WHT/RED,STRAIGHT
JACK-PIN;2P,Sn,WHT/RED,STRAIGHT
JACK-PIN;3P,Sn,YEL/WHT/RED,STRAIGHT
SHIELD-COVER;ROME,SECC,T0.3,49.5,79.5,HE
SILICON/RUBBER-BERGQUIST;VENUS 32,40",SI
ASSY SMD;LN40R71BX/XAZ,A51O,BORDEAUX
SOLDER-CREAM;LST309-M,-,D20~45§-,96.5Sn/
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
1
0.25
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
3.033
1
1
1
1
1
1
1
1
1
1
1
1
S.N.A
S.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-33
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
D324
D325
D326
D327
D451_NT
D467
D485
D486
D487
D494
D800
D801
D906
D300
D304
D305
D490
D491
D492
D493
D499
D500
D501
D502
D503
D504
D505
D506
D507
D508
D509
D510
D511
D512
D513
D909
D911
D301
D418
D421
D101
D308
D309
D401
D403
D404
D405
D406
D407
D408
D409
D410_NT
D411_NT
D412_NT
D428
D461
D462
D470
D471
D472
D483
D484
D600
D601
D900
D901
Q603
Q100
Q301
Q501
Q600
Q601
6-34
Code No.
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0402-000553
0403-000258
0403-000258
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-000620
0403-001016
0403-001169
0403-001169
0403-001425
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0406-001172
0407-000123
0407-000123
0407-000123
0407-000123
0501-000280
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
Description & Specification
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2
DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2
DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2
DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LLDIODE-ZENER;RLZ16C,15.96-16.51V,500MW,LL
DIODE-ZENER;RLZ16C,15.96-16.51V,500MW,LL
DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-TVS;CDS3C30GTH,48V,0W,SMD
DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOTDIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOTDIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOTDIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOTTR-SMALL SIGNAL;KSA1182,PNP,150MW,SOT-23
TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT-
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
Q602
Q605
Q606
Q609
Q802
Q900
Q904
Q905
Q906
Q972
Q973
Q222
Q800
Q801
Q409
Q409
Q409
Q409
Q409
Q409
IC104
IC900
IC605
IC905
IC107
IC110
IC112
IC112
IC112
IC222
DU410
T0085
T0085
IC910
T0087
T0087
T0087
T0087
T0087
T0087
T0170
IC601
IC118
R221
R222
R9004
R9005
R9006
R9007
R9008
R9009
R9010
R9015
R9028
R9032
R976
R109
R807
40_
R321
R440_NT
R441_NT
R442_NT
R443_NT
R444
R446
R456_NT
R480
R500
R501
R502
R511
Code No.
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-000342
0501-002080
0501-002080
0501-002080
0505-000110
0505-000110
0505-000110
0505-000110
0505-000110
0505-001170
0801-002095
0903-001432
1001-000164
1001-001109
1002-001399
1006-001076
1103-000129
1103-000129
1103-001279
1105-001538
1201-000166
1201-002136
1201-002246
1203-001559
1203-001815
1203-001816
1203-002842
1203-002842
1203-002855
1203-002974
1203-003059
1204-002471
1204-002503
2007-000043
2007-000043
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000060
2007-000067
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
Description & Specification
TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0
IC-CMOS LOGIC;74LCX245,TRANSCEIVER,TSSOP
IC-MICROCOMPUTER;M30840SGP,16Bit,LQFP,10
IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16
IC-ANALOG SWITCH;FST3125M,BUS SWITCH & C
IC-D/A CONVERTER;PCM1754,24BIT,SSOP,16P,
IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P,
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
IC-EEPROM;24C32,32Kbit,4Kx8Bit,SOP,8P,5x
IC-VIDEO RAM;K4D263238,-,128M,4x1Mx32Bit
IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10
IC-AUDIO AMP;LM4810,MSOP,8P,3x3mm,DUAL,IC-AUDIO AMP;STA323W,SO,36P,15.9x11mm,-,
IC-RESET;DS1834A,SOIC,8P,150MIL,PLASTIC,
IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA
IC-POSI.FIXED REG.;78M08,TO-252,3P,-,PLA
IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P
IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P
IC-POSI.FIXED REG.;MC33269DTRK-5.0,DPRK,
IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P
IC-SWITCH VOL. REG.;MP1583,SOIC,8P,4.9x3
IC-AUDIO PROCESSOR;STV8258DSX,TQFP,80P,1
IC-VIDEO PROCESS;SVP-PX56-7256,PQFP,256P
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;100Kohm,1%,1/10W,TP,1608
R-CHIP;15Kohm,1%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-35
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R512
R514_OP
R516
R523
R539
R540
R542
R563_OP
R564_OP
R565_OP
R566_OP
R567_OP
R568_OP
R569_OP
R570_OP
R571_OP
R572_OP
R574
R575
R577
R592
R656
R691
R692
R693
R9000
R9013
R9014
R9030
R909
R913
R931
R932
R933
R934
R936
R939
R940
R941
R949
R950
R951
R952
R953
R998
R224
R225
R226
R227
R458
R499
R503
R504
R505
R506
R507
R508
R509
R510
R518
R585
R586
R104
R105
R306
R308
R475
R495
R611
R612
R658
R659
6-36
Code No.
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
Description & Specification
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R676
R682
R108
R113
R116
R243
R244
R406
R409
R457_NT
R498
R525
R533
R538
R559
R582
R584
R587
R614
R615
R616
R617
R618
R619
R620
R621
R636
R637
R639
R640
R644
R645
R648
R650
R651
R653
R654
R678
R679
R680
R802
R9002
R901
R9016
R9023
R9025
R911
R916
R917
R919
R937
R947
R966
R967
R971
R972
R973
R977
R978
R999
R562
R100
R405
R410
R114
R307
R311
R403
R407
R408
R411
R429
Code No.
2007-000072
2007-000072
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000075
2007-000076
2007-000076
2007-000076
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
Description & Specification
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;220ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-37
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R474
R476
R487
R528
R590
R591
R810
R9026
R946
R103
R106
R312
R322
R522
R535
R537
R554
R555
R556
R576
R9019
R9044
R9045
R905
R928
R935
R530
R532
R925
R926
R963
R964
R242
R526
R541
R578
R593
R643
R655
R808
R809
R9011_OP
R9033
R9034
R9035
R9036
R9037
R9038
R9051
R9052
R9053
R9054
R9055
R9056
R9057
R908
R918
R923
R924
R927
R929
R930
R938
R943
R962
R996
R426
R427
R302
R303
R316
R445
6-38
Code No.
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000082
2007-000082
2007-000082
2007-000082
2007-000082
2007-000082
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000087
2007-000087
2007-000090
2007-000090
2007-000090
2007-000090
Description & Specification
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;6.8Kohm,5%,1/10W,TP,1608
R-CHIP;6.8Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R447
R459
R473
R515
R519
R610
R661
R673
R801
R803
R804
R9029
R9043
R906
R907
R912
R915
R920
R921
R922
R954
R956
R970
R994
R995
R664
R666
R101
R670
R914
R313
R601
R646
R652
R657
R665
R993
R602
R603
R604
R605
R606
R607
R608
R609
R626
R627
R628
R629
R630
R631
R632
R633
R102
R660
R663
R667
R800
R107
R111
R112
R668
R5004
R550
R551
R553
R638
R236
R237
R238
R683
R413
Code No.
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000093
2007-000093
2007-000094
2007-000094
2007-000094
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000100
2007-000102
2007-000102
2007-000102
2007-000102
2007-000102
2007-000106
2007-000106
2007-000106
2007-000107
2007-000113
2007-000113
2007-000113
2007-000113
2007-000119
2007-000123
2007-000123
2007-000123
2007-000125
2007-000293
Description & Specification
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;68Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;220Kohm,5%,1/10W,TP,1608
R-CHIP;220Kohm,5%,1/10W,TP,1608
R-CHIP;220Kohm,5%,1/10W,TP,1608
R-CHIP;470Kohm,5%,1/10W,TP,1608
R-CHIP;33ohm,5%,1/10W,TP,1608
R-CHIP;33ohm,5%,1/10W,TP,1608
R-CHIP;33ohm,5%,1/10W,TP,1608
R-CHIP;33ohm,5%,1/10W,TP,1608
R-CHIP;560ohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;3.9Kohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/4W,TP,3216
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-39
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R417
R434
R481
R9012_OP
R323
R324
R325
R326
R327
R328
R329
R330
R942
R955_OP
R957_OP
R969
R974
R975
R979
R980
R982
R983
R984
R985
R986
R987
R988
R989
R990
R991
R992
R997
R412
R416
R695
R9041
R9042
R557
R117
R118
R414
R415
R418
R477
R478
R482
R902
R903
R948
R223
R228
R805
R318
R320
R423
R424
R425
R435
R484
R485
R486
R468
R469
R470
R471
R472
R483
R496
R497
R675
R677
R681
6-40
Code No.
2007-000293
2007-000293
2007-000293
2007-000293
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000309
2007-000458
2007-000458
2007-000704
2007-000704
2007-000704
2007-000903
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-000950
2007-001014
2007-001014
2007-001068
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-008720
2007-008720
2007-008720
Description & Specification
R-CHIP;100ohm,5%,1/4W,TP,3216
R-CHIP;100ohm,5%,1/4W,TP,3216
R-CHIP;100ohm,5%,1/4W,TP,3216
R-CHIP;100ohm,5%,1/4W,TP,3216
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;18Kohm,5%,1/10W,TP,1608
R-CHIP;18Kohm,5%,1/10W,TP,1608
R-CHIP;3.6Kohm,5%,1/10W,TP,1608
R-CHIP;3.6Kohm,5%,1/10W,TP,1608
R-CHIP;3.6Kohm,5%,1/10W,TP,1608
R-CHIP;430ohm,1%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;47ohm,5%,1/4W,TP,3216
R-CHIP;51OHM,5%,1/10W,TP,1608
R-CHIP;51OHM,5%,1/10W,TP,1608
R-CHIP;6.8Kohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;4.7ohm,1%,1/4W,TP,3216
R-CHIP;4.7ohm,1%,1/4W,TP,3216
R-CHIP;4.7ohm,1%,1/4W,TP,3216
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R684
IC223
RA221
RA222
RA223
RA224
RA225
RA226
RA227
RA903
RA904
RA906
RA907
RA908
RA910
RA500
RA501
RA900
RA901
RA902
RA905
RA909
RA911
RA913
RA916
RA917
RA918
RA919
RA920
RA921
RA922
C6003
C616
C632
C120
C250
C303
C486
C511
C512
C513
C514
C516
C517
C518
C521
C522
C523
C524
C525
C526
C527
C529
C530
C532
C533
C534
C535
C537
C538
C545
C548
C549
C551
C553
C554
C555
C558
C560
C561
C564
C565
Code No.
2007-008720
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000651
2011-000651
2011-000651
2011-000651
2011-000651
2011-000651
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2011-001093
2203-000125
2203-000140
2203-000140
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
Description & Specification
R-CHIP;4.7ohm,1%,1/4W,TP,3216
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-41
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C566
C567
C568
C569
C570
C571
C572
C573
C577
C588
C589
C590
C591
C593
C595
C597
C598
C6004
C6016
C6017
C620
C625
C626
C627
C628
C644
C649
C651
C652
C660
C664
C680
C682
C687
C801
C803
C805
C812
C813
C815
C817
C834
C836
C840
C849
C867
C868
C900
C904
C943
C117
C118
C269
C270
C401
C403
C404
C405
C406
C407
C412
C413
C423
C424
C487
C488
C6006
C6007
C6008
C623
C678
C679
6-42
Code No.
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
Description & Specification
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C926
C928
C101
C111
C112
C228
C229
C230
C231
C232
C238
C241
C244
C264
C265
C268
C504
C505
C506
C507
C508
C541
C622
C800
C802
C810
C814
C816
C830
C843
C944
C901
C903
C908
C931
C933
C937
C114
C575
C592
C500
C510
C639
C647
C911
C912
C938
C939
C304
C305
C483
C484
C688
C696
C662
C663
C115
C223
C224
C502
C503
C674
C675
C104
C634
C266
C411
C629
C106
C6009
C670
C672
Code No.
2203-000236
2203-000236
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000440
2203-000440
2203-000440
2203-000440
2203-000440
2203-000440
2203-000491
2203-000531
2203-000531
2203-000552
2203-000552
2203-000626
2203-000626
2203-000626
2203-000626
2203-000626
2203-000626
2203-000783
2203-000783
2203-000783
2203-000783
2203-000783
2203-000783
2203-000798
2203-000798
2203-000888
2203-000888
2203-000888
2203-000888
2203-000888
2203-000888
2203-000888
2203-000972
2203-000972
2203-000998
2203-000998
2203-001402
2203-001607
2203-001607
2203-001652
2203-001652
Description & Specification
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;2.2nF,10%,50V,X7R,1608
C-CER,CHIP;2.7nF,10%,50V,X7R,1608
C-CER,CHIP;2.7nF,10%,50V,X7R,1608
C-CER,CHIP;0.02nF,5%,50V,C0G,1608
C-CER,CHIP;0.02nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C-CER,CHIP;33nF,10%,16V,X7R,TP,1608,C-CER,CHIP;33nF,10%,16V,X7R,TP,1608,C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
C-CER,CHIP;47nF,10%,16V,X7R,1608
C-CER,CHIP;47nF,10%,16V,X7R,1608
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608
C-CER,CHIP;0.22nF,5%,50V,NP0,1608
C-CER,CHIP;0.22nF,5%,50V,NP0,1608
C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608
C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-43
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C617
C631
C673
C103
C110
C221
C222
C235
C236
C261
C501
C519
C528
C543
C601
C640
C641
C642
C643
C657
C665
C822
C825
C827
C851
C853
C856
C859
C861
C914
C915
C916
C918
C920
C922
C923
C924
C925
C935
C941
C689
C697
C300
C536
C699
C823
C839
C870
C919
C942
C6001
C6002
C6005
C6011
C677
C681
C683
C685
C690
C691
C692
C693
C694
C695
C698
C546
C547
C550
C552
C556
C557
C559
6-44
Code No.
2203-001656
2203-001656
2203-001724
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005030
2203-005030
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005249
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
Description & Specification
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;4700nF,+80-20%,16V,Y5V,3216
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;470nF,+80-20%,50V,Y5V,TP,3216
C-CER,CHIP;470nF,+80-20%,50V,Y5V,TP,3216
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C562
C563
C578
C579
C580
C581
C582
C583
C584
C585
C586
C594
C596
C824
C302
C574
C576
C587
C599
C600
C6015
C603
C604
C605
C606
C607
C608
C609
C610
C611
C613
C618
C619
C621
C624
C630
C636
C645
C646
C648
C650
C653
C654
C655
C656
C658
C686
C852
C855
C921
C5001
C5002
C806
C819
C835
C239
C240
C102
C107
C108
C615
C668
C669
C671
C811
C848
C854
C116
C249
C509
C635
C667
Code No.
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005533
2203-005834
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2203-006333
2402-001059
2402-001059
2402-001081
2402-001081
2402-001081
2402-001097
2402-001097
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001129
2402-001129
2402-001129
2402-001129
2402-001129
Description & Specification
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
C-AL,SMD;220¥ìF,20%,6.3V,-,TP,6x6.6x6.6
C-AL,SMD;220¥ìF,20%,6.3V,-,TP,6x6.6x6.6
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
C-AL,SMD;0.1UF,20%,50V,WT,TP,4.3X4.3X5.2
C-AL,SMD;0.1UF,20%,50V,WT,TP,4.3X4.3X5.2
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-45
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C807
C820
C666
C485
C531
C684
C826
C902
C907
C913
C917
C950
C100
C227
C237
C542
C633
C850
C866
C6010
C676
C520
C113
C833
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
X904
X903
X600
X500
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
6-46
Code No.
2402-001129
2402-001129
2402-001160
2402-001178
2402-001178
2402-001178
2402-001178
2402-001178
2402-001178
2402-001178
2402-001178
2402-001178
2402-001183
2402-001183
2402-001183
2402-001183
2402-001183
2402-001183
2402-001183
2402-001221
2402-001221
2402-001226
2402-001238
2409-001029
2703-000274
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000417
2703-001229
2703-001229
2703-001229
2703-001229
2703-001229
2703-001229
2703-001426
2703-002327
2703-002722
2703-002915
2703-002915
2703-002915
2703-002915
2801-003326
2801-003923
2801-003954
2801-004483
3301-000314
3301-000314
3301-001145
3301-001145
3301-001236
3301-001236
3301-001236
3301-001236
3301-001236
3301-001236
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
Description & Specification
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;330UF,20%,16V,WT,TP,1008
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;470UF,20%,16V,-,TP,A8.3XB8.3XL1
C-AL,SMD;470UF,20%,16V,-,TP,A8.3XB8.3XL1
C-AL,SMD;4.7UF,20%,35V,HR,TP,4.3X4.3X5.8
C-AL,SMD;1uF,20%,50V,HR,TP,4.3x4.3x5.2mm
C-ORGANIC;120uF,20%,6.3V,WT,TP,10.3x10.3
INDUCTOR-SMD;2.2uH,10%,2012
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;10uH,10%,3225
INDUCTOR-SMD;220uH,5%,3225
INDUCTOR-SMD;2.2uH,10%,1608
INDUCTOR-SMD;2.2uH,10%,1608
INDUCTOR-SMD;2.2uH,10%,1608
INDUCTOR-SMD;2.2uH,10%,1608
INDUCTOR-SMD;2.2uH,10%,1608
INDUCTOR-SMD;2.2uH,10%,1608
INDUCTOR-SMD;680uH,20%,7070
INDUCTOR-SMD;3.9uH,5%,3225
INDUCTOR-SMD;22uH,20%,12x12mm
INDUCTOR-SMD;22uH,20%,8080
INDUCTOR-SMD;22uH,20%,8080
INDUCTOR-SMD;22uH,20%,8080
INDUCTOR-SMD;22uH,20%,8080
CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH
CRYSTAL-SMD;10MHz,30ppm,28-AAN,20pF,60oh
CRYSTAL-SMD;27MHz,30ppm,28-AAN,16pF,50oh
CRYSTAL-SMD;28.322MHz,30ppm,HC-49,20pF,5
BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
.....5
....4
.....5
....4
....4
....4
....4
....4
....4
...3
...3
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
CN703
CN330
CN330
CN330
M0018
IC115
M0018
IC520
R806
C841
R110
R9027
C842
T0077
CIS3
T0562
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001393
3301-001404
3301-001404
3301-001404
3301-001569
3701-001311
3711-005291
3711-005292
3711-005497
BN97-01060A
1107-001555
BN97-01060B
0903-001389
2007-000092
2203-000405
2007-000073
2007-000124
2203-002398
BN41-00680D
BN40-00091A
6046-001013
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
BEAD-SMD;60ohm,3216,1500mA,TP,41ohm/40MH
BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz
BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz
BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
CONNECTOR-HDMI;21P,2R,FEMALE,SMD-S,AU30U
HEADER-BOARD TO CABLE;BOX,2P,1R,2MM,SMDHEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMDHEADER-BOARD TO CABLE;BOX,15P,1R,1.25MM,
ASSY MICOM;A51O
IC-FLASH MEMORY;49BV802A,8MBIT,1MX8/512K
ASSY MICOM;A51O
IC-MICROCONTROLLER;S3F866B,8Bit,QFP,44P,
R-CHIP;15Kohm,5%,1/10W,TP,1608
C-CER,CHIP;0.18nF,5%,50V,C0G,1608
R-CHIP;91ohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
C-CER,CHIP;22nF,10%,50V,X7R,1608
PCB MAIN;BORDEAUX,FR-4,4,MP1.3,1.6,192*1
TUNER;TCPN3081PA32S(H),TCPN3081PA32S(H),
STAND OFF;M3,L5,Ni PLT,SUM24L,#4-40
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.A
S.A
S.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.A
S.N.A
0.1
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
M0112
M0081
M0081
M0081
M2893
T0076
M2893
M2893
M2893
M2893
M0174
M0114
M0146
M0146
M0115
M0059
M2893
BN91-01148N
6003-000115
6003-000115
6003-000115
BH39-00362B
BN39-00615D
BN39-00691B
BN39-00712E
BN39-00716B
BN39-00717A
BN44-00134C
BN61-01709A
BN61-02256B
BN61-02257B
BN61-02258A
BN96-03186H
BN39-00672B
BN61-02365B
BN64-00454B
BN96-02439A
BN96-03528B
6003-000115
6003-000115
AA60-00091J
AA63-01401A
BN61-02251B
BN61-02252B
BN61-02253A
BN61-02254A
BN61-02255A
BN61-02438A
BN61-02778A
6003-000337
6003-000337
6003-001188
6003-001188
6003-001188
6003-001188
6003-001188
6003-001188
6003-001188
6003-001439
ASSY SHIELD;LN40T71BX/*,-,-,SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
LEAD CONNECTOR;RE32**,UL1007#26,5P,150mm
CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING,
LEAD CONNECTOR;LE32R71BX,UL1007#26,16P,1
LEAD CONNECTOR-LVDS;Bordeaux,UL1571#30,U
LEAD CONNECTOR;LE40R71BX/XEC,UL3239#24,2
LEAD CONNECTOR;LE32R71BX/XEC,UL3443#28,5
IP BOARD;PSIV230601A,40"BORDEAUX,2.0~3.0
HOLDER-WIRE;NYLON 6/6,NATURAL,DAWS-1ND
BRACKET-PANEL SIDE;Bordeaux 40,SECC,T1.2
BRACKET-PANEL SIDE;Bordeaux 40,SECC,T1.2
BRACKET-STAND LINK;Bordeaux 40,SECC,T1.6
ASSY BOARD P-HOLDER AV;SONOMA,40,SO,CT50
LEAD CONNECTOR;LNR469DX/XAA,UL2835#28,14
HOLDER-SIDE AV;SONOMA,32,HIPS,HB,BK500
INLAY AV;BORDEAUX,PS SHEET,T0.3,-,-,BLAC
ASSY BOARD P-SUB AV SIDE;MILANO,CT5000-3
ASSY BRACKET P-PANEL;SONOMA,40EO,READY,S
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,GASKET;LE40R71BX,Conductive Fabric,22mm,
BRACKET-PANEL TOP;Bordeaux 40,SECC,T1.2
BRACKET-PANEL BOTTOM;Bordeaux 40,SECC,T1
BRACKET-GUIDE MAIN;Bordeaux 40,SECC,T1.2
BRACKET-GUIDE POWER;Bordeaux 40,SECC,T1.
BRACKET-GUIDE POWER;Bordeaux 40,SECC,T1.
BRACKET-WALL;MOSEL 40,SECC T1.6
BRACKET-SUPPORT;40M7,SECC T1.2
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW
1
1
4
6
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
2
2
1
1
1
1
1
1
1
1
5
2
2
1
6
2
3
3
3
1
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
T0578
M0020
T0447
M0081
M0081
T0069
M0131
M0146
T0101
T0514
M0081
M0081
M0081
M0081
M0081
M0081
M0081
M0081
M0081
M0081
Code No.
Description & Specification
Q'ty
SA/SNA
6-47
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
0.1
..2
M0003
T0130
BN92-01699R
BN69-01310M
ASSY BOX;40T71,UO,(READY,GSU),-,-,SONOMA
BOX-00,SET;40T7(OVERSEA),DY-01,AB,YEL,A1
1
1.01
S.N.A
S.N.A
0.1
..2
..2
..2
..2
M0113
T0376
T0376
T0003
T0524
BN92-01702A
6902-000061
6902-000379
6902-000604
6902-000411
ASSY P/MATERIAL;40T70,SONOMA
BAG AIR;LDPE,T0.2,L1000,W500,TRP,,,
BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,-BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP,
BAG PE;HDPE/NITRON,T0.015/T0.5,W1300,L13
1
0.061
0.018
14.32
1
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
0.1
M0019
BN92-02002W
ASSY LABEL;LN40T71BX/XAO
1
S.N.A
0.1
..2
...3
...3
...3
...3
...3
...3
...3
...3
M0045
M0045
T0268
T0524
T0210
ACCESSORY
T0074
T0531
M0156
M0126
BN92-02004K
BN96-04215K
3903-000144
6902-000110
AA68-03242F
AA68-03727A
BN59-00556A
BN63-02416B
BN68-01001W
BN69-01052A
ASSY ACCESSORY;LN40T71BX/XAO
ASSY ACCESSORY;LN40T71BX/XAO,A51O
CBF-POWER CORD;DT,US,BP3/Y,U(IEC C13-RA)
BAG PE;LDPE,T0.05,W250,L400,TRP,28,2
MANUAL FLYER-01,SAFETY GUIDE;All Model,S
MANUAL FLYER-01,WARRANTY CARD;All,SAMSUN
REMOCON;Bordeaux,TM86,44,PAL-N, M,South
COVER-BOTTOM;SONOMA,40,HIPS,HB,BK500
MANUAL USERS-01;COMM,SAMSUNG,2Langs,S.Am
BOX ACCESSORY-00;ALL,CB-SW1,YEL,W603,D67
1
1
1
2
1
1
1
1
1
1
S.N.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.N.A
0.1
..2
..2
..2
...3
...3
...3
...3
M0002
T0081
T0081
M0013
M0006
T0071
T0064
BN90-00878H
6002-001294
6002-001294
BN96-03187F
BN63-02411C
BN64-00445B
BN65-00002A
BN61-02776A
ASSY COVER REAR;40T71,UO(XAX),HIPS,HB,BK
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
ASSY COVER P-REAR;40T71,UO(XAX),HIPS,HB,
COVER-REAR;40S71,SO,CO,HIPS,-,-,-,HB,-,B
INLAY-TERMINAL;32,37,40R71,PS SHEET,T0.5
CLAMPER CORE;BORDEAUX,PP,V0,BLK
HOLDER-WALL;32R7,ABS,HB,BLK
1
12
3
1
1
1
1
1
S.N.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
6-48
8 Wiring Diagrams
8 Wiring Diagram
8-1 LN26T71B / LN32T71B / LN40T71B Wiring Diagram
8-1
8 Wiring Diagrams
8-2 Main Board Layout
8-2
8 Wiring Diagrams
8-3 PIN characteristic
CN800 - Main Board power supply
PIN
1
NAME B12V
Function Define
- B12V
- B5V
- B12VS
- A5V
2
3
4
5
6
7
GND
B5V
B5V
B5V
GND
GND
8
9
10
11
12
GND B12VS B12VS B12VS GND
13
14
15
16
GND
GND
A5V
A5V
B8V, B5V-T
B5V-1, B5V, 5V-P, B1.8V
B12VS
A5V, A3.3V-3, A3.3V, A3.3V-1, B3.3V, A1.8V
CN600 / CN601 - SPEAKER CONNECTOR
PIN
1
2
3
PIN
1
2
NAME
R+
NC
R-
NAME
L+
L-
8-3
8 Wiring Diagrams
CN221 - Front control
PIN
1
2
3
NAME SDA-T SCL-T GND
4
5
6
7
8
9
10
11
KEY
LED
GND
A5V
GND
IR
KEY
KEY
INPUT1
INPUT1 INPUT2
Function Define
- A5V
Front control board poewr supply
- KEY INPUT1,2/SDA/SCL
Key control, from the memu, change up/down Etc.
- IR
Remote control signal
- LED
Control the timing and stand by LED color
CN501 - Panel control
PIN
1
NAME
SW_inverter
Function Define
- SW_inverter
- Ana_dimming
- PWM_dimming
8-4
2
3
Ana_dimming PWM_dimming
panel inverter control, about 3.3V
panel dimming control
panel PWM control, duty 40% ~ 90%
4
5
GND
GND
12
13
14
15
GND IDENT HP-L HP-R
HP
8 Wiring Diagrams
8-5
8 Wiring Diagrams
8-4 Power Board Layout
8-6
8 Wiring Diagrams
CN801 - AC Input
PIN
I
2
NAME
Live
Netural
VOLTAGE
AC
AC
Functing Define
- Refer to : AC Input
CN801 - Main Board power supply
PIN
1
2
NAME
13V
3
GND 5.4V
4
5
6
7
8
9
10
11
12
13
5.4V
5.4V
GND
GND
GND
12V
12V
12V
GND
GND
14
15
16
GND ST7V PWR
Functing Define
- ST7V Stand-By Output
- PWR Power On/Off Control
- Refer to : CN801 function define
CNM804 - Panel control
PIN
1
NAME
SW_inverter
2
3
Ana_dimming PWM_dimming
4
GND
5
SENSOR POWER
Functing Define
- Refer to : CN815 function define
8-7
8 Wiring Diagrams
CN802 - Inverter power supply
PIN
1
2
3
4
5
6
7
NAME
24V
24V
24V
24V
24V
GND
GND
Functing Define
- AMLCD
- 24V
- B/L
- A_D
- P_D
8
9
GND GND
10
11
12
13
14
GND
GND
B/L
A_D
P_D
10
11
12
13
14
GND
A_D
B/L
P_D
GND
Panel Inverter Power
LAMP INVERTER Voltage
Brightness sensor power
ANA_DIMMING
PWM_DIMMING
CN803 - Inverter power supply
PIN
1
2
3
4
5
6
7
NAME
24V
24V
24V
24V
24V
GND
GND
Functing Define
- AUO
- 24V
- B/L
- A_D
- P_D
8-8
Panel Inverter Power
LAMP INVERTER Voltage
Brightness sensor power
ANA_DIMMING
PWM_DIMMING
8
9
GND GND
8 Wiring Diagrams
8-9
8 Wiring Diagrams
CN801 - AC Input
PIN
I
2
NAME
Live
Netural
VOLTAGE
AC
AC
Functing Define
- Refer to : AC Input
CN801 - Main Board power supply
PIN
1
2
NAME
13V
3
GND 5.4V
4
5
6
7
8
9
10
11
12
13
5.4V
5.4V
GND
GND
GND
12V
12V
12V
GND
GND
Functing Define
- ST7V Stand-By Output
- PWR Power On/Off Control
- Refer to : CN801 function define
CNM804 - Panel control
PIN
1
NAME
SW_inverter
2
Ana_dimming PWM_dimming
Functing Define
- Refer to : CN815 function define
8-10
3
4
GND
5
SENSOR POWER
14
15
16
GND ST7V PWR
8 Wiring Diagrams
CN803 - Inverter power supply
PIN
1
2
3
4
5
6
7
NAME
24V
24V
24V
24V
24V
GND
GND
Functing Define
- AMLCD
- 24V
- B/L
- A_D
- P_D
8
9
GND GND
10
11
12
13
14
GND
GND
B/L
A_D
P_D
10
11
12
13
14
GND
B/D
P_L
GND
B/L
Panel Inverter Power
LAMP INVERTER Voltage
Brightness sensor power
ANA_DIMMING
PWM_DIMMING
CN804 - Inverter power supply
PIN
1
2
3
4
5
6
7
NAME
24V
24V
24V
24V
24V
GND
GND
Functing Define
- CMO
- 24V
- B/L
- P_D
8
9
GND GND
Panel Inverter Power
LAMP INVERTER Voltage
Brightness sensor power
PWM_DIMMING
8-11
8 Wiring Diagrams
Memo
8-12
9 Schematic Diagrams
9 Schematic Diagrams
-This Document can not be used without Samsung's authorization.
9-1 Power_Sound Schematic Diagram
B8V
PO W ER
B12V B5V
B12VS
B5V_VCCT
TP800
C805
C800
TP949
TP950
MC33269DTRK-5.0
3
3
BA178M08FP
1
IN
< TORINO SMPS >
OUT
1
I
2
O
SOUND
L101
3.9uH
1
ADJ
GND
R100
330ohm
1
1
C807
TP801
1
TP802
1
TP980
TP981TP942
1
1
TP954
C806
1
C801
100uF
25V
100nF
47nF
C103
100nF
C102
100uF
C803
16V
47uF
C802
100nF 10nF
B8V
C601
C600
L102
220uH
100nF
16V
10uF
PGND
PGND
R604
C811
1
TP955
TP982
1
1
TP983
C113
1uF
50V
100nF 10nF
PGND
TUNER_VT
R607
68Kohm
C
2
R101
22Kohm
BZX84C33
D101
B9V
PGND
3
PC_SL_IN
C114
2.2nF
E
C115
4.7nF
XREF
COMP1_SL_IN
Q100
KSC1623-Y
C111
10nF
HDMI_SL_IN
PGND
DVI_SL_IN
PGND
XREFR615
100ohm
XREFR616
100ohm
XREFR617
100ohm
R621
100ohm
10nF
TP806
PC_SR_IN
IC802
BA178M09FP
1
1
SOUND_AMP
IN
OUT
3
COMP1_SR_IN
1
2
C815
C816
DVI_SR_IN
C817
100nF
R609
R608
68Kohm
68Kohm
C606
C607
C611
XREFR620
100ohm
XREFR619
100ohm
XREFR618
100ohm
C610
10uF 16V
10uF 16V
10uF 16V
B5V_VCCA
10uF 16V
1
2
3
4
5
6
7
8
10uF 16V
10uF 16V
HDMI_SR_IN
C820
100uF 100nF 10nF
25V
C605
XREF
TP807
GND
C819
R603
68Kohm
C604
100ohm
R614
B
1
C112
10nF
C814
100nF
R606
68Kohm
R605
68Kohm
R102
100Kohm
D100
MMBD4148SE
XREF
PGND
C813
L103
680uH
C106
220pF
PGND
C810
C812
SOUND_AMP
R602
68Kohm 68Kohm
100uF
16V
C609
C608
10uF 16V
10uF 16V
0Y
VDD
2Y
2X
16
15
14
13
12
11
10
9
Y-COM 1X
3Y X-COM
1Y
0X
/EN
VEE
3X
A
VSS
B
R954
10Kohm
R956
10Kohm
Q972
KSC1623-Y
C
SOUND_SEL1
B
16V
47uF
IC605
R626
R628
E
MM74HC4052M
R631
PGND
PO P NO ISE SO LU TION
10Kohm
R912
C
68Kohm 68Kohm
68Kohm
SOUND_SEL2
B
Q973
R629
68Kohm
R630
R633
68Kohm
68Kohm
R627
R632
68Kohm
68Kohm
E
10Kohm
KSC1623-Y
R922
B8V
C616
L601
VCC5P
C617
10uH
1.5nF 470pF
B5V_VCCT
B1.8VD
C615
4.7Kohm
1/10W
C621
16V
10uF
10uF
16V
XREF
C6015
10uF
16V
C646
100nF
C653
KSC1623-Y
ANY_SC2_SL_OUT
C
B
R657
E
SC2_AV1_SL_IN
SC2_AV1_SR_IN
47Kohm
1/10W
L800
IC805
C655
C849
Q801
E
2SC2412K-Q
3
PGND
VOUT
VIN
2
100nF
25V
16V
10uF
27.0MHz
B1.8VD
C647
22pF
10uH
100nF
C652
L607
SGND
R650
8257_RESET
XREF
100ohm
C658
16V
10uF
I2S_LR_CLK
IRQ
VDD18_4
I2S_DATA1
I2S_DATA0
I2S_DATA2
SIF_P
SIF_N
VSS18_4
I2S_SCLK
C657
SGND
100nF
C660
B5V_VCCA
R656
33nF
16V
0ohm47ohm
47ohm
HP_L
SDA_STV8257
SGND
C663
33nF
16V
R658
XREF
R659
XREF
SGND
100nF
SGND
C667
47uF
B1.8VD
KDS184
D600
100Kohm
C664
SGND
B3.3VD
HP_R
100nF
L608
10uH
C666
330uF
16V
R663
R661
SGND
470nF R664
C670
1
2
3
4
20Kohm
470nF R666
Q603
KSA1182
TP600
IC602
LM4810MM
100Kohm
C668
SGND
EO, SO : STV8257 1204-002464
UO : STV8258 1204-002471
R660
SCL_STV8257
C665
IR_CNTR
VOUT1
VDD
VIN1
VOUT2
BYPASS
VIN2
GND
SHUTDOWN
20Kohm
8
7
6
5
100uF
16V
SGND
R667
100uF
16V
C669 1
100uF
16V
C671 1
XREF
XREF
1/10W
E
C673
MUTE_HP
XREF
HP_OUT_R
100Kohm
XREF
R668
4.7uF
HP_OUT_L
TP601
R61010Kohm
B
R670
C648
X600
POP_KILL
10Kohm
1/10W
L606
22pF
C639
100nF
C662
BD611_NT
C672
1/10W
4.7Kohm
100nF
100nF
100nF100nF 100nF 10uH
4.7Kohm
KSC1623-Y
E
VSS18_2
10Kohm
10KohmXREF
1/10W
R665
BUS_EXP
/RST
VDD18_2
VCC_NISO
B1.8VD
SGND
C642 C643 C644
C640 C641
R655
Q605
B
GND_PSUB
SC2_OUT_L
SC2_OUT_R
47uF
16V
I2S_CLK_AMP
R637 100ohm
ACB2012L-015-T
C
VSS18_ADC
S/PDIF_IN
10uF
16V
AP1117D-33A TP952
4.7Kohm
S/PDIF_OUT
GND33_LS
XREF
C613
R673
VSS18_3
VSS33_IO1
VDD33_IO1
VCC33_LS
R654
SGND
BD802
B3.3VD
IC307
R809
R651
VDD18_3
CK_TST_CTRL
SC2_IN_L
SC2_IN_R
R636 100ohm
PX_VL1.8
SW_POWER
XREF
B
C843
100uF 100nF 10nF
16V
100ohm
100ohm
CLK_SEL
GND_SA
VBG
XREF
47Kohm
1/10W
C
C
C848
100ohm
100ohm
R653
10uF
16V
10uF
16V
BD610_EU
C833
R805
6.8Kohm
1/10W
R601
C840
18pF
50V
L:POWER ON
H:OFF
4.7Kohm
1/10W
C841
R808
B
E
D800
SS24
R807
TP810
SIDE_AV_SL_IN
SIDE_AV_SR_IN
Q609
KSC1623-Y
ANY_SC2_SR_OUT
C842
1
C836
100uF
25V
TP812
3.3nF
R806
50V
C835
1
15Kohm
1/10W
100Kohm
1/10W
FB
100nF
25V
GND
100nF
25V
SW COMP
100nF
25V
C654
C656
C603
SGND
ACB2012L-015-T
C
C834
8
7
6
5
C839
BS
SS
MGND1
IN
EN
10uF
16V
XREF
R648
10uF
16V
XREF
XREF
120uF
6.3V
MP1583DN
1
2
3
4
CIB31P600NE
BD801
22uH
1/10W
100ohm
10nF
50V
BD803
R802
R804
C830
Stand by Power
10uF
16V
XREF
ANY_SC2_SL_OUT
ANY_SC2_SR_OUT
PX_VA1.8
SC1_IN_R
VREFA
XREF
B
PGND
1/10W
10Kohm
XTALIN_CLKXTP
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
E
PGND
10uF
16V
XTALOUT_CLKXTM
IC601
STV8257DSX
SGND
L605
10uH
47nF
22uF
16V
C
PGND
C650
100nF
C651
SGND
Q602
C633
SDA
XREF
SC1_COMP2_SR_IN
SGND
GND33_SC
SC1_IN_L
SCL
47Kohm
1/10W
ACB2012L-015-T
PGND
VCC18_CLK1
VSS18_1
1
R652
E
C649
BD800
PGND
GND18_CLK1
VDD18_1
C825
100nF
100nF
GND18_CLK2
VCC33_SC
/HP_DET
B
PX_VD1.8
C824
10V
22uF
C827
VSS33_IO2
VCC18_CLK2
SC3_OUT_L
ADR_SEL
1
100ohm
100ohm
VDD33_IO2
GND_H
VSS18_CONV
2
R644
R645
I2S_PCM_CLK
VCC_H
VDD18_CONV
VOUT
ADJ
10uF
16V
SC1_OUT_R
100nF
16V
10uF
B3.3VD
C634
C635
SC3_OUT_R
HP_LSS_R
VIN
C645
SC1_COMP2_SL_IN
470pF 1.5nF
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
3
C
C826
10uF
16V
KSC1623-Y
SC1_SR_OUT
MPZ2012S300A
TP951
AP1117D-25A
SC1_OUT_L
VDD18_ADC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
C636
C620
C619
SGND
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
100ohm
100ohm
R639
R640
10uF
16V
XREF
HP_LSS_L
10uF
16V
XREF
LS_R
C630
SC1_SL_OUT
SC1_SR_OUT
I2S_DATA_AMP
I2S_LRCLK_AMP
I2S_SCLK_AMP
C631 C632
XREF
LS_SUB
47Kohm
1/10W
Q601
LS_C
R646
LS_L
B
E
SGND
B2.5V_VDD
SC4_IN_R
C
ACB2012L-015-T
BD807
PGND
IC804
R638
560ohm
1/10W
TUNER_SIF
XREF
SGND
SC4_IN_L
100nF
C627
MONO_IN
100nF
C625
100nF 100nF
KSC1623-Y
VCC18_IF
Q600
SC1_SL_OUT
GND18_IF
PGND
B1.8VD
VSS33_CONV
C628
VDD33_CONV
Q800
2SC2412K-Q
XREF
XREF
C629
220nF
C626
E
10uH
50V
100pF
10nF
50V
16V
10uF
C624
C
B
L604
C623
C618
C622
R643
10Kohm
1/10W
10Kohm
XREF
16V
10uF
SGND
L603 10uH
R801
R803
PGND
SW_PVCC
L602
10uH
B3.3VD
GNDPW_IF
100Kohm
100nF
100uF
16V
8
7
6
5
1
2
3
4
SCL_FLT
FDS9933A
SCR_FLT
1uF
10V
SC3_IN_R
IC803
SC3_IN_L
C823
R800
C822
470Kohm
XREF
MUTE_HP
POP_KILL
D601
KDS184
Q606
KSC1623-Y
C674
1
C675
4.7nF
4.7nF
SGND
SGND
ADJ
PGND
1
SGND
A5V
A3.3V
A5V_1 A5V
Q802
E
C
B
3
3
100nF
C868
2
PGND
PGND
C853
C852
16V
10uF
100nF
16V
C854
C867
2
VOUT
ADJ
C866
D801
VIN
C851
22uF 100nF
16V 16V
AP1117D-33A
22uF
16V
R810
470ohm
C850
IC809
KSC1623-Y
1
C870
10V
1uF
PGND
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
C100
22uF
16V
C101
10nF
C104
2
MPZ2012S300A
CN800
SMW200-16P
IC813
IC800
1
100nF 10nF
100uF
16V
C859
B12VS
B5V_VCCA
100nF
BZX84C5V6LT1100nF
C855 C856
100nF
16V
16V
10uF
PGND
B3.3VD
PGND
PGND
C680
100nF
25V
BD600
CIC21J601NE
BD805
ACB2012L-015-T
C861
100nF
C684
10uF
C685
100nF
470uF
16V
C678
C686
16V
10uF
0ohm
0ohm
0ohm
I2S_SCLK_AMP
SOUND_AMP
I2S_LRCLK_AMP
32_
37_
40_
R691
R692
R693
I2S_DATA_AMP
XREF
I2S_CLK_AMP
1/10W
0ohm
1/10W
0ohm
1/10W
0ohm
1/10W
0ohm
100ohm
8257_RESET
SDA1
SCL1
R678
R679
1/10W
1/10W
100ohm
100ohm
1/10W
R680
R683
3.9Kohm
1/10W
C699
1uF
10V
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
N.C.
VCCSIGN
N.C.
VSS
OUT2B
VDD
VCC2B
GND
N.C.
VICKI
GND2B
LRCKI
GND2A
SDI
VCC2A
VDDA
MGND1
OUT2A
GNDA
OUT1B
XTI
VCC1B
PLLFILTER
GND1B
RES
GND1A
SDA
SCL
N.C.
VCC1A
RESET
OUT1A
CONFIG
GNDCLEAN
VD
VSUBS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
C688
330pF
50V
C6003 C6008
100pF
50V
C6009
220pF
50V
C681
C683
SGND
R675
100nF
50V
R677
C691
C692
L611_OP
100nF
50V
4.7ohm
1/4W
SGND
100nF
50V
C690
100nF
50V
470nF
C689
SOUND_AMP
SOUND_AMP
C693
4.7ohm
1/4W
100nF
50V
(22uH)
TP984
1
3
TP985
2
1
1
20037WR-03A00
MGND2
MGND1
CN600
(22uH)
CN601
20037WR-02A00
TP986
1 1
TP987
MGND1
1
2
MGND2
L612_OP
C694
330pF
50V
C696
VDDREG
R612
C695
100nF
50V
C6002
100nF
50V
R682
47ohm
47ohm
1/10W
C6004
100nF
25V
L614_OP
(22uH)
SOUND_AMP
R681
100nF
50V
4.7ohm
1/4W
C6001
100nF
50V
R684
4.7ohm
1/4W
C698
100nF
50V
470nF
C697
SOUND_AMP
SOUND_AMP
C6005
100nF
50V
C6006
C6007
50V
100pF
50V
100pF
B12VS
SGND
SOUND_AMP
SOUND_AMP
100nF
50V
R676
47ohm
1/10W
R611
47ohm
1/10W
SOUND_AMP SOUND_AMP
1/10W
SOUND_AMP
1.2nF
50V
C679
50V
100pF
L609_OP
IC603
STA323W
C687
100nF
50V
100pF
(22uH)
SOUND_AMP
PGND
26_
C677
100nF
50V
C676
C682
100nF
25V
SOUND_AMP
C6011
100nF
50V
C6010
470uF
16V
SOUND_AMP
SGND
SOUND AMP
DGND
PGND
9-1
9 Schematic Diagrams
’
9-2 Jack Schematic Diagram
SC A R T1
JA701_EU
SC1_SR_OUT
JA716
SC1_SL_OUT
470ohm
R407
SC1_COMP2_SL_IN
XREF
TP405
TP406
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
C403
100pF
C402_EU
100pF
100pF
AGND_IN
R414
47ohm
R415
47ohm
R418
47ohm
XREF
D418
XREF
R430_EU
R420_EU
D422_EU
D423_EU
D424_EU
3
R490_EU
3
R425
3
R424
3
R423
XREF
1/10W
51ohm
R422_EU
D410_NT
B5V_VCCA
D411_NT
1
SC1_B_COMP2_Pb
TP415
TP416
SC1_G_COMP2_Y
330ohm
R408
470ohm
SC1_R_COMP2_Pr
1
3
SC2_AV1_SR_IN
XREF
2
ANY_SC2_SL_OUT
XREF
470ohm
R411
4
6
SC2_AV1_SL_IN
XREF
1
C407
D407
D408
D409
100pF
18Kohm
C405
C406
100pF
100pF
100ohm
R417
AGND_IN
AGND_IN
SC2_AV_CVBS_OUT
R421_EU 100ohm
D421
D419_EU
D420_EU
SC2_CVBS
XREF
$V
RLZ16C
SC1_FB
D412_NT
C409_EU
C408_EU
47pF
100pF
DDC_VCC
HDMI_5V
CDS3C30GTH
2
1
2
1
2
D405
CDS3C30GTH
XREF
CDS3C30GTH
R427
R428_EU
6.8Kohm
75ohm
XREF
NTSC Delete
AGND_IN
H D M I_I
N PU T
AGND_IN
AGND_IN
SC1_CVBS_OUT
XREF
A5V
R302
D301
RLZ6.2B
DC1R019WDH
1/10W
1Kohm
AV1_CVBS
AGND_IN
MGND2
AGND_IN
1/4W
100ohm
R9012_OP
AGND_IN
IDENT_AV1
XREF
MGND3
AV1_SL_IN
XREF
C O MP2 _IN PU T
JA707_NT
AV1_SR_IN
XREF
6
9
RED
XREF
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
47ohm
DGND_IN
DGND_IN
C
B
KSC1623-Y
DGND_IN
E
CEC
R323
R324
R325
R326
R327
R328
R329
DDC_WP
IC301
U912
AT24C02N-10SC
1
2
3
4
VCC
E0
E1
MODE,/WC
SCL
E2
SDA
VSS
U910
U911
47ohm
R308
IDENT_HDMI_A
75ohm
75ohm
1Kohm
1/10W
DGND_IN
R322
10ohm 1/10W
10ohm
1/10W
DGND_IN
47Kohm
R318
R320
10Kohm
R316
R321 0ohm
8
7
6
5
MMBD4148SE
R313
NC
U913
R306
1
Q301
R312
CDS3C30GTH
CDS3C30GTH
D305
RLZ5.6B-TE-11
RLZ5.6B-TE-11
1 1
100pF
D428 D429_EU
10Kohm
100nF
D307
D304
DGND_IN
2
CN703
R303
C303
C302
AGND_IN
C410_EU
3
XREF
100ohm
SC1_AV1_CVBS_IN
XREF
$V
R434
47pF
10Kohm
16V
10uF
R432_EU
C411
75ohm
SERVICE_ANY_TX
XREF
D404
CDS3C30GTH
SC2_D4_CONT3_ID
XREF
R419_EU
6.8Kohm
R435
SERVICE_ANY_RX
XREF
100ohm
R409
1
Service
_AN Y_SO UN D
68ohm
AGND_IN
68ohm
TP403
AGND_IN
AGND_IN
CDS3C30GTH
CDS3C30GTH
CDS3C30GTH
R426
100ohm
R406
1
AGND_IN
CDS3C30GTH
CDS3C30GTH
CDS3C30GTH
CDS3C30GTH
C404
R416
TP400
5
100pF
D406
4
9
10
5
6
8
7
ANY_SC2_SR_OUT
330ohm
R410
TP970
100ohm
XREF
D425_EU
100ohm
150ohm 75ohm 75ohm 75ohm
SC1_D4_CONT1_ID
1 1
XREF
RLZ16C
TP941
100ohm
R413
AGND_IN
18Kohm
R412
1
1
1
1
1
TP419
TP420
1
1
TP417
TP418
C401
2
TP414
1
1
1
1
TP410
TP411
TP412
TP413
100pF
1
1
C400_EU
CDS3C30GTH
CDS3C30GTH
CDS3C30GTH
CDS3C30GTH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
TP407
TP408
TP409
D403
D402_EU
R405
XREF
TP401
TP402
TP404
JA702_EU
D401
SUPLVAL
JA711
SC1_COMP2_SR_IN
XREF
1 1
XREF
XREF
1
330ohm
WHITE
470ohm
R404_EU
RED
330ohm
R403
1 1 1
R402_EU
AGND_IN
D400_EU
Service
_AN Y
47Kohm
1/10W
1
47Kohm
1/10W R401_EU
1 1
R400_EU
U908
U909
HDMI_HOT_PLUG_A
D2_RXCLKD2_RXCLK+
10ohm 1/10W
10ohm
1/10W
10ohm 1/10W
10ohm
1/10W
10ohm
1/10W
D2_RX0D2_RX0+
D2_RX1D2_RX1+
D2_RX2-
D321
D322
D323
D324
3
3
3
3
3
3
D320
3
D2_RX2+
5
MGND1
10ohm
1/10W
3
WHT
R330
D326
D325
D327
A3.3V
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
4
MMBD4148SE
1
8
RED
DGND_IN
D300
RLZ5.6B-TE-11
7
JA718_JP
IDENT_COMP2
2
1
2
1
2
75ohm 75ohm
22ohm
75ohm
R497
R498
75ohm
100ohm
TP969
R499
VCC
D492
D493
1
XREF
470ohm
SDA
VSS
BD400
D2_DDC_SCL
D483
XREF
PC_H_SYNC
R444
AGND_IN
0ohm
100pF
10Kohm
PC_SCL
100pF
PC _IN PU T
0ohm
XREF
PC_V_SYNC
C413
R447
100ohmXREF
RED
1/10W
680Kohm
2
1
2
1
1/10W
680ohm
B5V_VCCA
1 U903
D 4_IN PU T
AGND_IN
0ohm
CDS3C30GTH
1
0ohm
CDS3C30GTH
WHITE
330pF
100pF
SIDE_SVIDEO INPUT
AGND_IN
6
TP967
1
COMP1_SL_IN
JA712_OP
TP937
AGND_IN
R477
8
1
47ohm
COMP1_Pr
1
XREF
6
4
R482
R488_OP
C437_EU
33pF
50V
C424
CDS3C30GTH
100pF
CDS3C30GTH
3
D471
CDS3C30GTH
D472
100pF
CDS3C30GTH
2
1
B5V_VCCA
D470
AGND_IN
AGND_IN
SIDE_AV INPUT
D961_OP
R489_OP
0ohm
R494_OP
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0ohm
0ohm
75ohm
AGND_IN
0ohm
R440_NT
0ohm
R441_NT
2
C936_EU
R442_NT
330pF
AGND_IN
AV1_CVBS
IDENT_AV1
XREF
AV1_SL_IN
NTSC Delete
NT
SIDE_AV
0ohm
7
9
D495_DE
D498_DE
8
D497_DE
D496_DE
R443_NT
R431_DE
XREF
AV1_SR_IN
B5V_VCCA
2
1
CDS3C30GTH
CDS3C30GTH
CDS3C30GTH 75ohm
MMBD4148SE
TP939
100ohm
XREF
R116
1
X902
*
47ohm
1
TP938
R117
1
HP_OUT_R
DGND_IN
U719
1
D975_OP
B5V_VCCA
SIDE_HP
D976_OP
CDS3C30GTH CDS3C30GTH
R119_OP R120_OP
U716
1
1Kohm
2
1
10
5
6
8
7
3
4
9
AGND_IN
AGND_IN
D979_OP
C948_OP C940_OP C949_OP
330pF
330pF
330pF
MMBD4148SE
dcjhp_10p
AGND_IN
JA717_OP
AGND_IN
AGND_IN
AGND_IN
9-2
HP_OUT_L
XREF
1
2
3
4
1
2
3
4
1
2
3
4
AGND_IN
AGND_IN
XREF
47ohm
R118
AGND_IN
IDENT_HP
TP940
TUNERGND
JA 710
JA 713
JA 700_1
JA 701
JA 700_2
O
O
JA 706
JA 705
O
100pF
XREF
XREF
5
RED
PA L
C946_OP
AGND_IN
0ohm
4
6
AGND_IN
AGND_IN
X901
*
JA 707
330pF
R115_OP
1
3
AGND_IN
JA 702
C947_OP
MMBD4148SE
JA714_OP
1
AGND_IN
AV2_CVBS
XREF
CDS3C30GTH
CDS3C30GTH
CDS3C30GTH
0ohm
1
D462
SIDE_AV_SR_IN
XREF
D962_OP D963_OP D964_OP
TP971
D461
C423
D467
B5V_VCCA
R479_OP
1
33pF
50V
CDS3C30GTH
AGND_IN
CN700_OP
3
75ohm C436_EU 75ohm
33pF
50V
3
1
COMP1_Y
R486
JA715
XREF
47ohm
100ohm
IDENT_SIDE_AV
YELLOW
75ohm C435_EU
R485
XREF
470ohm
SIDE_AV_SL_IN
R911
1
IDENT_COMP1
WHITE
R484
2
47ohm
470ohm
TP934
100ohm
XREF
3
R481
R948
1
XREF
0ohm
R480
R946
TP935
47ohm
COMP1_Pb
5
R114
TP936
XREF
R478
TP974
RED
NTSC Delete
C930_EU
2
4
COMP1_SR_IN
2
9
7
BLUE
C945_EU
R904_OP
1 U919
1 U918
1 U917
1
3
3
1
X900
*
AGND_IN
IDENT_SIDE_SVHS
75ohm
2
RED
470ohm
XREF
330pF
75ohm
D950_OP
5
470ohm
XREF
330pF
AGND_IN
C O MP 1_IN PU T
R474
C304
AGND_IN
AV2_SIDE_C
XREF
D949_OP
D946_OP
R476
DVI_SR_IN
D309
D308
B5V_VCCA
R910_OP
R493_OP
R492_OP
0ohm
6
4
470ohm
XREF
CDS3C30GTH
CDS3C30GTH
XREF
AGND_IN
5
470ohm
XREF
R311
C305
100ohm
R901
TP933
R491_OP
MMBD4148SE
JA713
R307
DVI_SL_IN
5
AV2_SIDE_Y
47ohm
R902
1
3
AGND_IN
AGND_IN
1
R903 47ohm
2
AGND_IN
AGND_IN
TP301
4
6
IDENT_D4
XREF
C420_JP
100nF
TP300
2
1
1 U905
D453_JP
1
3
D4_ID
R467_JP
R466_JP
3
3
D452_JP
DVI_S_IN
JA704
100pF
10Kohm
PC_SDA
AGND_IN
100ohm
1 U402
MGND1
GREEN
330pF
C412
1
C488
AGND_IN
330pF
AGND_IN
AGND_IN
BD401
C487
C484
C483
D484
AGND_IN
AGND_IN
CIM10J121NC
100pF
D2_DDC_SDA
XREF
PC_SL_IN
CDS3C30GTH
CDS3C30GTH
R445
22ohm
RLZ5.6B-TE-11 RLZ5.6B-TE-11
RLZ5.6B-TE-11
RLZ5.6B-TE-11
RLZ5.6B-TE-11
D494
MMBD4148SE
XREF
PC_SR_IN
TP956
CIM10J121NC
3
1
D491
R487
R446
D499
D490
1
2
E0
E1
PC_5V
XREF
IDENT_PC
1
1
TP484
AGND_IN
XREF
R465_JP
TP958
1 8
7
XREF
1
XREF
470ohm
3722-001061
MODE,/WC
47ohm
6 AT24C02N-10SC
3
SCL
E2
47ohm
5
4
R475
R495
AGND_IN
R496
TP489
TP966
DDC_WP
R429
IC483
10Kohm
10Kohm
R458
1
1 TP487
1 TP488
TP965
1
1
XREF
R459
1
WHITE
R464_JP
10uF
R472
MMBD4148SE
MMBD4148SE
MMBD4148SE
AGND_IN
330ohm
1/10W
R471
R473
D487
100nF
DGND_IN
TP483
1
TP486
TP968
D486
DDC_VCC
C486
C485
TP957
1
D485
1
1
B5V_VCCA
R462_JP
1Kohm
1 U401
R463_JP
XREF
3
3
3
R470
TP963
MGND1
MGND2
1 TP439
75ohm
PC_BLUE
2
AGND_IN
D 4_SO UN D
B5V_VCCA
1
8
2
9
3
10
4
11
5
12
6
13
7
14
R469
DGND_IN
4
9
10
5
6
8
7
PC_RED
75ohm
6
1
11
7
2
12
8
3
13
9
4
14
10
5
15
3
1
2
1
MGND2
2
B5V_VCCA
JA710_JP
XREF
PC_GREEN
JA709
TP964
105-15202N330
1
1
RED
WHITE
3
AGND_IN
AGND_IN
XREF
75ohm
5
6
4
D451_NT
SUPLVAL
75ohm
1uF
10V
PC_S_IN
JA708
R483
R468
TP959
100ohm
XREF
1
BLUE
3
2
GRN
R457_NT
1
0ohm
1
UJB-05-01A
C300
PC_IN
B5V_VCCA
U400
R456_NT
AGND_IN
AGND_IN
1Kohm
Japan
O
O
O
O
O
O
O
O
O
O
9 Schematic Diagrams
’
9-3 Micom Schematic Diagram
9-3
9 Schematic Diagrams
’
9-4 SVP-PX/PX-Power/LBE-Option Schematic Diagram
9-4
9 Schematic Diagrams
’
9-5 Application Schematic Diagram
9-5
9 Schematic Diagrams
Memo
9-6
10 Operating Instructions and Installation
10 Operating Instructions and Installation
10-1 Front
- The product color and shape may vary depending on the model.
1. SOURCE
5. SPEAKERS
Toggles between all the available input sources
(TV, AV1, AV2, S-Video1, S-Video2, Component, PC,
6. REMOTE CONTROL SENSOR
HDMI1, HDMI2).
Aim the remote control towards this spot on the TV.
In the on-screen menu, use this button as you would
use the ENTER
button on the remote control.
7.
(POWER)
Press to turn the TV on and off.
2. MENU
POWER INDICATOR
Press to see an on-screen menu of your TV's features.
Blinks and turns off when the power is on and lights
up in stand-by mode.
3.
Press to decrease or increase the volume.
In the on-screen menu, use the
you would use the
and
buttons as
buttons on the remote
control.
4.
<
CH
>
Press to change channels.
In the on-screen menu, use the < CH >
as you use the
and
buttons
buttons on the remote
control.
10-1
10 Operating Instructions and Installation
10-2 Connection Panel
LN-S2641D
LN-S3241D / LN-S4041D
1. AV IN 1
Video and audio inputs for external devices, such as
a camcorder or VCR.
S-VIDEO 1
Connect an S-Video signal from a camcorder or VCR.
2. AUDIO OUT
Connect to the audio input jacks on your Amplifier/
Home theater.
3. DIGITAL AUDIO OUT (OPTICAL)
Connect to a Digital Audio component.
4. SERVICE 1/SERVICE 2
Connector for service only.
5. HDMI/DVI IN 1/2, DVI IN
Connect to the HDMI jack of a device with an HDMI
output.
Use the HDMI/DVI terminal for DVI connection to an
external device. You should use the DVI to HDMI
cable or DVI-HDMI adapter (DVI to HDMI) for the
connection, and the DVI IN 'R -AUDIO -L' terminal
for audio.
- HDMI/DVI IN terminal does not support PC.
- No sound connection is needed for an HDMI to
HDMI connection.
10-2
6.
HEADPHONE (LN-S2641D)
Connect a set of external headphones for private lis
tening.
7. ANT 1 IN/ANT 2 IN
Connect to an antenna or to a cable TV system.
8. PC IN
Connect to the video and audio output jacks on your
PC.
9. COMPONENT IN
Connect component video/audio.
10. POWER INPUT
Connect the supplied power cord.
11. KENSINGTON LOCK
The Kensington lock (optional) is a device used to
physically fix the system when used in a public
place.
If you want to use a locking device, contact the deal
er where you purchased the TV.
The place of the Kensington Lock may be different
depending on its model.
10 Operating Instructions and Installation
10-2-1 Side Panel Jacks(LN32T71B / LN40T71B)
- Use the left side panel jacks to connect a component that is used only occasionally, such as a camcorder or
video game.
1. AV IN 2
Video and audio inputs for external devices.
S-VIDEO IN 2
Video inputs for external devices with an S-Video
output.
2.
HEADPHONE
Connect a set of external headphones for private lis
tening.
Speaker
Audio Out
RF
AV, S-Video
Component,
PC, HDMI
RF
AV, S-Video
Component, PC,
HDMI
Internal Mute Off
Speaker
Output
Speaker
Output
Speaker
Output
Speaker
Output
Speaker
Output
Speaker
Output
Internal Mute On
Mute
Mute
Mute
Speaker
Output
Speaker
Output
Speaker
Output
Video No Signal
Mute
Mute
Mute
Mute
Speaker
Output
Speaker
Output
10-3
10 Operating Instructions and Installation
10-3 Remote Control
- This is a special remote control for the visually impaired, and has Braille points on the Power, Channel and Volume buttons.
10-4
10 Operating Instructions and Installation
10-5
10 Operating Instructions and Installation
Memo
10-6
11 Disassembly and Reassembly
11 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the TFT-LCD
TV.
WARNING : This monitor contains electrostatically sensitive devices. Use caution when
handling these components.
11-1 Disassembly
Cautions : 1. Disconnect the monitor from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the
cabinet.
Description
Picture Description
1. Place monitor face down on cushioned table.
Remove 15 screws from the rear cover.
Remove 4 screws from the stand.
11-1
11 Disassembly and Reassembly
Description
2. Lift up the rear cover and remove the stand.
3. Remove screws from the stand BRKT and lift
up the stand BRKT.
11-2
Picture Description
11 Disassembly and Reassembly
Description
Picture Description
4. Disonnect cables from the boards.
5. Remove screws from the boards and lift up the
boards.
11-3
11 Disassembly and Reassembly
Description
6. Remove screw from the side connector.
Remove screws from the panel BRKT.
7. Lift up the panel BRKT.
11-4
Picture Description
11 Disassembly and Reassembly
Description
Picture Description
8. Lift up the LCD panel.
11-2 Reassembly
Reassembly procedures are in the reverse order of disassembly procedures.
11-5
11 Disassembly and Reassembly
Memo
11-6
12 PCB Diagram
12 PCB Diagram
12-1 26" Main PCB Diagram
12-1
12 PCB Diagram
12-2 32" , 40" Main PCB Diagram
12-2
12 PCB Diagram
12-3 26" SMPS board
12-3
12 PCB Diagram
12-4 32" SMPS board
12-4
12 PCB Diagram
12-5 40" IP Board
12-5
12 PCB Diagram
Memo
12-6
13 Circuit Descriptions
13 Circuit Descriptions
13-1 Block description
13-1-1 Block description with IP Board
Bordeaux consists of three main blocks
1. Main board : Video signal processing
2. IP board : Power supply & Inverter
3. T-con board : LCD Panel control
13-1
13 Circuit Descriptions
13-1-2 Block description with SMPS
Bordeaux consists of three main blocks
1. Main board : Video signal processing
2. SMPS : Power supply
3. T-con board : LCD Panel control
13-2
13 Circuit Descriptions
13-2 Main Block
13-3
13 Circuit Descriptions
13-3 SMPS Board
13-3-1 26", 32" SMPS Block
13-3-2 26", 32" SMPS Block
13-4
13 Circuit Descriptions
13-3-3 26" , 32" SMPS Block
13-3-4 26" , 32" SMPS Block
13-5
13 Circuit Descriptions
13-6
13 Circuit Descriptions
13-3-5 32" , 40" IP Board
13-3-6 32" , 40" IP Board
13-7
13 Circuit Descriptions
Memo
13-8
14 Reference Infomation
14 Reference Infomation
14-1 Technical Terms
- TFT-LCD
- Auto Configuration(Auto adjustment)
(Thin film Transistor Liquid Crystal Display)
ADC(Analog to Digital Converter)
This is an algorithm to adjust monitor to optimum
condition by pushing one key.
This is a circuit that converts from analog signal to
digital signals.
- OSD(On Screen Display)
On screen display. customer can control the
screen easily with this.
- PLL(Phase Locked Loop)
During progressing ADC, Device makes clock synchronizing HSYNC with Video clock
- Image Lock
This means "Fineness adjustment" in LCD
Monitor, the features are "Fine" and "Coarse"
- Inverter
Device that supply Power to LCD panel lamp. this
device gernerate about 1,500~2,000V.
- FINE
"Fine" adjustment is used to adjust visibility by
control phase difference.
- AC Adapter
Device that converts AC(90V~240V) to DC(+12V
or 14V)
- COARSE
This is a adjustment by tuning with Video colck
and PLL clock.
- SMPS(Switching Mode Power Supply)
Switching Mode Power supply. This design technology is used to step up/down the input power by
switching on/off
- FRC(Frame Rate Controller)
Technology that change image frame quantity displayed on screen for one second.
Actually TFT-LCD panel require 60 pcs of frame
for one second.
so,this technology is needed to convert input
image to 60 pcs regardless input frame quantity.
- Image Scaler
Technology that convert various input resolution to
other resolution.(ex. 640* 480 to 1024*768)
- DVI (Digital Visual Interface)
This provides a high speed digital connection for
visual data types that is display technology
independent. this interface is primarily forcused at
providing a connection between a computer and
its display device.
- L.V.D.S.(Low Voltage Differential Signaling)
a kind of transmission method for Digital.It can be
used from Main PBA to Panel.
- DVI (Digital Visual Interface)
This provides a high speed digital connection for
visual data types that is display technology independent. this interface is primarily forcused at providing a connection between a computer and its
display device.
14-1
14 Reference Infomation
- T.M.D.S
- Interlace and Non-Interlace Methods
(Transition minimized Differential Signaling)
a kind of transmission method for Digital.
Showing the horizontal lines of the screen from the
top to the bottom in order is called the Non-
It can be used from Video card to Main PBA.
Interlace method while showing odd lines and then
even lines in turn is called the Interlace method.
The Non-Interlace method is used for the majority
- DDC(Display data channel)
It is a communication method between Host
of monitors to ensure a clear image. The Interlace
method is the same as that used in TVs.
Computer and related equipment.
It can make it Plug and Play between PC and
Monitor.
- Plug & Play
This is a function that provides the best quality
screen for the user by allowing the computer and
- EDID
Extended Display Identification Data PC can
the monitor to exchange information automatically.
This monitor follows the international standard
recognize the monitor information as Product data,
VESA DDC for the Plug & Play function.
Product name,Display mode,Serial number and
Signal source,etc through DDC Line
communicating with PC and Monitor.
- Resolution
The number of horizontal and vertical dots used
to compose the screen image is called 'resolution'.
- Dot Pitch
The image on a monitor is composed of red, green
and blue dots. The closer the dots, the higher the
resolution. The distance between two dots of the
same color is called the 'Dot Pitch'. Unit: mm
This number shows the accuracy of the display.
High resolution is good for performing multiple
tasks as more image information can be shown on
the screen.
Example: If the resolution is 1280 x 1024 , this
- Vertical Frequency
The screen must be redrawn several times per
second in order to create and display an image for
the user. The frequency of this repetition per second is called Vertical Frequency or Refresh Rate.
Unit: Hz
Example: If the same light repeats itself 60 times
per second, this is regarded as 60 Hz.
- Horizontal Frequency
The time to scan one line connecting the right
edge to the left edge of the screen horizontally is
called Horizontal Cycle. The inverse number of the
Horizontal Cycle is called Horizontal Frequency.
Unit: kHz
means the screen is composed of 1280 horizontal
dots (horizontal resolution) and 1024 vertical lines
(vertical resolution).
- BTSC
Broadcast Television System Committee
The stereo broadcasting system that is used in
most of the countries that have adopted the NTSC
system, including the United States, Canada,
Chile, Venezuela and Taiwan. It also refers to the
organization that has been organized to promote
its development and management.
- EIAJ
Electronic Industries Association of Japan.
- RF Cable
A round signal cable generally used for TV antennas.
14-2
14 Reference Infomation
- Satellite Broadcasting
- Channel Fine Tuning
Broadcasting service provided via satellite.
Enables high picture quality and clear sound
This feature allows the viewer to fine-tune the TV
channel to obtain the best viewing conditions. The
throughout the country regardless of the location of
the viewer.
Samsung LCD TV has both automatic and manual
channel fine-tuning features to enable the viewer
to adjust their desired settings.
- Sound Balance
Balances the levels of the sound coming from
each speaker in televisions with two speakers.
- External Device Input
External device input refers to video input from
such external video devices as VCRs, camcorders
and DVD players, separate from a TV broadcast.
- Cable TV
Whereas the terrestrial broadcasting is delivered
via frequency signals through the air, cable broadcasting is transmitted via a cable network. In order
to view cable TV, one must purchase a cable
receiver and hook it up to the cable network.
- CATV
"CATV" refers to the broadcasting service offered
at hotels, schools and other buildings through their
own broadcasting system, apart from VHF or UHF
broadcasting by terrestrial broadcasters. The
CATV programs may include movies, entertainment and educational programs. (Different from
cable TV.)
CATV can be viewed only within the area in which
the CATV service is offered.
- S-Video
Short for "Super Video." S-Video allows up to 800
lines of horizontal resolution, enabling high-quality
video.
- VHF/UHF
VHF indicates TV channels 2 to 13, and UHF indicates channels 14 through 69.
14-3
14 Reference Infomation
14-2 Pin Assignments
14-2-1 DVI-D
Sync
Type
Pin No.
24P DVI-D
1
Rx2-
13
NC
2
Rx2+
14
DDC Input power (+5V)
3
GND
15
IDENT-DVI
4
NC
16
Output Signal (HDCP Control)
5
NC
17
Rx0-
6
DDC - SCL
18
Rx0+
7
DDC - SDA
19
GND
8
NC
20
NC
9
Rx1-
21
NC
10
Rx1+
22
GND
11
GND
23
RxC+
12
NC
24
RxC-
Figure 1.
14-4
14 Reference Infomation
14-2-2 Component
14-2-3 S-Video
Y
Pin
Separate
GND
1
2
3
4
5
GND
Y
C
GND
GND
RCA Green
Pb (Cb)
RCA Blue
GND
Pr (Cr)
RCA Red
GND
Audio L
14-2-5 D-SUB
RCA White
GND
Audio R
RCA Red
GND
14-2-4 A/V
RCA Yellow
CVBS
Audio L
RCA White
GND
Audio R
RCA Red
GND
Pin
Separate
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Red
Green
Blue
GND
GND
GND Red
GND Green
GND Blue
DDC Input power(+5V)
IDENT PC
GND
DDC Data(SDA)
H SYNC
V SYNC
DDC Clock(SCL)
14-2-6 PC Display mode
Both screen position and size will vary depending on the type of PC monitor and its resolution.
The resolutions in the table are recommended. (All resolutions between the supported limits are supported)
Mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
Pixel Clock
Frequency (MHz)
Sync Polarity
(H/V)
IBM
640 x 480
720 x 400
31.469
31.469
59.940
70.087
25.175
28.322
-/-/+
VESA
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
1024 x 768
1024 x 768
1024 x 768
1360 x 768
37.861
37.500
37.879
48.077
46.875
48.364
56.476
60.023
47.712
72.809
75.000
60.317
72.188
75.000
60.000
70.069
75.029
60.015
31.500
31.500
40.000
50.000
49.500
65.000
75.000
78.750
85.800
-/-/+ /+
+ /+
+ /+
-/-/+ /+
+ /+
- The interlace mode is not supported.
- The set might operate abnormally if a non-standard video format is selected.
- DVI dose not support PC function.
14-5
14 Reference Infomation
14-3 Timing Chart
This section of the service manual describes the timing that the computer industry recognizes as standard for computergenerated video signals.
14-3-1 LCD Panel Mode1 mode
14-6
14 Reference Infomation
14-3-2 Supported Modes (1)
14-7
14 Reference Infomation
14-3-3 Supported Modes (2)
14-8
14 Reference Infomation
14-3-4 Supported Modes (3)
14-9
14 Reference Infomation
14-4 Panel Description
Maker
VENDOR P/N
PANEL_CODE
PANEL_ABB
STICKER_CODE
SEC
LT140X1-002
BN07-00004A
SA
SEC
LT150XS-L01
BN07-00009A
SB
-
SEC
LT150XS-L01-B
BN07-00022A
SC
-
SEC
LTM150XS-L02
BN07-00005A
SD
-
SEC
LT181E2-132
BN07-00001A
SE
-
SEC
LT150XS-T01
BN07-00010A
SF
-
SEC
LTM181E3-132
BN07-00019A
SG
-
SEC
LT170E2-131
BN07-10001D
SH
-
SEC
LT181E2-131
BN07-10001E
SJ
-
SEC
LTM170E4-L01
BN07-00018A
SK
-
SEC
LTM240W1-L01
BN07-00015A
SL
-
SEC
LTM213U3-L01
BN07-00016A
SM
-
SEC
LTM150XH-L01
BN07-00026A
SN
SEC
LTM150XH-L03
BN07-00027A
SP
-
SEC
LTM150XS-L01
BN07-00032A
SQ
DELL(ZPD)
SEC
LTM181E4-L01
BN07-00034A
SR
PVA
SEC
LTM170EH-L01
BN07-00036A
SS
TN
SEC
LTM170E5-L01
BN07-00037A
SU
PVA
SEC
LTM150XH-L11
BN07-00041A
SV
-
SEC
LTM213U4-L01
BN07-00039A
SW
PVA
SEC
LTM150XH-L01(ZPD)
BN07-00045A
SX
ZPD
SEC
LTM150XH-L04
BN07-00046A
SY
New panel with high brightness
SEC
LTM170W1-L01
BN07-00047A
SZ
Panel for TV
SEC
LTM150XH-L06
BN07-00053A
EA
Panel for TV/ High luminance for 450cd _ SONY&EOS Team Panel for TV
SEC
LTM153W1-L01
BN07-00054A
EB
Use NIKE MODEL
SEC
LTM170EH-L05
BN07-00055A
EC
Panel EOS proj. for high brightness of 17" EH-L05
SEC
LTM170E5-L03
BN07-00056A
ED
Dell 1702FP pro. E4. EH mechanical Compatible
SEC
LTM190E1-L01
BN07-00057A
EE
DELL 1900 FP
SEC
LTM181E5-L01
BN07-00061A
EF
18" narrow bezel GH18PS
SEC
LTM150XP-L01
BN07-00065A
EG
AMLCD PVA PANEL
SEC
LTM240W1-L02
BN07-00062A
EH
Panel for 15" Wide TV
SEC
LTM170EU-L01
BN07-00071A
EJ
Slim design, TN
SEC
LTM170E5-L04
BN07-00072A
EK
E5-L04 6 bits FRC... for IBM
SEC
LTA220W1-L01
BN07-00074A
EL
Panel for 22" TV
SEC
LTM170E6-L02
BN07-00075A
EM
AMLCD Narrow & slim design 17" PVA mode
SEC
LTM170W1-L01
BN07-00082A
EN
LTM170W1-L01 ZPD panel
SEC
LTM170EH-L01
BN07-00080A
EP
LTM170EH-L01 ZPD panel
SEC
LTM170E5-L01
BN07-00081A
EQ
LTM170E5-L01 ZPD panel
SEC
LTM170EH-L05
BN07-00083A
ER
LTM170EH-L05 ZPD panel
SEC
LTM170E5-L03
BN07-00084A
ES
LTM170E5-L03 ZPD panel
SEC
LTM170EU-L01
BN07-00085A
ET
LTM170EU-L01 ZPD panel
SEC
LTM170E5-L04
BN07-00086A
EU
LTM170E5-L04 ZPD panel
SEC
LTM170E6-L02
BN07-00087A
EV
LTM170E6-L02 ZPD panel
SEC
LTM150XH-L06
BN07-00091A
EW
Color coordinates change for LCD TV
SEC
LTM153W1-L01
BN07-00092A
EX
AMLCD WIDE 15",9/10
SEC
LTM170W1-L01
BN07-00100A
EY
Color Coordinates change code management
SEC
LTM170EH-L05
BN07-00097A
EZ
LTM170E5-L05 Color Coordinates Change Panel Code
14-10
BN68-00239H
Remarks
-
14 Reference Infomation
Maker
VENDOR P/N
PANEL_CODE
BN07-00109A
PANEL_ABB
S1
STICKER_CODE
Remarks
SEC
LTA400W1-L01
PANEL of AMLCD 40" TV
SEC
LTM153W1-L01
BN07-00110A
S2
Color coordinates change 0.280/0.290, 10000k & ZPD Panel
SEC
LTM150XH-L06
BN07-00111A
S3
Color coordinates change 0.280/0.290, 10000k & ZPD Panel
SEC
LTM170W1-L01
BN07-00112A
S4
Color coordinates change 0.280/0.290, 10000k & ZPD Panel
SEC
LTM170EH-L05
BN07-00113A
S5
Color coordinates change 0.280/0.290, 10000k & ZPD Panel
SEC
LTM220W1-L01
BN07-00114A
S6
ZPD Panel for AMLCD 22" TV
SEC
LTM150XH-L06
BN07-00117A
S7
ZPD Panel code
SEC
LTM153W1-L01
BN07-00118A
S8
ZPD Panel code
SEC
LTM170WP-L01
BN07-00119A
S9
PVA Panel for NIKE
SEC
LTM213U4-L01
BN07-00039A
E1
21.3" NARROW
SEC
LTA260W1-L01
BN07-00121A
E2
VENUS
SEC
LTA220W1-L01
BN07-00074B
E3
"Panel B-level panel code for 22"" TV Panel "
SEC
LTA320W1-L01
BN07-00108A
E4
"Panel for AMLCD 32"" TV"
SEC
LTM213U4-L01
BN07-00124A
E5
NARROW BEZEL 21 " PANEL
SEC
LTM170E6-L04
BN07-00129A
E6
"HIGHLAND 17"" LOW PANEL (Panel only for TCO03)"
SEC
LTM190E1-L01
BN07-00088A
E7
LTM190E1-L01 ZPD panel
SEC
M150X4-L06
BN07-00137A
E8
15" Narrow & Slim panel
SEC
LTA170V1
BN07-00139A
E9
"17"" Panel for Muse 4:3 VGA TV"
SEC
LTM190E1-L02
BN07-00128A
E10
"New Panel from AMLCDl, Specification : 6bit Driver IC"
SEC
LTM170EX-L01
BN07-00143A
E11
"Development new Panel from AMLCD"
SEC
LTM170E8-L01
BN07-00144A
E12
"Development new Panel from AMLCD"
SEC
LTM170E6-L04
BN07-00129B
E13
"ZPD panel for AMLCD (Panel only for TCO03)"
SEC
LTA320W1-L02
BN07-00108B
E14
"Creat B-level Panel code for AMLCD 32"" TV"
SEC
LTM190E1-L03
BN07-00151A
E15
"Development new 19"" Panel form AMLCD (Panel only for TCO03)"
SEC
LTM240W1-L03
BN07-00134A
E16
"AMLCD 24"" panel development"
SEC
LTM190E1-L02
BN07-00128B
E17
"New Panel from AMLCD, Specification : 6bit Driver IC(ZPD)"
SEC
LTM190E4-L01
BN07-00145A
E18
"AMLCD 24"" new panel development"
SEC
LTM170E8-L01
BN07-00158A
E19
"ZPD code derivation"
SEC
LTM170EX-L01
BN07-00159A
E20
"ZPD code derivation"
SEC
LTM190E1-L03
BN07-00151B
E21
"Creat new panel code for AMLCD 19"" (Panel only for TCO03)"
SEC
LTA460H1-L01
BN07-00157A
E22
"creat panel code for AMLCD 46"" TV "
SEC
LTM170EU-L11
BN07-00160A
E23
"creat new panel code for AMLCD 17"" (Panel only for TCO03)"
SEC
LTM240W1-L03
BN07-00134B
E24
"24"" panel ZPD code derivation"
SEC
LTM190E4-L01
BN07-00145B
E25
"AMLCD 19"" ZPD Panel code derivation"
SEC
LTM240W1-L03
BN07-00134B
E26
"24"" panel ZPD code derivation"
SEC
LTM150XO-L01
BN07-00164A
E27
"AMLCD 15"" XO-L01 new panel development"
SEC
LTM150XO-L01
BN07-00164B
E28
"AMLCD 15"" XO-L01 ZPD code derivation"
SEC
LTM170EU-L11
BN07-00160B
E29
"AMLCD 17"" NEW panel code derivation"
SEC
LTA320W2-L01
BN07-00172A
SPZ
AMLCD 32" NEW panel
SEC
LTM213U4-L01
BN07-00124B
SPZ
21.3" Narrow PANEL ZPD Panel derivation
SEC
LTM170EU-L11
BN07-00189A
STH
AMLCD EU-L11 Pb free panel code derivation
SEC
LTM170EU-L11
BN07-00189B
STZ
AMLCD EU-L11 Pb free panel ZPD code derivation
SEC
LTM240W1-L04
BN07-00188A
SPH
24" A-DCC new panel development
SEC
LTM240W1-L04
BN07-00188B
SPZ
24" A-DCC panel ZPD code derivation
SEC
LTM190EX-L01
BN07-00191A
STH
AMLCD 19" TN new Panel
SEC
LTM190EX-L02
BN07-00191B
STZ
AMLCD 19" TN new Panel ZPD derivation
SEC
LTA230W1-L02
BN07-00184A
SPZ
AMLCD 23" 16:9 new Panel
14-11
14 Reference Infomation
Maker
VENDOR P/N
PANEL_CODE
PANEL_ABB
STICKER_CODE
Remarks
SEC
LTA260W2-L01
BN07-00185A
SPZ
AMLCD 26" 16:9 new Panel
SEC
LTM240M1-L01
BN07-00195A
SPH
24" panel with high brightness deveiopment
SEC
LTA400W2-L01
BN07-00186A
SPZ
AMLCD 40" 16:9 new Panel
SEC
LTM150XO-L01
BN07-00197A
STH
AMLCD 15" XO-L01 Pb free panel code
SEC
LTM150XO-L01
BN07-00197B
STZ
AMLCD 15" XO-L01 Pb free panel ZPD code
SEC
LTM170EU-L21
BN07-00202A
STZ
AMLCD EU-L21 ZPD new code derivation
SEC
LTA460W2-L03
BN07-00187A
SPZ
BEETOVEN 46"ZPD new panel
SEC
LTM240M1-L01
BN07-00195B
SPZ
24" igh brightness panel ZPD code derivation
SEC
M170EX-L21
BN07-00206A
STZ
AMLCD LTM170EX-L21 ZPD new code derivation
SEC
LTA460H3-L01
BN07-00200A
SPZ
AMLCD 46" LED BLU panel
SEC
LTM170EU-L15
BN07-00214A
STZ
AMLCD EU-L15 TV high brightness ZPD new code derivation
SEC
LTM170E8-L21
BN07-00218A
SPZ
AMLCD LTM170E8-L21 PVA ZPD new code derivation
SEC
LTM190EX-L21
BN07-00222A
STZ
DISPLAY LCD
SEC
LTM201U1-L01
BN07-00190B
SPZ
AMLCD 20.1" Normal panel ZPD code derivation
SEC
LTM190E4-L21
BN07-00223A
SPZ
HAYDN 17" PZD code PANEL derivation
SEC
LTA570H1-L01
BN07-00196A
SPZ
AMLCD 57" new panel development
SEC
LTM150XO-L21
BN07-00229A
STZ
AMLCD 15" XO-L21 8ms panel code
SEC
LTA260W2-L11
BN07-00239A
SPZ
AMLCD 26" 16:9 7Line new Panel
SEC
LTA400WS-LH1
BN07-00245A
SPZ
AMLCD 40" 16:9 SPVA 90% new Panel
SEC
LTM213U6-L01
BN07-00231A
SPZ
AMLCD 21.3" PVA new Panel Code
SEC
LTA320WS-LH2
BN07-00244A
SPZ
AMLCD 32" 16:9 SPVA 90% new Panel
SEC
LTA400WS-LH1
BN07-00245A
SPZ
AMLCD 40" 16:9 SPVA 90% new Panel
CPT
CLAA150XG09
BN07-00141A
PA
"CPT 15"" Monitor new panel development"
CPT
CLAA170EA02
BN07-00148A
PB
"17"" CPT NEW development panel"
CPT
CLAA170EA02
BN07-00148B
PC
"17"" CPT ZPD panel code derivation"
CPT
CLAA150XG09
BN07-00141B
PTZ
"CPT 15"" panel ZPD code derivation (GOYA-PJT)"
CPT
CLAA150XP01
BN07-00173A
PTH
CPT 15" PSWG code derivation
CPT
CLAA150XP01
BN07-00173B
PTZ
CPT 15" PSWG panel ZPD code
CPT
CLAA170EA07
BN07-00174A
PTH
"CPT 17"" PSWG panel code derivation
CPT
CLAA170EA07
BN07-00174B
PTZ
CPT 17"""" PSWG type new Panel code"""
CPT
CLAA170EA07
BN07-00174B
PTZ
CPT 17" PSWG type new Panel code
CPT
CLAA170EA07Q
BN07-00220A
PTZ
CPT 17" PSWG R/T 8msec code derivation
CPT
CLAA170EA07Q
BN07-00220B
PTH
CPT 17" PSWG R/T 8msec HPD code derivation
CPT
CLAA150XP01F
BN07-00236A
PTZ
CPT 15" PSWG panel ZPD & Lead free code derivation
TOSHIBA
LTM15C419(A)
BN07-00002A
TA
-
TOSHIBA
LTM15C423(B)
BN07-00006A
TB
-
TOSHIBA
LTM18C161
BN07-00008A
TC
-
TOSHIBA
LTM15C443
BN07-00031A
TD
-
TOSHIBA
LTM15C458
BN07-00043A
TE
-
TOSHIBA
LTM15C458S
BN07-00077A
TF
"TSB 15"" high brightness Panel"
TOSHIBA
LTM15C458
BN07-00078A
TG
Toshiba ZPD panel
TOSHIBA
LTM15C458S
BN07-00099A
TH
TSB LTM15C458S ( ZPD )
HANNSTAR
HSD150MX41A(A)
BN07-00020A
NA
"TTL type"
HANNSTAR
HSD150MX12
BN07-00030A
NB
"TTL type"
HANNSTAR
HSD170ME13
BN07-00180A
NTH
Hannstar 17" TN new panel development
HANNSTAR
HSD170ME13
BN07-00180B
NTZ
Hannstar 17" TN new panel development ZPD code derivation
HANNSTAR
HSD190ME12
BN07-00210A
NTZ
Hannstar 19" TN new panel development
14-12
14 Reference Infomation
Maker
VENDOR P/N
PANEL_CODE
PANEL_ABB
STICKER_CODE
Remarks
HANNSTAR
HSD150MX17-A
BN07-00226A
NTZ
Hannstar 15" slim panel ZPD code derivation
TORISAN
TM150XG-22L03(A)
BN07-00021A
RA
-
TORISAN
TM150XG-26L06
BN07-00042A
RB
-
TORISAN
TM181SX-76N01
BN07-00048A
RC
-
TORISAN
TM150XG-26L06
BN07-00059A
RD
15" XGA TN MODE(ZPD)
TORISAN
TM290WX-71N31
BN07-00063A
RE
"RS24NS (TORISAN 29"" NEW PANEL)"
TORISAN
TM396WX-71N31
BN07-00064A
RF
"RS24NS (TORISAN 40"" NEW PANEL)"
TORISAN
TM150XG-26L09
BN07-00073A
RG
"Panel for 15"" TV"
TORISAN
TM150XG-26L10
BN07-00089A
RH
"L10(change except D/IC) ZPD"
TORISAN
TM150XG-26L10
BN07-00090A
RJ
L10 NORMAL
TORISAN
TM190SX-70N01
BN07-00098A
RK
Torisan 19" Panel
TORISAN
TM181SX-76N01
BN07-00106A
RL
ZPD Panel code
TORISAN
TM190SX-70N01
BN07-00107A
RM
ZPD Panel code
TORISAN
TM290WX-71N31
BN07-00115A
RN
"Color Coordinates change panel for TORISAN 29"" TV"
TORISAN
TM396WX-71N31
BN07-00116A
RP,Q
"Color Coordinates change panel for TORISAN 40"" TV"
TORISAN
TM22OWX-71N31
BN07-00125A
RR
"Development TORISAN 22"" TV PANEL (ZPD)"
TORISAN
TM22OWX-71N31
BN07-00127A
RS
"Development TORISAN 22"" TV PANEL (HPD)"
TORISAN
TM396WX-71N32A
BN07-00150A
RT
120V inverter Exclusive panel
TORISAN
TM190SX-70N02
BN07-00154A
RMH
Torisan 6bit panel code Derivation
TORISAN
TM190SX-70N02
BN07-00154B
RMZ
Torisan 6bit panel code Derivation
TORISAN
TM150XG-A01
BN07-00162A
RTH
Torisan 15" Narrow & Slim panel development
TORISAN
TM150XG-A01
BN07-00162B
RTZ
Torisan 15" N&S panel ZPD code Derivation
SHARP
LQ181E1DG11(A)
BN07-10001C
PA
-
SHARP
LQ150X1LW71
BN07-00067A
PB
SHARP 15" PVA PANEL
SHARP
LQ370T3LZ41
BN07-00216A
FAZ
Rome2
HITACHI
TX38D12VC0CAA(A)
BN07-00003A
HA
-
HITACHI
TX43DVCOCAB
BN07-00060A
HB
17" SXGA PVA MODE
HITACHI
TX43D15VC0CAB
BN07-00101A
HC
ZPD Panel
HITACHI
TX51D11VC0CAB
BN07-00122A
HD
20.1" NARROW
HITACHI
TX54D11VC0CAB
BN07-00123A
HE
21.3" NARROW
HITACHI
TX80D12VC0CAB
BN07-00169A
HIZ
"Development new panel for Hitachi 32"" TV (ZPD)"
HITACHI
TX54D11VC0CAB
BN07-00123B
HIZ
Hitachi 21.3"ZPD panel
IBM
ITSX94S
BN07-00017A
IA
-
UNIPAC
UM170E0
BN07-00028A
UA
Loaded by cisdba
HYUNDAI
HT15X13
BN07-00035A
DA
-
HYUNDAI
HT17E11-200
BN07-00049A
DB
TN MODE
HYUNDAI
HT17E11-300
BN07-00093A
DC
HT17E11-300 ZPD panel
HYUNDAI
HT17E11-400
BN07-00094A
DD
HT17E11-400 normal panel
HYUNDAI
HT17E11-400
BN07-00095A
DE
HT17E11-400 ZPD panel code
HYUNDAI
HT17E12
BN07-00096A
DF
HT17E12 ( Narow & slim Design )
HYUNDAI
HT17E12
BN07-00105A
DG
ZPD Panel code
HYUNDAI
HT15X15-D00
BN07-00146A
DH
"Development for Ares 15"" Hydis TV"
HYUNDAI
HT15X15-D01
BN07-00146B
DJ
"Derivation panel HPD for Ares 15"" Hydis TV "
HYUNDAI
HT17E13-100
BN07-00167A
DTH
"PINEHURST-2(IBM) PJT 17"" HYDIS PANEL Derivation"
HYUNDAI
HT17E13-100
BN07-00167B
DTZ
"PINEHURST-2(IBM) Hydis 17"" ZPD code Derivation"
ACER
L170E3
BN07-00044A
AA
TN(ADT)
ACER
M170EN05
BN07-00076A
AB
AU 17" Panel ( Narrow & slim design )
14-13
14 Reference Infomation
Maker
VENDOR P/N
PANEL_CODE
PANEL_ABB
STICKER_CODE
Remarks
ACER
M170EN05
BN07-00102A
AC
ZPD Panel code
ACER
M190EN02
BN07-00170A
AMH
"AU Monitor 19"" new panel development (P19-1S)"
ACER
M190EN02
BN07-00170B
AMZ
"AU 19"" ZPD code derivation (ZPD)"
ACER
M170EN06
BN07-00171A
ATH
"AU Monitor 17"" New panel development "
ACER
T260XW01
BN07-00163A
AMZ
"AU 26"" new panel development (NF26EO)"
ACER
A201SN01
BN07-00177A
ATZ
"AU TV panel 20.1"" TN SVGA new panel development"
ACER
M170EN06
BN07-00171B
ATZ
AU Monitor 17" ZPD code derivation
ACER
T315XW01
BN07-00194A
AMZ
AU 32" new
ACER
M170EG01
BN07-00192A
ATH
AU TN PSWG type new Panel code
ACER
M170EG01
BN07-00192B
ATZ
AU TN PSWG type NEW panel code derivation
ACER
M190EN04
BN07-00203A
ATH
AU Monitor 19" ZPD new Panel code
ACER
T260XW02
BN07-00208A
AMZ
AUO 26" ZPD panel
ACER
M170EG01 V8
BN07-00221A
ATZ
AU TN PSWG type new Panel (8msec) ZPD code derivation
ACER
T260XW02
BN07-00233A
AMZ
AUO 26" Panel new (Cosmetic spec down grade)
ACER
T315XW01
BN07-00234A
AMZ
AUO 32" Grade new (Cosmetic spec down grade)
ACER
M190EN03
BN07-00224A
AMZ
AU Monitor 19" MVA new code derivation
ACER
T315XW01
BN07-00237A
AMZ
LCD TV VE project new
ACER
T315XW01
BN07-00238A
AMZ
LCD TV VE project new
ACER
M201UN02 V3
BN07-00168A
AMZ
CHIMEI
M170E3-LO1
BN07-00050A
CA
CHIMEI
M150X3-L01
BN07-00051A
CB
COMPATIBLE
CHIMEI
M170E4-L01
BN07-00052A
CC
MVA PANEL
CHIMEI
M150X2-L01
BN07-00066A
CD
CHIME 15"I PVA PANEL
CHIMEI
M150X3-L01
BN07-00079A
CE
Chimei ZPD panel
CHIMEI
M170E3-L01
BN07-00103A
CF
ZPD Panel code
CHIMEI
M170E4-L01
BN07-00104A
CG
ZPD Panel code
CHIMEI
V296W1-L01
BN07-00120A
CH
MVA
CHIMEI
M170E6-L02
BN07-00126A
CJ
HIGHLAND 17" LOW PANEL
CHIMEI
M190E2-L01
BN07-00131A
CK
GH19AS,BS CHIMEI PANEL
CHIMEI
M150X4-L06
BN07-00137A
CL
15" Narrow & Slim panel
CHIMEI
M170E6-L01
BN07-00133A
CM
"2003-03-11 vendor change"
CHIMEI
M170E6-L01
BN07-00133B
CN
ZPD derivation panel
CHIMEI
V201V1-T01
BN07-00135A
CP
CHIMEI 20.1" panel development
CHIMEI
M170E6-L02
BN07-00126B
CQ
"HIGHLAND 17"" LOW PANEL ZPD derivation panel"
CHIMEI
M170E6-L05
BN07-00152A
CR
"CMO 17"" new panel development code"
CHIMEI
M170E6-L05
BN07-00152B
CS
"CMO 17"" ZPD panel code derivation"
CHIMEI
M150X4-L06
BN07-00137B
CT
Chimei 15" Narrow & Slim panel ZPD derivation
CHIMEI
M170E5-L05
BN07-00165A
CTH
CMO 17" new panel development code (GOYA2-PJT)
CHIMEI
M170E5-L05
BN07-00165B
CTZ
CMO 17" ZPD panel(GOYA2-PJT)
CHIMEI
V230W1-L02
BN07-00209A
CMZ
CMO 23" development
CHIMEI
V320B1-L01
BN07-00207A
CMZ
CMO 32" development
CHIMEI
V270W1-L01
BN07-00136A
CMZ
CHI MEI 27" panel development
NEC
SVA150XG04TB
BN07-00225A
BTZ
SVA NEC 15" panel ZPD code
14-14
TN PANEL
14 Reference Infomation
Memo
14-15
- This Service Manual is a property of
Samsung Electronics Co., Ltd.
Any unauthorized use of Manual can be
punished under applicable International
and/or domestic law.
Samsung Electronics Co.,Ltd.
416, Maetan-3Dong, Yeongtong-Gu, Suwon City,
Gyeonggi-Do, Korea, 443-742
Printed in Korea
P/N : BN82-00139U-00
URL : http://itself.sec.samsung.co.kr/
