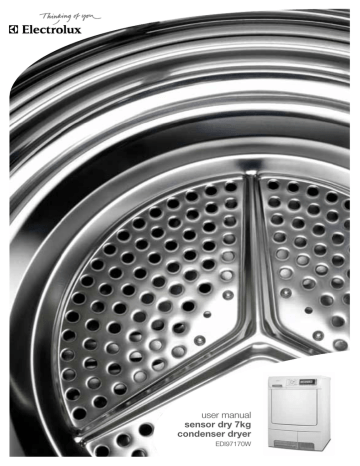

user manual
sensor dry 7kg
condenser dryer
EDI97170W
electrolux contents i
Congratulations
Congratulations and thank you for choosing
our EDI97170W tumble dryer. We are sure
you will find your new tumble dryer a pleasure
to use. Before you use your tumble dryer, we
recommend that you read through the whole
user manual, which provides the description
of the tumble dryer and its functions.
To avoid the risks that are always present when
you use an electrical appliance it is important
that the tumble dryer is installed correctly and
that you read the safety instructions carefully
to avoid misuse and hazards. We recommend
that you keep this instruction booklet for future
reference and pass it on to any future owners.
After unpacking the tumble dryer please check
it is not damaged. If in doubt, do not use the
appliance but contact your local Electrolux
Service Centre.
The symbols you will see in this booklet have
these meanings:
Contents
Product description......................................ii
Control panel............................................... iii
What is shown in the display...................... iii
Important safety information.......................1
Environment..................................................3
Before first use.............................................4
Sorting and preparing laundry....................4
Starting up for the first time........................5
Iron AidTM Steam System.............................5
Starting an Iron AidTM program....................9
Drying..........................................................11
Starting a drying program.........................13
Drying rack..................................................13
Cleaning and maintenance........................15
What to do if... ............................................18
Technical data.............................................20
Machine settings........................................21
Installation...................................................21
Service.........................................................26
Warranty......................................................26
Conditions of use
This appliance is intended to be used in
household and similar applications such as:
• Farm houses
• By clients in serviced apartments,
holiday apartments and other residential
type environments.
This symbol indicates information
concerning your personal safety
This symbol indicates tips and information
about economical and ecological use of
the dryer
dangerous voltage
This symbol indicates information
on how to avoid damaging the dryer
This symbol indicates risk of injury from
electrical current
caution risk of fire
This symbol indicates tips and information
about use of the dryer
This symbol indicates that extreme care must
be taken to avoid a fire
ii electrolux product description
Product Description
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
Control panel
Fluff filters
Loading door (reversible)
Ventilation grille
Adjustable feet
Water recirculation valve/filter,
Filler neck for steam water tank
Drawer with condensed water container
8
9
10
11
12
13
14
Drum light
Drying rack
Push button for base door opening
Rating Plate
Heat exchanger
Drainage hose for water tank
Heat exchanger door
iii electrolux control panel
Control Panel
1
2
3
5
5 Function buttons
6 START/PAUSE button
1 Program knob and On/Off switch
2Display
3 DELAY TIMER button
4 Maintenance displays
– HEAT EXCHANGER
– FILTER
– CONTAINER
What is shown in the display
1
2
3 4 5 6
7
8
9 10 11 12 13 14 15
1LOAD
2 DRYNESS
3 Start time preselection
4 Drying
5 Iron Aid program
6 Cooling
7 Anticrease
8 Degree of dryness Display
9 Steam Filter indicator
10 DELICATE
11 Child safety device
12 Steam water tank indicator
13 BUZZER
14 Steam display
15 Start time /program duration display
electrolux 1
Safety Information
In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and accidents,
it is important to ensure that all people using
the appliance are thoroughly familiar with
its operation and safety features. Save these
instructions and make sure that they remain
with the appliance if it is moved or sold, so
that everyone using it through its life will be
properly informed on appliance use and safety.
General safety
• It is dangerous to alter the specs or attempt
to modify this product in anyways
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of
the appliance by a persons responsible for
their safety.
• Make sure that small pets do not climb into
the drum. To avoid this, please check into
the drum before using.
• Any objects such as coins, safety pins, nails,
screws, stones or any other hard, sharp
material can cause extensive damage and
must not be placed into the machine.
• In order to avoid danger of fire caused by
excessive drying, do not use appliance to
dry the following items: cushions, quilts and
the like (these items accumulate heat).
• Items such as foam rubber (latex foam),
shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fitted
with foam rubber pads should not be dried
in the tumble dryer.
• Always unplug the appliance after use, clean
and maintenance.
• Under no circumstances should you attempt
to repair the machine yourself. Repairs
carried out by inexperienced persons may
cause injury or serious malfunctioning.
Contact your local Service Centre. Always
insist on genuine spare parts.
• O
il affected items can ignite spontaneously,
especially when exposed to heat sources
such as in a tumble dryer. The items become
warm, causing an oxidation reaction in the
oil. Oxidation creates heat. If the heat can
not escape, the items can become hot
enough to catch fire. Piling, stacking or
storing oil-affected items can prevent heat
from escaping and so creating a fire hazard.
• Tumble dryer is not to be used if industrial
chemicals have been used for cleaning
• Danger of explosion: never tumble
dry items that have been in contact with
inflammable solvents (petrol, methylated
spirits, dry cleaning fluid and the like).
As these substances are volatile, they could
cause an explosion. Only tumble dry items
washed with water.
• Risk of fire: items that have been spotted
or soaked with vegetable or cooking oil
constitute a fire hazard and should not be
placed in the tumble dryer.
• If you have washed your laundry with stain
remover you must execute an extra rinse
cycle before loading your tumble dryer.
• Please make sure that no gas lighters or
matches have accidentally been left in
pockets of garments to be loaded
into appliance
• When removing from the socket, never pull
the mains plug by the cable, instead take a
hold of the plug.
• The height adjustable screw feet must never
be removed.
• Manifold plugs, couplings and extension
cables must not be used. Risk of fire
from overheating!
• Do not spray down the appliance with jets of
water. Risk of electric shock!
• Do not lean on the open door. The appliance
may tip over.
• Once the drying cycle or Iron Aid program
has been interrupted, the laundry and drum
may be hot. Risk of burns! Take care when
removing the laundry.
• Take care when interrupting the Iron Aid
program: Do not open the machine door
during the steam phase. Hot steam may
result in burns. The display shows a
message to indicate the steam phase.
2 electrolux
• T
he final part of a drying cycle occurs
without heat (cool down cycle) to ensure
that the items are left at a temperature that
ensures that the items will not be damaged.
Do not touch the back of the appliance
while it is operating.
Never stop a tumble dryer before the end
of the drying cycle unless all items are
quickly removed and spread out so that
the heat is dissipated.
caution risk of fire
Installation
• T
his appliance is heavy. Care should be
taken when moving it.
• When unpacking the appliance, check that
it is not damaged. If in doubt, do not use it
and contact the Service Centre.
• All packing and transit bolts must be
removed before use. Serious damage can
occur to the product and to property if this
is not adhered to. See relevant section in the
user manual.
• The final part of a tumble dryer cycle occurs
without heat (cool down cycle) so that the
items are left at a temperature which ensures
they will not be damaged.
• Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
• If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely under the appliance.
• After having installed the appliance,
check that it is not pressing or standing
on its electrical supply cable.
• If the tumble dryer is placed on top of a
washing machine, it is compulsory to use
the stacking kit (optional accessory).
Use
• T
he appliance is intended for drying and
steam treatment of standard laundry in
domestic applications.
• This appliance is designed for domestic use.
It must not be used for purposes other than
those for which it was designed.
• Only dry fabrics which are designed to be
machine dried. Follow the instructions on
each garment label.
• Do not dry unwashed items in the tumble dryer.
• Do not overload the appliance. See the
relevant section in the user manual.
• Clothes which are dripping wet should not
be placed in the dryer.
• Garments which have been in contact with
volatile petroleum products should not be
machine dried. If volatile cleaning fluids are
used, care should be taken to ensure that
the fluid is removed from the garment before
placing in the machine.
• When using dry-cleaning sets: only use
• Do not allow lint to accumulate around the
tumble dryer. those products which are
declared as suitable for the dryer by
the manufacturer.
• Clean the micro-fine filter and fine strainer
after each drying cycle or Iron Aid program.
• Do not use the machine without a lint filter or
with a damaged lint filter. Risk of fire!
• Only fill the water reservoir for steam
treatment with distilled water. Do not use
tap water or any additives! The condensed
water from this appliance’s condensed water
container can also be used, if it is filtered
(e.g. with a coffee filter).
• Clean the heat exchanger regularly.
• Never use the tumble dryer if the power
supply cable, the control panel, the working
surface or the base are damaged so that the
inside of the tumble dryer is accessible.
• With stacked washer and Iron Aid appliance:
do not place objects on the appliance.
These may fall off during operation.
• The lamp cover for the interior light must be
screwed down tightly.
electrolux 3
Old appliance
• Fabric softeners, or similar products should
be used as specified by the fabric softener
instructions.
hot surface : Do not touch
the door light cover surface when the light is
switched on.
-
Child safety
• T
his machine is not intended for use by young
children or infirm persons without supervision.
• Children should be supervised to ensure that
they do not play with the appliance.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children
– danger of suffocation! Keep them out of
children’s reach.
• Keep all detergents in a safe place out
of children’s reach.
• Make sure that children or pets do not
climb into the drum.
Environment
The symbol on the product or on its packaging
indicates that this product may not be treated
as household waste. Instead it should be
taken to the appropriate collection point for the
recycling of electrical and electronic equipment.
By ensuring this product is disposed of
correctly, you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product.
For more detailed information about recycling of
this product, please contact your local council,
your household waste disposal service or the
shop where you purchased the product.
Remove mains plug from socket when you
have no further use for the machine. Cut off
mains cable and dispose of together with plug.
Destroy loading door hook. Children cannot
then lock themselves in the machine and put
their lives at risk.
Packaging material
The packaging materials are environmentally
friendly and can be recycled. The plastic
components are identified by markings, e.g.
>PE<, >PS<, etc. Please dispose of the
packaging materials in the appropriate container
at the community waste disposal facilities.
• In the dryer, laundry become fluffy and soft.
Fabric softeners are not therefore needed
when washing.
• Your dryer will function most economically
if you:
– always keep the ventilation slots on the base
of the dryer unobstructed;
– use the loading volumes specified in the
program overview;
– ensure you have good ventilation in the
installation room;
– clean the micro-fine filter and fine strainer
after each drying cycle;
– spin the laundry well before drying.
Energy consumption depends on spinning
speed set in washing machine. Higher
spinning speed - lower energy consumption.
4 electrolux
Before first use
Special notes about Iron Aid
In order to remove any residues which may
have been produced during production, wipe
the dryer drum with a damp cloth or carry out a
brief drying cycle (30 MIN) with damp cloths in
the machine.
1. Turn the program knob to TIME .
2. Press the TIME button repeatedly until 0.30
appears in the display.
3. Press the START/PAUSE button.
Sorting and preparing laundry
Sorting laundry
• Sort by fabric type:
– Cotton/linen for programs in
COTTONS
program group.
– Mixed fibres and synthetics for programs in
the
SYNTHETICS program group.
• Sorting by care label. The care labels mean:
Drying in the
tumble dryer
possible in principle
Dry at normal
temperature
Dry at reduced
temperature (press
DELICATE button!)
Drying in the tumble
dryer not possible
Important! Do not place in the appliance any
wet laundry which is not specified on the care
label as being suitable for tumble drying.
This appliance can be used for all wet laundry
items which are labelled as suitable for
tumble-drying.
• Do not dry new, coloured textiles together
with light-coloured laundry items. Textile
colours may bleed.
• Do not dry cotton jersey and knitwear with
the EXTRA program. Items may shrink!
• Wool and wool-like textiles can be dried
using the
WOOL program. Before the
drying cycle spin the woollen textiles as
well as possible (max. 1200 rpm). Only dry
woollen textiles together which are similar
or the same with respect to material, colour
and weight. Please dry heavy laundry items
made of wool separately.
The following textiles cannot be treated using
an Iron Aid program: woollen knitwear, leather,
textiles with large metal, wooden or plastic
parts, textiles with rusting metal parts, oilskins
or wax cotton garments.
• To smooth or freshen laundry with an Iron
Aid program, sort laundry by size, weight,
material and colour. Only smooth textiles
together that are similar in terms of size,
weight, material and colour.
• Do not dry new, coloured textiles together
with light-coloured laundry items. Colours
may fade (check colour fastness of fabric
when damp in an inconspicuous area).
• Do not use dry cleaning sets such as dryel in
combination with Iron Aid programs
Preparing laundry
• To avoid laundry becoming tangled: close
zips, button up duvet covers and tie loose
ties or ribbons (e.g. of aprons).
• Empty pockets. Remove metal items (paper
clips, safety pins, etc).
• Turn items with double-layered fabrics inside
out (e.g. with cotton-lined anoraks, the
cotton layer should be outermost). These
fabrics will then dry better.
Special notes about Iron Aid
• Before treating garments with an Iron Aid
program, remove stains by washing or using
localised stain removal.
• Turn items with double-layered fabrics inside
out (e.g. with cotton lined anoraks, the
cotton layer should be outermost). These
fabrics will then dry better.
electrolux 5
Starting up for the first time
Switching appliance on / switching light on.
Turn the program selector to any program.
The appliance has been switched on. When the
loading door is opened, the drum is illuminated.
Opening loading door / loading laundry
1. Open loading door: Push against the loading
door (push point).
2. Load your laundry (do not force it in/ overload
the machine).
water tank with distilled water. Otherwise, you
will not be able to start any Iron Aid program.
Important! Only fill the water tank with distilled
or fully desalinated water. Do not use tap water
or additives! You can also use the condensed
water from the tank, as long as you filter it first
(use the canister supplied with the filter fitted:
see figure opposite).
1. Pull drawer containing condensed water
container out a little (1),
Be careful not to trap laundry in between the
loading door and rubber seal.
3. Close loading door securely. Lock must
audibly lock.
1
2. Push down the water tank’s filler neck
(1) and pull out it (2).
1
2
Iron AidTM Steam System
Fill water tank
You must fill up the water tank before using an
Iron Aid program for the first time.
Use the distilled water provided if there is
not yet any condensed water from previous
drying programs (see chapter on “Cleaning
and Maintenance, Emptying condensed water
container”). If, after an Iron Aid program is
selected, the
water tank indicator on the
display lights up, you will need to fill up the
3. Fill with distilled water from the canister
provided, up to the MAX mark inside the
container.
6 electrolux
To activate recirculation set valve to the ON
position. To do that:
1. Pull drawer containing condensed water
container out a little (1). Behind the drawer
there is water tank’s filler neck (2).
max
2
4. Push filler neck and drawer with condensed
water container back in. When dry, all textiles
not specifically prohibited in the chapter
‘Sorting and preparing laundry’ may be
treated with the Iron Aid Steam System.
Wet textiles may only be treated if they are
labelled as suitable for dry programs.
1
2. Turn the valve to the ON position. Water will
be supplied by the water circuit directly to
the steam water tank filling it automatically
during the next drying cycle.
Water recirculation system
This system allows you to automatically use for
an Iron Aid Steam cycle the condensed water
collected in the condense water tank during a
drying cycle.
The water in the condense water tank will
never automatically fill the steam water tank.
The water recirculation system works only if it
is supplied by water arising during standard
drying cycles.
To activate this system turn the valve to
the ON position. When the valve is ON the
steam water tank will be filled during the next
drying cycle. Water will be supplied by the
water circuit directly to the steam water tank
filling it automatically.
The steam water tank is empty. Please fill it
and then press START/PAUSE
If valve is closed (OFF position)
recirculation system does not work.
electrolux 7
Overview of Iron Aid programs
Programs
max. load
(weight when dry)
LOAD
BUZZER
Additional
functions /
options
COTTON
1.0 kg
•
•
For 1- 6 cotton shirts. Min. 80% natural fibres (cotton, linen etc).
wet,
dry
SYNTHETICS
1.0 kg
•
•
For 1- 6 synthetic shirts. Max. 20% natural fibres (cotton, linen etc).
wet,
dry
COTTON
3.0 kg
•
•
For smoothing cotton garments. Min.
80% natural fibres (cotton, linen etc).
wet,
dry
SYNTHETICS
1.5 kg
•
•
For smoothing easy-care garments.
Max. 20% natural fibres (cotton, linen
etc).
wet,
dry
REFRESH
2.5 kg
•
•
For one suit or up to two suit jackets or
pairs of trousers or similar garments. Also suitable for removing odours. For
dry garments only
All information on applications is for
guidance only. Smoothing results may
vary depending on the selected program
and especially the fittings and material
properties of the textile. The results can be
improved if necessary by using different
programs and steam volumes. For example,
some textiles containing more than 20%
synthetics but with the right fittings may
behave more like cotton textiles in an Iron
Aid program. You may therefore get better
smoothing results by selecting a cotton Iron
Aid program.
Given the wide range of different textile
grades and properties that can be
manufactured today using different
mechanical and chemical processes,
we recommend running the first few Iron
Aid programs at low steam levels and with
a small number of garments that are as
similar as possible. Later, you can carefully
start to vary the conditions of Iron Aid
programs to learn from experience how
to get the best results from the volume of
laundry loaded, the quality of the textiles
and the most suitable steam levels and
Iron AidTM programs. Please also note the
accompanying ‘Textile Guide’.
Application/properties
8 electrolux
Programme
LOAD
Loading volume
MIN
MED
MAX
1 - 2 shirts
COTTON
1 - 2 shirts
SYNTHETICS
MIN
MED
MAX
MIN
MED
MAX
0.5 - 1 kg
COTTON
0.2 - 0.5 kg
SYNTHETICS
MIN
MED
MAX
MIN
MED
MAX
1 pair of trousers
REFRESH
3 - 4 shirts
DURATION
dry [min.]1)
DURATION
wet [min.]1)
20-23
41-51
14-17
24-49
13-16
53-64
12-16
43-53
5 - 6 shirts
3 - 4 shirts
5 - 6shirts
1 - 2 kg
2 - 3 kg
0.5 - 1 kg
1 - 1.5 kg
1 jacket
12-16
1 suit
All information provided on selecting the
steam level and corresponding load are
suggestions only. In some cases, using a
higher steam level or smaller load may give
better results. The
REFRESH program is
a gentle Iron Aid program for non washable
textiles. Any distortion to the shape of a
garment which might occur in few cases,
can be remedied by ironing.
Selecting the program
Use the program selector to set the program
you require. The estimated program duration (in
minutes appears in the multi-display.
Select steam level
LOAD (LOAD)
To achieve the best results, different steam
levels are required for different volumes
of laundry.
The LOAD button is used to set the required
steam level: MIN , MED or MAX . All Iron
Aid programs, apart from the
REFRESH
program, automatically recognise the remaining
dampness in clothes. When laundry is wet, a
drying cycle is activated first if required. The
table shows the steam levels appropriate for the
selected load, under LOAD.
1. Press the LOAD button repeatedly until the
desired steam level ( MIN , MED or MAX ) is
shown in the display
If the LOAD button is not pressed after an
Iron Aid program is selected, then medium
steam level ( MED ) is selected automatically.
If you select the
REFRESH program, MIN is
selected automatically.
electrolux 9
Important: If in doubt, always select a
lower steam level first until you have more
experience with load volumes, fabric types
and the corresponding optimum steam
level. If too high a steam level is selected,
garments may lose their shape. If too
low a steam level is selected, creases
may remain.
Selecting additional functions
The additional functions available for the Iron
Aid programs are BUZZER (BUZZER), DELAY
(DELAY) and the CHILD LOCK.
3. To activate the delay timer, press the
START/PAUSE button. The amount of time
remaining until the program is set to start is
continuously displayed (e.g. ( 1 5 . 0 0 ,
14.00,13.00,...15.00,0 0.30,
etc).
If the display is showing 2 0 . 0 0 and you
press the button again, the time delay will
be cancelled. The display will show 0 and
then the duration of the selected program.
Child lock
The child lock can be set to prevent a program
being accidentally started or a program in
operation being accidentally changed. The
child safety device locks all buttons and the
program knob. The child safety device can be
activated or deactivated by holding down the
BUZZER and TIME buttons simultaneously for
5 seconds.
Buzzer (buzzer)
The appliance is supplied with the BUZZER
function activated. When the drying cycle
has finished, an intermittent acoustic signal
will sound. Each time a button is pressed or a
program is changed using the program knob,
an audible signal is also set to sound.
The button is used to switch the function on or
off. When the function is active, the BUZZER
symbol appears in the display.
Delay (delay)
With the DELAY button, you can delay the
start of a program by between 30 minutes
( 0 0 . 3 0 ) and a maximum of 20 hours
( 2 0 . 0 0 ).
1. Select the program and additional functions.
2. Press the DELAY button as many times
as necessary until the required start delay
appears on the display, e.g. if the program
is to be started in 12 hours.
• B
efore program is started: Appliance cannot
be used.
• A
fter program is started: Program in
operation cannot be changed The symbol
appears in the display to indicate that the
child safety device is activated. The child
safety device is not deactivated once the
program comes to an end. If you want to set
a new program, you must first deactivate the
child safety device.
Starting an Iron Aidtm program
Press the START/PAUSE button. The program
is started. First, the drying phase indicator
appears in the display. The display will also
show the program duration for the selected Iron
Aid program, not including the additional drying
phase. With wet laundry, after a few minutes
the appliance will show the correct program
duration for the Iron Aid program including the
preceding drying program. As soon as the right
level of dryness is reached, the Iron Aid program
will start automatically. The steam indicator
shows the progress of the Iron Aid program in
the display. The individual steam phases are
shown by animated clouds of steam.
10 electrolux
been activated, an audible signal sounds at
regular intervals.
Important: During the steam phases that form
part of the Iron Aid program and also the anticrease phase (represented by animated clouds
of steam in the display), the loading door cannot
be opened. Risk of burns!
If the
water tank indicator lights up when
you select an Iron Aid program, the program
cannot be started. You will need to fill the
water tank first (see section on ‘Cleaning and
maintenance,filling water tank’.)
It is normal for the appliance to make noises
during an Iron Aid or drying program if
garments with hard parts, such as metal
buttons, are put in the drum.
Changing a program
To change a program which has been selected
by mistake once the program has started, first
turn the program selector to O OFF and then
reset the program.
The program can no longer be changed
directly once the program has started.
If you nevertheless attempt to change
the program with the program knob or
an additional function button (except the
BUZZER button), the START/PAUSE button
and
will flash in the display. The drying
program is not however affected by this.
Putting in extra items or taking items out before
end of program
1. Open door.
2. Load or remove laundry items.
3. Close door securely.
4. Press the START/PAUSE button to continue
the drying cycle.
Iron Aid program complete /
removing laundry
After the Iron Aid phase has ended, 0 0 . 0 0
is illuminated and the icon
ANTICREASE
appears in the display. If the
BUZZER has
The Iron Aid program is automatically
followed by an anti-crease phase, including
brief steam phases, which lasts around
90 minutes.
The drum rotates during the anti-crease
phase. This keeps the laundry loose and free
of creases. It can be removed at any point
during the anti-crease phase, except during
steam phases (look for steam animation in the
display!). Laundry should be removed as quickly
as possible.
1. Open the loading door to remove the laundry.
2. Before removing the laundry, remove fluff
from the micro-fine filter. It is best to use a
damp hand for this purpose. (See “Cleaning
and maintenance” section.)
3. Remove laundry one garment at a time.
4. Turn the program knob to O OFF. Important!
After each drying cycle
– Clean the micro-fine filter and fine filter|
– Drain the condensed water container
(See section “Cleaning and maintenance”.)
5. Close door.
To retain the effects of the Iron Aid treatment,
clothes must be removed one garment at a
time during the anticrease phase and hung
immediately on a clothes hanger to dry (for
at least 5-15 mins, depending on fabric and
selected steam level). Do up the buttons and
tug the garment into shape, paying particular
attention to cuffs and seams.
electrolux 11
Drying
Care symbols
Application/properties
TIME
DRYNESS
DELICATE
Additional
functions /
options
BUZZER
max. load
(weight when dry)
Programmes
Overview of drying programs
COTTON
EXTRA
7 kg
•
•
•
-
Thorough drying of thick or multilayered fabrics,
e.g. terry towelling items, bathrobes.
CUPBOARD
7 kg
•
•
•
-
Thorough drying of fabrics of even thicknesses,
e.g. terry towelling items, knitwear, towels.
DAMP
7 kg
•
•
•
-
For normal thickness cotton or linen laundry, e.g.
bedding, table linen .
SYNTHETICS
EXTRA
3 kg
•
•
•
-
Thorough drying of thick or multilayered fabrics,
e.g. pullovers, bedding, table linen.
1)
CUPBOARD
3 kg
•
•
•
-
For thin fabrics which are not ironed e.g. easy
care shirts, table linen, baby clothes, socks, lingerie with bones or wires.
1)
DAMP
3 kg
•
•
•
-
For thin textiles which are still to be ironed, e.g.
knitted items, shirts.
1)
TIME
TIME
7 kg
•
•
•
a
u
t
o
-
•
For further drying of individual items of laundry or
for small volumes of less than 1kg. You can select a programme duration from 10 mins to 3 hrs
in 10-minute steps.
SPECIAL
SILK
WOOL &
SPORT SHOES
(with RACK)
1 kg
1 kg
•
1) Press the DELICATE button.
a
u
t
o
•
-
-
Special programme for drying silk using warm air
and gentle movement. .
•
For drying woollen fabrics after they have been
washed, using warm air at minimum mechanical
load (Follow section “Sorting and preparing washing”). Recommendation: Remove fabrics immediately after drying, as no anticrease programme follows.
For gentle drying of one pair of sport shoes, washed and spindried at 1000 rpm.
You can select a programme duration from 10
mins to 3 hrs in 10-minute steps.
12 electrolux
Selecting the program
Use the program selector to set the program
you require. The estimated program duration
(in minutes) appears in the multi-display.
the program cycle displayed at the beginning is
corrected after a while.
Make sure that by selecting the DRYNESS
function, you do not overdry your wool or silk.
Delicate
For especially gentle drying of sensitive fabrics
with the care label and for temperature sensitive
textiles (e.g. acrylic, viscose). Program is
executed with reduced heat. DELICATE is only
suitable for use with loads of up to 3kg.
Selecting additional functions
You can choose from the additional functions
DRYNESS , DELICATE , BUZZER and TIME (if a
TIME program has been selected). The symbols
of the functions available for the selected
program are shown in the display.
1. Press the DELICATE button. The DELICATE
symbol appears in the display.
Time
To select the program duration after setting
the
TIME program. You can select a
program duration from 10 minutes to 3 hours
in 10-minute steps. (corresponding to
the
COOLING program).
TIMED
1. Turn the program knob to the
Program. The 0 0 . 1 0 minutes is in
the display
Dryness
If laundry comes out of the machine too
damp after a standard drying program, you
can increase the drying result by using the
DRYNESS function. Laundry becomes drier
as you move from MIN to MAX.
1. Press the DRYNESS button repeatedly until
the desired dryness level ( MIN , MED or
MAX ) is shown in the display. If another
program has been selected, AUTO flashes
in the display.
If wool or silk comes out of the machine too
damp at the end of a
WOOL or
SILK
program, you can dry it again by restarting
the appropriate program, this time with the
DRYNESS function selected and dryness level
MIN , MED or MAX . In the case of a drying
cycle with relatively dry laundry, the length of
2. Press the TIME button repeatedly until
the desired program duration is shown in
the display, e.g. 0 0 . 2 0 for a program of
20 minutes. If the program duration is not
selected, the duration is automatically set
to 10 mins.
Buzzer
See chapter “Iron AidTM Steam System” ,
section “Selecting additional functions BUZZER“
Delay
See chapter “Iron AidTM Steam System”, section
“Selecting additional functions - DELAY“
Child lock
See chapter “Iron AidTM Steam System” ,
section “Selecting additional functions CHILD LOCK”
electrolux 13
Starting a drying program
Press the START/PAUSE button. The program
is started. The program progress display shows
drying progress. The symbols for DRYING
and COOLING
appear in the display one
after the other. The number of droplets in the
dryness indicator gradually goes down as the
drying process progresses.
the anti-crease phase. (The laundry should be
taken out towards the end of the anti-crease
phase at the latest to prevent creases
from forming.)
1. Open door.
2. Before removing the laundry, remove fluff
from the micro-fine filter. It is best to use a
damp hand for this purpose. (See “Cleaning
and maintenance” section.)
Changing a program
3. Remove laundry.
To change a program which has been selected
by mistake once the program has started, first
turn the program selector to O off and then
reset the program.
4. Turn the program knob to O off.
he program can no longer be changed
T
directly once the program has started.
If you nevertheless attempt to change
the program with the program knob or
an additional function button (except the
BUZZER button), the START/PAUSE button
and
will flash in the multi-display.
The drying program is not however affected
by this.
Removing laundry or loading laundry
when necessary
5. Important! After each drying cycle
– Clean the micro-fine filter and fine filter
– Drain the condensed water container
(See section “Cleaning and maintenance”.)
6. Close door.
Drying Rack
Special equipment for gentle drying washable
woollens and sport shoes. Incomparable for
drying wet woollens - eliminated movement,
protection from matting.
or drying rack unpacking see Installation
F
chapter.
Important! Before drying rack installation
check the dryer drum. It must be empty!
Laundry and drumcan become hot. Risk
of burns!
1. Open loading door
2. Load or remove laundry items.
3. Close the door securely. Lock must
audibly lock.
4. Press the START/PAUSE button to continue
the drying cycle.
Drying cycle complete / removing laundry
Once the drying program has finished,
CREASE GUARD lights up in the display. If
the
BUZZER is activated, an audible signal
sounds at regular intervals.
The drying cycle is automatically followed
by a anti-crease phase which lasts around
30 minutes.
The drum rotates at intervals during this phase.
This keeps the laundry loose and free of
creases. It can be removed at any time during
Sport shoes cannot be dry without the drying
rack - drum damage.
Installation and use
1. Open the loading door.
2. Insert the rack carefully resting its two
support brackets on the front of plastic flange.
14 electrolux
• open support and put sport shoes on it
3. Place the woollens or pair of sport shoes on
the rack.
4. Select the suitable rack drying program and
drying time.
5. Press the START/PAUSE button.
6. When cycle is finished open the loading door
and remove the woollens or shoes.
7. Turn the program selector to OFF.
8. Take out the drying rack of the drum.
Drying tips
• for
the best drying result spread the woollens
out loosely on the drying rack and roll it up
• do not squash and fold the woollens
• the insoles should be placed beside the
shoes on the drying rack and the shoelaces
should be tied
electrolux 15
Cleaning and maintenance
4. Remove fluff from lint filter, preferably using a
damp hand for this purpose.
Cleaning lint filters
5. Replace the filter.
To ensure that the appliance works perfectly,
the lint filters in the door and in front of the
drum must be cleaned after every Iron AidTM
or drying cycle.
Important. Never operate the dryer without the
lint filter or with a damaged or blocked lint filter.
1. Open loading door
Cleaning the water recirculation
valve/ filter
If the
STEAM FILTER symbol is shown in
the display, the recirculation filter needs to be
cleaned. The valve/filter is placed behind the tank
handle - see chapter “Product description”.
1. Push down the water tank’s filler neck (1)
and pull out it (2).
2. Use a damp hand to clean the microfine
filter, which is built into the lower part of the
loading aperture.
3. After a period of time, a patina due to
detergent residue on laundry forms on the
filters. When this occurs, clean the filters
with warm water using a brush. Remove the
filter from the door pulling it out. It can be
positioned with the tooth facing to the left or
to the right). After cleaning do not forget to
put it back.
1
2
2. Clean the valve/filter under warm water.
16 electrolux
3. Re-insert the valve/filter.
4. Turn the valve/filter in ON position.
3. Push drainage pipe in and refit condensed
water container.
If the program has been interrupted as a
result of the condensed water container
being full: Press the START/ PAUSE button
to continue the drying cycle.
Clean the door seal
Wipe the door seal using a damp cloth
immediately after the Iron Aid or drying cycle.
Emptying the condensed water container
Empty condensed water container after
every drying cycle. If the condensed water
container is full, an active program will
break off automatically and the
icon display
will light up. In order to continue the program,
the condensed water container must first
be emptied.
he condensed water container has a
T
volume of approx. 4 litres. This is sufficient
for around 7 kg of laundry which has
previously been spun at 1000 revolutions/
minute.
4. The condensed water can be used as
distilled water, e.g. for steam irons. However,
first filter the condensed water to remove any
residues and small pieces of fluff.
The condensed water is not suitable for drinking
or for preparing food.
1. Pull drawer containing condensed water
container all the way out (1) and pull up the
condensed water container’s drainage pipe
as far as it will go (2).
2.
sing the attached canister to filter: Pour
U
the water out of the container straight
through the filter at the top of the canister.
Cleaning heat exchanger
1.
If the
HEAT EXCHANGER is displayed,
the heat exchanger needs to be cleaned.
electrolux 17
6. To empty the heat exchanger, hold vertically
over a washing-up bowl.
Operating when the heat exchanger is blocked
with fluff can damage the dryer. This also
increases energy consumption.
1. Open door.
2. Open door in plinth. To do this, press the
release button on the bottom of the door
aperture and open the door in the plinth to
the left.
Do not use sharp objects to clean. The heat
exchanger could develop leaks.
7. Clean heat exchanger. It is best to use a
brush or to rinse thoroughly with a hand-held
shower.
8. Replace heat exchanger and lock into place
(turn both lock washers outwards until they
snap into place).
9. Close door in plinth.
The appliance will not operate if the
HEAT EXCHANGER indicator is still lit.
Never operate the dryer without the heat
exchanger. Cleaning the drum
3. Clean fluff from the inside of the door and the
heat exchanger front chamber. Wipe the door
seal with a damp cloth.
4. Turn both lock washers inwards.
Cleaning the drum
Do not use abrasives or steel wool to clean
the drum.
ime in the water or cleaning agents
L
may form a barely visible lining on the
inside of the drum. The degree to which
the laundry has been dried is then no
longer detected reliably. The laundry is
damper than expected when removed
from the appliance.
Use a standard domestic cleaner (e.g. vinegar-
5. Use the handle to pull the heat exchanger out
of the base and carry it horizontally to prevent
any remaining water from spilling.
based cleaner) to wipe down the inside
of the drum and drum ribs.
Clean control panel and housing
Do not use furniture cleaners or aggressive
cleaning agents to clean the machine.
Use a damp cloth to wipe down the control
panel and housing.
18 electrolux
What to do if ...
Troubleshooting by yourself
If during operation, the error code E plus
number or letter) appears on the multi-display:
Switch the appliance off and on again. Reset
Problem
program. Press the START/ PAUSE button.
If the error appears again, please contact the
Customer Care Department
Possible cause
Remedy
Mains plug is not plugged in or
fuse is not working correctly.
Plug in at mains socket. Check
fuse in fuse box (domestic
installation).
Loading door is open.
Close loading door.
Have you pressed the START/
PAUSE button?
Press the START/PAUSE button
again.
Water tank is empty.
Fill water tank.
Recirculation valve is closed (OFF
position)
Turn the recirculation valve to ON
position.
Wrong program selected
(e.g.
SYNTHETICS instead
of
COTTON ).
Note the composition of the fabric.
Too low a LOAD level set.
Set a higher LOAD level.
Too many garments in machine,
or garments that are too different.
Load the machine with fewer
garments, or only similar ones.
Clothes are not removed until the
anti-crease phase is finished.
Remove clothes quickly one at a
time from the machine as soon as
possible after the start of the anticrease phase.
Garments not hung on clothes
hangers and/or not tugged into
shape.
Hang garments on clothes
hangers, do up buttons and tug
garments into shape.
Multi-layered garments tend to
lose their shape.
Reshape multi-layered garments
by ironing after they come out of
the machine.
After a IronAid
program, there are no
creases left in the
garments.
The IronAid programme has the
effect of smoothing garments.
Iron creases in again after the IronAid program.
Drying results
unsatisfactory.
Wrong program selected.
Select a different program the
next time you dry (see “Program
overview” chapter).
Dryer does not work.
IronAid program does
not start. the
water
tank indicator lights up.
After a IronAid
program, garments are
not sufficiently smooth.
Lint filters clogged.
Clean lint filters.
Fluff filter clogged.
Clean fluff filter.
Heat exchanger clogged with lint.
Clean heat exchanger.
Overloading of laundry.
Observe recommended loading
volumes.
Ventilation slots in base area covered up.
Uncover ventilation slots in base
area.
electrolux 19
Residue on inside surface of drum
or drum ribs.
Clean inside surface of drum and
drum ribs.
Make an adjustment using
theDRYNESS function (see
chapter ”Drying”)
Conductance of water at installation site differs from standard
setting of machine.
Re-programme standard setting
for degree of drying (see ‘Programming options’ chapter).
When a button is pressed
- no reaction of the
machine.
Drying protection. After the start of
the programme, the option can no
longer be set.
Turn the programme knob to
OFF . Set the programme again.
Drum light does not work.
Programme selector in OFF
position.
Turn programme selector to any
programme.
Defective light bulb.
Replace light bulb (see next
section).
Displayed program
time changes erratically
or stays unchanged for a
long time.
Programme time is corrected automatically depending on type and
Automatic process; this is not a
volume of laundry and level of
machine fault.
dampness.
Program inactive,
CONTAINER display
illuminated.
Condensed water container is full.
Empty Condensed water container,
then start program with START/
PAUSE button.
Drying cycle ends shortly
after programme
starts.
ANTICREASE
display illuminated.
Not enough washing loaded or
washing loaded is too dry for
selected programme.
Select time program or higher
drying level (e.g.
EXTRA
instead of
CUPBOARD ).
Drying cycle lasts an
unusually long time. Note:
After up to 5 hours the
Lint filter clogged.
drying cycle ends
automatically (see ‘End
ofdrying cycle’).
Clean lint filter.
Fluff filter clogged.
Clean fluff filter.
Load volume too big.
Reduce load volume.
Laundry insufficiently spun.
Laundry must be adequately spun.
Particularly high room temperature. Temporary switching off of
the compressor to avoid overload.
Automatic process, there is no
fault with the appliance. If possible,
lower the room temperature.
Colour fastness of textiles.
Check colour fastness of textiles.
Only treat textiles together if they
are a similar colour.
Discoloration
Changing the bulb for interior lighting
Only use a special bulb which is designed
specially for dryers. The special bulb can be
obtained from your local Service Force centre.
When the appliance is switched on, the interior
lighting switches itself off after 4 minutes when
the door is open.
20 electrolux
2. Replace defective bulb.
3. Screw cover back down.
Do not use standard bulbs! These develop too
much heat and may damage the machine!
Before replacing the bulb, disconnect the
mains plug.
1. Unscrew cover above the bulb (this can be
found directly behind the loading aperture,
at the top; refer to “Description of machine”
section.)
Check the correct positioning of o-ring gasket
before screwing back the door light cover.
Do not operate the dryer when missing o-ring
gasket on door light cover.
For safety reasons, the cover must be screwed
down tightly. If this is not done, the dryer must
not be operated.
Technical data
Height x width x depth
85 x 60 x 58 cm
Drum volume
108 l
Depth with loading door open
109 cm
Height can be adjusted by
1.5 cm
Weight when empty approx.
46 kg
Loading volume (depends on program)
max. 7 kg
Voltage
230-240V
Required fuse
10A
Total power
2350
Use
Domestic
Permissible ambient temperature
+ 5°C to + 35°C
1)
1) Different loading volume data may be needed in some countries as a result of different measuring methods.
electrolux 21
Machine settings
Installation
Appliance positioning
• It is recommended that, for your
convenience, the tumble dryer is positioned
close to your washing machine.
• The tumble dryer must be installed in a clean
place, where dirt does not build up.
• Air must be able to circulate freely all round
the tumble dryer. Do not obstruct the front
ventilation grille or the air intake grilles at the
back of the machine.
• To keep vibration and noise to a minimum
when the dryer is in use, it should be placed
on a firm, level surface.
• Once in its permanent operating position,
check that the dryer is absolutely level with
the aid of a spirit level. If it is not, raise or
lower the feet until it is.
• The feet must never be removed. Do not
restrict the floor clearance through deep pile
carpets, strips of wood or similar. This might
cause heat built-up which would interfere
with the operation of the dryer.
• A
dequate ventilation has to be provided
to avoid the back flow of gases into the
room from appliances burning other fuels,
including open fires.
• If this appliance is supplied from a cord
extension set or electrical portable device,
the cord extension set or the electrical
portable outlet device must be positioned
so that is not subject to splashing or ingress
of moisture.
22 electrolux
Important!
• T
he hot air emitted by the tumble dryer can
reach temperatures of up to 60°C.
The appliance must therefore not be
installed on floors which are not resistant to
high temperatures.
• When operating the tumble dryer, the room
temperature must not be lower than +5°C
and higher than +35°C, as it may affect the
performance of the appliance.
• Should the appliance be moved, it must be
transported vertically.
• The appliance must not be installed behind
the lockable door, a sliding door a door with
a hinge on the opposite side to that of the
appliance in such a way that a full opening
of the dryer is restricted. Removing transport
safety packaging
4
4
1
1
2
2
1
3
3
2
To unpack the rack:
1. Remove middle polystyrene part by pulling it.
1
1
Before use all parts of the transport packaging
must be removed.
4
3
Loosen polystyrene parts 3 and 4.
1. Open loading door
2. Pull off adhesive strips from inside machine
on top of drum.
3. Remove foil hose and polystyrene padding
from the machine.
1
Drying rack unpacking
Before appliance use all packaging parts and
drying rack must be removed from the drum.
The inside of the drum must be clean.
2. Lift slightly rack and take it carefully out from
the drum.
electrolux 23
Connect the machine to an earthed socket,
in accordance with current wiring regulations.
The manufacturer declines any responsibility for
damage or injury through failure to comply with
the above safety precautions.
Should the appliance power supply cable need
to be replaced, this must be carried out by our
Service Center.
3. Remove right polystyrene part by pulling it.
Inside this part there is a bottle of distilled
water for steam program purposes.
The plug must be accessible after installing
the machine.
Special accessories
• Stacking kit
These intermediate installation kits can be used
to arrange the dryer and a washing machine
(60cm wide, front loaded) as a space-saving
washer/dryer stack. The washing machine is
at the bottom and the dryer is at the top.
Read carefully the instructions supplied
with the kit.
Available from your specialist dealer
4. Remove left polystyrene part by pulling it.
Inside this part there is a canister for filling
distilled water tank for steam program
purposes.
• Draining kit
Installation kit for direct draining of the
condensed water into a basin, siphon, gully,
etc. The water reservoir then no longer has
to be drained, it must however remain in its
intended position in the machine. Fixed hose
has to be on the suitable height from minimum
of 50cm to maximum of 1m from floor level
and cannot be looped. If possible shorten the
draining hose.
Read carefully the instructions supplied with
the kit.
Service
Electrical connection
Details on mains voltage, type of current
and the fuses required should be taken
from the type plate. The type plate is fitted
near the loading aperture (see “Product
description” chapter).
If there are technical faults, first check if you
can remedy the problem yourself with the
help of the operating instructions - see chapter
What to do if….
If you cannot remedy the problem on your
own, get in touch with the Customer Care
Department or one of our service partners.
24 electrolux
To assist you quickly, these data are necessary:
– Model description
– Product number (PNC)
– Serial number (S No. is on rating plate stuck
to the product - to find it see chapter
Product description)
Type of failure
– Any error messages shown by the display.
So that you have the necessary reference
numbers from your appliance at hand, we
recommend that you wriite them in here:
Model description: .........................................
PNC: .............................................................
S No: .............................................................
notes 25
_____________________________________________________________________________________ _____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
26 warranty
_____________________________________________________________________________________ _____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
electrolux 27
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: Electrolux Dryer
This document sets out the terms and conditions of the product warranties for Electrolux
Appliances. It is an important document. Please keep it with your proof of purchase documents in
a safe place for future reference should you require service for your Appliance.
1. In this warranty
(a)‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in
the ACL;
(b)‘ACL’ means Trade Practices Amendment (Australian Consumer
Law) Act (No.2) 2010;
(c)‘Appliance’ means any Electrolux product purchased by you accompanied by this document;
(d) ‘ASC’ means Electrolux’ authorised serviced centres;
(e)‘Electrolux’ means Electrolux Home Products Pty Ltd of 163 O’Riordan Street, Mascot, NSW 2020,
ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ) Limited of
3-5 Niall Burgess Road, Mount Wellington, in respect of Appliances purchased in New Zealand;
(f)‘major failure’ as referred to in clause 10 of this warranty has the same meaning referred to in the
ACL and includes a situation when an Appliance cannot be repaired or it is uneconomic for
Electrolux, at its discretion, to repair an Appliance during the Warranty Period;
(g)‘Warranty Period’ means:
(i) w
here the Appliance is used for personal, domestic or household use (i.e. normal single family
use) as set out in the instruction manual, the Appliance is warranted against manufacturing
defects in Australia for 24 months and in New Zealand for 24 months, following the date of
original purchase of the Appliance;
(ii) w
here the Appliance is used for commercial purposes (including being used to directly assist a
business or where the Appliance is used in a multi-family communal or share type environment),
the Appliance will then be warranted against manufacturing defects in Australia for 3 months
and in New Zealand for 3 months, following the date of original purchase of the Appliance.
(h)‘you’ means the purchaser of the Appliance not having purchased the Appliance for re-sale,
and ‘your’ has a corresponding meaning.
2.This warranty only applies to Appliances purchased and used in Australia or New Zealand and is
in addition to (and does not exclude, restrict, or modify in any way) any non-excludable statutory
warranties in Australia or New Zealand.
3.During the Warranty Period Electrolux or its ASC will, at no extra charge if your Appliance is readily
accessible for service, without special equipment and subject to these terms and conditions, repair or
replace any parts which it considers to be defective. Electrolux or its ASC may use remanufactured
parts to repair your Appliance. You agree that any replaced Appliances or parts become the property
of Electrolux. This warranty does not apply to light globes, batteries, filters or similar perishable parts.
4.Parts and Appliances not supplied by Electrolux are not covered by this warranty.
5. Y
ou will bear the cost of transportation, travel and delivery of the Appliance to and from Electrolux or
its ASC. If you reside outside of the service area, you will bear the cost of:
(a) travel of an authorised representative;
(b)transportation and delivery of the Appliance to and from Electrolux or its ASC,
In all instances, unless the Appliance is transported by Electrolux or an Electrolux authorised
representative, the Appliance is transported at the owner’s cost and risk while in transit to and from
Electrolux or its ASC.
6.Proof of purchase is required before you can make a claim under this warranty.
7.You may not make a claim under this warranty unless the defect claimed is due to faulty or defective
parts or workmanship. Electrolux is not liable in the following situations (which are not exhaustive):
(a) the Appliance is damaged by:
28 electrolux
(i)accident
(ii) misuse or abuse, including failure to properly maintain or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii)insect or vermin infestation
(viii) failure to comply with any additional instructions supplied with the Appliance;
(b) the Appliance is modified without authority from Electrolux in writing;
(c)the Appliance’s serial number or warranty seal has been removed or defaced;
(d)the Appliance was serviced or repaired by anyone other than Electrolux, an authorised repairer or ASC.
8.This warranty, the contract to which it relates and the relationship between you and Electrolux are
governed by the law applicable where the Appliance was purchased. Where the Appliance was
purchased in New Zealand for business purposes the Consumer Guarantee Act does not apply.
9.To the extent permitted by law, Electrolux excludes all warranties and liabilities (other than as contained
in this document) including liability for any loss or damage whether direct or indirect arising from your
purchase, use or non use of the Appliance.
10.For Appliances and services provided by Electrolux in Australia, the Appliances come with a guarantee
by Electrolux that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be
of acceptable quality and the failure does not amount to a major failure. The benefits to you given by this
warranty are in addition to your other rights and remedies under a law in relation to the Appliances or
services to which the warranty relates.
11.At all times during the Warranty Period, Electrolux shall, at its discretion, determine whether repair,
replacement or refund will apply if an Appliance has a valid warranty claim applicable to it.
12.For Appliances and services provided by Electrolux in New Zealand, the Appliances come with a
guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act, the Sale of Goods
Act and the Fair Trading Act.
13.To enquire about claiming under this warranty, please follow these steps:
(a)carefully check the operating instructions, user manual and the terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (eg an invoice) available;
(d) telephone the numbers shown below.
14.You accept that if you make a warranty claim, Electrolux and its ASC may exchange information in relation
to you to enable Electrolux to meet its obligations under this warranty.
Important Notice
Before calling for service, please ensure that the steps listed in point 13 above have been followed.
FOR SERVICE
or to find the address of your
nearest state service centre
in Australia
Please call 13 13 49
For the cost of a local call
(Australia only)
FOR SERVICE
or to find the address of your
nearest authorised service centre
in New Zealand
Free call 0800 10 66 10
(New Zealand only)
AOV_Warr_Jun11
SERVICE AUSTRALIA
ELECTROLUX HOME PRODUCTS
www.electrolux.com.au
SERVICE NEW ZEALAND
ELECTROLUX HOME PRODUCTS
www.electrolux.co.nz
FOR SPARE PARTS
or to find the address of your
nearest state spare parts centre
in Australia
Please call 13 13 50
For the cost of a local call
(Australia only)
FOR SPARE PARTS
or to find the address of your
nearest state spare parts centre
in New Zealand
Free call 0800 10 66 20
(New Zealand only)
we were thinking of you
when we made this product
Electrolux Home Products Australia
telephone: 1300 363 640
fax:
1800 350 067
email:customercare@electrolux.com.au
web:www.electrolux.com.au
Electrolux Home Products New Zealand
phone:
09 573 2384
fax:
09 573 2221
email:customercare@electrolux.co.nz
web:www.electrolux.co.nz
The Thoughtful Design Innovator.
Do you remember the last time you opened a gift that made you say
“Oh! How did you know? That’s exactly what I wanted!” That’s the kind of
feeling that the designers at Electrolux seek to evoke in everyone who
chooses or uses one of our products. We devote time, knowledge, and a
great deal of thought to anticipating and creating the kind of appliances that
our customers really need and want.
This kind of thoughtful care means innovating with insight. Not design for
design’s sake, but design for the user’s sake. For us, thoughtful design means
making appliances easier to use and tasks more enjoyable to perform, freeing
our customers to experience that ultimate 21st century luxury, ease of mind.
Our aim is to make this ease of mind more available to more people in more
parts of their everyday lives, all over the world. So when we say we’re thinking
of you, you know we mean just that.
The “Thinking of you” promise from Electrolux goes beyond meeting the needs
of today’s consumers. It also means we’re committed to making appliances
safe for the environment – now and for future generations.
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com.au
P/No. 136 908 410
© 2011 Electrolux Home Products Pty Ltd
ABN 51 004 762 341
Print code: EMAN_EDI197170W_Jul11
