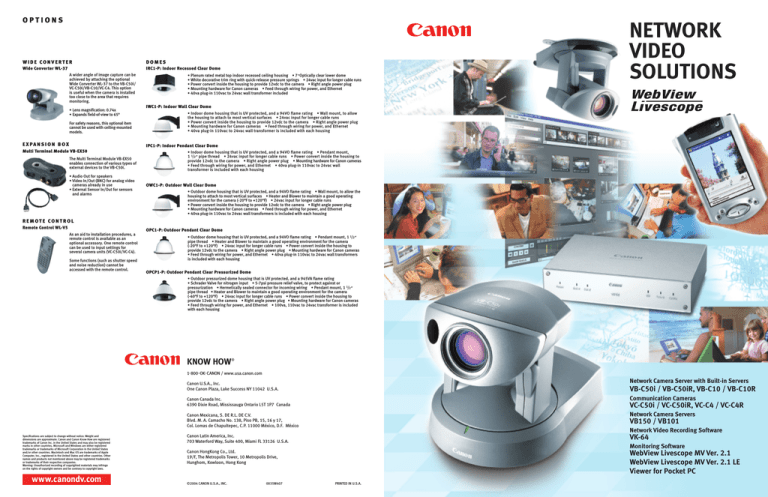

Canon VB150 Specifications

OPTIONS
W I D E CO N V E RT E R
DOMES
Wide Converter WL-37
IRC1-P: Indoor Recessed Clear Dome
A wider angle of image capture can be
achieved by attaching the optional
Wide Converter WL-37 to the VB-C50i/
VC-C50i/VB-C10/VC-C4. This option
is useful when the camera is installed
too close to the area that requires
monitoring.
• Plenum rated metal top indoor recessed ceiling housing • 7”Optically clear lower dome
• White decorative trim ring with quick-release pressure springs • 24vac input for longer cable runs
• Power convert inside the housing to provide 12vdc to the camera • Right angle power plug
• Mounting hardware for Canon cameras • Feed through wiring for power, and Ethernet
• 40va plug-in 110vac to 24vac wall transformer included
NETWORK
VIDEO
SOLUTIONS
IWC1-P: Indoor Wall Clear Dome
• Lens magnification: 0.74x
• Expands field-of-view to 65°
• Indoor dome housing that is UV protected, and a 94VO flame rating • Wall mount, to allow
the housing to attach to most vertical surfaces • 24vac input for longer cable runs
• Power convert inside the housing to provide 12vdc to the camera • Right angle power plug
• Mounting hardware for Canon cameras • Feed through wiring for power, and Ethernet
• 40va plug-in 110vac to 24vac wall transformer is included with each housing
For safety reasons, this optional item
cannot be used with ceiling-mounted
models.
E X PA N S I O N B O X
IPC1-P: Indoor Pendant Clear Dome
Multi Terminal Module VB-EX50
• Indoor dome housing that is UV protected, and a 94VO flame rating • Pendant mount,
1 1/2” pipe thread • 24vac input for longer cable runs • Power convert inside the housing to
provide 12vdc to the camera • Right angle power plug • Mounting hardware for Canon cameras
• Feed through wiring for power, and Ethernet • 40va plug-in 110vac to 24vac wall
transformer is included with each housing
The Multi Terminal Module VB-EX50
enables connection of various types of
external devices to the VB-C50i.
• Audio Out for speakers
• Video In/Out (BNC) for analog video
cameras already in use
• External Sensor In/Out for sensors
and alarms
OWC1-P: Outdoor Wall Clear Dome
• Outdoor dome housing that is UV protected, and a 94VO flame rating • Wall mount, to allow the
housing to attach to most vertical surfaces • Heater and Blower to maintain a good operating
environment for the camera (-20°F to +120°F) • 24vac input for longer cable runs
• Power convert inside the housing to provide 12vdc to the camera • Right angle power plug
• Mounting hardware for Canon cameras • Feed through wiring for power, and Ethernet
• 40va plug-in 110vac to 24vac wall transformers is included with each housing
R E M OT E CO N T R O L
Remote Control WL-V5
OPC1-P: Outdoor Pendant Clear Dome
As an aid to installation procedures, a
remote control is available as an
optional accessory. One remote control
can be used to input settings for
several camera units (VC-C50i/VC-C4).
Some functions (such as shutter speed
and noise reduction) cannot be
accessed with the remote control.
• Outdoor dome housing that is UV protected, and a 94VO flame rating • Pendant mount, 1 1/2”
pipe thread • Heater and Blower to maintain a good operating environment for the camera
(-20°F to +120°F) • 24vac input for longer cable runs • Power convert inside the housing to
provide 12vdc to the camera • Right angle power plug • Mounting hardware for Canon cameras
• Feed through wiring for power, and Ethernet • 40va plug-in 110vac to 24vac wall transformers
is included with each housing
OPCP1-P: Outdoor Pendant Clear Pressurized Dome
• Outdoor pressurized dome housing that is UV protected, and a 945VA flame rating
• Schrader Valve for nitrogen input • 5-7psi pressure relief valve, to protect against or
pressurization • Hermetically sealed connector for incoming wiring • Pendant mount, 1 1/2”
pipe thread • Heater and Blower to maintain a good operating environment for the camera
(-40°F to +120°F) • 24vac input for longer cable runs • Power convert inside the housing to
provide 12vdc to the camera • Right angle power plug • Mounting hardware for Canon cameras
• Feed through wiring for power, and Ethernet • 100va, 110vac to 24vac transformer is included
with each housing
C
KNOW HOW
®
1-800-OK-CANON / www.usa.canon.com
Network Camera Server with Built-in Servers
Canon U.S.A., Inc.
One Canon Plaza, Lake Success NY 11042 U.S.A.
Specifications are subject to change without notice. Weight and
dimensions are approximate. Canon and Canon Know How are registered
trademarks of Canon Inc. in the United States and may also be registered
marks in other countries. Microsoft and Windows are either registered
trademarks or trademarks of Microsoft Corporation in the United States
and/or other countries. Macintosh and Mac OS are trademarks of Apple
Computer, Inc., registered in the United States and other countries. Other
names and products not mentioned above may be registered trademarks
or trademarks of their respective companies.
Warning: Unauthorized recording of copyrighted materials may infringe
on the rights of copyright owners and be contrary to copyright laws.
www.canondv.com
VB-C50i / VB-C50iR, VB-C10 / VB-C10R
Canon Canada Inc.
6390 Dixie Road, Mississauga Ontario L5T 1P7 Canada
Communication Cameras
Canon Mexicana, S. DE R.L. DE C.V.
Blvd. M. A. Camacho No. 138, Piso PB, 15, 16 y 17,
Col. Lomas de Chapultepec, C.P. 11000 México, D.F. México
Network Camera Servers
Canon Latin America, Inc.
703 Waterford Way, Suite 400, Miami FL 33126 U.S.A.
VK-64
VC-C50i / VC-C50iR, VC-C4 / VC-C4R
VB150 / VB101
Network Video Recording Software
Monitoring Software
Canon HongKong Co., Ltd.
19/F, The Metropolis Tower, 10 Metropolis Drive,
Hunghom, Kowloon, Hong Kong
©2004 CANON U.S.A., INC.
0035W407
WebView Livescope MV Ver. 2.1
WebView Livescope MV Ver. 2.1 LE
Viewer for Pocket PC
PRINTED IN U.S.A.
Canon WebView Livescope:
You owe it to your business to find out more.
CANON
SYSTEM
What is
Network Video
Solutions?
Transmit
Network Video Solutions is simply the
transmission of high-quality video images
through the Internet or a LAN connection.
This may involve an individual viewing scenes
from multiple locations, many individuals
viewing a single location, or a combination of
the two.
Record
Anything that’s transmitted can be recorded and
stored to be viewed again at any time, a crucial
factor in safety and security applications.
Canon superior?
Over 60 Years of Excellence
With over 60 years of industry-leading experience
and a host of groundbreaking technical innovations
to its credit, Canon richly deserves its reputation
as maker of the world’s most advanced cameras
and photographic equipment.
Share
Network Video Solutions can accommodate
multiple viewers and multiple image locations,
linking people in a way no other technology
can offer.
Internet
Close the Distance
Network Video Solutions literally puts you,
and/or the information you wish to broadcast,
in several places at once. When physical
distance ceases to be a barrier, the possibilities
are limitless.
Why is
Legendary Optics
Canon lenses are the choice of professional
photographers all over the world. They feature
proprietary technology
that delivers sharp
resolution, high color
fidelity, crisp, fast
focus, and powerful,
seamless zooming.
High-resolution Images
Each camera features a CCD sensor built to
Canon’s exacting specifications, ensuring
high-resolution images in a variety of motion
patterns and lighting conditions.
Flexibility
Canon systems make installation, configuration
and maintenance easy, so you’ll be up and
running quickly and worry-free.
NETWORK CAMERAS WITH
B U I LT - I N S E R V E R S
How can
the system work
for you?
Medical Facility
Monitor multiple locations to provide the
highest quality care and security in facilities
where quick reactions are essential.
Teleconferencing
Conduct high-quality meetings with colleagues
and clients all over the world for unmatched
convenience and
substantial cost
savings.
Retail Store
Strategically located cameras can dramatically
improve security and allow employees to
provide more prompt customer service.
Distance Learning
Broadcast lectures and classroom sessions to
remote students. WebView’s crisp images and
superior camera control make students feel as
if they’re in the
room.
Construction Site
Oversee security, safety practices and project
status wherever you are. Ideal for client
presentations as well.
VB-C50i
VB-C50iR
VB-C10
VB-C10R
CO M M U N I C AT I O N C A M E R A S
VC-C50i
VC-C50iR
VC-C4
VC-C4R
NETWORK CAMERA SERVERS
VB150
VB101
SOFTWARE
Ethernet
(10/100Mbps)
Save
Putting Canon’s Network Video
Solutions to work for you will boost
the productivity of your business
immediately, for cost and time
savings that go straight to
your bottom line.
Ultimate Performance and Reliability
Canon’s excellent reputation is a direct result
of the high performance and reliability of its
products. Canon’s Network Video Solutions is
designed to perform long term in demanding
situations with minimal maintenance.
One-stop Solution
From network-ready cameras to servers to
software, Canon offers a complete, fully
integrated system that’s ready to go to work.
A Name You Can Trust
Canon is a solid industry leader, earning the
trust of millions for
over 60 years. We are
fully committed to
the needs of our
customers, today,
tomorrow and well
into the future.
2
Tourism
Promote destinations and attractions with live
views available to prospective visitors anywhere
in the world.
WebView Livescope
Network Video
MV Ver. 2.1
Recording Software
VK-64
Museum or Gallery
Constant surveillance in multiple locations
can reduce staffing requirements and give you
greater peace of mind.
Traffic Reports
Newsrooms can monitor key sites to give
accurate, real-time traffic reports.
WebView Livescope
MV Ver. 2.1 LE
Viewer for
Pocket PC
Viewer for Java
Viewer for PC
3
N E T W O R K C A M E R A S W I T H B U I LT - I N S E R V E R S
VB-C50i/ VB-C50iR
VB-C10/ VB-C10R
Advanced Scheduling Functions
The camera’s scheduling function allows you to
specify when to record images or output signals
to an external device, such as an alarm.
You can schedule by week, date, time, motiondetection and more.
Pan/Tilt/Zoom Viewing Restriction
The camera allows you to set restrictions on
camera angles and zoom magnifications. This
feature protects your privacy by preventing
viewers from seeing particular areas.
Standard Model
Reverse Model
Pan 340°
Pan 200°
Tilt 120°
•Up 90° •Down 30°
Tilt 100°
•Up 10° •Down 90°
• Genuine Canon 26x optical zoom lens with 12x digital zoom.
• Infrared Night Mode captures black and white images in the dark.
• 340K effective pixel CCD for smooth, high-quality video.
• Simultaneous image transmission in 3 viewer-selectable sizes
with excellent resolution (30 fps at 640 x 480). IP monitoring for
up to 50 clients.
• Auxiliary analog camera input (using optional VB-EX50).
• Automatic image capture with 15MB of internal memory for
storing still images, activated by schedule, motion detection, or
contact sensor.
• High-precision, viewer-controlled pan, tilt and zoom.
• Up to 20 preset viewing angles with scheduled auto touring.
• 4-zone motion detection with auto tracking of movement.
• Automatic and manual image adjustment controls.
• Optional Multi Terminal Module VB-EX50 for connecting external
speakers, cameras, sensors and alarms.
K E Y F E AT U R E S
Built-in Server for Ultimate Convenience
The built-in server supports many protocols for
easy direct connection to both the Internet and
LANs. Once connected, you’re ready for a world
of IP monitoring and webcast applications.
26x Optical/12x Digital Zoom
The camera’s 26x optical genuine Canon zoom
lens with 12x digital zoom offers the highest
optical zoom magnification in the industry,
making VB-C50i/VB-C50iR the perfect choice
for monitoring large facilities.
Multi-streaming Capability
Viewers with slower connections or videoenabled cell phones may not want or be able to
receive the camera’s highest-quality video,
given its larger file size. For customable
flexibility, the camera simultaneously
broadcasts in 3 file sizes from which the
viewer can select. The system can
accommodate up to 50 clients.
Sophisticated Motion Detection
and Auto Tracking
Four areas can be selected for motion detection
with the ability to set sensitivity, area ratio, and
duration of detected movement. These settings
can be independently set in each of the four
areas. Auto tracking gives the camera the
ability to pan and tilt once motion is detected,
and capture this movement automatically.
High Resolution
You’ll capture and transmit clear, well-focused
video with excellent image quality:
30 frames-per-second, 640 x 480 pixels.
30fps
Range of Camera
Head Movement
Set restrictions
using the View
Restriction Tool
BUNDLED SOFTWARE
VB Administration Tools
Version 2.0
•Panorama Creation Tool
•View Restriction Tool
•Preset Setting Tool
•Schedule Setting Tool
•Admin/Log Viewer
VB Collector Software Version 2.0
•Schedule-based download of captured
images •Automatic downloading when the
upper limit of the camera’s memory is reached
•Downloaded images can be viewed on a Web
browser •New image viewer offers animated
playback of captured images
Create and View Panoramic Scenes
The camera’s fast, vibration-free engine
enables wide-ranging pan and tilt angles so
you’ll capture panoramic images.
Viewer Software
•Viewer for PC •Admin Viewer
•Viewer for Java
K E Y F E AT U R E S
Built-in Server for Ultimate Convenience
The built-in server supports many protocols for
easy direct connection to both the Internet and
LANs. Once
connected,
VB-C10
VB-C10R
you’re ready
for a world of
Internet
IP monitoring
and webcast
applications.
VB Collector Software Version 1.1
•Schedule-based download of captured
images •Automatic downloading when the
upper limit of the camera’s memory is reached
•Downloaded images can be viewed on a Web
browser •New image viewer offers animated
playback of captured images
410,000 pixel CCD
The powerful CCD
sensor captures images
that are crisp and bright.
Smooth, high-quality
video puts you right into
the scene.
CO M PAT I B I L I T Y V I E W E R
Max. 20 Clients
Viewer Software
•Viewer for PC •Admin Viewer
•Viewer for Java
CO M PAT I B I L I T Y V I E W E R
FREE VIEWER
VK-64
SOFTWARE
Viewer
for Pocket PC
FREE VIEWER
SOFTWARE
Viewer for Pocket PC
N O M E N C L AT U R E
1. 10/100 Base T
Ethernet Terminal
2. Multi-terminal
3. DC In Terminal
1
VB-C50i
4
• Genuine Canon 16x optical zoom lens.
• 410K effective pixel CCD for sharp, seamless video.
• High resolution: 30 fps at 320 x 240.
• 5MB of internal memory for storage of still images.
• High-precision, viewer-controlled pan, tilt and zoom.
• Up to 9 preset viewing angles.
• Wide angles and fast, smooth engine create panoramic views.
• Motion-JPEG streaming for up to 20 clients.
• Programmable angle and zoom restrictions protect privacy.
2
3
FREE VIEWER
VK-64
SOFTWARE
Viewer for Pocket PC
FREE VIEWER
SOFTWARE
Viewer for Pocket PC
N O M E N C L AT U R E
1. DC In Terminal
2. Sensor Input/
Relay Output
3. 10/100 Base T
Ethernet Terminal
BUNDLED SOFTWARE
VB Administration Tools Version 1.1
•Panorama Creation Tool •View Restriction Tool
•Preset Setting Tool •Admin/Log Viewer
1
VB-C10
2 3
5
CO M M U N I C AT I O N C A M E R A S
NETWORK CAMERA SERVERS
VC-C50i/ VC-C50iR
VB150/ VB101
K E Y F E AT U R E S
Excellent Low-light Performance
The camera will
capture clear
color images in
dim lighting all
the way down to
a single lux
thanks to a
highly-sensitive CCD, bright lens
and slow shutter capability.
Images are further enhanced with
automatic noise reduction in both
bright and dim light.
Multi-connector Simplifies
System Set-up
The camera is easily adaptable to
custom system configurations thanks
to a new multi-connector interface.
External devices including alarm
sensors, infrared lamps and more
connect with just one plug.
Standard Model
Night Imaging with
Infrared Light
A Night Mode with built-in infrared
light allows the camera to capture
clear black and white images even
in complete darkness. An additional external infrared light can also be
connected.
Flexible Image Adjustment
Controls
Canon’s decades of photographic
expertise give the camera a high
degree of imaging control: automatic
and manual exposure control,
manual focusing, noise reduction,
K E Y F E AT U R E S
Connect up to 9 Cameras
Operate up to 9 cameras in a daisy
chain from your PC (via RS-232
with custom programming) or the
Canon VB101/VB150 controller.
VB Administration Tools
Version 1.2
•Panorama Creation Tool
•View Restriction Tool
•Preset Setting Tool
•Admin/Log Viewer
Reverse Model
Tilt 120°
•Up 90° •Down 30°
Tilt 100°
•Up 10° •Down 90°
Range of Camera Head Movement
S E R V E R CO M PAT I B I L I T Y
VB150
N O M E N C L AT U R E
1. DC in Terminal
2. Video Out
Terminal
3. Multiterminal
1 2
3
VC-C50i
VC-C4/ VC-C4R
BUNDLED SOFTWARE
Pan 340°
Pan 200°
• Genuine Canon 26x optical zoom lens with 12x digital zoom.
• Slow shutter speed for clear color video in very low light.
• Infrared mode with infrared light up to 9.8 ft. captures
black and white images in the dark.
• 340K effective pixel CCD for smooth, high-quality video.
• Viewer-controlled pan, tilt and zoom.
• Cascade function to connect up to 9 cameras to a single
PC or up to 4 cameras to a VB150 server.
• Automatic and manual image adjustment controls.
• Multi-connector for simple system configuration
accommodates alarm trigger, external IR light.
PCMCIA Card Slots for Expandability
2 built-in PCMCIA card slots allow you to
attach a dial-up modem card or flash memory
card. Captured images can be
saved and then forwarded to
preset e-mail addresses.
backlight compensation, white
balance and more.
S E R V E R CO M PAT I B I L I T Y
VB150
VB-101
N O M E N C L AT U R E
• Connect up to 4 cameras.
• Capture video up to 30 frames-per-second.
• Web server built-in, no computer necessary.
• Built-in motion detection (VB150).
• Automatic image capture and storage, either scheduled
or motion activated (VB150).
• Adjustable video quality and frame rates.
• Simultaneous viewing for up to 50 clients (VB150) or
40 clients (VB101).
• Create panoramas from sequential images.
• Create and host high-impact web pages.
• Expandable with PCMCIA card slots.
• Wireless-capable (802.11b) with wireless LAN card (VB150).
Built-in Motion Detection
When the server detects motion, it can capture
pictures, send data to control external devices,
or record data in a log.
Use the supplied
software to set
numerous parameters
including detection area,
sensitivity, duration and
area ratio.
VB Collector Software Version 2.0
•Schedule-based download of captured images
•Automatic downloading when the upper limit
of the camera’s memory is reached
•Downloaded images can be viewed on
a Web browser
•New image viewer offers animated playback
of captured images
Viewer Software
•Viewer for PC •Admin Viewer
•Viewer for Java
CO M PAT I B I L I T Y V I E W E R
FREE VIEWER
VK-64
SOFTWARE
Viewer for Pocket PC
Viewer for Pocket PC
K E Y F E AT U R E S
1 2 3 4 5
Max. 9 Clients
•
•
•
•
Genuine Canon 16x optical zoom lens.
410K effective pixel CCD for smooth, high-quality video.
Viewer-controlled pan, tilt and zoom.
Cascade function to connect up to 9 cameras to a single
PC or up to 4 cameras to a VB150 server.
• Compact and light: weighs less than a pound.
• Includes remote control.
VC-C4 or VC-C4R
Control Pan, Tilt and Zoom
A wide range of on-screen controls,
and a precision mechanism that
minimizes shaking and vibration
make it easy to adjust pan, tilt and
zoom to the exact view you need.
VC-C4
1.
2.
3.
4.
5.
DC In Terminal
S-Video Out Terminal
Composite Video Out Terminal
RS-232C Out Terminal
RS-232C In Terminal
Connect up to 4 Cameras
The servers can connect to and
control up to 4 Canon VC-C50i,
VC-C50iR, VC-C4, VC-C4R and a
variety of compatible generic analog cameras.
With Canon’s WebView Livescope MV 2.1 or 2.1
LE software, up to 4 live camera views can be
simultaneously
Controllable
displayed on
one screen for
superior
Static
Static
VC-C50i VC-C50iR
security
monitoring.
VB150
6
* MV 2.1 & MV 2.1 LE
used only on
VB150 for 4 line
camera views.
High-quality, Adjustable Images and
Frame Rate
The servers capture high-quality video of up to
30 frames-per-second in motion-JPEG format.
Video quality and frame rate can be freely
adjusted to suit the needs of viewers and the
network environment.
Create and Host Interactive Web Pages
Store web page content on a flash memory card
to transmit high-impact, interactive content over
the web any time.
Gives an immediate
boost to your site’s
professionalism
and your viewers’
excitement.
FREE VIEWER
SOFTWARE
N O M E N C L AT U R E
1
2
3
4
5
6
7
8
1. PCMCIA Card Slot A and B
2. DC Terminal
3. External Device I/O Terminals
4. Reset Button
5. 10/100 Base T Ethernet Terminal
6. Camera Control Connectors
7. Video Input Terminals (Composite)
8. Video Input Terminals (BNC)
Viewer for Java
7
SOFTWARE
Network Video Recording Software
Multi-Screen Monitoring Software
VK-64 v1.0
This highly flexible, easy to run program provides a
comprehensive solution for all video monitoring and
recording needs. Ideal for large-scale locations with
multiple cameras, multi-site businesses, and any business
in need of data custody at remote locations.
Camera
Section Area
Live Events
Window
Remote Monitoring and
Recording
Using an IP network, you can
record video captured from a
camera server. This remote data
custody can serve as a crucial back
up in the event of fire or other
damage in the server location.
Record up to 64 Camera Servers
The program can record video from
up to 64 cameras simultaneously
from a single storage server.
Further, it can manage 3 storage
servers with a single viewer,
allowing you to manage recorded
video from a total of 192 cameras.
Location
Zone
Viewing
Area
Individualized Recording Mode
Settings
The software allows unparalleled
flexibility in recording, with a wide
range of options available to each
individual camera. There is a mode
to meet every need, including
continuous recording, recording
triggered by a sensor event
at night, pre- and post-event
recording, as well as motion
detection.
Video
Window
Date
Selector
Event Search
with Keyword
Playback Controls
Timeline
Extract
Video
Zoom In/Out
Return to
Live Video
Playhead
• Remote monitoring and remote recording.
• Record up to 64 camera servers with a single storage server.
• Easily install a new camera or change a camera’s location.
• Access for up to 5 clients at a time.
• Quickly create a custom layout for your viewing screen.
• Control camera positions and zoom while monitoring
live video.
• Extensive recording mode settings available to each camera.
• Easy event search and playback.
• Play live or recorded video in up to 24 windows
simultaneously.
• QuickTime file conversion lets you send recorded video
to anyone via email.
• Supports VB-C10/VB-C10R, VB-C50i/VB-C50iR*, VB150
and VB101.
TM
* Not all features are available at this time.
Image size
320 x 240
Frame size
10KB
1 camera
640 x 480
40KB
320 x 240
10KB
640 x 480
40KB
10 cameras
8
* Multiple screens can be created.
• Simultaneously monitor up to 16 locations on a single screen.
• VB ImageBrowser for seamless image management and display.
• Communicate with external devices.
• Supports advanced VB150 features.
• Create custom monitoring screens.
• Enjoy flexible monitoring settings.
• Monitor from multiple sites.
• Add new camera servers quickly and easily.
Simple Monitoring Software
Communicate with External
Devices
When a connected external device
(such as a window alarm sensor) is
triggered,
you’ll hear or
see an alert of
your choosing
on the screen.
Seamless Image Management
and Display
Capturing, viewing and saving
images have never been easier.
VB ImageBrowser allows you to
download still images from the
camera server, compare and
PocketPC Software
*Multiple templates can be created.
Create Custom Monitoring Screens
A Monitoring Screen Wizard lets you
choose from a wide variety of screen
templates to find one that’s perfect
for your needs.
Flexible Monitoring Settings
The program features 3 convenient
modes: • Video Relay moves
between video and still images when
multiple cameras are connected to a
single server. • Automatic Rotation
gives you a “tour” of up to 8 preset
locations. • Autoswitch automatically
switches the display between
cameras and camera servers.
Monitor from Multiple Sites
Place the monitoring screen you
created in a common directory
location, and it can be viewed by
multiple stations running the MV
software.
Free Viewer
Software
Viewer
for Java
Allows video
from the
VB150,
VB101,
VB-C10 or
VB-C50i to be
displayed on
a standard web browser. This software is automatically downloaded.
XGA 24 screen
Event Search Dialog
Event Type
Location and Zone
Specify a Date
Specify Time Code
display differences between
consecutive images, view all
images as thumbnails, and more.
Animated replays and electronic
zoom are also available.
View Event in
Camera
Search Results Area
Server Capacity / Traffic / Data Size
Number of
cameras
Event Search and Easy Playback
The software makes it easy to find
an event you’re looking for. Search
by event type, location, date and
time, time code or scroll through the
Viewer Timeline to find and select
the event you want. Then, simply
double-click the event from the Live
Event Window to playback the
requested event.
Simultaneously Display Up to
24 Windows
View live or recorded action at the
same time in up to 24 windows per
template*. For instance, a retail
storeowner could simultaneously
view the identical scene shot at
various times of day to create a
timeline analysis of store traffic.
Even customize your viewing
screen by adjusting the number,
size and layout of video windows.
Simultaneously Monitor up to
16 Locations
View images from 16 cameras per
screen*, with automatic camera
position changes and camera server
information available on screen.
Choose your own layout, and switch
between displays automatically.
Network traffic
frame/sec Traffic volume
Storage volume
1 day
1 month
1 fps
80 kbps
0.9GB
25.9GB
5 fps
400 kbps
4.3GB
129.6GB
1 fps
320 kbps
3.5GB
103.7GB
5 fps
1.6 Mbps
17.3GB
518.4GB
1 fps
800 kbps
8.6GB
259.2GB
5 fps
5 Mbps
43.2GB
1,296.0GB
1 fps
3.2 Mbps
34.6GB
1,036.8GB
5 fps
16 Mbps
172.8GB
5,184.0GB
Camera Control in Real Time
Experience interactive monitoring of
live video by controlling the position
and zoom of VB-C50i and VC-C50i
cameras connected to a VB150
server. Presets are also available.
XGA 6 screen
Convert Recorded Video to
QuickTime
The software makes it simple to
convert up to an hour of recorded
video into a QuickTime file,
allowing you to email a viewable
video file to recipients.
• Simultaneously monitor up to 4 locations on a single screen.
• Panoramic Viewing Image Function.
• Add new camera servers quickly and easily.
TM
TM
Monitor up to 4 Locations at Once
Watch live video from up to 4
cameras simultaneously.
Control camera pan, tilt and zoom
functions right on the screen.
Easy Camera Server Registration
A built-in search feature
automatically locates camera
servers on the same network for
quick and easy registration.
Access and control your network
cameras right from your PDA!
Supports a wide variety of Pocket
PC based PDAs. Available in a
single or 5-license pack.
Viewer for PC
Offers faster start-up and a higher
video frame rate. Installable for
frequent viewers.
9
S YST E M CO N F I G U R AT I O N
S P EC I F I C AT I O N S
Network Camera VB-C50i/VB-C50iR & VB-C10/VB-C10R
LAN-connected
NETWORK
CAMERA
Internet-connected
VB-C50i
Viewer PC
VB-C50i
VB-C10
Router
Broadband
Connection
Router
Viewer PC
LAN
Viewer PC
Internet
Viewer PC
Network Camera Server VB150 or VB101
LAN-connected
Internet Service Provider
PDA
VB150
or
VB101
VC-C4R
Dial-up
LAN + Dial-up
VB150
or
VB101
Web Server
VB150
VC-C50i
Wireless LAN Card
Modem Card
VB150
or
VB101
Internet
LAN
Viewer PC
Router
Router
PSTN
Broadband
Connection
Modem Card
Viewer PC
Viewer PC
PDA
VC-C4R
Ethernet
Ethernet
(10/100Mbps)
VC-C4
VC-C4R
VC-C4
Router
Router
VB150
or
VB101
VC-C4R
VB150
or
VB101
VC-C4
(10/100Mbps)
VC-C4R
Viewer PC
Monitoring One
VC-C4R
VC-C4
Modem Card
We b V i e w L i v e s co p e M V Ve r. 2 . 1 L E
Monitoring Two
VB150
or
VB101
PDA
Viewer PC
Viewer PC
We b V i e w L i v e s co p e M V Ve r. 2 . 1
Monitoring One
VC-C4
PSTN
PDA
Router
LAN
VC-C4
Modem Card
VC-C4
VC-C4
VC-C4R
Ethernet
(10/100Mbps)
VB-C10R
VBC-10R
MV Ver.2.1
VB-C10
VB-C10
VB-C10R
MV Ver.2.1
MV Station Ver.2.1 License
VB-C10
MV Ver. 2.1 LE
VC-C50i / VC-C50iR
VC-C4 / VC-C4R
680K pixels
410K pixels
(340K effective)
(380K effective)
26x optical/12x digital
16x optical
1 lux
6 lux (2 lux at
(1/30 shutter speed)
gain-up mode)
+/-100° (Standard)/+/-170° (Reverse)
+90°/-30° (Standard)/+10°/-90° (Reverse)
NTSC
420 TV L
460 TV L
48 dB
3 to 47.5 degrees
(65 degrees with wide angle lens adapter)
Auto
Auto/Manual
Auto/Manual
3.5 to 91mm,
4 to 64mm,
f/1.6 to 4.0
f/1.4 to 2.8
1 to 90 degrees/sec
1 to 70 degrees/sec
Camera setting, Display setting, etc.
NETWORK
CAMERA SERVER
Operating
Environment
Dimension
(W x D x H)
(excluding
attachments)
Weight
14.8 oz (420g)/17.3 oz (490g) 13.2 oz (375g)/15.3 oz (435g)
AC adapter (included) DC13V (11.5-14V)
Power Supply
Power Consumption 12.5W or less
12W or less
VB101
VB150
DRYOS (Canon Realtime OS)
TCP/IP, HTTP, BOOTP, FTP, SMTP
Compression Technique Motion-JPEG
(Image quality range 1-99), JPEG (for still images)
Image Compression 0.1-30 fps (variable)
Rate
Video Capture Sizes 160 x 120, 320 x 240, 640 x 480
Server Functions
WWW, FTP
Log Management Syslog (mail, ftp, flash memory recording possible)
Camera Control
Pan, tilt, zoom, brightness, shutter speed etc.
Operations
Network Operations Access restriction (password/host),
video connection time.
Image Storage
Flash memory card (optional)
Simultaneous
40 (max.)
50 (max.)
Client Access
Image Input
4 Inputs (BNC x 2, RCA x 2; NTSC/PAL)
RS-232C x 3 (mini DIN RS-232C x 2 (mini DIN 8,
Serial Ports
8, for camera use x 2, for camera use)
for initial setting x 1)
Ethernet x 1 (RJ45, 10 Ethernet x 1(RJ45, 10
Networking
Base T/100 Base TX autoBase T/100 Base TX
auto-negotiation)
negotiation, wireless
LAN (1 PC card slot used)
PCMCIA Type II
PCMCIA Type II
Expansion Slots
(5V) x 2
(3.3V/5V) x 2
Power On/Off, network status,
Display LEDs
PCMCIA status display
Operating
F:32-104 degrees (C:0-40)
20-85% RH (non-condensing)
Environment
Dimension
98 x 65 x 20 in.
98 x 66 x 20 in.
(W x D x H)
(248 x 165 x 52mm)
(248 x 167 x 52mm)
(excluding
attachments)
Weight
2.86 lbs. (1.3Kg)
AC adapter (included) DC13V (11.5-14V)
Power Supply
Power Consumption 25W or less
17W or less
Network Video Recording Software VK-64
WebView Livescope MV 2.1 Manager
WebView Livescope MV 2.1 LE
Viewer System Requirements
CPU: Pentium III 700 MHz or greater (Pentium 4 2.2 GHz or greater recommended)
Operating System: Windows 2000 Server (service pack 3)/Windows 2000
Professional (service pack 3)/Windows XP Professional
(recommended)
Memory: 256MB RAM (1GB RAM or greater recommended)
CPU: Pentium III 600 MHz or greater
Operating System: Windows Me/Windows 2000 (service pack 1.0, 2.0, 3.0)
/Windows XP
Web Browser: Internet Explorer 5.0, 5.01, 5.01 (service pack 1, 2) 5.5, 5.5
(service pack 1, 2) 6.0, 6.0 (service pack 1)
Memory: 128MB or better
Hard Disk: Available space of 50MB or better
Monitor: XGA (1,024 x 768) or better with 16-bit color display or better
CPU: Pentium III 600 MHz or greater
Operating Systems: Windows Me/Windows 2000 (service pack 1)
/Windows XP
Web Browser: Internet Explorer 5.0, 5.01, 5.01 (service pack 1, 2) 5.5,
5.5 (service pack 1, 2) 6.0, 6.0 (service pack 1)
RAM: 128MB or better
Hard Disk: Available space of 20MB or better
Display: XGA (1,024 x 768) or better with 16-bit color display or better
WebView Livescope MV 2.1 Station
Viewer for PC
CPU: Pentium III 600 MHz or greater
Operating System: Windows Me/Windows 2000 (service pack 1.0, 2.0,
3.0)/Windows XP
Web Browser: Internet Explorer 5.0, 5.01, 5.01 (service pack 1, 2) 5.5, 5.5
(service pack 1, 2) 6.0, 6.0 (service pack 1)
Memory: 128MB or better
Hard Disk: Available space of 50MB or better
Monitor: SVGA (800 x 600) or better with 16-bit color display or better
Operating System: Windows 2000 (service pack 4)
Web Browser:
• Microsoft Internet Explorer 6.0 (service pack 1)
• Netscape Navigator or Communicator 7.1
Image Sensor
Zoom
Minimum Object Illumination
Pan Angle Range
Tilt Angle Range
Network
Protocol
Router
CO M M U N I C AT I O N
CAMERA
VB-C50i / VB-C50iR
VB-C10 / VB-C10R
680K pixels (340K effective)
410K pixels (380K effective)
26x optical/12x digital
16x optical
1 lux (1/30 shutter speed)
6 lux
+/-100° (Standard)/+/-170° (Reverse)
+90°/-30° (Standard)/+10°/-90° (Reverse)
Ethernet 10M/100M, auto negotiation
TCP/IP, HTTP, DHCP, FTP, NTP,
TCP/IP, HTTP, BOOTP, FTP, NTP,
DDNS, SMTP
SMTP
Capture Frame Rate
30 fps (640 x 480)
30 fps (320 x 240)
Video Capture Sizes
160 x 120, 320 x 240, 640 x 480
Video Compression Method M-JPEG (video), JPEG (still images)
Simultaneous Client Access 50 (max.)
20 (max.)
Compatible Viewers
Network Video Recording Software VK-64, Viewer for Java, Viewer
for PC, Admin Viewer, WebView Livescope MV Ver. 2.1/ 2.1 LE
Server Functions
WWW, FTP
Video Transmission Rate 0.1 to 30 fps (variable)
Connection Limitation
Using software management tools
Using software management tools
Setting for Camera
Control Privileges
Using software management tools
View Restriction
20 positions
8 positions
Camera Angle Presets
Home Position Function Using software management tools
External Device I/O
2/3 (optional)
1/1 (included)
Approx. 15MB (JPEG)
Approx. 5MB (JPEG)
Recording Capacity
Schedule/Sensor/Motion Detection Schedule/Sensor
Picture Recording
Video Input
Composite
None
None
Client PC to camera
Audio
Display & Management
VB Collector, WebView Livescope MV Ver. 2.1
of Stored Images
F:32-104 degrees (C:0-40) 20-85% RH (non-condensing)
Operating Environment
Dimension (W x D x H)
41 x 51 x 43 in.
42 x 44 x 56 in.
(excluding attachments) (104.6 x 130.3 x 109.7mm)/
(106 x 111.9 x 143.1mm)/
54 x 44 x 56 in.
54 x 51 x 44 in.
(136 x 130.3 x 110.6mm)
(136 x 111.9 x 143.1mm)
Weight
1.37 lbs. (620g)/1.54 lbs. (700g) 1.42 lbs. (645g)/1.6 lbs. (730g)
AC adapter (included) DC13V (11.5-14V)
Power Supply
Power Consumption
9.7W or less
25W or less
Image Sensor
Zoom
Minimum Object
Illumination
Pan Angle Range
Tilt Angle Range
Video Standard
TV-Line
SNR
Horizontal,
Field-of-View
White Balance
Exposure
Focus
Focus Length
Pan Speed
Tilt Speed
Menu Mode by
Super Impose
Camera Angle
Presets
Controllable
# by One IR
Cascade Control
Control
9 positions
9 units
9 units
RS232 serial, RTS/CTS has to be active
(Up to 19.2kbps)
F:32-104 degrees (C:0-40) 20-85% RH
(non-condensing)
39 x 46 x 38 in.
39 x 44 x 35 in.
(100 x 117 x 96mm)
(100 x 112 x 89.5mm)
OS
Protocol
SYSTEM REQUIREMENTS
*For more than 16 Camera Servers, 1GB or greater required.
Hard Disk: 2GB HDD or better
Display: 1,024 x 768 with 16 bit color display or better
*A high performance video card is desirable. With PCI video cards, display may be reduced.
V K- 6 4
Sound: Audio playback support is necessary for event notification alert sounds.
LAN type
WAN type
Monitoring
3F Server Room
VC-C50i
VB150
VB-C50i
2F Conference Room
VK-64
Monitoring
Viewer
VB-C50i
MULTIPLE type
Store
A
Store
B
VB-C50iR
VB-C50iR
Store
C
VC-C50iR
East
District
VB-C
50iR
Store
A
Store
B
Store
C
Store
D
West
District
Store
E
Store
F
Store
G
Central
District
*For more than 48 Camera Servers, 1.5GB or better required.
Store
H
Store
I
Hard Disk: 20GB HDD or better, SCSI or IDE, NTFS formatted
Viewer for Pocket PC
VB150
Router
* Must be installed in advance from the CD-ROM supplied with the
camera server.
Operating System: Microsoft Pocket PC 2002 Software
Router
Router
Ethernet
1F Entrance
COMPARISON CHART OF VIEWER SOFTWARE
IP
Network
VC-C50i
Storage Server System Requirements
CPU: Pentium III 1 GHz or greater (Pentium 4 2.2 GHz or greater recommended)
Operating System: Windows 2000 Server (service pack 3)/Windows 2000
Professional (service pack 3)/Windows XP Professional (recommended)
Memory: 768MB RAM (1GB RAM or better recommended)
Data Center
VB150
Router
Headquarters
B1 Parking Lot
Recording
VB-C50i
VK-64
Storage Server
VK-64
Storage Server
VB-C50iR
VK-64
Monitoring
Viewer
System
Division
Security
Division
Marketing
Division
Maximum Number of Servers
Maximum Number of Cameras per Screen
Save Camera Internet Location
Pan/Tilt/Zoom Control
Preset Selection
Custom Background Display
Focus Set
Trigger External Relay
Sensor Receive Notification
Automatic Search of Units on Network
Drag and Drop Server Views
Network Video Recording Software VK-64
64
24/XGA-35/SXGA
Yes
Yes
Yes
No
Yes
Yes
Yes
Yes
Yes
WebView LiveScope MV 2.1*
100
16/template, unlimited templates
Yes
Yes
Yes, Manual and Automatic
Yes
Wide/Infinity/Auto
Yes
Yes
Yes
Yes
WebView LiveScope MV 2.1 LE
4
4
Yes
Yes
No
No
Wide/Infinity/Auto
No
Yes
Yes
No
Viewer for PC
1
1
Yes
Yes
Yes, Manual
No
No
No
No
No
No
Viewer for Pocket PC
1
1
Yes
Yes
Yes, Manual
No
No
No
No
No
No
*Includes one license for MV Station. **Requires MV Ver. 2.1 for template creation.
10
11
