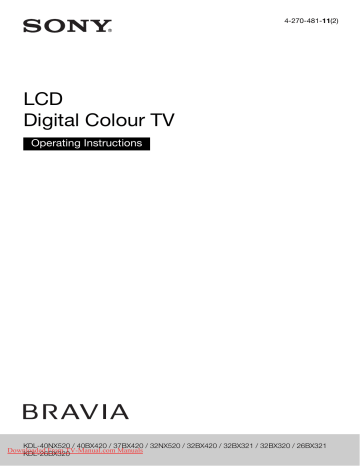

LCD
Digital Colour TV
Operating Instructions
4-270-481-
11
(2)
KDL-40NX520 / 40BX420 / 37BX420 / 32NX520 / 32BX420 / 32BX321 / 32BX320 / 26BX321
Downloaded From TV-Manual.com Manuals
NOTICE FOR
CUSTOMERS IN
THE UNITED
KINGDOM
A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience.
Should the fuse in the plug supplied need to be replaced with the same rating of fuse approved by ASTA or BSI to BS 1362 (i.e., marked with or ) must be used.
When an alternative type of plug is used it should be fitted with the same rating of fuse, otherwise the circuit should be protected by a 10 AMP FUSE at the distribution board.
If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.
• Your cable provider may charge a fee for their services, or require you to agree to its terms and conditions of business.
• This TV set complies with DVB-T and
DVB-C specifications, but compatibility with future DVB-T digital terrestrial and
DVB-C digital cable broadcasts are not guaranteed.
• Some Digital TV functions may not be available in some countries/areas and
DVB-C cable may not operate correctly with some providers.
The manufacturer of this product is
Sony Corporation, 1-7-1 Konan
Minato-ku Tokyo, 108-0075 Japan.
The Authorized Representative for
EMC and product safety is Sony
Deutschland GmbH, Hedelfinger
Strasse 61, 70327 Stuttgart,
Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.
~
• The illustration used in this manual are of the KDL-32BX320 unless otherwise state.
Trademark information
• is a registered trademark of the
DVB Project.
• HDMI, the HDMI Logo, and High-
Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC in the United
States and other countries.
• Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
• DivX®, DivX Certified® and associated logos are registered trademarks of DivX,
Inc. and are used under license.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,
Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND:
This DivX Certified® device must be registered in order to play DivX Videoon-Demand (VOD) content. To generate the registration code, locate the DivX
VOD section in the device setup menu.
Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.
• “BRAVIA” and are trademarks of Sony Corporation.
FUSE
Location of the identification label
Labels for Model No., Production Date
(month/year) and Power Supply rating (in accordance with applicable safety regulation) are located on the rear of the
TV or package.
FUSE
How to replace the fuse
Open the fuse compartment with a blade screwdriver, and replace the fuse.
Please refer to the illustration that actually equipped with the product.
Introduction
Thank you for choosing this Sony product.
Before operating the TV, please read this manual thoroughly and retain it for future reference.
Notice for Digital TV function
• Any functions related to Digital TV
( ) will only work in countries or areas where DVB-T (MPEG-2 and
H.264/MPEG-4 AVC) digital terrestrial signals are broadcast or where you have access to a compatible DVB-C (MPEG-
2 and H.264/MPEG-4 AVC) cable service. Please confirm with your local dealer if you can receive a DVB-T signal where you live or ask your cable provider if their DVB-C cable service is suitable for integrated operation with this
TV.
2
GB
Table of Contents
Start-up Guide 4
Watching TV
Using the Digital Electronic Programme Guide (EPG) .......................................17
Using Optional Equipment
Using MENU Functions
Additional Information
: for digital channels only
• Instructions about “Installing Wall Mount Bracket” are included within this TV’s instructions manual.
Downloaded From TV-Manual.com Manuals
3
GB
Start-up Guide
1: Checking the accessories
Table-Top Stand (1)
Screws for stand (4 + 3) (for KDL-40/32NX520 (8))
Remote RM-ED046 (1)
Size AA batteries (2)
To insert batteries into the remote
2
Place the TV set on the stand. Take care not to interfere with cables.
Push to open
~
• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way.
Certain regions may regulate the disposal of batteries.
Please consult your local authority.
• Handle the remote with care. Do not drop or step on it, or spill liquid of any kind onto it.
• Do not place the remote in a location near a heat source, a place subject to direct sunlight, or a damp room.
3
Fix the TV to the stand according to the arrow marks that guide the screw holes using the supplied screws.
2: Attaching the stand
~
• For best picture quality, do not expose the screen to direct illumination or sunlight.
• If the TV is brought directly from a cold to a warm location, or is placed in a very damp room, or is placed in a room in which heating has just been turned on, moisture may condense on the surface or inside the TV.
Should this occur, turn off the TV and leave the TV off until the moisture evaporates, and then the TV can be used. If you notice moisture condensation between the glass panel and the LCD, turn on the TV and the condensation will evaporate after the TV has warmed up.
Follow the assembling steps required to place on a
TV stand.
1
Refer to the supplied Table-Top Stand leaflet for proper attachment for some TV models.
~
• If using an electric screwdriver, set the tightening torque at approximately 1.5 N·m (15 kgf·cm).
4
GB
3: Connecting an aerial/cable/VCR/DVD recorder
Connecting an aerial/cable only
Terrestrial signal or cable
Coaxial cable
Connecting an aerial/cable/VCR/DVD recorder with
HDMI
HDMI cable
Coaxial cable
Terrestrial signal or cable
Coaxial cable
Connecting an aerial/cable/VCR/DVD recorder with
SCART
Coaxial cable
Terrestrial signal or cable
VCR/DVD recorder
4: Preventing the TV from toppling over
Scart lead
Coaxial cable
VCR/DVD recorder
Downloaded From TV-Manual.com Manuals
2
3
1
1
Install a wood screw (4 mm in diameter, not supplied) in the TV stand.
Continued
5
GB
2
Install a machine screw (M4 × 16, not supplied) into the screw hole of the TV.
3
Tie the wood screw and the machine screw with a strong cord (not supplied).
z
• An optional Sony support belt kit is used to secure the TV.
Contact your nearest Sony Service Centre to purchase a kit. Have your TV model name ready for reference.
5: Selecting the language, country/region and location
3
Press
F
/ f
/
G
/ g
to select the language displayed on the menu screens, then press
.
Language
Select language.
Select Next
4
Follow the on-screen instructions to select the country/region in which you will operate the TV.
If the country/region which you want to use on the TV does not appear in the list, select “-” instead of a country/region.
5
Follow the on-screen instructions to set the PIN code.
z
• Any PIN code can be used, except 0000. To change
the PIN code later, see page 33.
6
Follow the on-screen instructions to select the location type in which you will operate the TV.
This option selects the initial picture mode appropriate for the typical lighting condition in these environments.
In Shop mode, some settings will be periodically reset for Shop usage.
3,4,5,6
1
Connect the TV to your mains socket
(220-240V AC, 50Hz).
2
Press
1
on the side of the TV.
When you turn on the TV for the first time, the
Language menu appears on the screen.
~
• When you turn on the TV, the power indicator lights up in green.
6
GB
6: Auto-tuning the TV
1
Press
G
/
g
to select “Start”, then press .
Auto Tuning
Do you want to start Auto Tuning?
Start Skip
2
Press
F
/
f
to select “Antenna” or “Cable”, then press .
If you select “Cable”, the screen for selecting the
scan type appears. See “To tune the TV for
The TV then starts searching for all available digital channels, followed by all available analogue channels. This may take some time, so do not press any buttons on the TV or remote while proceeding.
If a message appears for you to confirm the aerial connection
No digital or analogue channels were found.
Check all the aerial/cable connections and press
to start auto-tuning again.
3
Programme Sorting (Only in analogue mode): Changes the order in which the analogue channels are stored on the TV.
1
Press
F
/ f
to select the channel you want to move to a new position, then press g
.
2
Press
F
/ f
to select the new position for your channel, then press .
If you do not change the order in which the analogue channels are stored on the TV, press
HOME
to go to next step.
~
• This step will not appear if any analogue channel is found.
The message “Set-up complete” will appear on the screen. Press .
The TV has now tuned in all the available channels.
z
• USB System Update
You can update the TV system using USB memory.
Obtain information from the website below.
http://support.sony-europe.com/TV/
To tune the TV for Cable connection
1
Press
F
/
f
to select “Quick Scan” or “Full Scan”, then press .
“Quick Scan” :
channels are tuned according to the cable operator information within the broadcast signal.
Recommended setting for “Frequency” and
“Network ID” is “Auto”.
This option is recommended for fast tuning when supported by your cable operator.
If the “Quick Scan” does not tune, please use the
“Full Scan” method below.
“Full Scan” :
All available channels are tuned and stored. This procedure may take some time.
This option is recommended when “Quick Scan” is not supported by your cable provider.
2
Press
f
to select “Start”.
The TV starts searching for channels. Do not press any buttons on the TV or remote.
~
• Some cable providers do not support “Quick Scan”. If no channels are detected using “Quick Scan”, perform “Full
Scan”.
Downloaded From TV-Manual.com Manuals
7
GB
Adjusting the viewing angle of the TV (NX520 models only)
This TV can be adjusted within the angles shown below.
0º 6º
Detaching the Table-
Top Stand from the TV
~
• Do not remove the Table-Top Stand for any reason other than to wall-mount the TV.
1 4
2
Remove screw as shown.
Install screw into the top screw hole of the Table-Top
Stand.
3
Table-Top
Stand z
• Be sure the TV is on the vertical position before switching on. TV set must not be powered on with LCD panel face down to avoid uneven picture uniformity.
Lift up and tilt.
Slide in.
• To return to 0°, reverse the above procedure.
8
GB
Safety
Information
Installation/Set-up
Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electrical shock or damage and/or injuries.
Installation
• The TV set should be installed near an easily accessible mains socket.
• Place the TV set on a stable, level surface.
• Only qualified service personnel should carry out wall installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including:
– Wall-mount bracket
SU-WL500
(except KDL-26BX321/KDL-
26BX320)
SU-WL100
(KDL-26BX321/KDL-26BX320)
• Be sure to use the screws supplied with the Wall-mount bracket when attaching the mounting hooks to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the mounting hook. The diameter and length of the screws differ depending on the
Wall-mount bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.
Min. ~ 26 TV: 6.5 ~ 10mm
32 TV ~ Max.: 8 ~ 12mm
Screw (supplied with the
Wall-mount bracket)
Mounting Hook
Hook attachment on rear of TV set
Transporting
• Before transporting the TV set, disconnect all cables.
• Two or three people are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown in the illustration. Do not put stress on the LCD panel and the frame around the screen.
• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.
Ventilation
• Never cover the ventilation holes or insert anything in the cabinet.
• Leave space around the TV set as shown below.
• It is strongly recommended that you use a Sony wall-mount bracket in order to provide adequate air-circulation.
Installed on the wall
30 cm
10 cm 10 cm
10 cm
Leave at least this space around the set.
Installed with stand
30 cm
10 cm
10 cm 6 cm
Leave at least this space around the set.
• To ensure proper ventilation and prevent the collection of dirt or dust:
– Do not lay the TV set flat, install upside down, backwards, or sideways.
– Do not place the TV set on a shelf, rug, bed or in a closet.
– Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc.
– Do not install the TV set as shown below.
Air circulation is blocked.
Wall Wall
KDL-26BX321/
KDL-26BX320
Except
KDL-26BX321/
KDL-26BX320
• When lifting or moving the TV set, hold it firmly from the bottom.
Mains lead
Handle the mains lead and socket as follows in order to avoid any risk of fire, electrical shock or damage and/or injuries:
– Use only mains leads supplied by
Sony, not other suppliers.
– Insert the plug fully into the mains socket.
– Operate the TV set on a 220–240 V AC supply only.
– When wiring cables, be sure to unplug the mains lead for your safety and take
Downloaded From TV-Manual.com Manuals care not to catch your feet on the cables.
– Disconnect the mains lead from the mains socket before working on or moving the TV set.
– Keep the mains lead away from heat sources.
– Unplug the mains plug and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire.
Notes
• Do not use the supplied mains lead on any other equipment.
• Do not pinch, bend, or twist the mains lead excessively. The core conductors may be exposed or broken.
• Do not modify the mains lead.
• Do not put anything heavy on the mains lead.
• Do not pull on the mains lead itself when disconnecting the mains lead.
• Do not connect too many appliances to the same mains socket.
• Do not use a poor fitting mains socket.
Prohibited Usage
Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electrical shock, damage and/or injuries.
Location:
• Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke.
• If the TV is placed in the changing room of a public bath or hot spring, the TV may be damaged by airborne sulfur, etc.
Environment:
• Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects
(candles, etc). The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.
• Do not place the TV in a humid or dusty space, or in a room with oily smoke or steam (near cooking tables or humidifiers). Fire, electric shock, or warping may result.
Situation:
• Do not use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the TV set from mains socket and aerial during lightning storms.
• Do not install the TV so that it sticks out into an open space. Injury or damage from a person or object bumping into the
TV may result.
Broken pieces:
• Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.
• If the surface of the TV set cracks, do not touch it until you have unplugged the mains lead. Otherwise electric shock may result.
Continued
9
GB
• Do not subject the LCD screen to any strong impact or shock. The screen glass may crack or shatter and cause injury.
When not in use
• If you will not be using the TV set for several days, the TV set should be disconnected from the mains for environmental and safety reasons.
• As the TV set is not disconnected from the mains when the TV set is just turned off, pull the plug from the mains to disconnect the TV set completely.
• However, some TV sets may have features that require the TV set to be left in standby to work correctly.
For children
• Do not allow children to climb on the TV set.
• Keep small accessories out of the reach of children, so that they are not mistakenly swallowed.
If the following problems occur...
Turn off
the TV set and unplug the mains lead immediately if any of the following problems occur.
Ask your dealer or Sony service centre to have it checked by qualified service personnel.
When:
– Mains lead is damaged.
– Poor fitting of mains socket.
– TV set is damaged by being dropped, hit or having something thrown at it.
– Any liquid or solid object falls through openings in the cabinet.
Warning
To prevent the spread of fire, keep candles or other open flames away from this product at all time.
Precautions
Viewing the TV
• View the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes.
• When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.
LCD Screen
• Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light
(red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and is not a malfunction.
• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD screen may be damaged.
• If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.
• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.
• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.
• The LCD screen contains a small amount of liquid crystal. Some fluorescent tubes used in this TV set also contain mercury.
Follow your local ordinances and regulations for disposal.
Handling and cleaning the screen surface/cabinet of the TV set
Be sure to unplug the mains lead connected to the TV set from mains socket before cleaning.
To avoid material degradation or screen coating degradation, observe the following precautions.
• To remove dust from the screen surface/ cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.
• Do not spray water or detergent directly on the TV set. It may drip to the bottom of the screen or exterior parts, and may cause a malfunction.
• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.
• Periodic vacuuming of the ventilation openings is recommended to ensure to proper ventilation.
• When adjusting the angle of the TV set, move it slowly so as to prevent the TV set from moving or slipping off from its table stand.
Optional Equipment
• Keep optional components or any equipment emitting electromagnetic radiation away from the TV set.
Otherwise picture distortion and/or noisy sound may occur.
• This equipment has been tested and found to comply with the limits set out in the EMC Directive using a connection signal cable shorter than 3 meters.
Batteries
• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way. Certain regions may regulate the disposal of batteries. Please consult your local authority.
• Handle the remote with care. Do not drop or step on it, or spill liquid of any kind onto it.
• Do not place the remote in a location near a heat source, a place subject to direct sunlight, or a damp room.
Disposal of the TV set
Disposal of Old
Electrical &
Electronic
Equipment
(Applicable in the European
Union and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local
Civic Office, your household waste disposal service or the shop where you purchased the product.
Disposal of waste batteries
(applicable in the
European Union and other
European countries with separate collection systems)
This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead
(Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified
10
GB
Downloaded From TV-Manual.com Manuals
service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
Downloaded From TV-Manual.com Manuals
11
GB
Overview of the remote
1
"/1
– TV standby
Turns the TV on and off from standby mode.
2
SYNC MENU
Displays the menu of connected HDMI equipment. While viewing other input screens or TV programmes, “HDMI Device Selection” is displayed when the button is pressed.
~
• “Control for HDMI” (BRAVIA Sync) is only available with the connected Sony equipment that has the BRAVIA Sync or BRAVIA
Theatre Sync logo or is compatible with Control for HDMI.
3
AUDIO
Press to change the dual sound mode (page 28).
4
SCENE – Scene Select mode (page 16)
5
/ – Info/Text reveal
• In digital mode: Displays brief details of the programme currently being watched.
• In analogue mode: Displays information such as current channel number and screen format.
• In Text mode (page 16): Reveals hidden information (e.g. answers to
a quiz).
6
F
/
f
/
G
/
g
/
7
OPTIONS
Press to display a list that contains shortcuts to some setting menus. The listed options vary depending on the current input and content.
8
9
Coloured buttons (page 16, 18)
0
Number buttons
• In TV mode: Selects channels. For channel numbers 10 and above, press the second and third digit in quick succession.
• In Text mode: Enters the three digit page number to select the page.
qa
– Subtitle setting
Press to change the subtitle language
(in digital mode only).
qs
PROG/CH +/–/ /
• In TV mode: Selects the next (+) or previous (-) channel.
• In Text mode (page 16): Selects the next (
) or previous ( ) page.
qd
– Previous channel
Press to return to the channel that was last viewed (for more than five seconds).
qf
%
– Mute the sound
qg
2
+/– – Volume
qh /
12
GB
qj
RETURN /
Returns to the previous screen of any displayed menu.
qk
GUIDE / – EPG (Digital Electronic Programme Guide)
ql
w;
DIGITAL – Digital mode (page 15)
ANALOG – Analogue mode (page 15)
wa
m
/
N
/
X
/
M
/
.
/ x
/
>
: You can operate the BRAVIA Synccompatible equipment that is connected to the TV.
ws
/ – (Input select)
• In TV mode: Press to display a list of inputs.
z
• The number 5,
N
,
PROG/CH +
and
AUDIO
buttons have tactile dots. Use the tactile dots as references when operating the TV.
Downloaded From TV-Manual.com Manuals
13
GB
Overview of the TV buttons and indicators
1
1
– Power
Turns the TV on or off.
~
• To disconnect the TV completely, pull the plug from the mains.
• When you turn on the TV, the power indicator lights in green.
2
CH +/–/ /
• In TV mode: Selects the next (+) or previous (-) channel.
• In TV menu: Moves through the options up ( ) or down ( ).
3 2
+/–
/ /
• In TV mode: Increases (+) or decreases (-) the volume.
• In TV menu: Moves through the options right
( ) or left ( ).
4
/ – Input select / OK
• In TV mode: Selects the input source from equipment connected to the TV sockets
• In TV menu: Selects the menu or option, and confirms the setting.
5
6
Light sensor
Do not put anything over the sensor, doing so may
affect its function (page 35).
Remote control sensor
• Receives IR signals from the remote.
• Do not put anything over the sensor, as its function may be affected.
7
– Picture Off / Sleep Timer indicator
• Lights up in green when the picture is switched
• Lights up in orange when the sleep timer is set
8 1
– Standby indicator
Lights up in red when the TV is in standby mode.
9
"
– Power indicator
Lights up in green when the TV is turned on.
~
• Make sure that the TV is completely turned off before unplugging the mains lead. Unplugging the mains lead while the TV is turned on may cause the indicator to remain lit or may cause the TV to malfunction.
14
GB
Watching TV
Watching TV
2
3
3
1
Press
1
on the side of the TV to turn on the TV.
When the TV is in standby mode (the 1
(standby) indicator on the TV front panel is red), press
"/1
on the remote to turn on the TV.
2
Press
DIGITAL/ANALOG
to switch between digital and analogue modes.
The channels available vary depending on the mode.
3
Press the number buttons or
PROG/CH
+/–
to select a TV channel.
To select channel numbers 10 and above using the number buttons, press the second and third digits in quick succession.
To select a digital channel using the Digital
Electronic Programme Guide (EPG), see page 17.
In digital mode
An information banner appears briefly. The following icons may be indicated on the banner.
: Radio service
: Scrambled/Subscription service
: Multiple audio languages available
: Subtitles available
: Subtitles available for the hearing impaired
: Recommended minimum age for current programme (from 4 to 18 years)
: Parental Lock
: Digital Programme Lock
Additional operations
To
Adjust the volume
Access the
Programme index table (in analogue mode only)
Do this
Press 2 + (increase)/
- (decrease).
Press . To select an analogue channel, press F / f , then press
.
Downloaded From TV-Manual.com Manuals
Continued
15
GB
To access Text
Press
/
. Each time you press
/
, the display changes cyclically as follows:
Text t Text over the TV picture (mix mode) t No
Text (exit the Text service)
To select a page, press the number buttons or / .
To reveal hidden information, press .
z
• When four coloured items appear at the bottom of the
Text page, Fastext is available. Fastext allows you to access pages quickly and easily. Press the corresponding coloured button to access the page.
Scene Select mode
When you select the desired scene option, the optimum sound quality and picture quality for the selected scene are automatically set.
1
Press
SCENE
on the remote.
2
Press
F
/
f
to select the mode, then press
.
“Auto”
: Delivers optimum picture and sound quality which is automatically set according to input source. There may not be any effect depending on the connected equipments.
“General”
: Current user settings.
“Photo”
: Delivers picture that reproduces the texture and colour of a printed photo.
“Music”
: Delivers dynamic and clear sound effects like at a concert.
“Cinema”
: Delivers theatre-like picture and dynamic sound.
“Game”
: Delivers the best picture and sound quality for fullest game playing enjoyment.
“Graphics”
: Delivers clearer detailed pictures to reduce fatigue for prolonged viewing.
“Sports”
: Delivers realistic picture with surround sound like in a stadium.
~
• Except for “Auto”, “General” and “Music”, if any scene mode is selected, picture mode selection in the picture menu is not possible - release scene selection first.
To change the screen format manually to suit the broadcast
Press repeatedly to select the desired screen format.
Wide Zoom
*
Displays conventional 4:3 broadcasts with an imitation wide screen effect. The 4:3 picture is stretched to fill the screen.
Normal
Displays conventional 4:3 broadcasts (e.g. non-wide screen TV) in the correct proportions.
14:9
*
Full
Displays 14:9 broadcasts in the correct proportions.
As a result, black border areas are visible on the screen.
Stretches a 4:3 picture horizontally, to fill a 16:9 screen.
Zoom *
Displays cinemascopic
(letter box format) broadcasts in the correct proportions.
Captions *
Displays cinemascopic
(letter box format) broadcasts with subtitles on the screen.
* Parts of the top and bottom of the picture may be cut off.
~
• Depending on the signal, some screen formats may not be selectable.
• Some characters and/or letters at the top and the bottom of the picture may not be visible in “Wide Zoom”.
z
• You can adjust the vertical position of the picture when selecting “Zoom”, “14:9” or “Captions”. Press
F
/ f
to move up or down (e.g. to read subtitles).
16
GB
Using the Digital Electronic Programme Guide
(EPG)
*
GUIDE
Today
001 BBC ONE
002 BBC TWO
003 ITV1
004 Channel 4
005 Five
006 ITV2
007 BBC THREE
008 BBC FOUR
009 ITV3
010 SKY THREE
011 More 4
Fri 16 Mar 11:35
11: 30 12: 00
Homes Under the Hammer
12: 30
Neighbours
13: 00
Afterlife
Ready Steady Cook Extraordinary People: Britains Iden...
Dancing On Ice Exclusive
CSI: Crime Scene Inv...
Cracker
Sign Zone: Ancient Rome: The Rise a...
House
The Jeremy Kyle...
Law and Order: Special Victims U...
Homes Under th...
PartyPoker.com Worl...
Crime Hour: Midsomer Murders
BBC Learning Zone: Schools: World P...
ER
P
A Picture of Brit...
Real Crime: The Truth About the...
Everybody Loves Raymond
Racing from Chepstow and Ascot
Carry On Up The Khyber
Baseball Wedne...
Vodafone TBA: L...
Eastenders
This is BBC FOUR
The Sharon Osb...
Trans World Sport
Digital Electronic Programme Guide (EPG)
* This function may not be available in some countries/regions.
1
In digital mode, press
GUIDE
.
2
Perform the desired operation as shown in the following table or displayed on the screen.
To
Watch a programme
Turn off the EPG
Do this
Press
F
/ f
/
G
/ g
to select the programme, then press .
Press
GUIDE
.
~
• If an age restriction for programmes has been selected, a message asking for a PIN code will appear on the screen. For
details, see “Parental Lock” on page 33.
Downloaded From TV-Manual.com Manuals
17
GB
Using the Digital Favourite list
*
Favourite Set-up
Favourites 1
001 BBC ONE
002 BBC TWO
003 ITV1
004 Channel 4
005 Five
006 BBC Three
007 ITV2
008 Sky Sports
009 UKTV History
Enter Programme Number: 000
010 More 4
011 abc1
012 QVC
013 UKTV Gold
014 The HITS
015 UKTV Bright Ideas
016 ftn
017 TMF
018 E4
Digital
The Favourite feature allows you to specify up to four lists of your favourite programmes.
1
In digital mode, press
HOME
, and select
“Digital Favourites”.
2
Perform the desired operation as shown in the following table or displayed on the screen.
Digital Favourite list
* This function may not be available in some countries/regions.
To
Create your Favourite list for the first time
Watch a channel
Turn off the Favourite list
Add or remove channels in the currently edited Favourite list
Remove all channels from the current
Favourite list
Do this
1
Press to select “Yes”.
2
Press the yellow button to select the Favourite list.
3
Press
F
/ f
/
G
/ g
to select the channel you want to add, then press .
Channels that are stored in the Favourite list are indicated by a symbol.
4
Press
RETURN
to finish setting up.
1
Press the yellow button to navigate through your Favourite lists.
2
Press
F
/ f
to select the channel, then press .
Press
RETURN
.
1
Press the blue button.
2
Press the yellow button to select the Favourite list you want to edit.
3
Press
F
/ f
/
G
/ g
to select the channel you want to add or remove, then press .
1
Press the blue button.
2
Press the yellow button to select the Favourite list you want to edit.
3
Press the blue button.
4
Press
G
/ g
to select “Yes”, then press to confirm.
18
GB
Using Optional Equipment
Connecting optional equipment
You can connect a wide range of optional equipment to your TV. Connecting cables are not supplied.
DVD player
PC (HDMI output)
Blu-ray disc player
Digital video camera
A
B
PC
C
D
Decoder
Video game equipment
DVD player
Decoder
DVD recorder
VCR
E
Hi-Fi audio equipment with optical audio input
F
Hi-Fi audio equipment
G
Downloaded From TV-Manual.com Manuals
DVD player with component output
H
CAM card
I
Digital video camera/Digital camera/USB storage
J
Video game equipment/
DVC camcorder
K
Headphones
19
GB
Viewing pictures from connected equipment
Turn on the connected equipment, then perform one of the following operation.
In analogue mode, press
PROG/CH +/–
, or the number buttons, to select the video channel.
For other connected equipment
Press to display the connected equipment list.
Press
F
/ f
to select the desired input source, then press . (The highlighted item is selected if two seconds pass without any operation after pressing
F
/ f
.)
Inputs
Digital
Analogue
AV1
AV2
HDMI1
HDMI2
Component
PC
For a USB device
Symbol on the screen
Description
Component To see the equipment connected to
G
.
HDMI1 or
HDMI2
HDMI IN 1 or HDMI IN 2
To see the equipment connected to
A
or
B
.
Digital video and audio signals are input from the connected equipment.
If the equipment has a DVI socket, connect the DVI socket to the HDMI
IN 1 socket through a DVI-HDMI adaptor interface (not supplied), and connect the equipment’s audio out sockets to the audio in sockets in the
HDMI IN 1 sockets.
Connect to the HDMI IN 2 socket, to view photographs or screen images from a PC or digital video camera.
AV1 To see the equipment connected to
D
.
Symbol on the screen
Description
PC To see the equipment connected to
C
.
z
• It is recommended to use a PC cable with ferrites like the “Connector, Dsub 15” (ref. 1-793-504-11, available in Sony Service Centre), or equivalent.
AV2 To see the equipment connected to
J
.
When connecting mono equipment, connect to the AV2 L socket.
~
• Be sure to use only an authorised HDMI cable bearing the HDMI logo. We recommend that you use a Sony
HDMI cable.
• When HDMI control compatible equipment is connected, communication with the connected
equipment is supported. Refer to page 24 to set up this
communication.
To connect Do this
Conditional
Access Module
(CAM)
H
To use Pay Per View services.
For details, refer to the instruction manual supplied with your CAM.
Turn off the TV when inserting or removing your CAM.
~
• CAM is not supported in some countries/regions. Check with your authorised dealer.
USB
I
You can enjoy photo/music/video files stored in a Sony digital still
).
Hi-Fi audio equipment
F
Connect to the audio output sockets
to listen to the sound from the
TV on Hi-Fi audio equipment.
Audio level of the external speakers can be modified by pressing the volume buttons on the remote.
DIGITAL
AUDIO OUT
(OPTICAL)
E
Use an optical audio cable.
Headphones
K
Connect to the i socket to listen to sound from the TV on headphones.
20
GB
Additional operation
To Do this
Return to normal
TV mode
Press
DIGITAL/ANALOG
.
Playing Back Photo/Music/
Video via USB
You can enjoy photo/music/video files stored in a
Sony digital still camera or camcorder through a
USB cable or USB storage device on your TV.
1
Connect a supported USB device to the TV.
2
Press
HOME
.
3
Press
F
/
f
to select “Photo”, “Music”, or
“Video”, then press .
The file or folder list appears.
4
Press
F
/
f
/
G
/
g
to select a file or folder, then press .
When you select a folder, select a file, then press
.
Playback starts.
~
• Picture quality may appear coarse when using “Photo” because images may be enlarged depending on the file.
Also, images may not fill the entire screen depending on the image size and aspect ratio.
• Some photo files may take some time to be displayed when using “Photo”.
• The file name and folder name support the UTF-8 character set.
• While the TV is accessing the data on the USB device, observe the following:
– Do not turn off the TV or connected USB device.
– Do not disconnect the USB cable.
– Do not remove the USB device.
The data on the USB device may be damaged.
• Sony will not be held liable for any damage to, or loss of, data on the recording media due to a malfunction of any connected devices or the TV.
• When you connect a Sony digital still camera, set the camera’s USB connection mode to Auto or “Mass
Storage”. For more information about USB connection mode, refer to the instructions supplied with your digital camera.
• USB Photo Viewer supports FAT16 and FAT32 file systems.
• BRAVIA TV supports DivX
®
.
• Up to 300 files per folder are supported.
• Depending on the exact file specifications, some files, including those modified on a PC, cannot be played even if the file format is supported.
• Check the website below for updated information about compatible USB devices. http://support.sony-europe.com/TV/compatibility/
Downloaded From TV-Manual.com Manuals
Continued
21
GB
Basic operation of Photo/Music/Video
You can operate the connected USB device by the
TV remote.
Item
m / M
.
/
>
N
X x
Description
Fast reverses/fast forwards the file when pressed during playback.
Goes to the beginning of the previous/ next file.
Starts playback.
Pauses playback.
Stops playback.
To use playback options
Press the coloured buttons to display a list that contains shortcuts to some setting menus. The listed options vary depending on the current input and content.
“Slideshow Effect”:
Selects an effect for a slideshow.
“Slideshow Speed”:
Selects the slideshow duration.
“Shuffle”:
Plays a file in random order.
“Zoom”:
Magnifies the picture (“1×”, “2×” or “4×”)
Music
“Playback Target”:
Selects to play all files, or one selected file.
“Shuffle”:
Plays files in random order.
“Speakers”:
Video
“Playback Target”:
Selects to play all files, or one selected file.
“Zoom”*:
Magnifies the picture (“1×”, “2×”, “4×” or “Full”)
“Speakers”:
* When you set “Zoom”, stop video playback.
General
“Repeat”:
Plays a file repeatedly.
“Sort By”:
Changes file order
“Device Selection”:
Selects a USB device.
To set the picture (Video)
You can adjust the picture quality of USB Video.
1
Select a video.
See “Playing Back Photo/Music/Video via
2
Press
OPTIONS
during playback, then press
F
/
f
to select “Picture” and press .
3
Press
F
/
f
/
G
/
g
to select the item, then press .
4
Press
F
/
f
/
G
/
g
to adjust the setting, then press .
To play a photo as a slideshow (Photo)
You can play a slideshow with photos. “Slideshow
Effect” and “Slideshow Speed” can be set.
1
Select a photo.
See “Playing Back Photo/Music/Video via
2
Press the green button in thumbnail view, or press
OPTIONS
while a photo is displayed, then press
F
/
f
to select
“Slideshow” and press .
To stop a slideshow
Press or
HOME
.
22
GB
USB Video format
Extension
.avi
.wmv
.asf
.mp4
.mov
.3gp
.mkv
.mpg
.mpeg
.vob
.ts, .m2ts
Container
AVI
ASF
MP4
MKV
PS
TS
USB Music format
Extension
.mp3
.wma
Audio Codec
MP3
WMA v8
USB Photo format
Extension
.jpg, .jpeg
Image Codec
JPEG
DCF2.0 or EXIF2.21 supported.
~
• Playback of the above file formats is not guaranteed.
Video Codec
DivX 3.11/4.x/5.1
XviD
MPEG1
MPEG2 MP
H.264 BP/MP/HP
MPEG-4 SP/ASP
WMV v9
DivX 3.11
XviD
MPEG-4 SP/ASP
VC-1
H.264 BP/MP/HP
MPEG-4 SP/ASP
H.263
H.264 BP/MP/HP
MPEG-4 SP/ASP
WMV v9
DivX 3.11/4.x/5.1
VC-1
MPEG1
MPEG2 MP
MPEG2 MP
VC-1
H.264 BP/MP/HP
Audio Codec
PCM / MPEG1 Layer1, 2 / MP3 /
MPEG2 AAC (2ch) /
MPEG4 AAC (2ch) /
MPEG4 HE-AAC (2ch) /
Dolby Digital (2ch) / WMA v8
MP3 / WMA v8
MPEG1 Layer1, 2 / MP3 / MPEG2 AAC /
MPEG4 AAC / MPEG4 HE-AAC
PCM / MPEG1 Layer1, 2 / MP3 /
MPEG2 AAC (2ch) /
MPEG4 AAC (2ch) /
MPEG4 HE-AAC (2ch) /
Dolby Digital (2ch) / WMA v8
MPEG1 Layer1, 2 / MP3 /
Dolby Digital (2ch)
MPEG1 Layer1, 2 / MP3 / MPEG2 AAC /
MPEG4 AAC / MPEG4 HE-AAC
Downloaded From TV-Manual.com Manuals
23
GB
Using BRAVIA Sync with
Control for HDMI
The Control for HDMI function enables the
TV to communicate with the connected equipment that is compatible with the function, using HDMI CEC (Consumer
Electronics Control).
For example, by connecting Sony equipment that is compatible with Control for HDMI (with
HDMI cables), you can control them together.
Be sure to connect the equipment correctly, and make the necessary settings.
Control for HDMI
• Automatically turns the connected equipment off when you switch the TV to standby mode using the remote.
• Automatically turns the TV on and switches the input to the connected equipment when the equipment starts to play.
• If you turn on a connected audio system while the TV is on, the sound output switches from the TV speaker to the audio system.
• Adjusts the volume (
2
+/–
) and mutes the sound (
%
) of a connected audio system.
• You can operate the connected Sony equipment that has the BRAVIA Sync logo by the TV remote by pressing:
– m
/
N
/
X
/
M
/
.
/ x
/
>
to operate the connected equipment directly.
–
SYNC MENU
to display the menu of the connected
HDMI equipment on the screen.
After displaying the menu, you can operate the menu screen by using F / f / G / g , , colour buttons, and
RETURN
.
– Select “Device Control”, then select the desired option to operate the equipment.
– Refer to the instruction manual of the equipment for available control.
– Select “TV Control” to open the TV Menu or TV options menu.
• If “Control for HDMI” of the TV is set to
“On”, “Control for HDMI” of the connected equipment is also automatically switched to
“On”.
To connect the equipment that is compatible with Control for HDMI
Connect the compatible equipment and the TV with an HDMI cable. When connecting an audio system, be sure to also connect the
DIGITAL AUDIO OUT (OPTICAL) jack of the TV and the audio system using an optical
audio cable (page 19).
To make the Control for HDMI settings
The Control for HDMI settings must be set on both the TV side and connected equipment
side. See “HDMI Set-up” page 34 for the TV
side settings. For settings on the connected equipment, refer to the operating instructions for that equipment.
24
GB
Using MENU Functions
Navigating through TV Menu
“MENU” allows you to enjoy various convenient features of this TV. You can easily select channels or inputs sources and change the settings for your TV.
1
Press
HOME
.
HOME
Digital Favourites
Digital EPG
Music
Video
Settings
2
Press
F
/
f
to select an option, then press .
To exit the menu, press
HOME
.
Media category icon
Digital Favourites
Description
You can select the Digital Favourite list (page 18).
Digital EPG
Music
Video
Settings
You can select the Digital Electronic Programme Guide (EPG) (page
You can enjoy photo files via USB devices (page 21).
You can enjoy music files via USB devices (page 21).
You can enjoy video files via USB devices (page 21).
You can make advanced settings and adjustments (page 26).
~
• The options you can adjust vary depending on the situation.
• Unavailable options are greyed out or not displayed.
Downloaded From TV-Manual.com Manuals
25
GB
Settings
Picture Mode
Selects the picture mode.
“Vivid”:
For enhanced picture contrast and sharpness.
“Standard”:
For standard picture. Recommended for home entertainment.
“Custom”:
Allows you to store your preferred settings.
“Cinema”:
For film-based content. Suitable in a theatre-like environment.
“Photo”:
For standard viewing of photographs.
“Sports”:
Optimises picture quality for viewing sports.
“Game”:
For standard picture suitable for games.
“Graphics”:
Optimises picture quality for viewing graphics.
~
• “Picture Mode” is set depending on “Scene Select” settings.
Resets all “Picture” settings except “Picture Mode” to the factory settings.
Reset
Backlight
Adjusts the brightness of the backlight.
~
• Reducing the brightness of the screen, the power consumption will be reduced.
Increases or decreases picture contrast.
Contrast
Brightness
Colour
Brightens or darkens the picture.
Increases or decreases colour intensity.
Hue
Increases or decreases the green tones and red tones.
z
• “Hue” can only be adjusted for an NTSC colour signal (e.g., U.S.A. video tapes).
Sharpens or softens the picture.
Sharpness
Colour Temperature
Adjusts the whiteness of the picture.
“Cool”:
Gives the white colours a blue tint.
“Neutral”:
Gives the white colours a neutral tint.
“Warm”:
Gives the white colours a red tint.
Noise Reduction
Reduces the picture noise (snowy picture) in a weak broadcast signal.
“Auto/High/Medium/Low”:
Modifies the effect of the noise reduction.
“Off”:
Turns off the “Noise Reduction” feature.
MPEG Noise
Reduction
Reduces the picture noise in MPEG-compressed video.
26
GB
Film Mode
Provides improved picture movement when playing DVD or VCR images taken on film, reducing picture blur and graininess.
“Auto”:
Provides the original film-based content as is.
“Off”:
Turns off the “Film Mode” feature.
~
• If the image contains irregular signals or too much noise, “Film Mode” is automatically turned off even if “Auto” is selected.
Advanced Settings
Customises the Picture function in more detail.
“Reset”:
Resets all the advanced settings to the factory settings.
“Adv. Contrast Enhancer”:
Automatically adjusts “Backlight” and “Contrast” to the most suitable settings judging from the brightness of the screen. This setting is especially effective for dark images scenes, and will increase the contrast distinction of the darker picture scenes.
“Black Corrector”:
Enhances black areas of the picture for stronger contrast.
“Gamma”:
Adjusts the balance between bright and dark areas of the picture.
“Clear White”:
Emphasises white colours.
“Live Colour”:
Makes colours more vivid.
~
• “Advanced Settings” is not available when “Picture Mode” is set to “Vivid” or for USB (Video) input.
Sound
Sound Mode
Reset
Equalizer
Balance
Auto Volume
Volume Offset
Selects the sound mode.
“Dynamic”:
Intensifies clarity and sound presence for better intelligibility and musical realism.
“Standard”:
Enhances clarity, detail, and sound presence.
“Clear Voice”:
Makes voice sound clearer.
Resets all the “Sound” settings to the factory settings.
Adjusts sound frequency settings.
Press G / g to select the desired sound frequency, then press F / f to adjust the setting and press . The adjusted settings will be received when you select “Sound Mode” options. Selecting “Reset” will set the “Equalizer” to original settings.
~
• Adjusting higher frequency will affect higher pitched sound and adjusting lower frequency will affect lower pitched sound.
Emphasises left or right speaker balance.
Keeps a constant volume level even when volume level gaps occur (e.g., adverts tend to be louder than programmes).
Sets an independent volume level to each equipment connected to the TV.
Downloaded From TV-Manual.com Manuals
Continued
27
GB
Surround
Selects the surround mode.
“On”:
Delivers surround effects that help you enjoy the virtual two-ch surround audio with just the two internal TV speakers.
“Simulated Stereo”:
Adds a surround-like effect to mono programmes.
“Cinema”:
Delivers surround effects just like the high-grade audio systems found in movie theatres.
“Music”:
Delivers surround effects that make you feel like you are surrounded by sound as in a music hall.
“Sports”:
Delivers surround effects that make you feel like you are watching a live sports contest.
“Game”:
Delivers surround effects that enhance game sound.
“Off”:
For normal stereo or mono reception.
~
• “Surround” is set depending on “Scene Select” settings.
Produces a fuller sound for more impact, by emphasising the bass sounds.
Bass Booster
Dual Sound
Speakers
Selects the sound from the speaker for a stereo or bilingual broadcast.
“Stereo”
,
“Mono”:
For a stereo broadcast.
“A”/“B”/“Mono”:
For a bilingual broadcast, select “A” for sound channel 1, “B” for sound channel 2, or “Mono” for a mono channel, if available.
z
• If you select other equipment connected to the TV, set “Dual Sound” to “Stereo”, “A” or “B”.
Turns on/off the TV’s internal speakers.
“TV Speakers”:
The TV speakers are turned on in order to listen to the TV’s sound through the TV speakers.
“Audio System”:
The TV speakers are turned off in order to listen to the TV’s sound only through your external audio equipment connected to the audio output sockets.
Audio Out
“Variable”:
When using an external audio system, volume output from audio out can be controlled using the TV’s remote.
“Fixed”:
The audio output of the TV is fixed. Use your audio receiver’s volume control to adjust the volume (and other audio settings) through your audio system.
Headphone Speaker
Link
Switches the TV’s internal speakers on/off when you connect headphones to the TV.
Headphone Volume
Adjusts the volume of the headphones.
HDMI/DVI Audio
Source
Switches the audio signal for HDMI input when a DVI device is connected. Select from “Auto”, “HDMI Audio” and “PC Audio”.
Advanced Settings
“Dynamic Range”:
Compensates for differences in the audio level between different channels (only for Dolby Digital audio).
~
• The effect may not function or may vary depending on the programme regardless of the
“Dynamic Range” setting.
“Optical Out”:
Sets the audio signal that is output from the DIGITAL AUDIO OUT
(OPTICAL) jack of the TV. Set to “Auto”, when connecting equipment compatible with Dolby Digital. Set to “PCM”, when connecting equipment not compatible with
Dolby Digital.
“Downmix Mode”:
Set the downmix method of multi-channel to two-channel sound.
• “Surround”: Select to get best surround performance, or while using external products with
Pro Logic.
• “Stereo”: Select to get a stereo output.
28
GB
~
• “Sound Mode”, “Reset”, “Equalizer”, “Balance”, “Auto Volume”, “Volume Offset”, “Surround” and “Bass Booster” are not available when “Speakers” is set to “Audio System”.
Screen
Screen Format
Screen Format
(only in PC mode)
Auto Format
Changes the screen format. For details about the screen format, see page 16.
“Normal”:
Displays the picture in its original size.
“Full 1”:
Enlarges the picture to fill the vertical display area, while maintaining its original proportion.
“Full 2”:
Enlarges the picture to fill the display area.
“On”:
Select “On” to automatically change “Screen Format” setting based on the content.
“Off”:
If frequent screen changes are disturbing to you, select “Off”. Choose one of the “Screen Format” options when this function is set to “Off”.
Sets the default screen format for 4:3 broadcasts.
4:3 Default
Auto Display Area
Display Area
“On”:
Automatically adjusts the display area based upon the content.
“Off”:
Turns off the “Auto Display Area”. Choose one from the “Display Area” options.
Adjusts the picture display area.
“Full Pixel”:
Displays pictures in their original size when parts of the picture are cut off.
“Normal”:
Displays pictures in their recommended size.
“+1”:
Displays pictures in their original size.
“-1”:
Enlarges the picture so that the edges are outside the visible display area.
~
• These options may change depending on the input displayed.
Adjusts the horizontal position of the picture.
Horizontal Shift
Vertical Shift
Vertical Size
Adjusts the vertical position of the picture when “Screen Format” is set to “Zoom”,
“14:9” or “Captions”.
Adjusts the vertical size of the picture when “Screen Format” is set to “Wide Zoom”.
Downloaded From TV-Manual.com Manuals
Continued
29
GB
PC Adjustment
Customises the TV screen as a PC monitor.
z
• This option is only available if a PC signal is received.
• “Auto Adjustment” may not work well with certain input signals. In such cases, manually adjust “Phase”, “Pitch”, “Horizontal Shift”, and “Vertical Shift”.
“Screen Format”:
Select “Normal” to display in the original image size. Select
“Full 1” to enlarge the picture to fill the display area, keeping its original aspect ratio.
Select “Full 2” to enlarge the picture to fill the display area.
“Reset”:
Resets all the “PC Adjustment” except “Screen Format” to the factory settings.
“Auto Adjustment”:
Automatically adjusts the display position, and phase of the picture in PC mode.
“Phase”:
Adjusts the screen when a part of a displayed text or image is not clear.
“Pitch”:
Enlarges or shrinks the screen size horizontally.
“Horizontal Shift”:
Moves the screen to the left or to the right.
“Vertical Shift”:
Moves the screen up or down.
Channel Set-up
Analogue Set-up “Analogue Auto Tuning” (Only in analogue mode):
Tunes in all the available analogue channels. Usually you do not need to do this operation because the channels are already tuned when the TV was first installed. However, this option allows you to repeat the process (e.g., to retune the TV after moving house, or to search for new channels that have been launched by broadcasters).
“Manual Programme Preset” (Only in analogue mode):
Changes the available analogue channel setting.
Press to select the programme you want to modify.
System
Presets programme channels manually.
1
Press
F
/ f
to select “System”, then press .
2
Press
F
/ f
to select one of the following TV broadcast systems, then press .
B/G: For western European countries/regions
I: For the United Kingdom
D/K: For eastern European countries/regions
L: For France
~
• Depending on the country/region selected for “Country”, this option may not be available.
Channel
1
Press
F
/ f
to select “Channel”, then press .
2
Press
F
/ f
to select “S” (for cable channels) or “C” (for terrestrial channels), then press g
.
3
Tune the channels as follows:
If you do not know the channel number (frequency)
Press F / f to search for the next available channel. When a channel has been found, the search will stop. To continue searching, press F / f .
If you know the channel number (frequency)
Press the number buttons to enter the channel number of the broadcast you want or your VCR channel number.
4
Press to jump to “Confirm”, then press .
Repeat the procedure above to preset other channels manually.
30
GB
Digital Set-up
Label
Assigns a name of your choice, up to five letters or numbers, to the selected channel.
AFT
Allows you to fine-tune the selected programme number manually if you feel that a slight tuning adjustment will improve the picture quality.
Audio Filter
Improves the sound for individual channels in the case of distortion in mono broadcasts. Sometimes a non-standard broadcast signal can cause sound distortion or intermittent sound muting when watching mono programmes.
If you do not experience any sound distortion, we recommend that you leave this option set to the factory setting “Off”.
~
• “Audio Filter” is not available when “System” is set to “L”.
Skip
Skips unused analogue channels when you press PROG
/CH +/-
to select channels.
(You can still select a skipped channel using the number buttons.)
Confirm
Saves changes made to the “Manual Programme Preset” settings.
“Programme Sorting” (Only in analogue mode):
Changes the order in which the analogue channels are stored on the TV.
1
Press
F
/ f
to select the channel you want to move to a new position, then press g
.
2
Press
F
/ f
to select the new position for your channel, then press .
“Digital Tuning”
•
“Digital Auto Tuning”:
Tunes in the available digital channels.
This option allows you to retune the TV after moving house, or to search for new channels that have been launched by broadcasters. Press .
•
“Programme List Edit”:
Removes any unwanted digital channels stored on the TV, and changes the order of the digital channels stored on the TV.
1
Press
F
/ f
to select the channel you want to remove or move to a new position.
Press the number buttons to enter the known three-digit programme number of the broadcast you want.
2
Remove or change the order of the digital channels as follows:
To remove the digital channel
Press . After a confirmation message appears, press
G
to select “Yes”, then press .
To change the order of the digital channels
Press g
, then press
F
/ f
to select the new position for the channel and press
G
.
3
Press .
~
• When “Cable” is selected this function may not be available in some countries.
•
“Digital Manual Tuning”:
Tunes the digital channels manually.
1
Press the number button to select the channel number you want to manually tune, then press
F
/ f
to tune the channel.
2
When the available channels are found, press to store programmes.
Repeat the above procedure to manually tune other channels.
~
• Not available for Cable connection.
Downloaded From TV-Manual.com Manuals
Continued
31
GB
32
GB
“Subtitle Set-up”
•
“Subtitle Setting”:
When “For Hard Of Hearing” is selected, some visual aids may also be displayed with the subtitles (if TV channels broadcast such information).
•
“Primary Preferred Language”:
Selects preferred language which subtitles are displayed in.
•
“Secondary Preferred Language”:
Selects secondary preferred language which subtitles are displayed in.
“Audio Set-up”
•
“Audio Type”:
Switches to broadcast for the hearing impaired when “For Hard
Of Hearing” is selected.
•
“Primary Preferred Language”:
Selects the preferred language used for a programme. Some digital channels may broadcast several audio languages for a programme.
•
“Secondary Preferred Language”:
Selects the secondary preferred language used for a programme. Some digital channels may broadcast several audio languages for a programme.
•
“Audio Description”:
Provides audio description (narration) of visual information if TV channels broadcast such information.
•
“Mixing Level”:
Adjusts the TV main audio and Audio Description output levels.
z
• This option is only available when “Audio Description” is set to “On”.
•
“MPEG Audio Level”:
Adjusts the MPEG audio sound level.
“Technical Set-up”
•
“Auto Service Update”:
Enables the TV to detect and store new digital services as they become available.
•
“System Update”:
This TV set is capable of receiving software upgrades via the broadcast signal. In order to receive upgrades the System Update option in the
Technical Setup menu should be set to “On”. When an upgrade is detected the user will be informed by a series of on screen displays on how to proceed with the upgrade. Please do not disconnect the set from the mains during the installation procedure.
•
“System Information”:
Displays the current software version and the signal level.
•
“Time Zone”:
Allows you to manually select the time zone you are in, if it is not the same as the default time zone setting for your country/region.
~
• When “Cable” is selected this function may not be available in some countries.
•
“Auto DST”:
Sets whether or not to automatically switch between summer time and winter time.
• “On”: Automatically switches between summer time and winter time according to the calendar.
• “Off”: The time is displayed according to the time difference set by “Time Zone”.
~
• When “Cable” is selected this function may not be available in some countries.
•
“Service Replacement”:
Select “On” to automatically change the channel when broadcaster changes transmission of the viewing programme to a different channel.
“CA Module Set-up”
Allows you to access a pay TV service once you obtain a Conditional Access Module (CAM)
and a view card. See page 19 for the location of the
(PCMCIA) socket.
Parental Lock
Sets an age restriction for programmes. Any programme that exceeds the age restriction can only be watched after a PIN Code is entered correctly.
~
• For cable operators in Netherlands, the PIN code should be entered when the programme rating is above or equal to the age you specify.
1
Press the number buttons to enter your existing PIN code.
If you have not previously set a PIN, a PIN code entry screen appears. Follow the instructions of “PIN Code” below.
2
Press
F
/ f
to select the age restriction or “None” (for unrestricted watching), then press .
3
Press
RETURN
.
PIN Code To set your PIN for the first time
1
Press the number buttons to enter the new PIN code.
2
Press
RETURN
.
To change your PIN
1
Press the number buttons to enter your existing PIN code.
2
Press the number buttons to enter the new PIN code.
3
Press
RETURN
.
z
• PIN code 9999 is always accepted.
Change PIN Code
Selects to change your PIN code.
Parental Lock
Digital Programme
Lock
Select the age of the youngest viewer (3 ~ 18). Select “None” for no registers.
These selectable items may change depending on the country setting.
Locks/unlocks programmes and checks the status of programmes.
1
Press the number buttons to enter your existing PIN code or to set the new one.
2
Press
F
/ f
to navigate across the programmes and press to change between “Locked” and “Unlocked” status.
External Input Lock
Locks an external input from being watched. To view a blocked external input, select
“Unblocked”.
Downloaded From TV-Manual.com Manuals
33
GB
Set-up
USB Auto Start
Sleep Timer
Auto Start-up
Language
Start-up Sound
AV Set-up
HDMI Set-up
Automatically enters the thumbnail view of the last played Photo/Music/Video when the TV is turned on and a USB device is connected to the USB port then turned on.
Sets a period of time after which the TV automatically switches itself into standby mode.
When the “Sleep Timer” is activated, the (Sleep Timer) indicator on the TV front panel lights up in orange.
z
• When you turn off the TV and turn it on again, “Sleep Timer” is reset to “Off”.
• A notification message appears on the screen one minute before the TV switches to standby mode.
Starts the initial set-up to select the language, country/region and location, and tune in all available digital and analogue channels. Usually, you do not need to do this operation because the language and country/region will have been selected and channels already tuned when the TV was first installed. However, this option allows you to repeat the process (e.g., to retune the TV after moving house).
Selects the language in which the menus are displayed.
Select “On” to play sound when the TV is turned on. Select “Off” to disable it.
Assigns a name to any equipment connected to the side and rear sockets. The name will be displayed briefly on the screen when the equipment is selected.
1
Press
F
/ f
to select the desired input source, then press .
2
Press
F
/ f
to select the desired option below, then press .
•
AV1 (or AV2/HDMI1/HDMI2/Component/PC),
CABLE, SAT, VCR, DVD/BD,
HOME THEATRE, GAME, CAM, DIGITAL CAMERA, PC: Uses one of the preset labels to assign a name to connected equipment.
• “Edit”: Creates your own label.
1
Press
F
/ f
to select the desired letter or number (“_” for a blank space), then press g
.
If you input a wrong character
Press
G
/ g
to select the wrong character. Then, press
F
/ f
to select the correct character.
2
Repeat the procedure in step 1 until the name is completed, then press .
Allows the TV to communicate with equipment that is compatible with the control for HDMI function, and connected to the HDMI sockets of the TV. Note that communication settings must also be made on the connected equipment.
“Control for HDMI”:
Sets whether or not to link the operations of the TV and the connected equipment that is compatible with control for HDMI.
“Auto Devices Off”:
When this is set to “On”, the connected equipment that is compatible with control for HDMI turns off when you switch the TV to standby mode using the remote.
“Auto TV On”:
When this is set to “On”, the TV turns on when you turn on the connected equipment that is compatible with control for HDMI.
“HDMI Device List”:
Displays a list of connected equipment that is compatible with control for HDMI.
“Device Control Keys”:
If it is set to “Tuning Keys”, you can select a channel tuned by connected equipment and if it is set to “Menu Keys” you can navigate through the menus of the connected equipment using the remote.
34
GB
DivX® VOD “DivX® VOD Registration Code”:
Displays the registration code that is required to play DivX® VOD content.
“DivX® VOD Deregistration Code”:
Displays the deregistration code that is required to play DivX® VOD content.
USB System Update
Updates the TV system using USB memory.
Product Support
Factory Settings
Displays your TV’s product information.
Resets all settings to factory settings. After completing this process, the initial set-up screen is displayed.
Eco
Reset
Resets all the “Eco” settings to the factory settings.
Power Saving
Idle TV Standby
Light Sensor
Selects the power saving mode to reduce the power consumption of the TV.
“Standard”:
Default settings.
“Reduce”:
Reduces the power consumption of the TV.
“Picture Off”:
Switches off the picture. You can listen to the sound with the picture off.
Selects the time (“1h”, “2h” or “4h”) to set the TV into standby mode automatically, if you do not operate the TV for the specified period of time.
Automatically optimises the picture settings according to the ambient light in the room.
~
• Do not put anything over the sensor, doing so may affect its function. Check the position of
When this is set to “On,” turns to standby mode if no PC signal is received. Only available in PC input.
PC Power
Management
~
• Energy efficiency reduces power consumption and thus saves money by reducing electricity bills.
• When not in use
– If you will not be using the TV set for several days, the TV set should be disconnected from the mains for environmental and safety reasons.
– As the TV set is not disconnected from the mains when the TV set is just turned off, pull the plug from the mains to disconnect the TV set completely.
– However, some TV sets may have features that require the TV set to be left in standby to work correctly.
Downloaded From TV-Manual.com Manuals
35
GB
Additional Information
Installing the Accessories (Wall-Mount Bracket)
To Customers:
For product protection and safety reasons, Sony strongly recommends that installing of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.
To Sony Dealers and Contractors:
Provide full attention to safety during the installation, periodic maintenance and examination of this product.
Your TV can be installed using the Wall-Mount Bracket SU-WL500 or SU-WL100 (sold separately).
• Refer to the Instructions supplied with the Wall-Mount Bracket to properly carry out the installation.
•
Refer to “Detaching the Table-Top Stand from the TV” (page 8).
~
• Place the TV on the Table-Top Stand, when securing the Mounting Hook.
SU-WL100
(KDL-26BX321/KDL-26BX320)
SU-WL500
(except KDL-26BX321/KDL-26BX320)
Screw
(+PSW4 × 12)
Screw
(+PSW6 × 16)
Mounting Hook
Square hole
Mounting Hook
Note when installing
When using the SU-WL500 or SU-WL100 Wall-Mount Bracket, the space between the wall and the TV will be
6 cm. Use this space to route cables to the TV.
6 cm
Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.
36
GB
TV installation dimensions table
SU-WL100
KDL-26BX321
KDL-26BX320
SU-WL500
Screen centre point
Model name
Display dimensions
A
66.8
B
42.4
Screen centre dimension
C
11.7
Unit: cm
Length for each mounting angle
Angle (0
°
) Angle (20
°
)
D E
F G H
33.6
14.7
24.4
40.3
33.8
Screen centre point
Unit: cm
Model Name
Display dimensions
Screen centre dimension
Length for each mounting angle
Angle (0
°
) Angle (20
°
)
F G
A B C D E
KDL-40NX520
KDL-40BX420
KDL-37BX420
KDL-32NX520
KDL-32BX420
KDL-32BX321
KDL-32BX320
100.0
99.2
91.6
81.2
80.0
60.9
59.8
56.2
50.2
49.6
12.2
12.2
14.0
17.2
17.2
42.8
42.5
42.6
42.5
42.6
Figures in the above table may differ slightly depending on the installation.
14.7
16.0
15.0
14.7
14.6
33.4
34.1
32.0
29.8
29.4
57.2
56.5
53.3
47.6
47.1
H
46.4
46.2
46.0
46.2
45.8
WARNING
The wall that the TV will be installed on should be capable of supporting a weight of at least four times that of
the TV. Refer to “Specifications” (page 39) for its weight.
Downloaded From TV-Manual.com Manuals
37
GB
Screw and Hook locations diagram/table
Model Name
Screw location
SU-WL500
KDL-40NX520
KDL-40BX420
KDL-37BX420
KDL-32NX520
KDL-32BX420
KDL-32BX321
KDL-32BX320 d, g e, g
KDL-26BX321
KDL-26BX320
Screw location a b
Hook location
SU-WL500 c
SU-WL100
Hook location
SU-WL100
a b
SU-WL500
a* b c
* Hook location “a” cannot be used for the models.
38
GB
Specifications
System
Panel System
TV System
LCD (Liquid Crystal Display) Panel
Colour/Video System
Channel Coverage
Sound Output
Depending on your country/region selection
Analogue: B/G, D/K, L, I
Digital: DVB-T, DVB-C
Analogue: PAL, PAL60 (only video input), SECAM, NTSC3.58, NTSC4.43 (only video input)
Digital: MPEG-2 MP@ML/HL, H.264/MPEG-4 AVC [email protected], [email protected]
Analogue: 46.25 - 855.25 MHz
Digital: VHF/UHF
8W + 8W (except KDL-26BX321/KDL-26BX320)
5W + 5W (KDL-26BX321/KDL-26BX320)
Input/Output jacks
Aerial
/ AV1
75 ohm external terminal for VHF/UHF
21-pin scart connector including audio/video input, RGB input, S-Video input, and TV audio/video output.
COMPONENT IN Supported formats: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Y: 1 Vp-p, 75 ohms, 0.3V negative sync/P
B
/C
B
: 0.7 Vp-p, 75 ohms/
P
R
/C
R
: 0.7 Vp-p, 75 ohms
COMPONENT IN Audio input (phono jacks)
HDMI IN 1, 2
AV2
AV2
Video: 1080p, 1080/24p, 1080i, 720p, 576p, 576i, 480p, 480i
Audio: Two channel linear PCM
32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital
Analogue audio (minijack) (HDMI 1 only)
Video input (phono jack)
Audio input (phono jacks)
Digital optical jack (Two channel linear PCM, Dolby Digital) DIGITAL AUDIO
OUT (OPTICAL)
AUDIO OUT
PC IN
Audio output (Left/Right) (phono jacks) i
PC Input (15 D-sub) (see page 41)
G: 0.7 Vp-p, 75 ohms, non Sync on Green/B: 0.7 Vp-p, 75 ohms/
R: 0.7 Vp-p, 75 ohms, H/V Sync: TTL level
PC audio input (minijack)
Headphones jack
USB port
CAM (Conditional Access Module) slot
Model name KDL-
Power and others
Power consumption in “Home”/
“Standard” mode in “Shop”/
“Vivid” mode
40BX420
Power Requirements 220–240 V AC, 50 Hz
Energy Efficiency Class C
Screen Size (measured diagonally)
Approx. 101.6 cm / 40 inches
123 W
180 W
Average annual energy consumption* 1
Standby Power
Consumption*
2
Off mode Power
Consumption
Display Resolution
180 kWh
0.25 W
0.24 W
1,920 dots (horizontal) × 1,080 lines (vertical)
37BX420
Approx. 94.0 cm / 37 inches
107 W
135 W
156 kWh
Downloaded From TV-Manual.com Manuals
Continued
39
GB
Model name KDL-
Dimensions
(w × h × d)
(Approx.)
(with stand) 98.8 × 63.2 × 25.0 cm
(without stand)
98.8 × 60.0 × 9.4 cm
Mass
(Approx.)
(with stand)
(without stand)
40BX420
15.7 kg
13.6 kg
Supplied Accessories
Optional Accessories
Refer to “1: Checking the accessories” on page 4.
37BX420
91.6 × 59.4 × 25.0 cm
91.6 × 56.2 × 9.1 cm
14.7 kg
12.7 kg
See “Installing the Accessories (Wall-Mount Bracket)” on page 36.
Model name KDL32BX420 32BX321
32BX320
26BX321
26BX320
Power and others
Power Requirements 220–240 V AC, 50 Hz
Energy Efficiency Class
C
Approx. 80.1 cm / 32 inches Screen Size (measured diagonally)
Power consumption in “Home”/
“Standard” mode in “Shop”/
“Vivid” mode
Average annual energy consumption*
1
Standby Power
Consumption* 2
75.0 W
110 W
110 kWh
0.25 W
Approx. 80.0 cm / 32 inches
79.0 W
110 W
115 kWh
Approx. 66.1 cm / 26 inches
59.0 W
88 W
86 kWh
Off mode Power
Consumption
0.24 W
Display Resolution 1,920 dots (horizontal) × 1,080 lines
(vertical)
1,366 dots (horizontal) × 768 lines (vertical)
80.0 × 52.8 × 22.0 cm 66.8 × 45.5 × 22.0 cm Dimensions
(w × h × d)
(Approx.)
(with stand) 80.0 × 52.8 × 22.0 cm
(without stand)
80.0 × 49.6 × 9.1 cm 80.0 × 49.6 × 9.1 cm 66.8 × 42.4 × 9.1 cm
Mass
(Approx.)
(with stand)
(without stand)
10.7 kg
9.1 kg
10.7 kg
9.1 kg
8.8 kg
7.3 kg
Supplied Accessories
Optional Accessories
Refer to “1: Checking the accessories” on page 4.
See “Installing the Accessories (Wall-Mount Bracket)” on page 36.
Model name KDL-
Power and others
40NX520
Power Requirements 220–240 V AC, 50 Hz
Energy Efficiency Class C
Screen Size (measured diagonally)
Power consumption in “Home”/
“Standard” mode
Approx. 101.6 cm / 40 inches
123 W in “Shop”/
“Vivid” mode
Average annual energy consumption*
1
Standby Power
Consumption* 2
180 W
180 kWh
0.25 W
Off mode Power
Consumption
0.24 W
32NX520
Approx. 80.1 cm / 32 inches
75.0 W
110 W
110 kWh
40
GB
Model name KDL-
Display Resolution
40NX520
1,920 dots (horizontal) × 1,080 lines (vertical)
Dimensions
(w × h × d)
(Approx.)
(with stand) 100.0 × 64.2 × 26.0 cm
(without stand)
100.0 × 60.9 × 8.7 cm
Mass
(Approx.)
(with stand)
(without stand)
20.4 kg
17.8 kg
Supplied Accessories
Optional Accessories
Refer to “1: Checking the accessories” on page 4.
32NX520
81.2 × 53.4 × 25.0 cm
81.2 × 50.2 × 8.7 cm
14.7 kg
12.3 kg
See “Installing the Accessories (Wall-Mount Bracket)” on page 36.
*
1
Energy consumption per year, based on the power consumption of the television operating 4 hours per day for 365 days.
The actual energy consumption will depend on how the television is used.
*
2
Specified standby power is reached after the TV finishes necessary internal processes.
Design and specifications are subject to change without notice.
PC Input Signal Reference Chart for PC IN and HDMI IN 1/2
For KDL-40NX520/KDL-40BX420/KDL-37BX420/KDL-32NX520/KDL-32BX420
Signals Horizontal (Pixel) Vertical (Line)
Horizontal frequency
(kHz)
31.5
VGA
SVGA
XGA
640
800
1024
480
600
768
37.9
48.4
WXGA
WXGA
WXGA
SXGA
HDTV
1280
1280
1360
1280
1920
768
768
768
1024
1080
47.4
47.8
47.7
64
67.5
Vertical frequency (Hz)
Standard
60
60
60
60
60
60
60
60
VGA
VESA Guidelines
VESA Guidelines
VESA
VESA
VESA
VESA
EIA
For KDL-32BX321/KDL-32BX320/KDL-26BX321/KDL-26BX320
Signals Horizontal (Pixel) Vertical (Line)
VGA 640 480
Horizontal frequency
(kHz)
31.5
SVGA
XGA
WXGA
WXGA
WXGA
800
1024
1280
1280
1360
600
768
768
768
768
37.9
48.4
47.4
47.8
47.7
Vertical frequency (Hz)
• This TV’s PC input does not support Sync on Green or Composite Sync.
• This TV’s PC input does not support interlaced signals.
• This TV’s PC input supports signals in the above chart with a 60 Hz vertical frequency.
60
60
60
60
60
60
Standard
VGA
VESA Guidelines
VESA Guidelines
VESA
VESA
VESA
Downloaded From TV-Manual.com Manuals
41
GB
Troubleshooting
Check whether the
1
(standby) indicator is flashing in red.
When it is flashing
The self-diagnosis function is activated.
Press 1 on the side of the TV to turn it off, disconnect the mains lead, and inform your dealer or
Sony service centre.
When it is not flashing
1
Check the items in the tables below.
2
If the problem still persists, have your TV serviced by qualified service personnel.
z
• For further information, please contact Sony Customer
Information Centre at the address or telephone that appears on the supplied guarantee.
No picture (screen is dark) and no sound
• Check the aerial/cable connection.
• Connect the TV to the mains, and press 1 on the side of the TV.
• If the 1 (standby) indicator lights up in red, press "/1 .
No picture or no menu information from equipment connected to the scart connector
• Press to display the connected equipment list, then select the desired input.
• Check the connection between the optional equipment and the TV.
Double images or ghosting
• Check the aerial/cable connection.
• Check the aerial location and direction.
Only snow and noise appear on the screen
• Check if the aerial is broken or bent.
• Check if the aerial has reached the end of its serviceable life (three to five years in normal use, one to two years at the seaside).
Picture or sound noise when viewing a TV channel
• Adjust “AFT” (Automatic Fine Tuning) to obtain better
Some tiny black points and/or bright points appear on the screen
• The picture of a display unit is composed of pixels. Tiny black points and/or bright points (pixels) on the screen do not indicate a malfunction.
No colour on programmes
No colour or irregular colour when viewing a signal from the COMPONENT IN sockets
• Check the connection of the COMPONENT IN sockets and check if each sockets are firmly seated in their respective sockets.
Sound
No sound, but good picture
• Press
2
+ or
%
(Mute).
• Check if the “Speakers” is set to “TV Speakers”
• When using HDMI input with Super Audio CD or DVD-
Audio, DIGITAL AUDIO OUT (OPTICAL) may not output audio signals.
Channels
The desired channel cannot be selected
• Switch between digital and analogue mode and select the desired digital/analogue channel.
Some channels are blank
• Scrambled/Subscription only channel. Subscribe to the pay TV service.
• Channel is used only for data (no picture or sound).
• Contact the broadcaster for transmission details.
Digital channels are not displayed
• Contact a local installer to find out if digital transmissions are provided in your area.
• Upgrade to a higher gain aerial.
General
The TV turns off automatically (the TV enters standby mode)
• Check if the “Sleep Timer” (page 34) or “Idle TV
Standby” (page 35) is activated.
• If no signal is received and no operation is performed in the TV mode for 15 minutes, the TV automatically switches to standby mode.
Distorted picture and/or sound
• Keep the TV away from electrical noise sources such as cars, motorcycles, hair-dryers or optical equipment.
• When installing optional equipment, leave some space between the optional equipment and the TV.
• Check the aerial/cable connection.
• Keep the aerial/cable TV cable away from other connecting cables.
The remote does not function
• Replace the batteries.
HDMI equipment does not appear on “HDMI
Device List”
• Check that your equipment is compatible with control for HDMI.
If “Store Display Mode: On” is displayed on the screen
• Your TV is set to “Shop” mode. You need to set “Home” for “Location” in the “Auto Start-up” procedure again
42
GB
Keep this Instruction manual safe you’ll need it
Television in the UK is going digital, bringing us all more.
Please see overleaf to find out when your area switches to digital.
Digital UK is the independent, non-profit organisation leading the process of digital TV switchover in the UK. Digital UK provides impartial information on what people need to do to prepare for the move to digital, and when they need to do it.
How the switchover affects your TV equipment:
Your new TV has a digital tuner built in, which means it is ready to receive the Freeview signal by simply plugging it into your aerial socket (check if you can get digital TV through your aerial now, or whether you'll have to wait until switchover, at
www.digitaluk.co.uk
).
When the TV switchover happens in your area, there are at least two occasions when you will need to re-tune your TV in order to continue receiving your existing TV channels, and also to pick up new ones. Digital UK, the body leading the digital TV switchover, will advise you when you need to re-tune during the switchover.
Downloaded From TV-Manual.com Manuals
43
GB
How to re-tune:
1 Press
"HOME"
on the remote
2 Press
F/f
to select "Settings", then press
3 Press
F
/
f
to select "Channel Set-up", then press .
4 Press
F
/
f
to select "Digital Set-up", then press
5 Press to select "Digital Tuning"
6 Press to select "Digital Auto Tuning"
7 Press
G
to select "OK" then press to start "Digital Auto Tuning"
8 Follow the on screen instructions.
If you are missing any channels, it may be that they are not available in your area, or that your aerial needs upgrading.
If you have any questions, please contact Sony on
0844 8466555
or call Digital UK on
0845 6 50 50
50
or visit
www.digitaluk.co.uk
44
GB
†Calls charged at BT rate of 3p per minute daytime and 1p per minute evenings and weekends.
Rates may vary for calls from non-BT lines.
Downloaded From TV-Manual.com Manuals
Downloaded From TV-Manual.com Manuals
Downloaded From TV-Manual.com Manuals
For useful information about Sony products
© 2011 Sony Corporation
Downloaded From TV-Manual.com Manuals
4-270-481-
11
(2)
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 4 Start-up Guide
- 9 Safety Information
- 10 Precautions
- 12 Overview of the remote
- 14 Overview of the TV buttons and indicators
- 15 Watching TV
- 15 Watching TV
- 17 Using the Digital Electronic Programme Guide (EPG) *
- 18 Using the Digital Favourite list *
- 19 Using Optional Equipment
- 19 Connecting optional equipment
- 20 Viewing pictures from connected equipment
- 21 Playing Back Photo/Music/ Video via USB
- 24 Using BRAVIA Sync with Control for HDMI
- 25 Using MENU Functions
- 25 Navigating through TV Menu
- 26 Settings
- 36 Additional Information
- 36 Installing the Accessories (Wall-Mount Bracket)
- 39 Specifications
- 42 Troubleshooting
