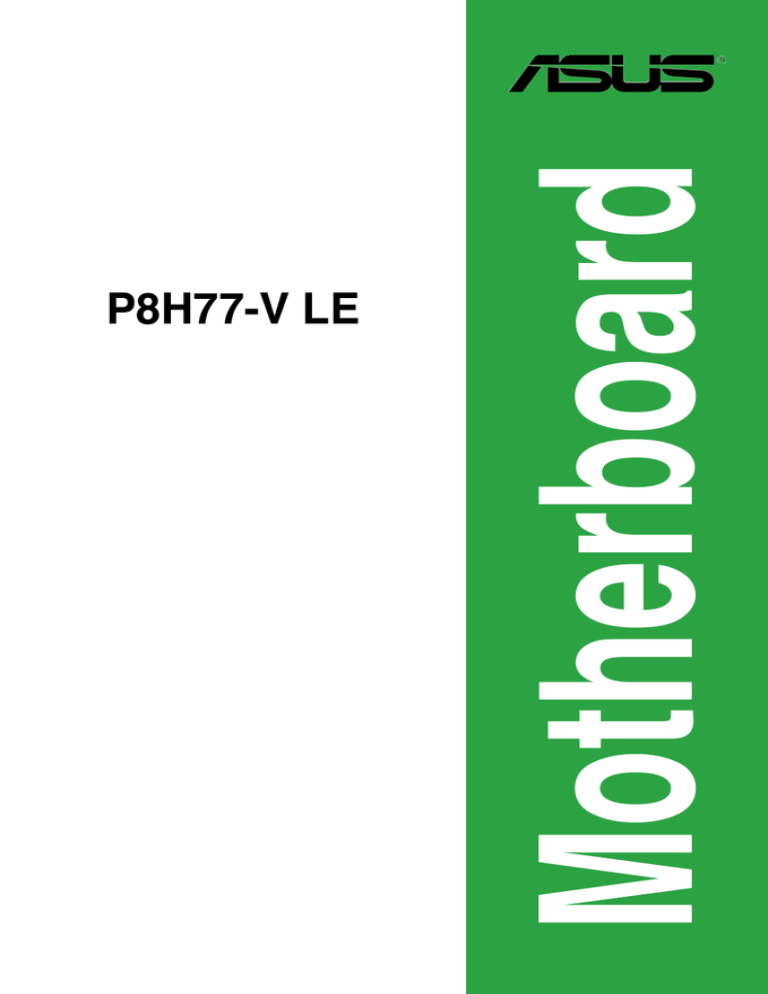

Motherboard
P8H77-V LE
E7114
First Edition (V1)
February 2012
Copyright © 2012 ASUSTeK Computer Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK Computer Inc. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless
such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identification or explanation and to the
owners’ benefit, without intent to infringe.
Offer to Provide Source Code of Certain Software
This product may contain copyrighted software that is licensed under the General Public License (“GPL”)
and under the Lesser General Public License Version (“LGPL”). The GPL and LGPL licensed code in this
product is distributed without any warranty. Copies of these licenses are included in this product.
You may obtain the complete corresponding source code (as defined in the GPL) for the GPL Software,
and/or the complete corresponding source code of the LGPL Software (with the complete machinereadable “work that uses the Library”) for a period of three years after our last shipment of the product
including the GPL Software and/or LGPL Software, which will be no earlier than December 1, 2011, either
(1) for free by downloading it from http://support.asus.com/download;
or
(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location
where you want to have it shipped to, by sending a request to:
ASUSTeK Computer Inc.
Legal Compliance Dept.
15 Li Te Rd.,
Beitou, Taipei 112
Taiwan
In your request please provide the name, model number and version, as stated in the About Box of the
product for which you wish to obtain the corresponding source code and your contact details so that we
can coordinate the terms and cost of shipment with you.
The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as
the corresponding binary/object code.
This offer is valid to anyone in receipt of this information.
ASUSTeK is eager to duly provide complete source code as required under various Free Open Source
Software licenses. If however you encounter any problems in obtaining the full corresponding source code
we would be much obliged if you give us a notification to the email address gpl@asus.com, stating the
product and describing the problem (please do NOT send large attachments such as source code archives
etc to this email address).
ii
Contents
Safety information....................................................................................... vi
About this guide.......................................................................................... vi
P8H77-V LE specifications summary....................................................... viii
Chapter 1
Product introduction
1.1
Welcome!....................................................................................... 1-1
1.2
Package contents.......................................................................... 1-1
1.3
Special features............................................................................. 1-1
1.3.1
Product highlights............................................................ 1-1
1.3.2
Innovative ASUS features................................................ 1-4
1.4
Before you proceed...................................................................... 1-6
1.5
Motherboard overview.................................................................. 1-7
1.6
1.7
1.8
1.5.1
Placement direction......................................................... 1-7
1.5.2
Screw holes..................................................................... 1-7
1.5.3
Motherboard layout.......................................................... 1-8
1.5.4
Layout contents................................................................ 1-8
Central Processing Unit (CPU).................................................... 1-9
1.6.1
Installing the CPU.......................................................... 1-10
1.6.2
CPU heatsink and fan assembly installation.................. 1-12
System memory.......................................................................... 1-14
1.7.1
Overview........................................................................ 1-14
1.7.2
Memory configurations................................................... 1-15
1.7.3
Installing a DIMM........................................................... 1-21
1.7.4
Removing a DIMM......................................................... 1-21
Expansion slots........................................................................... 1-22
1.8.1
Installing an expansion card.......................................... 1-22
1.8.2
Configuring an expansion card...................................... 1-22
1.8.3
PCI Express 2.0 x1 slots................................................ 1-22
1.8.4
PCI Express 3.0/2.0 x16 slots........................................ 1-22
1.8.5
PCI slots......................................................................... 1-22
1.9
Jumpers....................................................................................... 1-23
1.10
Connectors.................................................................................. 1-24
1.10.1
Rear panel connectors................................................... 1-24
1.10.2
Internal connectors........................................................ 1-26
1.11
Onboard switches....................................................................... 1-32
1.12
Onboard LEDs............................................................................. 1-33
iii
Contents
1.13
Software support......................................................................... 1-34
1.13.1
Installing an operating system....................................... 1-34
1.13.2
Support DVD information............................................... 1-34
Chapter 2
2.1
2.1.1
ASUS Update utility......................................................... 2-1
2.1.2
ASUS EZ Flash 2............................................................. 2-2
2.1.3
ASUS CrashFree BIOS 3 utility....................................... 2-3
2.1.4
ASUS BIOS Updater........................................................ 2-4
2.2
BIOS setup program..................................................................... 2-6
2.3
Main menu................................................................................... 2-10
2.4
2.5
iv
BIOS information
Managing and updating your BIOS............................................. 2-1
2.3.1
System Language [English]........................................... 2-10
2.3.2
System Date [Day xx/xx/xxxx]........................................ 2-10
2.3.3
System Time [xx:xx:xx].................................................. 2-10
2.3.4
Security.......................................................................... 2-10
Ai Tweaker menu......................................................................... 2-12
2.4.1
Ai Overclock Tuner [Manual].......................................... 2-13
2.4.2
Memory Frequency [Auto].............................................. 2-13
2.4.3
iGPU Max. Frequency [xxx]........................................... 2-13
2.4.4
EPU Power Saving Mode [Disabled]............................. 2-13
2.4.5
GPU Boost [OK]............................................................. 2-14
2.4.6
DRAM Timing Control.................................................... 2-14
2.4.7
CPU Power Management.............................................. 2-14
2.4.8
DIGI+ VRM..................................................................... 2-15
2.4.9
CPU Voltage [Offset Mode]............................................ 2-16
2.4.10
iGPU Voltage [Offset Mode]........................................... 2-16
2.4.11
DRAM Voltage [Auto]..................................................... 2-17
2.4.12
VCCSA Voltage [Auto]................................................... 2-17
2.4.13
PCH Voltage [Auto]........................................................ 2-17
2.4.14
CPU PLL Voltage [Auto]................................................. 2-17
Advanced menu.......................................................................... 2-18
2.5.1
CPU Configuration......................................................... 2-18
2.5.2
PCH Configuration......................................................... 2-20
2.5.3
SATA Configuration........................................................ 2-20
2.5.4
System Agent Configuration.......................................... 2-21
Contents
2.6
2.5.5
USB Configuration......................................................... 2-22
2.5.6
Onboard Devices Configuration..................................... 2-22
2.5.7
APM............................................................................... 2-23
2.5.8
Network Stack................................................................ 2-23
Monitor menu.............................................................................. 2-24
2.6.1
CPU Temperature / MB Temperature [xxxºC/xxxºF]....... 2-24
2.6.2CPU / Chassis Fan Speed [xxxx RPM] or [Ignore] / [N/A]2-24
2.7
2.8
2.9
2.6.3
CPU Q-Fan Control [Enabled]....................................... 2-24
2.6.4
Chassis Fan Speed Low Limit [600 RPM]..................... 2-25
2.6.5
CPU Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage... 2-25
2.6.6
Anti Surge Support [Enabled]........................................ 2-25
Boot menu................................................................................... 2-26
2.7.1
Bootup NumLock State [On].......................................... 2-26
2.7.2
Full Screen Logo [Enabled]............................................ 2-26
2.7.3
Wait for ‘F1’ If Error [Enabled]........................................ 2-26
2.7.4
Fast Boot [Enabled]....................................................... 2-27
2.7.5
Option ROM Messages [Force BIOS]............................ 2-27
2.7.6
CSM Support [Enabled]................................................. 2-27
2.7.7
Setup Mode [EZ Mode].................................................. 2-27
2.7.8
UEFI/Legacy Boot [Enabled both UEFI and Legacy]..... 2-27
2.7.9
PCI ROM Priority [Legacy ROM]................................... 2-27
2.7.10
Boot Option Priorities..................................................... 2-27
2.7.11
Boot Override................................................................. 2-27
Tools menu.................................................................................. 2-28
2.8.1
ASUS EZ Flash 2 Utility................................................. 2-28
2.8.2
ASUS O.C. Profile.......................................................... 2-28
2.8.3
ASUS SPD Information.................................................. 2-28
Exit menu..................................................................................... 2-29
Appendices
Notices........................................................................................................A-1
Safety information
Electrical safety
•
To prevent electric shock hazard, disconnect the power cable from the electric outlet
before relocating the system.
•
When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
•
Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
•
Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
•
Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
•
If the power supply is broken, do not try to fix it by yourself. Contact a qualified service
technician or your retailer.
Operation safety
•
Before installing the motherboard and adding devices on it, carefully read all the manuals
that came with the package.
•
Before using the product, ensure that all cables are correctly connected and the power
cables are not damaged. If you detect any damage, contact your dealer immediately.
•
To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
•
Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may become wet.
•
Place the product on a stable surface.
•
If you encounter technical problems with the product, contact a qualified service
technician or your retailer.
About this guide
This user guide contains the information you need when installing and configuring the
motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Product introduction
vi
This chapter describes the features of the motherboard and the new technology it
supports.
•
Chapter 2: BIOS information
This chapter tells how to change system settings through the BIOS Setup menus.
Detailed descriptions of the BIOS parameters are also provided.
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself when trying to complete a task.
CAUTION: Information to prevent damage to the components when trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.
Where to find more information
Refer to the following sources for additional information and for product and software
updates.
1.
ASUS websites
The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.
2.
Optional documentation
Your product package may include optional documentation, such as warranty flyers,
that may have been added by your dealer. These documents are not part of the
standard package.
Typography
Bold text
Italics
<Key>
<Key1>+<Key2>+<Key3>
Indicates a menu or an item to select.
Used to emphasize a word or a phrase.
Keys enclosed in the less-than and greater-than sign means
that you must press the enclosed key.
Example: <Enter> means that you must press the Enter or
Return key.
If you must press two or more keys simultaneously, the key
names are linked with a plus sign (+).
Example: <Ctrl>+<Alt>+<D>
vii
P8H77-V LE specifications summary
CPU
Chipset
Memory
Expansion slots
Graphics
Multi-GPU
support
Storage
LGA1155 socket for Intel® 3rd/2nd Generation Core™ i7/ i5/ i3/ Pentium® / Celeron® Processors
Supports 22nm and 32nm CPU
Supports Intel® Turbo Boost Technology 2.0*
*The Turbo Boost Thchnology 2.0 support depends on the CPU types.
** Refer to www.asus.com for Intel® CPU support list.
Intel® H77 Express Chipset
4 x DIMM, maximum 32GB, DDR3 1866(O.C.)*/1600/1333/1066 MHz, non-ECC, un-buffered memory
Dual-channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*Due to the CPU behavior, DDR3 1866 MHz memory module will run
at DDR3 1800 MHz frequency as default.
** Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel. Please refer to Memory QVL for details.
***Refer to www.asus.com or this User Manual for the Memory
QVL(Qualified Vendors List).
****When you install a total memory of 4GB capacity or more,
Windows® 32-bit operating system may only recognize less than
3GB. We recommend a maximum of 3GB system memory if you are
using a Windows® 32-bit operating system.
1 x PCI Express 3.0/2.0 x16 slot [bue] (at x16 mode)*
1 x PCI Express 2.0 x16 slot [black] (at x4 mode, compatible with PCIe x1, x2 and x4 devices)
2 x PCI Express 2.0 x1 slot
3 x PCI slots
*PCIe 3.0 speed is supported by Intel® 3rd generation Core™
processors.
Integrated graphics processor - Intel® HD Graphics support
Multi-VGA output support: HDMI, DVI and RGB port
- Supports HDMI with max. resolution up to 1920 x 1200 @60Hz
- Supports DVI with max. resolution up to 1920 x 1200 @60Hz
- Supports RGB with max. resolution 2048 x 1536@75Hz
- Supports Intel® InTru™ 3D/Insider™/Quick Sync Video/Clear Video HD Technology/HD Graphics
- Maximum shared Memory of 1696 MB
Supports ATI® Quad-GPU CrossFireX™ Technology
Supports Lucidlogix® Virtu MVP™ Technology*
*LucidLogix® Virtu MVP™ supports Windows® 7 operating systems.
Intel® H77 Express Chipset:
- 2 x Serial ATA 6.0 Gb/s connectors (gray)
- 4 x Serial ATA 3.0 Gb/s connectors (blue)
- Intel Rapid Storage Technology supports RAID 0, 1, 5 and 10
- Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology*
*Supports on Intel® Core™ processor family with Windows® 7
operating systems.
(continued on the next page)
viii
P8H77-V LE specifications summary
LAN
Audio
USB
ASUS Unique
Features
Realtek® RTL8111F Gigabit LAN controller
Realtek® 887 8-Channel High Definition Audio CODEC
- Supports Jack-Detection, Multi-streaming and Front Panel Jack-Retasking
- Optical S/PDIF out port at back I/O
* Use a chassis with HD audio module in the front panel to
support an 8-channel audio output
Intel® H77 Express Chipset - supports ASUS USB 3.0 Boost
UASP Mode*
- 2 x USB 3.0/2.0 ports at mid-board for front panel support
- 2 x USB 3.0/2.0 ports at back panel (blue)
Intel® H77 Express Chipset
-10 x USB 2.0/1.1 ports (6 ports at mid-board, 4 ports at
back panel)
* The USB 3.0 ports only support Windows® 7 or later versions.
UASP standard only supports Windows® 8.
ASUS DIGI+ VRM:
- Digital Power Control: Digital Power Design for the CPU and iGPU
- 4+1+1 Phase Power Design
ASUS Exclusive Features
- Network iControl featuring instant network bandwidth domination for top network program in use
- USB 3.0 Boost featuring the latest USB 3.0 UASP standard
- MemOK!
- TurboV
- Ai Charger
- Disk Unlocker featuring 3TB+ HDD support
ASUS Protect 3.0 Technology
- ASUS EPU
- ASUS Anti-Surge Protection
- Low EMI Solution
- 100% Solid Capacitors
ASUS Quiet Thermal Solution:
- ASUS Fanless Design: Stulish Heatsink solution
- ASUS FAN Xpert
ASUS EZ DIY:
- ASUS AI Suite II
- ASUS UEFI BIOS
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS My Logo 2
(continued on the next page)
ix
P8H77-V LE specifications summary
ASUS Exclusive
Precision Tweaker 2:
Overclocking Features - vCore: Adjustable CPU voltage at 0.005V increment
- vCCSA: 191-step system agent voltage control
- vDRAM Bus: 191-step Memory voltage control
- vPCH: 191-step Chipset voltage control
- iGPU: 127-step iGPU voltage control
- vCPU_PLL: 1-step CPU & PCH PLL voltage control
SFS (Stepless Frequency Selection)
-BCLK/PCIE frequency tuning from 80MHz up to 300MHz at
1MHz increment
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x PS/2 Keyboard/Mouse COMBO port
1 x HDMI Output port
1 x DVI Output port
1 x RGB Output port
1 x LAN (RJ45) port
2 x USB 3.0 ports
4 x USB 2.0/1.1 ports
1 x Optical S/PDIF Out
3-jack 8-channel Audio jack(s)
Internal I/O Connector 3 x USB 2.0/1.1 connectors support additional 6 USB 2.0/1.1 ports
1 x USB 3.0/2.0 connectors support additional 2 USB 3.0/2.0 ports
2 x SATA 6Gb/s connectors (gray)
4 x SATA 3Gb/s connectors (blue)
1 x 4-pin CPU Fan connector
1 x 3-pin Chassis Fan connector
1 x Front Panel Audio connector
1 x System Panel connector
1 x 24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
1 x S/PDIF Out connector
1 x MemOK! Button
1 x Clear CMOS jumper
1 x COM connector
BIOS
64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM
BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2,
ASUS CrashFree BIOS 3, F12 PrintScreen function, F3 Shortcut
function, and ASUS DRAM SPD (Serial Presence Detect)
memory information
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Accessories
2 x Serial ATA 6.0Gb/s cables
1 x I/O Shield
1 x User’s manual
1 x Support DVD
(continued on the next page)
P8H77-V LE specifications summary
Support DVD
Form Factor
Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)
uATX Form Factor, 12”x 8.6” (30.5cm x 21.8cm)
* Specifications are subject to change without notice.
xi
xii
Chapter 1
Product introduction
1.1
Welcome!
Thank you for buying an ASUS® P8H77-V LE motherboard!
The motherboard delivers a host of new features and latest technologies, making it another
standout in the long line of ASUS quality motherboards!
Before you start installing the motherboard, and hardware devices on it, check the items in
your package with the list below.
1.2
Package contents
Check your motherboard package for the following items.
Motherboard
ASUS P8H77-V LE motherboard
Cables
2 x Serial ATA 6.0Gb/s cables
Accessories
1 x I/O shield
Application DVD
ASUS motherboard support DVD
Documentation
User Manual
If any of the above items is damaged or missing, contact your retailer.
1.3
Special features
1.3.1
Product highlights
LGA1155 socket for Intel® Second/Third Generation Core™ i7
/ Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors
This motherboard supports the Intel® 3rd/2nd generation Core™ i7/i5/
i3/Pentium®/Celeron® processors in the LGA1155 package, with iGPU,
memory, and PCI Express controllers integrated to support onboard
graphics out with dedicated chipsets, 2-channel (4 DIMMs) DDR3
memory, and 16 PCI Express 3.0/2.0 lanes. This provides great graphics
performance. Intel® 3rd/2nd generation Core™ i7/i5/i3/Pentium®/Celeron®
processors are among the most powerful and energy efficient CPUs in
the world.
Chapter 1: Product introduction
1-1
Intel® H77 Express Chipset
The Intel® H77 Express Chipset is a single-chipset designed to support
the 1155 socket Intel® 3rd/2nd generation Core™ i7/i5/ i3/Pentium®/
Celeron® processors. It provides improved performance by utilizing
serial point-to-point links, allowing increased bandwidth and stability.
Additionally, H77 chipset provides 4 USB 3.0 ports for 10 times faster
data retrieval speed. Moreover, Intel® H77 Express Chipset can also
enable iGPU function, letting users enjoy the latest Intel® integrated
graphic performance.
Dual-Channel DDR3 1866(O.C.) / 1600 / 1333 / 1066MHz
support
The motherboard supports DDR3 memory that features data transfer
rates of 1866(O.C.) / 1600 / 1333 / 1066 MHz to meet the higher
bandwidth requirements of the latest 3D graphics, multimedia, and
Internet applications. The dual-channel DDR3 architecture enlarges the
bandwidth of your system memory to boost system performance.
Native SATA 6.0 Gb/s support
The Intel® H77 Express Chipset natively supports next-generation Serial
ATA (SATA) storage interface. This motherboard delivers up to 6.0 Gb/s
data transfer rates. Additionally, get enhanced scalability, faster data
retrieval, double the bandwidth of current bus systems.
Complete USB 3.0 Integration
ASUS facilitates the strategic USB 3.0 accessibility for both the front and
rear panel – 4 USB 3.0 ports in total. Experience the latest plug & play
connectivity at speeds up to 10 times faster than USB 2.0. The P8H77-V
LE affords greater convenience to high speed connectivity.
PCI Express® 3.0
PCI Express® 3.0 (PCIe 3.0) is the latest PCI Express bus standard with
improved encoding schemes that provide twice the performance of the
current PCIe 2.0. The total bandwidth for a x16 link reaches a maximum
of 32Gb/s, double the 16 Gb/s of PCIe 2.0 (in x16 mode). As such, PCIe
3.0 provides users an unprecendented data speeds, combined with the
convenience and seamless transition offerred by complete backward
compatibility with PCIe 1.0 and PCIe 2.0 devices. PCIe 3.0 will become
a must-have feature for users who wish to improve and optimize graphic
performance, as well as have the latest technology available to them.
PCI 3.0 speed is supported by Intel® 3rd generation Core™ processors.
1-2
ASUS P8H77-V LE
S/PDIF out connector at the back I/O
This motherboard provides convenient connectivity to external home
theater audio systems via the optical S/PDIF (SONY-PHILIPS Digital
Interface) out connecor at the back I/O. The S/PDIF transfers digital audio
without converting it to analog format and keeps the best signal quality.
Intel® Smart Response Technology
SSD Speed with HDD Capacity
Intel® Smart Response Technology boosts overall system performance by
using an installed fast SSD (min 18.6GB available capacity required) as
a cache for frequently accessed data. Key benefits include reduced load
and wait times, and lower power consumption through the elimination
of unnecessary hard drive spin. This technology combines SSD
performance with hard drive capacity, operating up to 6X faster than a
hard drive-only system.
* Intel® Smart Response Technology is supported by 3rd/2nd generation Intel®
Core™ processor family on Windows® 7™ operating systems.
** Operating systems must be installed on the HDD to launch Intel® Smart
Response Technology.
The capacity of the SSD is reserved for caching function.
Intel® Smart Connect Technology
Your computer could receive web updates with fresh content for selected
applications, even when setting the system to sleep. This means less
time waiting for applications to start, update and sync with the cloud,
providing a more efficient way.
Intel® Rapid Start Technology
Allows your computer to quickly resume from a lowe-power hibernate
state in seconds. Saving system memory to the designed SSD, provides
your computer a faster wake-up response time, while keeping the energy
use low.
ATI Quad-GPU CrossFireX™ Support
ATI's CrossFireX™ boosts image quality along with rendering speed,
eliminating the need to scale down screen resolution to get high quality
images. CrossFireX™ allows higher antialiasing, anisotropic filtering,
shading and texture settings. Adjust your display configurations,
experiment with the 3D settings, and check the effects with a real-time
3D-rendered previews within ATI Catalyst™ Control Center.
Chapter 1: Product introduction
1-3
1.3.2
Innovative ASUS features
ASUS DIGI+ VRM
Digital Power Control: Digital Power Design for the CPU and iGPU
All-new digital CPU power controls work perfectly together to match
digital power signal (SVID) requests from the CPU, with ultra-fast sensing
and response efficiently delivering precision power. Accurate delivery
reduces waste, and provides more stable CPU Vcore voltages. Users
can adjust CPU and its processor graphics (iGPU) voltages for various
overclocking scenarios, with accurate input through UEFI BIOS tuning
or the exclusive ASUS interface. This proprietary design increases
overclocking headroom to push performance to its full potential.
EPU
Energy Efficiency All Around
Tap into the world’s first real-time PC power saving chip through the AI
Suite II utility. Get total system-wide energy optimization by automatically
detecting current PC loadings and intelligently moderating power
consumption. This also reduces fan noise and extends component
longevity.
GPU Boost
Go to the Limit with iGPU Level Up!
GPU Boost accelerates the integrated GPU for extreme graphics
performance. The user-friendly interface facilitates flexible frequency
adjustments. It easily delivers stable system-level upgrades for every use.
ASUS UEFI BIOS
Flexible and Easy BIOS Interface
ASUS UEFI BIOS offers the first mouse-controlled graphical BIOS
designed with selectable modes, providing a user-friendly interface
that goes beyond the traditional keyboard-only controls. It also natively
supports fully-utilized hard drives larger than 2.2TB in 64-bit operating
systems.
ASUS exclusive interface
EZ Mode displays frequently-accessed info. Users can choose system
performance settings, and drag and drop boot priorities. Advanced Mode
for performance enthusiasts includes detailed DRAM settings via a
dedicated memory info page for complete insight.
New upgrade! Quick and easy information for enhanced system
control
- F12 BIOS snapshot hotkey for sharing UEFI information and
troubleshooting
- New F3 Shortcut for most accessed information
- ASUS DRAM SPD (Serial Presence Detect) information for accessing
memory information, detecting faulty DIMMs, and helping with difficult
POST situations.
1-4
ASUS P8H77-V LE
ASUS TurboV
Feel the adrenaline rush of real-time OC-now a reality with the ASUS
TurboV. This easy OC tool allows you to overclock without exiting or
rebooting the OS; and its user-friendly interface makes overclock with just
a few clicks away. Moreover, the ASUS OC profiles in TurboV provides
the best O.C. settings in different scenarios.
Network iControl
With a one-click on/off button, the software currently in use is set as
top priority over all other network programs, dominating the network
bandwidth with ease. Moreover, you can prioritize your favorite software
easily by configuring profiles through the intutive user interface. Within
the profile, programs can be pre-scheduled to run in a specific time period
to avoid network clogging and long-waits on downloads. Auto PPPoE
network connection gives a one-step setup and an intuitive network
bandwidth control center.
Fanless Design: stylish heatsink solution
The stylish heatsink features a 0-dB thermal solution that offers users a
noiseless PC environment. Not only the beautiful shape upgrades the
visual enjoyment for motherboard users, but also the heatsink design
lowers the temperature of the chipset and power phase area through
high efficient heat-exchange. Combined with usability and aesthetics,
the ASUS stylish heatsink will give users an extremely silent and cooling
experience with the elegant appearance!
ASUS Fan Xpert
ASUS Fan Xpert intelligently allows you to adjust the CPU fan and
chassis fan speeds according to different ambient temperatures caused
by different climate conditions in different geographic regions and your
PC’s loading. The built-in variety of useful profiles offer flexible controls of
fan speed to achieve a quiet and cool environment.
MemOK!
MemOK! quickly ensures memory boot compatibility. This remarkable
memory rescue tool requires a mere push of the button to patch memory
issues. MemOK! determines failsafe settings and dramatically improves
your system boot success. Get your system up and running in no time.
Ai Charger
Ai Charger is ASUS fast-charging software that supports iPod, iPhone,
and iPad.
• Check your USB mobile device if it fully supports the BC 1.1 function.
• The actual charging speed may vary with your USB device’s conditions.
Chapter 1: Product introduction
1-5
USB 3.0 Boost
New ASUS USB 3.0 Boost technology supports UASP (USB Attached
SCSI Protocol), the latest USB 3.0 standard. With USB 3.0 Boost
technology, a USB device’s transmission speed is significantly increased
up to 170%, adding to an already impressive fast USB 3.0 transfer speed.
ASUS software automatically accelerates data speeds for compatible
USB 3.0 peripherals without the need for any user interaction.
•
The USAP standard support varies with models.
•
Due to Intel® USB 3.0 controller limitation, USB 3.0 Boost does not
support Windows® XP.
ASUS CrashFree BIOS 3
ASUS CrashFree BIOS 3 is an auto-recovery tool that allows you to
restore a corrupted BIOS file using the bundled support DVD or USB
flash disk that contains the latest BIOS file.
C.P.R. (CPU Parameter Recall)
The BIOS C.P.R. feature automatically restores the CPU default settings
when the system hangs due to overclocking failure. C.P.R. eliminates the
need to open the system chassis and clear the RTC data. Simply shut
down and reboot the system, and the BIOS automatically restores the
CPU parameters to their default settings.
ErP ready
The motherboard is European Union´s Energy-related Products (ErP)
ready, and ErP requires products to meet certain energy efficiency
requirements in regards to energy consumptions. This is in line with
ASUS vision of creating environment-friendly and energy-efficient
products through product design and innovation to reduce carbon
footprint of the product and thus mitigate environmental impacts.
1.4
Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due to
static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic pad or in the
bag that came with the component.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so may
cause severe damage to the motherboard, peripherals, or components.
1-6
ASUS P8H77-V LE
1.5
Motherboard overview
Before you install the motherboard, study the configuration of your chassis to ensure that the
motherboard fits into it.
Ensure that you unplug the power cord before installing or removing the motherboard.
Failure to do so can cause you physical injury and damage motherboard components.
1.5.1
Placement direction
1.5.2
Screw holes
When installing the motherboard, ensure that you place it into the chassis in the correct
orientation. The edge with external ports goes to the rear part of the chassis as indicated in
the image below.
Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Do not overtighten the screws! Doing so can damage the motherboard.
Place this side towards
the rear of the chassis
P8H77-V LE
Chapter 1: Product introduction
1-7
1.5.3
Motherboard layout
1
2
3
4
21.8cm(8.6in)
KB_USB34
DIGI
+VRM
HDMI
ASM
1442
6
DRAM_LED
DDR3 DIMM_B2 (64bit, 240-pin module)
CPU_FAN CHA_FAN
5
MemOK!
2
EATXPWR
LAN_USB12
DDR3 DIMM_B1 (64bit, 240-pin module)
DDR3 DIMM_A1 (64bit, 240-pin module)
DVI_VGA
LGA1155
USB3_12
DDR3 DIMM_A2 (64bit, 240-pin module)
EATX12V
SPDIFO
Lithium Cell
CMOS Power
PCIEX1_1
USB3_34
Realtek
8111
PCIEX16_1
P8H77-V LE
PCIEX1_2
PCI1
PCIEX16_2
Super
I/O
8
SATA3G_3
ALC
887
COM1
SPDIF_OUT
AAFP
SATA3G_2
SATA3G_1
SATA3G_4 SATA6G_2
SATA6G_1
SB_PWR
PCI3
1-8
9
64Mb
BIOS
PCI2
1.5.4
7
Intel®
H77
ASM
1083
16
30.5cm(12.0in)
AUDIO
USB910
USB78
CLRTC
USB56
PANEL
15
14
13
12
11
9
10
Layout contents
Connectors/Jumpers/Slots/LED
Page
Connectors/Jumpers/Slots/LED
Page
1.
CPU, chassis fan connectors (4-pin CPU_FAN,
3-pin CHA_FAN)
1-26
9.
Intel® H77 Serial ATA 3.0Gb/s connectors
(7-pin SATA3G_1~4 [blue])
1-30
2.
ATX power connectors (24-pin EATXPWR,
8-pin EATX12V)
1-27
10
Intel® H77 Serial ATA 6.0Gb/s connectors
(7-pin SATA6G_1/2 [gray])
1-29
3.
Intel® LGA1155 CPU socket
1-9
11.
System panel connector (20-8 pin F_PANEL)
1-31
4.
DDR3 DIMM slots
1-14
12.
Clear RTC RAM (3-pin CLRTC)
1-23
5.
DRAM LED
1-33
13.
USB 2.0 connectors (10-1 pin USB5~10)
1-28
6.
MemOK! switch
1-32
14.
Serial port connectors (10-1 pin COM1)
1-28
7.
USB 3.0 connector (20-1 pin USB3_34)
1-29
15.
Front panel audio connector (10-1 pin AAFP)
1-26
8.
Onboard LED (SB_PWR)
1-33
16.
Digital audio connector (4-1 pin SPDIF_OUT)
1-27
ASUS P8H77-V LE
1.6
Central Processing Unit (CPU)
The motherboard comes with a surface mount LGA1155 socket designed for the Intel®
3rd/2nd Generation Core™ i7/ i5/ i3/ Pentium® / Celeron® processors.
P8H77-V LE
P8H77-V LE CPU socket LGA1155
Unplug all power cables before installing the CPU.
• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the
socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing,
or if you see any damage to the PnP cap/socket contacts/motherboard components.
ASUS will shoulder the cost of repair only if the damage is shipment/transit-related.
• Keep the cap after installing the motherboard. ASUS will process Return Merchandise
Authorization (RMA) requests only if the motherboard comes with the cap on the
LGA1155 socket.
• The product warranty does not cover damage to the socket contacts resulting from
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP
cap.
Chapter 1: Product introduction
1-9
1.6.1
Installing the CPU
The LGA1156 CPU is incompatible with the LGA1155 socket. DO NOT install a LGA1156
CPU on the LGA1155 socket.
1
A
B
2
1-10
3
ASUS P8H77-V LE
4
C
A
B
5
Chapter 1: Product introduction
1-11
1.6.2
CPU heatsink and fan assembly installation
Apply the Thermal Interface Material
to the CPU heatsink and CPU
before you install the heatsink and
fan if necessary.
To install the CPU heatsink and fan assembly
1
2
A
B
B
A
3
1-12
4
ASUS P8H77-V LE
To uninstall the CPU heatsink and fan assembly
1
2
A
B
B
A
Chapter 1: Product introduction
1-13
1.7
System memory
1.7.1
Overview
DIMM_B1
DIMM_B2
DIMM_A1
DIMM_A2
The motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) sockets.
A DDR3 module has the same physical dimensions as a DDR2 DIMM but is notched
differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are developed for
better performance with less power consumption.
The figure illustrates the location of the DDR3 DIMM sockets:
Channel
Sockets
Channel A
DIMM_A1 and DIMM_A2
Channel B
DIMM_B1 and DIMM_B2
P8H77-V LE
P8H77-V LE 240-pin DDR3 DIMM sockets
Recommended memory configurations
One DIMM:
We recommend you install one memory module in either of the blue slots (DIMM_A2 or
DIMM_B2) to get better performance.
Two DIMMs (dual-channel operation):
Four DIMMs (dual-channel operation):
1-14
ASUS P8H77-V LE
1.7.2
Memory configurations
You may install 1GB, 2GB, 4GB and 8GB unbuffered non‑ECC DDR3 DIMMs into the DIMM
sockets.
• You may install varying memory sizes in Channel A and Channel B. The system maps
the total size of the lower-sized channel for the dual-channel configuration. Any excess
memory from the higher-sized channel is then mapped for single-channel operation.
• Always install DIMMs with the same CAS latency. For optimum compatibility, we
recommend that you obtain memory modules from the same vendor.
• Due to the memory address limitation on 32-bit Windows® OS, when you install 4GB
or more memory on the motherboard, the actual usable memory for the OS can be
about 3GB or less. For effective use of memory, we recommend that you do any of the
following:
- Use a maximum of 3GB system memory if you are using a 32-bit Windows® OS.
- Install a 64-bit Windows® OS when you want to install 4GB or more on the
motherboard.
• This motherboard does not support DIMMs made up of 512Mb (64MB) chips or less.
• The maximum 32GB memory capacity can be supported with 8GB or above DIMMs.
ASUS will update the memory QVL once the DIMMs are available in the market.
• The default memory operation frequency is dependent on its Serial Presence Detect
(SPD), which is the standard way of accessing information from a memory module.
Under the default state, some memory modules for overclocking may operate at a
lower frequency than the vendor-marked value. To operate at the vendor-marked or at a
higher frequency, refer to section 2.4 Ai Tweaker menu for manual memory frequency
adjustment.
• For system stability, use a more efficient memory cooling system to support a full
memory load (4 DIMMs) or overclocking condition.
P8H77-V LE Motherboard Qualified Vendors Lists (QVL)
DDR3 1866 MHz capability
DIMM socket support (Optional)
Vendors
Part No.
Size
SS/ Chip Chip Timing
DS Brand NO.
Voltage
A-DATA
AX3U1866PB2G8-DP2(XMP)
2GB
DS
-
-
8-8-8-24
1.55V-1.75V •
CORSAIR
CMT4GX3M2A1866C9(XMP)
4GB (2 x 2GB)
DS
-
-
9-9-9-24
1.65V
•
•
CORSAIR
CMT6GX3MA1866C9(XMP)
6GB (3 x 2GB)
DS
-
-
9-9-9-24
1.65V
•
•
CORSAIR
CMZ8GX3M2A1866C9(XMP)
8GB (2 x 4GB)
DS
-
-
9-10-9-27 1.50V
•
•
•
G.SKILL
F3-14900CL9D-8GBXL(XMP)
8GB (2 x 4GB)
DS
-
-
9-10-9-28 1.5V
•
•
•
G.SKILL
F3-14900CL9Q-8GBXL(XMP)
8GB (4 x 2GB)
DS
-
-
9-9-9-24
1.6V
•
•
•
KINGSTON KHX1866C9D3T1K3/3GX(XMP) 3GB (3 x 1GB)
SS
-
-
-
1.65V
•
•
•
KINGSTON KHX1866C9D3T1K3/6GX(XMP) 6GB (3 x 2GB)
DS
-
-
-
1.65V
•
•
•
1 DIMM 2 DIMMs
4 DIMMs
•
Due to the CPU behavior, DDR3 1866 MHz memory module will run at DDR3
1800 MHz frequency as default.
Chapter 1: Product introduction
1-15
P8H77-V LE Motherboard Qualified Vendors Lists (QVL)
DDR3 1600 MHz capability
1-16
Voltage
DIMM socket support
(Optional)
A-DATA 3CCD-1509A
EL1126T
-
•
•
•
DS
-
1.55V-1.75V •
•
•
4GB
DS
A-DATA 3CCD-1509A
EL1126T
-
•
•
•
AX3U1600GC4G9-2G(XMP)
8GB(2 x 4GB)
DS
-
-
9-9-9-24
1.55V-1.75V •
•
•
A-DATA
AX3U1600XC4G79-2X(XMP)
8GB(2 x 4GB)
DS
-
-
7-9-7-21
1.55V-1.75V •
•
•
CORSAIR
TR3X3G1600C8D(XMP)
3GB(3 x 1GB)
SS
-
-
8-8-8-24
1.65V
•
•
•
CORSAIR
CMD12GX3M6A1600C8(XMP)
12GB(6 x
2GB)
DS
-
-
8-8-8-24
1.65V
•
•
•
CORSAIR
CMP4GX3M2A1600C8(XMP)
4GB(2 x 2GB)
DS
-
-
8-8-8-24
1.65V
•
•
•
CORSAIR
CMP4GX3M2A1600C9(XMP)
4GB(2 x 2GB)
DS
-
-
9-9-9-24
1.65V
•
•
•
CORSAIR
CMP4GX3M2C1600C7(XMP)
4GB(2 x 2GB)
DS
-
-
7-8-7-20
1.65V
•
•
•
CORSAIR
CMX4GX3M2A1600C9(XMP)
4GB(2 x 2GB)
DS
-
-
9-9-9-24
1.65V
•
•
•
CORSAIR
CMX4GX3M2A1600C9(XMP)
4GB(2 x 2GB)
DS
-
-
9-9-9-24
1.65V
•
•
•
CORSAIR
TR3X6G1600C8 G(XMP)
6GB(3 x 2GB)
DS
-
-
8-8-8-24
1.65V
•
•
•
CORSAIR
TR3X6G1600C8D G(XMP)
6GB(3 x 2GB)
DS
-
-
8-8-8-24
1.65V
•
•
•
CORSAIR
TR3X6G1600C9 G(XMP)
6GB(3 x 2GB)
DS
-
-
9-9-9-24
1.65V
•
•
•
CORSAIR
CMP8GX3M2A1600C9(XMP)
8GB(2 x 4GB)
DS
-
-
9-9-9-24
1.65V
•
•
•
CORSAIR
CMZ8GX3M2A1600C7R(XMP)
8GB(2 x 4GB)
DS
-
-
7-8-7-20
1.50V
•
•
•
CORSAIR
CMX8GX3M4A1600C9(XMP)
8GB(4 x 2GB)
DS
-
-
9-9-9-24
1.65V
•
•
•
Crucial
BL25664BN1608.16FF(XMP)
6GB(3 x 2GB)
DS
-
-
-
-
•
•
•
G.SKILL
F3-12800CL9D-2GBNQ(XMP)
2GB(2 x 1GB)
SS
-
-
9-9-9-24
1.5V
•
•
•
G.SKILL
F3-12800CL7D-4GBRH(XMP)
4GB(2 x 2GB)
SS
-
-
7-7-7-24
1.6V
•
•
•
G.SKILL
F3-12800CL7D-4GBRM(XMP)
4GB(2 x 2GB)
DS
-
-
7-8-7-24
1.6V
•
•
•
G.SKILL
F3-12800CL8D-4GBRM(XMP)
4GB(2 x 2GB)
DS
-
-
8-8-8-24
1.60V
•
•
•
G.SKILL
F3-12800CL9D-4GBECO(XMP)
4GB(2 x 2GB)
DS
-
-
9-9-9-24
XMP 1.35V
•
•
•
G.SKILL
F3-12800CL9D-4GBRL(XMP)
4GB(2 x 2GB)
DS
-
-
9-9-9-24
1.5V
•
•
•
G.SKILL
F3-12800CL9T-6GBNQ(XMP)
6GB(3 x 2GB)
DS
-
-
9-9-9-24
1.5V~1.6V
•
•
•
G.SKILL
F3-12800CL7D-8GBRH(XMP)
8GB(2 x 4GB)
DS
-
-
7-8-7-24
1.6V
•
•
•
G.SKILL
F3-12800CL8D-8GBECO(XMP)
8GB(2 x 4GB)
DS
-
-
8-8-8-24
XMP 1.35V
•
•
•
G.SKILL
F3-12800CL9D-8GBRL(XMP)
8GB(2 x 4GB)
DS
-
-
9-9-9-24
1.5V
•
•
•
GEIL
GET316GB1600C9QC(XMP)
16GB(4 x
4GB)
DS
-
-
9-9-9-28
1.6V
•
•
•
GEIL
GV34GB1600C8DC(XMP)
2GB
DS
-
-
8-8-8-28
1.6V
•
•
•
KINGMAX
FLGD45F-B8MF7 MAEH(XMP)
1GB
SS
-
-
7
-
•
•
KINGMAX
FLGE85F-B8KJ9A FEIS(XMP)
2GB
DS
-
-
-
-
•
•
•
KINGMAX
FLGE85F-B8MF7 MEEH(XMP)
2GB
DS
-
-
7
-
•
•
•
KINGSTON KHX1600C9D3P1K2/4G
4GB(2 x 2GB)
SS
-
-
-
1.5V
•
•
•
KINGSTON KHX1600C9D3K3/12GX(XMP)
12GB(3 x
4GB)
DS
-
-
9-9-9-27
1.65V
•
•
•
KINGSTON KHX1600C9D3T1BK3/
12GX(XMP)
12GB(3 x
4GB)
DS
-
-
9-9-9-27
1.65V
•
•
•
KINGSTON KHX1600C9D3K4/16GX(XMP)
16GB(4 x
4GB)
DS
-
-
-
1.65V
•
•
•
KINGSTON KHX1600C9AD3/2G
2GB
DS
-
-
-
1.65V
•
•
•
KINGSTON KVR1600D3N11/2G-ES
2GB
DS
KTC
D1288JPND
PLD9U
11-11-11-28 1.35V-1.5V
•
•
•
KINGSTON KHX1600C7D3K2/4GX(XMP)
4GB(2 x 2GB)
DS
-
-
-
1.65V
•
•
•
KINGSTON KHX1600C8D3K2/4GX(XMP)
4GB(2 x 2GB)
DS
-
-
8
1.65V
•
•
•
KINGSTON KHX1600C8D3T1K2/4GX(XMP)
4GB(2 x 2GB)
DS
-
-
8
1.65V
•
•
•
KINGSTON KHX1600C9D3K2/4GX(XMP)
4GB(2 x 2GB)
DS
-
-
9
1.65V
•
•
•
KINGSTON KHX1600C9D3LK2/4GX(XMP)
4GB(2 x 2GB)
DS
-
-
9
XMP 1.35V
•
•
•
KINGSTON KHX1600C9D3X2K2/4GX(XMP)
4GB(2 x 2GB)
DS
-
-
9-9-9-27
1.65V
•
•
•
KINGSTON KHX1600C9D3T1K3/6GX(XMP)
6GB(3x 2GB )
DS
-
-
-
1.65V
•
•
•
KINGSTON KHX1600C9D3K3/6GX(XMP)
6GB(3 x 2GB)
DS
-
-
9
1.65V
•
•
•
KINGSTON KHX1600C9D3T1BK3/6GX(XMP) 6GB(3 x 2GB)
DS
-
-
9-9-9-27
1.65V
•
•
•
KINGSTON KHX1600C9D3K2/8GX(XMP)
DS
-
-
9-9-9-27
1.65V
•
•
•
Vendors
Part No.
Size
SS/ Chip
DS Brand
A-DATA
AM2U16BC2P1
2GB
SS
A-DATA
AX3U1600XB2G79-2X(XMP)
4GB(2 x 2GB)
A-DATA
AM2U16BC4P2
A-DATA
8GB(2 x 4GB)
Chip NO.
-
Timing
7-9-7-21
1 DIMM 2 DIMMs 4 DIMMs
ASUS P8H77-V LE
P8H77-V LE Motherboard Qualified Vendors Lists (QVL)
DDR3 1600 MHz capability (continued)
Chip NO.
Timing
Voltage
DIMM socket support
(Optional)
8GB(2 x 4GB) DS -
-
-
1.5V
•
Super Talent WA160UX6G9
6GB(3 x 2GB) DS -
-
9
-
•
Transcend
JM1600KLN-8GK
8GB(2 x 4GB) DS Transcend TK483PCW3
-
-
Asint
SLZ3128M8-EGJ1D(XMP)
2GB
DS Asint
3128M8-GJ1D
9-9-9-24 1.6V
Asint
SLA302G08-EGG1C(XMP)
4GB
DS Asint
302G08-GG1C
-
Asint
SLA302G08-EGJ1C(XMP)
4GB
DS Asint
302G08-GJ1C
-
Elixir
M2P2G64CB8HC9N-DG(XMP) 2GB
DS -
-
-
Mushkin
998659(XMP)
6GB(3 x 2GB) DS -
Mushkin
998659(XMP)
PATRIOT
SanMax
Vendors
Part No.
Size
KINGSTON
KHX1600C9D3P1K2/8G
SS/ Chip
DS Brand
1 DIMM 2 DIMMs 4 DIMMs
•
•
•
•
•
•
•
•
-
•
•
•
-
•
•
•
-
•
•
•
-
9-9-9-24 -
•
•
•
6GB(3 x 2GB) DS -
-
9-9-9-24 1.5~1.6V •
•
•
PGS34G1600LLKA
4GB(2 x 2GB) DS -
-
7-7-7-20 1.7V
•
•
•
SMD-4G68HP-16KZ
4GB
H5TQ2G83BFR PBC -
•
•
•
DS HYNIX
-
P8H77-V LE Motherboard Qualified Vendors Lists (QVL)
DDR3 1333 MHz capability
Voltage
DIMM socket support
(Optional)
AD30908C8D-151C E0906
-
•
•
•
SS A-DATA
3CCD1509HNA1126L
-
-
•
•
•
2GB
SS A-Data
3CCA-1509A
-
-
•
•
•
AM2U139C2P1
2GB
SS ADATA
3CCD-1509A
EL1127T
-
-
•
•
•
A-DATA
AX3U1333C2G9-BP
2GB
SS -
-
-
-
•
•
•
A-DATA
AD31333G001GOU
3GB(3 x 1GB)
SS -
-
8-8-8-24 1.65-1.85V
•
Vendors
Part No.
Size
SS/ Chip
DS Brand
Chip NO.
A-DATA
AD31333001GOU
1GB
SS A-Data
A-DATA
AD3U1333C2G9
2GB
A-DATA
AD63I1B0823EV
A-DATA
Timing
1 DIMM 2 DIMMs 4 DIMMs
•
A-DATA
AXDU1333GC2G9-2G(XMP)
4GB(2 x 2GB)
SS -
-
9-9-9-24 1.25V-1.35V
(low voltage) •
A-DATA
AD31333G002GMU
2GB
DS -
-
8-8-8-24 1.65-1.85V
•
•
A-DATA
AD63I1C1624EV
4GB
DS A-Data
3CCA-1509A
-
-
•
•
•
A-DATA
AM2U139C4P2
4GB
DS ADATA
3CCD-1509A
EL1127T
-
-
•
•
•
A-DATA
SU3U1333W8G9-B
8GB
DS ELPIDA
J4208BASE-DJ-F
-
-
•
•
•
Apacer
78.A1GC6.9L1
2GB
DS Apacer
AM5D5808D
EWSBG
-
-
•
•
•
•
Apacer
78.A1GC6.9L1
2GB
DS Apacer
AM5D5808F
EQSBG
9
-
•
•
•
Apacer
AU02GFA33C9NBGC
2GB
DS Apacer
AM5D5808
APQSBG
-
-
•
•
•
Apacer
78.B1GDE.9L10C
4GB
DS Apacer
AM5D5908
CEHSBG
-
-
•
•
•
CORSAIR CM3X1024-1333C9
1GB
SS -
-
9-9-9-24 1.60V
•
•
•
CORSAIR TR3X3G1333C9 G
3GB(3 x 1GB)
SS -
-
9-9-9-24 1.50V
•
•
•
CORSAIR TR3X6G1333C9 G
6GB(3 x 2GB)
SS -
-
9-9-9-24 1.50V
•
•
CORSAIR CMD24GX3M6A1333C9(XMP) 24GB(6 x 4GB) DS -
-
9-9-9-24 1.60V
•
•
•
CORSAIR TW3X4G1333C9D G
4GB(2 x 2GB)
DS -
-
9-9-9-24 1.50V
•
•
•
CORSAIR CM3X4GA1333C9N2
4GB
DS CORSAIR 256MBDCJGE
LC0401136
9-9-9-24 -
•
•
•
CORSAIR CMX4GX3M1A1333C9
4GB
DS -
-
9-9-9-24 1.50V
•
•
•
CORSAIR CMD8GX3M4A1333C7
8GB(4 x 2GB)
DS -
-
7-7-7-20 1.60V
•
•
•
Crucial
CT12864BA1339.8FF
1GB
SS Micron
9FF22D9KPT
9
-
•
•
•
Crucial
CT25664BA1339.16FF
2GB
DS Micron
9KF27D9KPT
9
-
•
•
•
Crucial
BL25664BN1337.16FF(XMP)
6GB(3 x 2GB)
DS -
-
7-7-7-24 1.65V
•
•
•
Chapter 1: Product introduction
1-17
P8H77-V LE Motherboard Qualified Vendors Lists (QVL)
DDR3 1333 MHz capability (continued)
1-18
DIMM socket support
(Optional)
Vendors
Part No.
Size
SS/ Chip Brand Chip NO.
DS
Timing
Voltage
ELPIDA
EBJ10UE8EDF0-DJ-F
1GB
SS ELPIDA
-
1.35V
(low voltage) •
•
•
•
J1108EDSE-DJ-F
1 DIMM 2 DIMMs 4 DIMMs
•
ELPIDA
EBJ21UE8EDF0-DJ-F
2GB
DS ELPIDA
J1108EDSE-DJ-F
-
1.35V
(low voltage) •
G.SKILL
F3-10600CL8D-2GBHK
(XMP)
1GB
SS G.SKILL
-
-
-
•
•
G.SKILL
F3-10600CL9D-2GBNQ
2GB(2 x 1GB) SS -
-
9-9-9-24 1.5V
•
•
•
G.SKILL
F3-10666CL7T-3GBPK
(XMP)
3GB(3 x 1GB) SS -
-
7-7-7-18 1.5~1.6V
•
•
•
G.SKILL
F3-10666CL8D4GBECO(XMP)
4GB(2 x 2GB) DS -
-
8-8-8-24 XMP 1.35V
•
•
•
G.SKILL
F3-10666CL7T-6GBPK
(XMP)
6GB(3 x 2GB) DS -
-
7-7-7-18 1.5~1.6V
•
•
G.SKILL
F3-10666CL7D-8GBRH
(XMP)
8GB(2 x 4GB) DS -
-
7-7-7-21 1.5V
•
•
•
GEIL
GV32GB1333C9DC
2GB(2 x 1GB) DS -
-
9-9-9-24 1.5V
•
•
•
GEIL
GG34GB1333C9DC
4GB(2 x 2GB) DS GEIL
GL1L128M88BA12N 9-9-9-24 1.3V
(low voltage) •
•
•
GEIL
GV34GB1333C9DC
4GB(2 x 2GB) DS -
-
9-9-9-24 1.5V
•
•
•
GEIL
GVP34GB1333C7DC
4GB(2 x 2GB) DS -
-
7-7-7-24 1.5V
•
•
•
Hynix
HMT112U6TFR8A-H9
1GB
SS Hynix
H5TC1G83TFRH9A -
1.35V
(low voltage) •
•
•
Hynix
HMT325U6BFR8C-H9
2GB
SS Hynix
H5TQ2G83BFRH9C -
-
•
•
•
Hynix
HMT125U6TFR8A-H9
2GB
DS Hynix
H5TC1G83TFRH9A -
1.35V
(low voltage) •
•
•
Hynix
HMT351U6BFR8C-H9
4GB
DS Hynix
H5TQ2G83BFRH9C -
-
•
•
•
KINGMAX
FLFD45F-B8KL9 NAES
1GB
SS KINGMAX
KKB8FNWBFGNX27A
-
-
•
•
•
KINGMAX
FLFE85F-C8KF9 CAES
2GB
SS KINGMAX
KFC8FMFXF-DXX15A
-
-
•
•
•
KINGMAX
FLFE85F-C8KL9 NAES
2GB
SS KINGMAX
KFC8FNLXF-DXX15A
-
-
•
•
•
KINGMAX
FLFE85F-C8KM9 NAES
2GB
SS KINGMAX
KFC8FNMXF-BXX15A
-
-
•
•
•
KINGMAX
FLFE85F-B8KL9 NEES
2GB
DS KINGMAX
KKB8FNWBFGNX26A
-
-
•
•
•
KINGMAX
FLFF65F-C8KL9 NEES
4GB
DS KINGMAX
KFC8FNLXF-DXX15A
-
-
•
•
•
KINGMAX
FLFF65F-C8KM9 NEES
4GB
DS KINGMAX
KFC8FNMXF-BXX15A
-
-
•
•
•
KINGSTON KVR1333D3N9/1G
(low profile)
1GB
SS ELPIDA
J1108BDBG-DJ-F
9
1.5V
•
•
•
KINGSTON KVR1333D3N9/2G
(low profile)
2GB
SS Hynix
H5TQ2G83AFRH9C 9
-
•
•
KINGSTON KVR1333D3S8N9/2G
2GB
SS Micron
IID77 D9LGK
-
1.5V
•
•
•
KINGSTON KVR1333D3S8N9/2G-SP
2GB
(low profile)
SS ELPIDA
J2108BCSE-DJ-F
-
1.5V
•
•
•
KINGSTON KVR1333D3N9/2G
(low profile)
2GB
DS ELPIDA
J1108BFBG-DJ-F
9
1.5V
•
•
•
KINGSTON KVR1333D3N9/2G
2GB
DS KTC
D1288JPNDPLD9U
9
1.5V
•
•
•
KINGSTON KVR1333D3N9/2G
2GB
DS ELPIDA
J1108BDSE-DJ-F
9
1.5V
•
•
•
KINGSTON KVR1333D3N9/2G-SP
(low profile)
2GB
DS KTC
D1288JEMFNGD9U -
1.5V
•
•
•
KINGSTON KVR1333D3N9/2G-SP
(low profile)
2GB
DS KINGSTON
D1288JPSFPGD9U
-
1.5V
•
•
•
KINGSTON KHX1333C7D3K2/4GX
(XMP)
4GB(2 x 2GB) DS -
-
7
1.65V
•
•
•
KINGSTON KHX1333C9D3UK2/4GX
(XMP)
4GB(2 x 2GB) DS -
-
9
XMP 1.25V
•
•
•
KINGSTON KVR1333D3N9/4G
(low profile)
4GB
DS ELPIDA
J2108BCSE-DJ-F
9
1.5V
•
•
•
KINGSTON KVR1333D3N9/4G
(low profile)
4GB
DS ELPIDA
J2108BCSE-DJ-F
-
1.5V
•
•
•
KINGSTON KVR1333D3N9/4G
4GB
DS KTC
D2568JENCNGD9U -
1.5V
•
•
•
KINGSTON KVR1333D3N9/4G
4GB
DS Hynix
H5TQ2G83AFR
-
•
•
•
-
ASUS P8H77-V LE
P8H77-V LE Motherboard Qualified Vendors Lists (QVL)
DDR3 1333 MHz capability (continued)
Voltage
DIMM socket support
(Optional)
D2568JENCPGD9U -
1.5V
•
SS Micron
OJD12D9LGQ
-
-
1GB
SS Micron
9FF22D9KPT
9
-
•
•
•
2GB
SS Micron
OJD12D9LGK
-
-
•
•
•
MT8JTF25664AZ-1G4M1
2GB
SS MICRON
IJM22 D9PFJ
-
-
•
•
•
Micron
MT16JTF25664AZ-1G4F1
2GB
DS Micron
9KF27D9KPT
9
-
•
•
•
Micron
MT16JTF51264AZ-1G4D1 4GB
DS Micron
OLD22D9LGK
-
-
•
•
•
NANYA
NT4GC64B8HG0NF-CG
4GB
DS NANYA
NT5CB256M8GNCG
-
-
•
•
•
PSC
AL7F8G73F-DJ2
1GB
SS PSC
A3P1GF3FGF
-
-
•
•
•
PSC
AL8F8G73F-DJ2
2GB
DS PSC
A3P1GF3FGF
-
-
•
•
•
SAMSUNG
M378B2873FHS-CH9
1GB
SS SAMSUNG
K4B1G0846F
-
-
•
•
•
SAMSUNG
M378B5773DH0-CH9
2GB
SS SAMSUNG
K4B2G0846D
-
-
•
•
•
SAMSUNG
M378B5673FH0-CH9
2GB
DS SAMSUNG
K4B1G0846F
-
-
•
•
•
SAMSUNG
M378B5273CH0-CH9
4GB
DS SAMSUNG
K4B2G0846C
-
-
•
•
•
SAMSUNG
M378B1G73AH0-CH9
8GB
DS SAMSUNG
K4B4G0846A-HCH9 -
-
•
•
Super Talent
W1333UA1GH
1GB
SS Hynix
H5TQ1G83TFR
9
-
•
•
Super Talent
W1333UX2G8(XMP)
2GB(2x 1GB) SS -
-
8
-
•
•
Super Talent
W1333UB2GS
2GB
DS SAMSUNG
K4B1G0846F
9
-
•
•
•
Super Talent
W1333UB4GS
4GB
DS SAMSUNG
K4B2G0846C
-
-
•
•
•
Super Talent
W1333UX6GM
6GB(3x 2GB) DS Micron
0BF27D9KPT
9-9-9-24 1.5V
•
•
•
Transcend
JM1333KLN-2G
2GB
SS Micron
0YD77D9LGK
-
-
•
•
•
Transcend
JM1333KLN-2G
2GB
SS Hynix
H5TQ2G83BZRH9C -
-
•
•
•
Transcend
TS256MLK64V3U
2GB
DS Micron
9GF27D9KPT
-
-
•
•
Century
PC3-10600 DDR31333 9-9-9
1GB
SS NANYA
NT5CB128M8DNCF
-
-
•
•
Elixir
M2F2G64CB88B7N-CG
2GB
SS Elixir
N2CB2G80BN-CG
-
-
•
•
Elixir
M2F2G64CB88D7N-CG
2GB
SS Elixir
N2CB2G80DN-CG
-
-
•
•
Elixir
M2F2G64CB88G7N-CG
2GB
SS Elixir
N2CB2G80GN-CG
-
-
•
•
•
Elixir
M2F4G64CB8HB5N-CG
4GB
DS Elixir
N2CB2G80BN-CG
-
-
•
•
•
Elixir
M2F4G64CB8HD5N-CG
4GB
DS Elixir
N2CB2G80DN-CG
-
-
•
•
KINGSHARE
KSRPCD313332G
2GB
DS PATRIOT
PM128M8D385-15
-
-
•
•
•
KINGSTEK
KSTD3PC-10600
2GB
SS MICRON
PE911-125E
-
-
•
•
•
Kingtiger
2GB DIMM PC3-10666
2GB
DS SAMSUNG
SEC 904 HCH9
K4B1G0846D
-
-
•
•
•
Kingtiger
KTG2G1333PG3
2GB
DS -
-
-
-
•
•
•
Vendors
Part No.
Size
SS/ Chip Brand
DS
Chip NO.
KINGSTON
KVR1333D3N9/4G-SP
(low profile)
4GB
DS KINGSTON
Micron
MT4JTF12864AZ-1G4D1
1GB
Micron
MT8JTF12864AZ-1G4F1
Micron
MT8JTF25664AZ-1G4D1
Micron
Timing
1 DIMM 2 DIMMs 4 DIMMs
•
•
•
•
•
MARKVISION BMD32048M1333C9-1123 2GB
DS MARKVISION M3D1288P-13
-
-
•
•
•
MARKVISION BMD34096M1333C9-1124 4GB
DS MARKVISION M3D2568E-13
-
-
•
•
•
PATRIOT
PSD31G13332H
1GB
DS -
-
9
-
•
•
PATRIOT
PSD31G13332
1GB
DS PATRIOT
PM64M8D38U-15
-
-
•
•
•
PATRIOT
PSD32G13332H
2GB
DS -
-
-
-
•
•
•
PATRIOT
PG38G1333EL(XMP)
8GB
DS -
-
9-9-9-24 1.5V
•
•
RAMAXEL
RMR1870ED48E8F-1333
2GB
DS ELPIDA
J1108BDBG-DJ-F
-
-
•
•
•
RAMAXEL
RMR1870EC58E9F-1333
4GB
DS ELPIDA
J2108BCSE-DJ-F
-
-
•
•
•
RiDATA
E304459CB1AG32Cf
4GB
DS RiDATA
N/A
9
-
•
•
•
SanMax
SMD-4G68H1P-13HZ
4GB
DS HYNIX
H5TQ2G83BFR H9C -
-
•
•
•
SILICON
POWER
SP001GBLTU133S01
1GB
SS NANYA
NT5CB128M8ANCG
9
-
•
•
•
SILICON
POWER
SP001GBLTU133S02
1GB
SS Elixir
N2CB1680AN-C6
9
-
•
•
•
SILICON
POWER
SP002GBLTU133S02
2GB
DS Elixir
N2CB1680AN-C6
9
-
•
•
•
TAKEMS
TMS1GB364D081-107EY
1GB
SS -
-
7-7-7-20 1.5V
•
•
TAKEMS
TMS1GB364D081-138EY
1GB
SS -
-
8-8-8-24 1.5V
•
•
TAKEMS
TMS2GB364D081-107EY
2GB
DS -
-
7-7-7-20 1.5V
•
•
TAKEMS
TMS2GB364D081-138EY
2GB
DS -
-
8-8-8-24 1.5V
•
•
TAKEMS
TMS2GB364D082-138EW 2GB
DS -
-
8-8-8-24 1.5V
•
•
UMAX
E41302GP0-73BDB
2GB
DS UMAX
U2S24D30TP-13
-
-
•
•
•
WINTEC
3WVS31333-2G-CNR
2GB
DS AMPO
AM3420803-13H
-
-
•
•
•
Chapter 1: Product introduction
1-19
P8H77-V LE Motherboard Qualified Vendors Lists (QVL)
DDR3 1066 MHz capability
Vendors
Part No.
Size
SS/ Chip
DS Brand
Chip NO.
Timing Voltage
DIMM socket support
(Optional)
Crucial
CT12864BA1067.8FF
1GB
SS
Micron
9GF22D9KPT
7
-
•
•
•
Crucial
CT25664BA1067.16FF
2GB
DS
Micron
9HF22D9KPT
7
-
•
•
•
ELPIDA
EBJ10UE8EDF0-AE-F
1GB
SS
ELPIDA J1108EDSE-DJ-F
-
1.35V(low voltage) •
•
•
ELPIDA
EBJ21UE8EDF0-AE-F
2GB
DS
ELPIDA J1108EDSE-DJ-F
-
1.35V(low voltage) •
•
•
KINGSTON KVR1066D3N7/1G(low
profile)
1GB
SS
ELPIDA J1108BFSE-DJ-F
7
1.5V
•
•
•
KINGSTON KVR1066D3N7/2G
2GB
DS
ELPIDA J1108BDSE-DJ-F
7
1.5V
•
•
•
KINGSTON KVR1066D3N7/4G
4GB
DS
Hynix
H5TQ2G83AFR
7
1.5V
•
•
•
Micron
MT8JTF12864AZ-1G1F1 1GB
SS
Micron
9GF22D9KPT
7
-
•
•
•
Micron
MT16JTF25664AZ1G1F1
2GB
DS
Micron
9HF22D9KPT
7
-
•
•
•
Kingtiger
2GB DIMM PC3-8500
2GB
DS
Hynix
H5TQ1G83AFP G7C -
-
•
•
•
1 DIMM 2 DIMMs 4 DIMMs
Side(s): SS - Single-sided DS - Double-sided
DIMM support:
•
1 DIMM: S
upports one (1) module inserted into any slot as Single-channel
memory configuration. We suggest that you install the module
into A2 slot.
•
2 DIMMs: Supports two (2) modules inserted into either the blue slots or the
black slots as one pair of Dual-channel memory configuration. We
suggest that you install the modules into slots A2 and B2 for
better compatibility.
4 DIMMs: Supports four (4) modules inserted into both the blue and black
slots as two pairs of Dual-channel memory configuration.
•
Visit the ASUS website at www.asus.com for the latest QVL.
1-20
ASUS P8H77-V LE
1.7.3
Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other system components.
Failure to do so can cause severe damage to both the motherboard and the components.
2
1.
Press the retaining clips outward to
unlock a DIMM socket.
2.
Align a DIMM on the socket such that
the notch on the DIMM matches the
DIMM slot key on the socket.
DIMM notch
1
Unlocked
retaining clip
DIMM slot key
A DIMM is keyed with a notch so that it fits in only one direction. DO NOT force a DIMM into
a socket in the wrong direction to avoid damaging the DIMM.
3.
Firmly insert the DIMM into the socket
until the retaining clips snap back in place
and the DIMM is properly seated.
3
Locked Retaining Clip
1.7.4
Removing a DIMM
To remove a DIMM:
1.
Simultaneously press the retaining clips
outward to unlock the DIMM.
2
1
Support the DIMM lightly with your
fingers when pressing the retaining
clips. The DIMM might get damaged
when it flips out with extra force.
2.
Remove the DIMM from the socket.
Chapter 1: Product introduction
DIMM notch
1-21
1.8
Expansion slots
In the future, you may need to install expansion cards. The following sub‑sections describe
the slots and the expansion cards that they support.
Unplug the power cord before adding or removing expansion cards. Failure to do so may
cause you physical injury and damage motherboard components.
1.8.1
Installing an expansion card
To install an expansion card:
1.
Before installing the expansion card, read the documentation that came with it and
make the necessary hardware settings for the card.
2.
Remove the system unit cover (if your motherboard is already installed in a chassis).
3.
Remove the bracket opposite the slot that you intend to use. Keep the screw for later
use.
4.
Align the card connector with the slot and press firmly until the card is completely
seated on the slot.
5.
Secure the card to the chassis with the screw you removed earlier.
6.
Replace the system cover.
1.8.2
Configuring an expansion card
After installing the expansion card, configure it by adjusting the software settings.
1.
Turn on the system and change the necessary BIOS settings, if any. See Chapter 2 for
information on BIOS setup.
2.
Assign an IRQ to the card.
3.
Install the software drivers for the expansion card.
When using PCI cards on shared slots, ensure that the drivers support “Share IRQ” or that
the cards do not need IRQ assignments. Otherwise, conflicts will arise between the two PCI
groups, making the system unstable and the card inoperable.
1.8.3
PCI Express 2.0 x1 slots
1.8.4
PCI Express 3.0/2.0 x16 slots
1.8.5
PCI slots
This motherboard supports PCI Express 2.0 x1 network cards, SCSI cards, and other cards
that comply with the PCI Express specifications.
This motherboard has two PCI Express 3.0/2.0 x16 slots that supports PCI Express 3.0/2.0
x16 graphic cards complying with the PCI Express specifications.
The PCI slots support cards such as a LAN card, SCSI card, USB card, and other cards that
comply with PCI specifications.
1-22
ASUS P8H77-V LE
1.9
1.
Jumpers
Clear RTC RAM (3-pin CLRTC)
This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can
clear the CMOS memory of date, time, and system setup parameters by erasing
the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in
CMOS, which include system setup information such as system passwords.
CLRTC
P8H77-V LE
1
2
2
3
Normal
(Default)
Clear RTC
P8H77-V LE Clear RTC RAM
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3
for about 5-10 seconds, then move the cap back to pins 1-2.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and enter BIOS setup to re-enter
data.
Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default
position. Removing the cap will cause system boot failure!
• If the steps above do not help, remove the onboard battery and move the jumper again
to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.
• You do not need to clear the RTC when the system hangs due to overclocking. For
system failure due to overclocking, use the CPU Parameter Recall (C.P.R.) feature. Shut
down and reboot the system, then the BIOS automatically resets parameter settings to
default values.
Chapter 1: Product introduction
1-23
1.10
Connectors
1.10.1
Rear panel connectors
2
1
12
11
10
3
8
9
4 5
7
6
1.
PS/2 Keyboard / Mouse combo port. This port is for a PS/2 keyboard or mouse.
2.
Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
3.
LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indications.
LAN port LED indications
Activity/Link LED
Activity Link Speed
LED
LED
Speed LED
Status
Description
Status
Description
OFF
No link
OFF
10Mbps connection
ORANGE
Linked
ORANGE
100Mbps connection
BLINKING
Data activity
GREEN
1Gbps connection
LAN port
4.
Line In port (light blue). This port connects to the tape, CD, DVD player, or other
audio sources.
5.
Line Out port (lime). This port connects to a headphone or a speaker. In the 4, 6 and
8-channel configurations, the function of this port becomes Front Speaker Out.
6.
Microphone port (pink). This port connects to a microphone.
Refer to the audio configuration table below for the function of the audio ports in the 2, 4, 6,
or 8-channel configuration.
1-24
Audio 2, 4, 6, or 8-channel configuration
Port
Headset 2-channel
4-channel
6-channel
8-channel
Light Blue (Rear panel)
Line In
Rear Speaker Out
Rear Speaker Out
Rear Speaker Out
Lime (Rear panel)
Line Out
Front Speaker Out
Front Speaker Out
Front Speaker Out
Pink (Rear panel)
Mic In
Mic In
Bass/Center
Bass/Center
Lime (Front panel)
–
–
–
Side Speaker Out
ASUS P8H77-V LE
7.
USB 2.0 ports 1 ~ 2. These four 4-pin Universal Serial Bus (USB) ports are available
for connecting USB 2.0/1.1 devices.
8.
USB 3.0 ports 1 and 2. These two 9-pin Universal Serial Bus (USB) ports are
available for connecting USB 3.0 devices.
• DO NOT connect a keyboard / mouse to any USB 3.0 port when installing Windows®
operating system.
• Due to USB 3.0 controller limitation, USB 3.0 devices can only be used under Windows®
OS environment and after the USB 3.0 driver installation.
• USB 3.0 devices can only be used as data storage only.
• We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster
and better performance for your USB 3.0 devices.
9.
DVI-D port. This port is for any DVI-D compatible device. DVI-D can’t be converted to
output RGB Signal to CRT and isn’t compatible with DVI-I.
10. Optical S/PDIF Out port. This port connects an external audio output device via an
optical S/PDIF cable.
11.
HDMI port. This port is for a High-Definition Multimedia Interface (HDMI) connector,
and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected
content.
12. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
Chapter 1: Product introduction
1-25
1.10.2
1.
Internal connectors
Front panel audio connector (10-1 pin AAFP)
NC
AGND
NC
NC
SENSE2_RETUR
AGND
NC
SENSE1_RETUR
This connector is for a chassis-mounted front panel audio I/O module that supports
either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel
audio I/O module cable to this connector.
AAFP
HD-audio-compliant
pin definition
MIC2
MICPWR
Line out_R
NC
Line out_L
PIN 1
PORT1 L
PORT1 R
PORT2 R
SENSE_SEND
PORT2 L
PIN 1
P8H77-V LE
Legacy AC’97
compliant definition
P8H77-V LE Front panel audio connector
• We recommend that you connect a high-definition front panel audio module to this
connector to avail of the motherboard’s high-definition audio capability.
• If you want to connect a high-definition front panel audio module to this connector, set
the Front Panel Type item in the BIOS setup to [HD]. If you want to connect an AC'97
front panel audio module to this connector, set the item to [AC97]. By default, this
connector is set to [HD]. See section 2.5.6 Onboard Devices Configuration for details.
2.
CPU, and chassis fan connectors (4-pin CPU_FAN, 3-pin CHA_FAN)
CHA_FAN
Rotation
+12V
GND
P8H77-V LE
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
P8H77-V LE fan connectors
Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside the
system may damage the motherboard components. These are not jumpers! Do not place
jumper caps on the fan connectors!
The CPU_FAN connector supports a CPU fan of maximum 2A (24 W) fan power.
1-26
ASUS P8H77-V LE
3.
ATX power connectors (24-pin EATXPWR, 8-pin EATX12V)
These connectors are for ATX power supply plugs. The power supply plugs are
designed to fit these connectors in only one orientation. Find the proper orientation and
push down firmly until the connectors completely fit.
P8H77-V LE
GND
GND
GND
GND
+12V DC
+12V DC
+12V DC
+12V DC
EATX12V
PIN 1
EATXPWR
+3 Volts
+12 Volts
+12 Volts
+5V Standby
Power OK
GND
+5 Volts
GND
+5 Volts
GND
+3 Volts
+3 Volts
GND
+5 Volts
+5 Volts
+5 Volts
-5 Volts
GND
GND
GND
PSON#
GND
-12 Volts
+3 Volts
PIN 1
P8H77-V LE ATX power connectors
• For a fully configured system, we recommend that you use a power supply unit (PSU)
that complies with ATX 12 V Specification 2.0 (or later version) and provides a minimum
power of 350 W.
• DO NOT forget to connect the 4-pin / 8-pin ATX +12V power plug. Otherwise, the system
will not boot up.
• We recommend that you use a PSU with higher power output when configuring a
system with more power-consuming devices. The system may become unstable or may
not boot up if the power is inadequate.
• If you are uncertain about the minimum power supply requirement for your system,
refer to the Recommended Power Supply Wattage Calculator at http://support.asus.
com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.
4.
Digital audio connector (4-1 pin SPDIF_OUT)
SPDIFOUT
GND
P8H77-V LE
+5V
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect
the S/PDIF Out module cable to this connector, then install the module to a slot
opening at the back of the system chassis.
SPDIF_OUT
P8H77-V LE Digital audio connector
The S/PDIF module is purchased separately.
Chapter 1: Product introduction
1-27
5.
Serial port connectors (10-1 pin COM1)
The connector is for a serial (COM) port. Connect the serial port module cable to the
connector, then install the module to a slot opening at the back of the system chassis.
The serial port bracket (COM1) is purchased separately.
COM1
PIN 1
P8H77-V LE
P8H77-V LE Serial port (COM1) connector
6.
USB 2.0 connectors (10-1 pin USB_5~10)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specification that supports up to
480 Mbps connection speed.
PIN 1
USB+5V
USB_P5USB_P5+
GND
USB+5V
USB_P8USB_P8+
GND
NC
PIN 1
USB+5V
USB_P7USB_P7+
GND
PIN 1
USB+5V
USB_P9USB_P9+
GND
P8H77-V LE
USB56
USB+5V
USB_P6USB_P6+
GND
NC
USB78
USB+5V
USB_P10USB_P10+
GND
NC
USB910
P8H77-V LE USB2.0 connectors
Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!
The USB module cable is purchased separately.
1-28
ASUS P8H77-V LE
7.
USB 3.0 connector (20-1 pin USB3_34)
This connector is for the additional USB 3.0 ports. Connect the USB 3.0 bracket cable
to this connector, then install the USB 3.0 bracket to the rear side of the chassis. If your
chassis support customized front panel installation, with ASUS USB 3.0 header, you
can have a front panel USB 3.0 solution.
USB3_34
P8H77-V LE
P8H77-V LE USB3.0 Front panel connector
• The USB 3.0 module is purchased separately.
• Due to Intel® limitations, the USB3_34 only supports Windows® 7 operating system.
8.
Intel® H77 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1/2 [gray])
SATA6G_2
SATA6G_1
GND
RSATA_RXP1
RSATA_RXN1
GND
RSATA_TXN1
RSATA_TXP1
GND
P8H77-V LE
GND
RSATA_RXP2
RSATA_RXN2
GND
RSATA_TXN2
RSATA_TXP2
GND
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
P8H77-V LE SATA 6.0Gb/s connectors
• These connectors are set to [AHCI] by default. If you intend to create a Serial ATA RAID
set using these connectors, set the SATA Mode Selection item in the BIOS to [RAID].
See section 2.5.3 SATA Configuration for details.
• Before creating a RAID set, refer to the RAID Supplementary Guide included in the
folder named Manual in the support DVD.
• You must install Windows® XP Service Pack 3 or later version before using Serial ATA
hard disk drives. The Serial ATA RAID feature (RAID 0, 1, 5, and 10) is available only if
you are using Windows® XP SP3 or later version.
• When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to
[AHCI]. See section 2.5.3 SATA Configuration for details.
Chapter 1: Product introduction
1-29
9.
Intel® H77 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~4 [blue])
SATA3G_2
SATA3G_1
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXN2
RSATA_RXP2
GND
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
SATA3G_4
GND
RSATA_RXP4
RSATA_RXN4
GND
RSATA_TXN4
RSATA_TXP4
GND
P8H77-V LE
SATA3G_3
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXN3
RSATA_RXP3
GND
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via
Serial ATA 3.0 Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 0+1(10)
configurations with the Intel® Rapid Storage Technology through the onboard Intel® H77
chipset.
P8H77-V LE SATA 3.0Gb/s connectors
• These connectors are set to [AHCI] by default. If you intend to create a Serial ATA RAID
set using these connectors, set the SATA Mode Selection item in the BIOS to [RAID].
See section 2.5.3 SATA Configuration for details.
• Before creating a RAID set, refer to the RAID Supplementary Guide included in the
folder named Manual in the support DVD.
• You must install Windows® XP Service Pack 3 or later version before using Serial ATA
hard disk drives. The Serial ATA RAID feature (RAID 0, 1, 5, and 10) is available only if
you are using Windows® XP SP3 or later version.
• When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to
[AHCI]. See section 2.5.3 SATA Configuration for details.
1-30
ASUS P8H77-V LE
10. System panel connector (20-8 pin PANEL)
This connector supports several chassis-mounted functions.
+5V
Ground
Ground
Speaker
SPEAKER
PLED-
PLED+
PLED
PANEL
IDE_LED
PWRSW
Reset
Ground
P8H77-V LE
PWR
Ground
IDE_LED+
IDE_LED-
PIN 1
RESET
* Requires an ATX power supply
P8H77-V LE System panel connector
•
System power LED (2-pin PLED)
•
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
Hard disk drive activity LED (2-pin IDE_LED)
•
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or flashes when data is read from or written to
the HDD.
System warning speaker (4-pin SPEAKER)
•
This 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
ATX power button/soft-off button (2-pin PWRSW)
•
This 2-pin connector is for the system power button.
Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
Chapter 1: Product introduction
1-31
1.11
Onboard switches
Onboard switches allow you to fine-tune performance when working on a bare or open-case
system. This is ideal for overclockers and gamers who continually change settings to
enhance system performance.
1.
MemOK! switch
Installing DIMMs that are incompatible with the motherboard may cause system boot failure,
and the DRAM_LED near the MemOK! switch lights continuously. Press and hold the
MemOK! switch until the DRAM_LED starts blinking to begin automatic memory compatibility
tuning for successful boot.
P8H77-V LE
P8H77-V LE MemOK! switch
• Refer to section 1.12 Onboard LEDs for the exact location of the DRAM_LED.
• The DRAM_LED also lights when the DIMM is not properly installed. Turn off the system
and reinstall the DIMM before using the MemOK! function.
• The MemOK! switch does not function under Windows® OS environment.
• During the tuning process, the system loads and tests failsafe memory settings. It takes
about 30 seconds for the system to test one set of failsafe settings. If the test fails,
the system reboots and test the next set of failsafe settings. The blinking speed of the
DRAM_LED increases, indicating different test processes.
• Due to memory tuning requirement, the system automatically reboots when each timing
set is tested. If the installed DIMMs still fail to boot after the whole tuning process, the
DRAM_LED lights continuously. Replace the DIMMs with ones recommended in the
Memory QVL (Qualified Vendors Lists) in this user manual or on the ASUS website at
www.asus.com.
• If you turn off the computer and replace DIMMs during the tuning process, the system
continues memory tuning after turning on the computer. To stop memory tuning, turn off
the computer and unplug the power cord for about 5–10 seconds.
• If your system fail to boot due to BIOS overclocking, press the MemOK! switch to boot
and load BIOS default settings. A message will appear during POST reminding you that
the BIOS has been restored to its default settings.
• We recommend that you download and update to the latest BIOS version from the
ASUS website at www.asus.com after using the MemOK! function.
1-32
ASUS P8H77-V LE
1.12
1.
Onboard LEDs
Standby Power LED
The motherboard comes with a standby power LED that lights up to indicate that the
system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should
shut down the system and unplug the power cable before removing or plugging in any
motherboard component. The illustration below shows the location of the onboard LED.
P8H77-V LE
SB_PWR
ON
Standby Power
OFF
Powered Off
P8H77-V LE Onboard LED
2.
DRAM LED
DRAM LED checks the DRAM in sequence during motherboard booting process. If an
error is found , the LED next to the error device will continue lighting until the problem
is solved. This user-friendly design provides an intuitional way to locate the root
problem within a second.
DRAM LED
P8H77-V LE
P8H77-V LE DRAM LED
Chapter 1: Product introduction
1-33
1.13
Software support
1.13.1
Installing an operating system
This motherboard supports Windows® XP / Windows® 7 Operating Systems (OS). Always
install the latest OS version and corresponding updates to maximize the features of your
hardware.
• Motherboard settings and hardware options vary. Refer to your OS documentation for
detailed information.
• Ensure that you install Windows® XP Service Pack 3 or later versions before installing
the drivers for better compatibility and system stability.
1.13.2
Support DVD information
The Support DVD that comes with the motherboard package contains the drivers, software
applications, and utilities that you can install to avail all motherboard features.
The contents of the Support DVD are subject to change at any time without notice. Visit the
ASUS website at www.asus.com for updates.
To run the Support DVD
Place the Support DVD to the optical drive. The DVD automatically displays the Drivers menu
if Autorun is enabled in your computer.
The following screen is for reference only.
Click an icon to
display Support DVD/
motherboard information
Click an item to install
If Autorun is NOT enabled in your computer, browse the contents of the Support DVD to
locate the file ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run
the DVD.
1-34
ASUS P8H77-V LE
Chapter 2
BIOS information
2.1
Managing and updating your BIOS
Save a copy of the original motherboard BIOS file to a USB flash disk in case you need to
restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS Update
utility.
2.1.1
ASUS Update utility
The ASUS Update is a utility that allows you to manage, save, and update the motherboard
BIOS in Windows® environment.
• ASUS Update requires an Internet connection either through a network or an Internet
Service Provider (ISP).
• This utility is available in the support DVD that comes with the motherboard package.
Installing ASUS Update
To install ASUS Update:
1.
Place the support DVD in the optical drive. The Drivers menu appears.
2.
Click the Utilities tab, then click AI Suite II.
3.
Follow the onscreen instructions to complete the installation.
Quit all Windows® applications before you update the BIOS using this utility.
Updating the BIOS
To update the BIOS:
1.
From the Windows® desktop, click Start > Programs > ASUS > AI Suite II > AI Suite
II X.XX.XX to launch the AI Suite II utility. The AI Suite II Quick Bar appears.
2.
Click Update button from the Quick Bar, and then click ASUS Update from the popup
menu. The ASUS Update main screen appears. From the list, select either of the
following methods:
Updating from the Internet
a.
Select Update BIOS from the Internet, then click Next.
b.
Select the ASUS FTP site nearest you to avoid network traffic, then click Next.
c. From the FTP site, select the BIOS version that you wish to download then click
Next.
Chapter 2: BIOS information
2-1
The ASUS Update utility is capable of updating itself through the Internet. Always update
the utility to avail all its features.
Updating from a BIOS file
a.
Select Update BIOS from file, then click Next.
b.
Locate the BIOS file from the Open window, then click Open.
3.
Follow the onscreen instructions to complete the updating process.
2.1.2
ASUS EZ Flash 2
The ASUS EZ Flash 2 feature allows you to update the BIOS without using an OS‑based
utility.
Before you start using this utility, download the latest BIOS file from the ASUS website at
www.asus.com.
To update the BIOS using EZ Flash 2:
1.
Insert the USB flash disk that contains the latest BIOS file to the USB port.
2.
Enter the Advanced Mode of the BIOS setup program. Go to the Tool menu to select
ASUS EZ Flash 2 Utility and press <Enter> to enable it.
Exit
ASUS EZ Flash 2 Utility V01.04
Flash Info
MODEL: P8H77-V LE
VER: 0236
DATE: 02/09/2012
File Path: fs0:\
Drive Info
fs0:\
Folder Info
02/09/12
10:23p
8390656
P8H77VL.ROM
File Info
MODEL:
VER:
DATE
Help Info
[Enter] Select or Load
2-2
[Tab] Switch
[Up/Down/PageUp/PageDown/Home/End] Move
[Esc] Exit
ASUS P8H77-V LE
3.
Press <Tab> to switch to the Drive field.
4.
Press the Up/Down arrow keys to find the USB flash disk that contains the latest BIOS,
and then press <Enter>.
5.
Press <Tab> to switch to the Folder Info field.
6.
Press the Up/Down arrow keys to find the BIOS file, and then press <Enter> to perform
the BIOS update process. Reboot the system when the update process is done.
• This function supports USB flash disks with FAT 32/16 format and single partition only.
• DO NOT shut down or reset the system while updating the BIOS to prevent system boot
failure!
2.1.3
ASUS CrashFree BIOS 3 utility
The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS file
when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS
file using the motherboard support DVD or a USB flash drive that contains the updated BIOS
file.
• Before using this utility, rename the BIOS file in the removable device into
P8H77VL.ROM.
• The BIOS file in the support DVD may not be the latest version. Download the latest
BIOS file from the ASUS website at www.asus.com.
Recovering the BIOS
To recover the BIOS:
1.
Turn on the system.
2.
Insert the support DVD to the optical drive or the USB flash drive that contains the
BIOS file to the USB port.
3.
The utility automatically checks the devices for the BIOS file. When found, the utility
reads the BIOS file and enters ASUS EZ Flash 2 utility automatically.
4.
The system requires you to enter BIOS Setup to recover BIOS setting. To ensure
system compatibility and stability, we recommend that you press <F5> to load default
BIOS values.
DO NOT shut down or reset the system while updating the BIOS! Doing so can cause
system boot failure!
Chapter 2: BIOS information
2-3
2.1.4
ASUS BIOS Updater
The ASUS BIOS Updater allows you to update BIOS in DOS environment. This utility also
allows you to copy the current BIOS file that you can use as a backup when the BIOS fails or
gets corrupted during the updating process.
The succeeding utility screens are for reference only. The actual utility screen displays may
not be same as shown.
Before updating BIOS
1.
Prepare the motherboard support DVD and a USB flash drive in FAT32/16 format and
single partition.
2.
Download the latest BIOS file and BIOS Updater from the ASUS website at
http://support.asus.com and save them on the USB flash drive.
NTFS is not supported under DOS environment. Do not save the BIOS file and BIOS
Updater to a hard disk drive or USB flash drive in NTFS format.
3.
Turn off the computer and disconnect all SATA hard disk drives (optional).
Booting the system in DOS environment
1.
Insert the USB flash drive with the latest BIOS file and BIOS Updater to the USB port.
2.
Boot your computer. When the ASUS Logo appears, press <F8> to show the BIOS
Boot Device Select Menu. Insert the support DVD into the optical drive and select the
optical drive as the boot device.
Please select boot device:
SATA: XXXXXXXXXXXXXXXX
USB XXXXXXXXXXXXXXXXX
UEFI: XXXXXXXXXXXXXXXX
Enter Setup
↑ and ↓ to move selection
ENTER to select boot device
ESC to boot using defaults
3. When the Make Disk menu appears, select the FreeDOS command prompt item by
pressing the item number.
4.
At the FreeDOS prompt, type d: and press <Enter> to switch the disk from
Drive C (optical drive) to Drive D (USB flash drive).
Welcome to FreeDOS (http://www.freedos.org)!
C:\>d:
D:\>
2-4
ASUS P8H77-V LE
Updating the BIOS file
To update the BIOS file using BIOS Updater
1.
At the FreeDOS prompt, type bupdater /pc /g and press <Enter>.
D:\>bupdater /pc /g
2.
The BIOS Updater screen appears as below.
ASUSTek BIOS Updater for DOS V1.18
Current ROM
BOARD: P8H77-V LE
VER: 0236
DATE: 02/09/2012
Update ROM
BOARD: Unknown
VER: Unknown
DATE: Unknown
PATH: A:\
P8H77VL.ROM
A:
Note
[Enter] Select or Load
[Up/Down/Home/End] Move
3.
8390656 2012-02-09 17:30:48
[Tab] Switch
[B] Backup
[V] Drive Info
[Esc] Exit
Press <Tab> to switch between screen fields and use the <Up/Down/Home/End> keys
to select the BIOS file and press <Enter>. BIOS Updater checks the selected BIOS file
and prompts you to confirm BIOS update.
Are you sure to update BIOS?
Yes
4.
No
Select Yes and press <Enter>. When BIOS update is done, press <ESC> to exit BIOS
Updater. Restart your computer.
DO NOT shut down or reset the system while updating the BIOS to prevent system boot
failure!
• For BIOS Updater version 1.04 or later, the utility automatically exits to the DOS prompt
after updating BIOS.
• Ensure to load the BIOS default settings to ensure system compatibility and stability.
Select the Load Optimized Defaults item under the Exit menu. Refer to section 2.9
Exit menu for details.
• Ensure to connect all SATA hard disk drives after updating the BIOS file if you have
disconnected them.
Chapter 2: BIOS information
2-5
2.2
BIOS setup program
Use the BIOS Setup program to update the BIOS or configure its parameters. The BIOS
screens include navigation keys and brief online help to guide you in using the BIOS Setup
program.
Entering BIOS Setup at startup
To enter BIOS Setup at startup:
• Press <Delete> during the Power-On Self Test (POST). If you do not press <Delete>,
POST continues with its routines.
Entering BIOS Setup after POST
To enter BIOS Setup after POST:
• Press <Ctrl>+<Alt>+<Del> simultaneously.
•
Press the reset button on the system chassis.
•
Press the power button to turn the system off then back on. Do this option only if you
failed to enter BIOS Setup using the first two options.
Using the power button, reset button, or the <Ctrl>+<Alt>+<Del> keys to force reset from
a running operating system can cause damage to your data or system. We recommend to
always shut down the system properly from the operating system.
• The BIOS setup screens shown in this section are for reference purposes only, and may
not exactly match what you see on your screen.
• Visit the ASUS website at www.asus.com to download the latest BIOS file for this
motherboard.
• Ensure that a USB mouse is connected to your motherboard if you want to use the
mouse to control the BIOS setup program.
• If the system becomes unstable after changing any BIOS setting, load the default
settings to ensure system compatibility and stability. Select the Load Optimized
Defaults item under the Exit menu. See section 2.9 Exit Menu for details.
• If the system fails to boot after changing any BIOS setting, try to clear the CMOS and
reset the motherboard to the default value. See section 1.9 Jumpers for information on
how to erase the RTC RAM.
2-6
ASUS P8H77-V LE
EZ Mode
By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ
Mode provides you an overview of the basic system information, and allows you to select
the display language, system performance mode and boot device priority. To access the
Advanced Mode, click Exit/Advanced Mode, then select Advanced Mode or press F7 hot
key for the advanced BIOS settings.
The default screen for entering the BIOS setup program can be changed. Refer to the
Setup Mode item in section 2.7 Boot menu for details.
Selects the display language of
the BIOS setup program
Displays the CPU/motherboard temperature,
CPU/5V/3.3V/12V voltage output,
CPU/chassis fan speed
Exits the BIOS setup program without saving
the changes, saves the changes and resets
the system, or enters the Advanced Mode
UEFI BIOS Utility - EZ Mode
Exit/Advanced Mode
P8H77-V LE
English
BIOS Version : 0236
CPU Type : Intel(R) Core(TM) i5-2500 CPU 0 @ 3.30GHz
Friday [10/08/2010]
Speed : 3300 MHz
Total Memory : 1024 MB (DDR3 1333MHz)
Temperature
Voltage
CPU
+113.0ºF/+45.0ºC
CPU
1.248V
5V
MB
+75.2ºF/+40.0ºC
3.3V
3.344V
12V
5.160V
Fan Speed
CPU_FAN
3325RPM
CHA_FAN
N/A
12.248V
System Performance
Quiet
Performance
Energy Saving
Normal
Boot Priority
Use the mouse to drag or keyboard to navigate to decide the boot priority.
Shortcut (F3)
Advanced Mode(F7)
Selects the Advanced
mode functions
Selects the boot
device priority
Boot Menu(F8)
Power Saving mode
Normal mode
Default(F5)
Loads optimized default
ASUS Optimal mode
Selects the boot device priority
Displays the system properties of the
selected mode on the right hand side
Displays the Advanced mode menus
• The boot device options vary depending on the devices you installed to the system.
• The Boot Menu(F8) button is available only when the boot device is installed to the
system.
Chapter 2: BIOS information
2-7
Advanced Mode
The Advanced Mode provides advanced options for experienced end-users to configure
the BIOS settings. The figure below shows an example of the Advanced Mode. Refer to the
following sections for the detailed configurations.
To access the EZ Mode, click Exit, then select ASUS EZ Mode.
Back button
Menu items
Menu bar
Configuration fields
General help
EFI BIOS Utility - Advanced Mode
Ai Tweaker
Main
Back
Advanced
Exit
Monitor
Boot
Tool
Advanced\ System Agent Configuration >
Enable or disable memory remap
above 4GB.
System Agent Bridge Name
Memory Remap Feature
Enabled
> Graphics Configuration
> NB PCIe Configuration
Memory Remap Feature
Enabled
Disabled
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Shortcut
F5: Optimized Defaults
F6: ASUS Ratio Boost
F10: Save ESC: Exit
F12: Print Screen
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
Submenu items
Pop-up window
Scroll bar
Navigation keys
Menu items
The highlighted item on the menu bar displays the specific items for that menu. For example,
selecting Main shows the Main menu items.
The other items (Ai Tweaker, Advanced, Monitor, Boot, Tool, and Exit) on the menu bar have
their respective menu items.
Back button
This button appears when entering a submenu. Press <Esc> or use the USB mouse to click
this button to return to the previous menu screen.
Submenu items
A greater than sign (>) before each item on any menu screen means that the item has a
submenu. To display the submenu, select the item and press <Enter>.
2-8
ASUS P8H77-V LE
Pop-up window
Select a menu item and press <Enter> to display a pop-up window with the configuration
options for that item.
Scroll bar
A scroll bar appears on the right side of a menu screen when there are items that do not fit on
the screen. Press the Up/Down arrow keys or <Page Up> / <Page Down> keys to display the
other items on the screen.
Navigation keys
At the bottom right corner of the menu screen are the navigation keys for the BIOS setup
program. Use the navigation keys to select items in the menu and change the settings.
General help
At the top right corner of the menu screen is a brief description of the selected item.
Configuration fields
These fields show the values for the menu items. If an item is user-configurable, you can
change the value of the field opposite the item. You cannot select an item that is not
user-configurable.
A configurable field is highlighted when selected. To change the value of a field, select it and
press <Enter> to display a list of options.
Chapter 2: BIOS information
2-9
2.3
Main menu
The Main menu screen appears when you enter the Advanced Mode of the BIOS Setup
program. The Main menu provides you an overview of the basic system information, and
allows you to set the system date, time, language, and security settings.
EFI BIOS Utility - Advanced Mode
Main
Ai Tweaker
Exit
Advanced
Monitor
Tool
Choose the system default language
BIOS Information
BIOS Version
Build Date
ME Version
South Bridge Steppping
0236 x64
02/09/2012
8.0.0.1296
C1
CPU Information
Genuine Intel(R) Core(TM) i5-2500 CPU @ 3.30GHz
Speed
3300 MHz
Memory Information
Total Memory
Speed
1024 MB (DDR3)
1333 MHz
System Language
System Date
System Time
Access Level
Boot
English
[Mon 09/27/2010]
[16:46:15]
Administrator
> Security
2.3.1
System Language [English]
2.3.2
System Date [Day xx/xx/xxxx]
2.3.3
System Time [xx:xx:xx]
2.3.4
Security
Allows you to choose the BIOS language version from the options. Configuration options:
[English]
[Español] [Русский]
Allows you to set the system date.
Allows you to set the system time.
The Security menu items allow you to change the system security settings.
• If you have forgotten your BIOS password, erase the CMOS Real Time Clock (RTC)
RAM to clear the BIOS password. See section 1.9 Jumpers for information on how to
erase the RTC RAM.
• The Administrator or User Password items on top of the screen show the default Not
Installed. After you set a password, these items show Installed.
2-10
ASUS P8H77-V LE
Administrator Password
If you have set an administrator password, we recommend that you enter the administrator
password for accessing the system. Otherwise, you might be able to see or change only
selected fields in the BIOS setup program.
To set an administrator password:
1.
Select the Administrator Password item and press <Enter>.
2.
From the Create New Password box, key in a password, then press <Enter>.
3.
Confirm the password when prompted.
To change an administrator password:
1.
Select the Administrator Password item and press <Enter>.
2.
From the Enter Current Password box, key in the current password, then press
<Enter>.
3.
From the Create New Password box, key in a new password, then press <Enter>.
4.
Confirm the password when prompted.
To clear the administrator password, follow the same steps as in changing an administrator
password, but press <Enter> when prompted to create/confirm the password. After you clear
the password, the Administrator Password item on top of the screen shows Not Installed.
User Password
If you have set a user password, you must enter the user password for accessing the system.
The User Password item on top of the screen shows the default Not Installed. After you set
a password, this item shows Installed.
To set a user password:
1.
Select the User Password item and press <Enter>.
2.
From the Create New Password box, key in a password, then press <Enter>.
3.
Confirm the password when prompted.
To change a user password:
1.
Select the User Password item and press <Enter>.
2.
From the Enter Current Password box, key in the current password, then press
<Enter>.
3.
From the Create New Password box, key in a new password, then press <Enter>.
4.
Confirm the password when prompted.
To clear the user password, follow the same steps as in changing a user password, but press
<Enter> when prompted to create/confirm the password. After you clear the password, the
User Password item on top of the screen shows Not Installed.
Chapter 2: BIOS information
2-11
2.4
Ai Tweaker menu
The Ai Tweaker menu items allow you to configure overclocking-related items.
Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect field
values can cause the system to malfunction.
The configuration options for this section vary depending on the CPU and DIMM model you
installed on the motherboard.
EFI BIOS Utility - Advanced Mode
Main
Ai Tweaker
Exit
Advanced
Monitor
Target CPU Turbo-Mode Speed: xxxxMhz
Boot
Tool
[X.M.P.] When XMP is enabled BCLK
frequency, CPU ratio and memory
parameters will be auto optimized.
Target DRAM Speed: xxxxMhz
Ai Overclocking Tuner
BCLK/PEG Frequency
Manual
103.0
Memory Frequency
iGPU Max. Frequency
Auto
Auto
EPU Power Saving Mode
Disabled
> GPU Boost
> DRAM Timing Control
> CPU Power Management
> DIGI+ VRM
CPU Voltage
Offset Mode
CPU Offset Mode Sign
CPU Offset Voltage
iGPU Voltage
+
Auto
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
Offset Mode
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
Scroll down to display the following items:
iGPU Offset Mode Sign
iGPU Offset Voltage
+
Auto
DRAM Voltage
1.500V
Auto
VCCSA Voltage
0.705V
Auto
PCH Voltage
1.050V
Auto
CPU PLL Voltage
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
Auto
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
2-12
ASUS P8H77-V LE
Target CPU Turbo-Mode Speed : xxxxMHz
Displays the current CPU Turbo-Mode speed.
Target DRAM Speed : xxxxMHz
Displays the current DRAM speed.
2.4.1
Ai Overclock Tuner [Manual]
Allows you to select the CPU overclocking options to achieve the desired CPU internal
frequency. Select any of these preset overclocking configuration options:
[Auto]
Loads the optimal settings for the system.
[Manual]
Allows you to individually set overclocking parameters.
[X.M.P.]
If you install memory modules supporting the eXtreme Memory Profile
(X.M.P.) Technology, choose this item to set the profiles supported by your
memory modules for optimizing the system performance.
The item X.M.P. appears only when you set the Ai Overclocking Tuner to [Manual].
BCLK/PCIE Frequency [XXX]
Allows you to adjust the CPU and VGA frequency to enhance the system performance. Use
the <+> and <-> keys to adjust the value. You can also key in the desired value using the
numeric keypad. The values range from 80.0MHz to 300.0MHz.
eXtreme Memory Profile
This item appears only when you set the Ai Overclocking Tuner item to [X.M.P.] and
allows you to select the X.M.P. mode supported by your memory module. Configuration
options: [Profile #1] [ Profile #2]
2.4.2
Memory Frequency [Auto]
Allows you to set the memory operating frequency. Configuration options: [Auto] [DDR3800MHz] [DDR3-1066MHz] [DDR3-1333MHz] [DDR3-1600MHz] [DDR3-1866MHz] [DDR32133MHz] [DDR3-2400MHz]
Selecting a very high memory frequency may cause the system to become unstable! If this
happens, revert to the default setting.
2.4.3
iGPU Max. Frequency [xxx]
2.4.4
EPU Power Saving Mode [Disabled]
Allows you to set the iGPU maximum frequency. The values range from xxxxMHz (by CPU)
to 3000MHz with a 50MHz interval. Use <+>/<-> to adjust the value.
Allows you to enable or disable the EPU power saving function.
Configuration options: [Disabled] [Enabled]
EPU Setting [Auto]
This item appears only when you set the EPU Power Saving MODE item to [Enabled.] and
allows you to select the EPU power saving mode. Configuration options: [Auto] [Light Power
Saving Mode] [Medium Power Saving Mode] [Max Power Saving Mode]
Chapter 2: BIOS information
2-13
2.4.5
GPU Boost [OK]
2.4.6
DRAM Timing Control
[OK]
[Cancel]
Select [OK] to automatically optimize the iGPU frequency.
Select [Cancel] to use a fixed iGPU frequency.
The sub-items in this menu allow you to set the DRAM timing control features. Use the <+>
and <-> keys to adjust the value. To restore the default setting, type [auto] using the keyboard
and press <Enter>.
Changing the values in this menu may cause the system to become unstable! If this
happens, revert to the default settings.
2.4.7
CPU Power Management
The sub-items in this menu allow you to set the CPU ratio and features.
CPU Ratio [Auto]
Allows you to manually adjust the maximum non-turbo CPU ratio. Use <+> and <-> keys or
the numeric keypad to adjust the value. The valid value ranges vary according to your CPU
model.
Enhanced Intel SpeedStep Technology [Enabled]
Allows you to enable or disable the Enhanced Intel® SpeedStep Technology (EIST).
[Disabled]
Disables this function.
[Enabled]
The operating system dynamically adjusts the processor voltage and
core frequency which may result in decreased average consumption and
decreased average heat production.
Turbo Mode [Enabled]
This item appears only when you set the previous item to [Enabled].
[Enabled]Allows processor cores to run faster than marked frequency in specific
conditions.
[Disabled]
Disables this function.
The following three items appear only when you set both the Enhanced Intel SpeedStep
Technology and Turbo Mode items to [Enabled].
Long Duration Power Limit [Auto]
Allows you to limit the turbo ratio’s long duration power.
Use the <+> and <-> keys to adjust the value.
Long Duration Maintained [Auto]
Allows you to maintain the turbo ratio’s long duration power.
Use the <+> and <-> keys to adjust the value.
Short Duration Power Limit [Auto]
Allows you to limit the turbo ratio’s long duration power.
Use the <+> and <-> keys to adjust the value.
2-14
ASUS P8H77-V LE
Primary Plane Current Limit [Auto]
Maximum instantaneous current allowed at any given time for CPU cores
Use <+> and <-> key to adjust the value at 0.125A increment. .
Secondary Plane Current Limit [Auto]
Maximum instantaneous current allowed at any given time for Internal Graphics cores.
Use <+> and <-> key to adjust the value at 0.125A increment.
Some of the following items are adjusted by typing the desired values using the numeric
keypad and press <Enter>. You can also use the <+> and <-> keys to adjust the value. To
restore the default setting, type [auto] using the keyboard and press <Enter>.
2.4.8
DIGI+ VRM
CPU Load-Line Calibration [Auto]
Load-line is defined by Intel VRM spec and affects CPU voltage. The CPU working voltage
will decrease proportionally to CPU loading. Higher value gets a higher voltage and better
overclocking performance, but increases the CPU and VRM thermal. This item allows you to
adjust the voltage range from the following percentages to boost the system performance:
0% (Regular), 25% (Medium), 50% (High), 75% (Ultra High) and 100% (Extreme).
Configuration options: [Auto] [Regular] [Medium] [High] [Ultra High] [Extreme]
The actual performance boost may vary depending on your CPU specification.
CPU Fixed Frequency [xxx]
Switching frequency will affect the VRM transient response and component thermal. Setting
a higher frequency gets faster transient response.The values range from 200K to 350K with a
50K interval. Use <+>/<-> to adjust the value.
CPU Power Phase Control [Standard]
Allows you to control the power phase based on the CPU’s demands.
Configuration options: [Standard] [Optimized] [Extreme] [Manual Adjustment]
DO NOT remove the thermal module when switching to Extreme and Manual Mode. The
thermal conditions should be monitored.
CPU Power Duty Control [T.Probe]
DIGI + VRM Duty control adjusts the current and thermal conditions of every component’s
phase.
[T. Probe]
Select to maintain the VRM thermal balance.
[Extreme]
Select to maintain the current VRM balance.
CPU Current Capability [100%]
Allows you to configure the total power range, and extends the overclocking frequency range
simultaneously. Configuration options: [100%] [110%] [120%]
Choose a higher value when overclocking, or under a high CPU loading for extra power
support.
Chapter 2: BIOS information
2-15
iGPU Load-line Calibration [Auto]
Load-line Calibration is defined by Intel VRM specifications and affects iGPU voltage. The
iGPU working voltage will decrease proportionally to the integrated graphics loading. Higher
load-line calibration would get higher voltage and better overclocking performance, but
increase the CPU and VRM thermal. This item allows you to adjust the voltage range from
the following percentages to boost the system performance: 0% (Regular), 50% (High) and
100% (Extreme). Configuration options: [Auto] [Regular] [High] [Extreme]
iGPU Current Capability [100%]
Allows you to set the iGPU Current Capability. Configuration options: [100%] [110%] [120%]
Do not remove the thermal module while changing the DIGI+ VRM related parrameters .
The thermal conditions should be monitored.
Some of the following items are adjusted by typing the desired values using the numeric
keypad and press the <Enter> key. You can also use the <+> and <-> keys to adjust the
value. To restore the default setting, type [auto] using the keyboard and press the <Enter>
key.
2.4.9
CPU Voltage [Offset Mode]
[Manual Mode] Allows you to set a fixed CPU voltage.
[Offset Mode] Allows you to set the Offset voltage.
CPU Offset Mode Sign [+]
This item appears only when you set the CPU Voltage item to [Offset Mode].
[+]
To offset the voltage by a positive value.
[–]
To offset the voltage by a negative value.
CPU Offset Voltage [Auto]
This item appears only when you set the CPU Voltage item to [Offset Mode] and
allows you to set the Offset voltage. The values range from 0.005V to 0.635V with a
0.005V interval.
CPU Manual Voltage [Auto]
This item appears only when you set the CPU Voltage item to [Manual Mode] and allows you
to set a fixed CPU voltage. The values range from 0.800V to 1.990V with a 0.005V interval.
Refer to the CPU documentation before setting the CPU voltage. Setting a high voltage
may damage the CPU permanently, and setting a low voltage may make the system
unstable.
2.4.10
iGPU Voltage [Offset Mode]
[Offset Mode] To offset the voltage by a positive or negative value.
[Manual Mode] Allows you to set a fixed iGPU voltage.
iGPU Offset Mode Sign [+]
This item appears only when you set the iGPU Voltage item to [Offset Mode].
[+]
To offset the voltage by a positive value.
[–]
To offset the voltage by a negative value.
2-16
ASUS P8H77-V LE
iGPU Offset Voltage [Auto]
This item appears only when you set the iGPU Voltage item to [Offset Mode] and
allows you to set the iGPU Offset voltage. The values range from 0.005V to 0.635V
with a 0.005V interval.
iGPU Manual Voltage [Auto]
This item appears only when you set the iGPU Voltage item to [Manual Mode] and allows
you to set a fixed iGPU voltage. Use the <+> and <-> keys to adjust the value. The values
range from 0.800V to 1.990V with a 0.005V interval.
2.4.11
DRAM Voltage [Auto]
Allows you to set the DRAM voltage. The values range from 1.185V to 2.135V with a 0.005V
interval.
According to Intel CPU spec, DIMMs with voltage requirement over 1.65V may damage
the CPU permanently. We recommend you install the DIMMs with the voltage requirement
below 1.65V.
2.4.12
VCCSA Voltage [Auto]
2.4.13
PCH Voltage [Auto]
Allows you to set the VCCSA voltage. The values range from 0.610V to 1.560V with a 0.005V
interval.
Allows you to set the PCH voltage. The values range from 0.7350V to 1.6850V with a 0.005V
interval.
• The values of the CPU Offset Voltage, CPU Manual Voltage, iGPU Offset Voltage,
iGPU Manual Voltage, DRAM Voltage, VCCSA Voltage, and PCH Voltage are labeled
in different color, indicating the risk levels of high voltage settings.
• The system may need better cooling system to work stably under high voltage settings.
2.4.14
CPU PLL Voltage [Auto]
Allows you to set the CPU PLL voltage. Use <+> and <-> keys to adjust the value.
Configuration options: [Auto] [+0.10V].
Chapter 2: BIOS information
2-17
2.5
Advanced menu
The Advanced menu items allow you to change the settings for the CPU and other system
devices.
Be cautious when changing the settings of the Advanced menu items. Incorrect field values
can cause the system to malfunction.
EFI BIOS Utility - Advanced Mode
Ai Tweaker
Main
Advanced
Exit
Monitor
Boot
Tool
Trusted Computing (TPM) settings
> CPU Configuration
> PCH Configuration
> SATA Configuration
> System Agent Configuration
> USB Configuration
> Onboard Devices Configuration
> APM
> Network Stack
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
2.5.1
CPU Configuration
The items in this menu show the CPU-related information that the BIOS automatically
detects.
The items shown in submenu may be different due to the CPU you installed.
Intel Adaptive Thermal Monitor [Enabled]
[Enabled]
[Disabled]
Enables the overheated CPU to throttle its clock speed to cool down.
Disables the CPU thermal monitor function.
Active Processor Cores [All]
Allows you to choose the number of CPU cores to activate in each processor package.
Configuration options: [All] [1] [2] [3]
Limit CPUID Maximum [Disabled]
[Enabled]Allows legacy operating systems to boot even without support for CPUs
with extended CPUID functions.
[Disabled]
Disables this function.
2-18
ASUS P8H77-V LE
Execute Disable Bit [Enabled]
[Enabled]
[Disabled]
Enables the No-Execution Page Protection Technology.
Forces the XD feature flag to always return to zero (0).
Intel® Virtualization Technology [Disabled]
[Enabled]
[Disabled]
Allows a hardware platform to run multiple operating systems separately
and simultaneously, enabling one system to virtually function as several
systems.
Disables this function.
Hardware Prefetcher [Enabled]
[Enabled]
[Disabled]
Allows a hardware platform to run multiple operating systems separately
and simultaneously, enabling one system to virtually function as several
systems.
Disables this function.
Adjacent Cache Line Prefetch [Enabled]
[Enabled]
[Disabled]
Allows a hardware platform to perform adjacent cache line prefetching.
Disables this function.
CPU Power Management Configuration
CPU Ratio [Auto]
Allows you to set the ratio between the CPU Core Clock and the BCLK Frequency. Use
<+> and <-> keys to adjust the ratio. The valid value ranges vary according to your
CPU model.
Enhanced Intel SpeedStep Technology [Enabled]
Allows you to enable or disable the Enhanced Intel® SpeedStep Technology (EIST).
[Disabled] The CPU runs at its default speed.
[Enabled] The operating system controls the CPU speed.
Turbo Mode [Enabled]
Allows you to enable or disable the Intel® Turbo Mode Technology.
[Enabled] Allows processor cores to run faster than marked frequency in specific
condition.
[Disabled] Disables this function.
CPU C1E [Auto]
Allows you to enable or disable the CPU C1E.
[Auto]
Set this item automatically.
[Enabled] Enables the C1E support function. This item should be enabled in order to
enable the Enhanced Halt State.
[Disabled] Disables this function.
CPU C3 Report [Auto]
Allows you to disable or enable the CPU C3 report to OS.
[Auto]
Set this item automatically.
[Enabled] Enables the C3 report function. This item should be enabled in order to
enable the Enhanced Halt State.
[Disabled] Disables this function.
Chapter 2: BIOS information
2-19
CPU C6 Report [Auto]
Allows you to disable or enable the CPU C6 report to OS.
[Auto]
Set this item automatically.
[Enabled] Enables the C6 report function. This item should be enabled in order to
enable the Enhanced Halt State.
[Disabled] Disables this function.
2.5.2
PCH Configuration
High Precision Timer [Enabled]
Allows you to enable or disable the High Precision Event Timer. Configuration options:
[Enabled] [Disabled]
Intel(R) Rapid Start Technology
Intel(R) Rapid Start Technology [Disabled]
Allows you to enable or disable the Intel(R) Rapid Start Technology.
Configuration options: [Enabled] [Disabled]
The following three items appear only when you set the Intel(R) Rapid Start Technology
to [Enabled].
Entry on S3 RTC Wake [Enabled]
Allows you to enable or disable the iFFS invocation upon S3 RTC wake. Configuration
options: [Enabled] [Disabled]
Entry After [10 Minutes]
This item appears only when you set the Entry on S3 RTC Wake to [Enabled] and
allows you to set the RTC wake timer at S3 entry. Configuration options: [Immediately]
[1 minute] [2 minute] [5 minute] [10 minute] [15 minute] [30 minute] [1 hour] [2 hours]
Active Page Threshold Support [Disbaled]
Allows you to enable or disable the Active Page Threshold Support. Configuration
options: [Enabled] [Disabled]
Active Memory Threshold [x]
This item appears only when you set the Active Page Threshold Support to
[Enabled] and allows you to set the Active Memory Threshold. When the partition size
is larger than the Active Page Threshold size, the system will try to support the Intel(R)
Rapid Start Technology. When the item is set to zero, the system automatically checks
whether the partition size is enough at S3 entry. Key in the desired value using the
numeric keypad.
2.5.3
SATA Configuration
While entering Setup, the BIOS automatically detects the presence of SATA devices. The
SATA Port items show Not Present if no SATA device is installed to the corresponding SATA
port.
2-20
ASUS P8H77-V LE
SATA Mode Selection [IDE]
Allows you to set the SATA configuration.
[IDE]Set to [IDE] when you want to use the Serial ATA hard disk drives as
Parallel ATA physical storage devices.
[AHCI]Set to [AHCI] when you want the SATA hard disk drives to use the AHCI
(Advanced Host Controller Interface). The AHCI allows the onboard storage
driver to enable advanced Serial ATA features that increases storage
performance on random workloads by allowing the drive to internally
optimize the order of commands.
[RAID]Set to [RAID] when you want to create a RAID configuration from the SATA
hard disk drives.
S.M.A.R.T. Status Check [Enabled]
S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitor system. When
read/write of your hard disk errors occur, this feature allows the hard disk to report warning
messages during the POST. Configuration options: [Enabled] [Disabled]
Hot Plug [Disabled]
This item only appears when you set the SATA Mode Selection item to [AHCI] or [RAID]
and allows you to enable or disable the hot-plug support for each SATA port. Configuration
options: [Enabled] [Disabled]
2.5.4
System Agent Configuration
Memory Remap Feature [Enabled]
Enables or disables the memory remap feature. Configuration options: [Enabled] [Disabled]
Graphics Configuration
Primary Display [Auto]
Allows you to decide which graphics controller to use as the primary boot device.
Configuration options: [Auto] [iGPU] [PCIE] [PCI]
iGPU Memory [64M]
Allows you to set the iGPU memory size. Configuration options: [32M] [64M] [96M]
[128M] ~ [448M] [480M] [512M] [1024M]
Render Standby [Enabled]
Allows you to enable or disable Render Standby by internal graphics devices.
Configuration options: [Disabled] [Enabled]
iGPU Multi-Monitor [Disabled]
Allows you to enable the iGPU Multi-Monitor. For Lucid Virtu MVP function support, set
this item to [Enabled] to empower both integrated and discrete graphics. iGPU shared
system memory size is fixed in 64MB. Configuration options: [Disabled] [Enabled]
NB PCIe Configuration
Allows you to configure the NB PCI Express settings.
PCIE X16_1 [Auto]
Allows you to set the PCIE x16_1 slot link speed. Configuration options: [Auto] [Gen1]
[Gen2]
Chapter 2: BIOS information
2-21
2.5.5
USB Configuration
The items in this menu allow you to change the USB-related features.
The USB Devices item shows the auto-detected values. If no USB device is detected, the
item shows None.
Legacy USB Support [Enabled]
[Enabled]
[Disabled]
[Auto]
Enables the support for USB devices on legacy operating systems (OS).
The USB devices can be used only for the BIOS setup program.
Allows the system to detect the presence of USB devices at startup. If
detected, the USB controller legacy mode is enabled. If no USB device is
detected, the legacy USB support is disabled.
Legacy USB3.0 Support [Enabled]
This item appears only when you set the previous item to [Enabled] or [Auto].
[Enabled]
Enables the support for USB 3.0 devices on legacy operating systems
(OS).
[Disabled]
Disables the function.
Intel xHCI Mode [Smart Auto]
Allows you to select an operation mode for the Intel xHCI controller. Configuration options:
[Smart Auto] [Auto] [Enabled] [Disabled]
EHCI Hand-off [Disabled]
[Enabled]
[Disabled]
2.5.6
Enables the support for operating systems without an EHCI hand‑off
feature.
Disables the function.
Onboard Devices Configuration
HD Audio Controller [Enabled]
[Enabled]
[Disabled]
Enables the High Definition Audio Controller.
Disables the controller.
The following two items appear only when you set the HD Audio Controller item to
[Enabled].
Front Panel Type [HD]
Allows you to set the front panel audio connector (AAFP) mode to legacy AC’97 or highdefinition audio depending on the audio standard that the front panel audio module supports.
[HD]
Sets the front panel audio connector (AAFP) mode to high definition audio.
[AC97]
Sets the front panel audio connector (AAFP) mode to legacy AC’97
Realtek LAN Controller [Enabled]
[Enabled]
[Disabled]
2-22
Enables the Realtek LAN controller.
Disables the controller.
ASUS P8H77-V LE
Realtek PXE OPROM [Disabled]
This item appears only when you set the previous item to [Enabled] and allows you to enable
or disable the PXE OptionRom of the Realtek LAN controller.
Configuration options: [Enabled] [Disabled]
Serial Port Configuration
The sub-items in this menu allow you to set the serial port configuration.
Serial Port [Enabled]
Allows you to enable or disable the serial port (COM).Configuration options: [Enabled]
[Disabled]
Change Settings [IO=3F8h; IRQ=4]
This item appears only when you set the Serial Port to [Enabled] and allows you
to select the Serial Port base address. Configuration options: [IO=3F8h; IRQ=4]
[IO=2F8h; IRQ=3] [IO=3E8h; IRQ=4] [IO=2E8h; IRQ=3]
2.5.7
APM
Restore AC Power Loss [Power Off]
[Power On]
[Power Off]
[Last State]
The system goes into on state after an AC power loss.
The system goes into off state after an AC power loss.
The system goes into either off or on state, whatever the system state was
before the AC power loss.
Power On By PS/2 Keyboard [Disabled]
[Disabled]
[Space Bar]
[Ctrl-Esc]
[Power Key]
Disables the Power On by a PS/2 keyboard.
Sets the Space Bar on the PS/2 keyboard to turn on the system.
Sets the Ctrl+Esc key on the PS/2 keyboard to turn on the system.
Sets Power key on the PS/2 keyboard to turn on the system. This feature
requires an ATX power supply that provides at least 1A on the +5VSB lead.
Power On By PCIE/PCI [Disabled]
[Disabled]Disables the PCIE/PCI devices to generate a wake event.
[Enabled]Enables the PCIE/PCI devices to generate a wake event.
Power On By Ring [Disabled]
[Disabled]
[Enabled]
Disables Ring to generate a wake event.
Enables Ring to generate a wake event.
Power On By RTC [Disabled]
[Disabled]
[Enabled]
2.5.8
Disables RTC to generate a wake event.
When set to [Enabled], the items RTC Alarm Date (Days) and Hour/
Minute/Second will become user-configurable with set values.
Network Stack
Network Stack [Disable Link]
This item allows user to disable or enable the UEFI network stack. Configuration options:
[Disable Link] [Enabled]
Chapter 2: BIOS information
2-23
2.6
Monitor menu
The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
EFI BIOS Utility - Advanced Mode
Main
Ai Tweaker
Exit
Advanced
Monitor
CPU Temperature
+34ºC / +93ºF
MB Temperature
+31ºC / +87ºF
CPU Fan Speed
Boot
Tool
1717 RPM
Chassis Fan Speed
N/A
CPU Q-Fan Control
Enabled
CPU Fan Speed Low Limit
600 RPM
CPU Fan Profile
Standard
Chassis Fan Speed Low Limit
600 RPM
CPU Voltage
+1.186 V
3.3V Voltage
+3.312 V
5V Voltage
+5.080 V
12V Voltage
+12.192 V
Anti Surge Support
Enabled
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
2.6.1
CPU Temperature / MB Temperature [xxxºC/xxxºF]
The onboard hardware monitor automatically detects and displays the CPU and motherboard
temperatures. Select Ignore if you do not wish to display the detected temperatures.
2.6.2CPU / Chassis Fan Speed [xxxx RPM] or [Ignore] / [N/A]
The onboard hardware monitor automatically detects and displays the CPU and chassis fan
speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the field
shows N/A. Select Ignore if you do not wish to display the detected speed.
2.6.3
[Disabled]
[Enabled]
CPU Q-Fan Control [Enabled]
Disables the CPU Q-Fan control feature.
Enables the CPU Q-Fan control feature.
CPU Fan Speed Low Limit [200 RPM]
This item appears only when you enable the CPU Q-Fan Control feature and allows you to
disable or set the CPU fan warning speed.
Configuration options: [Ignore] [100 RPM] [200 RPM] [300 RPM] [400 RPM] [500 RPM]
2-24
ASUS P8H77-V LE
CPU Fan Profile [Standard]
This item appears only when you enable the CPU Q-Fan Control feature and allows
you to set the appropriate performance level of the CPU fan.
[Standard]Sets to [Standard] to make the CPU fan automatically adjust depending on
the CPU temperature.
[Silent]Sets to [Silent] to minimize the fan speed for quiet CPU fan operation.
[Turbo]
Sets to [Turbo] to achieve maximum CPU fan speed.
[Manual] Sets to [Manual] to assign detailed fan speed control parameters.
The following four items appear only when you set CPU Fan Profile to [Manual].
CPU Upper Temperature [70]
Use the <+> and <-> keys to adjust the upper limit of the CPU temperature. The values range
from 20ºC to 75ºC.
CPU Fan Max. Duty Cycle(%) [100]
Use the <+> and <-> keys to adjust the maximum CPU fan duty cycle. The values range from
20% to 100%. When the CPU temperature reaches the upper limit, the CPU fan will operate at
the maximum duty cycle.
CPU Lower Temperature [20]
Use the <+> and <-> keys to adjust the lower limit of the CPU temperature. The values range
from 20ºC to 75ºC.
CPU Fan Min. Duty Cycle(%) [20]
Use the <+> and <-> keys to adjust the minimum CPU fan duty cycle. The values range from 0%
to 100%. When the CPU temperature is under 40ºC, the CPU fan will operate at the minimum
duty cycle.
2.6.4
Chassis Fan Speed Low Limit [600 RPM]
2.6.5
CPU Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage
2.6.6
Anti Surge Support [Enabled]
This item allows you to disable or set the chassis fan warning speed.
Configuration options: [Ignore] [200 RPM] [300 RPM] [400 RPM] [500 RPM] [600 RPM]
The onboard hardware monitor automatically detects the voltage output through the onboard
voltage regulators. Select Ignore if you do not want to detect this item.
This item allows you to enable or disable the Anti Surge function.
Configuration options: [Disabled] [Enabled]
Chapter 2: BIOS information
2-25
2.7
Boot menu
The Boot menu items allow you to change the system boot options.
EFI BIOS Utility - Advanced Mode
Ai Tweaker
Main
Exit
Advanced
Monitor
Bootup NumLock State
On
Full Screen Logo
Enabled
Wait for ‘F1’ If Error
Enabled
Fast Boot
Option ROM Messages
Boot
Tool
Select the keyboard NumLock state
Enabled
Force BIOS
CSM Support
Setup Mode
Enabled
EZ Mode
UEFI/Legacy Boot
Enable bot...
PCI ROM Priority
Legacy ROM
Boot Option Priorities
Boot Override
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
2.7.1
Bootup NumLock State [On]
2.7.2
Full Screen Logo [Enabled]
[On]
[Off]
[Enabled]
[Disabled]
Sets the power-on state of the NumLock to [On].
Sets the power-on state of the NumLock to [Off].
Enables the full screen logo display feature.
Disables the full screen logo display feature.
Set this item to [Enabled] to use the ASUS MyLogo 2™ feature.
Post Report [5 sec]
This item appears only when the Full Screen Logo item is set to [Disabled] and allows you to
set the waiting time for the system to display the post report. Configuration options: [1 sec] [2
sec] [3 sec] [4 sec] [5 sec] [6 sec] [7 sec] [8 sec] [9 sec] [10 sec] [Until Press ESC]
2.7.3
Wait for ‘F1’ If Error [Enabled]
When this item is set to [Enabled], the system waits for the F1 key to be pressed when error
occurs. Configuration options: [Disabled] [Enabled]
2-26
ASUS P8H77-V LE
2.7.4
Fast Boot [Enabled]
2.7.5
Option ROM Messages [Force BIOS]
2.7.6
CSM Support [Enabled]
2.7.7
Setup Mode [EZ Mode]
2.7.8
UEFI/Legacy Boot [Enabled both UEFI and Legacy]
2.7.9
PCI ROM Priority [Legacy ROM]
2.7.10
Boot Option Priorities
Enables or disables boot with initialization of a minimal set of devices required to
launch active boot option. The settings of this item have no effect for BBS boot options.
Configuration options: [Disabled] [Enabled]
[Force BIOS]
The third-party ROM messages will be forced to display during the boot
sequence.
[Keep Current] The third-party ROM messages will be displayed only if the third-party
manufacturer had set the add-on device to do so.
[Enabled] Enables the CSM support.
[Disabled]Disables the CSM support.
[Auto]The CSM support is enabled or disabled automatically.
[Advanced Mode] Sets Advanced Mode as the default screen for entering the BIOS setup
program.
[EZ Mode]
Sets EZ Mode as the default screen for entering the BIOS setup program.
Enables or disables boot from the UEFI or Legacy devices. Configuration options: [Enable
both UEFI and legacy] [Disable UEFI] [Disable Legacy]
This item specifies the PCI Option ROM launch priority when multiple Option ROMs are
available. Configuration options: [Legacy ROM] [EFI Compatible ROM]
These items specify the boot device priority sequence from the available devices. The
number of device items that appears on the screen depends on the number of devices
installed in the system.
• To select the boot device during system startup, press <F8> when ASUS Logo appears.
• To access Windows OS in Safe Mode, press <F8> after POST.
2.7.11
Boot Override
These items displays the available devices. The number of device items that appears on
the screen depends on the number of devices installed in the system. Click an item to start
booting from the selected device.
Chapter 2: BIOS information
2-27
2.8
Tools menu
The Tools menu items allow you to configure options for special functions. Select an item
then press <Enter> to display the submenu.
EFI BIOS Utility - Advanced Mode
Ai Tweaker
Main
Advanced
Exit
Monitor
Boot
Tool
Be used to update BIOS
> ASUS EZ Flash 2 Utility
> ASUS O.C. Profile
> ASUS SPD Information
2.8.1
ASUS EZ Flash 2 Utility
Allows you to run ASUS EZ Flash 2. Press [Enter] to launch the ASUS EZ Flash 2 screen.
For more details, see section 2.1.2 ASUS EZ Flash 2.
2.8.2
ASUS O.C. Profile
This item allows you to store or load multiple BIOS settings.
The Setup Profile Status items show Not Installed if no profile is created.
Label
Allows you to input the label of the setup profile.
Save to Profile
Allows you to save the current BIOS settings to the BIOS Flash, and create a profile. Key in a
profile number from one to eight, press <Enter>, and then select Yes.
Load from Profile
Allows you to load the previous BIOS settings saved in the BIOS Flash. Key in the profile
number that saved your CMOS settings, press <Enter>, and then select Yes.
• DO NOT shut down or reset the system while updating the BIOS to prevent the system
boot failure!
• We recommend that you update the BIOS file only coming from the same memory/CPU
configuration and BIOS version.
2.8.3
ASUS SPD Information
DIMM Slot # [Slot 1]
Displays the Serial Presence Detect (SPD) information of the DIMM module installed on the
selected slot. Configuration options: [Slot 1] [Slot 2] [Slot 3] [Slot 4]
2-28
ASUS P8H77-V LE
2.9
Exit menu
The Exit menu items allow you to load the optimal default values for the BIOS items, and
save or discard your changes to the BIOS items. You can access the EZ Mode from the Exit
menu.
Exit
Load Optimized Defaults
Save Changes & Reset
Discard Changes & Exit
ASUS EZ Mode
Launch EFI Shell from filesystem device
Load Optimized Defaults
This option allows you to load the default values for each of the parameters on the Setup
menus. When you select this option or if you press <F5>, a confirmation window appears.
Select Yes to load the default values.
Save Changes & Reset
Once you are finished making your selections, choose this option from the Exit menu to
ensure the values you selected are saved. When you select this option or if you press <F10>,
a confirmation window appears. Select Yes to save changes and exit.
Discard Changes & Exit
This option allows you to exit the Setup program without saving your changes. When you
select this option or if you press <Esc>, a confirmation window appears. Select Yes to
discard changes and exit.
ASUS EZ Mode
This option allows you to enter the EZ Mode screen.
Launch EFI Shell from filesystem device
This option allows you to attempt to launch the EFI Shell application (shellx64.efi) from one of
the available devices that have a filesystem.
Chapter 2: BIOS information
2-29
2-30
ASUS P8H77-V LE
Appendices
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference.
•
This device must accept any interference received including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with manufacturer’s instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to the graphics card is required
to assure compliance with FCC regulations. Changes or modifications to this unit not
expressly approved by the party responsible for compliance could void the user’s authority
to operate this equipment.
IC: Canadian Compliance Statement
Complies with the Canadian ICES-003 Class B specifications. This device complies with RSS
210 of Industry Canada. This Class B device meets all the requirements of the Canadian
interference-causing equipment regulations.
This device complies with Industry Canada license exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Cut appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
Cet appareil est conforme aux normes CNR exemptes de licence d’Industrie Canada. Le
fonctionnement est soumis aux deux conditions suivantes :
(1) cet appareil ne doit pas provoquer d’interférences et
(2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer
un fonctionnement non souhaité de l’appareil.
ASUS P8H77-V LE
A-1
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus set out in the Radio Interference Regulations of the Canadian Department
of Communications.
This class B digital apparatus complies with Canadian ICES-003.
VCCI: Japan Compliance Statement
VCCI Class B Statement
KC: Korea Warning Statement
REACH
Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of
Chemicals) regulatory framework, we published the chemical substances in our products at
ASUS REACH website at http://csr.asus.com/english/REACH.htm.
DO NOT throw the motherboard in municipal waste. This product has been designed to
enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin
indicates that the product (electrical and electronic equipment) should not be placed in
municipal waste. Check local regulations for disposal of electronic products.
DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol
of the crossed out wheeled bin indicates that the battery should not be placed in municipal
waste.
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards for
protecting our environment. We believe in providing solutions for you to be able to responsibly
recycle our products, batteries, other components as well as the packaging materials. Please
go to �http://csr.asus.com/english/Takeback.htm for the detailed recycling information in different
regions.
A-2
Appendices
ASUS contact information
ASUSTeK COMPUTER INC.
Address
Telephone Fax E-mail
Web site
Technical Support
Telephone Online support
15 Li-Te Road, Peitou, Taipei, Taiwan 11259
+886-2-2894-3447
+886-2-2890-7798
info@asus.com.tw
www.asus.com.tw
+86-21-38429911
support.asus.com
ASUS COMPUTER INTERNATIONAL (America)
Address
Telephone Fax
Web site
Technical Support
Telephone Support fax
Online support
800 Corporate Way, Fremont, CA 94539, USA
+1-510-739-3777
+1-510-608-4555
usa.asus.com
+1-812-282-2787
+1-812-284-0883
support.asus.com
ASUS COMPUTER GmbH (Germany and Austria)
Address
Fax
Web site
Online contact
Technical Support
Telephone
Support Fax
Online support
Harkort Str. 21-23, D-40880 Ratingen, Germany
+49-2102-959911
www.asus.de
www.asus.de/sales
+49-1805-010923*
+49-2102-9599-11
support.asus.com
* EUR 0.14/minute from a German fixed landline; EUR 0.42/minute from a mobile phone.
(510)739-3777/(510)608-4555
800 Corporate Way, Fremont, CA 94539.
Asus Computer International
Signature :
Date :
Representative Person’s Name :
Feb. 6, 2012
Steve Chang / President
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Supplementary Information:
FCC Part 15, Subpart C, Intentional Radiators
FCC Part 15, Subpart E, Intentional Radiators
FCC Part 15, Subpart B, Unintentional Radiators
Model Number : P8H77-V LE
Conforms to the following specifications:
Product Name : Motherboard
hereby declares that the product
Phone/Fax No:
Address:
Responsible Party Name:
Per FCC Part 2 Section 2. 1077(a)
DECLARATION OF CONFORMITY
Ver. 110101
Manufacturer:
HARKORT STR. 21-23, 40880 RATINGEN
Model name :
Declaration Date: Feb. 6, 2012
Year to begin affixing CE marking:2012
CE marking
EN 62301:2005
Regulation (EC) No. 642/2009
EN 62301:2005
Regulation (EC) No. 1275/2008
Ver. 111121
Signature : __________
Position : CEO
Name :
Jerry Shen
(EC conformity marking)
EN 62301:2005
Regulation (EC) No. 278/2009
EN 60065:2002 / A12:2011
2009/125/EC-ErP Directive
EN 60065:2002+A1:2006+A11:2008
EN 60950-1 / A12:2011
EN 301 489-1 V1.8.1(2008-04)
EN 301 489-3 V1.4.1(2002-08)
EN 301 489-4 V1.3.1(2002-08)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.1.1(2009-05)
EN 301 489-24 V1.4.1(2007-09)
EN 302 326-2 V1.2.2(2007-06)
EN 302 326-3 V1.3.1(2007-09)
EN 301 357-2 V1.3.1(2006-05)
EN 302 623 V1.1.1(2009-01)
EN 55024:1998+A1:2001+A2:2003
EN 61000-3-3:2008
EN 55020:2007
EN 60950-1 / A11:2009
2006/95/EC-LVD Directive
EN 300 328 V1.7.1(2006-10)
EN 300 440-1 V1.4.1(2008-05)
EN 300 440-2 V1.2.1(2008-03)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V3.2.1(2007-05)
EN 301 908-2 V3.2.1(2007-05)
EN 301 893 V1.4.1(2005-03)
EN 50360:2001
EN 50371:2002
EN 62311:2008
EN 50385:2002
1999/5/EC-R &TTE Directive
EN 55022:2006+A1:2007
EN 61000-3-2:2006
EN 55013:2001+A1:2003+A2:2006
conform with the essential requirements of the following directives:
2004/108/EC-EMC Directive
Motherboard
P8H77-V LE
Product name :
GERMANY
Address, City:
declare the following apparatus:
Country:
TAIWAN
ASUS COMPUTER GmbH
Authorized representative in Europe:
No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN R.O.C.
Country:
Address, City:
ASUSTek COMPUTER INC.
EC Declaration of Conformity
We, the undersigned,
