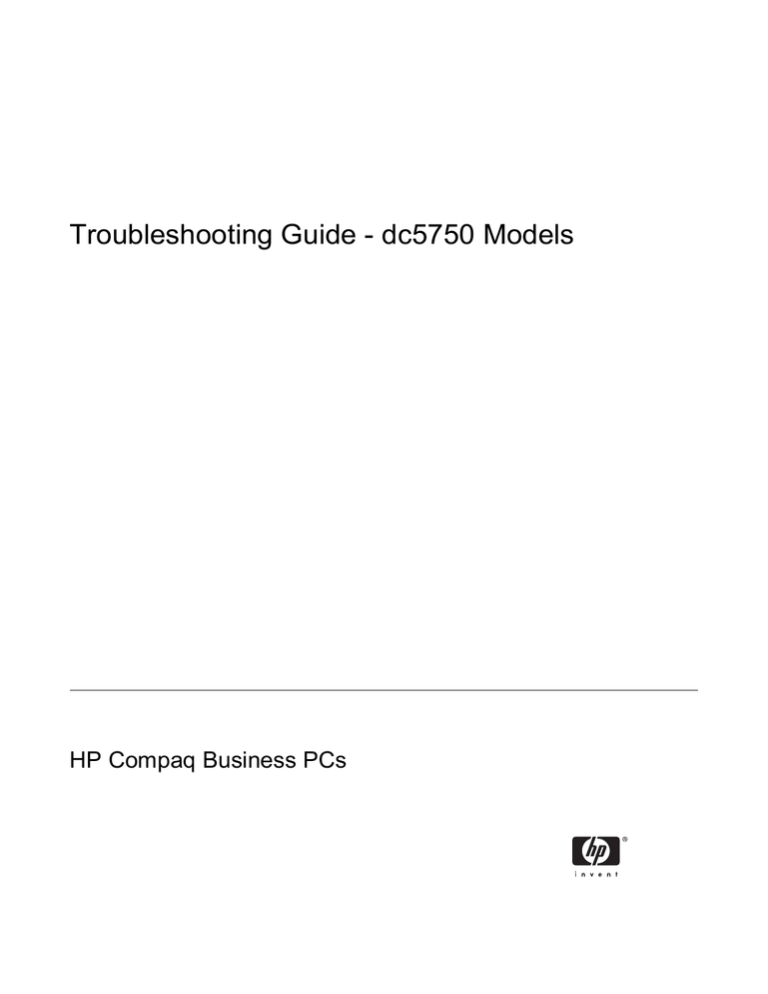

Troubleshooting Guide - dc5750 Models
HP Compaq Business PCs
© Copyright 2006 Hewlett-Packard
Development Company, L.P. The
information contained herein is subject to
change without notice.
Microsoft and Windows are trademarks of
Microsoft Corporation in the U.S. and other
countries.
The only warranties for HP products and
services are set forth in the express warranty
statements accompanying such products
and services. Nothing herein should be
construed as constituting an additional
warranty. HP shall not be liable for technical
or editorial errors or omissions contained
herein.
This document contains proprietary
information that is protected by copyright. No
part of this document may be photocopied,
reproduced, or translated to another
language without the prior written consent of
Hewlett-Packard Company.
Troubleshooting Guide
HP Compaq Business PC
dc5750 Models
First Edition (October 2006)
Document Part Number: 434211-001
About This Book
WARNING! Text set off in this manner indicates that failure to follow directions could result in
bodily harm or loss of life.
CAUTION Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
NOTE Text set off in this manner provides important supplemental information.
ENWW
iii
iv
About This Book
ENWW
Table of contents
1 Computer Diagnostic Features
HP Insight Diagnostics ......................................................................................................................... 1
Accessing HP Insight Diagnostics ....................................................................................... 1
Survey Tab .......................................................................................................................... 2
Test Tab ............................................................................................................................... 2
Status Tab ........................................................................................................................... 3
Log Tab ................................................................................................................................ 4
Help Tab .............................................................................................................................. 4
Saving and Printing Information in HP Insight Diagnostics .................................................. 4
Downloading the Latest Version of HP Insight Diagnostics ................................................. 5
Protecting the Software ........................................................................................................................ 5
Restoring the Software ......................................................................................................................... 6
2 Troubleshooting Without Diagnostics
Safety and Comfort .............................................................................................................................. 7
Before You Call for Technical Support ................................................................................................. 7
Helpful Hints ......................................................................................................................................... 8
Solving General Problems .................................................................................................................. 10
Solving Power Problems .................................................................................................................... 14
Solving Diskette Problems ................................................................................................................. 15
Solving Hard Drive Problems ............................................................................................................. 18
Solving Media Card Reader Problems ............................................................................................... 20
Solving Display Problems ................................................................................................................... 22
Solving Audio Problems ..................................................................................................................... 26
Solving Printer Problems .................................................................................................................... 28
Solving Keyboard and Mouse Problems ............................................................................................ 29
Solving Hardware Installation Problems ............................................................................................. 31
Solving Network Problems ................................................................................................................. 33
Solving Memory Problems ................................................................................................................. 36
Solving Processor Problems .............................................................................................................. 38
Solving CD-ROM and DVD Problems ................................................................................................ 39
Solving Drive Key Problems ............................................................................................................... 42
Solving Front Panel Component Problems ........................................................................................ 43
Solving Internet Access Problems ...................................................................................................... 44
Solving Software Problems ................................................................................................................ 46
Contacting Customer Support ............................................................................................................ 47
Appendix A POST Error Messages
POST Numeric Codes and Text Messages ....................................................................................... 50
ENWW
v
Interpreting POST Diagnostic Front Panel LEDs and Audible Codes ................................................ 56
Appendix B Password Security and Resetting CMOS
Resetting the Password Jumper ........................................................................................................ 60
Clearing and Resetting the CMOS ..................................................................................................... 61
Using Computer Setup to Reset CMOS ............................................................................ 61
Using the CMOS Switch to Reset CMOS .......................................................................... 61
Appendix C Drive Protection System (DPS)
Accessing DPS Through Computer Setup ......................................................................................... 64
Index ................................................................................................................................................................... 65
vi
ENWW
1
Computer Diagnostic Features
HP Insight Diagnostics
NOTE HP Insight Diagnostics is included on CD with some computer models only.
The HP Insight Diagnostics utility allows you to view information about the hardware configuration of
the computer and perform hardware diagnostic tests on the subsystems of the computer. The utility
simplifies the process of effectively identifying, diagnosing, and isolating hardware issues.
The Survey tab is displayed when you invoke HP Insight Diagnostics. This tab shows the current
configuration of the computer. From the Survey tab, there is access to several categories of information
about the computer. Other tabs provide additional information, including diagnostic test options and test
results. The information in each screen of the utility can be saved as an html file and stored on a diskette
or USB HP Drive Key.
Use HP Insight Diagnostics to determine if all the devices installed on the computer are recognized by
the system and functioning properly. Running tests is optional but recommended after installing or
connecting a new device.
You should run tests, save the test results, and print them so that you have printed reports available
before placing a call to the Customer Support Center.
NOTE Third party devices may not be detected by HP Insight Diagnostics.
Accessing HP Insight Diagnostics
You must boot to the Documentation and Diagnostics CD, as described in the steps below, to access
HP Insight Diagnostics.
1.
While the computer is on, insert the Documentation and Diagnostics CD into an optical drive on
the computer.
2.
Shut down the operating system and turn off the computer.
3.
Turn on the computer. The system will boot to the CD.
NOTE If the system does not boot to the CD in the optical drive, you may need to change
the boot order in the Computer Setup (F10) utility so that the system attempts to boot to the
optical drive before booting to the hard drive. Refer to the Computer Setup (F10) Utility
Guide on the Documentation and Diagnostics CD for more information.
You can also change the boot order so that the system boots to the optical drive on a onetime basis by pressing the F9 key at startup.
ENWW
HP Insight Diagnostics
1
4.
Select the appropriate language and click Continue.
NOTE It is recommended that you accept the assigned default keyboard for your language
unless you want to test your specific keyboard.
5.
In the End User License Agreement page, click Agree if you agree with the terms. The HP Insight
Diagnostics utility launches with the Survey tab displayed.
Survey Tab
The Survey tab displays important system configuration information.
In the View level field, you can select the Summary view to see limited configuration data or select
the Advanced view to see all the data in the selected category.
In the Category field, you can select the following categories of information to display:
All—Gives a listing of all categories of information about the computer.
Overview—Gives you a listing of general information about the computer.
Architecture—Provides system BIOS and PCI device information.
Asset Control—Shows product name, asset tag, system serial number, and processor information.
Communication—Shows information about the computer parallel (LPT) and serial (COM) port settings,
plus USB and network controller information.
Graphics—Shows information about the graphics controller of the computer.
Input Devices—Shows information about the keyboard, mouse, and other input devices connected to
the computer.
Memory—Shows information about all memory in the computer. This includes memory slots on the
system board and any memory modules installed.
Miscellaneous—Shows HP Insight Diagnostics version information, computer configuration memory
(CMOS) information, system board data, and system management BIOS data.
Storage—Shows information about storage media connected to the computer. This list includes all fixed
disks, diskette drives, and optical drives.
System—Shows information about the computer model, processor, chassis, and BIOS, plus internal
speaker and PCI bus information.
Test Tab
The Test tab allows you to choose various parts of the system to test. You can also choose the type of
test and testing mode.
2
Chapter 1 Computer Diagnostic Features
ENWW
There are three types of tests to choose from:
●
Quick Test—Provides a predetermined script where a sample of each hardware component is
exercised and requires no user intervention in either Unattended or Interactive mode.
●
Complete Test—Provides a predetermined script where each hardware component is fully tested.
There are more tests available in the Interactive mode, but these require user intervention.
●
Custom Test—Provides the most flexibility in controlling the testing of a system. The Custom Test
mode allows you to specifically select which devices, tests, and test parameters are run.
For each test type, there are two test modes to choose from:
●
Interactive Mode—Provides maximum control over the testing process. The diagnostic software
will prompt you for input during tests that require your interaction. You may also determine whether
the test passed or failed.
●
Unattended Mode—Does not display prompts and requires no interaction. If errors are found, they
are displayed when testing is complete.
To begin testing:
1.
Select the Test tab.
2.
Select the tab for the type of test you want to run: Quick, Complete, or Custom.
3.
Select the Test Mode: Interactive or Unattended.
4.
Choose how you want the test to be executed, either Number of Loops or Total Test Time. When
choosing to run the test over a specified number of loops, enter the number of loops to perform. If
you desire to have the diagnostic test for a specified time period, enter the amount of time in
minutes.
5.
If performing a Quick Test or Complete Test, select the device to be tested from the drop-down
list. If performing a Custom Test, Click the Expand button and select the devices to be tested or
click the Check All button to select all devices.
6.
Click the Begin Testing button at the bottom right corner of the screen to start the test. The Status
tab, which allows you to monitor the progress of the test, is automatically displayed during the
testing process. When the test is complete, the Status tab shows whether the device passed or
failed.
7.
If errors are found, go to the Log tab and click the Error Log to display more detailed information
and recommended actions.
Status Tab
The Status tab displays the status of the selected tests. The type of test executed (Quick, Complete,
or Custom) is also displayed. The main progress bar displays the percent complete of the current set
of tests. While testing is in progress, a Cancel Testing button is displayed for use if you want to cancel
the test.
After testing has completed, the Cancel Testing button is replaced with a Retest button. The Retest
button will retest the last set of tests executed. This enables you to re-run the set of tests without having
to re-enter the data in the Test tab.
ENWW
HP Insight Diagnostics
3
The Status tab also shows:
●
The devices being tested
●
The test status (running, passed, or failed) of each device being tested
●
The overall test progress of all devices being tested
●
The test progress for each device being tested
●
The elapsed test times for each device being tested
Log Tab
The Log tab contains a Test Log tab and an Error Log tab.
The Test Log displays all tests that have been executed, the number of times of execution, the number
of times failed, and the time it took to complete each test. The Clear Test Log button will clear the
contents of the Test Log.
The Error Log displays the tests for devices that have failed during the diagnostic testing and includes
the following columns of information.
●
The Device section displays the device tested.
●
The Test section displays the type of test run.
●
The Description section describes the error that the diagnostic test found.
●
The Recommended Repair will give a recommended action that should be performed to resolve
the failed hardware.
●
The Failed Count is the number of times the device has failed a test.
●
The Error Code provides a numerical code for the failure. The error codes are defined in the Help
tab.
The Clear Error Log button will clear the contents of the Error Log.
Help Tab
The Help tab contains an HP Insight Diagnostics tab, an Error Codes tab, and a Test
Components tab.
The HP Insight Diagnostics tab contains help topics and includes search and index features.
The Error Codes tab provides a description of each numerical error code that may appear in the Error
Log tab located on the Log tab. Each code has a corresponding error Message and a Recommended
Repair action that should help solve the problem. To find an error code description quickly, enter the
code in the box at the top of the tab and click the Find Error Codes button.
The Test Components tab displays low-level information on tests that are run.
Saving and Printing Information in HP Insight Diagnostics
You can save the information displayed in the HP Insight Diagnostics Survey and Log tabs to a diskette
or a USB 2.0 HP Drive Key (64MB or higher). You can not save to the hard drive. The system will
4
Chapter 1 Computer Diagnostic Features
ENWW
automatically create an html file that has the same appearance as the information displayed on the
screen.
1.
Insert a diskette or USB 2.0 HP Drive Key (capacity must be 64MB or higher). USB 1.0 Drive Keys
are not supported.
2.
Click Save in the bottom right corner of the screen.
3.
Select Save to the floppy or Save to USB key.
4.
Enter a file name in the File Name box and click the Save button. An html file will be saved to the
inserted diskette or USB HP Drive Key.
NOTE Do not remove the diskette or USB key until you see a message indicating that the
html file has been written to the media.
5.
Print the information from the storage device used to save it.
NOTE To exit HP Insight Diagnostics, click the Exit Diagnostics button in the bottom left corner
of the screen then remove the Documentation and Diagnostics CD from the optical drive.
Downloading the Latest Version of HP Insight Diagnostics
1.
Go to http://www.hp.com.
2.
Click the Software & Driver Downloads link.
3.
Enter your product number (for example, dc5750) in the text box and press the Enter key.
4.
Select your specific computer model.
5.
Select your OS.
6.
Click the Diagnostic link.
7.
Click HP Insight Diagnostics Offline Edition.
8.
Select a language and click Download.
NOTE The download includes instructions on how to create the bootable CD.
Protecting the Software
To protect software from loss or damage, you should keep a backup copy of all system software,
applications, and related files stored on the hard drive. See the operating system or backup utility
documentation for instructions on making backup copies of data files.
ENWW
Protecting the Software
5
Restoring the Software
The HP Backup and Recovery Manager is an easy-to-use, versatile application that is pre-loaded on
each system and allows you to:
●
create Recovery Points to back up the entire system incrementally
●
back up the entire hard drive in a single archive
●
back up individual files
Backups can be scheduled to occur automatically at designated intervals, or they can be initiated
manually. Recovery can be performed from the Recovery Partition on the hard drive or the Recovery
Disc Set. The Recovery Disc Set includes the Restore Plus! CD, the Microsoft Operating System, and
any Supplemental Software CDs.
NOTE HP highly recommends that you create a Recovery Disc Set immediately before using
the computer and schedule regular automatic Recovery Point backups.
The HP Backup and Recovery Manager provides two basic recovery methods. The first, recovery of
files and folders, operates in Windows. The second, PC Recovery, requires a reboot to the Recovery
Partition or from the Recovery Disc Set. To reboot to the Recovery Partition, press F11 at startup when
you see the message “Press F11 for Emergency Recovery.”
NOTE For more information on using HP Backup and Recovery Manager, refer to the HP
Backup and Recovery Manager User Guide by selecting Start > HP Backup and Recovery >
HP Backup and Recovery Manager Manual.
6
Chapter 1 Computer Diagnostic Features
ENWW
2
Troubleshooting Without Diagnostics
This chapter provides information on how to identify and correct minor problems, such as diskette drive,
hard drive, optical drive, graphics, audio, memory, and software problems. If you encounter problems
with the computer, refer to the tables in this chapter for probable causes and recommended solutions.
NOTE For information on specific error messages that may appear on the screen during PowerOn Self-Test (POST) at startup, refer to Appendix A, POST Error Messages.
Safety and Comfort
WARNING! Misuse of the computer or failure to establish a safe and comfortable work
environment may result in discomfort or serious injury. Refer to the Safety & Comfort Guide on
the Documentation and Diagnostics CD and available on the Web site at http://www.hp.com/
ergo for more information on choosing a workspace and creating a safe and comfortable work
environment. This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. For more information, refer to Safety &
Regulatory Information on the Documentation and Diagnostics CD.
Before You Call for Technical Support
If you are having problems with the computer, try the appropriate solutions below to try to isolate the
exact problem before calling for technical support.
ENWW
●
Run the diagnostics utility. Refer to Chapter 1, Computer Diagnostic Features for more information.
●
Run the Drive Protection System (DPS) Self-Test in Computer Setup. Refer to the Computer Setup
(F10) Utility Guide on the Documentation and Diagnostics CD for more information.
●
Check the Power LED on the front of the computer to see if it is flashing red. The flashing lights
are error codes that will help you diagnose the problem. Refer to Appendix A, POST Error
Messages for more information.
●
If the screen is blank, plug the monitor into a different video port on the computer if one is available.
Or, change out the monitor with a monitor that you know is functioning properly.
●
If you are working on a network, plug another computer with a different cable into the network
connection. There may be a problem with the network plug or cable.
●
If you recently added new hardware, remove the hardware and see if the computer functions
properly.
●
If you recently installed new software, uninstall the software and see if the computer functions
properly.
Safety and Comfort
7
●
Boot the computer to the Safe Mode to see if it will boot without all of the drivers loaded. When
booting the operating system, use “Last Known Configuration.”
●
Refer to the comprehensive online technical support at http://www.hp.com/support.
●
Refer to the following Helpful Hints section in this guide.
To assist you in resolving problems online, HP Instant Support Professional Edition provides you with
self-solve diagnostics. If you need to contact HP support, use HP Instant Support Professional Edition's
online chat feature. Access HP Instant Support Professional Edition at: http://www.hp.com/go/ispe.
Access the Business Support Center (BSC) at http://www.hp.com/go/bizsupport for the latest online
support information, software and drivers, proactive notification, and worldwide community of peers and
HP experts.
If it becomes necessary to call for technical assistance, be prepared to do the following to ensure that
your service call is handled properly:
●
Be in front of your computer when you call.
●
Write down the computer serial number and product ID number, and the monitor serial number
before calling.
●
Spend time troubleshooting the problem with the service technician.
●
Remove any hardware that was recently added to your system.
●
Remove any software that was recently installed.
●
Restore the system to a Recovery Point created in HP Backup and Recovery Manager or run
the Restore Plus! CD. For more information on using HP Backup and Recovery Manager, refer to
the HP Backup and Recovery Manager User Guide by selecting Start > HP Backup and
Recovery > HP Backup and Recovery Manager Manual.
CAUTION Running the Restore Plus! CD will erase all data on the hard drive.
NOTE For sales information and warranty upgrades (Care Packs), call your local authorized
service provider or dealer.
Helpful Hints
If you encounter problems with the computer, monitor, or software, see the following list of general
suggestions before taking further action:
8
●
Check that the computer and monitor are plugged into a working electrical outlet.
●
Check to see that the voltage select switch (some models) is set to the appropriate voltage for your
region (115V or 230V).
●
Check to see that the computer is turned on and the green power light is on.
●
Check to see that the monitor is turned on and the green monitor light is on.
●
Check the Power LED on the front of the computer to see if it is flashing red. The flashing lights
are error codes that will help you diagnose the problem. Refer to Appendix A, POST Error
Messages for more information.
Chapter 2 Troubleshooting Without Diagnostics
ENWW
●
Turn up the brightness and contrast controls of the monitor if the monitor is dim.
●
Press and hold any key. If the system beeps, then the keyboard should be operating correctly.
●
Check all cable connections for loose connections or incorrect connections.
●
Wake the computer by pressing any key on the keyboard or pressing the power button. If the system
remains in suspend mode, shut down the computer by pressing and holding the power button for
at least four seconds then press the power button again to restart the computer. If the system will
not shut down, unplug the power cord, wait a few seconds, then plug it in again. The computer will
restart if automatic start on power loss is set in Computer Setup. If it does not restart, press the
power button to start the computer.
●
Reconfigure the computer after installing a non–plug and play expansion board or other option.
See Solving Hardware Installation Problems for instructions.
●
Be sure that all the needed device drivers have been installed. For example, if you are using a
printer, you need a driver for that model printer.
●
Remove all bootable media (diskette, CD, or USB device) from the system before turning it on.
●
If you have installed an operating system other than the factory-installed operating system, check
to be sure that it is supported on the system.
●
If the system has multiple video sources (embedded, PCI, or PCI-Express adapters) installed
(embedded video on some models only) and a single monitor, the monitor must be plugged into
the monitor connector on the source selected as the primary VGA adapter. During boot, the other
monitor connectors are disabled and if the monitor is connected into these ports, the monitor will
not function. You can select which source will be the default VGA source in Computer Setup.
CAUTION When the computer is plugged into an AC power source, there is always voltage
applied to the system board. You must disconnect the power cord from the power source before
opening the computer to prevent system board or component damage.
ENWW
Helpful Hints
9
Solving General Problems
You may be able to easily resolve the general problems described in this section. If a problem persists
and you are unable to resolve it yourself or if you feel uncomfortable about performing the operation,
contact an authorized dealer or reseller.
WARNING! When the computer is plugged into an AC power source, voltage is always applied
to the system board. To reduce the risk of personal injury from electrical shock and/or hot
surfaces, be sure to disconnect the power cord from the wall outlet and allow the internal system
components to cool before touching.
Look for the LED on the system board. If the LED is illuminated, the system still has power. Power
off the computer and remove the power cord before proceeding.
Table 2-1 Solving General Problems
Computer appears locked up and will not turn off when the power button is pressed.
Cause
Solution
Software control of the power switch is not functional.
1.
Press and hold the power button for at least four seconds
until the computer turns off.
2.
Disconnect the power cord from the electrical outlet.
Computer will not respond to USB keyboard or mouse.
Cause
Solution
Computer is in standby mode.
To resume from standby mode, press the power button.
CAUTION When attempting to resume from
standby mode, do not hold down the power button for
more than four seconds. Otherwise, the computer will
shut down and you will lose any unsaved data.
System has locked up.
Restart computer.
Computer date and time display is incorrect.
Cause
Solution
RTC (real-time clock) battery may need to be replaced.
First, reset the date and time under Control Panel (Computer
Setup can also be used to update the RTC date and time). If
the problem persists, replace the RTC battery. See the
Hardware Reference Guide on the Documentation and
Diagnostics CD for instructions on installing a new battery, or
contact an authorized dealer or reseller for RTC battery
replacement.
NOTE Connecting the computer to a live AC outlet
prolongs the life of the RTC battery.
10
Chapter 2 Troubleshooting Without Diagnostics
ENWW
Table 2-1 Solving General Problems (continued)
Cursor will not move using the arrow keys on the keypad.
Cause
Solution
The Num Lock key may be on.
Press the Num Lock key. The Num Lock light should not be on
if you want to use the arrow keys. The Num Lock key can be
disabled (or enabled) in Computer Setup.
There is no sound or sound volume is too low.
Cause
Solution
System volume may be set low or muted.
1.
Check the F10 BIOS settings to make sure the internal
system speaker is not muted (this setting does not affect
the external speakers).
2.
Make sure the external speakers are properly connected
and powered on and that the speakers' volume control is
set correctly.
3.
Use the system volume control available in the operating
system to make sure the speakers are not muted or to
increase the volume.
The audio device may be connected to the wrong jack on the
rear of the computer or the jack has been retasked to perform
a different function.
Ensure that the device is connected to the correct jack on the
rear of the computer. If the correct jack is being used and the
problem persists, the jack may have been retasked to perform
a function that is different from the default function. Open the
Realtek control panel by clicking the Realtek HD Audio
Manager icon in the task tray or the Realtek entry in the
operating system's Control Panel and set the jack to the
desired function.
Poor performance is experienced.
ENWW
Cause
Solution
Processor is hot.
1.
Make sure airflow to the computer is not blocked. Leave
a 10.2-cm (4-inch) clearance on all vented sides of the
computer and above the monitor to permit the required
airflow.
2.
Make sure fans are connected and working properly
(some fans only operate when needed).
3.
Make sure the processor heatsink is installed properly.
Hard drive is full.
Transfer data from the hard drive to create more space on the
hard drive.
Low on memory.
Add more memory.
Hard drive fragmented.
Defragment hard drive.
Program previously accessed did not release reserved
memory back to the system.
Restart the computer.
Virus resident on the hard drive.
Run virus protection program.
Solving General Problems
11
Table 2-1 Solving General Problems (continued)
Poor performance is experienced.
Cause
Solution
Too many applications running.
1.
Close unnecessary applications to free up memory.
Some applications run in the background and can be
closed by right-clicking on their corresponding icons in the
task tray. To prevent these applications from launching at
startup, go to Start > Run and type msconfig. On the
Startup tab of the System Configuration Utility, uncheck
applications that you do not want to launch automatically.
CAUTION Do not prevent applications from
launching at startup that are required for proper
system operation.
Some software applications, especially games, are stressful
on the graphics subsystem
Cause unknown.
2.
Add more memory.
1.
Lower the display resolution for the current application or
consult the documentation that came with the application
for suggestions on how to improve performance by
adjusting parameters in the application.
2.
Add more memory.
3.
Upgrade the graphics solution.
Restart the computer.
Computer powered off automatically and the Power LED flashes Red two times, once every second, followed by a two
second pause, and the computer beeps two times. (Beeps stop after fifth iteration but LEDs continue flashing).
Cause
Solution
Processor thermal protection activated:
1.
Ensure that the computer air vents are not blocked and
the processor cooling fan is running.
2.
Open hood, press power button, and see if the processor
fan spins. If the processor fan is not spinning, make sure
the fan's cable is plugged onto the system board header.
3.
If fan is plugged in, but is not spinning, then replace the
heatsink/fan assembly.
4.
Contact an authorized reseller or service provider.
A fan may be blocked or not turning.
OR
The heatsink is not properly attached to the processor.
12
Chapter 2 Troubleshooting Without Diagnostics
ENWW
Table 2-1 Solving General Problems (continued)
System does not power on and the LEDs on the front of the computer are not flashing.
Cause
Solution
System unable to power on.
Press and hold the power button for less than 4 seconds. If the
hard drive LED turns green, then:
1.
Check that the voltage selector, located on the rear of the
power supply on some models, is set to the appropriate
voltage. Proper voltage setting depends on your region.
2.
Remove the expansion cards one at a time until the
5V_aux light on the system board turns on.
3.
Replace the system board.
OR
Press and hold the power button for less than 4 seconds. If the
hard drive LED does not turn on green then:
ENWW
1.
Check that the unit is plugged into a working AC outlet.
2.
Open hood and check that the power button harness is
properly connected to the system board.
3.
Check that both power supply cables are properly
connected to the system board.
4.
Check to see if the 5V_aux light on the system board is
turned on. If it is turned on, then replace the power button
harness.
5.
If the 5V_aux light on the system board is off, then replace
the power supply.
6.
Replace the system board.
Solving General Problems
13
Solving Power Problems
Common causes and solutions for power problems are listed in the following table.
Table 2-2 Solving Power Problems
Power supply shuts down intermittently.
Cause
Solution
Voltage selector switch on rear of computer chassis (some
models) not switched to correct line voltage (115V or 230V).
Select the proper AC voltage using the selector switch.
Power supply will not turn on because of internal power supply
fault.
Contact an authorized service provider to replace the power
supply.
Computer powered off automatically and the Power LED flashes Red two times, once every second, followed by a two
second pause, and the computer beeps two times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Processor thermal protection activated:
1.
Ensure that the computer air vents are not blocked and
the processor cooling fan is running.
2.
Open hood, press power button, and see if the processor
fan spins. If the processor fan is not spinning, make sure
the fan's cable is plugged onto the system board header.
3.
If fan is plugged in, but is not spinning, then replace the
heatsink/fan assembly.
4.
Contact an authorized reseller or service provider.
A fan may be blocked or not turning.
OR
The heatsink is not properly attached to the processor.
Power LED flashes Red four times, once every second, followed by a two second pause, and the computer beeps four
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
14
Cause
Solution
Power failure (power supply is overloaded).
1.
Check that the voltage selector, located on the rear of the
power supply (some models), is set to the appropriate
voltage. Proper voltage setting depends on your region.
2.
Open the hood and ensure the 4- or 6-wire power supply
cable is seated into the connector on the system board.
3.
Check if a device is causing the problem by removing ALL
attached devices (such as hard, diskette, or optical
drives, and expansion cards). Power on the system. If the
system enters the POST, then power off and replace one
device at a time and repeat this procedure until failure
occurs. Replace the device that is causing the failure.
Continue adding devices one at a time to ensure all
devices are functioning properly.
4.
Replace the power supply.
5.
Replace the system board.
Chapter 2 Troubleshooting Without Diagnostics
ENWW
Solving Diskette Problems
Common causes and solutions for diskette problems are listed in the following table.
NOTE You may need to reconfigure the computer when you add or remove hardware, such as
an additional diskette drive. See Solving Hardware Installation Problems for instructions.
Table 2-3 Solving Diskette Problems
Diskette drive light stays on.
Cause
Solution
Diskette is damaged.
In Microsoft Windows XP, right-click Start, click Explore, and
select a drive. Select File > Properties > Tools. Under Errorchecking click Check Now.
Diskette is incorrectly inserted.
Remove diskette and reinsert.
Drive cable is not properly connected.
Reconnect drive cable. Ensure that all four pins on the diskette
power cable are connected to the drive.
Drive not found.
Cause
Solution
Cable is loose.
Reseat diskette drive data and power cables.
Removable drive is not seated properly.
Reseat the drive.
Diskette drive cannot write to a diskette.
ENWW
Cause
Solution
Diskette is not formatted.
Format the diskette.
1.
From Windows Explorer select the disk (A) drive.
2.
Right-click the drive letter and select Format.
3.
Select the desired options, and click Start to begin
formatting the diskette.
Diskette is write-protected.
Use another diskette or remove the write protection.
Writing to the wrong drive.
Check the drive letter in the path statement.
Not enough space is left on the diskette.
1.
Use another diskette.
2.
Delete unneeded files from diskette.
Legacy diskette writes are disabled in Computer Setup.
Enter Computer Setup and enable Legacy Diskette Write
in Storage > Storage Options.
Diskette is damaged.
Replace the damaged disk.
Solving Diskette Problems
15
Table 2-3 Solving Diskette Problems (continued)
Cannot format diskette.
Cause
Solution
Invalid media reported.
When formatting a disk in MS-DOS, you may need to specify
diskette capacity. For example, to format a 1.44-MB diskette,
type the following command at the MS-DOS prompt:
FORMAT A: /F:1440
Disk may be write-protected.
Open the locking device on the diskette.
Legacy diskette writes are disabled in Computer Setup.
Enter Computer Setup and enable Legacy Diskette Write
in Storage > Storage Options.
A problem has occurred with a disk transaction.
Cause
Solution
The directory structure is bad, or there is a problem with a file.
In Windows XP, right-click Start, click Explore, and select a
drive. Select File > Properties > Tools. Under Errorchecking, click Check Now.
Diskette drive cannot read a diskette.
Cause
Solution
You are using the wrong diskette type for the drive type.
Check the type of drive that you are using and use the correct
diskette type.
You are reading the wrong drive.
Check the drive letter in the path statement.
Diskette is damaged.
Replace the diskette with a new one.
“Invalid system disk” message is displayed.
Cause
Solution
A diskette that does not contain the system files needed to start
the computer has been inserted in the drive.
When drive activity stops, remove the diskette and press the
Spacebar. The computer should start up.
Diskette error has occurred.
Restart the computer by pressing the power button.
Cannot Boot to Diskette.
16
Cause
Solution
Diskette is not bootable.
Replace with a bootable diskette.
Diskette boot has been disabled in Computer Setup.
1.
Run Computer Setup and enable diskette boot in
Storage > Boot Order.
2.
Run Computer Setup and enable diskette boot in
Storage > Storage Options > Removable Media
Boot.
Chapter 2 Troubleshooting Without Diagnostics
ENWW
Table 2-3 Solving Diskette Problems (continued)
Cannot Boot to Diskette.
Cause
Solution
NOTE Both steps should be used as the
Removable Media Boot function in Computer Setup
overrides the Boot Order enable command.
Network server mode is enabled in Computer Setup.
ENWW
Run Computer Setup and disable Network Server Mode in
Security > Password Options.
Solving Diskette Problems
17
Solving Hard Drive Problems
Table 2-4 Solving Hard Drive Problems
Hard drive error occurs.
Cause
Solution
Hard disk has bad sectors or has failed.
1.
In Windows XP, right-click Start, click Explore, and
select a drive. Select File > Properties > Tools. Under
Error-checking, click Check Now.
2.
Use a utility to locate and block usage of bad sectors. If
necessary, reformat the hard disk.
Disk transaction problem.
Cause
Solution
Either the directory structure is bad or there is a problem with
a file.
In Windows XP, right-click Start, click Explore, and select a
drive. Select File > Properties > Tools. Under Errorchecking, click Check Now.
Drive not found (identified).
Cause
Solution
Cable could be loose.
Check cable connections.
The system may not have automatically recognized a newly
installed device.
See reconfiguration directions in the Solving Hardware
Installation Problems section. If the system still does not
recognize the new device, check to see if the device is listed
within Computer Setup. If it is listed, the probable cause is a
driver problem. If it is not listed, the probable cause is a
hardware problem.
If this is a newly installed drive, run the Computer Setup utility
and try adding a POST delay under Advanced > Power-On
Options.
The device is attached to a SATA port that has been disabled
in Computer Setup.
Run the Computer Setup utility and ensure the device's SATA
port is enabled in Storage > Storage Options.
Drive responds slowly immediately after power-up.
Run Computer Setup and increase the POST Delay in
Advanced > Power-On Options.
Nonsystem disk/NTLDR missing message.
18
Cause
Solution
The system is trying to start from a diskette that is not bootable.
Remove the diskette from the diskette drive.
The system is trying to start from the hard drive but the hard
drive may have been damaged.
1.
Insert a bootable diskette into the diskette drive and
restart the computer.
2.
Check the hard drive format using fdisk: If NTFS
formatting, use a third party reader to evaluate the drive.
If FAT32 formatting, the hard drive cannot be accessed.
Chapter 2 Troubleshooting Without Diagnostics
ENWW
Table 2-4 Solving Hard Drive Problems (continued)
Nonsystem disk/NTLDR missing message.
Cause
Solution
System files missing or not properly installed.
1.
Insert a bootable diskette into the diskette drive and
restart the computer.
2.
Check the hard drive format using Fdisk: If NTFS
formatting, use a third party reader to evaluate the drive.
If FAT32 formatting, the hard drive cannot be accessed.
3.
Install system files for the appropriate operating system.
4.
Restore the system to a recovery point in HP Backup and
Recovery Manager. Refer to the HP Backup and
Recovery Manager User Guide in the Windows Start
menu for more information.
Hard drive boot has been disabled in Computer Setup.
Run the Computer Setup utility and enable the hard drive entry
in the Storage > Boot Order list.
Bootable hard drive is not attached as first in a multi-hard drive
configuration.
If attempting to boot from a hard drive, ensure it is attached to
the system board connector labeled P60 SATA 0.
Bootable hard drive's controller is not listed first in the Boot
Order.
Run the Computer Setup utility and select Storage > Boot
Order and ensure the bootable hard drive's controller is listed
immediately under the Hard Drive entry.
Computer will not boot from hard drive.
Cause
Solution
The device is attached to a SATA port that has been disabled
in Computer Setup.
Run the Computer Setup utility and ensure the device's SATA
port is enabled in Storage > Storage Options.
Boot order is not correct.
Run the Computer Setup utility and change boot sequence
in Storage > Boot Order.
Hard Drive's "Emulation Type" is set to "None."
Run the Computer Setup utility and change the "Emulation
Type" to "Hard Disk" in the device's details under Storage >
Device Configuration.
The device is attached to a SATA port that has been disabled
in Computer Setup.
Run the Computer Setup utility and ensure the device's SATA
port is enabled in Storage > Storage Options.
Hard drive is damaged.
Observe if the front panel Power LED is blinking RED and if
any beeps are heard. See Appendix A, POST Error
Messages to determine possible causes for the blinking red
and beep codes.
See the Worldwide Limited Warranty for terms and conditions.
Computer seems to be locked up.
ENWW
Cause
Solution
Program in use has stopped responding to commands.
Attempt the normal Windows “Shut Down” procedure. If this
fails, press the power button for four or more seconds to turn
off the power. To restart the computer, press the power button
again.
Solving Hard Drive Problems
19
Solving Media Card Reader Problems
Table 2-5 Solving Media Card Reader Problems
Media card will not work in a digital camera after formatting it in Microsoft Windows XP.
Cause
Solution
By default, Windows XP will format any media card with a
capacity greater than 32MB with the FAT32 format. Most digital
cameras use the FAT (FAT16 & FAT12) format and can not
operate with a FAT32 formatted card.
Either format the media card in the digital camera or select FAT
file system to format the media card in a computer with
Windows XP.
A write-protected or locked error occurs when attempting to write to the media card.
Cause
Solution
Media card is locked. Locking the media card is a safety feature
that prevents writing to and deleting from an SD/Memory Stick/
PRO card.
If using an SD card, make sure that the lock tab located on the
right of the SD card is not in the locked position. If using a
Memory Stick/PRO card, make sure that the lock tab located
on the bottom of the Memory Stick/PRO card is not in the
locked position.
Can not write to the media card.
Cause
Solution
The media card is a read-only memory (ROM) card.
Check the manufacturer’s documentation included with your
card to see if it is writable.
Unable to access data on the media card after inserting it into a slot.
Cause
Solution
The media card is not inserted properly, is inserted in the wrong
slot, or is not supported.
Ensure that the card is inserted properly with the gold contact
on the correct side. The green LED will light if inserted properly.
Do not know how to remove a media card correctly.
Cause
Solution
The computer’s software is used to safely eject the card.
Open My Computer, right-click on the corresponding drive
icon, and select Eject. Then pull the card out of the slot.
NOTE Never remove the card when the green LED
is flashing.
20
Chapter 2 Troubleshooting Without Diagnostics
ENWW
Table 2-5 Solving Media Card Reader Problems (continued)
After installing the media card reader and booting to Windows, the reader and the inserted cards are not recognized
by the computer.
Cause
Solution
The operating system needs time to recognize the device if the
reader was just installed into the computer and you are turning
the PC on for the first time.
Wait a few seconds so that the operating system can recognize
the reader and the available ports, and then recognize
whatever media is inserted in the reader.
After inserting a media card in the reader, the computer attempts to boot from the media card.
Cause
Solution
The inserted media card has boot capability.
If you do not want to boot from the media card, remove it during
boot or do not select the option to boot from the inserted media
card during the boot process.
Computer will not boot from a USB removable drive or media that is inserted in the USB port on the media card reader.
Cause
Solution
The media card reader is connected to the computer via the
PCI card, which is not supported on the HP Desktop BIOS.
The bootable USB device will have boot support if you connect
the media card reader to an available USB connector on the
computer’s system board. If no connector is available, plug the
bootable device into a different USB port on the computer.
After installing the media card reader, the front USB ports on the computer do not work.
ENWW
Cause
Solution
The USB cable for the front USB ports was disconnected so
that the system board connector could be used for the reader.
Reconnect the cable for the front USB ports. Install the PCI
card and connect the media reader to the USB connector on
the PCI card.
Solving Media Card Reader Problems
21
Solving Display Problems
If you encounter display problems, see the documentation that came with the monitor and to the common
causes and solutions listed in the following table.
Table 2-6 Solving Display Problems
Blank screen (no video).
Cause
Solution
Monitor is not turned on and the monitor light is not on.
Turn on the monitor and check that the monitor light is on.
Bad monitor.
Try a different monitor.
The cable connections are not correct.
Check the cable connection from the monitor to the computer
and to the electrical outlet.
You may have a screen blanking utility installed or energy
saver features are enabled.
Press any key or click the mouse button and, if set, type your
password.
System ROM is corrupted; system is running in Boot Block
Emergency Recovery Mode (indicated by eight beeps).
Reflash the system ROM with the latest BIOS image. See the
“Boot Block Emergency Recovery Mode” section of the
Desktop Management Guide on the Documentation and
Diagnostics CD for more information.
You are using a fixed-sync monitor and it will not sync at the
resolution chosen.
Be sure that the monitor can accept the same horizontal scan
rate as the resolution chosen.
Computer is in standby mode.
Press the power button to resume from standby mode.
CAUTION When attempting to resume from
standby mode, do not hold down the power button for
more than four seconds. Otherwise, the computer will
shut down and you will lose any unsaved data.
Monitor cable is plugged into the wrong connector.
Ensure that the monitor is plugged into an active connector on
the rear of the computer. If another connector is available,
connect the monitor to that connector and reboot the system.
Monitor settings in the computer are not compatible with the
monitor.
1.
Restart the computer and press F8 during startup when
you see “Press F8” in the bottom right corner of the
screen.
2.
Using the keyboard arrow keys, select Enable VGA
Mode and press Enter.
3.
In Windows Control Panel, double-click the Display icon
and select the Settings tab.
4.
Use the sliding control to reset the resolution.
Cannot enable integrated graphics after installing a PCI Express graphics card.
22
Cause
Solution
On systems with ATI integrated graphics, the integrated
graphics can be enabled in Computer Setup only if an ATI PCI
Express graphics card is installed.
On systems with ATI integrated graphics, install an ATI PCI
Express graphics card and enable the integrated graphics in
Computer Setup.
Chapter 2 Troubleshooting Without Diagnostics
ENWW
Table 2-6 Solving Display Problems (continued)
Blank screen and the power LED flashes Red five times, once every second, followed by a two second pause, and the
computer beeps five times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Pre-video memory error.
1.
Reseat DIMMs. Power on the system.
2.
Replace DIMMs one at a time to isolate the faulty module.
3.
Replace third-party memory with HP memory.
4.
Replace the system board.
Blank screen and the power LED flashes Red six times, once every second, followed by a two second pause, and the
computer beeps six times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Pre-video graphics error.
For systems with a graphics card:
1.
Reseat the graphics card. Power on the system.
2.
Replace the graphics card.
3.
Replace the system board.
For systems with integrated graphics, replace the system
board.
Blank screen and the power LED flashes Red seven times, once every second, followed by a two second pause, and
the computer beeps seven times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
System board failure (ROM detected failure prior to video).
Replace the system board.
Monitor does not function properly when used with energy saver features.
Cause
Solution
Monitor without energy saver capabilities is being used with
energy saver features enabled.
Disable monitor energy saver feature.
Dim characters.
ENWW
Cause
Solution
The brightness and contrast controls are not set properly.
Adjust the monitor brightness and contrast controls.
Cables are not properly connected.
Check that the graphics cable is securely connected to the
graphics card and the monitor.
Solving Display Problems
23
Table 2-6 Solving Display Problems (continued)
Blurry video or requested resolution cannot be set.
Cause
Solution
If the graphics controller was upgraded, the correct graphics
drivers may not be loaded.
Install the video drivers included in the upgrade kit.
Monitor is not capable of displaying requested resolution.
Change requested resolution.
Graphics card is bad.
Replace the graphics card.
The picture is broken up, rolls, jitters, or flashes.
Cause
Solution
The monitor connections may be incomplete or the monitor
may be incorrectly adjusted.
1.
Be sure the monitor cable is securely connected to the
computer.
2.
In a two-monitor system or if another monitor is in close
proximity, be sure the monitors are not interfering with
each other’s electromagnetic field by moving them apart.
3.
Fluorescent lights or fans may be too close to the monitor.
Monitor needs to be degaussed.
Degauss the monitor. Refer to the documentation that came
with the monitor for instructions.
Image is not centered.
Cause
Solution
Position may need adjustment.
Press the Menu button to access the OSD menu. Select
ImageControl/ Horizontal Position or Vertical Position to
adjust the horizontal or vertical position of the image.
“No Connection, Check Signal Cable” displays on screen.
Cause
Solution
Monitor video cable is disconnected.
Connect the video cable between the monitor and computer.
CAUTION Ensure that the computer power is off
while connecting the video cable.
“Out of Range” displays on screen.
24
Cause
Solution
Video resolution and refresh rate are set higher than what the
monitor supports.
Restart the computer and enter Safe Mode. Change the
settings to a supported setting then restart the computer so that
the new settings take effect.
Chapter 2 Troubleshooting Without Diagnostics
ENWW
Table 2-6 Solving Display Problems (continued)
Vibrating or rattling noise coming from inside a CRT monitor when powered on.
Cause
Solution
Monitor degaussing coil has been activated.
None. It is normal for the degaussing coil to be activated when
the monitor is powered on.
Clicking noise coming from inside a CRT monitor.
Cause
Solution
Electronic relays have been activated inside the monitor.
None. It is normal for some monitors to make a clicking noise
when turned on and off, when going in and out of standby
mode, and when changing resolutions.
High pitched noise coming from inside a flat panel monitor.
Cause
Solution
Brightness and/or contrast settings are too high.
Lower brightness and/or contrast settings.
Fuzzy focus; streaking, ghosting, or shadowing effects; horizontal scrolling lines; faint vertical bars; or unable to
center the picture on the screen (flat panel monitors using an analog VGA input connection only).
Cause
Solution
Flat panel monitor’s internal digital conversion circuits may be
unable to correctly interpret the output synchronization of the
graphics card.
1.
Select the monitor’s Auto-Adjustment option in the
monitor’s on-screen display menu.
2.
Manually synchronize the Clock and Clock Phase onscreen display functions. To download a SoftPaq that will
assist you with the synchronization, go to the following
Web site, select the appropriate monitor, and download
either SP32347 or SP32202: http://www.hp.com/support
1.
Reseat the graphics card.
2.
Replace the graphics card.
Graphics card is not seated properly or is bad.
Certain typed symbols do not appear correct.
ENWW
Cause
Solution
The font you are using does not support that particular symbol.
Use the Character Map to locate and select the appropriate
symbol. Click Start > All Programs > Accessories > System
Tools > Character Map. You can copy the symbol from the
Character Map into a document.
Solving Display Problems
25
Solving Audio Problems
If the computer has audio features and you encounter audio problems, see the common causes and
solutions listed in the following table.
Table 2-7 Solving Audio Problems
Sound cuts in and out.
Cause
Solution
Processor resources are being used by other open
applications.
Shut down all open processor-intensive applications.
Direct sound latency, common in many media player
applications.
In Windows XP:
1.
From the Control Panel, select Sounds and Audio
Devices.
2.
On the Audio tab, select a device from the Sound
Playback list.
3.
Click the Advanced button and select the Performance
tab.
4.
Set the Hardware acceleration slider to None and the
Sample rate conversion quality slider to Good and
retest the audio.
5.
Set the Hardware acceleration slider to Full and the
Sample rate conversion quality slider to Best and
retest the audio.
Sound does not come out of the speaker or headphones.
26
Cause
Solution
Software volume control is turned down.
Double-click the Speaker icon on the taskbar, then make sure
that Mute is not selected and use the volume slider to adjust
the volume.
Audio is hidden in Computer Setup.
Enable the audio in Computer Setup: Security >
Device Security > Audio.
The external speakers are not turned on.
Turn on the external speakers.
The audio device may be connected to the wrong jack on the
rear of the computer or the jack has been retasked to perform
a different function.
Ensure that the device is connected to the correct jack on the
rear of the computer. If the correct jack is being used and the
problem persists, the jack may have been retasked to perform
a function that is different from the default function. Open the
Realtek control panel by clicking the Realtek HD Audio
Manager icon in the task tray or the Realtek entry in the
operating system's Control Panel and set the jack to the
desired function.
External speakers plugged into the wrong audio jack on a
recently installed sound card.
See the sound card documentation for proper speaker
connection.
Digital CD audio is not enabled.
Enable digital CD audio:
Chapter 2 Troubleshooting Without Diagnostics
1.
From the Control Panel, select System.
2.
On the Hardware tab, click the Device Manager button.
ENWW
Table 2-7 Solving Audio Problems (continued)
Sound does not come out of the speaker or headphones.
Cause
Solution
3.
Right-click on the CD/DVD device and select
Properties.
4.
On the Properties tab, make sure Enable digital CD
audio for this CD-ROM device is checked.
Headphones or devices connected to the line-out connector
mute the internal speaker.
Turn on and use headphones or external speakers, if
connected, or disconnect headphones or external speakers.
Volume is muted.
1.
From the Control Panel program, click Sound, Speech
and Audio Devices, then click Sounds and Audio
Devices.
2.
Click the Mute check box to remove the check mark from
the box.
Computer is in standby mode.
Press the power button to resume from standby mode.
CAUTION When attempting to resume from
standby mode, do not hold down the power button for
more than four seconds. Otherwise, the computer will
shut down and you will lose any unsaved data.
Sound from headphones is not clear or muffled.
Cause
Solution
Headphones are plugged into the rear audio output connector.
The rear audio output connector is for powered audio devices
and is not designed for headphone use.
Plug the headphones into the headphone connector on the
front of the computer.
Computer appears to be locked up while recording audio.
Cause
Solution
The hard disk may be full.
Before recording, make sure there is enough free space on the
hard disk. You can also try recording the audio file in a
compressed format.
Line-in, Line-out, headphone, or microphone jacks are not functioning properly.
ENWW
Cause
Solution
Jacks have been reconfigured in the audio driver or application
software.
In the audio driver or application software, reconfigure the
jacks or set the jacks to their default values.
Solving Audio Problems
27
Solving Printer Problems
If you encounter printer problems, see the documentation that came with the printer and to the common
causes and solutions listed in the following table.
Table 2-8 Solving Printer Problems
Printer will not print.
Cause
Solution
Printer is not turned on and online.
Turn the printer on and make sure it is online.
The correct printer drivers for the application are not installed.
1.
Install the correct printer driver for the application.
2.
Try printing using the MS-DOS command:
DIR C:\ > LPT1
If the printer works, reload the printer driver.
If you are on a network, you may not have made the connection
to the printer.
Make the proper network connections to the printer.
Printer may have failed.
Run printer self-test.
Printer will not turn on.
Cause
Solution
The cables may not be connected properly.
Reconnect all cables and check the power cord and electrical
outlet.
Printer prints garbled information.
Cause
Solution
The correct printer driver for the application is not installed.
Install the correct printer driver for the application.
The cables may not be connected properly.
Reconnect all cables.
Printer memory may be overloaded.
Reset the printer by turning it off for one minute, then turn it
back on.
Printer is offline.
28
Cause
Solution
The printer may be out of paper.
Check the paper tray and refill it if it is empty. Select online.
Chapter 2 Troubleshooting Without Diagnostics
ENWW
Solving Keyboard and Mouse Problems
If you encounter keyboard or mouse problems, see the documentation that came with the equipment
and to the common causes and solutions listed in the following table.
Table 2-9 Solving Keyboard Problems
Keyboard commands and typing are not recognized by the computer.
Cause
Solution
Keyboard connector is not properly connected.
1.
On the Windows Desktop, click Start.
2.
Click Shut Down. The Shut Down Windows dialog box
is displayed.
3.
Select Shut down.
4.
After the shutdown is complete, reconnect the keyboard
to the back of the computer and restart the computer.
Program in use has stopped responding to commands.
Shut down your computer using the mouse and then restart
the computer.
Keyboard needs repairs.
See the Worldwide Limited Warranty for terms and conditions.
Wireless device error.
1.
Check the software, if available, for device status.
2.
Check/replace device batteries.
3.
Reset receiver and keyboard.
Computer is in standby mode.
Press the power button to resume from standby mode.
CAUTION When attempting to resume from
standby mode, do not hold down the power button for
more than four seconds. Otherwise, the computer will
shut down and you will lose any unsaved data.
Cursor will not move using the arrow keys on the keypad.
Cause
Solution
The Num Lock key may be on.
Press the Num Lock key. The Num Lock light should not be on
if you want to use the arrow keys. The Num Lock key can be
disabled (or enabled) in Computer Setup.
Table 2-10 Solving Mouse Problems
Mouse does not respond to movement or is too slow.
ENWW
Cause
Solution
Mouse connector is not properly plugged into the back of the
computer.
Shut down the computer using the keyboard.
1.
Press the Ctrl and Esc keys at the same time (or press
the Windows logo key) to display the Start menu.
2.
Use the up or down arrow key to select Shut Down and
then press the Enter key.
Solving Keyboard and Mouse Problems
29
Table 2-10 Solving Mouse Problems (continued)
Mouse does not respond to movement or is too slow.
Cause
Solution
3.
Use the up or down arrow key to select the Shut Down
option and then press the Enter key.
4.
After the shutdown is complete, plug the mouse
connector into the back of the computer (or the keyboard)
and restart.
Program in use has stopped responding to commands.
Shut down the computer using the keyboard then restart the
computer.
Mouse may need cleaning.
Remove the roller ball cover on the mouse and clean the
internal components.
Mouse may need repair.
See the Worldwide Limited Warranty for terms and conditions.
Wireless device error.
1.
Check the software, if available, for device status.
2.
Check/replace device batteries.
3.
Reset receiver and mouse.
Computer is in standby mode.
Press the power button to resume from standby mode.
CAUTION When attempting to resume from
standby mode, do not hold down the power button for
more than four seconds. Otherwise, the computer will
shut down and you will lose any unsaved data.
Mouse will only move vertically, horizontally, or movement is jerky.
30
Cause
Solution
Mouse roller ball or the rotating encoder shafts that make
contact with the ball are dirty.
Remove roller ball cover from the bottom of the mouse and
clean the internal components with a mouse cleaning kit
available from most computer stores.
Chapter 2 Troubleshooting Without Diagnostics
ENWW
Solving Hardware Installation Problems
You may need to reconfigure the computer when you add or remove hardware, such as an additional
drive or expansion card. If you install a plug and play device, Windows XP automatically recognizes the
device and configures the computer. If you install a non–plug and play device, you must reconfigure the
computer after completing installation of the new hardware. In Windows XP, use the Add Hardware
Wizard and follow the instructions that appear on the screen.
WARNING! When the computer is plugged into an AC power source, voltage is always applied
to the system board. To reduce the risk of personal injury from electrical shock and/or hot
surfaces, be sure to disconnect the power cord from the wall outlet and allow the internal system
components to cool before touching.
Look for the LED on the system board. If the LED is illuminated, the system still has power. Power
off the computer and remove the power cord before proceeding.
Table 2-11 Solving Hardware Installation Problems
A new device is not recognized as part of the system.
Cause
Solution
Device is not seated or connected properly.
Ensure that the device is properly and securely connected and
that pins in the connector are not bent down.
Cable(s) of new external device are loose or power cables are
unplugged.
Ensure that all cables are properly and securely connected and
that pins in the cable or connector are not bent down.
Power switch of new external device is not turned on.
Turn off the computer, turn on the external device, then turn on
the computer to integrate the device with the computer system.
When the system advised you of changes to the configuration,
you did not accept them.
Reboot the computer and follow the instructions for accepting
the changes.
A plug and play board may not automatically configure when
added if the default configuration conflicts with other devices.
Use Windows XP Device Manager to deselect the automatic
settings for the board and choose a basic configuration that
does not cause a resource conflict. You can also use Computer
Setup to reconfigure or disable devices to resolve the resource
conflict.
USB ports on the computer are disabled in Computer Setup.
Enter Computer Setup (F10) and enable the USB ports.
Computer will not start.
ENWW
Cause
Solution
Wrong memory modules were used in the upgrade or memory
modules were installed in the wrong location.
1.
Review the documentation that came with the system to
determine if you are using the correct memory modules
and to verify the proper installation.
2.
Observe the beeps and LED lights on the front of the
computer. Beeps and flashing LEDs are codes for
specific problems.
3.
If you still cannot resolve the issue, contact Customer
Support.
Solving Hardware Installation Problems
31
Table 2-11 Solving Hardware Installation Problems (continued)
Power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Memory is installed incorrectly or is bad.
CAUTION To avoid damage to the DIMMs or the
system board, you must unplug the computer power
cord before attempting to reseat, install, or remove a
DIMM module.
1.
Reseat DIMMs. Power on the system.
2.
Replace DIMMs one at a time to isolate the faulty module.
3.
Replace third-party memory with HP memory.
4.
Replace the system board.
Power LED flashes Red six times, once every second, followed by a two second pause, and the computer beeps six
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Graphics card is not seated properly or is bad, or system board
is bad.
For systems with a graphics card:
1.
Reseat the graphics card. Power on the system.
2.
Replace the graphics card.
3.
Replace the system board.
For systems with integrated graphics, replace the system
board.
Power LED flashes Red ten times, once every second, followed by a two second pause, and the computer beeps ten
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
32
Cause
Solution
Bad option card.
1.
Check each option card by removing the cards one at time
(if multiple cards), then power on the system to see if fault
goes away.
2.
Once bad card is identified, remove and replace bad
option card.
3.
Replace the system board.
Chapter 2 Troubleshooting Without Diagnostics
ENWW
Solving Network Problems
Some common causes and solutions for network problems are listed in the following table. These
guidelines do not discuss the process of debugging the network cabling.
Table 2-12 Solving Network Problems
Wake-on-LAN feature is not functioning.
Cause
Solution
Wake-on-LAN is not enabled.
Enable Wake-on-LAN.
NOTE Some NICs come with their own
configuration applets that allow for more detailed
control and configuration of wake features. Refer to
the documentation included with the NIC for more
information.
1.
Select Start > Control Panel.
2.
Double-click Network Connections.
3.
Double-click Local Area Connection.
4.
Click Properties.
5.
Click Configure.
6.
Click the Power Management tab, then select the check
box to Allow this device to bring the computer out of
standby.
Network driver does not detect network controller.
Cause
Solution
Network controller is disabled.
1.
Run Computer Setup and enable network controller.
2.
Enable the network controller in the operating system via
Device Manager.
Incorrect network driver.
Check the network controller documentation for the correct
driver or obtain the latest driver from the manufacturer’s Web
site.
Network status link light never flashes.
NOTE The network status light is supposed to flash when there is network activity.
ENWW
Cause
Solution
No active network is detected.
Check cabling and network equipment for proper connection.
Network controller is not set up properly.
Check for the device status within Windows, such as Device
Manager for driver load and the Network Connections applet
within Windows for link status.
Network controller is disabled.
1.
Run Computer Setup and enable network controller.
2.
Enable the network controller in the operating system via
Device Manager.
Solving Network Problems
33
Table 2-12 Solving Network Problems (continued)
Network status link light never flashes.
NOTE The network status light is supposed to flash when there is network activity.
Cause
Solution
Network driver is not properly loaded.
Reinstall network drivers. See the Network & Internet
Communications Guide on the Documentation and
Diagnostics CD.
System cannot autosense the network.
Disable auto-sensing capabilities and force the system into the
correct operating mode. See the Network & Internet
Communications Guide on the Documentation and
Diagnostics CD.
Diagnostics reports a failure.
Cause
Solution
The cable is not securely connected.
Ensure that the cable is securely attached to the network
connector and that the other end of the cable is securely
attached to the correct device.
The cable is attached to the incorrect connector.
Ensure that the cable is attached to the correct connector.
There is a problem with the cable or a device at the other end
of the cable.
Ensure that the cable and device at the other end are operating
correctly.
Network controller interrupt is shared with an expansion board.
Under the Computer Setup Advanced menu, change the
resource settings for the board.
The network controller is defective.
Contact an authorized service provider.
Diagnostics passes, but the computer does not communicate with the network.
Cause
Solution
Network drivers are not loaded, or driver parameters do not
match current configuration.
Make sure the network drivers are loaded and that the driver
parameters match the configuration of the network controller.
Make sure the correct network client and protocol is installed.
The network controller is not configured for this computer.
Select the Network icon in the Control Panel and configure
the network controller.
Network controller stopped working when an expansion board was added to the computer.
34
Cause
Solution
Network controller interrupt is shared with an expansion board.
Under the Computer Setup Advanced menu, change the
resource settings for the board.
The network controller requires drivers.
Verify that the drivers were not accidentally deleted when the
drivers for a new expansion board were installed.
The expansion board installed is a network card (NIC) and
conflicts with the embedded NIC.
Under the Computer Setup Advanced menu, change the
resource settings for the board.
Chapter 2 Troubleshooting Without Diagnostics
ENWW
Table 2-12 Solving Network Problems (continued)
Network controller stops working without apparent cause.
Cause
Solution
The files containing the network drivers are corrupted.
Download the network drivers from http://www.hp.com and
reinstall them.
The cable is not securely connected.
Ensure that the cable is securely attached to the network
connector and that the other end of the cable is securely
attached to the correct device.
The network controller is defective.
Contact an authorized service provider.
New network card will not boot.
Cause
Solution
New network card may be defective or may not meet industrystandard specifications.
Install a working, industry-standard NIC, or change the boot
sequence to boot from another source.
Cannot connect to network server when attempting Remote System Installation.
Cause
Solution
The network controller is not configured properly.
Verify Network Connectivity, that a DHCP Server is present,
and that the Remote System Installation Server contains the
NIC drivers for your NIC.
System setup utility reports unprogrammed EEPROM.
ENWW
Cause
Solution
Unprogrammed EEPROM.
Contact an authorized service provider.
Solving Network Problems
35
Solving Memory Problems
If you encounter memory problems, some common causes and solutions are listed in the following table.
CAUTION Power may still be supplied to the DIMMs when the computer is turned off. To avoid
damage to the DIMMs or the system board, you must unplug the computer power cord before
attempting to reseat, install, or remove a DIMM module.
For those systems that support ECC memory, HP does not support mixing ECC and non-ECC
memory. Otherwise, the computer will not boot the operating system.
Table 2-13 Solving Memory Problems
System will not boot or does not function properly after installing additional memory modules.
Cause
Solution
Memory module is not the correct type or speed grade for the
system or the new memory module is not seated properly.
Replace module with the correct industry-standard device for
the computer. On some models, ECC and non-ECC memory
modules cannot be mixed.
Out of memory error.
Cause
Solution
Memory configuration may not be set up correctly.
Use the Device Manager to check memory configuration.
You have run out of memory to run the application.
Check the application documentation to determine the memory
requirements.
Memory count during POST is wrong.
Cause
Solution
The memory modules may not be installed correctly.
Check that the memory modules have been installed correctly
and that proper modules are used.
Integrated graphics may use system memory.
No action required.
Insufficient memory error during operation.
36
Cause
Solution
Too many Terminate and Stay Resident programs (TSRs) are
installed.
Delete any TSRs that you do not need.
You have run out of memory for the application.
Check the memory requirements for the application or add
more memory to the computer.
Chapter 2 Troubleshooting Without Diagnostics
ENWW
Table 2-13 Solving Memory Problems (continued)
Power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
ENWW
Cause
Solution
Memory is installed incorrectly or is bad.
1.
Reseat DIMMs. Power on the system.
2.
Replace DIMMs one at a time to isolate the faulty module.
3.
Replace third-party memory with HP memory.
4.
Replace the system board.
Solving Memory Problems
37
Solving Processor Problems
If you encounter processor problems, common causes and solutions are listed in the following table.
Table 2-14 Solving Processor Problems
Poor performance is experienced.
Cause
Solution
Processor is hot.
1.
Make sure the airflow to the computer is not blocked.
2.
Make sure the fans are connected and working properly
(some fans only operate when needed).
3.
Make sure the processor heatsink is installed properly.
Power LED flashes Red three times, once every second, followed by a two second pause.
38
Cause
Solution
Processor is not seated properly or not installed.
1.
Check to see that the processor is present.
2.
Reseat the processor.
Chapter 2 Troubleshooting Without Diagnostics
ENWW
Solving CD-ROM and DVD Problems
If you encounter CD-ROM or DVD problems, see the common causes and solutions listed in the
following table or to the documentation that came with the optional device.
Table 2-15 Solving CD-ROM and DVD Problems
System will not boot from CD-ROM or DVD drive.
Cause
Solution
The device is attached to a SATA port that has been disabled
in the Computer Setup utility.
Run the Computer Setup utility and ensure the device's SATA
port is enabled in Storage > Storage Options.
Removable Media Boot is disabled in the Computer Setup
utility.
Run the Computer Setup utility and enable booting to
removable media in Storage > Storage Options. Ensure CDROM is enabled in Storage > Boot Order.
Network Server Mode is enabled in Computer Setup.
Run the Computer Setup utility and disable Network Server
Mode in Security > Password Options.
Non-bootable CD in drive.
Try a bootable CD in the drive.
Boot order not correct.
Run the Computer Setup utility and change boot sequence
in Storage > Boot Order.
Drive not found (identified).
Cause
Solution
Cable could be loose.
Check cable connections.
The system may not have automatically recognized a newly
installed device.
See reconfiguration directions in the Solving Hardware
Installation Problems section. If the system still does not
recognize the new device, check to see if the device is listed
within Computer Setup. If it is listed, the probable cause is a
driver problem. If it is not listed, the probable cause is a
hardware problem.
If this is a newly installed drive, run the Computer Setup utility
and try adding a POST delay under Advanced > Power-On
Options.
The device is attached to a SATA port that has been disabled
in Computer Setup.
Run the Computer Setup utility and ensure the device's SATA
port is enabled in Storage > Storage Options.
Drive responds slowly immediately after power-up.
Run Computer Setup and increase the POST Delay in
Advanced > Power-On Options.
CD-ROM or DVD devices are not detected or driver is not loaded.
ENWW
Cause
Solution
Drive is not connected properly or not properly configured.
See the documentation that came with the optional device.
Solving CD-ROM and DVD Problems
39
Table 2-15 Solving CD-ROM and DVD Problems (continued)
Movie will not play in the DVD drive.
Cause
Solution
Movie may be regionalized for a different country.
See the documentation that came with the DVD drive.
Decoder software is not installed.
Install decoder software.
Damaged media.
Replace media.
Movie rating locked out by parental lock.
Use DVD software to remove parental lock.
Media installed upside down.
Reinstall media.
Cannot eject compact disc (tray-load unit).
Cause
Solution
Disc not properly seated in the drive.
Turn off the computer and insert a thin metal rod into the
emergency eject hole and push firmly. Slowly pull the tray out
from the drive until the tray is fully extended, then remove
the disc.
CD-ROM, CD-RW, DVD-ROM, or DVD-R/RW drive cannot read a disc or takes too long to start.
Cause
Solution
Media has been inserted upside down.
Re-insert the Media with the label facing up.
The DVD-ROM drive takes longer to start because it has to
determine the type of media played, such as audio or video.
Wait at least 30 seconds to let the DVD-ROM drive determine
the type of media being played. If the disc still does not start,
read the other solutions listed for this topic.
CD or DVD disc is dirty.
Clean CD or DVD with a CD cleaning kit, available from most
computer stores.
Windows does not detect the CD-ROM or DVD-ROM drive.
1.
Use Device Manager to remove or uninstall the device.
2.
Restart the computer and let Windows detect the CD or
DVD driver.
Recording or copying CDs is difficult or impossible.
40
Cause
Solution
Wrong or poor quality media type.
1.
Try using a slower speed when recording.
2.
Verify that you are using the correct media for the drive.
3.
Try a different brand of media. Quality varies widely
between manufacturers.
Chapter 2 Troubleshooting Without Diagnostics
ENWW
USDT computer boots too slow after removing a CD-ROM or DVD drive.
ENWW
Cause
Solution
The system is searching for the drive during boot because the
drive cable is still attached to the system board.
Disconnect the drive cable from the system board.
Solving CD-ROM and DVD Problems
41
Solving Drive Key Problems
If you encounter Drive Key problems, common causes and solutions are listed in the following table.
Table 2-16 Solving Drive Key Problems
USB Drive Key is not seen as a drive letter in Windows XP.
Cause
Solution
The drive letter after the last physical drive is not available.
Change the default drive letter for the Drive Key in Windows
XP.
USB Drive Key not found (identified).
Cause
Solution
The device is attached to a USB port that has been hidden in
Computer Setup.
Run the Computer Setup utility and ensure that "Device
available" is selected for "All USB Ports" and "Front USB Ports"
under Security > Device Security.
The device was not properly seated before power-up.
Ensure the device is fully inserted into the USB port before
applying power to the system.
System will not boot from USB Drive Key.
Cause
Solution
Boot order is not correct.
Run the Computer Setup utility and change boot sequence
in Storage > Boot Order.
Removable Media Boot is disabled in the Computer Setup
utility.
Run the Computer Setup utility and enable booting to
removable media in Storage > Storage Options. Ensure USB
is enabled in Storage > Boot Order.
The image on the device is not bootable.
Follow the procedures described in the "ROM Flash:
Replicating the Setup: Creating a Bootable Device: Supported
USB Flash Media Device" section of the Service Reference
Guide.
The computer boots to DOS after making a bootable Drive Key.
42
Cause
Solution
Drive Key is bootable.
Install the Drive Key only after the operating system boots.
Chapter 2 Troubleshooting Without Diagnostics
ENWW
Solving Front Panel Component Problems
If you encounter problems with devices connected to the front panel, refer to the common causes and
solutions listed in the following table.
Table 2-17 Solving Front Panel Component Problems
A USB device, headphone, or microphone is not recognized by the computer.
Cause
Solution
Device is not properly connected.
1.
Turn off the computer.
2.
Reconnect the device to the front of the computer and
restart the computer.
The device does not have power.
If the USB device requires AC power, be sure one end is
connected to the device and one end is connected to a live
outlet.
The correct device driver is not installed.
1.
Install the correct driver for the device.
2.
You might need to reboot the computer.
1.
If possible, replace the cable.
2.
Restart the computer.
1.
Replace the device.
2.
Restart the computer.
The cable from the device to the computer does not work.
The device is not working.
USB ports on the computer are disabled in Computer Setup.
ENWW
Enter Computer Setup (F10) and enable the USB ports.
Solving Front Panel Component Problems
43
Solving Internet Access Problems
If you encounter Internet access problems, consult your Internet Service Provider (ISP) or refer to the
common causes and solutions listed in the following table.
Table 2-18 Solving Internet Access Problems
Unable to connect to the Internet.
Cause
Solution
Internet Service Provider (ISP) account is not set up properly.
Verify Internet settings or contact your ISP for assistance.
Modem is not set up properly.
Reconnect the modem. Verify the connections are correct
using the quick setup documentation.
Web browser is not set up properly.
Verify that the Web browser is installed and set up to work with
your ISP.
Cable/DSL modem is not plugged in.
Plug in cable/DSL modem. You should see a “power” LED light
on the front of the cable/DSL modem.
Cable/DSL service is not available or has been interrupted due
to bad weather.
Try connecting to the Internet at a later time or contact your
ISP. (If the cable/DSL service is connected, the “cable” LED
light on the front of the cable/DSL modem will be on.)
The CAT5 UTP cable is disconnected.
Connect the CAT5 UTP cable between the cable modem and
the computers’s RJ-45 connector. (If the connection is good,
the “PC” LED light on the front of the cable/DSL modem will be
on.)
IP address is not configured properly.
Contact your ISP for the correct IP address.
Cookies are corrupted. (A “cookie” is a small piece of
information that a Web server can store temporarily with the
Web browser. This is useful for having the browser remember
some specific information that the Web server can later
retrieve.)
Windows XP
1.
Select Start > Control Panel.
2.
Double-click Internet Options.
3.
On the General tab, click the Delete Cookies button.
Windows 2000
1.
Select Start > Settings > Control Panel.
2.
Double-click Internet Options.
3.
On the General tab, click the Delete Cookies button.
Cannot automatically launch Internet programs.
Cause
Solution
You must log on to your ISP before some programs will start.
Log on to your ISP and launch the desired program.
Internet takes too long to download Web sites.
44
Cause
Solution
Modem is not set up properly.
Verify that the correct modem speed and COM port are
selected.
Chapter 2 Troubleshooting Without Diagnostics
ENWW
Table 2-18 Solving Internet Access Problems (continued)
Internet takes too long to download Web sites.
Cause
Solution
Windows XP
1.
Select Start > Control Panel.
2.
Double-click System.
3.
Click the Hardware tab.
4.
In the Device Manager area, click the Device Manager
button.
5.
Double-click Ports (COM & LPT).
6.
Right-click the COM port the modem uses, then click
Properties.
7.
Under Device status, verify that the modem is working
properly.
8.
Under Device usage, verify the modem is enabled.
9.
If there are further problems, click the Troubleshoot
button and follow the on-screen instructions.
Windows 2000
ENWW
1.
Select Start > Settings > Control Panel.
2.
Double-click System.
3.
Click the Hardware tab.
4.
In the Device Manager area, click the Device Manager
button.
5.
Double-click Ports (COM & LPT).
6.
Right-click the COM port the modem uses, then click
Properties.
7.
Under Device status, verify that the modem is working
properly.
8.
Under Device usage, verify the modem is enabled.
9.
If there are further problems, click the Troubleshoot
button and follow the on-screen instructions.
Solving Internet Access Problems
45
Solving Software Problems
Most software problems occur as a result of the following:
●
The application was not installed or configured correctly.
●
There is insufficient memory available to run the application.
●
There is a conflict between applications.
●
Be sure that all the needed device drivers have been installed.
●
If you have installed an operating system other than the factory-installed operating system, check
to be sure it is supported on the system.
NOTE HP Backup and Recovery Manager can be used to restore the software to a recovery
point or to restore the system to its factory configuration. Refer to Restoring the Software for more
information.
If you encounter software problems, see the applicable solutions listed in the following table.
Table 2-19 Solving Software Problems
Computer will not continue and no HP logo screen has appeared.
Cause
Solution
POST error has occurred.
Observe the beeps and LED lights on the front of the computer.
See Appendix A, POST Error Messages to determine possible
causes.
See the Restore Kit or the Worldwide Limited Warranty for
terms and conditions.
Computer will not continue after HP logo screen has appeared.
Cause
Solution
System files may be damaged.
Restore the files from the Recovery Disc Set or backups you
created in HP Backup and Recovery Manager.
“Illegal Operation has Occurred” error message is displayed.
46
Cause
Solution
Software being used is not Microsoft-certified for your version
of Windows.
Verify that the software is certified by Microsoft for your version
of Windows (see program packaging for this information).
Configuration files are corrupt.
If possible, save all data, close all programs, and restart the
computer.
Chapter 2 Troubleshooting Without Diagnostics
ENWW
Contacting Customer Support
For help and service, contact an authorized reseller or dealer. To locate a reseller or dealer near you,
visit http://www.hp.com.
NOTE If you take the computer to an authorized reseller, dealer, or service provider for service,
remember to provide the setup and power-on passwords if they are set.
Refer to the number listed in the warranty or in the Support Telephone Numbers guide on the
Documentation and Diagnostics CD for technical assistance.
ENWW
Contacting Customer Support
47
48
Chapter 2 Troubleshooting Without Diagnostics
ENWW
A
POST Error Messages
This appendix lists the error codes, error messages, and the various indicator light and audible
sequences that you may encounter during Power-On Self-Test (POST) or computer restart, the probable
source of the problem, and steps you can take to resolve the error condition.
POST Message Disabled suppresses most system messages during POST, such as memory count
and non-error text messages. If a POST error occurs, the screen will display the error message. To
manually switch to the POST Messages Enabled mode during POST, press any key (except F10 or
F12). The default mode is POST Message Disabled.
The speed at which the computer loads the operating system and the extent to which it is tested are
determined by the POST mode selection.
Quick Boot is a fast startup process that does not run all of the system level tests, such as the memory
test. Full Boot runs all of the ROM-based system tests and takes longer to complete.
Full Boot may also be enabled to run every 1 to 30 days on a regularly scheduled basis. To establish
the schedule, reconfigure the computer to the Full Boot Every x Days mode, using Computer Setup.
NOTE For more information on Computer Setup, see the Computer Setup (F10) Utility Guide
on the Documentation and Diagnostics CD.
ENWW
49
POST Numeric Codes and Text Messages
This section covers those POST errors that have numeric codes associated with them. The section also
includes some text messages that may be encountered during POST.
NOTE The computer will beep once after a POST text message is displayed on the screen.
Table A-1 Numeric Codes and Text Messages
Control panel message
Description
Recommended action
101-Option ROM Checksum Error
System ROM or expansion board option
ROM checksum.
1.
Verify the correct ROM.
2.
Flash the ROM if needed.
3.
If an expansion board was recently
added, remove it to see if the problem
remains.
4.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS.)
5.
If the message disappears, there may
be a problem with the expansion card.
6.
Replace the system board.
1.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS.)
2.
Remove expansion boards.
3.
Replace the system board.
1.
If a PCI expansion card was recently
added, remove it to see if the problem
remains.
2.
In Computer Setup, set Advanced >
Device Options > NIC PXE Option
ROM Download to DISABLE to prevent
PXE option ROM for the internal NIC
from being downloaded during POST to
free more memory for an expansion
card's option ROM. Internal PXE option
ROM is used for booting from the NIC to
a PXE server.
3.
Ensure the ACPI/USB Buffers @ Top of
Memory setting in Computer Setup is
enabled.
103-System Board Failure
110-Out of Memory Space for Option ROMs
162-System Options Not Set
DMA or timers.
Recently added PCI expansion card contains
an option ROM too large to download during
POST.
Configuration incorrect.
RTC (real-time clock) battery may need to
be replaced.
Run Computer Setup and check the
configuration in Advanced > Onboard
Devices.
Reset the date and time under Control
Panel. If the problem persists, replace the
RTC battery. See the Hardware Reference
Guide on the Documentation and Diagnostics
CD for instructions on installing a new battery,
50
Appendix A POST Error Messages
ENWW
Table A-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
or contact an authorized dealer or reseller for
RTC battery replacement.
163-Time & Date Not Set
Invalid time or date in configuration memory.
RTC (real-time clock) battery may need to
be replaced.
Reset the date and time under Control
Panel (Computer Setup can also be used). If
the problem persists, replace the RTC
battery. See the Hardware Reference Guide
on the Documentation and Diagnostics CD
for instructions on installing a new battery, or
contact an authorized dealer or reseller for
RTC battery replacement.
163-Time & Date Not Set
CMOS jumper may not be properly installed.
Check for proper placement of the CMOS
jumper if applicable.
164-MemorySize Error
Memory amount has changed since the last
boot (memory added or removed).
Press the F1 key to save the memory
changes.
164-MemorySize Error
Memory configuration incorrect.
1.
Run Computer Setup or Windows
utilities.
2.
Make sure the memory module(s) are
installed properly.
3.
If third-party memory has been added,
test using HP-only memory.
4.
Verify proper memory module type.
1.
Run Computer Setup or Windows
utilities.
2.
Ensure memory modules are correctly
installed.
3.
Verify proper memory module type.
4.
Remove and replace the identified faulty
memory module(s).
5.
If the error persists after replacing
memory modules, replace the system
board.
A memory module in memory socket
identified in the error message is missing
critical SPD information, or is incompatible
with the chipset.
1.
Verify proper memory module type.
2.
Try another memory socket.
3.
Replace DIMM with a module
conforming to the SPD standard.
214-DIMM Configuration Warning
Populated DIMM Configuration is not
optimized.
Rearrange the DIMMs so that each channel
has the same amount of memory.
219-ECC Memory Module Detected ECC
Modules not supported on this Platform
Recently added memory module(s) support
ECC memory error correction.
1.
If additional memory was recently
added, remove it to see if the problem
remains.
2.
Check product documentation for
memory support information.
201-Memory Error
213-Incompatible Memory Module in
Memory Socket(s) X, X, ...
ENWW
RAM failure.
POST Numeric Codes and Text Messages
51
Table A-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
301-Keyboard Error
Keyboard failure.
1.
Reconnect keyboard with computer
turned off.
2.
Check connector for bent or missing
pins.
3.
Ensure that none of the keys are
depressed.
4.
Replace keyboard.
1.
Reconnect keyboard with computer
turned off.
2.
Replace the system board.
1.
Reconnect the keyboard with computer
turned off.
2.
Ensure that none of the keys are
depressed.
3.
Replace the keyboard.
4.
Replace the system board.
1.
Remove any parallel port expansion
cards.
2.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS.)
3.
Reconfigure card resources and/or run
Computer Setup.
303-Keyboard Controller Error
304-Keyboard or System Unit Error
404-Parallel Port Address Conflict Detected
I/O board keyboard controller.
Keyboard failure.
Both external and internal ports are assigned
to parallel port X.
410-Audio Interrupt Conflict
IRQ address conflicts with another device.
Enter Computer Setup and reset the IRQ in
Advanced > Onboard Devices.
411-Network Interface Card Interrupt Conflict
IRQ address conflicts with another device.
Enter Computer Setup and reset the IRQ in
Advanced > Onboard Devices.
501-Display Adapter Failure
Graphics display controller.
1.
Reseat the graphics card (if applicable).
2.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS.)
3.
Verify monitor is attached and turned
on.
4.
Replace the graphics card (if possible).
510-Flash Screen Image Corrupted
Flash Screen image has errors.
Reflash the system ROM with the latest BIOS
image.
511-CPU, CPUA, or CPUB Fan not Detected
CPU fan is not connected or may have
malfunctioned.
1.
Reseat CPU fan.
2.
Reseat fan cable.
3.
Replace CPU fan.
52
Appendix A POST Error Messages
ENWW
Table A-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
512-Chassis, Rear Chassis, or Front Chassis
Fan not Detected
Chassis, rear chassis, or front chassis fan is
not connected or may have malfunctioned.
1.
Reseat chassis, rear chassis, or front
chassis fan.
2.
Reseat fan cable.
3.
Replace chassis, rear chassis, or front
chassis fan.
1.
Reseat CPU or chassis fan.
2.
Reseat fan cable.
3.
Replace CPU or chassis fan.
1.
Run Computer Setup.
2.
Check and/or replace cables.
3.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS.)
4.
Replace diskette drive.
5.
Replace the system board.
1.
Run Computer Setup.
2.
Disconnect any other diskette controller
devices (tape drives).
3.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS.)
514-CPU or Chassis Fan not Detected
601-Diskette Controller Error
605-Diskette Drive Type Error
CPU or chassis fan is not connected or may
have malfunctioned.
Diskette controller circuitry or floppy drive
circuitry incorrect.
Mismatch in drive type.
610-External Storage Device Failure
External tape drive not connected.
Reinstall tape drive or press F1 and allow
system to reconfigure without the drive.
611-Primary Floppy Port Address
Assignment Conflict
Configuration error.
Run Computer Setup and check the
configuration in Advanced > Onboard
Devices.
660-Display cache is detected unreliable
Integrated graphics controller display cache
is not working properly and will be disabled.
Replace system board if minimal graphics
degrading is an issue.
912-Computer Cover Has Been Removed
Since Last System Startup
Computer cover was removed since last
system startup.
No action required.
917-Front Audio Not Connected
Front audio harness has been detached or
unseated from motherboard.
Reconnect or replace front audio harness.
918-Front USB Not Connected
Front USB harness has been detached or
unseated from motherboard.
Reconnect or replace front USB harness.
921-Device in PCI Express slot failed to
initialize
There is an incompatibility/problem with this
device and the system or PCI Express Link
could not be retrained to an x1.
Try rebooting the system. If the error
reoccurs, the device may not work with this
system
ENWW
POST Numeric Codes and Text Messages
53
Table A-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
1151-Serial Port A Address Conflict Detected
Both external and internal serial ports are
assigned to COM1.
1.
Remove any serial port expansion
cards.
2.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS.)
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
1.
Remove any serial port expansion
cards.
2.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS.)
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
1.
Remove any serial port expansion
cards.
2.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS.)
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
1152-Serial Port B Address Conflict Detected
1155-Serial Port Address Conflict Detected
Both external and internal serial ports are
assigned to COM2.
Both external and internal serial ports are
assigned to same IRQ.
1201-System Audio Address Conflict
Detected
Device IRQ address conflicts with another
device.
Enter Computer Setup and reset the IRQ in
Advanced > Onboard Devices.
1202-MIDI Port Address Conflict Detected
Device IRQ address conflicts with another
device.
Enter Computer Setup and reset the IRQ in
Advanced > Onboard Devices.
1203-Game Port Address Conflict Detected
Device IRQ address conflicts with another
device.
Enter Computer Setup and reset the IRQ in
Advanced > Onboard Devices.
1720-SMART Hard Drive Detects Imminent
Failure
Hard drive is about to fail. (Some hard drives 1.
have a hard drive firmware patch that will fix
an erroneous error message.)
Determine if hard drive is giving correct
error message. Enter Computer Setup
and run the Drive Protection System test
under Storage > DPS Self-test.
2.
Apply hard drive firmware patch
if applicable. (Available at
http://www.hp.com/support.)
3.
Back up contents and replace hard
drive.
1796-SATA Cabling Error
One or more SATA devices are improperly
attached. For optimal performance, the SATA
0 and SATA 1 connectors must be used
before SATA 2 and SATA 3.
For one device, use SATA 0. For two devices,
use SATA 0 and SATA 1. For three devices,
use SATA 0, SATA 1, and SATA 3.
1797-SATA Drivelock is not supported in
RAID mode.
Drivelock is enabled on one or more SATA
hard drives, and they cannot be accessed
while the system is configured for RAID
mode.
Either remove the Drivelocked SATA device
or disable the Drivelock feature. To disable
the Drivelock feature, enter Computer Setup,
change Storage > Storage Options > SATA
Emulation to IDE, and select File > Save
Changes and Exit. Reenter Computer Setup
and select Security > Drivelock. For each
listed Drivelock-capable SATA device,
ensure Drivelock is Disabled. Lastly,
54
Appendix A POST Error Messages
ENWW
Table A-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
change Storage > Storage Options > SATA
Emulation back to RAID and select File >
Save Changes and Exit.
1801-Microcode Patch Error
Invalid Electronic Serial Number
Memory Parity Error
Network Server Mode Active and No
Keyboard Attached
Parity Check 2
System will not boot without fan
ENWW
Processor is not supported by ROM BIOS.
Electronic serial number has become
corrupted.
1.
Upgrade BIOS to proper version.
2.
Change the processor.
1.
Run Computer Setup. If Setup already
has data in the field or will not allow
the serial number to be entered,
download the executable file from
http://www.hp.com.
2.
Run Computer Setup and try to enter
serial number under Security, System
ID, then save changes.
Parity RAM failure.
Run Computer Setup and Diagnostic utilities.
Third-party graphics card may be causing a
problem.
Remove third-party graphics card to see if the
problem goes away.
Keyboard failure while Network Server Mode 1.
enabled.
Reconnect keyboard with computer
turned off.
2.
Check connector for bent or missing
pins.
3.
Ensure that none of the keys are
depressed.
4.
Replace keyboard.
Parity RAM failure.
Run Computer Setup and Diagnostic utilities.
Third-party graphics card may be causing a
problem.
Remove third-party graphics card to see if the
problem goes away.
CPU fan not installed or disconnected in
VSFF chassis.
1.
Remove the computer cover, press the
power button, and see if the processor
fan spins. If the processor fan is not
spinning, make sure the fan's cable is
plugged onto the system board header.
Ensure the heatsink is properly seated
and installed.
2.
If the fan is plugged in and the heatsink
is properly seated but the fan does not
spin, then replace the heatsink-fan
assembly.
POST Numeric Codes and Text Messages
55
Interpreting POST Diagnostic Front Panel LEDs and
Audible Codes
This section covers the front panel LED codes as well as the audible codes that may occur before or
during POST that do not necessarily have an error code or text message associated with them.
WARNING! When the computer is plugged into an AC power source, voltage is always applied
to the system board. To reduce the risk of personal injury from electrical shock and/or hot
surfaces, be sure to disconnect the power cord from the wall outlet and allow the internal system
components to cool before touching.
Look for the LED on the system board. If the LED is illuminated, the system still has power. Power
off the computer and remove the power cord before proceeding.
NOTE If you see flashing LEDs on a PS/2 keyboard, look for flashing LEDs on the front panel
of the computer and refer to the following table to determine the front panel LED codes.
Recommended actions in the following table are listed in the order in which they should be
performed.
Not all diagnostic lights and audible codes are available on all models.
Table A-2 Diagnostic Front Panel LEDs and Audible Codes
Activity
Beeps
Possible Cause
Recommended Action
Green Power LED On.
None
Computer on.
None
Green Power LED flashes
every two seconds.
None
Computer in Suspend to
RAM mode (some models
only) or normal Suspend
mode.
None required. Press any key or move the mouse
to wake the computer.
Red Power LED flashes two
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
2
Processor thermal
protection activated:
1.
Ensure that the computer air vents are not
blocked and the processor cooling fan is
running.
2.
Open hood, press power button, and see if
the processor fan spins. If the processor fan
is not spinning, make sure the fan's cable is
plugged onto the system board header.
3.
If fan is plugged in, but is not spinning, then
replace heatsink/fan assembly.
4.
Contact an authorized reseller or service
provider.
1.
Check to see that the processor is present.
2.
Reseat the processor.
A fan may be blocked or
not turning.
OR
The heatsink/fan
assembly is not properly
attached to the processor.
Red Power LED flashes three
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
56
3
Appendix A POST Error Messages
Processor not installed
(not an indicator of bad
processor).
ENWW
Table A-2 Diagnostic Front Panel LEDs and Audible Codes (continued)
Activity
Beeps
Possible Cause
Recommended Action
Red Power LED flashes four
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
4
Power failure (power
supply is overloaded).
1.
Open the hood and ensure the 4 or 6-wire
power supply cable is seated into the
connector on the system board.
2.
Check if a device is causing the problem by
removing ALL attached devices (such as
hard, diskette, or optical drives, and
expansion cards). Power on the system. If
the system enters the POST, then power off
and replace one device at a time and repeat
this procedure until failure occurs. Replace
the device that is causing the failure.
Continue adding devices one at a time to
ensure all devices are functioning properly.
3.
Replace the power supply.
4.
Replace the system board.
Red Power LED flashes five
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
Red Power LED flashes six
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
5
6
Pre-video memory error.
Pre-video graphics error.
CAUTION To avoid damage to the
DIMMs or the system board, you must
unplug the computer power cord before
attempting to reseat, install, or remove a
DIMM module.
1.
Reseat DIMMs.
2.
Replace DIMMs one at a time to isolate the
faulty module.
3.
Replace third-party memory with HP
memory.
4.
Replace the system board.
For systems with a graphics card:
1.
Reseat the graphics card.
2.
Replace the graphics card.
3.
Replace the system board.
For systems with integrated graphics, replace the
system board.
ENWW
Red Power LED flashes seven 7
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
System board failure
(ROM detected failure
prior to video).
Replace the system board.
Red Power LED flashes eight
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
Invalid ROM based on bad
checksum.
1.
Reflash the system ROM with the latest BIOS
image. See the “Boot Block Emergency
Recovery Mode” section of the Desktop
Management Guide on the Documentation
and Diagnostics CD for more information.
2.
Replace the system board.
8
Interpreting POST Diagnostic Front Panel LEDs and Audible Codes
57
Table A-2 Diagnostic Front Panel LEDs and Audible Codes (continued)
Activity
Beeps
Possible Cause
Recommended Action
Red Power LED flashes nine
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
9
System powers on but is
unable to boot.
1.
Check that the voltage selector, located on
the rear of the power supply (some models),
is set to the appropriate voltage. Proper
voltage setting depends on your region.
2.
Replace the system board.
3.
Replace the processor.
1.
Check each option card by removing the card
(one at a time if multiple cards), then power
on the system to see if fault goes away.
2.
Once a bad card is identified, remove and
replace the bad option card.
3.
Replace the system board.
Red Power LED flashes ten
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
System does not power on and
LEDs are not flashing.
10
None
Bad option card.
System unable to power
on.
Press and hold the power button for less than 4
seconds. If the hard drive LED turns green, the
power button is working correctly. Try the
following:
1.
Check that the voltage selector (some
models), located on the rear of the power
supply, is set to the appropriate voltage.
Proper voltage setting depends on your
region.
2.
Replace the system board.
OR
Press and hold the power button for less than 4
seconds. If the hard drive LED does not turn on
green then:
58
Appendix A POST Error Messages
1.
Check that the unit is plugged into a working
AC outlet.
2.
Open hood and check that the power button
harness is properly connected to the system
board.
3.
Check that both power supply cables are
properly connected to the system board.
4.
Check to see if the 5V_aux light on the
system board is turned on. If it is turned on,
then replace the power button harness. If the
problem persists, replace the system board.
5.
If the 5V_aux light on the system board is not
turned on, remove the expansion cards one
at a time until the 5V_aux light on the system
board turns on. It the problem persists,
replace the power supply.
ENWW
B
Password Security and Resetting
CMOS
This computer supports security password features, which can be established through the Computer
Setup Utilities menu.
This computer supports two security password features that are established through the Computer
Setup Utilities menu: setup password and power-on password. When you establish only a setup
password, any user can access all the information on the computer except Computer Setup. When you
establish only a power-on password, the power-on password is required to access Computer Setup and
any other information on the computer. When you establish both passwords, only the setup password
will give you access to Computer Setup.
When both passwords are set, the setup password can also be used in place of the power-on password
as an override to log in to the computer. This is a useful feature for a network administrator.
If you forget the password for the computer, there are two methods for clearing that password so you
can gain access to the information on the computer:
●
Resetting the password jumper
●
Restoring factory settings as defaults in Computer Setup
CAUTION Sliding the CMOS switch will reset CMOS values to factory defaults. It is important
to back up the computer CMOS settings before resetting them in case they are needed later.
Back up is easily done through Computer Setup. See the Computer Setup (F10) Utility Guide on
the Documentation and Diagnostics CD for information on backing up the CMOS settings.
ENWW
59
Resetting the Password Jumper
To disable the power-on or setup password features, or to clear the power-on or setup passwords,
complete the following steps:
1.
Shut down the operating system properly, then turn off the computer and any external devices,
and disconnect the power cord from the power outlet.
2.
With the power cord disconnected, press the power button again to drain the system of any residual
power.
WARNING! To reduce the risk of personal injury from electrical shock and/or hot surfaces,
be sure to disconnect the power cord from the wall outlet, and allow the internal system
components to cool before touching.
CAUTION When the computer is plugged in, the power supply always has voltage applied
to the system board even when the unit is turned off. Failure to disconnect the power cord
can result in damage to the system.
Static electricity can damage the electronic components of the computer or optional
equipment. Before beginning these procedures, ensure that you are discharged of static
electricity by briefly touching a grounded metal object. See the Hardware Reference
Guide on the Documentation and Diagnostics CD for more information.
3.
Remove the computer cover or access panel.
4.
Locate the header and jumper.
NOTE The password jumper is green so that it can be easily identified. For assistance
locating the password jumper and other system board components, see the Illustrated Parts
Map (IPM) for that particular system. The IPM can be downloaded from http://www.hp.com/
support.
60
5.
Remove the jumper from pins 1 and 2. Place the jumper on either pin 1 or 2, but not both, so that
it does not get lost.
6.
Replace the computer cover or access panel.
7.
Reconnect the external equipment.
8.
Plug in the computer and turn on power. Allow the operating system to start. This clears the current
passwords and disables the password features.
9.
To establish new passwords, repeat steps 1 through 4, replace the password jumper on pins 1 and
2, then repeat steps 6 through 8. Establish the new passwords in Computer Setup. Refer to the
Computer Setup (F10) Utility Guide on the Documentation and Diagnostics CD for Computer Setup
instructions.
Appendix B Password Security and Resetting CMOS
ENWW
Clearing and Resetting the CMOS
The computer’s configuration memory (CMOS) stores information about the computer’s configuration.
Using Computer Setup to Reset CMOS
Using Computer Setup to reset CMOS also clears the power-on and setup passwords. To reset CMOS
through Computer Setup, you must first access the Computer Setup Utilities menu.
When the Computer Setup message appears in the lower-right corner of the screen, press the F10 key.
Press Enter to bypass the title screen, if necessary.
NOTE If you do not press the F10 key while the message is displayed, you must turn the
computer off, then on again, to access the utility.
A choice of five headings appears in the Computer Setup Utilities menu: File, Storage, Security,
Power, and Advanced.
To reset CMOS to the factory default settings first set time and date, then use the arrow keys or the
Tab key to select File > Default Setup > Restore Factory Settings as Defaults. Then select Apply
Defaults and Exit from the File menu. This resets the soft settings that include boot sequence order
and other factory settings. It will not, however, force hardware rediscovery.
See the Desktop Management Guide on the Documentation and Diagnostics CD for further instructions
on reestablishing passwords. For instructions on Computer Setup, see the Computer Setup (F10) Utility
Guide on the Documentation and Diagnostics CD.
Using the CMOS Switch to Reset CMOS
The CMOS switch resets CMOS but does not clear the power-on and setup passwords.
1.
Turn off the computer and any external devices, and disconnect the power cord from the power
outlet.
2.
Disconnect the keyboard, monitor, and any other external equipment connected to the computer.
WARNING! To reduce the risk of personal injury from electrical shock and/or hot surfaces,
be sure to disconnect the power cord from the wall outlet, and allow the internal system
components to cool before touching.
CAUTION When the computer is plugged in, the power supply always has voltage applied
to the system board even when the unit is turned off. Failure to disconnect the power cord
can result in damage to the system.
Static electricity can damage the electronic components of the computer or optional
equipment. Before beginning these procedures, ensure that you are discharged of static
electricity by briefly touching a grounded metal object. See the Hardware Reference
Guide on the Documentation and Diagnostics CD for more information.
3.
ENWW
Remove the computer cover or access panel.
Clearing and Resetting the CMOS
61
CAUTION Sliding the CMOS switch will reset CMOS values to factory defaults. It is
important to back up the computer CMOS settings before resetting them in case they are
needed later. Back up is easily done through Computer Setup. See the Computer Setup
(F10) Utility Guide on the Documentation and Diagnostics CD for information on backing up
the CMOS settings.
4.
Slide the CMOS switch in the direction shown in the illustration below.
NOTE Make sure you have disconnected the AC power cord from the wall outlet. The
CMOS switch will not clear CMOS if the power cord is connected.
Figure B-1 CMOS switch
NOTE For assistance locating the CMOS switch and other system board components, see
the Illustrated Parts Map (IPM) for that particular system.
5.
Replace the computer cover or access panel.
6.
Reconnect the external devices.
7.
Plug in the computer and turn on power.
NOTE You will receive POST error messages after clearing CMOS and rebooting advising
you that configuration changes have occurred. Use Computer Setup to reset any special
system setups along with the date and time.
For instructions on Computer Setup, see the Computer Setup (F10) Utility Guide on the Documentation
and Diagnostics CD.
62
Appendix B Password Security and Resetting CMOS
ENWW
C
Drive Protection System (DPS)
The Drive Protection System (DPS) is a diagnostic tool built into the hard drives installed in some
computers. DPS is designed to help diagnose problems that might result in unwarranted hard drive
replacement.
When these systems are built, each installed hard drive is tested using DPS, and a permanent record
of key information is written onto the drive. Each time DPS is run, test results are written to the hard
drive. Your service provider can use this information to help diagnose conditions that caused you to run
the DPS software.
Running DPS will not affect any programs or data stored on the hard drive. The test resides in the hard
drive firmware and can be executed even if the computer will not boot to an operating system. The time
required to execute the test depends on the manufacturer and size of the hard drive; in most cases, the
test will take approximately two minutes per gigabyte.
Use DPS when you suspect a hard drive problem. If the computer reports a SMART Hard Drive Detect
Imminent Failure message, there is no need to run DPS; instead, back up the information on the hard
drive and contact a service provider for a replacement hard drive.
ENWW
63
Accessing DPS Through Computer Setup
When the computer does not power on properly you should use Computer Setup to access the DPS
program. To access DPS, perform the following steps:
1.
Turn on or restart the computer.
2.
When the F10 Setup message appears in the lower-right corner of the screen, press the F10 key.
NOTE If you do not press the F10 key while the message is displayed, you must turn the
computer off, then on again, to access the utility.
A choice of five headings appears in the Computer Setup Utilities menu: File, Storage,
Security, Power, and Advanced.
3.
Select Storage > DPS Self-Test.
The screen will display the list of DPS-capable hard drives that are installed on the computer.
NOTE If no DPS-capable hard drives are installed, the DPS Self-Test option will not
appear on the screen.
4.
Select the hard drive to be tested and follow the screen prompts to complete the testing process.
When the test has been completed, one of three messages will be displayed:
●
Test Succeeded. Completion Code 0.
●
Test Aborted. Completion Code 1 or 2.
●
Test Failed. Drive Replacement Recommended. Completion Code 3 through 14.
If the test failed, the completion code should be recorded and reported to your service provider for help
in diagnosing the computer problem.
64
Appendix C Drive Protection System (DPS)
ENWW
Index
A
audible codes 56
audio problems 26
hardware installation
problems 31
helpful hints 8
B
Backup and Recovery Manager 6
beep codes 56
boot problems 41
booting options
Full Boot 49
Quick Boot 49
I
Insight Diagnostics 1
Internet access problems 44
C
CD-ROM or DVD problems 39
CMOS
backing up 59
clearing and resetting 61
Customer Support 7, 47
D
diagnostics utility 1
diskette problems 15
Drive Key problems 42
Drive Protection System
(DPS) 63
E
error
codes 49, 56
messages 50
F
flashing LEDs 56
front panel problems 43
G
general problems 10
H
hard drive problems 18
ENWW
K
keyboard problems 29
L
LEDs
blinking power 56
blinking PS/2 keyboard
56
M
Media Card Reader problems 20
memory problems 36
monitor problems 22
mouse problems 29
N
network problems 33
numeric error codes 50
O
optical drive problems 39
P
password
clearing 59
power-on 59
setup 59
POST error messages 49
power problems 14
power-on password 59
printer problems 28
problems
audio 26
CD-ROM or DVD 39
diskette 15
Drive Key 42
front panel 43
general 10
hard drive 18
hardware installation 31
Internet access 44
keyboard 29
Media Card Reader 20
memory 36
monitor 22
mouse 29
network 33
power 14
printer 28
processor 38
software 46
processor problems 38
R
Recovery Disc Set 6
resetting
CMOS 59
password jumper 59
S
safety and comfort 7
setup password 59
software
backing up 5
problems 46
restoring 6
W
Wake-on-LAN feature 33
Index
65
66
Index
ENWW
