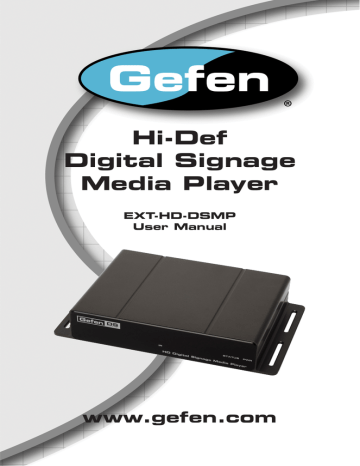

Hi-Def

Digital Signage

Media Player

EXT-HD-DSMP

User Manual

www.gefen.com

ASKING FOR ASSISTANCE

Technical Support:

Telephone (818) 772-9100

545-6900

Fax

Technical Support Hours:

8:00 AM to 5:00 PM Monday through Friday, Pacific Time

Write To:

Gefen, LLC c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311 [email protected]

www.gefen.com/DS

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.

Hi-Def Digital Signage Media Player is a trademark of Gefen, LLC

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing in the United States and other countries.

© 2011 Gefen, LLC, All Rights Reserved

All trademarks are the property of their respective owners.

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Panel Layout

4

5

Front Panel

Back Panel

6 Panel Descriptions

7 IR Remote Control

7

8

IR Remote Control Layout

IR Remote Descriptions

9 Installing the Batteries

10 Connecting the Hi-Def Digital Signage Media Player

10 Wiring Diagram

11 Operating the Hi-Def Digital Signage Media Player

11

12

19

21

23

24

24

26

26

27

Powering the Hi-Def Digital Signage Media Player

Accessing the Main Menu

14 Safely Removing the USB Storage Device

16 How the Hi-Def Digital Signage Media Player works

16

17

Directory and File Nomenclature

Renaming Files and Directories

18 Operating Modes

19 Stand-Alone Mode

29

29

29

30

Using Stand-Alone Mode

Viewing the Schedule File

Editing the Playlist File

Viewing the Settings.xml file

Checking Our Work

Adding More Video Content to the Playlist

Changing the Playlist Order

Scheduling Content

28 The Default Event

28 Understanding the Default Event

29 Push Mode / Pull Mode

33

34

37

37

Using Push and Pull Modes

The FTP Client and FTP Server

Push Mode

Method 1: Configuration using the OSD

Method 2: Configuration using the Settings.xml file

Configuring the FTP Client

Pull Mode

Method 1: Configuration using the OSD

40

43

Method 2: Configuration using the Settings.xml file

Configuring the FTP Server

44 The Settings.xml file

44 Understanding the Settings.xml file

46 Settings.xml Summary

54 Formatting the USB drive using ext3

55 Firmware Update

57 Specifications

58 Warranty

INTRODUCTION

Congratulations on your purchase of the Hi-Def Digital Signage Media Player.

Your complete satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies.

Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate.

The Gefen Hi-Def Digital Signage Media Player

The Hi-Def Digital Signage Media Player provides an effective means to playback and schedule digital signage content on both digital and analog connections. By connecting the Hi-Def Digital Signage Media Player to a network, content can be pushed to the box using a computer and FTP client program. When a more elaborate setup is required, a number of units can be installed to pull content from a local or external FTP server based on a schedule. The Hi-Def Digital

Signage Media Player acts as both an FTP client and server with live logging of various important statistics, such as playback, system status, and uploaded content. For precise time synchronization, the Hi-Def Digital Signage Media

Player can be set up to access an external NTP server. Many audio and video file formats are supported with NTSC and PAL output resolutions up to 1080p

Full HD. HDMI, Composite, and Component outputs with separate analog and digital audio outputs provide flexibility when connecting to various displays.

Two USB 2.0 ports provide connection to the included USB flash drive or to an external hard drive. The Hi-Def Digital Signage Media Player enclosure features integrated mounting brackets for a secure installation on any flat surface or directly to the back of the display. For complete management of multiple devices in multiple locations, Gefen provides a CMS (Content Management Software) solution which can be run in a virtual environment. The Gefen CMS will allow you to easily manage all of your units in the field from any compatible browser with access to logs, schedules, content, and playlists.

How It Works

The Hi-Def Digital Signage Media Player can connect to a display using either analog or digital video connectors. Connect an HDMI, Component, or Composite cable between the Hi-Def Digital Signage Media Player and the display. If using the networking capabilities of the Hi-Def Digital Signage Media Player, connect your network cable to the Ethernet port. Optionally, the digital or analog audio output connector can be used to connect the Hi-Def Digital Signage Media Player to an external audio processor or amplifier. Connect the included USB flash drive to the rear panel of the unit. Connect the 12 V DC power supply to the unit and connect the AC power cord to an available electrical outlet.

1

OPERATION NOTES

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE HI-DEF DIGITAL SIGNAGE MEDIA PLAYER

• This unit DOES NOT contain any internal memory. Memory must be supplied by the user in the form of a USB 2.0 flash drive. The following file systems are compatible with this player:

» NTFS and ext3

• The main settings, schedules, playlists, and subdirectories will be located on the attached USB device. The default directories and settings file (settings.

xml) can be downloaded and placed into the root directory of the USB device. These files can be downloaded from the Gefen Web site at:

» www.gefen.com/downloads

• Power must be disconnected from the Hi-Def Digital Signage Media Player

before the USB drive is attached.

• The Gefen Hi-Def Digital Signage Media Player has both analog

(Component and composite) and Digital (HDMI) connectors. The following output resolutions are available:

» Analog Connectors:

Composite:

Component:

480i and 576i (NTSC/PAL)

720p, 1080i, and 1080p (NTSC / PAL)

» Digital Connectors:

HDMI: 720p, 1080i, and 1080p (NTSC/PAL)

• The Gefen Hi-Def Digital Signage Media Player can operate in two modes:

» Stand-Alone Mode - This is the default mode. In this mode the unit supports all scheduling and playlist features but cannot be updated remotely via the FTP server or client. For more information on operating the Media Player in Stand-Alone mode, see page 19.

» Push Mode / Pull Mode - In this mode all scheduling and playlist features available. Remote management is possible by utilizing the

FTP server and client that are built into the Hi-Def Digital Signage

Media Player. For more information on operating the Media Player in one of the two Network Modes, refer to page 29.

• File logging can be enabled or disabled through the settings.xml.

See page 53 for information.

2

FEATURES

Features

• Supports resolutions up to 1080p Full HD

• HDMI, Component, and Composite A/V outputs active simultaneously

• Text-based scheduling and playlist using a text editor

• CMS for multiple units*

• Supports MPEG 1/2/4, DivX 3/4/5/6, XVid, and H.264/AVC video codecs

• Supports MP3, MPEG, WMA, PCM, LPCM, ADPCM, FLAC, WAV, AAC,

OGG, and MKA audio formats

• Wall-mountable enclosure for excellent heat dissipation and durability

• Integrated OSD Menu for device configuration

• Built-in FTP server and client to push and pull content

• Full media scheduling and accounting logs

• NTP client for time synchronization

• USB 2.0 ports used for storage

• Programmable PIN code prevents unauthorized access to OSD

• Compatible file systems: NTFS and ext3

• IR remote control unit

Package Includes

(1) Hi-Def Digital Signage Media Player

(1) 6 ft. Locking HDMI cable (M-M)

(1) USB 2.0 flash drive

(1) IR Remote Control Unit

(1) 12V / 3A DC Power Supply

(1) Quick-Start Guide

*The Content Management Software (CMS) allows you to manage content, playlists, and schedules for multiple units on a network. See the Content

Management Software User Manual for more information.

3

PANEL LAYOUT

Front Panel

4

PANEL LAYOUT

Back Panel

5

PANEL DESCRIPTIONS

1 IR

This IR window receives signals from the IR Remote Control Unit.

2 STATUS

This LED indicator will flash bright blue to indicate network traffic when the

Media Player is connected to a network.

3 PWR

Power LED indicator. When power is applied to the unit, this LED will glow bright blue. When no USB device is connected, the LED will alternate blue and red. When the Media Player is booting, this LED will flash red when accessing the USB drive.

4 Component

Connect three (3) RCA cables from the Green, Blue, and Red outputs to the component video input of a display or other video output device.

5 Optical

TOSLINK audio ouput connector. Connect an optical cable from this connector to an audio output device.

6 HDMI

Connect an HDTV display to this port using the included locking HDMI cable.

7 Ethernet

Connects the Hi-Def Digital Signage Media Player to a network using 10/100

Mbps Ethernet cable.

8 USB

USB 2.0 output ports. Connect up to two (2) USB devices to these ports.

9 12V DC

Connect the included 12 V DC power supply to this power receptacle.

10 Analog Audio Output

Connect a L/R RCA stereo pair from these outputs to an L/R RCA stereo input pair on an audio output device.

11 Component Output

Connect a single RCA cable from this output to the component video input of a display or other video output device.

6

1

2

3

4

5

6

7

8

IR REMOTE CONTROL

EXT-HD-DSMP-IR Remote Control Layout

15

14

13

12

11

10

9

7


IR Remote Control Descriptions

1 Power

This button will toggle between the ON and STANDBY power states. A RED

LED will be active when the unit is in Standby power state. The Power LED will glow bright blue when the Media Player is powered ON.

2 Numeric Keypad (0 - 9)

Used to enter values when using the Menu System.

3 +

Press this button to increase the volume level of the audio output.

4 Back

Press this button to move up one level in the Menu System or return from a submenu.

5 -

Press this button to decrease the volume level of the audio output.

6 Aspect

Changes the aspect ratio between 16:9, 16:10, Pan Scan 4:3, and

Letter Box 4:3

7 ◄ (Cursor Left)

Press this button to move (to the left) between fields in the Main Menu.

8 ▼ (Cursor Down)

Press this button to move the selection cursor down or to decrease values within the Main Menu.

9 OK

Confirms the current setting.

10 ► (Cursor Right)

Press this button to move (to the right) between fields in the Main Menu.

11 Output

Selects the output resolution.

12 ▲ (Cursor Up)

Press this button to move the selection cursor up or to increase values within the Main Menu.

13 Eject button

Press this button to eject the USB drive, before removing the USB drive.

14 Home

Press this button to display the Input PIN Code screen.

15 Mute

Press this button to mute the output signal.

8


Installing the Batteries

1. Remove the battery cover on the back of the IR Remote Control Unit.

2. Insert the included AA batteries into the open battery slot.

3. Replace the battery cover.

IR emitter

Transmits the IR commands to the

Media Player

Battery Slot

(shown with batteries)

Battery alignment

The batteries should be installed in the following position:

_

+

+

_

WARNING: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

9

CONNECTING THE HI-DEF DIGITAL SIGNAGE MEDIA PLAYER

How to Connect the Hi-Def Digital Signage Media Player

1. Connect Hi-Def Digital Signage Media Player to the display using the included HDMI cable.

NOTE: If using the Hi-Def Digital Signage Media Player with an analog display, then connect the Hi-Def Digital Signage Media

Player to the display using user-supplied composite or component video cables.

2. OPTIONAL: Connect the analog or digital audio outputs of the Hi-Def Digital

Signage Media Player to an audio receiver/processor using RCA (analog) or

Optical (digital) cables.

3. Connect the included USB 2.0 flash drive (or external USB 2.0 hard drive) to the USB port located on the rear panel of the Hi-Def Digital Signage Media

Player unit.

STOP: Make sure the USB drive is connected to the Media Player

before continuing to the next step.

4. Connect the included 12V DC power adapter between the power input of the Hi-Def Digital Signage Media Player and an available electrical outlet.

Wiring Diagram for the Hi-Def Digital Signage Media Player

Router

USB Flash Drive or

USB External HDD

CAT-5 / ETHERNET

USB CABLE

HDMI CABLE

COMPOSITE CABLE

COMPONENT CABLE

TOSLINK

Audio Receiver

Display using HDMI

Display using Composite

Display using Component

EXT-HD-DSMP

ATTENTION: This product should always be connected to a grounded electrical socket.

10


Powering the Hi-Def Digital Signage Media Player

1. Once power has been connected to the Hi-Def Digital Signage Media Player, the following screen will be displayed while the unit completes the booting process.

2. After the boot process has been completed, any schedules, playlists, and content will be automatically begin playing:

If no content has been scheduled, then the PIN code screen will be displayed. See next page for details on using the PIN code screen.

11


Accessing the Main Menu

If no media is scheduled to play after the Media Player has finished booting, then the PIN code screen will be displayed. The PIN code screen provides a secure gateway to the Main Menu. The PIN code screen can be displayed at any time by pressing the Home button on the IR Remote Control.

1. Press the Home button on the IR Remote Control.

2. The Input PIN code screen will be displayed.

S/W Version: Ver.0.9.7.3

3. Use the numeric keypad on the included IR Remote Control to enter the PIN code. The default PIN code is: 0000.

Numeric Keypad

Use the numeric keypad on the

IR Remote Control to enter the

PIN code.

The Main Menu will automatically be displayed if the correct PIN code is entered.

12


As the PIN code is entered, each of the numbers will be masked for security purposes. Although not required, a PIN code is recommended to prevent unauthorized access to the Main Menu. The PIN code can be disabled (see page 47).


PIN code is always masked during entry.

ADVANCED: If the PIN code has been disabled within the settings.xml file, then pressing the HOME button on the IR

Remote Control will access the Input PIN Code screen (see page

47 for more information on enabling / disabling and setting the PIN code). From the Input PIN Code screen, press the OK button to access the Main Menu.


13


4. After entering the correct PIN code, the Main Menu will be displayed.


Safely Removing the USB Storage Device

In Stand-Alone Mode, it will be necessary to remove the USB storage device from the Media Player in order to update schedule files, playlist files, and content. To safely remove the USB storage device, use the

EJECT button on the IR Remote Control Unit.

1. Access the Main Menu in order to stop the playback of all content.

2. Press the EJECT button on the IR Remote Control Unit. Note that the bottom portion of the Main Menu also identifies the EJECT button on the IR

Remote Control Unit.


14


3. The Media Player will prompt you to select which device to stop. In the example below, only one USB device is connected to the Media Player.

Additional storage would be identified as D, E, F, etc.

4. Highlight the USB device you wish to stop and eject, using the ▲ and ▼ buttons on the IR Remote Control, then press the OK button. The Media Player will prompt you to confirm the operation:

Select Yes to confirm the operation. Select No to cancel and return to the

Main Menu.

5. If you select Yes, then the following screen will be displayed, indicating that you may now remove the USB device from the back of the Media Player:

15

HOW THE HI-DEF DIGITAL SIGNAGE MEDIA PLAYER WORKS

Directory and File Nomenclature

The Hi-Def Digital Signage Media Player uses directories to organize schedules, playlists, and media content. A major part of how the Media Player behaves is governed by a set of three files:

• schedule.gsh

• playlist.gpl

• settings.xml

The local USB drive also contains three (3) directories:

• /media

• /playlists

• /schedules

The illustration below provides a summary of each of the three files, the location of the file on the USB drive, and how they relate to one another.

<settings>

<devConfig>

<name value= ”Gefen Player” />

</devConfig>

<ipConfig>

<ipMode value= ”manual” />

<automatic />

<manual>

<ip value= ”192.168.2.238” />

...

...

settings.xml

Location: Root directory

This file contains the name of the active Schedule file to be executed.

schedule.gsh

Location: /schedules directory

Contains the name of the Playlist(s) or media files to be executed.

<DefaultEvent>

<DayOfWeek>1,1,1,1,1,1,1</DayOfWeek>

<EventStart>00:00:00</EventStart>

<EventEnd>23:59:59</EventEnd>

<FileName>/playlists/playlist.gpl</File-

Name>

</DefaultEvent>

<media>

<FileName>/media/2.mov</FileName>

</media>

<media>

<FileName>/media/7.mp4</FileName>

</media>

<media>

<FileName>/media/8.mp4</FileName>

</media>

...

...

playlist.gpl

Location: /playlists directory

Each playlist file contains a list of the media file(s) to be played.

The /media directory is used to store your Digital Signage content.

An additional directory, /Logs, is automatically created by the Media Player.

These log files provide a record of all events which have transpired and can be used to provide information during troubleshooting.

16


Renaming Files and Directories

As mentioned earlier, three (3) directories must reside in the root directory of the

USB drive at all times: /media, /playlists, and /schedules.

The settings.xml file must always reside in the root directory.

The names given to each of the files and directories are provided as a guide and are by no means static. However, each of the files will reference a specific directory name. Therefore, if a directory name is changed, then the file which references that directory must also be changed to reflect the new information.

Example 1:

The settings.xml file references the active schedule file, like so:

<activeSchedule value=”/schedules/schedule.gsh” />

If the /schedules directory is renamed to /foo, then the activeSchedule value within the settings.xml file, must be changed to:

<activeSchedule value=”/foo/schedule.gsh” />

Example 2:

The schedule.gsh file may reference a playlist (or playlists), as follows:

<FileName>/playlists/playlist2.gpl</FileName>

If the /playlists directory is renamed to /foo2, then the schedule.gsh file must be edited to reference the correct playlist directory name:

<FileName>/foo2/playlist2.gpl</FileName>

The flexibility of renaming directories and files allows you to provide more meaningful names to the directory structure. The only exception is the settings.xml file.

IMPORTANT: The settings.xml file must never be renamed, moved, or deleted.

17


Operating Modes

The Hi-Def Digital Signage Media Player can operate in one of two modes:

Stand-alone Mode and Network Mode.

Stand-Alone Mode

Use this mode if you want content played locally from the USB flash drive on the

Media Player.

Network Modes

• Push Mode

Content is manually pushed to the Media Player from an FTP client.

• Pull Mode

Pulls content from an FTP server (based on a schedule) to the Media Player.

When the Media Player is in Stand-Alone Mode, all content and operational information is taken from the USB drive. When the Media Player is in Network

Mode, all files are located on an FTP server on the network.

We will cover both Stand-Alone and Network Mode for the Hi-Def Digital Signage

Media Player. In the next section, we will begin with Stand-Alone Mode.

18

STAND-ALONE MODE

Using Stand-Alone Mode

1. Connect the Hi-Def Digital Signage Media Player according to the instructions on page 10.

STOP: Make sure the USB storage device is connected to the

Media Player before power is connected.

The Media Player comes pre-loaded with a demo playlist, schedule, and content. After the Hi-Def Digital Signage Media Player has finished booting, the pre-loaded content will begin playing.

2. Press the HOME button on the IR Remote Control to stop the playback of the content and access the Input PIN Code screen.

NOTE: You can also simply enter the PIN code from the IR Remote

Control while content is playing, to display the Input PIN Code screen. Press the OK button to display the Main Menu.

3. Type in the PIN code:


4. From the Main Menu, press the Eject button on the IR Remote Control. This button will safely eject the USB device before removal.

WARNING: Removing the USB device without ejecting may cause the storage device to become unreadable, resulting in the loss or corruption of content and related files.

19



Eject USB Device

Indicates that the green button on the IR Remote Control is used for safe removal of the

USB device.

Refer to page 14 for details on ejecting the USB drive from the Media Player.

5. Remove the USB device from the back of the Media Player and connect it to your computer.

6. On the USB drive, locate the schedule.gsh file under the /schedules directory.

Next, we will edit the Schedule file in order to change what is displayed on the screen.

20


Viewing the Schedule File

1. Open the schedule.gsh file, located in the /schedules directory. Any plain text editor can be used (such as Windows® Notepad, etc).

IMPORTANT: Do not use a word processing program to edit the

Schedule file, as this may introduce unwanted invisible control characters into the file.

2. Locate the <DefaultEvent> tag at the top of the file.

The <DefaultEvent> and </DefaultEvent> tags must be present in the schedule.gsh file. At minimum, the four tags between the

<DefaultEvent> tags must also be present:

<DefaultEvent>

<DayOfWeek>.........</DayOfWeek>

<EventStart>........</EventStart>

<EventEnd>..........</EventEnd>

<FileName>..........</FileName>

</DefaultEvent>

3. The first thing we want to do is make sure that the playlist is executed on every day of the week. So, the <DayOfWeek> tag should contain the following information:


The number one (“1”) means that the playlist will be executed on each day.

Each day of the week is represented between the <DayOfWeek> opening and </DayOfWeek> closing tags (e.g. Monday, Tuesday, Wednesday, etc.).

Use the number zero (“0”) to skip certain days. For example, if you wanted the playlist to be executed every day except on the weekends (Saturday and

Sunday), you would type:


4. Next, we want the playlist to be executed between the hours of 00:00:00

(12:00:00 midnight) and 23:59:59 (11:59:59 pm). This will ensure that the video content is played constantly without interruption.

Therefore, <EventStart> and <EventEnd> tags should appear like this:



21


5. Next, the playlist file will be specified. Make sure to use the leading forwardslash in the path when specifying the full path to the schedule file.

<FileName>/playlists/playlist.gpl</FileName>


<FileName>playlists/playlist.gpl</FileName>

As mentioned earlier, the playlist.gpl file can be renamed to something more meaningful, if you like. For now, the important thing to note is that both the filename and directory path are spelled correctly.

Let’s look at what we have in our existing schedule.gsh file:

<DefaultEvent>





</DefaultEvent>

This is our default event. The schedule.gsh file must contain a default event, using the <DefaultEvent> and </DefaultEvent> tags. See page 28 for more information on the default event.

6. We did not make any changes to this file, so just close the file.

Next, we will edit the playlist.gpl file, and substitute the existing media with your own.

NOTE: Refer to the supported file formats and make sure that the media file(s) you are using is supported by the Media Player.

22


Editing the Playlist File

1. Open the playlist.gpl file, located in the /playlists directory.

2. Locate the <media> tag at the top of the file. The <media> and </media> tags must surround each instance of video content.

<media>

<FileName>........</FileName>

</media>

3. Type the full path (make sure to include a forward slash at the beginning of the path) to the video content, between the <FileName> opening tag and the </FileName> closing tag:

<FileName>/media/my_movie.mp4</FileName>

In this example, we only want to loop a single video file. However, if you need to play multiple video files, then each video file must be contained within its own <media> and </media> tags.

Example of multiple media files in a playlist:

<media>

<FileName>/media/my_movie1.mov</FileName>

</media>

<media>

<FileName>/media/movies/blockbuster.avi</FileName>

</media>

<media>

<FileName>/media/bumper.mp4</FileName>

</media>

...

...

... etc.

23


Viewing the Settings.xml File

Finally, we’re going to take a quick look at the settings.xml

file. The settings.xml

file contains all the information on how the Hi-Def Digital

Signage Media Player operates. Within the settings.xml

file, the active

schedule must be specified:

1. Open the settings.xml file, located in the root directory of the USB drive.

2. Locate the <schedule> and </schedule> tags, near the bottom portion of the file:

<schedule>

<activeSchedule value=”................” />

</schedule>

3. Make sure that the <activeSchedule> tag contains the following information:

<activeSchedule value=”/schedules/schedule.gsh” />

Double-quotes must surround the full path to the schedule file.

4. Close the settings.xml file.

Checking our Work

Before inserting the USB drive into the USB port of the Hi-Def Digital Signage

Media Player, let’s check to make sure everything is in order:

1. The settings.xml file should be in the root directory of the USB drive and should reference the active schedule file ( schedule.gsh).

2. The schedule.gsh file should be in the /schedules directory. The

schedule file should reference the playlist.gpl file.

3. The playlist.gpl file should be located in the /playlist directory. The

playlist file should reference the media file you are going to play.

In our example, we used my_movie1.mp4.

4. The media file ( my_movie1.mp4) specified in the playlist.gpl file should be placed in the /media directory.

24


5. The root directory of the USB drive should look something like this:

Filename Filesize Filetype

.. media File playlists schedules

settings.xml 2,472 XML Doc...

6. After you have verified everything, eject the USB drive from your computer before removing it. If the USB drive is removed without ejecting it, data loss and/or data corruption may occur.

7. Disconnect power from the Media Player. Never connect the USB drive while the Media Player is powered.

After the Media Player has finished booting, the media content will begin to play.

Congratulations! You have just created your first Digital Signage application using the Hi-Def Digital Signage Media Player. However, this is just the beginning and is only a very simple example. The Hi-Def Digital Signage

Media Player has several more features which we will cover in the following sections.

To stop the playback of the video, press the HOME button and enter the PIN code. Pressing the HOME button and entering the correct PIN code will always take you to the Main Menu.

25


Adding More Video Content to the Playlist

Running only one selection of video content may not always be what you want to do. The Hi-Def Digital Signage Media Player is capable of playing several pieces of video content. Here’s how to add more than one file to the playlist:

1. Safely eject and remove the USB drive from the Media Player, then insert the USB drive into an available USB port on your computer.

2. Open the playlist.gpl file, located in the /playlist directory.

3. Create an additional <media> tag below the first set of <media> tags, and specify the next piece of video content:

<media>


</media>

<media>

<FileName>/media/movie2.mp4</FileName>

</media>

NOTE: Always create a separate <media> tag for each media file to be played. Only one media file can be specified within the <media> and </media> tags.

4. Save the playlist.gpl file to the /playlists directory.

Changing the Playlist Order

When the playlist.gpl file is read by the Hi-Def Digital Signage Media

Player, the file is read from top to bottom. So, in the example above, movie2.mp4 will be played after my_movie.mp4. If you want to play movie2.mp4 before my_movie.mp4, edit the playlist.gpl file so it appears like this:

<media>

<FileName>/media/movie2.mp4</FileName>

</media>

<media>


</media>

26


Scheduling Content

We’ve already seen how we can play one or more media files and loop them.

However, we can also specify a when the playback will begin and end.

1. Open the schedule.gsh file, located in the /schedules directory.

2. Insert the following two lines between the <DefaultEvent> and

</DefaultEvent> tags. Make sure that the current date is entered in m/d/yyyy format:

<StartDate>6/23/2011</StartDate>

<EndDate>6/23/2011</EndDate>

For this example, the range of dates will only be one day.

3. Next, add the time frame in which you want the video content to play.

We’ve already seen the <EventStart> and </EventStart> tags in our first example. Specify the time in HH:MM:SS format:



In the example above, we’ve set the video content to play from

1:00 pm - 1:30 pm in the afternoon. You can specify the time range within an accuracy of 1 second.

Our schedule.gsh file should now look something like this:

<DefaultEvent>







</DefaultEvent>

The only difference between this example and our first example (page 22) is that we’ve introduced the <StartDate> and <EndDate> tags to specify the period of days in which to run the video content. The content specified in the playlist.gpl file will still loop but will only be presented for 30 minutes.

NOTE: If two video events overlap one another, the Media Player will stop playback of the current media file and begin playback of the next media file according to the schedule.

27

THE DEFAULT EVENT

Understanding the Default Event

As mentioned earlier, the schedule.gsh file must always contain a default

event. The important thing to remember when using Digital Signage is that something (some type of media) should be displayed at all times. A Digital Signage application with nothing displayed defeats the whole purpose of the application. Therefore, the default event should display media content when other content is not scheduled to be played.

Example:

Let’s say we have a Digital Signage application in a retail store. Our store hours are from 9 - 6 everyday. We want Digital Signage playing during store hours and after store hours. However, we want different signage played after hours. Here’s one way of setting this up:

When our store is closed, our main Digital Signage will no longer be displayed, so the default event will be used to “fill in the gap” when our store is closed.

Since we want this played every day of the week, we would set the information between the <DayOfWeek> opening and closing tags to: 1,1,1,1,1,1,1.

The default event will begin at 6:00 pm each night, and will end at 8:59:59 each morning.

<DefaultEvent>




<FileName>/playlists/closed.gpl</FileName>

</DefaultEvent>

After that time, our normal content would be played. Our normal content would then begin at 9:00 am and continue until 5:59:59 pm. Note that the default event does not contain the <StartDate> and <EndDate> opening and closing tags.

Since we want this event to play this event all the time, no matter what day it is, it is unnecessary to specify the dates.

<Event>






<FileName>/playlists/open.gpl</FileName>

</Event>

This is only one example of using the default event. One example of extending the flexibility of this Digital Signage application might be to add events that would only be played on Saturdays and Sundays.

28

PUSH MODE / PULL MODE

Using Push and Pull Modes

Use Push or Pull Modes when the Digital Signage requirements are:

• Playback and looping of media files

• Scheduling and playlist capability

• Remote content management using the built-in FTP client / server

NOTE: You should already be familiar with the schedule.gsh, schedule.gpl, and settings.xml files and how they work. If not, refer to the How the Hi-Def Digital Signage Media Player works section on pages 16 and 17.

The FTP Client and FTP Server

The Hi-Def Digital Signage Media Player contains a built-in FTP server and an

FTP client. To use the FTP functionality of the Hi-Def Digital Signage Media

Player, you will first need to install and configure an FTP server and client on the computer that will connect to the unit. There are many programs that can be downloaded from the Internet that will serve this purpose.

Push Mode

In this first section, we will discuss Push Mode. When we refer to Push Mode, we are describing a process whereby content is (manually) “pushed to” the

Hi-Def Digital Signage Media Player using an FTP client. In this configuration, the Hi-Def Digital Signage Media Player becomes the FTP server.

Configuring Push Mode on the Hi-Def Digital Signage Media Player can be changed through the OSD or can be changed, directly, from within the settings.xml file. Both methods will be presented.

STOP: Before making any changes to the Hi-Def Digital Signage

Media Player, through the OSD, the USB drive must be connected to the unit.

29


Method 1: Configuration using the OSD

1. Open the OSD and select the Network option.


2. Select either DHCP IP (AUTO) which automatically assigns the IP address from the pool. The FIX IP (MANUAL) option will require you to provide the correct IP address, Subnet mask, Default Gateway, and DNS server address.

3. Press the OK button on the IR Remote to accept the changes.

30


4. Select the Set FTP username / password for client option.


5. Enter the desired user name and password in the respective fields:

6. Press the OK button on the IR Remote to accept the changes. Select the

Back button to return to the main menu of the OSD.

31


7. Select the Enable / Disable FTP server / client option.


8. Select the Enable / Disable FTP Server option. Press the OK button on the

IR Remote Control until it is set to Enable, then press the Back button on the IR Remote Control.

Since we’re not using the FTP client (on the Hi-Def Digital Signage Media

Player), the Enable / Disable FTP Client option can be set to either state.

This will not affect the functionality of Push Mode.


32


Method 2: Configuration using the settings.xml file

ADVANCED: Before editing the settings.xml file, it is recommended that you are familiar with XML (eXtended Markup Language). If you are unfamiliar with XML, you should review pages 45 and 46 before continuing.

1. Open the settings.xml file and locate the <ipConfig> section:


<ipConfig>


<automatic />

<manual>

<ip value= ”192.168.2.238” />

<subnet value= ”255.255.255.0” />

<gateway value= ”0.0.0.0” />

<dns1 value= ”4.2.2.2” />

<dns2 value= ”8.8.8.8” />

</manual>

</ipConfig>

<osdConfig>

2. DHCP or a static IP address can be used: a) If DHCP is being used, then set the <ipMode value> tag to automatic. Any information under the <manual> tag will be ignored. b) If a static IP is being used, then the <ipMode value> tag should be

set to the IP address that will be assigned to the Hi-Def Digital Signage

Media Player. In addition, Subnet, Gateway, and DNS server values will

need to be specified.

3. Next, locate the <pushConfig> tags:

</timeConfig>

<pushConfig>

<pushMode value= ”enable” />

<disable />

<enable>

<userName value= ”User” />

<userPass value= ”Pass” />

<port value= ”21” />

</enable>

</pushConfig>

<pullMode value= ”enable” />

33


4. Set the pushMode attribute to enable. Then, set the userName and userPass attributes to the desired values. For most scenarios, the port value should be set to 21.

5. Save the file to the USB drive.

STOP: Before inserting the USB drive back in the Hi-Def Digital

Signage Media Player, make sure you disconnect the power to the unit. The USB drive must be connected to the Hi-Def Digital

Signage Media Player before power-up, in order for the new settings to take effect.

Configuring the FTP Client

1. In the FTP client on your computer (or on the dedicated FTP server), enter the IP address of the Hi-Def Digital Signage Media Player in the host name field.

IP address of Hi-Def Digital

Signage Media Player

34


2. Enter the user name and password that were created on page 31.

User name

Password

3. Connect to the Hi-Def Digital Signage Media Player using your FTP client.

Once connected, you should see a directory listing similar to the following:


..

4. To see the contents of the Hi-Def Digital Signage Media Player storage device, change to the /sda1 directory:


..

File playlists

File

settings.xml 2,472 folder folder folder

XML Doc...

35


5. To make changes to the current schedule or playlist, make changes locally on your computer, then upload the new files to their respective directories.

Media files can also be added. Any changes will automatically take place once the Hi-Def Digital Signage Media Player finishes executing the current schedule and/or playlist.

NOTE: If the settings.xml file has been changed, then the Hi-Def

Digital Signage Media Player must be power-cycled for the new changes to take effect.

Once the FTP client (or dedicated FTP server) has been configured and can

“see” the Hi-Def Digital Signage Media Player on the network, files can be uploaded to the directory.

Make sure that the following directory structure is observed. If you change the directory names, make sure that the schedule files and playlist files point to the correct directory path.

The (default) directory structure as viewed from the FTP server

The Logs directory will be created automatically.

File logging can be enabled or disabled. See page 53 for more information.

Schedule files (.gsh) go under this folder

.. sda1

Logs

media

playlists

Place content in this folder

schedules

settings.xml

Playlist (.gpl) files go under this folder

36

The settings.xml file must reside in the root folder


Pull Mode

In this next section, we will discuss Pull Mode. When we refer to Pull Mode, we are describing a process whereby content is (automatically) “pulled from” an

FTP server to the Hi-Def Digital Signage Media Player. In this configuration, the

Hi-Def Digital Signage Media Player becomes the FTP client. Pull Mode is highly desirable when managing multiple units on a network: Instead of uploading new content manually to each box, Pull Mode can be used to schedule the transfer of new / updated content on a daily or hourly basis.

Configuring Pull Mode on the Hi-Def Digital Signage Media Player can be changed through the OSD or from within the settings.xml file. Both methods will be presented here.

STOP: Before making any changes to the Hi-Def Digital Signage

Media Player, through the OSD, make sure that the USB drive is connected to the Media Player.

Method 1: Configuration using the OSD

1. Open the OSD and select the Network option.


2. Select either DHCP IP (automatically assigns the IP address from the pool) or FIX IP. The FIX IP option will require you to provide the correct IP address, Subnet mask, Default Gateway, and DNS server address.

37


3. Press the OK button to accept the changes.

4. Select the Set FTP username / password for server option.


|

5. Enter the desired user name and password in the respective fields. If no user name of password currently exists, the Current Username and Current

Password fields may be left blank.

IMPORTANT: Do not use special characters (@,#,&, etc) when creating a password. The Media Player will be unable to connect to the server while in Pull Mode if special characters are used.

6. Press the OK button on the IR Remote to accept the changes. Select the

Back button to return to the main menu of the OSD.

38


7. Select the Enable / Disable FTP server / client option.


8. Select the Enable / Disable FTP Server option. Press the OK button on the

IR Remote Control until it is set to Enable, then press the Back button on the IR Remote Control.


39


Method 2: Configuration using the settings.xml file

ADVANCED: Before editing the settings.xml file, it is recommended that you are familiar with XML (eXtended Markup Language). If you are unfamiliar with XML, you should review pages 45 and 46 before continuing.

1. Open the settings.xml file and locate the <ipConfig> section:


<ipConfig>


<automatic />

<manual>

<ip value= ”192.168.2.238” />

<subnet value= ”255.255.255.0” />


<dns1 value= ”4.2.2.2” />

<dns2 value= ”8.8.8.8” />

</manual>

</ipConfig>

<osdConfig>

2. DHCP or a static IP address can be used: a) If DHCP is being used, then set the <ipMode value> tag to automatic. Any information under the <manual> tag will be ignored. b) If a static IP is being used, then the <ipMode value> tag should be

set to the IP address that will be assigned to the Hi-Def Digital Signage

Media Player. In addition, Subnet, Gateway, and DNS server values

must be specified.

3. Next, locate the

<pullConfig>

<pullConfig> tags:

<pullMode value=”enable” />

<disable />

<enable>

<pullURL value=”192.168.2.70” />

<settingPull value=”192.168.2.70” />

<schedulePull value=”192.168.2.70/schedules” />

<playlistPull value=”192.168.2.70/playlists” />

<contentPull value=”192.168.2.70/media” />

<pullLogUpload value=”192.168.2.70” />

...

...

40


4. Set the pullMode attribute to enable.

<pullConfig>


<disable />

<enable>

...

...

5. Next, set the IP address of the server used to hold the content for the following attributes:

<pullConfig>


<disable />

<enable>

<pullURL value=”192.168.2.70” />






...

...

Note that the attribute values for schedulePull, playlistPull, and contentPull contain a path to a directory. These directories will be set up on the FTP server which we will cover in this section.

6. Enter the userName and userPass attributes to the desired values. These values will also be used by the FTP server. For most scenarios, the value of the port attribute should be set to 21.

...

...

<userName value=”User” />

<userPass value=”Pass” />

<port value=”21” />

</enable>

...

...

41


7. Under the pullSchedule tag, the pullRepeat attribute value can be set to hourly or daily, or none. See page 51 for more information.

If the pullRepeat attribute is set to daily, set the time value under the

<daily> tag to the time which the Hi-Def Digital Signage Media Player will connect to the FTP server and retrieve updated content.

If the pullRepeat attribute is set to hourly, set the time interval, under the

<hourly> tag, in which the Hi-Def Digital Signage Media Player will connect to the FTP server and retrieve updated content. The minimum time interval is one minute ( 00:01) when the pullRepeat attribute is set to “hourly”.

...

...

<pullSchedule>

<pullRepeat value=”hourly” />

<none />

<daily>

<time value=”20:00” />

</daily>

<hourly>

<time value=”00:01” />

</hourly>

</pullSchedule>

</pullConfig>

...

...

NOTE: If the time interval is set to 00:00 when the pullRepeat attribute is set to hourly, then the update process will not occur.

When set to “daily”, the time value can be set to “00:00” which corresponds to 12 am midnight.

42


Configuring the FTP Server

The following covers the configuration process for the FTP server. This process applies whether you are running FTP server software on a PC on a network or have a dedicated FTP server.

1. The first step is to create the path and permissions to the directory which the

Hi-Def Digital Signage Media Player will be accessing. In our example from the settings.xml file, we specified the following:

<pullConfig>


<disable />

<enable>

<pullURL value=”192.168.2.70” />






...

...

In the example above, the IP address of the FTP server is 192.168.2.70.

2. Create a local directory structure on the FTP server. The directory structure must be identical to the directory structure on the USB drive.

The settings.xml file must exist in the root directory, as shown below:


..

Logs playlists schedules

2,472 folder

File

settings.xml

File folder folder

File folder

XML Doc...

3. Configure the FTP server to point to the above directory structure. Only the parent directory should be specified.

For example, if you create a parent directory called /foo, the /media,

/playlists, and /schedules directory should reside under the /foo directory.

43

THE SETTINGS.XML FILE

Understanding the SETTINGS.XML file

The settings.xml contains all the settings used by Hi-Def Digital Signage

Media Player. This file can be edited directly, allowing you to set the output resolution, the active schedule, in addition to several other options such as NTP server assignment, push mode and pull mode. Many of these settings can also be modified using the built-in menu system.

The settings.xml file is located in the root directory of the USB drive and can be edited using any standard text editor.


..

Logs File media File playlists

File

settings.xml 2,472 XML Doc...

A portion of the settings.xml file is shown below:

<settings>

<devConfig>


</devConfig>

<ipConfig>


<automatic />

<manual>

<ip value= ”192.168.2.238” />

<subnet value= ”255.255.255.0” />


<dns1 value= ”4.2.2.2” />

<dns2 value= ”8.8.8.8” />

</manual>

</ipConfig>

<osdConfig>

<osdLock value= ”enable” />

<disable />

<enable>

<pinConfig>

<pin value= ”0000” />

</pinConfig>

</enable>

</osdConfig>

<timeConfig>

44

THE SETTINGS.XML FILE

The settings.xml is constructed as a typical XML file:

The beginning of the settings.xml file begins with an XML declaration:

<?xml version=”1.0” encoding=”UTF-8” ?>

The XML declaration is followed by a <settings> start-tag. The end of the file contains a </settings> end-tag. All other tags and attributes are contained within these two tags, creating the following structure:

<?xml version=”1.0” encoding=”UTF-8” ?>

<settings>

...

...

...

</settings>

An XML attribute is a markup containing both a name and a value, which can be edited to change the behavior of the Hi-Def Digital Signage Media Player. When modifying the settings.xml file, only the Attribute Value should be changed--

never change the Attribute Name. An example of a XML attribute would be:

<output value=”NTSC1080P” />

Attribute

Name

Attribute

Value

WARNING: Do not modify the Attribute Name. Changing the

Attribute Name will result in errors or undesirable results.

The Attribute Value must always be surrounded by double quotes. The beginning of an XML Attribute must be prefixed with a less-than symbol ( <) and must end with a forward slash ( /) followed by a greater-than symbol (>).

The next section provides a summary of each section of the settings.xml file and the attributes.

45

SETTINGS.XML SUMMARY

Tag Name:

Description:

Attributes:

Example:

Device Name

<devConfig>

Allows you to change the name of the device.

name

<devConfig>


</devConfig>

IP Configuration

Tag Name: <ipConfig>

Description:

Attributes:

Allows you to specify automatic (DHCP) or manual (FIXED IP) configuration of the Hi-Def Digital Signage Media Player.

ipMode ip

subnet

gateway

dns1

dns2

Example: <ipConfig>


<automatic />

<manual>

<ip value= ”192.168.2.238” />

<subnet value= ”255.255.255.0” />


<dns1 value= ”4.2.2.2” />

<dns2 value=

</manual>

</ipConfig>

”8.8.8.8” />

Notes: In the example above, manual configuration has been selected. If DHCP is used, the ipMode value attribute should be set to “automatic”. Any information under the

<manual> tag will be ignored.

46


Tag Name:

Description:

<osdConfig>

OSD PIN Code

Allows you to change or disable the PIN code for the OSD.

Attributes: osdLock

pin

Example: <osdConfig>

<osdLock value= ”enable” />

<disable />

<enable>

<pinConfig>

<pin value= ”0000” />

</pinConfig>

</enable>

</osdConfig>

Notes: settings.xml file, the Hi-Def Digital Signage Media Player

Once the PIN code has been changed in the must be power-cycled after inserting the USB drive.

Tag Name:

Description:

Time Configuration

<timeConfig>

Allows you to set the time zone and mode.

Attributes: timeZone

daySavings

timeMode

ntpServ1

ntpServ2

Example: <timeConfig>

<timeZone value= ”-8” />

<daySavings value= ”yes” />

<timeMode value= ”external” />

<internal />

<external>

<ntpServ1 value= ”0.pool.ntp.org” />

<ntpServ2 value= ”1.pool.ntp.org” />

</external>

</timeConfig>

47


Notes: Once the time zone or time mode has been changed using the settings.xml file, the Hi-Def Digital Signage Media Player must be power-cycled after inserting the USB drive.

WARNING: When using schedules, it is highly recommended that an NTP server be used to maintain all time settings. If the Hi-Def

Digital Signage Media Player experiences a power loss after setting the time manually, the clock will reset, causing any schedules and playlists to be executed at the incorrect time.

Tag Name:

Description:

Push Mode Configuration

<pushConfig>

Allows configuration of push mode and setting of user name password.

Attributes: pushMode

userName

userPass

port

Example: <pushConfig>

<pushMode value= ”disable” />

<disable />

<enable>




</enable>

</pushConfig>

48


Tag Name:

Description:

Pull Mode Configuration

<pullConfig>

Allows you to modify Pull Mode settings in network mode.

Attributes: pullMode

pullURL

schedulePull

playlistPull

contentPull

pullLogUpload

userName

userPass

port

syncMedia

syncPlaylist

syncSchedule

Example:

<pullConfig>


<disable />

<enable>

<pullURL value= ”192.168.2.70” />

<settingPull value= ”192.168.2.70” />

<schedulePull value= ”192.168.2.70

/schedules” />

<playlistPull value= ”192.168.2.70

/playlists” />

<contentPull value= ”192.168.2.70

/media” />

<pullLogUpload value= ”192.168.2.70” />




<syncMedia value=”disable” />

<syncPlaylist value=”disable” />

<syncSchedule value=”disable” />

</enable>

...

...

...

</pullConfig>

49


Notes:

the media from the server to the Media Player. The two examples below illustrate the difference between disabling and enabling syncMedia attribute. Note that when the syncMedia attribute is enabled, the Media player will receive the new content and erase the current content from the Media Player.

Media Player

(before sync) my_movie1.mov my_movie2.mp4

<syncMedia value=”disable”>

Server my_movie1.mov my_movie2.mp4 bigmovie10.mp4 bigmovie12.mov

Media Player

(after sync) my_movie1.mov my_movie2.mp4 bigmovie10.mp4 bigmovie12.mov

Media Player

(before sync) my_movie1.mov my_movie2.mp4

<syncMedia value=”enable”>

Server my_movie1.mov my_movie2.mp4 bigmovie10.mp4 bigmovie12.mov

Media Player

(after sync) bigmovie10.mp4 bigmovie12.mov

The syncSchedule and syncPlaylist attributes function in the same manner as the syncMedia attribute. If either of these attributes are enabled, then the new Schedule file and/or

Playlist(s) will be updated from the server to the Media Player.

The current schedule file and playlist(s) will be replaced with the new files.

WARNING: It is not recommended that you change the schedule filename. The schedule file is referenced within the settings.

xml file. If the schedule filename is changed, then the settings.

xml file must be modified, manually, to reflect the new schedule filename. The syncSchedule does not automatically update the settings.xml file with a new schedule filename.

50


Pull Schedule Configuration

Tag Name:

Description:

<pullSchedule>

Located within the <pullSchedule> opening and closing tags. This section allows you to specify when content is pulled on a daily or hourly basis.

Attributes: pullRepeat

(daily)

time

Example: <pullConfig>

...

...

...

<pullSchedule>

<pullRepeat value= ”hourly” />

<none />

<daily>

<time value= ”10:00” />

</daily>

<hourly>

<time value= ”00:20” />

</hourly>

</pullSchedule>

</pullConfig>

If you want to only pull content on a daily basis, then set the pullRepeat attribute to “daily” then set the time value

under content on an hourly basis, then set the pullRepeat

attribute to “hourly” and set the time value under the

<hourly> tag.

In the example above, the pullRepeat value is set to

”hourly” and will pull from the server every 20 minutes.

This value can be changed by 1-minute increments.

If the pullRepeat value was set to “daily”, then the Media Player would pull content each day at 10:00 am. Note that “daily” time values are based on a

24-hour clock.

To disable Pull mode, set the pullRepeat value to

“none”.

51


Tag Name:

Description:

Attributes:

Example:

Setting the Active Schedule

<schedule>

Sets the active schedule.

activeSchedule

<schedule>

<activeSchedule value= ”/schedules/ schedule.gsh” />

</schedule>

Tag Name:

Description:

Display Configuration

<display>

Sets the output resolution and enables / disables underscan.

Attributes: output

videoReduceSize

Example: <display>

<output value= ”NTSC1080I” />

<NTSC720P />

<NTSC1080I />

<NTSC1080P />

<PAL720P />

<PAL1080I />

<PAL1080P />

<videoReduceSize value= ”enable” />

<disable />

<enable />

</display>

Notes: In the example above, 1080i is the output resolution. All available output resolutions are listed below the output attribute. Both NTSC and PAL formats are supported.

The underscan mode. In this example, underscan is enabled.

Set the videoReduceSize attribute to ”disable” to bypass underscan mode.

52


Tag Name:

Description:

Reboot Configuration

<rebootConfig>

This option can be used in rare cases when the Media Player has exhibited abnormal behavior and performing a reboot return the Media Player to normal operation. The reboot time should be set when content is not scheduled to play. After the reboot procedure is executed, the Media Player will continue with the current schedule.

Attributes: reboot

rebootTime

Example: <rebootConfig>

<reboot value=”enable” />

<disable />

<enable>

<rebootTime value=”03:00” />

</enable>

</rebootConfig>

Tag Name:

Description:

Log Files Configuration

<logConfig>

This option is used to enable or disable logging. By default, file logging is disabled. However, /log directories are always created, regardless of whether file logging is enabled or

disabled.

Attributes:

Example: makeLog

<logConfig>

<makeLog value=”enable” />

<disable />

<enable />

</logConfig>

53

FORMATTING USING EXT3

Formatting the USB drive using ext3

The Digital Signage Media Player allows USB drives to be formatted using the ext3 file system from within the built-in menu system. The ext3 (third extended file system) is a journaled file system used by the Linux kernel.

1. Press the Home button on the IR Remote Control.

2. Use the numeric keypad on the included IR Remote Control to enter the PIN code to access the Menu System.

3. Select Format USB disk drive with EXT3.


4. Press the OK button on the IR remote.

5. The Format Storage dialog will be displayed.

6. Select drive C: and press the OK button to begin the format process.

54

FIRMWARE UPDATE

Updating the Firmware

1. Copy the install.img file to the root directory of the USB drive.

2. Insert the USB drive into the USB port on the Hi-Def Digital Signage Media

Player.

3. Enter the OSD and select Manual firmware update via USB.


4. Press the OK button on the IR Remote.

After the OK button has been pressed, the following screen will be displayed.

Click the OK button to proceed with the firmware update process.

If both the firmware version on the USB drive and the Media Player are the same, then the Media Player will not perform the update process.

55

FIRMWARE UPDATE

WARNING: Do not disconnect power or remove the USB drive during the firmware update process. Doing so may cause the unit to function improperly or lock up in an unrecoverable state.

5. The following set of screens will be displayed as the update process is taking place:

6. After the update process has completed successfully, the following screen will be displayed. The Hi-Def Digital Signage Media Player will then return to the Input PIN Code screen.

56

SPECIFICATIONS

Maximum Pixel Clock............................................................................... 225 MHz

Digital Video Output Connectors........................... (1) HDMI Type A 19-pin, female

Analog Video Output Connectors.........(1) Component, RCA-type, (1) Composite,

RCA-type,

Digital Audio Output Connector........................................................(1) TOSLINK™

Analog Audio Output Connector..................................................(1) L/R, RCA-type

Ethernet Connector........................................................................ RJ-45, Shielded

USB Output Connectors........................................................... (2) USB 2.0, type A

Power Supply....................................................................................... 12V DC, 3A

Power Consumption............................................................................ 10 W (max.)

Operating Temperature............................................................................ 0 ~ 40 °C

Dimensions........................................................................ 8.4” W x 5.1” D x 1.6” H

Shipping Weight............................................................................................. 4 lbs.

57

WARRANTY

Gefen warrants the equipment it manufactures to be free from defects in material and workmanship.

If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications. Equipment that fails under conditions other than those covered will be repaired at the current price of parts and labor in effect at the time of repair. Such repairs are warranted for ninety (90) days from the day of reshipment to the Buyer.

This warranty is in lieu of all other warranties expressed or implied, including without limitation, any implied warranty or merchantability or fitness for any particular purpose, all of which are expressly disclaimed.

1. Proof of sale may be required in order to claim warranty.

2. Customers outside the US are responsible for shipping charges to and from

Gefen.

3. Copper cables are limited to a 30 day warranty and cables must be in their original condition.

The information in this manual has been carefully checked and is believed to be accurate. However, Gefen assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will Gefen be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. The technical information contained herein regarding the features and specifications is subject to change without notice.

For the latest warranty coverage information, refer to the Warranty and Return

Policy under the Support section of the Gefen Web site at www.gefen.com.

PRODUCT REGISTRATION

Please register your product online by visiting the Register Product page under the Support section of the Gefen Web site.

58

20600 Nordhoff St., Chatsworth CA 91311

1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com/DS [email protected]

Pb

This product uses UL listed power supplies.

Gefen EXT-HD-DSMP User manual

®

Hi-Def

Digital Signage

Media Player

www.gefen.com

schedule must be specified:

Related manuals

Gefen EXT-HD-DSMP User manual

®

Hi-Def

Digital Signage

Media Player

www.gefen.com

schedule must be specified:

Related manuals

Gefen

EXT-HD-DSMP

Gefen

EXT-HD-DSMP

Gefen

EXT-HD-DSP

Gefen

EXT-HD-DSWFPN

AOC

65X8050

Gefen

EXT-HD-DSMP

AOC

50X8050

Gefen

SD-PVR
