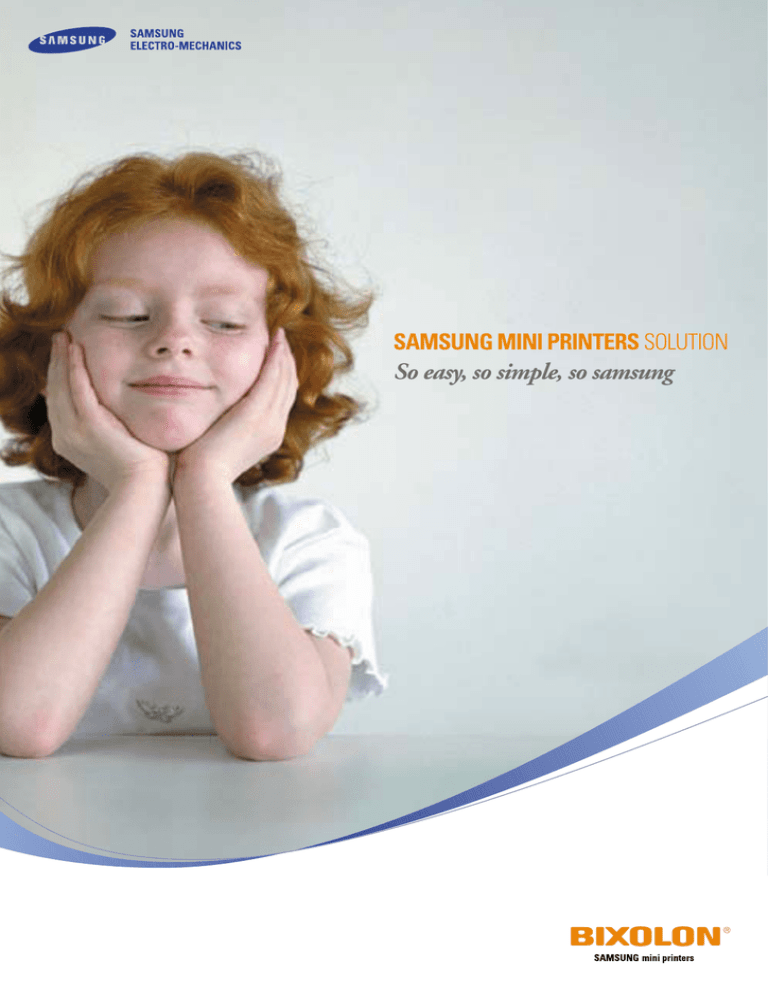

SAMSUNG MINI PRINTERS SOLUTION
So easy, so simple, so samsung
2nd Generation Impact Printer
SRP-275
2 Color Thermal Printer
SRP-370/372
Contents
04
New Release
15
Inkjet Printer | SRP-500
05
Advanced Technology
16
Thermal Printer | STP-131
06
2 color Thermal Printer | SRP-370/372
17
Thermal Printer | STP-103
08
Thermal Printer | SRP-350
18
Mini Printer Solution
10
2nd generation Impact Printer | SRP-275
20
Mechanism Solution
12
Impact Printer | SRP-270
22
Option
14
Thermal Label Printer | SRP-770
New Release
2nd Generation Impact Printer
SRP-275
Samsung Mini Printers keep at the forefront of technology and
commitment to reliability with new models.
No other manufacturer has this degree of cover.
This new models have all the usual drivers and interchangeable
interface cards.
Faster & Quieter
High Operational Reliability
Versatile Paper Roll Sizes
Drop In & Print Paper Loading
Connectivity, No Problem
Easy System Integration
Various Software Utilities
Internal Alarm Buzzer & Adapter
2 Color Thermal Printer
SRP-370/372
The Fastest Speed in Its Class
Various Paper Roll Sizes
Drop In & Print Paper Loading
Satisfy with Multiple Interfaces
Handy Software Utilities
The Powerful Features
: Splash Cover, Wall Mount Bracket, Internal & External Buzzer
Easy System Integration
The SRP-370 two color fast print speed thermal printer is ideal for
retail and hospitality applications and allows you to print receipt
with company logos and barcodes plus add coupons.
In addition, SRP-372 high density(203dpi) version is also available.
Advanced Technology
Versatile Interface
Ethernet
Ethernet infrastructure is more than just a way for computers to communicate with each other. Ethernet
can also be used to communicate with devices such as printers, using Ethernet print servers.
ETHERNET
Available with Ethernet : SRP-350, SRP-370, SRP-270, SRP-275
Bluetooth
Remove unsightly communication cables between POS host and remote printers.
BLUETOOTH
Available with Bluetooth : SRP-350, SRP-370, SRP-270, SRP-275
USB + Serial
The USB and Serial are in the one board. Through the USB + Serial, you can experience fast speed and
easy to use.
USB+SERIAL
Available with USB+Serial : SRP-350, SRP-370, SRP-270
Powered USB
The new retail connectivity standard, Powered USB offers retailers a secure, locking peripheral
connection that delivers both power and communications over a single cable connection.
POWERED
USB
Available with Powered USB : SRP-350, SRP-370, SRP-270, SRP-275
* Serial, Parallel and USB are available as basic interfaces
User-Friendly Option
Wall-Mount Bracket
Available with SRP-350, SRP-370, SRP-275
Splash Proof Cover
Available with SRP-350, SRP-370, SRP-275
External Buzzer
Available with SRP-350, SRP-270, SRP-500
Handy Software
Windows Driver (Windows 95/98/ME/2000/NT/XP/2003 Server)
OPOS
Logo Download Utility
Memory Switch Utility
06
2 COLOR THERMAL PRINTER
SRP-370/372
Samsung Mini Printers keep at the forefront of technology and commitment
to reliability with new model.
The SRP-370 two color fast print speed thermal printer is ideal for retail and
hospitality applications and allows you to print receipt with company logos
and barcodes plus add coupons.
• POS system
• Kitchen printer
• Electronic scale
• EFT-POS
High speed & 2 color POS printer features
for all Retail and Hospitality solutions!!!
• Measuring - equipment
• Lottery
The Fastest Speed in Its Class
PRINTING
SPEED
Printing at maximum speed of 200mm per second.
Various Paper Width
PAPER WIDTH
You can select the paper width only with the paper guide. And also capable of handling paper
rolls of up to 105mm in diameter and 58mm, 80mm, 83mm in width optionally.
Easy System Integration
EASY SYSTEM
Drivers are available for Windows 95/98/ME/NT4.0/XP/2003 server and OPOS.
Logo/firmware download helps you use logo efficiently and easily.
Drop In and Print Paper Loading
EASY LOAD
A simple drop-in loading system means that even inexperienced operators can load paper
rolls with the minimum of effort.
Satisfy with Multiple Interfaces
INTERFACES
Interfaces such as Serial, Parallel, USB, Ethernet and Bluetooth options with new technology
interfaces POWERED USB Y-cable and USB+SERIAL interface.
The Powerful Features
FEATURES
The splash proof cover, wall mount bracket and internal/external buzzer is fitted in food and
beverage preparation areas as standard equipment. The SRP-370 has these powerful features
to make all users satisfy in the busy and flurried environment.
07
Grasp the customer's attention and keep your POS system fully efficient by superb
fast printing speed and colorful promotion generated by 180 dpi and 203 dpi.
Save time, save money !!
SPECIFICATION FOR THE SRP-370/372 THERMAL PRINTER
PRINT
PRINT METHOD
Direct Thermal
PRINT SPEED
200mm/ sec (61.7 LPS)
PAPER SUPPLY METHOD
Easy Paper Loading
RESOLUTION
SRP-370 : 180 dpi (7dot/mm) , SRP-372 : 203 dpi (8dot/mm)
CHARACTER SET
Alphanumeric Character : 96
• Splash Proof Cover
Extended Graphic : 128 x 7 page (1space page)
International Character : 32
PAPER ROLL
RELIABILITY
CHARACTER SIZE
Font A : 12 x 24, Font B: 9 x 17
CHARACTER PER LINE
Font A : 42, Font B : 56
PAPER TYPE
Mono & 2 color thermal paper
WIDTH
57.5mm ± 0.5mm, 79.5mm ± 0.5 mm, 82.5 mm ± 0.5 mm
DIAMETER
Max.Ø 105.0mm
MCBF
70,000,000 Lines
AUTO CUTTER
1.5 million cuts
TPH
150Km
BARCODES
• Paper Width Guide
1D: EAN-13, EAN-8, Code 39, Code 93, Code 128, ITF, Code Bar,
UPC-A, UPC-E / 2D(Option): PDF417, QR Code
EMULATION
ESC/POS
FLASH MEMORY
16 Mbit
DATA BUFFER
64 Kbit
DRIVER
Windows 95/98/Me/2000/NT/XP/2003 server, USB, OPOS
SENSOR
Paper Near End Sensor, Paper End Sensor
DRAWER PORT
2 ports
CONNECTIVITY
INTERFACE
RS-232C, IEEE1284, USB, RS-485, Ethernet, Bluetooth
OPTIONS
LANGUAGE
Buyer language support
WALL MOUNT
RWM-350
SUPPLY
AC120V~230V ± 10%(Include), DC24V, 2.3A
• Large Roll Paper
105 mm
83 mm
POWER
146(W) x 204(L) x 160(H) mm
DIMENSION
AUTO CUTTER
TYPE
Guillotine
08
THERMAL PRINTER
SRP-350
The industry's best Thermal Receipt Printer, the SRP-350 features fast printing
speeds, a compact size, and an easy-to-load Drop and Print paper supply. This
versatile printer offers a multiple interface that can quickly convert to a printer
interface as your system evolves.
• POS system
• Kitchen printer
• Electronic scale
• EFT-POS
Samsung thermal printer SRP-350 has all the benefits for your
needs, Worldwide market proven quality !!!
• Measuring - equipment
• Lottery
The High Speed in Its Class
PRINTING
SPEED
The SRP-350 prints at speeds of up to 150mm per second.
Easy System Integration
Drives are available for Windows 95/98/ME/NT4.0/XP/2003 server and OPOS.
EASY SYSTEM
Drop In and Print Paper Loading
EASY LOAD
A simple drop-in loading system means that even inexperienced operators can load paper
rolls with the minimum of effort.
Software Utilities
LOGO
DOWN LOAD
Logo/firmware download program helps you use logo efficiently and easily.
Compact Size
COMPACT
The SRP-350 has a small footprint that allows for flexible placement on a countertop or wall
using an optional wall mount bracket.
Various Interface Cards
INTERFACES
The SRP-350 features modular interface, RS-232C, RS-485, Parallel, Ethernet, USB and
Bluetooth interfaces simply by ordering a new module.
Print Alarm Buzzer
PRINT ALARM
BUZZER
It is ideally suited to usage in food and beverage preparation areas. In fact, anywhere that
information needs to be passed to a remote location. These remote locations are quite often
noisy places so the SRP-350 is fitted with a print alarm buzzer (program option) as standard
equipment.
09
Thermal printing assures virtually silent operation and keeps
consumables to a minimum. Ribbons are not required. Black and white
thermal paper is widely available and increased use of thermal printing
has driven down paper costs significantly.
SPECIFICATION FOR THE SRP-350 THERMAL PRINTER
PRINT
PRINT METHOD
Direct Thermal
PRINT SPEED
150mm/ sec (47.2 LPS)
PAPER SUPPLY METHOD
Easy Paper Loading
RESOLUTION
180 dpi (7dot/mm)
CHARACTER SET
Alphanumeric Character : 96
• Splash Proof Cover
Extended Graphic : 128 x 7 page (1space page)
International Character : 32
PAPER ROLL
RELIABILITY
CHARACTER SIZE
Font A : 12 x 24, Font B: 9 x 17
CHARACTER PER LINE
Font A : 42, Font B : 56
PAPER TYPE
Thermal paper
WIDTH
79.5 mm ± 0.5mm
DIAMETER
Max. Ø 83.0mm
MCBF
37,000,000 Lines
AUTO CUTTER
1.5 million cuts
TPH
100Km
BARCODES
• Wall-mount bracket
• Easy Paper Loading
(Drop-in and Print)
EAN-13, EAN-8, Code 39, Code 93, Code 128, ITF, Coda bar,
UPC-A, UPC-E
EMULATION
ESC/POS
FLASH MEMORY
16 Mbit
DRIVER
Windows 95/98/Me/2000/NT/XP/2003 server, OPOS
SENSOR
Paper Near End Sensor, Paper End Sensor
DRAWER PORT
2 ports
• Rear Side
CONNECTIVITY
INTERFACE
RS-232C, IEEE1284, USB, RS-485, Ethernet, Bluetooth
OPTIONS
LANGUAGE
Buyer language support
WALL MOUNT
RWM-350
SUPPLY
AC120V~230V ± 10%(Include), DC24V, 2.3A
POWER
DIMENSION
AUTO CUTTER
145(W) x 195(L) x 146(H) mm
TYPE
Guillotine
Interface
Drawer Port
Power Jack
10
2nd GENERATION IMPACT PRINTER
SRP-275
THERMAL RECEIPT PRINTER
The SRP-275 is 2nd generation Impact printer which sets you free from
embarrassing paper jams. This printer has more functions such as two-color
printing and versatile paper roll sizes and boasts about fast speed and less
printing noise. It's really successful series from SRP-270.
• POS system
• Kitchen printer
• Electronic scale
• EFT-POS
Versatile system features for all retail solutions!!!
Versatile system features for all hospitality solutions!!!
• Measuring - equipment
Drop In and Print Paper Loading
EASY LOAD
Lift the lid, drop in the roll, close the lid and print. Nothing could be easier. No more feeding
rolls through slots or rollers.
Faster and Quieter
PRINTING
SPEED
Logic seeking, bi-directional print technology allows higher speed than previous models with
much less noise.
Various Paper Width
PAPER WIDTH
The SRP-275 can easily be made to take different width paper roll sizes saving paper costs.
The full width 76mm roll is standard and 69mm or 57mm can be chosen optionally.
Built-in Power Supply
BUILT IN
It helps you arrange easy cabling under the desk and protect your system from unexpected
short.
Easy System Integration
EASY SYSTEM
Drivers are available for Windows 95/98/ME/NT4.0/XP/2003 server and OPOS. Logo/firmware
download helps you use logo efficiently and easily.
Print Alarm Buzzer
PRINT ALARM
BUZZER
It is ideally suited to usage in food and beverage preparation areas. In fact, anywhere that
information needs to be passed to a remote location. These remote locations are quite often
noisy places so the SRP-275 is fitted with a print alarm buzzer (program option) as standard
equipment.
11
The SRP-275 is ideal for both POS receipt printing and remote hospitality
printing. It is a robust, high performance impact receipt printer which is
exceptionally easy to use. Featuring drop-in paper load, selectable autocutter and clamshell covers for easy access and maintenance, the SRP-275
is very reliable and prints on plain paper in three widths.
SRP-275A
(tear bar)
SPECIFICATION FOR THE SRP-275 IMPACT PRINTER
PRINT
PRINT METHOD
9 pin serial impact dot matrix
PRINT DIRECTION
Bi-directional, Logic seeking, Friction feed
PRINT SPEED
5.1 lines per second at 40 column
PAPER SUPPLY METHOD
Drop in and print
DOT PITCH
0.352mm (1/72”)
DOT WIRE DIAMETER
0.3mm (0.01”)
CHARACTERS PER LINE
Font A : 33, Font B : 40
PRINTING WIDTH
63.34mm (2.49”)
LINE SPACING
4.233mm (1/6 inch), Can be set by a command
CHARACTER FONT
Font A : 7 x 9 / Font B : 9 x 9
CHARACTER SETS
Alphanumeric characters : 95, international
characters : 48, Extended graphics : 128 x 20 pages
MEMORY
Print buffer : 8 Kbytes NV image : 256 Kbytes
CONTROL CODE EMULATION
ESC/POS, Star, Citizen.
SOFTWARE
Utilities : Firmware/NV image download, Virtual
SRP-275C
(auto cutter)
• Easy Paper Loading
(Drop-in and Print)
• Built-in Power Supply
memory switch manager
DRIVERS
Windows 95/98/ME/2000/NT4.0/XP/2003 server, OPOS
SENSORS
Paper end, paper near end, wall mounting paper near end,
cover open
BUZZER
Buzzer alarm
WIDTH
76, 69, 57 ± 0.5mm, 2.99”, 2.74”, 2.26” ± (0.22”)
THICKNESS
0.06 - 0.09mm (0.002 - 0.003”)
DIAMETER
83mm (3.27”) - Core Max.19mm
RIBBON
TYPE
RRC-270 B/R (Black/Red)
RELIABILITY
MCBF
18 million lines
AUTO CUTTER
1.5 million cuts
INTERFACE
Serial, Parallel, USB, Ethernet, Bluetooth
DKD FUNCTION
2 ports
PAPER ROLL
CONNECTIVITY
EMC/SAFETY STANDARD
CE, FCC, UL, TUV, GS
POWER
SUPPLY
AC100V~240V ± 10%, DC24V, 1.5A Internal/External installation
OPTIONS
PAPER CUTTER
SRP-275A(tear bar), SRP-275C(auto cutter)
COLOR
Ivory, Dark Grey
WALL MOUNT
Wall mount bracket
• Variable Paper Width
76 mm
69 mm
57 mm
12
IMPACT PRINTER
SRP-270
World famous receipt printer SRP-270 features the fast printing speed, high
durability. Specially SRP-270 is very suitable for the store manager to save
running cost considerably.
The SRP-270 has the solution such as multiple driver at any OS environment.
• POS system
• Kitchen printer
• Electronic scale
• EFT-POS
Dot impact printer with excellent build quality ,suitable for all
impact printing requirements. Samsung SRP-270 provides high
reliability, quality and user of convenience.
• Measuring - equipment
Faster Print Speed
PRINTING
SPEED
The SRP-270 prints at speeds of up to 4.6 lines per second.
Easy System Integration
EASY SYSTEM
The SRP-270 is no exception, drivers are available for Windows 95 / 98 / ME / NT4.0 / XP / 2003
server and OPOS.
High Operational Reliability
MULTI COPY
The market proven quality by world wide installation provides you option of an auto cutter and
take up, and the ability to print one original plus two copies.
Various Interface Cards
INTERFACES
A| C | D
3 MODELS
The SRP-270 features modular interface, RS-232C, RS-485, Parallel, Ethernet, USB and
Bluetooth interfaces simply by ordering a new module.
Three series models
There are 3 models to choose from, with varying options such as A type(tear-off bar), C type
(auto cutter) and D type(journal take-up for 2 ply paper printing).
13
The SRP-270 is an ideal low cost printer for pointof-sale applications. The modular user-friendly
design, graphics capability, and 4.6 lines per
second print speed offer reliable high performance
in a compact, lightweight design.
SRP-270A
(with tear-off bar)
SRP-270C
(with auto cutter)
SRP-270D
(with cutter and take-up spool)
• Available in Dark Gray
SPECIFICATION FOR THE SRP-270 IMPACT PRINTER
PRINT
PRINT METHOD
9 pin serial impact dot matrix
PRINT SPEED
4.6 lines per second at 40 column
PAPER SUPPLY METHOD
Auto Paper Loading
CHARACTERS PER LINE
Font A : 33, Font B:40
PRINTING WIDTH
63.34mm (2.49”)
CHARACTER FONT
Font A : 7 x 9 / Font B : 9 x 9
CHARACTER SETS
Alphanumeric characters : 95
• Auto Paper loading
Extended Graphics : 128 x 7 Page (1 space page)
International Character : 32
CONTROL CODE EMULATION
ESC/POS
DRIVERS
Windows 95/98/ME/2000/NT4.0/XP/2003 server, OPOS
SENSORS
Paper end sensor
WIDTH
76 ± 0.5mm
PAPER TYPE
Plain Paper
DIAMETER
Max. Ø 83.0mm
RIBBON
TYPE
RRC-270 B/R (Black/Red)
RELIABILITY
MCBF
18 million lines
AUTO CUTTER
1.5 million cuts
INTERFACE
Serial, Parallel, USB, Ethernet, Bluetooth
DKD FUNCTION
Maximum 2 cash drawers
POWER
SUPPLY
AC120V~230V ± 10%, DC24V, 1A
OPTIONS
PAPER CUTTER
SRP-270A (tear bar), SRP-270C (auto cutter)
• Ribbon Cassette
PAPER ROLL
CONNECTIVITY
Mono or 2 color
• Rear Side
SRP-270D (Cutter & take-up spool)
COLOR
Ivory, Dark Grey
LANGUAGE
Buyer Language Support :
(Including Chinese, Thai, Arabic, Turkey)
Interface
Drawer Port Power Jack
14
THERMAL LABEL PRINTER
SRP-770
The Samsung SRP-770 direct thermal label printer provides top quality label
printing for any application. With a print speed of 5 inches per second the SRP770 will keep pace with demand.
High print definition ensures excellent read quality, even with the smallest text
and the latest bar codes. Samlabel 'FREE' Professional Label Creation Software
for PC.
LABEL
BAR CODE
LABEL
EASY LOAD
PAPER WIDTH
LOW
NOISE
AUTO
CUTTER
PRINTING
SPEED
SPECIFICATION FOR THE SRP-770 LABEL PRINTER
PRINT
PRINT METHOD
Direct Thermal
PRINT SPEED
127mm/sec (5.1 IPS)
RESOLUTION
203 DPI (8dot/mm)
PAPER SUPPLY METHOD
Easy Paper Loading
CHARACTER SETS
7 resident bitmap fonts, 7 code page
Expandable up to 4X, soft storage BMP,
MCBF
PCX graphic supported
• SRP-770 C Type
PAPER ROLL
EMULATION
SLCS/EPL II, ZPLII, ESC-POS
DRIVERS
Windows 95/98/ME/2000/NT4.0/XP/2003 server
SENSORS
Gap, Black mark, Notch Sensor
PAPER TYPE
Label, Tag
WIDTH
1.5 ~ 4.1” (38.1 ~ 104.1mm)
DIAMETER
Inside : 1~1.5”
• Paper Loading
BARCODES
EAN-13, EAN-8, Code 39, Code 93, Code 128, ITF,
Coda bar, UPC-A, UPC-E, PDF417, Maxicode
RELIABILITY
• Peel Off
MCBF
20,000,000 Lines
AUTO CUTTER
1 million cuts
TPH
50km
CONNECTIVITY
INTERFACE
Serial, Parallel, USB (All standard)
POWER
SUPPLY
AC 100~240 V ± 10%(Include), DC 24V, 3.75A
OPTIONS
AUTO CUTTER
Guillotine
LANGUAGE
Buyer Language Support
15
INKJET PRINTER
SRP-500
Enhances any Epos system. Makes the most of color and graphics. Aimed at
Specialty retail, department stores, restaurants, fast food and bars, convenience
stores, laundry systems and anywhere where a permanent printed record is
required.
Inkjet printer technology set to revolutionize receipt printing. Combining the
manufacturing skills and experience of Samsung and inkjet cartridge expertise of
Hewlett Packard to produce a printer that provides lower cost of ownership than
thermal receipt printers with the advantage of two color print.
SPECIFICATION FOR THE SRP-500 INKJET PRINTER
2
2 COLOR
PRINTING
SPEED
EASY LOAD
LOGO
DOWN LOAD
LOW
NOISE
CASHDRAWER
DRIVER
PRINT
COMPACT
MCBF
PRINT METHOD
Color Inkjet
PRINT SPEED
13 LPS (at 12 column)
RESOLUTION
104/208 DPI
PAPER SUPPLY METHOD
Easy Paper Loading
CHARACTERS PER LINE
Font A : 32, Font B : 43
CHARACTER FONT
Font A : 12 x 12, Font B : 12 x 14
CHARACTER SETS
Alphanumeric characters : 95
Extended Graphics : 128 x 12 Page
International Character : 32
• Colorful Promotion
EMULATION
ESC/POS, IDP3541
DRIVERS
Windows 95/98/ME/2000/NT4.0/XP/2003 server, OPOS
SENSORS
Paper near end, Low ink indicator, No cartridge indicator,
Front/Rear cover open
PAPER ROLL
• Easy Ink replacement
WIDTH
76 ± 0.5mm
PAPER TYPE
Plain Paper
DIAMETER
Max. Ø 83.0mm
BARCODES
RELIABILITY
MCBF
18,000,000 lines
AUTO CUTTER
1.5 million cuts
INTERFACE
Serial, Parallel, USB, Ethernet, Bluetooth
DRAWER PORT
2 ports
POWER
SUPPLY
AC 96 ~ 264V (Include), DC 24V, 2.5A
OPTIONS
AUTO CUTTER TYPE
Rotary
COLOR
Ivory, Dark Grey
LANGUAGE
Buyer Language Support
CONNECTIVITY
• Ink Cartridge
Black, Red, Green, Blue
EAN-13, EAN-8, Code39, Code128, ITF, Code bar, UPC-A, UPC-E
16
THERMAL PRINTER
STP-131
The STP-131 offers cost-effective efficiency in thermal receipt printing.
This high speed, low cost direct thermal printer offers many of the features
found in more expensive printers including near end , end of paper sensing, full
graphics, and barcode printing support.
The STP-131 accommodates Serial & Parallel interfaces in one board and has
versatile download functions for logos, firmware and fonts.
SPECIFICATION FOR THE STP-131 THERMAL PRINTER
BAR CODE
COMPACT
EASY LOAD
LOGO
DOWN LOAD
LOW
NOISE
PRINT
AUTO
CUTTER
PRINTING
SPEED
PRINT METHOD
Direct Thermal
PRINT SPEED
73.3mm/sec (17.3 LPS)
RESOLUTION
180 DPI (7dot/mm)
PAPER SUPPLY METHOD
Auto Paper Loading
Character Size
Font A : 12 x 24, Font B : 9 x 24
Character per line
Font A : 42, Font B : 56
CHARACTER SETS
Alphanumeric Character : 95
MCBF
Extended Graphic : 128 x 7 Page (1 space page)
International Character : 32
• Indicator
PAPER ROLL
• Auto Paper Loading
EMULATION
ESC/POS
DRIVERS
Windows 95/98/ME/2000/NT4.0/XP/2003 server, OPOS
SENSOR
Paper near end sensor, Paper end sensor
PAPER TYPE
Thermal Paper
WIDTH
79.5 ± 0.5mm
DIAMETER
Max. Ø 83.0mm
EAN-13, EAN-8, Code 39, Code 93, Code 128, ITF,
BARCODES
Coda bar, UPC-A
RELIABILITY
MCBF
30,000,000 Lines
AUTO CUTTER
1.5 million cuts
TPH
100 km
8 Mbit
FLASH MEMORY
• Serial + Parallel
Convertible Board
Interface
CONNECTIVITY
INTERFACE
RS-232C, IEEE-1284
POWER
SUPPLY
AC120 ~230V ± 10%(include) DC 24V, 2.3A
OPTIONS
Power Jack
Drawer Port
150(W) x 205(L) x 132(H) mm
DIMENSION
AUTO CUTTER
Guillotine
LANGUAGE
Buyer Language Support
17
THERMAL PRINTER
STP-103
With its speed, quality and value, the Samsung STP-103 thermal receipt printer
is clearly first in its class. This user-friendly design incorporates a small
footprint ,drop and print, and can print at a speed of 50mm per second. Its ability
to produce large clear print on 58mm wide paper is found on no other compact
printer.
SPECIFICATION FOR THE SRP-103 THERMAL PRINTER
BAR CODE
COMPACT
EASY LOAD
LOGO
DOWN LOAD
LOW
NOISE
PRINT
MCBF
MANUAL CUT
PRINT METHOD
Direct Thermal
PRINT SPEED
50mm/sec (11.8 LPS)
RESOLUTION
203 DPI (8dot/mm)
PAPER SUPPLY METHOD
Easy Paper Loading
Character Size
Font A : 12 x 24, Font B : 9 x 24
Character per line
Font A: 322, Font B: 42
CHARACTER SETS
Alphanumeric Character :95
Extended Graphic : 128 x 7 Page (1 space page)
International Character : 32
• Cash Drawer Port
PAPER ROLL
• Easy Paper Loading
EMULATION
ESC/POS
DRIVERS
Windows 95/98/ME/2000/NT4.0/XP/2003 server, OPOS
SENSOR
Paper near end sensor, Paper end sensor
PAPER TYPE
Thermal Paper
WIDTH
58 ± 0.5mm
DIAMETER
Max. Ø 60.0mm
BARCODES
EAN-13, EAN-8, Code 39, Code 93, Code 128, ITF,
Coda bar, UPC-A
RELIABILITY
• Serial + Parallel
Convertible Board
Interface
Power Jack
MCBF
30,000,000 Lines
TPH
100km
CONNECTIVITY
INTERFACE
RS-232C, IEEE-1284
POWER
SUPPLY
AC120 ~230V ± 10%(include) DC 24V, 1.5A
100(W) x 191(L) x 90(H) mm
DIMENSION
OPTIONS
CUTTER TYPE
Manual Cutter
LANGUAGE
Buyer Language Support
DRAWER PORT
STP-103DK
18
MINI PRINTER
SOLUTION
New
New
2 color Thermal Printer
2nd Generation Impact Printer
Thermal Printer
SRP-370/372 SRP-275 SRP-350
2 color printing with high
speed
durable & easy paper loading
Reliable & High Quality
Samsung Mini Printers keep at the forefront
of technology and commitment to reliability
with new model. The SRP-370 two color fast
print speed thermal printer is ideal for retail
and hospitality applications and allows you to
print receipt with company logos and
barcodes plus add coupons.
The SRP-275 is 2nd generation Impact
printer which sets you free from
embarrassing paper jams. This printer has
more functions such as two-color printing
and versatile paper roll sizes and boasts
about fast speed and less printing noise. It's
really successful series from SRP-270.
With speed, quality and value, the
samsung SRP-350 thermal receipt
printer is clearly first in it's class. It
easily with stands the rigors of tough
enviroment, printing receipts,
coupons, logos or bar codes.
DARK GRAY
COLOR
AUTO
CUTTER
SYSTEM
2 COLOR
EASY LOAD
On-Time STATUS
CHECK
DARK GRAY
COLOR
AUTO
CUTTER
SYSTEM
BAR CODE
EASY LOAD
On-Time STATUS
CHECK
DARK GRAY
COLOR
AUTO
CUTTER
SYSTEM
BAR CODE
EASY LOAD
On-Time STATUS
CHECK
2
ITEM
BAR CODE
SRP-370/372
SRP-275
SRP-350
2 color Thermal Printer
2nd generation Impact Printer
Thermal Printer
Reliable & High quality
PRINTING METHOD
Direct Thermal
9 pin serial impact dot matrix
Direct Thermal
PRINTING SPEED
200mm/ sec (61.7 LPS)
5.1 lines per second at 40 column
150mm/sec (46.2LPS)
RESOLUTION (dpi)
SRP-370:180 dpi (7dot/mm) , SRP-372:203 dpi (8dot/mm)
CHARACTER SIZE
Font A : 12 x 24,
Font B: 9 x 17
Font A : 7 x 9
Font B : 9 x 9
FontA : 12 x 24
FontB : 9 x 17
CHARACTER PER LINE
Font A : 42
Font B : 56
Font A : 33
Font B:40
FontA : 42
FontB : 56
PAPER
PAPER TYPE
Mono & 2 color thermal paper
SPECIFICATION
PAPER WIDTH
57.5 ± 0.5mm, 79.5 ± 05.mm, 82.5 ± 05.mm
63.34mm (2.49”)
79.5 ± 0.5mm
PAPER ROLL DIAMETER
Max.Ø 105.0mm
Max. Ø 83.0mm
Max. Ø 83.0mm
PRINT
Thermal Paper
Easy Paper Loading
Drop in and print
Easy paper loading
MCBF
70,000,000 Lines
18,000,000 Lines
37,000,000 Lines
TPH LINE
150Km
PAPER SUPPLY METHOD
RELIABILITY
180 dpi (7 dot/mm)
CHARACTER SET
BARCODES
100km
Alphanumeric Character : 96
Alphanumeric characters : 95
Alphanumeric Character : 95
Extended Graphic : 128 x 7 page (1space page)
Extended graphics : 128 x 20 pages
Extended Graphic : 128 x 7 page (1 space page)
International Character : 32
International characters : 48
International Character : 32
1D: EAN-13, EAN-8, Code 39, Code 93, Code 128, ITF,
EAN-13, EAN-8, Code 39, Code 93,
Code Bar, UPC-A, UPC-E / 2D(Option): PDF417, QR Code
Code 128, ITF, Code Bar, UPC-A, UPC-E
EMULATION
ESC/POS
ESC/POS, Star, Citizen.
ESC/POS
FLASH MEMORY
16 Mbit
Print buffer : 8 Kbytes NV image : 256 Kbytes
8 Mbit
DRIVER
Win 95/98/Me/2000/NT/XP/2003 server, OPOS
Win 95/98/ME/2000/NT4.0/XP/2003 server, OPOS
Win 95/98/Me/2000/NT/ XP/2003 server, OPOS
SENSOR
Paper Near End Sensor, Paper End Sensor
Paper End, Paper Near End, Wall Mounting Paper
Paper Near End Sensor / End Sensor
Near End
DRAWER PORT
2 ports
2 ports
2 ports
INTERFACE
RS-232C, IEEE1284,USB,RS-485,Ethernet,Bluetooth
Serial, Parallel, USB, Ethernet
RS-232C, IEEE-1284, USB, RS-485, Ethernet, Bluetooth
WALL MOUNT
RWM-350
RWM-275
RWM-350
LANGUAGE
Buyer Language Support
Buyer Language Support
Buyer Language Support
AC 120V~230V ± 10%(Include), DC 24V, 2.3A
AC 100V~240V ± 10%, DC 24V. 1.5A Internal/External installation
AC 120 ~ 230V ± 10%(include), DC 24V, 2.3A
146 x 204 x 160
A : 160 x 239 x 157
145 x 195 x 146
OPTION
POWER SUPPLY (Adapter)
DIMENSIONS
W x L x H (mm)
C : 160 x 239 x 157
OPERATING TEMP.
AUTO CUTTER
TYPE
0 ~ 45˚C
0 ~ 45˚C
0 ~ 45˚C
Guillotine
Rotary
Guillotine
1,500,000 cuts
1,500,000 cuts
1,500,000 cuts
19
Thermal Printer
Thermal Printer
Label Printer
2 Color Impact Dot Printer Color Inkjet Printer
STP-131 STP-103 SRP-770 SRP-270 SRP-500
Robust & Cost-effective
Accomodation of Serial & Parallel in
one board and versatile download
fuction such as logo, firmware and
font.
DARK GRAY
COLOR
AUTO
CUTTER
Auto Feed
Compact with easy paper
loading
With speed,quality and value, the
Samsung STP-103 thermal receipt
printer is clearly first in it's class.
The user-friendly design in
corporates a small footprint, drop
and print.
DARK GRAY
COLOR
EASY LOAD
High speed & High
performance
Produces direct thermal labels for
retail, warehouse, shipping /
receiving, medical and many other
applications. USB, serial and
parallel interface standard on every
printer.
On-Time STATUS
CHECK
AUTO
CUTTER
EASY LOAD
On-Time STATUS
CHECK
Reliable & Rugged
2 Color Printing with Easy
Paper Loading
World best receipt printer SRP-270
features the fastest printing speed,
high durability. It is an ideal printer
to install in any enviroment where
high-volume transactions are
required.
Add a splash of color to print
distinctive receipts with logos,
coupons, rebates and specials.
Using HP's state-of-the-art inkjet
technology, the SRP-500 combines
high speed and low cost of
ownership.
AUTO
CUTTER
2
Auto Feed
2 COLOR
DARK GRAY
COLOR
AUTO
CUTTER
BAR CODE
On-Time STATUS
CHECK
LABEL
BAR CODE
EASY LOAD
2
LABEL
MULTIPLE
SYSTEM
BAR CODE
2 COLOR
BAR CODE
On-Time STATUS
CHECK
BAR CODE
STP-131
STP-103
SRP-770
SRP-270
SRP-500
Robust & Cost-effective
Compact with easy paper
loading
Thermal Printer
High speed & High performance
2 Color Impact dot Printer
Reliable and rugged
Color Inkjet Printer
2 Color printing with easy paper loading
Direct Thermal
Direct Thermal
Direct Thermal
9Pin Serial dot matrix
Color Inkjet
73.3mm/sec (17.3LPS)
50mm/sec (11.8LPS)
127 mm/sec (5 LPS)
4.6 LPS (40 mm/sec)
Max. 13LPS (at 12 column)
180 dpi (7 dot/mm)
203 dpi (8 dot/mm)
203 dpi (8 dot/mm)
104 / 208 dpi
FontA : 12 x 24
FontB : 9 x 24
FontA : 12 x 24
FontB : 9 x 24
-
FontA : 7 x 9
FontB : 9 x 9
FontA : 12 x 12
FontB : 12 x 14
FontA : 42
FontB : 56
FontA : 32
FontB : 42
-
Font A : 40
Font B : 33
FontA : 32
FontB : 43
Thermal Paper
Thermal Paper
Labels, tag, Continuous, Fan-fold
Plain paper
Plain paper
79.5 ± 0.5mm
58 ± 0.5mm
1 ~ 4 (25.4 ~ 101.6mm)
76 ± 0.5mm
76 ± 0.5mm
Max. Ø 83.0mm
Max. Ø 60.0mm
Inside Dia. 1 ~ 1.5 (25.4 ~ 38.1mm)
Max. Ø 83.0mm
Max. Ø 83.0mm
Outside Dia. Max. 5.1 (130mm)
Auto paper loading
Easy paper loading
Easy paper loading
Auto paper loading
Easy paper loading
30,000,000 Lines
30,000,000 Lines
20,000,000 Lines
18,000,000 Lines
18,000,000 Lines
100km
100km
50km
Alphanumeric Character : 95
Alphanumeric Character : 95
7 resident bitmap fonts, 7 code page,
Alphanumeric Character : 95
Alphanumeric Character : 95
Extended Graphic : 128 x 7 page (1 space page)
Extended Graphic : 128 x 7 page (1 space page) expandale up to 4X, soft font storage
International Character : 32
International Character : 32
BMP, PCX graphic supported
EAN-13, EAN-8, Code 39, Code 93,
EAN-13, EAN-8, Code 39, Code 93,
Code 39, Code 128, Interleave 2 of 5, Code Bar,
EAN-13, EAN-8, Code 39, Code 93,
Code 128, ITF, Code Bar, UPC-A
Code 128, ITF, Code Bar, UPC-A, UPC-E
Code 93, UPC-A, UPC-E, EAN-8, EAN-13,
Code 128, ITF, Code Bar, UPC-A, UPC-E
Extended Graphic : 128 x 7 page (1 space page) Extended Graphic : 128 x 12 page
International Character : 32
International Character : 32
UCC-EAN 128, Maxicode(2D), PDF 417(2D)
ESC/POS
ESC/POS
EPL II / ZPL
8 Mbit
8 Mbit
8 Mbit
Win 95/98/ME/2000/NT/XP/2003 server/OPOS
Win 95/98/ME/2000/NT/XP
Win 95/98/ME/2000/NT/XP/2003 server
Win 95/98/ME/2000/NT/XP/2003 server
Win 95/98/2000/NT/XP/2003 server/OPOS
Paper Near End Sensor / End Sensor
Paper Near End Sensor / End Sensor
Gap, Black Mark, Notch Sensor
Paper End Sensor
Low Ink Indicator, No Cartridge Indicator, Paper
2 ports
1 port
RS-232C, IEEE-1284
RS-232C, IEEE-1284
ESC/POS
ESC/POS, IDP3541
8 Mbit
Near End Sensor, Front/Rear Cover Open Sensor
RS-232C, IEEE-1284, USB (All standard)
2 ports
2 ports
RS-232C, IEEE-1284, USB, RS-485, Ethernet,
RS-232C, IEEE-1284, USB, Ethernet, Bluetooth
Bluetooth
Buyer Language Support
Buyer Language Support
Buyer Language Support
Buyer Language Support
Buyer Language Support
AC 120 ~ 230V ± 10%(include), DC 24V, 2 ~ 2.3A
AC 120 ~ 230V ± 10%(include), DC 24V, 1.5A
AC 100V ~ 240V ± 10%(include), DC 24V, 3.75A
AC120 ~ 230V ± 10%(include), DC 24V, 1A
AC 96 ~ 264V(include), 2.5A
150 x 205 x 132
100 x 191 x 90
184 x 221 x 171
Type A : 160 x 249 x 130
172 x 226 x 152
Type B : 160 x 249 x 149
Type C : 160 x 249 x 160
0 ~ 45˚C
0 ~ 45˚C
0 ~ 45˚C
0 ~ 45˚C
0 ~ 45˚C
Guillotine
Manual cutter
Guillotine
Guillotine
Rotary
1,000,000 cuts
1,500,000 cuts
1,500,000 cuts
1,500,000 cuts
20
MECHANISM
SOLUTION
ITEM
PRINTING METHOD
RESOLUTION (dpi)
PRINTING WIDTH
PRINTING SPEED
PAPER WIDTH
DOT SIZE (W X M MM)
CHARACTER SIZE
FONT SIZE
A TYPE
B TYPE
NUMBER OF PRINTING CHARACTERS
LINE PITCH
POWER SUPPLY
DRIVE
LOGIC
RELIABILITY
HEAD
MECHANISM
CUTTER METHOD OF PAPER
PAPER SUPPLY METHOD
DIMENSIONS (W x L x H mm)
SMP600
SMP610
SMP610H
3 Inch
Thermal Line Dot Printing
7 dot/inch (180 dpi)
72mm (512 dots)
73mm/sec (at 24DCV)
79.5 ± 0.5mm
0.141 x 0.141
1.27 x 3.38mm (9 x 24) Chinese Font
1.69 x 3.38mm (12 x 24)
3.38 x 3.38mm (24 x 24)
56, 42, 21 / line
4.23mm (30 dots) 1.6 inch Spacing
24VDC ± 7%
5VDC ± 5%
5 x 107pulses
10,000,000 Lines
Manual Cutter
Auto Cutter (Option)
Auto paper loading
110.1 x 69.7 x 43
2 Inch
Thermal Line Dot Printing
8 dot/mm (203 dpi)
48mm (384 dots)
60mm/s (at 8.5 DCV)
57.5 ± 0.5mm
0.125 x 0.125
1.125 x 3.0mm (9 x 24)
1.5 x 3.0mm (12 x 24)
2 Inch
Thermal Line Dot Printing
8 dot/mm (203 dpi)
48mm (384 dots)
62.5mm/sec (at 7.2 DCV)
57.5 ± 0.5mm
0.125 x 0.125
1.125 x 3.0mm (9 x 24)
1.5 x 3.0mm (12 x 24)
42,32 / line
3.75 mm (30 dots)
5.0 ~ 8.5 DCV
5 DCV ± 5%
5 x 107 Pulses
50Km
Auto paper loading
80.5 x 34.5 x 17.5
42,32 / line
3.75mm (30 dots)
3.6 ~ 7.2 DCV
5 DCV ± 5%
1 x 108pulses
50Km
With Auto cutter
(Partial cut)
Auto paper loading
73.8 x 42 x 20
SMP620
SMP640
SMP650
2 Inch
Thermal Line Dot Printing
8 dot/mm (203 dpi)
48mm (384 dots)
65mm/sec (at 7.2 DCV)
57.5 ± 0.5mm
0.125 x 0.125
1.125 x 3.0mm (9 x 24)
1.5 x 3.0mm (12 x 24)
2 Inch, Mobile Type
Thermal Line Dot Printing
8 dot/mm (203 dpi)
48mm (384 dots)
70mm/sec (at 7.2 DCV)
57.5 ± 0.5mm
0.125 x 0.125
1.125 x 3.0mm (9 x 24)
1.5 x 3.0mm (12 x 24)
2 Inch, Compact size
Thermal Line Dot Printing
8 dot/mm (203 dpi)
48mm (384 dots)
65mm/sec (at 7.2 DCV)
57.5 ± 0.5mm
0.125 x 0.125
1.125 x 3.0mm (9 x 24)
1.5 x 3.0mm (12 x 24)
42,32 / line
3.75mm (30 dots)
5.0 ~ 8.5 DCV
5 DCV ± 5%
5 x 107pulses
50Km
42,32 / line
3.75mm (30 dots)
3.6 ~ 7.2 DCV
5 DCV ± 5%
1 x 108pulses
50Km
42,32 / line
3.75mm (30 dots)
3.6 ~ 7.2 DCV
5 DCV ± 5%
5 x 107pulses
50Km
Easy paper loading
72.5 x 39.5 x 16
Easy paper loading
66.7 x 30.3 x 30.6
Easy paper loading
68.8 x 32.5 x 15.5
Thermal Printer Mechanism
Thermal Printer Mechanism
ITEM
PRINTING METHOD
RESOLUTION (dpi)
PRINTING WIDTH
PRINTING SPEED
PAPER WIDTH
DOT SIZE (W x M mm)
CHARACTER SIZE
FONT SIZE
A TYPE
B TYPE
NUMBER OF PRINTING CHARACTERS
LINE PITCH
POWER SUPPLY
DRIVE
LOGIC
RELIABILITY
HEAD
MECHANISM
CUTTER METHOD OF PAPER
PAPER SUPPLY METHOD
DIMENSIONS (W x L x H mm)
Thermal Printer Mechanism
Thermal Printer Mechanism
Thermal Printer Mechanism
Thermal Printer Mechanism
21
New
New
SMP2000II
SMP2000II A
Impact Printer Mechanism
ITEM
PRINT SPEED (LPS)
PRINT DIRECTION
PRINTER METHOD
PRINTING WIDTH (mm)
RESOLUTION (dpi)
PAPER
RELIABILITY
HEAD LIFE
VOLTAGE
HORIZENTAL
VERTICAL
MEDIA
WIDTH (mm)
THICKNESS
MECHANISM
LOGIC
FONT SIZE
FONT A (7 x 9)
FONT B (9 x 9)
OPERATION TEMPERATURE
PAPER FEEDING
WEIGHT (g)
DIMENSION (W x L x H mm)
BLACK MARK SENSOR
OPTION
AUTO CUTTER
PRINTING COLUMNS
4.2 LPS (3 Inch)
Bi-Direction
9-pin, Serial Impact dot
45.3(2.3 Inch), 63.5(3 Inch)
168
144
Roll Paper
57.5(2.3 Inch), 76.2(3 Inch)
With copy(2P) 0.2 mm
10 Million Lines
300 Million Lines/Wire
24V ± 10%
5V ± 5%
3 Inch : 7 x 9, 9 x 9, 16 x 16
2.3 Inch : 7 x 9, 9 x 9, 16 x 16
30(2.3 Inch), 42(3 Inch)
25(2.3 Inch), 35(3 Inch)
0 ~ 50 ˚C
Performed by step motor
460
127.8 x 100.3 x 53
Applicable
Applicable
Impact Printer Mechanism
3.6 LPS (3 Inch)
Bi-Direction
9-pin, Serial Impact dot
45.3(2.3 Inch), 63.5(3 Inch)
160
144
Roll Paper
57.5(2.3 Inch), 76.2(3 Inch)
With copy(2P) 0.2 mm
10 Million Lines
300 Million Lines/Wire
24V ± 10%
5V ± 5%
3 Inch : 7 x 9, 9 x 9, 16 x 16
2.3 Inch : 7 x 9, 9 x 9, 16 x 16
30(2.3 Inch), 42(3 Inch)
25(2.3 Inch), 35(3 Inch)
0 ~ 50 ˚C
Performed by step motor
460
127.8 x 100.3 x 53
Applicable
Applicable
New
SMP130 SMP136
ITEM
PRINT SPEED (LPS)
PRINT DIRECTION
PRINTER METHOD
PRINTING WIDTH (mm)
RESOLUTION (dpi)
PAPER
RELIABILITY
HEAD LIFE
VOLTAGE
FONT SIZE
PRINTING COLUMNS
HORIZENTAL
VERTICAL
MEDIA
WIDTH (MM)
THICKNESS
MECHANISM
LOGIC
FONT A (7X9)
FONT B (9X9)
OPERATION TEMPERATURE
PAPER FEEDING
WEIGHT (g)
DIMENSION (WxLxHmm)
BLACK MARK SENSOR
OPTION
AUTO CUTTER
Impact Printer Mechanism
Thermal Printer Mechanism
4.0 LPS (40 Column only)
Bi-Direction
9-pin, Serial impact dot
53.2
172
72
Fan fold
76.2 ± 0.7
1 Sheet : 0.06 ~ 0.085 mm. Total 0.2 mm
5 Million Lines
200 Million Dots/Wire
24V ± 10%
5V ± 5%
7 x 9, 9 x 9
40
32
0 ~ 50 ˚C
Performed by Step motor
410
114.9 x 107.8 x 35.8
Not applicable
Not applicable
4.5 (40 Column), 8.0 (20 Column)
Bi-Direction
9-pin, Serial impact dot
53.2
172
144
Fan fold
76.2 ± 0.7
1 Sheet : 0.06 ~ 0.085 mm. Total 0.2 mm
5 Million Lines
200 Million Dots/Wire
24V ± 10%
5V ± 5%
7 x 9, 9 x 9, 16 x 16
40
32
0 ~ 50 ˚C
Performed by Step motor
345
113.5 x 107.8 x 35.8
Not applicable
Not applicable
SMP150
Thermal Printer Mechanism
4.3 LPS (43 Column)
Bi-Direction
9-pin, Serial Impact dot
57.6
172
144
Fan Fold
76.2 ± 0.5
1 Sheet : 0.06 ~ 1.085 mm. Total 0.2 mm
5 Million Lines
200 Million Lines/Wire
24V ± 10%
5V ± 5%
7 x 9, 9 x 9, 16 x 16
43
39
0 ~ 50 ˚C
Performed by step motor
345
113.5 x 107.8 x 35.8
Not applicable
Not applicable
SAMSUNG MINI PRINTERS GUIDE 2005 EDITION
KOREA PRINTING SYSTEMS CO. LTD
Factoryworld 709, 332-2, Wonchon-dong, yeongtong-gu, Suwon, Kyonggi-do, Korea, 442-822
TEL : +82-31-218-5522 FAX : +82-31-218-5589
E-mail : [email protected]
http ://www.samsungminiprinters.com
ALL INFORMATION INDICATED IN THIS CATALOG IS AS OF MAR. 2005. The specifications and designs contained herein may be subject to change without notice.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
