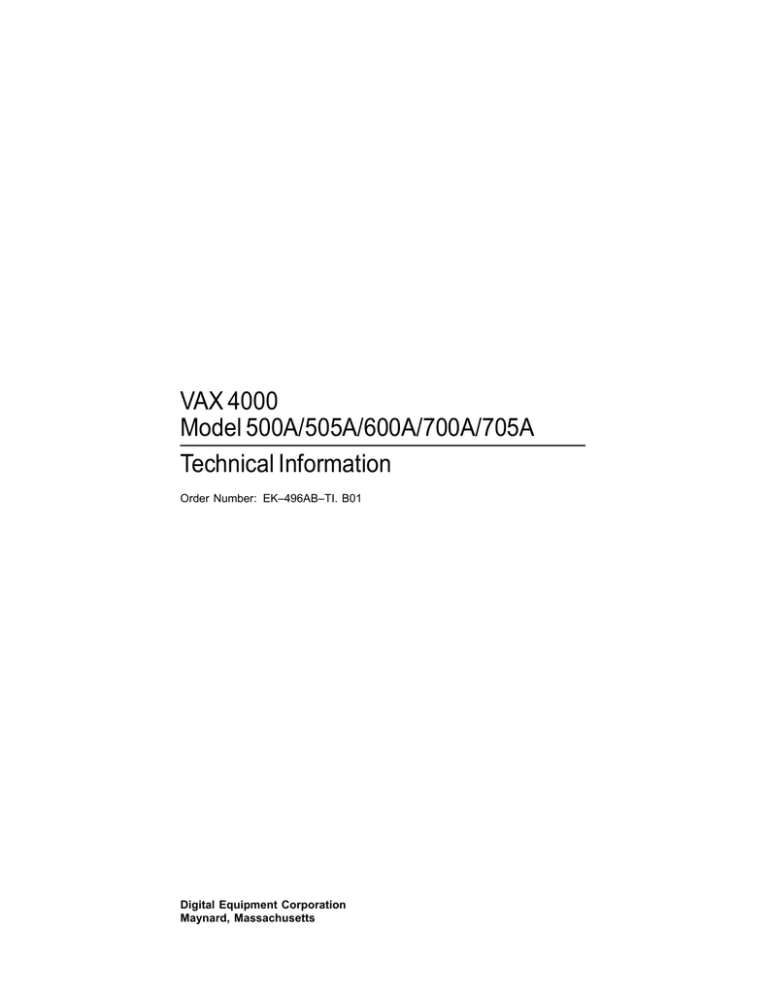

VAX 4000
Model 500A/505A/600A/700A/705A
Technical Information
Order Number: EK–496AB–TI. B01
Digital Equipment Corporation
Maynard, Massachusetts
First Printing, December 1991
Revised, February 1992
Revised, April 1992
Revised, July 1992
Revised, July 1993
Revised, July 1994
The information in this document is subject to change without notice and should not be construed
as a commitment by Digital Equipment Corporation.
Digital Equipment Corporation assumes no responsibility for any errors that may appear in this
document.
The software, if any, described in this document is furnished under a license and may be used or
copied only in accordance with the terms of such license. No responsibility is assumed for the use
or reliability of software or equipment that is not supplied by Digital Equipment Corporation or its
affiliated companies.
Restricted Rights: Use, duplication or disclosure by the U.S. Government is subject to restrictions
as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause
at DFARS 252.227–7013.
Copyright © Digital Equipment Corporation 1991, 1992, 1993, 1994. All Rights Reserved.
The following are trademarks of Digital Equipment Corporation: CompacTape, CX, DDCMP, DEC,
DECconnect, DECdirect, DECnet, DECscan, DECserver, DECUS, DECwindows, DELNI, DEMPR,
DESQA, DESTA, DSRVB, DSSI, IVAX, KDA, KLESI, MicroVAX, MSCP, Q–bus, Q22–bus, RA,
RQDX, RV20, SA, SDI, ThinWire, TK, TMSCP, TQK, TS05, TU, VAX, VAX 4000, VAXcluster, VAX
DOCUMENT, VAXELN, VAXlab, VAXserver, VMS, VT, and the DIGITAL logo.
All other trademarks and registered trademarks are the property of their respective holders.
FCC NOTICE: The equipment described in this manual generates, uses, and may emit radio
frequency. The equipment has been type tested and found to comply with the limits for a Class A
computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide
reasonable protection against such radio frequency interference.
Operation of the equipment in a residential area may cause interference, in which case the user
at his own expense will be required to take whatever measures may be required to correct the
interference.
S2581
This document was prepared using VAX DOCUMENT Version 2.1.
Contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
vii
1 Base System Description
1.1
1.2
1.3
1.4
1.4.1
1.4.2
1.5
1.6
1.7
1.8
1.9
System Overview . . . . . . . . . . . . . . . . . . . . . . .
Firmware Overview . . . . . . . . . . . . . . . . . . . . .
Power-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Console I/O Mode Overview . . . . . . . . . . . . . . .
Control Characters in Console I/O Mode . .
Console I/O Mode Commands . . . . . . . . . . .
Digital Storage Systems Interconnect (DSSI) . .
KA681–AA CPU Specifications . . . . . . . . . . . . .
KA691–AA CPU Specifications . . . . . . . . . . . . .
KA692–AA and KA694–AA CPU Specifications
MS690 Memory Specifications . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1–1
1–3
1–4
1–4
1–5
1–7
1–14
1–15
1–19
1–23
1–27
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
2–1
2–2
2–2
2–4
2–5
2–6
2–7
2–8
2–9
2–10
2–11
2–12
2–13
2–14
2–15
2 Option Specifications
2.1
Options Overview . . . . . . . . . . . . . . . . . . . . .
2.1.1
Configuration . . . . . . . . . . . . . . . . . . . . .
2.2
Mass Storage Options . . . . . . . . . . . . . . . . .
2.2.1
KDA50 Controller . . . . . . . . . . . . . . . . .
2.2.2
KFQSA Storage Adapter . . . . . . . . . . . .
2.2.3
KLESI Controller . . . . . . . . . . . . . . . . . .
2.2.4
KZQSA Storage Adapter . . . . . . . . . . . .
2.2.5
RA60 Disk Drive . . . . . . . . . . . . . . . . . .
2.2.6
RA70E Disk Drive . . . . . . . . . . . . . . . . .
2.2.7
RA81 Disk Drive . . . . . . . . . . . . . . . . . .
2.2.8
RA82 Disk Drive . . . . . . . . . . . . . . . . . .
2.2.9
RA90 Disk Drive . . . . . . . . . . . . . . . . . .
2.2.10
RA92 Disk Drive . . . . . . . . . . . . . . . . . .
2.2.11
RF36 Integrated Storage Element . . . . .
2.2.12
RF72 Integrated Storage Element (ISE)
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
iii
2.2.13
2.2.14
2.2.15
2.2.16
2.2.17
2.2.18
2.2.19
2.2.20
2.2.21
2.2.22
2.2.23
2.2.24
2.2.25
2.2.26
2.3
2.3.1
2.3.2
2.3.3
2.3.4
2.3.5
2.3.6
2.3.7
2.3.8
2.3.9
2.4
2.4.1
2.4.2
2.4.3
2.4.4
2.4.5
2.4.6
2.4.7
2.4.8
2.4.9
2.4.10
2.5
2.5.1
2.6
2.6.1
iv
RF73 Integrated Storage Element (ISE) . . .
RF74 Integrated Storage Element (ISE) . . .
RRD43 Optical Compact-Disc Subsystem . . .
RWZ01 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TF85 Tape Drive . . . . . . . . . . . . . . . . . . . . .
TF86 Tape Drive . . . . . . . . . . . . . . . . . . . . .
TK70 Tape Drive . . . . . . . . . . . . . . . . . . . . .
TLZ06 Tape Drive . . . . . . . . . . . . . . . . . . . .
TLZ07 Tape Drive . . . . . . . . . . . . . . . . . . . .
TSZ07 Tape Drive . . . . . . . . . . . . . . . . . . . .
TSV05 Tape Drive . . . . . . . . . . . . . . . . . . . .
TSV05 Controller . . . . . . . . . . . . . . . . . . . . .
TU81–Plus Tape Drive . . . . . . . . . . . . . . . . .
TZ85 Tape Drive . . . . . . . . . . . . . . . . . . . . .
Communication Options . . . . . . . . . . . . . . . . . . .
CXA16 Asynchronous Multiplexer (16 lines)
CXB16 Asynchronous Multiplexer (16 lines)
CXY08 Asynchronous Multiplexer (8 Lines) .
DEFQA Q-Bus Adapter . . . . . . . . . . . . . . . .
DEQRA Token Ring Q-Bus Adapter . . . . . . .
DESQA Ethernet Controller . . . . . . . . . . . .
DPV11 Synchronous Controller . . . . . . . . . .
DSRVB DECserver 200 . . . . . . . . . . . . . . . .
DSV11 Synchronous Controller . . . . . . . . . .
Real-Time Options . . . . . . . . . . . . . . . . . . . . . . .
AAV11–S Digital-to-Analog Converter . . . . .
ADQ32 Analog-to-Digital Converter . . . . . . .
ADV11–S Analog-to-Digital Converter . . . . .
AXV11 Controller . . . . . . . . . . . . . . . . . . . . .
DIV32 Controller . . . . . . . . . . . . . . . . . . . . .
DRQ3B Parallel Interface . . . . . . . . . . . . . .
DRV1W Parallel Interface . . . . . . . . . . . . . .
IBQ01 Controller . . . . . . . . . . . . . . . . . . . . .
IEQ11 Controller . . . . . . . . . . . . . . . . . . . . .
KWV11–S Programmable Real-Time Clock .
Printer Interface . . . . . . . . . . . . . . . . . . . . . . . .
LPV11–SA Printer Interface . . . . . . . . . . . .
Graphics Adapter . . . . . . . . . . . . . . . . . . . . . . . .
VS30U Graphics Adapter . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
2–16
2–17
2–18
2–20
2–21
2–23
2–25
2–26
2–28
2–30
2–32
2–33
2–34
2–36
2–38
2–38
2–42
2–45
2–47
2–48
2–50
2–51
2–52
2–53
2–54
2–54
2–56
2–58
2–60
2–62
2–63
2–64
2–66
2–67
2–68
2–71
2–71
2–72
2–72
3 System Expansion
3.1
3.2
Planning System Expansion . . . . . . . . . . . . . . . . . . . . . . . .
Completing the System Configuration Worksheet . . . . . . .
3–1
3–2
Index
Tables
1–1
1–2
1–3
3–1
Console I/O Mode Control Characters
Console I/O Mode Commands . . . . . . .
Device Names . . . . . . . . . . . . . . . . . .
Power Requirements . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1–5
1–7
1–12
3–4
v
Preface
This manual provides a summary of technical information for your system. The
manual is organized as follows.
•
Chapter 1 describes the base system and lists specifications for the CPUs and
the memory modules.
•
Chapter 2 describes optional components available for your system and lists
their specifications.
•
Chapter 3 provides guidelines on how to expand your system.
Note
You will find a glossary in the Operation manual to help with word
definitions and acronyms.
The following conventions are used in this manual.
Convention
Meaning
Key
A terminal key used in text and examples. For example, Break
indicates that you press the Break key on your terminal keyboard.
Ctrl/x
Hold down the Ctrl key while you press another key.
BOLD
Your input. For example:
>>> BOOT MIA5
shows that you must enter BOOT MIA5 at the console prompt.
NOTE
Provides general information about the current topic.
vii
1
Base System Description
This chapter describes the base system, including the following.
•
Power-up self-tests
•
Digital Storage Systems Interconnect (DSSI) architecture
•
Specifications for the KA6nn–AA CPU, and the MS690–BA/–CA/–DA memory
modules
1.1 System Overview
All base system components are housed in a BA440 enclosure, which contains a
12-slot backplane, 7 Q–bus slots; 1 slot reserved for CPU, and 4 slots for memory.
Each base system contains the following.
•
A KA6nn–AA (L4005–nA to L4006–nA) CPU module, located in slot 5.
•
From one to four MS690–BA/–CA/–DA memory modules.
MS690–BA memory modules are not supported on Models 700A and 705A.
The system operates from the KA6nn CPU firmware, the controls on the console
module, and the System Control Panel (SCP). The firmware is described in
Section 1.2. Base system operation also integrates Digital Storage Systems
Interconnect (DSSI) technology, which is discussed in Section 1.5.
Base System Description 1–1
A block diagram of the system:
Main
Memory
Real-Time
Devices
Q22-bus
Memory
Interconnect
Ethernet
CPU
Module
Communication
Devices
Console
(Optional)
DSSI
Bus
DSSI
Bus
DSSI
Bus
DSSI
Bus
Disk/Tape
Disk/Tape
Disk/Tape
Disk/Tape
Disk
Disk
Disk
Disk
Disk
Disk
Disk
Disk
Disk
Disk
Disk
Disk
Disk
Disk
Disk
Disk
Disk
Disk
Disk
Disk
Disk
Disk
Disk
Disk
Storage
Devices
MLO-010826
1–2 Base System Description
1.2 Firmware Overview
Four flash-eraseable programmable read-only memory (FEPROM) chips on
the KA6nn CPU module contain the firmware. This firmware consists of the
following three major programs, which perform the system power-up self-tests
and diagnostics.
•
A console program
•
A set of self-tests for the CPU and memory
•
A primary bootstrap program (VMB)
The console program receives control whenever the processor halts. In a processor
halt, processor control passes to the console program and instruction execution
continues.
Control passes to the firmware under any of the following conditions.
•
You turn on the system.
•
You press the Restart button.
•
You assert the Q22–bus BHALT signal by pressing the Halt button.
•
You enter a break when the Break Enable/Disable switch is set to enable.
•
A HALT instruction is executed.
•
A system error occurs.
Base System Description 1–3
1.3 Power-Up
At power-up, the console program determines the console device type and console
language, then runs the self-tests for the CPU and memory. You choose the
console language when you perform the set-up operations during your console
terminal installation procedure.
You determine the type of power-up mode by setting the Power-Up Mode switch
on the CPU console module. See your Operation manual for the following
power-up information.
•
Power-up procedures
•
Power-Up Mode and Break Enable/Disable switch settings
•
Examples of successful power-up sequences
•
Boot and autoboot procedures
See your Troubleshooting and Diagnostics manual for examples of problems you
may encounter during power-up.
1.4 Console I/O Mode Overview
If you set the Break Enable/Disable switch on the console module to enable,
the console program enters Console I/O mode after the power-up self-tests are
completed successfully. The console program also enters Console I/O mode in
response to any external halt condition.
Console I/O mode allows you to control the system by typing commands at the
console prompt (>>>). You may enter these commands in either uppercase or
lowercase letters. Enter each command, then press Return .
1–4 Base System Description
1.4.1 Control Characters in Console I/O Mode
Table 1–1 lists the keypad control characters that have special meaning in
Console I/O mode.
Table 1–1 Console I/O Mode Control Characters
Character
Action
Return also <CR>
The carriage return ends a command line. No action is taken on
a command until after it is terminated by a carriage return. A
null line terminated by a carriage return is treated as a valid,
null command. No action is taken, and the console prompts for
input. Carriage return is echoed as carriage return, line feed
<CR><LF>.
<x
(rubout)
When you press < x (rubout), the console deletes the previously
typed character. The resulting display differs, depending on
whether the console is a video or a hardcopy terminal.
For hardcopy terminals, the console echoes a backslash (\ ) followed by the character
being deleted. If you press additional rubouts, the additional deleted characters are
echoed. If you type a non-rubout character, the console echoes another backslash, followed
by the character typed. The result is to echo the characters deleted, surrounding them
with backslashes. For example:
EXAMI;E< x (rubout)< x (rubout)NE <CR>
The console echoes: EXAMI;E\ E\ ;NE<CR>
The console sees the command line: EXAMINE<CR>
For video terminals, the previous character is erased and the cursor is restored to its
previous position.
The console does not delete characters past the beginning of a command line. If you press
more rubouts than there are characters on the line, the extra rubouts are ignored. A
rubout entered on a blank line is ignored.)
Ctrl/A or F14
Toggles insertion/overstrike mode for command line editing. By
default, the console powers up to overstrike mode.
Ctrl/C
Echoes ^C<CR> and aborts processing of a command. Has no
effect as part of a binary load data stream. Clears Ctrl/S and
re-enables output stopped by Ctrl/O .
Ctrl/D or
Moves the cursor one position to the left.
Moves the cursor to the end of the line.
Ctrl/E
Ctrl/F or
Moves the cursor one position to the right.
(continued on next page)
Base System Description 1–5
Table 1–1 (Cont.) Console I/O Mode Control Characters
Character
Ctrl/B ,
Ctrl/H ,
F12
Action
, or
<x
(rubout), or
Recalls the previous commands.
Deletes the previously typed character. Same function as
(rubout), above.
<x
Ctrl/O
Ignores transmissions to the console until you enter Ctrl/O .
Echoes ^O when disabling output, which is not echoed when it
re-enables output. Output is re-enabled if the console prints an
error message, or if it prompts for a command from the terminal.
Output is also enabled by entering Maintenance mode: press
Break or enter Ctrl/C .
Ctrl/Q
Resumes output to the console terminal. Not echoed.
Ctrl/R
Echoes <CR><LF>, followed by the current command line. Can
be used to improve the readability of a command line that has
been heavily edited.
Ctrl/S
Stops output to the console terminal until you enter Ctrl/Q . Not
echoed.
Ctrl/U
Echoes ^U<CR>. Entered, but otherwise ignored if typed on an
empty line.
The console accepts Console I/O mode commands up to 80-characters long. Longer
commands produce error messages. The character count does not include rubouts,
rubbed-out characters, or the <CR> at the end of the command.
Two or more consecutive spaces and tabs are treated as a single space. Leading
and trailing spaces and tabs are ignored. You can place command qualifiers after
the command keyword or after any symbol or number in the command.
All numbers (addresses, data, counts) are hexadecimal, but symbolic register
names contain decimal register numbers. The hexadecimal digits are 0 through
9, and A through F. You can use uppercase and lowercase letters in hexadecimal
numbers (A through F) and commands.
The following symbols are qualifier and argument conventions.
[ ] = an optional qualifier or argument
{} = a required qualifier or argument
1–6 Base System Description
1.4.2 Console I/O Mode Commands
Table 1–2 lists and describes the Console I/O mode commands. You can display
the list of commands by entering HELP at the console prompt (>>>).
Table 1–2 Console I/O Mode Commands
Command
Action
BOOT
Initializes the processor and transfers execution to the VMB.
CONFIGURE
Invokes an interactive mode that permits you to enter Q22–bus
device names, then generates a table of Q22–bus I/O page
device CSR addresses and interrupt vectors.
CONTINUE
Causes the processor to resume instruction execution at the
point where the halt occurred. Does not perform a processor
initialization.
DEPOSIT
Deposits data into the address you specify. If you do not specify
an address space or data size qualifier, the console uses the last
address space and data size used in a DEPOSIT, EXAMINE,
MOVE, or SEARCH command.
EXAMINE
Examines the contents of the memory location or register of
the address you specify.
FIND
Searches main memory starting at address 0 (zero) for a
page-aligned 128-Kbyte segment of good memory, or a restart
parameter block (RPB).
HALT
The HALT command has no effect. It is included for
compatibility with other VAX consoles.
HELP
Displays the correct syntax for all console commands.
INITIALIZE
Performs a processor initialization.
LOGIN
Exit from the secure console by entering the password at the
prompt. The LOGIN command may only be executed while in
secure console mode.
MOVE
Copies the block of memory starting at the source address to a
block beginning at the destination address.
NEXT
Executes the number of macro instructions you specify. If you
do not specify a number, 1 (one) is assumed.
REPEAT
Repeatedly displays and executes the command you specify.
Press Ctrl/C to stop the command. You can specify any valid
console command except the REPEAT command.
(continued on next page)
Base System Description 1–7
Table 1–2 (Cont.) Console I/O Mode Commands
Command
Action
SEARCH
Finds all occurrences of a pattern and reports the addresses
where the pattern was found. If you include the /NOT qualifier,
the command reports all addresses for which the pattern did
not match.
SET BFLAG
Sets the default R5 boot flags. The value must be a
hexadecimal number of up to eight digits.
SET BOOT
Sets the default boot device. The value must be a valid device
name.
SET CONTROLP
Sets Control-P as the console halt condition, instead of a
BREAK.
SET HALT
Sets the halt action you define. Acceptable values are the
keywords: default, restart, reboot, halt, restart_reboot, or a
number in the range 0 to 4 inclusive.
SET HOST
Connects to the DUP or MAINTENANCE driver on the node
or device you specify.
SET LANGUAGE
Sets the console language and keyboard type.
SET PSE
Once a password has been set, the state of the secure console
enable bit, PSE, will determine whether the secure console
mode will be entered when certain console commands are
executed. If PSE = 0 (disabled), the console will remain in
privileged mode even if a password has been set. If PSE = 1
(enabled), the console will enter into secure mode when the
following commands are executed:
BOOT (with any supplied parameters)
CONTINUE
HALT
START
Once in secure console mode, the only commands which may be
executed are BOOT (with no qualifiers) and LOGIN (in order
to enter the password and exit into priviliged mode). Since the
BOOT command will take no qualifiers in secure console mode,
it is advisable to SET BOOT and SET BFLAG prior to exiting
privileged mode.
SET PSWD
Set the password to be entered in order to exit from the secure
console to the privileged console. A 16-character password
must be typed at the "PSWD1:" prompt. The password must
be typed again for verification at the "PSWD2:" prompt.
(continued on next page)
1–8 Base System Description
Table 1–2 (Cont.) Console I/O Mode Commands
Command
Action
SET RECALL
Sets command recall state to either ENABLED (1) or
DISABLED (0).
SET SCSI_ID
Selects the host SCSI id. The default value = 6. The values 0
to 7 are permitted.
SHOW BFLAG
Displays the default R5 boot flags.
SHOW BOOT
Displays the default boot device.
SHOW CONFIG
Shows a list of the devices and optional modules present in the
system and the status of the hardware.
SHOW CONTROLP
Shows the current state of Control-P halt recognition, either
ENABLED or DISABLED.
SHOW DEVICE
Displays all devices displayed by the SHOW DSSI, SHOW
ETHERNET, and SHOW UQSSP commands.
SHOW DSSI
Displays the status of all nodes that can be found on the DSSI
bus. For each node on the DSSI bus, the firmware displays the
node number, the node name, and the boot name and type of
the device, if available. Does not indicate whether the device
contains a bootable image.
SHOW ETHERNET
Displays the hardware Ethernet address for all Ethernet
adapters that can be found, both on-board and on the Q22–bus.
SHOW HALT
Displays the halt action. Keywords include: default, restart,
reboot, halt, restart_reboot or a number in the range 0 to 4
inclusive.
SHOW LANGUAGE
Displays console language and keyboard type.
SHOW MEMORY
Displays main memory configuration, board by board.
SHOW QBUS
Displays all Q22–bus I/O addresses that respond to an aligned
word read, plus vector and device name information. For each
address, the console displays the address in the VAX I/O space
in hexadecimal, the address as it would appear in the Q22–bus
I/O space in octal, and the word that was read in hexadecimal.
Also displays the vector that you should set up, and device
name or names that could be associated with the CSR.
SHOW RECALL
Displays the current state of command recall, either
ENABLED or DISABLED.
SHOW RLV12
Displays all RL01 and RL02 disks that appear on the Q22–bus.
(continued on next page)
Base System Description 1–9
Table 1–2 (Cont.) Console I/O Mode Commands
Command
Action
SHOW SAVED_STATE
Shows the values of all of the devices and optional module
present in the system.
SHOW SCSI
Shows any SCSI devices in the system.
SHOW SCSI_ID
Shows the value of the CPU SCSI id.
SHOW TRANSLATION
Shows any virtual addresses that map to the specified physical
address.
SHOW UQSSP
Displays the status of all disks and tapes that can be found
on the Q22–bus that support the UQSSP protocol. For each
such disk or tape on the Q22–bus, the firmware displays the
controller number, the controller CSR address, and the boot
name and type of each device connected to the controller. The
command does not indicate whether the device contains a
bootable image.
SHOW VERSION
Displays the current firmware version.
START
Starts instruction execution at the address you specify. If
you do not give an address, the current program counter is
used. If memory mapping is enabled, macro instructions are
executed from virtual memory, and the address is treated as a
virtual address. Equivalent to a DEPOSIT to PC, followed by
a CONTINUE. Does not perform a processor initialization.
TEST
Invokes a diagnostic test program specified by the test number
you enter. If you enter a test number of 0 (zero), all tests
allowed to be executed from the console terminal are executed.
The console accepts an optional list of up to five additional
hexadecimal arguments.
UNJAM
Performs an I/O bus reset, by writing a 1 (one) to IPR 55
(decimal).
X
Loads or unloads (that is, writes to memory or reads from
memory) the specified number of data bytes through the
console serial line (regardless of console type), starting
at the specified address. For use by automatic systems
communicating with the console.
The following examples show sample displays for the commonly used commands
SHOW and SET.
The SET command sets the parameter to the value you specify. The SHOW
command displays the console parameter you specify.
1–10 Base System Description
>>> SHOW QBUS
Scan of Qbus I/O Space
-20001920 (774440) = FF08 DELQA/DESQA
-20001922 (774442) = FF00
-20001924 (774444) = FF2B
-20001926 (774446) = FF08
-20001928 (774450) = FFD7
-2000192A (774452) = FF41
-2000192C (774454) = 0000
-2000192E (774456) = 1030
-20001F40 (777500) = 0020 IPCR
Scan of Qbus Memory Space
>>>
For each address, the console displays the address in the VAX I/O space in
hexadecimal, the address as it would appear in the Q22–bus I/O space in octal,
and the word data that was read in hexadecimal.
>>>SHOW DEVICE
DSSI Bus 0 Node 0
-DIA10 (RF31)
DSSI Bus 0 Node 1
-DIA11 (RF31)
DSSI Bus 0 Node 2
-DIA12 (RF31)
DSSI Bus 0 Node 5
-MIA5 (TF85/TF86)
DSSI Bus 0 Node 6
(SYSDSK)
(R7EB3C)
(R7EB22)
(TFDR1)
(*)
DSSI Bus 1 Node 0 (SNEEZY)
-DIB0 (RF71)
DSSI Bus 1 Node 1 (DOPEY)
-DIB1 (RF71)
DSSI Bus 1 Node 2 (SLEEPY)
-DIB2 (RF71)
DSSI Bus 1 Node 3 (GRUMPY)
-DIB3 (RF71)
DSSI Bus 1 Node 4 (BASHFUL)
-DIB4 (RF71)
DSSI Bus 1 Node 5 (HAPPY)
-DIB5 (RF71)
DSSI Bus 1 Node 6 (DOC)
-DIB6 (RF71)
DSSI Bus 1 Node 7 (*)
UQSSP Tape Controller 0 (774500)
-MUA0 (TK70)
Ethernet Adapter
-EZA0 (08-00-2B-06-10-42)
Base System Description 1–11
For each device, the console displays the controller, the node, and the address on
the first line, and the device name and option on the second line.
>>> SHOW ETHERNET
Ethernet Adapter
-EZA0 (08-00-2B-0B-29-14)
>>> SHOW LANGUAGE
English (United States/Canada)
>>>
>>> SET LANGUAGE 5
>>>
In that example, selection 5 is English, chosen from the language selection menu
that displays at power-up.
>>> SET BOOT MIA5
>>>
In that example, entering MIA5 sets the tape drive as the default boot device.
Table 1–3 lists all supported device names.
Table 1–3 Device Names
Device Type
Controller/Adapter
Device Logical Name
EF/RF-series ISE
Embedded DSSI host adapter
(part of CPU)
DImu1
KFQSA DSSI storage adapter
DUcu2
TF-series tape drive
Embedded DSSI host adapter
(part of CPU)
MImu1
TF85 tape drive
KFQSA DSSI storage adapter
MUcu2
TF86 tape drive
KFQSA DSSI storage adapter
MUcu2
TK70 tape drive
TQK70
MUcu3
TLZ06 tape drive4
KZQSA adapter
MKAu
1m
= DSSI bus adapter (A = internal bus (0); B = external bus (1).)
u = unit number (device unit numbers must be unique throughout the system).
When under operating system control, DIBu devices are recognized as DIAu devices.
2c
= MSCP controller designator (A = first, B = second, and so on.)
u = unit number (device unit numbers must be unique throughout the system).
3c
= TMSCP controller designator (A = first, B = second, and so on.)
u = unit number
4 The KZQSA adapter supports only the tabletop versions of these devices.
(continued on next page)
1–12 Base System Description
Table 1–3 (Cont.) Device Names
Device Type
TLZ07 tape drive
4
Controller/Adapter
Device Logical Name
KZQSA adapter
MKAu
TSZ07 tape drive
KZQSA adapter
MKAu
PROM (programmable
read-only memory)
MRV11 module
PRAu
Ethernet adapter
On-board (part of CPU)
EZA0
DEFQA Ethernet controller
XQAu
DESQA Ethernet controller
XQAu
RA-series drives
KDA50
DUcu2
RRD43 CD–ROM drive
KZQSA adapter
DKAu
RWZ01 tape drive
KZQSA adapter
MKAu
2c
= MSCP controller designator (A = first, B = second, and so on.)
u = unit number (device unit numbers must be unique throughout the system).
4 The
KZQSA adapter supports only the tabletop versions of these devices.
Base System Description 1–13
1.5 Digital Storage Systems Interconnect (DSSI)
The KA6nn CPU module contains two DSSI bus adapters and two more DSSI bus
adapters on an optional DSSI daughter board. The DSSI adapters are dedicated
to the mass storage devices in your system.
The DSSI adapters on the KA6nn CPU module provide a path to two separate
DSSI busses (Bus 0 and Bus 1) through which the CPU can communicate with
DSSI devices. The DSSI adapters on the optional DSSI daughter board provide a
path to two additional separate busses (Bus 2 and Bus 3) through which the CPU
can communicate with additional DSSI devices.
Each DSSI bus has the following characteristics.
•
A 4-Mbytes-per-second bandwidth
•
Up to eight nodes (one interface and up to seven additional DSSI Devices
(RF-series ISEs, TF85/TF86s, and adapters))
•
Eight data lines
•
One parity line
•
Eight control lines
DSSI architecture improves system performance as follows.
•
The DSSI bus handles all mass storage transactions.
•
Mass storage devices can act independently, since each device contains its
own controller. Several devices can work simultaneously.
The two DSSI bus interfaces support up to 16 nodes. These 16 nodes include the
2 DSSI interfaces and 14 additional DSSI devices.
An ISE can maintain connection to more than one DSSI interface. That feature
allows ISEs to be shared by multiple CPUs in a DSSI VAXcluster configuration.
The installation of KFDDB–AA/AF options offer 2 additional DSSI buses.
For more information about DSSI VAXcluster configurations and the advantages
of such configurations, see the section on DSSI VAXcluster capability in your
system Operation manual.
1–14 Base System Description
1.6 KA681–AA CPU Specifications
The Model 500A system uses the timesharing KA681–AA CPU (L4005–BA).
Central Processing Unit
Addressing modes
General register: 8
Program counter: 4
Index: 9
Clock rate
286 MHz (14 ns cycle)
Data path width
64 bits
Number of data types
Hardware: 9
Software emulated: 7
Number of instructions
Hardware: 242
Microcode assisted: 21
Software emulated: 41
General purpose registers
16 (32-bit wide)
Interval timer: 1 (programmable)
Programmable timers: 2
I/O bus interface
One Q22–bus interface with 8192 entry
scatter/gather map
Q–bus backplane termination
240
Memory Management and Control
Page size
512 bytes
Virtual address space
4 gigabytes
Physical memory space
512 Mbytes
Number of memory modules
4 maximum
Architecture
Instruction prefetch buffer size
16 bytes
Virtual instruction cache
Data stored
Instruction stream only
Size
2 Kbytes
Speed
14 nanoseconds
Base System Description 1–15
Architecture
Associativity
Direct mapped
Primary Cache
Data stored
Instruction stream and data
Write algorithm
Write-through
Size
8 Kbytes
Speed
14 nanoseconds
Associativity
Two-way
Back-up Cache
Data stored
Instruction stream and data
Write algorithm
Write-back
Size
128 Kbytes
Speed
56 nanoseconds
Associativity
Direct mapped
Translation buffer
Size
96 entry
Associativity
Fully associative
Q22–bus address translation
Q22–bus map cache
Size
16 entry
Associativity
Fully associative
Q22–bus I/O bus buffer size
Input
32 bytes
Output
4 bytes
Q22–bus Maximum I/O bandwidth
Block mode DMA read
2.4 Mbytes/second
Block mode DMA write
3.3 Mbytes/second
Ethernet Port
Supported protocols
Ethernet V2.0 (IEEE 802.3)
Supported media types
Standard or ThinWire
Data path width
1 bit
Data rate
10 Mbits/second
1–16 Base System Description
Ethernet Port
Buffer size
Transmit buffer
128 bytes
Receiver buffer
128 bytes
Digital Storage Systems Interconnect (DSSI)
Number of DSSI interfaces
2
Maximum number of supported devices
141 (7 per DSSI interface)
Data stored
Instruction stream and data
Write algorithm
Write-through
Data path width
8 bits
Maximum bandwidth
4 Mbytes/second
Maximum queue I/O rate
2400/second
Buffer size
Transmit buffer
256 bytes
Receiver buffer
256 bytes
Console Serial Line
Interface standards
EIA RS–423–A/CCITT V.10 X.26
EIA RS–232–C/CCITT V.28
DEC–423
Data format
1 start bit, 8 data bits, 0 parity bits, 1
stop bit
Baud rates
300; 600; 1200; 2400; 4800; 9600;
19,200; 38,400
Ordering Information
Included as part of base system
Operating System Support
VMS
1 Additional
Versions 5.5–2H4, 6.1 or later
DSSI devices are supported via the KFQSA DSSI host adapter or via KFDDB.
Base System Description 1–17
Configuration Information
Form factor
Quad height
Power requirements
CPU module only
+5 Vdc, 2.8 A; +3.3 Vdc, 3.2 A
+12 Vdc, 0.00 A; –12 Vdc, 0.00 A
(24.6 W total)
CPU module, console module, and
backplane termination
+5 Vdc, 4.8 A; +3.3 Vdc, 3.2 A
+12 Vdc, 1.6 A; –12 Vdc, 0.00 A
(53.8 W total)
Bus loads
4.0 ac; 1.0 dc
Diagnostic Support
MicroVAX Diagnostic Monitor
Release 139 and later
Self-tests
Yes
Related Documentation
EK–496AB–TI
VAX 4000 Model 500A/505A/600A/700A
/705A Technical Information
EK–498AB–MG
KA681/KA691/KA692/KA694 CPU
System Maintenance
1–18 Base System Description
1.7 KA691–AA CPU Specifications
The Model 505A and 600A systems use the timesharing KA691–AA CPU
(L4005–AA).
Central Processing Unit
Addressing modes
General register: 8
Program counter: 4
Index: 9
Clock rate
333 MHz (12 ns cycle)
Data path width
64 bits
Number of data types
Hardware: 9
Software emulated: 7
Number of instructions
Hardware: 242
Microcode assisted: 21
Software emulated: 41
General purpose registers
16 (32-bit wide)
Interval timer: 1 (programmable)
Programmable timers: 2
I/O bus interface
One Q22–bus interface with 8192 entry
scatter/gather map
Q–bus backplane termination
240
Memory Management and Control
Page size
512 bytes
Virtual address space
4 gigabytes
Physical memory space
512 Mbytes
Number of memory modules
4 maximum
Architecture
Instruction prefetch buffer size
16 bytes
Virtual instruction cache
Data stored
Instruction stream only
Size
2 Kbytes
Speed
12 nanoseconds
Base System Description 1–19
Architecture
Associativity
Direct mapped
Primary Cache
Data stored
Instruction stream and data
Write algorithm
Write-through
Size
8 Kbytes
Speed
12 nanoseconds
Associativity
Two-way
Back-up Cache
Data stored
Instruction stream and data
Write algorithm
Write-back
Size
512 Kbytes
Speed
36 nanoseconds
Associativity
Direct mapped
Translation buffer
Size
96 entry
Associativity
Fully associative
Q22–bus address translation
Q22–bus map cache
Size
16 entry
Associativity
Fully associative
Q22–bus I/O bus buffer size
Input
32 bytes
Output
4 bytes
Q22–bus Maximum I/O bandwidth
Block mode DMA read
2.4 Mbytes/second
Block mode DMA write
3.3 Mbytes/second
Ethernet Port
Supported protocols
Ethernet V2.0 (IEEE 802.3)
Supported media types
Standard or ThinWire
Data path width
1 bit
Data rate
10 Mbits/second
1–20 Base System Description
Ethernet Port
Buffer size
Transmit buffer
128 bytes
Receiver buffer
128 bytes
Digital Storage Systems Interconnect (DSSI)
Number of DSSI interfaces
2
Maximum number of supported devices
141 (7 per DSSI interface)
Data stored
Instruction stream and data
Write algorithm
Write-through
Data path width
8 bits
Maximum bandwidth
4 Mbytes/second
Maximum queue I/O rate
2400/second
Buffer size
Transmit buffer
256 bytes
Receiver buffer
256 bytes
Console Serial Line
Interface standards
EIA RS–423–A/CCITT V.10 X.26
EIA RS–232–C/CCITT V.28
DEC–423
Data format
1 start bit, 8 data bits, 0 parity bits, 1
stop bit
Baud rates
300; 600; 1200; 2400; 4800; 9600;
19,200; 38,400
Ordering Information
Included as part of base system
Operating System Support
VMS
1 Additional
Versions 5.5–2H4, 6.1 or later
DSSI devices are supported via the KFQSA DSSI host adapter or via KFDDB.
Base System Description 1–21
Configuration Information
Form factor
Quad height
Power requirements
CPU module only
+5 Vdc, 2.8 A; +3.3 Vdc, 3.2 A
+12 Vdc, 0.00 A; –12 Vdc, 0.00 A
(24.6 W total)
CPU module, console module, and
backplane termination
+5 Vdc, 4.8 A; +3.3 Vdc, 3.2 A
+12 Vdc, 1.6 A; –12 Vdc, 0.00 A
(53.8 W total)
Bus loads
4.0 ac; 1.0 dc
Diagnostic Support
MicroVAX Diagnostic Monitor
Release 139 and later
Self-tests
Yes
Related Documentation
EK–496AB–TI
VAX 4000 Model 500A/505A/600A/700A
/705A Technical Information
EK–498AB–MG
KA681/KA691/KA692/KA694 CPU
System Maintenance
1–22 Base System Description
1.8 KA692–AA and KA694–AA CPU Specifications
The Model 700A system uses the timesharing KA692–AA CPU (L4006–AA). The
Model 705A system uses the timesharing KA694–AA CPU (L4006–BA).
Central Processing Unit
Addressing modes
General register: 8
Program counter: 4
Index: 9
Clock rate
KA692 (L4006-AA)
333 MHz (10 ns cycle)
KA694 (L4006-BA)
444.44 MHz (9 ns cycle)
Data path width
64 bits
Number of data types
Hardware: 9
Software emulated: 7
Number of instructions
Hardware: 242
Microcode assisted: 21
Software emulated: 41
General purpose registers
16 (32-bit wide)
Interval timer: 1 (programmable)
Programmable timers: 2
I/O bus interface
One Q22–bus interface with 8192 entry
scatter/gather map
Q–bus backplane termination
240
Memory Management and Control
Page size
512 bytes
Virtual address space
4 gigabytes
Physical memory space
512 Mbytes
Number of memory modules
4 maximum
Architecture
Instruction prefetch buffer size
16 bytes
Virtual instruction cache
Data stored
Instruction stream only
Base System Description 1–23
Architecture
Size
2 Kbytes
Speed (KA692/L4006-AA)
10 nanoseconds
Speed (KA694/L4006-BA)
9 nanoseconds
Associativity
Direct mapped
Primary Cache
Data stored
Instruction stream and data
Write algorithm
Write-through
Size
8 Kbytes
Speed
12 nanoseconds
Associativity
Two-way
Back-up Cache
Data stored
Instruction stream and data
Write algorithm
Write-back
Size
2 Mbytes
Speed
36 nanoseconds
Associativity
Direct mapped
Translation buffer
Size
96 entry
Associativity
Fully associative
Q22–bus address translation
Q22–bus map cache
Size
16 entry
Associativity
Fully associative
Q22–bus I/O bus buffer size
Input
32 bytes
Output
4 bytes
Q22–bus Maximum I/O bandwidth
Block mode DMA read
2.4 Mbytes/second
Block mode DMA write
3.3 Mbytes/second
Ethernet Port
Supported protocols
1–24 Base System Description
Ethernet V2.0 (IEEE 802.3)
Ethernet Port
Supported media types
Standard or ThinWire
Data path width
1 bit
Data rate
10 Mbits/second
Buffer size
Transmit buffer
128 bytes
Receiver buffer
128 bytes
Digital Storage Systems Interconnect (DSSI)
Number of DSSI interfaces
2
Maximum number of supported devices
141 (7 per DSSI interface)
Data stored
Instruction stream and data
Write algorithm
Write-through
Data path width
8 bits
Maximum bandwidth
4 Mbytes/second
Maximum queue I/O rate
2400/second
Buffer size
Transmit buffer
256 bytes
Receiver buffer
256 bytes
Console Serial Line
Interface standards
EIA RS–423–A/CCITT V.10 X.26
EIA RS–232–C/CCITT V.28
DEC–423
Data format
1 start bit, 8 data bits, 0 parity bits, 1
stop bit
Baud rates
300; 600; 1200; 2400; 4800; 9600;
19,200; 38,400
Ordering Information
Included as part of base system
Operating System Support
VMS
1 Additional
Versions 5.5–2H4, 6.1 or later
DSSI devices are supported via the KFQSA DSSI host adapter or via KFDDB.
Base System Description 1–25
Configuration Information
Form factor
Quad height
Power requirements
CPU module only
+5 Vdc, 2.8 A; +3.3 Vdc, 3.2 A
+12 Vdc, 0.00 A; –12 Vdc, 0.00 A
(24.6 W total)
CPU module, console module, and
backplane termination
+5 Vdc, 4.8 A; +3.3 Vdc, 3.2 A
+12 Vdc, 1.6 A; –12 Vdc, 0.00 A
(53.8 W total)
Bus loads
4.0 ac; 1.0 dc
Diagnostic Support
MicroVAX Diagnostic Monitor
Release 139 and later
Self-tests
Yes
Related Documentation
EK–496AB–TI
VAX 4000 Model 500A/505A/600A/700A
/705A Technical Information
EK–498AB–MG
KA681/KA691/KA692/KA694 CPU
System Maintenance
1–26 Base System Description
1.9 MS690 Memory Specifications
The MS690 memory module provides memory expansion for the KA6nn–AA CPU
module. The MS690 modules interface with the CPU through the MS690 local
memory interconnect. You can use up to four MS690 modules in your system.
Operating system support and diagnostic support are the same as for the KA6nn
CPU module, as listed in either Section 1.6 or Section 1.7.
Performance
Memory Cycle Time with KA6nn:
Hexaword memory read (32 bytes):
588 ns
Hexaword memory write:
Hexaword
546 ns
Masked (octaword, longword)
1050 ns
Performance
Memory data path width
64 bits
Ordering Information
MS690–BA
32-Mbyte field-installed kit
MS690–CA
64-Mbyte field-installed kit
MS690–DA
128-Mbyte field-installed kit
(Not supported on Models 700A and 705A.)
Configuration Information
Form factor
Quad height
Power requirements
MS690–BA
+5V; 5.3 A; 26.5 W
MS690–CA
+5V; 4.2 A; 21.0 W
MS690–DA
+5V; 6.4 A; 32.0 W
Base System Description 1–27
2
Option Specifications
This chapter lists specifications for the options currently supported in your
system, grouped as follows.
•
Mass storage
•
Communications
•
Real-time
•
Printer
•
Graphics
The specifications appear in alphanumerical order within each of the above
groups. All weights are approximate.
Some of the options are already installed in your system. If you want to add
other options, your Digital sales representative can advise you.
2.1 Options Overview
The option specifications include the following, where applicable.
•
Functional information
•
Ordering information
•
Performance
•
Configuration information
•
Related documentation
Option Specifications 2–1
2.1.1 Configuration
Options must be properly configured so that the system recognizes them.
Each option in a system has a device address, commonly referred to as a control
and status register (CSR) address, and an interrupt vector that must be set
when the option is installed. Options are usually configured by setting switches
or jumpers on modules already configured at the factory or Digital service
representatives configure the option when they install it in your system.
Self-maintenance customers can find information on setting CSR addresses
and interrupt vectors in the Microsystems Options volume of the Entry Systems
Service Information .
2.2 Mass Storage Options
Your system supports the following mass storage devices.
•
Internal to the BA440 enclosure:
TK-series tape drive
TF-series tape drive
RF-series integrated storage element (ISE)
EF-series integrated storage element (ISE)
•
External to the BA440 enclosure:
RRD-series compact disk subsystem (tabletop)
TU81–Plus tape drive
TLZ-series tape drive
TS-series tape drive
TSZ07 tape drive
TF-series tape drive (tabletop)
RA-series disk drive
RWZ-series disk drive
Four RA-series drives are supported by one KDA50 controller. Up to seven ISEs
are supported by one KFQSA.
2–2 Option Specifications
Using any 3.5-inch drive and/or the dual-disk RF35, up to seven ISEs can be
installed in your system. The CPU communicates with the ISEs through a Digital
Storage Systems Interconnect (DSSI) adapter, which is built into the CPU. Your
system has two DSSI adapters, and hence, two separate DSSI busses. Each DSSI
bus is capable of supporting seven integrated storage elements.
The system can support two additional adapters (KFQSA, KDA50, KZQSA, and
KLESI) provided the system and Q–bus requirements are met.
The HSD05 DSSI–to–SCSI bus adapter option can be installed in the system
backplane. This adapter allows for the installation of the following embedded
SCSI devices.
RRD43 CD–ROM
RZ26L disk
RZ28 disk
RZ73 disk
RZ74 disk
TLZ07 tape drive
TZ86 tape drive
TZ87 tape drive
For more information about HSD05 and supported devices, see HSD05 DSSI–
to–SCSI Bus Adapter Operation Information for BA400–Based VAX 4000
Systems.
Option Specifications 2–3
2.2.1 KDA50 Controller
The KDA50 is an intelligent controller that interfaces with up to four SDIcompatible mass storage devices on the Q22–bus.
Functional Information
Controller protocol
MSCP
Bad block replacement
Software dependent
Supported drives
RA60, RA70, RA81, RA82, RA90
Drives per controller
4
Controllers per system
1 maximum for VMS 5.1
2 maximum for VMS V5.2 and later
Drive interconnect
Transformer-coupled radial
Ordering Information
KDA50–SE
Factory-installed RA-series disk drive
controller, controls up to a maximum of four
RA-series devices, uses three QBUS slots.
KDA50–SG
Same as –SE but is field-installed.
Performance
Read/Write data transfers
Up to 16-byte block mode DMA
Data buffering
32 Kbytes
Command buffering
20 command and response ring buffers
Configuration Information
Form factor
Two quad height
Power requirements
+5 Vdc, 13.5 A (typocal); +12 Vdc, 0.03 A
(typical)
Power consumption
67.86 W
Bus loads
3.0 ac; 0.5 dc
Related Documentation
EK–KDA5Q–UG
2–4 Option Specifications
KDA50–Q User’s Guide
2.2.2 KFQSA Storage Adapter
The KFQSA is an intelligent storage adapter that allows Q22–bus systems to
communicate with storage peripherals based on the Digital Storage System
Interconnect (DSSI).
Functional Information
Controller protocol
MSCP: to and from Q22–bus host
DSSI: to and from storage devices
Supported devices
RF-series ISEs, also TF85/TF86s and other
DSSI adapters
Drives per adapter
7
Drive interconnect
Direct
Controllers per system
2 maximum
Ordering Information
KFQSA–SE
Factory-installed Q-Bus to DSSI adapter,
controls up to a maximum of 7 DSSI devices
KFQSA–SG
Same as –SE but is field-installed
Performance
Peak transfer rate
4 Mbytes/second
Sustained transfer rate
1.5 Mbytes/second
I/O request throughput
190 I/O requests/second (single-sector reads)
Error detection
DSSI bus parity and error detection code
(EDC) check character, all transmissions
Configuration Information
Form factor
Quad height
Power requirements
+5 Vdc, 5.5 A (typical)
Power consumption
27.5 W
Bus loads
4.4 ac; 0.5 dc
Related Documentation
EK–KFQSA–IN
KFQSA Storage Adapter Installation and User
Manual
Option Specifications 2–5
2.2.3 KLESI Controller
The KLESI–SA is a controller that interfaces with the TU81–Plus tape drive on
the Q22–bus.
Functional Information
Controller protocol
TMSCP
Supported drive
TU81–Plus
Drives per adapter
1
Drive interconnect
Direct
Controllers per system
1 maximum
Ordering Information
Included with the TU81–Plus tape drive
Configuration Information
Form factor
Dual
Power requirements
+5 Vdc, 4.0 A (typical); +12 Vdc, 0.0 A (typical)
Power consumption
20.0 W
Bus loads
0.5 ac; 1.0 dc
Related Documentation
EK–LESIB–UG
2–6 Option Specifications
KLESI–B Module User’s and Installation
Guide
2.2.4 KZQSA Storage Adapter
The KZQSA storage adapter controls the RRD-series devices on the Q22–bus.
Functional Information
Adapter protocol
TMSCP
Supported drive
RRD43; two external cables or two devices
Controllers per system
2
Ordering Information
KZQSA–SA
For external factory-installed TMSCP storage
adapters
KZQSA–SF
Same as –SA but is field-installed
Performance Information
Peak transfer rate
4 Mbytes synchronous
Error detection
Q–bus parity
Configuration Information
Form factor
Quad height
Power requirements
+5 Vdc, 5.5 A (typical); +12 Vdc, 0.0 A (typical)
Power consumption
27.5 W
Bus loads
4.4 ac; 1.0 dc
Related Documentation
EK–KZQSA–IN
KZQSA Storage Adapter Installation and User
Manual
Option Specifications 2–7
2.2.5 RA60 Disk Drive
The RA60 is a removable disk drive that provides 205 Mbytes of formatted
storage space. Your system supports the RA60 in separate storage expansion
enclosures only.
Storage Capacity
User capacity
205 Mbytes
User capacity (blocks)
400,176
Ordering Information
RA60–AA
Field-installed RA60 disk drive and cables
RA60–AF
Factory-installed RA60 disk drive and cables
BC26V–06
Interconnect cable with connector block
Performance
Average seek time
41.67 milliseconds
Average rotational latency
8.33 milliseconds
Average access time
50.30 milliseconds
Peak transfer rate
15.84 Mbits/second
Physical Specifications
Height
26.52 cm (10.44 inches)
Width
48.26 cm (19 inches)
Depth
85.09 cm (33.75 inches)
Weight
68.95 kg (152 pounds)
Configuration Information
Form factor
10.5-inches high, full rack width
Related Documentation
EK–ORA60–UG
2–8 Option Specifications
RA60 Disk Drive User’s Guide
2.2.6 RA70E Disk Drive
The RA70E is a fixed-disk drive that provides 280 Mbytes of formatted storage
space. Your system supports the RA70E drives in separate storage expansion
enclosures only.
Storage Capacity
User capacity
280 Mbytes
Ordering Information
RA70E–SA
Factory-installed RA70E disk drive
RA70E–SF
Same as –SA but is field-installed
Performance
Average seek time
19.5 milliseconds
Average rotational latency
7.5 milliseconds
Average access time
27.0 milliseconds
Peak transfer rate
1.4 Mbytes/second
Physical Specifications
Height
26.3 cm (10.38 inches)
Width
44.5 cm (17.5 inches)
Depth
67.3 cm (26.5 inches)
Weight
61.2 kg (135 pounds)
Form factor
5.25-inches high, full rack width
Related Documentation
EK–ORA70–SV
RA70 Disk Drive Service Manual
EK–ORA70–PS
RA70 Disk Drive Pocket Reference
Option Specifications 2–9
2.2.7 RA81 Disk Drive
The RA81 is a fixed-disk drive that provides 456 Mbytes of formatted storage
space. Your system supports the RA81 drives in separate storage expansion
enclosures only.
Storage Capacity
User capacity
456 Mbytes
User capacity (blocks)
891,070
Ordering Information
RA81–HA/–HD
RA81 disk drive (120 V/240 V)
RQA81–AA
Factory-installed RA81 disk drive (120 V) with
KDA50 controller and BC26V–06 cable
RQA81–AD
Field-installed RA81 disk drive (240 V) with
KDA50 controller and BC26V–6D cable
BC26V–6D
Interconnect cable with connector block
Performance
Average seek time
28.00 milliseconds
Average rotational latency
8.32 milliseconds
Average access time
36.30 milliseconds
Peak transfer rate
17.4 Mbits/second
Physical Specifications
Height
26.3 cm (10.38 inches)
Width
44.5 cm (17.5 inches)
Depth
67.3 cm (26.5 inches)
Form factor
10.5-inches high, full rack width
Weight
61.2 kg (135 pounds)
Related Documentation
EK–ORA81–SV
RA81 Disk Drive Service Guide
EK–ORA81–UG
RA81 Disk Drive User’s Guide
2–10 Option Specifications
2.2.8 RA82 Disk Drive
The RA82 is a fixed-disk drive that provides 623 Mbytes of formatted storage
space. Your system supports the RA82 drives in separate storage expansion
enclosures only.
Storage Capacity
User capacity
623 Mbytes
User capacity (blocks)
1,216,660
Ordering Information
RA82–AA
Factory-installed RA82 disk drive (120 V) with
one BC26V–12 cable
RA82–AD
Field-installed RA82 disk drive (240 V) with
one BC26V–12 cable
BC26V–06
Interconnect cable with connector block
Performance
Average seek time
24.00 milliseconds
Average rotational latency
8.33 milliseconds
Average access time
32.33 milliseconds
Peak transfer rate
19.2 Mbits/second
Physical Specifications
Height
26.3 cm (10.38 inches)
Width
44.5 cm (17.5 inches)
Depth
67.3 cm (26.5 inches)
Weight
61.2 kg (135 pounds)
Configuration Information
Form factor
10.5-inches high, full rack width
Related Documentation
EK–ORA82–SV
RA82 Disk Drive Service Guide
EK–ORA82–UG
RA82 Disk Drive User’s Guide
Option Specifications 2–11
2.2.9 RA90 Disk Drive
The RA90 is a fixed-disk drive that provides 1.2 gigabytes of formatted storage
space. Your system supports the RA90 drives in separate storage expansion
enclosures only.
Storage Capacity
User capacity
1.2 gigabytes
User capacity (blocks)
2,376,153
Ordering Information
RA90–NA
RA90 disk drive (120 V)
RA90–ND
RA90 disk drive (240 V)
BC26V–12
Interconnect cable with connector block
Performance
Average seek time
18.5 milliseconds
Average access time
8.33 milliseconds
Peak transfer rate
22.2 Mbits/second
Physical Specifications
Height
26.6 cm (10.4 inches)
Width
23.0 cm (8.7 inches)
Depth
68.5 cm (27.0 inches)
Weight
13.6 kg (62 pounds)
Configuration Information
Form factor
10.5-inches high, full rack width
Power requirements
+5 Vdc, 1.3 A; +12 Vdc, 2.21 A
Power consumption
18.7 W
Related Documentation
EK–ORA90–SV
RA90 Disk Drive Service Guide
EK–ORA90–UG
RA90 Disk Drive User’s Guide
2–12 Option Specifications
2.2.10 RA92 Disk Drive
The RA92 disk drive provides 1.5 Gbytes of formatted storage space. Your system
supports the RA92 only in separate storage expansion enclosures.
Storage Capacity
User capacity
1.5 gigabytes
User capacity (blocks)
2,940,952
Ordering Information
RA92–CA/CD
RA92 disk drive (120 V @ 60 Hz; 240 V @ 50
Hz)
BC26J–xx
12-, 25-, 50-, or 80-ft. interconnect cable
BC27V–xx
12-, 15-, 25-, 35-, 50-, or 80-ft. interconnect
cable
Performance
Average seek time
16.5 milliseconds
Single track seek
3.0 milliseconds
Peak transfer rate
22.2 Mbits/second
Physical Specifications
Height
26.6 cm (10.42 inches)
Width
23.0 cm (8.75 inches)
Depth
60.96 cm (24.0 inches)
Weight
31.8 kg (70 pounds)
Configuration Information
Form factor
10.5-inches high
Power requirements
+5 Vdc, 1.3 A; +12 Vdc, 2.21 A
Power consumption
18.7 W
Related Documentation
EK–ORA92–UG–02
RA90/RA92 User’s Guide
Option Specifications 2–13
2.2.11 RF36 Integrated Storage Element
The RF36 is a DSSI integrated storage element (ISE) that provides 200 Mbytes of
formatted storage space. The RF36 features a code modification to the UVE ROM
that makes the RF36 a half-stroke drive.
Storage Capacity
Data storage capacity
200 Mbytes, formatted
Ordering Information
RF36–AA
Factory-installed 200-Mbyte half-height ISE
RF36–AF
Same as –AA but is field-installed
Performance
Average seek time
12.3 milliseconds
Average access time
20.6 milliseconds
Average rotational latency
8.37 milliseconds
Peak transfer rate
4.0 Mbytes/second
Transfer rate from the media
2.0 Mbytes/second
Physical Specifications
Height
4.40 cm (1.75 inches)
Width
14.60 cm (5.75 inches)
Depth
20.45 cm (8.25 inches)
Weight
1.81 kg (4.0 pounds)
Configuration Information
Form factor
Standard 5.25-inch footprint
Power requirements (peak
@spin-up)
+5 Vdc, 1.0 A; +12 Vdc, 2.80 A
Power consumption
38.6 W (peak @spin-up)
18.7 W (seeking), 12.6 W (idle)
Related Documentation
EK–RF72D–UG
RF Series Integrated Storage Element User Guide
EK–RF72D–SV
RF Series Integrated Storage Element Service Guide
2–14 Option Specifications
2.2.12 RF72 Integrated Storage Element (ISE)
The RF72 is a DSSI integrated storage element (ISE) that provides 1.0 Gbytes of
formatted storage space. RF-series ISEs are used in DSSI busses (Digital Storage
Systems Interconnect). An ISE is a 5.25-inch integrated storage element that is
housed in a special mounting bracket for simplified installation and upgrading.
Storage Capacity
User capacity
1.0 Gbytes
Ordering Information
RF72E–AA
Factory-installed 1.0 Gbyte ISE
RF72E–AF
Same as –AA but is field-installed
Performance
Average seek time
13.4 milliseconds
Average access time
21.7 milliseconds
Average rotational latency
8.33 milliseconds
Peak transfer rate
4.0 Mbytes/second
Transfer rate from the media
2.0 Mbytes/second
Physical Specifications
Height
7.75 cm (3.05 inches)
Width
14.60 cm (5.75 inches)
Depth
20.75 cm (8.17 inches)
Weight
4.09 kg (9.0 pounds)
Configuration Information
Form factor
Standard 5.25-inch high footprint
Power requirements (spin-up)
+5 Vdc, 1.38 A; +12 Vdc, 4.68 A
Power consumption
63.0 W (peak @spin-up)
28.9 W (seeking), 17.7 W (idle)
Related Documentation
EK–RF72D–UG
RF Series Integrated Storage Element User Guide
EK–RF72D–SV
RF Series Integrated Storage Element Service Guide
Option Specifications 2–15
2.2.13 RF73 Integrated Storage Element (ISE)
The RF73 is a DSSI integrated storage element (ISE) that provides 2.0 Gbytes of
formatted storage space. RF-series ISEs are used in DSSI busses (Digital Storage
Systems Interconnect). An ISE is an integrated storage element that is housed in
a special mounting bracket for simplified installation and upgrading.
Storage Capacity
User capacity
2.0 Gbytes
Ordering Information
RF73E–AA
Factory-installed 2.0 Gbyte ISE
RF73E–AF
Same as –AA but is field-installed
Performance
Average seek time
12.9 milliseconds
Average access time
21.3 milliseconds
Average rotational latency
8.33 milliseconds
Peak transfer rate
4.0 Mbytes/second
Transfer rate from the media
2.2 Mbytes/second
Physical Specifications
Height
8.26 cm (3.25 inches)
Width
14.71 cm (5.79 inches)
Depth
20.85 cm (8.21 inches)
Weight
2.89 kg (6.36 pounds)
Configuration Information
Form factor
Standard 5.25-inch high footprint
Power requirements (spin-up)
+5 Vdc, 1.2 A; +12 Vdc, 5.0 A
Power consumption
66.0 W (peak @spin-up)
22.9 W (seeking) 17.0 W (idle)
Related Documentation
EK–RF72D–UG
RF Series Integrated Storage Element User Guide
EK–RF72D–SV
RF Series Integrated Storage Element Service Guide
2–16 Option Specifications
2.2.14 RF74 Integrated Storage Element (ISE)
The RF74 is a DSSI integrated storage element (ISE) that provides 3.57 Gbytes of
formatted storage space. RF-series ISEs are used in DSSI busses (Digital Storage
Systems Interconnect). An ISE is an integrated storage element that is housed in
a special mounting bracket for simplified installation and upgrading.
Storage Capacity
User capacity
3.57 Gbytes
Ordering Information
RF74–AA
Factory-installed 3.57 Gbytes ISE
RF74–AF
Same as –AA but is field-installed
Performance
Average seek time
12.0 milliseconds
Average access time
17.6 milliseconds
Average rotational latency
5.56 milliseconds
Peak transfer rate
5.0 Mbytes/second
Transfer rate from the media
6.94 Mbytes/second
Physical Specifications
Height
8.26 cm (3.25 inches)
Width
14.71 cm (5.79 inches)
Depth
20.85 cm (8.21 inches)
Weight
2.89 kg (6.7 pounds)
Configuration Information
Form factor
Standard 5.25-inch high footprint
Power requirements (spin-up)
+5 Vdc, 1.2 A; +12 Vdc, 5.6 A (maximum)
Power consumption
72.2 W (maximum peak @spin-up)
40.8 W (seeking)34.8 W (idle)
Related Documentation
EK–RF72D–UG
RF Series Integrated Storage Element User Guide
EK–RF72D–SV
RF Series Integrated Storage Element Service Guide
Option Specifications 2–17
2.2.15 RRD43 Optical Compact-Disc Subsystem
The RRD43 is a 600-Mbyte optical CD reader that retrieves data in fixed-length
blocks from removable compact-disc media.
Functional Information
Interface
Single-ended, asynchronous SCSI to Q–bus systems
through KZQSA storage adapter
Ordering Information
RRD43–AB
1 inch high CD–ROM (brick)
RRD43–DA
Embedded power supply, tabletop model with kit
RRD43–DX
Embedded power supply, tabletop model, no kit
RRD43–JA
Same as –AB but factory-installed, embedded in
BA400 series enclosure
RRD43–JF
Same as –AB but field-installed
Performance
Access time, average
320 milliseconds
Rotational speed, innermost
track
1X: 530 rpm, 2X: 1060 rpm
Rotational speed, outermost
track
1X: 200 rpm, 2X: 400 rpm
Start time
1X: 2.3 seconds, 2X: 2.6 seconds
Stop time
2.0 seconds (maximum)
Transfer rate, sustained
1X: 150 Kbytes/second, 2X: 300 Kbytes/second
Transfer rate, burst
1.50 Mbytes/second (maximum) asynchronous
2–18 Option Specifications
Physical Specifications
RRD43–AB
Height
2.7 cm (1.06 inches)
Width
14.95 cm (5.89 inches)
Depth
20.0 cm (7.88 inches)
Weight
.88 kg (1.94 pounds)
Physical Specifications
RRD43–DA/DX
Height
5.41 cm (2.13 inches)
Width
20.32 cm (8.0 inches)
Depth
26.51 cm (10.44 inches)
Weight
1.59 kg (3.5 pounds)
Configuration Information
Form factor
Standard 5.25-inch high footprint
Related Documentation
EK–RRD43–IN
RRD43 CD–ROM Drive Installation Guide
Option Specifications 2–19
2.2.16 RWZ01
The RWZ01 is a 600-Mbyte optical CD reader that retrieves data in fixed-length
blocks from removable compact-disc media.
Functional Information
Interface
Single-ended, asynchronous SCSI to Q–bus
systems through KZQSA storage adapter
Ordering Information
RWZ01–DA
Tabletop model, with power supply
RWZ01–FB
Tabletop, 240 V
RWZ01–DH
Tabletop, 120 V
Performance
Seek time, average
400 milliseconds, (typical)
Seek time, max. full stroke
800 milliseconds, (typical)
Rotational speed, innermost track
530 rpm
Rotational speed, outermost track
200 rpm
Start time/stop time
2.0 seconds (maximum)
Transfer rate, sustained
150 Kbytes/second
Transfer rate, burst
1.50 Mbytes/second (maximum)
Physical Specifications
Height
4.15 cm (1.62 inches)
Width
14.60 cm (5.75 inches)
Depth
20.80 cm (8.0 inches)
RWZ01–AA
1.30 kg (2.8 pounds)
RWZ01–DA
2.9 kg (6.30 pounds)
Configuration Information
Form factor
Standard 5.25-inch high footprint
Related Documentation
EK–RWZ01–OM
2–20 Option Specifications
RRD42 Disc Drive Owner’s Manual
2.2.17 TF85 Tape Drive
The TF85 is a cartridge tape drive that can store up to 2.6 Gbytes. It is a
streaming tape drive with a built-in DSSI (Digital Storage Systems Interconnect)
controller, and can be used as a part of a DSSI VAXcluster configuration.
Functional Information
Recording media
Magnetic, metal-particle tape
Tape dimensions
1.27 cm (0.5 inch) wide, 366 m (1200 feet) long
Mode of operation
Streaming
Recording method
Serpentine
Recording density
42,500 bits/inch
Number of tracks
48
Storage capacity
2.6 Gbytes, formatted
Transfer rate
800 Kbytes/second, formatted
Ordering Information
TF85–BA
2.6-Gbyte cartridge tape subsystem for DSSIbased systems; includes tape drive with
embedded DSSI controller, tape cartridge,
and head cleaning cartridge
TF85E–JA
Same as –BA but factory-installed embedded
BA400-series
TF85E–JF
Same as –BA but field-installed embedded
BA400-series
TF85–TA
Same as –BA but tabletop
Performance
Tape start time
300 milliseconds maximum
Tape stop time
300 milliseconds maximum
Tape speed
390 cm/second (100 in/second)
Streaming data rate
800 Kbytes/second
Access time
TF85 mode
TK70/50 mode
Recording technique
3 minutes maximum
60 minutes maximum
Two-track parallel, serpentine
Option Specifications 2–21
Performance
Burst rate on DSSI bus
3.8 Mbytes/second
Physical Specifications
Height
11.3 cm (4.5 inches)
Width
14.9 cm (5.87 inches)
Depth
24.4 cm (9.6 inches)
Weight
3.2 kg (7.0 pounds)
Configuration Information
Form factor
Half-rack, near 5.25-inch footprint
Power requirements
+5 Vdc, 1.5 A (typical); +12 Vdc, 2.4 A (typical)
Power consumption
36.3 W
Related Documentation
EK–OTF85–OM
TF85 Cartridge Tape Subsystem Owner’s
Manual
EK–OTK85–RC
TF85 Cartridge Tape Drive Reference Card
2–22 Option Specifications
2.2.18 TF86 Tape Drive
The TF86 is a cartridge tape drive that can store up to 6 Gbytes. It is a streaming
tape drive with a built-in DSSI (Digital Storage Systems Interconnect) controller,
and can be used as a part of a DSSI VAXcluster configuration.
Functional Information
Recording media
Magnetic, metal-particle tape
Tape dimensions
1.27 cm (0.5 inch) wide, 366 m (1200 feet) long
Mode of operation
Streaming
Recording method
Serpentine
Recording density
42,500 bits/inch
Number of tracks
112
Storage capacity
6 Gbytes, formatted
Transfer rate
800 Kbytes/second, formatted
Ordering Information
TF86–BA
6-Gbyte cartridge tape subsystem for DSSIbased systems; includes tape drive with
embedded DSSI controller, tape cartridge,
and head cleaning cartridge
TF86E–JA
Same as –BA but factory-installed embedded
BA400-series
TF86E–JF
Same as –BA but field-installed embedded
BA400-series
TF86–TA
Same as –BA but tabletop
Performance
Tape start time
300 milliseconds maximum
Tape stop time
300 milliseconds maximum
Tape speed
390 cm/second (100 in/second)
Streaming data rate
800 Kbytes/second
Access time
TF85/TF86 mode
TK70/50 mode
Recording technique
1.5 minutes average, 3 minutes maximum
60 minutes maximum
Two-track parallel, serpentine
Option Specifications 2–23
Performance
Burst rate on DSSI bus
4.0 Mbytes/second
Physical Specifications
Height
11.3 cm (4.5 inches)
Width
14.9 cm (5.87 inches)
Depth
24.4 cm (9.6 inches)
Weight
3.2 kg (7.0 pounds)
Configuration Information
Form factor
Half-rack, near 5.25-inch footprint
Power requirements
+5 Vdc, 1.5 A (typical); +12 Vdc, 2.4 A (typical)
Power consumption
36.3 W
Related Documentation
EK–OTX86–OM
2–24 Option Specifications
TX86 Cartridge Tape Subsystem Owner’s
Manual
2.2.19 TK70 Tape Drive
The TK70 is a streaming-tape drive subsystem that can store up to 296 Mbytes on
a tape cartridge for backup data storage. The TK70 can read data from cartridges
recorded on a TK50 drive, but cannot write data to cartridges recorded on a TK50
drive.
Functional Information
Recording media
Magnetic tape
Tape dimensions
1.27 cm (0.5 inch) wide, 182.9 m (600 feet)
long
Mode of operation
Streaming
Recording method
Serpentine
Recording density
10,000 bits/inch
Number of tracks
48
Storage capacity
296 Mbytes formatted
Ordering Information
TK70E–AA
Factory-installed 296 Mbyte cartridge tape
drive
TK70E–AF
Same as –AA but is field-installed
TQK70–SF
Field-installed controller for TK70E–AF
TQK70–SA
Same as –SF but is factory-installed
Performance
Tape start time
325 milliseconds maximum
Tape stop time
200 milliseconds maximum
Tape speed
390 cm/second (100 in/second)
Streaming data rate
125 Kbytes/second
Access time (from insertion of tape)
60 minutes maximum
Physical Specifications
Height
8.25 cm (3.25 inches)
Width
14.60 cm (5.70 inches)
Depth
21.44 cm (8.44 inches)
Weight
2.27 kg (5.0 pounds)
Option Specifications 2–25
Configuration Information
Form factor
Standard 5.25-inch footprint
Power requirements
+5 Vdc, 1.35 A; +12 Vdc, 2.4 A
Power consumption
35.6 W
Related Documentation
EK–OTK70–OM
TK70 Tape Drive Subsystem Owner’s
Manual
EK–OTK70–TM
TK70 Tape Drive Subsystem Technical
Manual
EK–OTK70–SM
TK70 Tape Drive Subsystem Service
Manual
2.2.20 TLZ06 Tape Drive
The TLZ06 is a 2.0-Gbyte cassette (DAT) SCSI tabletop tape drive.
Functional Information
Recording media
Magnetic tape
Mode of operation
Streaming and start/stop
Storage capacity
2.0 Gbytes formatted, noncompressed, 4.0
compressed
Drive interface
SCSI–2
Ordering Information
TLZ06–GA
Tabletop including BC06P cable
Performance
Passes per cassette tape
300
Media
TLZ06–CA cassette tape
Bit density
114 Mbits/square inch
Transfer rate (sustained)
183 Kbytes/second
Recording format
Digital data storage (DDS, DC)
Read/write speed
0.87 cm/second
Peak transfer rate, raw
180 Kbytes/second
Peak transfer rate,user data
170 Kbytes/second
2–26 Option Specifications
Performance
Average file access time
20 seconds
Rewinding time
40 seconds
Physical Specifications
Height
8.6 cm (3.4 inches)
Width
13.5 cm (5.3 inches)
Depth
23.6 cm (9.3 inches)
Weight
2.4 kg (5.2 pounds)
Data Organization
Recording technology
Helical scan
Recording format
Digital Data Storage (DDS, DC)
Recording density
61,000 bits/inch
Record size
Variable
Maximum capacity
2.0 Gbytes, noncompressed (90 meter tape),
4.0 Gbytes, compressed (90 meter tape)
Recording medium
90 m x 4 mm
Maintenance
Recommended cartridge cleaning
Every 25 hours of drive usage
Configuration Information
Form factor
Tabletop
Power requirements
100 to 240 Vac, 0.3 A
Power consumption
12 W average
Related Documentation
EK–TLZ06–MM
TLZ06 Tape Drive Subsystem Service Manual
EK–TLZ06–OM
TLZ06 Tape Drive Owner’s Manual
Option Specifications 2–27
2.2.21 TLZ07 Tape Drive
The TLZ07 is a 4-Gbyte cassette (DAT) SCSI tape drive, either tabletop or
embedded in your system.
Functional Information
Recording media
Magnetic tape
Mode of operation
Streaming and start/stop
Storage capacity
4 Gbytes with 120 meter tape, 8 Gbytes with
120 meter tape and data compression
Drive interface
Small computer system interconnect (SCSI–2)
Ordering Information
TLZ07–GA
Tabletop compact external unit with built-in
power supply
Performance
Passes per cassette tape
300
Media
(4 mm x 60m) TLZ04–CA cassette tape
(4 mm x 90m) TLZ06–CA cassette tape
(4 mm x 120m) TLZ07–CA cassette tape
Bit density
114 Mbits/square inch
Transfer rate (sustained)
400 Kbytes/second
Recording format
Digital data storage (DDS-2, DDS, DC)
Peak transfer rate
1.5 Mbytes /second (asynchronous)
Physical Specifications
Height
8.6 cm (3.4 inches)
Width
13.5 cm (5.3 inches)
Depth
23.6 cm (9.3 inches)
Weight
2.4 kg (5.2 pounds)
2–28 Option Specifications
Data Organization
Recording technology
Helical scan
Recording method
Digital Data Storage (DDS-2, DDS, DC)
Bit density
114 Mbits per square inch
Record size
Variable
Maximum capacity
4 Gbytes with 120 meter tape, 8 Gbytes with
120 meter tape and data compression
Recording medium
4 mm dat tape (60, 90, 120 meters)
Maintenance
Recommended cartridge cleaning
Every 25 hours of drive usage
Configuration Information
Form factor
Tabletop
Power requirements
100 to 240 Vac, 0.3A
Power consumption
12 W average
Related Documentation
EK–TLZ07–OM
TLZ07 Cassette Tape Drive and Autoloader
Owner’s Manual
Option Specifications 2–29
2.2.22 TSZ07 Tape Drive
The TSZ07 is a 40-Mbyte, high-capacity, streaming, 9-track, reel-to-reel, half-inch
magnetic tape drive with dual recording densities. The TSZ07 is available in
tabletop, cabinet, or rackmount models, and cannot be mounted inside your
system.
Functional Information
Recording densities
1600 bits/inch or 6250 bits/inch
Mode of operation
Streaming and start/stop
Storage capacity
40 Mbytes with 8-Kbyte blocks, formatted
Number of tracks
9 on 0.5-inch magnetic tape
Drive interface
RDAT compatible
Ordering Information
TSZ07–AA
Rackmount, specify country kit
TSZ07–BA
Cabinet, 120 V
TSZ07–BB
Cabinet, 240 V
TSZ07–CA
Tabletop, specify country kit
Performance
Transfer rate
4 Mbytes/second
Load/unload time
55 seconds
Recording speed
100 in/second
Rewinding speed
150 seconds (with 2400 reel)
Physical Specifications
Tabletop
Height
26.78 cm (10.50 inches)
Width
50.36 cm (19.75 inches)
Depth
68.85 cm (27.00 inches)
Weight
36.8 kg (81 pounds)
Rackmount
Height
22.32 cm (8.75 inches)
Width
43.35 cm (17.0 inches)
2–30 Option Specifications
Physical Specifications
Depth
64.03 cm (25.5 inches)
Weight
31.8 kg (70 pounds)
Cabinet
Height
101.0 cm (40.0 inches)
Width
56.10 cm (22.0 inches)
Depth
76.50 cm (30.0 inches)
Weight
180.1 kg (238 pounds)
Maintenance
Cleaning cartridge interval
Every 25 hours recommended
Configuration Information
Form factor
5.25-inch DAT drive
Power consumption
385 W, cabinet
355 W, tabletop
355 W, rackmount
Related Documentation
EK–TSZ07–IN–002
TSZ07 Installation/Owner’s Manual
EK–TSZ07–TM–002
TSZ07 Technical Manual
Option Specifications 2–31
2.2.23 TSV05 Tape Drive
The TSV05 is a magnetic streaming-tape drive that provides 40.5 Mbytes of
backup data storage. The TSV05 reads or writes up to 160 Kbytes per second in
standard ANSI format.
Functional Information
Recording media
Magnetic tape, 26.7 cm (10.5 inches) reel
Tape dimensions
1.27 cm (0.5 inch) wide, 731 m (2400 feet) long
Mode of operation
Streaming
Recording method
Phase encoded (PE)
Recording density
1600 bits/inch
Number of tracks
9
Storage capacity
40 Mbytes formatted
Ordering Information
TSV05–SE
TSV05 tape drive subsystem
Performance
Handling
Bidirectional reel-to-reel with compliance arm
Tape velocity
64 or 254 cm/second (25 or 100 in/second)
Maximum data transfer rate
40 or 160 Kbytes/second
Rewind time
2.8 minutes/731 m (2400 feet)
Physical Specifications
Height
23.0 cm (8.75 inches)
Width
43 cm (17 inches)
Depth
62 cm (24.5 inches)
Weight
36 kg (80 pounds)
Form factor
10.5-in high, full rack width
Related Documentation
EK–TSV05–UG
TSV05 Tape Transport System User’s Guide
EK–TSV05–TM
TSV05 Tape Transport Subsys Tech Manual
2–32 Option Specifications
2.2.24 TSV05 Controller
The TSV05 tape drive controller interfaces the TSV05 tape drive to the Q22–bus.
Functional Information
Controller protocol
Controller unique
Supported drive
TSV05
Drives per controller
1
Drive interconnect
Direct
Ordering Information
TSV05–SB
TSV05 tape drive subsystem
TSV05–SE
TSV05 tape drive subsystem with cabinet
Performance
Buffer size
3.5 Kbytes
Configuration Information
Form factor
Quad height
Power requirements
+5 Vdc, 6.5 A (typical); +12 Vdc, 0.0 A (typical)
Power consumption
32.5 W
Bus loads
2.4 ac; 1.0 dc
Related Documentation
EK–TSV05–UG
TSV05 Tape Transport System User’s Guide
Option Specifications 2–33
2.2.25 TU81–Plus Tape Drive
The TU81–Plus is a reel-to-reel tape drive mounted in a 101.6-cm (40-inches)
cabinet. The drive supports two industry-standard recording methods: group
coded recording (GCR) and phase encoded (PE).
Storage Capacity
PE unformatted
45.3 Mbytes
PE formatted
40.0 Mbytes
GCR unformatted
177 Mbytes
GCR formatted
140 Mbytes
Functional Specifications
Recording media
Magnetic tape
Tape dimensions
1.27 cm (0.5 inch) wide, 731 m (2400 feet) long
Mode of operation
Streaming
Recording methods
Group code recording (GCR)
Recording density
6250 bits/in (GCR)
Phase encoded (PE)
1600 bits/in (PE)
Number of tracks
2–34 Option Specifications
9
Ordering Information
TU81E–DA
TU81–Plus tape drive, KLESI controller for
120 V
TU81E–DB
TU81–Plus tape drive, KLESI controller for
240 V
Performance
Handling
Bidirectional reel-to-reel
Tape velocity
High speed
190.5 cm/second (75 in/second)
Low speed
63.5 cm/second (25 in/second)
Channel data transfer rate
PE high speed
120 Kbytes/second
PE low speed
40 Kbytes/second
GCR high speed
469 Kbytes/second
GCR low speed
156 Kbytes/second
Rewind time (731.5 m (2400 feet) tape on
26.7 cm (10.5 inches) reel)
2.75 minutes maximum
Physical Specifications
Height
105.8 cm (41.7 inches)
Width
54.6 cm (21.5 inches)
Depth
76.2 cm (30.0 inches)
Weight
139 kg (295 pounds)
Related Documentation
EK–TU81E–UG
TU81–Plus Tape Subsystem User’s Guide
Option Specifications 2–35
2.2.26 TZ85 Tape Drive
The TZ85 is a 40-Mbyte, high-capacity, streaming, 9-track, reel-to-reel, half-inch
magnetic tape drive with dual recording densities. The TZ85 is available in
tabletop, cabinet, or rackmount models, and cannot be mounted inside your
system.
Functional Information
Recording densities
1600 bits/inch or 6250 bits/inch
Mode of operation
Streaming and start/stop
Storage capacity
40 Mbytes with 8-Kbyte blocks, formatted
Number of tracks
9 on 0.5-inch magnetic tape
Drive interface
RDAT compatible
Ordering Information
TZ85–AA
Rackmount, specify country kit
TZ85–BA
Cabinet, 120 V
TZ85–BB
Cabinet, 240 V
TZ85–CA
Tabletop, specify country kit
Performance
Transfer rate
4 Mbytes/second
Load/unload time
55 seconds
Recording speed
100 in/second
Rewinding speed
150 seconds (with 2400 reel)
Physical Specifications
Tabletop
Height
26.78 cm (10.50 inches)
Width
50.36 cm (19.75 inches)
Depth
68.85 cm (27.00 inches)
Weight
36.8 kg (81 pounds)
Rackmount
Height
2–36 Option Specifications
22.32 cm (8.75 inches)
Physical Specifications
Width
43.35 cm (17.0 inches)
Depth
64.03 cm (25.5 inches)
Weight
31.8 kg (70 pounds)
Cabinet
Height
101.0 cm (40.0 inches)
Width
56.10 cm (22.0 inches)
Depth
76.50 cm (30.0 inches)
Weight
180.1 kg (238 pounds)
Maintenance
Cleaning cartridge interval
Every 25 hours recommended
Configuration Information
Form factor
5.25-inch DAT drive
Power consumption
385 W, cabinet
355 W, tabletop
355 W, rackmount
Related Documentation
EK–TZ85–IN–002
TZ85 Installation/Owner’s Manual
EK–TZ85–TM–002
TZ85 Technical Manual
Option Specifications 2–37
2.3 Communication Options
Your system supports the following communication options.
•
CXA16 asynchronous multiplexer (16 lines)
•
CXB16 asynchronous multiplexer (16 lines)
•
CXY08 asynchronous multiplexer (8 lines)
•
DEFQA Q–bus adapter
•
DEQRA Token Ring Q–bus adapter
•
DESQA Ethernet controller
•
DFA01 asynchronous controller with integral modem
•
DPV11 synchronous interface
•
DSRVB DECserver 200
•
DSV11 synchronous controller
Asynchronous Serial Controllers
Asynchronous serial controllers provide low-speed connections between peripheral
devices and the system. Asynchronous communications between the system and
the peripheral depends on recognition of a pattern of start and stop bits, not on a
time interval.
Synchronous Serial Controllers
Synchronous serial controllers provide high-speed connections between systems.
Communication between synchronous devices depends on time intervals that are
synchronized before transmission of data begins.
Ethernet Controllers
Ethernet controllers connect your system to an Ethernet network. With a
network connection and appropriate DECnet software, you can use all network
services.
2.3.1 CXA16 Asynchronous Multiplexer (16 lines)
The CXA16 is an intelligent, preprogrammed serial controller that can operate in
either DHV11 or DHU11 mode, depending on the setting of an on-board switch.
The module contains 16 multiplexed lines.
2–38 Option Specifications
Functional Information
Supported line interfaces
EIA RS–423–A/CCITT V.10
EIA RS–232–D/CCITT V.28
DEC–423
Split-speed operation
All lines
Flow control (XON/XOFF)
All lines
Supported data formats
16 programmable formats (each with 1 start
bit)
•
5, 6, 7, or 8 data bits, 0 or 1 parity bit,
and 1 stop bit
•
5 data bits, 0 or 1 parity bit, and 1.5 stop
bits
•
6, 7, or 8 data bits, 0 or 1 parity bit, and 2
stop bits
Parity, if enabled, can be either odd or even.
Modem control
None
Ordering Information
CXA16–AA
CXA16 Factory-installed kit. Includes two 7.6m (25-feet) BC16D–25 cables, two H3104 cable
concentrators, and other accessories required
to install the option.
CXA16–AF
Same as –AA but is field-installed.
•
BC16D–25 cable—data only, 36-conductor,
terminated with 36-pin Amphenol
connectors
•
H3104 cable concentrator—concentrates
eight BC16E cables into one BC16D cable;
eight modified modular jacks and one
36-pin Amphenol connector
Option Specifications 2–39
Ordering Information
BC16E-series cable
Office cable—data only, six-conductor,
terminated with modified modular plugs
•
BC16E–10: 3 m (10 feet)
•
BC16E–25: 7.6 m (25 feet)
•
BC16E–50: 15.2 m (50 feet)
H8572
Cable extender with modified modular jacks.
H8571–A
25-pin passive adapter1
H8571–B
9-pin passive adapter1
H3105
Active adapter. Converts EIA RS–232–D
signals to DEC–423 signals.
Performance
Transmit data transfers
Single-character transfers or up to 16-char
block mode DMA transfers in DHV11 mode.
Single-character or two-character transfers, or
up to 16-character block mode DMA transfers
in DHU11 mode.
Receive data transfers
Single-character transfers in both DHV11 and
DHU11 modes.
Transmit buffer size
One character for DHV11 mode transfers
64-character FIFO for DHU11 mode transfers
64-character FIFO for DMA transfers in
DHU11 and DHV11 modes
Receive buffer size
256-character FIFO in DHV11 and DHU11
modes
Supported baud rates
16 programmable baud rates: 50; 75; 110;
134.5; 150; 300; 600; 1200; 1800; 2000; 2400;
4800; 7200; 9600; 19,200; 38,4002
Throughput at maximum baud rate:
5 data bits, 0 parity, 1 stop bit
140,000 characters/s (all lines)
7 data bits, 1 parity bit, 1 stop bit
110,000 characters/s (all lines)
1 Converts a D-connector to a modified modular jack. Required for connecting terminals and printers
to office cables terminated with modified modular plugs.
2 38,400
baud rate is not supported by Digital operating systems.
2–40 Option Specifications
Configuration Information
Form factor
Quad height with integral, recessed cover
panel
Power requirements
+5 Vdc, 1.6 A (typical); +12 Vdc, 0.20 A
(typical)
Power consumption
10.4 W
Bus loads
3.0 ac; 0.5 dc
Module connectors
2 female, 36-pin Amphenol connectors
Related Documentation
EK–CAB16–UG
CXA16/CXB16 User’s Guide
EK–CAB16–TM
CXA16/CXB16 Technical Manual
Option Specifications 2–41
2.3.2 CXB16 Asynchronous Multiplexer (16 lines)
The CXB16 is an intelligent, preprogrammed serial controller that can operate in
either DHV11 or DHU11 mode, depending on the setting of an on-board switch.
The module contains 16 multiplexed lines.
Functional Information
Supported line interfaces
EIA RS–422–A/CCITT V.11 X.27
Split-speed operation
All lines
Flow control (XON/XOFF)
All lines
Supported data formats
16 programmable formats (each with 1 start
bit)
•
5, 6, 7, or 8 data bits, 0 or 1 parity bit,
and 1 stop bit
•
5 data bits, 0 or 1 parity bit, and 1.5 stop
bits
•
6, 7, or 8 data bits, 0 or 1 parity bit, and 2
stop bits
Parity, if enabled, can be either odd or even.
Modem control
2–42 Option Specifications
None
Ordering Information
CXB16–AA
Factory-installed module and cable kit.
Includes two 7.6-m (25-feet) BC16D–25 cables,
two H3104 cable concentrators, and other
accessories required to install the option.
CXB16–AF
Same as –AA but is field-installed.
BC16E-series cable
H8572
•
BC16D–25 cable—data only, 36-conductor,
terminated with 36-pin Amphenol male
connectors
•
H3104 cable concentrator—concentrates
eight BC16E cables into one BC16D cable;
eight modified modular jacks and one
36-pin Amphenol female connector
Office cable—data only, six-conductor,
terminated with modified modular plugs
•
BC16E–10: 3 m (10 feet)
•
BC16E–25: 7.6 m (25 feet)
•
BC16E–50: 15.2 m (50 feet)
Cable extender. Null modem cable terminated
with modified modular jacks.
Performance
Transmit data transfers
Single-character programmed transfers or up
to 16-character block mode DMA transfers in
DHV11 mode.
Single-character or two-character programmed
transfers, or up to 16-character block mode
DMA transfers in DHU11 mode.
Receive data transfers
Single-character programmed transfers in
both DHV11 and DHU11 modes.
Transmit buffer size
One character for programmed transfers in
DHV11 mode
64-character FIFO for programmed transfers
in DHU11 mode
64-character FIFO for DMA transfers in
DHU11 and DHV11 modes
Option Specifications 2–43
Performance
Receive buffer size
256-character FIFO in DHV11 and DHU11
modes
Supported baud rates
16 programmable baud rates: 50; 75; 110;
134.5; 150; 300; 600; 1200; 1800; 2000; 2400;
4800; 7200; 9600; 19,200; 38,4001
Throughput at maximum baud rate:
5 data bits, 0 parity bits, 1 stop
bit
140,000 characters/second (all lines)
7 data bits, 1 parity bit, 1 stop bit
110,000 characters/second (all lines)
Configuration Information
Form factor
Quad height with integral, recessed cover
panel
Power requirements
+5 Vdc, 2.0 A (typical); +12 Vdc, 0.00 A
(typical)
Power consumption
10.0 W
Bus loads
3.0 ac; 0.5 dc
Module connectors
2 female, 36-pin Amphenol connectors
Related Documentation
EK–CAB16–UG
CXA16/CXB16 User’s Guide
EK–CAB16–TM
CXA16/CXB16 Technical Manual
1 38,400
baud rate is not supported by Digital operating systems.
2–44 Option Specifications
2.3.3 CXY08 Asynchronous Multiplexer (8 Lines)
The CXY08 asynchronous multiplexer performs data concentration, real-time
processing, and interactive terminal handling. The CXY08 can operate in either
DHV11 or DHU11 mode, depending on the setting of an on-board switch. The
CXY08 supports full modem control.
Functional Information
Supported line interfaces
EIA RS–423–A/CCITT V.10
EIA RS–232–D/CCITT V.28
DEC–423
Split-speed operation
All lines
Flow control (XON/XOFF)
All lines
Supported data formats
16 programmable formats (each with 1 start
bit)
•
5, 6, 7, or 8 data bits, 0 or 1 parity bit,
and 1 stop bit
•
5 data bits, 0 or 1 parity bit, 1.5 stop bits
•
6, 7, or 8 data bits, 0 or 1 parity bit, and 2
stop bits
Parity, if enabled, can be either odd or even.
Modem control
Full
Supported modems
Bell models 103, 113, 212
Ordering Information
CXY08–AA
Factory-installed CXY08 kit. Includes two
3.7-m (12-feet) BC19N–12 cable assemblies
and other accessories required to install the
option.
CXY08–AF
Same as –AA but is field-installed.
•
BC19N–12 cable assembly—concentrates
four 11-conductor cables with 25-pin male
D-connectors into one 44-connector cable
terminated by a 50-pin male CHAMP
connector.
Option Specifications 2–45
Performance
Transmit data transfers
Single-character programmed transfers or up
to 16-character block mode DMA transfers in
DHV11 mode.
Single-character or two-character programmed
transfers, or up to 16-character block mode
DMA transfers in DHU11 mode.
Receive data transfers
Single-character programmed transfers in
both DHV11 and DHU11 modes.
Transmit buffer size
One character for programmed transfers in
DHV11 mode
64-character FIFO for programmed transfers
in DHU11 mode
64-character FIFO for DMA transfers in
DHU11 and DHV11 modes
Receive buffer size
256-character FIFO in DHV11 and DHU11
modes
Supported baud rates
16 programmable baud rates: 50; 75; 110;
134.5; 150; 300; 600; 1200; 1800; 2000; 2400;
4800; 7200; 9600; 19,200; 38,4001
Throughput at maximum baud rate:
5 data bits, 0 parity bits, 1 stop
bit
87,771 characters/second (all lines)
7 data bits, 1 parity bit, 1 stop bit
61,440 characters/second (all lines)
Configuration Information
Form factor
Quad height with integral, recessed cover
panel
Power requirements
+5 Vdc, 1.64 A (typical); +12 Vdc, 0.395 A
(typical)
Power consumption
12.94 W
Bus loads
3.0 ac; 0.5 dc
Module connectors
2 female, 50-pin CHAMP connectors
Related Documentation
EK–CXY08–UG
CXY08 User’s Guide
EK–CXY08–TM
CXY08 Technical Manual
1 38,400
baud rate is not supported by Digital operating systems.
2–46 Option Specifications
2.3.4 DEFQA Q-Bus Adapter
The DEFQA Q–bus adapter and its software, TRDRV/VMS, enable Q–bus VAX
systems to connect to 4- or 16-Mbits/second Token Ring networks, and act as full
function DECnet Phase IV nodes and pathworks for VMS servers.
Functional Information
Supported protocols
Operating system supported
VMS 5.4
DECTRN Driver VMS 1.0
Ordering Information
DEFQA–xx
DEFQA module, documentation, and licensed
letter
BC29E–15
External console ribbon cable, 15-feet
OL–GVJAP–AA
Software license
BN26P Series
Adapter cable
Performance
Data transfer rate
4-Mbits and 16-Mbits
Option Specifications 2–47
Diagnostic Support
Diagnostic support
Power-up self test
MDM
Installation Verification Procedure (IVP)
DEQRA specific from host
Configuration Information
Form factor
Quad height
Power requirements
+5 Vdc, 4.0 A; +12 Vdc, 0.1 A
Power consumption
21.2 W
Bus loads
2.2 ac; 0.5 dc
Related Documentation
EK–DEFQA–IN
DEC TRNcontroller 100 Hardware Installation
and Debugging
EK–DEFQA–TM
DEC TRNcontroller 100 Hardware Description
and Operation
AA–PH7NA–TE
DEC Token Ring Network Device Driver for
VMS Installation
AA–PH7PA–TE
DEC Token Ring Network Device Driver for
VMS Use and Programming
2.3.5 DEQRA Token Ring Q-Bus Adapter
The DEQRA Token Ring Q–bus adapter and its software, TRDRV/VMS, enable
Q–bus VAX systems to connect to 4- or 16-Mbits/second Token Ring networks, and
act as full function DECnet Phase IV nodes and pathworks for VMS servers.
Functional Information
Supported protocols
IBM-compatible Token Ring (IEEE 802.5)
Operating system supported
VMS 5.4
DECTRN Driver VMS 1.0
Ordering Information
DEQRA–CA
2–48 Option Specifications
DEQRA module, documentation, and licensed
letter
Ordering Information
BC29E–15
External console ribbon cable, 15-feet
OL–GVJAP–AA
Software license
BN26P Series
Adapter cable
Performance
Data transfer rate
4-Mbits and 16-Mbits
Diagnostic Support
Diagnostic support
Power-up self test
MDM
Installation Verification Procedure (IVP)
DEQRA specific from host
Configuration Information
Form factor
Quad height
Power requirements
+5 Vdc, 4.0 A; +12 Vdc, 0.1 A
Power consumption
21.2 W
Bus loads
2.2 ac; 0.5 dc
Related Documentation
EK–DEQRA–IN
DEC TRNcontroller 100 Hardware Installation
and Debugging
EK–DEQRA–TM
DEC TRNcontroller 100 Hardware Description
and Operation
AA–PH7NA–TE
DEC Token Ring Network Device Driver for
VMS Installation
AA–PH7PA–TE
DEC Token Ring Network Device Driver for
VMS Use and Programming
Option Specifications 2–49
2.3.6 DESQA Ethernet Controller
The DESQA Ethernet controller provides a high-speed asynchronous connection
between a Q22–bus system and a local area network (LAN) based on Ethernet or
IEEE 802.3. The DESQA supports either standard or ThinWire Ethernet cabling.
Functional Information
Supported protocols
Ethernet, IEEE 802.3
Maintenance Operation Protocol (MOP)
Ordering Information
DESQA–SA
Factory-installed option
DESQA–SF
Same as –SA but is field-installed
External cable (standard)
BNE3B or BNE3D
External cable (ThinWire)
BC16M
Performance
Transmit/Receive data transfers
Up to 32-byte block mode DMA
Transmit data transfers
2-Kbyte FIFO for DMA transfers
Receive data transfers
4-Kbyte FIFO for DMA transfers
Throughput at maximum rate
10 Mbits/second
Configuration Information
Form factor
Quad height
Power requirements
+5 Vdc, 2.4 A; +12 Vdc, 0.22 A
Power consumption
14.64 W
Bus loads
2.2 ac; 0.5 dc
Module connectors (standard)
One 15-pin D-type
Module connectors (Thinwire)
T-connector to BNC connector on DESQA
Related Documentation
EK–DESQA–TM
2–50 Option Specifications
DESQA Technical Manual
2.3.7 DPV11 Synchronous Controller
The DPV11 is a single-line programmable controller that provides local or remote
interconnections between systems.
Functional Information
Supported line interfaces
EIA RS–232–C/CCITT V.28
EIA RS–423–A
EIA RS–422–A
Supported protocols
DDCMP, BISYNC, and SDLC
Operating mode
Full or half-duplex
Character size
Program selectable (5–8 bits with characteroriented protocols and 108 bits with bit-oriented
protocols)
Modem support
Limited
Supported modems
All Digital modems and the Bell 200 series
Ordering Information
DPV11–SA
Factory-installed option
DPV11–SF
Field-installed option
Performance
Transmit/Receive data transfers
Single-byte programmed transfer
Transmit buffer size
2 bytes
Receive buffer size
2 bytes
Data rate
56 Kbits/second
Configuration Information
Form factor
Dual height
Power requirements
+5 Vdc, 1.2 A (typical); +12 Vdc, 0.3 A (typical)
Power consumption
9.6 W
Bus loads
1.0 ac; 1.0 dc
Related Documentation
EK–DPV11–UG
DPV11 Synchronous Interface User’s Guide
EK–DPV11–TM
DPV11 Technical Manual
Option Specifications 2–51
2.3.8 DSRVB DECserver 200
The DSRVB DECserver 200 is an 8-line terminal server connecting terminals
to a host computer on an Ethernet local area network. Software for the server
is downloaded from a host. The server is available in two models: the modem
control (MC) model an RS–232–C line interface; the data leads (DL) model has no
modem control and a DEC–423 (DECconnect) line interface.
Functional Information
Supported line interfaces
RS–232–C (MC Model)/DEC–423 (DL Model)
Modem control
Yes (MC Model)/No (DL Model)
Protocols
Asynchronous
Supported terminal devices
VT-, LN-, LA-, and LQ-series devices
Ordering Information, Hardware Only1
DSRVB–AA
8-line DECserver 200/MC, RS–232–C line interface, 120 V.
Includes country kit.2
DSRVB–BA
8-line DECserver 200/DL, DEC–423 (DECconnect) line interface,
120 V. Includes country kit.
DSRVB–AB
8-line DECserver 200/MC, RS–232–C line interface, 240 V.
Requires country kit.
DSRVB–BB
8-line DECserver 200/DL, DEC–423 (DECconnect) line interface,
240 V. Requires country kit.
Performance
Maximum throughput
8 lines at 19.2 Kbytes/second
Physical Specifications
Height
11.75 cm (4.63 inches)
Width
48.90 cm (19.25 inches)
Depth
32.07 cm (12.63 inches)
Weight
5.44 kg (12 pounds)
Related Documentation
AA–HL77B–TK
1 See
DSRVB DECserver 200 User’s Guide
the Networks and Communications Buyer’s Guide for appropriate software.
2 Each
country kit includes a power cord, hardware manual, and rack mounting brackets. See the
Networks and Communications Buyer’s Guide for available country kits.
2–52 Option Specifications
2.3.9 DSV11 Synchronous Controller
The DSV11 is a two-channel, high-speed, synchronous controller that interfaces
Q22–bus backplanes.
Functional Information
Supported line interfaces
RS–423
RF–422
RS–232/V.24, V.35
Supported protocols
DDCMP
HDLC/SDLC
BISYNC
Operating mode
Full or half-duplex
Modem support
Full modem control
Ordering Information
DSV11–SF
Factory-installed kit (first DSV11)
DSV11–SG
Field-installed kit (additional DSV11s)
Performance Information
Transmit/Receive data transfers
DMA
Data rate, Mbits/second (maximum)
RS–232–C/V.24 = up to 20K
RS–423 = 100 Kbits/second
RS–422 = 256 Kbits/second
V.35 = 48 Kbits/second
Configuration Information
Form factor
Quad height
Power requirements
+5 Vdc, 5.43 A (typical); +12 Vdc, 0.69 A
(typical)
Power consumption
35.43 W
Bus loads
3.9 ac; 1.0 dc
Related Documentation
EK–DSV11–UG
DSV11–S Communications Option User Guide
EK–DSV11–TD
DSV11 Communications Option Technical
Description
Option Specifications 2–53
2.4 Real-Time Options
Real-time controllers interface devices that monitor processes in environments
such as the laboratory or manufacturing. Typically, real-time controllers are
parallel devices that transmit more than one bit of information simultaneously.
Your system supports the following real-time options.
•
AAV11–S digital-to-analog converter
•
ADQ32 analog-to-digital converter
•
ADV11–S analog-to-digital converter
•
AXV11 controller
•
DIV32 controller
•
DRQ3B parallel interface
•
DRV1W parallel interface
•
IBQ01 controller
•
IEQ11 controller
•
KWV11-S programmable real-time clock
2.4.1 AAV11–S Digital-to-Analog Converter
The AAV11–S is a digital-to-analog converter with DMA capability. The AAV11–S
is functionally equivalent to the AAV11–D.
Functional Information
Circuits
Two D/A converter circuits
D/A input
12-bit digital input
Data notation
Binary input notation for unipolar output;
offset binary or two’s complement input
notation for bipolar output.
D/A output
Voltage
Output voltage range is jumper selectable:
±10 V, ±5 V, or 0 V to +10 V.
Control signals
4-bit digital output for control signals, such as
CRT intensity, blank, unblank, and erase
Polarity
Unipolar or bipolar output
2–54 Option Specifications
Ordering Information
AAV11–SA
Factory-installed option
AAV11–SF
Same as –SA but is field-installed
UDIP–BA1
Universal data interface panel mounting box
UDIP–DB
Universal data interface panel (UDIP)
UDIP–TA
Tabletop enclosure
Performance
Analog output
Voltage
±10 V, at 10 mA
±5 V, at 10 mA
0 V to 10 V, at 10 mA
Current
DC impedance
10 mA, at 10 V minimum
0.05
typical
Linearity (0–10 V)
±1/2 LSB; ±1.2 mV at full-scale range
Differential linearity
±1/2 LSB
Offset error
Adjustable to 0
Offset drift
±15 ppm/at maximum °C
Gain accuracy
Adjustable to zero
Gain drift
±25 ppm/at maximum °C
Settling time
6 µs to 0.1% for a p–p output change of 20 V
Configuration Information
Form factor
Dual height
Power requirements
+5 Vdc, 2.10 A (typical); +12 Vdc, 0.0 A
Power consumption
10.5 W
Bus loads
2.5 ac; 0.5 dc
Related Documentation
EK–AV11D–UG
1 You
Q-Bus DMA Analog System User’s Guide
must order the UDIP mounting box and the UDIP interface when installing a new option.
Option Specifications 2–55
2.4.2 ADQ32 Analog-to-Digital Converter
The ADQ32 is an analog-to-digital converter with DMA capability.
Functional Information
Input channels
32 single-ended analog input channels or 16
differential analog input channels; singleended or differential is programmable
Programmable gain
1, 2, 4, or 8; selectable per channel
A/D output
Resolution
12-bit output data resolution
Data notation
Straight binary (unipolar), two’s complement
(bipolar)
A/D conversions
Can be started by a program, a real-time
clock, or an external trigger
A/D results
Can be received by a programmed I/O transfer
or by servicing an interrupt request
Interrupts
Can be enabled and automatically set
Common mode rejection ratio
55 dB at maximum range
2–56 Option Specifications
Ordering Information
ADQ32–SA
ADQ32 factory-installed kit
ADQ32–SF
ADQ32 field-installed kit
UDIP–BA1
Universal data interface panel (UDIP)
mounting box
UDIP–AA
Universal data interface panel (UDIP)
UDIP–TA
Tabletop enclosure
Performance
Analog input
No. of analog inputs
16 channels using differential inputs or 32
channels using single-ended inputs
Input range
0 V to +10 V (unipolar)
–10 V to +10 V (bipolar)
Input impedance
10 M , minimum
Input bias current
500 nA maximum ON current
Input protection
Inputs are current-limited and protected to an
overvoltage of ±35 V without damage.
Common mode rejection ratio
55 dB
A/D output
Data buffer register
16-bit read-only output register
Resolution
12 bits unipolar; 11 bits bipolar plus sign bit
Data notation
Straight binary or two’s complement
Sample and hold amplifier
Aperture uncertainty
1 nanosecond
Aperture delay
50 nanoseconds, maximum with minimum
aperture enabled (clock bypass bit set)
Input noise
2 µV p–p
A/D converter performance
Linearity
Differential
0.2 to 2 LSB
Integral
1.5 LSB, maximum
Scale drift
1 You
15 ppm/C typical
must order the UDIP mounting box and the UDIP interface when installing a new option.
Option Specifications 2–57
Performance
System throughput
Maximum single channel
sample rate
250 KHz
Maximum multichannel rate
to ensure ±1/2 LSB
accuracy
200 KHz
Configuration Information
Form factor
Quad height
Power requirements
+5 Vdc, 4.45 A (typical)
+12 Vdc, 0.0 A
Power consumption
22.25 W
Bus loads
2.5 ac
0.5 dc
Related Documentation
EK–153AA–UG
ADQ32 Analog-to-Digital Converter User’s
Guide
2.4.3 ADV11–S Analog-to-Digital Converter
The ADV11–S is an analog-to-digital converter with DMA capability. The
ADV11–S is functionally equivalent to an ADV11–D.
Functional Information
Input channels
16 single-ended analog input channels or 8
differential analog input channels; SE/DI
input is jumper-selectable.
Programmable gain
1, 2, 4, or 8
A/D output
Resolution
12-bit output data resolution
Data notation
Binary, offset binary, or two’s complement
A/D conversions
Can be started by a program, a real-time
clock, or an external trigger
A/D results
Can be received by a programmed I/O transfer
or by servicing an interrupt request
2–58 Option Specifications
Functional Information
Interrupts
Can be enabled and automatically set by A/D
DONE and/or ERROR bits
Common mode rejection ratio (gain=1)
80 dB at maximum range
Ordering Information
ADV11–SA
Factory-installed option
ADV11–SF
Same as –SA but is field-installed
UDIP–BA1
Universal data interface panel mounting box
UDIP–AB
Universal data interface panel for ADV11–S
UDIP–TA
Tabletop enclosure
Performance
Analog input
Number of analog inputs
8 channels using differential inputs or 16
channels using single-ended inputs
Input range
0 V to +10 V (unipolar); –10 V to +10 V
(bipolar)
Maximum input signal
±10.5 V (signal + common mode voltage)
Input impedance
Off channels
100 M
minimum, 10 pF maximum
On channels
100 M
minimum, 100 pF maximum
Power off
1K
in series with a diode
Input bias current
±20 nA at 25°C (77°F) maximum
Input protection
Inputs are current-limited and protected to an
overvoltage of ±35 V without damage.
Common mode rejection
ratio
80 dB at a range of ±10 V at 60 Hz
A/D output
Data buffer register
16-bit read-only output register
Resolution
12 bits unipolar; 11 bits bipolar plus sign bit
Data notation
Binary, offset binary, or two’s complement
Sample and hold amplifier
Aperture uncertainty
1 You
Less than 10 nanoseconds
must order the UDIP mounting box and the UDIP interface when installing a new option.
Option Specifications 2–59
Performance
Aperture delay
Less than 0.5 µs from start of conversion to
signal disconnect
Front end settling
Less than 15 µs to ±0.01% of full-scale value
for a peak-to-peak input of 20 V
Input noise
Less than 0.2 mV rms
A/D converter performance
Linearity
Less than ±1/2 LSB
Stability (temperature coefficient)
±30 ppm at maximum °C (32°F)
Stability (long term)
±0.05% change in 6 months
System accuracy (gain=1)
Input voltage to digitized value to within
±0.03%
System throughput
25K channel samples/second
Configuration Information
Form factor
Dual height
Power requirements
+5 Vdc, 2.0 A (typical); +12 Vdc, 0.0 A
Power consumption
10.0 W
Bus loads
2.3 ac; 0.5 dc
Related Documentation
EK–AV11O–UG
Q-Bus DMA Analog System User’s Guide
2.4.4 AXV11 Controller
The AXV11–S is an input/output circuit board for analog devices. The AXV11–S
is functionally equivalent to the AXV11–C.
Functional Information
Input channels
16 single-ended analog input channels or 8
differential analog input channels; SE/DI
jumper is field-selectable.
Programmable gain
1, 2, 4, or 8
A/D output
Data resolution
12-bit output data resolution
Data notation
Binary, offset binary, or two’s complement
2–60 Option Specifications
Functional Information
Voltage
Output voltage range selection of ±10 V
(bipolar) or 0 V to 10 V (unipolar)
A/D conversions
Can be started by a program, an external
trigger, or a real-time clock
A/D results
Can be received by a programmed I/O transfer
or by servicing an interrupt request
Common mode rejection ratio
80 dB at maximum range
D/A converters (DACs)
Number of DACs
2
Input (each DAC)
12-bit digital input
Output (each DAC)
Unipolar or bipolar output
Ordering Information
AXV11–SA
Factory-installed option
AXV11–SF
Same as –SA but is field-installed
1
UDIP–BA
Universal data interface panel mounting box
UDIP–AY
Universal data interface panel (UDIP) for
AXV11–S
UDIP–TA
Tabletop enclosure
Performance
A/D converter performance
Linearity
To within ±1/2 LSB
Stability (temperature coefficient)
±30 ppm at maximum °C (32°F)
Stability (long term)
±0.05% change in 6 months
Conversion time
25 µs from end of front end settling to setting
the A/D DONE bit
System throughput
25K channel samples/second
D/A converter specifications
Number of D/A converters
2
Digital input
12 bits (Binary code is used for unipolar
output; offset binary or two’s complement code
is used for bipolar output.)
Analog output
±10 V (bipolar) or 0 V to +10 V (unipolar)
1 You
must order the UDIP mounting box and the UDIP interface when installing a new option.
Option Specifications 2–61
Performance
Output current
±5 mA maximum
Output impedance
0.1
Differential linearity
To within ±1/2 LSB
Nonlinearity
0.02% of full-scale value
Offset error
Adjustable to 0
Offset drift
±30 ppm at maximum °C (32°F)
Gain accuracy
Adjustable to full-scale value
Gain drift
±30 ppm at maximum °C (32°F)
Settling time
65 µs to 0.1% for a peak-to-peak output
change of
20 V
Noise
0.1% full-scale value
Capacitive load capability
0.5 µF
Configuration Information
Power requirements
+5 Vdc, 2.0 A; +12 Vdc, 0.0 A
Power consumption
10.0 W
Bus loads
1.2 ac; 0.3 dc
Related Documentation
EK–AXVAA–UG
AXV11/KWV11 Module User’s Guide
MP–O11291–00
AXV11–C Field Maintenance Print Set
2.4.5 DIV32 Controller
The DIV32 is a quad-height, integrated services digital network (ISDN)
communication controller with connection to the Q22–bus backplane.
Functional Information
Supported line interfaces
RS–423
RS–422
RS–232/V.24, V.35
Supported protocols
VAX ISDN
Operating mode
Full- or half-duplex
2–62 Option Specifications
Ordering Information
DIV32–SA
Factory-installed option
DIV32–SF
Same as –SA but is field-installed
Performance
Transmit/Receive data transfers
DMA
Data transfer rate
64 Kbits/second
Configuration Information
Form factor
Quad height
Power requirements
+5 Vdc, 5.5 A (typical)
Power consumption
27.5 W
Bus loads
3.9 ac; 1.0 dc
Related Documentation
EK–DIV32–UG
Communications Option User Guide
EK–DIV32–IN
DIV Hardware Installation Guide
2.4.6 DRQ3B Parallel Interface
The DRQ3B is a high-speed parallel interface that provides two independent
16-bit, unidirectional data channels.
Functional Information
Two unidirectional channels
Each 512-word FIFO
Interrupt vectors
One for both DMA channels
One for all other interrupts
Ordering Information
DRQ3B–SA
Factory-installed option
DRQ3B–SF
Same as –SA but is field-installed
Cables
Connects the DRQ3B to a user device or to
another DRQ3B. Order two cables for each
DRQ3B module.
BC19T–25/–50: 7.6 m (25 feet)/15.2 m (50 feet)
Option Specifications 2–63
Performance
Throughput rates
Burst: 500 kilowords
Block: 1.1 megawords
Extended block mode: 1.1 megawords
Height speed: 1.4 megawords
Configuration Information
Form factor
Quad height
Power requirements
+ 5 Vdc, 4.5 A; +12 Vdc, 0.0 A
Power consumption
22.5 W
Bus loads
2.0 ac; 0.5 dc
Module connectors
Two 50-pin female IEEE connectors
I/O port data transceivers
Source 16 mA, sink 64 mA
Related Documentation
EK–O47AA–UG
DRQ3B Parallel DMA Input/Output Module
User’s Guide
2.4.7 DRV1W Parallel Interface
The DRV1W is a general-purpose, parallel interface with one 16-bit input port
and one 16-bit output port. The DRV1W supports DMA. The
DRV1W–S is functionally equivalent to the DRV11–WA.
Functional Information
Number of lines
Total: 50
16 data output lines
16 data input lines
3 user-definable input status lines
3 user-definable output control lines
8 input control lines
4 output control lines
Line characteristics
Input data lines
1 TTL unit load each
Input control lines
1 TTL unit load each
2–64 Option Specifications
Functional Information
Output data lines
10 TTL unit loads each
Output control lines
10 TTL unit loads each
Logic levels
High = logic 1
Low = logic 0
Ordering Information
DRV1W–SA
Factory-installed option
DRV1W–SF
Same as –SA but is field-installed
Performance
Transfer mode
Up to 2-byte programmed transfers
Up to 8-byte burst mode DMA transfers and
unlimited burst mode DMA transfers
(unsupported)
Data transfer rate
Up to 250,000 16-bit words/second in singlecycle mode
Up to 500,000 16-bit words/second in burst
mode
Configuration Information
Form factor
Dual height
Power requirements
+5 Vdc, 1.8 A (typical); +12 Vdc, 0.0 A
Power consumption
9.0 W
Bus loads
2.0 ac; 1.0 dc
Module connectors
Two 40-pin connectors
Option Specifications 2–65
Related Documentation
EK–DRVWA–UG
DRV11–WA General Purpose DMA User’s
Guide
2.4.8 IBQ01 Controller
The IBQ01 is a DMA controller that interfaces a Q22–bus system to RS–485
industrial control and measurement devices.
Functional Information
Communication protocol
Modified SDLC
Supported functions
Single multidrop interconnect
250 BITBUS compatible devices
Ordering Information
IBQ01–SA
Factory-installed option
IBQ01–SF
Same as –SA but is field-installed
Cables
User-supplied RS–485 BITBUS standard
Performance
Transfer mode
Programmed I/O transfers with interrupt
DMA data transfer
Data transfer rate
Up to 2.4 Mbits/second at BITBUS length of
30 m
375 Kbits/second at BITBUS length of 300 m
62.5 Kbits/second at BITBUS length of 13,200
m
Configuration Information
Form factor
Quad height
Power requirements
+5 Vdc, 5.0 A; +12 Vdc, 0.3 A
Power consumption
28.6 W
Bus loads
4.6 ac; 1.0 dc
2–66 Option Specifications
Related Documentation
EK–IBQ01–UG
DECscan BITBUS Controller User’s Guide
EK–IBQ01–IN
DECscan BITBUS Controller Installation
Manual
EK–IBQ01–TM
DECscan BITBUS Controller Technical
Manual
EK–JQ52A–TN
DECscan BITBUS Controller Software
Installation
2.4.9 IEQ11 Controller
The IEQ11 option is a DMA controller that interfaces a Q22–bus system to two
independent instrument buses (IEC/IEEE).
Functional Information
Supported interfaces
IEEE–488–1978
IEC 625–1
Supported interface functions
Automatic source handshake
Automatic acceptor handshake
Talker and extended talker (includes serial
poll)
Listener and extended listener
Service request
Remote local
Parallel poll
Device clear/Device trigger
Controller
Ordering Information
IEQ11–SA
Factory-installed option for IEC connection
IEQ11–SF
Same as –SA but is field-installed
Performance
Transfer mode
Programmed I/O transfers with interrupt
DMA data transfers
Data transfer rate
150 Kbytes/s during a DMA block transfer
Option Specifications 2–67
Configuration Information
Form factor
Quad height
Power requirements
+5 Vdc, 3.5 A (typical); +12 Vdc, 0.0 A
Power consumption
17.5 W
Bus loads
2.0 ac; 1.0 dc
Module connectors
Standard 24-pin IEEE 488 connector (IEQAA–
AC)
Standard 25-pin IEC 625 connector (IEQ11–
AD)
Related Documentation
EK–IEUQ1–UG
IEU11–A/IEQ11–A User’s Guide
2.4.10 KWV11–S Programmable Real-Time Clock
The KWV11–S is a programmable real-time clock that can be programmed to
count from one to five crystal-controlled frequencies, from an external frequency
or event, or from a 50-Hz or 60-Hz line frequency on the Q22–bus. The board
can generate interrupts or can synchronize the processor. The KWV11–S clock is
functionally equivalent to the KWV11–C.
Functional Information
Resolution
16 bits
Frequencies
5 internal crystal frequencies — 1 MHz, 100
kHz, 10 kHz, 1 kHz, and 100 Hz
Schmitt Triggers
2, each with slope and level controls that can
be used to start the clock or generate program
interrupts
Input
Line frequency input from BEVNT bus (50 or
60 Hz)
Modes
4 programmable modes
Ordering Information
KWV11–SA
Factory-installed option
KWV11–SF
Same as –SA but is field-installed
UDIP–BA1
Universal data interface panel mounting box
1 You
must order the UDIP mounting box and the UDIP interface when installing a new option.
2–68 Option Specifications
Ordering Information
UDIP–KB
Universal data interface panel for KWV11–S
UDIP–TA
Tabletop enclosure
Performance
Clock
Crystal oscillator
10-MHz base frequency
Output ranges
1 MHz, 100 kHz, 10 kHz, 1 kHz, and 100 Hz
Oscillator accuracy
0.01%
Other sources
Line frequency or input at Schmitt Trigger
Schmitt-Trigger input signals
Number of inputs
2
Input range
±30 V (maximum limits)
Triggering range
–12 V to +12 V (adjustable)
Triggering slope
Positive or negative, switch-selectable
Source
User device
Response time
Depends on input waveform and amplitude;
for TTL logic levels, typically 600 nanoseconds
Hysteresis
Approximately 0.5 V, positive and negative
Characteristics
Single-ended input, 100-K
impedance to gnd
Clock output
Signal
CLK OV L (clock overflow, asserted low)
Output pins
J1 pin 5 and CLK OVFL tab
Function
Time base selection from an internal
crystal-controlled frequency, an input at ST1,
or a line frequency at BEVNT bus line
Duration
Approximately 500 nanoseconds
Line driver
TTL-compatible, open collector circuit with a
470- pull-up resistor to +5 V
Maximum source current
5 mA when output is high ( 2.4 V), measuring
from source through load to ground
Maximum sink current
8 mA when output is low ( 0.8 V), measuring
from external source voltage through load to
output
Schmitt-Trigger 1 output
Option Specifications 2–69
Performance
Signal
ST1 OUT L (asserted low)
Output pins
J1 pin 2 and ST1 OUT tab
Function
External time base input or counter. Input
frequency is a function of the input signal.
Other characteristics
Same as clock output
Schmitt-Trigger 2 output
Signal
ST2 OUT L (asserted low)
Output pin
J1 pin 4
Function
Starts counter, sets ST2 flag, and generates
an interrupt (if enabled); causes buffer preset
register (BPR) to be loaded from counter.
Other characteristics
Same as clock output
Configuration Information
Power requirements
+5 Vdc, 2.2 A (typical); +12 Vdc, 0.013 A
(typical)
Power consumption
11.156 W
Bus loads
1.0 ac; 0.3 dc
Related Documentation
EK–AXVAA–UG
2–70 Option Specifications
AXV11/KWV11 Module User’s Guide
2.5 Printer Interface
2.5.1 LPV11–SA Printer Interface
The LPV11 printer interface controls the flow of data between the Q22–bus and a
line printer.
Ordering Information
LPV11–SA
LPV11 controller module
Configuration Information
Form factor
Quad height
Power requirements
+5 Vdc, 2.8 A (typical); +12 Vdc, 0.0 A
Power consumption
14.0 W
Bus loads
1.8 ac; 0.5 dc
Module connectors
2 female, 37-pin D subminiature connectors
Related Documentation
EK–LPV11–OP
LPV11 Printer User’s Manual
Option Specifications 2–71
2.6 Graphics Adapter
2.6.1 VS30U Graphics Adapter
The VS30U is a full-page, high-resolution DMA color video subsystem capable of
8-plane color video memory display. The VS30U allows field upgrade of Q–bus
VAXservers to Q–bus workstations. The option includes the 8-plane color graphics
module set (VCB02–J) as well as the 19-in color monitor (VR299) and a keyboard,
mouse, and cable.
Ordering Information
VS30U
3 modules: base module and two 4-plane
modules
VS30U-G3
GPX upgrade for BA213, VR299, 240 V
VS30U-G4
GPX upgrade for BA213, VR299, 240 V SH
VS30U-GA
GPX upgrade for BA213, VR299, 120 V
Configuration Information
Form factor
Quad height
Power requirements
Base module at +5 Vdc, 5.8 A (typical)
Base module at +12 Vdc, 0.7 A (typical)
4-plane module at +5 Vdc, 3.4 A (typical)
2–72 Option Specifications
3
System Expansion
This chapter provides guidelines on how to expand your system.
3.1 Planning System Expansion
You must consider the following when you decide to expand your system.
•
Can your system accommodate additional supported options?
You determine that by filling in a worksheet (Section 3.2) with the options
currently installed in your system and those you wish to add.
•
If your existing system cannot accommodate a particular set of supported
options, you might wish to add one of the following expanders, to enable
support for the RA-series or RF-series ISEs.
Expander
Name
Additional
Q22-Bus Slots
Additional
Storage Capacity
B400X
10
Up to four RF-series ISEs, or three ISEs and one
TK-series, or TF-series tape drive.
R400X
0
Up to seven RF-series ISEs1 , or six RF-series ISEs
with room for one TF85/TF86 tape drive.
SF100
0
One TF857 magazine tape subsystem and up to
four RF72 or RF73 ISEs.
SF200
0
Up to two TF857 magazine tape subsystems, and
two to 24 RF72 or RF73 ISEs.
SF12
1 RF35
may contain two ISEs.
This chapter does not describe how to configure new options or how to install
them in your system. Configuring an option involves assigning a control and
status register (CSR) address and an interrupt vector. This is usually done
by means of switches or jumpers on the options themselves. Digital service
System Expansion 3–1
representatives configure the options when they install them. Your Digital service
representative also determines the proper placement of options within your
system, according to specific guidelines.
3.2 Completing the System Configuration Worksheet
To determine what options you can add to your system, you must list the options
currently installed and their power requirements on the configuration worksheet
provided on the next page.
The worksheet is for the BA440 enclosure. All backplane slots and mass storage
devices are powered by the H7874 power supply.
Use the worksheets as follows.
1. In the Module column, list all options and mass storage devices currently
installed in your system, except the controller for the tape drive. The KA6nn
processor module has already been entered.
Use the label on the cover panel of each slot to identify the module installed
in that slot.
2. List each embedded storage device.
3. List the options and mass storage devices you wish to add to your system.
4. If the system includes a TK70 tape drive, list the TQK70 controller last.
5. Fill in the power requirements for each module and each mass storage device.
The power requirements for the more common options are listed in Table 3–1;
refer to the option descriptions in Chapter 2 for the power requirements of
additional options.
6. Add each column and make sure the totals do not exceed the specified limit.
As long as the figures are within range, you can probably install the new
option(s).
3–2 System Expansion
Slot
Module
Current (Amps) 1
Power
+5 Vdc +12 Vdc +3.3 Vdc -12 Vdc
Bus Load
(Watts)
AC
DC
MEM 1
MEM 2
MEM 3
MEM 4
2
L4002-nA 3
4.8
1.6
53.8
4.0
1.0
CPU 2
L4005-nA 4
9.084
1.6
64.62
4.0
1.0
2
L4006-nA 5
8.6
1.6
62.2
4.0
1.0
584.0 W
31
20
CPU
CPU
3.2
0.0
Q-bus 1
Q-bus 2
Q-bus 3
Q-bus 4
Q-bus 5
Q-bus 6
Q-bus 7
Mass Storage:
Tape
1
2
3
4
Total these columns:
Must not exceed:
60.0 A
22.0 A
15.0 A
3.0 A
1. Total output power from +3.3 Vdc and +5 Vdc must not exceed 330 watts.
2. Power requirements in this line include CPU module, H3604 console module,
and backplane terminator combined.
3. KA690 (L4002-AA), KA680 (L4002-BA), or KA675 (L4002-CA)
4. KA681 (L4005-BA) or KA691 (L4005-AA)
5. KA692 (L4006-AA)
6. KA694 (L4006-BA)
MLO-005361
System Expansion 3–3
Note
The worksheets are only guides. Confirm your plan with your Digital
sales representative. While certain configurations may be possible,
they may not be recommended due to excessive loads on the system or
difficulties in arranging bus and cable access to all devices.
Table 3–1 Power Requirements
Current
(Amps)
Max.
Power
Max.
Bus Loads
Option
Module
+5 V
+12 V
Watts
AC
DC
AAV11–SA
A1009–PA
2.10
0.00
10.50
2.5
0.5
ADQ32–SA
A030
4.45
0.00
22.25
2.5
0.5
ADV11–SA
A1008–PA
2.00
0.00
10.00
2.3
0.5
AXV11–SA
A026–PA
2.00
0.00
10.00
1.2
0.3
CXA16–AA
M3118–YA
1.60
0.20
10.40
3.0
0.5
CXB16–AA
M3118–YB
2.00
0.00
10.00
3.3
0.5
CXY08–AA
M3119–YA
1.64
0.395
12.94
3.0
0.5
DEFQA
–
DESQA–SA
M3127–PA
2.40
0.22
14.64
3.3
0.5
DIV32–SA
M7571–PA
5.5
0.00
35.4
3.5
1.0
DPV11–SA
M8020–PA
1.20
0.30
9.60
1.0
1.0
DRQ3B–SA
M7658–PA
4.50
0.00
22.50
2.0
0.5
DRV1J–SA
M8049–PA
1.80
0.00
9.00
2.0
1.0
DRV1W–SA
M7651–PA
1.80
0.00
9.00
2.0
1.0
DSV11–SA
M3108
5.43
0.69
35.43
3.9
1.0
–
1.70
0.50
14.50
–
–
H36041
IBQ01–SA
M3125–PA
5.00
0.30
28.60
4.6
1.0
IEQ11–SA
M8634–PA
3.50
0.00
17.50
2.0
1.0
1 Also
Operation Mode
include –12 Vdc @ 0.25 A, 3 W.
(continued on next page)
3–4 System Expansion
Table 3–1 (Cont.) Power Requirements
Current
(Amps)
Max.
Power
Max.
Bus Loads
Option
Module
+5 V
+12 V
Watts
AC
DC
KA681–AA
L4005–BA
9.084
1.6
64.62
4.0
1.0
KA691–AA
L4005–AA
9.084
1.6
64.62
4.0
1.0
KA692–AA
L4006–AA
8.6
1.6
62.2
4.0
1.0
KA694–AA
L4006–BA
8.6
1.6
62.2
4.0
1.0
KDA50–SE
M7164
6.93
0.00
34.65
3.0
0.5
—–
M7165
6.57
0.03
33.21
–
–
KFQSA–SA
M7769
5.50
0.00
27.50
4.4
0.5
KLESI–SA
M7740–PA
4.00
0.00
20.00
0.5
1.0
KRQ50–SA
M7552
2.70
0.00
13.50
2.7
1.0
KWV11–SA
M4002–PA
2.20
0.013
11.156
1.0
0.3
KXJ11–SF
M7616
6.0
0.4
46.8
2.0
1.0
KZQSA–SA
M5976
5.4
0.0
27.0
4.4
0.5
LPV11–SA
M8086–PA
2.80
0.00
14.00
1.8
0.5
M9404–PA
M9404
–
0.00
0.0
–
–
M9405–PA
M9405
–
0.00
0.0
–
–
MRV11–D
M8578
1.602
0.00
8.00
3.0
0.5
MS690–BA
L4004–BA
5.03
0.00
26.5
–
–
MS690–CA
L4004–CA
4.2
0.00
21.0
–
–
MS690–DA
L4004–DA
6.4
0.00
32.0
–
–
Operation Mode
RF31E–AA
–
1.20
3.03
42.4
N/A
N/A
peak @spin-up
(max.)
RF36–AA
–
0.91
2.89
39.23
N/A
N/A
peak @spin-up
(max.)
RF72E–AA
–
1.38
4.68
63.0
N/A
N/A
peak @spin-up
(max.)
RF73E–AA
–
1.20
5.00
66.0
N/A
N/A
peak @spin-up
(max.)
2 Value
is for the unpopulated module only.
(continued on next page)
System Expansion 3–5
Table 3–1 (Cont.) Power Requirements
Current
Option
Module
(Amps)
Max.
Power
Max.
Bus Loads
+5 V
+12 V
Watts
AC
DC
RF74–AA
–
1.20
5.60
72.2
N/A
N/A
RRD43
–
1.40
0.0
7.0
N/A
N/A
TF85–JA
–
1.50
2.40
36.30
N/A
N/A
TF86–JA
–
1.50
2.40
36.30
N/A
N/A
TK50E–AA
–
1.50
2.40
36.30
N/A
N/A
TK70E–AA
–
1.50
2.40
36.30
N/A
N/A
TQK70–SA
M7559
3.50
0.00
17.50
4.3
0.5
TSV05–SA
M7530
6.50
0.00
32.50
1.5
1.0
TZ85–JA
–
1.50
2.40
36.30
N/A
N/A
VCB02–A
M7615
4.60
0.10
24.2
3.5
1.0
VCB02–B
M7168
M7169
8.85
0.47
49.89
3.5
1.0
VCB02–C
(2) M7168
M7169
12.0
0.47
65.64
3.5
1.0
3–6 System Expansion
Operation Mode
peak @spin-up
(max.)
Index
A
Asynchronous serial controllers
description of, 2–38
B
BA440 enclosure, 1–1
Base system
description of, 1–1
Break Enable/Disable switch
description of enable setting, 1–4
C
Communication options
supported, list, 2–38
Console commands
qualifier and argument conventions in
Console I/O mode, 1–6
Console I/O mode
and examples of SET and SHOW
commands, 1–10
console commands, 1–6
description of, 1–4
Console program, 1–3
and power-up mode, 1–4
entering Console I/O mode, 1–4
Control and status register (CSR)
assigning, 3–1
description of, 2–2
CSR
See Control and status register
D
Device abbreviations, 1–12
DHU11 mode
and CXA16 support, 2–38
and CXB16 support, 2–42
DHV11 mode
and CXA16 support, 2–38
and CXB16 support, 2–42
Digital Storage Systems Interconnect
See DSSI
DSSI
description of, 1–14
E
Expanding system, 3–1
F
Firmware
system control of, 1–3
I
Integrated storage element (ISE)
and support on DSSI bus, 1–14
RF-series, description of, 2–14, 2–15
RF73, description of, 2–16
RF74, description of, 2–17
Interrupt vector
description of, 2–2
Index–1
K
KA681–AA modules
system names, 1–15
KA691–AA modules
system names, 1–19
KA692–AA modules
system names, 1–23
KA694–AA modules
system names, 1–23
M
Mass storage controllers
See Controllers
Modules
KA6nn–AA CPU, location, 1–1
N
Network controllers
description of, 2–38
P
Power supply
minimum load, 3–6
Power-up self-tests
description of, 1–3
R
Real-time options
supported, list of, 2–54
S
Self-tests
See Power-up self-tests
SET BOOT command, 1–12
SET command
description of, 1–10
SET LANGUAGE command, 1–12
Index–2
SHOW command
description of, 1–10
SHOW DEVICE display, 1–11
SHOW ETHERNET display, 1–12
SHOW LANGUAGE display, 1–12
SHOW QBUS display, 1–10
Synchronous serial controllers
description of, 2–38
V
VMB
description of, 1–3
Reader’s Comments
VAX 4000
Model 500A/505A/600A/700A/705A
Technical Information
EK–496AB–TI. B01
Your comments and suggestions help us improve the quality of our publications.
Thank you for your assistance.
I rate this manual’s:
Excellent
Good
Fair
Accuracy (product works as manual says)
Completeness (enough information)
Clarity (easy to understand)
Organization (structure of subject matter)
Figures (useful)
Examples (useful)
Index (ability to find topic)
Page layout (easy to find information)
I would like to see more/less
What I like best about this manual is
What I like least about this manual is
I found the following errors in this manual:
Page
Description
Additional comments or suggestions to improve this manual:
For software manuals, please indicate which version of the software you are using:
Name/Title
Dept.
Company
Date
Mailing Address
Phone
Poor
Do Not Tear – Fold Here and Tape
TM
BUSINESS REPLY MAIL
FIRST CLASS PERMIT NO. 33 MAYNARD MASS.
POSTAGE WILL BE PAID BY ADDRESSEE
DIGITAL EQUIPMENT CORPORATION
Information Design and Consulting
MRO1–3/K10
200 FOREST STREET
MARLBORO, MA 01752-3011
Do Not Tear – Fold Here
No Postage
Necessary
If Mailed
in the
United States
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
