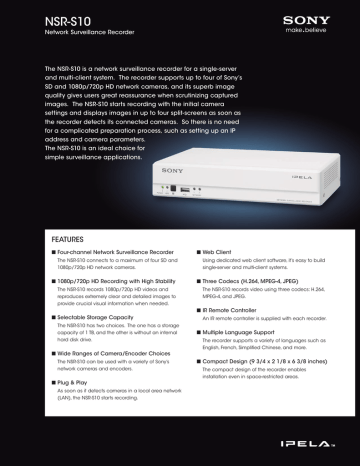

NSR-S10
NSR-S10
Network Surveillance Recorder
The NSR-S10 is a network surveillance recorder for a single-server
and multi-client system. The recorder supports up to four of Sony’s
SD and 1080p/720p HD network cameras, and its superb image
quality gives users great reassurance when scrutinizing captured
images. The NSR-S10 starts recording with the initial camera
settings and displays images in up to four split-screens as soon as
the recorder detects its connected cameras. So there is no need
for a complicated preparation process, such as setting up an IP
address and camera parameters.
The NSR-S10 is an ideal choice for
simple surveillance applications.
FEATURES
nFour-channel Network Surveillance Recorder
The NSR-S10 connects to a maximum of four SD and
1080p/720p HD network cameras.
n1080p/720p HD Recording with High Stability
The NSR-S10 records 1080p/720p HD videos and
reproduces extremely clear and detailed images to
provide crucial visual information when needed.
nWeb Client
Using dedicated web client software, it’s easy to build
single-server and multi-client systems.
nThree Codecs (H.264, MPEG-4, JPEG)
The NSR-S10 records video using three codecs: H.264,
MPEG-4, and JPEG.
nIR Remote Controller
nSelectable Storage Capacity
The NSR-S10 has two choices. The one has a storage
capacity of 1 TB, and the other is without an internal
hard disk drive.
nWide Ranges of Camera/Encoder Choices
The NSR-S10 can be used with a variety of Sony’s
network cameras and encoders.
nPlug & Play
As soon as it detects cameras in a local area network
(LAN), the NSR-S10 starts recording.
An IR remote controller is supplied with each recorder.
nMultiple Language Support
The recorder supports a variety of languages such as
English, French, Simplified Chinese, and more.
nCompact Design (9 3/4 x 2 1/8 x 6 3/8 inches)
The compact design of the recorder enables
installation even in space-restricted areas.
SPECIFICATIONS
NSR-S10 (without HDD)
Video/Recording
Number of cameras supported
Video compression
Maximum recording rate (each camera)
NSR-S10 (1TB)
Max. 4
H.264/MPEG-4/JPEG
15fps at 1920 x 1080
15fps at 1280 x 720
30fps at 640 x 480
Hard disk drives (physical capacity)
Hard disk drives (interface)
Expansion storage (interface)
Video Output
Monitor out
Display resolution
Audio Output
Audio output
Sensor Input/Alarm Output
Sensor input
Alarm output
Other Interfaces
Ethernet
USB
General
Dimensions (W x H x D)
Power requirement
Power consumption
AC adapter
Weight
Operating temperature
Operating humidity
–
1TB
Serial ATA (x1)
e-SATA (x1)
D-sub 15-pin (x1)
1024 x 768
Terminal connecter (x1)
Terminal connecter (x4)
Terminal connecter (x1)
1000BASE-T/100BASE-TX/10BASE-T (x2)
USB 2.0 (x1) (front) / USB 2.0 (x2) (rear)
9 3/4 x 2 1/8 x 6 3/8 inches (245 x 53 x 160 mm)
DC 12 V
Approx. 3A (typical) (Max. 4A)
AC 100 V to 240 V (50 Hz/60 Hz)
1 lb 12 oz (0.8 Kg)
3 lb 1 oz (1.4 Kg)
41˚F to 104˚F (5˚C to 40˚C)
20% to 80%
DIMENSIONS
6 3/8 (160)
SYSTEM CONFIGURATIONS
Hub
Client PC
9 3/4 (245)
SNC-CH210
2 1/8 (53)
NSR-S10
Unit: inches (mm)
The NSR-S10 can be used with the following products.
SNC-CH140/SNC-DH140/SNC-DH140T/SNC-CH180/SNC-DH180/SNC-CH240/SNC-DH240/SNC-DH240T/SNC-CH280/SNC-DH280/
SNC-CH120/SNC-DH120/SNC-DH120T/SNC-CH160/SNC-DH160/SNC-CH220/SNC-DH220/SNC-DH220T/SNC-CH260/SNC-DH260/
SNC-CH110/SNC-DH110/SNC-DH110T/SNC-CH210/SNC-DH210/SNC-DH210T/SNT-EX101/SNT-EX104/SNT-EP104/SNC-RZ25/SNC-RZ50
Please check with your local Sony Sales Representative for any updates.
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/security
S-IP2090-A (MK10708V2)
©2010 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are as of software version 01.00.01,
and subject to change without notice.
Weights and measurements are approximate.
Sony, ‘make.believe’, IPELA and their respective logos are trademarks of Sony.
All other trademarks are the properties of their respective owners.
Printed in USA (12/10)
