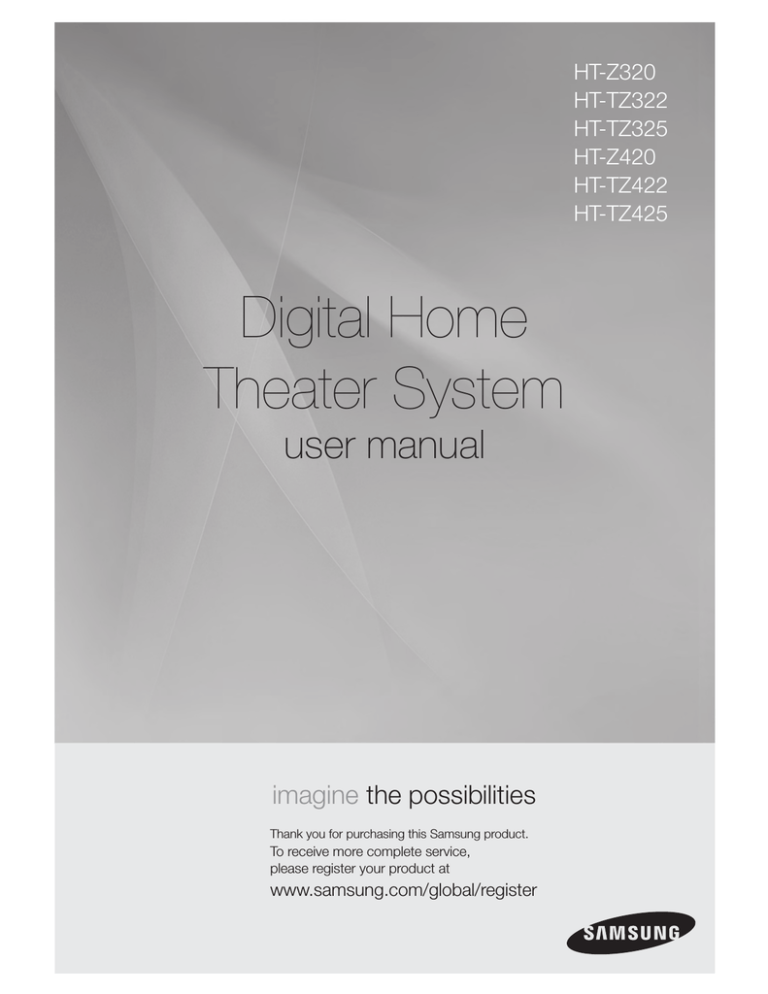

HT-Z320
HT-TZ322
HT-TZ325
HT-Z420
HT-TZ422
HT-TZ425
Digital Home
Theater System
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/global/register
features
Playback of many disc types
This Home Theater System allows you to play back various discs, including DVD-VIDEO, CD, MP3-CD, WMA-CD, DivX,
CD-R/RW, and DVD±R/RW.
USB Host support
You can enjoy media files such as pictures, movies and music saved on an MP3 player, digital camera or USB
memory stick by connecting the storage device to the USB port of the Home Theater.
Dolby Pro Logic II
Dolby Pro Logic II is a form of multi-channel audio signal decoding technology that improves upon existing Dolby Pro
Logic.
DTS (Digital Theater Systems)
DTS is an audio compression format developed by Digital Theater Systems Inc. It delivers full-frequency 5.1 channel
sound.
TV Screen Saver Function
If the main unit remains in Stop mode for 5 minutes, the Samsung logo appears on the TV screen.
The unit will automatically switch to the Power Saving mode after 20 minutes in the Screen Saver mode.
Power Saving Function
The unit will automatically shut off after 20 minutes in Stop mode.
Customized TV Screen Display
Allows you to select your favorite image during JPEG or DVD playback and set it as your background wallpaper.
Anynet+ (HDMI-CEC) Function
Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the
Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TV's that support
Anynet+.)
iPhone & iPodsupport
You can enjoy music files by connecting your iPod to the home theater with the supplied
iPod dock.
Wireless receiver amplifier(HT-Z420/TZ422/TZ425)
Samsung ’s rear- channel wireless module does away with cables running between your DVD receiver and
rear- channel speakers. Instead, the rear speakers connect to a compact wireless module that communicates with your
DVD receiver.
AV SYNC Function
Video may lag behind the audio if the unit is connected to a digital TV.
To compensate for this, you can adjust the audio delay time to sync up with the video.
2
ENG
WHAT’S INCLUDED
Check for the supplied accessories below.
Video Cable
(AH39-40001V)
FM Antenna
( AH42-00017A )
iPod Dock Package
( AH97-02650C )
User's Manual
( AH68-02166R )
Remote Control
( AH59-02131F )
/ Batteries
(AAA size)
( 4301-000116 )
ASC microphone
( AH30-00099A )
SWA-4100(HT-Z420/TZ422/TZ425 )
Wireless Receiver Module
(AH97-03207A)
TX Card
(AH40-00149A)
Speaker Cable (2EA)
(AH81-02137A)
3
safety information
SAFETY WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lighting flash and Arrowhead within
Triangle Is a warning sign alerting you of
dangerous voltage inside the product
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK) NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QULAIFIED SERVICE PERSONNEL.
The explanation point within the triangle is a
warning sign alerting you of important
instructions accompanying the product.
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
This Compact Disc player is classified as a CLASS 1 LASER product.
Use of controls, adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
CAUTION : INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED,
AVOID EXPOSURE TO BEAM.
WARNING
1 To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
1 To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
1 If this power supply is used at 240V ac, a suitable plug adapter should be used.
CAUTION
1 Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
1 The Mains plug is used as a disconnect device and shall stay readily operable at any time.
This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent
electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.
FCC NOTE (for U.S.A):
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
1 Reorient or relocate the receiving antenna.
1 Increase the separation between the equipment and receiver.
1 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
1 Consult the dealer or an experienced radio/TV technician for help.
Caution : FCC regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it.
Important Safety Instructions
Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions
handy for future reference.
1)
2)
3)
4)
5)
6)
7)
Read these instructions.
Keep these Instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
4
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11) Only use attachment/accessories
specified by the manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for
long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
ENG
PRECAUTIONS
Ensure that the AC power supply in your house com
complies with the identification
tion sticker located on the back of your player.
player Install your
player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches). Make sure the ventilation
slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which
may become hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off
the DVD player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the
power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.
During thunderstorms, disconnect the AC main plug from the
wall outlet. Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat sources.
This could lead to overheating and malfunction of the unit.
Phones
Protect the player from moisture (i.e. vases) , and excess heat
(e.g.fireplace) or equipment creating strong magnetic or electric fields
(i.e.speakers...). Disconnect the power cable from the AC supply if the
player malfunctions. Your player is not intended for industrial use. Use of
this product is for personal use only.
Condensation may occur if your player or disc has been stored in
cold temperatures. If transporting the player during the winter,
wait approximately 2 hours until the unit has reached room temperature
before using.
The batteries used with this product contain chemicals that are harmful
to the environment.
Do not dispose of batteries in the general household trash.
This product is covered by one or more of the following U.S. patents:
5,060,220
6,771,891
7,142,493
7,203,891
7,280,460
5,457,669
6,894,963
7,142,495
7,209,423
7,283,729
5,561,649
6,895,593
7,145,861
7,210,067
7,286,454
5,705,762
6,937,815
7,146,624
7,228,062
7,304,938
6,043,912
6,996,327
7,151,729
7,245,566
6,438,099
7,009,926
7,161,879
7,245,567
6,467,061
7,085,221
7,164,647
7,257,065
6,556,521
7,088,649
7,167,437
7,263,045
6,578,163
7,092,327
7,173,891
7,269,110
6,697,307
7,099,566
7,177,250
7,272,086
6,728,474
7,123,564
7,194,187
7,272,106
This device is protected by U.S. Patent Nos.
6,836,549; 6,381,747; 7,050,698; 6,516,132; and 5,583,936.
5

contents
3
What’s included
4
4
5
Safety Warnings
Important Safety Instructions
Precautions
GETTING STARTED
8
9
9
9
10
Before Reading the User’s Manual
Playable Discs
Do not use the following types of disc!
Copy Protection
Disc Type and Characteristics
DESCRIPTION
11
12
13
Front Panel
Display
Rear Panel
REMOTE CONTROL
14
16
Tour of the Remote Control
Setting the Remote Control
CONNECTIONS
18
25
35
Connecting the Speakers
Connecting the Rear Speakers to the
Wireless Receiving Amplifier
Connecting the Video Out to your TV
HDMI Auto Detection Function
BD Wise
Connecting an iPod
Connecting Audio from External
Components
Connecting the FM Antenna
36
Before using your home theater
37
38
39
40
42
50
52
Disc Playback
MP3/WMA-CD playback
JPEG File Playback
DivX Playback
Using the Playback Function
Using an iPod
Playing Media Files Using The USB Host
Feature
FEATURES
2
4
8
SAFETY INFORMATION
11
14
18
BEFORE USING YOUR HOME
THEATER
36
37
PLAYBACK
6
27
28
29
31
33
66
66
Listening To Radio
Presetting Stations
67
67
67
67
67
68
Sleep Timer Function
Adjusting Display Brightness
Mute Function
P.BASS
CD Ripping
TROUBLESHOOTING
69
Troubleshooting
71
Language Code list
72
73
76
Cautions on Handling and Storing Discs
Specifications
Warranty
54
54
55
56
56
57
57
58
59
60
60
61
RADIO
66
CONVENIENT FUNCTIONS
ENG
62
62
63
63
64
64
Setting the Language
Setting the TV Screen Type
Setting Parental Controls (Rating Level)
Setting the Password
Setting The Wallpaper
To Select one of the 3 Wallpaper Settings
you've made
Setting the Speaker Mode
Setting the Delay Time
Setting the Test Tone
Setting the Audio
Setting the DRC (Dynamic Range
Compression)
Setting the AV SYNC
Setting the HDMI Audio
Sound field (DSP)/EQ Function
Dolby Pro Logic II Mode
Dolby Pro Logic II Effect
ASC (Auto Sound Calibration) Setup
SYSTEM SETUP
69
LANGUAGE CODE LIST
71
72
APPENDIX
7
getting started
BEFORE READING THE USER’S MANUAL
Make sure to check the following terms before reading the user manual.
Icons that will be used in manual
Icon
Term
Definition
d
DVD
This involves a function available with DVD or DVD-R/DVD-RW discs that
have been recorded and finalized in Video Mode.
CD
This involves a function available with a data CD (CD-R or CD-RW).
MP3
This involves a function available with CD-R/-RW discs.
JPEG
This involves a function available with CD-R/-RW discs.
DivX
This involves a function available with MPEG4 discs.
(DVD±R/RW, CD-R or CD-RW)
Caution
This involves a case where a function does not operate or settings may be
cancelled.
Note
This involves tips or instructions on the page that help each function
operate.
B
A
G
D
M
M
 In this manual, the instructions marked with "DVD (
)" are applicable to
DVD
DVD-VIDEO and DVD-R/-RW discs that have been recorded in Video Mode and then
finalized. Where a particular DVD type is mentioned, it is indicated separately.
 If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be
playable.
About the use of this user’s manual
1) Be sure to be familiar with Safety Information before using this product. (See pages 4~5)
2) If a problem occurs, check the Troubleshooting. (See pages 69~70)
Copyright
©2008 Samsung Electronics Co.,Ltd.
All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior
written permission of Samsung Electronics Co.,Ltd.
8
1
~ 6
ENG
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital
surround sound and MPEG-2 video compression technology. Now you can enjoy these
realistic effects in the home, as if you were in a movie theater or concert hall.
DVD players and the discs are coded by region. These regional codes must match in order for the
disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
(Your DVD player will only play DVDs that are labeled with identical region codes.)
● GETTING STARTED
PLAYABLE DISCS
Disc Type
Mark (Logo)
Recorded Signals
Disc Size
Max. Playing Time
Approx. 240 min. (single-sided)
5 inches
Approx. 480 min. (double-sided)
DVD-VIDEO
VIDEO
Approx. 80 min. (single-sided)
3 1/2 inches
Approx. 160 min. (double-sided)
COMPACT
5 inches
74 min.
3 1/2 inches
20 min.
AUDIO
AUDIO-CD
DIGITAL AUDIO
DivX
5 inches
—
3 1/2 inches
—
AUDIO + VIDEO
DO NOT USE THE FOLLOWING TYPES OF DISC!
1 LD, CD-G, CD-I, CD-ROM, DVD-ROM and DVD-RAM discs cannot be played on this player.
If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.
1 DVD discs purchased abroad may not play on this player.
If such discs are played, a <CAN'T PLAY THIS DISC PLEASE, CHECK REGION CODE> message appears on the
TV screen.
COPY PROTECTION
1 Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player
directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD
discs.
1 This product incorporates copyright protection technology that is protected by methods claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
9
getting started
DISC TYPE AND CHARACTERISTICS
This product does not support Secure (DRM) Media files.
❖ CD-R Discs
1 Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the
condition of the disc.
1 Use a 650MB/74 minute CD-R disc.
Do not use CD-R discs over 700MB/80 minutes as they may not be played back.
1 Some CD-RW (Rewritable) media, may not be playable.
1 Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you
may not be able to fully play the disc.
❖ CD-R MP3 Discs
1 Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
1 MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters
(. / = +).
1 Use discs recorded with a compression/decompression data rate greater than 128Kbps.
1 Only files with the ".mp3" and ".MP3" extensions can be played.
1 Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession
disc, the disc can be played only up to the blank segment.
1 If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
1 For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate
(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
1 A maximum of 500 tracks can be played per CD.
1 A maximum of 300 folders can be played per CD.
❖ CD-R JPEG Discs
1 Only files with the "jpg" extensions can be played.
1 If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
1 Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
1 JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters
(. / = +).
1 Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession
disc, the disc can be played only up to the blank segment.
1 A maximum of 9,999 images can be stored on a single CD.
1 When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
1 Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
❖ DVD±R/RW, CD-R/RW DivX Discs
1 Software updates for incompatible formats are not supported.
(Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.)
1 Sections with a high frame rate might not be played while playing a DivX file.
1 DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified or DivX Ultra Certified device
that plays DivX video.
10
ENG
FRONT PANEL
● DESCRIPTION
FUNC.
FUNC.
11
12
10
FUNCTION BUTTON
TUNING UP & SKIP ( ) BUTTON
TUNING DOWN & SKIP ( )
BUTTON
VOLUME CONTROL
10
AUX IN 1/ASC IN CONNECTOR
STOP ( ) BUTTON
OPEN/CLOSE BUTTON
11
USB CONNECTOR
PLAY/PAUSE (
DISC TRAY
12
POWER( ) BUTTON
) BUTTON
PHONES CONNECTOR
11
description
DISPLAY
TUNER PRESETTING INDICATOR
SYSTEM STATUS DISPLAY
RADIO FREQUENCY INDICATOR
12
REAR PANEL
CD
iPod JACK
Connect the iPod dock connector here.
~
TX CARD CONNECTION (WIRELESS)
The TX card enables communication between the main unit and the
wireless receiver amplifier.(fhe wireless module is not provided for
(I)
HDMI OUT JACK
Use the HOMIcable, connect this HOMI output terminal to the HOMI input
terminal on your 1V for the best Quality picture.
@J
External DigitalOptical Input ~ack
Use this to connect external equipment capable of digital output.
[[)
AUX IN 2 JACKS
Connect to the 2CH analog output of an external device (such as aVCR).
[§J
VIDEO OUTPUT JACK
Connect your 1V's Video Input jack (VIDEO IN) to the VIDEO OUT jack.
rIJ
COMPONENT VIDEO OUTPUT JACKS
Connect a1V with Component video inputs to these jacks.
(]J
FM 750 COAXIAl JACK
Connect the FM antenna.
(]J
COOLING FAN
[Q)
SPEAKER OUTPUT CONNECTORS
Connect the front, center,rear speakers and subwoofer.
(HT-Z420rrZ422nL425 does not have rear speaker connectors on the
main unit,the rear speakers are connected to the Wireless module.)
(j]
CLAMP·WIRE
Fasten the speaker wires.
H~Z320nz322nL325)
_The fan always revolves when the power is on. Ensure a minimum of
4 inches of clear space on all sides of the fan when installing the product.
13
remote control
TOUR OF THE REMOTE CONTROL
1
2
3
20
21
22
23
4
5
6
7
24
25
26
27
8
28
29
9
30
10
11
31
12
13
32
14
15
16
17
18
19
14
33
34
35
36
37
38
39
POWER button
2
DVD RECEIVER button
3
TV button
4
Number (0~9) buttons
23
PORT button
5
AUDIO
24
SUBTITLE
6
STEP button
25
PAUSE button
7
Tuning Preset/CD Skip buttons
8
VOLUME button
9
MENU button
27
MUTE button
10
Cursor/ENTER button
28
TUNING/CH button
11
INFO button
29
REMAIN button
30
RETURN button
31
EXIT button
32
CANCEL button
33
SOUND EDIT button
34
REPEAT button
35
SLEEP button
36
DSP/EQ button
37
P.BASS button
38
DIMMER button
39
ASC button
DVD
22
PL II MODE button
TUNER MEMORY
14
SD(Standard Definition)/HD(High
Definition) button
15
ZOOM button
16
LOGO button
17
CD RIPPING button
18
SLOW, MO/ST button
20
DVD button
TUNER button
AUX button
13
19
OPEN/CLOSE button
PL II EFFECT button
SOURCE button
26
● REMOTE CONTROL
12
21
ENG
1
PLAY button
STOP button
SEARCH buttons
Insert Remote Batteries
1. Remove the battery
cover in the direction
of the arrow.
M
2.
Insert two 1.5V AAA batteries, paying
attention to the correct polarities
(+ and –).
3. Replace the battery
cover.
Follow these precautions to avoid leaking or cracking cells:




Place batteries in the remote control so they match the polarity : (+) to (+) and (–) to (–).
Use the correct type of batteries. Batteries that look similar may differ in voltage.
Always replace both batteries at the same time.
Do not expose the batteries to heat or a flame.
15
remote control
SETTING THE REMOTE CONTROL
You can control certain functions of your TV with this remote control.
When operating a TV with the remote control
1. Press the TV button to set the remote to TV mode.
2. Press the POWER button to turn on the TV.
3. While holding down the POWER button, enter the
code corresponding to your brand of TV.
1If there is more than one code listed for your TV in
the table, enter one at a time to determine which
code works.
Example : For a Samsung TV
While holding down the POWER button, use the
number buttons to enter 00, 15, 16, 17 or 40.
4. If the TV turns off, the setting is complete.
1You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons (0~9).
M
 The remote control may not work on some brands of TV's. Also, some operations may not
be possible depending on your brand of TV.
 If you do not set the remote control with the code for your brand of TV, the remote control
will work on a Samsung TV by default.
Operation Range of the Remote Control
The remote control can be used up to approximately 23 feet (7 meters) in a straight line.
It can also be operated at a horizontal angle of up to 30° from the remote control sensor.
FUNC.
16
No.
Brand
1
Admiral (M.Wards)
56, 57, 58
2
A Mark
01, 15
3
Anam
01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11,
12, 13, 14
Code
No.
Brand
ENG
TV Brand Code List
Code
44
MTC
18
45
NEC
18, 19, 20, 40, 59, 60
46
Nikei
03
47
Onking
03
AOC
01, 18, 40, 48
48
Onwa
03
5
Bell & Howell (M.Wards)
57, 58, 81
49
Panasonic
06, 07, 08, 09, 54, 66, 67, 73, 74
6
Brocsonic
59, 60
50
Penney
18
7
Candle
18
51
Philco
03, 15, 17, 18, 48, 54, 59, 62, 69, 90
8
Cetronic
03
52
Philips
15, 17, 18, 40, 48, 54, 62, 72
9
Citizen
03, 18, 25
53
Pioneer
63, 66, 80, 91
10
Cinema
97
54
Portland
15, 18, 59
11
Classic
03
55
Proton
40
12
Concerto
18
56
Quasar
06, 66, 67
13
Contec
46
57
Radio Shack
17, 48, 56, 60, 61, 75
14
Coronado
15
58
RCA/Proscan
18, 59, 67, 76, 77, 78, 92, 93, 94
15
Craig
03, 05, 61, 82, 83, 84
59
Realistic
03, 19
16
Croslex
62
60
Sampo
40
17
Crown
03
61
Samsung
00, 15, 16, 17, 40, 43, 46, 47, 48, 49,
18
Curtis Mates
59, 61, 63
19
CXC
03
62
Sanyo
19, 61, 65
20
Daewoo
02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,
63
Scott
03, 40, 60, 61
25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90
64
Sears
15, 18, 19
21
Daytron
40
65
Sharp
15, 57, 64
22
Dynasty
03
66
Signature 2000 (M.Wards)
57, 58
23
Emerson
03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85
67
Sony
50, 51, 52, 53, 55
24
Fisher
19, 65
68
Soundesign
03, 40
25
Funai
03
69
Spectricon
01
26
Futuretech
03
70
SSS
18
27
General Electric (GE)
06, 40, 56, 59, 66, 67, 68
71
Sylvania
18, 40, 48, 54, 59, 60, 62
28
Hall Mark
40
72
Symphonic
61, 95, 96
29
Hitachi
15, 18, 50, 59, 69
73
Tatung
06
30
Inkel
45
74
Techwood
18
31
JC Penny
56, 59, 67, 86
75
Teknika
03, 15, 18, 25
32
JVC
70
76
TMK
18, 40
33
KTV
59, 61, 87, 88
77
Toshiba
19, 57, 63, 71
34
KEC
03, 15, 40
78
Vidtech
18
35
KMC
15
79
Videch
59, 60, 69
36
LG (Goldstar)
01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44
80
Wards
15, 17, 18, 40, 48, 54, 60, 64
37
38
Luxman
18
81
Yamaha
18
LXI (Sears)
19, 54, 56, 59, 60, 62, 63, 65, 71
82
York
40
39
Magnavox
15, 17, 18, 48, 54, 59, 60, 62, 72, 89
83
Yupiteru
03
40
Marantz
40, 54
84
Zenith
58, 79
41
Matsui
54
85
Zonda
01
42
MGA
18, 40
86
Dongyang
03, 54
43
Mitsubishi/MGA
18, 40, 59, 60, 75
● REMOTE CONTROL
4
59, 60, 98
17
connections
This section involves various methods of connecting the Digital Home Theater to other external components.
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
CONNECTING THE SPEAKERS
Position of the DVD Player
Place it on a stand or cabinet shelf.
Selecting the Listening Position
The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV.
Example : For 32" TV's 2~2.4m (6~8feet)
For 55" TV's 3.5~4m (11~13feet)
Front Speakersei
Place these speakers in front of your listening position, facing inwards (about 45°) toward you.
Place the speakers so that their tweeters will be at the same height as your ear.
Align the front face of the front speakers with the front face of the center speaker or place them slightly in front
of the center speakers.
Center Speaker
f
It is best to install it at the same height as the front speakers. You can also install it directly over or under the TV.
Rear Speakers
hj
Place these speakers behind your listening position. If there isn't enough room, place these speakers so they face each
other. Place them about 60 to 90cm (2 to 3feet) above your ear, facing slightly downward.
the front and center speakers, the rear speakers are used to handle mainly sound effects and sound will not
* Unlike
come from them all the time.
* Sound will be heard from the rear speakers in DVD 5.1-CH or Dolby Pro Logic II mode only.
Subwoofer
The position of the subwoofer is not so critical. Place it anywhere you like.
18
ENG
Speaker Components
HT-Z320
(R)
(L)
FRONT
L (AH81-04855A)
R (AH81-04855B)
(R)
REAR
L (AH81-04855D)
R (AH81-04855E)
CENTER
(AH81-04855C)
● CONNECTIONS
(L)
SUBWOOFER
(AH81-04855F)
HT-TZ322
(L) (R)
SCREW (Small): 10EA
(AH81-03944A)
CENTER
(AH81-04856D)
(L)
SCREW (Large): 2EA
(AH81-03943A)
(R)
FRONT
REAR
STAND SPEAKER CABLE SUBWOOFER
L (AH81-04856H) L (AH81-04856W)
R (AH81-04856J) R (AH81-04856X) (AH81-04856M) (AH81-04856Y) (AH81-04855G)
STAND BASE
(AH81-04856J)
HT-TZ325
(L) (R)
(L) (R)
CENTER
(AH81-04856D)
FRONT
REAR
L (AH81-04856H) L (AH81-04856K)
SPEAKER CABLE
STAND
R (AH81-04856J) R (AH81-04856L) (AH81-04856M) (AH81-04856Y)
SCREW (Small): 20EA SCREW (Large): 4EA
(AH81-03944A)
(AH81-03943A)
SUBWOOFER
(AH81-04856G)
STAND BASE
(AH81-04856N)
19
connections
Speaker Components
HT-Z420
(L)
CENTER
(AH81-04973A)
(L) (R)
(R)
FRONT
(AH81-04670A)
FRONT
L (AH81-04972A)
R (AH81-04676A)
REAR
L (AH81-04974A)
R (AH81-04677A)
SPEAKER CABLE
(AH81-04673A)
SUBWOOFER
(AH81-04685A)
CRADLE STAND/
WALL MOUNT
HT-TZ422
(L) (R)
SCREW (Small): 10EA
(AH81-04984B)
CENTER
(AH81-04973A)
(L)
SCREW (Large): 2EA
(AH81-04983B)
(R)
FRONT
REAR
STAND
SPEAKER CABLE SUBWOOFER
L (AH81-04980A) L (AH81-04974A)
(AH81-04981A)
(AH81-04673A) (AH81-04685A)
R (AH81-04681A) R (AH81-04677A)
STAND BASE
(AH81-04982A)
HT-TZ425
CENTER
(AH81-04973A)
(L) (R)
(L) (R)
FRONT
REAR
SPEAKER CABLE
L (AH81-04980A) L (AH81-04980C) STAND
R (AH81-04681A) R (AH81-04681C)(AH81-04981A) (AH81-04673A)
20
SCREW (Small): 20EA SCREW (Large): 4EA
(AH81-04984A)
(AH81-04983A)
SUBWOOFER
(AH81-04685A)
STAND BASE
(AH81-04982A)
ENG
Installing the Cradle Stand
HT-Z420 - Front Speakers
<Front>
1
1. Insert the stand so that it fits into the hole
as described in the figure.
● CONNECTIONS
2
2. Turn the stand clockwise to lock it.
(Turning it counter-clockwise will loosen it.)
3. This is the completion of the stand
installation.
3
Front/Rear Tallboy Stand
How to Install the Speaker on the Stand
HT-TZ322/TZ422 - Front Speakers
HT-TZ325/TZ425 - Front/Rear Speakers
1
2
D
1. Turn the STAND upside-down and connect
it to the STAND BASE.
D
2. Insert five small SCREWS into the five holes
marked with arrows using a screwdriver as
shown in the illustration.
3. Connect upper SPEAKER to the assembled
STAND.
3
4
4. Insert another large SCREW into the hole on
the rear of the speaker marked with arrow
using a screwdriver.
21
connections
Front Speakers Wall Mount Installation
Installing the Wall Mount
HT-Z420 - Front Speakers
<Front>
1. Insert the wall mount so that it fi ts into the
rear hole of the speaker as in the figure.
1
2
2. Turn the wall mount counter clockwise to
fix it. (This is in the reverse direction of the
cradle stand installation.)
3. Use the wall mount hole (bracket) to install
the speaker on the wall.
M
22
3
 Make sure the speaker is hung properly to avoid accidents or injury.
ENG
Connecting the Front, Center,Rear and Subwoofer Speakers
1. Press down the terminal tab on the back of the speaker.
2. Insert the black wire into the black terminal (–) and the red
wire into the red terminal(+), and then release the tab.
HT-Z320
HT-TZ322
Front Speaker (R)
Front Speaker (R)
Center Speaker
Front Speaker (L)
Front Speaker (L)
Center Speaker
Speaker
Stand
ipod
ipod
AUX IN 2
Rear Speaker (R)
Rear Speaker (L)
Rear Speaker (R)
Rear Speaker (L)
Subwoofer
Subwoofer
HT-TZ325
Center Speaker
Front Speaker (L)
Front Speaker (R)
ipod
AUX IN 2
Rear Speaker (L)
Rear Speaker (R)
Subwoofer
23
● CONNECTIONS
ECTIONS
3. Connect the other end of the speaker cable to the
Black Red
connecting jacks on the back of the Home Theater and
Wireless Receiving Module.
1 Make sure the colors of the connecting plugs match the connecting jacks.
connections
Connecting the Front, Rear, Center and Subwoofer Speakers
HT-Z420
HT-TZ422/TZ425
Front Speaker (L)
Front Speaker (R)
Center Speaker
Front Speaker (R)
Front Speaker (L)
Center Speaker
Speaker
Stand
Subwoofer
Subwoofer
HT-Z420/TZ422
HT-TZ425
Rear Speaker (L)
Rear Speaker (L)
Rear Speaker (R)
Rear Speaker (R)
WIRELESS RECEIVER MODULE
WIRELESS RECEIVER MODULE
 Do not let children play with or near the speakers. They could get hurt if the speaker falls.
 When connecting the speaker wires to the speakers, make sure that the polarity (+/–) is correct.
 Keep the subwoofer speaker out of the reach of children so as to prevent them from inserting their hands or
alien substances into the duct (hole) of the subwoofer speaker.
 Do not hang the subwoofer on the wall through the duct (hole).
M
24
 If you place a speaker near your TV set, screen color may be distorted because of the magnetic field
generated by the speaker. If this occurs, place the speaker away from your TV set.
ENG
CONNECTING THE WIRELESS RECEIVING AMPLIFIER
Wireless Receiving Module (SWA-4100)
Front Speaker (L)
RESET
ipod
Rear Speaker (L)
Rear Speaker (R)
Subwoofer
WIRELESS RECEIVER MODULE
1. Connect the front, Center and Subwoofer speakers to the
DVD Player, referring to pages 23~24.
iPod
2. With the DVD Player turned off, insert the TX card into the
TX Card Connection (WIRELESS) on the back of the main unit.
1 Hold the TX card so that the slanted side faces to the left
and insert the card into the port.
1 The TX card enables communication between the main
unit and the wireless receiver.
3. Connect the left and right rear speakers to the wireless
receiving module.
Slanted side face left
TX card
4. Plug the power cord of the wireless receiving module
in the wall outlet
M
 HT-Z420/TZ422/TZ425 doesn’t have rear speaker connectors on the main unit.The rear speakers are
connected to the Wireless module.
 The rear speakers for HT-Z320/TZ322/TZ325 can also be connected to the Wireless module
(SWA-4100) if you purchase it separately.
 The HT-Z420/TZ422/TZ425 only can connect with wireless receiving module (SWA-4100).
25
● CONNECTIONS
Center Speaker
Front Speaker (R)
connections
M
 Place the wireless receiver module at the rear of the listening position. If the wireless
receiver module is too close to the main unit, some sound interruption may be heard due
to interference.
 If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment,
or any other device that uses the same frequency (2.4GHz) near the system, some sound
interruption may be heard due to interference.
 The transmission range from the main unit to the wireless receiving module is about 33 feet
(10m), but may vary depending on your operating environment. If a steel-concrete wall or
metallic wall is between the main unit and the wireless receiver module, the system may
not operate at all, because the radio wave cannot penetrate metal.
 If the main unit doesn't make wireless connection, the system needs ID Setting between
main unit and wireless receiver module. With the main unit turned off, press the remote
control's number button buttons "0""1""3""5" and the main unit will turn on.With the
wireless receiver module turned on, press "ID SET" button on the back of the unit for 5
seconds.
 Do not insert any other card except the provided TX card.
If a different TX card is used, the product may be damaged or the card may not be
removed easily.
 Do not insert the TX card upside down or in the reverse direction.
 Insert the TX card when the DVD Player is turned off. Inserting the card when it is turned
on may cause a problem.
 If the TX Card is inserted and wireless receiving module setting is complete, sound is not
output from the Rear Speaker connectors on the main unit.
 The wireless receiving antenna is built into the wireless receiver module. Keep the unit
away from water and moisture.
 For optimal listening performance, make sure that the area around the wireless receiver
module location is clear of any obstructions.
 If no sound is heard from the wireless rear speakers, switch the mode to DVD 5.1
channel or Dolby ProLogic II .
 In 2-CH mode, no sound will be heard from the wireless rear speakers.
26
ENG
CONNECTING THE VIDEO OUT TO YOUR TV
Choose one of the three methods for connecting to a TV.
● CONNECTIONS
iPod
METHOD1
(not supplied)
METHOD3
(supplied)
METHOD2
(not supplied)
METHOD 1 : HDMI(Best)
Connect the HDMI cable (not supplied) from the HDMI OUT jack on the back of the DVD Home Theater to
the HDMI IN jack on your TV.HDMI enables you to view movies in High Definition on your HDTV.
METHOD 2 : Component Video(Better)
If your television is equipped with Component Video inputs, connect a component video cable(not
supplied) from the Component Video Output (Pr, Pb and Y) Connectors on the back of the main unit to
the Component Video Input Connectors on your TV.
METHOD 3 : Composite Video(Good)
Connect the supplied video cable from the VIDEO OUT jack on the back of the main unit to the VIDEO
IN jack on your TV.
M
 Resolutions available for the HDMI output are 480p, 720p,1080i/1080p.See page 29 for
resolution setting.
 This product operates in Interlace scan mode (480i) for Component Output.
 After making the video connection, set the Video input source on your TV to match the
corresponding Video output (HDMI, Component or Composite) on your Home theater.
See your TV owner's manual for more information on how to select the TV's Video Input source.
 If you use an HDMI cable to connect a Samsung TV to the main unit, you can operate the Home
Theater using the TV's remote control. (This is only available with SAMSUNG TV's that support
Anynet+(HDMI-CEC).)
 If your TV has the
logo, then it supports the Anynet+ function.
27
connections
HDMI Auto Detection Function
The player's video output will automatically change to HDMI mode when connecting an HDMI cable
while power is on. For possible HDMI resolutions, see page 29.
1 HDMI (High Definition Multimedia Interface)
HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.
Using HDMI, the DVD Home Theater transmits a digital video and audio signal and displays a vivid
picture on a TV having an HDMI input jack.
1 HDMI connection description
HDMI connector - Supports video and digital audio data.
- HDMI outputs only a pure digital signal to the TV.
- If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise
appears on the screen.
1 Why does Samsung use HDMI?
Analog TV's require an analog video/audio signal. However, when playing a DVD, the data transmitted
to a TV is digital. Therefore either a digital-to-analog converter (in the DVD Home Theater) or an
analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is
degraded due to noise and signal loss. HDMI technology is superior because it requires no D/A
conversion and is a pure digital signal from the player to your TV.
1 What is the HDCP?
HDCP (High-band width Digital Content Protection) is a system for protecting DVD content outputted
via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc)
and a display device (TV, projector. etc). Content is encrypted at the source device to prevent
unauthorized copies from being made.
1 What is Anynet+?
Anynet+ is a convenient function that offers linked operation of this unit through Samsung TV's with
the Anynet+ feature.
- If your Samsung TV has an
logo, then it supports the Anynet+ function.
- If you turn on the player and insert a disc, the player will start playing the disc, and the TV will turn on
automatically and switch to HDMI mode.
- If you turn on the player and press the Play button with a disc already inserted, the TV will
immediately turn on and switch to HDMI mode.
28
ENG
HDMI FUNCTION
Resolution Selection
This function allows the user to select the screen resolution for
HDMI output.
M
 If the TV does not support the configured resolution,
you will not be able to see the picture properly.
 When a HDMI cable is connected, composite(Video)
and component video signals are not output.
 See your TV owner's manual for more information on
how to select the TV's Video Input source.
● CONNECTIONS
In Stop mode, press and hold the SD/HD (Standard
Definition/High Definition) button on the remote control until
the resolution changes.
1 Resolutions available for the HDMI output are 480p, 720p,
1080i/1080p.
1 SD(Standard Definition) resolution is 480p and HD
(High Definition) resolution is 720p, 1080i/1080p.
Why use HDMI (High Definition
Multimedia Interface)?
This device transmits a DVD
video signal digitally without the
process of converting to Analog.
You will get sharper digital
pictures when using an HDMI
connection.
BD Wise (Samsung products only)
You can select to use the BD Wise menu only if the Samsung home theater is connected to a Samsung
TV that supports BD Wise using an HDMI cable.
1 What is BD Wise?
BD Wise automatically adjusts BD Wise-compliant Samsung products to the optimal settings between them.
This feature is enabled only if BD Wise-compliant Samsung products are connected to each other using an
HDMI cable.
1 To use BD Wise
1. Use an HDMI cable to connect the Samsung home theater to a BD Wise-compliant Samsung TV.
2. Set each BD Wise menu of the Samsung home theater and the Samsung TV to On, respectively.
- This will optimize the picture quality according to the content (In the disc, DVD, etc) that you want
to play.
- This will also optimize the picture quality between the home theater and your BD Wise-compliant
Samsung TV.
M
 If you want to change the resolution in BD Wise mode, you must set BD mode to Off in advance.
 If you set the BD Wise mode to off, the resolution of the connected TV will be adjusted to its
maximum resolution automatically.
 BD Wise will be disabled if the player is connected to a device that does not support BD Wise.
LANGUAGE
BD WISE
MOVE
: ON
HDMI VIDEO OUT:
RGB
TV DISPLAY
:
WIDE/HDTV
PARENTAL
:
OFF
PASSWORD
:
CHANGE
ENTER
RETURN
EXIT
29
connections
HDMI FUNCTION
Using Anynet+(HDMI-CEC)
Anynet+ is a function that enables you to control other Samsung
Devices with your Samsung TV's remote control. Anynet + can be
used by connecting this Home Cinema to a SAMSUNG TV using a
HDMI Cable. This is only available with SAMSUNG TV's that
support Anynet+.
1. Connect the main unit of the Home Cinema to a Samsung
TV with an HDMI cable. (See page 27)
2. Set the Anynet+ function on your TV.
(See the TV instruction manual for more information.)
1 You can operate the Home Cinema by using the TV
,
,
remote control. (Available TV buttons : ,
, and , buttons, ~
button)
With Anynet+
You can operate this unit, power
on your TV, or watch a movie by
pressing the Play button on your
Samsung TV's remote control.
,
If you select the TV
MOVE
MOVE
ENTER
ENTER
EXIT
EXIT
Set the Anynet+(HDMI-CEC) to On by pressing the Anynet+
button on your TV remote control.
tReceiver : On : You can listen to audio through the Home Cinema.
tReceiver : Off : You can listen to audio through the TV.
If you select the THEATER
Select THEATER to connect and set the option of each item
MOVE
ENTER
EXIT
below.
t7JFX57 : If Anynet+(HDMI CEC) is set to on and you select
View TV, the home cinema will automatically
switch to digital in mode.
t5IFBUFS.FOV : You can access and control the Home cinema menu.
t5IFBUFS0QFSBUJPO : The Home Cinema disc playback information will be displayed.
You can control the Disc operation of the Home Cinema such as title, chapter and subtitle
change.
t3FDFJWFS0O : You can listen to audio through the Home Cinema.
t3FDFJWFS0GG : You can listen to audio through the TV.
M
30
 If you choose 'View TV' and want to listen to TV sound through Digital In, you have to
connect an optical cable between the TV and the Home Theater.
ENG
CONNECTING AN iPod
You can listen to audio from an iPod through the main unit. For iPod operation with this Home Theater, see this page
and page 50.
● CONNECTIONS
FM ANT
iPod
ipod
(supplied)
1. Connect the iPod dock connector to the iPod jack on the DVD home theater.
2. Press the PORT button on the remote control to select A iPod to listen to music, and V iPod to view
videos.
1 You can also use the FUNCTION button on the main unit.
The mode switches as follows :
DVD/CD ➞ D-IN ➞ AUX 1 ➞ AUX 2 ➞ USB ➞ A iPod ➞ V iPod ➞ TUNER.
M
 As the cable ports are close together, be sure to remove TX card before disconnecting the
iPod docking cable.
 A iPod is for audio iPod, V iPod is for video iPod.
 Depending on the type of iPod, you may need to insert one of the dock slots which are
provided by Apple when you purchase the iPod. (see next page).
 Adjust the volume to a moderate level before you connect your iPod and DVD home
theater.
 When the unit is powered on and you connect an iPod, the unit will charge your iPod's
battery.
 You must have the VIDEO output connected to your TV to
your TV view iPod video.
iPod
 Make sure to connect the dock connector so that the label
“SAMSUNG” faces upward.
(supplied)
31
connections
iPod models that are available to HT-Z320/TZ322/TZ325/Z420/TZ422/TZ425
iPod 1st+2nd generation
5GB 10GB 20GB
iPod 5th generation
(video) 30GB 60GB
80GB
iPod 3rd generation
10GB 15GB 20GB 30GB
40GB
iPod nano 2nd
generation(aluminum)
2GB 4GB 8GB
iPod mini 4GB 6GB
iPod 4th generation
20GB 40GB
iPod nano 3rd
generation (video)
4GB 8GB
iPod touch
1st generation
4GB 16GB 32GB
iPod touch
2nd generation
8GB 16GB 32GB
M
iPod 4th generation
(color display)
iPod classic
20GB 30GB 40GB
80GB 120GB 160GB
60GB
iPod nano
iPod nano
4th generation(video)
1st generation
8GB 16GB
1GB 2GB 4GB
iPhone
iPhone 3G
4GB 8GB 16GB
8GB 16GB
 “Made for iPod” means that an electronic accessory has been designed to connect specifically
to iPod and has been certified by the developer to meet Apple performance standards.
 “Works with iPhone” means that an electronic accessory has been designed to connect
specifically to iPhone and has been certified by the developer to meet Apple performance
standards.
 Apple is not responsible for the operation of this device or its compliance with safety and
regulatory standards.
iPod is a trademark of Apple Inc., registered in the U.S. and other countries. iPhone is a
trademark of Apple Inc.
32
ENG
CONNECTING AUDIO FROM EXTERNAL COMPONENTS
AUX1 : Connecting an External Component/MP3 player
Components such as an MP3 Player.
● CONNECTIONS
FUNC.
Audio Cable
(not supplied)
Audio OUT
1. Connect AUX IN 1 (Audio) on the Home Cinema to the Audio Out of the external component/
MP3 player.
2. Press the AUX button on the remote control to select AUX1 input.
1 You can also use the FUNCTION button on the main unit.
The mode switches as follows :
DVD/CD ➞ D-IN ➞ AUX 1 ➞ AUX 2 ➞ USB ➞ A iPod ➞ V iPod ➞ TUNER.
33
connections
AUX2 : Rear Panel
OPTICAL : Rear Panel
iPod
iPod
Optical Cable
(not supplied)
Audio Cable (not supplied)
If the external Analog component
has only one Audio
Out, connect either left or right.
External Digital Component
External Analog Component
AUX2 : Connecting an External Analog Component
Analog signal components such as a VCR.
1. Connect AUX IN 2 (Audio) on the Home Cinema to the Audio Out of the external Analog
component.
1 Be sure to match connector colors.
2. Press the AUX button on the remote control to select AUX 2 input.
1 You can also use the FUNCTION button on the main unit.
The mode switches as follows : DVD/CD ➞ D-IN ➞ AUX 1 ➞ AUX 2 ➞ USB ➞ A iPod ➞ V iPod
➞ TUNER.
M
 You can connect the Video Output jack of your VCR to the TV, and connect the Audio
Output jacks of the VCR to this product.
OPTICAL : Connecting an External Digital Component
Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).
1. Connect the Digital Input (OPTICAL) on the Home Cinema to the Digital Output of the external
digital component.
2. Press the AUX button on the remote control to select DIGITAL IN.
1 You can also use the FUNCTION button on the main unit to select D-IN.
The mode switches as follows : DVD/CD ➞ D-IN ➞ AUX 1 ➞ AUX 2 ➞ USB ➞ A iPod ➞ V iPod
➞ TUNER.
34
ENG
CONNECTING THE FM ANTENNA
1. Connect the FM antenna supplied to the FM 75Ω Coaxial Jack.
FM ANT
iPod
FM ANT
FM Antenna
(supplied)
M
 This unit does not receive AM broadcasts.
Cooling Fan
The cooling fan supplies cool air to the unit to prevent overheating.
Please observe the following cautions for your safety.
1 Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit may rise
and may damage it.
1 Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a
newspaper or cloth, heat may build up inside the unit and fire may result.)
FM ANT
iPod
35
● CONNECTIONS
2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it
to a wall or other rigid surface.
before using your home theater
The DVD Home Theater's remote can be used to control Samsung TV's.
1. Plug the main unit's power cord into the AC power supply.
FUNC.
2. Press the DVD RECEIVER button to operate the DVD Home Theater.
3. Press the FUNCTION button on the main unit or DVD button
on the remote to enable DVD/CD playback.
4. Press the TV button to set the remote to TV mode.
5. Press the POWER button to turn on your Samsung TV
with this remote.
6. Press the SOURCE button to select VIDEO mode
on your TV.
36
VIDEO
ENG
DISC PLAYBACK
dB
) button to open the disc tray.
2. Load a disc.
1 Place a disc gently into the tray with the disc’s label
facing up.
● PLAYBACK
1. Press the OPEN/CLOSE (
FUNC.
3. Close the compartment by pressing the OPEN/CLOSE
( ) button again.
1 Playback starts automatically.
To stop playback, press the STOP ( ) button during playback.
1 If pressed once, PRESS PLAY is displayed and the stop position will be stored in memory. If the
PLAY ( ) button or ENTER button is pressed, playback resumes from the stop position. (This
function works only with DVDs.)
1 If pressed twice, STOP is displayed, and if the PLAY ( ) button is pressed, playback starts from the
beginning.
To temporarily pause playback, press the PAUSE ( ) button during playback.
1 To resume playback, press the PLAY ( ) or ENTER button.
M
 Depending on the content of the disc, the initial screen may appear different.
 Pirated discs will not run in this player because they violate the CSS (Content Scrambling System :
a copy protection system) recommendations.
37
playback
MP3/WMA-CD PLAYBACK
Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played.
A
1. Place the MP3/WMA disc on the disc tray.
1 The MP3/WMA menu screen will appear and
playback will start.
1 The appearance of the menu depends on the
MP3/WMA disc.
1 WMA-DRM files cannot be played.
2. In Stop mode, use the Cursor ,,, button
to select the album, and then press the ENTER button.
1 Use the Cursor , button to select the track.
3. To change the album, use the Cursor ,,,
button to select another album in Stop mode, and then press the
ENTER button.
4. Press the STOP (
M
) button to stop playback.
 Depending on the recording mode, some MP3/WMA-CDs may not play.
 Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded
on the disc.
To play a file icon in the screen,
1 Press the Cursor ,,, button when it is in Stop mode and select a desired icon from the
top part of the menu.
Music File Icon : To play music files only, select the
Icon.
Image File Icon : To view image files only, select the
Icon.
Movie File Icon : To view movie files only, select the
Icon.
All File Icon : To view all files select the
38
Icon.
ENG
JPEG FILE PLAYBACK
Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back
with this Home Theater.
Place the JPEG disc on the disc tray.
1 Playback starts automatically. Each image is displayed
for 5 seconds and then the next image is displayed.
Press the #,$ button to skip to the next slide.
1 Each time the button is pressed, the slide moves backward or forward.
G
Rotate/Flip Function
Press the Cursor ,,, button during playback.
button: Flip Vertically
button: Rotate 90°
Counterclockwise
button: Rotate 90°
Clockwise
Original Image
button: Flip Horizontally
M
 The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for
standard JPEG files and 2048 x 1536 (or 3.0 MPixel) for progressive image files.
39
● PLAYBACK
G
Slide Mode
playback
DIVX PLAYBACK
The functions on this page apply to DivX disc playback.
D
Skip Forward/Back
During playback, press the #,$ button.
1 Goes to the next file whenever you press the $ button,
if there are over 2 files in the disc.
1 Goes to the previous file whenever you press the
# button, if there are over 2 files in the disc.
Forward/Reverse Search
D
During playback, press the , button.
To play back the disc at a faster speed, press the  or
 button during playback.
1 Each time you press either button, the playback speed will change as follows:
2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.
5 Minute Skip function
D
During playback, press the Cursor , button.
1 Playback skips 5 minutes forward whenever you press
the Cursor button.
1 Playback skips 5 minutes back whenever you press
the Cursor button.
Audio Display
D
Press the AUDIO button.
1 If there are multiple audio languages on a disc, you
can toggle between them.
1 Each time you press the button, your selection will
toggle between AUDIO (1/N, 2/N ...) and .
M

is displayed when there is only one supported language in the disc.
Subtitle Display
Press the SUBTITLE button.
1 Each time you press the button, your selection will
toggle between SUBTITLE (1/N, 2/N ...) and
SUBTITLE OFF.
1 If the disc has only one subtitle file, it will be played
automatically.
1 See number 2 (Caption Function) on the next page for
more details concerning Subtitle usage with DivX discs.
40
D
ENG
DIVX PLAYBACK
D
If the Disc has more than One Subtitle File
● PLAYBACK
If the disc has more than one subtitle file, the default
subtitle may not match the movie and you will have
to select your subtitle language as follows:
1. In Stop mode, press the Cursor , button, select the
desired subtitle ( ) from the TV screen, and then
press the ENTER button.
2. When you select the desired DivX file from the TV
screen, the movie will be played normally.
DivX(Digital internet video eXpress)
DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to
provide audio and video data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at
near DVD-quality video and audio.
1. Supported Formats
This product only supports the following media formats.If both video and audio formats are not
supported, you may experience problems such as broken images or no sound.
Supported Video Formats
Format
AVI
WMV
Supported Versions
DivX3.11~DivX5.1, XviD
V1/V2/V3/V7
Supported Audio Formats
Format
MP3
WMA
AC3
DTS
Bit Rate
80~384kbps
56~128kbps
128~384kbps
1.5Mbps
44.1/48khz
44.1khz
Sampling Frequency
44.1khz
1 DivX files, including audio and video files, created in the DTS format can only support up to 6Mbps.
1 Aspect Ratio : Although the default DivX resolution is 640x480 pixels, this product supports up to
800x600 pixels . TV screen resolutions higher than 800 will not be supported.
1 When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may
experience shaking on the screen during playback.
2. Caption Function
1 You must have some experience with video extraction and editing in order to use this feature
properly.
1 To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX
media file (*.avi) within the same folder.
Example. Root
Samsung_007CD1.avi
Samsung_007CD1.smi
1 Up to 60 alphanumeric characters for the file name.
41
playback
USING THE PLAYBACK FUNCTION
Displaying Disc Information
dBAGD
You can view disc playback information on the TV screen.
Press the INFO button.
M
 Depending on the disc, the disc information display may appear different.
 Depending on the disc, you can also select
DTS, DOLBY DIGITAL, or PRO LOGIC.
appears on the TV screen!
If this symbol appears on the TV screen when pressing
a button, that operation is not possible with the disc
currently being played.
Checking the Remaining Time
dBA
Press the REMAIN button.
1 For checking the total and remaining time of a title or
chapter being played.
Each time the Remain button is pressed
DVD-VIDEO
TITLE ELAPSED ➞ TITLE REMAIN ➞ CHAPTER ELAPSED ➞ CHAPTER REMAIN
BTRACK ELAPSED ➞ TRACK REMAIN ➞ TOTAL ELAPSED ➞ TOTAL REMAIN
ATRACK REMAIN ➞ TRACK ELAPSED
42
ENG
Forward/Reverse Search
dBAD
Press the , button.
1 Each time the button is pressed during playback, the
playback speed changes as follows:
● PLAYBACK
 2X ➞  4X ➞  8X ➞  32X ➞ PLAY
 2X ➞  4X ➞  8X ➞  32X ➞ PLAY
M
 During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and not at 4x,
8x, and 32x speeds.
Slow Playback
dD
Press the SLOW button.
1 Each time the button is pressed during playback, the playback speed changes as follows:
➞1/4 ➞1/8 ➞1/2 ➞1/4 ➞1/8 ➞
d1/2
PLAY
D 1/2 ➞1/4 ➞1/8 ➞ PLAY
M
 No sound is heard during slow playback.
 Reverse slow playback does not work with DivX.
Skipping Scenes/Songs
dA
Press the #,$ button.
1 Each time the button is pressed during playback, the
previous or next chapter, track or directory (file) will be
played.
1 You cannot skip chapters consecutively.
43
playback
USING THE PLAYBACK FUNCTION
Repeat Playback
dBAGD
Repeat playback allows you to repeatedly play a chapter, title,
track (song), or directory (MP3 file).
Press the REPEAT button.
1 Each time the button is pressed during playback, the repeat
playback mode changes as follows:
REPEAT : CHAPTER ➞ REPEAT : TITLE ➞ REPEAT : OFF
DVD-VIDEO
BREPEAT : TRACK ➞ REPEAT : DISC ➞ REPEAT : OFF
AGDREPEAT : RANDOM ➞ REPEAT : TRACK ➞ REPEAT : DIR ➞ REPEAT : DISC
➞ REPEAT : OFF
Repeat Playback Options
CHAPTER : Repeatedly plays the selected chapter.
TITLE : Repeatedly plays the selected title.
RANDOM : Plays tracks in random order. (A track that has already been played may be played again.)
TRACK : Repeatedly plays the selected track.
DIR : Repeatedly plays all tracks in the selected folder.
DISC : Repeatedly plays the entire disc.
OFF : Cancels Repeat Playback.
To Select a Repeat Playback Mode in the Disc Information Screen
1. Press the INFO button twice.
2. Press the Cursor button to move to REPEAT PLAYBACK (
) display.
3. Press the Cursor button to select the desired Repeat Playback mode.
1 To select another album and track, repeat Steps 2 and 3 above.
4. Press the ENTER button.
WOFF ➞ A- ➞ CHAP ➞ TITLE ➞ OFF
OFF ➞ A- ➞ TRACK ➞ DISC ➞ OFF
M
44
 For DivX, MP3 and JPEG discs, you cannot
select Repeat Play from the information display
screen.
dB
ENG
dB
A-B Repeat Playback
You can repeatedly play back a designated section of a DVD or CD.
1. Press the INFO button twice.
● PLAYBACK
2. Press the Cursor button to move to REPEAT
PLAYBACK ( ) display.
3. Press the Cursor , button to select A- and then
press the ENTER button.
1 When the ENTER button is pressed, the selected
position will be stored in memory.
4. Press the ENTER button at the end of the desired
segment.
1 The specified segment will be played repeatedly.
A-B
d To return to normal playback, press the Cursor , button to select
M
OFF.
 The A-B Repeat function does not operate with DivX, MP3 or JPEG discs.
Step Function
dD
Press the STEP button.
1 The picture moves forward one frame each time the button is pressed during playback.
M
 No sound is heard during step motion playback.
45
playback
USING THE PLAYBACK FUNCTION
d
Angle Function
This function allows you to view the same scene in different
angles.
1. Press the INFO button.
2. Press the Cursor button to move to ANGLE (
display.
)
3. Press the Cursor , button or numeric buttons to
select the desired angle.
1 Each time the button is pressed, the angle changes as
follows:
1/3 ➞
M
2/3 ➞
3/3 ➞
1/3
 The Angle function works only with discs on which multiple angles have been recorded.
d
Zoom (Screen Enlarge) Function
This function allows you to enlarge a particular area of the displayed image.
1. Press the ZOOM button.
2. Press the Cursor ,,, button to move to the area
you want to enlarge.
3. Press the ENTER button.
1 Each time the button is pressed, the zoom level
changes as follows:
ZOOM X 1.5 ➞ZOOM X 2 ➞ZOOM X 3
➞ZOOM OFF
SELECT ZOOM POSITION
46
ENG
USING THE PLAYBACK FUNCTION
d
Audio Language Selection Function
● PLAYBACK
1. Press the INFO button twice.
2. Press the Cursor , button or numeric buttons to
select the desired audio language.
1 Depending on the number of languages on a DVD
disc, a different audio language (ENGLISH, SPANISH,
FRENCH, etc.) is selected each time the button is
pressed.
EN 1/3 ➞ SP 2/3 ➞ FR 3/3 ➞ EN 1/3
d
Subtitle Language Selection Function
1. Press the INFO button twice.
2. Press the Cursor button to move to SUBTITLE (
display.
)
3. Press the Cursor button or numeric buttons to select the
desired subtitle.
EN 01/03 ➞ SP 02/03 ➞ FR 03/03 ➞ OFF/03 ➞
EN 01/03
M
 To operate this function, you can also press the AUDIO or SUBTITLE buttons on the
remote control.
 Depending on the disc, the Subtitle and Audio Language functions may not be available.
dBAG
Moving Directly to a Scene/Song
dB
1. Press the INFO button.
2. Press the Cursor , button or numeric buttons to select
the desired title/track ( ) and then press the ENTER
button.
3. Press the Cursor , button to move to the Chapter
( ) display.
4. Press the Cursor , button or numeric buttons to select
the desired chapter and then press the ENTER button.
5. Press the Cursor , button to move to the time (
display.
)
6. Press the numeric buttons to select the desired time
and then press the ENTER button.
47
playback
dBAG
Moving Directly to a Scene/Song
AG
Press the numeric buttons.
1 The selected file will be played.
1 When playing an MP3 or JPEG disc, you cannot use the
Cursor , button to move to a folder.
To move a folder, press the STOP ( ) and then press the
Cursor , button.
M
 You can press the #,$ button on the remote control to move directly to the desired title,
chapter, or track.
 Depending on the disc, you may not be able to move to the selected title or time.
d
Using the Disc Menu
You can use the menus for the audio language, subtitle language, profile, etc.
DVD menu contents differ from disc to disc.
1. In Stop mode, press the MENU button.
2. Press the Cursor , button to move to Disc Menu and
then press the ENTER button.
1 When you select Disc Menu and it is not supported by
the disc, the "This menu is not
supported" message appears on the screen.
3. Press the Cursor ,,, button to select the desired
item.
4. Press the ENTER button.
d Press the EXIT button to exit the setup screen.
MOVE
M
48
 The disc menu display may be different from disc
to disc.
ENTER
EXIT
ENG
USING THE PLAYBACK FUNCTION
d
Using the Title Menu
● PLAYBACK
For DVDs containing multiple titles, you can view the title of
each movie. Depending on the disc, the availability of this
feature may vary.
1. In Stop mode, press the MENU button.
2. Press the Cursor , button to move to Title Menu.
3. Press the ENTER button.
1 The title menu appears.
d Press the EXIT button to exit the setup screen.
MOVE
M
ENTER
EXIT
 The disc menu display may be different from disc to disc.
49
playback
USING AN iPod
You can enjoy playback of your iPod using the supplied remote control.
Listening to Music (A iPod function)
You can play music files stored in the iPod player by connecting it to the home
theater system.
1. Connect the iPod dock connector to the iPod jack on the DVD home
theater.
2. Place the iPod in the Dock.
1 Your iPod is automatically turned on.
3. Press the PORT button on the remote control to select A iPod mode.
1 If the iPod player is connected to the home theater system, each time
you press the the PORT button, it will be toggled in the order of USB A iPod V iPod.
4. Press the , buttons on the remote control to select Music and press
the ENTER button.
1 The Music categories appear.
5. Press the , buttons desired category and press the ENTER button.
1 The music files appear.
6. Press the , buttons to select the file to play and press the ENTER
button.
1 The music will start with a new screen which shows the song title,
time, artist, and progress bar.
7. You can use the remote control or main unit to control simple
playback functions such as PLAY, PAUSE, STOP, / ,
/ and REPEAT.
1 Press the RETURN button to return to the previous menu.
M
 See page 32 for compatible iPods.
Compatibility depends on the software version of your iPod.
Music categories
File information including the artist name, album name, music title and genre will be displayed according
to the ID3 Tag information on the appropriate music file.
Now Playing : Plays a recently played file or moves to the playback screen of the current file.
Artists : To play by artist.
Songs : To play in numeric or alphabetical order
Playlists : To play by Playlist.
Albums : To play by album.
Genres : To play by genre.
Composer : To play by composer.
M
 The category list may differ, depending on the iPod model.
 What is an ID3 Tag?
This is what is attached to an MP3 to carry information relevant to the file such as
the title, artist, album, year, genre and a comment field.
50
ENG
Watching a Movie (V iPod function)
You can play video or picture files stored in the iPod player by connecting it to the home theater system.ࣜ
● PLAYBACK
1. Connect the iPod dock connector to the iPod jack on the DVD home
theater.
2. In the iPod screen, move to Videos > Settings and set the TV Out
option to On for iPod class/nano or select YES when "Display on
TV" pops up in the screen for iPod touch/iPhone.
3. Place the iPod in the Dock.
4. Press the PORT button on the remote control to select V iPod mode.
1 If the iPod player is connected to the home theater system, each
<iPod Screen>
time you press the the PORT button, it will be toggled in the order ofࣜࣜ ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ
USB A iPod V iPod.
5. Set the AV IN option of the TV connected to the home theater system
to COMPOSITE.ࣜ
Follow the iPod onscreen guide through the following steps.
6. Press the , buttons on the remote control to select Videos and
press the ENTER button.
7. Press the , buttons on the remote control to select Movies and press
the ENTER button.
8. Press the , buttons to select the file to play and press the ENTER
button.
1 Video files of the iPod player will be played on the TV screen. ࣜ
9. You can use the remote control or main unit to control simple
playback functions such as PLAY, PAUSE, STOP, / and
/ .
1 If you press the PREV button within 3 seconds after the playback,
the player will stop playing and return to the list screen. ࣜࣜ
If you press the PREV button 3 seconds or later after the playback,
the player will move to the start screen of the current file.
1 Press the NEXT button to stop playing and return to the list
screen.
1 Press the RETURN button to return to the previous menu.ࣜ
ࣜ
M
<iPod Screen>
 See page 32 for compatible iPods.
Compatibility depends on the software version of your iPod.
 When the current file is played to the end, the next file will not be played automatically.
To play the next file, select a file to play in the list screen of the iPod player.
 You must have the VIDEO output connected to your TV to view iPod video.
 Only the iPod's playback screen will appear on your TV. The iPod menu screens will not appear.
J
 If the TV connected to the home theater system supports HDMI CEC, press the AUX button on
the remote control to switch the mode to DIGITAL IN if you want to watch TV while an iPod
movie is played.
 Some keys or functions of the remote control may not be supported depending on the
iPod device and sofeware version of the iPod.
 Some abnormal or duplicated screen may be displayed when you watch iPod Video Clip
if you set music options as 'Now Playing' in the photo settings of the iPod photo section.
 Some abnormal sound might be heard depending on the iPod model or S/W version of
the iPod.
51
playback
PLAYING MEDIA FILES USING THE USB HOST FEATURE
You can enjoy media files such as pictures, movies and music saved on an MP3 player, USB memory stick or digital
camera in high quality video with 5.1 channel Home Theater sound by connecting the storage device to the USB port of
the Home Theater.
1. Connect the USB device to the USB port on the front
of the unit.
2. Press the FUNCTION button on the DVD Player or the
PORT button on the remote control to select the USB
mode.
1 USB appears on the display screen and then
disappears.
1 The USB MENU screen appears on the TV screen
and the saved file is played.
3. To stop playback, press the STOP (
) button.
Safe USB Removal
To prevent damage to the memory stored in the USB device,
perform safe removal before disconnecting the USB cable.
1 Press the STOP ( ) button twice in a row.
The display will show REMOVE USB.
1 Remove the USB cable.
M
 To listen to your music files with 5.1 channel home theater sound, you must set the Dolby
Pro Logic II mode to Matrix. (See page 63)
 In USB mode, you are not able to change the resolution or use the SETUP menu if there is no
USB device connected to the USB port.
Skip Forward/Back
During playback, press the #,$ button.
1 When there is more than one file and you press the $
button, the next file is selected.
1 When there is more than one file and you press the #
button, the previous file is selected.
Fast playback
During playback, press the , button.
1 Each time you press either button, the playback speed
will change as follows:
2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.
52
USB Host Specification
Operational Limitations
t4VQQPSUT64#PS64#DPNQMJBOUEFWJDFT
t4VQQPSUTEFWJDFTDPOOFDUFEVTJOHUIF64#"UZQFDBCMF
t4VQQPSUT6.464#.BTT4UPSBHF%FWJDF
7DPNQMJBOUEFWJDFT
t4VQQPSUTUIFEFWJDFPGXIJDIUIFDPOOFDUFEESJWFJTGPSNBUUFEJOUIF'"5'"5
FAT16, FAT32) file system.
t Does not support a device that requires installing a separate driver on the PC (Windows).
t%PFTOPUTVQQPSUDPOOFDUJPOUPB64#IVC
tA USB device that is connected using the USB extension cable may not be recognized.
t"64#EFWJDFSFRVJSJOHBTFQBSBUFQPXFSTPVSDFOFFETUPCFDPOOFDUFEUPUIF
player with the separate power connection.
t*GUIFDPOOFDUFEEFWJDFIBTNVMUJQMFESJWFTPSQBSUJUJPOT
JOTUBMMFEPOMZPOFESJWF
(or partition) can be connected.
t"EFWJDFTVQQPSUJOH64#BMPOFNBZDBVTFBEJGGFSFODFJOUIFQJDUVSFRVBMJUZ
depending on the device.
● PLAYBACK
Non-compliance
ENG
USB Host Specifications
USB Devices that can be used with the Home Theater
1. USB Storage Device
2. MP3 Player
3. Digital Camera
4. Removable HDD
1 Removable HDDs equipped with less than 160 Gbytes are supported. Removable HDDs
equipped with 160Gbytes or more may not be recognized, depending on the device.
1 If the connected device does not work due to insufficient power supply, you can use a separate
power cable to supply power so that it can work properly. The connector of the USB cable may
differ, depending on the manufacturer of the USB device.
5. USB card Reader: One slot USB card reader and Multi slot USB card reader.
1 Depending on the manufacturer. the USB card reader may not be supported.
1 If you install multiple memory devices into a multi card reader, you may experience problems.
Compliant File Formats
Format
File name
File
extension
Bit rate
Version
Pixel
Sampling
Frequency
Still Picture
JPG
JPG .JPEG
–
–
640x480
–
MP3
.MP3
80~384kbps
–
–
44.1kHz
WMA
.WMA
56~128kbps
V8
–
44.1kHz
WMV
.WMV
4Mbps
V1,V2,V3,V7
720x480
44.1KHz~48KHz
DivX
.AVI,.ASF
4Mbps
DivX3.11~
DivX5.1, XviD
720x480
44.1KHz~48KHz
Music
Movie
1 CBI (Control/Bulk/Interrupt) is not supported.
1 Digital Cameras that use PTP protocol or require additional program installation when connected to a
PC are not supported.
1 A device using NTFS file system is not supported. (Only FAT 16/32 (File Allocation Table 16/32) file
system is supported.)
1 Does not operate with Janus enabled MTP (Media Transfer Protocol) devices.
53
system setup
For your convenience, you can set this DVD Home Cinema's features for the best use in your home
environment.
SETTING THE LANGUAGE
OSD(On-Screen Display) language is set to English by default.
1. In Stop mode, press the MENU button.
LANGUAGE
BD WISE
2. Press the Cursor ▼ button to move to Setup and then press the
ENTER button.
3. Select Language and then press the ENTER button.
4. Press the Cursor ▲,▼ button to select OSD Language and then
press the ENTER button.
: ON
HDMI VIDEO OUT:
RGB
TV DISPLAY
:
WIDE/HDTV
PARENTAL
:
OFF
PASSWORD
:
CHANGE
MOVE
ENTER
RETURN
EXIT
MOVE
ENTER
RETURN
EXIT
MOVE
ENTER
RETURN
EXIT
MOVE
SELECT
RETURN
EXIT
5. Press the Cursor ▲,▼ button to select the desired language
and then press the ENTER button.
1 Once the setup is complete, the OSD will be English if
English has been selected as language.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
1 OSD LANGUAGE : Selecting the OSD Language
1 AUDIO : Selecting the Audio Language (recorded on the disc)
1 SUBTITLE : Selecting the Subtitle Language (recorded on the disc)
1 DISC MENU : Selecting the Disc Menu Language (recorded on the disc)
a If the language you selected is not recorded on the disc, the menu
language will not change even if you set it to your desired language.
1 OTHERS : To select another language, select OTHERS and
enter the language code of your country (see page 71).
AUDIO, SUBTITLE and DISC MENU languages can be
selected.
SETTING THE HDMI VIDEO OUT MODE
Selects the type of output from the HDMI/OUT jack.
1 YCbCr : Normally, select this when connecting to an HDMI device.
1 RGB : Gives brighter colors and deeper blacks. Select this if colors are weak.
1. In Stop mode, press the MENU button.
2. Press the Cursor ▼ button to move to Setup and then press the
ENTER button.
LANGUAGE
BD WISE
3. Press the Cursor ▼ button to move to HDMI VIDEO OUT and then
press the ENTER button.
4. Press the Cursor ▲,▼ button to select the desired item
and then press the ENTER button.
1 Once the setup is complete, you will be taken to the
previous screen.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
54
MOVE
: ON
HDMI VIDEO OUT:
RGB
TV DISPLAY
:
WIDE/HDTV
PARENTAL
:
OFF
PASSWORD
:
CHANGE
ENTER
RETURN
EXIT
ENG
SETTING THE TV SCREEN TYPE
Depending on your TV type (Widescreen or conventional 4:3), you can select the TV's aspect ratio.
1. In Stop mode, press the MENU button.
LANGUAGE
BD WISE
3. Press the Cursor ▼ button to move to TV DISPLAY and then
press the ENTER button.
4. Press the Cursor ▲,▼ button to select the desired item
and then press the ENTER button.
1 Once the setup is complete, you will be taken to the
previous screen.
● SYSTEM SETUP
2. Press the Cursor ▼ button to move to Setup and then press the
ENTER button.
: ON
HDMI VIDEO OUT:
RGB
TV DISPLAY
:
WIDE/HDTV
PARENTAL
:
OFF
PASSWORD
:
CHANGE
MOVE
ENTER
RETURN
EXIT
MOVE
SELECT
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
Adjusting the TV Aspect Ratio (Screen Size)
The horizontal to vertical screen size ratio of conventional TV's is 4:3, while that of widescreen and high
definition TV's is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different
screen sizes, you should adjust the aspect ratio to fit your TV or monitor.
For a standard TV, select either 4:3PS or 4:3LB option according to personal preference.
Select WIDE/HDTV if you have a widescreen TV.
4:3PS (4:3 Pan&Scan)
Select this to play a 16:9 picture in the pan & scan mode on a conventional
TV.
1 You can see the central portion of the screen only (with the sides of the
16:9 picture cut off).
4:3LB (4:3 Letterbox)
Select this to play a 16:9 picture in the letter box mode on a conventional
TV.
1 Black bars will appear at the top and bottom of the screen.
WIDE/HDTV
Select this to view a 16:9 picture in the full-screen mode on your
widescreen TV.
1 You can enjoy the widescreen aspect.
M
 If a DVD is in the 4:3 ratio, you cannot view it in widescreen.
 Since DVD discs are recorded in various image formats, they will look different depending
on the software, the type of TV, and the TV aspect ratio setting.
 When using HDMI, the screen is automatically converted to Wide mode.
55
system setup
SETTING PARENTAL CONTROLS (RATING LEVEL)
Use this to restrict playback of adult or violent DVDs you do not want children to view.
1. In Stop mode, press the MENU button.
2. Press the Cursor ▼ button to move to Setup and then press the
ENTER button.
LANGUAGE
BD WISE
3. Press the Cursor ▼ button to move to PARENTAL and then press
the ENTER button.
4. Press the Cursor ▲,▼ button to select the desired rating level and
then press the ENTER button.
1 If you have selected Level 6, you cannot view DVDs with Level 7
or higher.
1 The higher the level, the closer the content is to violent or adult
material.
5. Enter the password and then press the ENTER button.
1 The password is set to "7890" by default.
1 Once the setup is complete, you will be taken to the previous screen.
: ON
HDMI VIDEO OUT:
RGB
TV DISPLAY
:
WIDE/HDTV
PARENTAL
:
OFF
PASSWORD
:
CHANGE
MOVE
ENTER
RETURN
EXIT
MOVE
SELECT
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
M
 This function works only if a DVD disc contains the rating level information.
SETTING THE PASSWORD
You can set the password for the Parental (rating level) setting.
1. In Stop mode, press the MENU button.
LANGUAGE
2. Press the Cursor ▼ button to move to Setup and then press the
ENTER button.
3. Press the Cursor ▼ button to move to PASSWORD and then
press the ENTER button.
BD WISE
MOVE
: ON
HDMI VIDEO OUT:
RGB
TV DISPLAY
:
WIDE/HDTV
PARENTAL
:
OFF
PASSWORD
:
CHANGE
ENTER
RETURN
EXIT
4. Press the ENTER button.
5. Enter the password and then press the ENTER button.
1 Enter the old password, a new password, and confirm new
password.
1 The setting is complete.
M
 The password is set to "7890" by default.
MOVE
SELECT
RETURN
If you have forgotten the rating level password, do the following
1 While the player is in No Disc mode, hold the remote control's STOP ( ) button for longer than
5 seconds. INITIAL appears on the display and all settings will return to the default values.
1 Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
56
EXIT
dG
ENG
SETTING THE WALLPAPER
While watching a DVD or JPEG CD, you can set the image you like as background wallpaper.
1. During playback, press the PAUSE button when
an image you like appears.
● SYSTEM SETUP
2. Press the LOGO button.
1 COPY LOGO DATA will be displayed on the TV screen.
3. The power will turn off and then back on.
1 The selected wallpaper will be displayed.
1 You can select up to 3 wallpaper settings.
COPY LOGO DATA
TO SELECT ONE OF THE 3 WALLPAPER SETTINGS YOU'VE MADE
1. In Stop mode, press the MENU button.
2. Press the Cursor ▼ button to move to Setup and then press the ENTER button.
3. Press the Cursor ▼ button to move to LOGO and then press the ENTER button.
4. Press the Cursor ▲,▼ button to select the desired USER, and then press the ENTER button.
1 This selects one of the 3 wallpaper screens.
5. Press the EXIT button to exit the setup screen.
BD WISE
: ON
HDMI VIDEO OUT:
1 ORIGINAL : Select this to set the Samsung Logo image as
your wallpaper.
1 USER : Select this to set the desired image as your
wallpaper.
RGB
TV DISPLAY
:
WIDE/HDTV
PARENTAL
:
OFF
PASSWORD
:
CHANGE
LOGO
:
ORIGINAL
MOVE
ENTER
RETURN
EXIT
MOVE
SELECT
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
57
system setup
DivX (R) Registration
Please use the Registration code to register this player with the DivX (R) video on demand format.
To learn more, go to www.divx.com/vod.
SETTING THE SPEAKER MODE
Signal outputs and frequency responses from the speakers will
automatically be adjusted according to your speaker configuration
and whether certain speakers are used or not.
1. In Stop mode, press the MENU button.
2. Press the Cursor ▼ button to move to Audio and then press the
ENTER button.
MOVE
ENTER
MOVE
CHANGE
RETURN
EXIT
3. In the SPEAKER SETUP, press the ENTER button again.
4. Press the Cursor ,,, button to move to the desired
speaker and then press the ENTER button.
1 For C, SL, and SR, each time the button is pressed, the mode switches
alternately as follows : SMALL ➞ NONE.
1 For L and R, the mode is set to SMALL.
RETURN
EXIT
1 SMALL : Select this when using the speakers.
1 NONE : Select this when no speaker is connected.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
M
58
 Depending on PRO LOGIC and STEREO settings, the speaker mode may vary (see page 63).
ENG
SETTING THE DELAY TIME
If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay
time of the audio signals from the center and rear speakers.
In Stop mode, press the MENU button.
Press the Cursor ▼ button to move to Audio and then press the ENTER button.
Press the Cursor ▼ button to move to DELAY TIME and then press the ENTER button.
Press the Cursor ,,, button to move to the desired speaker and then press the ENTER button.
Press the Cursor , to set the Delay time.
1 You can set the delay time for C between 00 and 05mSEC and for SL and SR between 00 and 15mSEC.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
Setting up the Speaker Delay Time
When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each
speaker is the same.
Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can
adjust this difference by adding a delay effect to the sound of the Center and Rear Speakers.
Setting CENTER SPEAKER
Ideal CENTER SPEAKER
placement
If the distance of Dc is equal to or longer than the
distance of Df in the figure, set the mode as 0ms.
Otherwise, change the setting according to the table.
Distance
between
Df and Dc
0.00 inch
Delay Time
0 ms
1 feet,
2 feet,
3 feet,
4 feet,
1.39 inches
2.77 inches
5.73 inches
7.12 inches
5 feet,
9.29 inches
1 ms
2 ms
3 ms
4 ms
5 ms
Ideal
REAR
SPEAKER
placement
Setting REAR SPEAKER
If the distance of Dc is equal to or longer than the distance of Dr
in the figure, set the mode as 0ms.
Otherwise, change the setting according to the table.
Distance
between
Df and Dc
0.00 inch
Delay Time
0 ms
M
3 feet,
6 feet,
10 feet,
13 feet,
17 feet,
5.73 inches
11.7 inches
4.80 inches
10.54 inches
4.27 inches
3 ms
6 ms
9 ms
12 ms
15 ms
It is desirable to place all speakers within this circle.
Df: The distance from FRONT SPEAKER
Dc: The distance from CENTER SPEAKER
Dr: The distance from REAR SPEAKER
 With PL II (Dolby Pro Logic II), the delay time may be different for each mode.
 With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.
 The Center channel is only adjustable on 5.1 channel discs.
59
● SYSTEM SETUP
1.
2.
3.
4.
5.
system setup
SETTING THE TEST TONE
Use the Test Tone feature to check the speaker connections.
1. In Stop mode, press the MENU button.
2. Press the Cursor ▼ button to move to Audio and then press the
ENTER button.
3. Press the Cursor ▼ button to move to TEST TONE and then press
the ENTER button.
1 The test tone will be sent to L ➞ C ➞ R ➞ SR ➞ SL ➞ SW in
order.
If the ENTER button is pressed again at this time, the test tone
will stop.
MOVE
ENTER
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
STOP
EXIT
SETTING THE AUDIO
You can adjust the balance and level for each speaker.
1. In Stop mode, press the MENU button.
2. Press the Cursor ▼ button to move to Audio and then press the
ENTER button.
3. Press the Cursor ▼ button to move to SOUND EDIT and then
press the ENTER button.
4. Press the Cursor , button to select and adjust the desired item.
Press the Cursor , button to adjust the settings.
MOVE
ENTER
RETURN
EXIT
MOVE
CHANGE
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
60
ENG
SETTING THE AUDIO
Manually Adjusting the Speaker Volume and Balance with the SOUND EDIT Button.
● SYSTEM SETUP
Press the SOUND EDIT button and then press the Cursor , button.
Adjusting Front/Rear Speaker Balance
 You can select between 0, -6, and OFF.
 The volume decreases as you move closer to –6.
Adjusting Center/Rear/Subwoofer Speaker Level
 The volume level can be adjusted in steps from +6dB to –6dB.
 The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.
SETTING THE DRC (DYNAMIC RANGE COMPRESSION)
This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby
Digital sound when watching movies at low volume at night.
1. In Stop mode, press the MENU button.
2. Press the Cursor ▼ button to move to Audio and then press the
ENTER button.
3. Press the Cursor ▼ button to move to DRC and then press the
ENTER button.
4. Press the Cursor , to adjust the DRC.
1 When the Cursor button is pressed, the effect is greater, and
when the Cursor button is pressed, the effect is smaller.
MOVE
ENTER
RETURN
EXIT
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
CHANGE
61
system setup
SETTING THE AV SYNC
Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to
match the video.
1. In Stop mode, press the MENU button.
2. Press the Cursor ▼ button to move to Audio and then press the
ENTER button.
3. Press the Cursor ▼ button to move to AV-SYNC and then press
the ENTER button.
4. Press the Cursor , button to select the AV-SYNC Delay Time
and then press the ENTER button.
1 You can set the audio delay time between 0 ms and 300 ms. Set
it to the optimal status.
MOVE
ENTER
MOVE
SELECT
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
RETURN
EXIT
SETTING THE HDMI AUDIO
The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.
1. In Stop mode, press the MENU button.
2. Press the Cursor button to move to Audio and then press the
ENTER button.
3. Press the Cursor button to move to HDMI AUDIO and then
press the ENTER button.
4. Press the Cursor , button to select ON or OFF and then press
the ENTER button.
MOVE
ENTER
MOVE
SELECT
RETURN
EXIT
t0/Both video and audio signals are transmitted over the HDMI
connection cable, and audio is output through your
TV speakers only.
t0''Video is transmitted over the HDMI connection cable only,
and audio is output through the home theater speakers only.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
M
62
 The default setting of this function is HDMI AUDIO OFF.
 HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.
 When HDMI AUDIO is on,PRO LOGIC II /DSP EQ/P.BASS doesn't work.
RETURN
EXIT
ENG
SOUND FIELD (DSP)/EQ FUNCTION
DSP(Digital Signal Processor) : DSP modes have been designed to simulate different acoustic environments.
EQ : You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing
Each time the button is pressed, the selection changes as follows:
POPS ➞ JAZZ ➞ ROCK ➞ STUDIO ➞ CLUB ➞ HALL ➞ MOVIE ➞ CHURCH ➞ PASS ➞ POPS
1 POP, JAZZ, ROCK : Depending on the genre of music, you can select POP, JAZZ, and ROCK.
1 STUDIO : Provides a sense of presence as if in a studio.
1 CLUB : Simulates the sound of a dance club with a throbbing
bass beat.
1 HALL : Provides a clear vocal as if listening in a concert hall.
1 MOVIE : Provides the feeling of a movie theater.
1 CHURCH : Gives the feel of being in a grand church.
1 PASS : Select this for normal listening.
M
 The DSP/EQ function is only available in STEREO mode.
Press the
PL II mode button to show STEREO on the display.
 This feature works with CDs, MP3-CDs, DivX, tuner and Dolby Digital discs.
 When playing a DVD disc encoded with two or more channels, the multi-channel mode will
be selected automatically and DSP/EQ does not work.
DOLBY PRO LOGIC II MODE
You can select the desired Dolby Pro Logic II audio mode.
Press the
PL II MODE button.
1 Each time the button is pressed, the mode changes as follows.
MUSIC ➞ CINEMA ➞ PROLOG ➞ MATRIX ➞
STEREO ➞ MUSIC
PRO LOGIC II
1 MUSIC : When listening to music, you can experience
sound effects as if you are listening to the actual
performance.
1 CINEMA : Adds realism to the movie soundtrack.
1 PRO LOGIC : You will experience a realistic multi-channel effect, as if using five speakers, while using
just the front left and right speakers.
1 MATRIX : You will hear 5.1 channel surround sound.
t STEREO : Select this to listen to sound from the front left and right speakers and the subwoofer only.
M
 When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks
(L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen
to surround sound.
 PRO LOGIC II function is only available in STEREO mode.
63
● SYSTEM SETUP
Press the DSP/EQ button.
1 DSP appears on the display panel.
system setup
DOLBY PRO LOGIC II EFFECT
This function works only in Dolby Pro Logic MUSIC mode.
1. Press the
PL II MODE button to select MUSIC mode.
2. Press the
PL II EFFECT button.
3. Press the , buttons to select the desired effect setting.
1 PANORAMA : You can select either 0 or 1.
1 C- WIDTH : You can select between 0 and 7.
1 DIMENS : You can select between 0 and 6.
ASC (Auto Sound Calibration) SETUP
By setting the ASC function just once when you relocate or install the unit, you can have the unit
automatically recognize the distance between speakers, levels between channels, and frequency
characteristics to create a 5.1-channel sound field optimized for your environment.
ASC
Microphone
L: FRONT SPEAKER (L)
R: FRONT SPEAKER (R)
C: CENTER SPEAKER
SW: SUBWOOFER
M
SL: REAR SPEAKER (L)
SR: REAR SPEAKER (R)
 ASC SETUP can be made when there is no disc in the unit.
 Because the volume level of the tone is fixed during the ASC setup, you cannot adjust the
volume using the volume control buttons.
 If the auto sound microphone is disconnected during the ASC setup, the setup will be
cancelled.
 When ASC function is activated, the DSP/EQ, DOLBY PRO LOGIC ll/P. BASS sound
effects will not work.
To Verify the ASC
Briefly press the ASC button.
1 Distance and level values specified for each channel will appear in the display.
64
ENG
ASC (Auto Sound Calibration) SETUP
1. Plug the ASC microphone into the ASC input jack.
2. Place the ASC microphone at the listening position.
● SYSTEM SETUP
3. Press ASC button.
1 To create the optimal 5.1 channel sound field, the
selections are in the following sequence:
L ➞ C ➞ R ➞ SR ➞ SL ➞ SW
4. When the message "REMOVE MIC" appears in the
display, unplug the ASC microphone.
M
 Setting the ASC function takes about 3 minutes.
To cancel the ASC (Auto Sound Calibration) setup, press the ASC
button.
The test tone output stops, "CANCEL ASC" appears in the display .
To listen in the ASC (Auto Sound Calibration) mode, briefly press
ASC button.
The selection alternates between ASC ON and ASC OFF in the display.
If you select "ASC ON", you will hear sound in the ASC mode.
If you select "ASC OFF", you will hear sound in the mode set in the audio setup.
65
radio
LISTENING TO RADIO
Remote Control
1. Press the TUNER button to select the FM band.
2. Tune in to the desired station.
1 Automatic Tuning 1 : When the #,$ button is
pressed, a preset broadcast station is selected.
1 Automatic Tuning 2 : Press and hold the ,,.
button to automatically search for active
broadcasting stations.
1 Manual Tuning : Briefly press the ,,. button to
increase or decrease the frequency incrementally.
Main Unit
1. Press the FUNCTION button to select the FM band.
2. Select a broadcast station.
1 Automatic Tuning 1 : Press the STOP ( ) button to select PRESET and then press the #,$
button to select the preset station.
1 Automatic Tuning 2 : Press the STOP ( ) button to select MANUAL and then press and hold
the #,$ button to automatically search the band.
1 Manual Tuning : Press the STOP ( ) button to select MANUAL and then briefly press
the
button to tune in to a lower or higher frequency.
Press the MO/ST button to listen in Mono/Stereo.
tEach time the button is pressed, the sound switches between STEREO and MONO.
tIn a poor reception area, select MONO for a clear, interference-free broadcast.
PRESETTING STATIONS
Example : Presetting FM 89.10 in the memory
1. Press the TUNER button to select the FM band.
2. Press the ,,. button to select 89.10.
3. Press the TUNER MEMORY button.
4. Press the #,$ button to select a preset number.
1 You can select between presets 1 and 15.
5. Press the TUNER MEMORY button again.
6. To preset another station, repeat steps 2 to 5.
1 To tune in to a preset station, press the
#,$ button on the remote control to select
a channel.
66
ENG
convenient function
SLEEP TIMER FUNCTION
You can set the time that the Home Cinema will shut itself off.
Press the SLEEP button.
1 SLEEP will be displayed. Each time the button is pressed, the
preset time in minutes changes as follows :
10 ➞ 20 ➞ 30 ➞ 60 ➞ 90 ➞ 120 ➞ 150 ➞ OFF.
To confirm the sleep timer setting, press the SLEEP button.
1 The remaining time before the Home Cinema will shut itself off is
displayed.
1 Pressing the button again changes the sleep time from what you
have set earlier.
To cancel the sleep timer, press the SLEEP button until OFF appears on the display.
ADJUSTING DISPLAY BRIGHTNESS
You can adjust the brightness of the display on the main unit so it won't
interfere with your movie viewing.
Press the DIMMER button.
1 Each time the button is pressed, the front display's brightness will
be adjusted.
MUTE FUNCTION
This is useful when answering a doorbell or telephone call.
Press the MUTE button.
1 MUTE appears in the display.
1 To restore the sound, press the MUTE button again.
P.BASS
The P.BASS function provides a bass boost to reinforce the low
frequencies.
1. Press the P.BASS button to select P.BASS mode.
2. Press the P.BASS button again to turn off the P.BASS
mode.
M
 The P.BASS function is only available with 2 channel LPCM sources such as mp3,Divx,cd
and wma. Press P.BASS button and "POWER BASS ON" will be displayed on the screen.
 The P.bass does not work with DSP/EQ or DOLBY PRO LOGIC ll modes.
If you press P.BASS in the DSP/EQ mode, the DSP/EQ mode is automatically shut off and
the P. BASS function comes on.
67
convenient function
CD RIPPING
Converts audio sound of the CD into a MP3 file format before sending to a USB storage device.
B
1. Connect the USB device.
2. Insert the audio CD into the CD tray.
3. Press the CD RIPPING button.
1 To start ripping the current track, press the CD
RIPPING button on the remote control while the
system is playing a track or stopped temporarily.
1 To rip the entire CD, press and hold the CD RIPPING
button on the remote control.
-"FULL CD RIPPING" appears on the display and ripping starts.
4. Press the STOP () button to stop ripping.
1 When the CD ripping is done, a directory named
"RIPPING" will be created in the USB device and the
ripped file will be saved in a format of "SAM-XXXX”.
mp3".
M
 Do not disconnect the USB connection or the power cable during the CD ripping.








68
Otherwise, it may cause damage to the data. To stop CD ripping, press the STOP button
and disconnect the USB device after the system stops playing the CD completely.
If you disconnect the USB connection during the CD ripping, the system will turn off and you will not
be able to delete the ripped file.
If you connect the USB device to the system while it is playing a CD, the system stops
playing and will resume playing when the USB connection initialization is completed.
(The initialization time may differ depending on the type of the USB device.)
DTS-CDs cannot be ripped.
If the ripping duration is less than 5 seconds, a ripping file may not be created.
CD ripping works only if the USB device or the HDD is formatted in the FAT file system.
(The NTFS file system is not supported.) For a list of compliant devices, refer to the
specification of the USB host.
Ripping is performed at a normal speed of x1. The ripping time may be longer with some
USB devices.
While the system is ripping a CD, the audio sound will not be output.
Do not put touch or move the system while it is ripping a CD.
ENG
troubleshooting
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed
below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest
authorized dealer or Samsung Customer Service Center.
SYMPTOM
Check/Remedy
● TROUBLESHOOTING
Disc tray does not open.
t*TUIFQPXFSDPSEQMVHHFETFDVSFMZJOUPUIFPVUMFU
t5VSOPGGUIFQPXFSBOEUIFOUVSOJUCBDLPO
In case of fail to connect iPod.
t$IFDLUIFDPOUBDUDPOEJUJPOPGUIFJ1PEDPOOFDUPSBOEUIF
Cradle of the Home theater again.
t,FFQUIFJ1PE48WFSTJPOVQUPEBUF
Playback does not start
immediately when the
Play/Pause button is pressed.
t"SFZPVVTJOHBEFGPSNFEEJTDPSBEJTDXJUITDSBUDIFTPO
UIFTVSGBDF
t8JQFUIFEJTDDMFBO
Sound is not produced.
t/PTPVOEJTIFBSEEVSJOHGBTUQMBZCBDLTMPXQMBZCBDLBOE
step motion playback.
t"SFUIFTQFBLFSTDPOOFDUFEQSPQFSMZ *TUIFTQFBLFSTFUVQ
DPSSFDUMZDVTUPNJ[FE
t*TUIFEJTDTFWFSFMZEBNBHFE
Sound can be heard only from a
few speakers and not all six.
t8IFOMJTUFOJOHUPB$%PSSBEJPTPVOEJTPVUQVUUPUIFGSPOU
speakers (L/R) only. Select "PRO LOGIC II" by pressing
PL II (Dolby Pro Logic II) on the remote control to use all
six speakers.
t.BLFTVSFUIBUUIF%7%EJTDJT$)DPNQBUJCMF
t*GZPVTFU$4-BOE43UP/0/&JOUIFTQFBLFSNPEFJOUIF
audio setup of the setup screen, no sound is heard from the
center speaker and the rear left and right speakers. Set C,
SL, and SR to SMALL.
Dolby Digital 5.1 CH Surround
Sound is not produced.
t*TUIFSF%PMCZ%JHJUBM$)NBSLPOUIFEJTD %PMCZ
Digital 5.1 CH Surround Sound is produced only if the disc is
recorded with 5.1 channel sound.
t*TUIFBVEJPMBOHVBHFDPSSFDUMZTFUUP%0-#:%*(*5"-
$)JOUIFJOGPSNBUJPOEJTQMBZ
The remote control does not
work.
t*TUIFSFNPUFDPOUSPMCFJOHPQFSBUFEXJUIJOJUTPQFSBUJPO
SBOHFPGBOHMFBOEEJTUBODF
t"SFUIFCBUUFSJFTFYIBVTUFE
t)BWFZPVTFMFDUFEUIFNPEF57%7%
GVODUJPOTPGUIF
SFNPUFDPOUSPM57PS%7%
DPSSFDUMZ
69
SYMPTOM
Check/Remedy
t%JTDJTSPUBUJOHCVUOP
picture is produced.
t1JDUVSFRVBMJUZJTQPPSBOE
picture is shaking.
t*TUIF57QPXFSPO
t"SFUIFWJEFPDBCMFTDPOOFDUFEQSPQFSMZ
t*TUIFEJTDEJSUZPSEBNBHFE
t"QPPSMZNBOVGBDUVSFEEJTDNBZOPUCFQMBZBCMF
Audio language and subtitles do
not work.
t"VEJPMBOHVBHFBOETVCUJUMFTXJMMOPUXPSLJGUIFEJTDEPFT
not contain them.
Menu screen does not appear
even when the menu function is
selected.
t"SFZPVVTJOHBEJTDUIBUEPFTOPUDPOUBJONFOVT
Aspect ratio cannot be changed.
t:PVDBOQMBZ%7%TJO8*%&NPEF-&55&3
BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be
seen in 4:3 ratio only. Refer to the DVD disc jacket and then
select the appropriate function.
t5IFNBJOVOJUJTOPUXPSLJOH
(Example: The power goes out
or the front panel key doesn't
work or a strange noise is
heard.)
t5IF%7%QMBZFSJTOPUXPSLJOH
normally.
t5VSOPGGUIFQPXFSBOEIPMEUIFSTOP ( ) button on the
remote control for longer than 5 seconds (reset function).
The rating level password has
been forgotten.
t8IJMFi/0%*4$wNFTTBHFBQQFBSTPOUIFEJTQMBZPGUIF
main unit, hold the remote control's STOP ( ) button for
longer than 5 seconds. “INITIAL” appears on the display and
all settings will return to the default values.
t1SFTTUIF108&3CVUUPO
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
Can't receive radio broadcast.
70
t*TUIFBOUFOOBDPOOFDUFEQSPQFSMZ
t*GUIFBOUFOOBhTJOQVUTJHOBMJTXFBLJOTUBMMBOFYUFSOBM'.
antenna in an area with good reception.
ENG
language code list
Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu”
(See page 54).
Code
Language
Code
Language
Code
Language
Code
Language
1027
Afar
1181
Frisian
1334
Latvian, Lettish
1506
Slovenian
1028
Abkhazian
1183
Irish
1345
Malagasy
1507
Samoan
1032
Afrikaans
1186
Scots Gaelic
1347
Maori
1508
Shona
1039
Amharic
1194
Galician
1349
Macedonian
1509
Somali
1044
Arabic
1196
Guarani
1350
Malayalam
1511
Albanian
1045
Assamese
1203
Gujarati
1352
Mongolian
1512
Serbian
1051
Aymara
1209
Hausa
1353
Moldavian
1513
Siswati
1052
Azerbaijani
1217
Hindi
1356
Marathi
1514
Sesotho
1053
Bashkir
1226
Croatian
1357
Malay
1515
Sundanese
1057
Byelorussian
1229
Hungarian
1358
Maltese
1516
Swedish
1059
Bulgarian
1233
Armenian
1363
Burmese
1517
Swahili
1060
Bihari
1235
Interlingua
1365
Nauru
1521
Tamil
1069
Bislama
1239
Interlingue
1369
Nepali
1525
Tegulu
1066
Bengali; Bangla
1245
Inupiak
1376
Dutch
1527
Tajik
1067
Tibetan
1248
Indonesian
1379
Norwegian
1528
Thai
1070
Breton
1253
Icelandic
1393
Occitan
1529
Tigrinya
1079
Catalan
1254
Italian
1403
(Afan) Oromo
1531
Turkmen
1093
Corsican
1257
Hebrew
1408
Oriya
1532
Tagalog
1097
Czech
1261
Japanese
1417
Punjabi
1534
Setswana
1103
Welsh
1269
Yiddish
1428
Polish
1535
Tonga
1105
Danish
1283
Javanese
1435
Pashto, Pushto
1538
Turkish
1109
German
1287
Georgian
1436
Portuguese
1539
Tsonga
1130
Bhutani
1297
Kazakh
1463
Quechua
1540
Tatar
1142
Greek
1298
Greenlandic
1481
Rhaeto-Romance
1543
Twi
1144
English
1299
Cambodian
1482
Kirundi
1557
Ukrainian
1145
Esperanto
1300
Kannada
1483
Romanian
1564
Urdu
1149
Spanish
1301
Korean
1489
Russian
1572
Uzbek
1150
Estonian
1305
Kashmiri
1491
Kinyarwanda
1581
Vietnamese
1151
Basque
1307
Kurdish
1495
Sanskrit
1587
Volapuk
1157
Persian
1311
Kirghiz
1498
Sindhi
1613
Wolof
1165
Finnish
1313
Latin
1501
Sangro
1632
Xhosa
1166
Fiji
1326
Lingala
1502
Serbo-Croatian
1665
Yoruba
1171
Faeroese
1327
Laothian
1503
Singhalese
1684
Chinese
1174
French
1332
Lithuanian
1505
Slovak
1697
Zulu
71
appendix
CAUTIONS ON HANDLING AND STORING DISCS
Small scratches on the disc may reduce sound and picture quality or cause skipping.
Be especially careful not to scratch discs when handling them.
Handling discs
Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not get on the surface.
Do not stick paper or tape on the disc.
Disc Storage
Do not keep in direct sunlight
M
Keep in a cool
ventilated area
Keep in a clean Protection jacket.
Store vertically.
 Do not allow the discs to become contaminated with dirt.
 Do not load cracked or scratched discs.
Handling and Storing Discs
When you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with
a soft cloth.
1 When cleaning, wipe gently from the inside to the outside of the disc
M
72
 Condensation may form if warm air comes into contact with cold parts inside the player.
When condensation forms inside the player, the player may not operate correctly. If this
occurs, remove the disc and let the player stand for 1 or 2 hours with the power on.
General
ENG
SPECIFICATIONS
AC 120V, 60Hz
Power Consumption
75 W
Weight
7.7 Ibs
Dimensions
16.9 (W) x 2.8 (H) x 11.1 (D) inches
Operating Temperature Range
+5°C~+35°C
Operating Humidity Range
10 % to 75 %
Reading Speed : 3.49 ~ 4.06 m/sec.
DVD (Digital Versatile Disc)
Disc
● APPENDIX
Power Requirements
Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
CD : 5 inch (COMPACT DISC)
Maximum Play Time : 74 min.
CD : 3 1/2 inch (COMPACT DISC)
Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 20 min.
480i
Composite Video
1 channel : 1.0 Vp-p (75 Ω load)
480i
Video Output
Y : 1.0 Vp-p (75 Ω load)
Component Video
Pr : 0.70 Vp-p (75 Ω load)
Pb : 0.70 Vp-p (75 Ω load)
Video/Audio
Amplifier
HDMI
1080p, 1080i, 720p, 480p
Front speaker output
166W x 2(3Ω)
Center speaker output
166W(3Ω)
Rear speaker output
166W x 2(3Ω)
Subwoofer speaker output
170W(3Ω)
Frequency range
20Hz~20KHz
S/N Ratio
70dB
Channel separation
60dB
Input sensitivity
(AUX)400mV
SWA-4100(HT-Z420/TZ422/TZ425 )
Power Requirements
Power Consumption
Weight
Dimensions (W x H x D)
Operating Temperature Range
Operating Humidity Range
Output
AC120V, 60Hz
50 W
2.9 lbs
Frequency range
3.0 x 10.1 x 6.9 inches
+41°F to +95°F
10% ~ 75%
166W x 2
20Hz~20KHz
S/N Ratio
75dB
73
appendix
SPECIFICATIONS
HT-Z320
Speaker system
Speaker
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
5.1ch speaker system
Front/Rear
3Ω
140Hz~20KHz
86dB/W/M
166W
332W
Center
3Ω
140Hz~20KHz
86dB/W/M
166W
332W
Dimensions (W x H x D)
Front/Rear : 3.9 x 5.9 x 3.5inches
Center : 11.8 x 2.3 x 1.9 inches
Subwoofer : 7.1 x 12.6 x 15.0 inches
Weights
Front : 1.1 Ibs, Center : 0.8 Ibs
Rear : 1.0 Ibs, Subwoofer : 9.9 Ibs
Subwoofer
3Ω
45Hz~160Hz
86dB/W/M
170 W
340 W
HT-TZ322
Speaker system
Speaker
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
5.1ch speaker system
Front/Rear
Center
Subwoofer
3Ω
3Ω
3Ω
140Hz~20KHz
140Hz~20KHz
45Hz~160Hz
86dB/W/M
86dB/W/M
86dB/W/M
166W
166W
170 W
332W
332W
340 W
Front : 9.4 x 40.2 x 9.4 inches (stand base : 9.4 x 9.4)
Rear : 3.9x 5.9 x 3.5 inches
Center : 11.8 x 2.3 x 2.0 inches
Subwoofer : 7.1 x 12.6 x 15.0 inches
Front : 4.1 Ibs, Center : 0.7 Ibs
Rear : 0.9 Ibs, Subwoofer : 9.9 Ibs
HT-TZ325
Speaker system
Speaker
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
74
5.1ch speaker system
Front/Rear
3Ω
140Hz~20KHz
86dB/W/M
166W
332W
Center
3Ω
140Hz~20KHz
86dB/W/M
166W
332W
Subwoofer
3Ω
45Hz~160Hz
86dB/W/M
170 W
340 W
Front/Rear : 9.4 x 40.2x 9.4 inches (stand base : 9.4 x 9.4)
Center : 11.8 x 2.3 x 2.0 inches Rear : 9.4 x 40.2x 9.4 inches
Subwoofer : 7.1 x 12.6 x 15.0 inches
Front : 4.1 Ibs, Center : 0.7 Ibs
Rear : 4.1 Ibs, Subwoofer : 9.9 Ibs
ENG
HT-Z420
Speaker system
Dimensions (W x H x D)
Weights
Front/Rear
Center
3Ω
3Ω
140Hz~20KHz
140Hz~20KHz
86dB/W/M
86dB/W/M
166W
166W
332W
332W
Front : 3.9 x 8.3 x 3.9 inches
Rear : 3.9 x 5.9 x 3.5 inches
Center : 11.8 x 2.3 x 1.9 inches
Subwoofer : 7.1 x 12.6 x 15.0 inches
Subwoofer
3Ω
45Hz~160Hz
86dB/W/M
170W
340W
● APPENDIX
Speaker
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
5.1ch speaker system
Front : 1.3 Ibs, Center : 2.0 Ibs
Rear : 1.1 Ibs, Subwoofer : 9.9 Ibs
HT-TZ422
Speaker system
Speaker
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
5.1ch speaker system
Front/Rear
Center
Subwoofer
3Ω
3Ω
3Ω
140Hz~20KHz
140Hz~20KHz
45Hz~160Hz
86dB/W/M
86dB/W/M
86dB/W/M
166W
166W
170W
332W
332W
340W
Front : 10.2 x 47.3 x 10.2 inches (stand base : 10.2 x 10.2)
Rear : 3.9 x 5.9 x 3.5 inches
Center : 11.8 x 2.3 x 1.9 inches
Subwoofer : 7.1 x 12.6 x 15.0 inches
Front : 6.4 Ibs, Center : 0.8 Ibs
Rear : 1.0 Ibs, Subwoofer : 9.9 Ibs
HT-TZ425
Speaker system
Speaker
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
5.1ch speaker system
Front/Rear
Center
Subwoofer
3Ω
3Ω
3Ω
140Hz~20KHz
140Hz~20KHz
45Hz~160Hz
86dB/W/M
86dB/W/M
86dB/W/M
166W
166W
170W
332W
332W
340W
Front /Rear: 10.2 x 47.3 x 10.2 inches (stand base : 10.2 x 10.2)
Center : 11.8 x 2.2 x 1.9 inches
Subwoofer : 7.1 x 12.6 x 15.0 inches
Front : 6.4 Ibs, Center : 0.8 Ibs
Rear : 5.3 Ibs, Subwoofer : 9.9 Ibs
*: Nominal specification
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
