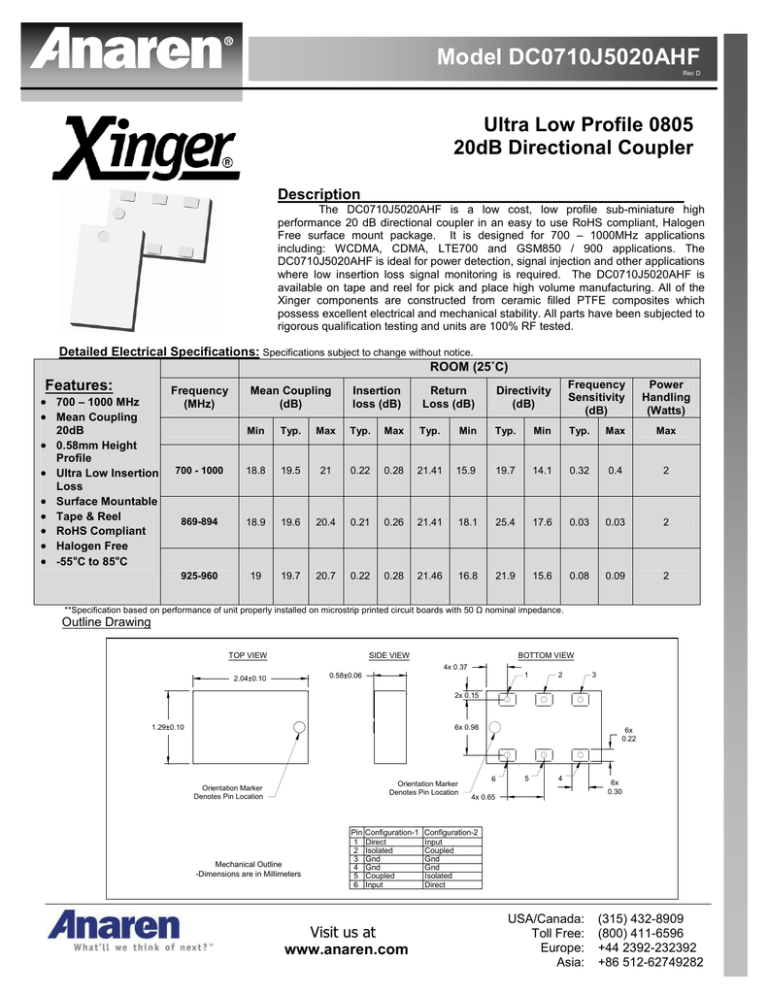

DC0710J5020AHF_Data Sheet_RevD
Model DC0710J5020AHF
Rev D
Ultra Low Profile 0805
20dB Directional Coupler
Description
The DC0710J5020AHF is a low cost, low profile sub-miniature high
performance 20 dB directional coupler in an easy to use RoHS compliant, Halogen
Free surface mount package. It is designed for 700 – 1000MHz applications
including: WCDMA, CDMA, LTE700 and GSM850 / 900 applications. The
DC0710J5020AHF is ideal for power detection, signal injection and other applications
where low insertion loss signal monitoring is required. The DC0710J5020AHF is
available on tape and reel for pick and place high volume manufacturing. All of the
Xinger components are constructed from ceramic filled PTFE composites which
possess excellent electrical and mechanical stability. All parts have been subjected to
rigorous qualification testing and units are 100% RF tested.
Detailed Electrical Specifications: Specifications subject to change without notice.
ROOM (25˚C)
Features:
Frequency
(MHz)
• 700 – 1000 MHz
• Mean Coupling
20dB
Mean Coupling
(dB)
Insertion
loss (dB)
Return
Loss (dB)
Directivity
(dB)
Frequency
Sensitivity
(dB)
Power
Handling
(Watts)
Min
Typ.
Max
Typ.
Max
Typ.
Min
Typ.
Min
Typ.
Max
Max
700 - 1000
18.8
19.5
21
0.22
0.28
21.41
15.9
19.7
14.1
0.32
0.4
2
869-894
18.9
19.6
20.4
0.21
0.26
21.41
18.1
25.4
17.6
0.03
0.03
2
925-960
19
19.7
20.7
0.22
0.28
21.46
16.8
21.9
15.6
0.08
0.09
2
• 0.58mm Height
Profile
• Ultra Low Insertion
•
•
•
•
•
Loss
Surface Mountable
Tape & Reel
RoHS Compliant
Halogen Free
-55°°C to 85°°C
**Specification based on performance of unit properly installed on microstrip printed circuit boards with 50 Ω nominal impedance.
Outline Drawing
TOP VIEW
SIDE VIEW
BOTTOM VIEW
4x 0.37
1
0.58±0.06
2.04±0.10
2
3
2x 0.15
1.29±0.10
6x 0.98
Orientation Marker
Denotes Pin Location
Orientation Marker
Denotes Pin Location
Mechanical Outline
-Dimensions are in Millimeters
Pin
1
2
3
4
5
6
Configuration-1
Direct
Isolated
Gnd
Gnd
Coupled
Input
Visit us at
www.anaren.com
6x
0.22
6
5
4
4x 0.65
6x
0.30
Configuration-2
Input
Coupled
Gnd
Gnd
Isolated
Direct
USA/Canada:
Toll Free:
Europe:
Asia:
(315) 432-8909
(800) 411-6596
+44 2392-232392
+86 512-62749282
Model DC0710J5020AHF
Rev D
Typical Performance: 700 MHz. to 1000 MHz (Configuration 1)
Coupling (dB) - Feeding thru input port (Port6)
Directivity (dB)- Feeding thru input port (Port6)
0
0
-5
-5
-10
-10
-15
-15
-20
-20
-25
-25
-30
-30
-35
0.65
-35
0.65
0.7
0.75
0.8
0.85
Freq [GHz]
0.9
0.95
1
0.7
0.75
0.8
1.05
0.85
Freq [GHz]
0.9
0.95
1
1.05
0.95
1
1.05
0.95
1
1.05
Return Loss at Input Port (dB)
Return Loss at Direct Port (dB)
0
0
-5
-5
-10
-10
-15
-15
-20
-20
-25
-25
-30
-30
-35
0.65
-35
0.65
0.7
0.75
0.8
0.85
Freq [GHz]
0.9
0.95
1
0.7
0.75
0.8
1.05
0.85
Freq [GHz]
0.9
Return Loss at Isolated Port (dB)
Return Loss at Coupled Port (dB)
0
0
-5
-5
-10
-10
-15
-15
-20
-20
-25
-25
-30
-30
-35
0.65
-35
0.65
0.7
0.75
0.8
0.85
Freq [GHz]
0.9
0.95
1
1.05
Visit us at
www.anaren.com
0.7
0.75
0.8
0.85
Freq [GHz]
USA/Canada:
Toll Free:
Europe:
Asia:
0.9
(315) 432-8909
(800) 411-6596
+44 2392-232392
+86 512-62749282
Model DC0710J5020AHF
Rev D
Insertion Loss (dB)- Feeding thru input port (Port6)
Transmission Loss (dB)- Feeding thru input port (Port6)
0
0
-0.1
-0.1
-0.2
-0.2
-0.3
-0.3
-0.4
-0.4
-0.5
-0.5
-0.6
-0.6
-0.7
-0.7
-0.8
-0.8
-0.9
-0.9
-1
0.65
0.7
0.75
0.8
0.85
Freq [GHz]
0.9
0.95
1
1.05
-1
0.65
0.7
0.75
0.8
0.85
Freq [GHz]
0.9
0.95
1
1.05
Wideband Performance: 0 to 8500MHz (Configuration 1)
Coupling (dB) - Feeding thru input port (Port6)
Directivity (dB)- Feeding thru input port (Port6)
0
0
-5
-5
-10
-10
-15
-15
-20
-20
-25
-25
-30
-30
-35
-35
-40
-40
-45
-45
1
2
3
4
5
Freq [GHz]
6
7
8
1
2
3
4
5
Freq [GHz]
6
7
8
7
8
Return Loss at Input Port (dB)
Return Loss at Direct Port (dB)
0
0
-5
-5
-10
-10
-15
-15
-20
-20
-25
-25
-30
-30
-35
-35
-40
-40
-45
-45
1
2
3
4
5
Freq [GHz]
6
7
8
Visit us at
www.anaren.com
1
2
3
4
5
Freq [GHz]
USA/Canada:
Toll Free:
Europe:
Asia:
6
(315) 432-8909
(800) 411-6596
+44 2392-232392
+86 512-62749282
Model DC0710J5020AHF
Rev D
Return Loss at Isolated Port (dB)
Return Loss at Coupled Port (dB)
0
0
-5
-5
-10
-10
-15
-15
-20
-20
-25
-25
-30
-30
-35
-35
-40
-40
-45
-45
1
2
3
4
5
Freq [GHz]
6
7
8
1
2
3
4
5
Freq [GHz]
6
7
8
Insertion Loss (dB)- Feeding thru input port (Port6)
Transmission Loss (dB)- Feeding thru input port (Port6)
0
0
-0.5
-0.5
-1
-1
-1.5
-1.5
-2
-2
-2.5
-2.5
-3
-3
-3.5
-3.5
-4
-4
-4.5
-4.5
-5
-5
1
2
3
4
5
Freq [GHz]
6
7
8
Visit us at
www.anaren.com
1
2
3
4
5
Freq [GHz]
USA/Canada:
Toll Free:
Europe:
Asia:
6
7
8
(315) 432-8909
(800) 411-6596
+44 2392-232392
+86 512-62749282
Model DC0710J5020AHF
Rev D
Definition of Measured Specifications
Parameter
Definition
Return Loss
The impedance match of
the coupler to a 50Ω
system. Return Loss is an
alternate
means
to
express VSWR.
Mean Coupling
At a given frequency (ωn),
coupling is the input power
divided by the power at
the coupled port. Mean
coupling is the average
value of the coupling
values in the band. N is
the number of frequencies
in the band.
Insertion Loss
Transmission
Loss
Directivity
Frequency
Sensitivity
The input power divided
by the sum of the power at
the two output ports.
The input power divided
by the power at the direct
port.
The power at the coupled
port divided by the power
at the isolated port.
The decibel difference
between the maximum in
band coupling value and
the minimum in band
coupling value.
Mathematical
Representation
for Pin Configuration 1
Mathematical
Representation
for Pin Configuration 2
Return Loss (dB)=
Return Loss (dB)=
20 log10 ( Sii ) i = 1, 2, 3, 4
20 log10 ( Sii ) i = 1, 2, 3, 4
Coupling (dB) =
Coupling (dB) =
C = 20 log10 S34
C = 20 log10 S 21
Mean Coupling (dB) =
Mean Coupling (dB) =
N
N
∑ C (ω
n
∑ C (ω
)
n =1
n
)
n =1
N
N
2
2
2
2
10 log10 ( S14 + S34 )
10 log10 ( S 41 + S 21 )
20 log10 ( S14 )
20 log10 ( S 41 )
20 log10 (
S 24
)
S34
(Max Coupling (dB) – Min
Coupling (dB))/2
20 log10 (
S31
)
S 21
(Max Coupling (dB) – Min
Coupling (dB))/2
*100% RF test is performed on configuration 1 where port 1 is connected to pin1, port 2 is connected to pin 2, port 3 is connected to pin 5 and port 4 is
connected to pin 6.
Visit us at
www.anaren.com
USA/Canada:
Toll Free:
Europe:
Asia:
(315) 432-8909
(800) 411-6596
+44 2392-232392
+86 512-62749282
Model DC0710J5020AHF
Rev D
Mounting Configuration:
In order for Xinger surface mount components to work optimally, the proper impedance transmission lines must be
used to connect to the RF ports. If this condition is not satisfied, insertion loss, Isolation and VSWR may not meet
published specifications.
All of the Xinger components are constructed from organic PTFE based composites which possess excellent
electrical and mechanical stability. Xinger components are compliant to a variety of ROHS and Green standards and
ready for Pb-free soldering processes. Pads are Gold plated with a Nickel barrier.
An example of the PCB footprint used in the testing of these parts is shown below. In specific designs, the
transmission line widths need to be adjusted to the unique dielectric coefficients and thicknesses as well as varying
pick and place equipment tolerances.
.41
.25
Plated thru
holes to
ground
.33
.66
.04
Plated thru
holes to
ground
4x Transmission
lines
Circuit Pattern
Footprint Pad (s)
Solder Resist
Dimensions are in Millimeters
Mounting Footprint
Visit us at
www.anaren.com
USA/Canada:
Toll Free:
Europe:
Asia:
(315) 432-8909
(800) 411-6596
+44 2392-232392
+86 512-62749282
Model DC0710J5020AHF
Rev D
Packaging and Ordering Information
Parts are available in reel and are packaged per EIA 481-2. Parts are oriented in tape and reel as shown below.
Minimum order quantities are 4000 per reel. See Model Numbers below for further ordering information.
2.00
.81
4.00
1.75
3.50
8.00
1.60
4.00
2.41
.25
Visit us at
www.anaren.com
USA/Canada:
Toll Free:
Europe:
Asia:
(315) 432-8909
(800) 411-6596
+44 2392-232392
+86 512-62749282
