MAX 10 FPGA Design Guidelines

M10-GUIDELINES

This application note provides a set of checklists that consist of design guidelines, recommendations, and factors to consider when you create designs using the

MAX

®

10 FPGAs.

Use this document to help you plan the FPGA and system early in the design process, which is crucial for a successful design.

Follow Altera’s recommendations throughout the design process to achieve good results, avoid common issues, and improve your design productivity.

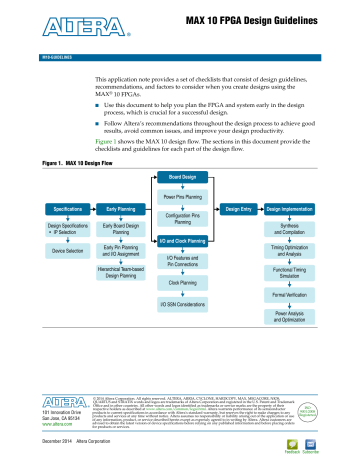

Figure 1

shows the MAX 10 design flow. The sections in this document provide the checklists and guidelines for each part of the design flow.

Figure 1. MAX 10 Design Flow

Board Design

Specifications Early Planning

Design Specifications

• IP Selection

Device Selection

Early Board Design

Planning

Early Pin Planning and I/O Assignment

Hierarchical Team-based

Design Planning

Power Pins Planning

Configuration Pins

Planning

I/O and Clock Planning

I/O Features and

Pin Connections

Clock Planning

I/O SSN Considerations

Design Entry Design Implementation

Synthesis and Compilation

Timing Optimization and Analysis

Functional Timing

Simulation

Formal Verification

Power Analysis and Optimization

101 Innovation Drive

San Jose, CA 95134 www.altera.com

© 2014 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS,

QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark

Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

December 2014 Altera Corporation

Feedback Subscribe

Page 2 Before You Begin

Before You Begin

Before you begin planning and designing your FPGA system, familiarize yourself with the FPGA device features, and the design tools and IP that are available for the

MAX 10 device family.

Table 1. Prerequisites Checklist

No.

v

Checklist items

1.

Read through the Device Overview of the FPGA

The Device Overview provides an overview of the capabilities and options available for a device family. Read through the document to familiarize yourself with the device family offerings and general features.

For an overview of each FPGA device family, refer to the

MAX 10 FPGA Device Overview

.

2.

3.

4.

Estimate design requirements

Create a rough estimate of the design in the following terms:

Basic functions of the product

Similar previous designs

General device requirements

Review available design tools

Consider the available design, estimators, system builders, and verification tools. The following items are some of the available tools provided by Altera:

Quartus

®

II software for design, synthesis, simulation, and programming; including integration with Qsys, simulation tools, and verification tools.

Qsys system integration tool—next generation SOPC Builder that automatically generates interconnect logic to connect intellectual property (IP) functions and subsystems.

Mentor Graphics

®

ModelSim

®

-Altera

®

simulation software.

TimeQuest Timing Analyzer for static timing analysis with support for Synopsys

®

Design Constraints (SDC) format.

PowerPlay Power Analyzer for power analysis and optimization.

SignalProbe and SignalTap II Logic Analyzer debugging tools.

External Memory Interface Toolkit available in the Quartus II software.

For more information, visit the following pages on the Altera website:

Design Tools & Services

Design Software Support

For a guideline to migrate from SOPC Builder to Qsys, refer to

AN 632: SOPC Builder to

Qsys Migration Guidelines

.

Review available IP

Altera and its third-party IP partners offer a large selection of parameterized blocks of IP cores optimized for Altera devices that you can implement to reduce your implementation and verification time.

Based on your estimated requirements, refer to the All Intellectual Property page on

Altera’s website to check if there are available IP that can provide the functions that you need.

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

Design Specifications Page 3

Design Specifications

Typically, the FPGA is an important part of the overall system and affects the rest of the system design. Use the following checklist to start your design process.

Table 2. Design Specifications Checklist

No.

v

Checklist items

1.

Create detailed design specifications

Before you create your logic design or complete your system design, perform the following:

Specify the I/O interfaces for the FPGA

Identify the different clock domains

Include a block diagram of basic design functions

Consider a common design directory structure—if your design includes multiple designers, a common design directory structure eases the design integration stages.

When performing any UFM write or erase operation, make sure you provide stable power connection. Loss of power supply during a write or erase operation can cause damage to the device.

2.

3.

4.

5.

Create detailed functional verification or test plan

A functional verification plan ensures the team knows how to verify the system. Creating a test plan at an early stage helps you design for testability and manufacturability.

For example, if you plan to perform built-in-self test (BIST) functions to drive interfaces, you can plan to use a UART interface with a Nios

®

II processor inside the FPGA device.

For more information, refer to

“Review available on-chip debugging tools” on page 7

.

Select IP that affects system design, especially I/O interfaces

Include intellectual property (IP) blocks in your detailed design specifications. Taking the time to create these specifications improves design efficiency.

For a list of available IP offered by Altera and third-party IP partners, refer to the All

Intellectual Property page on Altera’s website.

Ensure your board design supports the OpenCore Plus tethered mode

You can program your FPGA and verify your design in hardware before you purchase an

IP license by using the OpenCore Plus feature available for many IP cores. OpenCore

Plus supports the following modes:

Untethered—your design runs for a limited time.

Tethered—your design runs for the duration of the hardware evaluation period. This mode requires an Altera download cable connected to the JTAG port on your board and a host computer that runs the Quartus II Programmer. If you plan to use this mode, ensure that your board design supports this mode.

Review available system development tools

For more information, visit the following pages on the Altera website:

Design Tools & Services

Design Software Support

December 2014 Altera Corporation MAX 10 FPGA Design Guidelines

Page 4 Device Selection

Device Selection

Use the following checklist to determine the device variant, density, and package combination that is suitable for your design.

Table 3. Device Selection Checklist (Part 1 of 3)

No.

v

Checklist items

1.

Consider the available device variants

The MAX 10 device family consist of several device variants that are optimized for different application requirements.

Select a device based on I/O pin count, LVDS channels, package offering, logic/memory/multiplier density, single/dual supply device options, PLLs, clock routing, and speed grade.

Consider the following feature options:

Compact

Flash

Analog-to-digital converter (ADC)

For more information, refer to the

MAX 10 FPGA Device Overview

.

2.

3.

Estimate the required logic, memory, and multiplier density

MAX 10 devices offer a range of densities that provide different amounts of device logic resources. Determining the required logic density can be a challenging part of the design planning process. Devices with more logic resources can implement larger and potentially more complex designs but generally have a higher cost. Smaller devices have lower static power utilization.

For more information, refer to the

MAX 10 Embedded Multipliers User Guide

.

Consider vertical device migration availability and requirements

Determine whether you want the flexibility of migrating your design to another device density. Choose your device density and package to accommodate any possible future device migration to allow flexibility when the design nears completion.

To verify the pin migration compatibility, use the

Pin Migration View

window in the

Quartus II software Pin Planner. The

Pin Migration View

window helps you identify the difference in pins that can exist between migration devices:

If one device has pins for connection to V

CC

or GND but are I/O pins on a different device, the Quartus II software ensures these pins are not used for I/O. For migration, ensure that these pins are connected to the correct PCB plane.

If you are migrating between two devices in the same package, connect the pins that are not connected to the smaller die to V

CC

or GND on the larger die in your original design.

For more information about verifying the pin migration compatibility, refer to the

Managing Device I/O Pins” chapter of the

Quartus II Handbook

.

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

Device Selection Page 5

Table 3. Device Selection Checklist (Part 2 of 3)

No.

v

Checklist items

4.

Review resource utilization reports of similar designs

If you have other designs that target an Altera device, you can use their resource utilization as an estimate for your new design. Coding style, device architecture, and optimization options used in the Quartus II software can significantly affect resource utilization and timing performance of a design.

To estimate resource utilization for certain configurations of Altera’s IP designs, refer to the respective MAX 10 user guides.

5.

6.

Reserve device resources for future development and debugging

Select a device that meets your design requirements with some safety margin in case you want to add more logic later in the design cycle, upgrade, or expand your design.

You may also want additional space in the device to ease design floorplan creation for an incremental or team-based design.

Consider reserving resources for debugging, as described in

“Consider the guidelines to plan for debugging tools” on page 8 .

Estimate the number of I/O pins that you require

Determine the required number of I/O pins for your application, considering the design’s interface requirements with other system blocks. You can compile any existing designs in the Quartus II software to determine how many I/O pins are used.

Other factors can also affect the number of I/O pins required for a design, including simultaneous switching noise (SSN) concerns, pin placement guidelines, pins used as dedicated inputs, I/O standard availability for each I/O bank, differences between I/O standards and speed for row and column I/O banks, and package migration options.

For more details about choosing pin locations, refer to relevant topics under

“Board

Design” on page 6

and

“I/O and Clock Planning” on page 16 .

7.

8.

9.

Consider the I/O pins you need to reserve for debugging

Consider reserving I/O pins for debugging, as described in

“Consider the guidelines to plan for debugging tools” on page 8 .

Verify that the number of LVDS channels are enough

Larger densities and package pin counts offer more full-duplex LVDS channels for differential signaling. Ensure that your device density-package combination includes enough LVDS channels.

Verify the number of PLLs and clock routing resources

Verify that your chosen device density package combination includes enough PLLs and clock routing resources for your design. GCLK resources are shared between certain

PLLs, which can affect the inputs that are available for use.

For more details and references regarding clock pins and global routing resources, refer to

“I/O and Clock Planning” on page 16

.

December 2014 Altera Corporation MAX 10 FPGA Design Guidelines

Page 6 Board Design

Table 3. Device Selection Checklist (Part 3 of 3)

No.

v

Checklist items

10.

11.

Determine the device speed grade that you require

The device speed grade affects the device timing performance and timing closure, as well as power utilization. One way to determine which speed grade your design requires is to consider the supported clock rates for specific I/O interfaces.

For information about supported clock rates for memory interfaces using I/O pins on different sides of the device in different device speed grades, use the estimator tool on the External Memory Interface Spec Estimator page.

You can use the fastest speed grade while prototyping to reduce compilation time because less time is spent optimizing the design to meet timing requirements. If the design meets the timing requirements, you can then move to a slower speed grade for production to reduce cost.

When migrating to a device of different speed grade, check the timing report from the timing analysis to ensure that there is no timing violation between different blocks within the MAX 10 device, between MAX 10 devices and other devices on the board.

Always design with a sufficient timing margin so that your design can work on devices of different speed grades.

For information about the available speed grades, refer to the

MAX 10 FPGA Device

Datasheet

.

Determine the number of images supported for the device

Select a device that support dual configuration images, two FPGA bitstreams, if dual configuration feature is needed in your design. All MAX 10 devices support the dual configuration feature, except 10M02 device.

Board Design

Use the checklists in this section as guidelines to design your board.

Early Board Design

Early planning allows the FPGA team to provide early information to PCB board and system designers.

Table 4. Early Board Design Planning Checklist (Part 1 of 4)

No.

v

Checklist items

1.

Select a configuration scheme

For information about the internal configuration scheme, and the necessary and optional pin settings, refer to the

MAX 10 FPGA Configuration User Guide

.

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

Board Design Page 7

Table 4. Early Board Design Planning Checklist (Part 2 of 4)

No.

v

Checklist items

2.

Ensure board support the required features:

Data decompression—if you enable data compression, the storage requirement and the programming time (writing to flash) are reduced. The configuration time (writing to CRAM) is increased.

Design security—this feature utilizes a 128-bit security key to protect the designs from unauthorized copying, reverse engineering, and tampering. The devices can decrypt configuration bitstreams using the AES algorithm. Design security is not available for the JTAG configuration scheme.

Dual configuration—this feature is supported only in self-download mode.

SEU mitigation—dedicated circuitry in the devices perform cyclic redundancy check

(CRC) error detection and check for SEU errors automatically. To detect SEU errors, use the

CRC_ERROR

pin to flag errors and design your system to take appropriate action. If you do not enable the CRC error detection feature, you can also use the

CRC_ERROR

pin as a design I/O pin.

For more information, refer to the

MAX 10 FPGA Configuration User Guide

.

3.

4.

5.

Plan for the

Auto-restart after configuration error

option

To reset the device internally by driving the nSTATUS

pin low when a configuration error occurs, enable the

Auto-restart after configuration error

option. The device releases its nSTATUS

pin after the reset time-out period. This behavior allows you to re-initiate the configuration cycle. The nSTATUS

pin requires an external 10-k

Ω

pull-up resistor to

V

CCIO

.

Estimating configuration file size

To estimate the configuration file size, convert your configuration file in uncompressed

Raw Binary File (

.rbf

). The

.rbf

file size provides the approximate uncompressed configuration file sizes.

Use uncompressed

.rbf

size only to estimate the file size before design compilation.

Different configuration file formats, such as Hexadecimal (Intel-Format) File (

.hex

) or

Tabular Text File (

.ttf

) format, have different file sizes.

For more information on the uncompressed

.rbf

sizes for MAX 10 devices, refer to the

MAX 10 FPGA Configuration User Guide

.

Review available on-chip debugging tools

Take advantage of on-chip debugging features to analyze internal signals and perform advanced debugging techniques.

Different debugging tools work better for different systems and different designers.

Early planning can reduce the time spent debugging, and eliminates design changes later to accommodate your preferred debugging methodologies. Adding debug pins may not be enough, because of internal signal and I/O pin accessibility on the device.

For more information about in-system debugging tools in the Quartus II software, refer to the following documents:

System Debugging Tools Overview

in the

Quartus II Handbook

Virtual JTAG (sld_virtual_jtag) Megafunction User Guide

December 2014 Altera Corporation MAX 10 FPGA Design Guidelines

Page 8 Board Design

Table 4. Early Board Design Planning Checklist (Part 3 of 4)

No.

v

Checklist items

6.

Consider the guidelines to plan for debugging tools

Select on-chip debugging schemes early to plan memory and logic requirements, I/O pin connections, and board connections.

If you want to use SignalProbe incremental routing, the SignalTap II Embedded Logic

Analyzer, Logic Analyzer Interface, In-System Memory Content Editor, In-System

Sources and Probes, or Virtual JTAG IP core, plan your system and board with JTAG connections that are available for debugging.

Plan for the small amount of additional logic resources used to implement the JTAG hub logic for JTAG debugging features.

For debugging with the SignalTap II Embedded Logic Analyzer, reserve device memory resources to capture data during system operation.

Reserve I/O pins for debugging with SignalProbe or the Logic Analyzer Interface so that you do not have to change the design or board to accommodate debugging signals later.

Ensure the board supports a debugging mode where debugging signals do not affect system operation.

Incorporate a pin header or micro connector as required for an external logic analyzer or mixed signal oscilloscope.

To use debug tools incrementally and reduce compilation time, ensure incremental compilation is on so you do not have to recompile the design to modify the debug tool.

To use the Virtual JTAG IP core for custom debugging applications, instantiate it in the HDL code as part of the design process.

To use the In-System Sources and Probes feature, instantiate the IP core in the HDL code.

To use the In-System Memory Content Editor for RAM or ROM blocks or the

LPM_CONSTANT IP core, turn on the

Allow In-System Memory Content Editor

option to capture and update content independently of the system clock option for the memory block in the parameter editor.

For more information about the debugging tools and debugging methods, refer to the following documents:

Quick Design Debugging Using SignalProbe

chapter in the

Quartus II Handbook

Design Debugging Using the SignalTap II Logic Analyzer

chapter in the

Quartus II

Handbook

In-System Debugging Using External Logic Analyzers

chapter in the

Quartus II

Handbook

In-System Modification of Memory and Constants

chapter in the

Quartus II

Handbook

Design Debugging Using In-System Sources and Probes

chapter in the

Quartus II

Handbook

Virtual JTAG (sld_virtual_jtag) Megafunction User Guide

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

Board Design Page 9

Table 4. Early Board Design Planning Checklist (Part 4 of 4)

No.

v

Checklist items

7.

Use the PowerPlay Early Power Estimator (EPE) to estimate power supplies and cooling solution

FPGA power consumption depends on logic design and is challenging to estimate during early board specification and layout. However, it is an important design consideration and must be estimated accurately to develop an appropriate power budget to design the power supplies, voltage regulators, decoupling capacitors, heat sink, and cooling system.

Use the Altera PowerPlay EPE spreadsheet to estimate power, current, and device junction temperature before you have a complete design. The EPE calculates the estimated information based on device information, planned device resources, operating frequency, toggle rates, ambient temperature, heat sinks information, air flow, board thermal model, and other environmental considerations.

If you have an existing or partially-completed and compiled design—use the

Generate PowerPlay Early Power Estimator File

command in the Quartus II software to provide input to the EPE spreadsheet.

If you do not have an existing design—estimate manually the number of device resources used in your design and input into the EPE spreadsheet. If the device resources information changes during or after the design phase, your power estimation results will be less accurate.

For more information about the EPE user guide and to download the device-specific

PowerPlay EPE spreadsheet, refer to the PowerPlay Early Power Estimators (EPE) and

Power Analyzer page on the Altera website.

For guidelines about proper power supply design, refer to

“Use power distribution network (PDN) tool to plan for power distribution and decoupling capacitor selection” on page 11

.

Power Pin Connections

The MAX 10 devices require various voltage supplies depending on your design requirements. Use the following checklist to design the board for the FPGA power pin connections.

December 2014 Altera Corporation MAX 10 FPGA Design Guidelines

Page 10 Board Design

Table 5. Power Pin Connections Checklist (Part 1 of 2)

No.

v

Checklist items

1.

2.

Design the board for power-up

The MAX 10 devices support hot socketing (hot plug-in/hot swap) and power sequencing without the use of external devices. Consider the following guidelines:

During power-up, the output buffers are tri-stated and the internal weak pull-up resistors are disabled by default. You can enable the internal weak pull-up resistors through the Quartus II software.

■ with weak pull-up resistors enabled until the device is configured and configuration pins drive out.

Design the voltage power supply ramps to be monotonic—ensure that the minimum current requirement for the power-on-reset (POR) supplies is available during device power up. The following are the POR monitored power supplies:

V

CC

or V

CC_ONE

(after regulated down)

V

CCIO

of bank 1B and bank 8

V

CCA

Set the POR delay in the Quartus II software to ensure power supplies are stable. You can extend the POR delay by using an external component to assert the nSTATUS

pin low. To ensure the device configures properly and enters user mode, extend the POR delay if the board cannot meet the maximum power ramp time specifications.

Design power sequencing and voltage regulators for the best device reliability— although power sequencing is not required for correct operation, consider the power-up timing of each rail to prevent problems with long-term device reliability if you are designing a multi-rail powered system.

Take advantage of the power up sequence for instant-on feature. With instant-on, the device can directly enter user mode with the shortest time after power supplies reach the required level. During power up, the control block reads the POR delay value and instant-on setting bits. If the instant-on is set, the device directly enters the initialization phase. If the instant-on feature is not selected, the POR delay value delays the POR signal. Clear the DSM if you want to change the setting.

Connect the GND between boards before connecting the power supplies—Altera uses

GND as a reference for hot-socketing operations and I/O buffer designs. Connecting the GND between boards before connecting the power supplies prevents the GND on your board from being pulled up inadvertently by a path to power through other components on your board. A pulled up GND could otherwise cause an out-of-specification I/O voltage or current condition with the device.

For more information, refer to the following documents:

MAX 10 Power Management User Guide

MAX 10 FPGA Device Family Pin Connection Guidelines

MAX 10 FPGA Configuration User Guide

Review the list of required supply voltages and the power supply options

MAX 10 devices offer single and dual supply device options.

For a list of the required supply voltages and the recommended operating conditions, refer to the

MAX 10 FPGA Device Datasheet

.

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

Board Design Page 11

Table 5. Power Pin Connections Checklist (Part 2 of 2)

No.

v

Checklist items

3.

Ensure I/O power pin compatibility with I/O standards

The output pins of the devices will not conform to the I/O standard specifications if the

V

CCIO

level is out of the recommended operating range of the I/O standard.

For a complete list of the supported I/O standards and V

CCIO

voltages, refer to the

MAX 10 General Purpose I/O User Guide

.

4.

5.

6.

7.

Ensure correct power pin connections

Connect all power pins correctly as specified in the

MAX 10 FPGA Device Family Pin

Connection Guidelines

.

Connect V

CCIO

pins and V

REF

pins to support the I/O standards of each bank.

For unused supplies, consider whether there is a need to ground, open, or retain the power connection.

Determine power rail sharing

Explore unique requirements for FPGA power pins or other power pins on your board, and determine which devices on your board can share a power rail. It is especially important for you to consider the power supply sharing ability of devices from different device families.

Follow the suggested power supply sharing and isolation guidance, and the specific guidelines for each pin in the following documents:

MAX 10 FPGA Device Family Pin Connection Guidelines

AN 583: Designing Power Isolation Filters with Ferrite Beads for Altera FPGAs

Use

power distribution network (

PDN) tool to plan for power distribution and decoupling capacitor selection

MAX 10 devices include on-die decoupling capacitors to provide high-frequency decoupling.

To plan power distribution and return currents from the voltage regulating module to the

FPGA power supplies, you can use the PDN design tool that optimizes the board-level

PDN graphically. Although you can use SPICE simulation to simulate the circuit, the PDN design tool provides a fast, accurate, and interactive way to determine the right number of decoupling capacitors for optimal cost and performance trade-off.

Download the appropriate PDN tool and documentation from the Altera website:

Power Delivery Network (PDN) Tool

AN 574: Printed Circuit Board (PCB) Power Delivery Network (PDN) Design

Methodology

Device-Specific Power Delivery Network (PDN) Tool User Guide

Power Delivery Network (PDN) Tool User Guide

(device diagnostic)

Review the following guidelines for PLL board design

Connect all PLL power pins to power supplies to reduce noise even if the design does not use all the PLLs. For pin voltage requirements, refer to the

MAX 10 FPGA Device

Family Pin Connection Guidelines

.

Power supply nets should be provided by an isolated power plane, a power plane cut out, or a thick trace.

December 2014 Altera Corporation MAX 10 FPGA Design Guidelines

Page 12 Board Design

Configuration Pin Connections

Depending on your configuration scheme, different pull-up or pull-down resistor, signal integrity, and specific pin requirements apply. Connecting the configuration pins correctly is important. Use the following checklist to address common issues.

Table 6. Configuration Pin Connections Checklist (Part 1 of 2)

No.

v

Checklist items

1.

Verify configuration pin connections and pull-up or pull-down resistors are correct for your configuration schemes

For specifics about each configuration pin, refer to the

MAX 10 FPGA Device Family Pin

Connection Guidelines

.

2.

3.

4.

5.

Design configuration

TCK

pin using the same technique as in designing high-speed signal or system clock

Noise on the

TCK

signal can affect JTAG configuration.

For a chain of devices, noise on the

TCK

pin in the chain can cause JTAG programming or configuration to fail for the entire chain.

For a chain of devices, ensure all devices in the JTAG chain are powered on during

JTAG programming or configuration.

Verify the JTAG pins are connected to a stable voltage level if not in use

JTAG configuration takes precedence over all configuration methods. If you do not use the JTAG interface, do not leave the JTAG pins floating or toggling during configuration.

To disable the JTAG circuitry, connect

TCK

pin to GND through a 1-k

Ω

resistor. Connect

TMS

and

TDI

pins to V

CCIO

through a 1-k

Ω

resistor. Leave

TDO

unconnected.

Verify the JTAG pin connections to the download cable header

A device operating in JTAG mode uses the required

TDI

,

TDO

,

TMS

, and

TCK

pins. The

TCK

pin does not support internal weak pull-down. Connect the

TCK

pin to an external 1k

Ω

to 10-k

Ω

pull-down resistor. The

TDI

and

TMS

pins have weak internal pull-up resistors. The JTAG output pin (

TDO

) and all JTAG input pins are powered by V

CCIO

. The voltage range is 1.5 V to 3.3 V.

The download cable must be powered at 2.5 V when V

CCIO

of the JTAG pins are powered at 2.5 V to 3.3 V to prevent voltage overshoot because JTAG pins do not have internal

PCI clamping diodes. The

TCK

pin must be pulled to ground. If the V

CCIO

of the JTAG pins are powered at 1.5 V or 1.8 V, the download cable should be powered by the same V

CCIO

.

Review the following JTAG pin connections guidelines:

If you have multiple devices in the chain, connect the

TDO

pin of a device to the

TDI pin of the next device in the chain.

Noise on the JTAG pins during configuration, user mode, or power-up can cause the device to go into an undefined state or mode.

To disable the JTAG state machine during power-up, pull the

TCK

pin low through a

1-k

Ω

resistor to ensure that an unexpected rising edge does not occur on

TCK

.

Pull

TMS

and

TDI

high through a 1-k

Ω

to 10-k

Ω

resistor.

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

Board Design Page 13

Table 6. Configuration Pin Connections Checklist (Part 2 of 2)

No.

v

Checklist items

6.

Ensure the download cable and JTAG pin voltages are compatible

The download cable interfaces with the JTAG pins of your device. The operating voltage supplied to the Altera download cable by the target board through the 10-pin header determines the operating voltage level of the download cable. The JTAG pins are powered by V

CCIO

.

In a JTAG chain containing devices with different V

CCIO

levels, the devices with a higher

V

CCIO

level should drive the devices with the same or lower V

CCIO

level. A one-level shifter is required at the end of the chain with this device arrangement. If this arrangement is not possible, you have to add more level shifters into the chain.

For recommendations about connecting a JTAG chain with multiple voltages across the devices in the chain, refer to the

MAX 10 JTAG Boundary-Scan Testing User Guide

.

7.

8.

9.

Buffer the JTAG signal according to the following guidelines:

If a cable drives three or more devices, buffer the JTAG signal at the cable connector to prevent signal deterioration.

Anything added to the board that affects the inductance or capacitance of the JTAG signals increases the likelihood that a buffer should be added to the chain.

Each buffer should drive no more than eight loads for the

TCK

and

TMS

signals, which drive in parallel. If jumpers or switches are added to the path, decrease the number of loads.

For more information about JTAG pin sharing, refer to the

MAX 10 JTAG Boundary-Scan

Testing User Guide

.

Ensure all devices in the chain are connected properly

If your device is in a configuration chain, ensure all devices in the chain are connected properly and powered on.

Determine if you need to turn on device-wide output enable

The MAX 10 device supports an optional chip-wide output enable that allows you to override all tri-states on the device I/Os. When the

DEV_OE

pin is driven low, all I/O pins are tri-stated; when this pin is driven high, all pins behave as programmed.

To use the chip-wide output enable feature:

Turn on

Enable device-wide output enable (DEV_OE)

under the

General

category of the

Device and Pin Options

dialog box in the Quartus II software before compiling your design

Ensure that the

DEV_OE

pin is driven to a valid logic level on your board

Do not leave the

DEV_OE

pin floating

December 2014 Altera Corporation MAX 10 FPGA Design Guidelines

Page 14 Board Design

General I/O Pin Connections

Use the following checklist to plan your general I/O pin connections and to improve signal integrity.

Table 7. General I/O Pin Connections Checklist (Part 1 of 3)

No.

v

Checklist items

1.

2.

Specify the state of unused I/O pins according to the following guidelines:

To reduce power dissipation, set clock pins and other unused I/O pins

As inputs tri-stated

. By default, the Quartus II software set the input pins tri-stated with weak pull-up resistor enabled.

To improve signal integrity, in the

Reserve all unused pins

option under the

Unused

Pins

category of the

Device and Pin Options

dialog box of the Quartus II software, set the unused pins

As output driving ground

. This setting reduces inductance by creating a shorter return path and reduces noise on the neighboring I/Os. However, do not use this approach if it results in many via paths that causes congestion for signals under the device.

Carefully check the pin connections in the Pin-Out File (

.pin

) generated by the

Quartus II software when you compile your design. The

.pin

file specifies how you should connect the device pins. I/O pins specified as GND can be left unconnected or connected to ground for improved noise immunity. Do not connect

RESERVED

pins.

Refer to the Board Design Resource Center

If your design has high-speed signals the board design has a major impact on the signal integrity in the system.

For detailed information about signal integrity and board design, refer to the Board

Design Resource Center on the Altera website.

For example, Altera provides the following application notes that offer information about high-speed board stack-up and signal routing layers:

AN 528: PCB Dielectric Material Selection and Fiber Weave Effect on High-Speed

Channel Routing

AN 529: Via Optimization Techniques for High-Speed Channel Designs

AN 530: Optimizing Impedance Discontinuity Caused by Surface Mount Pads for

High-Speed Channel Designs

You can also refer to the I/O Management, Board Development Support, and Signal

Integrity Analysis Resource Center on the Altera website for board-level signal integrity information related to the Quartus II software.

3.

Design VREF pins to be noise free

Voltage deviation on a

VREF

pin can affect the threshold sensitivity for inputs. For more information about

VREF

pins and I/O standards, refer to “I/O Features and Pin

Connections” on page 17

.

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

Board Design Page 15

Table 7. General I/O Pin Connections Checklist (Part 2 of 3)

No.

v

Checklist items

4.

Refer to the Board Design Guideline Solution Center

Noise generated by SSN—when too many pins in close proximity change voltage levels at the same time—can reduce the noise margin and cause incorrect switching. For example, consider these board layout recommendations:

Break out large bus signals on board layers close to the device to reduce cross talk.

If possible, route traces orthogonally if two signal layers are next to each other, and use a separation of two to three times the trace width.

For more board layout recommendations that can help with noise reduction, refer to the

PCB guidelines in the Board Design Guidelines Solution Center on the Altera website.

For a list of recommendations for I/O and clock connections, refer to “I/O Simultaneous

Switching Noise” on page 25

.

5.

6.

Verify I/O termination and impedance matching

Voltage-referenced I/O standards require both a VREF and a termination voltage (V

TT

).

The reference voltage of the receiving device tracks the termination voltage of the transmitting device. Consider the following items:

Each voltage-referenced I/O standard requires a unique termination setup. For example, a proper resistive signal termination scheme is critical in

SSTL-2

standards to produce a reliable DDR memory system with superior noise margin.

Although single-ended, non-voltage-referenced I/O standards do not require termination, impedance matching is necessary to reduce reflections and improve signal integrity.

Differential I/O standards typically require a termination resistor between the two signals at the receiver. The termination resistor must match the differential load impedance of the signal line.

The MAX 10 on-chip series termination provides the convenience of no external components. You can also use external pull-up resistors to terminate the voltagereferenced I/O standards such as SSTL and HSTL.

For a complete list of on-chip termination (OCT) support for each I/O standard, refer to the

MAX 10 General Purpose I/O User Guide

.

Perform full board routing simulation using IBIS models

To ensure that the I/O signaling meets receiver threshold levels on your board setup, perform full board routing simulation with third-party board-level simulation tools using an IBIS model.

To select the IBIS output in the Quartus II software, on the Assignments menu, click

Settings

. Navigate to the

Board-Level

page of the

EDA Tool Settings

category. Under the

Board-level signal integrity analysis

section, in the

Format

option, select

IBIS

.

For more information, refer to the

Signal Integrity Analysis with Third-Party Tools

chapter of the

Quartus II Handbook

.

December 2014 Altera Corporation MAX 10 FPGA Design Guidelines

Page 16 I/O and Clock Planning

Table 7. General I/O Pin Connections Checklist (Part 3 of 3)

No.

v

Checklist items

7.

Configure board trace models for Quartus II advanced timing analysis

In order for a system to operate properly, signal integrity and board routing propagation delays must be taken into consideration. If you use an FPGA with high-speed interfaces in your board design, analyze the board level timing as part of the I/O and board planning.

Differential I/Os at the top left corner are located in the low speed region. For more information about the performance of these I/O pins, refer to the following documents:

Device pin-outs for MAX 10 devices in the

Device Pin-Outs

page

MAX 10 FPGA Device Datasheet

To generate a more accurate I/O delays and extra reports to gain better insights into the signal behavior at the system level, turn on

Enable Advanced I/O Timing

under the

TimeQuest Timing Analyzer

category in the

Settings

dialog box of your Quartus II project. With this option turned on, the TimeQuest Timing Analyzer uses simulation results for the I/O buffer, package, and board trace model to generate the I/O delays.

You can use the advanced timing reports as a guide to make changes to the I/O assignments and board design to improve timing and signal integrity.

8.

Review your pin connections

Altera provides schematic review worksheets based on the device Pin Connection

Guidelines and other board-level pin connections literature that you need to consider when you finalize your schematics.

Use the

MAX 10 Device Schematic Review Worksheet

to help you find mistakes in your schematic and adhere to Altera’s guidelines:

I/O and Clock Planning

Use the checklists in this section as guidelines to plan your I/O and clocking.

Early Pin Planning and I/O Assignment Analysis

In many design environments, FPGA designers want to plan top-level FPGA I/O pins early so that board designers can start developing the PCB design and layout.

Table 8. Early Pin Planning and I/O Assignment Analysis Checklist (Part 1 of 2)

No.

v

Checklist items

1.

Verify pin locations early in the FPGA place-and-route software

The FPGA I/O capabilities and board layout guidelines influence pin locations and other types of assignments. Starting FPGA pin planning early improves the confidence in early board layouts, reduces the chance of error, and improves the overall time-to-market.

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

I/O and Clock Planning Page 17

Table 8. Early Pin Planning and I/O Assignment Analysis Checklist (Part 2 of 2)

No.

v

Checklist items

2.

3.

Use the Quartus II Pin Planner for I/O pin planning, assignments, and validation

Early in the design process, the system architect typically has information about the standard I/O interfaces (such as memory and bus interfaces), IP cores to be used in the design, and any other I/O-related assignments defined by system requirements.

You can use the Quartus II Pin Planner for I/O pin assignment planning, assignment, and validation:

The Quartus II

Start I/O Assignment Analysis

command checks that pin locations and assignments are supported in the target FPGA architecture. Checks include reference voltage pin usage, pin location assignments, and mixing of I/O standards.

You can use I/O Assignment Analysis to validate I/O-related assignments that you make or modify throughout the design process.

The Create/Import IP core feature of the Pin Planner interfaces with the parameter editor, and enables you to create or import custom IP cores that use I/O interfaces.

Enter PLL and LVDS blocks. Then, use the

Create Top-Level Design File

command to generate a top-level design netlist file.

You can use the I/O analysis results to change pin assignments or IP parameters and repeat the checking process until the I/O interface meets your design requirements and passes the pin checks in the Quartus II software.

After planning is complete, you can pass the preliminary pin location information to PCB designers.

After the design is complete, you can use the reports and messages generated by the

Quartus II Fitter for the final sign-off of the pin assignments.

For more information about I/O assignment and analysis, refer to the

Managing Device

I/O Pins

chapter of the Quartus II Handbook.

For more information about the I/O restrictions guidelines, refer to the

MAX 10 General

Purpose I/O User Guide

.

Check I/O restrictions related to ADC usage

If you use the ADC input pin, refer to the ADC I/O restriction guidelines in the

MAX 10

General Purpose I/O User Guide

.

I/O Features and Pin Connections

Use the checklist in this section for guidelines related to I/O features, I/O signal types, I/O standards, I/O banks memory interfaces, pad placements, and special pin connections.

f

For a list of I/O pin locations and connection guidelines, refer to the

MAX 10 FPGA

Device Family Pin Connection Guidelines

.

December 2014 Altera Corporation MAX 10 FPGA Design Guidelines

Page 18 I/O and Clock Planning

f

To obtain device pin-outs for MAX 10 devices, refer to the

Device Pin-Outs

page of the

Literature

section of the Altera website ( www.altera.com

).

Table 9. I/O Features and Pin Connections Checklist (Part 1 of 6)

No.

v

Checklist items

1.

Determine if your system requires single-ended I/O signaling

Single-ended I/O signaling provides a simple rail-to-rail interface.

The speed is limited by the large voltage swing and noise.

Single-ended I/Os do not require termination, unless reflection in the system causes undesirable effects.

For more information about the I/O restrictions guidelines, refer to the Design

Considerations chapter in the

MAX 10 General Purpose I/O User Guide

.

2.

3.

4.

Determine if your system requires voltage-referenced signaling

Voltage-referenced signaling reduces the effects of simultaneous switching outputs

(SSO) from pins changing voltage levels at the same time (for example, external memory interface data and address buses).

Voltage-referenced signaling provides an improved logic transition rate with a reduced voltage swing, and minimizes noise caused by reflection with a termination requirement.

Additional termination components are required for the reference voltage source

(V

TT

).

For more information about the VREF restrictions guidelines, refer to the Design

Considerations chapter in the

MAX 10 General Purpose I/O User Guide

.

Determine if your system requires differential signaling

Differential signaling eliminates the interface performance barrier of single-ended and voltage-referenced signaling, with superior speed using an additional inverted closely-coupled data pair.

Differential signaling avoids the requirement for a clean reference voltage. This is possible because of lower swing voltage and noise immunity with a common mode noise rejection capability.

Considerations for this implementation include the requirements for a dedicated PLL to generate a sampling clock, and matched trace lengths to eliminate the phase difference between an inverted and non-inverted pair.

Allow the software to assign locations for the negative pin in differential pin pairs.

You only need to assign the positive pins.

For more information about the differential I/O restrictions guidelines, refer to the

Design Considerations chapter in the

MAX 10 General Purpose I/O User Guide

.

Select a suitable signaling type and I/O standard for each I/O pin

Ensure that the appropriate I/O standard support is supported in the targeted I/O bank.

For more information, refer to the following documents:

MAX 10 General Purpose I/O User Guide

MAX 10 High-Speed LVDS I/O User Guide

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

I/O and Clock Planning Page 19

Table 9. I/O Features and Pin Connections Checklist (Part 2 of 6)

No.

v

Checklist items

5.

Place I/O pins that share voltage levels in the same I/O bank

Certain I/O banks can support different I/O standards and voltage levels.

You can assign I/O standards and make other I/O-related settings in the Pin Planner.

Use the correct dedicated pin inputs for signals such as clocks and global control signals.

6.

Verify that all output signals in each I/O bank are intended to drive out at the bank's assigned VCCIO voltage level

The board must supply each bank with one V

CCIO

voltage level for every

VCCIO

pin in a bank.

Each I/O bank is powered by the

VCCIO

pins of that particular bank and is independent of the V

CCIO

of other I/O banks.

A single I/O bank supports output signals that are driving at the same voltage as the

V

CCIO

.

An I/O bank can simultaneously support any number of input signals with different

I/O standards.

For more information, refer to the I/O Standard Support section in the

MAX 10 General

Purpose I/O User Guide

.

7.

8.

9.

Verify that all voltage-referenced signals in each I/O bank are intended to use the bank's

VREF voltage (for devices that support VREF pins)

To accommodate voltage-referenced I/O standards, each I/O bank supports multiple

VREF pins feeding a common VREF bus. Set the VREF pins to the correct voltage for the I/O standards in the bank.

Each I/O bank can only have a single V

CCIO

voltage level and a single VREF voltage level at a given time. If the VREF pins are not used as voltage references, the pins cannot be used as generic I/O pins and must be tied to the V

CCIO

of that same bank or

GND.

An I/O bank, including single-ended or differential standards, can support voltage-referenced standards as long as all voltage-referenced standards use the same VREF setting.

For performance reasons, voltage-referenced input standards use their own V

CCIO level as the power source. You can place voltage-referenced input signals in a bank with a V

CCIO

of 2.5 V or below.

Voltage-referenced bidirectional and output signals must drive out at the V

CCIO voltage level of the I/O bank.

Check the I/O bank support for LVDS features

Different I/O banks include different support for LVDS signaling. Some banks have lower speed performance. Allocate the pins according to your data rate requirement.

For more information, refer to the

MAX 10 High-Speed LVDS I/O User Guide

.

Verify the usage of the VREF pins that are used as regular I/Os

VREF pins have higher pin capacitance that results in a different I/O timing:

Do not use these pins in a grouped interface such as a bus.

Do not use these pins for high edge rate signals such as clocks.

December 2014 Altera Corporation MAX 10 FPGA Design Guidelines

Page 20 I/O and Clock Planning

Table 9. I/O Features and Pin Connections Checklist (Part 3 of 6)

No.

v

Checklist items

10.

11.

Test pin connections with boundary-scan test

A boundary-scan test allows you to test pin connections at board level without using physical test probes while the device is operating normally. To perform the boundaryscan test, you must have the boundary-scan description language (BSDL) file of the device.

Use the BSDL files from the Altera website to perform boundary-scan test on preconfigured MAX 10 devices. For post-configured devices, you must modify the BSDL file according to the design.

To perform boundary-scan test after configuration, BSDL generation tool, and guidelines, refer to the Altera BSDL Support website.

Use the UniPHY IP core for each memory interface, and follow connection guidelines

The self-calibrating UniPHY IP core is optimized to take advantage of the MAX 10 structure. The UniPHY IP core allows you to set external memory interface features and helps set up the physical interface (PHY) best suited for your system. When you use the

Altera memory controller IP core functions, the UniPHY IP core is instantiated automatically.

If you design multiple memory interfaces into the device using Altera IP, generate a unique interface for each instance to ensure good results instead of designing it once and instantiating it multiple times.

For more information, refer to the

Planning Pin and FPGA Resources

chapter in the

External Memory Interface Handbook

.

12.

Use dedicated DQ/DQS pins and DQ groups for memory interfaces

The data strobe DQS and data DQ pin locations are fixed in MAX 10 devices. Before you design your device pin-out, refer to the memory interface guidelines for details and important restrictions related to the connections for these and other memory related signals.

For more information about specific external memory interface topic, refer to the following documents:

MAX 10 External Memory Interface User Guide

Volume 2: Design Guidelines

in the

External Memory Interface Handbook

External Memory Interface Spec Estimator on the Altera website

External Memory Solutions Center on the Altera website

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

I/O and Clock Planning Page 21

Table 9. I/O Features and Pin Connections Checklist (Part 4 of 6)

No.

v

Checklist items

13.

Make dual-purpose pin settings and check for any restrictions when using these pins as regular I/O

You can use dual-purpose configuration pins as general I/Os after device configuration is complete. Select the desired setting for each of the dual-purpose pins on the

Dual-Purpose Pins

category of the

Device and Pin Options

dialog box. Depending on the configuration scheme, these pins can be reserved as regular I/O pins, as inputs that are tri-stated, as outputs that drive ground, or as outputs that drive an unspecified signal.

For configuration pins that used as general purpose I/Os, take note on the limitations of the pins when operating in user mode. For more information, refer to the following documents:

MAX 10 General Purpose I/O User Guide

MAX 10 FPGA Configuration User Guide

You can also use dedicated clock inputs, which drive the GCLK networks, as general purpose input pins if they are not used as clock pins. If you use the clock inputs as general inputs, the I/O registers use arithmetic logic module (ALM)-based registers because the clock input pins do not include dedicated I/O registers.

The device-wide reset and clear pins are available as design I/Os if they are not enabled.

For more information, refer to

“Determine if you need to turn on device-wide output enable” on page 13 and

“Enable the chip-wide reset to clear all registers if required” on page 27 .

December 2014 Altera Corporation MAX 10 FPGA Design Guidelines

Page 22 I/O and Clock Planning

Table 9. I/O Features and Pin Connections Checklist (Part 5 of 6)

No.

v

Checklist items

14.

Review available device I/O features that can help I/O interfaces

Check the available I/O features and consider the following guidelines:

Programmable current strength—ensure that the output buffer current strength is sufficiently high, but does not cause excessive overshoot or undershoot that violates voltage threshold parameters for the I/O standard. Altera recommends performing an

IBIS or SPICE simulations to determine the right current strength setting for your specific application.

Programmable slew rate—confirm that your interface meets its performance requirements if you use slower slew rates. Altera recommends performing IBIS or

SPICE simulations to determine the right slew rate setting for your specific application.

Programmable input/output element (IOE) delays—helps read and time margins by minimizing the uncertainties between signals in the bus. For delay specifications, refer to the relevant device datasheet.

Open-drain output—if configured as an open-drain, the logic value of the output is either high-Z or 0. This feature is used in system-level control signals that can be asserted by multiple devices in the system. Typically, an external pull-up resistor is required to provide logic high.

Bus hold—If the bus-hold feature is enabled, you cannot use the programmable pullup option. Disable the bus-hold feature if the I/O pin is configured for differential signals. For the specific sustaining current driven through this resistor and the overdrive current used to identify the next driven input and level for each V

CCIO voltage, refer to the relevant device datasheet.

Programmable pull-up resistors—weakly holds the I/O to the V

CCIO

level when in user mode. This feature can be used with the open-drain output to eliminate the need for an external pull-up resistor. If the programmable pull-up option is enabled, you cannot use the bus-hold feature.

Programmable pre-emphasis—increases the amplitude of the high frequency component of the output signal, and thus helps to compensate for the frequencydependent attenuation along the transmission line.

For more information, refer to the

MAX 10 General Purpose I/O User Guide

.

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

I/O and Clock Planning Page 23

Table 9. I/O Features and Pin Connections Checklist (Part 6 of 6)

No.

v

Checklist items

15.

16.

Consider OCT features to save board space

Driver-impedance matching provides the I/O driver with controlled output impedance that closely matches the impedance of the transmission line to significantly reduce reflections. OCT maintains signal quality, saves board space, and reduces external component costs.

OCT R

S

are supported in the same I/O bank for different I/O standards if they use the same V

CCIO

supply voltage

Each I/O in an I/O bank can be independently configured to support OCT R

S

or programmable current strength

You cannot configure both OCT R

S

and programmable current strength or slew rate control for the same I/O buffer

For details about the support and implementation of this feature, refer to the following documents:

MAX 10 General Purpose I/O User Guide

MAX 10 High-Speed LVDS I/O User Guide

Verify that the required termination scheme is supported for all pin locations

Clock Planning

The first stage in planning your clocking scheme is to determine your system clock requirements:

Understand your device’s available clock resources and correspondingly plan the design clocking scheme. Consider your requirements for timing performance, and how much logic is driven by a particular clock.

Based on your system requirements, define the required clock frequencies for your

FPGA design and the input frequencies available to the FPGA. Use these specifications to determine your PLL scheme.

December 2014 Altera Corporation MAX 10 FPGA Design Guidelines

Page 24 I/O and Clock Planning

Use the Quartus II parameter editor to enter your settings in ALTPLL IP core, and check the results to verify whether particular features and input/output frequencies can be implemented in a particular PLL.

Table 10. Clock Planning Checklist

No.

v

Checklist items

1.

Use the device PLLs for clock management

Connect clock inputs to specific PLLs to drive specific low-skew routing networks.

Analyze the global resource availability for each PLL and the PLL availability for each clock input pin. Use the following descriptions for the clock signals in your design:

The GCLK networks can drive throughout the entire device, serving as low-skew clock sources for device logic.

IOEs and internal logic can also drive GCLKs to create internally generated GCLKs and other high fan-out control signals; for example, synchronous or asynchronous clears and clock enables.

PLLs cannot be driven by internally-generated GCLKs. The input clock to the PLL must come from dedicated clock input pins or from another pin/PLL-fed GCLK.

2.

3.

Ensure that you select the correct PLL feedback compensation mode

MAX 10 PLLs support four different clock feedback modes. For more information, refer to the “Clock Feedback Modes” section in the

MAX 10 Clocking and PLL User Guide

.

Check that the PLL offers the required number of clock outputs and use dedicated clock output pins

You can connect clock outputs to dedicated clock output pins or clock networks.

MAX 10 PLL only allows one clock output per PLL block. If your device have 4 PLLs, there are 4 clock outputs from the PLLs.

4.

5.

Use the clock control block for clock selection and power-down

Every GCLK network has its own clock control block. The control block provides the following features that you can use to select different clock input signals or power-down clock networks to reduce power consumption without using any combinational logic in your design:

Clock source selection (with dynamic selection)

GCLK multiplexing

Clock power down (with static or dynamic clock enable or disable)

In MAX 10 devices, the clkena

signals are supported at the clock network level instead of at the PLL output counter level. This allows you to gate off the clock even when you are not using a PLL. You can also use the clkena

signals to control the dedicated external clocks from the PLLs.

For more information, refer to the

MAX 10 Clocking and PLL User Guide

.

Instantiate PLL with ADC

You can only use the PLL

C0

counter to connect to the ADC reference clock pin.

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

I/O and Clock Planning Page 25

I/O Simultaneous Switching Noise

SSN is a concern when too many I/Os (in close proximity) change voltage levels at the same time. Use the checklist in this section for recommendations to plan I/O and clock connections.

Table 11. I/O Simultaneous Switching Noise Checklist

No.

v

Checklist item

1.

2.

Consider the following recommendations to mitigate I/O simultaneous switching noise:

Analyze the design for possible SSN problems.

Reduce the number of pins that switch the voltage level at exactly the same time whenever possible.

Use differential I/O standards and lower-voltage standards for high-switching I/Os.

Use lower drive strengths for high-switching I/Os. The default drive strength setting might be higher than your design requires.

Reduce the number of simultaneously switching output pins within each bank.

Spread output pins across multiple banks if possible.

Spread the switching I/Os evenly throughout the bank to reduce the number of aggressors in a given area to reduce SSN if bank usage is substantially below 100%.

Separate simultaneously switching pins from input pins that are susceptible to SSN.

Place important clock and asynchronous control signals near ground signals and away from large switching buses.

Avoid using I/O pins one or two pins away from PLL power supply pins for highswitching or high-drive strength pins.

Use staggered output delays to shift the output signals through time, or use adjustable slew rate settings.

For information and guidelines on using available I/O features, refer to “I/O Features and

Pin Connections” on page 17 .

For signal integrity design techniques to mitigate SSN, view the Signal & Power Integrity

Design Techniques for SSN webcast on the Altera website.

Check on the pin connection guidelines for the ADC pins

For more information about the filter type requirement at the ADC power pin, analog input pins, and VREF pin, refer to the

MAX 10 FPGA Device Family Pin Connection

Guidelines

.

December 2014 Altera Corporation MAX 10 FPGA Design Guidelines

Page 26 Design Entry

Design Entry

In complex FPGA design development, design practices, coding styles, and IP core usage have an enormous impact on your device's timing performance, logic utilization, and system reliability. In addition, while planning and creating the design, plan for a hierarchical or team-based design to improve design productivity.

Table 12. Design Entry Checklist (Part 1 of 5)

No.

v

Checklist items

1.

Use synchronous design practices

In a synchronous design, a clock signal triggers all events. When all of the registers’ timing requirements are met, a synchronous design behaves in a predictable and reliable manner for all process, voltage, and temperature (PVT) conditions. You can easily target synchronous designs to different device families or speed grades.

2.

Consider the following recommendations to avoid clock signals problems:

Use dedicated clock pins and clock routing for best results—dedicated clock pins drive the clock network directly, ensuring lower skew than other I/O pins. Use the dedicated routing network to have a predictable delay with less skew for high fan-out signals. You can also use the clock pins and clock network to drive control signals like asynchronous reset.

For clock inversion, multiplication, and division use the device PLLs.

For clock multiplexing and gating, use the dedicated clock control block or PLL clock switchover feature instead of combinational logic.

If you must use internally generated clock signals, register the output of any combinational logic used as a clock signal to reduce glitches. For example, if you divide a clock using combinational logic, clock the final stage with the clock signal that was used to clock the divider circuit.

In multi-clock designs, ensure that signals crossing clock domains are properly synchronized using the synchronizer, a handshake mechanism, or a FIFO.

For more information about clock networks, refer to the

MAX 10 Clocking and PLL User

Guide

.

3.

4.

Use IP cores with the parameter editor

Instead of coding your own logic, save your design time by using Altera’s IP cores—a library of parameterized modules and device-specific IP cores. The IP cores are optimized for Altera device architectures and can offer more efficient logic synthesis and device implementation.

To ensure that you set all ports and parameters correctly, use the Quartus II parameter editor to build or change IP cores parameters.

For detailed information about a specific IP core, refer to the respective MAX 10 user guides.

Review the information on dynamic reconfiguration feature

The MAX 10 devices support dynamic reconfiguration—dynamically change the PMA settings or protocols of a channel affecting data transfer on adjacent channels.

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

Design Entry Page 27

Table 12. Design Entry Checklist (Part 2 of 5)

No.

v

Checklist items

5.

Consider the Altera's recommended coding styles to achieve optimal synthesis results

HDL coding styles can have a significant impact on the quality of results for programmable logic designs. For example, when designing memory and digital system processing (DSP) functions, understanding the device architecture helps you to take advantage of the dedicated logic block sizes and configurations.

For specific HDL coding examples and recommendations, refer to the

Recommended

HDL Coding Styles

chapter in the

Quartus II Handbook

.

You can use the HDL templates provided in the Quartus II software as examples for your reference. To access the templates, right click the editing area in the Quartus II text editor and click

Insert Template

.

For additional tool-specific guidelines, refer to the documentation of your synthesis tool.

6.

7.

8.

Enable the chip-wide reset to clear all registers if required

MAX 10 devices support an optional chip-wide reset that enables you to override all clears on all device registers, including the registers of the memory blocks (but not the memory contents).

■ DEV_CLRn

pin is driven low—all registers are cleared or reset to 0. The affected register behave as if they are preset to a high value when synthesis performs an optimization called NOT-gate-push back due to register control signals.

DEV_CLRn

pin is driven high—all registers behave as programmed.

To enable chip-wide reset, before compiling your design, turn on

Enable device-wide reset (DEV_CLRn)

under the

Options

list of the

General

category in the

Device and Pin

Options

dialog box of the Quartus II software.

Use device architecture-specific register control signals

Each MAX 10 logic array block (LAB) contains dedicated logic for driving register control signals to its ALMs. It is important that the control signals use the dedicated control signals in the device architecture. In some cases, you may be required to limit the number of different control signals in your design.

For more information about LAB and ALM architecture, refer to the

MAX 10 FPGA

Device Architecture

.

Review recommended reset architecture

If the clock signal is not available when reset is asserted, an asynchronous reset is typically used to reset the logic.

The recommended reset architecture allows the reset signal to be asserted asynchronously and deasserted synchronously.

The source of the reset signal is connected to the asynchronous port of the registers, which can be directly connected to global routing resources.

The synchronous deassertion allows all state machines and registers to start at the same time.

Synchronous deassertion avoids an asynchronous reset signal from being released at, or near, the active clock edge of a flipflop that can cause the output of the flipflop to go to a metastable unknown state.

For more information about good reset design, refer to industry papers such as the analysis of reset architecture at www.sunburst-design.com/papers .

December 2014 Altera Corporation MAX 10 FPGA Design Guidelines

Page 28 Design Entry

Table 12. Design Entry Checklist (Part 3 of 5)

No.

v

Checklist items

9.

Review the synthesis options available in your synthesis tool

If you force a particular power-up condition for your design, use the synthesis options available in your synthesis tool:

By default, the Quartus II software Integrated Synthesis turns on the

Power-Up Don’t

Care

logic option that assumes your design does not depend on the power-up state of the device architecture. Other synthesis tools might use similar assumptions.

Designers typically use an explicit reset signal for the design that forces all registers into their appropriate values after reset but not necessarily at power-up. You can create your design with asynchronous reset that allows you to power up the design safely with the reset active, regardless of the power-up conditions of the device.

Some synthesis tools can also read the default or initial values for registered signals in your source code and implement the behavior in the device. For example, the

Quartus II software Integrated Synthesis converts HDL default and initial values for registered signals into

Power-Up Level

settings. The synthesized behavior matches the power-up conditions of the HDL code during a functional simulation.

Registers in the device core always power up to a low (0) logic level in the physical device architecture. If you specify a high power-up level or a non-zero reset value

(preset signal), synthesis tools typically use the clear signals available on the registers and perform the NOT-gate push back optimization technique. If you assign a high power-up level to a register that is reset low, or assign a low power-up value to a register that is preset high, synthesis tools cannot use the NOT-gate push back optimization technique and might ignore the power-up conditions.

For more information about the

Power-Up Level

settings and the altera_attribute assignment that sets the power-up state, refer to the

Quartus II Integrated Synthesis

chapter of the

Quartus II Handbook

.

10.

Consider resources available for register power-up and control signals

To implement a reset and preset signal on the same register, synthesis tools emulate the controls with logic and latches that can be prone to glitches because of the different delays between the different paths to the register. In addition, the power-up value is undefined for these registers.

For more information about reset logic and power up conditions, refer to the

Recommended HDL Coding Styles

chapter in the

Quartus II Handbook

.

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

Design Entry Page 29

Table 12. Design Entry Checklist (Part 4 of 5)

No.

v

Checklist items

11.

Consider Altera's recommendations for creating design partitions

Partitioning a design for an FPGA requires planning to ensure optimal results when the partitions are integrated and ensures that each partition is well placed, relative to other partitions in the device.

Follow Altera's recommendations for creating design partitions to improve the overall quality of results. For example, registering partition I/O boundaries keeps critical timing paths inside one partition that can be optimized independently. Plan your source code so that each design block is defined in a separate file. The software can automatically detect changes to each block separately.

Use hierarchy in your design to provide more flexibility when partitioning. Keep your design logic in the leaves of the hierarchy trees; that is, the top level of the hierarchy should have very little logic, and the lower-level design blocks contain the logic.

For guidelines to help you create design partitions, refer to the

Best Practices for

Incremental Compilation Partitions and Floorplan Assignments

chapter in the

Quartus II

Handbook

.

12.

Perform timing budgeting and resource balancing between partitions

If your design is created in multiple projects, it is important that the system architect provide guidance to designers of lower-level blocks to ensure that each partition uses the appropriate device resources:

Because the designs are developed independently, each lower-level designer has no information about the overall design or how their partition connects with other partitions, which can lead to problems during system integration.

The top-level project information, including pin locations, physical constraints, and timing requirements, should be communicated to the designers of lower-level partitions before they start their design.

The system architect can plan design partitions at the top level and use the Quartus II software

Generate Bottom-Up Design Partition Scripts

option on the Project menu to automate the process of transferring top-level project information to lower-level modules.

December 2014 Altera Corporation MAX 10 FPGA Design Guidelines

Page 30 Design Entry

Table 12. Design Entry Checklist (Part 5 of 5)

No.

v

Checklist items

13.

Create a design floorplan for incremental compilation partitions

A design floorplan avoids conflicts between design partitions and ensure that each partition is well-placed relative to other partitions. When you create different location assignments for each partition, no location conflicts occur.

A design floorplan helps avoid situations in which the Fitter is directed to place or replace a portion of the design in an area of the device where most resources have already been claimed.

Floorplan assignments are recommended for timing-critical partitions in top-down flows. You can use the Quartus II Chip Planner to create a design floorplan using

LogicLock region assignments for each design partition.

With a basic design framework for the top-level design, the floorplan editor enables you to view connections between regions, estimate physical timing delays on the chip, and move regions around the device floorplan.

After you compiled the full design, you can also view logic placement and locate areas of routing congestion to improve the floorplan assignments.

For more information and guidelines in creating a design floorplan and placement assignments in the floorplan, refer to the following chapters in the

Quartus II Handbook

:

Best Practices for Incremental Compilation Partitions and Floorplan Assignments

Analyzing and Optimizing the Design Floorplan with the Chip Planner

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

Design Implementation Page 31

Design Implementation

Use the checklists in the this section as guidelines while implementing your design.

Synthesis and Compilation

Table 13. Synthesis and Compilation Checklist (Part 1 of 3)

No.

v

Checklist items

1.

Specify your synthesis tool and use correct supported version

The Quartus II software includes integrated synthesis that fully supports Verilog HDL,

VHDL, Altera hardware description language (AHDL), and schematic design entry. You can also use industry-leading third-party EDA synthesis tools to synthesize your Verilog

HDL or VHDL design, and then compile the resulting output netlist file in the Quartus II software:

Specify a third-party synthesis tool in the New Project Wizard or the

EDA Tools

Settings

page of the Settings dialog box to use the correct Library Mapping File

(

.lmf

) for your synthesis netlist.

Altera recommends that you use the most recent version of third-party synthesis tools because tool vendors are continuously adding new features, fixing tool issues, and enhancing performance for Altera devices.

Different synthesis tools can give different results. If you want to select the best-performing tool for your application, you can experiment by synthesizing typical designs for your application and coding style, and comparing the results.

Perform placement and routing in the Quartus II software to get accurate timing analysis and logic utilization results.

Your synthesis tool may offer the capability to create a Quartus II project and pass constraints such as the EDA tool setting, device selection, and timing requirements that you specified in your synthesis project. You can use this capability to save time when setting up your Quartus II project for placement and routing.

For more information about supported synthesis tools, refer to the following chapters of the Quartus II Handbook:

Quartus II Integrated Synthesis

Synopsys Synplify Support

Mentor Graphics Precision Synthesis Support

Mentor Graphics LeonardoSpectrum Support

For information about the officially supported version of each synthesis tool in a

Quartus II software version, refer to the relevant Quartus II software release notes on the

Release Notes page at the Altera website.

December 2014 Altera Corporation MAX 10 FPGA Design Guidelines

Page 32 Design Implementation

Table 13. Synthesis and Compilation Checklist (Part 2 of 3)

No.

v

Checklist items

2.

Review resource utilization reports after compilation

After compilation in the Quartus II software, review the device resource utilization information:

Use the information to determine whether the future addition of extra logic or other design changes introduce fitting difficulties.

If your compilation results in a no-fit error, use the information to analyze fitting problems.

To determine resource usage, refer to the

Flow Summary

section of the Compilation

Report for a percentage representing the total logic utilization, which includes an estimation of resources that cannot be used due to existing connections or logic usage.

For more detailed resource information, view the reports under

Resource Section

in the

Fitter

section of the Compilation Report. The Fitter

Resource Usage Summary

report breaks down the logic utilization information and indicates the number of fully and partially used ALMs, and provides other resource information including the number of bits in each type of memory block.

There are also reports that describe some of the optimizations that occurred during compilation. For example, if you use the Quartus II Integrated Synthesis, the reports under the

Optimization Results

folder in the

Analysis & Synthesis

section provide information that includes registers that were removed during synthesis. Use this report to estimate device resource utilization for a partial design to ensure that registers were not removed due to missing connections with other parts of the design.

Low logic utilization does not mean the lowest possible ALM utilization. A design that is reported to be close to 100% may still have space for extra logic. The Fitter uses ALUTs in different ALMs, even when the logic can be placed within one ALM, so that it can achieve the best timing and routability results. Logic might be spread throughout the device when achieving these results. As the device fills up, the Fitter automatically searches for logic that can be placed together in one ALM.

3.

4.

Review all Quartus II messages, especially warning or error messages

Each stage of the compilation flow generates messages, including informational notes, warnings, and critical warnings. Understand the significance of warning messages and make changes to the design or settings if required.

In the Quartus II user interface, you can use the Message window tabs to look at only certain types of messages. You can suppress the messages if you have determined that your action is not required.

For more information about messages and message suppression, refer to the

Managing

Quartus II Projects

chapter in the

Quartus II Handbook

.

Consider using incremental compilation

Use the incremental compilation feature to preserve logic in unchanged parts of your design, preserve timing performance, and reach timing closure more efficiently. You can speed up design iteration time by an average of 60% when making changes to the design with the incremental compilation feature.

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

Design Implementation Page 33

Table 13. Synthesis and Compilation Checklist (Part 3 of 3)

No.

v

Checklist items

5.

6.

Ensure parallel compilation is enabled

The Quartus II software can run some algorithms in parallel to take advantage of multiple processors and reduce compilation time when more than one processor is available to compile the design. Set the

Parallel compilation

option on the

Compilation

Process Settings

page of the

Settings

dialog box, or change the default setting in the

Options

dialog box in the

Processing

page from the Tools menu.

Use the Compilation Time Advisor

The Compilation Time Advisor provides guidance in making settings that reduce your design compilation time. On the Tools menu, point to

Advisors

and click

Compilation

Time Advisor

. Using some of these techniques to reduce compilation time can reduce the overall quality of results.

For more information, refer to the

Timing Closure and Optimization

chapter in the

Quartus II Handbook.

Timing Optimization and Analysis

Use the guidelines in the following checklist for analyzing your design timing and optimizing your timing performance.

Table 14. Timing Optimization and Analysis Checklist (Part 1 of 2)

No.

v

Checklist items

1.

2.

Ensure timing constraints are complete and accurate

In an FPGA design flow, accurate timing constraints allow timing-driven synthesis software and place-and-route software to obtain optimal results. Timing constraints are critical to ensure designs meet their timing requirements, which represent actual design requirements that must be met for the device to operate correctly.

The Quartus II software optimizes and analyzes your design using different timing models for each device speed grade, so you must perform timing analysis for the correct speed grade. The final programmed device might not operate as expected if the timing paths are not fully constrained, analyzed, and verified to meet requirements.

For more information, refer to the

Timing Analysis Overview

chapter of the

Quartus II

Handbook

.

Review the TimeQuest Timing Analyzer reports after compilation

The Quartus II software includes the Quartus II TimeQuest Timing Analyzer, a powerful

ASIC-style timing analysis tool that validates the timing performance of all logic in your design. It supports the industry standard Synopsys Design Constraints (SDC) format timing constraints, and has an easy-to-use GUI with interactive timing reports. It is ideal for constraining high-speed source-synchronous interfaces and clock multiplexing design structures.

The software also supports static timing analysis in the industry-standard Synopsys

Primetime software. To generate the required timing netlist, specify the tool in the New

Project Wizard or the

EDA Tools Settings

page of the

Settings

dialog box.

December 2014 Altera Corporation MAX 10 FPGA Design Guidelines

Page 34 Design Implementation

Table 14. Timing Optimization and Analysis Checklist (Part 2 of 2)

No.

v

Checklist items

3.

Ensure that the I/O timings are not violated when data is provided to the FPGA

A comprehensive static timing analysis includes analysis of register to register, I/O, and asynchronous reset paths. It is important to specify the frequencies and relationships for all clocks in your design.

Use input and output delay constraints to specify external device or board timing parameters. Specify accurate timing requirements for external interfacing components to reflect the exact system intent.

The TimeQuest Timing Analyzer performs static timing analysis on the entire system, using data required times, data arrival times, and clock arrival times to verify circuit performance and detect possible timing violations. It determines the timing relationships that must be met for the design to correctly function. You can use the report_datasheet

command to generate a datasheet report that summarizes the I/O timing characteristics of the entire design.

4.

5.

Perform Early Timing Estimation before running a full compilation

If the timing analysis reports that your design requirements were not met, you must make changes to your design or settings and recompile the design to achieve timing closure. If your compilation results in no-fit messages, you must make changes to get successful placement and routing.

You can use the Early Timing Estimation feature in the Quartus II software to estimate your design’s timing results before the software performs full placement and routing. On the

Processing

menu, point to

Start

and click

Start Early Timing Estimate

to generate initial compilation results after you have run analysis and synthesis.

Consider the following recommendations for timing optimization and analysis assignment:

Turn on

Optimize multi-corner timing

on the Fitter Settings page in the Settings dialog box.

Use create_clock

and create_generated_clock

to specify the frequencies and relationships for all clocks in your design.

Use set_input_delay

and set_output_delay

to specify the external device or board timing parameters

Use derive_pll_clocks

to create generated clocks for all PLL outputs, according to the settings in the PLL IP cores. Specify multicycle relationships for LVDS transmitters or receiver deserialization factors.

Use derive_clock_uncertainty

to automatically apply inter-clock, intra-clock, and I/O interface uncertainties.

Use check_timing

to generate a report on any problem with the design or applied constraints, including missing constraints

Use the Quartus II optimization features to achieve timing closure or improve the resource utilization.

Use the Timing and Area Optimization Advisors to suggest optimization settings.

For more guidelines about timing constraints, refer to

The Quartus II TimeQuest Timing

Analyzer

chapter in the

Quartus II Handbook

.

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

Design Implementation Page 35

Functional and Timing Simulation

Use the following checklist for guidelines about functional and timing simulation.

Table 15. Functional and Timing Simulation Checklist

No.

v

Checklist items

1.

Perform functional simulation at the beginning of your design flow

Perform the simulation to check the design functionality or logical behavior of each design block. You do not have to fully compile your design; you can generate a functional simulation netlist that does not contain timing information.

2.

3.

Perform timing simulation to ensure your design works in targeted device

Timing simulation uses the timing netlist generated by the TimeQuest Timing Analyzer, which includes the delay of different device blocks and placement and routing information. You can perform timing simulation for the top-level design at the end of your design flow to ensure that your design works in the targeted device.

Specify your simulation tool and use correct supported version

Altera provides the ModelSim

®

-Altera simulator Starter Edition and offers the higher-performance ModelSim-Altera Edition that enable you to take advantage of advanced testbench capabilities and other features.

In addition, the Quartus II EDA Netlist Writer can generate timing netlist files to support other third-party simulation tools such as Synopsys VCS, Cadence NC-Sim, and Aldec Active-HDL.

If you use a third-party simulation tool, use the software version that is supported with your Quartus II software version.

Specify your simulation tool in the

EDA Tools Settings

page of the

Settings

dialog box to generate the appropriate output simulation netlist. The software can also generate scripts to help you setup libraries in your tool with NativeLink integration.

Use only the model libraries provided with your Quartus II software version. Libraries may change between versions and this can cause a mismatch with your simulation netlist.

To create a testbench in the Quartus II software, on the

Processing

menu, point to

Start

and click

Start Testbench Template Writer

.

For information about the officially supported version of each simulation tool in a

Quartus II software version, refer to the relevant Quartus II software release notes on the

Release Notes page at the Altera website.

For more information, refer to the following documents in the

Quartus II Handbook

:

Simulating Altera Designs

Mentor Graphics ModelSim and QuestaSim Support

Synopsys VCS and VCS MX Support

Cadence Incisive Enterprise Simulator Support

Aldec Active-HDL and Rivera-PRO Support

December 2014 Altera Corporation MAX 10 FPGA Design Guidelines

Page 36 Design Implementation

Formal Verification

Use the following guidelines if your design requires formal verification.

Table 16. Formal Verification Checklist

No.

v

Checklist items

1.

Determine if you require formal verification for your design

If formal verification is required for your design, it is easier to plan for limitations and restrictions in the beginning than to make changes later in the design flow.

2.

3.

Check for support and design limitations for formal verification

The Quartus II software supports some formal verification flows. Using a formal verification flow can impact performance results because it requires that certain logic optimizations be turned off, such as register retiming, and forces hierarchy blocks to be preserved, which can restrict optimization.

For more information, refer to the

Cadence Encounter Conformal Support

chapter in the

Quartus II Handbook

.

Specify your formal verification tool and use correct supported version

Specify your formal verification tool in the

EDA Tools Settings

page of the

Settings

dialog box to generate the appropriate output netlist.

For information about the officially supported version of each formal verification tool in a

Quartus II software version, refer to the relevant Quartus II software release notes on the

Release Notes page at the Altera website.

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

Design Implementation Page 37

Power Analysis and Optimization

After compiling your design, analyze the power consumption and heat dissipation with the Quartus II PowerPlay Power Analyzer to calculate the dynamic, static, and

I/O thermal power consumption and ensure the design has not violated power supply and thermal budgets.

Power optimization in the Quartus II software depends on accurate power analysis results. Use the following guidelines to ensure the software optimizes the power utilization correctly for the design’s operating behavior and conditions.

Table 17. Power Analysis and Optimization Checklist (Part 1 of 3)

No.

v

Checklist items

1.

2.

3.

4.

Provide accurate typical signal activities to get accurate power analysis result

You need to provide accurate typical signal activities to PowerPlay Power Analyzer:

Compile a design to derive the information about design resources, placement and routing, and I/O standards.

Derive signal activity data (toggle rates and static probabilities) from simulation results or a user-defined default toggle rate and vectorless estimation. The signal activities used for analysis must be representative of the actual operating behavior.

For the most accurate power estimation, use gate-level simulation results with a Value

Change Dump File (

.vcd

) output file from a third-party simulation tool. The simulation activity should include typical input vectors over a realistic time period and not the corner cases often used during functional verification. Use the recommended simulator settings, such as glitch filtering, to ensure good results.

Specify the correct operating conditions for power analysis

Specify the operating conditions, including the core voltage, device power characteristics, ambient and junction temperature, cooling solution, and the board thermal model.

In the Quartus II software, select the appropriate settings on the

Operating Settings and

Conditions

page in the

Settings

dialog box.

Analyze power consumption and heat dissipation in the PowerPlay Power Analyzer

In the Quartus II software, on the Processing menu, click

PowerPlay Power Analyzer

Tool

. The tool also provides a summary of the signal activities used for analysis and a confidence metric that reflects the overall quality of the data sources for signal activities.

For more information about power analysis and recommendations for simulation settings for creating signal activity information, refer to the

PowerPlay Power Analysis

chapter in the

Quartus II Handbook

.

The PowerPlay Power Analyzer report is a power estimate and is not a power specification. Always refer to the device datasheet for the power specification.

Review recommended design techniques and Quartus II options to optimize power consumption

For information about design techniques to optimize power consumption, refer to the

Power Optimization

chapter of the Quartus II Handbook.

December 2014 Altera Corporation MAX 10 FPGA Design Guidelines

Page 38 Design Implementation

Table 17. Power Analysis and Optimization Checklist (Part 2 of 3)

No.

v

Checklist items

5.

Use the Power Optimization Advisor to suggest optimization settings

The Power Optimization Advisor provides specific power optimization advice and recommendations based on the current design project settings and assignments.

For more information, refer to the

Power Optimization

chapter in the Quartus II

Handbook.

6.

7.

8.

Consider using a faster speed grade device

If your design includes many critical timing paths that require the high-performance mode, you might be able to reduce power consumption by using a faster speed grade device if available. With a faster device, the software might be able to set more device tiles to use the low-power mode.

Optimize the clock power management

Clocks represent a significant portion of dynamic power consumption, because of their high switching activity and long paths. The Quartus II software automatically optimizes clock routing power by enabling only the portions of a clock network that are required to feed downstream registers.

You can also use clock control blocks to dynamically enable or disable the clock network. When a clock network is powered down, all the logic fed by that clock network does not toggle, thereby reducing the overall power consumption of the device.

For more information about using clock control blocks, refer to the

MAX 10 Clocking and PLL User Guide

.

To reduce LAB-wide clock power consumption without disabling the entire clock tree, use the LAB-wide clock enable signal to gate the LAB wide clock. The Quartus II software automatically promotes register-level clock enable signals to the LAB level.

Reduce the number of memory clocking events

Reduce the number of memory clocking events to reduce memory power consumption.

You can use clock gating or the clock enable signals in the memory ports.

MAX 10 FPGA Design Guidelines December 2014 Altera Corporation

Design Implementation Page 39

Table 17. Power Analysis and Optimization Checklist (Part 3 of 3)

No.

v

Checklist items

9.

Consider the following I/O power guidelines:

The dynamic power consumed in the I/O buffer is proportional to the total load capacitance—lower capacitance reduces power consumption.

Dynamic power is proportional to the square of the voltage. Use lower voltage I/O standards to reduce dynamic power. Non-terminated I/O standards such as

LVTTL

and

LVCMOS

have a rail-to-rail output swing equal to the V

CCIO

supply voltage and consume little static power.

Dynamic power is proportional to the output transition frequency. Use resistively-terminated I/O standards such as

SSTL

for high-frequency applications.

The output load voltage swings by an amount smaller than the V

CCIO

around a bias point. Because of this, the dynamic power is lower than for non-terminated I/O under similar conditions.

Resistively-terminated I/O standards dissipate significant static power because current is constantly driven into the termination network. Use the lowest drive strength that meets your speed and waveform requirements to minimize static power when using resistively terminated I/O standards.

The power used by external devices is not included in the PowerPlay Power Analyzer calculations. Ensure that you include the external devices power separately in your system power calculations.

10.

Reduce design glitches through pipelining and retiming

A design that has many glitches consumes more power because of faster switching activity. Pipelining by inserting flip flops into long combinational paths can reduce design glitches.

However, if there are not many glitches in your design, pipelining may increase power consumption due to the addition of unnecessary registers.

11.

Review the information on power-driven compilation and Power Optimization Advisor

For more information, refer to the

Power Optimization

chapter in the Quartus II

Handbook.

12.

Reduce power consumption with architectural optimization

Use specific device architecture features to reduce power consumption.

For example, use the dedicated DSP block available in the MAX 10 device in place of LEs to perform arithmetic-related functions; build large shift registers from RAM-based FIFO buffers instead of building the shift registers from the LE registers.
