ROXBURY PARK PLAY AREAS RENOVATION

CITY OF BEVERLY HILLS

TECHNICAL SPECIFICATIONS

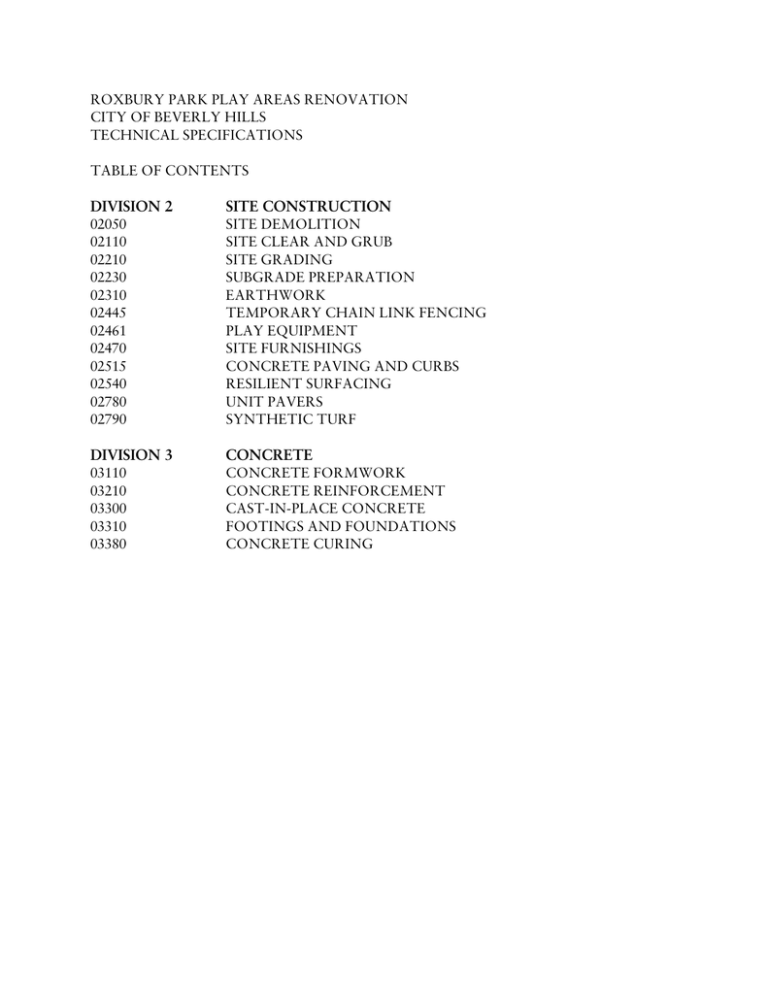

TABLE OF CONTENTS

DIVISION 2

02050

02110

02210

SITE CONSTRUCTION

DEMOLITION

SITE CLEAR AND GRUB

GRADING

02310

02445

SUBGRADE

02461

TEMPORARY CHAIN LINK FENCING

PLAY

02470

02515

02540

02780

CONCRETE PAVING AND CURBS

SURFACING

PAVERS

02790

DIVISION 3

03110

CONCRETE

CONCRETE

03210

03300

03310

CAST-IN-PLACE

FORMWORK

REINFORCEMENT

CONCRETE

FOOTINGS AND FOUNDATIONS

03380

PART 1 - GENERAL

SECTION 02050 - SITE DEMOLITION

1.01 RELATED

The requirements of the Standard Specifications for Public Works Construction (SSPWC), latest edition, Parts 2 through 6, apply to this project and are incorporated herein by this reference. Part

1 is specifically excluded.

Drawings, project manual, and general provisions of the Contract, including, without limitation,

General Conditions of the Contract, additional General Conditions of the Contract, and Division

1 specification sections, apply to this section.

1.02 SCOPE OF WORK

A. Furnish materials, labor, transportation, services, and equipment necessary to perform all site demolition work as indicated on the Drawings complete as shown and as specified herein.

Work:

Sub-grade

Earthwork

1.03 REFERENCES

A. Comply with the applicable reference specifications as specified in the GENERAL

PROVISIONS and in accordance with applicable laws, codes and regulations required by the City.

B. Comply with the current provisions of the following Codes and Standards:

3. Uniform Building Code

1.04 QUALITY ASSURANCE

A. Regulatory Requirements: Demolish existing site improvements as indicated on the

Drawings, in an orderly and careful manner. Comply with all local codes and ordinances.

B.

1. ASTM - American Society for Testing and Materials.

2. Standard

Equipment: Use equipment specifically designed for the demolition of each type of material.

C. Labor: Employ workmen skilled in the use of the equipment being utilized for demolition.

1.05 DELIVERY, STORAGE, AND DISPOSAL

A. Delivery and Storage: Do not deliver to the job site nor store thereon demolition equipment and materials prior to receiving written notice to proceed. Confine storage to areas approved by the City.

Site Demolition

02050-1

B. Disposal: Legally dispose of off site products of demolition during or at end of each day's work. Contractor shall pay all disposal costs associated with the project.

1.06 PROJECT CONDITIONS

A. Existing Conditions: Inspect site prior to commencing work. Determine scope of applicable site conditions. Prior to commencement of demolition activities, Contractor shall document in writing and photograph all existing conditions, including, without limitation, sidewalks, curbs, walls, trees, fencing, and other elements. Digital copies of all photos, at a size no smaller than 4" x 6" at 150 dpi minimum resolution, shall be provided to the City and Project Landscape Architect for future reference. The contractor shall be held responsible for any damages not documented in the submittal prior to commencement of demolition activities.

B.

C. Acceptance: Commencing work constitutes Contractor's acceptance of site conditions, both surface and subsurface. No extra payment shall accrue to Contractor by virtue of unknown conditions or difficulties of performing this demolition work.

1.07 PROTECTION

A. Protection of Existing Trees and Shrubs to Remain

1. Operations: Do not store materials or equipment, permit burning, or operate or park equipment under the branches of existing plants to remain except as actually required for construction in those areas.

2. Barriers: Provide barricades, fences or other barriers as necessary at the drip line to protect existing plants to remain from damage during construction.

Access and Testing: Make test excavations and borings required to determine existing conditions, subject to City's convenience.

3. Notification: Notify City representative when Contractor feels construction activities may damage existing plants to remain.

4. Replacement of Damaged Plants: a. Replace existing plants to remain that are damaged during construction with accepted plants of the same species and size as those damaged at no cost to City. b. The City representative will determine extent of damage and value of damaged plants.

B.

1.

Protection of Existing Site Improvements

References: Verify and maintain benchmarks, monuments and other reference points.

Replace if disturbed or destroyed.

2. Protection: Protect existing improvements noted to remain within designated limit(s) of work. Supply shoring, bracing, reinforcing and barricades as required. Refer to drawings for limit of work.

Site Demolition

02050-2

Hand excavate, expose, and report any root(s) below the surface of the concrete pavers that is 3” in diameter of larger. Do not cut any root larger than 3” prior to inspection, and direction from City representatives.

3. Utilities: Keep in operation existing utility circuits and piping to remain including sprinkler irrigation except at the direction of the Project Engineer. Provide 48-hour notice of interruption of service. Notify Project Engineer should utilities not shown on

Drawings be found during demolition.

4. Repair: If damage to site improvements to remain occurs during the course of the work, restore to the satisfaction of the City at no additional cost.

PART 2 B NOT APPLICABLE

PART 3 B EXECUTION

3.01 PREPARATION

A. Verification: Verify with the City representative items to be removed prior to commencement of work.

B. Compliance: Proceed with demolition in an orderly and careful manner, in compliance with local codes and ordinances.

C.

3.02 DEMOLITION

A. Utilities:

Disposal: Legally dispose of demolished materials off site unless otherwise directed by the

City representative.

1. Capping: Disconnecting and capping of utilities must be in accordance with the regulations of the utility company affected.

B. Paving and Walls:

1. Sawcutting: Accurately and cleanly sawcut existing concrete paving, if necessary, and as directed in field by City representative and/or Landscape Architect.

2. Finishing: Rough grade excavated areas as necessary to achieve the final line and grade to match existing, surrounding areas. Compact the grade to the density of the surrounding area. The final surface shall be smooth, even and tight, free from loose or soft areas.

C. Subgrade: Fill depressions made by demolition and restore excavated areas to a smooth and even grade. Compact the grade to the density of the surrounding soil.

Site Demolition

02050-3

3.03 DE-WATERING

A. General: Provide and operate equipment and do ditching and pumping necessary to keep the project area free from water.

B. Storm Water: Pump off storm runoff or other water until such time as new work in other

Sections shall effectively remove such water.

C. Protection: Take measures required to dispose of surface and subsurface water in compliance with municipal requirements.

D. Debris: Prevent transport of soil, aggregate or debris off site where practical.

END OF SECTION 02050

Site Demolition

02050-4

PART 1 - GENERAL

SECTION 02110 - SITE CLEAR AND GRUB

DOCUMENTS:

The requirements of the Standard Specifications for Public Works Construction (SSPWC), latest edition, Parts 2 through 6, apply to this project and are incorporated herein by this reference. Part

1 is specifically excluded.

Drawings, project manual, and general provisions of the Contract, including, without limitation,

General Conditions of the Contract, additional General Conditions of the Contract, and Division

1 specification sections, apply to this section.

1.02 SCOPE OF WORK:

Furnish all material, equipment and labor necessary to perform all clearing and grubbing work complete, including but not limited to the following:

Protection of trees indicated on drawings to remain.

Clearing and grubbing of all vegetation from site work areas.

Removal and disposal of all deleterious materials.

Furnishing, developing, applying and providing dust control watering equipment as required for the project.

1.03 RELATED WORK SPECIFIED ELSEWHERE:

1.04 RESPONSIBILITY AND COORDINATION:

Contractor shall secure and maintain all required permits and licenses, and pay all fees necessary to legally complete the work of this section.

Contractor shall notify utility companies for all utilities to be cut off, modified or relocated, and shall maintain and protect all active utilities.

1.05 PROTECTION AND SAFETY:

Contractor shall provide signs in necessary places to exclude persons, except those connected with the work, from entering the working area. Contractor is responsible for preventing unauthorized persons from entering working area.

Protect the project site and adjacent properties from dirty water, mud and water accumulated due to Contractor's operations, rainfall runoff or water that enters the project site from any other sources.

Site Clear and Grub

02110-1

PART 2 - MATERIALS - Not applicable.

PART 3 - EXECUTION

3.01 SUBMITTALS:

Pre-demolition Photographs: Show conditions of existing adjacent construction, and site improvements that might be misconstrued as damaged by demolition operations. Submit before work begin as specified in 02050 - Site Demolition, 1.07 A.

Record Documents: Accurately record locations of utilities and subsurface obstructions.

3.02 GENERAL REMOVAL WORK:

Removal work shall be carefully done to avoid damage to all existing facilities to remain.

3.03 SITE CLEARANCE AND DISPOSAL:

Clear the sites to be improved of grass, shrubs, weed growth, rubbish and debris, and existing concrete/ asphalt slabs, etc., that are to be removed for construction of the improvements shown on the construction plans. Rocks and broken masonry larger than four inches in the greatest dimension, shall be removed to a minimum depth of l2" below finished grade within areas to be planted, and within full depth of overexcavation in all other areas. Hand excavate, expose, and report any root(s) below the surface of the concrete pavers that is 3” in diameter of larger. Do not cut any root larger than 3” prior to inspection, and direction from City representatives.

All deleterious materials shall be disposed of off the site in a legal manner by the Contractor, who shall make all necessary arrangements and pay all related costs.

Miscellaneous existing underground facilities, drainage devices, secondary water lines, cables, abandoned oil and water lines, leaching fields, irrigation pipes, wiring, etc, located l2 inches or more below finish grade may be abandoned in place or removed as necessary for proper completion of the work, after notification is made to the City representative. All miscellaneous active lines that are uncovered during the grading operations shall be protected.

3.04 UTILITIES:

Inactive or abandoned utilities shall be disconnected, removed, and plugged or capped subject to the local governing ordinances.

Should the Contractor encounter any existing underground utilities not shown on the drawings, he shall at once notify the City representative who will determine further procedure.

BURNING:

Burning of debris will not be permitted.

3.06 DUST

Dust shall be kept to a minimum during site clearing operations by means of wetting the site or

Site Clear and Grub

02110-2

other approved method. Wash down all existing sidewalks and roadways on and off the site daily and after all operations are complete. Comply with all dust control requirements, SWPPP and

NPDES.

END OF SECTION 02110

Site Clear and Grub

02110-3

PART 1 - GENERAL

SECTION 02210 - SITE GRADING

1.01 RELATED DOCUMENTS:

See Section 02310 - Earthwork - for further information

The requirements of the Standard Specifications for Public Works Construction (SSPWC), latest edition, Parts 2 through 6, apply to this project and are incorporated herein by this reference. Part 1 is specifically excluded.

Drawings, project manual, and general provisions of the Contract, including General Conditions of the Contract, additional General Conditions of the Contract, and Division 1 specification sections, apply to this section.

1.02 SCOPE OF WORK:

Furnish all material, equipment and labor as necessary to perform all earthwork complete, including, but not limited to, the following:

Subgrade preparation for walks, slabs and other facilities

Finish grading of the site

Excavation and backfill for all footings, trenches, structures, etc.

Soil compaction as required

Protective measures

Dust and noise abatement

1.03 RELATED WORK SPECIFIED ELSEWHERE:

Site Clear and Grub - Section 02110.

Excavation and backfill for any mechanical, plumbing, irrigation, drainage or electrical work - appropriate sections

1.04 QUALITY ASSURANCE:

A. All work shall comply, without limitations, with the requirements of the following:

(1) Storm Water Quality Associations - Stormwater Best Management Practice

Handbook (BMP Handbook) Construction Edition.

(2) SWPPP & NPDES Requirements

B. Tests and Inspections:

(1) All work in this section shall be subject to the observation and testing as required by the Soils Engineer selected by the City. The Soils Engineer shall submit a compaction report to the City, certifying the Contractor's compliance with the plans, specifications, soils reports and City grading ordinance in placing all fills and backfills. The Soils Engineer shall conduct all specified tests to insure compliance. Soils Engineer shall also test, identify and make recommendations on

Site Grading 02210-1

borrow site fill materials as specified in this section.

(2) Number and location of soils tests to be at the discretion of the Soils Engineer to assure uniformity and compliance with the City grading ordinance, but at least one test per two vertical feet of fill, but not less than one test per 500 cubic yards, all as approved by the City.

(3) The costs of services of the Soils Engineer, specified field density and maximum density tests, compaction reports and certificates of compliance, shall be borne by the City. Additional tests and re-compactions made necessary by inadequate compaction, inadequate materials provided by contractor, and inaccurate excavations shall be paid for by the Contractor at no additional cost to the City.

1.05 GRADING OPERATIONS:

The grading contractor shall be responsible for determining their own earthwork quantities for bidding purposes. The quantities shown on the plans are the engineer

=s estimate only and are for the sole purpose of determining city plan check and permit fees.

All import or export necessary to achieve the grade to match existing surrounding areas is the responsibility of the contractor and shall be included in the contract prices including, but not limited to, spoils.

1.06 WATER:

Contractor shall make arrangements with the City of Beverly Hills Public Works to obtain construction water. This includes, without limitation, payment for a hydrant meter and water usage for entire job.

1.07 JOB CONDITIONS:

A. Protection of Existing Items:

(1) The Contractor shall furnish, place and maintain all shoring and bracing as may be required for protection of existing structures and utility services during execution of the work. The adequacy of and responsibility for this shall be the Contractor's completely.

(2) All bench marks, monuments and other reference points shall remain undisturbed unless specifically directed otherwise by the City representative.

(3) Contractor shall dig by hand as necessary to protect existing underground utilities and existing irrigation lines, in all areas where existing utilities and/or irrigation lines and wires are located.

B. Protection of Public:

The Contractor shall provide such barricades, temporary fences, gates, lights, warning signs, guards, and other measures as may be necessary to assure safety and to deter trespassers. These provisions shall be maintained during the entire duration of the work.

These temporary facilities shall be constructed, painted, and maintained in strict

Site Grading 02210-2

conformance with the requirements of applicable codes and other governing authorities.

C. Coordination with Others:

(1) Contractor shall give written notice to the City representative, utility agencies, and other legal authorities prior to starting work.

(2) Contractor shall coordinate his operations with other trades, utility firms, and other affected public departments to assure continuity for both access and service of all utility, service distribution lines, in conformance with applicable requirements of these organizations. No services to any property shall be impeded.

D. Abandoned and Unknown Utilities:

(1) Abandoned lines, meters and boxes, obstructions or piping, shall be removed, plugged, or capped in accordance with the requirements and approval of the agencies affected, or as directed by the City representative. Coordinate all such work with applicable mechanical or electrical trade having responsibility. Remove all abandoned utility lines, pipes, or conduits, to a point outside new construction lines.

(2) Where unmarked utility lines or other underground obstructions or piping are uncovered within the work area, notify the City representative or the agencies or service utility companies having jurisdiction and take necessary measures to prevent interruption of service. Should such lines or services be damaged, broken, or interrupted through the Contractor's own negligence, those services shall be repaired immediately and restored by him at his own expense.

PART 2 - MATERIALS

2.01 DRAIN ROCK:

2.02 IMPORT:

A.

Drain rock for all sumps shown on plan shall be ASTM C33 #57 rock, unless otherwise directed by the City representative.

All import soil used for fill in landscape areas (if deemed necessary) shall be Class `A' topsoil per Standard Specifications, Section 212.

B. All import soil used for structural fill shall be non-expansive, predominantly granular material free from organic contaminants, and capable of attaining the required compacted densities.

C. All import soil must be approved at the borrow site by the Soils Engineer.

2.03 FILL MATERIAL:

All fill material must be approved by the Soils Engineer. A.

B. On-site excavated materials may be used as approved by the Soils Engineer. Landscape fill

Site Grading 02210-3

shall be Class `A' topsoil.

Rocks larger than 3 inches in diameter shall be removed from all fills to be compacted.

PART 3 - EXECUTION

3.01 GENERAL:

A. All demolition and clearing and grubbing of objectionable materials must be completed to the satisfaction of the Soils Engineer before starting earthwork grading and excavation.

B. Survey/Staking:

C.

Contractor shall provide all survey services necessary for horizontal and vertical control points, layouts, lines and levels, staking of work.

Any corrections to the grading work required to obtain proper drainage and to bring it into conformance with the intent of the plans and specifications and City codes shall be performed by Contractor at no additional cost to the City.

C. Contractor shall check all existing grades prior to initiating grading work as necessary to verify that the project can be graded as proposed. Any discrepancies found should immediately be brought to the attention of the City in writing.

3.02 ROUGH GRADING:

A. Rough grading of the site shall be sufficient to allow for the depths of paving, sub-base, topsoil, and compacted fills. Tolerance for rough grading is 1/10th of a foot. In all areas, appearance and positive drainage will be governing factors in acceptability of grades.

B. Graded material shall not be left in loose layers, but shall be stockpiled for use as compacted fill or compacted in thin layers as grading takes place in accordance with the requirements for compacted fill.

C. Scarification to a minimum depth of six (6) inches or to a depth permitting twelve (12) inches of controlled compacted fill shall be performed on all areas indicated to be overexcavated.

D. The Soils Engineer shall inspect all scarified surfaces prior to placement of compacted fill.

3.03 CONTROLLED FILL:

A. Fill material shall be spread in uniform lifts of six (6) to eight (8) inches of uncompacted thickness.

B. Prior to starting compaction, the fill material shall be brought to optimum moisture content by spraying with water if too dry, and aeration if too wet.

C. Thoroughly mix each lift to assure uniform distribution of water content.

D. Bring fills to suitable elevations above required grades to provide for effects of shrinkage

Site Grading 02210-4

and settlement.

E. For all areas designated to receive slabs and pavement and within a perimeter five (5) feet outside these areas, each lift shall be compacted to a minimum of 95% of maximum density as determined by ASTM D1557-70.

F. Where fill is required in planting areas each lift shall be compacted to a minimum of 85% maximum density.

G. Perform all compaction by suitable mechanical equipment and methods approved by the

Soils Engineer.

H. Inspection and field tests shall be carried on during grading by the Soils Engineer to assist the Contractor in obtaining the required degree of compaction and the proper moisture content. Where compaction of less than 90% is indicated, additional compactive effort shall be made with adjustment of the moisture content as necessary until a minimum of

90% compaction is obtained.

I. The material in any soft or spongy spots shall be removed to such depth as directed by the

Soils Engineer and replaced with suitable material, properly compacted.

J. Sub-grades to receive slabs and pavements shall be finished to a tolerance of plus or minus one-half (l/2) inch.

3.04 FINE GRADING:

Finish grades shall slope to drain without water pockets or irregularities and shall conform to the intent of all plans and specifications after thorough shrinkage, settlement and compaction of the soil. Finish grades shall meet all existing or established controls of sidewalks and curbs, and shall be of uniform slope and grade between points of fixed elevations or elevation controls and from such points to established grades. Tolerance for finish grading is l/4 inch, plus or minus.

Any corrections to the grading work required to obtain proper drainage and to bring it into conformance with the intent of the plans and specifications and City codes shall be performed by

Contractor at no additional cost to the City.

3.05 EXCAVATION:

The Contractor shall make all necessary excavation for footings and slabs and to any additional excavation necessary to provide ample room for installation of concrete forms where required.

Bottom of excavations shall be level, free from loose material and brought to the indicated or required grades in undisturbed earth. All excavations shall be kept free from standing water. The

Contractor shall do all pumping or draining that may be necessary in carrying on the work. Should excavations for footings, through error, be excavated to a greater depth of size than indicated or required, such additional depth or size shall be filled with concrete, at the Contractor's expense.

3.06 BACKFILLING:

Select site material shall be used for backfill of trenches and shall be free from large stones and

Site Grading 02210-5

clods. All bedding to be per codes.

Backfill shall be deposited in layers of maximum six inch thickness.

Layers of backfill shall be moistened with water, the amount to be rigidly controlled to insure optimum moisture conditions for the type of fill material used. Excess water causing saturated earth beneath footings, walks, and curbs will not be permitted.

Backfill shall be compacted by suitable means to a minimum 90%.

3.07 DUST AND NOISE ABATEMENT:

During the entire period of construction, site areas shall be kept sprinkled as necessary to reduce dust in the air and annoyance to surrounding properties. Adhere to the requirements of City ordinances for dust and noise control and NPDES.

END OF SECTION 02210

Site Grading 02210-6

SECTION 02230 - SUB-GRADE PREPARATION

PART 1 - GENERAL

CONDITIONS

Requirements of the Contract Documents, including but not limited to, the General, Special, and Technical Provisions, apply to work in this Section with the same force and effect as though repeated in full herein.

1.02 SCOPE OF WORK

Furnish materials, labor, transportation, services, and equipment necessary to perform all subgrade preparation work for the park as indicated on the Drawings complete as shown and as specified herein.

Related Work:

Section

Concrete Formwork

Concrete Reinforcement

Section 03110

Section 03210

Cast-In-Place Concrete Section 03310

1.03 REFERENCES

Comply with the applicable reference specifications as specified in the GENERAL

PROVISIONS and in accordance with applicable laws, codes and regulations required by the

City of Beverly Hills, CA.

Comply with the current provisions of the following Codes and Standards:

ASTM - American Society for Testing and Materials.

Standard Specifications

Uniform Building Code

PART 2 - MATERIALS

MATERIALS

General: Fill, backfill, and embankment materials shall be suitable selected or processed clean, fine earth, rock, or sand, and free from grass, roots, brush, or other vegetation; contamination; or deleterious material. The size, gradation, and properties of the materials shall be in accordance with the requirements of the Soil Report and these specifications.

Aggregate base materials under pavements shall be crushed aggregate base material constructed to the thickness shown or specified. The percentage composition by weight of aggregate base shall conform to the Standard Specifications.

PART 3 - EXECUTION

Excavate and shape subgrade to line, grade, and cross-section shown on the Drawings.

Subgrade Preparation 02230-1

Subgrade is that area on which pavement, surfacing, base, sub-base, or a layer of other material which may be specified, is to be placed.

Plow or scarify subgrade to a depth of 6" below the final subgrade elevation; and by harrowing, dry rolling and breaking clods, the earth shall be brought to finely divided condition. Remove boulders, hardened material, or rock encountered. The earth shall be uniform for the full depth and width of the subgrade.

Water loose earth to a uniform depth of 4".

Harrow the earth to mix the wet earth with the dry beneath, until the whole mass of loose material is at the proper state of moisture for compaction.

The finished subgrade, immediately prior to placing subsequent material thereon, shall be in accordance with the Standard Specifications.

The finished surface of the subgrade, at any point, shall not vary more than 0.05' above or 0.2' below the elevation indicated on the drawings unless approved in writing by the City representative. Hand excavate, expose, and report any root(s) below the surface of the concrete pavers that is 3” in diameter of larger. Do not cut any root larger than 3” prior to inspection, and direction from City representatives.

The City will not provide any additional compensation to the Contractor for hard rock or caliches excavation.

3.02 BASE

Base shall be readily compacted and spread with equipment that will provide a uniform layer conforming to the planned section.

3.03 CLEANUP

Upon completion of the subgrade preparation and base, remove surplus construction materials, earth and debris so that the job site is left in a neat and orderly condition.

END OF SECTION 02230

Subgrade Preparation 02230-2

SECTION 02310 - EARTHWORK

PART 1 - GENERAL

DOCUMENTS:

Section 02210 - Site Grading

The requirements of the Standard Specifications for Public Works Construction (SSPWC), latest edition, Parts 2 through 6 (except as modified herein), apply to this project and are incorporated herein by this reference. Part 1 is specifically excluded.

Drawings, project manual, and general provisions of the Contract, including, without limitation, General Conditions of the Contract, additional General Conditions of the Contract, and Division 1 specification sections, apply to this section.

1.02 SCOPE OF WORK

Furnish materials, labor, transportation, services, and equipment necessary to perform all earthwork operations related to the park as indicated on the Drawings complete as shown and as specified herein.

The work of this Section includes all earthwork required for construction of the WORK. Such earthwork shall include, but not be limited to, the loosening, overexcavation and recompaction, removing, loading, transporting, depositing, and compacting in its final location of all materials wet and dry, as required for the purposes of completing the work specified in the Contract

Documents, which shall include, but not be limited to, the furnishing, placing, and removing of sheeting and bracing if necessary to safely support the sides of all excavation; all pumping, ditching, draining, dewatering, and other required measures for the removal or exclusion of water from the excavation; the supporting of structures above and below the ground; all backfilling around structures and all backfilling of trenches and pits; the disposal of excess excavated materials; alluvial removals, selective grading of expansive soils, soil importing or exporting, borrow of materials to make up deficiencies for fills, and all other incidental earthwork, all in accordance with the requirements of the Contract Documents.

Related Work:

Site Demolition

Grading

Sub-grade Preparation

1.03 REFERENCES

Section 02050

Section 02230

All work will be done in accordance with applicable laws, codes and regulations required by the

City of Beverly Hills, CA . Work shall comply with the rules and regulations of local, state and federal agencies having jurisdiction, including, without limitation, SWPPP and NPDES. Nothing contained herein shall be construed as permitting work that is contrary to such rules, regulations and codes.

Comply with the current provisions of the following Codes and Standards, without limitation:

1. ASTM - American Society for Testing and Materials

2. Standard Specifications (as specified in the General Provisions [Part 1 is specifically excluded])

3. CBC B California Building Code, Title 24, Part 2, Chapter 18 and Chapter 33

4. Storm Water Quality Association B Stormwater Best Management Practice Handbook (BMP

Handbook) Construction Edition.

5. State Water Resources Control Board Order No. 92-08-DWQ

6. ASTM C136 B Method for Sieve Analysis of Fine and Coarse Aggregation

7. ASTM D448 B Sizes of Aggregate for Roadway and Bridge Construction

8. ASTM D1556 B Test Method for Density of Solid in Place by the Sand-Cone Method

9. ASTM D1557 B Test Methods for Moisture-Density Relations of Soils and Soil-Aggregate

Mixtures Using 10 lb. Rammer and 18 inch Drop

10. ASTM D2922 B Test Methods for Density of Soil and Soil-Aggregate in Place by Nuclear

Methods (Shallow Depth)

11. ASTM D2937 B Test Method for Density of Solid in Place by the Drive-Cylinder Method

12. ASTM D3017 B Standard Test Method for Water Content of Soil and Rock in Place by

Nuclear Methods (Shallow Depth)

13. Coordinate work of this section with Permit provisions of State Water Resources Control

Board Order No. 92-08-DWQ and the Storm Water Pollution Prevention Plan.

1.04 SUBMITTALS

Submittals, including samples of materials, shall be in accordance with the GENERAL

PROVISIONS.

Samples: Submit a one-half cubic foot sample of proposed import soils (if required) per the project’s soil report for Soils Engineer=s review and approval; identify location and source of import soil.

ASSURANCE

General: All soils testing and inspection during earthwork operations, other than agricultural suitability and chemical analysis of proposed soils, will be done by a testing laboratory of the City representative’s choice, at the City’s expense except as specified in Paragraph 1.5.C below.

Where soil material is required to be compacted to a percentage of maximum dry density, the maximum dry density at optimum moisture content will be determined in accordance with the

Earthwork 02310-2

latest version of ASTM D 1557. In-place field density tests will be performed in accordance with

ASTM D 1556, (sand cone) and/or ASTM D 2922 and ASTM D 3017 (nuclear gauge). The number and location of field density tests will be determined by the Soils Engineer.

In case the tests of the fill or backfill show non-compliance with the required density, the

CONTRACTOR shall accomplish such remedy as may be required to ensure compliance.

Subsequent testing to show compliance shall be by a testing laboratory selected by the City and shall be at the CONTRACTOR=s expense. All imported fill material not specified in the contract shall be tested at the CONTRACTOR=s expense and approved by the Soils Engineer.

CONDITIONS

Existing Conditions: The existing topographic conditions are shown on the drawings for reference only. Upon beginning the earthwork, Contractor represents that he has inspected the site and satisfied himself as to actual grades and levels and the true conditions under which the work is to be performed. Promptly notify the City=s representative of unexpected subsurface conditions. The

Contractor is required to submit a "Site Acceptance" letter before earthwork operations begin.

Soil Classification: Excavated materials are not classified as to type.

1.07 PROTECTION

Protection:

1. Protect excavations by shoring, bracing, sheeting, underpinning, or other methods, as required to prevent cave-ins or loose dirt from entering excavations. Barricade open excavations and post warning lights at work adjacent to public streets and walks.

Coordinate with all ordinances.

2. Cover holes and trenches when work is not in progress. Fence or barricade changes of plane more than 45 degrees horizontally and more than 3 feet vertically.

3. Maintain bench marks, monuments, and other reference points. If disturbed or destroyed, replace as directed, at no cost to the owner

4. Protect existing berms and slopes from disruption. If slopes are disturbed, return to existing conditions at no additional cost to the City.

5. Underpin adjacent structure(s), including utility service lines, which may be damaged by excavation operations.

6.

7.

Protect existing natural areas and landscape improvements from damage.

Promptly repair damage to adjacent facilities caused by earthwork operations. Cost of repair at Contractor's expense.

Provide erosion and sedimentation control measures to prevent soil erosion and discharge of soilbearing water runoff or airborne dust to adjacent properties and walkways according to requirements of the Storm Water Pollution Prevention Plan.

Earthwork 02310-3

Inspect, repair, and maintain erosion and sedimentation control measures during earthwork operations.

PART 2 - MATERIALS

2.01 SUITABLE FILL AND BACKFILL MATERIAL REQUIREMENT

General: Fill, backfill, and embankment materials shall be suitable selected or processed clean, fine earth, rock, or sand, and free from grass, roots, brush, or other vegetation; contamination; or deleterious material. The size, gradation, and properties of the materials shall be in accordance with the requirements of these specifications.

Suitable materials may be obtained from onsite excavations, may be processed onsite materials, or may be imported provided these materials meet all the requirements in the Contract Documents. If imported materials are required to meet the requirements of this Section or to meet the quantity requirements of the project, the Contractor shall provide the imported fill materials and the required conformance reports of test results at no additional expense to the City, unless a unit price item is included for imported materials (including the appropriate required testing reports) in the bidding schedule.

2.02 USE OF FILL AND BACKFILL MATERIAL TYPES

The Contractor shall use the types of materials as designated on the Drawings and herein for all required fill, backfill, and embankment construction hereunder.

Where these Specifications conflict with the requirements of any local agency having jurisdiction, or with the requirements of a material manufacturer, the City shall be immediately notified. In case of conflict therewith, the order or precedence in the Contract or Terms and Conditions shall govern.

PART 3 - EXECUTION

3.01 PREPARATION

Establish extent of grading and excavation by area and elevation. Designate and identify datum elevation and project engineering reference points. Set required lines, levels and elevations.

Do not cover or enclose work of this Section before obtaining required inspections, tests, approvals, and location recording.

3.02 EXISTING

Before starting grading and excavation, establish the location and extent of underground utilities in the work area. Exercise care to protect existing utilities during earthwork operations. Perform excavation work near utilities by hand and provide necessary shoring, sheeting, and supports as the work progresses.

Maintain, protect, relocate, or extend, as required, existing utility lines to remain which pass through the work area.

Earthwork 02310-4

Protect active utility services uncovered by excavation. Notify respective utility companies and

City representative of damage caused to active utilities immediately.

Remove abandoned utility service lines from areas of excavation. Cap, plug, or seal abandoned lines at source of connection and identify termination points at grade level with markers, after notification is provided to the City representative.

Accurately locate and record abandoned and active utility lines rerouted or extended on project record documents.

3.03 SITE

Perform grading within contract limits, including adjacent transition areas, to new elevations, levels, profiles, and contours indicated. Provide uniform levels and slopes between new elevations and existing grades.

Obtain approval of scarified subgrade surfaces by City's representative prior to filling operations.

Scarify, dry, and compact soft and wet areas; remove and replace unsuitable subgrade materials with an approved fill material. Take corrective measures before placing fill materials.

Thoroughly scarify existing soil surface to a depth of 10" and as shown on the Soils Report and verify scarification with City's representative prior to placing fill material in mounded areas.

Spread approved fill material uniformly in layers not greater than 12" of loose thickness over entire fill zones of planting areas.

1. Lift thickness requirements may be modified by City’s representative to suit equipment and materials or other conditions when required to assure satisfactory compaction.

2. Place and compact each layer of fill before placing additional fill material. Repeat filling until proposed grade, profile or contour is attained.

3. Suspend fill operations when satisfactory results cannot be obtained because of environmental or other unsatisfactory site conditions. Do not use over-saturated fill materials. Do not place fill material on over-saturated subgrade surface.

4. Grade surfaces to assure positive drainage and to prevent ponding and pockets of surface drainage.

5. Protect finish graded areas from traffic and erosion. Keep free of trash and debris. Repair and reestablish grades in settled, eroded and damaged areas.

If, in the opinion of the City, the completed site grading does not reflect the intent of the Contract

Documents, an independent surveyor may be hired to verify the grades. If the grades are correct, the City will pay for the survey. If the grades are incorrect, the cost of the survey will be deducted from the Contract price.

Earthwork 02310-5

3.04 BACKFILLING / FILLING FOR PAVING & WALLS

Before filling, remove debris, large rocks, formwork and loose material.

Proof-roll areas to receive fill with rubber tired roller of sufficient weight. Weak areas or areas where excessive pumping is noted shall be removed, and if required by the City, replaced with select fill.

Prior to placing fill, scarify surface to a depth of 6 inches. Moisture content of loosened material shall be such that first layer of fill will readily bond to surface.

Top 6 inches shall be free from rocks larger than 3 inches diameter.

Place in maximum 8-inch lifts and compact per ASTM D 1557 at optimum moisture content (-1% to +3%). This lift and compaction requirement does not apply to planting areas.

Moisten fill to allow drying to correct moisture content before compaction. Do not place fill on subgrade that is over-saturated.

Paving subgrade per plan.

Allowing for total thickness of finish paving and base material, fill under paving to bring subgrade to proper elevation.

Soft areas that develop under construction operations shall be scarified, aerated or moistened.

Compact to full depth required to obtain specified density for each layer.

3.05 EXCAVATING

It is the Contractor's responsibility to investigate the likelihood of caliches or hard rock excavation.

The City will not provide any additional compensation to the Contractor for hard rock or caliches excavation.

3.06 FINISH

Grade uniformly with rounded surfaces at tops and bottoms of abrupt changes in plane. Hand grade steep slopes, areas that are inaccessible for machine work and areas around existing plants.

Slope graded surfaces to drain water away from structures, walls, etc.; minimum slope is 1/4 inch per foot.

Grade areas to elevation and slopes indicated without depressions causing pocketing of surface water or humps, producing localized runoff and erosion. Ponding of water on site is not allowed.

Finish surfaces to be not more than 0.10 foot above or below established grade elevation.

3.07 DRAINAGE

Provide drainage of the working area at all times.

Earthwork 02310-6

3.08 DISPOSAL OF WASTE MATERIALS

Legally dispose excess excavated material, including rock from site.

309 CLEANING

Upon completion of earthwork operation, clean areas within contract limits, remove tools and equipment.

Provide site clear, clean, free of debris and suitable for site work operations.

Remove and dispose of properly off site all rocks and other debris from grading operations.

END OF SECTION 02310

Earthwork 02310-7

SECTION 02445 - TEMPORARY CHAINLINK FENCING

Install a 6' tall (min.) temporary construction fence prior to beginning any site work, at the frontage of the park property. The fence shall be chain link (new or used), free of openings or breaks in the fabric, with fence posts at 10' O/C maximum. Fencing shall incorporate green “tennis court” windscreen material, securely fastened to top and bottom of chain link fabric, for the entire secured perimeter of the fence line. The fence shall be maintained in place throughout the construction phase period through to the end of the ninety (90) day landscape maintenance period.

Install “No Trespassing” signs minimum 20' o.c., with wording presented in both English and

Spanish. The temporary fence shall be removed prior to final inspection/project acceptance at the end of the maintenance period.

END OF SECTION 02445

Temporary Chainlink Fencing

02445-1

PART 1 - GENERAL

SECTION 02461 - PLAY EQUIPMENT

DOCUMENTS:

The requirements of the Standard Specifications for Public Works Construction (SSPWC), latest edition, Parts 2 through 6, apply to this project and are incorporated herein by this reference. Part 1 is specifically excluded.

Drawings, project manual, and general provisions of the Contract, including, without limitation,

General Conditions of the Contract, additional General Conditions of the Contract, and Division

1 specification sections, apply to this section.

1.02 SCOPE OF WORK:

The work under this section shall include, without limitation, all labor, materials, and equipment required to install the play equipment complete as specified. The equipment shall be assembled on site as per manufacturing recommendations and this section. All work and equipment provided shall be subject to approval of the City representative.

1.03 SHOP DRAWINGS OR CATALOGS:

Six (6) copies of shop drawings which show complete details will be provided for all items requiring shop fabrication in accordance with Section 2-5.3 of the Standard Specifications.

1.04 GUARANTEE & LIABILITY INSURANCES:

A. Manufacturer shall guarantee all materials and workmanship for a period of one (1) year exclusive of vandalism. Manufacturer will be required to provide product liability insurance coverage in the minimum amounts of $1,000,000.00 per incident.

The Manufacturer will be required to provide complete installation drawings including specifications and a replacement parts list for all products.

B. Contractor shall provide a written guarantee on his firm’s letterhead using City format, for all materials and workmanship for a period of one (1) year exclusive of vandalism.

Written guarantee shall be submitted to the City representative at the final inspection prior to final acceptance of the work.

1.05 PROPOSED

Products proposed for substitution as "equals" to those specified are subject to the approval of

City representative. If at the time proposed equals are delivered to the site it is determined by the City representative that they are not equal to those specified, they shall be removed and products as specified provided by the contractor at no additional cost to the City.

INSPECTION:

No equipment or apparatus or foundations for same shall be placed until location stakes have been

Play Equipment

02461-1

inspected by the City representative.

PART 2 - MATERIALS

2.01 CHILD PLAY & TOT LOT STRUCTURES:

Shall consist of custom Kompan play equipment per quote #14450, prepared by Recreation

Republic, (760)690-4030, or approved equal.

2.02 WATER/SAND PLAY STRUCTURES (ADD ALTERNATE #1):

Shall consist of the following:

1. Kompan ‘Waterfall’, model #M591P, or approved equal. Structure to be plumbed for water tap per construction plans and details. Available from Recreation Republic,

(760)690-4030.

2. Kompan ‘Rotating Table’, model #M571P, or approved equal. Available from Recreation

Republic, (760)690-4030.

3. Kompan ‘Starfish’, model #M584P, or approved equal. Available from Recreation

Republic, (760)690-4030.

4. Two (2) Landscape Structures ‘Superscoops’, model #123831A, or approved equal. Colors per construction plans. Available from Coast Recreation, (714)619-0100.

5. One (1) Landscape Structures ‘Accessible Superscoops’, model #123832A-B, or approved equal. Colors per construction plans. Available from Coast Recreation, (714)619-0100.

6. Three (3) existing ‘Palm Trees’ to be protected in place per demolition and construction plans. ‘Palms’ are to be plumbed for misting system with Mee Industries. Contact Dave

Sola at Mee Industries, (626)359-4550, for proposal and installation scope of work for both

Contractor and Mee Industries.

7. Vortex Foot Activator, model #VOR0606, or approved equal. Activator to be connected to water play controls via control wire per construction detail. Available from Vortex

West, (866)886-7839.

8. Precast concrete underground vault with galvanized steel lockable cover option, model

#K44-FP48-05PG, to house water play equipment. Available from Jensen Precast,

(909)351-4111.

SURFACING

Shall consist of one of the following dependent upon award by the City:

9. A custom mix blend (as specified per construction plans) of Surface America Playbound poured-in-place aliphatic rubber surfacing product, represented by Coast Recreation

(714)619-0100, or approved equal. Install per manufacturer’s specifications, and Section

02540 Resilient Surfacing.

10. Deductive Alternate #1: FieldTurf Olive Lush artificial turf surfacing, represented by

Recreation Republic, (760)690-4030, or approved equal. Installation per manufacturer’s specifications, subject to product warranties and guarantees. The installer shall specialize in performing the work, and provide competent workmen skilled in this specific type of installation. Supervisory personnel shall be certified in writing by the manufacturer, licensed, with a minimum of 5 years experience in managing or supervising synthetic turf installations. Installation methods and details shall be presented to City representative at time of pre-construction meeting prior to installation. The City reserves the right to request additional securing methods or measures to ensure that the surface is safe and

Play Equipment

02461-2

secure without additional cost to the City.

11. Deductive Alternate #2: Fibar engineered wood fiber surfacing, represented by Recreation

Republic, (760)690-4030, or approved equal. Shall be manufactured primarily from softwood; shall contain no plywood, particle board, or contaminated wood; shall be free of all foreign objects such as metal, glass, and stones; shall contain no chemicals or additives; shall be completely non-toxic; and shall be guaranteed against decay and biochemical degradation for a period of three (3) years from the date of installation.

PART 3 - EXECUTION

3.01 GENERAL:

Installation shall be in the approximate locations shown on the drawings. Final approval of precise location by the City is required. In case of conflict between construction plans and manufacturer's requirements, the more stringent shall apply.

RESISTANCE:

All fasteners shall be either deformed or tack welded together to prevent unauthorized removal of the fasteners. Paint with galvi-con after deformation/welding.

WORK:

All concrete foundation work shall be performed in accordance with the Standard Specifications,

Section 201. Per recommendations listed within the Soils Report, all concrete shall conform to

Concrete Class Use Table, Section 201-1.1.3(A), of the Standard Specifications and shall be 520-C-

2500 (2,500 pounds per square inch ultimate compressive strength at 28 days) unless otherwise noted. Concrete mix shall have a maximum water/ cement ratio of 0.61.

3.04 CLEAN-UP:

Project area shall be left clean and orderly upon completion.

END OF SECTION 02461

Play Equipment

02461-3

PART 1 - GENERAL

SECTION 02470 - SITE FURNISHINGS

The requirements of the Standard Specifications for Public Works Construction (SSPWC), latest edition, Parts 2 through 6, apply to this project and are incorporated herein by this reference. Part 1 is specifically excluded.

Drawings, project manual, and general provisions of the Contract, including, without limitation,

General Conditions of the Contract, additional General Conditions of the Contract, and Division

1 specification sections, apply to this section.

1.02 SCOPE OF WORK:

The work included in this section generally consists of providing all labor, equipment and materials necessary to install all site furnishings complete as shown on the plans and as described herein.

1.03 SUBMITTALS:

A. Contractor shall submit a written work schedule and cost breakdown for the various elements of the work at the pre-construction conference. Contractor shall also submit a complete list of materials along with manufacturers catalog data for all materials proposed for use in the work as a substitute for those specified herein.

B.

C. Submit supplier’s certificates attesting that the materials furnished will meet specifications.

1.04 DELIVERY, STORAGE AND HANDLING:

A.

Manufacturer's Product Data: Submit six (6) copies of manufacturer's literature for each item of site furnishings.

Contractor assumes all responsibility for storage of all materials relative to this project.

City assumes no liability for losses or damages from any cause as a result of such storage.

1.05 JOB CONDITIONS - PROTECTION:

After slabs are poured and site furnishings are installed, all damage to surrounding turf and/or irrigation system shall be repaired by the contractor at the contractor's expense. All trees and shrubs in and around the project site shall be protected by the contractor and, if damaged, replaced at the contractor's expense. This provision is in effect until acceptance by the City representative of the complete project.

INSPECTION:

No equipment, apparatus or foundations shall be placed until location stakes have been inspected and accepted by the City representative.

Site Furnishings

02470-1

1.07 GUARANTEE & LIABILITY INSURANCES:

A. Manufacturer shall guarantee all materials and workmanship for a period of one (1) year exclusive of vandalism. Manufacturer will be required to provide product liability insurance coverage in the minimum amounts of $1,000,000.00 per incident.

The manufacturer will be required to provide complete installation drawings including specifications and a replacement parts list for all products.

B. Contractor shall provide a written guarantee on his firm's letterhead for all materials and workmanship for a period of one (1) year exclusive of vandalism. Written guarantee shall be submitted to the City at the final inspection prior to final acceptance of the work.

PART 2 - PRODUCTS

2.01 BENCHES:

Shall be DuMor 6’ long bench, model #93-60, or approved equal. Benches are surface mount, color is to be ‘Black’. Install per manufacturer’s specifications, available from the Wakefield

Company, (949)470-1130.

2.02 TRASH

Shall be DuMor 32 gallon trash receptacle, model #84-32-FTO, or approved equal. Trash receptacle is surface mount, color is to be ‘Black’. Install per manufacturer’s specifications, available from the Wakefield Company, (949)470-1130.

2.03 SHADE SAIL CANOPIES (ADD ALTERNATE #2):

Shall be Shade Systems custom design shade sail canopies over the play equipment per plan. Post location, fabric color, and post color are per construction plan. Install per manufacturer’s specifications, available from Recreation Republic, (760)690-4030.

2.04 RECTILINEAR HIP SHADE CANOPIES (ADD ALTERNATE #3):

Shall be Shade Systems 20’x25’ rectilinear hip canopies over the individual double swing sets per plan. Post location, fabric color, and post color are per construction plan. Install per manufacturer’s specifications, available from Recreation Republic, (760)690-4030.

2.05 SHADE STRUCTURE (ADD ALTERNATE #4):

As part of add alternate #4, shall be Coverworx 26’ diameter steel hexagon shade stucture per plan. Roof type, color, and post color are per construction plan. Install per manufacturer’s specifications, available from Recreation Republic, (760)690-4030.

2.06 PICNIC TABLE (ADD ALTERNATE #4):

As part of Add Alternate #4, shall be DuMor 6’ long picnic table, model #443-60, or approved equal. Picnic table is surface mount, color to be ‘Black’. Install per manufacturer’s specifications,

Site Furnishings

02470-2

available from the Wakefield Company, (949)470-1130.

2.07 ACCESSIBLE PICNIC TABLE (ADD ALTERNATE #4):

As part of Add Alternate #4, shall be DuMor 8’ long picnic table with 6’ long benches, model

#443-68-1, or approved equal. Picnic table is surface mount, color to be ‘Black’. Install per manufacturer’s specifications, available from the Wakefield Company, (949)470-1130.

2.08 BARBECUE GRILL (ADD ALTERNATE #4):

As part of Add Alternate #4, shall be Iron Mountain Forge stationary barbecue grill, model #200-

X, or approved equal. Grill is an in-ground mount. Install per manufacturer’s specifications, available from Pacific Park & Playground, (760)846-4885.

2.09 HOT COAL RECEPTACLE

As part of Add Alternate #4, shall be Outdoor Creations hot coal receptacle, model #300CR, or approved equal. Receptacle to be surface mount, color is to be ‘Light Gray’. Install per manufacturer’s specifications available from Outdoor Creations, (530)365-6106.

PART 3 - EXECUTION

3.01 LAYOUT:

Contractor shall stake/mark locations for all slabs and foundations and shall obtain the approval of their location from Landscape Architect prior to commencing any digging. Locations shall be adjusted to provide minimum clear distances required from all edges of slabs, trees, irrigation heads, or other obstructions.

WORK:

All concrete work shall conform with the standard specifications. Contractor shall obtain the approval of all forming from the City representative prior to pouring any concrete slabs.

Foundations holes shall be inspected and approved by the Inspector prior to pouring concrete.

INSTALLATION:

A. All site furnishings shall be installed with vandal-proof hardware or made vandal-proof

(deforming or peening).

B. Block outs for "after slab installation" will not be allowed.

3.04 CLEAN-UP:

Contractor shall clean up and legally dispose of all unused materials, excess soil, and debris at regular intervals throughout the duration of the work, and as directed by the City representative.

3.05 PROTECTION OF EXISTING IMPROVEMENTS:

Contractor shall protect all existing improvements from damage.

Site Furnishings

02470-3

END OF SECTION 02470

Site Furnishings

02470-4

SECTION 02515 - CONCRETE PAVING AND CURBS

PART 1 - GENERAL

DOCUMENTS:

The requirements of the Standard Specifications for Public Works Construction (SSPWC), latest edition, Parts 2 through 6, apply to this project and are incorporated herein by this reference. Part 1 is specifically excluded.

Drawings, project manual, and general provisions of the Contract, including, without limitation,

General Conditions of the Contract, additional General Conditions of the Contract, and Division 1 specification sections, apply to this section.

1.02 SCOPE OF WORK:

Exterior walks and slabs as shown on drawings

Cement, finish, joints, sawcutting, and patching

Setting of items to be inserted into concrete

Reinforcement dowels for masonry work

Curing

Testing

Miscellaneous concrete items

Placing of sleeves and conduit stubs under slabs

Curbs

1.03 RELATED WORK SPECIFIED ELSEWHERE:

Furnishing and determining location of items to be inserted into concrete. (Site Furnishings -

Section 02470)

1.04 STANDARDS:

Testing, materials, and workmanship shall conform to the requirements of the applicable Building

Code, except that requirements specified herein shall govern where they exceed those in the

Building Code.

1.05 SMOOTHNESS

Cement finish surfaces shall be of such smoothness and evenness that they shall contact the entire length of a 10-foot straight edge laid in any direction, with an allowable tolerance of l/8 inch. Any operations necessary to achieve this result should be performed by the contractor at no additional cost to the City. No patching will be permitted to correct defective work; defective sections shall be removed and replaced. No extensions of time will be allowed for correcting defective work.

1.06 INSPECTIONS:

Inspections will be required. Contractor shall call for inspection a minimum of 48 hours (two working days) prior to need.

Concrete Paving and Curbs

02515-1

The contractor shall call for inspection during specific phases of construction. They shall include, at a minimum, the following each prior to pour:

All Form Work

All Footings

Subgrade

Steel Reinforcing

Contractor shall notify the City representative 48 hours prior to each concrete pour.

Any work covered prior to inspection shall be opened to view by the Contractor at his expense.

1.07 TESTING:

All testing shall be as required by Standard Specification 01400.

1.08 MOCK-UPS:

Prior to installation of concrete, Contractor shall install a 6' x 6' sample concrete slab demonstrating each type of finish for inspection and approval of City. This sample shall remain on site until concrete work has been completed, and may be accepted as finished product at City representative’s discretion.

PART 2 - MATERIALS

2.01 All materials shall conform to Section 201 of the Standard Specifications, except as noted below:

2.02 CONCRETE:

All concrete shall conform to Concrete Class Use Table, Section 201-1.1.3(A), of the Standard

Specifications and shall be 520-C-2500 (2,500 pounds per square inch ultimate compressive strength at 28 days) unless otherwise noted. Concrete mix shall have a maximum water/ cement ratio of 0.61. Contractor shall provide at least two test cylinders of each specified concrete mix of size 6 x 12 inch to be cast and stored in the field in accordance with the requirements of ASTM C31

(Standard Practices for Making and Curing Concrete Test Specimens in the Field). Cylinders shall be turned over to the City representative for independent laboratory testing no sooner than 8 hours after final set, and no later than 24 hours after casting.

STEEL:

Shall be in accordance with the Standard Specifications. Rebar shall be placed within concrete flatwork per Concrete Reinforcement Section 03210.

2.04 EXPANSION

Shall be as shown on plans and details. Submit samples of preformed material and sealant for approval by City representative.

2.05 CONCRETE CURING COMPOUND:

Shall be Type 1, Clear or translucent without dye, as called for in Section 201-4 of the Standard

Concrete Paving and Curbs

02515-2

Specifications.

2.06 CRACK JOINT CONTROL:

Shall be as shown on the drawings and details. Submit samples of preformed materials for approval by the City representative.

2.07 JOINING NEW CONCRETE ADJACENT TO EXISTING CONCRETE:

A single ply of 30 lb. asphalt roofing felt, meeting the guidelines of ASTM D-226, shall be placed along the entire thickness of the exposed vertical slab of existing concrete. Excess asphalt felt shall be removed so that the top edge of the felt is flush with the finished concrete surface after the concrete has cured.

PART 3 - EXECUTION

3.01 GENERAL:

All work shall conform to the requirements of Sections 303 of the Standard Specifications.

All work shall conform to the soils investigation report. Slab thicknesses, reinforcement, compaction requirements, and base recommendations shall take precedence over details and plan callouts.

Contractor shall construct a 6' square sample of each type of concrete for the City representative’s approval prior to installing concrete.

All concrete slabs shall slope to drain. Depressions in the slab surface that hold water ("bird baths") will not be acceptable.

Install concrete and cement finish work true to lines, dimensions and levels.

Protect all finished concrete from graffiti. Contractor shall be responsible for providing concrete watchmen. A graffitied finish will not be acceptable.

Remove and replace defective concrete or cement work with new materials. Permission to patch any defective area shall not be a waiver of the City=s right to require complete removal of defective work if patching does not restore quality and appearance of work.

No advertising impression, stamp, or mark of any description will be permitted on surface of concrete or cement finish.

3.02 PLACING

Transport, place and spread in a manner to prevent segregation of aggregate. Reinforcing shall be supported by metal or plastic chairs; concrete supports shall not be used.

3.03 CEMENT

Exterior slabs and walks - non-slip, uniform medium broom surface, transverse to direction of

Concrete Paving and Curbs

02515-3

slab, unless otherwise shown on the plans.

3.04 CURING:

Initial curing shall be moist curing or moisture cover curing, and shall continue for at least 168 cumulative hours (not necessarily consecutive), during which the concrete has been exposed to air temperatures above 50 degrees F. Avoid rapid drying at the end of the curing period.

Use water that is free of impurities which could etch or discolor concrete surfaces.

Do not use liquid membrane curing compounds on surfaces which are to be covered with a coating material applied directly to the concrete or with a covering material bonded to the concrete, such as other concrete, liquid floor hardener, waterproofing, damp-proof flooring, painting, and other coatings and finish materials, unless otherwise acceptable to the inspector.

3.05 COORDINATION:

In-ground mount site furnishings shall be set in cured footings prior to placing concrete slab.

All foundations shall cure at least 14 days prior to placing concrete slabs. Block outs will not be permitted.

END OF SECTION 02515

Concrete Paving and Curbs

02515-4

PART 1 - GENERAL

SECTION 02540 - RESILIENT SURFACING

A. The requirements of the Standard Specifications for Public Works Construction (SSPWC), latest edition, Parts 2 through 6, apply to this project and are incorporated herein by this reference. Part 1 is specifically excluded.

B. Drawings, project manual, and general provisions of the Contract, including, without limitation, General Conditions of the Contract, additional General Conditions of the

Contract, and Division 1 specification sections, apply to this section.

C. Reference Standards:

A Handbook for Public Playground Safety as prepared by the U.S. Consumer Product

Safety Commission.

ASTM F1487-93 Standard Consumer Safety Performance Specifications for Public Use

Playground Equipment.

The provisions of the Federal Consumer Products Safety Commission (CPSC) guidelines for impact attenuation under playground equipment.

The provisions of the Americans with Disabilities Act of 1990 for accessibility to play area equipment.

1.02 SCOPE

The Work of this Section shall consist of furnishing all labor, materials, equipment, appliances and services necessary for the execution and completion of all Resilient Surfacing Work as shown on the Plans and as described in the Specifications including, but not necessarily limited to, the following:

!

!

!

Analysis of maximum fall-height for as-built play equipment;

Design of resilient surfacing thickness;

Excavation, grading and compaction of subgrade;

!

!

Placement and compaction of aggregate base;

Installation of resilient surfacing system;

!

Coordination with Work of other Sections;

!

Testing;

!

Clean-up;

!

Replacements, Repairs, Guarantees and Warranty Work.

1.03 QUALITY ASSURANCE

Prior to the start of any Work of this Section, Contractor shall arrange a meeting at the job site with the following representation:

Prime Contractor

Resilient Surfacing Installer

Play Equipment Installer

City Representative

Project Landscape Architect

Resilient Surfacing

02540-1

The purpose of this meeting is to verify the suitability of the site to accept Work of this Section and to assure a high quality installation. Surfacing installer shall have a minimum of three years experience in this type of work.

The resilient surfacing as installed shall meet or exceed the Consumer Product Safety Commission's guidelines for shock absorbency materials used under play structures, and shall comply with the provisions of the Americans with Disabilities Act of 1990 with respect to accessibility standards.

1.04 RELATED WORK

Play Equipment:

1.05 GUARANTEE

Section 02461

The resilient surfacing product manufacturer shall guarantee against defects in materials and workmanship for a minimum period of two (2) years, excluding acts of vandalism, nature or war.

1.06 SUBMITTALS

A. Color Samples: Color samples of the resilient surfacing shall be submitted at the preconstruction meeting for the review and approval of the City representative and the

Landscape Architect.

B. Shop Drawings: Per sub-section 3.02 Analysis and Design, following herein, Shop

Drawings shall be submitted to the City representative for review, together with a written report to document compliance with the CPSC Guidelines, all prior to installation of the product.

C. Maintenance Manuals: At the end of the project, but prior to final acceptance,

Manufacturers product description, warranty, installation instructions, Shop Drawings, recommendations for resilient surfacing maintenance, etc., shall be submitted together in a loose leaf binder format for City representative review, approval, and use in maintaining the surfacing.

D. Documentation of Inspection and Certification: Per sub-section 1.07 Inspections &

Testing, following herein, documentation of inspection and certification shall be submitted no later than the start of the Final Acceptance Inspection.

1.07 INSPECTIONS & TESTING

Prior to Final Acceptance of the Project, inspection and certification shall be obtained from the surfacing manufacturer, surfacing installer, and play equipment manufacturer, and shall be provided to the City Representative. The certifications shall attest to the adequate and proper installation of the finished product.

PART 2 - MATERIALS

BASE

Resilient Surfacing

02540-2

Shall be 3" thick concrete conforming with Standard Specifications Section 02515 – Concrete

Paving & Curbs

ASSURANCE

Products used in the Work of this Section shall be produced per the following subsection,

Subsection 2.03 Resilient Surfacing.

2.03 RESILIENT

The resilient surfacing shall be Playbound aliphatic poured in place rubber surfacing as manufactured by Surface America and available from Coast Recreation, (714)619-0100, or City approved equal. The surfacing shall be a poured-in-place type of safety surface for use as a resilient, shock absorbing cushion under playground equipment. It shall be porous throughout, entirely seamless, and create a tight seal around the play equipment. The surfacing shall consist of a two (2) layer system with a soft cushion layer covered by a durable, weather resistant, colored wearing layer as follows:

A. Cushion Course: Two (2) types of shredded SBR Rubber particles held in place by a polyurethane binder applied to 100% of the particles. Particle type one: 1 mm - 4 mm cubical; Particle type two: .5 mm - 2 mm in thickness by .25 cm - 2 cm in length strand.

The cushion course shall be a precise three component part mixture of these type SBR

Rubbers and the polyurethane binder with a minimum installed thickness of 1 5/8" or greater as necessary to achieve the safety standards defined by the Federal Consumer

Product Safety Commission guidelines.

B. Wearing Course: EPDM Rubber granules, 1 mm - 4 mm chipped, held in place by a polyurethane binder applied to 100% of the granules. The wearing course shall be a precise two component part mixture of the full color EPDM rubber granules and the polyurethane binder with a minimum installed thickness of 3/8".

C. Weed Control Blanket: Shall be a polypropyline fabric as provided by the resilient surfacing manufacturer.

D. Quality Control: In order to provide consistent quality control during installation, all component parts (ingredients of the surfacing mix) are to be pre-measured and sealed in individual containers for delivery to the job site.

2.04 COLOR

Surface color shall be as shown on the Construction Plans.

PART 3 - EXECUTION

3.01 QUALIFICATIONS OF INSTALLERS

Use adequate numbers of skilled workers who are thoroughly trained and experienced in the necessary crafts and who are completely familiar with the specified requirements and the methods needed for proper performance of the Work of this Section.

Resilient Surfacing

02540-3

3.02 ANALYSIS AND DESIGN

Work of this Section shall not commence until after the installation of all concrete paving and play equipment structural members and foundations is complete. Once all deck heights, post top heights, slide top/canopy heights and swing frame heights are established, the Resilient Surfacing installer shall analyze the maximum potential fall-heights presented by the "as-built" equipment installation and shall design the thickness of the resilient surfacing system based upon the "as-built" conditions, to ensure the shock absorbency of the system meets or exceeds the standards for play and surfaces as defined by the Federal Consumer Product Safety Commission (CPSC) guidelines.

Thickness of the resilient surfacing may be varied within the play area as a function of the various maximum potential fall-heights. Thickness of cushion course shall be a minimum of 1 5/8". A written report to document the analysis and design of the resilient surfacing, together with Shop

Drawings identifying the limits of the various design thickness shall be prepared by the resilient surfacing installer and submitted to the City representative.

3.03 SUBGRADE PREPARATION BASE

After analysis and design of the resilient surfacing thickness, Contractor shall prepare the play area subgrade in accordance with Section 301-1.2 Preparation of Subgrade of the Standard

Specifications as described for installation of untreated base. Compact to 90% relative compaction, tolerance to be a variance of not more than 1/2" from the grades specified by the analysis and design.

3.04 CONCRETE FLATWORK SUBSURFACE

Concrete base shall be installed in accordance with Standard Specifications to a minimum depth of

3".

3.05 FINISH OF SURFACING

The wearing course shall be hand troweled to produce an even, uniform surface. Surface "Sheet" drainage shall be provided as shown on the Plans. The surfacing installer shall adhere to manufacturer's instructions. The manufacturer's representative shall be present during installation and shall provide the City representative with written certification that the product has been installed in accordance with the manufacturer's recommendations.

3.06 CLEAN UP

After completion of the Work of this Section, remove all debris; clean-up all spills of material from surfaces; and keep the play area surfacing in a clean condition until accepted by the City representative.

END OF SECTION 02540

Resilient Surfacing

02540-4

SECTION 02780 - UNIT PAVERS

PART 1 GENERAL

1.01 SUMMARY

A. Section Includes: Concrete paver units.

Bedding and joint sand.

Geotextiles.

Edge restraints.

B. Related Sections:

1.

2.

Section 02230 – Subgrade Preparation

Section: 02515 – Concrete Paving & Curbs

1.02 REFERENCES

A. American Society of Testing and Materials (ASTM):

C 33, Specification for Concrete Aggregates.

C 67, Standard Test Methods for Sampling and Testing Brick and Structural Clay Tile,

Section 8, Freezing and Thawing

C 136, Method for Sieve Analysis for Fine and Coarse Aggregate.

C 140, Standard Test Methods for Sampling and Testing Concrete Masonry Units and

Related Units.

C 144, Standard Specification for Aggregate for Masonry Mortar.

C 936, Specification for Solid Interlocking Concrete Paving Units.

C 979, Standard Specification for Pigments for Integrally Colored Concrete.

Interlocking Concrete Pavement Institute (ICPI)

ICPI Tech Spec Technical Bulletins

1.03 SUBMITTALS

A. In accordance with Conditions of the Contract and Division 1 Submittal Procedures

Section.

B. Manufacturer’s drawings and details: Indicate perimeter conditions, relationship to adjoining materials and assemblies, concrete paver layout, patterns, installation details.

Sieve analysis per ASTM C 136 for grading of bedding and joint sand. pavers:

Two representative full-size samples of each paver type, thickness, color, finish that indicate the range of color variation and texture expected in the finished installation.

Color(s) as indicated on plans, and subject to City representative approval based on batch coloring. Intent is to match existing pavers in color, pattern, and type.

Accepted samples become the standard of acceptance for the work.

Test results from an independent testing laboratory for compliance of paving unit requirements to ASTM C 936.

Manufacturer’s certification of concrete pavers by ICPI as having met applicable ASTM standards.

Unit Pavers 02780 - 1

Manufacturer's catalog product data, installation instructions, and material safety data sheets for the safe handling of the specified materials and products.

D. Paver Installation Subcontractor:

A copy of Subcontractor’s current certificate from the Interlocking Concrete Pavement

Institute Concrete Paver Installer Certification program.

Job references from projects of a similar size and complexity. Provide

Owner/Client/General Contractor names, postal address, phone, fax, and email address.

1.04 QUALITY ASSURANCE

A. Paving Subcontractor Qualifications:

Utilize an installer having successfully completed concrete paver installation similar in design, material, and extent indicated on this project.

Utilize an installer holding a current certificate from the Interlocking Concrete Pavement

Institute Concrete Paver Installer Certification program.

B. Regulatory Requirements and Approvals: City of Beverly Hills

C. Mock-Ups:

1. Install a 6 ft x 6 ft paver area.

2. Use this area to determine surcharge of the bedding sand layer, joint sizes, lines, laying pattern(s), color(s), and texture of the job.

3. This area will be used as the standard by which the work will be judged.

4. Subject to acceptance by City representative, mock-up may be retained as part of finished work. If mock-up is not retained, remove and properly dispose of mock-up.

1.05 DELIVERY, STORAGE & HANDLING

A. General: Comply with Division 1 Product Requirement Section.

B. Comply with manufacturer’s ordering instructions and lead-time requirements to avoid construction delays.

C. Delivery: Deliver materials in manufacturer’s original, unopened, undamaged containers packaging with identification labels intact.

1.

2.

3.

Coordinate delivery and paving schedule to minimize interference with normal use of buildings adjacent to paving.

Deliver concrete pavers to the site in steel banded, plastic banded or plastic wrapped packaging capable of transfer by fork lift or clamp lift.

Unload pavers at job site in such a manner that no damage occurs to the product.

D. Storage and Protection: Store materials protected such that they are kept free from mud, dirt, and other foreign materials. [Store concrete paver cleaners and sealers per manufacturer’s instructions.]

Unit Pavers 02780 - 2

1. Cover bedding sand and joint sand with waterproof covering if needed to prevent exposure to rainfall or removal by wind. Secure the covering in place.

1.06 PROJECT/SITE CONDITIONS

A. Environmental Requirements:

1.

2.

Do not install sand or pavers during heavy rain.

Do not install saturated sand.

3. Do not install concrete pavers on saturated sand.

1.07 MAINTENANCE

A. Extra Materials: Provide 5% additional material for use by City for maintenance and repair.

B. Pavers shall be from the same production run as installed materials.

PART II – MATERIALS

2.01 CONCRETE PAVERS

A. Manufacturer: Angelus Block Co., 4575 E. Vineyard Avenue, Oxnard, CA 93036

Contact: Sales Representative: (805) 485-1137.

B. Tumbled Interlocking Concrete Pavers:

1. a.

Paver Type: Royal Cobble I & II, (60% Stone I, 40% Stone II), or approved equal.

Material Standard: Comply with material standards in ASTM C 936. b. c. d. e.

Color [and finish]: 50% Stone & 50% Cream

Color Pigment Material Standard: Comply with ASTM C 979.

Size: 60 mm in walkway areas

Average Compressive Strength (ASTM C 140): 8000 psi (55 MPa) with no f. g. individual unit under 7200 psi (50 MPa) per ASTM C 140.

Average Water Absorption (ASTM C 140): 5% with no unit greater than 7%.

Freeze/Thaw Resistance (ASTM C 67): Resistant to 50 freeze/thaw cycles with no greater than 1% loss of material. Freeze-thaw testing requirements shall be waived for applications not exposed to freezing conditions.

2.02 BEDDING AND JOINT SAND

A. Provide bedding and joint sand as follows:

1. Washed, clean, non-plastic, free from deleterious or foreign matter, symmetrically shaped, natural or manufactured from crushed rock.

2. Do not use limestone screenings, stone dust, or sand for the bedding sand material that do not conform to the grading requirements of ASTM C 33.

3. Do not use mason sand or sand conforming to ASTM C 144 for the bedding sand.

Unit Pavers 02780 - 3

Note: Bedding sand durability is important for areas exposed to high traffic.

The engineer/architect is advised to evaluate the hardness of bedding sand with the following test method when the pavers and sand will be placed over concrete, or asphalt, and subject to major thoroughfare traffic (over 1.5 million ESALs):

One (1) 1.4 kg (3 lbs.) sample of bedding sand can be randomly sampled from the sand source. The sample is dried for 24 hours at 115° to 121° C. (240° to 250°

F.). Obtain three (3) sub-samples each weighing 0.2 kg (0.5 lbs.) by passing the main sample several times through a riffle box. Carry out a sieve analysis test on each sub-sample according to ASTM C 136. Re-mix each sub-sample and place in a nominal quart/liter capacity porcelain jar with two (2) 25 mm (1 inch) diameter steel ball bearings weighing 75 ±5 grams each. Rotate each jar at 50 rpm for six (6) hours. Repeat the sieve analysis. Record the individual and average sieve analysis. For each sample tested, the maximum increase in the percentages passing each sieve and the maximum individual percent passing should be as follows:

Sieve Size

No. 200 ( 0.075 mm)

No. 100 (0.150 mm)

Max. Increase

2%

5%

Maximum Passing

2%

15%

No. 50 (0.300 mm) 5% 35%

4. Where concrete pavers are subject to vehicular traffic, utilize sands that are as hard as practically available.

5. Regional Content: Aggregates and sand shall be extracted and processed within

500 miles of the jobsite.

6. Sieve according to ASTM C 136.

Bedding Sand Material Requirements: Conform to the grading requirements of

ASTM C 33 with modifications as shown in Table 1.

Table 1

ASTM C 33Grading Requirements for Bedding Sand

Sieve Size Percent Passing

3/8 in. (9.5 mm)

No. 200 (0.075 mm)

100

No. 4 (4.75 mm) 95 to 100

No. 8 (2.36 mm) 85 to 100

No. 16 (1.18 mm) 50 to 85

No. 30 (0.600 mm) 25 to 60

No. 50 (0.300 mm) 10 to 30

No. 100 (0.150 mm) 2 to 10

0 to 1

Note: Coarser sand than that specified in Table 2 below may be used for joint sand including C 33 or A23.1 material as shown in Table 1. Use material where the largest sieve size easily enters the smallest joints. For example, if the smallest paver joints are 2 mm wide, use sand 2 mm and smaller in particle size. If C 33 sand is used for joint sand, extra effort may be required in sweeping material and compacting the pavers in order to completely fill the joints.

Joint Sand Material Requirements: Conform to the grading requirements of ASTM C 144 as shown with modifications in Table 2 below:

Unit Pavers 02780 - 4

Table 2

ASTM C 144 Grading for Joint Sand

Natural Sand Manufactured Sand

Sieve Size

No. 4 (4.75 mm)

No. 8 (2.36 mm)

No. 16 (1.18 mm)

Percent Passing

100

95 to 100

Percent Passing

100

95 to 100

70 to 100 70 to 100

No. 30 (0.600 mm)

No. 50 (0.300 mm)

No. 100 (0.150 mm)

No. 200 (0.075 mm)

40 to 75

10 to 35

2 to 15

0 to 1

40 to 100

20 to 40

10 to 25

0 to 10

Note: Specify specific components of a system, manufactured unit or type of equipment. See ICPI

Tech Spec 3, Edge Restraints for Interlocking Concrete Pavements for guidance on selection and design of edge restraints.

2.03 EDGE RESTRAINTS

A. Provide edge restraints installed around the perimeter of all interlocking concrete paving unit areas as follows:

1. Proposed poured-in-place concrete play curb or existing exposed aggregate concrete paving per plan.

PART III - EXECUTION

3.01 ACCEPTABLE INSTALLERS

A. See Submittals, Subsection1.03, heading D.

The elevations and surface tolerance of the base determine the final surface elevations of concrete pavers. The paver installation contractor cannot correct deficiencies in the base surface with additional bedding sand or by other means. Therefore, the surface elevations of the base should be checked and accepted by the General Contractor or designated party, with written certification to the paving subcontractor, prior to placing bedding sand and concrete pavers.

3.02 EXAMINATION

A. Acceptance of Site Verification of Conditions:

1. General Contractor shall inspect, accept and certify in writing to the paver installation subcontractor that site conditions meet specifications for the following items prior to installation of interlocking concrete pavers. a. Verify that subgrade preparation, compacted density and elevations b. c. conform to specified requirements.

Verify that geotextiles, if applicable, have been placed according to drawings and specifications.

Verify that base materials, thickness, compacted density, surface tolerances and elevations conform to specified requirements.

Unit Pavers 02780 - 5

d. e.

Manufacturer to provide written density test results for soil subgrade, base materials to the City representative, general contractor and paver installation subcontractor.

Verify location, type, and elevations of edge restraints, concrete collars around utility structures, and drainage holes and inlets.

2. Do not proceed with installation of bedding sand and interlocking concrete pavers until subgrade soil and base conditions are corrected by the General Contractor or designated subcontractor.

A.

3.03 PREPARATION

Verify base is clean and dry, certified by General Contractor as meeting material, installation and grade specifications.

B. Verify that base is ready to support sand, pavers and imposed loads.

3.04 INSTALLATION

A. Spread bedding sand evenly over the base course and screed to a nominal 1 in. (25 mm) thickness. Spread bedding sand evenly over the base course and screed rails, using the rails and/or edge restraints to produce a nominal 1 in. (25 mm) thickness, allowing for specified variation in the base surface.

1.

2.

Do not disturb screeded sand.

Screeded area shall not substantially exceed that which is covered by pavers in one day.

3. Do not use bedding sand to fill depressions in the base surface.

When initially placed on the bedding sand, manually installed pavers often touch each other, or their spacer bars if present. Joint widths and lines (bond lines) are straightened and aligned to specifications with rubber hammers and pry bars as paving proceeds.

B. Lay pavers in pattern(s) shown on drawings. Place units hand tight without using hammers. Make horizontal adjustments to placement of laid pavers with rubber hammers as required.

Contact manufacturer of interlocking concrete paver units for recommended joint widths.

C. Provide joints between pavers between [1/16 in. and 3/16 in. (2 and 5 mm)] wide. No more than 5% of the joints shall exceed [1/4 in. (6 mm)] wide to achieve straight bond lines.

D. Joint (bond) lines shall not deviate more than ±1/2 in. (±15 mm) over 50 ft. (15 m) from string lines.

E. Fill gaps at the edges of the paved area with cut pavers or edge units.

Unit Pavers 02780 - 6

F. Cut pavers to be placed along the edge with a masonry saw. Specify requirements for edge treatment in paragraph below.

G. Adjust bond pattern at pavement edges such that cutting of edge pavers is minimized. All cut pavers exposed to maintenance vehicle tires shall be no smaller than one-third of a whole paver. Cut pavers at edges as indicated on the drawings.

H. Keep skid steer and forklift equipment off newly laid pavers that have not received initial compaction and joint sand.

I. Use a low-amplitude plate compactor capable of at least minimum of 4,000 lbf (18 kN) at a frequency of 75 to 100 Hz to vibrate the pavers into the sand. Remove any cracked or damaged pavers and replace with new units.

J. Simultaneously spread, sweep and compact dry joint sand into joints continuously until full. This will require at least 4 to 6 passes with a plate compactor. Do not compact within 6 ft (2 m) of unrestrained edges of paving units.

K. All work within 6 ft. (2 m) of the laying face must shall be left fully compacted with sandfilled joints at the end of each day or compacted upon acceptance of the work. Cover the laying face or any incomplete areas with plastic sheets overnight if not closed with cut and compacted pavers with joint sand to prevent exposed bedding sand from becoming saturated from rainfall.

L. Remove excess sand from surface when installation is complete. Excess joint sand can remain on surface of pavers to aid in protecting their surface especially when additional construction occurs after their installation. If this is the case, delete the article above and use the article below. Designate person responsible for directing timing of removal of excess joint sand.

M. Allow excess joint sand to remain on surface to protect pavers from damage from other trades. Remove excess sand when directed by the City representative.

N. Surface shall be broom clean after removal of excess joint sand.

3.05 FIELD QUALITY CONTROL

Surface tolerances on flat slopes should be measured with a rigid straightedge. Tolerances on complex contoured slopes should be measured with a flexible straightedge capable of conforming to the complex curves on the pavement surface.

A. The final surface tolerance from grade elevations shall not deviate more than ±3/8 in.

(±10 mm) under a 10 ft (3 m) straightedge.

B. Check final surface elevations for conformance to drawings.

Note: For installations on a compacted aggregate base and soil subgrade, the top surface of the pavers may be 1/8 to 1/4 in. (3 to 6 mm) above the final elevations after compaction.

This helps compensate for possible minor settling normal to pavements.

Unit Pavers 02780 - 7

C. The surface elevation of pavers shall be 1/8 in. to 1/4 in. (3 to 6 mm) above adjacent drainage inlets, concrete collars or channels.

D. Lippage: No greater than 1/8 in. (3 mm) difference in height between adjacent pavers.

Cleaning and sealing may be required for some applications. See ICPI Tech Spec 5,

Cleaning and Sealing Interlocking Concrete Pavements for guidance on when to clean and seal the paver surface, and when to stabilize joint sand. Delete article below if cleaners, sealers, and or joint sand stabilizers are not applied.

3.06 JOINT SAND STABILIZATION

A. Apply joint sand stabilization materials between] concrete pavers in accordance with the manufacturer’s written recommendations.

3.07 PROTECTION

A. After work in this section is complete, the General Contractor shall be responsible for protecting work from damage due to subsequent construction activity on the site.

END OF SECTION 02780

Unit Pavers 02780 - 8

SECTION 02790 – SYNTHETIC TURF

ARTIFICIAL GRASS FIELDTURF

RIDGED MONOFILAMENT

PART 1 - GENERAL

1.1

SUMMARY

A.

Furnish all labor, materials, tools and equipment necessary to install monofilament artificial grass FieldTurf as indicated on the plans and as specified herein; including components and accessories required for a complete installation. including but not limited to

1.

2.

Acceptance of prepared sub-base.

Coordination with related trades to ensure a complete, integrated, and timely installation: Aggregate base course, sub-base material (tested for permeability), grading and compacting, piping and drain components (when required); as provided under its respective trade section.

1.2

REFERENCE STANDARDS

A.

FM Factory Mutual

1.

P7825 - Approval Guide; Factory Mutual Research Corporation; current edition

B.

ASTM – American Society for Testing and Materials.

1.

D1577 - Standard Test Method for Linear Density of Textile Fiber

2.

3.

4.

D5848 - Standard Test Method for Mass Per Unit Area of Pile Yarn Floor Covering

D1338 - Standard Test Method for Tuft Bind of Pile Yarn Floor Covering

D1682 - Standard Method of Test for Breaking Load and Elongation of Textile

Fabrics

5.

D5034 - Standard Test Method of Breaking Strength and Elongation of Textile

Fabrics (Grab Test)

6.

D4491 - Standard Test Methods for Water Permeability of Geotextiles by

Permittivity

7.

D2859 - Standard Test Method for Ignition Characteristics of Finished Textile Floor

Covering Materials

8.

D1557 - Test Method for Laboratory Compaction Characteristics of Soil Using

Modified Effort.

1.3

SUBMITTALS

A.

Substitutions: Other products are acceptable if in compliance with all requirements of these specifications. Submit alternate products to Architect for approval prior to bidding in accordance Section 01 25 13, Product Substitution Procedures.

1.

Provide substantiation that proposed system does not violate any other manufacturer's patents, patents allowed or patents pending.

2.

Provide a sample copy of insured, non-prorated warranty and insurance policy information.

B.

Comply with Section 01 33 00, Submittals Procedures. Submit for approval prior to fabrication.

Synthetic Turf 02790-1

C.

Product Data:

1.

Submit manufacturer's catalog cuts, material safety data sheets (MSDS), brochures, specifications; preparation and installation instructions and recommendations; storage, handling requirements and recommendations.

2.

3.

4.

5.

Submit fiber manufacturer's name, type of fiber and composition of fiber.

Submit data in sufficient detail to indicate compliance with the contract documents.

Submit manufacturer's instructions for installation.

Submit manufacturer's instructions for maintenance for the proper care and preventative maintenance of the synthetic turf system, including painting and markings.

D.

Samples: Submit samples, 6 x 6 inches, illustrating details of finished product in amounts as required by General Requirements, or as requested by Architect.

E.

Product Certification:

1.

Submit manufacturer’s certification that products and materials comply with requirements of the specifications.

2.

Submit test results indicating compliance with Reference Standards.

F.

List of existing installations: Submit list including respective Owner’s representative and telephone number.

G.

Warranties: Submit warranty and ensure that forms have been completed in Owner's name and registered with approved manufacturer.

H.

Testing Certification: Submit certified copies of independent (third-party) laboratory reports on ASTM testing:

1.

2.

3.

4.

5.

Pile Height, Face Weight & Total Fabric Weight, ASTM D5848.

Primary & Secondary Backing Weights, ASTM D5848.

Tuft Bind, ASTM D1335.

Grab Tear Strength, ASTM D1682 or D5034.

Water Permeability, ASTM D4491

1.4

QUALITY ASSURANCE

A.

Comply with Section 01 43 00, Quality Assurance.

B.

Manufacturer Qualifications: Company specializing in manufacturing products specified in this section. The turf contractor and/or the turf manufacturer:

1.

Shall be experienced in the manufacture and installation of specified type of synthetic infill monofilament grass system for a minimum of three years with the same manufacturer, product and company they are proposing for this project. This includes use of a spined monofilament fiber, backing, the backing coating, and the installation method.

2.

Shall have 500 projects in use for at least two years with the same manufacturer and company they are proposing for this field.

3.

Shall have a minimum of 3000 installations in North America.

C.

Installer: Company shall specialize in performing the work of this section. The Contractor shall provide competent workmen skilled in this specific type of synthetic grass installation.

1.

The designated Supervisory Personnel on the project shall be certified, in writing by

Synthetic Turf 02790-2

2.

3.

the turf manufacturer, as competent in the installation of specified monofilament material, including gluing seams and proper installation of the infill mixture.

Installer shall be certified by the manufacturer and licensed.

The installer supervisor shall have a minimum of 5 years experience as either a construction manager or a supervisor of synthetic turf installations

D.

Pre-Installation Conference: Conduct conference at project site at time to be determined by

Architect. Review methods and procedures related to installation including, but not limited to, the following:

1.

Inspect and discuss existing conditions and preparatory work performed under other contracts.

2.

In addition to the Contractor and the installer, arrange for the attendance of installers affected by the Work, The Owner’s representative, and the Architect.

E.

The Contractor shall verify special conditions required for the installation of the system.

F.

The Contractor shall notify the Architect of any discrepancies.

1.5

DELIVERY, STORAGE, AND HANDLING

A.

Deliver and store components with labels intact and legible.

B.

Protect from damage during delivery, storage, handling and installation. Protect from damage by other trades.

C.

Inspect all delivered materials and products to ensure they are undamaged and in good condition.

D.

Comply with manufacturer’s recommendations.

1.6

SEQUENCING AND SCHEDULING

A.

Coordinate the Work with installation of work of related trades as the Work proceeds.

B.

Sequence the Work in order to prevent deterioration of installed system.

1.7

WARRANTY AND GUARANTEE

A.

See Section 01780 - Closeout Submittals, For Additional Warranty Requirements.

B.

The Contractor shall provide a warranty to the Owner that covers defects in materials and workmanship of the turf for a period of eight (8) years from the date of substantial completion. The turf manufacturer must verify that their representative has inspected the installation and that the work conforms to the manufacturer's requirements. The manufacturer's warranty shall include general wear and damage caused from UV degradation. The warranty shall specifically exclude vandalism, and acts of God beyond the control of the Owner or the manufacturer. The warranty shall be fully third party insured; pre paid for the entire 8 year term and be non-prorated. The Contractor shall provide a warranty to the Owner that covers defects in the installation workmanship, and further warrant that the installation was done in accordance with both the manufacturer's recommendations and any written directives of the manufacturer's representative. The insurance policy must be underwritten by an “AM Best” A rated carrier and must reflect the following values:

Synthetic Turf 02790-3

1.

Pre-Paid 8-year insured warranty.

2.

No maximum per claim coverage amount.

3.

Minimum of thirty-two-million dollar ($32,0000,000) annual aggregate

4.

Must cover full 100% replacement value of total square footage installed.

5.

Policies that include self insurance or self retention clauses shall not be considered.

6.

Policy cannot include any form of deductible amount.

7.

Sample policy must be provided at time of bid to prove that policy is in force. A letter from an agent or a sample Certificate of Insurance will not be acceptable.

PART 2 - PRODUCTS

2.1

ACCEPTABLE MANUFACTURER AND DISTRIBUTOR

A. Approved manufacturers are as follows:

1. FieldTurf USA Inc.

175 N. Industrial Blvd

Calhoun, GA 30701

Commercial Representative

Charles Colletti

2750 La Mirada Drive

Vista CA 92081

858-208-8449

2.2

MATERIALS AND PRODUCTS

A.

Artificial grass FieldTurf system materials shall consist of the following:

1.

Carpet made of “ridged” monofilament polyethylene fibers tufted into a fibrous, non-perforated, porous backing.

2.

3.

Infill: Controlled mixture of graded sand

Glue, thread, paint, seaming fabric and other materials used to install and mark the artificial grass monofilament FieldTurf.

B.

The installed artificial grass monofilament FieldTurf shall have the following properties:

Standard Property Specification

ASTM D1577

ASTM D5823

ASTM D5793

Fiber Denier

Pile Height

Stitch Gauge

9,000

1.625”

3/8”

ASTM D5848

ASTM D5848

ASTM D4491

Pile Weight

Primary Backing

Carpet Permeability

65oz/square yard

7oz/square yard

250 inches/hour

C.

Carpet shall consist of ridged monofilament fibers tufted into a primary backing with a

Synthetic Turf 02790-4

secondary backing.

D.

Backing:

1.

Primary backing shall be a double-layered polypropylene fabric treated with UV inhibitors.

2.

Secondary backing shall consist of an application of porous, heat-activated urethane to permanently lock the fiber tufts in place.

3.

4.

Perforated (with punched holes), backed turf is unacceptable.

Turf with attached scrim in lieu of porous, heat activated urethane is unacceptable.

E.

Fiber shall be 9,000 denier, low friction, and UV-resistant fiber measuring not less than

1.625 inches high.

F.

Infill materials shall be approved by the manufacturer.

1.

Infill shall consist of a resilient layered granular system, comprising selected and graded dust-free acrylic coated silica sand.

G.

Glue for seaming of turf shall be as recommended by the synthetic turf manufacturer.

2.3

QUALITY CONTROL IN MANUFACTURING

A.

The manufacturer shall own and operate its own manufacturing plant in North America.

Both tufting of the fibers into the backing materials and coating of the turf system must be done in-house by the turf manufacturer. Outsourcing of either is unacceptable.

B.

The manufacturer shall have full-time certified in-house inspectors at their manufacturing plant that are experts with industry standards.

C.

The manufacturer’s full-time in-house certified inspectors shall perform pre-tufting fiber testing on tensile strength, elongation, tenacity, denier, shrinkage, and twist i.e., turns per inch, upon receipt of fiber spools from fiber manufacturer.

D.

Primary backing shall be inspected by the manufacturer’s full-time certified in-house inspectors before tufting begins.

E.

The manufacturer’s full-time in-house certified inspectors shall verify “pick count”, yarn density in relation to the backing, to ensure the accurate amount of face yarn per square inch.

F.

The manufacturer’s full-time, in-house, certified inspectors shall perform turf inspections at all levels of production including during the tufting process and at the final stages before the turf is loaded onto the truck for delivery.

G.

The manufacturer shall have its own, in-house laboratory where samples of turf are retained and analyzed, based on standard industry tests, performed by full-time, in-house, certified inspectors.

PART 3 - EXECUTION

3.1

EXAMINATION

A.

Verify that all sub-base leveling is complete prior to installation.

Synthetic Turf 02790-5

B.

Installer shall examine the surface to receive the synthetic turf and accept the sub-base planarity in writing prior to the beginning of installation.

1.

Acceptance is dependent upon the Owner’s test results indicating compaction and planarity are in compliance with manufacturer’s specifications.

2.

The surface shall be accepted by Installer as “clean” as installation commences and shall be maintained in that condition throughout the process.

C.

Compaction of the aggregate base shall be 95%, in accordance with ASTM D1557

(Modified Proctor procedure); and the surface tolerance shall not exceed 0-1/4 inch over 10 feet and 0-½" from design grade.

D.

Correct conditions detrimental to timely and proper completion of Work.

E.

Do not proceed until unsatisfactory conditions are corrected.

F.

Beginning of installation means acceptance of existing conditions.

3.2

PREPARATION

A.

Prior to the beginning of installation, inspect the sub-base for tolerance to grade.

B.

Sub-base acceptance shall be subject to receipt of test results (by others) for compaction and planarity that sub-base is in compliance with manufacturer’s specifications and recommendations.

C.

When requested by Architect, installed sub-base shall be tested for porosity prior to the installation of the monofilament turf. A sub base that drains poorly is an unacceptable substrate

3.3

INSTALLATION - GENERAL

A.

The installation shall be performed in full compliance with approved Shop Drawings.

B.

Only trained technicians, skilled in the installation of synthetic turf systems working under the direct supervision of the approved installer supervisors, shall undertake any cutting, sewing, gluing, shearing, top dressing or brushing operations.

C.

The designated Supervisory personnel on the project must be certified, in writing by the turf manufacturer, as competent in the installation of this material, including gluing seams and proper installation of the Infill mixture.

3.4

INSTALLATION

A.

Install at location(s) indicated, to comply with final shop drawings, manufacturers’/installer’s instructions.

B.

The Contractor shall strictly adhere to specified procedures. Any variance from these requirements shall be provided in writing, by the manufacturer’s on-site representative, and submitted to the Architect and/or Owner, verifying that the changes do not in any way affect the Warranty. Infill materials shall be approved by the manufacturer and installed in accordance with the manufacturer’s standard procedures.

C.

Carpet rolls shall be installed directly over the properly prepared aggregate base. Extreme care shall be taken to avoid disturbing the aggregate base, both in regard to compaction and planarity.

Synthetic Turf 02790-6

1.

2.

Repair and properly compact any disturbed areas of the aggregate base as recommended by manufacturer

Seams shall be flat, tight, and permanent with no separation or fraying.

D.

Infill Materials:

1.

Infill materials shall be applied in thin lifts. The turf shall be brushed as the mixture is applied. The infill material shall be installed to a depth determined by the manufacturer.

2.

3.

Three-layered infill shall be installed in a systematic order.

Infill materials shall be installed to fill the voids between the fibers and allow the fibers to remain vertical and non-directional.

E.

Upon completion of installation, the finished project shall be inspected by the installation crew and an installation supervisor.

3.5

RECYCLING

A.

Manufacturer must commit to a “take back” program once the useful life of the turf surface has lapsed. Upon removal of the turf surface, at least 75% of the turf surface must be recycled.

Synthetic Turf 02790-7

SECTION 03110 - CONCRETE FORMWORK

PART 1 B GENERAL

CONDITIONS

Drawings, project manual and general provisions of the Contract, including, without limitation, General Conditions of the Contract, additional General Conditions of the Contract, and Division 1 specification sections, apply to this section.

1.02 SCOPE OF WORK

Furnish materials, labor, transportation, services, and equipment necessary to install all concrete formwork as indicated on the Drawings complete as shown and as specified herein.

Provide all formwork and accessories for construction of Portland Cement Concrete paving for the park.

Related Work:

1.03 REFERENCES

Comply with the applicable reference specifications as specified in the contract documents and in accordance with applicable laws, codes and regulations required by the City of Beverly Hills, CA.

Comply with the current provisions of the following Codes and Standards, without limitation:

1. ASTM B American Society for Testing and Materials.

2. UBC B Uniform Building Code.

3. ACI B American Concrete Institute.

4. Standard Specifications (as specified in the General Provisions).

ASSURANCE

Design Criteria: Conform to ACI 347-68, Chapter I.

Allowable Tolerances: Conform to ACI 347-68, 2.4.

1.05 STORAGE OF MATERIALS

Store materials on and under protective sheeting.

1.06 COORDINATION

Notify responsible trades of schedules of concrete pours to allow time for installation and coordination.

Concrete Formwork

03110-1

PART 2 - PRODUCTS

2.01 MATERIALS

Forms:

1. Flatwork: [email protected] Exterior Masonite Siding for all Tangents. Create true arc to tangent connections as per layout plan. No kinks will be accepted.

2. Vertical and Custom Work: Exterior grade Standard Douglas Fir (or equal plywood), minimum three ply, one smooth side sufficiently thick to sustain loads, or steel forms.

Form Oil: Non staining, paraffin-base oil having a specific gravity of between 0.8 and 0.9.

Form Ties: Bolts, rods, or patented devices having tensile strength of 3000 lbs., adjustable length, free of lugs which would leave a hole larger than 5/8" diameter and having a full one-inch depth of break-back.

PART 3 - EXECUTION

3.01 CONSTRUCTION AND ERECTION

Construct forms in accordance with ACI 347-68.

Build forms to shapes, lines and dimensions of detailed members of concrete construction. Set to line and grade, brace and secure to withstand placing of concrete and maintain their shape and position. Forms must extend at least 3" below finish grade on exterior walls, footings, and flatwork.

Construct forms with care to produce concrete surfaces without unsightly or objectionable form marks in exposed concrete surfaces.

Thoroughly clean surfaces of form material and remove nails before reuse. Do not reuse damaged or worn forms. Coat contact surfaces of forms with non-staining form oil prior to placing metal reinforcement.

Immediately before placing concrete, clean forms of chips, sawdust, and debris. Immediately after removal of forms, remove form ties, wires, and defects and patch.

3.02 INSERTS AND ACCESSORIES

Make provisions for required installation of accessories, bolts, hangers, sleeves, anchor slots and inserts cast in concrete. Obtain suitable templates or instructions for installation of items. Place expansion joints where detailed and required.

3.03 REMOVAL OF FORMS AND SHORING

Remove forms and shores in accordance with ACI 347-68.

Concrete Formwork

03110-2

3.04 CLEANUP

A. Upon completion of the concrete formwork, remove surplus construction materials, loose earth, trash and debris so that the job site is left in a neat and orderly condition.

END OF SECTION 03110

Concrete Formwork

03110-3

SECTION 03210 B CONCRETE REINFORCEMENT

PART 1 - GENERAL

CONDITIONS

Drawings, project manual, and general provisions of the Contract, including, without limitation, General Conditions of the Contract, additional General Conditions of the Contract, and Division 1 specification sections, apply to this section.

1.02 SCOPE OF WORK

Furnish materials, labor, transportation, services, and equipment necessary to install all concrete reinforcement related to the memorial as indicated on the Drawings complete as shown and as specified herein.

Related Work:

Cast-In-Place

1.03 REFERENCES

Comply with the applicable reference specifications as specified in the Project Manual and in accordance with applicable laws, codes and regulations required by the City of Beverly Hills, CA.

Comply with the current provisions of the following Codes and Standards:

1. ASTM - American Society for Testing and Materials.

2. Standard Specifications B Agency Specified

3. Uniform Building Code

American Concrete Institute (ACI):

1. ACI 315-80, Manual of Standard Practice for Detailing Reinforced Concrete Structures.

2. ACI 318-77, Building Code Requirements for Reinforced Concrete.

American Society for Testing and Materials (ASTM - latest editions):

1. ASTM A233 - Mild Steel Arc Welding Electrodes.

2. ASTM A615 - Deformed Billet-Steel Bars for Concrete Reinforcement.

3. ASTM A706 - Low-Alloy Steel Deformed Bars for Concrete Reinforcement.

Concrete Reinforcing Steel Institute (CRSI): Manual of Standard Practice, latest edition.

American Welding Society (AWS): Reinforcing Steel Welding Code, D12.1-75, including latest revisions.

1.04 DELIVERY AND STORAGE

Store materials in dry and protected locations and protect from damage. Stack reinforcing steel in staggered tiers. Mark each length, size, shape and location. Maintain reinforcement free of dirt, mud, paint or rust.

Concrete Reinforcement

03210-1

1.05 SUBMITTALS

In accordance with the Contract Documents and Section 01300 of the Specifications.

Shop Drawings: Indicate complete reinforcing method for each concrete member including materials, sizes, bends, dimensions, stirrup spacing, and placing details not shown on drawings.

PART 2 - PRODUCTS

2.01 MATERIALS

Steel Reinforcement: Conforming to ASTM A615, Grade 60, clean and free of rust, dirt, grease or oils.

Welded Steel Reinforcement: Deformed low-alloy steel, ASTM A706, carbon content not exceeding 0.30% and manganese content not exceeding 0.60%. Identify and tag with manufacturer's heat identification number.

Supports for Reinforcement: Provide supports for reinforcement including bolsters, chairs, spacers and other devices for spacing, supporting and fastening reinforcing bars in place.

2.02 FABRICATION

Fabricate to sizes, shapes, and lengths detailed in accordance with requirements of ACI 318-71 and

ACI 315-65.

PART 3 - EXECUTION

3.01 INSTALLATION

Comply with Concrete Reinforcing Steel Institute=s recommended practice for APlacing Reinforcing

[email protected] for placing and supporting reinforcement.

Clean reinforcement of loose rust and mill scale, earth, ice, and other bond-reducing materials.

Arrange, space, and securely tie bars and bar supports to hold reinforcement in position during concrete placement. Maintain minimum cover over reinforcement.

Accurately place reinforcing steel in accordance with drawings. Thoroughly clean reinforcement of any coating which would reduce bonding. Do not heat, cut, or bend bars without City representative's approval. Do not splice reinforcement at points of maximum stress. Stagger splices in adjacent bars and provide a minimum overlap of 30-bar diameters at splices unless specifically noted otherwise on Drawings.

Securely saddle tie intersections with No. 18 gauge black annealed wire. Rigidly secure reinforcement in place. Provide concrete coverage as shown on Drawings.

Concrete Reinforcement

03210-2

3.02 WELDING

Weld deformed steel reinforcement bars in strict accordance with AWS 12.1, using recommended pre-heat temperature and electrode for type of steel being welded.

Do not weld steel reinforcement bars without proper heat identification of bars.

3.03 CLEANUP

Upon completion of the concrete reinforcement work, remove surplus construction materials, loose earth, trash and debris so that the job site is left in a neat and orderly condition.

END OF SECTION 03210

Concrete Reinforcement

03210-3

PART 1 - GENERAL

SECTION 03300 - CAST-IN-PLACE CONCRETE

The requirements of the Standard Specifications for Public Works Construction (SSPWC), latest edition, Parts 2 through 6 (except as modified herein), apply to this project and are incorporated herein by this reference. Part 1 is specifically excluded.

Drawings, project manual, and general provisions of the Contract, including, without limitation,

General Conditions of the Contract, additional General Conditions of the Contract, and Division 1 specification sections, apply to this section.

1.02 SCOPE:

Work included: Provide all cast-in-place concrete, complete in place, as indicated on the drawings, specified herein, and needed for a complete and proper installation.

1.03 QUALITY

Qualifications of Installers:

Throughout the progress of installation of the work of this Section, provide at least one person who shall be thoroughly familiar with the specified requirements, completely trained and experienced in the necessary skills, and who shall be present at the site and shall direct all work performed under this Section.

Use adequate number of skilled workers to ensure installation in strict accordance with the approved design.

PART 2 - MATERIALS

2.01 GENERAL:

All materials shall conform to Section 201 of Standard Specifications and Soils Report.

A. Portland Cement: Section 201-1.2.1, Type V. Only one brand of cement shall be used.

B. Aggregates: Conform to Section 201-1.2.2.

C. Water shall be clean and free from deleterious materials.

D. Curing compound: "Clear Seal" as manufactured by A.C. Horn, "Burke Cure Seal" as manufactured by Burke Concrete Accessories, Inc.

E. Form lumber shall be Douglas Fir, construction grade or better.

F. Expansion joint material: Shall be ASTM Standard D1751-61 "Flexcell" as manufactured by Celotex Corporation or approved equivalent.

Cast-In-Place Concrete

03300-1

G. Joining new concrete adjacent to existing concrete: A single ply of 30 lb. asphalt roofing felt, meeting the guidelines of ASTM D-226, shall be placed along the entire thickness of the exposed vertical slab of existing concrete. Excess asphalt felt shall be removed so that the top edge of the felt is flush with the finished concrete surface after the concrete has cured.

PART 3 - EXECUTION

3.01 GENERAL:

All materials shall conform to Section 302.6 of Standard Specifications except as modified herein.

3.02 CONCRETE

A. The Contractor shall supply and pay all costs for concrete mix designs.

B. In no case shall concrete contain less than 5 sacks of cement per cubic yard, and a maximum of 7 gallons of water per sack of cement.

C. Concrete mixes shall be proportioned by the using of 1-inch maximum size aggregate.

D. Per recommendations listed within the Soils Report, all concrete shall conform to Concrete

Class Use Table, Section 201-1.1.2, of the Standard Specifications and shall be 520-C-

2500(2,500 pounds per square inch ultimate compressive strength at 28 days) unless otherwise noted. Concrete mix shall have a maximum water/ cement ratio of 0.61.

E. The maximum slump for slab on grade shall be 4".

F. Mix design must be approved by Landscape Architect, and/or City’s testing laboratory.

Three or more mix design reviews will be at Contractor’s expense.

3.03 TESTS AND INSPECTION:

A. The quality and quantity of materials used in the concrete shall be controlled at the batch plant by a Weighmaster.

B. Contractor shall deliver two copies of each load ticket to the City representative.

3.04 FORMWORK:

Form shall be substantial, unyielding, true to line and grade, and shall conform to the dimensions indicated on the drawings.

3.05 TRANSPORTATION AND PLACING CONCRETE:

Responsibility for proper placing, compacting and finishing rests with the Contractor. Finished work showing voids and separation of aggregates will not be accepted.

Cast-In-Place Concrete

03300-2

3.06 SLAB

A. Exterior slabs shall have a finish between light broom and medium broom as directed by the Landscape Architect. The finish must be true to line and grade.

B. Concrete walks shall have 1/2" thick expansion joints at all locations indicated on plans, and score joints at all locations indicated on plans, with a maximum interval of 10 feet oncenter.

C. All exterior flatwork shall drain positively away from buildings, whether indicated or not on the drawings.

(1) Any condition which may result in water standing or flowing adjacent to buildings shall be brought to the attention of the City representative before placing concrete.

(2) Maximum allowable tolerance for level slab shall be a variation of l/8" from a 10' straight edge.

D. Grafittied concrete surfaces will not be accepted. The contractor shall provide watchmen as required to insure a graffiti-free surface. Patching of concrete surfaces will not be permitted. Whole sections must be removed and replaced.

3.07 CURING

All concrete surfaces shall be kept continuously wet for a period of not less than 36 hours by ponding, soaking or spraying. Following this 36 hour period, the concrete shall be protected from loss of moisture by Edoco Cure & Seal 30 EF by Dayton Superior or approved equal.

END OF SECTION 03300

Cast-In-Place Concrete

03300-3

PART 1 - GENERAL

SECTION 03310 - FOOTINGS AND FOUNDATIONS

DOCUMENTS:

The requirements of the Standard Specifications for Public Works Construction (SSPWC), latest edition, Parts 2 through 6 (except as modified herein), apply to this project and are incorporated herein by this reference. Part 1 is specifically excluded.

Drawings, project manual, and general provisions of the Contract, including, without limitation,

General Conditions of the Contract, additional General Conditions of the Contract, and Division

1 specification sections, apply to this section.

1.02 SCOPE:

Work included: Provide all footings and foundations, complete in place, as indicated on the drawings, specified herein, and needed for a complete and proper installation.

1.03 QUALITY

Qualifications of Installers:

Throughout the progress of installation of the work of this Section, provide at least one person who shall be thoroughly familiar with the specified requirements, completely trained and experienced in the necessary skills, and who shall be present at the site and shall direct all work performed under this Section.

Use adequate number of skilled workers to ensure installation in strict accordance with the approved design.

Details provided on plans with notes. If notes conflict with book specification, the more stringent shall apply.

PART 2 - MATERIALS

2.01 GENERAL:

All materials shall conform to Section 201 of Standard Specifications and Soils Report.

A. Portland Cement: Section 201-1.2.1, Type V, low alkali. Only one brand of cement shall

B.

C.

D.

E. be used.

Aggregates: Conform to Section 201-1.2.2.

Water shall be clean and free from deleterious materials.

Form lumber shall be uniform construction grade or better.

Provide reinforcement steel as indicated on the drawings and in conformance with the requirements of the uniform building code latest edition.

Footings and Foundations

03310-1

PART 3 - EXECUTION

3.01 GENERAL:

All materials shall conform to Section 302.6 of Standard Specifications except as modified herein.

3.02 CONCRETE

A.

B.

The Contractor shall supply and pay all costs for three or more concrete mix designs and reviews.

In no case shall concrete contain less than 5 sacks of cement per cubic yard, and a

C.

D. maximum of 7 gallons of water per sack of cement.

Concrete mixes shall be proportioned by the using of 1-inch maximum size aggregate.

Per recommendations listed within the Soils Report, all concrete shall conform to Concrete

Class Use Table, Section 201-1.1.3(A), of the Standard Specifications and shall be 520-C-

2500 (2,500 pounds per square inch ultimate compressive strength at 28 days) unless otherwise noted. Concrete mix shall have a maximum water/ cement ratio of 0.61.

E. The maximum slump for slab on grade shall be 4".

3.03 TESTS AND INSPECTION:

A.

B.

The quality and quantity of materials used in the concrete shall be controlled at the batch plant by a Weighmaster.

Contractor shall deliver two copies of each load ticket to the City representative.

3.04 FORMWORK:

A.

B.

Form shall be substantial, unyielding, true to line and grade, and shall conform to the dimensions indicated on the drawings.

Edge of footing shall not cross property line or right of way line. Set wall 2" in from same line. See details on drawings. No spoils shall occur on builders' lot.

3.05 TRANSPORTATION AND PLACING CONCRETE:

Responsibility for proper placing, compacting and finishing rests with the Contractor. Finished work showing voids and separation of aggregates will not be accepted.

CONCRETE:

All concrete surfaces shall be kept continuously wet for a period of not less than 36 hours by ponding, soaking or spraying. Following this 36 hour period, the concrete shall be protected from loss of moisture by an approved liquid curing compound.

END OF SECTION 03310

Footings and Foundations

03310-2

SECTION 03380 - CONCRETE CURING

PART 1 B GENERAL

CONDITIONS

Requirements of the Contract Documents, including but not limited to, the General, Special, and Technical Provisions, apply to work in this Section with the same force and effect as though repeated in full herein.

1.02 SCOPE OF WORK

Furnish materials, labor, transportation, services, and equipment necessary to install all Concrete

Curing related to the park as indicated on the Drawings complete as shown and as specified herein.

Related Work:

Cast-In-Place Concrete Section 03300

1.03 REFERENCES

Comply with the applicable reference specifications as specified in the GENERAL PROVISIONS and in accordance with applicable laws, codes and regulations required by the City of Beverly

Hills, CA. Comply with the current provisions of the following Codes and Standards:

ASTM - American Society for Testing and Materials:

ASTM C94 B Ready-Mixed Concrete.

ASTM C150 B Portland Cement.

ASTM C271 B Sheet Materials for Curing Concrete.

ASTM C309 B Liquid Membrane-Forming Compounds for Curing Concrete.

ACI B American Concrete Institute:

ACI 301 B Specifications for Structural Concrete for Buildings.

ACI 305 B Recommended Practice for Hot Weather Concreting.

ACI 306 B Recommended Practice for Cold Weather Concreting.

ACI 318 B Building Code Requirements for Reinforced Concrete.

UBC B Uniform Building Code

1.04 SUBMITTALS

In accordance with Contract Documents, General, Special and Technical Provisions.

Submit product data and manufacturer's instructions for:

1. Curing compound.

2. Proprietary cleaning agents.

3. Plastic film for curing.

4. Surface retarders.

Concrete Curing 03380-1

1.05 DELIVERY, STORAGE, AND HANDLING

Store materials in dry and protected locations and protect from damage.

1.06 SITE

Environmental Requirements: Protect concrete against extreme cold and heat, frost, rapid drying, and damage by rain.

PART 2 - PRODUCTS

2.01 MATERIALS

Curing Compound: ASTM C 309, non-staining, all resin type, white-pigmented, compatible with color admixture.

Acceptable Product: Burke Spartan-Cote Cure or equal. Curing Compound Application Rate: 350 sq. ft./U.S. Gallon (12.5m sq./L)

PART 3 - EXECUTION

3.01 CURING

Protect concrete surfaces against rapid drying. Keep sealed with cure agent for necessary amount of time to reach concrete strength and inhibit moisture loss after placing per manufacturer’s recommendation.

Apply to exposed surface of concrete as soon as manufacturer recommends with an airless sprayer.

Apply to sides of concrete paving upon removal of form boards.

Meet requirements of manufacturer’s current printed application instructions.

Uniformly apply 2 coats and apply the second coat at right angle to first coat.

Apply compound to form a continuous, uniform, coherent film that will not check, crack, or peel.

Do not apply to concrete that is still bleeding, or has a visible water sheen on the surface.

Protect paving surfaces from foot traffic with scuff-proof paper.

Immediately re-coat damaged areas of curing compound.

Protect surface from water, adjacent concrete work and debris.

3.02 CLEANUP

Contractor to remove all cure agent from concrete surface with power washing equipment and soft brush not causing abrasion to finish work surface prior to final inspection. No Cure Agent shall be

Concrete Curing 03380-2

present on any surfaces for final inspection acceptance. Remove debris and trash resulting from specified work.

END OF SECTION 03380

Concrete Curing 03380-3

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
