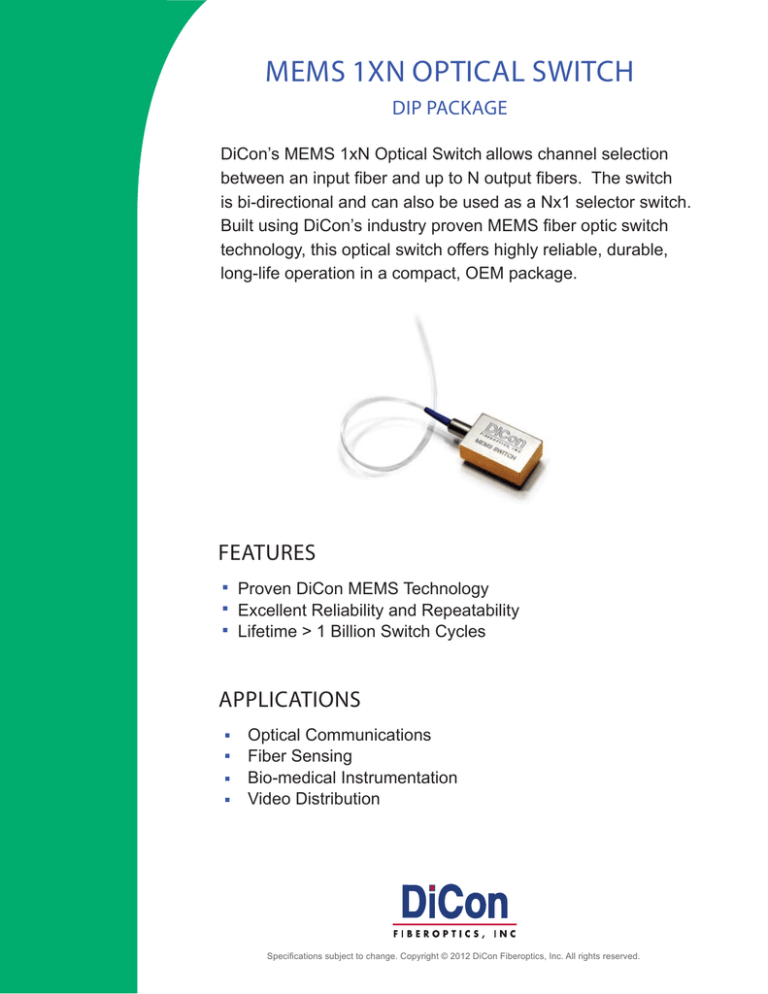

MEMS 1XN OPTICAL SWITCH
DIP PACKAGE
DiCon’s MEMS 1xN Optical Switch allows channel selection
between an input fiber and up to N output fibers. The switch
is bi-directional and can also be used as a Nx1 selector switch.
Built using DiCon’s industry proven MEMS fiber optic switch
technology, this optical switch offers highly reliable, durable,
long-life operation in a compact, OEM package.
FEATURES



Proven DiCon MEMS Technology
Excellent Reliability and Repeatability
Lifetime > 1 Billion Switch Cycles
APPLICATIONS
Optical Communications
Fiber Sensing
Bio-medical Instrumentation
Video Distribution
Specifications subject to change. Copyright © 2012 DiCon Fiberoptics, Inc. All rights reserved.
DIP PACKAGE
ORDERING INFORMATION
OPTICAL SPECIFICATIONS1
PARAMETER
Insertion 1x2,1x4
Loss2,3,4 1x8
Crosstalk5
Back Reflection
TDL
WDL6
PDL
Repeatability7
Optical Power
Durability
Switching 1x2
Time
1x4,1x8
Operating Temp
Storage Temp
Fiber Type
RATING
0.7 dB max.
0.8 dB max.
-50 dB max.
-50 dB max.
0.30 dB max.
0.20 dB max.
0.10 dB max.
0.02 dB max.
500 mW max.
10 9 cycles min.
10 ms max.
15 ms max.
-5 to 70 oC
-40 to 85oC
9/125 m single mode
1. Specifications are without connectors.
2. IL is measured at CWL, 23oC.
3. IL is for standard opaque model.
4. IL is for single-band. Dual-band adds 0.1dB.
5. Power off isolation is same as crosstalk.
6. WDL is measured in a +/- 20nm range at 23oC.
7. Repeatability is defined after 100 cycles.
MECHANICAL DIMENSIONS
(Units: mm)
Bare Fiber
MS1
Product Code
MS1
MEMS Switch
Switch Configuration
1xN
1xN Switch
Specify N, where N ≤ 8
Control Interface
TTL
I2C
TTL
I 2C
Wavelength Range
13
15
16
13/15
15/16
1290 - 1330 nm
1530 - 1570 nm
1570 - 1610 nm
1290 - 1330 & 1530 - 1570 nm
1530 - 1570 & 1570 - 1610 nm
Fiber and Jacket Type
9/BF
9/LT
Corning SMF-28, bare fiber
Corning SMF-28, loose tube
SPECIFICATIONS / ORDERING INFORMATION
MEMS 1XN OPTICAL SWITCH
Or other equivalent 9m Singlemode fiber
Connector Type
FC/SPC FC/SPC
FC/APC FC/APC
N
NONE
Also Available: SC, SC/UPC, SC/APC, ST, ST/UPC, LC
Pigtail Length
1
X
1 Meter
Specify X Meters
Tolerance is +/- 0.05 m
PARAMETER
Latching Type
Control Type
Vcc Voltage
Power Consumption
Vcc Damage Threshold
RATING
non-latching
I2C and TTL
12 VDC
170 mW max.
15 VDC
Loose Tube
DiCon Fiberoptics, Inc. 1689 Regatta Blvd. Richmond, CA 94804 Tel. (510) 620-5000 Fax. (510) 620-4100 www.diconfiberoptics.com
MEMS 1XN OPTICAL SWITCH
ELECTRICAL SPECIFICATIONS
0239A
