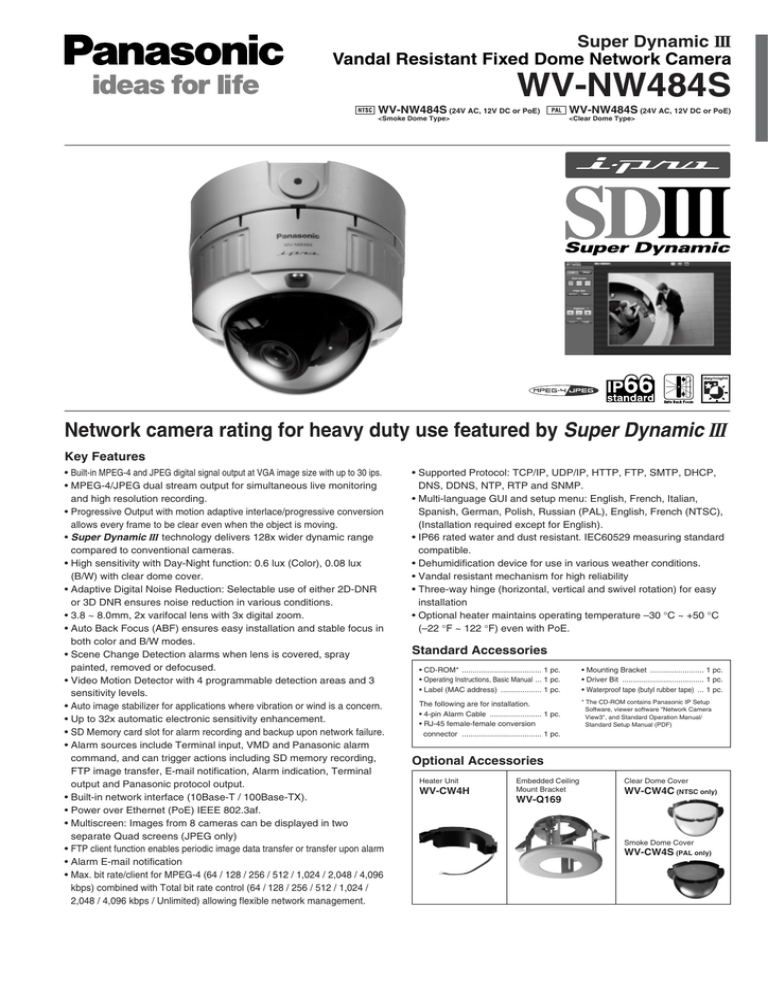

• WV-NW4845
Super Dynamic III
Vandal Resistant Fixed Dome Network Camera
WV-NW484S
WV-NW484S (24V AC, 12V DC or PoE)
WV-NW484S (24V AC, 12V DC or PoE)
<Smoke Dome Type>
<Clear Dome Type>
Network camera rating for heavy duty use featured by Super Dynamic III
Key Features
• Built-in MPEG-4 and JPEG digital signal output at VGA image size with up to 30 ips.
• MPEG-4/JPEG dual stream output for simultaneous live monitoring
and high resolution recording.
• Progressive Output with motion adaptive interlace/progressive conversion
allows every frame to be clear even when the object is moving.
• Super Dynamic III technology delivers 128x wider dynamic range
compared to conventional cameras.
• High sensitivity with Day-Night function: 0.6 lux (Color), 0.08 lux
(B/W) with clear dome cover.
• Adaptive Digital Noise Reduction: Selectable use of either 2D-DNR
or 3D DNR ensures noise reduction in various conditions.
• 3.8 ~ 8.0mm, 2x varifocal lens with 3x digital zoom.
• Auto Back Focus (ABF) ensures easy installation and stable focus in
both color and B/W modes.
• Scene Change Detection alarms when lens is covered, spray
painted, removed or defocused.
• Video Motion Detector with 4 programmable detection areas and 3
sensitivity levels.
• Auto image stabilizer for applications where vibration or wind is a concern.
• Up to 32x automatic electronic sensitivity enhancement.
• SD Memory card slot for alarm recording and backup upon network failure.
• Alarm sources include Terminal input, VMD and Panasonic alarm
command, and can trigger actions including SD memory recording,
FTP image transfer, E-mail notification, Alarm indication, Terminal
output and Panasonic protocol output.
• Built-in network interface (10Base-T / 100Base-TX).
• Power over Ethernet (PoE) IEEE 802.3af.
• Multiscreen: Images from 8 cameras can be displayed in two
separate Quad screens (JPEG only)
• FTP client function enables periodic image data transfer or transfer upon alarm
• Alarm E-mail notification
• Max. bit rate/client for MPEG-4 (64 / 128 / 256 / 512 / 1,024 / 2,048 / 4,096
kbps) combined with Total bit rate control (64 / 128 / 256 / 512 / 1,024 /
2,048 / 4,096 kbps / Unlimited) allowing flexible network management.
• Supported Protocol: TCP/IP, UDP/IP, HTTP, FTP, SMTP, DHCP,
DNS, DDNS, NTP, RTP and SNMP.
• Multi-language GUI and setup menu: English, French, Italian,
Spanish, German, Polish, Russian (PAL), English, French (NTSC),
(Installation required except for English).
• IP66 rated water and dust resistant. IEC60529 measuring standard
compatible.
• Dehumidification device for use in various weather conditions.
• Vandal resistant mechanism for high reliability
• Three-way hinge (horizontal, vertical and swivel rotation) for easy
installation
• Optional heater maintains operating temperature –30 °C ~ +50 °C
(–22 °F ~ 122 °F) even with PoE.
Standard Accessories
• CD-ROM* ..................................... 1 pc.
• Operating Instructions, Basic Manual ... 1 pc.
• Label (MAC address) ................... 1 pc.
• Mounting Bracket ......................... 1 pc.
• Driver Bit ...................................... 1 pc.
• Waterproof tape (butyl rubber tape) ... 1 pc.
The following are for installation.
• 4-pin Alarm Cable ........................ 1 pc.
• RJ-45 female-female conversion
connector ..................................... 1 pc.
* The CD-ROM contains Panasonic IP Setup
Software, viewer software "Network Camera
View3", and Standard Operation Manual/
Standard Setup Manual (PDF)
Optional Accessories
Heater Unit
WV-CW4H
Embedded Ceiling
Mount Bracket
WV-Q169
Clear Dome Cover
WV-CW4C (NTSC only)
Smoke Dome Cover
WV-CW4S (PAL only)
Specifications
Lens
Pan and
Tilt
Browser
GUI
Privacy Zone
Up Side Down
Auto Image Stabilizer
Camera Title
Lens Mount
Back Focus Adjustment
Focal Length
Angular Field of View
Maximum Aperture Ratio
Min. Object Distance
Panning Range
Tilting Range
Camera Control
Display Mode
SD Memory Data Download
Clock Display
Alarm Control
GUI/Setup Menu Language
System Log
Supported OS
Supported Browser
Network
Network IF
Image Resolution
Image Compression
Image Refresh Rate
(JPEG)
Total Bit Rate
Max. Bit Rate/Client (MPEG-4)
Supported Protocol
FTP Client
No. of Simultaneous Users
SD Memory Card (Option)
Alarm
Alarm E-mail
User Registration
User Level
Security Method
Alarm Source
Alarm Actions
Input/
Output
EXT. Input/Output
Monitor Output
General
Safety/EMC Standard
Power Source
Power Consumption
Ambient Operating
Temperature
Ambient Operating Humidity
Water and Dust Resistance
Dimensions
Weight
Enclosure
Mounting Bracket (Accessory)
Network Cable
Alarm I/O Cable
Power Cable
Tilting Lock Screw
Tilt Adjustment Seat
Panning Table
Focus Lever
Panning Lock Screw
Zoom Lever
Heater Unit Connector
INIT Button (INT)
ABF Button (ABF)
LED ON/OFF Switch Button
Access LED (ACT)
Link LED (LINK)
ABF LED (ABF)
Monitor Output Jack
SD Memory Card Slot
SD Memory Card Error LED
Appearance
225(8-7/8")
260(10-1/4")
152.5(6")
46(1-13/16")
PCD ø120
83.5(3-5/16")
White Balance
Light Control
AGC
Super Dynamic III
Dynamic Range
Electronic Shutter
Electronic Sensitivity UP
Digital Noise Reduction
Black and White Mode
Digital Zoom
Video Motion Detector
Major Operating Controls & Terminals
NTSC
PAL
1/3-type interline transfer CCD
768 (H) x 494 (V)
2:1 interlace scan (with motion adaptive interlace/progressive conversion)
4.8 (H) x 3.6 (V) mm
Color (30IRE): 1.5 lux (Sens up: OFF), Color (30IRE): 0.6 lux (Sens up: OFF),
0.019 lux (Sens up: 32x) at F1.4
0.046 lux (Sens up: 32x) at F1.4
B/W (10IRE): 0.16 lux (Sens up: OFF), B/W (10IRE): 0.08 lux (Sens up: OFF),
0.003 lux (Sens up: 32x) at F1.4
0.005 lux (Sens up: 32x) at F1.4
Will be same as PAL spec with
WV-CW4C optional clear dome cover
AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)
ALC
ON (LOW) / ON (MID) / ON (HIGH) / OFF
ON or OFF (with BLC masking)
52 dB typical (Super Dynamic III: ON, Shutter speed: OFF)
OFF (1/60), AUTO, 1/100
OFF / AUTO (2x, 4x, 6x, 10x, 16x, 32x)
High / Low
Mode: AUTO1 / AUTO2 / ON / OFF, Level: High / Low, with external control
Up to 3x with Digital PAN/TILT
Mode1 (Motion): 4 areas, Sensitivity: 3 levels /
Mode2 (Scene): OFF, Auto suspend 2, 5, 10, 30 sec.
Up to 8 zones, Gray/Mosaic
ON / OFF
ON / OFF
Up to 16 characters (alphanumeric characters, marks)
CS-mount
ABF/MANUAL, ABF mode upon CL/BW switching: AUTO / PRESET / FIX
3.8 ~ 8.0 mm, 2x varifocal
H: 35.6° (TELE) ~ 73.6° (WIDE) V: 26.6° (TELE) ~ 53.4° (WIDE)
1:1.4 (WIDE) 1:1.8 (Tele)
1.2 m (3.9 ft)
±175°
±75°
Iris
Image from 8 cameras can be displayed in 2 different
Quad screens (JPEG only). 20 characters camera title available.
Images recorded in the SD memory card can be downloaded.
Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)
Reset, Suspend
English, French
English, French, Italian, Spanish,
(Installation required for French) German, Polish, Russian
(Installation required except for English.)
Alaram log, FTP error log (SD memory required)
®
Microsoft Windows 2000 Professional SP4,
Microsoft Windows® XP Professional/Home SP2 English, French, Italian, Spanish, German
Internet Explorer 7.0
Internet Explorer 6.0 SP2 (Windows® XP Home/Professional SP2)
Internet Explorer 6.0 SP1 (Only Windows® 2000 Professional SP4)
10Base-T / 100Base-TX, RJ45 connector
VGA (640 x 480) / QVGA (320 x 240)
MPEG-4: Image quality: LOW/NORMAL/FINE, Transmission type: UNICAST/MULTICAST
JPEG : Image quality: 10 steps, Transmission type: PULL/PUSH
MPEG-4/JPEG dual streaming and JPEG multi-resolution supported.
0.1 / 0.2 / 0.33 / 0.5 / 1 / 2 / 3 / 5 / 6 / 10 / 15 / 30 ips
(Max. rate will be 5 ips-VGA, 10 ips-QVGA when transmitting
JPEG and MPEG-4 simultaneously)
64 / 128 / 256 / 512 / 1,024 / 2,048 / 4,096 kbps / Unlimited
64 / 128 / 256 / 512 / 1,024 / 2,048 / 4,096 kbps
TCP/IP, UDP/IP, HTTP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, RTP
Alarm image transfer, Periodic image transfer
Up to 8 users
Alarm REC/Backup upon network failure. Compatible SD card: Panasonic 64MB,
128MB, 256MB, 512MB, 1GB, 2GB model. SDHC standard card not supported.
Yes
Up to 16 users
3 Levels: Administrator, Camera control, Live only
User authentication (ID and Password), Host authentication (IP address)
VMD, Command alarm, Terminal input
SD memory recording, E-mail notification, Indication on browser,
FTP image transfer, Panasonic protocol output
ALARM input, ALARM output/Black and White Mode input, AUX output
1.0 V [p-p] / 75 Ω,
1.0 V [p-p] / 75 Ω,
NTSC composite, RCA jack
PAL composite, RCA jack
UL (6500 Edition2), FCC (Part15 ClassA), CE (EN55022, EN55024, ClassB),
C-UL (E60065), DOC (ICES003 ClassA) GOST (R 51558)
24 V AC, 60 Hz / 12 V DC / PoE (IEEE802.3af) 24 V AC, 50 Hz / 12 V DC / PoE (IEEE802.3af)
16 W (24 V AC) / 920 mA (12 V DC) / 12 W (PoE Class 0) with Optional Heater
–10 °C ~ +50 °C (14 °F ~ 122 °F), –30 °C ~ +50 °C (–22 °F ~ 122 °F)
with Optional Heater (24 V AC/PoE)
90 % or less (without condensation)
IP66 rated water and dust resistant. IEC60529 measuring standard compatible.
ø159 mm x 153 mm (H) (6-1/4" x 6-1/32")
approx.1.9 kg (4.18 lbs.) (with Mounting Braket)
ø159(6-1/4")
TV System
Camera
Image Sensor
Effective Pixels
Scanning Mode
Scanning Area
Minimum Illumination
57.2
52.5
(2-1/4") (2-1/16")
109.7(4-5/16")
SR52.5
8-Mounting Surface
8-ø6.5 Base Hole
42.8
(1-11/16")
Unit: mm (inches)
Trademarks and registered trademarks
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
– SD logo is a trademark.
Important
– Safety Precaution: carefully read the operating instructions and installation manual before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer products that
reside on the network.
• All TV pictures/menu are simulated.
• Weights and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
• Product pictures shown in this catalog are all NTSC models.
