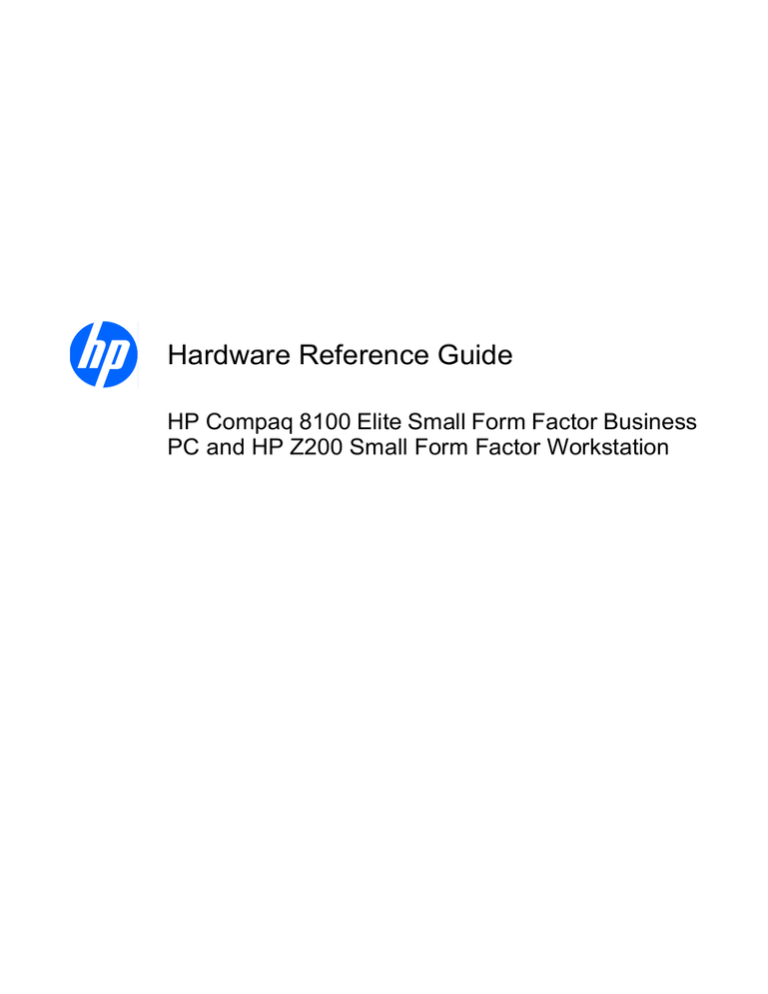

Hardware Reference Guide
HP Compaq 8100 Elite Small Form Factor Business
PC and HP Z200 Small Form Factor Workstation
© Copyright 2010 Hewlett-Packard
Development Company, L.P.
Microsoft, Windows, and Windows Vista are
either trademarks or registered trademarks
of Microsoft Corporation in the United States
and/or other countries.
The only warranties for HP products and
services are set forth in the express warranty
statements accompanying such products
and services. Nothing herein should be
construed as constituting an additional
warranty. HP shall not be liable for technical
or editorial errors or omissions contained
herein.
This document contains proprietary
information that is protected by copyright. No
part of this document may be photocopied,
reproduced, or translated to another
language without the prior written consent of
Hewlett-Packard Company.
Hardware Reference Guide
HP Compaq 8100 Elite Small Form Factor
Business PC and HP Z200 Small Form
Factor Workstation
Second Edition (February 2010)
Document Part Number: 593073-002
About This Book
This guide provides basic information for upgrading this computer model.
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily
harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage
to equipment or loss of information.
NOTE:
ENWW
Text set off in this manner provides important supplemental information.
iii
iv
About This Book
ENWW
Table of contents
Hardware Upgrades ............................................................................................................................................ 1
Warnings and Cautions ........................................................................................................................ 1
Additional Information ........................................................................................................................... 1
Unlocking the Smart Cover Lock .......................................................................................................... 1
Smart Cover FailSafe Key ................................................................................................... 2
Using the Smart Cover FailSafe Key to Remove the Smart Cover Lock ............................. 2
Removing the Computer Access Panel ................................................................................................ 4
Replacing the Computer Access Panel ................................................................................................ 5
Removing the Front Bezel .................................................................................................................... 6
Removing Bezel Blanks ....................................................................................................................... 6
Replacing the Front Bezel .................................................................................................................... 8
Using the Small Form Factor Computer in a Tower Orientation .......................................................... 8
Installing Additional Memory .............................................................................................................. 11
DIMMs ............................................................................................................................... 11
DDR3-SDRAM DIMMs ...................................................................................................... 11
Installing DIMMs ................................................................................................................ 12
Removing or Installing an Expansion Card ........................................................................................ 15
Drive Positions ................................................................................................................................... 20
Installing and Removing Drives .......................................................................................................... 21
Removing an External 5.25-inch Drive .............................................................................. 23
Installing an Optical Drive into the 5.25-inch Drive Bay ..................................................... 25
Removing an External 3.5-inch Drive ................................................................................ 28
Installing a Drive into the 3.5-inch External Drive Bay ....................................................... 30
Removing and Replacing the Primary 3.5-inch Internal SATA Hard Drive ........................ 32
Removing and Replacing a Removable 3.5-inch SATA Hard Drive .................................. 36
Battery Replacement .......................................................................................................................... 40
Installing a Security Lock .................................................................................................................... 43
HP/Kensington MicroSaver Security Cable Lock ............................................................... 43
Padlock .............................................................................................................................. 43
HP Business PC Security Lock .......................................................................................... 44
Front Bezel Security .......................................................................................................... 47
Appendix A Electrostatic Discharge .............................................................................................................. 49
Preventing Electrostatic Damage ....................................................................................................... 49
Grounding Methods ............................................................................................................................ 49
Appendix B Computer Operating Guidelines, Routine Care and Shipping Preparation .......................... 50
Computer Operating Guidelines and Routine Care ............................................................................ 50
ENWW
v
Optical Drive Precautions ................................................................................................................... 51
Operation ........................................................................................................................... 51
Cleaning ............................................................................................................................. 51
Safety ................................................................................................................................. 51
Shipping Preparation .......................................................................................................................... 51
Index ................................................................................................................................................................... 52
vi
ENWW
Hardware Upgrades
Warnings and Cautions
Before performing upgrades be sure to carefully read all of the applicable instructions, cautions, and
warnings in this guide.
WARNING! To reduce the risk of personal injury from electrical shock, hot surfaces, or fire:
Disconnect the power cord from the wall outlet and allow the internal system components to cool before
touching.
Do not plug telecommunications or telephone connectors into the network interface controller (NIC)
receptacles.
Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.
To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper workstation,
setup, posture, and health and work habits for computer users, and provides important electrical and
mechanical safety information. This guide is located on the Web at http://www.hp.com/ergo.
WARNING! Energized and moving parts inside.
Disconnect power to the equipment before removing the enclosure.
Replace and secure the enclosure before re-energizing the equipment.
CAUTION: Static electricity can damage the electrical components of the computer or optional
equipment. Before beginning these procedures, ensure that you are discharged of static electricity by
briefly touching a grounded metal object. See Electrostatic Discharge on page 49 for more information.
When the computer is plugged into an AC power source, voltage is always applied to the system board.
You must disconnect the power cord from the power source before opening the computer to prevent
damage to internal components.
Additional Information
For more information on removing and replacing hardware components, desktop management, the
Computer Setup utility, and troubleshooting, refer to the Maintenance and Service Guide (available in
English only) for your computer model at http://www.hp.com.
Unlocking the Smart Cover Lock
NOTE:
The Smart Cover Lock is an optional feature included on some models only.
The Smart Cover Lock is a software-controllable cover lock, controlled by the setup password. This lock
prevents unauthorized access to the internal components. The computer ships with the Smart Cover
Lock in the unlocked position. For more information about locking the Smart Cover Lock, refer to the
Maintenance and Service Guide (available in English only).
ENWW
Warnings and Cautions
1
Smart Cover FailSafe Key
If you enable the Smart Cover Lock and cannot enter your password to disable the lock, you will need
a Smart Cover FailSafe Key to open the computer cover. You will need the key to access the internal
computer components in any of the following circumstances:
●
Power outage
●
Startup failure
●
PC component (for example, processor or power supply) failure
●
Forgotten password
NOTE: The Smart Cover FailSafe Key is a specialized tool available from HP. Be prepared; order this
key before you need it.
To obtain a FailSafe Key:
●
Contact an authorized HP reseller or service provider. Order PN 166527-001 for the wrench-style
key or PN 166527-002 for the screwdriver bit key.
●
Refer to the HP Web site (http://www.hp.com) for ordering information.
●
Call the appropriate number listed in the warranty or in the Support Telephone Numbers guide.
Using the Smart Cover FailSafe Key to Remove the Smart Cover Lock
To open the access panel with the Smart Cover Lock engaged:
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
5.
2
If the computer is on a stand, remove the computer from the stand.
Hardware Upgrades
ENWW
6.
Use the Smart Cover FailSafe Key to remove the tamper-proof screw that secures the Smart Cover
Lock to the chassis.
NOTE:
Your computer may look different than the illustration shown below.
Figure 1 Removing the Smart Cover Lock Screw
You can now remove the access panel. See Removing the Computer Access Panel on page 4.
To reattach the Smart Cover Lock, secure the lock in place with the tamper-proof screw.
ENWW
Unlocking the Smart Cover Lock
3
Removing the Computer Access Panel
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
5.
If the computer is on a stand, remove the computer from the stand.
6.
Lift up on the access panel handle (1) then lift the access panel off the computer (2).
NOTE: Your computer may look different than the illustration shown below.
Figure 2 Removing the Access Panel
4
Hardware Upgrades
ENWW
Replacing the Computer Access Panel
Slide the lip on the front end of the access panel under the lip on the front of the chassis (1) then press
the back end of the access panel onto the unit so that it locks into place (2).
NOTE:
Your computer may look different than the illustration shown below.
Figure 3 Replacing the Access Panel
ENWW
Replacing the Computer Access Panel
5
Removing the Front Bezel
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
5.
Remove the access panel.
6.
Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).
NOTE: Your computer may look different than the illustration shown below.
Figure 4 Removing the Front Bezel
Removing Bezel Blanks
On some models, there are bezel blanks covering the 3.5-inch and 5.25-inch external drive bays that
need to be removed before installing a drive. To remove a bezel blank:
1.
6
Remove the access panel and front bezel.
Hardware Upgrades
ENWW
2.
To remove a bezel blank, push the two retaining tabs that hold the bezel blank in place towards
the outer right edge of the bezel (1) and slide the bezel blank back and to the right to remove it (2).
NOTE:
Your computer may look different than the illustration shown below.
Figure 5 Removing a Bezel Blank
ENWW
Removing Bezel Blanks
7
Replacing the Front Bezel
Insert the three hooks on the bottom side of the bezel into the rectangular holes on the chassis (1) then
rotate the top side of the bezel onto the chassis (2) and snap it into place.
NOTE:
Your computer may look different than the illustration shown below.
Figure 6 Replacing the Front Bezel
Using the Small Form Factor Computer in a Tower
Orientation
The Small Form Factor computer can be used in a tower orientation with an optional tower stand that
can be purchased from HP.
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
8
Hardware Upgrades
ENWW
5.
Orient the computer so that its right side is facing down and place the computer in the optional
stand.
NOTE:
Your computer may look different than the illustration shown below.
Figure 7 Changing from Desktop to Tower Orientation
NOTE: To stabilize the computer in a tower orientation, HP recommends the use of the optional
tower stand.
6.
On the back of the Z200 Small Form Factor (SFF) Workstation front bezel, squeeze the HP logo
mounting tabs (1) and press the logo outward (2) as shown in the following illustration.
NOTE:
Your computer may look different than the illustration shown below.
Figure 8 Rotating the Z200 SFF Logo
Rotate the HP logo 90 degrees counterclockwise, and then release the logo and press it back into
place in the front bezel.
7.
ENWW
Reconnect the power cord and any external devices, then turn on the computer.
Using the Small Form Factor Computer in a Tower Orientation
9
NOTE: Ensure at least 10.2 centimeters (4 inches) of space on all sides of the computer remains
clear and free of obstructions.
10
Hardware Upgrades
ENWW
Installing Additional Memory
The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3SDRAM) dual inline memory modules (DIMMs).
DIMMs
The memory sockets on the system board can be populated with up to four industry-standard DIMMs.
These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum
memory support, you can populate the system board with up to 16-GB of memory.
DDR3-SDRAM DIMMs
For proper system operation, the DDR3-SDRAM DIMMs must be:
●
industry-standard 240-pin
●
unbuffered non-ECC PC3-8500 DDR3-1066 MHz-compliant or PC3-10600 DDR3-1333 MHzcompliant
●
unbuffered ECC PC3-10600 DDR3-1333 MHz-compliant (Z200 SFF only)
●
1.5 volt DDR3-SDRAM DIMMs
The DDR3-SDRAM DIMMs must also:
●
support CAS latency 7 DDR3 1066 MHz (7-7-7 timing) and CAS latency 9 DDR3 1333 MHz (9-9-9
timing)
●
contain the mandatory JEDEC SPD information
In addition, the computer supports:
●
single-sided and double-sided DIMMs
●
DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not
supported
NOTE: The 8100 SFF supports 512Mbit, 1Gbit, and 2Gbit non-ECC memory technologies. The
Z200 SFF supports 512Mbit, 1Gbit, and 2Gbit ECC and non-ECC memory technologies.
NOTE:
ENWW
The system will not operate properly if you install unsupported DIMMs.
Installing Additional Memory
11
Installing DIMMs
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power to
drain before adding or removing memory modules. Regardless of the power-on state, voltage is always
supplied to the memory modules as long as the computer is plugged into an active AC outlet. Adding
or removing memory modules while voltage is present may cause irreparable damage to the memory
modules or system board.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is
important to use memory modules with gold-plated metal contacts to prevent corrosion and/or oxidation
resulting from having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching a
grounded metal object. For more information, refer to Electrostatic Discharge on page 49.
When handling a memory module, be careful not to touch any of the contacts. Doing so may damage
the module.
NOTE:
Do not intermix non-ECC memory DIMMs with ECC memory DIMMs.
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the
power to drain before adding or removing memory modules. Regardless of the power-on state,
voltage is always supplied to the memory modules as long as the computer is plugged into an
active AC outlet. Adding or removing memory modules while voltage is present may cause
irreparable damage to the memory modules or system board.
5.
If the computer is on a stand, remove the computer from the stand.
6.
Remove the access panel.
WARNING! To reduce risk of personal injury from hot surfaces, allow the internal system
components to cool before touching.
12
Hardware Upgrades
ENWW
7.
Rotate up the external drive bay housing to access the memory module sockets on the system
board.
NOTE:
Your computer may look different than the illustration shown below.
Figure 9 Rotating the Drive Cage Up
8.
ENWW
Locate the memory modules on the system board.
Installing Additional Memory
13
9.
Open both latches of the memory module socket (1), and insert the memory module into the socket
(2).
NOTE: Your computer may look different than the illustration shown below.
Figure 10 Installing a DIMM
NOTE: A memory module can be installed in only one way. Match the notch on the module with
the tab on the memory socket.
A DIMM must occupy the black DIMM0 socket.
NOTE: Populate the DIMM sockets in the following load order: DIMM1, DIMM3, DIMM2, then
DIMM4.
10. Push the module down into the socket, ensuring that the module is fully inserted and properly
seated. Make sure the latches are in the closed position (3).
11. Repeat steps 9 and 10 to install any additional modules.
12. Replace the access panel.
13. If the computer was on a stand, replace the stand.
14. Reconnect the power cord and turn on the computer.
15. Lock any security devices that were disengaged when the access panel was removed.
The computer should automatically recognize the additional memory the next time you turn on the
computer.
14
Hardware Upgrades
ENWW
Removing or Installing an Expansion Card
The computer has one PCI expansion slot, one PCI Express x1 expansion slot, one PCI Express x16
expansion slot, and one PCI Express x16 expansion slot that is downshifted to a x4 slot.
NOTE:
The PCI and PCI Express slots support only low profile cards.
NOTE:
slot.
You can install a PCI Express x1, x4, x8, or x16 expansion card in the black PCI Express x16
NOTE: For dual graphics card configurations, the first (primary) card must be installed in the black
PCI Express x16 slot that is NOT downshifted to a x4 slot.
NOTE: On the Z200 SFF, only HP supported cards (CTO or AMO) may be installed in the PCI Express
x16 slot.
To remove, replace, or add an expansion card:
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
ENWW
5.
If the computer is on a stand, remove the computer from the stand.
6.
Remove the access panel.
7.
Locate the correct vacant expansion socket on the system board and the corresponding expansion
slot on the back of the computer chassis.
Removing or Installing an Expansion Card
15
8.
Release the slot cover retention latch that secures the PCI slot covers by lifting the green tab on
the latch and rotating the latch to the open position.
NOTE: Your computer may look different than the illustration shown below.
Figure 11 Opening the Expansion Slot Retainer
9.
Before installing an expansion card, remove the expansion slot cover or the existing expansion
card.
a.
If you are installing an expansion card in a vacant socket, remove the appropriate expansion
slot cover on the back of the chassis. Pull the slot cover straight up then away from the inside
of the chassis.
NOTE:
Your computer may look different than the illustration shown below.
Figure 12 Removing an Expansion Slot Cover
16
Hardware Upgrades
ENWW
b.
If you are removing a standard PCI card or PCI Express x1 card, hold the card at each end,
and carefully rock it back and forth until the connectors pull free from the socket. Pull the
expansion card straight up from the socket (1) then away from the inside of the chassis to
release it from the chassis frame (2). Be sure not to scrape the card against the other
components.
NOTE: Before removing an installed expansion card, disconnect any cables that may be
attached to the expansion card.
NOTE: Your computer may look different than the illustration shown below.
Figure 13 Removing a Standard PCI Expansion Card
ENWW
Removing or Installing an Expansion Card
17
c.
If you are removing a PCI Express x16 card, pull the retention arm on the back of the expansion
socket away from the card and carefully rock the card back and forth until the connectors pull
free from the socket. Pull the expansion card straight up from the socket then away from the
inside of the chassis to release it from the chassis frame. Be sure not to scrape the card against
the other components.
NOTE:
Your computer may look different than the illustration shown below.
Figure 14 Removing a PCI Express x16 Expansion Card
10. Store the removed card in anti-static packaging.
11. If you are not installing a new expansion card, install an expansion slot cover to close the open
slot.
CAUTION: After removing an expansion card, you must replace it with a new card or expansion
slot cover for proper cooling of internal components during operation.
18
Hardware Upgrades
ENWW
12. To install a new expansion card, hold the card just above the expansion socket on the system
board then move the card toward the rear of the chassis (1) so that the bracket on the card is
aligned with the open slot on the rear of the chassis. Press the card straight down into the expansion
socket on the system board (2).
NOTE:
Your computer may look different than the illustration shown below.
Figure 15 Installing an Expansion Card
NOTE: When installing an expansion card, press firmly on the card so that the whole connector
seats properly in the expansion card slot.
13. Rotate the slot cover retention latch back in place to secure the expansion card.
NOTE:
Your computer may look different than the illustration shown below.
Figure 16 Closing the Expansion Slot Retainer
14. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
ENWW
Removing or Installing an Expansion Card
19
15. Replace the access panel.
16. If the computer was on a stand, replace the stand.
17. Reconnect the power cord and turn on the computer.
18. Lock any security devices that were disengaged when the access panel was removed.
19. Reconfigure the computer, if necessary.
Drive Positions
NOTE:
Your computer may look different than the illustration shown below.
Figure 17 Drive Positions
Table 1 Drive Positions
1
3.5-inch internal hard drive bay
2
3.5-inch external drive bay for a second hard drive or optional drives (media card
reader shown)
3
5.25-inch external drive bay for optional drives (optical drive shown)
NOTE: The drive configuration on your computer may be different than the drive
configuration shown above.
To verify the type, size, and capacity of the storage devices installed in the computer, run Computer
Setup.
20
Hardware Upgrades
ENWW
Installing and Removing Drives
When installing additional drives, follow these guidelines:
●
The primary Serial ATA (SATA) hard drive must be connected to the dark blue primary SATA
connector on the system board.
●
Connect a SATA optical drive to the white SATA connector on the system board.
●
Connect an optional eSATA adapter cable to the black ESATA connector on the system board.
●
Connect a media card reader USB cable to the media USB connector on the system board. If the
media card reader has a 1394 port, connect the 1394 cable to the 1394 PCI card.
●
The system does not support Parallel ATA (PATA) optical drives or PATA hard drives.
●
You must install guide screws to ensure the drive will line up correctly in the drive cage and lock
in place. HP has provided extra guide screws for the external drive bays (five 6-32 standard screws
and four M3 metric screws), installed in the front of the chassis, under the front bezel. The 6-32
standard screws are required for a secondary hard drive. All other drives (except the primary hard
drive) use M3 metric screws. The HP-supplied metric screws are black and the HP-supplied
standard screws are silver. If you are replacing the primary hard drive, you must remove the four
silver and blue 6-32 isolation mounting guide screws from the old hard drive and install them in the
new hard drive.
NOTE:
Your computer may look different than the illustration shown below.
Figure 18 Extra Guide Screw Locations
No.
Guide Screw
Device
1
Black M3 Metric Screws
All Drives (except hard drives)
2
Silver 6-32 Standard Screws
Secondary Hard Drive
There are at total of five extra silver 6-32 standard screws. Four are used as guide screws for a secondary
hard drive. The fifth is used for bezel security (see Front Bezel Security on page 47 for more information).
ENWW
Installing and Removing Drives
21
CAUTION: To prevent loss of work and damage to the computer or drive:
If you are inserting or removing a drive, shut down the operating system properly, turn off the computer,
and unplug the power cord. Do not remove a drive while the computer is on or in standby mode.
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid
touching the connector. For more information about preventing electrostatic damage, refer to
Electrostatic Discharge on page 49.
Handle a drive carefully; do not drop it.
Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields
such as monitors or speakers.
If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and label
the package “Fragile: Handle With Care.”
22
Hardware Upgrades
ENWW
Removing an External 5.25-inch Drive
CAUTION:
computer.
All removable media should be taken out of a drive before removing the drive from the
To remove a 5.25-inch external drive:
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
5.
If the computer is on a stand, remove the computer from the stand.
6.
Remove the access panel.
7.
Rotate the drive cage to its upright position.
NOTE:
Your computer may look different than the illustration shown below.
Figure 19 Rotating the Drive Cage Up
ENWW
Installing and Removing Drives
23
8.
If removing an optical drive, disconnect the power cable (1) and data cable (2) from the rear of the
optical drive.
NOTE: Your computer may look different than the illustration shown below.
Figure 20 Disconnecting the Power and Data Cables
9.
Rotate the drive cage back down to its normal position.
NOTE: Your computer may look different than the illustration shown below.
CAUTION:
Be careful not to pinch any cables or wires when rotating the drive cage down.
Figure 21 Rotating the Drive Cage Down
24
Hardware Upgrades
ENWW
10. Press down on the green drive retainer button located on the left side of the drive to disengage the
drive from the drive cage (1). While pressing the drive retainer button, slide the drive back until it
stops, then lift it up and out of the drive cage (2).
NOTE:
Your computer may look different than the illustration shown below.
Figure 22 Removing the 5.25-inch Drive
NOTE: To replace the drive, reverse the removal procedure. When replacing a drive, transfer the four
guide screws from the old drive to the new one.
Installing an Optical Drive into the 5.25-inch Drive Bay
To install an optional 5.25-inch optical drive:
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
ENWW
5.
If the computer is on a stand, remove the computer from the stand.
6.
Remove the access panel.
7.
If you are installing a drive in a bay covered by a bezel blank, remove the front bezel then remove
the bezel blank. See Removing Bezel Blanks on page 6 for more information.
Installing and Removing Drives
25
8.
Install four M3 metric guide screws in the lower holes on each side of the drive. HP has provided
four extra M3 metric guide screws on the front of the chassis, under the front bezel. The M3 metric
guide screws are black. Refer to Installing and Removing Drives on page 21 for an illustration of
the extra M3 metric guide screws location.
CAUTION: Use only 5-mm long screws as guide screws. Longer screws can damage the internal
components of the drive.
NOTE: When replacing the drive, transfer the four M3 metric guide screws from the old drive to
the new one.
NOTE: Your computer may look different than the illustration shown below.
Figure 23 Installing Guide Screws in the Optical Drive
9.
Position the guide screws on the drive into the J-slots in the drive bay. Then slide the drive toward
the front of the computer until it locks into place.
NOTE: Your computer may look different than the illustration shown below.
Figure 24 Installing the Optical Drive
26
Hardware Upgrades
ENWW
10. Rotate the drive cage to its upright position.
NOTE:
Your computer may look different than the illustration shown below.
Figure 25 Rotating the Drive Cage Up
11. Connect the SATA data cable to the white system board connector.
12. Route the data cable through the cable guides.
CAUTION: There are two cable guides that keep the data cable from being pinched by the drive
cage when raising or lowering it. One is located on the bottom side of the drive cage. The other is
located on the chassis frame under the drive cage. Ensure that the data cable is routed through
these guides before connecting it to the optical drive.
13. Connect the power cable (1) and data cable (2) to the rear of the optical drive.
NOTE:
Your computer may look different than the illustration shown below.
Figure 26 Connecting the Power and Data Cables
ENWW
Installing and Removing Drives
27
14. Rotate the drive cage back down to its normal position.
NOTE: Your computer may look different than the illustration shown below.
CAUTION:
Be careful not to pinch any cables or wires when rotating the drive cage down.
Figure 27 Rotating the Drive Cage Down
15. Replace the access panel.
16. If the computer was on a stand, replace the stand.
17. Reconnect the power cord and turn on the computer.
18. Lock any security devices that were disengaged when the access panel was removed.
The system automatically recognizes the drive and reconfigures the computer.
Removing an External 3.5-inch Drive
CAUTION: All removable media should be taken out of a drive before removing the drive from the
computer.
The 3.5-inch drive is located underneath the 5.25-inch drive. You must remove the external 5.25-inch
drive before removing the external 3.5-inch drive.
1.
Follow the procedure in Removing an External 5.25-inch Drive on page 23 to remove the 5.25-inch
drive and access the 3.5-inch drive.
CAUTION: Ensure that the computer is turned off and that the power cord is disconnected from
the electrical outlet before proceeding.
28
Hardware Upgrades
ENWW
2.
Disconnect the drive cables from the rear of the drive, or, if you are removing a media card reader,
disconnect the USB and 1394 cables from the system board as indicated in the following
illustrations.
NOTE:
On some models, the media card reader does not include a 1394 port or cable.
NOTE:
Your computer may look different than the illustration shown below.
Figure 28 Disconnecting the Media Card Reader USB Cable
Figure 29 Disconnecting the Media Card Reader 1394 Cable
ENWW
Installing and Removing Drives
29
3.
Press down on the green drive retainer button located on the left side of the drive to disengage the
drive from the drive cage (1). While pressing the drive retainer button, slide the drive back until it
stops, then lift it up and out of the drive cage (2).
NOTE: Your computer may look different than the illustration shown below.
Figure 30 Removing a 3.5-inch Drive (Media Card Reader Shown)
NOTE:
To replace the 3.5-inch drive, reverse the removal procedure.
When replacing a 3.5-inch drive, transfer the four guide screws from the old drive to the new one.
Installing a Drive into the 3.5-inch External Drive Bay
The 3.5-inch bay is located underneath the 5.25-inch drive. To install a drive into the 3.5-inch bay:
NOTE: Install guide screws to ensure the drive will line up correctly in the drive cage and lock in place.
HP has provided extra guide screws for the external drive bays (four 6-32 standard screws and four M3
metric screws), installed in the front of the chassis, under the front bezel. A secondary hard drive uses
6-32 standard screws. All other drives (except the primary hard drive) use M3 metric screws. The HPsupplied M3 metric screws are black and the HP-supplied 6-32 standard screws are silver. Refer to
Installing and Removing Drives on page 21 for illustrations of the guide screw locations.
1.
Follow the procedure in Removing an External 5.25-inch Drive on page 23 to remove the 5.25-inch
drive and access the 3.5-inch drive bay.
CAUTION: Ensure that the computer is turned off and that the power cord is disconnected from
the electrical outlet before proceeding.
2.
30
If you are installing a drive in a bay covered by a bezel blank, remove the front bezel then remove
the bezel blank. See Removing Bezel Blanks on page 6 for more information.
Hardware Upgrades
ENWW
3.
Position the guide screws on the drive into the J-slots in the drive bay. Then slide the drive toward
the front of the computer until it locks into place.
NOTE:
Your computer may look different than the illustration shown below.
Figure 31 Installing a Drive into the 3.5-inch Drive Bay (Media Card Reader Shown)
4.
ENWW
Connect the appropriate drive cables:
a.
If installing a second hard drive, connect the power and data cables to the rear of the drive
and connect the other end of the data cable to the next available (unpopulated) SATA
connector on the system board by following the numbered sequence of the connectors.
b.
If installing a media card reader, connect the USB cable from the media card reader to the
media USB connector on the system board. If the media card reader includes a 1394 port,
connect the 1394 cable to the 1394 PCI card.
5.
Replace the 5.25-inch drive.
6.
Replace the front bezel and access panel.
7.
If the computer was on a stand, replace the stand.
8.
Reconnect the power cord and turn on the computer.
9.
Lock any security devices that were disengaged when the access panel was removed.
Installing and Removing Drives
31
Removing and Replacing the Primary 3.5-inch Internal SATA Hard Drive
NOTE:
The system does not support Parallel ATA (PATA) hard drives.
Before you remove the old hard drive, be sure to back up the data from the old hard drive so that you
can transfer the data to the new hard drive.
The preinstalled 3.5-inch hard drive is located under the power supply. To remove and replace the hard
drive:
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
5.
If the computer is on a stand, remove the computer from the stand.
6.
Remove the access panel.
7.
Rotate the drive cage for external drives to its upright position.
NOTE: Your computer may look different than the illustration shown below.
Figure 32 Rotating the Drive Cage Up
32
Hardware Upgrades
ENWW
8.
Rotate the power supply to its upright position. The hard drive is located beneath the power supply.
NOTE:
Your computer may look different than the illustration shown below.
Figure 33 Raising the Power Supply
9.
Disconnect the power cable (1) and data cable (2) from the back of the hard drive.
NOTE:
Your computer may look different than the illustration shown below.
Figure 34 Disconnecting the Hard Drive Power Cable and Data Cable
ENWW
Installing and Removing Drives
33
10. Press down on the green release latch next to the hard drive (1). While holding the latch down,
slide the drive forward until it stops, then lift the drive up and out of the bay (2).
NOTE: Your computer may look different than the illustration shown below.
Figure 35 Removing the Hard Drive
11. To install a hard drive, you must transfer the silver and blue isolation mounting guide screws from
the old hard drive to the new hard drive.
NOTE: Your computer may look different than the illustration shown below.
Figure 36 Installing Hard Drive Guide Screws
34
Hardware Upgrades
ENWW
12. Align the guide screws with the slots on the chassis drive cage, press the hard drive down into the
bay, then slide it back until it stops and locks in place.
NOTE:
Your computer may look different than the illustration shown below.
Figure 37 Installing the Hard Drive
13. Connect the power and data cables to the back of the hard drive.
NOTE: When replacing the primary hard drive, be sure to route the SATA and power cables
through the cable guide on the bottom of the chassis frame behind the hard drive.
If the system has only one SATA hard drive, the data cable must be connected to the dark blue
connector on the system board to avoid any hard drive performance problems.
14. Rotate the drive cage for external drives and the power supply down to their normal positions.
15. Replace the access panel.
16. If the computer was on a stand, replace the stand.
17. Reconnect the power cord and turn on the computer.
18. Lock any security devices that were disengaged when the access panel was removed.
ENWW
Installing and Removing Drives
35
Removing and Replacing a Removable 3.5-inch SATA Hard Drive
Some models are equipped with a Removable SATA Hard Drive Enclosure in the 5.25-inch external
drive bay. The hard drive is housed in a carrier that can be quickly and easily removed from the drive
bay. To remove and replace a drive in the carrier:
NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so
that you can transfer the data to the new hard drive.
1.
Unlock the hard drive carrier with the key provided and slide the carrier out of the enclosure.
2.
Remove the screw from the rear of the carrier (1) and slide the top cover off the carrier (2).
NOTE: Your computer may look different than the illustration shown below.
Figure 38 Removing the Carrier Cover
36
Hardware Upgrades
ENWW
3.
Remove the adhesive strip that secures the thermal sensor to the top of the hard drive (1) and
move the thermal sensor away from the carrier (2).
NOTE:
Your computer may look different than the illustration shown below.
Figure 39 Removing the Thermal Sensor
4.
Remove the four screws from the bottom of the hard drive carrier.
NOTE:
Your computer may look different than the illustration shown below.
Figure 40 Removing the Security Screws
ENWW
Installing and Removing Drives
37
5.
Slide the hard drive back to disconnect it from the carrier then lift it up and out of the carrier.
NOTE: Your computer may look different than the illustration shown below.
Figure 41 Removing the Hard Drive
6.
Place the new hard drive in the carrier then slide the hard drive back so that it seats in the SATA
connector on the carrier's circuit board. Be sure the connector on the hard drive is pressed all the
way into the connector on the carrier's circuit board.
NOTE: Your computer may look different than the illustration shown below.
Figure 42 Replacing the Hard Drive
38
Hardware Upgrades
ENWW
7.
Replace the four screws in the bottom of the carrier to hold the drive securely in place.
NOTE:
Your computer may look different than the illustration shown below.
Figure 43 Replacing the Security Screws
8.
Place the thermal sensor on top of the hard drive in a position that does not cover the label (1) and
attach the thermal sensor to the top of the hard drive with the adhesive strip (2).
NOTE:
Your computer may look different than the illustration shown below.
Figure 44 Replacing the Thermal Sensor
ENWW
Installing and Removing Drives
39
9.
Slide the cover on the carrier (1) and replace the screw on the rear of the carrier to secure the cover
in place (2).
NOTE: Your computer may look different than the illustration shown below.
Figure 45 Replacing the Carrier Cover
10. Slide the hard drive carrier into the enclosure on the computer and lock it with the key provided.
NOTE: The carrier must be locked for power to be supplied to the hard drive.
Battery Replacement
The battery that comes with the computer provides power to the real-time clock. When replacing the
battery, use a battery equivalent to the battery originally installed in the computer. The computer comes
with a 3-volt lithium coin cell battery.
WARNING! The computer contains an internal lithium manganese dioxide battery. There is a risk of
fire and burns if the battery is not handled properly. To reduce the risk of personal injury:
Do not attempt to recharge the battery.
Do not expose to temperatures higher than 60°C (140ºF).
Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
Replace the battery only with the HP spare designated for this product.
CAUTION: Before replacing the battery, it is important to back up the computer CMOS settings. When
the battery is removed or replaced, the CMOS settings will be cleared.
Static electricity can damage the electronic components of the computer or optional equipment. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching a
grounded metal object.
40
Hardware Upgrades
ENWW
NOTE: The lifetime of the lithium battery can be extended by plugging the computer into a live AC wall
socket. The lithium battery is only used when the computer is NOT connected to AC power.
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and
rechargeable batteries. For more information about recycling programs, go to http://www.hp.com/
recycle.
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
5.
If the computer is on a stand, remove the computer from the stand.
6.
Remove the access panel.
7.
Locate the battery and battery holder on the system board.
NOTE: On some computer models, it may be necessary to remove an internal component to gain
access to the battery.
8.
Depending on the type of battery holder on the system board, complete the following instructions
to replace the battery.
Type 1
a.
Lift the battery out of its holder.
Figure 46 Removing a Coin Cell Battery (Type 1)
b.
Slide the replacement battery into position, positive side up. The battery holder automatically
secures the battery in the proper position.
Type 2
a.
ENWW
To release the battery from its holder, squeeze the metal clamp that extends above one edge
of the battery. When the battery pops up, lift it out (1).
Battery Replacement
41
b.
To insert the new battery, slide one edge of the replacement battery under the holder’s lip with
the positive side up. Push the other edge down until the clamp snaps over the other edge of
the battery (2).
Figure 47 Removing and Replacing a Coin Cell Battery (Type 2)
Type 3
a.
Pull back on the clip (1) that is holding the battery in place, and remove the battery (2).
b.
Insert the new battery and position the clip back into place.
Figure 48 Removing a Coin Cell Battery (Type 3)
NOTE: After the battery has been replaced, use the following steps to complete this procedure.
9.
Replace the access panel.
10. If the computer was on a stand, replace the stand.
11. Plug in the computer and turn on power to the computer.
42
Hardware Upgrades
ENWW
12. Reset the date and time, your passwords, and any special system setups using Computer Setup.
13. Lock any security devices that were disengaged when the access panel was removed.
Installing a Security Lock
The security locks displayed below and on the following pages can be used to secure the computer.
HP/Kensington MicroSaver Security Cable Lock
NOTE:
Your computer may look different than the illustration shown below.
Figure 49 Installing a Cable Lock
Padlock
NOTE:
ENWW
Your computer may look different than the illustration shown below.
Installing a Security Lock
43
Figure 50 Installing a Padlock
HP Business PC Security Lock
1.
Fasten the security cable by looping it around a stationary object.
Figure 51 Securing the Cable to a Fixed Object
44
Hardware Upgrades
ENWW
2.
Thread the keyboard and mouse cables through the lock.
Figure 52 Threading the Keyboard and Mouse Cables
3.
Screw the lock to the chassis using the screw provided.
NOTE:
Your computer may look different than the illustration shown below.
Figure 53 Attaching the Lock to the Chassis
ENWW
Installing a Security Lock
45
4.
Insert the plug end of the security cable into the lock (1) and push the button in (2) to engage the
lock. Use the key provided to disengage the lock.
NOTE: Your computer may look different than the illustration shown below.
Figure 54 Engaging the Lock
46
Hardware Upgrades
ENWW
Front Bezel Security
The front bezel can be locked in place by installing a security screw provided by HP. To install the
security screw:
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
5.
If the computer is on a stand, remove the computer from the stand.
6.
Remove the access panel and front bezel.
7.
Remove one of the five silver 6-32 standard screws located on the front of the chassis behind the
bezel.
NOTE:
Your computer may look different than the illustration shown below.
Figure 55 Retrieving the Front Bezel Security Screw
8.
ENWW
Replace the front bezel.
Installing a Security Lock
47
9.
Install the security screw next to the middle front bezel release tab to secure the front bezel in
place.
NOTE: Your computer may look different than the illustration shown below.
Figure 56 Installing the Front Bezel Security Screw
10. Replace the access panel.
11. If the computer was on a stand, replace the stand.
12. Reconnect the power cord and turn on the computer.
13. Lock any security devices that were disengaged when the access panel was removed.
48
Hardware Upgrades
ENWW
A
Electrostatic Discharge
A discharge of static electricity from a finger or other conductor may damage system boards or other
static-sensitive devices. This type of damage may reduce the life expectancy of the device.
Preventing Electrostatic Damage
To prevent electrostatic damage, observe the following precautions:
●
Avoid hand contact by transporting and storing products in static-safe containers.
●
Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.
●
Place parts on a grounded surface before removing them from their containers.
●
Avoid touching pins, leads, or circuitry.
●
Always be properly grounded when touching a static-sensitive component or assembly.
Grounding Methods
There are several methods for grounding. Use one or more of the following methods when handling or
installing electrostatic-sensitive parts:
●
Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis. Wrist
straps are flexible straps with a minimum of 1 megohm +/- 10 percent resistance in the ground
cords. To provide proper ground, wear the strap snug against the skin.
●
Use heelstraps, toestraps, or bootstraps at standing workstations. Wear the straps on both feet
when standing on conductive floors or dissipating floor mats.
●
Use conductive field service tools.
●
Use a portable field service kit with a folding static-dissipating work mat.
If you do not have any of the suggested equipment for proper grounding, contact an HP authorized
dealer, reseller, or service provider.
NOTE: For more information on static electricity, contact an HP authorized dealer, reseller, or service
provider.
ENWW
Preventing Electrostatic Damage
49
B
Computer Operating Guidelines,
Routine Care and Shipping Preparation
Computer Operating Guidelines and Routine Care
Follow these guidelines to properly set up and care for the computer and monitor:
50
●
Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and cold.
●
Operate the computer on a sturdy, level surface. Leave a 10.2-cm (4-inch) clearance on all vented
sides of the computer and above the monitor to permit the required airflow.
●
Never restrict the airflow into the computer by blocking any vents or air intakes. Do not place the
keyboard, with the keyboard feet down, directly against the front of the desktop unit as this also
restricts airflow.
●
Never operate the computer with the access panel or any of the expansion card slot covers
removed.
●
Do not stack computers on top of each other or place computers so near each other that they are
subject to each other’s re-circulated or preheated air.
●
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must
be provided on the enclosure, and the same operating guidelines listed above will still apply.
●
Keep liquids away from the computer and keyboard.
●
Never cover the ventilation slots on the monitor with any type of material.
●
Install or enable power management functions of the operating system or other software, including
sleep states.
●
Turn off the computer before you do either of the following:
◦
Wipe the exterior of the computer with a soft, damp cloth as needed. Using cleaning products
may discolor or damage the finish.
◦
Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other
foreign matter can block the vents and limit the airflow.
Appendix B Computer Operating Guidelines, Routine Care and Shipping Preparation
ENWW
Optical Drive Precautions
Be sure to observe the following guidelines while operating or cleaning the optical drive.
Operation
●
Do not move the drive during operation. This may cause it to malfunction during reading.
●
Avoid exposing the drive to sudden changes in temperature, as condensation may form inside the
unit. If the temperature suddenly changes while the drive is on, wait at least one hour before you
turn off the power. If you operate the unit immediately, it may malfunction while reading.
●
Avoid placing the drive in a location that is subject to high humidity, extreme temperatures,
mechanical vibration, or direct sunlight.
Cleaning
●
Clean the panel and controls with a soft, dry cloth or a soft cloth lightly moistened with a mild
detergent solution. Never spray cleaning fluids directly on the unit.
●
Avoid using any type of solvent, such as alcohol or benzene, which may damage the finish.
Safety
If any object or liquid falls into the drive, immediately unplug the computer and have it checked by an
authorized HP service provider.
Shipping Preparation
Follow these suggestions when preparing to ship the computer:
1.
Back up the hard drive files on PD discs, tape cartridges, CDs, or USB flash drives. Be sure that
the backup media is not exposed to electrical or magnetic impulses while stored or in transit.
NOTE:
The hard drive locks automatically when the system power is turned off.
2.
Remove and store all removable media.
3.
Turn off the computer and external devices.
4.
Disconnect the power cord from the electrical outlet, then from the computer.
5.
Disconnect the system components and external devices from their power sources, then from the
computer.
NOTE: Ensure that all boards are seated properly and secured in the board slots before shipping
the computer.
6.
ENWW
Pack the system components and external devices in their original packing boxes or similar
packaging with sufficient packing material to protect them.
Optical Drive Precautions
51
Index
A
access panel
locking and unlocking
1
B
battery replacement 40
C
computer access panel
removing 3
replacing 5
computer operating guidelines 50
connecting drive cables 21
D
DIMMs. See memory
drives
connecting cables 21
installing 21
locations 20
E
electrostatic discharge, preventing
damage 49
expansion card
installing 15
removing 15
slot locations 15
expansion slot cover
removing 16
replacing 18
F
FailSafe Key 2
front bezel
removing 6
removing blanks 6
replacing 8
security 21
G
guide screws 21
52
Index
H
hard drive
installing 32
installing secondary 30
removing 32
I
installation guidelines 1
installing
battery 40
drive cables 21
expansion card 15
guide screws 21
hard drive 32
media card reader 30
memory 11
optical drive 25
removable hard drive 36
M
media card reader
installing 30
removing 28
memory
installing 11
specifications 11
O
optical drive
cleaning 51
installing 25
precautions 51
removing 23
computer access panel 3
expansion card 15
expansion slot cover 16
front bezel 6
hard drive 32
media card reader 28
optical drive 23
PCI card 17
PCI Express card 18
Smart Cover Lock 2
S
security
cable lock 43
front bezel 21
HP Business PC Security
Lock 44
padlock 43
Smart Cover Lock 1
shipping preparation 51
Smart Cover Lock 1
specifications
memory 11
T
tower orientation
8
U
unlocking access panel
1
V
ventilation guidelines 50
P
PCI card 17
PCI Express card 18
R
removable hard drive
replacing 36
removing
battery 40
bezel blanks 6
ENWW
Download PDF

advertising
