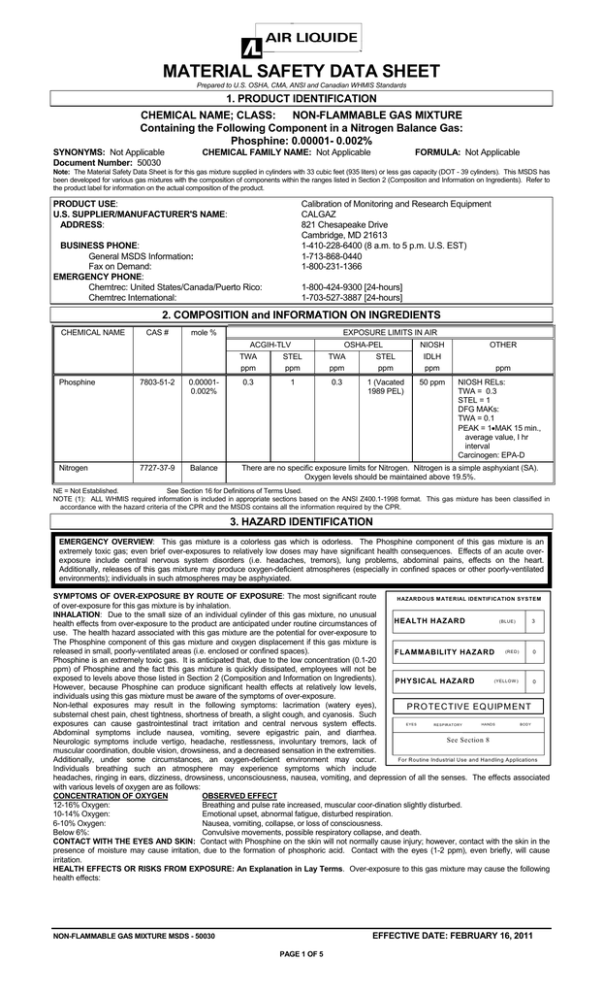

MATERIAL SAFETY DATA SHEET
Prepared to U.S. OSHA, CMA, ANSI and Canadian WHMIS Standards
1. PRODUCT IDENTIFICATION
CHEMICAL NAME; CLASS:
NON-FLAMMABLE GAS MIXTURE
Containing the Following Component in a Nitrogen Balance Gas:
Phosphine: 0.00001- 0.002%
SYNONYMS: Not Applicable
Document Number: 50030
CHEMICAL FAMILY NAME: Not Applicable
FORMULA: Not Applicable
Note: The Material Safety Data Sheet is for this gas mixture supplied in cylinders with 33 cubic feet (935 liters) or less gas capacity (DOT - 39 cylinders). This MSDS has
been developed for various gas mixtures with the composition of components within the ranges listed in Section 2 (Composition and Information on Ingredients). Refer to
the product label for information on the actual composition of the product.
PRODUCT USE:
U.S. SUPPLIER/MANUFACTURER'S NAME:
ADDRESS:
Calibration of Monitoring and Research Equipment
CALGAZ
821 Chesapeake Drive
Cambridge, MD 21613
1-410-228-6400 (8 a.m. to 5 p.m. U.S. EST)
1-713-868-0440
1-800-231-1366
BUSINESS PHONE:
General MSDS Information:
Fax on Demand:
EMERGENCY PHONE:
Chemtrec: United States/Canada/Puerto Rico:
Chemtrec International:
1-800-424-9300 [24-hours]
1-703-527-3887 [24-hours]
2. COMPOSITION and INFORMATION ON INGREDIENTS
CHEMICAL NAME
CAS #
mole %
EXPOSURE LIMITS IN AIR
ACGIH-TLV
NIOSH
OTHER
TWA
ppm
STEL
ppm
TWA
ppm
OSHA-PEL
STEL
ppm
IDLH
ppm
ppm
1
0.3
1 (Vacated
1989 PEL)
50 ppm
Phosphine
7803-51-2
0.000010.002%
0.3
NIOSH RELs:
TWA = 0.3
STEL = 1
DFG MAKs:
TWA = 0.1
PEAK = 1•MAK 15 min.,
average value, I hr
interval
Carcinogen: EPA-D
Nitrogen
7727-37-9
Balance
There are no specific exposure limits for Nitrogen. Nitrogen is a simple asphyxiant (SA).
Oxygen levels should be maintained above 19.5%.
NE = Not Established.
See Section 16 for Definitions of Terms Used.
NOTE (1): ALL WHMIS required information is included in appropriate sections based on the ANSI Z400.1-1998 format. This gas mixture has been classified in
accordance with the hazard criteria of the CPR and the MSDS contains all the information required by the CPR.
3. HAZARD IDENTIFICATION
EMERGENCY OVERVIEW: This gas mixture is a colorless gas which is odorless. The Phosphine component of this gas mixture is an
extremely toxic gas; even brief over-exposures to relatively low doses may have significant health consequences. Effects of an acute overexposure include central nervous system disorders (i.e. headaches, tremors), lung problems, abdominal pains, effects on the heart.
Additionally, releases of this gas mixture may produce oxygen-deficient atmospheres (especially in confined spaces or other poorly-ventilated
environments); individuals in such atmospheres may be asphyxiated.
SYMPTOMS OF OVER-EXPOSURE BY ROUTE OF EXPOSURE: The most significant route
HAZARDO US M ATER IAL IDENTIFICATIO N SYS TEM
of over-exposure for this gas mixture is by inhalation.
INHALATION: Due to the small size of an individual cylinder of this gas mixture, no unusual
(BLUE)
3
HEALTH HAZARD
health effects from over-exposure to the product are anticipated under routine circumstances of
use. The health hazard associated with this gas mixture are the potential for over-exposure to
The Phosphine component of this gas mixture and oxygen displacement if this gas mixture is
released in small, poorly-ventilated areas (i.e. enclosed or confined spaces).
0
FLAM M ABILITY HAZARD (RED)
Phosphine is an extremely toxic gas. It is anticipated that, due to the low concentration (0.1-20
ppm) of Phosphine and the fact this gas mixture is quickly dissipated, employees will not be
exposed to levels above those listed in Section 2 (Composition and Information on Ingredients).
(YELLO W )
PHYSIC AL HAZAR D
0
However, because Phosphine can produce significant health effects at relatively low levels,
individuals using this gas mixture must be aware of the symptoms of over-exposure.
Non-lethal exposures may result in the following symptoms: lacrimation (watery eyes),
PRO TECTIVE EQ UIPM ENT
substernal chest pain, chest tightness, shortness of breath, a slight cough, and cyanosis. Such
E YES
H ANDS
BOD Y
RE SPIRATORY
exposures can cause gastrointestinal tract irritation and central nervous system effects.
Abdominal symptoms include nausea, vomiting, severe epigastric pain, and diarrhea.
See Section 8
Neurologic symptoms include vertigo, headache, restlessness, involuntary tremors, lack of
muscular coordination, double vision, drowsiness, and a decreased sensation in the extremities.
For Routine Industrial Use and H andling Applications
Additionally, under some circumstances, an oxygen-deficient environment may occur.
Individuals breathing such an atmosphere may experience symptoms which include
headaches, ringing in ears, dizziness, drowsiness, unconsciousness, nausea, vomiting, and depression of all the senses. The effects associated
with various levels of oxygen are as follows:
OBSERVED EFFECT
CONCENTRATION OF OXYGEN
12-16% Oxygen:
Breathing and pulse rate increased, muscular coor-dination slightly disturbed.
10-14% Oxygen:
Emotional upset, abnormal fatigue, disturbed respiration.
6-10% Oxygen:
Nausea, vomiting, collapse, or loss of consciousness.
Below 6%:
Convulsive movements, possible respiratory collapse, and death.
CONTACT WITH THE EYES AND SKIN: Contact with Phosphine on the skin will not normally cause injury; however, contact with the skin in the
presence of moisture may cause irritation, due to the formation of phosphoric acid. Contact with the eyes (1-2 ppm), even briefly, will cause
irritation.
HEALTH EFFECTS OR RISKS FROM EXPOSURE: An Explanation in Lay Terms. Over-exposure to this gas mixture may cause the following
health effects:
EFFECTIVE DATE: FEBRUARY 16, 2011
NON-FLAMMABLE GAS MIXTURE MSDS - 50030
PAGE 1 OF 5
3. HAZARD IDENTIFICATION (Continued)
ACUTE: Due to the small size of the individual cylinder of this gas mixture, no unusual health effects from exposure to the product are anticipated
under routine circumstances of use. Phosphine (a component of this gas mixture) is an extremely toxic gas; even brief over-exposures to relatively
low doses may have significant health consequences. Effects of an acute over-exposure include central nervous system disorders (i.e. headaches,
tremors), lung problems, abdominal pains, effects on the heart. Contact with the skin or eyes with Phosphine in the presence of moisture can
cause irritation, due to the formation of phosphoric acid.
CHRONIC: Effects of chronic low level exposures to the Phosphine component of this gas mixture may result in anemia, bronchitis, gastrointestinal
disorders, and visual, speech, and motor disturbances. Refer to Section 11 (Toxicology Information) for additional data. Chronic exposure to
oxygen-deficient atmospheres (below 18% oxygen in air) may affect the heart and nervous system.
TARGET ORGANS: ACUTE: Respiratory system, central nervous system, cardiac system, skin, eyes. CHRONIC: Blood system, respiratory
system, gastrointestinal system, cardiac system, central nervous system.
4. FIRST-AID MEASURES
RESCUERS SHOULD NOT ATTEMPT TO RETRIEVE VICTIMS OF EXPOSURE TO THIS GAS MIXTURE WITHOUT ADEQUATE PERSONAL
PROTECTIVE EQUIPMENT. At a minimum, Self-Contained Breathing Apparatus must be worn.
No unusual health effects are anticipated after exposure to this gas mixture, due to the small cylinder size. If any adverse symptom develops after
over-exposure to this gas mixture, remove victim(s) to fresh air as quickly as possible. Only trained personnel should administer supplemental
oxygen and/or cardio-pulmonary resuscitation if necessary. Victim(s) who experience any adverse effect after over-exposure to this gas mixture
must be taken for medical attention. Rescuers should be taken for medical attention if necessary. Take a copy of the label and the MSDS to
physician or other health professional with victim(s).
SKIN EXPOSURE: If irritation of the skin develops after exposure to this gas mixture, immediately begin decontamination with running water.
Minimum flushing is for 15 minutes. Remove exposed or contaminated clothing, taking care not to contaminate eyes. Victim must seek immediate
medical attention.
EYE EXPOSURE: If irritation of the eye develops after exposure to this gas mixture, open victim's eyes while under gentle running water. Use
sufficient force to open eyelids. Have victim "roll" eyes. Minimum flushing is for 15 minutes. Seek medical assistance immediately, preferably an
ophthalmologist.
MEDICAL CONDITIONS AGGRAVATED BY EXPOSURE: Any respiratory disorder, heart condition, or central nervous system condition, may be
aggravated by over-exposure to Phosphine. Additionally, skin and eye conditions may be aggravated by Phosphine exposures.
RECOMMENDATIONS TO PHYSICIANS: Administer oxygen. Victims of exposure to Phosgene must be monitored closely for delayed pulmonary
edema. There is no specific antidote to Phosphine poisoning; therefore, treatment is symptomatic and supportive.
5. FIRE-FIGHTING MEASURES
FLASH POINT: Not applicable.
AUTOIGNITION TEMPERATURE: Not applicable.
FLAMMABLE LIMITS (in air by volume, %):
Lower (LEL): Not applicable.
Upper (UEL): Not applicable.
FIRE EXTINGUISHING MATERIALS: Non-flammable gas mixture. Use extinguishing
media appropriate for surrounding fire.
UNUSUAL FIRE AND EXPLOSION HAZARDS: Phosphine is toxic to humans in
relatively low concentrations, and in the concentrations present in this gas mixture, poses
a potential hazard to fire-fighters. This gas mixture is not flammable; however,
containers, when involved in fire, may rupture or burst in the heat of the fire.
Explosion Sensitivity to Mechanical Impact: Not sensitive.
Explosion Sensitivity to Static Discharge: Not sensitive.
SPECIAL FIRE-FIGHTING PROCEDURES: Structural firefighters must wear SelfContained Breathing Apparatus and full protective equipment.
NFPA RATING
FLAMMABILITY
0
HEALTH
0
3
REACTIVITY
OTHER
6. ACCIDENTAL RELEASE MEASURES
LEAK RESPONSE: Due to the small size and content of the cylinder, an accidental release of this gas mixture presents significantly less risk of
over-exposure to Phosphine, an oxygen-deficient environment, and other safety hazards than a similar release from a larger cylinder. However, as
with any chemical release, extreme caution must be used during emergency response procedures. In the event of a release in which the
atmosphere is unknown, and in which other chemicals are potentially involved, evacuate immediate area. Such releases should be responded to
by trained personnel using pre-planned procedures. Proper protective equipment should be used. In case of a leak, clear the affected area,
protect people, and respond with trained personnel. Allow the gas mixture to dissipate. If necessary, monitor the surrounding area (and the original
area of the release) for oxygen. A colorimetric tube is available for Phosphine. The level of Phosphine must be at acceptable levels (less than
50% of the TLV; TLV = 0.3 ppm) and Oxygen levels must be above 19.5% before non-emergency personnel are allowed to re-enter area.
If leaking incidentally from the cylinder, contact your supplier.
7. HANDLING and USE
WORK PRACTICES AND HYGIENE PRACTICES: Be observant for the odor of sulfur; this odor is indicative of a potential over-exposure the
Sulfur Dioxide of this gas mixture. Do not attempt to repair, adjust, or in any other way modify cylinders containing this gas mixture. If there is a
malfunction or another type of operational problem, contact the nearest distributor immediately. Eye wash stations/safety showers should be near
areas where this gas mixture is used or stored. All work operations should be monitored in such a way that emergency personnel can be
immediately contacted in the event of a release. All work practices should minimize releases of Sulfur Dioxide and Nitrogen Monoxide-containing
gas mixtures.
STORAGE AND HANDLING PRACTICES: Cylinders should be firmly secured to prevent falling or being knocked-over. Cylinders must be
protected from the environment, and preferably kept at room temperature (approximately 21°C [70°F]). Cylinders should be stored in dry, wellventilated areas, away from sources of heat, ignition, and direct sunlight. Protect cylinders against physical damage. Full and empty cylinders
should be segregated. Use a first-in, first-out inventory system to prevent full containers from being stored for long periods of time. These cylinders
are not refillable. WARNING! Do not refill DOT 39 cylinders. To do so may cause personal injury or property damage.
SPECIAL PRECAUTIONS FOR HANDLING GAS CYLINDERS: WARNING! Compressed gases can present significant safety hazards. During
cylinder use, use equipment designed for these specific cylinders. Ensure all lines and equipment are rated for proper service pressure.
PROTECTIVE PRACTICES DURING MAINTENANCE OF CONTAMINATED EQUIPMENT: Follow practices indicated in Section 6 (Accidental
Release Measures). Make certain that application equipment is locked and tagged-out safely. Always use product in areas where adequate
ventilation is provided.
8. EXPOSURE CONTROLS - PERSONAL PROTECTION
VENTILATION AND ENGINEERING CONTROLS: No special ventilation systems or engineering controls are needed under normal
circumstances of use. As with all chemicals, use this gas mixture in well-ventilated areas. If this gas mixture is used in a poorly-ventilated area,
install automatic monitoring equipment to detect the levels of Phosphine and Oxygen.
RESPIRATORY PROTECTION: No special respiratory protection is required under normal circumstances of use. Maintain Phosphine levels below
50% of the TLV (TLV = 0.3 ppm) and oxygen levels above 19.5% in the workplace. Use supplied air respiratory protection when Phosphine levels
exceed 50% of the TLV (TLV = 0.3 ppm), oxygen levels are below 19.5%, or during emergency response to a release of this gas mixture. During
an emergency situation, before entering the area, check the concentration of Phosphine and Oxygen. If respiratory protection is required, follow the
requirements of the Federal OSHA Respiratory Protection Standard (29 CFR 1910.134), or equivalent State standards. The following are NIOSH
respiratory protection equipment recommendations for Phosphine.
PHOSPHINE
RESPIRATORY PROTECTION
CONCENTRATION
Up to 3 ppm:
Any Supplied-Air Respirator (SAR)
Up to 7.5 ppm:
Any SAR operated in a continuous-flow mode.
Up to 15 ppm:
Any Air-Purifying, Full-Facepiece Respirator (gas mask) with a chin-style, front-or back-mounted canister
providing protection against Phosphine, or any Self-Contained Breathing Apparatus (SCBA) with a full
facepiece, or any SAR with a full facepiece.
Up to 50 ppm:
Any SAR operated in a pressure-demand or other positive-pressure mode.
EFFECTIVE DATE: FEBRUARY 16, 2011
NON-FLAMMABLE GAS MIXTURE MSDS - 50030
PAGE 2 OF 5
8. EXPOSURE CONTROLS - PERSONAL PROTECTION (Continued)
RESPIRATORY PROTECTION (continued):
PHOSPHINE
RESPIRATORY PROTECTION (continued)
CONCENTRATION
Emergency or Planned Entry into Unknown Concentrations or IDLH Conditions: Any Self-Contained Breathing Apparatus (SCBA) that has a
full facepiece and is operated in a pressure-demand or other positive-pressure mode, or any SAR that has a full
facepiece and is operated in a pressure-demand or other positive-pressure mode in combination with an
auxiliary self-contained breathing apparatus operated in pressure-demand or other positive-pressure mode.
Escape:
Any Air-Purifying, Full-Facepiece Respirator (gas mask) with a chin-style, front- or back-mounted organic vapor
canister, or any appropriate escape-type, SCBA.
EYE PROTECTION: Safety glasses. If necessary, refer to U.S. OSHA 29 CFR 1910.133 or appropriate Canadian Standards.
HAND PROTECTION: Wear leather gloves when handling cylinders. Chemically resistant gloves should be worn when using this gas mixture. If
necessary, refer to U.S. OSHA 29 CFR 1910.138 or appropriate Standards of Canada.
BODY PROTECTION: No special protection is needed under normal circumstances of use. If a hazard of injury to the feet exists due to falling
objects, rolling objects, where objects may pierce the soles of the feet or where employee’s feet may be exposed to electrical hazards, use foot
protection, as described in U.S. OSHA 29 CFR 1910.136.
9. PHYSICAL and CHEMICAL PROPERTIES
The following information is for Nitrogen, the main component of this gas mixture.
3
3
GAS DENSITY @ 32°F (0°C) and 1 atm: .072 lbs/ ft (1.153 kg/m )
FREEZING/MELTING POINT @ 10 psig: -345.8°F (-210°C)
BOILING POINT: -320.4°F (-195.8°C)
SPECIFIC GRAVITY (air = 1) @ 70°F (21.1°C): 0.906
pH: Not applicable.
SOLUBILITY IN WATER vol/vol @ 32°F (0°C) and 1 atm: 0.023
MOLECULAR WEIGHT: 28.01
EVAPORATION RATE (nBuAc = 1): Not applicable.
EXPANSION RATIO: Not applicable.
3
VAPOR PRESSURE @ 70°F (21.1°C) (psig): Not applicable.
SPECIFIC VOLUME (ft /lb): 13.8
COEFFICIENT WATER/OIL DISTRIBUTION: Not applicable.
The following information is for this gas mixture.
ODOR THRESHOLD: 0.14 ppm (Phosphine)
APPEARANCE, ODOR AND COLOR: This gas mixture is a colorless gas which is odorless.
HOW TO DETECT THIS SUBSTANCE (warning properties): In terms of leak detection, fittings and joints can be painted with a soap solution to
detect leaks, which will be indicated by a bubble formation.
10. STABILITY and REACTIVITY
STABILITY: Normally stable in gaseous state. Pure Phosphine is pyrophoric; however, due to the low concentration of this component in the gas
mixture, spontaneous ignition in air is not a potential hazard.
DECOMPOSITION PRODUCTS: Decomposition products of Phosphine are phosphoric acid and hydrogen. When heated to decomposition
Phosphine emits toxic fumes of phosphorous oxides. Nitrogen does not decompose, per se, but can react with other compounds in the heat of a
fire.
MATERIALS WITH WHICH SUBSTANCE IS INCOMPATIBLE: Titanium will burn in Nitrogen (the main component of this gas mixture). Lithium
reacts slowly with Nitrogen at ambient temperatures. Phosphine is not compatible with halogens or strong oxidizers (i.e. chlorine, bromine
pentafluoride, oxygen difluoride, and nitrogen trifluoride).
HAZARDOUS POLYMERIZATION: Will not occur.
CONDITIONS TO AVOID: Contact with incompatible materials. Cylinders exposed to high temperatures or direct flame can rupture or burst.
11. TOXICOLOGICAL INFORMATION
TOXICITY DATA: The following toxicology data are available for the components of this gas mixture:
NITROGEN:
There are no specific toxicology data for
Nitrogen. Nitrogen is a simple asphyxiant,
which acts to displace oxygen in the
environment.
PHOSPHINE:
LCLo (Inhalation-Human) 1000 ppm
LC50 (Inhalation-Rat) 11 ppm/4 hours
TCLo (Inhalation-rat) 200 µg/m3/24 hours/6
weeks-continuous: Brain and Coverings:
recordings from specific areas of CNS; Blood:
pigmented or nucleated red blood cells,
changes in serum composition (e.g. TP,
bilirubin, cholesterol)
TCLo (Inhalation-rat) 3100 ppb/6 hours/13
weeks-intermittent: Blood: pigmented or
nucleated red blood cells, changes in
erythrocyte (RBC) count, changes in platelet
count
PHOSPHINE (continued):
TCLo (Inhalation-rat) 10 ppm/4 hours/4 daysintermittent: Related to Chronic Data: death
TCLo (Inhalation-mouse) 10 ppm/4 hours/4
days-intermittent: Kidney, Urethra, Bladder:
changes in tubules (including acute renal
failure, acute tubular necrosis); Blood:
changes in leukocyte (WBC) count;
Biochemical: Enzyme inhibition, induction, or
change
in
blood
or
tissue
levels:
transaminases
TCLo (Inhalation-mouse) 5 ppm/4 hours/2
weeks-intermittent: Cardiac: changes in heart
weight; Lungs, Thorax, or Respiration:
changes in lung weight; Blood: changes in
serum composition (e.g. TP, bilirubin,
cholesterol)
PHOSPHINE (continued):
TCLo (Inhalation-rat) 5 ppm/4 hours/2 weeksintermittent: Cardiac: changes in heart weight;
Lungs, Thorax, or Respiration: changes in lung
weight; Liver: changes in liver weight
LCLo (Inhalation-Mouse) 380 mg/m3/2 hours
LCLo (Inhalation-Cat, adult) 70 mg/m3/2 hours
LCLo (Inhalation-Rabbit, adult) 2500 ppm/20
minutes
LCLo (Inhalation-Guinea Pig, adult) 140 mg/m3/4
hours
LCLo (Inhalation-Mammal) 1000 ppm/5 minutes
Micronucleus Test (Inhalation-mouse) 5 ppm/6
hours/13 weeks-intermittent
SUSPECTED CANCER AGENT: The components of this gas mixture are listed by agencies tracking the carcinogenic potential of chemical
compounds as follows:
PHOSPHINE: EPA-D (Not Classifiable as to Human Carcinogenicity)
The remaining component of, this gas mixture are not found on the following lists: FEDERAL OSHA Z LIST, NTP, CAL/OSHA, and IARC; therefore,
they are not considered to be, nor suspected to be, cancer-causing agents by these agencies.
IRRITANCY OF PRODUCT: Phosphine reacts with water or moisture, slowly producing corrosive phosphoric acid; therefore, this gas mixture may
be irritating to the skin, the eyes, and mucous membranes.
SENSITIZATION TO THE PRODUCT: This gas mixture is not known to cause sensitization in humans.
REPRODUCTIVE TOXICITY INFORMATION: Listed below is information concerning the effects of this gas mixture and its components on the
human reproductive system.
Mutagenicity: No mutagenicity effects have been described for this gas mixture.
Embryotoxcity: No embryotoxic effects have been described for this gas mixture.
Teratogenicity: No teratogenicity effects have been described for this gas mixture.
Reproductive Toxicity: No reproductive toxicity effects have been described for gas mixture.
A mutagen is a chemical which causes permanent changes to genetic material (DNA) such that the changes will propagate through generation
lines. An embryotoxin is a chemical which causes damage to a developing embryo (i.e. within the first eight weeks of pregnancy in humans), but
the damage does not propagate across generational lines. A teratogen is a chemical which causes damage to a developing fetus, but the damage
does not propagate across generational lines. A reproductive toxin is any substance which interferes in any way with the reproductive process.
BIOLOGICAL EXPOSURE INDICES (BEIs): Currently, Biological Exposure Indices (BEIs) are not applicable for the components of this gas
mixture.
12. ECOLOGICAL INFORMATION
ENVIRONMENTAL STABILITY: The gas will be dissipated rapidly in well-ventilated areas. The following environmental data are applicable to the
components of this gas mixture.
NITROGEN: Water Solubility = 2.4 volumes Nitrogen/100 volumes water at 0°C. 1.6 volumes Nitrogen/100 volumes water at 20°C.
PHOSPHINE:
Abiotic Degradation: Pure Phosphine is inert, but will oxidize under influence of radiation and UV light.
EFFECT OF MATERIAL ON PLANTS or ANIMALS: Due to the presence of Phosphine, this gas mixture may be harmful to over-exposed plant or
animal life. Refer to Section 11 (Toxicology Information) for data on the effects of Phosphine on test animals during clinical studies.
EFFECTIVE DATE: FEBRUARY 16, 2011
NON-FLAMMABLE GAS MIXTURE MSDS - 50030
PAGE 3 OF 5
12. ECOLOGICAL INFORMATION (Continued)
EFFECT OF CHEMICAL ON AQUATIC LIFE: The Phosphine component of this gas mixture is soluble in water; therefore, this gas mixture may be
harmful or fatal to aquatic life in contaminated bodies of water. The following are aquatic toxicity data for the Phosphine component of this gas
mixture.
PHOSPHINE:
EC50 (Bacillus subtilis) 2.7 mg/L growth inhibition
13. DISPOSAL CONSIDERATIONS
PREPARING WASTES FOR DISPOSAL PREPARING WASTES FOR DISPOSAL: Waste disposal must be in accordance with appropriate
Federal, State, and local regulations. Cylinders with undesired residual product may be safely vented outdoors with the proper regulator. For
further information, refer to Section 16 (Other Information).
14. TRANSPORTATION INFORMATION
THIS GAS MIXTURE IS HAZARDOUS AS DEFINED BY 49 CFR 172.101 BY THE U.S. DEPARTMENT OF TRANSPORTATION.
PROPER SHIPPING NAME:
Compressed gases, n.o.s. (Phosphine, Nitrogen)
HAZARD CLASS NUMBER and DESCRIPTION: 2.2 (Non-Flammable Gas)
UN IDENTIFICATION NUMBER:
UN 1956
PACKING GROUP:
Not applicable.
DOT LABEL(S) REQUIRED:
Non-Flammable Gas
NORTH AMERICAN EMERGENCY RESPONSE GUIDEBOOK NUMBER (2000): 126
MARINE POLLUTANT: The components of this gas mixture are not classified by the DOT as Marine Pollutants (as defined by 49 CFR 172.101,
Appendix B).
SPECIAL SHIPPING INFORMATION: Cylinders should be transported in a secure position, in a well-ventilated vehicle. The transportation of
compressed gas cylinders in automobiles or in closed-body vehicles can present serious safety hazards. If transporting these cylinders in
vehicles, ensure these cylinders are not exposed to extremely high temperatures (as may occur in an enclosed vehicle on a hot day).
Additionally, the vehicle should be well-ventilated during transportation.
Note: DOT 39 Cylinders ship in a strong outer carton (outer package). Pertinent shipping information goes on the outside of the outer package.
DOT 39 Cylinders do not have transportation information on the cylinder itself.
TRANSPORT CANADA TRANSPORTATION OF DANGEROUS GOODS REGULATIONS: This gas is considered as Dangerous Goods, per
regulations of Transport Canada.
PROPER SHIPPING NAME:
Compressed gases, n.o.s. (Phosphine, Nitrogen)
HAZARD CLASS NUMBER and DESCRIPTION:
2.2 (Non-Flammable Gas)
UN IDENTIFICATION NUMBER:
UN 1956
PACKING GROUP:
Not Applicable
HAZARD LABEL:
Class 2.2 (Non-Flammable Gas)
SPECIAL PROVISIONS:
None
EXPLOSIVE LIMIT AND LIMITED QUANTITY INDEX:
0.12
ERAP INDEX:
None
PASSENGER CARRYING SHIP INDEX:
None
PASSENGER CARRYING ROAD VEHICLE OR PASSENGER CARRYING RAILWAY VEHICLE INDEX: 75
NORTH AMERICAN EMERGENCY RESPONSE GUIDEBOOK NUMBER (2000): 121
NOTE: Shipment of compressed gas cylinders via Public Passenger Road Vehicle is a violation of Canadian law (Transport Canada
Transportation of Dangerous Goods Act, 1992).
15. REGULATORY INFORMATION
ADDITIONAL U.S. REGULATIONS:
U.S. SARA REPORTING REQUIREMENTS: This gas mixture is subject to the reporting requirements of Sections 302, 304, and 313 of Title III of
the Superfund Amendments and Reauthorization Act, as follows:
CHEMICAL NAME
SARA 302
(40 CFR 355, Appendix A)
SARA 304
(40 CFR Table 302.4)
SARA 313
(40 CFR 372.65)
YES
YES
YES
Phosphine
U.S. SARA SECTION 302 EXTREMELY HAZARDOUS SUBSTANCE THRESHOLD PLANNING QUANTITY: Phosphine = 500 lb (227 kg)
U.S. SARA SECTION 304 EXTREMELY HAZARDOUS SUBSTANCE REPORTABLE QUANTITY: Phosphine = 100 lb (45.5 kg)
U.S. TSCA INVENTORY STATUS: The components of this gas mixture are listed on the TSCA Inventory.
U.S. CERCLA REPORTABLE QUANTITY (RQ): Phosphine = 100 lb (45.4 kg)
OTHER U.S. FEDERAL REGULATIONS:
• Phosphine is subject to the requirements of CFR 29 1910.1000 (under the 1989 PELs). Phosphine is listed on Table Z.1.
• Phosphine is subject to the reporting requirements of Section 112(r) of the Clean Air Act. The Threshold Quantity for this gas is 5,000 lb (2270
kg)
• Depending on specific operations involving the use of this gas mixture, the regulations of the Process Safety Management of Highly Hazardous
Chemicals may be applicable (29 CFR 1910.119). Under this regulation Phosphine is listed in Appendix A. The threshold quantity for
Phosphine, under this regulation is 100 lb (45.4 kg); therefore, the requirements of this regulation are not applicable to one cylinder of this gas
mixture.
• This gas mixture does not contain any Class I or Class II ozone depleting chemicals (40 CFR Part 82).
• Nitrogen is not listed as a Regulated Substance, per 40 CFR, Part 68, of the Risk Management for Chemical Releases. Phosphine is listed in
Table 1, as an extremely hazardous substance. The threshold quantity for Phosphine under this regulation is 5,000 lb (2270 kg).
OTHER CANADIAN REGULATIONS: This gas mixture is categorized as a Controlled Product, Hazard Classes A and D2B, as per the Controlled
Product Regulations.
U.S. STATE REGULATORY INFORMATION: The components of this gas mixture are covered under the following specific State regulations:
Alaska - Designated Toxic and Hazardous
Minnesota - List of Hazardous Substances:
Rhode Island - Hazardous Substance List:
Phosphine.
Oxygen, Nitrogen, Phosphine.
Substances: Phosphine.
Missouri - Employer Information/Toxic
Texas - Hazardous Substance List:
California - Permissible Exposure Limits
Phosphine.
Substance List: Phosphine.
for Chemical Contaminants: Nitrogen,
West Virginia - Hazardous Substance List:
Phosphine.
New Jersey - Right to Know Hazardous
Phosphine.
Florida - Substance List:
Oxygen,
Substance List:
Oxygen, Nitrogen,
Wisconsin - Toxic and Hazardous
Phosphine.
Phosphine.
Substances: Phosphine.
Illinois - Toxic Substance List: Phosphine.
North Dakota - List of Hazardous
Kansas - Section 302/313 List: No.
Chemicals, Reportable Quantities: No.
Massachusetts - Substance List: Oxygen,
Pennsylvania - Hazardous Substance List:
Phosphine.
Oxygen, Nitrogen, Phosphine.
CALIFORNIA SAFE DRINKING WATER AND TOXIC ENFORCEMENT ACT (PROPOSITION 65): No component of this gas mixture is on the
California Proposition 65 lists.
ADDITIONAL CANADIAN REGULATIONS:
CANADIAN DSL/NDSL INVENTORY STATUS: The components of this gas mixture are listed on the DSL Inventory.
CANADIAN ENVIRONMENTAL PROTECTION ACT (CEPA) PRIORITIES SUBSTANCES LISTS: The components of this gas mixture are not on
the CEPA Priorities Substances Lists.
CANADIAN WHMIS CLASSIFICATION: This gas mixture is categorized as a Controlled Product, Hazard Classes A and D2B, as per the
Controlled Product Regulations.
EFFECTIVE DATE: FEBRUARY 16, 2011
NON-FLAMMABLE GAS MIXTURE MSDS - 50030
PAGE 4 OF 5
16. OTHER INFORMATION
INFORMATION ABOUT DOT-39 NRC (Non-Refillable Cylinder) PRODUCTS
DOT 39 cylinders ship as hazardous materials when full. Once the cylinders are relieved of pressure (empty) they are not considered
hazardous material or waste. Residual gas in this type of cylinder is not an issue because toxic gas mixtures are prohibited. Calibration gas
mixtures typically packaged in these cylinders are Nonflammable n.o.s., UN 1956. A small percentage of calibration gases packaged in DOT
39 cylinders are flammable or oxidizing gas mixtures.
For disposal of used DOT-39 cylinders, it is acceptable to place them in a landfill if local laws permit. Their disposal is no different than that
employed with other DOT containers such as spray paint cans, household aerosols, or disposable cylinders of propane (for camping, torch
etc.). When feasible, we recommended recycling for scrap metal content. CALGAZ will do this for any customer that wishes to return
cylinders to us prepaid. All that is required is a phone call to make arrangements so we may anticipate arrival. Scrapping cylinders involves
some preparation before the metal dealer may accept them. We perform this operation as a service to valued customers who want to
participate.
MIXTURES: When two or more gases or liquefied gases are mixed, their hazardous properties may combine to create additional, unexpected
hazards. Obtain and evaluate the safety information for each component before you produce the mixture. Consult an Industrial Hygienist or
other trained person when you make your safety evaluation of the end product. Remember, gases and liquids have properties which can
cause serious injury or death.
Further information about the handling of compressed gases can be found in the following pamphlets published by: Compressed Gas
Association Inc. (CGA), 1725 Jefferson Davis Highway, Suite 1004, Arlington, VA 22202-4102. Telephone: (703) 412-0900.
P-1
AV-1
“Safe Handling of Compressed Gases in Containers”
“Safe Handling and Storage of Compressed Gases”
“Handbook of Compressed Gases”
This Material Safety Data Sheet is offered pursuant to OSHA’s Hazard Communication Standard, 29 CFR, 1910.1200. Other government regulations must be
reviewed for applicability to this gas mixture. To the best of CALGAZ knowledge, the information contained herein is reliable and accurate as of this date;
however, accuracy, suitability or completeness are not guaranteed and no warranties of any type, either express or implied, are provided. The information
contained herein relates only to this specific product. If this gas mixture is combined with other materials, all component properties must be considered. Data
may be changed from time to time. Be sure to consult the latest edition.
EFFECTIVE DATE: FEBRUARY 16, 2011
NON-FLAMMABLE GAS MIXTURE MSDS - 50030
PAGE 5 OF 5
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
