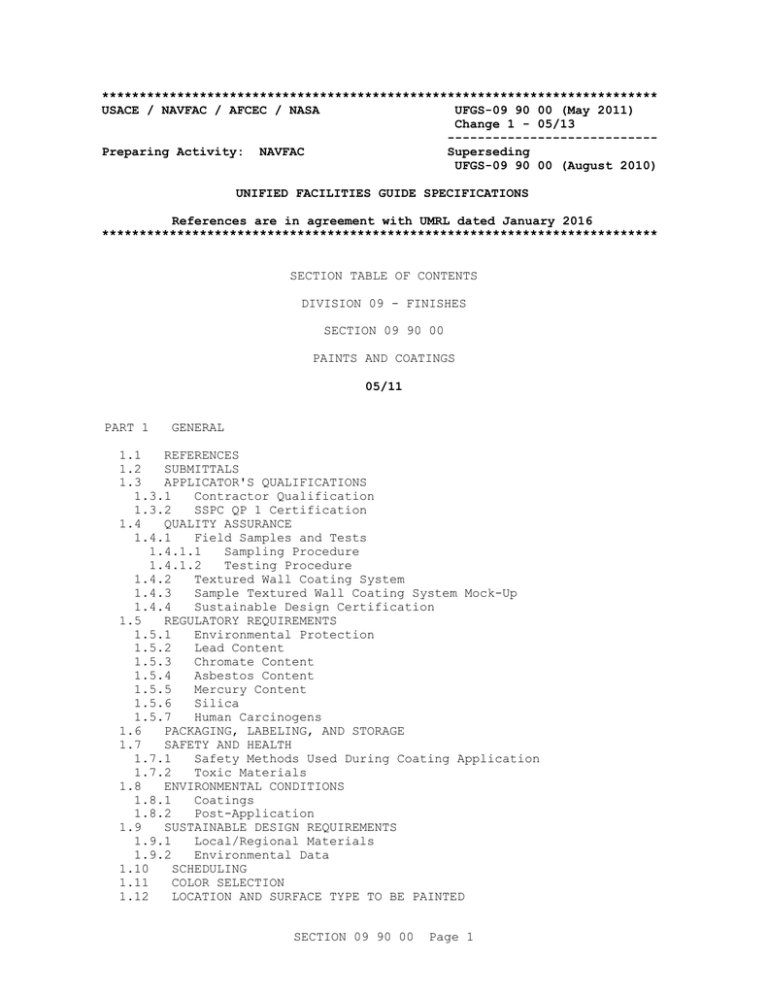

UNIFIED FACILITIES GUIDE SPECIFICATIONS
References are in agreement with UMRL dated January 2016
**************************************************************************
SECTION TABLE OF CONTENTS
DIVISION 09 - FINISHES
SECTION 09 90 00
PAINTS AND COATINGS
05/11
PART 1
GENERAL
1.1
REFERENCES
1.2
SUBMITTALS
1.3
APPLICATOR'S QUALIFICATIONS
1.3.1
Contractor Qualification
1.3.2
SSPC QP 1 Certification
1.4
QUALITY ASSURANCE
1.4.1
Field Samples and Tests
1.4.1.1
Sampling Procedure
1.4.1.2
Testing Procedure
1.4.2
Textured Wall Coating System
1.4.3
Sample Textured Wall Coating System Mock-Up
1.4.4
Sustainable Design Certification
1.5
REGULATORY REQUIREMENTS
1.5.1
Environmental Protection
1.5.2
Lead Content
1.5.3
Chromate Content
1.5.4
Asbestos Content
1.5.5
Mercury Content
1.5.6
Silica
1.5.7
Human Carcinogens
1.6
PACKAGING, LABELING, AND STORAGE
1.7
SAFETY AND HEALTH
1.7.1
Safety Methods Used During Coating Application
1.7.2
Toxic Materials
1.8
ENVIRONMENTAL CONDITIONS
1.8.1
Coatings
1.8.2
Post-Application
1.9
SUSTAINABLE DESIGN REQUIREMENTS
1.9.1
Local/Regional Materials
1.9.2
Environmental Data
1.10
SCHEDULING
1.11
COLOR SELECTION
1.12
LOCATION AND SURFACE TYPE TO BE PAINTED
SECTION 09 90 00
Page 1
1.12.1
Painting Included
1.12.1.1
Exterior Painting
1.12.1.2
Interior Painting
1.12.2
Painting Excluded
1.12.3
Mechanical and Electrical Painting
1.12.3.1
Fire Extinguishing Sprinkler Systems
1.12.4
Exterior Painting of Site Work Items
1.12.5
MISCELLANEOUS PAINTING
1.12.6
Definitions and Abbreviations
1.12.6.1
Qualification Testing
1.12.6.2
Batch Quality Conformance Testing
1.12.6.3
Coating
1.12.6.4
DFT or dft
1.12.6.5
DSD
1.12.6.6
EPP
1.12.6.7
EXT
1.12.6.8
INT
1.12.6.9
micron / microns
1.12.6.10
mil / mils
1.12.6.11
mm
1.12.6.12
MPI Gloss Levels
1.12.6.13
MPI System Number
1.12.6.14
Paint
1.12.6.15
REX
1.12.6.16
RIN
PART 2
PRODUCTS
2.1
MATERIALS
PART 3
EXECUTION
3.1
PROTECTION OF AREAS AND SPACES NOT TO BE PAINTED
3.2
REPUTTYING AND REGLAZING
3.3
RESEALING OF EXISTING EXTERIOR JOINTS
3.3.1
Surface Condition
3.3.2
Backstops
3.3.3
Primer and Bond Breaker
3.3.4
Ambient Temperature
3.3.5
Exterior Sealant
3.3.6
Cleaning
3.4
SURFACE PREPARATION
3.4.1
Additional Requirements for Preparation of Surfaces With
Existing Coatings
3.4.2
Existing Coated Surfaces with Minor Defects
3.4.3
Removal of Existing Coatings
3.4.4
Substrate Repair
3.5
PREPARATION OF METAL SURFACES
3.5.1
Existing and New Ferrous Surfaces
3.5.2
Final Ferrous Surface Condition:
3.5.3
Galvanized Surfaces
3.5.4
Non-Ferrous Metallic Surfaces
3.5.5
Terne-Coated Metal Surfaces
3.5.6
Existing Surfaces with a Bituminous or Mastic-Type Coating
3.6
PREPARATION OF CONCRETE AND CEMENTITIOUS SURFACE
3.6.1
Concrete and Masonry
3.6.2
Gypsum Board, Plaster, and Stucco
3.6.3
Existing Asbestos Cement Surfaces
3.7
PREPARATION OF WOOD AND PLYWOOD SURFACES
SECTION 09 90 00
Page 2
3.7.1
New [, Existing Uncoated,] [and] [Existing Coated] Plywood and
Wood Surfaces, Except Floors:
3.7.2
Wood Floor Surfaces, Natural Finish
3.7.3
Interior Wood Surfaces, Stain Finish
3.7.4
Water Blasting of Existing Coated Wood Surfaces:
3.8
APPLICATION
3.8.1
Coating Application
3.8.2
Mixing and Thinning of Paints
3.8.3
Two-Component Systems
3.8.4
Coating Systems
3.9
COATING SYSTEMS FOR METAL
3.10
COATING SYSTEMS FOR CONCRETE AND CEMENTITIOUS SUBSTRATES
3.11
COATING SYSTEMS FOR WOOD AND PLYWOOD
3.12
PIPING IDENTIFICATION
3.13
INSPECTION AND ACCEPTANCE
3.14
WASTE MANAGEMENT
3.15
PAINT TABLES
3.15.1
EXTERIOR PAINT TABLES
3.15.2
INTERIOR PAINT TABLES
-- End of Section Table of Contents --
SECTION 09 90 00
Page 3
**************************************************************************
