Visionary

Manufacturing Security Solutions by Design

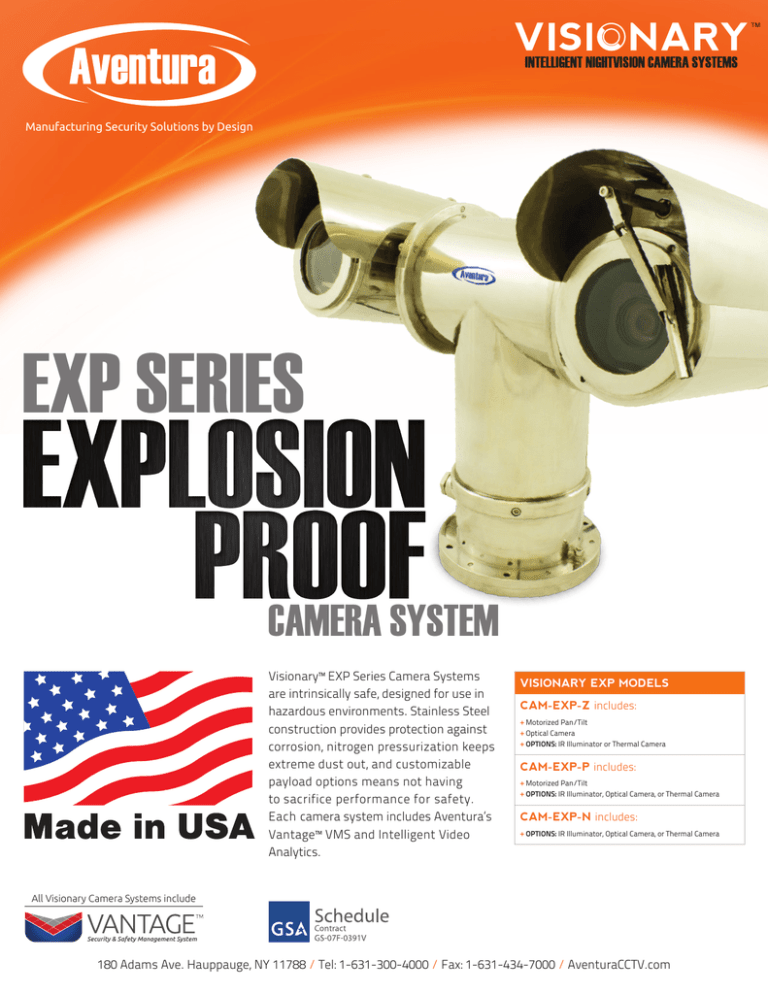

EXP SERIES

CAMERA SYSTEM

Visionary™ EXP Series Camera Systems are intrinsically safe, designed for use in hazardous environments. Stainless Steel construction provides protection against corrosion, nitrogen pressurization keeps extreme dust out, and customizable payload options means not having to sacrifice performance for safety.

Each camera system includes Aventura’s

Vantage™ VMS and Intelligent Video

Analytics.

VISIONARY EXP MODELS

CAM-EXP-Z

includes:

+

Motorized Pan/Tilt

+

Optical Camera

+

OPTIONS: IR Illuminator or Thermal Camera

CAM-EXP-P

includes:

+

Motorized Pan/Tilt

+

OPTIONS: IR Illuminator, Optical Camera, or Thermal Camera

CAM-EXP-N

includes:

+

OPTIONS: IR Illuminator, Optical Camera, or Thermal Camera

All Visionary Camera Systems include

180 Adams Ave. Hauppauge, NY 11788 / Tel: 1-631-300-4000 / Fax: 1-631-434-7000 / AventuraCCTV.com

EXP SERIES

THERMAL CAMERA

Detector Uncooled VOx Microbolometer

Pixel Pitch 17 µm

Lens Type Athermalized Fixed Focus

Effective Focal Length

320 x 240 Resolution

7.5 mm @ f/1.2, 40° HFOV

19 mm @ f/1.1, 16° HFOV

35 mm @ f/1.2, 9° HFOV

640 x 480 Resolution

14.25 mm @ f/1.2, 44° HFOV

16.7 mm @ f/1.25, 37° HFOV

25 mm @ f/1.2, 25° HFOV

35 mm @ f/1.2, 18° HFOV

50 mm @ f/1.2, 12° HFOV

65 mm @ f/1.25, 9° HFOV

Spectral Response 8 – 14 µm (LWIR)

Sensitivity ≤50 mK

Framerate 30 fps (NTSC) or 25 fps (PAL), 9Hz also available

OPTICAL CAMERA

36x Analog

Signal System NTSC or PAL

Imaging Device 1/4 in. High Sensitivity CCD

Resolution Color: 600 TVL / B/W: 650 TVL

Effective Pixels NTSC: 768 x 494 / PAL: 752 x 582

Lens 3.43-122.4mm, f/1.6 (W) ~ f/4.5 (T)

Field of View (H) 1.7° ~ 57.8°

Min. Illumination Day Mode: 0.1 Lux

Mechanical IR Cut Filter

Wide Dynamic Range

Night Mode: 0.02 Lux

Sense-Up Mode: 0.0002 Lux

Video Out 1Vp-p, 75 Ohm, BNC (Composite Video Signal)

ILLUMINATOR

IR LED

Spectrum Infrared 810nm

Effective Range 100m

36x Analog

Digital Zoom 12x

Back Light Compensation

Auto White Balance

On-Screen Display

20x IP Camera

IP Ethernet

1/3” CMOS

2 Megapixel 1080p / 1080i / 720p

1920 x 1080

4.7m ~ 94.0mm, f/1.6 (W) ~ f/3.5 (T)

2.9° ~ 55.2°

Day Mode: 1.8 Lux

Night Mode: 0.02 Lux

-

H.264 Dual Stream

IR Laser

Infrared 810nm

300m

ADDITIONAL FEATURES

20x IP Camera

12x

PAN / TILT

Pan Range 360º Continuous

Pan Speed .01º ~ 40º/S

Tilt Range -90º ~ +90º

Tilt Speed .01º ~ 40º/S

Accuracy ≤0.2º

Presets 128

Protocol Pelco-D (Pelco-P Available)

Serial Communication RS-485

ENVIRONMENT

Explosion Proof

Exd CT6/DIP A21 TA, T6

Operating Temperature -25°C ~ +60°C

Operating Humidity Less than 95%

Operating Environment Indoor/Outdoor

Heater Optional Feature (Automatic <1°C)

Wiper

Operating Atmospheric Pressure 80 KPa ~ 106 KPa

Ingress Protection IP67

ELECTRICAL

Input Voltage 85 VAC ~ 265 VAC

Current Draw

500 mA ~ 3 A

GENERAL

Material SS304 (SS316 Optional)

Weight EXP-N: 3 Kg / EXP-PTX: 19 Kg / EXP-PTZ: 22 Kg

Dimensions EXP-N: 130 mm (W) x 280 mm (L) x 130 mm (H)

EXP-PTX: 400 mm (W) x 280 mm (L) x 390 mm (H)

EXP-PTZ: 530 mm (W) x 280 mm (L) x 390 mm (H)

Regulatory Type FCC, CE, UL

Warranty 1 Year

All product, product specifications and data are subject to change without notice to improve Reliability, function or design or otherwise.

CAMERA SYSTEM

180 Adams Ave. Hauppauge, NY 11788 / Tel: 1-631-300-4000 / Fax: 1-631-434-7000 / AventuraCCTV.com

Manufacturing Security Solutions by Design

PRZ SERIES

All Visionary Camera Systems include

CAMERA SYSTEM

The PRZ Series takes the Visionary™ camera system into even more punishing environments. It features nitrogenpressurized camera housings, providing impact resistance and superior ingress protection against the elements. Each camera system includes Aventura’s

Vantage™ VMS and Intelligent Video

Analytics.

VISIONARY PRZ MODELS

CAM-PRZ-X

includes:

+

Motorized Pan/Tilt

+

Optical Camera

+

IR Illuminator

+

Thermal Camera

CAM-PRZ-Z

includes:

+

Motorized Pan/Tilt

+

Optical Camera

+

OPTIONS: IR Illuminator or Thermal Camera

CAM-PRZ-P

includes:

+

Motorized Pan/Tilt

+

OPTIONS: IR Illuminator, Optical Camera, or Thermal Camera

CAM-PRZ-N

includes:

+

OPTIONS: IR Illuminator, Optical Camera, or Thermal Camera

180 Adams Ave. Hauppauge, NY 11788 / Tel: 1-631-300-4000 / Fax: 1-631-434-7000 / AventuraCCTV.com

PRZ SERIES

CAMERA SYSTEM

THERMAL CAMERA

Detector Uncooled VOx Microbolometer

Pixel Pitch 17 µm

Lens Type Athermalized Fixed Focus

Effective Focal Length

320 x 240 Resolution

7.5 mm @ f/1.2, 40° HFOV

19 mm @ f/1.1, 16° HFOV

35 mm @ f/1.2, 9° HFOV

640 x 480 Resolution

14.25 mm @ f/1.2, 44° HFOV

16.7 mm @ f/1.25, 37° HFOV

25 mm @ f/1.2, 25° HFOV

35 mm @ f/1.2, 18° HFOV

50 mm @ f/1.2, 12° HFOV

65 mm @ f/1.25, 9° HFOV

Spectral Response 8 – 14 µm (LWIR)

Sensitivity ≤50 mK

Framerate 30 fps (NTSC) or 25 fps (PAL), 9Hz also available

OPTICAL CAMERA

36x Analog Camera

Signal System NTSC or PAL

Imaging Device 1/4” High Sensitivity CCD

Resolution Color: 600 TVL / B/W: 650 TVL

Effective Pixels NTSC: 768 x 494 / PAL: 752 x 582

Lens 3.43-122.4mm, f/1.6 (W) ~ f/4.5 (T)

Field of View (H) 1.7° ~ 57.8°

Min. Illumination Day Mode: 0.1 Lux

Night Mode: 0.02 Lux

Sense-Up Mode: 0.0002 Lux

Mechanical IR Cut Filter

Wide Dynamic Range

Video Out 1Vp-p, 75 Ohm, BNC (Composite Video Signal)

20x IP Camera

IP Ethernet

1/3” CMOS

2 Megapixel - 1080p / 1080i / 720p

1920 x 1080

4.7m ~ 94.0mm, f/1.6 (W) ~ f/3.5 (T)

2.9° ~ 55.2°

Day Mode: 1.8 Lux

Night Mode: 0.02 Lux

-

H.264 Dual Stream

ILLUMINATOR

IR LED

Spectrum Infrared 810nm

Effective Range 100m

ADDITIONAL FEATURES

36x Analog Camera

Digital Zoom 12x

Back Light Compensation

Auto White Balance

On-Screen Display

20x IP Camera

12x

PAN / TILT

IR Laser

Infrared 810nm

300m

Pan Range 360º Continuous

Pan Speed .01º ~ 30º/S

Tilt Range -75º ~ +75º

Tilt Speed .01º ~ 15º/S

Accuracy ≤0.2º

Presets 80

Protocol Pelco-D (Pelco-P available)

Comm. Speed 2,400 / 4,800 / 9,600 / 19,200 bps

Serial Communication RS-485 (RS-422 available)

ENVIRONMENT

Operating Temperature -25°C ~ +65°C / -40°C ~ +65°C (w/ heater)

Operating Humidity ≤90% (non-condensing)

Operating Environment Indoor/Outdoor

Heater Optional

Blower Optional

Operating Atmospheric Pressure -0.1MPa ~ 0.3MPa (Relative Pressure)

Ingress Protection

IP67

ELECTRICAL

Input Voltage AC24V ± 25%, DC24V ± 20%

Power Consumption PRZ-N: ≤80W / PRZ-P: ≤225 W / PRZ-Z: ≤305 W / PRZ-X: ≤385 W (w/heater and blower)

GENERAL

Material Aluminum alloy

Weight PRZ-N: 8 Kg - PRZ-P: 28 Kg - PRZ-Z: 36 Kg - PRZ-X: 42 Kg

Dimensions PRZ-N: 900mm (L) x 204mm (W) x 212mm (H)

PRZ-P: 900mm (L) x 206mm (W) x 608mm (H)

PRZ-Z: 900mm (L) x 426mm (W) x 608mm (H)

PRZ-X: 900mm (L) x 642mm (W) x 608mm (H)

Regulatory Type FCC, CE, UL

Warranty 1 Year

All product, product specifications and data are subject to change without notice to improve Reliability, function or design or otherwise.

180 Adams Ave. Hauppauge, NY 11788 / Tel: 1-631-300-4000 / Fax: 1-631-434-7000 / AventuraCCTV.com

Manufacturing Security Solutions by Design

VCS SERIES

CAMERA SYSTEM

Aventura has created a modular camera system like none other. The

Visionary™ VCS Series Camera

System offers the ability to select and combine multiple night-vision technologies to create systems that meet your needs exactly. Each camera system includes Aventura’s Vantage™

VMS and Intelligent Video Analytics.

VISIONARY VCS MODELS

CAM-VCS-X

includes:

+

Motorized Pan/Tilt

+

Optical Camera

+

IR Illuminator

+

Thermal Camera

CAM-VCS-Z

includes:

+

Motorized Pan/Tilt

+

Optical Camera

+

OPTIONS: IR Illuminator or Thermal Camera

CAM-VCS-P

includes:

+

Motorized Pan/Tilt

+

OPTIONS: IR Illuminator, Optical Camera, or Thermal Camera

CAM-VCS-N

includes:

+

OPTIONS: IR Illuminator, Optical Camera, or Thermal Camera

All Visionary Camera Systems include

180 Adams Ave. Hauppauge, NY 11788 / Tel: 1-631-300-4000 / Fax: 1-631-434-7000 / AventuraCCTV.com

VCS SERIES

CAMERA SYSTEM

THERMAL CAMERA

Detector Uncooled VOx Microbolometer

Pixel Pitch 17 µm

Lens Type Athermalized Fixed Focus

Effective Focal Length

320 x 240 Resolution

7.5 mm @ f/1.2, 40° HFOV

19 mm @ f/1.1, 16° HFOV

35 mm @ f/1.2, 9° HFOV

640 x 480 Resolution

14.25 mm @ f/1.2, 44° HFOV

16.7 mm @ f/1.25, 37° HFOV

25 mm @ f/1.2, 25° HFOV

35 mm @ f/1.2, 18° HFOV

50 mm @ f/1.2, 12° HFOV

65 mm @ f/1.25, 9° HFOV

Spectral Response 8 – 14 µm (LWIR)

Sensitivity ≤50 mK

Framerate 30 fps (NTSC) or 25 fps (PAL), 9Hz also available

OPTICAL CAMERA

36x Analog Camera

Signal System NTSC or PAL

Imaging Device 1/4” High Sensitivity CCD

Resolution Color: 600 TVL / B/W: 650 TVL

Effective Pixels NTSC: 768 x 494 / PAL: 752 x 582

Lens 3.43-122.4mm, f/1.6 (W) ~ f/4.5 (T)

Field of View (H) 1.7° ~ 57.8°

Min. Illumination Day Mode: 0.1 Lux

Mechanical IR Cut Filter

Wide Dynamic Range

Night Mode: 0.02 Lux

Sense-Up Mode: 0.0002 Lux

Video Out 1Vp-p, 75 Ohm, BNC (Composite Video Signal)

ILLUMINATOR

IR LED

Spectrum Infrared 810nm

Effective Range 100m

20x IP Camera

IP Ethernet

1/3” CMOS

2 Megapixel - 1080p / 1080i / 720p

1920 x 1080

4.7m ~ 94.0mm, f/1.6 (W) ~ f/3.5 (T)

2.9° ~ 55.2°

Day Mode: 1.8 Lux

Night Mode: 0.02 Lux

-

H.264 Dual Stream

IR Laser

Infrared 810nm

300m

ADDITIONAL FEATURES

36x Analog Camera

Digital Zoom 12x

Back Light Compensation

Auto White Balance

On-Screen Display

20x IP Camera

12x

PAN / TILT

Pan Range 360º Continuous

Pan Speed .01º ~ 60º/S

Tilt Range VCS-P, VCS-X: -75º ~ +40º / VCS-Z: -90º ~ +90º

Tilt Speed .01º ~ 30º/S

Accuracy ≤0.2º

Presets 80

Protocol Pelco-D (Pelco-P available)

Comm. Speed 2,400 / 4,800 / 9,600 / 19,200 bps

Serial Communication RS-485

ENVIRONMENT

Operating Temperature -20°C ~ +65°C / -35°C ~ +65°C (w/ heater)

Operating Humidity ≤90% (non-condensing)

Operating Environment Indoor/Outdoor

Heater Optional

Blower Optional

Ingress Protection IP66

ELECTRICAL

Input Voltage AC24V ± 10%

Power Consumption

VCS-N: ≤36W / VCS-P: ≤135 W / VCS-Z: ≤170 W / VCS-X: ≤205 W (w/ heater and blower)

GENERAL

Material Aluminum alloy

Weight VCS-N: 3 Kg - VCS-P: 16 Kg - VCS-Z: 19 Kg - VCS-X: 22 Kg

Dimensions VCS-N: 322mm (L) x 90mm (W) x 72.5mm (H)

VCS-P: 322mm (L) x 230mm (W) x 375mm (H)

VCS-Z: 322mm (L) x 470mm (W) x 269mm (H)

VCS-X: 322mm (L) x 295mm (W) x 375mm (H)

Regulatory Type FCC, CE, UL

Warranty 1 Year

All product, product specifications and data are subject to change without notice to improve Reliability, function or design or otherwise.

180 Adams Ave. Hauppauge, NY 11788 / Tel: 1-631-300-4000 / Fax: 1-631-434-7000 / AventuraCCTV.com

Manufacturing Security Solutions by Design

MBL SERIES

CAMERA SYSTEM

Available in both Thermal/Optical and

Optical/Illuminator combinations,

Visionary™ MBL-Series cameras deliver peerless night-vision capabilities in a compact, ruggedized, shock resistant package. Each camera system includes

Aventura’s Vantage™ VMS and Intelligent

Video Analytics.

VISIONARY MBL MODELS

CAM-MBL-Z

includes:

+

Motorized Pan/Tilt

+

Optical Camera

+

OPTIONS: IR Illuminator or Thermal Camera

All Visionary Camera Systems include

180 Adams Ave. Hauppauge, NY 11788 / Tel: 1-631-300-4000 / Fax: 1-631-434-7000 / AventuraCCTV.com

MBL SERIES

THERMAL CAMERA

Resolution 320 x 240

Detector Uncooled VOx Microbolometer

Pixel Pitch 17 µm

Lens Type Athermalized Fixed Focus

Effective Focal Length

7.5 mm @ f/1.2, 40° HFOV

19 mm @ f/1.1, 16° HFOV

35 mm @ f/1.2, 9° HFOV

Spectral Response 8 – 14 µm (LWIR)

Sensitivity ≤50 mK

Framerate 30 fps (NTSC) or 25 fps (PAL), 9Hz also available

ILLUMINATOR

Type Laser

Spectrum Infrared 810 nm

Effective Range 300m

OPTICAL CAMERA

Signal System NTSC or PAL

Imaging Device 1/4” High Sensitivity CCD

Resolution Color: 600 TVL / B/W: 650 TVL

Effective Pixels NTSC: 768 x 494 / PAL: 752 x 582

Lens 3.43-122.4mm, f/1.6 (W) ~ f/4.5 (T)

Field of View (H) 1.7° ~ 57.8°

Min. Illumination Day Mode: 0.1 Lux / Night Mode: 0.02 Lux / Sense-Up Mode: 0.0002 Lux

Mechanical IR Cut Filter

Wide Dynamic Range

Video Out 1Vp-p, 75 Ohm, BNC (Composite Video Signal)

PAN / TILT

Pan Range 360º Continuous

Pan Speed .01º ~ 80º/S

Tilt Range -90º ~ +90º

Tilt Speed .01º ~ 40º/S

Accuracy ≤0.2º

Presets 80

Protocol Pelco-D (Pelco-P available)

Serial Communication

RS-485

ENVIRONMENT

Operating Temperature -35°C ~ +65°C (w/ heater)

Operating Humidity ≤90% (non-condensing)

Operating Environment Indoor / Outdoor / Vehicle

Heater Optional

Ingress Protection IP66

ELECTRICAL

Input Voltage DC12V

Current Draw ≤30W

GENERAL

Material Rare earth alloy

Weight 5 Kg

Dimensions 242mm (L) x 143mm (W) x 207mm (H)

Regulatory Type FCC, CE, UL

Warranty 1 Year

All product, product specifications and data are subject to change without notice to improve Reliability, function or design or otherwise.

CAMERA SYSTEM

180 Adams Ave. Hauppauge, NY 11788 / Tel: 1-631-300-4000 / Fax: 1-631-434-7000 / AventuraCCTV.com

Manufacturing Security Solutions by Design

EXT SERIES

CAMERA SYSTEM

The EXT Series takes Aventura’s Visionary™ line to the next level with extended range options capable of detecting targets at incredible distances. Like the VCS

Series, EXT systems are customizable for nearly any application. Each camera system includes Aventura’s Vantage™

VMS and Intelligent Video Analytics.

VISIONARY EXT MODELS

CAM-EXT-X

includes:

+

Motorized Pan/Tilt

+

Optical Camera

+

IR Illuminator

+

Thermal Camera

CAM-EXT-Z

includes:

+

Motorized Pan/Tilt

+

Optical Camera

+

OPTIONS: IR Illuminator or Thermal Camera

All Visionary Camera Systems include

180 Adams Ave. Hauppauge, NY 11788 / Tel: 1-631-300-4000 / Fax: 1-631-434-7000 / AventuraCCTV.com

EXT SERIES

CAMERA SYSTEM

THERMAL CAMERA

Detector

Uncooled VOx Microbolometer

Resolution 640 x 480

Pixel Pitch 17 µm

Lens Type Motorized Continuous Zoom

Effective Focal Length 25 mm @ f/1.2 (25° HFOV)

35 mm @ f/1.2 (18° HFOV)

50 mm @ f/1.2 (12° HFOV)

65 mm @ f/1.25 (9° HFOV)

100 mm @ f/1 (6° HFOV)

25-150mm @ f/1.4 (25°~4° HFOV)

25-225mm @ f/1.5 (25°~3° HFOV)

Spectral Response 8 – 14 µm (LWIR)

Sensitivity ≤50 mK

Framerate 30 fps (NTSC) or 25 fps (PAL), 9Hz also available

OPTICAL CAMERA

Analog Camera

Signal System NTSC or PAL

Imaging Device 1/3 in. Dual Scan Sony HAD II Color CCD

Resolution Color: 700 TVL / B&W: 750 TVL

Effective Pixels 976 x 494 (NTSC), 976 x 582 (PAL)

Lens 10~200mm (27º~1.38º HFOV)

17~370mm (16º~0.74º HFOV)

23~500mm (12º~0.55º HFOV)

30~750mm (9º~0.37º HFOV)

12.5~1500mm (22º~0.18º HFOV)

Min. Illumination B/W: 0.1 Lux / Sens-Up (512x): 0.0002 Lux

Mechanical IR Cut Filter

Wide Dynamic Range

Video Out 1Vp-p, 75 Ohm, BNC (Composite Video Signal)

ILLUMINATOR

Type

Laser

Spectrum Infrared 808 nm

Angle of Illumination .2º ~ 20º

Effective Range 500 / 1000 / 1500 / 2000 / 3000m

ADDITIONAL FEATURES

Digital Zoom 12x

Noise Reduction Intelligent DNR (2D + 3D)

Back Light Compensation

Auto White Balance

On-Screen Display

12x

-

PAN / TILT

Pan Range 360º Continuous

Pan Speed .01º ~ 30º/S

Tilt Range -75º ~ +75º

Tilt Speed .01º ~ 15º/S

Accuracy ≤0.2º

Presets 80

Protocol Pelco-D (Pelco-P available)

Comm. Speed 2,400 / 4,800 / 9,600 / 19,200 bps

Serial Communication RS-485 (RS-422 available)

ENVIRONMENT

Operating Temperature

-25°C ~ +70°C / -40°C ~ +70°C (w/ heater)

Operating Humidity ≤90% (non-condensing)

Operating Environment Indoor/Outdoor

Environmental Protection Anti-Salt-Spray (48 hours continuous spray, pH 6.5-7.2)

Heater Optional

Blower Optional

Ingress Protection IP66

ELECTRICAL

Input Voltage AC24V ± 25%, DC24V ± 20%

Power Consumption ≤180 W / ≤265 W(w/ heater and blower)

Surge Protection 600V Lightning and Surge Protection

GENERAL

Material Aluminum alloy

Weight 45 Kg

Dimensions 830mm x 300mm x 580mm (L x W x H)

Regulatory Type FCC, CE, UL

Warranty 1 Year

IP Megapixel Camera

IP Ethernet

1/2 in. Sony Progressive Scan CCD

1600 x 1200 (@ 30 fps)

1600 x 1200

10~200mm (35º~1.83ºHFOV)

17~370mm (21º~0.99º HFOV)

23~500mm (22º~0.73º HFOV)

30~750mm (12º~0.49º HFOV)

16.7~2000mm (22º~0.18º HFOV)

Color: 0.5 Lux / B/W: 0.05 Lux

-

H.264 Dual Stream

All product, product specifications and data are subject to change without notice to improve Reliability, function or design or otherwise.

180 Adams Ave. Hauppauge, NY 11788 / Tel: 1-631-300-4000 / Fax: 1-631-434-7000 / AventuraCCTV.com

Manufacturing Security Solutions by Design

WND SERIES

CAMERA SYSTEM

For long-range applications in extreme environments, the WND Series provides a tough, agile surveillance platform.

This Visionary™ Camera System delivers high-performance, flexible configuration options, and extreme durability. Each camera system includes Aventura’s

Vantage™ VMS and Intelligent Video

Analytics.

VISIONARY WND MODELS

CAM-WND-X

includes:

+

Motorized Pan/Tilt

+

Optical Camera

+

IR Illuminator

+

Thermal Camera

CAM-WND-Z

includes:

+

Motorized Pan/Tilt

+

Optical Camera

+

OPTIONS: IR Illuminator or Thermal Camera

All Visionary Camera Systems include

180 Adams Ave. Hauppauge, NY 11788 / Tel: 1-631-300-4000 / Fax: 1-631-434-7000 / AventuraCCTV.com

WND SERIES

THERMAL CAMERA

Detector Uncooled VOx Microbolometer

Resolution 640 x 480

Output Signal NTSC, PAL, or IP Ethernet

Pixel Pitch 17 µm

Lens Type Motorized Continuous Zoom

Effective Focal Length 25 mm @ f/1.2 (25° HFOV)

35 mm @ f/1.2 (18° HFOV)

50 mm @ f/1.2 (12° HFOV)

65 mm @ f/1.25 (9° HFOV)

100 mm @ f/1 (6° HFOV)

25-150mm @ f/1.4 (25°~4° HFOV)

25-225mm @ f/1.5 (25°~3° HFOV)

Spectral Response 8 – 14 µm (LWIR)

Sensitivity ≤50 mK

Framerate 30 fps (NTSC) or 25 fps (PAL), 9Hz also available

OPTICAL CAMERA

Analog Camera

Signal System NTSC or PAL

Imaging Device 1/3 in. Dual Scan Sony HAD II Color CCD

Resolution Color: 700 TVL / B&W: 750 TVL

Effective Pixels 976 x 494 (NTSC), 976 x 582 (PAL)

Lens 10~200mm, HFOV 1.38º ~ 27º

17~370mm, HFOV 0.74º ~ 16º

23~500mm, HFOV 0.55º ~ 12º

30~750mm, HFOV 0.37º ~ 9º

12.5~1500mm, HFOV 0.18º ~ 22º

Min. Illumination B/W: 0.1 Lux / Sens-Up (512x): 0.0002 Lux

Mechanical IR Cut Filter

Wide Dynamic Range

Video Out 1Vp-p, 75 Ohm, BNC (Composite Video Signal)

IP Megapixel Camera

IP Ethernet

1/2 in. Sony Progressive Scan CCD

1600 x 1200 (@ 30 fps)

1600 x 1200

10~200mm, HFOV 1.83º ~ 35º

17~370mm, HFOV 0.99º ~ 21º

23~500mm, HFOV 0.73º ~ 16º

30~750mm, HFOV 0.49º ~ 12º

16.7~2000mm, HFOV 0.18º ~ 22º

Color: 0.5 Lux / B/W: 0.05 Lux

ILLUMINATOR

Type Laser

Spectrum Infrared 808nm

Angle of Illumination .2º ~ 20º

Effective Range 500 / 1000 / 1500 / 2000 / 3000m

ADDITIONAL FEATURES

-

H.264 Dual Stream

12x

-

Digital Zoom 12x

Noise Reduction Intelligent DNR (2D + 3D)

Back Light Compensation

Auto White Balance

On-Screen Display

PAN / TILT

Pan Range 360º Continuous

Pan Speed .05º ~ 45º/S

Tilt Range -60º ~ +90º

Tilt Speed .05º ~ 45º/S

Accuracy ≤0.05º

Presets 80

Protocol Pelco-D (Pelco-P available)

Comm. Speed 2,400 / 4,800 / 9,600 / 19,200 bps

Serial Communication RS-485 (RS-422 available)

ENVIRONMENT

Operating Temperature -20°C ~ +60°C / -35°C ~ +60°C (w/ heater)

Operating Humidity ≤90% (non-condensing)

Operating Environment Indoor/Outdoor

Heater Optional

Blower Optional

Wiper Optional

Ingress Protection

IP66

ELECTRICAL

Input Voltage AC220V ± 25%

Power Consumption ≤300 W / ≤415 W (w/ heater and blower)

Surge Protection 600V Lightning and Surge Protection

GENERAL

Material Rare earth alloy

Weight 126 Kg

Dimensions 656mm x 600mm x 985mm (L x W x H)

Regulatory Type FCC, CE, UL

Warranty 1 Year

All product, product specifications and data are subject to change without notice to improve Reliability, function or design or otherwise.

CAMERA SYSTEM

180 Adams Ave. Hauppauge, NY 11788 / Tel: 1-631-300-4000 / Fax: 1-631-434-7000 / AventuraCCTV.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
