fg100eng

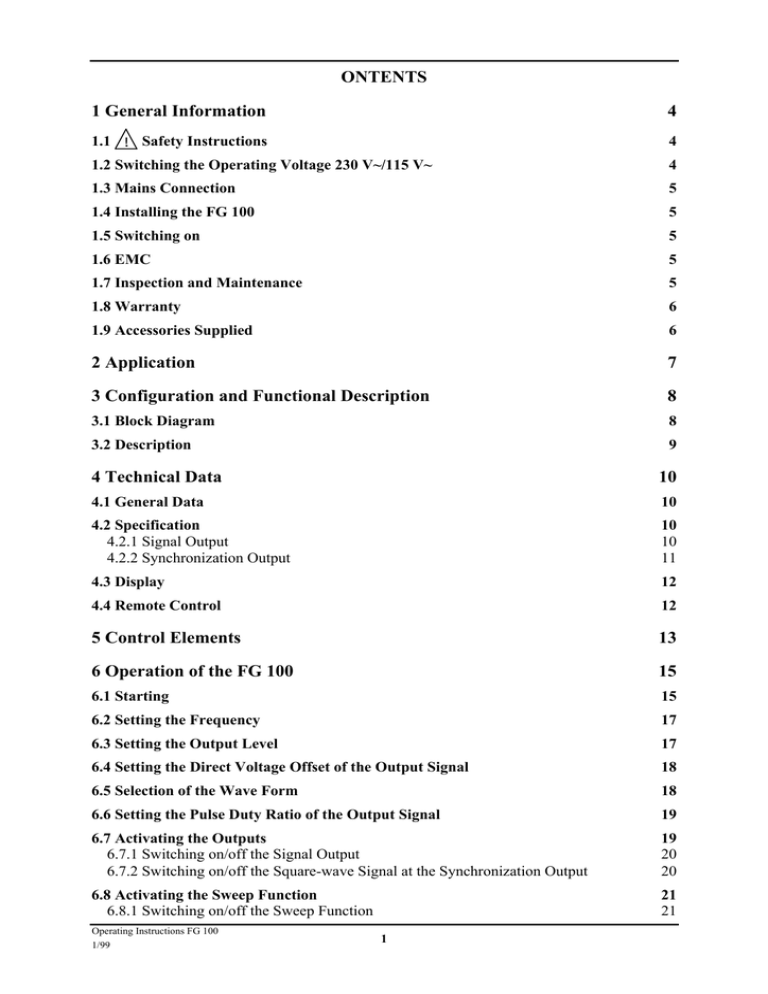

1 General Information

1.1 Safety Instructions

1.2 Switching the Operating Voltage 230 V~/115 V~

1.3 Mains Connection

1.4 Installing the FG 100

1.5 Switching on

1.6 EMC

1.7 Inspection and Maintenance

1.8 Warranty

1.9 Accessories Supplied

2 Application

ONTENTS

3 Configuration and Functional Description

3.1 Block Diagram

3.2 Description

4 Technical Data

4.1 General Data

4.2 Specification

4.2.1 Signal Output

4.2.2 Synchronization Output

4.3 Display

4.4 Remote Control

5 Control Elements

6 Operation of the FG 100

6.1 Starting

6.2 Setting the Frequency

6.3 Setting the Output Level

6.4 Setting the Direct Voltage Offset of the Output Signal

6.5 Selection of the Wave Form

6.6 Setting the Pulse Duty Ratio of the Output Signal

6.7 Activating the Outputs

6.7.1 Switching on/off the Signal Output

6.7.2 Switching on/off the Square-wave Signal at the Synchronization Output

6.8 Activating the Sweep Function

6.8.1 Switching on/off the Sweep Function

Operating Instructions FG 100

1/99

1

10

10

10

10

11

12

12

8

8

9

13

15

18

19

19

20

20

21

21

15

17

17

18

4

5

5

5

4

4

5

5

6

6

7

6.8.2 Setting the Frequency Limits

6.8.3 Setting the Period

6.9 User Settings of the FG 100

6.9.1 Switching on/off the Initialization Test

6.9.2 Self-Diagnosis of the FG 100

6.9.3 Fine Tuning of the Frequency Setting

6.9.4 Instrument Settings

6.9.4.1 Saving the Current Instrument Settings

6.9.4.2 Loading the Instrument Settings of the Manufacturer

6.9.5 Display

6.9.5.1 Contrast Setting of the Display

6.9.5.2 Brightness Setting of the Display

6.10 Special Functions of the FG 100

6.11 Protection of the Signal Output

7 Remote Control by Program

7.1 Preparation of the FG 100

7.1.1 Selecting the Interface Parameters

7.1.1.1 Setting the Baud Rate

7.1.1.2 Setting the Transmission Protocol

7.1.2 Local Control

⇔ Remote Control

7.2 Messages of the FG 100 on Remote Control

7.2.1 Description of the Unit Status

7.2.1.1 ESR - EVENT STATUS REGISTER

7.2.1.2 STB - STATUS BYTE REGISTER

7.2.2 Description of Errors

7.2.2.1 DER - DEVICE ERROR REGISTER

7.2.2.2 Error Messages

7.3 List of Commands on Remote Control

7.3.1 General Commands

7.3.1.1 Interface commands

7.3.1.2 Initializing the Instrument Settings

7.3.1.3 Self-Diagnosis of the FG 100

7.3.1.4 Identification of the FG 100

7.3.1.5 Initializing the Error Register

7.3.1.6 Synchronization Commands

7.3.1.7 Query of the Instrument Status

7.3.2 Instrument Settings and Messages

7.3.2.1 Output Frequency

7.3.2.2 Output Level

7.3.2.3 Direct Voltage Offset of the Output Signal

7.3.2.4 Wave Form

7.3.2.5 Pulse Duty Ratio of the Output Signal

7.3.2.6 Switching State of the Signal Output

7.3.2.7 Square-wave Signal at the Synchronization Output

7.3.2.8 Sweep Function

7.3.2.9 Type of Frequency Fine Tuning

7.3.2.10 Password Input

7.4 Programming Notes

2

40

40

40

40

38

38

39

39

39

39

37

37

37

37

38

38

38

41

42

42

43

Operating Instructions FG 100

1/99

30

30

30

31

31

32

33

33

33

34

35

35

36

22

22

26

27

27

28

23

23

24

25

25

26

28

29

7.5 Program Example (Q-Basic)

8 Maintenance

9 Appendix

9.1 List of all Instrument Messages

44

45

46

46

Operating Instructions FG 100

1/99

3

1 General Information

1.1

Safety Instructions

Note

Wherever you see this sign you will find information on potential hazards. Please read these sections with particular care!

Warning!

Attention!

Before opening the FG 100 disconnect the mains plug!

Our instrument fuses are dimensioned in such a way that optimal protection is guaranteed for the instrument and the user. In industrial power supplies, which are extremely strongly loaded, the instrument

If the fuse has to be changed, use only G fuse-link 5

× 20 according

to IEC 127 (see 4.1)!

1.2 Switching the Operating Voltage 230 V

~

/115 V

~

Attention!

Setting the operating voltage 115 V~

Your SC 600 left the factory set to 230 V. Switching to 115 V requires the SC 600 to be opened, which should only be done by trained personnel.

1. Disconnect the SC 600 from the mains.

2. Remove upper caps and loosen the screws below.

3. Identify the mains voltage switch by means of the following illustration.

4. Switch the mains voltage switch (slide switch) located under the power switch to the indication “115”.

5. Remove safety cover at the mains plug and replace the fuse with the fuse for 115 V supplied with the instrument.

6. Fasten upper caps and put the sticker supplied with the instrument for marking the switch-over to 115 V on to the type label.

Mains voltage switch

115 V position

230 V position

4

Operating Instructions FG 100

1/99

1.3 Mains Connection

Attention!

The design of the unit meets the requirements of safety class I according to EN 61010-1, i. e. all metal parts accessible from outside and exposed to contact are connected with the protective conductor of the supply network.

Power is supplied via a mains cable with earthing contact.

1.4 Installing the FG 100

Attention!

The FG 100 should not be operated close to equipment that develops heat.

1.5 Switching on

Note

The FG 100 is switched on using the power switch at the front. The power switch separates the FG 100 completely from the primary side of the transformer.

The LED I/O serves as a status indicator.

1.6 EMC

Interference suppression

Prerequisite for EMC

EN 50081-2.

In order to fulfil the limiting values in line with present standards, it is absolutely essential that only cables which are in perfect condition be connected to the unit. The following information applies here:

− Metallic or metallized socket cases must be used for the serial interface RS-232C. The socket cases and the braided screen of the cables must be connected at the shortest distance possible. The signal earth must not be connected to the braided screen.

− After opening and closing the FG 100 check that all the fixing elements and contact springs are installed as before and that all the screws have been tightened.

1.7 Inspection and Maintenance

Note

If service is needed, due attention should be paid to the regulations according to VDE 0701. The FG 100 should only be repaired by trained personnel.

Operating Instructions FG 100

1/99

5

1.8 Warranty

Conditions for warranty

Returning the FG 100

Identification

DIGIMESS guarantees the perfect working order of the FG 100 for

12 months as from delivery.

There is no warranty for faults arising from improper operation or from changes made to the unit or from inappropriate application.

If a fault occurs please contact or send your FG 100 to:

The FG 100 should be returned in appropriate packing - if possible in the original packing. Please enclose a detailed fault report (functions working incorrectly, deviating specifications and so on) including unit type and serial number.

Kindly verify warranty cases by enclosing your delivery note. Any repairs carried out without reference to a valid warranty will initially be at the owner’s expense.

Should the warranty have expired, we will, of course, be glad to repair your FG 100 as per our General Terms Of Assembly And

Service.

1.9 Accessories Supplied

Contents 1 mains cable

1 coaxial cable

1 fine-wire fuse

2 fine-wire fuses

1XK64100

1AK64220

T 80 L/250 V (230 V)

T 160 L/250 V (115 V)

1 operating instructions

1 label for indicating the switch-over to 115 V

6

Operating Instructions FG 100

1/99

2 Application

Performance features

Additional functions

Operation via keybord

Remote control via

RS-232C

The function generator FG 100, controlled by a microprocessor, is a compact signal source in the frequency range of 0.5 Hz to 20 MHz.

The FG 100 supplies:

Sinusoidal alternating voltages

Square-wave voltages and triangular voltages with adjustable pulse duty factor

Sawtooth voltages

The amplitude and the direct voltage offset of the output signal can be adjusted within a wide range.

The FG 100 is fitted with a sweep function.

Furthermore, a square-wave signal (synchronization signal) with a

CMOS/TTL level can be picked off.

All functions and measuring ranges can be set via menus by means of four buttons and an rotary switch.

The chosen parameters of the output signal are clearly depicted on a two-line alphanumeric LC matrix display.

The FG 100 is equipped, as standard, with the serial interface

RS-232C for communication with a PC.

All functions and parameters can be set.

Set values and states of the FG 100 can be transmitted.

Operating Instructions FG 100

1/99

7

3 Configuration and Functional Description

3.1 Block Diagram

12

Shaper

14

Divider

2

D/A

Converter

3

D/A

Converter

15

CPU

1

Oscillator

4

Control

5

Multiplier

9

Control

6

Amplifier

13

Buffer

7

Attenuator

8

Attenuator

10

Control

11

Offset

16

RS-232C

17

EPROM

18

RAM

19

EEPROM

20

Display

(1)

Oscillator

(2)

D/A converter for control of the output signal frequency

(3)

D/A converter for control of the pulse duty ratio of the output signal

(4)

Switchover of condensers in the oscillator

(5)

Analog multiplier

(6)

Signal amplifier

(7)

Output attenuator for 20 dB

(8)

Output attenuator for 20 dB

(9)

Level control of the output signal

(10) Offset control of the output signal

(11) Generator of the offset voltage (direct voltage moving)

(12) Square-wave signal shaper

(13) Buffer stage of output signal and CMOS/TTL converter

(14) Predivider stage

(15) Microprocessor

(16) RS-232C interface

(17) Program memory EPROM

(18) Data memory RAM

(19) EEPROM memory for calibrated data

(20) Display

(21) Keyboard

(22) Power supply

21

Keyboard

22

Power Supply

8

Operating Instructions FG 100

1/99

3.2 Description

Internal control unit

Operating the FG 100

The instrument’s internal operational procedures are controlled by the one-chip microprocessor MCS-51 (15) with support from additional switching circuits e. g. program memory EPROM (17), data memory

RAM (18) and back-up memory EEPROM (19) for the calibrated data.

The FG 100 can be operated locally via the keyboard with the rotary switch (21) and via the LC display (20).

Remote control by a PC takes place via the serial interface and is controlled by the microprocessor.

The modules are supplied by the internal power supply (22).

Power supply

Configuration of FG 100

Setting the

Frequency

The microprocessor (15) carries out the configuration and sets the hardware of the FG 100 after the parameters have been selected.

Firstly, depending on the frequency which has been entered, the appropriate capacitor for the oscillator is selected and the appropriate control current (2) for fine tuning the frequency is set

Frequency fine tuning

Output level

Offset voltage and pulse duty ratio

The synchronization signal from the oscillator is fed to a square-wave signal shaper (12). The square-wave signal is led through the buffer stage (13) with CMOS logic level to the synchronization output. In addition, the square-wave signal is fed back to the microprocessor unit through the frequency distributor (14), where the generated signal period is measured. According to the measured standard deviation, the microprocessor (15) adjusts the required frequency value via the D/A converter (2) (programmable current source).

The generated signal is fed to the analog multiplier (5). The output level is set within the range from 0 to 20 dB by means of this circuit.

The signal is also led to the amplifier (6) and to the output attenuators

(7), (8) with attenuation of 0, 20 or 40 dB. According to the required value of the output level, the analog multiplier (5) and subsequently the damping of the output attenuators (7), (8) are set via the level control circuit (9). The signal from the attenuator (8) is led to the output socket of the FG 100.

The offset voltage generator - programmable current source (11) - is also connected to the output socket. The current source (11) is controlled by the microprocessor (15) via the control circuit (10). The offset voltage generator permits setting of the dc voltage part of the output signal within a wide voltage range.

The pulse duty factor of the output signal can be set with the D/A converter (3).

Operating Instructions FG 100

1/99

9

4 Technical Data

4.1 General Data

Nominal temperature:

Operating temperature:

Relative humidity:

Atmospheric pressure:

Operating position:

Operating voltage:

Power consumption:

Fuses:

Safety class:

Radio interference suppression:

Dimensions (L

× H × D):

Dimensions of packing:

Weight of

FG 100: incl. packing and accessories:

+ 23 °C ± 2 °C

+ 5 ... + 40 °C

20 ... 80 %

70 ... 106 kPa horizontal or inclined by

± 15 ° sinusoidal alternating voltage

115/230 V (+ 10 %/– 15 %), internally switchable

47 ... 60 Hz (

± 5 %) max. 20 VA (max. 20 W)

T 80 L/250 V (230 V~)

T 160 L/250 V (115 V~)

I, according to EN 61010 Part 1

EN 55011 Class B

225 mm

× 85 mm × 200 mm

315 mm

× 115 mm × 270 mm approx. 1.9 kg approx. 2.9 kg

4.2 Specification

Frequency range: 0.5 Hz ... 20 MHz

Frequency setting:

Accuracy of frequency setting

(at nominal temperature):

4 places

± 0.5 %

± 0.05 % after auto calibration for f > 10 Hz

Duration for auto calibration of frequency: approx. 0.8 s for f > 100 Hz approx. 0.8 ... 30 s for f < 100 Hz

Temperature coefficient of frequency: < ± 5 · 10

-4

/K

Time coefficient of frequency: < ± 10

-3

/5 min after 30 min

Break-in period: 30 min

4.2.1 Signal Output

Output impedance:

Output voltage V

PP

:

Maximum output level incl. offset voltage:

Setting the output voltage:

Accuracy of output voltage at f = 1 kHz:

50

Ω ± 1.5 %, unsymmetric

10 mV ... 10 V/50

V

PP

+ |2 V

Offset

|

≤ 10.00 V

3 places

± 3 %

10

Operating Instructions FG 100

1/99

Additional frequency error of output voltage:

Temperature coefficient of output voltage:

Direct voltage offset of signal (V

Offset

):

Setting of direct voltage offset:

Accuracy of setting of direct voltage offset:

Output signal:

± 5 % in the range 10 Hz ... 100 kHz

± 10 % in the range 0.5 Hz ... 20 MHz

< ± 5 · 10

-3

/K

± 2.5 V/50

Ω in 10 mV steps

± ( 2 % + 20 mV) sinusoidal signal

Distortion of sinusoidal signal:

Rise time of square-wave signal:

Nonlinearity of triangular signal (5 ... 95 %):

Pulse duty ratio setting: signal

Setting of pulse duty ratio:

Sweep function:

Frequency change at the sweep function:

Repetition period at the sweep function:

4.2.2 Synchronization Output

Output impedance:

Output voltage V

PP

:

Maximum output current:

Pulse duty ratio for periodical signals: at the sweep function:

< 1 % for 20 Hz ... 20 kHz

< 3 % for 10 Hz ... 100 kHz

< 5 % for 100 kHz ... 10 MHz

< 15 ns

< 1 %

15 ... 85 % for square-wave signal and triangular in 1 % steps internal, digital, discreet max. 1 : 50, linear, discreet

10 ms ... 60 s approx. 50

5 V ± 10 % in the idling

10 mA approx. 1 : 1

“start” puls with a breadth of approx. 5

µs

Operating Instructions FG 100

1/99

11

4.3 Display

Set-up and display contents

The FG 100 is equipped with a 16-digit alphanumerical LC matrix display with background lighting.

It indicates the setting parameters of the output signal or the menucontrolled functions and system messages.

4.4 Remote Control

Performance range

Data transmission parameter

The FG 100 can be fully controlled and read out via the serial interface RS-232C. The data transfer is based on the ASCII character set.

Baud rate (eligible):

Length of data character:

Number of STOP bits:

1200, 2400, 4800, 9600 Bd

8 Bit

1

Parity: none

Protocol: RTS/CTS, without (NONE)

Length of input buffer:

Length of output buffer:

End character on receiving:

End characters on transmission:

64 characters

256 characters

LF

CR

(10 dec.)

+ LF (13 dec. + 10 dec.)

Plug connections of cable

FG

TXD

FG 100

1

2

RXD

RTS

CTS

DSR

3

4

5

6

SG

DCD

DTR

7

8

20

PC

3

4

5

6

1

2

7

8

20

FG

TXD

RXD

RTS

CTS

DSR

SG

DCD

DTR

12

Operating Instructions FG 100

1/99

5 Control Elements

Front side of FG 100

3

digimess

2

1

12

Rear side of FG 100

5 6 7 8

4

9

10

11

13 15 16 14

The LED indicates whether the unit is ready for operation.

[3] Display

With the rotary switch the parameters can be set and the current menus can be scrolled forwards and backwards.

FREQ - The button opens the menu to set the frequency of the output signal.

- The button changes between first and second line of the display.

- The button has different meanings in the menu levels.

Operating Instructions FG 100

1/99

13

LEVEL

WAVE

MENU

ENTER

LOC

- The button opens the menu to set the level of the output signal.

- The cursor is moved to the left.

- The button has different meanings in the menu levels.

- The button opens the menu to set the wave form of the output signal.

- The cursor is moved to the right.

- The button has different meanings in the menu levels.

- The button opens the menu to set further parameters of the FG 100.

- With the help of this button the new parameter setting is confirmed.

- On remote control the FG 100 changes to local control.

- The button has different meanings in the menu levels.

The LED lights up if the FG 100 is being remote controlled via the PC.

[10] LED OUTPUT

The LED lights up if the signal output is switched on.

[11] BNC socket of signal output

[12] BNC socket of synchronization output

[13] Plug of RS-232C interface

[14] Fused plug for non-heating appliances

The FG 100 is protected by a fuse of T 80 L/250 V for 230 V~ or T 160 L/250 V for

115 V~ net voltage respectively.

[15] Type plate

[16] Operating voltage indication

The operating voltage indication shows which operating voltage is to be used.

14

Operating Instructions FG 100

1/99

6 Operation of the FG 100

6.1 Starting

Attention!

When the FG 100 is operated remotely via PC the connecting cable of the system interface must be connected before switching on the operating voltage.

Switching on the FG 100

Starting the initialization test

1. Connect the FG 100 with the mains cable to the mains system.

2. Press the power switch [1].

− The LEDs I/O [2], REM [9] and OUTPUT [10] light up and the following message appears on the display [3]:

G E N E R A T O R < F G 1 0 0 >

R E A D Y

An internal initialization test starts up.

The following message appears on the display [3]:

T e s t i n g : U N I T

. . . . . . . .

P A S S E D

The variable UNIT stands for the unit which has just been tested:

Processor (

CPU )

Data bus (

BUS

)

ROM memory (

ROM

)

RAM memory (

RAM

)

EEPROM memory (

EEPROM

)

Display (

DISPLAY

)

Keyboard (

KEYBOARD

)

Whole system (

SYSTEM

)

Note

Fault-free test

The test routine can be switched off (see 6.9.1).

In this case, the initialization test is started only if a button is pushed while switching the instrument on.

On error-free conclusion of the test the following confirmation and current software version appear, e. g.:

G E N E R A T O R < F G 1 0 0 >

R E A D Y

and

G E N E R A T O R < F G 1 0 0 >

V e r : 2 . 0 0

Operating Instructions FG 100

1/99

15

Operating state

Note

Faulty test

After fault-free testing the LEDs REM [9] and OUTPUT [10] go out and the parameters of the FG 100 correspond to the following presettings:

Frequency of the output signal: 1.000 kHz

Frequency fine tuning: single

Output voltage V

PP

: 1.00

Direct voltage offset at the output: 0.00 V

Output signal: sinusoidal

Pulse duty ratio of the output signal: 50

%

Signal output: switched off

Synchronization output:

Sweep function:

Start frequency:

Stop frequency:

Sweep period:

Baud rate:

Data transmission protocol:

Initializing test: switched off switched off

1.000 kHz

50.00 kHz

100 ms

9600 Bd without (NONE) switched on

The FG 100 is ready for operation and the following message appears on the display [3]:

F R E Q :

W A V E :

1 . 0 0 0 k H z

S I N E

If you have saved your own instrument settings, these are loaded after

the instrument is switched on (see 6.9.4).

Should a system error occur during the internal test, the FG 100 interrupts the test until the error is eliminated. The following message appears on the display [3]:

T e s t i n g : U N I T

. . . . . . . .

E R R O R

The variable

UNIT

stands for the unit which has just been tested (see above).

If errors which have no direct effect on the function of the FG 100 occur in the component circuits, the test will continue. A warning with corresponding error characterization appears on the display [3], e. g.:

G E N E R A T O R < F G 1 0 0 >

C a l i b r a t i o n O F F !

16

Operating Instructions FG 100

1/99

Changing the parameter

6.2 Setting the Frequency

Calling up the menu point

1. Press the F1 button FREQ [5] when the instrument is in operation.

− The cursor appears on the display [3] on the last position of the frequency value:

F R E Q :

W A V E :

1 . 0 0 0 M H z

S I N E

2. With the cursor buttons [6] and [7], select the parameter position to be changed.

3. Change the current frequency value of 0.5 Hz to 20 MHz with the help of the rotary switch [4].

Note

If you try to exceed the limit values the message L i m i t !

is signalled on the display.

Saving the change

4. Save the new setting with the help of the F4 button ENTER [8].

− The cursor disappears and the FG 100 returns to the operating state. The last position of the cursor is preserved.

− The frequency of the output signal is set exactly to the required value. During fine tuning the output signal does not correspond to the value which has been entered and the symbol “~” appears on the display [3].

6.3 Setting the Output Level

Calling up the menu point

1. Press the F2 button LEVEL [6] when the instrument is in operation.

− The last settings of the output voltage and the direct voltage offset appear on the display [3]:

Changing the parameter

L E V E L :

O F F S E T :

1 . 0 0 V

0 . 0 0 V

2. With the cursor buttons [6] and [7], select the parameter position to be changed.

3. Change the output voltage with the help of the rotary switch [4].

− You can shift between the setting of output voltage for the setting of voltage offset with the F1 button [5].

Note

If you try to exceed the limit values the message L i m i t !

is signalled on the display.

Saving the change

4. Save the new setting with the help of the F4 button ENTER [8].

− The cursor disappears and the FG 100 returns to the operating state. The last position of the cursor is preserved.

Operating Instructions FG 100

1/99

17

Changing the parameter

6.4 Setting the Direct Voltage Offset of the Output Signal

Calling up the menu point

1. Press the F2 button LEVEL [6] when the instrument is in operation.

− The last settings of the output voltage and the direct voltage offset appear on the display [3]:

L E V E L :

O F F S E T :

1 . 0 0 V

0 . 0 0 V

2. Shift from the setting of the output voltage to the setting of the voltage offset with the F1 button [5].

3. With the cursor buttons [6] and [7], select the parameter position to be changed.

4. Change the direct voltage offset within the range of ± 2.5 V with the help of the rotary switch [4].

Note

If you try to exceed the limit values the message L i m i t !

is signalled on the display.

Saving the change

5. Save the new settings with the help of the F4 button ENTER [8].

− The cursor disappears and the FG 100 returns to the operating state. The last position of the cursor is preserved.

6.5 Selection of the Wave Form

Calling up the menu point

1. Press the F3 button WAVE [7] when the instrument is in operation.

− The current setting of the wave form appears on the display [3], e. g.:

Changing the parameter

Saving the change

W a v e F o r m :

S I N E

2. Change the form of the generated output signal with the help of the rotary switch [4]:

SINE - sinusoidal signal

SQUARE

TRIANGLE

- square-wave signal

- triangular signal

RAMP UP/RAMP DOWN - sawtooth signal

3. Save the new setting with the help of the F4 button ENTER [8].

− The FG 100 changes to the operating state.

18

Operating Instructions FG 100

1/99

6.6 Setting the Pulse Duty Ratio of the Output Signal

Calling up the menu point

1. Call up the main menu with the help of the F4 button MENU [8] when the instrument is in operation.

− Different menu points, which are assigned to function buttons

F1-F4, appear on the bottom line of the display:

_ _ M a i n M e n u _ _

D C Y O U T S W P N E X T

2. Press the F1 button DCY [5].

− The last setting of the pulse duty ratio appears on the display

[3], e. g.:

Changing the parameter

D u t y C y c l e :

5 0 %

3. With the cursor buttons [6] and [7], select the parameter position to be changed.

4. Change the pulse duty ratio within the range of 15 to 85 % with the help of the rotary switch [4].

Note

If you try to exceed the limit values the message L i m i t !

is signalled on the display.

Saving the change

Changing to the operating state

5. Save the new setting with the help of the F4 button ENTER [8].

− The cursor disappears and the FG 100 returns to the main menu. The last position of the cursor is preserved.

6. Repeated pressing of the F4-button [8] allows the user to shift between the different menu levels and to the operating state of the

FG 100:

Press

× 1 - 2nd stage of the main menu

Press

× 2 - operating state

6.7 Activating the Outputs

Calling up the menu

1. Call up the main menu with the help of the F4 button MENU [8] when the instrument is in operation.

− Different menu points, which are assigned to function buttons

F1-F4, appear on the bottom line of the display:

_ _ M a i n M e n u _ _

D C Y O U T S W P N E X T

2. Call up the menu of settings of the signal output and the synchronization output with the help of the F2 button OUT [6].

− Different menu points, which are assigned to function buttons

F1-F4, appear on the bottom line of the display:

_ O u t p u t s M e n u _

S Y N C S I G N A L E X I T

Operating Instructions FG 100

1/99

19

6.7.1 Switching on/off the Signal Output

Calling up the menu point

1. Call up the menu of settings of the signal output and the

synchronization output (see 6.7).

2. Press the F2 button SIGNAL [6].

− The current state of the signal output appears on the display [3], e. g.:

Changing the parameter

Saving the change

Changing to the operating state

S i g n a l O u t p u t :

O F F

3. Change the state with the help of the rotary switch [4]:

OFF

- signal output is switched off

ON

- signal output is switched on

4. Save the new setting with the help of the F4 button ENTER [8].

− The FG 100 returns to the menu for setting the signal output and the synchronization output.

5. Repeated pressing of the F4-button [8] allows the user to shift between the different menu levels and to the operating state of the

FG 100:

Press

× 1 - main menu

Press

× 2 - 2nd stage of the main menu

Press

× 3 - operating state

− The switched on signal output is displayed with the LED

OUTPUT [10].

6.7.2 Switching on/off the Square-wave Signal at the Synchronization Output

Calling up the menu point

1. Call up the menu of settings of the signal output and the

synchronization output (see 6.7).

2. Press the F1 button SYNC [5].

− The current state of the synchronization output appears on the display [3], e. g.:

Changing the parameter

S y n c .

O u t p u t :

O F F

3. Change the state with the help of the rotary switch [4:

OFF - synchronization output is switched off

POSITIVE - positive square-wave signal at the synchronizatio output

NEGATIVE negative square-wave signal at th

Saving the change

Changing to the operating state

4. Save the new setting with the help of the F4 button ENTER [8].

− The FG 100 returns to the menu for setting the signal output and the synchronization output.

5. Repeated pressing of the F4-button [8] allows the user to shift between the different menu levels and to the operating state of the

FG 100:

Press

× 1 - main menu

Press

× 2 - 2nd stage of the main menu

Press

× 3 - operating state

20

Operating Instructions FG 100

1/99

6.8 Activating the Sweep Function

Calling up the menu point

1. Call up the main menu with the help of the F4 button MENU [8] when the instrument is in operation.

− Different menu points, which are assigned to function buttons

F1-F4, appear on the bottom line of the display:

_ _ M a i n M e n u _ _

D C Y O U T S W P N E X T

2. Call up the menu for setting the sweep function with the help of the F3 button SWP [7]

− Different menu points, which are assigned to function buttons

F1-F4, appear on the bottom line of the display:

_ _ S w e e p M e n u _ _

M O D F R E Q S T E X I T

6.8.1 Switching on/off the Sweep Function

Calling up the menu point

1. Call up the menu for setting the sweep function (see 6.8).

2. Press the F1 button MOD [7].

− The current state of the sweep function appears on the display

[3], e. g.:

Changing the parameter

Saving the change

Changing to the operating state

S w e e p M o d e :

O F F

3. Change the state with the help of the rotary switch [4]:

OFF - sweep function is switched off

LINEAR - linear frequency change

4. Save the new setting with the help of the F4 button ENTER [8].

− The FG 100 returns to the menu for the settings of the sweep function.

5. Press the F4 button EXIT [8].

− The FG 100 is configured anew. Either the sweep function is stopped or the new frequency settings are started.

− The FG 100 changes to the operating state.

Note

The frequency of the FG 100 is not adjusted if the sweep function is switched on.

Operating Instructions FG 100

1/99

21

6.8.2 Setting the Frequency Limits

Calling up the menu point

1. Call up the menu for setting the sweep function (see 6.8).

2. Press the F2 button FREQ [6].

− The current settings of the frequency limits appear in the display [3], e. g.:

Changing the parameter

S t a r t : 1 . 0 0 0 k H z

S t o p : 5 0 . 0 0 k H z

3. Change with the F1 button [5] between the upper limit (

Start

) and lower limit (

Stop

) of the frequency change.

4. With the cursor buttons [6] and [7], select the parameter position to be changed.

5. Change the upper and lower limit with the help of the rotary switch [4].

− Note the relationship: Start / Stop = max. 1 : 50 or 50 : 1.

Note

If you try to exceed the limit values the message

L i m i t !

is signalled on the display.

Saving the change

Changing to the operating state

6. Save the new setting with the help of the F4 button ENTER [8].

− The FG 100 returns to the menu for setting the sweep function.

7. Press the F4 button EXIT [8].

− The FG 100 is configured anew. Either the sweep function is stopped or the new frequency settings are started.

− The FG 100 changes to the operating state.

6.8.3 Setting the Period

Calling up the menu point

1. Call up the menu for setting the sweep function (see 6.8).

2. Press the F3 button ST [7].

The current setting of the period appears in the display [3], e. g.:

Changing the parameter

S w e e p T i me :

1 0 0 ms

3. With the cursor buttons [6] and [7], select the parameter position to be changed.

4. Change the period within the range of 100 ms to 60 s with the help of the rotary switch [4].

22

Operating Instructions FG 100

1/99

Note

If you try to exceed the limit values the message

L i m i t !

is signalled on the display.

Saving the change

Changing to the operating state

5. Save the new setting with the help of the F4 button ENTER [8].

− The FG 100 returns to the menu for setting the sweep function.

6. Press the F4 button EXIT [8].

− The FG 100 is configured anew. Either the sweep function is stopped or the new frequency settings are started.

− The FG 100 changes to the operating state.

6.9 User Settings of the FG 100

Calling up the menu

1. Call up the main menu with the help of the F4 button MENU [8] when the instrument is in operation.

− Different menu points, which are assigned to function buttons

F1-F4, appear on the bottom line of the display:

_ _ M a i n M e n u _ _

D C Y O U T S W P N E X T

2. Change with the help of the F4 button NEXT [8] to the 2nd stage of the main menu.

− Further menu points, which are assigned to function buttons F1-

F4, appear on the bottom line of the display:

_ _ M a i n M e n u _ _

I N T U S R S P C E X I T

3. Call up the menu of the user settings with the help of the F2 button

USR [6].

− Different menu points, which are assigned to function buttons

F1-F4, appear on the bottom line of the display:

_ _ U s e r M e n u _ _

P S T E S T F A D N E X T

6.9.1 Switching on/off the Initialization Test

Calling up the menu point

1. Call up the menu of the user settings (see 6.9).

2. Press the F1 button PS [5].

− The current state of the initialization test after switching on the

FG 100 appears in the display [3], e. g.:

Changing the parameter

P o w e r U p S e l f T e s t

O N

3. Change the state with the help of the rotary switch [4]:

ON

- initialization test is switched on

OFF

- initialization test is switched off

Operating Instructions FG 100

1/99

23

Saving the change

Changing to the operating state

Note

4. Save the new setting with the help of the F4 button ENTER [8].

− The FG 100 returns to the menu of the users settings.

5. Repeated pressing of the F4-button [8] allows the user to shift between the different menu levels and to the operating state of the

FG 100:

Press

× 1 - 2nd stage of the menu of the user settings

Press

× 2 - main menu

Press

× 3 - operating state

If the initialization test is switched off ( OFF ), it is still possible to activate the test routine when the FG 100 is switched on. This is done by pressing any button while switching on the instrument.

initialization test is preserved.

6.9.2 Self-Diagnosis of the FG 100

Note

For successful performance of the test, testing equipment is necessary.

Calling up the menu point

Starting the self-diagnosis

1. Call up the menu of the user settings (see 6.9).

Changing to the operating state

2. Press the F2 button TEST [6].

− The internal diagnostic test routines are started.

− After fault-free test the FG 100 returns to the menu of the user settings.

3. Repeated pressing of the F4-button [8] allows the user to shift between the different menu levels and to the operating state of the

FG 100:

Press

× 1 - 2nd stage of the menu of the user settings

Press

× 2 - main menu

Press

× 3 - operating state

24

Operating Instructions FG 100

1/99

6.9.3 Fine Tuning of the Frequency Setting

Calling up the menu point

1. Call up the menu of the user settings (see 6.9).

2. Press the F3 button FAD [7].

− The current type of fine tuning at the frequency setting of the generated signal appears on the display [3], e. g.:

Changing the parameter

Saving the change

Changing to the operating state

F r e q .

A d j u s t :

S I N G L E

3. Change the type of fine tuning with the help of the rotary switch

[4]:

SINGLE

- single fine tuning

CONTINUOUS

- continuous fine tuning

OFF

- fine tuning is switched off

− During fine tuning the output signal does not correspond to the value which has been entered and the symbol “~” appears on the display [3].

− During continuous fine tuning (

CONTINUOUS ) the sign “c” appears on the display [3].

4. Save the new setting with the help of the F4 button ENTER [8].

− The FG 100 returns to the menu of the user settings.

5. Repeated pressing of the F4-button [8] allows the user to shift between the different menu levels and to the operating state of the

FG 100:

Press

× 1 - 2nd stage of the menu of the user settings

Press

× 2 - main menu

Press

× 3 - operating state

Note

The instrument settings are carried out fastest (approx. 100 ms) when the fine tuning is switched off ( OFF ). However, technical

specifications (see 4.2) cannot then be observed.

6.9.4 Instrument Settings

Calling up the menu

1. Call up the menu of the user settings (see 6.9).

2. Change with the help of the F4 button NEXT [8] to the 2nd stage of the menu.

− Further menu points, which are assigned to function buttons F1-

F4, appear on the bottom line of the display:

_ _ U s e r M e n u _ _

S T O R C L L C D E X I T

Note

The menu point LCD is only displayed when the FG 100 has the

option “Display Settings” (see 6.9.5).

Operating Instructions FG 100

1/99

25

6.9.4.1 Saving the Current Instrument Settings

Calling up the menu point

Saving the parameters

1. Call up the 2nd stage of the menu of the user settings (see 6.9.4).

2. Save the current settings of the FG 100 with the F1 button STO

[5].

− The following message appears on the display [3]:

Changing to the operating state

C u r r e n t S e t t i n g

. . . . . . . .

S A V I N G

3. Repeated pressing of the F4-button [8] allows the user to shift between the different menu levels and to the operating state of the

FG 100:

Press

× 1 - main menu

Press

× 2 - operating state

− The saved settings are called after every switching on the

FG 100.

Note

The interface setting, initialization test activation and display setting are not saved. When the FG 100 is switched on, those parameters which were current before switching off are set.

6.9.4.2 Loading the Instrument Settings of the Manufacturer

Calling up the menu point

1. Call up the 2nd stage of the menu of the user settings (see 6.9.4).

Loading the parameters

2. Press the F2 button RCL [6].

− The user’s current settings are cleared and the manufacturer’s instrument settings are loaded.

− The following message appears on the display [3]:

Changing to the operating state

D e f a u l t S e t t i n g

. . . . . . . .

L O A D I N G

3. After the manufacturer’s instrument settings are loaded, the

FG 100 returns to the menu of the user settings.

4. Repeated pressing of the F4-button [8] allows the user to shift between the different menu levels and to the operating state of the

FG 100:

Press

× 1 - main menu

Press

× 2 - operating state

Note

The interface setting, initialization test activation and display setting are not saved. When the FG 100 is switched on, those parameters which were current before switching off are set.

26

Operating Instructions FG 100

1/99

6.9.5 Display

Note

Display settings can only be changed if the FG 100 is equipped with this function.

Calling up the menu

1. Call up the menu of the user settings (see 6.9).

2. Change with the help of the F4 button NEXT [8] to the 2nd stage of the menu.

− Further menu points, which are assigned to function buttons F1-

F4, appear on the bottom line of the display:

_ _ U s e r M e n u _ _

S T O R C L L C D E X I T

3. Call up the menu for the display settings with the help of the F3 button LCD [7].

− Different menu points, which are assigned to function buttons

F1-F4, appear on the bottom line of the display:

_ _ L C D A d j u s t _ _

C O N T B R I G H T E X I T

6.9.5.1 Contrast Setting of the Display

Calling up the menu point

1. Call up the menu for the display settings (see 6.9.5).

2. Press the F1 button CONT [5].

− The current contrast setting appears on the display [3], e. g.:

Changing the parameter

Note

C o n t r a s t A d j u s t :

7 5 %

3. Change the contrast within the range of 0 to 100 % in 5 % steps with the help of the rotary switch [4].

If you try to exceed the limit values the message on the display.

L i m i t !

is signalled

Saving the change

Changing to the operating state

4. Save the new setting with the help of the F4 button ENTER [8].

− The FG 100 returns to the menu for the display settings.

5. Repeated pressing of the F4-button [8] allows the user to shift between the different menu levels and to the operating state of the

FG 100:

Press

× 1 - main menu

Press

× 2 - operating state

Note

When the FG 100 is switched off, the last contrast setting is preserved.

Operating Instructions FG 100

1/99

27

6.9.5.2 Brightness Setting of the Display

Calling up the menu point

1. Call up the menu for the display settings (see 6.9.5).

2. Press the F2 or F3 button BRIGHT [6, 7].

− The current brightness setting appears on the display [3], e. g.:

Changing the parameter

Note

B r i g h t A d j u s t :

7 5 %

3. Change the brightness within the range of 0 to 100 % in 5 % steps with the help of the rotary switch [4].

If you try to exceed the limit values the message on the display.

L i m i t !

is signalled

Saving the change

Changing to the operating state

4. Save the new setting with the help of the F4 button ENTER [8].

− The FG 100 returns to the menu for the display settings.

5. Repeated pressing of the F4-button [8] allows the user to shift between the different menu levels and to the operating state of the

FG 100:

Press

× 1 - main menu

Press

× 2 - operating state

Note

When the FG 100 is switched off, the last contrast setting is preserved.

6.10 Special Functions of the FG 100

Calling up the password input

1. Call up the main menu with the help of the F4 button MENU [8] when the instrument is in operation.

− Different menu points, which are assigned to function buttons

F1-F4, appear on the bottom line of the display:

_ _ M a i n M e n u _ _

D C Y O U T S W P N E X T

2. Change to the 2nd stage of the main menu with the help of the F4 button NEXT [8].

− Further menu points, which are assigned to function buttons F1-

F4, appear on the bottom line of the display:

_ _ M a i n M e n u _ _

I N T U S R S P C E X I T

3. Press the F3 button SPC [7].

− The field for the input of the password appears on the display

[3]:

P a s s w o r d :

0 0 0 0 0 0 0 0

28

Operating Instructions FG 100

1/99

Entering the password

Wrong password input

4. With the cursor buttons [6] and [7], select the parameter position to be changed.

5. Enter the right password with the help of the rotary switch [4].

6. Press the F4 button ENTER [8].

− The special menu is opened to the authorized user (service technicians) for service and calibration work.

At wrong input of the password the following message appears on the display [3] and the instrument returns to the main menu:

P a s s w o r d :

I L L E G A L !

7. Press the F4 button ENTER [8].

− The FG 100 returns to the operating state.

6.11 Protection of the Signal Output

Operation

The signal output OUTPUT [11] is equipped with a protective circuit

(Reverse Power Protection).

If an external voltage V > ± 15 V is connected to the active signal output [11] of the FG 100, the signal output switches itself off automatically.

Error message

The LED OUTPUT [10] at the front of the FG 100 is cleared when the FG 100 is switched off and the following error message appears on the display [3]:

*

* E r r o r : 3 1 * *

R P P T r i p p e d !

Only after the error is removed, is the operating state of the signal output automatically restored and the error message disappears.

Operating Instructions FG 100

1/99

29

7 Remote Control by Program

7.1 Preparation of the FG 100

Attention!

For remote control of the FG 100 the connecting cable of the serial interface RS-232C has to be connected before switching on the operating voltage.

Prerequisite Remote control of the FG 100 with a personal computer (PC) is possible via the serial interface RS-232C. The interface of the

personal computer must be configured as described in paragraph 0.

The connecting cable must not be longer than 15 m.

1. Connect the connecting cable to the FG 100 [13] and the PC.

2. Screw in tight the connections.

Connecting the connecting cable

Note

Make sure that the phase of the mains voltage at the FG 100 and PC is the same, the earth connection was removed and the ESD regulations are observed.

Switching on the

FG 100

3. Switch on the FG 100.

− After the initialization test the FG 100 can receive commands.

7.1.1 Selecting the Interface Parameters

Calling up the menu

1. Call up the main menu with the help of the F4 button MENU [8] when the instrument is in operation.

− Different menu points, which are assigned to function buttons

F1-F4, appear on the bottom line of the display:

_ _ M a i n M e n u _ _

D C Y O U T S W P N E X T

2. Change with the help of the F4 button NEXT [8] to the 2nd stage of the main menu.

− Further menu points, which are assigned to function buttons F1-

F4, appear on the bottom line of the display:

_ _ M a i n M e n u _ _

I N T U S R S P C E X I T

3. Call up the menu for setting the interface parameters with the help of the F1 button INT [5].

− Different menu points, which are assigned to function buttons

F1-F4, appear on the bottom line of the display:

_ _ R S 2 3 2 S e t _ _

B D R P R O T E X I T

30

Operating Instructions FG 100

1/99

7.1.1.1 Setting the Baud Rate

Calling up the menu point

1. Call up the menu for setting the interface parameters (see 7.1.1).

2. Press the F1 button BDR [5].

− The current baud rate appears on the display [3], e. g.:

Changing the parameter

Saving the change

Changing to the operating state

B a u d R a t e :

9 6 0 0

3. Change the baud rate (

1200

,

2400

,

4800

, oder

9600

Bd) with the help of the rotary switch [4].

4. Save the new setting with the help of the F4 button ENTER [8].

− The FG 100 returns to the menu for setting the interface parameters.

5. Press the F4 button EXIT [8].

− The FG 100 is configured anew and returns to the operating state.

Note

After switching off the FG 100 the current setting of the baud rate is kept.

7.1.1.2 Setting the Transmission Protocol

Calling up the menu point

1. Call up the menu for setting the interface parameters (see. 오류!

참조 원본을 찾을 없습니다.).

2. Press the F2 button PROT [5].

− The current setting of the transmission protocol appears on the display [3], e. g.:

Changing the parameter

Saving the change

Changing to the operating state

P r o t o c o l :

N O N E

3. Change the setting of the transmission protocol with the help of the rotary switch [4]:

NONE - communication without transmission protocol

RTS/CTS - communication with RTS/CTS protocol

4. Save the new setting with the help of the F4 button ENTER [8].

− The FG 100 returns to the menu for setting the interface parameters.

5. Press the F4 button EXIT [8].

− The FG 100 is configured anew and returns to the operating state.

Note

After switching off the FG 100 the current setting of the transmission protocol is kept.

Operating Instructions FG 100

1/99

31

Communication with RTS/CTS protocol

Data received from PC

Signal RTS=ON

− FG 100 can receive data.

Signal RTS=OFF

− FG 100 cannot receive data.

Data transmitted to PC

Signal CTS=ON

− FG 100 transmitting data.

Signal CTS=OFF

− FG 100 not transmitting data.

Communication without RTS/CTS protocol

Data received from PC

Signal RTS=ON

− FG 100 can always receive data, on overloading of the input buffer the error 131 INP.BUFFER FULL is reported.

Data transmitted to PC

Signal CTS=ON

− FG 100 can always transmit data.

7.1.2 Local Control

Remote Control

Activating the remote control

Send the command indicated by the LED REM [9]. Afterwards control of the FG 100 by the local control elements is not possible (except with the F4 button LOC [8]).

REN

via the PC.

− The FG 100 is in the REMOTE CONTROL status. This is

Note

Block the F4 button LOC [8] with the help of the command LLO .

Then all the commands of the PC are processed completely.

Activating the local control

Remote control at local control

− There are several ways of switching from remote control to local control:

By transmitting command

GTL

(Go To Local) from the PC

By pressing the F4 button LOC [8] at the FG 100 if the keyboard has not been locked by the command

LLO

(Local

Lock Out)

By switching the power switch [1] off and on

− The button field is ready for use after the transition for the local control again. The LED REM [9] goes out.

− The following commands can also be sent and received by the PC when the FG 100 is on local control:

*IDN?, *CLS, *ESR?, *ESE,* ESE?,

*STB?, *SRE, *SRE?, ERR?, DER?.

32

Operating Instructions FG 100

1/99

7.2 Messages of the FG 100 on Remote Control

7.2.1 Description of the Unit Status

Introduction The current status of the operating conditions of the FG 100 can be interrogated at any time via the EVENT STATUS REGISTER and the STATUS BYTE REGISTER.

7.2.1.1 ESR - EVENT STATUS REGISTER

Reading and deleting the register

The current contents

XXX

are saved in the output buffer by transmitting the command

*ESR?

.

The ESR register can set on

Ø

after the following operations (except bit 7):

Switching on the FG 100

Transmitting the command

*CLS

Changing the interface parameters

Contents of the

ESR register

Bit 7: (PON) Power On

Operating readiness and interface activities are displayed on

1

.

Bit 6: (URQ) User Request

Is not used, is always set on Ø .

Bit 5: (CME) Command Error

Is set on 1 at instruction errors.

Bit 4: (EXE) Execution Error

Is set on

1

at query errors and execution errors.

Bit 3: (DDE) Device Dependent Error

Device errors are displayed on

1

.

Bit 2: (QYE) Query Error

Is set on

1

at query errors.

Bit 1: (RQC) Request Control

Is not used, is always set on Ø .

Bit 0: (OPC) Operation Complete

Is set on 1 by transmitting the command

*OPC

.

ESE - EVENT STATUS ENABLE REGISTER

Meaning of the register

Various statuses and settings of the FG 100 can be checked. For this the contents of the ESR register are called with the help of a mask.

The single bits are compared and evaluated by the following logical equation:

ESB = (ESR7

∧ ESE7) ∨ (ESR6 ∧ ESE6) ∨ (ESR5 ∧ ESE5) ∨

(ESR4

∧ ESE4) ∨ (ESR3 ∧ ESE3) ∨ (ESR2 ∧ ESE2) ∨

(ESR1

∧ ESE1) ∨ (ESR

0

∧ ESE

0

)

The result ESB (Event Summary Bit) is entered in the STB register.

Describing the register

The command

*ESE <XXX>

offers the possibility of initializing the

ESE register with any mask. The value XXX has to be within the range of 0 to 255 . Otherwise the error 134 VAL. OUT OF RANGE is reported.

Operating Instructions FG 100

1/99

33

Reading and deleting the register

The current contents XXX are saved in the output buffer by transmitting the command

*ESE?

.

The ESE register can set on Ø after the following operations:

Switching on the FG 100 (except bit 7)

Transmitting the command

*ESE 0

Changing the interface parameters

7.2.1.2 STB - STATUS BYTE REGISTER

Reading and deleting the register

The contents of the STB register are filed in the output buffer by transmitting the command

*STB?

.

The STB register can set on

Ø

after the following operations (except bit 4 - MAV):

Switching on the FG 100

Transmitting the command

*CLS

Changing the interface parameters

Contents of the

STB register

Bit 7: Is not used, is always set on

Ø.

Bit 6: (MSS) Master Summary Bit

Result during checkup of the STB register with a mask (SRE register, see below).

Bit 5: (ESB) Event Summary Bit

Result during checkup of the ESR register with a mask (ESE register).

Bit 4: (MAV) Message Available

Is set on 1 if a current message of the FG 100 is requested at the output buffer.

Bit 3: Is not used, is always set on

Ø

.

Bit 2: Is not used, is always set on

Ø

.

Bit 1: Is not used, is always set on Ø .

Bit 0: Is not used, is always set on Ø .

SRE - SERVICE REQUEST ENABLE REGISTER

Meaning of the register

Various statuses and settings of the FG 100 can be checked. For this the contents of the ESR register are called with the help of a mask.

The single bits (except SRE bit 6, which is always set on Ø ) are compared and evaluated by the following logical equation:

MSS = (STB7

∧ SRE7) ∨ (STB5 ∧ SRE5) ∨ (STB4 ∧ SRE4) ∨

(STB3

∧ SRE3) ∨ (STB2 ∧ SRE2) ∨ (STB1 ∧ SRE1) ∨

(STB

0

∧ SRE

0

)

The result MSS (Master Summary Status) is entered in the STB register.

Describing the register

The command

*SRE <XXX>

offers the possibility of initializing the

SRE register with any mask. The value XXX has to be within the range of Ø to 255 . Otherwise the error 134 VAL. OUT OF RANGE is reported.

34

Operating Instructions FG 100

1/99

Reading and deleting the register

The current contents XXX are saved in the output buffer by transmitting the command

*SRE?

.

The SRE register can set on Ø after the followings (except bit 7):

Switching on the FG 100

Transmitting the command

*SRE 0

Changing the interface parameters

7.2.2 Description of Errors

Contents of the fault register

Reading and deleting the register

When errors occur in the remote-controlled settings and measurements, they are saved with a code in the error register.

The contents of the error register can be called and deleted at any time by transmitting the command

ERR?

.

If several errors arise only the error codes of the first and last error are saved. On repeating transmission of the command

ERR?

the contents of the error codes are filed in the output buffer and initialized (deleted).

The initializing of the error register is also started by transmitting the command

*CLS

(initializing of the state register).

Note

Before transmission of the command

ERR?

the interface command

DCL has to be send.

7.2.2.1 DER - DEVICE ERROR REGISTER

Meaning of the register

The contents of the DER register specify the device error in the error register.

Reading and deleting the register

Contents of the

DER register

The contents of the register XXX within the range of 0 to 255 are filed in the output buffer by transmitting the command DER?

.

The DER register can set on Ø after the following commands:

Repeated use of the command

ERR?

(according to the number of errors)

Initializing of status structure (

*CLS

)

Bit 7: Is not used, is always set on

Ø

.

Bit 6: Is set on

1

, if the calibration data are deleted.

Bit 5: Is set on 1 , if the frequency value of the output signal is not set and cannot be set.

Bit 4: Is set on 1 , if an external voltage of > ± 15 V is connected at the output and the output was switched off.

Bit 3: Is not used, is always set on Ø .

Bit 2: Is not used, is always set on

Ø

.

Bit 1: Is not used, is always set on

Ø

.

Bit 0: Is not used, is always set on Ø .

Note

When a device error occurs the bit 3 (DDE) of the ESR register is set on

1

.

Operating Instructions FG 100

1/99

35

7.2.2.2 Error Messages

Dependence of the error message

The error messages are dependent on the operating status and the type of error.

On local control interface errors are displayed for only a short time. On remote control of the FG 100 interface errors are displayed until the contents of the error register are queried or initialized.

Device errors are displayed until new commands from the personal computer are transmitted.

List of Error Messages

Error code

Text of messages Meaning of text

120

132

134

181

DEVICE ERROR

DEVICE DEPENDENT ERROR

INTERFACE ERROR

QUERY ERROR

BAD USING QUERY

EXECUTION ERROR

NOT EX. IN LOCAL

VAL. OUT OF RANGE

COMMAND ERROR

RS 232 ERROR

INP. BUFFER FULL

Device error

Output overload with external voltage

Wrong password

Errors in the instrument function

Interface error

Query error

Used query is wrong

Execution error

Cannot be executed

Cannot be executed on local control

Value is out of range

Command error

Unknown command

Error of the RS-232C interface

Input buffer is full

36

Operating Instructions FG 100

1/99

7.3 List of Commands on Remote Control

7.3.1 General Commands

7.3.1.1 Interface commands

REN

(Remote)

− Transition from local control to remote control

LLO

(Local Lock Out)

HT 9

− Locking of the F4 button LOC [8]

GTL

(Go To Local)

EM 25

− Transition from remote control to local control

DCL

(Device Clear)

SOH 1

− Initializing for the communication protocol of the interface

− Resetting or initializing of the partial circuits

Note

DC4 20

The command

DCL

has no influence on the functions of the device.

These have to be initialized by the general command

*RST

.

7.3.1.2 Initializing the Instrument Settings

*RST

(Reset)

− Resetting the FG 100 in the operating state

Frequency of the output signal: 1.000 kHz

Frequency fine tuning: single

Output voltage V

PP

: 1.00

Direct voltage offset of the output signal: 0.00 V

Output signal: sinusoidal

Pulse duty ratio of the output signal: 50

%

Signal exit: switched off

Synchronization output:

Sweep function:

Start frequency:

Stop frequency: switched off switched off

1.000 kHz

50.00 kHz

Note

After switching on the FG 100 the commands DCL and

*CLS

are executed automatically and the contents of the ESE and SRE register are reset. Bit 7 (PON) of the ESR register is set on 1 .

Operating Instructions FG 100

1/99

37

7.3.1.3 Self-Diagnosis of the FG 100

*TST?

(Test)

− Start of internal test and saving of result where: 0 - test is successful

1 - test is not successful

7.3.1.4 Identification of the FG 100

*IDN?

(Identification)

− Identification

DIGIMESS,FG100,X,Y where: X - production number or 0

Y - software version or 0

Note

The query

*IDN?

should be written at the end of the command line because subsequent data can be lost before transmission. Otherwise the error120

BAD USING QUERY

is reported.

7.3.1.5 Initializing the Error Register

*CLS

(Clear Status Byte)

− Resetting of ESR and STB register (except bit 4 - MAV)

ESE and SRE registers are not deleted.

− Initializing of the error structure (see 7.2.2)

7.3.1.6 Synchronization Commands

*WAI

(Waiting)

*OPC

(Operation

Complete)

The following commands are executed only after completion of current operation.

After completion of current operation bit

0

(OPC) in the ESR register is set on

1

.

*OPC?

− After completion of current operation the number 1 is saved in the output buffer.

Note

While the commands

*

OPC and

*

OPC? are executed, the command

*

WAI does not have any effect.

7.3.1.7 Query of the Instrument Status

ERR?

(Error)

Reading and resetting of the error messages (see 7.2.2)

DER?

− Contents of the DER register are filed in the output buffer.

− Reading of the ESR register (see 7.2.1.1)

*ESR?

*ESE <XXX>

*ESE?

*STB?

*SRE <XXX>

*SRE?

− Reading of the STB register (see 7.2.1.2)

38

Operating Instructions FG 100

1/99

Note

7.3.2 Instrument Settings and Messages

7.3.2.1 Output Frequency

FREQ <X...X>

− Frequency setting [Hz] within the range of

0.5

to 2.000E7

(in the free format)

The numeric argument is rounded up.

If the value is out of range the error 134

VAL. OUT OF RANGE

is reported.

FREQ?

− The set frequency value [Hz] is filed in the output buffer with the following format:

X.XXXE+0Y or ZX.XXE+0Y or ZXX.XE+0Y where: Z - character from 1 to 9

X - character from 0 to 9

Y - character 0 , 3 or 6

7.3.2.2 Output Level

LEVEL <X...X>

Level setting [V] within the range of 10.0E-03 to 10 (in the free format)

The numeric argument is rounded up.

Note

LEVEL?

If the value is out of range the error 134

VAL. OUT OF RANGE

is reported.

− The set output level [V] is filed in the output buffer with the following format:

Z.XXE+00 to ZX.XE+00 or ZX.XE-03 to ZXXE-03 where: X - character from 0 to 9

Z - character from 1 to 9

7.3.2.3 Direct Voltage Offset of the Output Signal

OFFSET <X...X>

− Setting the direct voltage offset of the output signal [V] within the range of

-2.5

to

+2.5

(in the free format)

The numeric argument is rounded up.

Note

If the value is out of range the error 134

VAL. OUT OF RANGE

is reported.

OFFSET?

− The set direct voltage offset [V] is filed in the output buffer with the following format:

TZ.XXE+00 where:

X

- character from

0

to

9

Z

- character from

0

to

2

T

- character (

-

/

Blank

)

Operating Instructions FG 100

1/99

39

7.3.2.4 Wave Form

W_SINE

W_SQUARE

W_TRIANGLE

W_RAMPUP

W_RAMPDN

WAVE?

The sine output signal is selected.

The square-wave output signal is selected.

The triangular output signal is selected.

The sawtooth output signal (

Ramp Up

) is selected.

The sawtooth output signal (

Ramp Down

) is selected.

− The current selection of the wave form at the output of the

FG 100: W_SINE , W_SQUARE , W_TRIANGLE , W_RAMPUP or

W_RAMPDN is filed in the output buffer.

7.3.2.5 Pulse Duty Ratio of the Output Signal

DCY <X...X>

− Setting the pulse duty ratio of the output signal [%] within the range of 15 to 85 (in the free format).

The numeric argument is rounded up.

Note

If the value is out of range the error 134

VAL. OUT OF RANGE

is reported.

DCY?

− The set pulse duty ratio of the output signal [%] is filed in the output buffer with the following format:

ZX where:

X

- character from

0

to

9

Z

- character from

1

to

8

7.3.2.6 Switching State of the Signal Output

OUT_ON

The signal output is switched on.

OUT_OFF

OUT?

The signal output is switched off.

− The current state of the signal output:

OUT_ON

or

OUT_OFF

is filed in the output buffer.

7.3.2.7 Square-wave Signal at the Synchronization Output

SOUT_OFF

The square-wave signal at the synchronization output is switched off.

SOUT_POS

SOUT_NEG

SOUT?

The positive square-wave signal at the synchronization output is switched on.

The negative square-wave signal at the synchronization output is switched on.

− The current status:

SOUT_OFF

,

SOUT_POS

or

SOUT_NEG

is filed in the output buffer.

40

Operating Instructions FG 100

1/99

Note

7.3.2.8 Sweep Function

SWP_OFF

The sweep function is switched off.

SWP_LIN

SWP?

The linear sweep function is switched on.

The current state of the sweep function: SWP_OFF or

SWP_LIN is filed in the output buffer.

SWP_START <X...X>

− Setting the lower frequency limit [Hz] within the range of

0.5

to

2.000E7

(in the free format)

The numeric argument is rounded up.

If the relationship between stop and starting frequency is bigger than

50, the error 134

VAL. OUT OF RANGE

is reported.

SWP_START?

SWP_STOP <X...X>

− The set lower frequency limit [Hz] is filed in the output buffer with the following format:

X.XXXE+0Y or ZX.XXE+0Y or ZXX.XE+0Y where: Z - character from 1 to 9

X - character from 0 to 9

Y - character 0 , 3 or 6

− Setting the upper frequency limit [Hz] within the range of

0.5

to

2.000E7

(in the free format)

The numeric argument is rounded up.

Note

If the relationship between stop and starting frequency is bigger than

50, the error 134

VAL. OUT OF RANGE

is reported.

SWP_STOP?

SWP_TIME <X...X>

− The set upper frequency limit [Hz] is filed in the output buffer with the following format:

X.XXXE+0Y or ZX.XXE+0Y or ZXX.XE+0Y where: Z - character from 1 to 9

X - character from 0 to 9

Y - character 0 , 3 or 6

− Setting the period [s] within the range of

10E-3 to 60 (in the free format)

The numeric argument is rounded up.

Note

If the value is out of range the error 134

VAL. OUT OF RANGE

is reported.

SWP_TIME?

− The set period [s] is filed in the output buffer with the following format:

ZXE-03 or ZXXE-03 or Z.XXE+00 or ZX.XE+00 where: Z - character from 1 to 9

X - character from 0 to 9

Operating Instructions FG 100

1/99

41

7.3.2.9 Type of Frequency Fine Tuning

FADJ_SNGL

Single fine tuning of the set frequency value

FADJ_CONT

FADJ_OFF

Continuous fine tuning of the set frequency value

The fine tuning of the set frequency value is switched off.

FADJ?

− The current type of frequency fine tuning:

FADJ_SNGL ,

FADJ_CONT or FADJ_OFF is filed in the output buffer.

7.3.2.10 Password Input

PASSWORD <X...X>

− Input the 8-digit password (in the free format) for access to the service functions

Note

If the password is wrong, the error 98

INVALID PASSWORD

is reported. The following commands are ignored.

42

Operating Instructions FG 100

1/99

7.4 Programming Notes

Command line

Separation and end characters

Single commands can be written one after the other in one command line, the length of which must not exceed 64 characters. In case errors occur, the command sequence is ignored and error 181

INP. BUFFER

FULL

is indicated.

Commands and device messages have to be separated by a semicolon:

; 59

An end character is at the end of every command line.

During transmission of commands:

LF 10

During receiving of commands:

Parameter separator characters

CR + LF 13 + 10

Certain commands or messages can contain parameters or results which are separated from the command by a parameter separator characters.

During transmission of commands:

SP

NUL

STX to BS

VT

NAK to DC3 to CAN

SUB to US

32

0 to 8

11 to 19

21 to 24

26 to 31

During receiving of commands:

SP 32

Operating Instructions FG 100

1/99

43

7.5 Program Example (Q-Basic)

'************************************************************

' THE EXAMPLE IN MICROSOFT Q BASIC

' OF USING FG 100 WITH RS232C INTERFACE

' Serial port is com1 and Bd rate is 9600

' Generator settings - output frequency: 1.234 kHz

' - output level: 2 V

' - wave form: square-wave

'************************************************************

CLS

'**** Set up interface commands ****

IDCL$ = CHR$(20): IREN$ = CHR$(9): ILLO$ = CHR$(25):

IGTL$ = CHR$(1)

'**** Opening communication file ****

OPEN "COM1:9600,n,8,1,CS30000,LF" FOR RANDOM AS #1

'**** Set up device and status reporting ****

PRINT #1, IDCL$; IREN$; ILLO$; "*RST;*CLS"

'**** Frequency setting ****

PRINT #1, "FREQ 1.234E+3"

'**** Output wave form setting ****

PRINT #1, "W_SQUARE"

'**** Output level setting ****

PRINT #1, "LEVEL 2"

'**** Signal output setting ****

PRINT #1, "OUT_ON"

'**** Set local mode ****

PRINT #1, "*OPC?"

INPUT #1, A$

PRINT #1, IGTL$

'**** Close statement ****

CLOSE #1

END

44

Operating Instructions FG 100

1/99

8 Maintenance

Warning!

Care

Maintenance

The FG 100 must be separated from all power sources before maintenance work is carried out and before parts or fuses are repaired or replaced.

Only use a soft wet rag with some soap suds or a soft rinse liquid for cleaning. Avoid acrid cleanser and solvents.

The FG 100 does not require special maintenance if it is used and handled correctly.

Service work should only be done by trained personnel.

In case of repairs it is vital to ensure that the design features of the

FG 100 are not changed, resulting in a reduction in operational safety, and that replacement parts match the original ones and are installed properly (original state).

Operating Instructions FG 100

1/99

45

9 Appendix

9.1 List of all Instrument Messages

G E N E R A T O R < F G 1 0 0 >

P o w e r U p S e l f T e s t

T e s t i n g : C P U

. . . . . . . . P A S S E D

T e s t i n g : C P U

. . . . . . . . E R R O R

T e s t i n g : B U S

. . . . . . . . P A S S E D

- Internal test starts

- Faultless CPU test

- Error during CPU test

- Faultless BUS test

T e s t i n g : B U S

. . . . . . . . E R R O R

T e s t i n g : R O M

. . . . . . . . P A S S E D

T e s t i n g : R O M

. . . . . . . . E R R O R

T e s t i n g : R A M

. . . . . . . . P A S S E D

T e s t i n g : R A M

. . . . . . . . E R R O R

T e s t i n g : E E P R O M

. . . . . . . . P A S S E D

T e s t i n g : E E P R O M

. . . . . . . . E R R O R

T e s t i n g : D I S P L A Y

. . . . . . . . P A S S E D

T e s t i n g : D I S P L A Y

. . . . . . . . E R R O R

T e s t i n g : K E Y B O A R D

. . . . . . . . P A S S E D

T e s t i n g : K E Y B O A R D

. . . . . . . . E R R O R

T e s t i n g : S Y S T E M

. . . . . . . . P A S S E D

T e s t i n g : S Y S T E M

. . . . . . . . E R R O R

G E N E R A T O R < F G 1 0 0 >

V e r : 2 . 0 0

- Error during BUS test

- Faultless ROM test

- Error during ROM test

- Faultless RAM test

- Error during RAM test

- Faultless EEPROM test

- Error during EEPROM test

- Faultless display test

- Error during display test

- Faultless keyboard test

- Error during keyboard test

- Faultless SYSTEM test

- Error during SYSTEM test

- Version of the firmware

46

Operating Instructions FG 100

1/99

G E N E R A T O R < F G 1 0 0 >

R E A D Y

G E N E R A T O R < F G 1 0 0 >

C a l i b r a t i o n O F F !

P a s s w o r d :

0 0 0 0 0 0 0 0

P a s s w o r d :

I L L E G A L !

* * E r r o r : 3 1 * *

R P P T r i p p e d !

- Operational readiness of the device

- Warning with fault characteristics

- Password input

- Invalid password

- Signal output is overloaded with external voltage

Operating Instructions FG 100

1/99

47

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
