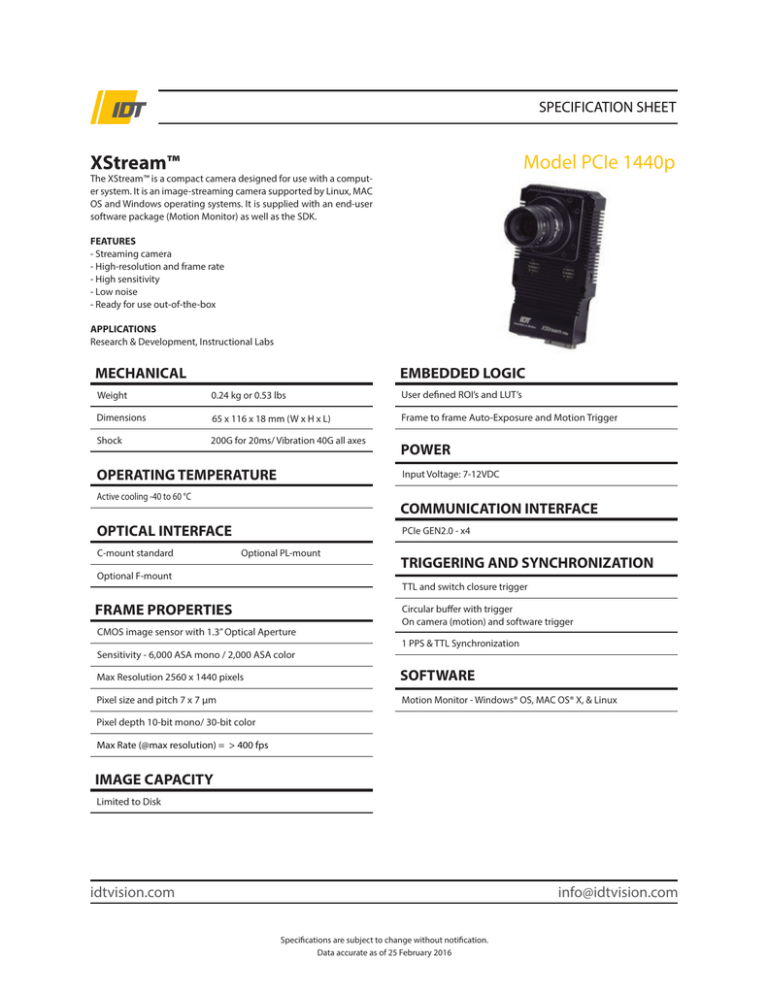

Model PCIe 1440p XStream™ SPECIFICATION SHEET

Model PCIe 1440p XStream™ SPECIFICATION SHEET
SPECIFICATION SHEET
Model PCIe 1440p
XStream™
The XStream™ is a compact camera designed for use with a computer system. It is an image-streaming camera supported by Linux, MAC
OS and Windows operating systems. It is supplied with an end-user
software package (Motion Monitor) as well as the SDK.
FEATURES
- Streaming camera
- High-resolution and frame rate
- High sensitivity
- Low noise
- Ready for use out-of-the-box
APPLICATIONS
Research & Development, Instructional Labs
MECHANICAL
EMBEDDED LOGIC
Weight
0.24 kg or 0.53 lbs
User defined ROI’s and LUT’s
Dimensions
65 x 116 x 18 mm (W x H x L)
Frame to frame Auto-Exposure and Motion Trigger
Shock
200G for 20ms/ Vibration 40G all axes
OPERATING TEMPERATURE
Input Voltage: 7-12VDC
Active cooling -40 to 60 °C
COMMUNICATION INTERFACE
OPTICAL INTERFACE
C-mount standard
POWER
PCIe GEN2.0 - x4
Optional PL-mount
Optional F-mount
TRIGGERING AND SYNCHRONIZATION
TTL and switch closure trigger
FRAME PROPERTIES
CMOS image sensor with 1.3” Optical Aperture
Sensitivity - 6,000 ASA mono / 2,000 ASA color
Circular buffer with trigger
On camera (motion) and software trigger
1 PPS & TTL Synchronization
Max Resolution 2560 x 1440 pixels
SOFTWARE
Pixel size and pitch 7 x 7 µm
Motion Monitor - Windows® OS, MAC OS® X, & Linux
Pixel depth 10-bit mono/ 30-bit color
Max Rate (@max resolution) = > 400 fps
IMAGE CAPACITY
Limited to Disk
idtvision.com
[email protected]
Specifications are subject to change without notification.
Data accurate as of 25 February 2016
