PHYTEC Messtechnik GmbH

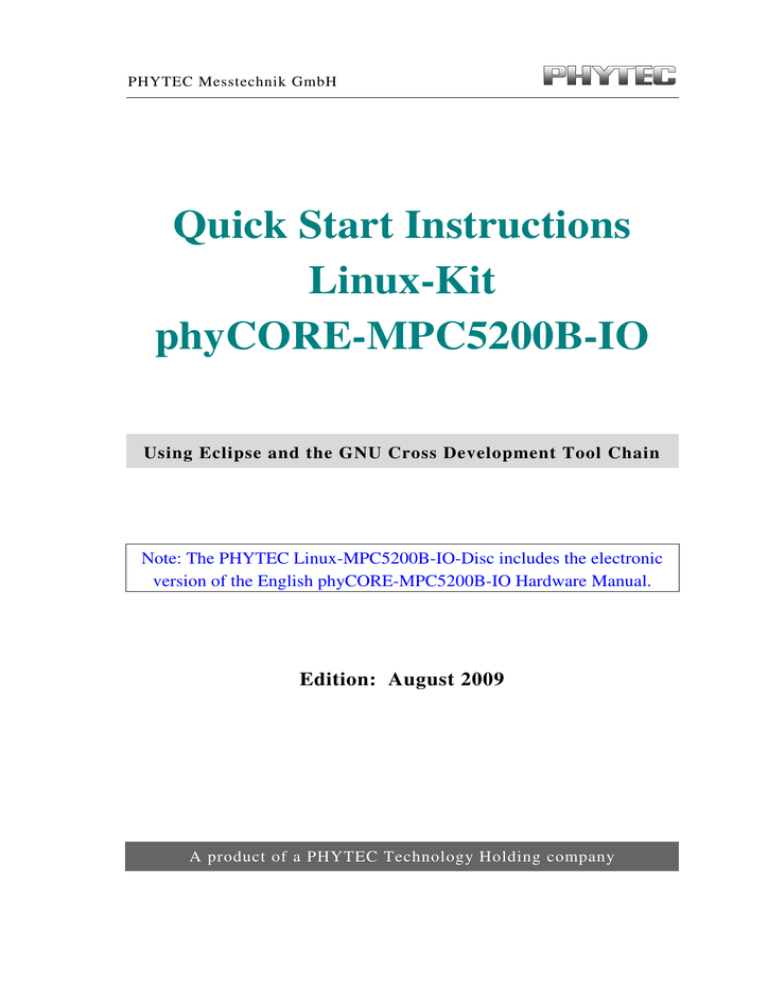

Quick Start Instructions

Linux-Kit phyCORE-MPC5200B-IO

Using Eclipse and the GNU Cross Development Tool Chain

Note: The PHYTEC Linux-MPC5200B-IO-Disc includes the electronic version of the English phyCORE-MPC5200B-IO Hardware Manual.

Edition: August 2009

A product of a PHYTEC Technology Holding company

phyCORE-MPC5200B-IO Quick Start Instructions

In this manual copyrighted products are not explicitly indicated. The absence of the trademark (

) and copyright () symbols does not imply that a product is not protected.

Additionally, registered patents and trademarks are similarly not expressly indicated in this manual.

The information in this document has been carefully checked and is believed to be entirely reliable. However, PHYTEC Messtechnik GmbH assumes no responsibility for any inaccuracies. PHYTEC Messtechnik GmbH neither gives any guarantee nor accepts any liability whatsoever for consequential damages resulting from the use of this manual or its associated product. PHYTEC Messtechnik GmbH reserves the right to alter the information contained herein without prior notification and accepts no responsibility for any damages that might result.

Additionally, PHYTEC Messtechnik GmbH offers no guarantee nor accepts any liability for damages arising from the improper usage or improper installation of the hardware or software. PHYTEC Messtechnik GmbH further reserves the right to alter the layout and/or design of the hardware without prior notification and accepts no liability for doing so.

Copyright 2009 PHYTEC Messtechnik GmbH, D-55129 Mainz.

Rights - including those of translation, reprint, broadcast, photomechanical or similar reproduction and storage or processing in computer systems, in whole or in part - are reserved. No reproduction may be made without the explicit written consent from

PHYTEC Messtechnik GmbH.

Address:

E

U R O P E

PHYTEC Technologie Holding AG

Robert-Koch-Str. 39

55129 Mainz

GERMANY

Ordering

Information:

+49 (800) 0749832 [email protected]

N

O R T H

A

M E R I C A

PHYTEC America LLC

203 Parfitt Way SW, Suite G100

Bainbridge Island, WA 98110

USA

1 (800) 278-9913 [email protected]

Technical

Support:

Fax:

+49 (6131) 9221-31 [email protected]

+49 (6131) 9221-33

Web Site: http://www.phytec.de

1 (800) 278-9913 [email protected]

1 (206) 780-9135 http://www.phytec.com

6th Edition: August 2009

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Table of Contents

Chapter 1 Introduction.........................................................1

1.1

Rapid Development Kit Documentation.....................................1

1.2

Professional Support Packages Available ..................................1

1.3

Overview of this Quick Start Manual .........................................2

1.4

Conventions Used in this Quick Start Manual............................3

1.5

System Requirements..................................................................4

1.6

Software Development Tool Chains...........................................4

Eclipse.........................................................................................4

The GNU Cross Development Tool Chain.................................5

Chapter 2 Getting Started....................................................7

5 min

2.1

Requirements of the Host Platform ............................................7

2.2

Configuring the Host Platform ...................................................8

Installing Software Packages ......................................................8

Set Up Network Card Configuration ........................................14

Disabling the Firewall...............................................................15

Set Up TFTP Server..................................................................16

2.3

Linux-MPC5200B-IO-Kit Setup ..............................................18

Starting the Setup......................................................................19

2.4

Advanced Configuration Information.......................................27

2.5

Connecting the Host with the Target ........................................28

2.6

Copying an Example to the Target ...........................................32

Copying a Program to the Target..............................................33

Using Telnet to Execute a Program on the Target....................34

Using SSH to Execute a Program on the Target.......................35

2.7

Advanced Information ..............................................................38

Copying a Program to the Target with the Command Line......38

Executing a Program on the Target ..........................................38

Executing a Program directly on the Target using SSH ...........38

35 min

Chapter 3 Getting More Involved .....................................40

3.1

Configuring and Compiling the Kernel ....................................40

70 min

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Quick Start Instructions

Writing the Kernel into the Target’s Flash............................... 44

3.2

Opening an Existing Project ..................................................... 47

Copying the HelloWorld Project .............................................. 47

Starting Eclipse and Importing the Example Project................ 48

3.3

Creating a New Project............................................................. 52

3.4

Changing the Demo Application .............................................. 62

Executing the Program on the Target using Microcom............ 63

3.5

Starting a Program out of Eclipse on the Target ...................... 64

3.6

Automatically Starting the Program when Booting the Target 67

Chapter 4 Debugging an Example Project .......................73

4.1

Starting the GDB Server on the Target .................................... 73

4.2

Configuring and Starting the Debugger in Eclipse................... 75

35 min

4.3

Setting a Breakpoint ................................................................. 80

4.4

Stepping and Watching Variable Contents............................... 80

4.5

Changing Variable Values........................................................ 82

4.6

Using the Memory Monitor ...................................................... 84

Chapter 5 Further Information .........................................87

Chapter 6 Summary............................................................88

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Introduction

Chapter 1 Introduction

5 min

In this Quick Start you can find general information on the PHYTEC phyCORE-MPC5200B-IO, and an overview of the Eclipse software development tool and the GCC C/C++ cross development tool chain. You will also find instructions on how to run example programs on the phyCORE-MPC5200B-IO, mounted on the PHYTEC Development Board, in conjunction with the Eclipse development tool.

Please refer to the phyCORE-MPC5200B-IO Hardware Manual for specific information on board-level features, such as jumper configuration , memory mapping , and pin layout .

1.1 Rapid Development Kit Documentation

This “Rapid Development Kit” (RDK) includes the following electronic documentation on the enclosed “PHYTEC Linux-MPC5200B-IO-Disc:”

The PHYTEC phyCORE-MPC5200B-IO Hardware Manual.

MPC5200B-IO Controller User's Manuals and Data Sheets .

This Quick Start Instructions with general “Rapid Development Kit” description, software installation advice, and an example program enabling quick out-of-the-box start-up of the phyCORE-MPC5200B-

IO in conjunction with the Eclipse and GCC C/C++ software development tool chain.

1.2 Professional Support Packages Available

This kit comes with free installation support. If you have any questions concerning installation and setup, you are welcome to contact our support department.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

1

phyCORE-MPC5200B-IO Quick Start Instructions

For more in-depth questions, we offer a variety of custom-tailored packages with different support options (e-mail, phone, direct contact to the developer) and different reaction times.

Please contact our sales team to discuss the appropriate support option if professional support beyond installation and setup is important to you.

1.3 Overview of this Quick Start Manual

This Quick Start manual gives you a general “Rapid Development Kit” description, as well as software installation advice and an example program enabling quick out-of-the-box start-up of the phyCORE-MPC5200B-IO in conjunction with the Eclipse IDE and GCC

C/C++ software tools. It is structured as follows:

The “Getting Started” chapter describes the configuration of the host platform and how to setup all the tools used in this manual.

The “Getting More Involved” chapter provides step-by-step instructions on how to configure and build a new kernel, modify an example application, create and build new projects, and copy programs to the phyCORE-MPC5200B-IO using Eclipse.

The “Debugging” chapter provides information on how to debug an application with the Eclipse debugging interface.

In addition to the dedicated data for this Rapid Development Kit, the

PHYTEC Linux-MPC5200B-IO-Disc contains supplemental information on embedded microcontroller design and development in general.

2

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO

1.4 Conventions Used in this Quick Start Manual

Introduction

The following is a list of the typographical conventions used in this Quick

Start manual:

Italic

Bold

Used for file and directory names, program and command names, command-line options, menu items, URLs, and other terms that correspond the terms on your desktop.

Used in examples to show commands or other text that should be typed literally by the user.

Pay attention to notes set apart from the text with the following icons:

At this part you might leave the path of this Quick Start.

This is a warning. It helps you to avoid annoying problems.

Provides useful supplementary information about the topic.

At the beginning of each chapter you can find information of the time needed to pass that chapter.

You have successfully passed an important part of this Quick

Start manual.

Provides information to solve common problems.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

3

phyCORE-MPC5200B-IO

1.5 System Requirements

Quick Start Instructions

Use of this “Rapid Development Kit” requires:

The PHYTEC phyCORE-MPC5200B-IO.

The PHYTEC Development Board with the included DB-9 serial cable, Ethernet cross-over cable and AC adapter supplying 12 VDC

(min. 2 A).

PHYTEC Linux distribution based on OSELAS from Pengutronix.

An IBM-compatible host PC (586 or higher CPU).

• openSUSE 11.0 (x86) and the KDE desktop.

Recommended free disk space: at least 2 GB.

For more information and updates, please refer to the following sources: http://www.phytec.de

[email protected]

1.6 Software Development Tool Chains

Eclipse

The Eclipse platform provides support for C/C++ development. Because the Eclipse platform is only a framework for developer tools, it doesn't support C/C++ directly; instead it uses external plug-ins. This Quick Start shows you how to make use of the CDT, a set of plug-ins for C/C++ development in conjunction with the GCC C/C++ tool chain.

The CDT is an open source project (licensed under the Common Public

License) implemented purely in Java as a set of plug-ins for the Eclipse

SDK platform. These plug-ins add a C/C++ perspective to the Eclipse

4

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Introduction

Workbench that can now support C/C++ development with a number of views and wizards, along with advanced editing and debugging support.

Due to its complexity, the CDT is broken down into several components, which take the form of separate plug-ins. Each component operates as an autonomous project, with its own set of committers, bug categories, and mailing lists. However, all plug-ins are required for the CDT to work properly. Here is a list of the plug-ins/components:

Primary CDT plug-in is the “framework” for the CDT plug-ins.

CDT Feature Eclipse is the CDT Feature Component.

CDT Core provides Core Model, CDOM, and Core Components.

CDT UI is the Core UI, views, editors, and wizards.

CDT Launch provides the launch mechanism for external tools such as the compiler and debugger.

CDT Debug Core provides debugging functions.

CDT Debug UI provides the user interface for the CDT debugging editors, views, and wizards.

CDT Debug MI is the application connector for MI-compatible debuggers.

The GNU Cross Development Tool Chain

Cross development in general refers to the overall software development process that produces a single application or a complete system running on a platform that is different from the development platform. This is an important concept when the target system doesn’t have a native set of compilation tools, or when the host system is faster and has greater resources.

The platform where the actual development takes place is called the host

platform.

The platform where the final application is tested and run is

© 2009 PHYTEC Messtechnik GmbH L-679e_6

5

phyCORE-MPC5200B-IO Quick Start Instructions called the target platform. In this Quick Start we are using an x86-based

Linux as the host platform. As the target platform we are using the

PowerPC architecture with an MPC5200B-IO CPU.

Building a program for a CPU architecture different from the one used on the machine where the compilation is done is accomplished using a cross compiler tool chain and cross-compiled libraries. In this Quick Start we are using the GNU C/C++ cross development tool chain.

6

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting Started

Chapter 2 Getting Started

35 min

In this chapter you will establish the basis to pass the steps in this Quick

Start. First you will learn how to configure the host platform. You will install additional software packages and setup the network configuration for connecting your host to the target. After connecting the host to the target, you will copy an application to the target. At the end of this chapter you will be able to start a first demo application on the target.

2.1 Requirements of the Host Platform

To pass the following steps in this Quick Start, you will need a host PC with an installation of openSUSE 11.0 (x86) and the KDE desktop.

When you are installing openSUSE 11.0, you can select KDE as Desktop

selection

. The default packages to use openSUSE 11.0 with your host PC will be selected automatically. This default selection will suffice to pass the steps in these Quick Start Instructions. The installation of additional packages and configurations will be described on the following pages.

In the following configuration steps we assume that the host PC is not connected to any other network. The target and host will be connected with a cross-over cable via a peer-to-peer connection. If your host is part of a company’s network, we recommend disconnecting your host from such a network.

In these Quick Start Instructions you will have to shutdown the firewall and configure the network card of your host PC. If your host PC is connected to another network, changing the IP address can cause conflicts with existing hosts.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

7

phyCORE-MPC5200B-IO

2.2 Configuring the Host Platform

Quick Start Instructions

In this passage you will learn how to configure the host platform. You will execute the following steps:

Install additional software packages. These packages are necessary to accomplish the steps in the Quick Start Instructions.

Set up the network configuration to use the host PC with your target.

Disable the firewall. If the firewall is enabled, you will have problems with connecting to the target.

Set up a TFTP server. You can use a TFTP server to download files

(e.g. kernel and root file system images) to the target from within the target’s boot loader.

Installing Software Packages

To accomplish the steps in the Quick Start Instructions, you will have to install additional packages.

If you don’t install all of these packages, the setup may fail or some configuration steps won’t work correctly.

8

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting Started

Open the K menu from the lower-left corner of the desktop and click on the tab Computer.

Open the Administrator Settings / YaST.

Enter your root password and click OK.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

9

phyCORE-MPC5200B-IO Quick Start Instructions

Open Software Management in Software.

10

Select the filter Search.

Type libxml2-devel and click the Search button.

Check libxml2-devel.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting Started

Type python-devel and click the Search button.

Check python-devel.

Type tftp and click the Search button.

Check the packages tftp and yast2-tftp-server.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

11

phyCORE-MPC5200B-IO Quick Start Instructions

Type qt3-devel and click the Search button.

Check qt3-devel.

12

Select the filter Patterns.

Select Basis Development, C/C++ Development, and Tcl/Tk

Development

.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO

Click Accept.

Getting Started

Some additional packages will be selected automatically to resolve any dependencies.

If problems occur while resolving dependencies, we recommend going back to a default configuration.

Click Continue to install the packages.

Click Finish.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

13

phyCORE-MPC5200B-IO Quick Start Instructions

Set Up Network Card Configuration

In the following steps you will have to configure the IP address of your host. We recommend disconnecting your host from any other network. If you change the host’s IP, chances are that problems may occur with other hosts in the network.

Open the YaST Control Center if it is not already opened.

Choose Network Settings in Network Devices.

14

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting Started

Select the right network card (if more than one network card is installed on your host).

Click Edit to enter the Network Card Setup.

Choose Static address setup.

Enter IP address 192.168.3.10 and subnet mask 255.255.255.0

Disabling the Firewall

To ensure that there are no problems with connections to the target, the host’s firewall should be disabled.

Select the General tab in the upper-left corner.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

15

phyCORE-MPC5200B-IO Quick Start Instructions

Use the drop-down box in the Firewall Zone settings to set the current interface to Internal Zone (Unprotected).

Then press Next, and in the following window click Finish to complete the settings.

The firewall is now disabled for this network card.

Set Up TFTP Server

Later in this Quick Start you will learn how to write a new kernel image into the flash memory of the target. To download the kernel image from the target, you need have to have a TFTP server running. In this passage we show you how to configure a TFTP server.

Open the YaST Control Center if it is not already opened.

16

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting Started

Choose TFTP Server in Network Services.

If the TFTP Server icon does not exist, restart the YaST

Control Center.

Switch the selection to Enable.

The path of the boot image directory should be /tftpboot. If there is a different path, change it to /tftpboot.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

17

phyCORE-MPC5200B-IO

Click Finish.

Quick Start Instructions

Click Yes to create the /tftpboot directory.

The TFTP server will be started.

Close the YaST Control Center.

You have successfully finished the configuration of the host platform.

2.3 Linux-MPC5200B-IO-Kit Setup

In this section you will find a description of the Linux-MPC5200B-IO-Kit setup. The whole setup will be done by a graphical interface. At the end of the setup you will find all programs to develop applications for the target on your host PC.

The setup will install the following programs:

GNU C/C++ cross development tool chain – you can use this tool chain to develop programs for the target on your host PC.

Eclipse SDK with CDT

– the Eclipse SDK is a platform and application framework for building software which can use the GNU

C/C++ cross development tool chain.

Microcom – a program for serial communication with the target.

Linux Kernel archive – this kernel archive contains the Linux kernel source code as well as all patches needed to compile the kernel for the phyCORE-MPC5200B-IO.

18

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting Started

HelloWorld – this example program can be used to test how to download and execute a program on the target.

mkimage

– this program will be used to create the kernel image file for the target.

There will be some additional configuration steps performed on your PC:

The setup program will create desktop links to the installed programs.

The setup will also create desktop links to access the target via FTP,

SSH, and Telnet.

The path of the cross development tool chain will be added to the

$PATH environment variable.

Read and write access to the serial interface will be added to your user account so you use the serial communication program Microcom.

The setup will configure Microcom.

Starting the Setup

To start with the Linux-MPC5200B-IO-Kit setup, put your PHYTEC

Linux-MPC5200B-IO-Disc into your CD-ROM drive.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

19

phyCORE-MPC5200B-IO

The following dialog may appear:

Quick Start Instructions

Click Cancel.

20

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting Started

From the K menu, select the Applications tab.

Select System Terminal Terminal Program / Konsole.

Type: cd /media/SO-462

Enter ./install.sh to launch the setup program.

The media may be mounted on a different mount point in the directory /media. The mount points can be shown with the command ls /media. Change to the accordant directory if no directory SO-462 should exist.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

21

phyCORE-MPC5200B-IO

Enter the root password.

Click Yes to proceed.

The welcome screen appears.

Quick Start Instructions

22

Click Next to continue.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting Started

Click Next.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

23

phyCORE-MPC5200B-IO Quick Start Instructions

Click Next to copy all files to your hard disk.

The default destination location is

/usr/local/share/MPC5200B-IO-Kit

. All path and file statements within this Quick Start manual are based on the assumption that you accept the default installation paths. If you decide to individually choose different paths, you must consider this for all further file and path statements when working with this Quick Start.

We strongly recommend accepting the default destination location.

The GCC C/C++ tool chain will be installed to the default directory

/opt/OSELAS.Toolchain-1.99.3/powerpc-603e-linux-gnu

. The program

mkimage

will be installed to /usr/local/bin. All other programs and examples will be installed to the selected destination directory.

24

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting Started

After the files have been copied, a dialog box for the Eclipse installation will appear.

Click Yes to install Eclipse. If you want to skip the installation of

Eclipse, choose No.

We recommend installing Eclipse even if you already have installed Eclipse on your system. The version of Eclipse provided on the setup CD-ROM includes additional plug-ins.

Click Next.

Click Finish to exit the setup.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

25

phyCORE-MPC5200B-IO

Close the terminal window.

Now you will have to restart the KDE desktop.

Quick Start Instructions

26

Open the K Menu from the lower-left corner of the desktop.

Select the Leave tab and choose Logout.

When the display manager appears, enter your login name and password to restart the KDE desktop.

You have successfully installed the software for the Linux-

MPC5200B-IO-Kit. You can now use the programs you need to develop your own applications for the target on your host system. The setup program did all necessary configurations.

In the following passage you can find some advanced

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO

configuration information.

Getting Started

2.4 Advanced Configuration Information

In this part you can find some information on how to change the configuration steps of the setup program by your own. The setup program performed all the following configuration steps. The information in this part is for users who want to use the MPC5200B-IO-Kit with a Linux distribution other than openSUSE. This is also interesting for users who want to see what configurations the setup program did.

During the setup program, the GCC C/C++ cross compiler was installed in the directory

/opt/OSELAS.Toolchain-1.99.3/powerpc-603e-linuxgnueabi/gcc-4.3.2-glibc-2.8-binutils-2.18-kernel-2.6.27-sanitized/bin

. To start the cross compiler directly from every location of the system, the directory of the cross compiler was added to the $PATH environment variable. You can manually add the directory of the cross compiler to the

$PATH by adding the following line in the file /etc/profile:

export PATH=/opt/OSELAS.Toolchain-1.99.3/powerpc-603e-linuxgnueabi/gcc-4.3.2-glibc-2.8-binutils-2.18-kernel-2.6.27sanitized/bin:“$PATH”

You can open a terminal program and use the cross compiler directly from the command line. For example, you can compile a C program with the following command:

powerpc-603e-linux-gnu-gcc -o HelloWorld HelloWorld.c

In the standard configuration only the root user has write access to the serial interface. To use a serial communication tool like Microcom with normal user rights, you have to be a member of the group uucp. A user can be added to this group with the following command:

groupmod -A username uucp

© 2009 PHYTEC Messtechnik GmbH L-679e_6

27

phyCORE-MPC5200B-IO Quick Start Instructions

The serial communication program was configured during the setup with the following configuration:

115200 baud, 1 start bit, 8 data bits, 1 stop bit, no parity, no flow control.

2.5 Connecting the Host with the Target

In this section you will learn how to connect your host PC with the target.

The connection will be done using a cross-over Ethernet cable and a serial one-to-one cable. You will start Linux from flash on the target, and you will be able to login with the serial communication program Microcom as well as via a Telnet session using a peer-to-peer network connection.

Connect the serial cable with the UART1 (connector P3, Bottom) port on the target and the first serial interface on your host.

Ensure to use the one-to-one serial cable included in this

Rapid Development Kit.

Connect the cross-over Ethernet cable with the RJ45 connector of the target and the appropriate network card of your host.

28

Click the Microcom icon on your desktop.

Connect the AC adapter with the power supply connector X6 (12V) on your board.

The power connector should have 12 VDC inside, and outside should be ground.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting Started

After connecting the board with the power supply, the target starts booting.

When the target has finished loading the system, you should see a screen similar to the following:

Type root to login.

After you have successfully logged in, you can close Microcom.

If you don’t see the U-Boot and Linux starting and don’t get a login prompt, you probably have a kit with Windows CE preinstalled. Please refer to the chapter “Installing Linux on the phyCORE-MPC5200B-IO” for instructions on how to install Linux in such a case.

When the target is connected with the power supply, first the boot loader U-Boot is loaded from the flash memory. Then the boot loader is uncompressing and booting the Linux kernel from the flash. The kernel will then mount the root file system, which is also located in the target’s flash. The root file system uses the Journaling Flash File System, Version 2.

JFFS2 is the successor, and a complete rewrite, of the original JFFS by Red Hat. As its name implies, the JFFS2 implements a journaling file system on the memory technology device (MTD) it manages. JFFS2 does not

© 2009 PHYTEC Messtechnik GmbH L-679e_6

29

phyCORE-MPC5200B-IO Quick Start Instructions attempt to provide a translation layer that enables the use of a traditional file system with the device. Instead, it implements a log-structured file system directly on the MTD. The file system structure itself is recreated in RAM at mount time by

JFFS2 through a scan of the MTD’s log content.

In addition to its log-structured file system, JFFS2 implements wear levelling and data compression on the MTD it manages, while providing power-down reliability. JFFS2 can gracefully restart, and is capable of restoring a file system’s content, without requiring outside intervention regardless of power failures.

Troubleshooting:

If you don’t see any output in the Microcom window, check the serial connection between the target and your host.

At the end of the setup, you had to restart the KDE desktop.

If you haven’t done yet, restart the KDE desktop now and try again.

It is also possible that your user account is missing read and write access to the serial interface:

Open the YaST Control Center.

Choose Security and Users.

Choose User Management.

In the line of you user name should be the group uucp.

If the group is missing, select your user name and click the Edit button.

Select the tab Details.

30

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting Started

In Groups, check the group uucp.

Click Accept.

Click Finish and close YaST.

You need to log out and log in again for the new group membership to take effect.

Now you can test the network connection to the target.

Click the Telnet for Target icon on your desktop.

A new window with a connection to the target opens.

If you can see the user login in the opened window, the network configurations were configured correctly.

Close the window.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

31

phyCORE-MPC5200B-IO Quick Start Instructions

Troubleshooting:

If you don’t see the user login, check the connection between the target and the host. If you have installed more than one network card on your host, be sure to connect the cable with the network card you have configured with the IP address

192.168.3.10.

If you do not see the login, you may not have set up the right

IP address of your host. You can check the settings of your network card by opening YaST. In the YaST Control Center you can select Network Settings in Network Devices. There should be the following configuration:

Information on how to configure your network device can be found in the section Configuring the Host Platform.

You have successfully set up all configurations to access your phyCORE-

MPC5200B-IO from your host.

2.6 Copying an Example to the Target

In this section you will learn how to copy an example program to the target using the FTP protocol with the Konqueror browser. After that you will execute the example on the target. At the end of this passage you can find some information on how to copy and execute a file on the target using the command line.

32

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO

Copying a Program to the Target

Getting Started

First click the MPC5200B-IO-Kit icon on your KDE desktop.

A new window with the contents of the installation directory opens.

Enter the directory HelloWorld.

Click the FTP for Target icon on your desktop.

A window with an FTP session to the target opens. Now you have two windows opened, one for the target and one for the host. You can use these two windows to copy files per “drag and drop” from the host to the target (and vice versa).

© 2009 PHYTEC Messtechnik GmbH L-679e_6

33

phyCORE-MPC5200B-IO Quick Start Instructions

Select the window that lists HelloWorld program on your hard disk.

Click the HelloWorld program and hold the left mouse button pressed.

Drag the program into the window with the FTP session to the target and release the mouse button.

Choose Copy here in the appearing context menu.

Close the two windows.

Using Telnet to Execute a Program on the Target

Click the Telnet for Target icon on your KDE desktop.

34

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting Started

Enter root as login and press Enter.

Enter ./HelloWorld and press Enter.

The program starts and you should see the following output:

Welcome to the World of the phyCORE-MPC5200B-IO!

Using SSH to Execute a Program on the Target

SSH can be used if you want to execute a program directly from the host on the target. Later, this will be used to execute programs out of Eclipse on the target. Before you can start programs out of Eclipse, you have to log in to the target via SSH from the command line for one time. This is necessary to add the RSA public key of the target to the list of known hosts.

There are several authentication methods when using SSH.

The method used on the phyCORE-MPC5200B-IO is the

hosts.equiv

method combined with RSA-based host authentication.

If the machine the user logs in from is listed in

© 2009 PHYTEC Messtechnik GmbH L-679e_6

35

phyCORE-MPC5200B-IO Quick Start Instructions

/etc/hosts.equiv

on the remote machine, and the user name is the same on both sides, the user is allowed to log in.

On the target, the file /etc/hosts.equiv has the following entry:

# file: /etc/hosts.equiv

#

# Allow access from everywhere.

#

+ +

The “

+ +

” means that every user can log in from every host.

When the host connects to the target, the file

~/.ssh/known_hosts

(on the host) is consulted when using

hosts.equiv

with RSA host authentication to check the public key of the target. The key must be listed in this file to be accepted. When the host connects to the target for the first time, you will be asked to store the target’s RSA pubic key to your ~/.ssh/known_hosts. If you agree to do this, then the host will be able to connect to the target without entering a password.

This authentication method closes security holes due to IP spoofing, DNS spoofing, and routing spoofing. But note that

/etc/hosts.equiv

is, in general, inherently insecure and should be disabled if security is a concern.

36

Click the SSH for Target icon on the desktop.

A new window opens.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting Started

In this window you can see that the authenticity of the phyCORE-

MPC5200B-IO can’t be established. This is normal if you want to create an SSH connection for the first time.

Enter yes and press Enter to continue. The RSA public key of the target will be permanently added to the list of the known hosts.

Troubleshooting:

If an error occurs and you can’t see the [email protected]:~> prompt, open a terminal window and enter the following command:

rm ~/.ssh/known_hosts

Try to log in again by entering:

ssh

[email protected]

Enter yes to add the target to the list of known hosts.

Now you should see the target’s prompt.

We expect that you haven’t changed the SSH configuration file on your host. If you change this file, the authentication may not work.

Now you are logged in, you can execute programs on the target.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

37

phyCORE-MPC5200B-IO Quick Start Instructions

Type ./HelloWorld to start the program you had copied to the phyCORE-MPC5200B-IO before.

The program starts and you should see the following output:

Welcome to the World of the phyCORE-MPC5200B-IO!

Close the SSH window.

You have successfully copied and executed an example application on the target.

2.7 Advanced Information

Copying a Program to the Target with the Command Line

Open a new terminal window.

Change to /usr/local/share/MPC5200B-IO-Kit/HelloWorld:

cd /usr/local/share/MPC5200B-IO-Kit/HelloWorld

Copy the application to the target by typing:

ftp -u ftp://root:[email protected]/ HelloWorld

Be sure to enter a slash followed by a space after the IP address.

Executing a Program on the Target

Open a Telnet session to the target:

telnet 192.168.3.11

Type root and press Enter.

Type ./HelloWorld to start the application.

Executing a Program directly on the Target using SSH

To start the program, type:

38

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting Started

ssh [email protected] ./HelloWorld

After the program has finished, SSH will logout automatically

.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

39

phyCORE-MPC5200B-IO Quick Start Instructions

Chapter 3 Getting More Involved

70 min

In this chapter you will pass some continuative topics. First you will configure and compile your own kernel. With the kernel configuration tool you can add additional features, or disable them if they are not needed.

After compiling the kernel, you will learn how to write the newly created kernel into target’s flash memory and how to start the new kernel.

Then you will start working with the Eclipse platform using the C/C++

Development Tools (CDT) in conjunction with the GCC C/C++ tool chain.

You will learn how to configure the Eclipse platform and how to open an existing project. After that you will create your first own project and modify the example’s source code.

At the end of this chapter you will execute the program as an external application out of Eclipse. Additionally, you will add your application to the startup configuration of the target so it is automatically started when the phyCORE-MPC5200B-IO boots.

3.1 Configuring and Compiling the Kernel

In this part you will learn how to configure and build a new Linux kernel.

First you will copy the kernel archive to your home directory and extract the kernel source. Then you will configure the kernel with the graphical user interface qconf. After the configuration you will compile the new kernel using the GNU cross development tool chain.

The kernel used by PHYTEC is based a standard kernel available from

www.kernel.org

. Additionally, the kernel archive in your setup installation directory already includes all necessary patches for the phyCORE-

MPC5200B-IO.

As the first step, open a new terminal.

40

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting More Involved

Click the terminal icon on your desktop.

Type the following commands to copy the kernel archive to your home directory:

cp /usr/local/share/MPC5200B-IO-Kit/linux-*-PCM032.tar.bz2 ~ cd ~

Unpack the kernel source archive:

tar xvjf linux-*-PCM032.tar.bz2

Change to the newly created directory:

cd linux-*

The kernel would normally be built for the native machine architecture of your host. To use the PowerPC architecture and PowerPC cross compiler suitable for the phyCORE-MPC5200B-IO instead, you will have to specify the architecture and the cross compiler on the command line.

Type:

make xconfig ARCH=powerpc

The kernel configuration tool qconf starts.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

41

phyCORE-MPC5200B-IO Quick Start Instructions

Select I2C support in Device drivers.

Check I2C support.

Check I2C device interface.

42

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting More Involved

Select I2C Hardware Bus support.

Check MPC107/824x/85xx/52xx/86xx.

Save your configuration and exit the configuration tool.

Type:

make ARCH=powerpc CROSS_COMPILE=powerpc-603e-linuxgnu- uImage

The kernel sources will be compiled and the new kernel will be built. This will take a few minutes. The new kernel will be written to

arch/powerpc/boot/uImage.

If the process of building the kernel stops with an error, check the values of both ARCH and CROSS_COMPILE.

Close the terminal window.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

43

phyCORE-MPC5200B-IO Quick Start Instructions

In this section you learned how to configure and compile a new kernel.

Now you can add new features to your kernel, or remove features you do not need.

Writing the Kernel into the Target’s Flash

In this passage you will find a description how to write the newly created kernel into the flash memory. Before the kernel can be written into flash, you will have to download the kernel from a tftp server.

This will be done in the command line of the bootloader.

The kernel will be copied into RAM, starting at address 0x400000. Then you will have to erase the part of the FLASH, where you want to copy the Kernel image.

In the default configuration you will find five partitions on the target. The first partition contains a second bootloader for rescue issues, the second partition contains the kernel, the third the root file system, the forth contains the bootloader and the last contains some free space at the end of the FLASH.

The five partitions have the following address ranges:

0xFE000000 - 0xFE03FFFF U-Boot-Low (256k)

0xFE040000 - 0xFE1FFFFF Kernel (1572k)

0xFE200000 - 0xFFEFFFFF Root-FS(30408k)

0xFFF00000 - 0xFFF3FFFF U-Boot (256k)

0xFFF40000 - 0xFFFFFFFF Space (768k)

You should never erase the U-Boot partition. If this partition is erased, you can’t restart your target.

44

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting More Involved

First open a new terminal window if it is not opened yet.

Copy the new kernel image to the /tftpboot directory and exit:

cp ~/linux-*/arch/powerpc/boot/uImage /tftpboot; exit

Open Microcom and press the RESET button on the target.

You will see the output “Hit any key to stop autoboot.”

Press any key to stop autoboot.

You can download the kernel from the TFTP server to the target’s

RAM, erase the required flash area, and write the kernel from the

RAM into the flash with just one simple command: run prg_kernel.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

45

phyCORE-MPC5200B-IO Quick Start Instructions

46

Type the following command to set the name of your kernel image:

setenv uimage uImage

Type run prg_kernel to download and write the kernel into the

Flash

The copy process can take up to a minute, depending on the speed of your system.

Press the RESET button on the target to restart the phyCORE-

MPC5200B-IO with the new kernel. The target will boot the newly created kernel.

Close Microcom when the target has successfully finished with booting the kernel and mounting the root file system.

Troubleshooting:

If any problem occurs after writing the kernel into Flash, you can write the kernel and root-file system from you setup CD

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting More Involved into the Flash.

You can find the kernel and root file system in the directory

Linux\image.

To restore your system copy the files

uImage-pcm032

and root-pcm032.jffs2 into the directory

/tftpboot

Type the following commands in the u-boot command line

setenv uimage uImage-pcm032

setenv jffs2 root-pcm032.jffs2

run prg_kernel

run prg_jffs2

In this section you learned how to download a kernel image from a TFTP server into the RAM of the target. The kernel was written from RAM to flash, and finally the target was started with the new kernel.

3.2 Opening an Existing Project

In this section you will import an existing Eclipse project into your workspace. The imported example project will be compiled with the cross compiler. After compiling the project, you will copy and execute the newly created program on the target.

Copying the HelloWorld Project

Click the MPC5200B-IO-Kit icon on your KDE desktop.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

47

phyCORE-MPC5200B-IO Quick Start Instructions

Right-click the HelloWorld directory and select Copy.

Browse to your home directory.

If the workspace directory doesn’t exist, create a directory workspace in your home directory.

Enter the workspace directory.

Right-click in the workspace directory and select Paste.

Starting Eclipse and Importing the Example Project

Click the Eclipse icon to start the application. You can find this icon on your desktop.

48

Confirm the Workspace directory with OK.

The Welcome screen will appear.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting More Involved

Select File Import from the menu bar.

Select Existing Projects into Workspace.

Click Next.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

49

phyCORE-MPC5200B-IO Quick Start Instructions

Select Browse.

50

Double-click the HelloWorld directory in your home directory.

Click OK.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting More Involved

Select Finish to import the project.

Close the Welcome screen.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

51

phyCORE-MPC5200B-IO Quick Start Instructions

The HelloWorld program will be compiled and the HelloWorld executable is built for the target. Then the HelloWorld file is copied to the target using FTP. After the file has been copied to the target, the program is executed on the target using SSH. You should now see the

“Welcome to the World of the phyCORE-MPC5200B-IO!”

message in the Console window.

Select the Console tab.

You will see the following content in the Console window:

If the project is not built automatically, you will have to check Project Build automatically from the menu bar.

You have successfully passed the first steps with the Eclipse

IDE. You are now able to import existing projects into the

Eclipse Workspace. You can compile an existing project and execute the program on the target.

3.3 Creating a New Project

In this section you will learn how to create a new project with Eclipse and how to configure the project for use with the GNU C/C++ cross development tool chain.

52

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO

Open Eclipse if it isn’t already opened.

Select File New Project from the menu bar.

A new dialog opens.

Getting More Involved

Select Managed Make C Project and click Next.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

53

phyCORE-MPC5200B-IO Quick Start Instructions

Enter the project name myHelloWorld and click Next.

54

Click Next.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting More Involved

Click Finish.

Select Yes to open the C/C++ perspective.

You will see the C/C++ IDE with the myHelloWorld project.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

55

phyCORE-MPC5200B-IO Quick Start Instructions

56

Right-click on HelloWorld.c in the HelloWorld project which we have worked with previously.

Select Copy.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting More Involved

Select the myHelloWorld project.

Right-click and select Paste.

Double-click on HelloWorld.c in the myHelloWorld project.

If Build Automatically from the Project menu is selected, the HelloWorld application will now be compiled and created with the standard GCC

C/C++ compiler suitable for your host machine. You will find the executable file, which can only be run on your host system, in the

workspace/myHelloWorld/Debug

directory.

To compile your project for the phyCORE-MPC5200B-IO instead, you will have to use the GNU C/C++ cross compiler.

Right-click the myHelloWorld project and choose Properties.

The Properties dialog appears.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

57

phyCORE-MPC5200B-IO Quick Start Instructions

Select C/C++ Build.

Enter powerpc-603e-linux-gnu-gcc into the Command input field.

58

Select GCC C Linker.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting More Involved

Enter powerpc-603e-linux-gnu-gcc into the Command input field.

Select GCC Assembler.

In the Command input field, change the default as to powerpc-603e-

linux-gnu-as.

Click Apply.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

59

phyCORE-MPC5200B-IO Quick Start Instructions

60

Select the Build Steps tab.

Enter following command in the Command input field:

ftp -u ftp://root:[email protected]/ ./myHelloWorld ; ssh [email protected] ./myHelloWorld

Be sure to enter the semicolon between ./myHelloWorld and

ssh.

Be sure the file myHelloWorld on the target will have execution rights, because otherwise ssh will fail.

Click Apply.

Click OK.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting More Involved

Select Project Clean from the menu bar.

Confirm with OK.

The project will be rebuilt.

Select the Console tab.

If no errors occur while building the project, you will see the following output:

You have successfully created your first own project with the

Eclipse IDE. You have configured the project to create an application for your target platform.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

61

phyCORE-MPC5200B-IO

3.4 Changing the Demo Application

Quick Start Instructions

Now we will extend the myHelloWorld application. The extended

myHelloWorld

application will write an output to the first serial interface as well as the standard output.

Open Eclipse if it is not opened yet.

Double-click HelloWorld.c in the myHelloWorld project.

First include the following two additional header files:

#include <unistd.h>

#include <fcntl.h>

Then add the function write_tty(), which writes n bytes to the first serial interface (which, on the phyCORE-MPC5200B-IO, is connected to the system console /dev/console): void write_tty(char *buffer, int count)

{

int out;

out = open("/dev/console", O_RDWR);

write(out, buffer, count);

close(out);

}

Enter the following two lines in the main() function to declare the buffer and call the write_tty() function. char buf[] = { "Welcome to the World of the

phyCORE-MPC5200B-IO! (serial)\n" }; write_tty(buf, sizeof(buf) - 1);

In the next screenshot you can see the complete program.

62

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting More Involved

Save your program after changing the code.

The application will be compiled, built, copied to the target, and executed.

Executing the Program on the Target using Microcom

Click the Microcom icon on the desktop.

If you are not logged in, enter root and press Enter.

Type ./myHelloWorld to start the application.

You will see the following output:

Welcome to the World of the phyCORE-MPC5200B-IO! (serial)

Welcome to the World of the phyCORE-MPC5200B-IO!

Close Microcom.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

63

phyCORE-MPC5200B-IO Quick Start Instructions

When you start the application over an SSH session, you only see one output line. When you execute the program with Microcom, you see two output lines.

The first line is a direct output on the serial interface. You can’t see this line in an SSH session, because you are connected over a TCP/IP connection to the target. With Microcom, however, you have direct access to serial interface, so you can also see the line that it written to the serial console.

In this passage you have changed an existing application. You also learned how to access the serial interface. First you called the function open() on the device /dev/console. The return value of this function was a file descriptor. With the file descriptor you called the function write() to send n bytes to the device /dev/console. After that, the file descriptor was closed with the function close().

This procedure is in principle quite typical for Linux because Linux treats everything like a file.

3.5 Starting a Program out of Eclipse on the Target

After compiling a project in Eclipse, the program is copied to the target and directly executed. A program can also be executed on the target without compiling a project. In the following section you will learn how to start a program on the target as an external tool.

64

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting More Involved

Select RunExternal ToolsExternal Tools from the menu bar.

Select Program.

Select New.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

65

phyCORE-MPC5200B-IO Quick Start Instructions

In the Name input field, enter: myHelloWorld Target

Enter /usr/bin/ssh in the Location input field.

Enter [email protected] ./myHelloWorld into the Arguments field.

Select Apply.

Select Run.

If you want to execute the program the next time, you can use the

Run External Programs

button from the menu bar.

66

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting More Involved

3.6 Automatically Starting the Program when Booting the

Target

In this passage you will integrate the myHelloWord program into the startup process of the target. When you have finished this part, the

myHelloWorld

application will be started automatically each time you are starting the target.

The scripts for controlling the system startup live in /etc/init.d.

These are executed directly or indirectly by /sbin/init, the father of all processes. The configuration of /sbin/init is placed in /etc/inittab.

After system startup, /sbin/init will switch to the default run level, as configured in /etc/inittab. It calls the run level master script /etc/init.d/rcS to start or stop services provided by the other scripts in /etc/init.d. This is done by the help of symbolic links in the directory /etc/rc.d. These links point to the actual startup scripts in /etc/init.d.

First you will have to create a startup script in /etc/init.d.

Click the FTP for Target icon on your KDE desktop.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

67

phyCORE-MPC5200B-IO Quick Start Instructions

Browse to the target’s /etc/init.d. If an authorization dialog should appear, just click on OK (no password is required for FTP access).

In the directory /etc/init.d you can see the existing scripts.

Right-click in the opened window and select Create NewText File.

68

Enter myHelloWorld.

Click OK.

Right-click on myHelloWorld and select Open with.

Enter kwrite and click OK.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting More Involved

The text editor KWrite starts with an empty document.

Enter the following two lines:

#!/bin/sh

/home/myHelloWorld

Select FileSave.

Close the KWrite window.

Close the FTP window.

Click the Telnet for Target icon on your desktop.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

69

phyCORE-MPC5200B-IO Quick Start Instructions

70

Enter root and press Enter to login.

The startup script we have just created with KWrite must be made executable in order to run it later:

chmod a+x /etc/init.d/myHelloWorld

Change to the directory /etc/rc.d. Type the following command:

cd /etc/rc.d

Enter ls -l to list the directory contents.

You can see the different links to the scripts in the directory

/etc/init.d

. The scripts are started in alphabetic order: The script udev is the first script started because the link starts with S00…, whereas

S99zzz_PHYTEC_BSP_version_startup_script

will be started last.

To start your myHelloWorld application automatically when the system boots, you have to create a new link to the start script

/etc/init.d/myHelloWorld.

In

/etc/rc.d,

create a symbolic link which points to

/etc/init.d/myHelloWorld.

Enter the following command:

ln -s /etc/init.d/myHelloWorld /etc/rc.d/S99myHelloWorld

Type ls -l again to check the newly created link.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Getting More Involved

Close the window.

Open Microcom.

Push the RESET button on the target to restart your system.

The program myHelloWorld now starts automatically on startup.

Because its link in /etc/rc.d starts with S99…, you should see

myHelloWorld

’s output near the output of the two other scripts that start with S99… (which print all sorts of version information).

Close Microcom.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

71

phyCORE-MPC5200B-IO Quick Start Instructions

Now you can add your own programs to the root file system and start these programs automatically when your phyCORE-MPC5200B-IO boots.

You have successfully passed the “Getting More Involved” part of this Quick Start.

72

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Debugging an Example Project

Chapter 4 Debugging an Example

Project 20 min

In this chapter you will learn using the GNU debugger, GDB, on the host for remote debugging in conjunction with the GDB server on the target.

GDB is the symbolic debugger of the GNU project and is arguably the most important debugging tool for any Linux system.

First you will start the GDB server on the target. Then you will configure the Eclipse platform and start the GNU debugger out of Eclipse using the

Debug view.

The CDT extends the standard Eclipse Debug view with functions for debugging C/C++ code. The Debug view allows you to manage the debugging and running of a program in the Workbench. Using the Debug view you will be able to set breakpoints/watchpoints in the code and trace variables and registers. The Debug view displays the stack frame for the threads of each target you are debugging. Each thread in your program appears as a node in the tree, and the Debug view displays the process for each target you are running.

The GDB client is running on the host and is used to control the GDB server on the target, which in turn controls the application running on the target. GDB client and GDB server can communicate over a TCP/IP network connection as well as via a serial interface. In this Quick Start we will only describe debugging via TCP/IP.

4.1 Starting the GDB Server on the Target

In this passage you will learn how to start the GDB server on the target.

The GDB server will be used to start and control the myHelloWorld program.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

73

phyCORE-MPC5200B-IO Quick Start Instructions

To debug a program with GDB, the program needs extended debugging symbols. With the default Eclipse settings, these debugging symbols have already been added when building the program.

Open Microcom.

Type root and press Enter.

Start the GDB server:

gdbserver 192.168.3.11:10000 myHelloWorld

You have started the GDB server on the target. The GDB server is now waiting for connections on TCP port 10000.

74

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Debugging an Example Project

4.2

Configuring and Starting the Debugger in Eclipse

In this passage you will learn how to configure your project settings to use

Eclipse with the GNU debugger. After the configuration of your project settings, the GNU debugger will start and connect to the GDB server on the target.

Start Eclipse if the application is not started yet.

Select myHelloWorld in the Navigator window.

Select Run Debug from the menu bar.

A dialog to create, manage, and run applications will appear.

Select C/C++ Local Application.

Click New.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

75

phyCORE-MPC5200B-IO Quick Start Instructions

Select the Search Project button.

Click OK .

76

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Debugging an Example Project

Select the Debugger tab.

Select GDB Server from the Debugger drop-down box.

Click the Browse button right beside the GDB debugger input field.

A new dialog opens to choose the GDB executable.

Click on File System.

Navigate to the directory /opt/OSELAS.Toolchain-1.99.3/powerpc-

603e-linux-gnueabi/gcc-4.3.2-glibc-2.8-binutils-2.18-kernel-2.6.27sanitized/bin.

Select the file powerpc-603e-linux-gnu-gdb.

Click OK.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

77

phyCORE-MPC5200B-IO Quick Start Instructions

78

From the Connection drop-down box, select TCP.

Enter 192.168.3.11 (the target’s IP address) in the Host name input field. The host’s GDB will connect to this IP address to communicate with the target’s GDB server.

Click Apply.

Click Debug.

A new dialog appears.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Debugging an Example Project

Select Yes to switch to the Debug perspective.

The Debug perspective opens and the debugger stops at the first line automatically. The host’s GDB is now connected to the GDB server on the target.

You have configured your project for remote debugging. You have started the GNU debugger in Eclipse and connected the host’s GDB with the target’s GDB server. You can now start to debug the project.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

79

phyCORE-MPC5200B-IO

4.3 Setting a Breakpoint

Quick Start Instructions

Now you will set a breakpoint in your program. The breakpoint will be set on the last line. If you resume the application, the debugger will stop on this line.

Select the last line in main().

Right-click into the small grey border on the left-hand side and select

Toggle Breakpoint

to set a new breakpoint.

4.4 Stepping and Watching Variable Contents

In this part you will step through the example project with the debugger.

You will also learn how to watch the content of a variable.

Expand buf in the Variables window.

80

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Debugging an Example Project

Click on the Step Over button in the Debug window to step to the next line.

You will see the content of the buf variable in the Variables window.

Click on the variable buf.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

81

phyCORE-MPC5200B-IO Quick Start Instructions

Then click on the button Step into

write_tty().

The debugger stops in write_tty().

You will see the following variable window:

to enter the function

Click on the variable buffer.

You will probably see a different address at the buffer pointer.

Remember what address is shown in your case; you will need this address later.

4.5 Changing Variable Values

In this section you will change the value of a variable. At the end of this part you will see the effect of this change.

82

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO Debugging an Example Project

Select the count variable in the Variables window.

Right-click on count and select Change Value.

Change the value of count to 7 and click OK.

Open Microcom if the application is not already opened.

Go back to Eclipse.

Click the Step Over button two times.

Change to Microcom.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

83

phyCORE-MPC5200B-IO Quick Start Instructions

You will see the output Welcome in the Microcom window. This means that due to changing the counter variable’s value, instead of printing the full “Welcome to the World of the phyCORE-MPC5200B-IO” string, only the first seven characters of the buffer were written to the screen.

4.6 Using the Memory Monitor

In the last section of this chapter you will use the memory monitor to watch the content at a memory address.

Select the Memory tab.

Click Add Memory Monitor.

84

Enter the address of buffer and click on OK. Remember that the variable’s address might differ on your system.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO

Change the window size.

Click Add Rendering.

Debugging an Example Project

Select ASCII and click OK.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

85

phyCORE-MPC5200B-IO Quick Start Instructions

86

You can see the contents of the variable buffer at the address

0xbeda6e48

(or whatever address is used on your system).

Now click the Resume button from the menu bar.

The debugger stops at the breakpoint in the last line of main().

Click the Resume button to end the application.

You have successfully passed the debugging chapter. You are now able to configure and use Eclipse for remote debugging.

You can step through a project, watch and change the content of variables, and you can use the memory monitor to view the content at a memory address.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO

Chapter 5 Further Information

Further Information

In the PTXdist User Manual you can find further information. The manual is located on your setup CD-ROM in the directory:

PHYTEC/PCM032 phyCORE-MPC5200B-IO/Linux-Kit/BSP/OSELAS

The PTXdist User Manual includes information on the following topics:

Installation and Configuration of PTXdist.

Building and using a tool chain.

Create and activate a PTXdist project.

Running the phyCORE-MPC5200B-IO from network only.

Running the phyCORE-MPC5200B-IO stand-alone.

U-Boot on the phyCORE-MPC5200B-IO.

The phyCORE-MPC5200B-IO’s Board Support Package (BSP).

Using CAN on the phyCORE-MPC5200B-IO.

© 2009 PHYTEC Messtechnik GmbH L-679e_6

87

phyCORE-MPC5200B-IO

Chapter 6 Summary

Quick Start Instructions

This Quick Start manual provided a general “Rapid Development Kit” description, as well as software installation advice and an example program enabling quick out-of-the-box start-up of the phyCORE-

MPC5200B-IO in conjunction with the Eclipse IDE and GNU C/C++ software tools.

In the Getting Started section you learned how to configure your host to provide a basis for working with your target platform. You installed the

Rapid Development Kit software and learned how to copy and run a program on the target.

In the Getting More Involved section you got step-by-step instructions on how to configure and build a new kernel, modify the example application, create and build new projects, and copy programs to your phyCORE-

MPC5200B-IO using Eclipse.

The Debugging part of this Quick Start gave you information on setting up and using the GNU debugger with the Eclipse IDE. You learned how to set breakpoints, watching and changing variable contents, and using the memory monitor.

88

© 2009 PHYTEC Messtechnik GmbH L-679e_6

phyCORE-MPC5200B-IO

Document:

phyCORE-MPC5200B-IO with Linux

Quick Start Instructions

Document Number:

L-679e_6

August 2009

How would you improve this manual?

Did you find any mistakes in this manual?

Submitted by:

Customer number:

Name:

Company:

Address:

Return to:

PHYTEC Messtechnik GmbH

Robert-Koch-Str. 39

D-55129 Mainz

Fax: +49 (6131) 9221-26

© 2009 PHYTEC Messtechnik GmbH L-679e_6

Summary

89

page

PHYTEC phyCORE-i.MX35 Quick Start Instructions

Published by

2009 PHYTEC Messtechnik GmbH Ordering No. L-679e_6

Printed in Germany

phyCORE-MPC5200B-IO Suggestions and Improvements

© 2009 PHYTEC Messtechnik GmbH L-679e_6

91

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
