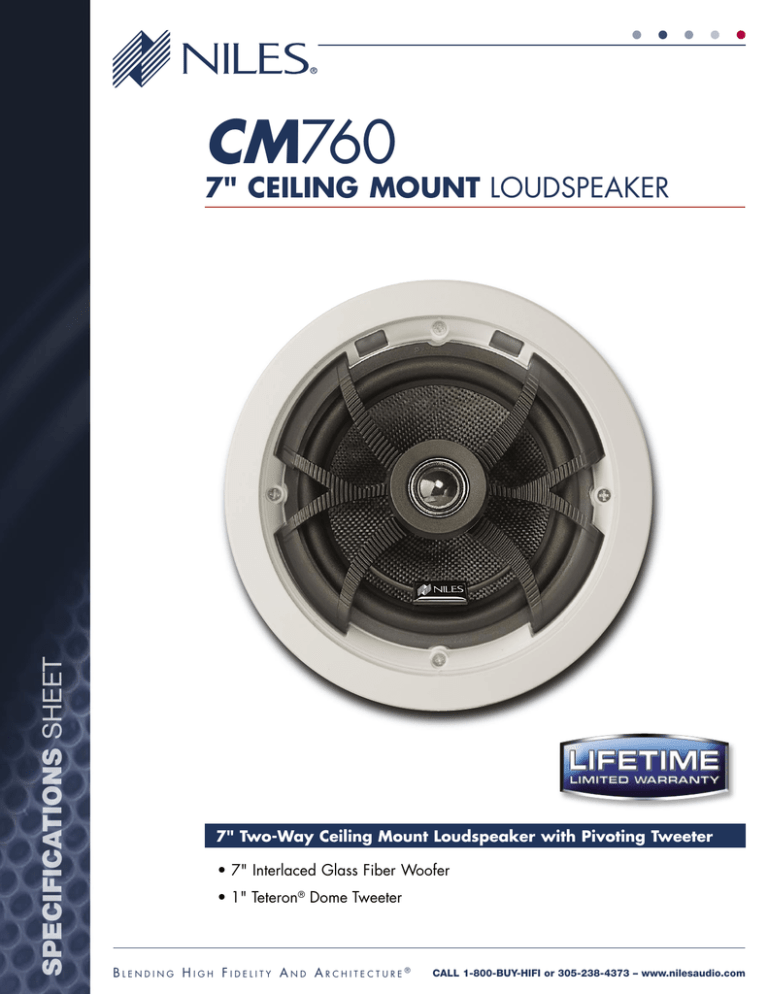

CM760
SPECIFICATIONS SHEET
7" CEILING MOUNT LOUDSPEAKER
7" Two-Way Ceiling Mount Loudspeaker with Pivoting Tweeter
• 7" Interlaced Glass Fiber Woofer
• 1" Teteron® Dome Tweeter
BLENDING HIGH FIDELITY AND ARCHITECTURE®
CALL 1-800-BUY-HIFI or 305-238-4373 – www.nilesaudio.com
7
INCH CEILING MOUNT LOUDSPEAKER
7" Two-way Loudspeaker
with Pivoting Tweeter
Features
CM760
■ Interlaced glass fiber cone is lightweight yet extremely rigid for deep, powerful bass response
■ Integrated woofer/baffle design delivers greater low frequency response by employing a 7" woofer
where competitive models of the same outer size employ 6 1/2" woofers
■ Butyl rubber surround damps resonance and provides exceptional durability
Stock Number
■ 1" fluid-cooled Teteron® dome tweeter offers ultra-wide dispersion and silky-smooth highfrequency response
FG01299
■ Proprietary bridge-mounted tweeter-adjustment mechanism focuses the high frequency sound in
any direction up to 20º without diffraction
■ 3 position tweeter level control provides for precise matching to room acoustics
■ Includes flush-mount MicroPerf™ aluminum grille for a clean and unobtrusive look
■ Weather resistant construction reduces installation limitations and provides unique solutions in
moist environments or outdoors under eaves
Specifications
■ Frequency Response: 54Hz to 21kHz +/-3dB
■ Impedance: 8 ohm nominal; 6 ohm minimum
■ Recommended Amplifier Power: 10 to 150 Watts
■ Frame Dimensions: 9 1/4 inches (23.49 cm)
■ Hole cutout dimensions: 8 inches (20.32 cm)
■ Depth behind ceiling: 4 3/8 inches (11.11 cm)
Warranty: Lifetime Limited
P RODUCT CONSTRUCTION AND ACCESSORIES
4-3/8" (11.11 cm) Depth
SPECIFICATIONS SHEET
8" (20.32 cm)
Hole
Cutout
9-1/4" (23.49 cm)
Frame Outer
Diameter
8" (20.32 cm)
Hole
Cutout
4-11/16" (11.90 cm) Depth
Loudspeaker Model
Model
Stock Number
CM760
FG01299
Works With
Previous Bracket
New Bracket
CM6 Series
Bracket Kit
FG00655
Metal Enclosure
Hole Cover
CM700 BKT
CE 6
CM700 Hole Cover
FG01308
FG00944
FG01309
NILES AUDIO CORPORATION 12331 SW 130 Street, Miami, FL 33186 1-800-BUY-HIFI – 305-238-4373 – www.nilesaudio.com
©2007 Niles Audio Corporation. All Rights Reserved. Niles, Blending High Fidelity and Architecture and the Niles logo are registered trademarks of Niles Audio Corporation. MicroPerf is a
trademark of Niles Audio Corporation. CS0053B
