Morgana Systems Ltd
3909 Upland Way, Marietta
GA 30066 Georgia
USA
Tel: 866 463 5060
Fax: 770 565 6163
www.morganausa.com
[email protected]

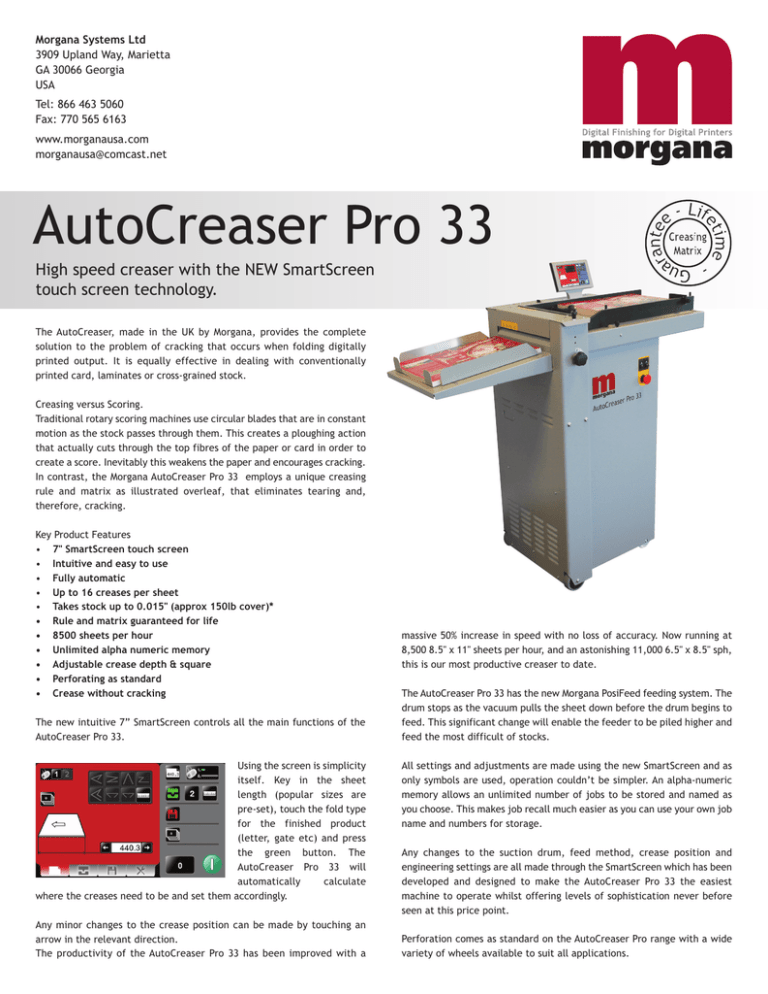

AutoCreaser Pro 33
High speed creaser with the NEW SmartScreen
touch screen technology.
The AutoCreaser, made in the UK by Morgana, provides the complete
solution to the problem of cracking that occurs when folding digitally
printed output. It is equally effective in dealing with conventionally
printed card, laminates or cross-grained stock.
Creasing versus Scoring.
Traditional rotary scoring machines use circular blades that are in constant
motion as the stock passes through them. This creates a ploughing action
that actually cuts through the top fibres of the paper or card in order to
create a score. Inevitably this weakens the paper and encourages cracking.
In contrast, the Morgana AutoCreaser Pro 33 employs a unique creasing
rule and matrix as illustrated overleaf, that eliminates tearing and,
therefore, cracking.
Key Product Features
• 7" SmartScreen touch screen
• Intuitive and easy to use
• Fully automatic
• Up to 16 creases per sheet
• Takes stock up to 0.015" (approx 150lb cover)*
• Rule and matrix guaranteed for life
• 8500 sheets per hour
• Unlimited alpha numeric memory
• Adjustable crease depth & square
• Perforating as standard
• Crease without cracking
The new intuitive 7” SmartScreen controls all the main functions of the
AutoCreaser Pro 33.
Using the screen is simplicity
itself. Key in the sheet
length (popular sizes are
pre-set), touch the fold type
for the finished product
(letter, gate etc) and press
the green button. The
AutoCreaser Pro 33 will
automatically
calculate
where the creases need to be and set them accordingly.
Any minor changes to the crease position can be made by touching an
arrow in the relevant direction.
The productivity of the AutoCreaser Pro 33 has been improved with a
massive 50% increase in speed with no loss of accuracy. Now running at
8,500 8.5" x 11" sheets per hour, and an astonishing 11,000 6.5" x 8.5" sph,
this is our most productive creaser to date.
The AutoCreaser Pro 33 has the new Morgana PosiFeed feeding system. The
drum stops as the vacuum pulls the sheet down before the drum begins to
feed. This significant change will enable the feeder to be piled higher and
feed the most difficult of stocks.
All settings and adjustments are made using the new SmartScreen and as
only symbols are used, operation couldn’t be simpler. An alpha-numeric
memory allows an unlimited number of jobs to be stored and named as
you choose. This makes job recall much easier as you can use your own job
name and numbers for storage.
Any changes to the suction drum, feed method, crease position and
engineering settings are all made through the SmartScreen which has been
developed and designed to make the AutoCreaser Pro 33 the easiest
machine to operate whilst offering levels of sophistication never before
seen at this price point.
Perforation comes as standard on the AutoCreaser Pro range with a wide
variety of wheels available to suit all applications.
AutoCreaser Pro 33
High speed creaser with the NEW SmartScreen
touch screen technology.
technical specifications
Maximum sheet size
27.5" x 12.9"
Minimum sheet size
8.2" x 5.5"
Maximum paper thickness
0.015" (approx 150lb cover)* including laminated material
Minimum paper thickness
0.004" (approx 20lb bond)*
Maximum number of creases per sheet
16
Maximum number programmed applications
Unlimited alpha numeric
Minimum repeat crease distance
0.03" (depending on paper weight)
Minimum crease distance from lead edge
0.09"
Minimum crease distance from tail edge
1.37"
Speed per hour
8500 sph (8.5" x 11"), 11,000 sph (6.5" x 8.5")
Dimensions
L 57" x W 20.5" x H 48"
Weight
267lb
Power requirement
240v 50/60hz
Options
Narrow creasing blade, Narrow sheet guide
Note: the production speed varies according to material size and the number of creases on the sheet
Creasing rule and matrix. The AutoCreaser Pro 33 uses an
identical mechanism to that on the more expensive
AutoCreaser Pro 50, DigiFold Pro and DocuMaster
Pro and is guaranteed for life. With thousands
of these mechanisms installed throughout
the world our creasing technology is
unparalled in both performance and
longevity.
*Disclaimer
As part of our continued product improvement plan, specifications and information published here are subject to change without notice.
All specifications are dependent on application, type of stock, temperature, RH and print engine used.
Specifications quoted were measured on uncoated and unprinted stock.
E & OE.
USA AutoCreaser Pro 33 data sheet ver 1 - 07/10
